Architecture Works_Shreya by Shreya Shivaprakash

Portfolio.

Shreya.Shivaprakash A rchitect Contact shreya.shivaprakash236@gmail.com Linked IN Shreya. Shivaprakash PH.+91-9538776919

Shreya Shivaprakash

Architect I believe architecture gives opportunities to space makers to enhance human relationships with one another and with one’s surroundings, through hard work ,dedication and vision. I would attempt to manifest my thoughts and aspirations by creating a space for interactions of various scales, as I now seek a professional career in architecture which is my window to the professional development I am keen to learn more and explore my capabilities to the best of my potential.

Education

PES University

Bachelor of Architecture 2018 - 2023

CGPA 9.19/10

MVJ Pu college

Pre university (PCMB) 2016 -2018

JSS Public School (CBSE)

2010 - 2016

Our Own English High School (Sharjah UAE)

2006 - 2010

Technical skillset

Adobe indesign Revit

Adobe Photoshop Lumion

Microsoft suite

Sketchup

Autocad

Language

English (Advanced),Kannada (Native),Hindi (Fluid)

Work experience

Architect - Arcadis IBI group- 6months

Intern -Dutta Kanna Architects-6months

Social worker - Youth for Seva- 2 months

Academic projects

Live thesis project -Maritime museum

Mixed use high rise

Inter and Intracity bus terminal hub Design

Hospital Design

Campus design

Personal skillset

Work ethic amd motivation

Communication

Team work

Prsentaion

Attention to detail

Contents (Showcasing Selected works only).

4 Live thesis project (Academic) Maritime museum in Mumbai.

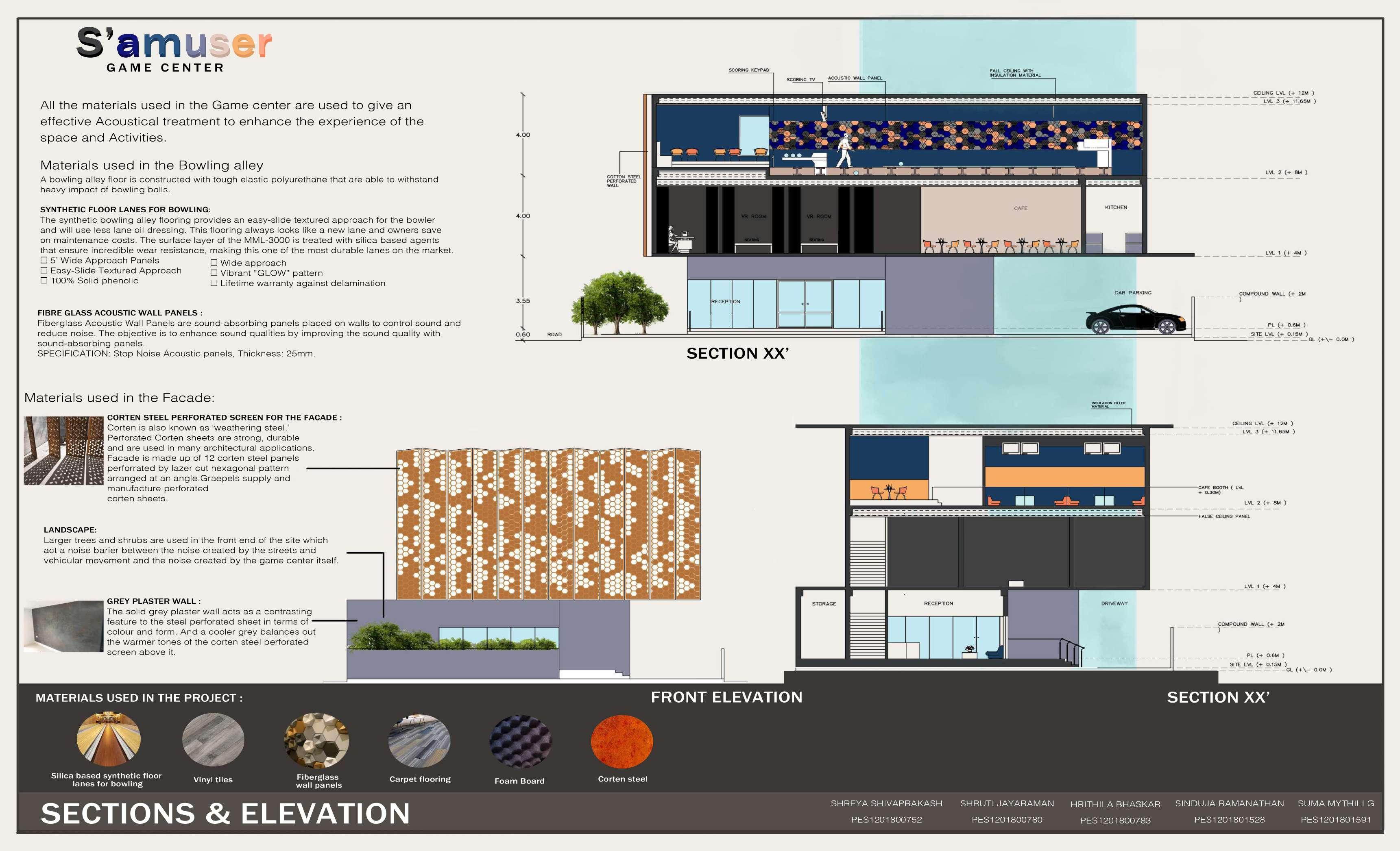

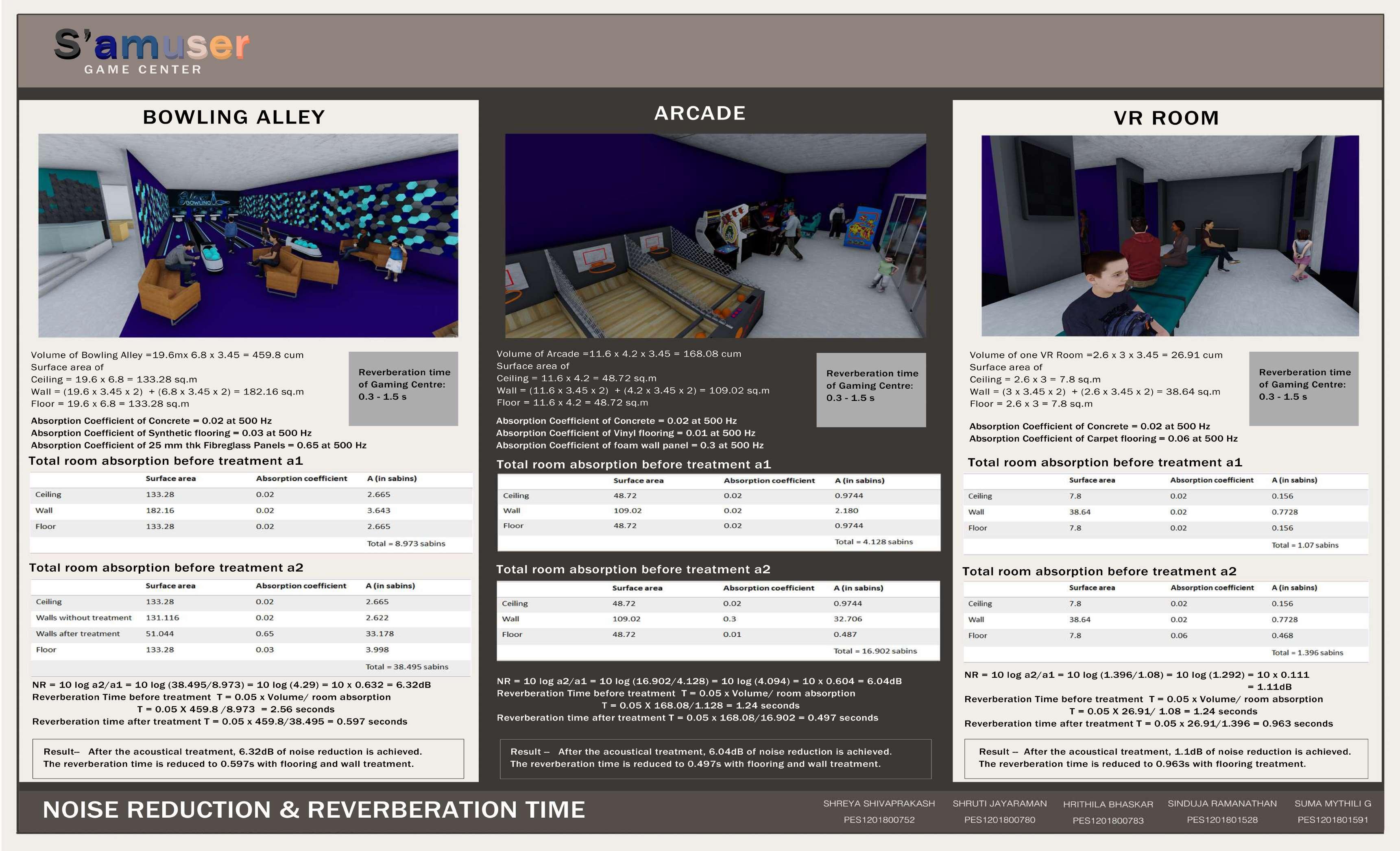

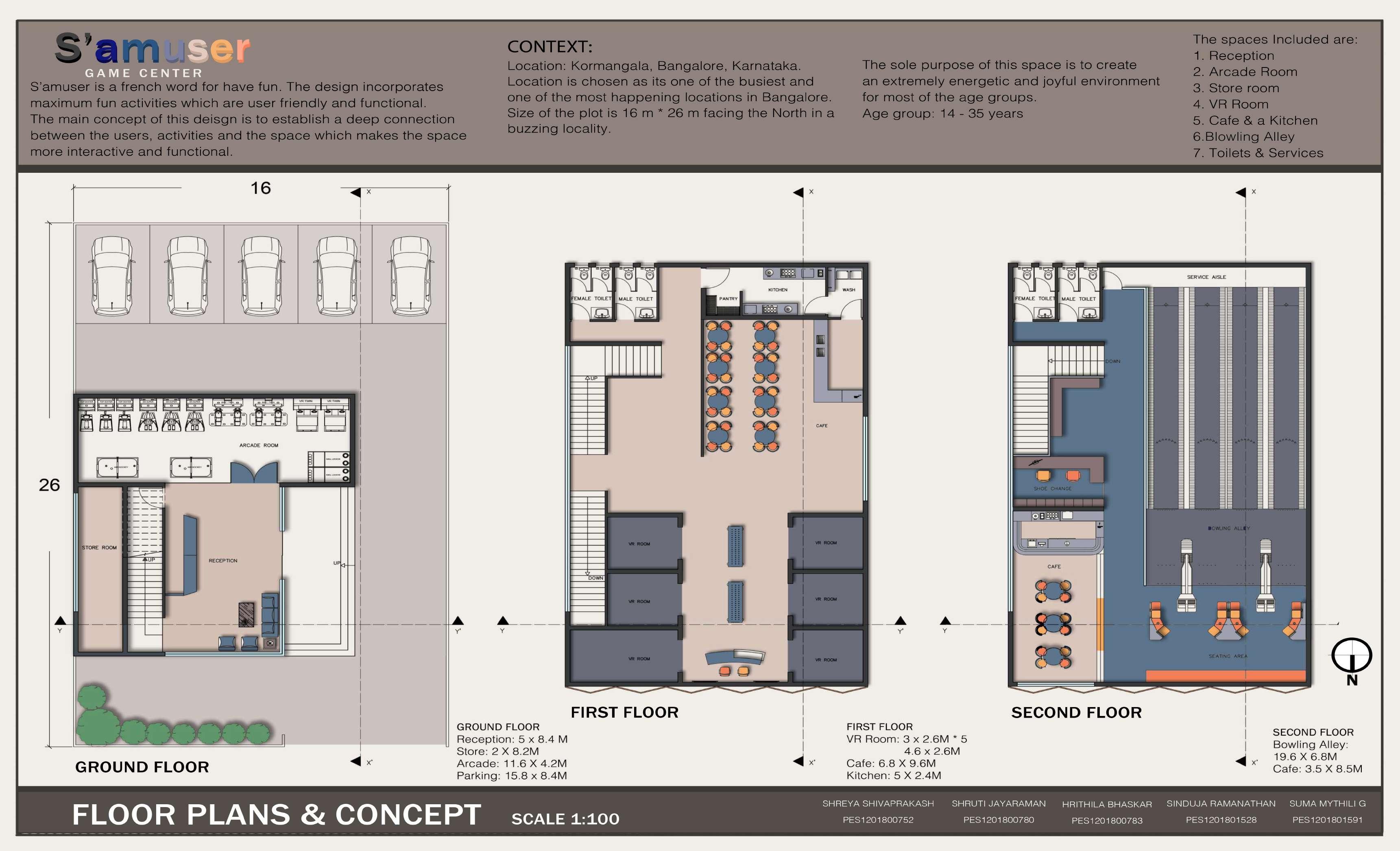

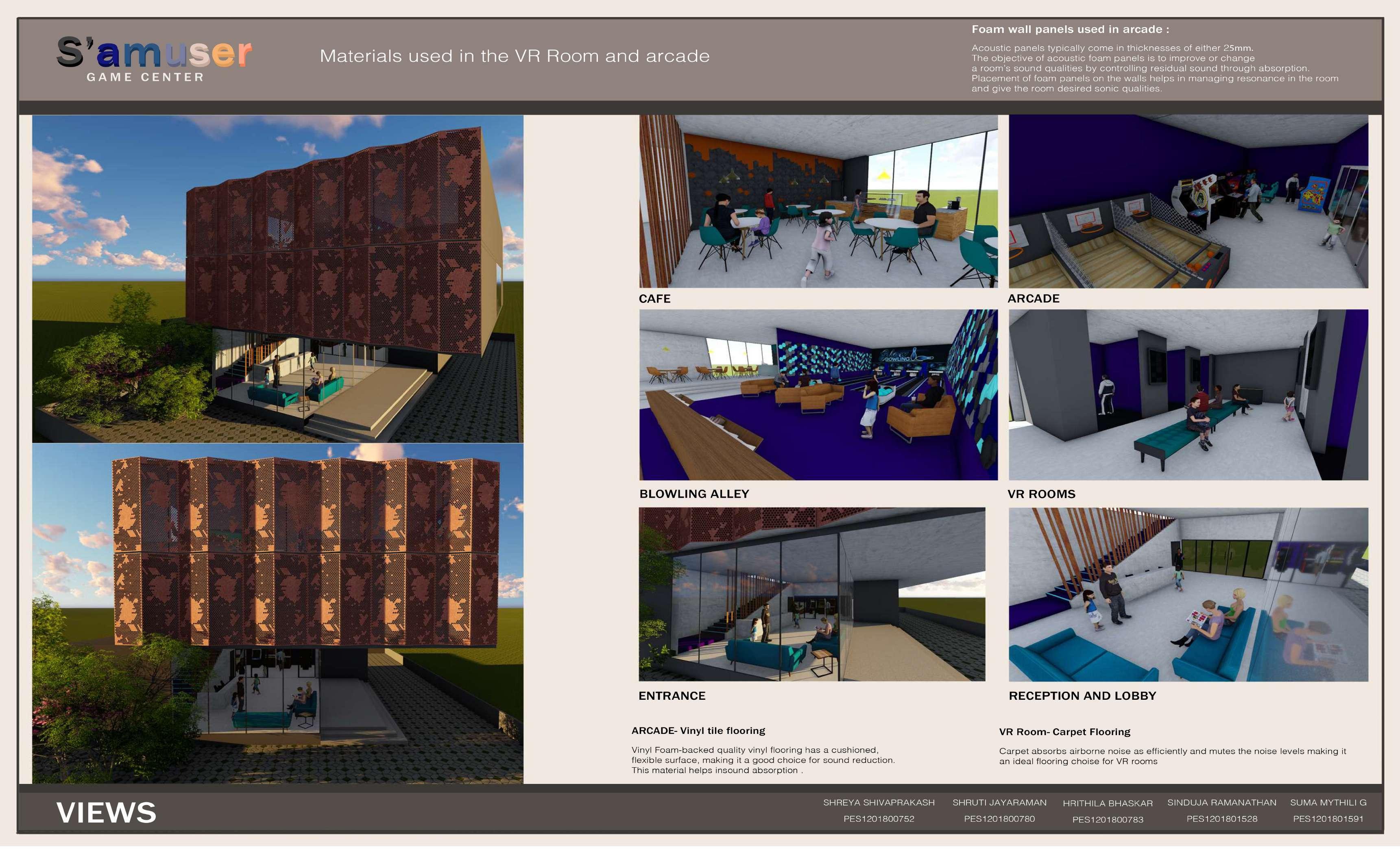

10 Gaming center Kormangala, Bengaluru

14 Seleted works of Dutta Kannan Architects Architecture Internship

23 Seleted works of Arcadis IBI group Architect

Connect.

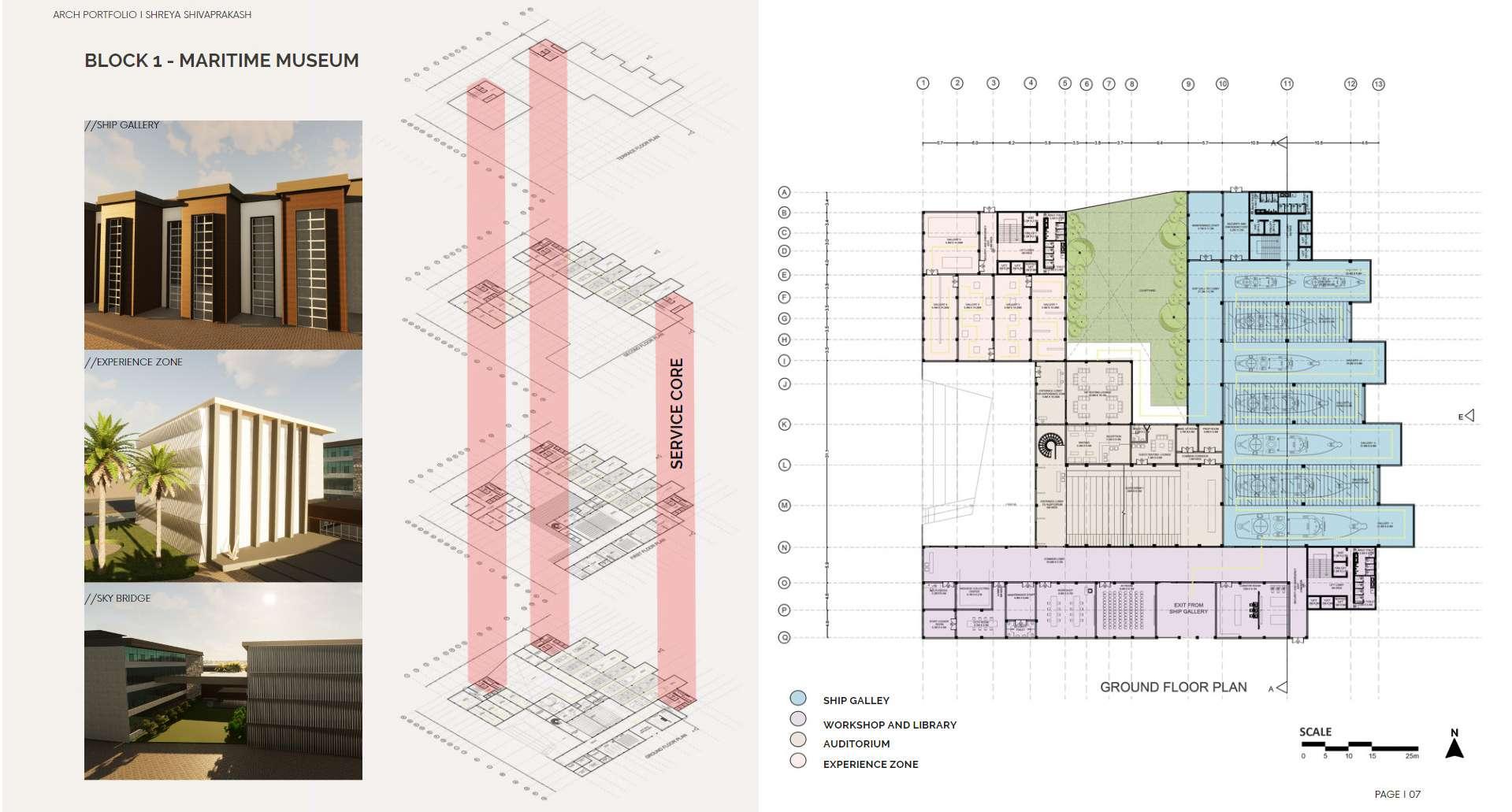

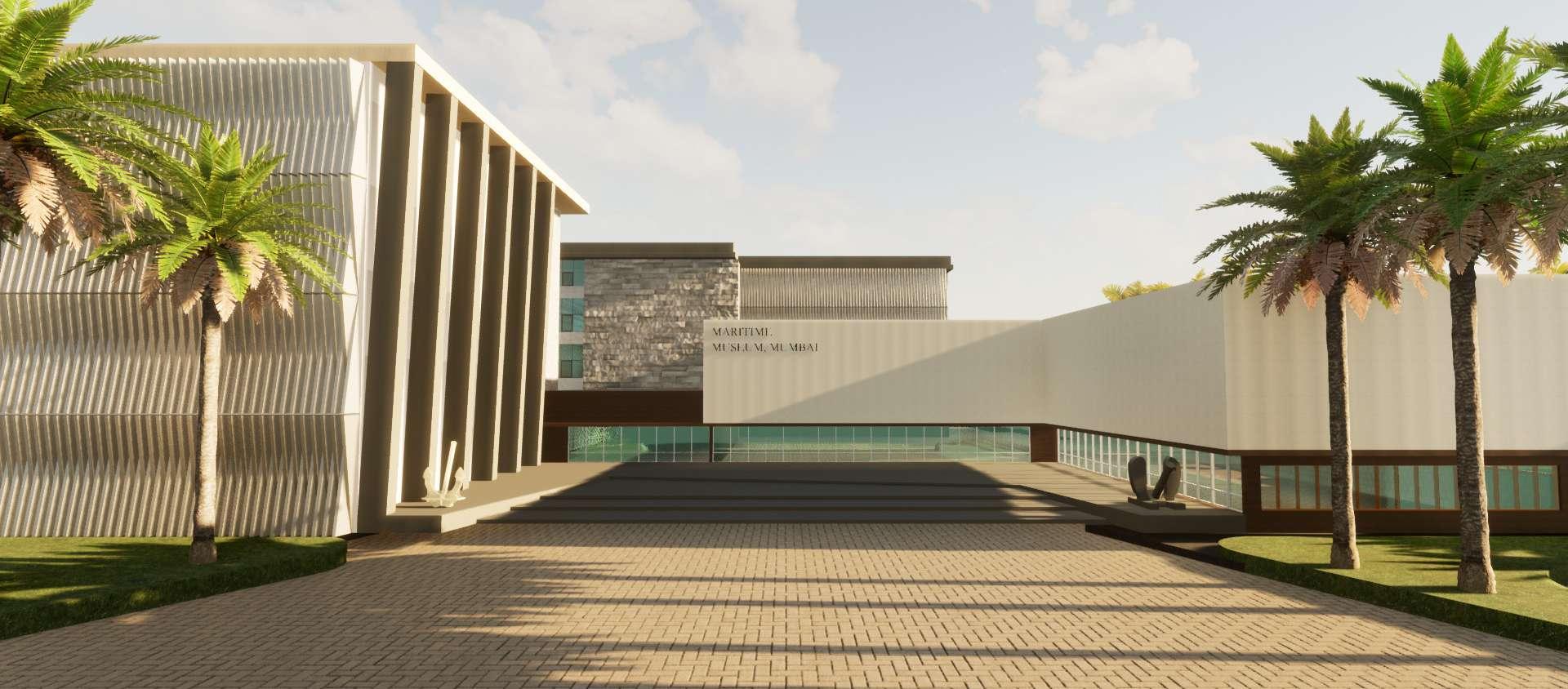

Maritime museum, Mumbai.

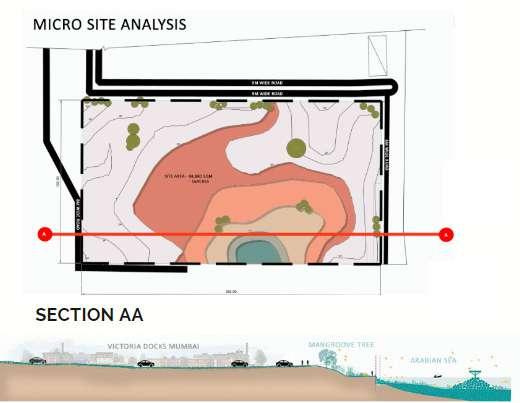

The plan for a Mumbai maritime museum that specializes in displaying of objects related to ships and travel on large bodies of water is described in the thesis. Although Mumbai is an island city and has historically relied on the sea for trade, transportation, and sustenance, there is no significant center dedicated to Mumbai’s extensive coastline and coastal waters. Additionally, there is no museum devoted to past and present maritime of mumbai. To remind the city of its rich maritime heritage and culture and to rekindle public interest in its preservation, it is necessary to develop a expertly operated maritime

museum. Various sustainable and technologically advanced strategies will be analyzed using case studies The best solution among them will be incorporated during the design process.The proposed museum will have:

01.Museum block

02.Maritime Administration block

03. Maritime shopping center

04.Maritime restaurant

Shreya Shivaprakash 4

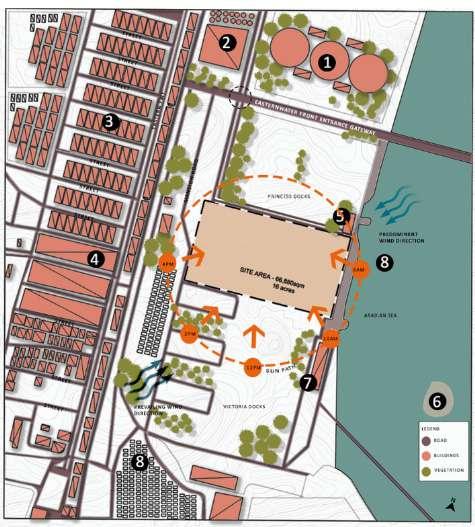

CONCEPT

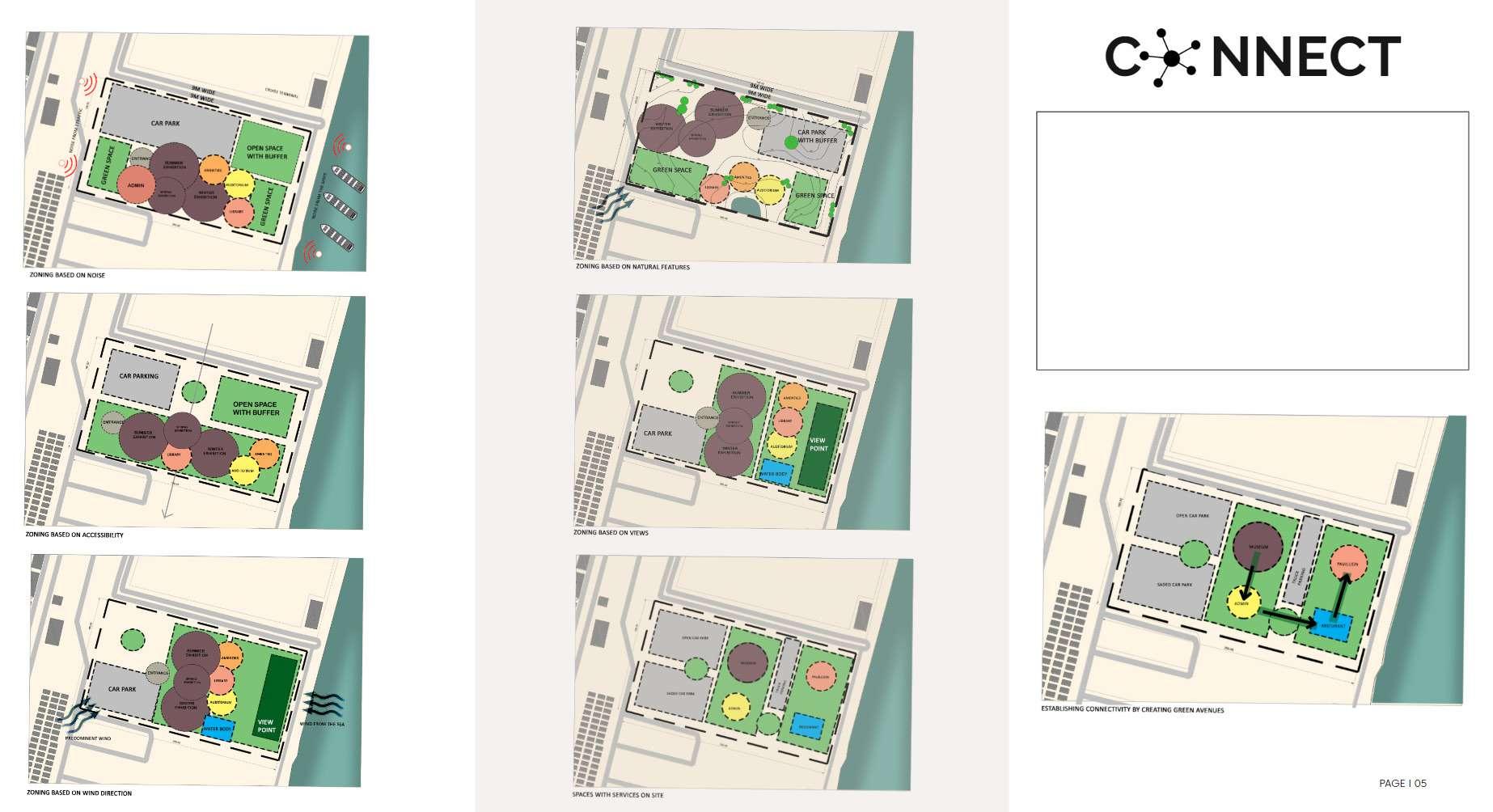

The idea is to establish a connect between the 4 blocks.

This connect is established by creating a rich avenue of trees

The avenue of trees creates a clam soothing atmosphere before entering a the building and also builds the aesthetics of the space.

The rich vegetation also help battle the humidity caused by the sea in vicinity.

The vegetation acts as a natural shading device and control the temperature surrounding the space.

5 Trail , error & final solution

Shreya Shivaprakash

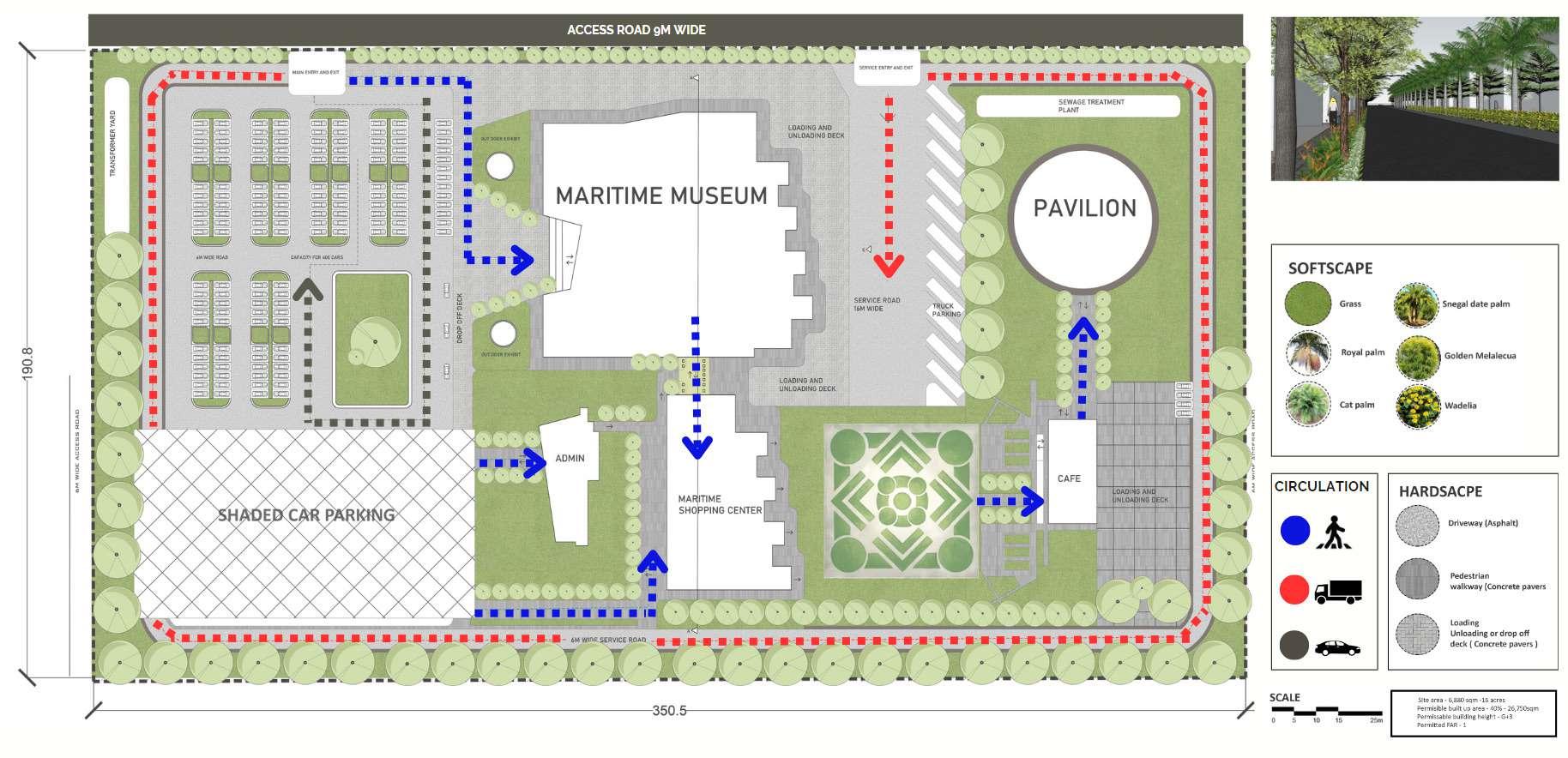

Master Plan

Shreya Shivaprakash Green avenues for every pedestrian entrance. LEGEND

Technical development

Shreya Shivaprakash

Shreya Shivaprakash

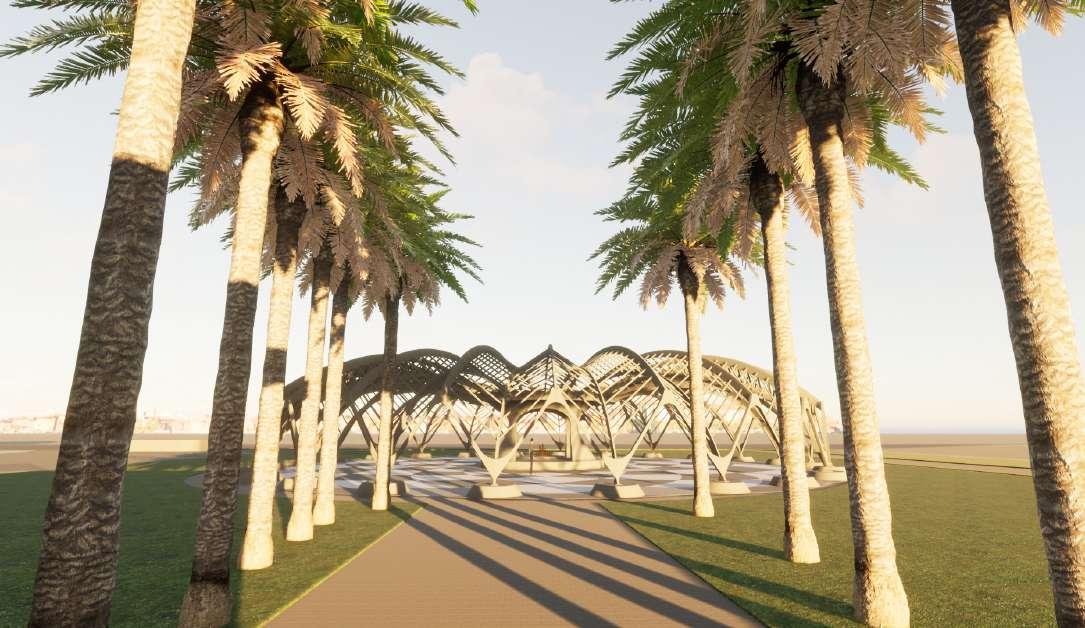

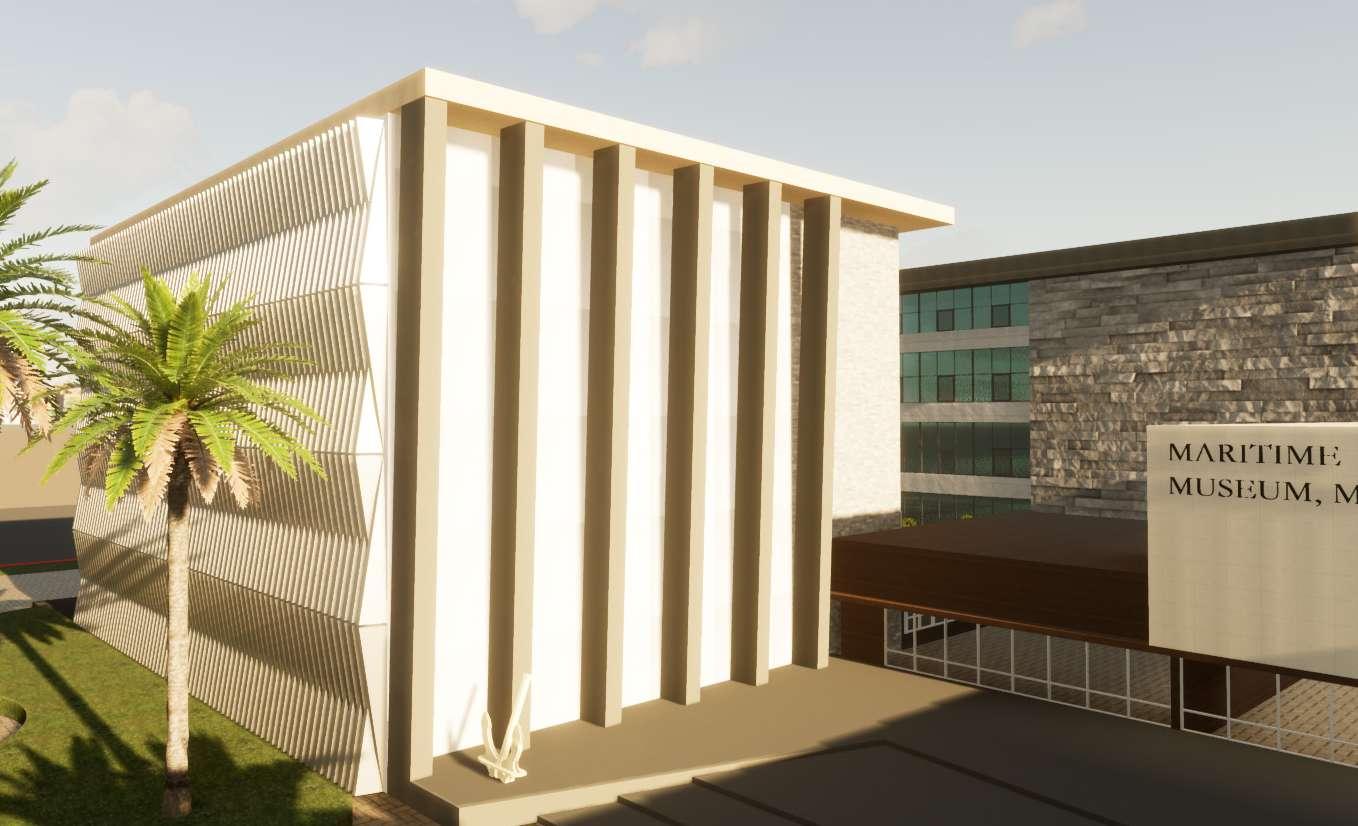

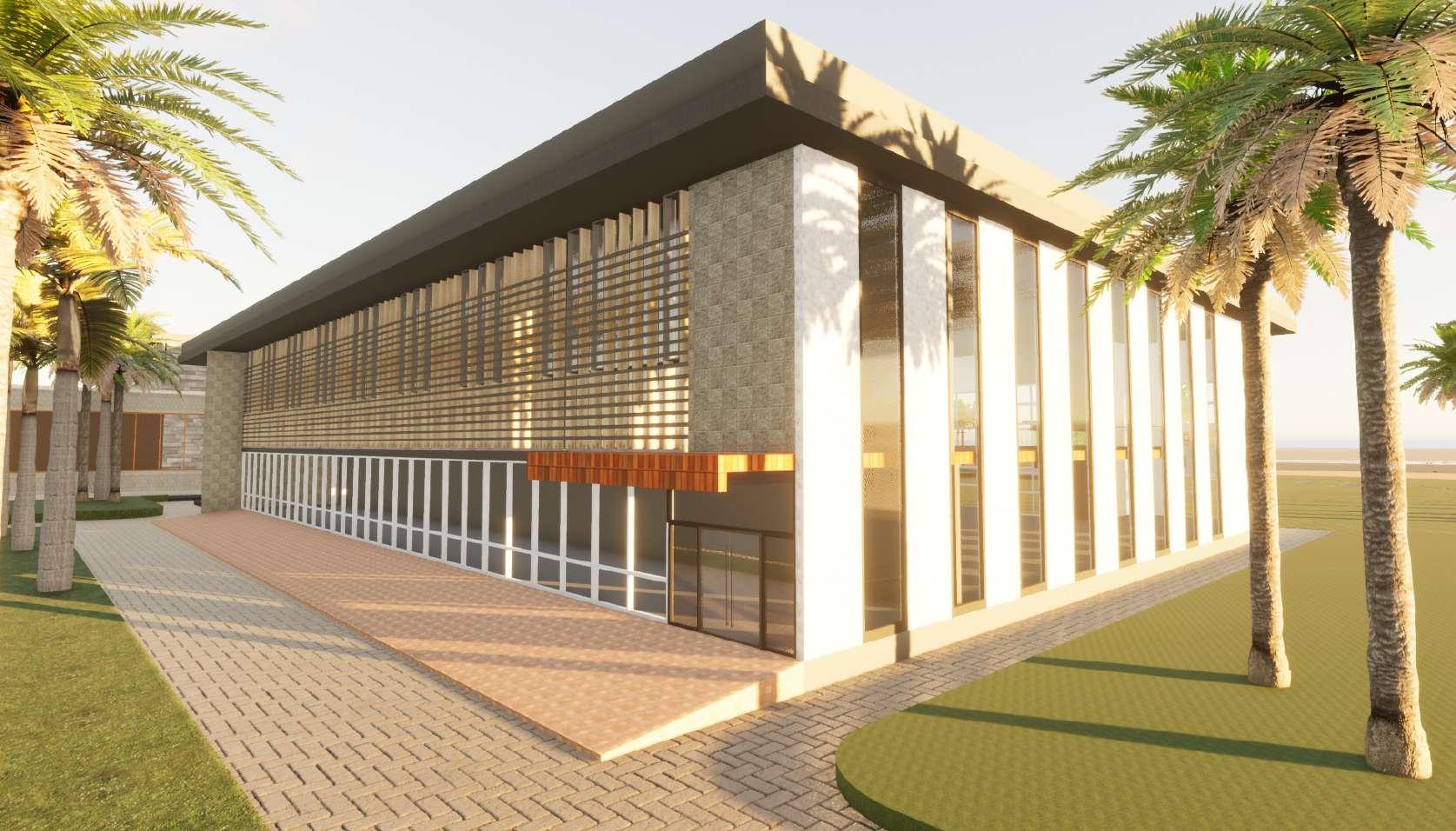

Renders

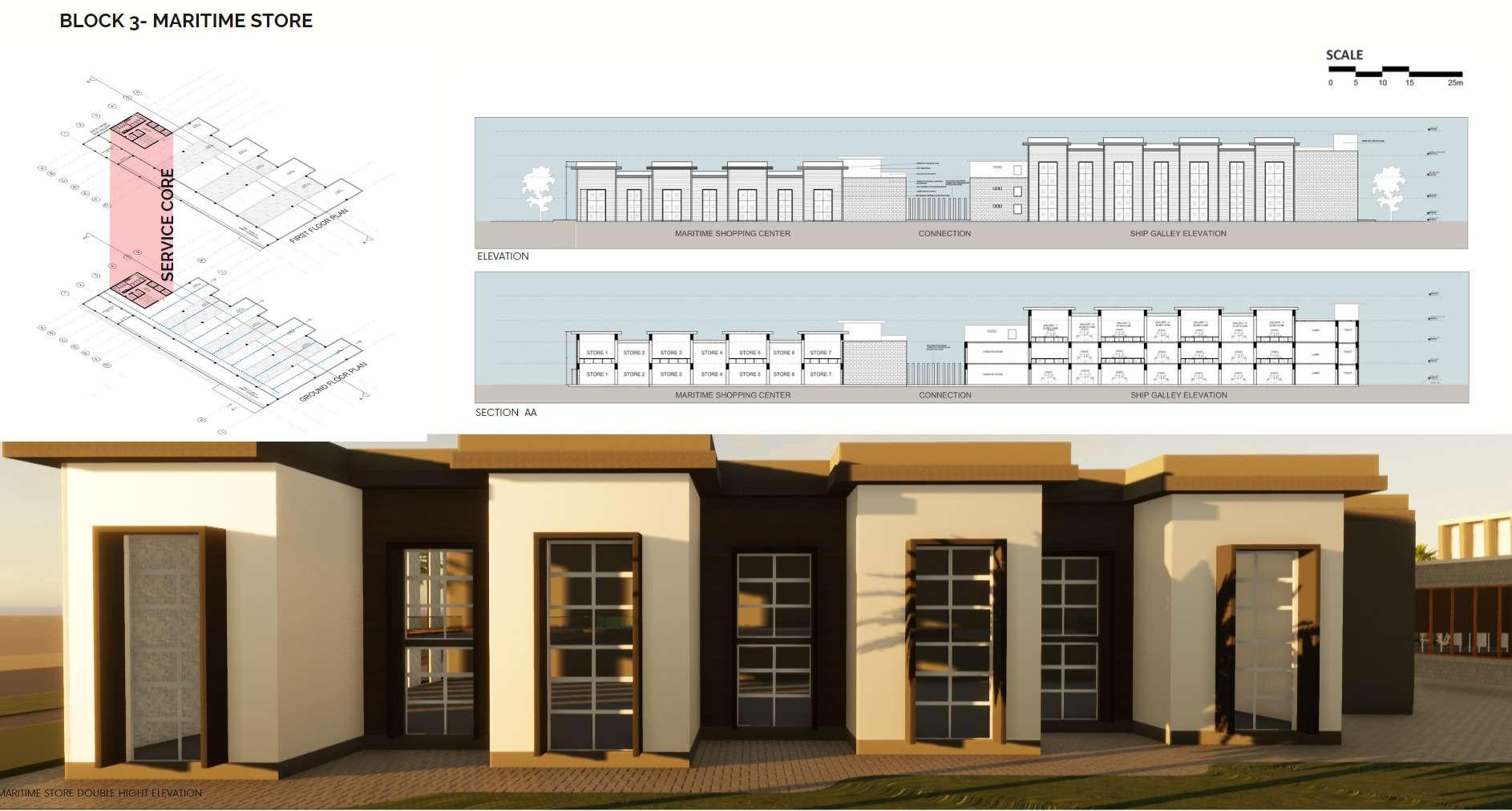

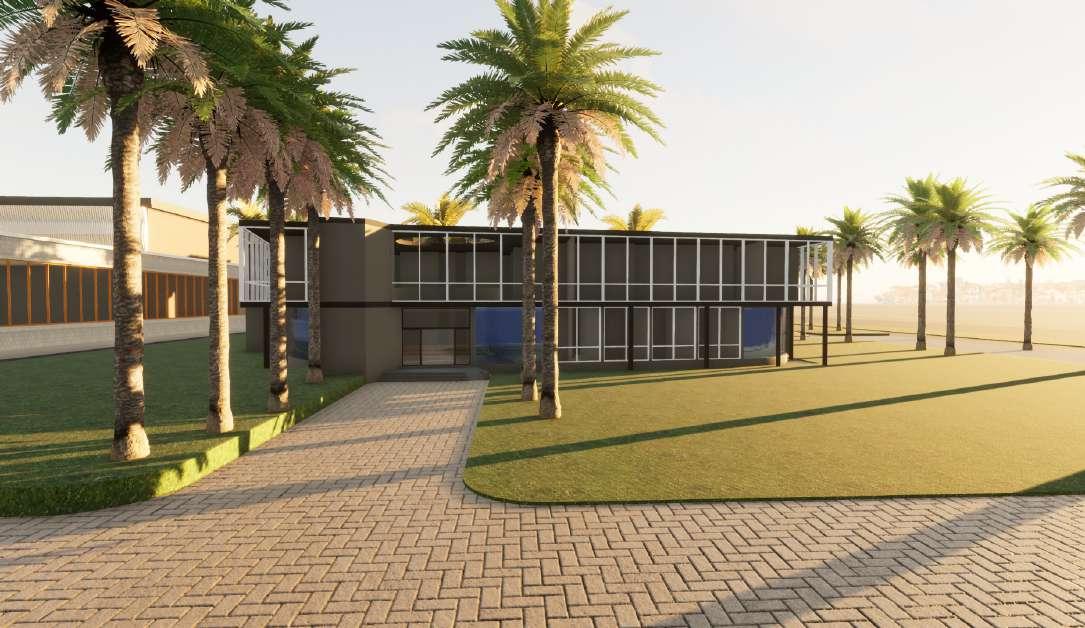

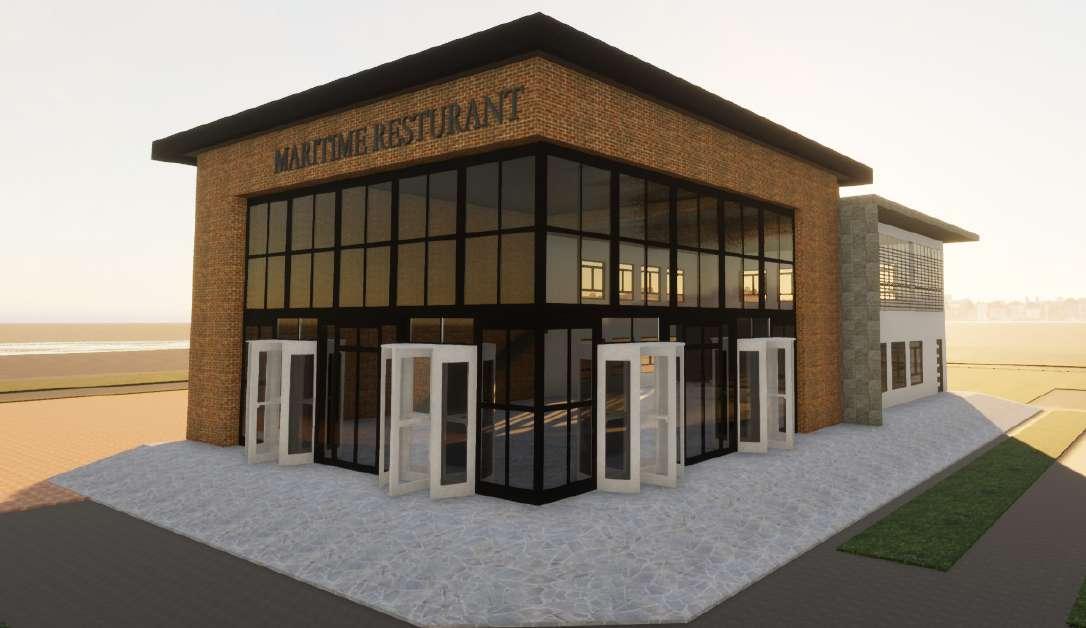

Shreya Shivaprakash Experience zone Martime store Administration block Resturant block Structural steel pavillion

Shreya Shivaprakash

Shreya Shivaprakash

Shreya Shivaprakash

Shreya Shivaprakash

Dutta Kannan Architects

Job position - Architecture Intern

Job roles

-Collaborate with the architecture team to contribute innovative ideas and concepts for architectural projects.

-Assist in the creation of detailed architectural drawings using software such as AutoCAD.

-Conduct research on materials, building codes, and regulations to ensure compliance with industry standards.

-Participate in site visits and inspections to gain practical experience in construction processes.

-Contribute to the development of presentations and visual materials for client meetings and project proposals.

-Support project managers in coordinating project timelines and deliverables.

PROJECTS INVOLVED

1.AGHQ - High end Villa project in Bengaluru- Detailed drawing set

2.Kajaria -High end Villa project in Bengaluru - Tender set

3.BTM Apartment in Bengaluru- Tender set

4.ECR - High end Villa in Chennai - Detail drawing set

5.PMR Apartment in Hyderabad - Addressing Fire norms rules and regulations - Blockwork drawing set.

6.Triguna 21 Acre Township -Renders and 3d modeling.

7.Festival city 19 Acre township -Conceptual planning of Spanish villas according to client interests.

- Compilation and Final presentation with 3 villa options to clients.

Technical skill set majorly used:Microsoft office, Adobe Photoshop, Sketchup, Autocad, Lumion.

Shreya Shivaprakash

3150 300 3200 3200 3200 3200 4300 1900 1675 11 EQ. Risers @ 152.38mm each 1525 10 EQ.Risers @ 152.38mm each 10 EQ.Risers @ 152.38mm each 1525 11 EQ. Risers @ 152.38mm each 1675 10 EQ.Risers @ 152.38mm each 1525 11 EQ. Risers @ 152.38mm each 1675 2900 SECTION CC 11500 1525 1250 4600 [15'-1"] 44 45 46 47 48 49 50 51 52 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 53 54 55 56 57 58 59 60 61 62 63 64 1110 1110 22 24 23 25 26 27 29 28 31 30 32 33 36 35 38 37 34 UP DW 1025 2220 STAIRCASE RAILING TO DETAIL UP LOBBY 2075 X 2215 2220 1110 1110 4 8 7 10 11 12 13 14 15 16 17 1025 LIFT OPENING AS PER VENDOR SPECIFICATION ELECTRICAL SHAFT 1110 1110 2220 43 44 45 46 47 48 49 UP DW 50 51 52 53 54 55 56 57 58 59 1500 UP 1110 1110 2220 DW 64 65 66 67 68 69 70 71 72 74 73 75 76 78 77 80 79 1500 1110 1110 2220 DW 1500 2215 2075 50X50 MS BOX SECTION @100MM C/C SEMI STILT LEVEL C LIFT 1800X1600 6 PAX 2215 2075 LOBBY 2075 X 2215 LIFT OPENING AS PER VENDOR SPECIFICATION ELECTRICAL SHAFT 200MM THICK BLOCK WORK GROUND FLOOR LEVEL 9 EQ TREAD @300 MM EACH 10 EQ TREAD @300 MM EACH 9 EQ TREAD @300 MM EACH 10 EQ TREAD @300MM EACH STAIRCASE RAILING TO DETAIL LIFT 1800X1600 6 PAX LOBBY 2075 X 2215 LIFT OPENING AS PER VENDOR SPECIFICATION ELECTRICAL SHAFT 200MM THICK BLOCK WORK C 9 EQ TREAD @300 MM EACH 10 EQ TREAD @300MM EACH 2075 2215 FIRST FLOOR LEVEL STAIRCASE RAILING TO DETAIL LIFT OPENING AS PER VENDOR SPECIFICATION ELECTRICAL SHAFT 200MM THICK BLOCK WORK C 10 EQ TREAD @300 MM EACH 10 EQ TREAD @300MM EACH LOBBY 2075 X 2215 2215 2075 SECOND FLOOR LEVEL STAIRCASE RAILING TO DETAIL LIFT OPENING AS PER VENDOR SPECIFICATION ELECTRICAL SHAFT 200MM THICK BLOCK WORK C 10 EQ TREAD @300 MM EACH 10 EQ TREAD @300MM EACH LOBBY 2075 X 2215 2215 2075 TERRACE FLOOR LEVEL 18 19 LIFT 1800X1600 6 PAX LIFT 1800X1600 6 PAX LIFT 1800X1600 6 PAX 39 40 60 61 81 82 83 64 65 66 67 68 69 70 71 72 74 73 75 76 78 77 80 79 81 82 83 85TH STEP TO BE MADE BLOCKWORK 20 21 41 42 62 63 84 85 84 85 DETAIL @ X DETAIL @ Y AG-HQ-501 R3 DKP NTS ARCHITECTURE DKP CONSTRUCTION AG - HQ @ 7TH CROSS KORAMANGALA REVISION RECORD ARCHITECT ORIENTATION PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO. SCALE DRAWN BY APPROVED BY SHEET SIZE ISSUED DATE A3 DIS. ARCHITECT'S SEAL REV DATE REVISION DESCRIPTION THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES SIGNATURE OF THE ARCHITECT DEVELOPER PURPOSE OF ISSUE 02.06.2022 AVANT GARDE DEVELOPER GOOD FOR CONSTRUCTION DuttaKannan architects GAGAN STAIRCASE AND LIFT DETAIL DRAWING ID A SHREYA Shreya Shivaprakash 15

KORAMANGALA RING ROAD 28.98m road width

BASEMENT PLAN

AS PER SANCTION PLOT LINE

PRIVATE PROPERTY PRIVATE PROPERTY PRIVATE PROPERTY ACTUAL PLOTLINE STORM WATER COLLECTION SUMP SIZE:3.0X2.0X1.8mtr deep CAP: 10 CUM 4.5M 4.3M 4.5M 4.5M 3.92M Temple stp u g sump MS LADDER STP PUMP ROOM 3070 935 200 225 200 200 2035 200 2215 735 900 220 1480 150 595 1000 4960 BMS ROOM ELECTRICAL ROOM 200 D1 D7 ELEVATION -D1 02 1000 2100 1070 SECTION DD 03 FFL FFL D D 2100 OUTSIDE INSIDE D1 1000 PLAN D1 01 900 INSIDE OUTSIDE 150MM THICK WALL 75X100MM HARD WOOD FRAME 30MM THK.FLUSH SHUTTER WITH LAMINATE AT BOTH SIDES 75X100MM (EQUIVALENT OR MORE THAN THAT) THICK TEAKWOOD FRAME SS WITH MAT FINISH TOWER BOLT MM thk. 40 MM WIDE ARCHITRAVE LINTEL LEVEL FFL FFL 2100 100X75MM (EQUIVALENT OR MORE THAN THAT) THICK TEAKWOOD FRAME 30MM THK. MOLDED SHUTTER WITH LAMINATE ON BOTH SIDES 900 SS MAT FINISH CYLINDRICAL LOCK 2100 SS MAT FINISH CYLINDRICAL LOCK 30MM THK. MOLDED SHUTTER WITH LAMINATE ON BOTH SIDES SS MAT HINGES D7 D D ELEVATION -D7 02 SECTION DD 03 PLAN D7 01 1000 INSIDE OUTSIDE 200MM THICK WALL 75X100MM HARD WOOD FRAME D 30MM THK.FLUSH SHUTTER WITH LAMINATE AT BOTH SIDES 75X100MM (EQUIVALENT OR MORE THAN THAT) THICK TEAKWOOD FRAME SS WITH MAT FINISH TOWER BOLT MM thk. 40 MM WIDE ARCHITRAVE LINTEL LEVEL FFL FFL 2100 100X75MM (EQUIVALENT OR MORE THAN THAT) THICK TEAKWOOD FRAME 30MM THK. MOLDED SHUTTER WITH LAMINATE ON BOTH SIDES 1000 SS MAT FINISH CYLINDRICAL LOCK 2100 SS MAT FINISH CYLINDRICAL LOCK 30MM THK. MOLDED SHUTTER WITH LAMINATE ON BOTH SIDES SS MAT HINGES D9 D ELEVATION -D9 02 SECTION DD 03 PLAN D9 01 DKA NTS ARCHITECTURE DKA CONSTRUCTION RRBC REVISION RECORD MEP CONSULTANTS ORIENTATION PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO. SCALE DRAWN BY APPROVED BY SHEET SIZE ISSUED DATE A2 DIS. ARCHITECT'S SEAL REV DATE REVISION DESCRIPTION THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES ARCHITECT'S SIGNATURE DEVELOPER PURPOSE OF ISSUE 11.10.2022 GOOD FOR CONSTRUCTION GAGAN DOOR DETAILS FOR BASEMENT PLAN ID A SHREYA

Shreya Shivaprakash

UTILITY HAND WASH LIVING AND DINING LIVING AREA AND DINING FORMAL LIVING AND DINING TREE ATRIUM DINING AREA BATHROOM DINING BATHROOM PLUMBING/ VENTILATION SHAFT OPEN KITCHEN ENTRANCE FOYER UTILTIY DINING LIVING AREA AND DINING FORMAL LIVING AND DINING TREE ATRIUM DINING AREA BATHROOM LIVING OPEN KITCHEN ENTRANCE FOYER HAND WASH LIVING AND DINING LIVING AREA AND DINING FORMAL LIVING AND DINING TREE ATRIUM DINING AREA BATHROOM DINING BATHROOM BATHROOM BATHROOM OPEN KITCHEN ENTRANCE FOYER SERVICE ROOM SERVICE ROOM SERVICE ROOM UTILITY HAND WASH LIVING AND DINING LIVING AREA AND DINING FORMAL LIVING AND DINING TREE ATRIUM DINING AREA BATHROOM OPEN KITCHEN ENTRANCE FOYER 15.60 3.00 3.00 3.00 3.00 SECTION FOR SANCTION 3.00 0.60 3.00 3.00 3.00 3.00 15.60 3.00 NORTH ELEVATION CHANAKYAN MAIN ROAD VACANT LAND VACANT LAND 65245 [214'-1"] 67810 B B KEY PLAN OF TYPICAL FLOOR NTS ARCHITECTURE DKA CONSTRUCTION NOLUMBUR REVISION RECORD ARCHITECT ORIENTATION PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO. SCALE DRAWN BY APPROVED BY SHEET SIZE ISSUED DATE A3 DIS. ARCHITECT'S SEAL REV DATE REVISION DESCRIPTION THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES SIGNATURE OF THE ARCHITECT CLIENT NAME PURPOSE OF ISSUE GOOD FOR CONSTRUCTION DuttaKannan architects GAGAN SECTION AND ELEVATION FOR SANCTION ID SHREYA DKA

Mr Ayush

Shreya Shivaprakash

SECTION - AA' 4 A/500 SECTION - BB' 5 A/500 2 6 5 9 10 11 12 13 14 15 16 17 19 22 21 20 26 27 25 24 23 28 29 30 31 32 33 34 35 36 38 41 40 39 45 46 44 43 42 47 48 49 50 51 52 53 54 55 57 60 59 58 64 65 63 62 61 66 67 68 69 70 71 72 73 74 75 76 8 9 10 11 12 13 14 15 16 17 18 19 27 28 29 30 31 32 33 34 35 36 37 38 46 47 48 49 50 51 52 53 54 55 56 57 65 67 68 69 70 71 72 73 74 75 76 7 10 11 12 13 4 14 15 16 17 18 A' A GROUND FLOOR - STAIRCASE PLAN 1 A/500 7 EQ TREAD @270MM EACH 22 21 20 26 27 28 29 30 31 32 25 24 23 34 35 36 37 38 A' A B B TYPICAL STAIRCASE PLAN 2 A/500 7 EQ TREAD @270MM EACH 42 41 40 46 4748 49 50 51 52 45 44 43 53 54 55 56 57 A' A B B 7 EQ TREAD @270MM EACH TERRACE - STAIRCASE PLAN 3 A/500 B B DETAIL A 6 A/500 NTS ARCHITECTURE DKA CONSTRUCTION BTM APARTMENT REVISION RECORD ARCHITECT ORIENTATION PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO. SCALE DRAWN BY APPROVED BY SHEET SIZE ISSUED DATE A3 DIS. ARCHITECT'S SEAL REV DATE REVISION DESCRIPTION THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES SIGNATURE OF THE ARCHITECT CLIENT NAME PURPOSE OF ISSUE GOOD FOR CONSTRUCTION DuttaKannan architects ADARSH DESIGN FOR 150MM RISER AND 270MM TREAD ID SHREYA DKA Mr.Rajesh rao Shreya Shivaprakash 18

MASTER BATHROOM 4470 X 4300MM KEY PLAN 4670 1000 3400 2200 2200 3380 1285 450 900 2120 900 200 800 800 MI WB WC WC 2300 1100 200 WB HF PH PH HF FT FT 1350 750 FT 300 300 10MM TILE DROP 10MM TILE DROP MASTER BATHROOM 4470 X 4300MM 10MM TILE DROP START TILE 600 600 1:200 GRADIENT TILING LAYOUT 4670 1000 3400 3380 1285 450 900 2120 900 200 800 800 FT FT FT FT 4400 2300 1350 SLOPE SLOPE 1:200GRADIENT SLOPE 1:200 GRADIENT SLOPE GRADIENT1:200 10MM TILE DROP 10MM TILE DROP 100 800 2810 600X600 ANTI SKID CERAMIC FLOOR TILE AS PER SELECTION 150MM SUNKEN SLAB SECTION A- A' SLAB AND BEAMS AS PER STRUCTURAL DETAILS 100MM THK BLOCKWORK 200MM THK BLOCKWORK DOOR AS PER SELECTION 450 3550 300 4000 RS HAND SHOWER AS PER SPECIFICATION RAIN SHOWER AS PER SPECIFICATION 2255 WALL TILES AS PER SPECIFICATION 715 3050 FALSE CEILING GLAZING AS PER SPECIFICATION RS D2 SCREED TO FALL WATER PROOFING 800 1200 600X600 ANTI SKID CERAMIC FLOOR TILE AS PER SELECTION 150MM SUNKEN SLAB 1200MM HIGH 100MM THK LEDGE WALL SECTION B- B' SLAB AND BEAMS AS PER STRUCTURAL DETAILS 100MM THK BLOCKWORK 100MM THK BLOCKWORK VENTILATOR AS PER VENDOR SPECIFICATIONS 450 3550 300 4000 WB 715 19MM THK GRANITE COPING V1 V1 25MM GYPSUM AS PER SPECS 100MM THK BLOCKWORK 100MM THK BLOCKWORK SCREED TO FALL WATER PROOFING GLASS DOOR AS PER SPECS MIRROR AS PER SPECS

C- C' WATER PROOFING AS PER SPECS 600X600 ANTI SKID CERAMIC FLOOR TILE AS PER SELECTION 150MM SUNKEN SLAB SLAB AND BEAMS AS PER STRUCTURAL DETAILS 100MM THK BLOCKWORK 200MM THK BLOCKWORK DOOR AS PER SELECTION 450 3550 300 4000 715 FALSE CEILING AS PER SPECIFICATION 1850 100 360 450 910 MIRROR AS PER SPECIFICATION GYPSUM BOARD 35 MM THK WB D3 D3 WINDOW AS PER SPECIFICATION SCREED TO FALL V1 800 HF PH WC 800 400 START SECTION D- D' WC AS PER SELECTION 600X600 ANTI SKID CERAMIC FLOOR TILE AS PER SELECTION 150mm SUNKEN SLAB SLAB AND BEAMS AS PER STRUCTURAL DETAILS 100MM THK BLOCKWORK 100MM THK BLOCKWORK 450 3550 300 4000 HAND FAUCET AS PER SELECTION WASH BASIN AS PER SPECIFICATION WB DOOR AS PER SELECTION 715 SCREED TO FALL WATER PROOFING 100MM THK LEDGE WALL GYPSUM AS PER SPECS MI MIRROR AS PER SPECS 1200 600 19MM THK GRANITE COPING D3 2400 NTS ARCHITECTURE DKA CONSTRUCTION ECR - RESIDENCE CHENNAI REVISION RECORD ARCHITECT ORIENTATION PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO. SCALE DRAWN BY APPROVED BY SHEET SIZE ISSUED DATE A3 DIS. ARCHITECT'S SEAL REV DATE REVISION DESCRIPTION THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES SIGNATURE OF THE ARCHITECT CLIENT NAME PURPOSE OF ISSUE GOOD FOR CONSTRUCTION DuttaKannan architects GAGAN TOILET DETAIL ID SHREYA DKA DR.SHOBANA AND VIGNESH

Shivaprakash 19

SECTION

Shreya

Ø110mm PVC SOIL PIPE FROM SH-04 ABOVE

Ø75mm PVC WASTE PIPE

FROM SH-04 ABOVE

Ø75mm PVC WASTE PIPE Ø110mm PVC SOIL PIPE FROM SH-04 ABOVE

GT-03

300X300mm

Ø75mm PVC WASTE PIPE

Ø75mm PVC RAINWATER

Ø110mm PVC WASTE PIPE

150Ø

1:150

Ø75mm PVC WASTE PIPE

Ø110mm PVC WASTE PIPE

W12

TRAP DOOR - 600MM X 600MM

OUTLET DRAIN CONNECTED TO THE DRAINAGE/ MANHOLE

R.C.C PRE CAST RINGS

270MM X 270MM OPENING

WITH REMOVABLE

RCC GRATING

75Ø PVC PIPE (INLET PIPE)

75Ø CORE/ BORE HOLE

FILLED WITH MEDIUM SIZE

RIVERSIDE PEBBLES (TYP)

75Ø PVC PIPE FOR OVER FLOW

SL NO

LEGEND

SOIL PIPE (110MM DIA)

SP WASTE PIPE (75MM DIA)

TRAP DOOR - 600MM X 600MM

Shreya Shivaprakash

REV DATE REVISION DESCRIPTION

CLIENT NAME

RAIN WATER PIPE (75MM DIA) RWP

COLD WATER SUPPLY CWS

WP HWS

HOT WATER SUPPLY

40MM ØWATER SUPPLY

WS (FROM THE UG TO THE OHT)

LEGEND 75Ø PVC WASTE PIPE INTERNAL FROM FLOOR TRAP

110Ø PVC SOIL PIPE INTERNAL FROM WATER CLOSET

03 75Ø PVC RAIN WATER INTERNAL FROM BALCONY

04 150Ø PVC CHAMBER PIPE FROM CHAMBER TO CHAMBER

05 40Ø PVC CHAMBER PIPE FROM WASH BASIN TO FLOOR TRAP

LEGEND WC WATER CLOSET(WALL MOUNTED WITH

PH FLUSH TANK)

PAPER HOLDER

HEALTH FAUCET FOR WC HF

FLOOR TRAP 110Ø X 75Ø

THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES SIGNATURE OF THE ARCHITECT

OUTLET

WB WASH BASIN

SH SHOWER

TR TRAP DOOR 600MMX 600MM

600MM ARCHITECTURE DKA

ARCHITECT'S SEAL

BANSAL - RESIDENCE

REVISION RECORD ARCHITECT ORIENTATION

PURPOSE OF ISSUE GOOD FOR CONSTRUCTION DuttaKannan architects NAYANA

SHREYA

DRAWN BY APPROVED BY

GROUND FLOOR - DRAINAGE LAYOUT ID

CONSTRUCTION

PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO.

SHEET SIZE ISSUED DATE

A3 DIS.

SCALE

FOYER 2650X1770 PARKING 4770X5480 GUEST ROOM 3150X4630 PUJA KITCHEN 5050X4220 DINING 6680X5320 LIVING 6580X6230 GARDEN 3150X5160 TOILET 1780X3000 DECK 1620X6060 LIFT 1500X1500 STUDY 3150X1830 SERVANT'S ROOM 3100X2330 SERVICE ENTRY WASHING UTILITY 1780X950 MD W1 W1 W3 D2 D2 D1 SD1 W4 W5 V1 W6 D1 D1 D2 W2 SD2 DECK 1500X3530 CONSOLE TABLE ART WORK CROCKERY UNIT WARDROBE QUEEN SIZE BED SIDE TABLE SIDE TABLE HOB SINK FRIDGE MICROWAVE/ OVEN DISH WASHER PANTRY LEDGE WARDROBE SINK STUDY TABLE ART WORK TV UNIT EXTERNAL DRAIN CONNECTED TO THE DRAINAGE/ MANHOLE STORM WATER DRAIN BOREWELL WATER UG SUMP SIZE:2.0 MX 1.55M X 1.55 SWD (+0.3FB) CAPACITY: 4,800 LITERS KAVERI WATER UG SUMP SIZE:3.2M X 5.1 M X 1.55 SWD (+0.3FB) CAPACITY: 25,300 LITERS WC FT HF WB UR FT 75MM WATER DRAIN FROM TERRACE 75MM DIA CONCEALED WASTE WATER PIPE FROM BALCONY SH:01 SH:02 SH:03 PIPE LENGTH: 10.67M PIPE LENGTH: 3.46M PIPE LENGTH: 7.43M PIPE LENGTH: 3.19M IC:01 SIZE:600X600 HIGHEST INVERT LEVEL GT -01 300X300mm IC:02 SIZE:600X600 IC:03 SIZE:600X600 SIZE:600X600 IC:04 SIZE:600X600 IC:05 GT-02 300X300mm GT-04 300X300mm IC:07 SIZE:600X600 LOWEST INVERT LEVEL RECHARGE PIT DEPTH:1800MM IC:06 SIZE:600X600 LOWEST INVERT LEVEL PIPE LENGTH: 4.21M PIPE LENGTH: 4.21M Ø75mm RAIN WATER PIPE

PVC CHAMBER PIPE B/W CHAMBERS SLOPE

1:150 1:150 1:150

PLAN RAIN WATER HARVESTING PITS DKA

C C' NTS

Ø75mm

GROUND FLOOR - WATER SUPPLY LAYOUT

SL NO 01

LEGEND

SOIL PIPE (110MM DIA)

SP WASTE PIPE (75MM DIA)

RAIN WATER PIPE (75MM DIA) RWP

COLD WATER SUPPLY CWS

WP HWS

HOT WATER SUPPLY

40MM ØWATER SUPPLY WS (FROM THE UG TO THE OHT)

LEGEND 75Ø PVC WASTE PIPE INTERNAL FROM FLOOR TRAP

110Ø PVC SOIL PIPE INTERNAL FROM WATER CLOSET 02

03 75Ø PVC RAIN WATER INTERNAL FROM BALCONY

04 150Ø PVC CHAMBER PIPE FROM CHAMBER TO CHAMBER

05 40Ø PVC CHAMBER PIPE FROM WASH BASIN TO FLOOR TRAP

LEGEND WC WATER CLOSET(WALL MOUNTED WITH

PAPER HOLDER PH FLUSH TANK)

HEALTH FAUCET FOR WC HF

FLOOR TRAP 110Ø X 75Ø

OUTLET

WB WASH BASIN

SH SHOWER

TR TRAP DOOR 600MMX 600MM

FOYER 2650X1770 PARKING 4770X5480 GUEST ROOM 3150X4630 PUJA KITCHEN 5050X4220 DINING 6680X5320 LIVING 6580X6230 GARDEN 3150X5160 TOILET 1780X3000 DECK 1620X6060

LIFT 1500X1500 STUDY 3150X1830 SERVANT'S ROOM 3100X2330 SERVICE ENTRY WASHING UTILITY 1780X950 MD W1 W1 W3 D2 D2 D1 SD1 W4 W5 V1 W6 D1 D1 D2 W2 SD2 DECK 1500X3530 CONSOLE TABLE CROCKERY UNIT WARDROBE QUEEN SIZE BED SIDE SIDE HOB SINK FRIDGE MICROWAVE/ OVEN DISH WASHER PANTRY LEDGE WARDROBE SINK STUDY TABLE ART WORK TV UNIT DRESSER

DIA CONCEALED COLD WATER SUPPLY FROM OHT BIB TAP FOR CAR SERVICE

DIA PVC SUPPLY PIPE BOREWELL WATER SUPPLY LINE FROM THE UG SUMP TO THE OHT HF WB

DIA PVC SUPPLY PIPE KAVERI WATER SUPPLY LINE FROM THE UG SUMP TO THE OHT

40mm

Ø40mm

PVC WASTE PIPE

PVC SOIL PIPE

COLD WATER SUPPLY BOREWELL WATER UG SUMP SIZE:2.0 MX 1.55M X 1.55 SWD (+0.3FB) CAPACITY: 4,800 LITERS KAVERI WATER UG SUMP SIZE:3.2M X 5.1 M X 1.55 SWD (+0.3FB) CAPACITY: 25,300 LITERS TRAP DOOR - 600MM X 600MM TRAP DOOR 600MM X 600MM Ø75mm PVC WASTE PIPE Ø110mm PVC SOIL PIPE Ø40mm COLD WATER SUPPLY Ø25mm HOT WATER SUPPLY COLD WATER SUPPLY FOR AQUAGUARD SH:01 SH:02 SH:03 Ø75mm RAIN WATER PIPE SPOUT FOR WASHING MACHINE OR WASHBASIN COLD WATER SUPPLY FOR DISH WASHER W12 SH:04 DKA NTS ARCHITECTURE DKA CONSTRUCTION BANSAL - RESIDENCE REVISION RECORD ARCHITECT ORIENTATION PROJECT NAME PROJECT TITLE DISCIPLINE PROJECT PHASE DRAWING ORIGINATOR ORIGINATOR'S JOB NO. CHECKED BY ORIGINATOR PRO. REF. DRAWING NO. REVISION NO. SCALE DRAWN BY APPROVED BY SHEET SIZE ISSUED DATE A3 DIS. ARCHITECT'S SEAL REV DATE REVISION DESCRIPTION THIS DRAWING IS THE PROPERTY OF DUTTA KANNAN ARCHITECTS. REPRODUCTION OR DUPLICATION OF THE DRAWING IN PART OR WHOLE IS NOT PERMITTED. KEY PLAN NOTES SIGNATURE OF THE ARCHITECT CLIENT NAME PURPOSE OF ISSUE GOOD FOR CONSTRUCTION DuttaKannan architects NAYANA GROUND FLOOR - WATER SUPPLY LAYOUT ID SHREYA Shreya Shivaprakash 21

Ø110mm

Ø40mm

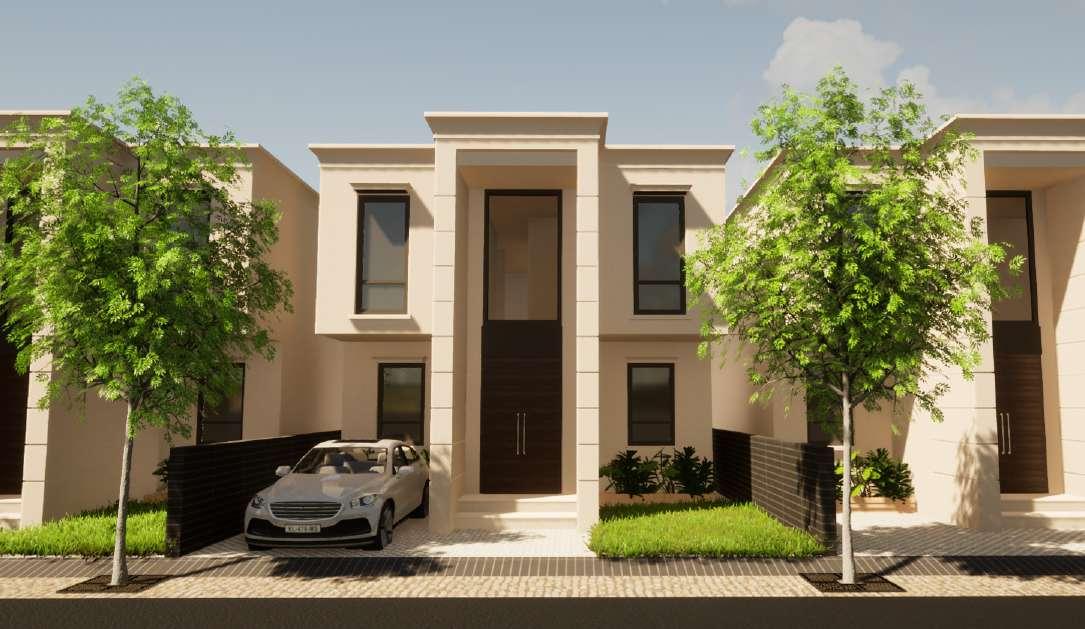

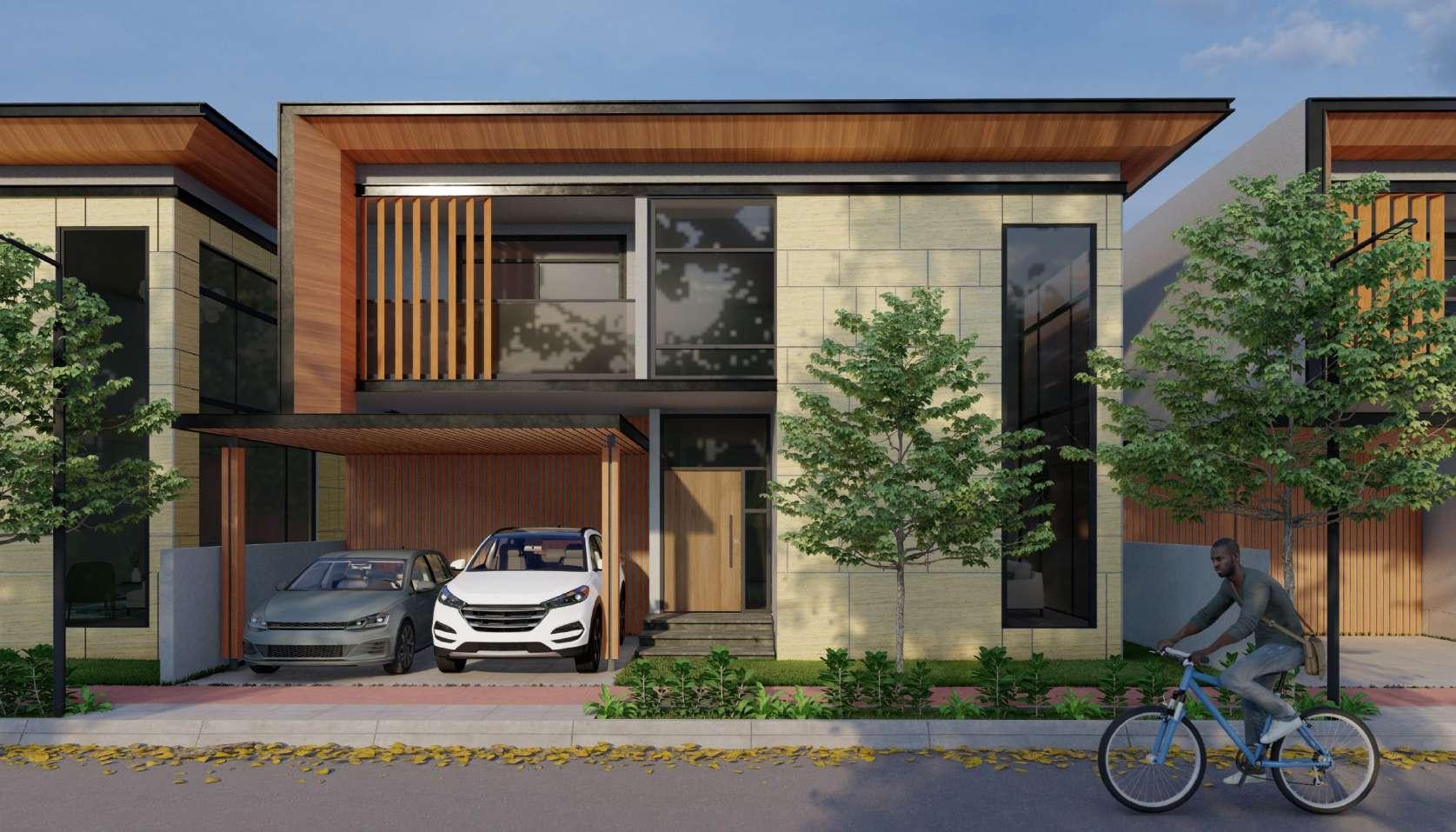

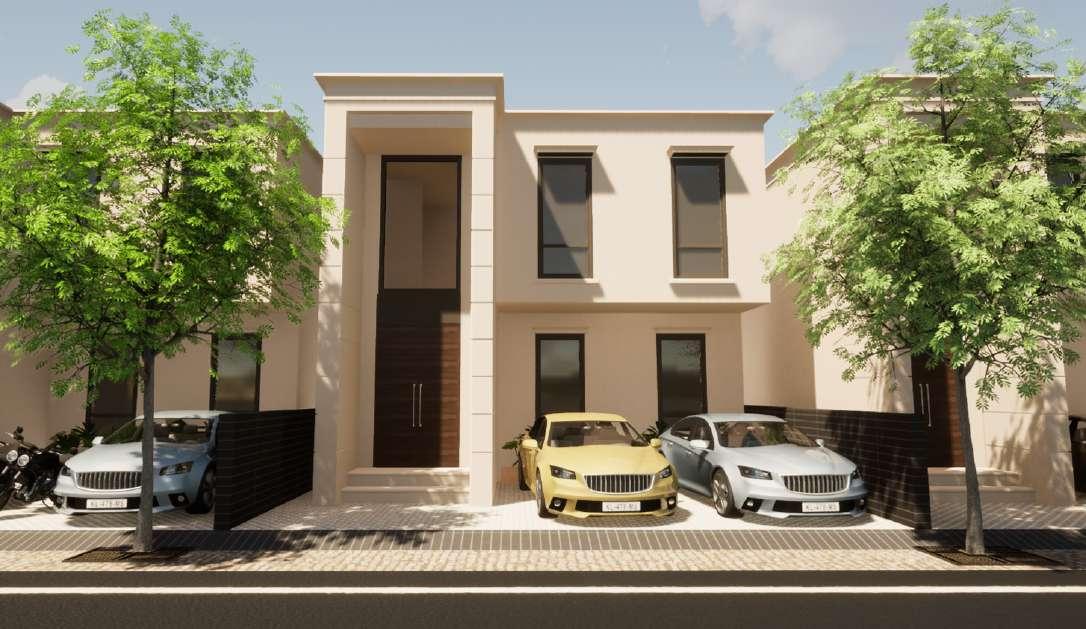

Twonship villa options

Shreya Shivaprakash Contemporary villa option 01 Contemporary villa option 02 Spanish villa option 03 Spanish villa opyion 04 Elevation option 01 for 60*40 site

Arcadis IBI Group

Job position - Architect

Job roles

1.Project name : Swadesh Darshan 2.0 - Hampi and Mysuru

Assisting in Design Development:

-Collaborating with senior architects to develop design concepts.

-Contributing to the creation of architectural drawings ,plans and 3D modeling.

-Conducting research to support design decisions. Technical Documentation

-Assisting in the preparation of technical drawings and specifications.

-Ensuring that drawings comply with building codes and regulations.

-Collaborating with other team members to integrate various systems into the design.

-Sanity check: -Proof reading of Detailed project reports of respective projects to be presented to the clients and stake holders.

Site Visit and study: - Understanding the site context for architecture conceptual development in an urban environment.

2.Project name : TOD around Bengaluru Namma metro.

-Presentation and representation of various urban strategies and achieving percentages.

-Addressing parking and non parking zones with the help URDPFI Guidelines.

Technical skill set majorly used:

Adobe indesign, Adobe Photoshop, Sketchup, Autocad, Lumion.

Shreya Shivaprakash

Swadesh Drashan 2.0

Destination center planning for Hampi

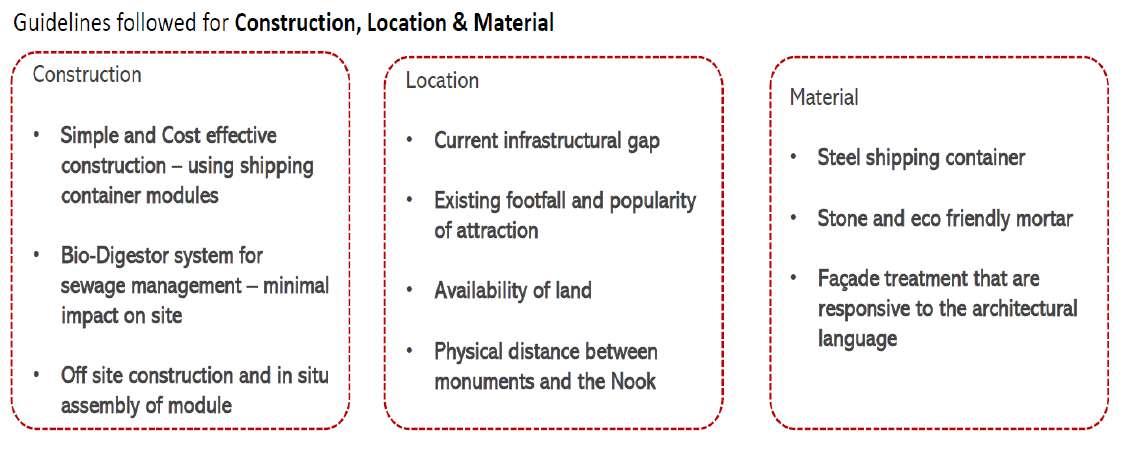

OBJECTIVES

a)To improve overall tourist experience

b)To offer vital ancillary amenities at accessible points

c)To enable comprehensive and consolidated information dissemination

d)To implement heritage sensitive construction technique

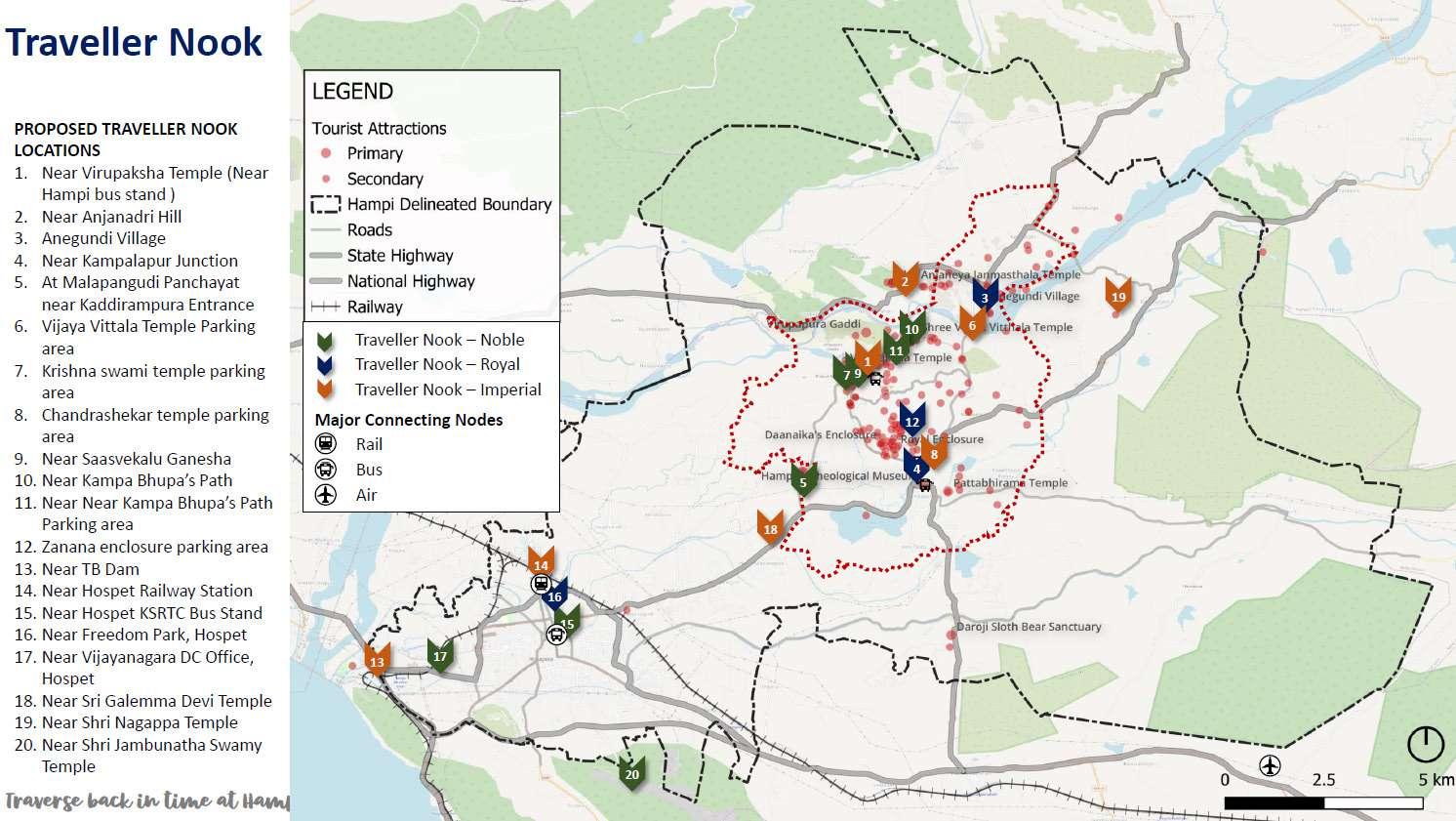

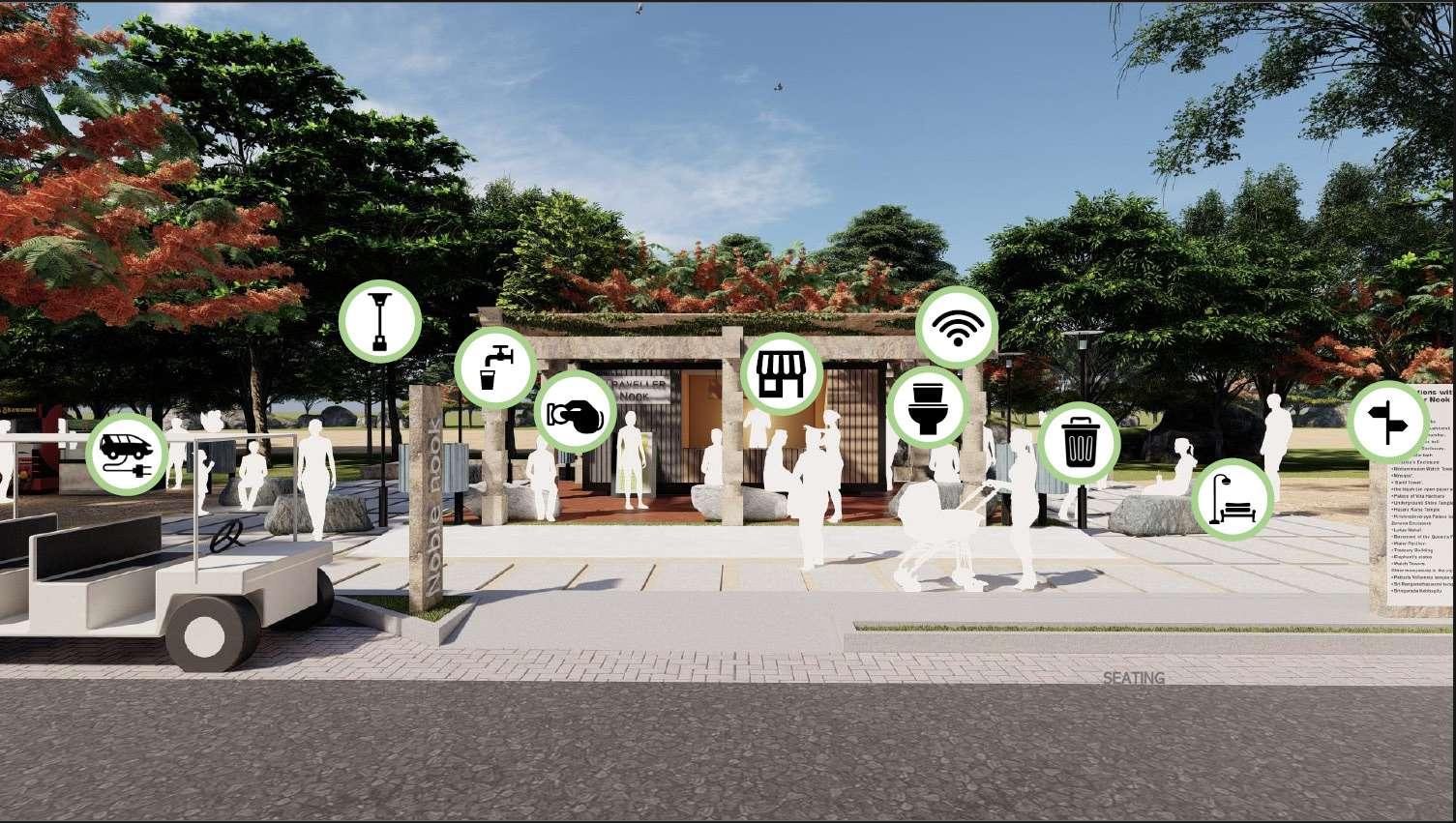

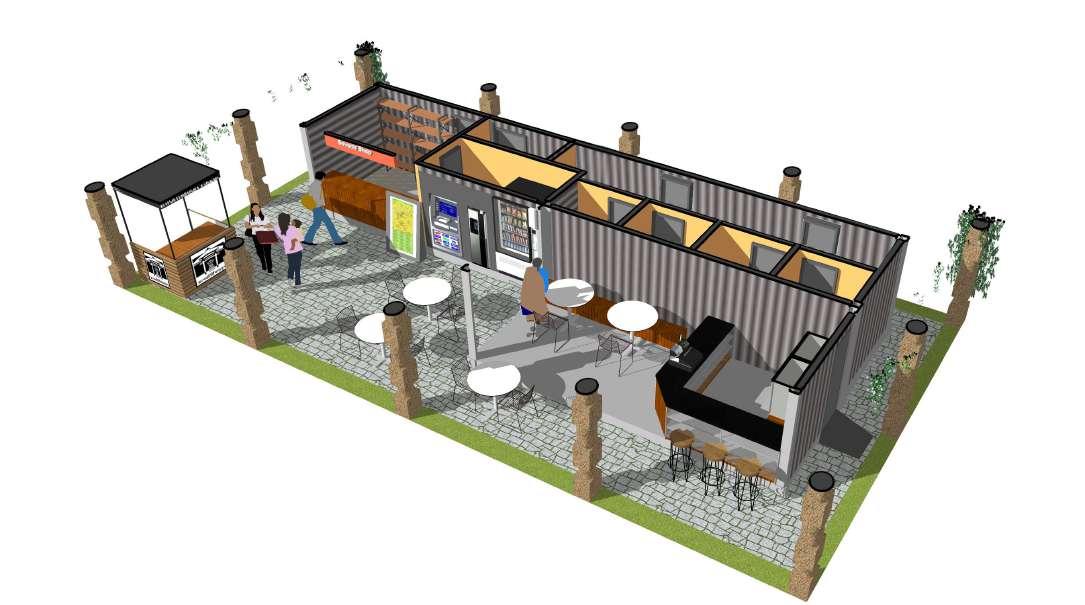

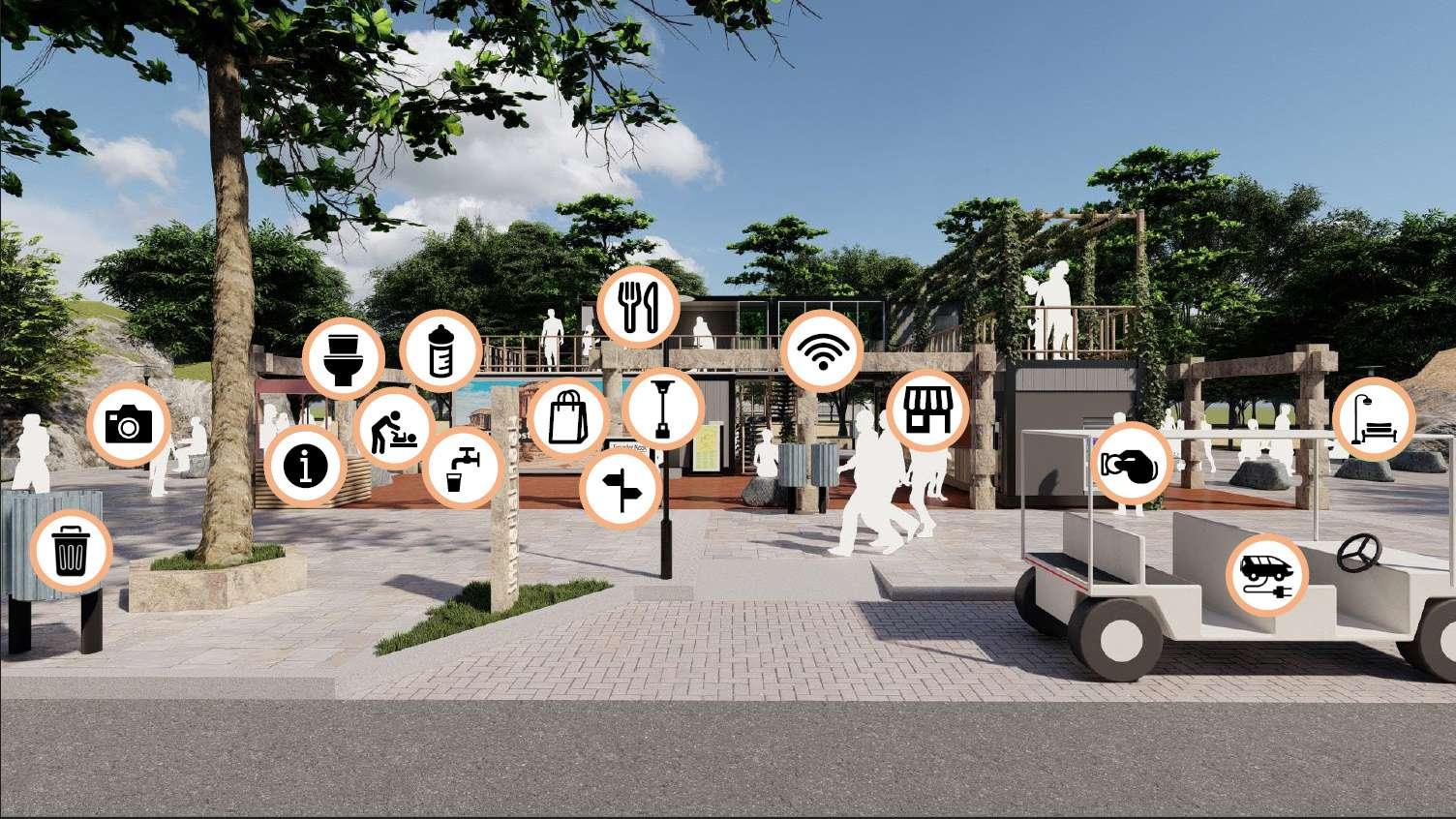

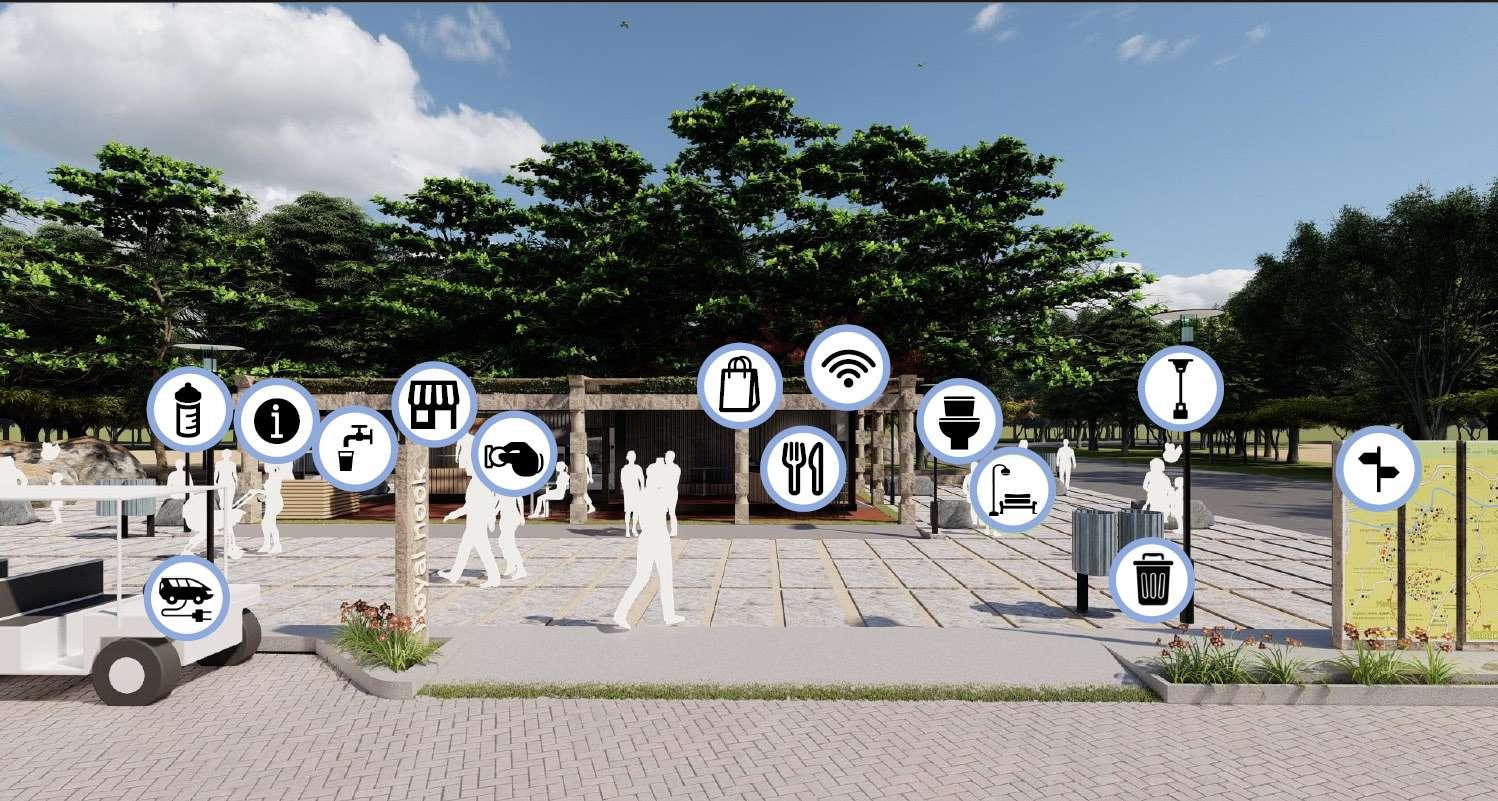

Traveller Nook

One stop Mutipurpose center for tourist amenities - Traveller nook across tourist destination.

Shreya Shivaprakash 24

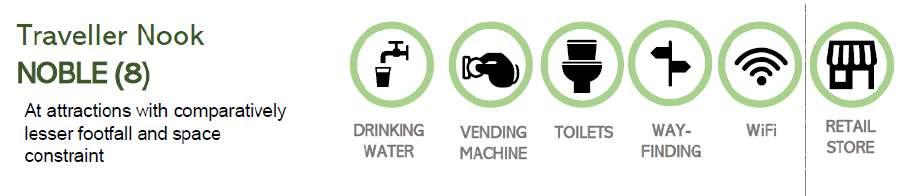

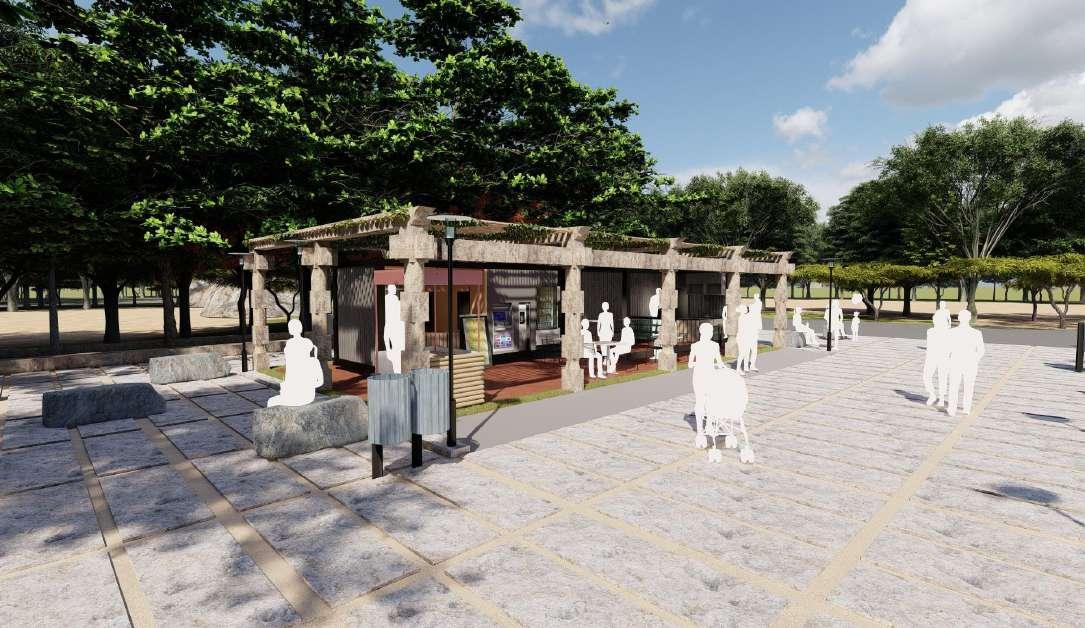

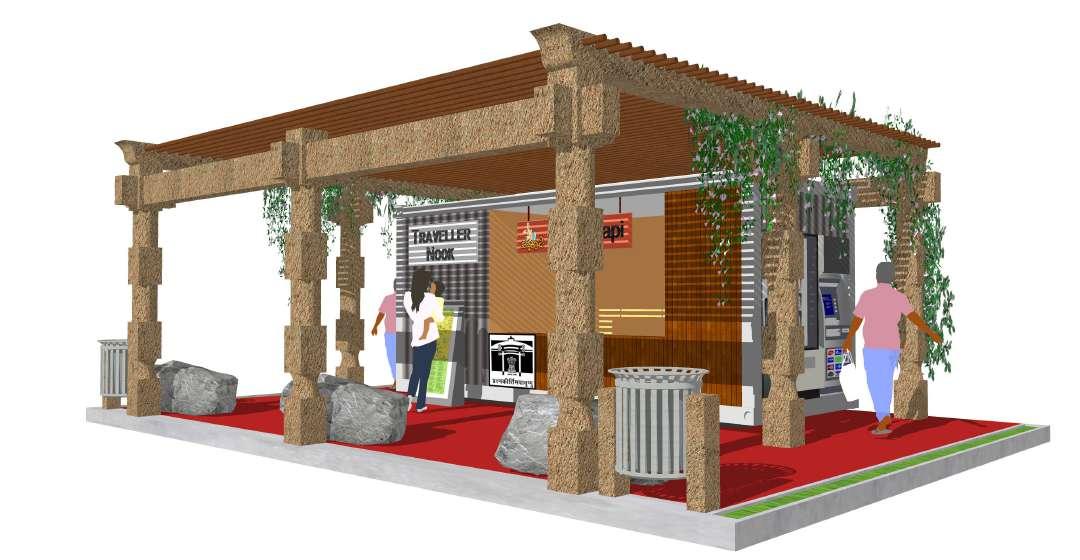

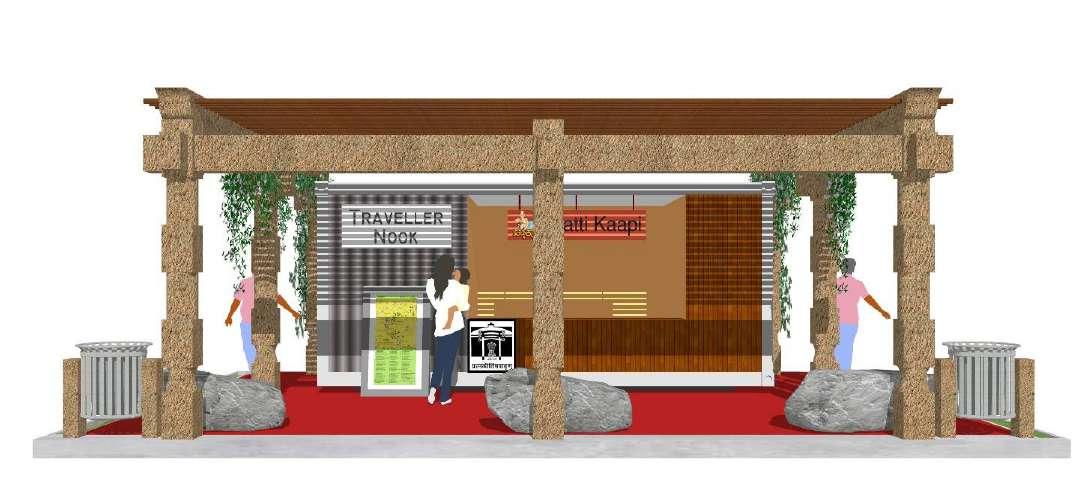

Traveller Nook Configeration (8) Size - 10m

Shreya Shivaprakash

Noble

x 9.5m

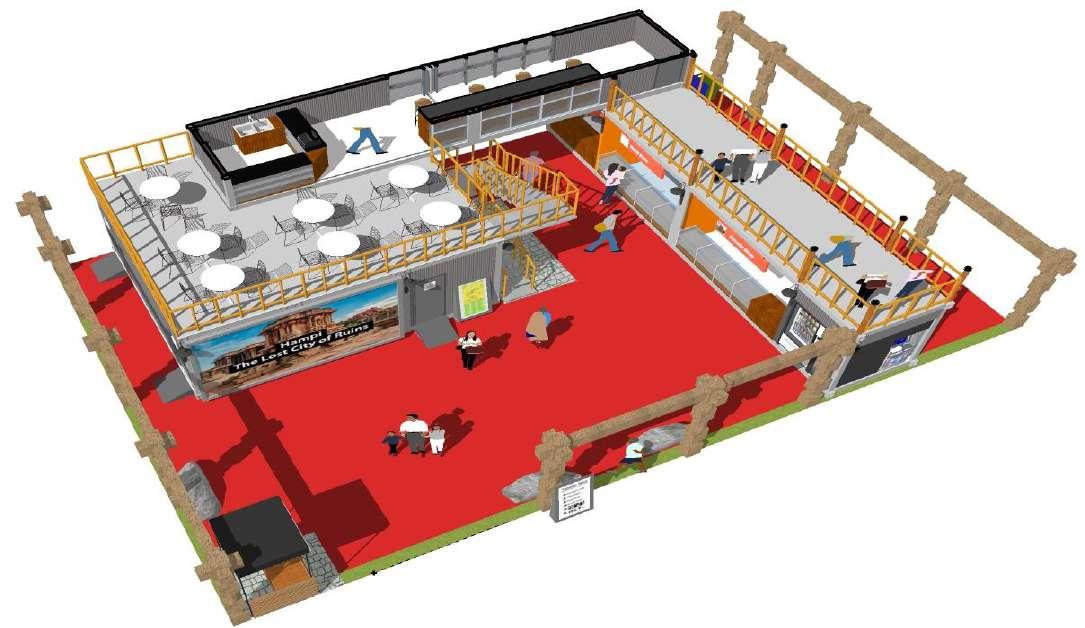

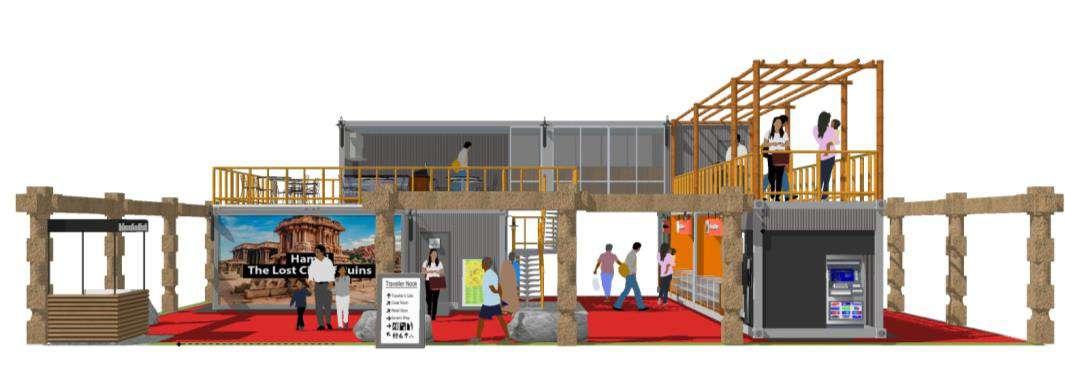

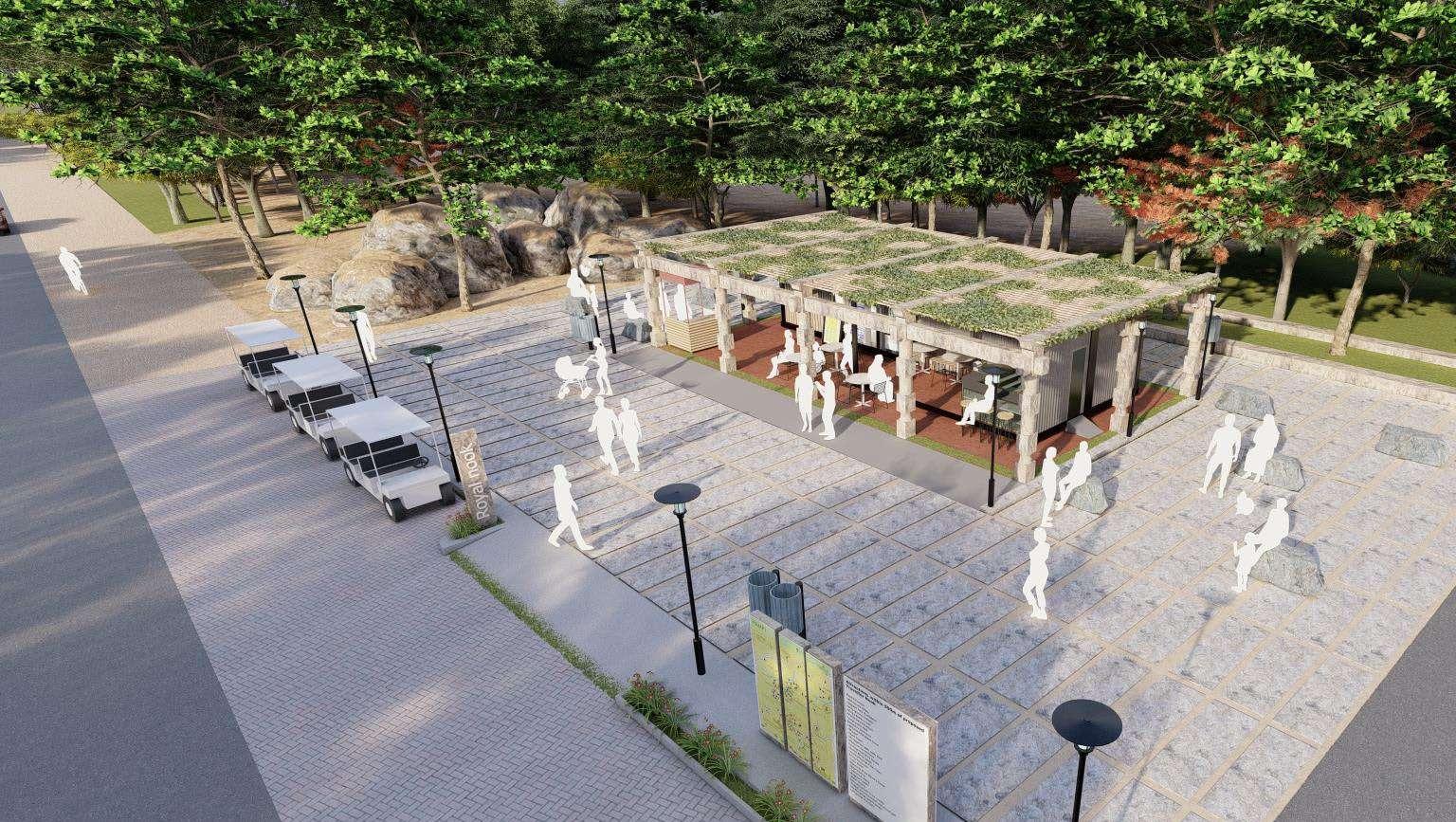

Noble Traveller Nook inclusive of all amenities Isometric render showing the bamboo roof Facade Isometric view Sectional view

Size

14.7m

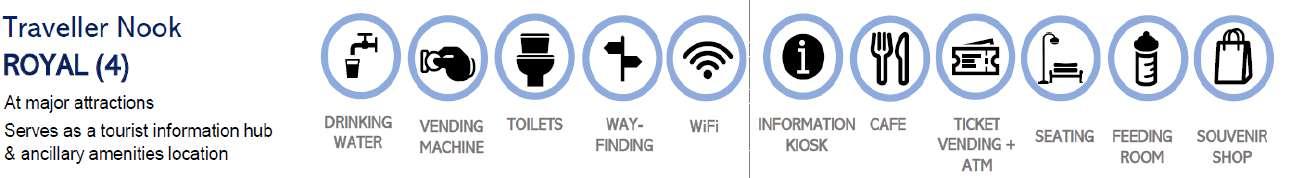

Royal Traveller Nook Configeration (4)

x 9.3m

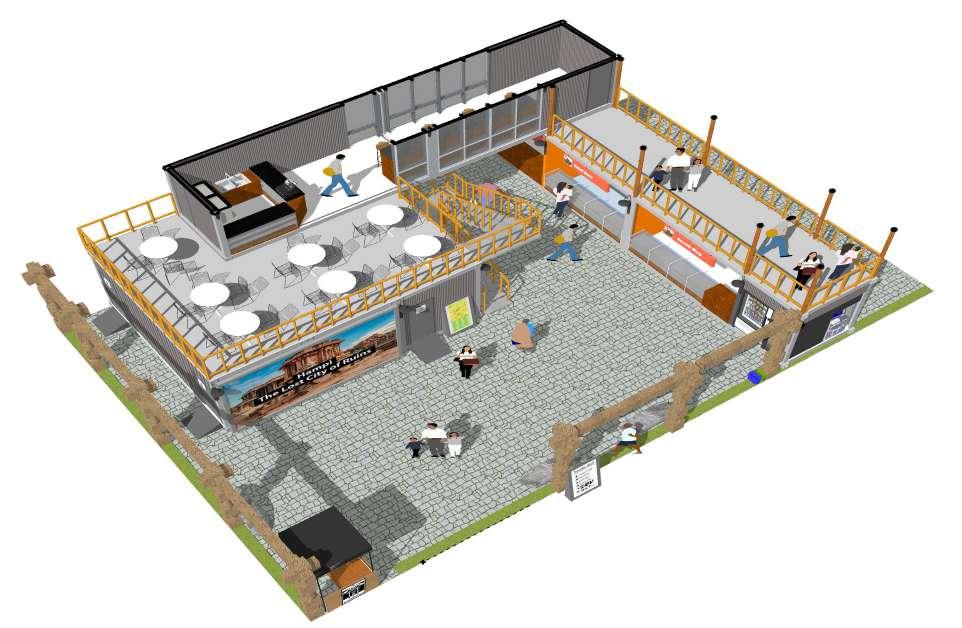

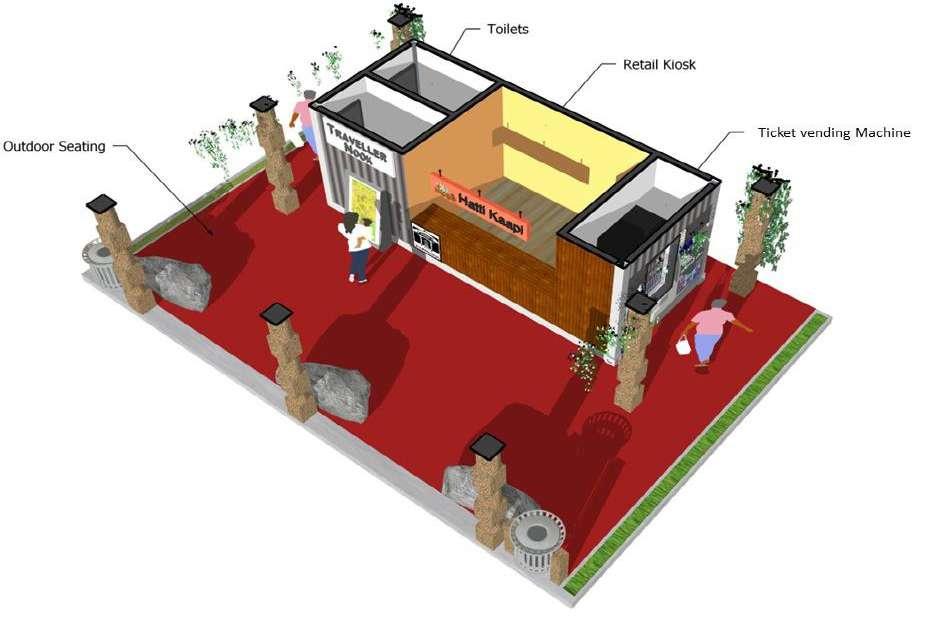

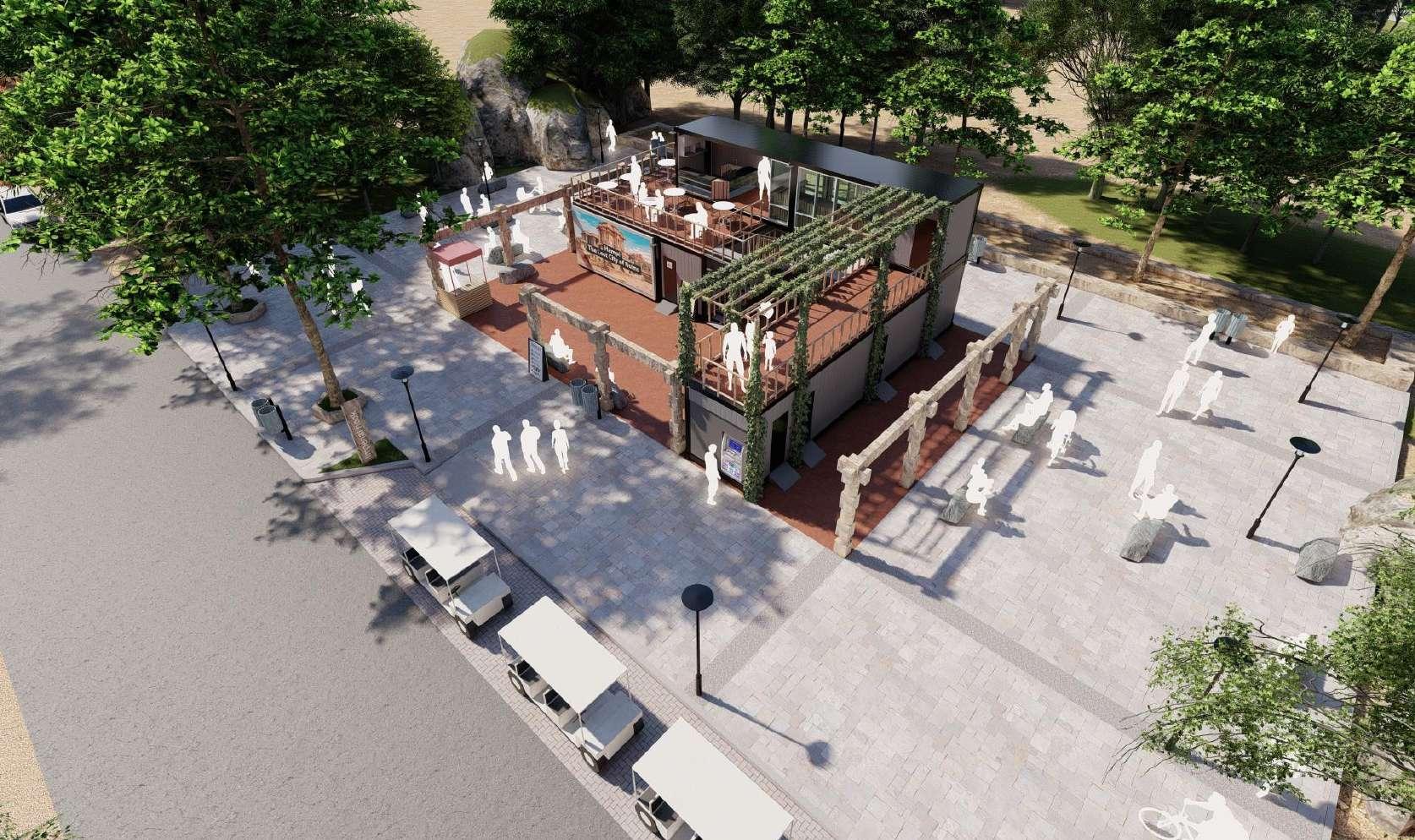

Royal Traveller Nook inclusive of all amenities Royal Traveller Nook with bamboo roof Facade Isometric view Sectional view

Shreya Shivaprakash

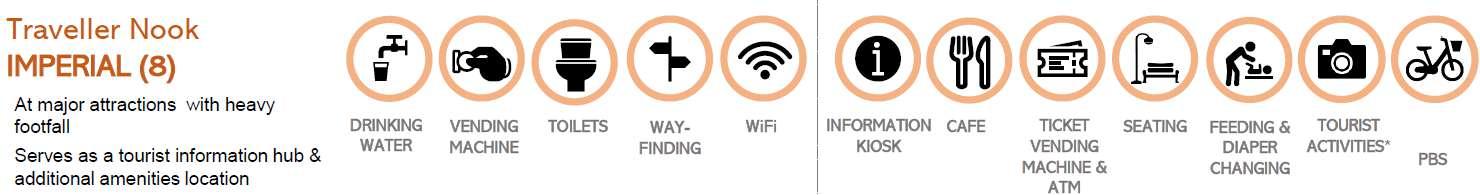

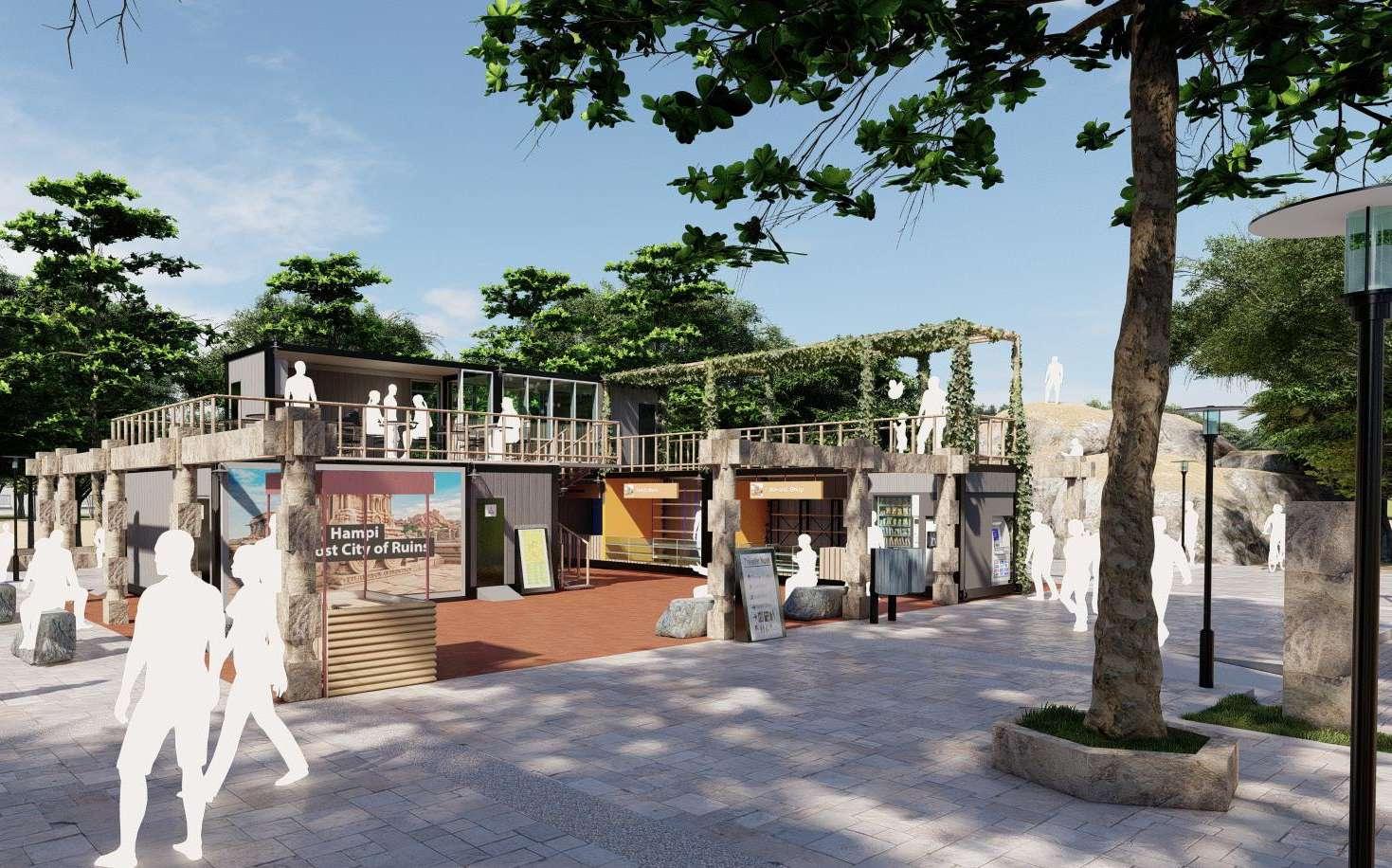

Imperial Traveller Nook Configeration (8) Size - 20.6m x 12.1m

Imperial Traveller Nook inclusive of all amenities Imperial Traveller Nook with bamboo roof Facade Sectional view 01 Sectional view 02

Shreya Shivaprakash

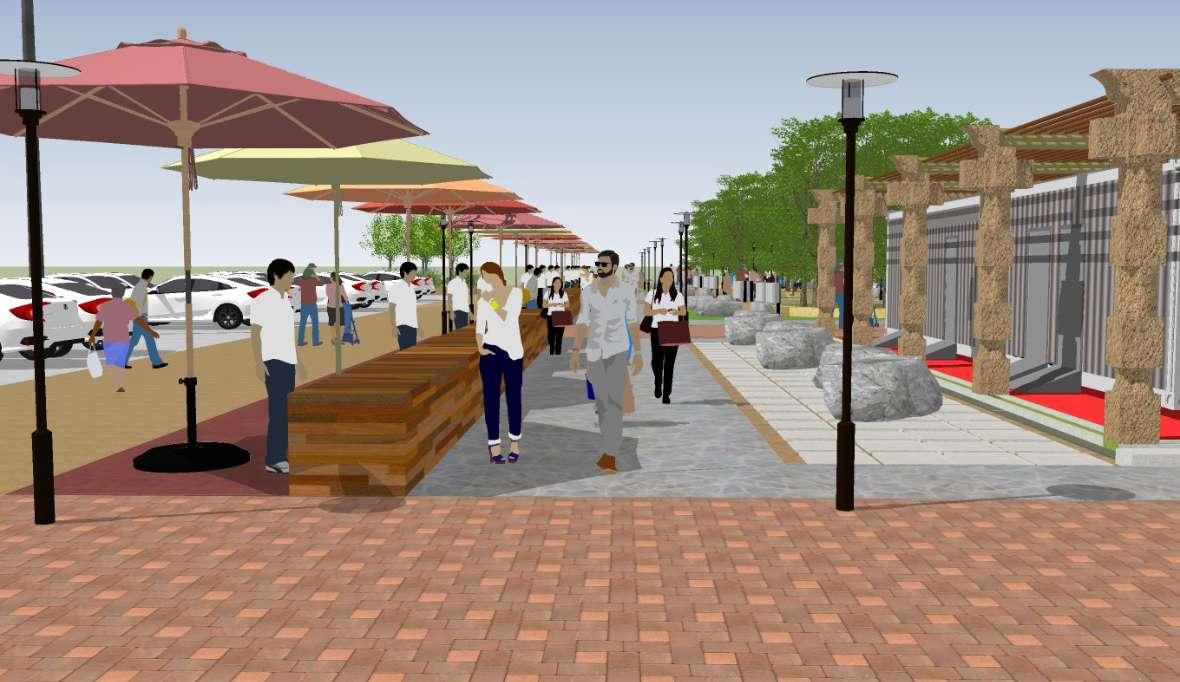

A B C

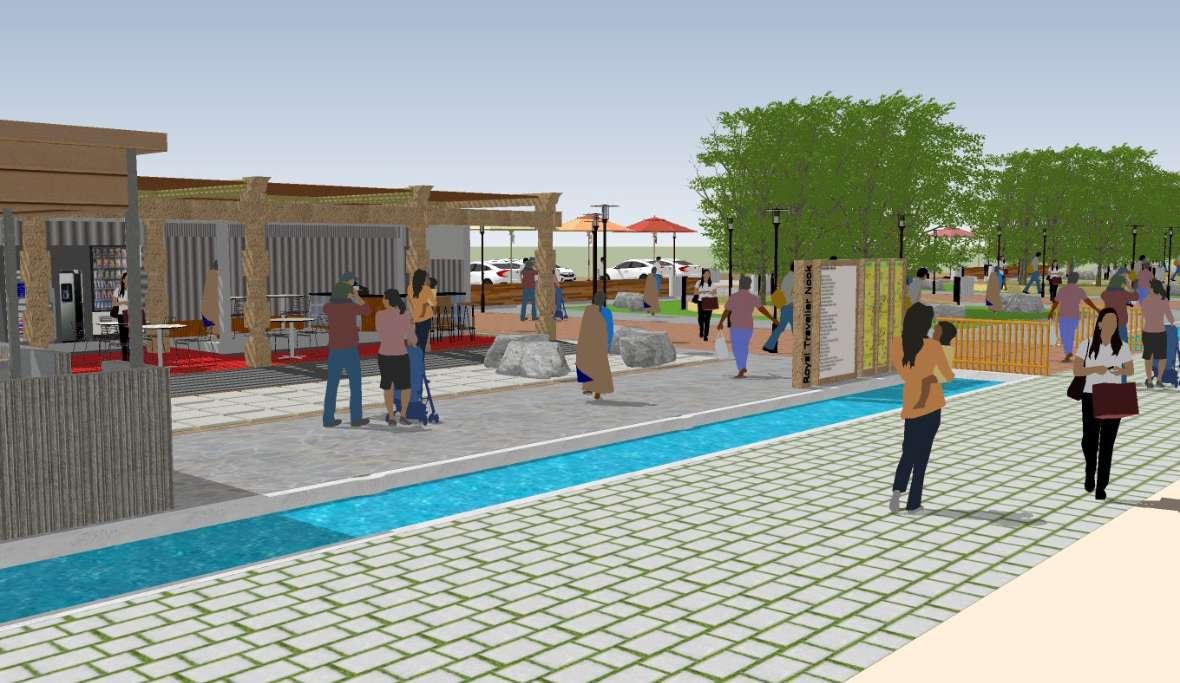

View from point A View from point C View from point B Master Plan

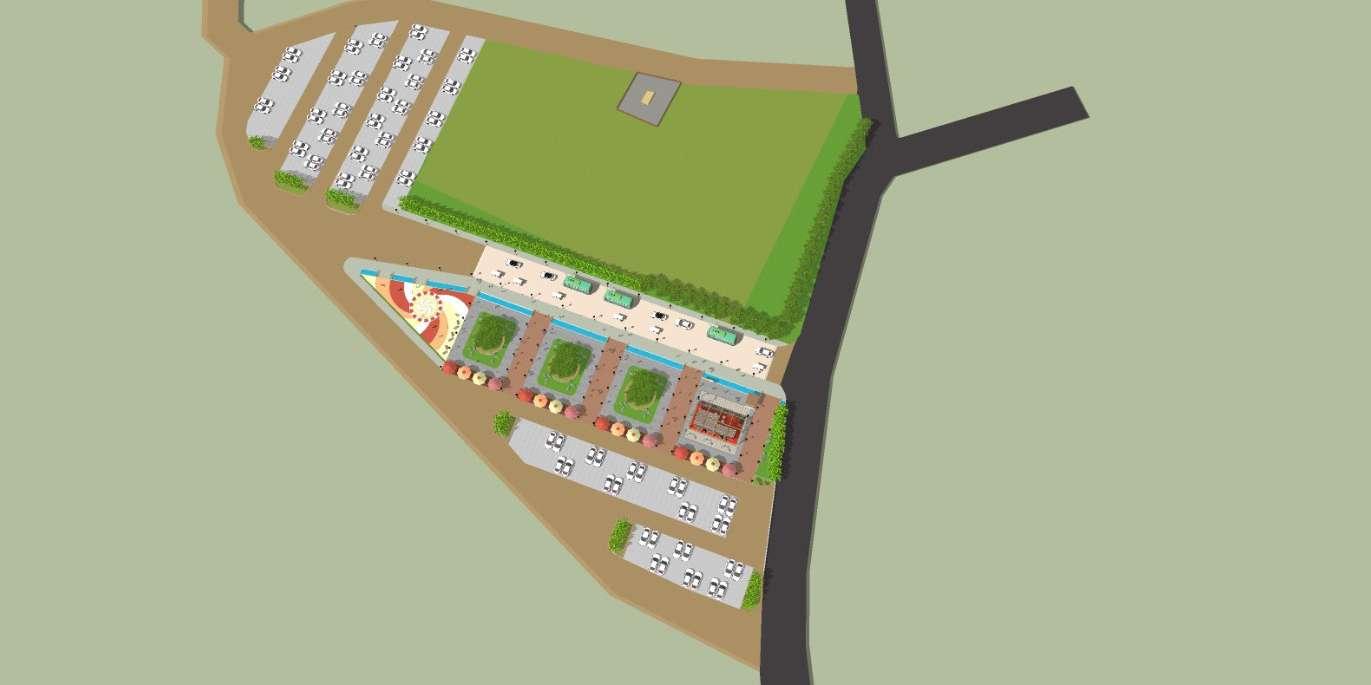

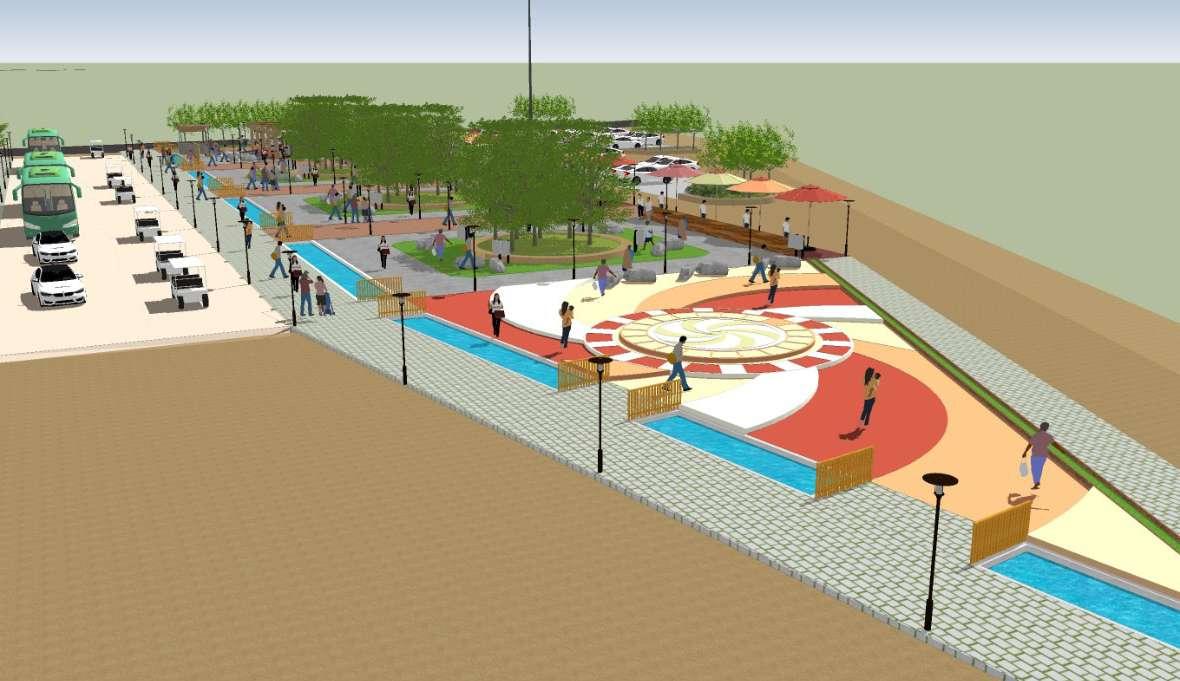

28 Land parcel development near virupaksha temple Addessing parking issues

Shreya Shivaprakash

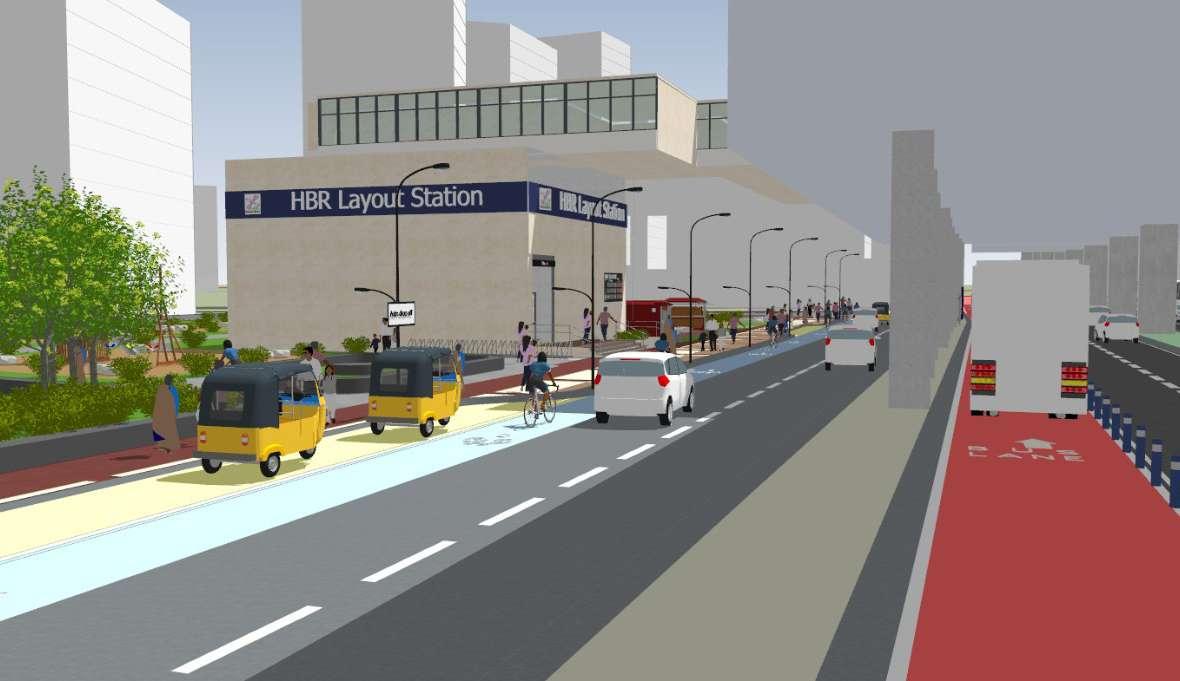

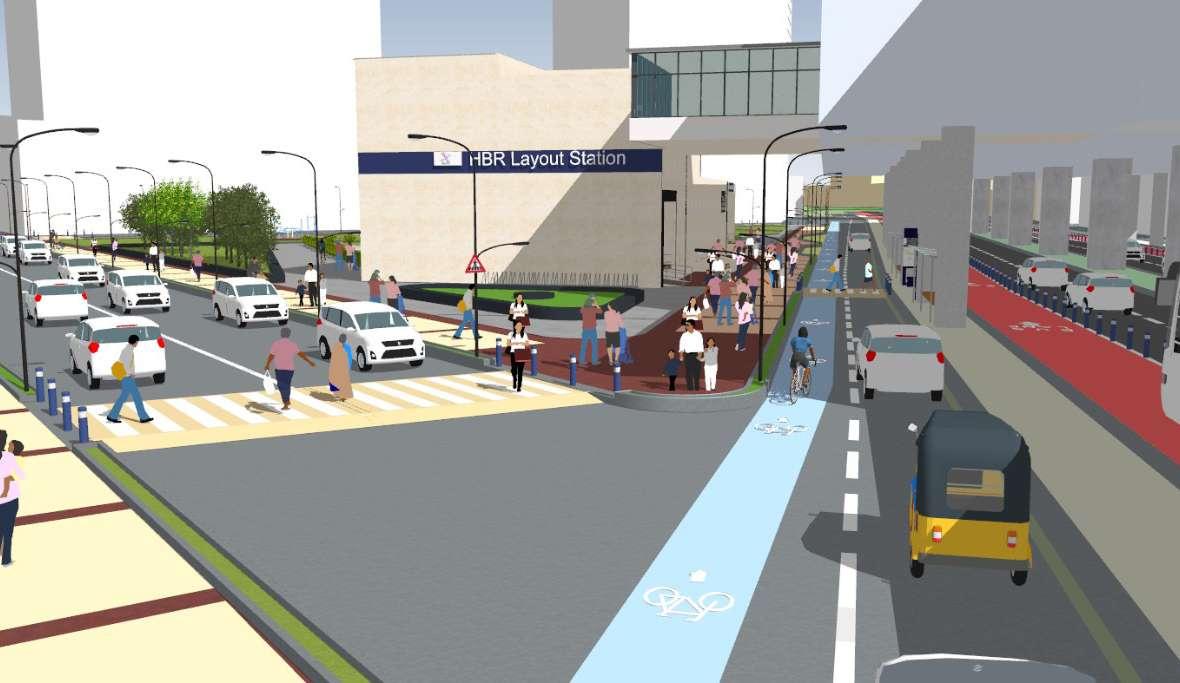

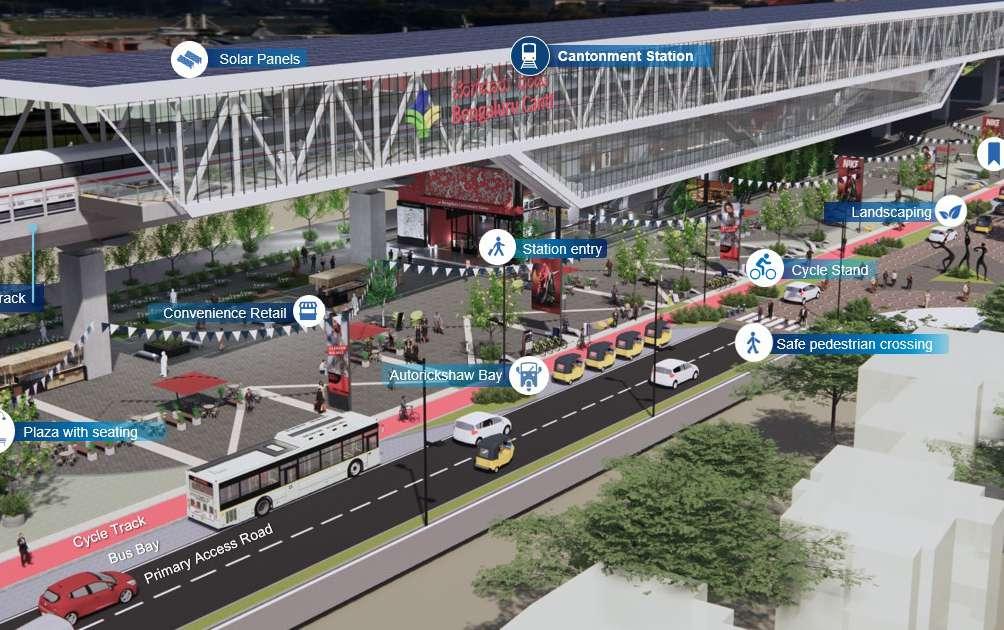

Transit Oriented Development

Bengaluru Metro station

TOD, or transit-oriented development, means integrated urban places designed to bring people, activities, buildings, and public space together, with easy walking and cycling connection between them and near-excellent transit service to the rest of the city. It means inclusive access for all to local and citywide opportunities and resources by the most efficient and healthful combination of mobility modes, at the lowest financial and environmental cost, and with the highest resilience to disruptive events. Inclusive TOD is a necessary foundation for long-term sustainability, equity, shared prosperity, and civil peace in cities.

Shreya Shivaprakash

Portfolio. Shreya Shivaprakash A rchitect Contact shreya.shivaprakash236@gmail.com T. +919538776919
