SMART DDR4 & DDR5 UDIMM & CUDIMM - Product Brief

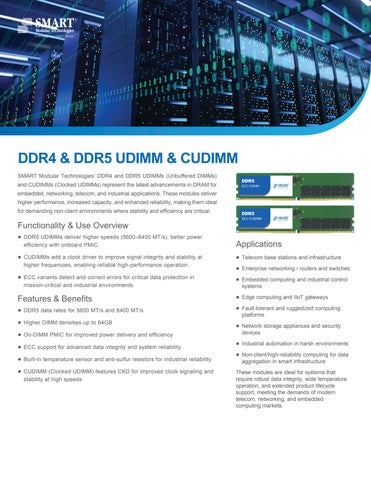

Page 1

DDR4 & DDR5 UDIMM & CUDIMM SMART Modular Technologies’ DDR4 and DDR5 UDIMMs (Unbuffered DIMMs) and CUDIMMs (Clocked UDIMMs) represent the latest advancements in DRAM for embedded, networking, telecom, and industrial applications. These modules deliver higher performance, increased capacity, and enhanced reliability, making them ideal for demanding non-client environments where stability and efficiency are critical.

Functionality & Use Overview

• DDR5 UDIMMs deliver higher speeds (5600–6400 MT/s), better power

Applications

•

CUDIMMs add a clock driver to improve signal integrity and stability at higher frequencies, enabling reliable high-performance operation.

• Telecom base stations and infrastructure • Enterprise networking / routers and

•

ECC variants detect and correct errors for critical data protection in mission-critical and industrial environments.

• Embedded computing and industrial control

efficiency with onboard PMIC.

Features & Benefits

• • Higher DIMM densities up to 64GB • On-DIMM PMIC for improved power delivery and efficiency • ECC support for advanced data integrity and system reliability • Built-in temperature sensor and anti-sulfur resistors for DDR5 data rates for 5600 MT/s and 6400 MT/s

industrial reliability

• CUDIMM (Clocked UDIMM) features CKD for improved clock signaling and stability at high speeds.

switches systems

• Edge computing and IIoT gateways • Fault-tolerant and ruggedized computing platforms

• Network storage appliances and security devices

• Industrial automation in harsh environments • Non-client/high-reliability computing for data aggregation in smart infrastructure

These modules are ideal for systems that require robust data integrity, wide temperature operation, and extended product lifecycle support, meeting the demands of modern telecom, networking, and embedded computing markets.


DDR5 Ordering Information 288-PIN - DDR5 Non-ECC CUDIMM SMART Part Number

Density

Height (mm)

Module Config

Comp Config

Speed

Voltage

Temp*

ST8G6CD548J-HM

64GB

31.25

8G x64

4Gx8

6400MT/s

1.1V

0°C to +70°C

SR8G6CD548JHM

64GB

31.25

8G x64

4Gx8

6400MT/s

1.1V

0°C to +70°C

SR6G6CD538J-SP

48GB

31.25

6G x64

3Gx8

6400MT/s

1.1V

0°C to +70°C

ST6G6CD538J-HM

48GB

31.25

6G x64

3Gx8

6400MT/s

1.1V

0°C to +70°C

SR6G6CD538JHM

48GB

31.25

6G x72

3Gx8

6400MT/s

1.1V

0°C to +70°C

SR6G6CD538JHM

48GB

31.25

6G x64

3Gx8

6400MT/s

1.1V

0°C to +70°C

SR4G6CD528J-SP

32GB

31.25

4G x64

2Gx8

6400MT/s

1.1V

0°C to +70°C

ST4G6CD528J-HA

32GB

31.25

4G x64

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR4G6CD528JSQ

32GB

31.25

4G x64

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR3G6CD538JHM

24GB

31.25

3G x64

3Gx8

6400MT/s

1.1V

0°C to +70°C

SR2G6CD528J-SP

16GB

31.25

2G x64

2Gx8

6400MT/s

1.1V

0°C to +70°C

ST2G6CD528J-HA

16GB

31.25

2G x64

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR1G6CD516J-SP

8GB

31.25

1G x64

1Gx16

6400MT/s

1.1V

0°C to +70°C

SR1G6CD516J-SQ

8GB

31.25

1G x64

1Gx16

6400MT/s

1.1V

0°C to +70°C

ST1G6CD516J-HA

8GB

31.25

1G x64

1Gx16

6400MT/s

1.1V

0°C to +70°C

SMART Part Number

Density

Height (mm)

Module Config

Comp Config

Speed

Voltage

Temp*

SR8G7CD548JHM

64GB

31.25

8G x72

4Gx8

6400MT/s

1.1V

0°C to +70°C

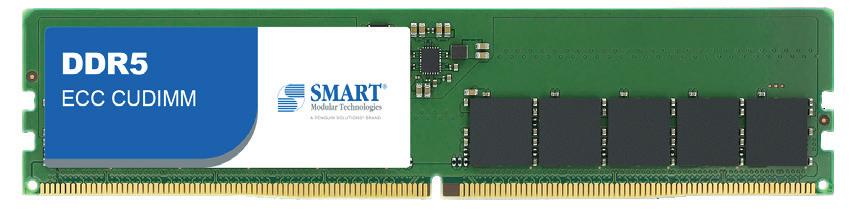

288-PIN - DDR5 ECC CUDIMM

ST6G7CD538J-HM

48GB

31.25

6G x72

3Gx8

6400MT/s

1.1V

0°C to +70°C

ST4G7CD528J-HA

32GB

31.25

4G x72

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR4G7CD528JHA

32GB

31.25

4G x72

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR4G7CD528JSQ

32GB

31.25

4G x72

2Gx8

6400MT/s

1.1V

0°C to +70°C

ST2G7CD528J-HA

16GB

31.25

2G x72

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR2G7CD528JHA

16GB

31.25

2G x72

2Gx8

6400MT/s

1.1V

0°C to +70°C

SR2G7CD528JSQ

16GB

31.25

2G x72

2Gx8

6400MT/s

1.1V

0°C to +70°C

288-PIN - DDR5 Non-ECC UDIMM SMART Part Number

Density

Height (mm)

Module Config

Comp Config

Speed

Voltage

Temp*

SR8G6UD5488HM

64GB

31.25

8G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR6G6UD5388-SP

48GB

31.25

6G x64

3Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G6UD5288-SE

32GB

31.25

4G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G6UD5288-SP

32GB

31.25

4G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G6UD5288-SQ

32GB

31.25

4G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

ST4G6UD5288-HA

32GB

31.25

4G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G6UD5288NA

32GB

31.25

4G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SRI4G6UD5288-SP

32GB

31.25

4G x64

2Gx8

5600MT/s

1.1V

-40°C to +85°C

SR3G6UD5388-SP

24GB

31.25

3G x64

3Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G6UD5288-SE

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G6UD5288-SP

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G6UD5288-SQ

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

ST2G6UD5288-HA

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G6UD5288NA

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G6UD5288SQ

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

0°C to +70°C

SRI2G6UD5288-SP

16GB

31.25

2G x64

2Gx8

5600MT/s

1.1V

-40°C to +85°C

SRMG6UD5M68-SP

12GB

31.25

1.5G x64

1.5Gx16

5600MT/s

1.1V

0°C to +70°C

SR1G6UD5168-SP

8GB

31.25

1G x64

1Gx16

5600MT/s

1.1V

0°C to +70°C

SRI1G6UD5168-SP

8GB

31.25

1G x64

1Gx16

5600MT/s

1.1V

-40°C to +85°C

* Reflects Operating Ambient Temperature

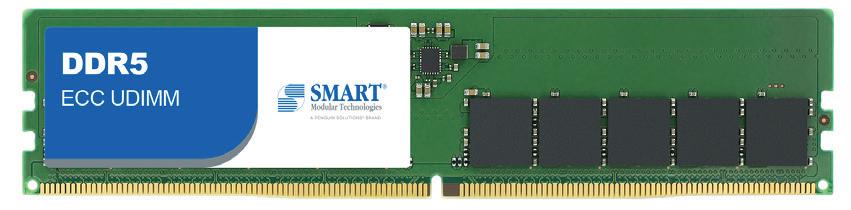

DDR5 Ordering Information 288-PIN - DDR5 ECC UDIMM SMART Part Number

Density

Height (mm)

Module Config

Comp Config

Speed

Voltage

Temp*

SR8G7UD5488ME

64GB

31.25

8G x72

4Gx8

5600MT/s

1.1V

0°C to +70°C

SR8G7UD5488HM

64GB

31.25

8G x72

4Gx8

5600MT/s

1.1V

0°C to +70°C

SR6G7UD5388HM

48GB

31.25

6G x72

3Gx8

5600MT/s

1.1V

0°C to +70°C

SR6G7UD5388MC

48GB

31.25

6G x72

3Gx8

5600MT/s

1.1V

0°C to +70°C

SR6G7UD5385HM

48GB

31.25

6G x72

3Gx8

4800MT/s

1.1V

0°C to +70°C

SR6G7UD5385MC

48GB

31.25

6G x72

3Gx8

4800MT/s

1.1V

0°C to +70°C

SRI6G7UD5385HM

48GB

31.25

6G x72

3Gx8

4800MT/s

1.1V

-40°C to +85°C

ST4G7UD5288-HA

32GB

31.25

4G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G7UD5288HA

32GB

31.25

4G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G7UD5288MH

32GB

31.25

4G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G7UD5288NA

32GB

31.25

4G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR4G7UD5288SQ

32GB

31.25

4G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

ST2G7UD5288-HA

16GB

31.25

2G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G7UD5288HA

16GB

31.25

2G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G7UD5288MH

16GB

31.25

2G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G7UD5288NA

16GB

31.25

2G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

SR2G7UD5288SQ

16GB

31.25

2G x72

2Gx8

5600MT/s

1.1V

0°C to +70°C

Temp*

* Reflects Operating Ambient Temperature

DDR4 Ordering Information 288-PIN - DDR4 Non-ECC UDIMM SMART Part Number

Density

Height (mm)

Module Config

Comp Config

Speed

Voltage

ST4096UD420825MF

32GB

31.25

4G x64

2Gx8

3200MT/s

1.2V

0°C to +70°C

STT4096UD420825MF

32GB

31.25

4G x64

2Gx8

3200MT/s

1.2V

-40°C to +85°C

ST2046UD410825GB

16GB

31.25

2G x64

1Gx8

3200MT/s

1.2V

0°C to +70°C

ST2046UD410825NH

16GB

31.25

2G x64

1Gx8

3200MT/s

1.2V

0°C to +70°C

STI2046UD410825NH

16GB

31.25

2G x64

1Gx8

3200MT/s

1.2V

-40°C to +85°C

ST1026UD451825NE

8GB

31.25

1G x64

512Mx8

3200MT/s

1.2V

0°C to +70°C

ST1026UD451825WR

8GB

31.25

1G x64

512Mx8

3200MT/s

1.2V

0°C to +70°C

ST1026UD410825GB

8GB

31.25

1G x64

1Gx8

3200MT/s

1.2V

0°C to +70°C

ST1026UD410825NH

8GB

31.25

1G x64

1Gx8

3200MT/s

1.2V

0°C to +70°C

STI1026UD410825NH

8GB

31.25

1G x64

1Gx8

3200MT/s

1.2V

-40°C to +85°C

ST5126UD451825NE

4GB

31.25

512M x64

512Mx8

3200MT/s

1.2V

0°C to +70°C

* Reflects Operating Ambient Temperature


DDR4 Ordering Information 288-PIN - DDR4 ECC UDIMM SMART Part Number

Density

Height (mm)

Module Config

Comp Config

Speed

Voltage

Temp*

ST4097UD420825MF

32GB

31.25

4G x72

2Gx8

3200MT/s

1.2V

0°C to +70°C

ST2047UD410825GB

16GB

31.25

2G x72

1Gx8

3200MT/s

1.2V

0°C to +70°C

ST2047UD410825NH

16GB

31.25

2G x72

1Gx8

3200MT/s

1.2V

0°C to +70°C

ST1027UD410825GB

8GB

31.25

1G x72

1Gx8

3200MT/s

1.2V

0°C to +70°C

ST1027UD410825NH

8GB

31.25

1G x72

1Gx8

3200MT/s

1.2V

0°C to +70°C

ST1027UD451825WR

8GB

31.25

1G x72

512Mx8

3200MT/s

1.2V

0°C to +70°C

STI1027UD410825NH

8GB

31.25

1G x72

1Gx8

3200MT/s

1.2V

-40°C to +85°C

ST5127UD451825NF

4GB

31.25

512M x72

512Mx8

3200MT/s

1.2V

0°C to +70°C

* Reflects Operating Ambient Temperature

For more information, please visit: www.smartm.com *Product images are for promotional purposes only. Labels may not be representative of the actual product.
