BATTERY-POWERED TOOLS - GREEN SPACES 2025 - 2026
THE PIONEER OF ELECTRIC POWER
+ MORE THAN
YEARS OF EXPERTISE in electrical technology AN INNOVATIVE GROUP DEDICATED TO PERFORMANCE
+1,300 PATENTS REGISTERED
1 ST
MANUFACTURER WORLDWIDE
to offer lithium-ion battery-powered tools for green space professionals AN INTERNATIONAL NETWORK
2,200 CERTIFIED DISTRIBUTORS WORLDWIDE
60
DISTRIBUTOR COUNTRIES
48 AWARDS a testament to the excellence of the products in the battery-powered tools range
MORE THAN 50 YEARS OF INNOVATION
1973 FOUNDING OF THE COMPANY
*For the product range intended for green space maintenance
21 SUBSIDIARIES
PELLENC INDUSTRIAL PERFORMANCE
was awarded the "Showcase of the Future" label and the "Trophées des Usines Productivity Prize" in 2018. PELLENC has also benefited from the "France Relance" ("France Relaunch") investment plan, which aims to transform French industry by automating non-value-added tasks and optimising production line flows.
10 YEARS
AVAILABILITY OF SPARE PARTS FOR BATTERY-POWERED TOOLS
AWARDED 2 LABELS
SHOWCASE OF THE FUTURE AND LONGTIME
DURABILITY & REPAIRABILITY
Extending the life of products is essential to reducing their environmental impact. PELLENC has been developing durable, robust and repairable machines for many years. Going beyond the regulations, PELLENC fights against programmed obsolescence and respects the environment. Since 2023, several of its products have been LONGTIME® certified, the first European label for products designed to last. PELLENC is the first manufacturer of professional tools, motors and batteries to receive this label.
RECYCLING
Waste management will be a major issue in the coming years. With natural resources becoming depleted, we must move towards increased utilisation of secondary raw materials from recycling.
You have a responsibility to contribute to recycling at your point of sale, and to make sure you properly manage the storage and collection of your batteries and tools at the end of their lives.
As a distributor of Pellenc and other brands of electrical equipment, consider outfitting yourself with storage and transport facilities for your batteries, such as those made available by the French agency SCRELEC.
From 1 January 2022, the management method of the WEEE eco-tax will change: the eco-tax will no longer be charged to the user customer but only to the manufacturer. The eco-organisations are responsible for organising their collection.
Contact your local eco-organisation to arrange for the collection of your equipment. There is an eco-organisation for the recovery of tools and batteries in each country.
ECO-ORGANISATIONS FOR THE RECOVERY OF BATTERIES AND ACCUMULATORS:
GRS - Batterien in Germany
BEBAT in Belgium
COBAT in Italy
SCRELEC in France
STIBAT in the Netherlands
INOBAT in Switzerland
HOW DOES IT WORK?
COLLECTION
In France, for example, simply make an equipment collection request and SCRELEC will appoint a carrier to pick up the collected batteries or tools within 15 working days.
The storage containers are then sent to a collection centre and then to a recycling/recovery centre.
ECO-ORGANISATIONS FOR THE RECOVERY OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE):
RIGK in Germany
CIRMI in Italy
RECUPEL in Belgium
ECOLOGIC in France
VERENIGING ICT in the Netherlands
SWICO in Switzerland
REMOVAL REQUEST
PICK-UP
COLLECTION CENTRE
OVER 30 YEARS OF EXPERIENCE IN BRUSHLESS MOTORS
BRUSHLESS motors wholly manufactured by PELLENC are highly efficient and extremely robust. Efficiency is the ratio between the output power and the energy drawn from the battery.
BATTERY OPTIMISATION
Heat is wasting power capacity unnecessarily. PELLENC provides 8% (=15%-7%) of additional motor efficiency capacity, which lets the user keep working for longer.
BATTERIES
PELLENC EXPERTISE
POWERFUL
Best integrated capacity/weight ratio
MULTIFUNCTION
Compatible with all PELLENC tools since they were first manufactured
ECO-FRIENDLY
Zero CO2 emissions
80% recyclable battery
DURABLE
The leading service life on the market, with 80% of initial capacity after 800 or 1,300 complete cycles, depending on the range
HARDY COMPACT
SERVICE LIFE: PELLENC AND LITHIUM-ION POWER
1. New cells that are highly resistant to charging and discharging cycles
At the heart of the battery, the lithium-ion cell was chosen for its available energy capacity and its service life. The cells are sensitive to the level of charge: too low a charge and the cells die, too high a charge and they become unstable.
2. High-performance electronic management
Charging must stop before one of the cells becomes unstable. The other cells will not necessarily be fully charged, and the capacity will be reduced.
High-quality lithium-ion cells, ultra-compact assembly system
Electronic charge and discharge control board inside a waterproof casing
Natural ventilation system to continuously deliver more power
5 YEARS OF UPSTREAM TESTING
in harsh usage conditions by PELLENC before market release.
BALANCE SYSTEM
A high-performance electronic management and balancing system that guarantees balanced charging of all the battery cells.
Weldless connections
MULTIFUNCTION
RANGE** CULTIVION
SELION 12
SELION C21 HD AND TELESCOPIC EXCELION 2 2+2-YEAR WARRANTY *
SELION TELESCOPIC
*Offer valid for up to 3 years from the date of commissioning of the tool and annual servicing, with service invoice/repair order and battery diagnosis to be provided. **Compatible with a connector.
3. Cell assembly
The assembly of the cells affects the life of the batteries. They must withstand the vibrations and impacts inherent to professional use.
4. Batteries that last - accurate diagnostics and repairability
An annual diagnostic is recommended for proper maintenance of professional equipment and appropriate recommendations for use.
WELDLESS CONNECTOR PROCESSES
Weldless, suitable for professional use.
REPAIRABILITY
Our professional batteries are repairable and built to last, in contrast to the concept of programmed obsolescence.
A BATTERY OF ADVANTAGES
FEATURES
(without harness)
Quick charge to 100% 7.6 Ah Quick charger
ACCESSORIES
STORAGE BOX
Storage box that can carry, for example, one or more batteries + 1 charger.
CHARGING DOCK
Ref.: 118544
The harness lets the user carry ALPHA batteries on their back and so power other PELLENC tools. Weight: 1.4 kg (3.1 lbs).
56 57194
Wall kit for recharging ALPHA batteries.
Comfort harness for the 750, 1200, and 1500 batteries that can be adapted to the 700 and 1100 batteries using an adapter plate. Weight: 1.5 kg (3.3 lbs).
Ref.: 56 57183
PLATE
Adapter plate for the 700 or 1100 battery on the comfort harness.
Specifically developed for the 750 battery and its featherlight weight. Without a belt, for more comfortable pruning. Weight: 0.8 kg (1.8 lbs).
Ref.: 56 57257
* On slow or quick charging. ** On slow charging only.
COMFORT HARNESS
ALPHA HARNESS
ALPHA
ADAPTER
750 HARNESS
power converter
CONVERTER
BATTERY LIFE
• Autonomy on all work sites
• Uses the power of PELLENC batteries
MULTIFUNCTION
- Compatible with mains-operated tools and appliances ≤ 1,000 W (drill, disc, etc.)
• Compatible with all PELLENC batteries
FEATURES
OR QUICK CHARGERS
A RANGE OF MULTIFUNCTION BATTERIES

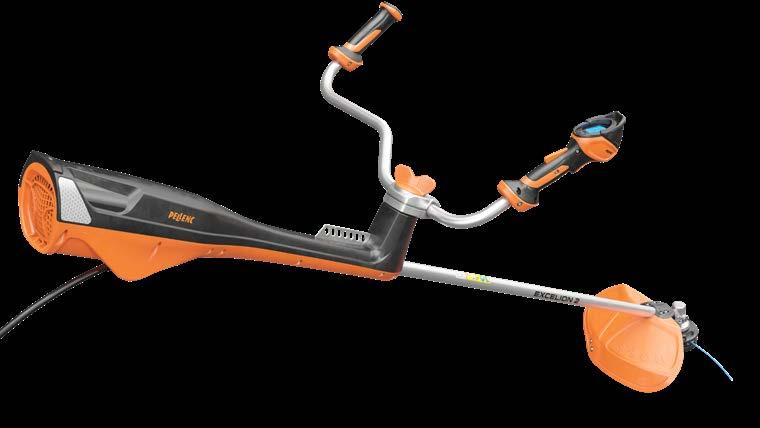

EXCELION 2 & EXCELI ON ESSENTIAL brush cutters
EXCELION 2 & EXCELI ON ESSENTIAL brush cutters
AIRION 3 & AIRION ESSENTIAL Blowers
EXCELION 2 & EXCELION ESSENTIAL brush cutters
AIRION 3 & AIRION ESSENTIAL blowers
EXCELION 2 & EXCELION ESSENTIAL brush cutters
AIRION 3 & AIRION ESSENTIAL blowers
ALPHA grass cutter

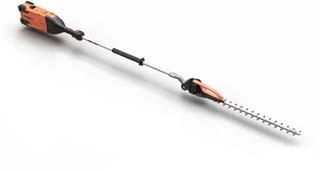

HELION 3, HELION ESSENTIAL & HELION ALPHA hedge trimmer
ALPHA grass cutter
HELION 3, HELION ESSENTIAL & HELION ALPHA Hedge trimmer
HELION 3, HELION ESSENTIAL & HELION ALPHA hedge trimmer
EXCELION ALPHA grass cutter AIRION 3 & AIRION ESSENTIAL blowers
HELION 3,HELION ESSENTIAL & HELION ALPHA hedge trimmer
*Overall working time for average professional use. This time includes tool stoppages inherent to the job. Theoretical data that depends on the numerous parameters: type and condition of the work, type of plant growth, type of wire and speed selected.
CONNECTION TABLE
BATTERY - TOOL CONNECTION TABLE
RASION EASY 2 & SMART 2
ul i b 750
BATTERY
ERGONOMIC
• Lightweight <4.5 kg (9.9 lbs).
• 166 Wh/kg, (396 Wh/lbs), an exceptional capacity-to-weight ratio.
• Ultra compact - pruning.
• Easy Clip system, double safety attachment - pruning.
• Backlit display with menu, battery life to the nearest %.
• Night visibility.
DURABLE
• 80% of their initial capacity after 1,300 charging cycles (i.e. 1,300 full charges/discharges);
• Stacked assembly of high-quality lithium-ion cells;
• Retrieved, 80% recycled, and recovered by competent eco-organisations.
FEATURES
Weight without harness - kg/lbs 4.5 / 9.9
Compatible chargers 2.2 A
Recharging to 100% 9 hrs.
*Offer valid for up to 3 years from the date of commissioning of the tool and annual servicing, with service invoice/repair order and battery diagnosis to be provided. Limited to 500 hrs. / year of use or 150 cycles / year.
**Rate corresponding to the cost of €0.14 excl. tax/kWh in France.
WATERPROOF BATTERY WITH IP 54 SEALING 2+2-YEAR WARRANTY*
PRODUCTIVE
• 745 Wh for 17.25 Ah and 43.2 V.
• Battery life: 2hrs. 30 min. with the RASION 2 range of mowers; up to 30 days with a HELION 2 hedge trimmer.
• IP54 protection rating against dust and water ingress sealing, allows working in the rain.
COST EFFECTIVE
• Daily cost €0.11 (excl. VAT)**.
• Over a duration of 1,300 cycles, work equivalent to 2,800 litres (740 gallons) of petrol.
ACCESSORIES AVAILABLE AS AN OPTION ALL BATTERIES ARE SOLD WITHOUT A CABLE OR CHARGER.
Quick connector cable. REF. 56 57238
Adapter for quick connector cable. REF. 56 57262
2.2 A charger. REF. 56 57256
Essential Range connector. ULiB backpack battery adapter. REF. 57355 ULiB 750
3.3 A charger REF. 56 57283
Universal 7.6 A quick charger. REF. 56 57258
Tool connector with protected contacts
Stacked assembly of lithium-ion cells for greater compactness
Ultra-slim battery
Ergonomic handle, easy to transport
Quick-clip system on the harness
Upper on/off button
Charging
Backlit battery display with hour counter for each type of tool
Lower ON/OFF button
Double safety attachment specially designed for pruning work
Reversible battery
Tool connection at the top or the bottom
PELLENC PATENT
ul i b 1200 & 1500
BATTERIES
ERGONOMIC
• 198.8 Wh/kg (438.3 lbs.), the best on-board capacity-toweight ratio on the market (ULiB 1500).
• 1,491 Wh for only 7.5 kg (16.5 lbs.) (ULiB 1500).
• Backlit display with menu, battery life to the nearest %.
• Night visibility.
DURABLE
• 80% of their initial capacity after 1,300 cycles (one cycle = one complete charge/discharge).
• Ultra-compact assembly system for high-quality lithium-Ion cells.
• Retrieved, 80% recycled, and recovered by the competent eco-organisations.
Innovation Award, SMCL Exhibition for French Mayors and Local Authorities 2017 Sustainable Development Award, Paysalia Trophies 2017 Innovation Award, SETT d'or 2017 X3
FEATURES
*Offer valid for up to 3 years from the date of commissioning of the tool and annual servicing, with service invoice/repair order and battery diagnosis to be provided. Limited to 500 hrs. / year of use or 150 cycles / year.
**Rate corresponding to the cost of €0.14 excl. tax/kWh in France.
WATERPROOF BATTERY WITH IP 54 SEALING 2+2-YEAR WARRANTY*
PRODUCTIVE
• 1,491 Wh for 34.5 Ah and 43.62 V.
• 1,221 Wh for 28 Ah and 43.62 V.
• Battery life: 5 hrs with the RASION 2 range of mowers;
> 3 days with a HELION 3 hedge trimmer.
• IP54 protection rating against dust and water ingress sealing allows working in the rain.
COST EFFECTIVE
• Daily cost €0.21 (excl. VAT)**.
• Over a duration of 1,300 cycles, work equivalent to 7,000 litres (1,849 gallons) of petrol.
ACCESSORIES
AVAILABLE AS AN OPTION ALL BATTERIES ARE SOLD WITHOUT CABLES OR CHARGERS.
Quick connector cable. REF. 56 57238
Adapter for quick connector cable. REF. 56 57262
3.3 A charger REF. 56 57283
Universal 7.6 A quick charger. REF. 56 57258
Essential Range connector. ULiB backpack battery adapter. REF. 57355
Quick-clip system on the harness
Tool connector with protected contacts
Ultra-compact cell assembly system
Sealed ventilation system
Lower ON/OFF button
Upper on/off button
Charging
Easy Clip system:
Clip on and release the battery with one hand
Battery display
• % charge remaining
• Charging in progress/ completed
• Hour counter for each type of tool
Reversible battery on comfort harness
Tool connection at the top or the bottom
Natural 360° ventilation
PELLENC PATENT
PELLENC PATENT
ALPHA 260 & 520
BATTERIES
POWERFUL
• Keeps powerful tools running with high-capacity Lithium-ion cells: - 260 Wh for 6 Ah and 43.2 V. - 520 Wh for 12 Ah and 43.2 V.
ERGONOMIC
• Connect to tools with a single clip click — switch it on and it’s ready to go.
FEATURES
Charging time - hrs.
2.2 A charger (70 % /
3.75 A charger (70% /
A Quick Charger (70% /
service life: number of charge cycles**
with tools
ADAPTABLE
• Batteries integrated into tools and adaptable to backpack battery solutions to power other PELLENC tools.
BATTERY
LIFE
• Long battery life and durability in this integrated solution for professionals.
excluding RASION and EXCELION
*Offer valid for up to 3 years from the date of commissioning of the tool and annual servicing, with service invoice/repair order and battery diagnosis to be provided. Limited to 350 hrs. / year of use or 100 cycles/year.
**At PELLENC, the number of cycles corresponds to the time when a maximum of 80% of charge capacity remains.
WATERPROOF BATTERY WITH IP 54 SEALING 2+2-YEAR WARRANTY*
ACCESSORIES AVAILABLE AS AN OPTION
2.2 A charger.
REF. 56 57256
Universal 7.6 A quick charger. REF. 56 57258
ALPHA harness (weight: 1.4 kg (3.1 lbs) without cord).
REF. 56 57194
Quick connector cable for the ALPHA Harness.
REF. 56 57248
Charging dock: wall kit for charging.
REF. 56 57278
ALPHA batteries can also be used to power the other tools in the green spaces range.
ALPHA harness REF. 56 57194
RANGE OF ON-BOARD BATTERIES
ul i b 200E & 400E
BATTERIES
ERGONOMIC
• Quick, clear view of charge level;
• Easy to clip onto the tool.
HIGH-PERFORMANCE
• ULiB 200E: the perfect compromise between weight and power.
• ULiB 400E: offers high capacity.
HEAVY DUTY
• Guaranteed reliable, long-lasting use.
POWERFUL
Powering of powerful tools with high-capacity lithium-ion cells:
• 189 Wh for 4.4 Ah and 43.2 V.
• 389 Wh for 12 Ah and 43.2 V.
FEATURES
6A Quick Charger
REF. 57335
Essential Range connector. ULiB backpack battery adapter. REF. 57355
Communication diag.
RANGE OF ON-BOARD BATTERIES
Charge level indicator in 25% increments
button
6A QUICK CHARGER
Possibility of daisy-chaining chargers for simultaneous fast charging of up to 8 batteries
Easy Clip system:
One-handed clipping and unclipping of the battery.
ergonomic harnesses
BATTERY CARRYING
ERGONOMIC
• Comfortable.
• Intuitive adjustment.
• Adaptable to all body types and ways of working.
FEATURES
HEAVY DUTY
• Designed for intensive professional use.
Battery compatibility 750, 1200, 1500. With adapter plate: 700, 1100 750 260, 520
Harness adapter kits AIRION 3 strap and EXCELION 2 carrying strap
PATENTED
Designed in partnership with extreme hiking professionals
ACCESSORIES AVAILABLE AS AN OPTION
Carrying strap for AIRION 3
REF. 137018
EXCELION 2 DH & 2000
CONFORT (comfort) harness.
REF. 135500
700 or 1100 battery adapter plate for the CONFORT (comfort) harness.
REF. 139091
Quarter turn clip for cord.
REF. 133621
CONFORT (comfort) harness extension kit.
REF. 152778
Adjustable battery height. 7-level lever for all body types and all types of work
6. Stand for holding the harness upright
8. Ultra-thick belt with quick-release mechanism to adjust the weight of the battery on the hips
9. Back adjustment (CONFORT harness) Rotating pivot between shoulder blades: shoulders are free, battery remains secure
1. Holder for interchangeable right and left loop or quick connector
2. Return strap for holding the battery securely on the back
3. Reversible chest strap compatible with the brush cutter PELLENC PATENT
4. Extension strap
7. Ultra-thick X-shaped belt with quick tightening/loosening PELLENC PATENT
5.
CHARGING STATION
BATTERY MANAGEMENT SYSTEM
OPTIMISED TIME
• Centralises battery management.
• Continues or defers battery charging.
• User-friendly touchscreen interface.
• Quick visualisation of the battery charge level*.
CONNECTIVITY
• Customisable dashboard: petrol prices, exchange rates, etc.
• Several charging stations can be connected together.
• Statistical data sent by email (over Wi-Fi).
SAFETY
• Neat battery charging area.
• No power strips.
FEATURES
Capacity 10 battery chargers (including 2 quick chargers)
Dimensions (L x H x W) - cm/in.
Weight without charger - kg/lbs.
Weight with 10 chargers - kg/lbs.
x 98 x 39 / 32 x 39 x 15
/ 165
/ 198
COST EFFECTIVE
• 10 batteries can be charged simultaneously—including 2 at maximum speed - during off-peak hours.
ACCESSORIES AVAILABLE AS AN OPTION 2-YEAR WARRANTY
Holder kit for the 400 battery, including clips, for wall mounting.
REF. 135162
Holder kit for the 750, 1200, or 1500 batteries for wall mounting.
REF. 135161
ALPHA charging dock: wall kit for charging.
REF. 56 57278
* Some "old generation" batteries, known as "non-communicating" batteries, do not allow the feedback of information such as the battery charge rate in the app.
Viewable data:
Actual consumption of the cabinet.
Savings in CO2 compared to a petrol-driven tool.
Savings in euros (€) compared to a petrol-driven tool.
Manual sending of the charge report by e-mail via Wi-Fi.
Real-time battery management:
Charge one or more batteries. Put one or more batteries on deferred charging. Pause charging.
Maintain the charging of one or more batteries.
SECURION
YOUR BATTERIES CHARGED IN COMPLETE SAFETY SAFETY
• Up to 40 ULiB 750 batteries (or smaller models) can be stored in SECURION XL.
• Protection of the equipment contained in the cabinet in case of fire.
• Locking of doors in the event of fire inside the cabinet.
• Cylinder lock for secure access with strong locking system.
FEATURES
Application
Secure storage of lithium-ion batteries
Fire-resistance class F90 (90-minute fire resistance)
Standards NF EN 14470-1, NF EN 16121, NF EN 16122 and NF 31000
Protection from damage VdS3103
Certifications GS (safety certified)
Exterior and doors
Powder-coated sheet steel (RAL 9001), backflow protection
Interior High-quality panels (RAL 7035), retention container on the floor
*16 NO SPLIT power outlets (4 on the right-hand side of each cabinet/32 SPLIT power outlets (on the left-hand and right-hand sides of each cabinet).
**4 NO SPLIT storage cabinets/8 SPLIT storage cabinets.
MORE THAN JUST A CABINET:
THE ADVANTAGES OF PELLENC
The doors close automatically in case of fire inside or outside the cabinet.
Thermocouple temperature sensors on the central partition with thermal insulation for each level.
CHARGING STATION
XL SECURION M SECURION S
AVAILABLE AS AN OPTION
LOCKABLE COMPARTMENTS
For secure access all compartments are individually lockable in addition to the central door.
SEVERAL MODELS ADAPTED TO YOUR NEEDS
• SECURION PRO STANDARD M/XL: fireprotection storage compatible with the CHARGING STATION.
• SECURION PRO STATION M/XL: fireprotection storage compatible with the CHARGING STATION. Integrated 230 V sockets on the first two levels, vertically separated. Smart box and/ or individually lockable compartments optional.
• SECURION 230 V S/M/XL: fire-protection storage with integrated 230 V sockets on the first two levels. Smart box optional.
• SECURION 400 V M/XL: fire-protection storage with integrated 230 V sockets on the first two levels. Smart box and vertical separation optional.
• The S model can hold up to 4 ULiB 250 batteries, the M model up to 20 ULiB 750 batteries and the XL model up to 40 ULiB 750 batteries.
Depending on the model, charging cable passages with stainless steel tube. Earthing connection on top of the cabinet.
NW 75 air outlets with connector for connecting the cabinet to an air evacuation duct.
On PRO models, charging cables run directly into each compartment via the walls.
1 perforated sheet steel floor retention tray.
Rasion 2
RANGE OF PROFESSIONAL MOWERS
PRODUCTIVE
• Perfect mowing with dual blades.
• Cutting width: 60 cm/24 in.
• IP54 protection rating against dust and water ingress sealing allows working in the rain.
BATTERY LIFE
• Up to 5 hours of mowing or 5,400m2/58,125 ft2 with the 1500 battery.
ACCESSORIES AVAILABLE AS AN OPTION
Cable for connecting the 400, 700, or 1100 battery to the RASION EASY 2 and SMART 2.
REF. 56 57245
Holder kit for 750, 1200 and 1500 BATTERIES (as standard).
REF. 135161
Holder kit for the ALPHA 260, 520 batteries.
REF. 57278
WATERPROOF TOOL 2-YEAR WARRANTY
DURABLE
• No petrol management/consumption.
• Makes it possible to work in populated areas at any time of day.
ERGONOMIC
• Quiet: 93 dB at max. power;
• Extremely low vibration rate: 0.7 m/s2 (2.3 ft/s2).
• Ease of handling: Zero Turn.
• Light: less than 30 kg/66 lbs.
• Easy adjustment of the cutting height.
Adapter plate for the 700 and 1100 batteries.
REF. 139091
Holder kit for the 400 battery, including clips.
REF. 135162
Mulching kit.
REF. 57154
RASION universal/mulching blades kit.
REF. 134104
RASION collection blades kit (as standard on Rasion Easy 2 and Smart 2).
REF. 131404
RASION suction blades kit, extreme mowing for dense, heavy, and wet grass. (available as an option on all models).
REF. 160427
THE ADVANTAGES OF PELLENC
Silent wheel motor
Directly driven brushless wheel motor. 91 dB at cutting speed 3 and 93 dB at maximum power.
Optimised automatic unblocking system
Reverse rotation of the blades. Allows excess grass to be removed from the cover while keeping the mower running.
Heat dissipation
IMS circuit board* derived from LED technologies. Increases the electronic capacity and improves heat exchange, while extending the limits of the machine.
Easy handling
The Zero Turn assisted handling system making it easy to turn 180° thanks to the front swivel wheels and the reverse rotation of the rear wheels.
40 mm (1.6 in.) non-slip and notched front single wheels facilitating stability and smooth operation.
2 front-wheel locking positions: free-turning or guided steering for help in managing slopes.
Reinforced front wheel locking.
Cutting adjustment
Centralised cutting height adjustment: manual or electronic from 25 to 75 mm (1.0 to 3.0 in.).
Compact
Storage and cleaning position.
ICC** infra-red plant growth detector.
*Insulated Metallic Substrate
**Intelligent Cutting Control - PELLENC patent
“THE LIGHTEST PROFESSIONAL MOWER”
Cutting width
60 cm / 24 in.
Flexible collection bin 70 L / 18 gal
Weight without battery or bin 28 kg / 62 lbs. 30 kg / 66 lbs.
Battery life with the ULiB 1500 battery 5,400 m2 / 58,125 ft²
Maximum cutting power 1,600 W
Guaranteed sound power level - (LWA)** - dB(A) 93 dBA
Sound pressure level (LpA)* - dB(A) 83.5 dB
Vibrations (ah)* 0.7 m/s² / 2.3 ft/s²
Collecting blades as standard 2
Blade speeds 4 or 3 + ICC*** available as an option 4(4+1 ICC***)
Rotational speed of the blades 3,000 – 5,000 rpm
ICC* infrared plant growth detector Available as an option Yes
Boost --> 5,000 rpm Yes
6 cutting heights
25/35/45/55/65/75 mm / 1.0/1.4/1.8/2.2/2.6/3.0 in.
Centralised height adjustment Manual Electronic
Mulching kit Available as an option
Ground speeds Self-propelled 2/3/4/5 km/h / 1.2/1.9/2.5/3.1 mph
Front wheel locking Free or locked position
Housing Cast aluminium
LED display No Yes
Zero Turn Yes
Immobiliser in vertical position Yes
Automatic unblocking mode Yes
Parking brake Manual Electric (Semi-Automatic)
IP54 Yes
COMPARISON * Noise and vibration measurements in accordance with standard EN 60335-2-77. ** In accordance with Directive 2000/14/EC. *** Smart Cutting Control.
Rasion Smart 2
SELF-PROPELLED MOWER
Reverse gear
Electronic display: LCD screen
Electronic adjustment of the cutting height and parking function
Boost function activated by double-pressing on the left handle
Mono-arm
Rasion Easy 2
SELF-PROPELLED MOWER
Handlebar function
Boost function activated by pressing twice
ICC* plant growth detector (available as an option on the EASY 2)
Reinforced front wheel locking for improved mowing on slopes
Zero Turn
Manual adjustment of the cutting height and parking function * Smart Cutting Control - PELLENC patent
metallic substrate
IMS circuit board** derived from LED technologies. Increases the electronic capacity and improves heat exchange, extending the limits of the machine
PELLENC PATENT
EXCELION ESSENTIAL
BRUSH CUTTER
HIGH-PERFORMANCE
• 460 mm (18 in) cutting diameter.
• Rotational speed of 5,400 rpm.
PRECISE
• 3 cutting speeds for perfect adaptation to different types of work.
• TAP CUT 3 cutting head combined with PELLENC 2.4 or 2.7 mm (0.09 and 0.11 in) wire for a clean, even cut.
ERGONOMIC
NEW
2-YEAR WARRANTY WATERPROOF TOOL
• PERFECT BALANCE with the ULiB 400E battery.
• Adjustable handle for comfortable working.
• HMI with LED display for agile control.
ADAPTABLE
• Compatible with ULiB PELLENC backpack batteries via a connector.
ESSENTIAL DH Double handle EXCELION ESSENTIAL LH Loop handle
FEATURES ACCESSORIES AVAILABLE AS AN OPTION
Weight with casing and TAP CUT 3 - kg/lbs. 5.9 / 13.01 4.9 / 10.80
Weight with ULiB 200E battery - kg/lbs. 7.3 kg / 16.09 6.3 kg / 13.89
Weight with ULiB 400E battery - kg/lbs. 8.4 / 18.52 7.4 / 16.31
Autonomy with ULiB 400E battery 30 min. to 2 hrs.
Max. power – W 1,200
Rotation (3 speeds) - rpm 5,400 (speed 3)
Tangential speed - m/s (ft/s) 130 (427)
Cutting wire Ø - mm/in. 460 / 18.1
Wire Ø - mm/in.
2.4/0.09 as standard and 2.7/0.11
TAP CUT 3 Included
Connector to back backpack battery
Yes
PELLENC cutting wire 2.4 and 2.7 mm (0.09 and 0.11 in.)
REF. 159892 / 159895 / 159893 / 159894
ULiB backpack battery adapter. REF. 57355
BRUSHCUT WITHOUT LIMITS
Handle adjustment
Carrying eyelet
EXCELION ESSENTIAL DH
Protective bumpers
HMI PELLENC LEGACY
• Battery charge percentage
• Back-lighting
• ON/OFF button
• Speed change button
• Alerts info Integrated
EXCELION ESSENTIAL LH
Professional-grade, aerodynamic, corrugated cutting wire for a clean, even cut. High heat resistance: 260° C/500° F.
3 cutting head Progressive trigger Safety casing Planetary gear
EXCELION ESSENTIAL comes with its TAP CUT 3 cutting head + low bowl.
TAP CUT
excelion 2
BRUSH CUTTER
PRODUCTIVE
• A surprising level of power in an electric brush cutter, 6,600 (with chopping blade).
• Ultra-resistant, non-stick cutting wire.
• TAP CUT 3, suitable for intensive work, metal insert to reinforce the base.
SMART MANAGEMENT
• Real-time information.
FEATURES
MULTIFUNCTION
• From green space maintenance to brush clearing.
• Smart motor control and cutting heads adapted to a wide range of worksites.
ERGONOMIC
• 30% lighter than an equivalent petrol brush cutter.
• Perfectly balanced, ultra-efficient.
EXCELION 2 DH Handlebar handle
Cutting diameter wire - mm/in. 420 / 17
Cutting diameters
chopping blade / blades / saw - mm/in.
EXCELION 2 LH Loop handle
290/320/230 / 11/13/9
Weight (with TAP CUT 3 + safety casing, without cable) - kg/lbs. 6.5 /14.3
Weight (with TAP CUT 3, without safety casing, without cable) - kg/lbs.
/12.1
Rotational speed - rpm 1 = 3,000 / 2 = 4,200 / 3 = 5,400 / 4 = 6,600 BOOST
Max. wire diameters - mm/in. Ø 2.4 to 3 / Ø 0.09 to 0.12
Interchangeable heads / blades adaptable blades on cups TAP CUT 2 & 3, CITY CUT, mulching kit with high cup + chopping blade, sawing kit + saw, tri-blade or twin blade + low cup
Carrying kit for the harness Included
TAP CUT 3 semi-automatic cutting head Included
Low cup compatible with tri-blade and twin blade Included
ACCESSORIES 2-YEAR WARRANTY AVAILABLE AS AN OPTION
PELLENC cutting wire 2.4 and 2.7 mm (0.09 to 0.11 in.).
REF. 159892 / 159895 / 159893 / 159894
Mulching kit (protective shield + high cup).
REF. 53 57277
Sawing kit (planetary gear + cover + special sawing cup).
REF. 53 57275
Saw, chopping blade, tri-blade, twin blade.
REF. 111700 / 158491 / 158489 / 158490
TAP CUT 2 semi-automatic wire head.
REF. 53 57218
Quick connector cable for ULiB 750, 1200, 1500.
REF. 56 57238
For ALPHA 520, 260.
REF. 56 57248
For ULiB 700, 1100.
REF. 56 57237 + 57262
CONFORT (comfort) harnes
REF. 56 57183
TRIED AND TESTED POWER
Carrying eyelet
Handle adjustment
Safety throttle
ERGONOMIC
SMART HANDLE
Safety throttle
Smart handle
Throttle trigger
Smart handle
Throttle trigger
Professional-grade, aerodynamic, corrugated cutting wire for a clean, even cut. High heat resistance:
The EXCELION 2 is delivered with the TAP CUT 3 cutting head + low bowl.
Planetary gear
Interchangeable cutting head
Safety casing
A Speed selection paddle and Boost trigger + ➎ Speed limiter
B Rear trigger for progressive and responsive acceleration
C Quick menu access button
At a glance
➊ Current speed setting (4 speeds)
➋ Remaining battery life in hours/ minute or %.
➌ Power bar graph
➍ Energy saving info < 500 W
Alerts
➏ After-sales service maintenance message
➐ ”Fault” alert
➑ Screen lock
Control options
Quick connector for quick connection and disconnection of the tool to the battery.
Boost triggered
Speed limiter triggered
A CUTTING HEAD FOR EACH USE
EXCELION 2 is supplied with a universal angle transmission, a TAP CUT 3 cutting head, a low bowl (for tri- or twin-blade blades not included), and a straps kit.
BRUSH CLEARING WEEDING
Dense grass and vegetation
Semi-automatic wire strimmer head
Ref. 53 57276
Semi-automatic wire strimmer head
Ref. 53 57218
wire
2.7 mm / 280 m (0.11 in. /917 ft.)
tie band - Ref. 159892
2.7 mm / 63 m (0.11 in. / 207 ft.)
cuttings guard - Ref. 159895
2.4 mm / 347 m (0.09 in. / 1,138 ft.)
tie band - Ref. 159893
2.4 mm / 70 m (0.09 in. / 230 ft.) cuttings guard - Ref. 159894
No scattering of debris on loose gravel, stabilised, or coated surfaces
38
Ref. 53 57098
Mulching kit high cup + protective shield (blade not included)
Ref. 57277
Sawing kit special sawing bowl, angle gear, 200 mm (8 in.) aluminium safety casing (blade not included)
Ref. 57275
Ø 290 mm (Ø 11 in.) -Ref. 158491
Ø 230 mm (Ø 9 in.) - Ref. 111700
TRIMMING
cup
139502 - As standard
152042 - As standard
158489
Low
Strimmer
Standard safety casing
Tri-blade Twin blade
Mulching blade
Chisel-tooth disc blade
Ref.
Ref.
Tall grass, bushes. Brush or bushes Brush or bushes
city cut
WEEDING HEAD
SAFE
• No dangerous scattering of debris: can be used in populated areas.
• Does not damage urban infrastructure.
• Does not harm plants.
• Avoids the creation and inhalation of dust.
FAST
• Quick switching from one cutting head to another.
FEATURES
Weight - kg/lbs.
Cutting diameter (Ø mm/in.)
Tool compatibility
R & D
Unique counterrotating technology.
PRODUCTIVE
• 400 linear metres (1,312 linear feet)/hour of weeding.
• Use in eco mode.
• Flexible head for more efficient work.
• Durable blades.
Certificate for low debris scattering issued by KWF, a German laboratory.
1.6 / 3.5
230 / 9
EXCELION 2 - Excelion 2000
Spacer (for EXCELION 2) Included
ACCESSORIES AVAILABLE AS AN OPTION
CITY CUT Blades Kit. REF. 118270
UNIQUE COUNTER-ROTATING TECHNOLOGY
COMPATIBLE WITH EXCELION 2000, EXCELION 2DH, AND EXCELION 2LH
Interchangeable heads for the EXCELION 2 range
THE TECHNOLOGY LIMITS THE SCATTERING OF DEBRIS
CITY MODE adapted speed
The counter-rotational movement and shape of the blades protect urban infrastructure, as well as nearby cars and plants
EXCELION ALPHA
GRASS CUTTER
WATERPROOF TOOL 2-YEAR WARRANTY
FAST
• Provides a cutting diameter of 400 mm and up to 6,400 rpm with 3 mm (0.1 in.) wire.
ERGONOMIC
• Carrying strap with position holding.
FLEXIBLE
• The ALPHA range can use PELLENC integrated or backpack batteries.
FEATURES ACCESSORIES AVAILABLE AS AN OPTION
EXCELION ALPHA
Max. power - W 900
Weight (excluding cutting tool, casing, and battery) - kg/lbs. 2.5 / 5.5
Weight (complete tool with ALPHA CUT and and safety casing, without battery) - kg/lbs. 3.1 / 6.8
Max. rotational speed - rpm 3 speeds: 4,000 / 5,800 / 6,400
Cutting diameter with ALPHA CUT - mm/in. Ø 400 (Ø 16)
Loading trimmer line with ALPHA CUT - Ø 2.4 and Ø 3mm (Ø 0.09 and Ø 0.11 in.) 3.5 m / 11.5 ft.
Progressive trigger
Cutting heads
*Battery life with the 260 battery 40 min. to 1 hr. 45 min.
*Battery life with the 520 battery 1 hr. 30 min. to 3 hrs. 30 min.
Total tool length (battery > cutting head) - cm/in. 189 / 74
Carrying strap Included
* Total working time for average professional use. This time includes the tool stops inherent to the work.
ALPHA W26 counterweight. Weight 2.6 kg/5.7 lbs. The counterweight can be clipped on in place of the Alpha battery so that another PELLENC battery (e.g. the 1200) can power a tool.
REF. 56 57195
Quick connector cable 750, 1200, 1500 + Plate.
REF. 56 57238
Quick connector cable 400, 700, 1100 + Plate.
REF. 56 57237
ALPHA batteries can also be used to power the other tools in the green spaces range.
ALPHA harness REf. 56 57194
A SIMPLE AND FAST TOOL TO GET THE JOB DONE
Remaining battery life display and tool start-up
Carrying strap on the shoulder with a pectoral support that prevents neck strain
Adjustable and reversible round handle, towards or away from the user
*Insulated Metallic Substrate
For mowing tall grass, embankments, ditches, finishing work Motor + IMS* circuit board with increased heat exchange, more power
Helion ESSENTIAL
HEDGE TRIMMER
HIGH PERFORMANCE
• 27 mm/1 in. cutting diameter, even finish.
• 3 cutting speeds.
ERGONOMIC
• Progressive trigger.
• Swivel handle.
• Anti-vibration design.
SAFETY
• Protective stop.
• Screw-on cut protection.
FEATURES
ADAPTABLE
• Compatible with ULiB PELLENC backpack batteries via a connector.
Weight without battery - kg/lbs. 4 / 8.82
Compatible battery ULiB 200E
Battery-life with ULiB 200E battery 1 hr. 30 min. to 3 hrs.
Weight with ULiB 200E battery - Kg/lbs. 5.4 / 11.9
Rotating rear handle Yes
Guaranteed sound pressure (LWA)** - dB(A) - uncertainty kWA: 1.1 dB(A) 91
Vibration emission values (m/s2 / ft/s2 - uncertainty of K=1.5 m/s2 (4.9 ft/s2) ah = 3.73
Number of cutting speeds - kg/lbs 3 / 6.61
Progressive trigger Yes
Protection rating/sealing IPX4
Connector to back battery - accessory Yes
ACCESSORIES AVAILABLE AS AN OPTION
ULiB backpack battery adapter. REF. 57355
Biodegradable cleaner for resin.
REF. 121633
TRIM WITH COMPLETE FREEDOM
ULiB 200E on-board battery
HMI PELLENC LEGACY
• Charge percentage remaining in the battery
• Backlit
• ON/OFF button
• Speed change button
• Alerts info
Ergonomic swivel handle
HELION 3
HEDGE TRIMMER
EFFICIENT
• Ø 3 cm (Ø 1 in.) cutting diameter for both cutting back overgrowth and finishing work.
ERGONOMIC
• 3.6 kg (7.9 lbs.).
• Quick connector.
• Balanced.
FEATURES
DURABLE
• Long life battery, one day autonomy for the 750 battery.
WATERPROOF TOOL 2-YEAR WARRANTY
SAFE
• Anti-blocking system.
• Anti-kickback guard.
• New hedge trimmer blades protector.
ACCESSORIES AVAILABLE AS AN OPTION
Sound
level (LpA)** - dB(A) - uncertainty KpA: 1.5 dB (A)
Guaranteed sound pressure level (LWA)** - dB(A) - uncertainty KWA: 2 dB(A) 93
Vibration emission values*** at the handle (m/s² / ft/s²) ah = 3.4
Protection rating/weather-proofing IP54
* Compliant according to standard EN 62841-1 §5.17.
** Values determined according to noise measurement standards NF EN ISO 11201, NF EN ISO 3744.
*** Vibration emission values at the handle determined according to EN 62841-4-2: 2009 - uncertainty of K=1.5 m/s² (4.9 ft/s²).
R4* 51 (cm) / 20 (in.) hedge trimmer blades.
REF. 56205
R4* 63 (cm) / 25 in. hedge trimmer blades. REF. 56206
R4* 75 (cm) / 30 in. hedge trimmer blades. REF. 56207
Quick connector cable for ULiB 750, 1200, 1500.
REF. 56 57238
Quick connector cable for ALPHA 520, 260. REF. 56 57248
Biodegradable cleaner for resin. REF. 121633
SAFE, PROFESSIONAL TRIMMING AND PRUNING
Anti-kickback guard
Double rake hedge trimmer blades
Aluminium hedge trimmer blades holder
Reinforced hedge trimmer blades protector
Quick Switch – 1 minute to change the hedge trimmer blades
Reinforced carrying eyelet Throttle trigger
Helion 3 is delivered without a hedge trimmer blade. Choose the hedge trimmer blade that best suits your needs.
Safety throttle
Safety handle
4-speed selector LED light
Ergonomic Soft Touch handle swivels +/-90° 5 adjustment positions
Deflector (adaptable to the 63 cm / 25 in. hedge trimmer blades)
Male quick connector cable
helion ALPHA
HEDGE TRIMMER
POWERFUL
• Mechanics and hedge trimmer blades designed for large cuts with 33 mm (1.3 in.) tooth opening and 23 mm (0.9 in.) height.
ERGONOMIC
• Offset hedge trimmer blades for a better working position.
*Battery life with the 260 battery 2 to 3 hours
*Battery life with the 520 battery
Carrying strap
WATERPROOF TOOL 2-YEAR WARRANTY
Included
* Total working time for average professional use. This time includes the tool stops inherent to the work.
- Average measured sound power level (K uncertainty=3 dB) LWA= 96 dB.
- Weighted sound pressure emission at the measured workstation (K uncertainty=3 dB) LpA= 82 dB.
Vibration emission values at the handles (K uncertainty=1.5 m/s² (4.9 ft/s²) ah = 3.4 m/s² (11.2 ft/s²).
ALPHA W26 counterweight.
REF. 56 57195
Quick connector cable 750, 1200, 1500 + Plate.
REF. 56 57238
Quick connector cable 400, 700, 1100 + Plate.
REF. 56 57237
ALPHA batteries can also be used to power the other tools in the green spaces range.
ALPHA harness REF. 56 57194
HELION ALPHA
TAKE ON THE HEIGHTS WHILE PRUNING
IMS* circuit board with increased heat exchange, more power
Remaining battery life display and tool start-up
3 cutting speeds (cuts per minute): 3,200/3,500/3,800
Carrying strap as standard
Ergonomically designed gripper
Dimensions reduced to -180°: Foldaway cutting head for transport (140cm/55 in.)
Ergonomically designed button
Tilt angle: 10 positions from -90° to +45°
Ergonomic additional handle for adjusting the hedge trimmer blades
Higher, wider, and thicker teeth
*Insulated Metallic Substrate
Tilted angle > useful for moving away from the hedge without tilting the blade, ensures better working visibility

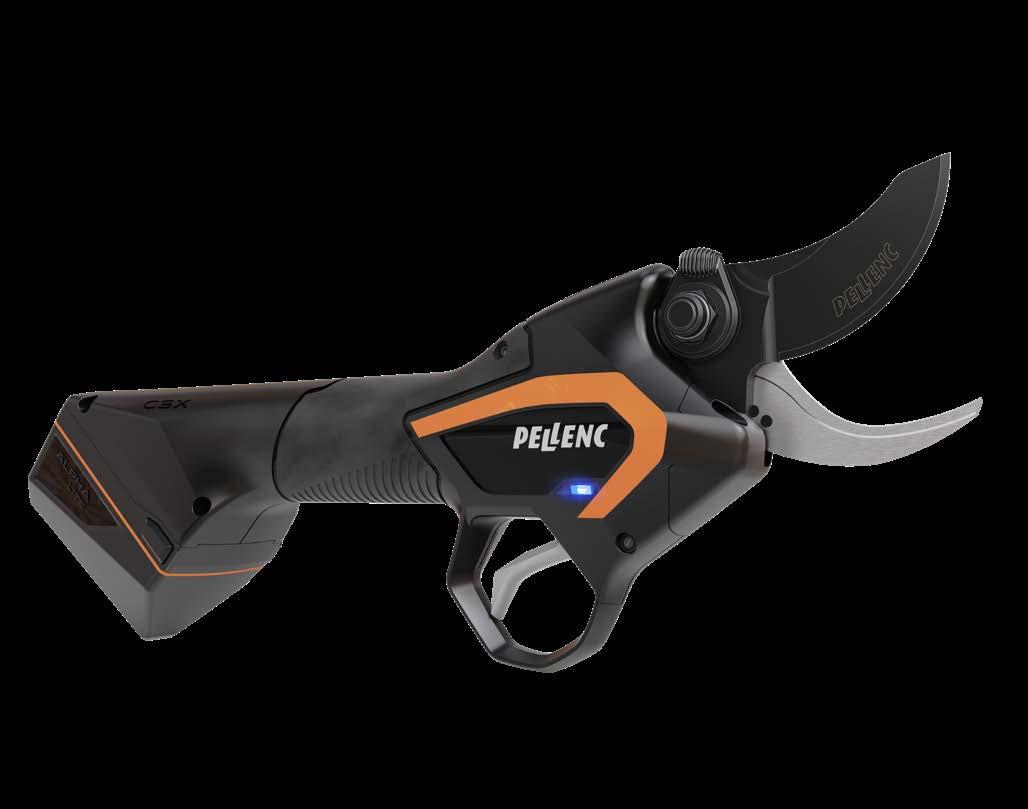

PRUNING SHEARS
INTEGRATED BATTERY
• Up to 4 hours of work with the MADE FOR PELLENC battery.
• Great freedom of movement.
• Fast working.
ERGONOMIC
• 955 g / 34 oz. including battery.
• 2 blade opening modes.
FEATURES
Cutting diameter - mm/in.
Weight with battery - g/oz.
MULTIFUNCTION
• Ideal for viticulture, arboriculture and green space maintenance.
/ 1.3
/ 34
½ opening Yes
Battery compatibility MADE FOR
ACCESSORIES
57345
182046
Cutting head Ø 32 mm / Ø 1.6 in.
Integrated greasing nipple at the base of the cutting head.
LCD screen statistical data and battery level
Thorough design
Integrated battery
Four lithium-ion cells
37.4 Wh - 14.4 V
On/Off button
Half-opening mode activated by pulling the trigger
Trigger control
Panel for access to the mechanical parts
MADE IN FRANCE
PRUNING SHEARS
AGILE
• Up to 4 hours work with the ALPHA LITE on-board battery.
• Great freedom of movement.
• Fast working.
CONNECTED
• Setting up and controlling the tool via the PELLENC application.
• Easily look up and export usage statistics.
• Maintenance alerts.
FEATURES
Cutting diameter - mm/in.
Blade opening - mm/in.
Weight with battery - g/oz.
/ 1.4
/ 2.2
/ 34
½ opening Yes
Battery compatibility
LITE
ERGONOMIC
• 955 g/34 oz. with battery - perfectly balanced.
• Choice of two blade types.
• 2 blade opening modes.
SAFETY AND SECURITY
• Patented user protection system
- Activ' Security with or without gloves.
2+3 YEAR WARRANTY*
ACCESSORIES AVAILABLE AS AN OPTION
ALPHA LITE battery. REF. 57301
ALPHA LITE "3 Batteries" charger. REF. 57299
ALPHA LITE nomad charger. REF. 57344
STANDARD C3X blade kit. REF. 150925
PLUME C3X blade kit. REF. 159029
Carrying kit. REF. 57298
Activ'Security Tool gloves:
• Size 7 - REF. 164452,
• Size 8 - REF. 147338,
• Size 9 - REF. 163551,
• Size 10 - REF. 163552,
*Offer valid on C3X pruning shears with the original battery associated with the tool at the time of purchase, for up to 4 years from the date the tool is put into service and annual maintenance is carried out.
• Size 11 - REF. 163553,
• Size 12 - REF. 163554.
Activ' Security Vegetation
Gloves:
• Size 7 - REF. 164453,
• Size 8 - REF. 147339,
• Size 9 - REF. 163555,
• Size 10 - REF. 163556,
• Size 11 - REF. 163557
SWITCH UP TO AGILE PRUNING
Latest generation geared motor
RFID circuit board as standard
battery level indicator
Choice of two blades with optimised design and penetration
• FEATHER - Ø 35 mm / Ø 1.4 in.
• STANDARD - Ø 35 mm / Ø 1.4 in.
Tactile sensor for switching to half-opening mode
PELLENC ALPHA LITE battery
Three lithium-ion cells
30.2 Wh - 10.8 V
Activ’Security
Patented safety feature that instantly stops the blade if it comes into contact with the user’s finger, with or without PELLENC gloves PELLENC PATENT
Greasing nipple integrated directly into the tool
Activ’Security LED
Cast aluminium central mechanical structure
C35/C45
PRUNING SHEARS
PRODUCTIVE
• Very high-efficiency motor 93%.
• Blade shaft with integrated greasing nipple.
• Intelligent control for efficient and precise pruning.
ERGONOMIC
• 720 g/25oz. a perfectly balanced tool.
• Two blades to choose from.
• 4 user operating modes.
• 4 settings modes.
DURABLE
• High-strength materials.
• Servicing interval increased to 400 hours for more cost-effective maintenance.
• 20% longer battery life for the 150 and 150P batteries.
SAFETY
• Patented user protection systemActiv' Security with or without gloves.
• Waterproof batteries for all-weather work.
ULiB 150 AND 150P BATTERIES
Lightweight and compact FEATURES
C35 blade kit REF. 150925
C35 FEATHER blade kit REF. 159029
C45 blade kit. REF. 165510
C35/C45 carrying holster. REF. 152336
FIXION belt - C35/C45. REF. 154772
Activ'Security Tool gloves:
• Size 7 - REF. 164452,
• Size 8 - REF. 147338,
• Size 9 - REF. 163551,
• Size 10 - REF. 163552,
• Size 11 - REF. 163553,
• Size 12 - REF. 163554. Activ' Security Vegetation Gloves:
• Size 7 - REF. 164453,
• Size 8 - REF. 147339,
• Size 9 - REF. 163555,
• Size 10 - REF. 163556,
• Size 11 - REF. 163557.
A CONCENTRATION OF TECHNOLOGY
Choice of two blades with optimised geometry and penetration
• C35 - Ø35 mm / 1.4 in.
MULTIFUNCTION WITH UL i B 250
2 connector sockets for working with 2 tools.
Greasing nipple integrated directly into the tool
• C45 - Ø45 mm / 1.8 in.
New high-strength materials
High-strength ball screws & nuts
Latest generation geared motor
Controlled using the optical trigger
Activ’Security LED
Debris evacuation opening
Opening of the safety guard without tools
Activ’Security
Patented safety feature that instantly stops the blade if it comes into contact with the user’s finger, with or without PELLENC gloves PELLENC PATENT
C35/C45
CULTIVION
SELION 12
HELION 3
PELLENC PATENT
PELLENC PATENT
C45
C45 C35 C35
C35/C45 FREQUENTLY ASKED QUESTIONS
THE CUTTING HEAD:
Can the C35 and C45 blade with grease nipple be fitted to VINION and PRUNION?
No, because the stacking of the parts the same and does not guarantee perfect blade tightness.
Blade maintenance: easier or same as in the past?
Sharpening angles: simpler thanks to the more pronounced single counter-bevel and the single radius.
Burr, identical, i.e. in the first 15 minutes of cutting. Safer thanks to the open guard, i.e. the trigger no longer acts to close the blade.
Simplified greasing, to be carried out with the supplied grease gun for daily lubrication.
Crossing, identical, i.e. setting with F5 mode.
Wear on the blades: when should they be replaced?
PELLENC recommendation: replacement every 200 hours, i.e. 2 blades per season on average.
Why? A blade loses its 3D profile after being repeatedly sharpened. This affects cutting performance, even if the blade remains well sharpened.
How should I go about adjusting the tightness of the blade?
PELLENC recommendation: the clearance check ring should slide very slightly in the "blade closed" position.
Frequency: daily check (if necessary, tightening wrench supplied). Are there specific cleaning instructions with Activ' Security?
No, because the cutting edge cleans itself by the friction of the blade against the hook at each opening-closing movement. The Activ'Security feature continues to function.
GLOVES AND ACTIV'SECURITY:
Can I work with gloves other thanPELLENC Activ' Security gloves?
No: if the Activ' Security feature is activated.
Yes: if the Activ' Security feature is deactivated / “alarm” for caution at startup.
What are the safety recommendations when starting up with Activ'Security?
With PELLENC gloves: check that the blade stops properly by touching the lower face of the hook with the inside of the fingers (thumb, index, and middle fingers).
If the blade does not stop properly, the glove on the vegetation side MUST be changed!
Without gloves: check that the blade stops properly by touching the lower face of the hook with the inside of the fingers (thumb, index, and middle fingers).
If the blade does not stop properly, the gloves MUST be worn!
Why does my blade “jerk” when I am wearing a PELLENC glove on the tool side?
PELLENC recommendation: restart the tool without gloves. If it is working properly, then it is the glove that is worn out and not making proper contact on the trigger or the body.
The pruning shears stop cutting when the grip is released. Is that linked to the Activ'Security feature?
No. The C35 may stop if the fingers or palm of the hand are not in contact with the lower PAD.
What is the estimated life of PELLENC Activ'Security gloves?
On the vegetation side: on average 1 glove per month when used for pulling and handling branches.
On the tool side: on average 1 glove per season.
What are the commonly used glove sizes between S07 and S12?
Breakdown between Tool Gloves / Vegetation Gloves: 45% O and 55% V
PELLENC SAS breakdown by Size - Women: S07 to S09
PELLENC SAS breakdown by Size - Men: S08 to S10
Does Activ'Security protect the "battery - pruning shears" cord against getting cut?
No, the cord is not protected.
With the Activ'Security feature, can the pruning shears stop if you touch the trellis wire with the hook during pruning?
No, however, you should not touch the wire with the glove on the "vegetation" side.
Poles for C45
PRUNING SHEARS
ERGONOMIC
• The position of the centre of gravity enhances manoeuvrability and comfort.
PRODUCTIVE
• Allows access to branches up to 4 metres (13 feet) high without the need for a ladder or platform.
LIGHTWEIGHT
• Robust, lightweight aluminium pole 1.6 kg or 1.83 kg/3.5 or 4.03 lbs., depending on model).
FEATURES
ADAPTABLE
• Compact C45 cutting head, for good visibility of work and excellent penetration of the tool into the tree.
ACCESSORIES AVAILABLE AS AN OPTION
Fabric cover to protect the tool during transport.
LIGHTWEIGHT, ROBUST, POWERFUL
Optical trigger
Pole option
Pre-assembled
Blade + shaft disassembly
Quick and easy tool-free assembly
Folding key folding wrench
Blade opening: 67 mm/2.6 in.
Hook for catching branches at height
Suitable for right-handed or left-handed use
New oval-shaped tube (1 m 50 or 2 m/4.92 ft or 7 ft)
Waterproof controller
Handy hook for pulling branches
PRADINES blade, xylan coating
FIXION 2
TYING MACHINE
BUILT-IN BATTERY
• Great freedom of movement.
• A quick working pace.
• Lightweight: tool + integrated battery.
NEW DESIGN
• Easier to get started with.
• Easier to change the tie band.
UNRIVALLED PRODUCTIVITY
• 40% reduction in working time.
• Up to 15,000 ties/charge cycle.
• Battery life = 1 full day of work.
133063 On-board 200 m/656 ft. reel. REF. 159299
Standard plastic link (large and small spools).
REF. 57047 / 57203
Paper link (large and small reels). REF. 57049 / 57204
Paper link 0.36 (large and small reels). REF. 57052 / 57251
Climate link (large and small reels). REF. 57273 / 57274
Stainless steel link (large and small spools).
REF. 57053 / 57228
CORDLESS TOOL, WITHOUT BELT
Tie band intake
Brushless gear box
100% manufactured by PELLENC
Hanging hook
STANDARD TIE
Spool for 60 m/197 ft. tie bands
Charging connector
Power button
Twist selector
(four levels possible)
Binding hook up to 25 mm ø/1.0 in. ø
Electric trigger
Battery-life display
Ergonomic handle
Micro-battery integrated into the handle
PAPER
TIE
Decomposition after 10 to 12 months of use depending on climatic conditions, load, and the quality of the trellising wire. 0.44 mm/0.02 in. steel wire Average tie strength = 14 kg/31 lbs.
Decomposition after 6 to 9 months depending on use. The paper retains moisture, which is conducive to the breakdown of the tie. 0.44 mm/0.02 in. steel wire Average tie strength = 14 kg/31 lbs.
0.36 MM/0.01 IN. PAPER TIE
Decomposition after 6 to 9 months depending on use. The paper retains moisture, which is conducive to the breakdown of the tie. 0.36 mm/0.01 in. steel wire. Average tie strength = 9 kg/20 lbs.
200 M/656 FT. TIE BAND ON BELT
Up to 1,500 ties per tie band
60 M/197 FT. TIE BAND MOUNTED ON THE TOOL
Up to 450 ties per tie band
200 M/656 FT. TIE BAND MOUNTED ON THE TOOL
Up to 1,500 ties per tie band
CLIMATIC TIE
Decomposition in 7 to 10 months depending on climatic conditions. Envelope made of paper + PLA (totally biodegradable corn-based bioplastic). 0.44 mm/0.02 in. steel wire Average tie strength = 14 kg/31 lbs.
STAINLESS STEEL TIE
Little decomposition. Used for cordon system vines and installing irrigation hoses. 0.44 mm/0.02 in. stainless steel wire Average tie strength = 14 kg/31 lbs.
SELION 12 EVO
CHAINSAW PRUNER
MULTIFUNCTION
• Dedicated to pruning in green spaces, fruit growing, olive growing, and vine growing.
• Use in conjunction with the C35/C45 pruning shears on the 250 battery.
SAFETY
• Electronic chain brake.
• Electronic anti-kickback.
FEATURES
* Noise and vibration measurements according to EN 60745-1 and EN 60745-2-13.
PRODUCTIVE
• New software for even more precise cutting.
** According to Directive 2000/14/EC. ACCESSORIES AVAILABLE AS AN OPTION
LIGHTWEIGHT
• Less than 2 kg/4.4 lbs.
6 in./15 cm anti-kickback guide. REF. 78790
6 in./15 cm precision guide. REF. 138788
1/4 in./1.1 mm precision chain - 41 E. REF. 138880
Biodegradable oil for the chain and pruner. REF. 116688
Quick connector cable for ULiB 750,1200, 1500. REF. 56 57238
Quick connector cable for ALPHA 520, 260. REF. 56 57248
Adapter for quick connector cable. REF. 56 57262
FAST AND EASY TO HANDLE
Reinforced and replaceable upper handle
Revolutionary Pellenc motor with electronic switching system
The oil flow is managed electronically
Oil reservoir
Lateral wood shavings ejection
Software for even more precise cutting Safety throttle
Electronic chain brake
Chain tensioning spanner for quick access to sprocket and chain
Double-press start-up
Hand guard
Mobile chain protection
Automatic chain tensioning
Male cable
PELLENC PATENT
PELLENC PATENT
SELION C21 HD evo
CHAINSAW PRUNER
SAFETY
• Electronic chain brake.
• Electronic anti-kickback.
ERGONOMIC
• Weighs only 2.55 kg/5.62lbs.
• Quick connector system.
FEATURES
* Noise and vibration measurements according to EN 60745-1 and EN 60745-2-13.
** According to Directive 2000/14/EC.
POWERFUL
• Up to 2 kW.
• New software for even more precise cutting.
ACCESSORIES AVAILABLE AS AN OPTION
Carving guide 11in 28 cm.
REF. 80344
Precision guide 10.4 in 27 cm.
REF. 145550
Precision Chain 1/4 in 1.1 mm - 67E
REF. 145589
Biodegradable oil for the chain and pruner.
REF. 116688
Quick connector cable for ULiB 750, 1200, 1500.
REF. 56 57238
Quick connector cable for ALPHA 520, 260.
REF. 56 57248
Quick connector cable for ULiB 400, 700, 1100.
REF. 56 57237
FOR INTENSIVE USE
Safety throttle
Cutting software that helps the user better dose the applied force
Electronically controlled oil-flow rate
Oil reservoir
Double-press start-up
Reinforced fixed front hand guard
Electronic chain brake
Male quick connector cable
Steel fastening hook
Revolutionary PELLENC motor with electronic switching
Spanner for tightening the chain and providing quick access to the sprocket and chain
Automatic chain tensioning
PELLENC PATENT
PELLENC PATENT
SELION TELESCOPIC evo
CHAINSAW PRUNER
• Weighs less than 3.5 kg/7.7 in.
DURABLE
• New steel tilting system.
• Up to 1.2 kW;
• New cutting and guidance software for even more precise cutting.
• Electronic chain brake.
FEATURES
* Noise and vibration measurements according to EN 60745-1 and EN ISO 11680-2.
ACCESSORIES AVAILABLE AS AN OPTION
Carving guide 6 in 15 cm. REF. 80343
OREGON chain 1/4 in - 25AP 1.3 mm - 42E. REF. 71550
Standard light guide 10 in 25 cm. REF. 66756
OREGON chain 1/4 in - 25AP 1.3 mm - 58E. REF. 64486
1/4 in/1.1 mm precision chain - 41 E. REF. 138883
Biodegradable oil for the chain and pruner. REF. 116688
Quick connector cable for ULiB 750,1200, 1500. REF. 56 57238
Quick connector cable for ALPHA 520, 260. REF. 56 57248
Adapter for quick connector cable. REF. 56 57262
** According to Directive 2000/14/EC. 2-YEAR WARRANTY
STRAIGHTFORWARD AND PRECISE
Safety throttle
Carbon fibre telescopic pole
Adapter sleeve
Tightening wrench
The oil flow is managed electronically
Revolutionary PELLENC motor with electronic switching system
Automatic tensioning of the chain
Cutting software that helps the user better dose the applied force
Steel tilting system
Aluminium tube
Cap for oil reservoir
SELION
Male cable
PELLENC PATENT
cultivion ALPHA
SOIL CULTIVATOR
MULTIFUNCTION
• operating modes: precision, all purpose, intense.
• Up to 885 strokes/min. DURABLE
• An alternative to chemical weed killers.
• Durability.
FEATURES
Tool speed (strokes/min)
Carrying strap Ref. F.162970
ADAPTABLE
• 4 blades for each application.
• 9 tilt angles.
• Compatible with Alpha and ULiB batteries.
ERGONOMIC
• Stability and comfort.
• Elastic carrying strap.
Battery life** with ALPHA 260 battery 1 hr. 30 min. to 2hrs. 30 min.
Battery life** with ALPHA 520 battery 4 to 6 hrs.
* Vibration emissions according to DIN EN 60745-1:2009 - Kd uncertainty = 1.5 m/s² (4.9 ft./s²).
** For information purposes: the times were observed in actual working time, including breaks. Battery life is influenced by the nature of the work required.
ALPHA batteries can also be used to power the other tools in the green spaces range.
ALPHA harness REF. 56 57194
2-YEAR WARRANTY
ACCESSORIES AVAILABLE AS AN OPTION
8 cm/3 in. blade for finishing work, with reduced vibration.
REF. 100422
16 cm/6 in. V-shaped blade for working on hard soil and furrows.
REF. 83849
16 cm/6 in. blade for medium and deep work.
REF. 81251
CULTIVION 22 cm/9 in. blade for weeding.
REF. 84125
Blade attachment kit that makes it easier to change blades.
REF. 101003
ALPHA W26 counterweight.
Weight: 2.6 kg/5.7 lbs.
The counterweight can be clipped on in place of the Alpha battery so that another PELLENC battery (e.g. the 1 200) can power a tool.
REF. 56 57195
Quick connector cable 750, 1200, 1500 + Plate.
REF. 56 57238
Quick connector cable 400, 700, 1100 + Plate.
REF. 56 57237
THE ALTERNATIVE TO WEED KILLERS
3-speed selector switch
Plug & Play
LED indicators
Front handle with quick adjustment
Aluminium pole
Elasticated carrying strap developed specifically for the tool and offering support for working movements
CONTINUOUS MODE RECOMMENDED (pull the trigger during power-on)
Greater penetration
9 tilt angles of the work tool
16 cm/6 in. blade as standard, quickly interchangeable
INTERCHANGEABLE BLADES
8 cm/3 in. blade. For finishing and precision work, while reducing vibration.
16 cm/6 in. V-shaped blade. For working on hard soil and furrows.
16 cm blade. For versatility and work at depth.
22 cm/9 in. weeding blade. For surface weeding over large areas. Perfect for weeding seedlings.
cultivion
SOIL CULTIVATOR
PRODUCTIVE
• Exceptional working speed;
• Less strain on the user.
FEATURES
MULTIFUNCTION
• A blade for every job.
Weight (kg/lbs.) 3.1/ 6.8
Tool speed (strokes/min.) 800 to 885
Number of blades - kg/lbs. 5 / 11.02
Vibration level at front handle (ah)* m/s² (ft/s²)
Vibration level at rear handle (ah)* m/s² (ft./s²)
22 cm/9 in. weed control blade for surface work, removing weeds (as standard)
REF. 84125 -
(33.5)
* Vibration emission value in accordance with DINEN ISO 22867, EN 50260-1 and EN 60745-1. - Uncertainty Kd = 1.5 m/s² (4.9 ft./s²).
2+3 YEAR WARRANTY*
ACCESSORIES AVAILABLE AS AN OPTION
8 CM/3 IN. BLADE
For finishing work, with reduced vibration. REF. 100422
16 CM/6 IN. V-SHAPED BLADE
For working on hard soil and furrows. REF. 83849
16 CM/6 IN. BLADE
For medium and deep work. REF. 81251
22 CM/9 IN. BLADE CLASSIC For wide and deep work. REF. 79779
22 CM/9 IN. BLADE WEEDING -
For surface weeding over large areas. Perfect for weeding seedlings. Blade as standard. REF. 84125
Blade attachment kit that makes it easier to change blades. REF. 101003
Quick connector cable for ULiB 750,1 200, 1 500. REF. 56 57238
Quick connector cable for ALPHA 520, 260. REF. 56 57248
Adapter for quick connector cable. REF. 56 57262
EXCEPTIONAL WORKING SPEED
CONTINUOUS MODE RECOMMENDED (pull the trigger during power-on)
Ergonomic handle
Front handle with quick adjustment
5 quickly interchangeable blades
22 cm/9 in. weeding blade as standard
AIRION ESSENTIAL
ELECTRIC BLOWER
POWERFUL
• Thrust of 23N at BOOST and working speed of 19N at speed 3.
SMART MANAGEMENT
• HMI with control options: BOOST, Cruise Control and 3 speeds.
FEATURES
NEW
ERGONOMIC
• Perfect balance and centre of inertia.
• PELLENC LEGACY angled air intake.
ADAPTABLE
• Compatible with ULiB PELLENC backpack batteries via a connector.
ACCESSORIES AVAILABLE AS AN OPTION 2-YEAR WARRANTY WATERPROOF TOOL
with ULiB 400E battery - Kg/lbs. 5.5 / 12.1
Battery-life with ULiB 400E battery 20 min. to 2 hrs.
Thrust (3 speeds + BOOST) - N 7/13/19/23
Max. power - W 1,000 (speed 3) / 1,350 (BOOST)
Air speed (3 speeds + BOOST) - m/s (ft/s) 30/40/50/60 (98/131/164/197)
Flow (3 speeds + BOOST) - m3/h (ft.3/h)
600/800/1,000/1,200 (21,200, 28,250, 35,300, 42,400)/1,000 /1,200
Sound pressure level (LpA)** - dB(A) - uncertainty KpA: 3 dB(A) 77
Guaranteed sound pressure (LWA)** - dB(A)uncertainty kWA: 0.7 dB(A) 93
Vibration emission values (m/s2 / ft./s2) - uncertainty of K=1.5 m/s2 (4.9 ft./s2) 0.6 (2.0)
Rain resistant Yes
Connector to backpack battery - accessory Yes
ULiB backpack battery adapter. REF. 57355
BLOW FREELY, CLEAN EFFICIENTLY
Carrying strap hooks
Integrated battery
Speed and boost selector
HMI PELLENC LEGACY
• Charge percentage remaining in the battery
• Backlit
• ON/OFF button
• Speed change button
• Alerts info
HMI
Angled air intake
Progressive trigger
Quick-clip nozzle
Airion 3
BLOWER
POWERFUL
• Actual air flow rate: 920 m3/h (32,500 ft.3/h).
ERGONOMIC
• Perfectly balanced in use.
FEATURES
Effective thrust* - N 17.5 (Boost) / 13.5 (speed 4)
Max. power - W 940
Weight of the tool with the cable - kg/lbs. 2.7 / 6.0
Weight of the tool without the cable - kg / lbs. 2.45 / 5.40
Actual weight of the tool in use - kg / lbs. 2.55 / 5.62
Actual air flow rate with round nozzle** - m3/h / ft.3 /h 920 / 32,500 (BOOST) / 815 / 28,800 (speed 4)
Maximum airflow speed with round nozzle** - m/s ft./s 63 / 207 (BOOST) 55 / 180 (speed 4)
Maximum airflow speed with flat nozzle - m/s ft./s 69 / 226 (BOOST) / 60 / 197 (speed 4)
Sound pressure level (LpA)** - dB(A) 79
Guaranteed sound power level (LWA)*** - dB(A) 92
Sound pressure at 15 meters/49 feet* - dB(A) < 65
Vibration level**** - m/s2 (ft./s2) < 2.5 (0.5 actual) (< 8.2 (1.6 actual)
Battery life***** with the ULiB 1500 Up to 6 hrs.
* According to standard ANSI/OPEI B175.2-2012. ** With nozzle diameter of 75 mm (3.0 in). *** Values determined according to the acoustic measurement standards NF EN ISO 11203, NF EN ISO 3744 and NF EN ISO 4871. **** Vibration emission value according to NF EN 60745-1: 2009 - Kd uncertainty = 1.5 m/s2 (4.9 ft./s2). ***** For information purposes: the times were observed in actual working time, including breaks. Battery life is influenced by the nature of the work carried out.
WATERPROOF TOOL AND MOTOR BLOCK
2-YEAR WARRANTY
QUIET
• Just 79 dB.
LIGHTWEIGHT
• 2.5 kg/5.5 lbs. in the hand.
ACCESSORIES AVAILABLE AS AN OPTION
Flat nozzle.
REF. 122865
Ergonomic nozzle.
REF. 131967
Scraper nozzle.
REF. 132728
Quick connector cable for ULiB 750, 1200, 1500.
REF. 56 57238
Quick connector cable for ALPHA 520, 260.
REF. 56 57248
Quick connector cable for ULiB 400, 700, 1100.
REF. 56 57237
Carrying strap for AIRION 3 adaptable to CONFORT (comfort) harness.
REF. 137018
ULTRA-ERGONOMIC
AIRION 3 LEAF BLOWER
Balance point
Phenomenon counteracted
Suction strength Blowing strength
Speed and boost selector
OTHER LEAF BLOWERS
Balance point
See-saw phenomenon that puts strain on the user’s wrist STRAIGHT BLOWER
Profiled nozzle 4 interchangeable nozzles
Quick connector system
Enables quick connection and disconnection of the tool and the battery.
Angled air intake
Progressive trigger
New, stronger material
Intake screen
Carrying strap hook fixed either side for right-handed or lefthanded use
While pressing on the speed selector, the LEDs flash and display the remaining battery life in 25% steps.
PELLENC PATENT
AIRION BACKPACK
BACKPACK BLOWER
POWERFUL
• 1,455 m3/h/51,400 ft.3/h (without nozzle), the most powerful battery-powered backpack blower.
QUIET
• Sound power level +/-97 dB(A), 10 decibels less than a petrol tool.
FEATURES
WATERPROOF TOOL AND MOTOR BLOCK 2-YEAR WARRANTY
SMART MANAGEMENT
• Real-time information on a backlit display.
• Working time: remaining battery life visible in hours/minutes.
BATTERY LIFE
• From 40 min to 3 hrs. depending on the battery.
ERGONOMIC
• Comfortable to wear;
• Patented sweeping pivot;
• 2 nozzle lengths supplied;
• Very low vibration.
AIRION BACKPACK is supplied with 2 nozzles and a round nozzle.
ACCESSORIES AVAILABLE AS AN OPTION
Angled nozzle: effective under vehicles.
REF. 159701
Angled flat nozzle.
REF. 159700
Flat nozzle: precision. REF. 159699
and long secondary nozzles + round tip with anti-wear ring
Battery life*** with battery models ALPHA 520 / ULiB 750, 1200, 1500 Standard maintenance: 1 hr. to
** Vibration emission value according to Annex BB of Standards EN 60335-1 and EN 50636-2-100 – Kd uncertainty = 1.5m/s2 (4.9 ft./s2 ).
***For information purposes: the times were observed in actual working time, including breaks. Battery life is influenced by the nature of the work required.
POWERFUL AND QUIET
Shock resistant battery casing
The battery can be quickly clipped on to its holder
Return strap for holding the battery securely on the back
Nozzle locking system for storage
Extension strap for adjusting the weight on the hips
Ergonomic cushioning
ERGONOMIC
SMART HANDLE
Flexible
accordion sleeve
Side protection bumper
Tilted pivot, for great flexibility and freedom of movemen
Smart handle Backlit screen
Easy sweeping on vertical and horizontal axis
A Speed selection paddle and Boost trigger + ➎ Speed limiter
B Rear trigger for progressive and responsive acceleration
C Quick menu access button
At a glance
Adaptable to the user’s body type
The axial impeller delivers the power you need
Shock resistant battery casing
➊ Current speed setting (4 speeds)
➋ Remaining battery life in hours/ minutes or %
➌ Power bar graph
➍ Energy saving info < 500 W
Alerts
➏ After-sales service maintenance message
➐ ”Fault” alert
➑ Screen lock
Control options
Boost triggered
Speed limiter triggered
PELLENC patent
CLEANION
SWEEPER
PRODUCTIVE
• Suitable for indoor use.
MULTIFUNCTION
• A variety of uses: brush, blade, pushing and collecting leaves.
QUIET
• 70 dB.
ERGONOMIC
• Perfectly balanced in use.
COMPACT
• Compact storage position.
ACCESSORIES AVAILABLE AS AN OPTION
Snowplough blade.
REF. 57160
Anti-scatter cover.
REF. 57161
Tilting collection box.
REF. 57162
FEATURES
Weight - kg/lbs.
Working width - cm/in.
Max. power - W
Rotational speed of the brush - rpm
/ 218
/ 39
to 200 rpm
Battery life in terms of surface area - m2/ft.2 7,000 / 75,350 with the 1500 battery
/ 60,300 with the 1200 battery
Battery life - h
Handling (Zero Turn)
5 hrs. with 1500 battery 4 hrs.with 1200 battery
Leaf pushing grill.
REF. 57163
Holder kit for the 750, 1200, and 1500 batteries.
REF. 142620
Quick connector cable for ULiB 750, 1200, 1500.
REF. 56 57238
Adapter for quick connector cable. REF. 56 57262
COMPACT AND MULTIFUNCTION
LCD screen
4 rotational speeds
Ergonomic handle
Motorised wheel
Handle that makes it possible to turn the brush
Easy access to the battery case
Quick release of accessories
Brush pressure
Reversible rotation of the brush
POWER 48
OLIVE-HARVESTING SHAKER RAKE
PRODUCTIVE
• Very powerful – 480 W.
• 8 times faster than manual harvesting.
• Up to one full day of battery life.
COST EFFECTIVE
• Reduced investment.
• 12/44 V power converter.
FEATURES
VERSATILE
• 2 working modes for greater comfort.
• 2 working speeds.
• Effective on all types of olives.
ADAPTABLE
• 2 interchangeable poles.
• 2 interchangeable harvesting heads.
• Changeover in less than 2 minutes.
48 POLES
DURABLE
• Designed to protect the tree.
Acoustic measurement values according to NF EN ISO 3744 - Uncertainty according to ISP 4871 ** Vibration emission value according to EN ISO 22867 and EN607445 -1 Uncertainty Kd = 2.5 m/s ² (8.2 ft./s²) *** Using a 12/44V converter.
REF. 57293 ACCESSORY AVAILABLE AS AN OPTION
Comfort handle.
BATTERIES
ULTRA-HIGH PERFORMANCE, LIGHTWEIGHT, EASY TO HANDLE, AND COST-EFFECTIVE.
Adapter sleeve (on telescopic poles)
An on/off switch with mode and speed selection
Ergonomic handle
TWO MOTORISED ALUMINIUM POLES TO CHOOSE FROM
A 48V motor that can be powered by a PELLENC multifunction battery or a classic 12V battery connected by means of a 12/44V converter. Available in two sizes either as a fixed 2.2 m/7.2 ft. pole or as a telescopic pole with a length varying from 2.3 m to 3.1 m/7.5 ft. to 10.1 ft.
TWO RAKES TO CHOOSE FROM
OLIVION “SOLO” HEAD
A SINGLE SHAKER RAKE for maximum productivity
/ 13
Carbon fibre tines
Transmission head.
Ultra-fast assembly and disassembly
Revolutionary Pellenc motor
OLIVION “DUO” HEAD
DOUBLE SHAKER RAKE offering exceptional working comfort by reducing the vibrations felt by the user and delivering optimal productivity
SINGLE “SOLO” HEAD OLIVION “DUO” HEAD
DEMONSTRATOR'S TIPS
PELLENC EXPERTS AT YOUR SIDE
ULIB 1200/1500
You can even see it at night!
COMFORT HARNESS
EXCELION ALPHA
After a long press on both buttons, the display will flash.
The rapid power-on can be activated from the upper or lower position, so it is always within easy reach.
Reversible!
The tool can be plugged into the lower socket, e.g. for working with a blower, or the upper socket for a hedge trimmer.
Adjust the spine of the harness according to the size of the user and the type of work to be done. A high position is recommended, however, except for work requiring the arms to be in a raised position or the body leaning forward (in that case, lower the battery position a little).
Start adjusting the straps from bottom to top. Proper adjustment considerably reduces the weight on the back.
Finish by adjusting the return straps, which are designed to hold the battery firmly on the back. Turn the chest strap over to position it higher or lower according to your body shape. To make it more comfortable for female users, the right-left supports can be reversed for quick connection in order to refit the chest strap.
Cut tall grass when demonstrating the tool to show how powerful it is, adjust the cutting speed up and down.
Speed 1 is recommended for finishing work as well as weeding to limit the spraying of debris.
Speed 3 is recommended for cutting after the wire has been replaced.
The handle can be adjusted to make it easier to work on slopes.
CITY CUT
The counter-rotational movement allows a complete rotation of the 2 blades in the opposite direction to the movement of the reciprocating blade (scissor effect).
For optimal efficiency and ergonomics, hold the City Cut head at a 28° or 51° angle, depending on the working direction.
Working in CITY CUT mode in automatic operation avoids scattering debris and reduces wear on the dual blades while ensuring battery life of more than one working day.
Are your new blades noisy? That’s normal! Remember to spin them for a few minutes in a sandy area.
EXCELION 2
Quick change to faster speed by pressing upwards.
At the start of each work session, the remaining battery life will be displayed after 3 min. of work.
Reset the working time before starting a session at a work site to know the actual working time.
Ultra-fast wire loading with TAP CUT 2 & 3. heads.
It is possible to switch directly to speed 4 by activating the Boost function.
BOOST = Press down on the paddle switch for 0.5 seconds.
In tall grass, use the chopping blades rather than wire to save energy while continuing to mulch.
The time is indicated in hours/minutes when the trigger is pulled and in % when the trigger is released.
Remember to activate the speed limiter when working on a uniform work site.
RASION 2
Adapt your cutting speed to the type of work to be done:
• Maintenance mowing: lower the speed of the blades and increase the ground speed;
• Difficult conditions (tall grass): increase the speed of the C3 blades and reduce the ground speed by 2 km/h (1 mph).
• Please note, RASION cuts deep! A height of 55 mm/2.2 in. leaves an actual length of more like 45 mm/1.8 in.
Maintenance cutting, speed 1 is suitable if there is a noise constraint. Dry grass, height of <5 cm/<2 in.
Maintenance, speed 2 suitable for noisesensitive environments Wet grass, height between 5 and 10 cm/2 and 4 in.
Mulching, ejection. Wet and heavy grass, height between 5 and 10 cm/2 and 4 in.
Difficult collecting conditions and fast ground speeds. Dry grass
The boost function is activated by pressing the trigger twice. For effective collecting, use suction blades. Ref. 160427
C1
C3
C2
AIRION BACKPACK
Quick access, which makes your work easier:
CRUISE CONTROL = Press up on the paddle switch for 0.5 seconds.
BOOST = Press down on the paddle switch for 0.5 seconds.
Ergonomic angled nozzle for more air flow. For large piles of leaves.
Angled flat nozzle for speed and precision. For very wet leaves on the ground and other highly encrusted residues, cigarette butts, trellis towers.
Flat nozzle for precision cleaning. For leaves, pine needles, waste to be cleared from a grove, fence, or under a car.
AIRION 3
Remember to use the correct nozzles for the work to be done:
Flat nozzle for more speed with a controlled air flow, for blowing under cars or removing leaves on wet ground.
Ergonomic nozzle to reduce wrist strain, allowing you to work effortlessly for several hours and move a large volume of leaves.
Scraper nozzle for scraping the ground and lifting dirt.
HELION ALPHA
Start your demos with an ALPHA 260 battery.
For optimal storage, fold the tool 180°, a safety device is then activated and prevents the hedge trimmer blades from starting up.
Speed selection:
• Speed 1 for deciduous shrubs and large diameter cuts.
• Speeds 2 and 3 for annual pruning.
HELION 3
Choice of hedge trimmer blades:
• 51 and 63 cm (20 and 25 in.) blades for cutting back hedges from November to January or for maintaining narrow hedges and finishes.
• 75 cm/30 in. blade for maintaining wide hedges and finishes.
Speed selection:
• Speeds 1 and 2 for pruning.
• Speeds 3 and 4 for finishing.
Enables cutting diameters up to 3 cm/1 in.
C35/C45
Several possible attachments for the battery (ULiB 150 and 150P) and right- or left-handed holster.
Grease the blade shaft once a day.
Refresh the edge of the blade after the first 15 minutes of cutting, then every 1 to 2 days maximum.
Check the blade tightness once a week.
SELION C21 EVO
For better working comfort, remember to thread the wire through the strap loops and then in the strap provided.
Choose the lightweight ALPHA 520 battery, which has a range of 4 to 5 hours, or the ULiB 750 battery, which is compact and has a range of 1.5 days.
CLEANION
Use the collection box for heavy waste such as sand or gravel.
CULTIVION
Remember to check the tightness of the cord on the back of the tool every day before starting work.
Check that the Activ' Security feature is working every time you start it up.
Operating modes:
C1 – Steady with half-opening
C2 – Steady with wide opening
C3 – Fast on/off with half-opening
C4 – Fast on/off with wide opening
F5 – Crossing the blades
F6 – Adjustment of the half-opening
F7 – Adjustment of the optical sensor sensitivity
F8 – Setting the sleep-mode timer
Check your pruning shears every 400 working hours or once a year.
Use the 22 cm/9 in. weeding blade at speed 1.
Remember to take several attachment kits to make it easier to change the blades.
9 tilting angles to choose from for better working comfort and improved productivity.
Continuous mode recommended (hold the trigger down during power-on).
Do not hold the tool firmly, let it do the work by pulling.
CULTIVION ALPHA
Consider using the new slower Speed 1 for more delicate and more comfortable working.
MADE-TO-MEASURE
SERVICES
OUR EXPERTS AT YOUR SIDE
To deliver optimal service quality to our 500,000 customers around the world, PELLENC fosters a close relationship by maintaining regular ties with all those in our network. To that end, we undertake many actions and processes at the international level.
A NETWORK OF TRAINERS WORKING IN THE FIELD
PELLENC distributors are first and foremost ambassadors for the brand and its products. To assist them and bolster their expertise for the benefit of customers, they are trained by technical inspectors with extensive field experience. This system provides an appropriate solution for the end-user and ensures a consistent approach based on the specific needs of the market.
EFFICIENT AFTER-SALES SERVICE
PELLENC's after-sales service not only meets the immediate needs of users but also takes account of their feedback to improve existing products and design new ones.
To guarantee users a “manufacturer quality” servicing of their machines, PELLENC has recently reconsidered its maintenance process. By entrusting their tools to distributors with the 5S label, users can be sure of a service carried out by certified professionals who know exactly what points to check, who work with original parts and who use appropriate tools.
Your equipment comes with a 2-year manufacturer's warranty on parts and labour (excluding wear parts) on your battery-powered tools. An extended warranty of up to 3 years, depending on the product, can be offered in addition to the manufacturer warranty (2 years).
A RESPONSIVE REPLACEMENT PARTS DEPARTMENT
With stock-on-hand worth €30 million and Industry 4.0 processes, the rate of orders met with shipments of PELLENC replacement parts is over 98%; a very high service rate.
When machines are taken out of use for servicing, the many replacement parts directly available from our distributors lets PELLENC minimise downtime and keep the machine in use as much as possible throughout the seasons.
TURNKEY FINANCING SOLUTIONS
For more information on our financing solutions, please contact us: solutions.finances@pellenc.com
DEMONSTRATION TOOLS PACK
Every year, it is essential to order your demo tool pack.
A demo pack in good condition and with the latest up-to-date tools is essential to perform quality demonstrations.
Your demo tool pack must be renewed every year.
Remember to offer a loan of the tools from your demo pack from the previous year.
