‘‘ The highly ecient Easy Fill and Easy Press² functions save time and optimise juice quality. Here we pay particular attention to cleaning, and the new Easy Clean technology works perfectly. We generally carry out an average of 80 pressings per press: with the SPC² the results are amazing. Particular attention has been paid to ergonomics, with a larger screen for easier viewing. The PELLENC CONNECT mobile application gives us peace of mind, even when we’re out in the vineyards, thanks in particular to the alerts which ensure that operations run smoothly. ’’
Cédric CARCENAC
Domaine CARCENAC, 100 hectares Montans (Gaillac), Occitanie (81), FRANCE

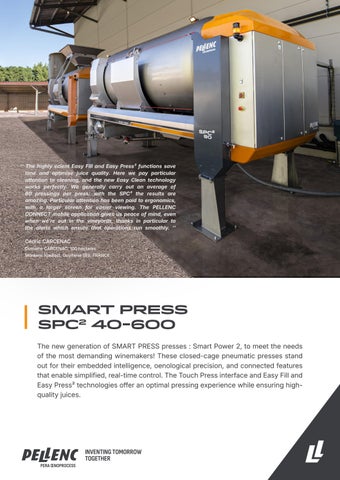

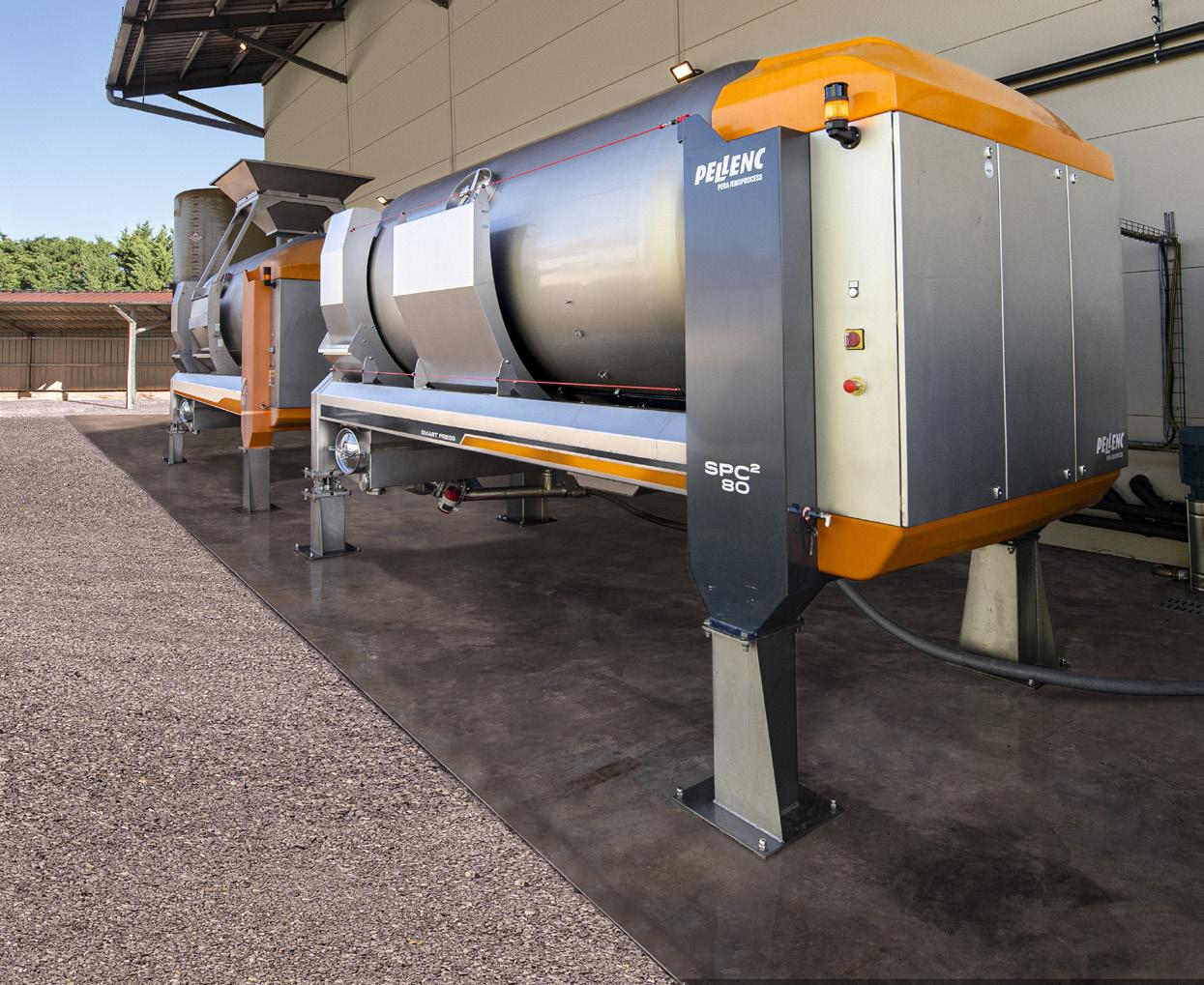

SMART PRESS SPC2 40-600

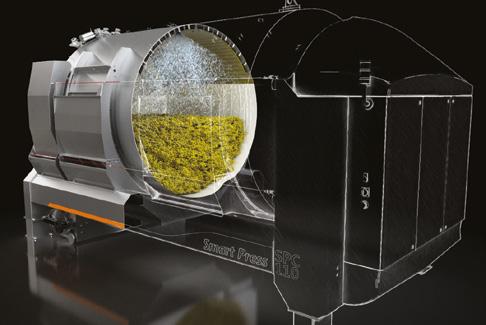

The new generation of SMART PRESS presses : Smart Power 2, to meet the needs of the most demanding winemakers! These closed-cage pneumatic presses stand out for their embedded intelligence, oenological precision, and connected features that enable simplified, real-time control. The Touch Press interface and Easy Fill and Easy Press² technologies offer an optimal pressing experience while ensuring highquality juices.
The SMART PRESS SPC² can be fed by a pump via a manual or pneumatic feed valve. The Easy Fill² system, coupled with pressure sensors, allows for smart control over filling for optimum, safe management of the tank.

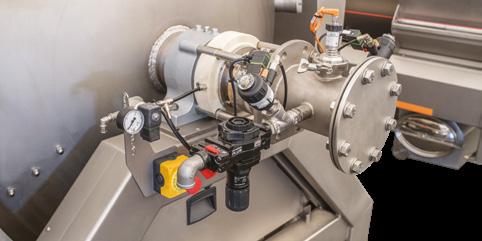

Axial feeding with pneumatic valve

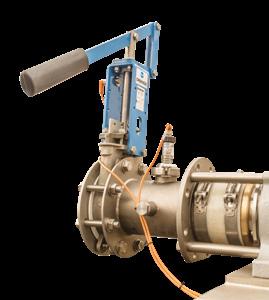

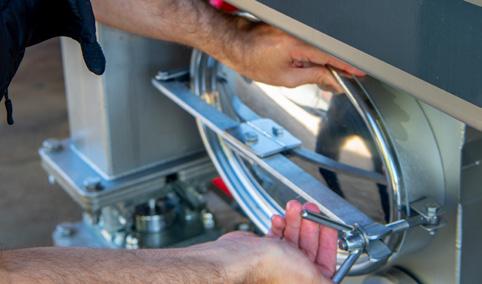

Axial feeding with manual valve

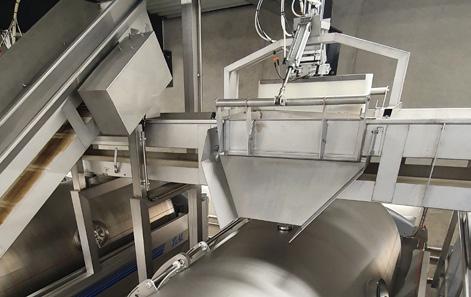

The press can be fed by gravity through one or two doors depending on the model. It can be fed directly or via a conveyor, ensuring a gentle, uniform feed of the grape harvest.
Two independent power-operated doors
FAST PRESS DRAINAGE GRIDS: EFFICIENT DRAINAGE, SIMPLE MAINTENANCE
UNRIVALLED SURFACE AREA FOR DRAINAGE
• Vertical pierced slots
• Fast juice extraction
RESPECT FOR THE BERRIES
• Soft, non-abrasive surface
• Reduction in solids
• Low level of crushing
EASY EMPTYING AND CLEANING
• Smooth surface with no retention zone or pomace accumulation
• Quick evacuation with little residue

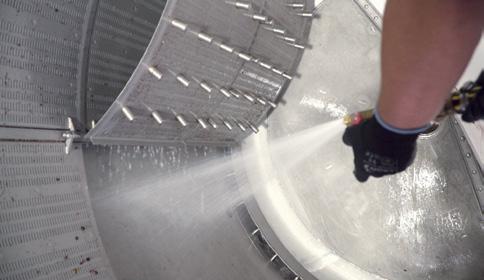

• Easy, quick washing thanks to the hinged drainage grids

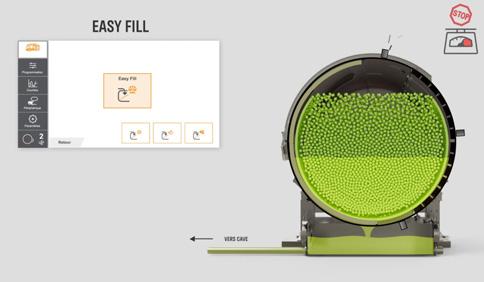

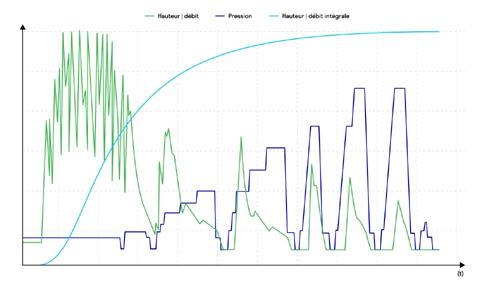

EASY FILL : THE POWER OF DRAINAGE
AUTOMATIC CYCLE CONTROL
• Easy Fill coupled with flow and tank pressure measurement to control rotation
• High-performance partial rotation: the movement unclogs and breaks up juice pockets
• Natural juice drainage when pressure is stable
• Sector rotations triggered if the juice flow slows down
• Full rotation up to 10 minutes: few rotations, low level of sediment and 3% less solids in juices (vs. complete rotation)
AIR ESCAPES DURING FILLING
• Controlled pressure in the press without blocking the grids
• Stop position adjusted via three valves for natural air evacuation

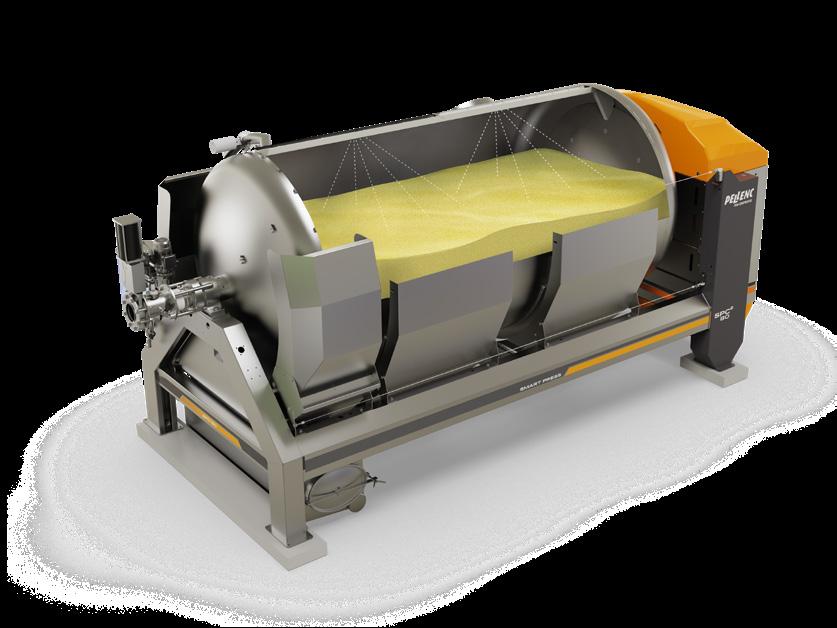

HIGH-STRENGTH MEMBRANE
• Polyurethane food-grade sage membrane on both sides
• CE/FDA compliant and suitable for use with thermovinified grapes
• Air diffusion drain to balance pressure
• Quick emptying thanks to a spiral moving the pomace towards the door
• Technical access hatch on the air side available on models from 65 hl
Juice tank
Easy Fill with sector rotations

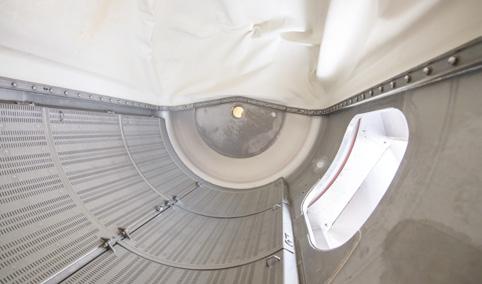

Press interior without corners

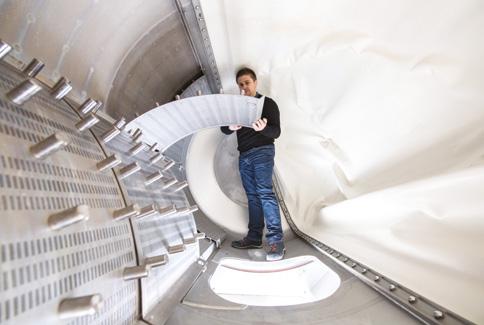

Hinged Fast Press drainage grids
SIMPLE, SMART, REAL-TIME PROGRAMMING
Touch Press and Easy Press² : cycle automation and full traceability
• Custom pressing cycles for the winery’s needs (logistics, quality etc.)
• Real-time program changes
• Monitoring of pressure and yield curves
• Optimised ad secure filling with Easy Fill²

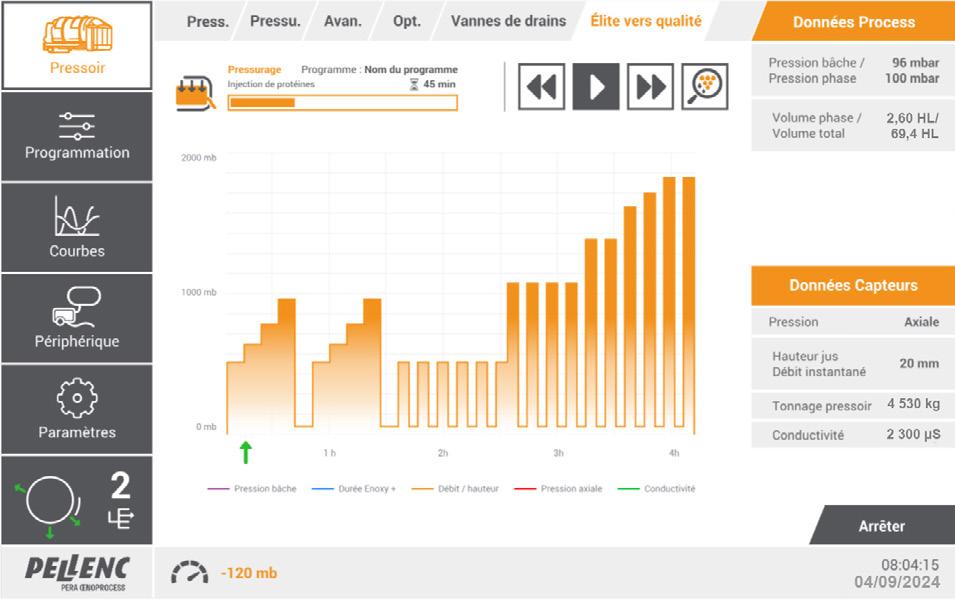

TOUCH PRESS control screen, simple and intuitive
TWO PROGRAMMING MODES
Advanced
• The operator programs the different pressing phases: pressure, holding pressing time, number of turns to break up the pomace
• 20 customisable programs (up to 99 lines) exportable on flash drive

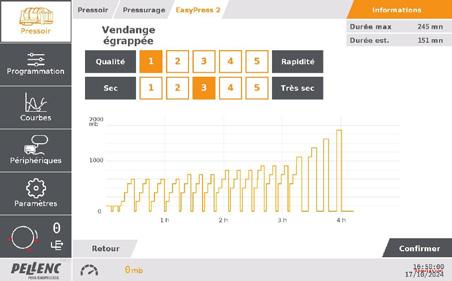

Easy Press²
• Automatic control of pressing cycles based on juice flow and the degree of drying required. The operator adjusts two criteria: quality and dryness
• Optimised pressing time and pomace break-up
• Five predefined pressing profiles
PHASES/TEMPS
Temps de maintien en secondes
Emiettage : P=0
PRESSION
OPTIONS
POWER PACK² : CONTROL BY WEIGHT SENSOR AND FLOWMETER
• Real-time juice yield display: litres extracted/100 kg grapes
• Display of extracted volume as soon as filling strats
• Juice selection optimised based on the real volumes extracted
• Percentage display of the last peak/total volume already extracted
• Precise monitoring of juice extraction: avoids juice loss and over-extraction
PROTECTION OF THE HARVEST AND MUSTS
• Systems controlled via the Touch Press screen
• ENOXY+ and INGAS
• Injection of neutral gas during rotation in the final pressing phase
JUICE SELECTOR
• Manually programmable via the Touch Press screen
• Control based on changes in conductivity
• Separate juices automatically based on quality

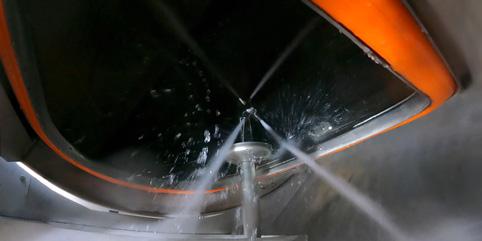

EASY CLEAN²
• Automatic cleaning (CIP) with retractable rotating nozzle
• Washing through sealed door
MOTORISED PRESS MOVEMENT
• On rails or wheels
Neutral gas injection: Ingas, gas on final pressing
Easy Clean² : fast and efficient
Flowmeter
Automated juice selection
Weight sensor
Motorised press movement

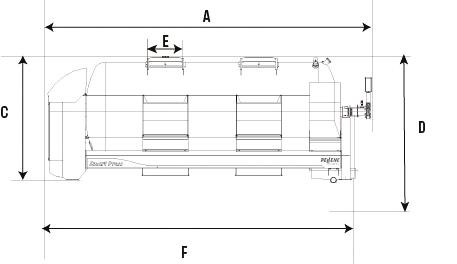

TECHNICAL FEATURES
Axial feeding with end-of-filling detector and Easy Fill
Ø 125 manual or pneumatic Ø 150
Power Pack² (flowmeter – weight sensor – Easy Fill²) •
Drainage Fast Press draining grids
Membrane
Advanced Pressing Cycle (20 options) or Easy Press²
Easy Clean Automatic washing cycle
Easy Clean²
Washing with rotating nozzle
Door feeding 1
High-density polyester weave covered with polyurethane FDA/EEC 1227 food-grade quality
• Standard equipment • Optional equipment
Note: The specifications are provided for information purposes and may be modifief by the manufacturer without notice.
*Estimated capacities depending on grape variety, year, maturity, harvesting type and filling conditions.
