THE SELECTIV’PROCESS 2 SYSTEM

Next Article
EASE OF HANDLING

EASE OF HANDLING

SELECTIV’PROCESS 2* AN UNRIVALLED DESTEMMING AND SORTING SYSTEM

In 2007 PELLENC invented the first ever on-board 2-in-1 destemming and sorting system. Since then, SELECTIV’ PROCESS has been continuously improved, and is now the most efficient system on the market. Equipping our most sophisticated models, this system offers you unrivalled sorting quality. Its productivity is optimal, even in high-yielding vineyards. Thanks to SELECTIV’ PROCESS, your tanks receive your harvest directly without further winery operations.

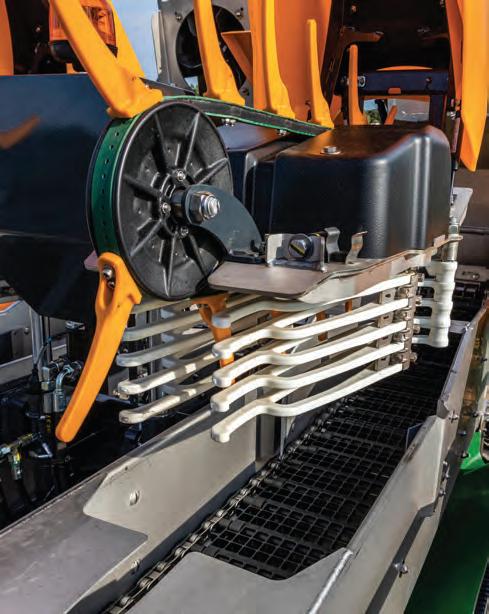

HIGH-FREQUENCY LINEAR DESTEMMER

• It destems the berries gently, without loss, even for difficult grape varieties. • The frequency can be adjusted from the EASY TOUCH screen. • Its 5 pairs of long fingers achieve flow rates of up to 50 tonnes per hectare at 4.5 km/h. • The linear destemmer is equipped with an anti-jam sensor.

Feeding fingers ensure a constant flow and evacuate foreign bodies

Direction of the harvest

The slatted conveyor selects only the berries The stalks are evacuated at the end of the conveyor

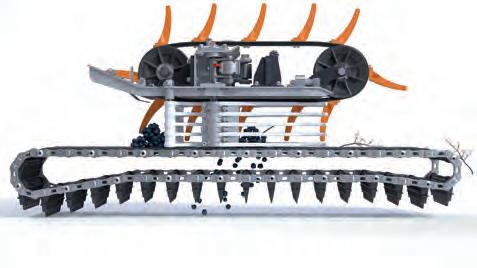

Linear destemmer with 5 pairs of long fingers 1. Upper suction fan 2. Destemmer 3. Vibrating deflector 4. Rotary distributor

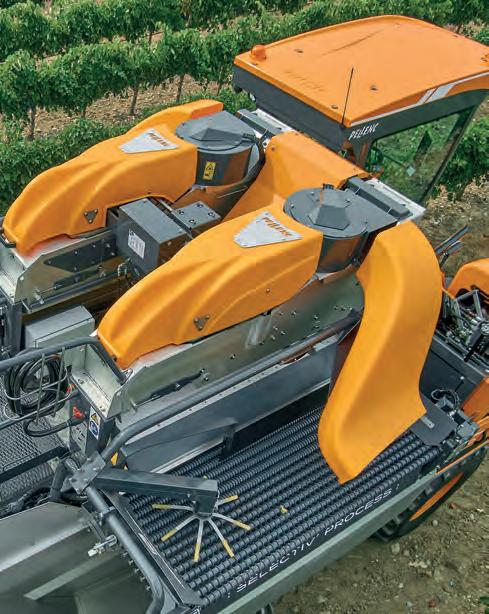

VARIABLE SCREEN SORTING TABLE

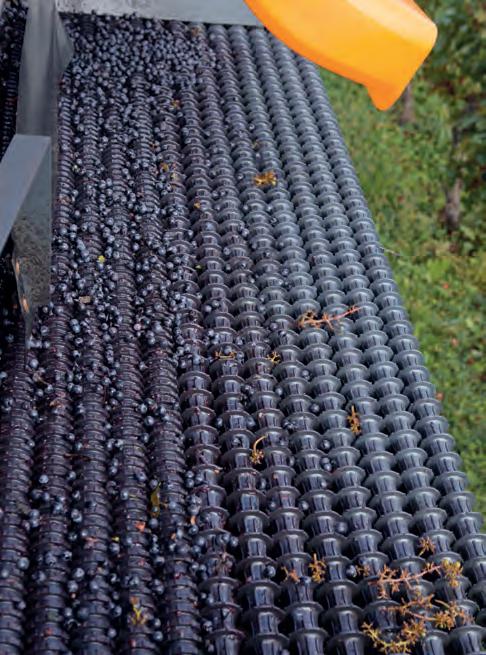

• It allows rapid adaptation to all grape varieties and all working conditions. • Its 2.50 m2 sorting surface is unmatched on the market and guarantees a high working speed. • The solid notched feeding rollers route leaf stems to the sorting rollers. • The sorting rollers allow the sorted grapes to pass through and remove the leaf stems and other waste from the sorting table. • The capacity of the bins is entirely preserved, the sorting table being located above them. • System can be disengaged in 1 click from the cab to facilitate washing.

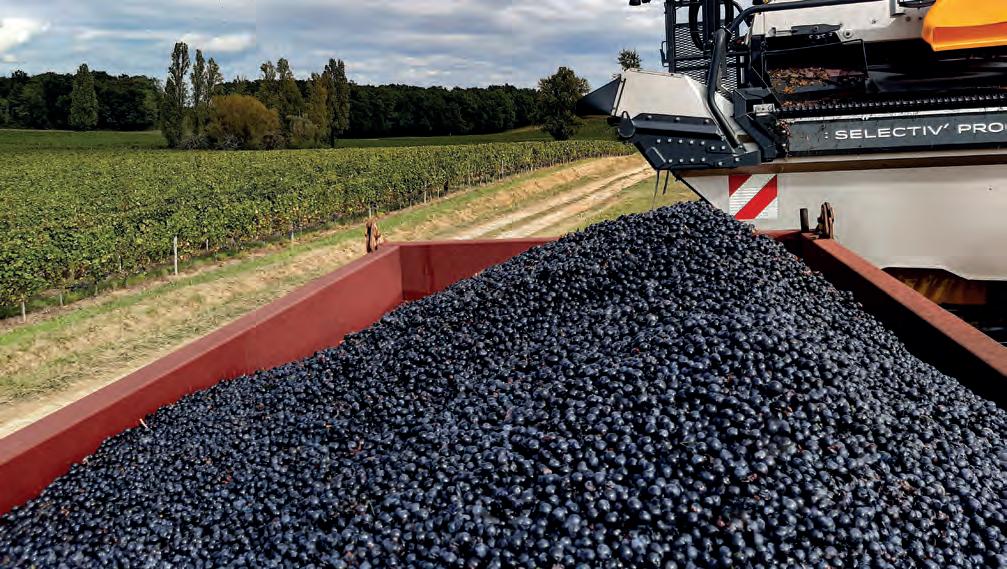

Testing conducted by the French Vine and Wine Institute (IFV) in 2012 on the Syrah variety. 99.82% clean.

Unmatched sorting quality
