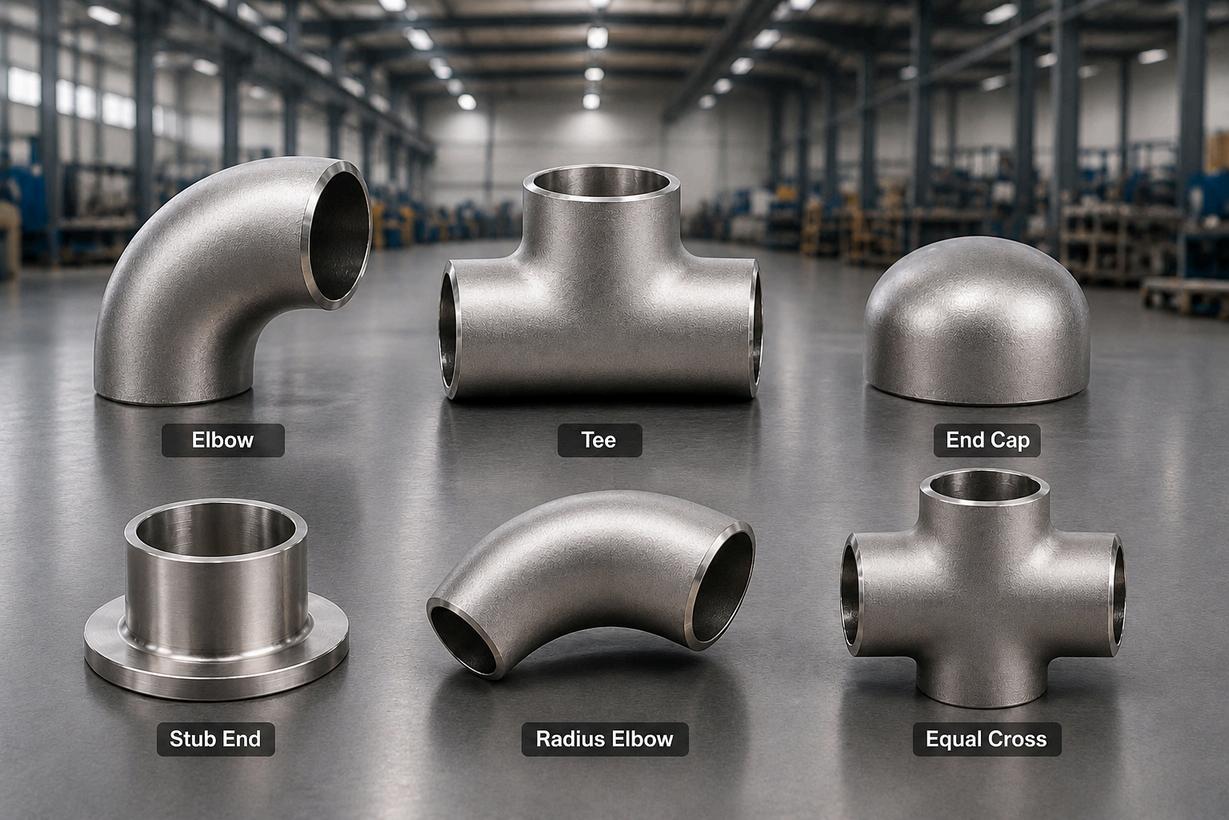

What are Pipe Fittings?

Pipe fittings are essential mechanical components used to connect pipes, change the direction of flow, create branch connections, reduce pipe sizes, or seal pipeline ends. They play a vital role in ensuring safe, efficient, and leak-proof fluid transportation.

Commonly manufactured from stainless steel, carbon steel, and alloy steel, pipe fittings are widely used in oil & gas, chemical processing, water treatment, construction, food processing, and power generation industries.

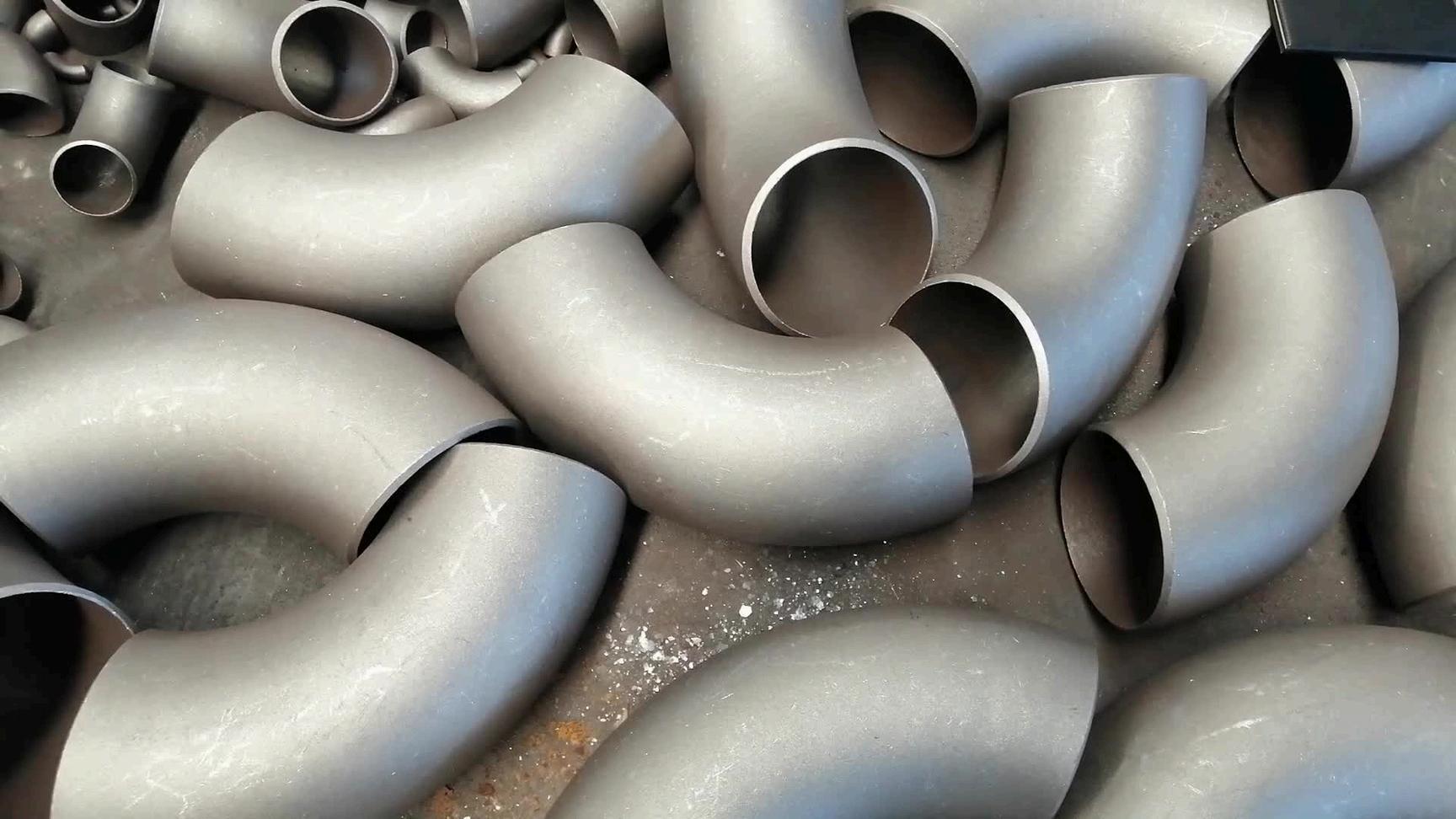

Elbow Pipe Fitting

Used to change the direction of fluid flow in a piping system.

Commonly available in 45°, 90°, and 180° angles.

Helps route pipelines around obstacles and equipment.

Available in Long Radius (LR) and Short Radius (SR) designs.

Manufactured from materials such as Stainless Steel, Carbon Steel, Alloy Steel, and Duplex Steel.

Widely used in oil & gas, chemical processing, water treatment, power plants, and food processing industries.

Provides smooth flow with minimal pressure loss when properly selected.

Suitable for both high-pressure and high-temperature applications.

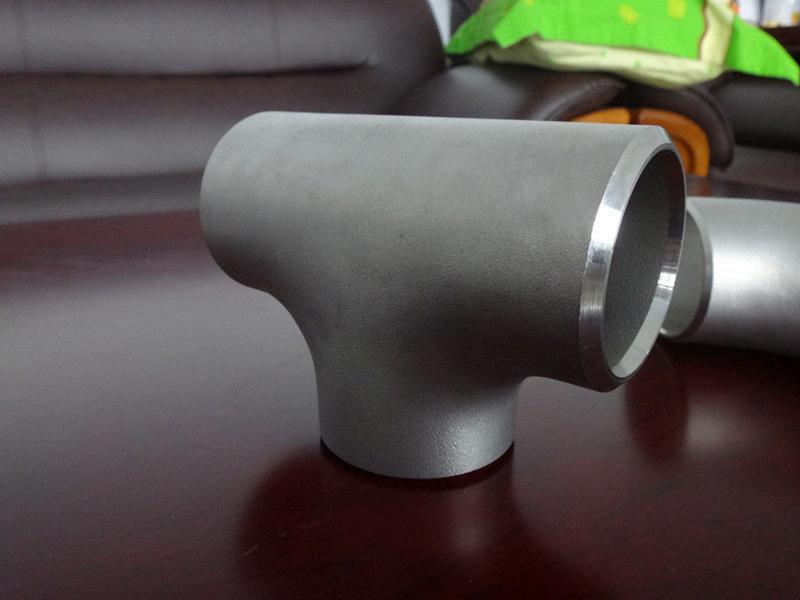

Tee Pipe Fitting

Used to create a branch connection from the main pipeline.

Allows fluid flow to split into two directions or combine two flows into one.

Available in Equal Tee and Reducing Tee configurations.

Ensures efficient distribution of liquids, gases, and steam.

Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, and other industrial-grade materials.

Suitable for high-pressure and high-temperature piping systems.

Commonly used in oil & gas, chemical processing, water treatment, HVAC, and power generation industries.

Provides strong, reliable, and leak-resistant pipeline connections.

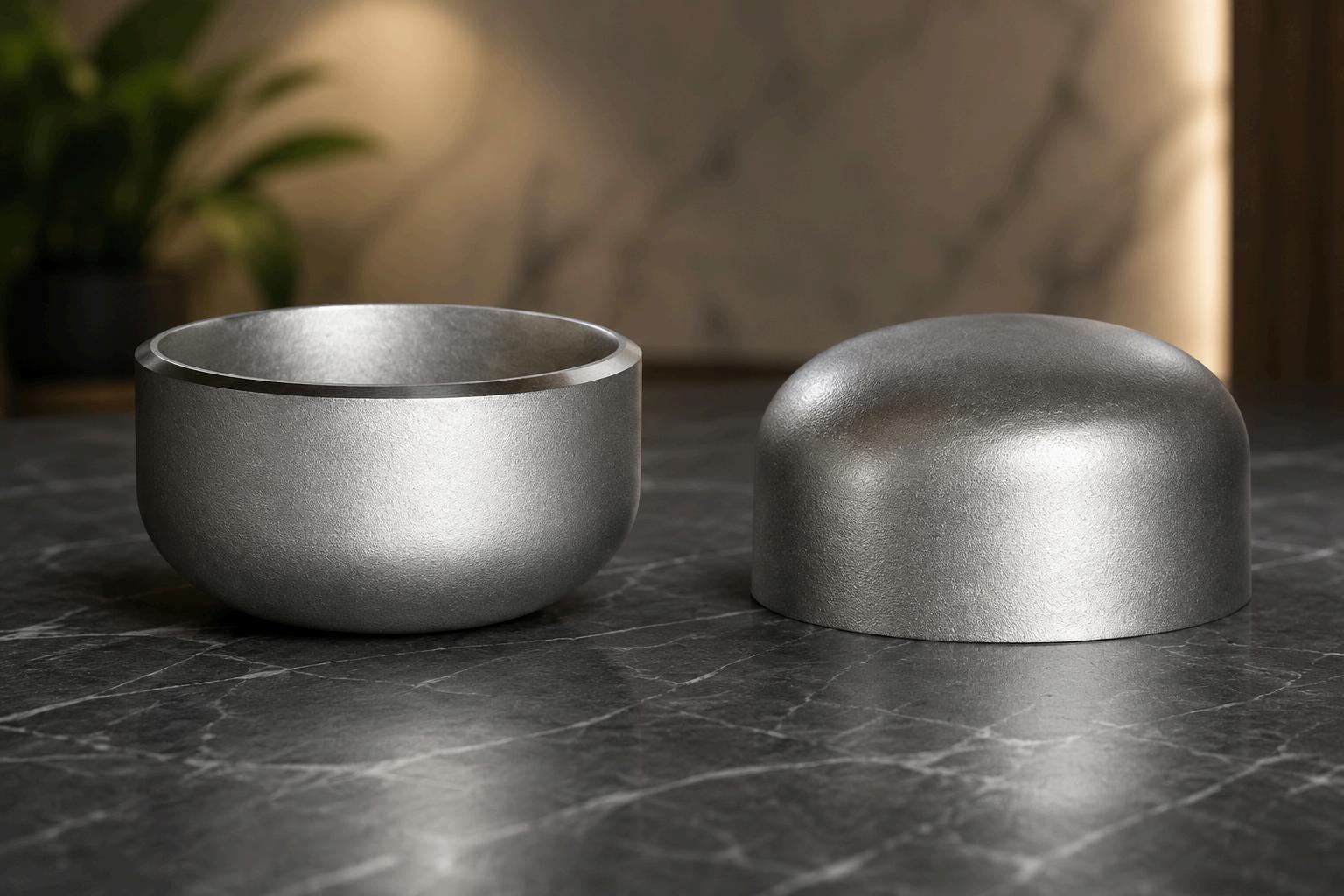

End Cap Pipe Fitting

Used to seal the open end of a pipeline securely.

Prevents the flow of fluids, gases, or steam beyond the pipe end.

Protects the piping system from dust, moisture, and contaminants.

Helps maintain system pressure and prevents leakage.

Available in welded, threaded, and socket weld designs.

Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, and other industrial materials.

Commonly used in oil & gas, chemical plants, water treatment, power generation, and process industries.

Provides a durable and reliable solution for temporary or permanent pipeline closure.

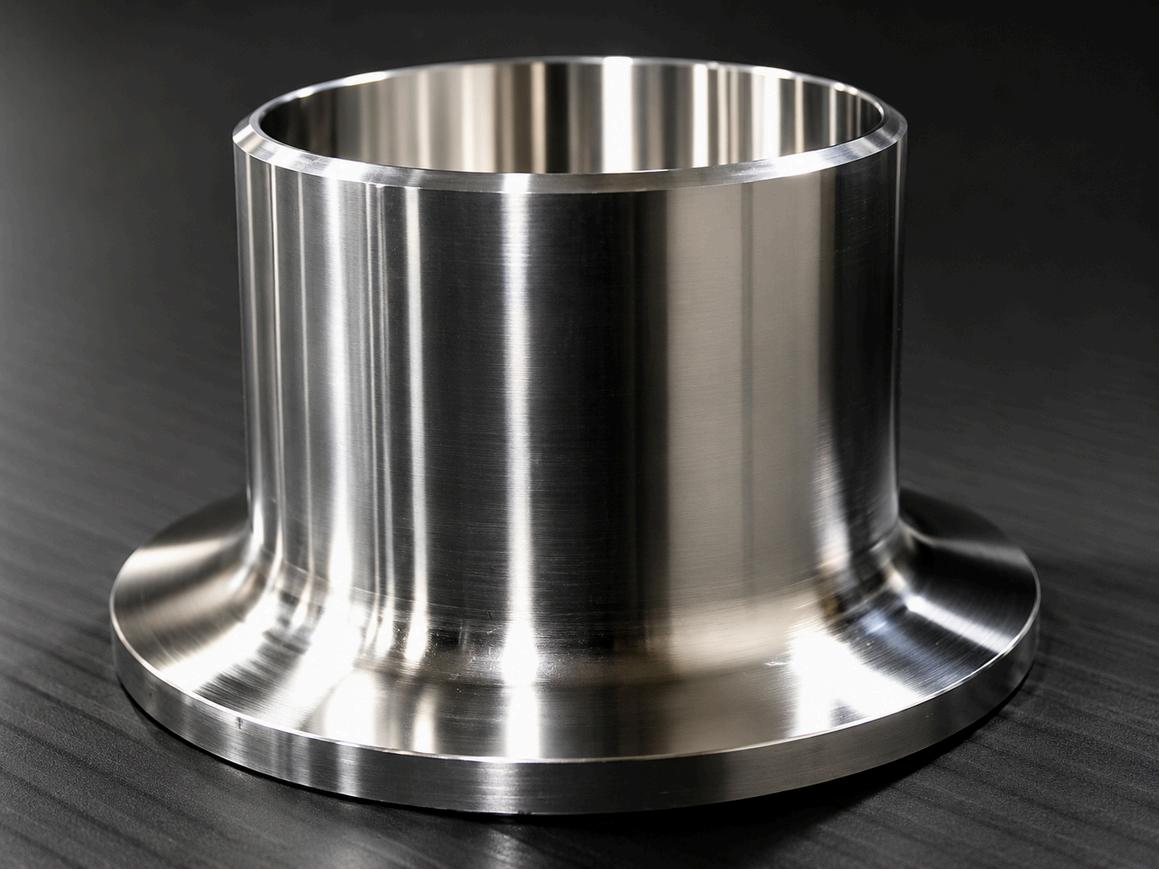

Stub End Pipe Fitting

Used with a Lap Joint Flange to create a removable piping connection.

Makes flange alignment and installation easier.

Reduces overall installation and maintenance costs.

Ideal for systems requiring frequent dismantling and inspection.

Available in Type A, Type B, and Type C designs.

Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and Nickel Alloys.

Suitable for low- to high-pressure industrial piping applications.

Commonly used in oil & gas, chemical processing, water treatment, marine, and food processing industries.

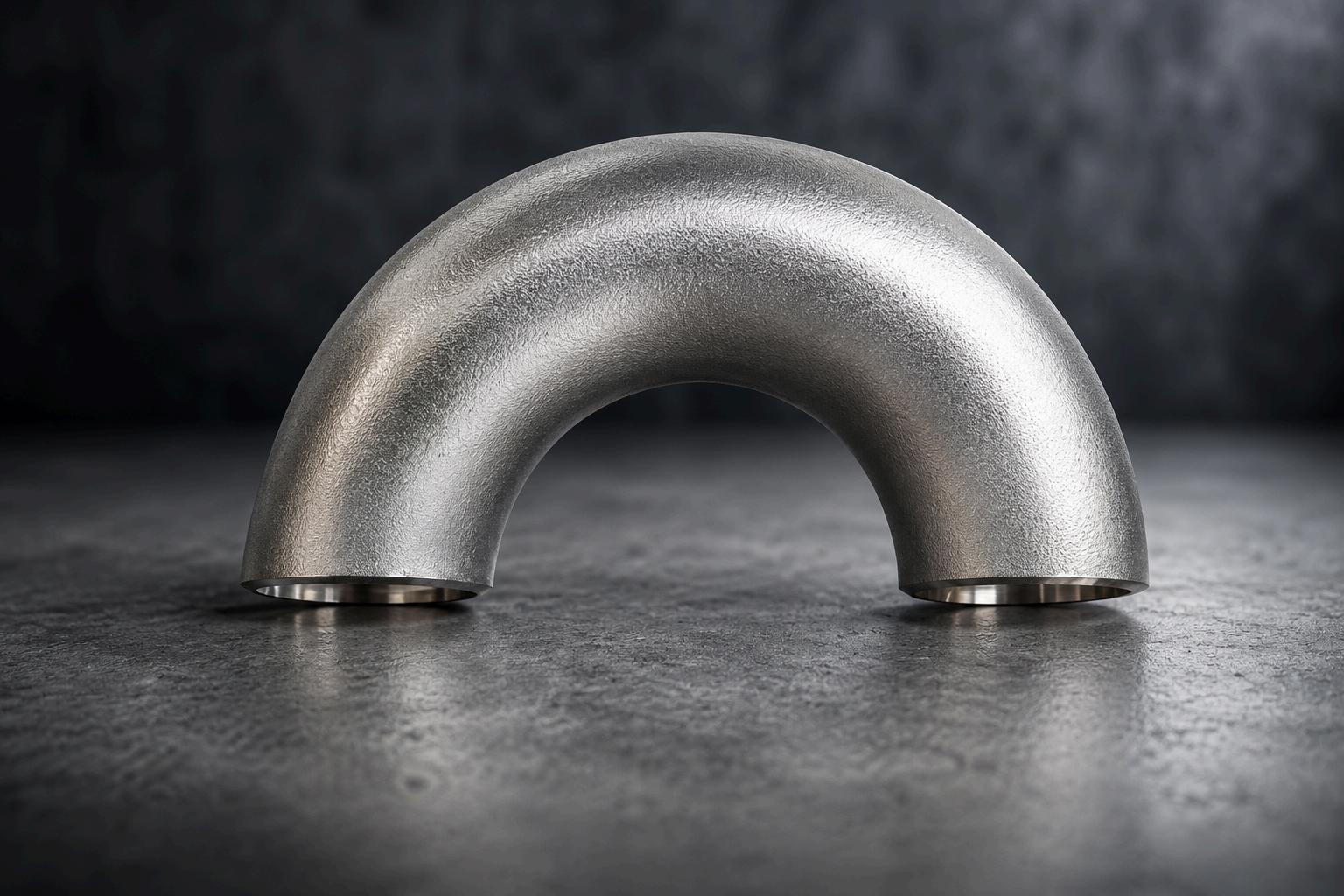

Radius Elbow Pipe Fitting

Used to change the direction of flow with a larger bend radius.

Reduces turbulence and minimizes pressure drop in the pipeline.

Improves flow efficiency by providing a smoother flow path.

Available in Long Radius (LR) and Short Radius (SR) configurations.

Helps reduce pipe wear caused by high-velocity fluids.

Suitable for high-pressure and high-temperature applications.

Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other industrial materials.

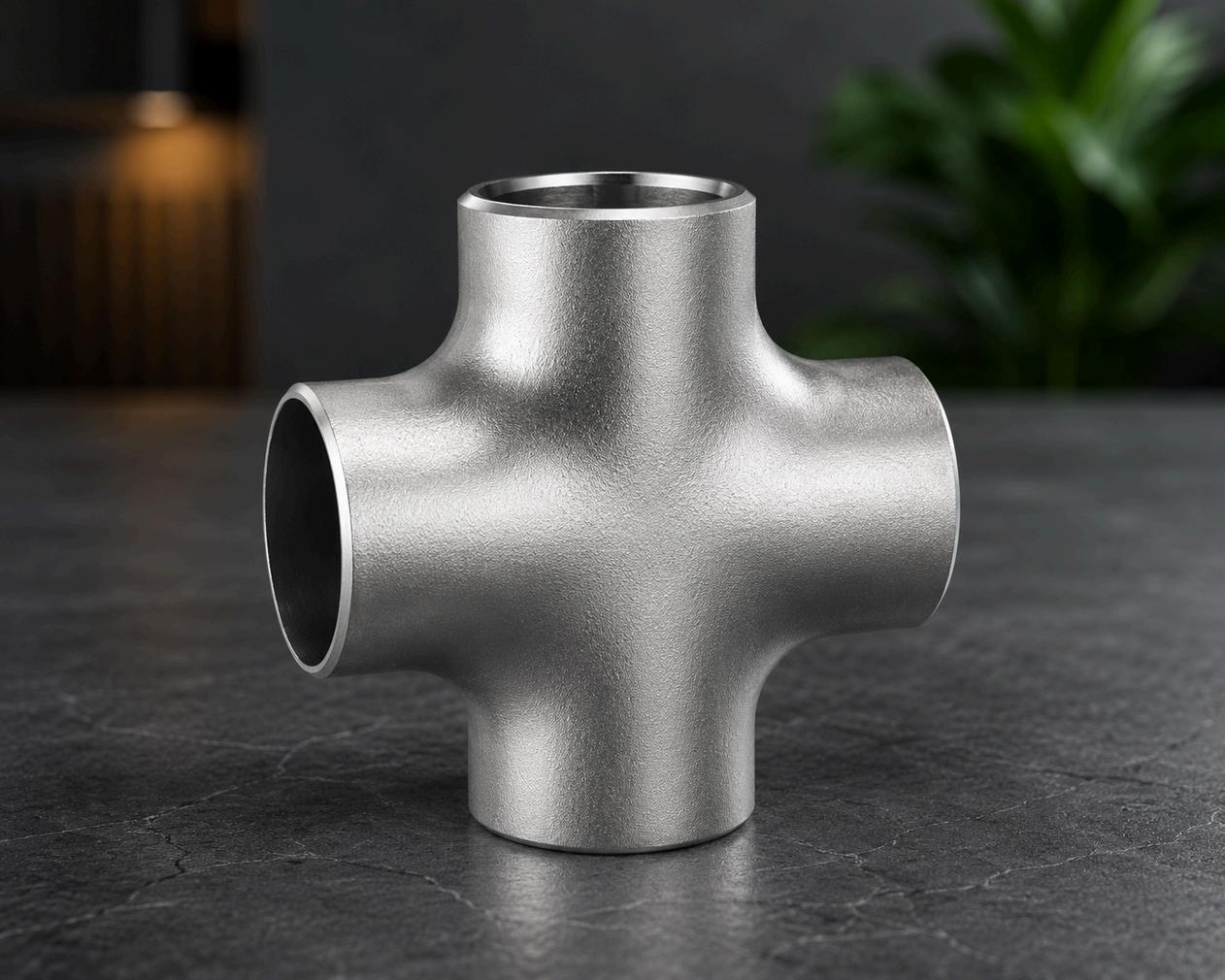

Equal Cross Pipe Fitting

Used to connect four pipes of the same diameter at a single junction.

Allows fluid flow to be distributed in four different directions.

Ensures equal flow capacity through all connected pipelines.

Ideal for creating multiple branch connections in piping systems.

Manufactured from Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, and other industrial materials.

Suitable for low-, medium-, and high-pressure applications.

Commonly used in oil & gas, chemical processing, water treatment, HVAC, and fire protection systems.

Applications of Pipe Fittings

Oil & Gas: Transport of crude oil, natural gas, and petroleum products Chemical Plants: Safe handling of chemicals and corrosive fluids Water Treatment: Water distribution and wastewater management systems Food & Beverage: Hygienic and contamination-free fluid transfer Pharmaceutical: Sterile and precision process piping systems HVAC: Heating, cooling, and ventilation pipeline networks Construction: Plumbing systems and building infrastructure
