Exclusive ll Series Material: The construction materials in this series offer heat insulation quality such as 10 cm. thick autoclaved concrete which keeps the house cool and lowers the electricity costs. Additionally, the bedrooms are equipped with the PD Fresh Airflow - air ventilation system, model Fresh II, which provides fresh air, prevents mold, and filters out PM 2.5 dust. The floors on both levels are made of 8 mm. thick laminated wood. This makes the home energy-efficient and environmentally friendly.

PD HOUSE

5

01

Materials and equipment for the elderly and health

6

Exclusive Exclusive ll ll 01 Materials and equipment หมวดที่​่� 1 วั​ัสfor ดุ​ุเพื่​่the �อผู้​้elderly �สู​ูงวั​ัยและสุ​ุ andขภาพ health

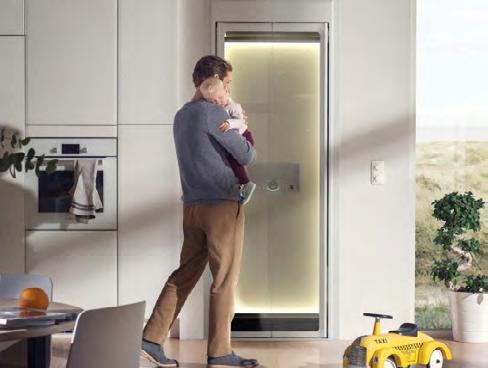

Lift

By ARITCO : S15 or as drawing specified Feature : Beautiful and space-efficient with a unique structure. Saves up to 95% on electricity and is made from recyclable materials. www.aritco.co.th

Air ventilation equipment

PM 2.5 prevention and clean air ventilation equipment by PD Fresh Airflow model Fresh II, wall mounted in the bedrooms and bathrooms except maid room-maid bathroom (if any) Feature : Air ventilation system with PM 2.5 filter, decrease polluted air, enhance indoor air quality, minimize the risk of mold with automatic system.

Exclusive Exclusive ll ll 01หมวดที่​่ Materials � 1 วั​ัand สดุ​ุเพื่​่equipment �อผู้​้�สู​ูงวั​ัยและสุ​ุ forขภาพ the elderly and health

Elder room floor

Shock absorb Safety Floor – PVC type, by KRONOTEX with PVC floor skirt Feature : Anti-slip surface reduces the risk of slipping and minimizes the impact severity in case of falls. www.thaigermandecor.com

House entrance ramp

Coarse polished cement, as drawing Feature : For wheelchair accessibility

7

8

Exclusive ll 01 Materials and equipment for the elderly and health

Door for elder bathroom

White Wood Plastic Composite (WPC) door, hanging sliding type, 1.00 meter wide. With grove pattern (MN80-P01G05, MN80-P01G05 or MN80-P01G08 to be chose later) and sliding rail, equipment and white rail cover by MOHNE’ Feature : Sliding door for e asy access of the elderly, made from waterproof WPC material that resists warping. www.thaiwpc.com

Elder Bathroom

“AMERICAN STANDARD” or COTTO” (White color) Feature : Special designed sanitaryware and equipment for elderly, complemented by additional safety features to prevent accidents in the bathroom. www.americanstandard.co.th www.cotto.com

Water closet

AMERICAN STANDARD: Cygnet Hygiene Rim 2626SC-WT-0 with toilet seat model Armorlid, 2 function rinsing spray

by COTTO: CT980H#WH (HM) and stop valve model CT179N(HM)

Wash basin

Wall hung type by COTTO: For All SC00537

Exclusive Exclusive ll ll 01 Materials หมวดท ี 1and วสัดequipment -ุ อปุกรณเ พfor อ �ผthe ส ูงูวelderly ยัและสขุand ภาพhealth

Wash basin mixer faucet

COTTO: CT300A (with hot water pipe)

Wall mounted mixer faucet for shower

AMERICAN STANDARD: Codie FFASB212-7T1500BT0 with shower head

Wall mounted faucet

AMERICAN STANDARD: WINSTON FFAST602-0T0500BT0

9

10

Exclusive ll 01 Materials and equipment for the elderly and health

Towel bar

AMERICAN STANDARD: Concept RK-2801-46-N chromium color

Soap holder

AMERICAN STANDARD: Concept S K-2501-54-N chromium color

Tissue holder

AMERICAN STANDARD: Concept SK-2501-43-N chromium color

Mirror

COTTO: MZ901#BS with shelf and cloth hook

11

Exclusive Exclusive ll ll 01 Materials หมวดท ี 1and วสัดequipment -ุ อปุกรณเ พfor อ �ผthe ส ูงูวelderly ยัและสขุand ภาพhealth

Bathroom floor drain

COTTO: CT654Z2P (size 100 cm.) and AMERICAN STANDARD: A-8204-N

Safety equipment for Elder bathroom Foldable support arm by COTTO: CT0190

Safety equipment for Elder bathroom

L shape handrail (L/R) by COTTO: CT751L/R#SA(HM)

Exclusive 6 ll ll Exclusive 01 Materials and่ 1 equipment forเพ�the andขภาพ health หมวดที วัสดุ-อุปกรณ ่อผูelderly สูงวัยและสุ

12

สระว ายน้ำ

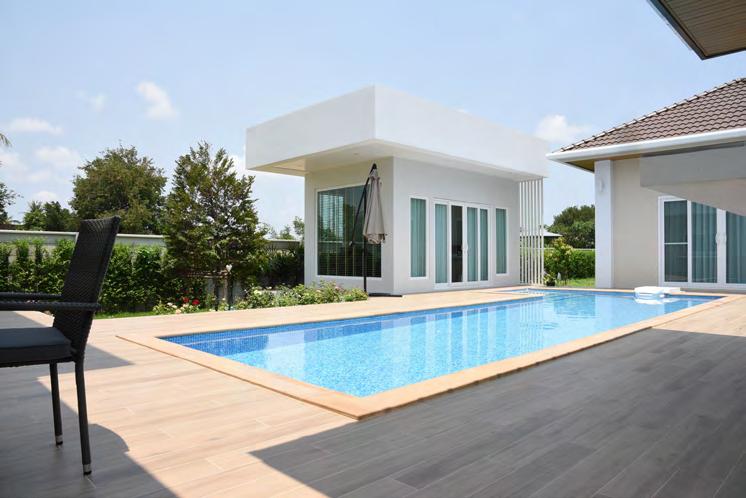

Swimming Pool

Feature : Convenient and safe for the elderly to exercise for strong and healthy well-being.

Wall structure โครงสร างผนัง

Polypropylene with concrete structureภายในเทคอนกร� depth not exceeds ใช แบบสำเร็จโพลีพwall รอพโพลี น (polypropylene) ต 1.20 m. or as drawing specified. ความลึกไมเกิน 1.20 เมตร หร�อขนาดตามแบบกำหนด

Floor-wall ระบบพ�้น-ผนัsystem ง

1.1ดmm. thick,ขนาดความหนา anti-slip, blue1.1liner, pattern.

Poolนลืedge กรุ วย Liner มิลลิno เมตร สีฟาแบบกั ่น tile with polished sandstone size 30x60 cm. ไมมีลวดลาย ขอบสระกรุหินทราย ผิวขัดเร�ยบ ขนาด 30x60 เซนติเมตร

Installation อุปกรณ การติequipment ดตั้ง

Electricalาsystem, ระบบไฟฟ , ขนาดทอpipe, น้ำทิ�งdrainage -น้ำดี and filter system size follow the manufacturer recommendation และระบบกรองขนาดตามผูผลิตกำหนด

Pool pavement (if any) ทางเดินรอบสระ (ถ ามี)

Reinforced concrete with porcelain tile เทคอนกร� มเหล็ก500 ปูดวbaht/sq.m) ยกระเบื้องพอรซเลน (price notตเสร� exceed ราคาไมเกิน ตารางเมตรละ 500 บาท

15

02

Materials and equipment for Energy-Efficiency and Heat Insulation

16

Exclusive ll 02 Materials and equipment for Energy-Efficiency and Heat Insulation

Solar water heater

Capacity 160 litres with hot water piping (Pimaflex) to 2 bathrooms for wash basin, bath tub and shower. (2 points for each bathroom) Feature : Uses solar energy to help reduce electricity costs.

Heat prevention beneath the roof

3 inches thick insulator by “STAY COOL”: Premium placed on ceiling beneath upper and lower roof level (except garage, upper, lower terrace area external ceiling and Insulated Roof). For the concrete roof or concrete floor, 6 inches thick “STAY COOL”: Premium is used.

Feature : Prevent the heat from the roof to enter the living space. www.scgsmartliving.com

Roofing materials

Ceramic Metal Roof : Casa Spain – Premium color by PD Insulated, (choose the color later) or Ceramic Metal Roof : Snaplock – Premium color by PD Insulated (choose the color later) with “Dry ridge system”, stainless steel valley through#24 Feature : Durable in all weather conditions, reduces heat entering the building, effectively absorbs rain noise, and is lightweight

Exclusive ll 02 Materials and equipment for Energy-Efficiency and Heat Insulation

17

Sanitary ware (Water saving)

“AMERICAN STANDARD” or COTTO” (White color) Feature : Water conservation with water saving funtion www.americanstandard.co.th www.cotto.com

Water closet

For general bathroom AMERICAN STANDARD: Compact Codie 2407SC-WT-0

Water closet

Rinsing spray set model STD A-4900-ST and stop valve model STD A-4401

18

Exclusive ll 02 Materials and equipment for Energy-Efficiency and Heat Insulation

Exterior/ interior wall material

10 cm. thick Autoclave concrete with plastering and skim coat.

Feature : Heat insulation and fire resistant. Reduce te disturbing noise from outside

Decorative wall material

7.5 cm. thick Autoclave concrete with plastering and skim coat.

Feature : Heat insulation and fire resistant. Reduce te disturbing noise from outside

21

03

Eco-Friendly Materials and Equipment

22

Exclusive ll 03 Eco-Friendly Materials and Equipment

General first floor and upper floor materials 8 mm. thick laminated floor by “KRONOTEX”: Exquisit or equal with PVC floor skirt.

Feature : Designed to resemble natural wood, offering superior moisture resistance and scratch durability. www.thaigermandecor.com

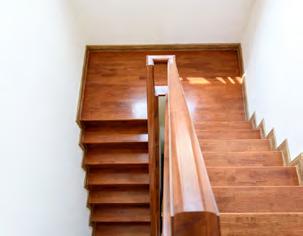

Wooden stair set

A set of Engineered Wood by ACON or MUKU color coated from the factory Feature : Strong, warp-resistant, insect and mold-proof, and environmental friendly as it is made from plantation-grown rubberwood. www.facebook.com/AconThailand www.facebook.com/Mukuthailand

Stair tread

Size 300x30 mm.

Riser

Size 200x20 mm.

23

Exclusive ll 03 Eco-Friendly Materials and Equipment

Handrail

Size 100x50 mm.

Post

Size 125x125 mm.

Baluster

Size 50x50 mm.

Sub-baluster

Size 125x25 mm.

24

Exclusive ll 03 Eco-Friendly Materials and Equipment

Landing

30 mm. thick, 2 pieces (V groove connect)

Eave ceiling

Wood Plastic Composite (WPC) by PD WOOD by Maxis Wood model QB-003 Teak color or equal with Zinc galvanized studs#26 and insect prevention screen.

Feature : Sunlight, UV rays, and rain moisture resistance without cracking or warping, eliminating pest issues. www.scgsmartliving.com

Decorated wall (If any)

In case of fiber cement decorated wall, use “SCG” or “CONWOOD” or Wood Plastic Composite (WPC) PD WOOD by Maxis Wood model CX-002 teak color or as drawing specified

25

Exclusive ll 03 Eco-Friendly Materials and Equipment

Interior Doors

General interior door/ Bedroom/ Storage room (if any)

Laminated Wood Plastic Composite (WPC) model L-WPC-001-006 with white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD” Feature : Strong, durability, and moisture resistance with the beauty of real wood.

General bathroom door / Door for maid room / maid bathroom (interior door)

White Wood Plastic Composite (WPC) door model C-WPC-001-003, 008, 011, 012 and white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”

26

Exclusive ll 03 Eco-Friendly Materials and Equipment

Door for kitchen / garage / maid bathroom / bathroom (exterior door)

White Wood Plastic Composite (WPC) door with steel structure model C1-WPC-001-003, 008, 011, 012 and white wood pattern film coated Wood Plastic Composite (WPC) door frame model Ultra series 3 by “PD WOOD”

Door for storage room under stair (if any) White uPVC door panel with louver

Door for electric control unit panel White uPVC door panel with louver

Facia

Fiber - cement board by “CONWOOD”: Two in One, primer paint coated type or “SCG”: 6”, 8” primer paint coated type or equal.

Feature : Highly resistant to outdoor conditions, termite-proof, and asbestos-free. www.conwood.com

27

Exclusive ll 03 Eco-Friendly Materials and Equipment

Treatment Tank

Fiberglass tank by “DOS”: ST-21/GY or “PP”: Ecotank or equal (put underground).

Feature : Strong and durable, meets wastewater treatment standards, ideal for residential use. www.dos.co.th www.premier-products.co.th

Grease trap Tank

Fiberglass tank by “DOS”: GT-09/BK-40 or “PP”:GT-30UG (put underground).

Feature : Eco-friendly, odor-free from water and food waste. www.dos.co.th www.premier-products.co.th

31

04

Construction technology and innovative materials and equipment

32

Exclusive ll 04 Construction technology and innovative materials and equipment

Concrete Structure

Footing/Column /Beam/ Staircase / Bathroom tray

Prefabrication structure with Multi Joint Lock System.

Some parts of structure are cast-in-place as engineer specified.

Feature : Strong and durable, with every component quality-checked before installation. Speeds up construction, reduces dust and noise, and can be installed during the rainy season.

General concrete plank

Prestressed planks by D-CON or PCM or equal.

Some parts of structure are cast-in-place as engineer specified.

Exclusive ll 04 Construction technology and innovative materials and equipment

Exterior Door/Window

33

by TOSTEM Feature : Anodized aluminum panels are manufactured and quality-controlled to meet production standards in a factory using Japanese technology. www.tostemthailand.com

Door to Terrace / Balcony/ main entrance

Anodized aluminum door by “TOSTEM”: WE 70 or as manufacturer specific with 5 mm. thick clear green glass.

General Window

Anodized aluminum window by “TOSTEM”: WE70 or as manufacturer specific with 5 mm. thick clear green glass.

Bathroom window

Anodized aluminum window by “TOSTEM”: WE 70 or as manufacturer specific with 5 mm. thick frosted glass.

34

Exclusive ll 04 Construction technology and innovative materials and equipment

Plastering Material

Mortar cement by “SCG”, “INSEE”, “TPI”, “SINGHA MORTAR” or equal with skim coat. For exterior wall, protective formula mortar “PD Mortar Plus”+ Fiberglass mesh is used.

Feature : High adhesion strength with a smooth finish, suitable for both interior and exterior walls. Highly flexible, reducing plaster cracking issues by up to 99%.

Roof Truss

Alu-zinc (AZ-150) or SuperDyma coated high strength steel structure with screw and nut system as engineer specified.

Feature : Made from high-tensile steel, lightweight, rust-resistant coating.

Handrail

Stainless steel, Steel, Tempered glass handrail or as drawing specified

Exclusive ll 04 Construction technology and innovative materials and equipment

Internal Water Pipe

By “PIMATEC” : Pimaflex Multipipe Feature : Made from high-quality materials, flexible, durable, resistant to breakage, and effectively prevent leaks. The pipe is well-suited for use under high temperatures and pressure. www.pimatec.com/th

Water pipe

25x2.5 mm. (20 mm.) for main pipe 20x2.25 mm. (15.5 mm.) for branch pipe 16x2.0 mm. (12 mm.) for hot water pipe

35

39

05

General Construction Materials and Equipment

40

Exclusive ll 05 General Construction Materials and Equipment

Piling

Bangkok area and surrounding area One storey house pre-stressed concrete pile I-22, length does not exceed 10.00 m. (2 piles welded connection) Two storey house pre-stressed concrete pile I-22, length does not exceed 18.00 m. (2 piles welded connection).

Three storey house pre-stressed concrete pile I-22, length does not exceed 21.00 m. (2 piles welded connection) In case driven pile cannot be used, bored pile as engineer specified is used (extra cost) Provincial area (stiff soil) One storey house pre-stressed concrete solid square pile 22x22 cm., length does not exceed 10.00 m. is used.

Two -3 storey house pre-stressed concrete solid square pile 22x22 cm. length does not exceed 12.00 m. is used.

In the area where pile cannot be driven, soil bearing foundation as engineer specified is used.

Floor of washing area

Reinforced concrete slab (on ground) as engineer specified

41

Exclusive ll 05 General Construction Materials and Equipment

Concrete

Ready mixed concrete by SCG, INSEE, TPI

Floor Level

Lower floor

0.80 meter high from the ground or as specified in the drawing (In case of multilevel floor).

Upper floor

As specified in drawing

42

Exclusive ll 05 General Construction Materials and Equipment

Flooring Materials

Feature : Highly durable and strong, reducing the risk of breakage, moisture issues, and mold growth.

Master bathroom floor

Porcelain tile (price does not exceed 600 bath/sq.m.)

General bathroom floor / Elder bathroom floor / Laundry floor (if any) Porcelain tile (price does not exceed 400 bath/sq.m.)

Kitchen floor

Porcelain tile (price does not exceed 400 bath/sq.m.) with PVC floor skirt or equal

43

Exclusive Exclusive ll ll 05 General and Equipment หมวดท ี 5Construction วสัดกอ สรา งทMaterials ว ัไป

Maid room floor

Porcelain tile (price does not exceed 300 bath/sq.m.) with PVC floor skirt or equal

Maid bathroom floor

Porcelain tile (price does not exceed 300 bath/sq.m.)

Storage room floor

Porcelain tile (price does not exceed 250 bath/sq.m.)

44

Exclusive ll 05 General Construction Materials and Equipment

Exterior Flooring Materials porcelain tile

Feature : Highly durable and strong, reducing the risk of breakage, moisture issues, and mold growth.

Main entrance terrace

Porcelain tile (price does not exceed 600 bath/sq.m.) with aluminum stair nose

General terrace floor

Porcelain tile (price does not exceed 400 bath/sq.m.) with aluminum stair nose (if there’s stair)

Waterproofing system for terrace / balcony / toilet floor

the paint type waterproofing system, TOA Cement Waterproof with fiberglass mesh or equal will be applied.

Feature : Flexible waterproof cement ensures 100% leak protection, ideal for waterproofing and protecting concrete surfaces. www.toagroup.com

45

Exclusive ll 05 General Construction Materials and Equipment

Parking floor

Porcelain tile (price does not exceed 300 bath/sq.m.)

Footpath (If any)

Coarse polished cement.

Washing area

Porcelain tile (price does not exceed 300 bath/ sq.m.) with aluminum stair nose (if there’s stair)

46

Exclusive ll 05 General Construction Materials and Equipment

Wall Decoration Materials

Master bathroom wall

Porcelain tile (price does not exceed 600 bath/sq.m.) height does not exceed 2.40 m. with PVC tile trim

General bathroom wall / Elder bathroom wall Porcelain tile (price does not exceed 400 bath/sq.m.) height does not exceed 2.40 m. with PVC tile trim

Maid bathroom wall

Porcelain tile (price does not exceed 250 bath/sq.m.) height does not exceed 2.40 m. with PVC tile trim

Decorated wall (If any)

Natural color granite “BEZEN” 2”x9” or “KENZAI” : Granite tile 2”x8” (price does not exceed 800 baht/sq.m.) or equal, spaced grooves Feature : Homogeneous porcelain ceramic tiles - quartz stone strength comparable. Scratch-resistant, long-lasting, and easy to clean. www.bezenceramictiles.com

Exclusive ll 05 General Construction Materials and Equipment

Ceiling

General interior ceiling

Beveled edge gypsum board 9 mm. thick by “SCG” or “GYPMANTECH” with galvanized metal studs#26. 1 set of 60x60 cm. instant service access on the second-floor ceiling.

Feature : Prevents insects from entering through the roof while maintaining an aesthetic appearance. www.scgsmartliving.com

Exterior ceiling (Balcony/Garage)

Beveled edge moisture resistant gypsum 9 mm. thick by “SCG” or “GYPMANTECH”. with galvanized metal studs#26 Feature : Fire-resistant with a smooth, even surface that is visually appealing. www.scgsmartliving.com

Ceiling for maid room/ storage

Beveled edge gypsum board 9 mm. thick by “SCG” or “GYPMANTECH” with galvanized metal studs #26

47

48

Exclusive ll 05 General Construction Materials and Equipment

Bathroom ceiling

Beveled edge moisture resistant gypsum board 9 mm. thick by “SCG” or “GYPMANTECH” with galvanized metal studs #26

Roof tile

Concrete roof tile model Adamas Tile, chalet shake or smooth tile model with Platinum color (Sunny red, Brightly brown) the color chosen later with “Dry ridge system”, stainless #24 for valley rafter.

Feature : Features a triple water-blocking layer that effectively prevents rainwater backflow. Wet on Wet color coat system, ensuring deep color absorption and long-lasting durability.

Roof tile

In case of polished concrete roof, the paint type waterproofing system, TOA PU Waterproof with fiberglass mesh or equal will be applied Feature : Provides 100% waterproofing with high flexibility to cover cracks, resistant to sunlight and extreme weather conditions. www.toagroup.com/th

Roof tile

In case of Shingle Roof, use the Double layer type (the color chosen later) with equipment from manufacturer Feature : Made from asphalt, lightweight, sound-absorbing, and does not retain heat. Effectively blocks UV rays, prevents water seepage, and withstands strong winds.

Exclusive ll 05 General Construction Materials and Equipment

Door and window accessories

General interior door

Stainless steel mortise lock set by “MATURE”: MTL-001-C or equal with stainless steel door stopper model MDH-006 or equal.

Hinge for general door/ bedroom/ maid room/ bathroom/ kitchen

Stainless steel butterfly hinge by “MATURE” : MH-S4325HS2BB or equal, 4 pieces/door

kitchen/ garage door (open to exterior) Stainless steel mortise lock set by “MATURE”: MTL-001-C or equal with stainless steel door stopper model MDH-006 or equal.

49

50

Exclusive ll 05 General Construction Materials and Equipment

Bathroom door

Stainless steel knob by “MATURE”: MT-001 BK SS or equal with stainless steel door stopper model MDH-006 or equal.

Elder bathroom door As specified by MOHNE’

Maid bathroom door

Stainless steel knob by “MATURE”: MK-012-B SS (eco) or equal with stainless steel door stopper model MDH-006 or equal.

Main entrance door, Balcony door

By TOSTEM: WE 70 or as manufacturer specified

51

Exclusive ll 05 General Construction Materials and Equipment

General window

By TOSTEM: WE 70 or as manufacturer specified

Hung type sliding door (if any) By “HAFELE” or equal

52

Exclusive ll 05 General Construction Materials and Equipment

SANTARY WARE

“AMERICAN STANDARD” or COTTO” (White color) or equal (as specified by company) Feature : Efficient flushing system for thorough cleaning without residue, along with advanced surface coating innovation that ensures it looks as good as new even after 100 years www.americanstandard.co.th/th www.cotto.com

Water closet

For master bathroom, 1-piece automatic water closet

by AMERICAN STANDARD: E-LITE Smart Toilet TF-2070-WT9 with rinsing spray model A-4900-ST and stop valve model STD-A-4401 For maid bathroom, 2 pieces water closet by AMERICAN STANDARD: New Winplus 2697SCWWT-0 with white rinsing spray model Basic F75006-WTADY and stop valve model STD-A-4401

Urinal (if any)

AMERICAN STANDARD: Neo Modern A-8014AC-WT with automatic flush valve (1 unit in bathroom downstairs)

Bathtub

For master bathroom AMERICAN STANDARD: Moments 70130-WT with wall mounted mixer faucet model Signature A-1711-200 (with hot water pipe)

53

Exclusive ll 05 General Construction Materials and Equipment

Wash basin

For master bathroom, AMERICAN STANDARD: Acacia SupaSleek WP-F420-WT, under the counter type For general bathroom, AMERICAN STANDARD: Signature WP-0420-WT For maid bathroom, AMERICAN STANDARD: NEW CODIE-S 0948-WT-0, wall hung type

Wash basin faucet

For Master bathroom, bathroom with hot water piping, mixer faucet by AMERICAN STANDARD: Acacia Evolution Mono A-1301-100 (2 bathroom) and cold faucet model

Acacia Evolution Mono A-1306-10 For general bathroom model Signature A-1706-10-LL or mixer faucet (if any) model Signature A-1701-100-LL For maid bathroom model STD WINSTON FFAST601-1T1500BT0

Bathroom counter

General bathroom counter topped with granite stone (Chinese grey, Chinese black, white tone or equal), counter edge topped with porcelain tile same as the wall.

Wall mounted mixer faucet for shower

AMERICAN STANDARD: STD SIGNATURE A-1712-300 with shower head

54

Exclusive ll 05 General Construction Materials and Equipment

Wall mounted faucet for shower

For general bathroom by AMERICAN STANDARD: SIGNATURE A-1726-10-A with shower head For maid bathroom model STD AS BASIC F21033-CHADY

Shower head set

For general bathroom by AMERICAN STANDARD: SIGNATURE A-1726-10-A with shower head For maid bathroom model STD AS BASIC F46103-CHADYHS

Wall mounted faucet

For master bathroom and general bathroom by AMERICAN STANDARD: WINSTON FFAST602-0T0500BT0 (1 for each room) For maid bathroom by AMERICAN STANDARD: Basic F22077-CHADY

Towel bar

For master bathroom, general bathroom by AMERICAN STANDARD: CONCEPT S K-2501-46-N chromium color For maid bathroom by AMERICAN STANDARD CONCEPT R K-2801-46-N chromium color

Exclusive ll 05 General Construction Materials and Equipment

55

Soap holder

For master bathroom, general bathroom by AMERICAN STANDARD: CONCEPT S K-2501-54-N chromium color For maid bathroom by RASLAND รุ่​่�น RA-BENZ-9894

Tissue holder

For master bathroom, general bathroom by AMERICAN STANDARD: CONCEPT SK-2501-43- chromium color For maid bathroom by RASLAND รุ่​่�น RA-822626

Shelf

For maid bathroom by RASLAND รุ่​่�น RA-B30044

Mirror

For master bathroom, general bathroom by AMERICAN STANDARD: SPLASH LQ-03 size 50x70 cm. square shape For maid bathroom by COTTO: MM004#B size 50x70 cm. square shape

56

Exclusive ll 05 General Construction Materials and Equipment

Bathroom floor drain

Odor trap chrome plated brass floor drain by AMERICAN STANDARD: A-8204-N, 2 for each bathroom

WATER

PVC pipes by SCG or THAI PIPE

Clear water pipe

¾” dia. PVC pipe (class 13.5) for main pipe from building to meter, length not exceed 30.00 m. with ball valve, metal hand, separating for each floor.

Waste water/ Drain

4” dia. PVC pipe (class 8.5) for sewage pipe. 2” dia.

PVC (class 8.5) for drainage pipe and 3” dia.

For main pipe (class 8.5)

Exclusive ll 05 General Construction Materials and Equipment

Ventilation pipe

1” dia. PVC pipe (class 5.0 )

Rain water drainage

2” dia. PVC pipe for branch rain water pipe and 3” dia. for main water pipe (class 8.5). Skull shape stainless steel floor drain for balcony or concrete slap roof.

SANITARY SYSTEM

Drainage pipe

Asbestos cement pipe dia. 8” to public drain (Not exceed 40.00 m. long from the house).

Manhole

30x40 cm. precast manhole every 6.00 m. interval and every bends or corners.

57

58

Exclusive ll 05 General Construction Materials and Equipment

ELECTRICITY SYSTEM

Electric cables and equipment comply with the Standard of Metropolitan Electricity or Provincial Electricity Authority. Electricity cable by THAI YASAKI or equal.

Main income wiring

PVC insulated single copper wiring (KV-CV#35 sq.mm.)

The length from wall to meter does not exceed 30.00 m (put in PE conduit dia. 2” underground).

Feature : Durable electrical wires, withstanding higher temperatures than general wires. www.thaiyazaki.com

Main income telephone wiring

Four cores wiring not exceed 30.00 m. from meter to the house put in PE conduit ½” underground.

Internal wiring

Single copper wiring with PVC insulated with yellow PVC conduit in wall or on ceiling.

Air condition wiring

1 point at Master Bedroom

Exclusive ll 05 General Construction Materials and Equipment

Control panel

16 Amps. 24 circuit breaker by “HACO”: HLC-100/24 with main breaker model HM3-100S16 or equal with Residual Current Device (RCBO).

Lighting switch

Flat wall mounted lighting switch by “HACO” switch cover model Deco W1111 / W1112, 1 way switch model W2711 install 1 switch for 1 room and 2 switches for master bedroom, 2 way switch model W2711A-2 only at stair hall

Receptacle

Flat wall mounted receptacle by “HACO” 3 panels cover model Deco W1113 and 3 pin receptable model W8416V2, install 2 for each room and 3 for living room (none for storage/bathroom).

59

60

Exclusive ll 05 General Construction Materials and Equipment

Exterior receptacle

Flat wall mounted receptacle by “HACO” 3 panels cover model Deco W1113 and 3 pin receptable model W8416V2, with soft rubber waterproof case model IPW553-WH

Telephone outlet

1 set of Flat wall mounted telephone outlet by “HACO” cover model Deco W1111 and 6 core telephone outlet RJ12 model W8201TU

T.V. outlet

1 set of Flat wall mounted T.V. outlet by “HACO” cover model Deco W1111 and 75 ohm T.V. outlet model Deco W8201TV

LAN outlet

3 set of Flat wall mounted LAN outlet by “HACO” cover model Deco W1111 and CAT6 LAN outlet model W8211PC

Exclusive ll 05 General Construction Materials and Equipment

61

Luminaire

Total budget not over 40,000 Baht

Emergency light

1 set of twin LED lamp head emergency light at stair hall or as drawing specified.

62

Exclusive Exclusivell ll 05 General Construction Materials and Equipment

ELECTRICITY AND WATER METER

Permanent electric meter

15 Amps 3 phases meter. Fee and meter deposit covered by company. (Exclude the service area extension fee) Feature : Ideal for large home with high-power electrical appliances. Help prevent phase overloads.

Permanent water meter

3/4” Diameter meter, Fee and meter deposit covered by company. (Exclude the service area extension fee)

Exclusive ll 05 General Construction Materials and Equipment

PAINTING

BY TOA

External wall

External acrylic paint “TOA”: Supershield or equal,1 primer and 2 final coated Feature : Resistant to mold, algae, salt stains, and cement marks also protects against corrosion from pollutants, peeling, and powdering. https://www.toagroup.com/th/home

Internal wall

Internal acrylic paint “TOA”: Shield One or equal,1 primer and 2 final coated Feature : With Dirt Shield Technology, the walls stay clean and stain-free, providing superior protection against dirt while inhibiting 99% of bacteria and viruses. https://www.toagroup.com/th/home

Steel surface/HDF panel

Emulsion paint “TOA”: Glipton or equal 1 primer and 2 final coated

Facia/Fiber Cement Board

External acrylic paint “TOA”: Supershield or equal,1 primer and 2 final coated

63

64

Exclusive ll 05 General Construction Materials and Equipment

OTHER WORK

Termite protection system

Springer system with “SCG” or “THAI PIPE” 1/2” PVC pipe. class 13.5 is installed beneath the first-floor structure for termite protection chemical from the service provider. The owner pays for the chemical and service fee.

Tile adhesive

Glue cement by SCG, WEBER, CROCODILE or equal

69

06 Warranty

70

Exclusive ll 06 Warranty

Structure

20-year warranty

General work

2-year warranty exclude natural depreciation of materials due to long used and misused

Remarks

The company reserves the right to change the list if needed but the price of the materials is not less than that stated above. The cost of the construction does not include: - Old building demolition - Interior decoration and garden - Water drainage outside the construction site.

- Mosquito net, door and window steel bars, rain gutter - Air conditioner system.
