ilektroRange 950 LT SPECIFICATION SHEET
Version3 11/01/23
Contentsofmanualmaybe updatedwithoutnotice. Forthelatestversionofthismanual please referto ourwebsite:www.paulagnewdesigns.com.au
ilektro 950LT GlassFronted

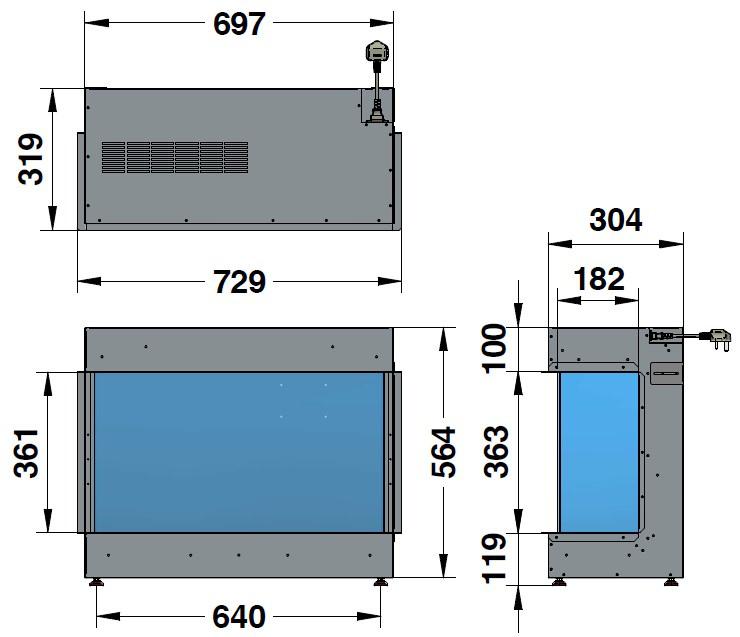

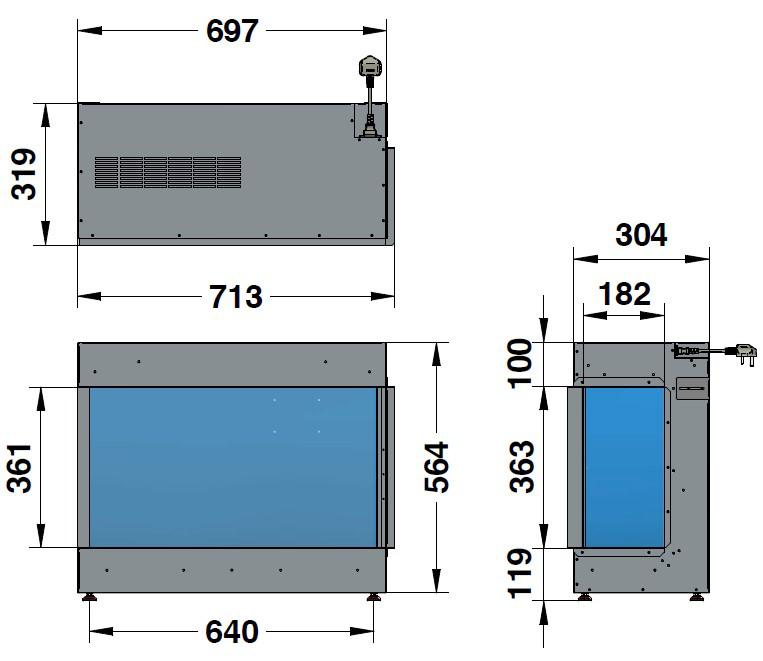

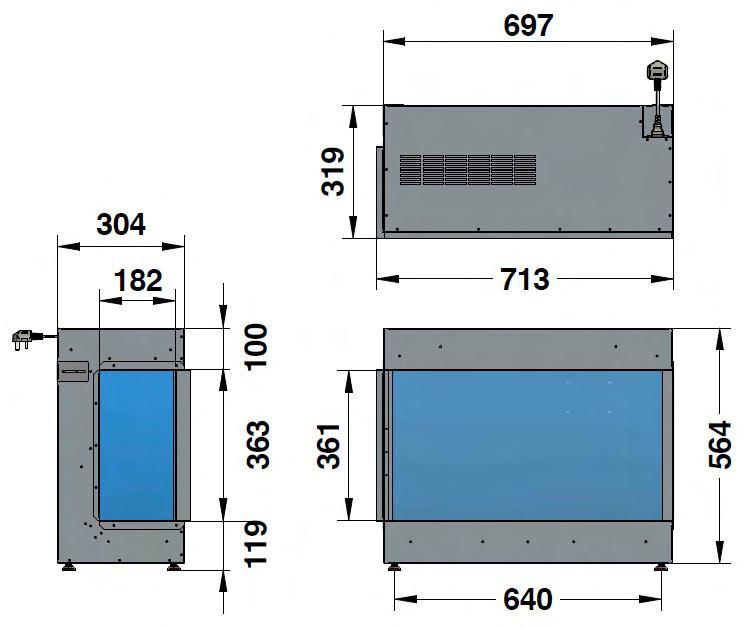

APPLIANCEDIMENSIONS
ProductCode:

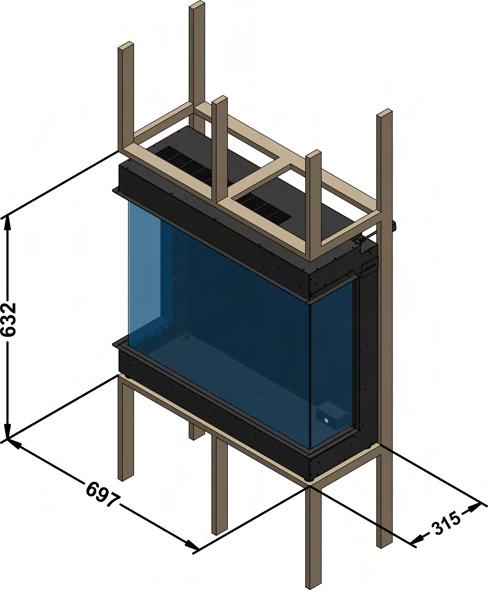

FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
MINIMUMCAVITYDEPTH REQUIREDTOINSTALL950LT TRIM-355MM
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
1. ilektro Range
H-MIN W-MIN C-CAVITYDEPTH WITHOUTTRIM 592 697 315 C-CAVITYDEPTH
355
WITH950LTTRIM
592 320 523 323
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
2. ilektro Range
ilektro 950LT Bay
H-MIN W-MAX C-CAVITYDEPTH 697 592
315
320 523 323 592

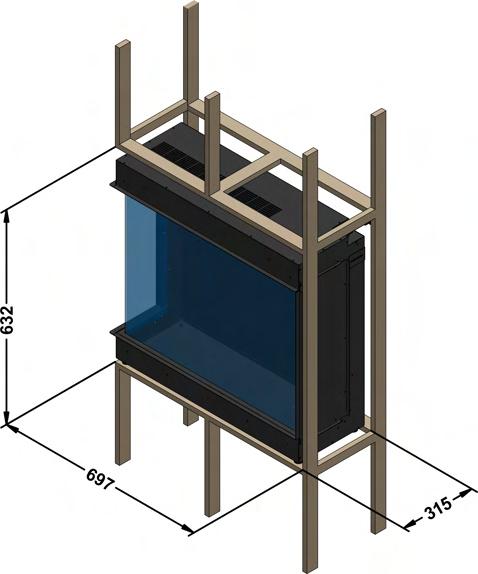

ilektro 950LT LeftCornerGlass

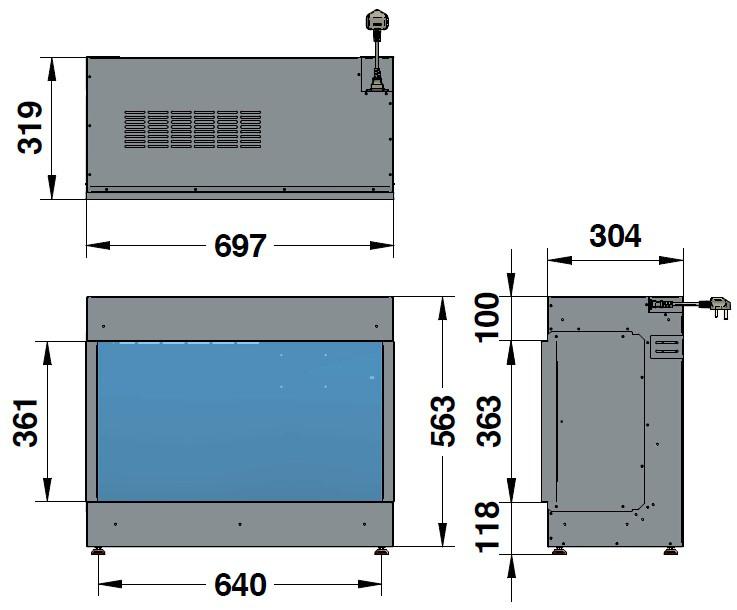

APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
3. ilektro
Range
H-MIN W-MAX C-CAVITYDEPTH 592 697 315
592 320 523 323

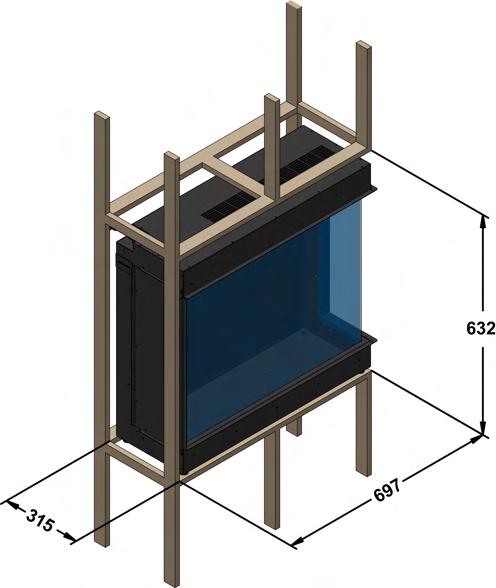

ilektro 950LT RightCornerGlass
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
4. ilektro Range
H-MIN W-MAX C-CAVITYDEPTH 592 697 315
592 320 523 323

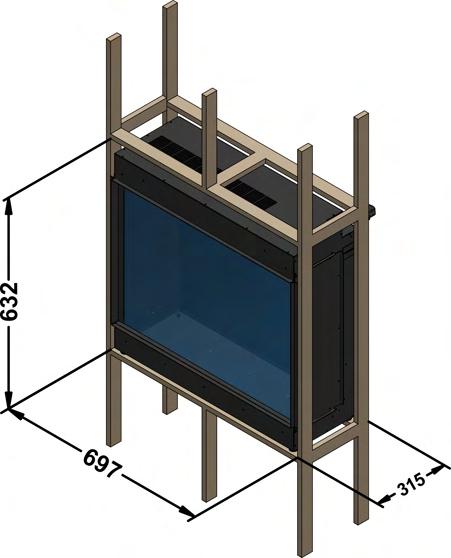

ilektro 950 LT
Note:
Above given dimensions are for framestructure only.

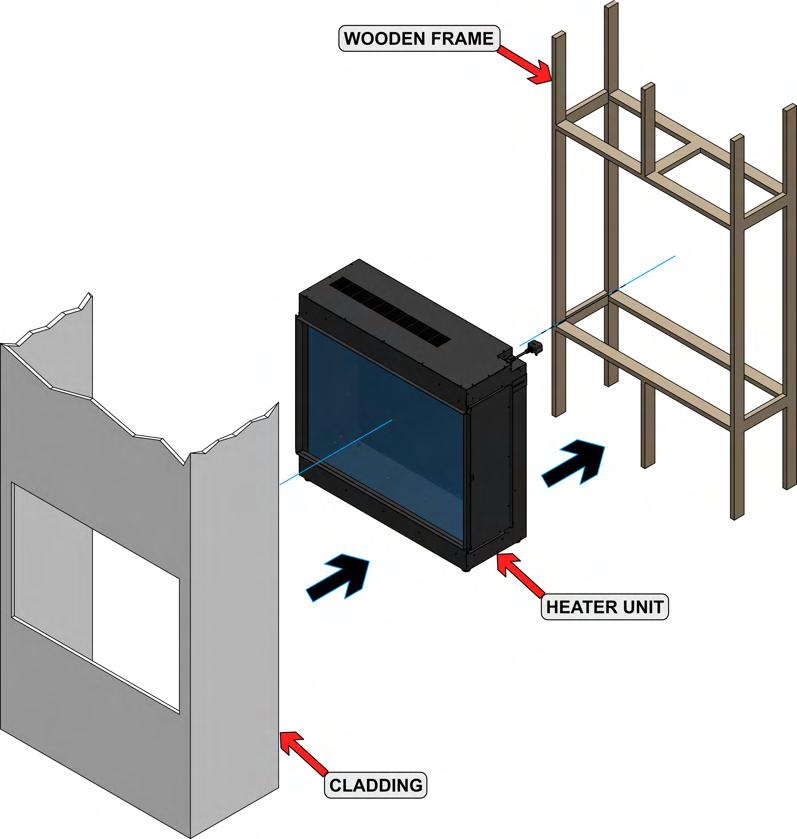

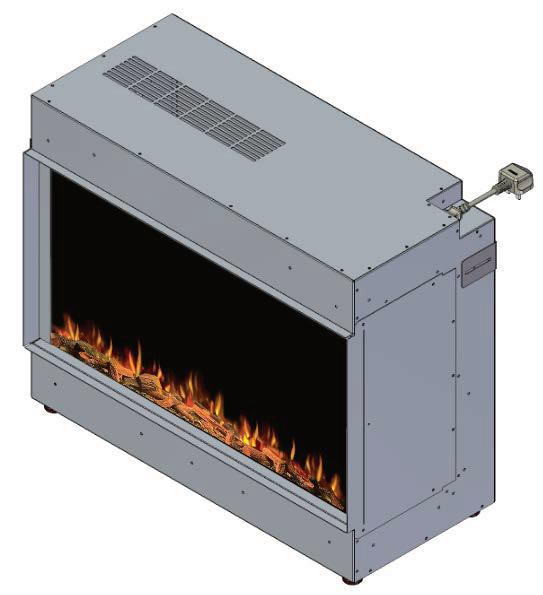

EXPLODEDVIEW
5. ilektro Range
ilektro 950 LT

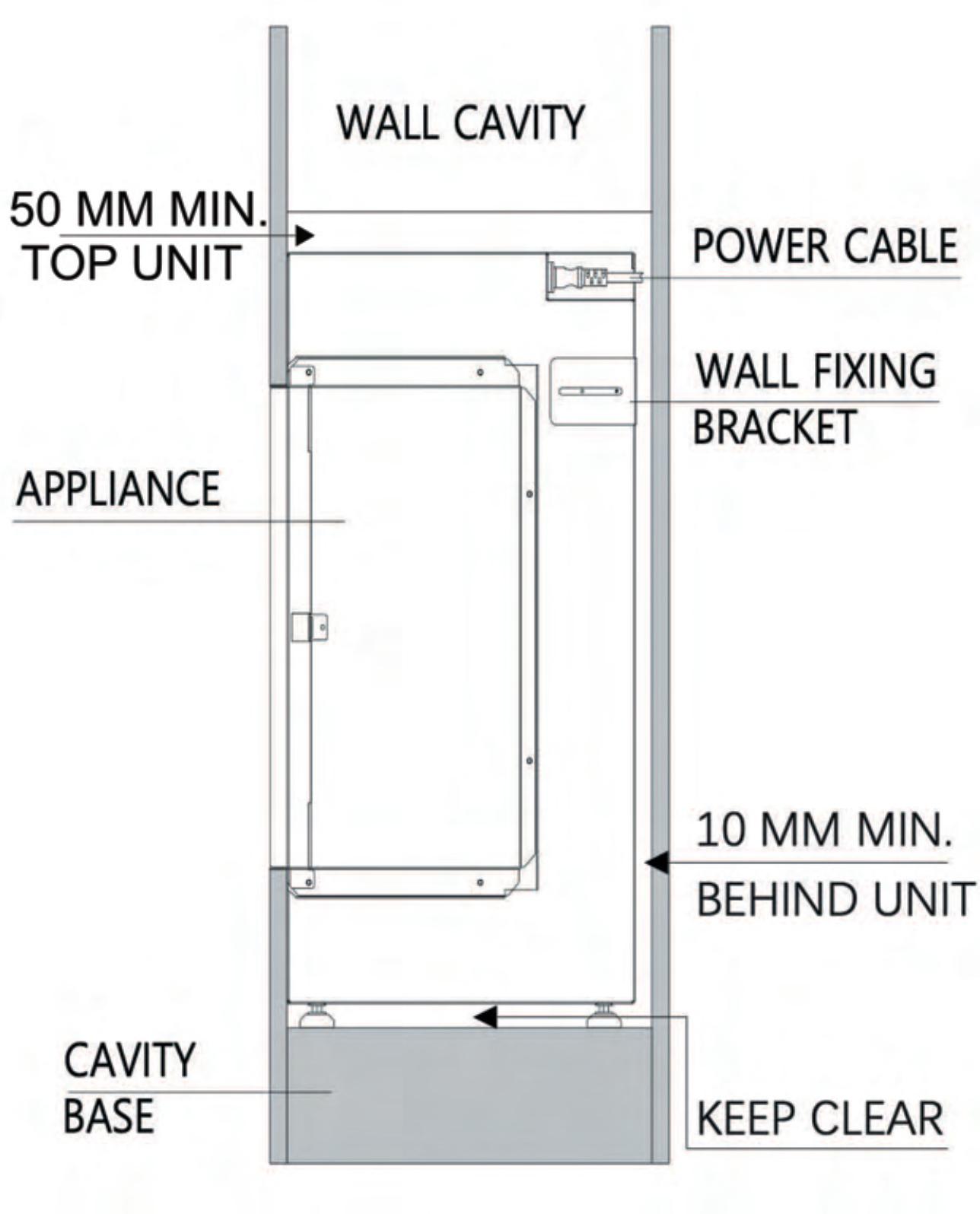

POSITIONINGYOURAPPLIANCE
NOTE:
Nofixturesaresuppliedtosecuretheappliancetothechosenwall.Ensureanappropriatefixing methodisuseddependingontheconstructionmaterialofthewall.
• Wheninstallingintoawallcavityspace,astudworkenclosureshouldbebuilttohousethe appliance.Refertoframeoutbuildsheet.
• Finishtheenclosureinthechosenmaterialensuringcladdingarepusheduptotheedge framearoundtheglassoftheunit.
• Ifyourapplianceisnotlevelwheninstalledtheglasscornerfitwillbemisaligned.
6 ilektro
Range
CAUTION

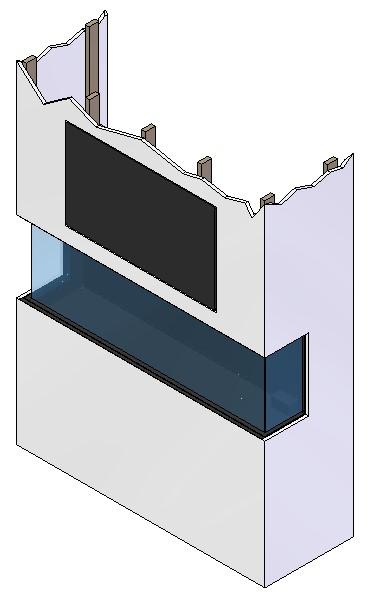

TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Whenfittingatelevisionabovethefireplacethe followinginstallationmustbeadheredto.

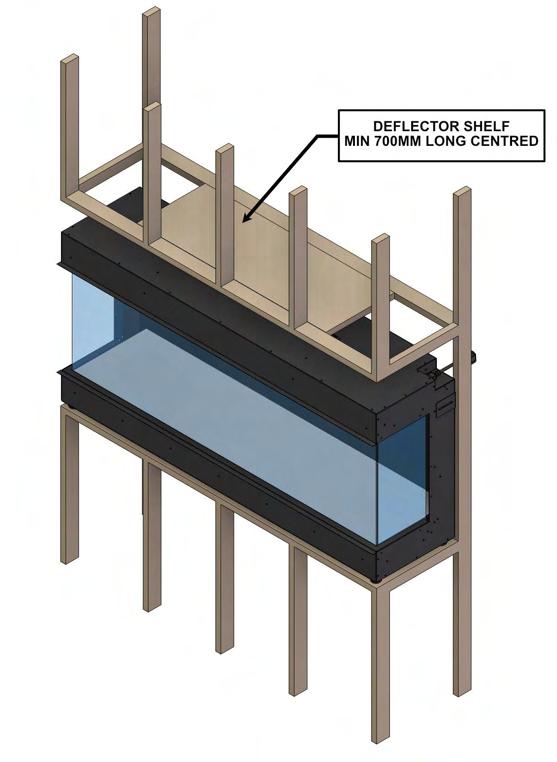

Debryanddustwillfallintothefanslotsabovethe appliancecausingdamageunlessprotected.Itisa requirementtosetashelfasshownbelow.
Option1:Shelftobemadeduringframing
Option2:Deflectorplateasanaccessories
CAUTION: Appliancewarrantywillbevoidifthe shelfordeflectorplateisnotinstalled.
Option1:
7 ilektro Range
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS

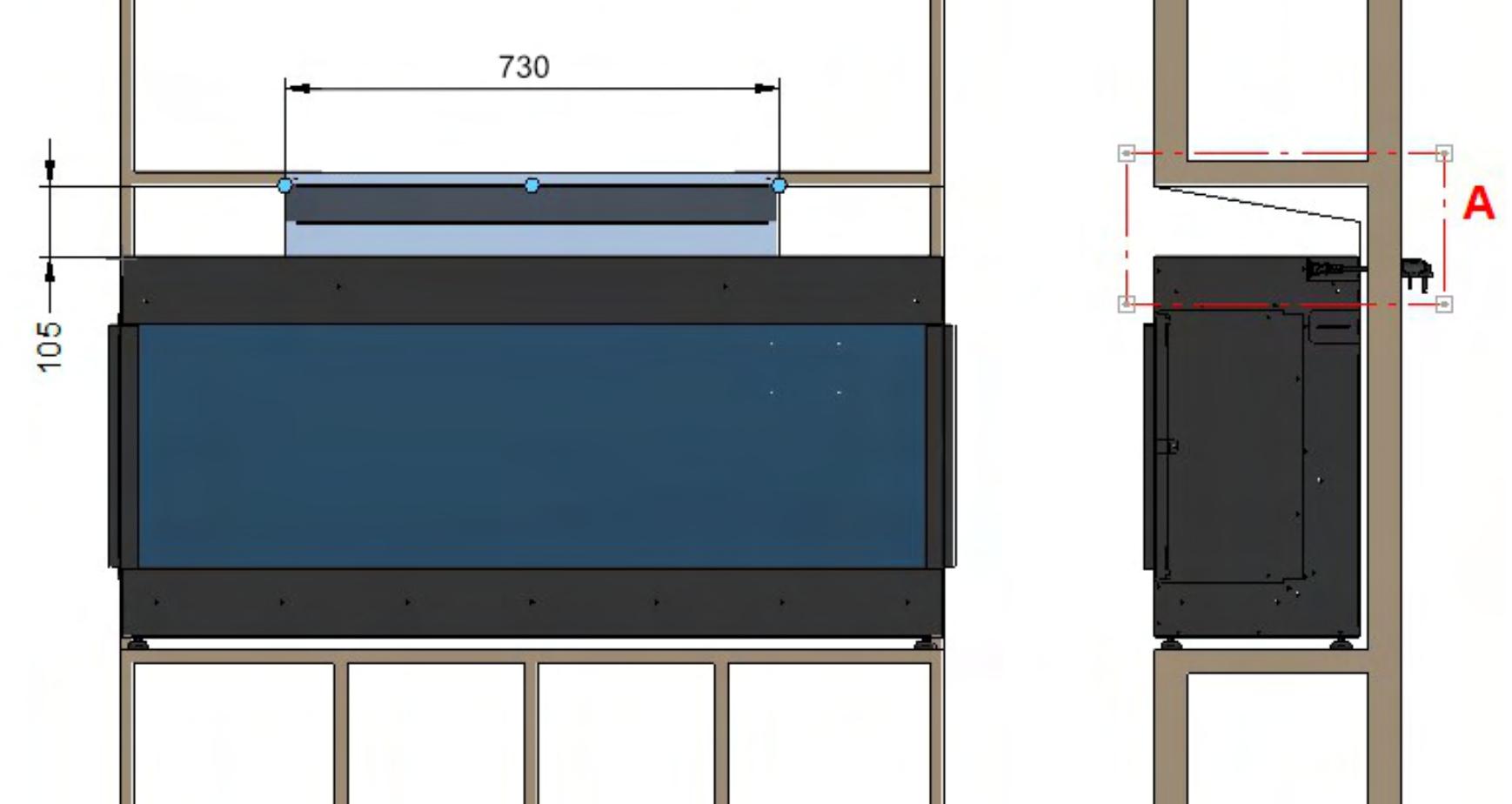

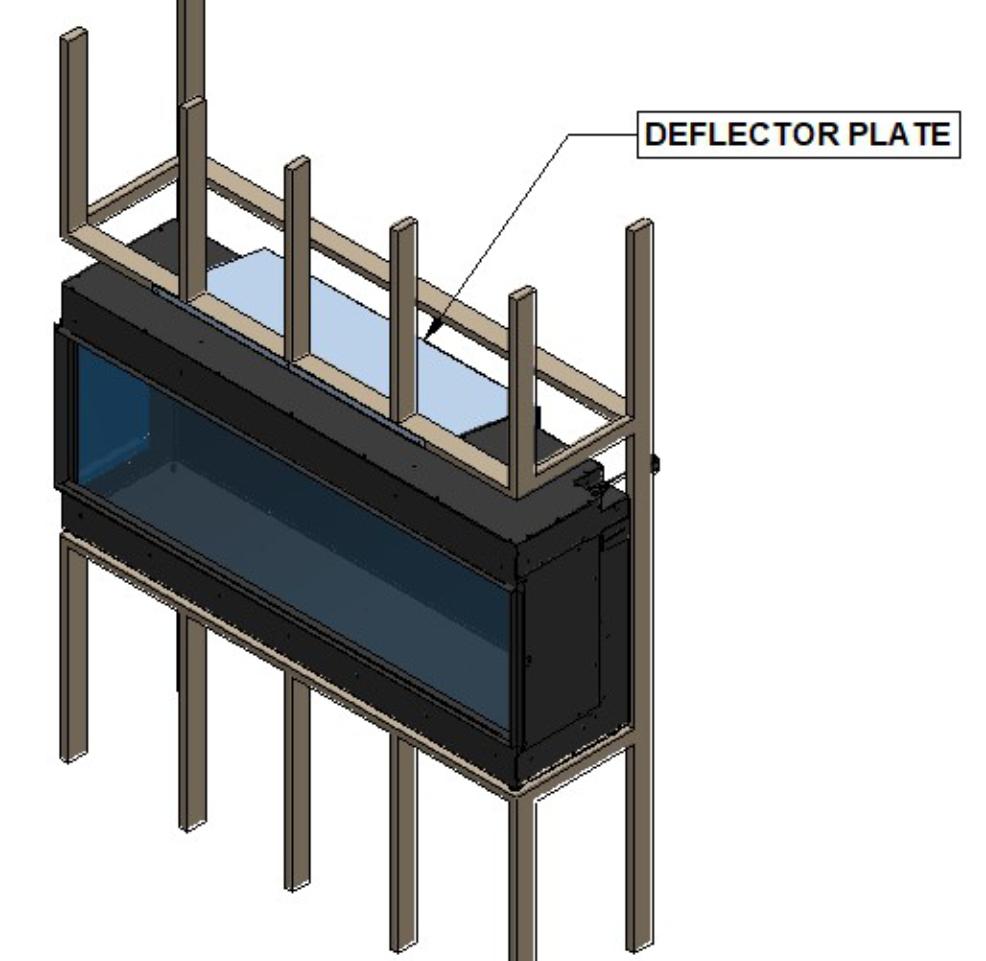

Option2:

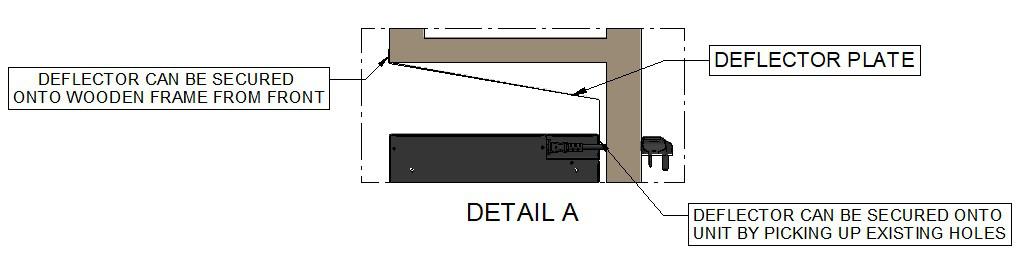

Deflectorplatecanbesecuredtowooden framethroughselftappers;refertodetailA.
Rearsideofthedeflectorplatescanbe securedtothefireplacebypickingupthe existingscrewholes;refertodetailA.
8 ilektro Range
ilektro 950 LT

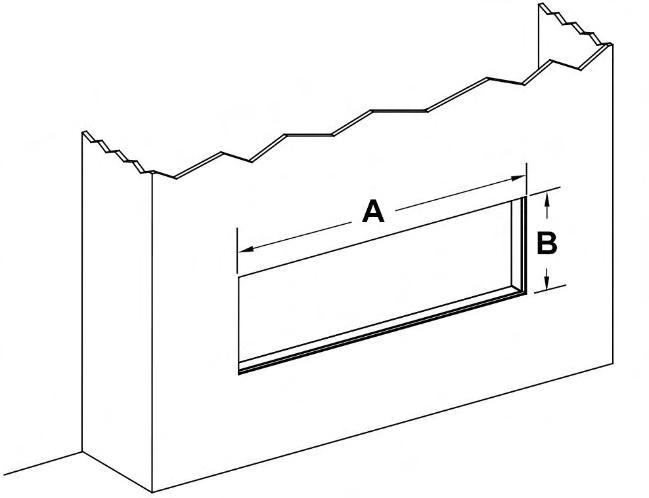

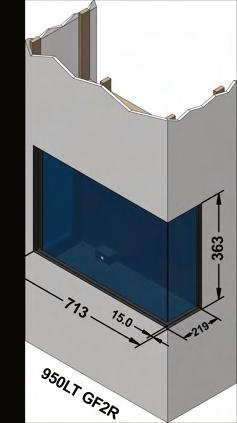

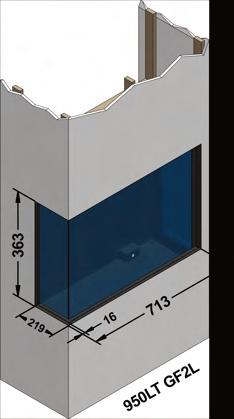

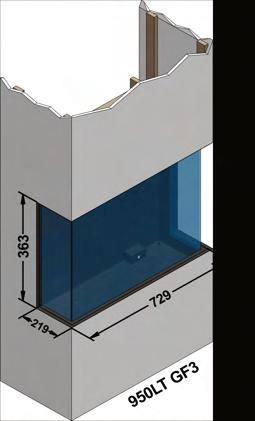

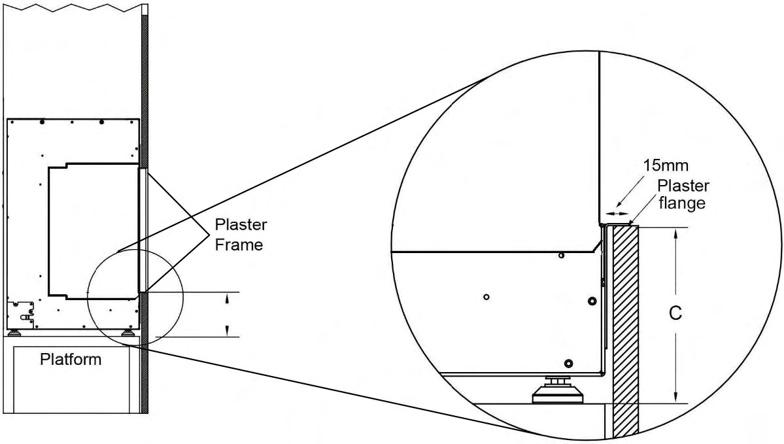

Theabovetablecontainsthe minimum openingA= Widthtooutsideofplasterflanges
B=Heighttooutsideofplasterflanges
C=Heightoffire(min)
D=DepthfromfrontoffirebodytorearofsideplasterflangeE = Depthoffire(+1MMTOL)
F=Heightoffireabovetopplasterbead
G=Minheightfromundersideofadjustablefoottoundersideoflowerplasterflange
F C G G 9 ilektro Range
Model A B C D E F G 950LTGF
323mm 541mm 219mm 315mm 100mm119mm 950LTGF3
950LTGF F B 323 323 323
697mm
729mm 323mm 541mm 219mm 315mm 100mm 119mm 950LTGF2L 713mm 323mm 541mm 219mm 315mm 100mm119mm 950LTGF2R 713mm 323mm 541mm 219mm 315mm 100mm 119mm
Distributed By info@paulagnewdesigns.com| www.paulagnewdesigns.com
