ilektroRange 2000 Landscape
SPECIFICATIONSHEET
Version427/02/23
Contentsofmanualmaybeupdatedwithoutnotice. Forthelatestversionofthismanualpleasereferto ourwebsite:www.paulagnewdesigns.com.au

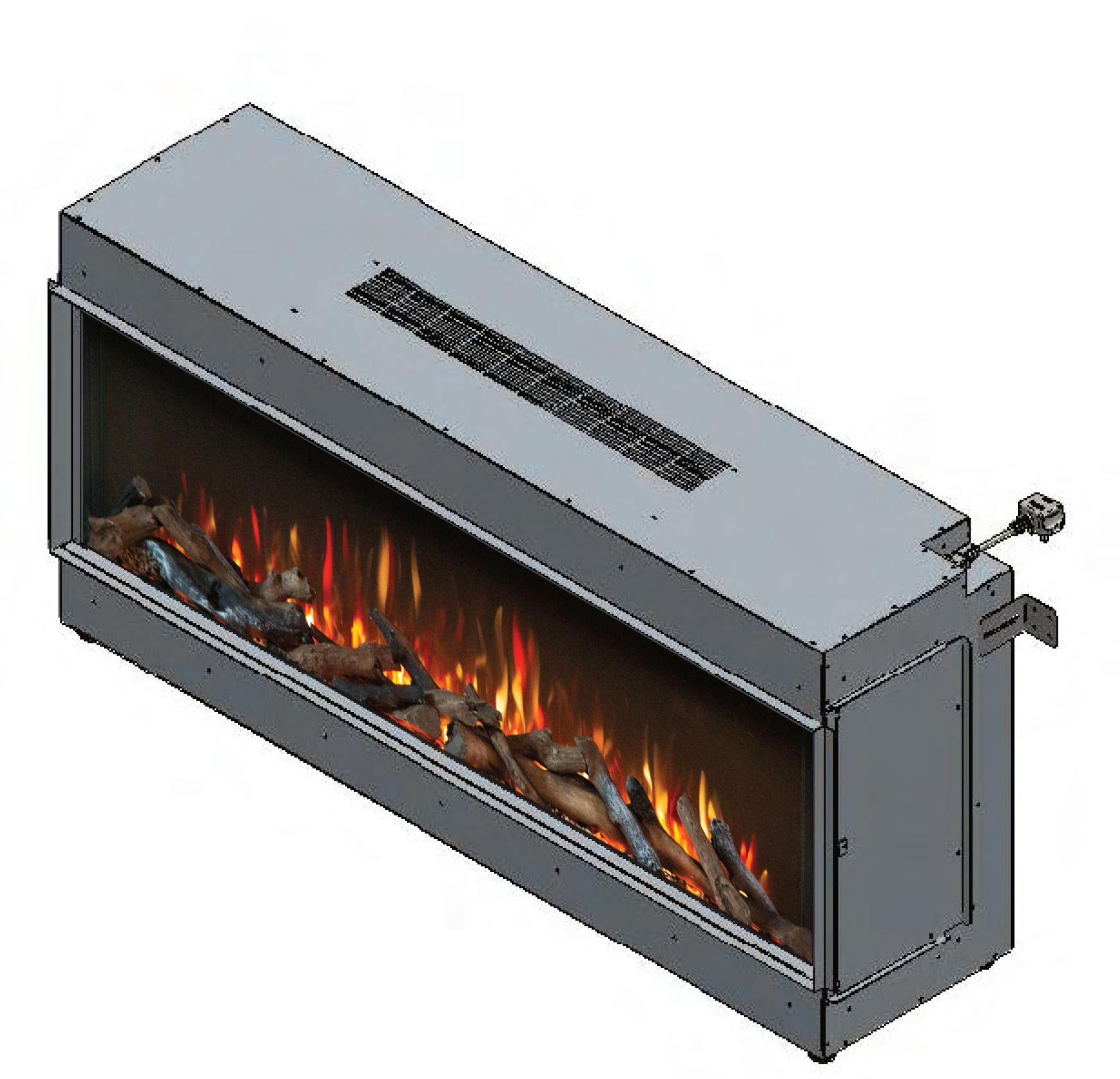

ilektro 2000 LandscapeGlassFronted

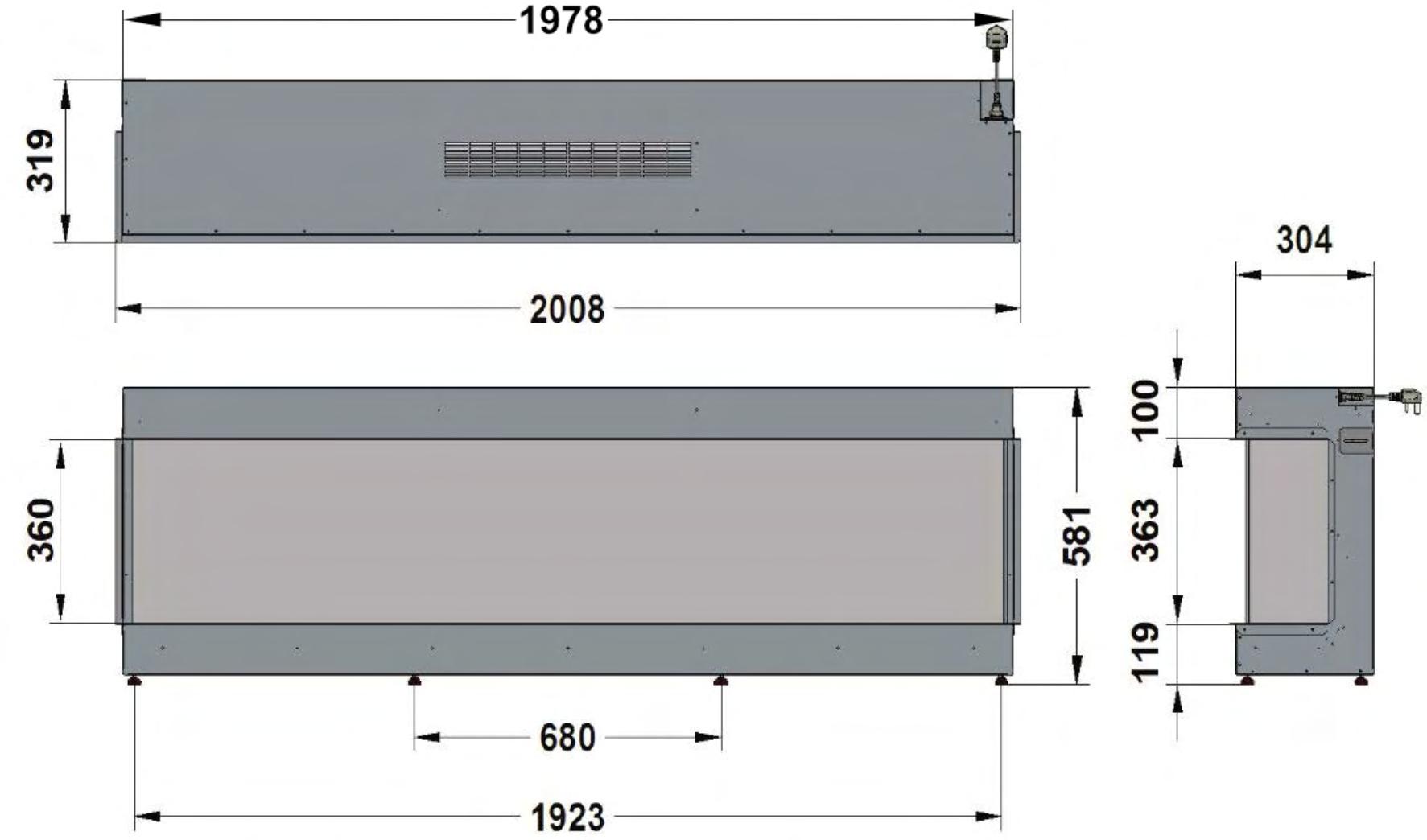

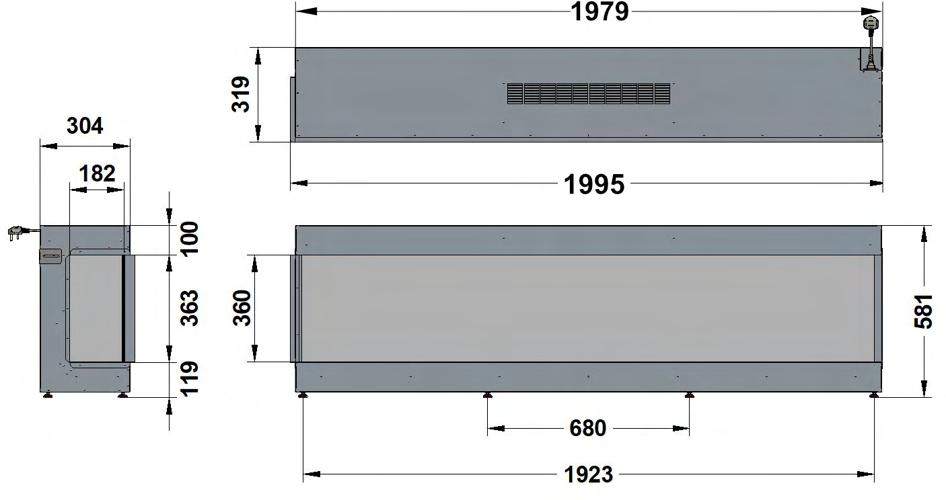

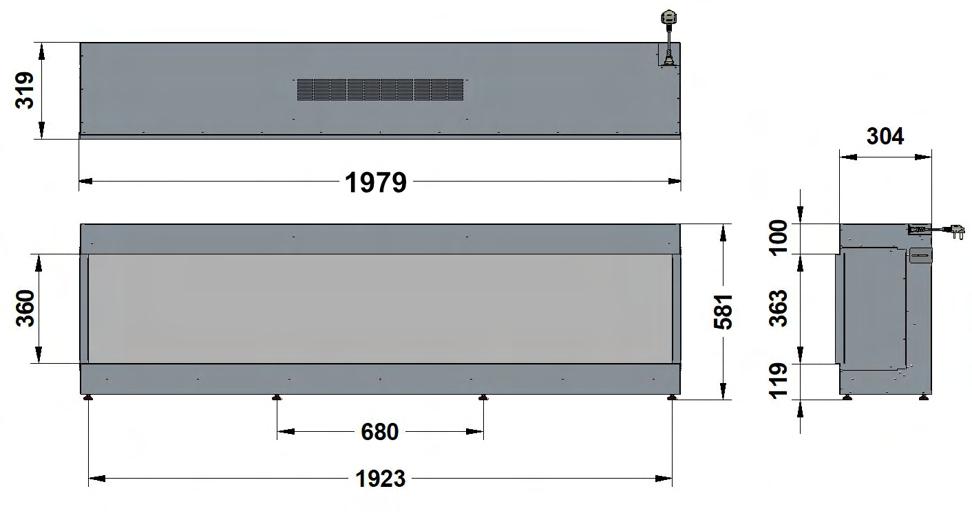

APPLIANCEDIMENSIONS
ProductCode:

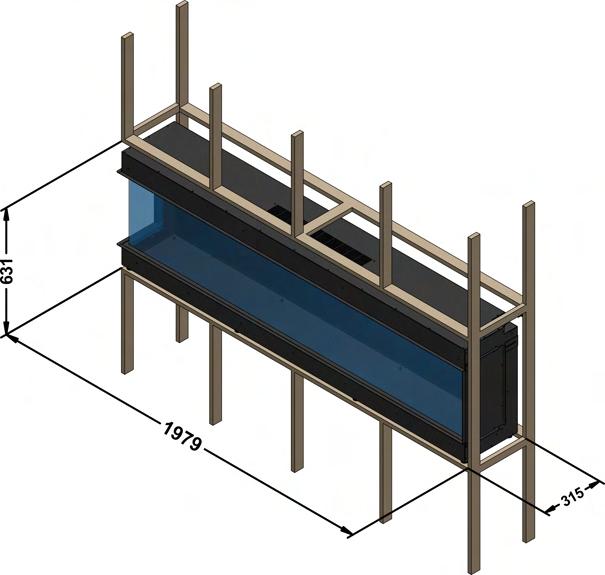

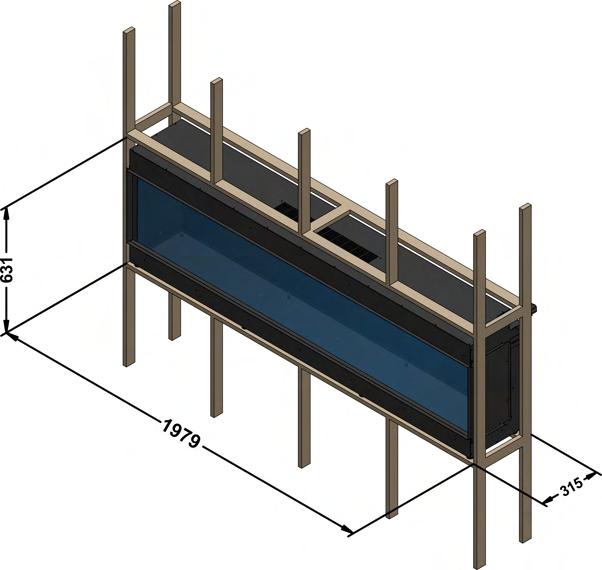

FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
1. ilektroRange
H-MIN W-MIN C-CAVITYDEPTH 631 1979 315
ilektro 2000 LandscapeBay

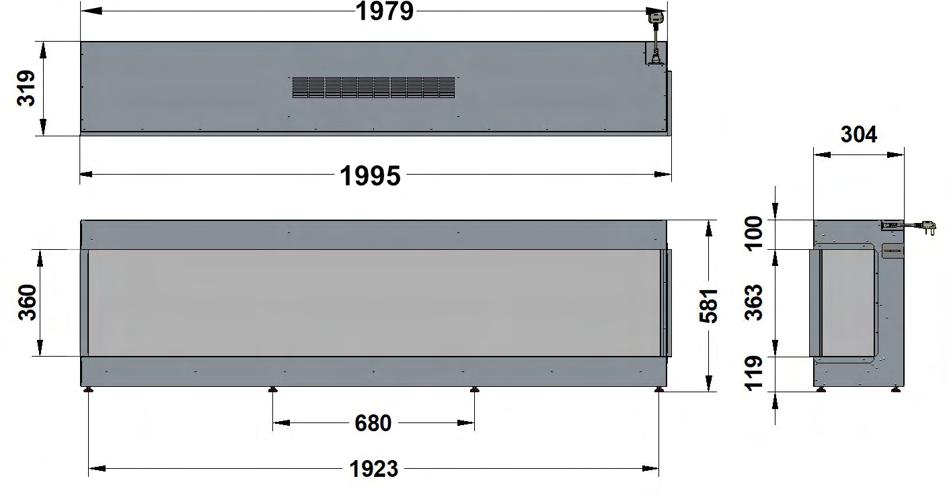

APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
2. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 1979 631
315

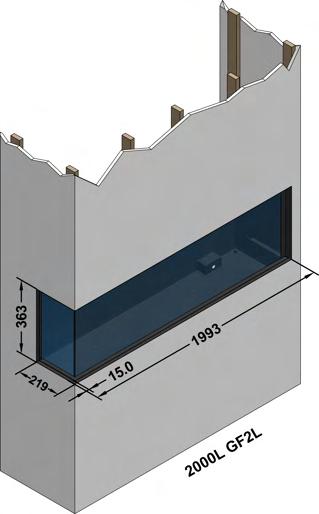

ilektro 2000 LandscapeLeftCornerGlass
APPLIANCEDIMENSIONS
ProductCode:

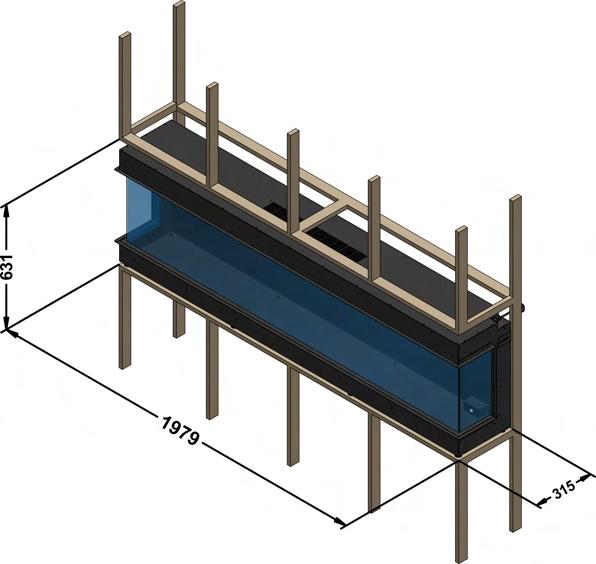

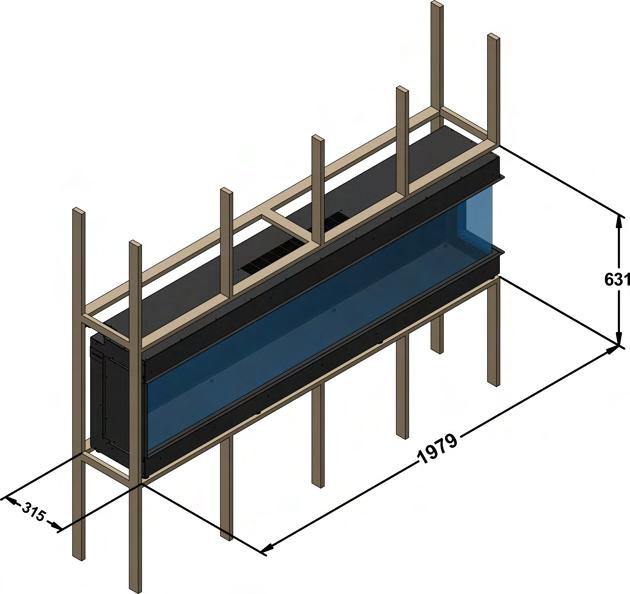

FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
3. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 631 1979 315
ilektro 2000 LandscapeRightCornerGlass
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
4. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 631 1979
315
ilektro 2000 Landscape
Note: Abovegivendimensionsareforframestructure only.

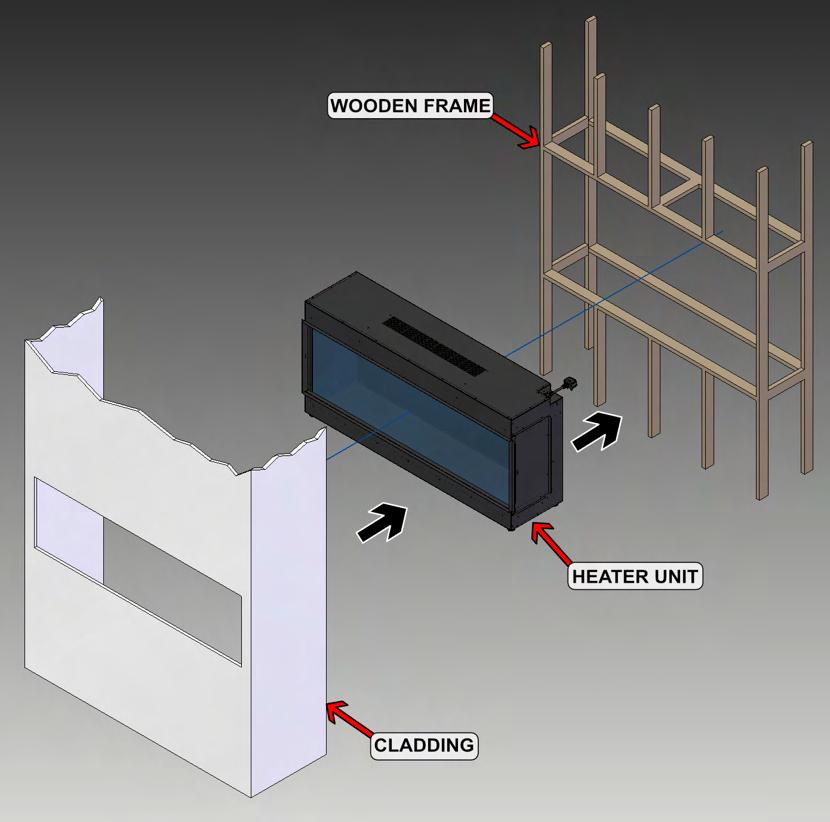

EXPLODEDVIEW
5. ilektroRange
ilektro 2000 Landscape

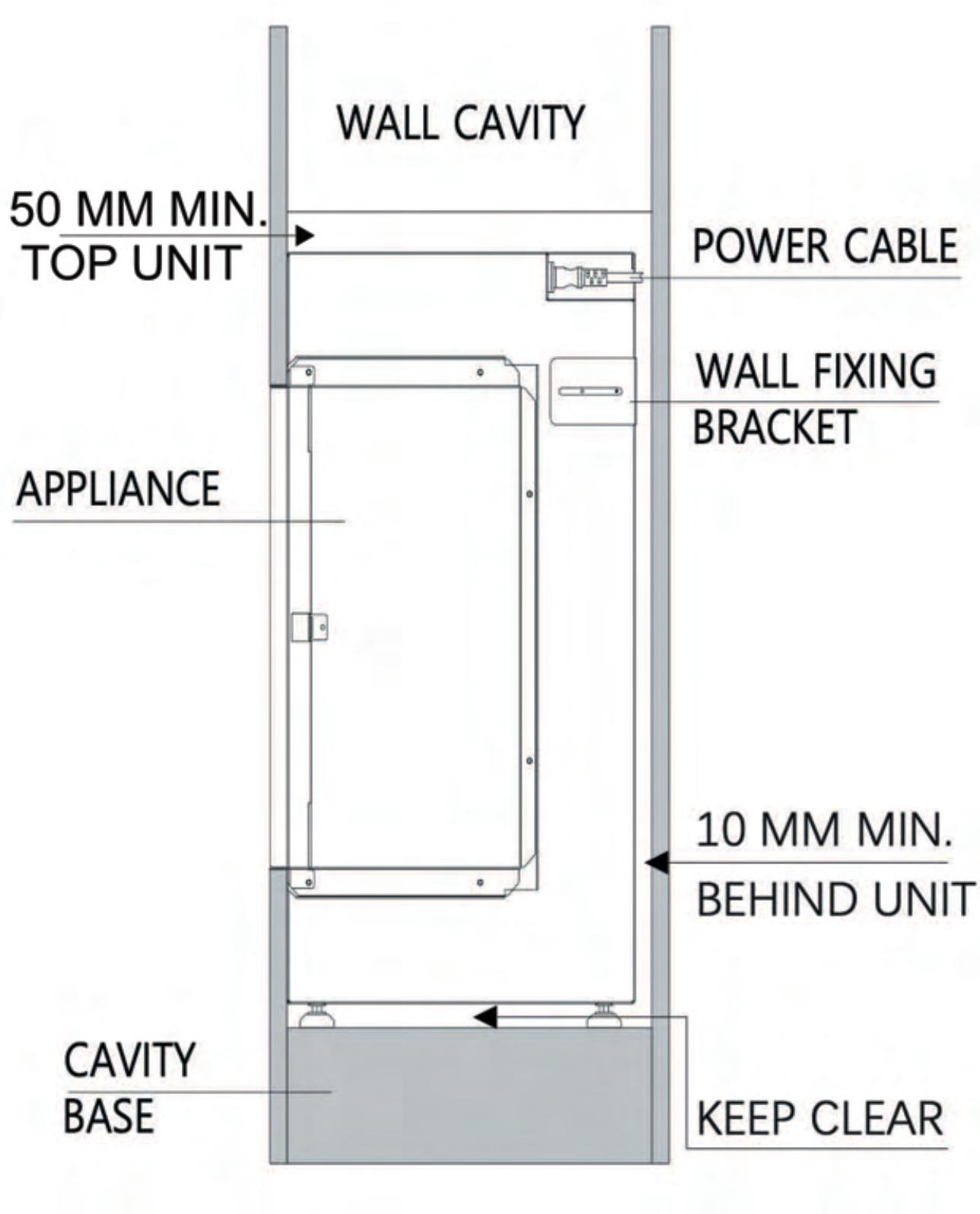

POSITIONINGYOURAPPLIANCE
NOTE:
Nofixturesaresuppliedtosecuretheappliancetothechosenwall.Ensureanappropriatefixingmethod isuseddependingontheconstructionmaterialofthewall.
•Wheninstallingintoawallcavityspace,astudworkenclosureshouldbebuilttohousethe appliance.Refertoframeoutbuildsheet.

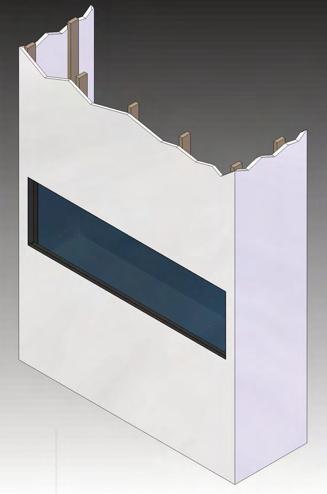

•Finishtheenclosureinthechosenmaterialensuringcladdingarepusheduptotheedgeframe aroundtheglassoftheunit.
•Ifyourapplianceisnotlevelwheninstalledtheglasscornerfitwillbemisaligned.
6 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS

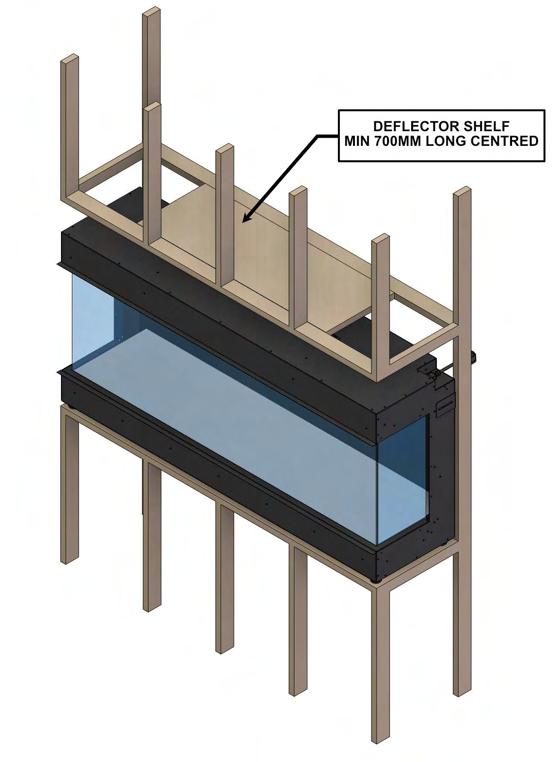

Whenfittingatelevisionabovethefireplacethe followinginstallationmustbeadheredto.
Debryanddustwillfallintothefanslotsabovethe appliancecausingdamageunlessprotected.Itisa requirementtosetashelfasshownbelow.
Option1:Shelftobemadeduringframing
Option2:Deflectorplate asanaccessories
CAUTION: Appliancewarrantywillbevoidifthe shelfordeflectorplateisnotinstalled.

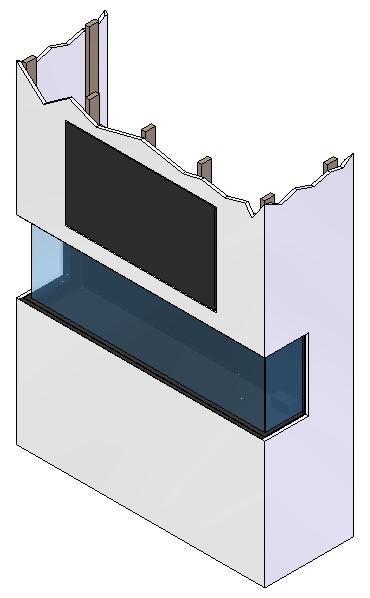

Option1:
7 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS

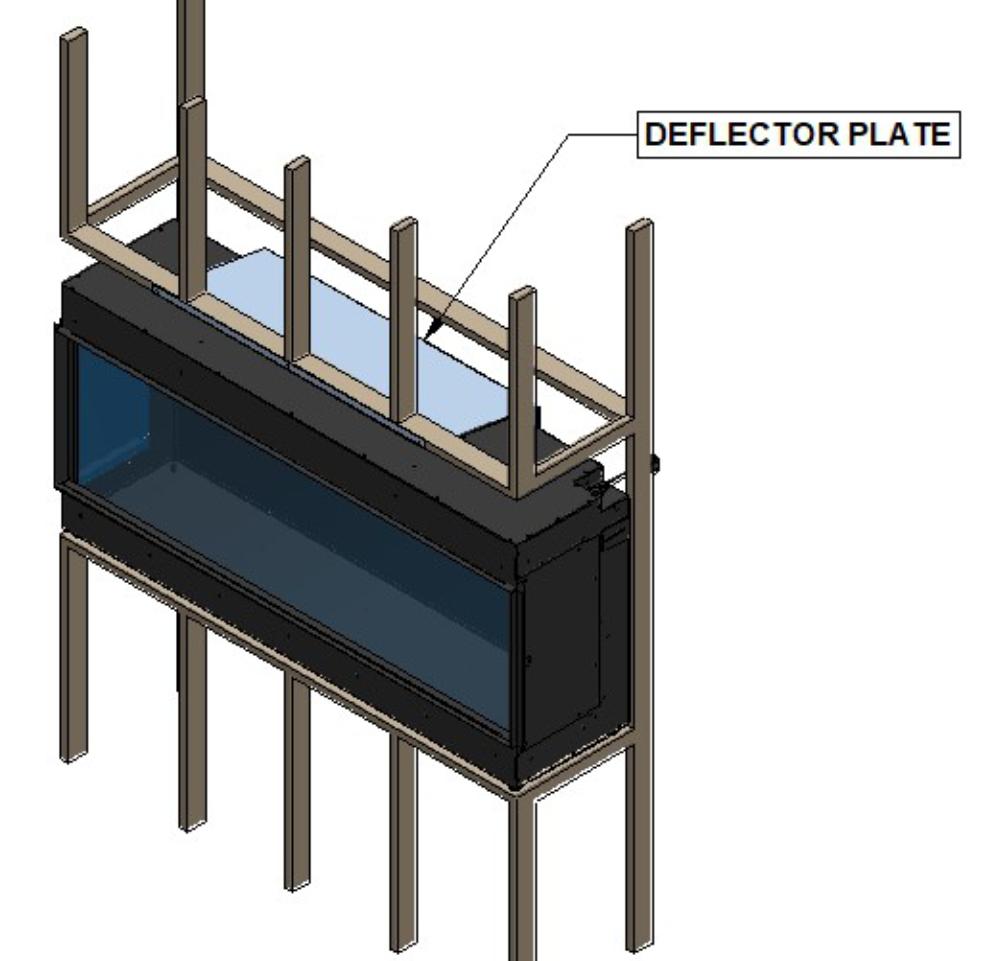

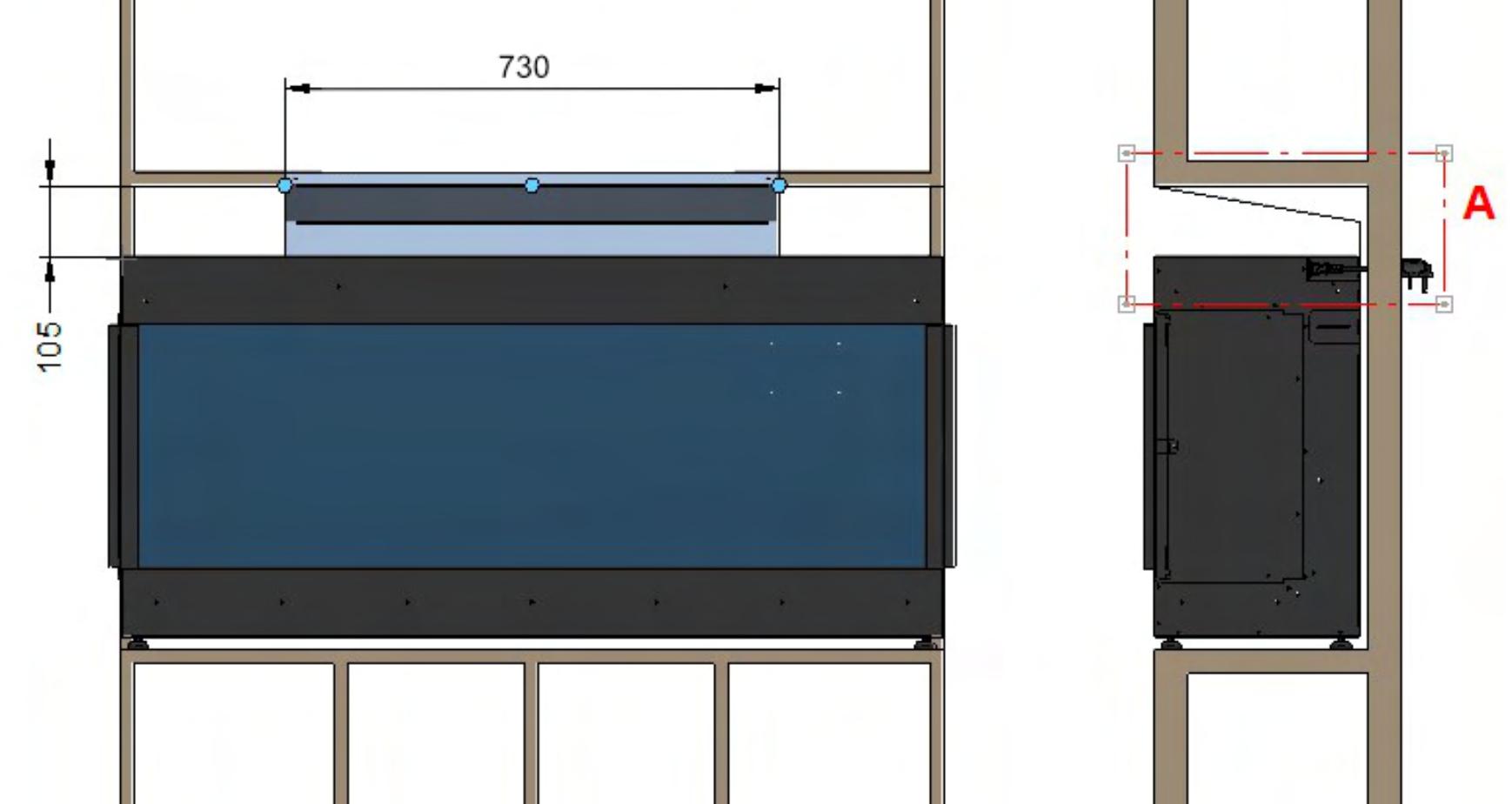

Option2:

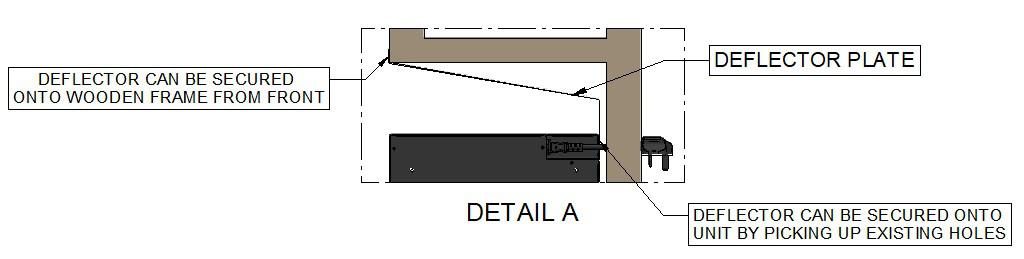

Deflectorplatecanbesecuredtowooden framethroughselftappers;refertodetailA.
Rearsideofthedeflectorplatescanbe securedtothefireplacebypickingupthe existingscrewholes;refertodetailA.
8 ilektroRange

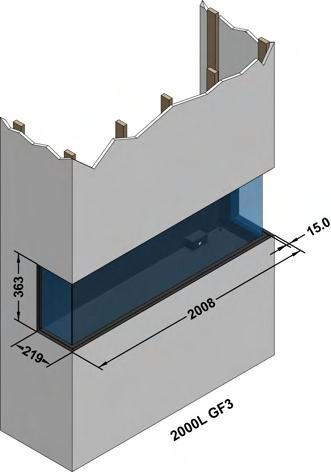

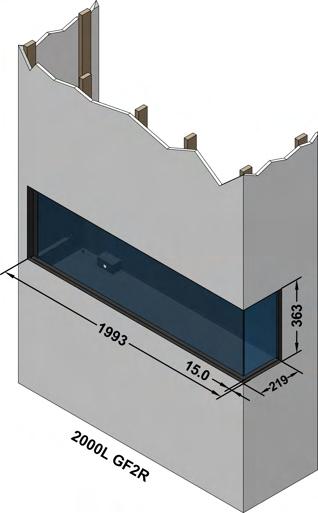

ilektro 2000 Landscape

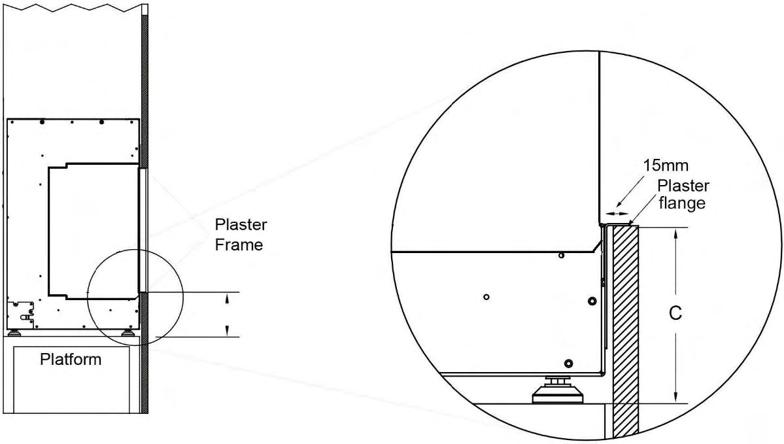

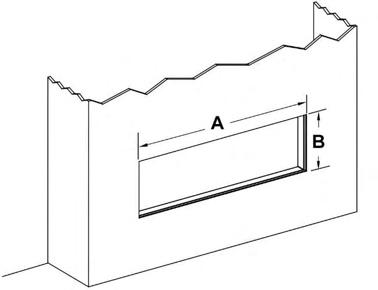

Theabovetablecontainsthe minimum opening A =Widthtooutsideofplasterflanges
B=Heighttooutsideofplasterflanges
C=Heightoffire(min)
D=Depthfromfrontoffirebodytorearofsideplasterflange
=Depthoffire(+1MMTOL)
F=Heightoffireabovetopplasterbead
G=Minheightfromundersideofadjustablefoottoundersideoflowerplasterflange
F C G G 9 ilektroRange
Model A B C D E F G 2000LGF 1979mm 363mm 581mm 219mm 315mm 100mm119mm 2000LGF3 2008mm 363mm
219mm 315mm 100mm 119mm
2000LGF
581mm
2000LGF2L 1993mm 363mm 581mm 219mm 315mm 100mm119mm 2000LGF2R 1993mm 363mm 581mm 219mm 315mm 100mm 119mm
