SPECIFICATIONSHEET
Version427/02/23
Contentsofmanualmaybeupdatedwithoutnotice. Forthelatestversionofthismanualpleasereferto ourwebsite:www.paulagnewdesigns.com.au
ilektroRange 1250Landscape

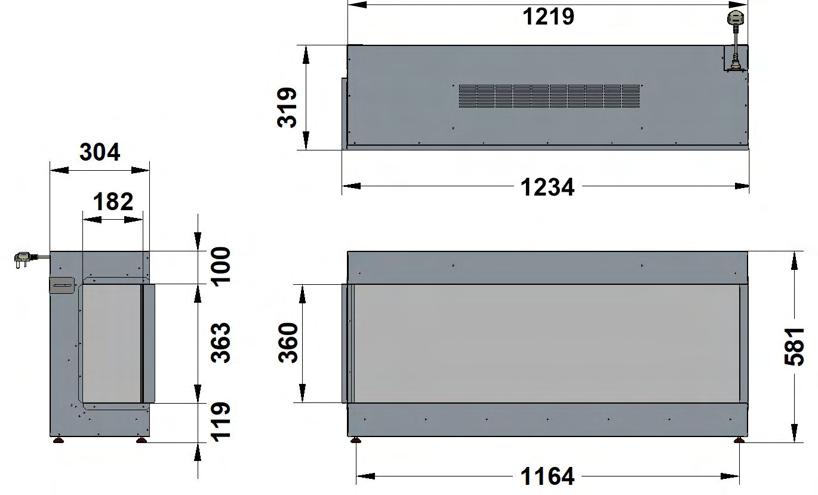

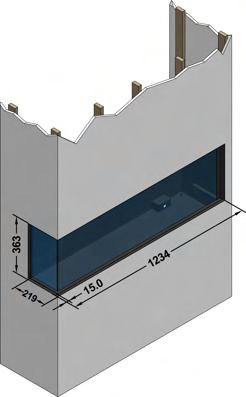

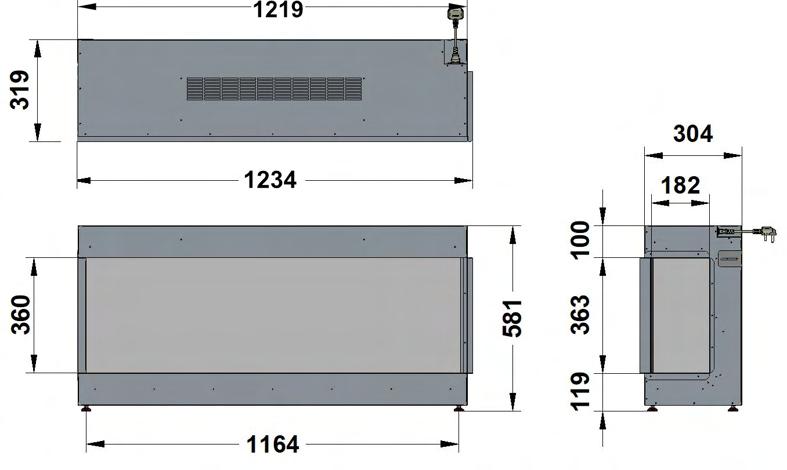

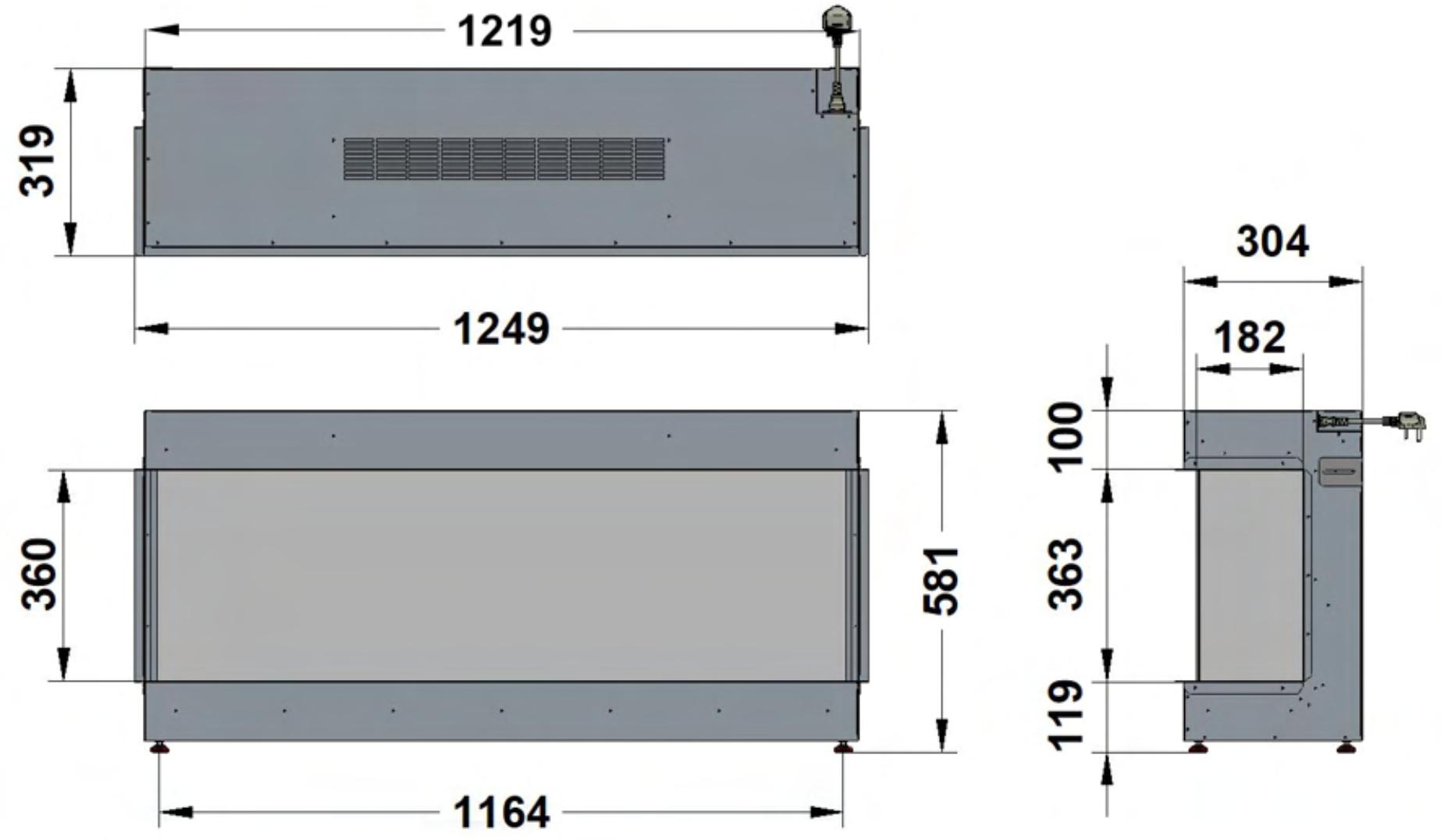

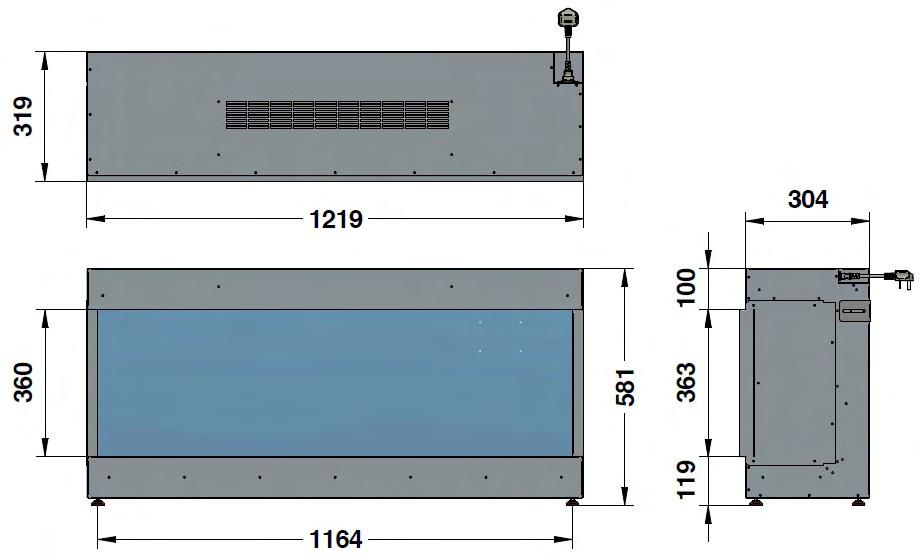

APPLIANCEDIMENSIONS
ProductCode:

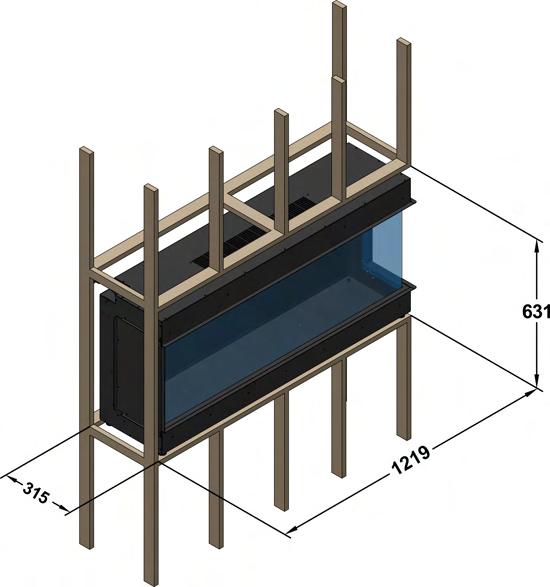

FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
1. ilektroRange
ilektro1250LandscapeGlassFronted

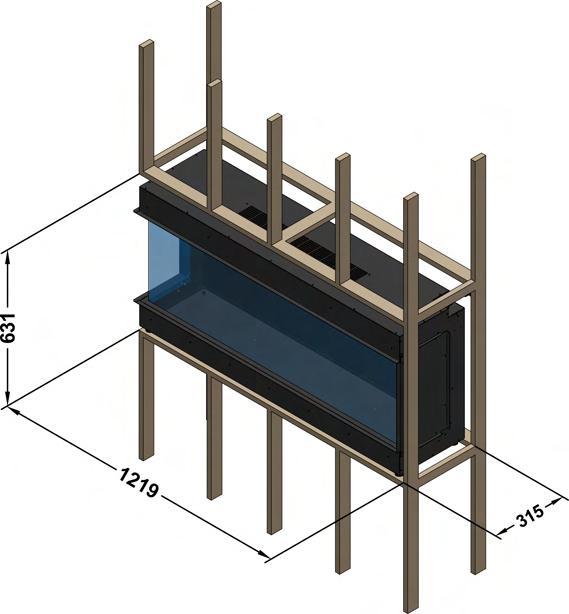

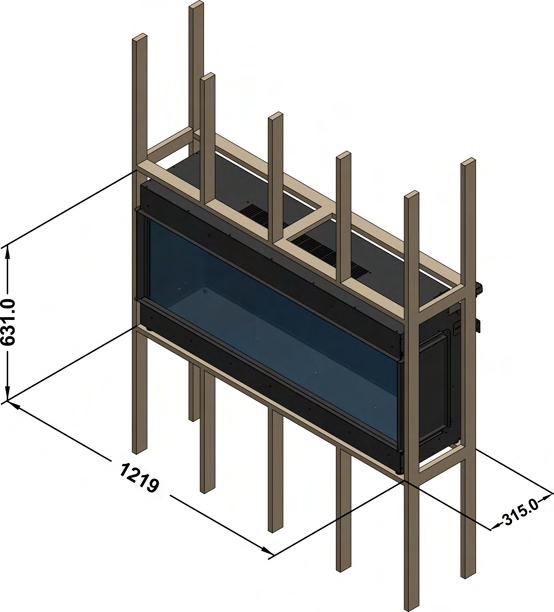

H-MIN W-MIN C-CAVITYDEPTH 631 1219 315
ilektro1250LandscapeBay
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
2. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 1219 631 315
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
3. ilektroRange
ilektro1250LandscapeLeftCornerGlass

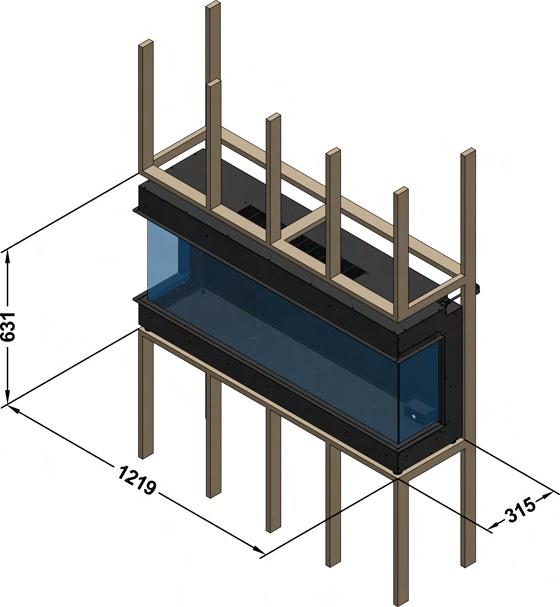

H-MIN W-MAX C-CAVITYDEPTH 631 1219 315
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
4. ilektroRange ilektro1250LandscapeRightCornerGlass
H-MIN W-MAX C-CAVITYDEPTH 631 1219 315
ilektro1250Landscape
Note: Abovegivendimensionsareforframestructure only.

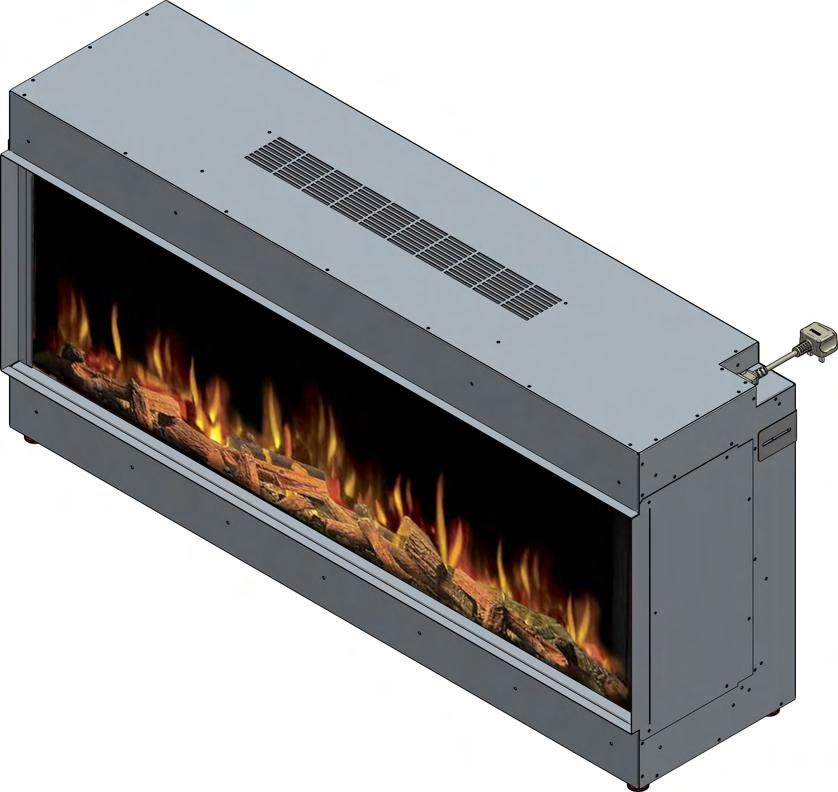

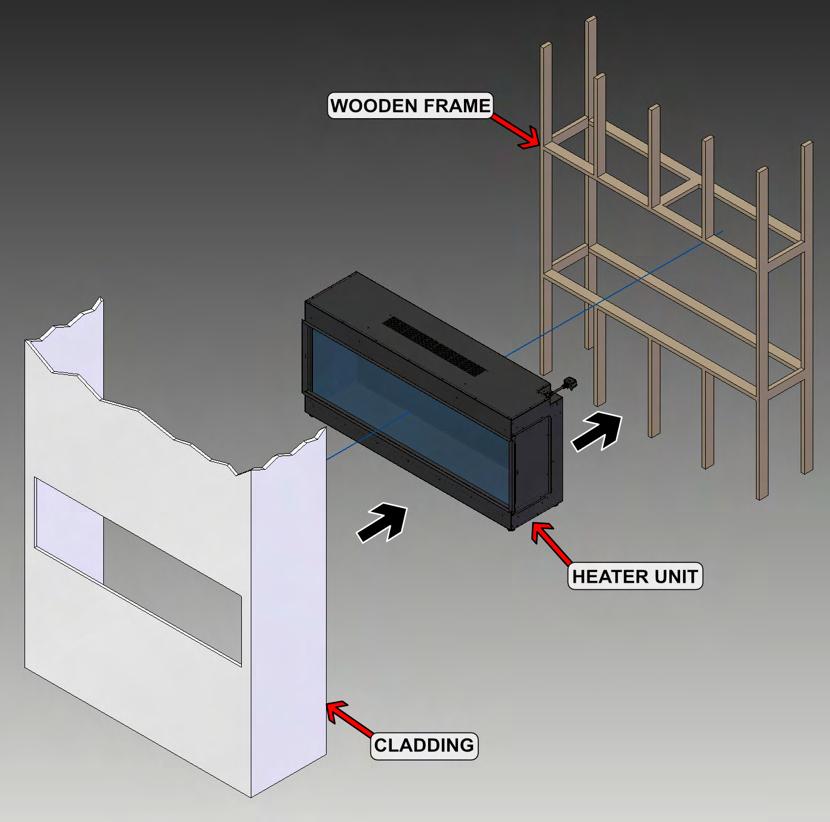

EXPLODEDVIEW
5. ilektroRange
ilektro1250Landscape

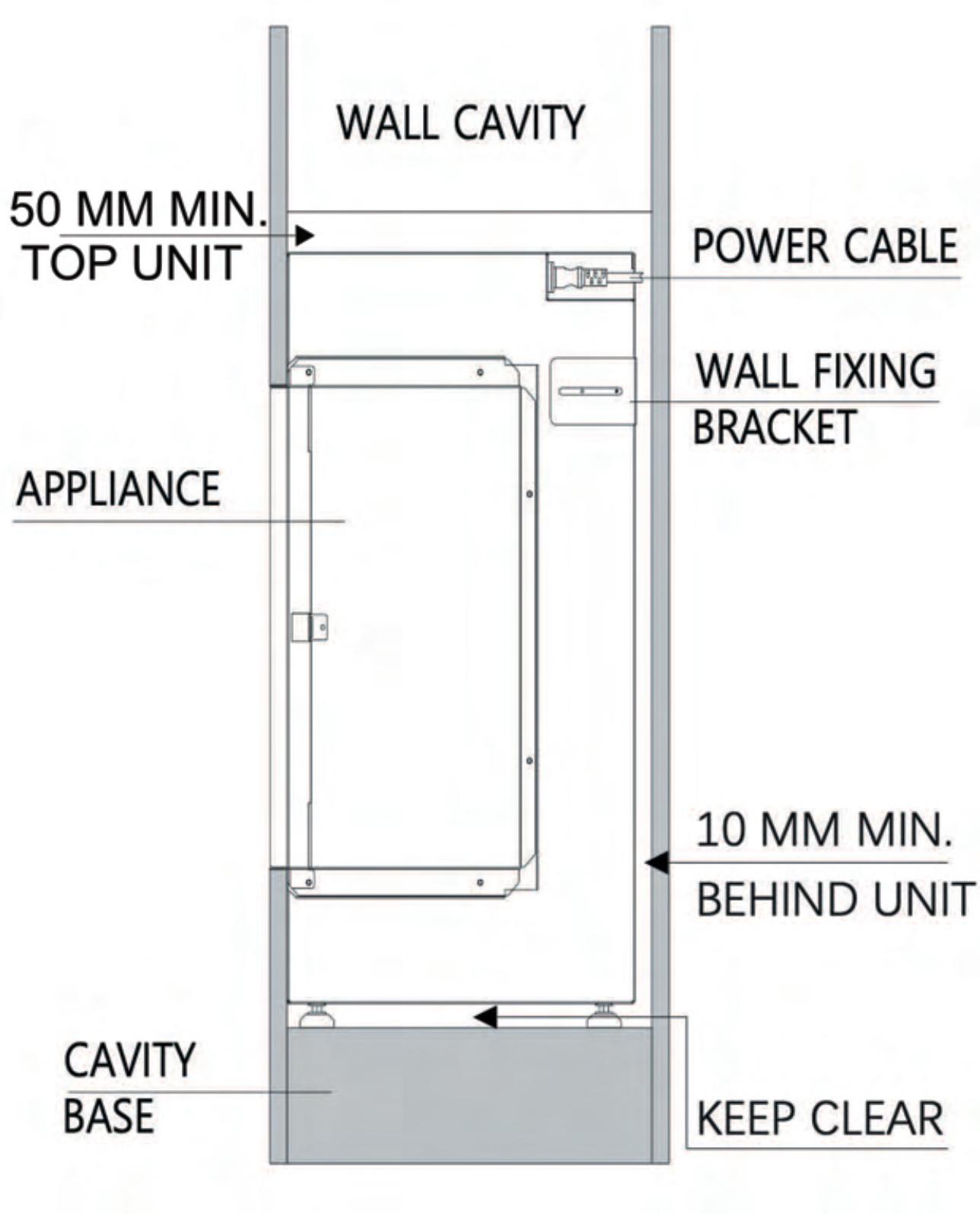

POSITIONINGYOURAPPLIANCE
NOTE:
Nofixturesaresuppliedtosecuretheappliancetothechosenwall.Ensureanappropriatefixingmethod isuseddependingontheconstructionmaterialofthewall.

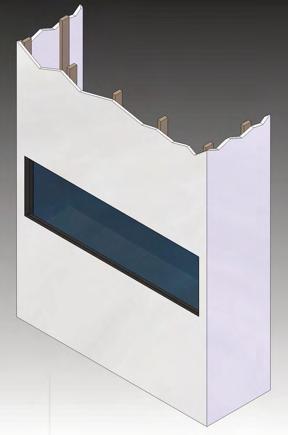

•Wheninstallingintoawallcavityspace,astudworkenclosureshouldbebuilttohousethe appliance.Refertoframeoutbuildsheet.
•Finishtheenclosureinthechosenmaterialensuringcladdingarepusheduptotheedgeframe aroundtheglassoftheunit.
•Ifyourapplianceisnotlevelwheninstalledtheglasscornerfitwillbemisaligned.
6 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Whenfittingatelevisionabovethefireplacethe followinginstallationmustbeadheredto.

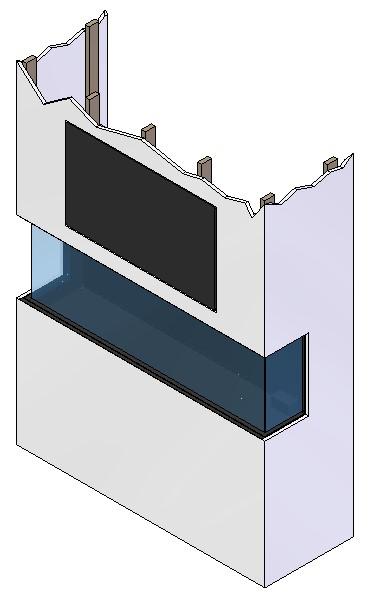

Debryanddustwillfallintothefanslotsabovethe appliancecausingdamageunlessprotected.Itisa requirementtosetashelfasshownbelow.

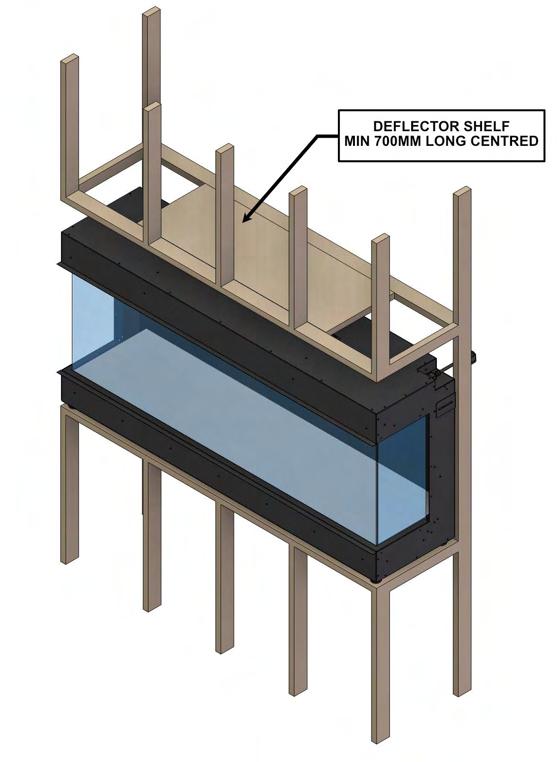

Option1:Shelftobemadeduringframing

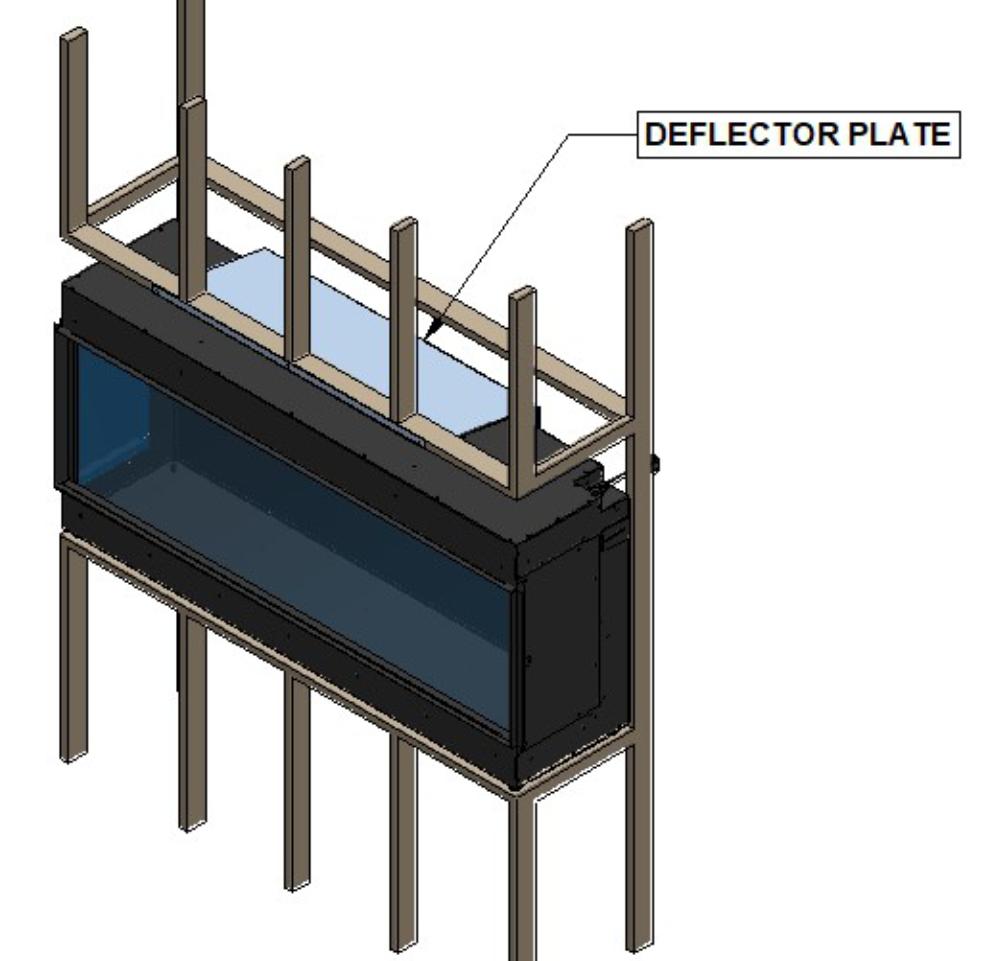

Option2:Deflectorplateasanaccessories
CAUTION: Appliancewarranty willbevoidifthe shelfordeflectorplateisnotinstalled.
Option1:
7 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Option2:

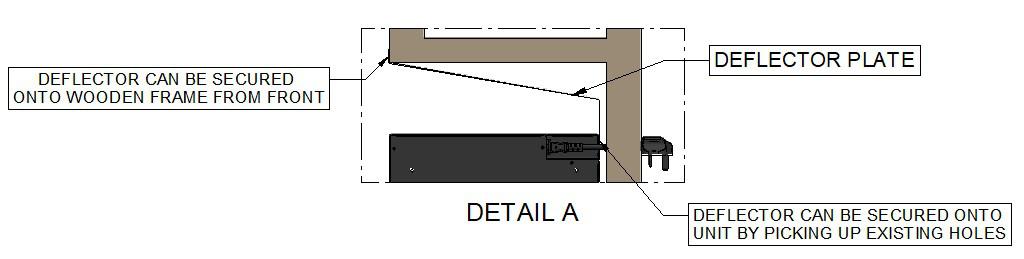

Deflectorplatecanbesecuredtowooden framethroughselftappers;refertodetailA.
Rearsideofthedeflectorplatescanbe securedtothefireplacebypickingupthe existingscrewholes;refertodetailA.
8 ilektroRange
ilektro1250Landscape

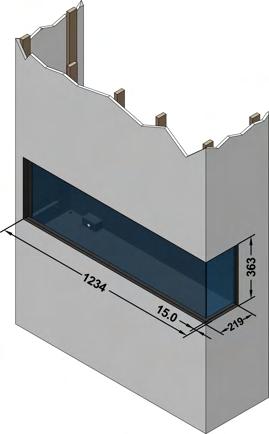

1234mm 363mm 581mm 219mm 315mm 100mm119mm 1250LGF2R 1234mm 363mm 581mm 219mm 315mm 100mm 119mm

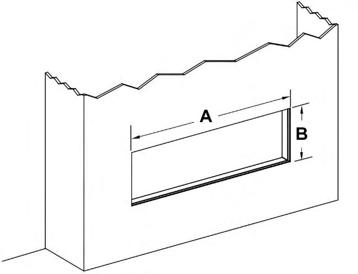

Theabovetablecontainsthe minimum opening A =Widthtooutsideofplasterflanges
B=Heighttooutsideofplasterflanges
C=Heightoffire(min)

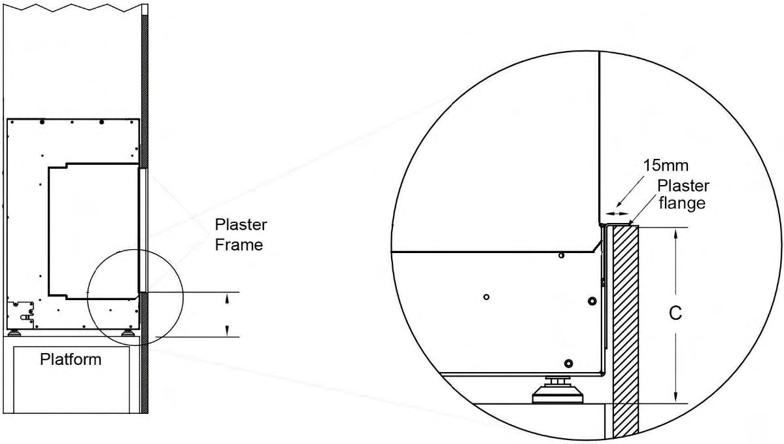

D=Depthfromfrontoffirebodytorearofsideplasterflange E =Depthoffire(+1MMTOL)
F=Heightoffireabovetopplasterbead
G=Minheightfromundersideofadjustablefoottoundersideoflowerplasterflange
F C G G 9 ilektroRange
Model A B C D E F G 1250LGF
363mm 581mm 219mm 315mm 100mm119mm 1250LGF3
1219mm
1249mm 363mm 581mm 219mm 315mm 100mm 119mm 1250LGF2L
1250LGF3
1250LGF2L
1250LGF2R
1250LGF
