01 02 03 04 05

Open Habitat Relocation Complex Oakspring Private Resort Four-storey terrace house Mini scale model: Deployable shelter Two-storey residence in Imus

table of CONTENTS

01

Open Habitat

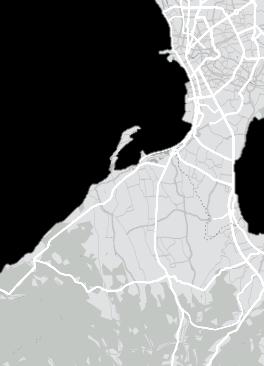

City of Trece Martires

The city of Trece Maritres is in dire need of housing provision for its displaced households—informal settler families occupying danger areas.

Open Habitat is a socialized housing relocation complex proposed to provide housing primarily for a particular displaced household community in Barangay Luciano.

Honorable Mention PUP Best Architecture Theses 2024

02

01s

01

The thesis: Open Habitat Affordability remains to be the biggest challenge of affordable housing. The most common approach towards this has been the functionalism A.K.A mass housing. However, mass housing have been producing empty, impersonal, small, and inappropriately designed socialized housing units. It has become a source of unprecedented problems while simultaneously failing to actually make housing more affordable. Since the 70s, architects and scholars in the field have been arguing against mass housing as it is virtually impossible to gather the necessary data to create the ideal house because it is the dwellers themselves who holds these very vast and very dynamic data.

03

03s

04

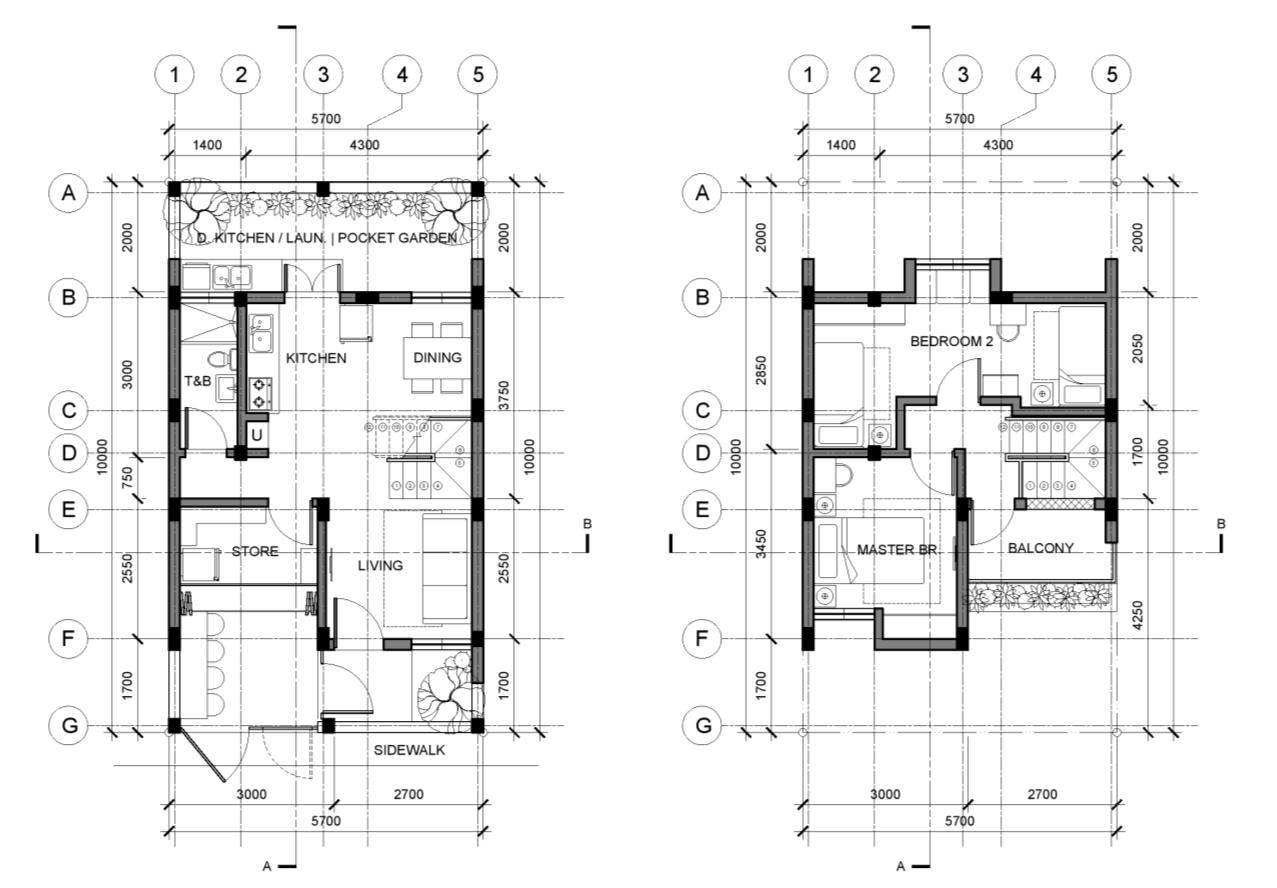

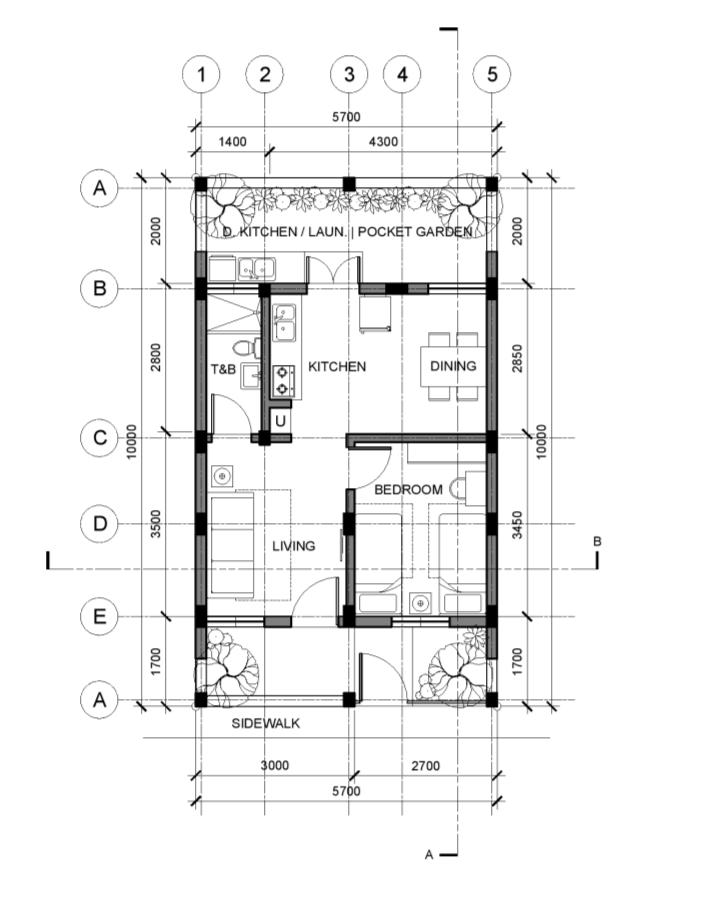

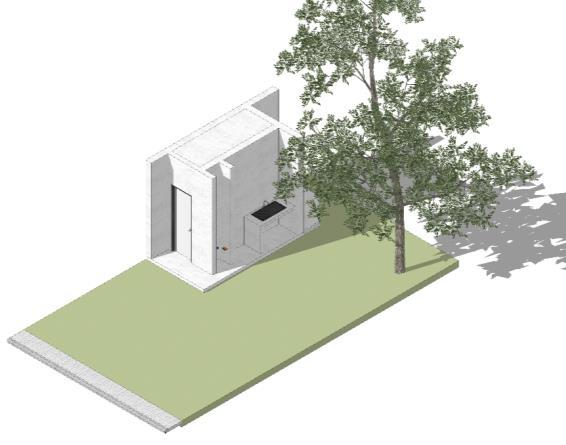

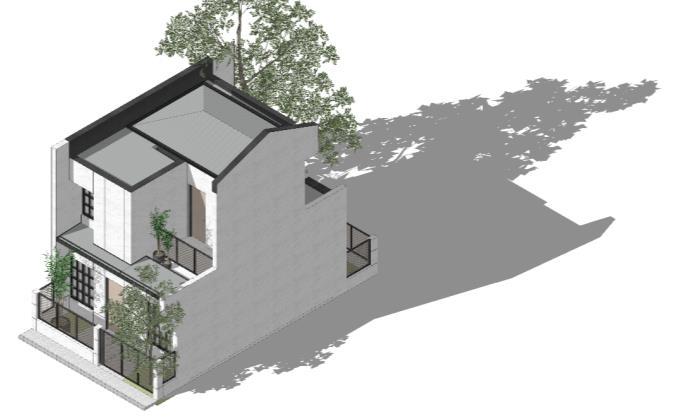

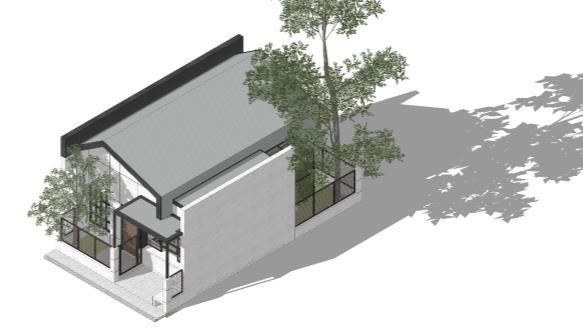

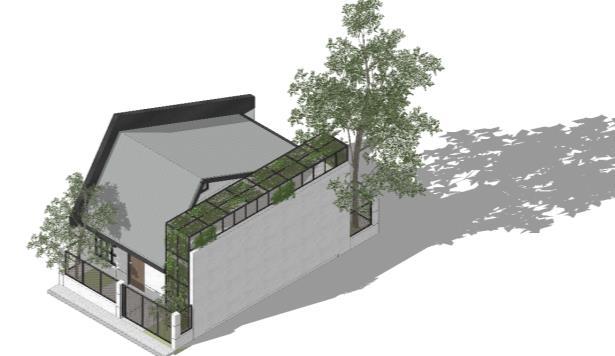

Thus, the idea for this thesis was to distribute the design and construction responsibilities to the dwellers to significantly aid in cost-reduction while also giving them the opportunity to respond to their own needs. A growth framework, previewed above, aims to guide the development to prevent uncontrolled individual preferences from getting out of hand. Dwellers can choose from different permutation of units according to their own particularities starting from the same core structures. Single-storey permutations can later be transformed into two-storey ones given certain circumstances.

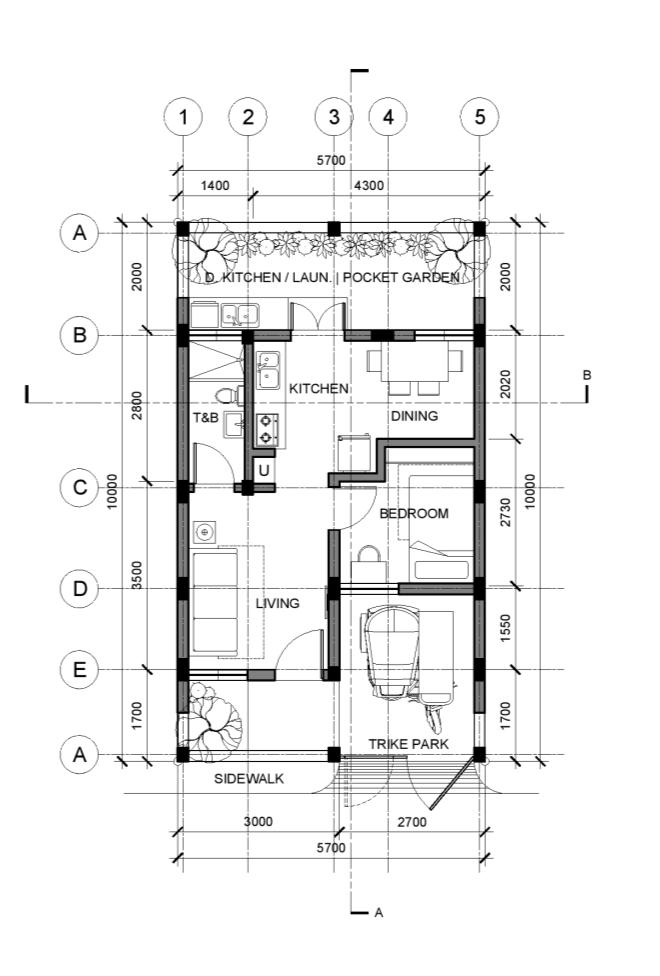

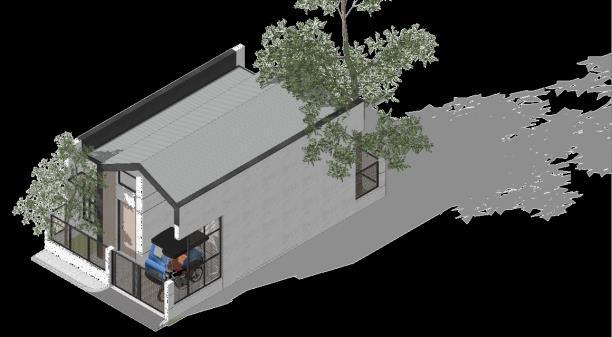

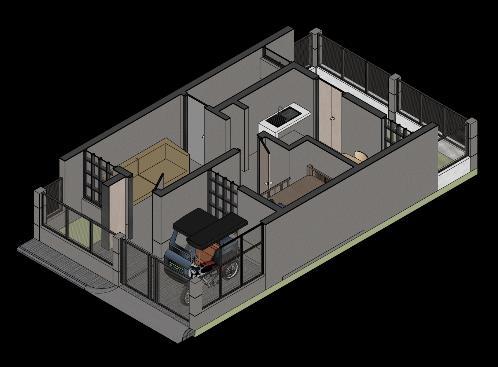

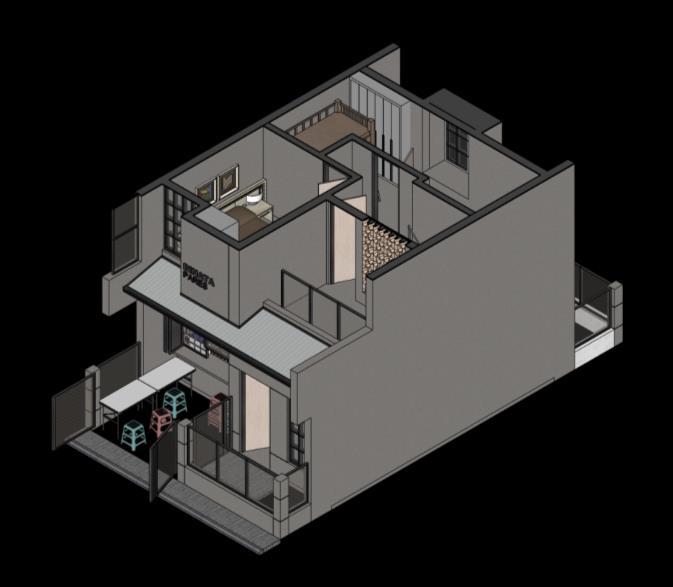

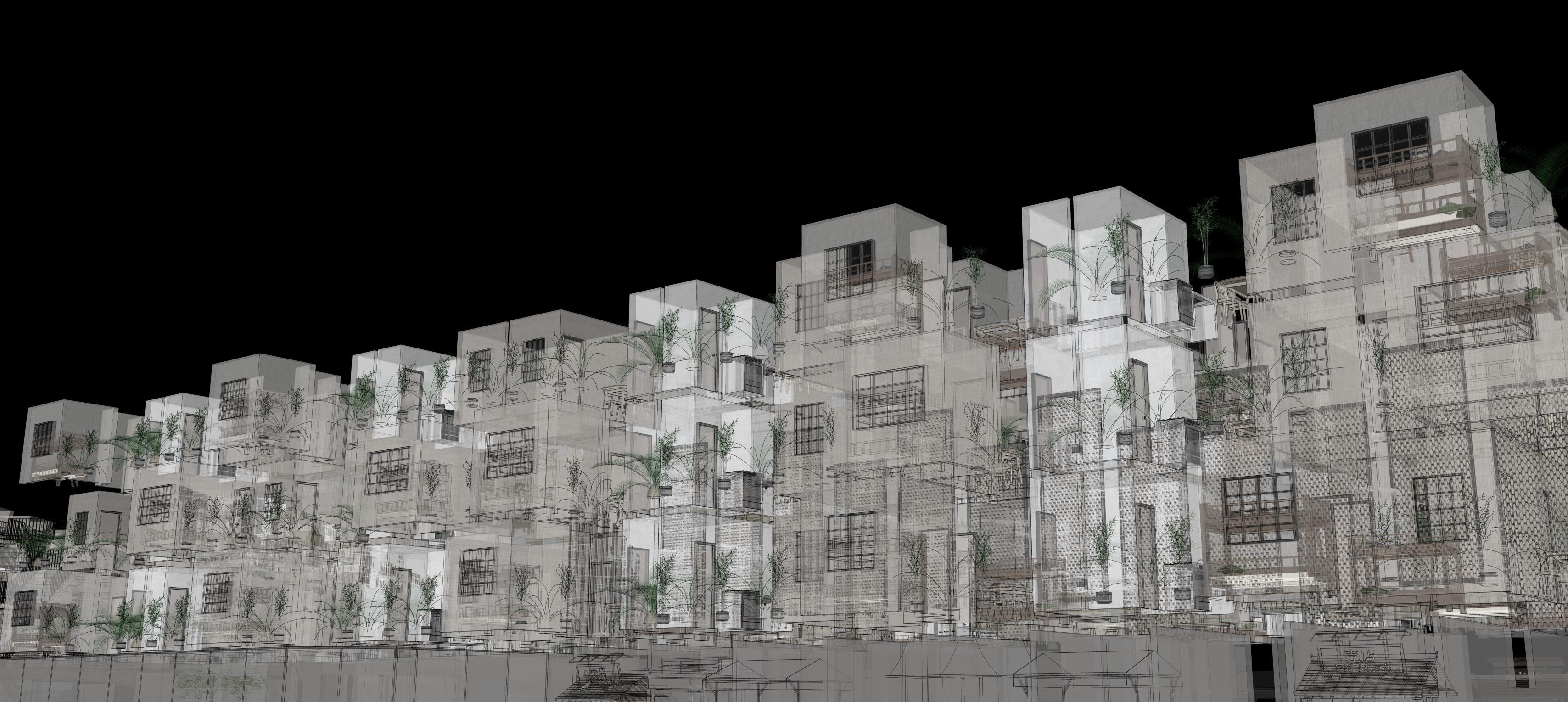

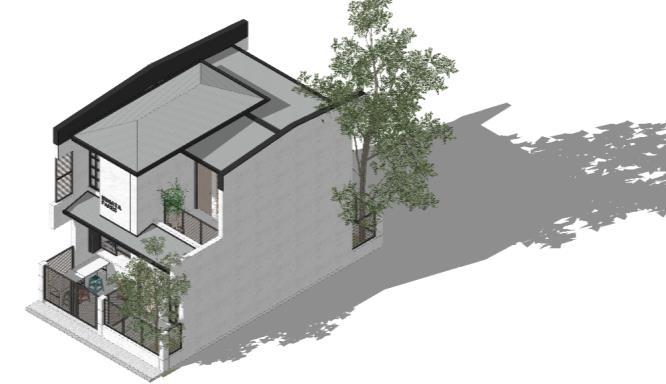

Open Habitat neighborhood scene showing P4, P3 which highlights a P3S unit that utilized the shop sp a P2 unit that already has a tricycle uni

3S, and P2 permutations (as seen from left to right) pace provision as a beef stew or “Pares” eatery and it parked in the trike parking provision.

01

01s

02

03s

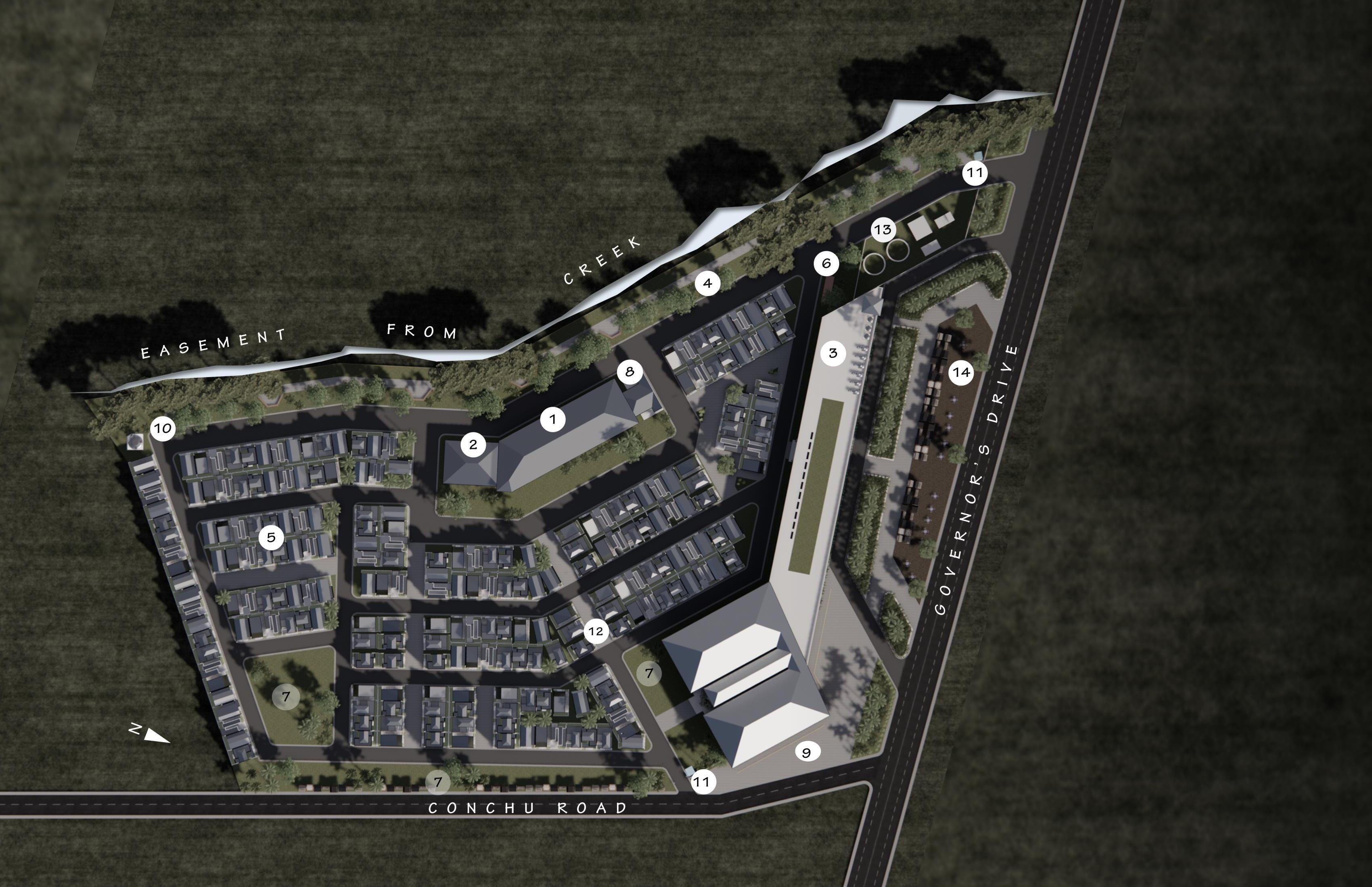

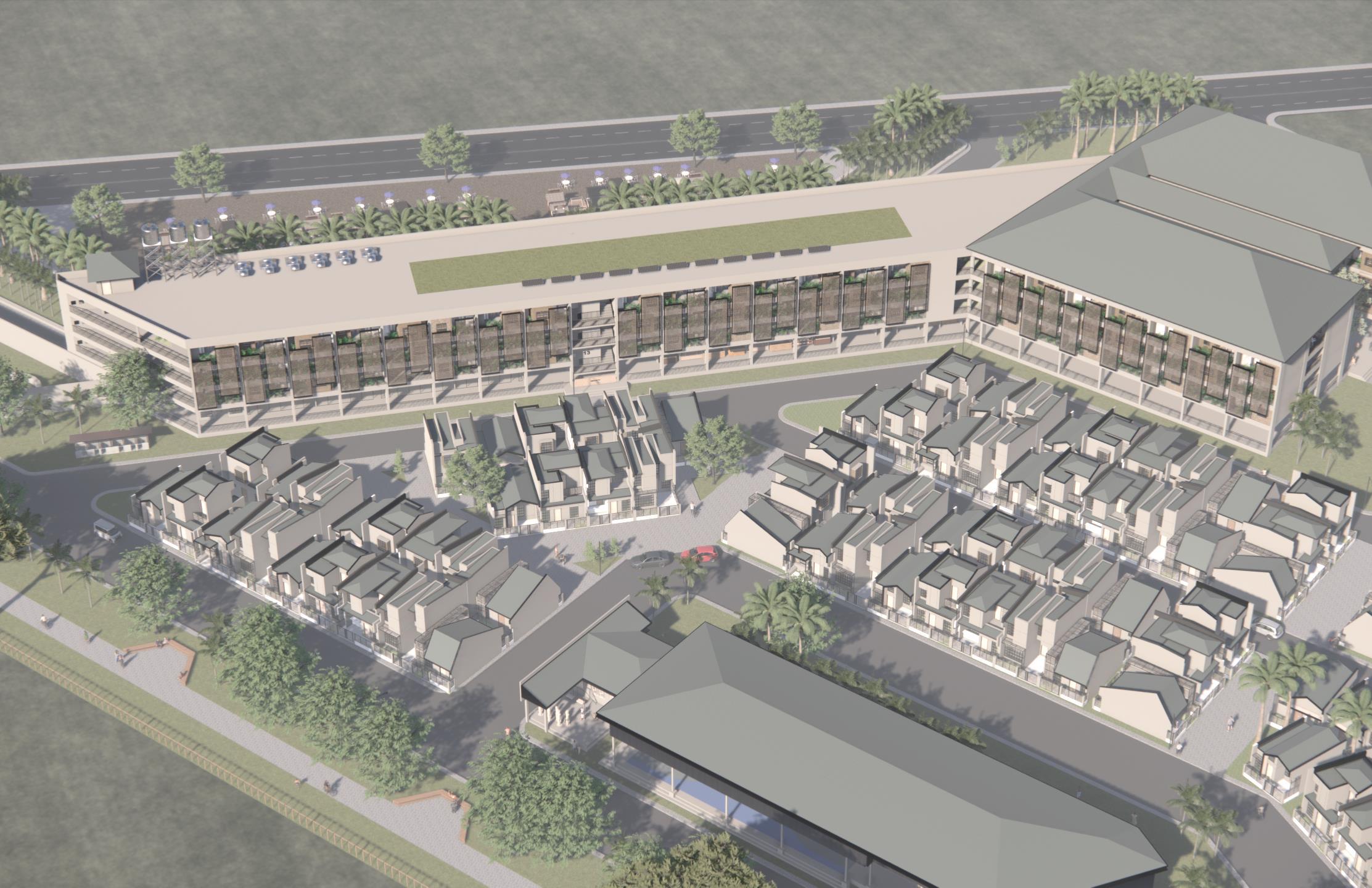

Aerial perspective of the relocation complex software: sketchup + enscape

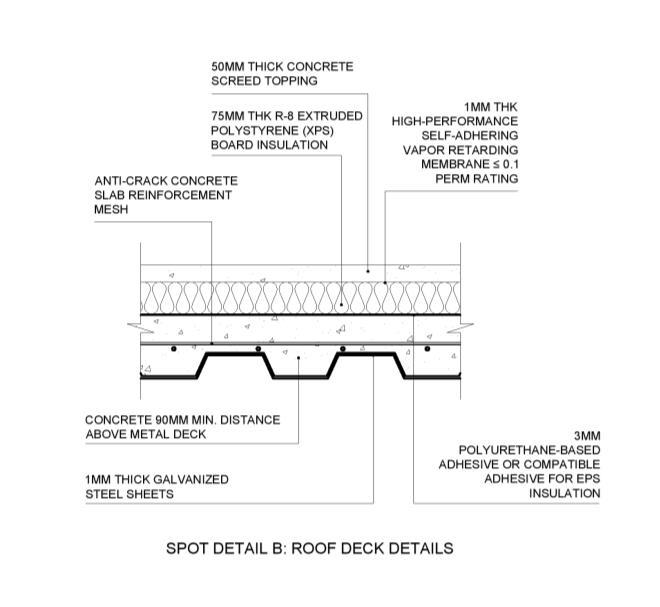

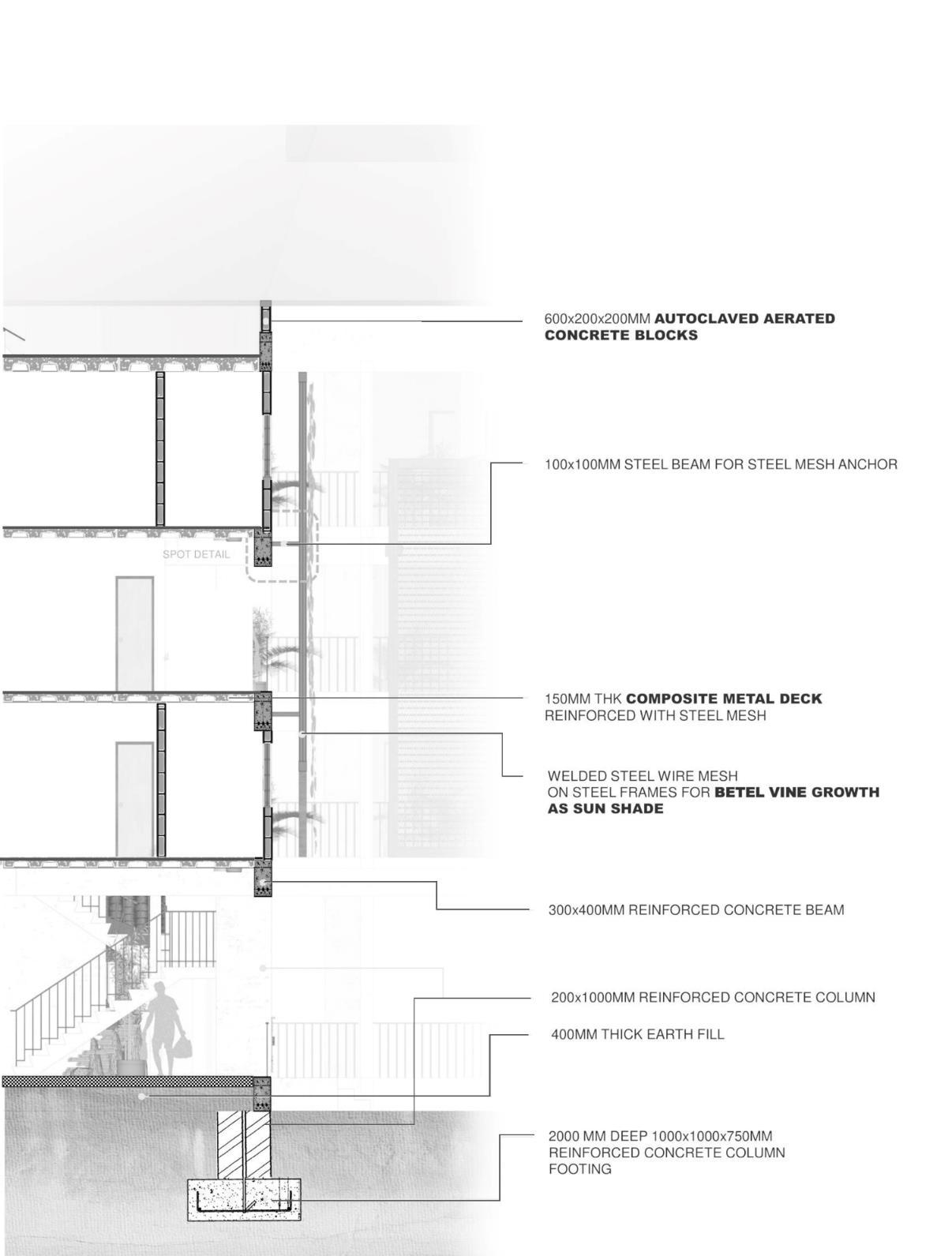

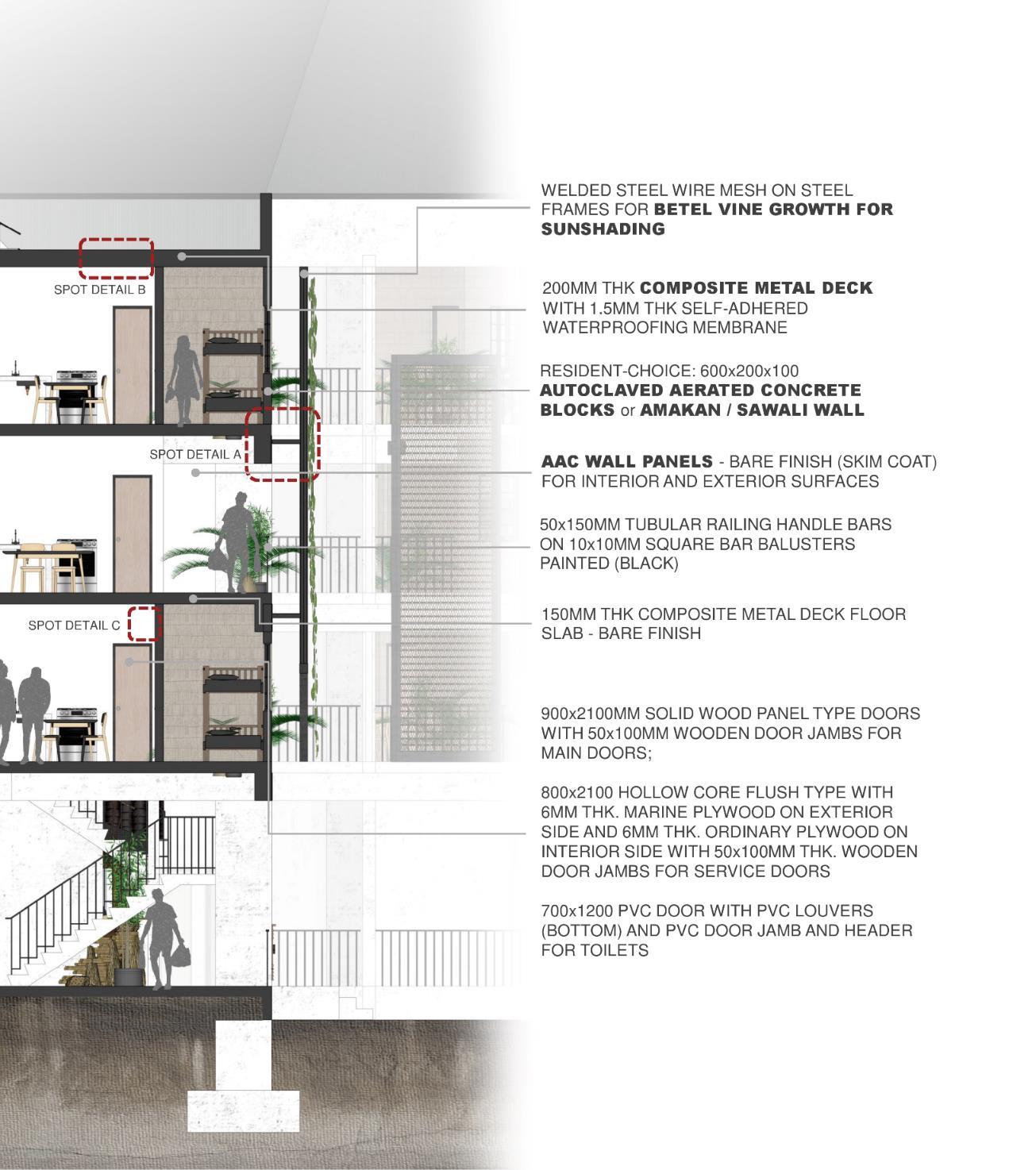

Mix-use bldg. bay section: Architectural

WELDED GALVANIZED STEEL WIRE MESH ON GAL. STEEL FRAMES FOR BETEL VINE GROWTH AS SUN SHADING

Mix-use bldg. bay section: Structural

WELDED GALVANIZED STEEL WIRE MESH ON GAL. STEEL FRAMES FOR BETEL VINE GROWTH AS SUN SHADING

Catering only to the already identified beneficiaries appea to be an inefficient use of allocated resource. Thus, at point, I decided to plan the entire 5-hectare site be able cater to all the rest of informal settler families occupy danger areas in the entire city of Trece Martires if agr upon by all parties involved. Nevertheless, the expansion be available to all qualified families seeking afforda (socialized) housing in the area. A mix-use building was a added in the road-side commercial zone.

C

Moreover, the adjacent creek will inevitably trig unsanitary tendencies from informal settler famil especially those located right beside it. Hence, the en length of the site adjacent to that creek is developed to b linear park, facing the busiest street of the development.

A

This was the very first iteration of the site plan under a planning principle inspired by Laws of the Indies to achieve a sense of organization and also as a reference to the concept that attempts to formalize informality.

B

In this stage, I got rid of using Laws of the Indies completely as it was not a progressive concept of planning, but rather an old-school one. Instead, I focused more on orienting buildings based on site contexts and navigation.

ared this e to ying reed will able also

gger lies, ntire be a

E

B

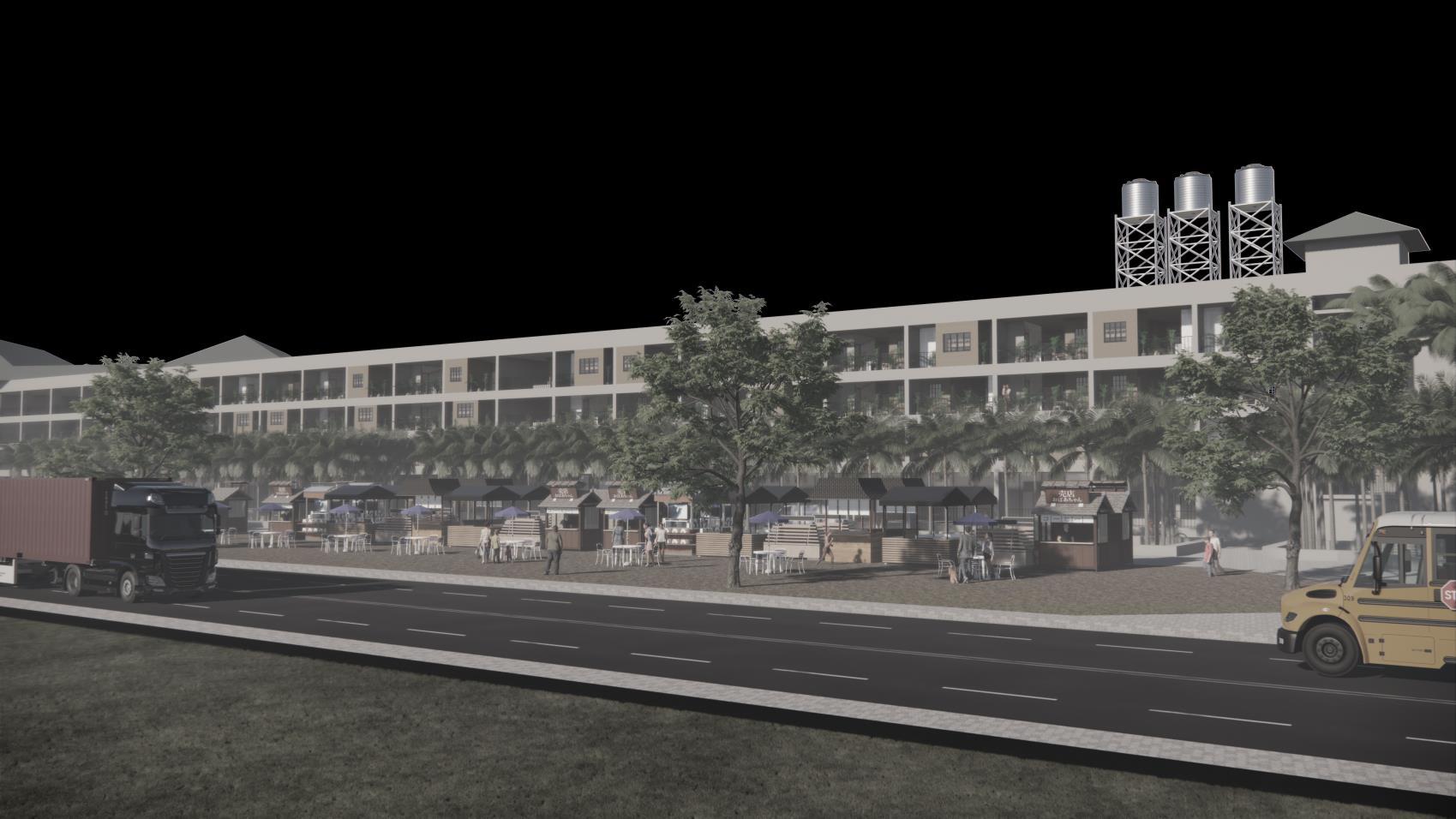

A 25-meter front setback was applied, creating a space for bargain market stalls or road-side night market during the night to still take advantage of the economic opportunities from the road. This is for the possibility of road expansion.

Regarding the sun heat and light mitigation, wire mesh-vine combination was applied at the rear elevation surface as sun shading device.

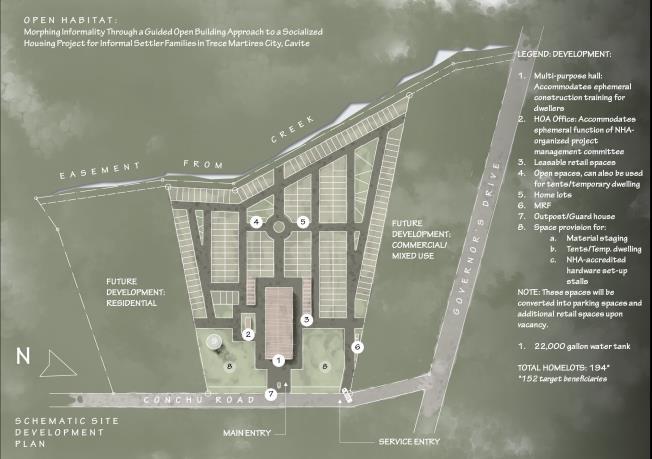

F D This was the final scheme of the site development plan before I proceeded to modelling all the site features. The community facility and mix-use building, nevertheless, is already completely planned and modelled at this point.

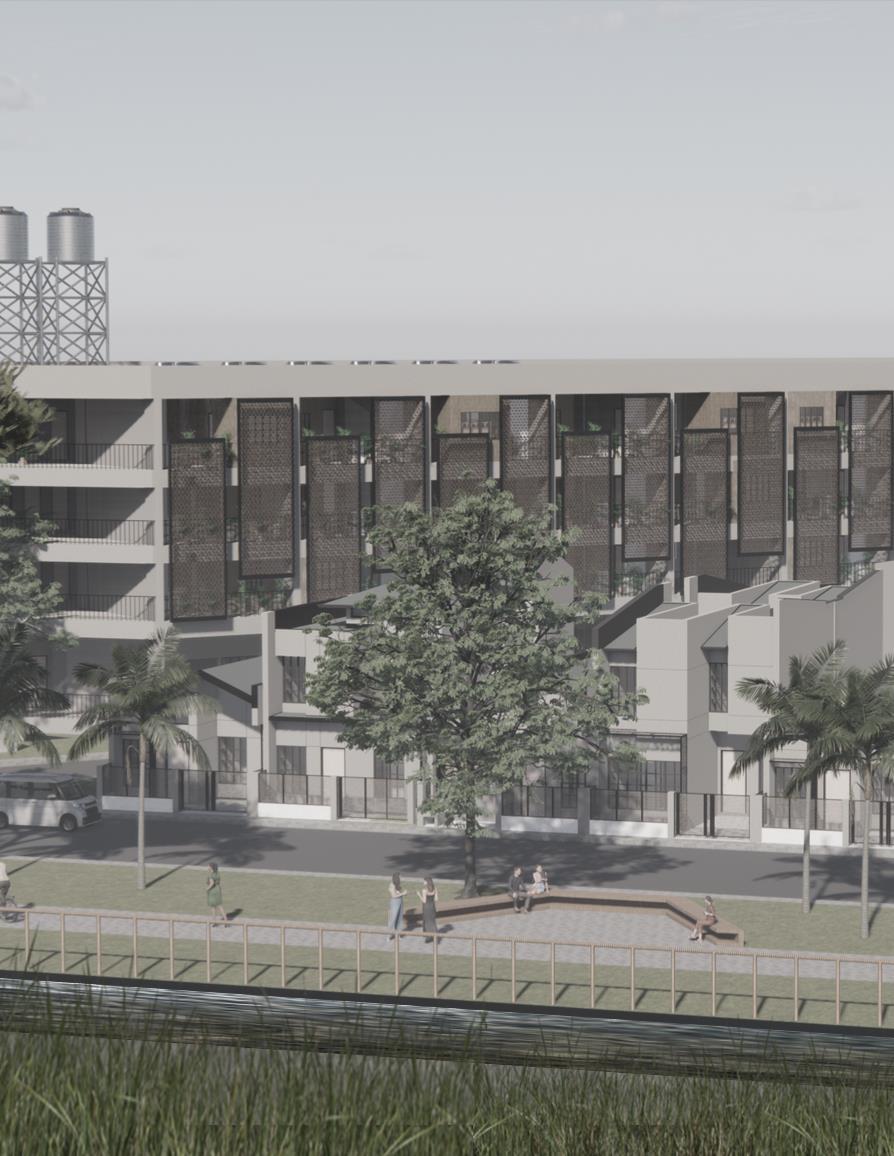

Entry points of the development were limited to two main entrances and one for the mix use building at this point for safety and security purposes. To compensate the purpose of preventing urban fragmentation, the mix-use building will serve as the inviting element into the development, lessening low-income community isolation.

The mix-use building is oriented to minimize façade surface area that receives the hottest (south-western) sun rays.

To improve navigation, the community facility was turned into the main decision point of the site and roads and path walks are then directed near or towards it, creating the final arrangement of the single-family housing blocks.

progress drawings

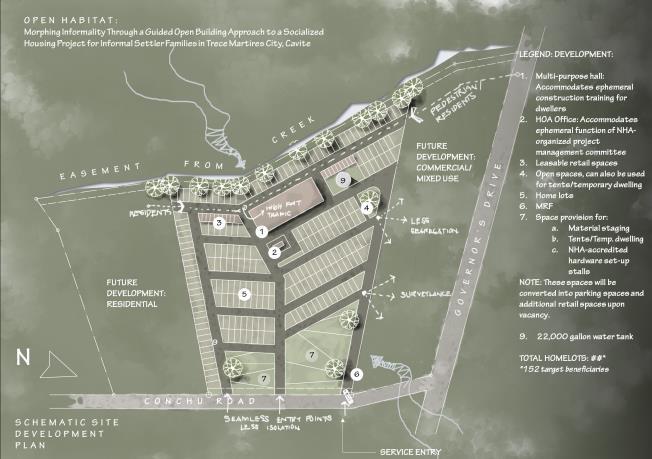

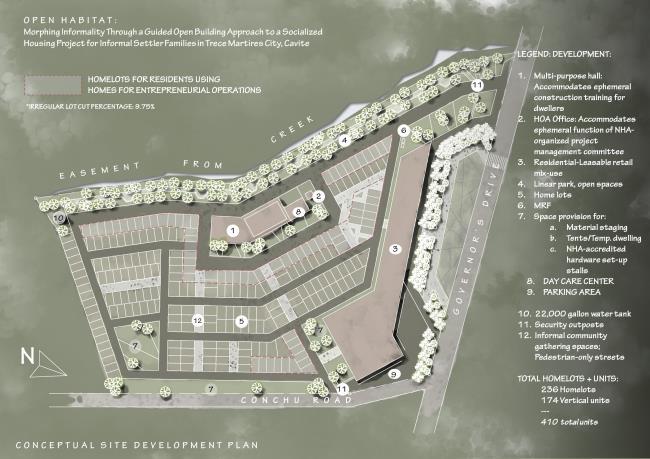

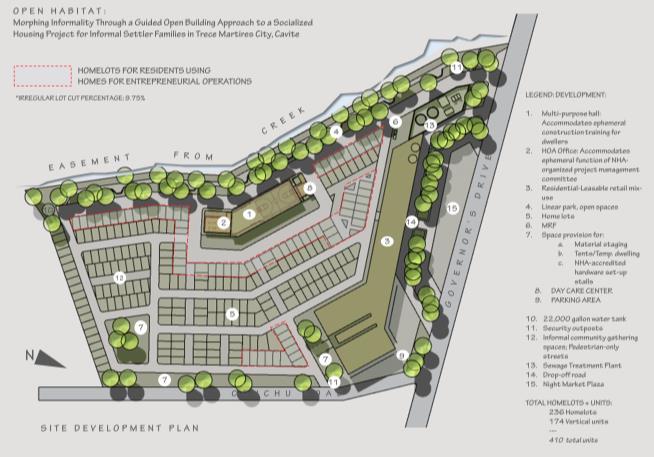

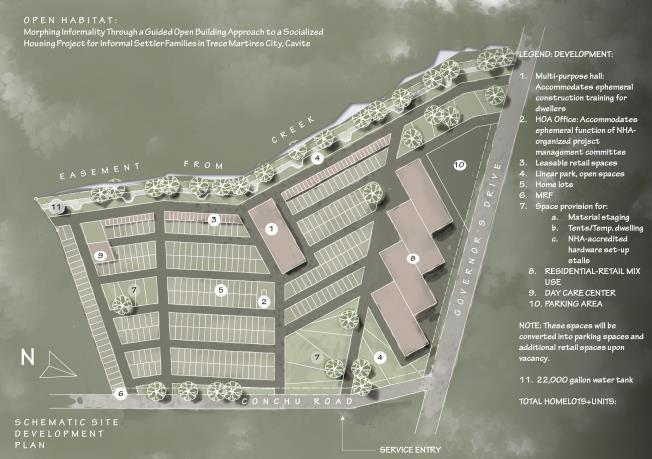

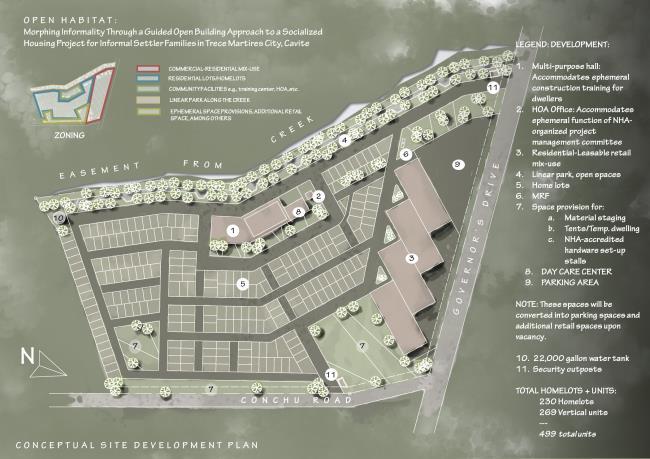

The final SDP

01 02

03 04 05 06 07

08 09 10 11 12 13 14

Multi-purpose hall: Accommodates ephemeral construction training for dwellers HOA Office: Accommodates ephemeral function of NHAorganized project management committee MOLENVLIET 13: Residentialcommercial mix-use Linear park ARANYA 13: Serviced home lots MRF Ephemeral pace provision for: Material staging Tents/Temp. dwelling NHA-accredited hardware set-up stalls Daycare Center Parking area 22,000 gallon water tank Security outposts Informal community gathering spaces; Pedestrian-only streets Sewage Treatment Plant Open Bargain Market / Night Market

A

B

Award won PUP Best Architecture Theses - Honorable Mention This project, Open Habitat relocation complex for slum-dwellers occupying danger areas in the City of Trece Martires, has secured a spot in PUPCADBE’s Talaghay: 2024 Best Architecture Theses as Honorable mention. The award is given to thesis students who managed to crack the top 10 best theses on final deliberations despite not being able to take RMA, Design 9, and Design 10 in three consecutive semesters.

For a fun fact, best theses awardees are the same team who will organize everything for the awarding ceremony, exhibit, and promotions of the event.

My primary role was in promotional materials, specifically video editing for teasers. The videos can be accessed by clicking either Teaser 2 or Teaser 1.

02

Oakspring Private Resort

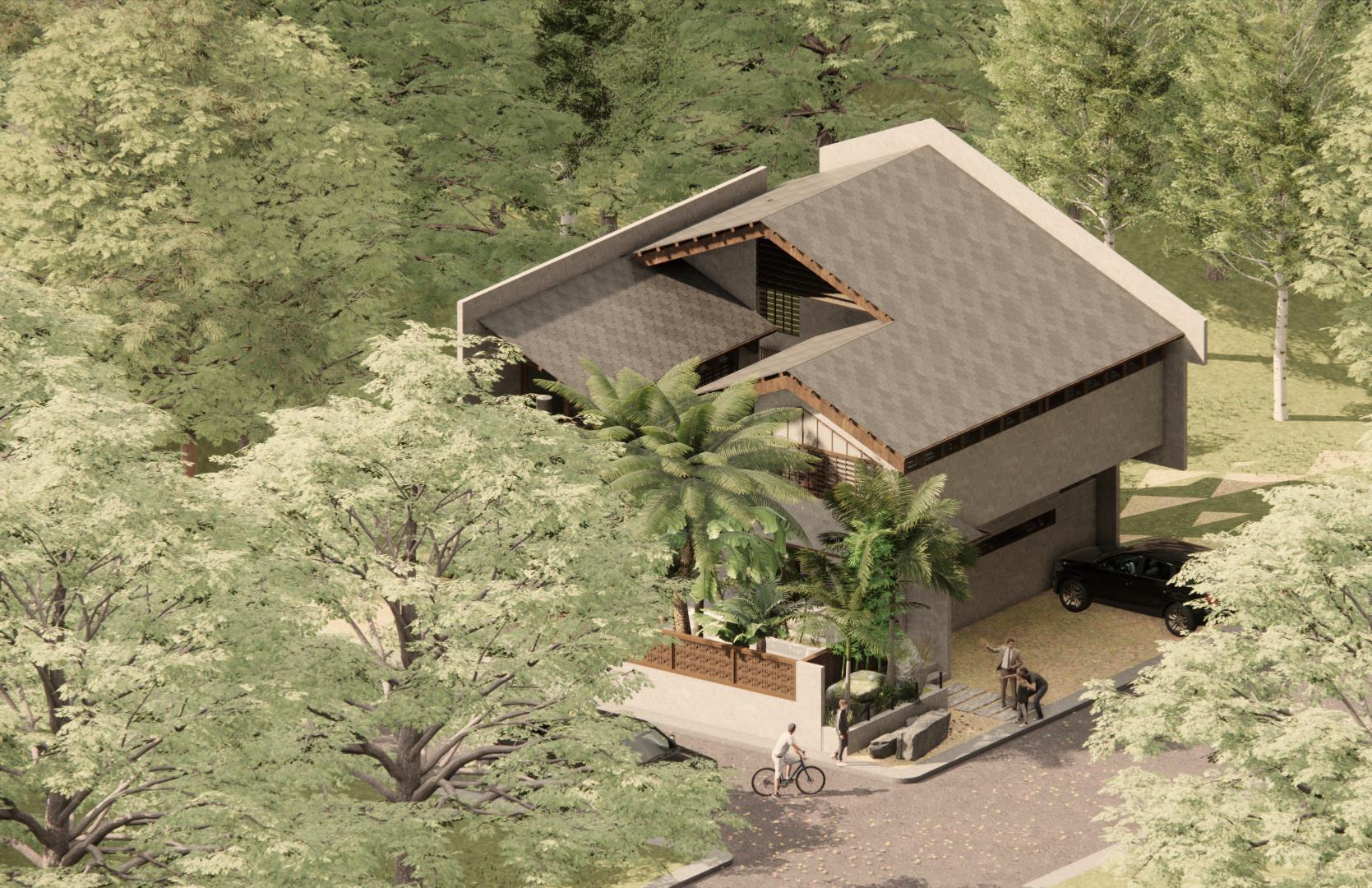

Oakspring is a private resort I designed and rendered for SRchitects Construction during my second internship last July 2023. This task was supposed to be a design revision but my mentor architect asked me to create a totally new design if I can.

Software used: AutoCAD SketchUp Enscape

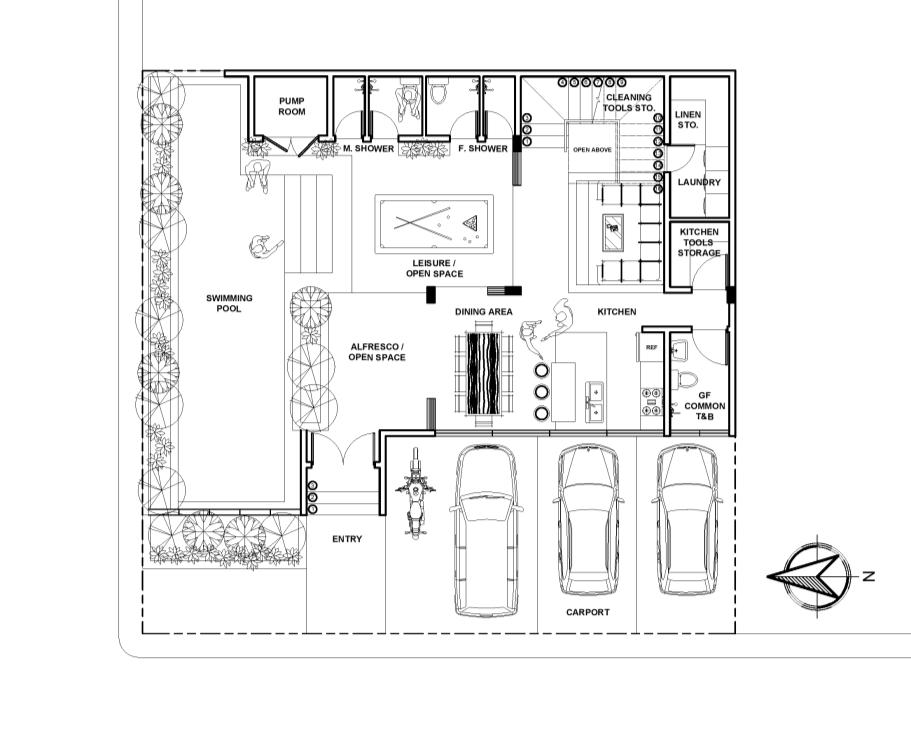

GROUND

SECOND

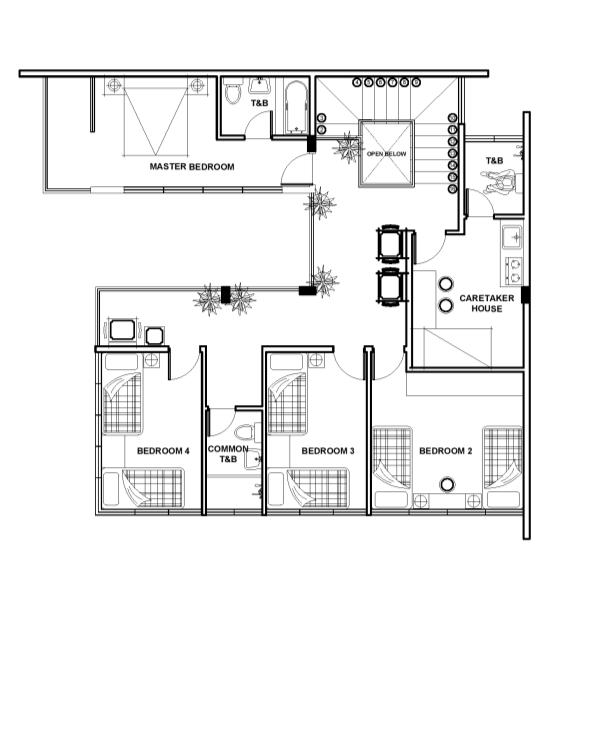

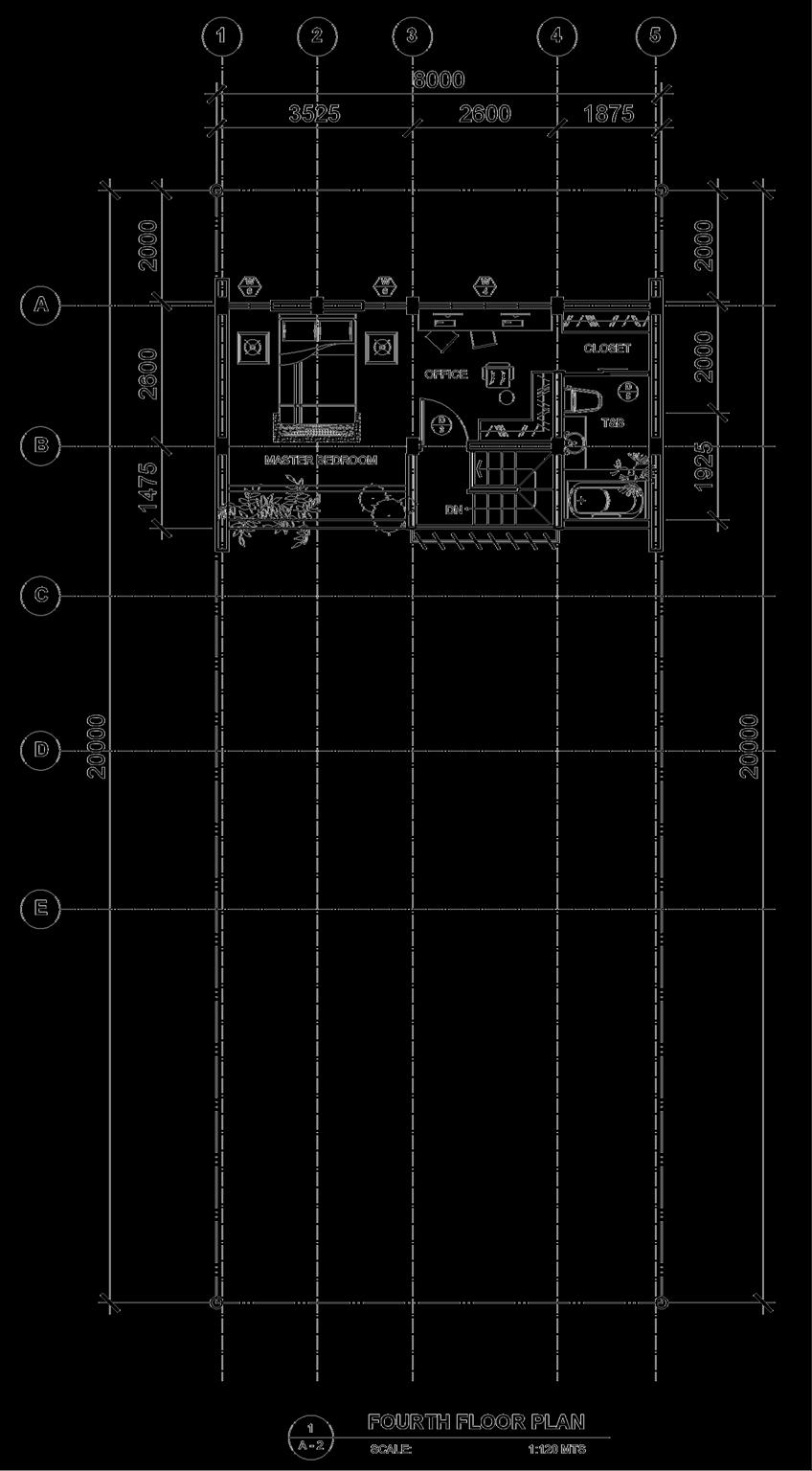

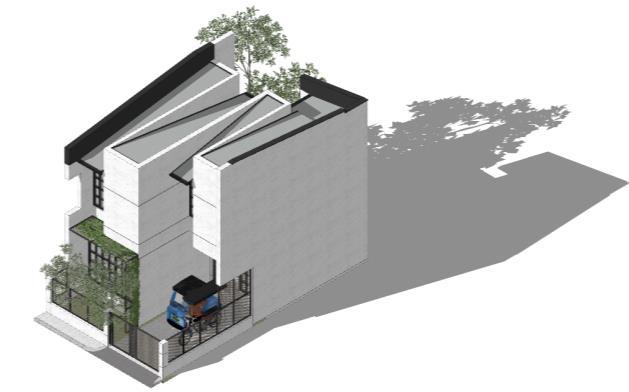

03 Four-storey terrace house Done for: Architectural Internship 1 2022 This project was the main task I had to accomplish throughout my first OJT. The brief was to design a residence that has not yet been listed the firm’s directory.

The concern that I was trying to address in the project was the inevitable tendency of neighboring properties to build their own firewalls, hence, limiting natural light and air that penetrates the lot.

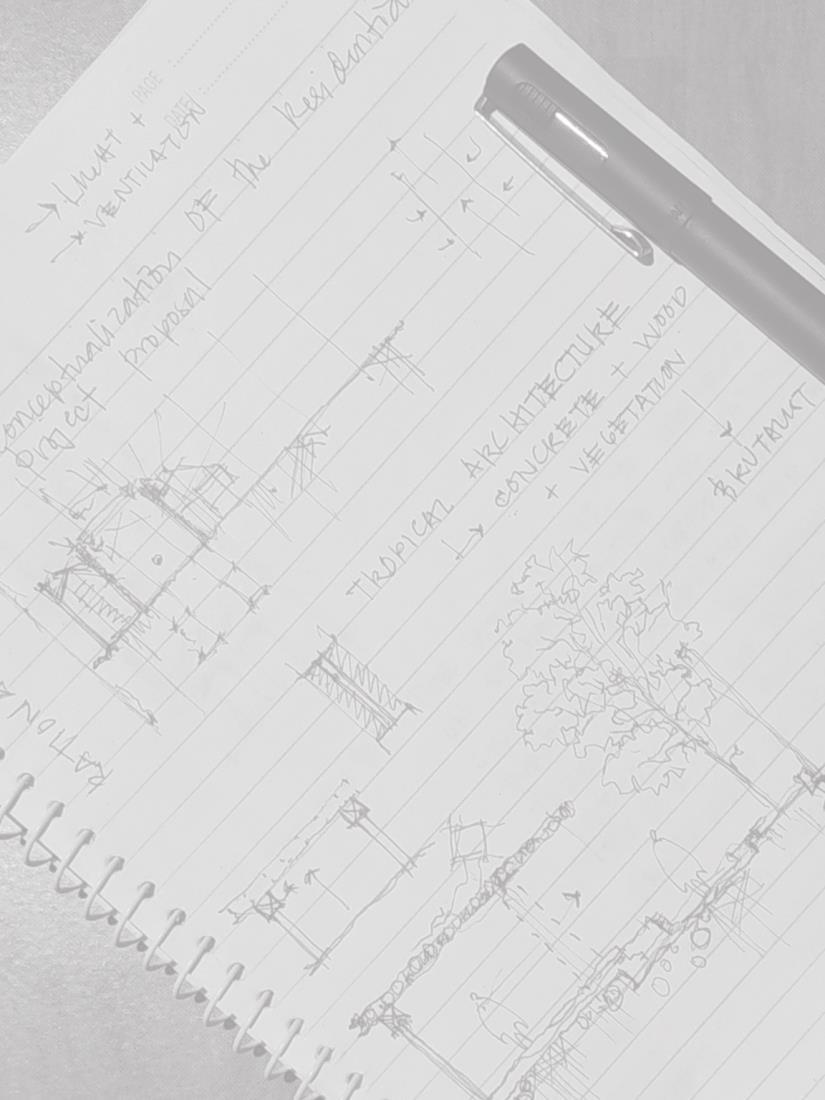

So I sketched out concepts and layouts whose goal is to not fully rely on setbacks alone for light and ventilation. And since neighboring firewalls were anticipated, I decided to go for a terrace house or row house type of development.

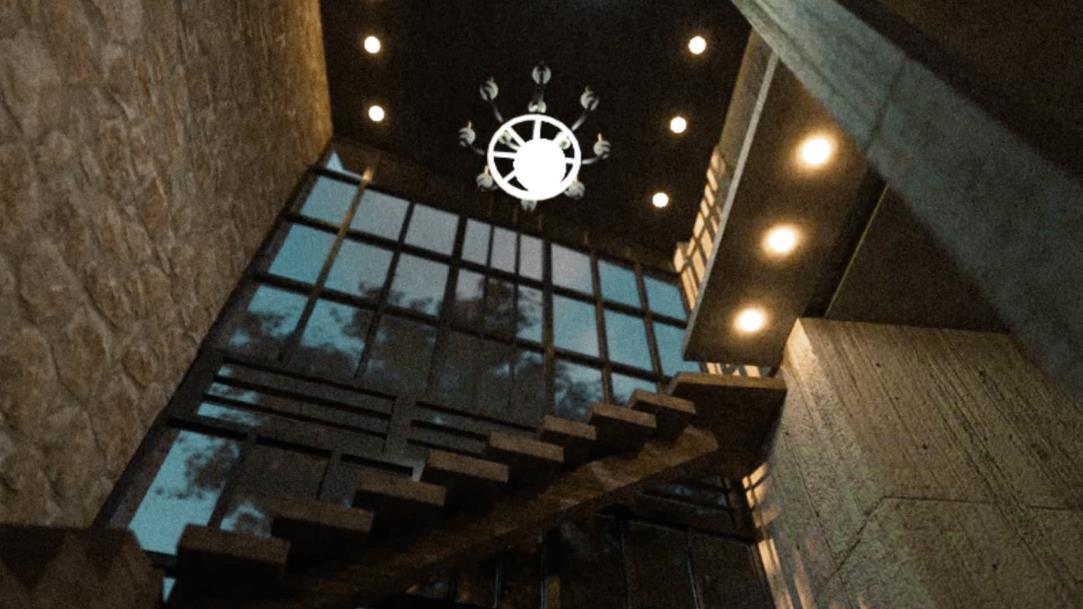

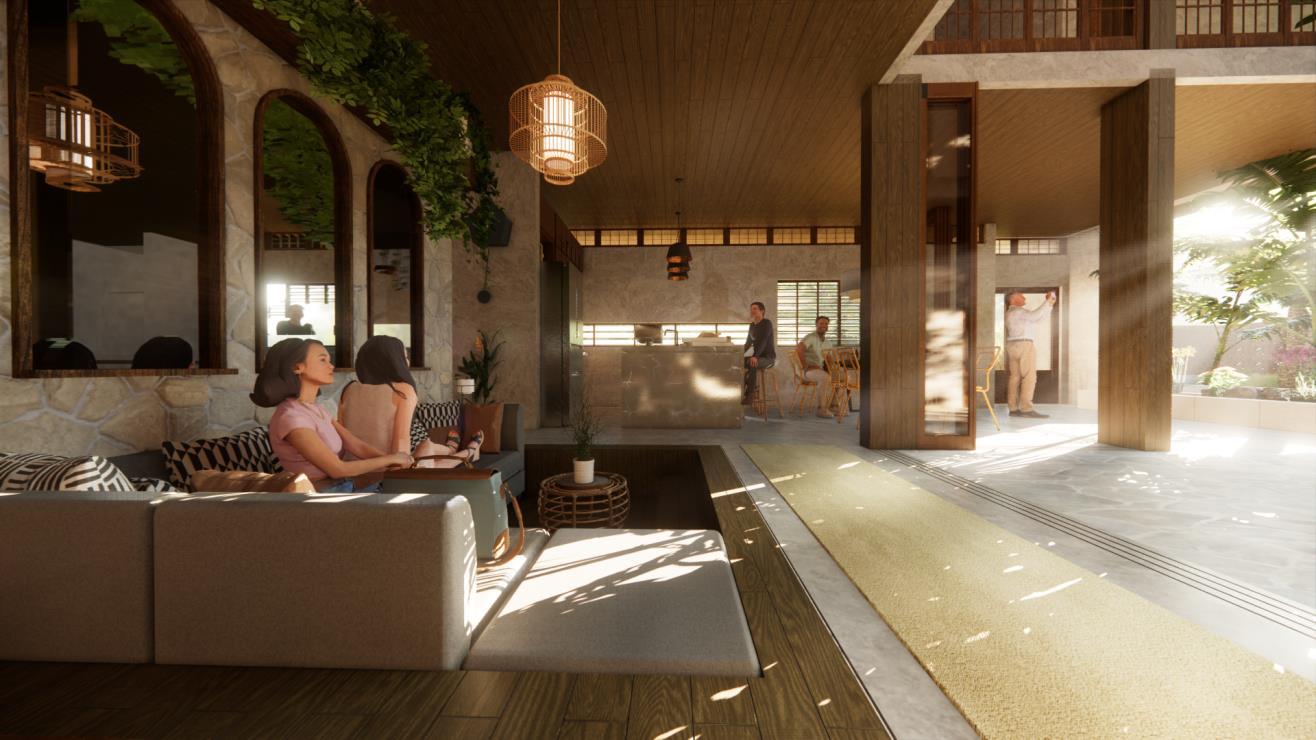

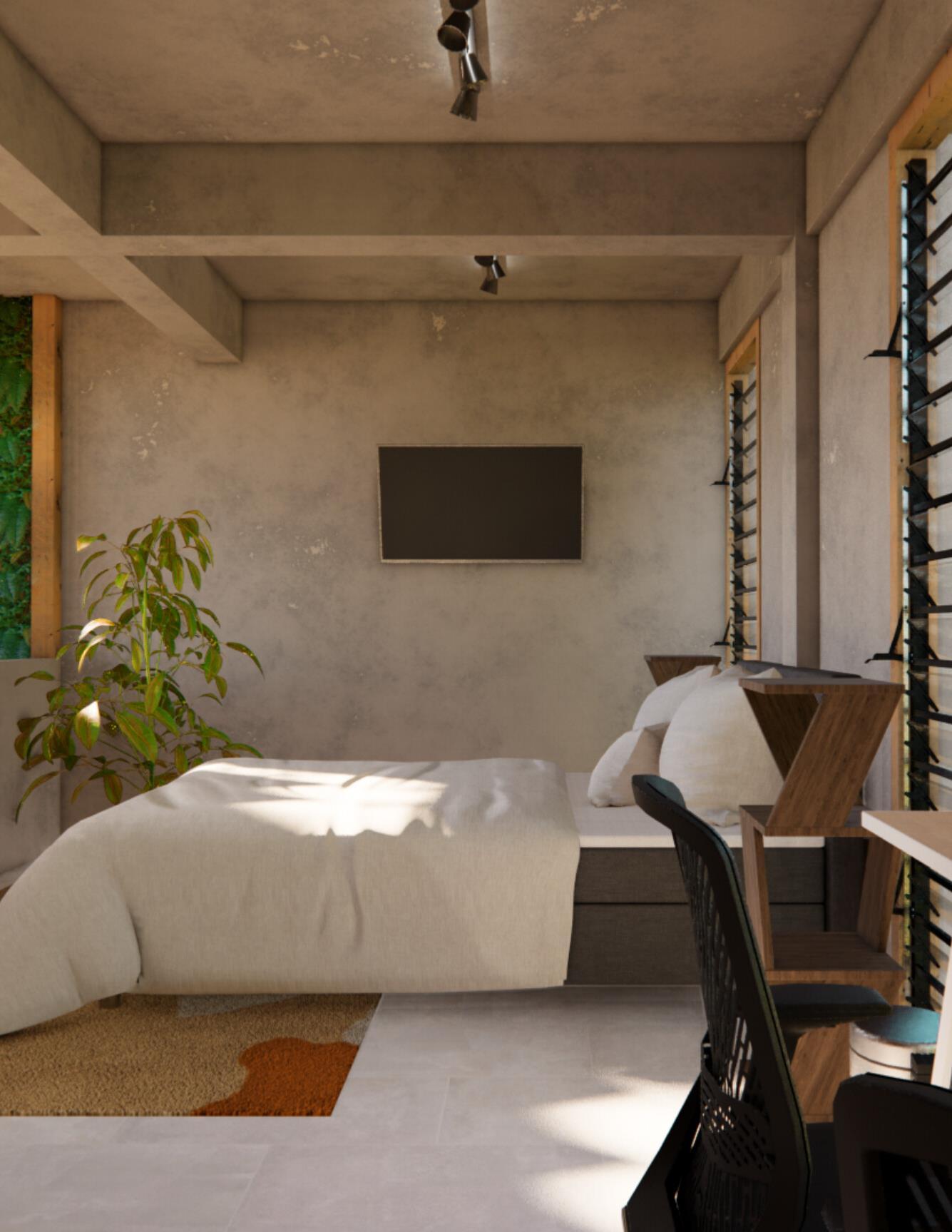

In addition to opting for a terrace house sort of development, the design also utilized tropical architecture and brutalism at the same time. The abundance of open spaces, especially the USAs, is easily noticeable just by looking at the plans. The interior renders give a glimpse of the frequent use of huge openings all over the house.

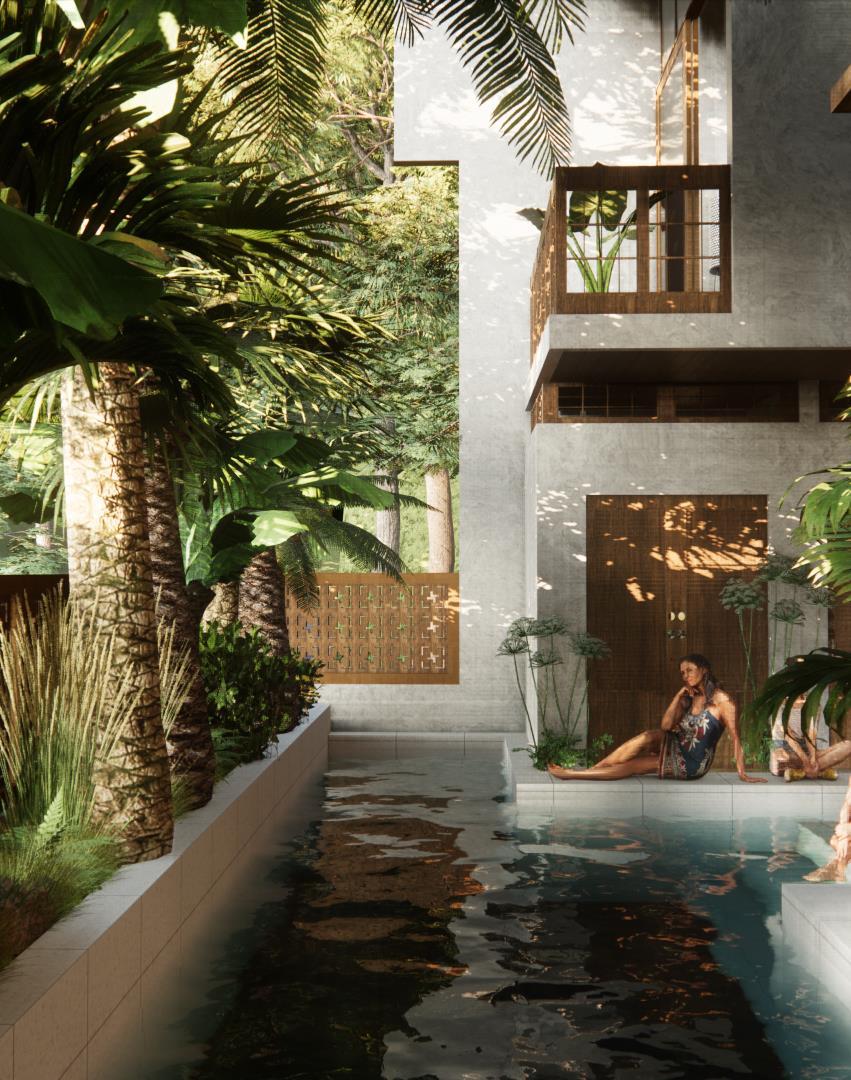

Aesthetically speaking, I just wanted to contrast the warmth of wood and vegetation with the calmness, coolness, and honesty of brutalism.

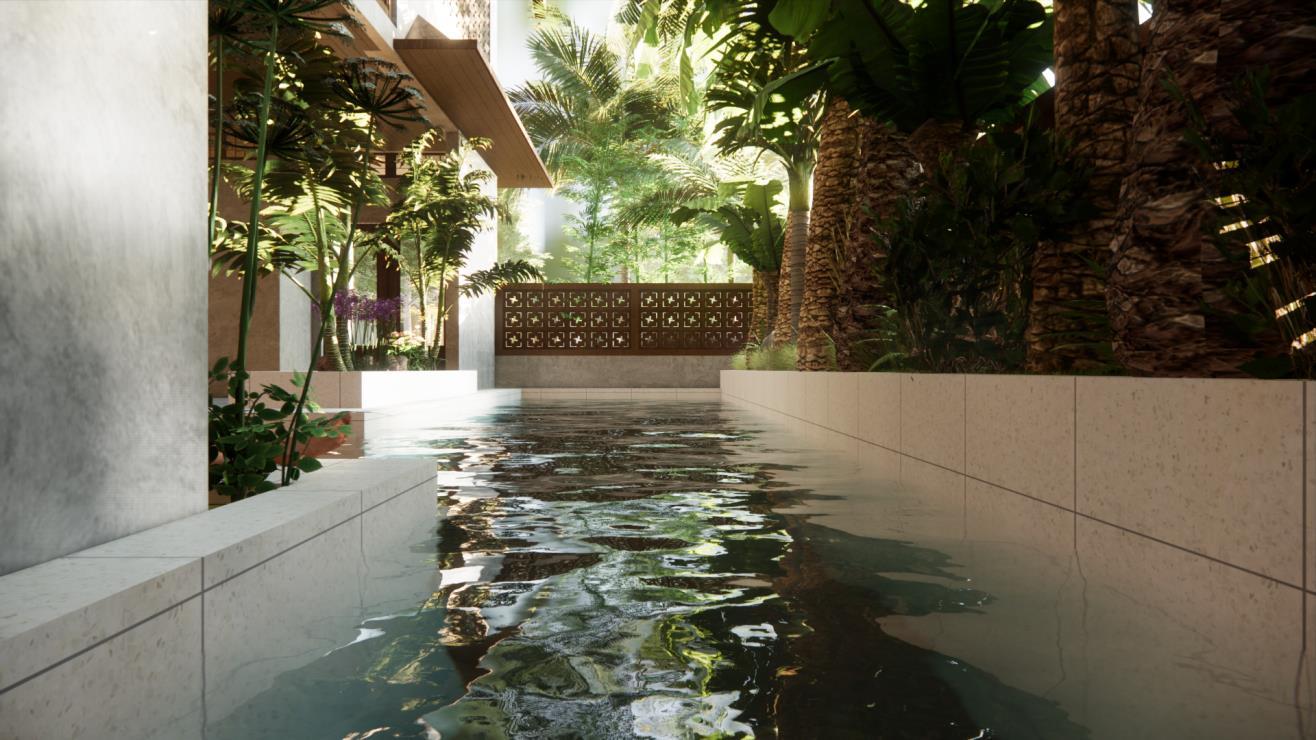

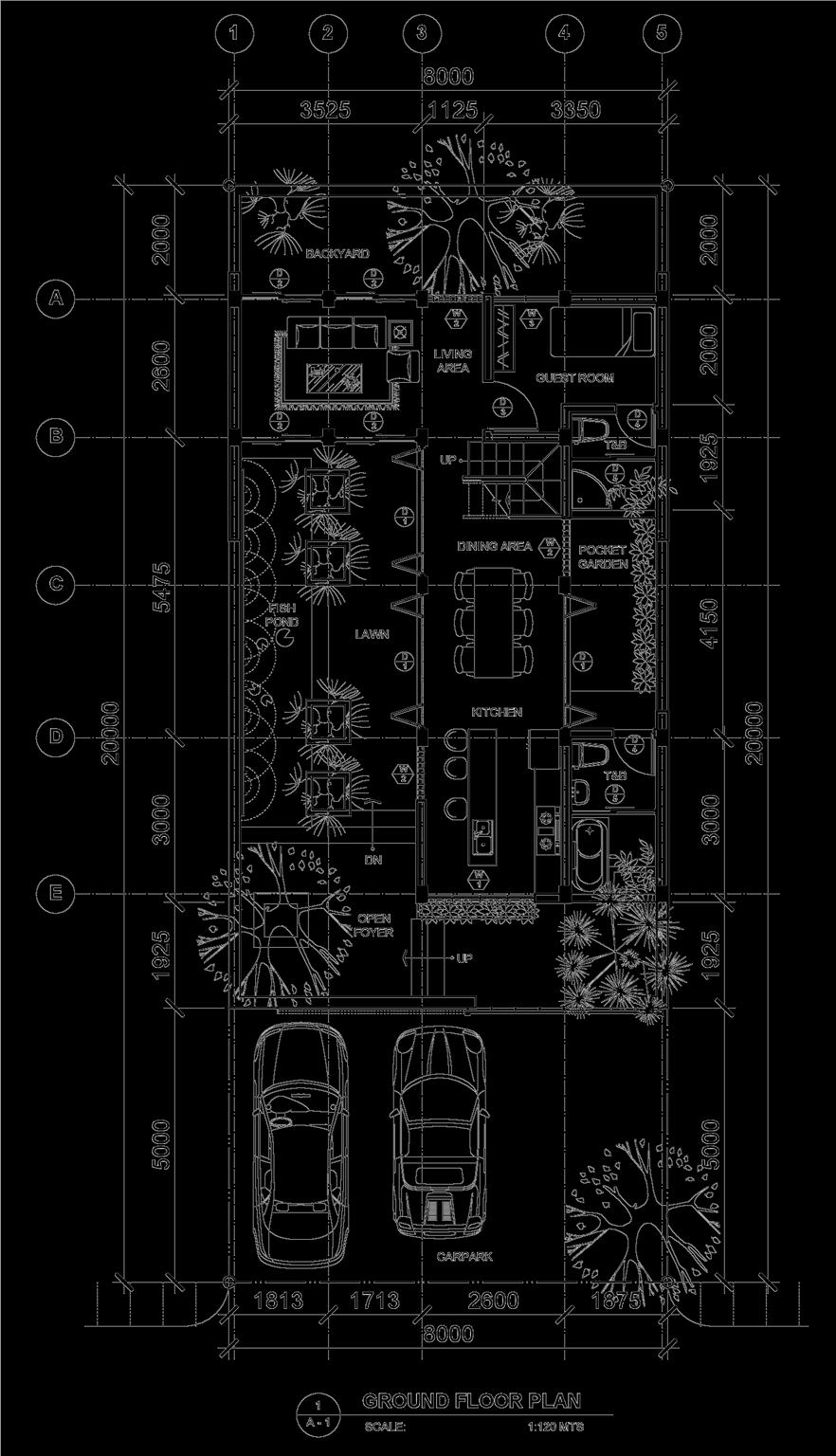

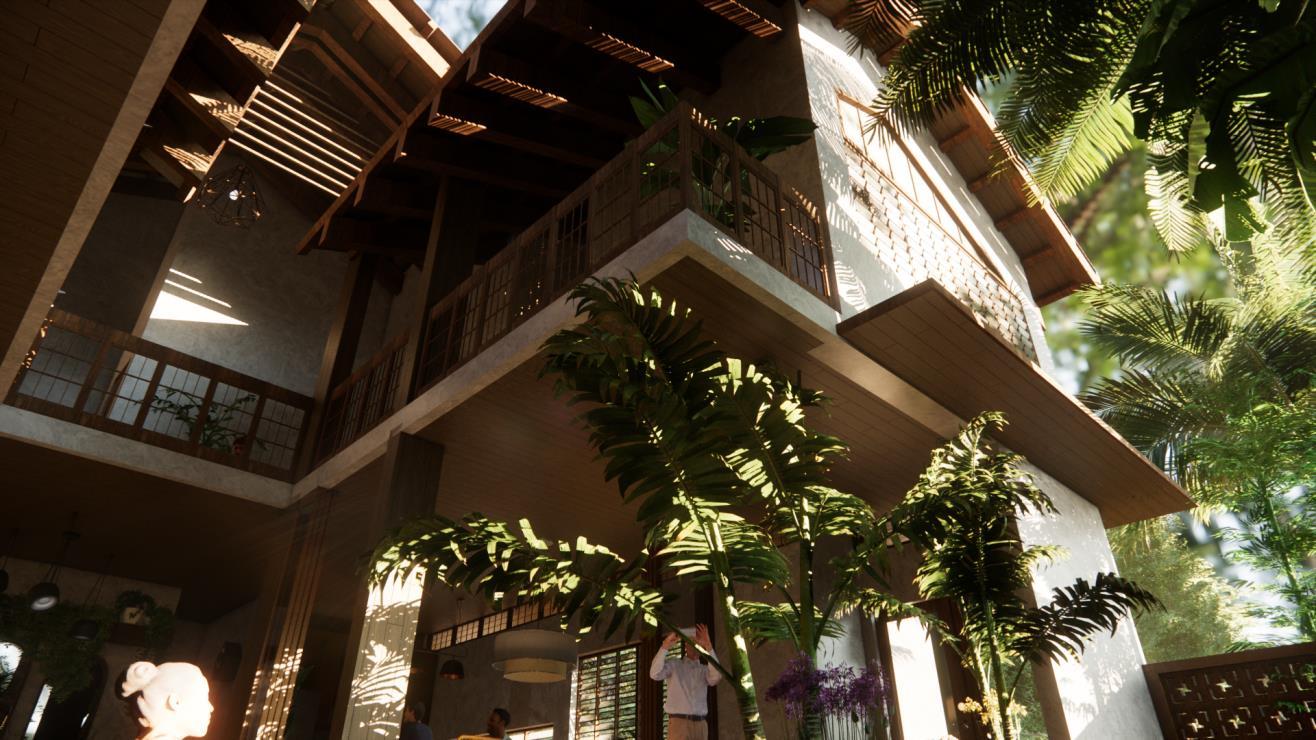

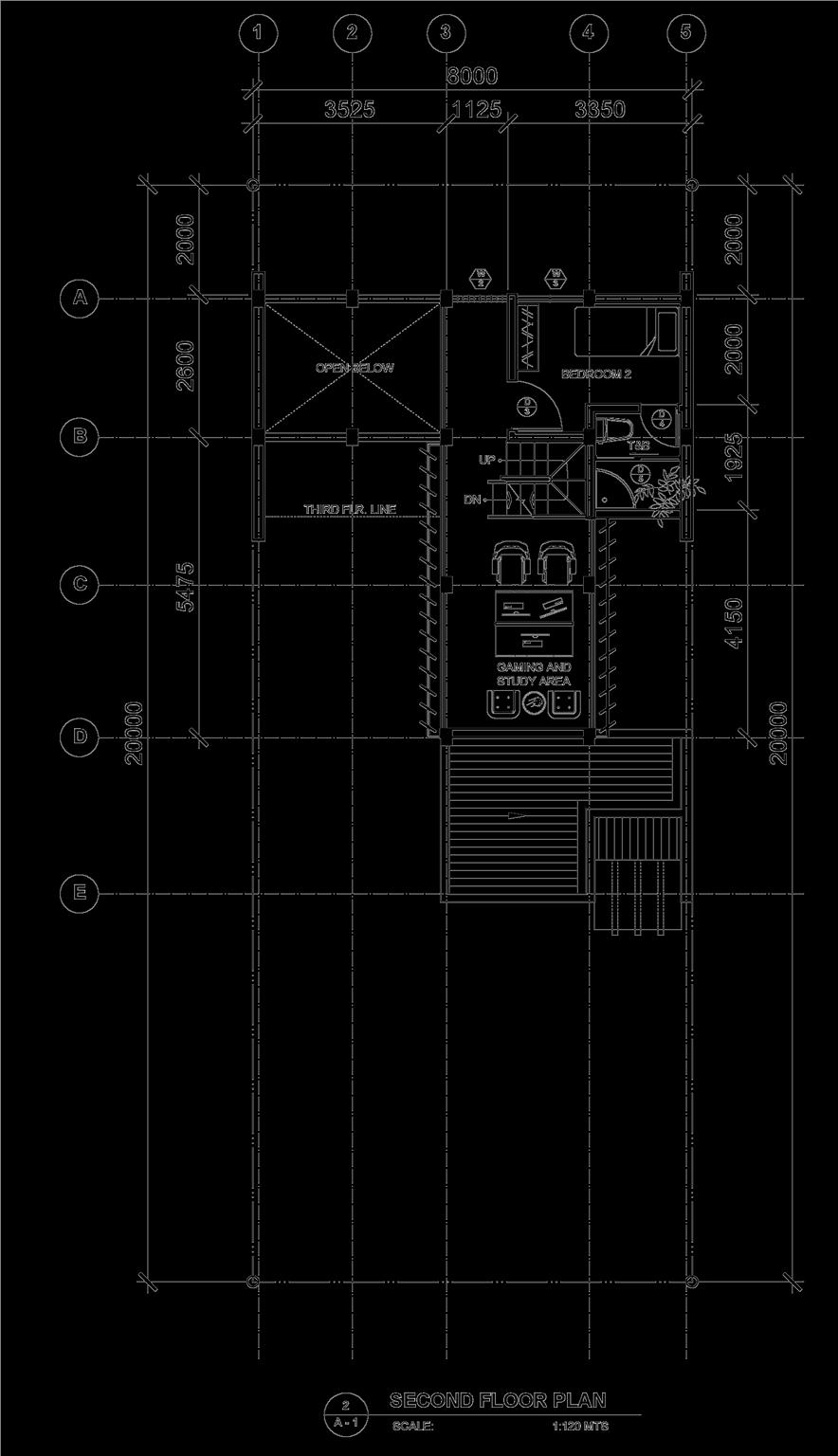

TROPICAL brutalism The plans were drawn with AutoCAD and the model was created in SketchUp. All image and video renderings were done in Enscape. I used mobile video editors to weave all the animations together.

The entire output of this project is on the firm’s YouTube channel too. You can check it out here.

04 Mini scale model: Deployable shelter Done for: Housing and Human Settlements 2022

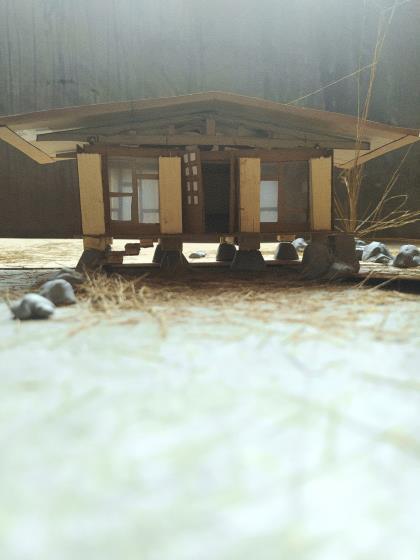

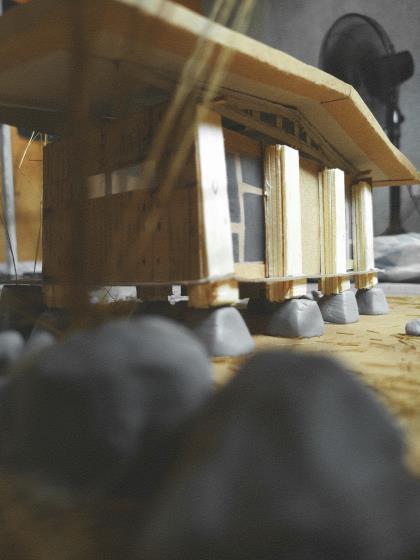

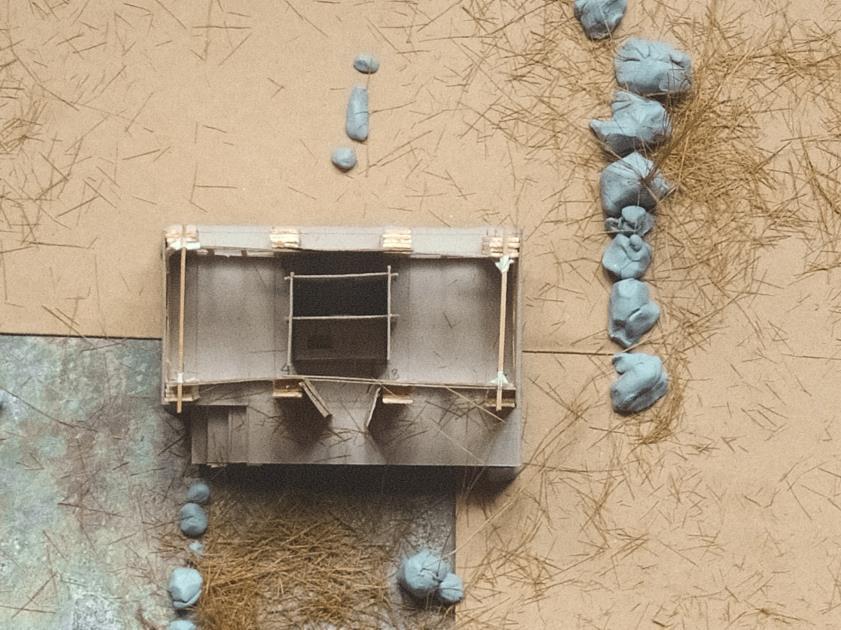

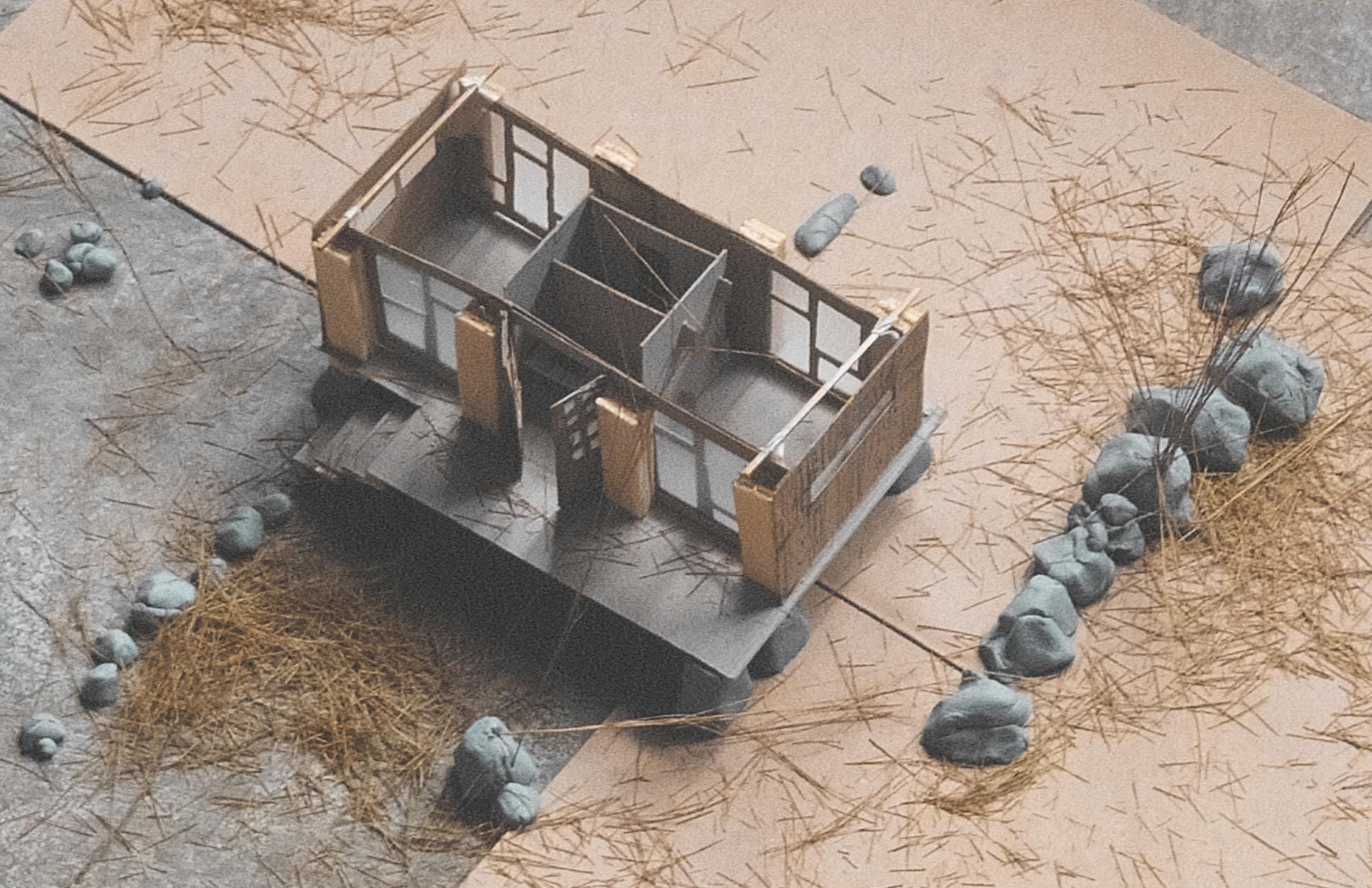

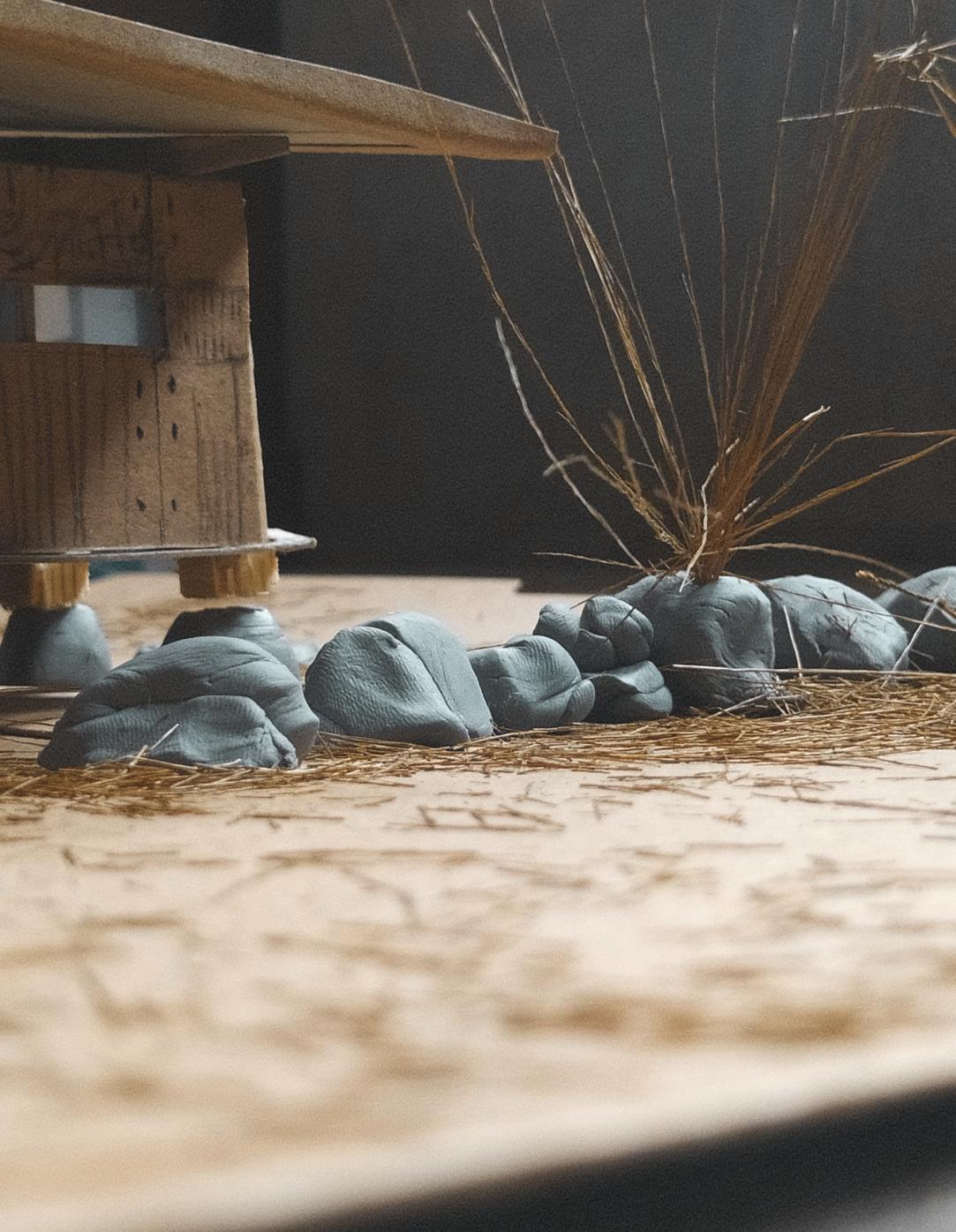

I was the one who was tasked to create this 1:50 physical model of our group’s post-disaster deployable shelter.

Although I still definitely should improve my craftsmanship in making physical models like this, I think I still did a decent job after more than two years of zero physical model projects.

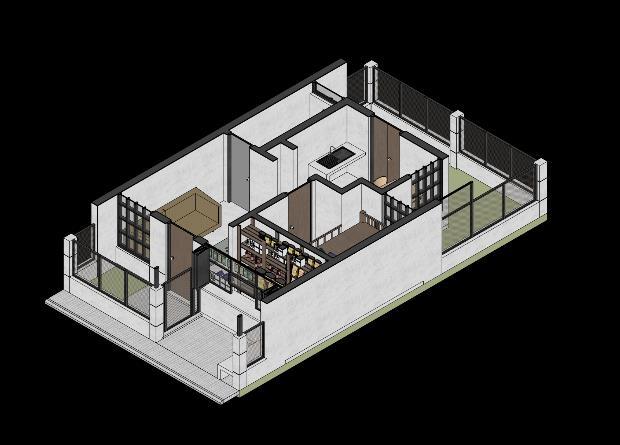

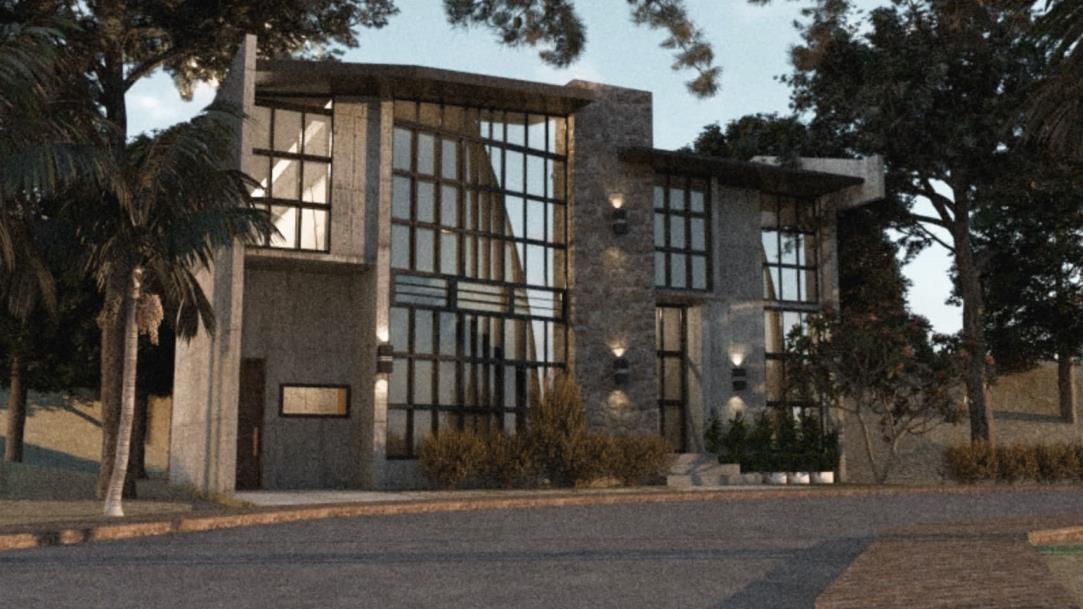

05 Two-storey residence in Imus Done for: Building Technology 3 2022

Originally, the site of this project was two separate smaller properties. We were challenged to plot both of them using lot bearings from land titles.

Fortunately, I was able to figure it out without much problems and was able to see the singular lot it creates.

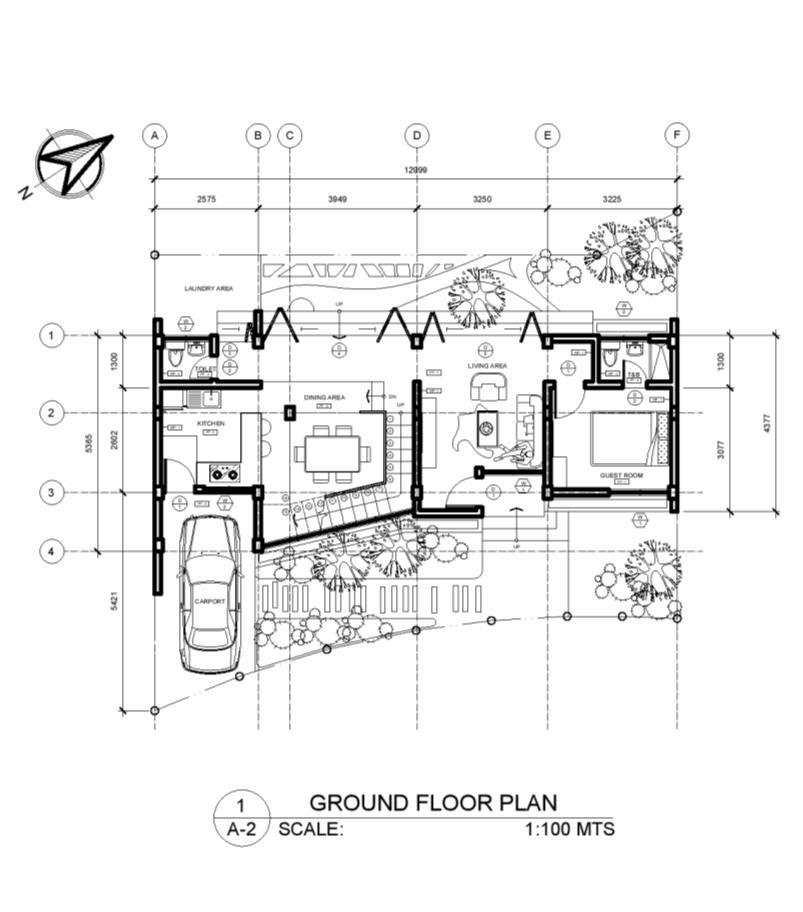

As noticed in the plans, I really prefer large openings, particularly the floor-to-ceiling accordion patio doors.

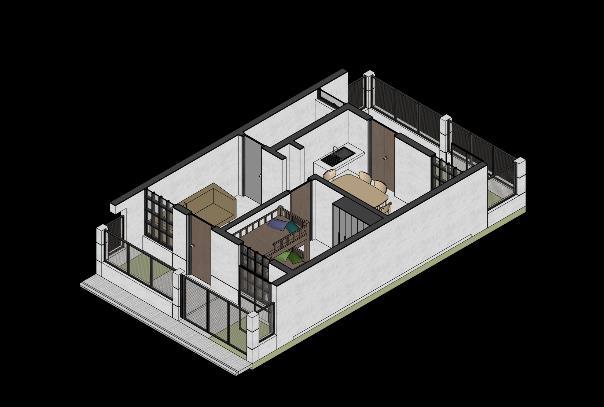

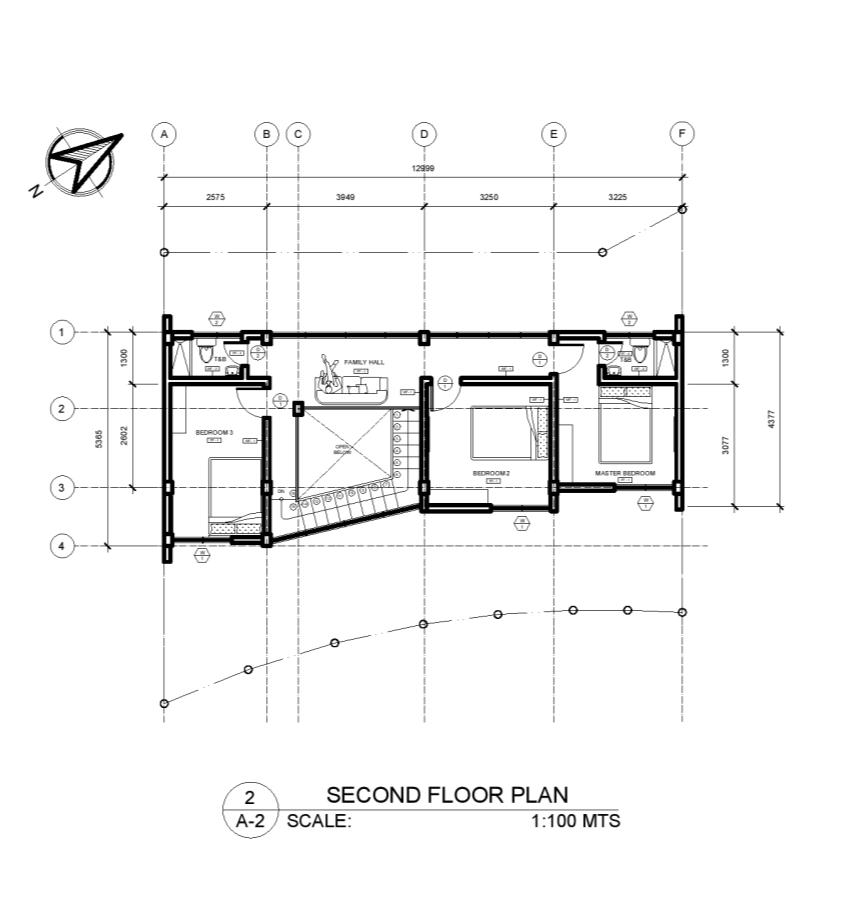

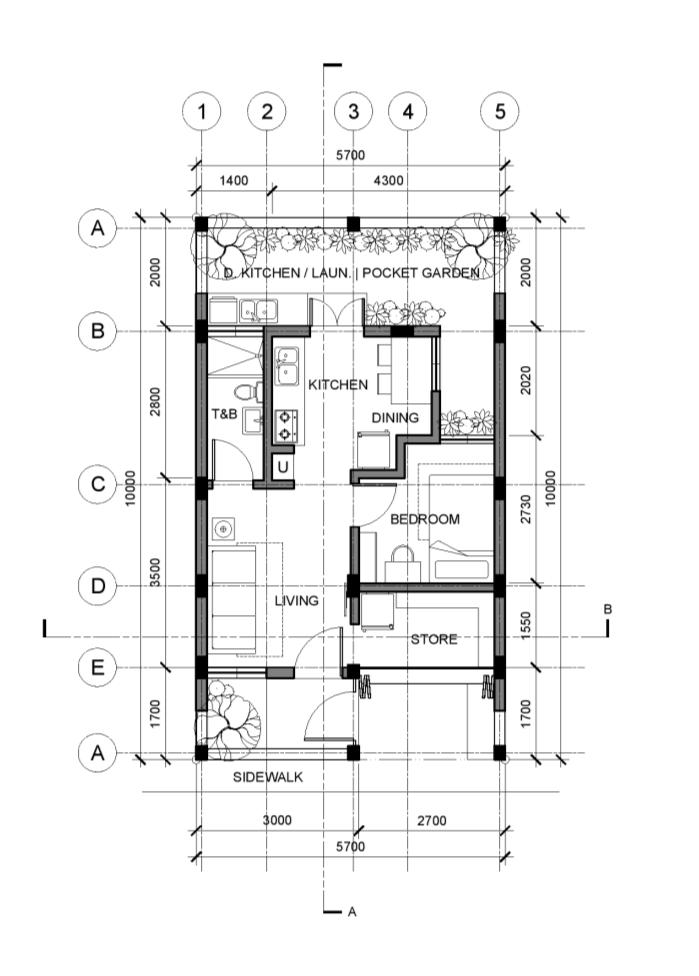

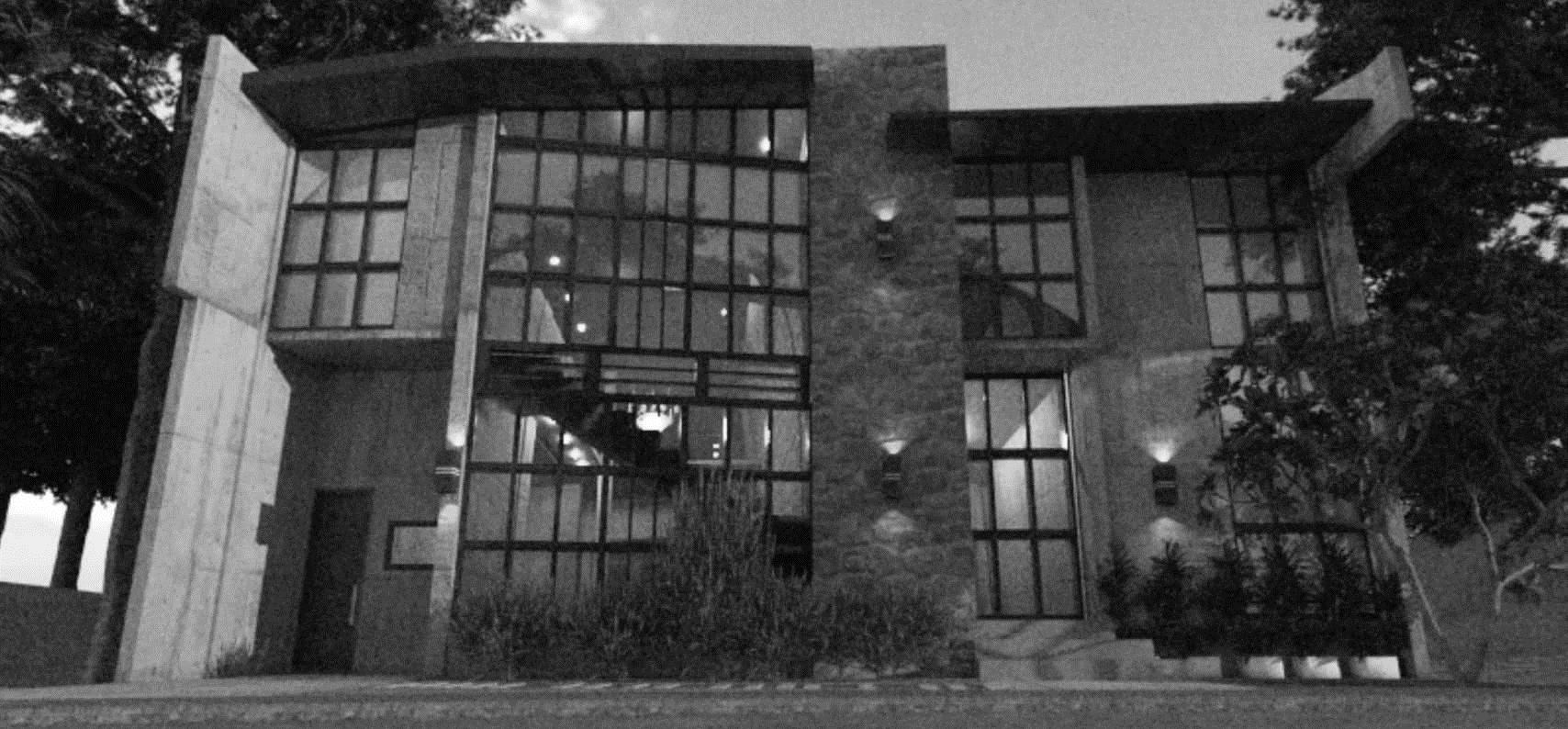

I created this plans in AutoCAD, modelled a 3d version in SketchUp and wrapped it all up by rendering perspectives in VRay.

This is a random living room model I quickly created using SketchUp before the start of Architectural Design 10 this year to study interior lighting techniques in Enscape. Unfortunately, I wasn’t able to apply this in the thesis renderings because it takes so much time to set up.
