Unipipe UFH system

Innovative UFH system from Unipipe perfect for upper floors

The unique Ideal Classic NEO 20 underfloor heating system from Unipipe is designed to be installed without the use of wet screed and, at just 20mm high, is ideal for use upstairs in timber floors and in homes with engineered joists. The underfloor heating pipework is fitted into shallow pre-engineered EPS boards, with an aluminium coating that helps to transfer heat optimally into the floor finish above.

The Ideal Classic NEO 20 system is an adaptation of the established Ideal Classic EPS 30 devised by renowned German manufacturer MFH. The advantage of the latest version is that the installation height is reduced by 10mm, while a 16mm heating pipe is still used, meaning that the heat output and pressure loss remain identical.

The system elements are laid according to the usual, simple principle of the MFH Ideal system. The 0.5mm thick aluminium heat-conducting sheets are already attached to the NEOPOR and the pipe channels have an omega shape to optimally fix the 16mm pipe. Floor coverings can be laid (almost) directly on the heating elements.

Ideal Classic NEO 20 can be combined with all common screeds and is particularly suitable for drywall construction. In combination with innovative heat-conducting layers, a high level of heat output is achieved and rapid heating up and down is possible, making it particularly energy-efficient.

“These underfloor heating systems are ideal for new-build or retrofit,” says Paul O’Donnell, Managing Director, Unipipe, “and challenge the misconception that underfloor heating is too awkward and difficult to install on the first floor and above. Apart from the comfort and performance levels, it also offers a solution for those who don’t want radiators cluttering up wall space.

“We also supply a strong, 5mm board made from recycled materials which, when placed over the MFH 20mm boards, can then take ceramic tiles. This solution is ideal for apartments and also offers the added benefit of sound-proofing the floors.”

Features and benefits

• Easy-to-install with a low installation height; • An installation height of 40mm, including flooring, is possible with CompactFloor; • The 16mm pipe can also be used at a low height; • Technically compatible with the Ideal Classic EPS 30; • Flexibility and efficiency in one system.

Contact: Unipipe Ireland Ltd. T: 01 – 286 4888; E: info@unipipe.ie; www.unipipe.ie

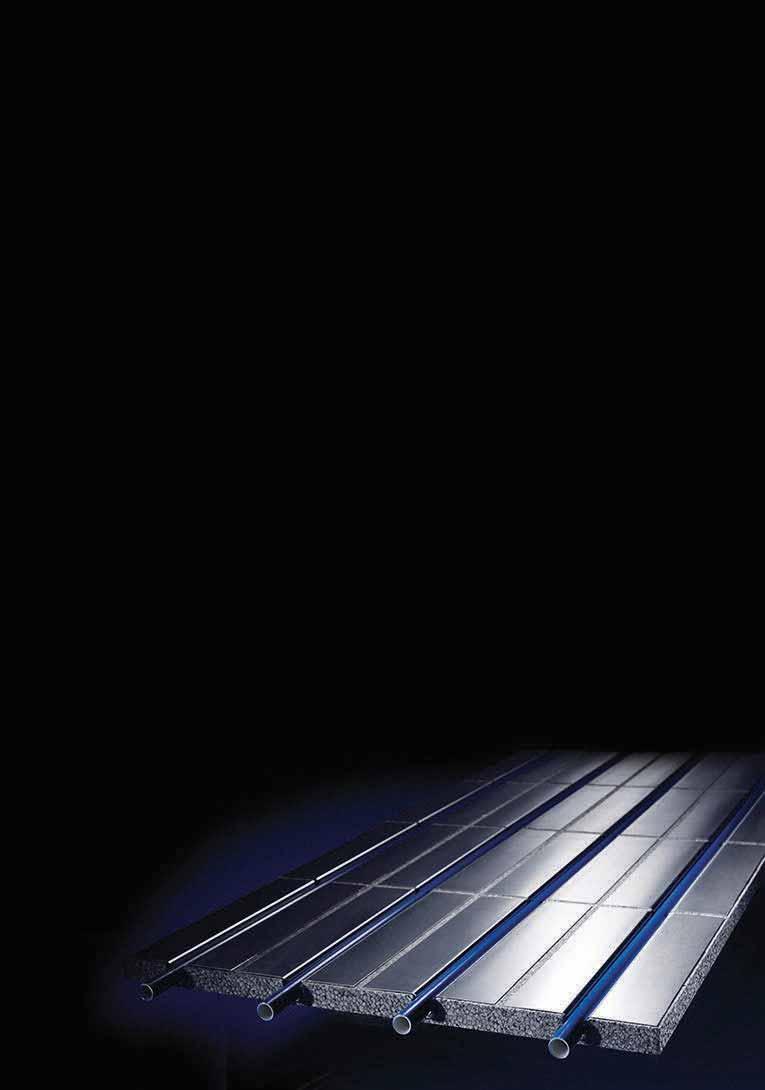

Despite the low installation heights, Ideal Classic 20 still delivers optimum performance and is ready for tiles or other floorcovering when the 5mm board is placed over the MFH 20mm boards.
