DIMENSION
OR
1. DO NOT SCALE DRAWINGS. VERIFY ALL DIMENSIONS. NOTIFY THE ARCHITECT OF ANY DISCREPANCIES BETWEEN DRAWINGS, THESE NOTES, DIMENSIONS, SPECIFICATIONS AND FIELD CONDITIONS BEFORE COMMENCING ANY WORK
2. NOTIFY THE ARCHITECT IMMEDIATELY IF COMPLIANCE WITH ALL DRAWINGS AND NOTES CALLED FOR ON ALL CONTRACT DOCUMENTS IS NOT POSSIBLE
3. ALL PARTIES RESPONSIBLE FOR WORK ASSOCIATED WITH THESE CONSTRUCTION DOCUMENTS SHALL REVIEW ALL SHEETS AND SPECIFICATIONS. IN THE CASE DISCREPANCIES ARE FOUND WITHIN THESE CONSTRUCTION DOCUMENTS, PROMPTLY NOTIFY ARCHITECT FOR CLARIFICATION AND DIRECTION. DO NOT PROCEED PRIOR TO DIRECTION FROM ARCHITECT. UNLESS DIRECTED OTHERWISE, ALL WORK SHALL REFLECT THE GREATEST QUANTITY, QUALITY, AND COMPLETENESS OF DISCREPANT ITEMS DEFINED WITHIN THESE CONSTRUCTION DOCUMENTS.
4. PERFORM ALL WORK IN ACCORDANCE WITH ALL APPLICABLE CODES, ORDINANCES AND ACCEPTED INDUSTRY STANDARDS. ANY NEW WORK NOT INSTALLED PER RELEVANT CODES AND REGULATIONS SHALL BE MODIFIED TO BRING IT INTO CONFORMITY WITH THESE LAWS, ORDINANCES AND REGULATIONS, WITHOUT ADDITIONAL COST TO THE OWNER/TENANT. OBTAIN ALL CERTIFICATES OF OCCUPANCY REQUIRED BY AUTHORITIES HAVING JURISDICTION
LIST SHEET NUMBER SHEET NAME
T1.00 COVER SHEET
T1.01 INDEX
INTERIOR ELEVATION SECTION HEAD
LS1.01 6TH FLOOR LIFE SAFETY PLAN
LS1.02 7TH FLOOR LIFE SAFETY PLAN
AC1.00 ACCESSIBILITY LEGEND
AC1.01 6TH FLOOR ACCESSIBILITY PLAN
AC1.02 7TH FLOOR ACCESSIBILITY PLAN
MATERIAL TAG
DOOR TAG WALL TAG
KEYNOTE
CEILING TAG
FURNITURE TAG
AD1.01 6TH FLOOR DEMOLITION PLAN
AD1.02 7TH FLOOR DEMOLITION PLAN
A1.01 6TH FLOOR REFERENCE PLAN
A1.02 7TH FLOOR REFERENCE PLAN
A1.11 6TH FLOOR DIMENSION PLAN
A1.12 7TH FLOOR DIMENSION PLAN
A2.00 PARTITION SCHEDULE
A3.01 6TH FLOOR RCP
A3.02 7TH FLOOR RCP
A4.01 ENLARGED BRAND POP UP PLAN
A4.02 ENLARGED POP UP FURNITURE PLAN
A4.03 BRAND POP UP RCP
A4.05 ENLARGED BAR PLAN
A4.06 POP UP DETAILS
A4.07 FINISH LEGEND
A5.01 6TH FLOOR FINISH PLAN
A5.02 LEVEL 7 FINISH FLOOR PLAN
A5.03 ENLARGED POP UP FINISH PLAN
A6.00 DOOR SCHEDULE
E1.00 POP UP ELECTRICAL PLAN M100 POP UP MECHANICAL PLAN
6TH FLOOR LIFE SAFETY PLAN
BUILDING CODE: IBC 2021
OCCUPANCY CLASSIFICATION: BUSINESS
TYPE OF CONSTRUCTION: TYPE IA, SPRINKLERED
MAXIMUM TRAVEL DISTANCE: 250 FT
ACTUAL TRAVEL DISTANCE: 136 FT FIRE SAFETY LEGEND AREA:150 SF
Type
per Occupant
6TH FLOOR LIFE SAFETY OCCUPANT LOAD
BUILDING CODE: IBC
OCCUPANCY CLASSIFICATION: BUSINESS
TYPE OF CONSTRUCTION: TYPE IA, SPRINKLERED MAXIMUM TRAVEL DISTANCE:
(B) FRONT APPROACH, PUSH
ACCESSIBILITY NOTES
ACCESSIBLE BUILDING FEATURES AND FACILITES SHALL COMPLY WITH ADAAG AND
SCOPE OF WORK NOT IN CONTRACT
DEMOLITION
GENERAL NOTES FOR DEMOLITION PLAN
1. THE EXTENT OF THE DEMOLITION IS GENERALLY DESCRIBED. THE CONTRACTOR IS RESPONSIBLE FOR ALL DEMOLITION WORK REQUIRED TO ACCOMODATE THE INSTALLATION OF THE PROPOSED WORK.
2. THESE DOCUMENTS HAVE BEEN PREPARED BASED UPON VISIBLE CONDITIONS AVAILABLE FOR INPECTION AND OWNER'S RECORD DOCUMENTS. CERTAIN AREAS AND PORTIONS OF THE WORK MAY VARY FROM CONDITIONS INDICATED HEREIN WHEN UNCOVERED AT THE SITE. EACH CONTRACTOR SHALL FIELD VERIFY ALL EXISTING CONDITIONS AND PROMPTLY NOTIFY THE ARCHITECT OF ANY DISCREPANCIES BETWEEN THESE DOCUMENTS AND THE EXISTING CONDITIONS.
VERIFY ALL EXISTING DIMENSIONS AND CONDITIONS PRIOR TO INITIATING WORK. COORDINATE LIMITS OF DEMOLITION WORK WITH THE REQUIREMENTS OF NEW WORK.
REMOVE EXISTING PORTION OF FLOOR DEMO NOTES
PORTION
SCOPE OF WORK NOT IN CONTRACT
DEMOLITION
GENERAL NOTES FOR DEMOLITION PLAN
1. THE EXTENT OF THE DEMOLITION IS GENERALLY DESCRIBED. THE CONTRACTOR IS RESPONSIBLE FOR ALL DEMOLITION WORK REQUIRED TO ACCOMODATE THE INSTALLATION OF THE PROPOSED WORK.
2. THESE DOCUMENTS HAVE BEEN PREPARED BASED UPON VISIBLE CONDITIONS AVAILABLE FOR INPECTION AND OWNER'S RECORD DOCUMENTS. CERTAIN AREAS AND PORTIONS OF THE WORK MAY VARY FROM CONDITIONS INDICATED HEREIN WHEN UNCOVERED AT THE SITE. EACH CONTRACTOR SHALL FIELD VERIFY ALL EXISTING CONDITIONS AND PROMPTLY NOTIFY THE ARCHITECT OF ANY DISCREPANCIES BETWEEN THESE DOCUMENTS AND THE EXISTING CONDITIONS.
VERIFY ALL EXISTING DIMENSIONS AND CONDITIONS PRIOR TO INITIATING WORK. COORDINATE LIMITS OF DEMOLITION WORK WITH THE REQUIREMENTS OF NEW WORK.
ALL DIMENSIONS ARE TO FACE OF STUD UNLESS NOTED OTHERWISE
DECK OR SLAB
CONT. RUNNER TRACK
SEAL AROUND ALL PENETRATIONS EACH SIDE W/ ACOUSTICAL SEALANT
DECK OR SLAB
CONT. RUNNER TRACK
5/8" GYP. BD. (RE: FINISH SCHEDULE)
WALL FINISH (RE: SCHEDULE)
ACOUSTICAL SOUND CONTROL BATTS
3 5/8" METAL STUD AT 16" O.C. BOX HEADER
SHIM AND SEALANT
ALUMINUM STOREFRONT FRAMING (SEE SCHEDULE)
GLAZING, 1/2" THK
3 5/8" METAL STUDS AT 16" O.C. MAX
5/8" GYP. BD. (RE: SCHEDULE)
ALUMINUM STOREFRONT FRAMING (SEE SCHEDULE)
SHIM AND SEALANT
BASE (RE:SCHEDULE)
DECK OR SLAB
CONT. RUNNER TRACK
SEAL AROUND ALL PENETRATIONS EACH SIDE W/ ACOUSTICAL SEALANT EXISTING WALL
WALL FINISH (RE: SCHEDULE)
ACOUSTICAL SOUND CONTROL BATTS
3 5/8" METAL STUDS AT 16" O.C. MAX
5/8" GYP. BD. (RE: SCHEDULE) BASE (RE:SCHEDULE)

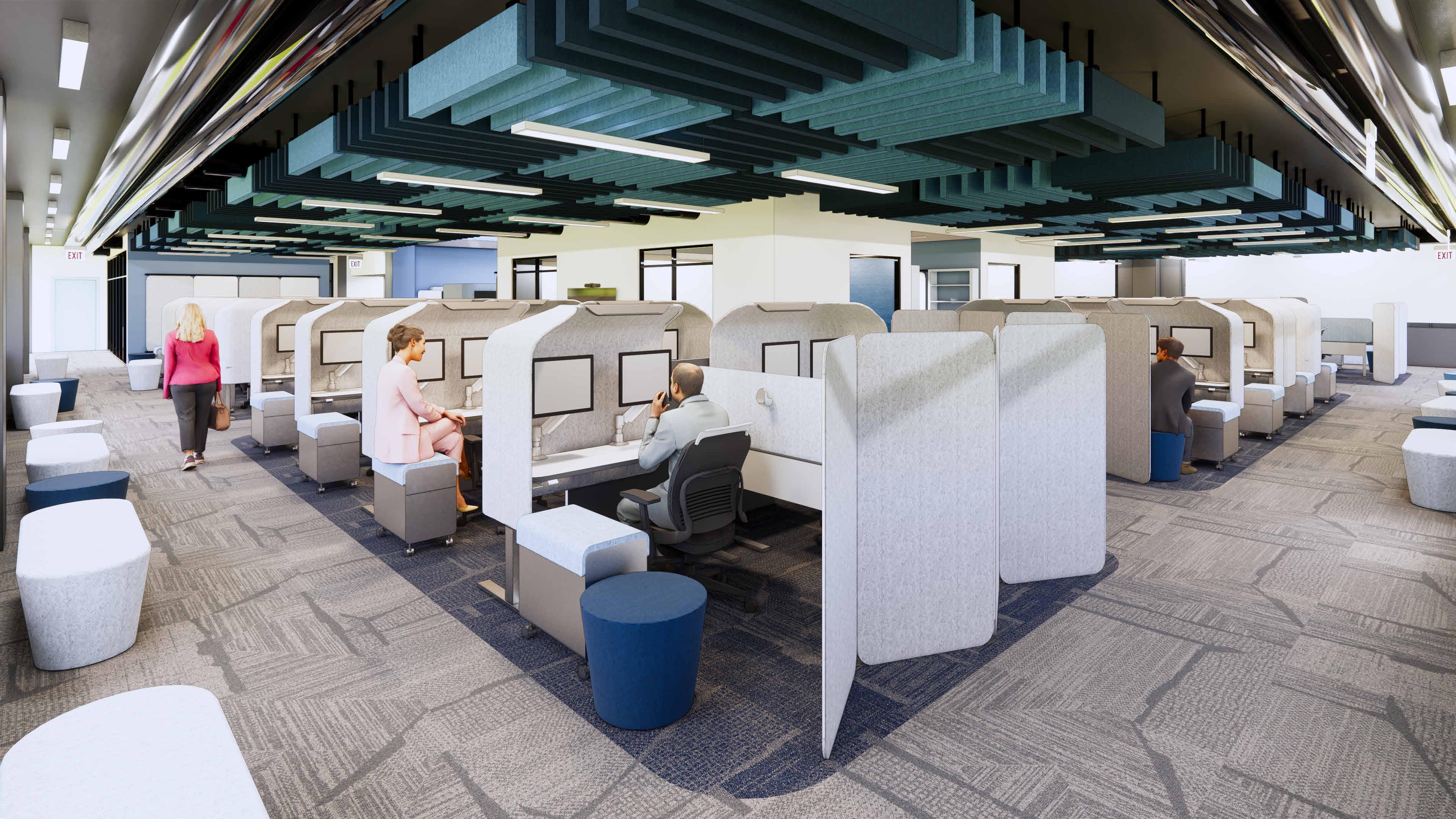

LIGHTING STRIP TRACK SPOTLIGHT
OPTIC LIGHTING
PENDANT NERA FOCAL POINT 4'
ACOUSITC CEILING PANELSARMSTRONG CEILING SOUNDSCAPES SHAPESTRAPEZOID (PANEL) LUMENWERX ELIA OVAL -
GYPSUM BOARD CEILING (GYP) 2X2 SUSPENDED ACOUSTIC TILES (SAT)
LIGHT FIXTURES 2' X 2'
PENDANT 3' X 3' LED DECORATIVE PENDANT 4' X 4' LED DECORATIVE PENDANT 3.5" X 3.5"
LUMENWERX ELIA OVAL26"
GYPSUM BOARD CEILING (GYP) 2X2 SUSPENDED ACOUSTIC TILES (SAT) FIBER OPTIC LIGHTING LINEAR PENDANT NERA FOCAL POINT 4' LED LIGHTING STRIP TRACK SPOTLIGHT
ACOUSITC CEILING PANELSARMSTRONG CEILING SOUNDSCAPES SHAPESTRAPEZOID (PANEL)
3.5" X 3.5" LED
2' X 2' LED DECORATIVE PENDANT
3' X 3' LED DECORATIVE PENDANT 4' X 4' LED DECORATIVE PENDANT
LUMENWERX ELIA OVAL26"
FIBER OPTIC LIGHTS
1000 1/4" FIBER OPTICS
1000 1/2" FIBER OPTICS RANDOMLY SPACED
SPACING NO GREATER THAN 1" REFER TO SHOP DRAWING COORDINATE W/ DESIGNER IN FIELD BEFORE INSTALLATION
GYPSUM BOARD CEILING (GYP)
2X2 SUSPENDED ACOUSTIC TILES (SAT) FIBER OPTIC LIGHTING LINEAR PENDANT NERA FOCAL POINT 4' LED LIGHTING STRIP TRACK SPOTLIGHT
ACOUSITC CEILING PANELSARMSTRONG CEILING SOUNDSCAPES SHAPESTRAPEZOID (PANEL)
WORK CAFE, RECEPTION RESILIENT FLOORING INTERFACE NORTHERN GRAIN 3.0 mm
TL-1 WORK CAFE KITCHEN FLOOR TILE
FLOOR BASE
STONE SOURCE PALMA ITALIAN MARBLE
WB-1 ALL OVER RUBBER WALL BASE JOHNSONITE BASEWORKS THERMOSET RUBBER - BASEWORK 4 1/2"
WALL FINISH
PT-1 ALL OVER PAINT
PT-2 ACCENT WALL PAINT
PT-3 BRAND POP UP ACCENT PAINT
PT-4 BRAND POP UP PAINT
WC-1 STAIR ACCENT WALL TRAVERTINE
SHERWIN WILLIAMS SW 9173
SHERWIN WILLIAMS SW 6515
SHERWIN WILLIAMS SW 6767
SHERWIN WILLIAMS SW 6496
STONE CONTACT TRAVERTINE SLAB
WC-2 OFFICE ACCENT WALL WALLCOVERING KOROSEAL HILLSIDE
CEILING FINISH
PT-5 ALL OVER PAINT
SHERWIN WILLIAMS SW 7627
C01101 ANTIQUE WASH
STATUARIO - GLAZED CERAMIC, MATTE
BEDROCK TSB TA6
SHIITAKE - EGGSHELL
LEISURE BLUE - EGGSHELL
AQUARIUM - EGGSHELL
OCEANSIDE - EGGSHELL
OCEAN BLUE - EGGSHELL
HS21-06 LAKESIDE
HERON - FLAT SAT-1 PRODUCTION AND RESOURCE CENTER ACOUSTIC CEILING TILES ARMSTRONG CIRRUS SQUARE LAY IN - ANGLED TEGUALR- 24" X 24" X 3/4" - 0.70 NRC/ 35 CAC
TXT-1 ACOUSTIC CEILING PANELS FELT
TXT-2 ACOUSTIC CEILING PANELS FELT
- AM001401 SURFACE FINISH SS-1 COUNTERTOPS SOLID SURFACE
MISCELLANEOUS
PT-6 MILLWORK AND DOORS PAINT
TXT-3 WORK STATIONS FELT
- PULIDO - POLISHED
SHERWIN WILLIAMS SW 9070 BABY BLUE EYES- SEMI GLOSS
- AM001801
FINISH SCHEDULE LEGEND
LVT CON DOOR AS APPLICABLE. POINT OF TRANSITION IS CENTER OF DOOR. ALUMINUM TRANSITION STRIP
INDICATES OVERALL FLOOR TREATMENT
MATERIAL CODES
INDICATES MILLWORK TREATMENT
INDICATES COUNTERTOP TREATMENT
INDICATES OVERALL WALL TREATMENT
INDICATES OVERALL BASE TREATMENT INDICATES OVERALL CEILING TREATMENT
INDICATES ACCENT TREATMENT
INDICATES CASEWORK TREATMENT
INDICATES CHANGE OF MATERIALS, SEE TRANSITION DETAILS
INDICATES OVERALL FLOOR TREATMENT
INDICATES OVERALL BASE TREATMENT
INDICATES OVERALL WALL TREATMENT
INDICATES OVERALL CEILING TREATMENT
INDICATES ACCENT TREATMENT
INDICATES TWO WALL FINISHES, REFER TO ELEVATIONS FOR ADDITIONAL INFORMATION
INDICATES MILLWORK TREATMENT
INDICATES COUNTERTOP TREATMENT
INDICATES CASEWORK TREATMENT
INDICATES CHANGE OF MATERIALS, SEE TRANSITION DETAILS
SAT SUSPENDED ACOUSTICAL TILE
WB WALL BASE
CPT CARPET
EX EXISTING TO REMAIN
HR HAND RAIL
LVT LUXURY VINYL TILE
PT PAINT
WC WALL COVERING
TL TILE
RF RESILIENT FLOOR
SS SOLID SURFACE ON SEALED CONCRETE
TXT TEXTILE
GENERAL FINISH NOTES
1 .IT IS THE INTENT OF THESE DRAWINGS THAT ALL EXPOSED SURFACES RECEIVE NEW FINISHES AS INDICATED ON THE DRAWINGS UNLESS SPECIFICALLY NOTED OTHERWISE.
2.PROVIDE SUBFLOOR LEVELERS WHERE NECESSARY FOR SMOOTH TRANSITIONS OF ALL FLOOR FINISH MATERIALS. REFER TO FLOOR TRANSITION DETAILS ON SHEET (***) FOR ALL CONDITIONS.
3. ALL WALL FINISHES TO BE APPLIED FROM BREAK-IN-PLANE TO BREAK-IN-PLANE EVEN IF EXTENDS BEYOND AREA DISTURBED BY RENOVATION WORK.
4. HM & PAINT GRADE WOOD FRAMES OF GLAZED OPENINGS SHALL BE PAINTED FINISH (P*) UNO.
5. ALL DRYWALL SOFFITS, FASCIAS, AND CEILINGS
TO BE PAINTED FINISH (P*) UNO. REFER TO REFLECTED CEILING PLAN FOR LOCATIONS.
6. HANDRAILS AND GUARD RAILS OF STAIRS SHALL BE PAINTED FINISH (P*) UNO. STAIR STRINGERS SHALL BE PAINTED FINISH (P*).
