TRANSPORTATION
PERFORMANCE M.Plan 1st year- Gurugram Area Planning

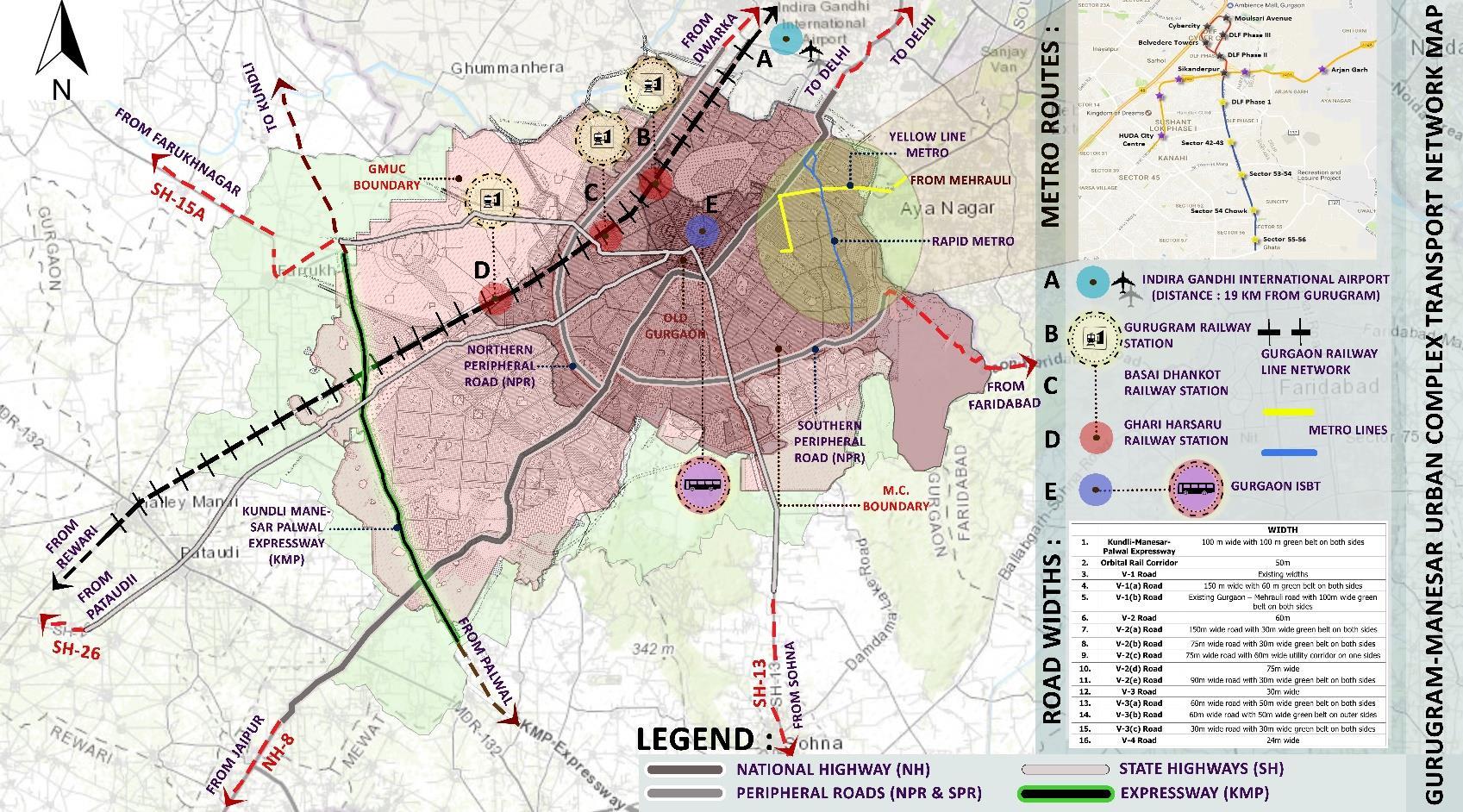

EXISTING TRANSPORTATION NETWORK IN GURUGRAM

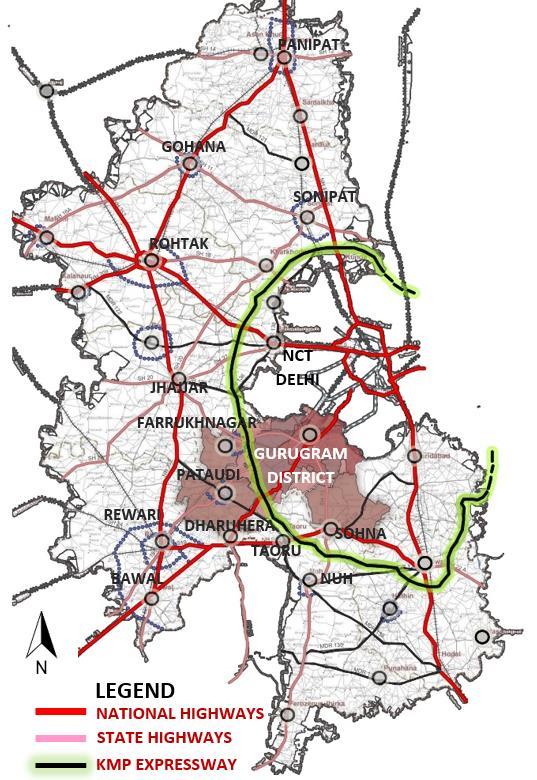

KEY MAP
M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE
EXISTING TRANSPORTATION NETWORK IN GURUGRAM Issues and Conditions
Accidents • • • • •
• •
•
Rajiv Chowk (lack of pedestrian crossing infrastructure), Hero Honda Chowk & Shankar Chowk Khandsa-FOB present but escalators don’t work so pedestrians don’t sue FOB much) Bilaspur Chowk-Residential area; lack of Foot-Over Bridge Sidhrawali cut-not properly fenced which enables pedestrians to cross the main highway on foot and also 2wheeler criss crossing from one side to another of highway) Lack of traffic signals and insufficient street-lighting city has 49,000 streetlights. Another 8,000 LED streetlights are being added. Street lights are available only on 20% of roads in Gurgaon & Nearly 60% of streetlights in Gurugram don’t work due to irregular upkeep.
Traffic Jams •
•
Accident prone areas M.Plan 1st year- Gurugram Area Planning
Traffic prone areas/max congested areas
•
Sirhaul toll plaza, Signature Towers, Sheetla Mata mandir road, Ghata mod, Atlas FoB, Daultabad flyover and Tikri Cut Traffic congestion due to waterlogging were seen at Vatika Chowk, HUDA City Centre Chowk, Jharsa Chowk, Rajiv Chowk and Old Railway Road. Due to influx of heavy vehicles on the NH8 TRANSPORTATION PERFOMANCE
EXISTING TRANSPORTATION NETWORK IN GURUGRAM Issues and Conditions
Floods Gurugram is immensely affected by flood because• Topographical- 90M difference between the highest and lowest point of the city • Concretization- Level of percolation in the city is less than average 50% • Faulty drainage- Several ponds and natural waterways are covered with thick layers of bitumen, steel and cement paving, the catchment areas of water have disappeared over time.
Location-wise Parking Durations of Vehicles Parked Cyber Park
Near HUDA Shopping Complex
Fountain Chowk
Sethi Chowk
Railway Station Road
Vishwakarma Road
New Railway Road (Near New Colony)
MG Road
Upto 0.5 Hour
30%
77%
82%
84%
69%
55%
85%
63%
0.5 - 1 Hours
10%
11%
16%
14%
18%
14%
8%
11%
1-2 Hours
4%
7%
2%
2%
4%
4%
4%
6%
2-3 Hours
1%
2%
0%
0%
4%
5%
2%
4%
>3 Hours
55%
3%
0%
0%
5%
22%
1%
16%
So it can be concluded that Huda shopping complex, Fountain chowk, Sethi Chowk, New Railway station Road and railway station rroad have the maximum parking demand for the least hours which makes those areas maximum congested during needy hours M.Plan 1st year- Gurugram Area Planning
Parking •
• • •
Parking demand is huge in Gurgaon, but off-street facilities are absent. Vehicles are parking on streets haphazardly interfering the traffic more than 80% of the vehicles are parked for short period About 11000 vehicles are parked on various roads
TRANSPORTATION PERFOMANCE
LOS FOR OUTER CORDONS IN GURUGRAM LOS assigns quality levels of traffic based on performance measure like speed, density, etc.
https://nptel.ac.in/content/storage2/courses/105101008/downloads/cete_21.pdf
• 4,47,519 PCUs entering into Gurugram • 4,49,722 PCUs leaving from Gurugram • Maximum traffic - Delhi-Jaipur Expressway (Near Ambience Mall) with 37.3 % of total traffic entering and exiting the city, Reason- Work trips • Delhi-Jaipur Expressway (Manesar) with 18% of total traffic Reason- Work and business trips • MG Roadwith 12.7% of total traffic Reason- Work and business trips
Draft Comprehensive mobility report -GMDA
Reason of Travel on different routes Average Old Gurgaon Road On Najafgarh road On Daulathabad road On Basai road On Pataudi road On NH8 towards Rewari On Sohna road On Faridabad road On MG road On NH8 towards Delhi 0%
Work
Business
10%
20%
Education
30%
40%
50%
60%
Social & Recreation
70%
80%
Tourism
90%
100%
Others
https://tcpharyana.gov.in/CIM/Doc/gurgaon%20mobility%20plan.pdf
M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE

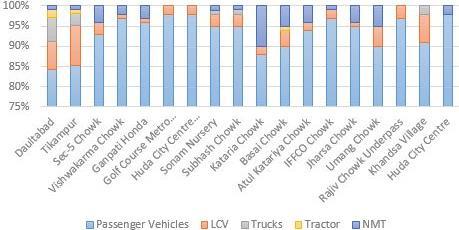

LOS FOR DIFFERENT LOCATIONS IN GURUGRAM The Level of Service (LOS) for all the 18 locations were analyzed to know the existing situation of the traffic flow with respect to the present carrying capacity of the road infrastructure
Mode share for different locations
• Vishwakarma Chowk and Sonam Nursery screen line locations have LOS F whereas while • Sector-5 Chowk, Ganpati Honda, Huda City Centre Underpass and Atul Katariya Chowk have LOS E.
• Other nine locations have LOS varying in between A and B. M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE
TRANSPORTATION CHARACTERISTICS

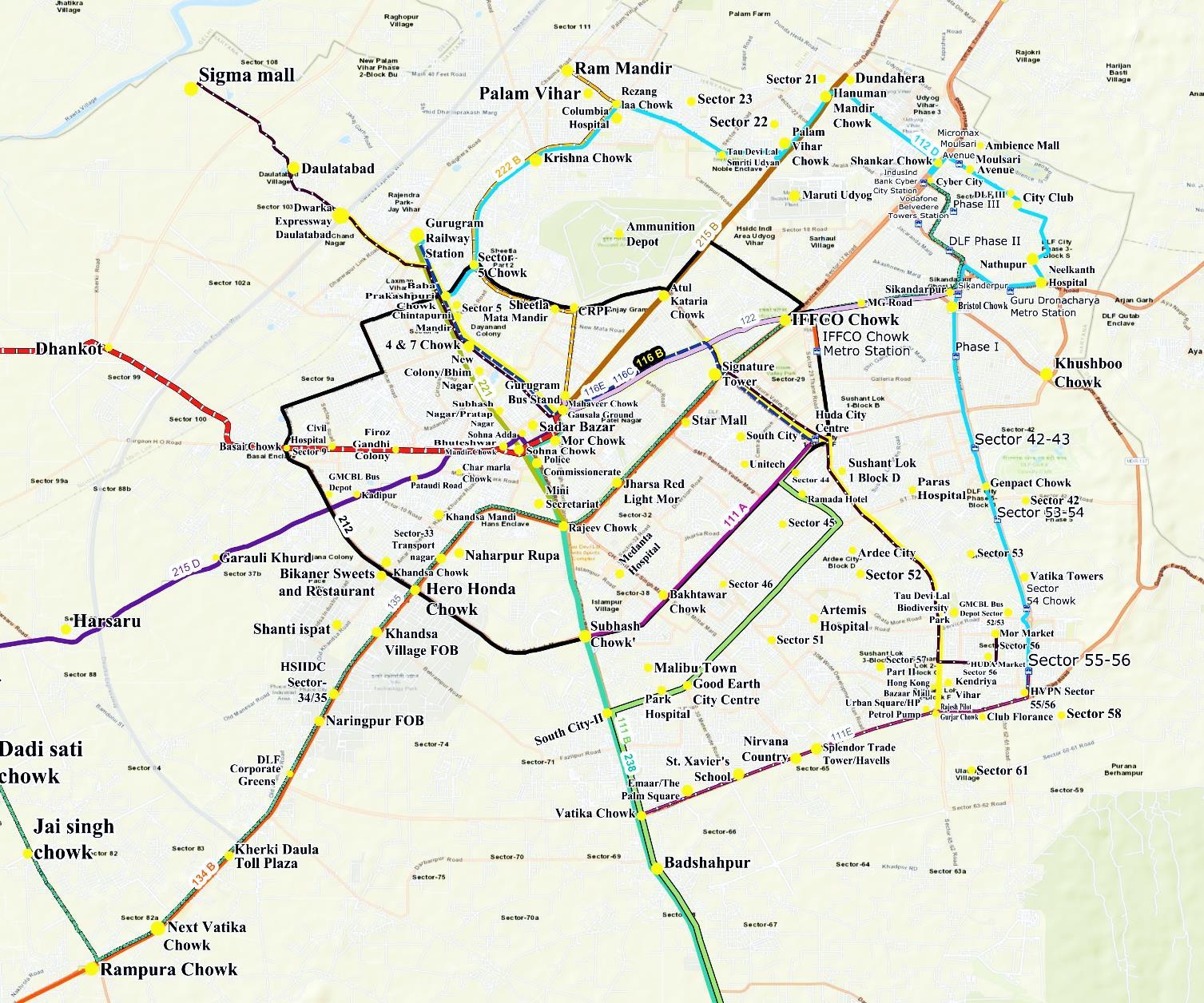

AVAILABLE PUBLIC TRANSPORTATION MODE - BUS
Vehicular Ownership
Monthly Expenditure on Transport (Rs)
M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE
AVAILABLE TRANSPORTATION MODE – SHUTTLE AND IPT Shuttle (Private App based Bus Service) • • •
Shuttle is an app based, office bus Shuttle partnered with Chirp to reduce congestion, pollution and guarantee passenger seats and arrival times. Connecting offices in Gurugram & Noida to homes in Delhi-NCR. Average Daily ridership - 35,000 people

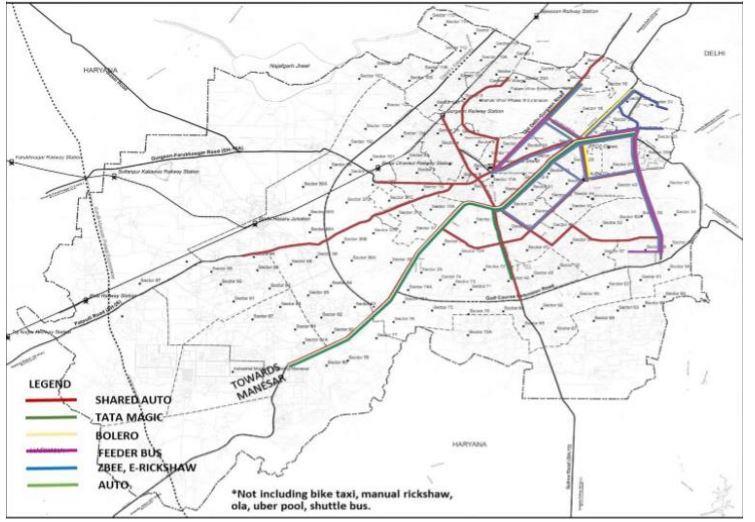

Intermediate Public Transport (IPT) of Gurugram city • • • • • • •
Preferred over public bus system Better availability, connectivity, frequency and low pricing. The average route length for IPT is more than that of public transport which depicts the dependence of users on IPT. These modes operate on major hubs like metro stations, IFFCO chowk, Bus Stand and Rajiv Chowk. Private owners- Bolero, Tata magic operate on Manesar – MG road, IFFCO chowk route in absence of frequent bus service towards Manesar. Connectivity in residential sectors of 29,45,56 etc are dominated by auto and manual rickshaw. Metro Feeder service from bus stand to Sector 55-56 is available.
Public Bike sharing
M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE
COMPARATIVE PERFOMANCE OF DIFFERENT MODES OF TRANSPORT From huda city centre to subash chowk stretch
Huda city centre
Subash Chowk
Mode of transport
Time taken (in min)
Cost of travel
Private car
12
60
Shared auto (tuk tuk)
20
10
CNG Auto
15
50
City Bus
30
10
Cab/ taxi
12
100
Bicycle
18 (avg speed 20m/hr)
0
Metro*
15
30
*metro route is assumed on this stretch. Figures are calculated by analysing similar route. M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE
Inferences from Existing and Proposed Section
Interpretations sections:
M.Plan 1st year- Gurugram Area Planning
proposed
•
2.5m wide footpath is proposed for pedestrian safety.
•
Also, the position of footpaths has been changed towards the outer edges to prevent accidents.
•
The median width has been increased to 3m in order to provide sufficient distance between the two roads and also space for sufficient greens.
•
The carriageway has been divided proportionately between vehicular road, service lane, pedestrian footpath and cycle track with proper kerb stones to separate roads, paths and greens.
•
Addition of cycle track in the proposed section promotes usage of eco-friendly vehicles and also to prevent accidents.
•
Provision of 2-single armed street light on both sides for sufficient lighting.
•
More provision of green space.
•
Saucer drains along roads for sufficient drainage and also to prevent waterlogging
Existing Section
Proposed Section (as per CMP)
from
TRANSPORTATION PERFOMANCE
PERFOMANCE ANALYSIS
Graph analysis on Distance(km) v/s VKT 11 10
7
20 18 16 14 12 10 8 6 4 2 0
5
2 4
6 3
9
Distance(km) VMT
7000000 6000000 5000000 4000000 3000000 2000000 1000000 0 DelhiDelhiJaipur Gurugr Najafga Jaipur DelhiExpress SohnaamOld rhRezang Dunda Express Faridab MG way Gurugr Farukh Pataudi Delhi Kapash hera – La way ad Road (Near am nagar Road Road eda Marg Road (Manes Road Ambien Road Road Road ar) ce Mall) 18.7
12
Calculations
11.1
5.3
18.1
9
9.4
15
4.8
0.7
3014543218328 258701 814951 6036976057762572688 281868 817155 71745.610290.7 Distance(km)
1
14.3
-1000000
VMT
DISTANCE TRENDLINE
VMT TRENDLINE
•
Annual VMT = Total VMT *365 = 2883570828
•
Annual VKT = Total VKT *365 = 4,643,431,286
•
Population = 18,73,097 (2020)
•
Annual VKT/Annual population = VKT per capita 4,643,431,286 / 1873097 = 2480 • VKT per capita / 365 = Daily VKT per capita Daily VKT per capita = 6.80 •
Annual VMT/Annual population = VKT per capita 2883570828 / 1873097 = 3288
• VMT per capita / 365 = Daily VKT per capita Daily VMT per capita = 4.00 M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE

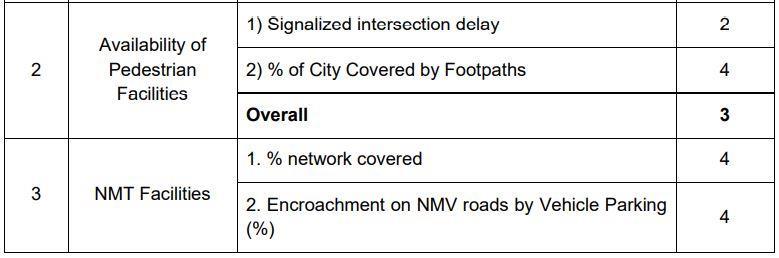

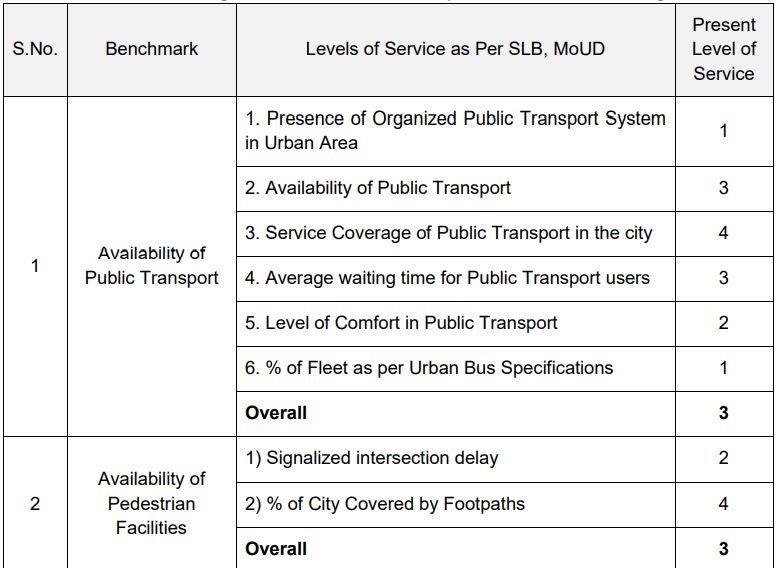

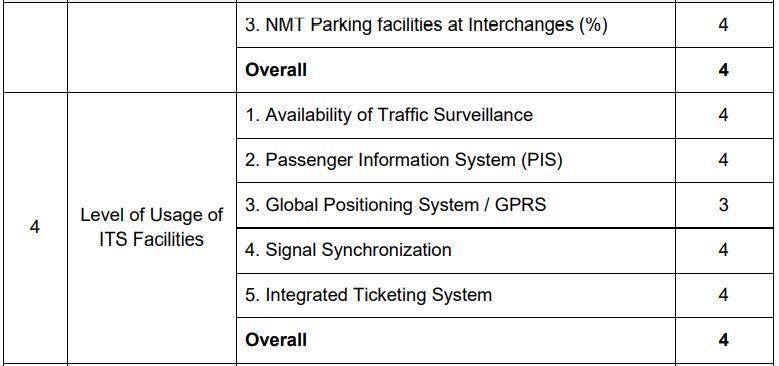

Existing Level of Services for Transport Infrastructure at Gurugram
• Supply of buses needs to be increased • Bus Routes are not covered in many parts of the city • Poor pedestrian facilities at intersections , no availability of footpath etc • Lack of adequate NMT facilities. • delays on roads, average travel speed is 1/3 of free flow speed or lower due to extensive queuing at critical intersections and inappropriate signal timing. • Paid parking spaces provided in the city need to be improved upon and to cater to the demand some differential parking rates along the NH-8 has to be adopted.
M.Plan 1st year- Gurugram Area Planning
TRANSPORTATION PERFOMANCE
