Pang Qi Yuan Ernest Portfolio

PORTFOLIO BY: PANG QI YUAN ERNEST

Selected Work

(2022- 2024)

architecture portfolio

PANG QI YUAN ERNEST graduate, architect

As a dedicated and enthusiastic architecture graduate, I am seeking an opportunity to bring my creativity and design expertise to a professional setting, where I can further develop my skills through practical experience. My goal is to contribute to innovative and meaningful projects that make a positive impact, while collaborating with and learning from experienced professionals who can guide my growth in the field. I am eager to take on new challenges that will allow me to deepen my understanding of architectural design and construction, and to refine my abilities as a thoughtful and effective designer.

INFO 26 february, 2002 Johor Bahru, Johor +6016-777-7560 pangernest4757@gmail.com

SOFTWARE AutoCAD Revit SketchUp Photoshop Enscape Lumion Microsoft office

LANGUAGE ABILITY Chinese English Malay

native language proficiency Intermediate

LINK E- Portfolio https://pangernest4757.wixsite.com/ernest-portfolio

EDUCATION 2009-2014

SJK(C) PEI HWA

2015-2019

SERI OMEGA PRIVATE AND INTERNATIONAL SCHOOL

2020-2021

TAYLORS COLLEGE Foundation in Natural and Build Environment

2021-2024

TAYLORS UNIVERSITY LAKESIDE CAMPUS Bachelor of Science (Honours) in Architecture

COURSEWORK Taylor’s University, Graduate Bachelor of Science (Honours) in Architecture Second Class Upper Honours Dean list achiever in (2022) [Area of Expertise] Architecture Design Studio, Architecture and Environment, Building Construction and Material, Computer Application, Advance Architecture Construction, Measure Drawing and Documentation, Sustainability Design, Policies and Regulation, Architectural Conservation and Tourism, Building Service, Architecture History and Theory, Design Communication, Theories of Asian Architecture, Heritage Conservation Theories, Principles and Practices

Academic Projects

01

02

Content Studio Work Archive

MASIWANG

GLORA HEIGHTS

Hidden in the Unknown

Reach Up to the Glorious Sky

Year 2/ Semester 3

Year 2/ Semester 4

Academic Projects

03

04

<Architecture should speak of its time and place, but yearn for timelessness= - Frank Gehry.

THE SHARDS

HELIX OF RENAISANCE

Dispersed and Fragmented

Revitalize, Revive, Bringing Back Significant

Year 3/ Semester 5

Year 3/ Semester 6

Cultural and History Centre

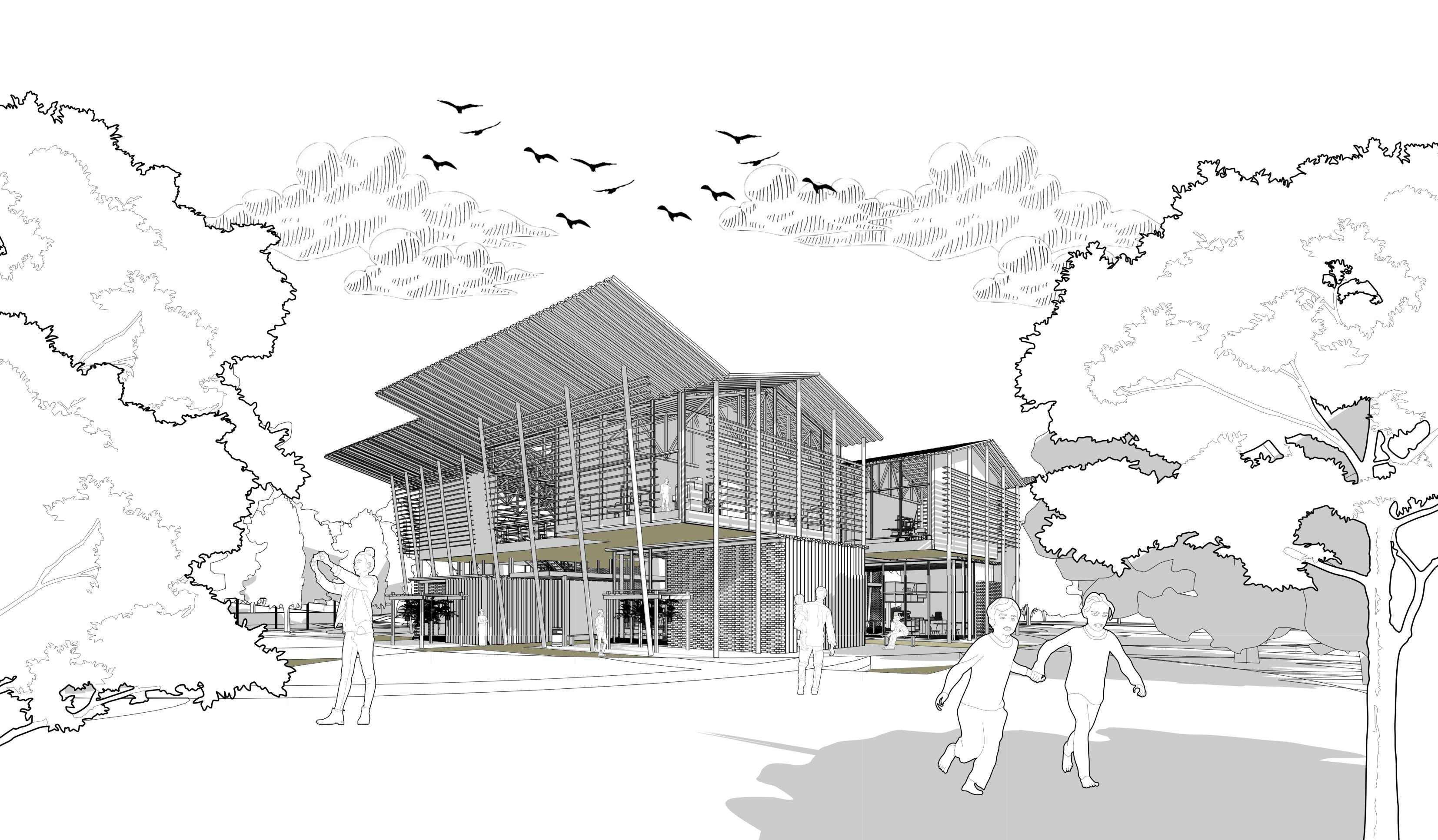

01 MASIWANG Kampung Janda Baik A place which we have not heard of a place fill with rich culture and history which is yet to be explore. A hidden gem that hides itself from the buzling city. Just like the river flow time passes but the culture and history were to be remembered. It will keep passing down just like the non stop river flow it will keeo flowing no matter what.

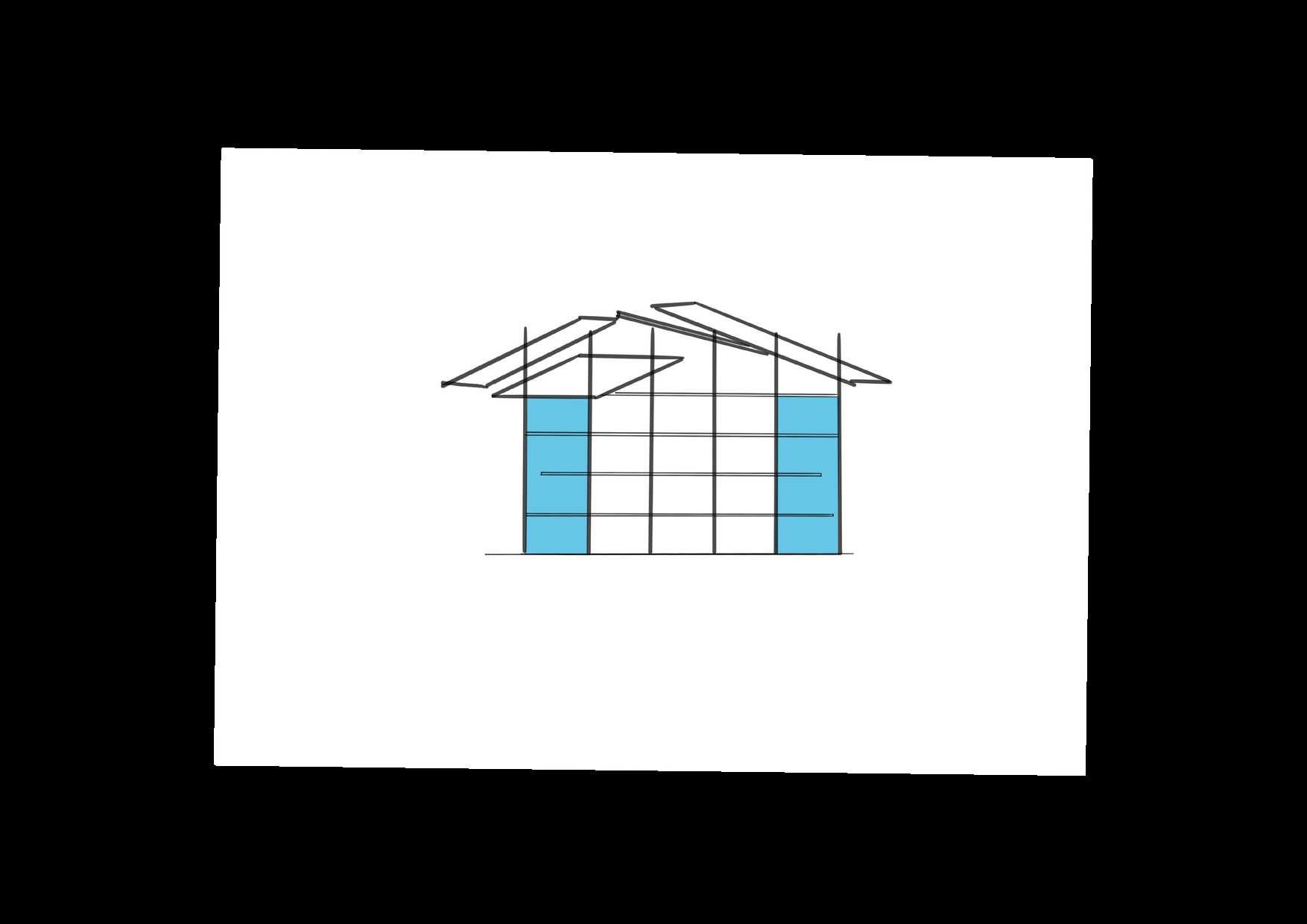

The Flow of River Why River?

- River represent the togetherness and unity of the kampung as river brings everything together.

-River represent life as it is the important water source as water is important for every living things.

- Water brings human and natural together - River remind us to not forget our past and to keep it down to the future one just like how the river flow

MASIWANG River Flow Rich In Culture and History Hidden in the Unknown

Semester 3

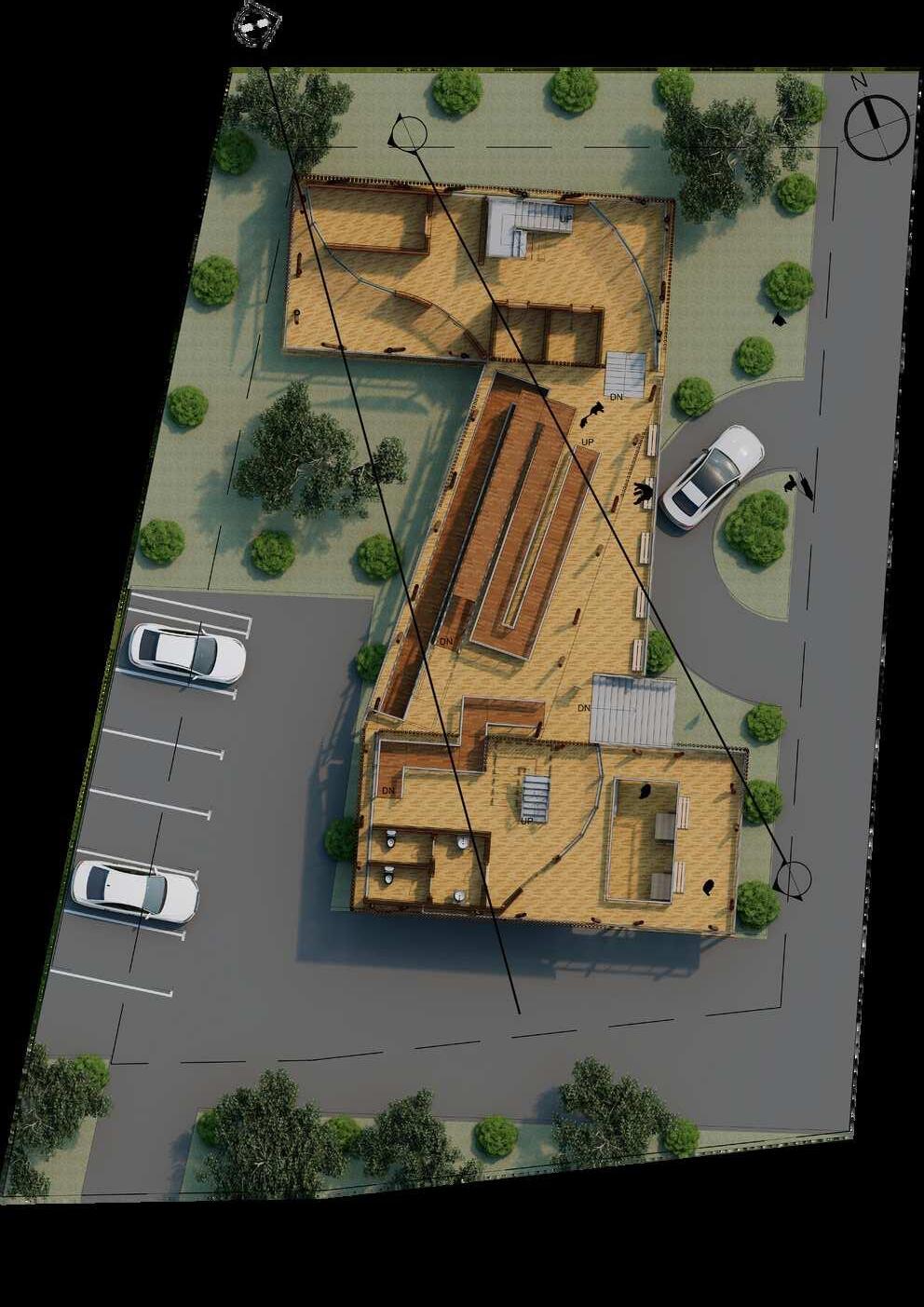

Kampung Janda Baik The site is located at the back of Masjid Janda Baik (Masjid Sultan Abu Bakar)

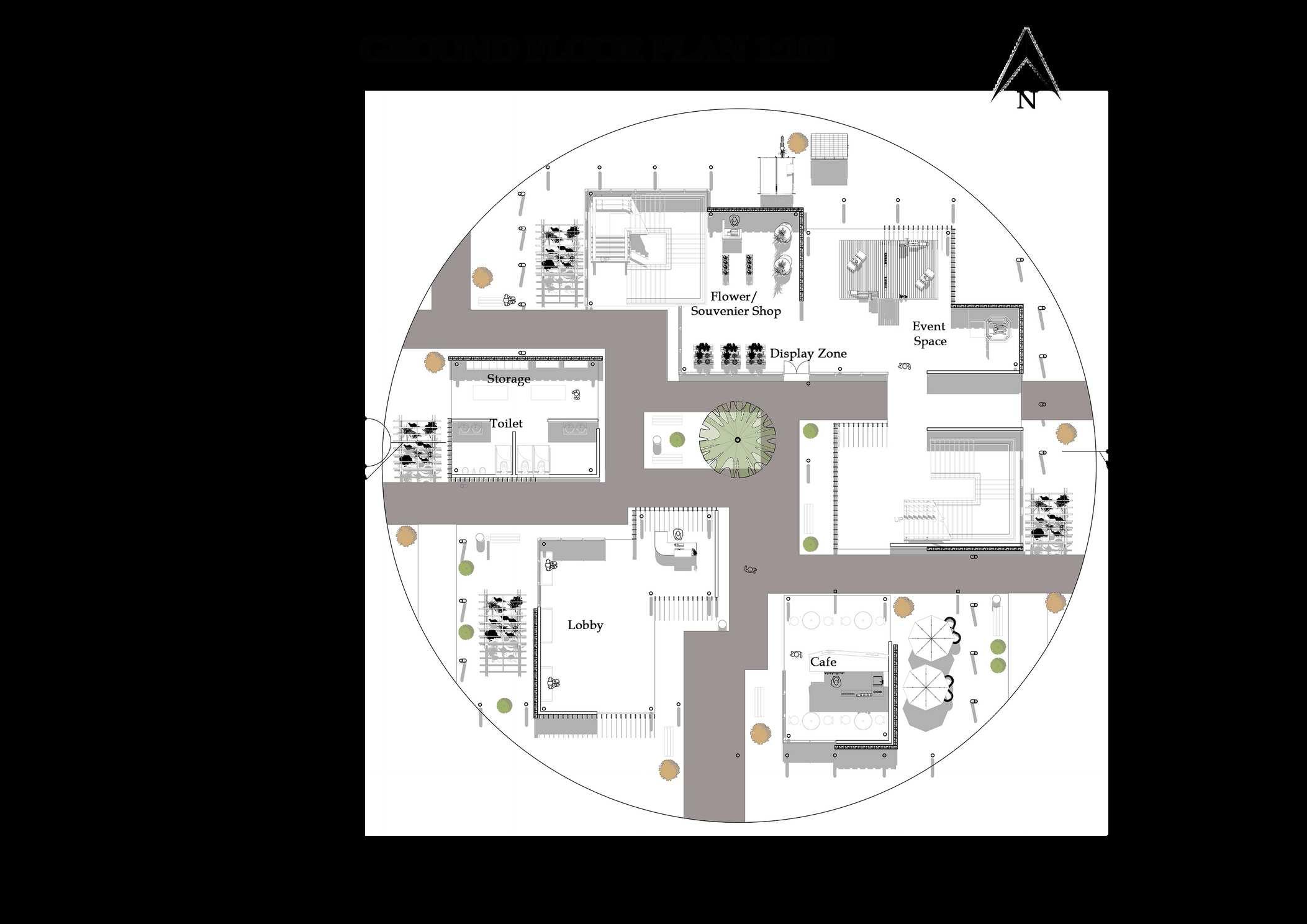

G Floor

The site is located at the back of Masjid Sultan Abu Bakar. It is an empty land and is surrounded by forest, a school and some private housing. The site has a flat landscape and it is connected to the roads

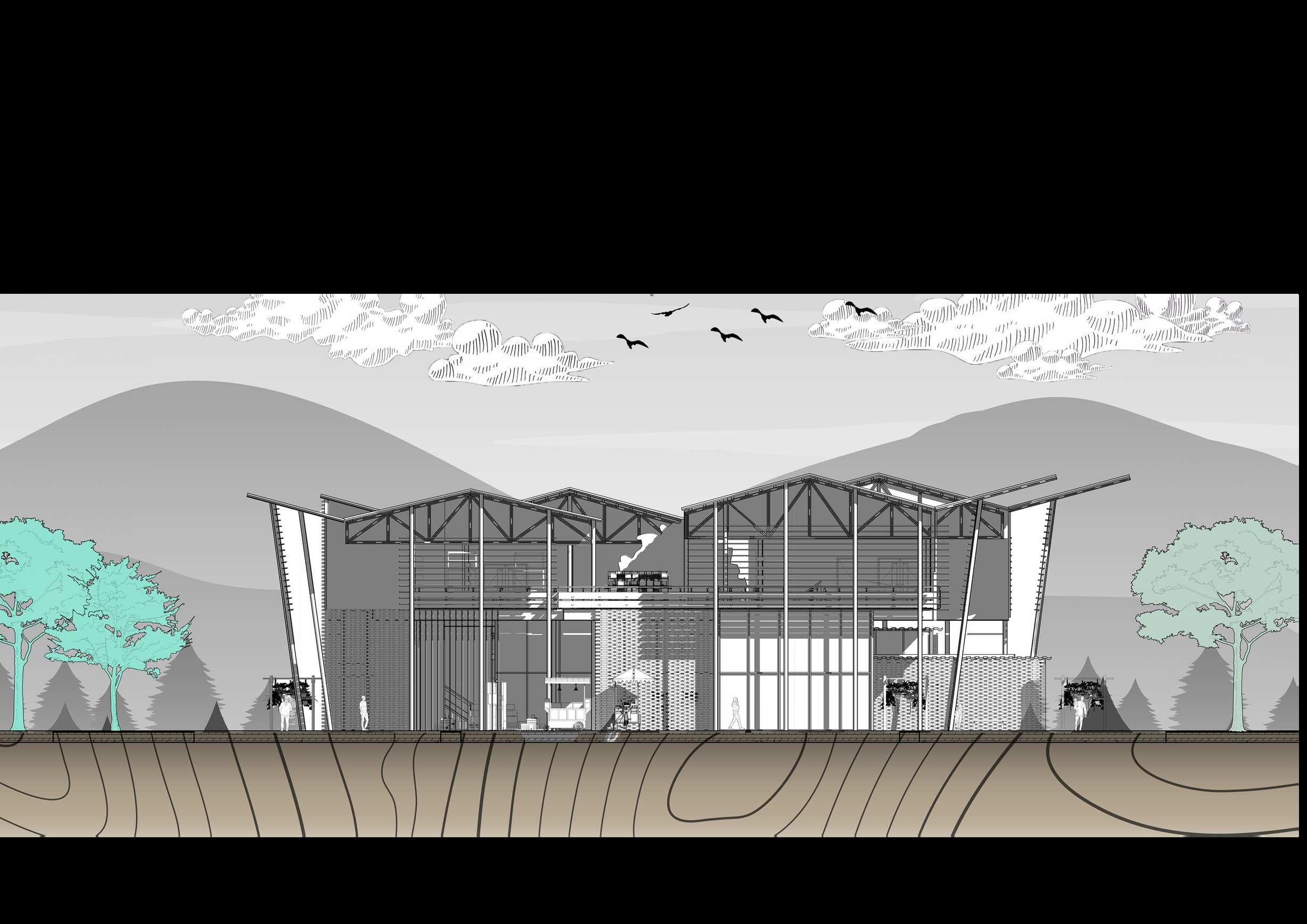

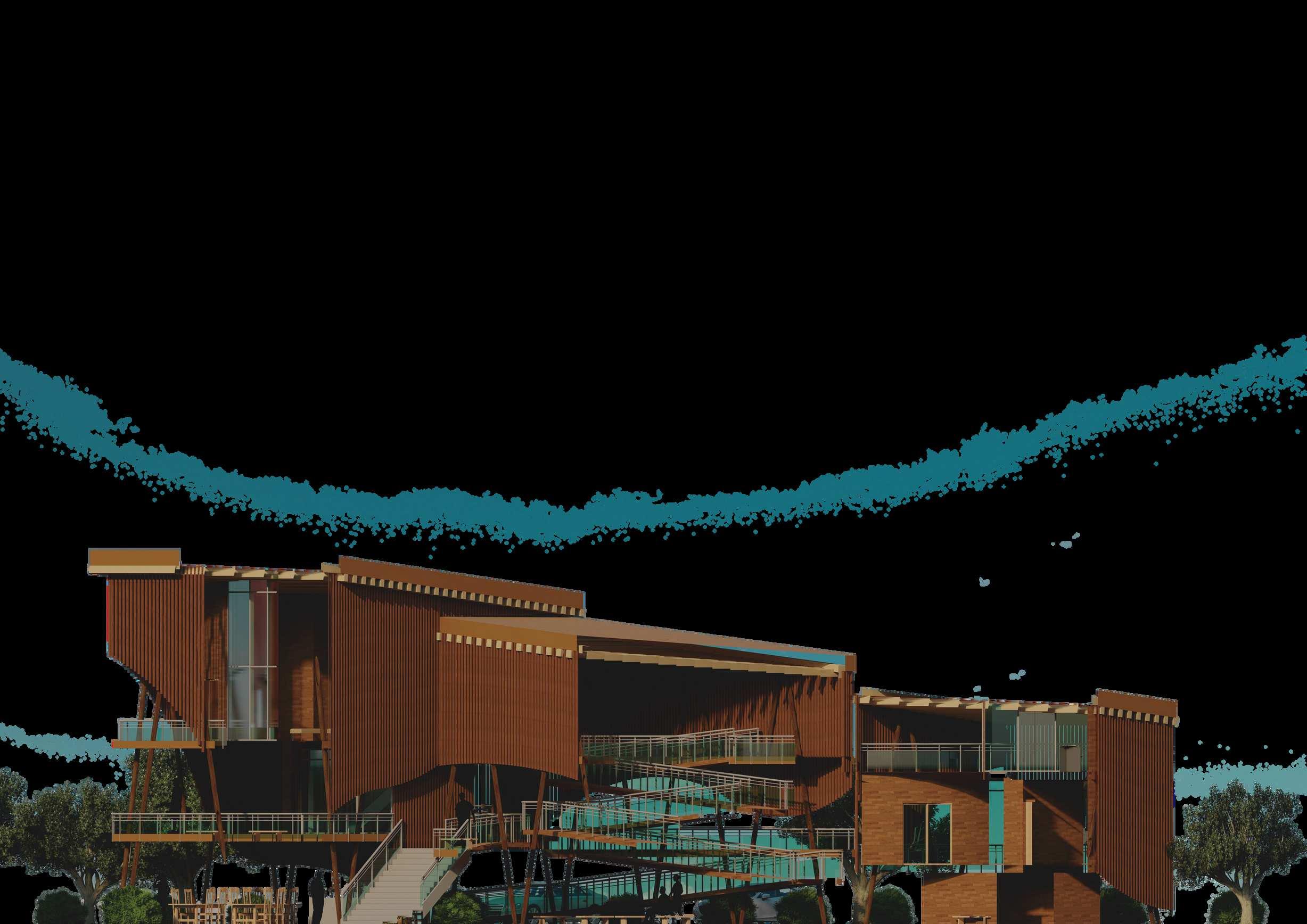

Back Elevation

1 Floor

2 Floor

Cafeteria

Lobby

Office

Place where the visitor can get themselves some drink once they just reach the place or want to have some rest after visiting.

The center place which is able to lead us to every part of the building. It is also the place where people gather when they first reach

The place where the staff there work and also the place for them do discuss and carry out everything and it is not open to the public

Waiting Area

Gallery One

Gallery Two

The place where the visitor can wait for their transport to come or even place to have a quick rest after walking for a long time.

The place where the gallery first began artwork and traditional items where shown here to the visitor and they can walk around themselves freely while enjoying the gallery.

It continues the journey from the first gallery and there are more interesting items and picture to be seen here

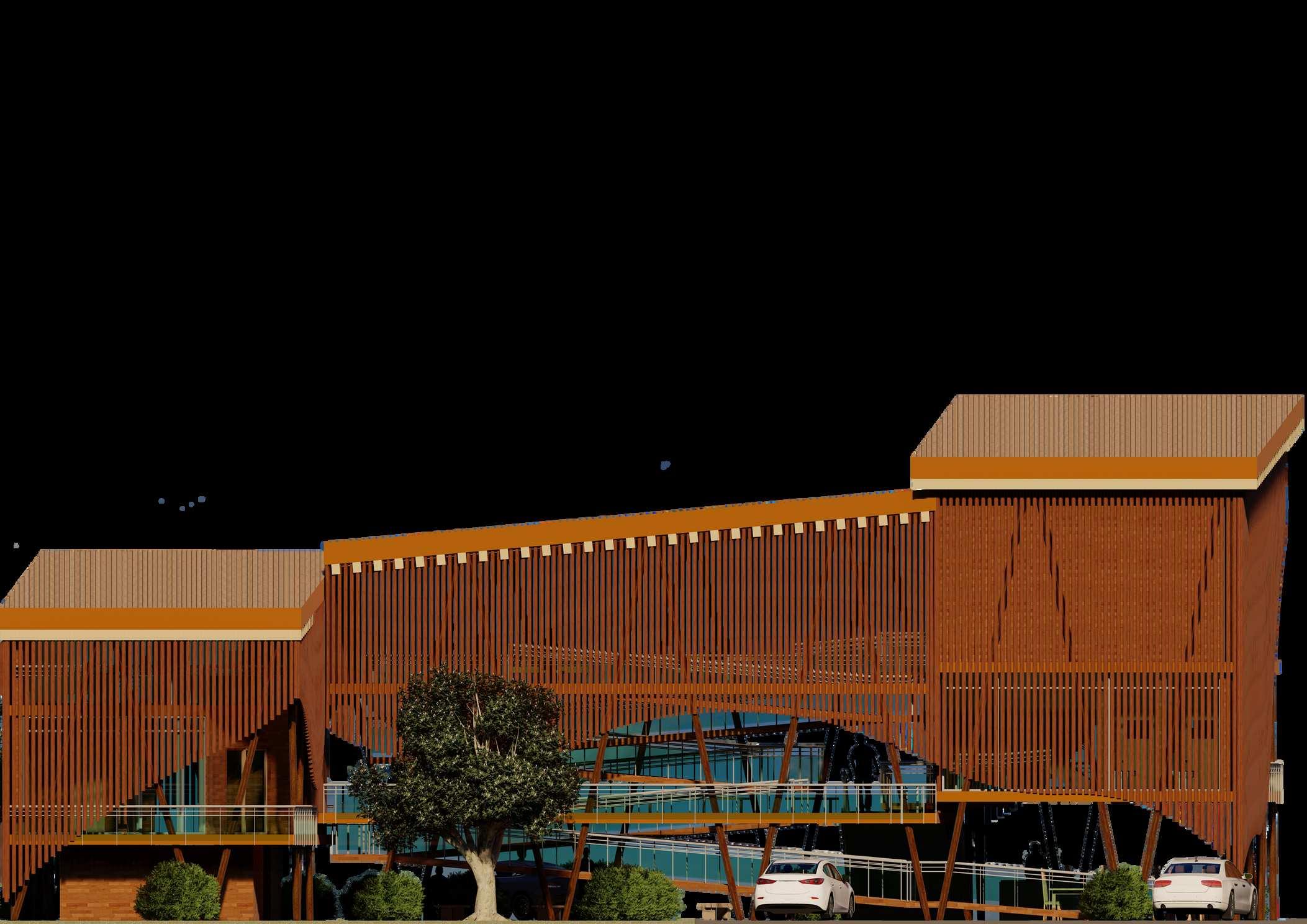

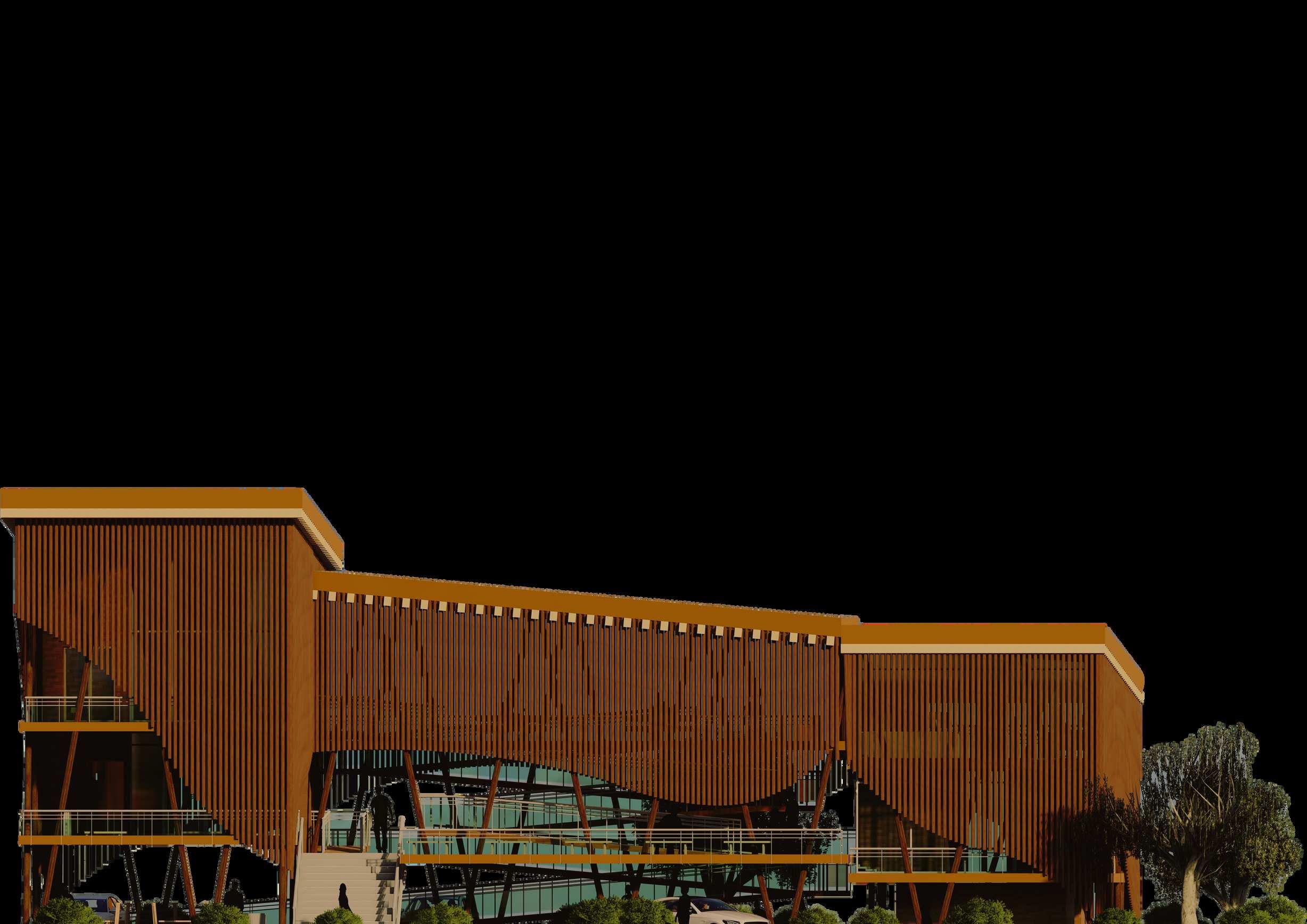

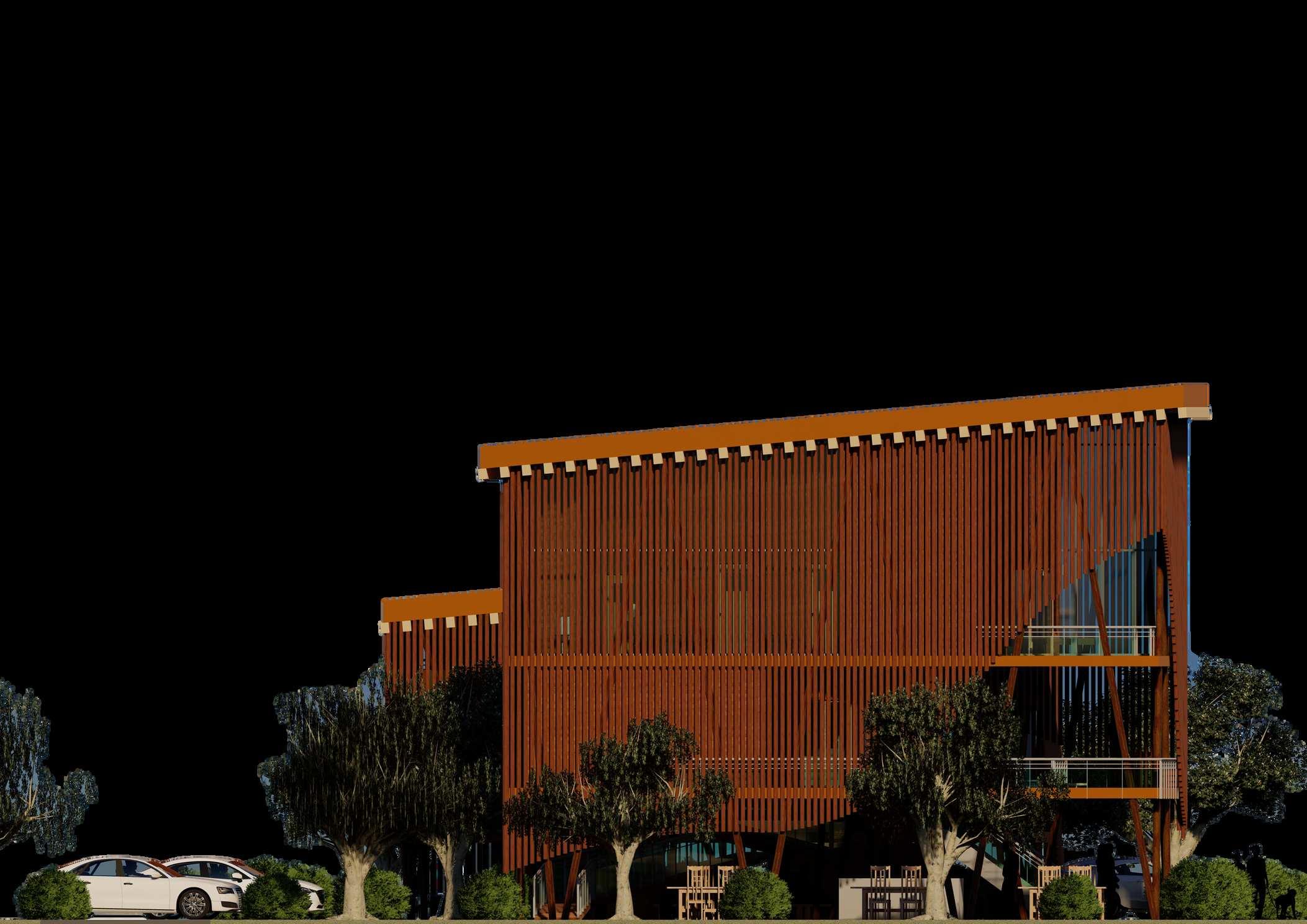

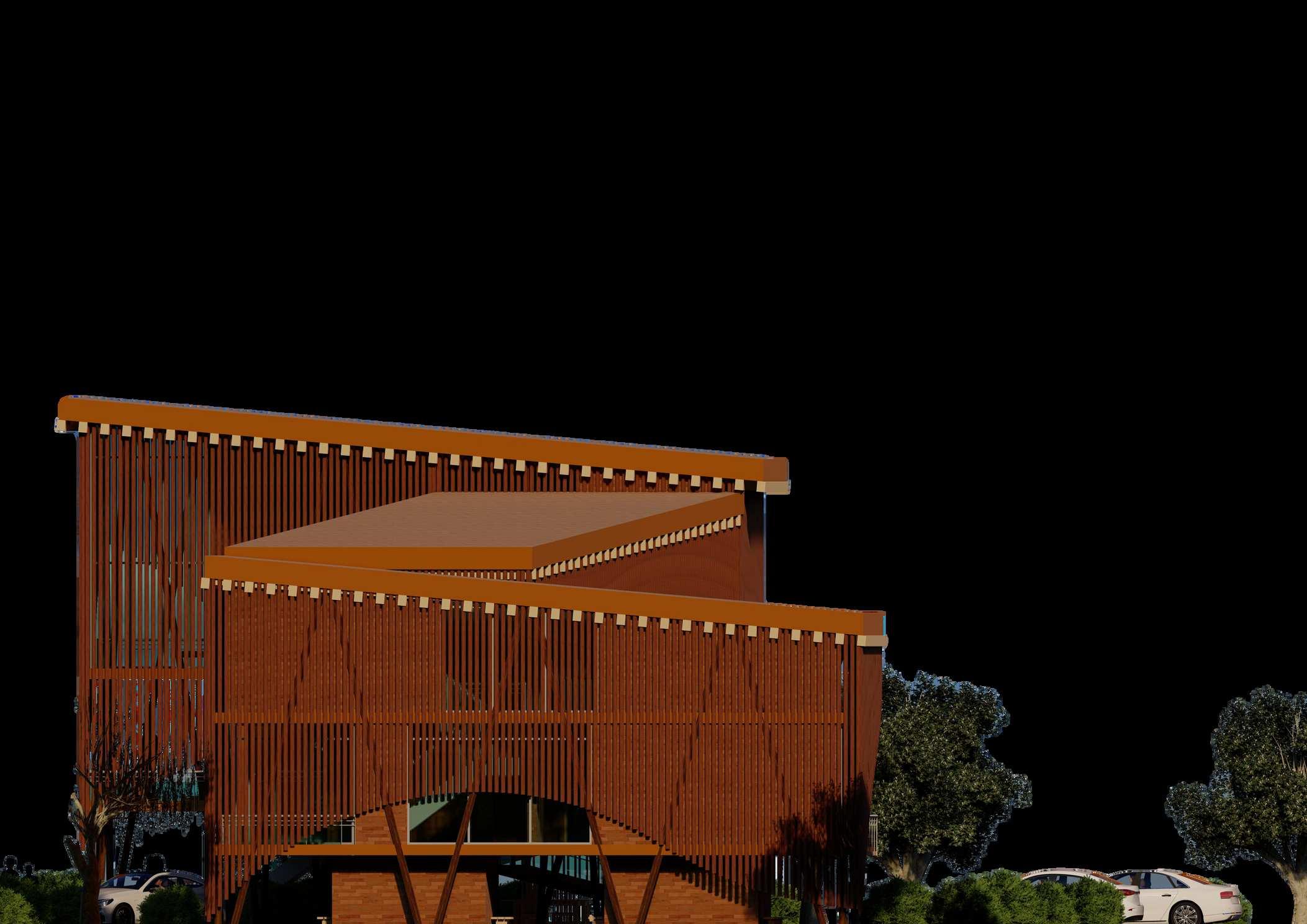

Front Elevation

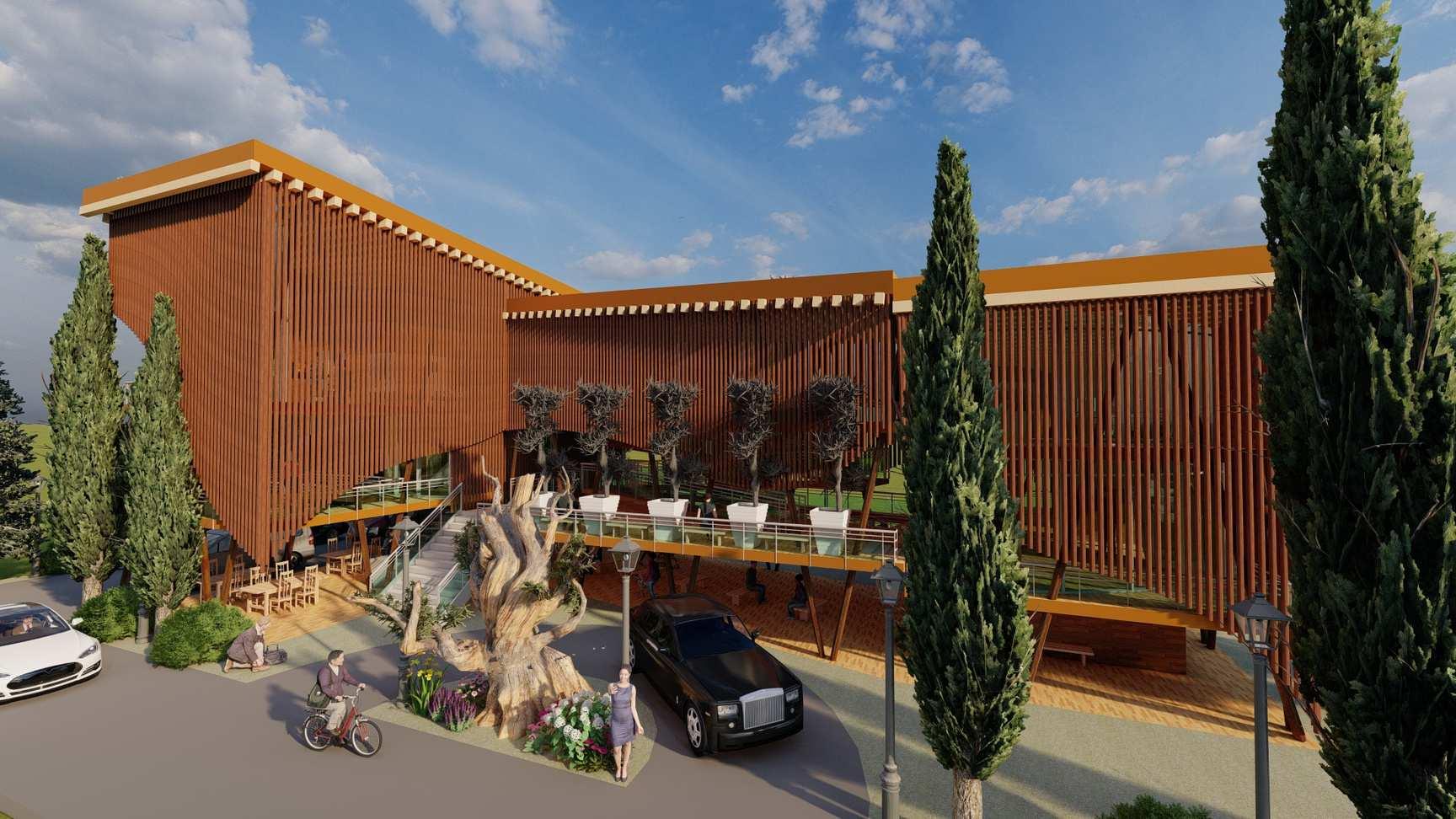

The entrance of the building this is where to enter the building as well as the place where the visitors gathers

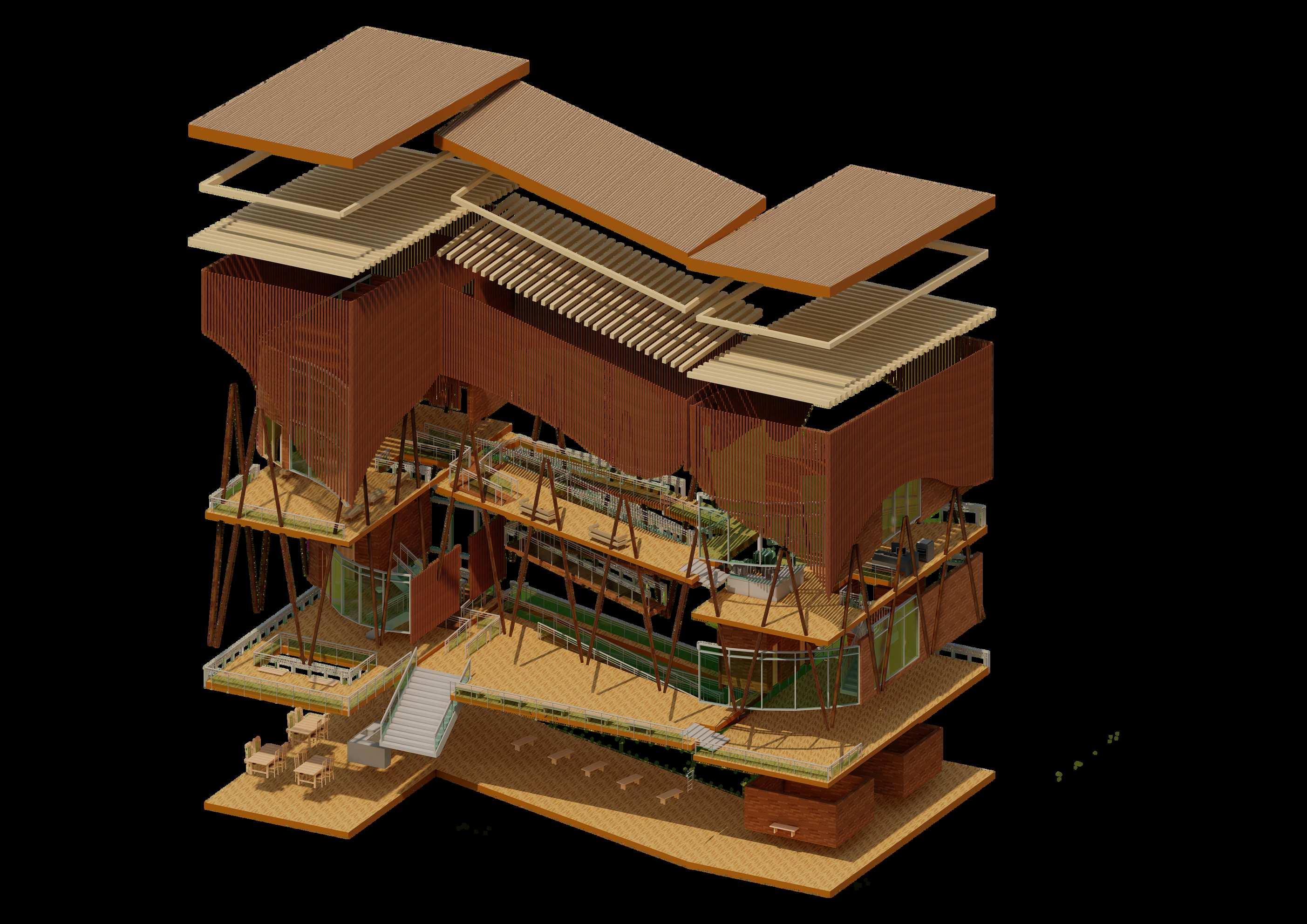

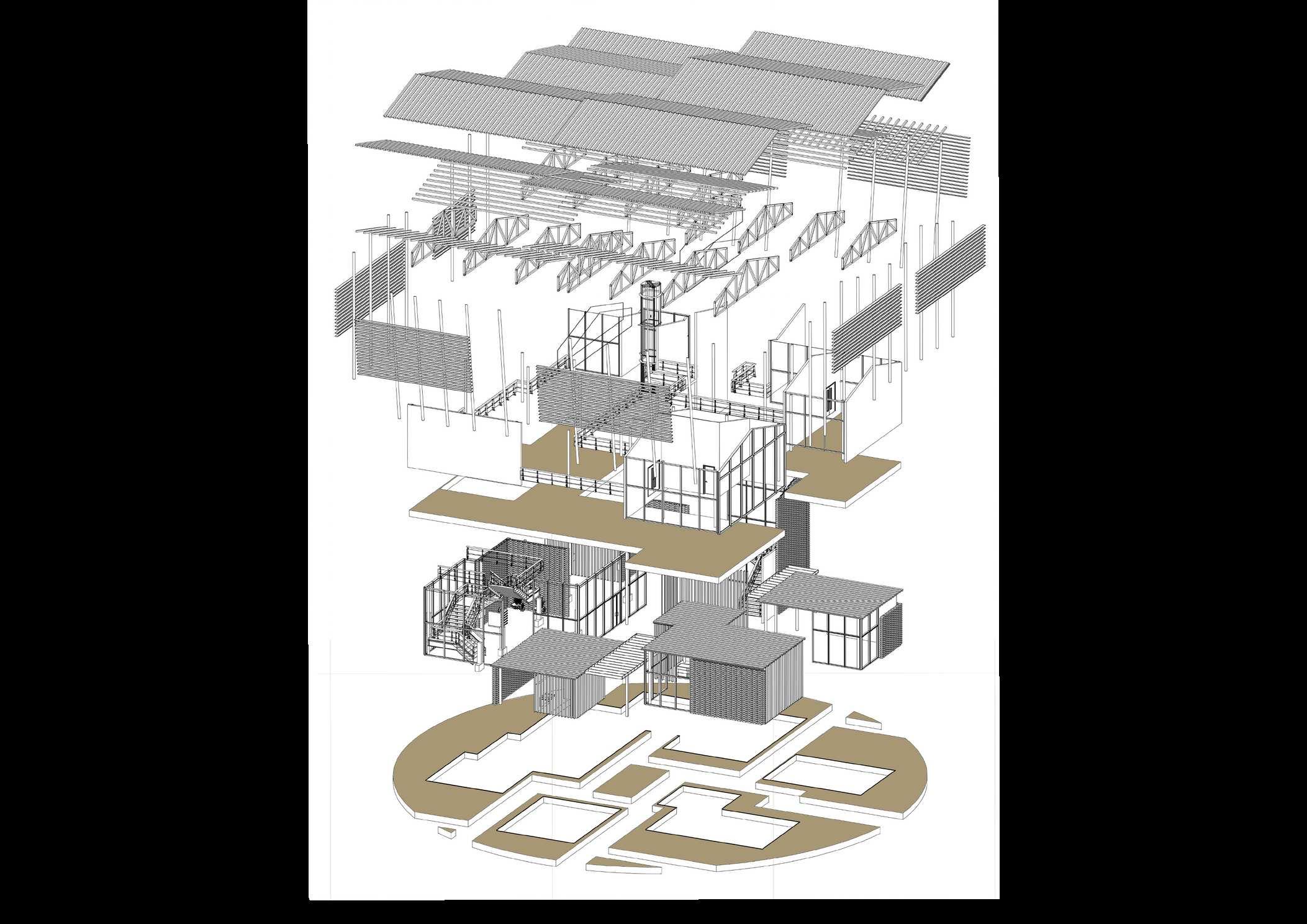

Exploded Axonometric

Timber Framing Timber Roof

Timber Column

V-Shape Timber Column

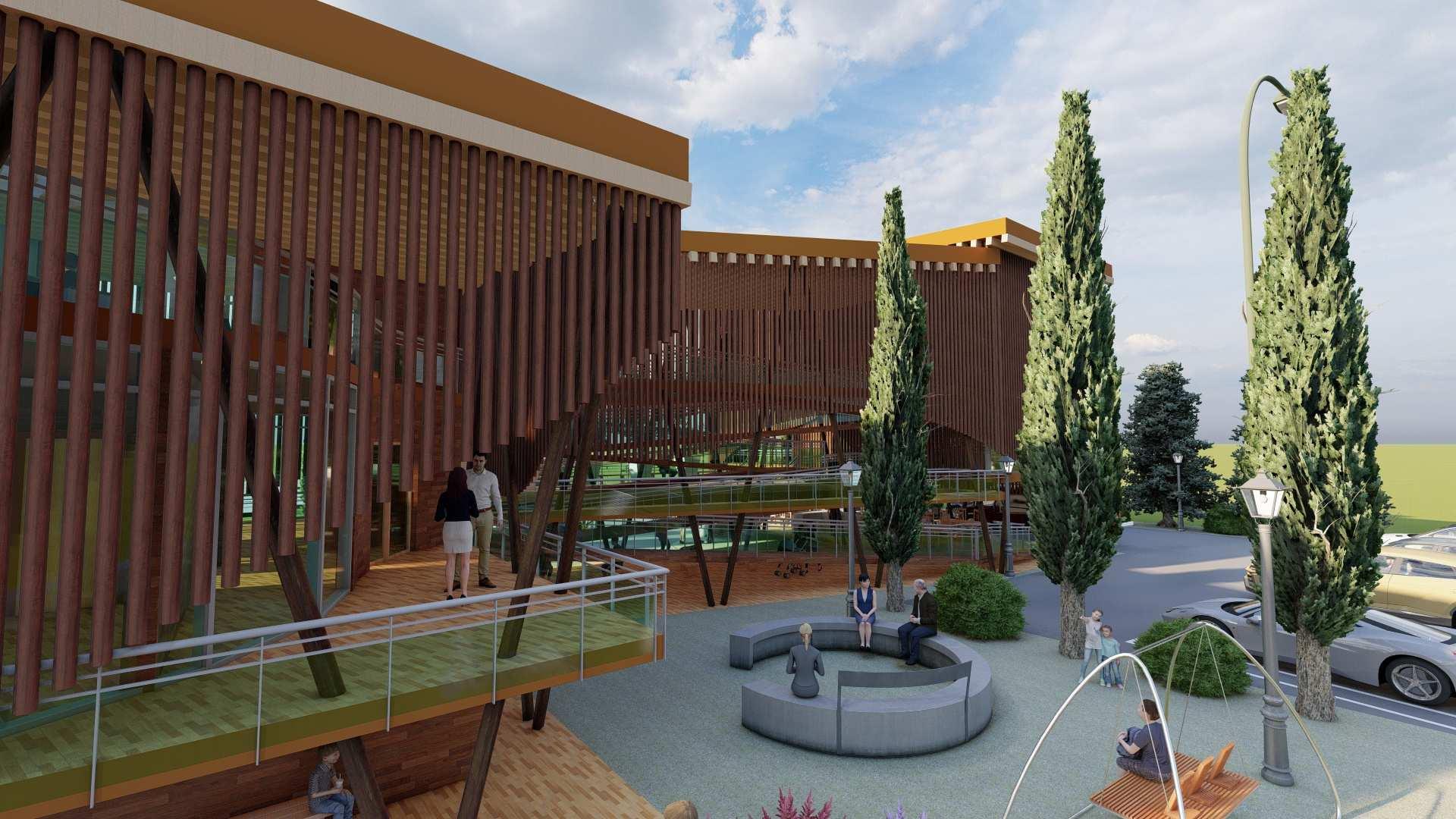

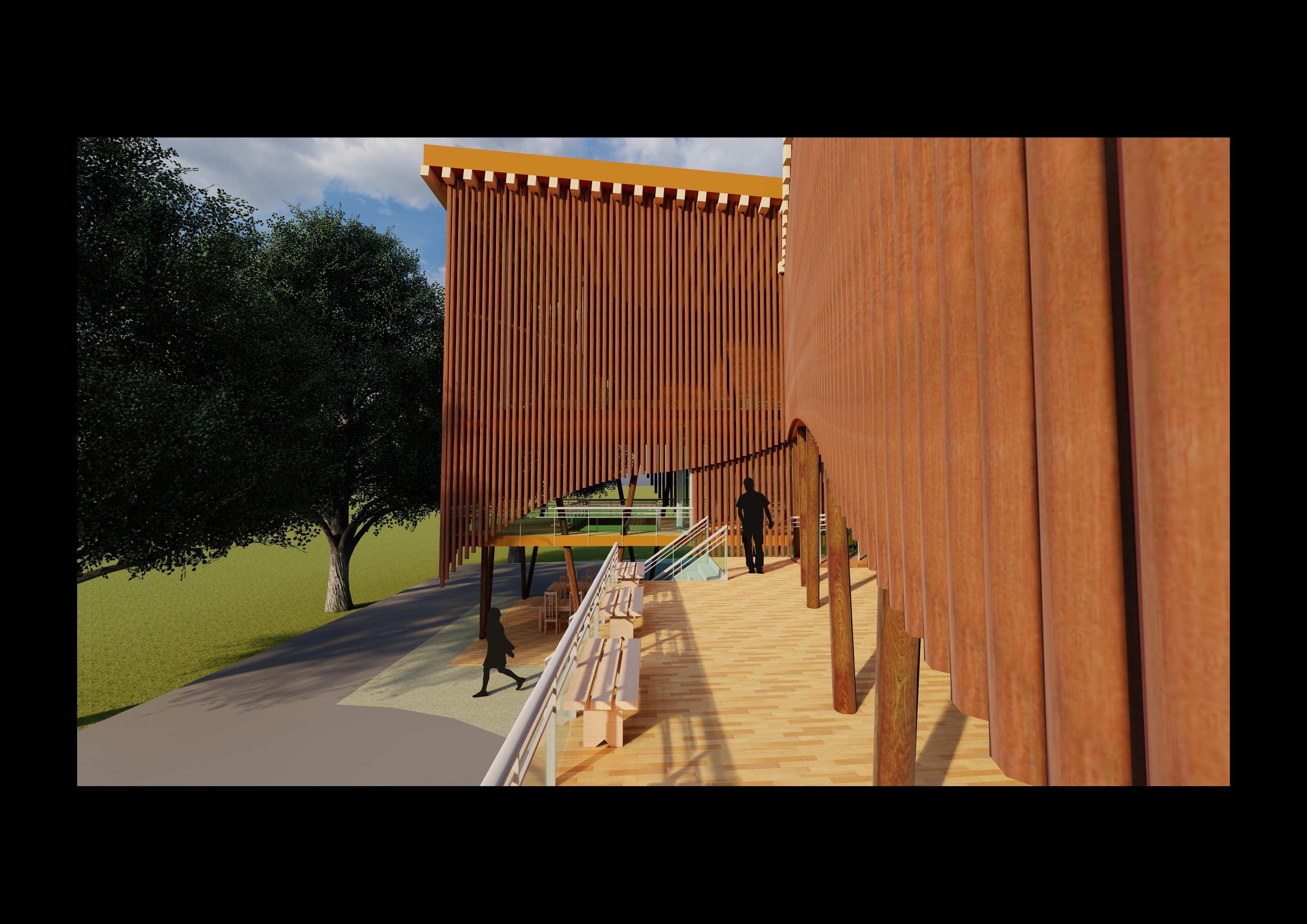

The view from the side of the building showcasing the side profile of the building

Timber Flooring

Glass Panel Bottom Filled Railings

Timber Wall

Curtain Window

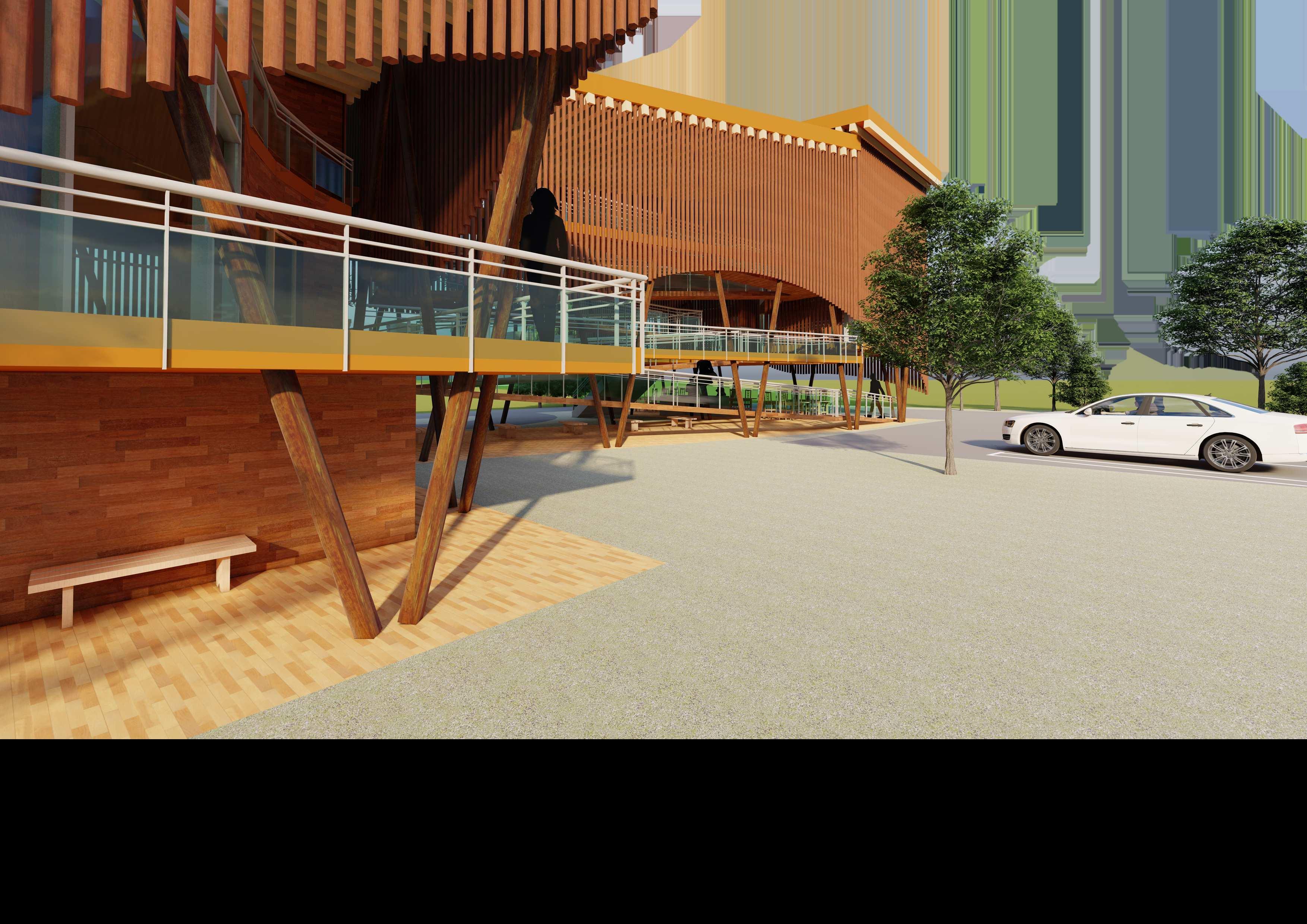

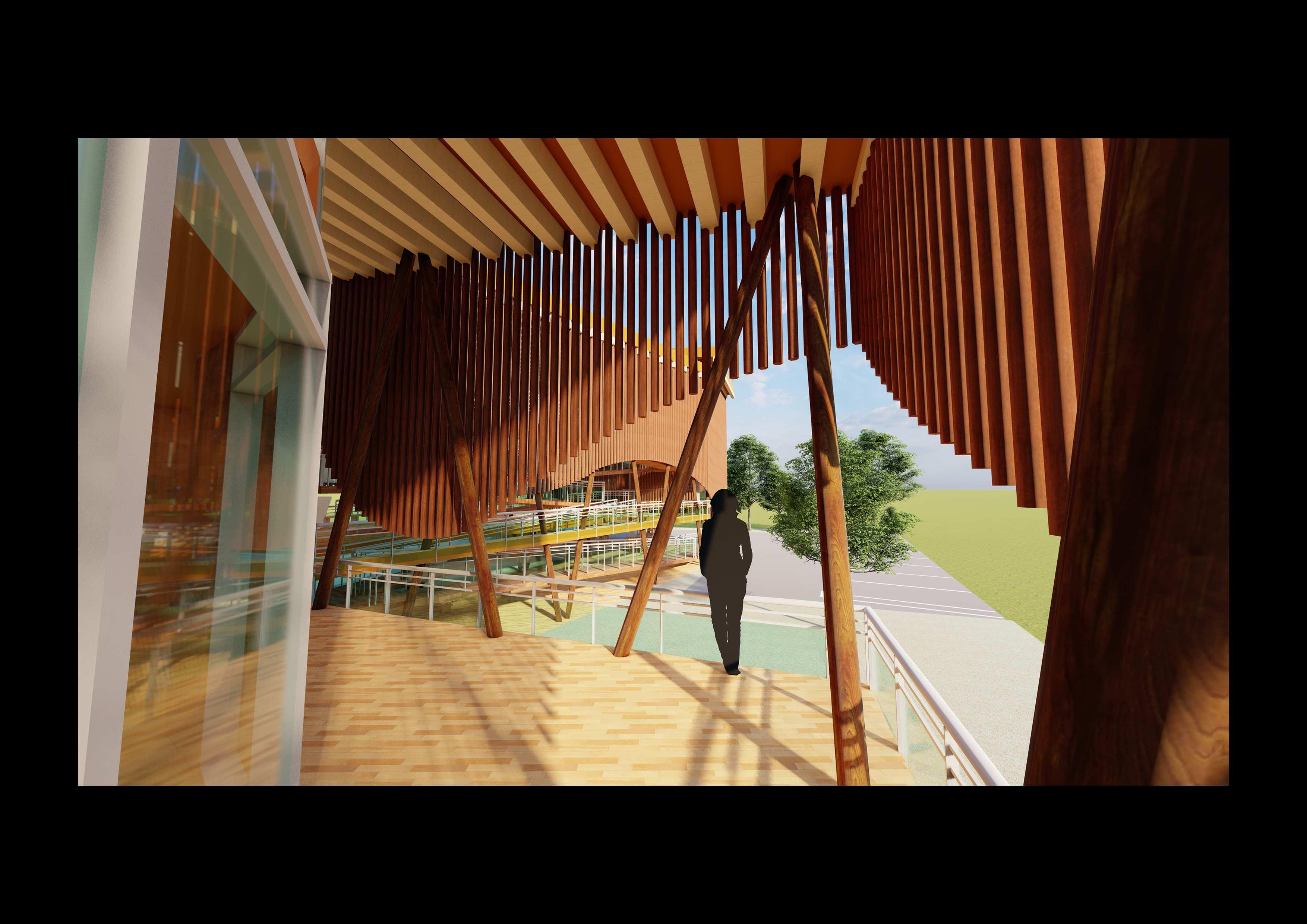

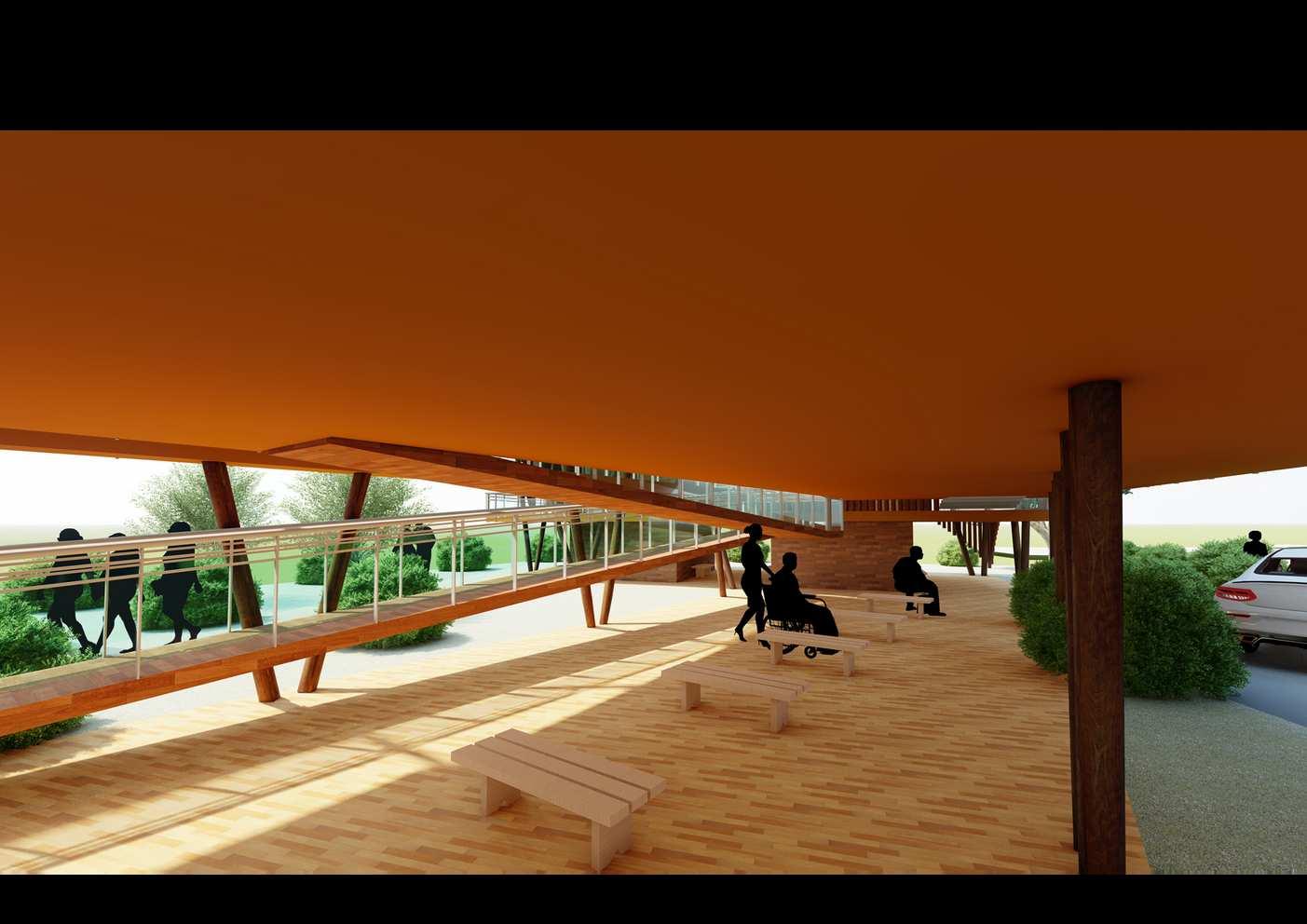

The place where the visitors could wait for people, rest as well as interact with the people waiting

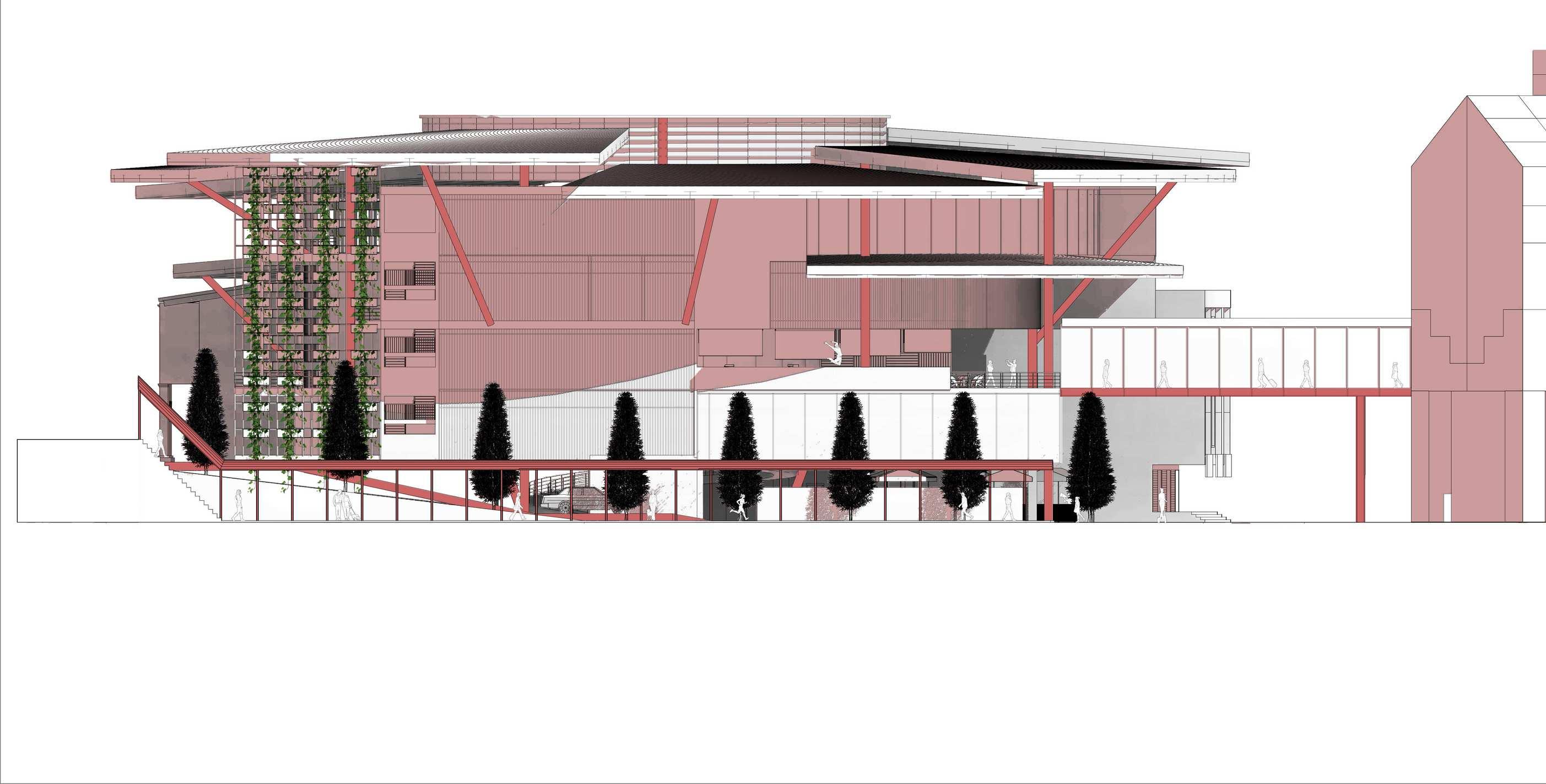

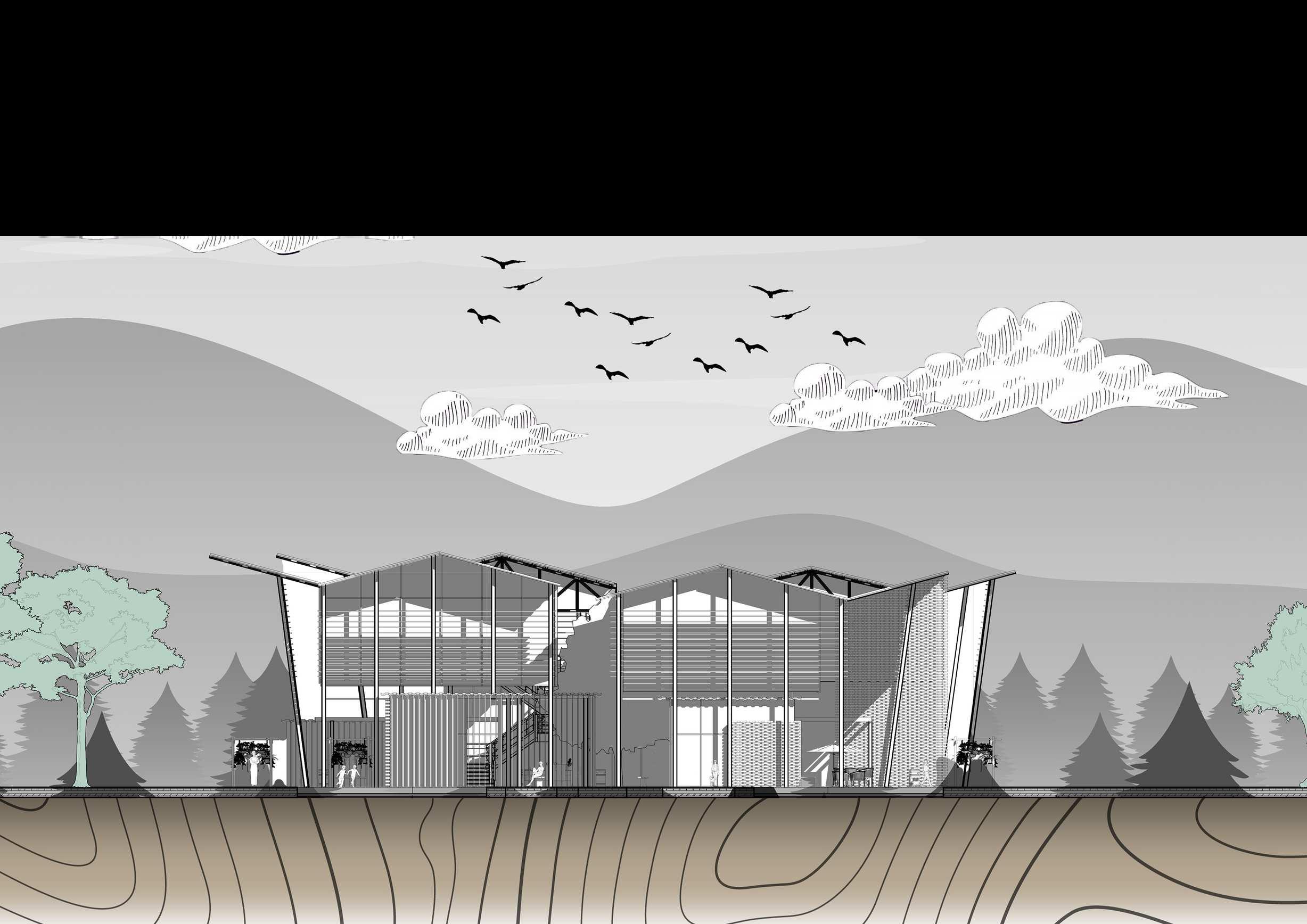

Back Elevation

Side Elevation

Poetic space to explore and interact. Spaces that invites people to stay

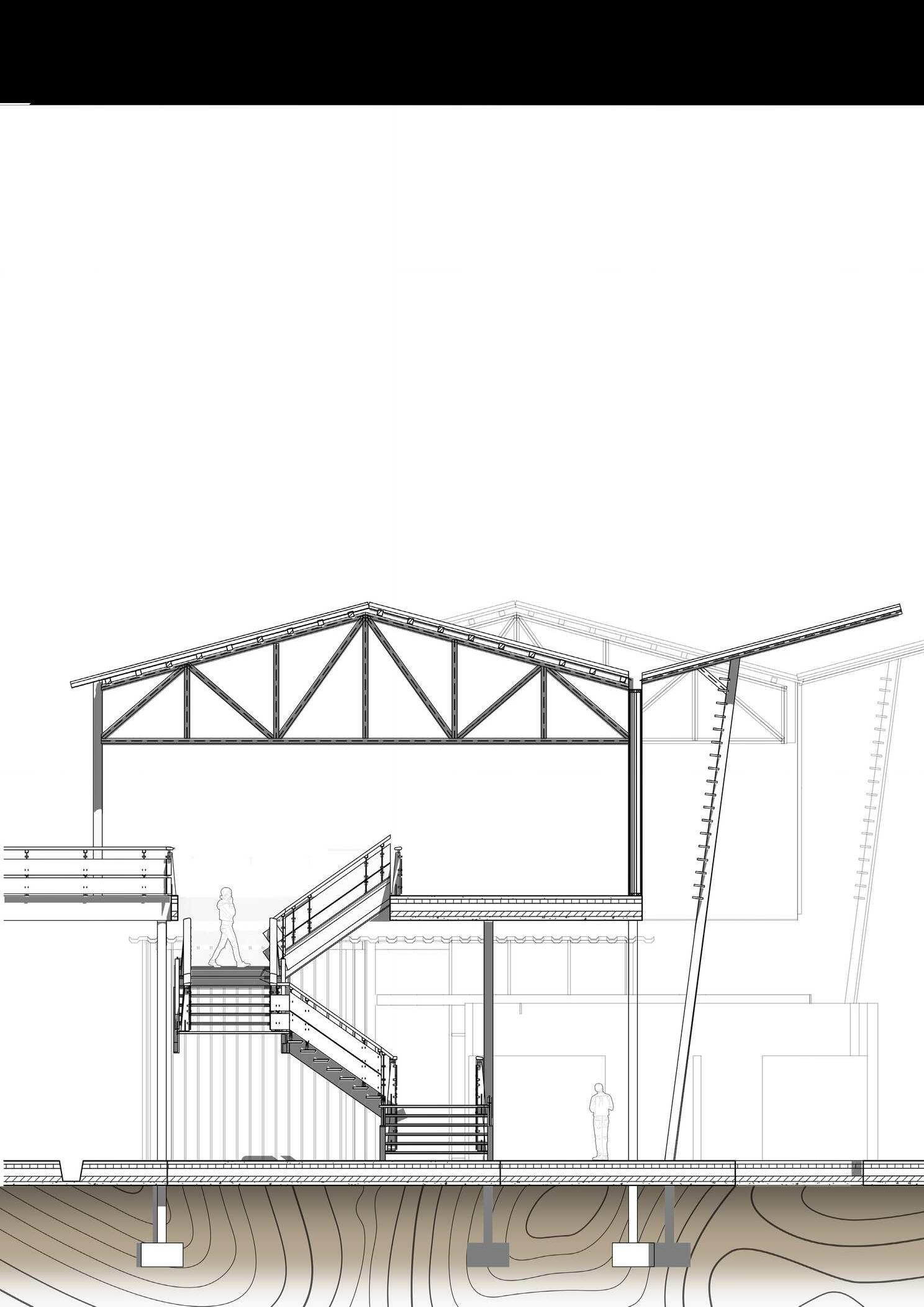

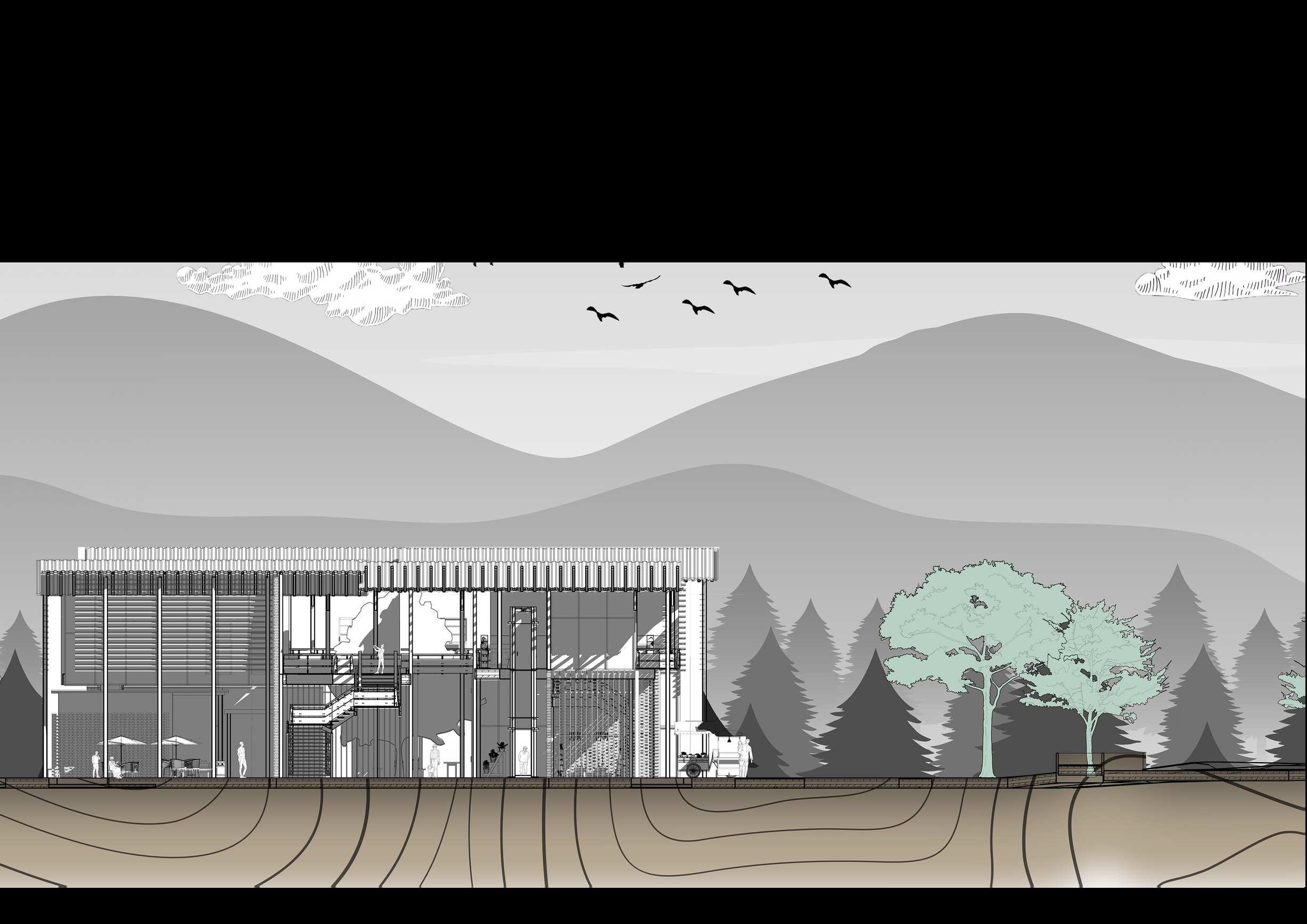

Sectional Detail

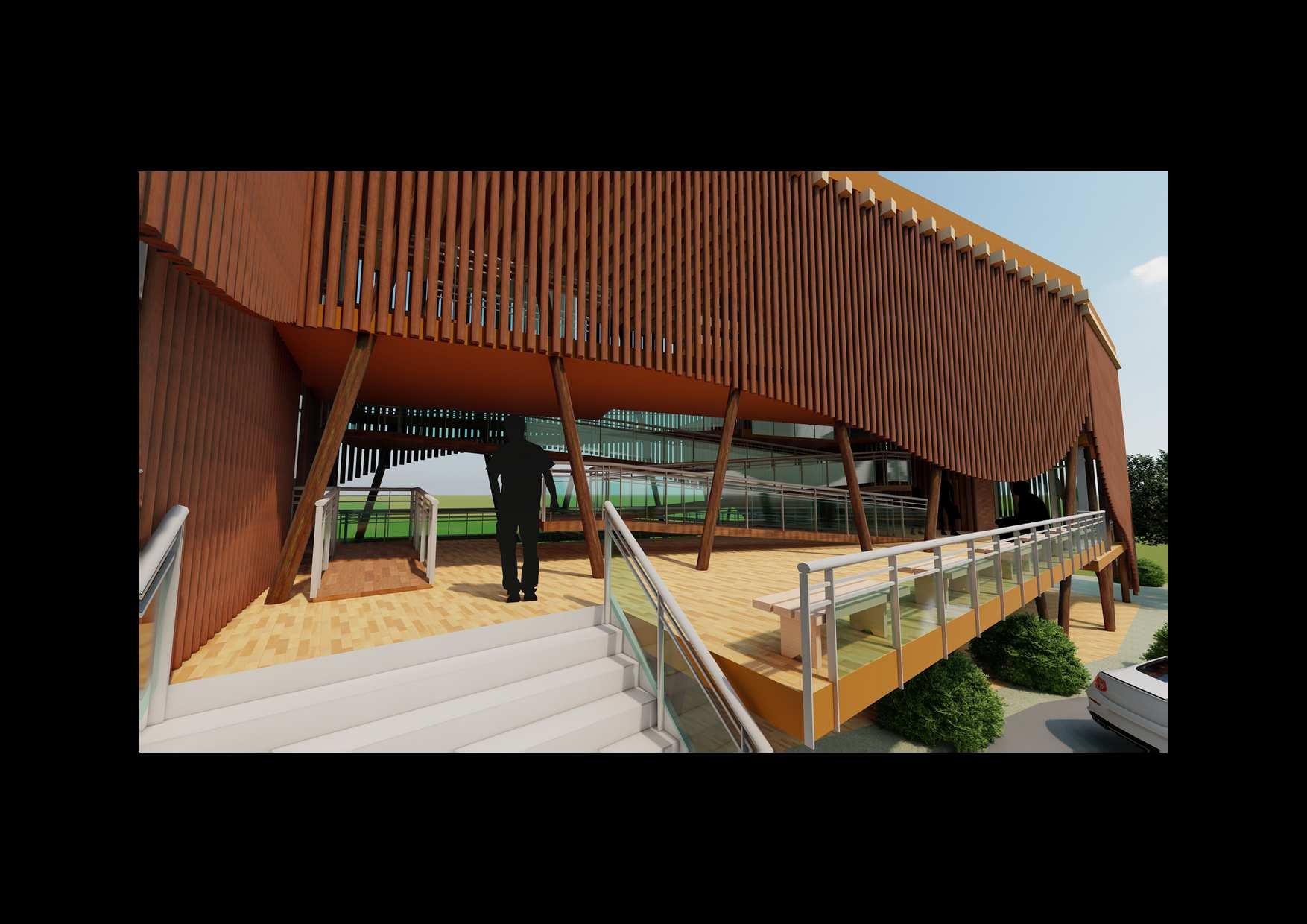

Attract and enter the space, curiosity draws in visitor in. Having a Large welcoming Entrance

Section 1

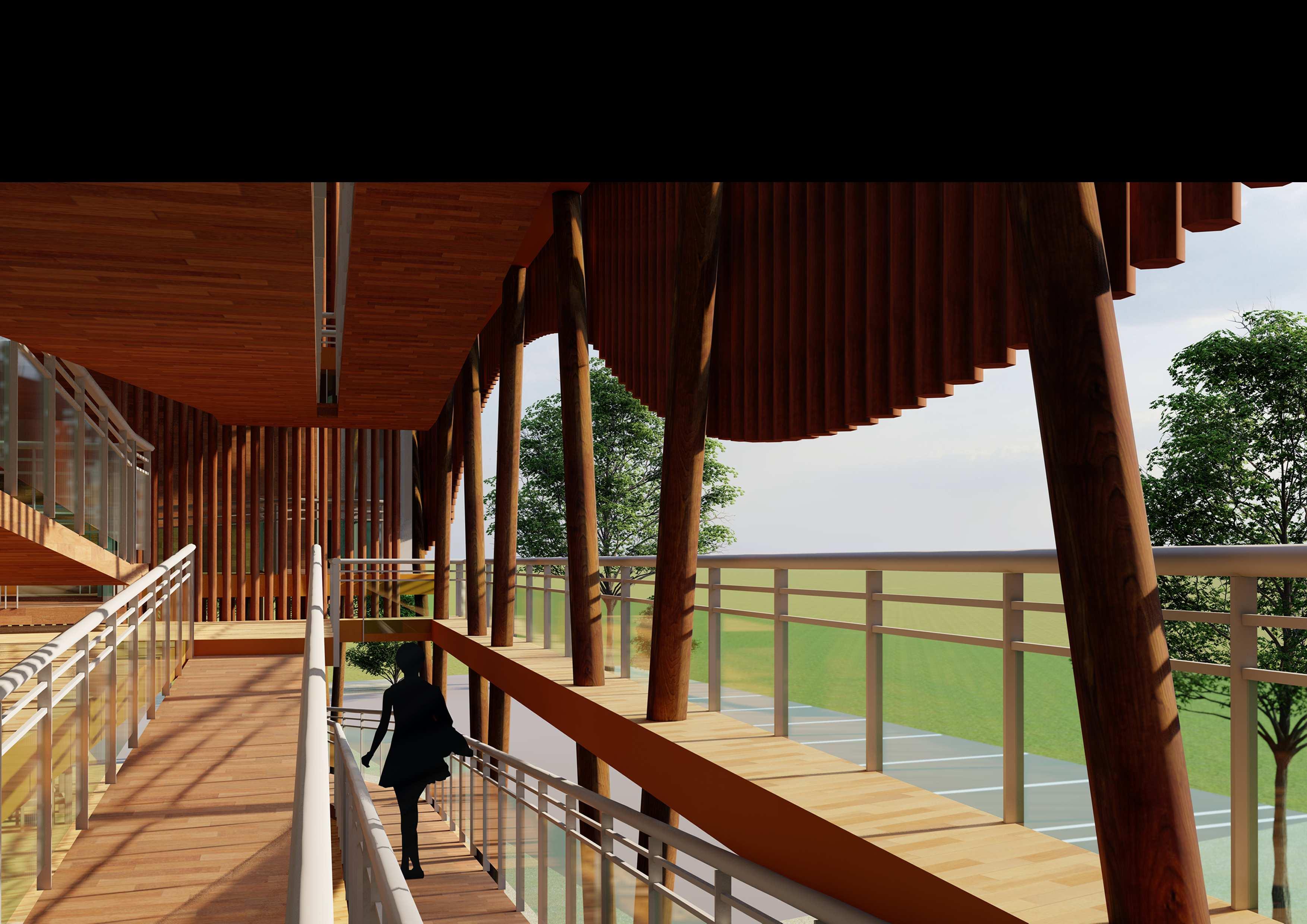

Walkway to enhance movement, create interesting spatial movement

Section 2

P3KU Kebun Komuniti Center

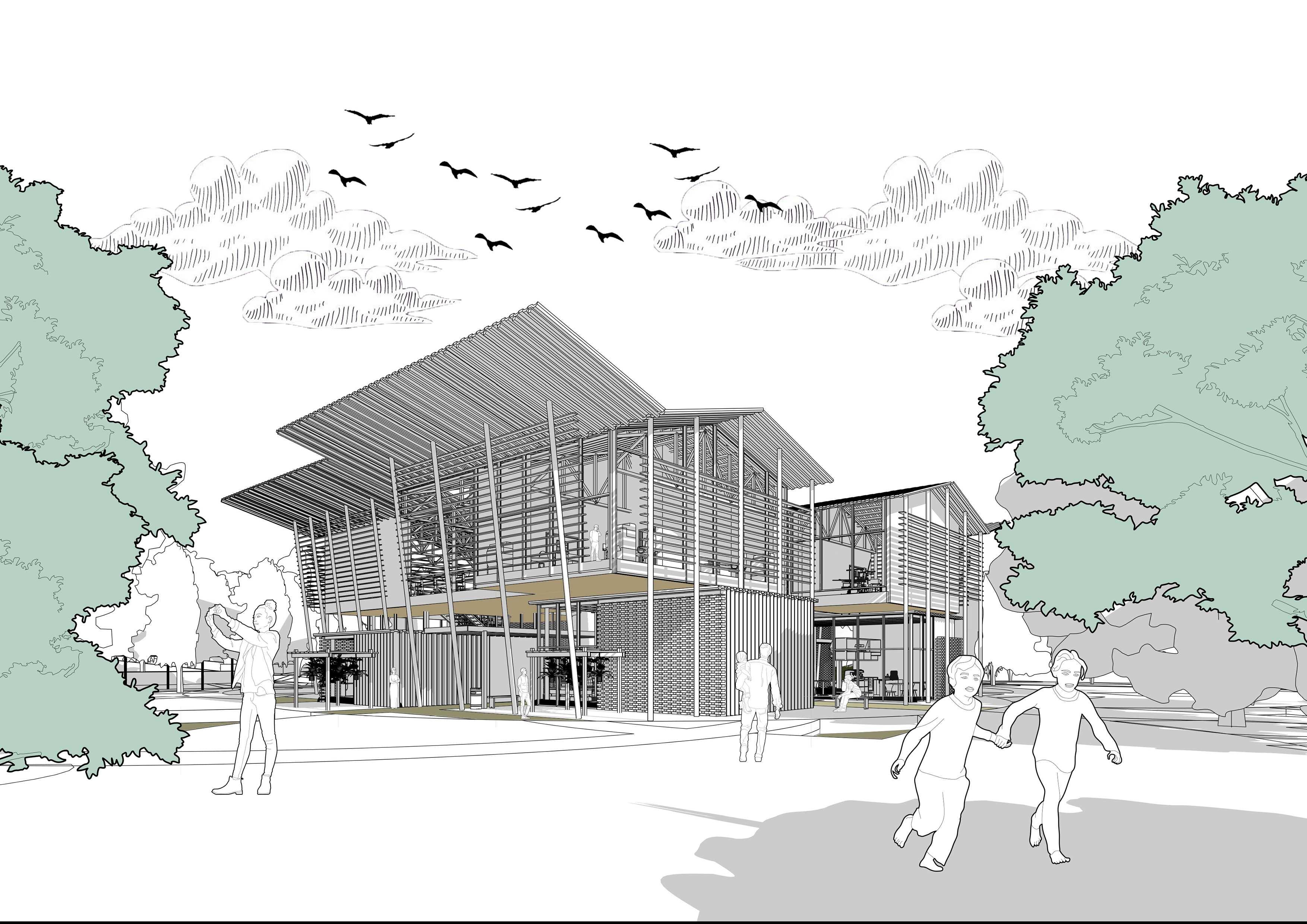

02 GLORA HEIGHTS P3KU Urban Farm in USJ18 Park Glora Heights represent the unity spirit and fight against challenges ahead of the P3KU community. The use of clustering and interlocking shows the togetherness of the community. Furthermore the play of layers, height and building posture creates a unique effect which enhance the sensory experience of the user by viewing, feeling and more. The use of different type of material like steel, brick and timber also shows how materials can create harmony when different material are combined as a whole. Therefore the users could experience different sensory experience from view, texture, emotional from any side of the building.

P3KU Kebun Komuniti Center Intentions?

A place for further exploration on the curiosity and also experience different sensory experience throughout the journey. Moreover enhance the idea of being with the environment and learning ways to secure it. Furthermore create a equal space between normal and disable.

Having workshops which provide urban farming technique helps giving a chance for the disable to learn new technique for future uses. Promote sustainable features around the building create awareness.

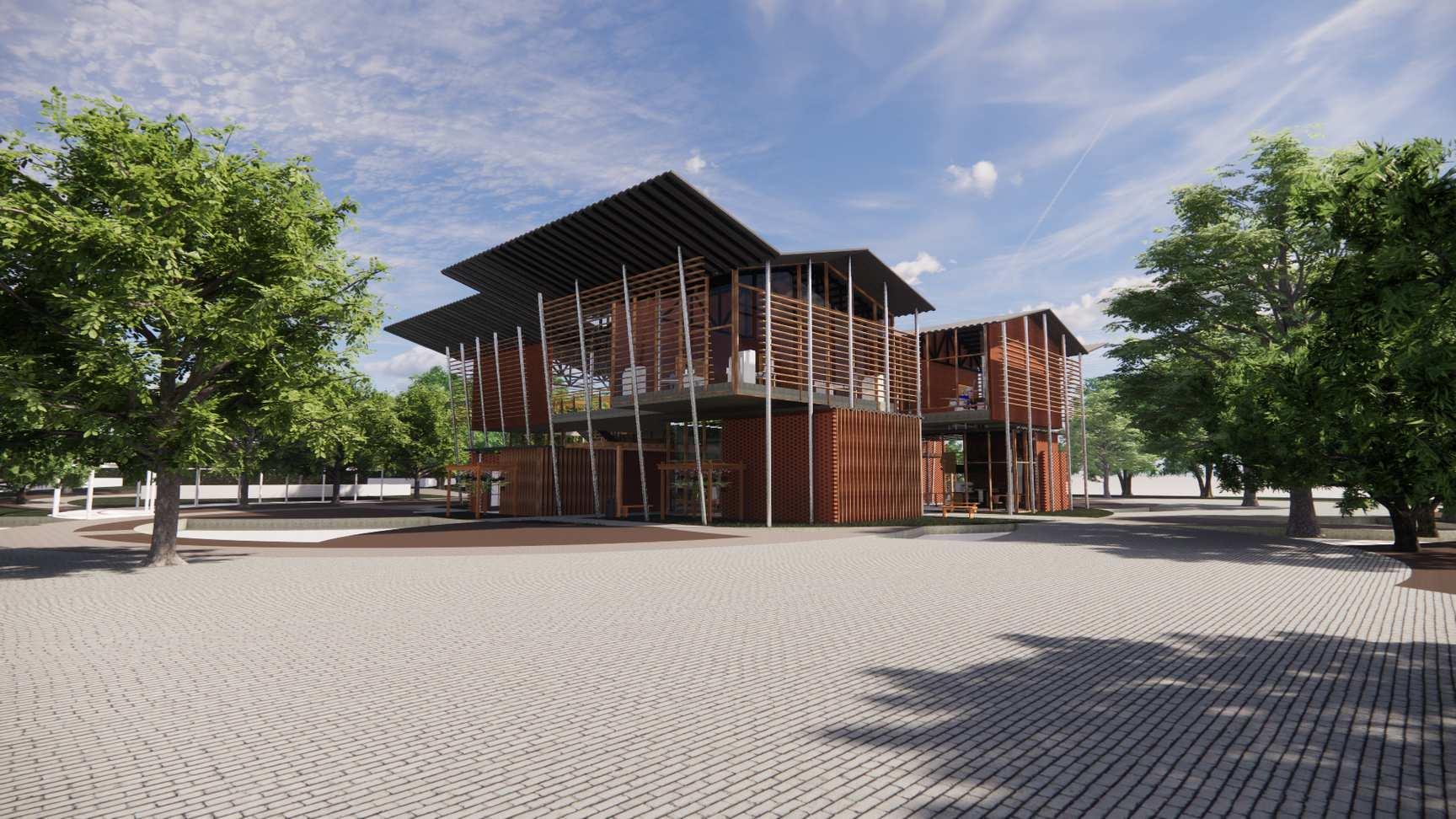

GLORA HEIGHTS Keep growing into greater heights reach up to the glorious sky

Semester 4

P3KU Kebun Komuniti Center P3KU Urban Farm in USJ18 Park

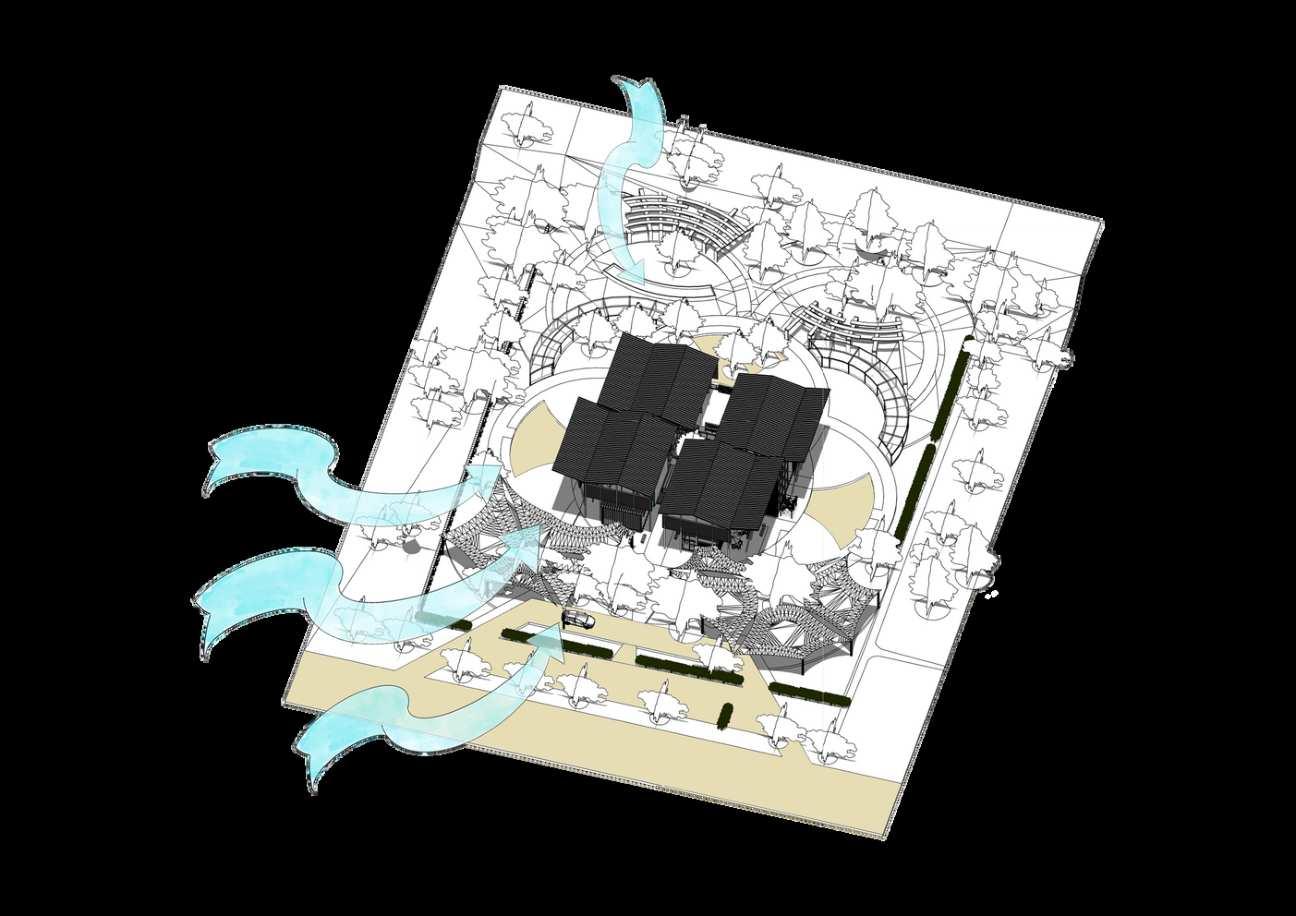

The wind circulation in the site moves through the southwest, as well as mind diffracted wind direction from the northwest

The drainage around the building is highlighted in blue to show the drainage movement of the building

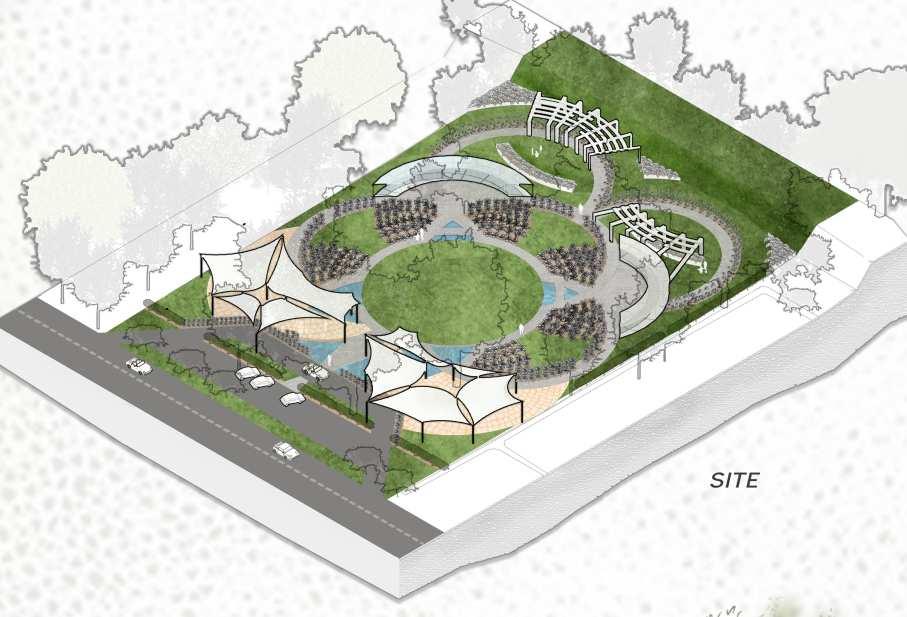

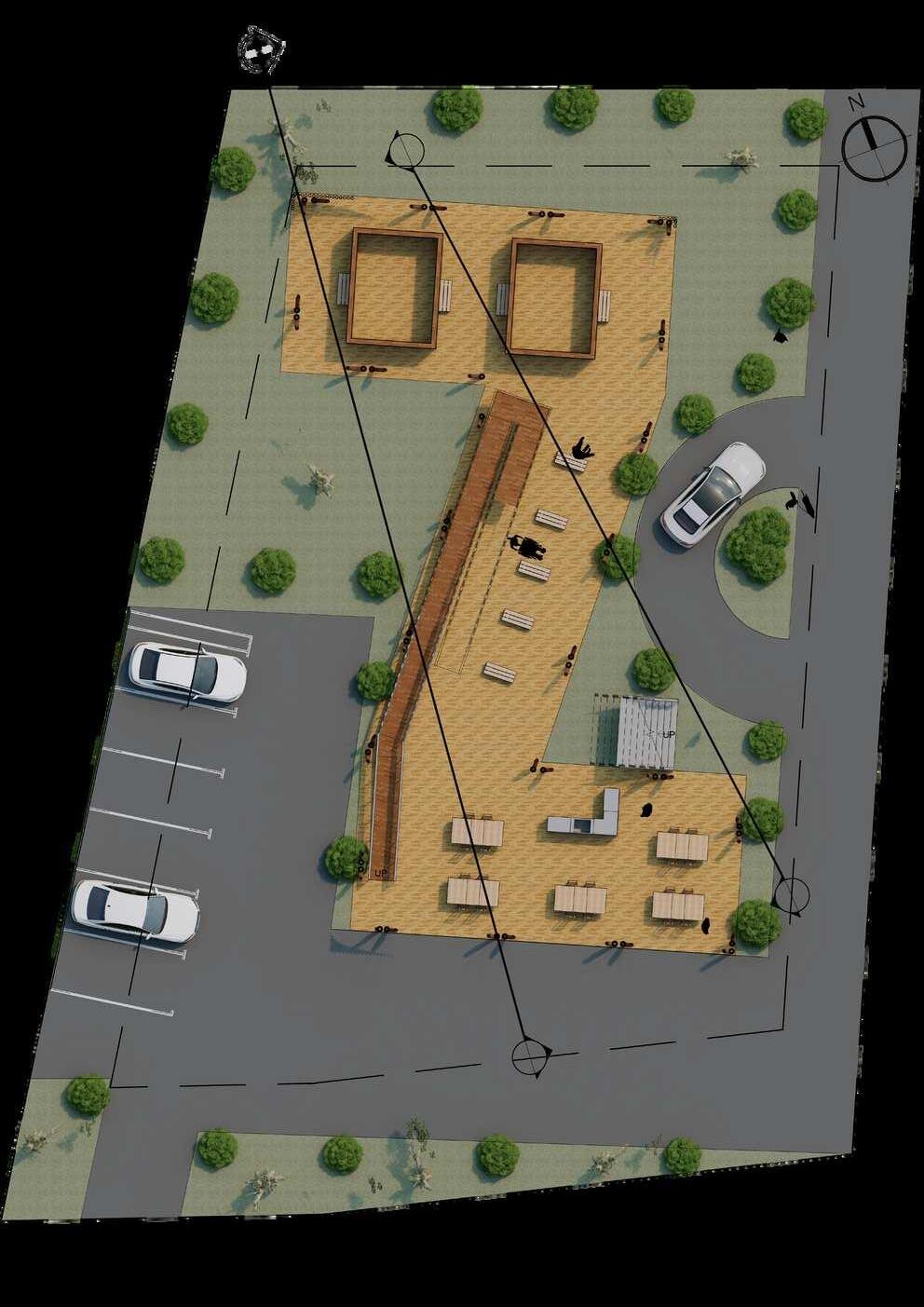

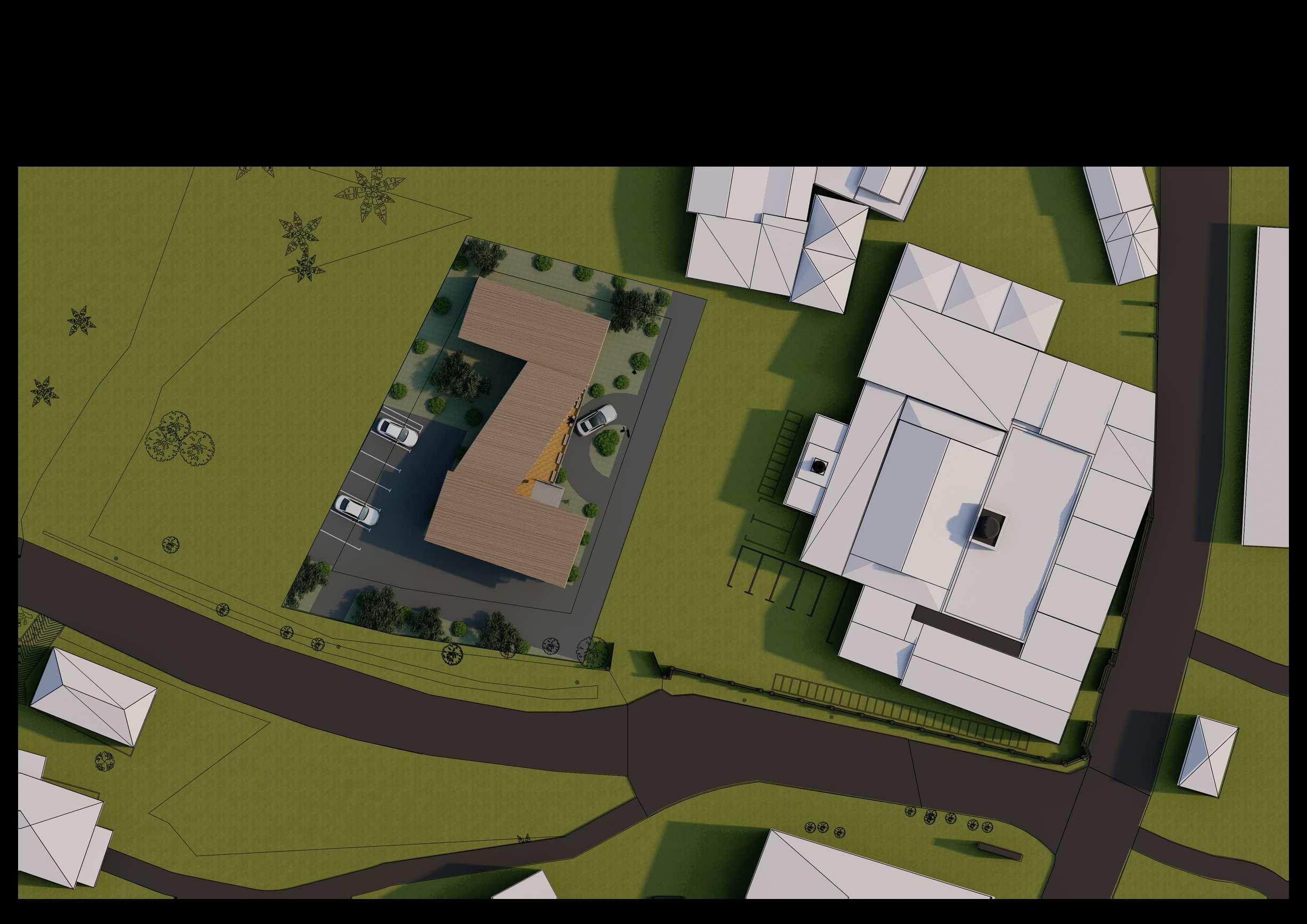

Site Details P3KU Urban Farm The site is located at P3KU urban farm in USJ18 park. The site is surrounded by parks, private housing, a mosque and shop lots.

The site is an urban farm beside of the road Jalan USJ 18/7.

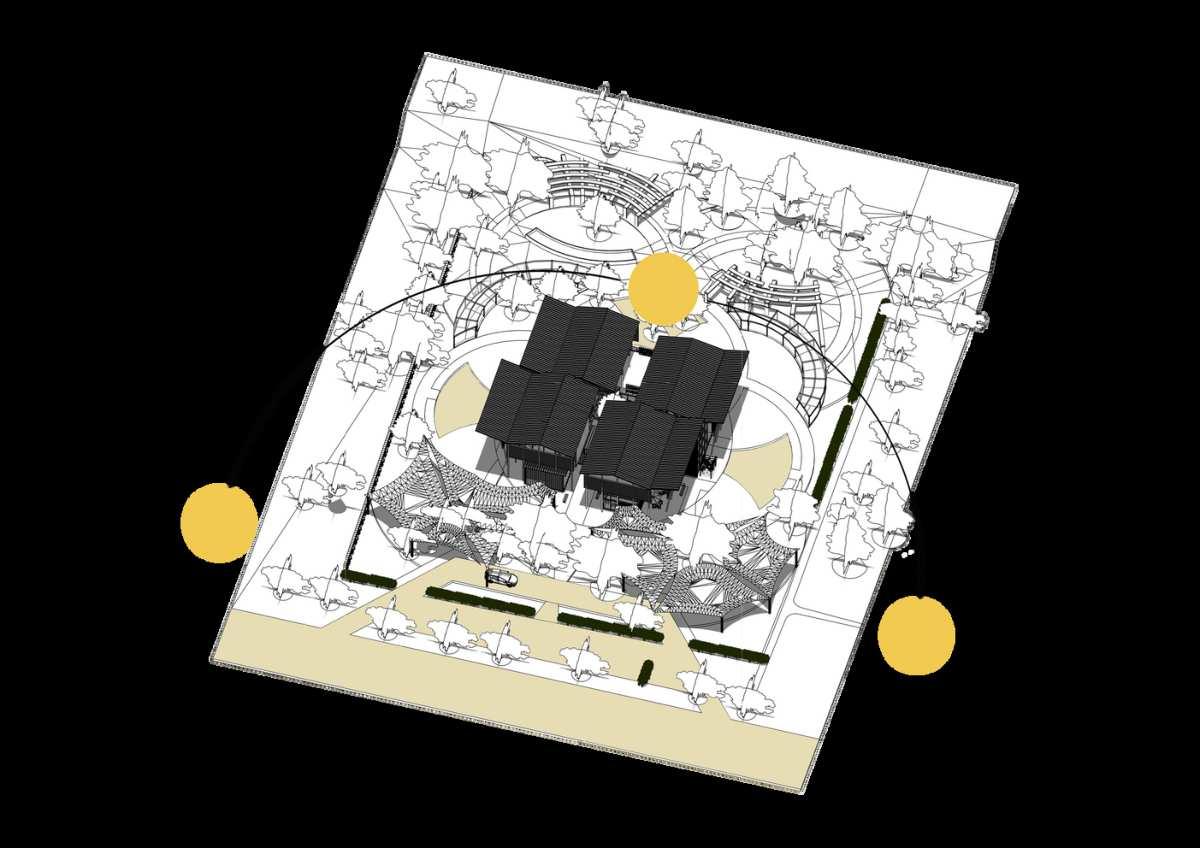

As it rises and sets, the sun moves from east to west, giving the area the most sunshine possible.

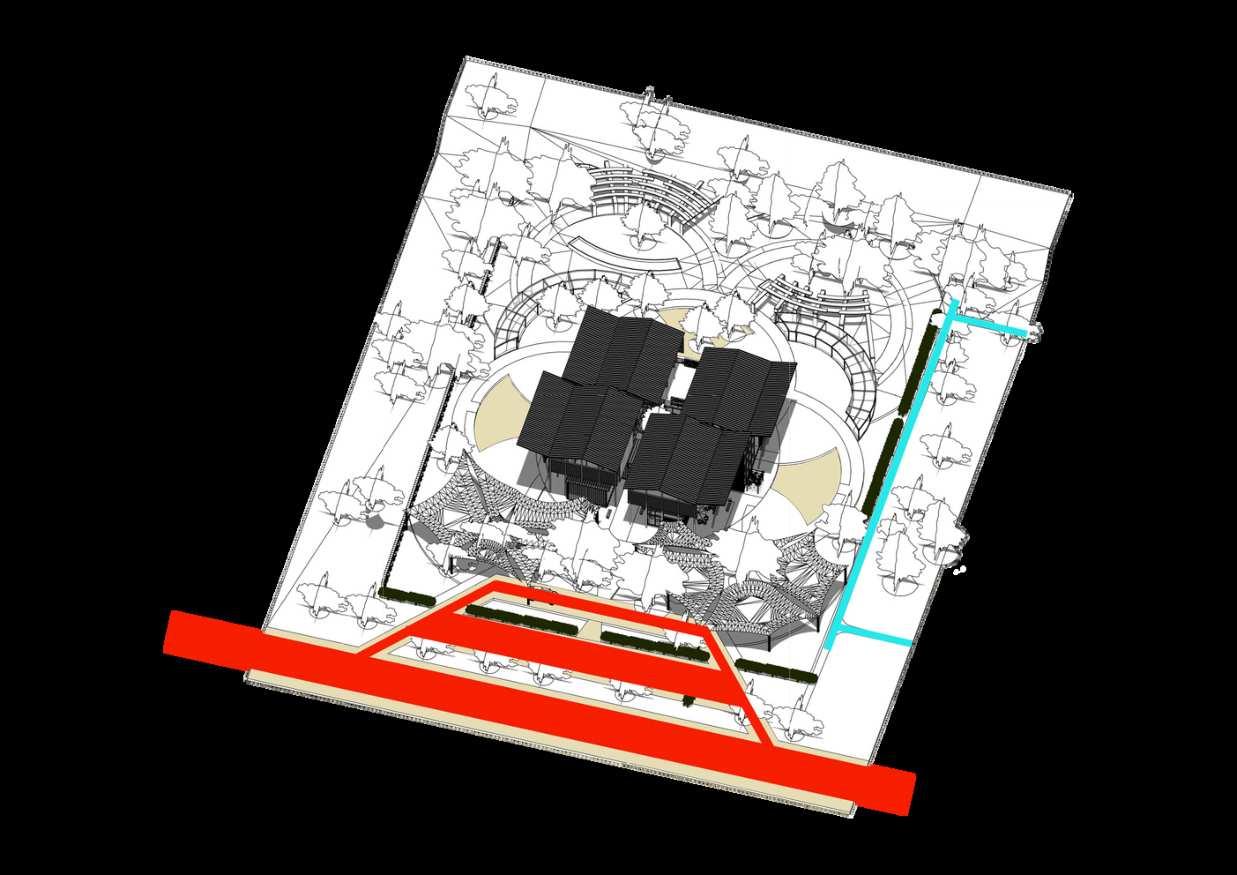

There are two entrance one main as highlighted red and the second entrance were highlighted in blue it is a small entrance for the park user to reach it

ROOF TO FLOOR SECTION 1:50 Shows the detail of the structure inside in a bigger image The roof structure as well as the detail in it and also how the water are transfer away from the roof

Steel Beam Rafter Steel Truss

Timber Planks

Steel Column

Drainage Concrete Foundation

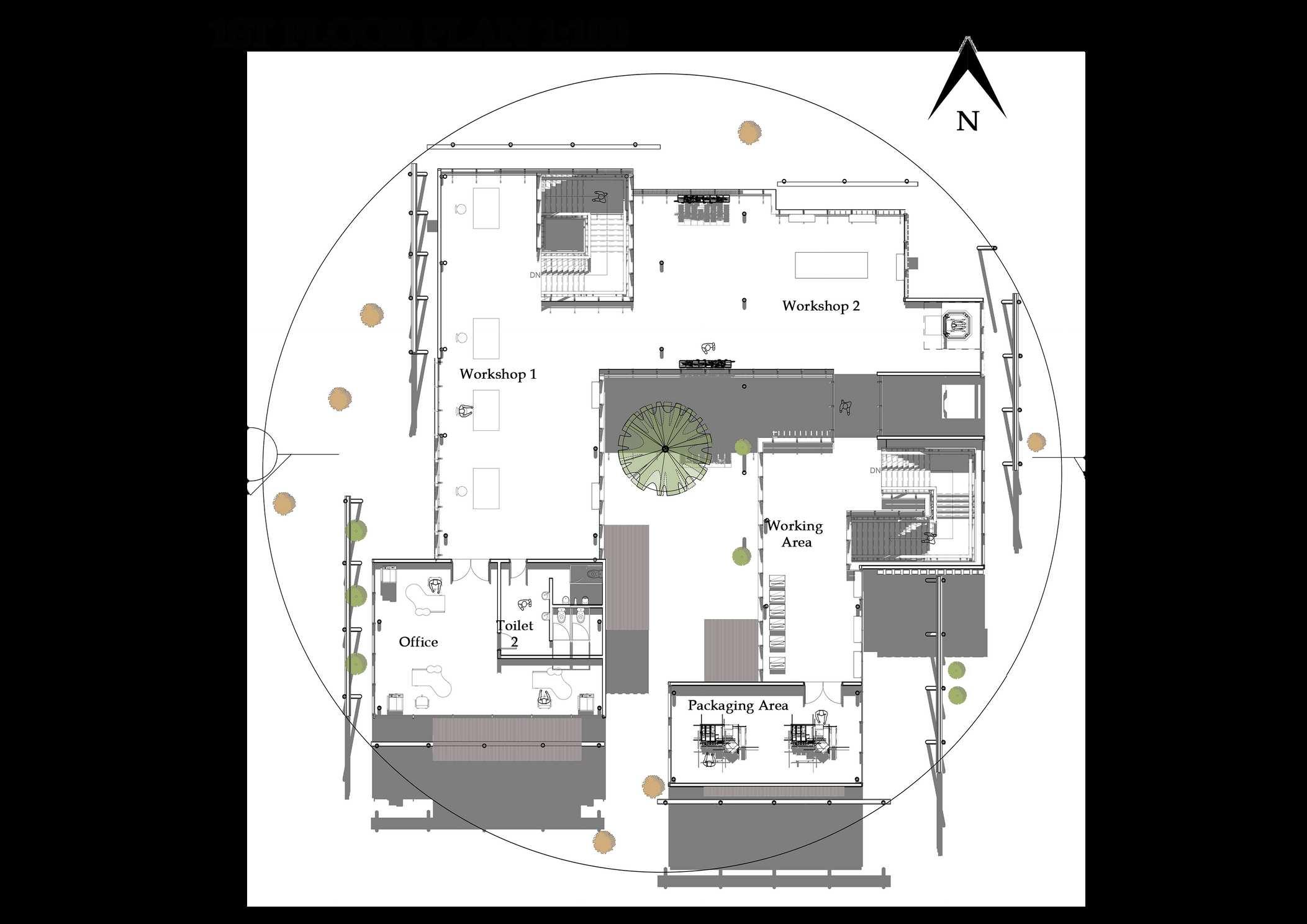

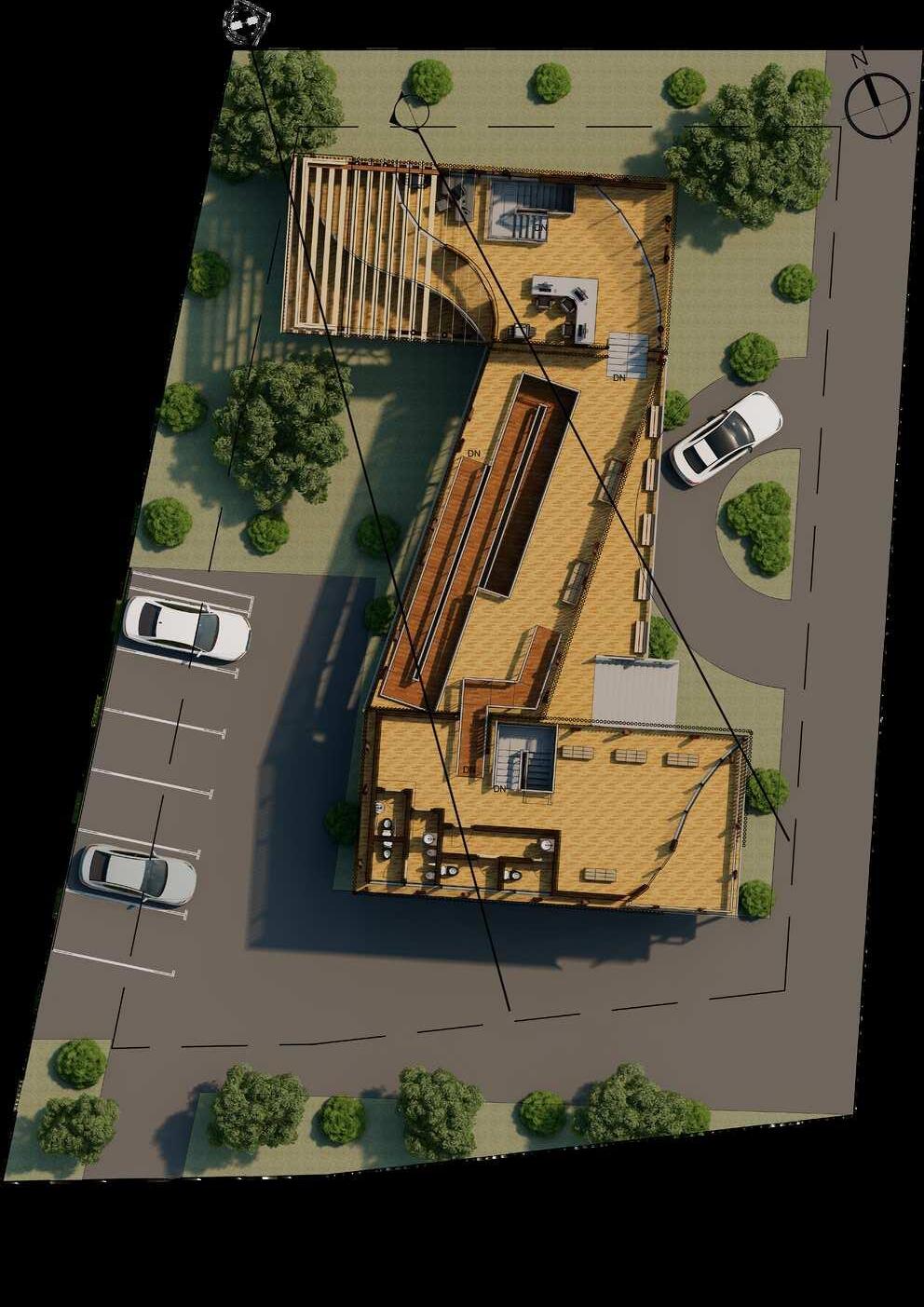

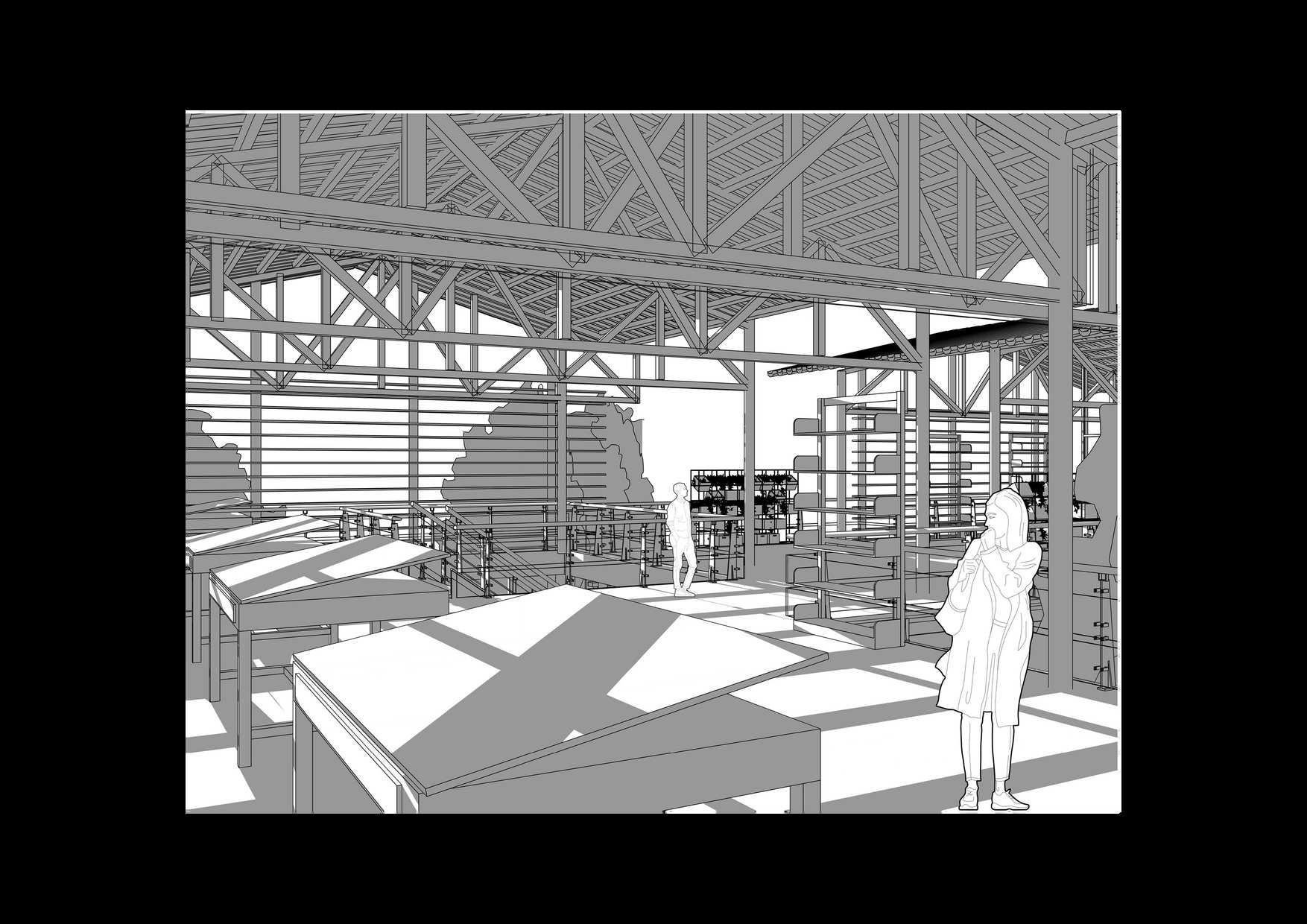

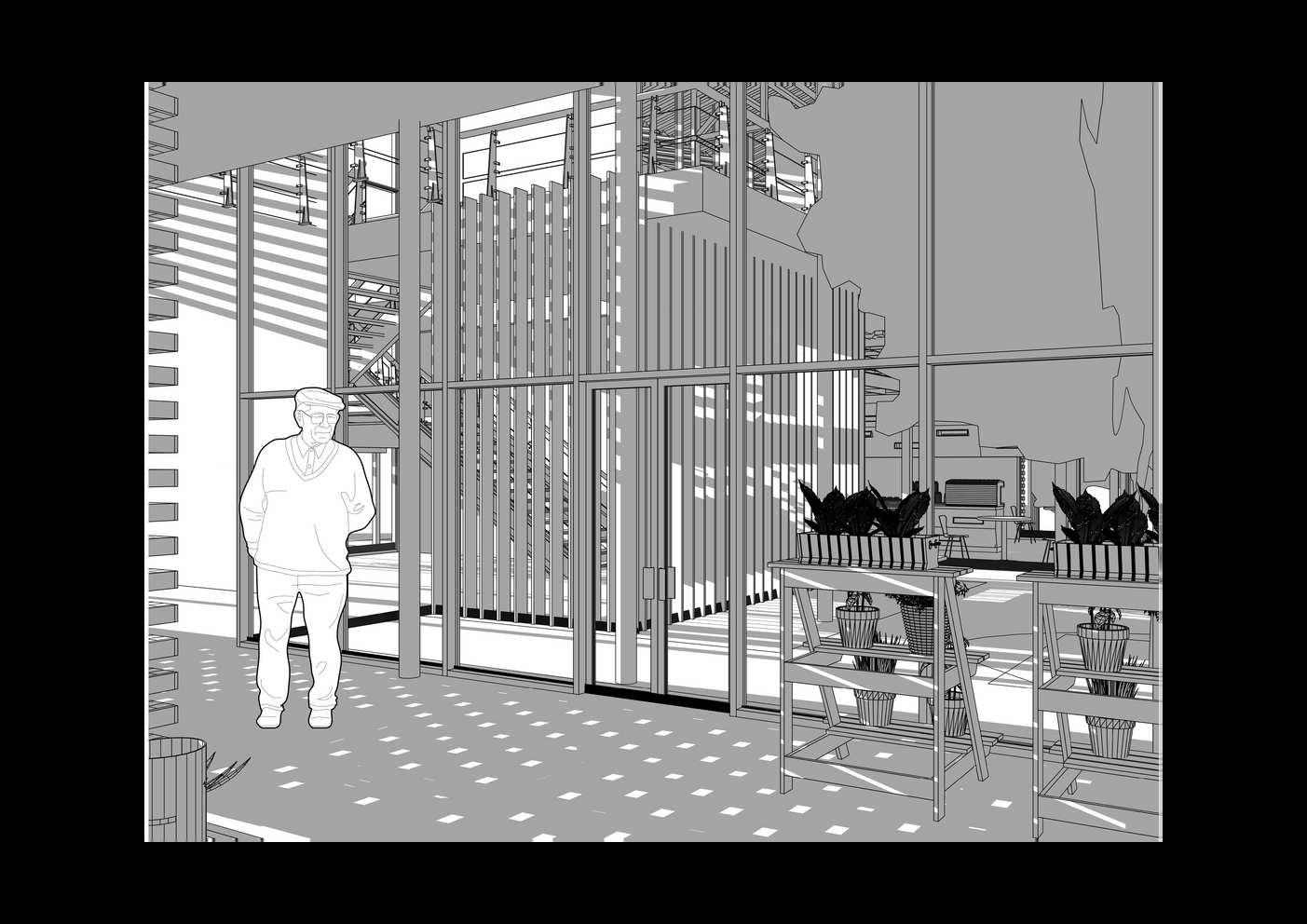

The floor plan adopts a cluster design, with spaces dispersed across the site to create engaging opportunities for exploration.

Public areas, as well as points of interest, are strategically positioned on the lower level to attract visitors and encourage interaction. The main event space is centrally located, just behind a courtyard, serving as a visual anchor that draws attention and invites people into the building.

On the second floor, the design shifts to focus on the workspace for employees, including workshops, working areas, and offices. This upper level is intentionally open, promoting a sense of living in harmony with nature. It is designed as a multifunctional space where activities like farming and other nature-oriented practices take place, further reinforcing the building's connection to the environment.

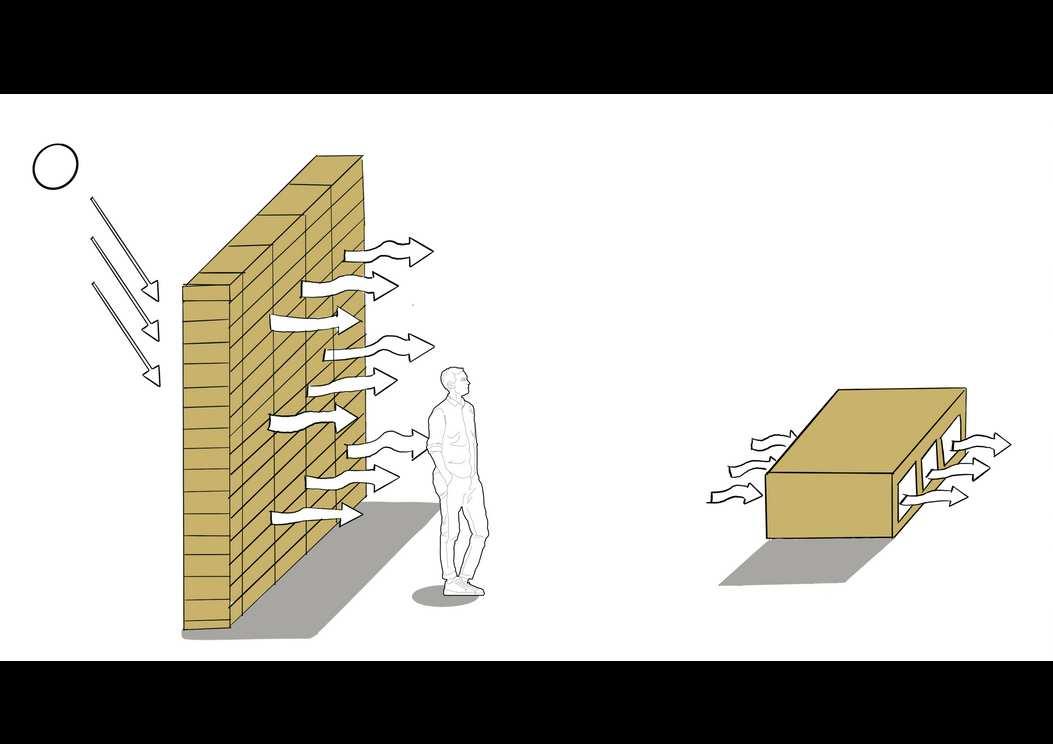

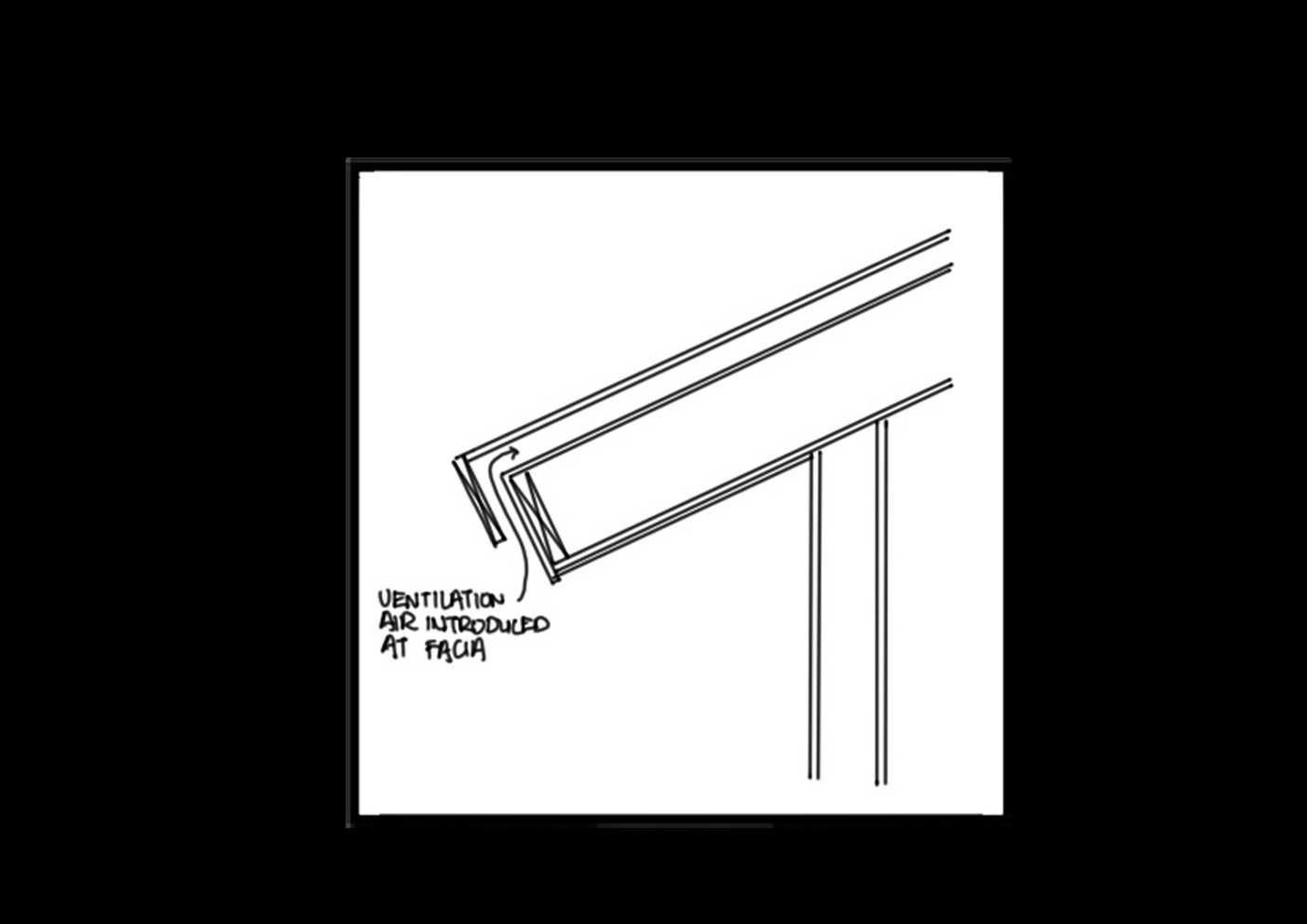

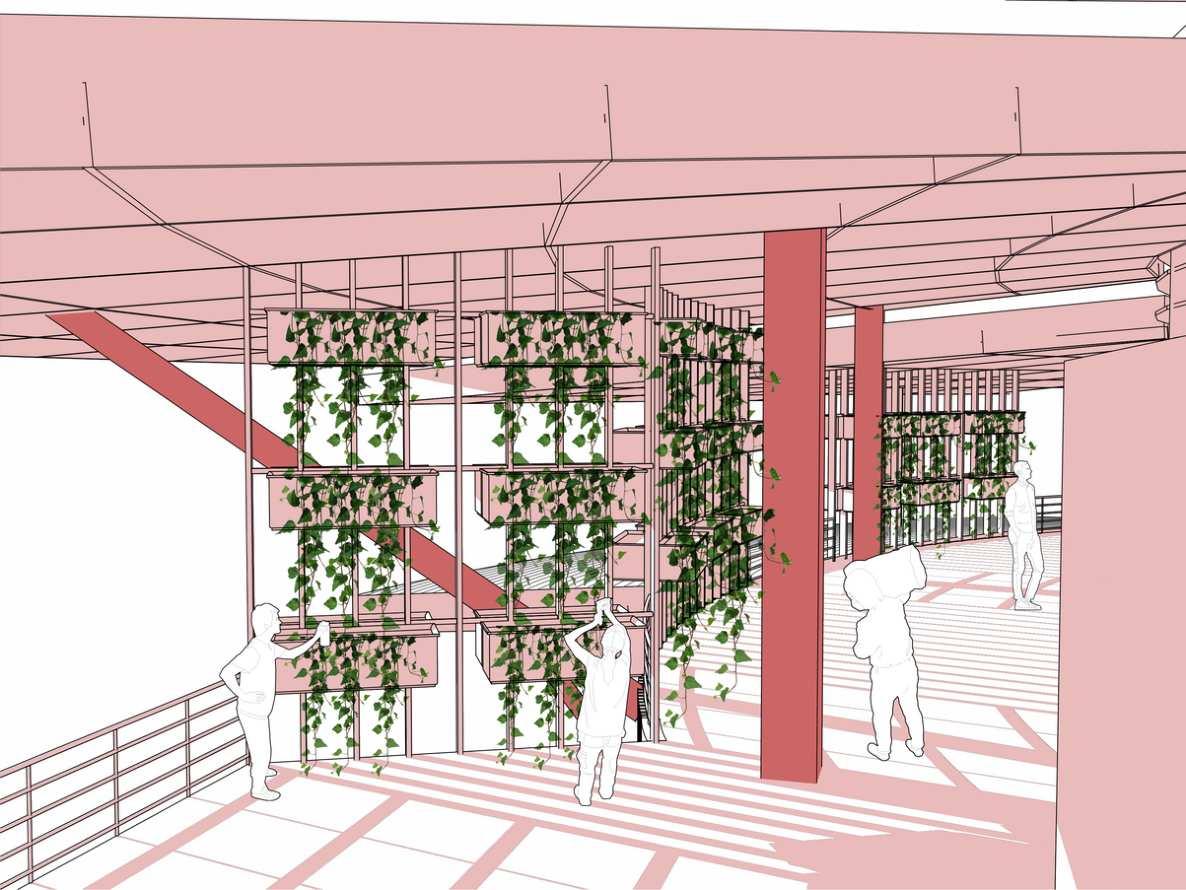

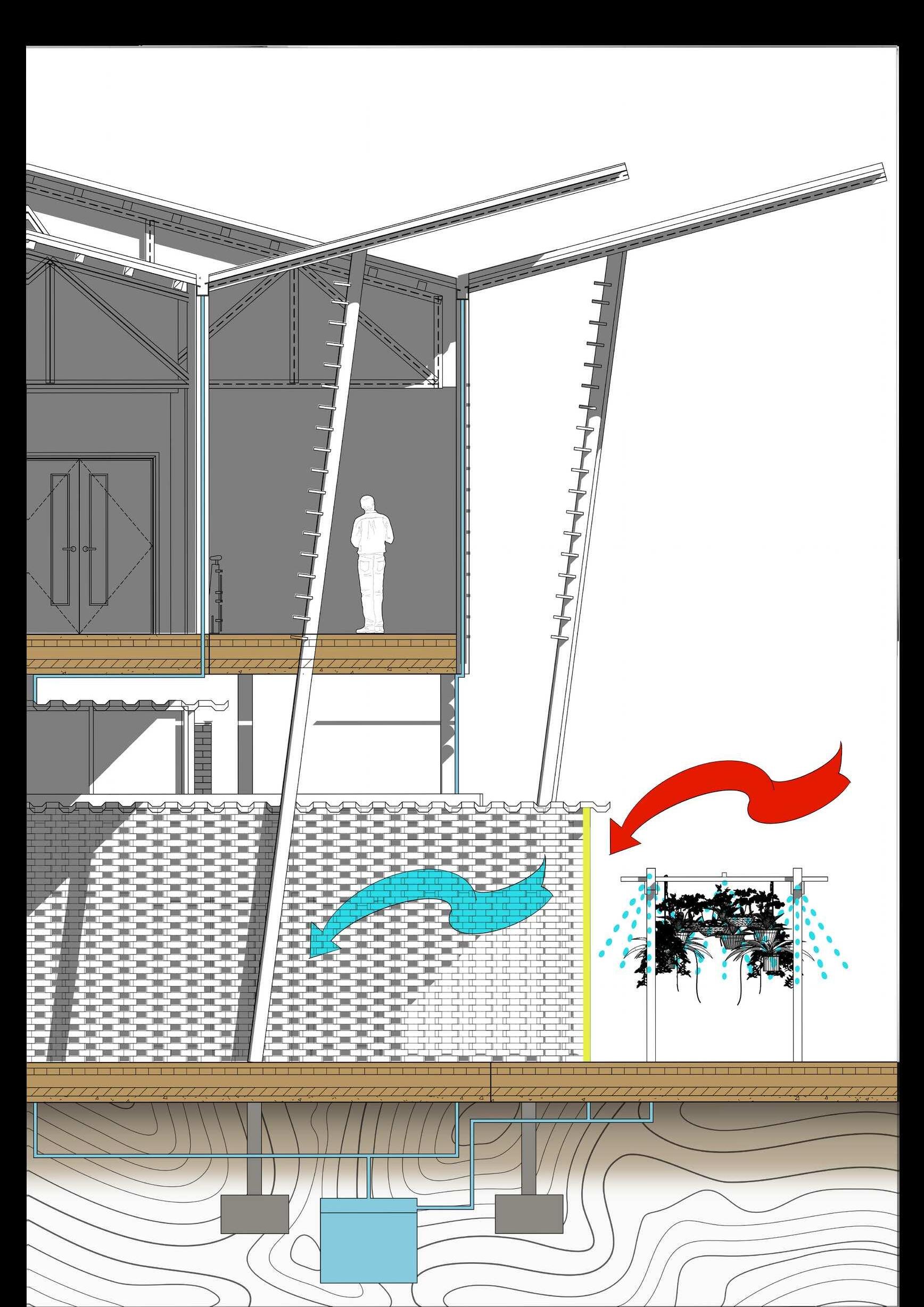

Passive Cooling Wall

Water Pipe System Use as Water for Planting

Rainwater from Gutter Cold Air

Rafter

Pipe

Hot Air Wind

Moist Void Brick

Main Tank

Filter Pump

Water Pipe Metal Cladding Roof

Steel Beam

Round Steel Column

6 Panel Steel Truss

Moist Void Brick

Timber Planks Brick Wall

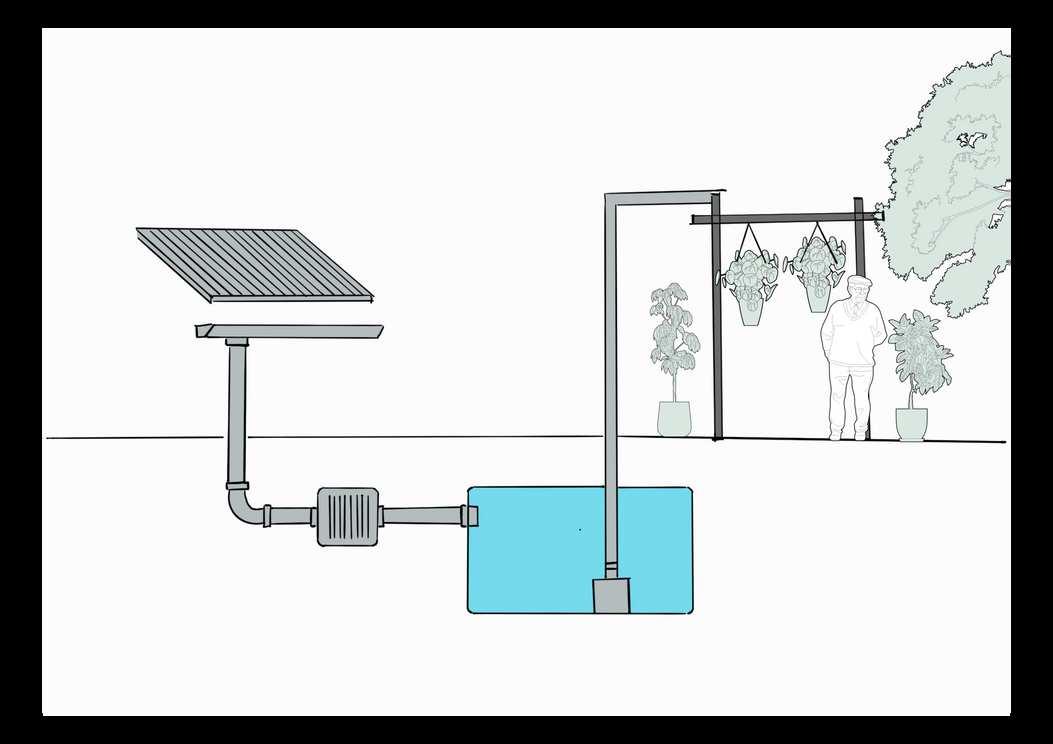

Self Sustain Water System

Concrete Flooring Glass

Passive Cooling Wall

Water Tank

Railing

Perforated Brick

Timber Column

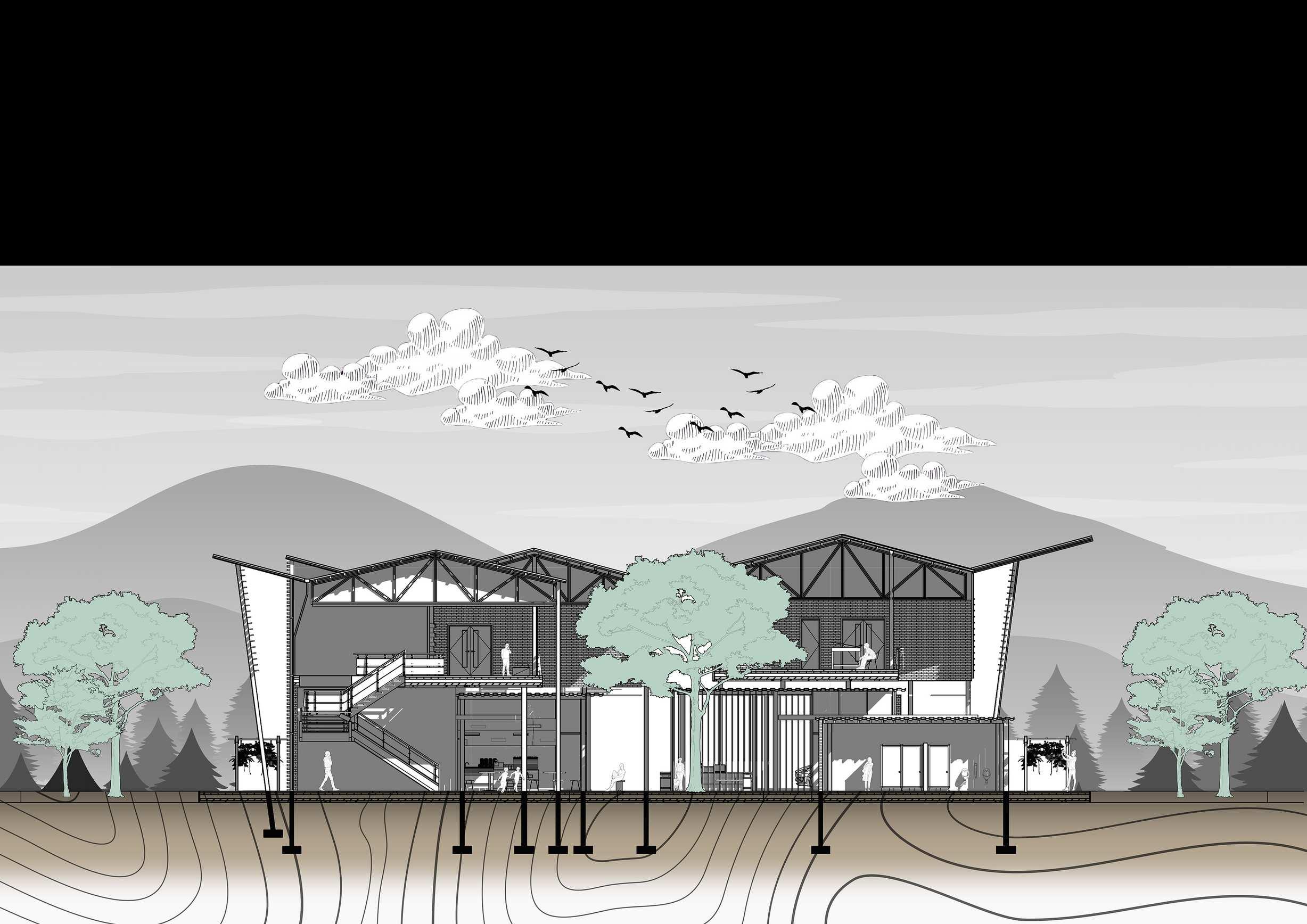

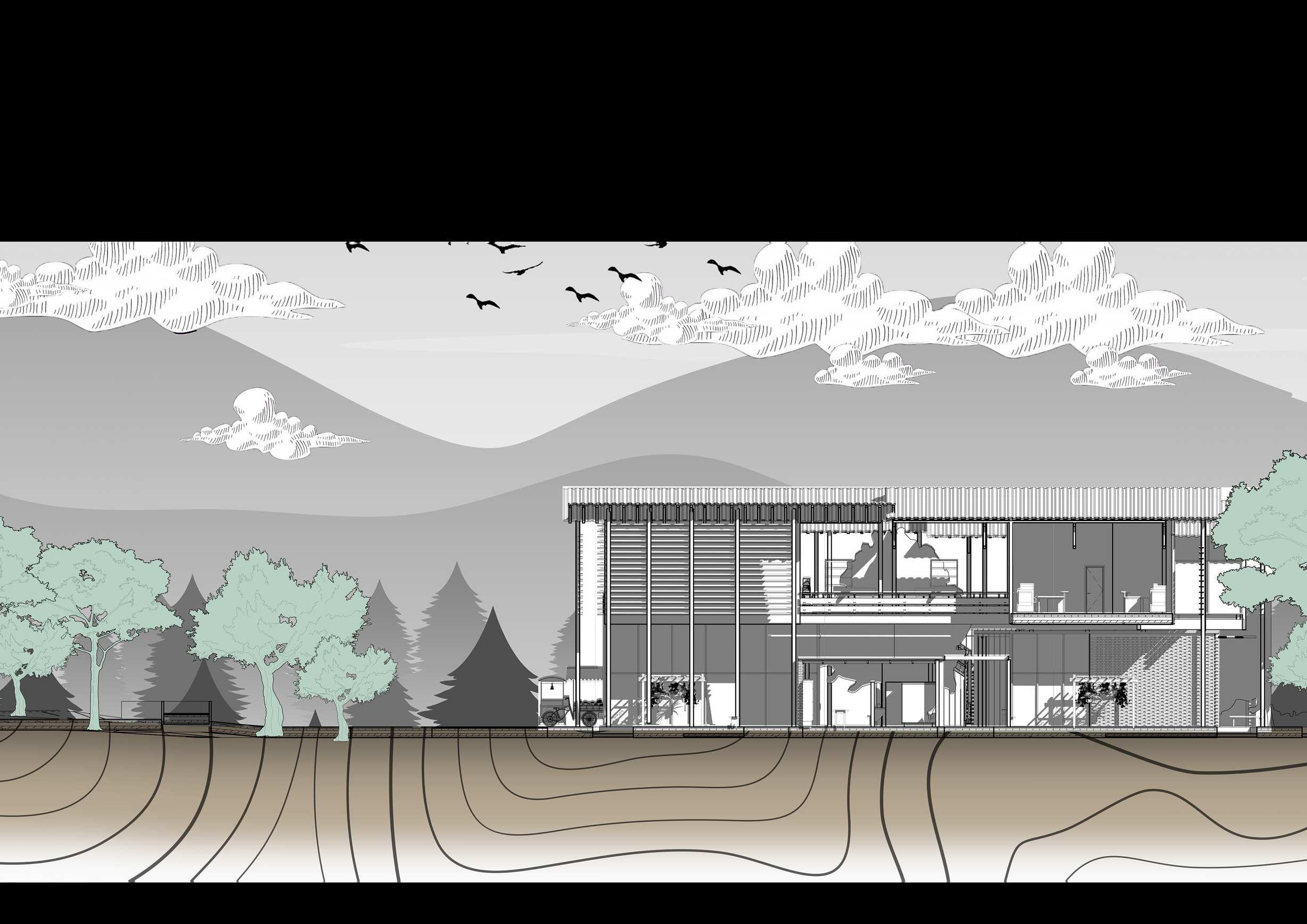

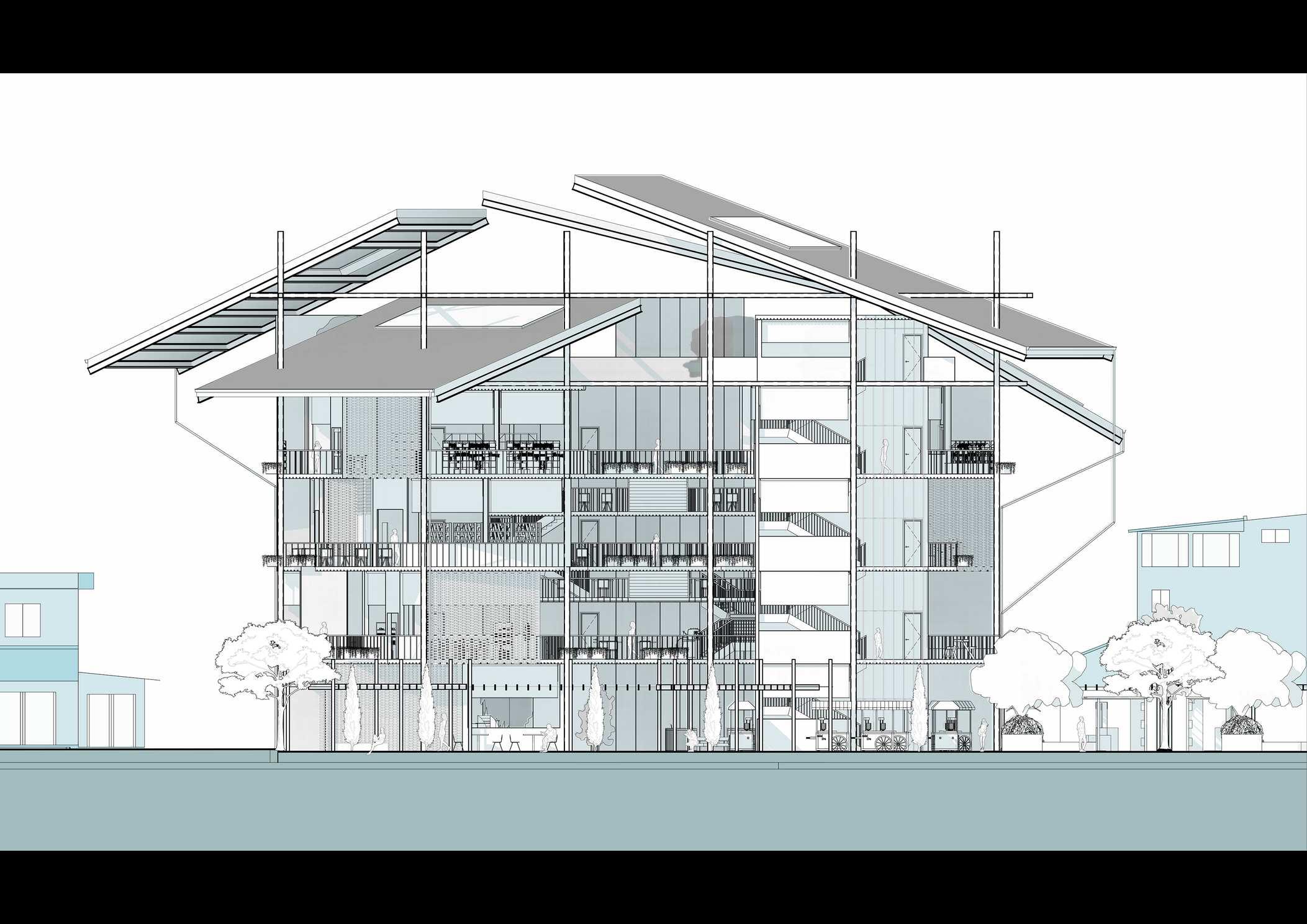

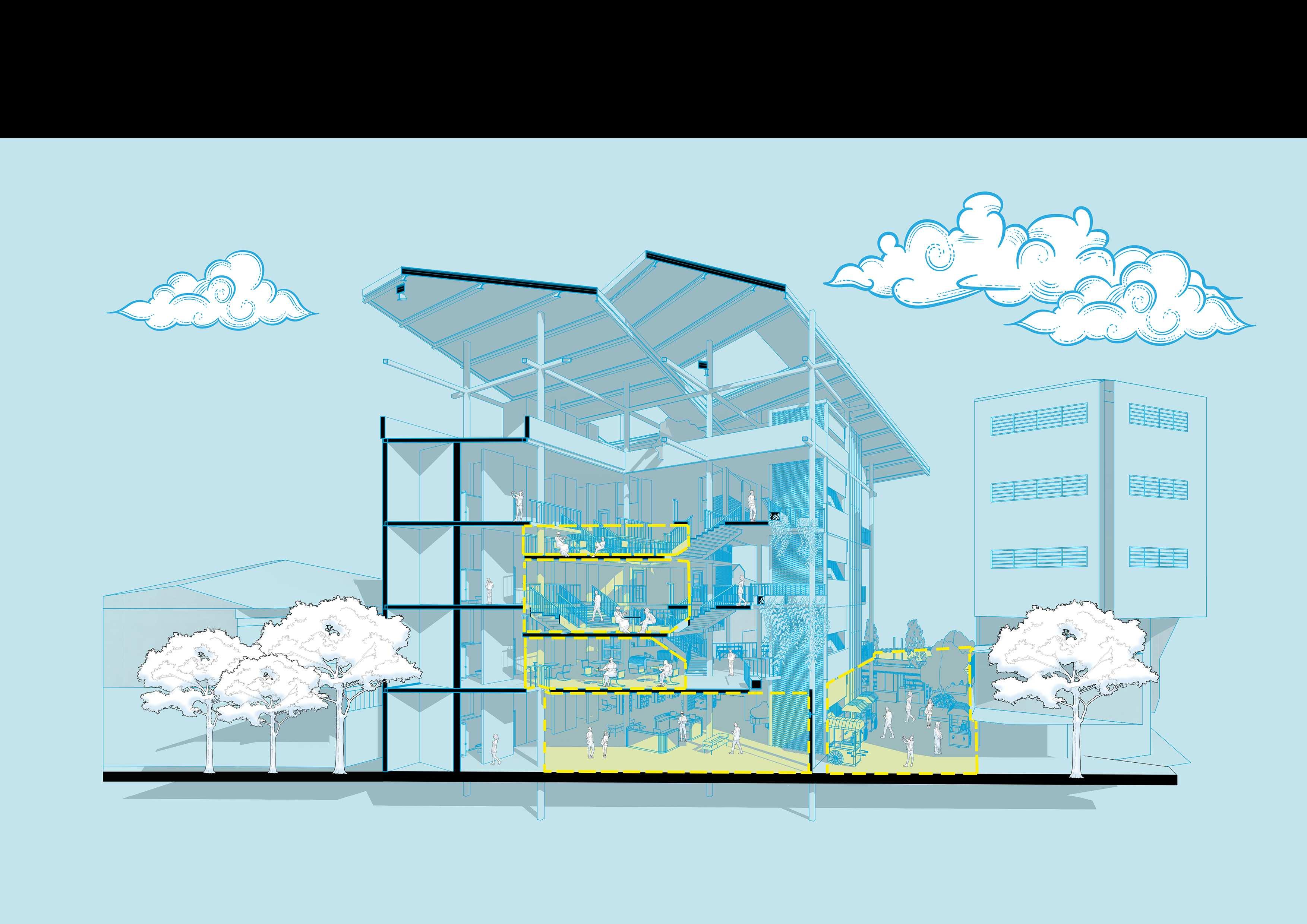

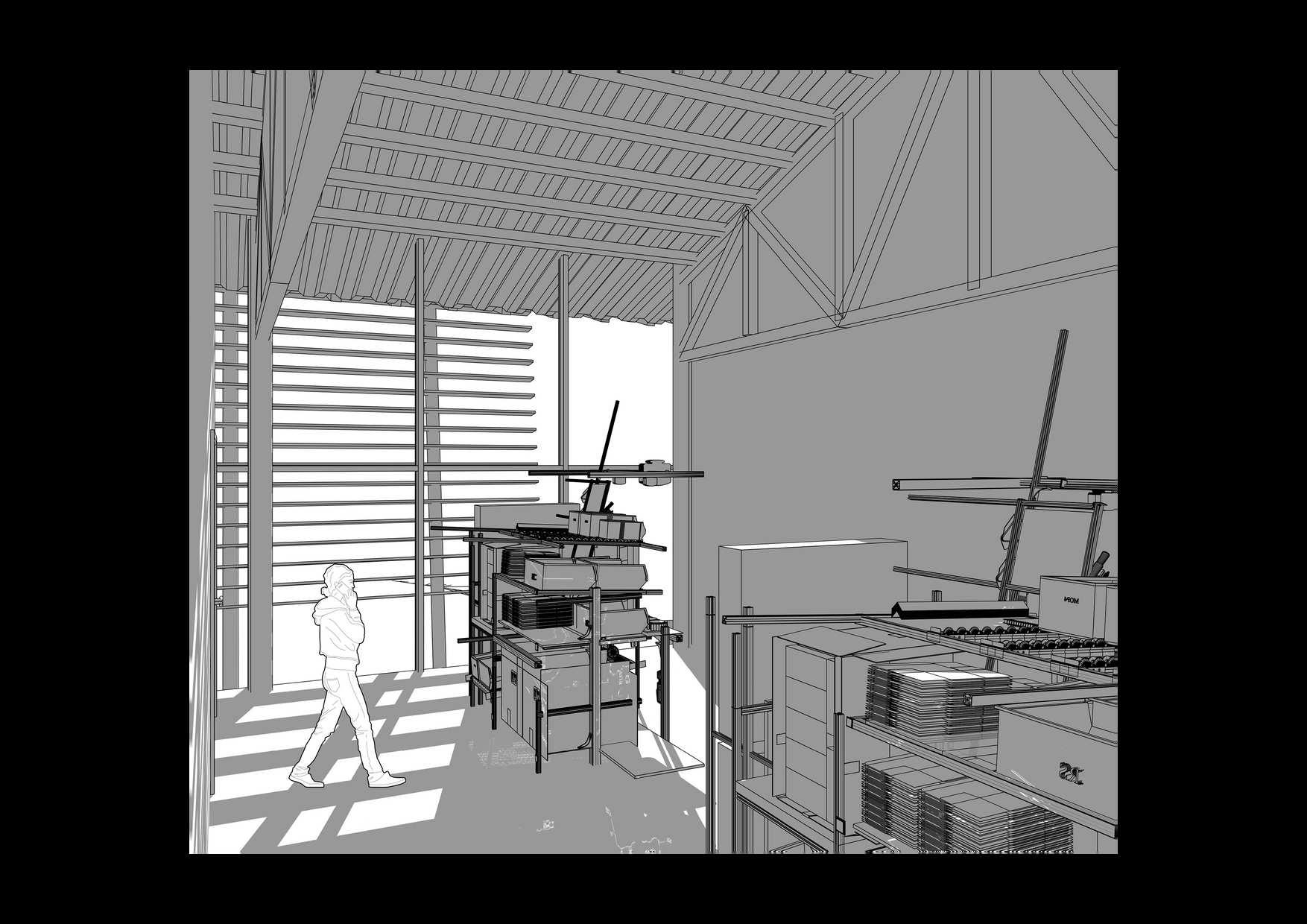

SECTIONAL PERSPECTIVE A view into the building showing the context inside

Brickfields, Kuala Lumpur

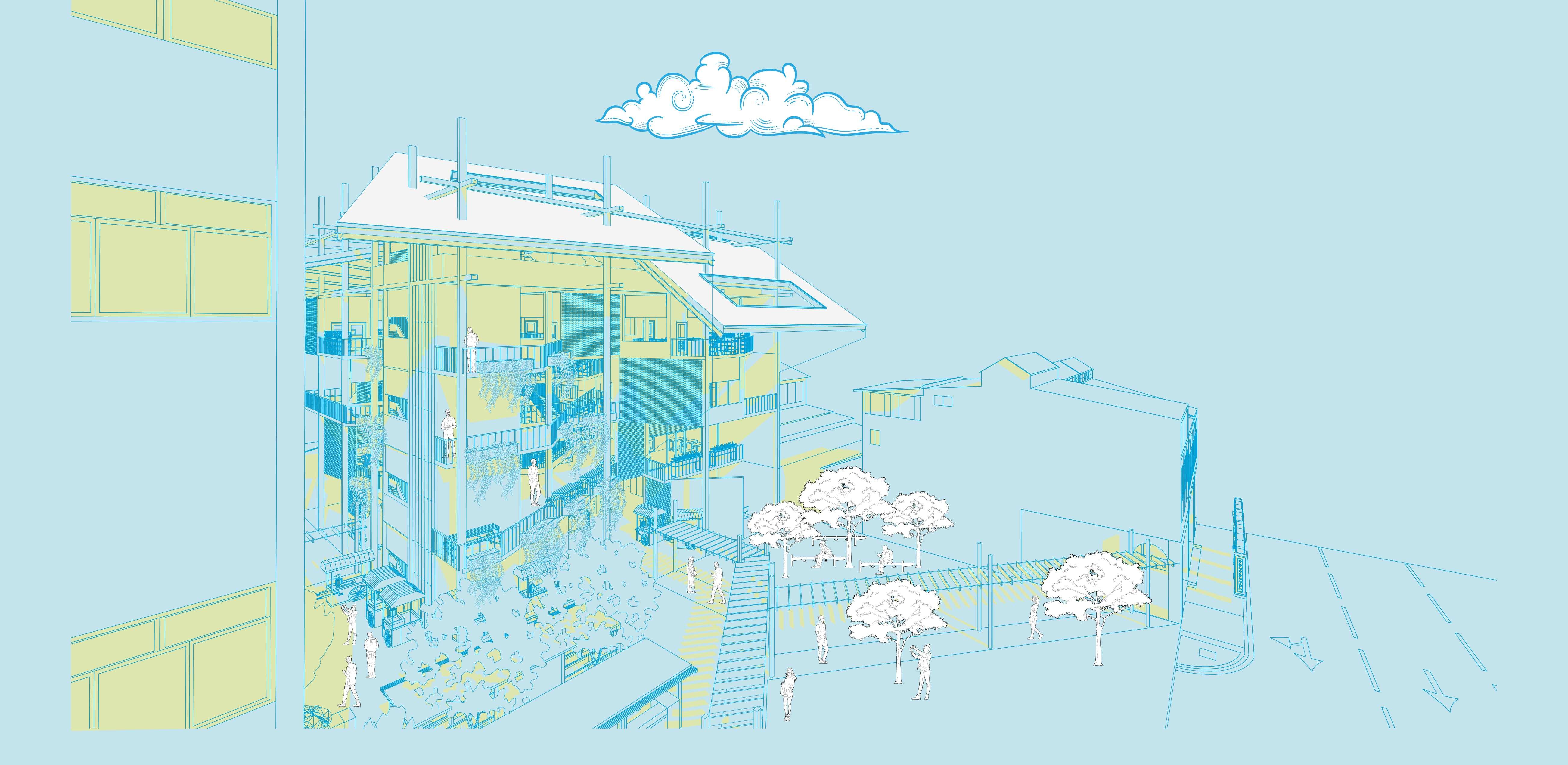

03 THE SHARDS Dispersed and Fragmented Once a tightly-knit community, Brickfield now finds itself dispersed and fragmented following the removal of its hundred quarters. The palpable sense of unity that once defined this neighborhood has dissipated, leaving a void in interpersonal connections. This transformation has manifested in the current state of Brickfield , where the communal bonds that once thrived have given way to disconnected segments.

Recognizing the significance of restoring the community spirit that defined Brickfield's past, this project aims to reunite the disparate parts of the community, mending the fragmented puzzle that now characterizes the area. The vision is to not only resurrect the bygone unity but also foster integration among the residents. By addressing the fractures in the community, the project aspires to cultivate a shared sense of belonging and pave the way for collective growth as Brickfield continues its development journey into the foreseeable future.

Brickfield’s Community Center Intentions?

Fragmented

People

Space

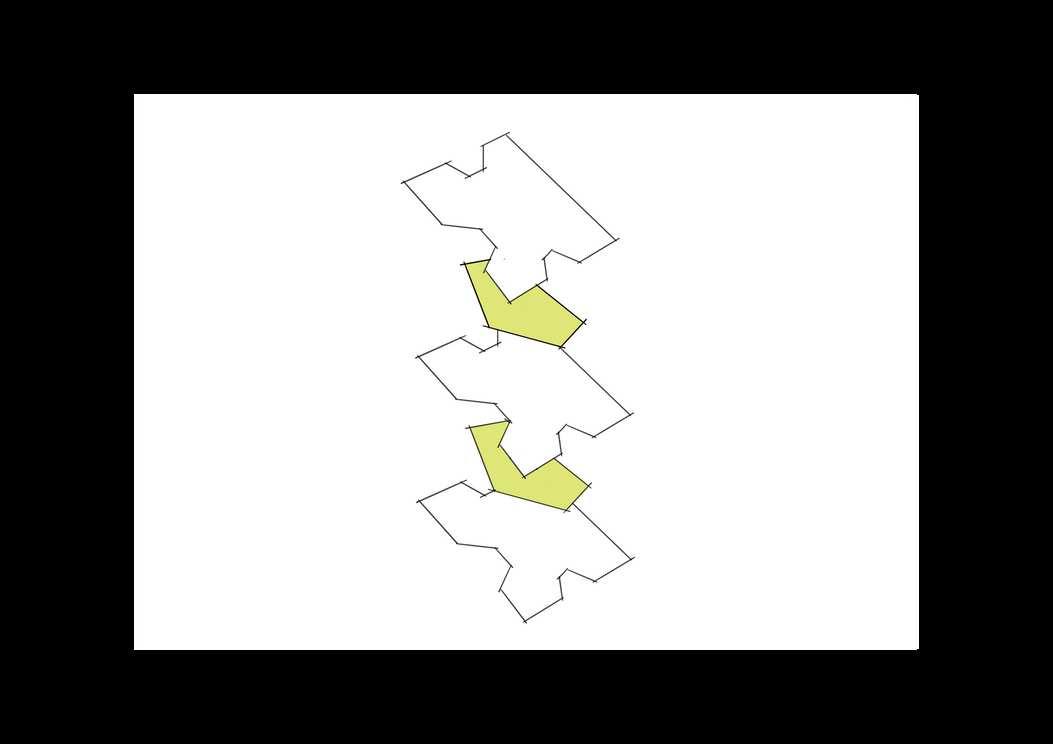

Assemble & Integrate

Community

THE SHARDS Dispersed and Fragmented

Learn

Work

Play

The idea of having a community centre for the residence and it intensionly exist to help improve the community in brickfields. It serve as a place for learning,working and playing.

The use to 2 key word assemble and integration is being applied in the design. Therefore it consist of open space/ void space intentionally to allow possible assemble and integration happens during the visit of the user.

Relevant Question Can the community centre brings out the idea of assembling the community of brickfield. Will it be able to bring back the original brickfield community and maintain it in the long run ?

Semester 5

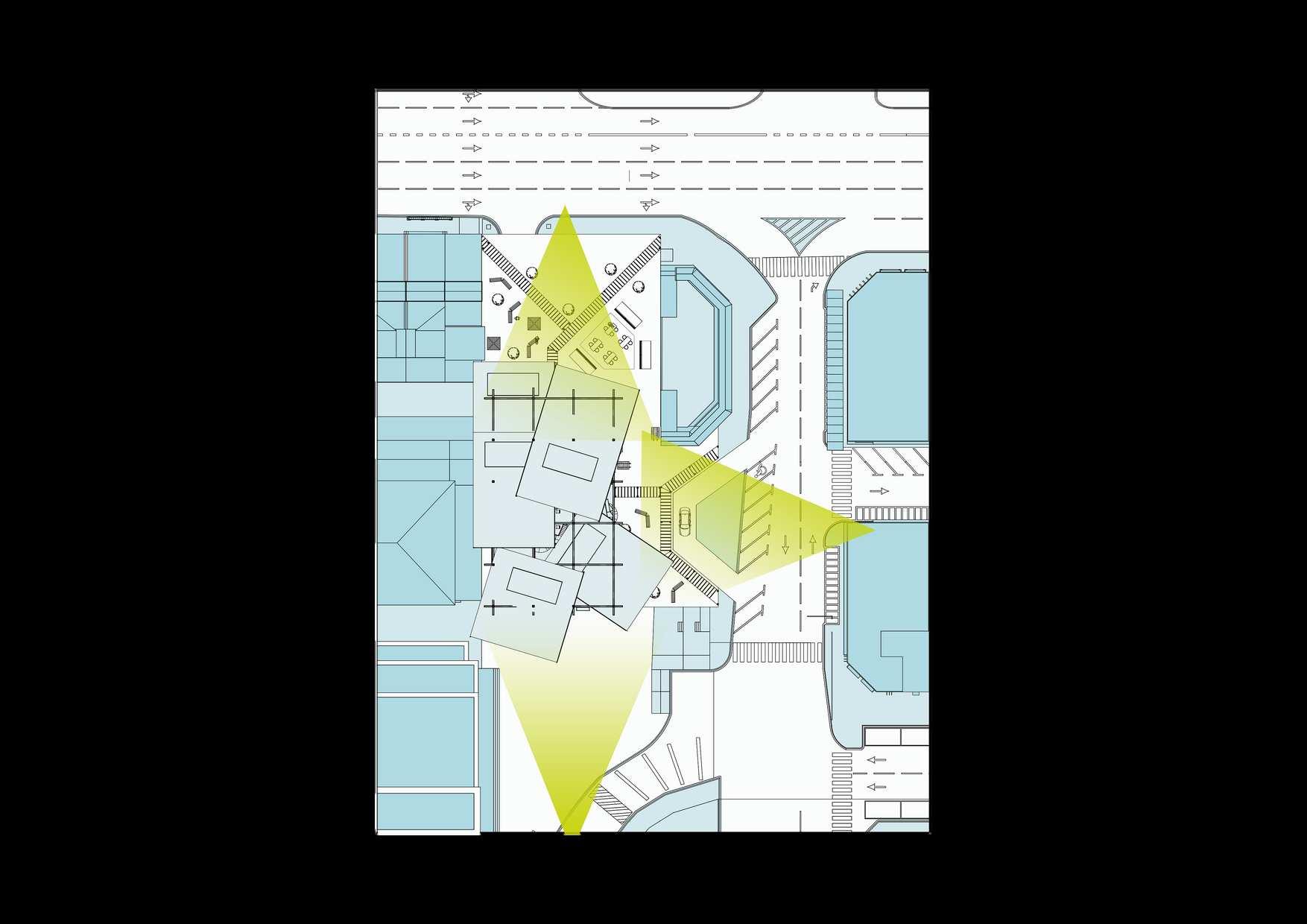

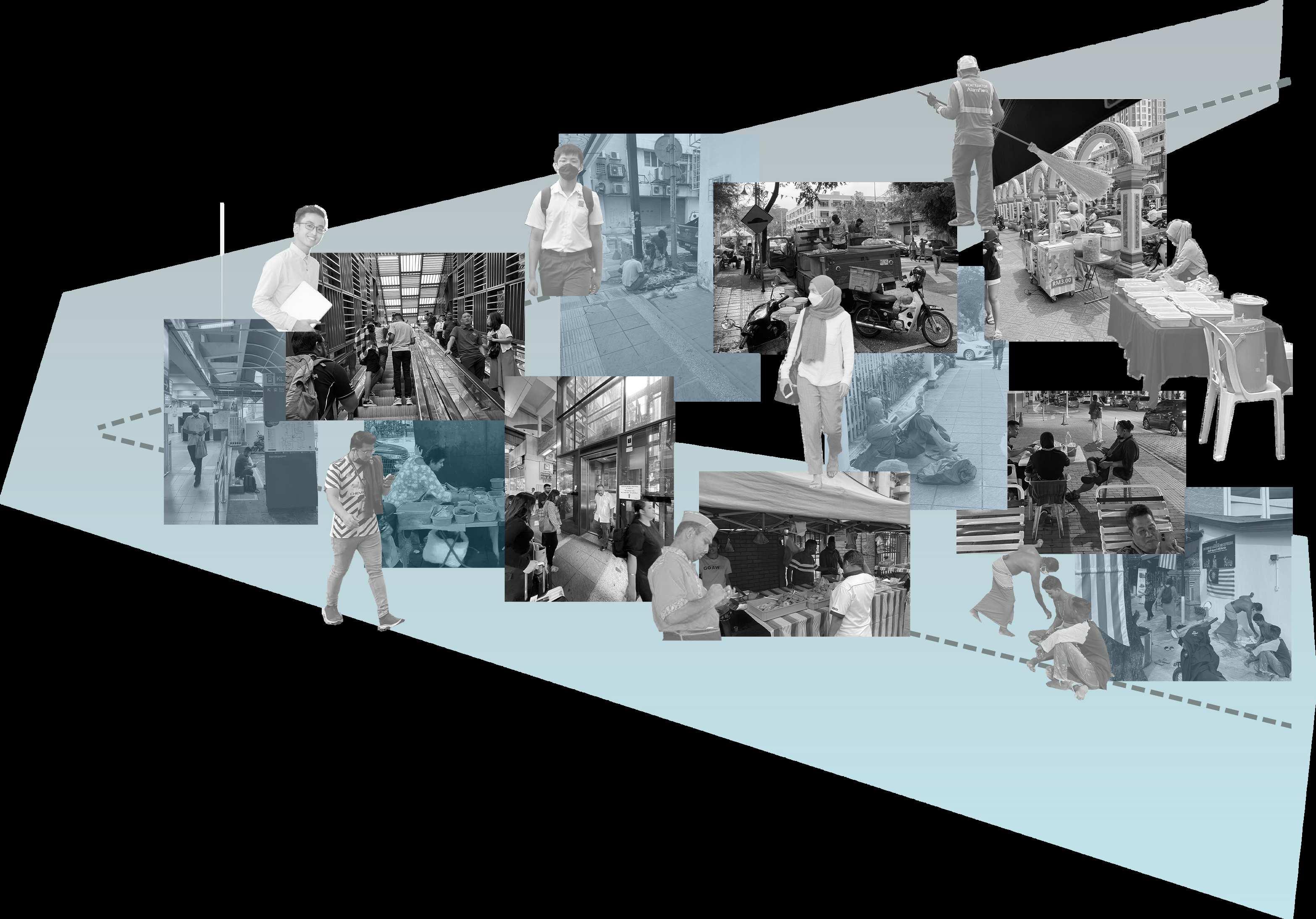

Sense of Place The community is dispersed into distinct areas where various user groups engage in diverse cultural and recreational activities, yet the prevailing fragmentation imparts a sense of segregation and distance to the overall environment.

Brickfield’s Community Center Brickfields, Kuala Lumpur

The site is located in Brickfields, commonly known as Little India, a vibrant and culturally rich area. It is surrounded by shop lots and parking spaces, with the building positioned adjacent to the shop lots on one side and facing the main road on the other. The site benefits from its proximity to various public amenities, including a public car park, NU Sentral shopping mall, and nearby monorail stations, offering convenient access for visitors and making the location highly accessible.

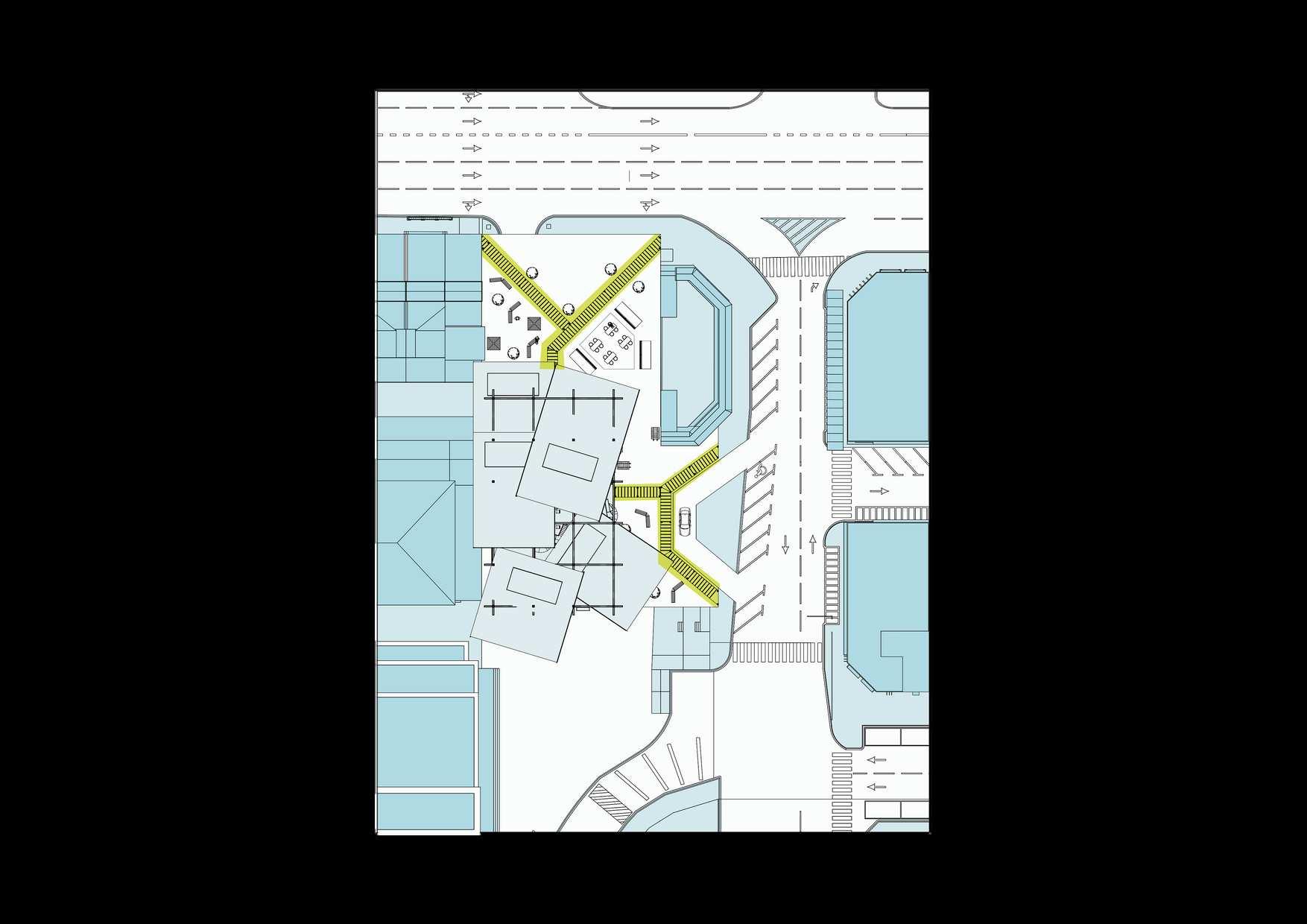

Pathway helps to lead the visitor into the building during bad weather. Ensure good walking experience throughout building.

Opening on all three sites to allow easier entrance and also more possible route for the visitors to explore during the visit

The choosing of site B allow the building to get more exposure from all different sides so that its unique looks could be seen and attract visitors

The drop off point is relocated to the site of the building to ensure the fast and hectic traffic outside does not affect the visitors during the visit

S

W

O

T

Strength

Weakness

Opportunity

Treat

GREAT ACCESSIBILITY AND STRATEGIC LOCATION

BUSY ROAD AND FACILITIES THAT ARE NOT USER FRIENDLY

THE NEXT ICONIC TOURIST ATTRACTION

HARD TO STAND OUT IN A ALREADY MATURE AREA

Located in the heritage trail and beside few major roads of brickfield brings a lot of advantages on people flow due to its accessibility and the strategic location. It located near few nodes of the place like school, NU sentral and etc. With just walking distance, visitors could reach the place.

Busy roads at the main road facing the front of site B. Busy traffic cause by illegal double park and work dismiss hours and other random occasion like holidays or events. During heavy traffic the T junction beside site B will jam causing inconvenience. As a result, longer time needed to reach which may cause frustration to the visitor who may prevent coming to the site area next time

It has the potential on becoming the iconic places of the area with its advantages on location and accessibility to some of the nearest transportation hub KL sentral and the user of KL sentral could reach the place by just walking. It also located near few popular famous brickfield address like moneys corner, NU sentral and popular temples.

Moreover it also located in between the heritage trail which may be a potential nodes of the area.

Brickfield is already a self sustainable area where all the things needed are there.So it would be hard to stand out at that area as there are already present iconic places available there and are already well known also by the tourist.

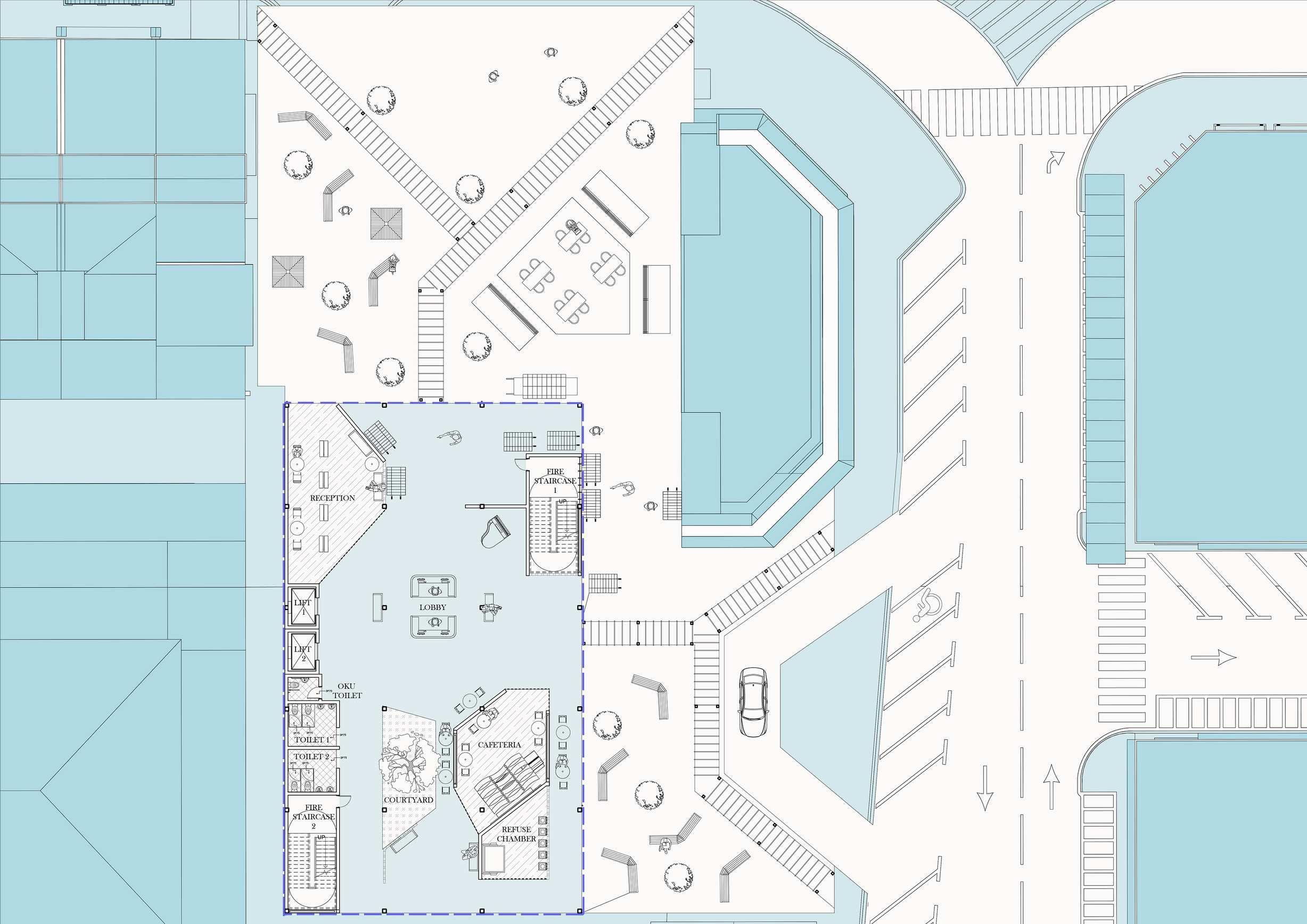

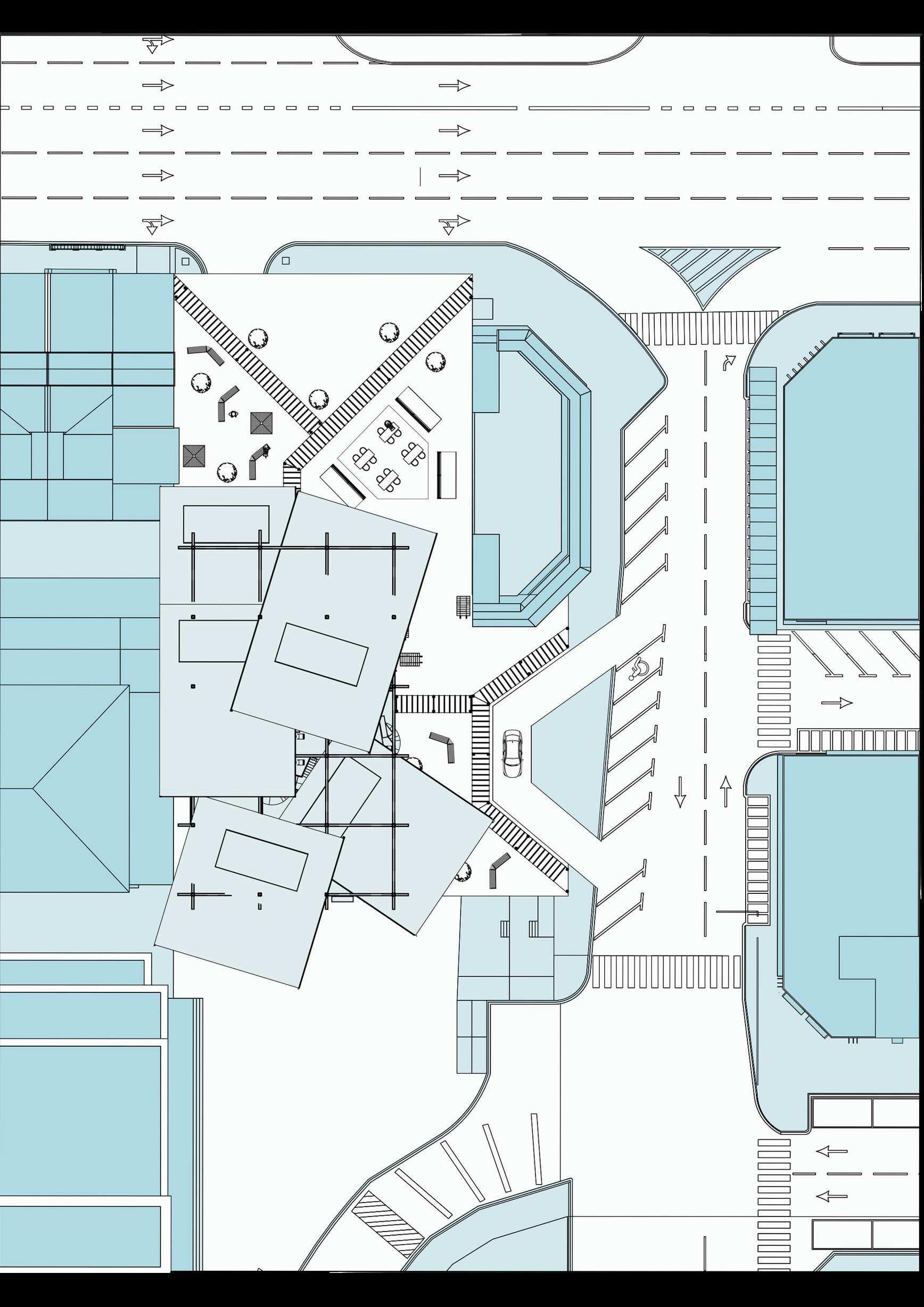

Ground Floor Plan

1 Floor Plan

2 Floor Plan

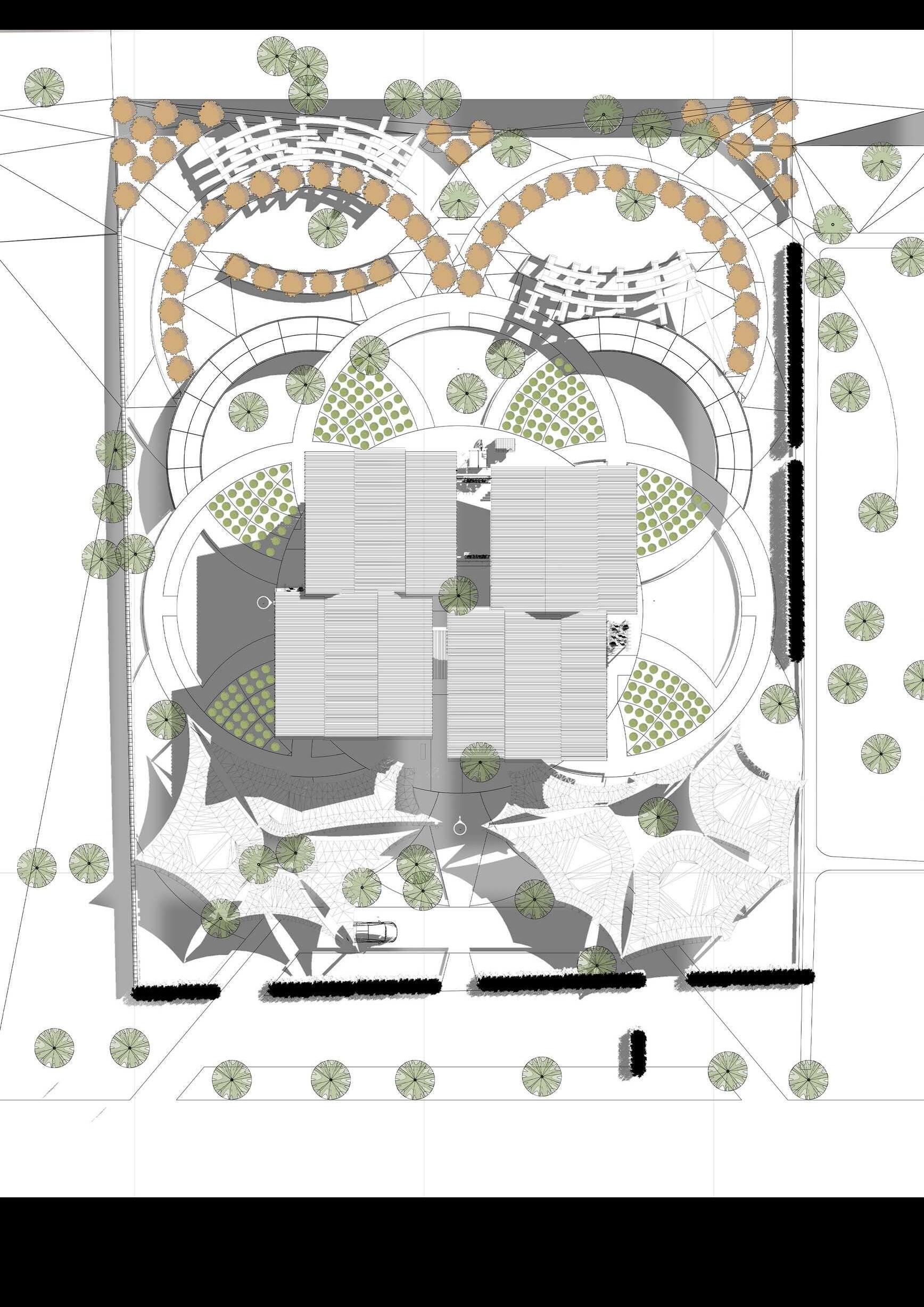

Roof Plan

Level In Between

3 Floor Plan

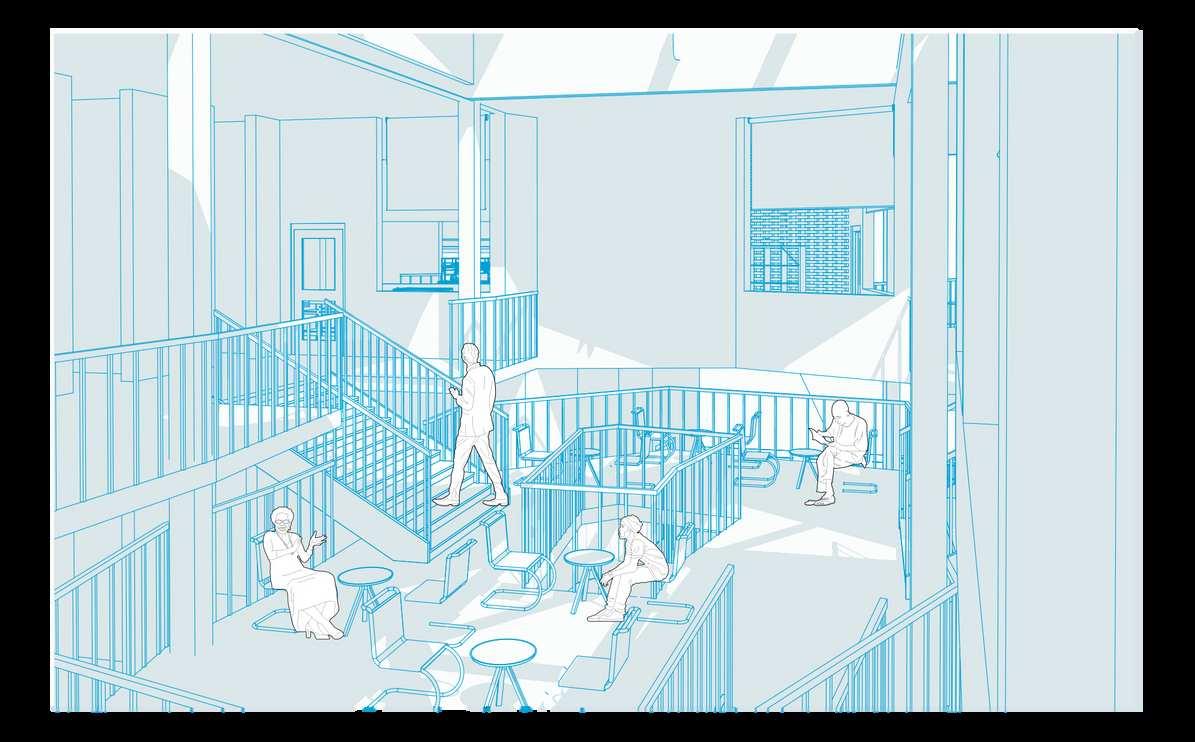

Both located at the center of the void between level 1/2 and level 3/4.These spaces act as a connection between levels as well as a integrate space for different people doing different activities, allow them to have chance to work different things at the same place.

Level 1.5

Level 2.5

Level 1.5

These extended levels are only small space for the user to hangout. It can also be use as link bridge to cross to the other side

Level 2.5

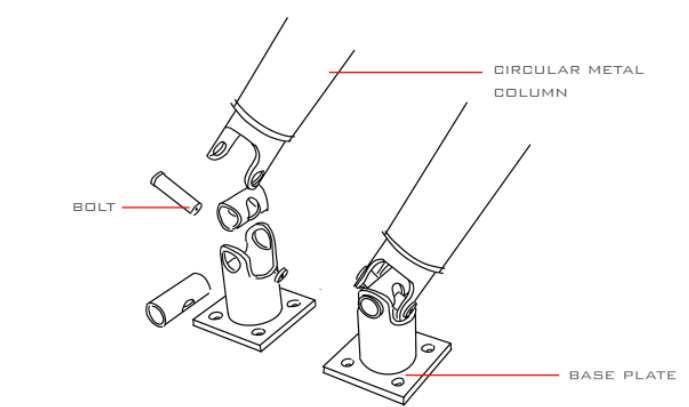

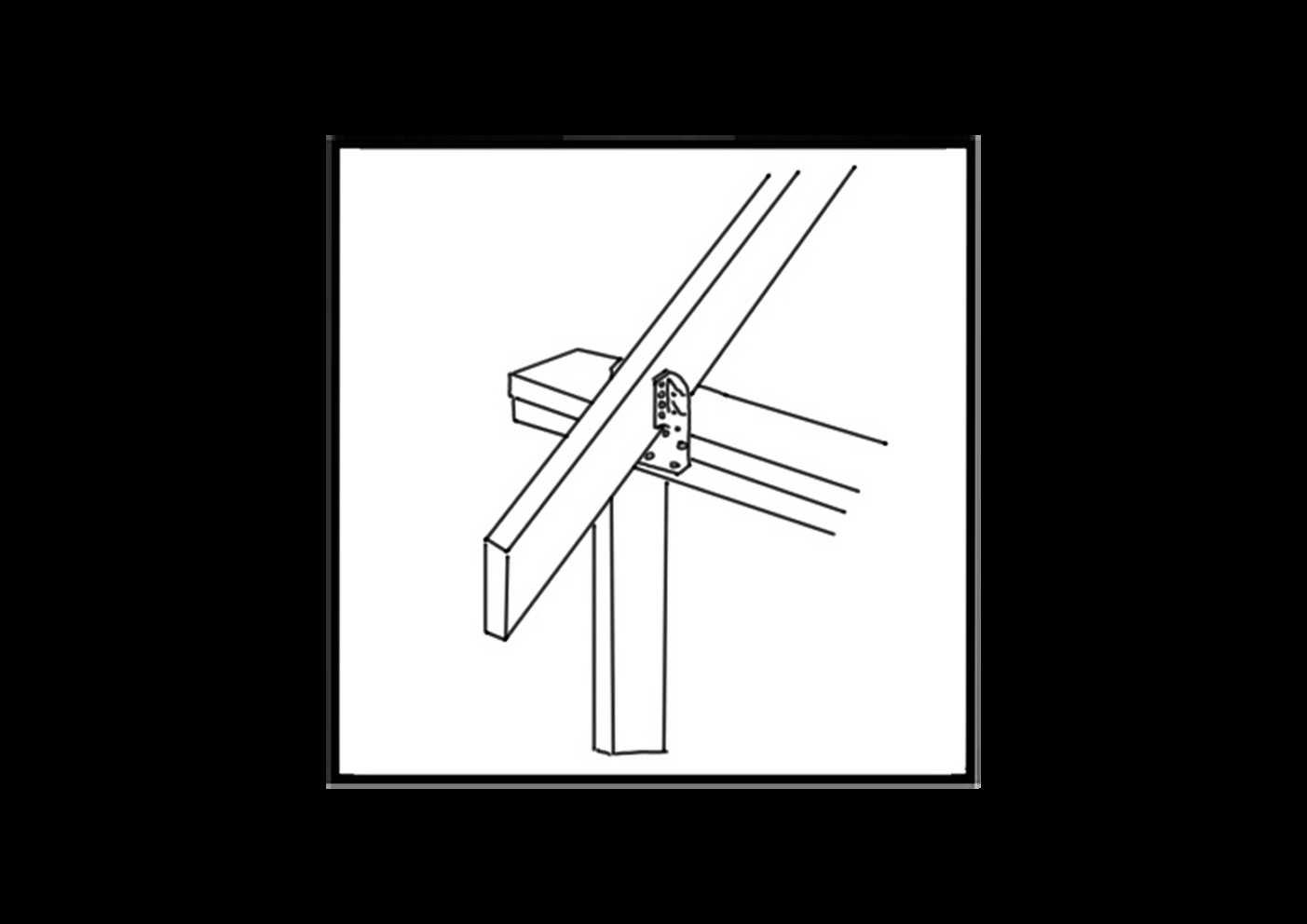

1. Connection and Bolt

Public/ Gather Space

Angles

2. Concrete Foundation

3. Connection Steel Column

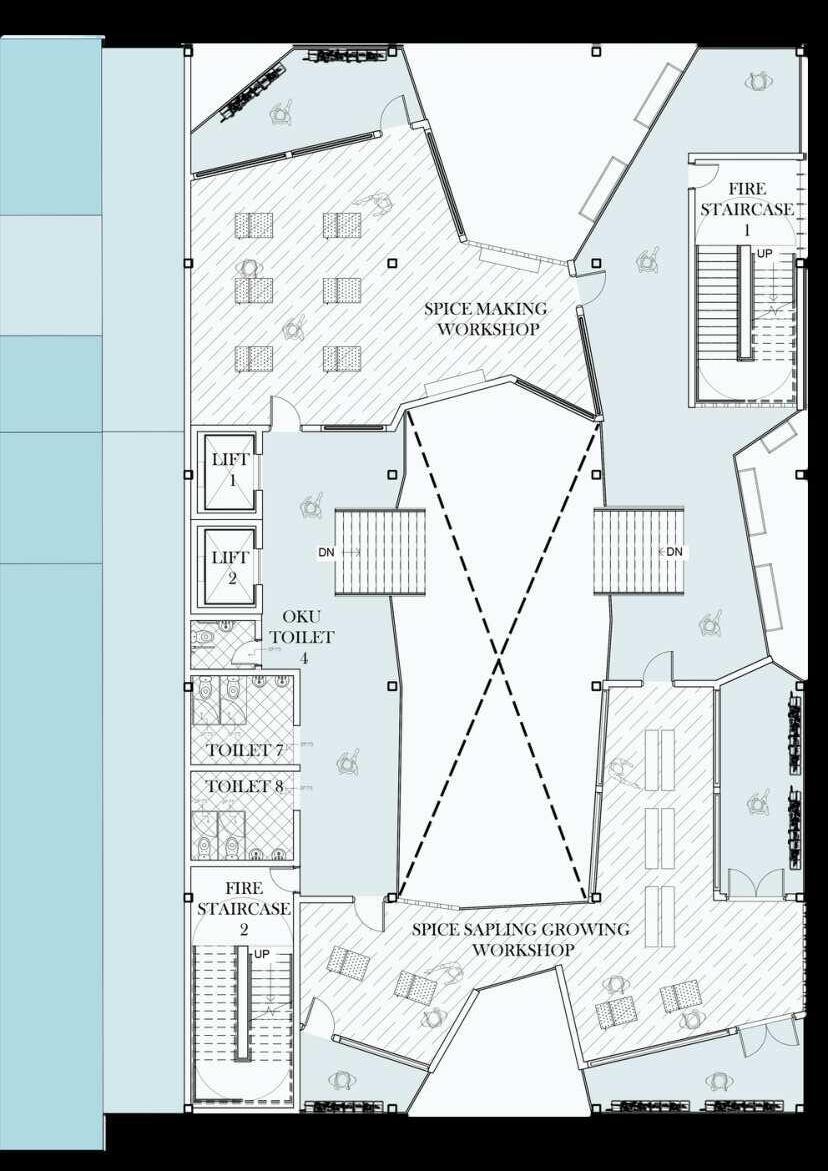

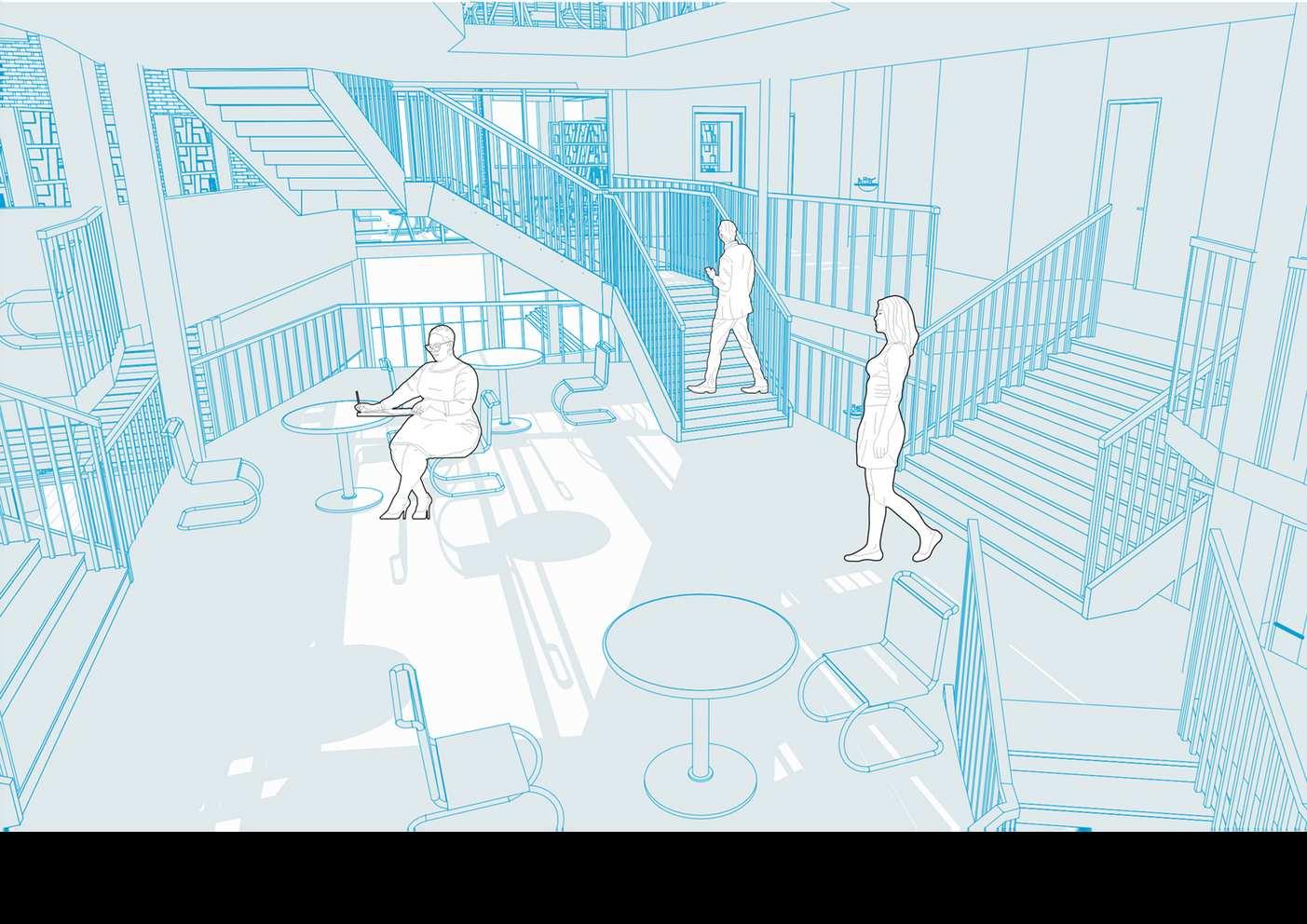

The hangout/ gather space are located at the middle of the building. Most of the space in the middle are for assemble purpose which is to bring people together Workshop and ETC All the other activity spaces are located at both side of the building and it is connected by the public space in the middle. Both side can go to opposite side by going through middle space which enhance the idea of assembling and integrate

Jalan Wong Ah Fook, Johor Bahru

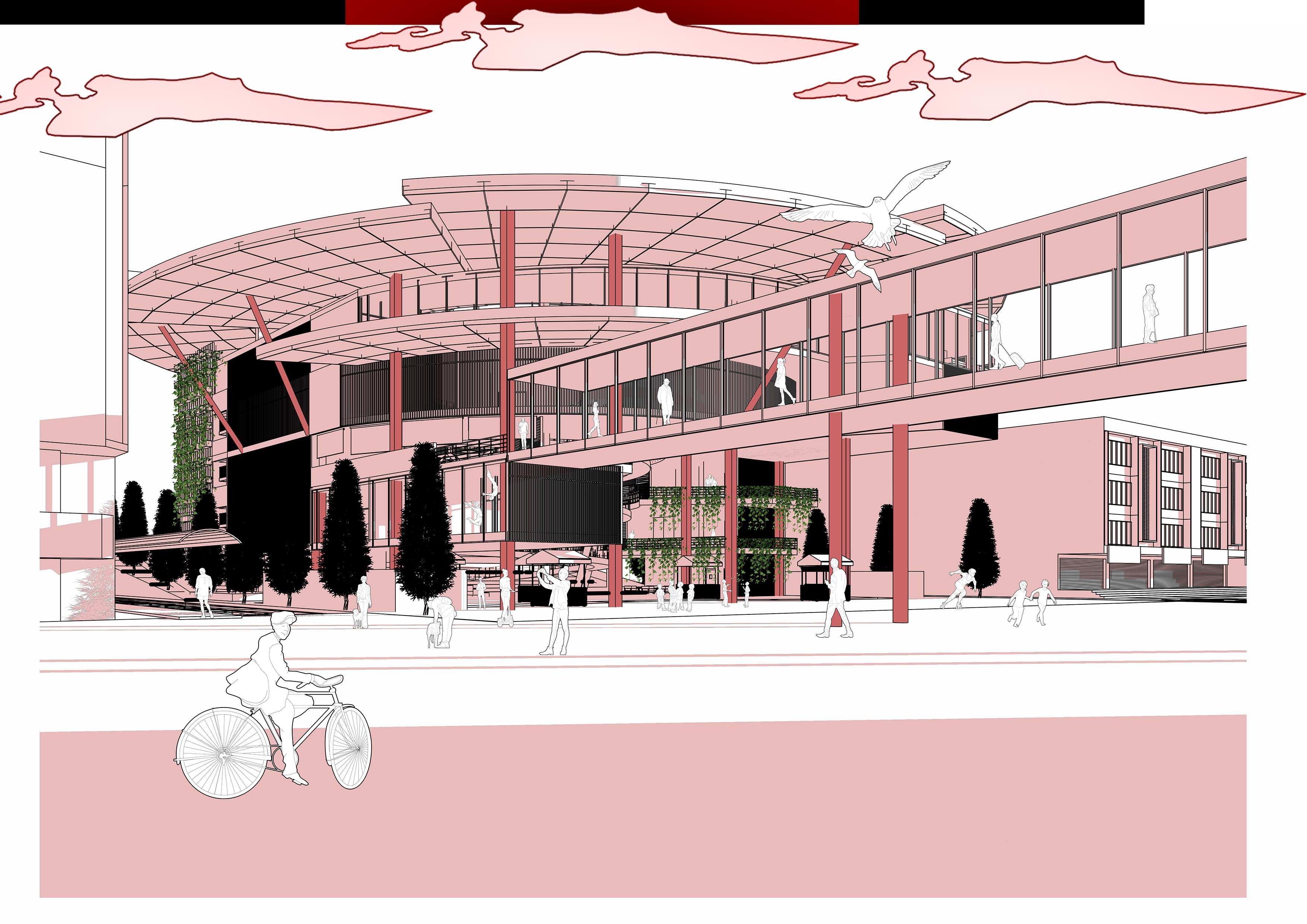

03 HELIX OF RENAISANCE Revitalize, Revive, Bringing Back Significant Johor Bahru, a rapidly developing city located next to Singapore, is a melting pot where people of diverse cultures, backgrounds, races, and religions coexist harmoniously. Despite its unique character, Johor Bahru often finds itself overshadowed by the success of its neighboring country, Singapore. Many people merely pass through the city on their way to Singapore, and it is sometimes labeled as "boring" due to a perceived lack of attractions. As a result, locals often prefer visiting the suburban areas instead.

This project aims to revitalize Johor Bahru by highlighting its cultural richness, historical significance, and promoting local artists and attractions. The goal is to encourage people to spend more time in the city and appreciate all it has to offer. By celebrating Johor Bahru's unique identity and fostering a vibrant local scene, we hope to make the project a destination in its own right.

Performing Arts Centre Attract

Gather

Stay

To capitalize on this potential, the project proposes the creation of a performing arts center featuring an amphitheater. This venue would provide a platform for traditional dance performances, enabling people from different racial backgrounds to learn and experience each other's cultural dances. The center would also include spaces for artists to showcase their work, engage with other artists, and share ideas. Additionally, dedicated areas would be available for street musicians to perform, whether in enclosed or open settings, allowing them to express their talents freely.

HELIX OF RENAISANCE Revitalize, Revive, Bringing Back Significant

Semester 6

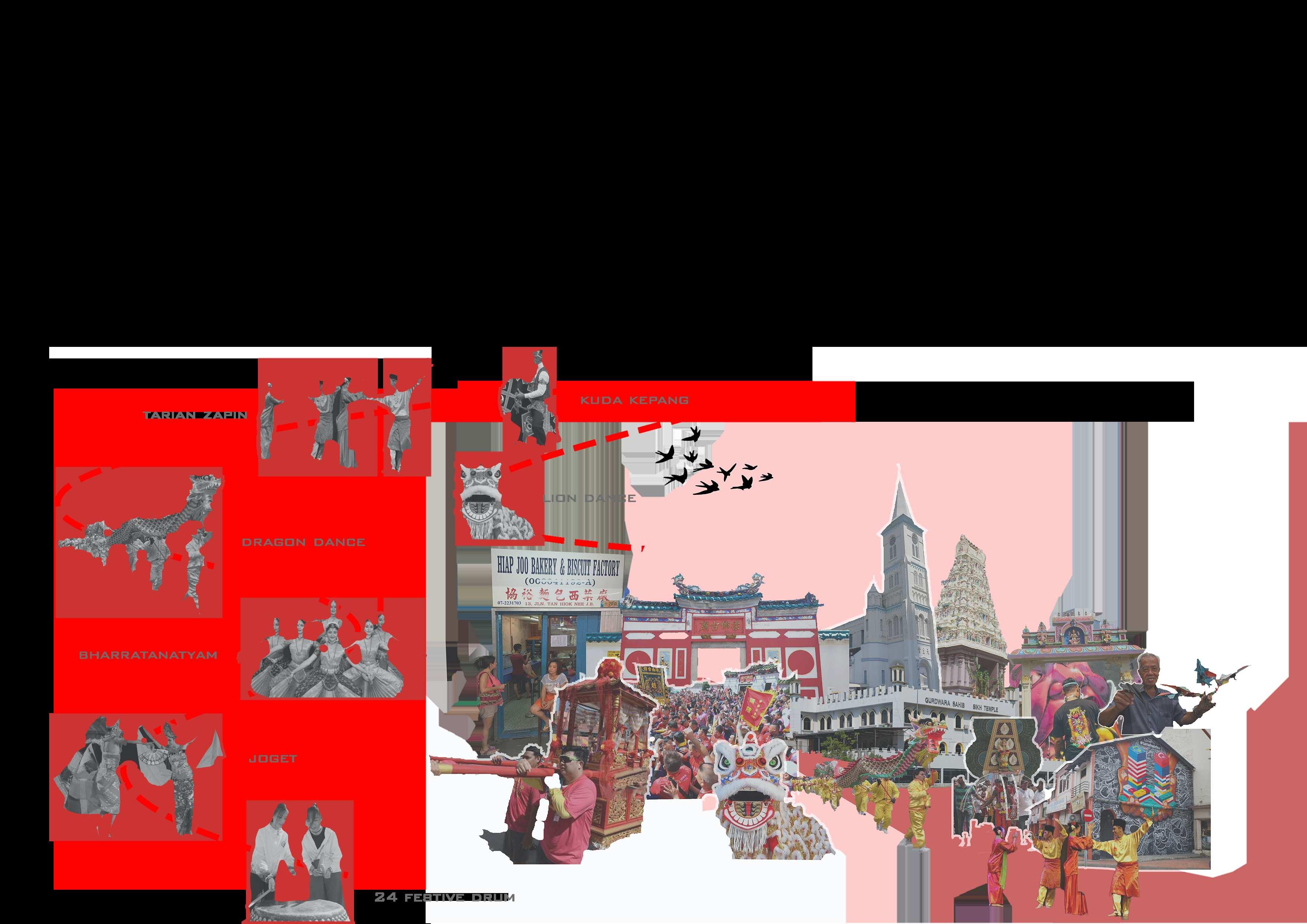

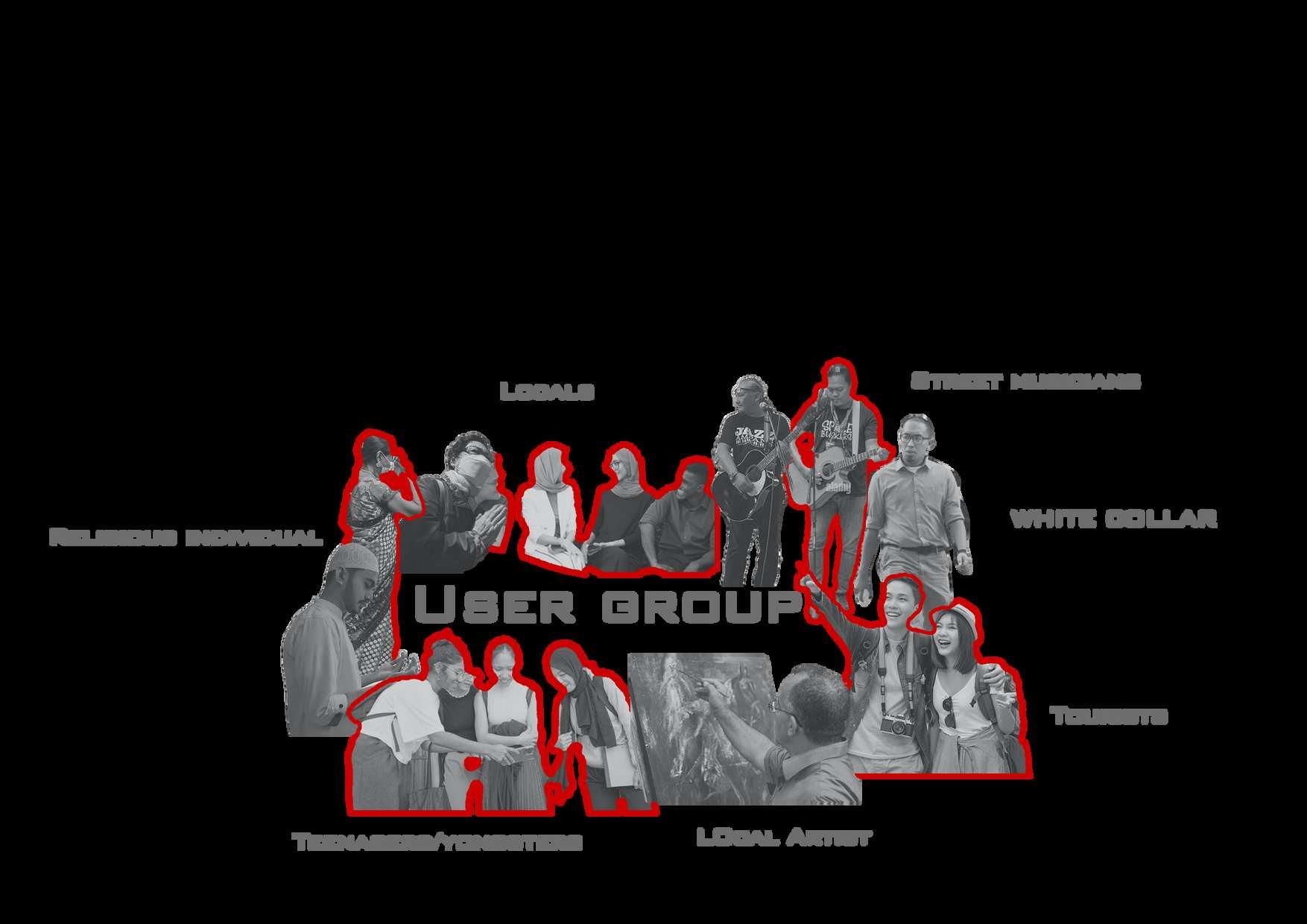

Sense of Place Johor's rich cultural diversity has given rise to unique cultural assets such as lion dances, Tarian Zapin, Bharatanatyam, and more. The city also boasts a vibrant community of street artists, musicians, and muralists, adding to its distinctive cultural landscape. These elements hold great potential to attract visitors and encourage them to explore and appreciate Johor's artistic and cultural heritage.

Performing Arts Centre Jalan Wong Ah Fook, Johor Bahru

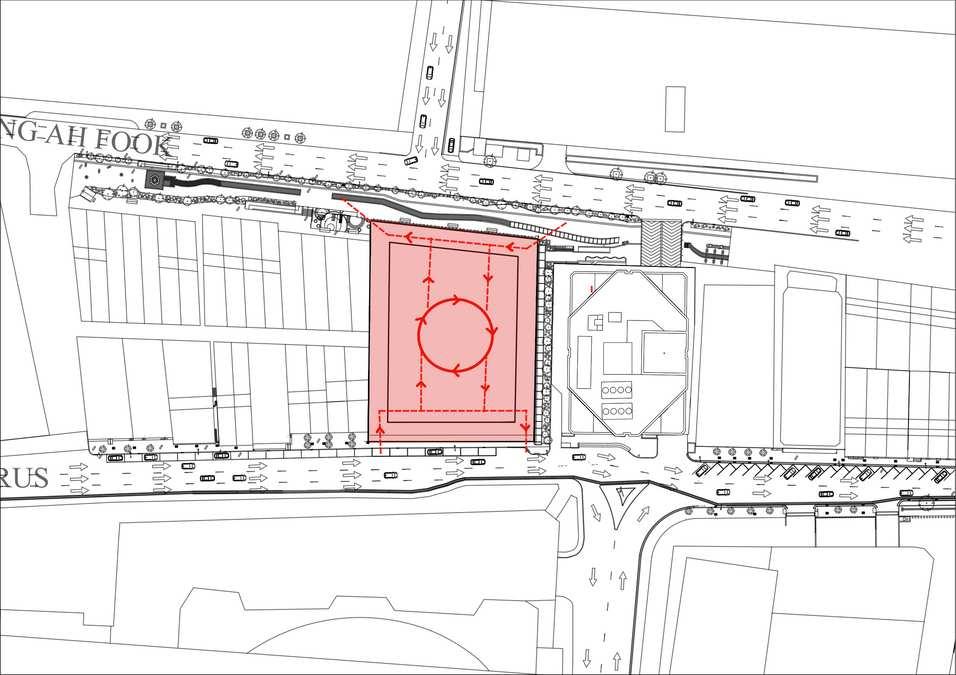

Circular Movement

Placement of drop of point at Jalan Trus to avoid heavy traffic

Community garden space

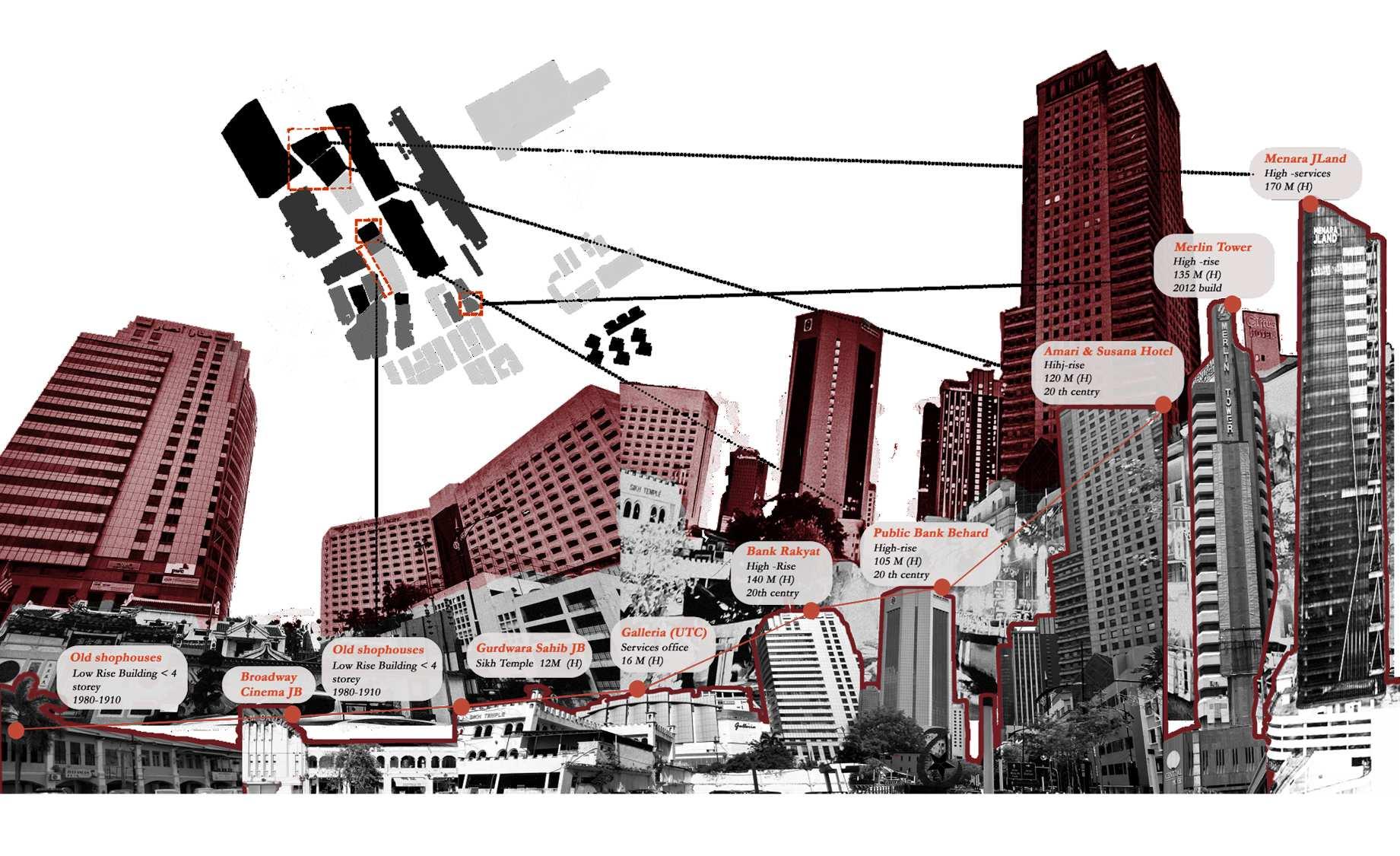

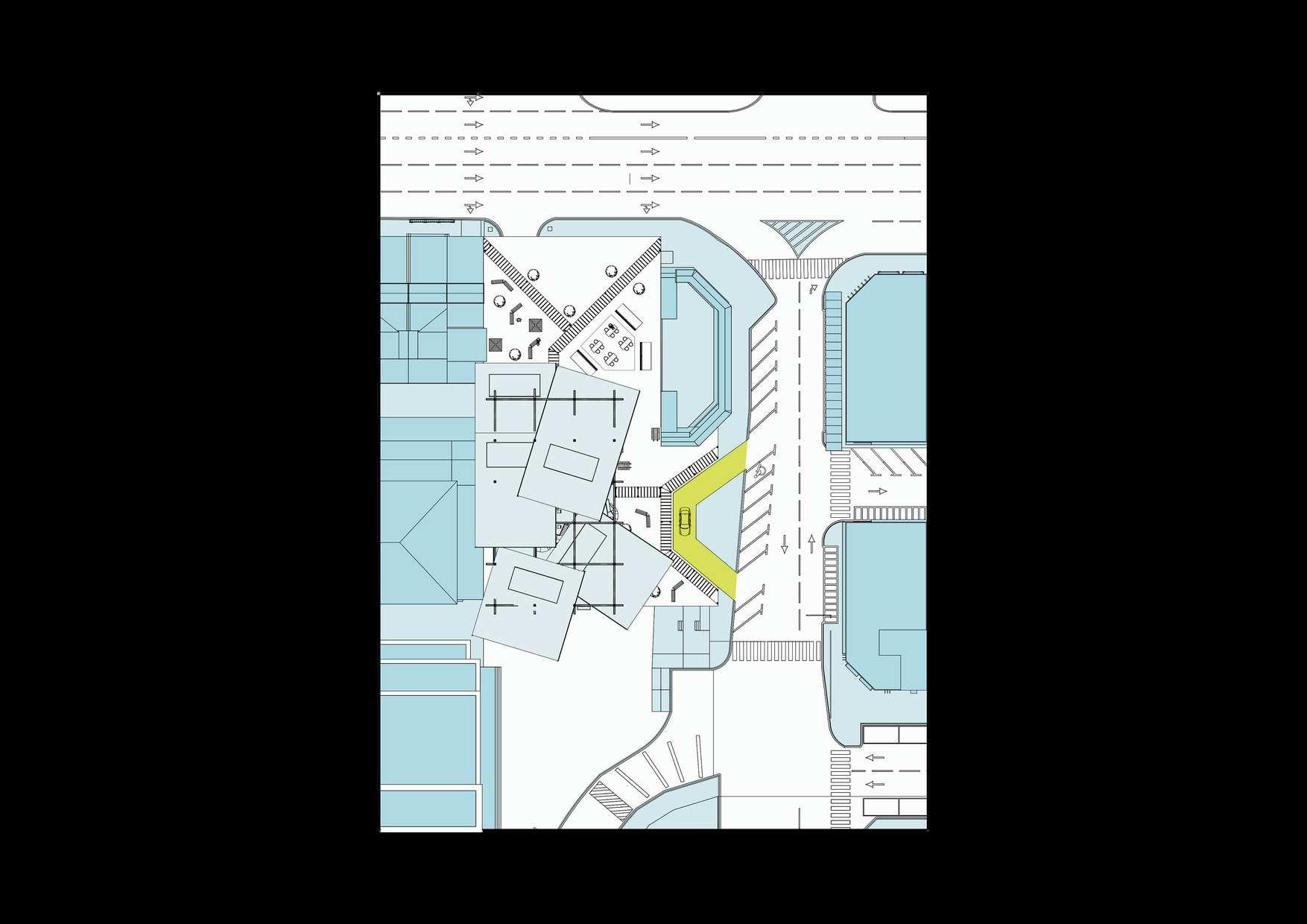

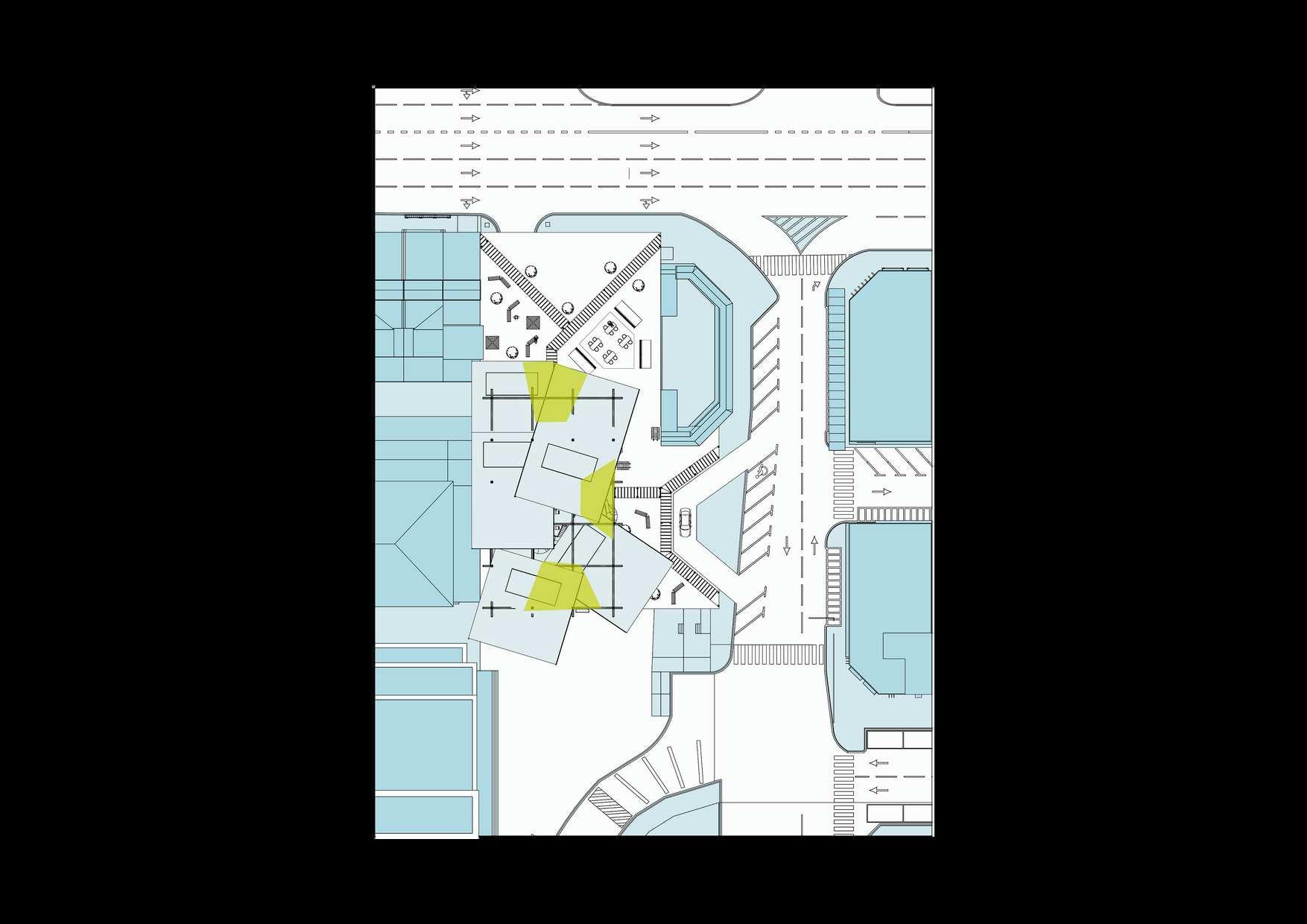

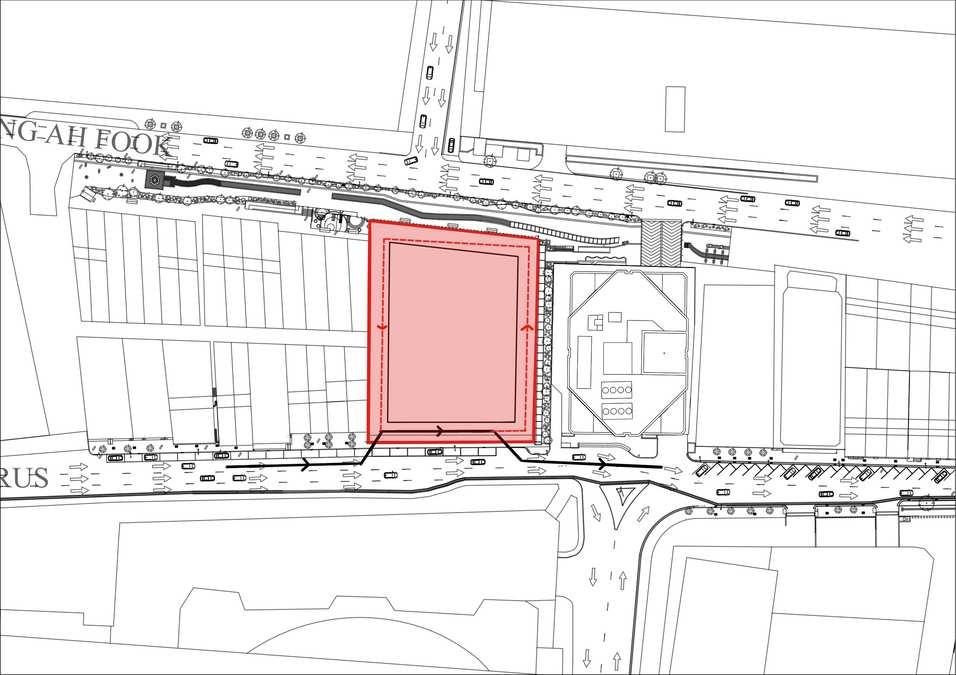

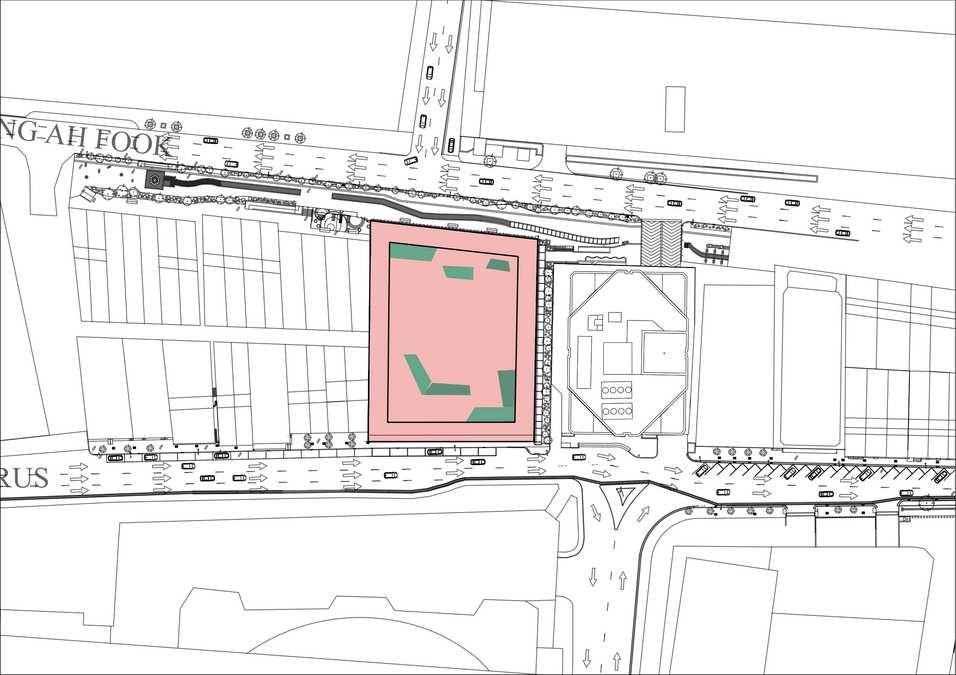

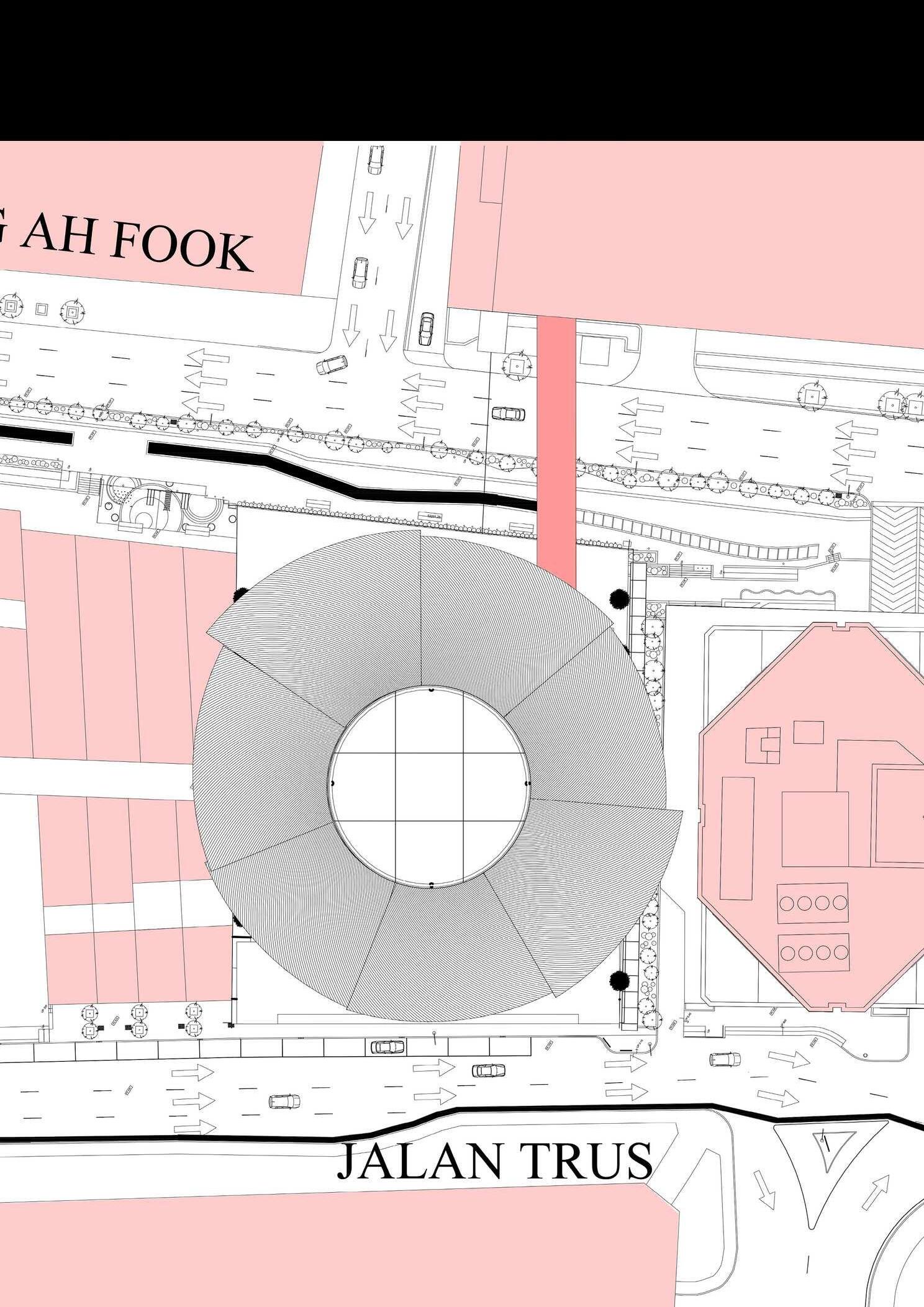

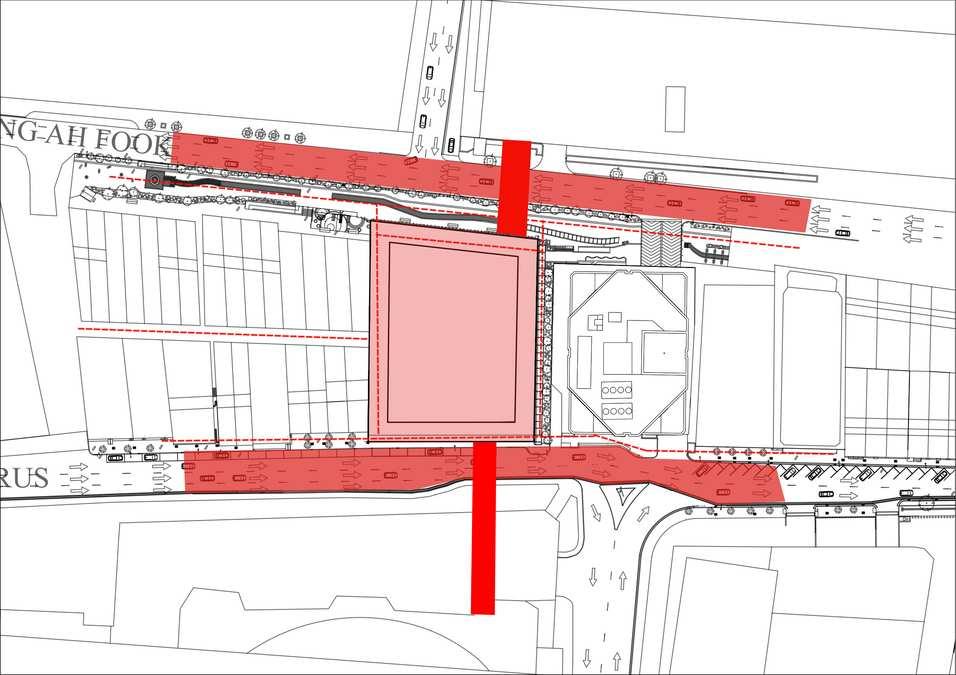

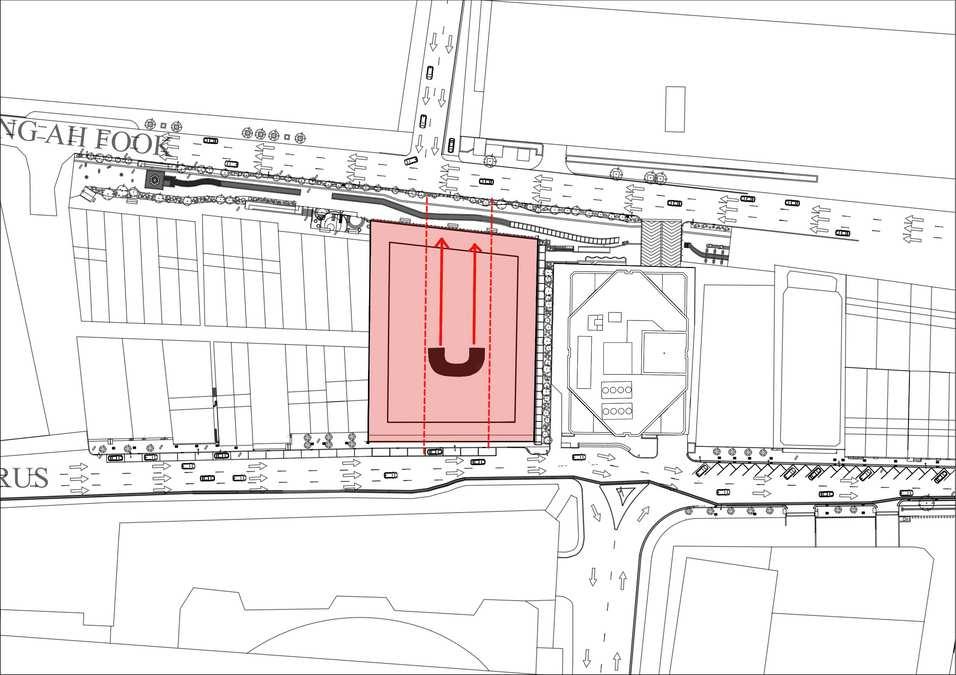

Site Details The Design Scheme is located in between Jalan Trus and Jalan Wong Ah Fook (Next to Public Bank) in Johor Bahru, Johor. The site was originally a link bridge project by coronation square but it has not started working yet.

The site was connected to the Sungai Segget trail which is just located right in front of the site and the site is located at the most popular area of JB which is a street consist of City Square malls, JBCC mall and varies of hotels. Moreover the site is surrounded by a variety of religious buildings like church, temple and mosque. The area is also a melting pot of people coming from different places.

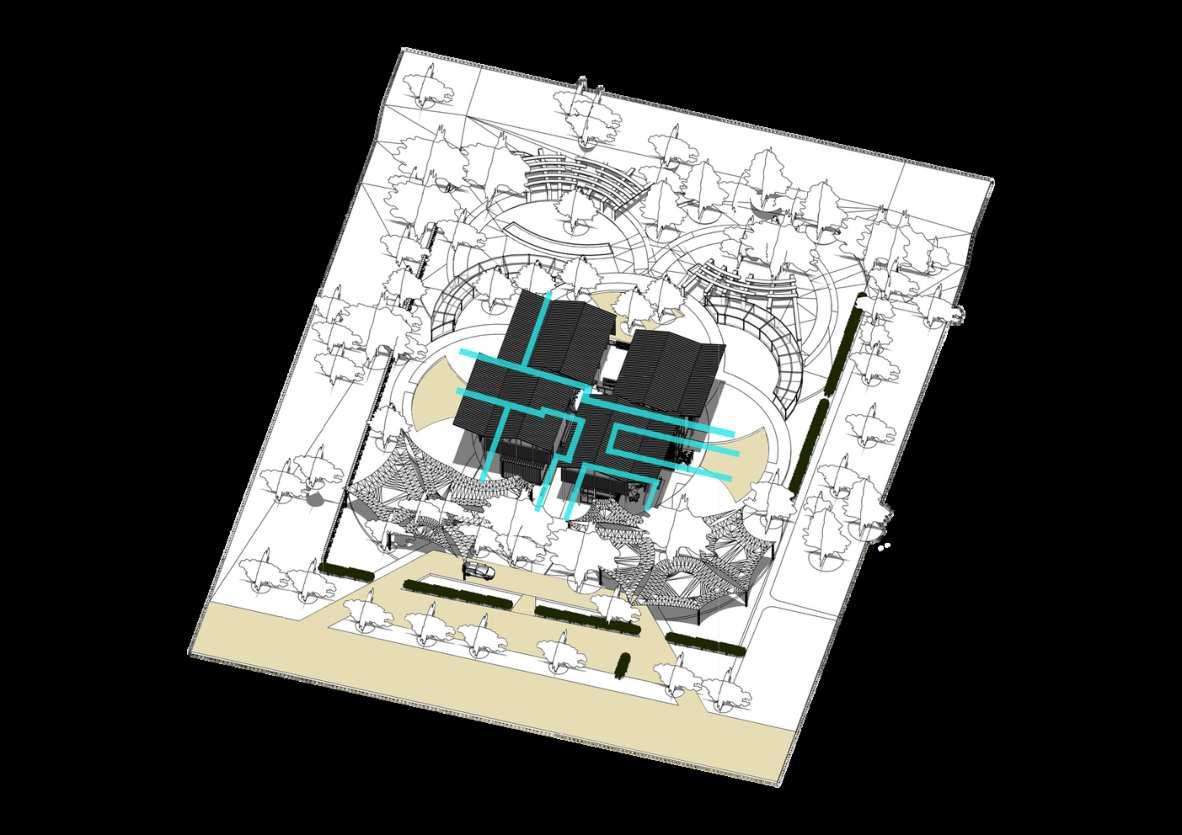

Permeability of the project

Connectivity like link bridge, roads and pathways

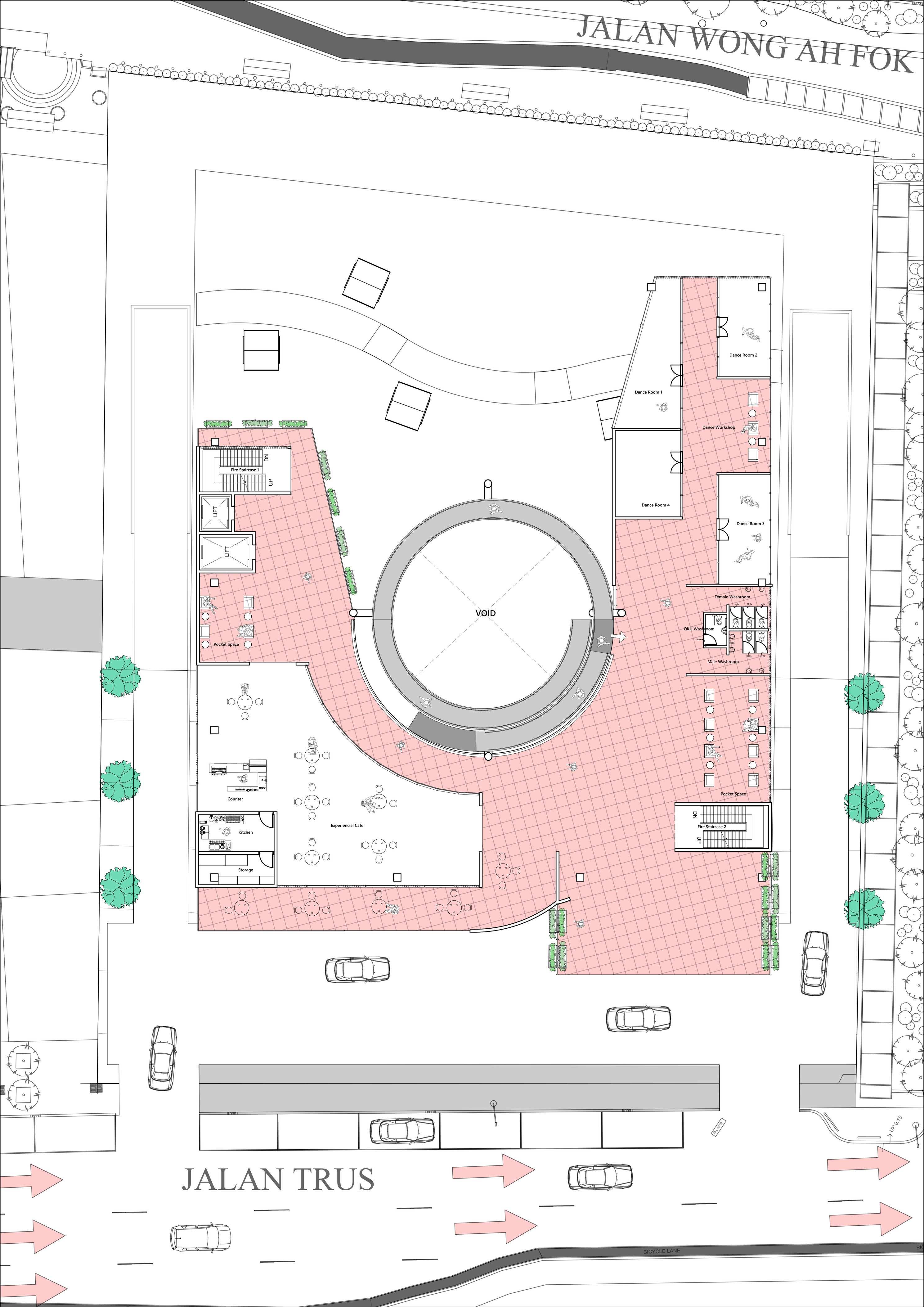

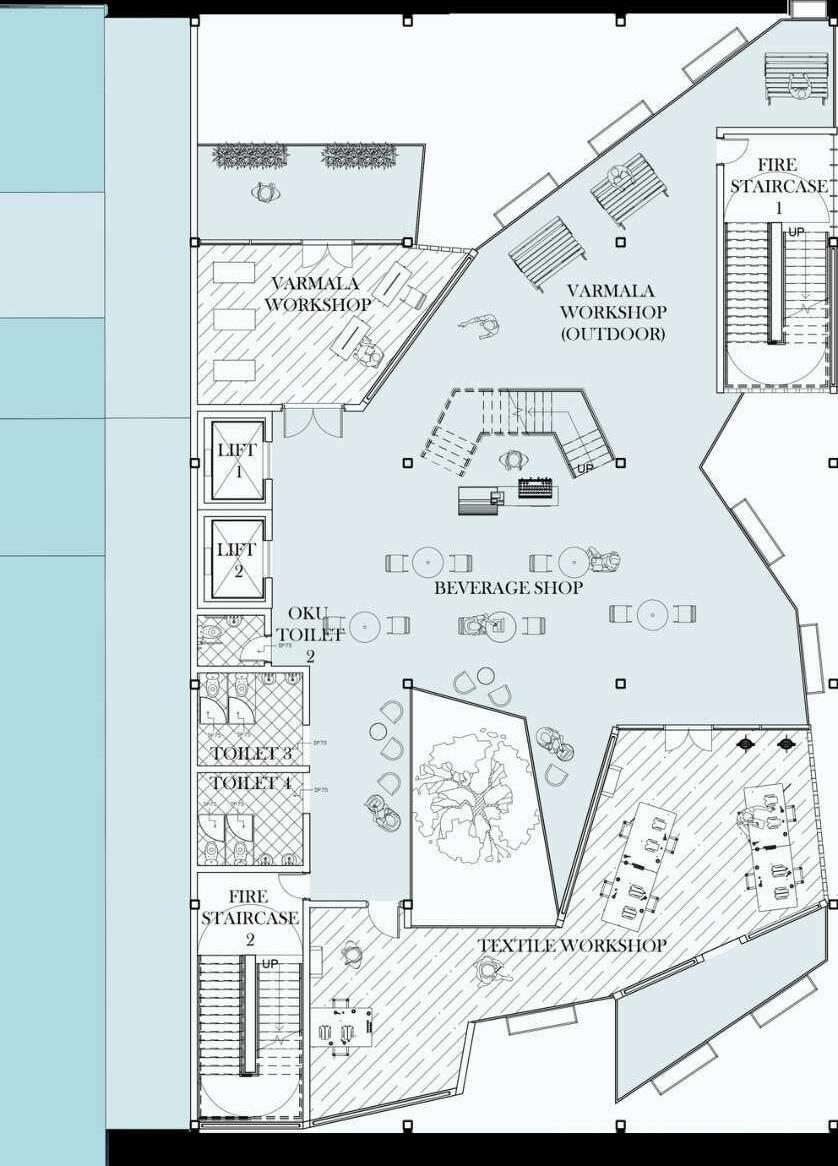

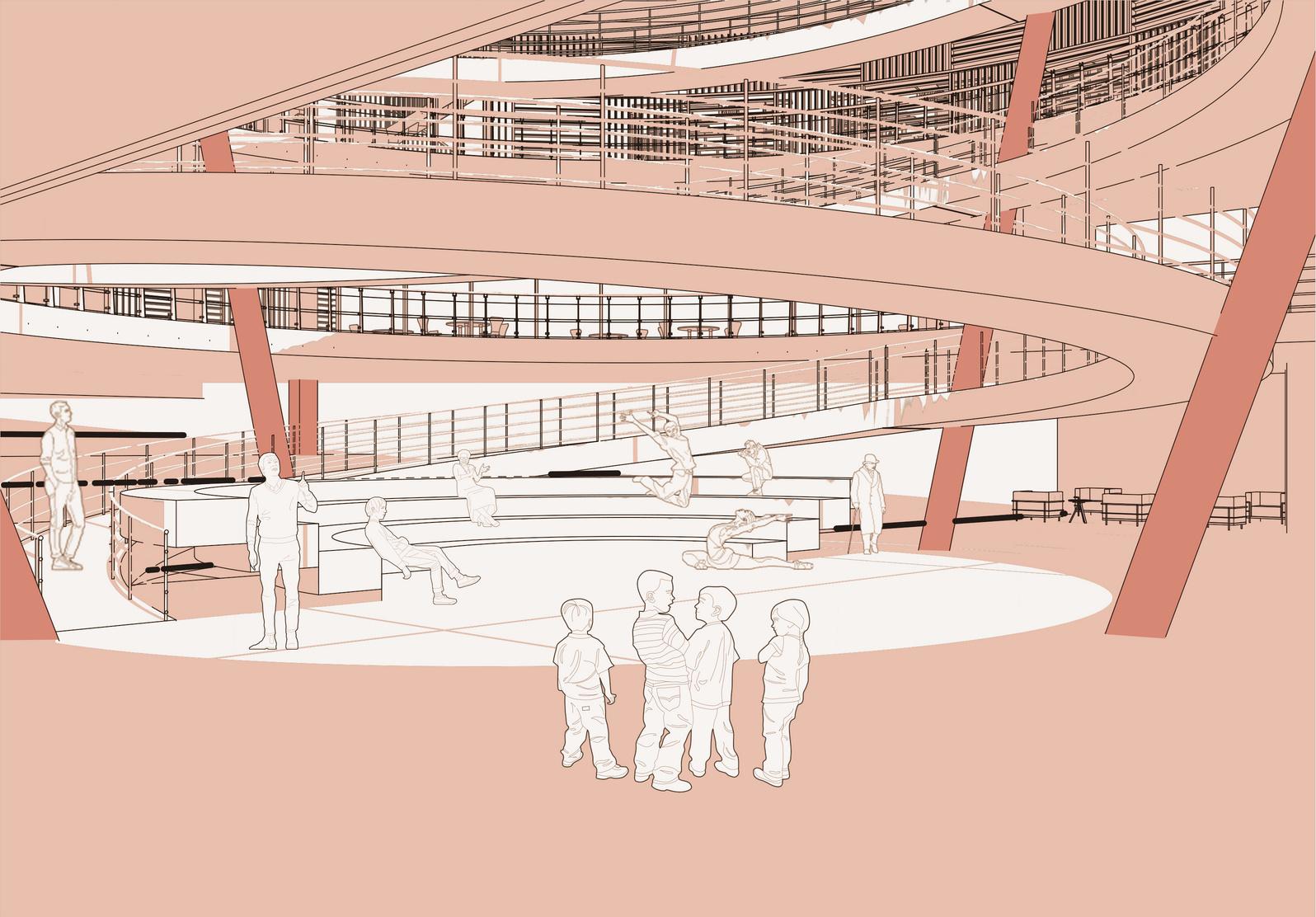

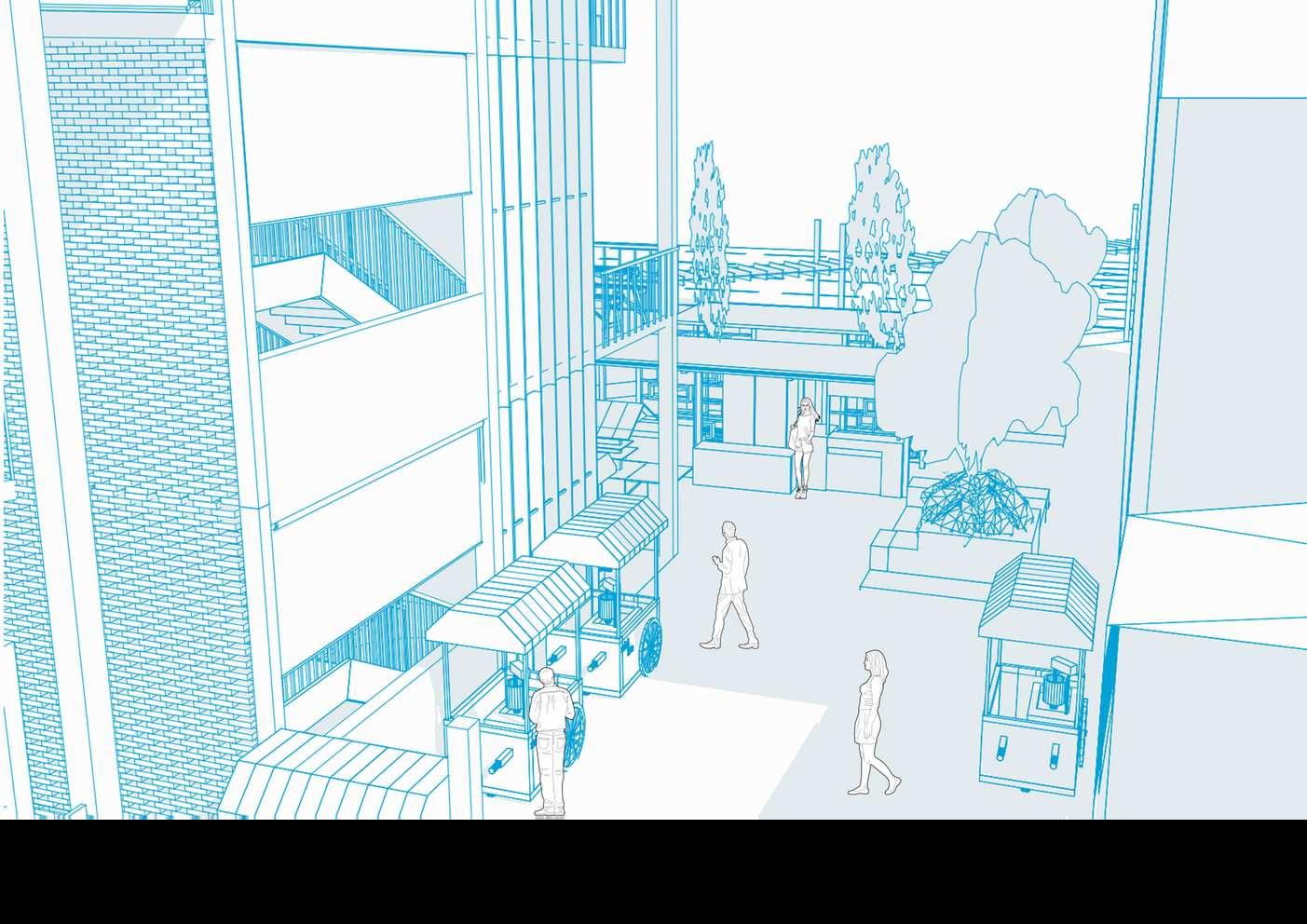

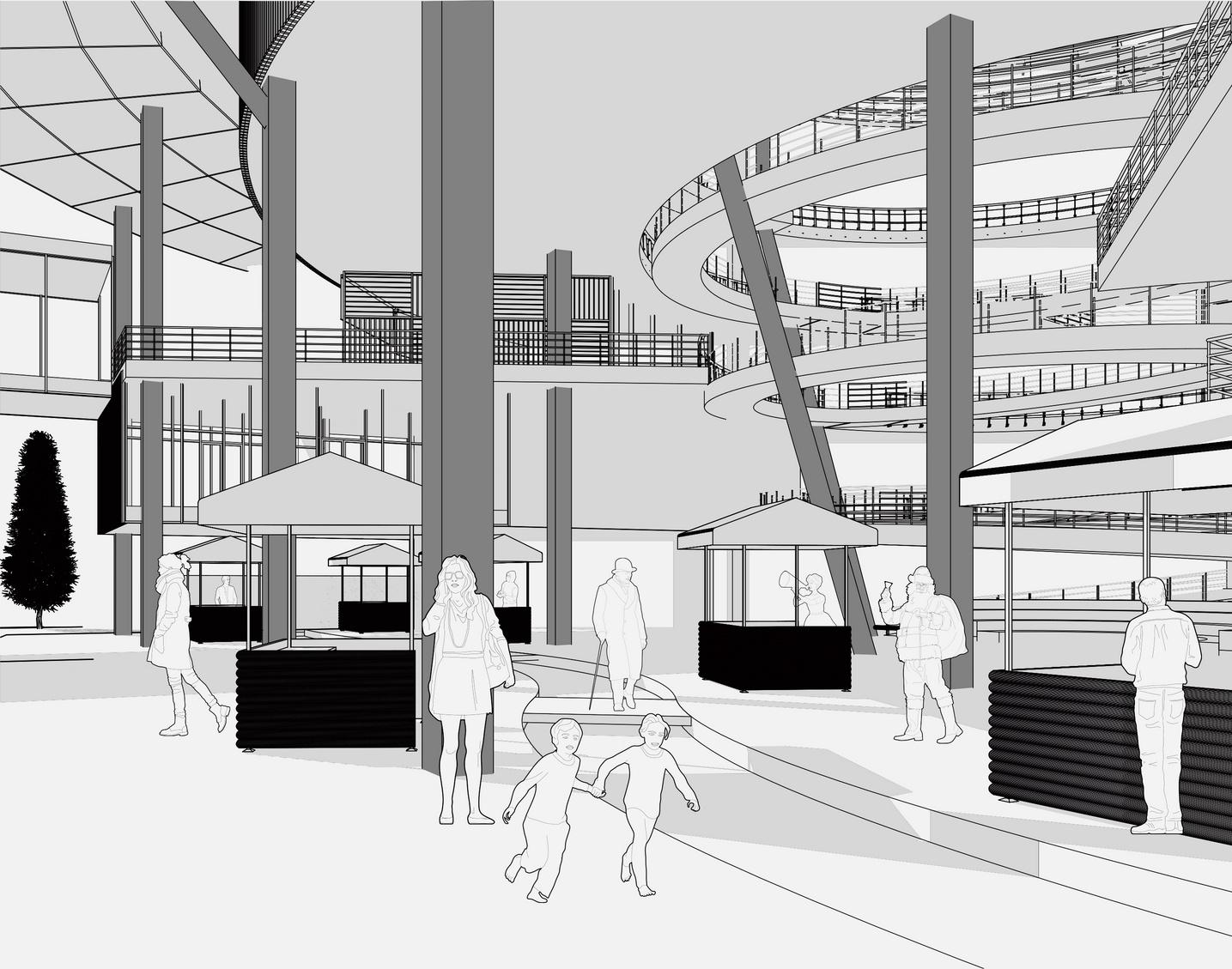

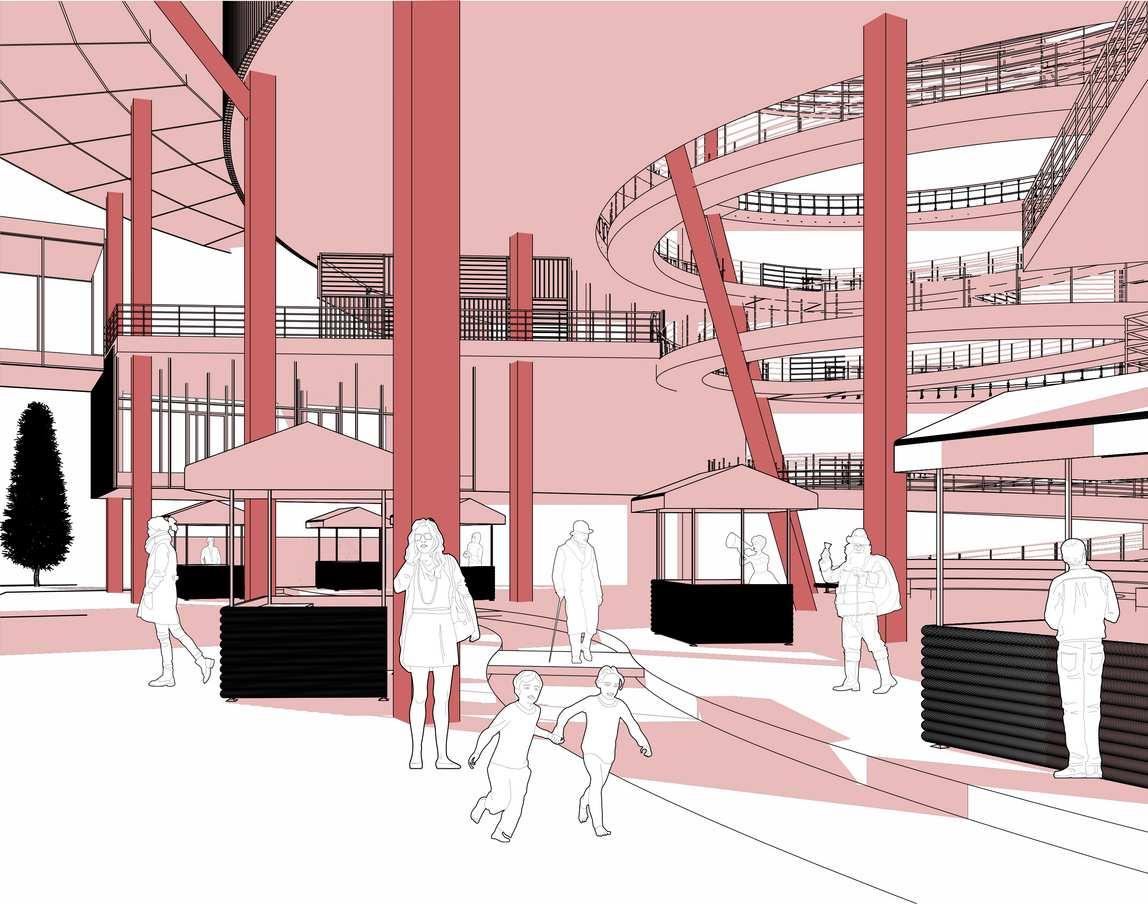

Lower Ground Floor Plan The lower ground floor, which directly faces Jalan Wong Ah Fook, serves as the main entrance from the front of the building. This area is mostly open and permeable to visitors who walk past the building. The two main spaces here include the market spaces at the front of the plan, where stalls sell various items, and an amphitheater at the center of the building, which hosts performances and events. These areas are primarily open, designed to exhibit and engage with visitors passing by.

Market Space

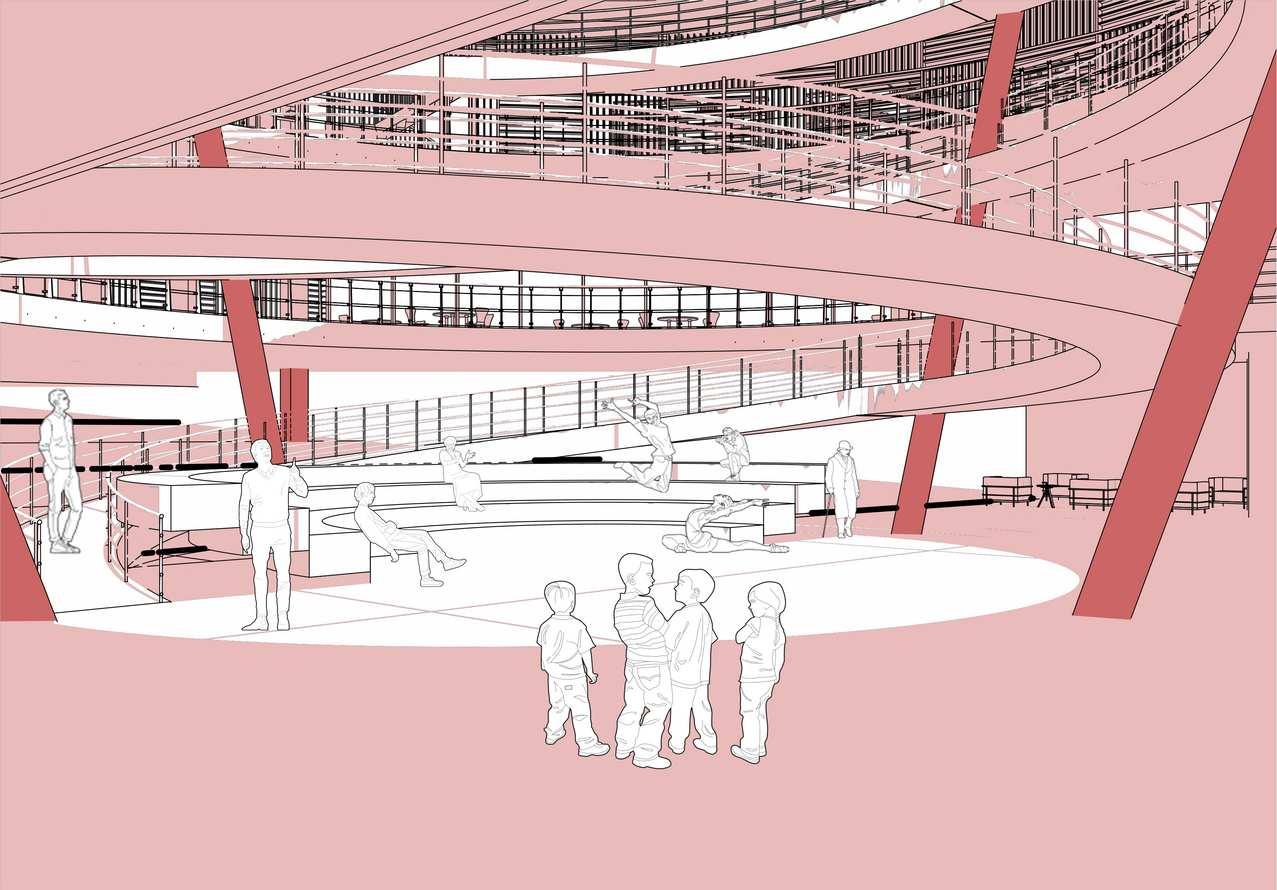

Amphitheater

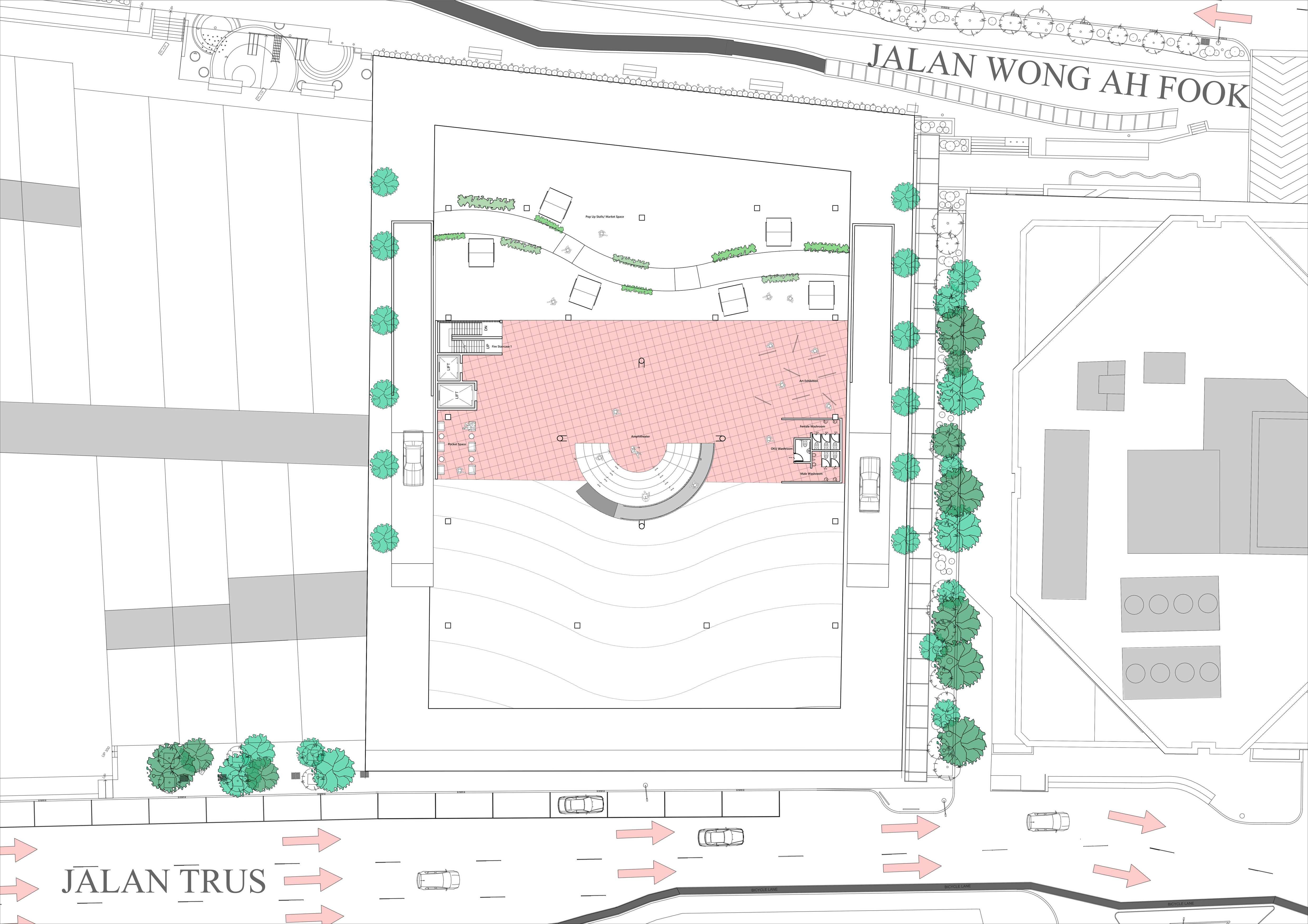

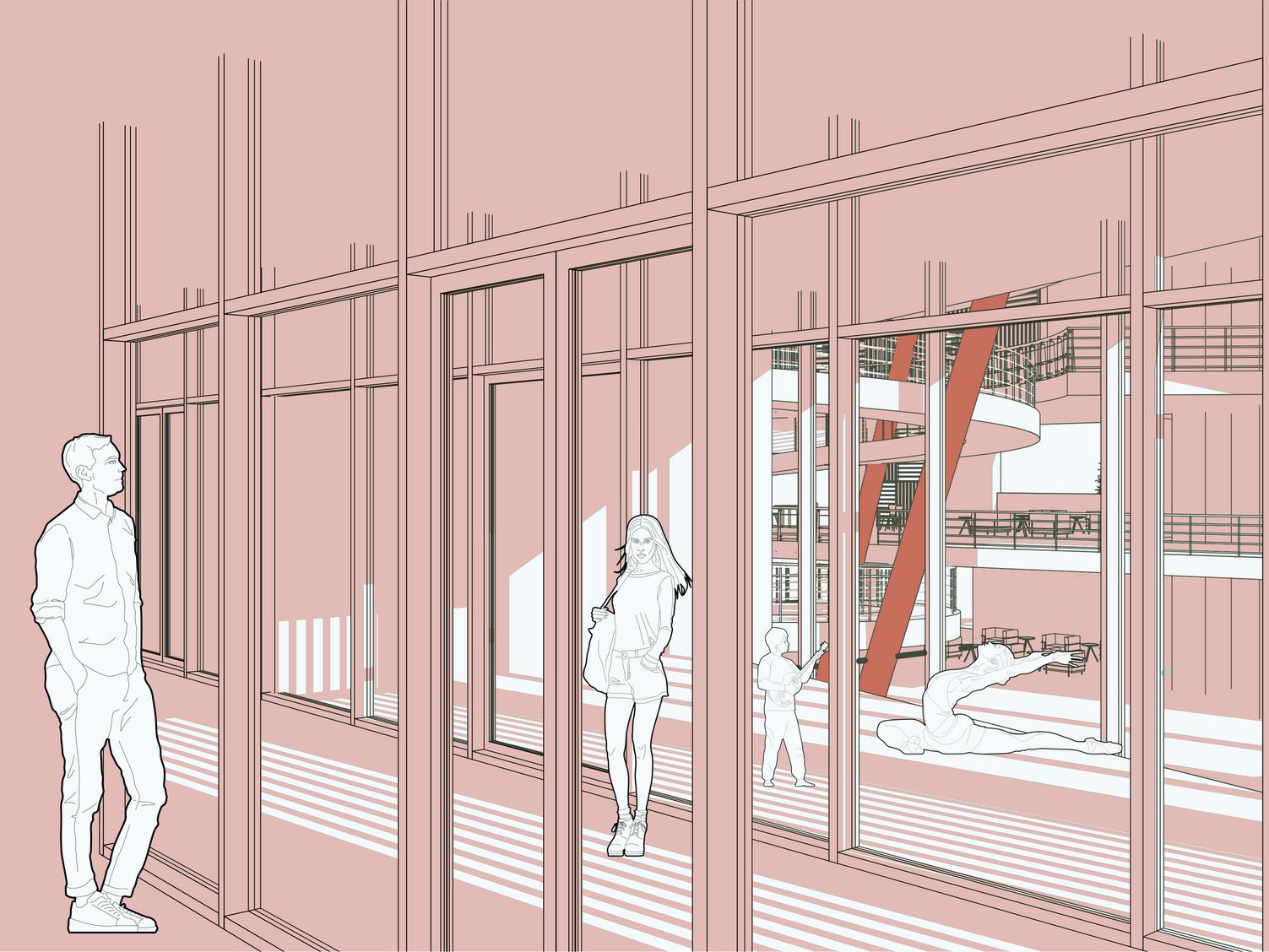

Upper Ground Floor Plan The upper ground floor faces Jalan Trus, where more locals and office workers tend to hang out. Because of this, a café is placed facing Jalan Trus, providing a spot for locals to relax and eat during their break time or after work. Additionally, the dance room is located at the front right of the building, with its fully glass walls, allowing passersby to watch the dancers as they walk along.

The drop-off area is also situated on this floor, along the side of the building facing Jalan Trus, to avoid the heavy traffic that often occurs on Jalan Wong Ah Fook.

Additionally, pocket spaces are strategically placed throughout the floor, providing visitors with spots to sit, relax, or engage in their own activities.

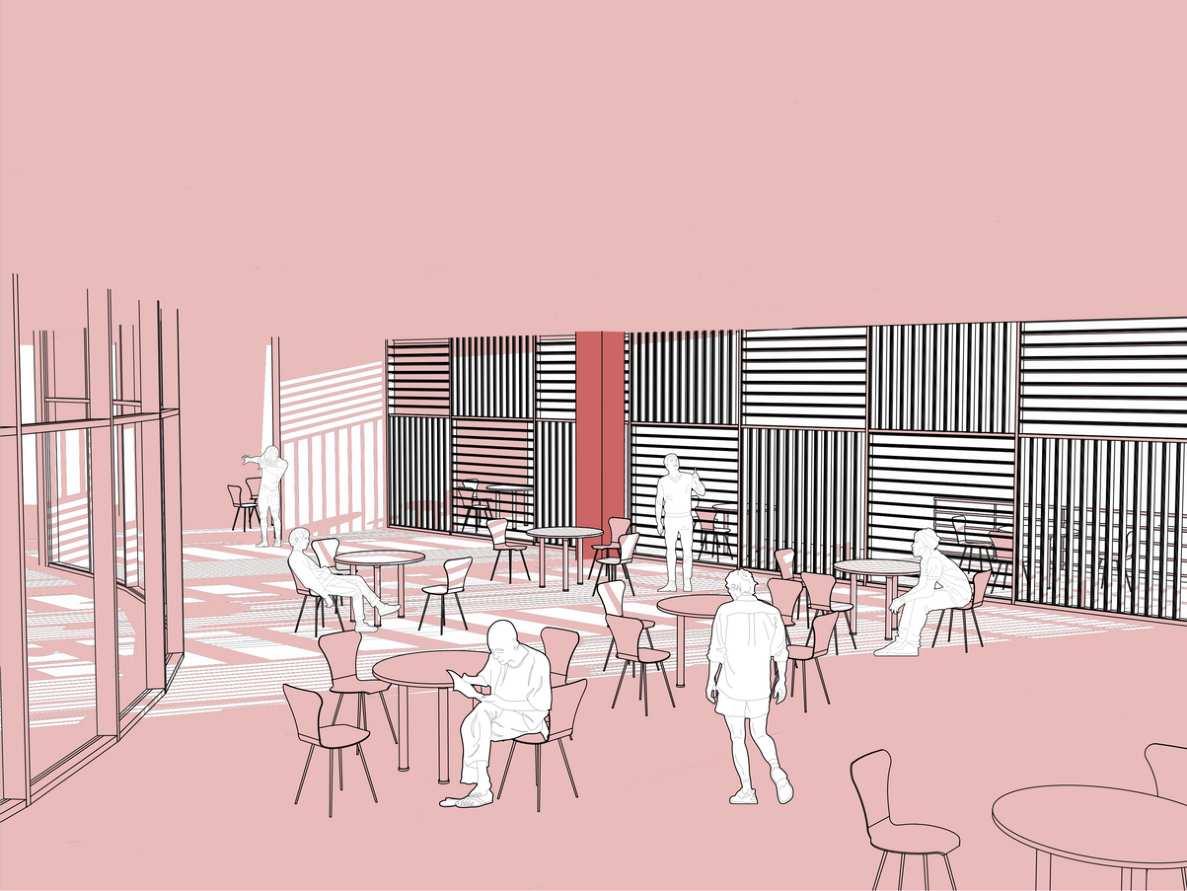

Experiential Cafe

Dance Workshop

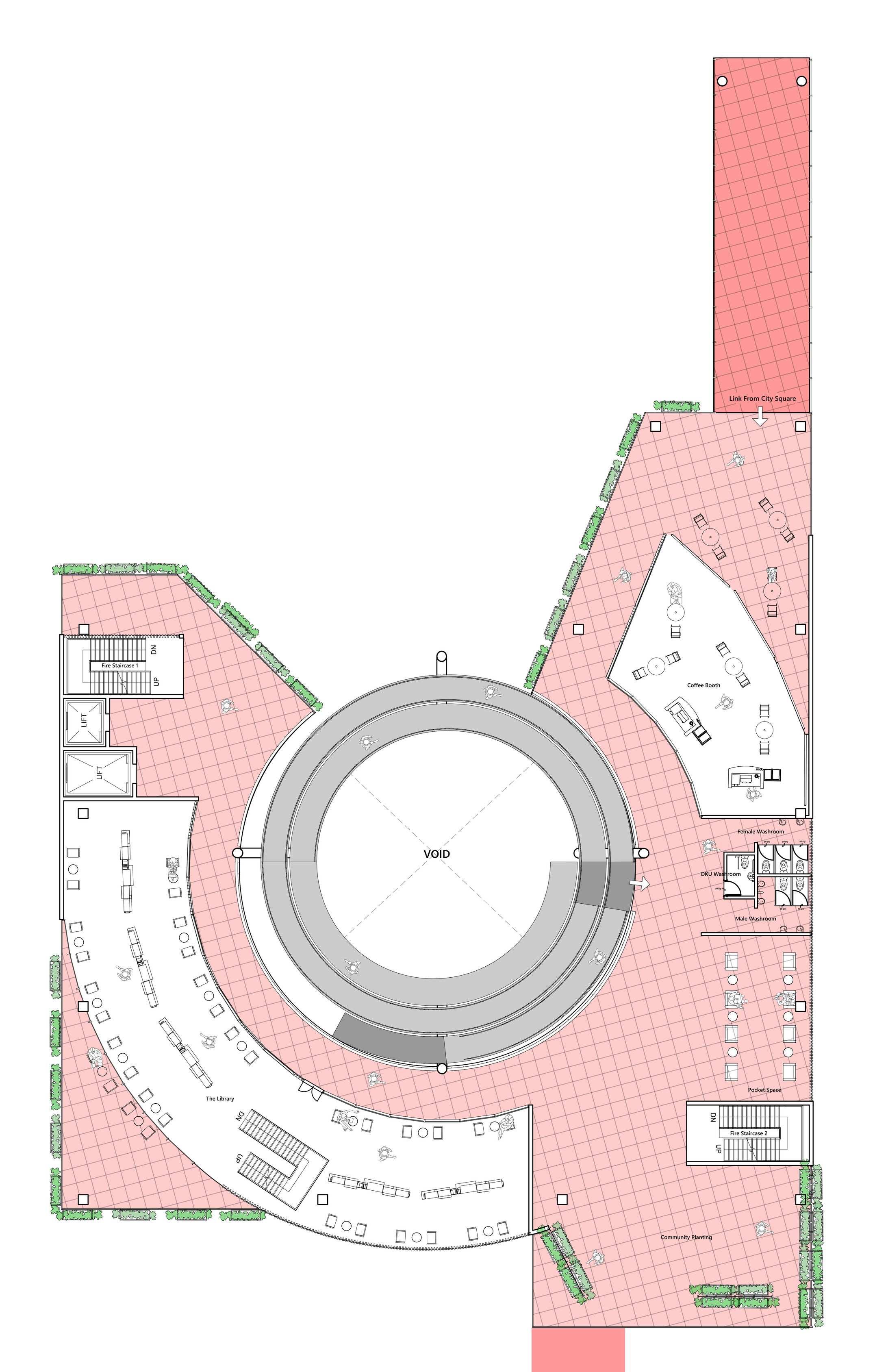

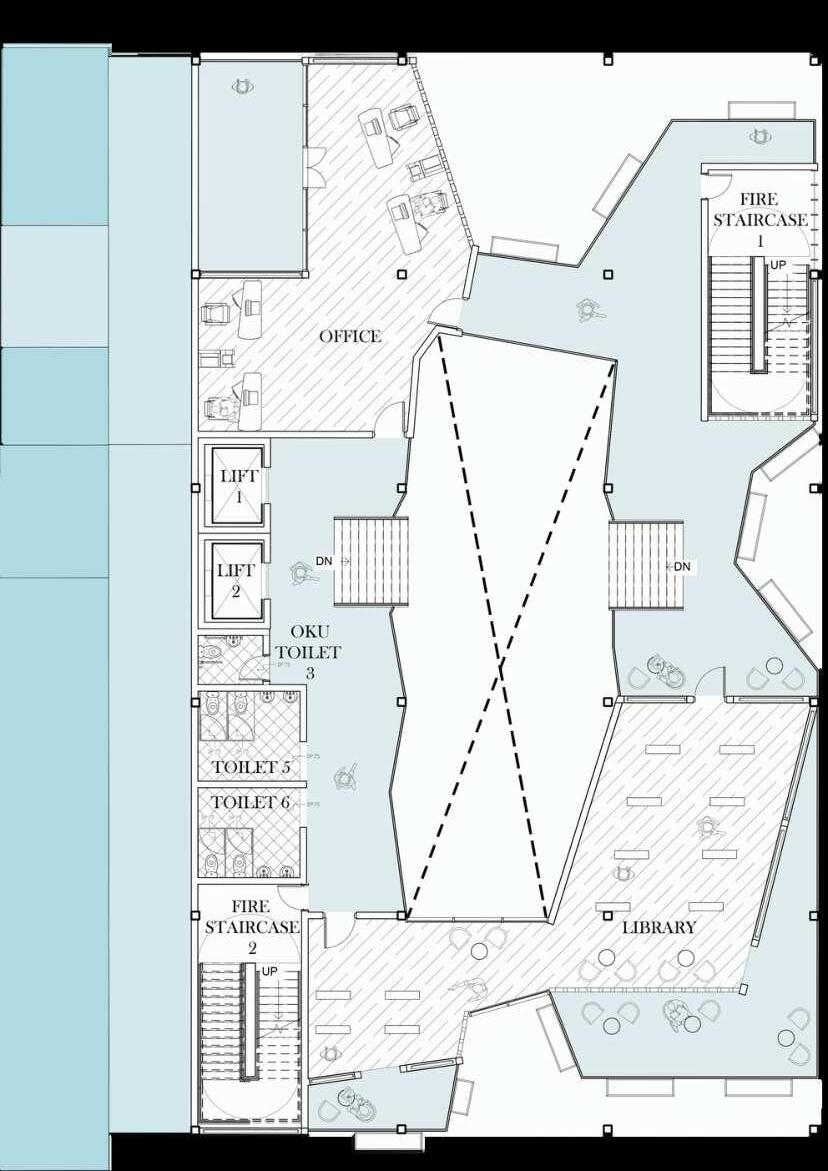

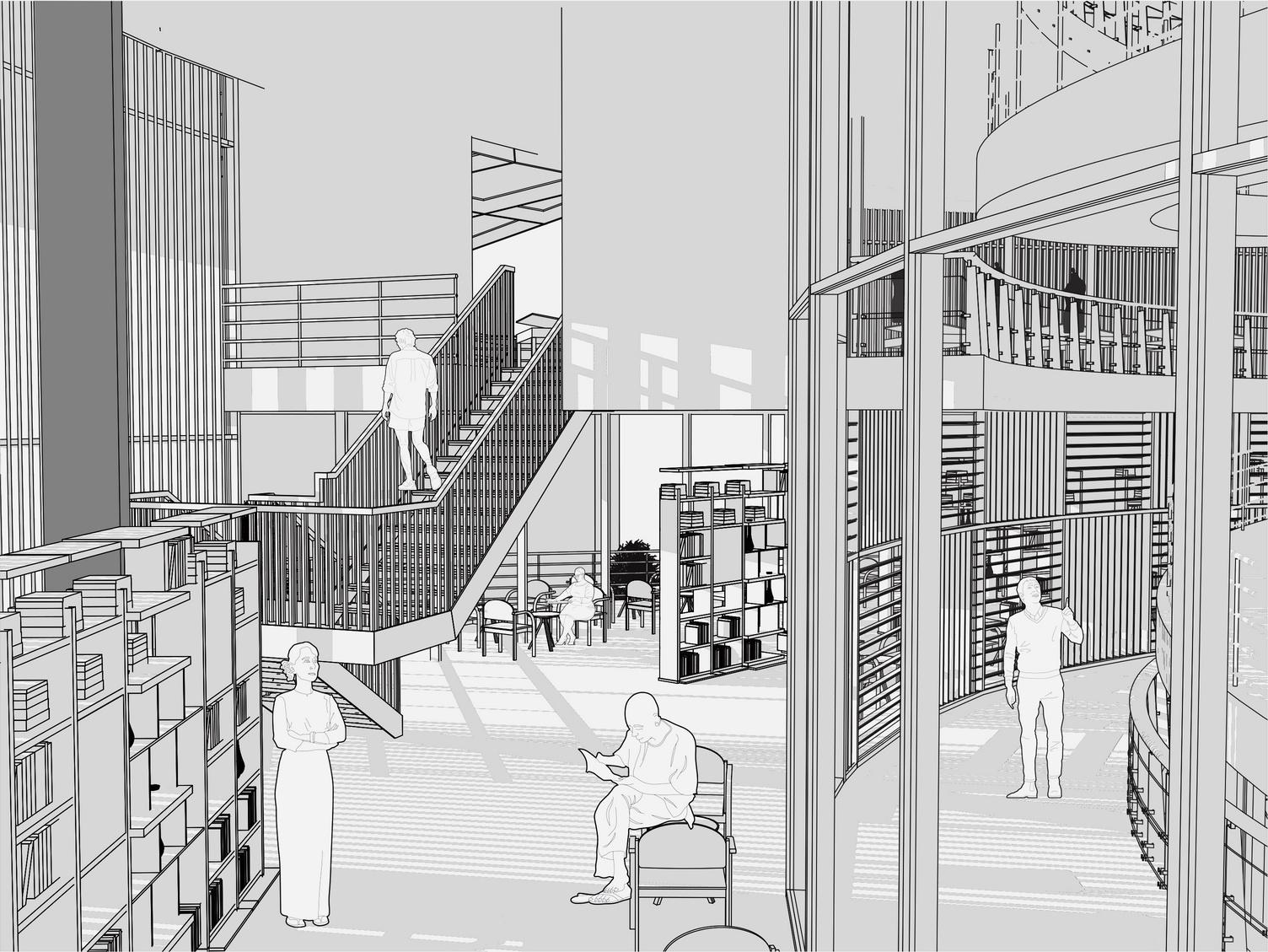

Level 1 Plan In the level one floor we first have the coffee booth which intentionally there for the people who use the library to have a place to grab a coffee when they are going to the library to either study or work there.

Moreover, the library, which takes up a large space on this level, serves as a place for visitors to study the history of Johor Bahru, as well as a space for users to get their work done or even to chill and relax.

The link bridge is located here because the City Square Mall doesn't have a library, so I thought it would be nice to provide a connection to my building, allowing users who want to access the library to easily come over and use it.

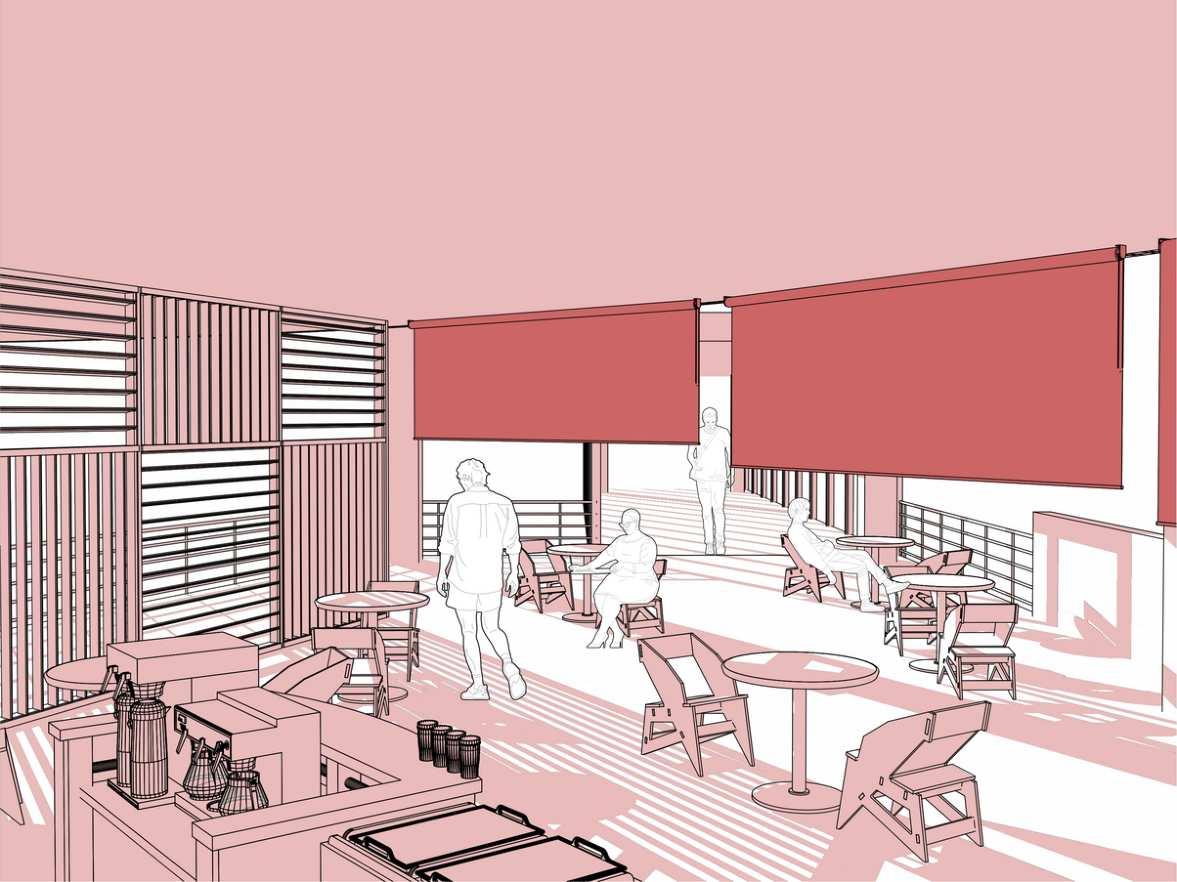

Coffee Booth

The Library

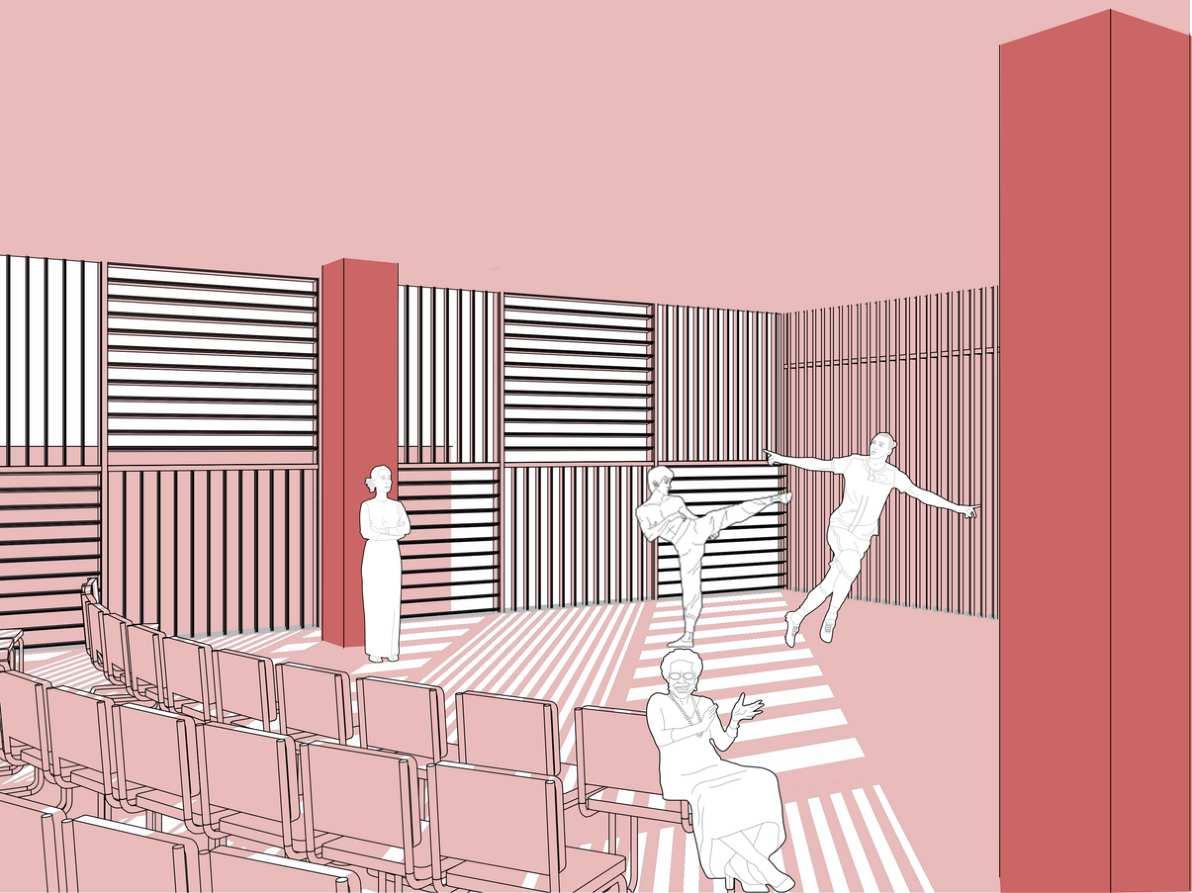

Level 2 Plan On level two, the Blackbox theaters are located. This is where users can practice or perform their shows, with four theaters available to ensure ample space. Additionally, a larger theater is provided for those needing more room Moreover, there is a traditional clothing workshop and exhibition. This space allows performers to showcase their traditional attire after their performance, while the workshop invites visitors interested in learning about traditional clothing. It is situated on the same floor as the theater, ensuring that guests can easily visit it after watching a performance.

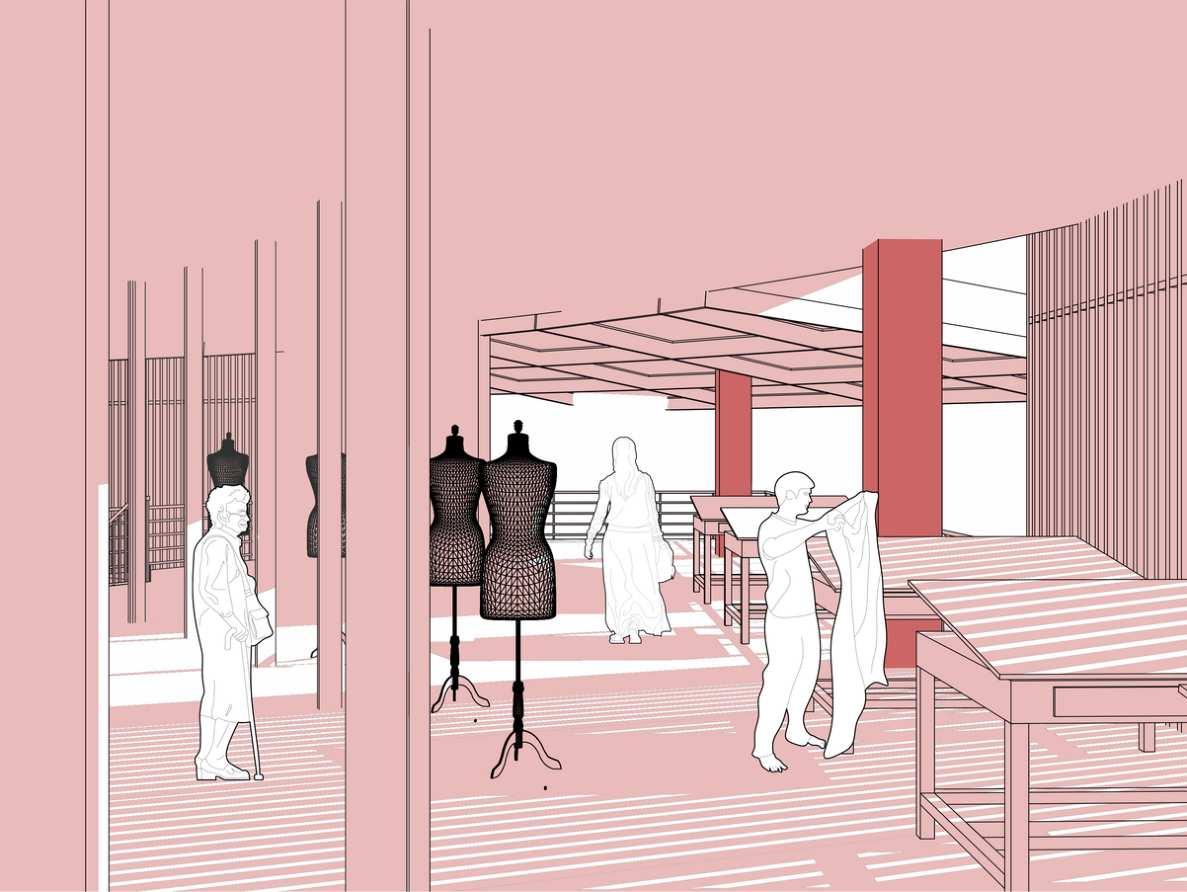

Traditional Clothing Workshop

Blackbox Theatre

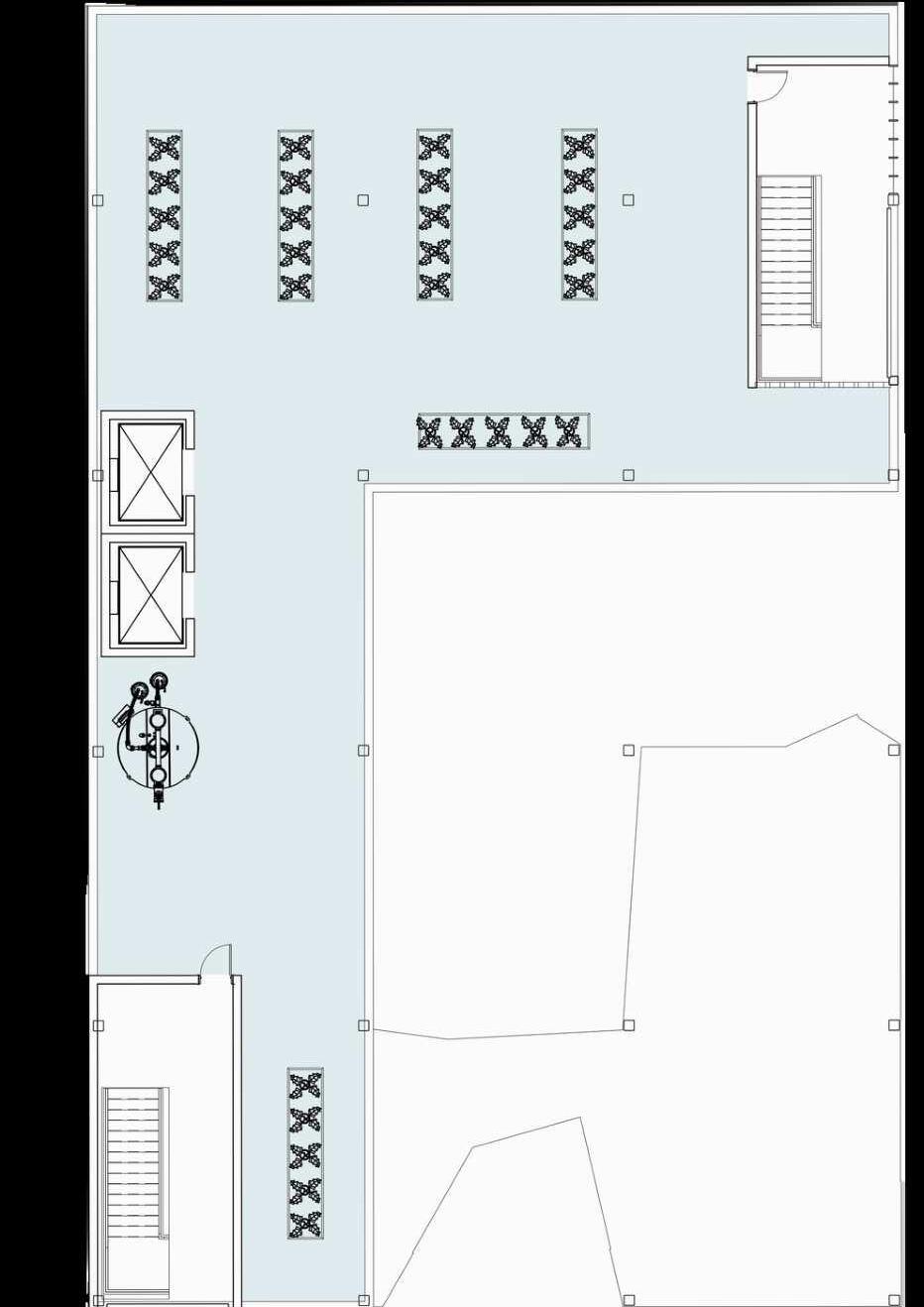

Level 3 Plan Level 3 is where the office is situated. It is the place specially for the workers there to have a place to carry out their work there Moreover is the accommodation where is the place specially for the workers to have a place to rest after their work. It is situated right beside the office Furthermore, there is a community planting area that extends around the back of the building. This space is designed to let users contribute to making Johor Bahru greener while also providing an opportunity to make friends during the process.

Community Planting Area

The Office

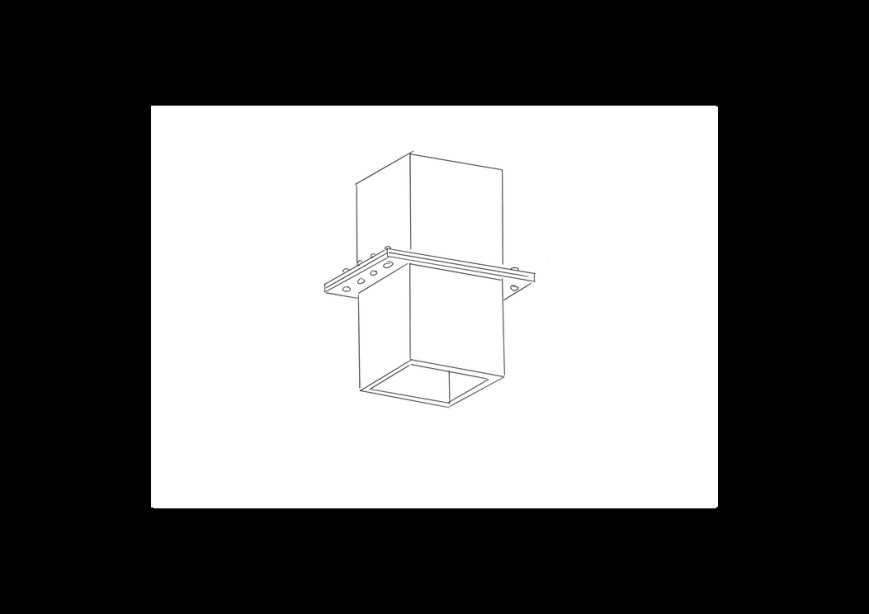

Construction Details

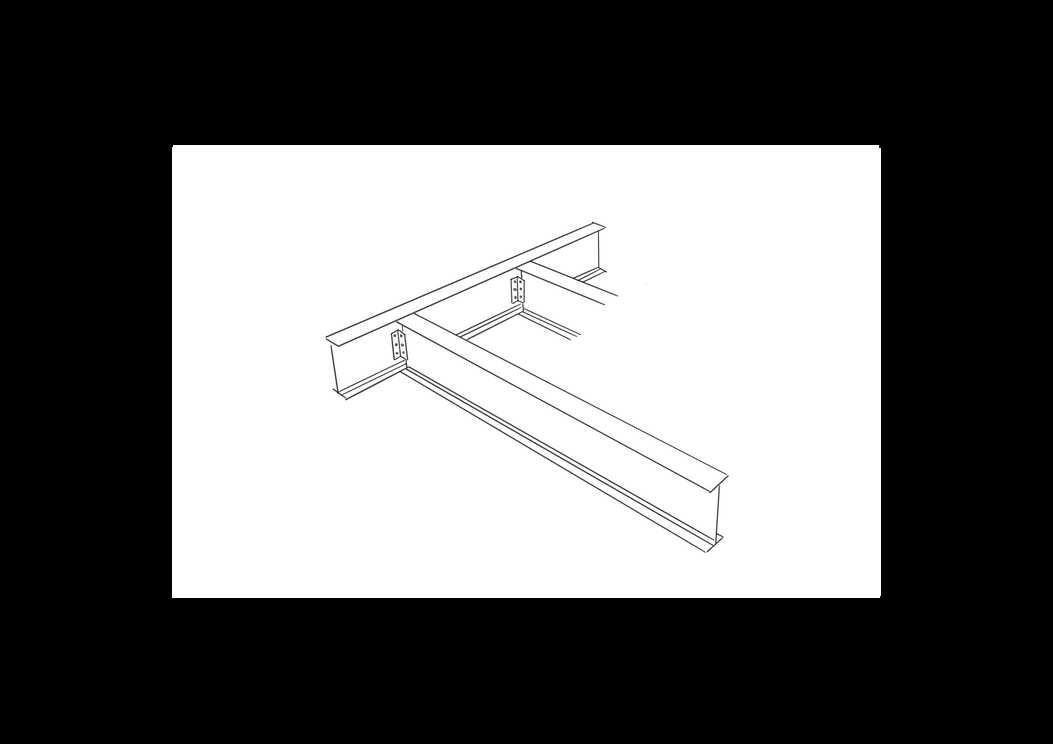

Connection of a Concrete Beam

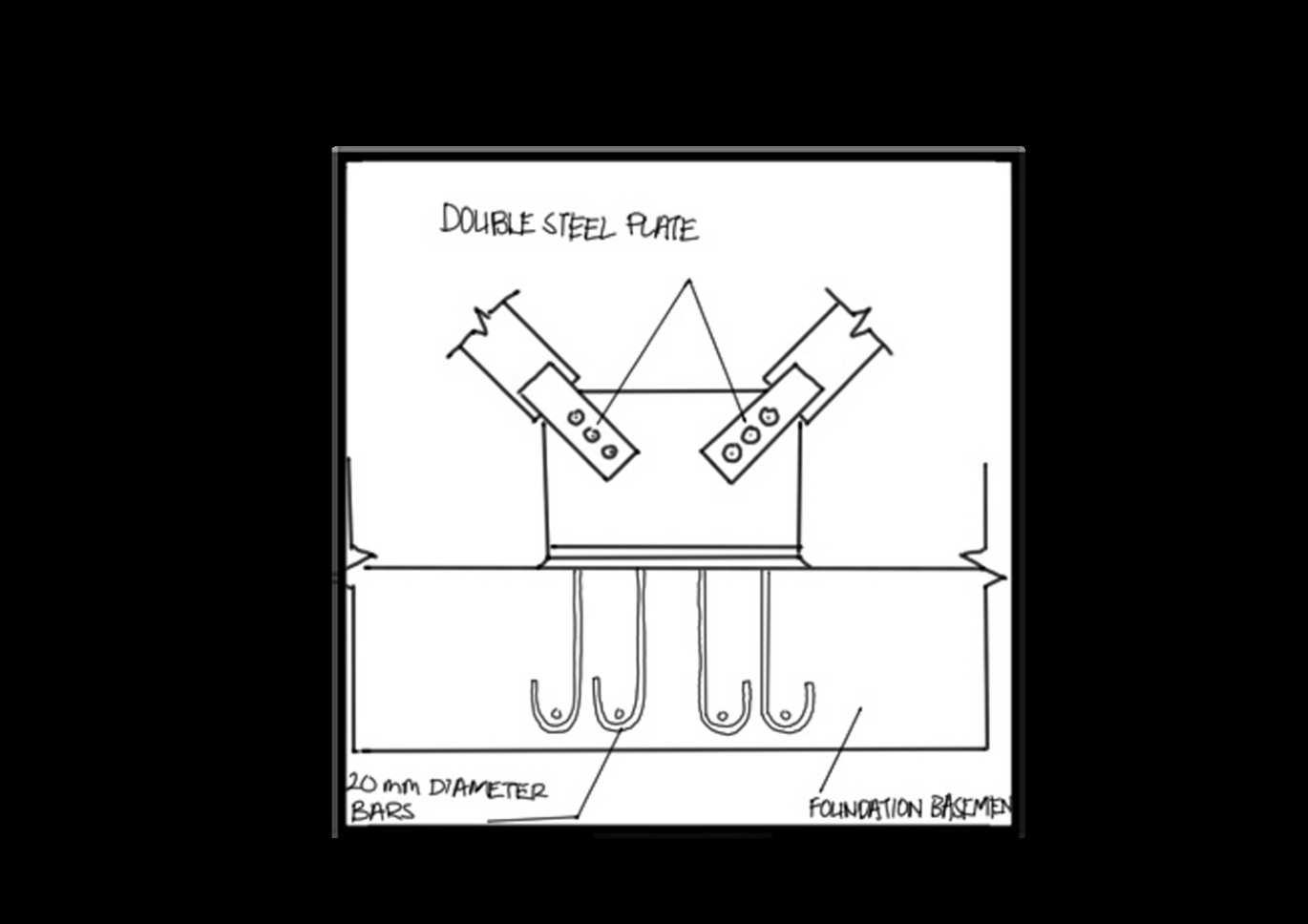

Slanted Steel Column Connection

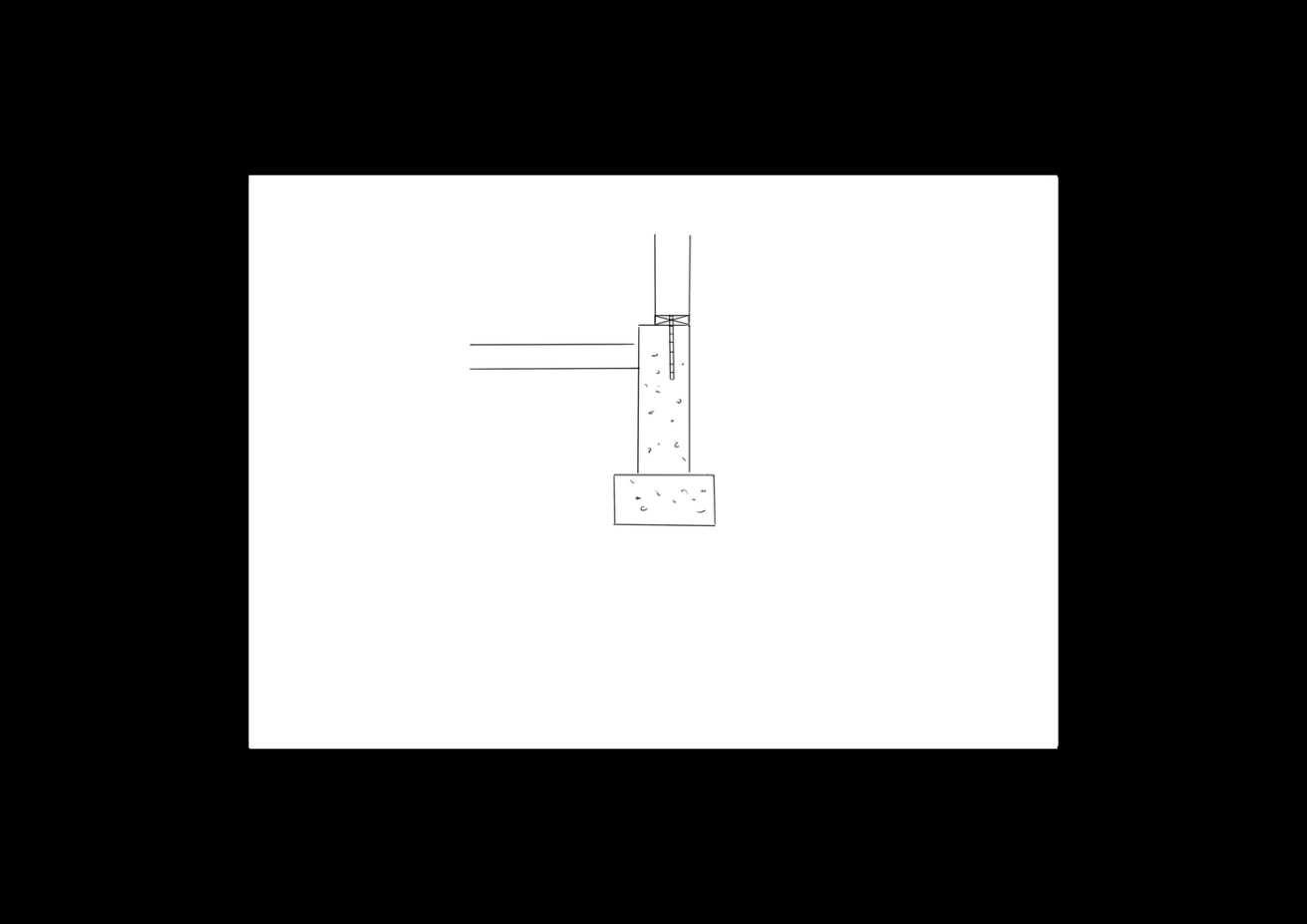

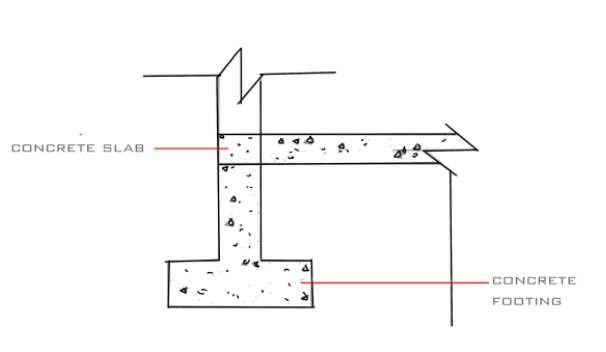

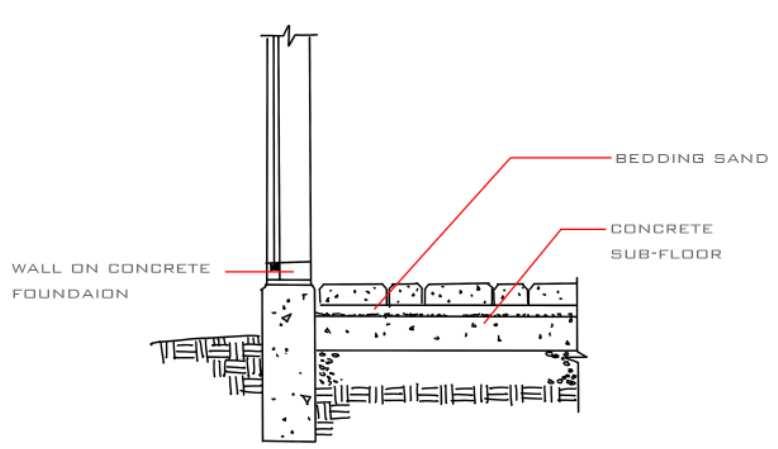

Concrete Base

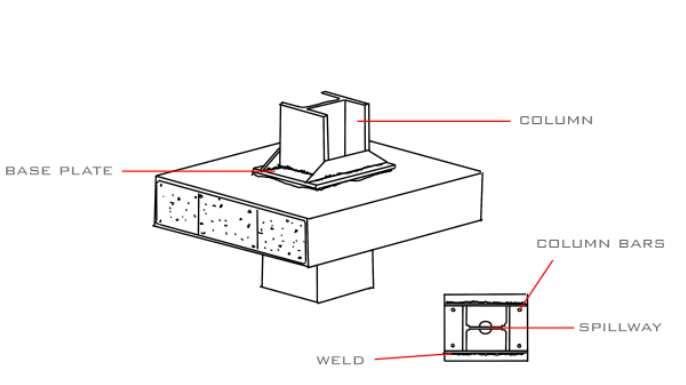

Concrete Column to Foundation

Community Planting Area

Traditional Clothing Workshop

Blackbox Theatre

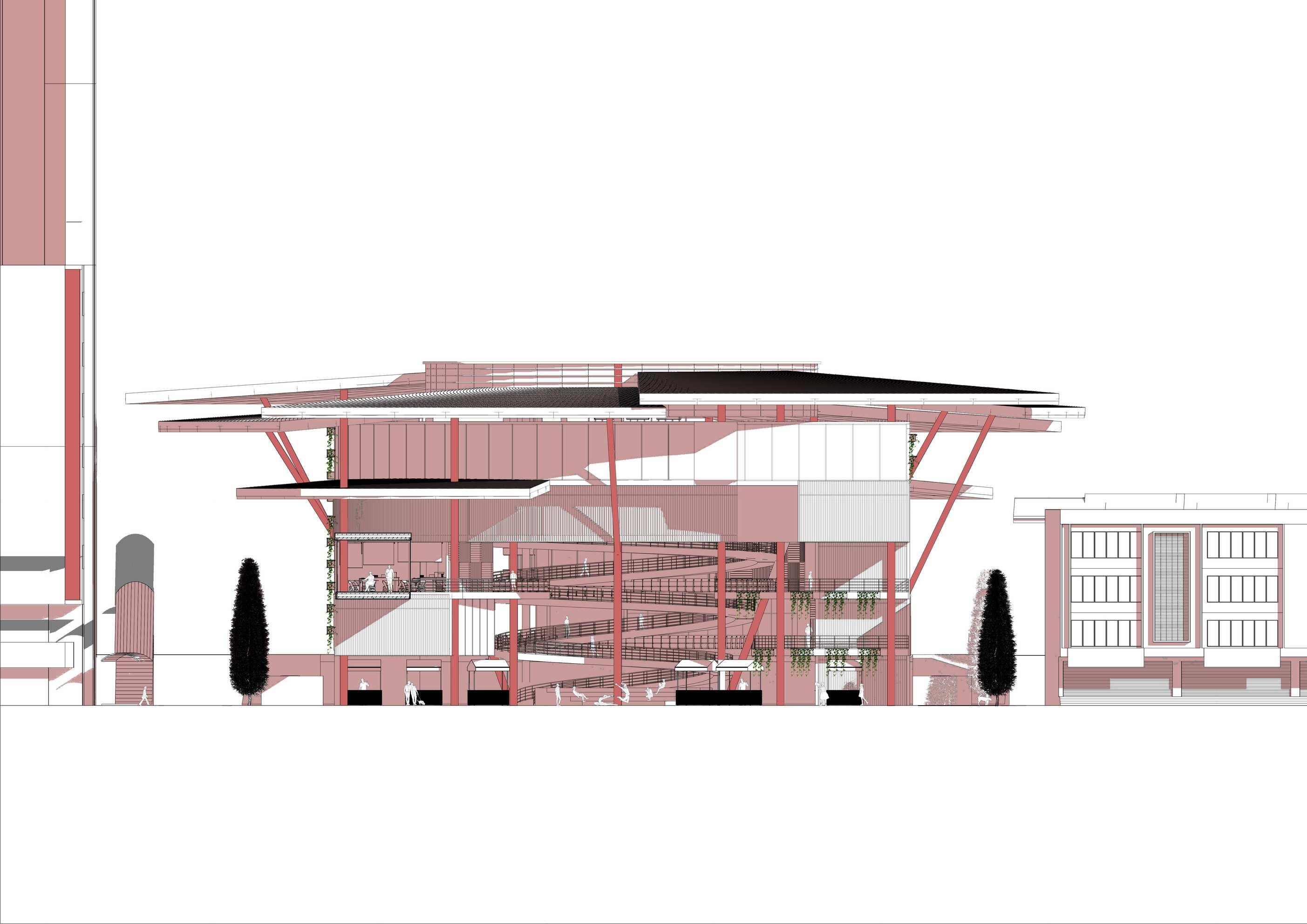

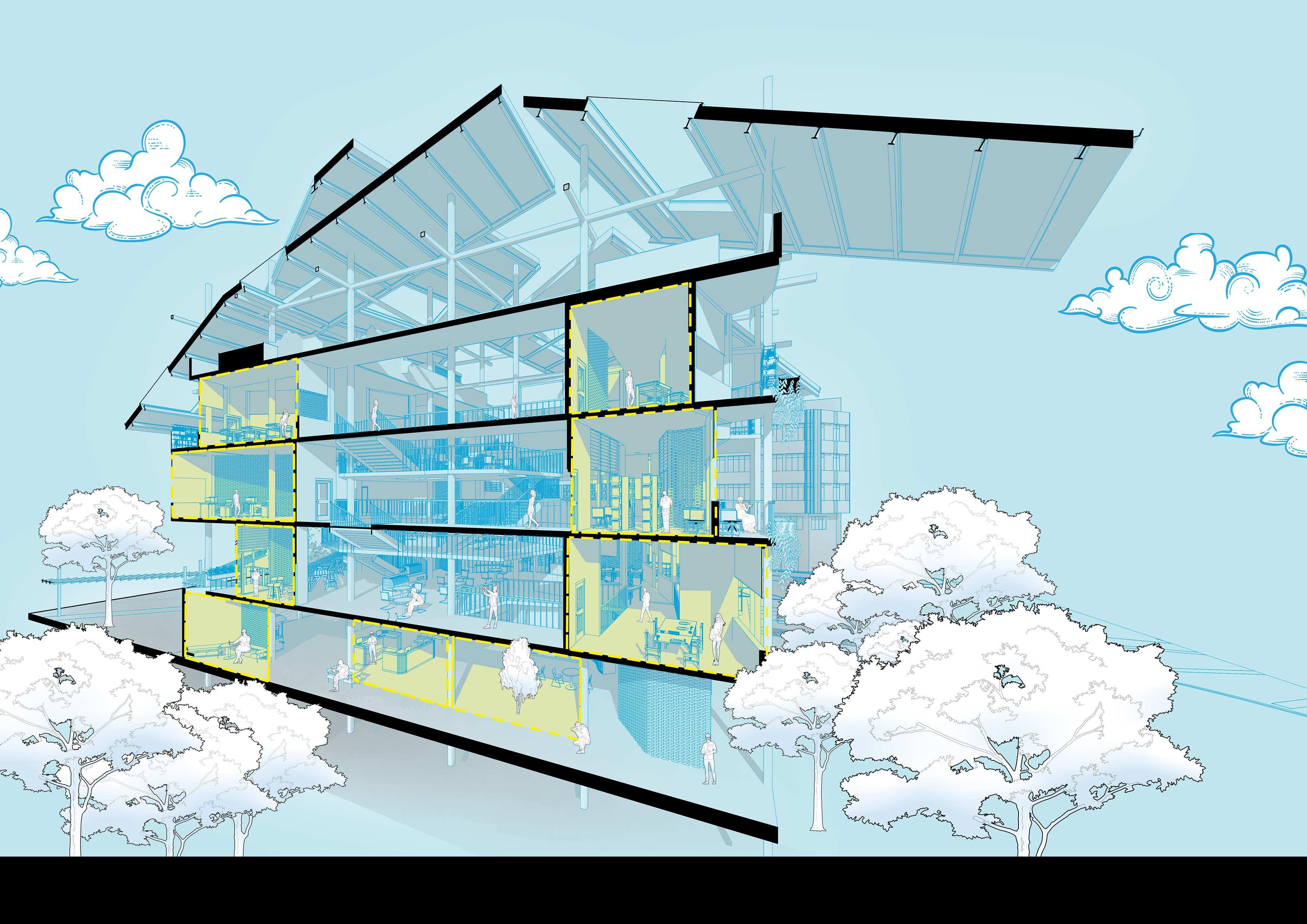

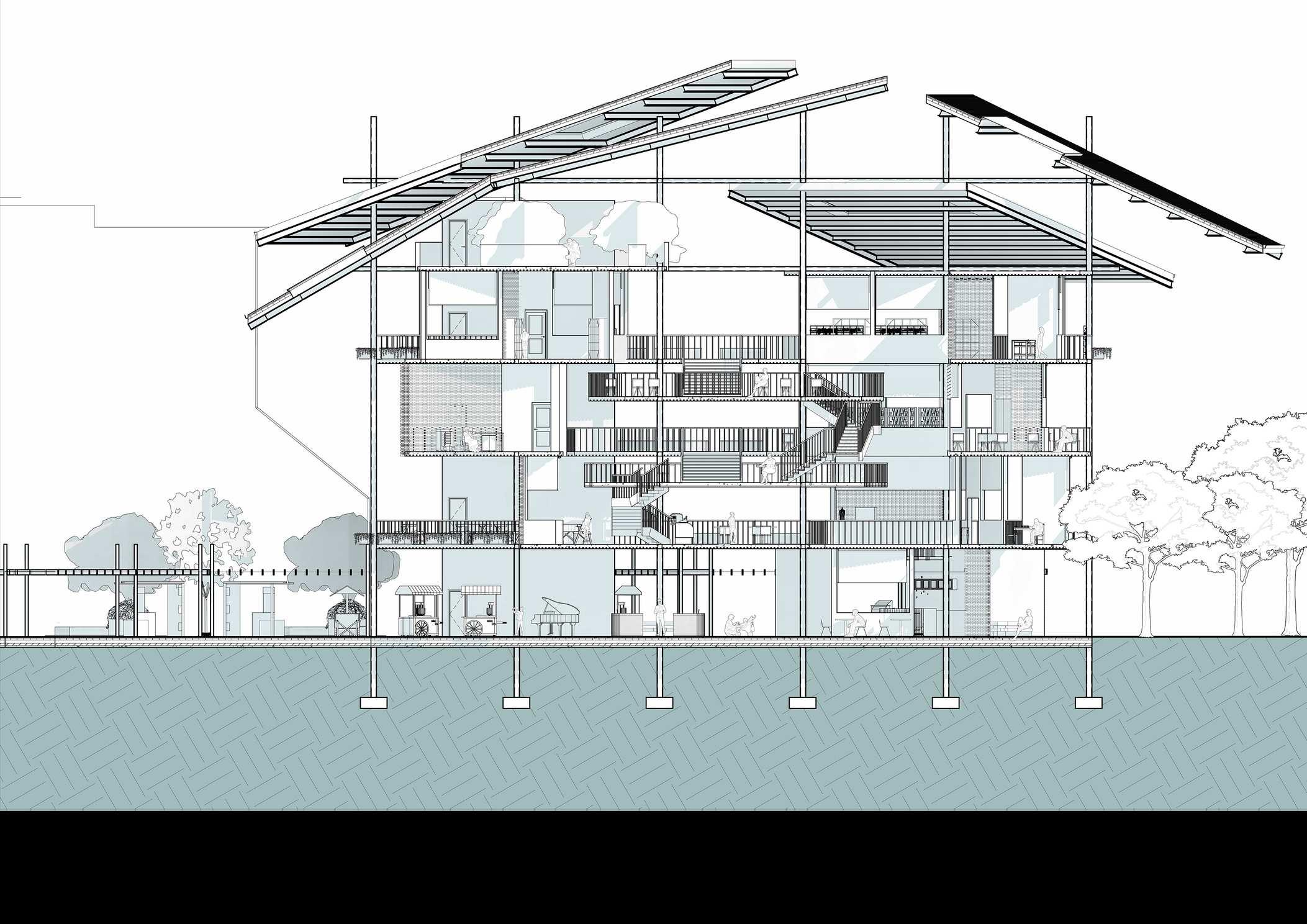

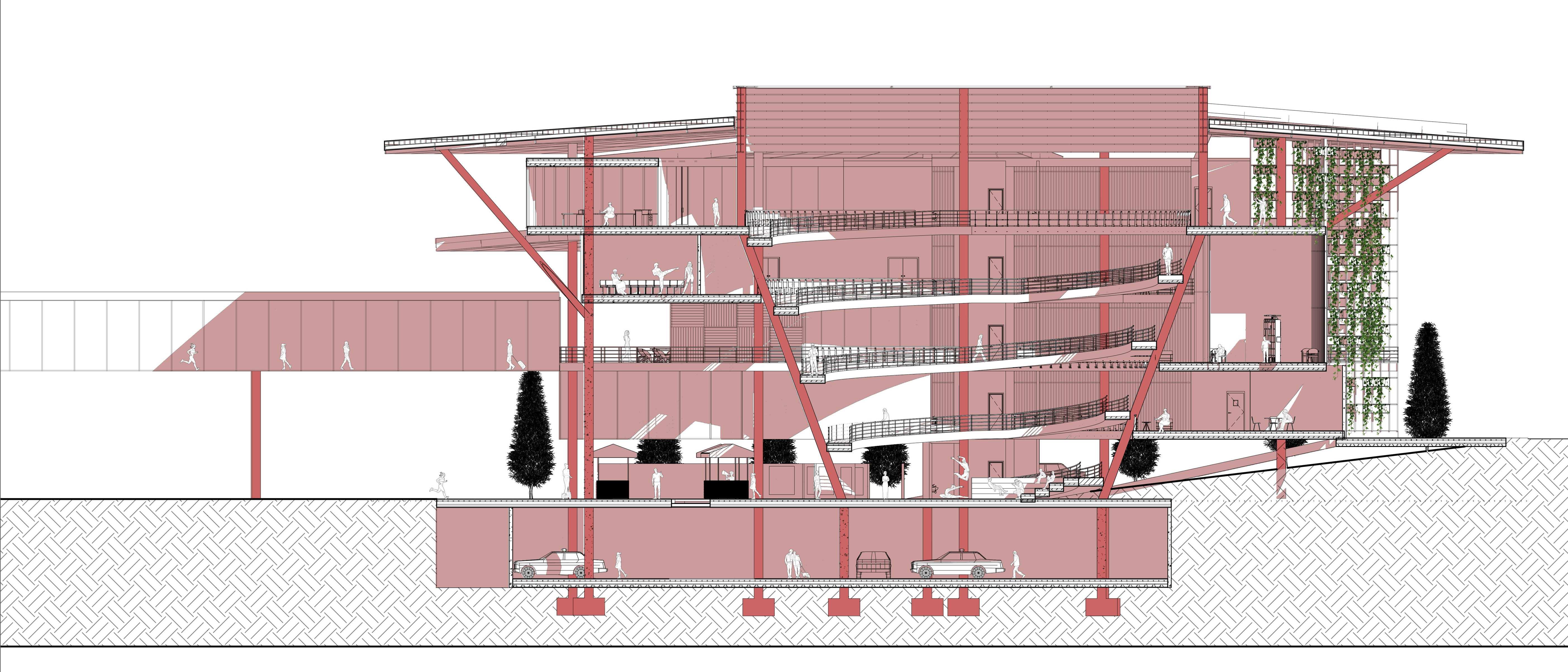

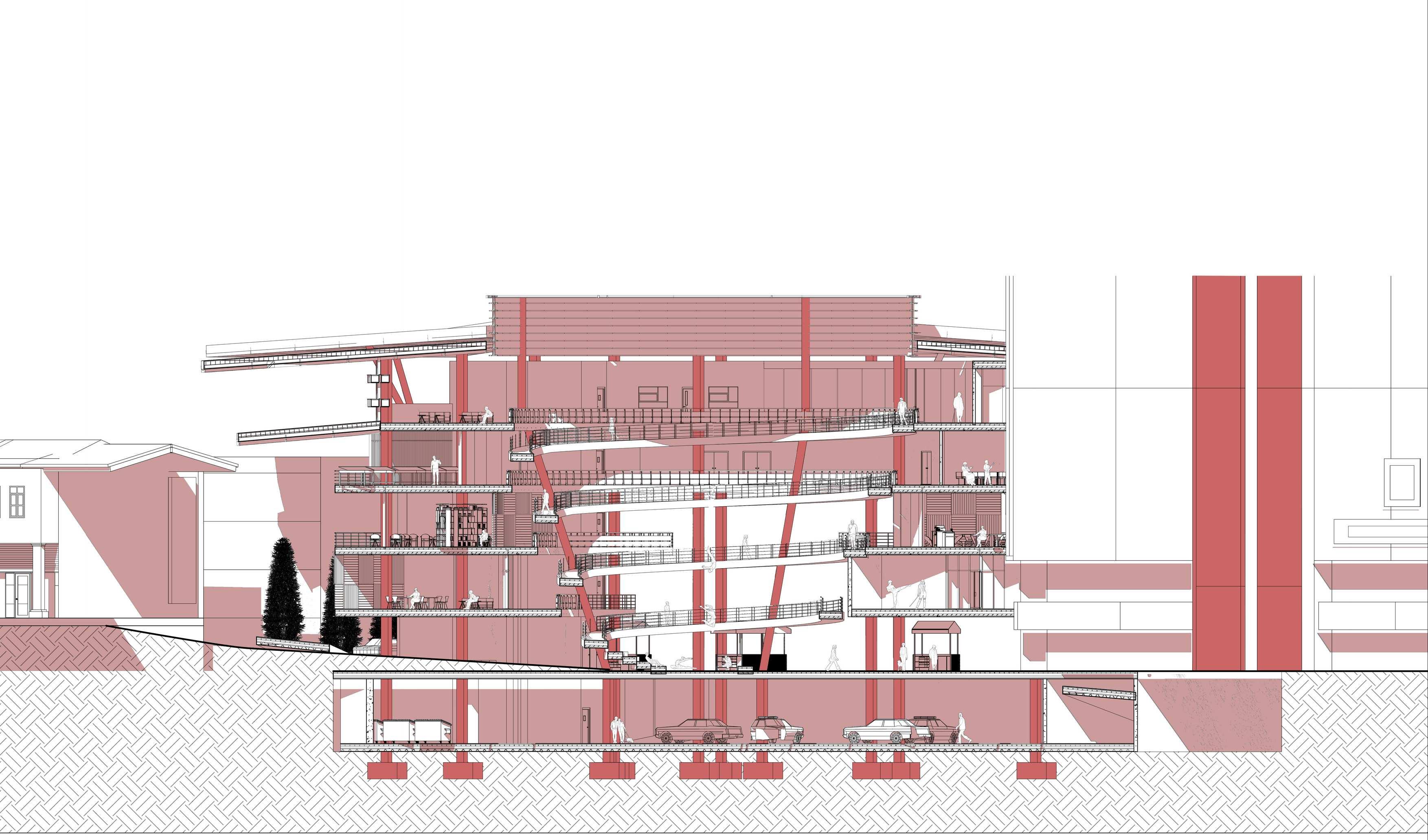

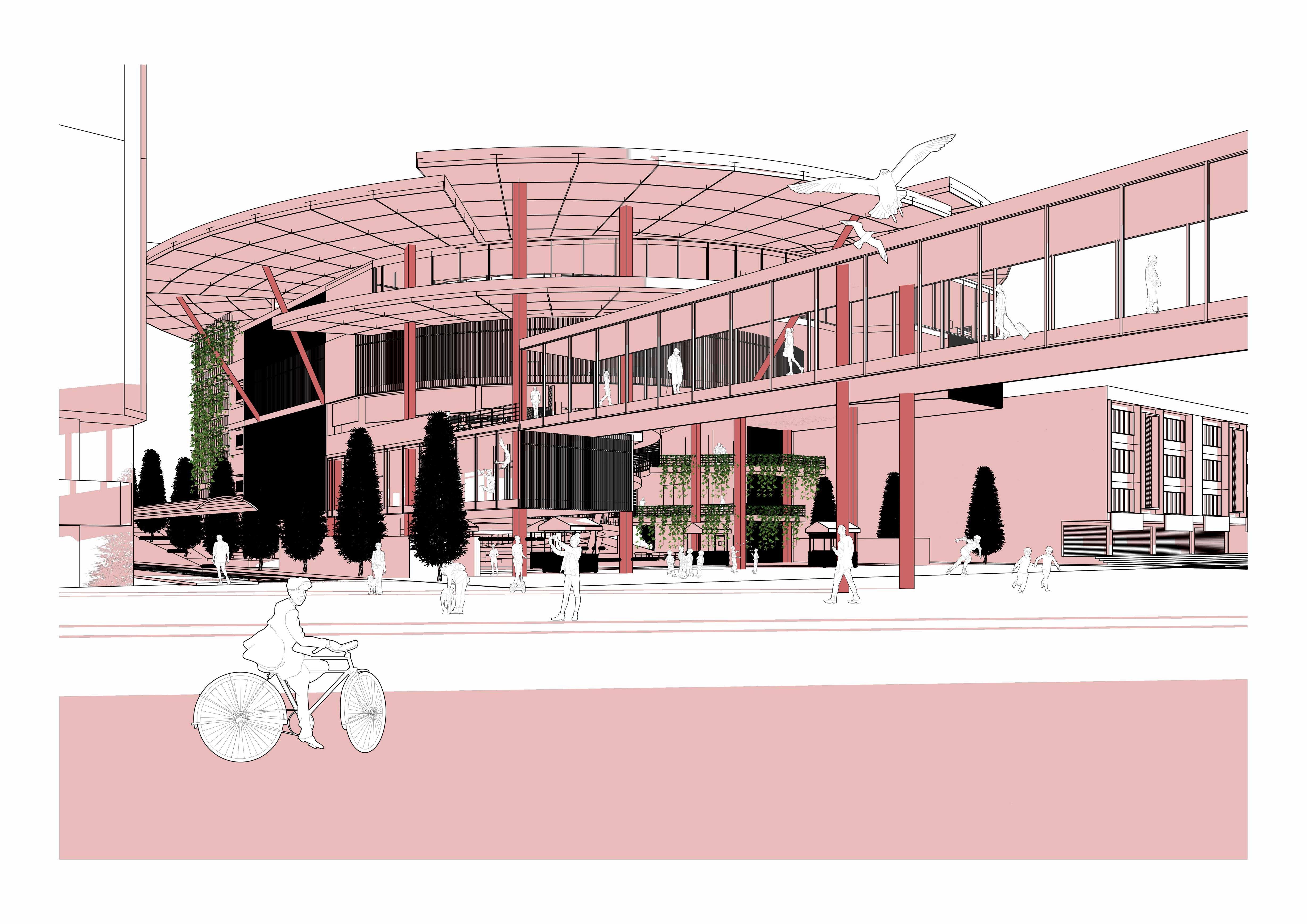

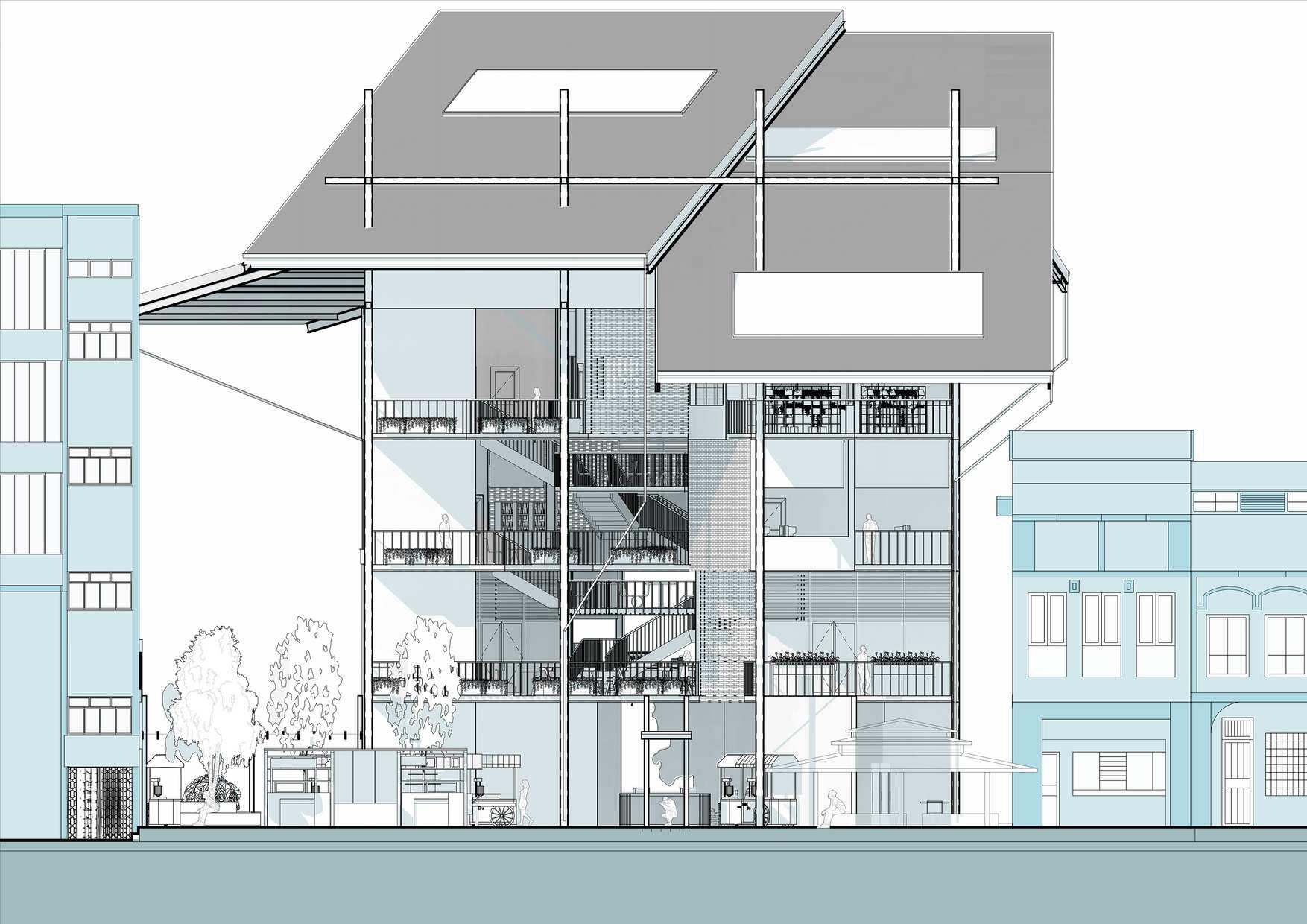

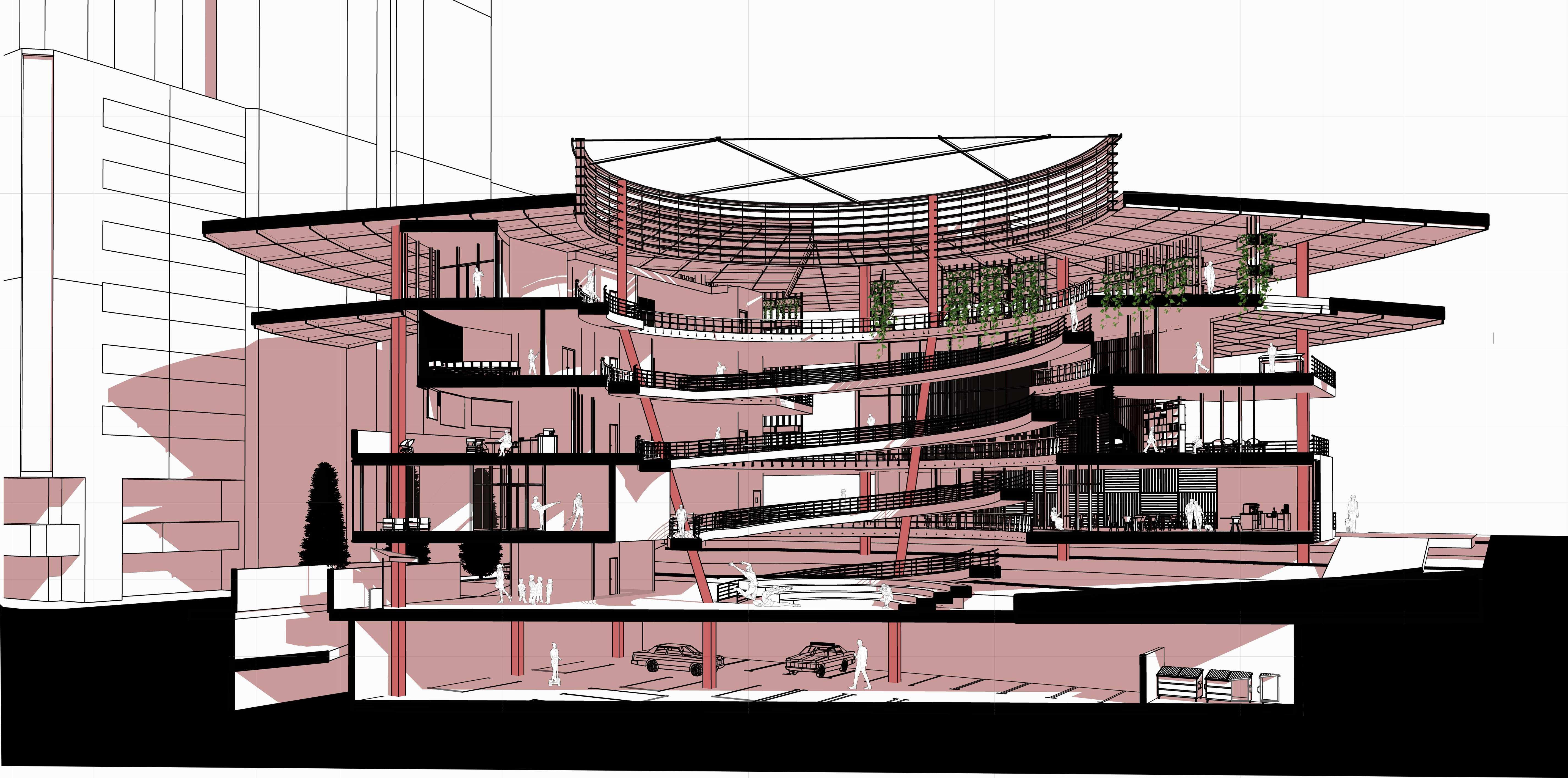

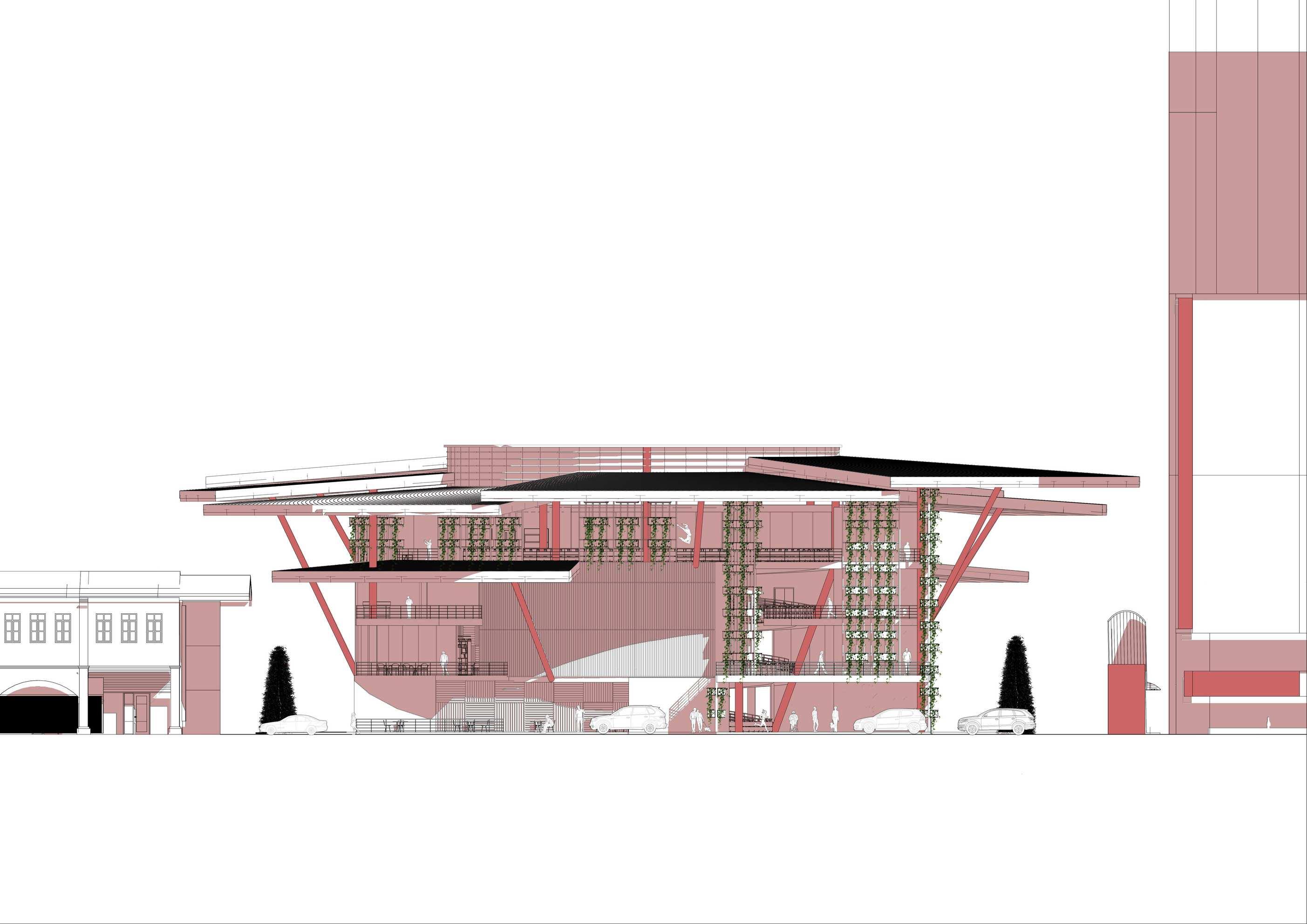

Sectional Perspective

Let’s Contact!

n/ Pang Qi Yuan Ernest t/ +60167777560 e/ pangernest4757@gmail.com a/ No.12 Jalan Indah 4/3, Taman Bukit Indah, 81200 Johor Bahru, Johor
