Industry 4.0: The importance of APS in automated lean production

Faced with a complex market environment featuring multiple varieties, fewer batches, shorter delivery times and more changes, custom furniture manufacturers are currently pressed for the support of a powerful production information management system. Since the planning and scheduling process is deemed as the core of production information, an information system is even more imperatively needed.

As the traditional enterprise resource planning (ERP) system is used to conduct production planning and schedule management, they poorly meet the corresponding needs of custom furniture manufacturers due to the lack of process data sources and limitations in the system architecture. Meanwhile, to meet the crying needs of the market, process software vendors within the custom furniture industry have investigated the needs of manufacturers and industrial characteristics of discreet and fl exible production. They have developed a dedicated advanced planning and scheduling (APS) system for the furniture industry, which is designed to address the fl aws in ERP’s planning module. Using algorithms, the system scheduling of the production process, and automatically generate the scheduling and production batch plans, etc. Consequently, such a system facilitates lean production by improving the kitting productivity, panel utilisation and processing effi ciency of orders. Taking a simple process in FinChinasoft's production information system for example, a custom order is split through Fin CAD/CAM and the order’s bill of materials (BOM) list is generated; the APS system then divides the parts into special-shaped workpieces and rectangular workpieces according to the manufacturing technique. Through the APS system's order and productionscheduling algorithms, the combined batches are automatically generated; rectangular panels and large-scale standard panels are allocated to the panel dividing saw, and special-shaped panels and batch size one panels head to the CNC nesting machine. Finally, the system is connected to the Fin Optimize Cloud Software to quickly obtain the cutting program fi les required by the nesting machine and saw equipment to begin production.

Nanxing Machinery has successfully combined its equipment and the Fin Optimize Cloud Software to maximise the advantages and effi ciency of their machines. This is how the APS system and Fin

makes full use of corporate resources to perform intelligent

Optimize Cloud Software work together. ADVANCED PLANNING AND SCHEDULING SOFTWARE The APS system has not only addressed the fl aws of the ERP module but also provided eff ective reinforcement for the existing ERP system. It automatically generates scheduling plans and production batch plans through algorithmic calculations to improve kitting productivity, panel utilisation and processing effi ciency of orders. The optimal computing engine can develop the most reasonable scheduling plan even under limited production capacity and provide furniture manufacturers with a more cost-eff ective scheduling plan.

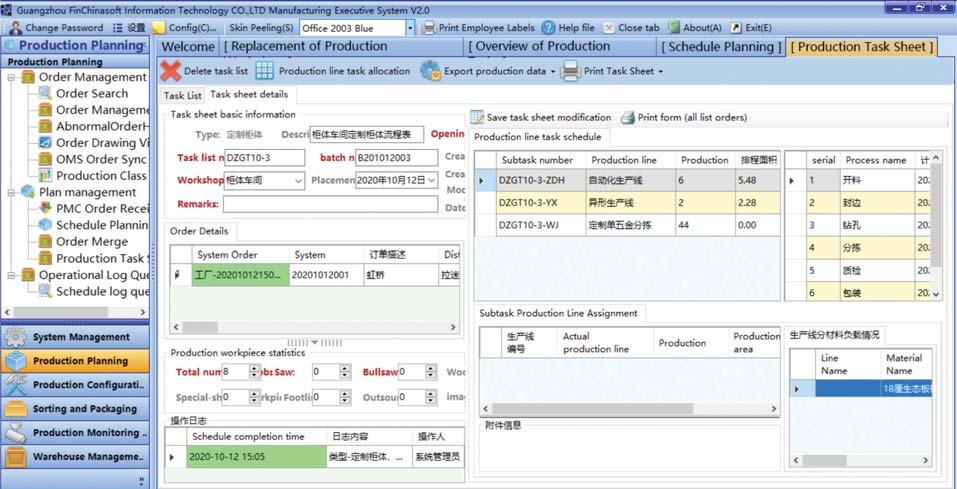

1. INTELLIGENT ORDER-SCHEDULING ALGORITHM When an order is received, the ERP system can provide feedback of current material storage and production capacity of the plant according to the real-time scheduling results from the APS system. Through its intelligent order-scheduling algorithm, the system, taking into account the order delivery time, production cycle of parts, equipment capacity, and other planned order-

scheduling constraints, can automatically generate the optimal order scheduling plan. This allows users to achieve the most optimised scheduling of production resources, and thereby improve the overall kitting productivity of business orders and eff ectively shorten the overall delivery time. By comparing the detailed list of required materials with the material inventory, the system can generate timely feedback on material requirements, lack-of-stock requests and generate inventory for inventory being withheld, guarantee the availability for orders in planning and scheduling, and ensure just-in-time production with suffi cient materials. In addition, special features such as urgent order delivery capability could be also introduced. 2. INTELLIGENT AGGREGATION OF PRODUCTION BATCHES production batch plan based on the system's statistical analysis of order material composition, part size distribution, processing technology characteristics and other factors, combined with the number of parts in the batch, part area and product quantity. For example, if it accounts for 80% of the factory’s large-scale engineering orders, standard rectangular panels will be assigned to the panel dividing saw, and the specialshaped panels or batch size one panels that require fl exible production, accounting for 20%, will be assigned to the CNC nesting machine to effectively improve the rational allocation of equipment use, material utilisation and workshop production effi ciency. 3. SYSTEM INFORMATION SHARING FOR INTELLIGENT PRODUCTION SCHEDULING The APS system can be integrated with the manufacturing execution system (MES) and third-party ERP to fulfi l interactive integration of planned production with material inventory and production process data. This then allows the continual development towards intelligent production scheduling that features system autonomy, self-feedback and self-decisionmaking.

The system is remarkably eff ective in actual order scheduling. The use of the APS system has developed huge advantages (eg, reduced staff , improved effi ciency and increased utilisation) under the same restrictions. After having used the APS system, some customers found that batch scheduling optimised by the algorithm could reduce panel consumption by 1% to 3% compared to the original manual method. Assuming a factory's

The intelligent production-scheduling algorithm generates the

originally consumes 1,000 panels a day, the APS algorithm can save at least ten panels per day using automatic scheduling. Given that one panel costs about US$22.40, savings could reach up to US$224 daily and US$67,200 annually (based on 300 working days per year).

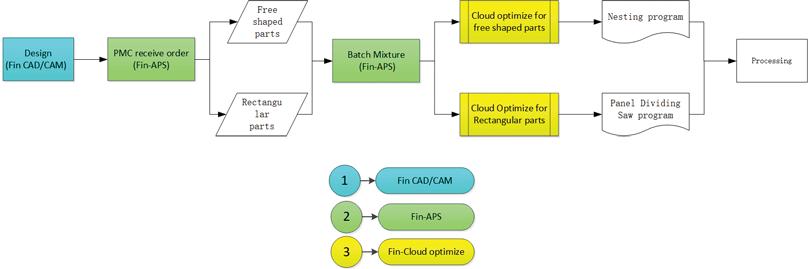

FIN OPTIMIZE CLOUD SOFTWARE Upon using the APS system’s intelligent scheduling in the preliminary stage, further improving the panel optimisation rate is the key to success for furniture enterprises. Presently, to improve the utilisation rate of panels, panel-type whole-house custom manufacturers across China generally merge multiple orders into one production batch, and optimise the layout of workpieces through optimisation software. Cutting optimisation software has also gradually developed into an important tool for processing the production data of process-splitting software, and has thus become a must-have product for such software companies in the industry. However, cutting optimisation software of diff erent companies may diff er in technical features according to deployment plan, supported equipment types and layout algorithm, which would directly aff ect the optimisation effi ciency, ease of use and extensibility of the software. This could ultimately aff ect customers’ user experience.

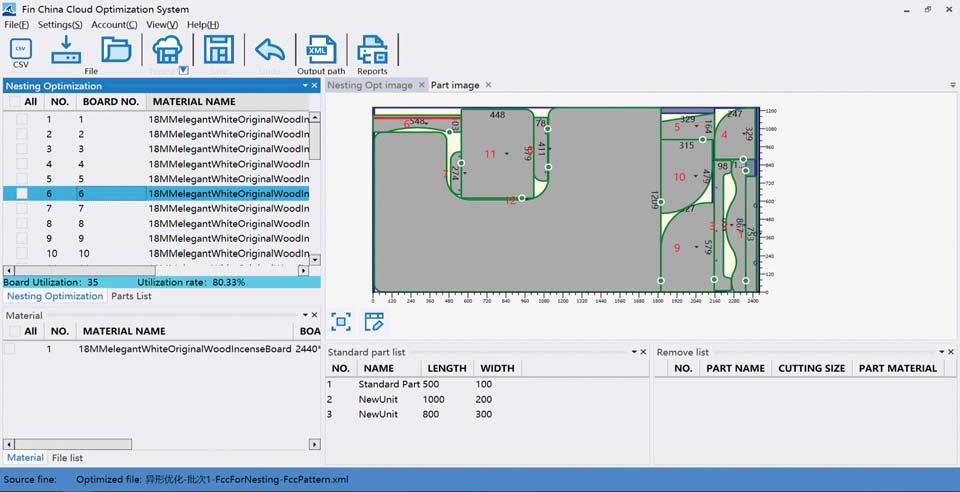

The Fin Optimize Cloud Software is an online layout optimisation system based on a cloud server. The user can log in to the system via the Internet on any computer at any time and place to easily upload and optimise the order data and get the desired layout result to coordinate with follow-up production. The core layout algorithms of the optimisation software also get updated and maintained regularly to continuously improve optimisation results, including the utilisation rate of materials and processing effi ciency of equipment. Currently, two optimisation algorithms – special-shaped layout algorithm and rectangular layout algorithm) – are being applied to the mainstream cutting devices, the CNC nesting machine and panel dividing saws, respectively.

ONLINE NESTING CLOUD SOFTWARE – SHAPED PARTS AND BATCH SIZE ONE An ordinary optimisation software can only complete the layout of rectangular workpieces. For special-shaped panels, the optimising process is performed by the rectangular outline. As a result, the vacant materials cannot be used rationally, adding to the cost of the enterprise. FinChinasoft's CNC nesting machine optimisation software uses intelligent algorithms to upload data to the cloud for automatic optimisation, achieving nesting of special-shaped panels, fi lling of layout and requires less manual work.

By using software to assist the automation equipment, the optimised utilisation rate and processing effi ciency of specialshaped workpieces are greatly improved. In addition to the optimisation, it can also perform multi-material optimal management, remodification of layout results, adding of standard parts, utilisation of material remainder, output reports, XML, CSV+MPR/BPP optimisation and other important features, which facilitate better management, raise production effi ciency and save investment costs. At present, the optimised utilisation rate for traditional rectangular workpieces is about 80%, and the number can be raised to 90% or even higher for specialshaped parts.

ONLINE SAWING OPTIMISATION SOFTWARE FOR RECTANGLE PARTS The web version of the online optimisation software is easy to use and allows the user to log in for layout anytime from anywhere, breaking the limitation of time and space. The newly added matching header function allows flexible matching to eliminate the restrictions that previous optimisation software have on part listing. The optimal layout is produced using the AI intelligent algorithm of the cloud server, and a variety of optimised formats are supported, including CSV, SAW, NXCUT and XML, to achieve seamless integration with the panel dividing saw.

It is evident that using algorithms to make the most optimal production scheduling plans under limited production capacity can greatly improve furniture manufacturers’ kitting productivity, panel utilisation and processing effi ciency. As the core process of production informatisation, an APS system is becoming increasingly important in lean production. P

The “Smart&Human Factory” is SCM’s vision for the future of the furniture industry. It is a system of automated, modular and easily reconfi gurable fl exible cells, integrated with articulated and collaborative robots and self-guided autonomous mobile robot (AMR) shuttles that can be programmed according to the production unit plant to move and work alongside the operator in complete safety.

This new digital and smart factory is still user-friendly, and designed to satisfy the challenges of mass customisation even more effi ciently and eff ectively. This goes beyond traditional automated systems; the state of the art SCM cells can be put together by clients according to their vastly varying processing needs.

By using a series of combinations between the shuttle routes and fl exible processing cells, SCM's “Smart&Human Factory” concept can be expanded within the same production unit to create complete furnishings for bathrooms, kitchens, living areas and bedrooms.

Presented at LIGNA 2019, and after numerous implementations on cutting-edge markets in Europe, the US and China, SCM's “Smart&Human Factory” was re-proposed at the SCM LIVE SHOW held from 30 June to 2 July 2020. New additions were developed to further increase productivity and fl exibility, reduce waste and optimise end product quality even with more sensitive materials.

The new version – only an example of the various confi gurations that this production model can achieve based on customer needs – involves three modular, flexible automated cells integrated with articulated robots and interconnected by AMR selfguided shuttles.

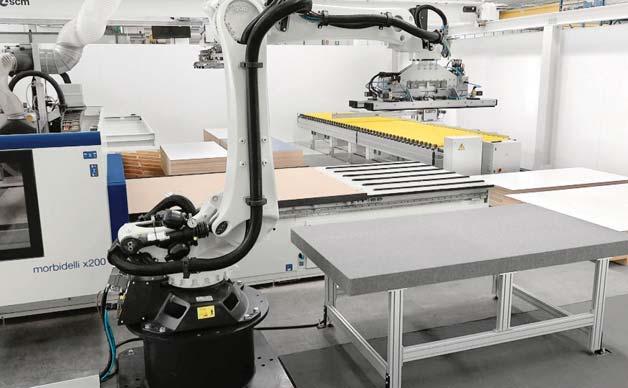

CUTTING CELL The “morbidelli x200” nesting machining centre, designed for “batch 1” fl exible production and able to cut at 50 m/min, is directly integrated into the high-performing “fl exstore hp” automatic storage for boards. This allows the stored and labelled panel to be directly loaded on to the worktable which protects those panels with a delicate surface. Once the nesting function has terminated, an articulated robot unloads the operating panel directly from the worktable and positions the diff erent parts on the AMR shuttles which then depart towards the next cell for edgebanding.

Another new aspect concerns the management of smaller pieces and waste: the robot also picks these up, making them available for future made-to-order productions with a considerable reduction in waste material.

The cell is also designed such that the panels with no delicate surfaces can be manually unloaded from the belt.

The “pack” cut made with a blade that guarantees high productivity on repetitive logical cuts is done simultaneously to the nesting, offering excellent fl exibility when cutting single sheets. This function is carried out by the new “gabbiani p80” panel saw. This model off ers a number of exclusive advantages: a “saw-set” device for the automatic and precise setting of the tools, 60 mm and 80 mm blade projections, more powerful motors, an additional extractor outlet on the presser and automatic blade release with switch.

pack c 100

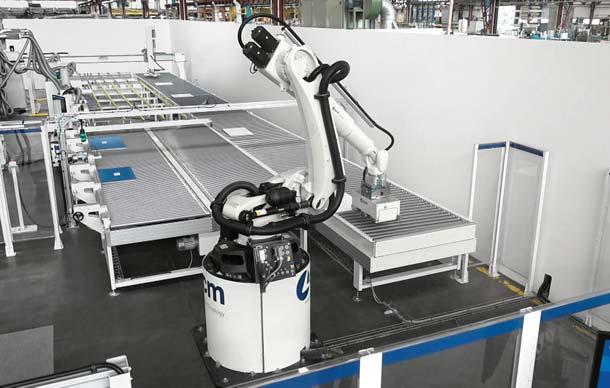

FLEXIBLE EDGEBANDING CELL The new “batch 1” “stefani cell E” cell is confi gured with an articulated robot for the fully automatic management of panel loading and unloading operations. The solution combines the advantages of customised production and large volumes with a compact overall design and, above all, an accessible investment even for small and medium-sized enterprises. Parameters like colour, edge thickness, position and depth of the mortise, management of the protective fi lm and panel sizes can be continually changed without interrupting the production fl ow. With a new gantry panel return system for the automatic return of panels, the panel is automatically rotated to speed up the next in-feed. It will also be possible to unload at the end of the cycle in masked time with the next loop load.

PACKAGING CELL With two machines, this cell is the ideal solution for furniture kit manufacturers. The “cut c 200” is an automatic punching machine for the cutting and production of an open cardboard box with the required size and shape. The “pack c 100” is an automatic solution for packaging with hot glue, using a pre-punched cardboard sheet. All the operator has to do is position the product for packaging on the open box (in this case – the panels coming from the edgebanding cell). After which, the upper lid is automatically closed. Due to the automatic measurement change setting, packages can be created with diff erent box sizes positioned in sequence on the roller.

DIGITAL INTEGRATED WOODWORKING PROCESS In the “Smart&Human Factory”, the whole system is optimised by the “Digital Integrated Woodworking Process”. Software and digital services assist the customer at each stage of the furniture-creation process – from the planning and preparation of the data to the machine production, right up to production monitoring, maintenance and after-sales service.

In response to production planning needs, a new manufacturing execution system solution is integrated into the SCM machines to assist customers with programming and managing the production fl ow.

Maestro active watch, a supervisor and process optimisation software, allows users to monitor the state of each product being machined, from the start to the end of the process. Through production tracking, it allows the best use of the facility by reducing bottlenecks and downtime, making all machines work at full load.

The new human-machine interface multi-touch Maestro active demonstrates how it is possible to have even simpler and better control and interaction with the machine during the production stage.

Lastly, the IoT Maestro connect platform collects and analyses the data about the actual use of the machines, improves the availability and reduces downtime. P
