Ozwide Tools 2024 Flyer

Fuel Injector Test & Cleaning Unit for Standard and GDI Fuel Injectors 6CYL

This fuel injector cleaner is adopted with the latest unique GDI fuel injector driving software, which can drive 12V, 70V, 120V high-pressure fuel injectors and clean and test not only standard injectors but also GDI injectors, such as found on Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines. The machine has 12 functions and can drive up to 6 injectors at a time. A great addition to your workshop!

Wheel Security Lock Remover Kit for Spinning Collar Style

This updated BMW & Mini kit assists with the removal of the ultra high security wheel lock bolts with the spinning collars found on a huge range of vehicles. With this kit you can remove each wheel within several minutes without the wheel key tool and with no damage to the rim!

PLEASE NOTE: Using this tool kit will destroy the genuine bolts and you will need to replace them with a normal set of wheel bolts.

Suits: BMW / Mini

Air Shock Absorber Leak Test Kit

Tool kit to complete a leak test of the Air Shock Suspension Systems.

Can test individual suspension units or the complete system. Comes with a range of ttings to suit most vehicles including: BMW, Mercedes Benz, Audi, VW, Land Rover and many more!

Fully Adjustable Upper Engine Support Brace

New designed upper engine support brace to support the engine while the engine is off its mounting points while completing various repairs. This new design does

INTRODUCTION TO THE

ATS PRODUCTS

The ATS range of products are designed and manufactured in the USA for automotive professionals.The range of tools include, 8 channel oscilloscopes, engine pressure analysis and exhaust gas analysers to vibration analysers and drivability tools.

This range of tools have been designed right from the start with the repair process in mind.

The tools are not the product of a vehicle manufacturer's engineering team, but rather the requirements and desire of a highly committed company to find and apply a better, faster way. ATS have achieved that goal.

These tools are not for everyone, but if you have the mindset and desire to be the absolute best in your field, these tools will be for you.

iEA™ Intelligent Engine Analyzer ELITE8 Kit /W AU Tablet

iEA™ Intelligent Engine Analyzer (Requires Scope)

The ATS EMI1030 Intelligent Engine Analyser is available as a standalone kit and when paired with either the 4 or 8 channel ATS Oscilloscope it can turn your laptop into a powerful engine diagnostic machine to pinpoint the locations of a misre or mechanical problems, such as incorrect valve timing or compression loss.

The kit includes exhaust pressure transducers, minus 30in.hg, 300psi and 500psi, A Spark tester with RF lter, exhaust pulse amplifier, cylinder compression adaptors, vacuum and tail pipe hoses, adaptors and cables.

Note: This tool kit needs to be paired with the ATS 4 or 8 channel oscilloscope.

This tool kit is designed with the powerful 8-channel oscilloscope as the hub which then works seamlessly with their entire diagnostic range including the iEA kit, E-Scan Elite Intelligent Power Scan, The iVA Intelligent Vibration Analyser and the iGA5 Elite intelligent 5 gas analyser, which are all available separately, as well as all the standard scope accessories.

ATS has the solution. You provide the motivation.

This comprehensive kit comprises of:

- ESO3100-E-Scope, 8 channel with accessory lead and clamp box

- EMI1030-iEA intelligent engine analyser

- DM20-MS7PRO-128 Microsoft Surface Pro 7+ 128Gb, 8Gig Ram (with Windows 10)

- DM20-MSPEN Microsoft Surface Pen, coded to suit ATS software

- DM20-UAG-SURFACECASE- UAG Surface Cover with rear strap

iVA Intelligent Vibration Analyzer

The ATS iVA is a stand alone kit used used to locate the source of vibrations transmitted into the cabin on passenger vehicles or heavy vehicles.

As with all things with modern vehicles with sophisticated dynamics, it can be a very time consuming process to pinpoint the source of a vibration. In the past it was not uncommon to have to swap components from one vehicle to another to try to locate the fault, this could (and did) amount to days of lost time. This tool is designed to eliminate the guesswork with its four sensors and extremely powerful software and logical process. It can turn a challenging task into a protable and satisfying outcome.

Note: This kit must be used in conjunction with a Laptop or tablet A

Ultra-Sharp Wave-forms,

Test Lead

Detection, Automatic voltage attenuator, drives four pressure transducers at once with full

/

conversions Includes a large lead & accessory kit for both the 4 and 8 channel.

Please visit www.ozwidetools.com.au for a more in-depth description.

This is a medical grade borescope that delivers crystal clear images and video to your computer, tablet or phone.

The 6mm diameter probe has 150 degree one handed articulation with image ip and 360 degree rotation. A 4x zoom is featured. It has a three foot probe cable, it also comes with an Android adaptor kit and a screw on mirror and light. It also comes with a lens cleaning kit and case.

This Borescope is in a league of it’s own!

eScan Elite, Engine Power And Drivability Diagnostics

· Does your scan tool have a list of special diagnostic PIDS?

· Can your scan tool calculate and display catalyst efciency?

· Can your scan tool tell you if the air/fuel ratio is correct: if the MAF is working properly?

· Does your scan tool display fuel trim charts at different engine speeds?

· Does your scan tool calculate volumetric efciency?

· Can your scan tool translate Mode 6 data to simple English?

A recent winner of the USA magazine Motor Top 20 award eSCAN is like a diagnostic compass that points you in the right diagnostic direction to x drivability issues fast! –Check our website for more details.

The ATS BULLSEYE LEAK DETECTOR utilises carbon dioxide, CO2 as the medium for testing enclosed systems such as air conditioning and fuel evap emission control systems. It can also be used to check cylinder integrity or even cooling systems prior to relling which is a great way to locate potential issues in complex cooling systems with components often buried under manifolds and covers and it uses cheap CO2 to do so. This unit can be used with SodaStream bottles which once you have the kit becomes a very cost effective way to test.

Check out our website for more details

Pressure Pro Transducer Kit

This kit will work with any oscilloscope to display up to three pressure transducer outputs simultaneously

Kit Includes:

Pressure Pro, 300 PSI Transducer, -30 HG Vacuum Transducer, EMissFire Exhaust Sensor (-20 H2O), 2 Pressure Transducer Cables, Phono Jack to Phono Jack Cable, 3 Pressure Pro to Scope BNC Cables, 3 BNC to Banana Plug Cables, 14mm Stainless Steel Compression Tester Adapter, 18mm Stainless Steel Compression Tester Adapter, Exhaust Tailpipe Hose, Quick Connect Coupler - Small, 1/4" Hose Adapter, 3/8" Hose Adapter, Custom Carry Case (not shown).

Please check out

Test

Youtube channel. It has a large library of amazing videos you can watch of these tools being used first hand.

Some of

mind.

Cylinder Leak Down Tester

Cylinder leak down testers should be one of the rst things you reach for when wanting a physical check for engine condition.

The leakage test can determine a large range of issues. This test will give you a far better insight into the integrity of the engine, it is possible to have a good compression test and a complete fail on the cylinder leak down test. The leak down test is the one to trust!

CRD Common Rail Diesel Fuel Rail Pressure Tester & Signal Simulator

This tool connects to the CRD rail pressure sensor and harness via moulded plugs, no ddling with back probes. It automatically detects which system, Bosch, Delphi or Denso.

This

Universal Diesel Injector

Seat Cutter and Reamer Set - 19 Pcs

Set of 19 cutters for re-cutting injector seats. This set helps to avoid blow back due to poorly seated injectors. The set ensures that the injector seat is bored to the exact dimension when replacing or reconditioning the diesel injectors.

Later model vehicles are housing more narrow injectors these days and earlier kits may not have small enough reamers to t down the injector ports. This kit is the latest on the market containing various cutters for nearly all diesel vehicles.

Glow Plug Puller Set with Slide Hammer

Crank the engine. The tool then directly displays the signal as MPA, PSI or BAR this will immediately tell you whether the fuel system develops enough pressure to activate the injectors and start the engine. In the event that the engine fails to start, possibly due to a fault in the pressure sensor, it is then possible to substitute a pressure value to the PCM to help determine whether you have an actual pressure fault or a perceived fault due to a faulty pressure sensor. All this data can be gathered in minutes by making two connections.

If you service CRD vehicles you need this tool!

Petrol & Diesel Engine Compression & Leak Tester Kit

This petrol & diesel engine compression and cylinder leakage test kits that cover the wide range of modern engines, including Hdi, TDCi and Pumpe Duse.

Diesel Injector Return Flow Testing Kit

The DM13-T175 common rail diesel injector return ow testing or leak-back test kit is designed to measure the fuel leak- back from each individual injector to identify mechanical issues within the injector. It is a comparative test where each injector is connected to a calibrated measuring ask and the engine is operated through its range for a set period and the leak-off is read and compared to the rest of the injectors.

In general, the injector with a greater leak-off is injecting less fuel, and therefore that cylinder is producing less power.

The injector with less leak-off is possibly injecting excess fuel and that cylinder may be experiencing knocking. Both of these conditions can lead to engine failure. Refer to the manufacturer’s specications for precise tolerances.

The kit is also supplied with calibrated tubes of smaller volume which can be mounted on” top return” injectors to test the cranking return rate on a no start engine. This kit is designed for non pressurised return, solenoid type systems. It comes with a range of ttings to suit Bosch, Delphi and Denso injectors.

Micsig SATO 1004

Automotive Tablet Oscilloscope

This tool was designed to be user friendly for new technicians as well as advanced diagnostic tech. More than 30 presets available along with conguring your own. This 4 channel scope has undergone a complete redesign and now incorporates a full function manual control panel as well as the 10" touchscreen with revised functions to make set-up and operation much easier, particularly when in the workshop environment. Becoming a must for the modern day workshop!

Pro Digital AC DC Current Clamp Meter with Multimeter Resistance Frequency Tester

UNI-T UT210E Pro Digital AC DC Current Clamp Meter with Multimeter Resistance Frequency Tester UT210 series mini clamp meters are designed to work well in limited space environments.

Features:

1. VFC, low pass lter

2.

3.

Diagnostic OBD2 Breakout Box

Each port has an led which illuminates to indicate whether power and ground are present. An in-built volt meter will also indicate the level of supply voltage available from the vehicle. The

apprentices or workshops. Kit comes with RPM pick up, temperature probe for testing A/C vent temperatures. Auto ranging, data hold, continuity, fuse protected, plus many more features.

Updated

System Ignition Analyzer

This ignition analyser can be used to quickly pin-point ignition misres, worn coils, damaged spark plugs, high tension leads, and other starting issues. Requires no time-consuming set up, simply grab and point!

Will analyse all spark ignition systems including Coil on Plug, and other general set ups such as DIS

Displays spark burn time (0-10ms)

Maximum KV (0-50 / -50,000v)

Engine speed for individual cylinders

Measures RPM (200 – 19,999 Rpm)

Capture Button

Very handy addition to your diagnostic collection.

11 PC Trim Tool Set in Pouch

11pc plastic trim tools set used for various trim and gasket use.

Comes complete with storage pouch.

Automotive Digital Pressure Manometer

This digital pressure manometer features a positive port, and a negative port.

It was chosen specically to measure the pressure gradient across D.P.F.s by teeing into the pressure sensing tubes, this enables us to measure the actual pressure and compare this simultaneously to the pressure reported in live data to determine if the differential pressure sensor is reading correctly or not and move on with our diagnosis.

The range of this meter is + or - 30PSI / 206.8 KPA in 11 selectable common units and is also suitable for MAP, BPS, EXHAUST BACK PRESSURE, VACUUM, CRANKCASE PRESSURE TESTING and PRESSURE ACTUATOR system diagnostics.

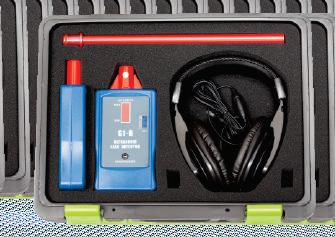

Super Ultrasonic Leak Detector

An invaluable tool used to pinpoint leak paths in sunroofs, windscreens, doors, boot lid, panels, light assemblies, etc.

Anywhere you suspect has a wind or water leak. Also used to trace high pressure air leaks from air suspension systems, vacuum leaks, e.g. brake boosters or servo motors.

The kit contains a transmitter which may be located inside the vehicle, and a receiver used to detect the leak. A set of headphones is supplied for use in noisy environments and two sensor extensions to reach into crevices.

Superseal Auto Connector & Tool Kit

This grab kit comprises 1,2,3,4,5 and 6 pole male and female housings with male and female terminals and wire seals to suit. A high quality ratchet type crimp tool is included with quick change jaws to suit all of the included terminals.

Also see DM13-BA26 JPT terminal crimp and release tool kit.

Air Bag Test Tool

Quickly test

Fuse Buddy Loop Tester

Fuse Buddy 2pc set clamp your current probe over the loop to access the amperage draw through a fused circuit. Also handy for installers needing to monitor circuit amperage limits. Great accessory for any current probe or automotive scope.

Pneumatic Ball Joint Separator 8.8 Tonne

This fantastic hydraulic ball Joint snapper / Separator has 8.8 tonnes of power which is strong enough for the tightest ball joints, brake slack adjusters on trucks, buses and trailers. With your imagination there will be many other uses for this tool!

Please Note: Must be used in conjunction with a hydraulic hand pump or air over hydraulic foot pump.

Please see: DM11-B1129 & DM11-A3036

Jeep Ball Joint Remover and Installer ON CAR

Special design to remove and install the ball joints in the steering knuckle without the need to disassemble the suspension.

A smart and effective way of completing what would normal be a painful job quickly and efciently.

Models: Jeep Wrangler

Ball Joint Separator Master Kit

Universal master ball joint separator kit.

Suits a huge range of vehicles due to a clever design that allows you to adjust the height on the centre pivot point up or down to suit various control arm set ups.

Includes sizes: 24mm / 27mm 31mm / 36mm

Universal Hydraulic Hand Pump (700 Bar / 800 KG)

Hydraulic hand pump. 3/8" Adapter

800kg Output

Maximum Pressure: 700 bar

Universal Adjustable 5 Hole CV Shaft Expeller

Expeller for 5 stud hub extraction with mechanical spindle.

Models: BMW / Mercedes Benz / VW / Commodore and most other 5 stud hubs

PCD: 96mm - 126mm

Suspension Split Hub Knuckle Spreader

Multimeter

Multi Colour Non Destructive Piercing Needles

Automotive Diagnostic Test Acupuncture Probe Pin Set

Insulation Puncture Probe 2pc Set4MM Socket

Auto repair multimeters 2pc puncture test clip. 4MM banana plug end.

10AMP/ 143MM Long / Max 1000V

2PC Insulation Wire

Piercing Puncture Test Set 2MM & 4MM

High quality piercing puncture probe hook sets. Come as a 2PC Red & Black set. These have a sliding adjustment so you are in control of how shallow or deep you want the puncture to be.

Length: 96.5MM

Optional 2MM or 4MM jacking points.

Test Leads Multicolour

Piggyback 5pc Set

This 5 piece set of test / jumper leads are tted with 4MM piggyback style terminations. They are designed to connect with all standard 4mm test probes, crocodile clips and diagnostic accessories. They t all 4mm standard multimeter inputs, and can be used to extend test leads and make up individual jumper cables.

Back Probe Kits 5 Colour Identifier

5 Colour identied Back Probes for use on harness connectors, fuel injectors and automotive sensors. Stainless steel, straight, 45 and 135 degree probes in 0.7MM Banana plug extension leads compatible with standard 4mm plug

Probe Max Voltage & Current: 30V /1A

Lead Length: 100cm

Red And Black 4MM

Banana Lead Extenders

These lead extenders are a 4MM Banana, male to male lead. There are 2 leads in the set, 1 x Red / 1 x Black

Length: 1M / 15AMP

1000Vrated

Multimeter Test Leads

4MM Banana Plug Multimeter test leads. 90 degree angle to straight style. Industry standard 4mm banana plugs to connect with alligator clips, back probes etc. Durable and safe. Refer DM14-T307.

Rated: 15A / 1000V

Line Length: 100cm

This large multi-function wire terminal set allows you to greatly extend the capabilities of your diagnostic tooling by allowing you to tap into the wires and connectors needed for testing.

Air Powered Calliper Wind Back Tool

Latest air powered wind back tool kit with adapters to suit a huge range of vehicles - 23 PCS

Includes the 3 pin adapter that suits many of the Euro vehicles including VW, Audi, BMW, Renault and more.

If you have not used an air powered brake calliper wind back kit yet, you will wish you had of bought one a long time ago!

Porsche Wheel Centre Lock Nut

Socket

Universal Professional Brake Piston Wind Back Calliper Tool

A universal tool for pressing the pistons back into the brake caliper on most vehicles with 4 piston calipers.

Vehicle and component manufacturers are increasingly incorporating high torque and specialised fasteners with a greater number of bolt head proles, this trend is very prevalent with brake callipers and can make even a brake pad change impossible without the correct tool.

This 10 piece boxed set covers most commonly encountered fasteners used on VW, AUDI, PORSCHE, MERCEDES BENZ, BMW, SEAT and other European makes, and includes: 7 point, 10 point, hex and multi spline.

Works on various single, dual & quad piston callipers Centrally distributes force to prevent misalignment of pistons. Tool has two plate sizes: 115mm x 60mm & 177mm x 60mm

15 PC Alloy Brake Bleed Adapter Set

• Suitable for use with most pressure brake bleeders. Includes European cap adapter, multi vehicle caps, American adapters (GM), BMW, Audi, Nissan, Mazda & Honda.

• This new kit contains master cylinder adapters which cover domestic and import vehicles. It contains many universal adapters and manufacturer specic caps.

• An adapter is also available to use with traditional pressure bleeder. Adapters t 90% of current master cylinder reservoirs.

Suitable for use in conjunction with DM13-Y002 /

This kit is specially designed for performing power brake bleeding on Tesla vehicles. Aluminum-made adapter holds high pressure, suitable for Tesla working pressure at 30PSI / 2 bar. Compatible with most brake pressure bleeder machines or tankpumps.

Adapters for: Tesla Model S and X, Tesla Model 3 and Y

Brake Fluid Tester Electronic

This new and much improved brake uid tester will accurately display water moisture content in the brake uid. The unit comes with a backlit screen and inbuilt ashlight for when in dimly lit areas. Includes a buzzer alarm function and auto shut off after 5 minutes.

1% or less is a good condition, no need to replace the uid.

5% - 2.5% means the performance is reduced but still usable.

3% or above indicates a serious decrease of performance and needs replacing.

High Quality Manual Brake Fluid Bleeder 3.0L

Manual operation suitable for most vehicle brake systems.

1 x standard European adapter with a 90 degree tting for narrow spaces. Capacity 3000CC tank with improved pressure gauge for easy viewing. Built-in a pressure release valve on the ller cap. Includes 2 special industrial hoses with control valve & connectors.

Suits Fluids: DOT3, DOT4, DOT5.1

Brake Bleeder

This kit is designed to cut holes in new bumper bars to t the following:

Parking Distance Control Sensors (PDC) / Parking Manoeuvring Assistance (PMA)

Side View Camera (SVC) / Sensors and Cameras

Suits Models:

1 Series (F20, F21) / 2 Series (F22, F23) / 3 Series (F30, F31) / 4 Series (F32, F33)

X5 (F15 & F85) / X6 (F16) / X6 (F86)

Will suit more models as they are produced.

OEM: 8330 2334 055, 8330 2334 065, 8330 2334 059 and 8330 2334 067

Also Includes latest adapter BMW 83302359747 for front camera

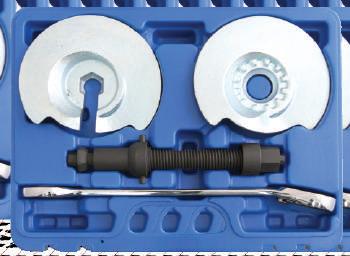

BMW Rear Spring Compressor E70

Used to remove and reinstall the rear springs on vehicles without automatic ride height option.

Models: E70 / E71

OEM: 335100 / 335 100

BMW Timing Chain Rivet Press Tool

Parking & Camera Sensor Hole Cutting Kit for BMW

This kit contains a uniquely designed chain guide tool to control old chain withdrawal and simultaneous new chain insertion, and includes a chain tensioner tool to facilitate timing chain replacement without major engine tear down, potentially saving many hours labour.

Models: Suits ongoing models that may not be listed:

E81/ E87/ E88/ E82/ F20/ F21/ E46/ E92/ E93/ F30/ F31 F35/ F10/ F11/ F12/ F13

X1(E84) / X3(E83) / X3(F25) /X4(F26) / X5(E70) / X5(F15) X6(E71) / X6(F15) / Z4(E85)

Z4(E89) / R56 / R55 / R57 / R58 / R59 / R60 / R61

OEM: 83 30 2 354 985

Nissan 2.5L Injector Pump Lock

Engine codes: YD22DTI, YD25DDT, YD25DDTI

This tool is designed to retain the HP pump drive sprocket during pump replacement.

Diesel Injector Pump Timing Kit

M8 / M10 / M12 / M14

This set of tools works with a dial indicator to precisely set the injection timing on Bosch VE -EP fuel injection pumps. The timing is set by measuring the plunger height at a specied crankshaft position, usually TDC. This process is often overlooked, but is the only way to ensure correct pump timing and there are still very many vehicles and engines in service today using this pump and those manufactured under licence form Bosch, i.e. KIKKI, NIPPONDENSO, CAV ROTODIESEL. With many European and Japanese applications. Please also refer to DM13-853A Bosch Diesel Injection Pump Socket Kit and DM21-1288 Universal Injector Pump Timing Kit.

Ford 2.0 EcoBlue TDCI Crankshaft Pulley Removal Tool

This tool is designed specially for the EcoBlue 2.0L to remove the harmonic balancer pulley on the Ford Ranger, Transit and Kuga from 2019 onwards.

This tool ensures the vibration damper can be removed without causing damage to the bonded rubber section of the pulley

Ranger, Kuga, Transit

ISUZU Valve Clearance Adjust Nut Socket

Specially designed deep

Special tool for safe, quick, labor-saving removal of the CV joint for most car models. With this tool, there is no need of wasting time and labor on hammering the CV joint for removal. This is a smaller size with higher rigidity than the others in the market which allows using this tool in a narrower space ideal. Single-side design allows the installation of clamp more easily, and directly. There are 4 types of

Suitable

Models:

Heavy Duty High Flow Smoke Machine

This is truly a portable 12-volt DC powered unit, incorporating its own internal air pump with the ability to also connect to shop air OR a CO2 source for safely testing EVAP systems. It incorporates a low-pressure gauge and ow metre for testing EVAP systems etc in the 5 to 8 KPa range.

A high-pressure gauge and ow metre for testing induction systems, exhaust systems, cooling systems etc in the 0.8 to 1.2 Bar range, and a HD range from 2 to 8 Bar to test high pressure systems such as air suspension or combustion chambers. It gives you essentially three pressure ranges, fully adjustable for pressure and ow.

The machine can be used with or without smoke depending on what you are testing and comes with a large range of accessories to enable connection to the vehicle. This is a truly versatile, well-built machine and enables leak detection not just in engine systems but is also great for tracking down wind and water leaks in doors, sunroofs, light assemblies and many more applications.

The smoke leak detector is an essential tool for drivability diagnosis in today’s modern workshop and this machine really packs a punch with its versatility and range of functions.

If you have been holding out from purchasing a smoke machine or waiting for the right one to cover all your needs or you simply want to update your old machine, this is the machine for you!

The GYS range of battery chargers and programming maintainers are state of the art and have now been ofcially approved by BMW for use during diagnosing and reprogramming procedures. This unit is capable of charging all battery types including lithium and stop/start in either 8 steps (lead acid) or 9 steps(LFP) automatically. It provides the clean output and current capacity to maintain the battery even under the most demanding situations.

This is critical during reprogramming where a failure to maintain battery voltage can result in corrupted data or damage to control units. This is particularly important for prestige makes during long procedures. This unit has many safety features including reverse polarity and short circuit protection and has been designed with future requirements in mind.

Built in France and engineered to last and the list of features is extensive.

The PicoScope is an extremely powerful automotive diagnostic piece of equipment for today's modern workshop.

The kit comes with the hardware module and an extensive range of test leads and connectors. All you need is to use the unit in conjunction with your laptop and installed PicoScope software.

Please check our website for all individual parts included in the Pico Standard Kit.

Regular software updates are free for the life of the machine.

There are over 150 guided tests and growing, plus 6,500 sample waveforms. Access to the PicoScope waveform library. This is an Opus IVS branded PicoScope, there is nothing different about it.

Warranty and access to waveform library and free software updates
