ZG-MedCart Lite
Basic Lite Cart
Ergonomic
Easy to clean
Multi purpose
Lifetime warranty
Quick setup
FEATURES
Designed and manufactured in Hungary, products are typically 100% recyclable and upgradable in the future. Raw materials are sourced locally or in the EU.
Cart Properties
Dimensions and mechanical data
Mechanical data
Height
Wheelbase dimension
Wheel construction
Wheels/locking
Loading
Construction
Main
Color
RAL 9016
Custom
Certificates
Certificates
CE
mm (diameter)

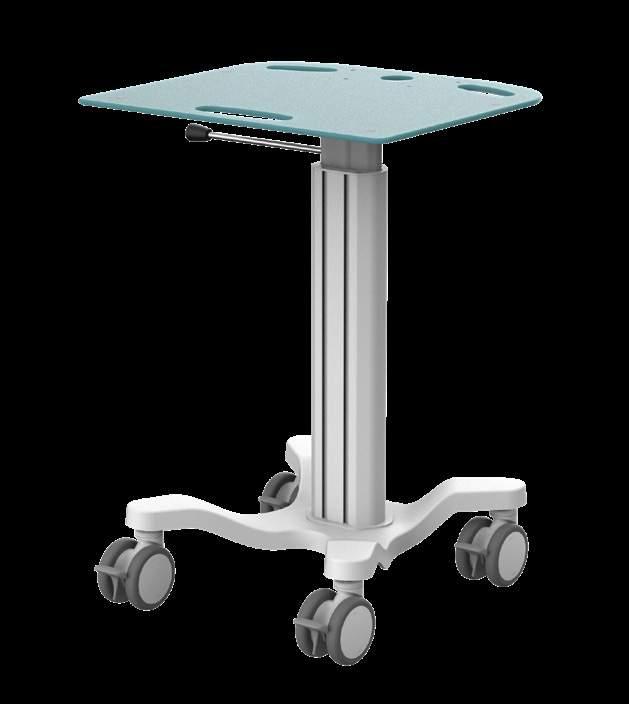

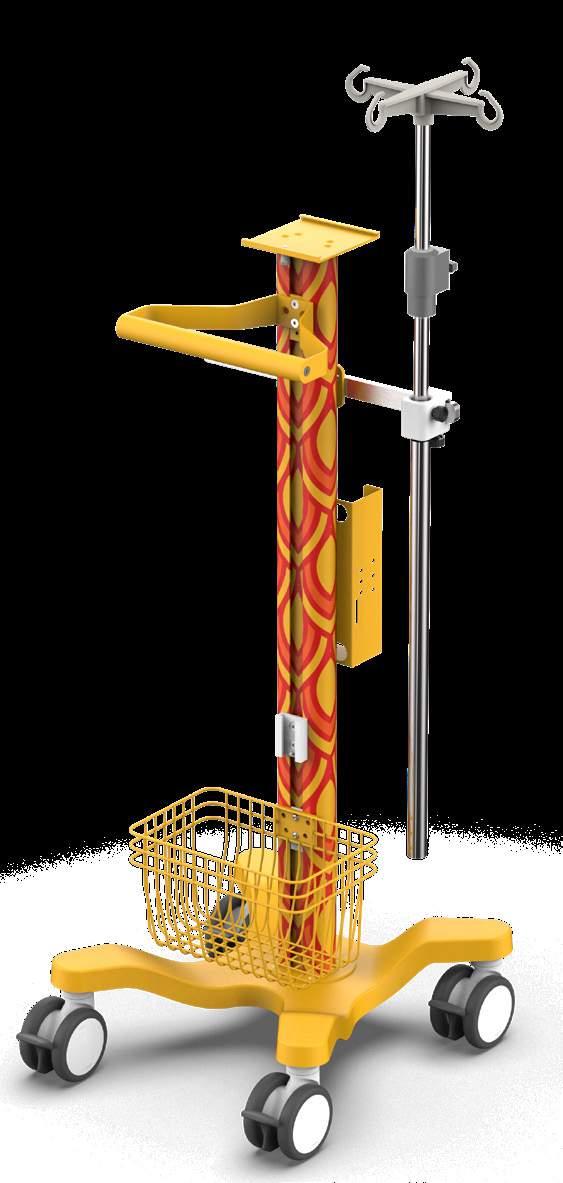

Example of a Lite Cart
All the accessories shown are available in stock. For unique accessory requests please contact us!
HANDLE H1
• Safe way to move the cart
COLUMN C2-L4
• C2 Column
• L4 - 996 mm tall
• Custom wrapping
• Column channel to fix accessories
• Aluminum
POWER SUPPLY HOLDER PSU1
MOUNT AM1
• Fisher & Paykel mount
• Suitable for humidifiers
• Column channel mounting
STORAGE B1
• Wire Basket
• Yellow painting
QUICK RELEASE MOUNT QRM
• Wide range of devices can be attached
DIN RAIL
• 400 mm long
• Wide range of accessories can be attached
• Aluminum
DRIP POLE IV4
• Height adjustable
BASE B1-W4
• B1 Base
• W4 100 mm wheels (Rubber coated)
• Aluminum
• Yellow painting
• 36 kg max. load
Equipped Lite Cart
Other possible accessories shown in the pictures. List of all accessories shown on next pages.
Ergonomic
Easy to clean
Plus
Multi purpose
Lifetime warranty
Quick setup
FEATURES
Designed and manufactured in Hungary, products are typically 100% recyclable and upgradable in the future. Raw materials are sourced locally or in the EU.
Different bases with lockable wheels
Cart Properties
Dimensions and mechanical data
Range 4 - B1 Base Range 6 - B3 Base Range 7 - B4
Mechanical
Wheel construction Polyamide with Polyurethane tread
Wheels/locking 2 lockable, 100mm diameter
Loading capacity up to 1 meter B1: 25kg, B3: 35kg; B4: 65kg; B6: 80kg
Construction
Main material Aluminium
Color
RAL 9016
Custom color
Certificates
Certificates conforms to IEC60601-1:2012 (Edition 3) CE Rohs compliant
Example of a Plus Cart
All the accessories shown are available in stock. For unique accessory requests please contact us!
Equipped Plus Cart
Other possible accessories shown in the pictures. List of all accessories shown on next pages.

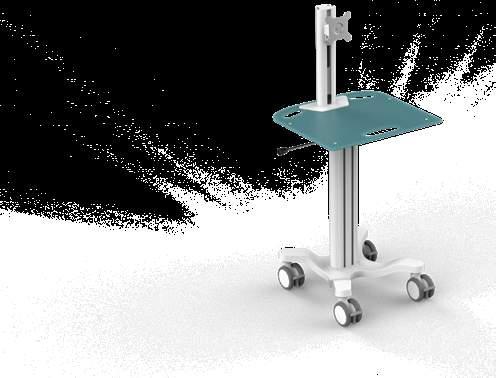

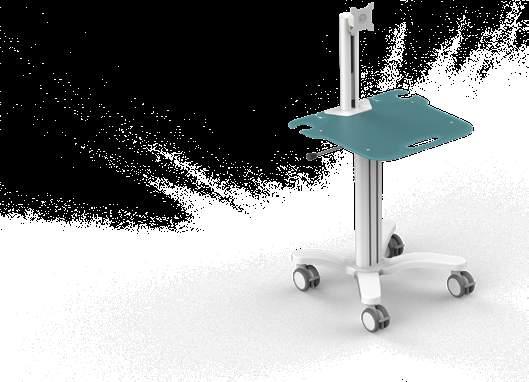

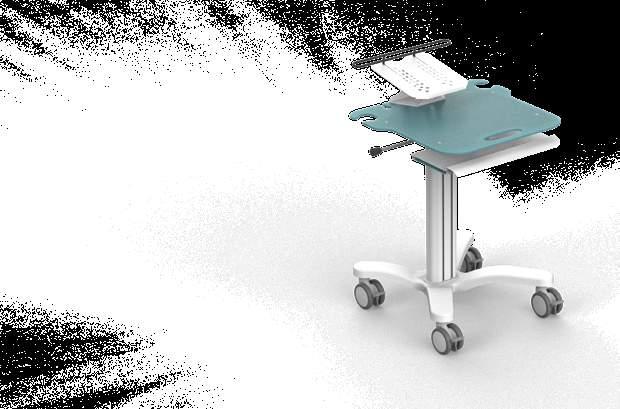

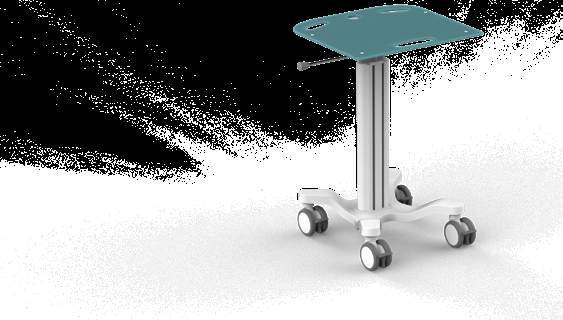

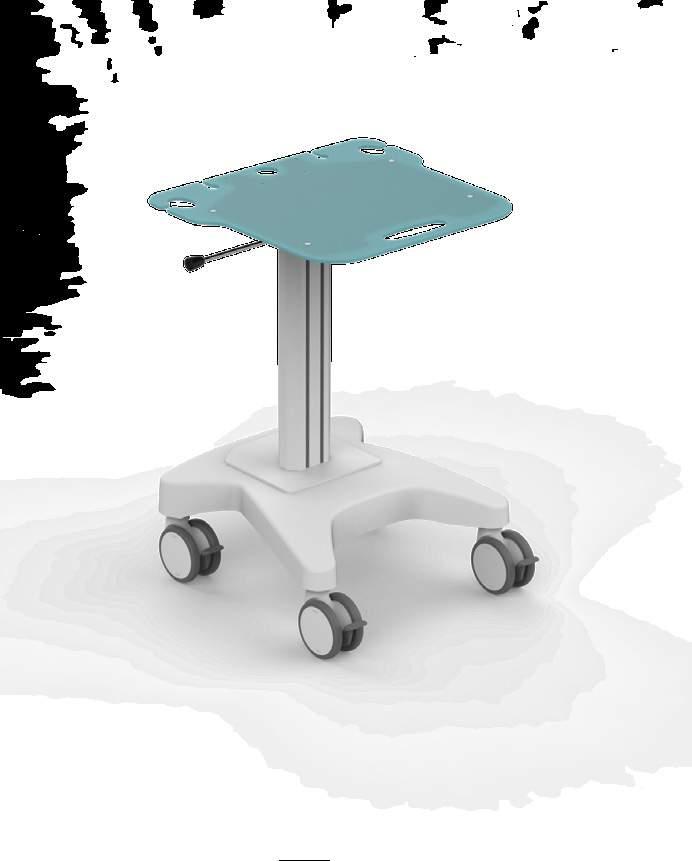

ZG-MedCart Pro
Height adjustable cart for general purposes
Pro Range
Ergonomic
Easy to clean
Multi purpose
Lifetime warranty
Quick setup
FEATURES
Built in channels to fix accessories
Different bases with lockable wheels
Height adjustment
Designed and manufactured in Hungary, products are typically 100% recyclable and upgradable in the future. Raw materials are sourced locally or in the EU.
Cart Properties
Dimensions and mechanical data
Range 7 - B4 Base
Worksurface
Range 6 - B3 Base
Range 4 - B1 Base
Mechanical data
Height
Wheels/locking 2 lockable, 100mm diameter
Loading capacity up to 1 meter B1: 25kg, B3: 35kg; B4: 65kg;
Construction
Main material Aluminium, PMMA
Color
RAL 9016
Custom color
Certificates
Certificates conforms to IEC60601-1:2012 (Edition 3)
CE Rohs compliant

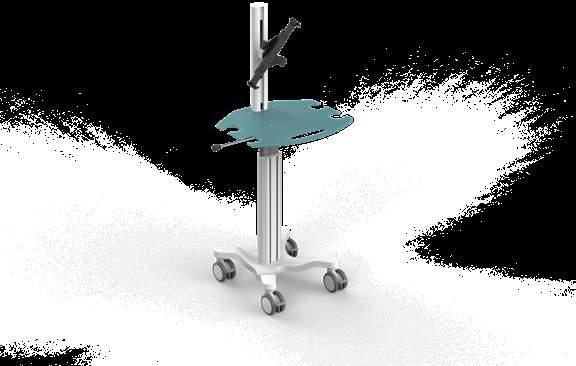

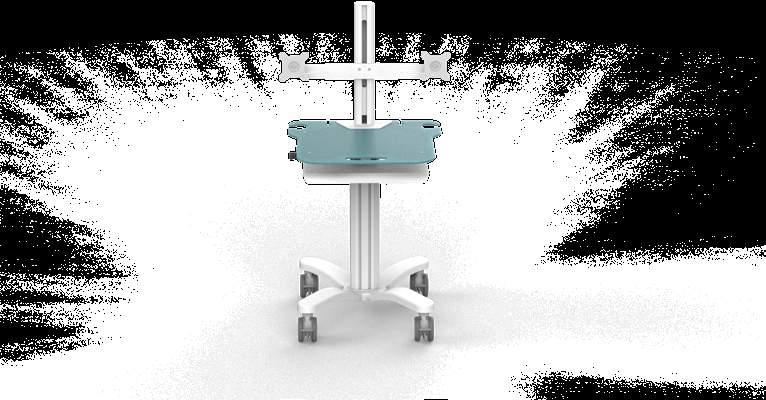

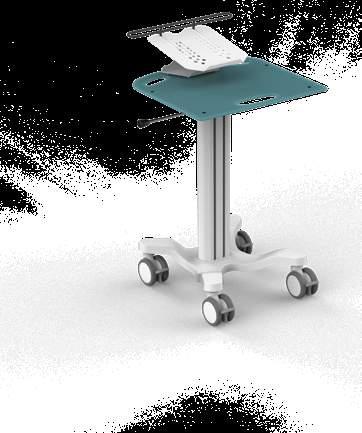

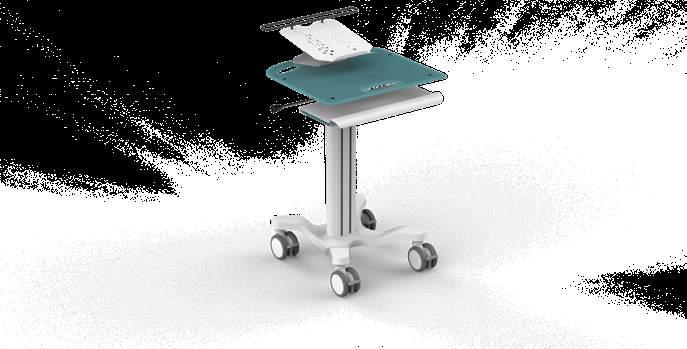

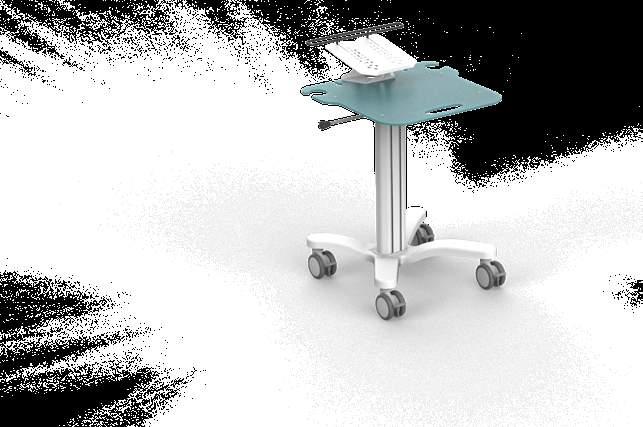

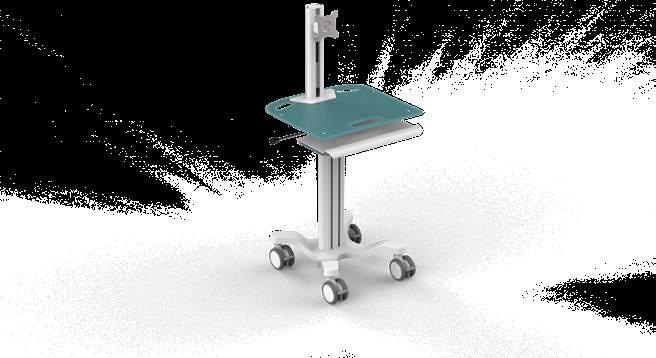

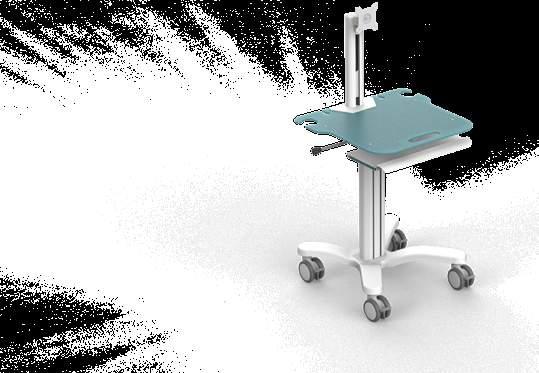

Example of a Pro Cart
All the accessories shown are available in stock. For unique accessory requests please contact us!
LAPTOP LAPTOP MOUNT LM4Equipped Pro Cart
Other possible accessories shown in the pictures. List of all accessories shown on next pages.
085-0300
085-0300-1
085-0300-2
085-0300-34
085-0300-4
B1-Base
085-0300-5
085-0307
B1-Base
085-0300-8
085-0302-1 DISPLAY MOUNT
085-0302-2 TABLET MOUNT
085-0302-3
ZG-MedCart Ultra
Height adjustable cart for heavy duty purposes
Ultra Range
Ergonomic
Easy to clean
Multi purpose
Lifetime warranty
Quick setup
FEATURES
100% recyclable and upgradable in the future. Raw materials are sourced locally or in the EU.
Lockable wheels Height adjustment and column channels to fix accessories
Cart Properties
Dimensions and mechanical data
Mechanical data
Height Min.: 865 mm Max.:
Wheelbase dimension 750 mm (diameter)
Work surface dimensions Width: 620 mm Height: 560 mm
Wheels/locking 2 lockable, 125mm diameter
Loading capacity up to 1 meter 80 kg
Construction
Main
Color
RAL 9016
Custom
Certificates
Certificates conforms to IEC60601-1:2012 (Edition 3)
CE Rohs compliant

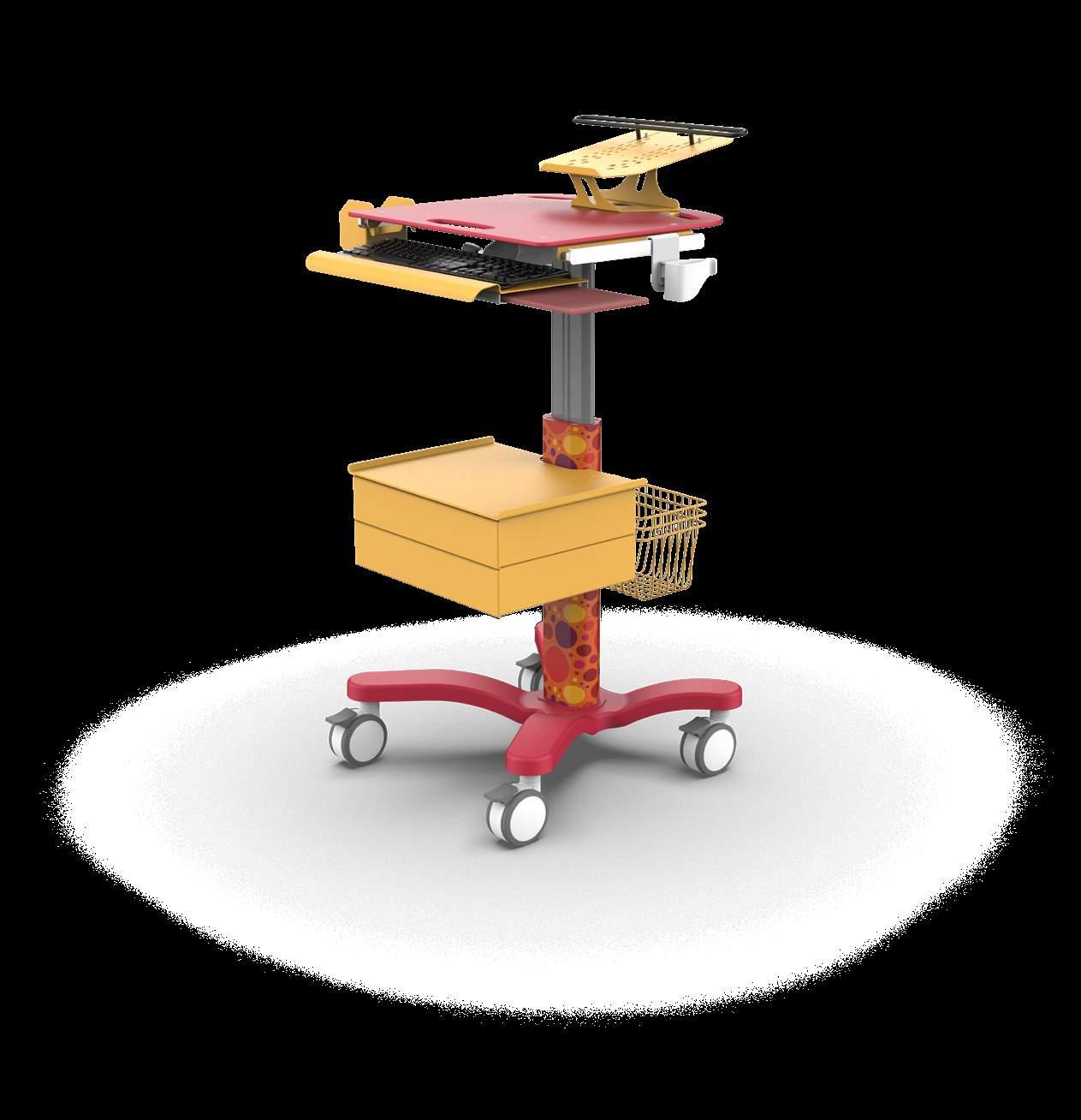

Example of a Ultra Cart
All the accessories shown are available in stock. For unique accessory requests please contact us!
DISPLAY MOUNT LM4
• Height adjustable
• Up to 27” displays
• Tiltable
• Rotatable
KEYBOARD TRAY
KB2
• Wrist support
• Mouse holder
• Mouse tray
• Can be hidden under work surface
DRAWER D5
• Push to open
• Shelf on top
COMPUTER MOUNT CPU1
• 250x221x47/97 mm
• Variable width
TRANSFORMER TRAY ITT1
• Potential equalisation pin on houseing
• 260x124x305 mm internal dimension
WORK SURFACE WS11
• 540x620 mm
• Acrylic, available in aluminium
RUBBER INSERTS
• For scanners
DIN RAIL DR1
• 300x10x25 mm
COLUMN C5-L2
• C5 Column
• Fixed heigh
• Aluminum
SHELF CUSTOM
• Custom shape
• Custom painting
BASE B6-W4
• B1 Base
• W4 100 mm wheels (Rubber coated)
• Aluminum
• Black painting
Equipped Ultra Cart
Other possible accessories shown in the pictures. List of all accessories shown on next pages.
Display and Tablet Mount options
Holder options Gas
DIN Rail options
PSU Holder options
Shelf options
CPU Mount options
Drip Pole Clamp and Drip Pole options
Accessories
Storage and Handle options
Small Basket ST1-C5
Large Basket ST7-C5
Large Basket ST2-C5
Storage Bin ST8-C5
Power function options
Storage Bin ST3-C5
Handle and Storage ST5-C5
Small Basket ST6-C5
Power strip 5 PDU5 PDU3
Potential Equalisation pin POW-A2-15/25

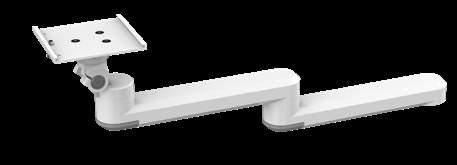

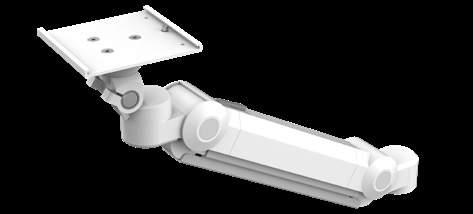

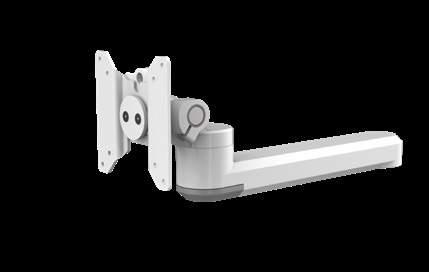

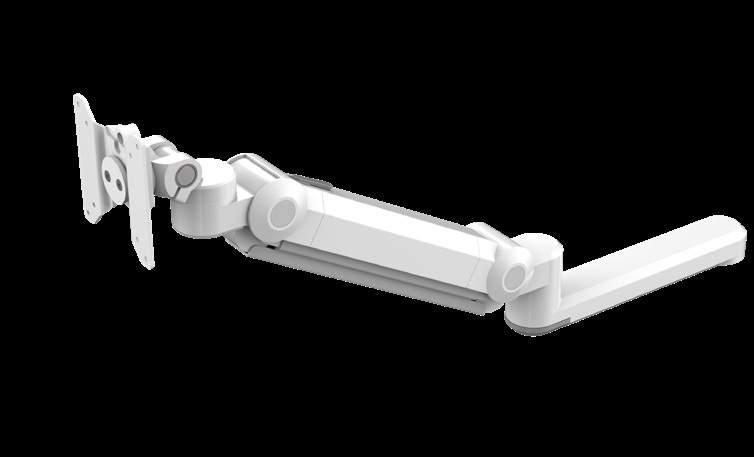

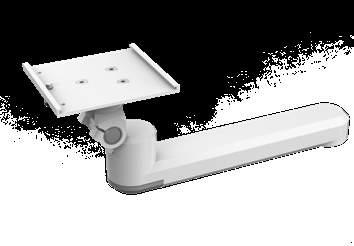

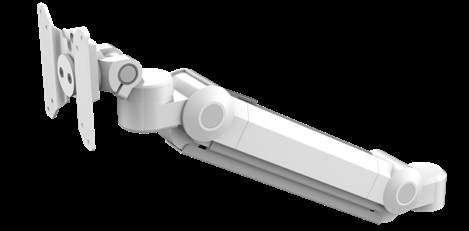

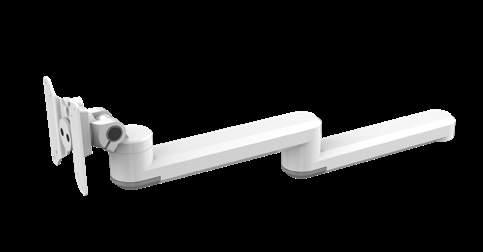

Arm options

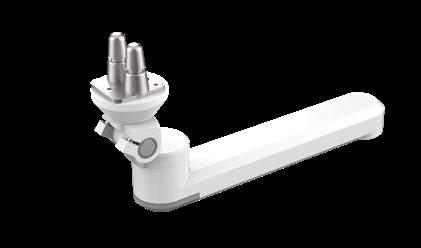

Snake 1 Arm
SNA1-XX-L3-FLH

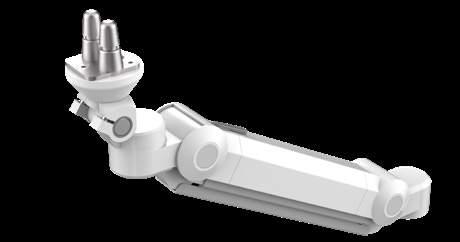

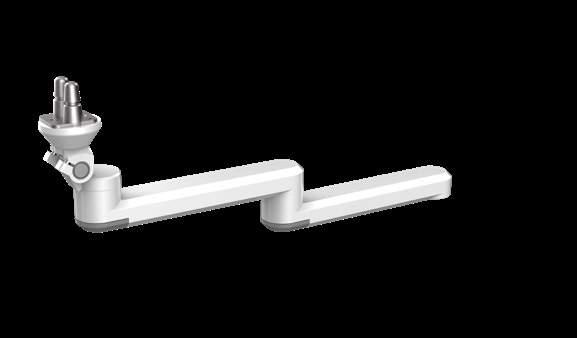

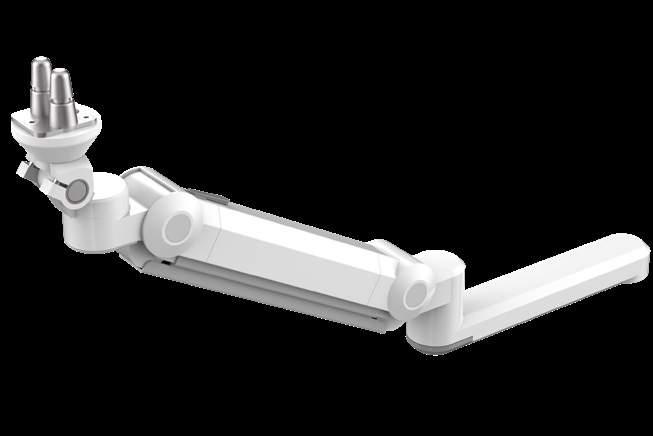

Snake 2 double pin arm
SNA2-XX-052-DP
Snake 2 VESA arm
SNA2-XX-061-VM

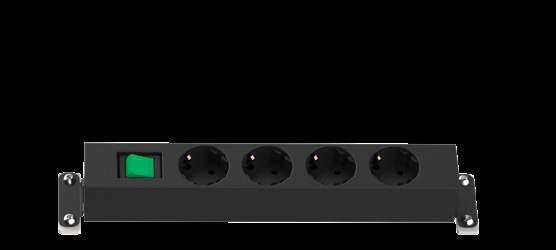

Power strip 4 PDU4
Potential Equalisation socket POW-A3-15/25
Snake 2 double pin arm
SNA2-XX-051-DP
Snake 2 quick release arm
SNA2-XX-052-QR
Snake 2 double pin arm
SNA2-XX-062-DP
Potential Equalisation cable POW-A4-3/5
Snake 2 quick release arm
SNA2-XX-051-QR
Snake 2 VESA arm
SNA2-XX-052-VM
Snake 2 quick release arm
SNA2-XX-062-QR
Power strip 8 PDU8
POAG Studs POW-A1
Battery Pack PWP
Snake 2 VESA arm
SNA2-XX-051-VM
Snake 2 double pin arm
SNA2-XX-061-DP
Snake 2 VESA arm
SNA2-XX-062-VM
Snake 2 quick release arm
SNA2-XX-061-QR
Snake 2 VESA mount
SNA2-XX-00-VM
Accessories
Work surface options
Component options

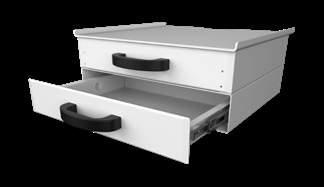

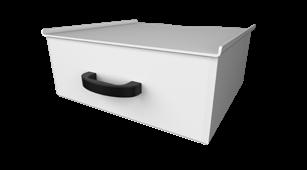

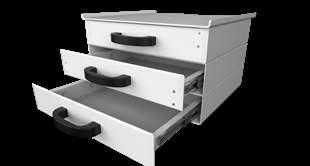

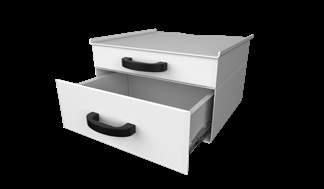

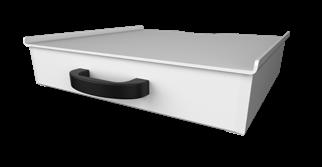

Drawer options
All drawers come in white, RAL 9016. Available in custom colors. All drawers can be bought as an extension without the shelf!
Dimensions: 420x80x400 mm
Material: Mild Steel (3 mm) Max. Load: 4 kg
Dimensions: 420x160x400 mm
Material: Aluminium (5 mm) Max. Load: 6 kg
Dimensions: 420x240x400 mm
Material: Aluminium (5 mm) Max. Load: 8 kg
Dimensions: 420x320x400 mm
Material: Mild Steel (3 mm) Max. Load: 10 kg
Dimensions: 420x160x400 mm
Material: Mild Steel (3 mm) Max. Load: 6 kg
Dimensions: 420x320x400 mm
Material: Aluminium (5 mm) Max. Load: 8 kg

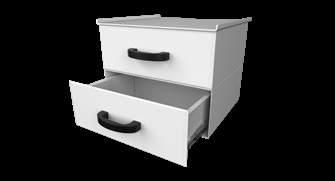

Drawer options
All drawers come in white, RAL 9016. Available in custom colors. All drawers can be bought as an extension without the shelf!
D7
D8
D9
Dimensions: 420x480x400 mm
Material: Aluminium (25mm)
Max. Load: 10 kg
D10
Dimensions: 420x240x400 mm
Material: Aluminium (5 mm) Max. Load: 8 kg
D11
Dimensions: 420x320x400 mm
Material: Aluminium (4 mm) Max. Load: 10 kg
Dimensions: 420x400x400 mm
Material: Aluminium (25mm) Max. Load: 12kg
Dimensions: 420x400x400 mm
Material: Aluminium (5 mm)
Max. Load: 12 kg
I ntraOral CART SOLUTIONS

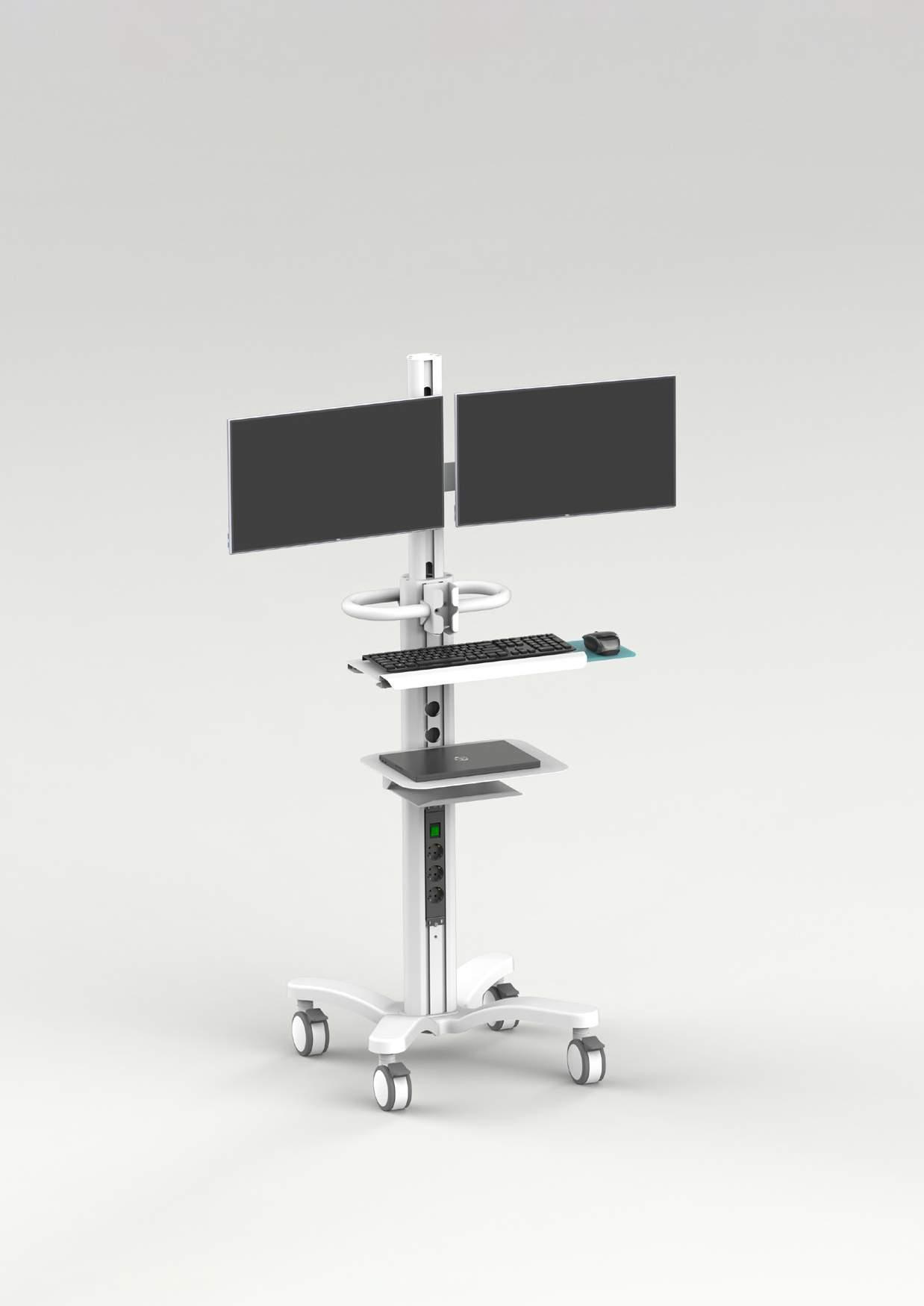

ZG-MedCart Display
Example of a Cart
The shown accessories are optional. Devices are shown only for illustration purposes.
DISPLAY MOUNT
DM7
• 2 VESA mounts
• Tiltable, Rotatable
• Height adjustment
• Cable management
HANDLE
H-SH3
• Safe way to move the cart
• Mouse holder
COLUMN
C5-L5
• 1050 mm
• Cable management in body, holes for plugs
POWER STRIP
PDU3
• Bulit-in
• 3 plugs
• ON/OFF switch
KEYBOARD TRAY
KB2-C5
• Wrist support
• Mouse tray
SHELF S11
• Designed for laptops
• Powersupply holder under it
BASE
B3-W4
• B3 Base
• W4 100 mm wheels (Rubber coated)
• Aluminum
• 35 kg max. load
• 746 mm diameter

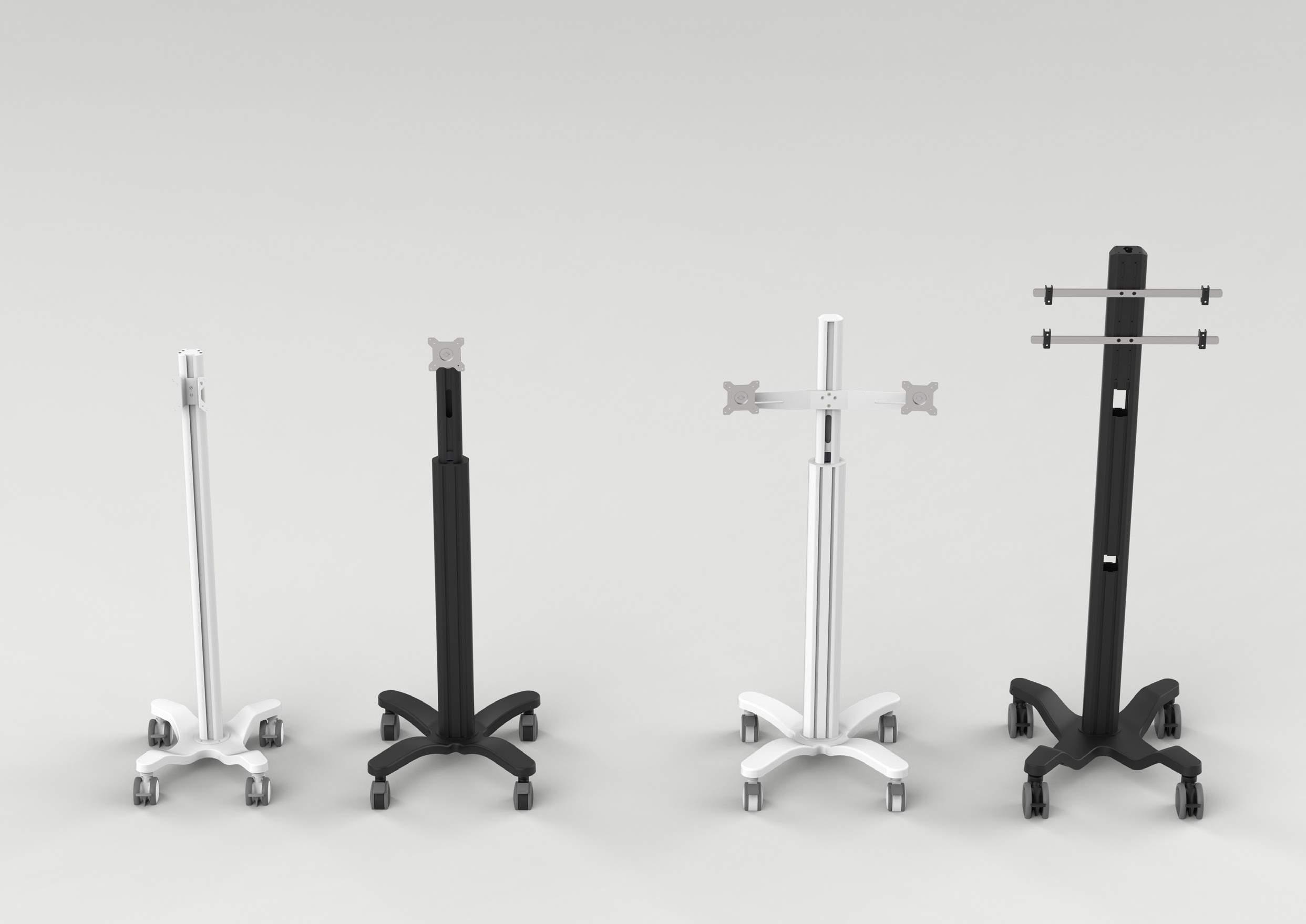

DIS1
Display:
Base: 616 mm diameter
Column:
Cable management:
Height adjustable
DIS2
Display:
Base: Column:
Cable management:
Height adjustment, tilt and rotate
DIS3
Display:
Base:
Column:
Cable management: Height adjustment, tilt and rotate
DIS4
Display: up to 65”
Base: 820 mm diameter
Column: 1800 mm
Cable management:
Height adjustable
Ergonomic
SNA2-XXX-051-VM-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
VESA MOUNT
SNA2-XXX-051-QR-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
QUICK RELEASE HEAD
SNA2-XXX-051-DP-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
DOUBLE PIN HEAD
SNA2-XXX-051-KD-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
VESA MOUNT
KEAYBOARD TRAY
SNA2-XXX-061-VM-YY
CABLE MANAGEMENT
VESA MOUNT
GAS SPRING
SNA2-XXX-061-QR-YY
CABLE MANAGEMENT
QUICK RELEASE MOUNT
GAS SPRING
SNA2-XXX-061-DP-YY
CABLE MANAGEMENT
DOUBLE PIN MOUNT
GAS SPRING
SNA2-XXX-061-KD-YY
VESA MOUNT
KEAYBOARD TRAY
GAS SPRING
SNA2- XXX -052-VM-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
VESA MOUNT
SNA2- XXX -052-QR-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
QUICK RELEASE MOUNT
SNA2- XXX -052-DP-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
DOUBLE PIN MOUNT
SNA2- XXX -00-VM
TILTABLE & ROTATABLE
VESA MOUNT
SNA2-XXX-062-VM-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
VESA MOUNT
GAS SPRING
SNA2-XXX-062-QR-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
QUICK RELEASE MOUNT
GAS SPRING
SNA2-XXX-062-DP-YY
TILTABLE & ROTATABLE
CABLE MANAGEMENT
DOUBLE PIN MOUNT
GAS SPRING

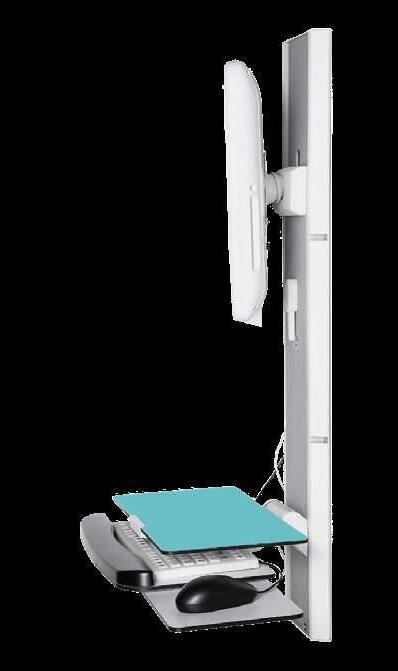

WALL MOUNT SOLUTIONS

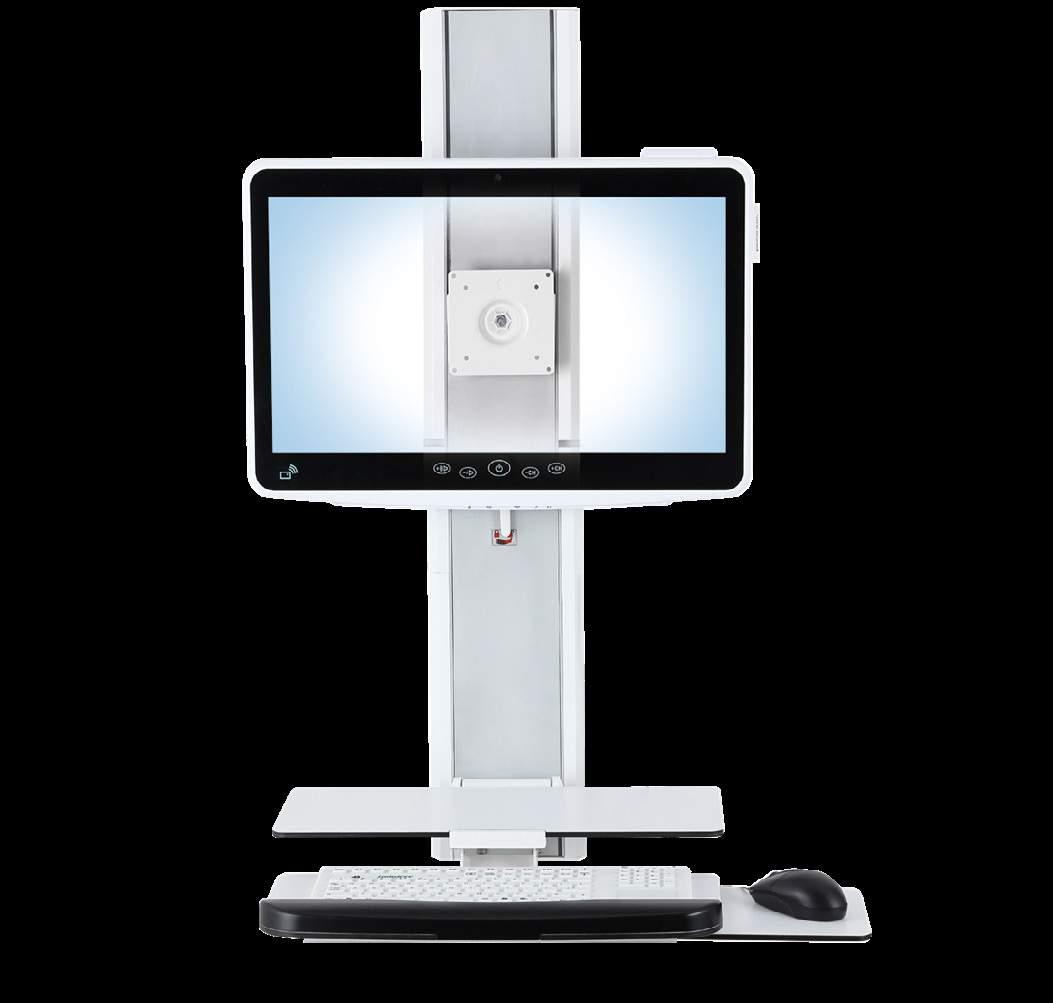

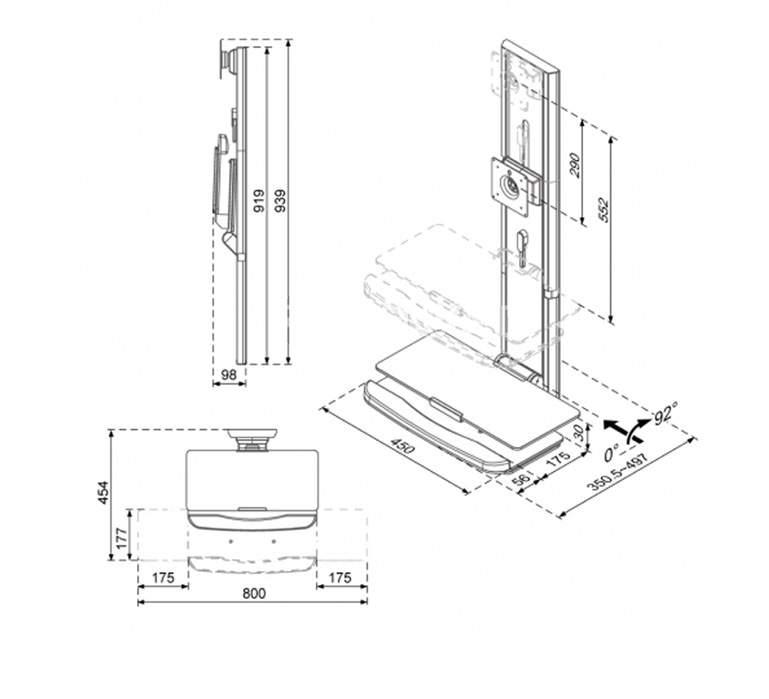

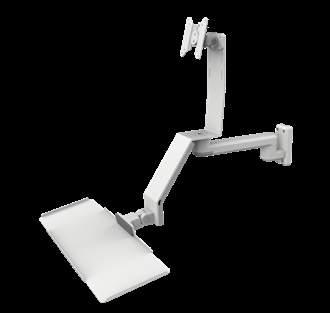

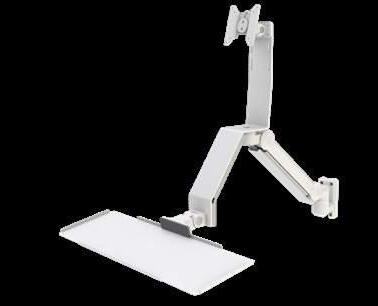

SIT/STAND WALL MOUNT
Work station fixed on the wall. Allows busy areas to be used without consuming significant floor space.
Sliding Display Mount
Foldable sliding Keyboard
Tray with two sided Mouse Holder
POWER SOLUTIONS

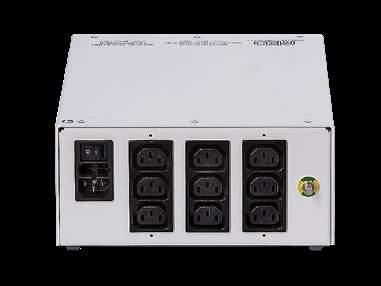

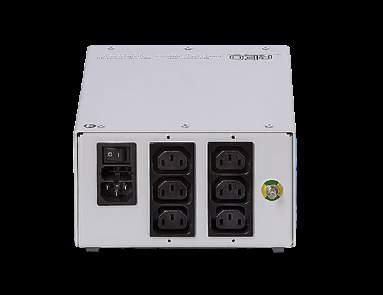

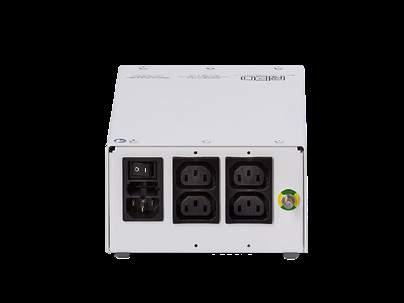

MEDICAL ISOLATION TRANSFORMERS
For added safety when using medical technology.

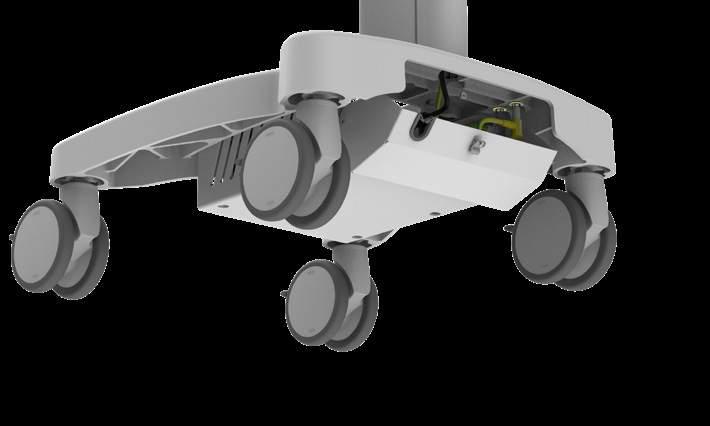

Isolation Transformer mounted with hidden cabling

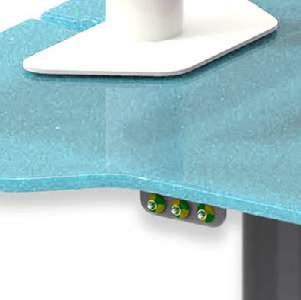

Optional POAG Studs mounted under WorkSurface
PWP POWER SYSTEM
POWER PACK
Heavy Duty LiPo4 Power Pack suitable to fit any cart with built in charger and AC inverter allow easy installation of suitable equipment. Available in 512WH or 240WHsizes.
Autonomy Multi Purpose Easy to Clean Easy to Use Durable

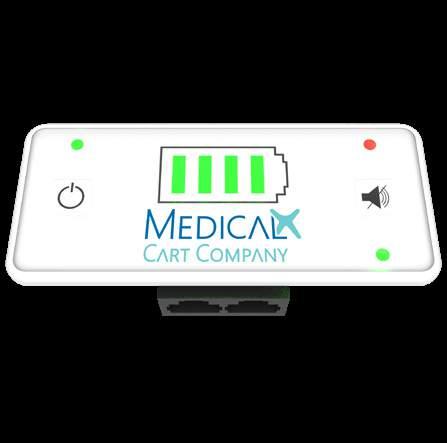

DIGITAL FEEDBACK

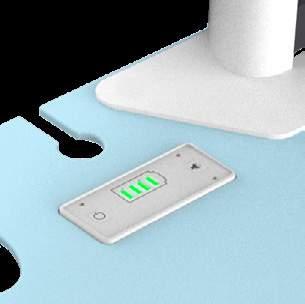

WORK SURFACE - LED Indicator
Easy to see, easy to understand battery charge indicator.

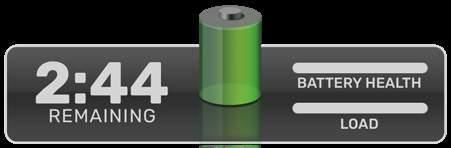

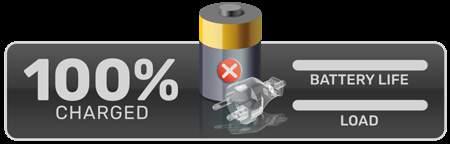

DISPLAY - Service Related Conditions
Intelligent fuel gauge report run time and battery health. Datalogging and fleet management software is built into the product as standard.
Service related alarms, such as overload, over temperature, replace battery etc., will cause one of the RUI Service LEDs to flash.

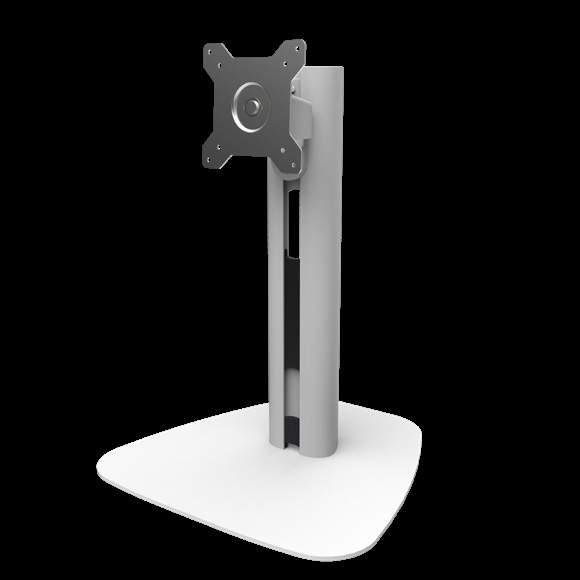

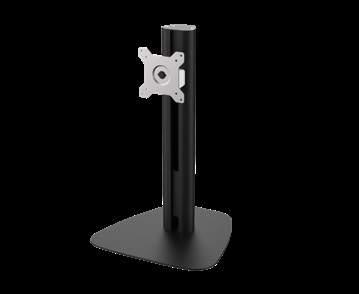

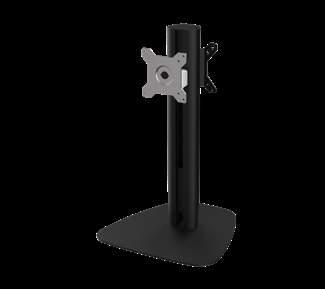

DESK STANDS
FEATURES
• Height adjustable
• Tilt and Rotation

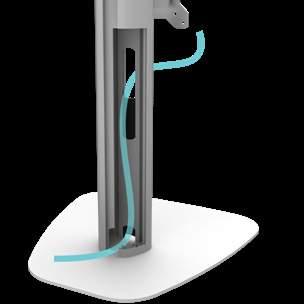

• Integrated Cable Management
VESA HEAD 75/100 OPTIONS
VES1 OPTION:
• Teardrop holes to hangdisplay quickly
• Suitable for displaysup to 27”
• Maximum load 15 kg

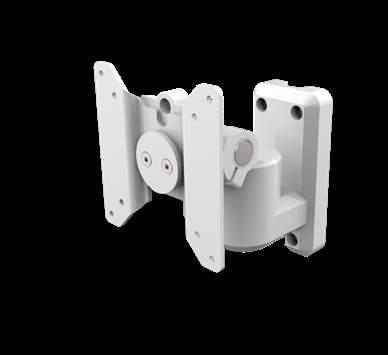

VES2 OPTION:
• Tilt and rotate function
• Suitable for displays up to 24”
• Load capacity: 6-12 kg
TABLET HOLDER OPTIONS
Tablet holders are fixed on VESA 75/100 heads!
TM2 OPTION:
• Quick tablet installation
• Available in two sizes:
9.5”-13.5” and 13.5”-16.5”
• Can be applied on VES1 or VES2 as well
Twin Display Stand TS4
TM3 OPTION:
• Our safest tablet mounting solution for 11”-16”
• Can be applied on VES1 or VES2 as well

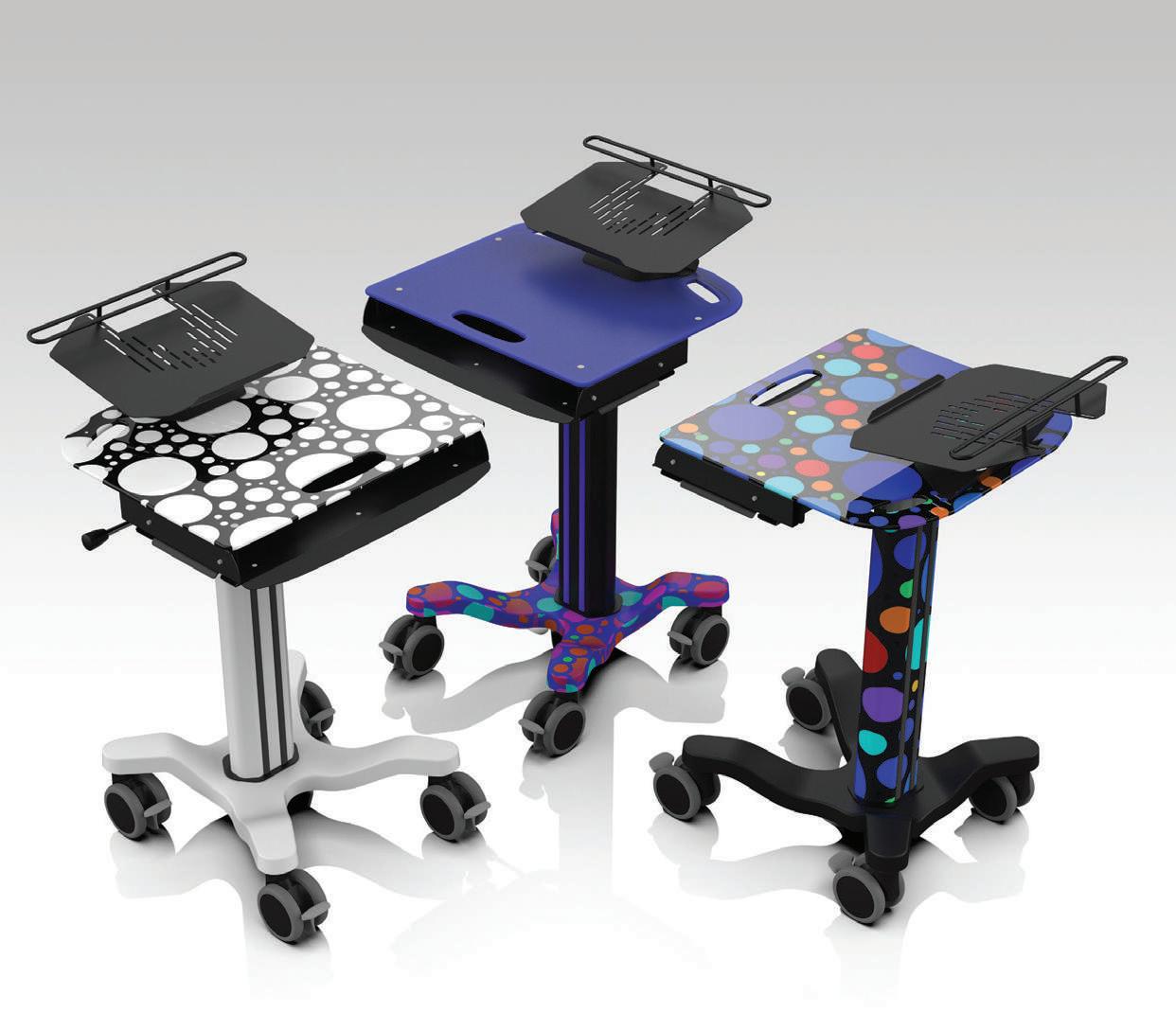

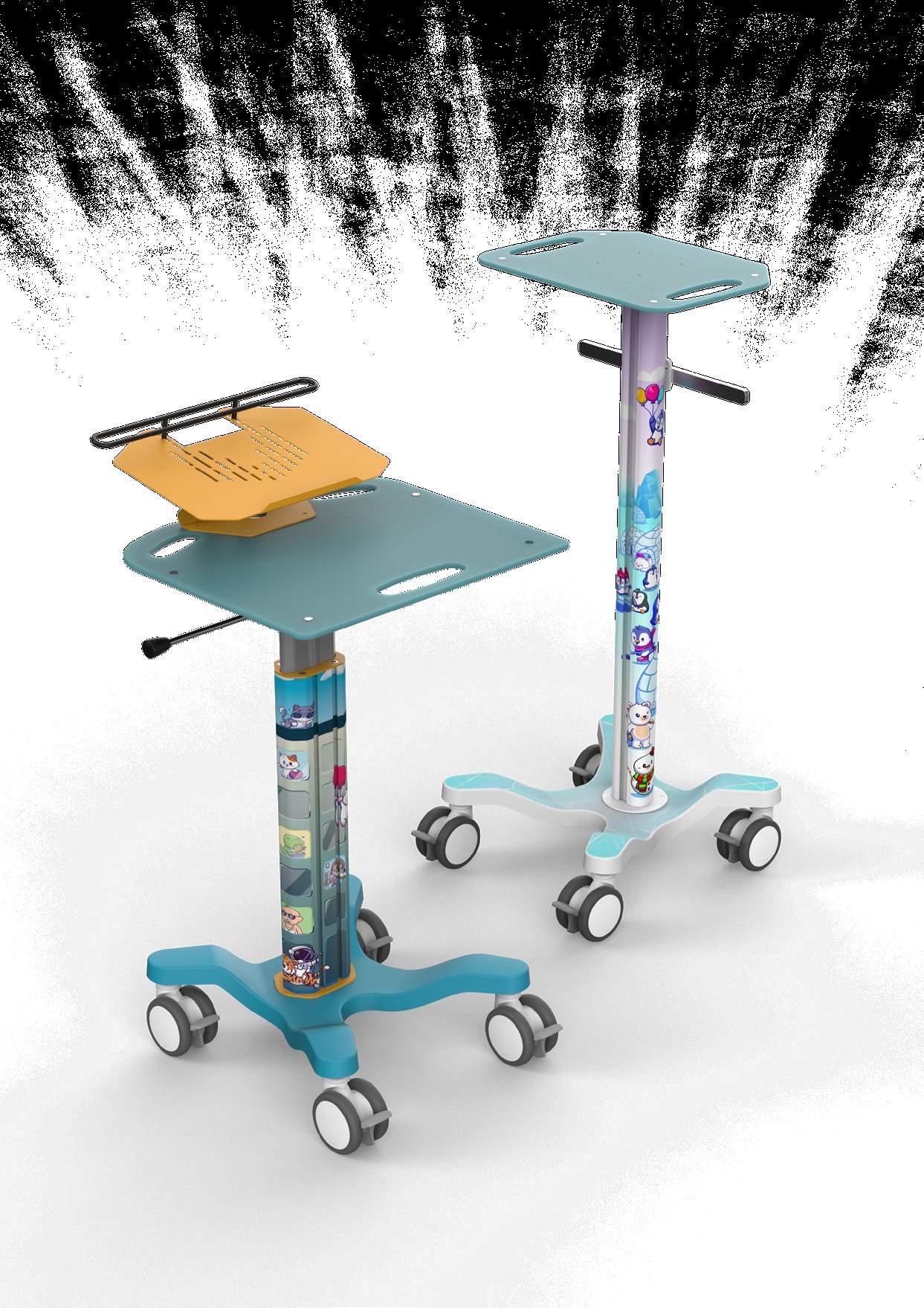

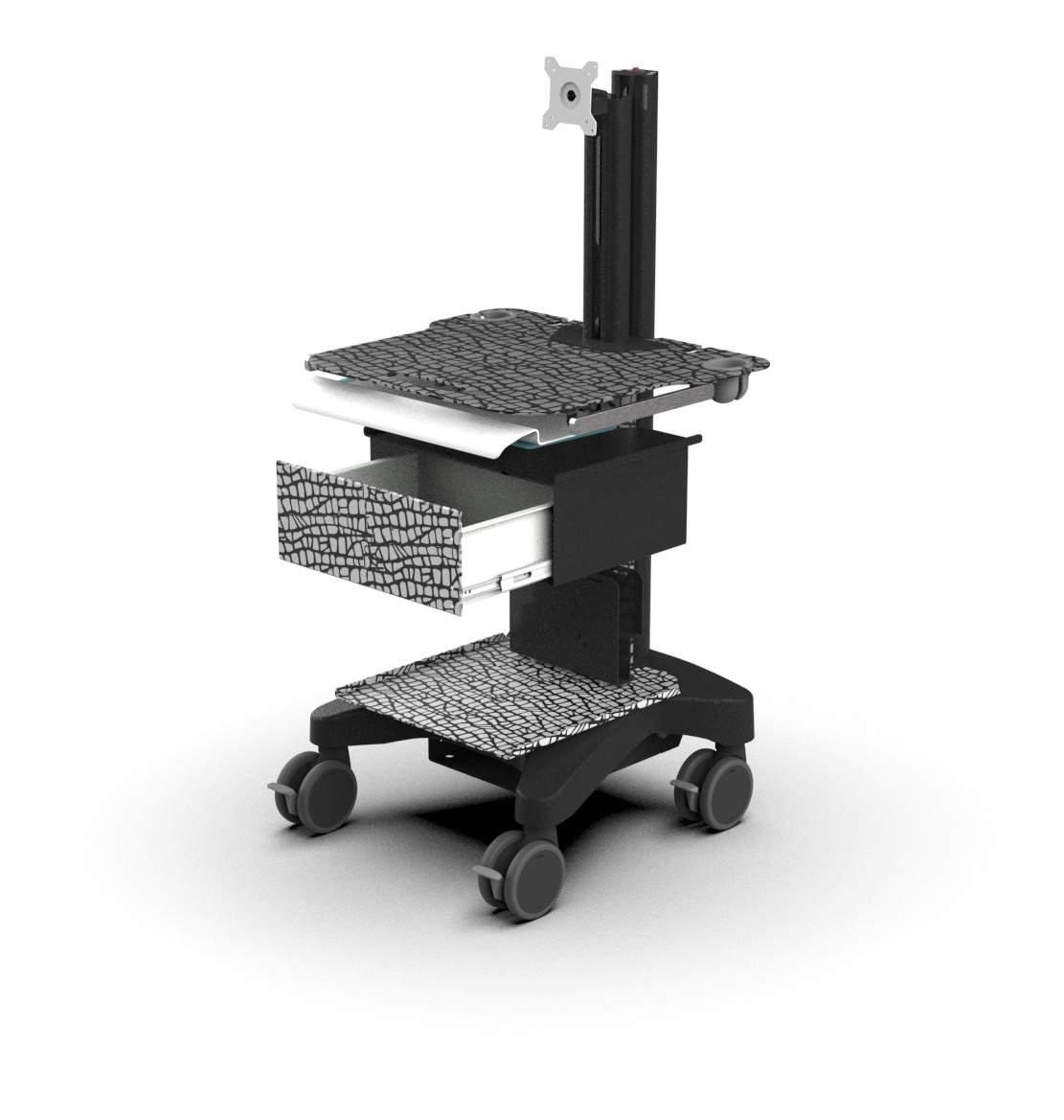

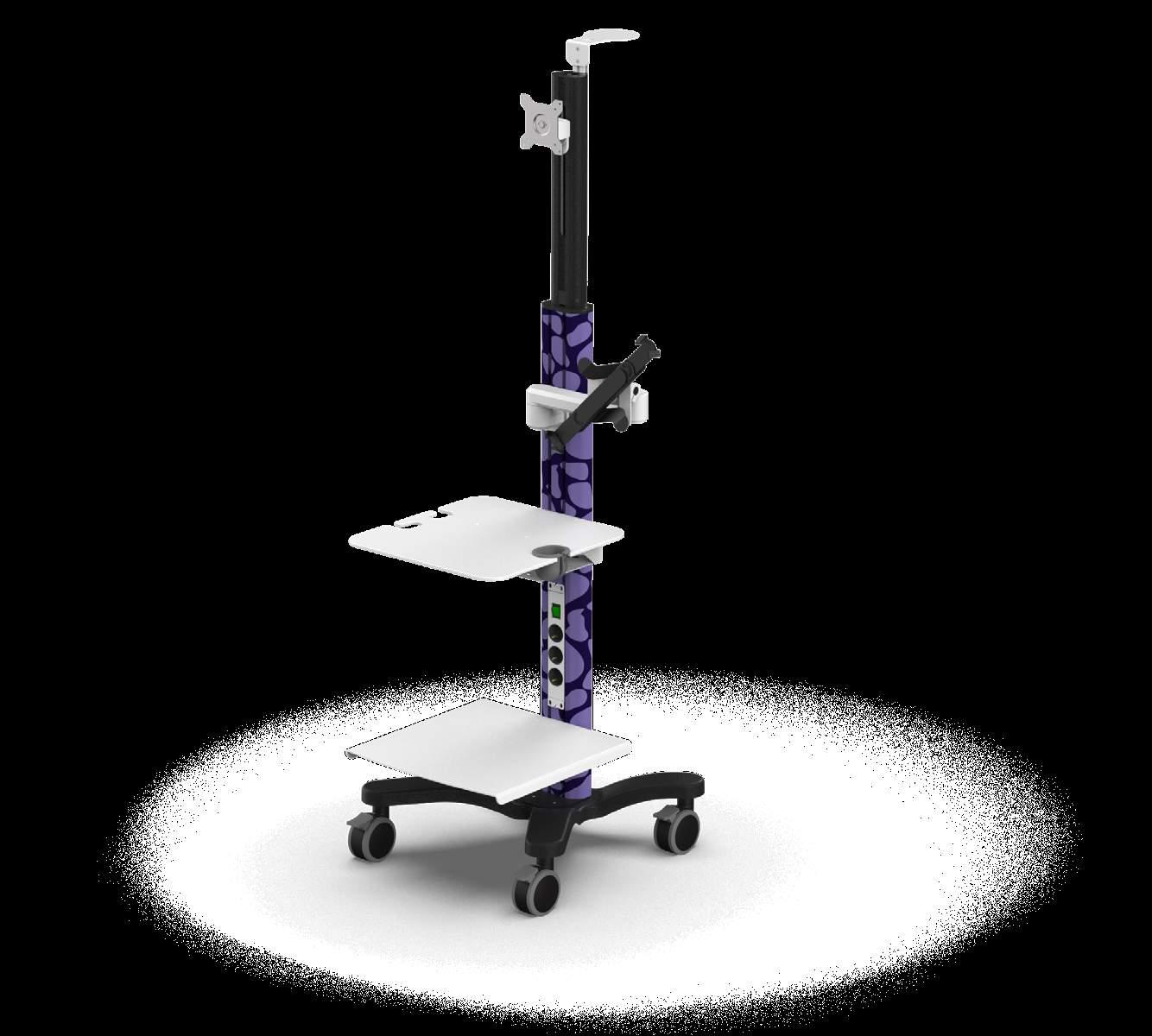

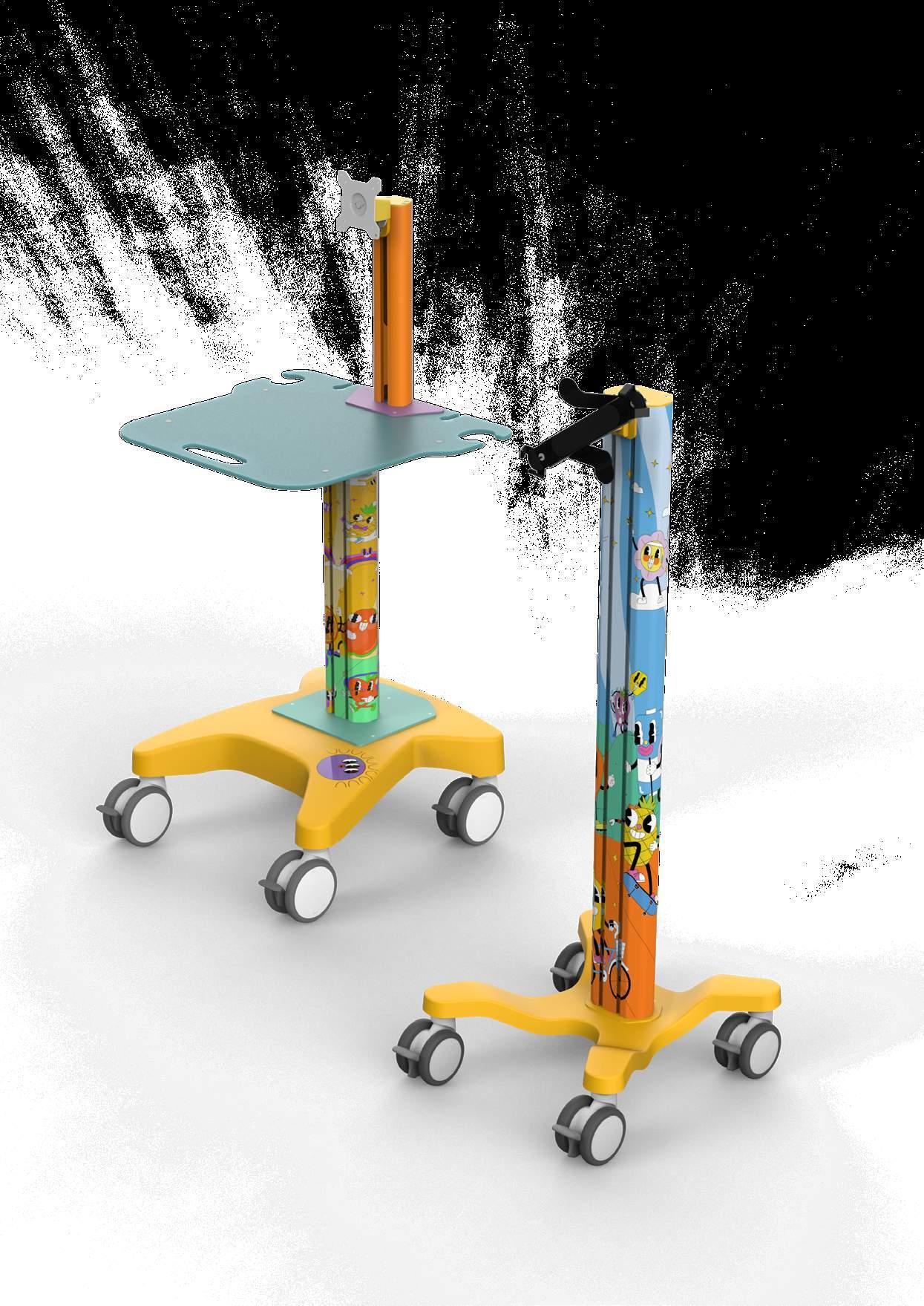

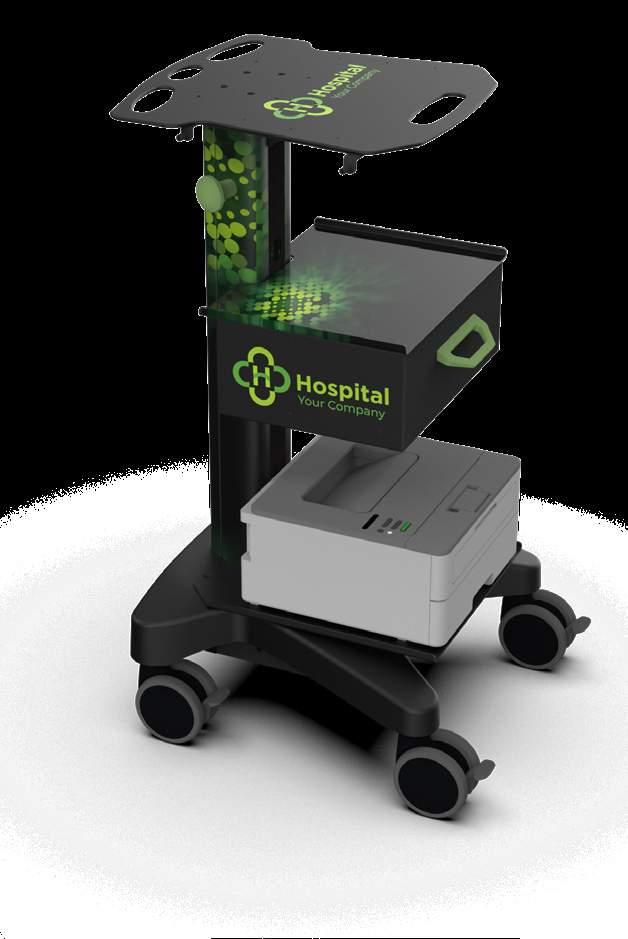

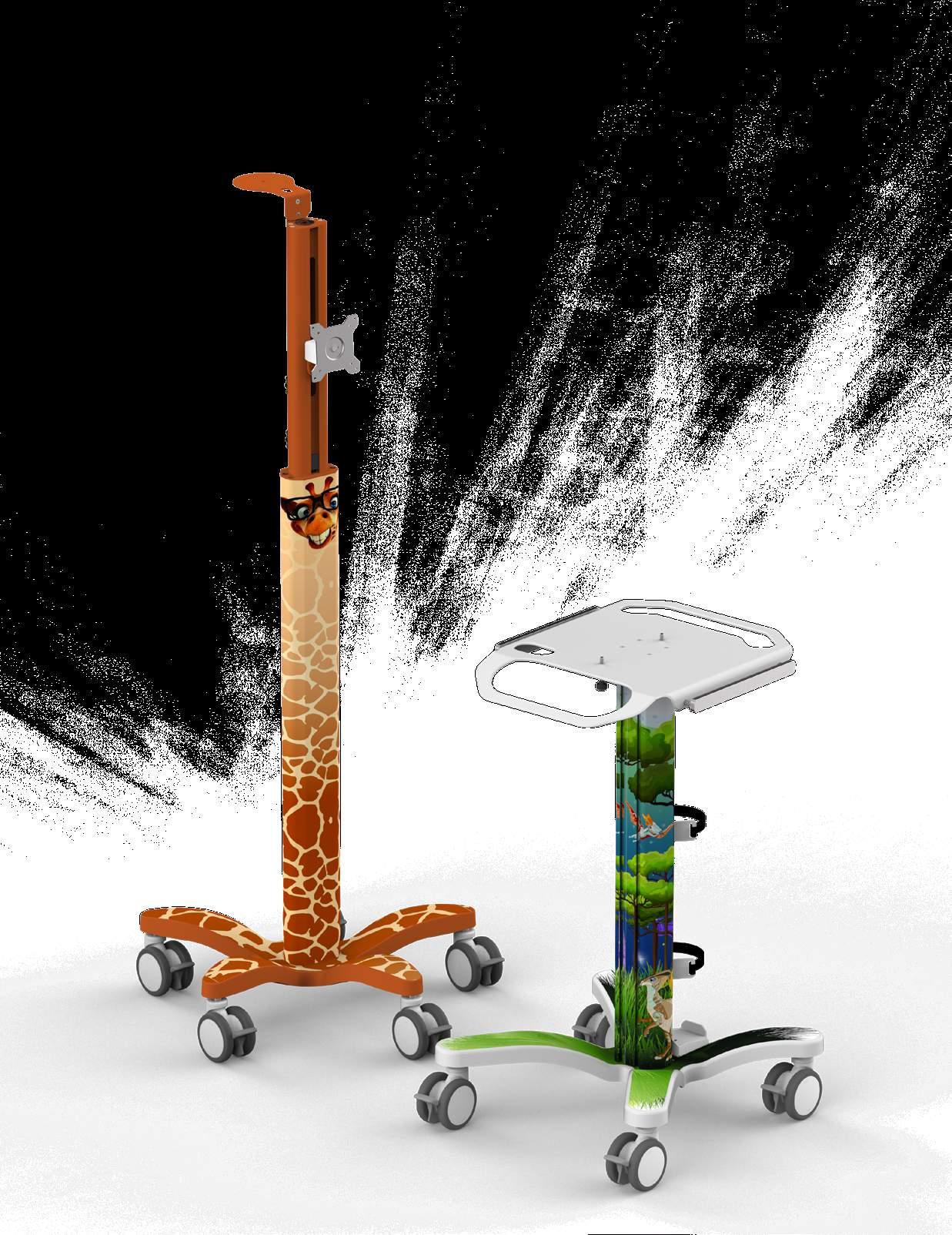

CUSTOM COLOR OPTIONS
Available for all Carts. Custom graphics are also available.
CUSTOM GRAPHICS
Logos, labels, graphics. We can apply any of your ideas on the cart to make it more unique, according to you, or your company’s needs. Full-cover graphics and labels can be added as well.
CUSTOM PAINTJOB
Just pick any RAL color, and add it to your cart. Can be added to any painted surface.
WRAPPINGS
Customize your cart’s column with printed foils. We can offer you our graphics or you can bring your own ideas as well.
CUSTOM COLOR

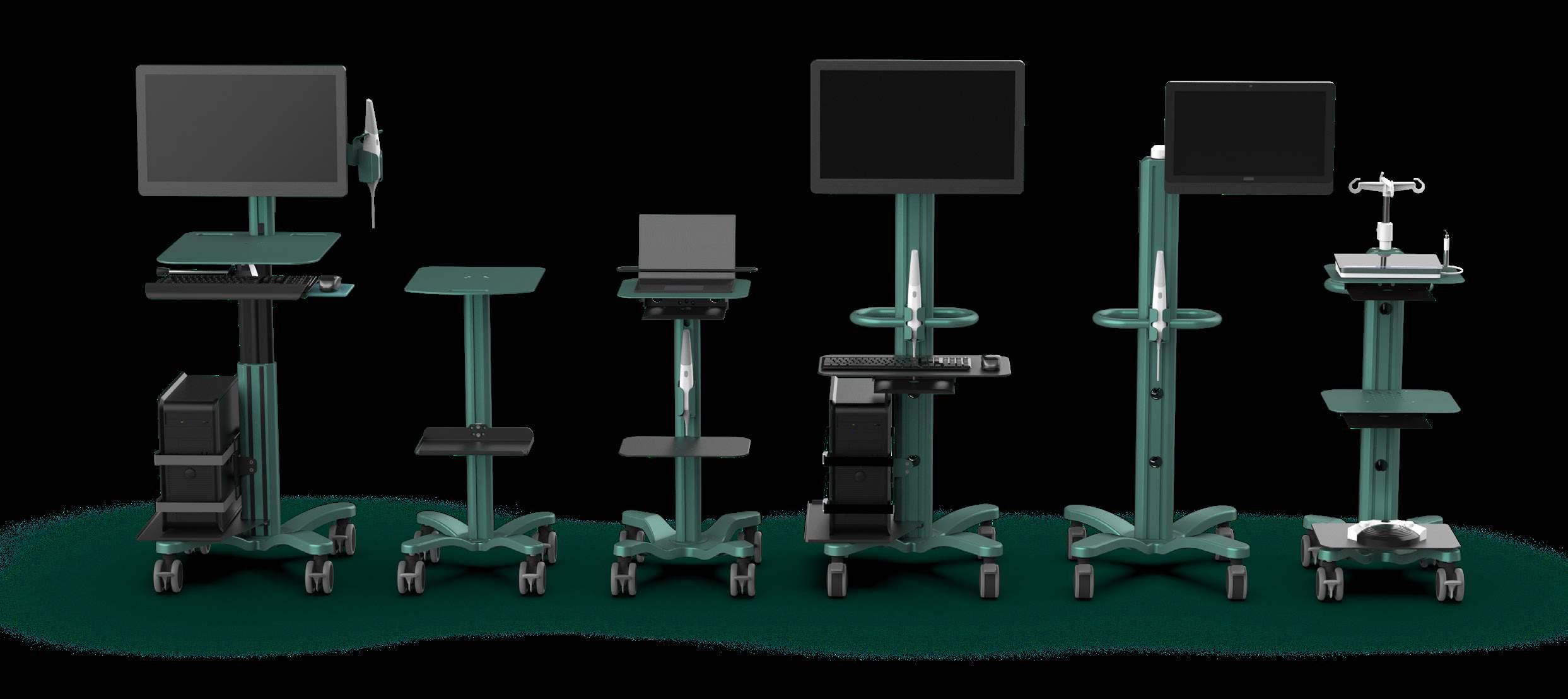

COLOR COMBINATIONS
Try different colors! We can add custom colors for every part if it’s necessary. It is a nice and easy way to seperate your carts in each departments.
Children’s Carts
Available for all Carts. Custom graphics are also available.
IGLOO VILLAGE
Wrapping with printed base.
CITY ANIMALS
Wrapping with blue and yellow color combination.
SPORTY FRUITS
Wrapping with yellow painting.
HAPPY FRUITS
Wrapping with yellow, purple, green and orange painted parts.
Childern’s Carts Patterns
Available for all Carts. Custom graphics are also available.
Design Carts
Available for all carts.
You dream it we make it. Let your dreams come true and work in confortable and exciting design environment. You can bring your own ideas, or you can count on us as well.
OZG AG
Mülibodenstrasse 3 CH-8172 Niederglatt
+41 (0) 44 576 02 10 info@ozg.ch www.ozg-healthcare.ch
#wecaremore
