Solar Area Lighting

Solar Powered Area Lighting

Outdoorlink has partnered with GridShift Solutions on its Cuesta Solar collection to provide area lighting packages exclusively equipped with the SmartLink Management System.

Cuesta Sol packages are the only USA made lighting systems with 24/7 cellular based monitoring and control. SmartLink controllers are integrated into each of the Siege, Predator and Patriot packages so customers can manage their lighting from anywhere and at any time without the burden of in-person maintenance.

GridShift is an America Combat Veteran owned company that engineers and manufactures its solar packages in the US, ensuring they’re of the highest quality and meet Buy America requirements.

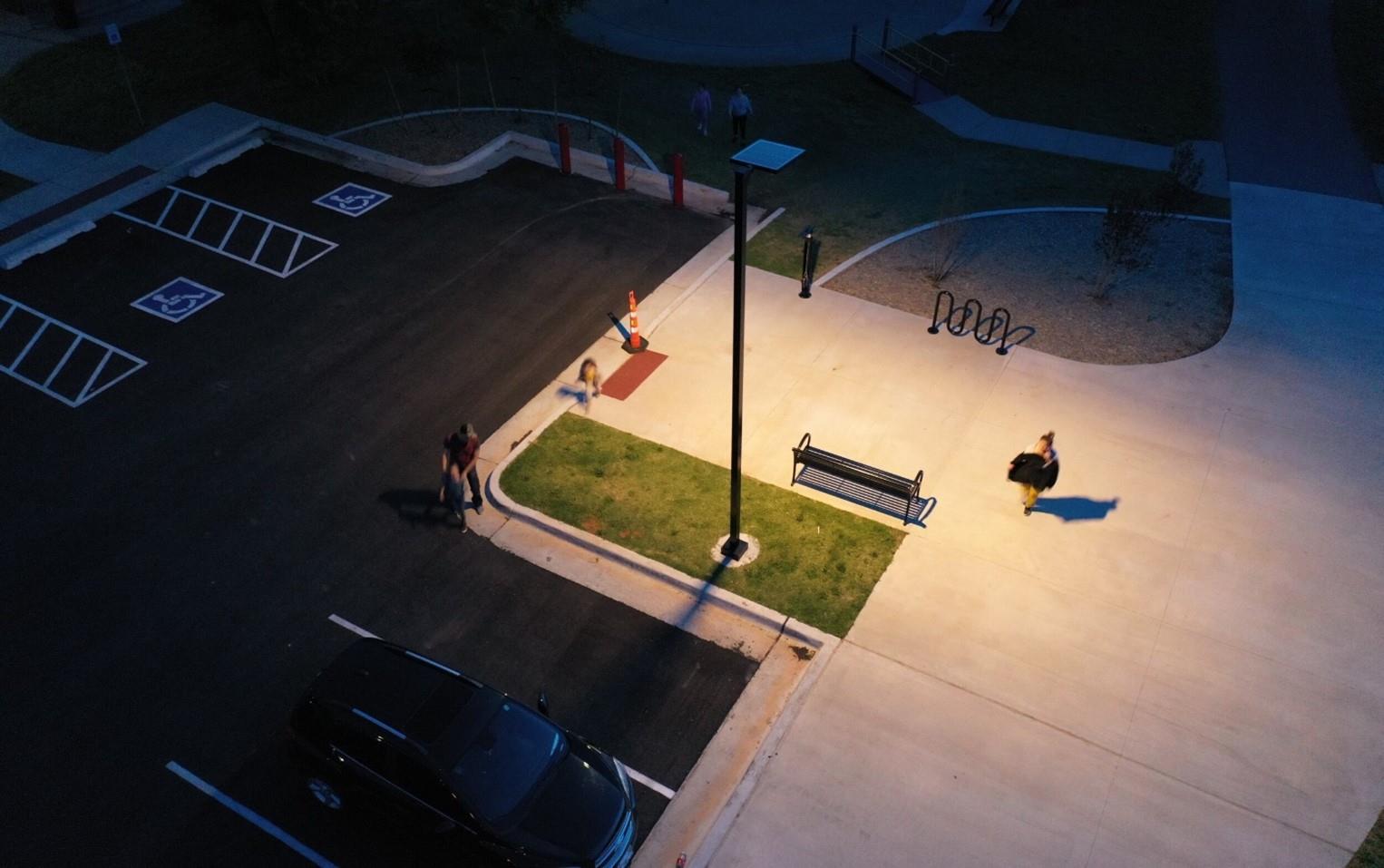

Siege area lighting systems at a university campus.

Cuesta Sol SiegeArea Lighting

Siege lighting packages range in battery, LED, and solar panel sizes to accommodate different locations and project requirements. Packages are sized for each project’s needs to provide the brightest possible LED output.

Each system is an all-in-one low profile package that is engineered for ease-of-installation to a round or square pole with its adjustable mounting bracket. Installation services are also available.

All Siege packages include long life LiFePO4 lithium batteries, monocrystalline solar panels, and SmartLink controllers for 24/7 cloud-based monitoring and control. All installations are stamped by a structural engineer to meet the necessary wind and snow loads.

Pathways and Roads Parking Lots Sports Fields Security Lighting University Campuses Playgrounds and Parks

Cuesta Sol SiegeArea Lighting

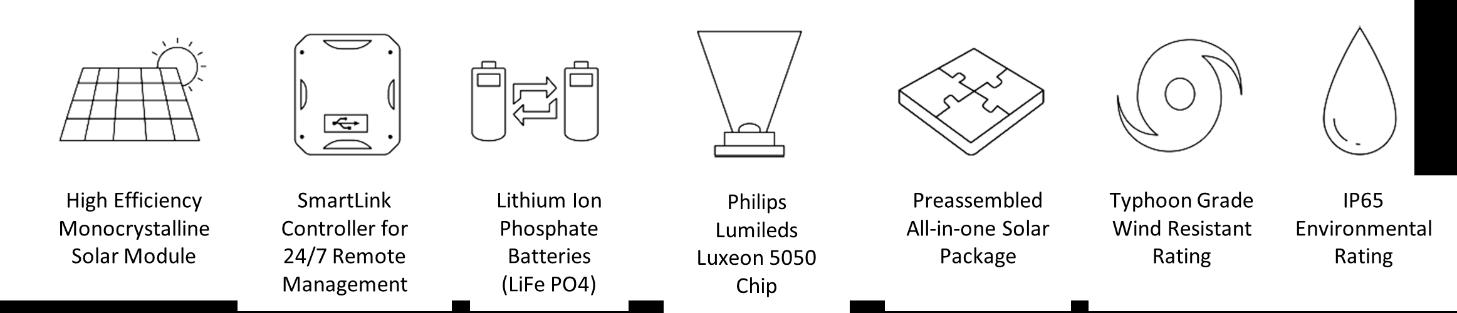

The Siege collection is a solar streetlamp series that uses high efficiency lithium iron phosphate batteries for the highest temperature performance, highest current discharge, and lifespan of more than 2000 cycles.

The monocrystalline panels include a 3.2mm tempered glass lamination for excellent load resistance in any environment and provide an 85% output efficiency after 20 years.

The Philips Luxeon LED chips have excellent heat dissipation and maintain the highest levels of brightness with the least fading over time. The sealed lenses are made with UV protection for anti-aging and shock resistance and provide a uniform photometric footprint.

All Siege packages are Burn Time Certified and comply with ASTM standards to validate the solar luminaire's performance in a controlled environment without subjectivity.

D L

W

L W

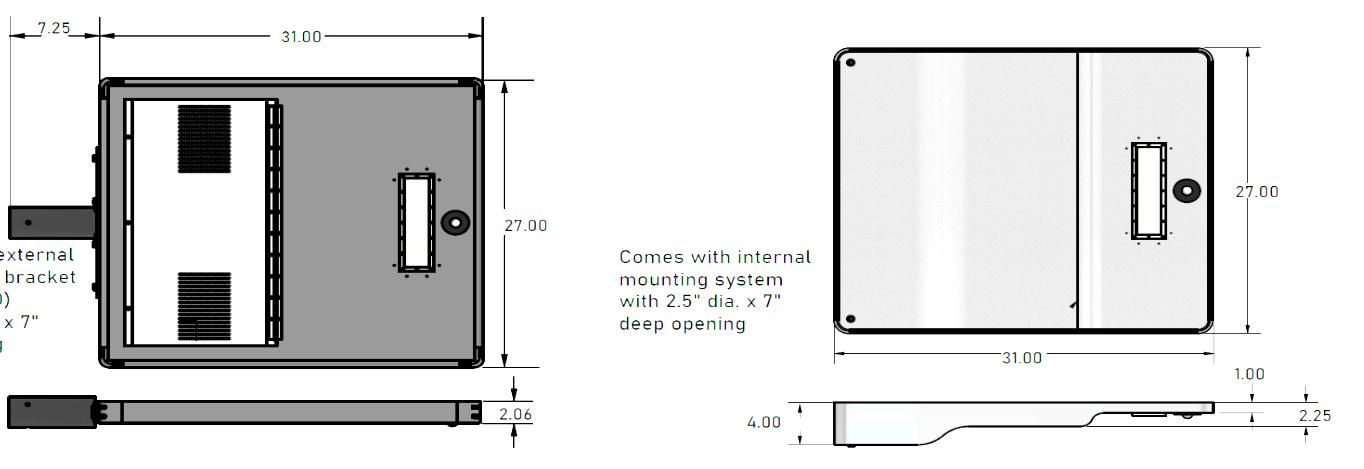

Siege Area Lighting Packages with SmartLink Model W x L x H (in.) Solar Panel Battery LED Options Weight

CS-SIE-2124 21 x 24 x 4 45 W 10 Ah

CS-SIE-2529 25 x 29 x 4 70 W 15 Ah 10W, 15W, 20W

15W, 20W, 25W, 30W, 35W

CS-SIE-2731 27 x 31 x 4 90 W 22.5 Ah 25W, 30W, 35W, 40W, 45W 21 lbs.

37.5 lbs.

55 lbs.

Certifications All Siege lighting packages are IP65 Rated, CE and FC Certified, RoHS Compliant, Burn-Time Certified and Buy America Compliant.

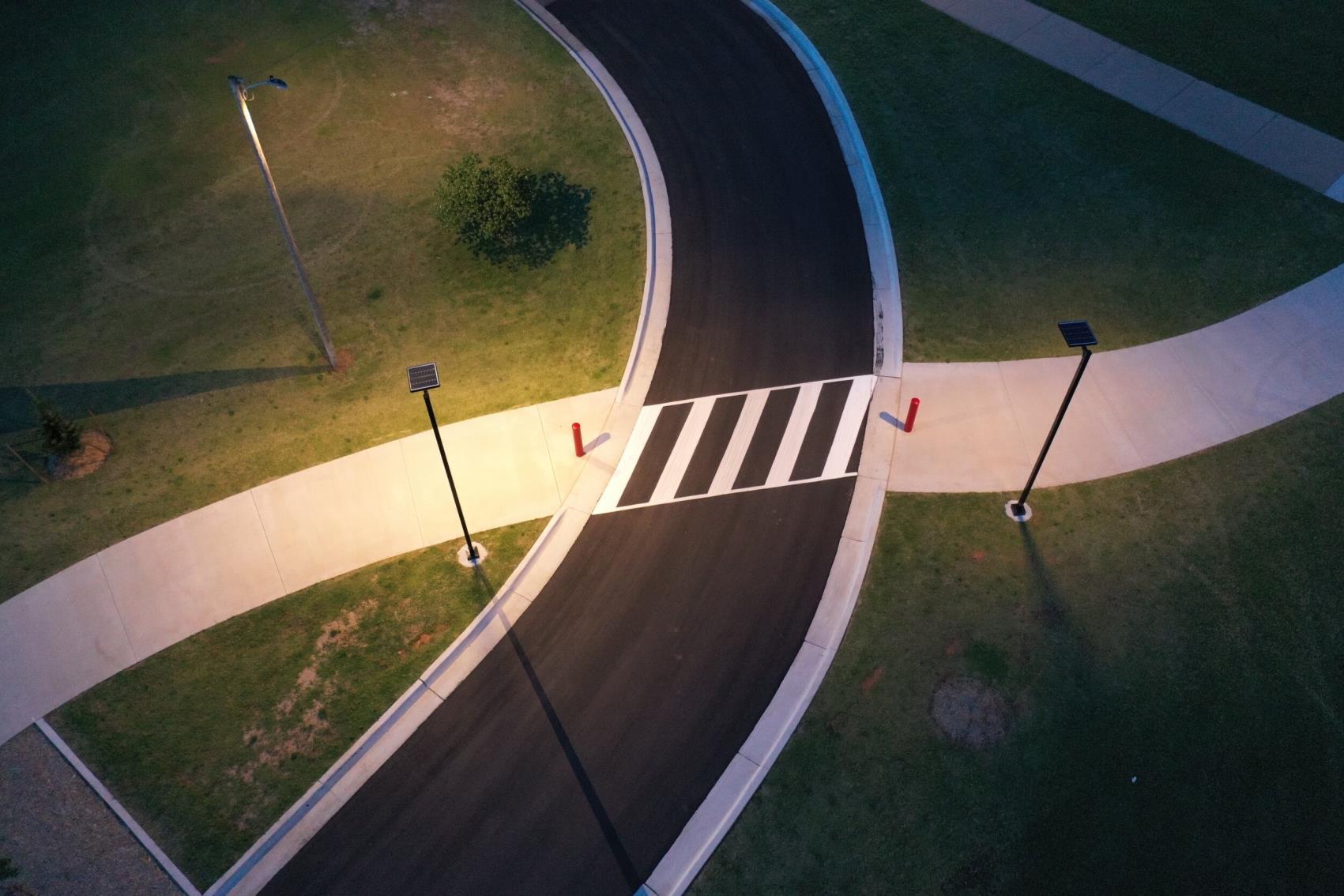

Cuesta Sol’s Siege solar pathway lights.

Customize Your Lighting Schedules

The SmartLink portal provides custom scheduling options for solar lighting package. Scheduling options include automatic dusk to dawn, specific times, or a mix of the two. This allows for property managers to ensure lights are on during operating hours, and to turn lights off after operating hours to deter patrons from lingering on the property. This is ideal for sports fields and other recreational areas.

Cuesta Sol PredatorArea Lighting

All Cuesta Sol Predator lighting packages are low profile and range in battery, LED, and solar panel sizes to accommodate different locations and project requirements. Systems are sized for each customer based on project needs but are summarized below.

Each system is an all-in-one solution engineered for ease-of-installation to a round or square pole with its adjustable mounting bracket. All installations are stamped by a structural engineer to meet the necessary wind and snow loads.

Collection Features

 Dusk to Dawn or Custom Scheduling  24/7 SmartLink Monitoring & Control  Brightest Industry LED Output Levels  Long Life LiFePO4 Lithium Batteries  Monocrystalline Solar Panels

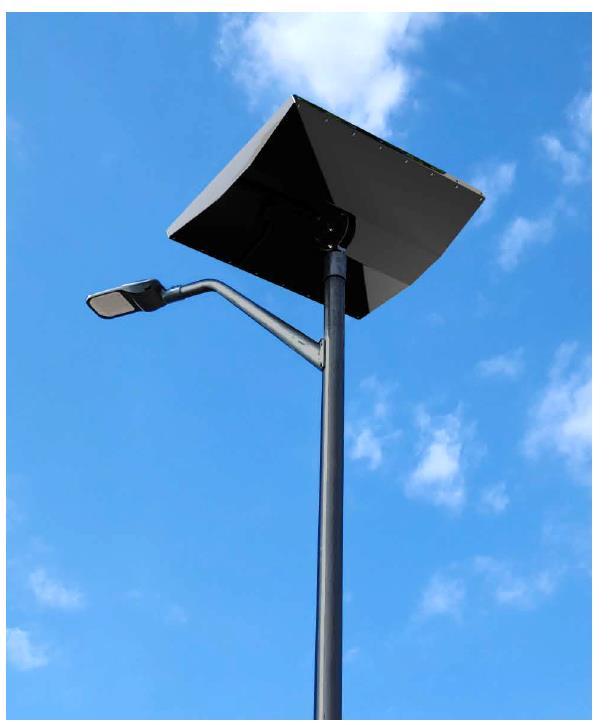

Predator solar lighting package with LED arm 3.

Predator Billboard Lighting Packages with SmartLink

Model W x H X D (in.) Weight Solar Panel Battery LED Installation Height

CS-PRE-20 32.25 x 19.5 x 7.5 42 lbs. CS-PRE-40 39.5 x 25.75 x 7.5 45 lbs. CS-PRE-60 63.5 x 25.75 x 7.5 45 lbs. CS-PRE-80 59 x 39 x 7.5 98 lbs. CS-PRE-100 77 x 39 x 7.5 101 lbs. 70 W 12V / 54 Ah 130 W 12V / 108 Ah 200 W 24V / 84 Ah 260 W 24V / 102 Ah

20 W 40 W 60 W 80 W 260 W 24V / 102 Ah 100 W 10 - 13 ft. 16 - 19 ft. 22 - 26 ft. 29 - 32 ft. 36 - 39 ft.

CS-PRE-40 for reference: Predator lighting packages are available in four arm options for mounting the LED:

Arm 1

Arm 2

Arm 3

(shown left and above)

Arm 4

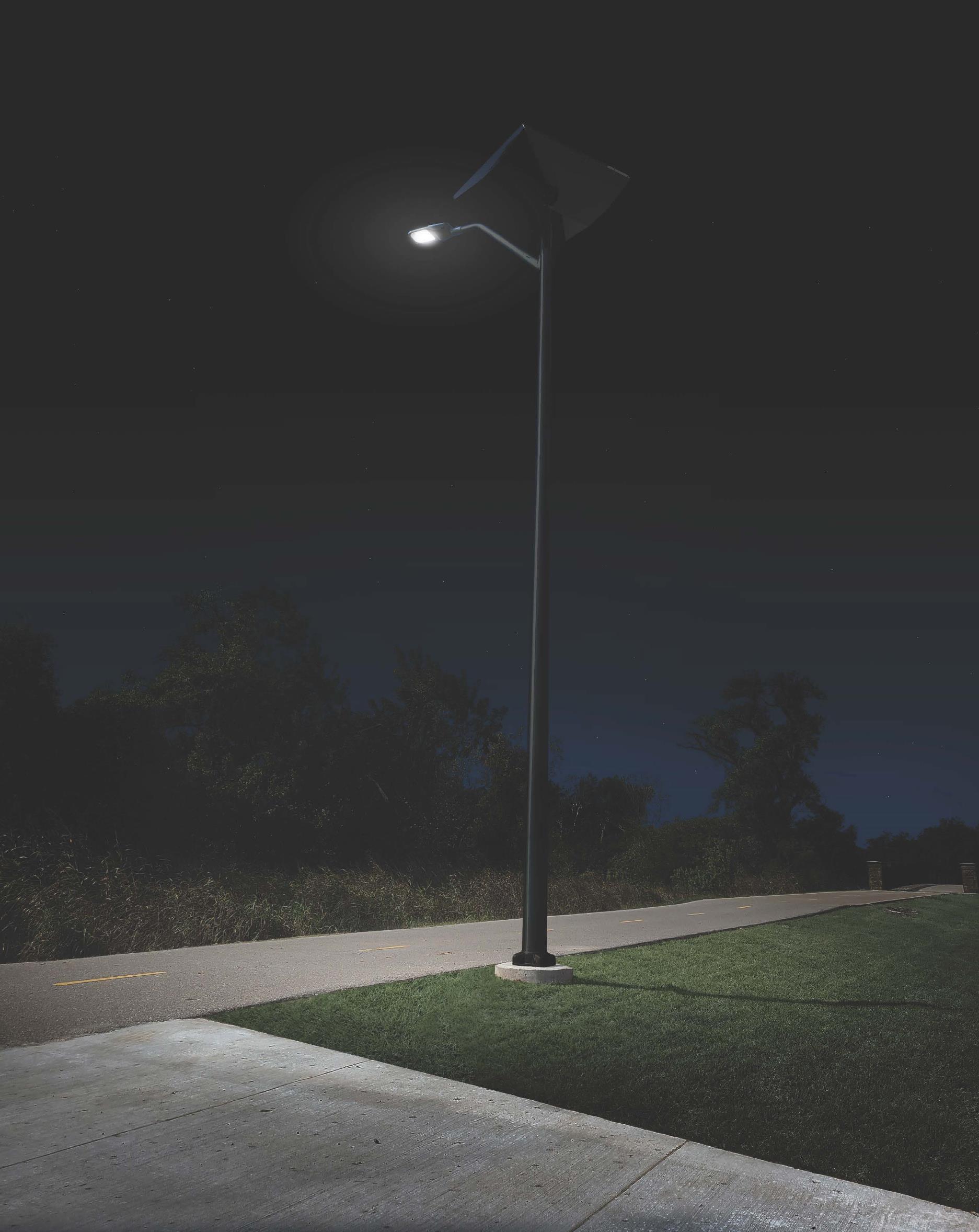

Cuesta Sol Predator solar lighting package along a bike path.
