B
BALL TYPE B [1”]
Good for light weight installations like phones, tablets, small fish finders or other accessories.
#VNB-01001
DOUBLE SOCKET ARM 6 cm
Double socket arm, lenght 6cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
B
#VNB-01002
DOUBLE SOCKET ARM 9 cm
Double socket arm, lenght 9cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
#VNB-01004
DOUBLE SOCKET SWING ARM 12cm
Double socket swivel arm features 360-degree center rotation. Material: Reinforced nylon. Two the easy adjust knobs.
#VNB-01005
DOUBLE SOCKET SWIVEL & RATCHET ARM 17CM
Double socket swivel arm features 360-degree center rotation. Also sideways 180-degree rotation. Material: Reinforced nylon. Two the easy adjust knobs.
B Type | 1”
#VNB-01013
DOUBLE SOCKET ARM 17cm
Double socket arm, lenght 17cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
B
#VNB-01128

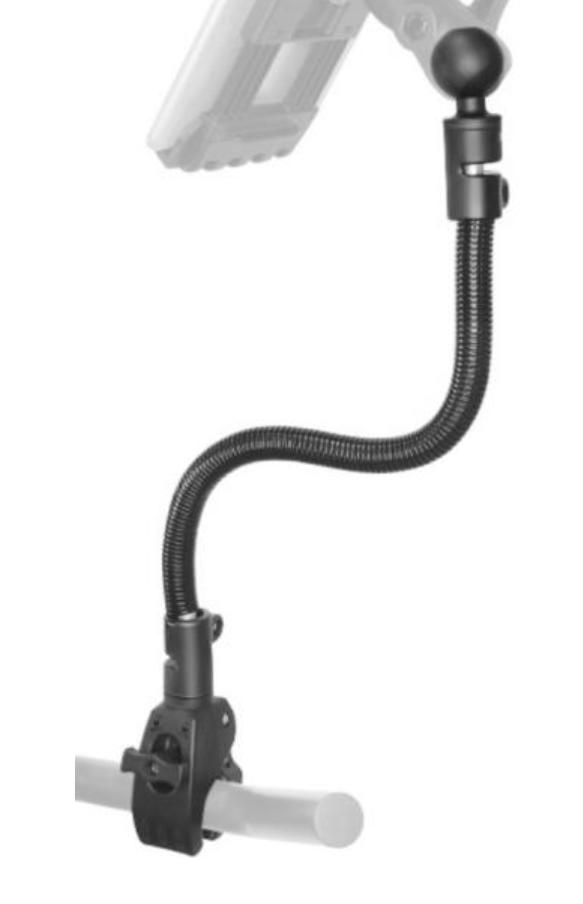

CLAW WITH 50 CM FLEX ARM WITH 1” BALL
This kit includes a small claw clamp base connected to an 18” flex arm and 1” ball. Clamp can be clamped to 0.625” - 1.14” diameter rails.
#VNB-01101
ROUND PLATE WITH 1”
Round plate with 1” / B size rubber ball. . This mounting component includes predrilled holes using the universal AMPS hole pattern. Diameter ø 62 mm.
#VNB-01104
BALL BASE 1”
Plate 55 x 55mm, 4 holes, hole spacing 37.5 x 30 mm, material: aluminum alloy + rubber. 1” Ball. Plate size 53x55mm.
#VNB-01102
BALL BASE WITH 1”
4-aperture 6.5mm/4 hole spacing 38.5x 64mm, material: aluminum alloy + rubbe. Plate size 51 x 76mm.
#VNB-01105
ROUND PLATE 1”
#VNB-01103
DIAMOND BALL BASE 1”
2-aperture 6.5mm/center hole spacing
48.6mm(1.912 “), matching AMPS industry standard hole spacing. Diamond plate size 36x70mm.
#VNB-01107
BALL ADAPTER 1”
Ball with 1/4” thread. Can be used connect diffrent kind of devices to arm. If you want to install multiple devices but cannot find multiple installation points on your motorcycle or vehicle, this base is an ideal accessory for connecting the two devices.
Round plate with 1” ball. The distance between the 4 holes is 21.2x 21.2mm; The distance between the diagonal center holes is 30mm. Material is aluminum alloy + rubber. Plate outer diameter ø 45mm.
#VNB-01110
DOUBLE BALL FOR RAIL
Double 1” ball for rail installation. Thread Specification 3/16 “,T-inch 10.5x 15.5x 2mm
#VNB-01108
#VNB-01106
BALL BASE 1”
Ball base with four holes, hole spacing 40 x 40 mm. Material: aluminum alloy + rubber. 1” Ball. Plate size 53x55mm.
#VNB-01109
DIAMOND BALL BASE 1”
2-aperture 5.5mm/center hole distance 40mm, bottom plate outline dimension 32x 56mm, material:aluminum alloy/rubber.
#VNB-01111
ROUND PLATE 1”
Big round plate with 1” ball. Distance between installation holes 33 x 33 mm. Hole diameter 5.5mm. /4 hole spacing 33x 33mm(1.29 “x 1.29”), bottom plate external dimension: diameter 63mm, made of aluminum alloy and rubber.
#VNB-01114
BALL BASE 1”
Square ball base 1”. Four holes (5.5mm), spacing 50x 50mm. Plate dimension: 62x 60mm. Material aluminum alloy and rubber
1” BALL WITH RAIL MOUNT
Can be installed to rail. Thread Specification 3/16 “,T-inch 10.5x 15.5x 2mm
#VNB-01112 (male)
#VNB-01113 (female)
BALL HEAD 1/4”
Ball Head base with 1/4 “-20x 0.3” Bolt, used in sports cameras, photographic equipment and other fields equipment
#VNB-01115
HANDLEBAR BASE 1”
For motocycle handlebar. 1” B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5” to 1.25” in diameter. Include black cover caps and composite adapter that can narrow the rail to a minimum width of .5”.
#VNB-01116
SMALL RAIL BASE 1”
Small rail with B size 1” rubber ball. Fits to rails from 3/8” to 5/8” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. Nylon-insert lock nuts to prevent loosening in high vibration environments. Good for mounting to scooter mirror rails as well as vehicle headrests and other round rails within the stated dimensions.
#VNB-01118
LARGE RAIL BASE 1”
Large handlebar mounting with 1” B size rubber ball and. Fits to rails 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. Icludes nylon-insert lock nuts to prevent loosening in high vibration environments.
#VNB-01119
MAGNETIC BASE 1”
Mount to a metal surface? Magbase with diameter ø 66mm is the powerful and durable solution. With a B size ball magnet is easy to use. Simply attach a compatible double socket arm and your desired holder. N35 grade magnet and rubber coating that protects the metal surface you’re attaching.
#VNB-01117
MEDIUM RAIL BASE 1”
Medium rail base with 1” B size rubber ball. Fits to rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. Includes nylon-insert lock nuts to prevent loosening in high vibration environments.
#VNB-01120

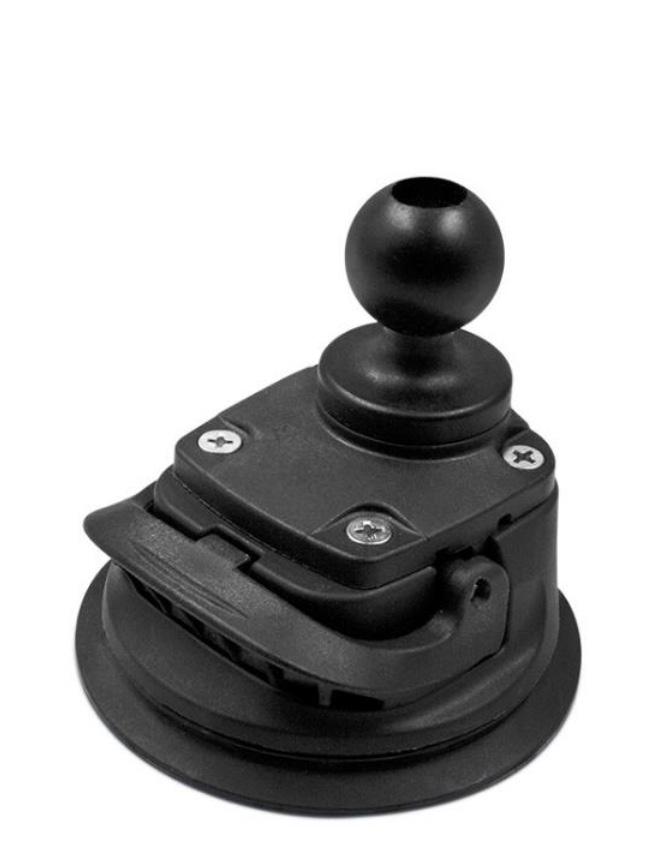

SUCTION CUP 1”
Suction cup base consists of a 3.3” diameter suction cup and 1” ball. Suction cup can be used on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface. Diameter 90mm, standard load: 0.5kg; Heavy duty: 1kg.
#VNB-01121
SUCTION CUP 2x 1”
Suction cup base consists of a 3.3” diameter suction cup and 2pcs of 1” ball. Suction cup can be used on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface. Diameter 90mm, standard load: 0.5kg; Heavy duty: 1kg.
#VNB-01122
1” BALL GOPRO MOUNT
If you need more options to connect your action camera. With 1” ball you can connect your action camera several diffrent kinds of mount options. Utilizing the ball and socket mounting system, simply attach the included B size 1” rubber ball adapter to action camera base for enhanced adjustability and superior vibration damping – letting you get the most out of your favorite action camera.
#VNB-01123
CLAMP WITH 1” BALL
This strong clamp includes a 1” ball. It can be used to mount a variety of products. Example, attach your GoPro Camera, Smartphone, or similar light weight device to any flat surface or rail.
BALL TYPE B [1”]
#VNB-01124
CLAMP WITH DOUBLE 1” BALL
#VNB-01125
MEDIUM MOUNT CLAW 1”
Medium size Mount Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The medium version can quickly be clamped on rails ranging from 1” to 1.6” in outer diameter. It´s great for mounting phones, tablets, action cameras, rod holders, and much more.
BALL TYPE B [1”]
This strong clamp includes double 1” ball. It can be used to mount a variety of products. Example, attach your GoPro Camera, Smartphone, or similar light weight device to any flat surface or rail.
#VNB-01126
TOUGH MOUNT CLAW 1”
Mount Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The large version of the Claw can quickly be clamped on rails ranging from 1” to 2.2” in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more.
BALL TYPE B [1”]
#VNB-01127
ACTION CAMERA CLAMP
Handy clamp for action cameras. Include Gopro mount a 1” ball which can be used to mount a variety of products utilizing VINmounts® vast selection of mounting solutions. Attach your GoPro Camera, Smartphone or similar lightweight device on almost any flat surfaces and square rails. B
B Type | 1”
#VNB-20001
MAGSAFE ADAPTER 1”
This adapter is designed specifically to fit the official Apple MagSafe Charger. Place your Magsafe charging disc to adapter and charge your phone or other device wirelesly. Include 1” / B size ball.Take advantage of your iPhone’s magnetic MagSafe charging abilities with this MagSafe adapter.
BALL TYPE B [1”]
B Type | 1”
#VNB-20002
UNIVERSAL PHONE HOLDER 1”
Compact durable mount for your cell phone. Includes a device tether recommended for outdoor applications. Compatible with common handheld devices. Include also place for Magsafe charger so user can wirelesly charge mobile phone while placing it to holder. Include also 1” ball.
B Type | 1”
#VNB-20003
UNIVERSAL PHONE HOLDER 1”
Fitting phones of all sizes, keeps your device functional while in the cradle. Thanks to the ball and socket system, this phone mount allows for near-infinite adjustability so you can achieve the perfect viewing angle. With a turn of a knob, quickly relocate to a different mounting application. No magsafe adapter included.
B Type | 1”
#VNB-20004
PHONE HOLDER/CHARGER 1”
This cradle features an ‘X’ design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.
HOW TO CHOOSE CORRECT BALL SIZE
Different sizes of ball and socket mounts are designed for different weight capacities and device sizes. For boats in heavy duty environments, choose C size for 4”–7” fishfinders and plotters, and D size for 8”–16” fishfinders and plotters. Swing arm with no ball components can support any size fishfinder or plotter.
BOATING MOUNTS
Out on the water, we know that the ideal experience requires having the versatility to confidently place and adjust your fishfinders and other devices to any position while maintaining the structure of the mount out on harsh waters. Our ball and socket technology allows for near-infinite adjustability while providing the holding power to support heavy devices in any environment. Simply attach the ball adapter to your device and connect with the correct size socket arm to place on to the
BALL TYPE B [11/2”]
#VNB-15001
DOUBLE SOCKET ARM 9 cm
Double socket arm, length 9 cm, Material: Aluminium alloy. The easy to adjust knob allows fast adjustability for your connected device.
#VNB-15002
C
#VNB-15005
DOUBLE SOCKET ARM 9 cm
Lockable double socket arm, length 9 cm, Material: Aluminium alloy. The easy to adjust lock knob. The knob can only be loosened through a specific anti-theif key.
DOUBLE SOCKET ARM 15 cm
Double socket arm, length 15 cm, Material: Aluminium alloy. The easy to adjust knob allows fast adjustability for your connected device
C Type | 11/2”
#VNB-15003
DOUBLE SOCKET ARM 10 cm
Double socket arm, length 10 cm, Material: Aluminium alloy. The easy to adjust knob allows fast adjustability for your connected device
#VNB-15006
DOUBLE SOCKET ARM 15 cm
Lockable double socket arm, length 15 cm, Material: Aluminium alloy. The easy to adjust lock knob. The knob can only be loosened through a specific anti-theif key..
C Type | 11/2”
#VNB-15007
DOUBLE SOCKET ARM 10 cm
Lockable double socket arm, length 10 cm, Material: Aluminium alloy. The easy to adjust lock knob. The knob can only be loosened through a specific anti-theif key.
#VNB-15004
DOUBLE SOCKET ARM 23 cm
Double socket arm, length 23 cm, Material: Aluminium alloy. The easy to adjust knob allows fast adjustability for your connected device
C
#VNB-15008
DOUBLE SOCKET ARM 23 cm
Lockable double socket arm, length 23 cm, Material: Aluminium alloy. The easy to adjust lock knob. The knob can only be loosened through a specific anti-theif key.
C Type | 11/2”
#VNB-15009
DOUBLE SOCKET SWING ARM 12cm
Double socket arm, length 12 cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
#VNB-15010
DOUBLE SOCKET SWIVEL & RATCHET ARM 17CM
Double socket arm, length 6cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
#VNB-15101
CLAW WITH 50 CM FLEX ARM WITH 11/2” BALL
Double socket arm, length 6cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
BALL
[11/2”]
#VNB-15103
TRIPLE SUCTION CUP BASE 11/2”
Triple suction cup base, consists of a 1.5” ball base connected to a high strength composite base with three suction cup bases at each end. This base has a suction grip, allowing for the connection with 1.5” double socket arms to any non-porous surface, like a windshield, with confidence.
#VNB-15102
SUCTION CUP 6 cm
Double socket arm, length 6cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
#VNB-15104
DOUBLE SUCTION CUP BASE 11/2”
Triple suction cup base, consists of a 1.5” ball base connected to a high strength composite base with two suction cup bases at each end. This base has a suction grip, allowing for the connection with double socket arms to any non-porous surface, like a windshield, with confidence.
#VNB-15105
DIAMOND BALL 11/2”
Diamond ball mount with 11/2” rubber ball. Distance between holes 48mm, hole size 6,5mm
#VNB-15109
RAIL BALL 11/2”
#VNB-15106
ROUND BALL 11/2”
Round ball plate with 11/2” rubber ball. Diameter 62mm.
#VNB-15110
MARINE BALL 11/2”
#VNB-15107
SQUARE BALL 11/2”
Vesa plate with 11/2” rubber ball. Hole spacing 75x75mm.
#VNB-15111
RAIL BALL 11/2”
Heavy duty rail mount with 11/2” rubber ball attached to a zinc-coated metal double U-bolt base. Include black cover caps and composite adapters that can narrow the rail to a minimum width.
Consists of a C 11/2” rubber ball. Flat 6.25 x 2” rectangular plate. The plate contains pre-drilled holes that will match many electronic devices.
Rail track mount with 11/2” rubber ball. Thread 1/4”. T-bolt size 28x13x3mm. Good to connect arms to rail. Insert Rail Ball into your track and twist the ball clockwise to tighten in place.
#VNB-15113
CAMERA BALL 11/2”
Double socket arm, lenght 6cm, Material: Reinforced nylon. The easy to adjust knob allows fast adjustability for your connected device.
#VNB-15114
BOTTOM PLATE 11/2”
Strong plate with 11/2” rubber ball. Size 102x51mm. Several diffrent hole combinations like 35x75mm, 25x63mm, 38x50mm and 38x89mm
#VNB-15115
MEDIUM CLAMP 11/2”
Medium size Mount Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The medium version can quickly be clamped on rails ranging from 1” to 1.6” in outer diameter. It´s great for mounting phones, tablets, action cameras, rod holders, and much more.
#VNB-15108
VESA BALL 11/2”
Vesa plate with 11/2” rubber ball. Several hole spacing like 100x100mm, 75x75mm, 76x100mm, 63x38mm.
#VNB-15112
MARINE PLATE 11/2”
Universal mount plate with 11/2” rubber ball. Suitable for many diffrent fish finders, sounders and other marine electronics. 241L hole spacing.
#VNB-15116
PIPE MOUNT X 11/2”
Pipe mount X base, consists of a 11/2”rubber ball connected that will connect to a pipe tubing diameter from 1.25” to 1.875” in diameter.
#VNB-15117
MARINE ELECTRONIC BALL 11/2”
Marine electronic plate which consists of a C size 1.5” rubber ball. Flat 6.25 x 2” rectangular plate. The plate contains different combinations of pre-drilled holes that will match many electronic devices and mounts, including marine GPS, CB radios, Ham radios, gimbal brackets, and more.
#VNB-15118
SMALL RAIL BALL 11/2”
For motocycle handlebar. 11/2” C size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5” to 1.25” in diameter. Include black cover caps and composite adapter that can narrow the rail to a minimum width of .5”
BALL TYPE B [11/2”]
#VNB-15021
SQUARE POST CLAMP BASE 11/2”
Clamping base ideal for square posts up to 4” in width; adjustable and easily removable. C size 1.5” rubber ball. Made of powder-coated, marine-grade aluminum.
BALL TYPE B [11/2”]
#VNB-15123
DOUBLE BALL 11/2”
Double ball connector allows you to connect two socket arms together and maintain a flexible mount.
#VNB-15119
MEDIUM RAIL BALL 11/2”
Medium rail base with 11/2” C size rubber ball. Fits to rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. Includes nylon-insert lock nuts to prevent loosening in high vibration environments.
#VNB-15022
PIPE BASE 11/2”
Round pipe base with 11/2” rubber ball. Easy to connect to a pipe tubing diameter from 2” to 2.5” in diameter.
#VNB-15124
BALL HEAD 11/2”
Ball head with 11/2” rubber ball. Thread M10 x 25mm.
#VNB-15120
LARGE RAIL BASE 11/2”
Large handlebar mounting with 11/2” C size rubber ball and. Fits to rails 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. Icludes nylon-insert lock nuts to prevent loosening in high vibration environments.
#VNB-15125
BALL HEAD 11/2”
Ball head with 11/2” rubber ball. Thread M8 x 10mm.
SWING ARMS
For those who desire stability to adjust of your device on the X-axis, swing arm mounts support 360° horizontal rotations. Our swing arm mounts can also be mounted on a horizontal or vertical flat surface for a wide range of compatible mounting locations.
#VNB-15301
SWIMG ARM DOUBLE BALL VERTICAL MOUNT
Vertical mount with short double 11/2”ball. Can be used example to install displays and main units to same place. 2.5kgs.
BALL TYPE B [11/2”]
#VNB-15302
DOUBLE BALL VERTICAL MOUNT WITH ARM
Vertical mount with arm and double 11/2”ball. Can be used to install displays, tablets or many other things. Max load 2kgs.
BALL TYPE B [11/2”]
#VNB-15303

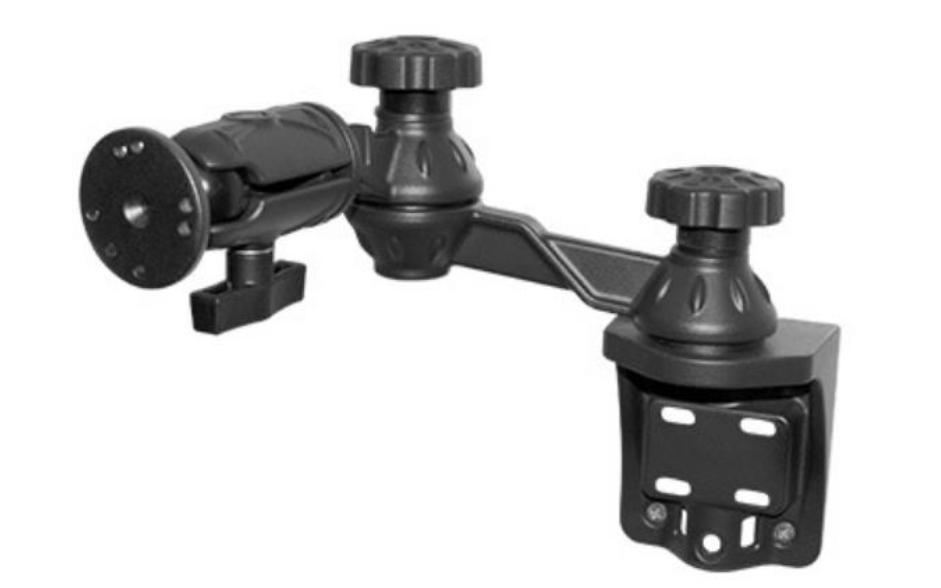

VERTICAL MOUNT WITH SWING ARM AND VESA PLATE
Vertical mount set short arm, swivel socket arm and Vesa ball. Swivel socekt with 11/2”ball. Can be used to install displays, tablets or many other things. Max load 2kgs.
BALL TYPE B [11/2”]
#VNB-15304
VERTICAL MOUNT WITH SWING ARM AND ROUND BALL
Vertical mount set with 150 mm arm, short arm with swivel socket arm and round plate 11/2”ball. Can be used to install displays, tablets or many other things. Max load 2kgs.
#VNB-15126
BALL 11/2”+12mm
11/2”ball with M12x12mm thread.
BALL TYPE B [11/2”]
#VNB-15130
BALL 11/2”+3/8”
11/2”ball with 3/8”-24x0.375” thread.
BALL TYPE B [11/2”]
#VNB-15134
BALL 11/2”+5/16”
11/2”ball with 5/16”-24x0.375” thread.
BALL TYPE B [11/2”]
#VNB-15138
BALL 11/2”+1/4”
11/2”ball with 1/4”-20x0.625” thread.
#VNB-15127
BALL 11/2”+6mm
11/2”ball with M6x6mm thread.
#VNB-15131
BALL 11/2”+3/8”
11/2”ball with 3/8”-16x0.375” thread.
#VNB-15128
BALL 11/2”+1/2”
11/2”ball with 1/2”x20x0.5” thread.
#VNB-15129
BALL 11/2”+1/2”
11/2”ball with 1/2”-13x0.5” thread.
#VNB-15132
BALL 11/2”+5/16”
11/2”ball with 5/16”-18x0.75” thread.
#VNB-15133
BALL 11/2”+5/16”
11/2”ball with 5/16”-18x0.375” thread.
#VNB-15135
BALL 11/2”+1/4”
11/2”ball with 1/4”-20x0.25” thread.
#VNB-15139
BALL 11/2”+1/4”
11/2”ball with 1/4”-20x0.375” thread.
#VNB-15136
BALL 11/2”+1/4”
11/2”ball with 1/4”-20x0.5” thread.
#VNB-15137
BALL 11/2”+1/4”
11/2”ball with 1/4”-28x0.25” thread.
BALL TYPE D [2.25”]
Different sizes of ball and socket mounts are designed for different weight capacities and device sizes. D size is designed for heavier loads, example for 8”–16” fishfinders and plotters.
#VNB-25001
SOCKET ARM 2.25” 13cm
Strong and duragle double socket arm, length 13cm. Big ball D size 2.25” is suitable for big marine screens 10-16”. Material: aluminium alloy. The easy to adjust knob allows fast adjustability for your connected device. Very strong arm for heavy devices.
#VNB-25002
SOCKET ARM 2.25”21cm
Strong and duragle double socket arm, length 21cm. Big ball D size 2.25” is suitable for big marine screens 10-16”. Material: aluminium alloy. The easy to adjust knob allows fast adjustability for your connected device. Very strong arm for heavy devices.
#VNB-25003

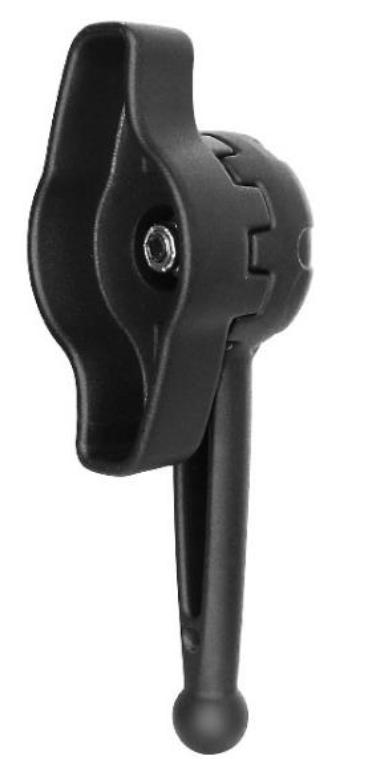

POWER WRENCH
This wrench is designed tp be used with D ball size knobs. It gives you extra power when adjusting ball angles. Material aluminium alloy
BALL TYPE B [2.25”]
#VNB-25101
PLATE BALL 2.25”
Durable plate with 2.25” ball. Plate size 63x38mm. Four hole pattern helps installation to many places.
#VNB-25103
ROUND BALL 2.25”
Round shape plate with 2.25” ball. Diameter 94mm. Very strong aluminium alloy construction.
#VNB-25105
VESA PLATE BALL 2.25”
Strong and durable VESA plate with 2.25” ball. Several diffrent hole patterns 75x75mm, 38x63.5m etc. Very strong and durable aluminium construction.
#VNB-25107
SQUARE POST CLAMP BASE 2.25”
Clamping base ideal for square posts up to 75x40mm tube. Adjustable and easily removable. D size 2.25” rubber ball. Made of powder-coated, marine-grade aluminum.
#VNB-25100
PIPE MOUNT X 2.25”
Pipe mount X base, consists of a 2.25”rubber coated ball connected that will connect to a pipe tubing diameter from 1.25” to 1.875” in diameter.
#VNB-25102
VESA PLATE BALL 2.25”
Strong and durable VESA plate with 2.25” ball. Several diffrent hole patterns 100x100mm, 75x75mm, 76x100m etc. Very strong and durable aluminium construction.
#VNB-25104
RAIL BALL 2.25”
Heavy duty rail mount with 2.25” rubber coated ball attached to a zinc-coated metal double U-bolt base. Include black cover caps.
#VNB-25106
BOTTOM PLATE 2.25”
Strong plate with 2.25” rubber coated ball. Size 158x51mm. Several diffrent hole combinations like 19x110mm, 31x72mm, 31x90mm, 31x139mm, 38x114mm. Hole patterns matching for many marine electronics in the market.
#VNB-25111
#VNB-25108
DOUBLE BALL 2.25”
Double ball connector allows you to connect two socket arms together and maintain a flexible mount.
#VNB-25110
PIPE BASE 2.25”
Round pipe base with 2.25” rubber coated ball. Easy to connect to a pipe tubing diameter from 2” to 2.5” in diameter.
MARINE ELECTRONIC BALL 2.25”
many electronic devices and mounts, like Garmin, Lowrance, Humminbird, Raymarne etc.
MOUNTING RAILS
With our mounting rails, flat surface mounting possibil ities are nearly endless for ATV´s, kayaks, motorboats, tractors, trucks, and much more. Whether you’re look ing to secure a rod holder, fishfinder, or accessories to your kayak, using mounting rails it´s easy way to get the job done. This mount solution can be drilled to any flat surface and is designed for use with screws for easy installation.
MOUNTING
#VNB-30045
COMPOSITE RAIL 45 Heavy
MOUNTING
COMPOSITE RAIL 27 Heavy
MOUNTING
COMPOSITE RAIL 18
#VNB-30018
Heavy
ADHESIVE RAILS
Add a reliable rai mounting system to your inflatable boat or stand up paddleboard with the adhesive rails. Easily install with the included 3M VHB double-sided adhesive pad that connects the rail to your watercraft. Adhesive rail allows you to mount action cameras, fishfinders, phones, rod holders and much more.
MOUNTING
ADHESIVE RAIL 45
#VNB-31045
Heavy
MOUNTING
#VNB-31045
ADHESIVE RAIL 27 Heavy
EXAMPLE SETS
C Type | 11/2”
CHARTPLOTTER / FISHFINDER MOUNT
#VNB-40001
VNB-15002 | Double Socket Arm
VNB-15106 | Round Ball 1 1/2”
VNB-15117 | Marine Electronic Ball 1 1/2”
Fits for max 9” screens
D Type | 2.25”
CHARTPLOTTER / FISHFINDER MOUNT
#VNB-40002
VNB-25002 | Double Socket Arm 2.25”
VNB-25103 | Round Ball 2.25”
VNB-25111 | Marine Electronic Ball 2.25”
Fits bigger screens, max size 16 inch
D Type | 2.25”
MARINE MOUNT
#VNB-40003
VNB-25001 | Double Socket Arm 2.25”
VNB-25103 | Round Ball 2.25”
VNB-25106 | Bottom plate Ball 2.25”
C Type | 11/2”
FISHFINDER MOUNT RAIL MOUNT
#VNB-40004
VNB-15002 | Double Socket Arm
VNB-15110 | Marine Ball 1 1/2”
VNB-15109 | Rail Ball 1 1/2”
Mount fishfinder to boat rail
C Type | 11/2”
FISHFINDER LONG MOUNT
#VNB-40005
VNB-15106 | Round Ball 1 1/2”
VNB-15004 | Double Socket Arm 23cm 1 1/2”
VNB-15110 | Marine Ball 1 1/2”
Long fish finder/ chart plotter mount
C Type | 11/2”
ELECTRIC MOTOR HOLDER
#VNB-40006
VNB-15116 | Pipe mount x 1 1/2”
VNB-15004 | Double Socket Arm 23cm 1 1/2”
VNB-15115 | Medium clamp 1 1/2”
Connect to boat rail and use medium clamp to keep trolling motor stil while driving main motor.
