THE RESIDENCY
2525 N STEMMONS FREEWAY
SITE ANALYSIS
UTSW

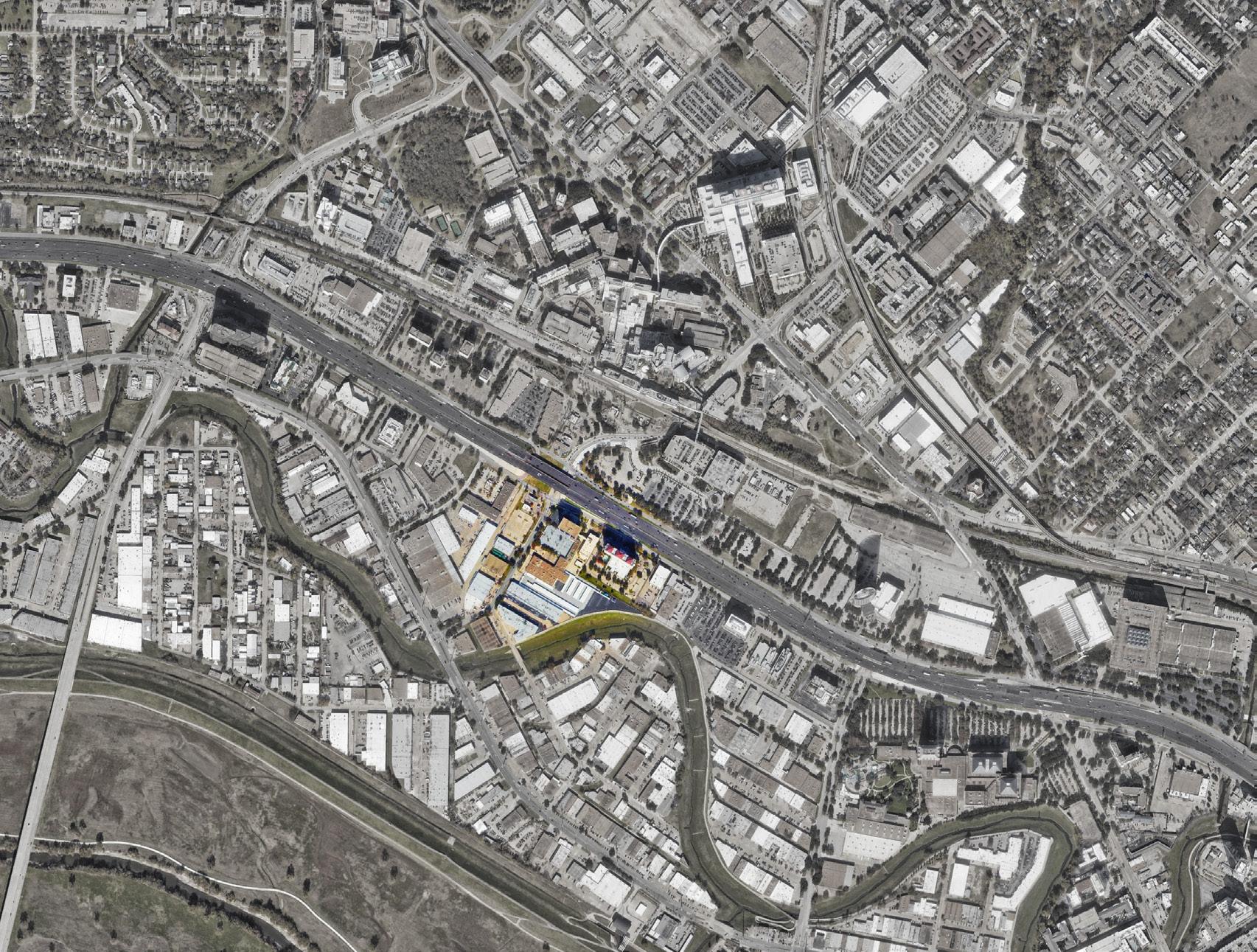

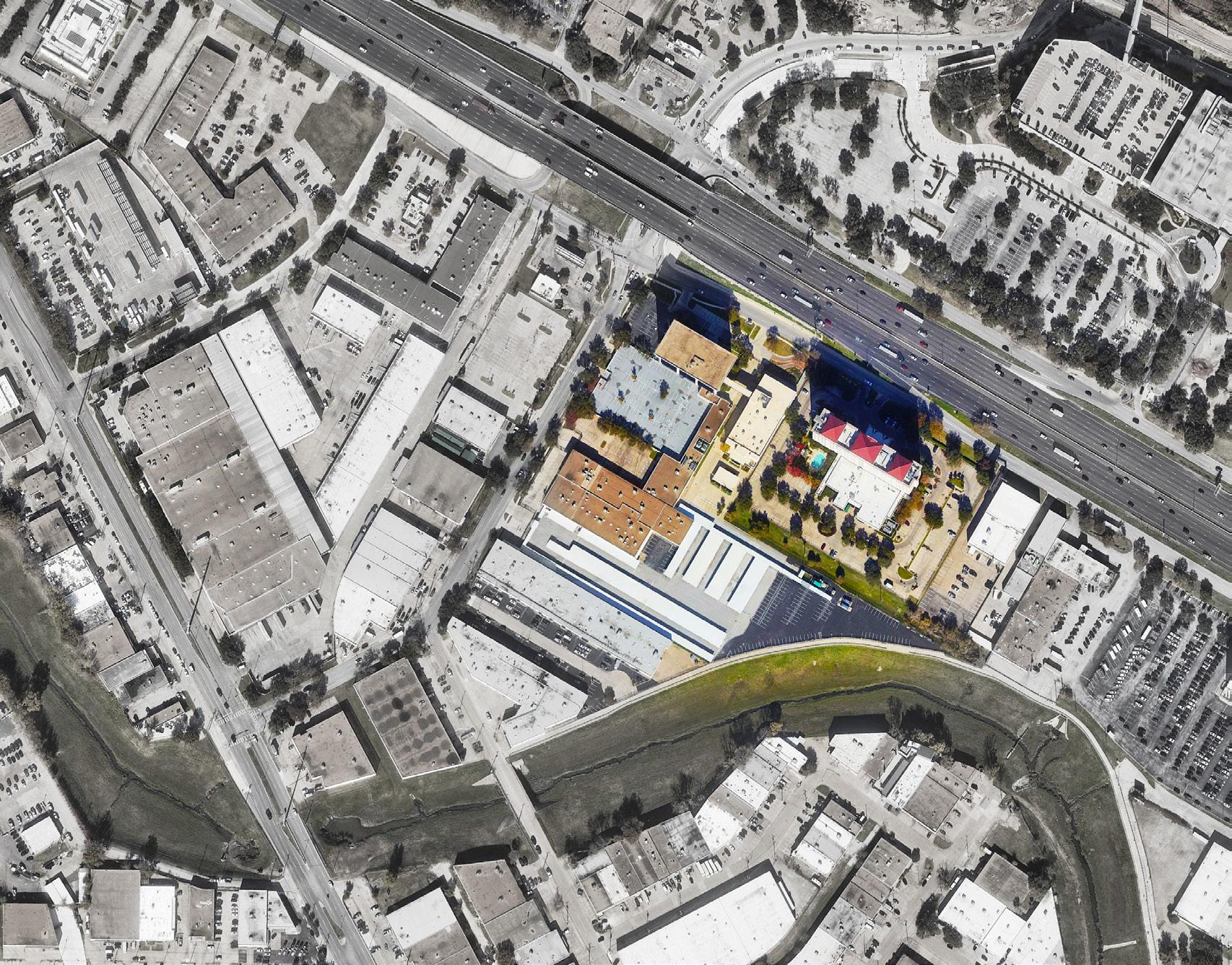

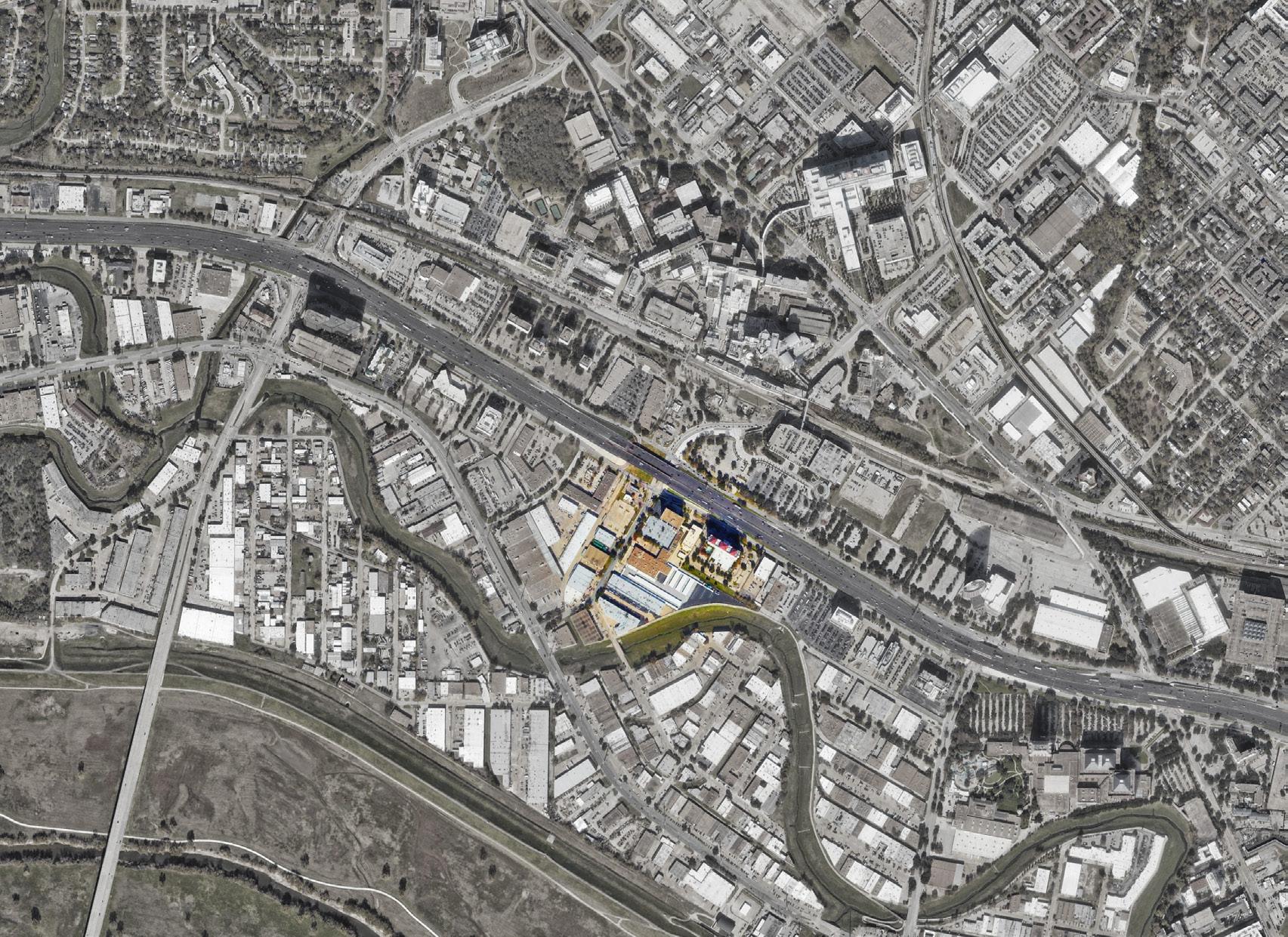

AERIAL SITE LOCATION
2525 N STEMMONS FREEWAY
SITE PLAN / DIAGRAM
FIGURE/GROUND - UTSW CONNECTIONS
3 MILE
SITE PLAN / DIAGRAM
PARKING
2525 N STEMMONS FREEWAY
PARKS AND PUBLIC GREENSPACES
2.5 MILE
TRINITY STRAND TRAIL
TRINITY RIVER
BIRD SANCTUARY
SITE PLAN / DIAGRAM
HIGHWAY STREET
CIRCULATION LINKAGES
2525 N STEMMONS FREEWAY
SITE PLAN / DIAGRAM
WESTVIEW MEDICALDISTRICT VIEW
DOWNTOWNVIEW

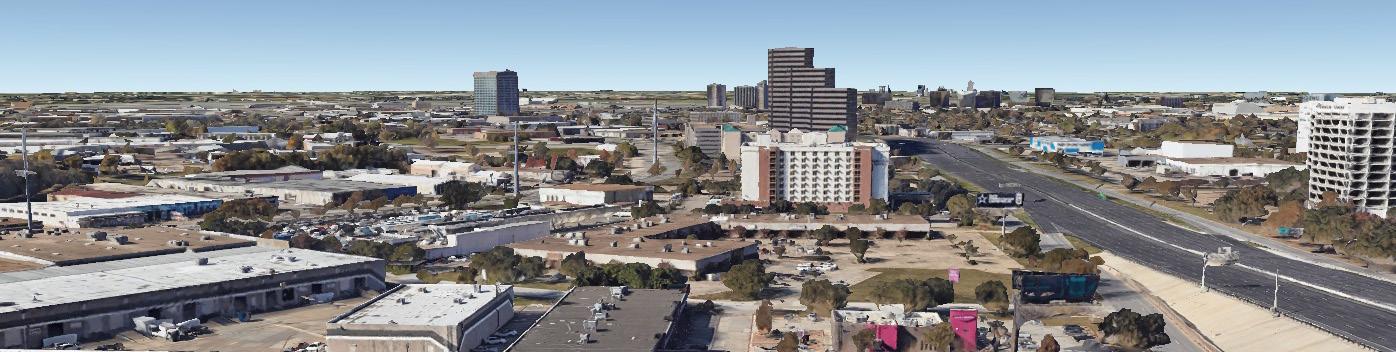

VIEWS

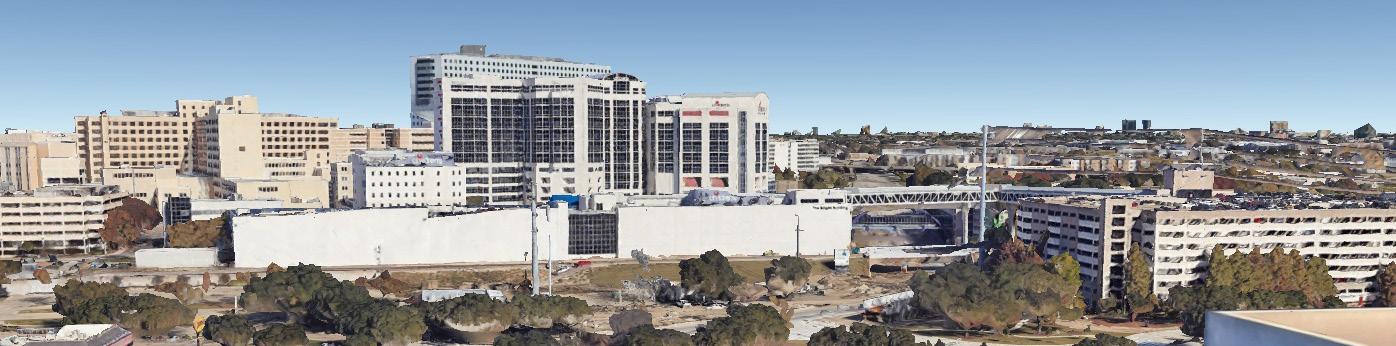

MEDICAL DISTRICT VIEW
2525 N STEMMONS FREEWAY

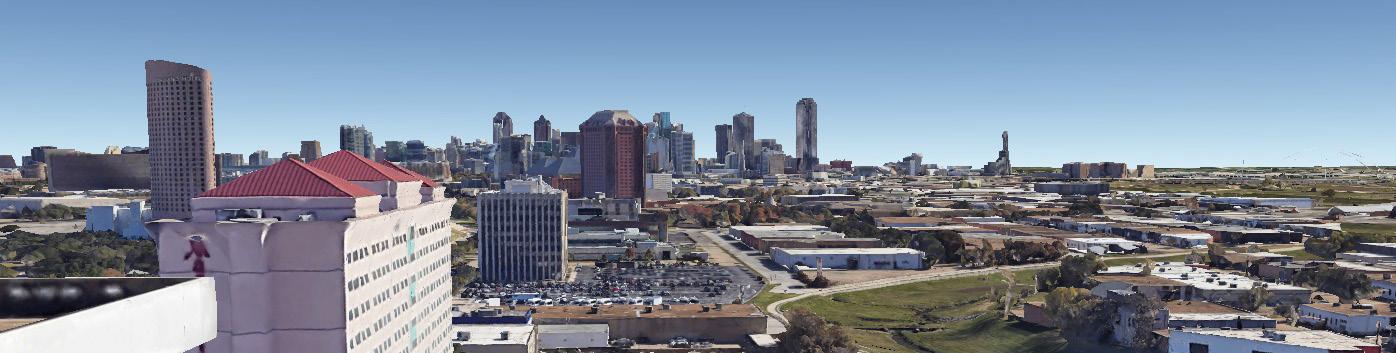

DOWNTOWN VIEW
TRINITY RIVER VIEW
WEST VIEW
TRINITY RIVER
VIEW
CAMPUS GOALS
CREATE
BRAND/IDENTITY
COMMIT TO TECHNOLOGY
SHARE
COMMUNITY
PROMOTE
WELLNESS & SAFETY
WELCOME
UNIVERSAL DESIGN
2525 N STEMMONS FREEWAY

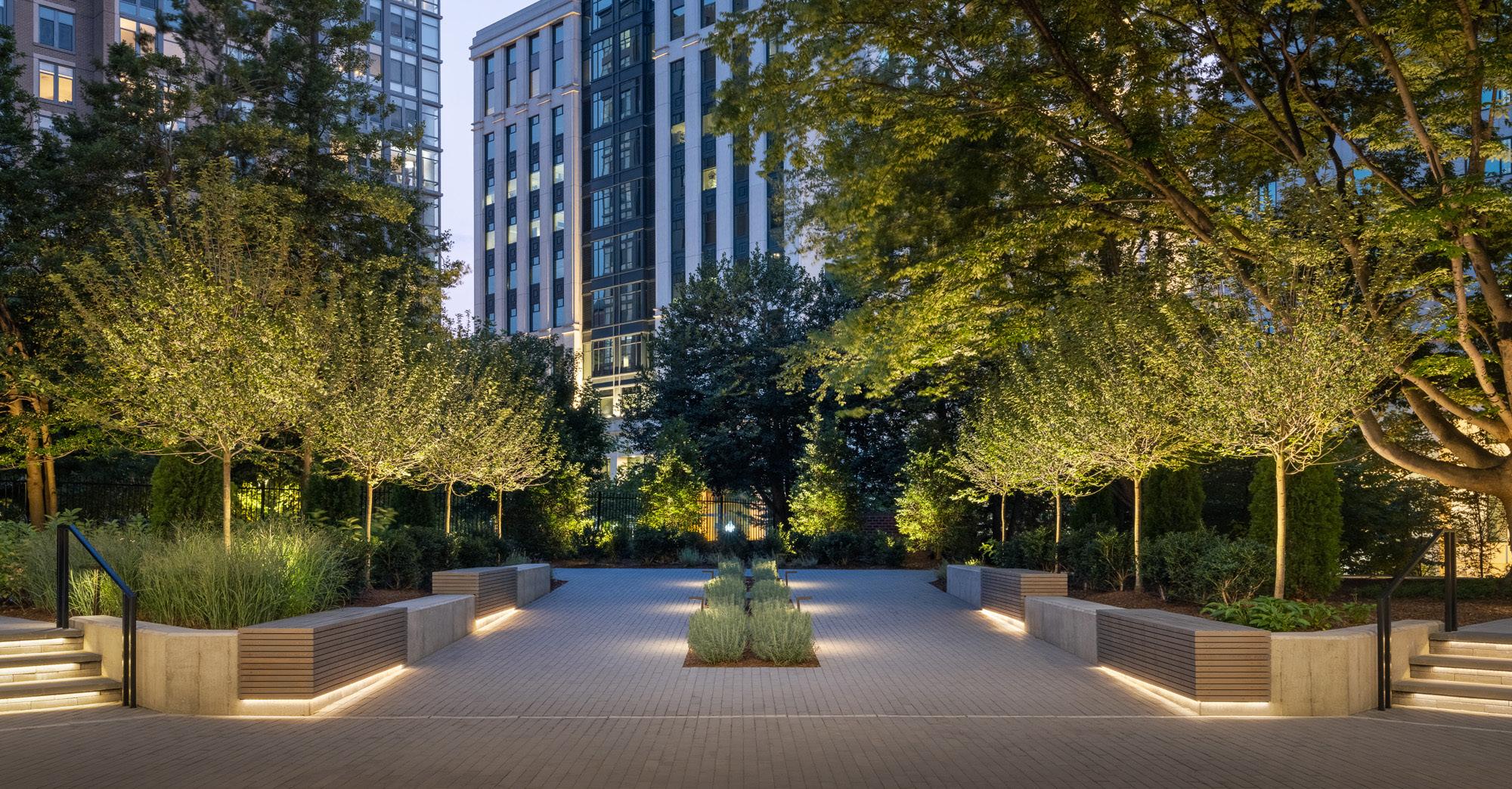

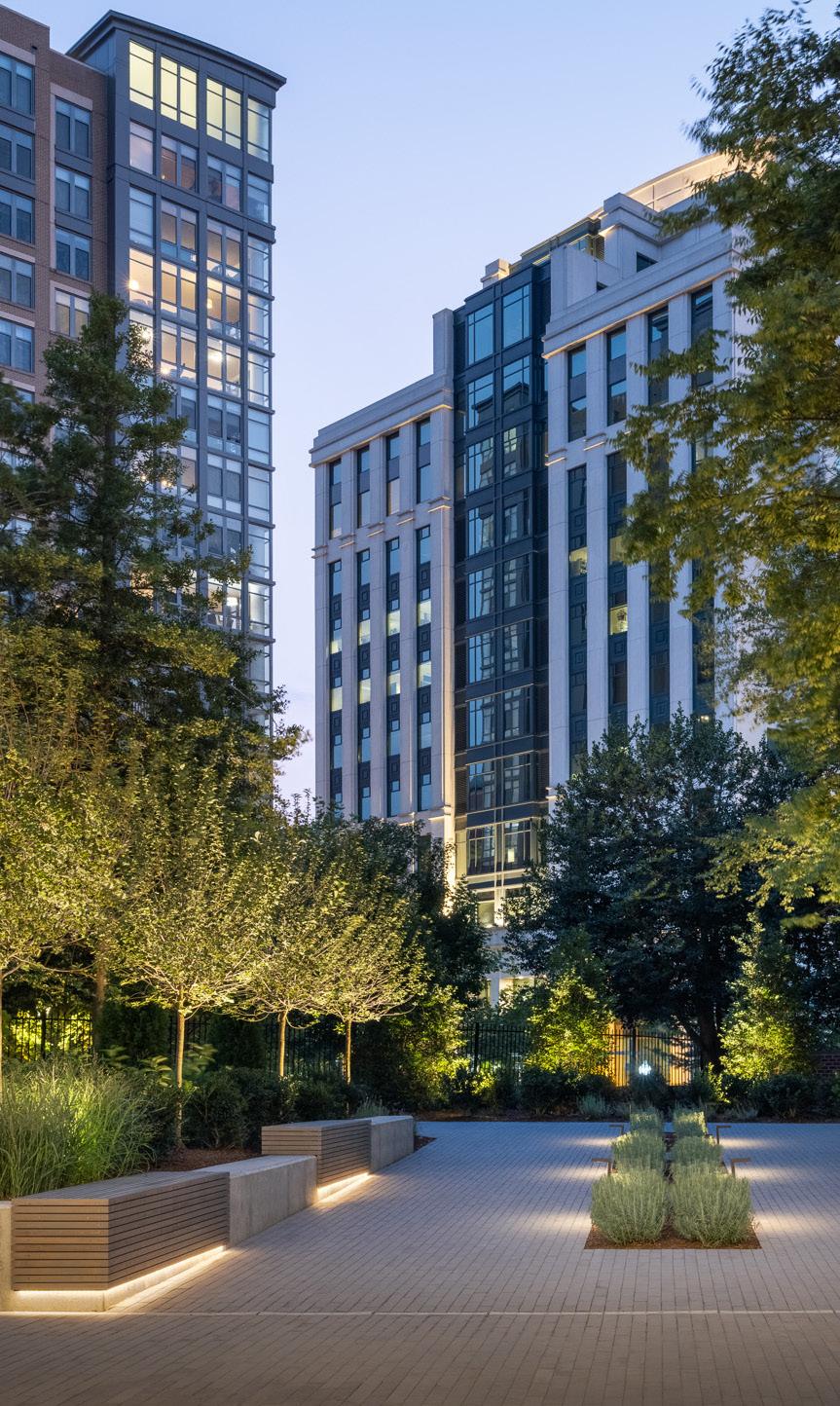

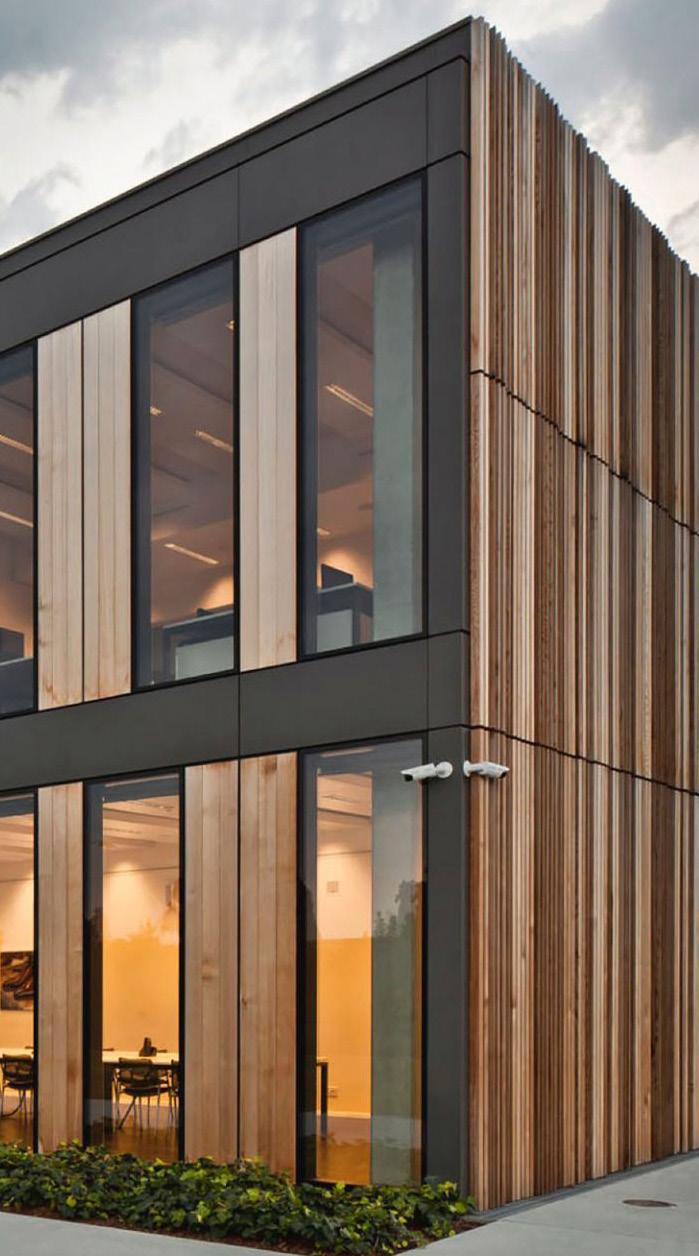

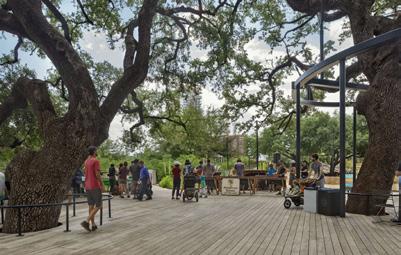

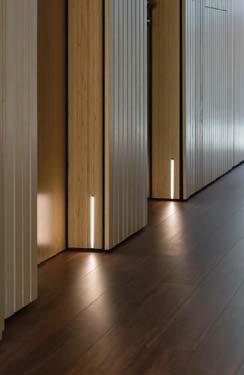

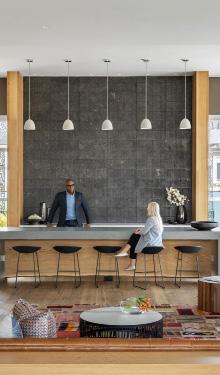

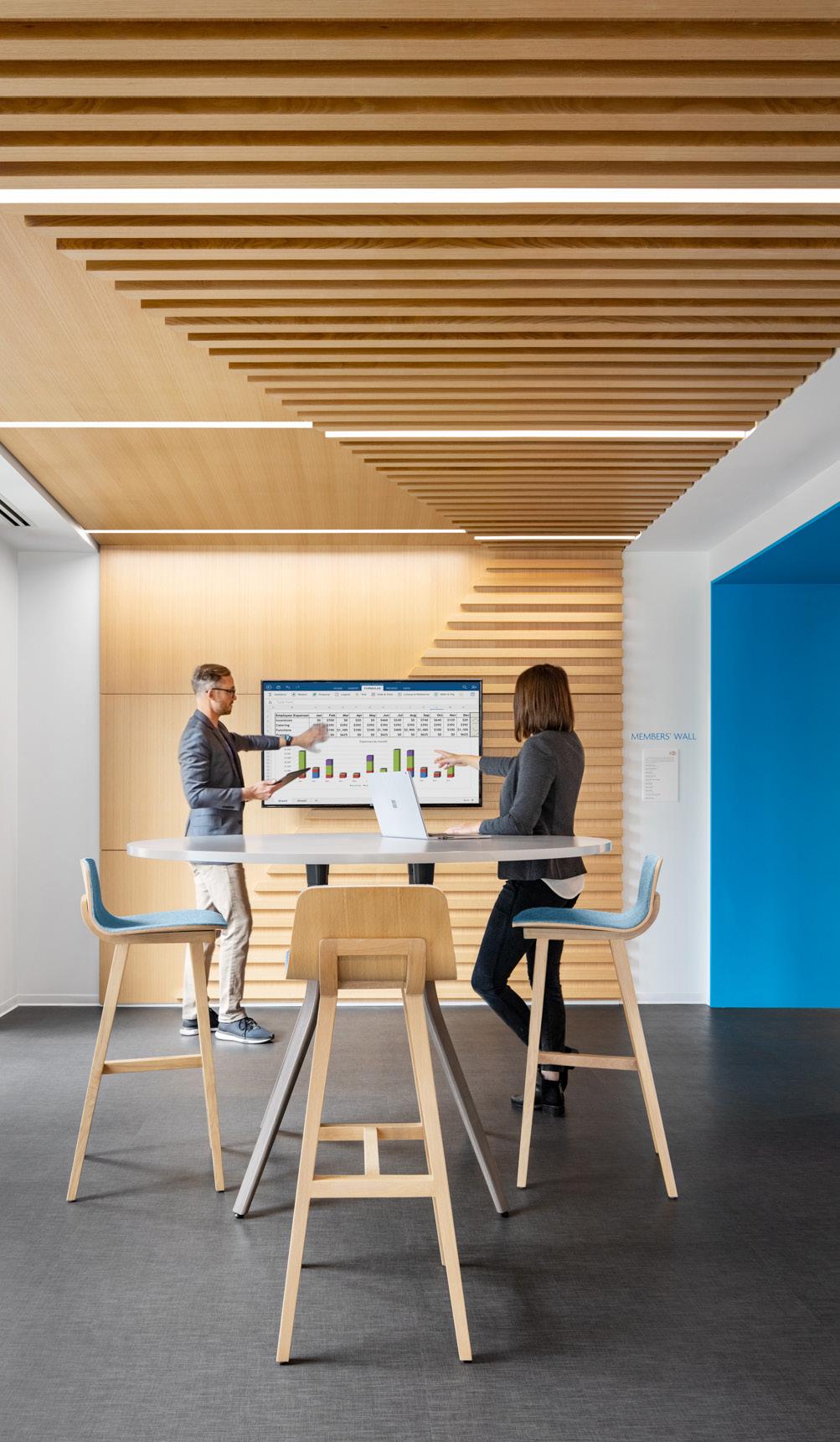

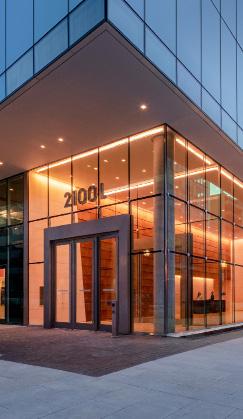

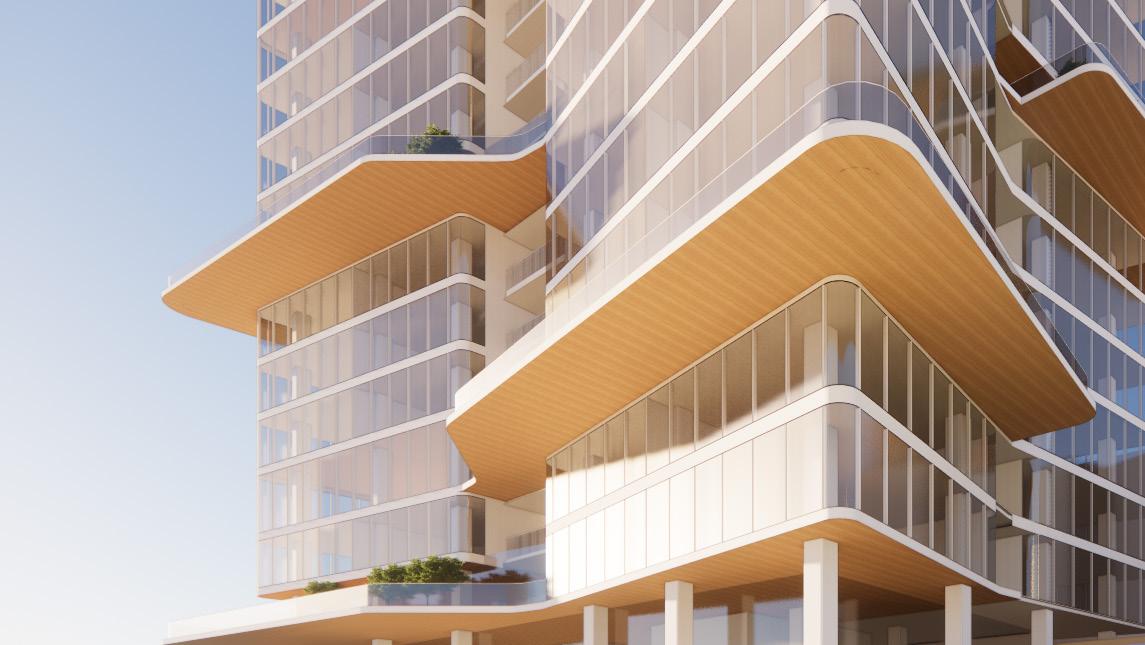

CAMPUS AESTHETIC
2525 N STEMMONS FREEWAY
LANDSCAPE CONCEPT RECAP

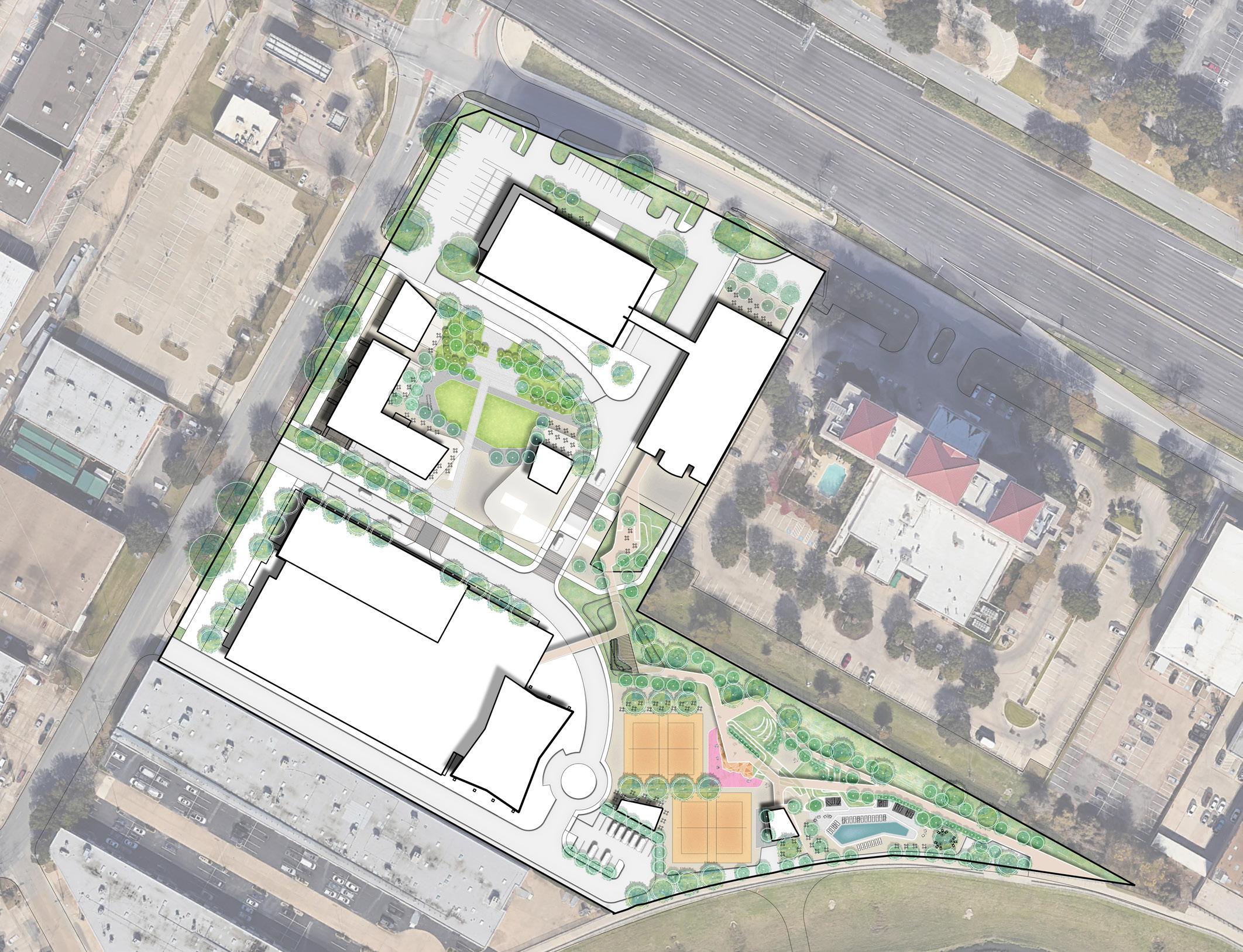

The site plan (in-progress) is a conceptual starting point depicting the potential of creating a series of open spaces to link the campus and provide complementary program/uses to offer a full range of amenities for tenants, residents and visitors.
2525 N STEMMONS FREEWAY 2 1 9 8 3 4 5 6 7
KEY:
PLAN
PLAZA
1. ENTRY
2. THE POOL
3. TRAIL
4. BEACH VOLLEYBALL
5. OVERLOOK
6.WELLNESS CENTER
7. CENTRAL LAWN
8. COURTYARD
9. PATIO
MEDICAL DISTRICT DRIVE TRINITY STRAND TR A IL
N.STEMMONSFWY.
N 0 100’ 200’ 400’
DINE VIEW EAT/DRINK WORKOUTDOORSWELLNESS RELAX WORK PLAY GATHER RECREATION ENTERTAINMENT CELEBRATE MEET THRIVE CONNECT LIVE N.STEMMONSFWY. MEDICAL DISTRICT DRIVE TRINITY STRAND TR A IL TRINITY RIVER TO MEDICAL DISTRICT TO DOWNTOWN DALLAS VIA KATY TRAIL ONNECTION
LANDSCAPE/SITE STORY - GOALS

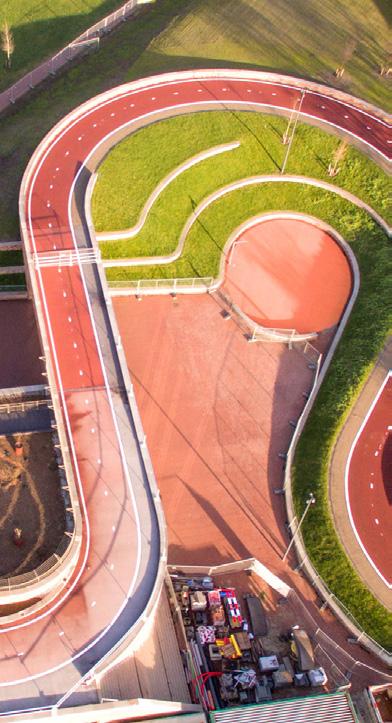

1. MAXIMIZE ACCESS INTO SITE WITH ELEVATED + AT GRADE CONNECTIONS + TRAILS

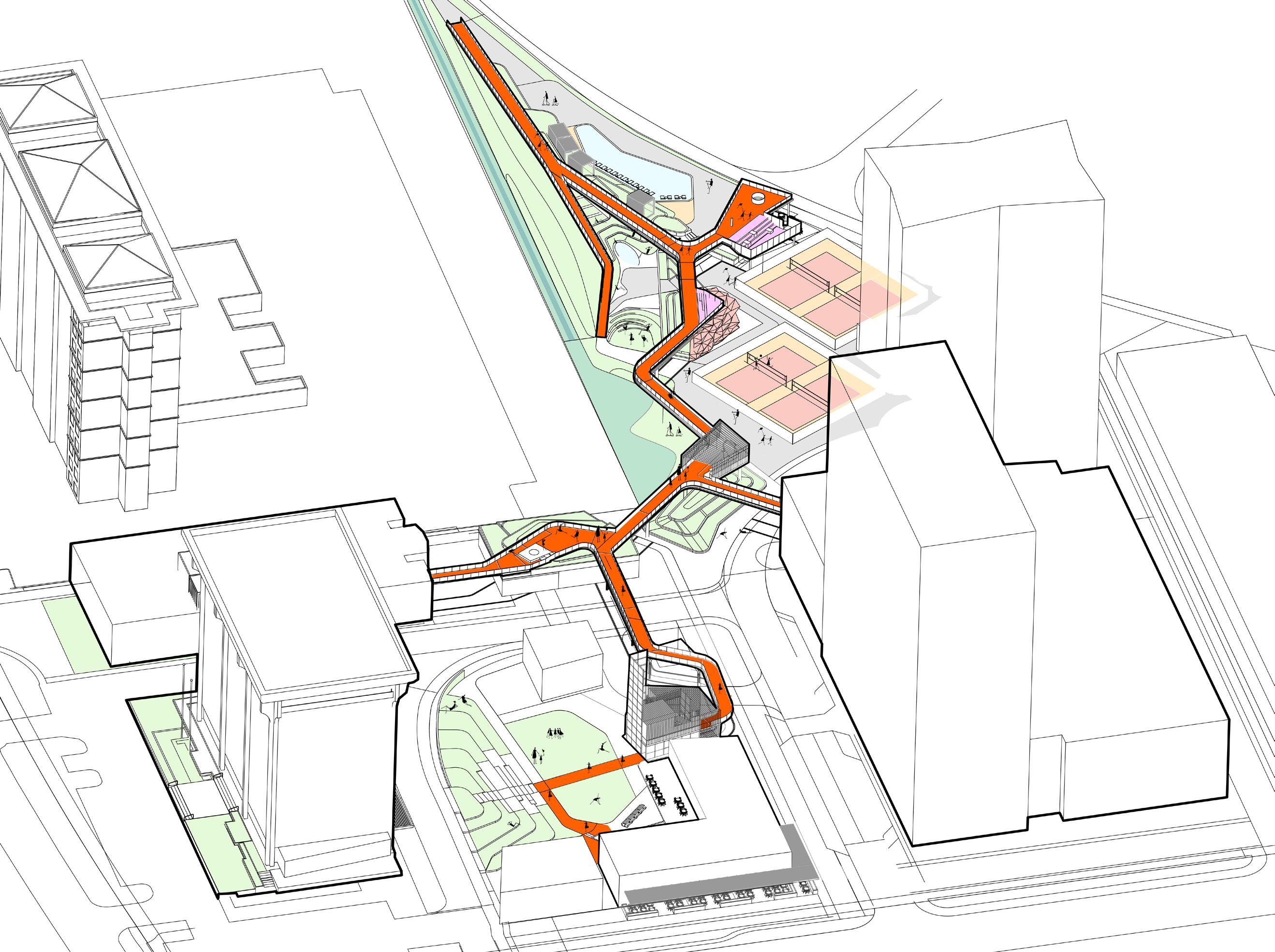

A CONNECTED CAMPUS: WELLNESS LOOPS
2. CREATE A SERIES OF OPEN SPACES FOR WELLNESS + FLEXIBLE PROGRAM
3. GENERATE REVENUE IN THE LANDSCAPE/RECREATIONAL PROGRAM + ENTERTAINMENT(PUBLIC TO PRIVATE CONNECTIONS)
4. FOCUS ON SUSTAINABILITY (WELL STANDARDS, SITES STANDARDS AS A GUIDE TO APPEAL TO CAMPUS TENANTS)
5. CAPITALIZE ON VIEWS WITH INDOOR + OUTDOOR CONNECTIONS

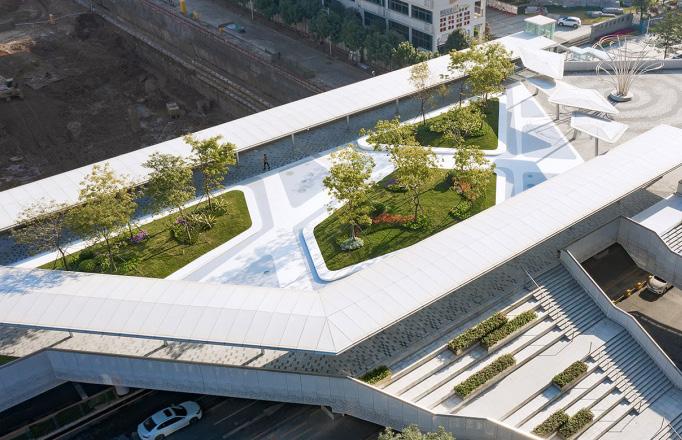

The site’s existing relationship to finished floor elevation and adjacent grade presents an opportunity to create elevated memorable connections between buildings directly to adjacent Trinity Strand Trail. that interact with nature.
Likewise, the connections draw tenants/residents and visitors into site if desired for maximizing success in private development.

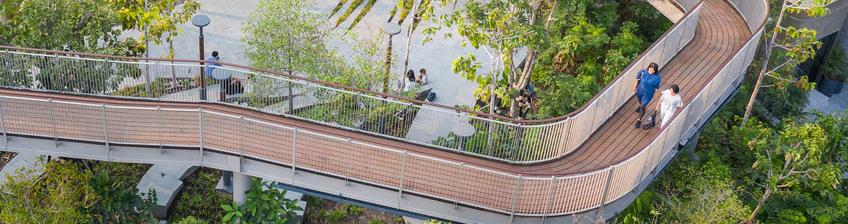

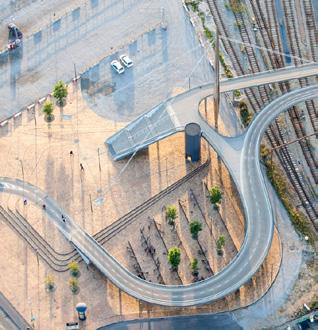

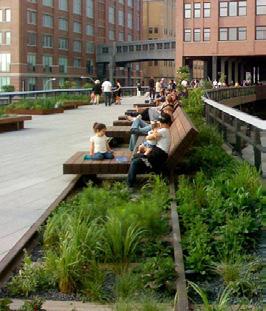

Trails and elevated terraces will have exceptional views to Downtown Dallas, toward the Trinity River and the site’s landscape features.
Soil that is excavated for construction on site can be utilized as fill to construct elevated trails on grade and create interesting terracing with topographic features.
2525 N STEMMONS FREEWAY

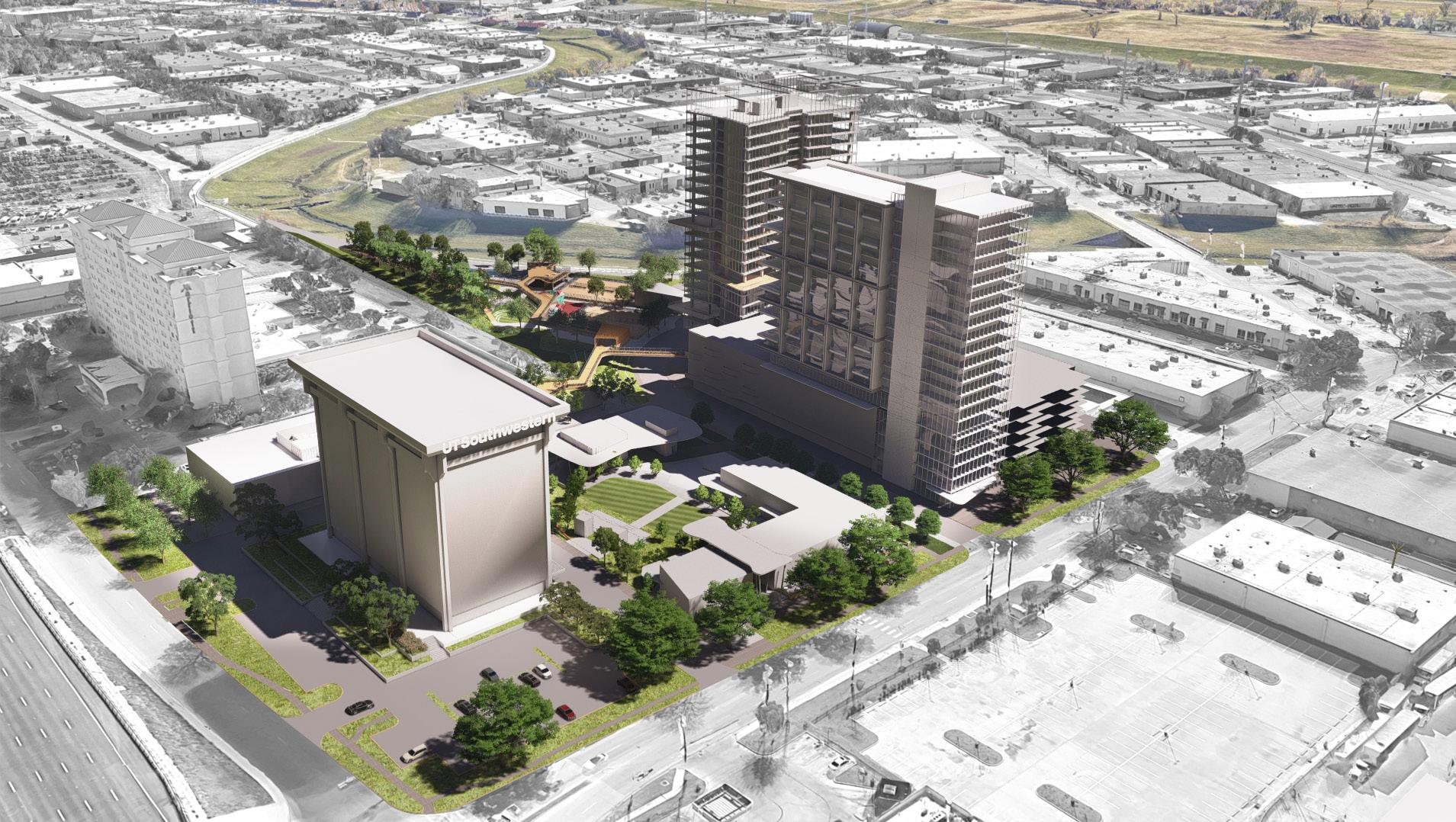

THE RIVERBANK
WELLNESS + RECREATION DESTINATION/CAMPUS THE RESIDENCY
THE DELTA
OVERLOOK
CENTRAL PLAZA
THE RESIDENCY

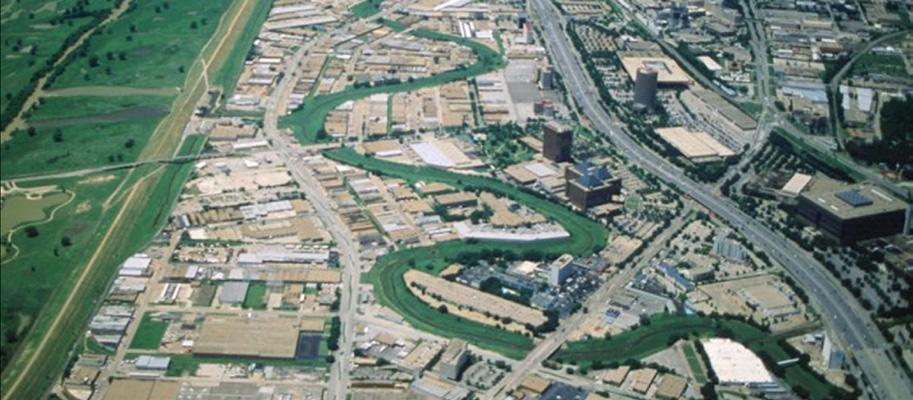

The landscape of The Residency is a connective wellness open space that captures the dynamic movement of the Old Trinity Meanders .
The Meanders bridges connections through the campus both at-grade and elevated, framing views to Dallas, The Trinity River and the campus itself while carving out spaces at its bends for experiences of wellness, health, activity, connection, community, ecology, nature, play, and sport.
THE CONFLUENCE
2525 N STEMMONS FREEWAY
2525 N STEMMONS FREEWAY
