EXHIBITION CENTRE: WILLESDEN JUNCTION STATION EXTENSION FORM GENERATION

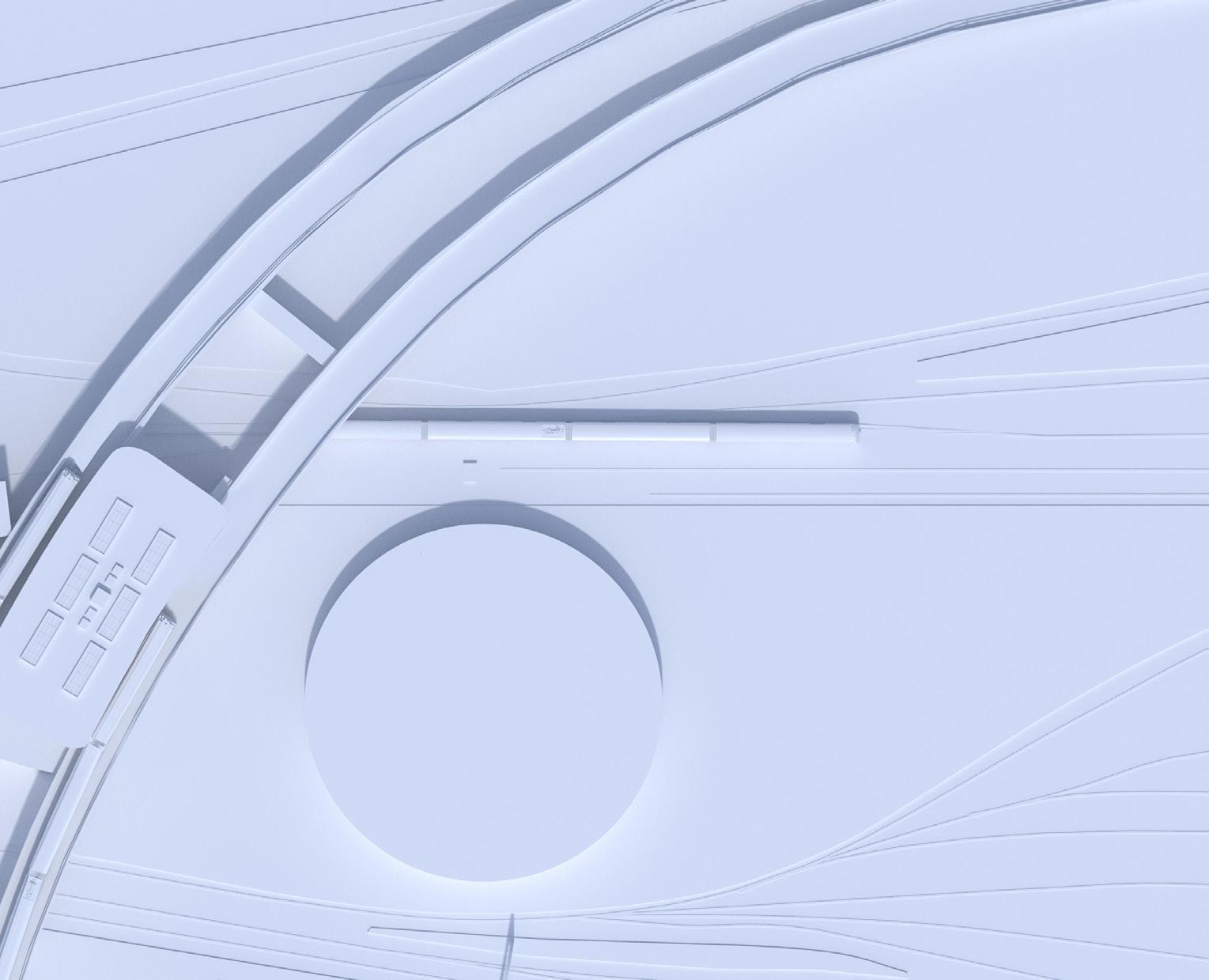

STAGE 1

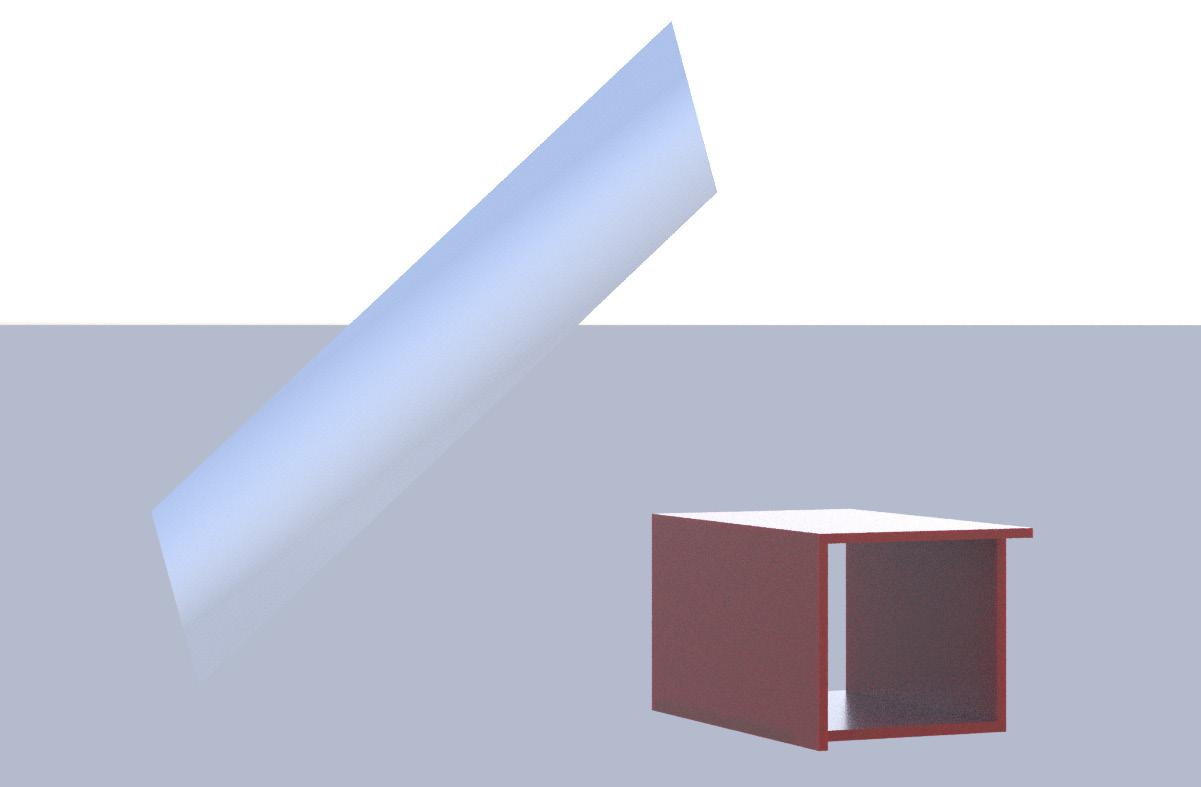

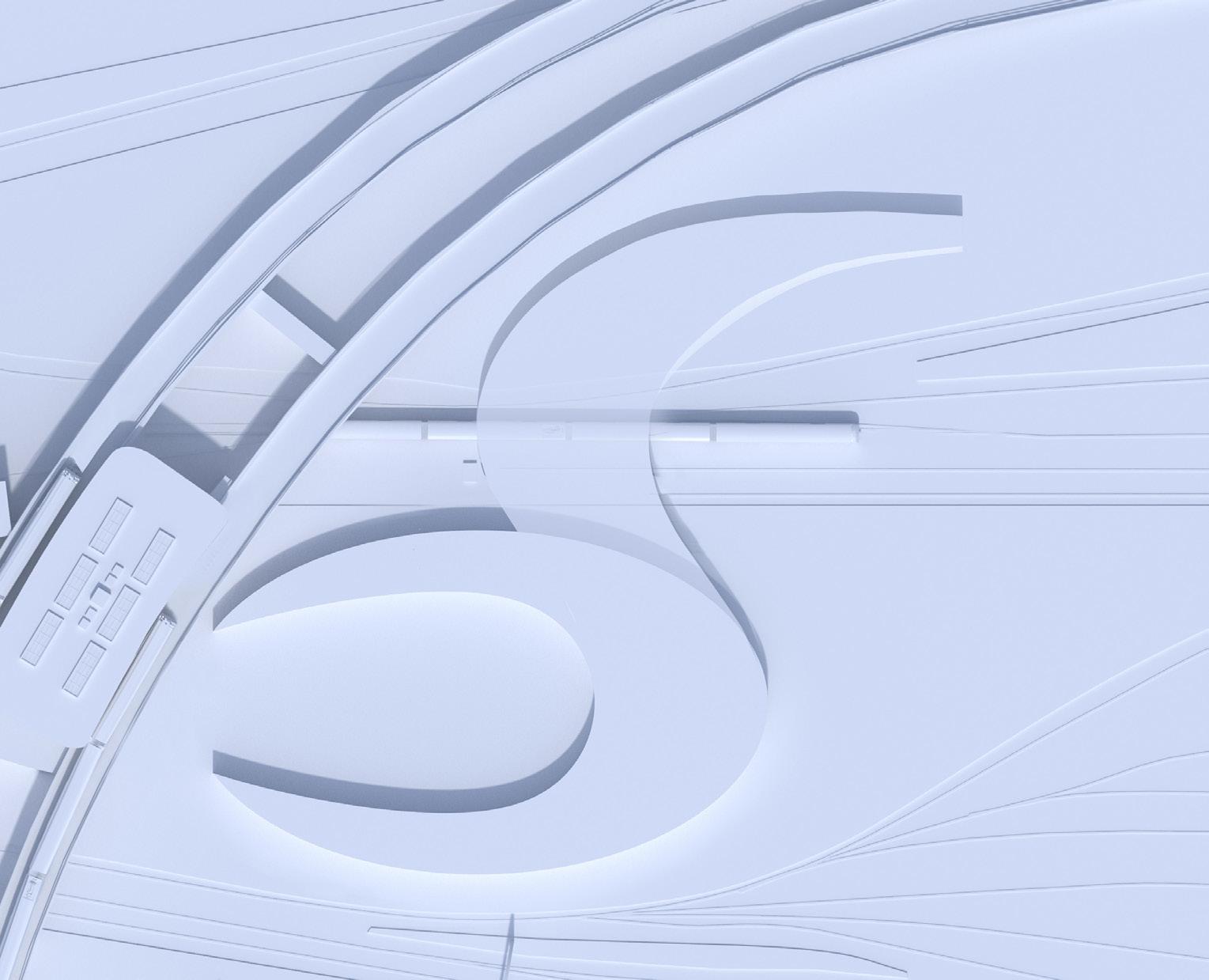

STAGE 2

• •

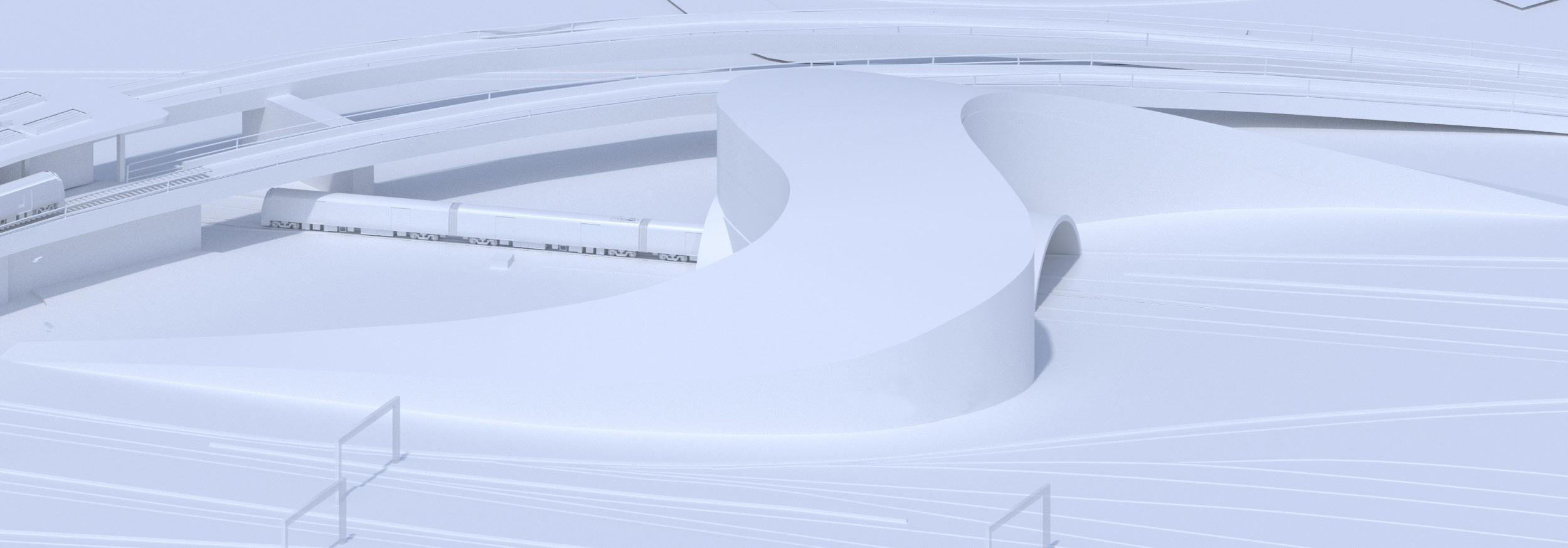

SCALING UP IN MIDDLE PART: to create a tunnel for railway SCALING DOW AT TALE PART: to create ramps

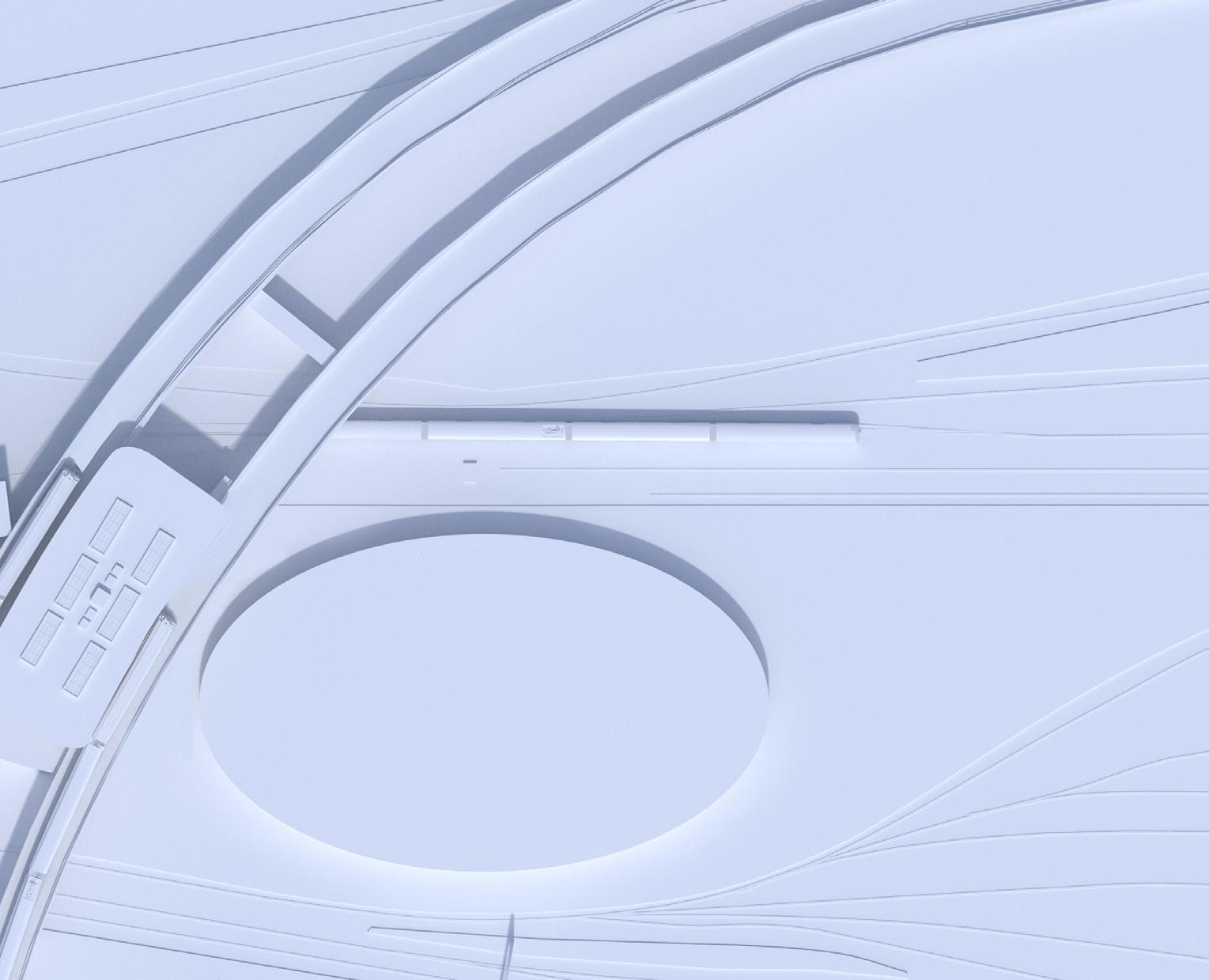

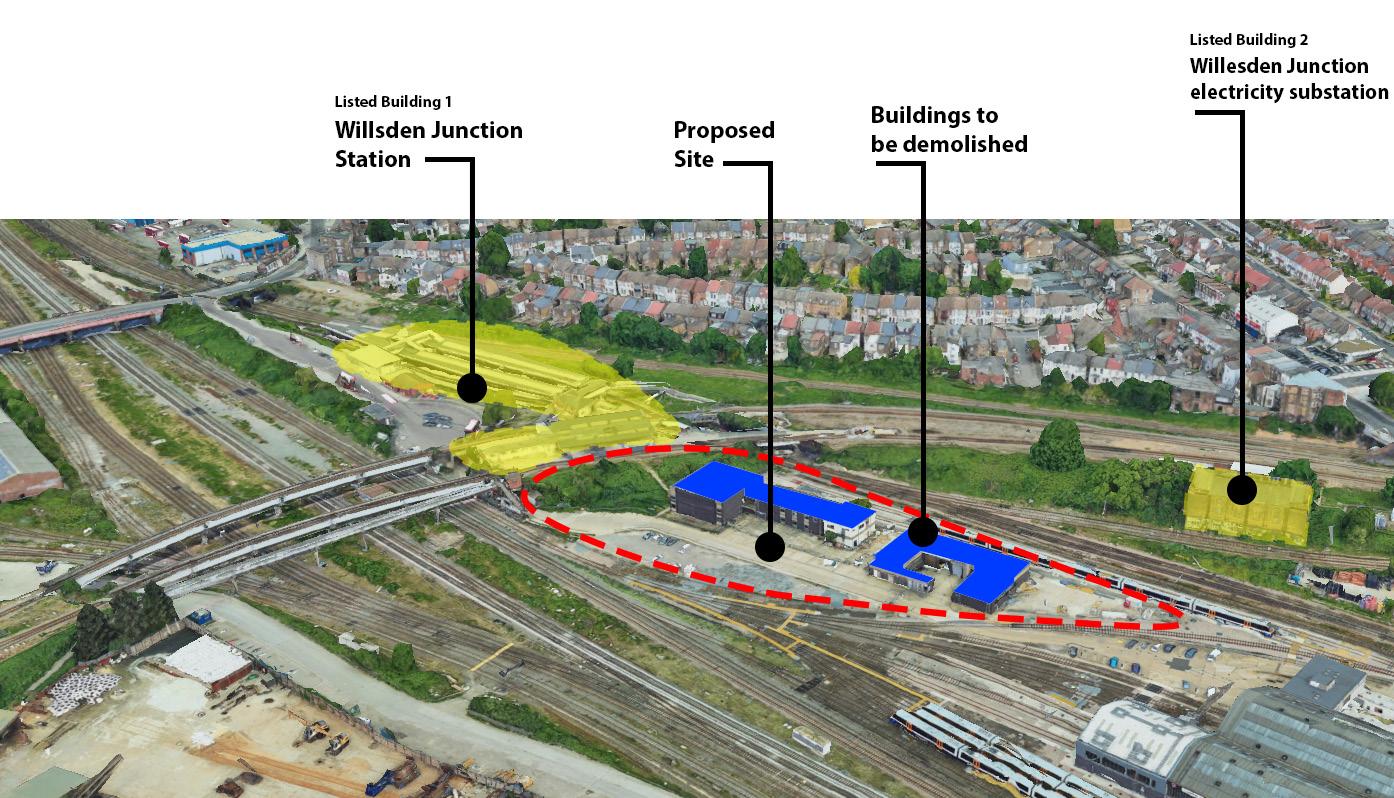

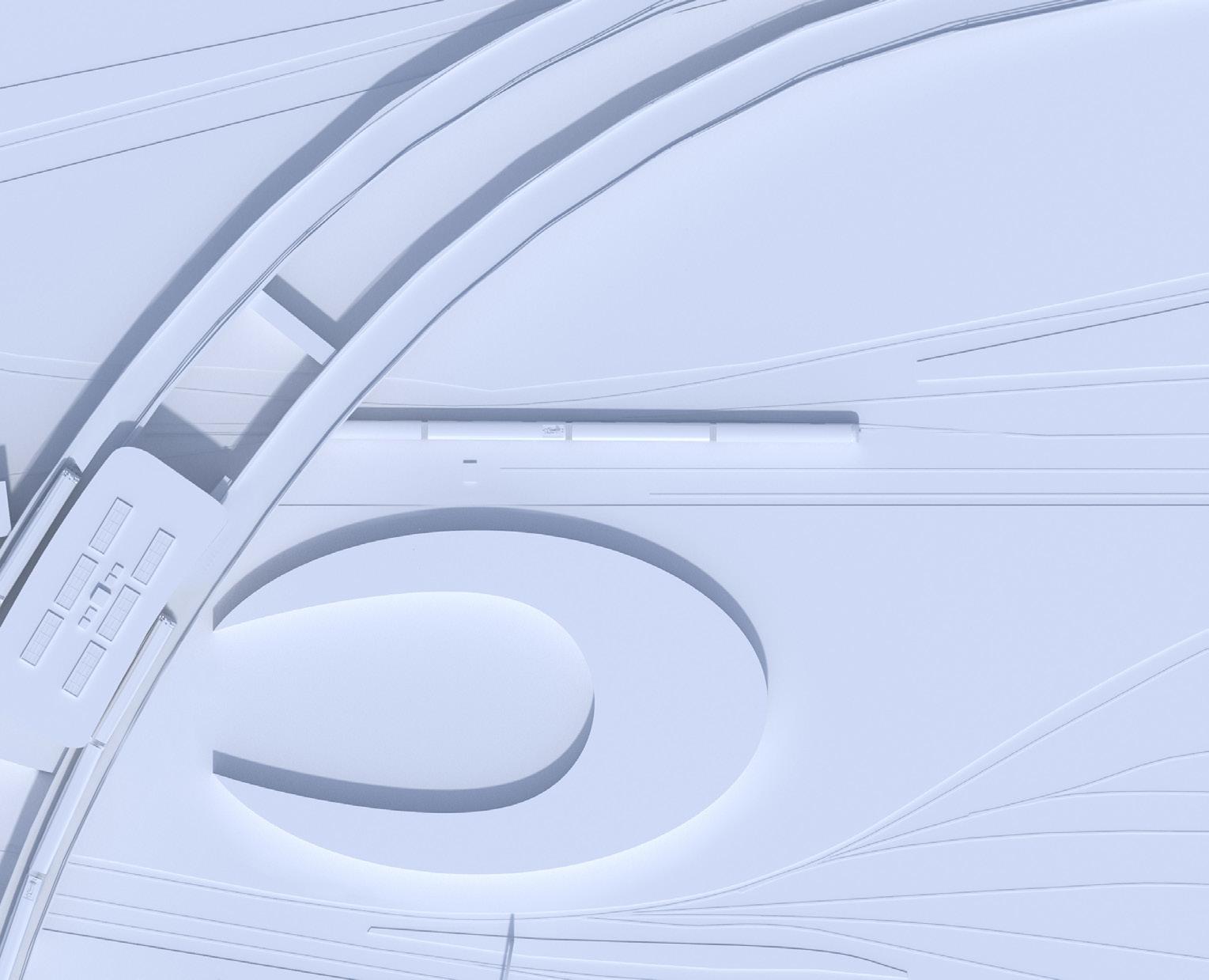

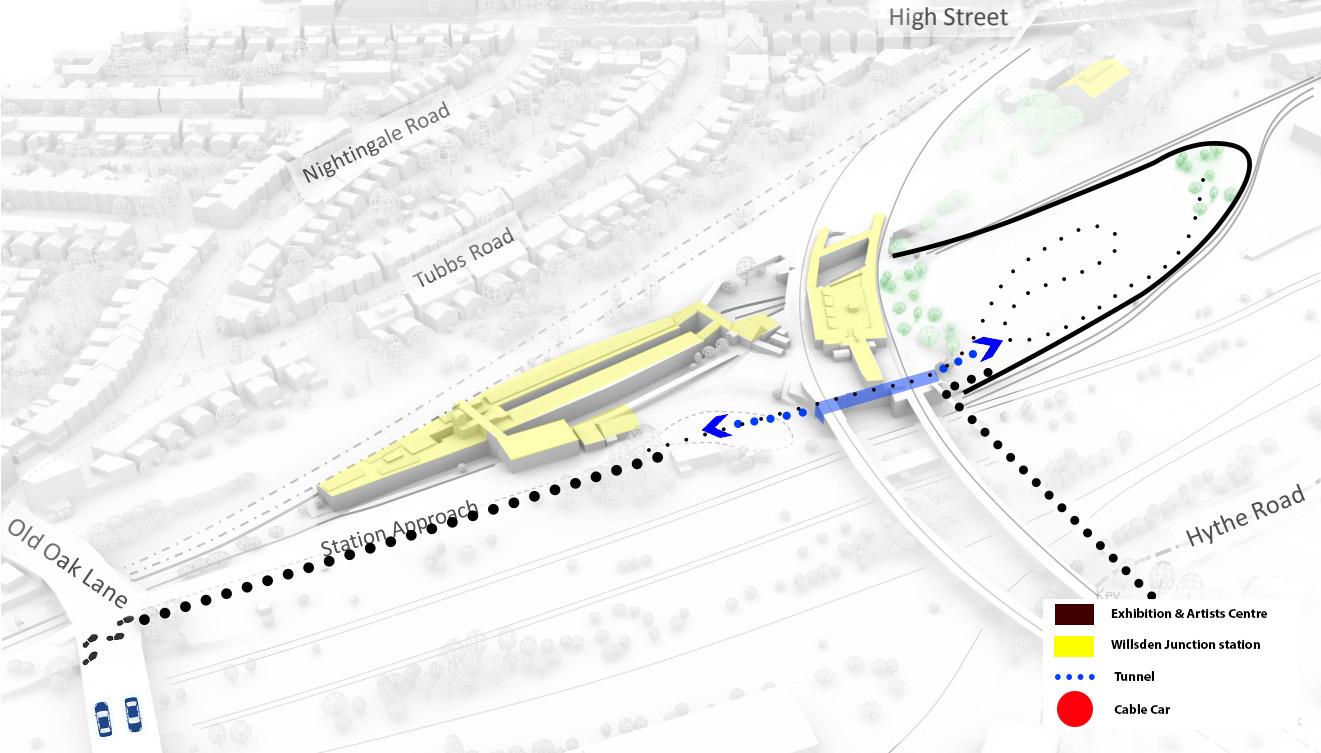

SCALE CIRCLE Willesden Junction station

RAILWAY

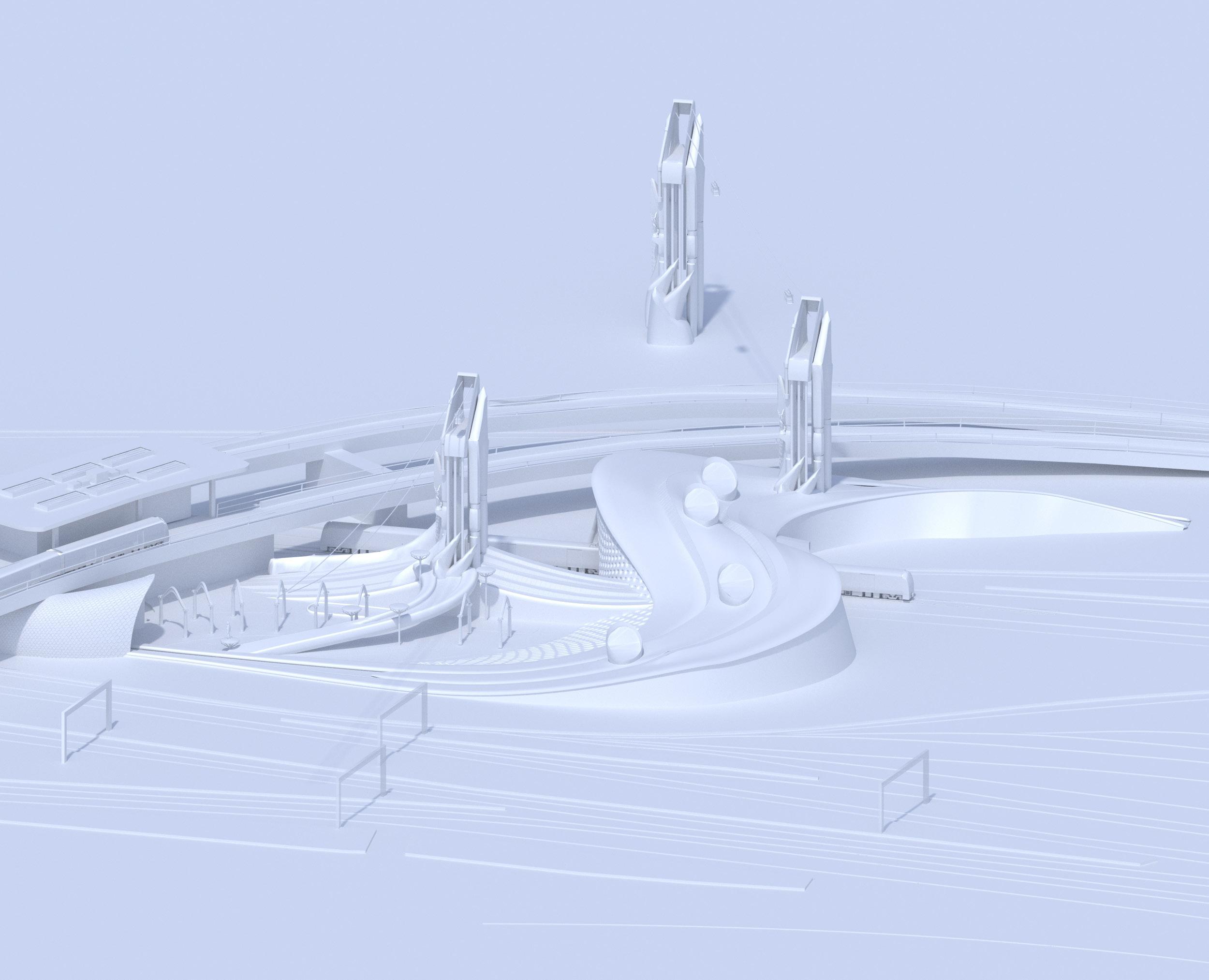

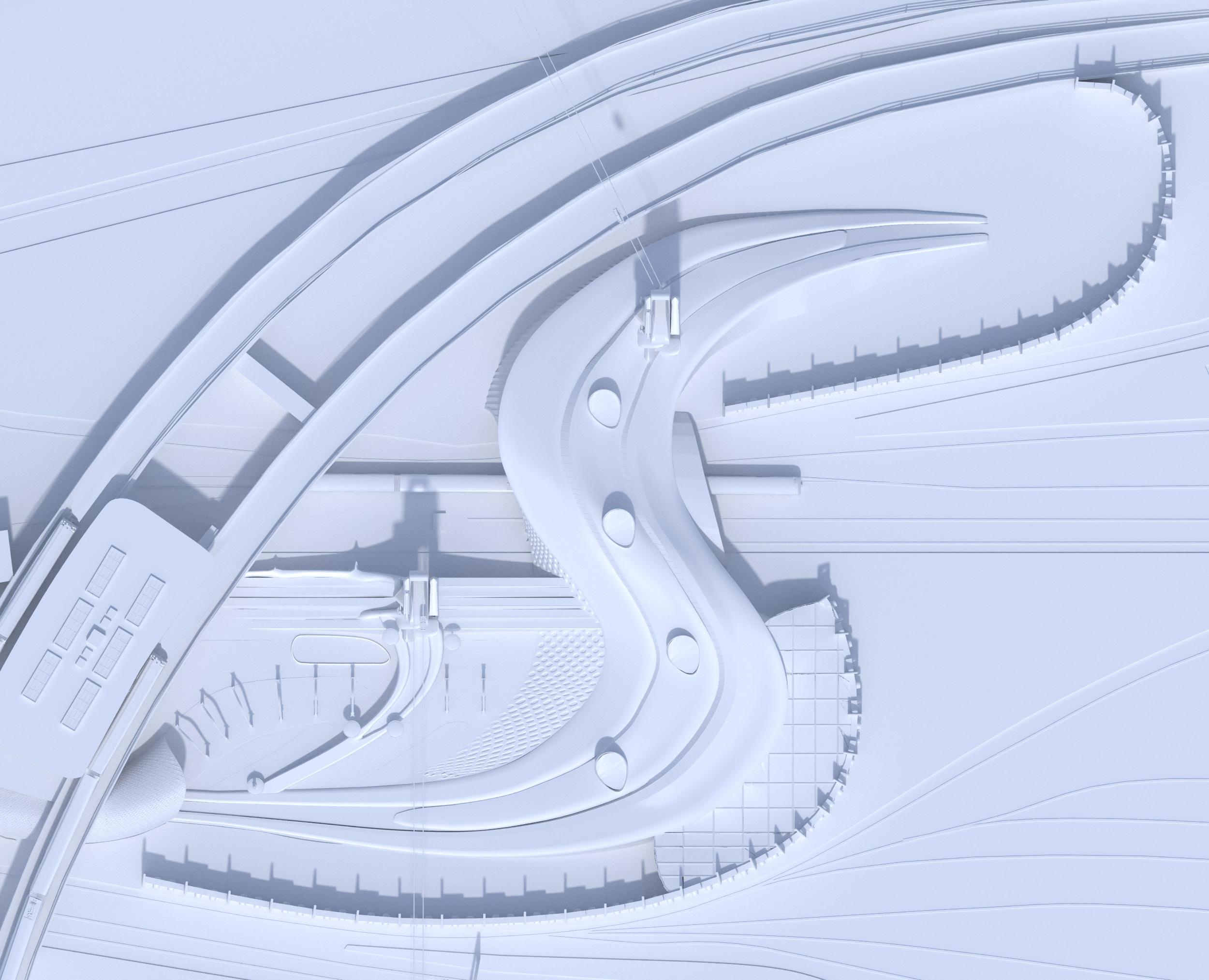

STAGE 3

•

Cable cars added for transportation.

CABLE CAR TOWER 2 Tubbs High St. (Neighbourhood)

CUT OUT RED PART

CABLE CAR TOWER 2 Art Centre area

CABLE CAR TOWER 1 Exhibition

S HS2

D TOWAR

RAILWAY

ENTRANCE

RAILWAY

HORSE-SHOE SHAPE

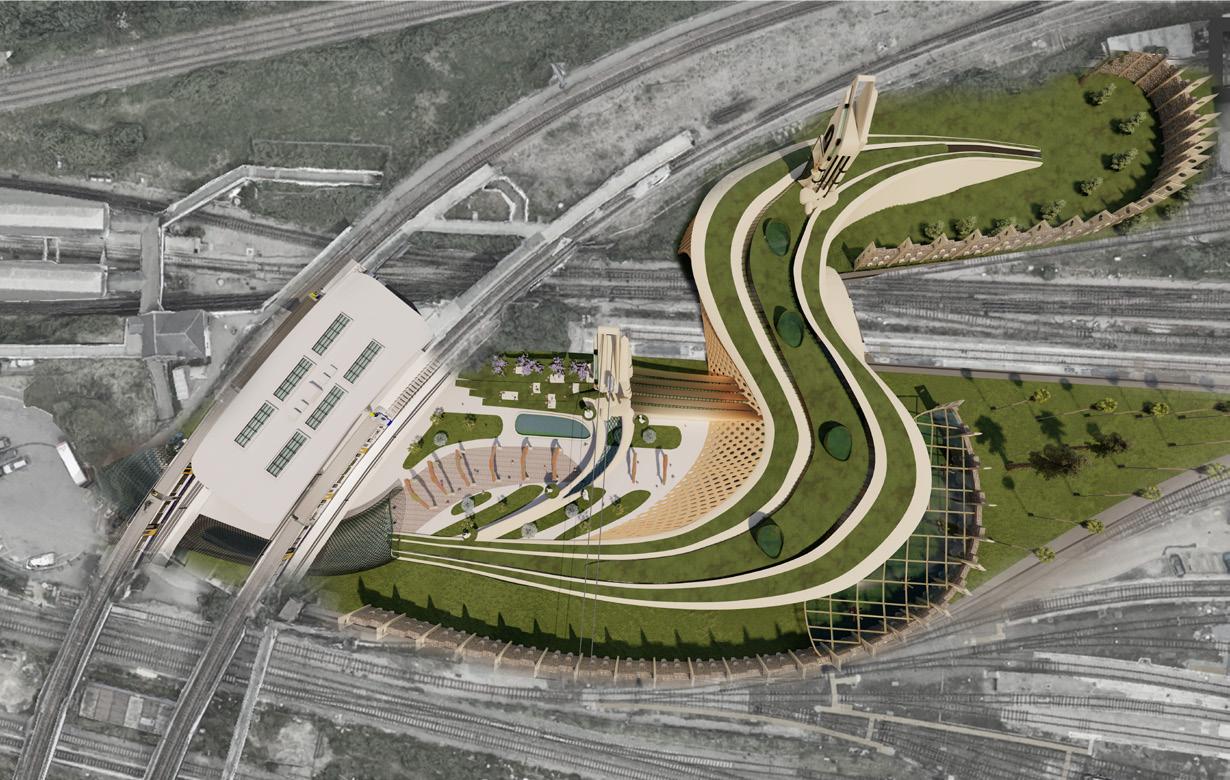

STAGE 4

•

Adding gabion walls protects project from railway and providing it the desired privacy

•

Adding green areas and water features to project

•

Skylight facing south to take advantage to sunlight

GABION WALLS

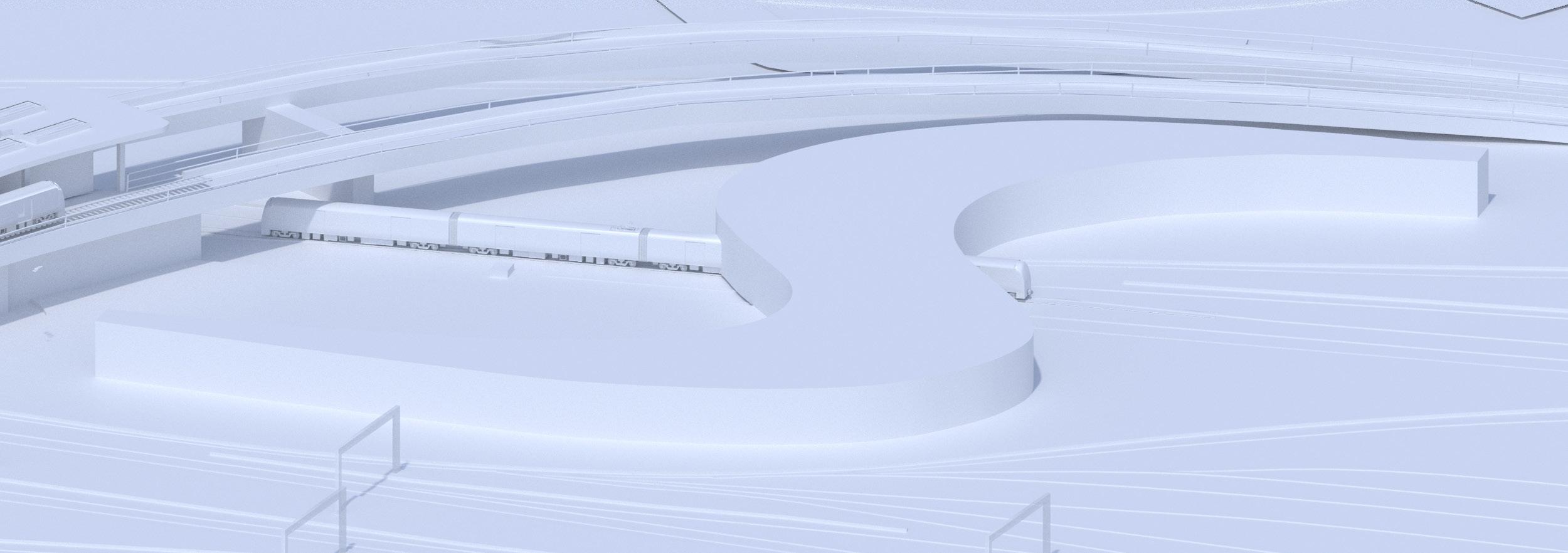

MIRROR HORSE-SHOE SHAPE

GABION WALLS

ENTRANCE

EXTERIOR WORKSHOP

used Indesign in the process

2

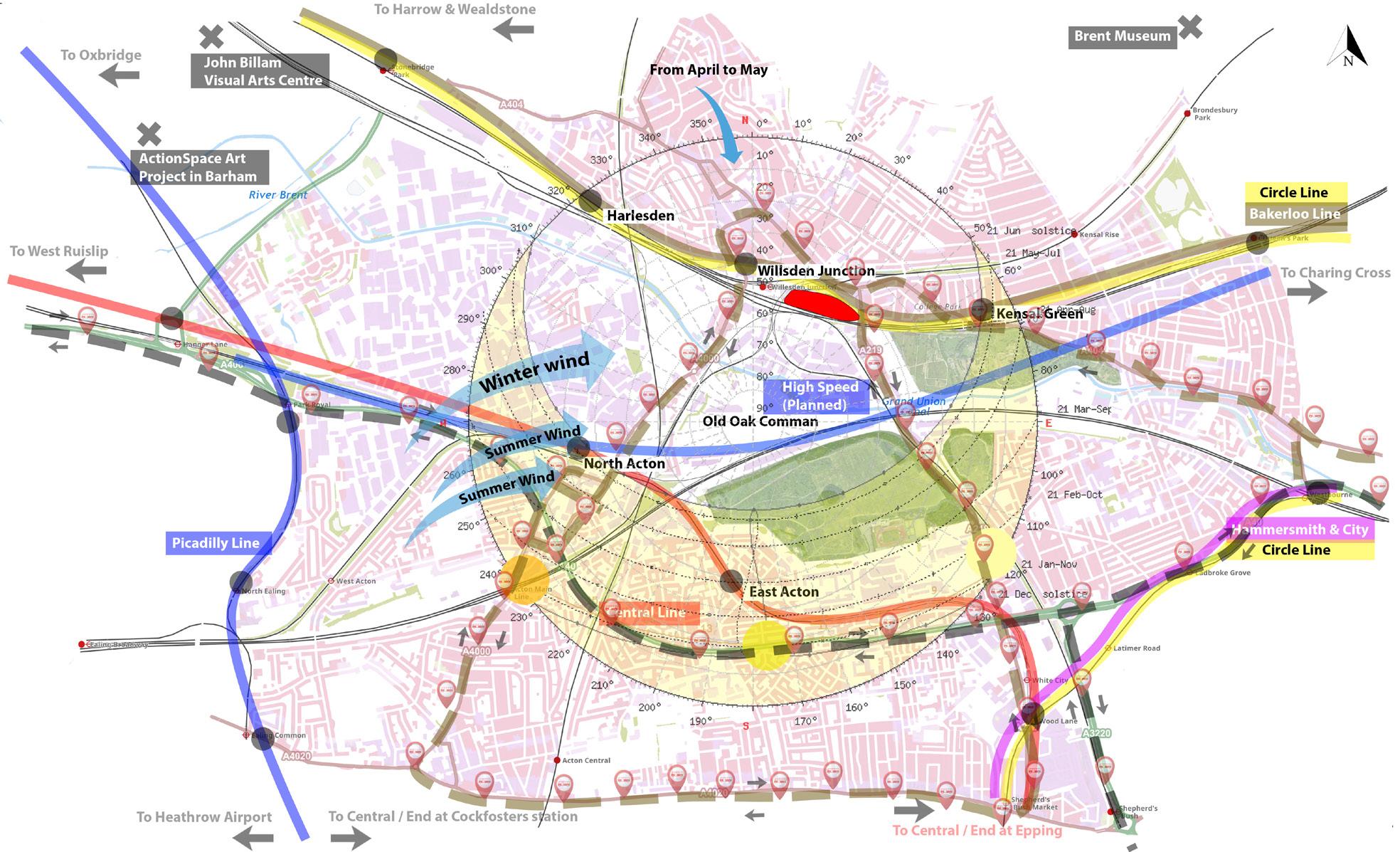

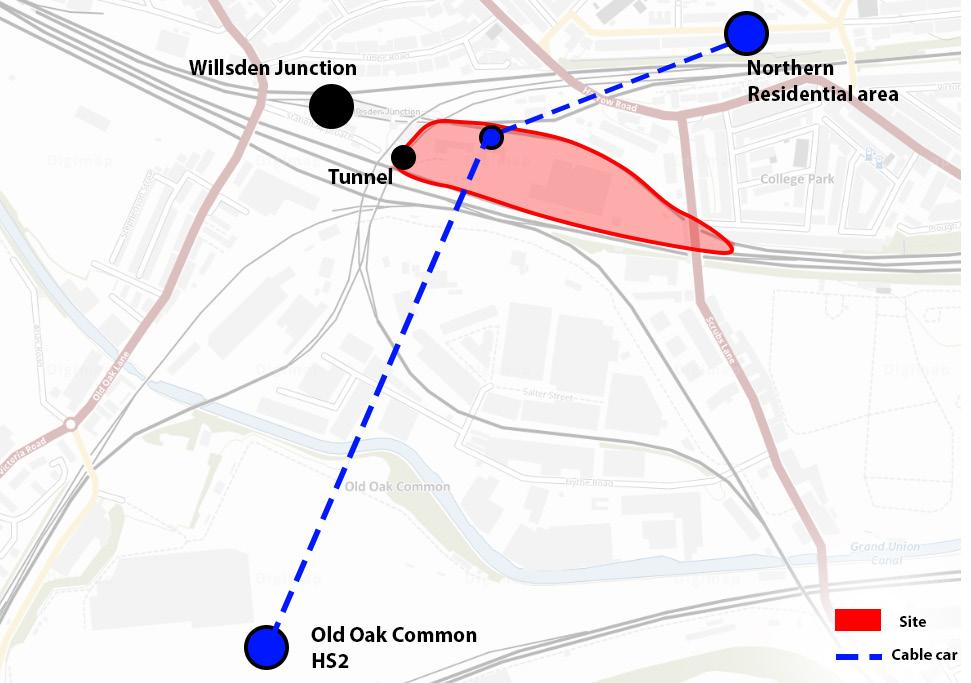

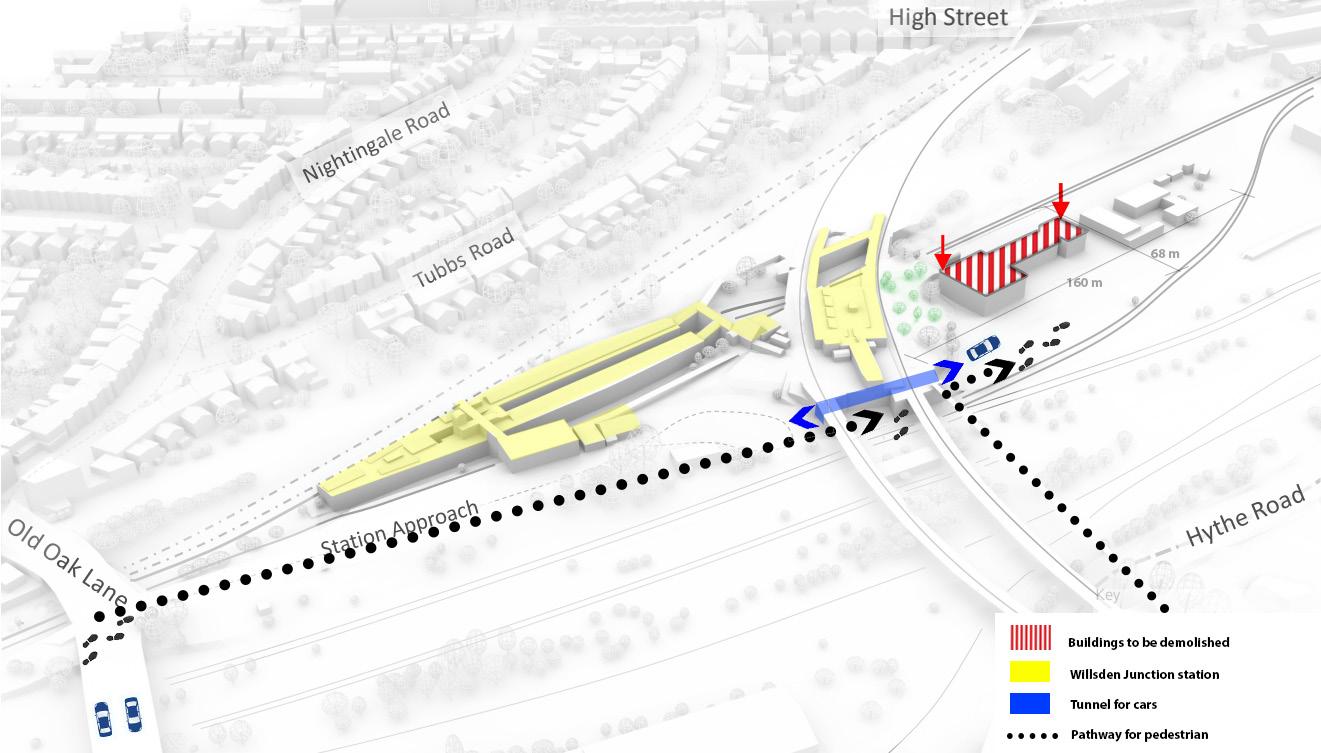

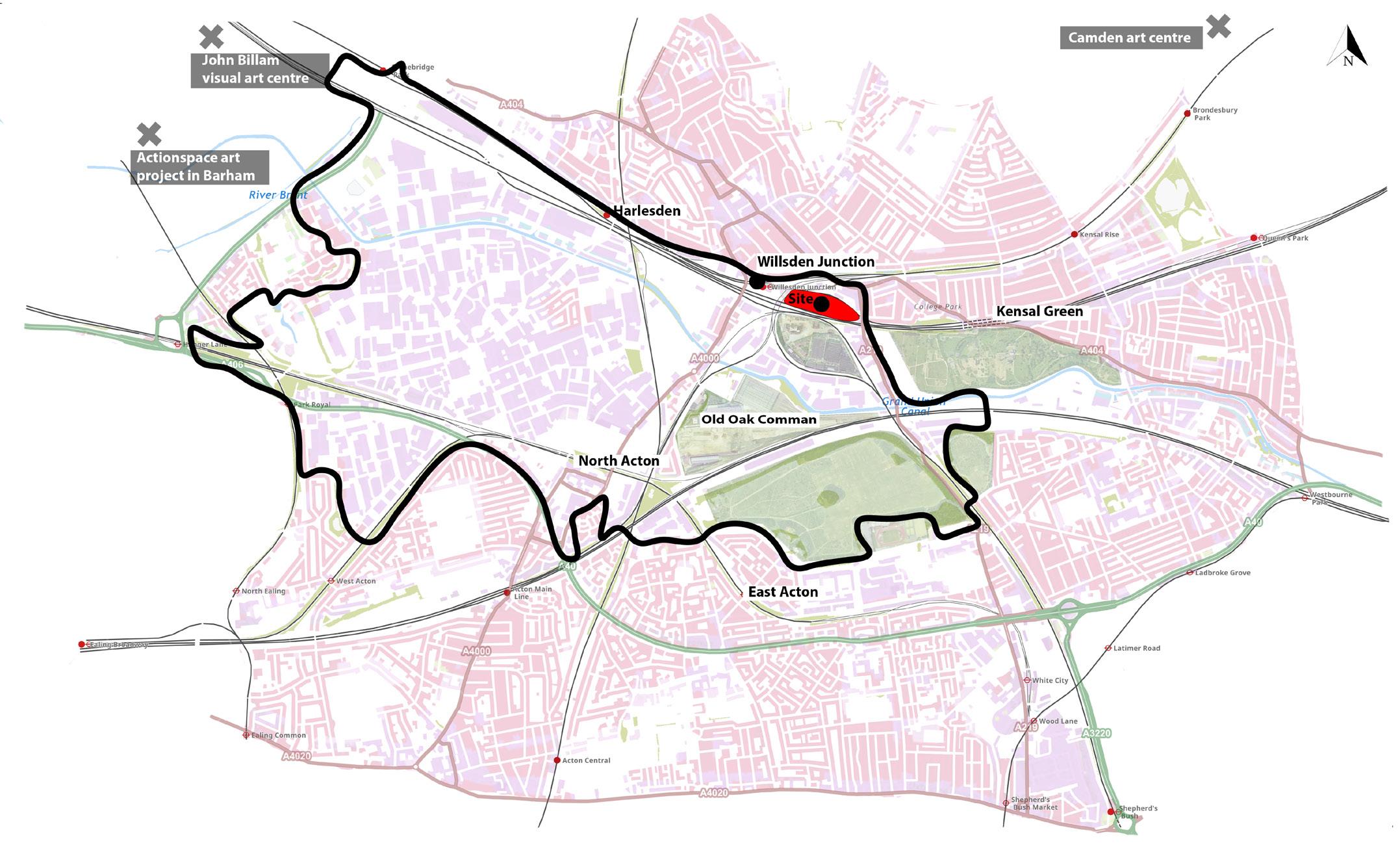

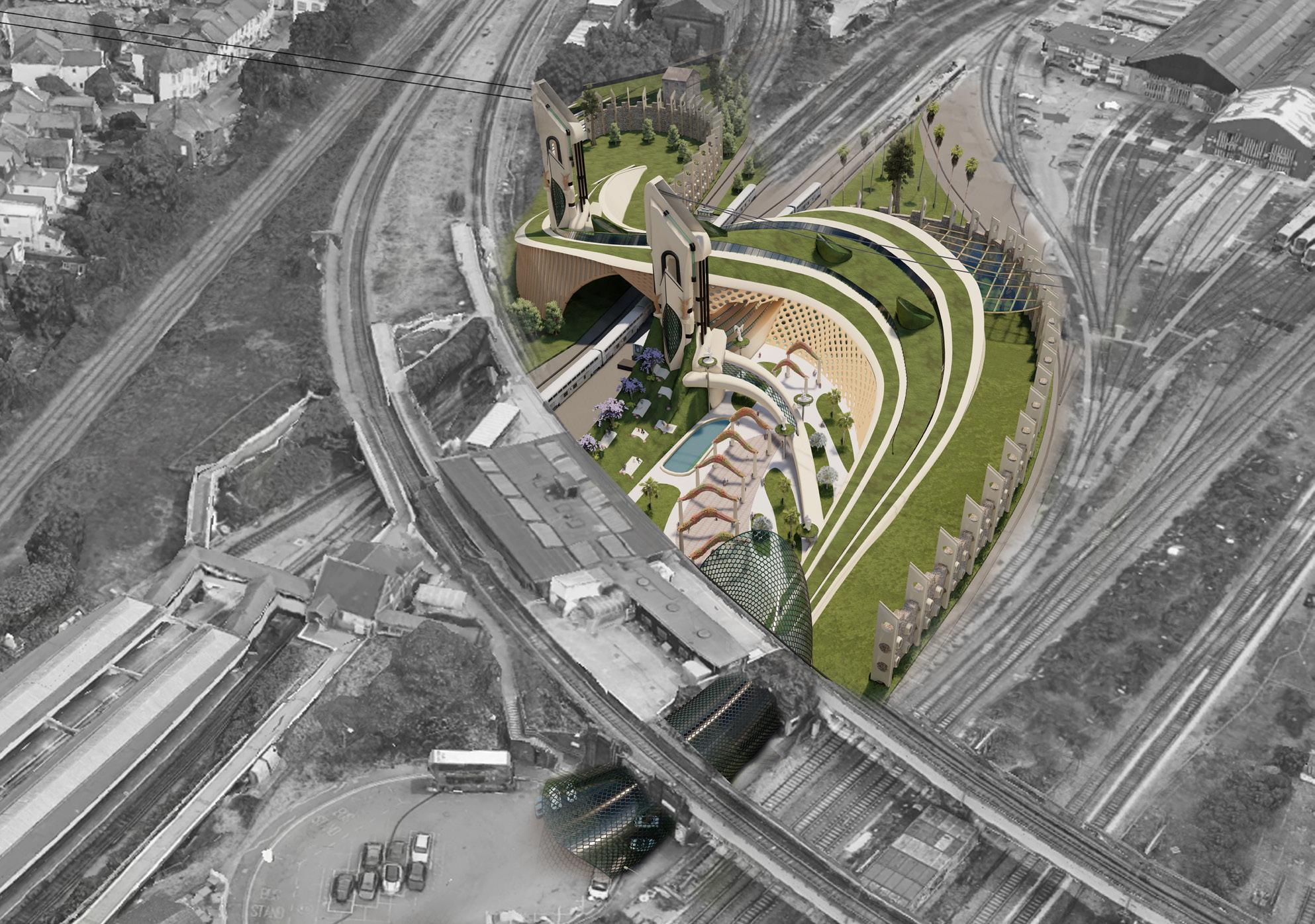

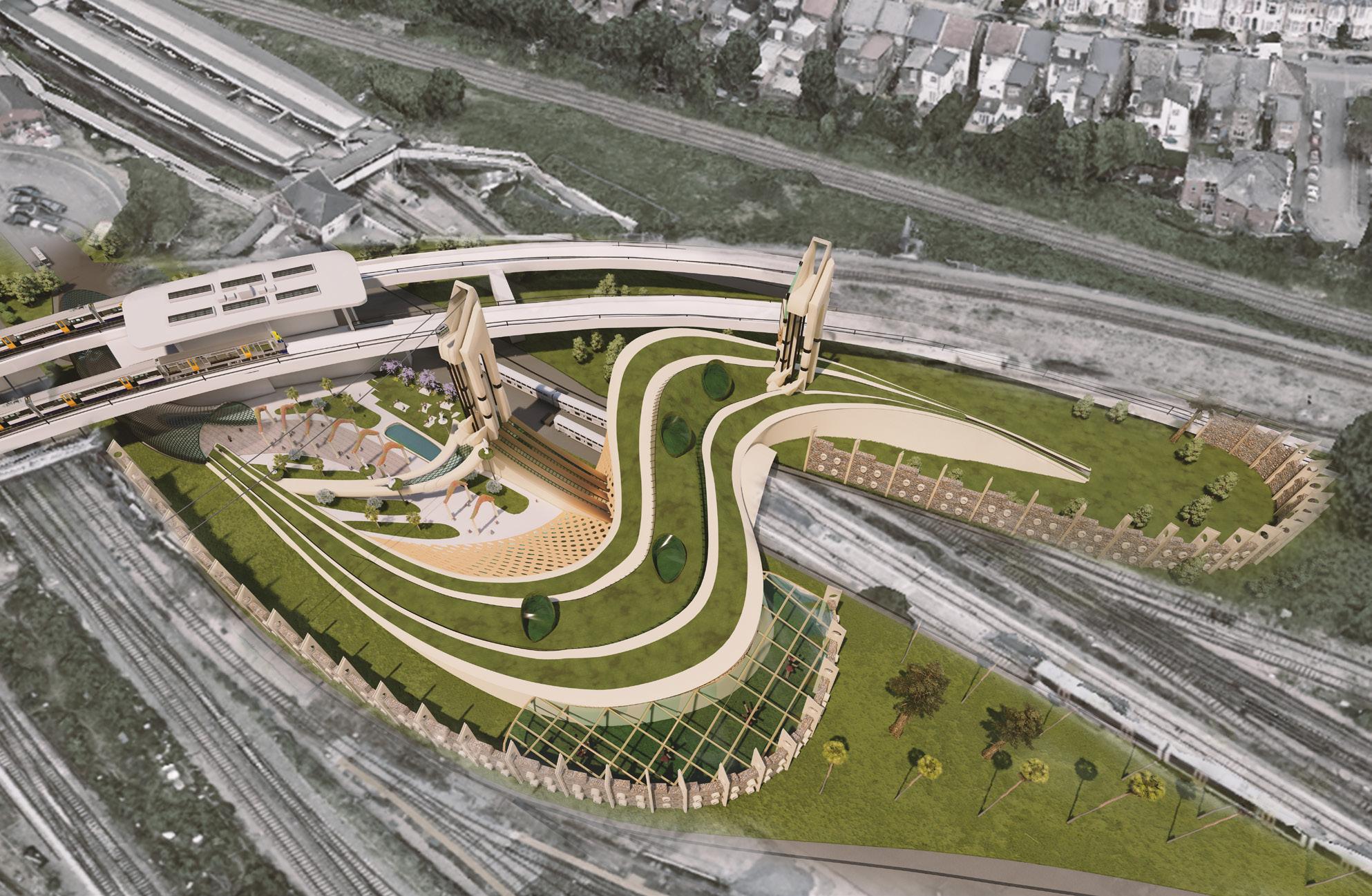

MAPS & SITE ANALYSIS

used Indesign in the process

3

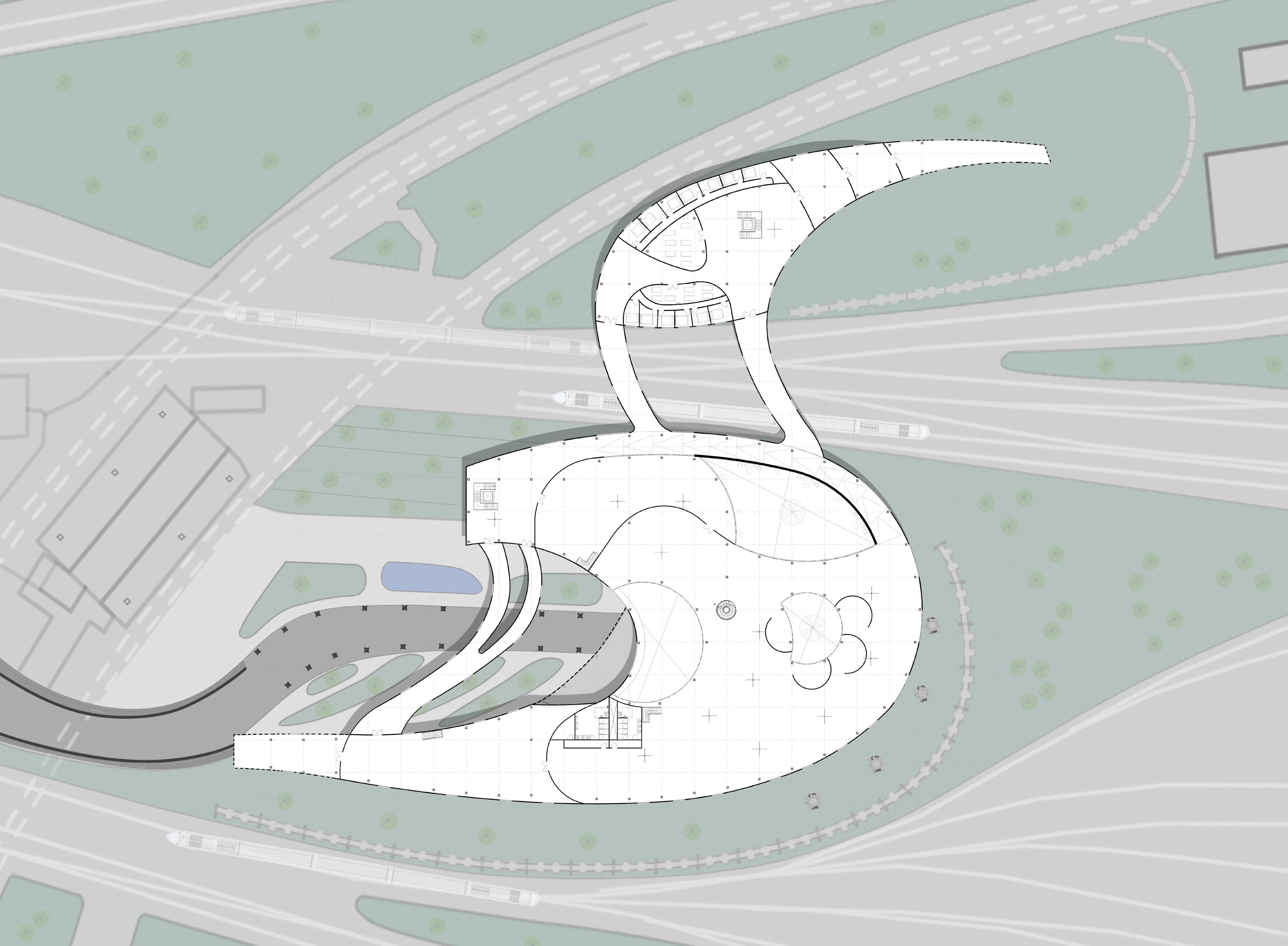

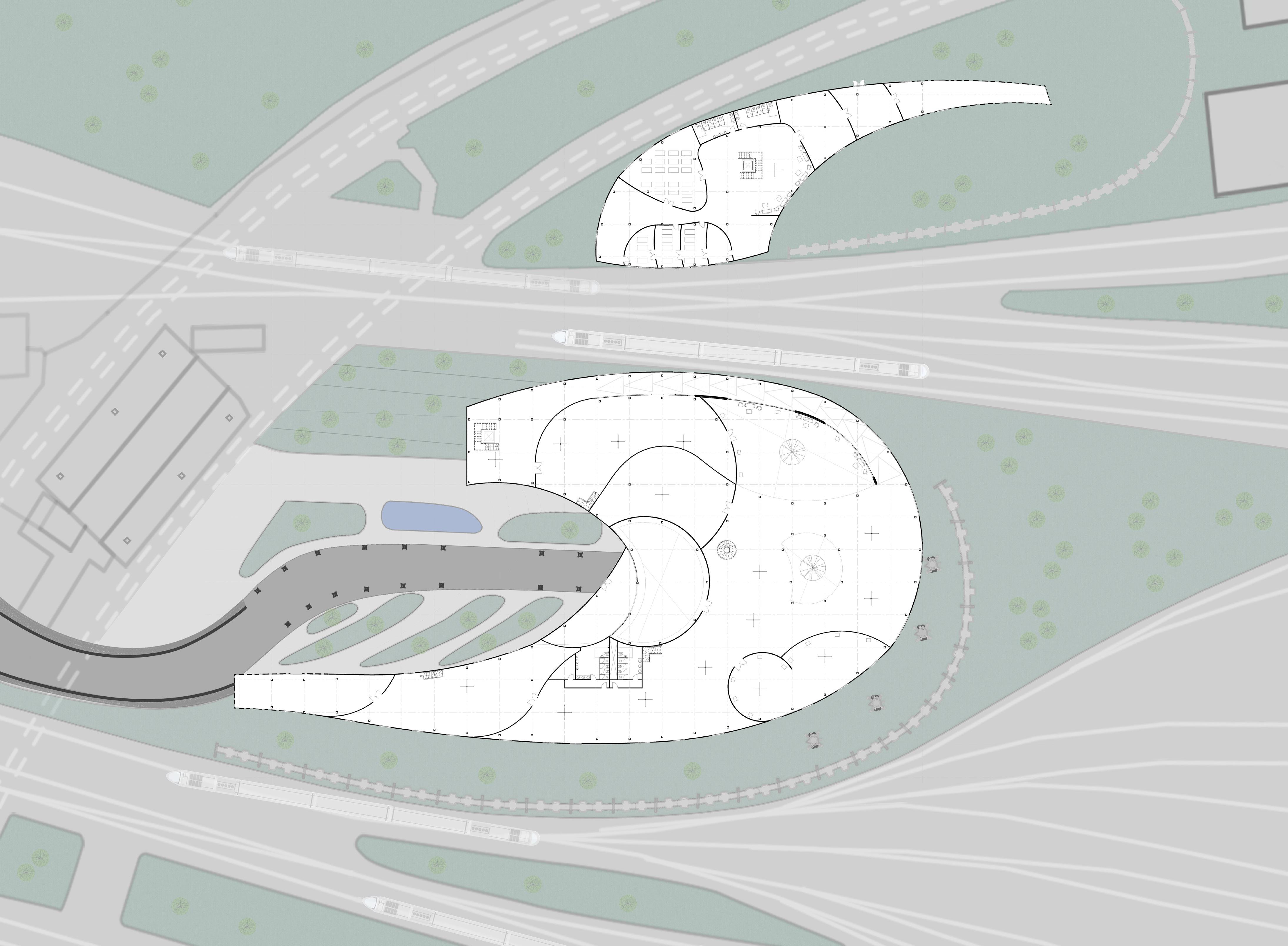

PROJECT PLANS STORAGE MEETING ROOM

WORKSHOP 1 REST AREA

2

3

4

STORAGE

CABLE CAR TOWER EXPERIENCE ROOM 1 DOUBLE HEIGHT REST AREA DESIGN GALLERY

RECEPTION AREA

ART GALLERY

ENTRANCE

ENTRANCE SCULPTURE ROOM 1

EXTERIOR WORKSHOP

WORKSHOP

STORAGE

GABION WALL

GROUND FLOOR

A STORAGE MEETING ROOM 2

WORKSHOP 5

MEETING ROOM 3

REST AREA

WORKSHOP 6

CABLE CAR TOWER

DIGITAL ART GALLERY

FASHION AREA

COURTYARD AREA

EXHIBITION SPACE

STORAGE EXPERIENCE ROOM 2

A

FIRST FLOOR used Revit & Photoshop in the process

4

CONSTRUCTION APPLICATIONS

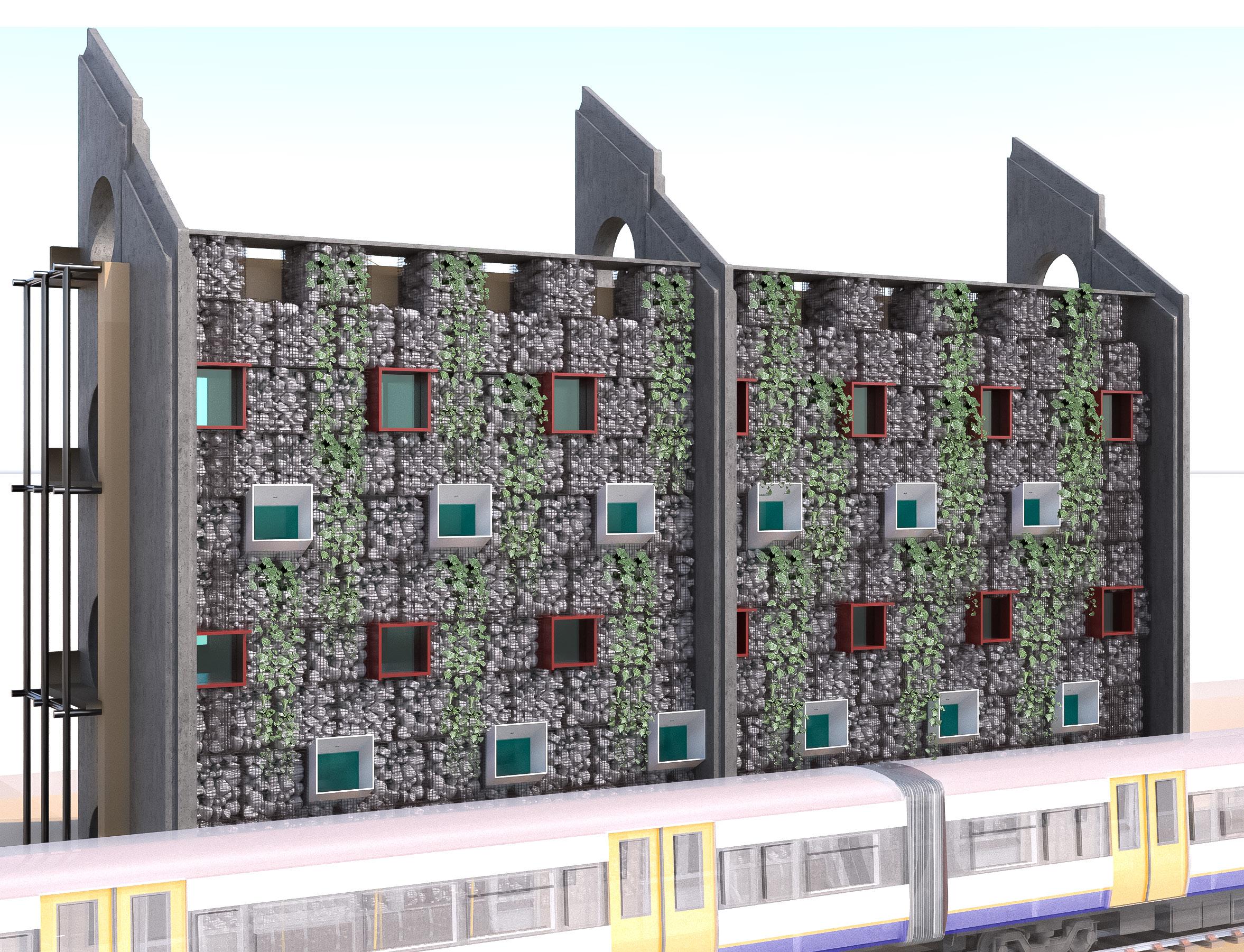

8 Gabion Walls •

Its purpose is to surround the site from the borders to act as a sustainable shield that will protect the building from surrounding railway harm.

•

Gabion wall is designed from recycled stone cages and rocks that can prevent pollution, noise coming from nearby railway to enter the site.

•

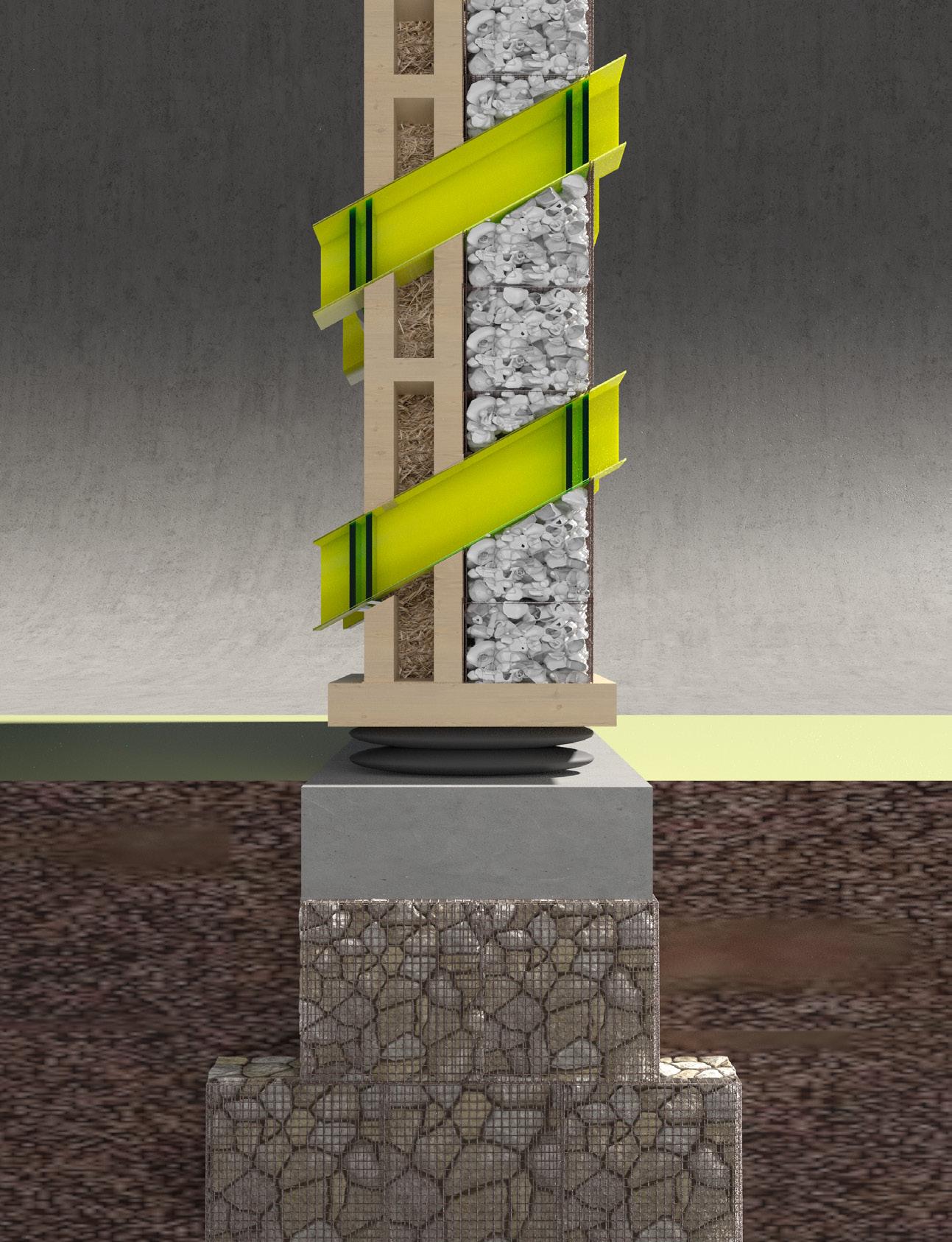

In foundation (rubber bands)installed to prevent vibrations in gabion wall.

1

7

2 4

6 5

3 9

1. Steel frame structure to support gabion back.

2. Straw insulator covered with 2 layers CLT. 3.Gabion walls (recycled steel cages and rocks).

4. Facade plants to collect dust.

5. Double glazed 45 degree window.

6. Louvred window to protect from rainfall.

7. Concrete column (structure engineer to determine spacing between columns).

8. Roof story supported with steel rails (900mm height), contractor to ensure safety strategy for falling from heights risk.

9. Railway overground train.

Roof

Construction considerations •

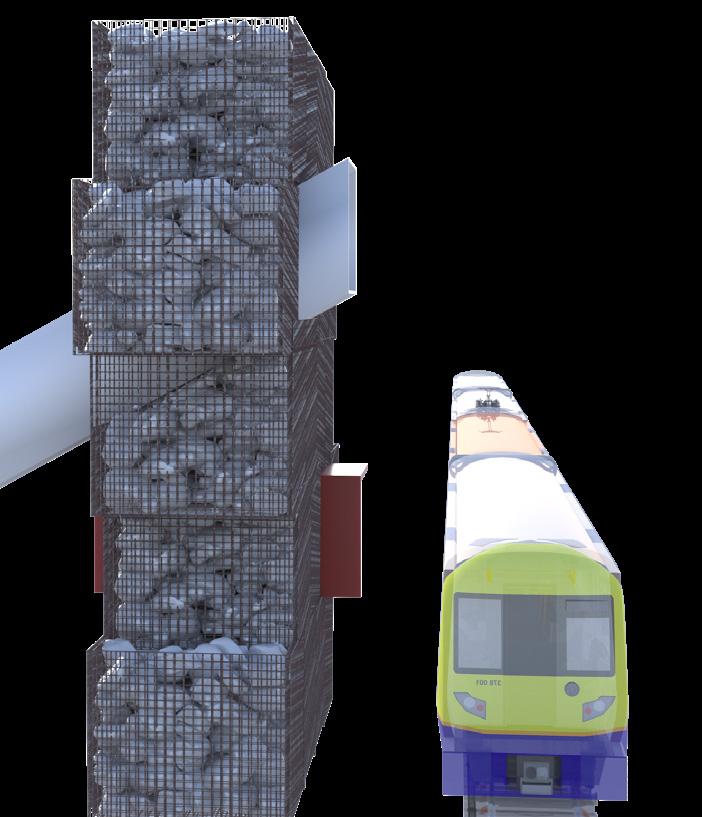

Gabion wall is designed to be placed surrounding the site to protect the building from the nearby railway, which can cause pollution, noise and vibration.

•

Windows placed between gabions to allow daylight and sun to enter the site.

•

Steel frames and concrete columns to be placed behind gabion wall to support structure.

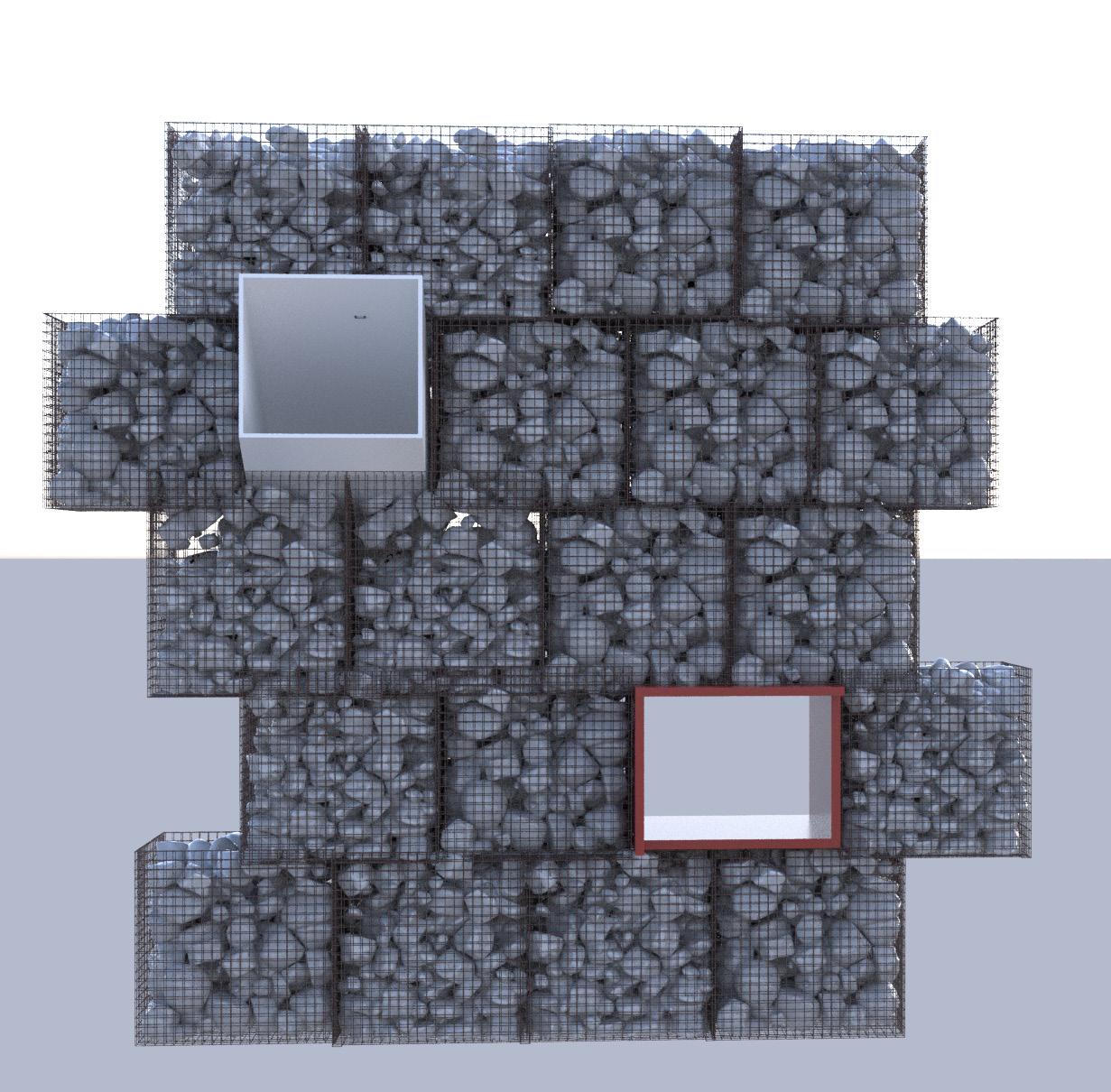

Gabion wall idea sketch

Roof

2nd floor

1

2nd floor

1st floor

2

1st floor Ground

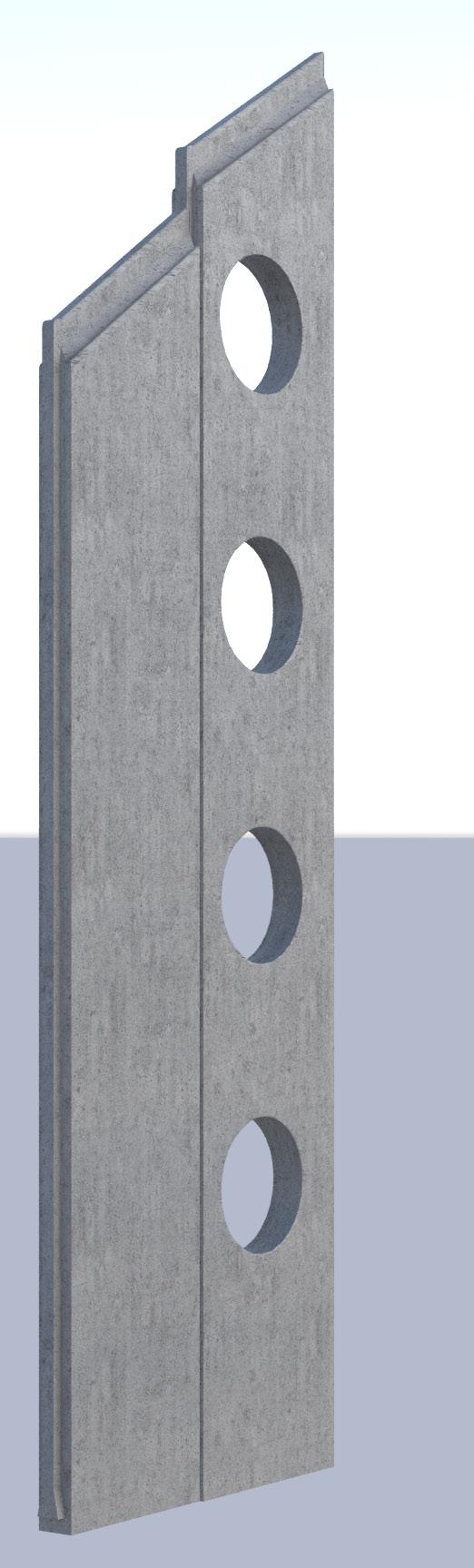

Opening in concrete column for floor slab to be placed.

Steel frames to support gabion back.

Gabion cages place on top of each other in a way to divide the load .

1

Plants on facade To collect dust

2

45

Noise Vibration Pollution Gabion rocks will prevent noise from passing through, plants on facade to filter the air pollution coming from railway.

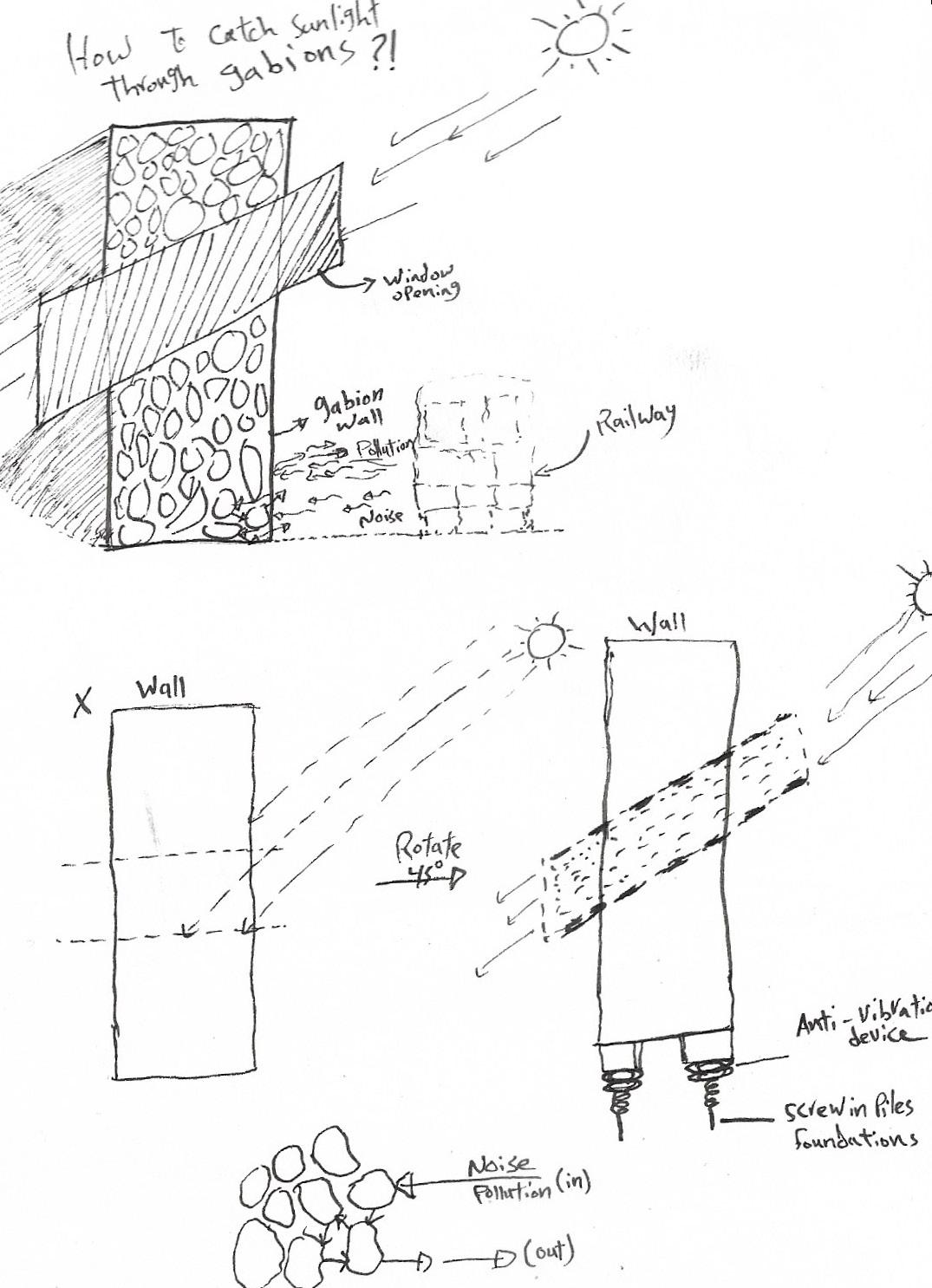

Window 1 is rotated 45degrees to allow maximum sun to enter the site. Window 2 louvred to prevent rain water from entering.

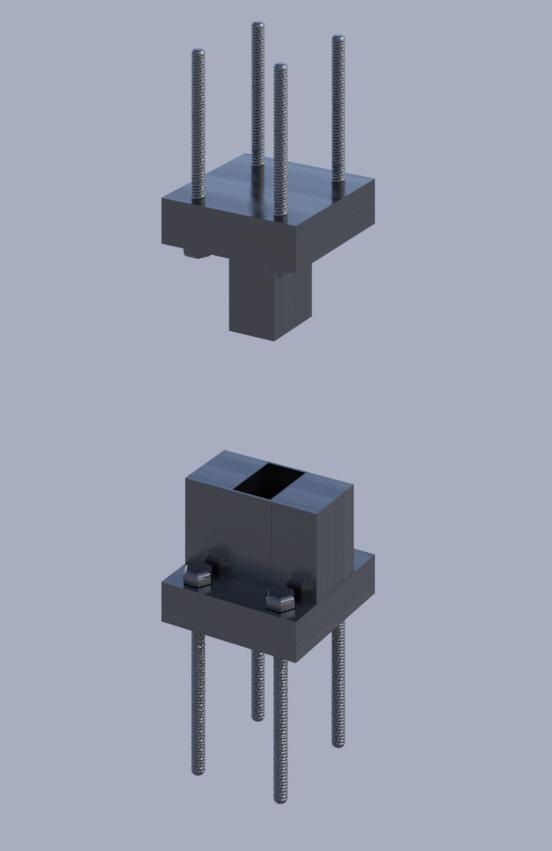

Glulam column

Steel connection

Rubber anti-vibration strips Holding down bolt

Timber frame branch tapered 200x300x200mm diameter

Concrete beam Anchor bolts

Countersunk fixing

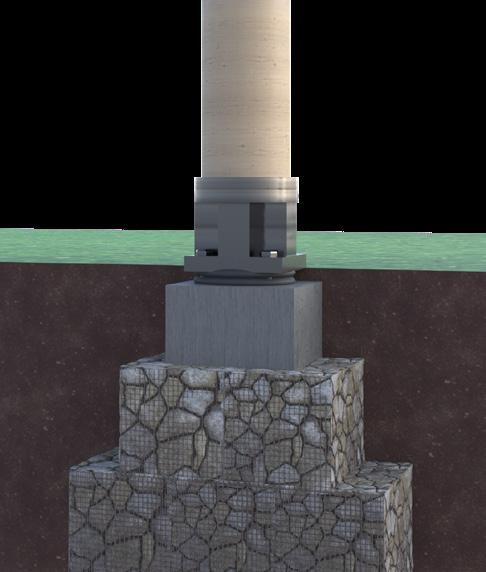

Galvanised steel column head Gabion foundation

Earth

Steel strap

Glulam column Steel sheet

used AuroCAD in the process

5

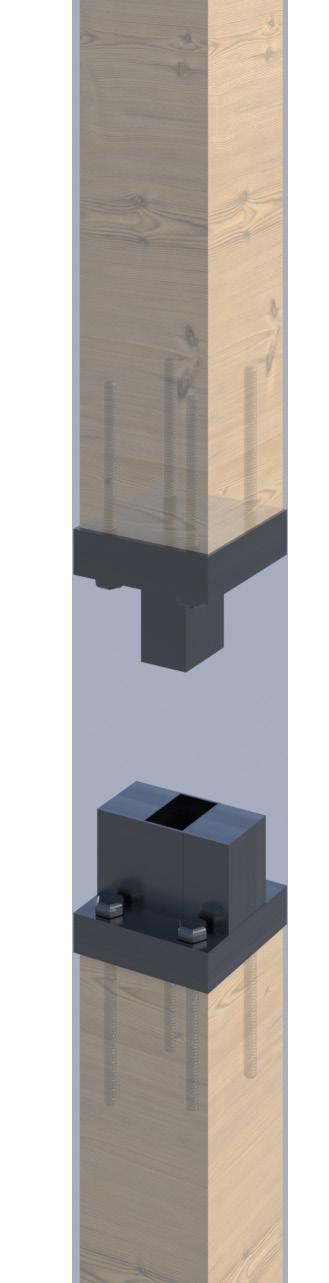

Glulam Column design

Glulam column

Glulam beam

Flitch beams

Threaded rod diameter 16mm

Wood skirting cover

Column steel head

Floor finish

Steel connection (Plug connector)

Cut in half

Glulam column

Steel plate placed in between

Gabion foundation

Wood skirting cover Beam bolted from sides

Timber frames

450

Gabion column 500mm each

Straw blocks (insulation)

Straw (insulator)

Double glazed window

Timber frames

Steel column placed vertical each 5m

Steel sheet

Gabion wall

Rubber anti-vibration strips

Holding down bolt

Anchor bolts

Anti-vibration rubber strips

Concrete beam

Concrete beam

Gabion foundation

Gabion foundation Earth

CLT 8 layers 400mm

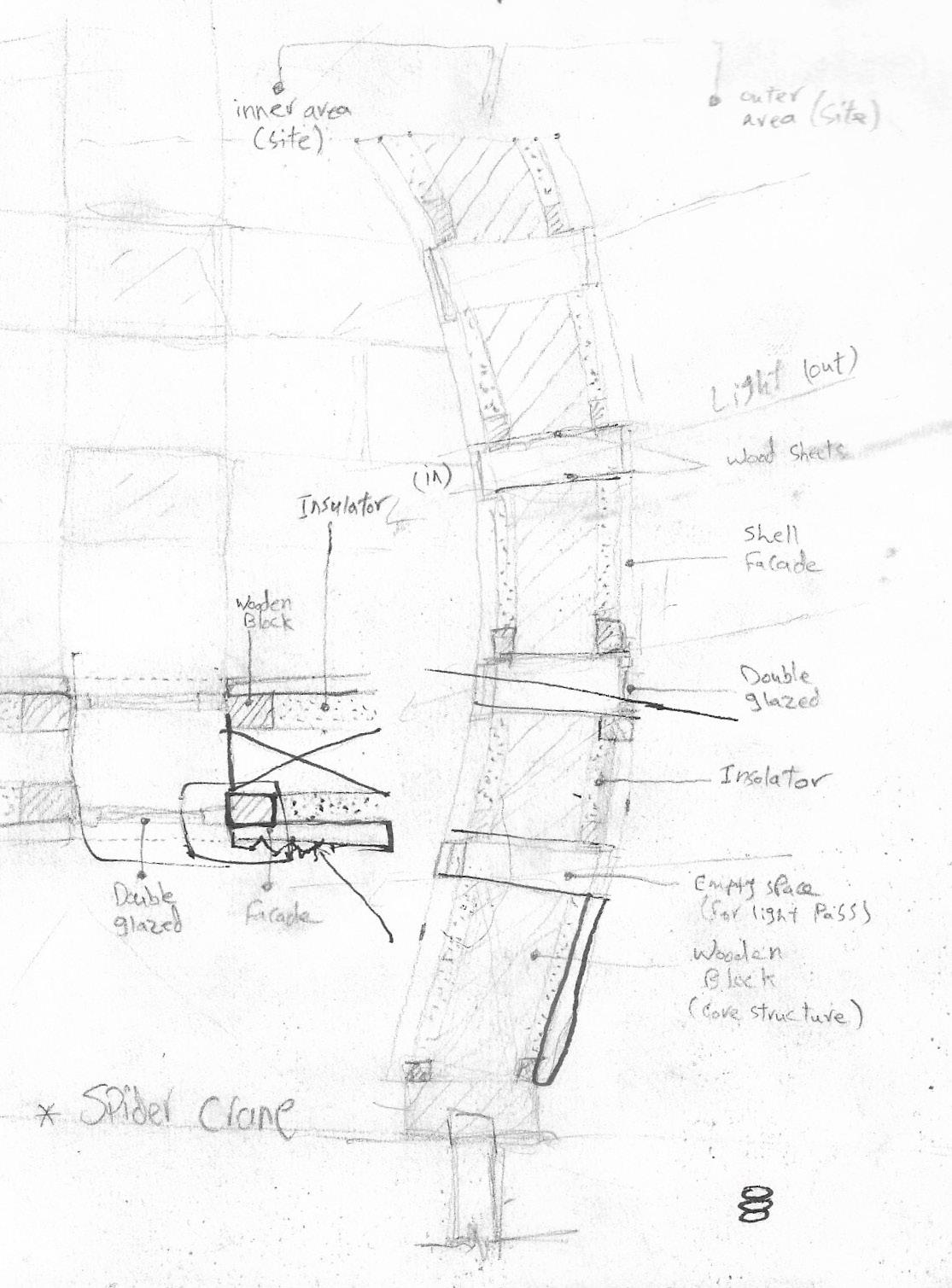

Exterior wall and curtain wall Gallery facade material used is timber cladding with curtain wall and window openings in the desired areas.

• •

Window are controlled using wooden louvres in rooms with oil paintings.

Breathable control, thermal insulation and vapour control layers installed to exterior wall to control environment defects.

Breather membrane

Timber cladding

Triple glazed window

Glulam Beam 500mm depth

Glulam column type 1

Timber louvres

Timber frames

Thermal insulation

used AuroCAD in the process

6

HEALTH AND SAFETY

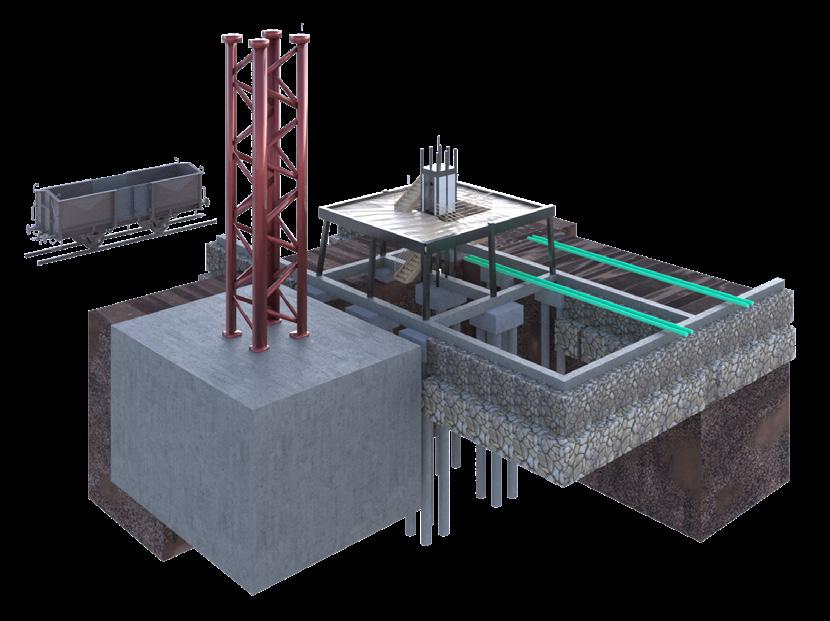

TFL construction element delivery train

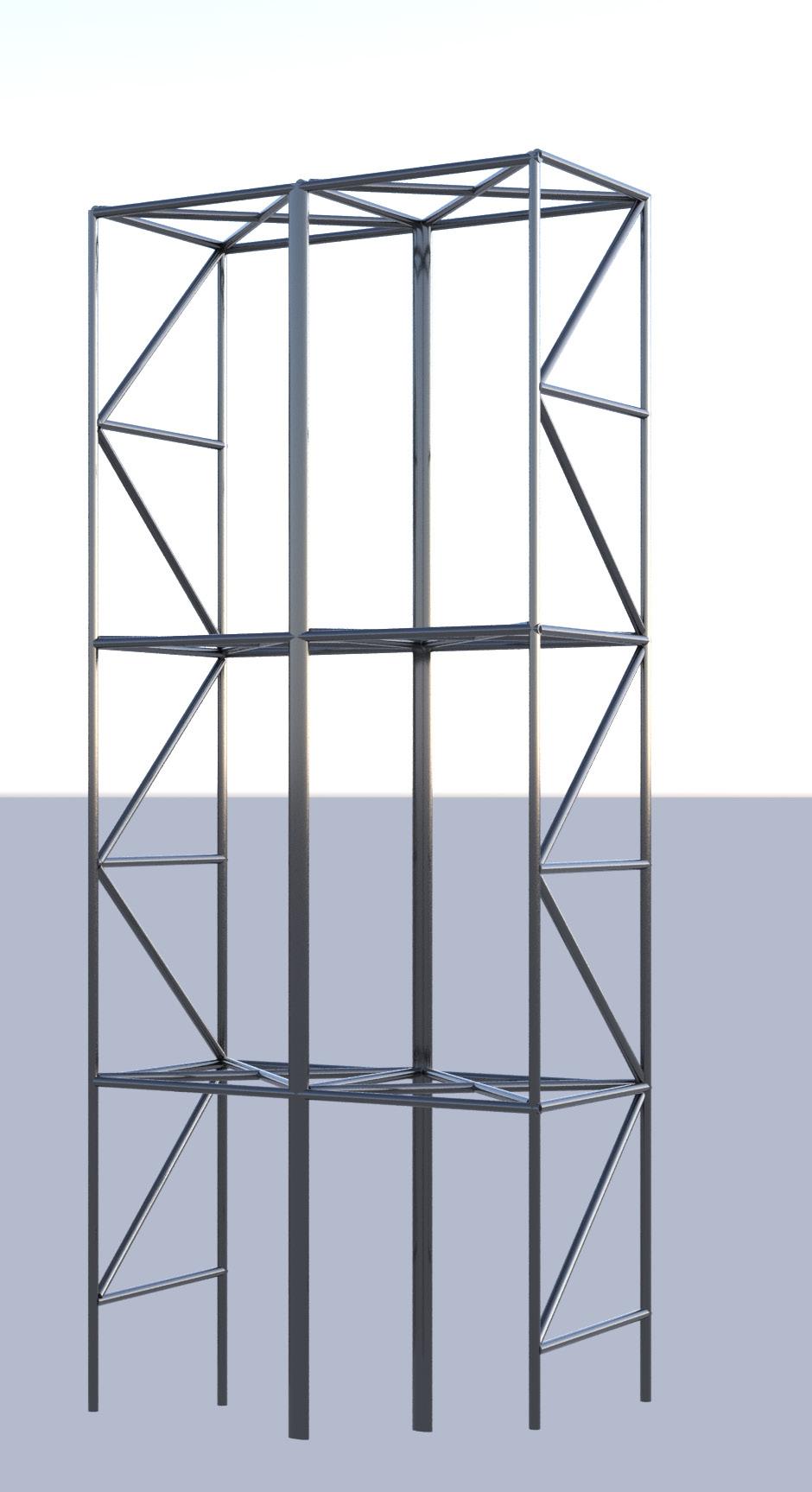

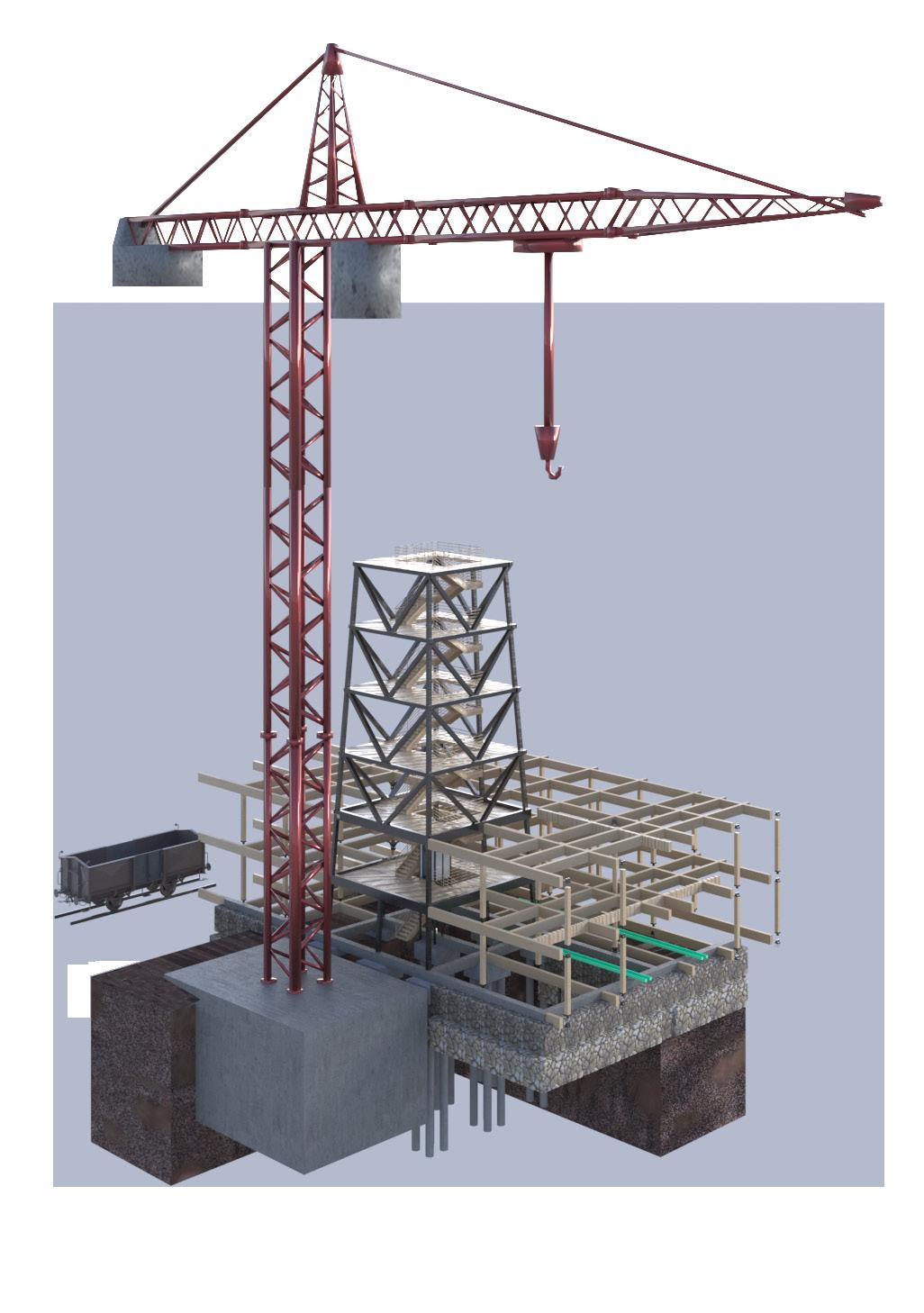

Tower crane elements

RC crane foundation

• •

•

•

Risk of falling from heights when building and working with crane.

Contractor to ensure safety strategy.

While installing tower crane element, spider crane will left elements for installation.

Contractor and safety engineers to ensure safe installation process.

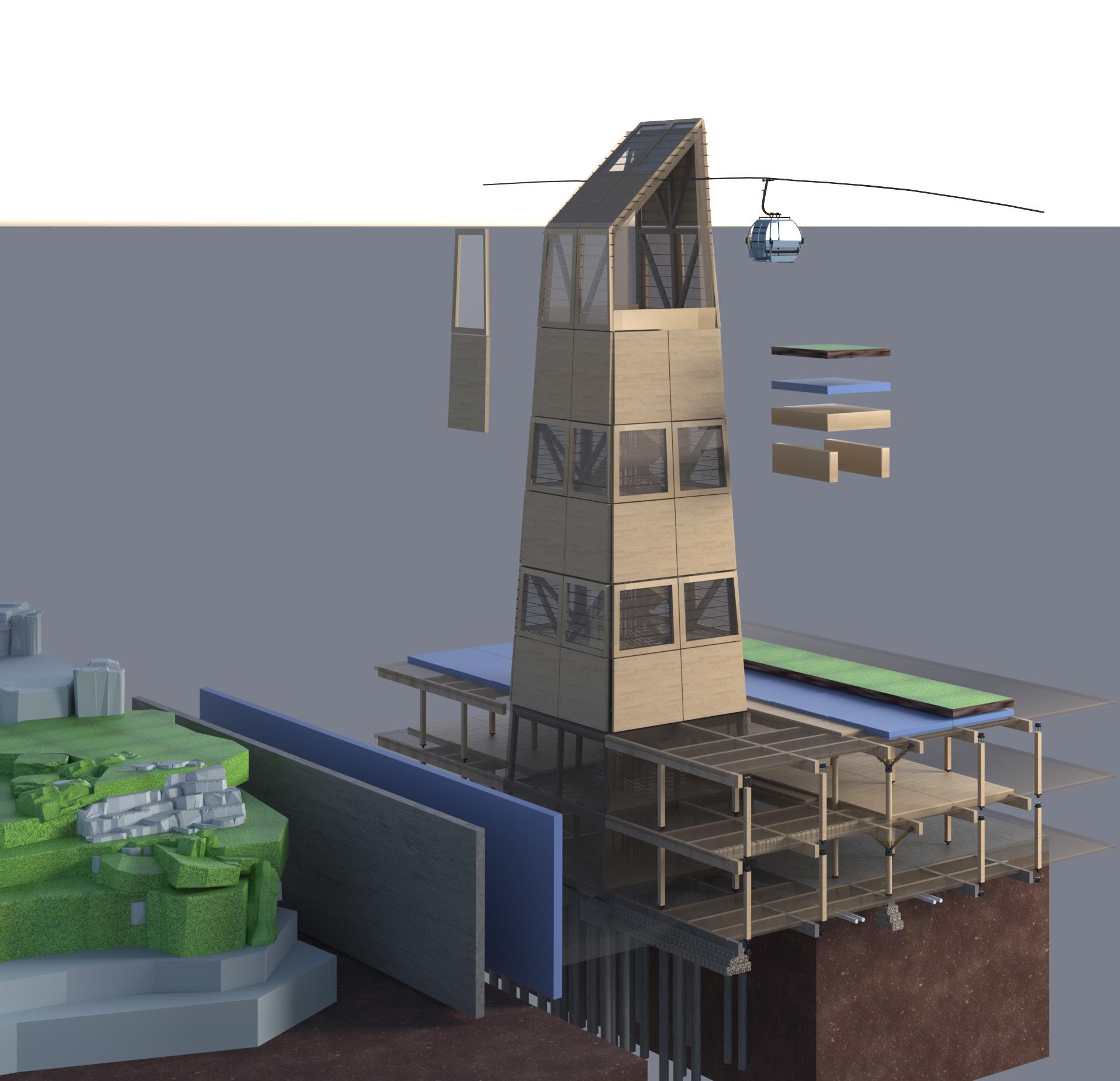

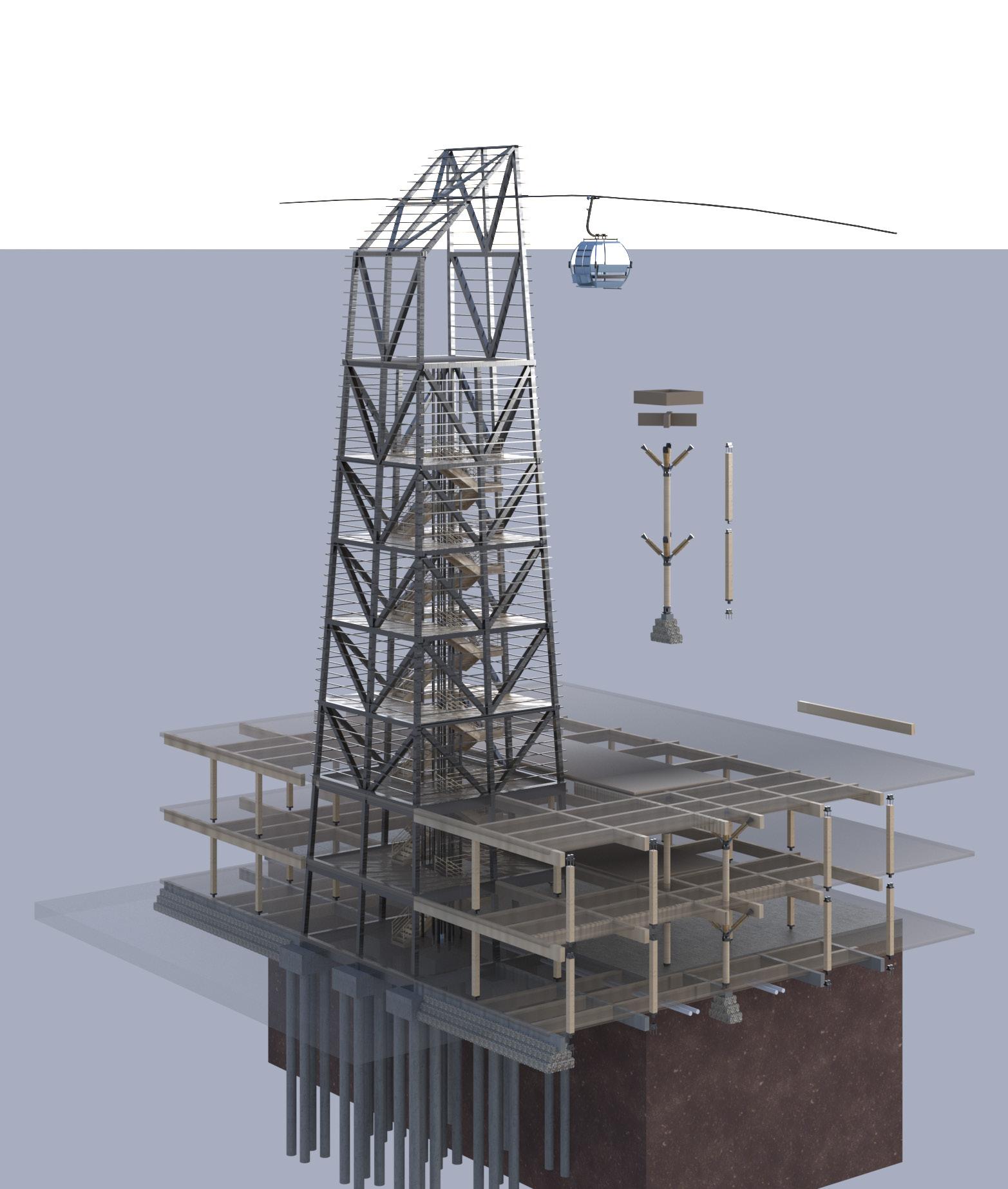

CLADDING & INSULATION SYSTEM

Cable car

+20m

Glulam beam(primary) Glulam beam(secondary)

Staircase & lift

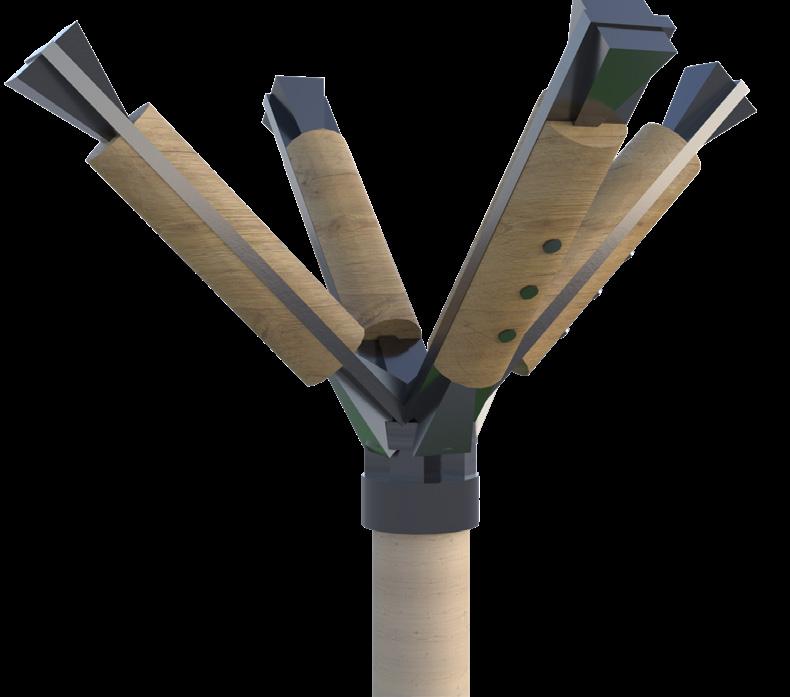

Glulam tree column

Timber frames

Glulam type 1 column

CLT flooring

Glulam beam 9m

CLT

Glulam column sets on RC slab with gabion wall foundation Pile cap

RC piles 300mm diameter

Drainage below slab Soil

Timber framed double glazed window CLT panel Sloped roof to fall into guttering Insulation

Green roof Insulation and drainage layer CLT 6 layers Glulam beams

RC concrete wall Green area (up hill) Glulam beam

CLT

Drainage below slab Soil

used 3DsMax & Indesign in the process

7

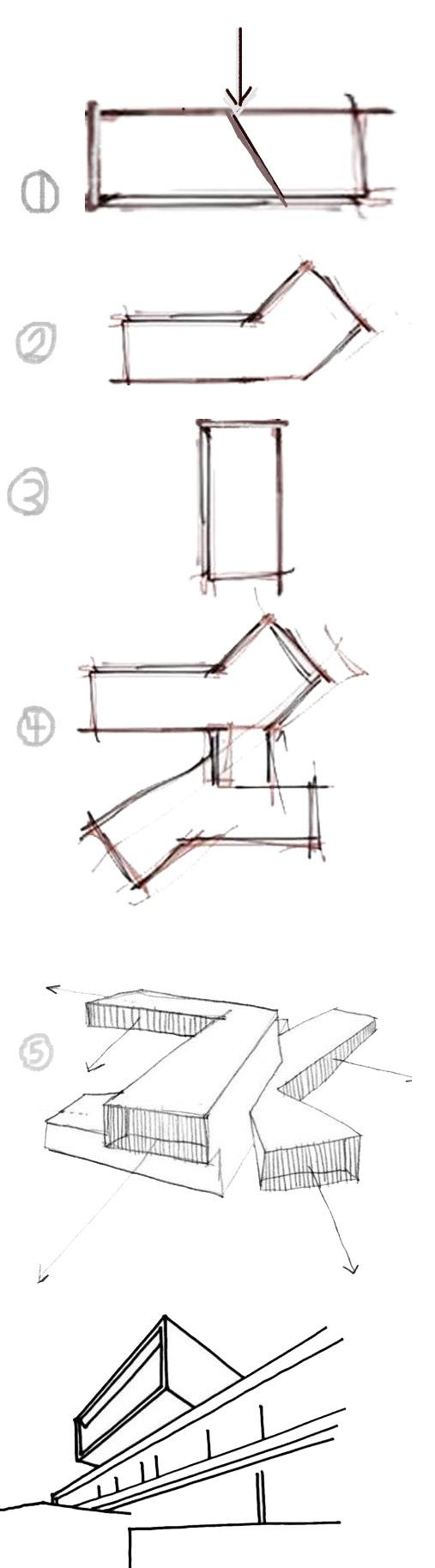

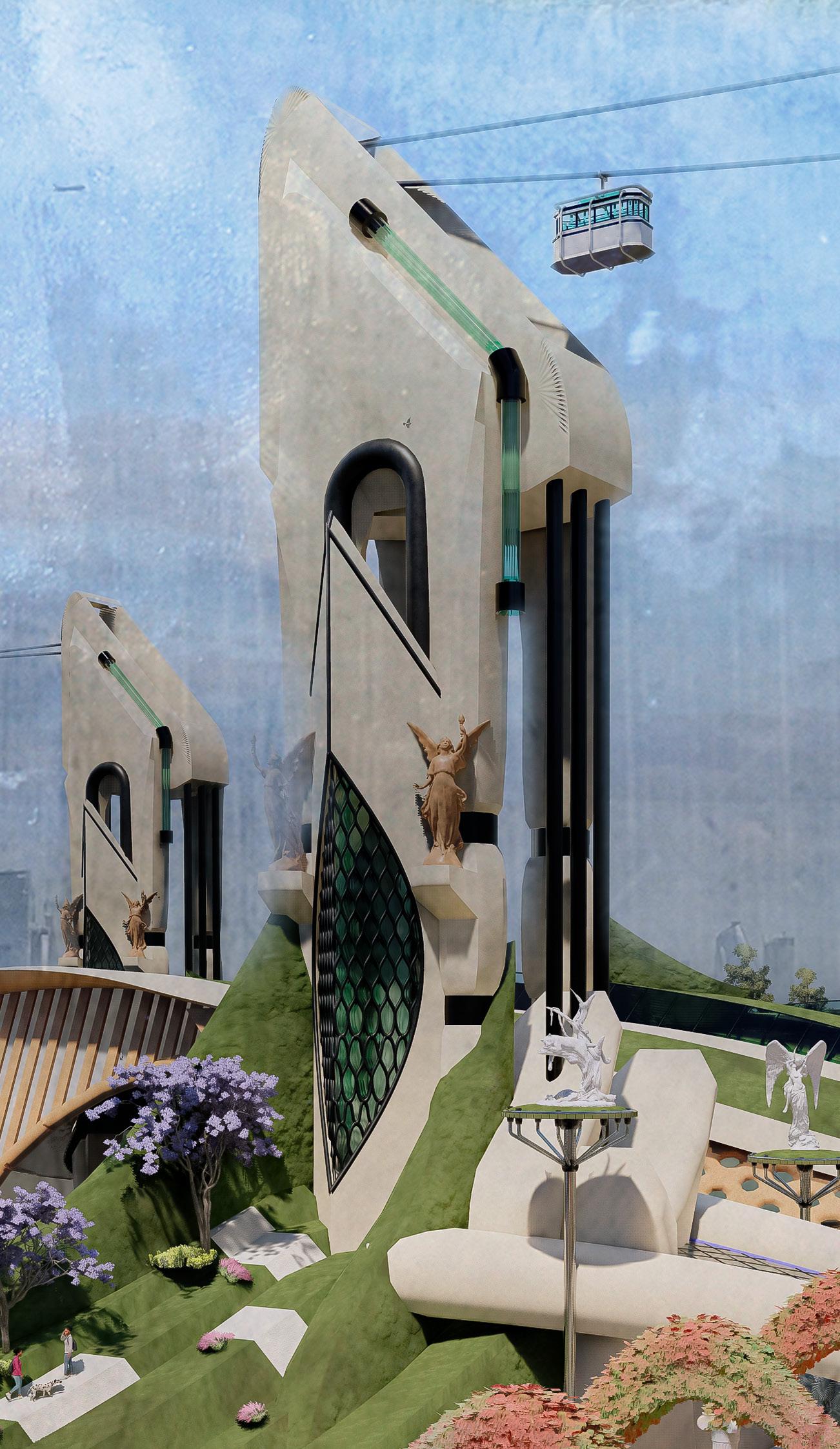

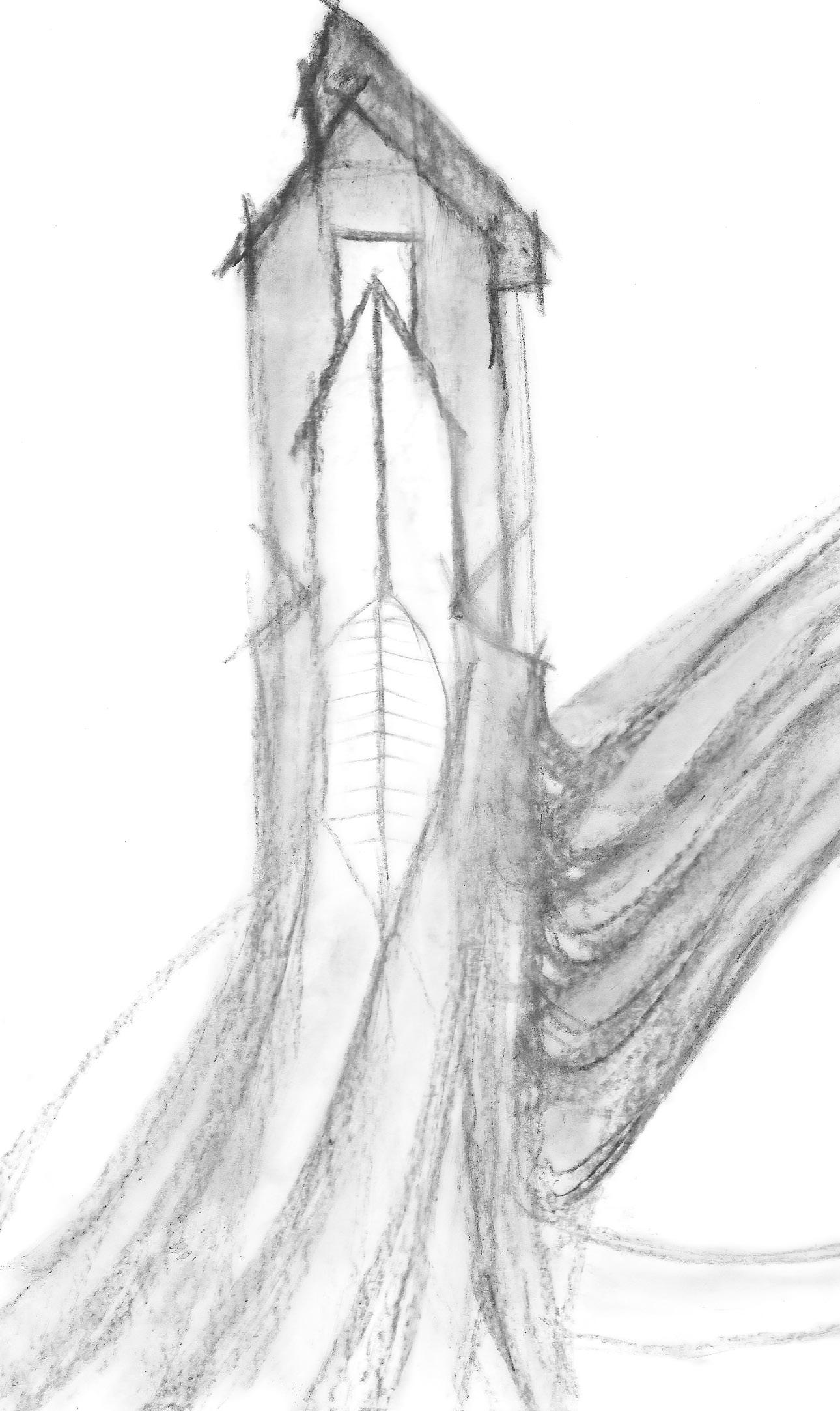

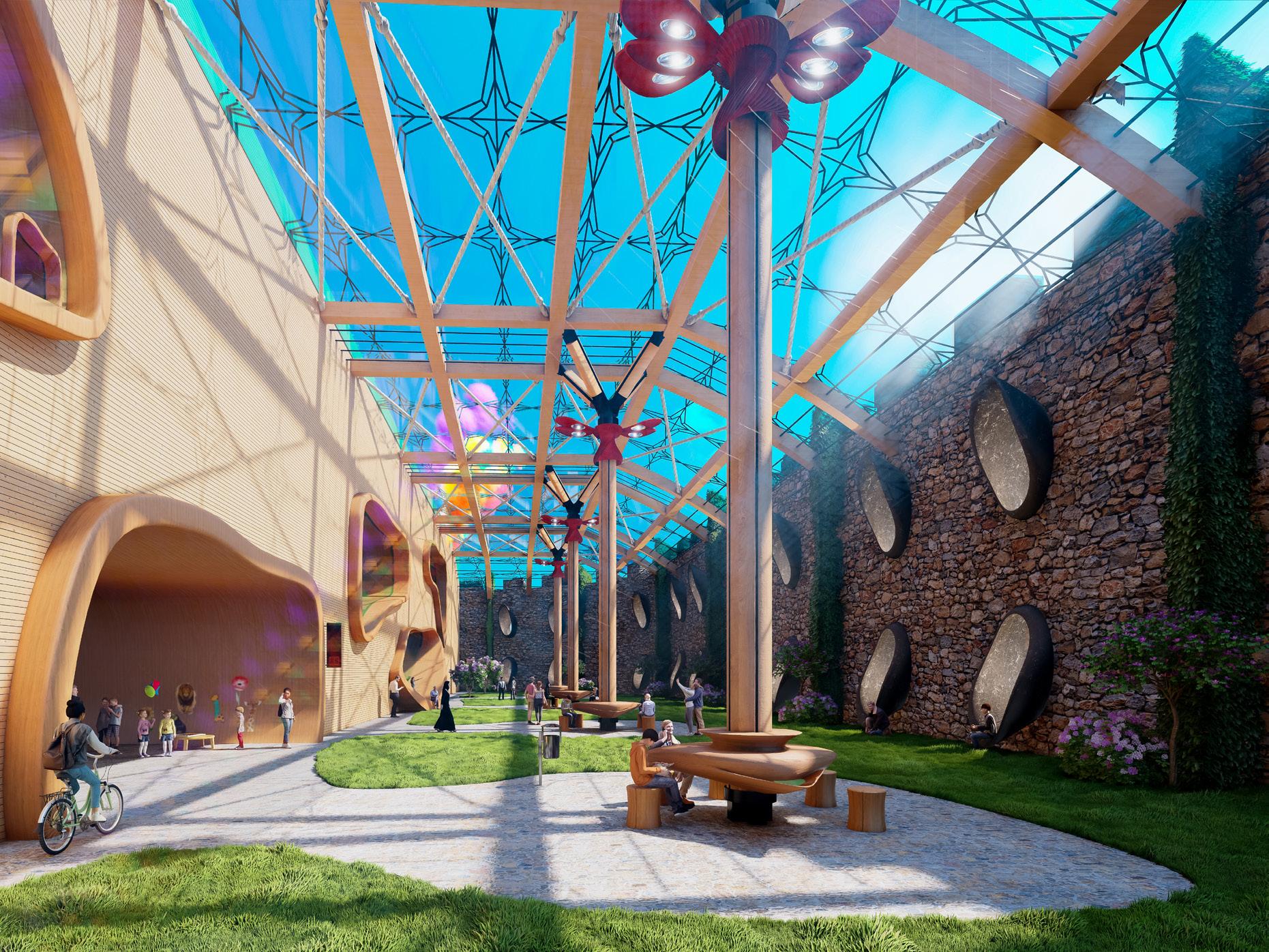

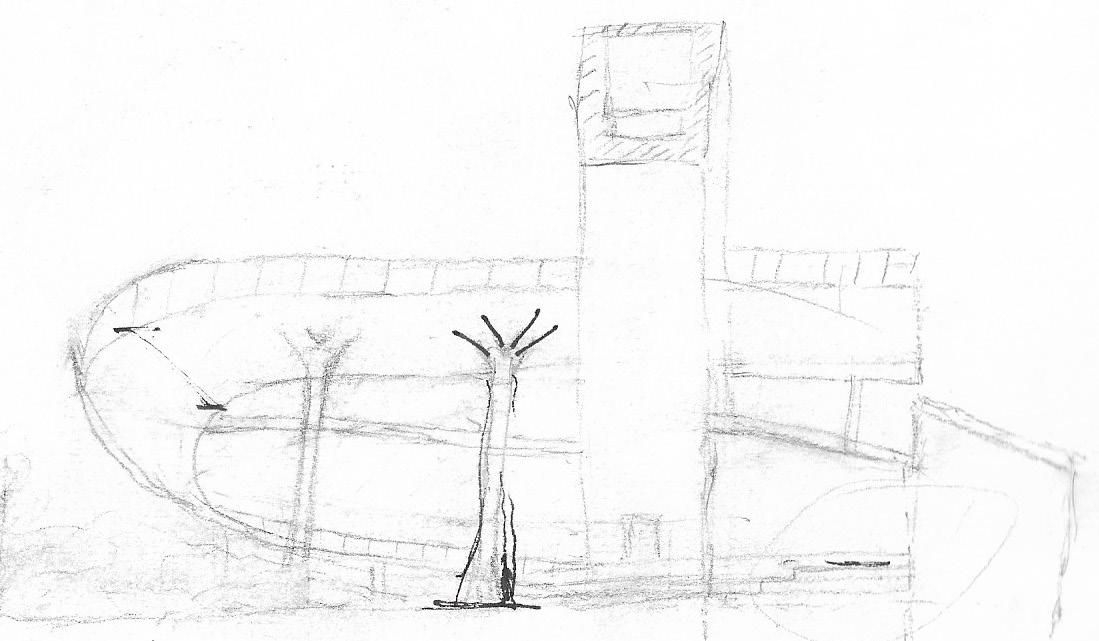

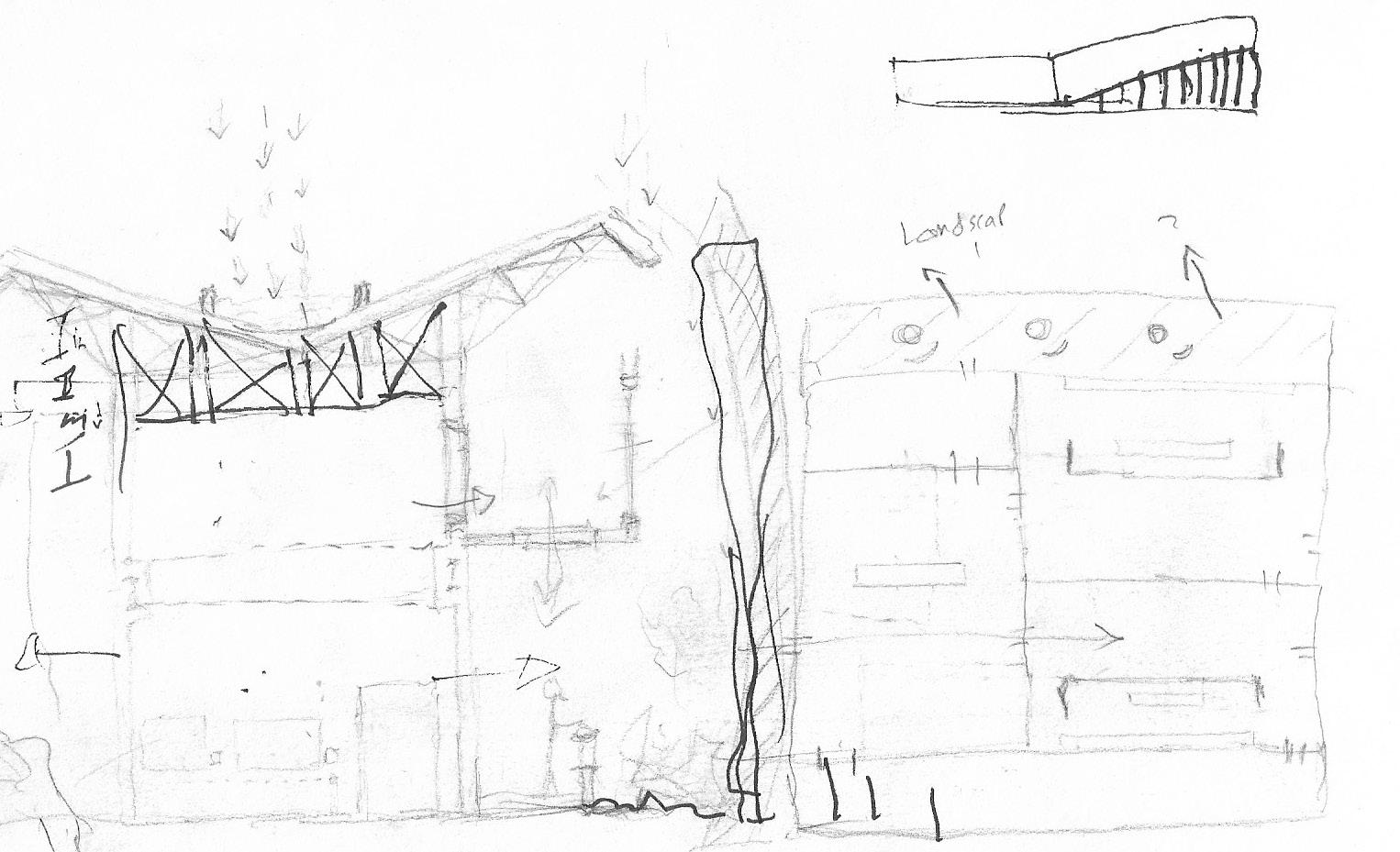

HAND SKETCHES & RENDERS

used 3DsMax & Hand-sketch in the process

8

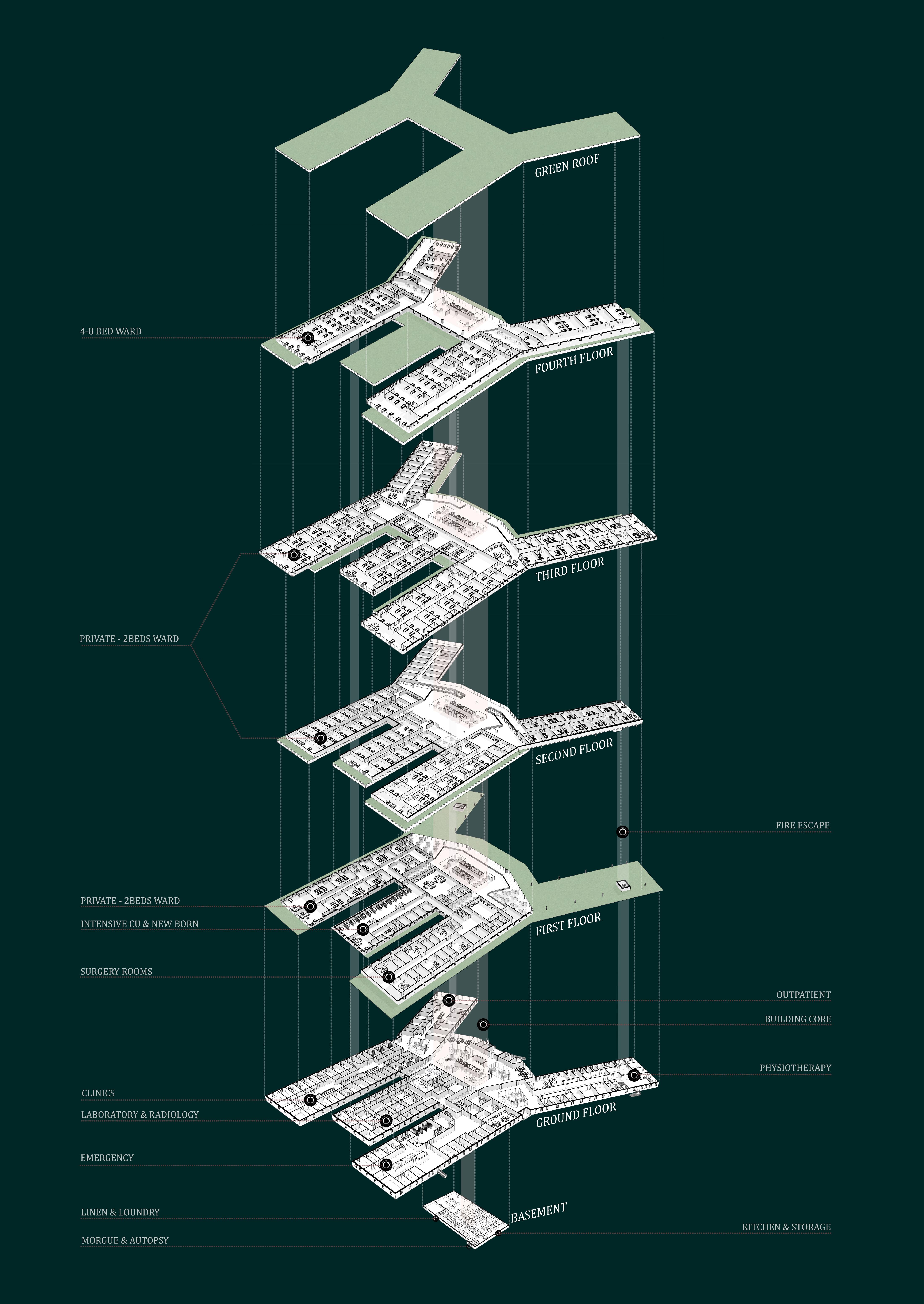

GENERAL HOSPITAL PROJECT floor plans & form generation

This area (Cairo, Egypt) lack health care facilities, in which the existed buildings were either too old or does not have the proper services and required departments.

Form inspired by human body, heart is the core of the building, the arteries which is connected to the heart provide body parts with blood, considered as the hospital departments and wings. (Movement of blood represents circulation inside hospital).

Concrete construction is a good way to improve the function, value and whole life performance of the facility. Using RC columns dimensions between each is 12m maximum.

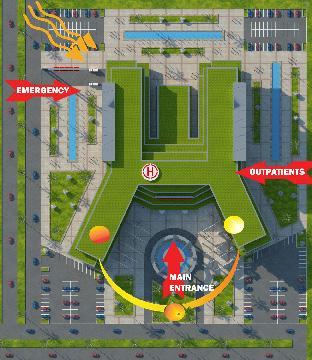

master plan

Waffle slab to support column with loads, and Hospital ceiling services can be managed through waffles spaces.

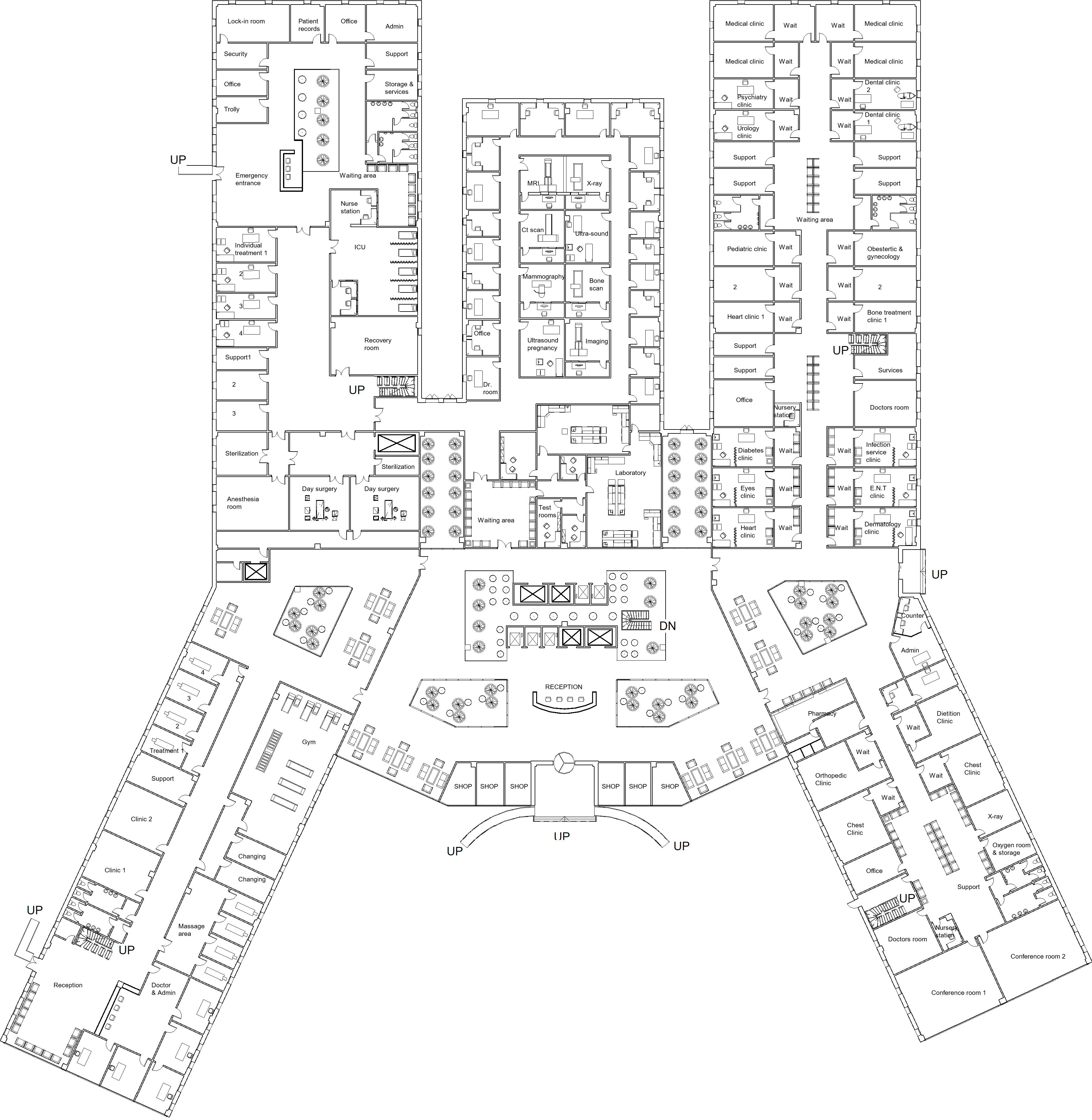

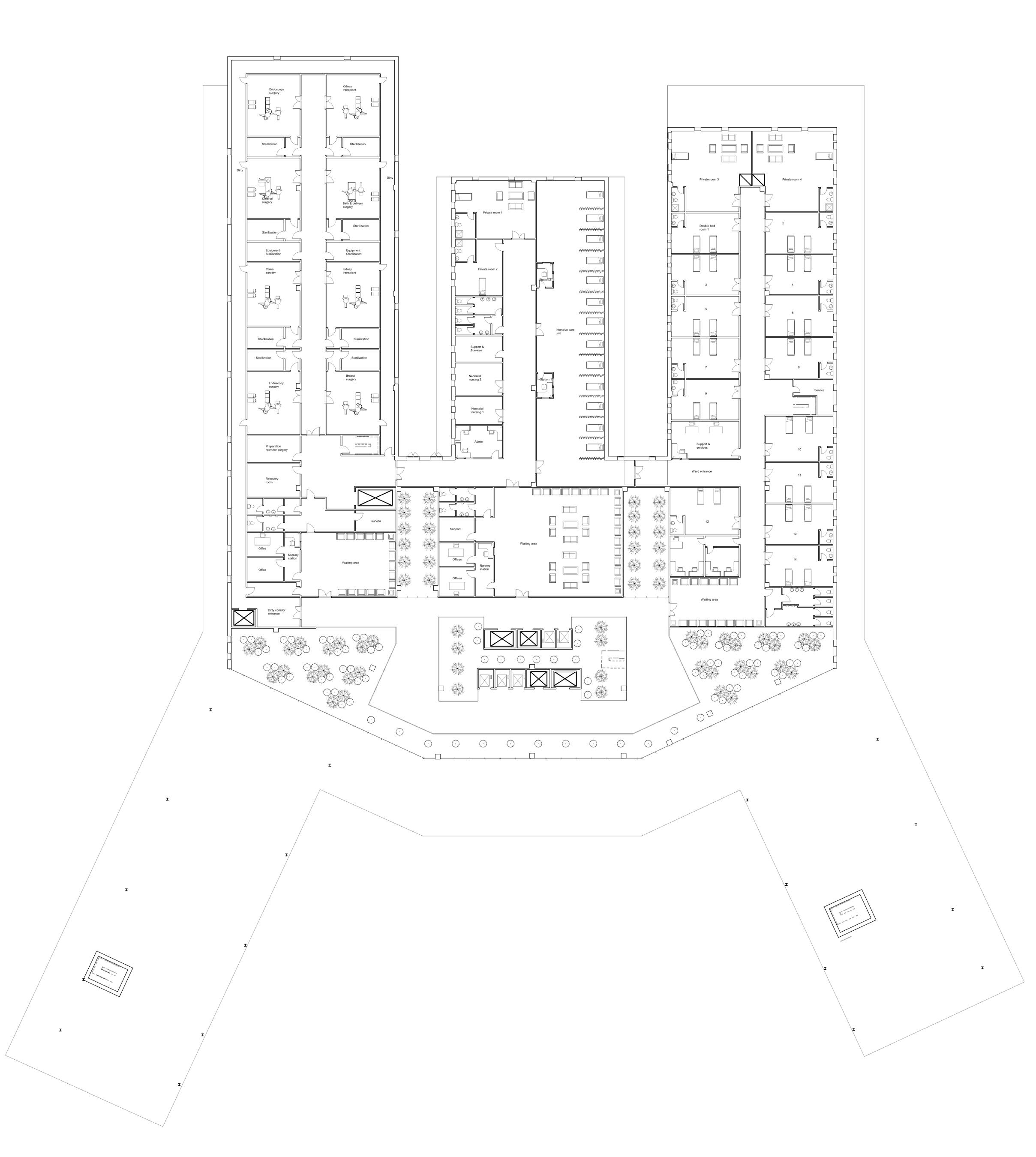

first floor plan 9
