Work Samples // Osman Nasir

PART 2 // ARcHITEcTURAL ASSISTANT work samples // 2018 - 2024

OSMAN NASIR

(M.Arch) Masters of Architecture University of Dundee

Osman Nasir

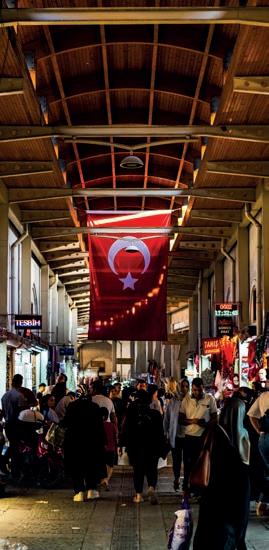

Familiarising with Local Commerce

Kahramanaraş Bazaar, Turkey

Interacting with Community

Resident Showing Damage to Local Church

conSTRUction VOLUNTEERING IN A DISASTER ZONE Kahramanmaras, Turkey

In September 2023 students from Design for Displacement group travelled to Kahramanaraş in Türkiye from Dundee, Scotland. The intention of the trip was to promote active involvement in the initiatives of a non-governmental organisation All Hands and Hearts, aimed at enhancing additional facilities in the established IDP camps located in and around the city.

Throughout the visit, I had opportunity to explore the city, engage with the local community and contribute to the construction of shaded structures in one of the container camps on the periphery of the city.

8

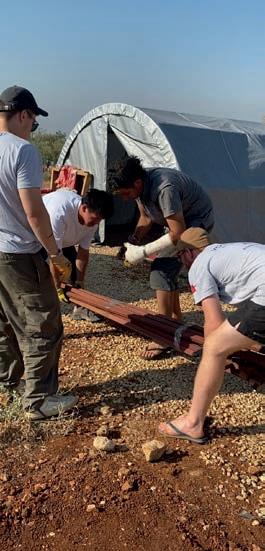

Reusing Salvaged Materials

Building temporary secure tents for Residence

Academic Thesis

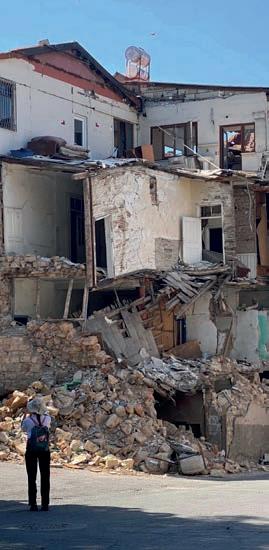

Surveying Damaged Buildings Damaged Highschool, disrupting education.

Typology 1 : Modern

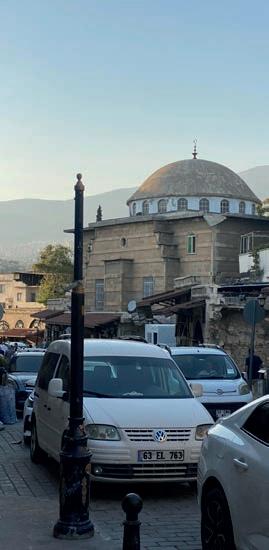

Respecting a Rich History

16th Century Mosque

Typology 2 : Historic

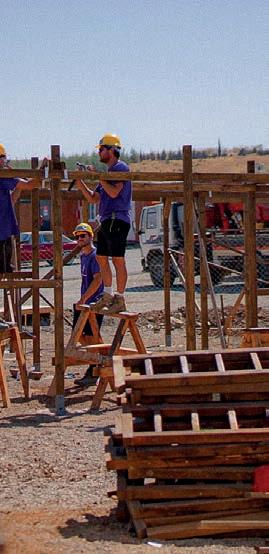

Constructing Public Pavilions

Necip Fazil Container Camp

Typology 3 : Temporary 9

Academic Thesis

SEISMIc TYPOLOGY Technological Iteration of Historical Typologies

Seismic Telescopic Trusses Rhino. AutoCAD, Photoshop

The Seismic structures embody advanced industrial design, with I-Beams extending from a central core, channelling seismic energy and stabilizing through tension-cables. A concrete cylinder on the ground floor enhances acoustic reverberations. The Madrassah features an octagonal design, stabilized by space-trusses and CHS beams. These elements, joined by Pin-Connections, convert seismic moments into rotational forces, maintaining structural integrity. The design merges traditional geometry with cutting-edge technology, reflecting a synthesis of form and function in earthquake-resistant architecture.

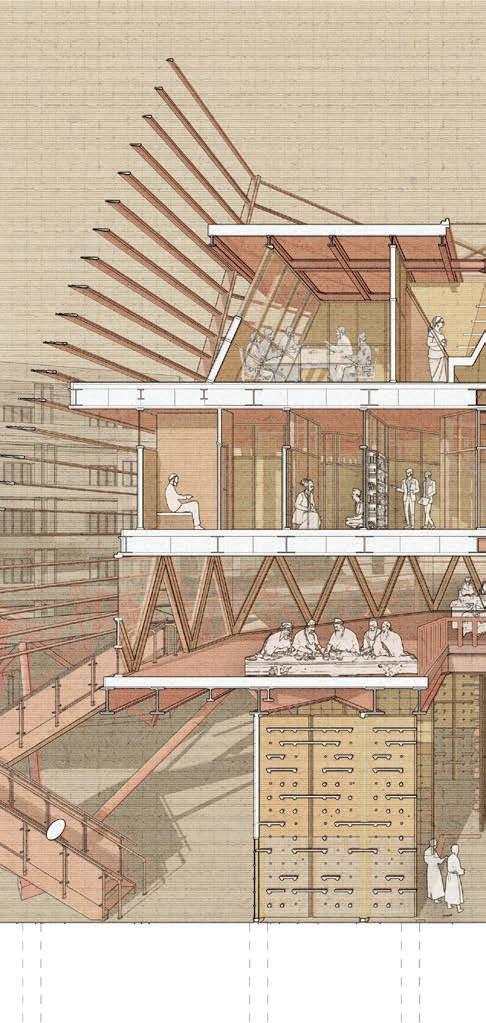

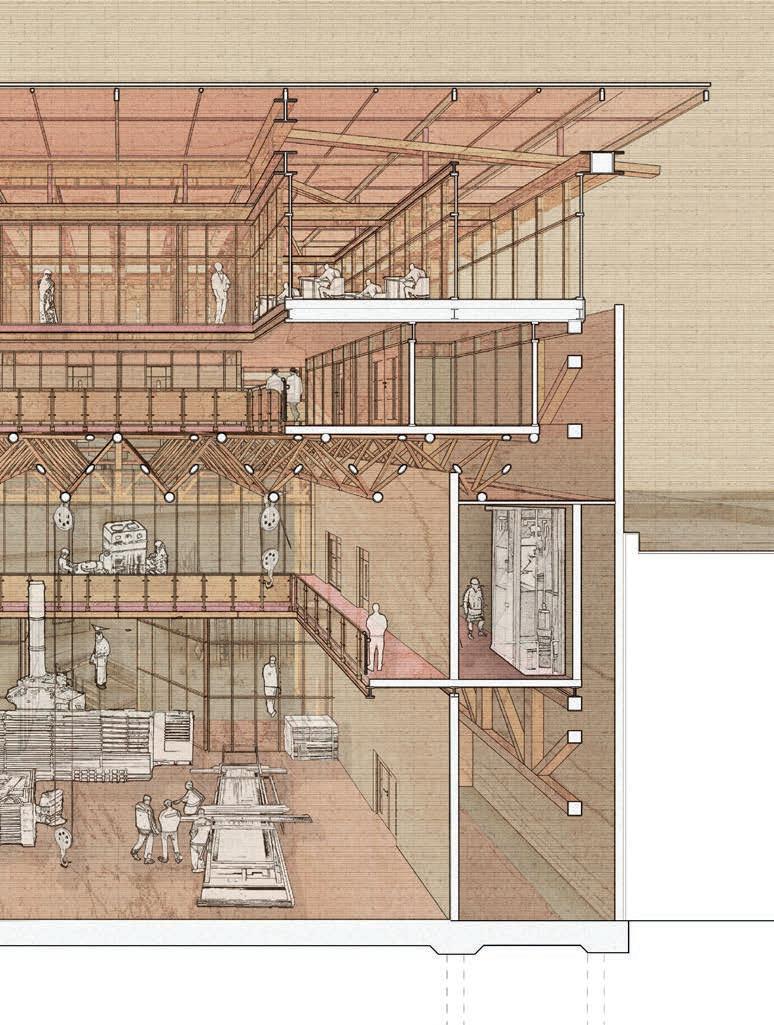

“Imalthane” - House of Production

Revit, Enscape, Illustrator, Photoshop

Seismic Roof Diaphragm

[500+500] 1000mm Perimeter I- Beam 150x50mm Steel Transom 50mm Glazing 160mm Polished Concrete Screed 50mm Brushed Steel, Slab End Cap 1000mm Deep - Space Truss.

500mm Service Corridor.

330 Mm Blockwork Parti Wall

10

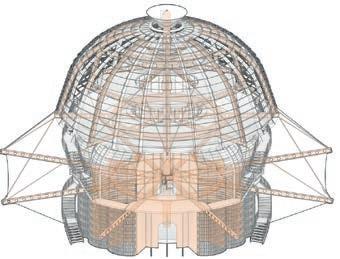

Autocephalous Millet Seismic Pivot Connections Rhino. Enscape, Photoshop

“Zahwiyah” - House of Serenity

Rhino, Enscape, Illustrator, Photoshop

Seismic Coaxial Connections Rhino. Illustrator, Photoshop

“Madrassa” - House of Knowledge Revit, Enscape, Illustrator, Photoshop

11

Academic Project

IS HEALTHcARE TRULY PUBLIc? Obsolete models and healthcare austerity Dundee, relies heavily on Ninewells Hospital, located on the city’s periphery. Mental health facilities, are even farther north.

With some of Scotland’s worst drug death rates, accessible, urban-centred healthcare is critical. Traditionally, hospitals are isolated sanctuaries, but growing urban sprawl and the UK housing crisis challenge this model, necessitating the evolution of urban-centric hospitals to serve densely populated areas.

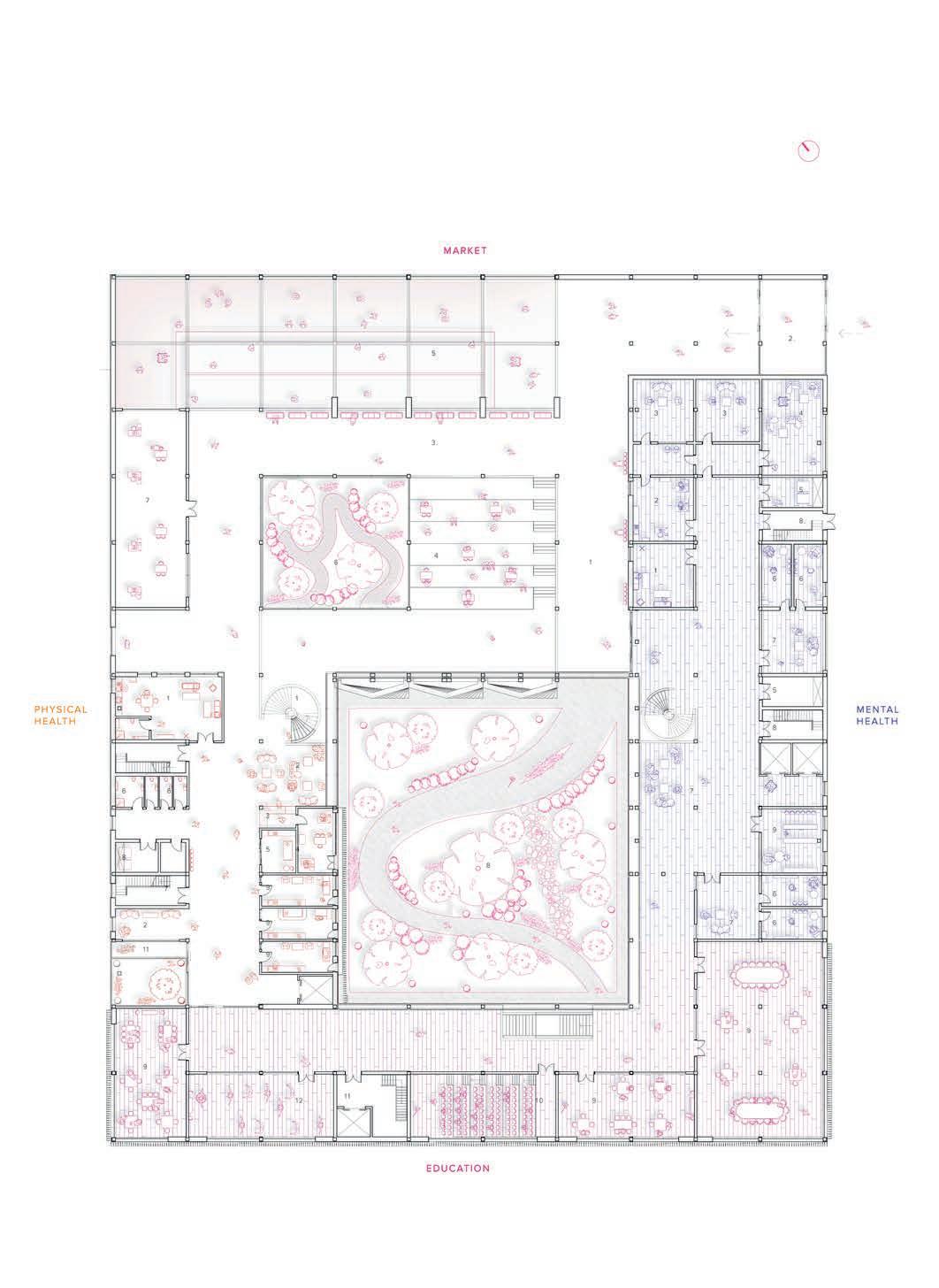

Comprehensive Healthcare - Ground Floor Plan

Revit, Illustrator, Photoshop

14

c.v.

Emergency Department - External Render

Revit, Enscape, Photoshop

13

03. Nolli + Neoliberalism

Drawing Research On The Future Of Rome Year: 2023 Institution: University of Dundee Location: Rome, Italy Medium: Steel Sheets/Pipes Brief: Making an Object from the Nolli Plan

16

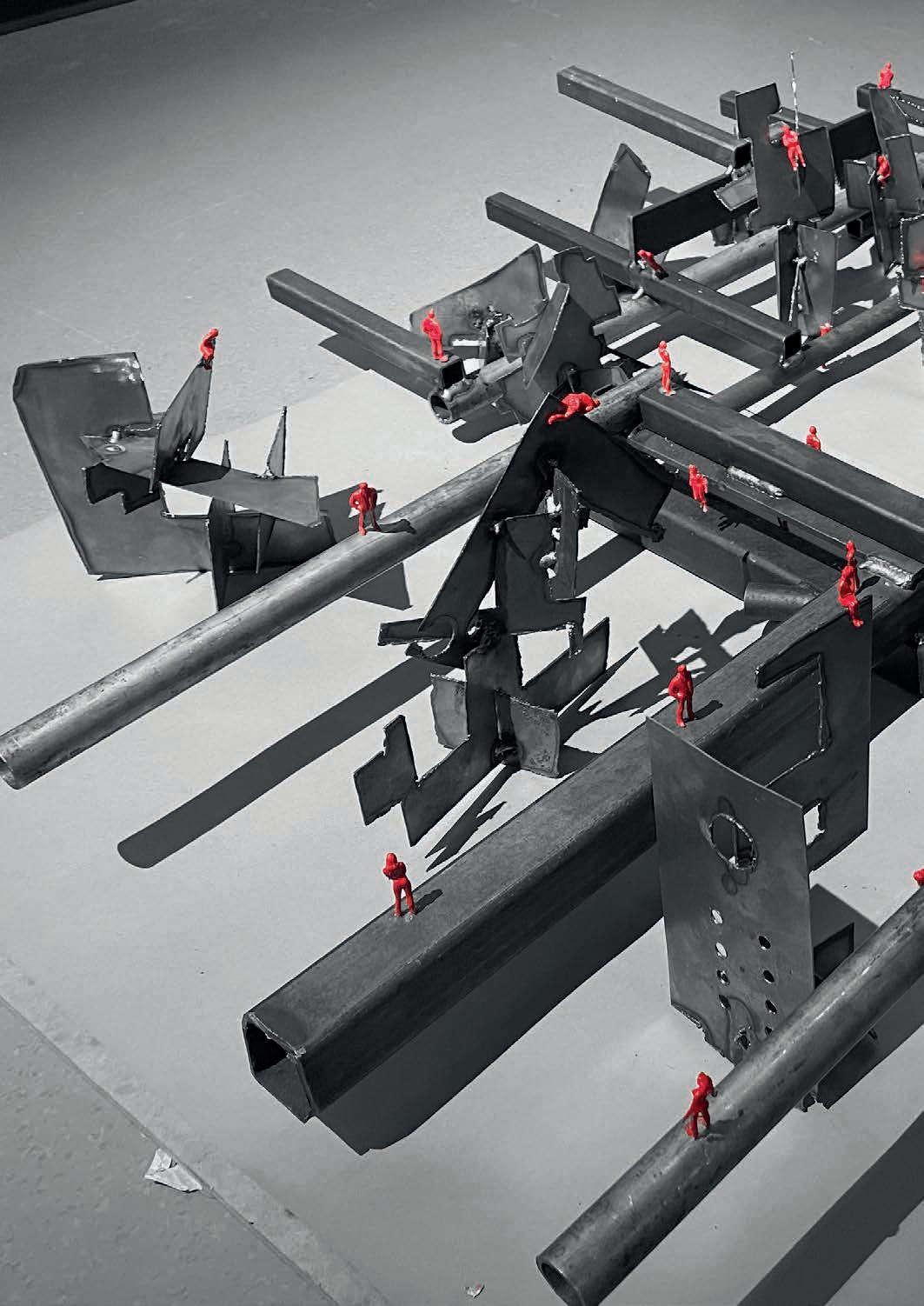

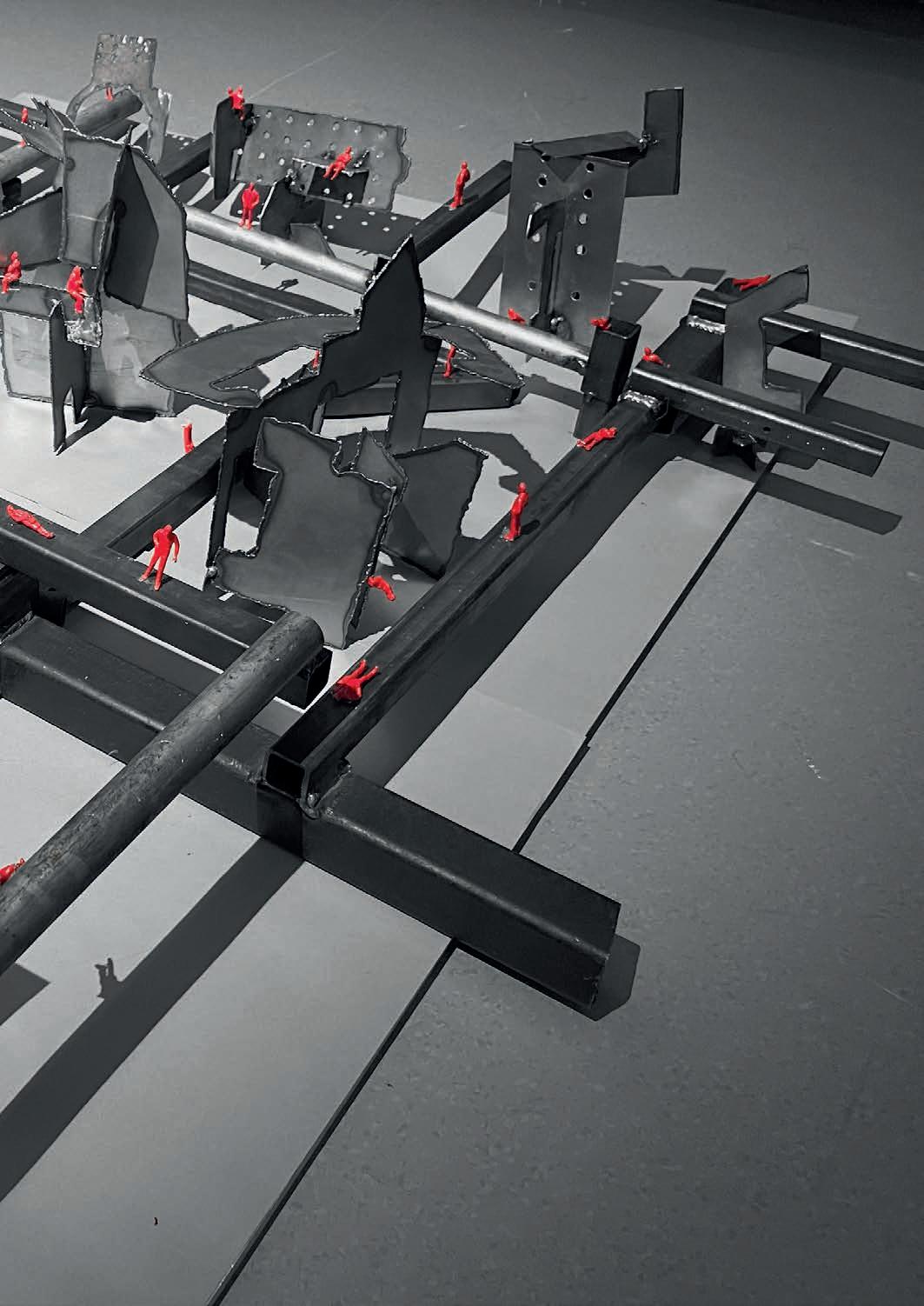

Academic Project Model - Armature & Amalgamation of Nolli Steel Pipes, Steel Sheet, Welds,

To represent novelty, hallmark of neoliberalism, the craft of metallurgy was learned to create the final iteration of my object. The processes used in this were, based around the combination of machinery and hand-crafted tasks. The main idea in the creation of this object was to extract the historic layers of Rome’s heart - around Pantheon, Church of St. Ignatius of Loyola, Palazzo Bonaparte, and Via Monterone 22 - from the Nolli landscape and represent them in the ideological manifestation of today’s culture.

17

Osman Nasir

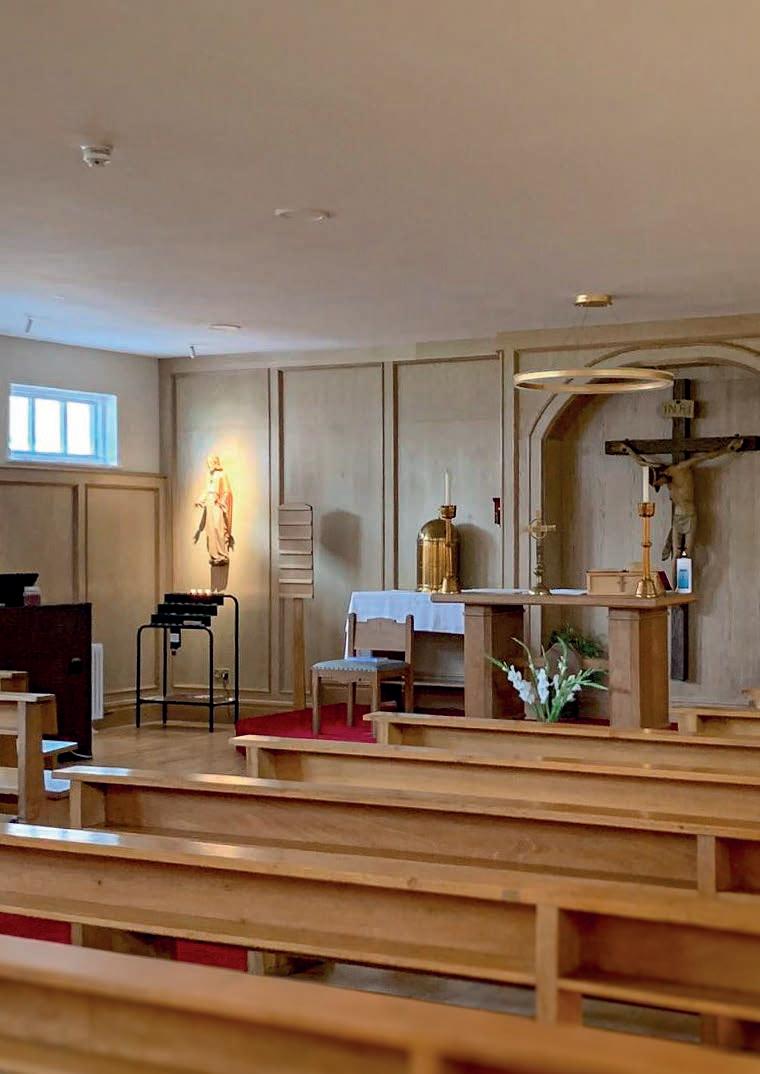

06. St. Fergus Church

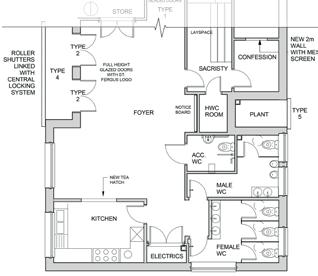

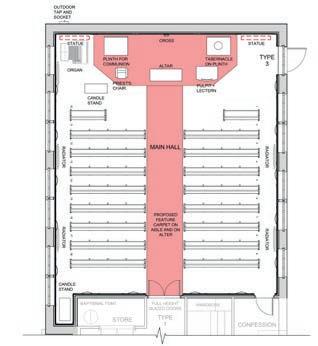

Conversion of Annex into Main Church Hall Year: 2022 Location: Paisley, Scotland Brief: Fit-out of Exisiting Building RIBA Stages: 0, 1, 2, 3, 4, 5 Practice: CRGP Ltd.

This project arises as a response to St Fergus church committee’s concerns about heating the main hall of their existing building for Sunday mass and school. An existing annex , used as mainly auxiliary storage space, with very little internal compartmentalisation was converted to serve these main purposes. This was done through the internal fitting of wooden panels, spotlights and new furniture design, along with this, new toilets and kitchen areas were installed into the existing building. This was my first project where I was familieried wth Revit Family parametrics.

24

Professional Project Ornate Detail Design Revit, AutoCAD

25

THANK YOU. For your consideration, please get in touch, for full Portfiolio
