PORTFOLIO OSCAR MENESES

ARCHITECTURAL DRAFTSPERSON PORTFOLIO

Personal profile

Architectural designer with 8 years of experience in the design, conceptualization, drawing, modeling and coordination of residential, commercial and educational projects in the public and private sectors. Experienced senior draftsperson with emphasis on detail drawing, design of doors, windows and facades including shop drawings, material take-offs. Understanding of local building codes and ordinances. Knowledgeable about accessibility requirements for public buildings and private residences. He worked with government clients and highly recognized public and private institutions.

Knowledgeable in the development of architectural projects using BIM tools, from modeling to the coordination and implementation of this methodology, improving productivity, the level of detail and reducing delivery times.

Profesional CV

Professional Experience:

11/2023 to 12/2023

Mobile kitchens Brisbane, QLD ARCHITECTURAL DRAFSTPERSON

04/2018 to 11/2022

FP Architecture Medellin, Colombia ARCHITECT

06/2015 to 04/2016

Puritec Cali, Colombia CONSTRUCTION ESTIMATOR

08/2014 to 06/2015

05/2016 to 04/2018

Metric Architects Cali, Colombia ARCHITECT

Project Index

Sample of professional works:

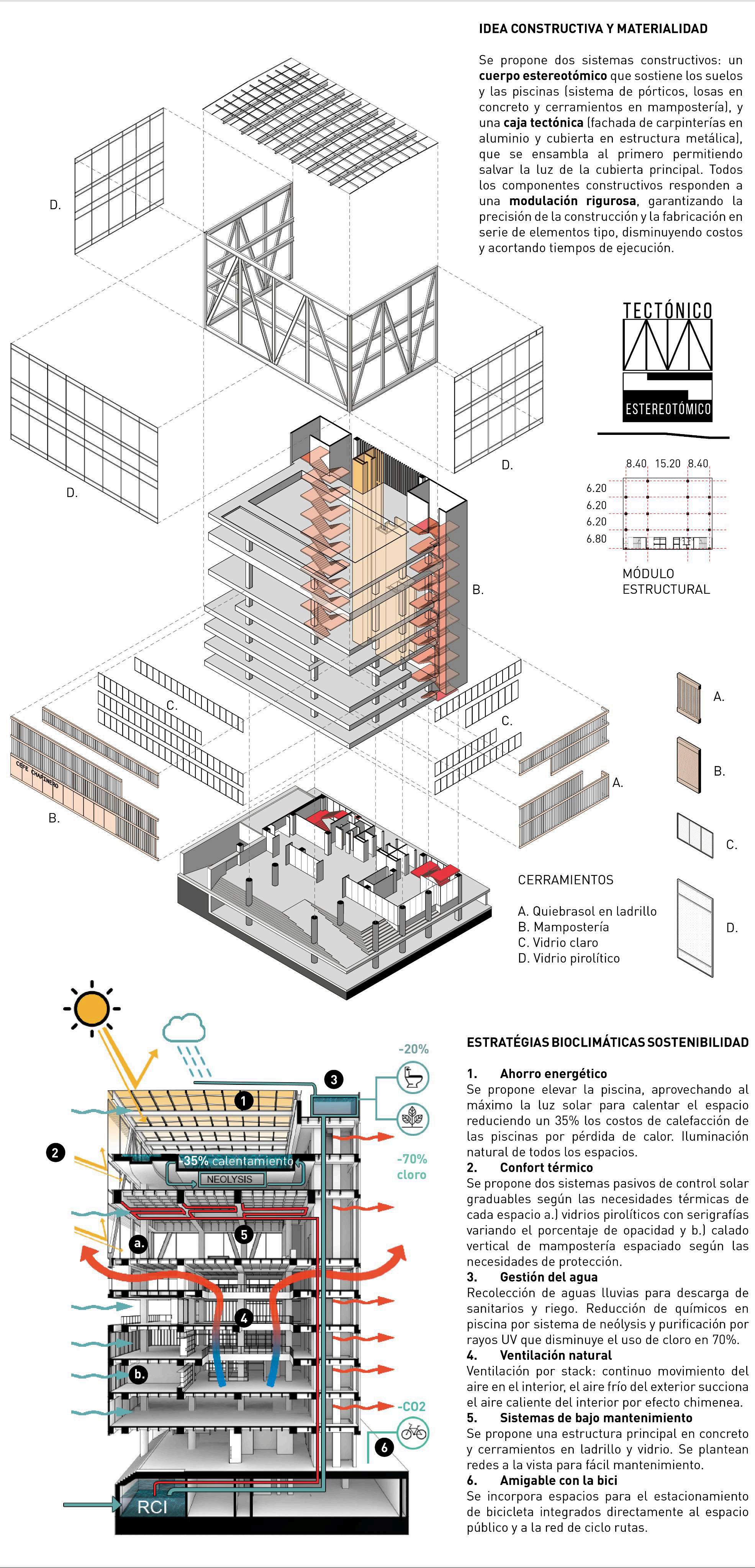

01. CEFE Chapinero Competition

2019 - Designed

Autocad, Sketchup, Illustrator, Photoshop

Functions performed:

- Facade modulation

- Section detail drawing for facade

- Wind schemes

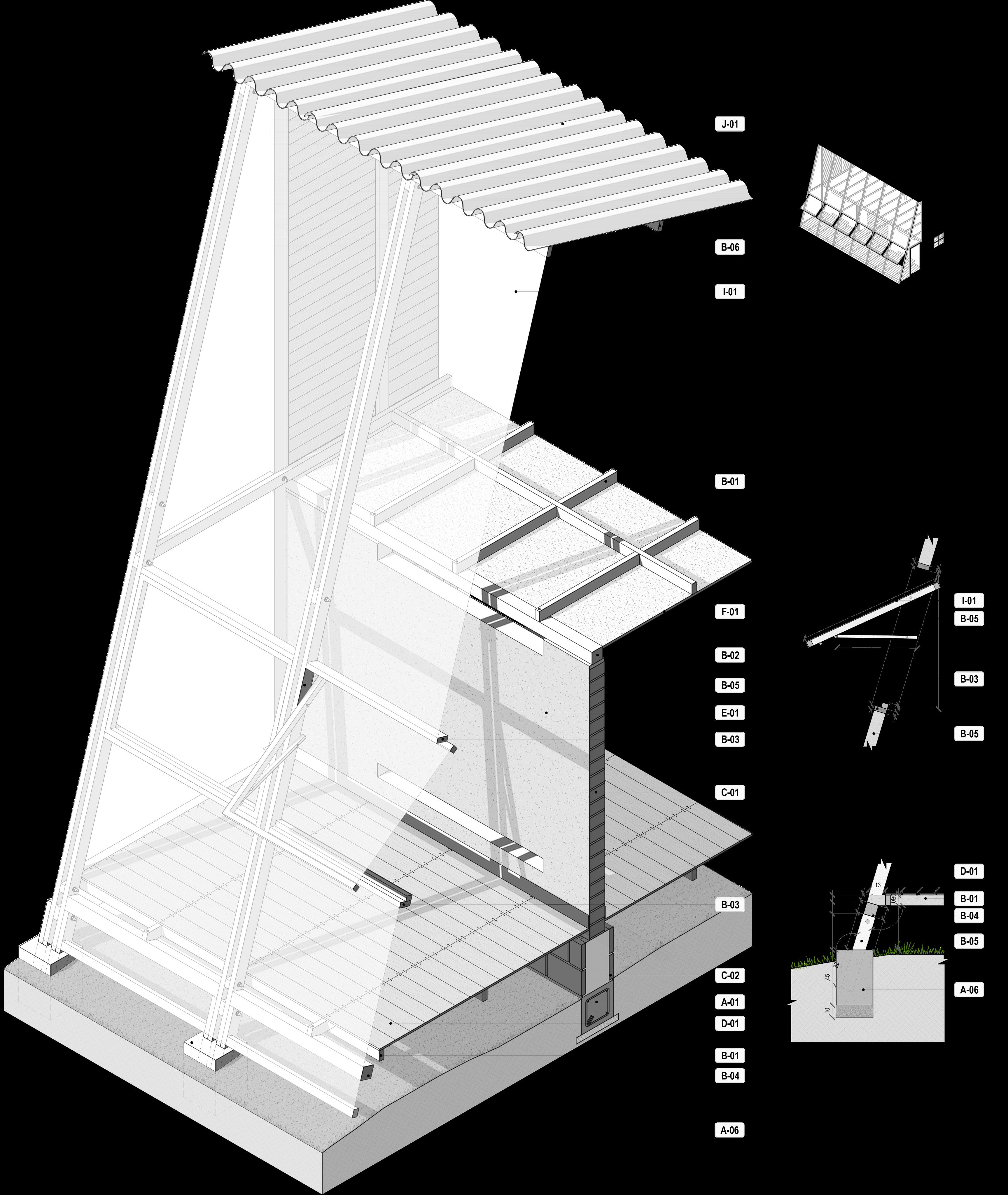

02. Rural housing prototype competition

2019 - Designed

Autocad, Sketchup, Illustrator, Photoshop

Functions performed:

- Constructive details

- Facade sections in isometric view

- Constructive isometry

03. San Cristobal Mayor's Competition

2020 - Designed Autocad, Sketchup, Illustrator, Photoshop

Functions performed:

- Facade sections with vanishing point

- Window design

- Structural modeling

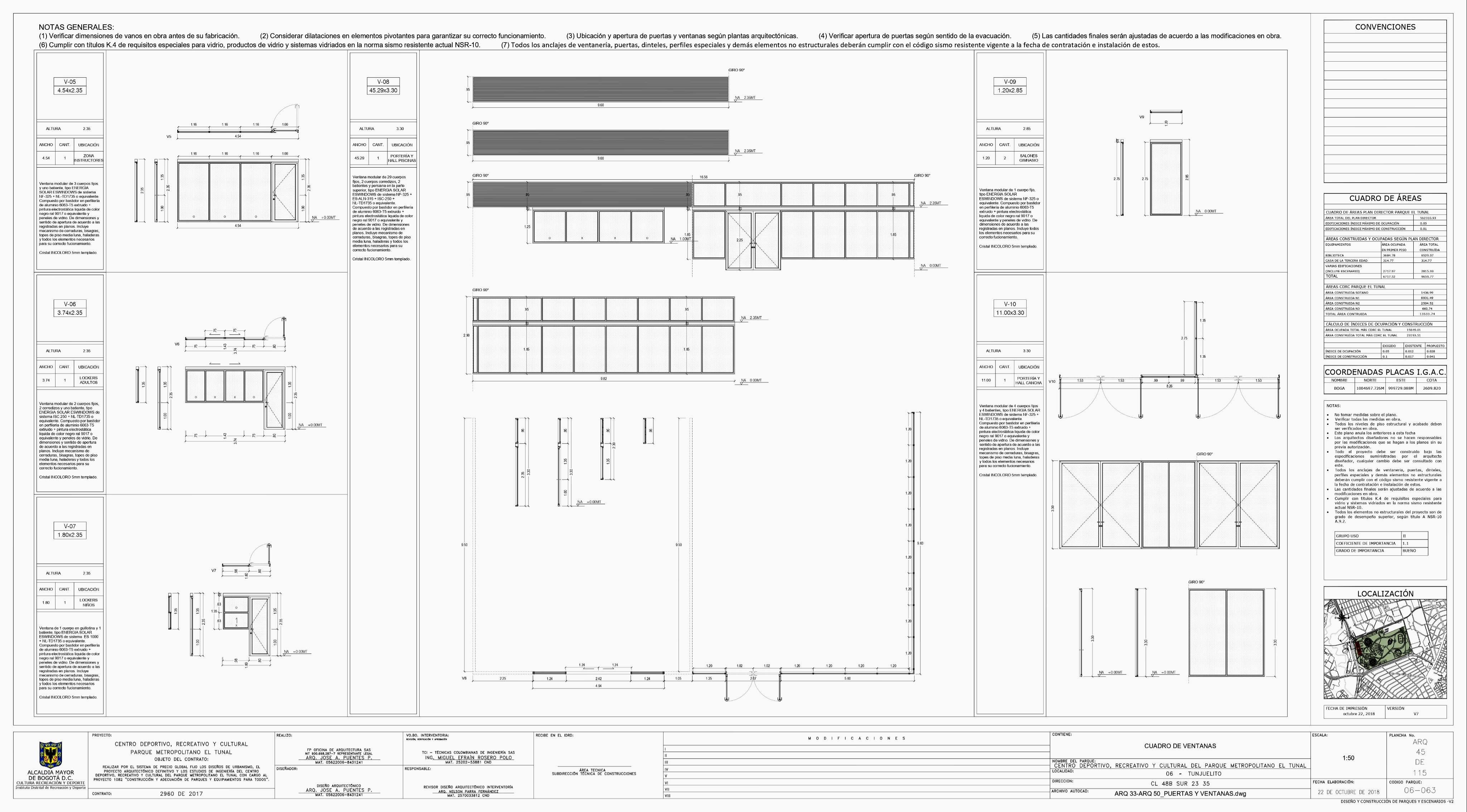

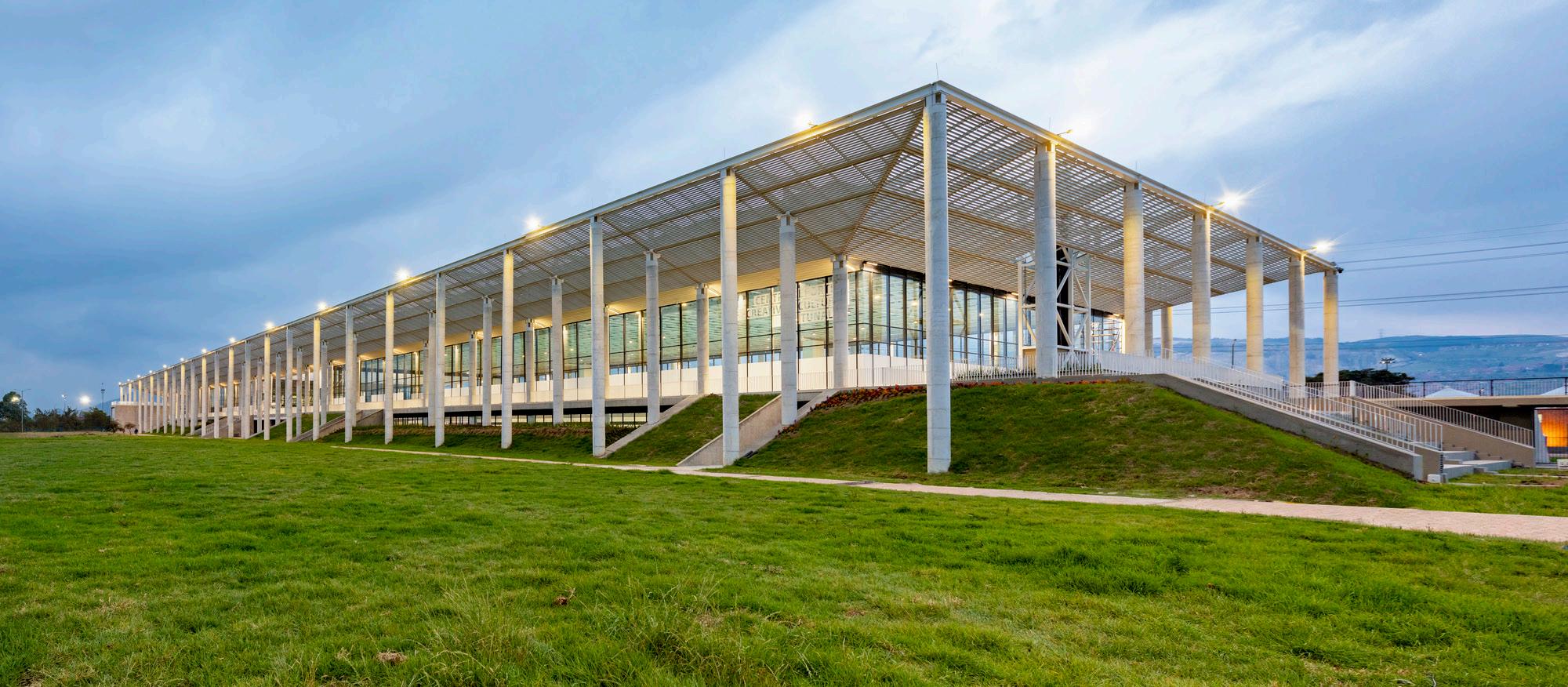

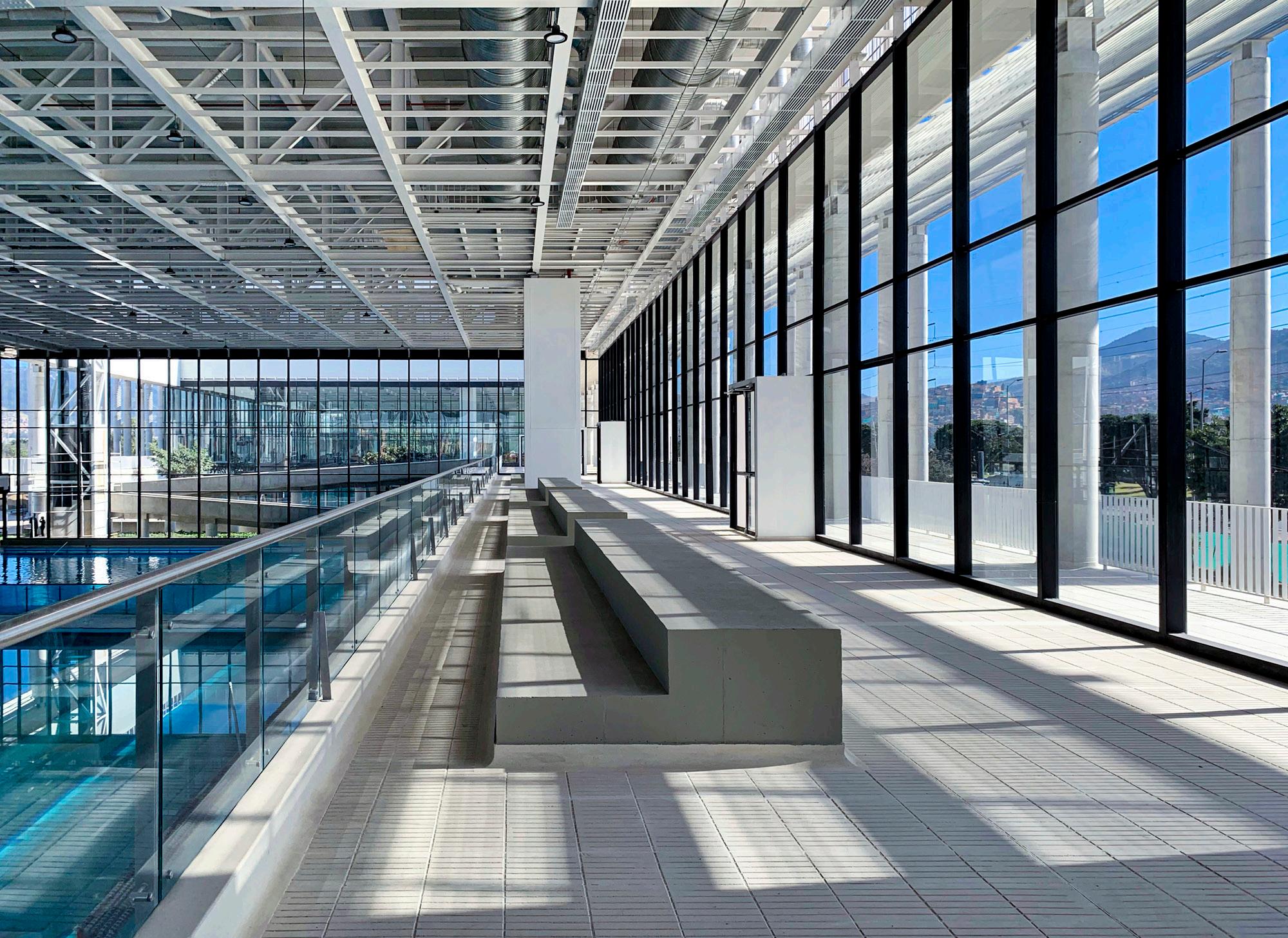

04. CEFE Tunal Project 2019 - Built Autocad, Sketchup, Excel

- Functions performed:

- Facade sections

- Door and window design

- Door and window quantity tables

- Technical coordination of the project including lighting, structure, hydraulic systems, mechanical systems, electrical systems, carpentry, roof and exterior areas.

- Facades drawing

- General project development

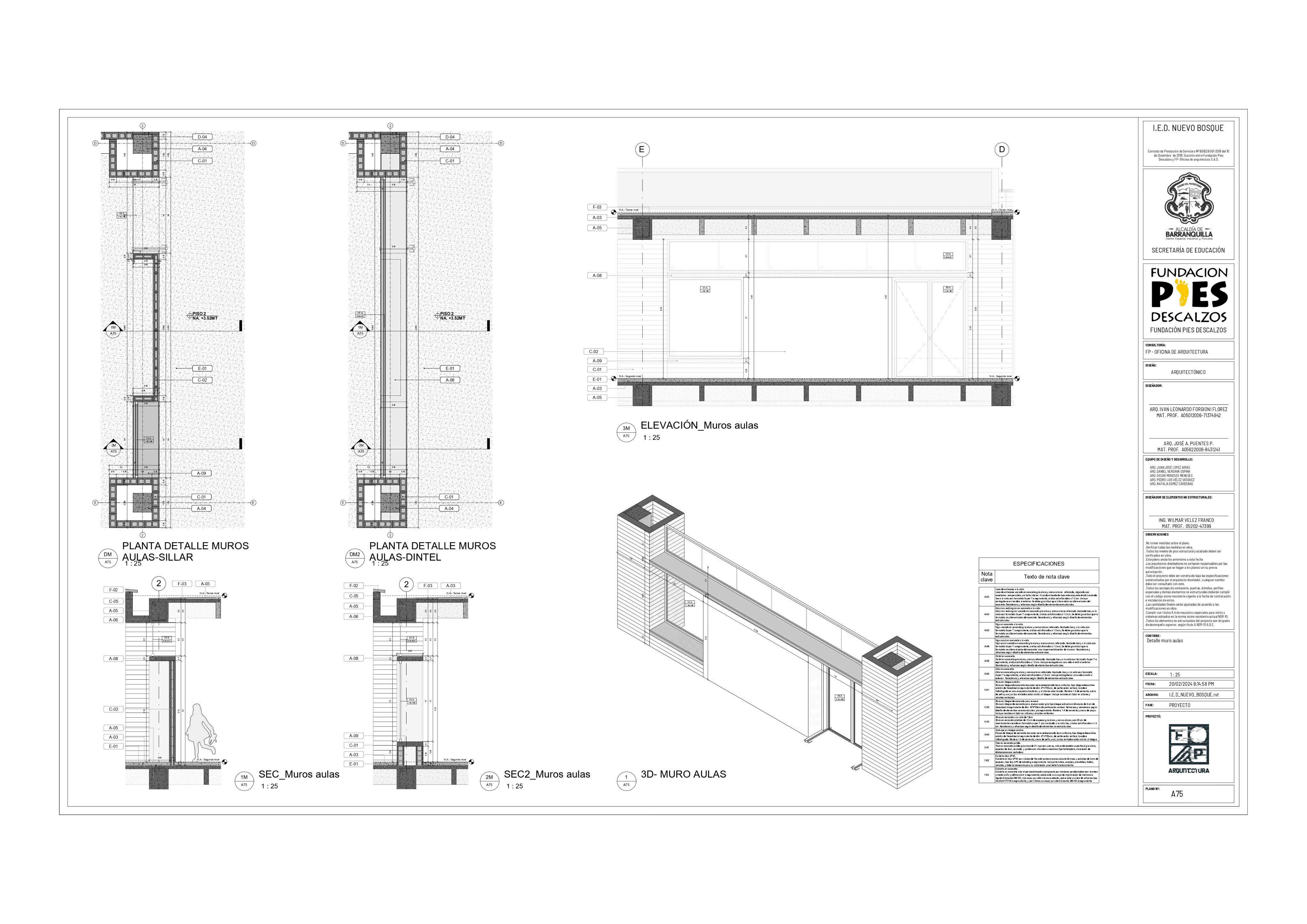

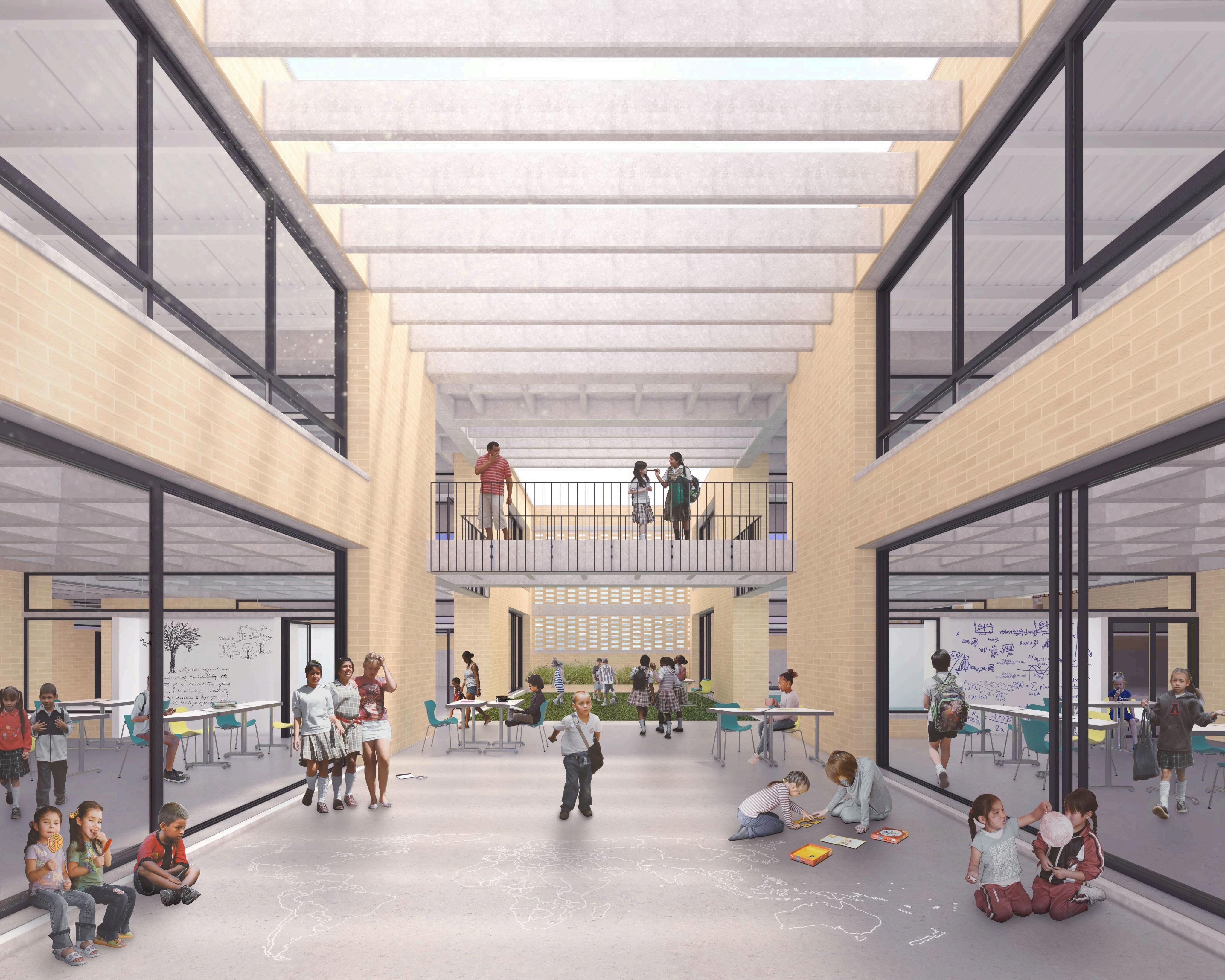

05. Nuevo Bosque School 2020 - Built Autocad, Revit, Excel

- Functions performed:

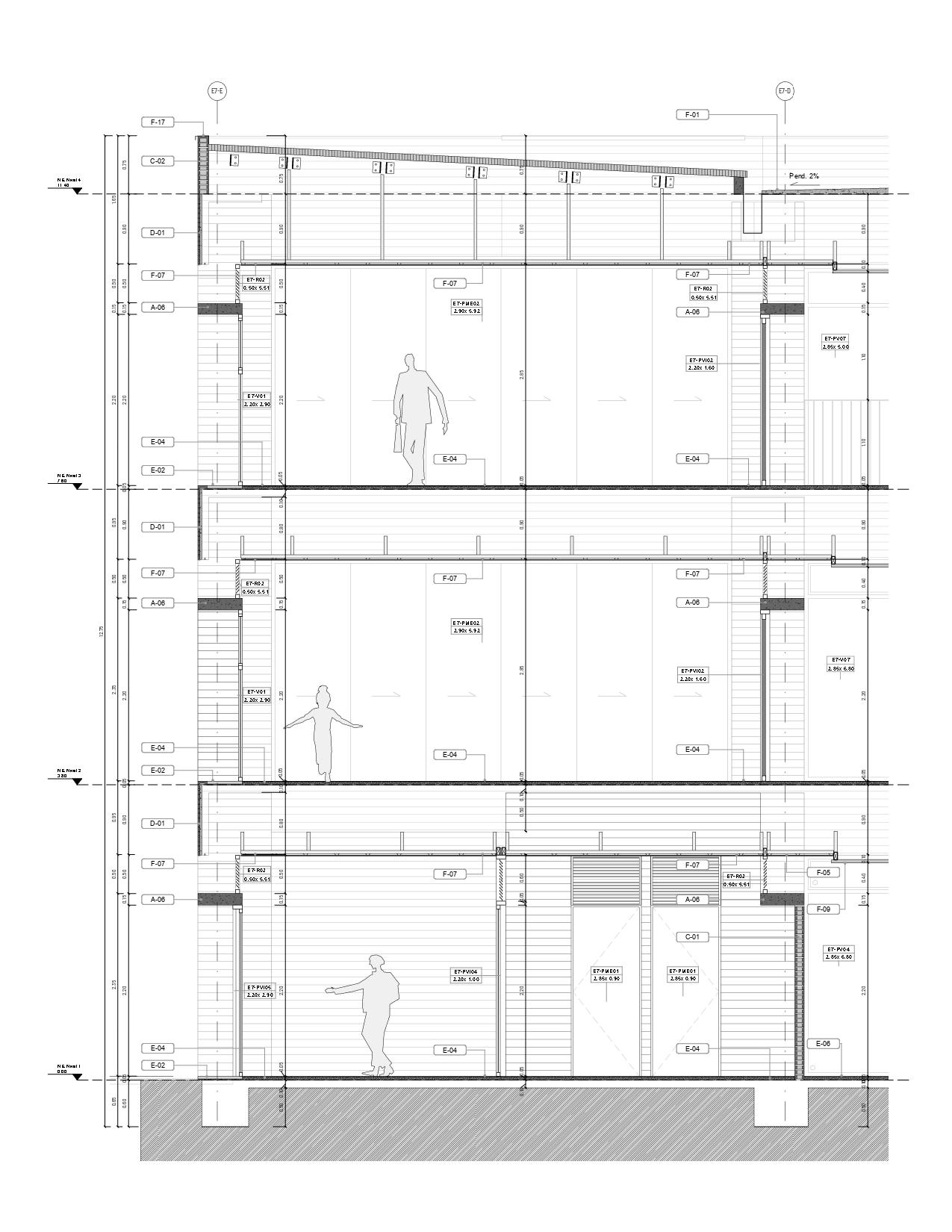

- Facade sections

- Door and window design.

- List of quantities of doors and windows.

- Technical coordination of the project

- Drawings of sections and general facades of the project

- Constructive details

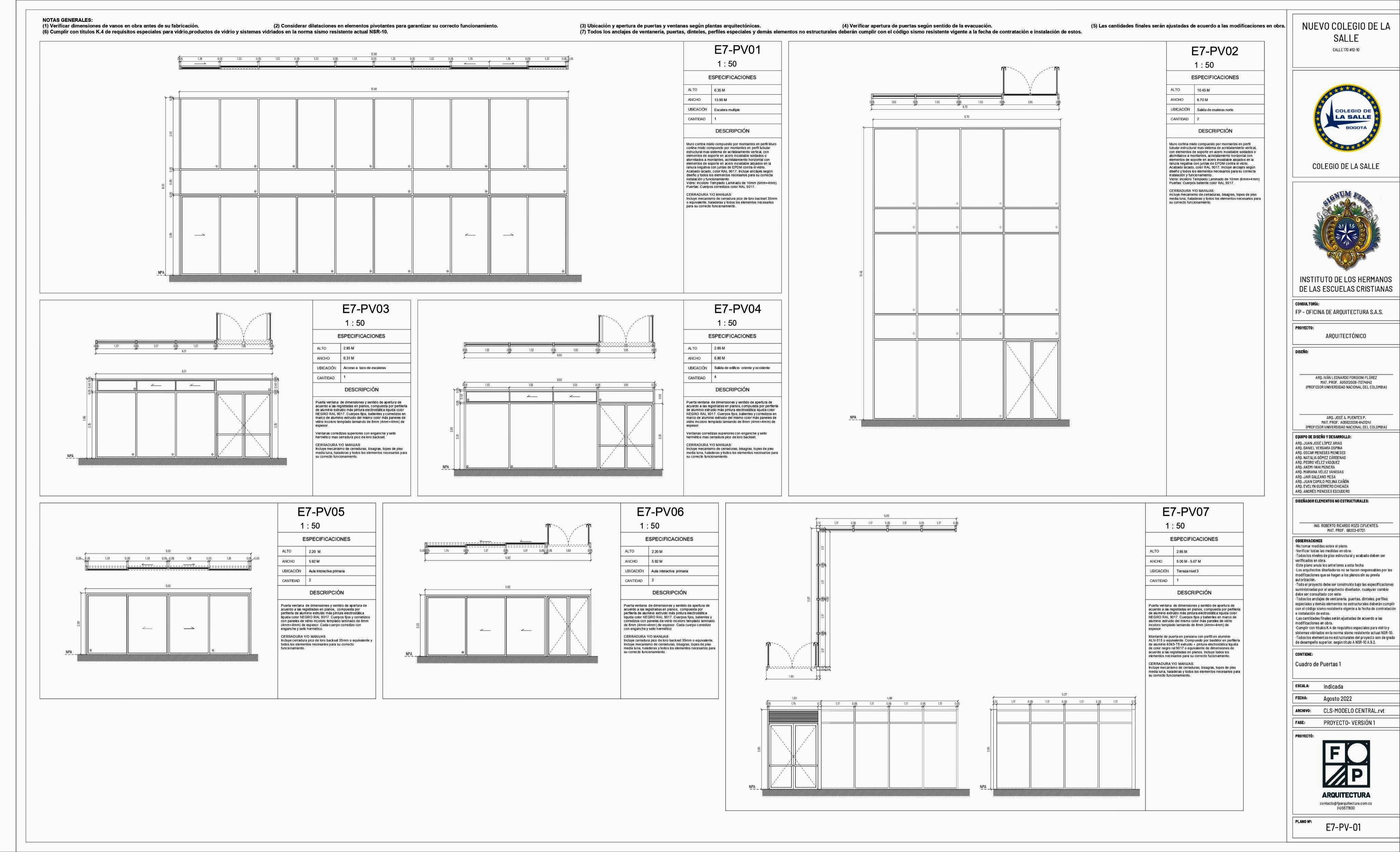

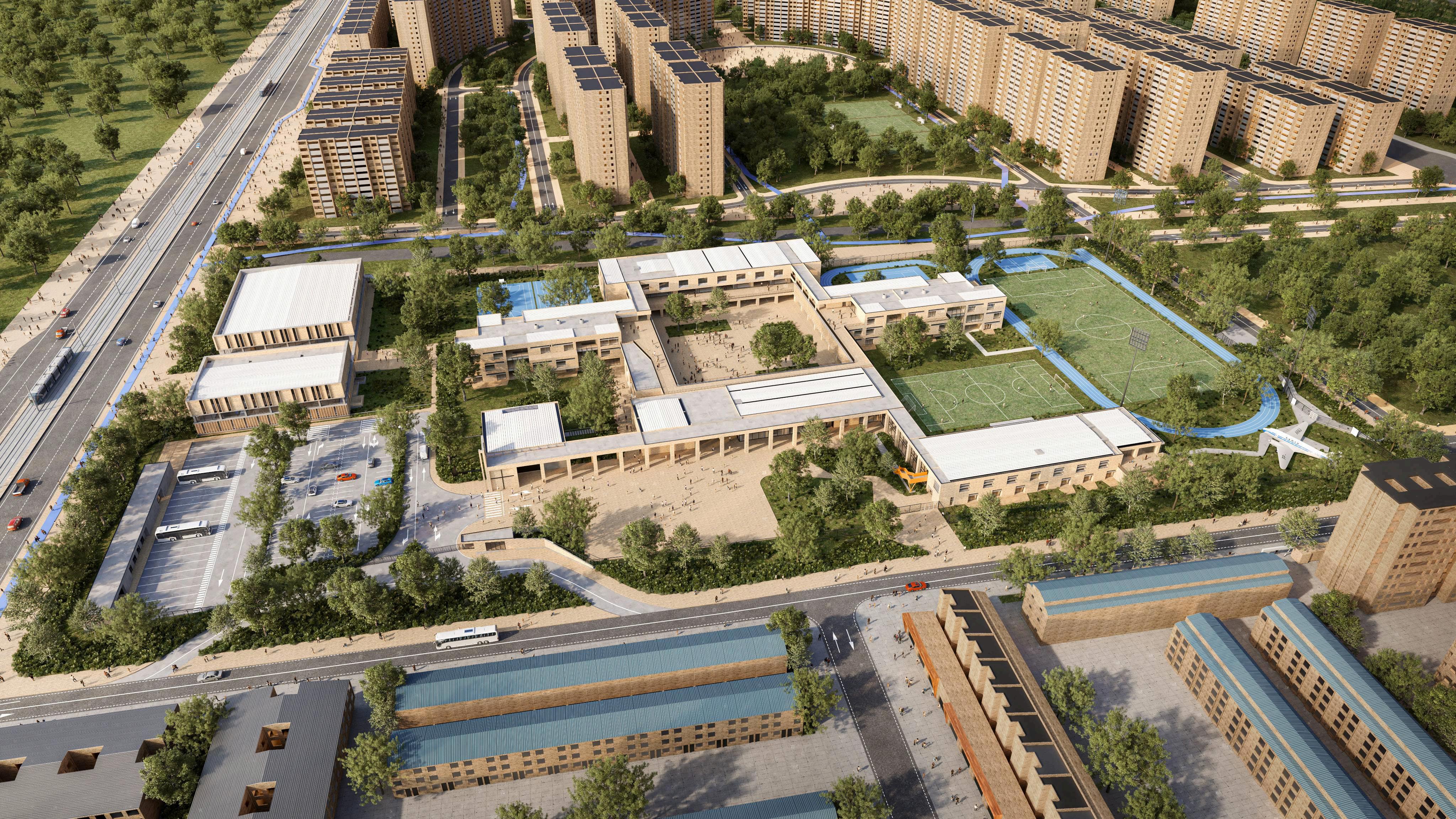

06. De la Salle College 2022 - Under construction Autocad, Revit, Navisworks, Excel

Functions performed:

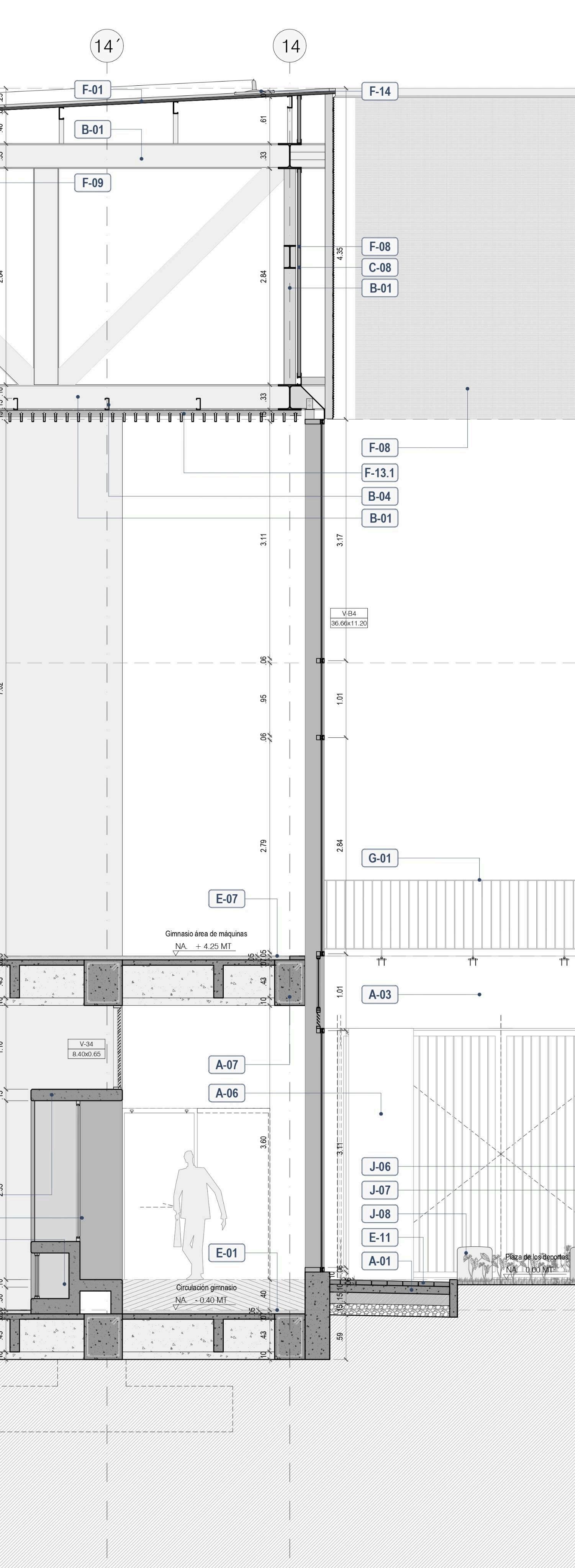

- Facade sections

- Door and window design.

- List of general project quantities including doors and windows.

- Technical coordination of the project.

- Section plans and general facades of the project.

- Constructive details

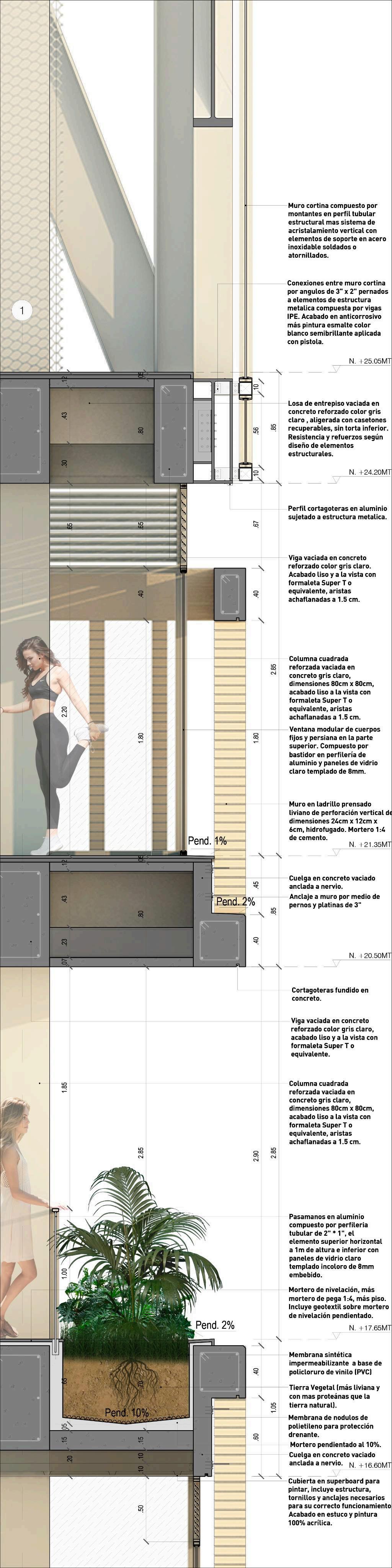

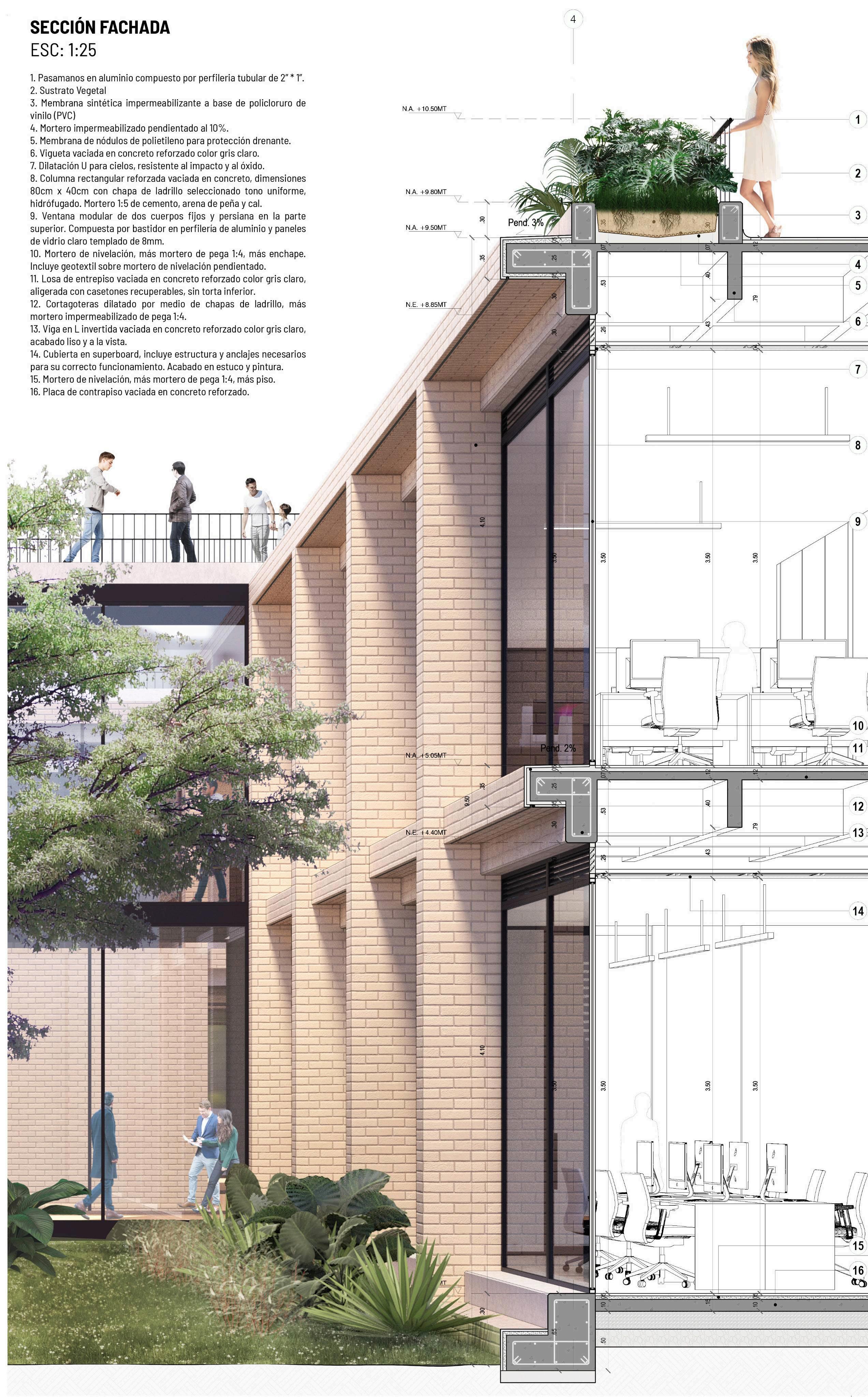

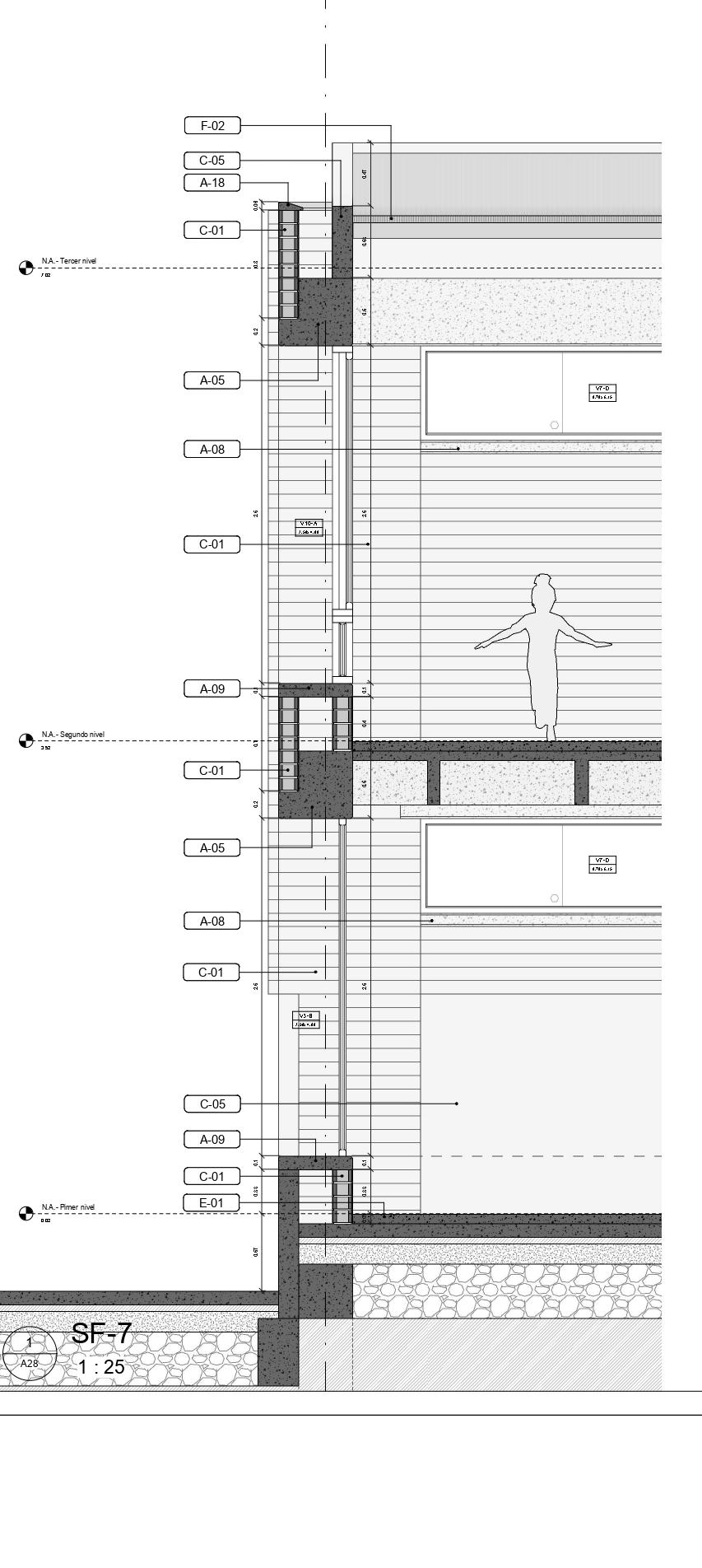

1. Composite aluminum handrail with 2" x 1" tubular profiles.

2. Plant Substrate

3. Synthetic waterproofing membrane based on polyvinyl chloride (PVC)

4. Waterproofing mortar sloped at 10%.

5. Polyethylene nodule membrane for drainage protection.

6. Joist cast in light gray reinforced concrete.

7. U expansion for ceilings, resistant to impact and rust.

8. Reinforced rectangular column cast in concrete, dimensions 80cm x 40cm with selected brick veneer, uniform tone, water-repellent. Mortar 1:5 of cement, rock sand and lime.

9. Modular window with two fixed bodies and blinds at the top. Composed of a frame made of aluminum profiles and 8mm clear tempered glass panels.

10. Leveling mortar, plus 1:4 adhesive mortar, plus veneer. Includes geotextile on sloped leveling mortar.

11. Mezzanine slab cast in light gray reinforced concrete, lightened with recoverable coffers, without bottom cake.

12. Expanded drip stopper for half brick veneers, plus 1:4 waterproofing mortar.

13. Inverted L-beam cast in light gray reinforced concrete, smooth and visible finish.

14. Superboard deck, includes structure and anchors necessary for its proper functioning. Stucco and paint finish.

15. Leveling mortar, plus 1:4 adhesive mortar, plus floor.

16. Subfloor plate cast in reinforced concrete.
