Heavy Duty Truck & Trailer

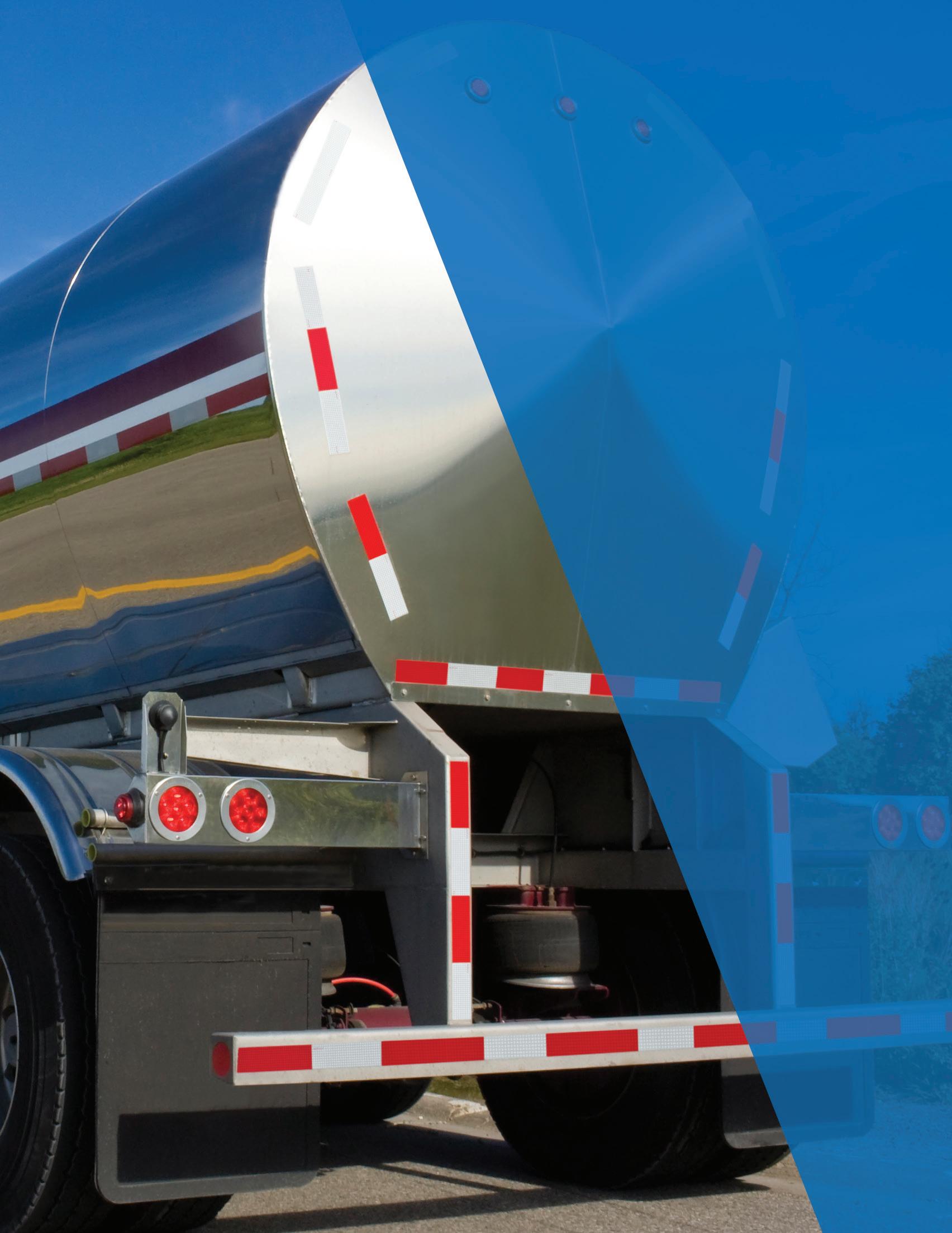

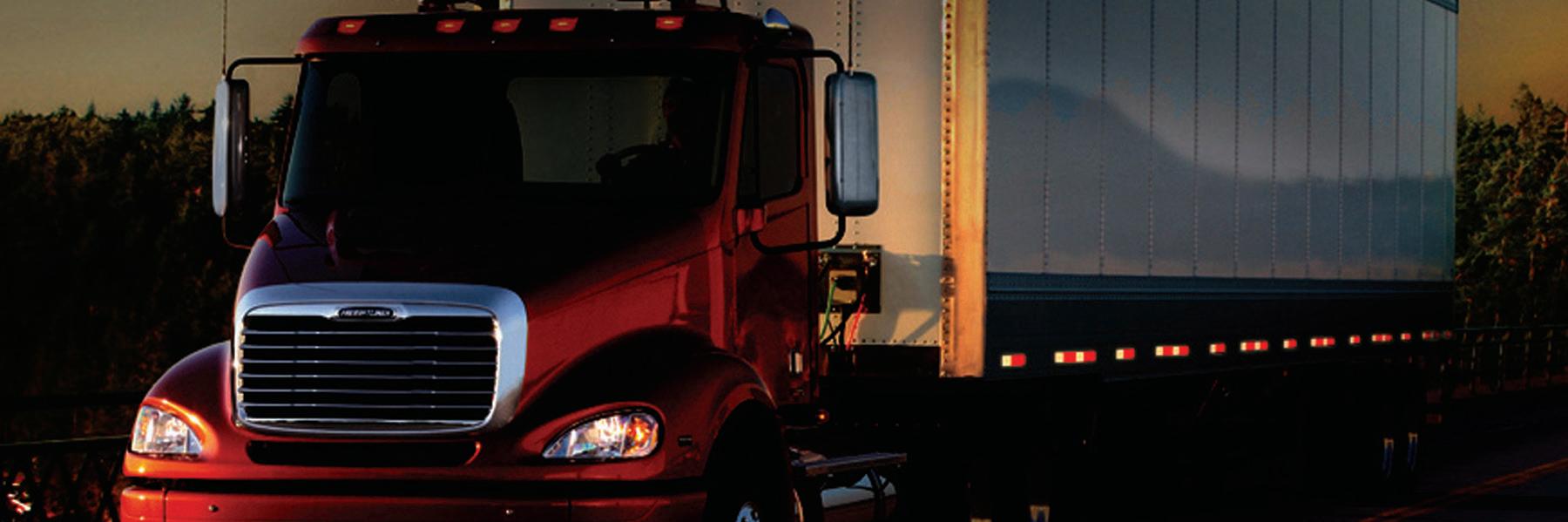

HEAVY DUTY TRUCK & TRAILER Regulation FMVSS 108 (49CFR 571.108) Alternating RED/WHITE conspicuity tape is required on all new trailers manufactured after December 1, 1993. All products in this section are FMSVSS 108, DOT-C2 compliant and are ideal for trucks, trailers, tankers, dump trucks, tow trucks and pick-up beds. Application Locations: Rear Upper Body

Rear Lower Body

Side Marking

• 12” WHITE strips placed in the upper rear corners

• 2” wide RED/WHITE tape placed on rear full width of vehicle

• 2” wide RED/WHITE tape placed on each side of trailer continuous or evenly spaced over 50% of the vehicle

• 2” wide RED/WHITE tape minimum 24” length on fender, mudflap brackets or within 12” below the top of mud flaps

4   www.ORAFOLAMERICAS.com    Engineered to Save Lives™


Regulation FMVSS 108 (49CFR 571.108)

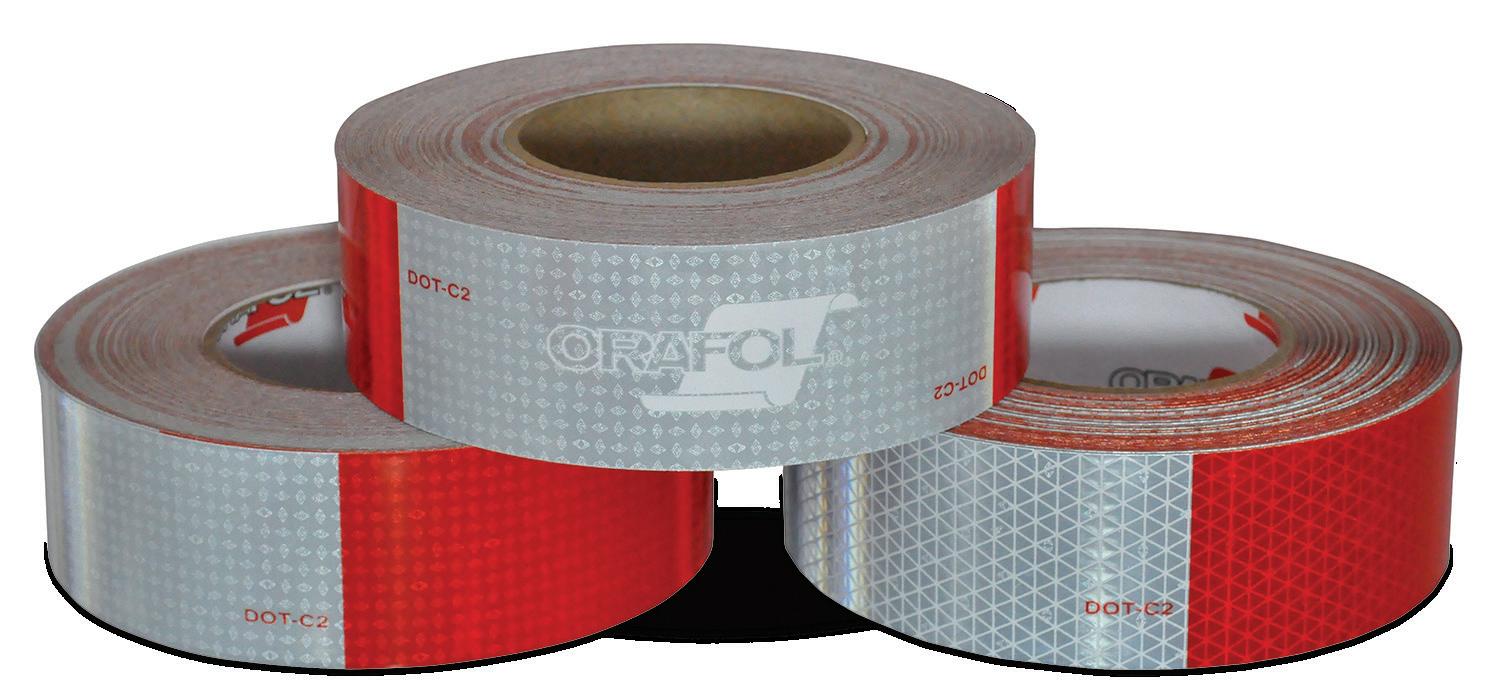

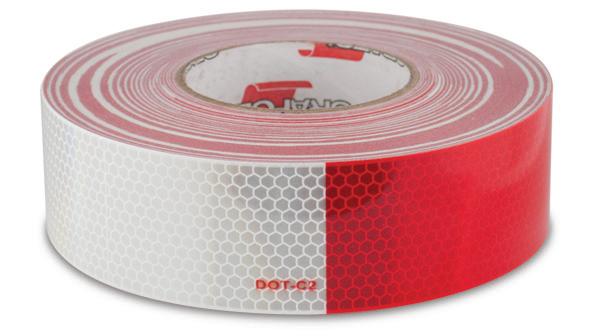

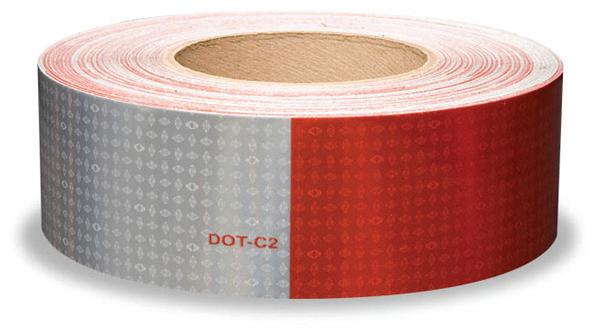

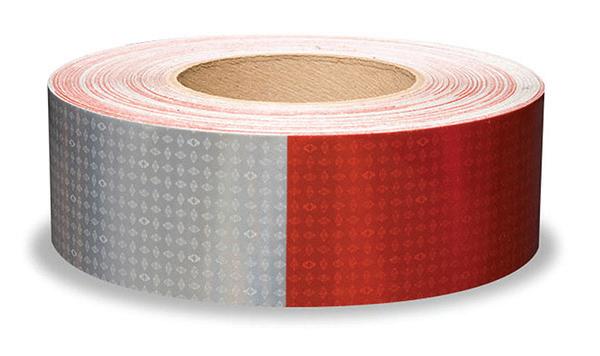

ORALITE ® V82 DOT-C2 Conspicuity Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible

•  Weather resistant •  Maintains reflectivity after impact •  Exceeds requirements by 200%

Product

Available Colors

Available Strip Sizes

Available Colors

11” red / 7” white

2” x 18”

11” red / 7” white

6” red / 6” white

2” x 12”

6” red / 6” white

11” red / 7” white (kiss cut every 18”)

2” x 36”

11” red / 7” white

6” red / 6” white (kiss cut every 12”) solid white DOT-C2

2” x 24” tanker crescent strip

white

solid white (kiss cut every 12”)

-

-

V82 DOT-C2

Available Roll Sizes

2” x 150’

Durability

10 years

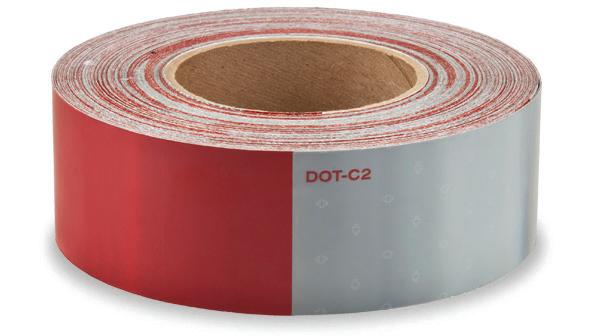

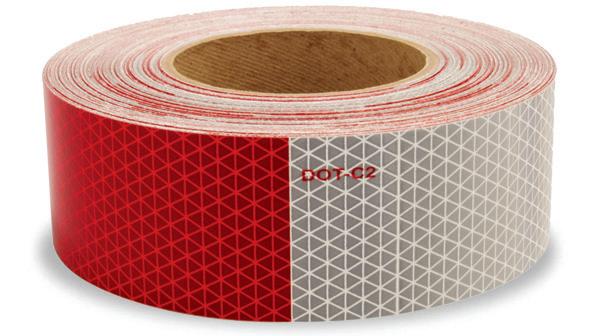

ORALITE ® V92 Daybright® DOT-C2 Conspicuity Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible •  Weather resistant

•  Maintains reflectivity after impact •  White lines in pattern for maximum   daytime visibility

Product

Available Colors

Available Strip Sizes

Available Colors

11” red / 7” white

2” x 18”

11” red / 7” white

6” red / 6” white

2” x 12”

6” red / 6” white

11” red / 7” white (kiss cut every 18”)

-

-

6” red / 6” white (kiss cut every 12”)

-

-

solid white DOT-C2

-

-

solid white (kiss cut every 12”)

-

-

V92 Daybright ®

Available Roll Sizes

2” x 150’

Durability

5 years

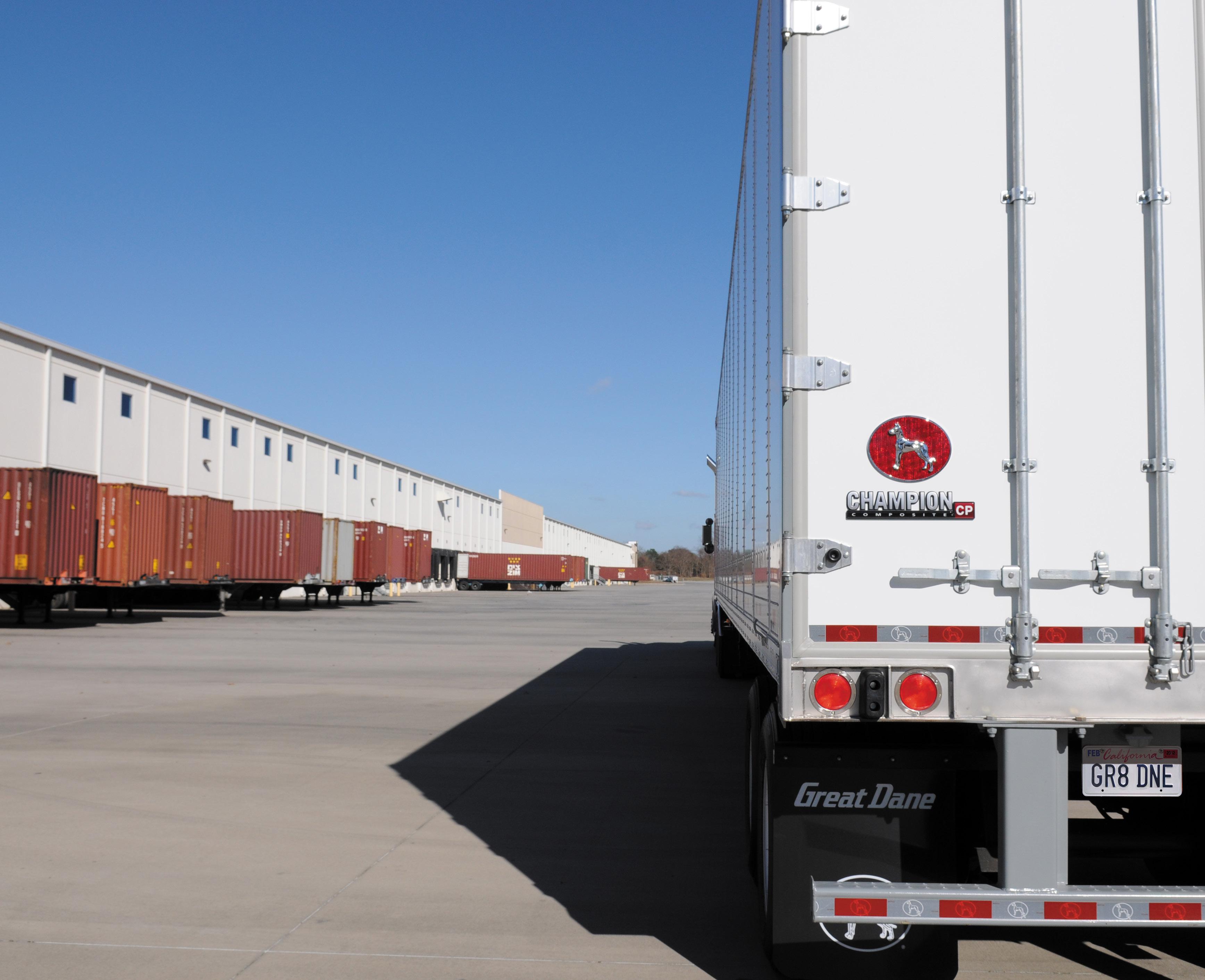

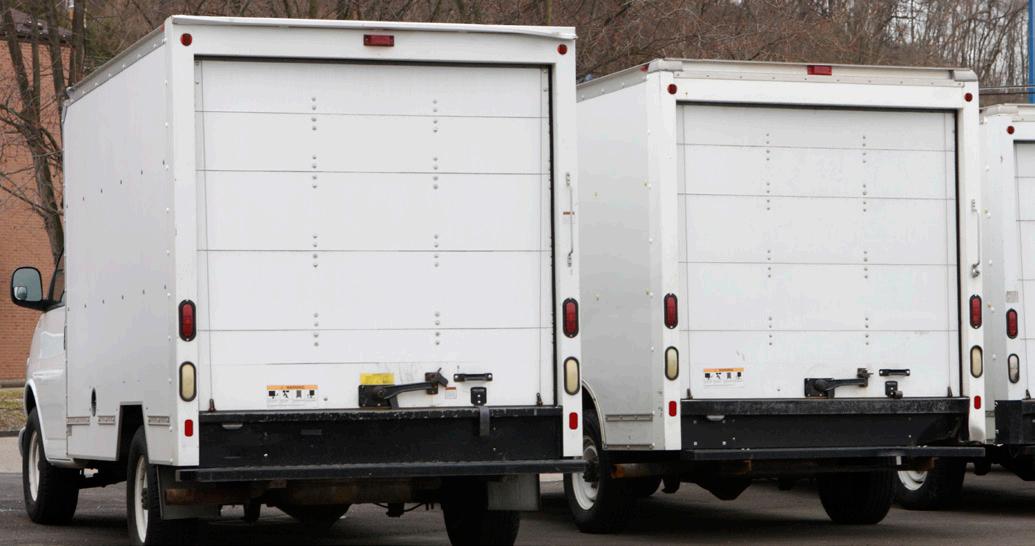

typical application example of ORALITE ® V82 DOT-C2 and ORALITE ® V92 Daybright ® DOT-C2 Engineered to Save Lives™    www.ORAFOLAMERICAS.com   5


Heavy Duty Truck & Trailer

Regulation FMVSS 108 (49CFR 571.108)

ORALITE ® V42 DOT Conspicuity Sheeting Product Features and Benefits: •  Prismatic reflective technology •  Polyester film •  Thin & flexible

•  Weather resistant •  Cost effective solutions for   retrofitting existing trucks and trailers

Product

Available Roll Sizes

Available Colors

Available Strip Sizes

Available Colors

Durability

V42

2” x 150’

6” red / 6” white, 11” red / 7” white

-

-

3 years

ORALITE ® V59 HIP DOT-C2 Conspicuity Sheeting Product Features and Benefits: •  High Intensity Prismatic (HIP) •  Vivid colors for enhanced visibility

•  Weather resistant •  Superior daytime visibility

Product

Available Roll Sizes

Available Colors

Available Strip Sizes

Available Colors

Durability

V59

2” x 150’

6” red / 6” white, 11” red / 7” white

-

-

10 years

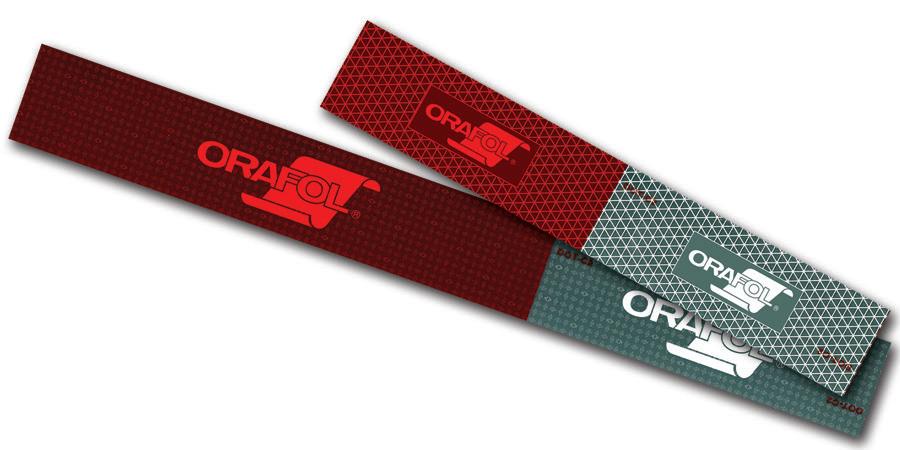

ORALITE ® Custom Logo DOT-C2 Conspicuity Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible

•  Weather resistant •  Maintains reflectivity after impact •  Enhances brand image

Product

Available Sizes

Available Colors

2” x 150’ roll

11” red / 7” white

L82 (custom V82) L92 (custom V92)

6   www.ORAFOLAMERICAS.com    Engineered to Save Lives™

Durability 6” red / 6” white

10 years 5 years


School Bus

Regulation FMVSS 131 & FMVSS 217

SCHOOL BUS Regulation FMVSS 131 & FMVSS 217 Each opening for a required emergency exit shall be outlined around its outside perimeter with a retroreflective tape with a minimum width of 1 inch and either red, white, or yellow in color, that when tested under the conditions specified in S6.1 of Standard No. 131 (49 CFR 571.131), meets the criteria specified. All products in this section meet and exceed the National Standards for School Buses, Federal Specifications, ASTM D4956-13, Type V, FMVSS 131 & FMVSS 217. Application Locations: Side

Rear

• 1” strips used to mark side emergency exit windows

• 1” strips used to mark back emergency exit windows

SCHOOL BUS

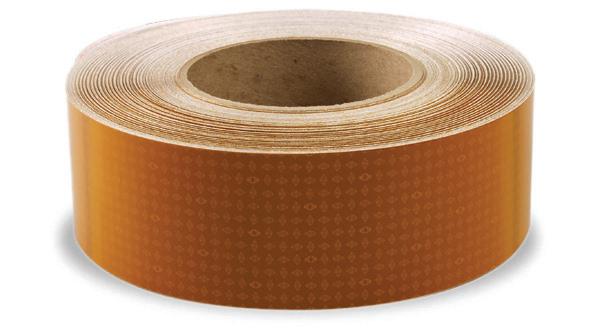

ORALITE ® V82 School Bus Conspicuity Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible

•  Weather resistant •  Maintains reflectivity after impact •  Exceeds requirements by 200%

Product

Available Sizes

Available Colors

Durability

V82 School Bus

1”, 2” x 150’ roll

school bus yellow (#44)

10 years

Ask your ORAFOL® sales representative about

ORALITE ® V99

School Bus Sheeting for Printed Signs Engineered to Save Lives™    www.ORAFOLAMERICAS.com   7


School Bus

Regulation FMVSS 131 & FMVSS 217

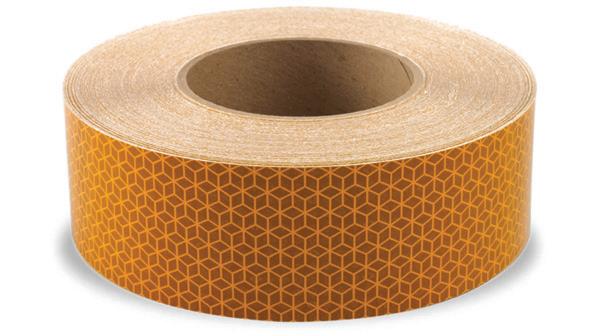

ORALITE ® V99 School Bus Conspicuity Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible

•  Weather resistant •  Maintains reflectivity after impact

Product

Available Sizes

Available Colors

Durability

V99 School Bus

1”, 2” x 150’ roll

school bus yellow (#44)

10 years

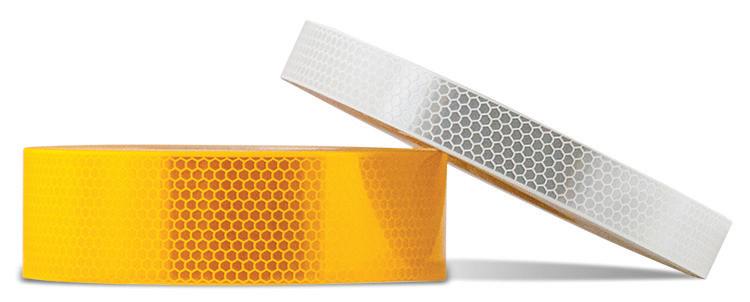

ORALITE ® V59 School Bus Conspicuity Sheeting Product Features and Benefits: •  High Intensity Prismatic (HIP) •  Vivid colors for enhanced visibility

•  Weather resistant •  Superior daytime visibility

Product

Available Sizes

Available Colors

Durability

V59 School Bus

1”, 2” x 150’ roll

yellow, white

10 years

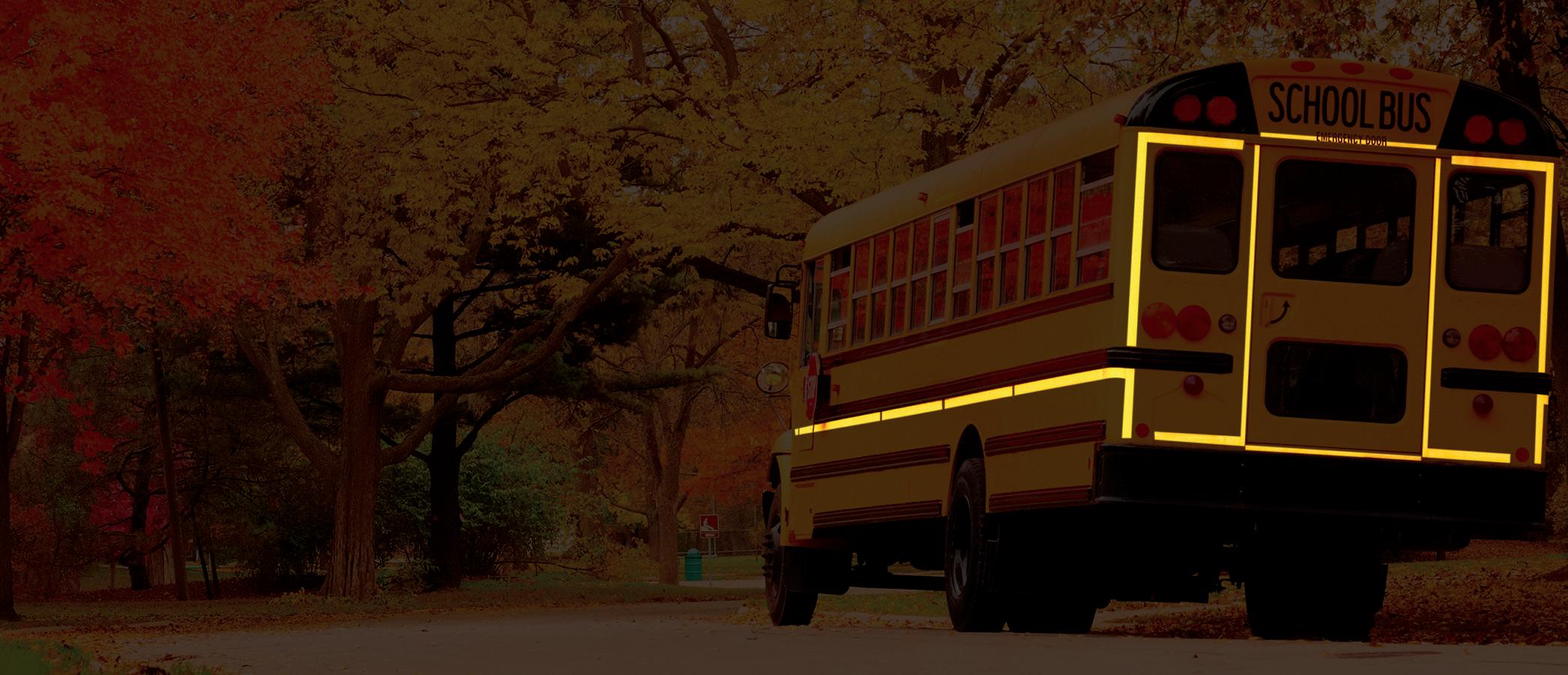

typical application example of ORALITE ® V59

8   www.ORAFOLAMERICAS.com    Engineered to Save Lives™


Agriculture

Regulation ASAE S276.8, ASAE S279.17

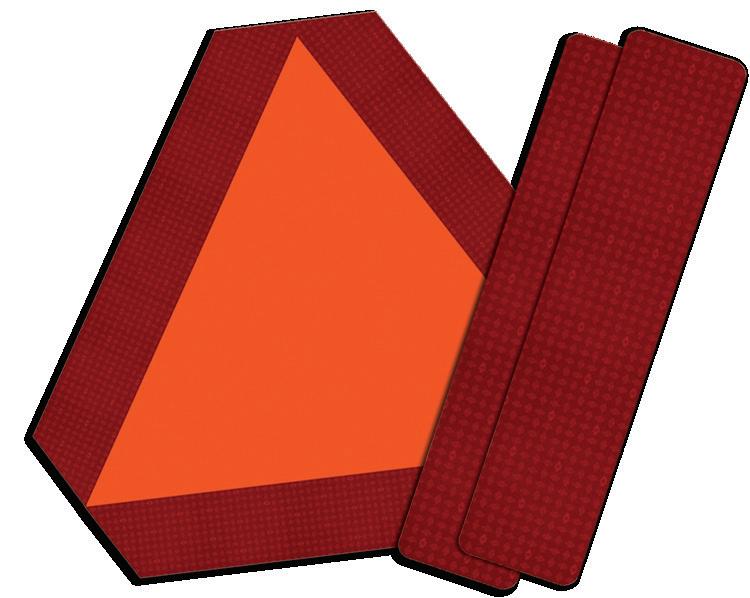

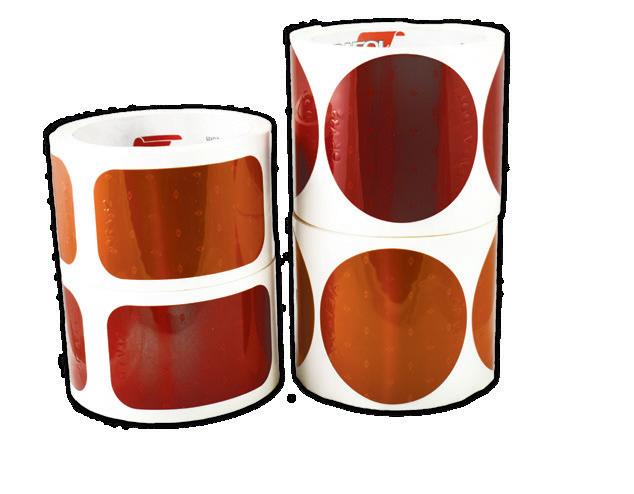

AGRICULTURE Regulation ASAE S276.8, ASAE S279.17 Retroreflective sheeting shall meet requirements of ASTM D4956 for type V sheeting except for the photometric requirements. Retroreflective sheeting shall meet the minimum photometric performance requirements specified in the spec. ASAE S276.8 and ASAE S279.17. All products in this section are ASTM D4956-13 and ANSI/ASAE S276.8 & S279.17 compliant and are ideal for heavy equipment, farm machinery, agricultural and industrial vehicles and equipment. Application Locations: • 2” x 9” Red retroreflective strip • Red 2” retroreflective strips surround the perimeter of the SMV triangle

ORALITE ® V82 Agriculture Conspicuity Tape Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible •  Weather resistant

•  Maintains reflectivity after impact •  Pre-cut strips with radius or square  corners

Product

Available Sizes

Available Colors

2” x 9” strip (rounded corners, no seam)

red

2” x 9” strip (square corners)

red, yellow

3.12” circle (kiss cut, no seam)

red

1.75” x 13.825” trapezoid (with or without seam)

red

2” x 4.5” rectangle (rounded corners)

red

2” x 6” rectangle

white

V82 Agriculture

Durability

10 years

Engineered to Save Lives™    www.ORAFOLAMERICAS.com   9


Agriculture

Regulation ASAE S276.8, ASAE S279.17

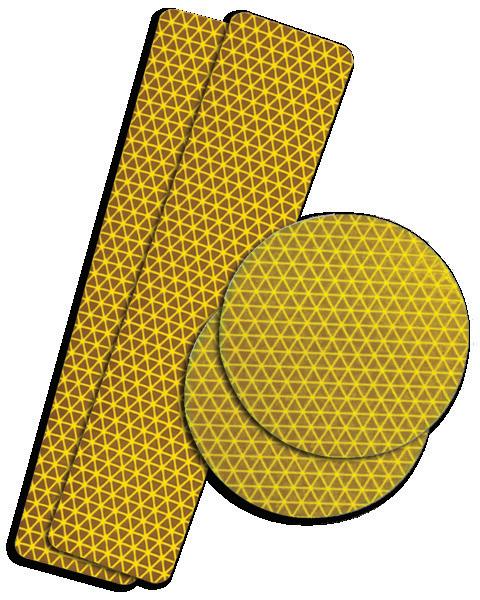

ORALITE ® V92 Agriculture Conspicuity Tape Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible •  Weather resistant

•  Maintains reflectivity after impact •  Pre-cut strips with radius or square  corners

Product

Available Sizes

Available Colors

2” x 9” strip (rounded corners, no seam)

John Deere yellow

3.149” circle (kiss cut, no seam)

John Deere yellow

2” x 4.5” rectangle (rounded corners, no seam)

John Deere yellow

V92 Agriculture

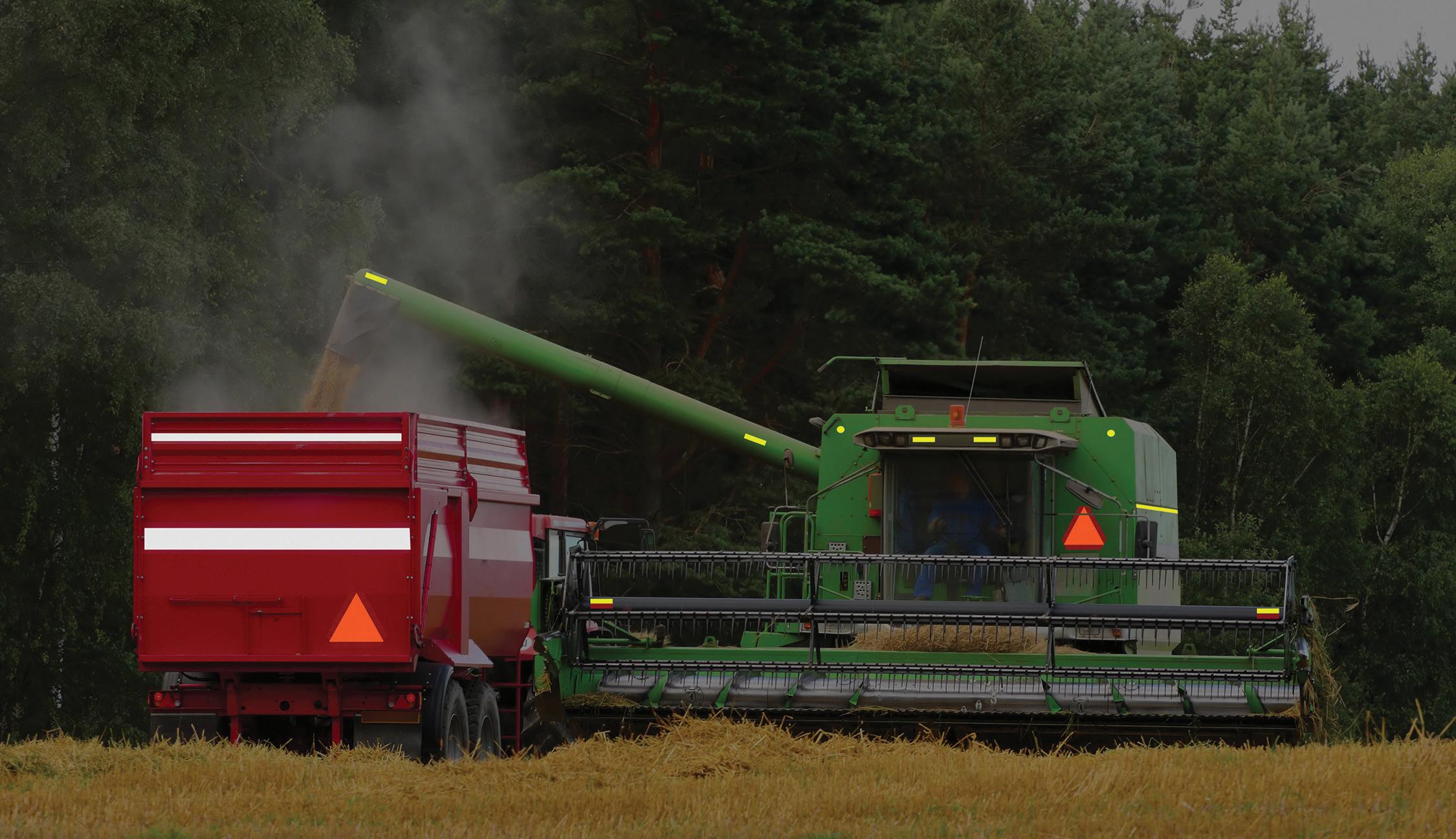

typical application example of ORALITE ® V82 & V92 Agriculture Conspicuity Tapes

10   www.ORAFOLAMERICAS.com    Engineered to Save Lives™

Durability 5 years


Rail

Regulation FRA 224

Rail Regulation FRA 224 Retroreflective sheeting applied pursuant to this part shall be yellow or white as specified by the chromaticity coordinates of ASTM International’s Standard D4956-01a, “Standard Specification for Retroreflective Sheeting for Traffic Control.” All products in this section are compliant to the Federal Railroad Administration regulation part FRA 224.101, 103, 105 & 106. Application Locations: • Retroreflective sheeting must be applied in strips 4” wide and 18” or 36” long • Material can be applied either vertically or horizontally on freight cars only

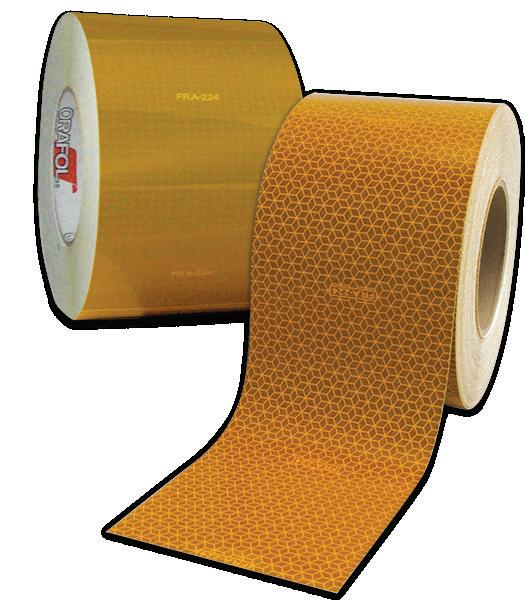

ORALITE ® R82 & R99 Retroreflective Rail Tape Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible

•  Weather resistant •  Maintains reflectivity after impact •  Adheres easily to flat or curved surfaces

Product

Available Sizes

Available Colors

R82

4” x 150’ roll (18” kiss cut)

yellow

4” x 150’ roll

yellow, white

4” x 150’ roll (18” kiss cut)

yellow, white

4” x 18” strip

yellow

4” x 36” strip

yellow

R99

R82 R99

Durability

10 years

Engineered to Save Lives™    www.ORAFOLAMERICAS.com   11


Rail

Regulation FRA 224

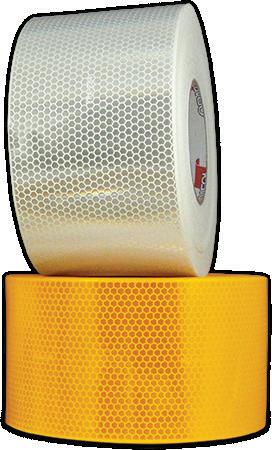

ORALITE ® R59 Retroreflective Rail Tape Product Features and Benefits: •  High Intensity Prismatic (HIP) •  Vivid yellow and white colors for   enhanced daytime visibility

•  Weather resistant •  High-tack adhesive •  Long-term durability

Product

Available Sizes

Available Colors

Durability

R59

4” x 150’ roll

yellow, white

10 years

ORALITE ® V82 Rail Gate Arm Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance polyester film •  Thin & flexible

•  Weather resistant •  Maintains reflectivity after impact •  Compliant with MUTCD for railroad   crossing arms

Product

Available Sizes

Available Colors

Durability

V82

2”, 3”, 4” x 150’ roll

16” red / white block

10 years

typical application example of ORALITE ® R59

12   www.ORAFOLAMERICAS.com    Engineered to Save Lives™


Fire Apparatus

Regulation NFPA 1901

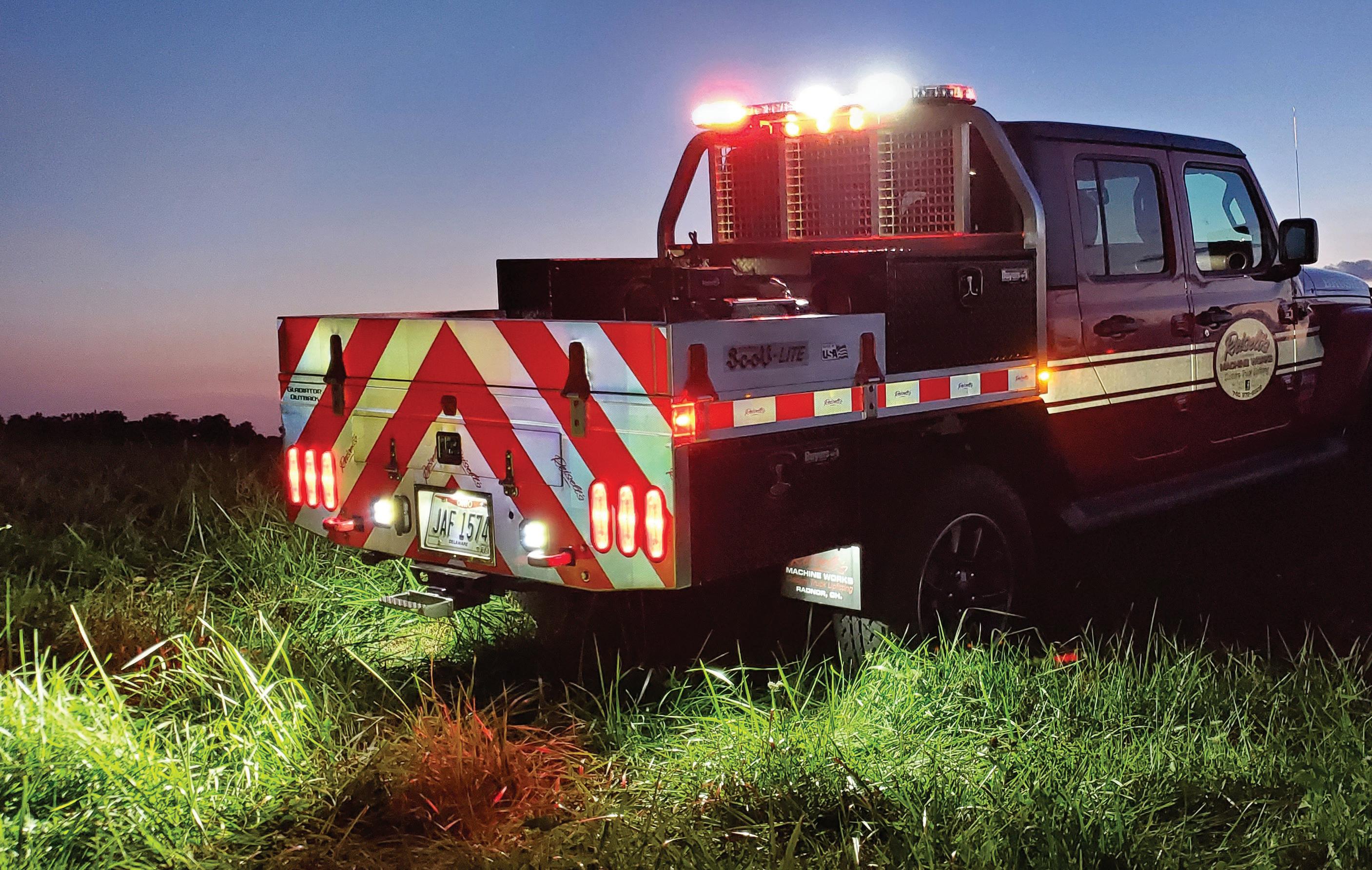

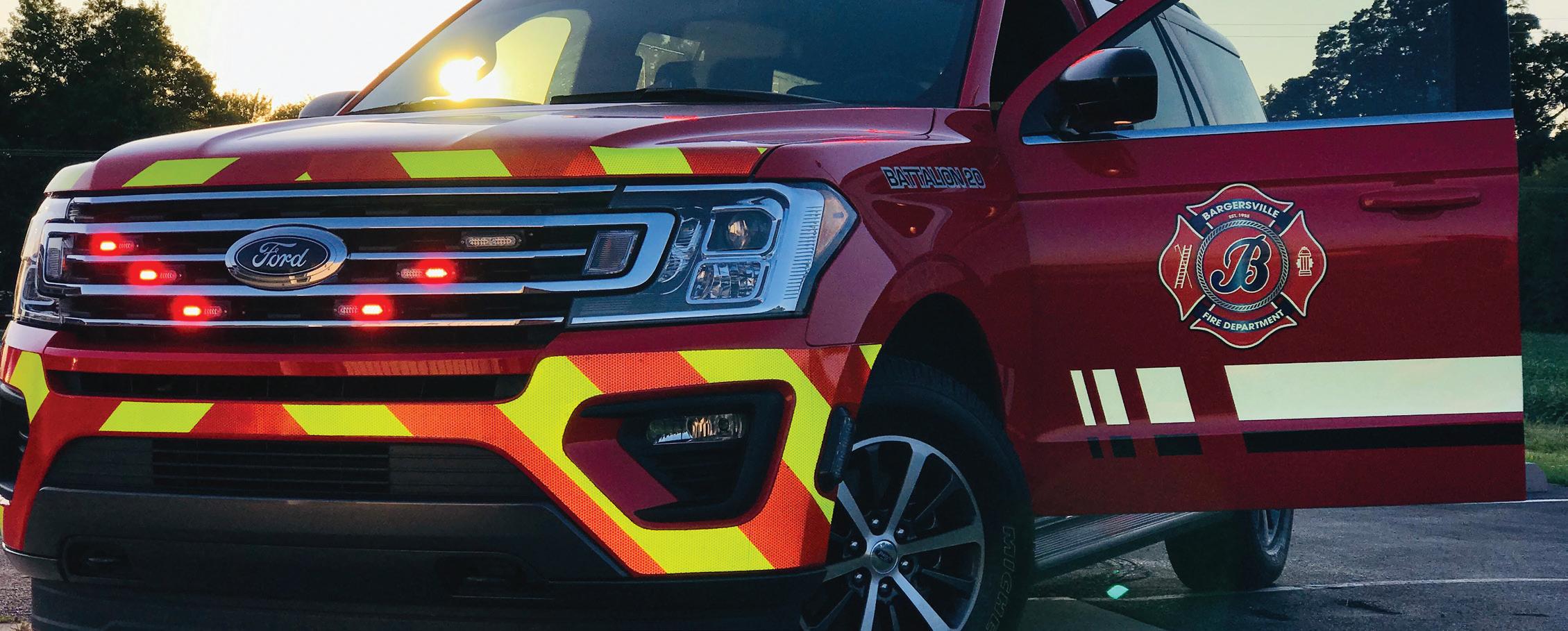

FIRE APPARATUS Regulation NFPA 1901 Benefits of Application: • Enhances the visibility of emergency response vehicles that work in or near moving traffic

• The chevron pattern is an inverted “V”, in compliance with the MUTCD (Manual On Uniform Traffic Control Devices)

• Commands the attention of the motoring public more than horizontal stripes

• More effectively warns oncoming motorists allowing more reaction time to maneuver

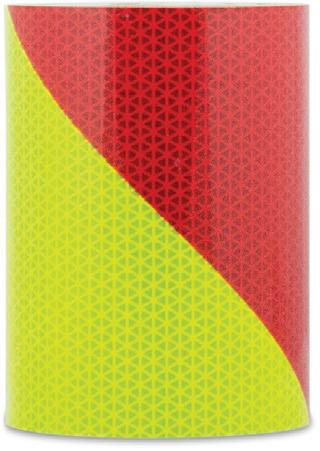

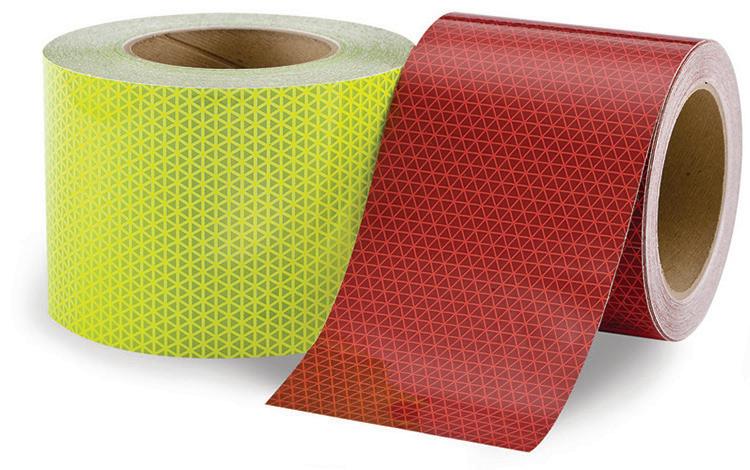

ORALITE ® V98 Conformable Graphic Sheeting Product Features and Benefits: •  Prismatic reflective technology •  High performance vinyl film •  Thin & flexible •  Weather resistant

•  Maintains reflectivity after impact •  Conforms to vehicle shapes   and curves •  6” width fluorescent lime and red   compliant to NFPA 1901

Product

Available Sizes

Available Colors

Durability

V98 Conformable Graphic Sheeting

1”, 2”, 6”, 30” x 150’ roll

white, yellow, green, red, blue, fluorescent orange, fluorescent yellow, fluorescent lime

5 years

Engineered to Save Lives™    www.ORAFOLAMERICAS.com   13


Fire Apparatus

Regulation NFPA 1901

ORALITE ® V98 Pre-Striped Chevron Product Features and Benefits: •  Prismatic reflective technology •  High performance vinyl film •  Thin & flexible •  Weather resistant

•  Maintains reflectivity after impact •  Conforms to vehicle shapes   and curves •  NFPA 1901 compliant

Product

Available Sizes

Available Colors

Durability

V98 Pre-Striped Chevron

6”, 15”, 30” x 150’ roll

45° left hand fluorescent lime/red pre-stripe, 45° right hand fluorescent lime/red pre-stripe

5 years

ORALITE ® V98

Microprismatic Technology Featured in ORALITE ® conspicuity products How it works:

LIGHT IN LIGHT OUT

14   www.ORAFOLAMERICAS.com    Engineered to Save Lives™

Light strikes each of the three surfaces of the microprism before returning to the source. The microprism provides more reflective surface area than a glass bead and will reflect up to 250% more light. The microprism’s economical use of surface area delivers a higher level of performance in all applications, which results in superior long distance visibility of the vehicle and greater awareness by the motoring public.


“

Research shows that conspicuity markings can reduce crashes in low light conditions involving HGVs by up to 41%*

*Source: The US National Highway Traffic Safety Administration (NHTSA)
