COMMERCE CONNECTOR

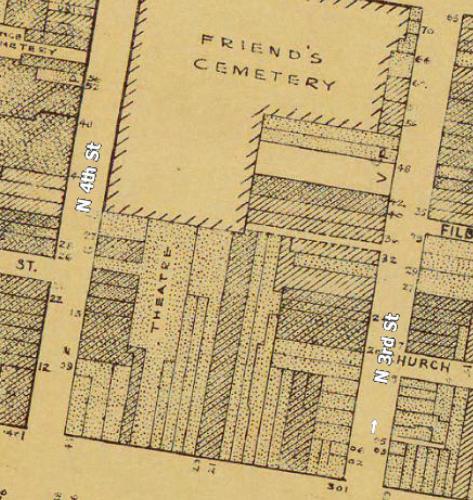

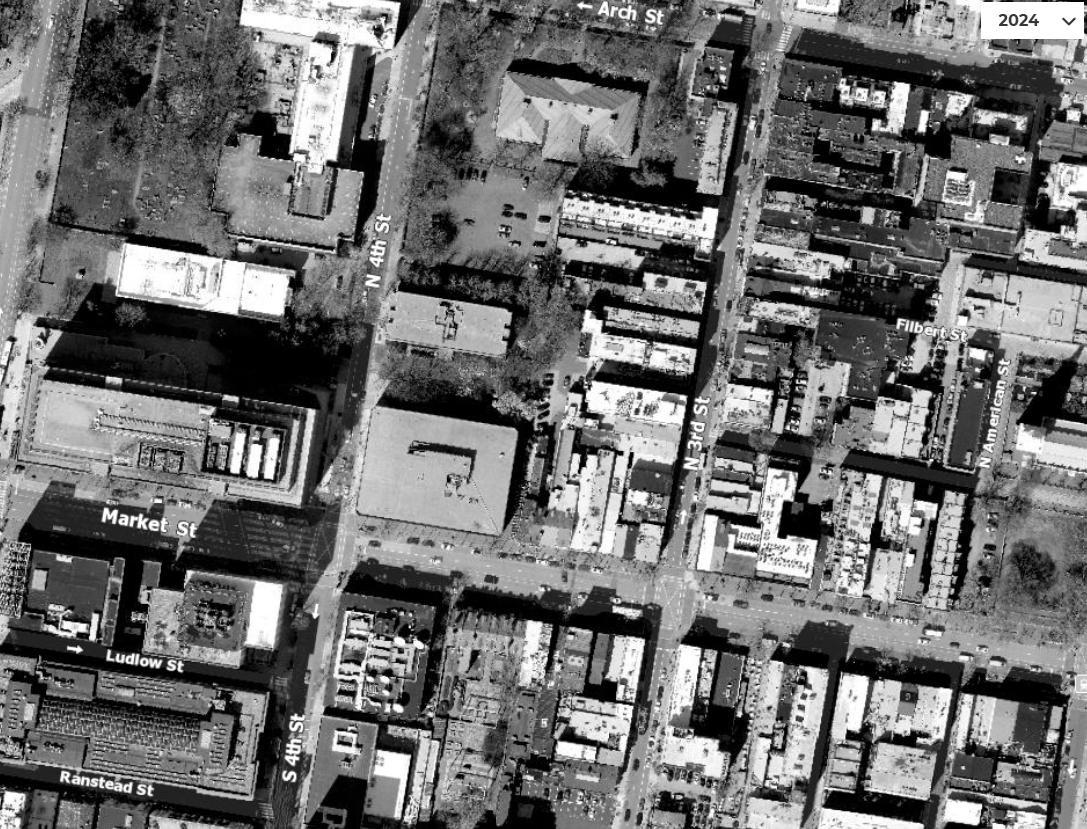

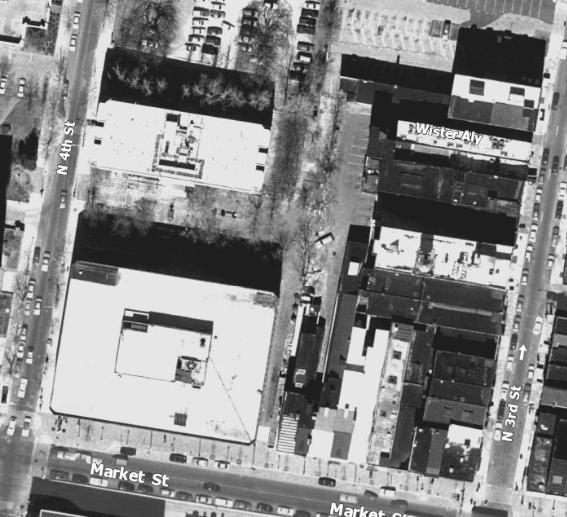

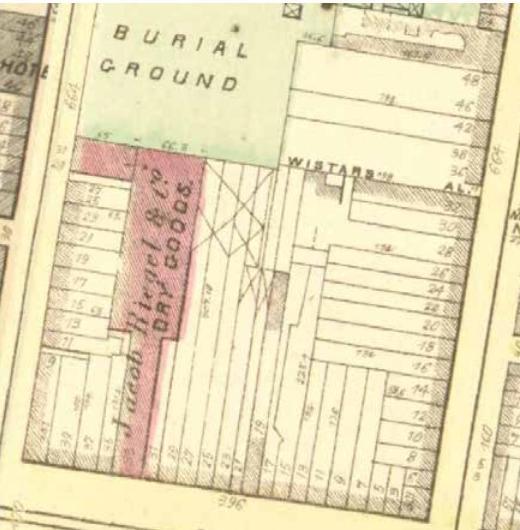

Philadelphia Atlas, 2024

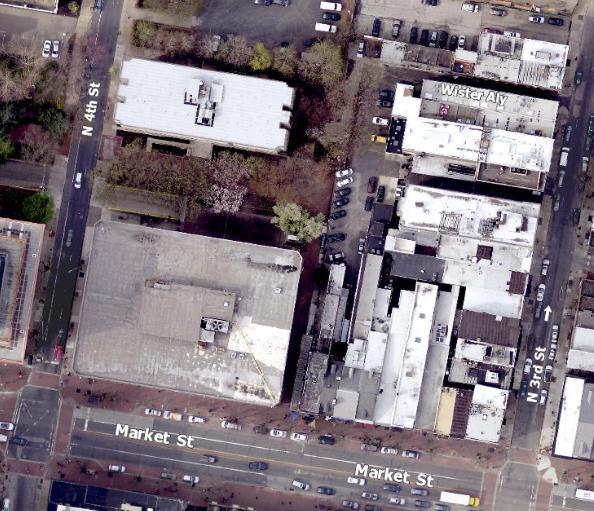

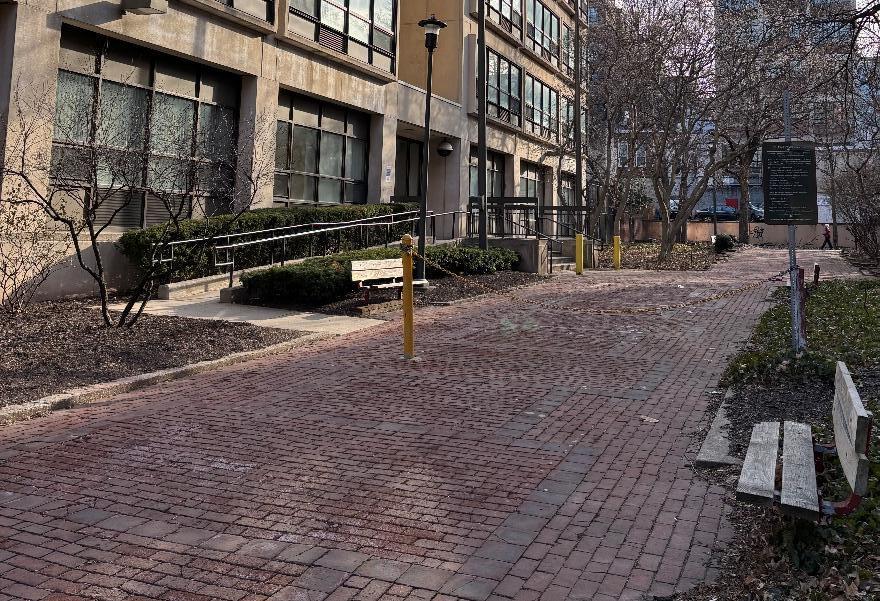

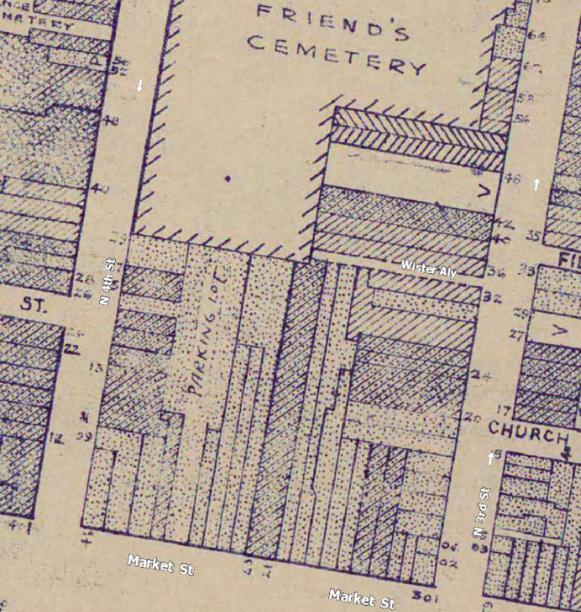

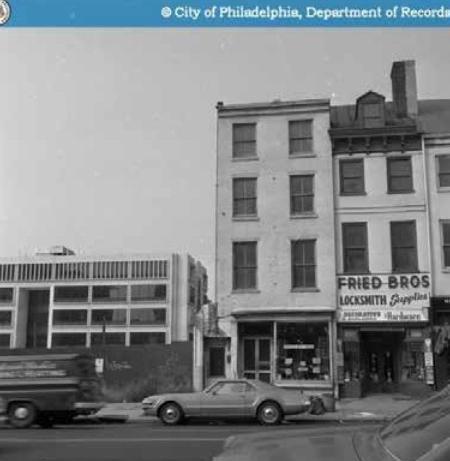

Industrial and commercial buildings line N.4th & Market Streets. The largest and most notable building on the block was 333 Market Street 333

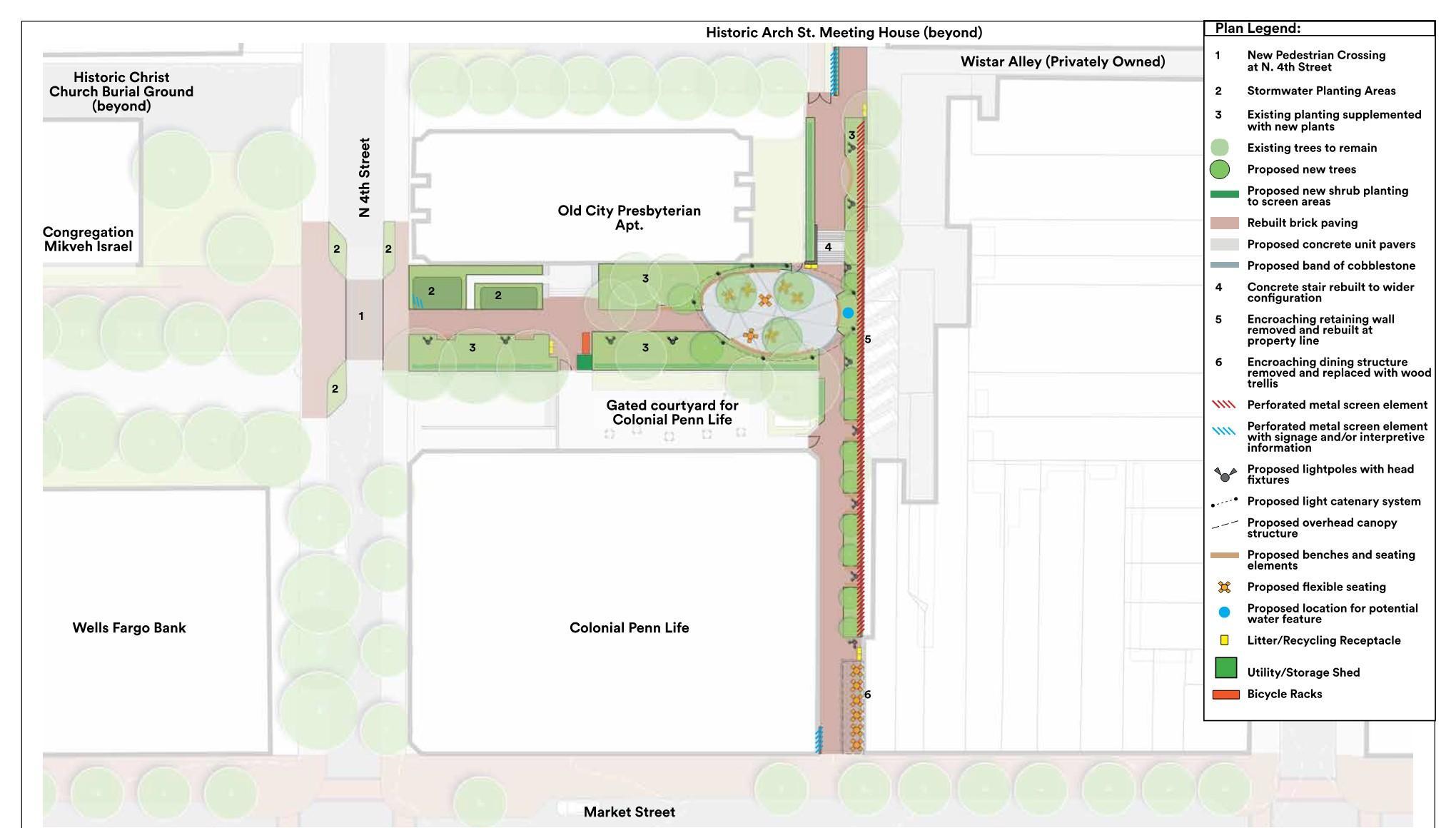

Old City Presbyterian Apartments
Adjacent property trees for reference
25” DBH Morus alba White Mulberry
Magnolia stellata Star Magnolia
8” DBH Acer rubrum Red Maple 14” DBH Acer rubrum Red Maple 12” DBH

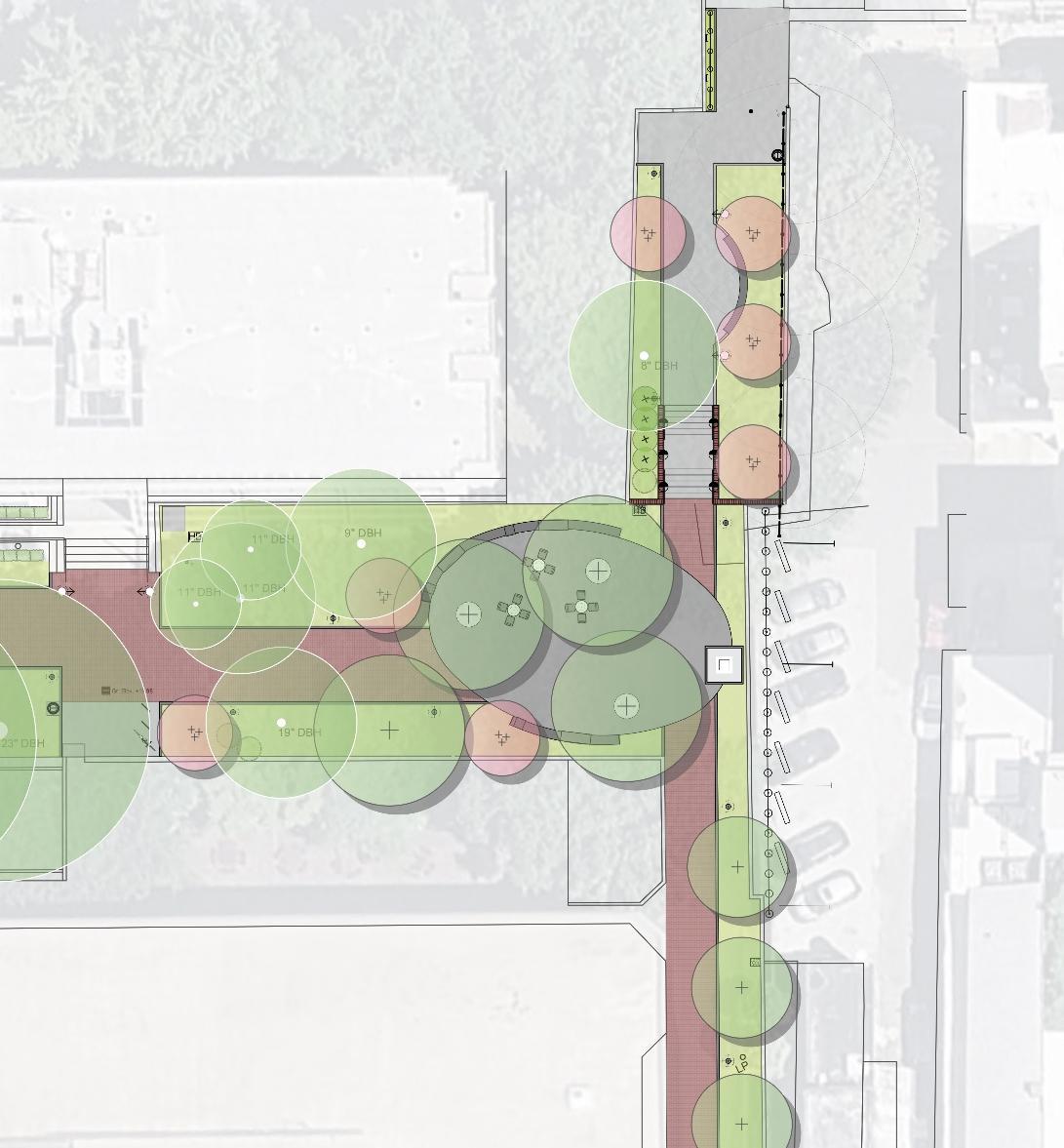

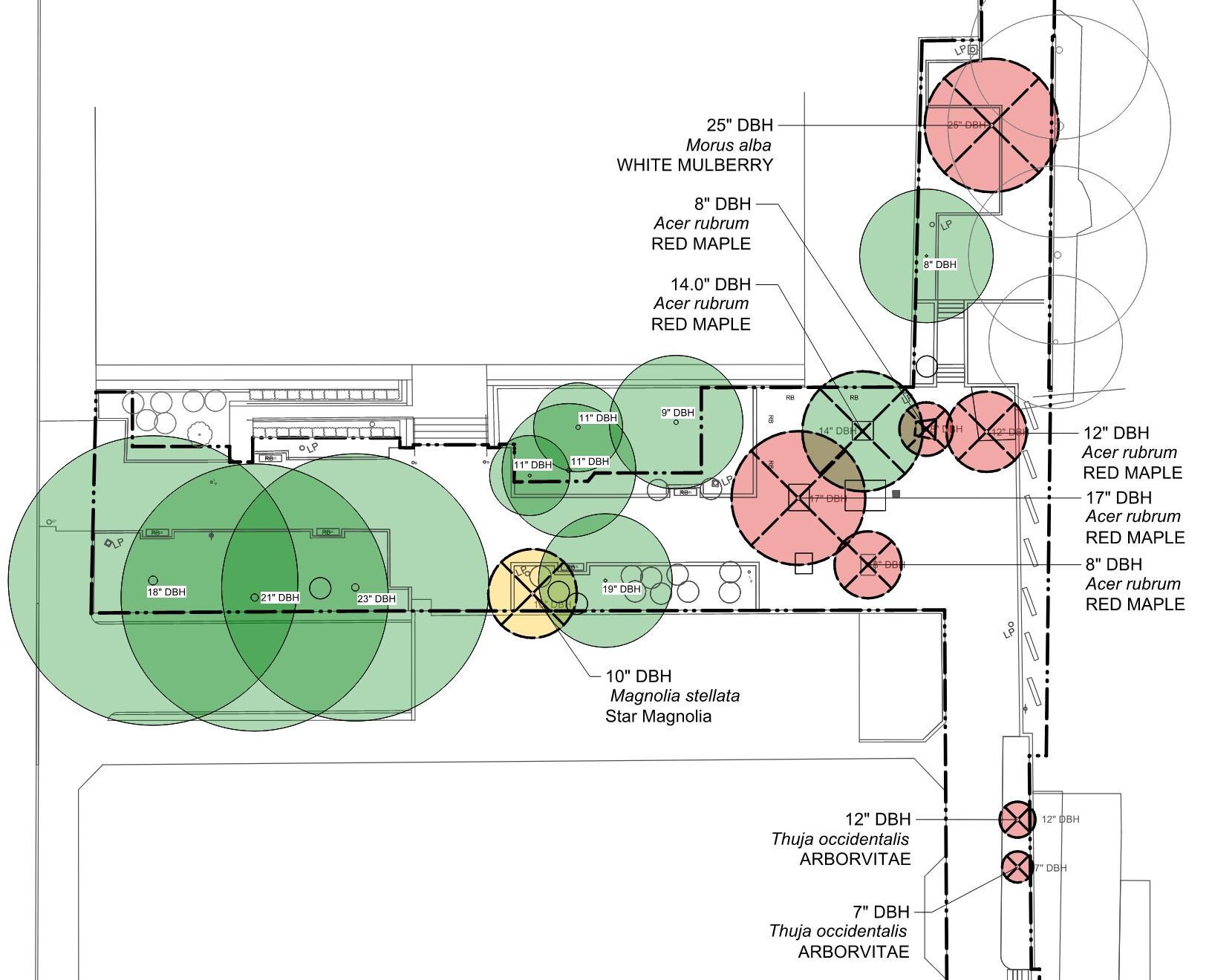

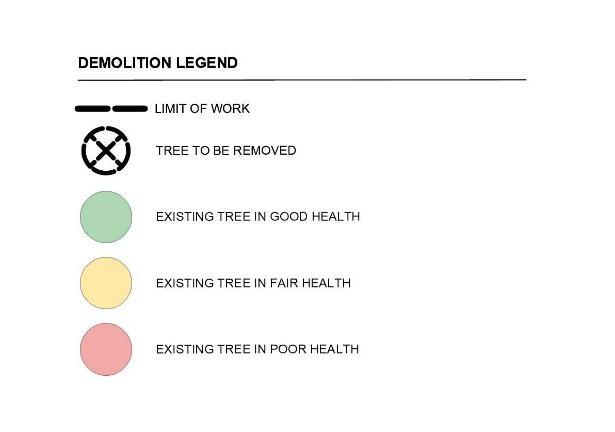

DEMOLITION LEGEND
LIMIT OF WORK
TREE TO BE REMOVED
EXISTING TREE IN GOOD HEALTH
EXISTING TREE IN FAIR HEALTH
EXISTING TREE IN POOR HEALTH
12” DBH Acer rubrum Red Maple
17” DBH Acer rubrum Red Maple
8” DBH Acer rubrum Red Maple

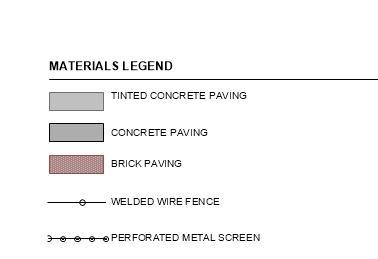

MATERIALS LEGEND
CONCRETE PAVING
TINTED CONCRETE PAVING

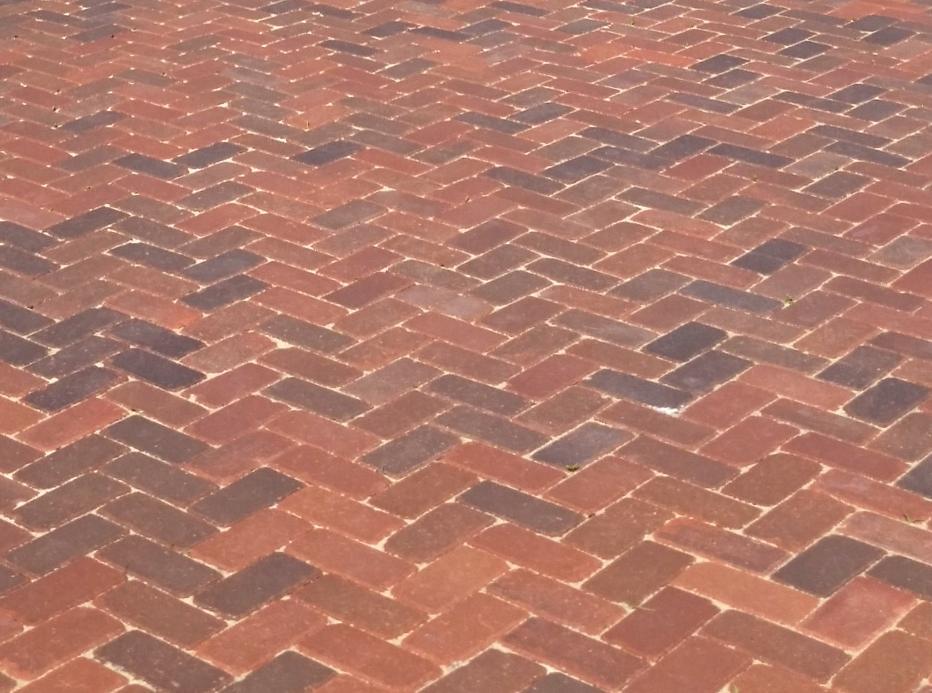

BRICK PAVING

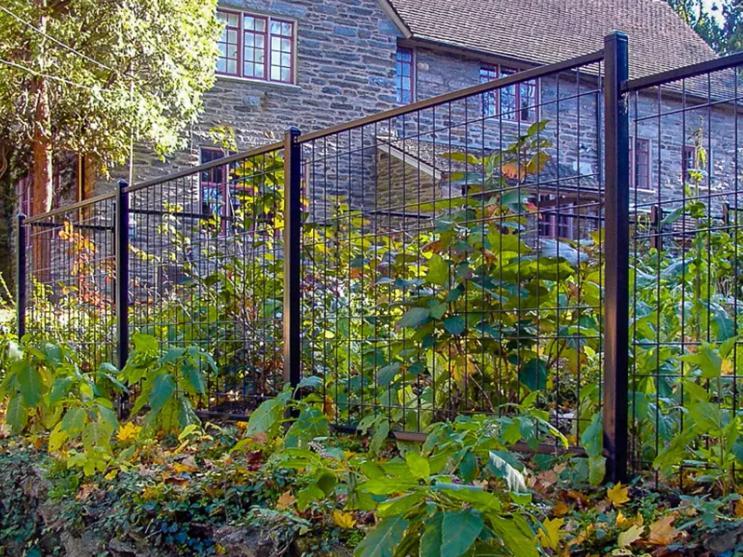

WELDED WIRE FENCE

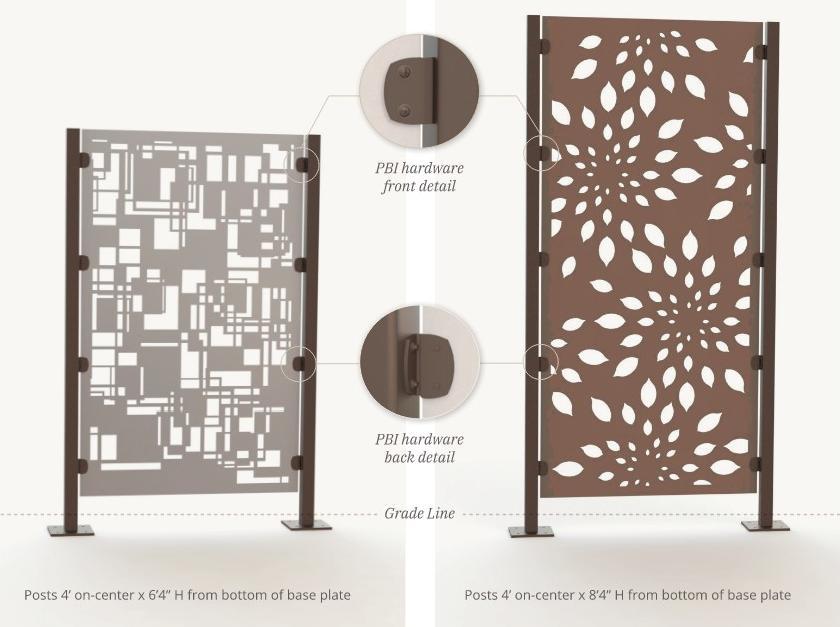

PERFORATED METAL SCREEN

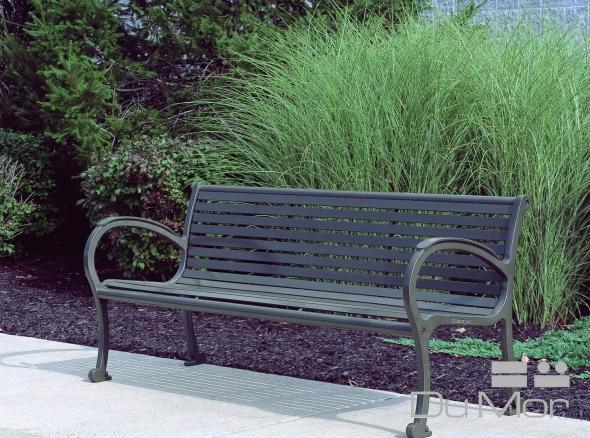

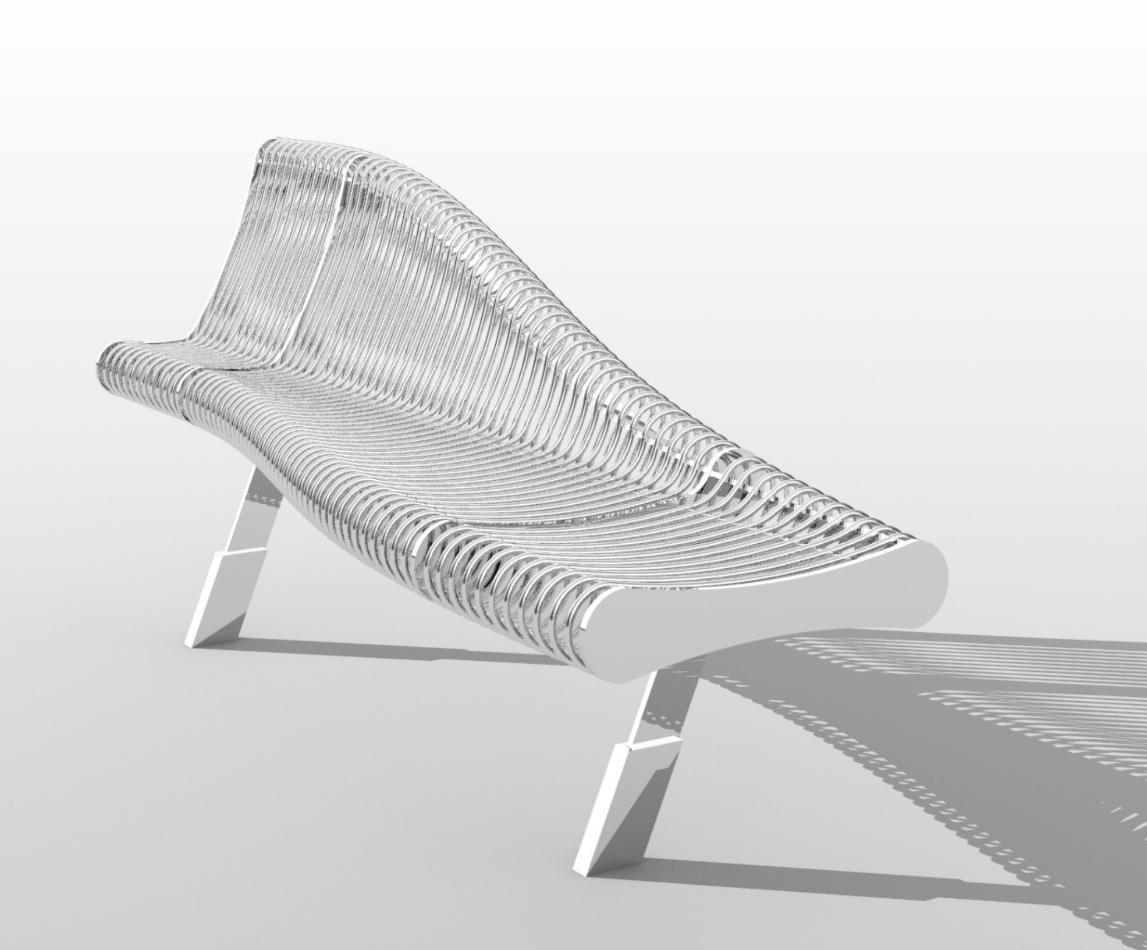

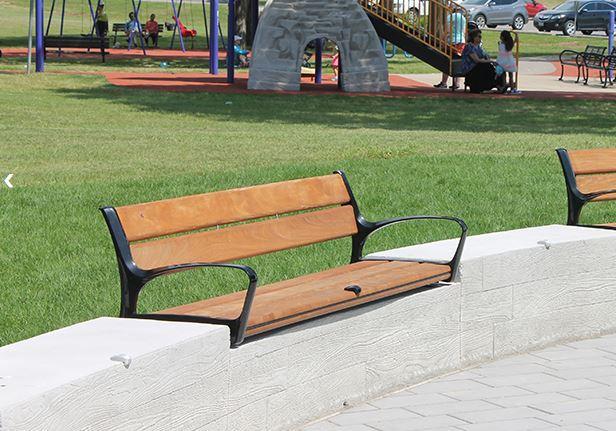

STANDARD BENCH

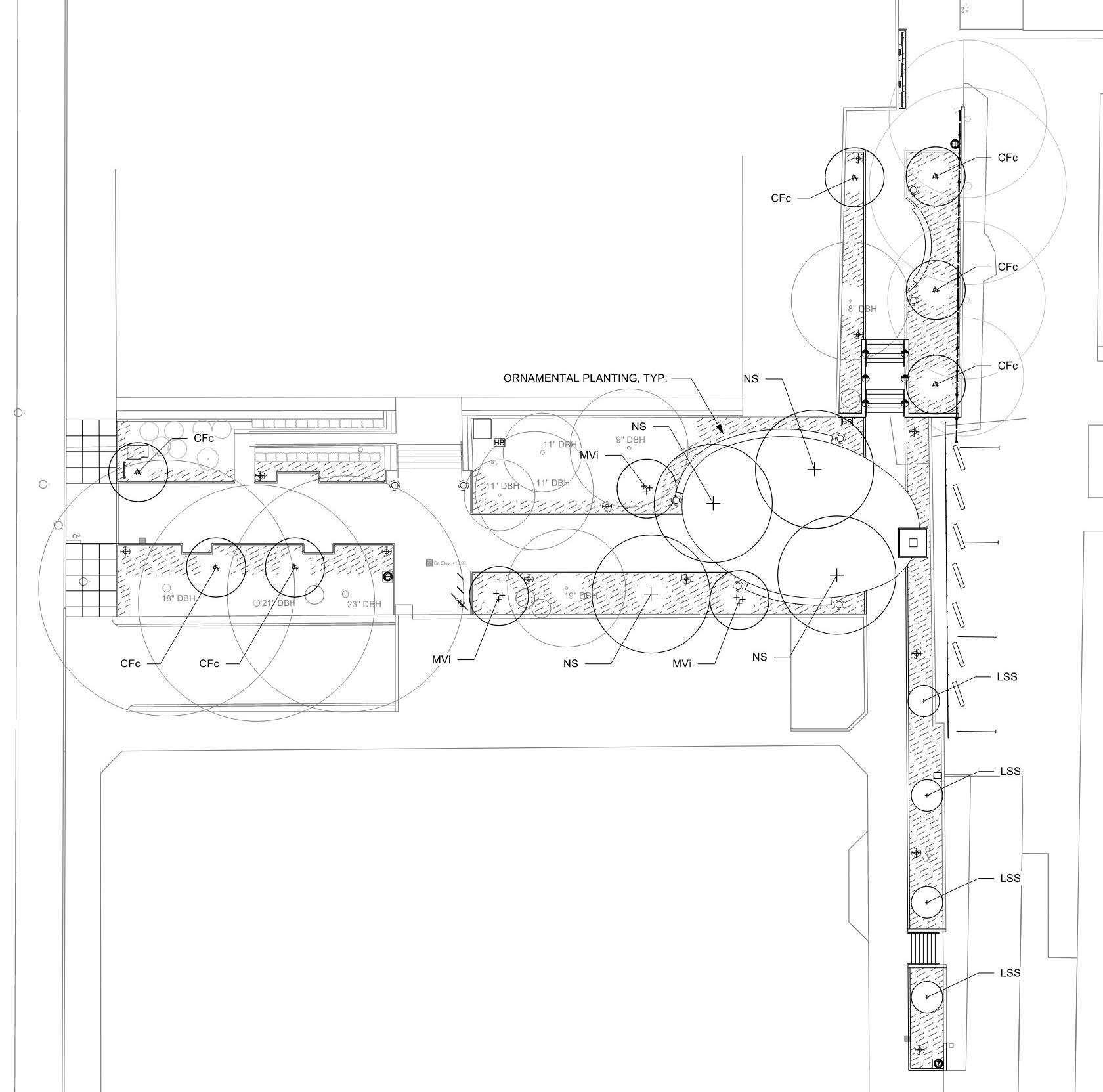

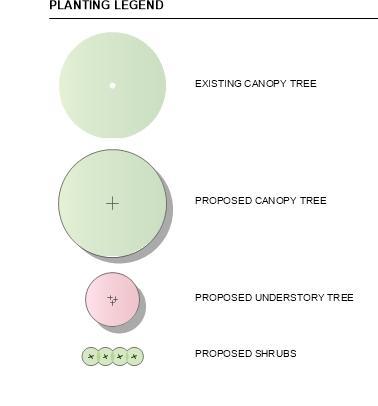

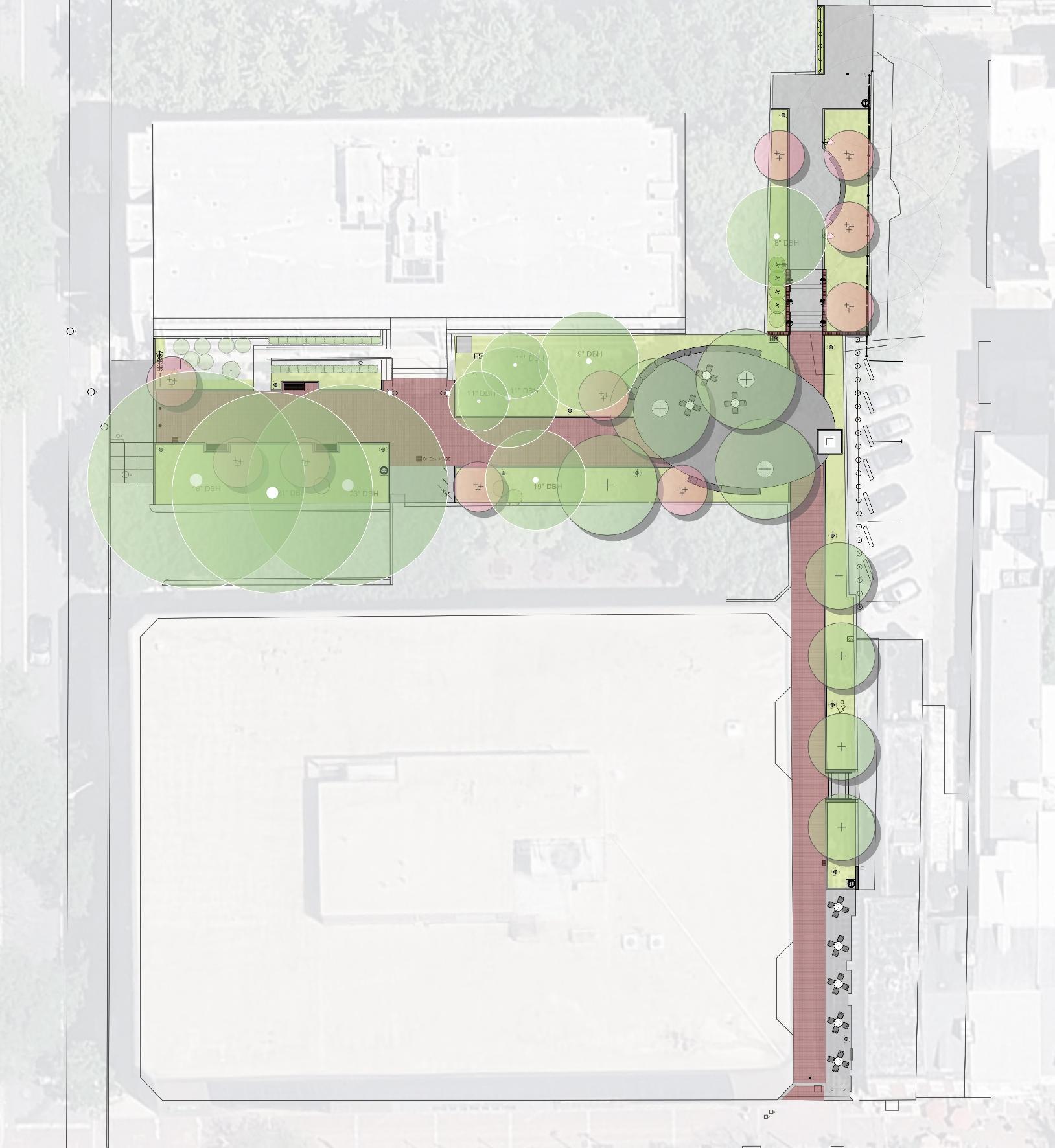

PLANTING LEGEND
EXISTING CANOPY TREE
PROPOSED CANOPY TREE
PROPOSED UNDERSTORY TREE
PROPOSED SHRUBS
BRICK PAVING
PERFORATED METAL SCREEN
WELDED WIRE FENCE

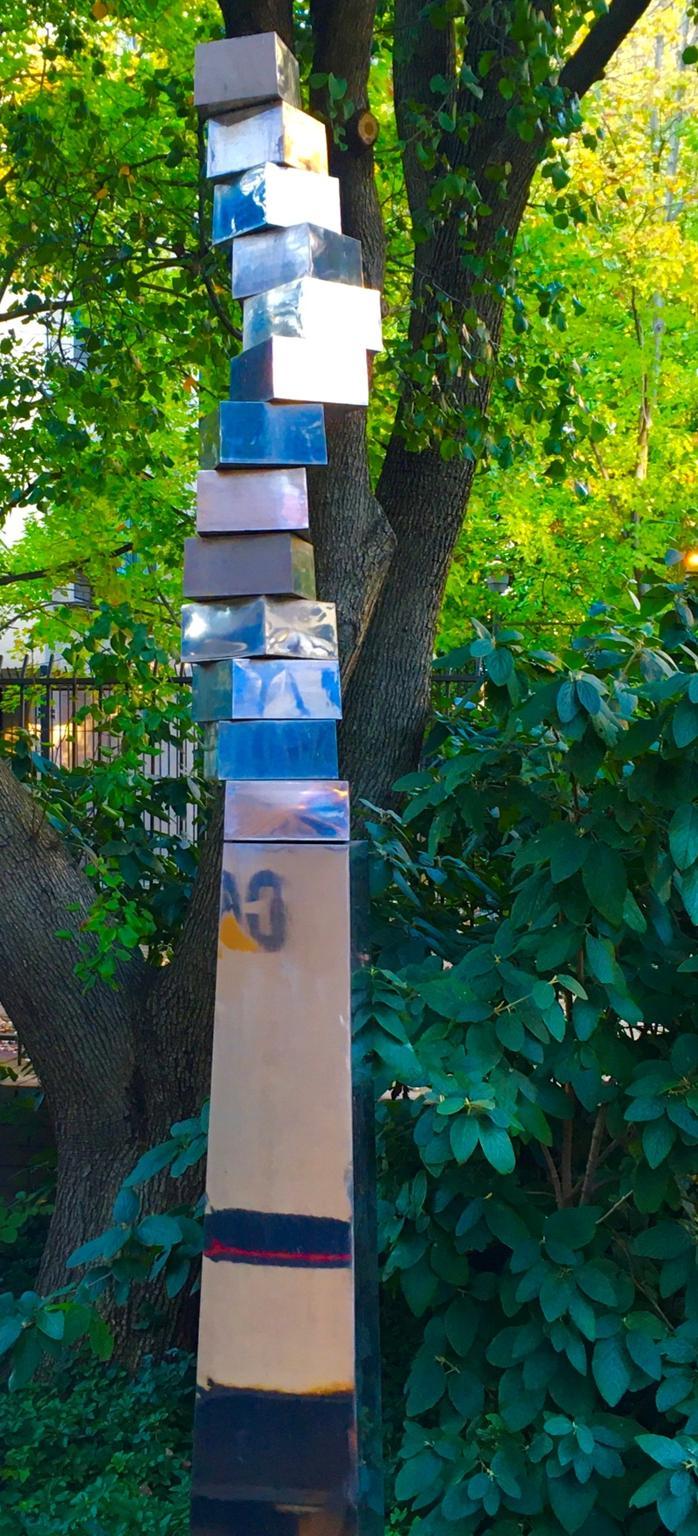

EXISTING SCULPTURE TO BE REPURPOSED AS A FOUNTAIN
Add Alternate Custom
Series to replace precast wall and bench toppers

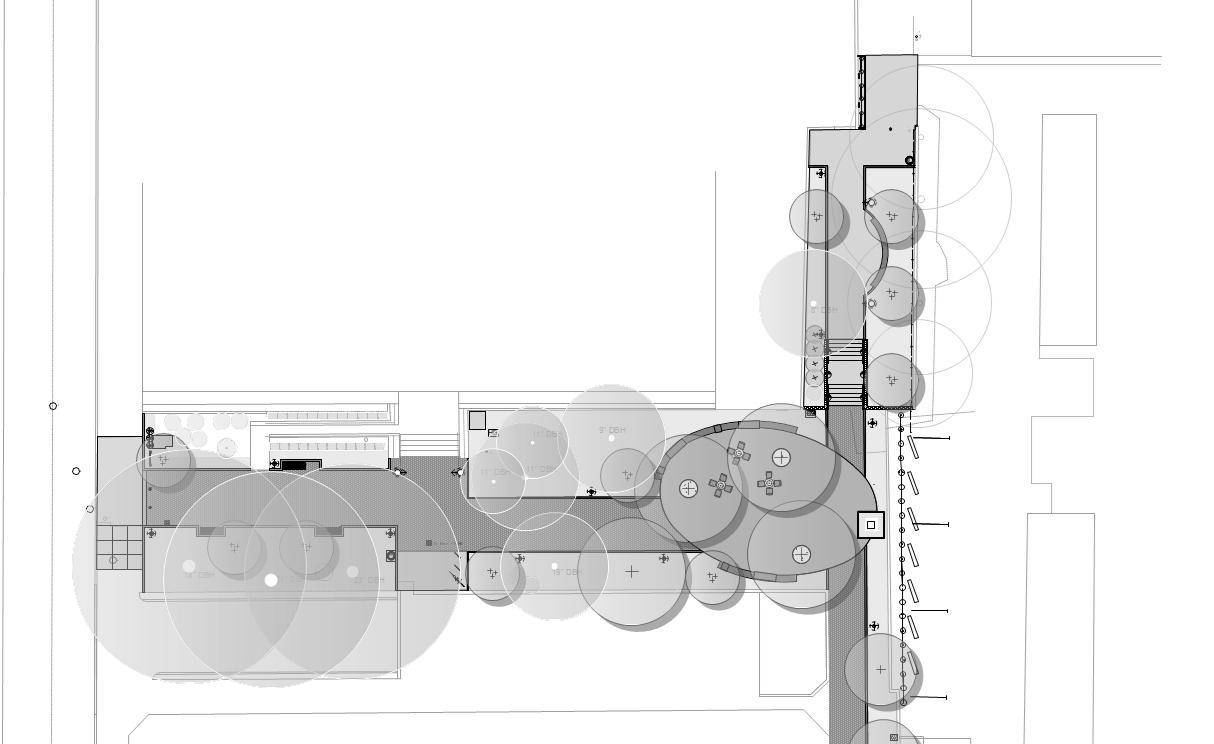

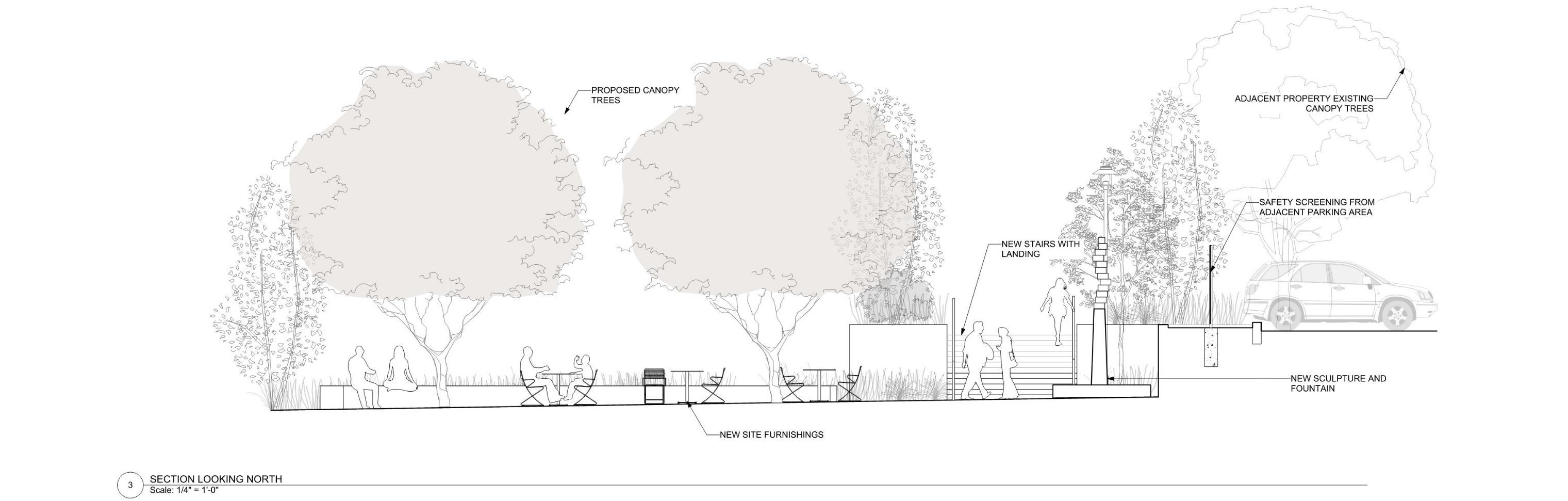

PROPOSED CANOPY TREES
ADJACENT PROPERTY EXISTING CANOPY TREES

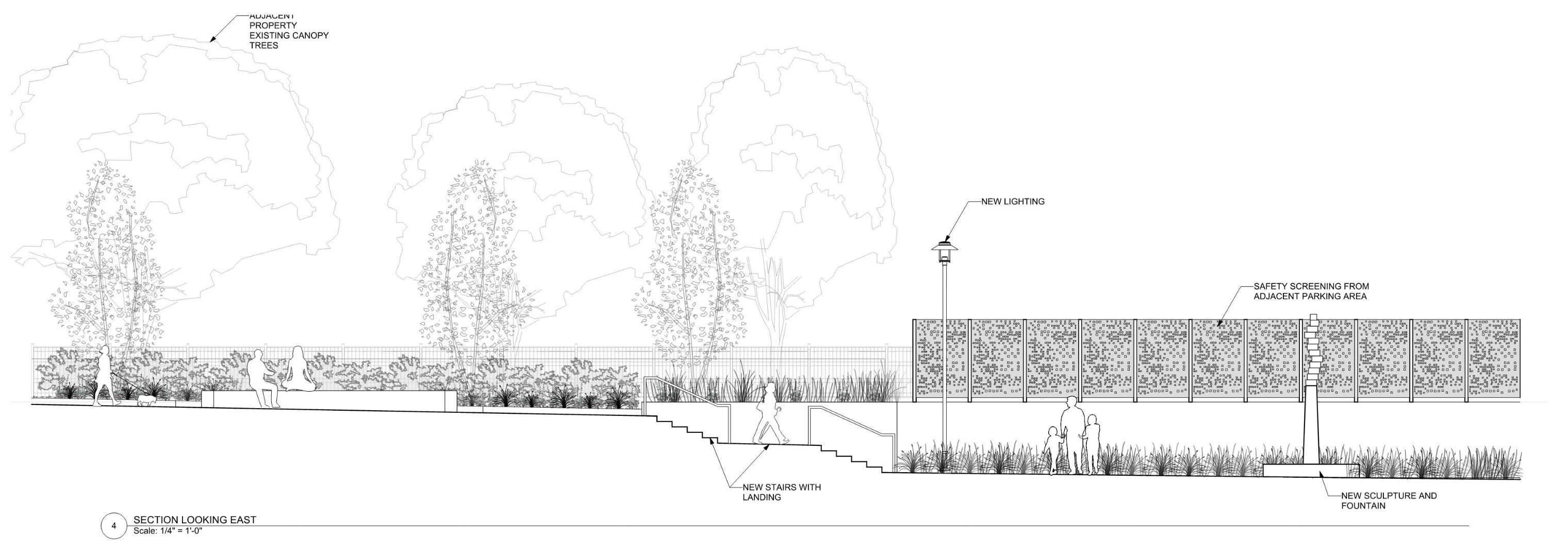

SAFETY SCREENING FROM ADJACENT PARKING AREA
NEW STAIRS WITH LANDING
ADJACENT PROPERTY EXISTING CANOPY TREES
SAFETY SCREENING FROM ADJACENT PARKING AREA

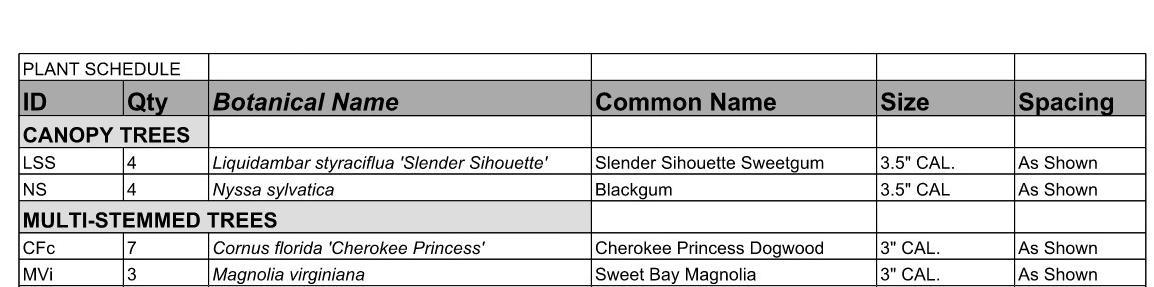

CANOPY TREES
Liquidambar styraciflua ‘Slender Silhouette’
ORNAMENTAL TREES
PERENNIALS & GROUNDCOVERS
