MX & ENDURO MOTORCYCLE
Since the company was founded in 1976, Öhlins has represented the pinnacle of suspension technology and firmly rooted itself as an integral part of the motorsport industry, underpinning countless world titles and podium finishes. Öhlins technology is not only considered the gold standard within the aftermarket suspension industry, but also by car, motorcycle, and mountain bike manufacturers across the globe.
Back in the 1960s, Kenth Öhlin was an up-and-coming motocross rider who showed an innate talent for mechanics. He knew how to bring out the best in the materials he used, and soon found himself modifying his competitors’ bikes. By the time he started his business, he’d already designed his own exhaust pipes, engines, and of course –shock absorbers.
Öhlins grew to become synonymous with advanced suspension. The products were not only superior in terms of technology, but also in quality – a testament to Kenth Öhlin’s meticulous nature. In 1978, Öhlins won its first world championship, when Russian motocross racer Gennady Moiseev took home the 250cc title on an Öhlins-equipped KTM. Since then, more than 400 world titles have followed. Öhlins aimed to build on its success in road racing, and soon entered the automotive seg ment – in racing, as well as rally – further strengthening its motorsport pedigree. But Öhlins didn’t stop there. The company continued to grow, adding electronically controlled, semi-active suspension to its portfolio under the trademark CES. This technology revolutionized the automotive industry and is widely used by premium car manufacturers today.

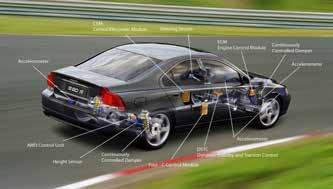

In 1998, Öhlins partnered with Tenneco Inc. to develop CES valve technology for automotive applications. They jointly launched the first CES shock absorbers as standard equipment on the Volvo S60R performance car in 2003. Fast forward to No vember 2018, Kenth Öhlin announced an agreement to sell a majority share of Öhlins Racing AB® to Tenneco Inc. The acquisition was finalized in January 2019, marking the beginning of a new era for Öhlins as part of Tenneco.
OTHER PRODUCT AREAS
MOTORSPORT ROAD & TRACK
SNOWMOBILE ROAD & TRACK
BUILDING ON OUR RACING LEGACY
FROM F1 TO YOUR RIDE
Öhlins has been a pillar of racing for over four decades and counting. We’ve used the insights gained from working with some of the world’s most high-profile racing teams to develop and innovate products across every segment, enabling riders worldwide to experience the pinnacle of suspension technology.
This year, we were proud to announce our technical partnership with the iconic Scuderia Ferrari. For over five years, Öhlins Racing has been developing and supplying suspension for the Scuderia Ferrari cars, providing advanced technical and support when needed. Our goal is to ensure the drivers experience the best possible suspension performance during every race – no matter how extreme the conditions get.
Tailor made for you! We have the perfect part for your bike, delivering outstanding performance at a competitive price. Öhlins manufactures more than 300 different shock absorber models, every one uniquely fitted to your bike and suited to fit without interfering. We make sure that the product behaves the way it should, through the design of the shim stacks and valves as well as the calibration of the adjusters. This is no guesswork. We try the settings out, in real life, and adjust them until everything works perfectly for each and every specific model. Then we assemble the products with utmost precision to ensure superior control of the damping force. That is the key to our success.

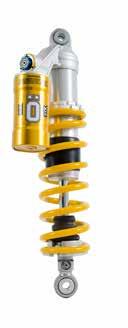

TTX FLOW DV Shock Absorber STX 46 Shock Absorber TTX 30 Shock Absorber 2023 PRODUCT
TTX FLOW DV WITH PDS Shock Absorber 8

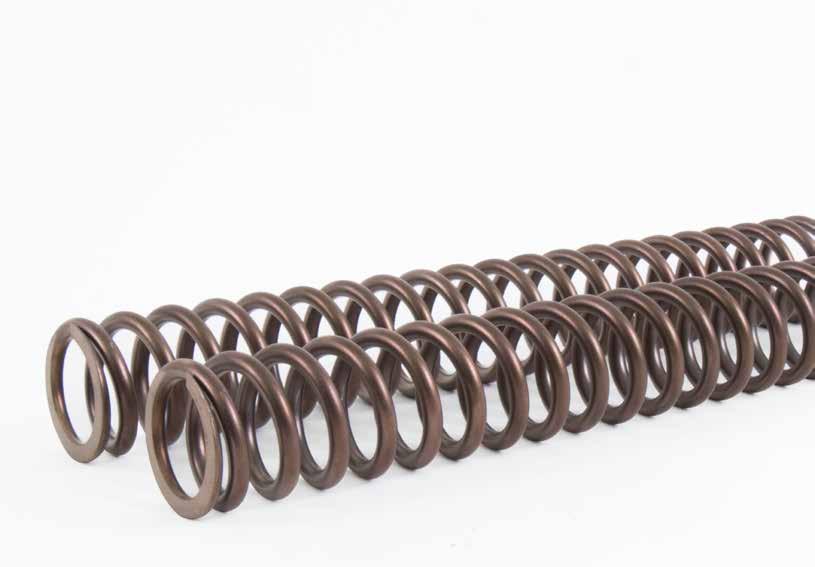

Front Fork TTX 22 Cartridge Kit STX 22 Cartridge Kit FLUIDS Accessories SPRINGS Accessories PRELOAD 9 UPDATED UPDATED
FRONT END PRODUCTS

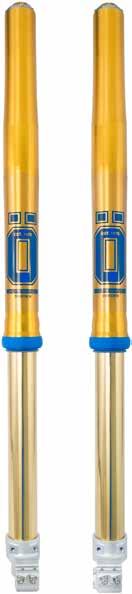

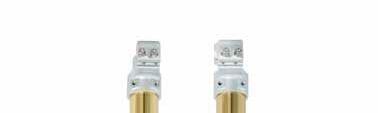

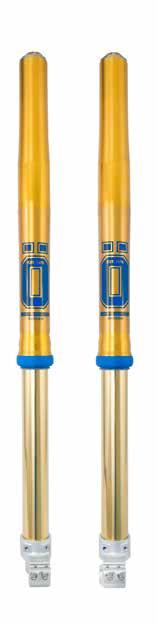

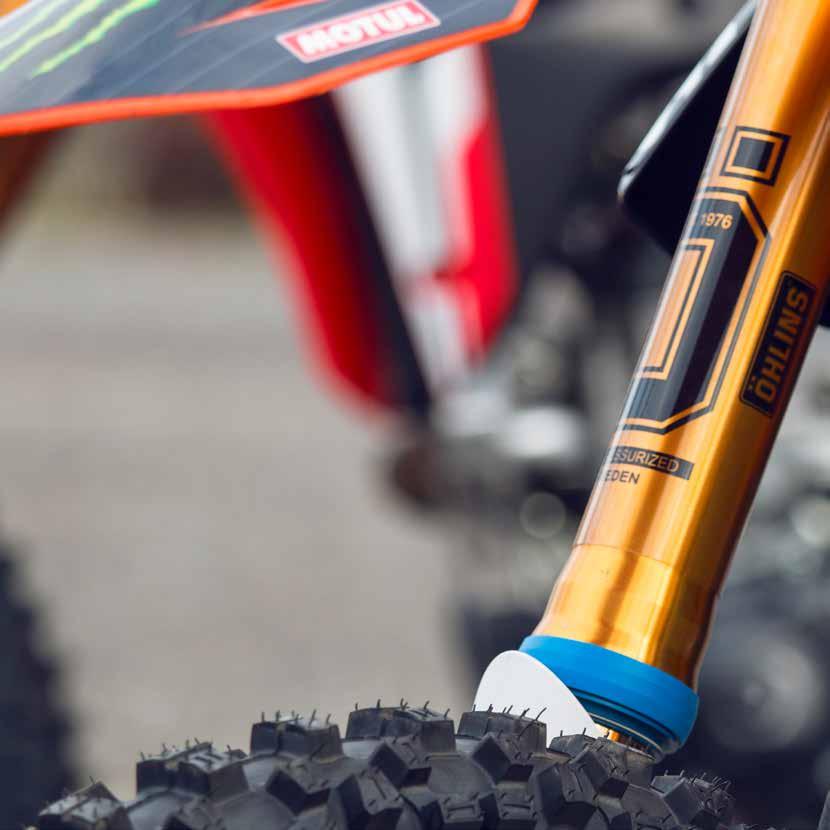

RXF 48 S MX

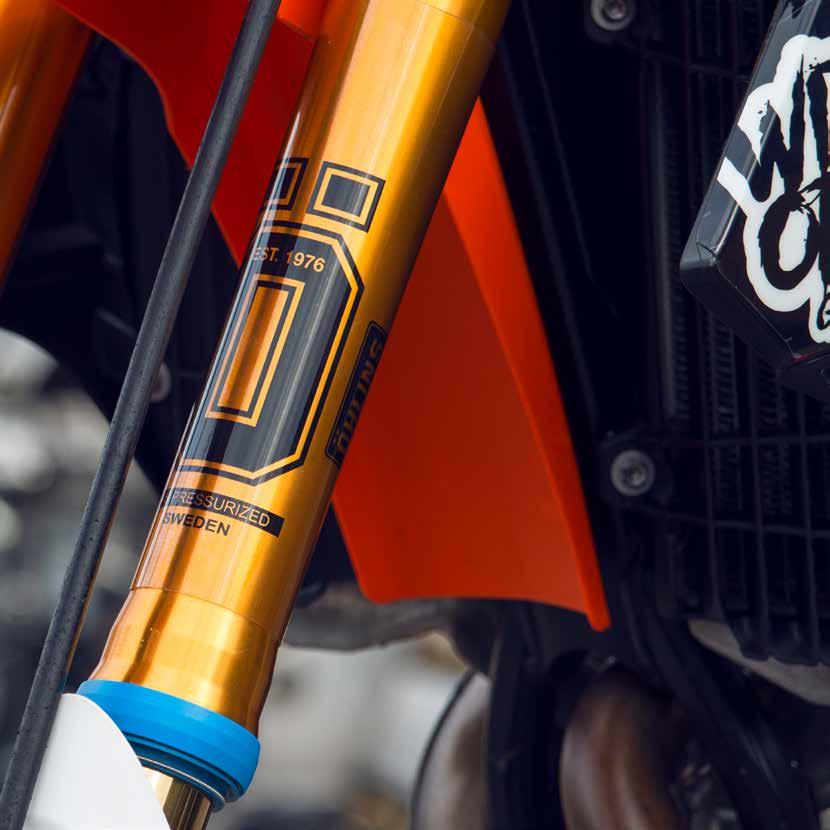

Experience top-level performance, just like the pro riders of the Enduro, Moto cross, and Supercross series. Öhlins RXF 48 S takes your ride to another level, and with the 2023 updates you’ll achieve faster lap times with smoother landings.
For 2023, we have given the RFX 48 S a new hard-anodized aluminum main piston with a three-port design for improved flow and a revised setting to match it. Extensive engineering and testing were done to both the port design and set tings to make this high-performing fork even better, so with these updates, you’ll experience better comfort, more progressivity, and a more controlled, damped feeling. As a nod to Öhlins’ Swedish heritage, we have switched the stickers on the fork from black to blue.
The 2023 version of the TTX 22 cartridge also comes with the new piston and settings. We have updated the FCX 1301 with a hexagon-shaped adapter for easier installation.
No matter what track you’re racing, our updated RXF 48 S fork will give you the confidence to conquer your toughest ride yet.
> TTX-technology > Improved traction > More comfort > Higher definition front wheel feedback > Great dynamic performance > Gold colored surface treatment > Compression adjuster, angled for easy access > Rebound adjuster underneath the fork > Hydraulic stops for great bottoming resistance > Top out springs for greater progressive feel
of the stroke > Gold and blue color scheme
UPDATED TOP FEATURES > TTX-technology > Great dynamic performance > Compression adjuster, angled for easy access > Rebound adjuster at the bottom of the cartridge > Hydraulic stops for better bottoming resistance > Top out springs for greater progressive feel at the top of the stroke > Available for most major MX and Enduro models

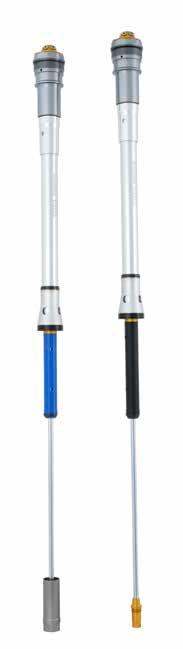

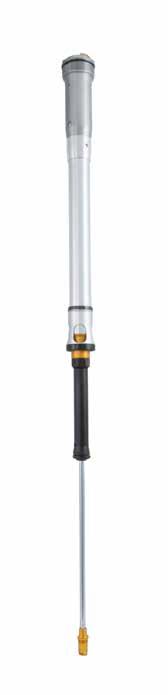

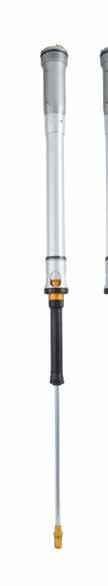

Kit We’ve made the same damping system technology found in our front forks availa ble as replacement cartridge kits for your standard forks. By installing the cartridges straight into your front forks, you can reduce the risk of bottom outs while improving stability and hold-up. You’ll also get higher definition front wheel feedback,
and the ability to handle
we want you to experience
TTX 22 MX & ENDURO 14
take on the track,
that’s above and beyond the ordinary.
> STX-technology > Low-profile
> Adjustable compression
rebound > Spring pressurized
> Converts air forks to
consistent perfor mance > Full maintenance and service capabilities Cartridge Kit Treat your
22 MX & ENDURO 17
top cap makes it possible to move the fork tubes farther up the triple clamps
hydraulic stop for improved bottoming resistance
compensate for heat changes and
for better reliability and
85cc motocross to an upgrade that lets you compete with the “big bikes”. Öhlins
22 cartridge kits have similar features to our cartridge kits for bigger bikes and will give you improved performance with easy adjustability to fit your personal riding style. Our STX 22 cartridge kits are available for KTM, Husqvarna, Kawasaki, GasGas, Suzuki, and Yamaha 85cc bikes, as well as for Yamaha 65cc and Honda 150cc. STX
TOP FEATURES > TTX-technology > Efficient high speed compression adjuster > Compression valve interface for optimal pressure control > Rebound needle and shaft jet design. > Strong 16 mm shaft > Patented FLOW valve dynamic control > Great bottoming resistance > Easy spring change due to unique spring clip design > Wide range of optional springs

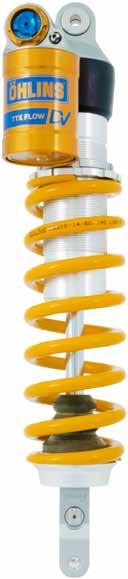

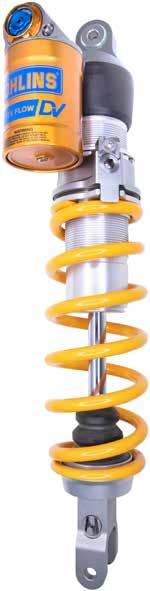

Absorber The TTX Flow DV for the perfect formula to improve your riding experience. With our shock absorber you can say goodbye to the days of
to choose between bottoming resistance and chassis stability over traction and comfort.
Öhlins TTX Flow DV you’ll get the best of
efficient high speed compression adjuster allowing you to adapt your
track condition that comes your
FLOW DV MX & ENDURO 21
both worlds. The
setup to any
TOP FEATURES > TTX-technology > Efficient high speed compression adjuster > Compression valve interface for optimal pressure control > Rebound needle and shaft jet design. > Strong 16 mm shaft > Patented FLOW valve dynamic control > Great bottoming resistance > Easy spring change due to unique spring clip design > Wide range of optional springs Shock Absorber Take your enduro ride to the next level with the TTX Flow DV for the KTM EXC/EXC-F family. Featuring our Pro gressive Damping System (PDS) to work with linkage-free bikes, the TTX Flow DV is designed for superior bottoming resistance and chassis stability without compromising on traction and comfort. TTX FLOW DV MX & ENDURO WITH PDS 22
TOP FEATURES > STX-technology > Great dynamics equal optimum function > Rebound adjuster > Wide range of low speed compression adjustment, 3 clicks high speed adjustment > Full maintenance and service capability > PDS design for progressive damping stroke end. (DMX 0101 application only)
Absorber We believe that great riders start when they’re young, and that’s why we have ex panded our 85cc program to include KTM, Husqvarna, Kawasaki, Yamaha, GasGas and Suzuki. All our applications provides the best performance and adjustability. On top of that, our STX 46 for, the KTM 85cc, GasGas 85cc and Husqvarna 85cc comes equipped with our Progressive Damping System (PDS).
46 MX & ENDURO 25

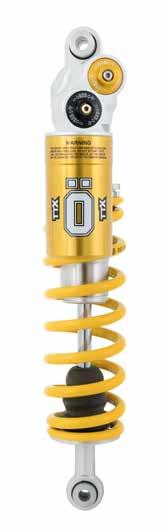

TOP FEATURES > TTX-technology > Compression and rebound adjusted separately > Different spring rates available > Full maintenance and service capability Shock Absorber A strong foundation is the key to success. We are excited to launch our TTX 30 line, a family of shocks for our youngest riders on the 50cc and 65cc MX-bikes. It might be smaller, but it packs the same performance and comfort as the
bikes. The right suspension gives our young riders higher safety, better control, and the ability to go faster using less energy. You shouldn’t put an age limit on performance!
MX & ENDURO 27
TTX FLOW DV ACCESSORY
The spring preload device for the TTX flow DV series shock absorber available to purchase as an accessory part. The entire range of TTX Flow DV for is prepared to accept the adjuster together with all recommended spring rates.
The device is purely mechanical and uses a rack and pinion system to translate your adjustment into spring preload. Install the device at a recommended base preload level and with the easy use of an 8 mm Allen key you have 10 mm of available ad justment at your hands. The spring preload is one of the most powerful tools in your arsenal when setting up your bike and changing it between different track conditions. By installing the preload adjuster you will enable easy adjustment and therefore a better setup for your ride.
Easy adjustment with 8 mm Allen key
Mechanical function with rack and pinion system
Enables easy adjustment of sag and rider position
Fits all 2022 TTX Flow DV
Works together with all recommended spring rates
10 mm adjustment range
ADJUSTER MX & ENDURO >
ÖHLINS MX SERVICE KITS 32

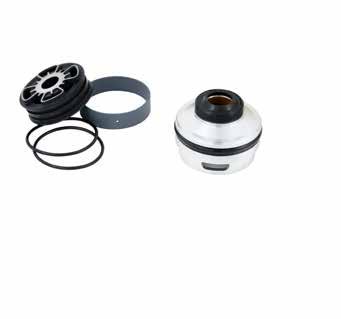

Öhlins MX Service Kit – RXF 48 S Front Fork Includes all the wear components you need to restore the performance level to factory spec, complete with stickers and guide sleeves. Do not settle for low-quality knock-offs when you can get the real thing and continue winning races. Kit Part No: 15999-21 Öhlins MX Service Kit – Spring preload for TTX Flow Shock Absorber Replace your old spring platform and lock nut for fresh look and improved reliability. Kit Part No: 15999-22 Öhlins MX Service Kit – STX 46 Shock Absorber This kit contains all parts that are subject to wear. A service will restore the performance level to an almost as new condition, ready to race and win championships. Kit Part No: 15999-23 Öhlins MX Service Kit – TTX Flow Shock Absorber Öhlins service kit for TTX Flow shock absorbers contains all parts that are subject to wear. A service will restore the performance level to an almost as new condition, ready to race and win championships. Kit Part No: 15999-24 33
ÖHLINS BLUE/YELLOW MEDIUM ÖHLINS BLACK/WHITE
Ö BLACK SMALL Ö YELLOW Ö YELLOW SMALL Ö BLACK 34
Öhlins’ stickers range gives you the
to personalize your bike or shock. Stickers can be found through the Öhlins network. ÖHLINS
Part No: 01196-02 Size: 74 x 28 mm Part No: 01196-01 Size: 74 x 28 mm
Part No: 11221-06 Size: 43 x 80 mm Part No: 11221-09 Size: 17 x 32 mm Part No: 11221-08
17 x 32 mm Part No: 11221-07 Size: 43 x 80 mm
ÖHLINS BLUE/YELLOW MEDIUM ÖHLINS RETRO BLACK
Part No: 11221-01
Size: 210 x 79 mm
Part No: 11221-02
Size: 210 x 79 mm
Part No: 11221-04 Size: 63 x 47 mm
Part No: 11221-05
Size: 63 x 47 mm
ÖHLINS BLACK/WHITE MEDIUM ÖHLINS RETRO WHITE
DISTRIBUTORS For more information about which models Öhlins products are available for, please contact your local Öhlins distributor or visit: www.ohlins.com/contact/distributors OHLINS.COM 36
