FIELD GUIDE TO MYSTERY FARM TOOLS

4 Field/Crop—A tool man’s field of dreams As a category, “field and crop” spans the territory from a John Deere wrench to a threshing machine.

22 Farmhouse—The heart of the homestead Modern conveniences tend to make us complacent and ask, “How did the early farm wife do it?”

76 Specialty—Clever devices made to last

Collectors invariably encounter pieces that turn out to be related to early farm life but have no specific farm function.

86 Odd Lots—The clues tools leave behind When it comes to antique tools, it’s not surprising that some remain stubbornly unidentifiable.

42 Livestock—Keeping the herd in check

94 Patents—Helpful information

54 Barn/Shop—Tools that kept life moving

96 Resources—Aiding in your search

The stockman of yesteryear was equipped with an enormous selection of tools with which he managed his herd and flock.

To a farmer, the barn and farm shop are the rough equivalent of a businessman’s desk and file cabinet.

86

94

The history of farm antiques is often lost to the mists of time – but a patent search can help clear the fog.

96

Publications and collector organizations offer uniquely focused information on specific brands and products. www.FarmCollector.com

03 Mystery_tool_TOC final-end.indd 3

76

3

8/23/10 3:11:27 PM

Field/Crop

A tool man’s field of dreams

A

s a category, “field and crop” spans the territory from a John Deere wrench to a threshing machine.

Tractors and implements were often equipped with tools unique to the device: their own toolboxes,

oilcans and attachments like discs, blades, spikes, coulters, teeth, hoes, runners, markers and rollers. The machine itself may not have survived to modern day, but the small components turn up with some regularity.

Perhaps the biggest niche within this category is that of antique wrenches. With nearly 800 documented manufacturers of wrenches in the U.S. alone, the field is as vast as the prairie.

Subtle variations in castings and lettering create an incalculable multiplier effect.

The wrench collector community is active and well informed.

Fine resources exist among the Missouri Valley Wrench Club, Mid-West Tool Collectors Assn., www.wrenchingnews.com and a comprehensive book by collector P.T. Rathbone, The History of Old Time Farm Implement Companies and the Wrenches They Issued (see the Resources guide for more information.)

Fence tools represent another significant segment of this category. What was more common on a farm than fence, and what fence didn’t require periodic repair? Tools to build and repair fencing were considered essential. A century ago, fence-making machinery was commonly available for on-farm use. More recently, galvanized steel wire fence replaced those devices. The category includes wire

4

tighteners/stretchers, cutters and post hole diggers.

In sheer volume, corn-related tools and collectibles are a massive category in their own right. More than any other farm crop, corn has generated an enormous range of collectibles, from check-wire planters down to lapel pins. The niche includes signs, posters, seed sacks, husking pegs, hooks and gloves, shellers of every size and description, grinders, hand planters and dealer promotional items running the gamut from matchbooks to ball caps. Members of the Corn Items Collectors Assn. are very knowledgeable and helpful in tracking information. (See the Resources guide for contact information.)

As in every collectible category imaginable, fakes are an inevitable part of the landscape. While the vast majority of collectors and dealers operate with integrity scoundrels do exist.

Experienced collectors recognize red flags. If the supply of any given item seems surprisingly large – such as a pail full of identical antique wrenches all in the same, very nice condition – think twice before buying. And beware of patinas that seem too perfect. Almost any finish from rust to satin can be easily created and applied. About the only thing that can’t be easily re-created is wear. In general, it’s best to know the people you’re doing business with.

Tools in this category are becoming harder to find but still turn up with some regularity at swap meets, flea markets, auctions, antique malls and even garage sales. You may have to buy a box full to get the one piece you want, or you may have to take a leap of faith and buy an item on little more than a hunch. Complex items may be missing parts; look carefully through nearby boxes and piles to see if the piece you need got mixed in with other items.

Farm Collector Mystery Tools

04-05 Opening_Field final.indd 4

8/18/10 9:56:23 AM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

04-05 Opening_Field final.indd 5

8/18/10 8:30:38 AM

Field/Crop

1. Brush Ax

“I’m 73 years old and was raised on a farm in the Tidewater region of Virginia from infancy until I went off to college,” one reader says. “Over the years, I used this exact same tool. It was used primarily to clear heavy brush on ditch banks and hedgerows.”

Another reader notes that “you need a weak brain and a strong back to use one.”

“. . . you need a weak brain and a strong back

to

use

o n e .”

2. Slat Replacing Tool Patent 1,030,429: Brush ax. Patent g r a n t e d t o J . T. Reeves, Grant, Okla., June 25, 1912.

Patent 639,521: Machine for attaching pickets to fence wires. Patent granted to Jerome Carpenter, Livonia Station, N.Y., Dec. 19, 1899.

This is not the exact patent but it illustrates a similar piece.

6

Farm Collector Mystery Tools

06-19 Field Crop Chapter.indd 6

8/18/10 9:58:39 AM

Marked “Ridgely Trimmer Co. 47 Pat. Pend.”

3. Wire Tightener

4. Fence Tightener

According to a 1900 patent awarded to Samuel Beal of Conway Springs, Kan., “The wire-engaging arms or bars, which are arranged to engage a fence-wire at opposite sides of the post, are provided at their lower edges with notches or teeth to receive the fence-wire.”

Used to take up slack in a single wire of a fence by twisting a knot in a loose wire. “Notice that the patent was issued on New Year’s Eve, which fell on a Tuesday in 1907,” one reader says. “Almost all patents were issued on a Tuesday; there were very few exceptions to that rule. Would the people that work in the patent office today consider working on New Year’s Eve?”

Patent 658,335: Wire tightener.

Patent granted to Samuel Beal, Conway Springs, Kan., Sept. 25, 1900.

Patent 874,934: Fence wire tightener.

Patent granted to Henry Broome and Charles J. Bowlus, Springfield, Ohio, Dec. 31, 1907.

www.FarmCollector.com

06-19 Field Crop Chapter.indd 7

7

8/17/10 3:45:01 PM

Field/Crop

6. Fence Stay-Weaving Device

As shown in the patent drawing, horizontal line wires were put in place and stretched tight. Then the stay (vertical) wires were installed. The device was used to build fences of any size.

5. Combination Fence Tool

“The fork end was used to remove staples by sliding the forks around the staple and under the wire and prying the staple out,” one reader writes. “The notch in the side by the hinge was used to cut wire, and the flat area by the hinge was used as a hammer to drive in a staple when the handles were closed. One tool to carry for quick fence repairs.”

Patent 640,598: Combination tool.

Patent granted to Daniel Stetler, Medford, Okla., Jan. 2, 1900.

8

Patent 606,266: Fence stay weaving device. Patent granted to C. Baxter and A. Schrader, Waukesha, Wis., June 28, 1898.

Farm Collector Mystery Tools

06-19 Field Crop Chapter.indd 8

8/17/10 3:46:10 PM

About 20 inches long. Stamped “Pat’d. Sep’t 1890.”

Overall length is 23-1/2 inches and the two pieces that hinge out are 11 inches. The small piece in the center is also hinged. The only markings on it are “Patent applied for.”

8. Wire-Splicing Device

Wire-splicing device for use in fence repair. The tool is shown veritcal, but would be horizontal in actual use.

7. Wire Twist

Wire twist for making picket fence.

Patent 436,004: Fence machine twister and spacing device. Patent granted to Franklin W. Kremer, Wadsworth, Ohio, Sept. 9, 1890.

did you know?

We can thank early European settlers for picket fences. An iconic boundary for American homes dating back to Colonial times, the classic picket fence evolved from medieval boundaries constructed of wooden planks and stakes.

Patent 1,322,136: Wire-splicing device for broken fence wires.

Patent granted to Emil Sahler, Minneapolis, Nov. 18, 1919. This is similar to the tool shown above and illustrates how the device was used.

www.FarmCollector.com

06-19 Field Crop Chapter.indd 9

9

8/18/10 10:00:09 AM

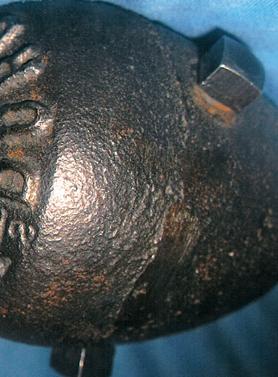

Field/Crop Made of cast iron; measures 6-by-15 inches; concave on the back. Stamped on the front “Standard Fence Never Creep.”

Patent 1,384,825: Anchor. Patent granted to Albert Chance, Centralia, Mo., July 19, 1921.

10. Land Anchor

This land anchor was used for various purposes, such as guying telephone and other poles, smokestacks, etc.

“This item is part of an anchoring system developed by the A.B. Chance Co.,” one reader explains. “The other part would be a rod with a pointed ball on one end and an eye for connecting a wire or cable to the other end. You’d dig a posthole, preferably slanted away from the direction of strain. The pointed rod was driven into the hole, angled so it intercepted the posthole at the desired depth, and the keyhole of the anchor was inserted onto the rod and dropped down so the ball on the end of the rod was secure from backing out. Backfill the hole; job completed. Some interesting history about this item can be found by Googling ‘A.B. Chance Co.,’ ‘link Chance anchoring systems,’ and ‘history of earth anchoring.’”

9. Seed Sower

Seed is poured into the top hopper and dispersed by cranking the handle at the bottom, which flings each seed out of a spinning hole.

10 10

Farm Farm Collector Collector Mystery Mystery Tools Tools

06-19 Field Crop Chapter.indd 10

8/17/10 3:47:45 PM

11. Cultivator

Fowler cultivator built by the Harriman (Tenn.) Plow Co. One reader says this piece was also used to harvest dry beans.

Another reader notes that the unit pictured cut weeds at the root to stop growth and was adjustable in several ways.

Harriman manufactured the piece under varied names for sale by various hardware stores and short-line farm implement companies. Another reader says “HPW” was stamped on many Harriman products. “H” was put on all products built in Harriman. In 1940 Harriman bought the IHC plant in Chattanooga, Tenn. In 1957 the plant was closed, and later that year was destroyed by fire.

12. Band Cutter A grain band cutter designed to cut wire or twine ties from bundles of wheat, oats or barley, thereby keeping the wire out of the threshing machine.

Patent 231,424: Grain band cutter. Patent granted to Moses G. Hubbard, Norristown, Pa., Aug. 24, 1880.

www.FarmCollector.com

06-19 Field Crop Chapter.indd 11

11

8/17/10 3:48:19 PM

Field/Crop

Patent 533,787: Strawyberry-runner cutter. Patent granted to Charles Carter, Spring Arbor, Mich., Feb. 5, 1895.

13. Bundling Device

This device was used to bundle grasses, grains and other field crops. According to a 1914 patent awarded to George Rheem of Helena, Mont., this item, “Is to produce novel means for clamping the stalks of vegetation near the butt ends thereof and also at the neck portions thereof just back of the heads, so that the stalks may be tied together in bundles by ribbon or ornamental fastenings, or in any other appropriate way.”

14. Strawberry Runner Cutter

A Feb. 5, 1895 patent and drawing describes it as a device for “effectually and rapidly severing the runners from strawberry plants.” By depressing the handle downward, knives gather the runners and sever them in a guillotinelike action. A lift on the handle draws the tool upward and returns the knives to their original position.

Patent 1,097,364: Bundling device. Patent granted to George Rheem, Helena, Mont., May 19, 1914.

12

Farm Collector Mystery Tools

06-19 Field Crop Chapter.indd 12

8/18/10 10:00:56 AM

16. Stump Hook

15. Threshing Board

This stump hook was used when clearing land.

“If the stump was tall, the pulling cable could be wrapped around the stump, making for an easy pull,” one reader says.

“However, if the stump was low, the cable couldn’t be wrapped and the pulling crew would use this type of hook.” The hooks were often used in conjunction with a horse-powered windlass (winch) anchored to a large tree, another reader says. A heavy steel cable attached the “plow” shown to the windlass.

In their book, The Grain Harvesters, Graeme Quick and Wesley Buchele describe the threshing sledge as possibly being the oldest farm implement. It was pulled (usually by oxen and with a child or two riding on it for added weight) round and round over a circular band of unthreshed grain.

Although dating back more than 3,000 years B.C., many were still in use in the 1960s in Turkey and Cyprus. The Romans gave it the name tribulum from which the word tribulation is derived. The threshing sledge is referred to in Isaiah 41:15.

“ The Romans gave it the name tribulum from which the word

tribulation is derived. The threshing sledge is referred to in Isaiah 41:15.”

A typical stump pulling set-up, with a horse-powered windlass pulling a tall stump. A stump hook could be used for short stumps. Illustration from 1906 Milne Mfg. Co. (Monmouth, Ill.) catalog. Milne manufactured grub and stump machines and other appliances for clearing timber land.

www.FarmCollector.com

06-19 Field Crop Chapter.indd 13

13

8/17/10 3:49:57 PM

Field/Crop

17. Stump Splitter

“Pound it into the end of the log with a sledge. Insert 6 inches of fuse. Light it and get out of the way,” a reader says. “It really works. I still have one and use it on the Fourth of July to make a loud noise.”

Another reader adds that “an old timer told me to cut the chain off because if it comes flying out of the log, the chain makes it whip around.”

“ Pound it into the end of the log with a sledge. Insert 6 inches of fuse.

Light it and get out of the way. It really works. I still have one and use it on the Fourth of July to make a loud noise.”

Patent 1,533,579 illustrates a similar piece: Log splitting gun.

Patented granted to Joseph A. Webber, Vancouver, Wash., Oct. 28, 1924.

14

18. Tree Faller Attachment

This appears to be a very early or highly modified tree faller attachment for a very popular Kansas-produced log saw.

One reader notes that it may have been produced for a tractor saw instead of a portable drag saw. As indicated in the catalog illustration, hooks secured the framework to the tree. The saw mechanism from the unit would be transferred to this framework. A jack shaft would then be extended from the power unit. Another reader concurs, identifying the device as an attachment for an Ottawa drag saw. “It allows you to fell a tree,” he explains. “The photos show it laying on its side not in the working position. By turning it a quarterturn clockwise, it would be in the working position. The two threaded rods with tightening wheels at the far end in the picture are used to fasten the unit to the tree with the use of a chain. The saw blade and gears are removed from the draw saw and placed on the attachment where you see the short heavy pin and gear in the lower picture.

Manufacturer’s advertisement ad for an Ottawa drag saw.

Farm Collector Mystery Tools

06-19 Field Crop Chapter.indd 14

8/17/10 3:51:20 PM

20. Weeder

19. Ground Separator

One reader says, “It is set deep enough to move potatoes out of the path of the blade of the plow. The wooden cone clears the old growth of the plant so it does not plug up. I remember picking up potatoes behind the plows as a boy.” The reader adds that the middle buster was clamped to the main beam of a potato plow.

One reader identified this as a Plomb Tool Co. weeder dating to the 1920s or 1930s. The handle is made of wood and it has two metal tines for weeding gardens or potted plants. The handle was originally forest green, and the Plomb name should show on one tine. Another reader said the tool was most commonly used to pull dandelions and other weeds with a central root. “The forked blade is pushed into the ground around the root, and the bulge in the handle becomes a fulcrum as the tool is rocked back to lift the weed out.”

www.FarmCollector.com

06-19 Field Crop Chapter.indd 15

15

8/17/10 3:52:11 PM

Field/Crop

9-1/2 inches long. On handgrip: “William Johnson, Newark, N.J.”

21. Dibble

This planting dibble (or dibber), was used to set a variety of young plants.

“Alvin Sellens’ book, Dictionary of American Hand Tools, shows that very one,” notes one reader. “Sellens’ book is a very good reference source, and is still in print.”

22. Corn Shock Tightener

“The two points (at the bottom) are stuck into the loose cornstalk, one point above the other,” a reader says. “A rope is attached to the crank shaft and passed over the loose roller at the top. It’s then carried around the shock and attached to the crossbar just under the crank. Next the crank is tightened to the desired amount and then held or locked. A piece of twine is then passed around the shock and tied tight, and the shock tightener is released.”

Patent 22,315: Planting dibble. Patent granted to Warren E. Warner, assignee to Weaver, Palmer & Richmond, Rochester, N.Y., March 28, 1893.

16

Farm Collector Mystery Tools

06-19 Field Crop Chapter.indd 16

8/18/10 10:01:59 AM

Patent 423,010: Fodder binder. Patent granted to George Willison, Marysville, Ohio, March 11, 1890. This is not the exact patent for this piece, but it shows how the binder was used.

24. Corn Shock Binder 23. Hand-Shocking Tool

This tool was used to “... readily pick up a bundle of grain and convey it to a shock and then easily release said bundle,” according to a similar patent filed in 1911 by Henry Ferris of Ardoch, N.D. According to that same patent, “It can be easily carried ... without necessitating the user to hold his hand in a cramped position and so that the operator will have free use of his fingers for operating grappling arms which are caused to engage the bundle of grain to be carried.”

did you know?

A combine can harvest enough wheat in 9 seconds to make 70 loaves of bread. One acre of wheat can produce enough flour to provide a family of four with bread for 10 years.

This corn shock binder was used to compress shocks. The binder pictured may have been homemade and is missing the handle used to turn the shaft, the rope and possibly other parts.

Patent 365,742: Device for compressing shocks of corn. Patent granted to William Gregory, New Antioch, Ohio. This is not the exact patent for this piece, but it shows how the binder was used.

www.FarmCollector.com

06-19 Field Crop Chapter.indd 17

17

8/17/10 3:55:18 PM

Field/Crop

25. Air Washer Float

After-market float that goes in the air washer (air cleaner) on an early Fordson tractor.

“I have a 1927 Fordson with that air washer on it,” one reader notes. “The air washer held water in which the air was forced across in order to clean it. When the water got low enough, the float shut the air off thus shutting the tractor down. Having water in the air washer also brought moisture into the carburetor that mixed with kerosene causing the motor to function properly. The tractor would start on gasoline then switch to kerosene after the engine warmed up.”

18

26. Planter Rope and Reel

The rope had metal “buttons” or knots every so many inches, usually about 40 inches. The knots tripped a mechanism on the planter that dropped seed into furrows.

This device planted corn in a pattern so it could be cultivated from various directions; later versions used wire instead of rope.

Farm Collector Mystery Tools

06-19 Field Crop Chapter.indd 18

8/17/10 3:56:51 PM

27. Ice Plow

This piece is a horse-drawn ice plow (or marker), used to score ice in ice harvesting on lakes and rivers. What’s missing from the piece pictured is a guide plate extending to one side, parallel to the blade, which helped measure the width of the strip of ice to be cut.

28. Pruning Hook

The specific use of this item couldn’t be agreed upon, but it’s used to cut fruit down from highgrowing places. “The tool is used to cut out raspberry cane at the end of the summer,” said one reader. “I used my grandpa’s as a young boy, and I am 81 years young.” It could be used just as affectively on other varieties of fruit plants, depending on the user’s needs. www.FarmCollector.com

06-19 Field Crop Chapter.indd 19

19

8/18/10 8:09:04 AM

L QU

ORDER ONLINE!

FarmCollector.com/ Shopping

Your source for literature on all types of antique farm-related equipment.

S AVE 30% O FF T HESE S ELECT T ITLES !

OLD IRON BIG BUD 747: THE WORLD’S LARGEST TRACTOR

When it was first introduced 30 years ago, Big Bud caught the attention of farmers and tractor enthusiasts worldwide. The monstrosity of Montana holds the unofficial title of the most famous tractor in the world. John Harvey’s book takes a unique glimpse into this fascinating agricultural icon, complete with stunning photography. #2556 Retail Price $37.47 Sale Price $26.22

THE BIG BOOK OF FARMALL TRACTORS

This is the first book to feature every Farmall model. It chronicles the background of McCormickDeering and International Harvester and outlines the beginnings of IH’s production of the treasured Farmall tractor from its inception in 1923 (the lightweight, general purpose row-crop tractor that could literally “farm all”) until the last model rolled off the assembly line in the mid 1970s. #3123 Retail Price $25.99 Sale Price $18.15

INTERNATIONAL HARVESTER TRACTOR DATA BOOK

This pocket-size guide provides serial numbers, engines and carburetor numbers, magneto codes, specifications decal placement, options and more. It also includes 50 black-and-white illustrations. #1092 Retail Price $14.95 Sale Price $10.45

ORIGINAL FARMALL CUB AND CUB CADET

This book presents the most complete and authoritative text available for those wishing to restore their Farmall Cub, Cub Lo-Boy and Cub Cadet, from their inception in the 1940s through the end of production. The detailed text includes hard-to-find information on the development and design of each model. #2674 Retail Price $37.95 Sale Price $26.55

Bookazine book ad.indd 20

IH FARM EQUIPMENT PRODUCT HISTORY 1831-1985

This is a history of International Harvester farm equipment from the first traction engine in 1906 until the last 5488 all-wheel-drive tractor.

It also includes IH-produced implements and combines. #1049 Retail Price $39.95 Sale Price $27.95

THE ANTIQUE AMERICAN STEAM GUAGE

This is a comprehensive collector’s guide to antique gauges.

It includes chapters on gauge makers, cleaning and restoring, railroad gauges, fire-engine gauges, portable and tractionengine gauges and more. An astounding amount of information and illustrations on these small machine (and life) savers! #2233 Retail Price $35.00 Sale Price $24.50

STANDARD CATALOG OF FARM TRACTORS 1890-1980

This is the No. 1 guide to North American farm tractors by C.H. Wendel, complete with Nebraska Tests. Explore popular makes and models, research company background and key production information, or just browse through more than 1,500 images! #2673 Retail Price $32.99 Sale Price $23.05

THE BIGGER BOOK OF JOHN DEERE

This is a model-by-model encyclopedia of John Deere tractors from their first appearance in 1892 to the latest, 2009 models. Photographs showcase beautifully restored tractors as well as unique paintings and artwork from the Deere archives, rare and valuable original brochures and studio photos of John Deere toys and models. This book is an unparalleled compendium of pictures and facts. #4511 Retail Price $40.00 Sale Price $28.00

INSTRUCTION MANUALS & SHOP GUIDES HOW TO RESTORE YOUR JOHN DEERE TWO-CYLINDER TRACTOR

From the 1920s well into the 1950s, John Deere tractors powered by two-cylinder engines provided adequate power at more-reasonable prices than most competitors could muster. This complete guide to restoring “Johnny Poppers” provides extensive photo sequences and detailed captions that break the entire restoration process into manageable steps covering engine, paint, wiring and all mechanical systems. #1445 Retail Price $25.95 Sale Price $18.15

THE FARM WELDING HANDBOOK

This 141-page book covers all the basics for welding projects on the farm. Chapters include setting up a home shop, welding safety and different welding processes. The book is largely devoted to oxyacetylene gas and arc welding, but wire-feed MIG welding is also covered. #2712 Retail Price $25.95 Sale Price $18.15

TOOLS & COLLECTIBLES COLLECTING ANTIQUE TOOLS

This book describes and illustrates more than 700 antique tools. It covers all categories. #1208 Retail Price $29.95 Sale Price$20.95

AMERICAN FARM COLLECTIBLES

This reference book explores collectibles related to farming in North America from the Civil War to approximately 1965. Also, an identification and price guide, this reference covers everything from old print advertisements to tools to implements and more! The book includes more than 1,000 photos. #2229 Retail Price $24.99 Sale Price $17.45

FARM TRACTOR COLLECTIBLES

This guide covers every tractor collectible from oil cans, thermometers, signs, brochures, pedal tractors, watch fobs and more. Each chapter is written by an acknowledged expert. #1231 Retail Price $29.95 Sale Price $20.95

8/20/10 3:56:29 PM

Farm Collector Bestsellers

LIMITED QUANTITY!

AMERICAN GASOLINE ENGINES VOLUME 1

AMERICAN GASOLINE ENGINES SET

AMERICAN GASOLINE ENGINES VOLUME 2

By C.H. Wendel. Hardbound reprint of the popular 1983 classic (the one with the yellow cover). This is the original “holy grail” gas engine encyclopedia.

Item # 2823 $50.00

By C.H. Wendel. The ultimate resource for gas engine enthusiasts, both volumes combine for nearly 1,000 pages of valuable engine information and photographs.

While supplies last.

Item # 3973 $90.00

Includes a small appendix of Webster bracket numbers and other magneto information, plus an appendix of European engines.

Item # 2824 $50.00

GARDEN TRACTORS

This illustrated history features the brands that have endeared themselves to landowners everywhere — the Cub Cadets and John Deeres, Simplicitys and Fords, Ariens and Kubotas. Accompanied by current and vintage images of these indefinable machines, this chronicle of the garden tractor is a wonderful testament to what makes America work, furrow by furrow.

Item #4033 $25.00

LEGENDARY FARMALL TRACTORS

METAL CASTING

AMERICAN INDUSTRIAL MACHINERY SINCE 1870

RUST BOOK: TRACTOR AND IMPLEMENT PRICE GUIDE

This single hardbound volume is packed with hundreds of period images and manufacturer overviews on construction, printing, sawmill, machine shop and steam industrial equipment. Enjoy hard-to-find information on machines like the Thew Automatic Shovel, the McCabe DoubleSpindle Lathe, the “Liberty” Paper Cutter, the Flory Hoisting Steam Engine and many more in over 400 pages.

Item # 4184 $50.00

Compiled by Machinery Pete, the Rust Book is the No. 1 source for actual auction prices on antique machinery manufactured between the 1920s and 1970s. Sales results on nearly 10,000 vintage tractors, implements and trucks including a complete list of serial numbers and tractor test results. It gives specific information on the model number sold.

Item # 4117 $19.95

GAS ENGINE RESTORATION

This comprehensive guide provides detailed information on farm tractors produced from 1939 through 2008. Included is information covering approximate retail prices when new plus a range of estimated used retail values.

Estimated trade-in values are also included to help you determine the approximate case value or loan value for a tractor.

Item # 4567 $29.95

Stephen Chastain, a mechanical and materials engineer, shows the beginner how to make a sand mold and then how to hone skills to produce high-quality castings.

Written in non-technical terms, the sandcasting manuals begin by melting aluminum cans over a charcoal fire and end by casting a cylinder head. Volume 2 contains advanced techniques.

Item #2085, Volume 1 $19.95 Item #2086, Volume 2 $19.95

This big book features 500 photographs of Farmall tractors, from that first experimental model introduced in 1924, through the classic lineup of International Harvester models that bore the Farmall name, to the last one to roll off the assembly line. Detailed descriptions combine with vibrant pictures to make this book a full-scale appreciation of the art of farm machinery.

Item # 4497 $25.00

STEAM ENGINE GUIDE

This guide details how an engine works and how to make adjustments. It is good for study and reference: reprint of “Threshers School of Modern Methods,” popular in The American Thresherman 1906-1910.

Item # 1276 $12.25

SEARS ROEBUCK & CO. CATALOGUE

THE OFFICIAL TRACTOR BLUEBOOK

For the first time, a step-by-step guide to stationary gas engine restoration has been written for engine enthusiasts. Peter Rooke leads you from stripping an engine through rebuilding each component. Also included are data tables containing reference information such as various bolt head and nut sizes, copper wire sizes and bearing tolerances.

Item # 4217 $19.95

This book is both a wonderfully fascinating collector’s item and a valuable piece of American history.

For every recognizable item, there are plenty of others guaranteed to confuse 21st-century readers.

Item # 3665 $17.95

YOUR SATISFACTION IS GUARANTEED 100% OR WE’LL REFUND YOUR MONEY Name:________________________________ Address:______________________________ City:____________________ State:________ Zip:________Phone ( )_______________ E-mail Address:________________________ QTY.

ITEM#

I have enclosed a check for $ _______________________ (Please include shipping and handling) Please charge my

MC

VISA

DISC

AMEX

Exp. Date:____________________ Card # _____________________________________________________________ Card Verification (last 3 or 4 digits on the back of the card) #_____________________________________________

DESCRIPTION

PRICE EA.

TOTAL

To order call

1-866-624-9388 or clip and send to:

Multiple orders may arrive in separate packages.

Please allow 4 - 6 weeks for delivery.

THANK YOU FOR YOUR ORDER! MFCPAAA2

Bookazine book ad.indd 21

SHIPPING AND HANDLING KS residents add 8.95% tax; MN add 6.875%; NE add 5.5% Canadian residents add appropriate sales tax

ORDER TOTAL

5.00

Farm Collector Books 1503 SW 42nd St. Topeka, KS 66609

8/19/10 4:19:08 PM

Farmhouse

The heart of the homestead

M

odern conveniences like the dishwasher, clothes washer and dryer, microwave oven, garbage disposal, food processor and refrigerator tend to make us smug and

complacent. “How did the early farm wife do it?” we ask as we consider the relentless work of cooking, food preservation and laundry in an era when few farms had electricity, and everything was done by hand and from scratch.

In fact, if her budget allowed, the farm wife of yesteryear had a dizzying array of clever devices, gadgets and gizmos designed to make life easier – though still a far cry from today’s automated routine. Literally hundreds of styles of washing machines existed (initially cranked by hand but later powered by stationary gas engines) and elaborate drying racks were available for inside and outside use.

The farmhouse kitchen was often a large room, and no wonder. The kitchen housed cream

22

separators, butter churns and workers, cook stoves, steam cookers, meat grinders, egg beaters, peelers, parers, choppers, stoners, seeders, slicers, sausage stuffers, fruit presses, kettles and canning gear. The number of manufactured variations of each item seems nearly infinite.

Devices used to process apples tell the story. The most common and readily available fruit 100 years ago, apples were a dietary staple throughout the country. But until the advent of wide-spread home canning in 1858 (the year the Mason jar was invented), the only way to preserve apples over the winter was to dry them – necessitating sheer tonnage of peelers, parers, choppers and slicers. Inventors saw enormous market potential and began churning out “a better mousetrap.”

Markings vary widely on antique tools and devices; countless pieces carry no markings at all. Many are marked with patent information, but even that information cannot be taken at face value. The patent date, for instance, doesn’t necessarily translate into the year the piece was manufactured. The item may have remained in production for years under the same patent. And the phrase “patent pending” doesn’t necessarily mean a patent was ever actually filed. Inventors sometimes cut corners by putting those words on their inventions with no intention of incurring the expense of filing for a patent. The phrase alone, some believed, would scare off competition.

Look for pieces in this category in antique shops and malls, flea markets, swap meets and online auctions. And pay close attention to the collector community: Your best source could be a dispersal auction representing a collection built over many years. A variety of books have been published on kitchen collectibles, and you can tap into the collector community through Kollectors Of Old Kitchen Stuff. (See the Resources guide for contact information.)

Farm Collector Mystery Tools

22-23 Opening_FarmHouse.indd 22

8/20/10 2:43:21 PM

Farmhouse

The heart of the homestead

M

odern conveniences like the dishwasher, clothes washer and dryer, microwave oven, garbage disposal, food processor and refrigerator tend to make us smug and

complacent. “How did the early farm wife do it?” we ask as we consider the relentless work of cooking, food preservation and laundry in an era when few farms had electricity, and everything was done by hand and from scratch.

In fact, if her budget allowed, the farm wife of yesteryear had a dizzying array of clever devices, gadgets and gizmos designed to make life easier – though still a far cry from today’s automated routine. Literally hundreds of styles of washing machines existed (initially cranked by hand but later powered by stationary gas engines) and elaborate drying racks were available for inside and outside use.

The farmhouse kitchen was often a large room, and no wonder.

The kitchen housed

22

cream separators, butter churns and workers, cook stoves, steam cookers, meat grinders, egg beaters, peelers, parers, choppers, stoners, seeders, slicers, sausage stuffers, fruit presses, kettles and canning gear. The number of manufactured variations of each item seems nearly infinite.

Devices used to process apples tell the story. The most common and readily available fruit 100 years ago, apples were a dietary staple throughout the country. But until the advent of wide-spread home canning in 1858 (the year the Mason jar was invented), the only way to preserve apples over the winter was to dry them – necessitating sheer tonnage of peelers, parers, choppers and slicers. Inventors saw enormous market potential and began churning out “a better mousetrap.”

Markings vary widely on antique tools and devices; countless pieces carry no markings at all. Many are marked with patent information, but even that information cannot be taken at face value. The patent date, for instance, doesn’t necessarily translate into the year the piece was manufactured. The item may have remained in production for years under the same patent. And the phrase “patent pending” doesn’t necessarily mean a patent was ever actually filed. Inventors sometimes cut corners by putting those words on their inventions with no intention of incurring the expense of filing for a patent. The phrase alone, some believed, would scare off competition.

Look for pieces in this category in antique shops and malls, flea markets, swap meets and online auctions. And pay close attention to the collector community: Your best source could be a dispersal auction representing a collection built over many years. A variety of books have been published on kitchen collectibles, and you can tap into the collector community through Kollectors Of Old Kitchen Stuff. (See the Resources guide for contact information.)

Farm Collector Mystery Tools

22-23 Opening_FarmHouse.indd 22

8/23/10 4:35:51 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

22-23 Opening_FarmHouse.indd 23

32.

33.

34.

8/20/10 11:09:48 AM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34. www.FarmCollector.com

22-23 Opening_FarmHouse.indd 23

23

8/23/10 4:34:17 PM

Farmhouse

Rollers measure 4-1/2 inches long and 1-1/4 inches in diameter. Base clamps to a bench or table.

A lever separates the rollers just enough to slide material in.

Spring pressure keeps the rollers together.

1. Radiator Mover

One reader says the two objects were used to move cast iron heating radiators. With one on each side of a radiator, the chain was passed through to secure the radiator. The handles could then be raised or lowered to achieve the desired lifting height.

2. Fluting Machine

The fluting machine was used to put pleats and ruffles in garments such as petticoats, blouses and collars. In use, heated irons were inserted into the hollow rollers. The heat helped “set” the pleat. One reader suggests an alternate use. “I myself have no use for pleated garments,” he writes.

“However, the device might be o f sufficiently heavy construction to be used for juicing such things as rhubarb.” Editor’s note: Be sure to clean all the rhubarb off before you next use the device on petticoats!

Several readers thought this piece was a stovepipe crimper. However, the soft brass rollers on this device would not hold up well in that application and would likely become distorted. Also, the rollers are quite a bit longer than the rollers in a crimper.

For more on stovepipe crimpers, including a patent illustration, see “It’s All Trew” on page 35 of the April 2010 issue of Farm Collector.

Patent 169,327: Fluting machine. Patent granted to Hermann Albrecht, Philadelphia, Nov. 2, 1875. This is not the exact item but illustrates a similar piece.

24 24

Farm Farm Collector Collector Mystery Mystery Tools Tools

24-40 FarmHouse Chapter.indd 24

8/20/10 2:45:06 PM

P a t e n t 1,739,358: Looping machine.

Patent granted to Emory Gearhart, Clearfield, Penn., Dec. 10, 1929. This is not the exact item but illustrates a similar piece.

Rollers are about 5 inches wide.

3. Candy-Making Machine

This device is similar to the one a reader once used at Zigenfelder Candy Co. “Strips of candy were fed through the machine via the crank handle. Notches in the wheels formed ‘drops’ such as hardtack and horehound candy. The drops would cool and be hard as rock. There was a similar machine to use in making ribbon candy.” Another reader notes that the bronze twin-roller device was made in England in about 1840.

Patent 111,765: Candy-making machine. Patent granted to Thomas Mills and George R. Mills, Philadelphia, Feb. 14, 1871.

4. Hook Rug Needle

“The rug is hooked from the back, and the linen or jute backing (burlap bag) is stretched on a frame,” a reader explains. “The strip of cloth or yarn is threaded through the metal eye and pushed through the backing to the preselected distance. As you pull the wooden piece back, the strip of cloth is held in place by the threads of the backing.

This is repeated over and over to get a hooked rug with even loops on the front. It is a tedious process but yields a smoothly hooked design.”

One Farm Collector reader has a hooked rug device like this one, complete with a box bearing this verse:

“ One handle up and the other down,

Over the burlap so tightly drawn, With scraps of rose and orange and fawn, Bits of purple and gray and blue, And pieces of mother’s wedding gown, Gleaned from the scrap-bag and attic hoard And garments long in the closet stored; Till on the frame a rug there grew!

Susan Burr, in the days gone by, Fashioned rugs such as you or I With the self-same needle In the self-same way.” www.FarmCollector.com

24-40 FarmHouse Chapter.indd 25

25

8/20/10 2:45:59 PM

Farmhouse

6. Can Opener 5. Can Opener

Cast iron can opener made in Decatur, Ill. There are two prongs on the circular head.

Insert both in a can and move one handle, cutting the lip open. The other handle holds the can in a permanent position.

According to one reader, this unpatented can opener was produced by William Dodd and C.S. Osborne in 1854.

The business partners opened a hardware manufacturing company in Newark, N.J., in the late 1830s.

They offered an extensive line of goods and were among the first hardware companies in America.

did you know?

Patent 402,840: Can opener. Patent granted to John Kaylor, Decatur, Ill., May 7, 1889.

26

Tin cans were invented in about 1810 in London

by Peter Durand, but the can opener was not invented until almost 50 years later. Prior to the can opener’s invention, cans were opened using a chisel and hammer, knives, rocks … whatever got the can open.

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 26

8/20/10 2:50:43 PM

Stamped with “Dutchess Tool Co., Beacon, N.Y., USA Pat. April 4, 1916”

7. Dough-Dividing Machine

One reader writes, “It was used in cutting pans of bread dough into biscuits or dinner roll shapes. A lot of these are still in use in bakeries and restaurants today. It’s a very durable machine. The Dutchess Company is alive and well today.”

Patent 1,177,835: Dough dividing machine. Patent granted to Frank H. Van Houten Jr. for the Dutchess Tool Co., Fishkill-onthe-Hudson, N.Y., April 4, 1916.

8. Lemon Squeezer

The lemon was inserted in the device and squeezed using the hand levers and fulcrum “so that when power is applied the flat surfaces of the interior of the cylinder will be brought together, forming comparatively a close-fitting joint,” an 1881 patent said. One reader writes that it is “a Little Giant lemon squeezer, probably made by Peck & Stowe.”

Patent 240,858: Lemon squeezer.

Patent granted to Joseph C. Steber, San Francisco, May 3, 1881.

www.FarmCollector.com

24-40 FarmHouse Chapter.indd 27

27

8/20/10 10:09:43 AM

Farmhouse

This piece is incomplete as shown; it is missing its wheel.

Patent 332,185: Door hanger. Patent granted to John Braun, Philadelphia, Dec. 8, 1885.

10. Yarn Winder 9. Sliding Door Hanger

This slid into a pocket in the wall, usually between the parlor and dining room.

According to one reader, the door pocket had a wooden track on each side that a 4or 5-inch roller rested on.

The rollers were connected to the door hanger, which was connected to the door allowing for ease of movement and storage when not in use.

According to our source, because the vast majority of winders were handmade, no two are alike. From this piece comes the old tune “Pop Goes the Weasel.” After 60 turns, a hank of yarn is produced; an elongated tooth on the gear signals that by clicking or “popping.”

“ From this piece comes the old tune ‘Pop Goes the Weasel.’ After 60 turns, a hank of yarn is produced; an elongated tooth on the gear signals that by clicking or ‘popping.’”

28

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 28

8/20/10 2:52:22 PM

No markings on the assembly. The device is 24 inches long, 7 inches wide and 3 inches deep.

The rollers are 5 inches long and have an outside diameter of 3 inches. Rollers and gears are made of steel; springs press against the axle of one roller against the other.

“PAT APLD FOR” on the handle.

11. Fruit Crusher

The one pictured is missing the hopper that held the supply of fruit. The piece was used to crush apples for cider or apple butter.

Crushers were also used to process grapes for juice or wine, and peaches, apricots, cherries and blackberries for jam and jelly.

12. Pan Handle

Patent 1,681,920: Fruit crusher.

Patent granted to Raffaele Baccellieri, Philadelphia, Aug. 28, 1928.

Patent 1,145,060: Pan handle. Patented granted to John J. Duket, Toledo, Ohio, July 6, 1915.

www.FarmCollector.com

24-40 FarmHouse Chapter.indd 29

29

8/20/10 10:17:31 AM

Farmhouse

13. Stitching Horse

The stitching horse was used by those working with and/or stitching leather.

The vertical clamp acted much like a vise. When the operator sat on the bench, he used his right foot to put pressure on the arm near the floor, causing the clamp to close firmly, holding the work so it could be sewed.

These were commonly found in harness shops and many farmers used them to repair harnesses. “ This one appears to be homemade, as most were, but the jaw mechanism is not typical of these things,” notes one reader. “They were mostly tightened up with a big bolt and a knurled nut thing. This has a strap passing through the upright to the free arm, which is tightened down by the foot action. Neat. Someone was thinking; speeds things up.”

“My dad used to repair his horse and mule harness on winter nights,” another reader recalls. “He would bring the harness horse into the kitchen near the old kitchen wood range where it was warm. He used an awl and stitching awl for the sewing. The string he used was linen, which is quite strong. The string was rubbed across a ball of bee’s wax to make it water- and weather-proof before the stitching took place.”

Patent 371,198: Stitching horse.

Patent granted to Edward Jones, Flint, Mich., Oct. 11, 1887.

30

14. Sausage Grinder

This sausage grinder may have been made by the Ames Plow Co. A 5/8-inch exit hole for the ground sausage is on the bottom side; the auger portion lifts out for cleaning.

did you know?

German inventor Karl Drais is credited with inventing the meat grinder, as well as the “hobby horse,” which was the first modern bicycle, and the keyboard operated typewriter. The grinder we know today is not much different from the one Drais invented – the modern grinder is just faster and more reliable.

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 30

8/20/10 10:24:48 AM

7-1/2 inches wide by 15-3/4 inches tall; no moving parts.

15. Ash Shovel

Used to sift ashes or handle rigid, durable vegetables.

16. Stove Boiler Base “This stand held the boiler or tank that was piped to a coal or wood stove to heat water,” one reader says. “In northeast Pennsylvania where I grew up, almost every house had a boiler hooked to their coal stove in the kitchen. Some were made of galvanized steel and others were made of copper.”

Patent 1,257,415: Sifting shovel. Patent granted to Benjamin H. Smith, Niles, Mich., for Michigan Wire Goods Co., Feb. 26, 1918.

www.FarmCollector.com

24-40 FarmHouse Chapter.indd 31

31

8/20/10 10:25:50 AM

Farmhouse

The single hook’s rod slips down inside the outside rod and can control the double hooks (a third finger is missing); 5 feet long.

17. Clinker Catcher

“After you burn coal you end up with ‘clinkers’ in the bottom of the furnace,” one reader explains. “A clinker is coagulated slag or metal impurities that ‘melt’ from the coal as it becomes coke. Most clinkers consist of pyrites that are naturally included in coal. Periodically one has to reach into the bottom of the furnace with the grapple and remove the hot clinkers.

In a home you might get enough to fill a metal 5-gallon bucket. On the farm in the winter, it was my chore when I got home from school to go to the basement and fill up the ‘stoker’ (a box with an auger to the furnace) with coal and remove the ash and clinkers from the furnace.” Another reader notes that a piece is missing from the one pictured. “There should be an opposing finger or hook at the end with the double hook. There were many variations of this tool: Some had five fingers, others had three. Some worked by rotating the handle. In the picture, the handle is what you called the single hook end. Others worked with a springloaded lever that you squeezed or pulled.”

Patent 824,642: Clinker catcher.

Patent granted to Harry Gibbs, Princeton, Ill., June 26, 1906.

18. Croquette Mold

As reported in 300 Years of Kitchen Collectibles, 5th Edition, Edition “According to Richard Hooker, who wrote the amusing, informative History of Food & Drink in America, America meat choppers in the 1860s and ‘70s opened to the housewife an entire school of dishes based on chopped foods: croquettes, timbales, patties, loaves etc.” This mold is a result of that trend. In fact, 300 Years of Kitchen Collectibles further notes these molds were “... used to shape a mixture of minced meat, spices, onion & egg into shape of lambchop or drumstick, etc., before cooking, but not used to bake the cutlet in.” One reader noted, “There is a hole in the narrow end to insert a stick for holding while eating.”

Chicken Croquettes (Mock Chicken Legs) Ingredients:

2 C. chicken, cooked, boned, cut into chunks 1 onion, cut into chunks 2 cloves garlic, minced 2 Tbs. prepared Dijon mustard 2 Tbs. mayonnaise or creamy garlic dressing 1 Tbs. honey 1 Tbs. vegetable oil 2 tsp. dried basil

1 tsp. salt to taste 1 tsp. pepper 1 tsp. paprika 1 tsp. chili powder to taste 1 C. flavored breadcrumbs Breading: 1-2 eggs, beaten, may add water Additional bread crumbs for coating.

Vegetable oil for frying

Directions:

Put all the croquette ingredients into a food processor and chop until finely minced and able to mold into croquettes. (Adjust consistency by adding oil or breadcrumbs.) Shape into patties (or chicken leg shapes). Dip in beaten egg, roll in breadcrumbs and fry until golden and cooked.

Tip:

Insert a popsicle stick to lift the leg and eat it from the “bone.”

32

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 32

8/20/10 10:33:51 AM

20. Jar Holder 19. Lovell Wringer One reader sent in a picture of what this tool should look like if it were complete. It is used to wring out wet clothing.

This device was used in securing fruit jars while opening or tightening the caps. It was adjustable to accommodate jars of different sizes. Such pieces sometimes had clamps, which held the base to a tabletop. This piece was patented Oct. 12, 1909.

did you know?

The clothes wringer was invented

by Ellen Eglin, an African-American woman, in 1888. She sold the patent for $18 because she believed white women would not want to use the wringer if they knew it was invented by an African-American. www.FarmCollector.com 33

24-40 FarmHouse Chapter.indd 33

8/20/10 10:37:02 AM

Farmhouse The arm on bottom is 10 inches long.

The arm on top (with the loop at one end) is 11 inches long, and the connecting piece is 4-1/2 inches.

21. Clothesline Tightener

“Inside the body are small balls spring-loaded into the coneshaped bottom,” one reader explains. “Release them by pushing down on the ring-shaped collar at the top (inside) of the wire loop, which serves to attach the anchor to some fixed point.

Push a rope through the opening at the bottom on out the top and then release the collar. The balls are forced down, holding the rope. The tighter the rope is pulled, the more the balls grip against it. To release, just push down on the collar again.”

22. Carpet Stretcher Patent 444,415: Carpet or oilcloth stretcher. Patent granted to Andrew R. Anderson, New York City, Jan. 13, 1891. This is similar to the tool shown above and illustrates how a carpet stretcher works.

did you know?

William Sprague is credited with starting the United States’ carpet industry when he opened the nation’s first woven carpet mill in Philadelphia in 1791. The industry took off in 1839 when Erastus Bigelow invented the power loom for weaving carpet, which tripled carpet production by 1850 and paved the way for further loom advancements.

34

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 34

8/20/10 10:45:24 AM

24. Stove Lid Lifter

“The pointed end was used to lift the hot lid off the top for filling and also the ash pit cover,” one reader wrote. “The square hole would fit over a grate end that protruded through the side of the stove to shake ashes down from the firebox into the ash pit.” An alternative possibility suggested by a reader was a tack puller with a square socket used as a wrench to open and close the gas valve on gas stoves.

23. Knife

Cleaner

This piece appears to be an improved version of a knife cleaner and polishing machine, primarily used to clean and polish table knives.

The piece was patented in 1914 and produced by Ernest Koeppen, New York.

www.FarmCollector.com

24-40 FarmHouse Chapter.indd 35

35

8/20/10 10:51:30 AM

Farmhouse

26. Meat/Produce Cutter

The device is used to cut a variety of foods including kraut, slaw, cabbage, vegetables and pickles.

25. Wallpaper Trimmer Machine According to the 1886 patent, “It is customary for the manufacturers [of wallpaper] to leave a margin along both edges, one of which margins, at least, must be trimmed off, in order to allow the papers to be placed upon a wall in such a manner that the ornamental design may match from one strip to the next and together form an unbroken figure.

Further, it is desirable that the edge of the paper shall be so cleanly cut as to leave no fuzz.” The patent continues, “The object of our invention is to furnish a machine ... that shall expeditiously do the work of trimming wall-paper.”

Patent 346,307: Machine for trimming wall paper. Patent granted to J. Harvey Miltimore and Henry Underwood, Waukegan, Ill., July 27, 1886.

36

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 36

8/20/10 2:53:40 PM

27. Meat Tenderizer

Also known as a meat tenderer.

As identified in its 1871 patent (no. 113,260): “Improvements in devices for preparing beef-steaks for broiling.” The piece was used to strike a piece of meat. On each strike, the device’s sharpened teeth scored the meat. The spring-loaded rod then pushed the meat off of the device.

Other readers identified the piece as a clapboard marker, an item with a very similar appearance.

28. Stove Coal Release

One reader claims this was used for coal release. “It slides on the bottom of a cylindrical chamber that runs from the top of the stove down through the middle. This is what you pour the coal in. This mechanism releases the coal into the bottom of the stove.”

Patent 113,260: Meat tenderer. Patent granted to William A. Clark, Woodbridge, Conn., April 4, 1871.

Patent 1,153,171: Clapboard marker. Patent granted to Henry Neistadt, Ames, Iowa, Sept. 7, 1915.

www.FarmCollector.com

24-40 FarmHouse Chapter.indd 37

37

8/20/10 10:56:40 AM

Farmhouse

29. Multi-tool

This was used for a wide variety of tasks. In the September 2004 issue of The Chronicle (a quarterly publication for the Early American Industries Assn., or EAIA), it was said that one Samuel C. Monce is more-or-less credited for this idea, which started out as a simple glass cutter. His 1869 patent was invalidated in 1879, due in part to a man by the name of Woodward, inventor and manufacturer of the Woodward multi-tool.

Woodward claimed he came up with the idea first, though there are no patent records to confirm this.

Three ceramic boxes: large, 18-by-24-1/2by-17 inches; medium, 11-3/4-by-19-by-16-1/2 inches; small, 11-7/8-by17-3/4-by-16-7/8 inches.

30. Icebox porcelains

Patent drawing of Samuel C. Monce’s combination tool. Monce was a forerunner in the industry.

Image courtesy of The Chronicle, Volume 57, No. 3 (September 2004).

38

These were used in early iceboxes. When one reader acquired a large estate icebox, he found the top section (where the ice would be placed) lined with galvanized metal.

The lower sections contained the porcelain boxes. “They were arranged so that the cold air from above ‘fell’ down below, passing through the holes in the stacked porcelain boxes. The cool air fell to the bottom of the top porcelain, typically falling out another vent on the bottom to the next porcelain below on its way through the stack. In that way, the cool air circulated down, and the mass of the porcelains helped keep the food colder for a given mass of ice. Of course, the porcelains were also easier to keep clean than metal shelving.”

did you know?

Early refrigerators used toxic gases like ammonia, sulfur dioxide and methyl chloride as refrigerants. Deadly leaks led to the invention of chlorofluorocarbon, or Freon, by 1930.

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 38

8/20/10 11:00:28 AM

31. Pencil Sharpener

Dubbed “The Combination,” the unit was produced by The Lord Manufacturing Co., New Haven, Conn. If complete, it will have one wheel with sandpaper and another with a brush, the latter used to clean chalkboard erasers. Promotional material claimed that the unit would “do away with much of the disagreeable part of cleaning erasers.”

“I presume that means keeping the dust down,” one reader writes, “but I wouldn’t want to bet on it.”

Patent 575,964: Combination pencil sharpener and eraser cleaner. Patent granted to Percy Lord, Riverside, Calif., Jan. 26, 1897.This patent drawing shows the eraser cleaning wheel (bottom left) and pencil sharpening wheel (above).

This piece has been bolted to the wall, has a hole and a spring-type piece; it has no markings or numbers.

32. Bowl Clamp

This bowl clamp was used with a cream separator.

“We have one just like this,” one reader says. “Bolt it to the wall, set the bowl into the spring and use the wrench (not shown) to loosen the ring so you can take the bowl apart to clean. Before separating next time, set the bowl in the spring, assemble the discs, cover and ring, and tighten before setting up the separator.” Some manufacturers built the clamp into the separator itself; others provided the customer with a cast iron wall bracket with the bowl clamp installed on top of it.

Patent 1,453,802: Combined milk reservoir and bowl clamp support for cream separator. Patent granted to Theodore H. Miller, Poughkeepsie, N.Y., assignor to the DeLaval Separator Co., New York City, May 1, 1923.

www.FarmCollector.com

24-40 FarmHouse Chapter.indd 39

39

8/20/10 2:54:38 PM

Farmhouse

33. Carrier

This book/parcel/shawl carrier was likely home-made.

Similar items are shown below.

Patent 360,769: Package holder.

Patent granted to Newland E. Frost, Geneva, N.Y., Aug. 5, 1887.

34. Skimmer Washer

Although occasionally misidentified as a marshmallow maker, in fact this apparatus is designed to use in washing cream separator skimmers.

Patent 303,896: Shawl strap. Patent granted to William B. Tharp, Eagle Pass, Texas, Aug. 19, 1884.

Patent 401,073: Shawl strap. Patent granted to Max Rubin, New York City, April 9, 1889.

Patent 412,295: Shawl strap. Patented granted to Howard W. Reynolds, Rochester, N.Y., and N.E. Stoneburn, Rochester, N.Y., Oct. 8, 1889.

40

Patent 1,121,731: Apparatus to wash cream separator skimmers.

Patent granted to Perley L. Kimball for Vermont Farm Machinery Co., Bellows Falls, Vt., Dec. 22, 1914.

Farm Collector Mystery Tools

24-40 FarmHouse Chapter.indd 40

8/20/10 11:02:51 AM

MORE THAN JUST A KNIFE STORE We carry a large selection of

quality

equipment.

meat

processing

Meat Tenderizers,

Electric Smokers, Manual and Electric Meat Grinders, Sausage Stuffers & Food Dehydrators.

Visit our website: www.madcowcutlery.com or call (325) 597-2621 We have the lowest prices & free shipping on most processing equipment!

NOW

meat grinder

knife care

&

meat tenderizer

meat mixer

THEN MadCow WII Bookazine.indd 41 Bkzn_Mad_Cow.indd 41 1

8/10/10 AM 8/19/10 11:11:30 1:52:46 PM

Livestock

Keeping the herd in check

T

he stockman of yesteryear was equipped with an enormous selection of tools with which he managed his herd and flock. For cattle, there were blinders, staffs, leaders, calf weaners, dehorning

clippers, brands, ties and “staking out” chains. For hogs, there were snouters, ringers, holders, ear notchers, waterers and oilers. There were leg bands, nest eggs, markers, grit machines, perch brackets, bits and egg testers for poultry; shears, brushes, picks and clippers for sheep and horses – the list is nearly endless. Dairymen, too, required their own tools: pails and seats, thermometers, gauges, testers, lactoscopes (to determine cream content in milk) and lactometers (water content).

Early manufacturers rose to the challenge and regionally produced tools were widely available. General stores, hardware suppliers and catalog merchants like Sears & Roebuck and Montgomery, Ward & Co. carried extensive inventory and the tools were commonly used across the country.

For the collector of livestock tools, an interesting subcategory exists of farmer-made devices. The rough equivalent of primitive household antiques, these pieces are marked by particular

42

ingenuity and economy. They don’t come easy: Your best bet may be to scour antique shops, flea markets and swap meets, particularly in the eastern part of the country.

Another offshoot of the category is stockyard collectibles.

That group of items revolves around printed materials (bulletins, photographs and schedules), small premiums and signs, as well as animal handling tools and devices.

Most livestock tools were manufactured and used from the 1880s to about 1930, with a primary focus on controlling animals while minimizing the handler’s exposure. Hog tools were very widely used in eastern states; collectors in the west may find more cattle tools there than hog tools. In general, livestock tools are increasingly difficult to find outside of collection dispersal auctions. Regardless of whether you place a winning bid, collections built over the past several decades offer rare opportunity for the novice to see tools only seldom encountered otherwise.

Many antique tools were relegated to the dust heap of history when early machines and processes became obsolete.

Corporate farming has had its impact, to be sure, but even by the 1940s most of the tools in this category had been abandoned – yet livestock remained a vital part of many farm operations. What changed?

One answer may be the evolution of fence design, construction and materials. Early fences were notoriously weak and ineffective. As confinement methods became more sophisticated, the stockman’s job changed in subtle ways. And yet no farmer worth his salt would throw away a perfectly good tool – at least not until the scrap metal drives of World War II, which account for short supply of many farm relics.

Farm Collector Mystery Tools

42-43 Livestock opening.indd 42

8/18/10 12:11:15 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20. www.FarmCollector.com

42-43 Livestock opening.indd 43

43

8/18/10 12:12:29 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20. www.FarmCollector.com

42-43 Livestock opening.indd 43

43

8/23/10 4:46:23 PM

Livestock

1. Sheep Shearing Chair

The 1875 patent reads in part, “The sheep, having been placed on the seat in the position desired for commencing the clipping, is not changed during the entire process. As the clipping progresses the platform is revolved, so as to bring the rack into different relative positions to the sheep.”

2. Cow Tail Holder

Used for holding a cow’s tail while milking. According to an 1890 patent for the device, “When the handles are released, the spring will actuate the curved arm, forcing the latter, as well as the jaw, in an inward direction and retaining the device upon the leg and tail of the animal.”

Patent 161,622: Sheep shearing chair.

Patent granted to Charles and James McCall, Morristown, Ohio, April 6, 1875.

Patent 444,428: Cow tail holder. Patent granted to Edwin Farnham, Dover, Maine, January 13, 1891.

44

Farm Collector Mystery Tools

44-53 Livestock Chapter.indd 44

8/19/10 9:28:08 AM

Approximately 22 inches wide by 18 inches tall.

Pad resembles thin belting.

4. Hog Snouter

According to an 1862 patent awarded to Reuben Hurd, of Spring Hill, Ill., “The animal to be operated upon is grasped by the operator or an attendant and the operator distends the back parts of the levers by means of the finger and thumb, and thereby throws out the knife from the block. The block is then placed against the end of the upper part of the snout of the animal and the knife is then forced against the block, the former passing through the rim of the snout and severing it, so that the animal loses all power over it for ‘rooting’ purposes.”

3. Neck Aid for a Horse

Device to hold up a horse’s collar when the horse has a sore neck, so the neck can heal while the horse continues to work.

Patent 34,368: Improved device for cutting the noses of swine to prevent them from rooting.

Patent granted to Reuben Hurd, Spring Hill, Ill., Feb. 11, 1862.

www.FarmCollector.com

44-53 Livestock Chapter.indd 45

45

8/18/10 12:14:08 PM

Livestock

The pieces appear to hook together: left piece has buckles, right doesn’t.

5. Speculum for a Horse

Identified as the cheek pieces of a veterinarian’s speculum.

“It is used to examine the mouth, particularly the teeth for sharp edges, as these teeth grow continuously and must be ground off with a rasp (also known as a float),” notes one veterinarian.

6. Ox Yoke Staple & Rings

Both rings would be centered at the bottom of the yoke to attach the load. The elongated section went through the wood of the yoke and was secured at the top with a pin. The tongue of the wagon would be hitched through the larger of the rings and a chain would go through the smaller ring.

46

Farm Collector Mystery Tools

44-53 Livestock Chapter.indd 46

8/18/10 12:14:48 PM

Nineteen inches long. This has the appearance of a chamfer knife, but has replaceable blades on both edges and is too wide for a drawknife operation.

Patent no. 511,885: Hoof trimmer.

Patent granted to W.K. Fraley, Lebanon, Ind., Jan. 2, 1894.

8. Currier’s Knife 7. Hoof Trimmer

Compound-action horse hoof trimmer.

One reader says the tool, known as a “fleshing knife,” was used to scrape fat and tissue from the flesh side of a hide before tanning. “The blade was used in long scraping motions, and was kept very sharp, necessitating the T-shaped handle to maintain the correct angle with the hide,” he explained.

“If the angle changed too much, the knife would slash the hide, ruining it.”

“ If the angle chang ed too much, the knife would slash the hide, ruining it.”

www.FarmCollector.com

44-53 Livestock Chapter.indd 47

47

8/18/10 12:16:10 PM

Livestock

Stamped “Pat. Dec. 2 1873.”

9. Hog Snout Holder

Placed over the hog snout, a strong squeeze on the handle and the grip locked the device to the snout, thus immobilizing the hog and enabling a farmer to “ring” it.

10. Hill’s Hog Tongs

“The tongs are used to clamp and hold the hog’s snout while the ring is applied,” one reader says. A similar piece was manufactured by E.C. Stearns Co.

did you know?

A pig uses its snout much like a human uses its hands. The rooting disc, located on the end of the snout, contains as many sensory organs as a human has on both p a l m s. “ R i n g i n g ” d i s c o u r a g e s rooting and digging as it makes it very uncomfortable for the pig.

48

Patent 145,105: Hog tongs. Patent granted to Hugh W. Hill, Decatur, Ill., Dec. 2, 1873.

Farm Collector Mystery Tools

44-53 Livestock Chapter.indd 48

8/19/10 9:28:40 AM

Stamped “Wilson & Baker pat. June 10, 78.” Loop is 15-1/2 inches long; chain is 25 inches long.

Patent 216,482: Hog holder. Patent granted to John R. Wilson and Wilson M. Baker, Urbana, Ohio, June 10, 1879.

11. Hog Catcher

Used to capture hogs by the hind legs in order to hold them enough to ring, castrate, vaccinate or otherwise. Most models would have provisions for a pole to be inserted into the end. This pole would be held in one hand, and the rope in the other. The jaws of the catcher would be wide open, and by moving and guiding with the pole, the jaws were placed on the rear leg. The rope was then pulled, closing the jaw around the leg by pulling away on the pole. It would separate itself from the catcher and you could then use both hands to hold the rope and grasp the animal by its front legs to wrestle it into position.

Patent 338,606: Animal catching device. Patent granted to C.F. Morley, Tecumseh, Mich., March 23, 1886.

12. Hog Holder

The patent was issued to John R. Wilson and Wilson M. Baker, both of Urbana, Ohio. “We have invented a new and improved Hog Holder,” noted the patent applicants. “The invention consists of a stout rod, preferably of metal, bent so as to form a loop or handle, whose legs cross each other, and are soldered or otherwise fastened together and whose ends are hooked, notched, or perforated, for the purpose of securely holding the chain, cord, or strap, which is attached to them. If the chain is placed in a hog’s mouth, a turn or twist of the loop portion of the device instantly forms a hitch of the chain over the hog’s nose, making it easy to hold him thereby, or to throw him down, if desired.”

Pictured at right is another type of hog holder.

“The holder was placed over the hog’s upper jaw,” one reader says. “The hog would back up, trying to get away. When the holder was tightened on top of the hog’s nose, the animal would stand still for vaccinations, castration, tooth clipping, etc.”

www.FarmCollector.com

44-53 Livestock Chapter.indd 49

49

8/18/10 12:22:33 PM

Livestock

14. Cow Chain “ We did not have stanchions, but we stapled

Wooden trough with 4-bar rotating insert. Measures 4 feet long, 5 inches high and 11 inches wide.

13. Poultry Feeder

one end of the chain to the manger, then tied the cow by slipping the other ‘catch’ through one of the two circles on the free end of the chain.” . . . one reader recalls.

This piece was probably made on the farm or by a local craftsman. The 4-bar reel on top served two purposes: It kept chickens from getting into the feed trough and scratching out the feed. If the chicken hopped onto the reel, it rotated, dumping the fowl to the ground.

Patent 2,136,587: Feeding and watering device. Patent granted to Donald S. Gaskill, Lyndonville, N.Y., Nov. 15, 1938.

did you know?

In 1910 there were 61 million cattle in the United States. By 2007 that number was 97 million cattle – an increase of 59 percent.

50

Farm Collector Mystery Tools

44-53 Livestock Chapter.indd 50

8/18/10 12:23:55 PM

Patent 253,359: Hog tendon cutter.

Patent granted to Orville Ewing, Decatur, Ill., Feb. 7, 1882.

Marked: “C.H. Dana West Lebanon, N.H.”

16. Nose Ringing Tool 15. Tendon Cutter

Patent 339,152: Nose ringing tool.

Patent granted to Charles H. Dana, West Lebanon, N.H., April 6, 1886.

This hog tendon cutter was used to cut tendons in the hog’s snout to prevent rooting.

Although the hog might be expected to see matters entirely differently, a copywriter for Bell-Hart promised the anti-rooter would deliver happy outcomes: “That means hog heaven for me for I can’t root,” reads text accompanying the drawing. “I’ve been operated on with a Bell-Hart Anti-Rooter.”

Hog “anti-rooter” used to nip the end of a hog’s nose to prevent rooting.

“This item sold for $33 per dozen in the 1925 Belknap hardware catalog,” one reader reports.

www.FarmCollector.com

44-53 Livestock Chapter.indd 51

51

8/18/10 12:25:28 PM

Livestock

Multiple blade fleam, with “Borwick” cast into smaller blade. With blades folded in penknife-style, piece measures 3-1/8 inches long.

17. Fleam

Fleams were most typically used by veterinarians in early bloodletting treatments. A related instrument, the thumb lancet, was used in treatment of human patients.

18. Pig Puller

More formally, pig forceps.

“Used when a sow was having trouble delivering, the round ends grasped around the piglet’s eye sockets. If that failed, the tool was turned around and the piglet was grasped with the pliers-like end,” one reader notes. Pig pullers were used on livestock farms from the late 1890s to 1920s.

did you know?

Bloodletting was typically performed by barbers. The iconic striped barbershop pole showed that bloodletting was performed there. The pole represented the staff the patient gripped to make his veins bulge. After the procedure, the bandages used to stop the bleeding were hung on the staff to dry, creating the famous red-and-white pattern.

52

Farm Collector Mystery Tools

44-53 Livestock Chapter.indd 52

8/18/10 12:28:39 PM

Patent 534,112: Dehorner.

Patent granted to Harry Leavitt, Hammond, Ill., Feb. 12, 1895.

Patent 2,244,810: Horn forming weight. Patent granted to Ernest Stone, Denver, June 10, 1941. This is not the exact patent but it illustrates a similar piece.

20. Horn Weights

19. Dehorner

“A lot of times a bull’s horns would grow in a curve into their cheek,” one reader notes. “The horn would have to be clipped off or totally removed.”

Dehorning also protects cattle from injuring other animals, “especially in feedlots,” another reader says. “Horns are often left on cows that roam free where there may be predators such as coyotes, so they can better protect themselves and their calves. Some breeds of cattle do not grow horns.”

“When the horns on younger cattle weren’t turning down as they should, horn weights could be put over the ends and the screws tightened to hold them on,” explains one reader. “They came in different sizes and weights to take care of varying ages and sizes of the horns and how much they needed to be turned. They were left on three or four weeks and then you’d check to see the results, or put them back on if they came off. It was best to confine the cattle to a small lot so you could find them again. If the horn was starting to make some turning (and that would be at the base where it was growing out), it might be best to take them off and let the horn grow out more and repeat a little later. If too heavy a weight was used and left on too long, the results would be a sharp angle in the horn and it would look very unnatural.”

Another use, according to another reader: “They helped prevent injuries if two bulls (or cows) were fighting, and could be used to restrain a bovine by attaching a rope or chain to the weights.”

And the numbers shown on the weights? “The 1-1/2 is the weight of the casting and they came in different weight sizes,” explains another reader, “depending on what the showman wanted to accomplish and how fast.”

www.FarmCollector.com

44-53 Livestock Chapter.indd 53

53

8/18/10 12:28:05 PM

Barn/Shop

Tools that kept life moving

T

o a farmer, the barn and farm shop are the rough equivalent of a businessman’s desk and file cabinet.

Home to a vast variety of tools for every conceivable purpose, the building’s interiors may look chaotic

and unorganized to the untrained eye. But look closely and a uniquely individualized system unfolds.

Here you find a range from a blacksmith’s forge to engine repair; tools for saws and sawmills, implements, wagons and carpentry. While other tools were carried to the field for fencework or onsite mechanical repairs, the barn and shop were headquarters for planned maintenance.

The barn was also the site where large amounts of milk were processed in cream separators, grain was shelled, and fodder was cut, ground, milled and compressed for later use. In many cases, the barn offered shelter to livestock, which translated into daily chores associated with feeding and watering, cleaning stalls and gutters, and spreading straw.

The loft, of course, offered centralized, weatherproof storage for hay, and hay tools make up a very popular collectible group.

Common to farms across the country, the category includes forks, spears and harpoons as well as barn tools such as carriers,

54

slings, pulleys and tracks. The latter pieces often remain intact in decades-old barns, but because of their location at the building’s most inaccessible point can be frustratingly just out of the collector’s reach.

Because of their size and somewhat awkward stance when out of their element, hay tools are less commonly found on eBay or in antique shops than many farm collectibles. When they are found online shipping charges can be hefty. As a result, auctions, flea markets and swap meets are good sources for such items.

Manufactured as early as the 1840s, hay tools such as those cited here began to fade from the landscape in the 1930s. Hardbound annual catalogs produced early in the last century by Louden Machinery Co., Fairfield, Iowa, and F.E. Myers & Bro., Ashland, Ohio, are very useful to the collector of barn and hay tools. Other leading manufacturers of the era included Ney Mfg., Canton, Ohio, and J.E. Porter Co., Ottawa, Ill. Vintage catalogs from hardware suppliers, farm supply houses and general merchandisers like Sears & Roebuck or Montgomery, Ward & Co. are equally reliable references when researching vintage barn and shop tools.

The North American Hay Tool Collectors Assn. offers a wealth of information to those interested in hay tools and related pieces. (See the Resources guide for contact information.)

Farm Collector Mystery Tools

54-55 Opening_Barn_tools.indd 54

8/19/10 11:31:46 AM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

www.FarmCollector.com

54-55 Opening_Barn_tools.indd 55

55

8/20/10 9:45:13 AM

Barn/Shop

1. Battery Carrier

This carrier makes it easy to remove, replace and carry car, truck and tractor batteries. Multiple notches allowed it to be used on just about any size battery.

“It was used to extract 6- or 12-volt car/truck batteries from battery boxes in engine compartments, from under seats or within the floor boards,” explains one reader. “The notches on the red handle allowed the sliding longer metal hook to be adjustable to the spread of the lead post on the battery. When the handle was lifted, the two post gripers wedged together onto the ‘+’ and ‘-’ post of the battery, allowing it to be carried.

The wood on the handle did not pass the current or cause a short. My father had an Esso (later to become Exxon) gas station in Quincy, Mass. My brother and I worked many years there and used the same type tool often. My dad (who is 90) still has it hanging up in his garage.”

Patent 2,435,549: Battery carrier. Patent granted to Chester Sumter, Knoxville, Tenn., Feb. 3, 1948. This is not the exact patent but it illustrates a similar piece.

56

2. Hay Hauler

One reader says that this piece was used with a rope sling for hauling loose hay on a hayrack; this was used as the “trip” to release the sling on one end after the hay was in the barn.

Patent 739,901: Hay tool. Patent granted to Phillip A. Myers, Ashland, Ohio, Sept. 29, 1903.

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 56

8/19/10 11:41:50 AM

3. Corn Sheller

According to a Feb. 21, 1927 patent, “My invention relates to devices for stripping or otherwise removing objectionable kernels from ears of seed corn and its object is the provision of a hand operated tool of extreme simplicity of construction and operation, the tool being designed to strip the kernels from the butt and tip of the ear and to remove defective kernels in the body of the ear.”

Patent 1,633,365: Seed corn sheller. Patent granted to Harry Ebmeier, Bertrand, Neb., June 21, 1927.

4. Corn Sheller

According to an 1869 patent, this corn sheller’s opposing coils apply pressure to the corn cob, thus scraping the corn kernels away. “The disks, owing to their form, and being placed on opposite sides of the coils, act in the manner of a screw, progressing forward or backward, as they are revolved about the ear of corn. As the forward disks advance, they are pressed between the kernels, which are removed from the cob by the follower, as it advances. To operate the sheller, place one end of an ear of corn between the jaws. Then, hold the ear with the left hand, with the right grasping the handle, and revolve the sheller about the ear.”

Patent 86,562: Corn sheller. Patent granted to W.J. Ludlow, Cleveland, Feb. 2, 1869.

did you know?

The word “corn” means different things in different countries. In England, corn means wheat, while in Scotland and Ireland it means oats.

And references to corn in the Bible are thought to be about wheat or barley.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 57

57

8/19/10 11:53:42 AM

Barn/Shop

6. Cylinder Wrench Patent 685,282: Cylinder wrench. Patent granted to John Johnson, Storden, Minn., Oct. 29, 1901.

5. Milking Machine Inflation

Sanitizing-Cleaning Reservoir

“The item shown is upside down without the lid. The fittings are brass,” a reader says. “The reservoir fits in a cast iron bracket that has capacity for eight milker inflations assembled on their ‘spiders’ and housings. We had a two-unit RiteWay milking machine with a reservoir that looks like this one. I have the sanitizing reservoir and bracket among my farm memories.”

“It was hung so the solution ran into the teat cups until they were full, then the valve was shut off to stop the flow,” another reader says. “At the next milking, the teat cups were held higher than the disinfectant container, the valve was opened and the solution flowed back in.” The device, which was attached to the wall with a bracket, was used after washing the milker.

Reservoir mounted on the wall

held clorox and water solution

58

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 58

8/19/10 11:46:13 AM

Stamped “Sears Roebuck & Co.”

7. Grain Grinder

Winger’s windmill-powered grain grinder.

These devices ground very slowly and could be left completely unattended. This undoubtedly had a 1- or 2-bushel hopper attached to the small hopper on the mill.

8. Asparagus Bundler

Six stalks were held in a bundle; when the pedal is pressed, the machine wraps and ties the bundle with string.

Patent 227,465: Grinding mill. Patent granted to Oswald E. Winger, Freeport, Ill., May 11, 1880.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 59

59

8/19/10 4:51:41 PM

Barn/Shop

9. Hay Fork

Hay and fodder fork.

One reader explains that “The idea is to open the tines or jaw, thrust it into a shock or pile of hay, then close the jaw and move the material to where you want it. I am glad I never had to use one!”

10. Drag Saw Clamps Patent 384,281: Hay and fodder fork. Patent granted to Zouave S. Randleman and Martin C. Randleman, Carlisle, Iowa, June 12, 1888.

The clamps are clearly shown at the high end of the drag saw. “It is the end piece of a one-man buck saw that holds on to the log,” explains one reader. “It actually works backward: When you pull up on it, it opens up instead of closing like you would think.”

Patent 420,115: Clamp for drag saws.

Patent granted to Marvin O. Smith, New Buffalo, Minn., Jan. 28,1890.

60

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 60

8/19/10 12:14:27 PM

11. Corn Grader

This grader separated kernels by sizes for use as seed in the old plate-type planters. The galvanized hopper was filled with shelled corn and the handle cranked slowly as the seeds dropped through the holes according to size, and into separate buckets.

Built by Humphrey & Sons, Joliet, Ill.

12. Bone Cutter

The item is missing several parts, which could be misleading on the use of the tool (sometimes referred to as a green bone cutter). It was used to flake bone into a meal used for poultry feed.

did you know?

Farmers discovered at the end of the 19th century that feeding flaked bone to hens produced healthier eggs with thicker shells. This is believed to be caused by the extra calcium provided by the bone.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 61

61

8/19/10 12:15:29 PM

Barn/Shop

13. Model T Transmission Compressor

Transmission spring compressor for a Model T Ford.

According to a similar patent (no. 1,433,944), “All of the springs are simultaneously compressed and held and the shafts are prevented from rocking in their bearings when the removable section of the casing is being replaced on the transmission casing.”

14. Wheel Wrench

This wrench was used to tighten the nut between the spokes on wooden buggy wheels. According to an 1888 patent granted to John Byrne of Sharon, Wis., “The object of my invention is to provide an improved tool or device for applying and removing tire bolts to or from the wheels of vehicles ... to clamp the bolt to hold it from turning and to revolve the nut for the purpose of threading it.”

Patent 1,433,944: Transmission spring compressor and holder.

This is not the exact patent but it illustrates a similar piece.

62

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 62

8/20/10 9:39:08 AM

16. Carriage Wrench

Used to tighten the spindle nut on a carriage or buggy wheel. The hooks on the ends attach to the spokes, holding the socket on the nut.

The wheel is turned, effectively tightening the nut. Its key feature is the springiness of the wrench. According to an 1890 patent awarded to Frederick Wegner of Three Rivers, Mich., “It is the object of my improvement to provide a lateral springiness on the part of the wrench, so that on the nut reaching its seat and suddenly stopping the revolution of the wheel this lateral springiness will ease the suddenness of the pressure on the side of the spoke.”

15. English Wheel

This device was used to take wrinkles out of car fenders and was, quite likely, one of a set. This piece, identified on the patent as a metalworking device used to remove dents on fenders, was patented on June 20, 1944, by Vernon E. Robbins.

The patent drawing shows the device at work, with a piece of metal inserted between the “anvil” and the wheel.

Patent 420,981: Carriage wrench.

Patent granted to Frederick Wegner, Three Rivers, Mich., Feb. 11, 1890.

did you know?

Patent 2,352,009: Metalworking device. Patent granted to Vernon Robbins, Berkeley, Calif., June 20, 1944.

Michigan has long been the country’s transportation leader. Thanks to its rich forests and plentiful lumber, Michigan was an obvious choice for wagon manufacturers looking to set up shop. By the 1890s, more than 125 wagon companies employing about 7,000 workers called Michigan home. 75 percent of the companies were located in seven communities: Detroit, Flint, Grand Rapids, Jackson, Kalamazoo, Lansing and Pontiac. www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 63

63

8/19/10 4:37:02 PM

Barn/Shop

18. Valve Remover

This device was used to take valves out of large cylinder heads. As several sharpeyed readers noted, a piece of this one is missing: a 12-inch chain with cast iron hook on the end.

About 3-1/2 feet long and 3 feet tall.

Weighs about 200 pounds. Lettering on wooden base: “Rockford Ill.” Cast on left front leg: “MOLES PAT.” On right front leg: “NOV. 4 1877.”

17. Tire Upsetter

This device was used to tension the steel tire around the wooden wheel for some buggies and wagons. “Wooden wheel wagons had a band of metal around the outside,” one reader explains. “This had a two-fold purpose: First, it kept the wooden felloes from coming apart and separating from the spokes, and second, the iron band (called a tire) wore much better than wood. I had two tire shrinkers, but a couple of high school boys sold them for salvage.”

“Wooden wheels on wagons would get dry in summer heat,” explains another reader. “The wood shrunk away from the iron tire and the tire would come off the wheel. Blacksmiths would place the tire in a forge and get it very hot. The tire shrinker would be opened by a wooden handle fitted into the tool. The hot wagon tire was placed in the shrinker and the handle was pulled down to reduce the diameter of the tire. The tire was replaced on the wooden wheel, which would be tighter than before. Some old-timers would back their wagons into a pond, leaving them overnight to tighten the tires.”

Patent 868,952: Valve remover.

Patent granted to H.Z. White, Buffalo, N.Y., Oct. 22, 1907.

Patent 148,385 (Above): Machine for upsetting tires. Patent granted to Mathias Schon, Englishtown, N.J., March 10, 1874.

Patent 196,923 (Left): Tireupsetters. Patented granted to J.G. Mole, Nov. 6, 1877.

64

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 64

8/19/10 1:01:50 PM

19. Car Soft-Top Bracket

This is a securing bracket from an early 1920s convertible touring car. “(The bracket) is used to secure the top bows of an early ‘20s/late-teens touring car,” one reader says. “When the top is lowered, the bows are latched into these brackets – one on each side – at the upper rear corners of the car. I have a ‘27 Chevy touring car, and this item looks almost identical to the ones in my car.”

20. Tire Tool

This device was used to remove and install Model T clinch-type tires.

Patent 1,343,893: Tire tool. Patented granted to Julius Bjornlie, Bjornlie Mfg. Co., Watertown, S.D., June 22, 1920.

did you know?

H. Nelson Jackson made the first transcontinental road trip in the spring of 1903 in a Winton touring car. People doubted long-distance automobile travel was possible, but Jackson proved it could be done. Beginning in San Francisco, Jackson and mechanic Sewall Crocker made the journey through the rough, mostly road-less west and arrived in New York City 64 days later. The car is now on display at the Smithsonian Institution’s National Museum of American History.

An ad from the Feb. 6, 1919 issue of Hardware Age magazine states it’s the “only real tire tool on the market.”

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 65

65

8/19/10 12:30:40 PM

Barn/Shop

22. Wrench

The “speedy wrench” was used on Fords for transmission cover and engine base bolts, one reader says.

Marked with the number 3 on side opposite the handle. “J C Moore & Co., Racine, Wis” is cast into handle side.

Patent 1,400,226: Wrench. Patent granted to Horace R. Milan, Columbia, Tenn., Dec. 13, 1921.

21. Auto Jack

This jack is one from a set of four. The jack was particularly useful in storage of early cars, an easy alternative to putting the car on and off blocks.

Below: The Speedy wrench, “very extensively used by Ford men,” one catalog notes.

Patent 876,824: Automobile jack. Patent granted to J.C. Moore, Cedar Rapids, Iowa, Jan. 14, 1908.

66

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 66

8/19/10 12:33:19 PM

23. Beading tool

In Wisconsin, one reader says, the tool is called a “crowfoot.” It was used by boiler replacement repairmen to put a round finish bead on a steel boiler flue.

“The tool displayed is badly eroded and does not show a true picture. The heel of the crowfoot should have a sharp curved heel to produce a neat-round bead. When boiler flues get old and leak, the old flue is chiseled out and a new flue (cut to length) is replaced. The new flue is sealed to the end boilerplates by inserting a roller inside the tube and rotating it to make a seal. Depending on the diameter of the tube or flue, the end extends about 1/2-inch beyond the boilerplate on each end. With the use of a proper size ball peen hammer, the tube end is peened out like a flute to the outside of the boilerplate. The crowfoot is now used to form the final neat-round bead to the boilerplate. The foot of the curved tool helps guide you around the perimeter of the tube or flue. If the procedure was not done properly, leaving the tube ends exposed, the fire in the boiler would burn off the tube ends and eat the tubes away.

This was a job I experienced many times and I usually did school boilers during the summer breaks; a hot, dirty job.” The tool is sometimes called a “lady’s slipper,” another reader notes, because of its inherent shape.

24. Sickle Grinder

Although one reader says his grinder, built in 1901, is made by McCormick-Deering, another reader sent in an ad of a similar grinder made

by Luther Grinder Manufacturing Co. of Milwaukee, Wis. According to the ad, “[Dimo-Grit grinders No. 60 and No. 60A are] compact, well built and a practical tool for plumbers, carpenters, farmers – in fact for all who desire a portable foot power grinder for general work.”

“. . . compact, well built and a practical tool for plumbers, carpenters, farmers — in fact for all who desire a portable foot power grinder for general work.”

Patent 1,162,681: Beading tool for boiler tubes. Patent granted to Howard Bush, Jackson, Miss., Nov. 30, 1915.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 67

67

8/19/10 12:33:47 PM

Barn/Shop

Manufactured by E.C. Stearn & Co., Syracuse, N.Y.; 16 inches long.

25. Floor Clamp

This floor clamp or jack was used before subflooring was developed.

The curved part of the tool fit on the floor joist and the tongue fit in the slot.

The handle then pulled the floor piece tight to nail. “It is used when installing 3-inch tongue-and-groove flooring boards,” one reader notes. “The lower left part wedges onto the floor joist. The lower right part fits over the ‘tongue’ part of the floorboard. The lever, when pulled, forces the board, which might be slightly warped, against the previous board while the nail is driven through the floorboard and into the joist. You will see a raised pedestal on the part that engages the tongue. That can be struck by the hammer if more help is needed to get the board in line.”

Stamped: “Stapling Machine Co. Rocker, Rockaway, N.H.”

26. Box Closing Tool

“Wire-bound crates were prevalent in the 1960s to package vegetables for shipment,” one reader explains. “I worked as a manager of a farmers vegetable co-op and we used them on thousands of crates per season. The wire crates were in a knocked-down position. First you set them up and then you filled them. Four wires had to be in a certain position.

Then you would take this tool and interlock the wires, thus closing it so you could then load the boxes on trucks. You didn’t want to get your fingers in the way. The crate closers became obsolete very shortly. We had an electric crate closer that was right in the production line and it would close all four wires at one time.”

Instruction sheet for the Rocker box closer, available in right- and lefthanded models.

Patent 338,933: Flooring jack. Patent granted to Henry C. Cloyd, Union City, Ind., March 30, 1886. This is similar to the tool shown above and illustrates how the floor clamp was used.

68

Patent 2,188,161: Box closing tool. Patent granted to Alfred L. Rosenmund, Rockaway, N.J., for Stapling Machines Co., Jan. 23, 1940.

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 68

8/19/10 12:51:02 PM

27. Distance Recorder

According to an 1896 patent awarded to Willard Bundy, Binghamton, N.Y., the object “records distances, speed of travel, and the time consumed, all simultaneously ... and [is] adapted to be attached to a rotating object, as to the spoke of a vehicle-wheel, so that the rotation of the wheel actuates the distance-recording mechanism.” An undated Keuffel & Esser Co., N.Y., catalog further notes the recording method.

“The distance traveled is determined by multiplying the circumference of the wheel by the number of revolutions that the dial indicates.”

28. Wire Tension Device

Check wire tension device used in planting corn. The planter wire stake went through the ring on the top. A button on the check wire was caught in the jaw of the clawlike device on the bottom. The arm that this jaw is on is attached to a spring that helped keep tension on the check wire all the way across the field. Similar devices are shown in the patent drawings below.

Stake

Patent 578, 283: Recording apparatus.

Patent granted to Willard Bundy, Binghamton, N.Y., March 2, 1897.

Knot

Patent 1,247,007: Anchor for check row planters. Patent granted to Rolin Reed, Princeton, Ill., Nov. 20, 1917.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 69

69

8/19/10 12:51:33 PM

Barn/Shop

30. Cutting Tool 29. Disc Sharpener

Provided support for a cutting blade near a work piece.

“The horseshoe-shaped part was placed over the axle and the rollers on the tool rolled against the disc blade as the axle was turned,” one reader says. “What look like cutters below the rollers are actually the sharpeners that were pressed by the handles against the disc blade’s cutting surface.”

Patent 2,848,020: Tenon cutting tool.

Patent granted to Edmund A. Zemrowski, Michigan City, Ind., Aug. 19, 1958.

70

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 70

8/19/10 1:07:07 PM

31. Shingle or Roof

Total length: about 11 inches.

“Schul-son” cast on one side.

Bracket

Typically used in pairs to hold a board to stand on when roofing.

32. Nail Puller Patent 330,971: Shingle or roof bracket. Patent granted to E.R. Elmer, Buckland, Mass., Nov. 24, 1885.

did you know?

In an effort to curb the spread of fire in 12th century London, King James issued a law requiring the use of clay tiles for roofing. The law marked the beginning of the mass-produced roofing material industry in England and beyond.

Patent 1,317,156: Nail puller. Patent granted to Meyer Diamond, Brooklyn, N.Y., Sept. 30, 1919. This is similar to the tool shown above and was used for pulling partially driven nails, such as those used to secure skins to boards in tanning, curing or drying.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 71

71

8/19/10 1:07:53 PM

Barn/Shop

34. Hacksaw

Although the piece shown is missing the blade, this is a hacksaw.

33. Drill Frame The term “post drill” is used for this type of drill press because the drill is attached to a vertical structural member (the “post”) in a shop.

Floor model drill presses are freestanding and bench drill presses are attached to a bench. “I have one fastened to the wall in my old shop that I used many times for drilling holes in metal,” says one reader. “This was before the Rural Electric Administration provided electricity to our farm and has since been replaced with an electric drill press. The shank of the drill bits was flat on one side and was kept from turning in the chuck by tightening a set screw against the flat area.”

72

Patent 1,497,135: Hacksaw.

Patent granted to Peter Cunneen, New Rochelle, N.Y., June 10, 1924.

did you know?

Hieroglyphics show ancient Egyptians using saws made with copper blades dating to the 18th dynasty. (15501307 B.C.) They used both onehanded and two-handed saws, but because of the copper blades, they had to use a pull-stroke rather than the more modern push-stroke. A push stroke would have made the copper blade buckle.

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 72

8/19/10 4:37:39 PM

Platform measures 30 inches long. Device measures 24 inches tall.

Will adjust to angle. Handles have bolts with wing nuts to extend nut, creating more leverage in turn. Has a holder on the shaft that might hold a rod or drill.

36. Lubricating Device

Lubricating device for automobile leaf springs.

Patent 22,379: Machine for boring wood. Patent granted to Geo. F. Rice, Worcester, Mass., Dec. 21, 1858.

35. Boring Machine

“My uncle built timber-framed barns in the very early 1900s and used a drill like the one pictured to drill or auger holes in timber for the wooden pins to be driven into,” writes one reader. “You would put the correct size bit in for the size of wooden pin, set the machine on the timber, sit on the tail and turn the handles. It was a must for timber barn framing.”

Patent 1,084,181: Lubricating device for springs. Patent granted to George Voight, San Francisco, Jan. 13, 1914.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 73

73

8/19/10 1:19:06 PM

Barn/Shop

37. Pipe Tongs

Brown’s adjustable pipe tongs, offered in five sizes.

The tool was a forerunner of the modern pipe wrench. “They’re old, but common in the Midwest,” one reader says.

38. Saddle Supply Rack

Rack for storage of a saddle, saddle blankets and tack, such as bridle and reins.

Patent 142,143: Pipe tongs. Patent granted to James Brown, Cambridgeport, Mass., Aug. 26, 1873.

74

Farm Collector Mystery Tools

56-75 Barn_Shop_tools_Chapter.indd 74

8/19/10 1:22:08 PM

40. Saw Set Wrest

39. Saw Set

“The slots in the blade were of different widths to correspond to different thicknesses of saw blades,” a reader explains. “The slot in the tool would be slid down over the tooth of the saw blade and pressure applied, using the handle, to bend the tooth to the proper angle, usually 15 to 20 degrees.”

The string attached to the lever was run down to the floor so it could be foot-actuated. Pulling this string raised the anvil and set the saw. The size of teeth in the saw could be selected via different screws on the tool.

Patent 964,417: Saw set. Patent granted to John Wesley Gaede, Cleveland, July 12, 1910.

Patent 2,180,899: Improved saw set. Patent granted to Gaede, Nov. 21, 1939.

www.FarmCollector.com

56-75 Barn_Shop_tools_Chapter.indd 75

75

8/19/10 1:22:56 PM

Specialty Tools

Clever devices made to last

C

ollectors of antique farm equipment and tools invariably encounter pieces that turn out to be related to early farm life but have no specific farm function. These pieces may not fit into a

neat collectible category, but they do help describe and define a way of life long since past. They are particularly fascinating in that they help us understand life before discount stores.

Leatherworking tools, for instance, tell us how people decades ago more fully utilized (then) commonly available materials and resources. Cartridge reloaders speak volumes not only on food supply and recreation, but also on the price, quality and availability of manufactured ammunition. The skachet, fish gaff and clay pigeon launcher, each in its own way, speak to ingenuity and resourcefulness in an era when people “did for themselves.”

Other tools in this category reflect a virtue now in short supply: thrift. “Reduce, reuse, recycle” may be the mantra today, but 100 years ago it was a nearly universal way of life.

Cobblers stretched ill-fitting shoes. Machines, implements, cars and trucks were repaired in the home shop count-

76

less times before replacement was even considered. Rugs were crafted from rags, garden produce was preserved for winter in the pantry, garments and household furnishings were sewn from feed and seed sacks.

Because many of these items exist outside the farm category, initial identification can be a challenge. Show it around to other collectors; see if they recognize it. In this and all categories of antiques, be prepared to pull the trigger. If you see an item and want it, buy it. Don’t tell yourself that you’ll get it “next time,” or that you might find it closer to home where it’s easier to transport or where you might get a better deal. You’re probably not one in a thousand: If you’re interested in the piece, other collectors will be, too.

Online auctions offer an intriguing alternative to swap meets, flea markets and antique malls. The eBay audience, for instance, is increasingly knowledgeable, both in terms of awareness of what’s collectible and the limitations and capabilities of online auction technology. Additionally, a new breed of collector is creating waves. Although many novice collectors move in a slow, deliberate and conservative manner, a certain segment of the freshman class has a clearly defined goal and pockets so deep they drag on the ground. Nowhere is this more apparent than in online auctions.

In all cases, whether you’re buying a bird in the hand or considering an online listing, bear in mind that the scam is not a modern invention. Caveat emptor, the ancients advised: Buyer beware.

Farm Collector Mystery Tools

76-77 Opening_Specialty Tools.indd 76

8/18/10 3:15:37 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16. www.FarmCollector.com

76-77 Opening_Specialty Tools.indd 77

77

8/18/10 3:20:07 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16. www.FarmCollector.com

76-77 Opening_Specialty Tools.indd 77

77

8/23/10 4:39:01 PM

Specialty Tools

This piece is very sharp with a hammer on one end with threads where a handle may have been attached.

1. Skachet

“The sharp end was used for skinning deer or elk, the hook was for ripping hide and the threaded end was so you could cut a green limb and thread it into the end, making it a hatchet,” one reader explains.

“It was designed to use as a hatchet, and to cut and split bones. Our hunting party of six carried these for years, and we still use them.”

2. Carbonator

One reader believes the piece to be a carbonator, used to make “charged” water for drink systems. Carbon dioxide was applied to the main tank (the large red tank, which probably has a stainless steel interior). Water was pumped into the carbon dioxide atmosphere until the tank was full. The full tank would be “sensed” by the small stainless steel tank (seen at left rear of the photo) which raised and lowered with the water level in the main tank. It was coupled to a switch that started or stopped the electric motor. The reader couldn’t make a positive identification but says the unit might be an early Bastian Blessing. “I worked in the beverage industry for many years and ran into some later models of these units in some of the old mom-and-pop drive-ins and restaurants,” he says. “Our nickname for these carbonators was ‘slough pumpers!’”

Patent 3,187,354: Combination hunting tool.

Patent granted to Herbert F. Frisbie, Springfield, Va., June 8, 1965.

78

Farm Collector Mystery Tools

78-85 Specialty_Tools Chapter.indd 78

8/18/10 2:58:30 PM

3. Leather-Work Vice

This device was used to hold leather during stretching. The illustration, from a Sears, Roebuck & Co. catalog, notes the following about the product: “It can also be used around mills for mending belts, etc. It contains the following articles: One strong lever clamp, round punch, sewing awl and handle, rivet set, ball of wax and a ball of thread, package of assorted needles and one paper of copper rivets and burrs.”

4. Shur-Stop Fire Kit

This is a well-remembered feature at many homes and farm shops. Although early units were filled with salt water, many later models were filled with carbon tetrachloride, often tinted red. Varied designs were used: Some globes burst when exposed to extreme heat; some were broken by heat-activated triggers; still others were intended to be hurled at flames, breaking on contact. While the device sounded good in theory, exposure to even minute amounts of carbon tetrachloride poses significant health risks.

“These kits are often found in houses dating to the early 1900s. The object was to throw the bulb at the base of the fire. Another variation was to hang the bulbs from basement rafters. I am sure that this primitive fire suppression device did more harm than good as it endangered the occupant to a deadly chemical while delaying the alarm as the occupant attempted to fight the fire,” notes one reader – a professional firefighter.

The devices are highly collectible, but those who have them should exercise extreme caution in display, shipping and storage. Disposal of the fluid should be conducted only by commercial hazardous waste handlers. For more information, contact your state’s health department or the Environmental Protection Agency.

www.FarmCollector.com www.FarmCollector.com 79 79

78-85 Specialty_Tools Chapter.indd 79

8/18/10 2:59:55 PM

3. Leather-Work Vice

This device was used to hold leather during stretching. The illustration, from a Sears, Roebuck & Co. catalog, notes the following about the product: “It can also be used around mills for mending belts, etc. It contains the following articles: One strong lever clamp, round punch, sewing awl and handle, rivet set, ball of wax and a ball of thread, package of assorted needles and one paper of copper rivets and burrs.”

4. Shur-Stop Fire Kit

This is a well-remembered feature at many homes and farm shops. Although early units were filled with salt water, many later models were filled with carbon tetrachloride, often tinted red. Varied designs were used: Some globes burst when exposed to extreme heat; some were broken by heat-activated triggers; still others were intended to be hurled at flames, breaking on contact. While the device sounded good in theory, exposure to even minute amounts of carbon tetrachloride poses significant health risks.

“These kits are often found in houses dating to the early 1900s. The object was to throw the bulb at the base of the fire. Another variation was to hang the bulbs from basement rafters. I am sure that this primitive fire suppression device did more harm than good as it endangered the occupant to a deadly chemical while delaying the alarm as the occupant attempted to fight the fire,” notes one reader – a professional firefighter.

The devices are highly collectible, but those who have them should exercise extreme caution in display, shipping and storage. Disposal of the fluid should be conducted only by commercial hazardous waste handlers. For more information, contact your state’s health department or the Environmental Protection Agency.

www.FarmCollector.com

78-85 Specialty_Tools Chapter.indd 79

79

8/23/10 4:48:10 PM

Specialty Tools

Item has a small tag reading “PA1 1269.” Total length, 41-1/2 inches with a 1/4-inch hole at the middle. Tapered metal ends; metal clasp with a spring-released latch.

Patent 1,018,065: Gaff tongs.

Patent granted to Webster L. Marble, Gladstone, Mich., Feb. 20, 1912.

5. Jockey Stick

Jockey stick, used to compel horses composing a team to draw evenly.

Patent 453,210: Jockey stick. Patent granted to Ephraim N. Rittase, Manchester, Md., June 2, 1891. This is similar to the tool shown above and illustrates how the jockey stick was used.

6. Fish Gaff

The clincher fish gaff No. 321 was made from 1911-59 by Marble’s Outdoors, Gladstone, Mich.

“I went fishing with my uncle, who landed a northern in the Wisconsin River with a Marble’s fish tong made in Gladstone. I still have it,” one reader says. The gaff was used to handle large pike such as muskies, northerns and walleyes: “Those pike all had rather dangerous teeth and could cause serious punctures to careless handlers.” The piece is collectible today, says another reader, who notes that in good condition, it could be worth as much as $100.

Illustration of a gaff from Marble’s Knife and Axe Accessories and Oddities.

80

Farm Collector Mystery Tools

78-85 Specialty_Tools Chapter.indd 80

8/18/10 3:01:14 PM

8. Leather Crimper

This is a leather cutter and/or crimper, used to cut leather straps such as those used in making reins or halters.

7. Lettering Pallet

According to one reader, the object is used by book binders to hold a small line of type. “It would be used to print the title of a book on the spine or cover of a book.”

Patent 160,231: Machine for creasing and finishing leather-straps.

Patent granted to Silas Randall, Cincinnati, Feb. 23, 1875.

did you know?

Leather and fur garments dating to 3,300 B.C. were found in Bolzano, Italy, in 1991. The garments were found on “Ötzi the Iceman,” a mummy who was naturally preserved in the ice of the Ötztal Alps. His clothing was made from goat, deer and bear leather that was fashioned into leggings, shoes, a coat, a loincloth and a bearskin hat. www.FarmCollector.com

78-85 Specialty_Tools Chapter.indd 81

81

8/18/10 3:02:24 PM

Specialty Tools

10. Button-Setting Tool 9. Shotgun Shell Reloader

One reader notes the tool was used to reload paper shotgun shells. “After the fired shell is reprimed and filled with gun powder, wadding and buckshot it’s inserted in the tool, and the lever pushes the shell against the rolling head that’s turned by the crank handle. This kept a thin cardboard wad crimped in place over the shot.”

We believe this piece to be a button-setting tool to secure buttons to shoes and other articles, as indicated in the accompanying patent drawing dating to 1892.

One reader concurs, recalling a hand-staple tool from his youth.

“My father ordered one from Montgomery Ward in the late 1920s. He used it to repair leather items and binder canvases.”

Patent 483,695: Button-setting tool. Patent granted to Frederick Ray, Chicago, Oct. 4, 1892.

82

Farm Collector Mystery Tools

78-85 Specialty_Tools Chapter.indd 82

8/18/10 3:05:56 PM

Measures 15 inches long, has a 7/8-inch ring and a 13/16-inch ball. Shaped like a pair of pliers with spoon-shape handles. Spring-loaded, no markings; cast construction.

12. Shoe Stretcher 11. Clay Pigeon Launcher

This device was used to throw clay pigeons during shotgun practice. “My dad had one of these when I was a kid,” one reader recalls. “You can put one or two clay pigeons under the springloaded holder on the top. The handle is loosened by a thumb nut on the bottom.” The reader also recalls a cautionary note. “The clay pigeons were very toxic to hogs so they weren’t thrown where they could get them,” he says.

“One of my jobs while attending college in the early 1970s was in a shoe store with a repair shop,” recalls one reader. “We used this tool to soften the leather on a new shoe for a person with corns or bunions. We’d spray a liquid softener on the leather to gradually stretch that portion of the shoe that was causing irritation to the foot. It was effective; sometimes a customer would come back for a little more stretch. It was a concern of mine that I could apply too much pressure and crack or break the leather on the outside of the shoe. That never happened to me.”

Patent 591,492: Shoe stretcher.

Patent granted to Charles L. Passmore, Fulton, Ill., Oct. 12, 1897.

www.FarmCollector.com

78-85 Specialty_Tools Chapter.indd 83

83

8/18/10 3:07:37 PM

Specialty Tools

13. Firefighter’s Wrench Evidently, this wrench is used by fire departments across America. “[It’s used] to tighten and loosen fire hose connections,” one reader says. “The pointed tip can be used for prying and has a slit in it to fit over gas meters to shut them off. The hook has a notch to fit the lugs on older fire hoses.”

14. Spoke Tightener

A reader claims this item was used on wood automobile wheel spokes. “The wedge end of the jack was placed between the spokes at the hub, the hex at the top was turned with a wrench to push the rim slightly outward so a ‘C’ shaped steel shim could be inserted at the spoke end of the wheel. This would take up any minor shrinkage in the wood spoke to keep the wheel from clattering as you drove down the street. [You had to] be careful not to put a thick shim in or you could make the wheel egg-shaped.”

Patent 1,411,391: Spoke tightening shim drift.

Patent granted to Jesse Tucker, Sacramento, Calif., Nov. 6, 1923.

84

Farm Collector Mystery Tools

78-85 Specialty_Tools Chapter.indd 84

8/19/10 9:48:18 AM

16. Floor Saw

15. Hatter’s Iron Patent 874,029: Electric hat curling iron. Patent granted to Joseph O’Brien, South Norwalk, Conn., Dec. 17, 1907.

Patent 1,981,520: Hatter’s iron. Patented granted to George W. Martz for Hat Corp. of America, New York City, Nov. 20, 1934. These patents are for electric irons; the iron shown at top probably predates these as it does not appear to be electric, but the patent illustration makes clear how such irons were used.

One reader replied, “The curved blade allows you to cut into an existing wood floor without having to dismantle the floor or remove boards.” Another reader said, “The saw allows the user to use a rotary motion to make an initial cut through the flooring which may then permit the use of a conventional hand saw to finish the job.”

Atkins No. 100 flooring saw from an undated pamphlet (“Saw Sense”) published by E.C. Atkins & Co., Indianapolis.

www.FarmCollector.com

78-85 Specialty_Tools Chapter.indd 85

85

8/18/10 3:11:58 PM

Odd Lots

The clues tools leave behind

T

he more we know, the more we realize we don’t know. When it comes to antique tools, it’s not surprising that some remain stubbornly unidentifiable.

What’s surprising is how many have been identified.

That said, the unidentified antique tool is a relentless tease.

You hold it in your hand, turn it this way and that and operate moving parts – certain that if you just fiddle with the darned thing long enough a long forgotten purpose will become clear.

While that may seem an exercise in futility, it can spur creative processes that ultimately blossom into a “eureka” moment.

If divining an answer doesn’t deliver results, try some basic forensics. First, examine the piece for markings. A patent date is the most direct route to positive identification, including the inventor’s name and date the patent was granted, as well as richly detailed illustrations and descriptions. The U.S. Patent & Trademark Office has records on file for patents issued since 1836. Those records are easily and quickly available online, often at For information on basic no charge. (For patent research, see the Resources guide on page 94.)

Some pieces will be marked with the name of the city of manufacture; some actually bear the tool’s trade name. Online searches occasionally yield a clue leading to a specific early manufacturer or 86

industry. Ashland, Ohio, for instance, is the birthplace of F.E. Myers & Brother Co., famed manufacturer of pumps and haying equipment. An unidentified piece bearing the name of Ashland, Ohio, might be related to items in either category.

This is admittedly a long shot, but for an unidentified antique, that’s the name of the game. Sifting through 15 pages of Google listings takes time and patience, but it can pay off (and don’t underestimate the entertainment value of detours down digital side roads and back alleys).

For all the technology available to them, CSI detectives still rely on time-honored techniques, canvassing the neighborhood and talking to the witnesses. Take a tip from them and work the collector community.

Show other collectors your mystery item; ask if they’ve ever seen anything like it or know anyone who might recognize it.

Cast a wide net: Reach out to people with various specialty areas. If you have a show display, place your “what is it” in a prominent area and invite discussion. If the item is compact, tuck it in your pocket when attending antique farm shows and run it by everyone you visit with. If you have a website, post a photo of your mystery item there.

If your interest in antique tools is deep and abiding, invest in a decades-old tool or hardware catalog. Vintage catalogs are invaluable resources in helping identify and understand long forgotten tools and devices.

Do you know what any of the following tools are?

If so, log on to www.FarmCollector.com/mystery-toolswww revealed and post your suggestions.

Farm Collector Mystery Tools

86-87 Misc_Oddlotsv2.indd 86

8/23/10 2:29:33 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24. www.FarmCollector.com

86-87 Misc_Oddlots.indd 87

87

8/18/10 3:51:48 PM

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24. www.FarmCollector.com

86-87 Misc_Oddlotsv2.indd 87

87

8/23/10 4:43:46 PM

Odd Lots

1. Possible Name Harrow Part P OSSIBLE ANSWERS : Two readers believe it is a part from a tandem disc harrow. “When I was a kid back in the ’40s, my dad had a David Bradley tandem disc harrow that used a chain and swivel assembly like this between the rear disc gangs.

It was connected to the gangs’ axle nuts to keep the gangs from spreading or drifting too far apart during operation. The swivels at each end would keep it from kinking up.

Other brands used a more rigid frame, therefore they didn’t need this chain.”

Another reader speculates that it could be a shackle used to keep a milk cow from kicking.

3. Undetermined Device

Weighing about 4 pounds, the piece is 19 inches wide both closed and open.

The pulleys, handle, brackets and hinges are made of lightweight wood.

The screw and bolts are metal.

88

2. Unidentified

Crank Pulley The piece with the thumbscrew slides up and down; the hooks open and close slightly. There are no markings.

4. Possible Leather

Harness Machine

POSSIBLE ANSWER: The owner writes that he found the name “Maxwell Mfg. Co., Wichita, Kansas” on it and possibly a patent date of 1927. He guesses it was used to make leather harnesses. “The machine was run from a flat belt. The pulley has a built-in clutch that operates a lever, which has been broken off. The machine appears to have hose fittings that may have steam-heated the rollers. There may have been a circular knife blade, as well.”

Farm Collector Mystery Tools

88-93 Misc._Odd lots Chapter pages.indd 88

8/23/10 2:36:29 PM

5.

Hammer 3. Unknown Name

6. Unrecognized Tool

Found by a Dakota Territory homesteader in 1883. About 10 inches long; head is 3 inches wide.

Wood, perhaps maple, reinforced with steel on both sides; measures 14-by-6 inches.

Carved into one side: “POT. 8.”

POSSIBLE ANSWER: Farm Collector readers weren’t entirely sure what they had hold of here. Brass hammer, says one reader; smack hammer, says another; lead hammer, says yet another. One reader says the piece is identical to hammers built at Seneca Falls Machine Co. in the late 1940s. “When I worked there we made hammers with a lead head for use in the milling machine area, to tap parts down in a vise for milling. We used lead so the hammer would not mar or damage the metal. After two weeks they looked just like the one in the photo.”

7. Unidentified Cage 7

P OSSIBLE ANSWER : This item was probably hand-made for a specific and unknown purpose.

8. Unknown Odd Lots The owner sent in the following clues: “I got them in a box of tools at a farm auction. I have asked many old-timers, and nobody knows what they could have been used for. They are 13, 18 and 27 inches long plus a 5-inch handle.

POSSIBLE ANSWER: We don’t recognize this piece but one reader believes it to be a salt block holder of the type used in rabbit cages. “The holes show that it should have been hung up vertically,” he says. “The salt block is held in place by the hinged wire in front.” www.FarmCollector.com 89

88-93 Misc._Odd lots Chapter pages.indd 89

8/18/10 3:56:22 PM

Odd Lots

9. Unknown Tool

10. Unidentified Knife Measures 14 inches long by 3 inches wide. Less than 1/8inch thick with sharpened bevel on top and bottom. Blade sharpened on both sides and slightly cupped. “G.W. Proctor” cast into blade center, twice, in a “V” configuration.

Two views of the item found in a sextant’s shop.

POSSIBLE ANSWER: One reader guesses that this item may be a fleshing knife (used to remove flesh from the inside of a recently slaughtered bovine hide). However, those typically have two handles.

11. Unidentified Small Stove 11

12. Unknown Tool POSSIBLE ANSWERS: An instrument used in a “tin band.” It would be struck by another object, perhaps made of wood, to emit a sound.

Variations of this piece have a rough surface which, when rubbed with a wooden object, produce sound.

Alternatively, it might have been used to crush crackers to make crumbs for use in cooking.

POSSIBLE ANSWER: One reader believes this cast-iron stove was most likely used in an early beauty shop to heat two curling irons at the same time.

90

Farm Collector Mystery Tools

88-93 Misc._Odd lots Chapter pages.indd 90

8/23/10 2:37:47 PM

13. Possible Washing Machine

14. Possible Stove Part

POSSIBLE ANSWER: This may

be a turn-of-the-century washing machine. Can anyone confirm that idea?

POSSIBLE ANSWER: According

to one reader, “It appears to be the ornament from the top of an old heating stove.”

15. Unknown Device

Cement-like base measures 4 by 6 inches. Only remaining markings on serial number tag: “Mfg Co. New York. Serial number 180875.”

16. Unknown Tool

POSSIBLE ANSWER: This item could be a homeuse version of a hay/grass twister. Or, it could be a hank-twisting device. www.FarmCollector.com

88-93 Misc._Odd lots Chapter pages.indd 91

91

8/18/10 3:58:28 PM

Odd Lots

17. Possible Crate or Fence tool

Measures 14 inches long; cast with “R 58.”

18. Unrecognized Tool Mostly wood with a hinged part; movement limited by a chain. The other end of the long member has a 1-1/4-inch round wood peg through it protruding from each side about 1-inch. Height indicated by yardstick is approximately 30 inches.

POSSIBLE ANSWER: One reader wonders if it is some kind of crate or barrel top tool; another reader speculates that it might be a fence tightener.

19. Unknown Tool

20. Unidentified Clamp

Found buried in a farm grove. Measures about 10 inches wide when opened. One of the round ends rotates.

P OSSIBLE ANSWER : One reader thinks this might be a tool used to vulcanize holes in an inner tube.

92

1-1/2 inches long and 1 inch in diameter; the spring returns the piece to the closed position.

Farm Collector Mystery Tools

88-93 Misc._Odd lots Chapter pages.indd 92

8/23/10 2:38:52 PM

21. Possible Baling Tool

22. Unidentified Lathe

POSSIBLE ANSWER: We have no definitive answer, but this tool may have been used to produce baling wire used on hand-tied balers.

POSSIBLE

ANSWER:

One reader guesses this is a wood-turning lathe, possibly pre-1900.

23. Unknown Implement Made of very heavy wood, the piece is 30 inches long with a 1-inch handle attached to a cylinder 4 inches long and 4 inches in diameter. The movable cylinder is 4-1/2 inches long and 6 inches in diameter

24. Unrecognized Device Weighing 4 pounds, the piece is 19 inches wide both closed and open.

The pulleys, handle, brackets and hinges are made of lightweight wood.

The screw and bolts are metal.

www.FarmCollector.com

88-93 Misc._Odd lots Chapter pages.indd 93

93

8/18/10 4:00:32 PM

Patents

Patent Research

The history of farm antiques is often lost to the mists of time – but a patent search can help clear the fog. The U.S. Patent and Trademark Office (USPTO), a division of the U.S. Department of Commerce, has administered patents in the U.S. since 1790.

The typical patent includes the name and detailed description of the item and its operation, date the patent was granted, the inventor’s name, city and state and an illustration of the item, often in multiple views. Patent illustrations are a uniquely useful resource, but researchers should bear in mind that production costs and other factors sometimes required modification. The manufactured item may not match the drawing.

Fire necessitates new system

Some 10,000 patents had been granted in the U.S. by 1836, when the patent office building was destroyed by fire. Inventors were asked to return their patent documents so copies could be made, but not all documents could be recreated. In cases of significant inventions, such as Eli Whitney’s cotton gin, Samuel Colt’s revolver and Cyrus McCormick’s reaper, the patents had to be reconstructed.

After 1836, all new patents were numbered, starting with “1,” and as a consequence, “the first patent” and “patent number one” are different – creating just one of many idiosyncrasies associated with patent research today.

In granting a patent, the USPTO considers three criteria: novelty, utility (usefulness) and obviousness. Each patent is constitutionally protected as “intellectual property.” No two patents are issued for the same thing, but new patents may be issued (and often are) for improvements to a previously patented item.

Three categories exist: utility

94

patents, subdivided into “general and mechanical,” “chemical” and “electrical”; design patents, which usually show a picture of the object’s exterior and, since 1930, plant patents.

Most farm inventions fall into the “general and mechanical” category of utility patents.

Searching from scratch

For a beginner, patent research can be very time consuming but not very complicated, especially if you know one or more of three crucial pieces of information: the inventor’s name, date the patent was granted, and/or item type. Quite often at least some of that information appears on the item itself.

Before 1836, patents were listed under the inventor’s name. After that year, they were numbered, beginning with No. 1. As an example, if you were looking for a corn sheller that you knew was patented in 1872, you’d review the hardbound book for that year at the Depository Library and look under the corn sheller heading. Individual listings contain the item’s patent number, and with that, a copy of the patent is easily obtained at the library or online.

In 1872, the USPTO established Tuesday as the date on which patents are granted each week. A first step in researching patents is verification that the patent date is accurate; perpetual calendars available online make that a simple process.

Unidentified pieces present particular challenges to the researcher. The Official Gazette for Patents, published by the

USPTO, offers a useful resource. New patents have been announced weekly to the public in that publication since 1872. Gazette listings for the past year are available online; older issues are available in digital format. If the item in question has a date on it, it is fairly easy to track down the corresponding Gazette, which may include an illustration of the piece along with the name of the inventor and basic patent information. Information on accessing the Gazette is available on the patent office website.

For more information: U.S. Patent and Trademark Office, online at www.

USPTO.gov. A search option at the top right of the site’s home page offers a variety of options, including depository library information and locations. General information is also available by phone at (800) 786-9199.

Farm Collector Mystery Tools

94-96 Patent_resources.indd 94

8/23/10 9:21:17 AM

Basic patent research

Patents are available online and from libraries. In 1980, the patent office established a nationwide network of official Patent and Trademark Depository Libraries. Today 88 such facilities exist in the U.S. The libraries include such resources as bound volumes of the annual index for almost every year since 1790 (the year the first U.S. patent was issued), as well as personal computers, CDs and DVDs, microfilm and readers. Libraries may charge a nominal fee for copies and materials.

A variety of websites also offer patent search functions, allowing fast, simple downloads, often at no charge. If you have the patent number, sites like these make quick work of patent research:

http://www.google.com/patents. PDF. Coverage: U.S. Includes more than 7 million patents since the 1790s. Search full text or by number, inventor or filing date. Cost: free.

http://www.pat2pdf.org. PDF. Coverage: All issued U.S. patents. Search interface: patent number. Can search multiple patent numbers at once. Cost: free.

http://www.braindex.com. Coverage: U.S., Germany, Japan, U.K., France, Spain, Italy, Belgium, Netherlands, Russia, Austria and others. PDF and text downloads start at $4.95.

http://www.freepatentsonline.com. PDF or TIFF. Coverage: U.S. patents published by the USPTO since patent number 4,000,000. Search interface: patent number. Cost: free.

http://www.patentmatic.com. Enter patent number and receive a summary page with abstract and related patents and a link to download a PDF of the patent. Coverage: European, U.S., World and Japanese patents. Cost: free.

http://free.patentfetcher.com. PDF. Coverage: U.S. patent and published patent applications. Cost: free.

www.FarmCollector.com

94-96 Patent_resources.indd 95

95

8/23/10 9:21:53 AM

Resources

Books and Publications Many of these books are long out of print; others are as collectible as the products they describe. All are excellent resources.

Look for them on eBay and from sellers of used books, where they turn up with some regularity.

■ American Farm Tools: From Hand-Power to SteamPower by R. Douglas Hurt ■ American Woodworking Tools

by Paul B. Kebabian and Dudley Whitney ■ American Wrench Makers, 1830-1930

by Kenneth L. Cope ■ The Antique Tool Collector’s Guide to Value

by Ronald S. Barlow ■ Anvils in America

by Richard Postman ■ Blacksmith’s Gazette, www.blacksmithsgazette.com ■ Classic Hand Tools

by Garrett Hack

■ American Industrial Machinery Since 1870

by C.H. Wendel ■ Encyclopedia of American Farm Implements & Antiques

by C.H. Wendel ■ Encyclopedia of Antique Tools & Machinery

by C.H. Wendel ■ The History of Old Time Farm Implement Companies and the Wrenches They Issued by P.T. Rathbone ■ Louden Machinery Co. catalogs ■ Standard Catalog of Farm Tractors, 1890 to 1960

by C.H. Wendel ■ Tools: A Guide for Collectors by Jane and Mark Rees ■ Turn-of-the-Century Farm Tools and Implements, reprint of 1898 Peter Henderson & Co. catalog

Associations

Collector organizations offer uniquely focused information on specific brands and products Networks of knowledgeable collectors represent an immediate, broad-based resource.

■ Cast Iron Seat Club: Charolette Traxler, 40874 231 Ave., Le Center, MN 56057; (507) 357-6142; e-mail: gctrax@frontiernet.net.

■ Corn Items Collectors Assn., Inc.: Bob Chamberlain, 9288 Poland Rd., Warrensburg, IL 62573; (217) 674-3334; e-mail: lain@frontiernet.net; online at www.cornitems.org.

■ Cream Separator & Dairy Collectors: Paul Dettloff, (608) 323-3047.

■ Early American Industries Assn., Inc: Elton W. Hall, 167 Bakerville Rd., South Dartmouth, MA 02748; e-mail: execdirector@eaiainfo.org; online at www.eaiainfo.org.

■ Ford/Fordson Collectors Assn., Inc.: Steve Parker, P.O. Box 470, Mahomet, IL 61853; (217) 269-4778; e-mail: sjp@volomail.net; online at www.ford-fordson.org.

■ J.I. Case Collectors Assn.: online at www.jicasecollector.com.

■ John Deere Two-Cylinder and New Generation Tractors Club: Jack Cherry, P.O. Box 430, Grundy Center, IA 50638; (319) 824-6060; e-mail: twocyl@iowatelecom.net; online at www.two-cylinder.com.

■ Kollectors of Old Kitchen Stuff: www.kooksonline.org.

■ Mid-West Tool Collectors Assn.: membership@mwtca.org; online at www.mwtca.org.

96

■ National Early Day Gas Engine & Tractor Assn.: Ruth Warnock, 1537 Weekend Villa Rd., Ramona, CA 92065; (760) 789-3402; e-mail: rawarnock@sbcglobal.net; online at www.edgeta.org.

■National International Harvester Collectors: e-mail: IHCCLUB@aol.com; online at www.nationalihcollectors.com.

■ North American Hay Tool Collectors Assn.: Doug de Shazer, (402) 510-8845; e-mail: haytoolcollector@yahoo.com.

■ North American Ford/Fordson Collectors Assn.: David Uhouse, R.R. 2, Box 265, Rome, PA 18837; (570) 247-5483; e-mail: jdfinch2@hotmail.com; online at www.nafffca.org.

■ Rumely Products Collectors Inc.: Dennis Rupert, P.O. Box 225, Hillsdale, MI 49242; (517) 437-4565; e-mail: rupertcull@comcast.net; online at www.rumelycollectors.com.

■ Spark Plug Collectors of America: Bill Bond, P.O. Box 2229, Ann Arbor, MI 48106; (734) 971-4229; e-mail: spcoa1@sbcglobal.net.

■ Vintage Garden Tractor Club of America: Doug Tallman, 121 St. Rd. 224, Greenwich, OH 44837; (419) 752-4082; e-mail: dtallman@accnorwalk.com; online at www.vgtcoa.com.

Farm Collector Mystery Tools

94-96 Patent_resources.indd 96

8/23/10 9:22:15 AM

2011

T

he jumbo guide to all the antique farm equipment shows in 2011. From spring swap meets and consignment auctions, to antique tractor pulls, thresherees, fall shows and annual meetings ... more than 1,400 events featured from coast to coast – and Canada!

The Farm Collector Show Directory is the number– one source for the most current and complete show information. Packed with maps of each show location, detailed listings, club advertisements and commercial resources, the directory is your personal guide to the world of antique farm equipment shows.

U.S. Orders – Item # 4569 Single-copy price before Jan. 21, 2011 .... $14.95 Single-copy price after Jan. 21, 2011 ...... $16.95

Canada Single-copy price before Jan. 21, 2011 .... $19.95 Single-copy price after Jan. 21, 2011 .... $21.95

ALL OTHER COUNTRIES: Air Mail ......... $29.95

In a hurry? Call us toll-free at: (866) 624-9388 or Fax: (785) 274-4305 ORDER ONLINE AT www.FarmCollectorShowDirectory.com All directories will ship on or before February 28, 2011

FCSD 2011 Bkzn.indd 97

MFCPAAA3

(U.S. funds, please. Credit cards preferred)

8/19/10 1:46:29 PM

Always 5 days ending on Labor Day! ■

Grandstand Entertainment

■

Demonstrations

■

Swap Tent & Vendors

■

Drive a Tractor

■

Cars and Trucks

■

Camping

■

Tractors

■

Food

■

Labor Day Horse Pull

■

AND MORE . . .

319-385-8937 info@oldthreshers.org Mt Pleasant-WII_Bkzn_2010_fp.indd 98

www.oldthreshers.com 8/20/10 9:34:19 AM
