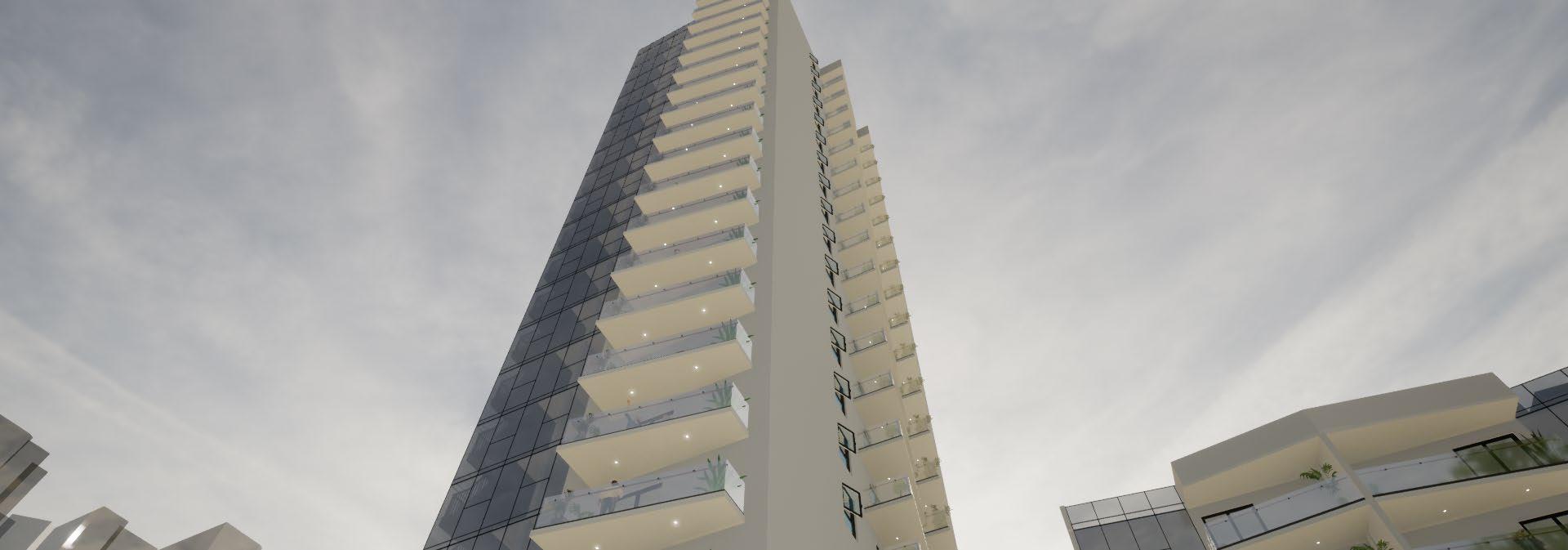

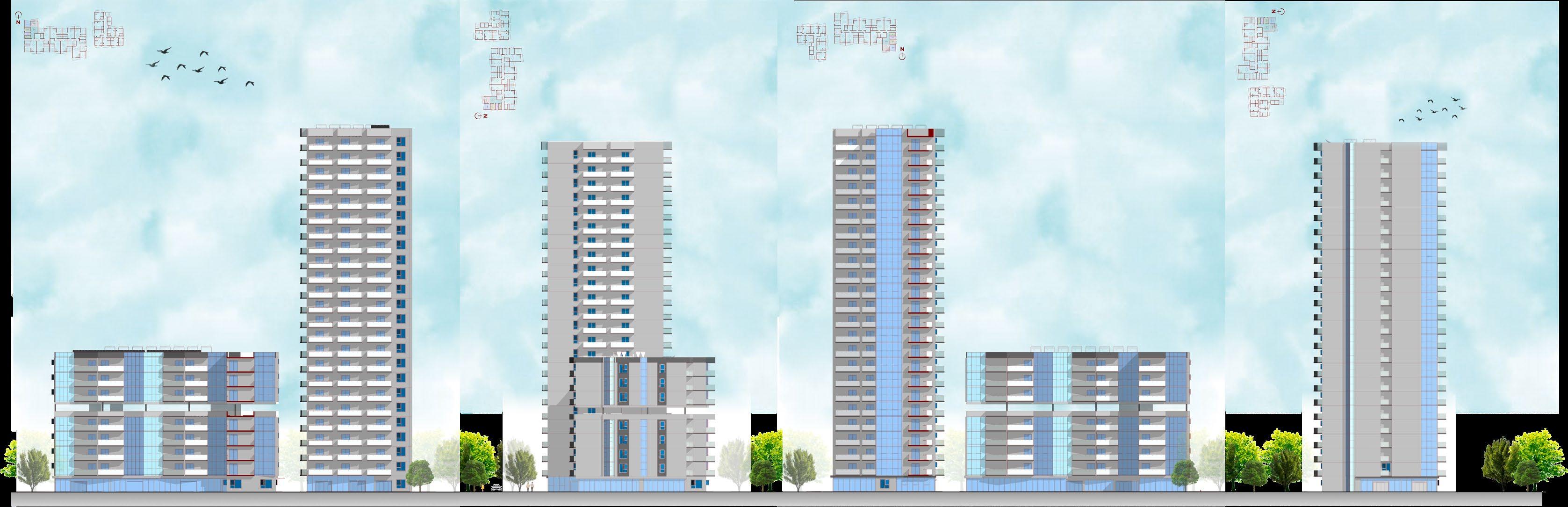

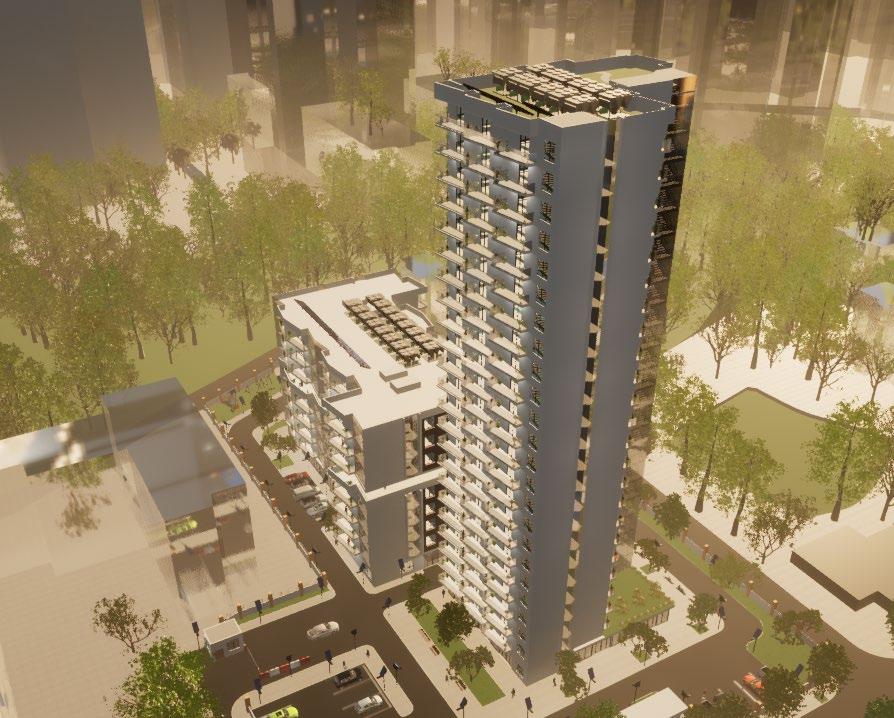

NBU SERVICE APARTMENTS

December 2022

Project Description

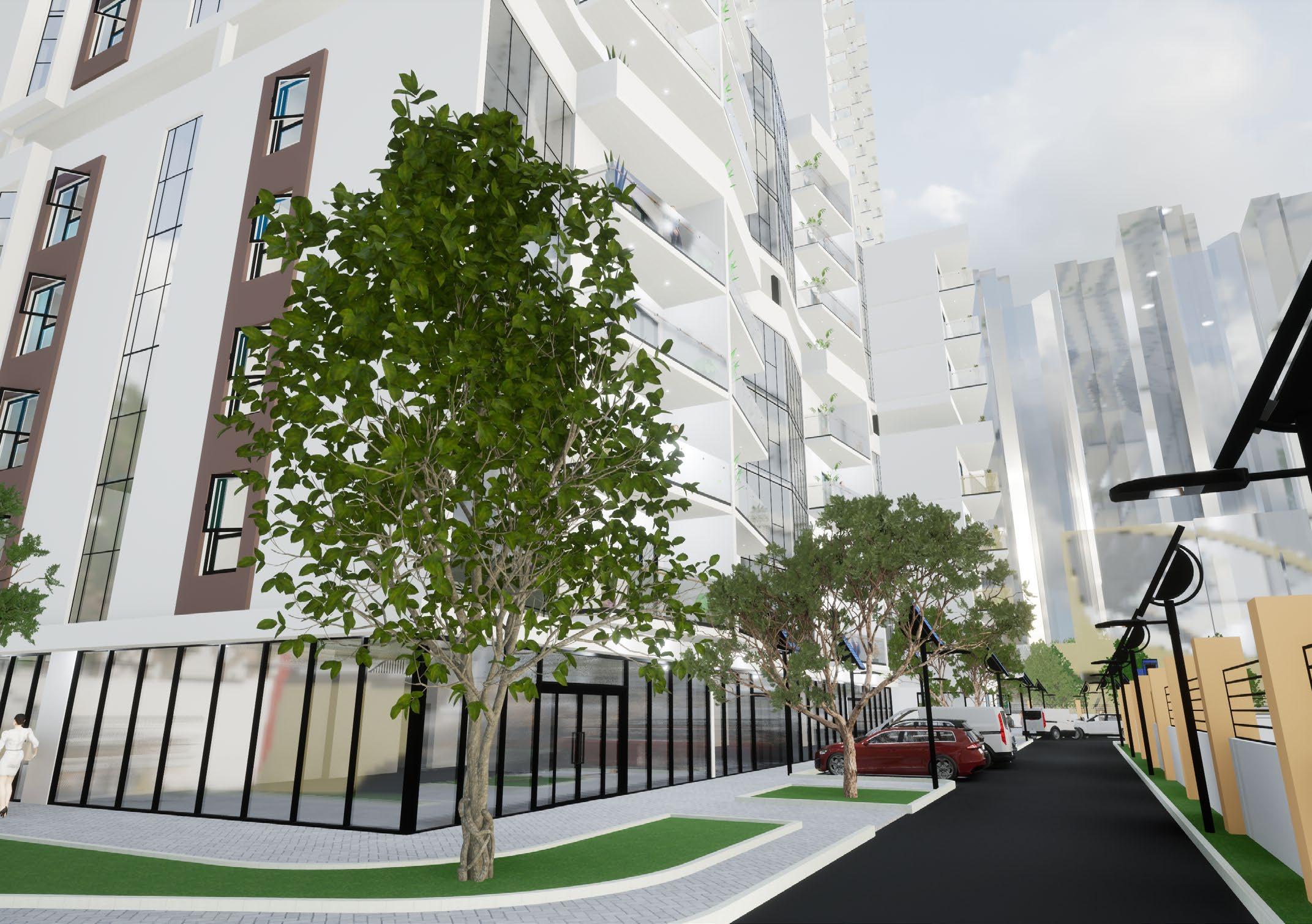

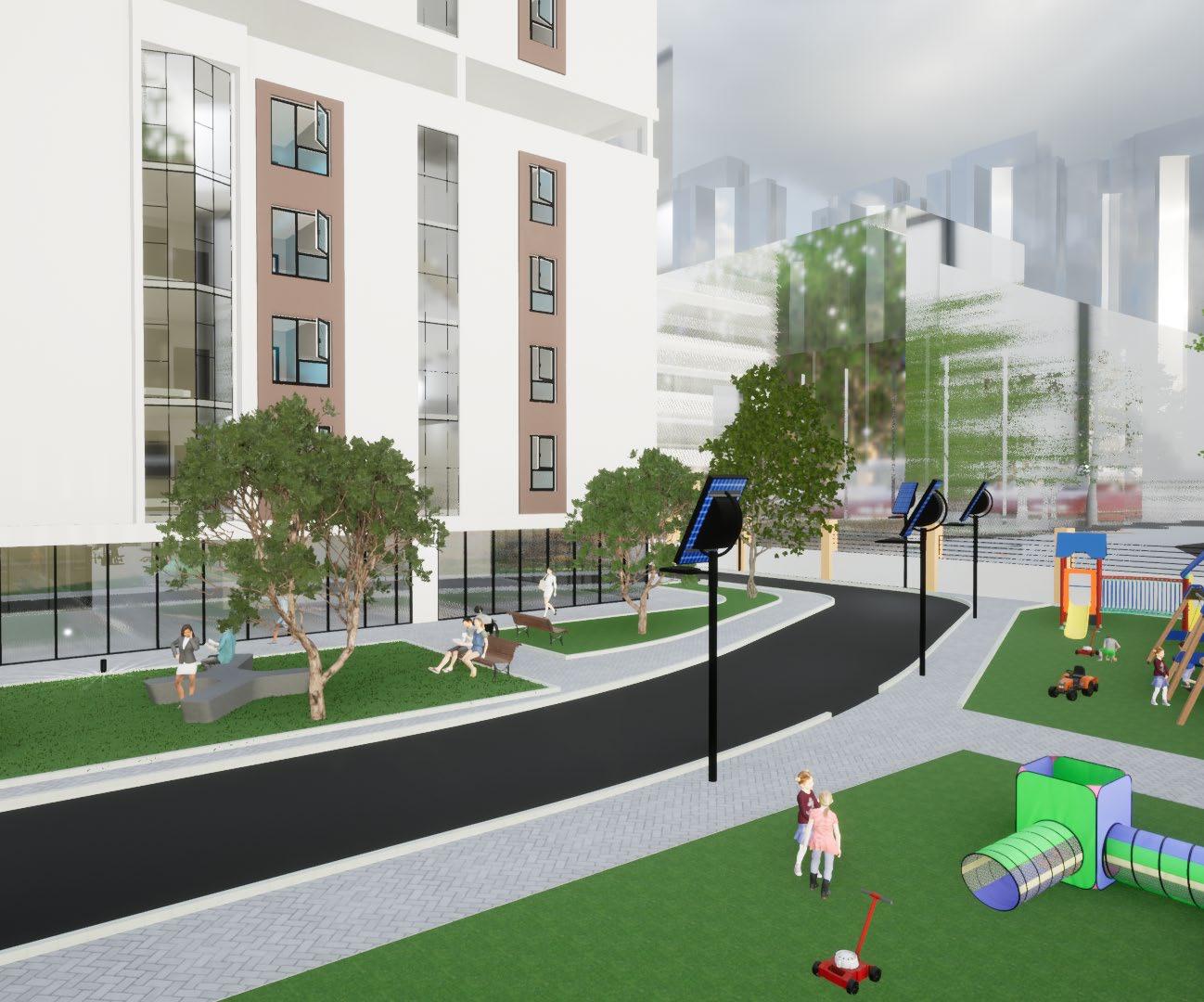

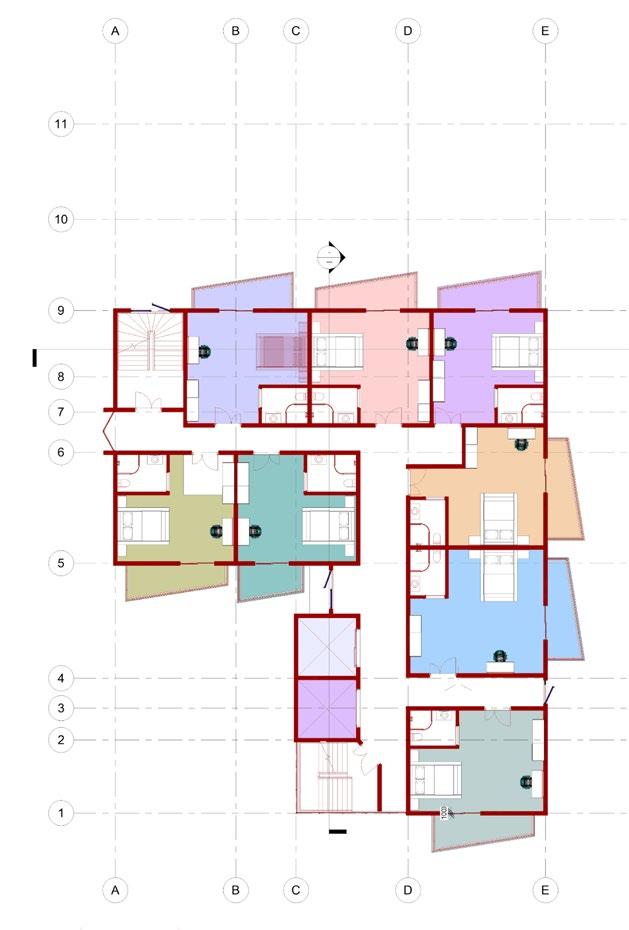

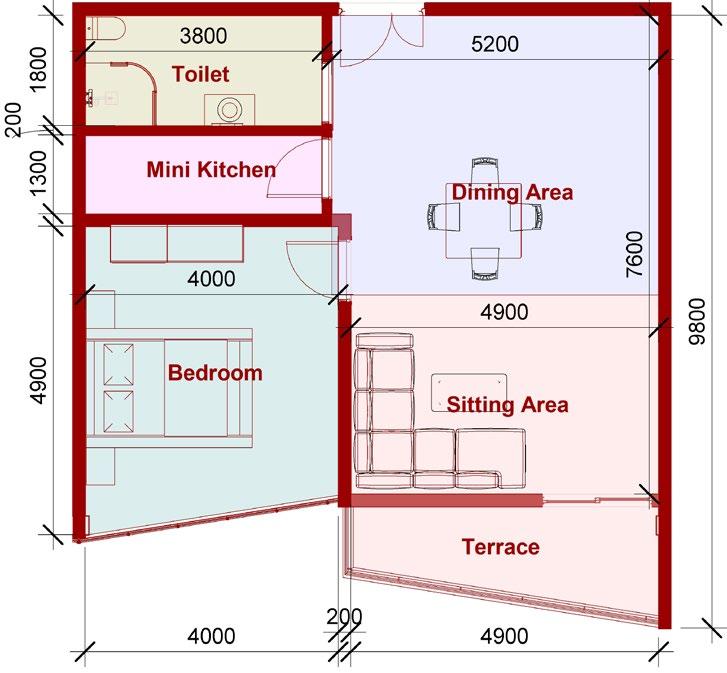

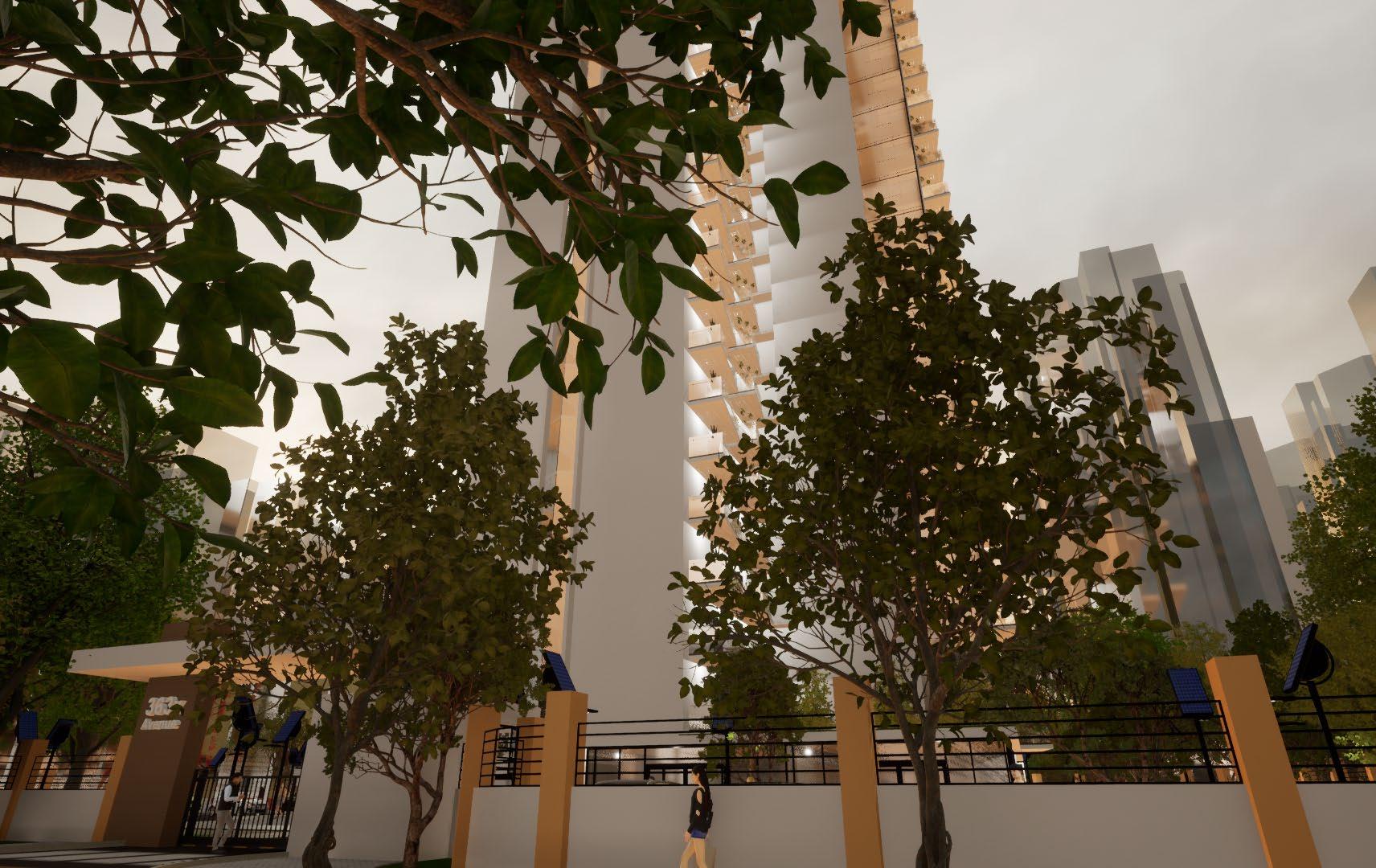

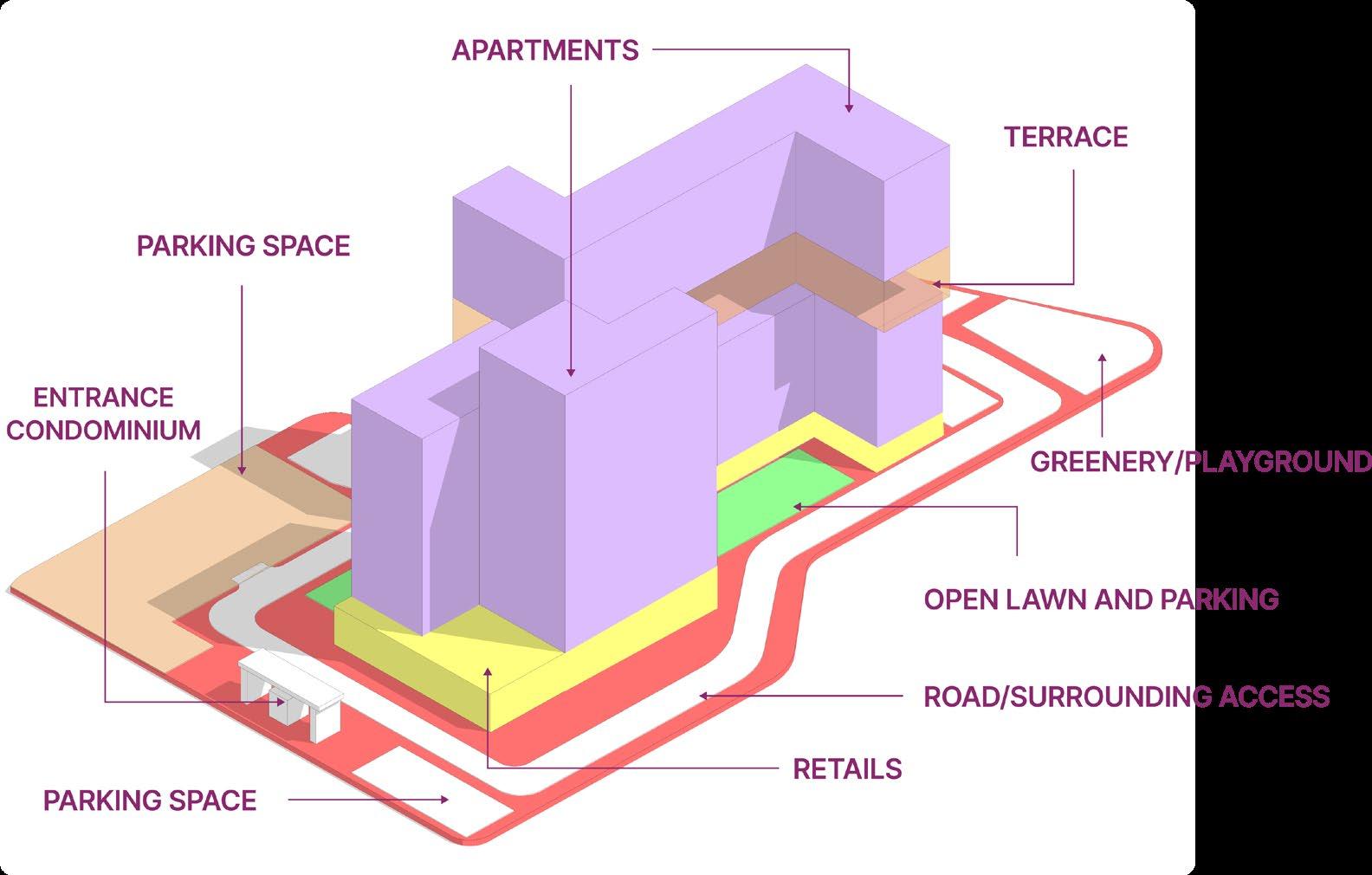

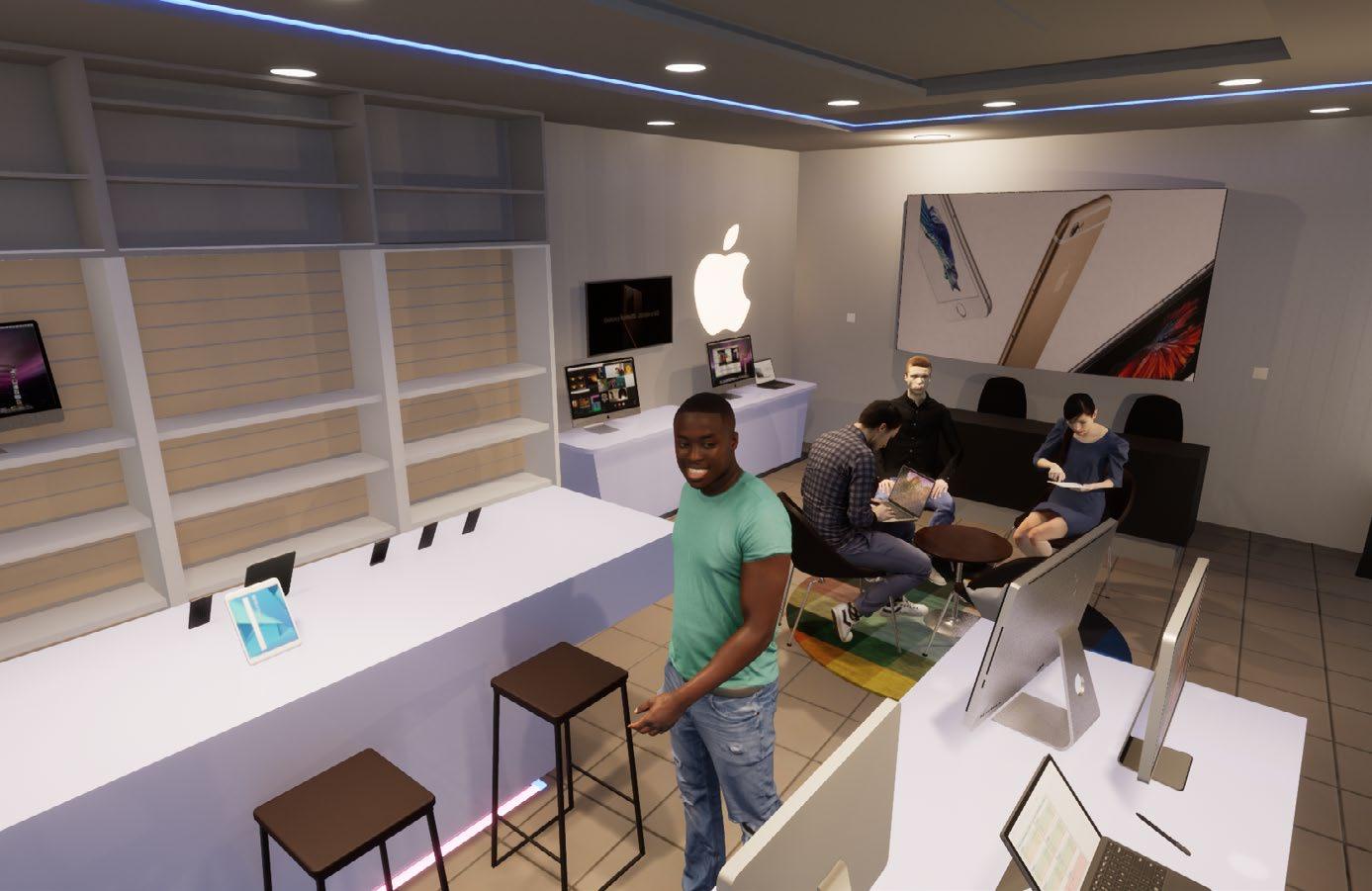

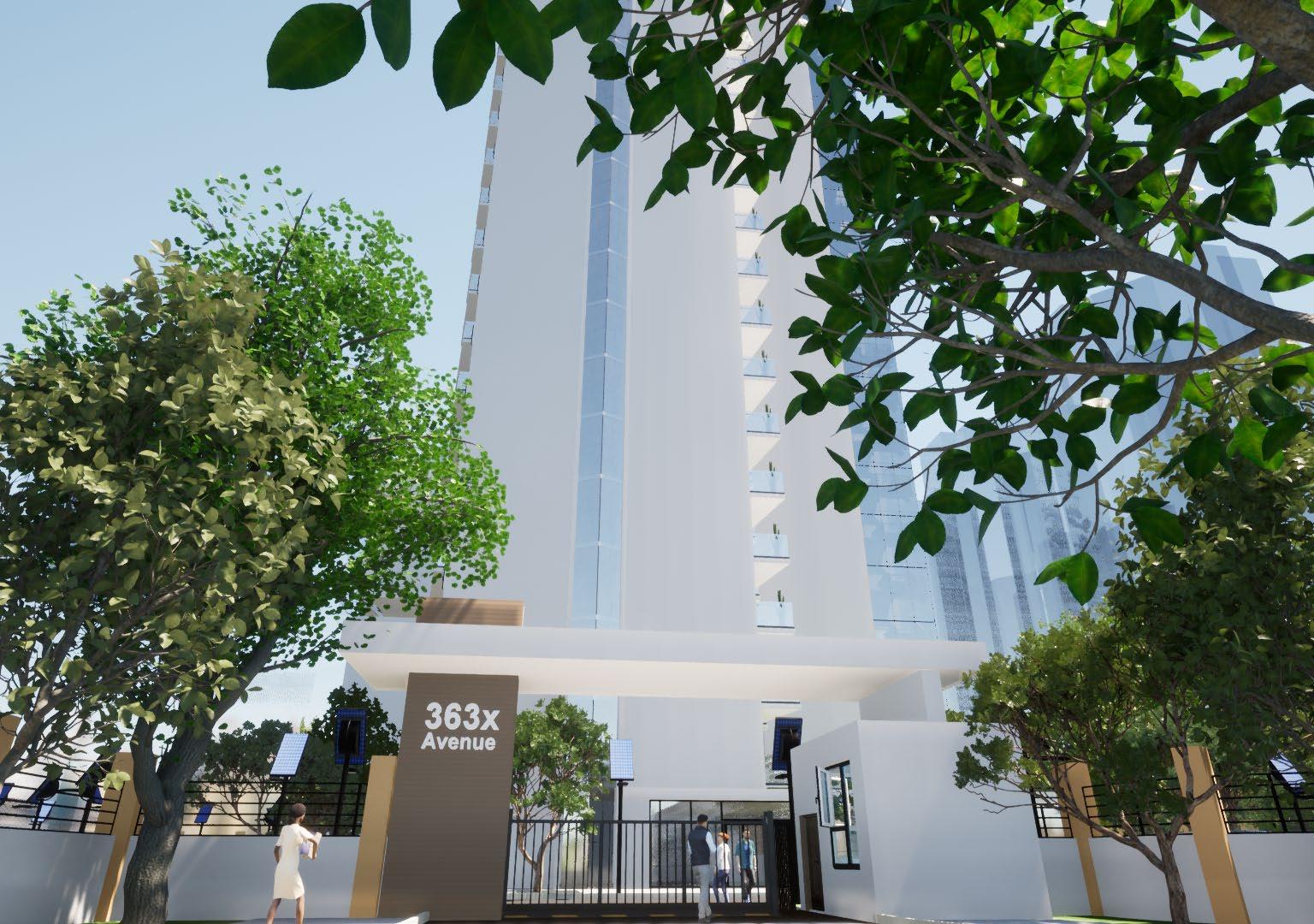

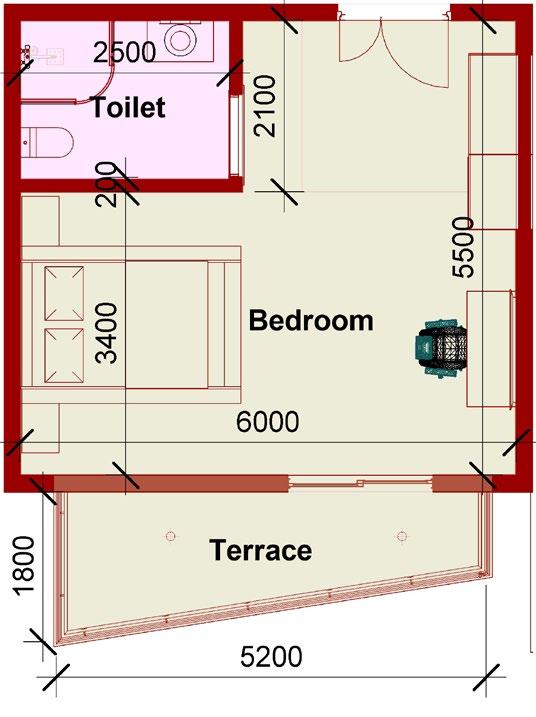

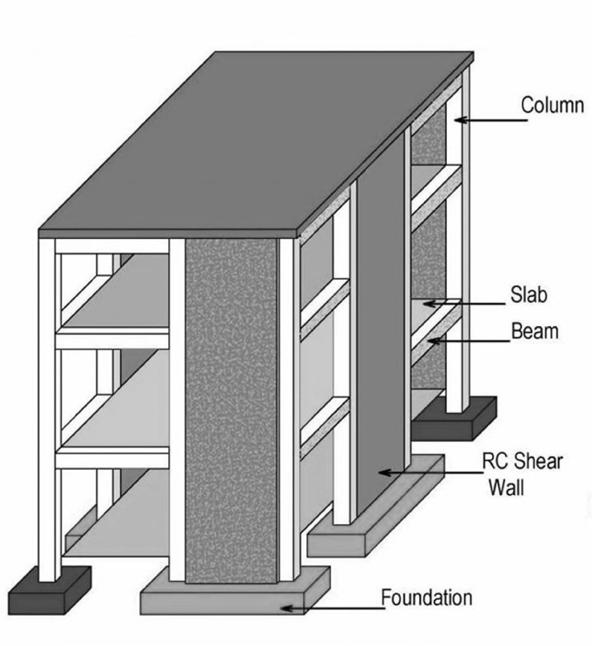

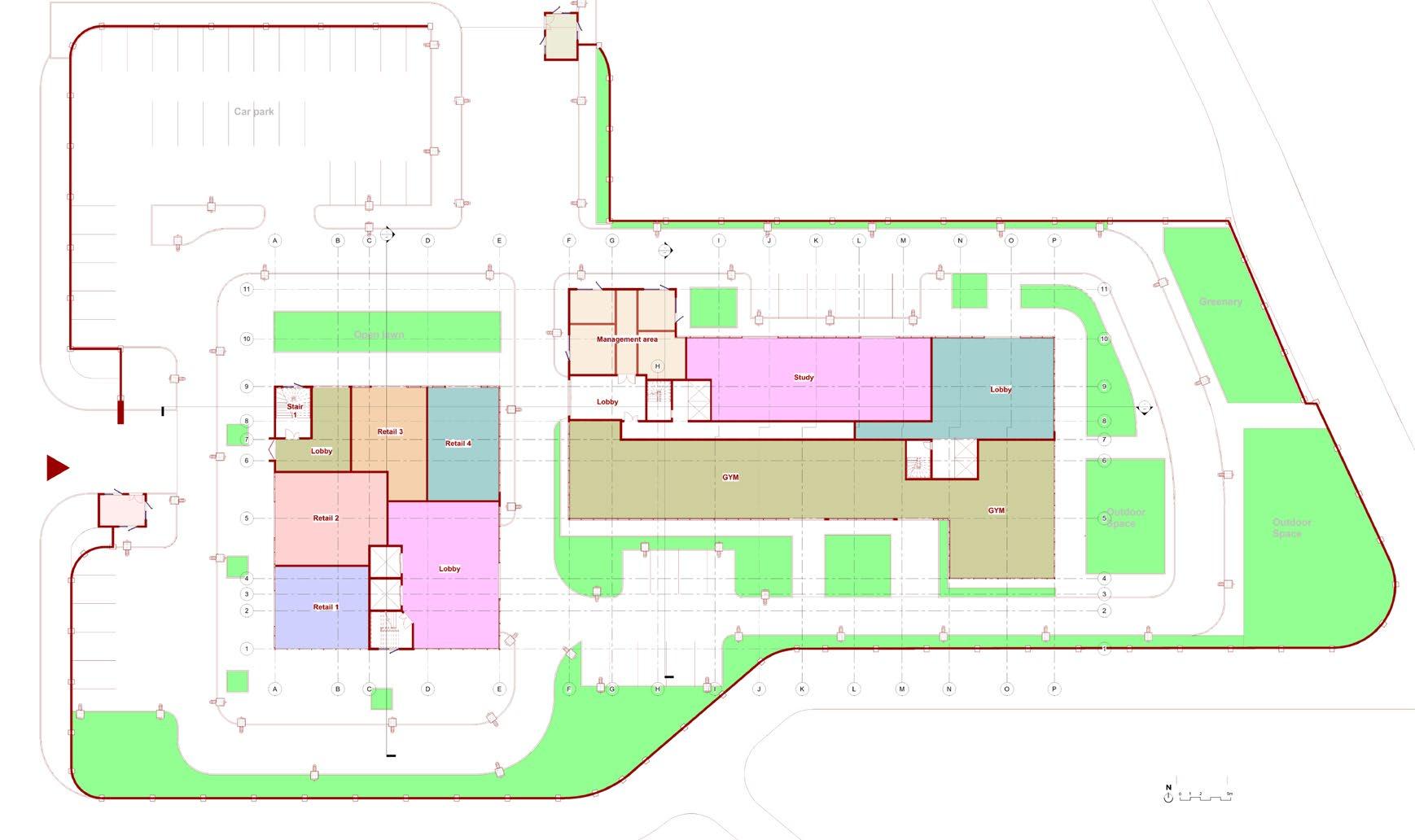

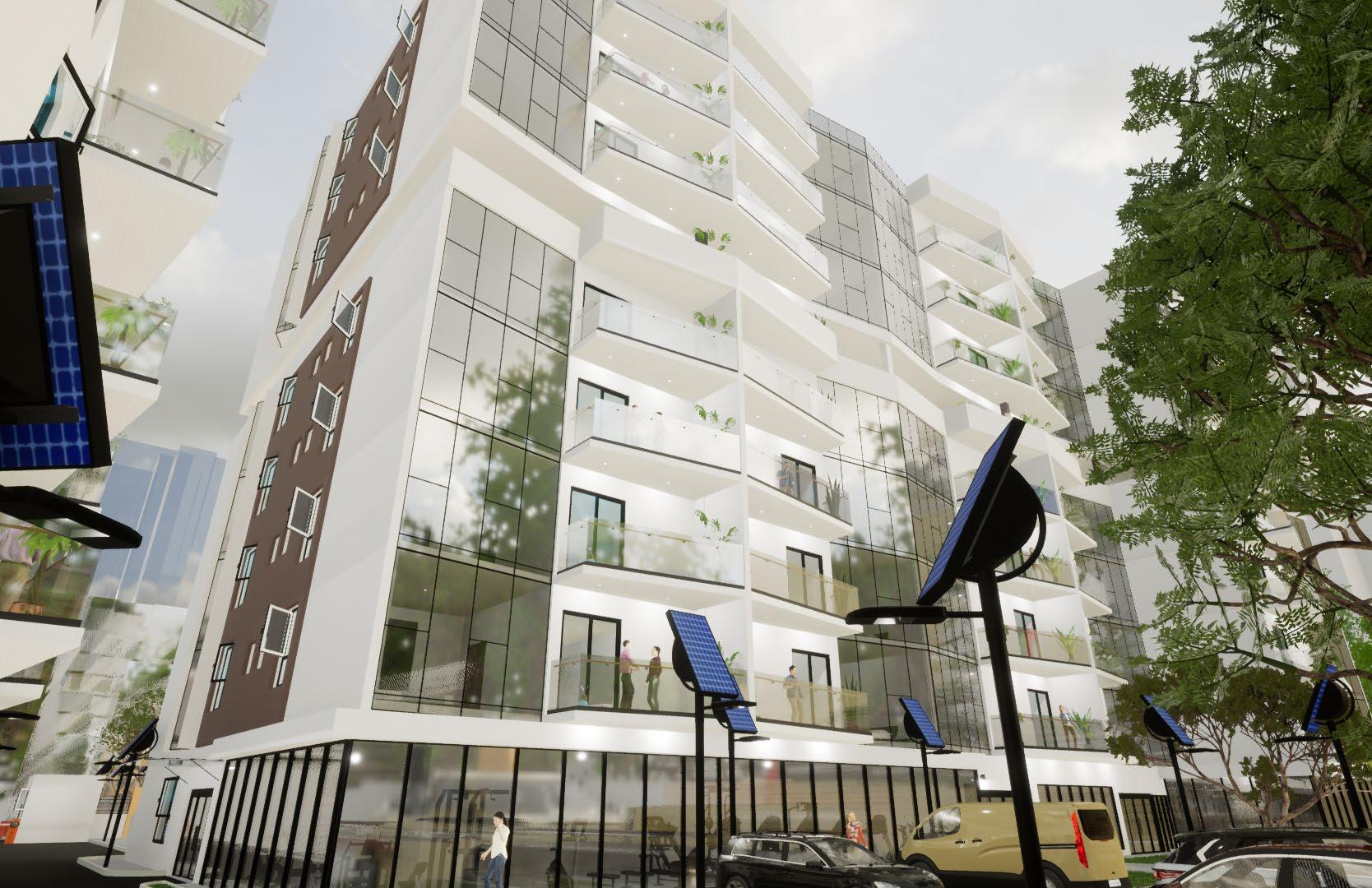

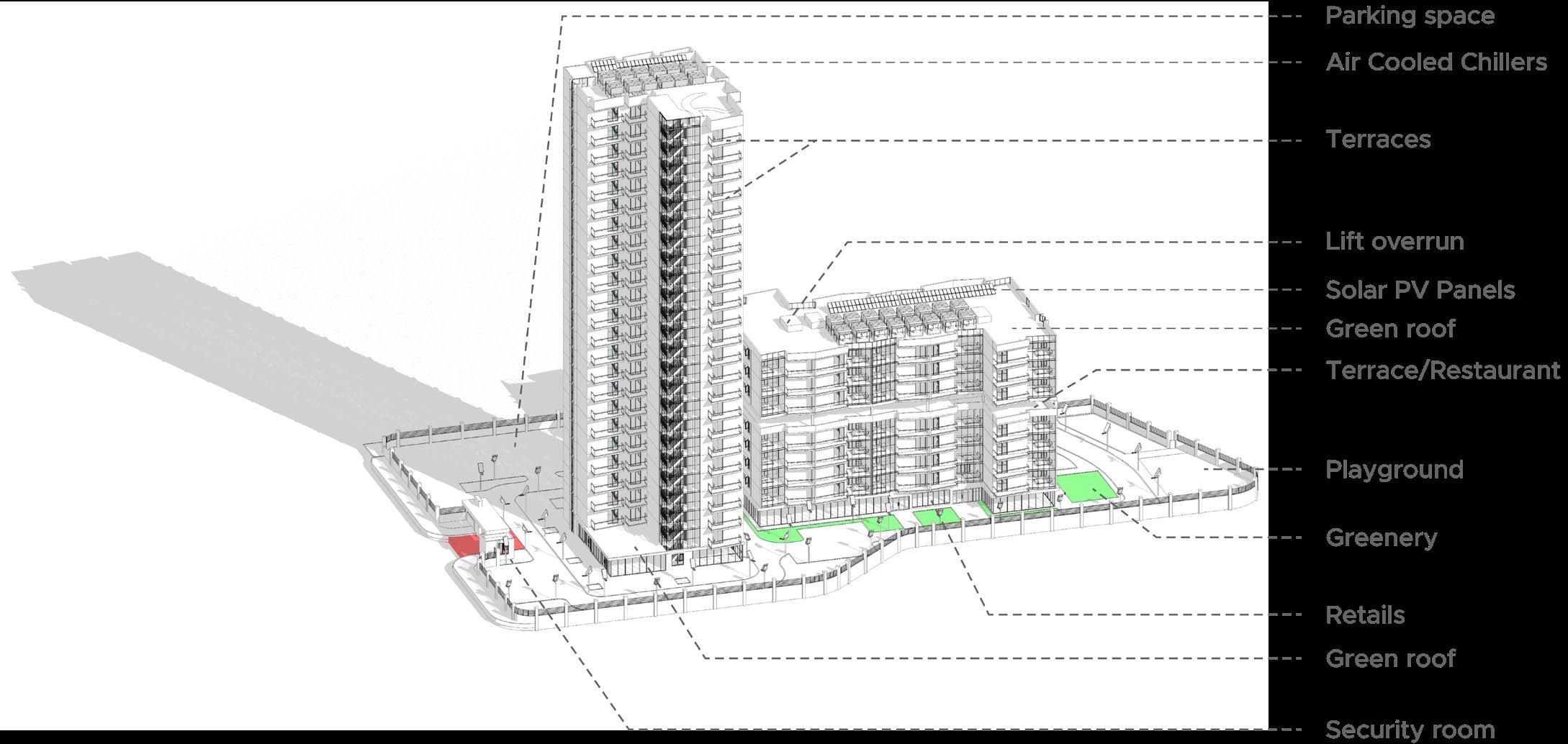

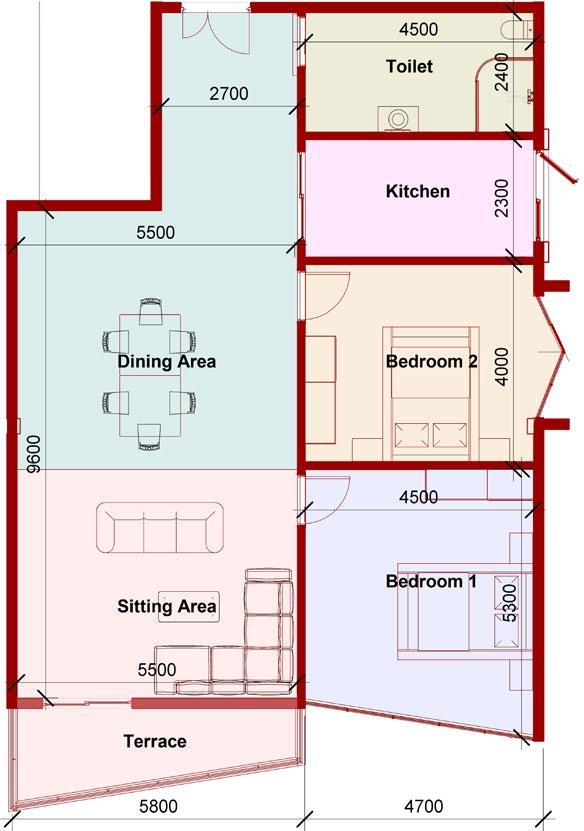

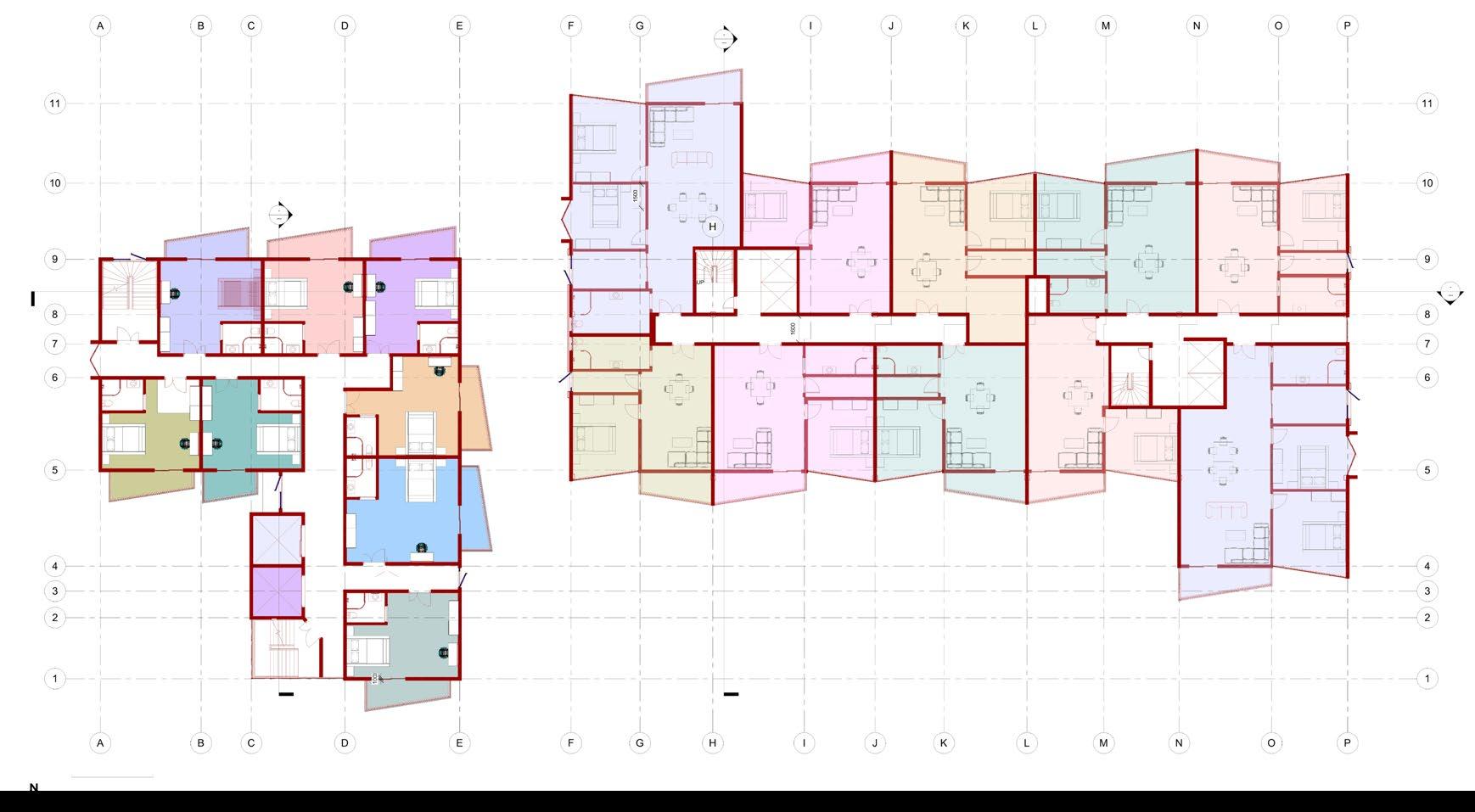

The brief was to design a new Amalgamated Apartment zone of about 14,000m2. The site is in the east gate of the campus. Requirements for the project includes residential spaces, supporting facility spaces such as the gate room, hall, management room, and retail stores building uses a shear wall and concrete column slab and beam structure. Shear walls are be positioned at the perimeter of buildings or they may form a shear coreand a structure of shear walls in the centre of a building, typically encasing the lift shaft or stairwell.

La Ji Jie Pedestrian Street

March 2022

Project Description Design Goal

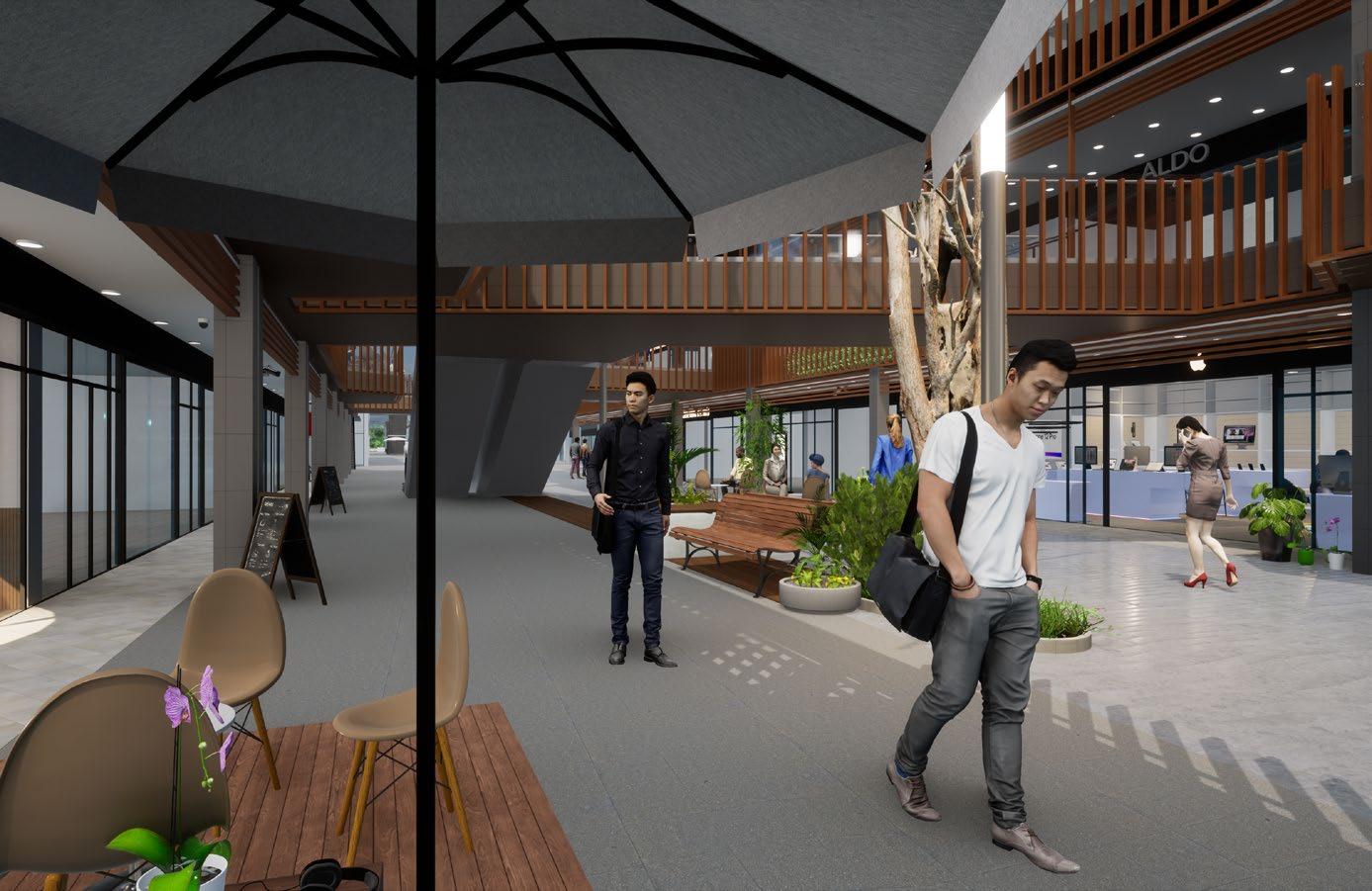

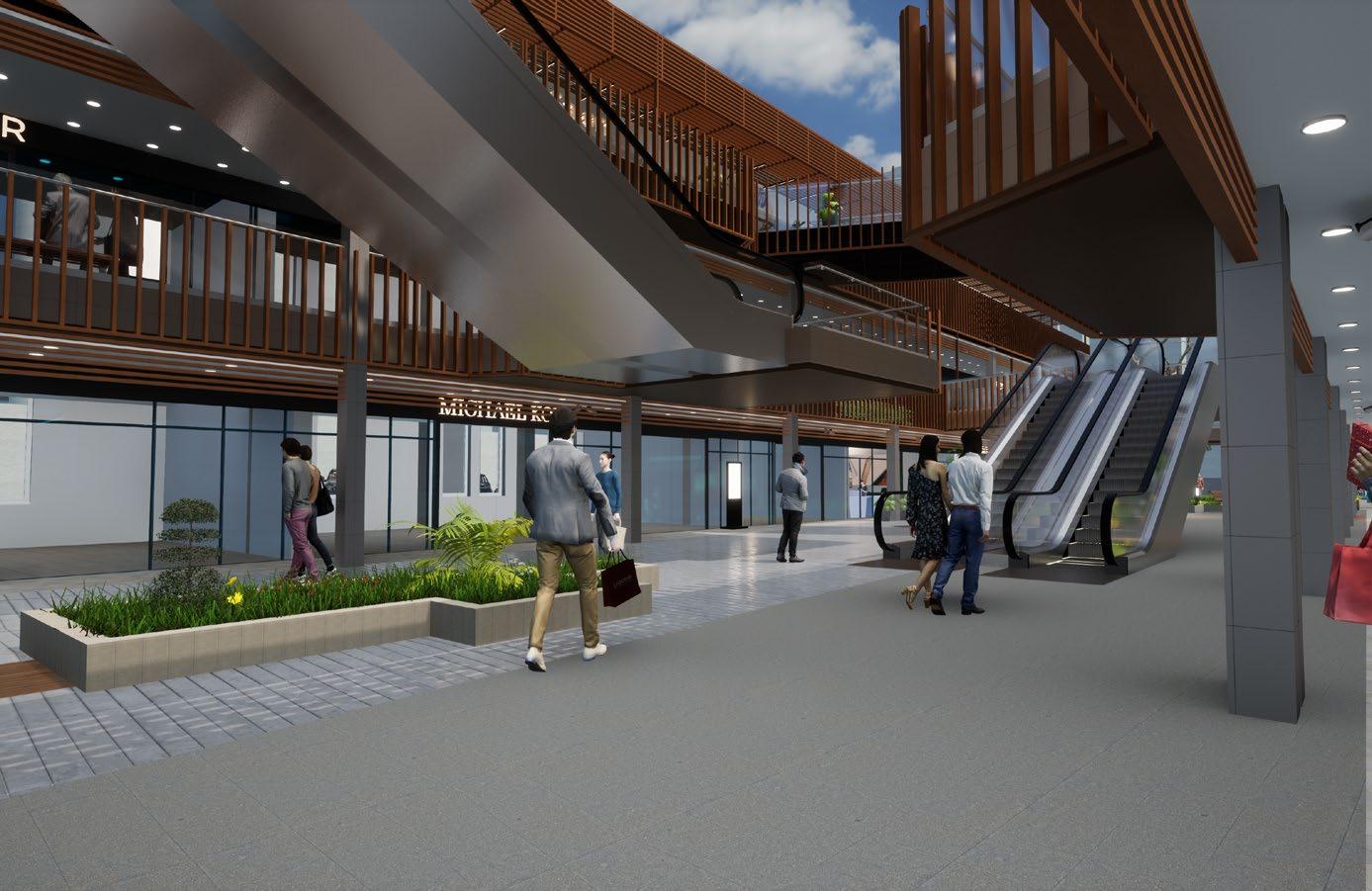

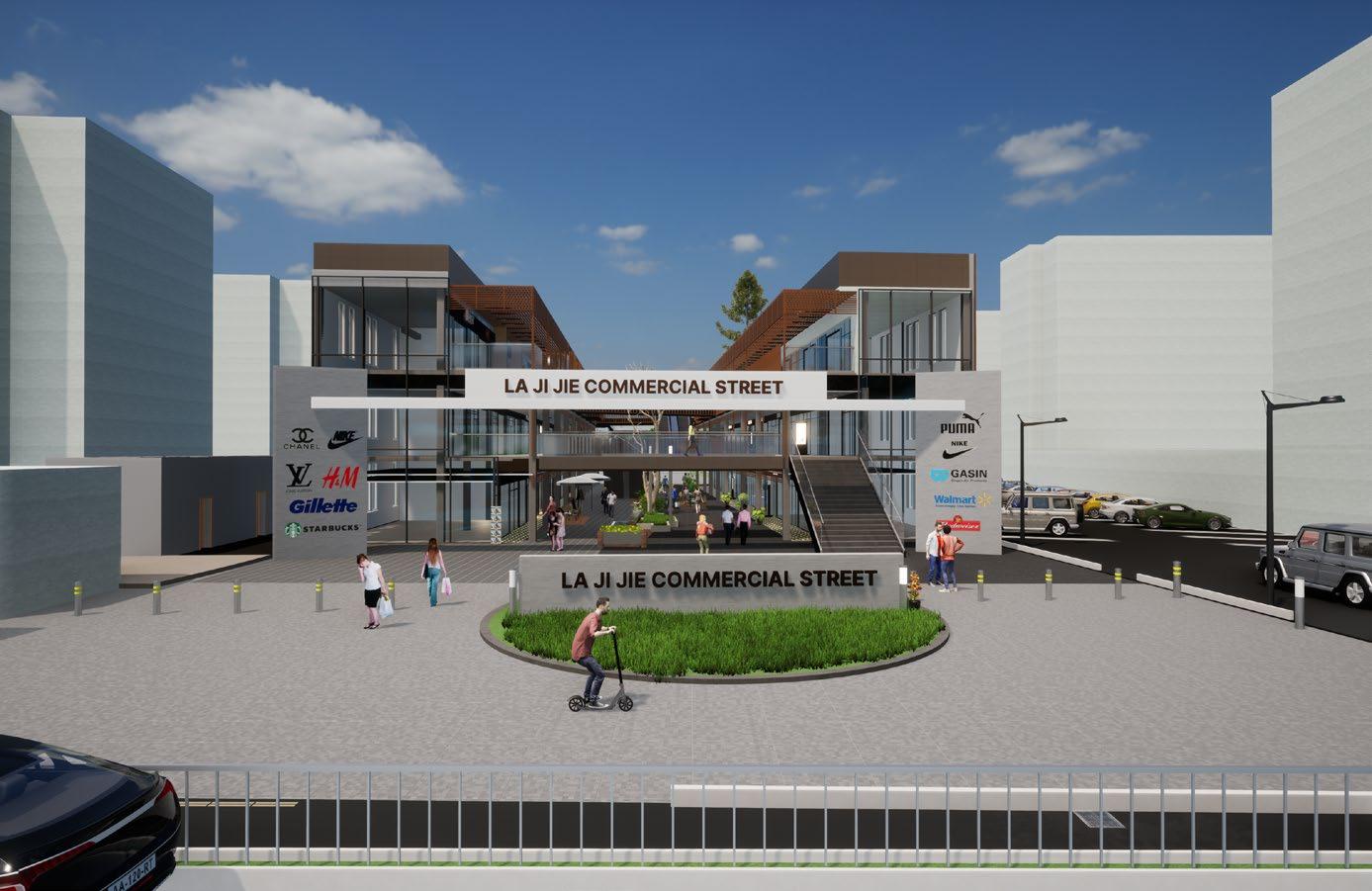

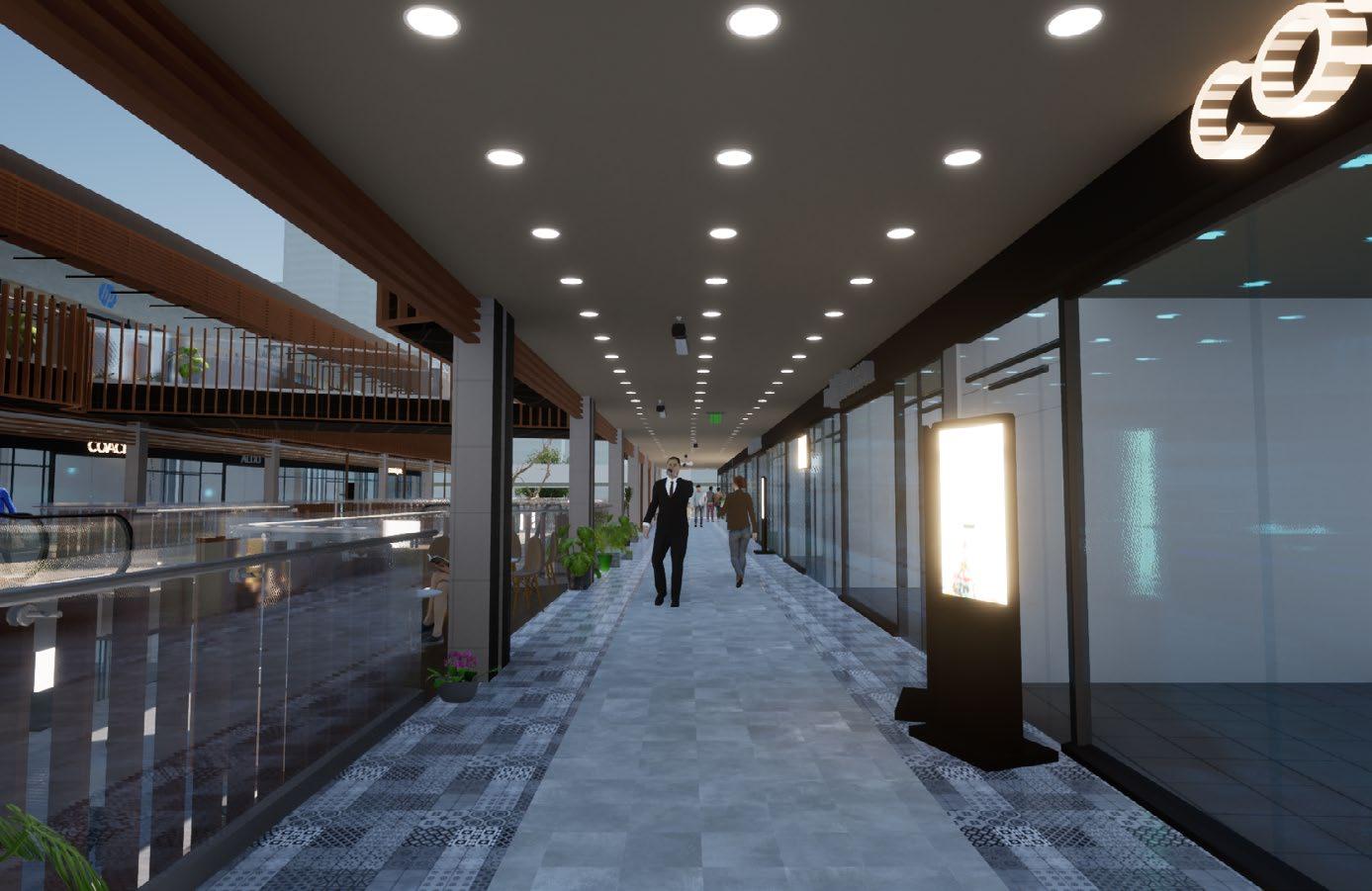

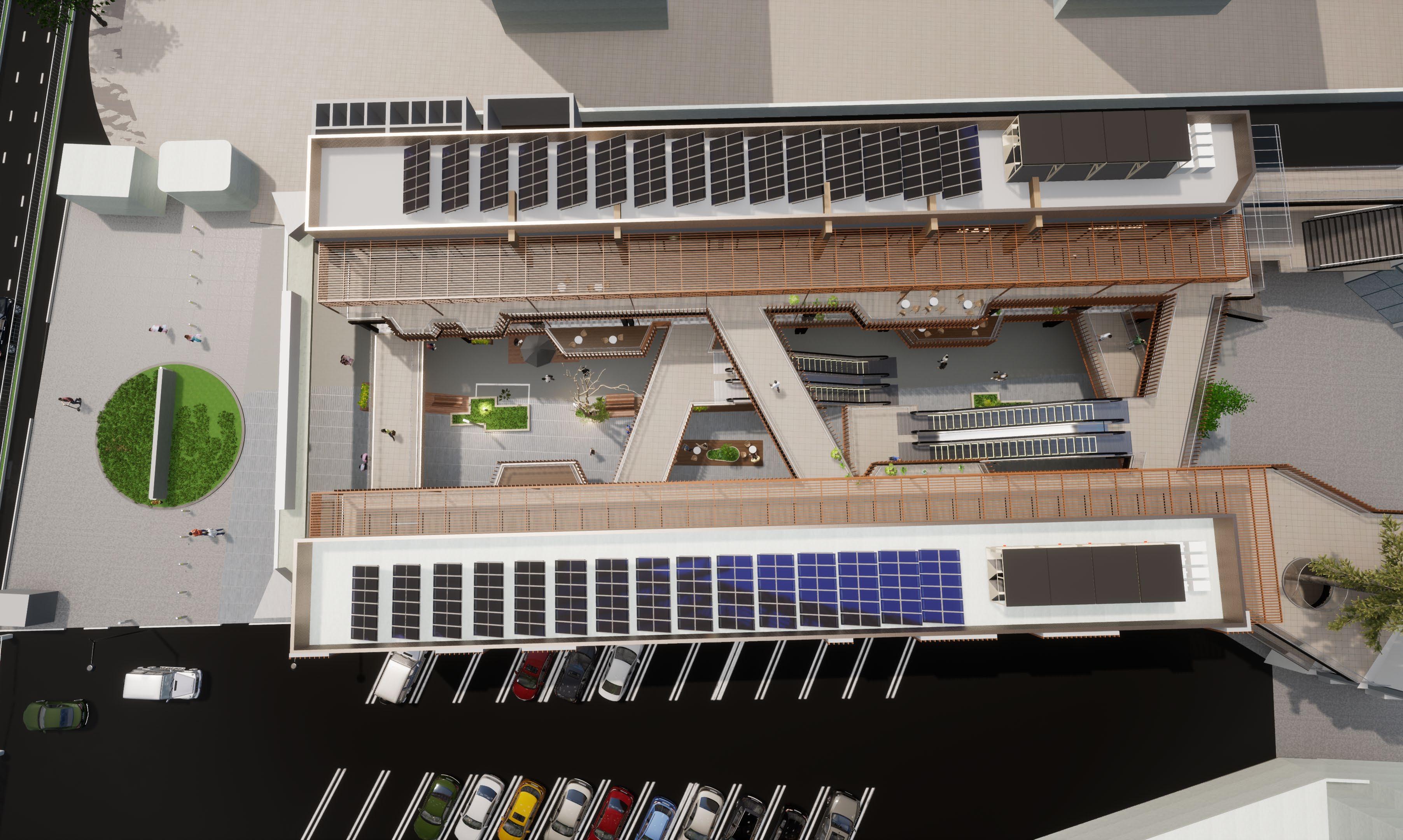

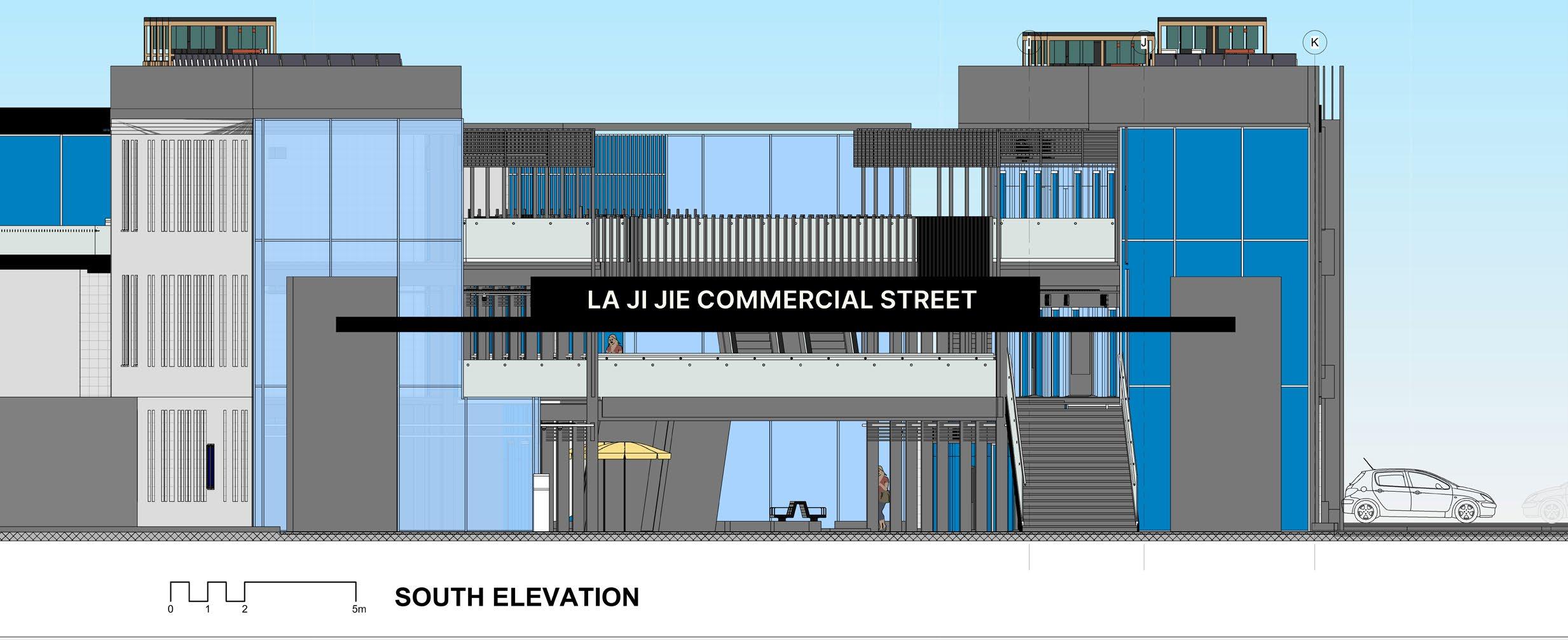

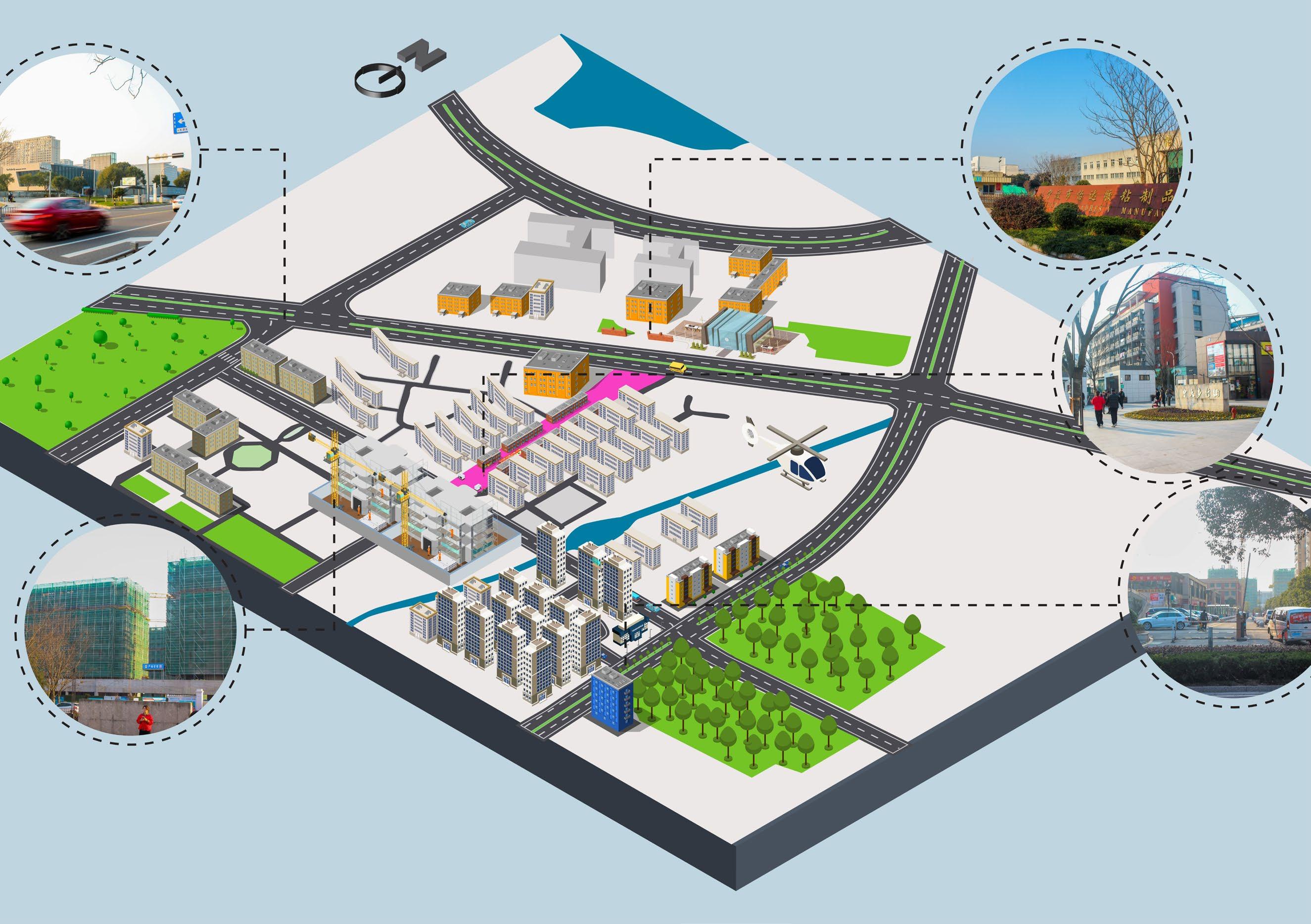

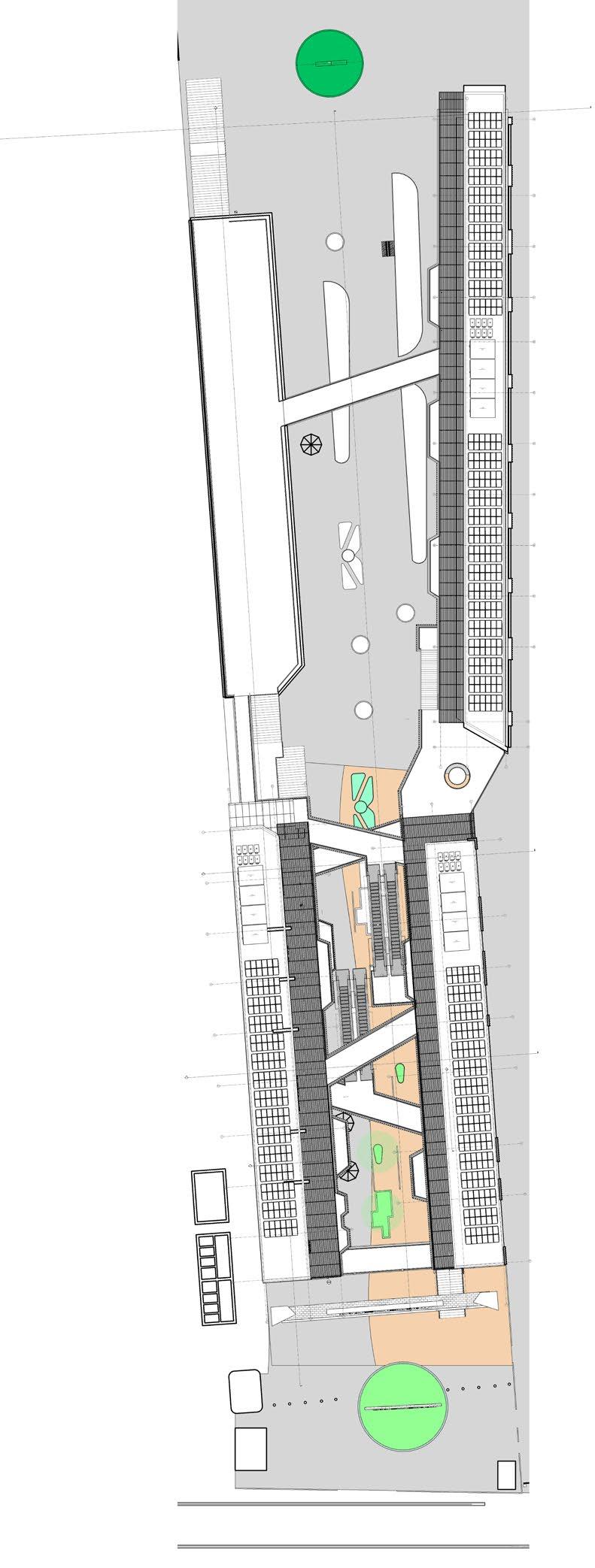

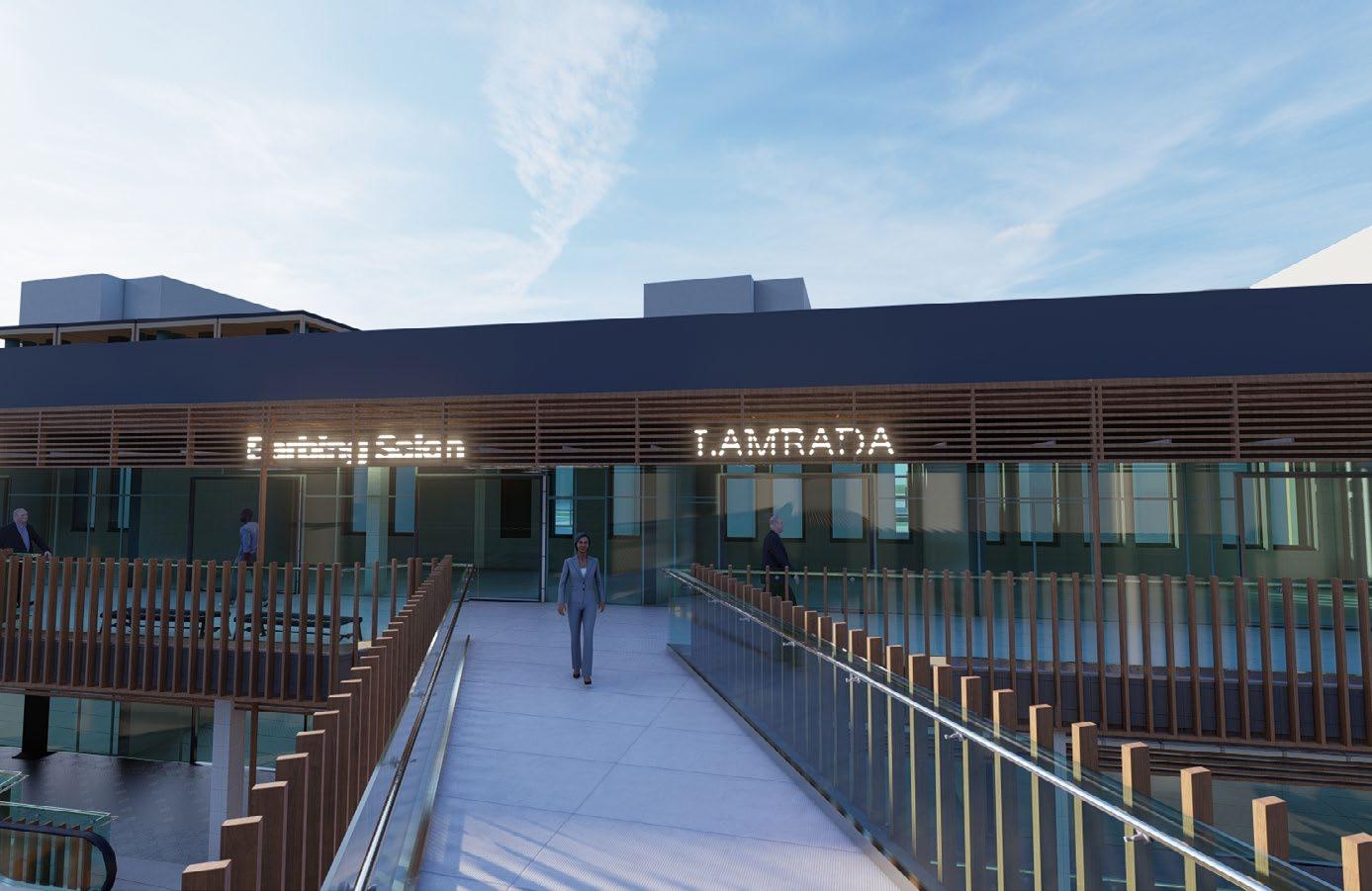

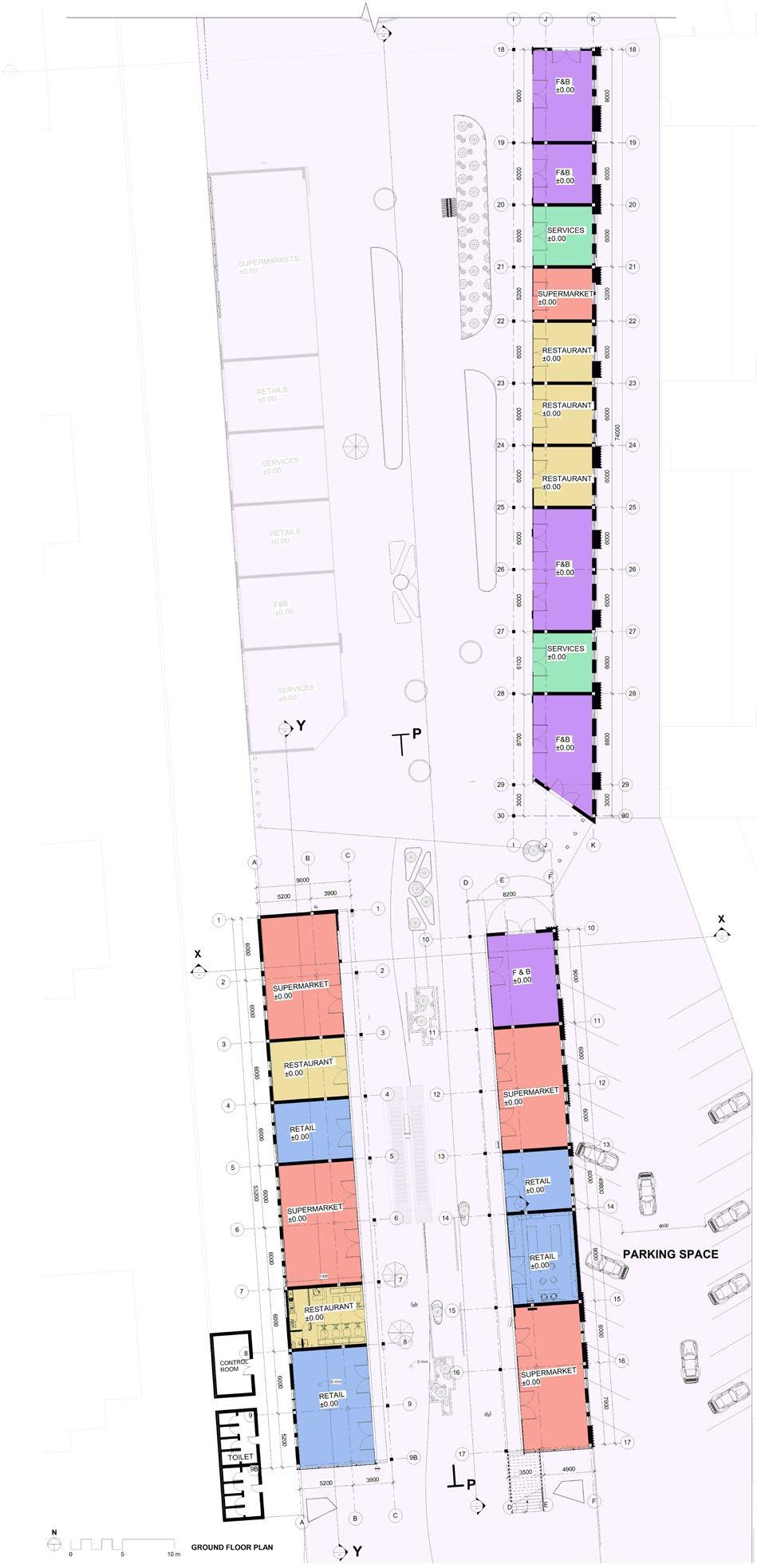

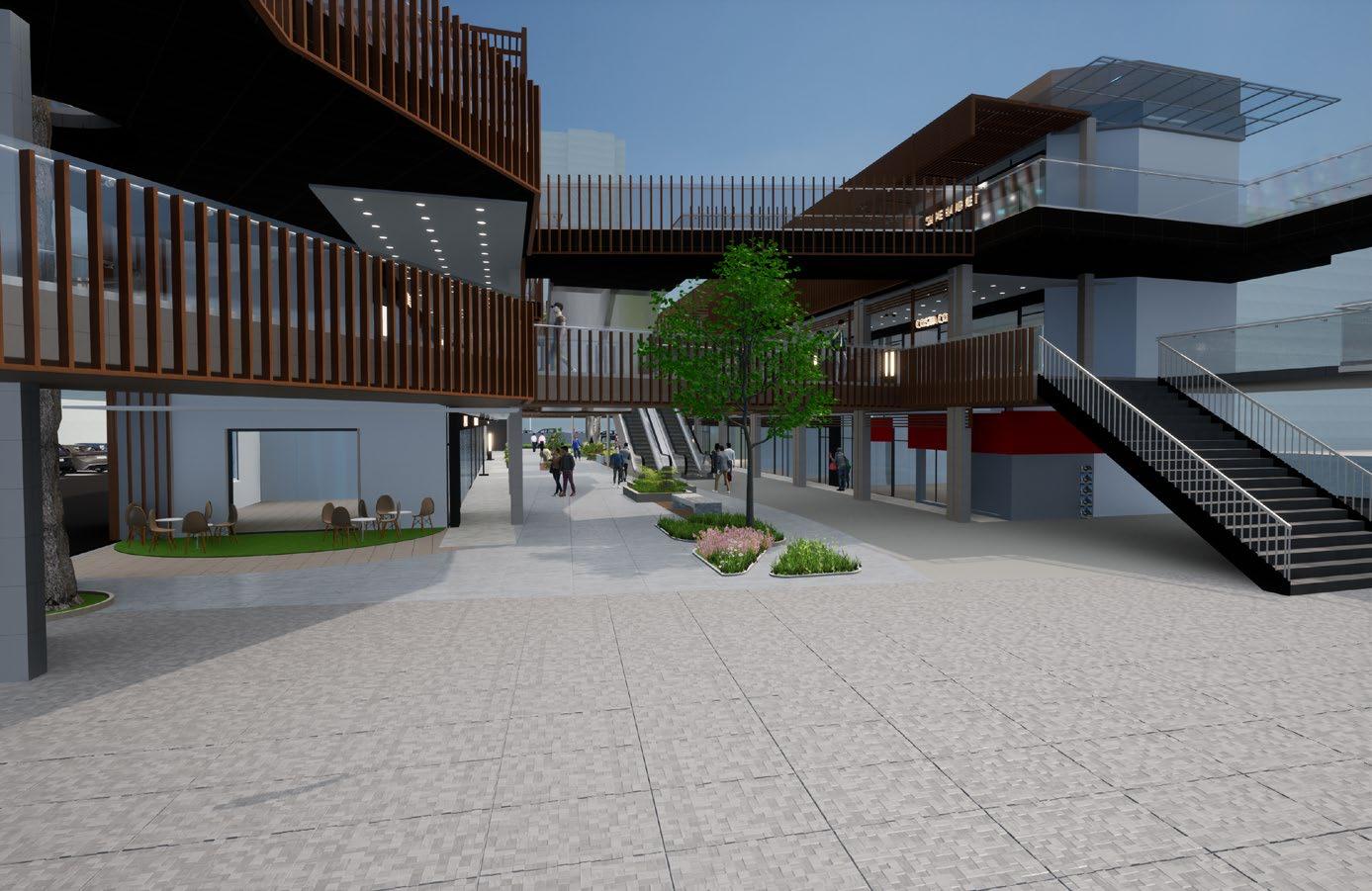

Ningbo University Pedestrian Street (La Ji Jie), is a commercial street located on Ningbo University's North Campus between Zhongguan Road and Yuxiu Road. You can get to the site via bus (1-2 minutes walk) or train (ten minutes walk).

Its surrounding areas consist of Ningbo institute of materials technology and Engineering, Ningbo Gang Museum, Student dormitories, family residential neighbourhood.

• The goal is to create an emotional bond between the space and people (its users) by creating amazing spaces and functionalities for the users. To create do-able improvements that can bring benefits to the space and the people (its users).

• To create a dynamic space that will attract the range of user groups, to keep people coming back and continue evolving.

• Providing access and creating active usage and economic opportunities and programming.

• To promote the growth of healthy and vibrant neighbourhoods.

• Encouraging WALKABILITY – CONNECTIVITY –

SUSTAINAIBILITY

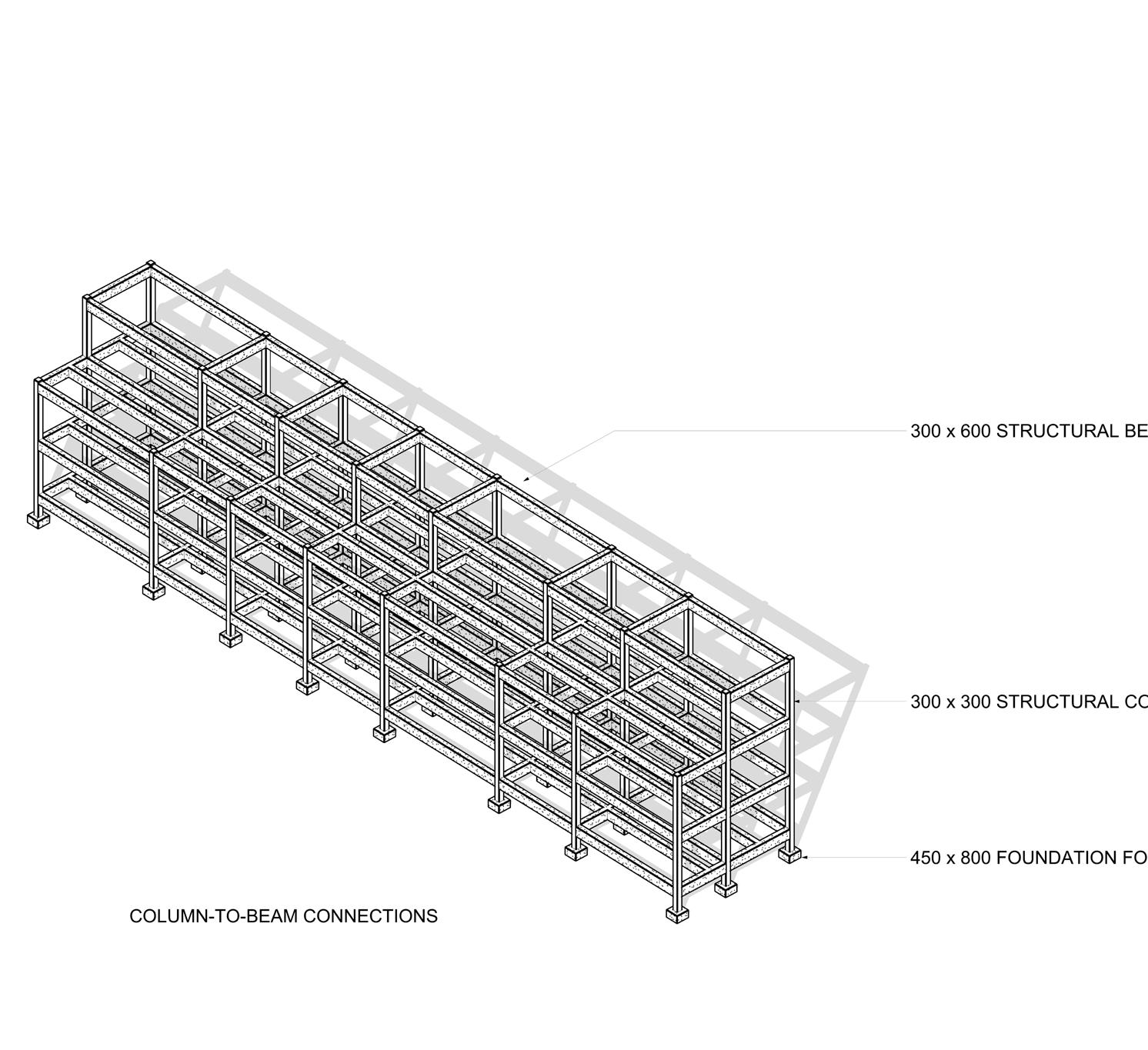

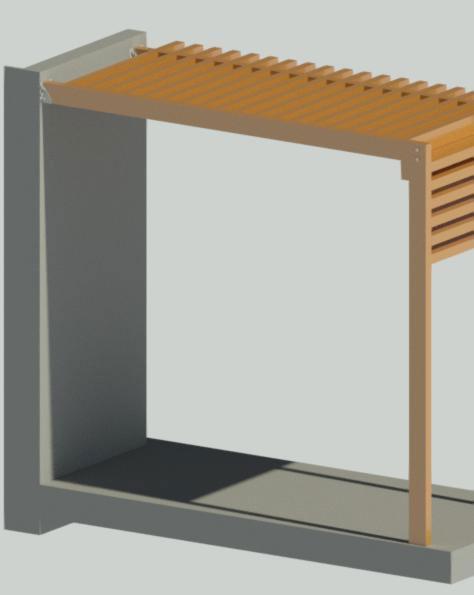

This image shows shows the Column And Beam Framing Connections. To make sure the buildings are structurally sound and has enough capacity to withstand heavy loads. The beams, columns, and walls are joined to the concrete slabs, and all structural sections are suitably connected to their supporting members, to ensure that the structures are structurally sound and capable of withstanding enormous loads. Concrete beams are used, which will carry structure load on itself vertically and it will withstand load by resisting bending.
