E COR Sheet Steel Enclosures

Cataphoresies Process Electroplating Double Layer Protection Transparent door & inner doors available

H * W * D

300 * 200 * 150

300 * 300 * 150

300 * 300 * 200

300 * 400 * 150

300 * 400 * 200

400 * 300 * 150

400 * 300 * 200

400 * 400 * 200

400 * 600 * 300

500 * 300 * 150

500 * 300 * 200

(WHITE RAL 9010)

500 * 400 * 200

500 * 400 * 250

500 * 500 * 200

500 * 500 * 250

600 * 400 * 200

600 * 400 * 400

600 * 400 * 250

600 * 600 * 200

600 * 600 * 250

600 * 600 * 300

600 * 600 * 400

600 * 800 * 300

700 * 500 * 200

700 * 500 * 250

800 * 600 * 250

800 * 600 * 300

800 * 600 * 400

800 * 800 * 300

1000 * 600 * 250

1000 * 600 * 300

1000 * 600 * 400

1000 * 800 * 300

1000 * 1000 * 300

(DOUBLE DOOR)

1200 * 600 * 300

1200 * 800 * 300

1200 * 1000 * 300

ECO20315

ECO30315

ECO30320

ECO40315

ECO40320

ECO30415

ECO30420

ECO40420

ECO60430

ECO30515

ECO30520

ECO40520

ECO40525

ECO50520

ECO50525

ECO40620

ECO40640

ECO40625

ECO60620

ECO60625

ECO60630

ECO60640

ECO60820

ECO50720

ECO50725

ECO60825

ECO60830

ECO60840

ECO80830

ECO61025

ECO61030

ECO61040

ECO81030

EC101030

ECO61230

ECO81230

EC101230 (DOUBLE DOOR)

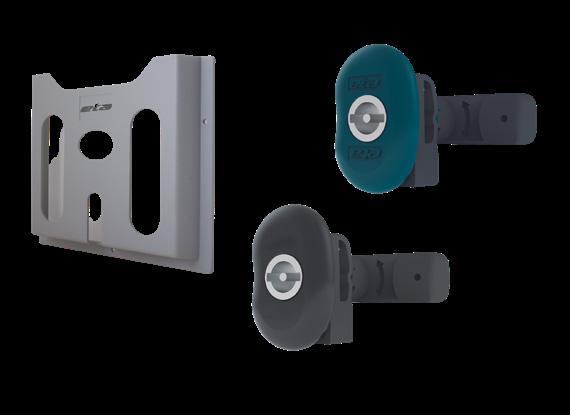

Wall Mounting Brackets (ST)

New locking system/More internal space/ Mount doors side by side/Improved IP protection/180degree door opening

Sheet Steel Enclosures / Ecomp Monoblock

• Completely welded enclosure

• Double bar locking system

• Modular cable entry bottom with adjustable base plates and seal

• 3 hinges per door/180° optional

• Epoxy Polyester powder coating for enclosure & door in RAL 7035

• Aesthetic door profile & innovative latch system in RAL 5020

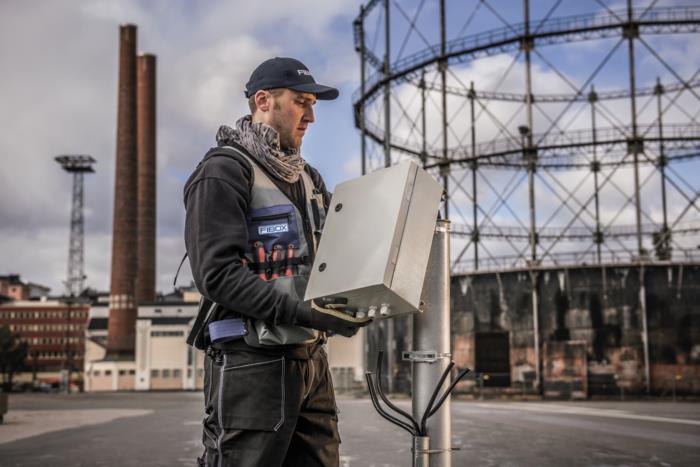

Stainless Steel Enclosures

IP66, enclosure and door manufactured from AISI304L or AISI316L stainless steel.

Hinge in zinc alloy on the body and stainless steel on the door. Pins in stainless steel.

The standard stocked items are AISI 304.

300x200x150

300x400x150

400x300x150

400x300x200

400x400x200

500x500x200

600x400x200

600X600X200

600X600X250

800X600X200

800X600X250

800X800X300

1000X800X300

1000X1000X300

1200X800X300

1200X1000X300

ECSF0001

EC020315X

EC040315X

EC030415X

EC030420X

EC040420X

EC050520X

EC040620X

EC060620X

EC060625X

EC060820X

EC060825X

EC080830X

EC081030X

EC101030X

EC081230X

EC101230X

E COR Modular Chassis

Blank plate

Blank

Blank plate 545 x 147mm ECAV060015

Accessories For Eta Enclosures

Terminal Box Sheet Steel IP 66 - Ral 7035

Stainless Steel Pushbutton Boxes

Monobloc Cabinets E MOX

Fully Welded Enclosure. C/W 2.5/3mm. Steel Mounting Plate

Door C/W 3 Or 4 Hinges & Double Lock System

Ral 7035 To Ip66. (Double Door Ip55) Removable Rear Panel

EMOX ENCLOSURE C/W PLATE

H * W * D

2000* 600* 400

2000* 800* 400

2000* 1000* 400

ENCLOSURE C/W PLATE

EMOX062004PR

EMOX082004PR

EMOX102004PR

2000* 1200* 400 EMOX122004PR

Other sizes on request Stainless Steel EMOX also available

EMOX PLINTHS

H * W * D PLINTH/ CORNER PIECE FRONT CROSS PIECE SIDE CROSS PIECE

2000* 600* 400 EUZEA100

2000* 800* 400 EUZEA100

2000* 1000* 400

2000* 1200* 400

Eyebolts WTGS-003

E NUX SUITE CABINETS

2000* 600* 400

2000* 800* 400

2000* 1000* 400

2000* 1200* 400

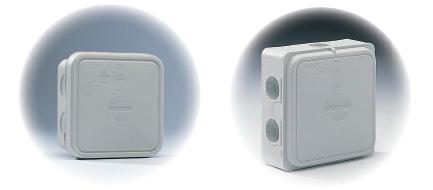

Tempo Junction Boxes - ABS IP65 IK07

Abs Grey Cover Plain Sides (Hinge Included)

ABS/PC MNX Enclosure Grey IP66/67 IK07

H

95 * 65 * 60 TA090706

95 * 65 * 60 (c/w knockouts) TAM090706

110 * 110 * 65

110 * 110 * 65 (c/w knockouts) TAM111107

187 * 122 * 90

201 * 163 * 98

240 * 191 * 107 TA241911

289 * 239 * 107

344 * 289 * 117

Tempo

Mounting Plates

Piccolo Enclosure – ABS IP66/67 IK07

ABS15075HG 180 * 130 * 100

ABS150125HG 180 * 130 * 150

PC150150HG 180 * 180 * 75 ABS17575HG 180 * 180 * 100 ABS175100HG

180 * 180 * 125

110 * 80 * 65

ABSB65G

110 * 80 * 85 ABSB85G

140 * 80 * 65

140 * 80 * 85

170 * 80 * 65

170 * 80 * 85

230 * 80 * 65

230 * 80 * 85

170 * 140 * 95

230 * 140 * 95

Transparent lids available on request

ABSC65G

ABSC85G

ABSD65G

ABSD85G

ABSF65G

ABSF85G

ABSH95G

ABSM95G

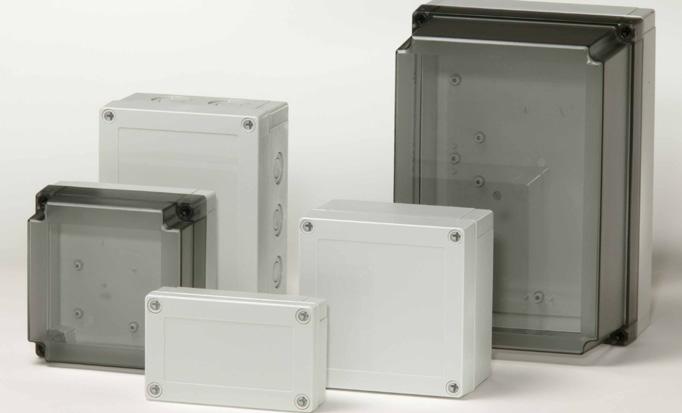

Polycarbonate MNX Enclosure Transparent - IP66/67

ABS175125HG

ABS175150HG

PC150100HT

PC175100HT

PC175/150HT

PC200150HT

Mounting Plates (Metal) To Suit

Junction Boxes c/w Knockouts

SOLID ABS/PC - IP66/67

Enclosure, halogen free

Temperature range: 40°C to 120°C

Grey (RAL 7035)

Two lid depths: 30mm and 80mm.

Enclosure depth can be extended in stages of 50mm with depth extension frames.

SOLID ABS – Base (Grey) 100mm

H * W * D REF

190 * 190 * 100 ABS1919

280 * 190 * 100 ABS2819

280 * 280 * 100 ABS2828

380 * 190 * 100 ABS3819

SOLID PC Transparent Lid 80mm

SOLID Mounting Plate - Metal

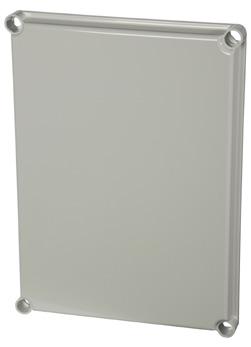

SOLID ABS/PC Grey Lid 30mm depth

190 * 190 ABS1919G30

280 * 190 ABS2819G30

280 * 280 ABS2828G30

380 * 190 ABS3819G30

380 * 280 ABS3828G30

560 * 280 PC5628G30 560 * 380 PC5638G30

SOLID PC Transparent Lid 30mm

Inspection Windows

50mm Depth Extension Collars available for the above. Screws are extra. All windows are

SOLID ABS Grey Lid 80mm depth

380 * 280 * 100 ABS3828 560 * 280 * 100 ABS5628 560 * 380 * 150 ABS5638 H

W REF

190 * 190 ABS1919G80

280 * 190 ABS2819G80

280 * 280 ABS2828G80

380 * 190 ABS3819G80

380 * 280 ABS3828G80

Blind Plug

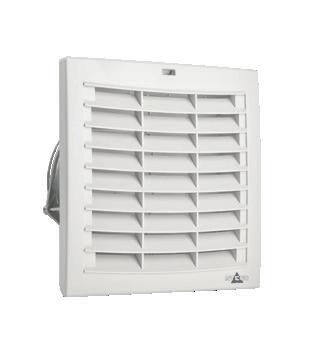

Ventilator IP44 MB10564

Hinges (Polycarbonate) MB10622

Mounting Bracket Set ABS Enclosure MB10674

Screws (Slotted) - 80mm SS10563

Screws (Slotted) - 30mm CS10256

Screws (Wing) - 80mm

Fibox ABS Accessories Ventilation Plugs IP68

Screws (Wing) - 30mm HS10255

IP65

Mounting Plates To Suit VTR

E SI MONTA SOLO CON UN CACCIAVITE!

300 * 265 * 165 VTR30-26-16

425 * 325 * 180 VTR42-32-18

500 * 430 * 210 VTR50-43-21

650 * 430 * 210 VTR65-43-21

650 * 540 * 260 VTR65-54-26

805 * 615 * 315 VTR80-61-31 1060 * 810 * 355 VTR106-81-35

300 * 265 * 165 VTR30-26-16-T

DESCRIPTION REF

Steel Plate 300 * 265 IMP30-26

Steel plate 425 * 325 IMP42-32

Steel plate 500 * 430 IMP50-43

Steel plate 650 * 430 IMP65-43

Steel plate 650 * 540 IMP65-54

Steel plate 805 * 615 IMP80-61

Steel plate 1060 * 810 IMP106-81

Polyester plate 300 * 265 IPP30-26

Polyester plate 425 * 325 IPP42-35

Polyester plate 500 * 430 IPP50-43

Polyester plate 650 * 430 IPP65-43

Polyester plate 650 * 540 IPP65-54

Polyester plate 805 * 615 IPP80-61

Polyester plate 1060 * 810 IPP106-81

Suit VTR 65-43-21-T VTR-04633

Suit VTR 65-54-26-T VTR-04634

Suit VTR 80-61-31-T VTR-04635

Sistemi di fissaggio rapidi e sicuri

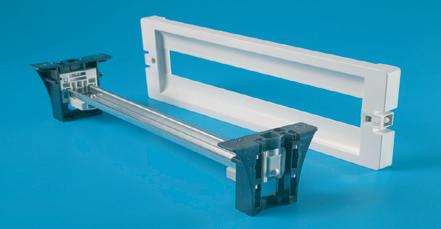

Face plate & Rail

DESCRIPTION

36Mod (3 rows of 12)

54Mod (3 rows of 18)

VTR42-32-18

VTR50-43-21

72Mod (4 rows of 18) VTR65-43-21

96Mod (4 rows of 24)

140Mod (5 rows of 28)

190Mod (5 rows of 38)

Blind Panel

DESCRIPTION

VTR02-04645

VTR03-04646

VTR03-04646

VTR05-04647

VTR06-04648

VTR07-04649

VTR65-54-26

VTR80-61-31

VTR106-81-35

VTR02-04640

VTR03-04641

VTR03-04641

VTR05-04642

VTR06-04643

VTR07-04644

VTR42-32-18

VTR50-43-21

VTR65-43-21

VTR65-54-26

VTR80-61-31

VTR106-81-35

Enclosure – Die Cast Aluminium IP65

Spare Rail

DESCRIPTION

VTR42-32-18

VTR50-43-21

VTR65-43-21

VTR65-54-26

VTR80-61-31

VTR106-81-35

Vertical Frame

DESCRIPTION

VTR42-32-18

VTR50-43-21

VTR65-43-21

VTR65-54-26

VTR80-61-31

VTR106-81-35

VTR02-04660

VTR03-04661

VTR03-04661

VTR05-04662

VTR06-04663

VTR07-04664

VTR02-04651

VTR03-04652

VTR05-04653

VTR05-04653

VTR06-04654

VTR07-04655

ABS Enclosures c/w Mounting Plate (Farm Mater Box)

REF

50000105

50000305

50000605

50000805

50000905

50001005

DESCRIPTION

ABS Enclosure 300x200x130 c/w mtg plate

ABS Enclosure 400x300x170 c/w mtg plate

ABS Enclosure 500x400x180 c/w mtg plate

ABS Enclosure 600x400x210 c/w mtg plate

ABS Enclosure 700x500x250 c/w mtg plate

ABS Enclosure 800x600x260 c/w mtg plate

c/w Steel Base Plate , ABS material

Kaedra IP65 Modular Enclosures

DESCRIPTION REF

IP65 Kaedra 3 Mod. 13975

IP65 Kaedra 4 Mod. 13441

IP65 Kaedra 6 Mod. 13442

IP65 Kaedra 8 Mod. 13443

IP65 Kaedra 12 Mod. 13444

IP65 Kaedra 18 Mod. 13432

IP65 Kaedra 24 Mod. 2 Row 13433

IP65 Kaedra 36 Mod. 3 Row 13435

IP65 Kaedra 54 Mod. 3 Row 13436

PrisamSeT XS & S

DESCRIPTION REF

PrismaSeT XS

PrismaSeT XS (S) 2R24M cw White Door

PrismaSeT XS (S) 3R24M cw White Door

PrismaSeT XS (S) 4R24M cw White Door

PrismaSeT XS (S) 5R24M cw White Door

PrismaSeT S

PrismaSeT S (S) 4R24M 1TB

LVSXQ224

LVSXQ324

LVSXQ424

LVSXQ524

LVSST424

PrismaSeT S (S) 5R24M 1TB LVSST524

PrismaSeT S (S) 6R24M 1TB

PrismaSeT S (S) 7R24M 1TB

PrismaSeT S (S) 8R24M 1TB

PrismaSeT S White Door 4R24M

PrismaSeT S White Door 5R24M

PrismaSeT S White Door 6R24M

PrismaSeT S White Door 7R24M

PrismaSeT S White Door 8R24M

PrismaSeT S (S) 6R24M 1TB +Duct

PrismaSeT S (S) 7R24M 1TB +Duct

PrismaSeT S (S) 8R24M 1TB +Duct

PrismaSeT S White Door fr Duct 6R

PrismaSeT S White Door fr Duct 7R

PrismaSeT S White Door fr Duct 8R

PrismaSeT S Mount NSXm Panel

PrismaSeT S Mount NSX-NSXm duct

PrismaSeT S-XS Keylock

Acti9 VDIS 66 holes 160A

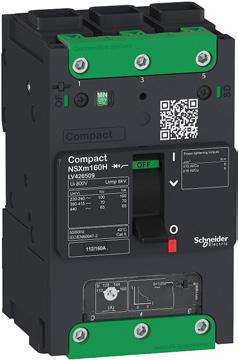

160A MCCB Incomer

NSXm 3P 25kA TMD 160A Elink

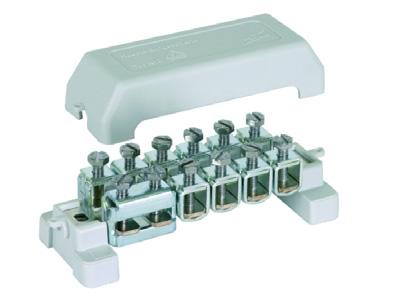

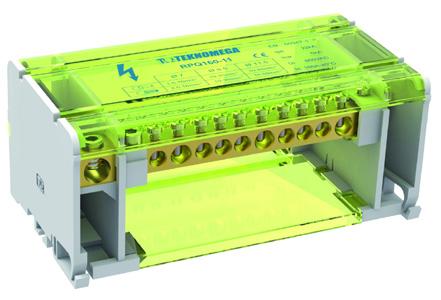

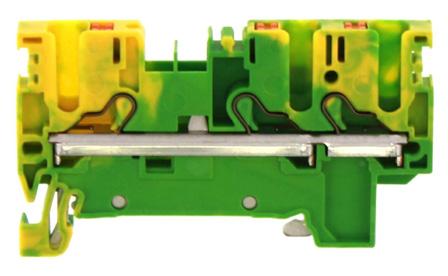

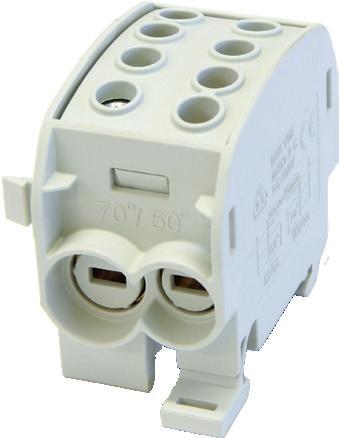

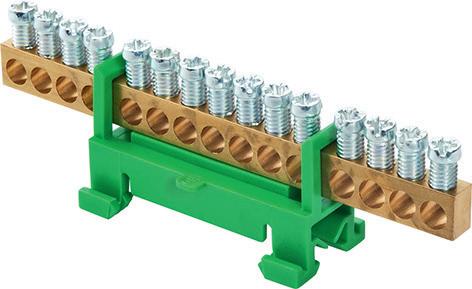

Earth & Neutral Terminal Blocks

Earth Screwless TB 5holes

Earth Screwless TB 14holes

Earth Screwless TB 24holes

Neutral Screwless TB 5holes

Neutral Screwless TB 14holes

Neutral Screwless TB 24holes

LVSST624

LVSST724

LVSST824

LVSSDP424

LVSSDP524

LVSSDP624

LVSSDP724

LVSSDP824

LVSSD624

LVSSD724

LVSSD824

LVSSDD6

LVSSDD7

LVSSDD8

LVSSY801

LVSSY802

LVSXS2

A9XPK715

C12B3TM160L

LGYT1E05

LGYT1E14

LGYT1E24

LGYT1N05

LGYT1N14

LGYT1N24

KQ 3 Phase Boards

DESCRIPTION

6 Way TPN KQ Distribution Board

8 Way TPN KQ Distribution Board

12 Way TPN KQ Distribution Board

KQ Split metered DB 36/24 125A

KQ Split metered DB 42/18 125A

REF

SE18B250

SE24B250

SE36B250

SEB36S24125

SEB42S18125

KQ Split metered DB 48/12 125A SEB48S12125

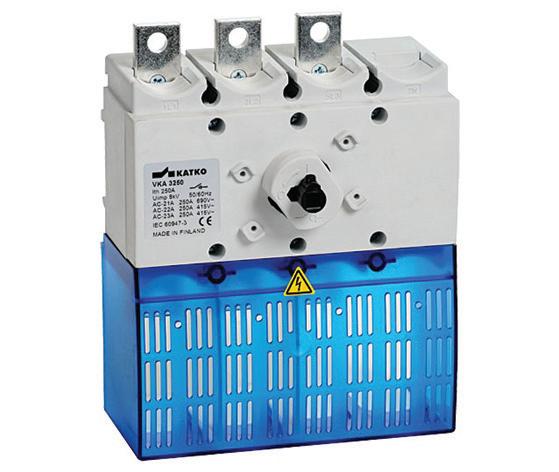

125A TPN Switch Disconnector

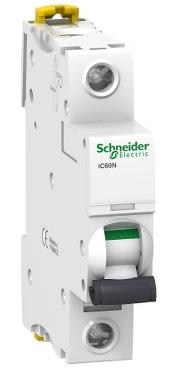

iKQ 1P 6A Type B MCB

iKQ 1P 20A Type B MCB

iKQ 1P 32A Type B MCB

iKQ 3P 20A Type C MCB

iKQ 3P 32A Type C MCB

SE125SW3L

SE10B106

SE10B120

SE10B132

SE10C320

SE10C332

Type 2 Surge kit 40kA 3P+N CF3PN40

iKQ 1P 6A Type B 30mA RCBO SEE106B03

iKQ 1P 10A Type B 30mA RCBO SEE110B03

iKQ 1P 16A Type B 30mA RCBO SEE116B03

iKQ 1P 20A Type B 30mA RCBO SEE120B03

iKQ 1P 32A Type B 30mA RCBO SEE132B03

iKQ 1P 40A Type B 30mA RCBO SEE140B03

3 Module Blank

SEDNBP3

Wide Slot Trunking 2 Meter Lengths

Narrow Slot Trunking 2 Meter Lengths

W Spare Lid COV150G

T1EN25100G 8

T1EN4040G 20

T1EN4060G 18

T1EN4080G 16

T1EN40100G 8

12

12

12

T1EN8060G 12

12

T1EN80100G 4

T1EN10080G 8

4

T1EN12080G 8

Halogen Free Slotted Panel Trunking T1-ZH (RAL7035)

Black Trunking and Blue Trunking are available on request

Spare

Trunking Retainer Clips

Braided Sleeving – Polyester

Spiral Wrap – Clear

Din Rail-Zinc Coated 2mt

Din Rail Mounting Bracket

Door Trunking 0.5mt

PVC Profile/ Edging

Floor Section Trunking 2mt

Cabinet Filter Fans & Grills - IP54 (Adjustable for Airflow Reversal)

HEATERS

Touch-Safe Heaters LTS 064

Touch-Safe Heaters Includes Thermostat LTF 065

CSK 060

DC Touch-Safe Heaters

AC/DC

AC/DC

06402.0-00 120-240V AC/DC

AC/DC

AC/DC

AC/DC

120-240V AC/DC 50W (15°C Stat) 06510.0-00

120-240V AC/DC

120-240V AC/DC

(25°C Stat) 06520.0-00

(15°C Stat) 06513.0-00

120-240V AC/DC 100W (25°C Stat) 06523.0-00

120-240V AC/DC 150W (15°C Stat) 06514.0-00

120-240V AC/DC 150W (25°C Stat) 06524.0-00

CS 060 24V DC

06030.1-00

06010.1-00 24V DC

Standard Heaters HGK 047 Cable 120-240V AC/DC

AC/DC

Cable 120-240V AC/DC

HG 140 120-240V AC/DC

Touch-Safe Heaters CSK 060

06020.1-00

14000.0-00 120-240V AC/DC

120-240V AC/DC

120-240V AC/DC

120-240V AC/DC

14001.0-00

14007.0-00

14006.0-00 120-240V AC/DC

120-240V AC/DC

120-240V AC/DC 20W 06030.0-00

CS 060 120-240V AC/DC 50W 06000.0-00

TYPE SERIES

Touch-Safe Heaters

Includes Thermostat

CSF 060

Flat Heaters CP 061

Fan-assisted Heaters

CS 028

AC/DC

AC/DC

120-240V AC/DC

120-240V AC/DC

120-240V AC/DC

120-240V AC/DC

120-240V AC/DC

(15°C Stat)

(25°C Stat) 06002.0-00

(15°C Stat) 06011.0-00

(25°C Stat)

(15°C Stat) 06021.0-00 120-240V AC/DC

AC

AC

CSF028 230V AC

230V AC

230V AC

230V AC

(25°C Stat) 06022.0-00

(15°C Stat) 02821.0-06

(25°C Stat) 02821.0-09

(15°C Stat) 02820.0-06

(25°C Stat) 02820.0-09

CR 027 230V AC 475W (°C Stat) 02700.0-00

230V AC

(°C Stat) 13051.0-00

(°C Stat) 02701.0-00 230V AC

THERMOSTATS & HYGROSTATS

111 0 to 60°C Push-in

Reversed Fans High Performance FPO 018

Sensors / Measuring CSS014 IO-Link Smart Sensor

015 IO-Link Distance Sensor

PANEL LIGHTING

Enclosure Lamp LED025

Enclosure Lamp PIR Sensor LED025

IP64 Sensor Temp & Humidity 07300.0-00

IP64 Sensor Pressure & Temp 07301.0-00 IP64 Sensor

Mount

Din-rail Mount

AC 02542.3-13 Magnetic Mount

AC 02542.3-10

Screw Mount 24-48v DC 02542.1-11

Din-rail Mount 24-48v DC 02542.1-13

Magnetic Mount

Mount

DC 02542.1-10

AC 02541.3-11

AC 02541.3-13 Magnetic Mount

Screw Mount

Din-rail Mount

AC 02541.3-10

DC 02541.1-11

DC 02541.1-13 Magnetic Mount

PANEL ACCESSORIES & SOCKETS

DC 02541.1-10

AC/DC Mini Contactors

DESCRIPTION

6 amp

9 amp

18 amp AC3

25 amp AC3 LC1D25BD

32 amp AC3

38 amp AC3

AC Contactors

DESCRIPTION

9 amp AC3

12 amp AC3

18 amp AC3

25 amp AC3

32 amp AC3

38 amp AC3

40 amp AC3

50 amp AC3

65 amp AC3

80 amp AC3

95 amp AC3

115 amp AC3

150 amp AC3

* replace .....with coil voltage reqd.

B = 24V, F = 110V, P = 230V and V = 400V

24V DC Contactors

DESCRIPTION

9 amp AC3

12 amp AC3

18 amp AC3

amp AC3

amp AC3

38 amp AC3

LC1D32BD

LC1D38BD

LC1D09...*7

LC1D12...*7

LC1D18...*7

LC1D25...*7

LC1D32...*7

LC1D38...*7

LC1D40A*7

LC1D50A*7

LC1D65A*7

LC1D80*7

LC1D95*7

LC1D115*7

LC1D150*7

Auxiliary Contact Blocks

DESCRIPTION

1N/O 1N/C LADN11

2 N/O 2 N/C

2N/0 LADN20

3N/O 1N/C LADN31

4N/O LADN40

Direct On Line Starter

DESCRIPTION

9 amp AC3 4KW DOL LE1D09....*

12 amp AC3 5.5KW DOL LE1D12....*

18 amp AC3 7.5KW DOL LE1D18....*

25 amp AC3 11KW DOL LE1D25....*

* replace .....with coil voltage reqd.

Spare Coils

DESCRIPTION REF

To suit 9-38A LXD1....*

To suit 40-65A LXD3...*

To suit 80-95A LX1D6...*

To suit 115-150A  LX1D8...*

* replace .....with coil voltage reqd.

B = 24V, E = 48V, F=110V, P = 230V and V = 400V

Overload Relays for LC1/LE1

DESCRIPTION

0.25-0.40 amp

LRD03

0.4-0.63 amp LRD04

0.63-1.0 amp

1.0-1.6 amp

1.6-2.5 amp

2.5-4.0 amp

4.0-6.0 amp

5.5-8.0 amp

7.0-10 amp

9.0 - 13 amp

12-18 amp

16-24 amp

23-32 amp

Manual Starters GV2

DESCRIPTION

0.4-0.63 amp

0.63-1.0 amp

1.0-1.6 amp

1.6-2.5 amp

2.5-4.0 amp

4.0-6.3 amp

6.0-10 amp

9.0-14 amp

13-18 amp

17-23 amp

20-25 amp

24-32 amp

Enclosure

Comb. Block

Auxiliary Contact (Side)

Spare Contacts

Control and Signal Devices 22.5mm

DESCRIPTION REF

Black Push Button N/O XB4BA21

Green Push Button N/O XB4BA31

Red Push Button N/C XB4BA42

Yellow Push Button N/O XB4BA51

Blue Push Button N/O XB4BA61

2 pos. switch N/O XB4BD21

2 pos. switch N/O & N/C XB4BD25

3 pos. switch 2 N/O XB4BD33

3 pos. switch S/R 2N/O XB4BD53

2 pos. Key switch N/O XB4BG21

3 pos. Key switch 2 N/O XB4BG33

Green Push Button N/O Booted XB4BP31

Red Push Button N/C Booted XB4BP42

Pilot Lights

DESCRIPTION REF

LRD05

LRD06

LRD07

LRD08

LRD10

LRD12

LRD14

LRD16

LRD21

LRD22

LRD32

GV2ME04

GV2ME05

GV2ME06

GV2ME07

GV2ME08

GV2ME10

GV2ME14

GV2ME16

GV2ME20

GV2ME21

GV2ME22

GV2ME32

GV2MC02

GV2AF3

GVAN11

*replace....with colour. 3=green, 4=red, 5=amber, 6=blue

Illuminated Pushbuttons

DESCRIPTION REF

LED 24V XB4BW..B*

LED 110V XB4BW..G.*

LED 230V XB4BW..M.*

*replace....with colour.

Metal Control Stations (empty)

DESCRIPTION REF

1 hole XAPD1201

2 hole XAPD1202

3 hole XAPD2203

ABS Control Stations (complete)

DESCRIPTION REF

Emergency Stop Twist Release XALK178

Emergency Stop Key Release XALK188

Start/Stop XALD215

Up, Down and Stop XALD324

Pushbutton Contact Block N/O Base Mounted ZENL1111

Pushbutton Contact Block N/C Base Mounted ZENL1121

Control Station 1 way empty XALD01

Control Station 2 way empty XALD02

Control Station 3 way empty XALD03

Self assembly XAL... Stations and ZB5..

Accessories available on request.

Interlocks & Timers

DESCRIPTION REF

Mechanical Interlock 9A-38A LAD9R1

Mechanical & Electrical Interlock 9A-38A LAD9R1V

Off Delay 0-3 seconds LADR0

Off Delay 0.1-30 seconds LADR2

Off Delay 10-180 seconds LADR4

On Delay 0-3 seconds LADT0

On Delay 0.1-30 seconds LADT2

On Delay 10-180 seconds LADT4

On Delay 1-30 seconds LADS2

Self assembly XAL... Stations and ZB5..

Accessories available on request.

TeSys Green Contactors

AMPERAGE

9 amp AC-3

9 amp AC-3

12 amp AC-3

12 amp AC-3

18 amp AC-3

25 amp AC-3

25 amp AC-3

32 amp AC-3

- 60V AC/DC electronic coil

- 250V AC/DC electronic coil

- 60V AC/DC electronic coil

- 250V AC/DC electronic coil

24 - 60V AC/DC electronic coil

24 - 60V AC/DC electronic coil

100 - 250V AC/DC electronic coil

24 - 60V AC/DC electronic coil

LC1D09BNE

LC1D09KUE

LC1D12BNE

LC1D12KUE

LC1D18BNE

LC1D25BNE

LC1D25KUE

LC1D32BNE 32 amp AC-3

- 250V AC/DC electronic coil LC1D32KUE 38 amp AC-3

38 amp AC-3

For direct control by PLC static outputs, and reduced energy consumption.

Also available in electronic coil versions

40A - 80A contactors

- 60V AC/DC electronic coil

- 250V AC/DC electronic coil

LC1D38KUE

Illuminated E-Stops & retrofit illuminated rings for standard E-stops

E-stop twist release Illuminated white/red 24V AC/DC

E-stop white/red 24V AC/DC complete control stn

E-stop white/red 24V AC/DC 1NO+1NC

Retrofit rings (EMERGENCY STOP) fixed red 24V AC/DC

Retrofit rings (EMERGENCY STOP) fixed red 230V AC

Retrofit rings (EMERGENCY STOP) fixed red+white 24V AC/DC

Control Stations IP66/67 Double Headed Pushbuttons

XALK178W3B140E

XALK84W3BE

XB5AS84W3B5

ZBY9W2B330

ZBY9W2M330

ZBY9W3B330

Development, manufacturing and distribution of products and solutions for machine safety

Designed and manufactured in the UK, distributed globally Renowned for product quality and reliability

World’s largest range of safety products in 316 stainless steel

Limit Switch

DESCRIPTION

Complete Plastic Roller Plunger

REF

XCKP2102G11

Complete Plastic Cat’s Whisker XCKP2106G11

Complete Plastic End Plunger XCKP2110G11

Complete Plastic Fixed Roller Plunger XCKP2118G11

Complete Plastic Horizontal Roller Lever XCKP2121G11

Complete Plastic Adjustable Roller Lever XCKP2145G11

DESCRIPTION

REF

Complete Metal Roller Plunger XCKD2102G11

Complete Metal Cat’s Whisker XCKD2106G11

Complete Metal End Roller Plunger

XCKD2110G11

Complete Metal Fixed Roller Plunger XCKD2118G11

Complete Metal Horizontal Roller Lever XCKD2121G11

Complete Metal Adjustable Roller Lever XCKD2145G11

DESCRIPTION

Body (Metal)

REF

ZCKM1H29

Head Metal Roller Plunger ZCKD02

Head Metal Cat’s Whisker ZCKD06

Head Metal Spring Rod Lever ZCKD08

Head Metal End Plunger ZCKD10

Head Metal Roller Lever ZCKD15

Head Plastic Roller Plunger ZCKD21

4)

DESCRIPTION

Body (Metal)

REF

ZCKJ1H29

Head Metal Cat’s Whisker ZCKE06

Head Metal Spring Rod Lever ZCKE08

Head Metal Roller Plunger ZCKE67

Head Metal For Lever Arm ZCKE05

Lever Arm Plastic ZCKY11

Lever Arm Metal ZCKY13

Lever Arm Adjustable Plastic ZCKY41

Lever Arm Adjustable Metal ZCKY43

Lever Arm Adjustable 200m Plastic ZCKY59

1) BODY SIZE: H65*W31*D30

2) BODY SIZE: H65*W31*D30

3) BODY SIZE: H64*W64*D30

BODY SIZE: H84*W43*D36

XCMH Limit Switches

DESCRIPTION

XCMH Limit Switches Miniature Plastic Metal Roller Plunger NC + NO Snap L1

XCMH Limit Switches Miniature Plastic Cat’s whisker NC + NO Snap L1

XCMH Limit Switches Miniature Plastic Spring lever with plastic end NC + NO Snap L1

XCMH Limit Switches Miniature Plastic Metal Plunger NC + NO Snap L1

XCMH Limit Switches Miniature Plastic Metal Roller Lever NC + NO Snap L1

XCMH Limit Switches Miniature Plastic Plastic roller lever plunger horizontal actuation NC + NO Snap L1

XCMH Limit Switches Miniature Plastic Variable Length Metal Roller Lever NC + NO Snap L1

XCMD Limit Switches

DESCRIPTION

limit switch XCMD roller plunger 1 NC and 1 NO

limit switch XCMD steel end plunger 1 NC and 1 NO

limit switch XCMD roller lever 1 NC and 1 NO

limit switch XCMD roller lever 1 NC and 1 NO

limit switch XCMD retractable roller lever 1 NC and 1 NO

XCKN Limit Switches

DESCRIPTION

limit switch

XCKN roller plunger 1 NC and 1 NO

limit switch XCKN cat s whisker 1 NC and 1 NO

limit switch XCKN spring lever 1 NC and 1 NO

limit switch XCKN steel end plunger 1 NC and 1 NO

limit switch XCKN roller lever 1 NC and 1 NO

limit switch XCKN roller lever plunger, horizontal direction 1 NC and

limit switch XCKN adjustable roller lever 1 NC and 1 NO

limit switch XCKN roller plunger 1NC and 1NO

limit switch XCKN steel end plunger 1NC and 1NO

limit switch XCKN roller lever 1NC and 1NO

limit switch

XCKN roller lever plunger, vertical direction 1NC and 1N

limit switch XCKN adjustable roller lever 1NC and 1NO

XCMH2102L1

XCMH2106L1

XCMH2107L1

XCMH2110L1

XCMH2115L1

XCMH2121L1

XCMH2145L1

XCMD2102L1

XCMD2110L1

XCMD2115L1

XCMD2116L1

XCMD2124L1

REF

XCKN2102P20

XCKN2106P20

XCKN2108P20

XCKN2110P20

XCKN2118P20

XCKN2121P20

XCKN2145P20

XCKN2502P20

XCKN2510P20

XCKN2518P20

XCKN2527P20

XCKN2545P20

Proximity Switch

DESCRIPTION

Prox Switch M12 PNP/NO DC Metal (3 wire) 4mm s/d

Prox Switch M18 PNP/NO DC Metal (3 wire) 8mm s/d

Prox Switch M30 PNP/NO DC Metal (3 wire) 15mm s/d

Prox Switch M12 NO AC/DC Metal (2 wire) 4mm s/d

Prox Switch M18 NO AC/DC Metal (2 wire) 8mm s/d

Prox Switch M30 NO AC/DC Metal (2 wire) 15mm s/d

Prox Switch 5 Pos. Turret Head NO/NC AC (2 wire) 15mm s/d

Prox Switch 5 Pos. Turret Head NO/NC AC (2 wire) 20mm s/d

Inductive Sensors

DESCRIPTION

XS612B1PAL2

XS618B1PAL2

XS630B1PAL2

XS612B1MAL2

XS618B1MAL2

XS630B1MAL2

XS7C4A1MPP20

XS8C4A1MPP20

INDUCTIVE SENSOR CYLIND DIA 08 PNP NO 1224V FLUSH SN 2MM5 CONN M8

INDUCTIVE SENSOR CYLIND DIA 08 PNP NO 1224V FLUSH SN 2MM5 CONN M12

INDUCTIVE SENSOR CYLIND DIA 08 PNP NO 1224V FLUSH SN 2MM5 CONN M8

INDUCTIVE SENSOR CYLIND DIA 12 PNP NO 1224V FLUSH SN 4MM CABLE 2M

INDUCTIVE SENSOR CYLIND DIA 12 PNP NO 1224V FLUSH SN 4MM CONN M12

INDUCTIVE SENSOR CYLIND DIA 18 PNP NO 1224V FLUSH SN 8MM CABLE 2M

INDUCTIVE SENSOR CYLIND DIA 18 PNP NC 1224V FLUSH SN 8MM CONN M12

INDUCTIVE SENSOR CYLIND DIA 30 PNP NO 1224V FLUSH SN 15MM CABLE 2M

INDUCTIVE SENSOR CYLIND DIA 30 PNP NO 1224V FLUSH SN 15MM CONN M12

inductive sensor XS6 cylindrical M12 Sn 4 mm cable 2m

inductive sensor XS6 cylindrical M12 Sn 4 mm cable 2m

inductive sensor XS6 cylindrical M18 Sn 8 mm cable 2m

XS108BHPAM8

XS108BHPAM12

XS108BHPAM8

XS112BHPAL2

XS112BHPAM12

XS118BHPAL2

XS118BHPBM12

XS130BHPAL2

XS130BHPAM12

XS612B1MAL2

XS612B1PAL2

XS618B1MAL2 inductive sensor XS6 cylindrical M18 Sn 8 mm cable 2m

inductive sensor XS6 cylindrical M30 Sn 15 mm cable 2m

XS618B1PAL2

XS630B1PAL2

XS630B1MAL2 inductive sensor XS6 cylindrical M30 Sn 15 mm cable 2m

INDUCTIVE SENSOR RECT 40X40X117 24 240V ACDC NO NC 2WIRE FLUSH SN 20M

XS7C4A1MPP20

INDUCTIVE SENSOR RECT 40X40X117 24 240V ACDC NO NC 2WIRE FLUSH SN 20M XS8C4A1MPP20

Ultrasonic Sensors XXS

DESCRIPTION REF

ULTRASONIC SENSOR CYLINDRICAL M18 SN=1M ANALOG 4 20MA SYNC CONN

ULTRASONIC SENSOR CYLINDRICAL M18 SN=1M PNP SYNC CONNECTOR M12

ULTRASONIC SENSOR CYLINDRICAL M18 SN=1M ANALOG 0 10V SYNC CONNE

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 1M 420

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 1M PNP

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 1M 010

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 2M 420

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 2M PNP

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 2M 010

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 4M 420

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 4M PNP

ULTRASONIC SENSOR CYLINDRICAL M30 STRAIGHT 4M 010

ULTRASONIC SENSOR PLASTIC CYLINDRICAL M30 STRAIGHT 8M 4-20mA + PNP

ULTRASONIC SENSOR PLASTIC CYLINDRICAL M30 STRAIGHT 8M 2NPN

ULTRASONIC SENSOR PLASTIC CYLINDRICAL M30 STRAIGHT 8M 2PNP

ULTRASONIC SENSOR PLASTIC CYLINDRICAL M30 STRAIGHT 8M 0-10V + PNP

Ultrasonic Sensors XXA

DESCRIPTION

ULTRASONIC SENSOR CYL 90 DEG M18 SN=1M ANALOG 4 20MA SYNC CONNE

ULTRASONIC SENSOR CYLINDRICAL 90 DEG M18 SN=1M PNP SYNC CONNECT

ULTRASONIC SENSOR CYL 90 DEG M18 SN=1M ANALOG 0 10V SYNC CONNEC

ULTRASONIC SENSOR CYLINDRICAL M30 ANGLED 1M 420

ULTRASONIC SENSOR CYLINDRICAL M30 ANGLED 1M PNP

ULTRASONIC SENSOR CYLINDRICAL M30 ANGLED 1M 010

ULTRASONIC SENSOR CYLINDRICAL M30 ANGLED 2M 420

ULTRASONIC SENSOR CYLINDRICAL M30 ANGLED 2M PNP

ULTRASONIC SENSOR CYLINDRICAL M30 ANGLED 2M 010

XXS18*1AM12

XXS18*1PM12

XXS18*1VM12

XXS30*1AM12

XXS30*1PM12

XXS30*1VM12

XXS30*2AM12

XXS30*2PM12

XXS30*2VM12

XXS30*4AM12

XXS30*4PM12

XXS30*4VM12

XXS30P8APM12

XXS30P8NNM12

XXS30P8PPM12

XXS30P8VPM12

XXA18*1AM12

XXA18*1PM12

XXA18*1VM12

XXA30*1AM12

XXA30*1PM12

XXA30*1VM12

XXA30*2AM12

XXA30*2PM12

XXA30*2VM12

Photoelectric Sensors

DESCRIPTION REF

pho to electric sensor XUM thrubeam Sn 10 m cable 2m

pho to electric sensor XUM thrubeam Sn 10 m M8 connec to r

pho to electric sensor universal Sn 0 to 10 m NO or NC cable 2m

pho to electric sensor universal Sn 0 to 10 m NO or NC M8 connec to r

pho to electric sensor universal Sn 0 to 10 m NO or NC cable 2m

pho to electric sensor universal Sn 0 to 10 m NO or NC cable 5m

pho to electric sensor universal Sn 0 to 10 m NO or NC M8 connec to r

PHOTOCELL EMIT RECEIV MINIATURE THRU BEAM NPN NO NC CABLE 2M 24V

PHOTOCELL EMIT RECEIV MINIATURE THRU BEAM PNP NO NC CABLE 2M 24V

PHOTOCELL EMIT RECEIV MINIATURE THRU BEAM PNP NO NC CONNECT M8 24V

PHOTOCELL MINIATURE PROX 100MM NPN NO NC CABLE 2M 24V

PHOTOCELL MINIATURE PROX 100MM NPN NO NC CONNECT M8 24V

PHOTOCELL MINIATURE PROX 100MM PNP NO NC CABLE 2M 24V

PHOTOCELL MINIATURE PROX 100MM PNP NO NC CONNECT M8 24V

PHOTOCELL MINIATURE PROX 1M NPN NO NC CABLE 2M 24V

PHOTOCELL MINIATURE PROX 1M NPN NO NC CONNECT M8 24V

PHOTOCELL MINIATURE PROX 1M PNP NO NC CABLE 2M 24V

PHOTOCELL MINIATURE PROX 1M PNP NO NC CONNECT M8 24V

PHOTOCELL MINIATURE PROX 500MM NPN NO NC CABLE 2M 24V

PHOTOCELL MINIATURE PROX 500MM NPN NO NC CONNECT M8 24V

PHOTOCELL MINIATURE PROX 500MM PNP NO NC CABLE 2M 24V

PHOTOCELL MINIATURE PROX 500MM PNP NO NC CONNECT M8 24V

PHOTOCELL SENSOR MINIAT BGS 12 24 VDC NPN NONC OUTPUT CABLE 2M

PHOTOCELL SENSOR MINIAT BGS 12 24 VDC NPN NONC OUTPUT CONN M8

PHOTOCELL SENSOR MINIAT BGS NPN NONC CONNETOR M8 24V

PHOTOCELL SENSOR MINIAT BGS 12 24 VDC PNP NONC OUTPUT CABLE 2M

PHOTOCELL SENSOR MINIAT BGS 12 24 VDC PNP NONC OUTPUT CONN M8

PHOTOCELL SENSOR MINIAT BGS PNP NONC CABLE 2M 24V

PHOTOCELL SENSOR MINIAT BGS PNP NONC CONNETOR M8 24V

PHOTOCELL MINIATURE REFLEX POLAR NPN NO NC CABLE 2M 24V

PHOTOCELL MINIATURE REFLEX POLAR NPN NO NC CONNECT M8 24V

PHOTOCELL MINIATURE REFLEX POLAR PNP NO NC CABLE 2M 24V

PHOTOCELL MINIATURE REFLEX POLAR PNP NO NC CONNECT M8 24V

PHOTOCELL SENSOR MINIAT TRANSP 12 24 VDC NPN NONC OUTPUT CABLE 2M

PHOTOCELL SENSOR MINIAT TRANSP 12 24 VDC PNP NONC OUTPUT REMOTE CONN

PHOTOCELL SENSOR MINIAT TRANSP 12 24 VDC PNP NONC OUTPUT CABLE 2M

PHOTOCELL SENSOR MINIAT TRANSP 12 24 VDC PNP NONC OUTPUT CONN M8

pho to electric sensor universal Sn 0 to 30 m NO or NC cable 2m

PHOTO ELECTRIC SENSOR XUK REFLEX SN 7 M CABLE 2M

pho to electric sensor universal Sn 0 to 40 m NO or NC Pg 16

Pressure Sensors & Switches

DESCRIPTION

PRESSURE TRANSMITTER 10BAR 4-20MA G1 4A MALE FPM SEAL M12 CONNECTOR

PRESSURE TRANSMITTER 10BAR 0-10V G1 4A MALE FPM SEAL M12 CONNECTOR

Cloud Connected Sensors

XUM0AKSAL2T

XUM0AKSAM8T

XUM0ANSAL2

XUM0ANSAM8

XUM0APSAL2

XUM0APSAL5

XUM0APSAM8

XUM2ANXBL2

XUM2APXBL2

XUM2APXBM8

XUM4ANXBL2

XUM4ANXBM8

XUM4APXBL2

XUM4APXBM8

XUM5ANXBL2

XUM5ANXBM8

XUM5APXBL2

XUM5APXBM8

XUM6ANXBL2

XUM6ANXBM8

XUM6APXBL2

XUM6APXBM8

XUM8ANCNL2

XUM8ANCNM8

XUM8ANXBM8

XUM8APCNL2

XUM8APCNM8

XUM8APXBL2

XUM8APXBM8

XUM9ANXBL2

XUM9ANXBM8

XUM9APXBL2

XUM9APXBM8

XUMTANCNL2

XUMTAPCNL03M12

XUMTAPCNL2

XUMTAPCNM8

XUK0ARCTL2

XUK1ARCNL2H60

XUX0ARCTT16

DESCRIPTION REF

DIGITAL TRANSCEIVER SIGFOX EUROPE NO SUBSCRIPTION

DIGITAL TRANSCEIVER SIGFOX EUROPE 5 YEAR SUBSCRIPTION

DIGITAL TRANSCEIVER SIGFOX EUROPE RENEWABLE SUBSCRIPTION

XIOT11SE0MRCL

XIOT11SE5MRCL

XIOT11SERMRCL

Capacitors

DESCRIPTION

12.4 kvar @ 400V Capacitor, 15 kvar @ 440V 85*218

23.2 kvar @ 400V Capacitor, 30.0 kvar @ 440V 125*192

24.6 kvar @ 400V Capacitor, 33 kvar @ 480V 116*248

12.5 kvar @ 525v Capacitor used in 14% detuning 85*200

25 kvar @ 525v Capacitor used in 14% detuning 116* 207

Power Factor Correction Trays

DESCRIPTION W*H*D REF

2x25Kvar 400v 50Hz 7% detuned tray 680*350*530mm

50 Kvar 400v 50Hz 7% detuned tray 680*350*530mm

2x50Kvar 400v 50Hz 7% detuned tray 680*350*530mm

B25675A4152J040 4

B25675A4302J040 2

B25675A4332J080 4

B25675A5122J525 1

B25675A5252J025 1

B44066M7250E400N

B44066M7150E400N

B44066M7299E400N

Contactors - Capacitors

DESCRIPTION REF

12.5 kvar - 400V - Coil 230V - 50 Hz

B44066S1810J230

25 kvar - 400V - Coil 230V - 50 Hz B44066S3210J230

50 kvar - 400V - Coil 230V - 50 Hz B44066S6210J230

100 kvar - 400V - Coil 230V - 50 Hz B44066S9910J230

Controller - BR6000/7000 Series - Supply Voltage

DESCRIPTION W*H*D REF

4 Step Control Relay, 230V 100*100*40

B44066R6004E230

6 Step Control Relay, 230V 144*144*55 B44066R6006E230

12 Step Control Relay, 230V 144*144*55 B44066R7012E230

Reactors

DESCRIPTION REF

25 Kvar 400V, 50 Hz, 7% Detuned Filter Reactors B44066D7025M400

50 Kvar 400V, 50 Hz, 7% Detuned Filter Reactors B44066D7050M400

25 Kvar 400V Detuned Step Uses 1 no

50 Kvar 400V Detuned Step Uses 2 no

Fs = 189 Hz to filter up to 35% of 5th harmo

Fuses included 14% Detuned Trays also available.

B25675A4332J080

B25675A4332J080 DESCRIPTION

Grid Analysis Tool (Meter) and Current Clamps

1Grid Analysis Tool MC7000 - 3

B44066M7777E230 1

3 X Flexible Current Clamps Mini Flex B44066M1303E230 1

FAMILY BUSINESS SINCE

1960

• Development, production and distribution of products & solutions for measurement, transmission and evaluation

• Enabler for Industry 4.0 & Smart Factory

• Over 500 people work at Kübler

• Worldwide presence in over 50 countries

• 12 Subsidiaries / 4 production sites

1

Computer Vision Hardware

2

Computer Vision Software

3

Portfolios

Schneider ACTI9 Range

Schneider ACTI9 Range

POLE MCB’S

IC60N 1P 6A

IC60N 1P 10A

IC60N 1P 16A

IC60N 1P 20A

IC60N 1P 25A

IC60N 1P 32A

IC60N 1P 40A

IC60N 1P 50A B curve

IC60N 1P 63A B curve

IC60N 1P 1A C curve

IC60N 1P 2A C curve

IC60N 1P 3A C curve

IC60N 1P 4A C curve

IC60N 1P 6A C

1P 10A C curve

IC60N 1P 16A C curve

IC60N 1P 20A

IC60N 1P 25A

1P 32A

1P 40A

1P 6A

1P 10A

IC60N 3P 25A

IC60N 3P 63A

IC60N 3P 6A

IC60N 3P 10A

IC60N 3P 16A

IC60N 3P 20A

IC60N 3P 25A

IC60N 3P 32A

A9F Triple Pole

A9F Double Pole

A9F Single Pole

Isolators 3P (Vario)

20amp AC21 / 11amp AC23

25amp AC21 / 14amp AC23

32amp AC21 / 21amp AC23

40amp AC21 / 29amp AC23

63amp AC21 / 41amp AC23

80amp AC21 / 57amp AC23

125amp AC21 / 68amp AC23

175amp AC21 / 83amp AC23

Extended Rotary Handle Kit

Door Interlock Kit

Add On Modules

3P (Interpact Type)

Extended Rotary Handle Kit

NG (Modular) MCCB’s 25KA Din Rail Mounted (Miniature)

DESCRIPTION

NG125 with 63A Trip

NG125 with 80A Trip

NG125 with 100A Trip

NG125 with 125A Trip

NSXm with 160A Trip

DESCRIPTION

100A 3P Frame

100A 3P TMD Trip

80A 3P TMD Trip

63A 3P TMD Trip

160A 3P Frame

160A 3P TMD Trip

125A 3P TMD Trip

250A 3P Frame

250A 3P TMD Trip

200A 3P TMD Trip

160A 3P TMD Trip

400A 3P Frame (50KA)

400A 3P Micrologic 2.3 Trip

630A 3P Frame (50KA)

630A 3P Micrologic 2.3 Trip

DESCRIPTION

Ext. Handle Kit 100–250A

Ext. Handle Kit 400–630A

Terminal Covers 100–250A

Terminal Covers 400–630A

Terminal Spreaders 100–250A

Terminal Spreaders 400–630A

C12B3TM160L

C10F3

C103TM100

C103TM080

C103TM063

C16F3

C163TM160

C163TM125

C25F3

C253TM250

LV431431

C253TM200

C40N3

C4032D400

C63N3

C6332M630

LV429338T

LV432598T

LV429515

LV432591

LV431563

LV432490

Aux Contact 100–630A 29450

4-Pole option available on request for each section

Fast Reliable Safe

As simple as it is intelligent

PRK – wide range of terminal block products in the push-in connection system

• Wire insertion requires no tools

• Less insertion force

• Many cross-connection options

• Multifunctional labelling channel

Standard Terminals For Din Rail

End Covers and Partitions

Terminal Covers

Fully Enclosed Terminals For TS35 Rail

Pluggable Cross Connection SQI To Suit SRK/SSL Terminals

Earth Terminals for TS35 Rail (SSL) SNAP ON TYPE

Terminals for TS35 Rail (SL) SCREW ON

Double Deck Terminals

Triple Deck Terminals For TS32 & TS35 Rails

Fused Terminals

Disconnect

& TS35 Rails

High Current Stud Terminals

End Stops

Miniature Terminals for TS15 Rail

PRK Push In Terminals

2.5sq Grey Push In Terminal Block (2 connections)

2.5sq Blue Push In Terminal Block (2 connections)

2.5sq Grey End Plate (2 connections)

2.5sq Grey Push In Terminal Block (3 connections)

2.5sq Blue Push In Terminal Block (3 connections)

2.5sq Grey End Plate (3 connections)

2.5sq 10 Way Cross Connection

4.0sq Grey Push In Terminal Block (2 connections)

4.0sq Blue Push In Terminal Block (2 connections)

4.0sq Grey End Plate (2 connections)

4.0sq Grey Push In Terminal Block (3 connections)

4.0sq Blue Push In Terminal Block (3 connections)

PRK2.5/2A GR

PRK2.5/2A BU

PAP2.5/2A GR

PRK2.5/3A GR

PRK2.5/3A BU

PAP2.5/3A GR

PQI2.5/10 RD

PRK4/2A GR

PRK4/2A BU

BU

4.0sq Grey End Plate (3 connections) PAP4/3A GR

4.0sq 10 Way Cross Connection

6.0sq Grey Push In Terminal Block (2 connections)

6.0sq Grey Push In Terminal Block (3 connections)

2.5sq Grey Push In Double Deck Terminal Block

2.5sq Grey Double Deck End Cover

2.5sq

2.5sq Grey Triple Deck End Cover

End Stop Snap On

6.0sq Grey End Plate (2 connections)

6.0sq Grey End Plate (3 connections)

6.0sq 10 Way Cross Connection

GR

GR

PRK (PSL) Earth Push In Terminals

Test Disconnect Terminals For TS32 & TS35 Rails

Test Disconnect Terminals are used in field of generating and supplying electrical current. They are designed to meet the various prevailing switching requirements of the Current Transformer Secondary Circuits. Disconnection of current and voltage circuits is achieved by slide link. Terminals can be provided with test sockets for test purposes by means of a test plug material: Polyadmide 6.6.

1131.2

GSM PRO2E Range - Communication Processors

DESCRIPTION

GSM PRO2E-4G 10 Input Channels, Supply voltage range: 10 - 30 VDC

GSM-ANTENNA-90° - On board GSM antenna (SMA connector)

GSM-USB-MICRO-cable - Programming cable UDB to USB micro

External GSM Antenna 3mt

5mt & 10mt Antenna also available

GSM-PRO2(E) – the perfect communicator

CONTA-CLIP’s GSM-PRO2 series provides a 4G remote control and maintenance solution which allows you to monitor and control decentralized facilities. The GSM-PRO2(E) module informs you when the process reaches a user-defined status or limit value. Digital and analogue inputs values can also be transmitted via e-mail or SMS (text message). The digital relay outputs can be switched using an SMS sent from the decentralized control room or from the service technician. The process can be monitored and controlled remotely. Monitoring and controlling the GSM-PRO2(E) modules is even easier when using our iPhone or Android apps. The inputs and outputs of the modules and their desired functions can be configured using an easy-to-understand application.

GSM PRO2 Communication Processor

DESCRIPTION

GSM-PRO-10DI - Extension unit, 10 digital inputs 24V DC

GSM-PRO-4DO - Extension unit, 4 digital outputs (4 x CO)

GSM-PRO-8AI - Extension unit, 8 multifunction analog inputs (0…10V, 0(4)…20mA, NTC, RTD)

GSM-PRO-4AO - Extension unit, 4 analog outputs 0…10V

Multifunction Timer

Features:

• 4G communication

• GPS functionality

• 10 multifunction Analog/Digital inputs

• 4 Relay outputs

• 4 extension units available:

• 8 multifunction Analog inputs

• 10 Digital inputs

• 4 Analog outputs

• 4 Digital outputs

• Smart phone APP’s available

For consecutive marking of SRK, RK, SSL and SL 2.5sq terminals please use 5mm markers. For consecutive marking of SRK, RK, SSL and SL 2.5-4sq terminals, please use 6mm markers. Customized Marking On Request.

Terminal Markers

PMC SB 5/50 GW 0 5mm Terminal Marker No 0

PMC SB 5/50 GW PE 5mm Terminal Marker “earth”

PMC SB 5/50 GW L1 5mm Terminal Marker L1

PMC SB 5/50 GW L2 5mm Terminal Marker L2

PMC SB 5/50 GW L3 5mm Terminal Marker L3

PMC SB 5/50 GW N 5mm Terminal Marker N

PMC SB 5/50 GW - 5mm Terminal Marker "minus" 4813.7 50/500

PMC SB 5/50 GW + 5mm Terminal Marker "plus" 4814.7 50/500

SB 5/10 GW A 5mm Terminal Marker A 2474.0001 50/500

SB 5/10 GW B 5mm Terminal Marker B

2474.0002 50/500

SB 5/10 GW C 5mm Terminal Marker C 2474.0003 50/500

SB 5/10 GW D 5mm Terminal Marker D 2474.0004 50/500

SB 5/10 GW E 5mm Terminal Marker E 2474.0005 50/500

SB 5/10 GW F 5mm Terminal Marker F 2474.0006 50/500

SB 5/10 GW G 5mm Terminal Marker G 2474.0007 50/500

SB 5/10 GW H 5mm Terminal Marker H 2474.0008 50/500

SB 5/10 GW I 5mm Terminal Marker I

SB 5/10 GW J 5mm Terminal Marker J

SB 5/10 GW K 5mm Terminal Marker K

50/500

50/500

SB 5/10 GW L 5mm Terminal Marker L 2474.0012 50/500

SB 5/10 GW M 5mm Terminal Marker M 2474.0013 50/500

SB 5/10 GW N 5mm Terminal Marker N 2474.0014 50/500

SB 5/10 GW O 5mm Terminal Marker O

SB 5/10 GW P 5mm Terminal Marker P

SB 5/10 GW Q 5mm Terminal Marker Q

SB 5/10 GW R 5mm Terminal Marker R

SB 5/10 GW S 5mm Terminal Marker S

SB 5/10 GW T 5mm Terminal Marker T

SB 5/10 GW U 5mm Terminal Marker U

SB 5/10 GW V 5mm Terminal Marker V

SB 5/10 GW W 5mm Terminal Marker W

SB 5/10 GW X 5mm Terminal Marker X

SB 5/10 GW Y 5mm Terminal Marker Y

SB 5/10 GW Z 5mm Terminal Marker Z

50/500

Terminal Markers

Group Marking

Marking Pen

Conta Clip KDS Click

Flange Plate

Round Cable Entries

Modular Cable Entries

Inlays

Conta Clip KDS Click Seals

Small Cable Seals

Large Cable Seals

Operating pumps fail-safe

Save life cycle costs and prevent production downtime with pump alternators from TELE.

a Increased system reliability

a Higher operational safety

a Optimized maintenance cycles

a Increased pump efficiency

a Avoid expensive consequential damage

Pump alternator G2ASMA20

Particularly flexible with selectable power modules in industrial design

3-in-1 Pump alternatorrelay E1ZMLA

Electrode relay V4LM24-240 AC/DC

Compact module in installation design

The particularly safe all-rounder for level monitoring www.demesne.ie

www.tele-online.com

SensAct energy metering

Compact and communicationcapable energy monitoring de vices with ModBus RTU.

a Fully isolated, direct and accurate measurement of current, voltage, power, energy and various other electrical values

a Compact modules for single and three-phase networks

a Data transfer via ModBus RTU to a PLC or other data logger for further processing

With integrated hall sensor distribution systems

TELE Monitoring Relays –

Measuring and monitoring current, voltage, temperature, frequency, level, power factor, active power

Variety of enclosures for control technology, industrial systems, machinery, building installations

Rugged design for excellent usability and installability

Scan the QR-Code and learn more about TELE Monitoring Relays.

Reliable measurement of current, voltage, power, energy and various other electrical values

In single- or three-phase networks

Data transfer via ModBus RTU to a PLC or other data logger

www.tele-online.com

Scan the QR-Code and learn more about TELE SensAct.

Timers – ENYA Series – Din Rail Mounted Multifunction Timers – KAPPA Series – 11 Pin Plug In Central Test Unit

Relays Enya

Grid & System Protection

Multifunction Timer

Industrial Relays & Bases

Mini 8 Pin Relays & Bases

14 Pin Relays & Bases

11 Pin Octal Relays & Bases

11Pin

11Pin

11Pin

11Pin

DC Power Supplies

Digital Time Switches

Analogue Time Switches

Elapsed Time Counters

Countdown Timer

Compact Digital Time Switch

ELECTRICAL COMPONENTS

Busbars for RCBs, MCBs, MCBs + Auxiliary Contact and D0

1-pole Fork (M6) L/N | L + AUX

1-pole Pin L/N | L + AUX

2-pole

Cuttable

3-pole Fork (M6) L1

G-3L+9-1000/16

3-pole Pin L1 - L2 - L3 | L1 - L2 - L3 + HI

S-3L-210/16

S-3L+9-1000/16

S-3L+9-1000/10

4-pole Fork (M6)

Busbars for RCBs, MCBs, MCBs + Auxiliary Contact and D0 4-pole

Touch protection for Fork and Pin Busbars

SUITABLE FOR CUTTABLE BUSBARS

BUSBAR TYPE POLE WIDTH (PITCH)

1 - 4 phase Fork and Pin 17,6 -18 mm (cuttable)

Feed In Terminals Fork And Pin Type

PRODUCT FEATURES

> Rapid installation

> Safe bonding by means of screw clamping

Current Rating

Feed-in from side

Feed-in at start of busbar

> No special tool needed for crimping cable lugs

> Fingersafe according to DIN EN 50274

> General-purpose power directions (front / side)

Dependent on the cross

Feeding along the busbar or central feed-in

For central supply, it has to be made sure that the sum of the outgoing currents a0 at each bus branch is not bigger than the above-mentioned max. busbar current Is / phase

PDB160 - 082040-0-3

(ready

triple block 082040-2-3

PDB 210 - 082050-0-3

Also

as double and triple block (ready assembled with bridge)

double block 082050-1-3 triple block 082050-2-3

PDB 220 - 082060-0-3

PDB 270 - 082070-0-3

PDB 400 - 082080-0-3

PDB 490 - 082090-0-3

RKA 50 - 1-pole

087310-0-3

RKA 50 - 3-pole

RKA 95 - 1-pole

RKA 185 - 1-pole

RKA 185 Grey

RKA 185 Blue

RKA 185 Blue

RKA 185 Brown

RKA 185 Black

RKA 300 - 1-pole

087810-0-3

087810-1-3

087810-2-3

087810-3-3

087810-4-3

Terminal Blocks (Copper)

HLAK 25mm² 1pole 152A grey

080110-0-4

HLAK 25mm² 1pole 152A blue 080110-1-4

HLAK 25mm² 1pole 152A green 080110-2-4

HLAK 25mm² 1pole 152A brown 080110-3-4

HLAK 25mm² 1pole 152A black 080110-4-4

HLAK 35mm² 1pole 202A grey 080210-0-4

HLAK 35mm² 1pole 202A blue 080210-1-4

HLAK 35mm² 1pole 202A green

080210-2-4

HLAK 35mm² 1pole 202A brown 080210-3-4

HLAK 35mm² 1pole 202Ablack 080210-4-4

HLAK 70mm² 1pole 300A grey

HLAK 70mm² 1pole 300A blue

HLAK 70mm² 1pole 300A green 080310-2-4

HLAK 70mm² 1pole 300A brown

Totally finger safe

Stackable mounting DIN rail or installation plate

Certified VDE 0603-2 and Fimco 60947-7-1 for AL

Busbar Tapping Device

Space saving shape, mounting on DIN rail 3mm-10mm, 2 cable connection

Certified EN 60947-7-1

Earth/Neutral Blocks

High number of connection points

Horizontal and vertical installation

ELECTRICAL POWER SOLUTIONS

Red Insulators

DESCRIPTION

Insulator 15mm x 16mm x 4mm

Insulator 19mm x 20mm x 6mm

Insulator 22mm x 25mm x 6mm

Insulator 30mm x 30mm x 6mm

Insulator 30mm x 30mm x 8mm

Insulator 32mm x 35mm x 6mm

Insulator 32mm x 35mm x 8mm

Insulator 32mm x 35mm x 10mm

Insulator 41mm x 35mm x 10mm

Insulator 41mm x 40mm x 8mm

Insulator 41mm x 40mm x 10mm

Insulator 46mm x 50mm x 8mm

Insulator 46mm x 50mm x 10mm

Insulator 50mm x 50mm x 12mm

Insulator 60mm x 60mm x 8mm

Insulator 41mm x 65mm x 10mm

Insulator 50mm x 75mm x 10mm

Insulator 65mm x 100mm x 12mm

Extension Studs

Steel Exten Spacer 30mm x M4 x 7mm

Steel Extension Spacer 40mm x M4 x 7mm

Steel Exten Spacer 50mm x M4 x 7mm

Steel Exten Spacer 70mm x M4 x 7mm

Steel Exten Spacer 15mm x M6 x 10mm

Steel Exten Spacer 20mm x M6 x 10mm

Steel Exten Spacer 30mm x M6 x 10mm

Steel Exten Spacer 40mm x M6 x 10mm

Steel Exten Spacer 50mm x M6 x 10mm

Steel Exten Spacer 70mm x M6 x 10mm

Steel Exten Spacer 50mm x M8 x 13mm

Terminal Blocks

DESCRIPTION

Terminal Block 7 Way Blue 80A

Terminal Block 7 Way Green 80A

Terminal Block 11 Way Blue 80A

Terminal Block 11 Way Green 80A

Terminal Block 15 Way Blue 80A

Terminal Block 15 Way Green 80A

Distribution Blocks

DESCRIPTION

Distribution Block 1 Pole 125A-8 way

Distribution Block 1 Pole 160A - 9 way

Distribution Block 1 Pole 250A - 11 way

Distribution Block 1 Pole 400A - 11 way

Distribution Block 2 Pole 125A 6 way

Distribution Block 2 Pole 125A 14 way

Distribution Block 3p 125A

Distribution Block 3p 160A

Distribution Block 4 Pole 125A 6 way

Distribution Block 4 Pole 125A 11 way

Distribution Block 4 Pole 125A 14 way

Distribution Block 4 Pole 160A 11 way

Distribution Block 4 Pole 160A 11 way

Distribution Block 4 Pole 160A 11 way (Side)

Distribution Block 4 Pole 160A 11 way

Distribution Block 4 Pole 160A 11 way

CPH16M4

CPH20M6

CPH25M6

CPH30M6

CPH30M8

CPH35M6

CPH35M8

CPH35M10

CPH35M10

CPH40M8

CPH40M10

CPH50M8

CPH50M10

CPH50M12

CPH60M8

CPH65M10

CPH75M10

CPH100M12

DZM30M4

DZM40M4

DZM50M4

DZM70M4

DZM15M6

DZM20M6

DZM30M6

DZM40M6

DZM50M6

DZM70M6

DZM50M8

ITB80-7B

ITB80-7G

ITB80-11B

ITB80-11G

ITB80-15B

ITB80-15G

REF

RPU 125-8

RPU 160-8-S

RPU 250-11

RPU 400-11

RPB125-06

RPB125-14

RPT3000

RPT3005

RPQ125-06

RPQ125-10

RPQ125-14

RPQ160-11

RPQ160-11M

RPQ160-11SI

RPQ1016

RPQ 160-11-U&D

Transformers Din Rail Mounted Range – Enclosed (IP20)

DESCRIPTION

40VA RATED

Transformer IP20 Pri 230-400V Sec 12V 40va 680040035

Transformer IP20 Pri 230-400V Sec 24V 40va 680040036

Transformer IP20 Pri 230-400V Sec 48V 40va 680040037

Transformer IP20 Pri 230-400V Sec 115V 40va 680040038

Transformer IP20 Pri 230-400V Sec 230V 40va 680040039

63VA RATED

Transformer IP20 Pri 230-400V Sec 12V 63va

680063035

Transformer IP20 Pri 230-400V Sec 24V 63va 680063036

Transformer IP20 Pri 230-400V Sec 48V 63va 680063037

Transformer IP20 Pri 230-400V Sec 115V 63va 680063038

Transformer IP20 Pri 230-400V Sec 230V 63va 680063039

100VA RATED

Transformer IP20 Pri 230-400V Sec 12V 100va 680100035

Transformer IP20 Pri 230-400V Sec 24V 100va 680100036

Transformer IP20 Pri 230-400V Sec 48V 100va 680100037

Transformer IP20 Pri 230-400V Sec 115V 100va 680100038

Transformer IP20 Pri 230-400V Sec 230V 100va 680100039

160VA RATED

Transformer IP20 Pri 230-400V Sec 12V 160va 680160035

Transformer IP20 Pri 230-400V Sec 24V 160va 680160036

Transformer IP20 Pri 230-400V Sec 48V 160va 680160037

Transformer IP20 Pri 230-400V Sec 115V 160va 680160038

Transformer IP20 Pri 230-400V Sec 230V 160va 680160039

250VA RATED

Transformer IP20 Pri 230-400V Sec 12V 250va

Transformer IP20 Pri 230-400V Sec 24V 250va

Transformer IP20 Pri 230-400V Sec 48V 250va

Transformer IP20 Pri 230-400V Sec 48V 1000va 681000037

Transformer IP20 Pri 230-400V Sec 115V 1000va 681000038

1000va 681000039

Transformers Enclosed (Vented)

230/400-110 3kva

230/400-110 5kva 62C0050016

230/400-110 10kva 62C0100008

Fuses - Cylindrical

Glass Cylindrical - Fuse

Fuses

Fuse Holders (Cylindrical)

1p NH00 160amp 352100 3p NH00 160amp 353102

1p NH1 250amp 352300 3p NH1 250amp 353300 3p NH00 160amp 334717

Fuse Base (NH)

60mm Classic Busbar System

Advantages 60mm system:

• Reduced panelspace needed due to direct mounting of switchgear onto busbar system.

• Less time consuming building of panels due to lesser wiring

• Better heat management of panel.

• Tested and fully compliant to IEC norms

• No need for drilling and tapping into the copper busbars

• Fully shrouded system IP20

• Busbar system from 0 to 2500A

• Fully interchangeable components

• Adapters for every device in different ampratings

3

3

1

2

End Cover

Busbar Feeder 3-Pole

Terminals

Adapter Plate 3-Pole*

Enclosed Isolators 16-630 A

Katko’s enclosed isolators are available in an extensive selection of polycarbonate, aluminium, sheet steel and stainless steel enclosures. EMC, Atex and Firerated switches are also available.

The right enclosure for all operating conditions.

KER Stainless Steel 16-630 A

Designed for hygienic and heavy environments. AISI 316 acid proof and high corrosion resistance, IP66 with stainless steel handle.

New version available – IP69K with plastic handle. Ask for more information.

Load Break Switches 16-800 A

Katko Load Break Switch range consists of six different series of switches:

KU series 16-80 A

Din-rail mountable series available in both rotary and toggle switch models. Variety of accessories.

Modular KU series 125-160 A

Rotary switch model with easy configuration of multiple solutions, including change-over switch

EVA series 125-250 A

Toggle switch model designed for panel boards.

VKA series 200-250 A

Rotary switch model designed for panel boards.

VKE series 125-400 A

Rotary switch model designed for panel boards.

New KU series 630-800 A

Rotary switch model designed for panel boards and industrial applications.

KATKO offers a wide range of accessories to its open switch range.

Switch Fuses 3P

DESCRIPTION REF

63amp AC23 NH Type

125amp AC23 NH Type

160amp AC23 NH Type

250amp AC23 NH Type

400amp AC23 NH Type

63amp AC23 BS Type

125amp AC23 BS Type

160amp AC23 BS Type

250amp AC23 BS Type

400amp AC23 BS Type

Price Includes Handle & Shaft.

Enclosed Switch Fuses 3P+N IP65 (Steel)

KVKE 363 L220AD12TLK12 SS

KVKE 3125 L220AD12TLK12 SS

KVKE3160 L220AD12TLK12 SS

KVKE 3250 LVK228LK14 SS

KVKE3400 LVK228LK14 SS

KVKE363BS

KVKE3125BS

KVKE3160BS

KVKE3250BS

KVKE3400BS DESCRIPTION

125amp AC23

160amp AC23

250amp AC23

400amp AC23

125/160/250A = 600x400mm Enclosure

300A = 800x600mm Enclosure

3125

3160

3250

3400

400a = 800x600mm Enclosure

Enclosed Isolators (Sheet Steel) IP65

Available as 4-pole version

Available as EMC version.

Accessories for KVKE / ESF / VKE

DESCRIPTION

Terminal Covers to suit 63a / 125a / 160a

Terminal Cover to suit 250A only

Terminal Cover to suit 400A only

300mm Ext.Shaft 63 / 160a

400mm Ext.Shaft 63 / 160a

300mm Ext.Shaft 250 / 400a

63-160amp 3p (Set of 3) Spreader Bars

Auxiliary Contact 1N/O & 1N/C

Door Mounting Kit

Terminal Covers Priced per Pole (LS)

Y/R

LS

Isolators 3P (DIN Rail or Modular with Accessory)

DESCRIPTION

25amp AC21 / 16amp AC23

40amp AC21 / 25amp AC23

63amp AC21 / 40amp AC23

80amp AC21 / 40amp AC23

100amp AC21 / 63amp AC23

160amp AC21 / 125amp AC23

160amp AC21 / 160amp AC23

250amp AC21 / 250ampAC23

DESCRIPTION

25amp AC21 / 16amp AC23

40amp AC21 / 25amp AC23

63amp AC21 / 40amp AC23

80amp AC21 / 40amp AC23

100amp AC21 / 63amp AC23

160amp AC21 / 125amp AC23

Modular Accessory

Note: VKA3250/4250 c/w handle shaft & covers.

KU316

KU325

KU340

KU363N

KU380N

KU3125

KU3160

VKA3250LS/VS

KU416

KU425

KU440

KU463N

KU480N

KU4125

KKU3P

Din Rail Mounted Changeover Switch

160A Din Mounted C/O Switch

Auxillary Contact for above KU1.V160

Isolator 3P Door Mounted RT

KU & RT Rotary Switches 16-40A to suit 316

KU & RT Rotary Switches 16-40A to

KU & RT Rotary Switches 16-40A to

Accessories for KU / VKA

DESCRIPTION

External Handle (Door Interlocked) LK10Y/R ABS

External Handle (Panel Mounted) OKA/KU/LK10 Y/R

300mm Ext. Shaft KU/VKA L300AD11/VT

400mm Ext Shaft KU/VKA L400AD11/VT

Modular Kit For KU Range K/KU3P

Modular Kit For VKA Range K/VKA3P

1 N/O & 1 N/C Aux Contact KU1.V

2 N/O & 2 N/C Aux Contact KU2.V

1 N/O & 1 N/C Aux Contact VKA1.V

2 N/O & 2 N/C Aux Contact VKA2.V

Change-over kit KU160 CO160KU

Parallel kit KU160 PK160KU

Auxiliary 1NC+NO KU160 1.V160KU

Auxiliary 2NC+2NO KU160 2.V160KU

Fuse Unit 32amp 3p 10x38 KV10x38

Terminal Covers KU... KUO.V

Supporting Metal Bracket for KU Isolator AT5

Terminal Cover LS1603P

KKL/ KL1 Cable Connectors

KV10x38 Fuse Unit

LK10 Door Handle

Enclosed Isolators (Polycarbonate) IP66 & IP65

3P 20amp AC21 / 10amp AC23

3P 25amp AC21 / 16amp AC23

3P 40amp AC21 / 25amp AC23

3P 40amp AC21 / 25amp AC23

3P 63amp AC21 / 40amp AC23

3P 63amp AC21 / 40amp AC23

3P 80amp AC21 / 40amp AC23

3P 100amp AC21 / 63amp AC23

3P 160amp AC21 / 125amp AC23

3P 160amp AC21 / 160 amp AC23

3P 250amp AC21 / 250amp AC23

4P 20amp AC21 / 10amp AC23

4P 25amp AC21 / 16amp AC23

4P 40amp AC21 / 25amp AC23

4P 63amp AC21 / 40amp AC23

4P 80amp AC21 / 40amp AC23

KEM310UY/R

KEM316UY/R

KEM325UY/R

KEM325UY/R

KEM340UY/R

KEM340UY/R

KEM363UY/R

KEM380UY/R

KEM3125UY/R

KEM3160Y/R

KEM3250Y/R

KEM410UY/R

KEM416UY/R

KEM425UY/R

KEM440UY/R

KEM463UY/R

4P 100amp AC21 / 63amp AC23 KEM480UY/R

4P 160amp AC21 / 125amp AC23

*When ordering Grey/ Black Please

Specify

KEM4125UY/R

Enclosed Isolators (ABS) IP66 & IP65

3P 20amp AC21 / 10amp AC23 ABSKEM310UY/R

3P 25amp AC21 / 16amp AC23 ABSKEM316UY/R

3P 40amp AC21 / 25amp AC23

3P 40amp AC21 / 25amp AC23

3P 63amp AC21 / 40amp AC23

3P 63amp AC21 / 40amp AC23

ABSKEM325UY/R

ABSKEM325UY/R

ABSKEM340UY/R

ABSKEM340UY/R

Enclosed Isolators (6 Pole) (Polycarbonate) IP66

DESCRIPTION

6P 25amp AC21 / 16amp AC23

6P 40AMP AC21 / 25AMP AC23

6P 63amp AC21 / 40amp AC23

6P 100amp AC21 / 63amp AC23

6P 200amp AC21 / 135amp AC23

KEM616UY/R

KEM625UY/R

KEM640UY/R

KEM680UY/R

KEM6160Y/R

Enclosed Changeover Switches (Polycarbonate) IP66 & IP65

2P 100amp AC21 / 63amp AC23

2P 100amp AC21 / 63amp AC23

3P 100amp AC21 / 63amp AC23

2P 125amp AC21 / 80amp AC23

2P 125amp AC21 / 80amp AC23

3P 125amp AC21 / 80amp AC23

4P 125amp AC21 / 80amp AC23

Copper Earth Plates available for Polycarbonate Enclosures.

KEM280VV-U3

KEM280VV-U4

KEM380VV-U3

KEM2125VV-U4

KEM2125VV-MF11

KEM3125VV-MF11

KEM4125VV-MF11

Enclosed Isolators (Aluminium) IP66

3P 25amp AC21 /16amp AC23

3P 40amp AC21 /25amp AC23

3P 63amp AC21 /40amp AC23

KEA340UY/R

3P 80amp AC21 /40amp AC23 KEA363UY/R

3P 100amp AC21 /63amp AC23

4P 25amp AC21 /16amp AC23

4P 40amp AC21 /25amp AC23

4P 63amp AC21 /40amp AC23

Enclosed Isolators (Stainless Steel) IP66

4P 25amp AC21 / 16amp AC23

4P 63amp AC21 / 40amp AC23

4P 100amp AC21 / 63amp AC23

4P 125amp AC21 / 100amp AC23

4P 160amp AC21 / 125amp AC23

KER416Y/R

KER4125Y/R

Where hygiene and good protection against corrosion are required.

Padlock-able with three locks.

Enclosed Isolators (Stainless Steel - Sloped Roof) IP66

3P 25amp AC21 / 16amp AC23 KER316RS

3P 40amp AC21 / 25amp AC23 KER325RS

4P 25amp AC21 / 16amp AC23 KER416RS

4P 40amp AC21 / 25amp AC23 KER425RS RA2RS

A completely hygienic isolator designed specifically for pharmaceuticals and wash down areas in manufacturing plants due to IP66 rating and sloped roof.

Auxilary Contacts (KE...)

(1N/O&1N/C) Aux contact KU1.V (Fits KU 16–125 Amp) (2N/O&2N/C) Aux contact KU2.V (Fits KU 16–125 Amp) (1N/O&1N/C) Aux Contact KVKE1.V (Fits VKE/KVKE 63–630 Amp)

Enclosed Isolators (Polycarbonate, EMC) IP66

3P 63amp AC21 /40amp AC23

3P 80amp AC21 /40amp AC23

3P 100amp AC21 /63amp AC23

Photovoltaic Isolators

Enclosed Isolators (Firerated Aluminium) IP66

3P 25amp AC21 / 16amp AC23

3P 40amp AC21 /25amp AC23

3P 63amp AC21 /40amp AC23

Enclosed Fireman Switch (Aluminium) IP66

Cable entries: 2 x M25 as standard on the top and bottom. Padlock-able handle in 0-position and also available in 1-position.

Enclosure Sizes

Category Use / Application

AC-20 Connecting and disconnecting under no-load

AC-21

AC-22

AC-23

Switching of resistive loads including moderate overloads

Switching of mixed loads, inductive and resistive loads including moderate overloads

Switching of motor loads or other highly inductive loads

Male Insert 16A 500V Screw Termination

N0. OF PINS REF

6+E

10+E

16+E

24+E

*32+E

*48+E

10+E

16+E

CNEM06T

CNEM10T

CNEM16T

CNEM24T

CNEM16TN

CNEM24TN

CDAM10X (Mini Range)

CDAM16X (Mini Range)

*Require the T & TN items to make up 32 & 48 way.

Hood, Top Entry, Single Lever

TO SUIT REF

6 way MHV06L20

10 way MHV10L20

16 way MHV16L25

24 way MHV24L25

32 way MHV32L32

48 way

10 way

MHV48L40

MZV15L20 (Mini Range)

16 way MZV25L20 (Mini Range)

Housing, Panel Mounted, Single Lever

10 way CZI15L (Mini Range)

10 way CZI15LS c/w

(Mini Range) 16 way CZI25LS c/w

Female Insert 16A 500V Screw Termination

N0. OF PINS REF

CNEF10T

CNEF24T

*32+E

*48+E

10+E

16+E

CNEF16TN

CNEF24TN

CDAF10X (Mini Range)

CDAF16X (Mini Range)

*Require the T & TN items to make up 32 & 48 way.

Hood, Side Entry, Single Lever

TO SUIT REF

6 way

10 way

16 way

way

MHO06L20

MHO10L20

(Mini Range)

way MZO15L25 (Mini Range)

way MZO25L20 (Mini Range)

Housing, Surface Mounted, Single Lever

way MHP48LS40

way MZP15LS225 (Mini Range) 16 way MZAP25LS225 (Mini Range)

Protective Cover IP65

Multipole Connectors (10A)

Xenon Strobe Beacons 60mm IP65

Xenon Strobe Beacons 90mm pre-wired c/w base

XB2 Xenon Strobe Beacon Ø65mm, IP65

XB2 Xenon Strobe Beacon Ø65mm, IP65 red

XB2 Xenon Strobe Beacon Ø65mm, IP65

XB2 Xenon Strobe Beacon Ø65mm, IP65 red

LED Steady/Flashing Beacons IP66 c/w base

/ D118521313

Electronic Multitone Siren 32-tones, red housing, IP65

Multitone Alarm Sounder, 8-tones, IP66, square design max 103dB

Multitone Alarm Sounder & Beacon Combi Units c/w LED Indicator

ADS-P Multitone Alarm Sounder and Beacon Combi Unit 94mm red 24 V 875062405

ADS-P Multitone Alarm Sounder and Beacon Combi Unit 94mm red 230 V 875062313

ADS-P Multitone Alarm Sounder and Beacon Combi Unit 94mm amber 24 V 875061405

ADS-P Multitone Alarm Sounder and Beacon Combi Unit 94mm amber 230 V 875061313

*available lens colours: amber, red, green, blue, clear and yellow

Mini Horns IP43 / Signal Horns IP55

Panel Mounted Buzzers

R Series Beacons

Traffic Light Access Kit

Ammeter 48x48mm 0/20A, Scale 0/20A (X2) Direct Connection

Ammeter 72x72mm 0/2A, Scale 0/2A (X2) Direct Connection

Ammeter 72x72mm 0/5A, Scale 0/5A (X2) CT Operated

Ammeter 72x72mm 0/5A, Scale 0/5A (X6) CT Operated

Ammeter 72x72mm 0/10A, Scale 0/10A (X2) Direct Connection

Ammeter 72x72mm 0/15A, Scale 0/15A (X2) Direct Connection

Ammeter 72x72mm 0/20A, Scale 0/20A (X2) Direct Connection

Ammeter 72x72mm 0/30A, Scale 0/30A (X2) Direct Connection

Ammeter 72x72mm 0/40A, Scale 0/40A (X2) Direct Connection

Scale plate 48x48mm

Scale plate 72x72mm

DESCRIPTION REF

Scale 0/300V

Scale 0/500V

EQ74-V68X2N1CAW0ST

EQ74-V70X2N1CAW0ST

DESCRIPTION

72x72mm 0/5A (x1) 4 Position Switch

72x72mm 0-500V 4 Position Switch

72x72mm 0-500V 7 Position Switch

DESCRIPTION

Ammeter DC 72x72mm 0/10A Scale 0/10A

Ammeter DC 72x72mm 0/20A Scale 0/20A

Ammeter DC 72x72mm 0/25A Scale 0/25A

Ammeter DC 72x72mm 0/30A Scale 0/30A

Voltmeter DC 72x72mm 0/30V Scale 0/30V

Voltmeter DC 72x72mm 0-60V Scale 0/60V

Voltmeter DC 72x72mm 0/150V Scale 0/150V

Voltmeter DC 72x72mm 0/300V Scale 0/300V

SS74-I0312N1CA40ST

SS74-V2VX1N1CA40ST

SS74-V2VX1N1CA70ST

REF

PQ74-I35L2N1CAW0ST

PQ74-I37L2N1CAW0ST

PQ74-I38L2N1CAW0ST

PQ74-I39L2N1CAW0ST

PQ74-V0VL2N1CAW0ST

PQ74-V0YL2N1CAW0ST

PQ74-V1AL2N1CAW0ST

PQ74-V1DL2N1CAW0ST

Voltmeter DC Din Rail 0/30V Scale 0/30V DC35-V2HL2P1AW00ST

Voltmeter DC Din Rail 0/250V Scale 0/250V DC35-V2JL2P1AW00ST

EQ44-I1522N1CAW0ST

EQ74-I0812N1CAW0ST

EQ74-I1122N1CAW0ST

EQ74-I1162N1CAW0ST

EQ74-I1322N1CAW0ST

EQ74-I1422N1CAW0ST

EQ74-I1522N1CAW0ST

EQ74-I1722N1CAW0ST

EQ74-I1822N1CAW0ST

EQ44-00D1-0001

EQ74-00D1-0001

DESCRIPTION REF 45-55-65 Hz, 200-250V

ZQ74-46243N1CAW0ST

DESCRIPTION REF

Ammeter Selector Switch

DC Ammeter Shunt

DESCRIPTION

Ammeter Shunt DC 48x48mm 0/60mV

Scale 0/60A

Ammeter Shunt DC 48x48mm 0/75mV

Scale 0/100A

Ammeter Shunt DC 72x72mm 0/60mV

Scale 0/60A

Ammeter Shunt DC 72x72mm 0/75mV

Scale 0/100A

CST4-A62LXXXOFA0ST

PQ44-V0EL2N1CAW0ST

PQ44-V0FL2N1CAW0ST

PQ74-V0EL2N1CAW0ST

PQ74-V0FL2N1CAW0ST

DC Shunt 60A/60mV, Cl-1% YN01-12601WS000000

DC Shunt 100A/60mV, Cl-1% YN01-17601WS000000

DC Shunt 100A/75mV, Cl-1% YN01-17751WS000000

Current Transformer (5A Secondary)

DESCRIPTION

SIZE BUSBAR SIZE

50/5A Standard Type CT 20mm 20x10 CU

60/5A Standard Type CT 20mm 20x10 CU

80/5A Standard Type CT 20mm 20x10 CU

100/5A Standard Type CT 26mm 20x10 CU

100/5A Standard Type CT 26mm 30x10 CU

125/5A Standard Type CT 26mm 30x10 CU

150/5A Standard Type CT 26mm 30x10 CU

200/5A Standard Type CT 26mm 30x10 CU

250/5A Standard Type CT 26mm 30x10 CU

400/5A Standard Type CT 26mm 30x10 CU

600/5A Standard Type CT 26mm 30x10CU

150/5A Standard Type CT 28mm 30x10 CU

200/5A Standard Type CT 28mm 30x10 CU

300/5A Standard Type CT 28mm 30x10 CU

400/5A Standard Type CT 28mm 30x10 CU

600/5A Standard Type CT 28mm 30x10 CU

800/5A Standard Type CT 51mm 50x30 or 60x12 CU

1250/5A Standard Type CT 51mm 50x30 or 60x12 CU

1600/5A Standard Type CT 51mm 50x30 or 60x12 CU

800/5A Standard Type CT 100x55 CU

1250/5A Standard Type CT 100x55 CU

1600/5A Standard Type CT 100x55 CU

2000/5A Standard Type CT 100x55 CU

2500/5A Standard Type CT 100x55 CU

3000/5A Standard Type CT 100x55 CU

4000/5A Standard Type CT 100x55 CU

1250/5A Standard Type CT 128x38mm CU

1600/5A Standard Type CT 128x38mm CU

2000/5A Standard Type CT 128x38mm CU

2500/5A Standard Type CT 128x38mm CU

3200/5A Standard Type CT 128x38mm CU

Current Transformers Split Core Type

DESCRIPTION

OMEGA 10A Current Transformer Split Core Type 100/5A 1.5VA

OMEGA 10A Current Transformer Split Core Type 150/5A 1.75VA

OMEGA 10A Current Transformer Split Core Type 200/5A 2.5VA

OMEGA 10A Current Transformer Split Core Type 250/5A 3.5VA

OMEGA 10E Current Transformer Split Core Type 300/5A 5VA

OMEGA 10E Current Transformer Split Core Type 400/5A 7.5VA

OMEGA 10E Current Transformer Split Core Type 600/5A 10VA

OMEGA 10B Current Transformer Split Core Type 800/5A 10VA

OMEGA 10B Current Transformer Split Core Type 1000/5A 15VA

OMEGA 10C Current Transformer Split Core Type 1250/5A 30VA

OMEGA 10C Current Transformer Split Core Type 1600/5A 45VA

OMEGA 10C Current Transformer Split Core Type 2000/5A 45VA

Current Transformers 3 Phase 3 in 1

XM02-135031S000000

XM02-145031S000000

XM02-175051S000000

XM02-185071S000000

XM07-185051S000000

XM07-205051S000000

XM07-225071S000000

XM07-245081S000000

XM07-275081S000000

XM07-315091S000000

XM07-335101S000000

XM11-225081S000000

XM11-245101S000000

XM11-285111S000000

XM11-315121S000000

XM11-335131S000000

XM20-375141S000000

XM20-415141S000000

XM20-435145S000000

XR06-375111S000000

XR06-415131S000000

XR06-435131S000000

XR06-445131S000000

XR06-466131S000000

XR06-485131S000000

XR06-515131S000000

XR02-415115S000000

XR02-435135S000000

XR02-445135S000000

XR02-466135S000000

XR02-496115S000000

REF

XS01-185031S000000

XS01-225221S000000

XS01-245051S000000

XS01-275071S000000

XS05-115081S000000

XS05-145101S000000

XS05-165111S000000

XS02-375111S000000

XS02-395131S000000

XS03-415151S000000

XS03-435161S000000

XS03-445161S000000

3 Phase current transformers 35mm Busbar Centres, Ratio 60/5A XN35-145031S000000

3 Phase current transformers 35mm Busbar Centres, Ratio 100/5A XN35-185031S000000

3 Phase current transformers 35mm Busbar Centres, Ratio 125/5A XN35-205031S000000

3 Phase current transformers 35mm Busbar Centres, Ratio 200/5A XN35-245031S000000

3 Phase current transformers 35mm Busbar Centres, Ratio 250/5A XN35-275031S000000

3 Phase current transformers 45mm Busbar Centres, Ratio 300/5A XN45-285051S000000

3 Phase current transformers 45mm Busbar Centres, Ratio 400/5A XN45-315051S000000

kWh and Multifunction

Panel Mount Meters

DESCRIPTION

96x96mm Single/Three Phase Digital kWh/Multifunction Meter CT (1/5A) Operated c/w Modbus & Pulse

AP15P5CO

LCD Panel Mount Power Network Multi-function ND20LITE22100U0

TFT Panel Mount Power Analyser Multi Function Meter ND30 Range ND30-12100U0

kWh and Multifunction Din Rail Meters

DESCRIPTION

Single Phase Digital kWh/Multifunction Meter, 100A Direct Conn c/w Modbus & Pulse

Three Phase Digital kWh/Multifunction Meter, CT Operated c/w Modbus & Pulse

Three Phase Digital kWh/Multifunction Meter, 100A Direct Conn c/w Modbus & Pulse

Three Phase Digital kWh Meter, CT Operated c/w Pulse

Three Phase Multi Function Quad Load kWh Meter 240V

4*3Phase CT Operated 100mA system with built in RS485

AP15-QUAD-RJ12

Three Phase Digital kWh Meter, 100A Direct Conn c/w Pulse AP253DOBI

MID Approved Single Phase Digital kWh/Multifunction Meter, 100A Direct Conn c/w Modbus & Pulse AP251DO

MID Approved Three Phase Digital kWh/Multifunction Meter, CT Operated c/w Modbus & Pulse

MID Approved Three Phase Digital kWh/Multifunction Meter, 100A Direct Conn c/w Modbus & Pulse

Panel Kit to work with AP15/AP25 Three Phase Meters

AP25-Panel -Kit

RJ12 Meters

DESCRIPTION

MID Approved Single/Three Phase Digital kWh/Multifunction Meter, CT (100mA)Operated c/w Modbus & Pulse AP353RJ12

Tri Load Multifunction Meter, 3 x CT (100mA) Operated c/w Modbus & Pulse, Din Mounted

Quad Load Multifunction Meter, 4 x CT (100mA) Operated c/w Modbus & Pulse, Din Mounted

RJ12 Single Phase Current Transformers

DESCRIPTION

Aperture 21.5mm Diameter, 50A/100mA

Aperture 21.5mm Diameter, 60A/100mA

Aperture 21.5mm Diameter, 100A/100mA

Aperture 21.5mm Diameter, 125A/100mA

Aperture 21.5mm Diameter, 150A/100mA

AP15-TRI-RJ12

AP15-QUAD-RJ12

REF

XJ12-132235S000000

XJ12-142235S000000

XJ12-182235S000000

XJ12-202235S000000

XJ12-222235S000000

Aperture 21.5mm Diameter, 160A/100mA XJ12-232235S000000

Aperture 21.5mm Diameter, 200A/100mA XJ12-242235S000000

Aperture 21.5mm Diameter, 250A/100mA XJ12-272235S000000

RJ12 Three Phase Current Transformers c/w 1.5mt Cable

DESCRIPTION

25mm Centres, Aperture 3 x 15mm Diameter, 60A/100mA

25mm Centres, Aperture 3 x 15mm Diameter, 100A/100mA

25mm Centres, Aperture 3 x 15mm Diameter, 125A/100mA

25mm Centres, Aperture 3 x 15mm Diameter, 150A/100mA

25mm Centres, Aperture 3 x 15mm Diameter, 160A/100mA

25mm Centres, Aperture 3 x 15mm Diameter, 200A/100mA

35mm Centres, Aperture 22 x 21mm, 60A/100mA

35mm Centres, Aperture 22 x 21mm, 100A/100mA

35mm Centres, Aperture 22 x 21mm, 125A/100mA

35mm Centres, Aperture 22 x 21mm, 150A/100mA

35mm Centres, Aperture 22 x 21mm, 160A/100mA

35mm Centres, Aperture 22 x 21mm, 200A/100mA

35mm Centres, Aperture 22 x 21mm, 250A/100mA

45mm Centres, Aperture 32 x 27mm, 250A/100mA

45mm Centres, Aperture 32 x 27mm, 400A/100mA

45mm Centres, Aperture 32 x 27mm, 600A/100mA

Optional RJ12 Cables

XJ25-142231S000000

XJ25-182235S000000

XJ25-202235S000000

XJ25-222235S000000

XJ25-232235S000000

XJ25-242235S000000

XJ35-142231S000000

XJ35-182235S000000

XJ35-202235S000000

XJ35-222235S000000

XJ35-232235S000000

XJ35-242235S000000

XJ35-272235S000000

XJ45-272235S000000

XJ45-312235S000000

XJ45-332235S000000

XJ35

XJ45

AP35-3RJ12

*Rack Mounting Rails (600 – 1000mm deep)

Note: VSD 2200 & VSD 3000 require 16A Supply

Sentinel Pro (with 6 mins Full Load)

3.0kVA/2.7kW Sentinel Pro (with 5 mins Full Load)

Note: SEP 3000 requires 16A Supply

Off-Line, Line Interactive & On-Line Double Conversion… what’s the difference?

Off-Line UPS will only kick in once the power has failed, or dropped below c. 172V... so basically, if the input voltage is 180V, then the output is 180V. The voltage needs to drop below c. 172V for the UPS to kick in, and give an output of 230V (+/- 10%) on battery

Line Interactive UPS use automatic voltage regulation (AVR) to correct abnormal voltages without switching to battery. The UPS detects when voltage crosses a preset low (c. 162V) or high (c. 192V) threshold value and uses transformers to boost or lower the voltage by a set amount to return it to the acceptable range. So basically, if the input voltage is 180V, then the output is 230V. These UPS’s will clean the input voltage, and always give an output of 230V.

On-Line Double Conversion UPS use a more precise method of voltage regulation: they continuously convert incoming AC power to DC power (rectifier) and then convert the DC power to ideal AC output power (inverter). This continuous double conversion operation isolates connected equipment from problems on the AC line, including blackouts, brownouts, overvoltages, surges, line noise, harmonic distortion, electrical impulses and frequency variations. So basically, these UPS’s will clean and protect the input voltage, and always give a perfect output of 230V.

Low Smoke Halogen Free Flexible Conduit

Protection For LSF and LSHF Cables On Site

Low

Smoke Halogen Free Flexible Conduit

Low Smoke Halogen Free Flexible Conduit Glands

Flexible Conduit Gland DN10 M16

LSHF Flexible Conduit Gland DN12 M20

LSHF Flexible Conduit Gland DN17 M20 MIR17M20N

LSHF Flexible Conduit Gland DN23 M25 MIR23M25N

LSHF Flexible Conduit Gland DN29 M32

Low Smoke Halogen Free Locknuts

Flexible Conduit Support Brackets

Flexible Conduit – PVC Spiral

Flexible Conduit PVC - Contractor Packs

Flexible Conduit Glands (Glands supplied with Locknut)

Straight PG9 GSI10 RPGN10 20/160 Straight M16 GSI12 RPMN12 20/160

Straight PG13.5 GSI14 RPGN14 20/100

Straight M20 GSI16 RPMN16 20/100

Straight M25 GSI20 RPMN20 20/100

Straight PG29 GSI28 RPGN28 10/70

Straight 1.5” GSI40 RPSN040 1/30

Straight 2” GSI50 RPSN050 1/20

LSF Liquid Tight Steel Spiral Flexible Conduit (Black)

Plasticised PVC Conduit with rigid reinforced PVC Spiral, with self extinguishing additives black.

Halogen Free Liquid Tight Conduit

Metal c/w PVC Sheath (Liquid Tight)

Flexible Conduit Glands

HALOGEN FREE CONDUITS

Flexible galvanized steel conduit with reinforced clutch covered by blue Poliurethane: vacuum (DMA PU), smooth (DMC PU) or overbraided (DMT PU). It doesn’t release halogen substances in order to avoid the development of toxic smokes, in compliance with the norm UNI CEI 11170-3 Ed. 2005+FA 2007. Certified smoke class F1. Suitable where high mechanical resistance to traction, compression and torsion are required and it is recommeded for accidental combustions where no halogens must be released. Excellent resistance to oils, sea salt, acids and aging.

10mm-15mm

12mm-17mm

15mm-20mm

18mm-24mm

22mm-29mm

26mm-34mm

32mm-42mm

39mm-51mm

ONE HOLE CABLE CLAMP (ALUMINIUM)

Standard Duty Aluminium Cable Clamp, for single cables.

The Ellis one hole cable clamp has been designed, developed, tested and manufactured in accordance with IEC 61914 (Cable cleats for electrical installations). The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured from LM6 Aluminium. The clamp can be epoxy coated for use in harsh environments, such as sea air conditions.

ONE HOLE CABLE CLAMP (ALUMINIUM)

Standard Duty Aluminium Cable Clamp, for single cables.

TWO HOLE CABLE CLAMP (ALUMINIUM)

Standard Duty Aluminium Cable Clamp, for single cables.

The Ellis one hole cable clamp has been designed, developed, tested and manufactured in accordance with IEC 61914 (Cable cleats for electrical installations). The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured from LM6 Aluminium. The clamp can be epoxy coated for use in harsh environments, such as sea air conditions.

The Ellis two hole cable clamps have been designed, developed, tested and manufactured in accordance with IEC 61914 (Cable cleats for electrical installations). The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured from LM6 Aluminium. The clamp can be epoxy coated for use in harsh environments, such as sea air conditions.

Light Duty Compact Aluminium Cable Cleat, for cables in trefoil formation.

The Ellis Alpha cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is available in a range of sizes with range taking ability to suit cables in trefoil formation. The frame of the cleat is manufactured from 6000 series extruded aluminium. The base of the cleat can be supplied in aluminium or in a low smoke zero halogen (LSOH) polymeric material.

The Alpha is secured to the supporting structure by a single M10 fixing. Polyester coating, alternative fastener material and cleats for a single cable can be supplied upon request.

TWO HOLE CABLE CLAMP (ALUMINIUM)

Light Duty Stainless Steel Fire Resistant Cable Clamp, for single cables.

Standard Duty Aluminium Cable Clamp, for single cables. The Ellis two hole cable clamps have been designed, developed, tested and manufactured in accordance with IEC 61914 (Cable cleats for electrical installations). The clamp is available in a range of sizes with range taking ability to suit single cables. The clamp is manufactured from LM6 Aluminium. The clamp can be epoxy coated for use in harsh environments, such as sea air conditions

The Ellis Phoenix cable clamp has been designed, developed, tested and manufactured in accordance with IEC 1914 (Cable cleats for electrical installations). The Phoenix range is specifically designed for the installation of Fire Protection (FP) rated cables. Precision engineered from Type 316L stainless steel with single bolt fixing, Phoenix Cable Clamps are available in 11 sizes to suit single cables from 10mm to 65mm in diameter. To prove their fire resistance these cleats were used to secure a fire rated cable during a series of tests in accordance with BS 5839-1:2002, Section 26. 2d.

ALPHA ™

PHOENIX ®

Industrial Cable Clamps – Black LLDPE (B)

VULCAN+ ™

Standard Duty Compact Stainless Steel Cable Cleat, for cables in single, trefoil or quad formation.

The Ellis Vulcan+ cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is available in a range of sizes with range taking ability to suit single cables, cables in trefoil formation or cables in quad formation. The frame of the cleat is manufactured from corrosion resistant 316L grade stainless steel, the cable is supported by a liner manufactured from a low smoke zero halogen (LSOH) material. The closure fixings are manufactured from A4-70 grade stainless steel. Vulcan+ can be fixed to the supporting structure by either one or two M10 fixings. Non standard cleat designs can be supplied upon request.

EMPEROR ™ SINGLE & TREFOIL

Heavy Duty Compact Stainless Steel Cable Cleat, for cables in single or trefoil formation.

The Ellis Emperor cable cleat has been designed, developed, tested and manufactured in accordance with IEC 61914 (cable cleats for electrical installations). The cleat is available in a range of sizes with range taking ability to suit single cables or cables in trefoil formation. The frame of the cleat is manufactured from corrosion resistant grade 316L stainless steel, the cable is supported by a liner manufactured form a low smoke zero halogen (LSOH) material. The closure fixings are manufactured from grade A4-70 stainless steel. The Emperor can be fixed to the supporting structure by either two M10 fixings or one M12 fixing. Non standard cleat designs can be supplied upon request.

PEGASUS ™ – NON METALLIC CABLE HANGERS

The hanger material is a high strength nylon especially formulated to meet the requirements of the London Underground 1-085 specification. Independent testing is carried out to prove conformance to the standard including toxicity, limited oxygen and smoke emission. The extruded aluminium spine is marine grade and its specially shaped profile has been designed to offer high strength rigidity. Resistance to ‘self-corrosion’ and ‘bi-metallic corrosion’ are considered in the design and the non-metallic nature of the materials ensures that corrosion would not occur even in the harshest of environments.

The world’s most trusted labeller, now optimized for mobile.

Unique features

Top applications

Wire and cable

Sleeves, self-lam, wire wraps, flag labels, cable markers

DataCom

Self-lam, flag labels, patch-panel, face plate labeling

Electrical

Sleeves, self-lam, wire wraps, cable markers, flag and raised panel

Lean / 5S

Rack, gauge, part bin labeling

General identification

Directional marking, equipment labeling

• Prints labels with the Express Labels Mobile App, for iOS and Android

• Withstands 1.8 m drops, is crush-resistant to 115 kg and has militarygrade shock and vibration resistance per MIL-STD-810G Method 5.16.6 SA4.6.5

• Advanced battery technology for all-day use; prints 300 labels on a full charge

• 11 label design guides, 22 barcode symbologies, 85 fonts, 31 languages and over 1,400 symbols

• Imports data from spreadsheets and allows label saving and label sharing

• 90+ cartridges, made from 12 unique materials, with continuous and pre-sized label widths between 6.4 mm to 19.1 mm

Label output

Speed: Prints up to 100 labels / day at 15.2 mm per second

Quality: 203 dpi print resolution

Optional accessories

• Attachable magnet for hands-free label creation

• Hard and soft carrying cases to protect your label printer and keep accessories organized

Available kits

Printer with accessory kit

• Belt clip provides hands-free transport

• Power brick charges label printer, phone or tablet

Popular self-laminating vinyl, shrink sleeves, wire wraps, BradyGrip print-on hook material and indoor/outdoor vinyl are offered as pre-sized labels or continuous tape in enclosed cartridges.

Belt clip provides hands-free transport

Tough, industrial labeler designed to survive and thrive on any worksite.

Get more done all day long with 300 label prints from one full battery charge

Fast and dependable Bluetooth connection

The tough smart labeller that belongs on

any job site

Unique features:

Top applications

Wire and cable

Sleeves, self-lam, wire wraps, flag labels, cable markers

DataCom

Self-lam, flag labels, patch-panel, face plate labeling

Electrical

Sleeves, self-lam, wire wraps, cable markers, flag and raised panel

Lean / 5S

Rack, gauge, part bin labeling

General identification

Directional marking, equipment labeling

• Auto-format labels with 11 pre-loaded application design guides for rapid and accurate label creation

• Military-grade shock and vibration resistance per MIL-STD-810G Method 5.16.6 SA4.6.5 — drop tested to withstand the roughest job sites

• Easy-to-access hot key and menus for fast label creation, on-board symbols and the ability to store 12 label files up to 2MB

• Ability to create UPC, DataMatrix and QR Codes

• Onboard label material gauge that tracks the amount of material left in the cartridge

• 90+ compatible easy-to-load cartridges with continuous and pre-sized label widths between 6.4 mm to 19.1mm

Label output

Speed: Prints up to 100 labels / day at 10.2 mm per second

Quality: 203 dpi print resolution

Optional accessories

• Multi-functional tool that includes a heavy-duty magnet, retractable stand and flashlight

• Attachable magnet for handsfree label creation

Available kits

Printer with accessory kit

• Rechargeable Li-Ion battery pack

• Hard and soft carrying cases to protect your label printer and keep accessories organized

Brady identifies and protects premises, products and people with high performance labels, printers, software, safety and facility identification products, precision die-cut parts and Lockout/Tagout products.

At Brady, commitment to performance drives our business decisions every day. We design our products and solutions to perform in ways that others simply don't. Our people perform in ways that regularly exceed expectations. And our focus and discipline as a company works toward solid, long-term performance for our customers and shareholders. In short, the essence of Brady, and subsequently our brand is centered on 'performance'.

Hand-held Printer

Simple to operate and quick to print, the BMP21 is labelling tool specifically designed for industrial environments like voice/ datacom, electrical and general industrial.

Print one label, knowing it'll adhere and stay legible for years to come.

REF BMP21 BMP21 KIT Electrical

Self-Laminating Vinyl (for BMP21)

DESCRIPTION REF

19.5w x 4.26m cont M21-750-427

Shrink Sleeve (for BMP21)

DESCRIPTION REF

5.97w x 2.13m cont M21-125-C-342

Vinyl (for BMP21)

DESCRIPTION REF

9.53w x 6.40m cont M21-375-595-wt

Mobile Label Printer

Simple to operate and quick to print, the BMP21 is labelling tool specifically designed for industrial environments like voice/ datacom, electrical and general industrial.

Print one label, knowing it'll adhere and stay legible for years to come.

REF BMP71

(for BMP71)

DESCRIPTION REF

25.40w x 9.53 write on height M71-19-427

Recommended Ribbon M71-R4300

Shrink Sleeve (for BMP71)

DESCRIPTION REF

225.78w X 16.38 height M71-375-1-342

Recommended Ribbon M71-R4300

DESCRIPTION REF

9.53w x 4.80m cont M21-375-499

DESCRIPTION REF

50.8mm x 15mm M71C2000595GN

Recommended Ribbon M71-R6000

DESCRIPTION REF 60w X 10h yellow BM71H-1-7643-YL

Recommended Ribbon M71R6000

IDEAL INDUSTRIES

Present in the UK since 1992, we have supplied electrical wholesalers and distributors with innovative solutions to meet their customer’s requirements while committing to IDEAL’s core values: strength in relationships and transparency in business.

Our goal is to help you deliver improved installation quality and value for your customers.

You can trust us to offer best in class products across a wide selection of electrical consumables, tools and equipment, all of which have been thoroughly tested and proven.

Over the next couple of pages you’ll find a selection of IDEAL products,but if you are looking for more information, please contact Demesne on +3531-404 7700 or via email: sales@demesne.ie. idealind.com

GEN II LEVER WIRE CONNECTORS

• Innovative levers opening in the opposite direction of insertion point

• Lock in position to avoid accidental loosening/pull out

IDEAL INDUSTRIES

Present in the UK since 1992, we have supplied electrical wholesalers and distributors with innovative solutions to meet their customer’s requirements while committing to IDEAL’s core values: strength in relationships and transparency in business.

Our goal is to help you deliver improved installation quality and value for your customers.

You can trust us to offer best in class products across a wide selection of electrical consumables, tools and equipment, all of which have been thoroughly tested and proven.

Over the next couple of pages you’ll find a selection of IDEAL products,but if you are looking for more information, please contact Demesne on +3531-404 7700 or via email: sales@demesne.ie. idealind.com

GEN II LEVER WIRE CONNECTORS

• Innovative levers opening in the opposite direction of insertion point

• Lock in position to avoid accidental loosening/pull out

Cable Markers – Slide On

DESCRIPTION

.75-4sq Black on Yellow (Reel 1000)

.75-4sq Colour Coded (Reel 1000)

.75-4sq Black on Yellow (Pkt 200)

.75-4sq Colour Coded (Pkt 200) 0 – 9 only

PA13BYR*

PA13CCR*

PA13BYMP*

PA13CCMP*

Kit (PA13) Colour Coded X 4500pcs (0-9,L,N,R,S,T,+,- PAL1CC

6.0-10sq black on yellow (Reel 250)

6.0-10sq black on yellow (pkt 100)

* Replace with letters or numbers

Carrier Strip

DESCRIPTION REF

12 Digit Carrier POH-12

18 Digit Carrier POH-18

Oval Shape for Cable, Black on Yellow (Reel 500)

POK10BYR*

PA24BYR*

PA24BYMP*

Pan-Code Wire Marker Tape On Reels

DESCRIPTION

Dispenser Loaded 0-9

Single Roll Number (Refill)

* Replace with number or letters

Cable Marker Book (Brady)

DESCRIPTION

Book 0-9 PWM-PK-1

Book A-Z, 0-15, +, - PWM-PK-2

Book A-Z, Blank, +, - PWM-PK-12

Cable Markers Push On

DESCRIPTION

0.5-1.5sq (pk 500) numbers

1.5-2.5sq (pk 500) numbers

4.0-6sq (pk 500) numbers

0.5-1.5sq (pk 200) letters & symbols WCL-D1

1.5-2.5sq (pk 200) letters & symbols WCL-D2

4.0-6sq (pk 200) letters & symbols WCL-D3

Simply Replace The ‘-’ With The Letter Or Number You Require In WC Range Above

Cable Marker Accessories

DESCRIPTION REF

Cable Marker Applicator MD10 Nylon 2.8mm Marker Indelible Black 2034.0

Cable Ties, Nylon 6/6

.. denotes: N = Natural, B = Black Other colours on request

Certification and accreditation: UL, CE, ABS, GL

Internal serrations allowing for a positive hold onto cable and pipe bundles. The design of the head guarantees a high tensile strength while allowing a very low insertion force. Material: UL approved polyamide 6.6, 94V-2.

Cable Ties, Metal Detectable Blue

Nylon cable tie with metal content spread throughout. Detectable by standard metal detectors. Blue colour assists in visual detection and reduces the risk of contamination.

Stainless Steel Cable Ties (316) Ball Lok Type

Our stainless steel ties are designed to secure hoses, cables, poles, pipes, and more when harsh environmental conditions may adversely affect the bundling application.

• Used where corrosion, vibration, weathering, radiation, and temperature extremes are a concern.

• Self locking, ball bearing mechanism for quick and easy installation.

• AISI 316 stainless steel for the most corrosive environments.

Temperature range -80° ~ 500° (-112° ~ 932°).

Cable Ties

The extended pawl allows for simple and quick release of the ties. One-piece construction for consistent performance and reliability.

Permits easy release and re-use where changes are anticipated during development, production or servicing in the field.

Material: Polyamide 6,6, UL94 V2.

Cable Ties Coloured

Certification and accreditation: UL, CE, ABS, GL

Internal serrations allowing for a positive hold onto cable and pipe bundles. The design of the head guarantees a high tensile strength while allowing a very low insertion force.

Cable Ties, Marker Type

Tensioning tool available on request

Cable Tie Base Mounts

Push On Crimps

V70FH007001 Ins. Crimps Red Push on 2.8mm (pack 100)

V70FH007003 Ins. Crimps Red Push on 4.8mm (pack 100)

V70FH007005 Ins. Crimps Red Push on 6.3mm (pack 100)

V70FH007008

V70FH007010

V70FH007011

Crimps Blue Push on 4.8mm (pack 100)

Crimps Blue Push on 6.3mm (pack 100)

Crimps Yellow Push 6.3mm (pack 100) V70FP007001 Ins. Crimps Red Piggyback 6.3mm (pack 100)

V70FP007002

V70FS007005

V70FS007010

Crimps Blue Piggyback 6.3mm (pack 100)

Crimps Red Push on male 6.3mm (100)

Crimps Blue Push on male 6.3mm (100) V70FS007011

Crimps Yellow Push on male 6.3mm (100) V70FV007003

Ins. Crimp Red Push on 2.8mm (pack 100) V70FV007005

Fork Crimps

Ring Crimps

REF DESCRIPTION

V70RK007002 Ins. Crimps Red Ring 3.2mm (pack 100)

V70RK007003 Ins. Crimps Red Ring 3.7mm (pack 100)

V70RK007004 Ins. Crimps Red Ring 4.3mm (pack 100)

V70RK007005 Ins. Crimps Red Ring 5.3mm (pack 100)

V70RK007006 Ins. Crimps Red Ring 6.5mm (pack 100)

V70RK007007 Ins. Crimps Red Ring 8.5mm (pack 100)

V70RK007008 Ins. Crimps Red Ring 10mm (pack 100)

V70RK007010 Ins. Crimps Blue Ring 3.7mm (pack 100)

V70RK007011 Ins. Crimps Blue Ring 4.3mm (pack 100)

V70RK007012 Ins. Crimps Blue Ring 5.3mm (pack 100)

V70RK007013 Ins. Crimps Blue Ring 6.5mm (pack 100)

V70RK007014 Ins. Crimps Blue Ring 8.5mm (pack 100)

V70RK007015 Ins. Crimps Blue Ring 10mm (pack 100)

V70RK007022 Ins. Crimps Yellow Ring 12mm (pack 100)

V70RK007017 Ins. Crimps Yellow Ring 4.3mm (pack 100)

V70RK007018 Ins. Crimps Yellow Ring 5.3mm (pack 100)

V70RK007019 Ins. Crimps Yellow Ring 6.5mm (pack 100)

V70RK007020 Ins. Crimps Yellow Ring 8.5mm (pack 100)

V70RK007021 Ins. Crimps Yellow Ring 10mm (pack 100)

Pin Crimps

REF DESCRIPTION

V70SS007001 Pre-Ins. Terminal Red Pin 12mm (pack 100)

V70SS007002 Pre-Ins. Terminal Blue Pin 12mm (pack 100)

V70SS007003 Ins. Crimps Yellow Pin 14mm (pack 100)

REF DESCRIPTION

V70SV007001 Ins. Crimps Red Butt 1.5mm (pack 100)

V70SV007002 Ins. Crimps Blue Butt 2.5mm (pack 100)

V70SV007003 Ins. Crimps Yellow Butt 6mm (pack 100)

REF DESCRIPTION

V70RS007001 Ins. Crimps Red Male Bullet 4mm (pack 100)

V70RV007001 Ins. Crimps Red Female Bullet 4mm (pack100)

V70RS007002 Ins. Crimps Blue Male Bullet 5mm (pack 100)

V70RV007002 Ins. Crimps Blue Female Bullet 5mm (pack 100)

Butt Crimps Bullet Crimps Butt splices (Heat Shrink)

Electrical

Copper tubular cable lugs and connectors

THE CLASSICCOPPER TUBULAR CABLE LUGS

Not every product becomes a classic at Klauke. Only the best ones. Tubular cable lugs made from high-quality electrolytic copper have been part of the Klauke standard range since 1960. The hallmarks: We handle all phases, from development to production. We monitor each and every step. The result: The certified classic remains - in every version.

In brief

` Everything from a single source, from development to production

` Best electrical conductivity thanks to electrolytic copper

` Available for all cross sections and in many special versions

` Tested to international standards

Copper Lug Terminal (NF Series)

Specialized lugs available on request ie. angled, two hole, or narrow palm etc

Copper Butt Splice

All Lugs and Splices are Bell mouth for easier insertion of flexible cables. See pages 124 & 127 for crimping tools.

DESCRIPTION

Tubular Cable Lugs 6-300sq Available

Narrow Palm Cu lugs (SG Series)

DESCRIPTION

Tubular Cable Lugs 35-300sq Available

Copper Lug Teriminal (R Series)

Stripping Machines

Dismantling Machine Insulated Ring Terminals

Dismantling Machine

Crimper for Loose Contacts Hand Tool Operator

Stripper-crimper for AEH on Reel

Universal Stripper-crimper for Ferrules on Reel

BOOTLACE FERRULE REELS (For machines)

V30MA000033

V30MA000034

V30MA000036

V30MA000037

V30MA000038

V30MA000039

V30MA000040

V30MA000041

V30MA000030

V30MA000031

Bootlace Ferrule Strips for Jokari Quadro

V30MA000073 S115

V30MA000079 S140

V30MA000069 S310

V30MA000071 S315

V30MA000074 S320

Bootlace Ferrules 0.5 8mm White Reeled (5K)

Bootlace Ferrules 0.5 8mm Orange Reeled (5K)

Bootlace Ferrules 0.75 8m White Reeled (5K)

Bootlace Ferrules 0.7 8mm Blue Reeled (5K)

Bootlace Ferrules 1.0 8mm Red Reeled (5K)

Bootlace Ferrules 1.0 8m Yellow Reeled (5K)

Bootlace Ferrules 1.5 8mm Black Reeled (5K)

Bootlace Ferrules 1.5 8mm Red Reeled (5K)

Bootlace Ferrules 2.5 8mm Blue Reeled (3K)

Bootlace Ferrules 2.5 8mm Grey Reeled (3K)

Bootlace Ferrules Quadro Tool 0.75sq-8mm Blue

Bootlace Ferrules Quadro Tool 2.5sq-8mm Grey

Bootlace Ferrules Quadro Tool 0.5sq-8mm White

Bootlace Ferrules Quadro Tool 0.75sq-8mm Grey

Bootlace Ferrules Quadro Tool 1.0sq-8mm Red

Crimper for Ferrules on Reel

Stripper Crimper for Loose Ferrules

Universal Stripper-crimper for Loose Ferrules

Universal Stripper-Crimper

Dereeler

V30MA000076 S330

V30MA000078 S340

Bootlace Ferrules Quadro Tool 1.5sq-8mm Black

Bootlace Ferrules Quadro Tool 2.5sq-8mm Blue

Crimper for Ferrues on Reel Strippe AEH on reel

PRODUCT CODE

Single Bootlace Ferrules

V30AE001662

V30AE000003

V30AE000006

V30AE000005

V30AE006224

V30AE000038

V30AE000537

V30AE004816

V30AE000041

V30AE000009

V30AE000045

V30AE000013

V30AE000048

V30AE000016

V30AE000051

V30AE000052

V30AE000538

V30AE000550

V30AE000054

V30AE000055

V30AE000539

V30AE000056

V30AE000025

V30AE000540

V30AE000541

V30AE000027

V30AE000554

V30AE000029

V30AE000542

V30AE000555

V30AE000543

V30AE000031

V30AE000033

V30AE000067

V30AE000070

V30AE001658

V30AE001659

DESCRIPTION

Ferrules 0.25sq-6mm Violet (Pack 500)

Ferrules 0.34sq-6mm Green (Pack 500)

Ferrules 0.5sq-8mm Orange (Pack 500)

Ferrules 0.5sq-6mm Orange (Pack 500)

Ferrules 0.5sq-12mm White (Pack 500)

Ferrules 0.5sq-8mm White (Pack 500)

Ferrules 0.75sq-8mm Blue (Pack 500)

Ferrules 0.75sq-12mm Blue (Pack 500)

Ferrules 0.75sq-8mm Grey (Pack 500)

Ferrules 0.75sq-8mm White (Pack 500)

Ferrules 1.0sq-8mm Red (Pack 500)

Ferrules 1sq-8mm Yellow (Pack 500)

Ferrules 1.5sq- 8mm Black (Pack 500)

Ferrules 1.5sq-8mm Red (Pack 500)

Ferrules 1.5sq-18mm Black (Pack 500)

Ferrules 2.5sq-8mm Blue (Pack 500)

Ferrules 2.5sq-8mm Grey (Pack 500)

Ferrules 2.5sq-18mm Grey (Pack 500)

Ferrules 2.5sq-18mm Blue (Pack 500)

Ferrules 4.0sq-10mm Grey (Pack 500)

Ferrules 4sq-10mm Orange (Pack 500)

Ferrules 4.0sq-12mm Grey (Pack 500)

Ferrules 6.0sq-12mm Black (Pack 100)

Ferrules 6sq-12mm Green (Pack 100)

Ferrules 10sq-12mm Brown (Pack 100)

Ferrules 10sq-12mm Ivory (Pack 100)

Ferrules 10sq-18mm Brown (Pack 100)

Ferrules 16sq-12mm Green (Pack 100)

Ferrules 16sq-12mm Ivory (Pack 100)

Ferrules 16sq-18mm Ivory (Pack 100)

Ferrules 25sq-16mm Black (Pack 50)

Ferrules 25sq-16mm Brown (Pack 50)

Ferrules 35.0sq-16mm Beige (Pack 50)

Ferrules 35.0sq-16mm Red (Pack 50)

Ferrules 50sq-20mm Blue (Pack 50)

Ferrules 70sq-20mm Yellow (Pack 25)

Ferrules 95.0sq-25mm Red (Pack 25) Single Bootlace Ferrules Smaller Pack

V30AE000079

V30AE000619

V30AE000081

V30AE000082

V30AE000620

V30AE000621

Insulated End Terminals White 0.5-8mm (100)

Insulated End Terminals Blue 0.75-8 (100)

Insulated End Terminals Red 1.0-8mm (100)

Insulated End Terminals Black 1.5-8mm (100)

Insulated End Terminals Grey 2.5-8 (50)

Insulated End Terminals Orange 4-10 (50) Twin Bootlace Ferrules

V30AE001134

V30AE001145

V30AE003106

V30AE000607

V30AE000606

V30AE000609

V30AE000608

V30AE000625

V30AE000623

V30AE000738

V30AE000611

V30AE003115

V30AE003116

V30AE001148

V30AE003118

V30AE003120

V30AE001141

V30AE003122

V30AE001143

V30AE003124

Uninsulated Bootlace Ferrules

V30AE009051

V30AE009053

V30AE009055

V30AE009059

V30AE009068

V30AE009071

V30AE009072

V30AE009073

V30AE009075

V30AE009079

V30AE009650

Bootlace Ferrule Kits

Ferrules 2x0.5sq-8mm Orange (Pack 500)

Ferrules 2x0.5sq-8mm White (Pack 500)

Ferrules 2x0.75sq-8mm Blue (Pack 500)

Ferrules 2x0.75sq-8mm Grey (Pack 500)

Ferrules 2x0.75sq-8mm White (Pack 500)

Ferrules 2x1sq-8mm Red (Pack 500)

Ferrules 2x1.0sq-8mm Yellow (Pack 500)

Ferrules 2x1.5sq-8mm Black (Pack 500)

Ferrules 2x1.5sq-8mm Red (Pack 500)

Ferrules 2x1.5sq-12mm Black (Pack 500)

Ferrules 2x2.5sq-10mm Blue (Pack 500)

Ferrules 2x2.5sq-10mm Grey (Pack 500)

Ferrules 2x2.5sq-12mm Grey (Pack 250)

Ferrules 2x4.0sq-12mm Grey (Pack 100)

Ferrules 2x4sq-12mm Orange (Pack 100)

Ferrules 2x6sq-12mm Green (Pack 100)

Ferrules 2x10.0sq-12mm Ivory (Pack 100)

Ferrules 2x10sq-12mm Brown (Pack 100)

Ferrules 2x16.0sq-16mm Green (Pack 50)

Ferrules 2x16sq-16mm Ivory (Pack 50)

End Terms Uninsul 0.75-10 (1000)

Ferrules Uninsulated 1.0sq-10mm (Pack 1000)

Ferrules Uninsulated 1.5sq-10mm (Pack 1000)

Ferrules Uninsulated 2.5sq-10mm (Pack 100)

Ferrules Uninsulated 6.0sq-15mm (Pack 100)

Ferrules Uninsulated 10.0sq-15mm (Pack 500)

Ferrules Uninsulated 10.0sq-18mm (Pack 500)

Ferrules Uninsulated 16sq-12mm (Pack 500)

Ferrules Uninsulated 16sq-18mm (Pack 100)

Ferrules Uninsulated 25.0sq-18mm (Pack 100)

Ferrules Uninsulated 35sq-20mm (Pack 100)

Ferrule

Single Bootlace Ferrules

Twin Bootlace Ferrules

Cable Glands (Nylon IP68) (All Nylon Glands supplied with Locknut)

DESCRIPTION REF

METRIC NYLON CABLE GLANDS

Cable Gland 12mm

Cable Gland 16mm

Cable Gland 20mm

Cable Gland 20mm

Cable Gland 25mm

Cable Gland 32mm

Cable Gland 40mm

Cable Gland 50mm

Cable Gland 63mm

Cable Gland 20mm

DCGM12GRY (W) 3-6.5mm Grey 10/100

DCGM16GRY (W) 5-10mm Grey 10/100

DCGM20GRY (W) 6-12mm Grey 10/100/1200

DCGM20LGRY (W) 10-14mm Grey 10/100/1200

DCGM25GRY (W) 13-18mm Grey 10/50/600

DCGM32GRY (W) 18-25mm Grey 10/30

DCGM40GRY (W) 22-32mm Grey 5/10

DCGM50GRY (W) 30-38mm Grey 5/10

DCGM63GRY (W) 34-44mm Grey 5/10

DCGM20LBLACK 10-14mm Black 10/50/1200

RED FIRETUFF NYLON CABLE GLANDS

Cable Gland 20mm (firetuff) Red DCGM20LRED 10-14mm Red 10/50/1200

Cable Gland 25mm (firetuff) Red DCGM25RED 13-18mm Red 10/50/600 QUICK FIT M20 NYLON CABLE GLANDS

Cable Gland 20mm (quick fit) DCGPATM20GRY 6-12mm Grey 10/100

Cable Gland 25mm (quick fit) DCGPATM25GRY 13-18mm Grey 10/100 PG NYLON CABLE GLANDS

Cable Gland PG 7 DCGPG7GRY

Ventilation Plug for Enclosures SBVPE-11

Blue available on request

Cable

All cable glands have neoprene insert.

BRM cable Entry Plates

Glands (Nickel plated brass IP68)

BMEM Silflex Gland

BMBC Nickel Plated Glands

Push and Tighten Gland

Ventilation Plug

Red Fire Tuff Gland

Brass Cable Glands (BW)

Brass Cable Glands (CW)

Brass Cable Glands (E1W)

BW Brass Cable Glands c/w LSF Shrouds

CW Brass Cable Glands c/w LSF Shrouds

Cold Shrink End Caps/Cold Shrink Tubes

DESCRIPTION SIZE RANGE REF

COLD SHRINK END CAPS

FiloShrinkCE - 1 (Length 55mm) Range 11.6-20.9mm 506700

FiloShrinkCE - 2 (Length 60mm) Range 15.9-30.1mm 506710

FiloShrinkCE - 3 (Length 60mm) Range 23-54mm 506720

FiloShrinkCE - 4 (Length 65mm) Range 45.5-84.3mm 506730

COLD SHRINK TUBES

FiloShrinkCT - FS25-8 (203x25) Range 10-20mm 506500

FiloShrinkCT - FS04-9(229x104) Range 43-94mm 506590

FiloShrinkCT - FS40-12 (305x40) Range 17.5-33mm 506540

FiloShrinkCT - FS40-18 (457x40) Range 17.5-33mm 506520

FiloShrinkCT - FS50-18(457x150) Range 55-135mm 506610

FiloShrinkCT - FS53-12(305x53) Range 25-46mm 506560

FiloShrinkCT - FS53-14(355x53) Range 25-46mm 506570

FiloShrinkCT - FS53-6 (152x405) Range 25-46mm 506550

FiloShrinkCT - FS70-18(457x70) Range 32-63mm 506630

FiloShrinkCT - FS70-6(152x70) Range 32-63mm 506580

Cable Repair Kit

Straight Joint Kit-Snaplock

DESCRIPTION REF

1.5-6sq Straight 6 10-16sq Straight16 25sq Straight25 35-70sq Straight35/70 70-95sq Straight95 95-120sq Straight120 150-185sq Straight185 240-300sq Straight300

Connector & Earth Kit

DESCRIPTION REF to suit Straight 6 6EKCON to suit Straight 16 16EKCON to suit Straight 25 25EKCON to suit Straight 35/70 35/70EKCON to suit Straight 95 95EKCON to suit Straight 120 120EKCON to suit Straight 185 185EKCON to suit Straight 300 300EKCON

Y Branch Joint Kit (c/w Earth Kit & Connectors)

DESCRIPTION REF

1.5-6sq MB6EKCON

10-16sq MB16EKCON

25-35sq MB35EKCON

Polyurathene Resin for Cable Jointing

DESCRIPTION REF

1200ml Bag RESIN200

450ml Bag RESIN450 1000ml Bag RESIN1000

Duct & Fire Sealing Systems

MD2 DUCT SEALING SYSTEM:

DESCRIPTION REF

50mm

Gellseal Resin (Magic Gell)

DESCRIPTION REF 250ml GELLRESIN250 1000ml GELLRESIN1000

MD4 SEALING SYSTEM:

DESCRIPTION REF

MD2/50 110mm

125mm

MD2/110

MD2/125 160mm

MD2/200

MD2/160 200mm

MD3 DUCT SEALING SYSTEM:

DESCRIPTION REF 50mm

MD3/50 75mm MD3/75 110mm

75-95mm MD4/75-95

95-125mm MD4/95-125

125-160mm MD4/125-160

FILOSEAL+ / DUCT SEALING SYSTEM

DESCRIPTION REF 75-125mm Filoseal+75/125

150-200mm

Filoseal/125/160(200) 110mm

Filoseal+HD110 160mm

MD3/110 160mm

200mm

MD3/160

MD3/200 220mm

MD3/220

MD3/250

Filoseal+HD160 110mm

Filoseal+HDfire 160

Filoseal+HDfire 110 160mm

ADDITIONAL ACCESSORIES:

DESCRIPTION MD+ Fire Sealant Tri-Flexible Foam 160mm Foam Flange

Heat and Cold Shrink Technology

DSG-Canusa is a division of Shawcor, a global growth-oriented energy services company. We offer a complete line of heat shrink tubing and cold-applied accessories to meet the unique requirements of your specific industry and application.

(2:1) Heatshrink Polyolefin Sleeving Full Reels

(3:1) Heatshrink Polyolefin Sleeving (Green/Yellow)

For other temperatures, materials, shrink-ratios and dimensions pleases ask us as we use DSG´s stock and rapid shipping services.

* Replace with colour as required: black, blue, brown, grey, red, yellow.

(2:1)

Heatshrink Kits –Polyolefin, Length 1.22m

SHRINKAGE (MM) REF PK QTY

6.4 - 3.2 H64 * 20

9.5 - 4.8 H95 * 20 19.0 - 9.5 H190 * 10 25.4 - 12.7 H254 * 10

* Replace with colour as required: black, blue, brown, grey, red, yellow.

Operating Temp: -55°C to 135°C. Shrink Temp: 110°C

Heat Shrink HandyBox

6.4 - 3.2

(3:1)

Heatshrink Kits, Polyolefin, Length 1.22m (Green/Yellow)

SHRINKAGE (MM) REF PK QTY

- 2.0 IGY64 20 12.7 - 4.0 IGY127 20

- 8.0 IGY254 10

(3:1) Meltable Thick Wall Adhesive Polyolefin, Length 1.22m

6mtr 9.5 - 4.8

Replace ** with colour as required BK-Black BL-Blue BR-Brown GR-Grey GY-Green/Yellow

Heat Shrink Gun

5mtr

4mtr

3mtr

SHRINKAGE (MM) REF PK QTY 4.5 - 1.5 IAKT 4.5/1.5 25 6.0 - 2.0

Cable Sleeves (Expandable Sleeves)

Cable

Cable

Cable Sleeves A4FM 02010076013

Cable Sleeves A4FM 02010076010

Cable Sleeves A5 02010077002

Cable Sleeves A5 02010077006

Cable Sleeves A5 02010077013

Cable Sleeves A5 02010077010

Sleeve Expander for A2, A3 Sleeves KP2

Sleeve Expander for A3, A4, A5 Sleeves KP3

Heat Shrink Box Kits

Very often people tend to use a cable gland even though they do not quite need one, but do so out of habit, lack of substitutes or knowledge of alternative products. This is where our grommets are much more beneficial to use, with no need for threaded holes or a lock-nut, ease and fast installation, the installation surface can even be rounded – the grommet will adjust itself to it.

Grommets

TRS CABLE GROMMET:

RUTASEAL is a cable seal that is very simple to use and demands no tools, which in turn means lower work cost. It requires no screwdriver or scissors to make the hole, which otherwise would endanger the IP Class seal.

RUTASEAL rubber grommet is SEMKO tested for IP65 internally and externally.

TSS CABLE GROMMET:

CABLE GROMMET:

Klikseal is a revolutionary two-component grommet with cable anchorage. Apart from the cable anchorage, Klikseal is compact, self-adjusting to its surrounding wall thickness, click-fixed in place, has a membrane seal, is waterproof, requires very little effort to install with its collapsible outer membrane, and saves up to 90% of your time.

Klikseal

TRS Rutaseal Cable Grommet

TSS Cable Grommet

Klikseal

TRS Rutaseal

Customised Flange Plates Available

TSS

TSS Multi

Klikseal

Brass Reducers

Cavity Fixings

Blanking Plug

Locknuts – Brass Earth Clamps

Banding

Earth Nuts

Steel Raised Screws

Brass Bushings

Locknuts – Galvanised

Screws – Brass

ELECTRICAL EQUIPMENT FOR EXPLOSIVE ATMOSPHERES

ATEX Industrial Plugs & Sockets

DESCRIPTION

Zone 1 16 Amp 3 Pin

Zone 1 16 Amp 3 Pin

Zone 1 16 Amp 3 Pin

Zone 1 16 Amp 3 Pin

Zone 1 16 Amp 3 Pin

Plug

Plug

Socket

Socket

Coupler

ATEX Control Stations

DESCRIPTION

ATEX Emergency Stop Push Button 1n/c

U41W2D3 On/Off 16 Amp Control Switch

U41W2H3 Stop/Start Control Station

ATEX Terminal Enclosures

DESCRIPTION

GRP terminal box c/w 2 x M20 bottom entry 6x4mm 2 : 4 x 4sq power + 2 x 4sq earth

GRP terminal box c/w 2 x M20 bottom entry 12x4mm2 : 10 x 4sq power + 2 x 4sq earth

Zone 1&2 16A 2 Pole Switch, 2 x M20 bottom entry

Zone 1&2 20A

Areamaster Series - LED Floodlight

DESCRIPTION

9000 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

14000 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

18500 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

23000 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

28500 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

36000 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

FELED Series - LED Luminaire

DESCRIPTION

3050 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

4200 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

5300 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

7200 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

FNLED Series - LED Luminaire

DESCRIPTION

3300 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

4300 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

5100 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

7000 lm - 120-277 Vac, 50/60 Hz - 170-300 Vdc

110-254V, Z1, Z2, Z21, Z22

Set of 2 Fixing Brackets

Zone 1 2x18w EX e Flourescent

Zone 1 2x36w EX e Flourescent

2696 lumens, 16W, T5, -40-+60°C

5230 lumens, 35W, T5, -40-+60°C

U42W2A5A9

FEB258BUSN

CHA-PRGE/218/BI

PRXB/02L/LE

PRXB/05L/LE 2696 lumens, 19W, T5, -25-+60°C

5230 lumens, 38W, T5, -25-+60°C

PRXB/02L/LE/EM

PRXB/05L/LE/EM

JBEP121209AE07

JBEP171709AE09

NEO X

The Next Generation in Hazardous Area LED Lighting

• -55°C to +55°C full ambient range

• Range of outputs from 1500lm up to 4300lm

• Effective and compact alternative to a linear luminaire

• RCG entries and hot swap battery options available

• Exit sign kit option available

Zone 1 Bulkhead Luminaire

EVOLUTION X

The Next Generation in Hazardous Area LED Lighting

• 120,000 maintenance free hours at 25°C

• Highly Energy Efficient >106lm/W

• Temperature Range -55°C to +60°C

• Three lumen output options: 20,000, 30,000, 40,000

• 5000k 4000k 3000k available at 80 CRI

• Asymmetric optic option - minimising light pollution

Long Life and Low Maintenance

Zone 1 Floodlight... Evolution X

Dimmable allround panel with selectable colour temperature

SKY OP

Min. installation dimensions: 600x600x70mm

Selectable colour temperature via DIP-switch ColourTemp

Opal anti-glare shield

Comes complete with connection box or 2m pre-assembled cord set

Comes with Q-Box Mini, or Linect - a universal quick connection system

Spacer frame and cover plate available as accessory

SKY MP

Min. installation dimensions: 600x600x70mm

Selectable colour temperature via DIP-switch ColourTemp

Microprismatic anti-glare shield

Meets display screen and UGR requirements (UGR<19 office) under standard conditions

Comes complete with connection box or 2m pre-assembled cord set

Comes with Q-Box Mini, or Linect - a universal quick connection system

Spacer frame and cover plate available as accessory

OPTIC G2 QUICK ISO 6 PACK

Replaceable LED and driver

Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster

Can be installed both indoors and outdoors

Approved for installation directly against insulation

Min. installation dimensions: 170x120x38mm

Pack includes 6 luminaires with mains dimmable drivers

BUILTLUMINAIRES FORTHE FUTURE

HIGHLITE IP65

Efficient Highbay luminaire, for heights up to 25m

High lumen output and very good efficiency

With replaceable driver, 3m connecting cable and chain for suspension, including snap hook

Accessories available to change the look of your luminaire and for ceiling or wall installation

SCOUT G2

Highly efficient floodlight family with efficiency over 140lm/W 80x150° asymmetric light distribution

Easily installed with Ceiling/Wall bracket

Adjustable lumen output and wattage via DIP-switch Power (Scout G2 XS) Comes complete with integrated dimmable driver and 2m rubber cable Accessories for endless areas of application

BLITZDUCTORconnect

protects measuring and control circuits as well as bus and telecommunication systems.

As a universal combined lightning current and surge arrester, now also suitable for protecting terminal equipment. The optional remote signalling unit reports the status of the arresters in real time.

ƒ Push-in technology

Easy installation without tools

ƒ Integrated measuring sockets

Voltage measurement directly on the module

ƒ LifeCheck

Functional or not?

See the arrester status at a glance

ƒ secR module locking

Stays put even in case of vibrations

Easy and safe removal of individual modules

ƒ Signal disconnection / protection against polarity reversal

Easy maintenance by pulling the arrester module, turning it 180° and plugging it into the base part again

Release button

Connection line

Measuring sockets For easy maintenance

Fail-open failure mode

The signal remains available

secR technology

Safe and precise removal of the module

DEHN protects.®

Surge protection

Red/Line® series for power supply information technology, measuring installation into buildings are

portfolio includes the Red/Line® series for power supply Yellow/Line series for data, information technology, measuring Surge protective devices for installation into buildings are into the following categories: that are capable of discharging lightning currents of 10/350 µs, lightning current arresters. Fully coordinated SPD’s utilizing the technology protect against direct lightning currents. coordinated surge arresters which protect against overvoltages surges, referred to as surge arresters. the latest European EN 61643 standards for surge protection. and worldwide unique portfolio makes us a leading surge variety of national and international patents and awards continuing success of our activities and the quality of our protects.®

Safe: secR module locking and fail-safe function ensure high system availability

Robust: Lightning current carrying capability of

provides optimal system protection

Push-in connection terminals

45° inclined, up to 2.5 mm2

Earthing contact 35 mm DIN rail

Signal disconnection / protection against polarity reversal

Easy maintenance by pulling the arrester module, turning it 180° and plugging it into the base part again

Remote monitoring

Thanks to optional remote signalling transmitter and receiver unit

LifeCheck indication For visual status recognition

lightning currents of 10/350 µs, coordinated SPD’s utilizing the direct lightning currents. which protect against overvoltages arresters. standards for surge protection. portfolio makes us a leading surge international patents and awards activities and the quality of our

Our surge protection portfolio includes the Red/Line® series for power supply systems and the Yellow/Line series for data, information technology, measuring and control systems. Surge protective devices for installation into buildings are basically classified into the following categories:

• Type 1 arresters that are capable of discharging lightning currents of 10/350 µs, referred to as lightning current arresters. Fully coordinated SPD’s utilizing the latest spark gap technology protect against direct lightning currents.

• Type 2 and Type 3 coordinated surge arresters which protect against overvoltages and switching surges, referred to as surge arresters.

• All products meet the latest European EN 61643 standards for surge protection.

Our comprehensive and worldwide unique portfolio makes us a leading surge protection provider. A variety of national and international patents and awards demonstrates the continuing success of our activities and the quality of our products.

DEHN protects.®

Lightning Protection / Earthing, Safety Equipment

Surge Protection, Lightning Protection Earthing, Safety Equipment

222 Safety Equipment

DEHN (U.K.) LTD.

Mills Industrial Estate West Yorkshire, HD9 4DS 859111 Fax: +44 1484 859 222 www.dehn.co.uk

Unit N8b, Meltham Mills Industrial Estate Meltham, Holmfirth, West Yorkshire, HD9 4DS

Phone: +44 1484 859111 Fax: +44 1484 859 222 info@dehn.co.uk www.dehn.co.uk

www.demesne.ie

DEHNventil®

DEHNshield®

DEHNguard®

GS Yuasa batteries

GS Yuasa batteries provide reliable energy behind the scenes to keep your daily life moving.

From trips to the shops to missions in outer space –we’re the number one battery choice for millions of people around the world.

POWER YOUR PROFITABILITY

Procell® professional batteries were launched in September 2019 as the replacement for Industrial by Duracell®, also known as IBD. Launched to exclusively serve the professional battery market, Procell® is manufactured using superior cell design ensuring the highest quality cell construction. Batteries are tested in order to guarantee the highest quality and reliable performance. Environmental testing is also conducted to ensure dependable and consistent use.

CHOOSING THE RIGHT BATTERY

Procell® engineers, using smart technologies, have developed the world’s first dual portfolio of professional, device specific batteries.

Procell® Intense Power Alkaline batteries with up to 40% greater longevity* in high-drain professional devices, are specifically engineered with a unique power profile to deliver precise pulses of energy. High drain devices have mechanisms that drive motion for example electronic door locks, paper towel dispensers, motors and pumps.

Procell® General Purpose Alkaline batteries are completely redesigned to deliver consistent, reliable and longer lasting* performance in professional devices such as flushometers, glucometers, automatic water taps, digital thermostats, bluetooth trackers and more.

By selecting the right battery to match the power needs of your professional device you will drive the profitability of your business through minimising battery replacement and labour costs and device downtime.

Procell® is supported by a global B2B-dedicated multifunctional team, including R&D, marketing and commercial.

AAX10

AAAX10

CX10

DX10 9V 10 PROCELLINTENSE 9VX10

AAAX10

123X10

Plugs IP44

AMP POLE V REF

16A 2P+E 110V 013-4

16A 2P+E 230V 013-6

16A 3P+E 400V 014-6

16A 3P+N+E 400V 015-6

32A 2P+E 110V 023-4

32A 2P+E 230V 023-6

32A 3P+E 400V 024-6

32A 3P+N+E 400V 025-6

63A 2P+E 230V 0331-6

63A 3P+E 400V 0341-6

63A 3P+N+E 400V 0351-6

Plugs IP67

AMP POLE V REF

16A 2P+E 110V 0132-4

16A 2P+E 230V 0132-6

16A 3P+E 400V 0142-6

16A 3P+N+E 400V 0152-6

32A 2P+E 110V 0232-4

32A 2P+E 230V 0232-6

32A 3P+E 400V 0242-6

32A 3P+N+E 400V 0252-6

63A 2P+E 230V 033-6

63A 3P+E 400V 034-6

63A 3P+N+E 400V 035-6

125A 2P+E 230V 043-6

125A 3P+E 400V 044-6

125A 3P+N+E 400V 045-6

Wall Mounted Sockets IP44

AMP POLE V REF

16A 2P+E 110V 113-4

16A 2P+E 230V 113-6

16A 3P+E 400V 114-6

16A 3P+N+E 400V 115-6

32A 2P+E 110V 123-4

32A 2P+E 230V 123-6

32A 3P+E 400V 124-6

32A 3P+N+E 400V 125-6

63A 2P+E 230V 1331-6

63A 3P+E 400V 1341-6

63A 3P+N+E 400V 1351-6

Wall Mounted Plugs IP44

AMP POLE V REF

16A 2P+E 110V 513-4

16A 2P+E 230V 513-6

16A 3P+E 400V 514-6

16A 3P+N+E 400V 515-6

32A 2P+E 110V 523-4

32A 2P+E 230V 523-6

32A 3P+E 400V 524-6

32A 3P+N+E 400V 525-6

Pack quantity: 16A and 32A - 10 pieces

Pack quantity:

16A and 32A - 10 pieces

63A - 2 pieces

Pack quantity:

16A and 32A - 10 pieces

63A and 125A - 2 pieces

Pack quantity: 16A and 32A - 10 pieces

63A - 2 pieces

Connectors IP44

AMP POLE V REF

16A 2P+E 110V 213-4

16A 2P+E 230V 213-6

16A 3P+E 400V 214-6

16A 3P+N+E 400V 215-6

32A 2P+E 110V 223-4

32A 2P+E 230V 223-6

32A 3P+E 400V 224-6

32A 3P+N+E 400V 225-6

63A 2P+E 230V 2331-6

63A 3P+E 400V 2341-6

63A 3P+N+E 400V 2351-6

Connectors IP67

AMP POLE V REF

16A 2P+E 110V 2132-4

16A 2P+E 230V 2132-6

16A 3P+E 400V 2142-6

16A 3P+N+E 400V 2152-6

32A 2P+E 110V 2232-4

32A 2P+E 230V 2232-6

32A 3P+E 400V 2242-6

32A 3P+N+E 400V 2252-6

63A 2P+E 230V 233-6

63A 3P+E 400V 234-6

63A 3P+N+E 400V 235-6

125A 2P+E 230V 243-6

125A 3P+E 400V 244-6

125A 3P+N+E 400V 245-6

Wall Mounted Sockets IP67

AMP POLE V REF

16A 2P+E 110V 1132-4

16A 2P+E 230V 1132-6

16A 3P+E 400V 1142-6

16A 3P+N+E 400V 1152-6

32A 2P+E 110V 1232-4

32A 2P+E 230V 1232-6

32A 3P+E 400V 1242-6

32A 3P+N+E 400V 1252-6

63A 2P+E 230V 133-6

63A 3P+E 400V 134-6

63A 3P+N+E 400V 135-6

125A 2P+E 230V 143-6

125A 3P+E 400V 144-6

125A 3P+N+E 400V 145-6

Pack quantity: 16A and 32A - 10 pieces

63A - 2 pieces

Pack quantity: 16A and 32A - 10 pieces

63A and 125A - 2 pieces

Pack quantity: 16A and 32A - 10 pieces

63A and 125A - 2 pieces

Appliance Inlets Wall Mounted Plugs IP67

AMP POLE V REF

63A 2P+E 230V 533-6

63A 3P+E 400V 534-6

63A 3P+N+E 400V 535-6

125A 2P+E 230V 543-6

125A 3P+E 400V 544-6

125A 3P+N+E 400V 545-6

Pack quantity: 16A and 32A - 10 pieces; 63A and 125A - 2 pieces

Flanged Sockets Sloping IP44

AMP POLE V REF

16A 2P+E 110V 413-4f8 16A 2P+E 230V 413-6f8 16A 3P+E 400V 414-6f8 16A 3P+N+E 400V 415-6

32A 2P+E 110V 423-4

32A 2P+E

32A 3P+E

423-6

424-6

32A 3P+N+E 400V 425-6

63A 2P+E 230V 4331-6

63A 3P+E 400V 4341-6

63A 3P+N+E

4351-6

Flanged Sockets Sloping IP67

32A 2P+E 110V 4232-4f78

32A 2P+E 230V 4232-6f78

32A 3P+E 400V 4242-6f78

32A 3P+N+E 400V 4252-6f78

63A 2P+E 230V 433-6

63A 3P+E 400V 434-6 63A 3P+N+E 400V 435-6

125A 2P+E 230V 443-6 125A 3P+E 400V 444-6 125A 3P+N+E 400V 445-6

Wall Mounting, Thermoplastic Insulated Distribution Boxes

Socket Box 3 openings 6 mod

Socket Box 4 openings 8 mod

Socket Box 6 openings 16 mod 15851606

Customised Pre-Wired Distribution Enclosures

Customised to your specs... Polycarbonate and Solid Rubber Site Distribution Boxes Available On Request.

Switched Sockets IP67

61132-6

61132-4

61152-6

61252-6

Plugs and Sockets

High-performance electrical connections

Protection from dust, water and high-temperature pressurised water

Choose innovation and reliability

Reduce installation and maintenance costs

Extend the possibilities of use

Joint Circular Connectors

Plug & Play Connectors

THR.209.A4A

Plug & Play Connectors Panel-Mounted

6DB021900

6DB023400

Closure Cap for Plug Connector

Closure Cap for Socket Connector

All parts include product unit, wiring & fixing accessories & an instruction sheet

THB.400.D1AZ

THB.391.A4A.L.Z

THB.381.N3E.Z

THB.387.A4A.L.Z THB.381.B3E.Z

THR.390.S3T

THR.400.S5D

THB.392.R4A.L.R

THB.381.A3E.Z

THB.391.A4A.L.Z

THB.400.D1A.Z

Safe Isolation saves lives

Stay safe, prove dead and lock off with Martindale VIPDLOK kits

LOCKOUT/TAGOUT

LOCKOUT KITS Basic Lockout Kit

This full 6 piece kit includes:

1 x Safety Padlock with unique key; 1 x Yellow MCB lock 10mm clip; 1 x Red MCB lock 6mm clip

1 x Yellow isolation lock; 1 x ‘Equipment Locked Out’ tag which can be written on 1 x Black marker for writing on tags

Lockout Kit

The full 16 piece kit includes:

• Essential for compliance with Health and Welfare at Work Regulations

MARLOKKIT1 1

1 x Padlock with unique key; 1 x Steel safety hasp, with space for up to 6 padlocks; 1 x Green mini MCB lock

• New VI-15000 Voltage Indicator, CATIV 1000V for all installations categories

1 x Yellow mini MCB lock; 1 x Blue medium MCB lock; 1 x Large red MCB lock; 1 x Small red MCB lock;

• Includes industry leading voltage indicator, proving unit, locking off devices and tags

1 x Red fuse lockout breaker; 1 x Yellow fuse lockout breaker; 5 x Danger tags which can be overwritten

1 x Black marker for writing on Danger tags; 1 x TC55 soft carry case Industrial Lockout Kit

The VIPDLOK kits include everything you need to ensure safe isolation The simple solution to safe maintenance

MARLOKKITPRO

• Safe because it’s simple, no batteries, no ranges, no switches

MARLOK7

MARLOK8

Safe Isolation & Voltage Indication

DESCRIPTION REF

Voltage Indicator MARVI13800

50-400V AC/DC

Retractable probes

Heavy duty double

Insulated cable

No batteries required

DESCRIPTION REF

Voltage Indicator & Proving Device MARVIPD138-S

Includes PD440S Proving device

VI13800 Voltage indicator

TC71 Soft carry case

Safe Isolation & Voltage Indication

DESCRIPTION REF

Voltage Indicator & Proving Device Lock Kit MARVIPDLOCK150-S

Inludes VI-15000 50-690V

AC/DC Voltage Indicator

PD690-S 700V Proving Device with PRO Lock Kit

DESCRIPTION REF

Two Pole Voltage Tester MARVT12

AC/DC Voltage

Detection up to 690V & Continuity

DESCRIPTION REF

Two Pole Voltage Tester MARVT25

Two Pole Voltage Tester with LCD Display MARVT28

AC/DC Voltage

Detection up to 690V

Built-in torch

Phase Rotation & Continuity

DESCRIPTION REF

Proving Device 440V AC MARPD440S

Proving Device 50/120/230/440V MARPD440SX

Proving Device 690V AC MARPD690S

Proving Device 50/120/230/400/690V MARPD690SX

Proving units for low and high impedance testers

When ordering please prefix all part numbers with MAR

Safe Isolation & Voltage Indication (contd.)

DESCRIPTION REF

Non-contact Voltage Tester MARNC2

Non-contact Voltage and Magnetic Field Tester MARNC3

200-1000V AC

>10mT NC3 only

Optimised for cable tracing in trunking and voltage detection in sockets

Built-in LED torch

DESCRIPTION REF

Non-contact Voltage Tester MARNC4

12V-1000V AC

50V-1000V AC

50Hz-400Hz

Dual sensitivity, built-in LED torch

Socket Testers

Clamp

Meters

DESCRIPTION REF

AC/DC Electrical Tester 200A MARET4

Dual display

AC/DC Voltage & Current

Resistance & Continuity

Frequency

DESCRIPTION

AC/DC Electrical Tester 200A MARET5

DESCRIPTION REF

Socket Tester MARCP501

Detects 28 fault conditions

As ET4 plus: Temperature

Duty cycle

Capacitance

DESCRIPTION REF

Socket Tester with Sounder MARBZ101

Detects 28 fault conditions

Buzzer for instant pass/fail indication

DESCRIPTION REF

E-Ze Check Xtra™ Non-Trip Earth Loop Impedance Socket Tester MAREZ165

Detects 28 fault conditions plus value ranges for earth loop impedance

DESCRIPTION REF

Martindale EZ365 Socket, Earth Loop & RCD Tester MAREZ365

Red/Green LEDs and buzzer indicate 28 faults Non-trip earth loop impendence test

When ordering please prefix all part numbers with MAR

DESCRIPTION REF

AC Current Only Clamp Meter 40A/300A MARCM51

Pocket sized

High Accuracy

0.01mA Resolution

DESCRIPTION REF

AC Clamp Meter 40A/400A MARCM55

Pocket sized

High Accuracy

AC/DC Voltage

Resistance & Continuity

DESCRIPTION REF

TRMS AC/DC Clamp Meter 60A/600A MARCM79

Pocket sized

AC/DC Current & Voltage Resistance & Continuity

Min/Max Readings Backlit Display

DESCRIPTION

Pocket sized

1µA Current Resolution

Peak hold

Switchable Low Pass Filter Backlit Display

TRMS AC Earth Leakage Clamp 6mA to 60A MARCM69

Multimeters

DESCRIPTION REF

Autoranging Digital Multimeter MARMM39

600V AC/DC

20M�

10A AC/DC

Continuity & Diode Test

Rechargable Pat Tester

DESCRIPTION REF

Advanced Rechargable Pat Tester MARHPAT600

Pass/Fail indicators with test results

Class I, Class II & power lead tests

200mA earth bond test – I.T. Safe

250V / 500V insulation test

DESCRIPTION REF

Advanced Rechargable Pat Tester MARHPAT400

Automatic Class I, Class II & power lead tests

Simple PASS/FAIL indication only

200mA earth bond test – I.T. Safe

250V / 500V insulation test

Leads,

Accessories & Phase Rotation

DESCRIPTION REF

4mm Unfused Test Leads Double Insulated Cable MARTL47

Crocodile clips included

DESCRIPTION REF

4mm Fused Test Leads Double Insulated Cable MARTL57

Crocodile clips included

DESCRIPTION REF

Phase Rotation Indicator MARPC15250

Retractable locking probes, colour coded for ease of use

No batteries required

DESCRIPTION REF

Safe Break Socket Adaptor MARSB13

For fast testing of sockets with direct 4mm connections

Fuse Finders & Thermal Cameras

DESCRIPTION REF

Elite Fuse Finder MARFD550

Microprocessor

Controlled with manual & auto modes

DESCRIPTION REF

Elite Professional Fuse Finder Kit MARFD650

Traces fuses from sockets, lights and distribution boards

DESCRIPTION REF

30m Continuity Test Lead MARTL77

Protective reel, double insulated with 4mm plugs and crocodile clip

DESCRIPTION REF

50m Continuity Test Lead MARTL78

Protective reel, double insulated with 4mm plugs and crocodile clip

When ordering please prefix all part numbers with MAR

Lockout / Tagout

Scafftag

Microtag

Microtag for PAT Testing (PK20)

Microtag for PAT Testing (PK20)

ARC Flash Clothing and Life Saving Equipment

DESCRIPTION

Arc Flash Long Hooded Jacket 12cal/cm KIT-ARC-12-J

Arc Flash Coveralls 12cal/cm AFG-1001

Arc-Flash Multi-Risk Jacket ATPC 12 cal/ cm² AFG-2000

ARC Flash Lined Overall Trousers AFG-2001

Arc-Flash Multi-Risk Switching Jacket

ATPV 12cal/cm² AFG-2300

ARC Flash Accessories

DESCRIPTION

DESCRIPTION

Rescue Rod

Bracket/Support for Rescue Rod

Life Saving Kit CZ-54-R

Insulated Step Ladder 2.58mt MP-700-4

Circuit Breaker Lock (No Tool Req'd) AL-208-C

Safety Matting 40kv DC Class 3 (Per Mtr) 642103-10

Bag for Insulated Mats

Rubber Gloves Class 0

Glove Box

GP-0-9

CG-35/2

Cut Resistant Gloves CG-952

Rubber Gloves Class 0 Mechanical size 9

Glove Underliners - Cotton Size 9-10

Glove Storage Bag 420x180x50mm

CGM-0-09

CG-80-H

CG-36-1

CATU Nomex Undergloves CG-37

ARC Flash Helmets

ARC Flash Helmet 12/Cal/cm2

ARC Flash Shield with Head Band

Helmet with Face Shield

Rescue Rod

Matting CI 3/26.5 kV 1000x3mmx1mt wide 642103-10

CZ-54-R

CGM-0-09

Snips and Cable Cutters VDE 1000v

VDE CABLE CUTTERS

VDE SIDE CUTTERS

Waterpump Pliers

KL920B22 Tool Bag

Combi Pliers

LK38A

CC100/250L

HS300B

VDE Screwdrivers

Nut & Bolt Drivers c/w Magnetic Tip

Long reach Nut & Bolt Drivers c/w magnetic tip and spring loaded body.

DESCRIPTION

73mm long PH1, 2, 3, PZ1,2,3

73mm long TX 10, 15, 20, 25, 30, 40 KL335 Swift box 7 pces, PZ1&2 PH1& 2 5.5 flat 6.5 flat. KL340 Bit Sets

Screwdriver / Blade Kit

DESCRIPTION

VDE Screwdriver Set, 1000V, with 10 blades

and voltage indicator

Klauke Crimping Tools

DESCRIPTION

3 IN 1 CRIMPING TOOL

Insulated Terminals 0.5 to 6.0sq

Bootlace from 0.5 - 50mm2

Lugs 0.5 to 10sq

Bootlace Ferrules 0.14 to 10sq

KLAUKE HEX HEAD CRIMPING TOOLS

6-50sq Hex Head Crimping Tool

1 16-95sq Hex Head Crimping Tool

KLAUKE BOOTLACE FERRULE CRIMPING TOOLS

0.14 - 10sq Bootlace Ferrule Crimping Tool Square Crimp K3014K 1

0.08 - 16sq Bootlace Ferrule Crimping Tool Square Crimp K304K

0.14 - 10sq Bootlace Ferrule Crimping Tool Heaxagonal Crimp K3016K

0.08 - 16sq Bootlace Ferrule Crimping Tool Hexagonal Crimp K306K 1

2 x 4 - 50sq Bootlace Ferrule Crimping Tool K05WF50 1

50 - 95sq Bootlace Ferrule Crimping Tool K05WF95 1

Crimping Tools

CRIMPS RATCHET CRIMPER

0.5-6sq Ratchet

Red, Blue and Yellow Crimps COPPER LUGS CRIMPERS

6 - 25sq Ratchet

1.5 - 16sq Ratchet

FERRULES CRIMPERS 0.25 - 6sq Ratchet

6 - 16sq Ratchet

16 - 35sq Ratchet

0.5 - 6sq Ratchet (Twin Ferrules)

0.25 - 16sq Ratchet Equilateral

6 - 16sq Ratchet Equilateral

RJ11/RJ45 CRIMPER

RJ11/RJ45 Crimping Tool for 6 pair & 8 pair

Ratchet Crimping Tool For RJ11 and RJ45 Cables

K507

K05NF

K3014K

K306K

K06NF

TLN5684R

HS26TWH

HX26B

HSD2

HS1016

KH95A

HS35TWF

HS30J

image change*

K3016K

Battery Operated Micro Crimp Tool

DESCRIPTION

Interchangeable dies for crimps, ferrules and lugs up to 50mm2

Tool comes complete with R, B, Y dies.

Spare Battery for all 10.8v tools

EK50ML

RAML1225 for EK50ML/EK354ML/ES32ML / EKWF120ML

Bootlace 0.5 - 6mm2

Bootlace 10 - 25mm2

Bootlace 35-50mm2

Twin bootlace 2 x 6 - 2 x 16mm2

Cable cutting die

Cu lugs 0.75 - 2.5mm2

Cu lugs 4-10mm2

Cu lugs 16 -25mm2

Battery operated tools 10.8V

DESCRIPTION

AE5071

AE5072

AE5073

ZAE5072

S502

R501

R502

NF505

EK30IDML

EK354ML

EK1204ML

Battery operated tools - 18V

6SQ TO 120SQ INDENT CRIMPER

DESCRIPTION

3 second stroke and 300 crimps per charge

Spare battery 10.8V (2.5Ah)

RAML1225 for EK505CFB/ EK354CFB/ EKM6022CFB

6SQ TO 150SQ BATTERY CRIMPER:

6–150mm2, c/w case

4 second stroke and 150 crimps per charge

Spare Battery

(LI–Ion/ IPS version)

6–150mm2, c/w case

HNF4SET

RAML1225

EK354CFB

HNF4SET for EK345CFB EKM6022CFB

6SQ TO 300SQ BATTERY CRIMPER:

Crimping Tool

6–300mm2, c/w case and battery

3 second stroke, 300 crimps per charge

Dies

6-300mm2

Spare 18V Bosch Battery (1.5Ah)

LARGER CONTRACTORS TOOLS

Spiking tool/ safe cable cutting

Dies

Battery Operated Cable Cutter

DESCRIPTION

Cable Cutter

EKM6022CFB

NF22SET

RALB1EU

EK12032CFB

EK135FTCFB

ESG85CFB

ESG105CFB

ESG105RMCPCFB

EK135FTCFB

ESG85CFB

ESG105CFB

ES32ML up to 32mm dia, c/w case, battery and charger

EKM6022CFB

EK030IDML

EKWF120ML

Hydraulic Punch Driver

DESCRIPTION

Hydraulic Punch Driver

suitable for punches up to 64mm ø

Punches sold separately.

Battery Powered Punch Driver

DESCRIPTION REF

Punch Driver with Case LS50FlexCFB

Slug Buster Punch set ISO 16–63 50068920SET

Speed Punch set ISO 16–40 52055439SET

50342916

Slug Splitter Punch Set (for stainless steel)

DESCRIPTION REF 16mm to 63mm 50766797

Punch and dies for stainless steel. sizes 16.2, 20.4, 25.4, 32.5, 40.5, 64.0mm.

Including 2 draw studs 11 & 19mm dia in robust carry case for hydraulic operation only

Slug Buster Ratchet Hole Punch Kit

DESCRIPTION REF

Punch Kit 16–40mm 50366920SET for mild steel including manual draw studs and ratchet driver

Speed Punch and Die

DESCRIPTION REF

Speed Punch & Die 20mm

52055432

Speed Punch & Die 22.5mm 52055433

Speed punch & Die 32mm 52055435

Speed punch & Die 40mm

52055436

Speed punch & die 50mm 52055437

Speed Punch and Die 25mm

52055434

Speed Lock & Draw Stud 16, 20, 25mm 52055439

Speed Lock & Draw Stud 32, 40, 50mm 52055440

Cable Drum Rollers

DESCRIPTION REF

Suitable for 500mm 52055383 wide 200 Kg drum

Suitable for 650mm 52055384 wide 250 Kg drum

LS50FlexCFB

Tap Sets

Kwik Step Drill Set

Greenlee Step Drill

4.8-22mm

Fish Tapes - Steel

Fish Tapes - Nylon

DESCRIPTION

4mm*10m c/w leader and pulling eye

4mm*20m c/w leader and pulling eye

4mm*30m c/w leader and pulling eye

Fish Tapes - Flat Steel

7.5M in Compact Winder

Kwik Step Drill Set

Fish Tapes - Flat Steel

Greenlee Step Drill

Fish Tapes - Nylon

Tap Set Fish Tapes

Slug Buster (Mild Steel)

DESCRIPTION

Die ISO 16 (16.2)

Die ISO 20 (20.4)

Die PG 16 (22.5)

Die ISO 25 (25.4)

Die ISO 32 (32.5)

Punch ISO 16 (16.2)

Punch ISO 20 (20.4)

Punch PG 16 (22.5)

Punch ISO 25 (25.5)

Punch ISO 32 (32.5)

Punch Unit ISO 16 (16.2) (punch, die and manual draw stud)

Punch Unit ISO 20 (20.4)

Punch Unit PG 16 (22.5)

Punch Unit ISO 25 (25.4)

Punch Unit ISO 32 (32.5)

Punch Unit ISO 40 (40.5)

Punch Unit ISO 50 (50.8)

Punch Unit ISO 60 (64.0)

Adaptor (19-9.5mm)

Draw Stud 9.5mm

Ball Bearing Draw Stud 9.5mm

Draw Stud 19mm

Slug Splitter Punch UnitStainless Steel (punch & die)

DESCRIPTION

ISO 16 (16.2) INOX

ISO 20 (20.4) INOX

PG16 (22.5) INOX

ISO 25 (25.4) INOX

ISO 32 (32.5) INOX

Draw Stud INOX up to 25.4mm

Draw Stud INOX 28.3mm and above

REF

50351621

50320041

51147220

50351648

50351680

50351630

50319710

50317563

50351656

50351699

50351770

50319914

50319620

50351788

50351796

50351800

50351818

50351826

50339672

51300430

50000420

52085691

50069527

50069543

50069551

50069560

50069594

50294512

50294520

Tungsten Carbide Tipped Multi- Purpose Holesaws

DESCRIPTION REF CATEGORY

HOLESAWS TO CUT WOOD & PLASTERBOARD

HSS SPLIT POINT 3X61MM

HSS SPLIT POINT 3.5X70MM

HSS SPLIT POINT 4X75MM

HSS SPLIT POINT 5X86MM

HSS SPLIT POINT 6X93MM

HSS SPLIT POINT 7X109MM

HSS SPLIT POINT 8X117MM

HSS SPLIT POINT 9X125MM

HSS SPLIT POINT 10X133MM

HSS SPLIT POINT 12X151MM

HSS SPLIT POINT13PC SET

SDS PLUS 2 POINTS 5.5X110MM

SDS PLUS 2 POINTS 5.5X160MM

SDS PLUS 2 POINTS 6X160MM

SDS PLUS 2 POINTS 8X160MM

SDS PLUS 2 POINTS 8X210MM

SDS PLUS 2 POINTS 10X160MM

SDS PLUS 2 POINTS 10X460MM

SDS PLUS 2 POINTS 12X160MM

SDS PLUS 4 POINTS 14X260MM

SDS PLUS 4 POINTS 14X460MM

SDS PLUS 4 POINTS 16X460MM

SDS PLUS 4 POINTS 20X460MM

SDS PLUS 4 POINTS 25X460MM

KBAR030 HSS Drill Bits

KBAR035 HSS Drill Bits

KBAR040 HSS Drill Bits

KBAR050 HSS Drill Bits

KBAR060 HSS Drill Bits

KBAR070 HSS Drill Bits

KBAR080 HSS Drill Bits

KBAR090 HSS Drill Bits

KBAR100 HSS Drill Bits

KBAR120 HSS Drill Bits

KBK13 HSS Drill Bits - Sets

KBPS055A SDS Plus 2 Points Drill Bits

KBPS055B SDS Plus 2 Points Drill Bits

KBPS06B SDS Plus 2 Points Drill Bits

KBPS08B SDS Plus 2 Points Drill Bits

KBPS08C SDS Plus 2 Points Drill Bits

KBPS10B SDS Plus 2 Points Drill Bits

KBPS10E SDS Plus 2 Points Drill Bits

KBPS12B SDS Plus 2 Points Drill Bits

KBPX14D SDS Plus 4 Points Drill Bits

KBPX14E SDS Plus 4 Points Drill Bits

KBPX16E SDS Plus 4 Points Drill Bits

KBPX20E SDS Plus 4 Points Drill Bits

KBPX25E SDS Plus 4 Points Drill Bits 14-30mm Arbor

32-210mm Arbor

Pilot Drill

Jigsaw Blades

Safety Knives

Hacksaw

Holesaws

Cordless Holesaws

Electricians Tool Bags

Ultimate Rapid Release

Hole Saw Kit

Cordless Holesaws

BGS BGM

BGL

Cable Knives and Wire Strippers

DESCRIPTION

FOR STRIPPING ROUND CABLES

Cable knife 2-Compound Design for stripping

most common round cables from 4 - 16 mm Ø (5/32 - 5/8”)

Cable knife 2-Compound Design for stripping most common 10270 round cables from 8 - 28 mm (5/16” - 1.1/8”) Ø

FOR STRIPPING SOLID & STRANDED WIRE

Automatic wire stripper in 2-CompoundDesign for solid and 20100 stranded wires with diameters from 0.2 to 6 mm² (AWG 24 - 10) with wire cutter and length stopper

AUTOMATIC WIRE STRIPPERS

Automatic wire stripper for conductor cables with diameters from 20090 6 to 16 mm² (AWG 10-5). Also suitable for stripping solar cables with jointed cable sheatings

Automatic wire stripper for PVC-insulated flat cables with widths 20030 of up 12 mm (1/2”) and inner insulation

de-insulating

FOR STRIPPING ROUND CABLES c/w Blade & Clip

Super stripper in 2-Compound design for common round cables 30155 8 to 13 mm Ø. With patented cable duct for straightforward longitudinal cut function, special outlined blades (0.2 to 4 mm²), mulit-function-slide-out blade and belt clip

FOR STRIPPING ROUND CABLES + 1.5 & 2.5sq

Stripping tool for round cables 8-15 mm diameter with additional 30400 stripping device for 1.5mm² and 2.5mm² wires

FOR STRIPPING CAT5, CAT6 TWISTED PAIR CABLES

Stripping tool for removing the outer insulation and the foil 30500 shielding inside of PVC-data cables (e.g. Cat5, Cat6, Cat7, twisted-pair)

Wire stripper for

cable sections of 20 mm (13/16” ) 20220

Cable Knives and Wire Strippers

DESCRIPTION REF

FOR STRIPPING COAX CABLE

Cable stripper in 2-Compound design for common standard 30600 coaxial cables with diameters from 4.8 up to 7.5 mmØ ,e.g. TVCoax, Coax, RG 58U / RG 59U

FOR STRIPPING ROUND, FLAT, DATA & COAX

Stripping tool for standard round and flat cable incl. building 30900 installation, industrial cables, energy-, telefon-, solar-, sensor-, data-, coax-, cat- and video cables. Round cable Ø 4 - 15 mm I 5/32“ - 19/32“ Flat cable - 15 mm 19/32“ width

FOR PRECISION STRIPPING

Mini-Precision stripping tool for cable stripping of solid and 40024 stranded wires from AWG 36 to 26, working range 0.12-0.160.20-0.25-0.30-0.40 mm Ø

CABLE STRIPPING KNIFE c/w Blades For Stripping 4mm to 70mm Cables

For stripping all common round cables with diameter from 8 to 28 mm Ø 71000

Thanks to the intelligent bracket change system, all common cable types, from 4 to 70 mm diameter, can be stripped with just one tool.

Jokari Quadro – 4 In 1 Cable Stripping and Crimping Tool

Wire stripper and crimper with 4 functions: cutting - stripping - 62000 twisting - crimping. Working range: wires with insulation made of PVC from 0.5 to 2.5 mm² (AWG 20 - 14). Set with end sleeves and switching magazines

Cartridge for QUADRO

Ferrule Strips for Quadro Tool

DESCRIPTION

60100

Bootlace Ferrules Quadro Tool 0.5sq-8mm White V30MA000069 310 500

Bootlace Ferrules Quadro Tool 0.75sq-8mm Blu V30MA000073 115 500

Bootlace Ferrules Quadro Tool 0.75sq-8mm Grey V30MA000071 315 500

Bootlace Ferrules Quadro Tool 1.5sq-8mm Black V30MA000076 330 500

Bootlace Ferrules Quadro Tool 2.5sq-8mm Grey V30MA000079 140 500

Bootlace Ferrules Quadro Tool 2.5sq-8mm Blue V30MA000078 340 500

Get the correct cable stripping tool for your cable by checking the new Jokari cable database. www.jokari.de/en/Cable-database.htm

Marking Pens

DESCRIPTION REF

Display 150/20

Loose Pens Red 150-40

Loose Pens Blue 150-41

Loose Pens Black 150-46

Pica DRY Longlife Automatic Pencil 3030

Lead Refills for 3030 4030

Permanent White Gel/Wax Marker 8080

Permanent Blue Gel/Wax Marker 8081

Permanent Red Gel/Wax Marker 8082

Permanent Black Gel/Wax Marker 8083

Permanent Yellow Gel/Wax Marker 8084

Fine permanent white pen 532/52 INSTANT -WHITE PEN

Black Permanent Pen 533/46

TP Wall Plugs

TC Cable Clips – Round

TC Cable Clips – Flat

Terminal Blocks – Strip Connectors

Insulating Tape

Demesne Electrical Sales The Square Industrial Complex, Tallaght, Dublin 24, D24 ED71 01-4047700

+3531-4047777 sales@demesne.ie

Demesne Electrical Sales 25 Euro Business Park, Little Island, Co Cork, T45 HP92 021 4355440 021 4354626 corksales@demesne.ie

Demesne Electrical Dungannon Unit 14 Ballysaggert Business Complex, 8 Beechvalley Way, Dungannon, BT70 1BS 028 8772 5033 028 8772 7618 dungannonsales@demesne.ie

DUBLIN
