ARCHITECTURE PORTFOLIO

astrid oelsner.

architecture portfolio.

index.

project 01.

project 02.

research center on mars.

coworking & coliving.

project 03. epidauro hospital.

research center on mars.

As a final degree project, I developed the proposal for a Research Center that would be inhabited by 6 astronauts for 1.5 to 2 years. It was taken into account the structural, thermal, services and psychological needs necessary to guarantee the survival of the users during their stay, also developing the essential technologies for it to achieve habitability.

A1

4

8

2

2

9

14

13

1 4 10 11

12

5 6

7 A2

3

6

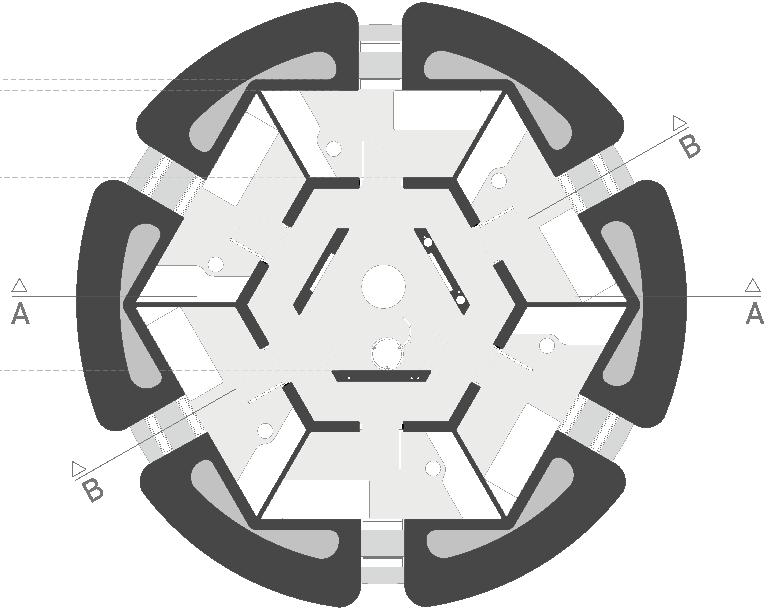

basement.

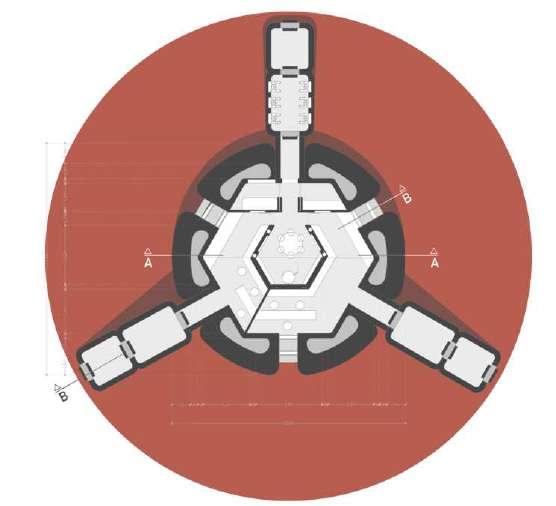

ground floor.

A3

24 16 17

23 24

24

15

22

21

19

24

18

24

20

24

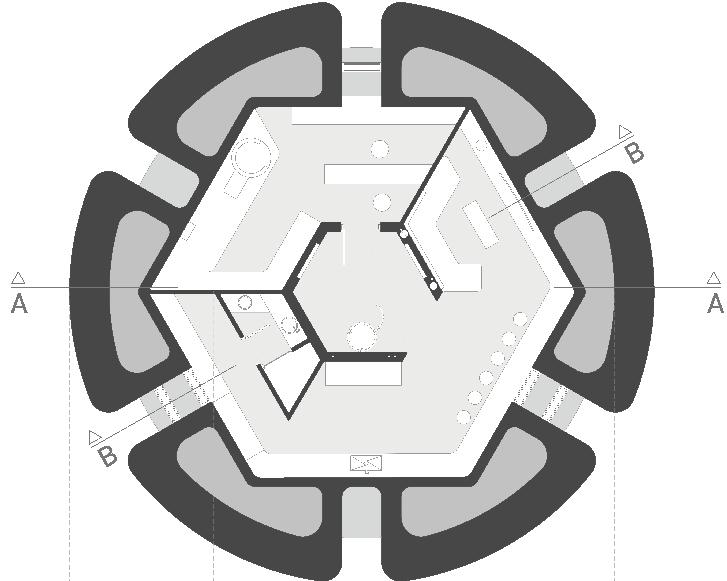

first storey.

second storey.

structural proposal.

The loads that were going to act on the structure had to be considered, such as the pressure difference, the winds and the seismic actions; but at the same time also design considering compactness, transmittance, radiation and thermal protection.

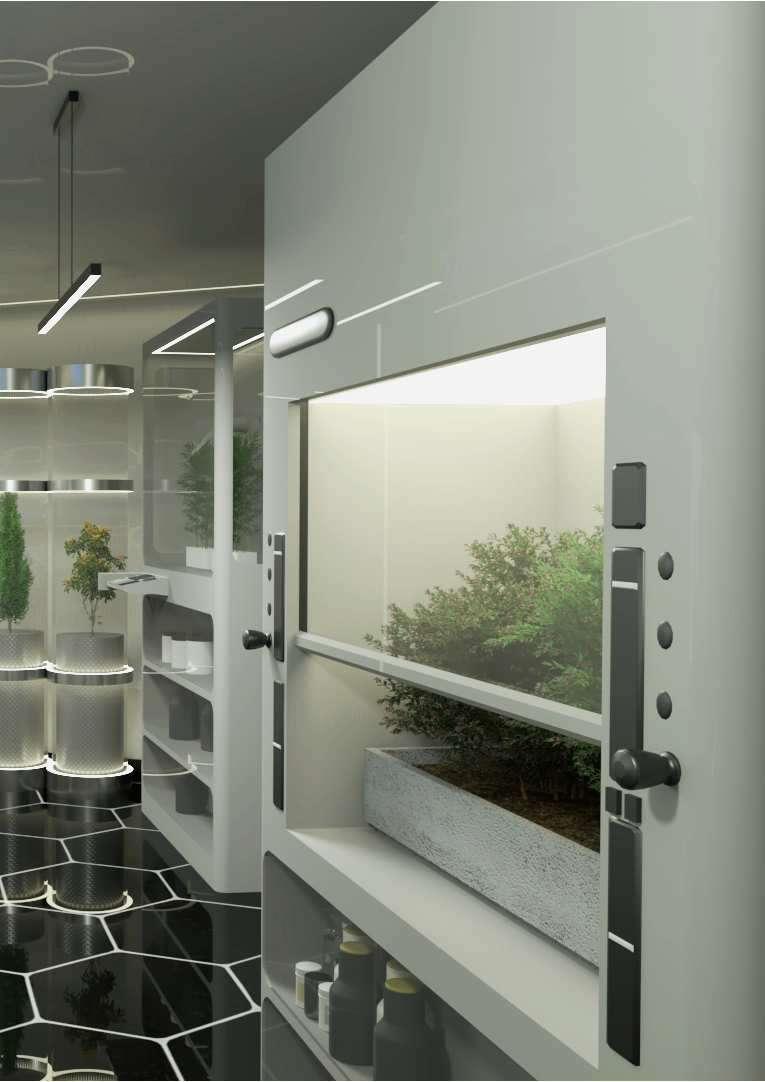

wet laboratory.

interior design.

The interior design proposal responds to the same aesthetics, color palette and materiality throughout the project, with the exception that as it moves away from the work areas and is introduced to everyday spaces, the environments take on a more humanized appearance.

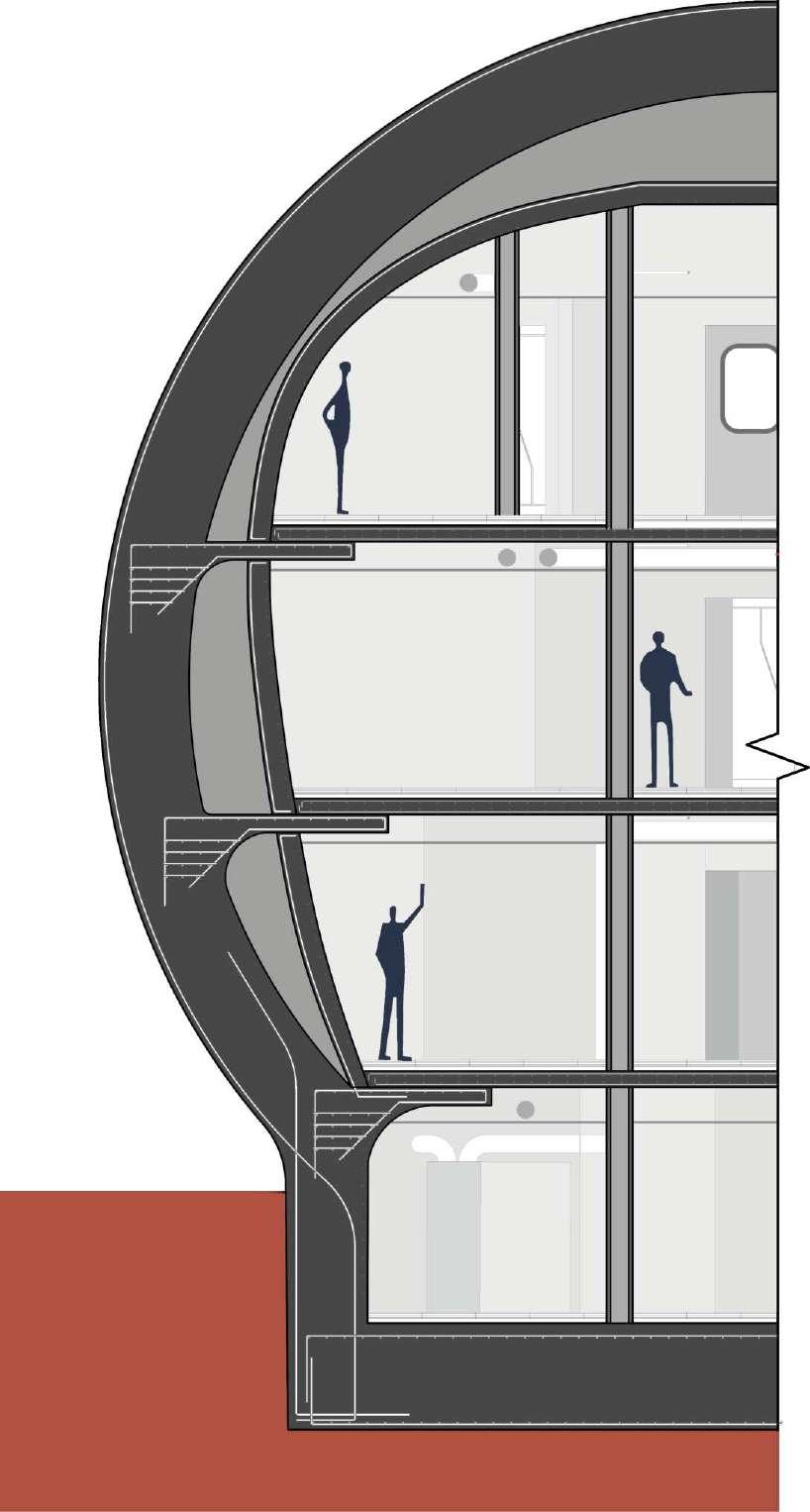

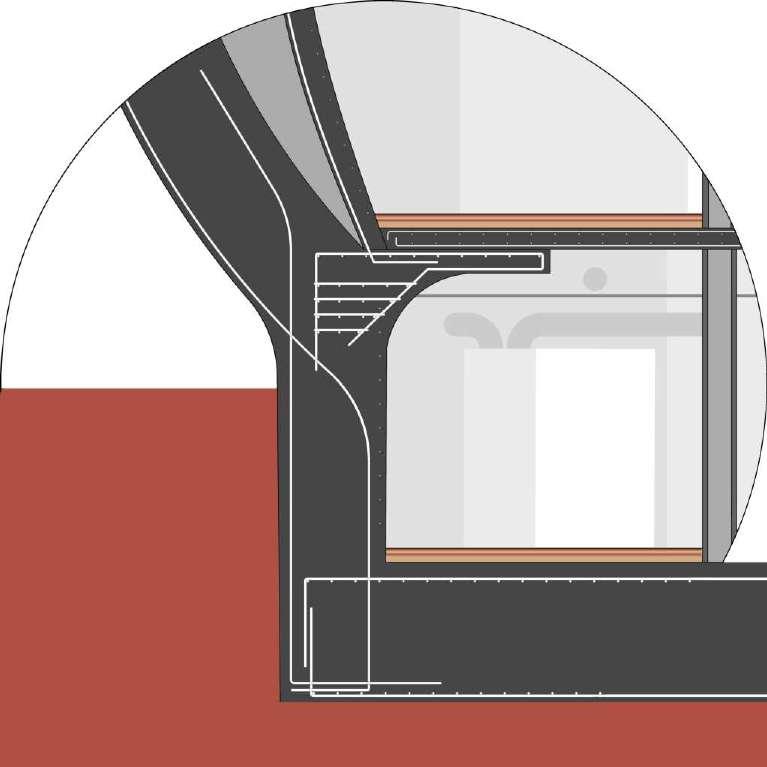

details.

exterior shell. martian concrete

air chamber.

interior shell. martian concrete, insulation and resistance thermal

structural bracket. martian concrete

slab. martian concrete, insulation and radiant plates

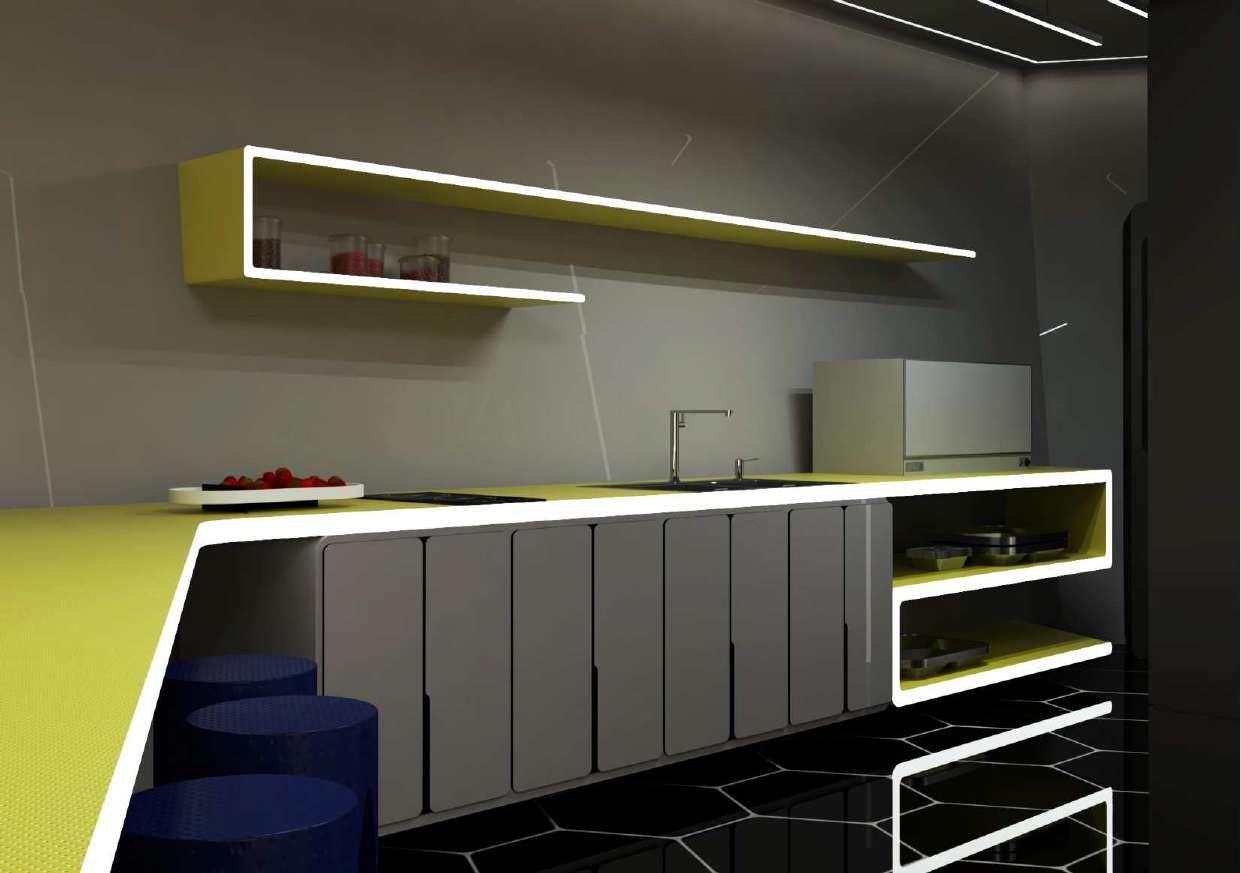

food preparation.

dining room.

coworking & coliving.

The project consisted of the development of a joint coworking and coliving. The peculiarity of it was in the land. It was located in Mantua, Italy, facing Lake Inferiore. It included a wall that turned out to be historical heritage. It should respect both the heritage and the range of colors imposed by territorial ordering.

basement.

ground floor.

first storey.

second storey.

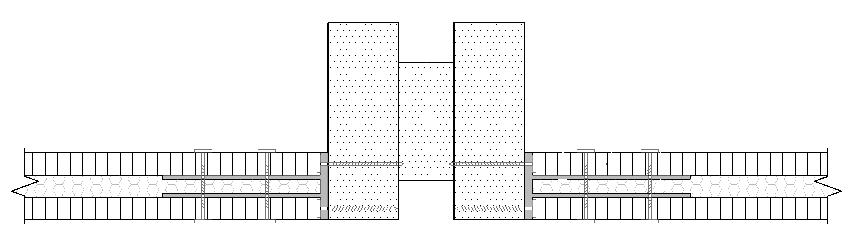

wooden columns compound section metal plate attached with pegs CLT panel maple wood glass wool CLT panel maple wood

structural proposal.

The proposed construction system consists of a wooden structure made up of wooden columns with a composite section and CLT panel enclosures attached by means of plates inside them. The main objective was to achieve simple and visually clean solutions, but also ease of construction.

materiality.

The project is materialized in wood, which is a material that by itself respects the city's color code, as well as being an element highly adaptable to different shapes. In addition, it also appeals to the port aspect of the rest of the city. The architecture blends with not only the city, but the landscape.

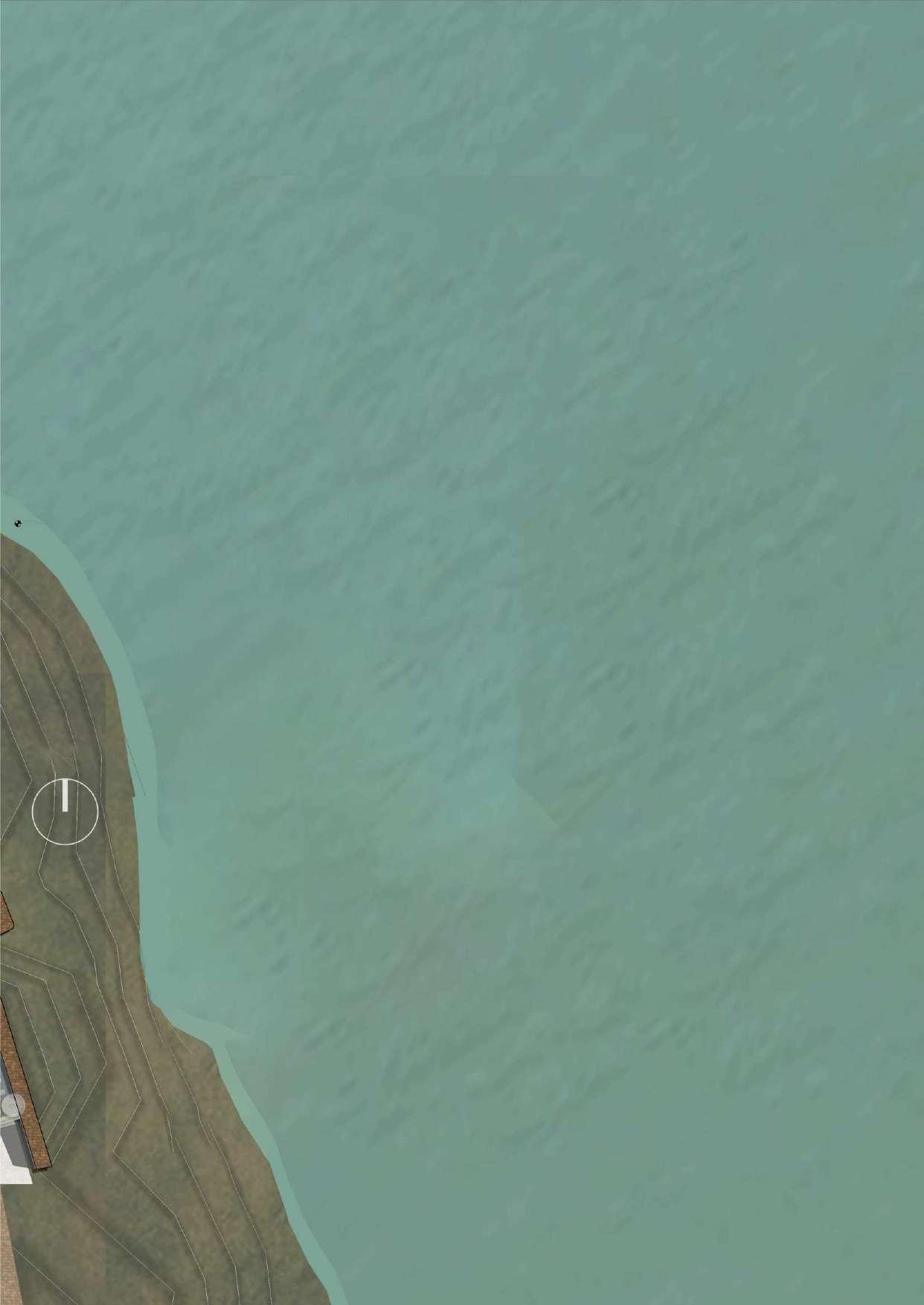

planimetry

landscaping.

The selected vegetation is found only in protected areas of the Lombardy region. To offer the enjoyment of them, they are arranged on the outside to accompany the morphology of the architectonic proposal.

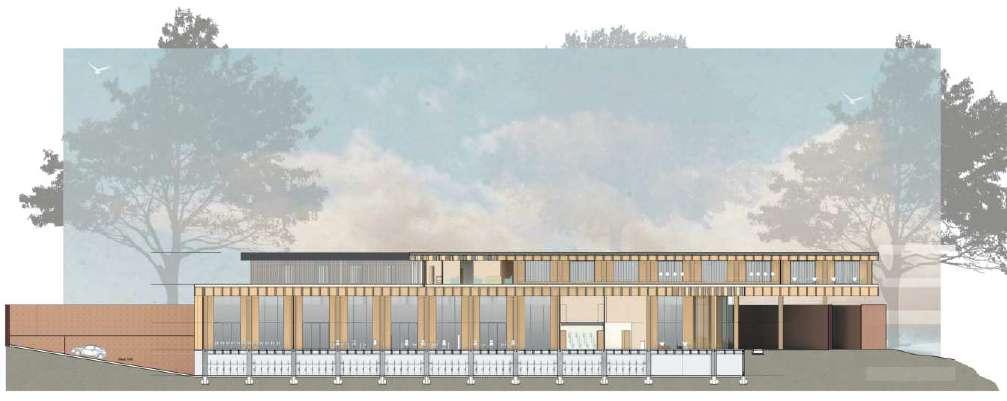

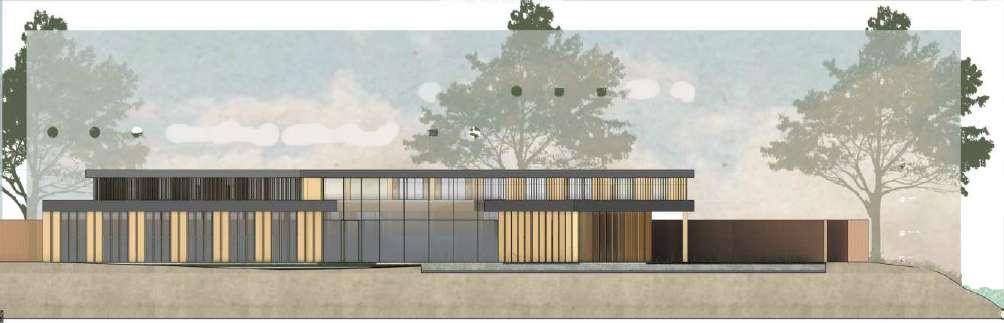

north facade.

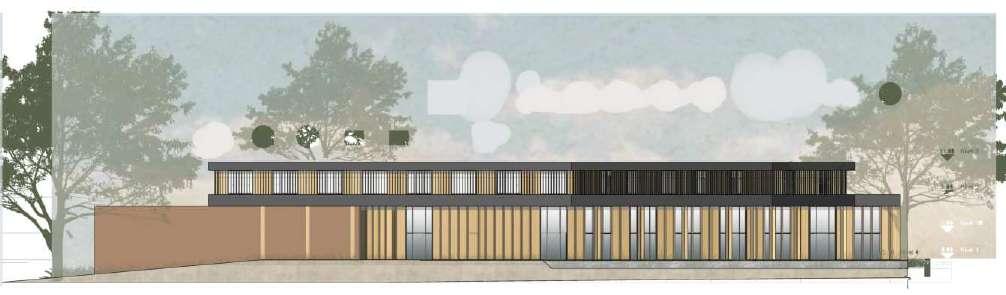

south facade.

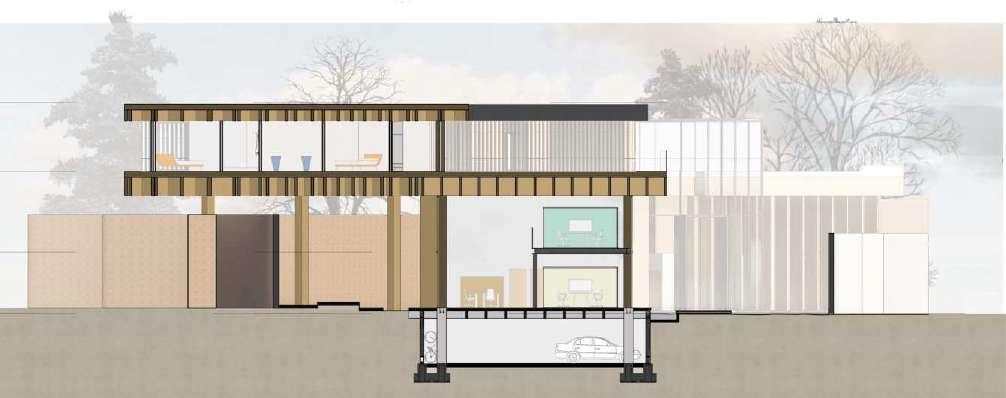

section cut a-a.

section cut b-b.

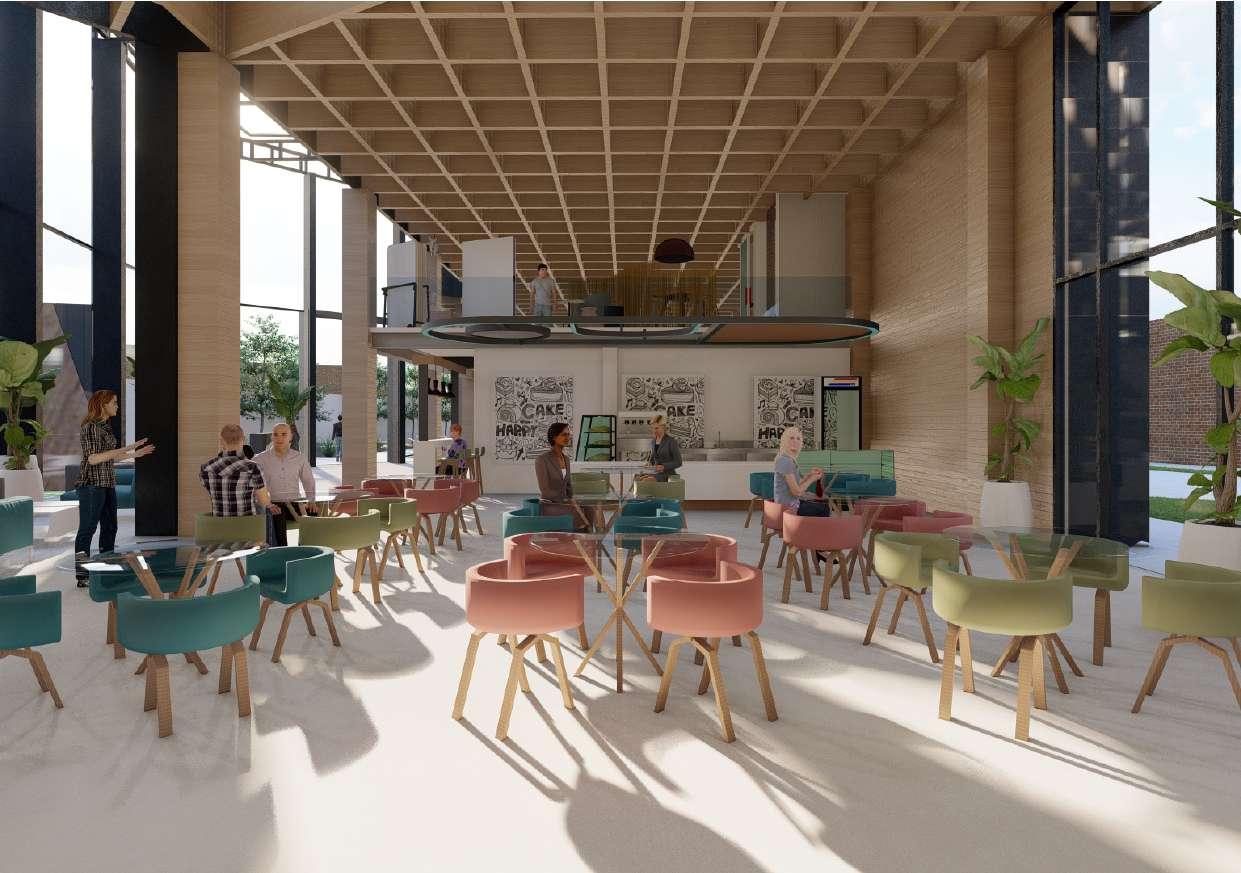

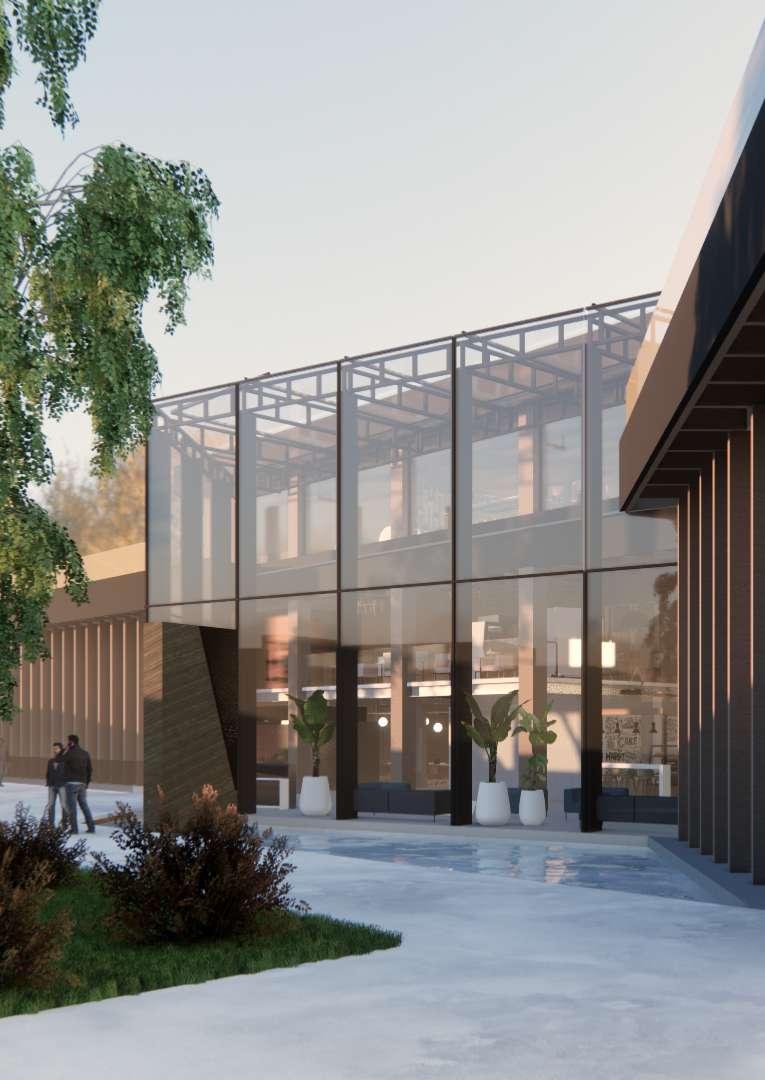

café.

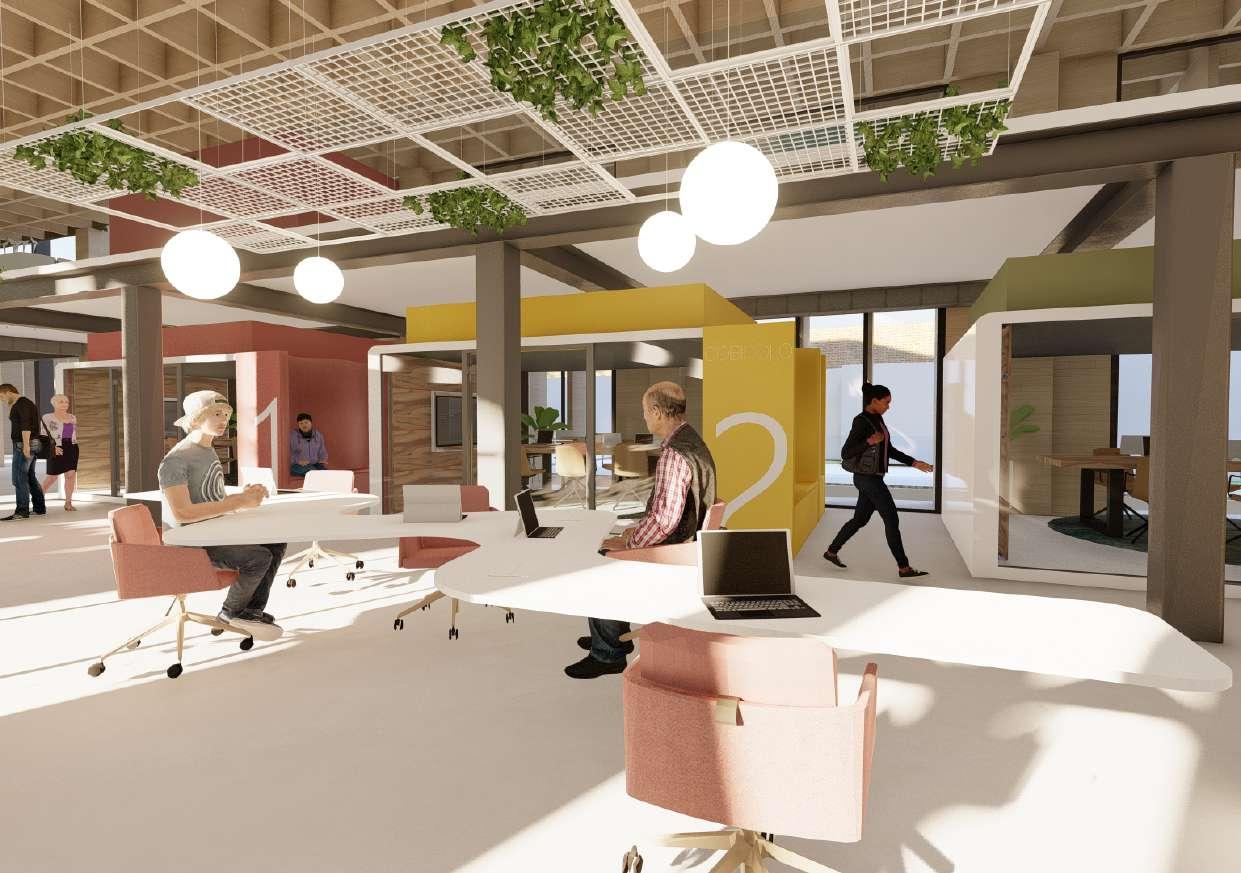

coworking.

epidauro hospital.

The proposed concept arose from Ancient Greece, where patients they were treated in temples and sought contact with the nature, entertainment and spiritual cleansing to go through the recovery process.

It was screened globally group way, but developed individually the Hospitalization area, which contains Pediatrics, Neonatology, Maternity, Psychiatry, Burns , Intensive Care, Infectious Diseases and Hospitalization.

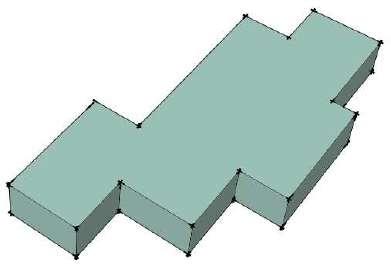

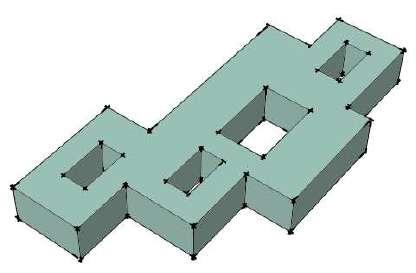

basic form.

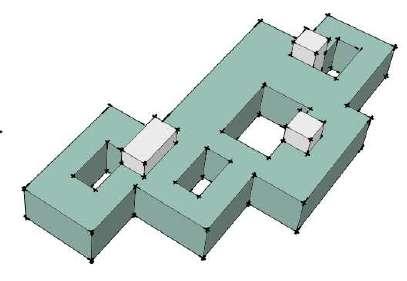

compactness.

courtyards.

vertical circulation.

conceptual proposal.

The vegetation is not only introduced inside the building, but it also structures the architecture by means of 4 green axes that cross the building mass and allow it to breathe.

Together with the element of natural light, they become the protagonists of the project, manifesting itself in all spaces.

maternity terrace.

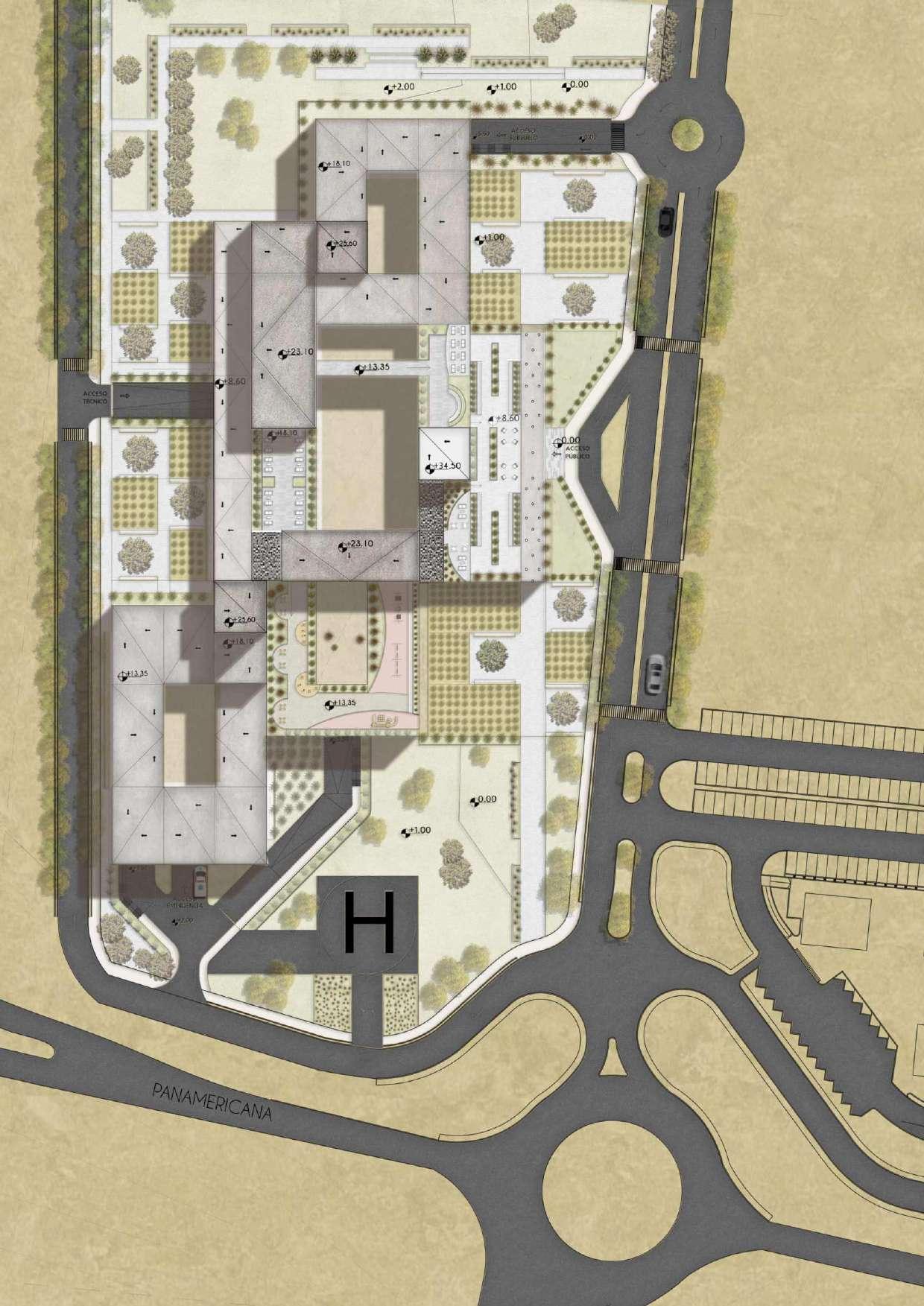

planimetry.

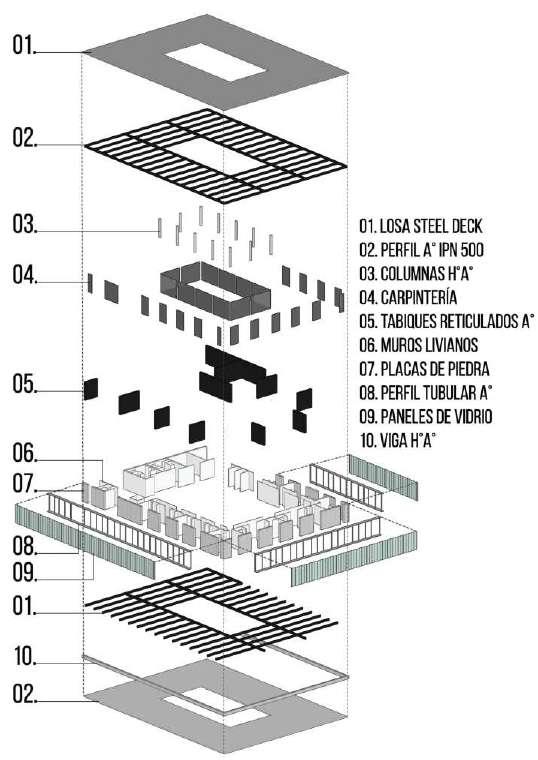

axonometry.

The proposal is materialized in a steel deck and columns of concrete, to achieve free and easy to modulate floors.

To resist seismic actions, reinforced concrete partitions are arranged inside, allowing the facades to be glazed in their totality in certain sectors.

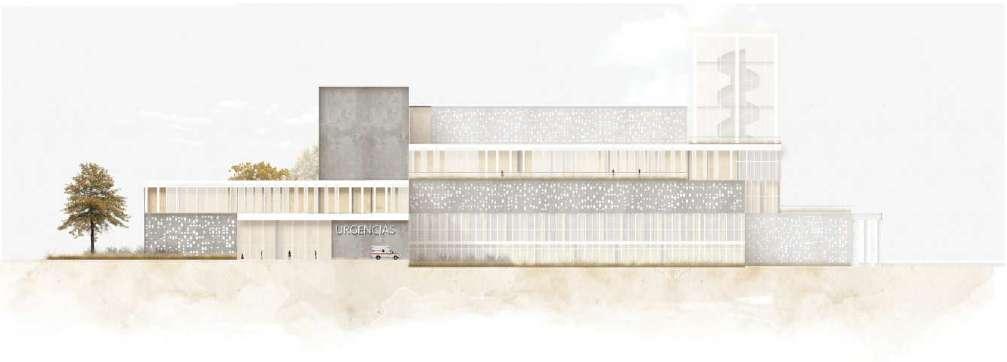

east facade.

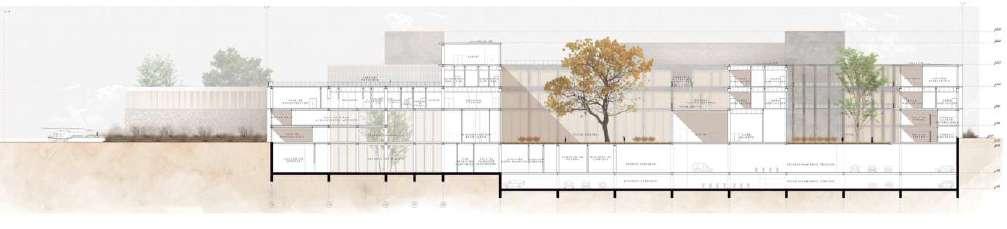

longitudinal cut.
