EMERGENCY LIGHTING
NEBRASKA LiFe
LiFe BENEFITS
IP65 emergency bulkhead available in self-test and addressable test versions, with a range of attachments
Lithium batteries supplied as standard • Longer-lasting – lithium batteries are warranted for 7-years from the data of installation • 80% more efficient – lithium batteries only lose c.4% of their charge every month, compared with 20% loss with NiCd • 50% less waste – lithium batteries last twice as long as NiCd, so there is 50% less waste
GEAR TRAY FIXED TO COVER FOR FASTER INSTALLATION
Installation is easy • The gear tray is attached to the cover • Removing the cover also exposes the terminal block for immediate cable insertion
R YEA SEVEN
LITHIUM
TY RAN WAR
001 - 031
- Exits and escape routes
- Self-test (STM3) and DALI addressable test (DAM3) versions available as listed
CONSTRUCTION
OPTIONS
DROP DOWN ATTACHMENT Polycarbonate drop down signage attachment available supplied with legends. Order as separate item
- Polycarbonate base and cover - Gear tray and cover in one piece for faster installation - Supplied with EURO or ISO legend pack - Lithium batteries included as standard
SMART WIRELESS addressable test options are available. See pages 100-103 or contact our technical team for details
RECESSED MOUNTING KIT Semi-recessed mounting kit available. Cut-out 360 x 120mm Order as a separate item
APPLICATIONS
ATTACHMENTS
LEGENDS Spare legend packs available as listed
TECHNICAL DETAILS
AVAILABLE WITH EITHER “MAN RUNNING THROUGH A DOOR” (ISO7010/BS5266) OR WITH “MAN RUNNING TOWARDS A DOOR” (EURO) LEGENDS
- 2.1W, 195 lm on mains supply - 133 lm on battery supply - 3-hour operation on battery power after mains failure - Can be installed as maintained or non-maintained – details in instructions - 20m maximum viewing distance with standard legends, 30m with drop-down attachment

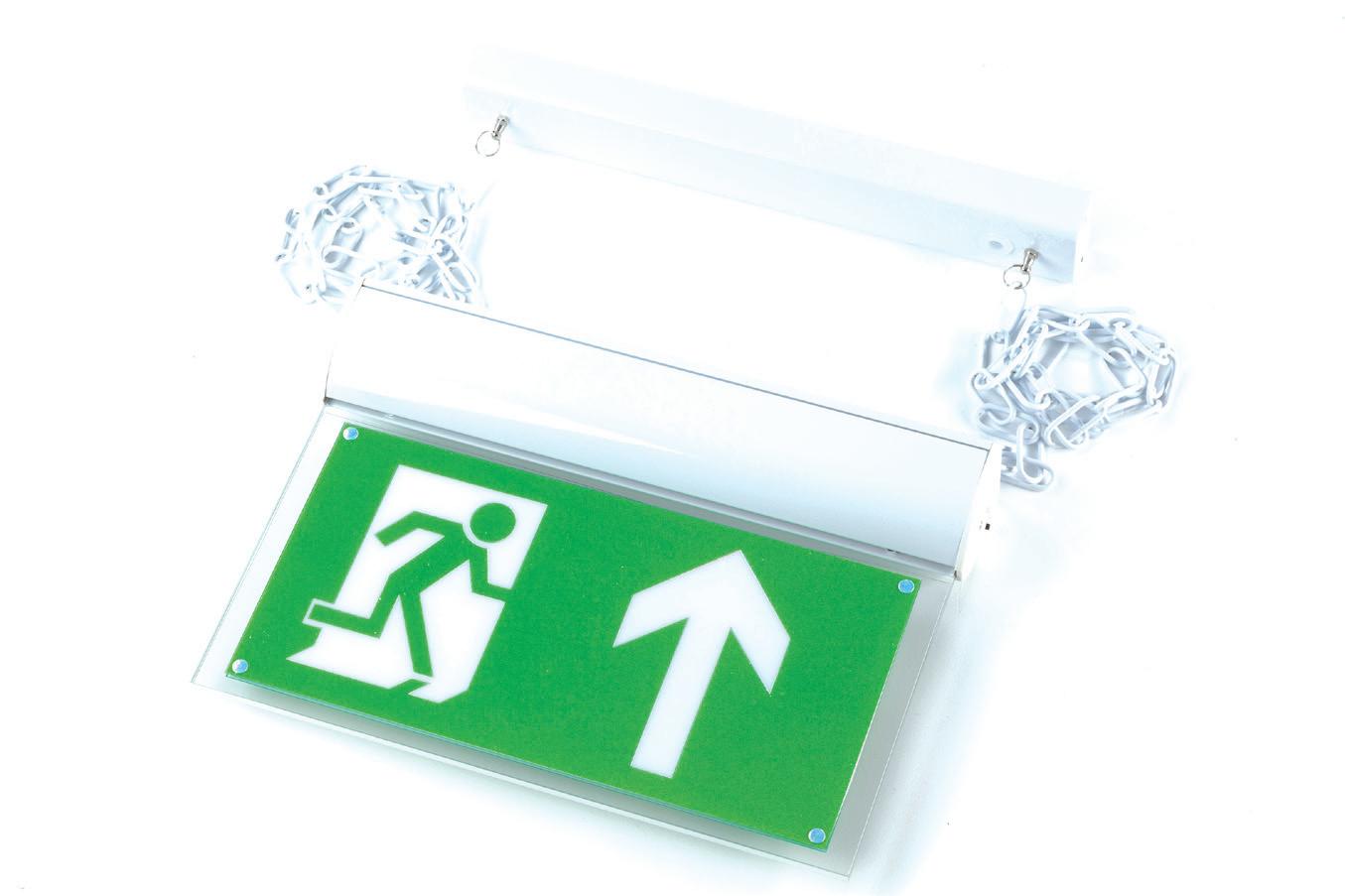

NEBRASKA WITH DROP DOWN ATTACHMENT

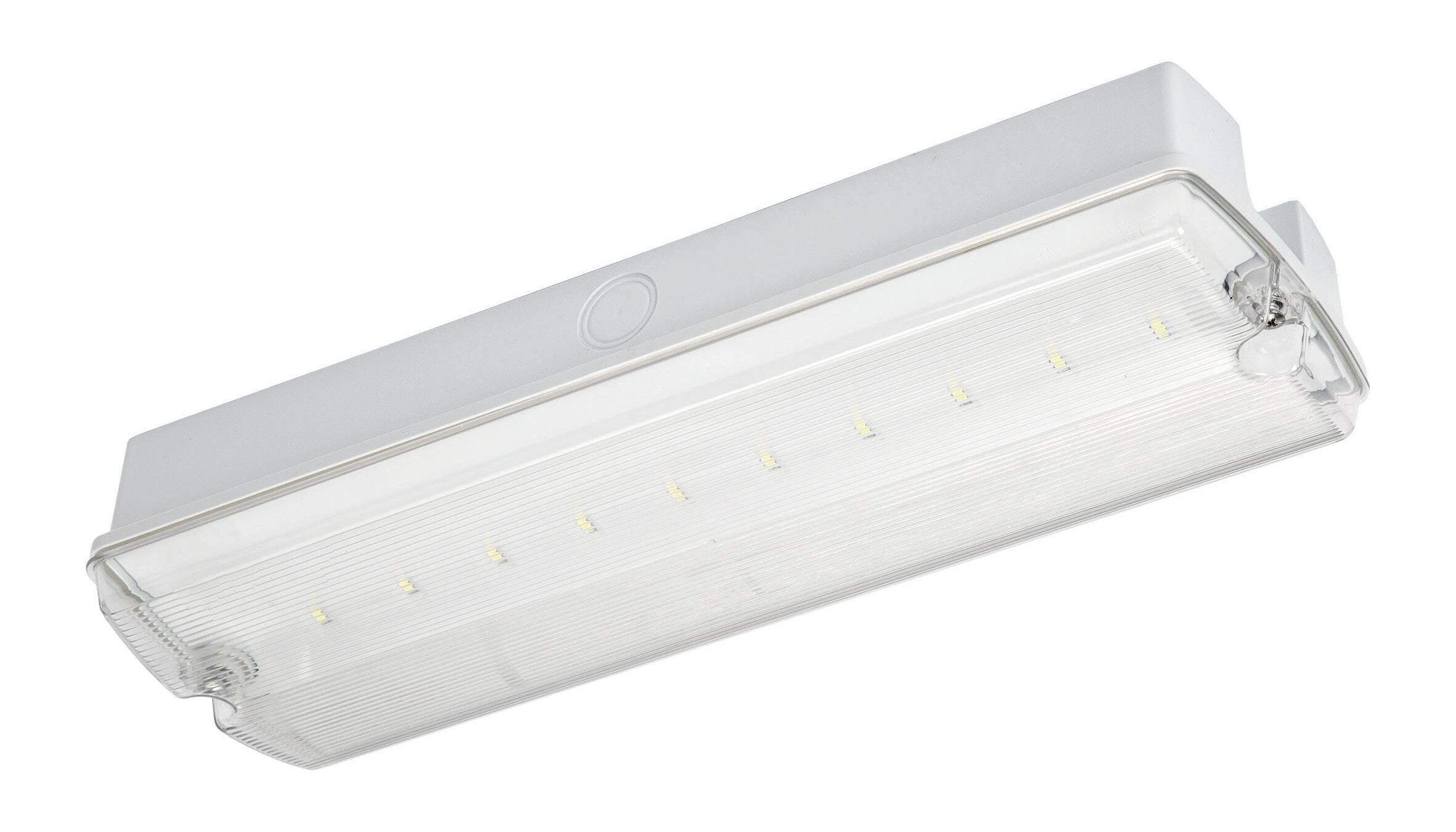

NEBRASKA
ORDER CODE
DESCRIPTION
NNE/M3
Nebraska LiFe LED IP65 Maint. Bulkhead Euro Legend Pack
NNE/M3/ISO
Nebraska LiFe LED IP65 Maint. Bulkhead ISO Legend Pack
NNE/STM3
Nebraska LiFe LED IP65 Maint. Bulkhead Euro Legend Pack Self Test
NNE/STM3/ISO
Nebraska LiFe LED IP65 Maint. Bulkhead ISO Legend Pack Self Test
NNE/DAM3
Nebraska LiFe LED IP65 Maint. Bulkhead Euro Legend Pack DALI M3
NNE/DAM3/ISO
Nebraska LiFe LED IP65 Maint. Bulkhead ISO Legend Pack ISO M3
ATTACHMENTS
60
NVC LIGHTING CATALOGUE / 2024
NNELEP4
Nebraska LiFe Euro Legend Pack Of Up Down Left Right
NNE/ISO/LEP4
Nebraska LiFe ISO Legend Pack Of Up Down Left Right
NNE/RMK
Nebraska LiFe Recessed Mounting Kit
NNE/DDA
Nebraska LiFe Drop Down Attachment c/w Legend Packs
