RECESSED DOWNLIGHTS

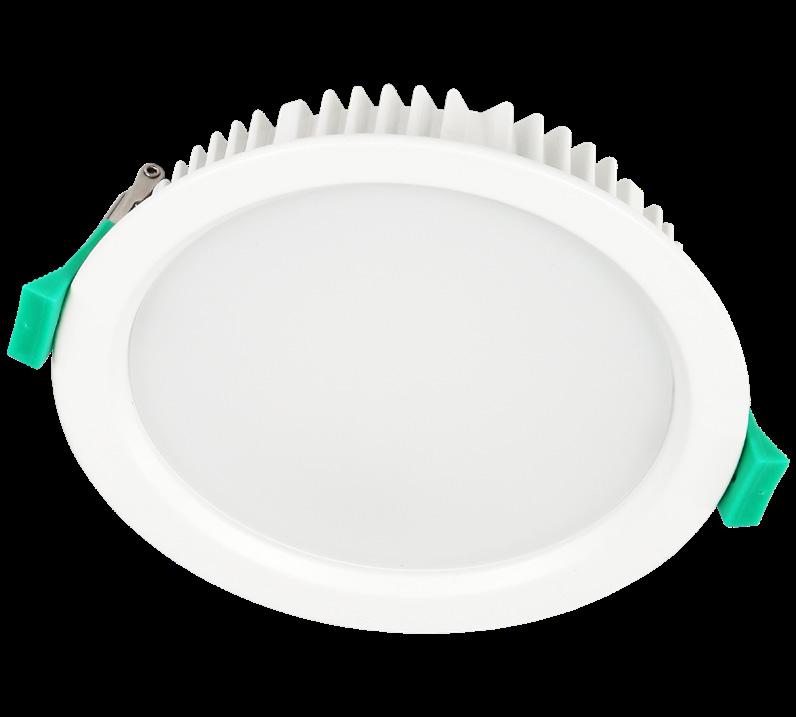

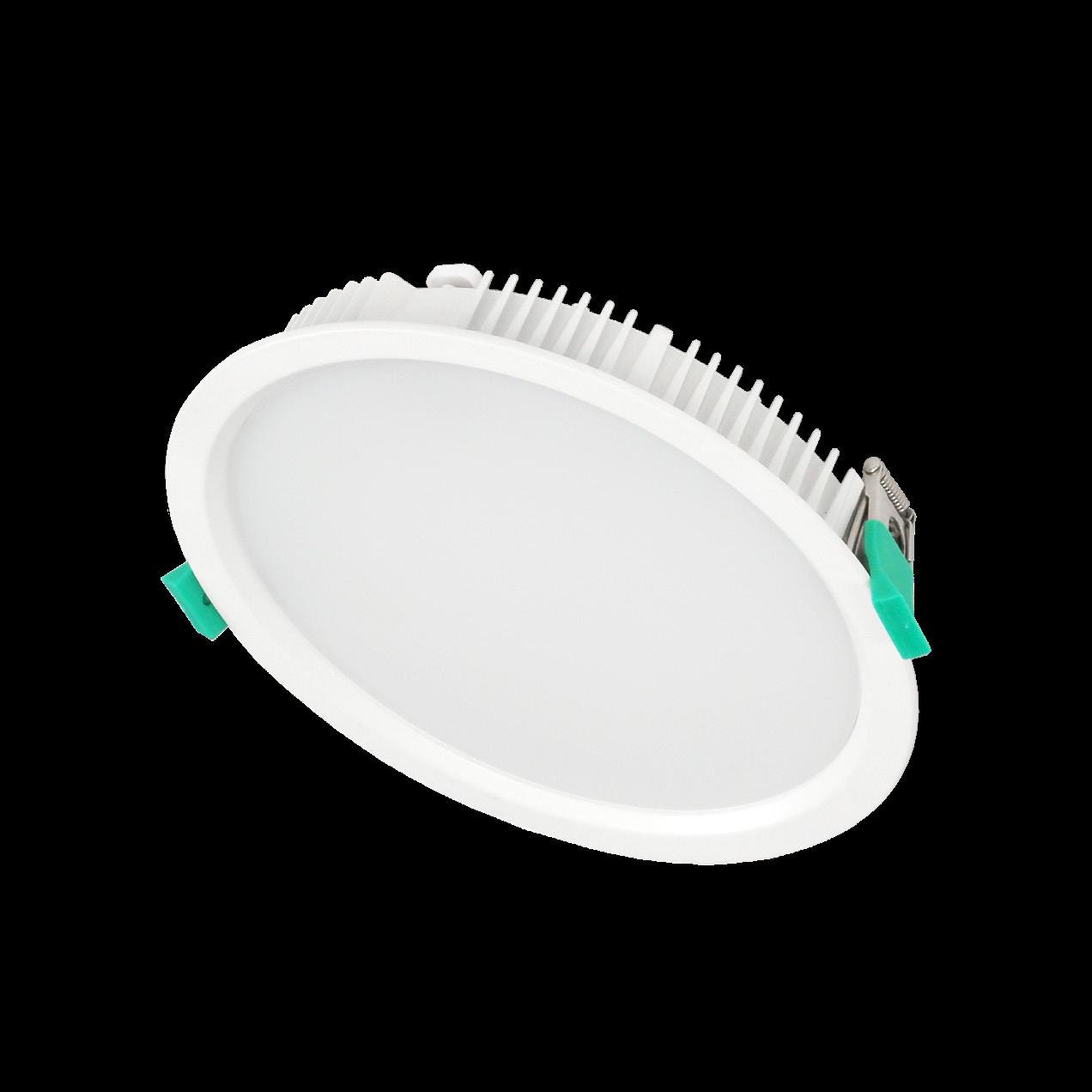

MAUI IP44 CCT selectable recessed downlight with opal diffuser in 3 sizes
EAR IVE Y
F TY RAN WAR
IP 44
TP (a)
L70 SDCM <5
50,000
CUT-OUT
OPTIONS
APPLICATIONS
Wattage and cut-out: • 8W, 108mm cut-out • 11W, 155mm cut-out • 13W, 205mm cut-out
• Corridors and communal areas • Changing rooms and toilets SPECIFICATION

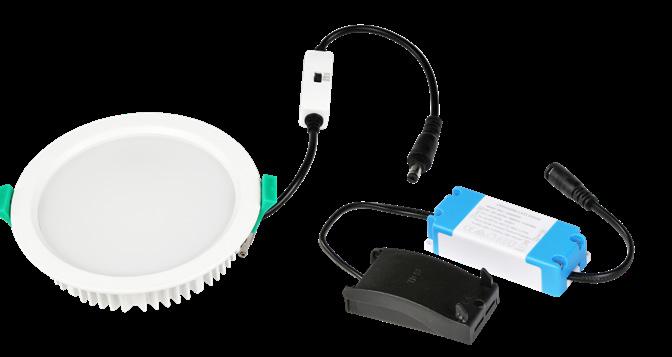

• Die-cast aluminium body and bezel, painted white (RAL9016) • Polycarbonate opal diffuser, TP(a) rated • Back-lit design, with LEDs on a metal core PCB, screw fixed to the aluminium body for excellent heat dissipation • 110° beam angle • Remote driver with plug / socket connector for easy installation and (optional) emergency conversion • 3-way CCT selector switch for 3000K, 4000K and 6000K • Connector box with 3-pole loop-in / loop-out 1.5mm² piano key terminal block
Emergency For M3, self-test and DALI addressable test, order the emergency conversion packs required from the list below
MAUI / NMU8/840 polar diagram Measurements made are in absolute units. The luminaire is treated as if it was a lamp as it is not possible to measure each LED separately - hence an LOR of 100% The Light output ratio in real terms would be less than 100%. If it was possible to compare real LED lumens with the total output from the luminaire we could obtain an actual LOR This also means that the total lumens emitted from the LED’s would be greater than the Luminaire Lumens measured. In reality the LED lumens would approximate to this value divided by the actual Light Output.
105°
105°
90°
90°
75°
75°
100
60°
60°
150 45°
200
45°
250 300 30°
I ( cd/klm ) C0
30° C90
page 2 / 6
•••
EMERGENCY CONVERSION PACKS AVAILABLE SEPARATELY SEE BELOW
ORDER CODE
REMOTE MOUNTED OSRAM OR TRIDONIC DRIVER
DIMENSIONS (mm) DIAMETER CUT-OUT
POWER (W)
LUMENS (lm)
EFFICACY (l.lm/c.W)
BEAM ANGLE
DIMMING
CCT (K) 4000
NMU8/830-40-60
130
110
6 / 8 / 10 / 12 / 14 / 16
732 / 944 / 1151 / 1363 / 1544 / 1727
up to 116
110o
>80
NMU11/830-40-60
130
110
6 / 8 / 10 / 12 / 14 / 16
752 / 993 / 1176 / 1389 / 1584 / 1774
up to 122
110o
>80
NMU13/830-40-60
130
110
6 / 8 / 10 / 12 / 14 / 16
732 / 944 / 1151 / 1363 / 1544 / 1727
up to 116
110o
>80
4000

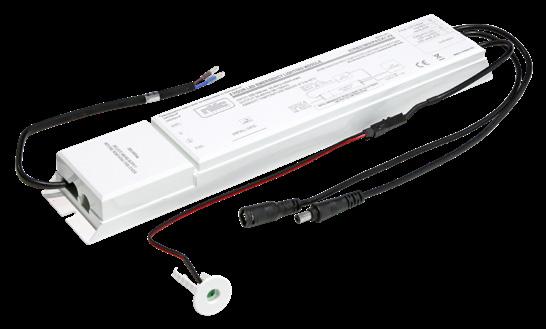

Emergency conversion packs ORDER CODE
DESCRIPTION
N/REC/M3/PACK/V2
M3 Pack V2 LiFePO4 For Recessed Product Ranges
N/REC/STM3/PACK/V2
M3 Pack V2 LiFePO4 Self Test For Recessed Product Ranges
N/REC/DAM3/PACK
LiFe DALI Addressable M3 Emergency Pack For Recessed Product Ranges
