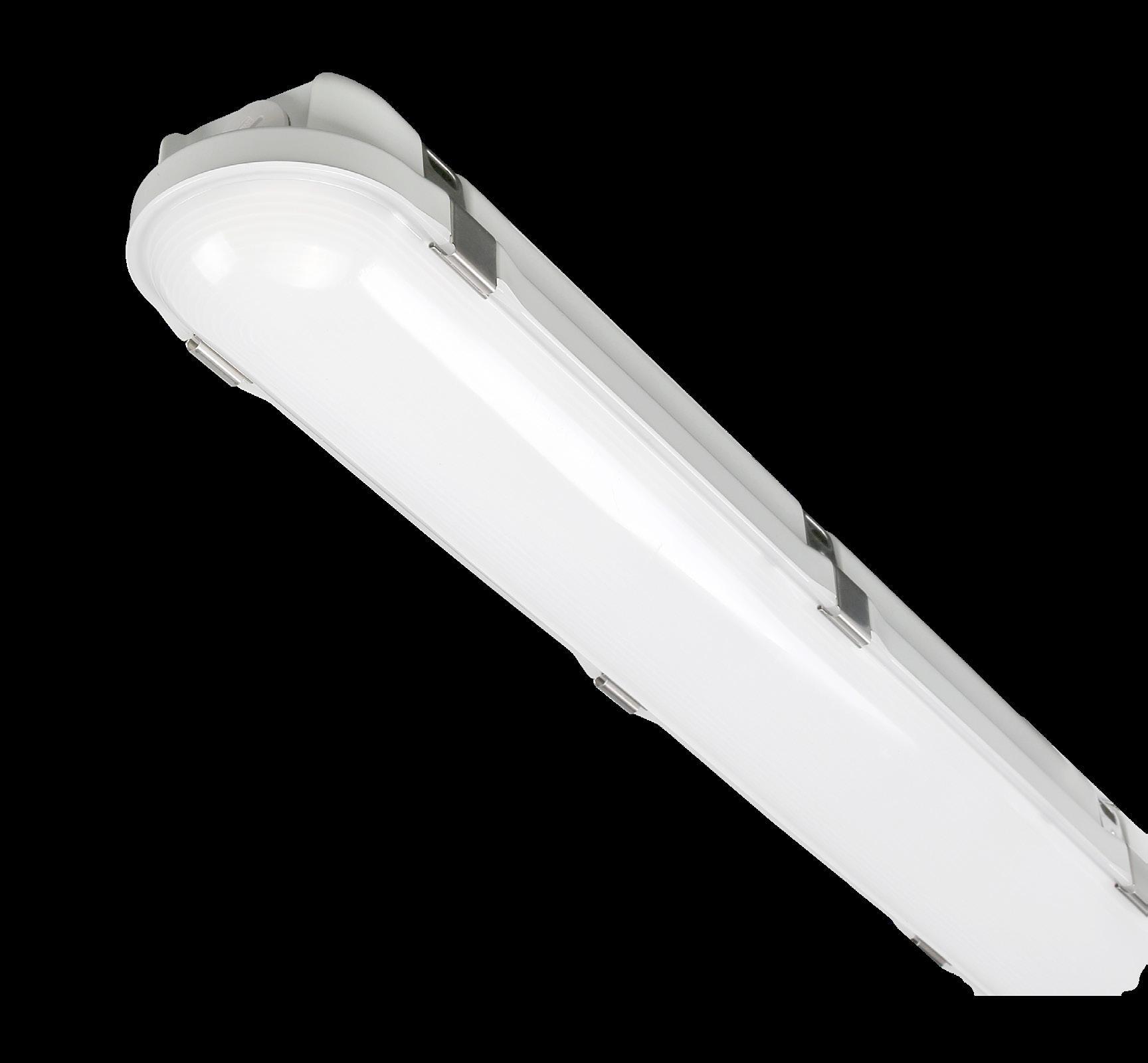

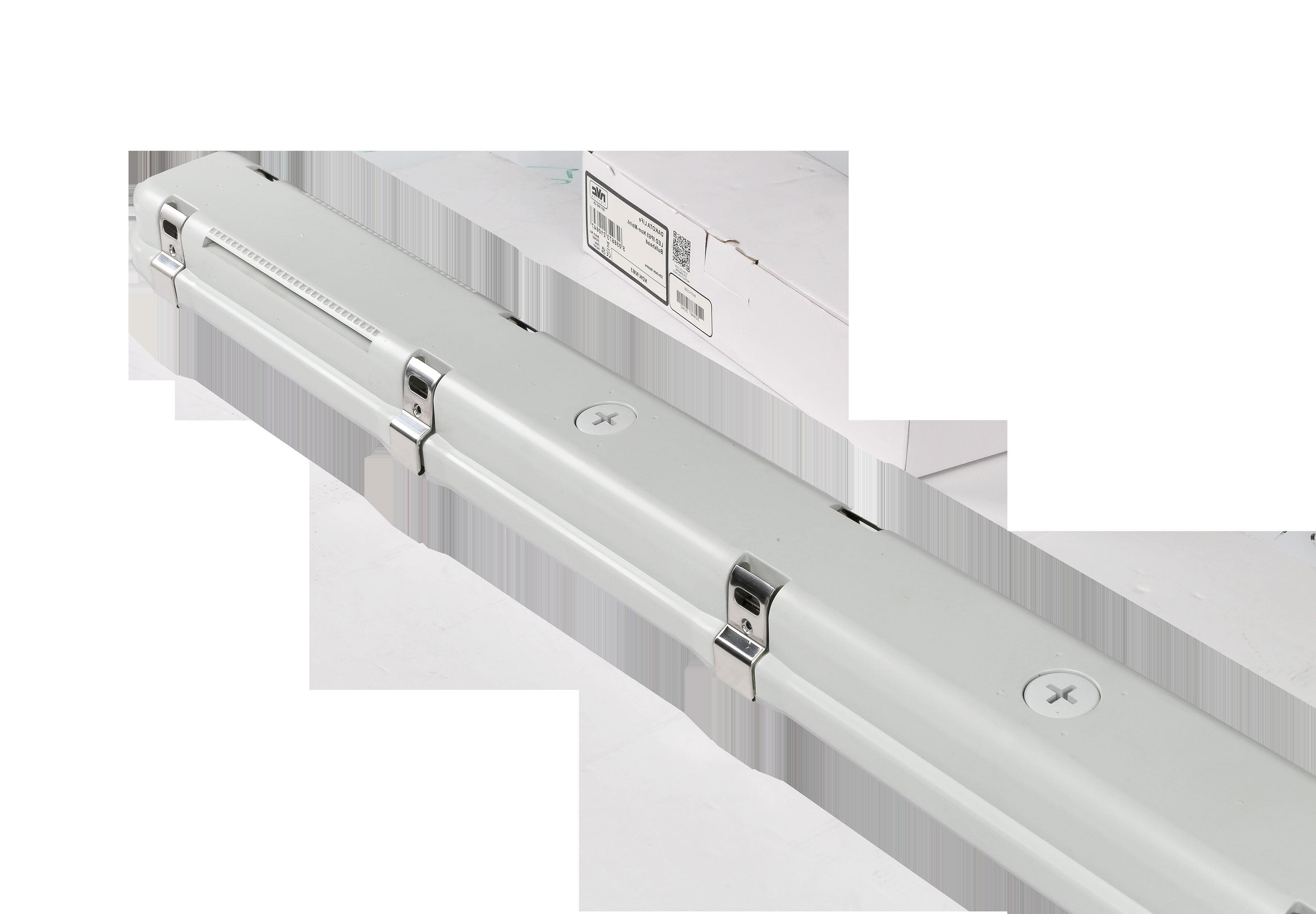

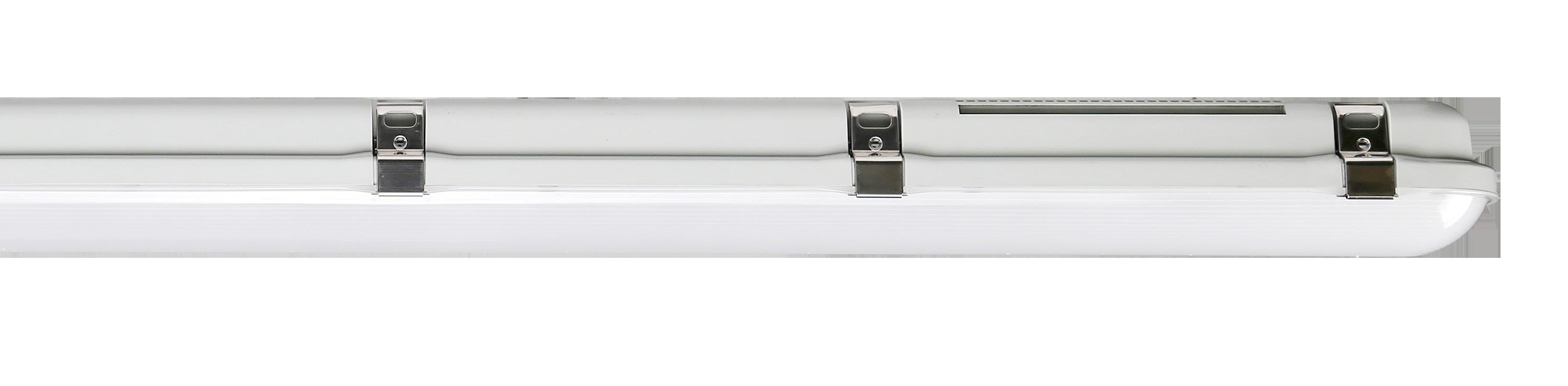

GREENLAND PRO
The all-new non-corrosive – better than ever. Quicker and easier to install.
BASE: First fix
• Fix the base to the ceiling
• Bring the mains supply in at the end or the rear
Makes maximum use of less-skilled labour. Keeps the light engine safe while other trades keep working.

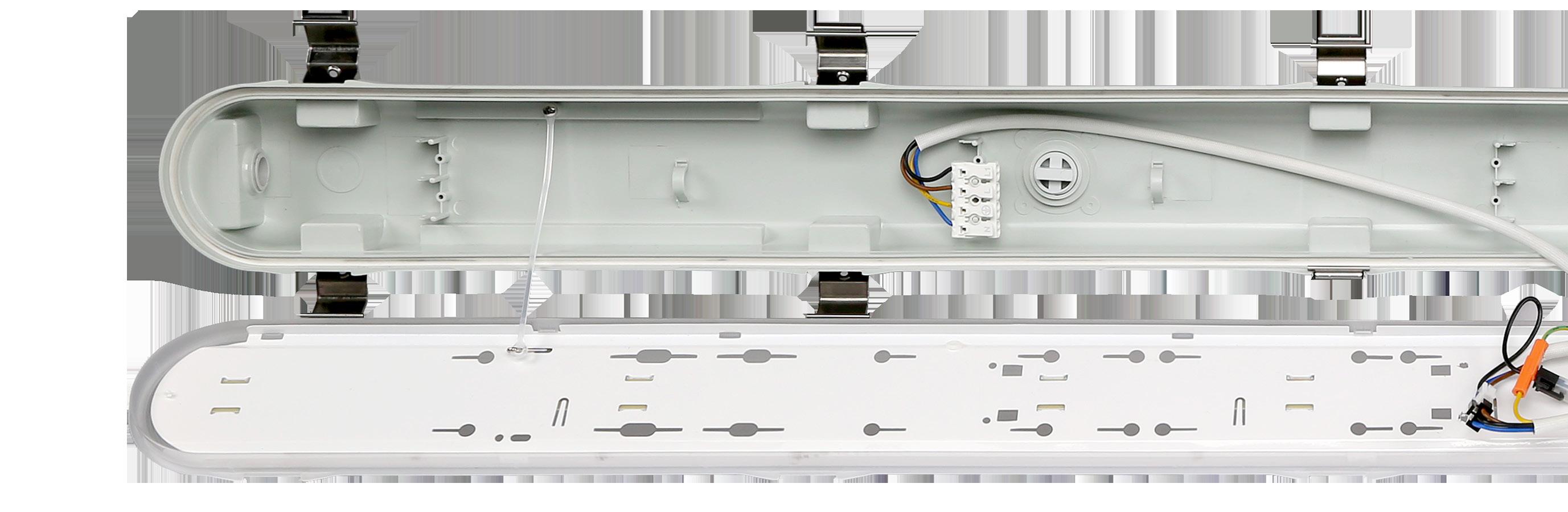

Terminal block, attached to light engine on a flying lead, can be fixed in any one of these 4 positions in the base.
LIGHT ENGINE: Second fix
• Terminal block snap-fits into moulded positions in the base
You place the terminal block where it’s easiest for you
o At the end for end cable entry
o In the middle for rear cable entry
Polycarbonate diffuser and base
Up to ??? l/lm/c.W
Wide range of sizes and wattages: 2’, 4’, 5’ & 6’ lengths.
??W - ??W
IP66 and IK10 rated
Tapped holes in the rear for conduit entry
Pre-drilled holes, tapped and sealed with IP66 plugs. No more drilling; IP66 guaranteed. Base
M20 tapped and plugged

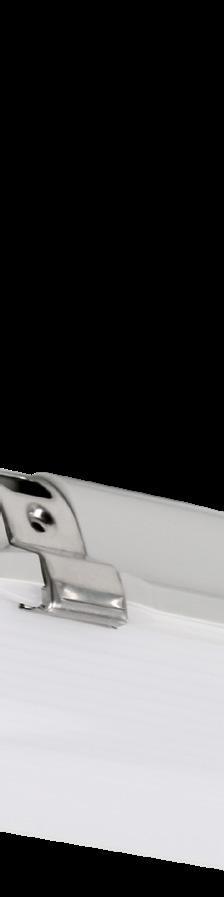

Clips hang clear of the sides3 hands not required when closing!

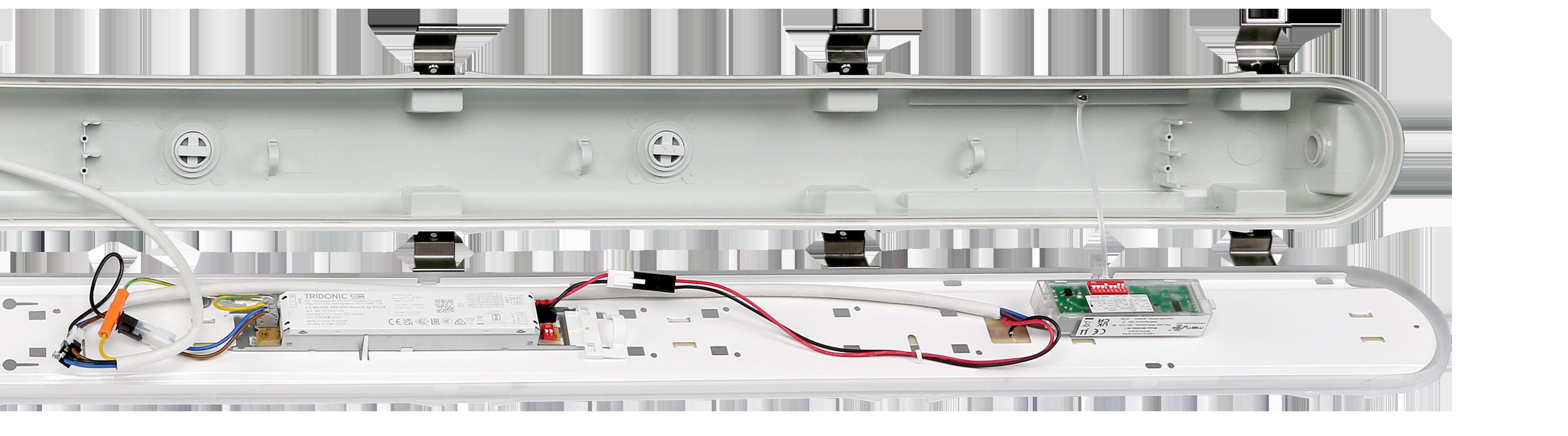

Light engine, detachable

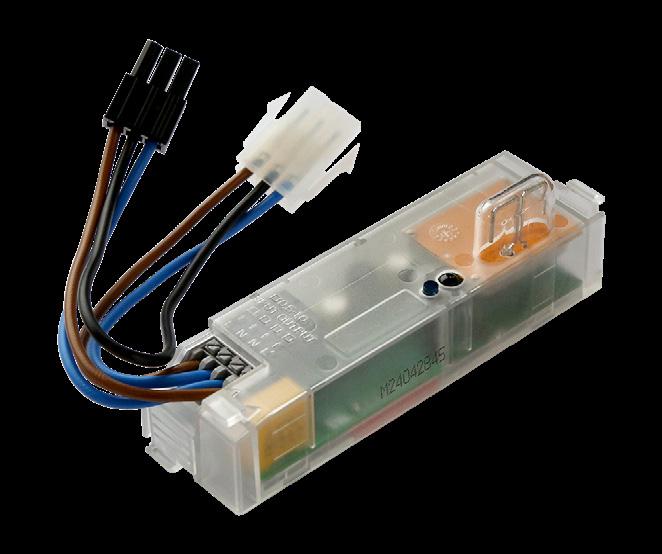

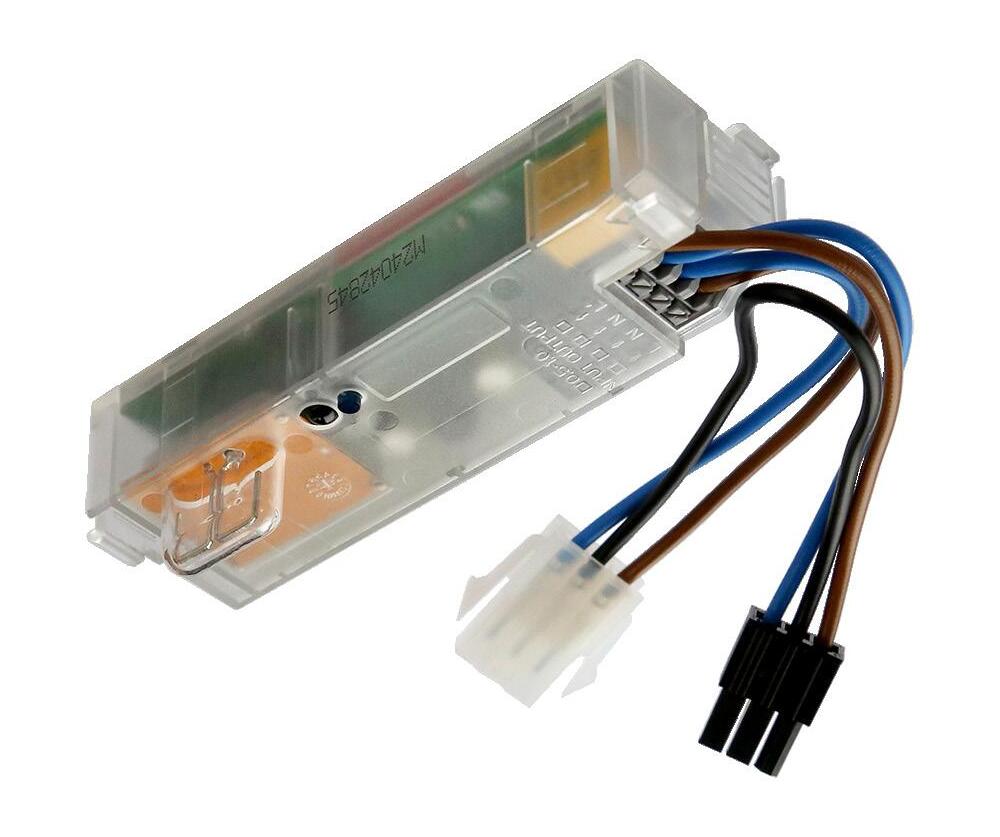

MW occupancy sensor
• Micro-wave occupancy sensor available with adjustable:
o Switch-on lux threshold
o Hold time
o Sensitivitty / detection area
This can be supplied ready fitted (suffix MW), or as a plug-in accessory for adding on site as required, as listed overleaf.
Elongated mounting clip grooves.
• Precision positioning of clips not required.
• Mounting clips can be positioned as is convenient and the base can then be slid into the correct position.
Tridonic driver
GREENLAND PRO
All new IP66 rated non-corrosive, power selectable and designed to deliver the fastest and most convenient installation process yet
APPLICATIONS
• Factories, garages and workshops
• Food preparation areas
• Rated to -20°C (standard), 0°C (emergency)
SPECIFICATION
• Polycarbonate base and opal diffuser
• Grade 304 stainless steel clips 2-part construction
o Base, with prepared cable and conduit entry points.
o Light engine, with diffuser, LEDs, Tridonic driver and terminal block on flying lead
• Designed for two stage installation
o First fix – install base and introduce mains cables
o Second fix – attach light engine and connect supply to terminal block
OPTIONS
Length
• 2’, 4’, 5’ and 6’ lengths available
Wattages
At each length there is a standard and high output version
• Each version is 4-way power selectable
Colour temperature
• Fixed - 4000K and 5000K available in all lengths
• CCT selectable - giving a choice of 2700K, 4000K & 6000K
Emergency – all maintained 3 hours with lithium (LiFePO4) batteries
• M3L: Manual test
• STM3L: Self-test
• HSDAM3L: HubSense addressable test
• DAM3L: DALI addressable test
• Emergency conversion packs (M3L and STM3L) are also available to be ordered separately for conversion on site, as listed.
Dimming
• DD: Digital Dimming - DALI and Switch Dim
• CF: Corridor Function – dim-to-10%
• CS: Casambi smart wireless control
HS: HubSense smart wireless control
Sensor
• MW: Supplied with microwave sensor fitted to the gear tray
The microwave sensor above is also available to be purchased as a separate item for plug-in installation on the gear tray, as listed opposite
QUICK TO INSTALL – all entries pre-drilled, tapped and supplied with IP66 plugs
COST EFFECTIVE – 1st fix with less skilled labour. 2nd fix is easy with movable terminal block
EFFICIENT – up to ?? l/lm/c.W
MADE TO LAST – 100,000 hours rated driver & 7-year warranty
GREENLAND PRO
