FOIL FOIL
ALAIN TEURQUETIL
BOARD DESIGNER
Renowned for his winning raceboard designs, Alain Teurquetil applies his engineering skills to designing foil boards too. NSP is stoked about the cooperation with Alain and his second generation of SUP foil, Wing foil and Surf foil boards.
Features like double concave bottoms, chinned rails, strap inserts and unique innovations like the front stringer on both the Pro models, plus the fuller nose concave on the Protech range ensures this generation of NSP foil boards continue to be state-of-the-art.
Whether you are passionate about foiling downwind, in the surf, on a SUP or with wings, NSP’s foil shapes offer an unsurpassed experience that get you on the foil with ease.
•
•
• SURF FOIL
• SURF FOIL - CONSTRUCTION
• HOT SHOT WING FOIL
•
• WING FOIL INFLATABLE
•
SUP WING FOIL RANGE OVERVIEW
• SUP WING FOIL PRO
• SUP WING FOIL PRO - CONSTRUCTION
• SUP WING FOIL
• SUP WING FOIL - CONSTRUCTION
• SPITFIRE DOWNWIND FOIL OVERVIEW
• SPITFIRE DOWNWIND FOIL
• SPITFIRE DOWNWIND FOIL - CONSTRUCTION
• WINDSURF FOIL OVERVIEW
• WINDSURF FOIL
• HYBRID FOIL
• SUP WINDSURF FOIL - CONSTRUCTION
• AIRWAVE
• AIRWAVE OVERVIEW
• AIRWAVE MODULAR HYDROFOIL SYSTEM
• AIRWAVE MODULAR 80 SET
• RIBLET FW SERIES - RIBLET REAR WINGS
• GULL FW SERIES - GLIDER FW SERIES
• REAR WINGS
• WING PAIRING
• FUSELAGES
• MASTS - MOUNTING PLATE - TUTTLE BOX
• SHIMS - MAST SHIM
• AIRWAVE ACCESSORIES
• AIRWAVE USER MANUAL
• FIREBALL
• FIREBALL FEATURES & SPECS
• FIREBALL TECHNICAL FEATURES AND MATERIALS
• FIREBALL SIZE CHART
• FIREBALL BACKPACK
• FIREBALL ACCESSORIES
• FIREBALL MANUAL
• FOIL KIT BOARD BAGS SINGLE & DOUBLE
• FOIL BAGS
• TRACTION PADS
• MFC FOOTSTRAPS - RAIL TAPE - TIE DOWN STRAPS - ROOF RACK PADS
• SOFT ROOF RACKS - SINGLE
• SOFT ROOF RACKS - DOUBLE

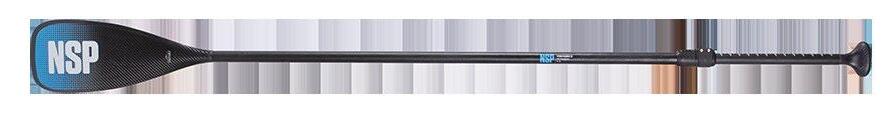

• PADDLE RANGE
• SURF / SUP LEASHES

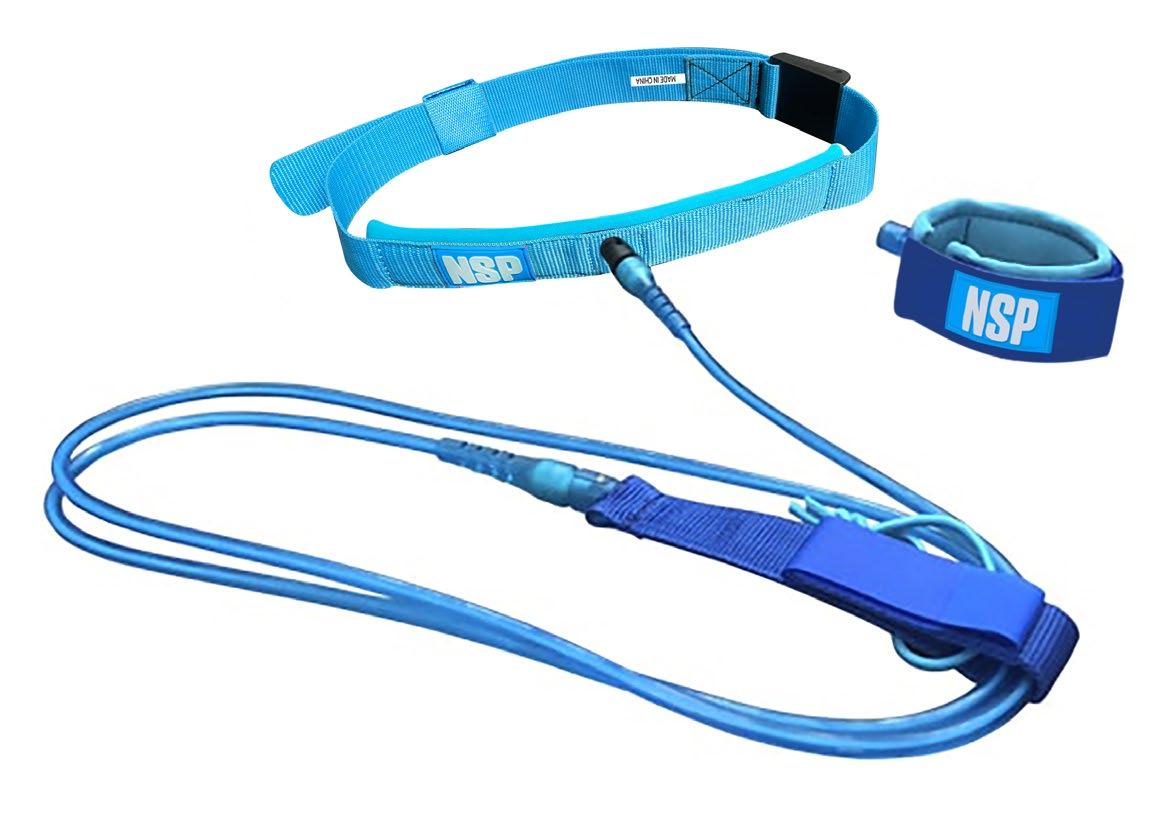

• SUP COIL LEASHES - WAIST BELT
• BUOYS - BEACH FLAG - TENT - BANNER
• OUR STORY
• SOCIAL MEDIA
FOIL BOARD RANGE OVERVIEW
Photographer : Franck Berthout
Rider : Alex Bicrel
Location : Maui, USA
Board : Surf Foil Pro with Airwing Fireball
4’4” x 19”
4’8” x
5’0” x
•NSSF1101-0404
•NSSF1102-0408
•NSSF1103-0500
•NSSF1104-0504
HOT SHOT WING FOIL PRO
4’10” x 22.5”
5’0” x 24”
5’2” x 25.5”
5’4” x 27”
5’6” x 28.5”
•NFHS1101-0410
•NFHS1102-0500
•NFHS1103-0502
•NFHS1104-0504
•NFHS1105-0506
5’5” x 22 1/2”
5’9” x 24”
6’1” x 25”
6’6” x 26”
6’11” x 27”
7’4” x 28”
SUP WING FOIL PRO
5’6” x 24”
5’10” x 25”
6’2” x 25”
6’6” x 27”
6’10” x 28”
7’2” x 29”
•SFFL12-0505-PR
•SFFL12-0509-PR
•SFFL12-0601-PR
•SFFL12-0606-PR
•SFFL12-0611-PR
•SFFL12-0704-PR
•NSPF0909
•NSPF0904
•NSPF0905
•NSPF0906
•NSPF0907
•NSPF0908
•NSSF0904
4’8” x 20”
•NSSF0901
SUP WING FOIL
6’6” x 27”
6’10” x 28”
7’2” x 29”
•NSPF0901
•NSPF0902
•NSPF0903
5’10” x 27 1/2”•NOXY1005 WING FOIL FS INFLATABLE
Photographer : David Edmondson
Rider : Bruno Pitanga
Location : Dubai
Board : Airwave & Surf Foil Pro
SURF FOIL BOARDS
KINGPIN SURF FOIL PRO
The concave deck is comfortable to paddle and ultra-responsive to rider input. Combined with a new deck pad and the option of foot straps, the Kingpin will be an integral part of the NSP Foil range.
•NSSF1101-0404
•NSSF1102-0408
•NSSF1103-0500
•NSSF1104-0504
SURF FOIL PRO
The NSP Pro Series Surf Foil boards are designed to optimize paddle speed, getting you on waves and on foil quickly. The lower swing weights increase maneuverability in the air and riders lose minimal speed, recovering quickly from touchdowns thanks to the bottom shape.
SURF FOIL
The Recreational (Rec) series Surf Foil boards are designed with the same outlines and rocker as the Pro Series, but with more volume in the forward half of the board and less concave provides an easier and safer entry to the wave.

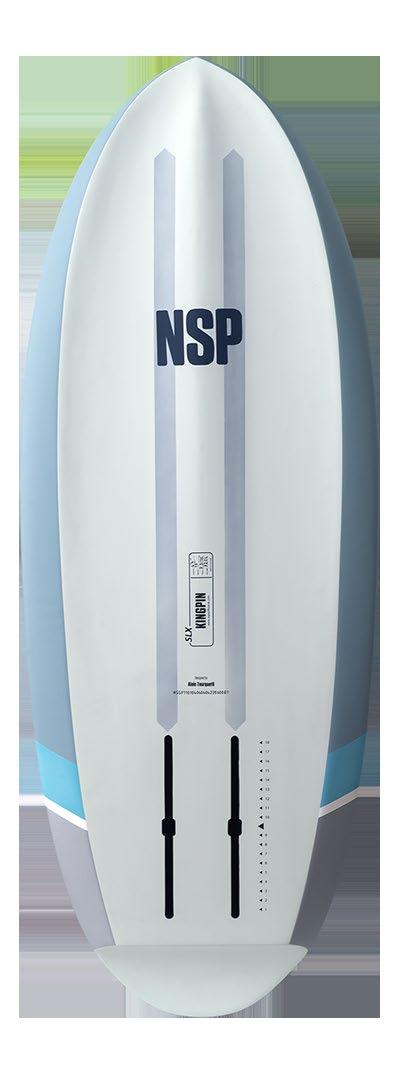

NSP KINGPIN SURF FOIL PRO
The Kingpin is the next evolution of Surf Foil boards.
After numerous R&D cycles, the foiling product team is excited to present one of the most functional and progressive surf foil boards on the market today.
The full volume pointed round nose features a deep double concave hydro hull transitioning to a flat rocker through the middle and tail. This is complimented by a full chined rail and cutaway round tail, reducing surface area and promoting early release. This combination of concaves, rocker, rail chines, and cutaway tail release faster without drag for a super smooth take-off and easily handles touchdowns.
The concave deck is comfortable to paddle and ultra-responsive to rider input. Combined with a new deck pad and the option of foot straps, the Kingpin will be an integral part of the NSP Foil range.
Design:
• The volume distribution is concentrated around the chest area to give surfers a perfect platform for paddling into waves.
• Deep double concave Hydro Hull nose. Chined rails and tail cutaway for maximum paddle speed and release on take-off and touchdowns.
• Flat rocker through the middle and tail with relief from the tail cutaway to kick the tail early to get onto foil.
• Thermoformed EVA tail pad with arch bar, side kick and pronounced tail kick and side wedges.
• Twin track foil tuning guide.
Construction Features:
• Leash plug
• Compact shape for pumping
• Beveled rails for quick water release and bounce backs
• Single rear foot strap and double front strap options
• Tail kick pad - added leverage to help lift the foil out of the water, reducing the tail touching the water when pumping and turning
• Narrow nose outline for faster paddling, pushing through waves, and easy quick turns.
• Medium nose kicker prevents the board pearling and with enough curve to recover from touch-downs
• Hydro hull is a combination of increased “V”, subtle double concaves and double-edged chine rails
• 10” US box reinforced twin tracks for a fully adjustable setup, made easier to remember with the scale printed on the board
• Mounting tracks embedded in high-density closed cell PVC blocks
• Hybrid SLX Carbon construction - lightweight construction for stiffness, maneuverability and glide

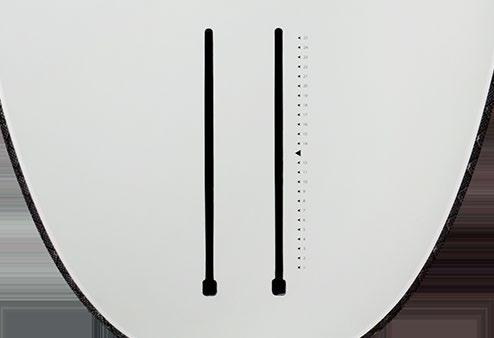

Twin track /foil tuning guide center ridge
concave & chined rails
Dual UD carbon stringers
Tail kick pad with center arch and side wedges
NSP SURF FOIL PRO
The NSP Surf Foil Pro boards are designed around the same parameters as the SUP foil boards. The boards paddle fast, getting you into waves faster and on foil with ease.
Riders can hit the water hard, lose minimal speed or momentum, and recovery is smooth after an accidental touchdown. These advanced shapes feature concave and pronounced center stringers that create a totally new experience for intermediate-to-expert foilers.
Key Features:
• The volume distribution is concentrated around the chest area to give surfers a perfect platform for paddling into waves.
• A completely new rocker with a unique front stringer line optimizes paddling speed from every paddle stroke, getting you on the wave and on the foil faster than ever before.
• A pronounced stringer and double nose concave actively help directional efficiency, making sure that every paddle is converted into forward movement, getting you into the waves quicker .
• The forward bottom shape and chinned rails avoid any sticking or catching when they touch down, instantly rebounding the board back into flying mode.
• A refined nose volume minimizes the swing weight of the board in the air, allowing foilers to snap fast turns with confidence and balance.
• Thermoformed EVA tail pad with arch bar, side kick and pronounced tail kick and side wedges.
• Twin track foil tuning guide.
Twin Track Mounting system and tuning guide
EVA tail pad with center arch bar and side wedges
Carbon
SURF FOIL PRO - CONSTRUCTION
Super durable, impact resistant and great for surf foiling.
SLX – Super Light Epoxy. Lightweight, responsive and extremely versatile boards.
• The standing area is reinforced with biaxial glass adding extra strength to avoid dings or dents from excessive pumping, while also helping to prevent delamination.
•The rail-to-rail carbon vector net wrap creates optimal board performance by providing unmatched flex and strength throughout the board, while making it less prone to breakage.
•The board has a consistent feel and flexes naturally with the water conditions or when pressure is applied from the rider pumping the board.
•Dual uni-directional carbon bottom stringers provide the optimum flex needed for enhanced performance.
•All boards come equipped with a NSP foiling tail pad and twin track mount.
•The twin track boxes are mounted in high-density PU boxes for a maximum bond between the different components. It will pair perfectly with the NSP AIrwave hydrofoil but will accommodate a wide variety of twin track foils on the market.
Photographer : Laurent Nevarez
Rider : Alex Bicrel
Location : France
Board : Airwave & Surf Foil Pro
NSP SURF FOIL
The Surf Foil boards in our popular Protech technology, are designed with the same outlines and rocker as the Pro Series, but with a less pronounced concave and a less pronounced center stringer. This lineup of surf foil boards also has a bit more volume in the front section of the board and fuller rails compared to the Pro Series range.
Overall, the increased stability makes it easier to focus on getting onto the foil and really helps recovering from abrupt touchdowns while on the foil.
NSP’s Protech Technology is an ideal construction for this type of water-sport, combining performance and price in a very attractive package for beginning and intermediate foilers.
Key Features:
• The volume distribution is concentrated around the chest area to give surfers a perfect platform for paddling into waves.
* Refined rocker for faster paddle speeds.
* Shallower concaves and less pronounced stringer make maneuvering in the line up a breeze.
* Fuller rails and forward volume provide great stability, allowing for quick recovering in steep takeoff conditions.
• Thermoformed EVA tail pad with arch bar, side kick and pronounced tail kick and side wedges.
• Twin track foil tuning guide.
EVA tail pad with center arch bar and side steps Chinned railsDouble concave
SURF FOIL - CONSTRUCTION
Protech construction is renowned as NSP’s line of durable, high-performance custom laminated boards offered at the most attractive price point.
• 36g molded SecureCell EPS core.
• Triple-reinforced glass deck and rail with full 200g. glass bottom.
• The twin track boxes rails mounted in high-density PU boxes for a maximum bond between the different components. It will pair perfectly with the NSP AIrwave hydrofoil but will accommodate a wide variety of twin track foils on the market.
Photographer : Bryce Frees Rider : Dominic DiMaggio
Location : California
Board : Surf Foil
Protech and Airwave
WING FOIL BOARDS
HOT SHOT WING FOIL PRO
An exercise in hydrodynamic efficiency. Reducing drag by optimizing release and maximum speed pre-foiling also translates to less drag when riders touch down, allowing them to successfully relaunch.
•NFHS1101-0410
•NFHS1102-0500
•NFHS1103-0502
•NFHS1104-0504
•NFHS1105-0506
WING FOIL FS INFLATABLE
For minimal storage needs, the Wing Foil FS Inflatable can be stowed away anywhere, and inflated when you are ready to fly. The Wing Foil FS benefits from FS Construction for the most rigid inflatable foiling experi-ence possible.
Photographer : Laurent Nevarez
Rider : Alex Bicrel
Location : France
Board : Airwave & Wing Foil FS Inflatable
HOT SHOT WING FOIL PRO
New for 2023, The Hot Shot is a next-generation Wing Foil board. An exercise in pure hydrodynamics reducing drag by optimised release and maximum speed sub foil also means less drag when riders touch down, allowing them to relaunch quickly and smoothly.
The nose features a refined double concave hydro hull transitioning to a flat rocker with cut-away chined rails positioned one-third above the rounded cut-away tail, reducing surface area and drag. Despite the reduced length, the fuller outline and rail maintain volume to assist starts and recovery in rough water and combined with the bottom, the take-off is as smooth as silk and gives riders confidence to push hard.
The concave deck is comfortable and ultra-responsive to rider input. Combined with a new deck pad and included MFC foot straps, the Hot Shot is the perfect board together with NSP’s new Fireball Airwing to take your wing foiling to the next level.
Design:
• The volume distribution is designed to reduce the board’s swing weight when you are on the foil and allows for quicker directional changes and gybes.
• Directional efficiency when you are off the foil, so all applied forces convert into forward movement.
• Enough buoyancy and stability to recover in rough water and stay comfortable when you are not on the foil.
• Thermoformed EVA deck pad with pronounced kick tail and side wedges.
• Twin track foil tuning guide.
• Multi-positioning foot strap inserts mid-deck and tail.
Construction features:
• Leash plug
• Compact shape for pumping
• Beveled rails for quick water release and bounce backs
• 3/4 length EVA deck pad - grip where needed
• Tactile and visual stance references
• Multiple foot strap insert positions - Ride with 1, 2, or 3 straps, half straps, or no straps
• Mounting tracks embedded in high density closed cell PVC blocks
• 13” reinforced twin tracks for a fully adjustable setup, made easier to remember with the scale printed on the board
• Tail kick pad - perfect for riding without straps
• Quick release track mount - detach your foil without removing the bolts
• Hybrid carbon technology - lighter weight construction for stiffness, maneuverability and glide
• Hydro hull is a combination of increased “V”, subtle double concaves and cut-away double-edged chine rails and tail.
• Integrated bottom and deck SUP handles for easy transportation - carry your Hot Shot with one hand and your wing with the other.
Tail kick pad with Footstrap inserts
Concave & chined rails
Twin track / foil tuning guide
UD Carbon stringer
Multiple foot strap options
Rounded tail with cut-away chined rails and tail
HOT SHOT WING FOIL PRO - CONSTRUCTION
WING FOIL FS
INFLATABLE
The ultimate compact wing foiling traveling companion!
Without sacrificing performance and stability, the all new Wing Foil inflatable board rolls up into a backpack and makes storage and traveling so much easier. The design concept comes from our well known composite foil boards and has been tested with the same rigor, intensity and detail that our team gives to every board put into production. Built with 5” dropstitch reinforced double layer glueless pre-lamination, double layer rail band and a full carbon pre-preg foil mounting plate, the Wing Foil board is extremely durable and rigid. Equipped with footstrap inserts this board is all you need to travel, get airs and have a whole lot of fun.
Features:
• Rounded square tail for increased stability.
• Fusion reinforced double layer glueless pre-lamination.

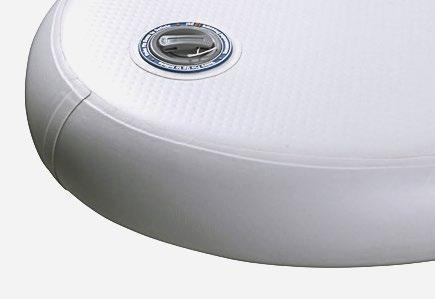

• Double layer rail construction with double sealing rail band.
• Thermoformed diamond grooved EVA deckpad with kicktail .
• M5 footstrap V-shaped inserts to attach footstraps for winging.
• Reinforced full carbon pre-preg foil mounting plate with 10” twin track.
• Double action pump.

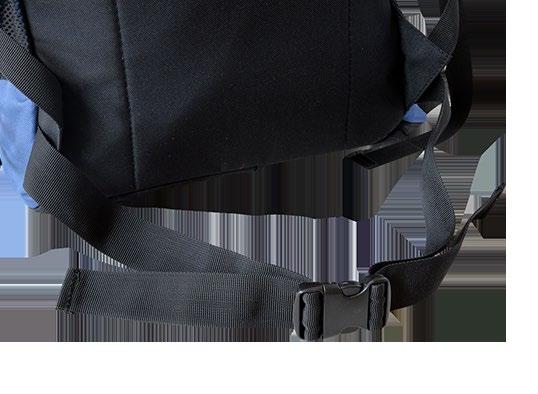

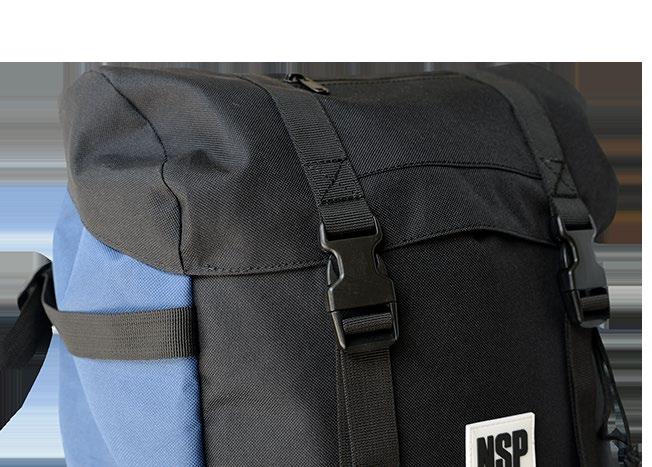

• Premium dual compartment backpack with wheels.
• 3 adjustable footstraps.
Double rail band Full carbon pre-preg mounting plate
Footstrap V-shaped inserts
Thermoformed diamond grooved EVA deckpad with kicktail
3x footstrap included
WING FOIL - INFLATABLE TECHNOLOGY
INFLATABLE
NSP FOOTSTRAP
Supplied exclusively with our Wing Foil Inflatable, the NSP footstrap is a must have for anyone looking to get into wingding foiling, windsurf foiling or kitesurf foiling. The external adjustable system and 1/2/3 bolts accommodate every foot size and board setup, while offering the best comfort and support. You will feel ‘locked in’ when you slip your feet into the NSP footstrap.
Features:
• Comfortable 7mm neoprene padding
• Internal adjustment system
• Single or double insert compatibility
• Maximum comfort
SUP WING FOIL PRO
This new generation of SUP-Wing foiling shapes take engineering cues from the latest America’s Cup foiling boats. By adapting key concepts to the specific needs of SUP foiling, we greatly improved bottom-end sub-foiling performance, getting you up and foiling early with minimal effort. The refined forward hull shapes deliver instant recovery from those unavoidable touchdowns.
SUP WING FOIL
NSP’s Sup Wing Rec Series is designed with the same outlines and rocker as the Pro Series, but with a bit more volume in the front half of the board and fuller rails. Overall, the increased stability makes it easier to focus on getting onto the foil and makes it easier to control during dramatic touch downs.
SUP WING & WING FOIL BOARDS
Photographer : David Edmondson
Location : Dubai
Board : Airwave & SUP Wing Foil Pro
SUP WING FOIL PRO
This generation of SUP-Wing foiling shapes take engineering cues from the latest America’s Cup foiling boats. By adapting key concepts to the specific needs of SUP foiling, we greatly improved bottom-end sub-foiling performance, getting you up and foiling early with minimal effort.
The boards are balanced in the air with low swing weight. The forward bottom and rail shape is designed to maintain speed during accidental touch downs while delivering a smooth recovery. These improved shapes bring a totally new experience for intermediate-to-expert foilers with the most pronounced stringer line for increased directional momentum.
The result is a shape riders can easily stand on, with a very good sub-foiling efficiency and a forgiving ride when flying. This makes the NSP SUP Wing Foil Pro boards perfect for waves, downwinding and wing foiling.
FEATURES:
• Enough buoyancy and volume to stay balanced when you are not on foil.
• Early planing shape and efficient tail exit requires minimal effort to lift up and fly. These shapes provide better sub-foiling bottom-end efficiency for paddling and wingfoiling.
• Directional efficiency when you are off the foil, so all applied forces ((paddle stroke, kite-pump or wingding)) is converted into forward movement.
• The directional shape is designed to avoid any sticking effect when touching the water surface, allowing the board to rebound instantly to flying mode.
• The volume distribution is designed to reduce the swing weight of the board when you are on on foil. This allows for quick turns and gybes.
• Thermoformed EVA deck pad with pronounced kick tail and side wedges.
• Twin track foil tuning guide.
• Multi-positioning foot strap inserts mid deck and tail.
•MFC-designed footstraps are available as an aftermarket item in NSP’s foil accessories range.
Twin track / foil tuning guide
Tail kick pad with center arch and side wedges
Center ridge and foot strap inserts
Uni-directional carbon stringer deck
Pronounced stringer line
SUP WING FOIL PRO - CONSTRUCTION
Extremely Durable, Lightweight and Fun to SUP Foil.
SLX – Super Light Epoxy. Lightweight, responsive and extremely versatile boards.
•Carbon-reinforced standing area just over the foil box to add strength for pumping when foiling.
•Biaxial glass protects the standing area from dings, dents or sustained pumping and prevents delamination.
•Center ridge just below the EVA deck pad runs conveniently along the entire length of the deck pad allowing you to position yourself on the center of your board without looking down.
• Full-length uni-directional carbon stringer on the deck and a uni-directional hybrid carbon stringer on the bottom add strength, flexibility and foil drive.
•The twin tracks are mounted in high-density PU boxes for a maximum bond between the different components. It will pair perfectly with the NSP AIrwave hydrofoil but will accommodate a wide variety of twin track foils on the market.
Photographer : Laurent Nevarez
Rider : Titouan Puyo
Location : France
Board : Airwing and SUP Wing

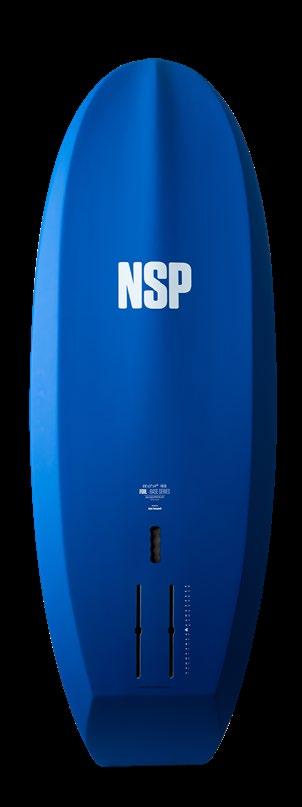

SUP WING FOIL
The SUP Wing Foil shapes take engineering from the America’s Cup foiling boats.
Designed with the same outlines and rocker as the Pro Series, but with a dialed down concave and a less pronounced stringer line. The SUP Wing Foil Series also has a bit more volume in the front section of the board and fuller rails compared to the Pro Series range.
Overall, the increased stability makes it easier to focus on getting onto the foil and really helps recovering from dramatic touchdowns while flying.
Features :
* Perfect for first-time and wing foilers.
* Greater nose volume in the front half of the board and fuller rails compared to the Pro Series range, provide increased volume and stability.
* Dynamically efficient bottom shape allows you to get on the foil with minimal effort.
* Chinned rails make
• Thermoformed EVA deck pad with pronounced kick tail and side wedges.
• Twin track foil tuning guide.
• Multi-positioning foot strap inserts mid deck and tail.
• MFC-designed footstrap are available as an aftermarket item in our foil accessories range.
Twin track /foil tuning guide Center ridge on deck pad
Footstrap Footstrap insertsconcave & chinned rails
SUP WING FOIL - CONSTRUCTION
Renowned as NSP’s line of durable, high-performance custom laminated boards.
NSP’s Protech technology is an ideal construction as it combines performance and price in a very attractive package for beginning- to intermediate foilers.
Riders can now hit the water hard, lose minimal speed or momentum, and recovery is smooth after an accidental touchdown.
•36g molded SecureCell EPS core.
• The standing area is reinforced with biaxial glass to avoid dings or dents from excessive pumping, while also helping to prevent delamination.
•Biaxial glass protects the standing area from dings, dents or sustained pumping and prevents delamination.
•The twin track boxes are mounted in high-density PU boxes for a maximum bond between the different components. It will pair perfectly with the NSP Airwave hydrofoil but will accommodate a wide variety of twin track foils on the market.
Photographer : David Parias Board : Airwave & SUP Wing Foil Protech
DOWNWIND FOIL
SPITFIRE DOWNWIND FOIL
The spitfire is the latest development in a category of boards that demands both a shorter board for manageability as well as lifting efficiently as possible to get onto foil for endless rides bump-to-bump.
•SFFL12-0505-PR
•SFFL12-0509-PR
•SFFL12-0601-PR
•SFFL12-0606-PR
•SFFL12-0611-PR
•SFFL12-0704-PR
Photographer : Brett Bennett Rider : Dane Gillett
Location : Hebara beach, Chiba Japan
Board : Airwing, Airwave & SUP Foil
NSP SPITFIRE DOWNWIND FOIL
The Spitfire is the latest development in a category of boards that demands both a shorter board for manageability as well as lifting efficiently as possible to get onto foil for endless rides bump-to-bump.
To achieve this, the Spitfire features a narrow nose and pin tail to lengthen the waterline and advanced hydrodynamics with a deep double concave hydro hull and chined rail to push less water and lift unbelievably early. This is key downwind as initial speed from the paddle and early lift to foil is the key to chasing the bumps.
The narrower tail width creates efficient water exit but also allows the nose to lift quickly. The concave deck is super comfortable to paddle and ultra responsive to rider input. Combined with a new deck pad and the option for multi-positioned foot straps the Spitfire is the perfect board to enjoy your time in downwind conditions.
Design:
• Designed to lift back onto foil quickly and efficiently to endlessly ride downwind bumps and get you back on foil easily if you come down.
• Directional efficiency when you are off the foil, so all applied forces are converted into forwarding movement.
• Thermoformed EVA deck pad with pronounced kick tail and visual stance references.
• Multi-positioning foot strap inserts mid deck and tail.
• Beveled rails for quick water release and bounce backs.
• Inset bottom and deck SUP handles for easy transportation.
• 13” reinforced twin tracks for a fully adjustable setup, made easier to remember with the scale printed on the board.
• Quick release track mount - detach your foil without removing the bolts.
• Tactile and visual stance references.
• Hybrid carbon technology-lighter weight construction for stiffness, maneuverability and glide.
• Deep double concave hydro hull and double-edged chine rails.
SPITFIRE DOWNWIND FOIL - CONSTRUCTION
Rider : Ishi
Location : Japan
Board : Airwave & SUP Hybrid Foil
WINDSURF FOIL
WINDSURF FOIL
With a wave sail, the Windsurf Foil is perfectly tuned for freeride wind foiling, fast and responsive for all sorts of manoeuvres, especially 360-turns. An allrounder for a wide variety of conditions to go winging or windfoiling with.
HYBRID FOIL
The ultimate crossover board, perfect for SUP foiling, windsurf foiling, and wing foiling; remove the foil, add fins and you have a ripper of a surf SUP board.
NSP WINDSURF FOIL
The 6’6” WS is a real funboard. First designed as a pure Windsurf board, it quickly turned out to be an absolute allrounder during our testing.
“With a small wave sail its perfect for freeride wind foiing, very fast, agile in all sorts of manoeuvres, especially at 360 degree turns. a pure allrounder in all sort of conditions…surfing, winging and windsurfing” Riccardo Giordano (1992, 2000 and 2004 Olympic windsurfer)
Great rail shapes, volume balance and clean bottom shape make it perfect for Free ride Wind Foil, but also for winging.
Features include:
• Extended twin track for perfect tuning options
• Windsurf Mast Track
• Plenty of footstrap insert options for Windsurf and Winging
• Full-length uni-directional carbon stringer for added strength
• Biaxial carbon reinforced foil box
• Carbon Innegra rails for durability and strength

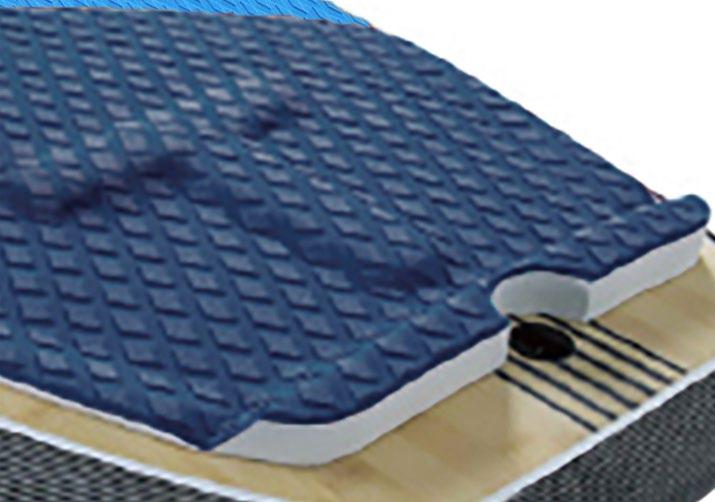

• Diamond-grooved EVA pattern
• Paulonia wood deck for added strength. A great addition to our eco-friendly Sustainable materials
• Supplied with 4x MFC footstraps
UD Carbon stringer
Twin track system
Carbon - Innegra honey comb rail
MFC Footstraps
HYBRID FOIL
The Hybrid Foil is designed for downwinding, tow-in or windfoiling; the Hybrid Foil can do it all. Paired to the NSP Airwave or with conventional fins (thruster works best for fast and loose rides), this hybrid works well on- and over the surface.
Selling features:
• SLX : A premium and high-performance package.
• Vacuum bonded SLX (Super Light Epoxy) core offers a lighter weight.
• Biax glass and Paulownia veneer wood deck for improved impact resistance.
• Full-length unidirectional (UD) carbon stringers for added strength and foil drive.
• Biaxial carbon reinforced foil box.
• Hand-polished unidirectional (UD) flax rails.
• Maximize every wave with power and speed.
• With a huge sweet spot for a board this size, this foil board is designed for maximum stability.
• Deck/bottom matt colour and polished rails.
• Diamond grooved EVA tail pad with side and a center T-bar ridge for easy foot placement while foiling.
Catch waves that refuse to break and fly over the slower sections with grace and speed. The Hybrid Foil is an eco-friendly board featuring flax fiber rails for added durability. If you don’t already own a foil with a tuttle-box, this is the board to go for, as we engineered the twin track system to be more tunable, more resistant to torque and easier to set up.
Features:
Foil and a 2+1 fin setup, stategically positioned to either foil or surf. FTU finboxes with Futures fins. Wave 6” Center fin and 2x J5 side bites supplied with each board.
Kick tail for SUP Surfing
UD Carbon hybrid stringer Twin
HYBRID AND WINDSURF FOIL SLX PRO CARBON TECHNOLOGY
Fiber glass
Biaxial glass
Carbon-Innegra rail
Hand polished UD Flax Rails
Uni-directional carbon stringers
Secure cell EPS core
•Features multi foil fin box options strategically positioned to optimize control.
•13” Twin Track foil mount
•Full-length uni-directional carbon stringer for added strength.
•Carbon innegra rail
•Biaxial carbon reinforced foil box.
•FTU fin system.
•Diamond grooved EVA tail pad with side and a center T-bar ridge for easy foot placement while foiling.
•Paulonia wood deck for added strength. A great addition to our eco-friendly / sustainable materials.
•Peel Ply texture to maximize grip when stepping outside EVA-covered area.
Vacuum molded epoxy
Peel Ply Texture
Paulownia wood
Photographer : On’s Japan Distribution
Location : Japan
Board : Airwave & SUP Hybrid Foil
AIRWAVE
Designed with performance, hydrodynamic efficiency and durability in mind. This modular platform can be tuned for every type of foiling: Surf, SUP, downwind, tow, windsurfing, wake, kite and wingfoiling.
It’s an extremely versatile foiling platform with all the necessary add-ons to allow you to customize your NSP Airwave across the entire watersports spectrum, no matter the riders weight or ability.
The backbone of the NSP Airwave is the unique 13.5cm (5.31”) wide 6061-T6 Aluminum mast. It is substantially wider than other masts for additional strength and directional stability. Connected to our beefed-up, precision CNC-cut 6061-T6
Aluminum fuselage, the Airwave will withstand loads generated from high speed turns and those inevitable wipe-outs.

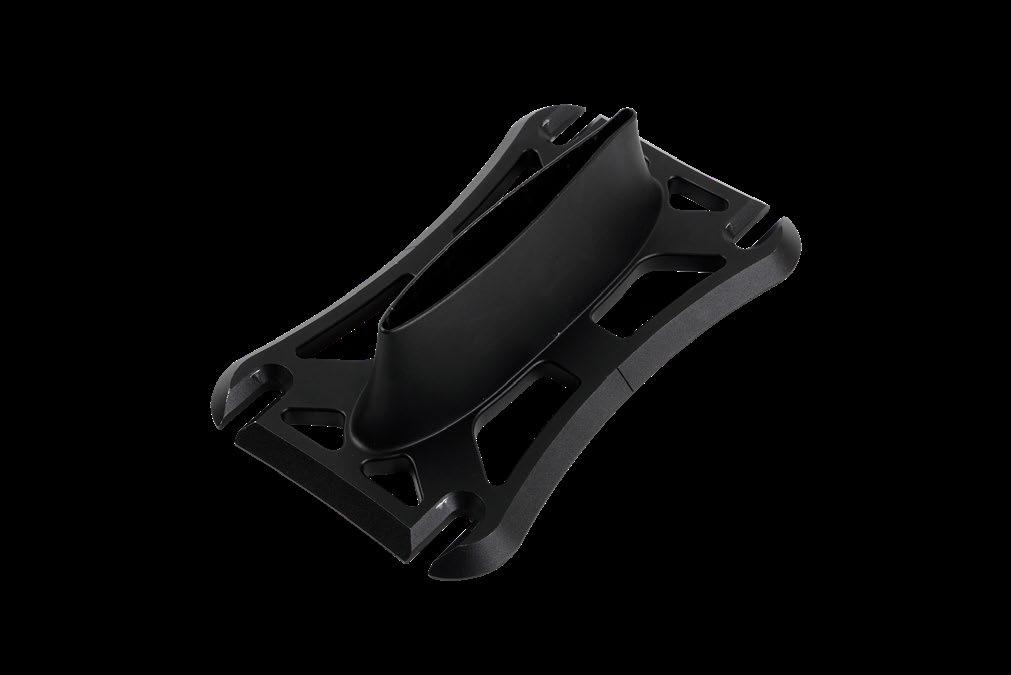

The 6061-T6 Aluminum twin track mounting plate perfectly balances strength and weight. Control and lift can be adjusted with the interchangeable shims under the rear wings for the right combination of lift, stability and speed.
NSP wings are built to last, featuring a reinforced foam core laminated with 100% pre-preg 3K carbon fiber.
The rear wings with cutoff marks are fully made from carbon, adding a little weight and rigidity in the process, but allowing you to tweak its ride characteristics by cutting off the tips.
NSP Airwave wings will handle regular wear and tear and the inevitable groundings.
A
- Twin track base
- 316 stainless Torx screws
- Deep mast sleeves, CNC-milled for best strength-to-weight ratio
- Bomb-proof, 6061-T6 Aircraft grade anodized aluminum base
- Optional tuttle box adapter available
B
C
- 13.5cm wide for strength and directional stability
- Extruded 6061-T6 anodized aircraft aluminum
- Mast 60, entry-level or shallows
- Mast 70, Ideal first mast, perfect allrounder
- Mast 80, Advanced height for surfers, downwind, wing and windsurf
- Mast 90, Kite, wing or windsurf and downwind
- Mast 100, Kite, wing, windsurf and tow-in foilers
- High-end 3k pre-preg carbon rear wings:
D E
- RW 330 Flat wing
- RW 340 M wing
- RW 245 HA Wing
- RW 225 Riblet
- RW 275 Riblet
- Super strong, CAD designed precision CNC-cut 6061-T6 anodized aluminum
- Fuselage 57.5
- Fuselage 60
- Fuselage 70
- Fuselage 85
- High-end 3K pre-preg carbon front wings:
- FW 1720 (Gull Wing series)
- FW 2100 (Gull Wing series)
- FW 1050 (Glider Series)
- FW 1250 (Glider Series)
- FW 1450 (Glider Series)
- FW 1650 (Glider Series)
- FW 1025 (Riblet Series)
- FW 1225 (Riblet Series)
- FW 1425 (Riblet Series)
MODULAR HYDROFOIL SYSTEM
MODULAR HYDROFOIL SYSTEM AIRWAVE
The Airwave is designed as the most versatile and performance oriented foil platform on the market. The NSP Airwave can be used for surf, SUP, tow-in, wakesurfing, wingdinging, wingsurfing, kiting or downwinding.
There is an ideal Airwave for you with a great variety of tuning options so you get the most out of your spot and its conditions.
(Gull Wing Series) (Gull Wing Series) (Glider Series) (Glider Series) (Glider Series) (Glider Series) (Riblet Series) (Riblet Series) (Riblet Series)

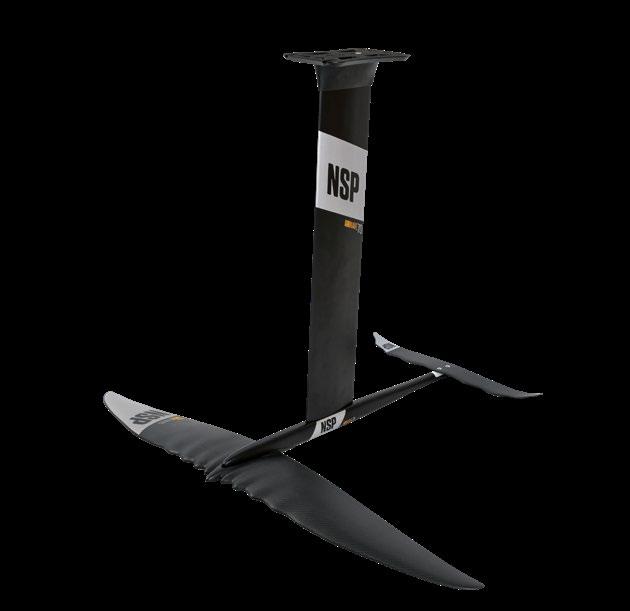

AIRWAVE MODULAR MAST 80 - SET IN BAG
The NSP Airwave Modular 80 set contains a mounting plate, Fuselage 70, Mast 80 and all the necessary screws, shims and tools to attach every available NSP Front and rear wing.
The 600D padded bag with carry handle is designed to fit every mast from 60cm to 100cm and the bag length can be adjusted with the attached webbing strap.
•AWMK1101-80
1. T30/T40 Torx Allen Keys NFOIL27
2. Tef Gel anti-corrosion paste
3. Front Wing Mounting Screws M8 x 25 (3x) for Riblet 1025/1225 AWXX1104-M8
4. Front Wing Mounting Screws M8 x 30 (3x) NFOIL11
5. Mounting Plate AWXX1103-MP
6. Mast 80 AWMS1103-80
7. Fuselage 70 AWFL1103-70
8. Board Mounting Hardware M8 x 35 (4x) AWXX1111-SC
9. Mast Mounting Screws M6 x 45 (6x) NFOIL13
10. Rear Wing Shims Kit (1°, 2°, 3°) for RW 330, RW 340 and RW 245 AWXX1102-SH
11. Rear Wing Shims Kit (0°, 1°, 2°, 3°) for all Riblet Rear Wings AWXX1106-SH
12. Rear Wing Mounting Screws M6 x 20 (2x) AWXX1105-M6
13. Rear Wing Mounting Screws M6 x 25 (2x) AWXX1107-M6 only for RW 340 and RW 245
RIBLET SERIES
BIOMIMICRY!
The tubercles, or large raised bumps, on the leading-edge of whale fins and foil and outline of a Manta Ray have inspired this design using scientifically proven features to provide additional control, hold and propulsion.
NSP was inspired by these phenomena and has created the new Riblet front and rear wings, striking a perfect balance between efficient lift and rail-to-rail maneuvering.
The new anhedral design translates into glide, stability and excellent speed.
Riblet wings are excellent for wing- and surf foiling in high-wind conditions, but will also perform as endless downwinders for advanced foilers who can leverage the efficient shape of these wings.
(Note: We strongly recommend using the all new mast shim with the Riblet to fine tune the performance).
The Riblet Front Wings are available in the following dimensions:
RIBLET REAR WINGS
Designed as high-aspect stabilizers, Riblet Rear Wings perform best in combination with their front wing counterparts, creating sustained glide and extreme maneuverability. The 225 and 275 combine well with the Riblet 1025 FW and Riblet 1225 FW
Four shims are available for the Riblet series, ranging from 0 to 3 degrees.
All Riblet rear wings use M6x20 screws.
The Riblet Rear Wings are available in the
RIBLET FW 1025
RIBLET FW 1225
RIBLET RW 225
RIBLET RW 275
RIBLET FW 1425
GULL SERIES

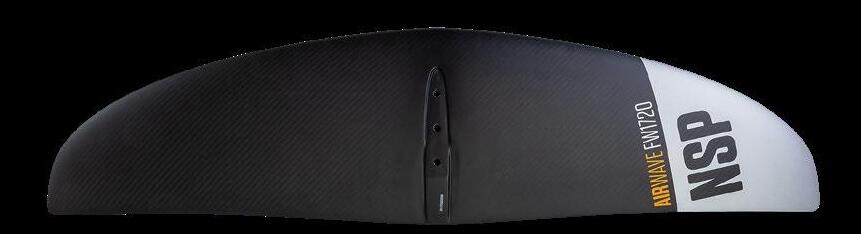

NSP Gull Wings come in two sizes; the tried-and-tested 1720 and a new 2100 as well.
The Gull Wing Series has softer winglets that increase maneuverability, while retaining stability. This makes these front wings a game changer for beginners who are just getting into foiling, intermediate riders looking to increase their skills or expert free riders looking for a wing that works in all conditions.
The Gull Wing is available in the following dimensions
GLIDER SERIES
NSP’s high-aspect (HA) gliders are available in four sizes.
The 1050 is the latest addition to our HA line-up, ideally used in big downwind conditions, big surf and for any rider wanting more speed from their setup. Perfect for surf, SUP and wingfoiling, the new glider series are the basis of any foiling quiver.
On the smaller glider wings, the reduction of surface area means less drag, increased efficiency and maneuverability, better acceleration and more top-end speed.
All HA sizes have been tweaked for a looser ride and increased maneuverability, allowing for lightning fast turns and drawn out circles.
The NSP gliders series is available in the following dimensions:
REAR WINGS
• The rear wings have also been tweaked for improvised turning, increased acceleration and minimal drag.
• Thanks to our new solid carbon fiber construction, all rear wings are exceptionally rigid, reducing the level of input needed while up on foil.
• Both simulations and test reports found a top-mount solution improved efficiency and we redesigned the NSP fuselage, allowing it to carry rear wings on the top.
• The Shims have been redesigned and can be used for the 330, 340, and 245 rear wings.
• The attachment point of 245 wing has been redesigned to ensure the best angle of attack when in the water.
• New cutoff marks on the 245 allow you to easily reduce the surface area by up to 35cm2 down to 225 or right up to a surface of 210, really loosening up the foil. (For instance, trimming down the 245 changes its ride from HA to a great stabilizer for surf foiling).
• The 330 will use M6x20 screws, the 340 & 245 uses M6x25. All screws are provided in the modular set.
330 FLAT WING RW 340 M WING RW 245 HIGH ASPECT WING
• AWRR1101-39
• AWRR1102-42
• AWRR1107-42
NSP Rear Wings are available in the folliwng sizes:
- The 330 is the best allrounder for all conditions
- The 340 M wing is best for surf and windsurf
- The 245 works as a high-aspect glider or trimmed down for a loose, surf ride
Chord Aspect Ratio Weight Span
Photographer : Dane Gillett Rider : Ralph Gillett
SUGGESTED WING PAIRING
GULL WING PAIRING:
• The 330 Flat Rear Wing is best suited as an allrounder, meant for beginning and advanced foilers alike.
• The 340 M Rear Wing is better suited for surf or windsurf foiling. Handling is fast, changes in directions swift and freeriders, windsurfers, wing and kitesurfers. Radical surfers are best served with a 245 Rear Wing that they trim down to their liking.
• Riders looking specifically to go windsurf foiling are going High Aspect to get the best performance from the 85cm fuselage as it is the most stable size in the fuselage range.
GLIDER WING PAIRING:
The 245 High-Aspect rear wings perform best in downwind and wing foiling applications. Cutting the winglets from the Rear Wings converts them from high-aspect to more of a stabilizer, best used by radical surfers who prefer a loose feel and the ability to turn quickly. While the aspect ratio remains high compared to the 330 and 340, its directional stability is removed in exchange for a more skate-like ride.
RIBLET WING PAIRING:
Riblet Rear Wings work best with the Riblet Front Wings but the R&D team is extremely stoked about riding the Riblet Front Wings paired with the 245 High Aspect Rear Wing as a stabilizer. Furthermore its turned out that pairing the 1225 & 1425 Riblet Front Wings with the 330 Rear Wing is a great allround combination, a perfect compromise of speed and maneuverability
Suggested Front and Rear Wing Pairing
FUSELAGE
The fuselage range for the Airwave is now expanded with two additional sizes; the 57.5cm and 60cm fuselage. What’s more, we have also redesigned the Airwave fuselage.
Inserted threads
Adding marine-grade stainless steel insert threads has drastically increased the integrity of the Airwave system.
Tail mount flipped
After countless hours of testing and an appropriate amount of computational fluid dynamics, we found that flipping the tail eliminates significant drag and turbulence, so from now on, rear wings are mounted on the top of the fuselage.
Reworked tail section
By adding thickness and width, NSP fuselages will now accommodate deeper screws for a more secure connection.
57.5cm for Radical Surf
The ultra-short, 57.5cm fuselage is perfect for advanced wake- and surf foilers wanting to go from rail-to-rail as quick as possible and perform lightning fast turns.
60cm for stable and fast turning
Super-responsive but balanced, your gybe is going to be tighter, consistent and most of all, easier. Your pumping cadence also improves, allowing for some very big wings to be pumped.
70cm Allround
Included as the standard go-to mast in the Modular Kit, the 70cm is our best allround option for foilers wanting stability, prolonged glide and efficiency. The 70cm is also ideal for downwind runs.
85cm for windsurf foiling
The 85cm is our longest, stiffest and most directional fuselage. Great for beginning foilers trying to wake for the first time, and wingfoilers looking to get the most out of their larger kit.
Sleeved mast position for the strongest possible bond between mast and fuselage
Marine-grade stainless steel thread inserts
MASTS
With a width of 13.5mm, NSP masts are 22.5% wider than conventional masts on the market. The wider chord allows for a more efficient foil profile, directional stability and the use of high-rigidity 6061-T6 aircraft-grade aluminum. All Airwave masts feature three full-length channels for the stiffest possible construction. Airwave masts are anodized for protection and a branded look, sealed with silicone plugs to keep them waterproof.
AIrwave foil setups are fully compatible with any of the available mast sizes:
MAST
60 MAST 70 MAST 80 MAST 90 MAST 100
•AWMS1101-60
•AWMS1102-70
•AWMS1103-80
•AWMS1104-90
•AWMS1105-10
Entry level and shallow conditions (1.45kg)
Allround length (1.7kg)
More advanced surfers/windsurfer, included in the modular set (1.9kg)
Wind, kite and windsurfers (2.1kg)
Kite and windsurfers (2.3kg)
TUTTLE CONVERTER MOUNTING PLATE
Designed to distribute forces as evenly as possible, The CNC-cut, anodized aluminum Airwave base has open slots for easy mounting and fine-tuning. With the mast embedded in a solid four-centimeter sleeve, the mounting plate will handle all the loads you can exert on your NSP Airwave.
For riders wanting to use their Airwave on a Tuttle box, swapping the mounting plate with a Tuttle converter allows you to use an even wider variety of boards for your Airwave.
Mast60
Mast70 Mast80
Mast90
Mast100
SHIMS
As part of the new range, we have reworked our shims, and there are now two sets on offer, molded from fiber-reinforced nylon. NSP has the 3-piece 1-3 degrees shim set which we offer for the standard rear wings. But we now also offer a four-piece, 0-3 degrees set for the Riblet rear wings.
The different degrees of each shim changes the angle of the wings in the water so you can customize your ride for more stability, faster lift maximum speed, or the best for pumping or winging.
• The 1-degree shim gives the least amount of drag, increasing speed but requiring some pumping to get up on foil.
• The 2-degree shim offers a great balance between stability and speed. It is the best choice to start out on.
• The 3-degrees shim gives the most lift and is the easiest to get up on foil with, but a little slower, making it useful for beginners or foilers who prefer a quick lift.
Rear Wing Trim Shim Kit - 3pcs
Riblet Rear Wing Trim Shim Kit - 4pcs
The Riblet Rear Wings come with the zero-degrees shim as well, which is the fastest shim in the setup, perfect for high-speed downwind runs. A perfect shim for time trials and downwind competitions, where every millisecond counts.
Mast Shim Plate
The Mast Shim Plate is designed to further enhance endless flight. Every foil set-up is different and our Mast Shim Plate fine-tunes your stability and control by dialing-in the overall feel and performance of your foil set.
The Mast Shim Plate fine tunes the mast’s angle of attack relative to the board to enhance acceleration and glide. It makes take-offs easier in lighter winds and while pumping.
When combined with NSP’s all new Riblet Front and Rear Wings, we recommend using the Mast Shim Plate to fully maximize your potential, increasing stability while efficiently reducing drag with every pump
Board Mounting Hardware M8 x 35 - 4pcs
Four high-grade stainless steel bolts with M8 countersunk Torx® screws will take the required torque to secure your foil to the board without stripping. Corrosion resistant nuts, sourced for marine applications, allow tuning of your setup as you slide them up or down the twin rack mount.
AIRWAVE FOIL ACCESSORIES
Front Wing Mounting Screws M8 x 30 - 3pcs
Mount your Front wing to the fuselage with three high-grade stainless steel bolts, For all Front Wings, except Riblet 1025 & 1225
Rear Wing Mounting Screws M6 x 25 - 2pcs
For 340 & 245 Rear Wing
T30/T40 Torx Allen Keys - 2pcs
Mast Mounting Screws M6 x 45 - 6pcs
M6 long countersunk Torx® screws mount your Airwave mast to the fuselage and mounting plate.
Front Wing Mounting Screws M8 x 25 - 3pcs
For Riblet Front Wings 1025 & 1225
Rear Wing Mounting Screws M6 x 20 - 2pcs
For all Rear Wings except 340 & 245
•AWXX1105-M6
Screw Pairing (Front Wings, Rear Wings and Masts) Glider Glider
Wings
Glider
Glider
Gull
Wings
MODULAR KIT
GULL WING SERIES
GLIDER SERIES RIBLET SERIES
WARNING:
The use of this product exposes the user to many unavoidable and unexpected risks, injury, DANGERS and HAZARDS. NSP will not be held liable for any damage to property or any personal injury caused by any use, misuse, abuse, accidental or irresponsible use of this product by the user
Hydrofoiling can be DANGEROUS to anyone in the vicinity of its use and must be taken seriously. We recommend to seek the guidance of professional instructors and experienced foilers. Improper and/or unreasonable use of this hydrofoil may result in DEATH or SERIOUS INJURY to ANY part of your body and to OTHERS. As you learn the sport, work within your own limitations and do NOT try to exceed them. Always wear an USCG (Type III or V) approved lifejacket, a helmet and leash.
If you are below the age of 18, you should have your parent or guardian read and explain these warnings, cautions and instructions to you. Do not use this product unless you are under the guidance of an experienced foiler.
CONTENTS:
Unpack contents and ensure all necessary parts are present to complete assembly. Before each use inspect all parts for damage and wear and tear. Do not use parts that show any signs of damage or wear. Replace all worn and damaged parts with genuine NSP spare parts.
1. T30/T40 Torx Allen Keys NFOIL27
2. Tef Gel anti-corrosion paste
3. Front Wing Mounting Screws M8 x 25 (3x) for Riblet 1025/1225 AWXX1104-M8
4. Front Wing Mounting Screws M8 x 30 (3x) NFOIL11
5. Mounting Plate AWXX1103-MP
6. Mast 80 AWMS1103-80
7. Fuselage 70 AWFL1103-70
8. Board Mounting Hardware M8 x 35 (4x) AWXX1111-SC
9. Mast Mounting Screws M6 x 45 (6x) NFOIL13
10. Rear Wing Shims Kit (1°, 2°, 3°) for RW 330, RW 340 and RW 245 AWXX1102-SH
11. Rear Wing Shims Kit (0°, 1°, 2°, 3°) for all Riblet Rear Wings AWXX1106-SH
12. Rear Wing Mounting Screws M6 x 20 (2x) AWXX1105-M6
13. Rear Wing Mounting Screws M6 x 25 (2x) AWXX1107-M6 only for RW 340 and RW 245
FOIL INSTALLATION:
CAUTION:
Do not over-tighten the bolts as this will damage the foil.
Using the supplied Tef Gel, dab a small amount onto the threads of the two screws M6 screws* for the fuselage.
Attach the rear wing as shown with the two M6 screws*. Tighten by hand using the supplied T30 Allen key. Never use power tools.
*Depending on the rear wing you are using, either 20mm or 25mm screws are required. If your setup requires the 25mm this will be clearly stated on the rear wing itself.
Using the supplied Tef Gel, dab a small amount of the anti-seize grease onto the threads of the front two holes of the fuselage. Attach the front wing as shown with the three M8 screws*. Tighten by hand using the supplied T40 Allen key.
* Depending on the frong wing you are using, either 25mm or 30mm screws are required. If your setup requires the 30mm this will be clearly stated on the rear wing itself.
Using the supplied Tef Gel, dab a small amount of it onto the threads of the three holes in the top of the mast.
Attach the mounting plate to the top of the mast using three of the M6 x 45mm supplied screws. Tighten by hand using the supplied T30 Allen key.
Using the supplied Tef Gel, dab a small amount of it onto the threads of the three holes in the bottom of the mast.
Attach the fuselage to the bottom of the mast using remaining three M6 x 45mm supplied screws . Tighten by hand using the supplied T30 Allen key.
*After every use disassemble, wash with water and dry each piece.
ATTACHING THE FOIL TO THE TWIN TRACK MOUNT
Dab a small amount of supplied Tef Gel to the threads of the four stainless nuts.
Thread M8 screws into stainless nuts just slightly (3-4 turns) and insert stainless nuts into track (2 screws in each track).
Slide screws to opposite ends of the tracks.
With the mounting plate centered on the tracks, you can simply slide the screw into the recesses. Next, use the positioning guide to place netune the desired position of your mounting plate.
4.Tighten your screws with the supplied T40 Allen key. Do not overtighten.
*After use disassemble, wash with water and dry each piece.
NSP has a wide variety of wings, after-market accessories and replacement parts available for your foil setup.
Scan the QR code below to see our complete Foil overview online:
Photographer : Franck Berthout
Rider : Alex Bicrel
Location : Maui, USA
Board : Surf Foil Pro with Airwing Fireball
FIREBALL
The NSP Fireball is the result of months of design, development and testing by the development team. The new design offers a lightweight and rigid structure that delivers smooth and instant power that is stable under all conditions. Ride a Fireball for freeride cruising, wave riding, big air boosting and aerial antics, downwinders or go hard on a parking lot with a skateboard under your feet, or a snowboard if you’re hitting the slopes.
DYNAMIC DYHEDRAL AND LIGHTER WEIGHT
The redesigned Leading Edge and Strut create a dynamic dihedral shape that promotes stability and accessible power in all conditions. Double reinforcements in the Leading Edge translates to a more rigid wing structure and less flex.
The new Fireball wings are lighter and more maneuverable than their predecessor, delivering a solid and balanced feeling. Power is readily available even in lightwind conditions, thanks to the added rigidity. The Leading Edge stitching is relocated to minimize turbulence and to protect the rider and it seams are now covered.
• Performs on land, snow and water
• Durability by additional patching
• Lightweight and simple to set up
• Stable in all conditions
REFINED AND REDESIGNED
Balancing comfort with performance, the redesigned Strut improves riding ergonomics, allowing you to ride longer with more control. Additional protection makes the Fireball more durable and suitable for land and snow as well. Windows on either side of the strut help riders keep an overview and improve safety.
Note: Despite reinforced wing tips we recommend keeping your Fireball wing off the ground at all times.
SIZING
AIRWING FIREBALL FEATURES & SPECS
SUP valve for quick rigging up. NSP wings can be pumped up with any standard SUP pump.
Premium Leading Edge handle for neutral wave rides or depowering your Fireball.
Harness loops on the strut just in case you want to use the wing with a kite harness.
3
Easy bladder access points on the leading edge and wing tips.
Optimized handles for improved control: new handle design and orientation allows riders to make subtle adjustments to their hand positioning, to get the most power from their wing.
Double reinforced leading edge for added rigidity.
Added reinforcements between the strut and the leading edge.
Kevlar, PVC and TPU abrasion protection along the Leading Edge protects the wing from wear and tear when making contact.
Extra tight trailing edge minimizes leach flutter. Added batons add stability
Photographer : Franck Berthout
Rider : Alex Bicrel
Location : Maui, USA
Board : Surf Foil Pro with AirWing Fireball

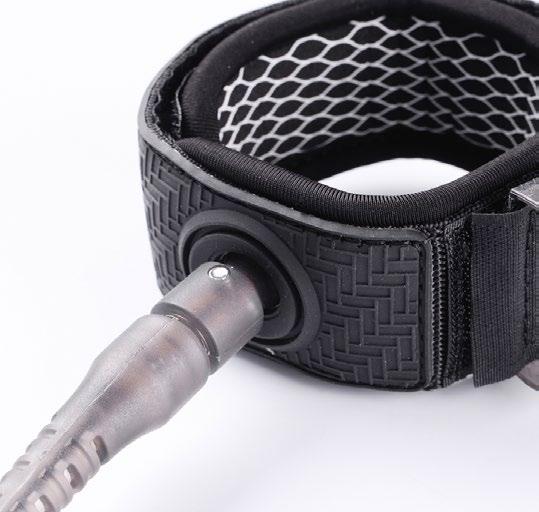

Premium Quick Release Wing Leash Highly durable 6mm TPU coiled wing leash with integrated quick release sytem, double stainless steel swivels, and double layered neoprene strap.
TECHNICAL FEATURES AND MATERIALS
Halkey valves
Less time spent rigging up means more time on the water. A lightweight, high-diameter Halkey valves allows fast rigging and derigging.
Triple stitching protection
Additional 2-ply strips and triple stitching protect the trailing edge from stretching, wear and tear or protects ripping.
Hardcore Wingtip reinforcements
To protect the wing from rougher surfaces, TPU strips with vulcanized PVC protect the wing tips from punctures and wear.
Premium comfortable handles
Premium handles on the Strut and Leading Edge allow for hours of comfortable riding, sheeting in and out, gibing and getting as much power from your Fireball as possible. The Leading Edge handle is placed as neutral as possible, allowing for a complete depowered wing to be held as you focus on angled carves, downwinding and surfing.
protective materials
Smart one-pump design
SUP valves that fit most SUP pumps, covered with premium PVC and velcro covers.
Premium
Kevlar, PVC and TPU abrasion protection materials to increase the life-span of the Fireball
Suggested wing sizes based on an average 80kgs / 17lb rider
Actual sizes depend highly on rider skill, ability, personal preference and conditions Saftey Note: Always double check surf and beach conditions before winging.
Wing size and wind strength: Water
in the diagram indicates the level required to navigate the specified size comfortably.
Photographer : Raph Gillett
Rider : Dane Gillett
Location : Hebara beach, Chiba Japan
Board : Airwing, Airwave & SUP Foil
AIRWING BACKPACK
Zippered lid compartment
Drawstring closure
Extendable mesh wing storage compartment reduces window creasing when folding
Extended view
600D Nylon fabric
Compression straps with quick release buckle closures
Carry handle and padded shoulder straps
Front zippered compartment, side mesh pocket and compression straps
Waist adjustment belt with side release buckle
AIRWING FIREBALL ACCESSORIES
Rider : Alex Bicrel
Location : Tenerife, Islas Canarias, España Spain
Board : NSP Fireball, Surf Foil Pro
AIRWING MANUAL
Contents:
One NSP Airwing in the size of your choice
Fireball repair kit including TPU repair patches, dacron and canopy sheets, mark cloth, and users manual
Quick release wing leash
Airwing Backpack
* NSP low pressure pump sold separately
Feature:
Kelvar reinforced wingtips
Double reinforced leading edge with abrasion protection
Double reinforced strut with optimized handles
* We recommend purchasing the NSP low pressure pump
Inflating your NSP Fireball
1. Lay the wing flat on a non abrasive surface, free from sharp objects that could damage the canopy, making sure the handles face up.
2. Lift open the velcro valve covers to gain access to the standard SUP valves underneath.
3. Make sure there’s no sand or debris around the valve before opening.
4. Twist the valve nib to the closed position so that any air pumped in does not escape when you remove the pump.
5. Using a standard SUP pump, twist on the nozzle, and pump up the Leading Edge to 8psi*.
6. Remove the nozzle, reinstall the valve top, and close the velcro valve cover.
7. Repeat steps 1-6 for the Strut.
* Note: When pumping, the actual pressure in the bladder shows at the end of every stroke on the pump gauge. Always use a pump with a low-pressure gauge. DO NOT OVER-INFLATE; DAMAGES AS A RESULT ARE NOT COVERED UNDER WARRANTY.
Completely deflating your NSP Fireball*
1. Lay the wing down on a non abrasive surface free of sharp objects, with the handles facing up.
2. Open the velcro valve covers, and twist off the valve covers.
3. Twist open the valve nib to the open position to release the air.
4. Repeat 1 - 3 for the Strut.
5. With the wing fully deflated start from the wing tips, roll them towards the strut, removing any remaining air.
6. With both wing tips rolled to the Strut, start at the end tip of the strut and roll up towards the LE, removing any remaining air.
7. Put the folded wing into the supplied back pack for easy carry and storage.
* We recommend users drying the wing completely before any long term storage. Trapped water can result in irreparable marking, color transfer, and mold.
Partially deflating your NSP Fireball*
1. Lay the wing down on a non abrasive surface free of sharp objects, with the handles facing up.
2. On the Leading Edge only, open the Velcro valve covers, and twist off the valve covers
3. Twist open the velcro valve nib to the open position to release the air.
4. Fold from the tips towards the Strut.
5. Open and pull out the mesh extension from the NSP backpack.
6. Slide the Strut in through the top all the way through and close the top of the backpack.
* Recommended for cold or near freezing temperatures and/or transporting the wing from one location to the next or home before drying properly.
Note: If using the wing in near freezing temperatures DO NOT fold the TPU windows; folding can damage / crack the TPU windows.
Damages as a result of improper storage are not covered under warranty
ACCESSORIES
Photographer : Franck Berthout
Rider : Alex Bicrel
Location : Maui, USA
Board : Airwave & Surf Foil Pro
FOIL KIT BOARD BAG
The 6’2” Single and Double Foil Kit bags are designed to keep all your foil gear same from harm and in one, easy-to-carry bag.
The double bag holds enough space for two foil boards up to 6’2” and two complete kits, preparing you for every condition mother nature can throw at you.
• Single Bag 202 x 70 x 18 cm
• Double Bag 202 x 70 x 32 cm
• 10mm foam padded heat and water resistant polysack
• Padded carry handle
• Detachable padded shouldestraps
• Lockable heavy duty zipper
• 1680D Nose and Tail reinforcement
• 2 interior compression straps to keep your boards tight .
• 3 exterior compression straps.
• Scuff resistant drag protective rails
The inside part of the bag lid features two big Front Wing pockets, designed to accommodate the FW 1650 and 1450 or the Allrounder FW 1700 and 1325.
The Rear Wing pockets help stowing away the high-aspect RW 245 easily as well as securing the allround 330 RW. Fuselage and mounting hardware can be stored in the top section as well, while the board section has additional pockets for the mounting plate and two masts up to 100cm in size.
The boards are separated from the foil gear by a 20mm thick padded foam divider.
KIT BOARD BAG - DOUBLE
FOIL BAGS
FOIL DAY BAG
•4mm Polysack inside and out
•Ideal for day trips
•name tag slot
•Carry handle
•Detachable padded shoulder strap
•R ust-proof hardware
•Fin slot
Day (4 mm)
Photographer : @mattrobinson_08
Location : Coffin Bay National Park, Australia Board : NSP Board Bag
FOIL TRAVEL BAG
•Travel bag 8mm
•Durable 8mm padded bag Polysack inside and out and 600D reinforcement at tail
•Ideal for travel with name tag slot
•Carry handle
•Detachable padded shoulder strap
•R ust-proof hardware
•Fin slot
Travel (8 mm)
Front pad (Only)
TRACTION PADS
Whether you are foiling, surfing or paddling – the NSP traction pads provide long-lasting grip and confidence. Especially in foiling, a delicate balance is required to get you flying over the surface of the water and your feet need precise positioning to control pitch, roll and yaw.
Always centered
NSP tail pads feature a kicktail and a mild dome in the center of the pad. The ridges of the dome will make sure your back foot finds the dead center of your board without ever looking down.
Thermoformed texture ensures your back foot stays planted over the mast at all times. For hard pumping or committing to a tight radius, get that extra leverage by moving your back foot against the kicktail and force the last bit of performance from your board.
More durable
There is nothing worse than a peeling deck pad, which is why NSP uses premium 3M adhesives, as it provides the best possible bond between your board and the thermoformed EVA. Different from conventional EVA, thermoforming gives these pads a more abrasion-resistant layer that will hold up longer. Make sure your board is properly cleaned up before applying the pads, and wait 24 hours before hitting the water to get the best possible bond for years to come. Removal is easiest with a hot air gun and some soapy water.
Versatile patterns
A 3-piece tail pad is the most versatile pattern that still offers variable width and an arched center strip. It’s the easiest to install, offers tons of grip and will work on any board. In combination with the 4-piece pattern for the front part of the deck, you should have the standing area of your board covered.
Directional diamond-shaped pattern
The deeper the grooves, the more resistance against slipping and superior traction.
Kick & Arch
Performance riders benefit from a 45 degrees kick whenever your foot needs to be well-placed to blow out a wave. Apart from the comfort aspect, an arch helps your backfoot instinctively find the centre line of your board without ever having to look down.
Tail pad (Only)
Traction Pad Front Blue
Tail pad Blue Solid tail kick
Directional diamond-shaped pattern
MFC-DESIGNED FOOTSTRAPS
The MFC-designed footstrap is a must have for anyone looking to get into wingding foiling, windsurf foiling or kitesurf foiling. The external adjustable system and 1/2/3 bolts accommodate every foot size and board setup while offering the best comfort and support. You will feel “locked in” when you slip your feet into the MFC footstrap. Sold one per package.
Features:
• 7mm neoprene padding
• Internal adjustment system
• Single or double insert compatibility
• Maximum comfort
TIE DOWN STRAPS
NSP’s heavy-duty Tie Down Straps are ideal for securing your surf, foil and SUP boards to the roof of your car. Made with strong, yet soft nylon straps that will easily secure your boards without scratching the board. The heavy-duty cam buckles are encased in a padded EVA to to prevent damage to your board or car.
Available in one size only: 15’7” (475 cm)
RAIL TAPE
Protect your SUP rails with 3M protection tape.
Available in: 2x 200 cm x 7.5 cm
ROOF RACK PADS
NSP subtly branded roof rack pads easily attach to your existing roof racks for a padded landing for your surf, sup or foil boards. The Roof Rack Pads are designed with a foam core wrapped in a durable 600D water-resistant fabric and fit most standard sized round or square roof racks.
Available in one size only: 17” pads
SOFT ROOF RACKS - SINGLE
NSP’s Soft Roof Racks are perfect for carrying your surf, SUP, or foil boards to the beach on the roof of your car.
The Soft Racks are secured with heavy duty nylon straps that are designed to wrap around the inside of your car while safely securing your boards to the roof. The durable cam buckles keep your boards in place without sliding during transport. The Soft Racks are designed to work on most vehicles.
Available in a Double or Single rack sizing.
Features:
• Single racks hold up 3 shortboards or 2 longboards.
• Double racks hold up to 6 surfboards
• Universal fit for most cars, trucks, and SUVs
• Thick, long length nylon straps
• Heavy-duty, corrosion-free buckles encased in padded EVA to avoid scratching the vehicle.
• Water-resistant, durable, nylon-wrapped, soft rubber pads.
• Compact size and easy to store.
SOFT ROOF RACKS - DOUBLE
•NACR0904
SPEEDSTER
Perfect for hardcore endurance athletes, reduced diameter (RDM) shafts work for any paddler wanting a scaleddown shaft for their racing - these high-performance are not just for kids and women.

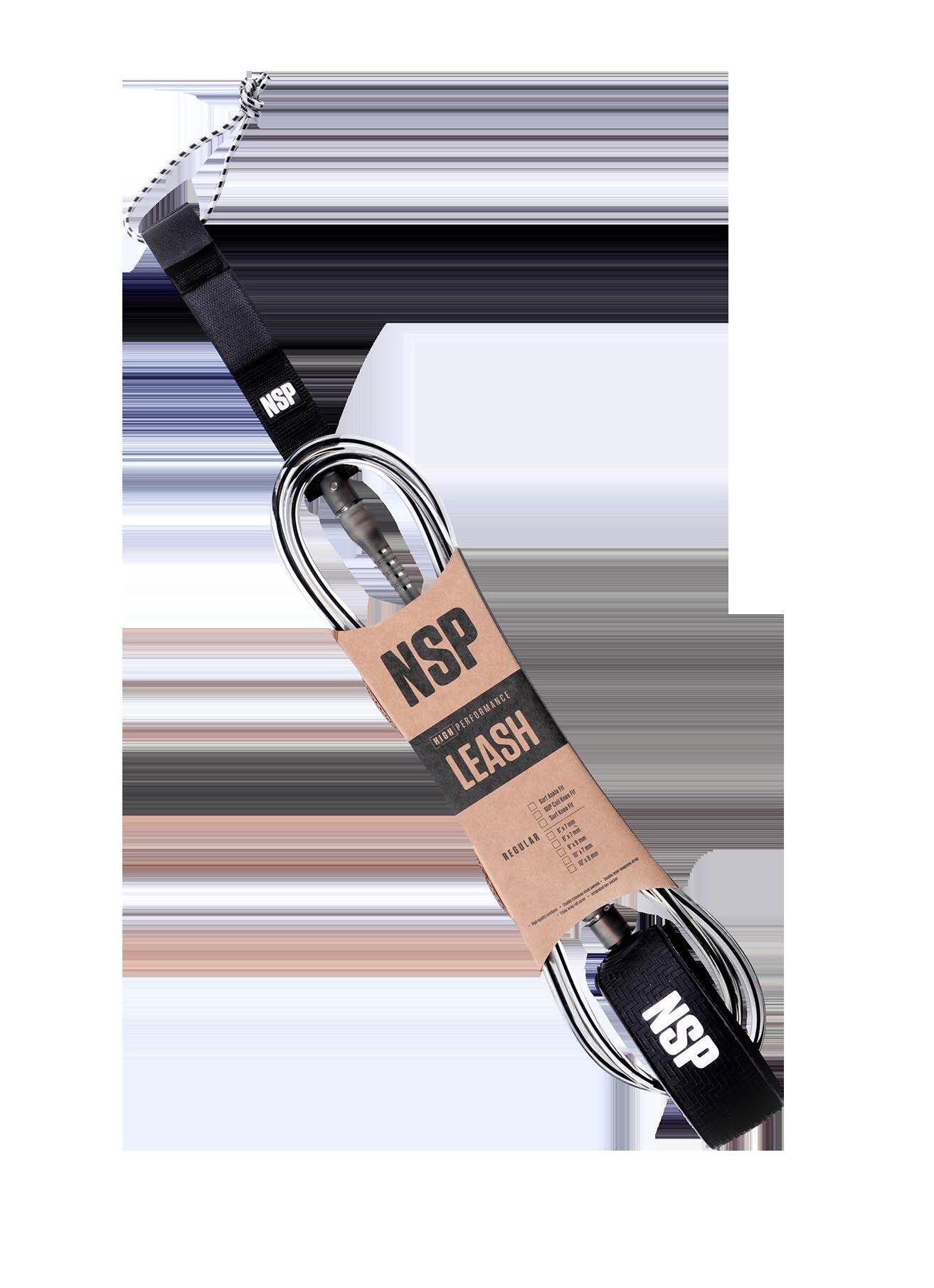

SURF / SUP LEASH
• 7mm TPU
• Double Stainless steel swivels
• Double layer neoprene ankle strap
• Integrated key pocket
• Rail saver
• Calf fit for 10’ 9mm
Durable cord 7mm & 9mm
Double stainless steel swivels
Double layer neoprene strap
Triple wrap rail saver

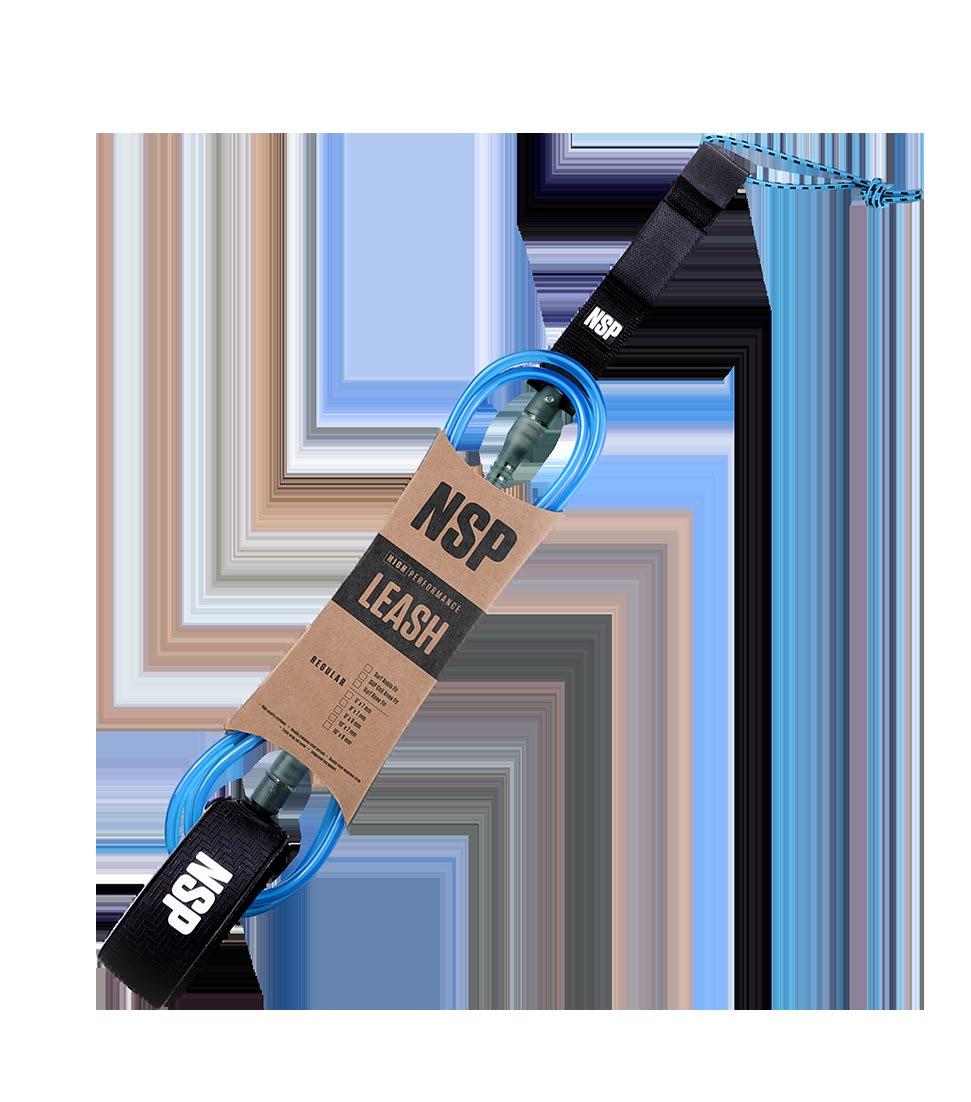

LEASH
The ultimate combination of strength, stretch and elasticity. Durable Thermoplastic Polyurethane (TPU) leashes with two stainless-steel swivels, leash string, key pocket and double layered velcro strap.
• High-quality BASF™ TPU.
• Coiled 7mm cord.
• Double stainless steel swivels.
• Double layer neoprene calf strap.
• Integrated key pocket.
• Rail saver.
WAIST BELT
• High-quality nylon webbing belt.
• Comfortable neoprene front liner.
• Swivel mount to avoid tangling.
• Quick-release clip.
• One size fits all.
• Compatible with all NSP leashes.
Leash sold separately SUP Coil available in 9’ (9 mm) Blue
Durable cord 7mm & 9mm
Double stainless steel swivels
Double layer neoprene strap
Triple wrap rail saver
•NALR1009
BUOYS
Designed utilizing our durable PVC inflatable board material, our racing buoys are equipped with 4 heavy-duty D-rings for easy and secure anchoring in any lake or open ocean. Great for race, demo events and promotions.
cm (Orange)
(Orange)
- BANNER - BEACH FLAG
Photographer : David Edmondson
Location : Srilanka
NSP OUR STORY
NSP was born in 2001 from the vision of Bruce “Buzz” Hansen, a life-long surfer, skater and all round waterman.
While working on Maui as a custom surfboard builder, Buzz had an epiphany about producing affordable, versatile, durable and great performing surfboards. Buzz correctly realized there were everyday surfers who needed an affordable board that performed in Hawaii, yet they didn’t require “custom” or specialized competition or extreme surf boards.
The quest began, so Buzz summoned his friends working for a leading composites manufacturer with the goal to create a light, very durable surf board at highly competitive prices. Working together they introduced a new epoxy technology that would go on to revolutionize the industry and quite possibly recreational surfing. Weekend and occasional surfers no longer had to rely on the ill- performing “foamies” or be relegated to the used board market.
Our code name during development was “New Surf Project”. The name stuck and “NSP” was established. Over the years, we changed and evolved, and so did the name. Today, NSP stands for “Nature”, “Surfing” and “Products” because at the end of the day, that is what the company is all about.
Creating amazing products, firmly maintaining our surfing roots while we expand in other exciting watersports with the best possible designers, engineers and materials involved. And last but definitely not least; “Nature”. Choosing repurposed, recycled or renewable resources wherever we can is essential to us as a brand, creating a more sustainable future for ourselves and our sport.
His dream was a utilitarian surfboard that could ride in the back of a pick-up truck to the beach, be left in the sun all-day or loaned to a friend without fear of damage – of course it had to surf well enough to be given to his long-time surfing buddies, neighbors and friends.
Bruce ‘Buzz’ Hansen on one of the first NSP epoxy surfboards
Today, NSP is one of the world’s largest brands in recreational surfing and stand-up paddle boards. Everyday new enthusiasts, young and old, go out and introduce their friends and family to the freedom of the sport and the brand.
NSP
Since 2013 NSP has produced some of the fastest SUP race boards on the planet, quickly racking up some of the most sought after and prestigious titles with the help of national and international athletes.
In almost 20 years, with hundreds of thousands of boards produced, our core values remain the same. NSP stays true to the vision of creating great performing, affordable, durable surf and paddle boards that allow everyone to catch more waves.
Rider : Kaelan Lockhart
A FEW NSP MILESTONES
• Sold our first boards in Australia and Hawaii
• Shipped our first SUP boards
• Launched our first NSP race boards used in ISA Worlds
• Dale Chapman & Alain Teurquetil started on the race program
• Travis Grant joined the team
• Launched patent pending, award-winning Coco technology
• Alain Teurquetil started exclusively designing our race program
• Travis Grant won Molokai on a production NSP board
• Launched our first foil boards
• NSP wins Paddle Expo Product of the Year for Cocoflax
• Collaborated with Carl Schaper on a performance surf range
• Collaborated with Tully St. John on new longboard Sleep Walker and created new Teaching soft board with Dane Gillett.
• NSP’s first Pro model surf boards are put into production designed by Carl Schaper.
Photographer : Fenna De King Rider : Will De King, Izzi Caldow, Noah Davies, Paul Jonesy, Tully St. John
Location : Australia
Board : PU Sleep Walker, Elements Sleep walker, Cocoflax Dream Rider, CSE Pro-9, CSE Chopstix, Sundowner, CSE Butter Knife
NSP MISSION
To create a utilitarian surf, race, foil or paddle board that can ride in the back of a pick-up truck, be left in the sun all-day or loaned to a friend – without fear of damage – and of course, that performs well.
NSP VISION
Seeing people of all ages and skill levels enjoying the lifestyle of surf and paddle boarding by providing boards that paddle faster, catch more waves, last longer and are a whole lot of fun to ride.
Photographer : @Paillavoine Rider : Alex Bicrel Location : France
SOCIAL MEDIA SURFSUPFOILRACE
#justaddwater
#nspsurfnsup
#nsp
#nspsurf
#surfing
#paddling
#balance
#outdoors
#epoxy
#ecoboard
#catchmorewaves
#sustainablesurf
#harmlessvest
#justaddwater
#nspsurfnsup #nsp
#nspsup
#nspsurf
#livetheadventure
#surfing
#paddling
#supsurf
#balance
#outdoors
#livetoride
#paddleboarding
#harmlessharvest
#sustainablesurf
#justaddwater
#NSPfoil
#loyaltothefoil
#nspairwave
#nspfoiling
#frequentflyer
#justaddwater
#nspsurfnsup
#nsp
#nspsup
#nspracing
#livetheadventure
#paddling
#supsurf
#balance
#outdoors
#recessdeck
#dugout
#sonic
#ninja
#puma
#carolina
#ecoboard
#sustainablesurf
#harmless harvest
GET CREATIVE
And remember, the key to success in social media is being “on it”. Posting for the sake of posting will show, and your posts will go unnoticed.
Engage your shops, team riders, ambassadors, share demo days, winter sales, summer sales, product reviews or anything else you think is interesting. Your audience will let you know what they like.
TAGGING #HASHTAGS USE DIFFERENT HASHTAGS
Tagging is what lets people know you are talking to them, and will trigger engagement. Tagging a single person activates their network, carrying you and your message that much further.
#sopitted is going to attract different instagram users than #tractionpad or #kookoftheday. Being creative and adding the hashtags that apply to a specific situation will allow you to get more followers so make sure to change things up!
NATURE SURFING PRODUCTS
Photographer : Brett Bennett
Rider : Dane Gillett
Location : Hebara Beach, Chiba Japan
Board : NSP Fireball, SUP Wing Foil Pro and Airwave
