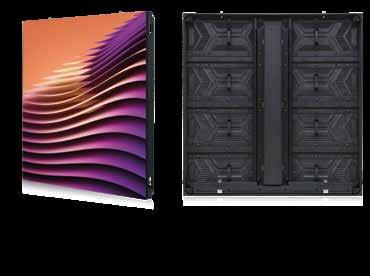

OTV Series DOOH LED System
SAVING
OTV Series - 2023
DESIGN, EFFICIENCY, BRIGHTNESS
• Unique and modular design, ultra slim & lightweight
• Both front&rear service for easy installation
• Energy-saving design
• High brightness up to 8,000 nits
• Lower temperature heating
COLOR WIDE VIEW EASY INSTALL LOW NOISE OPERATION SCALABLE 24/7 MODULAR CONTRAST
OTV Series - 2023
MAIN FEATURES
With handle for easy installation&maintenance
Modular design
«All in one» box , for a more stable connection
IP65
Heat sink design for module chassis and power supply unit heat
dissipation improved considerably
Both front&rear services
OTV Series - 2023
Positioning aid for easy installation
Easy connection design
IP65 waterproof
E NERGY SAVING
OTV Series - 2023
40-50% Energy Saving Low circuit loss for energy saving Driive IC Power Consumption per Square of Traditional Led Display Power Consumption per Square of Energy Saving Led Display 250 200 150 100 50 0 LED-Red LED-Green LED-Blue Loss of Heat Energy $120.8/m2 cost saved Energy Saving: 0.16kw/hour.㎡*1㎡*12hours*365days*0.2USD/KW =140.16USD/㎡ Non Energy Saving: 0.30kw/hour.㎡**1㎡*12hours*365days*0.2USD/KW =262.8USD/㎡

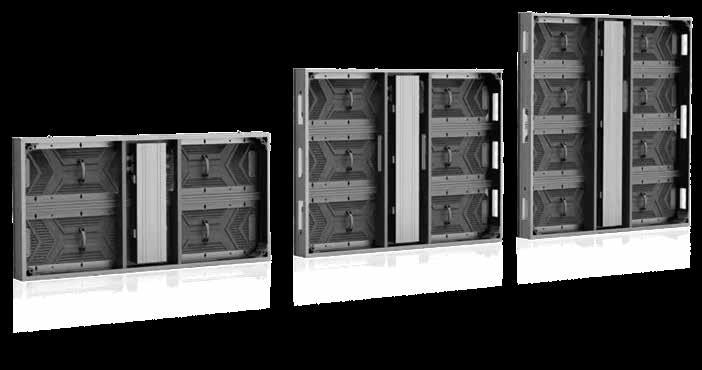

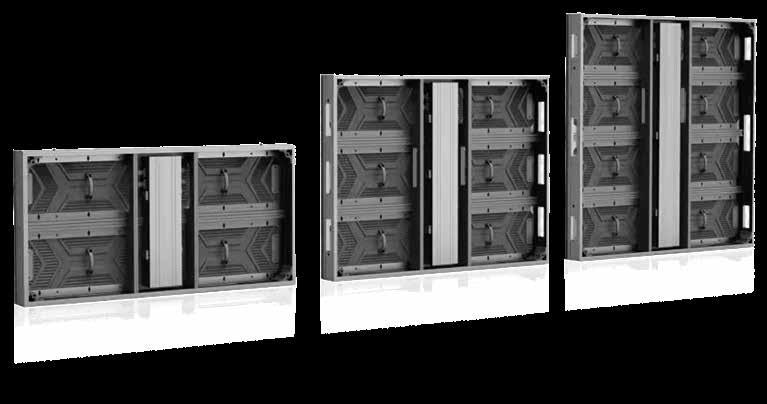

FRONT A ND REA R SERVIC E
Support both front/rear maintenance Saving time and cost for future maintenance

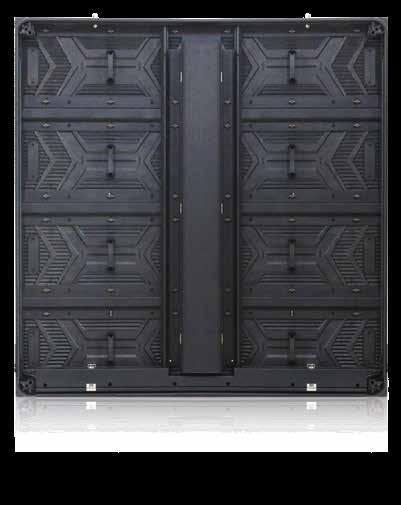

Super slim aluminum cabinet: only 60mm thickness and ultra light weight (24 kg/cabinet)
Full Front Service
Full Back Service
OTV Series - 2023
MAINTENANCE STEPS
Front Service: remove screws with front maintenance tool
Back Service: 3 steps to open the lock on the back of the module
1
2 3 1 2 3 4 OTV Series - 2023

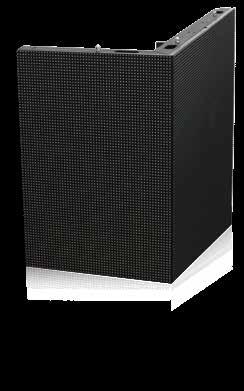

C URVED INSTALLATION
The LED module and cabinet are equipped with 90° bevels
Support customized 90°seamless splicing
Strong visual impact with 3D performance
OTV Series - 2023
INSTALLATION 2.0
Wall-mounted
Front-installation
International Certifications
Rear-installation
OTV Series - 2023
N SELED CASES

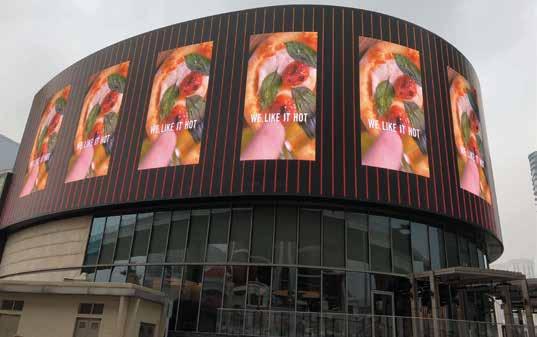

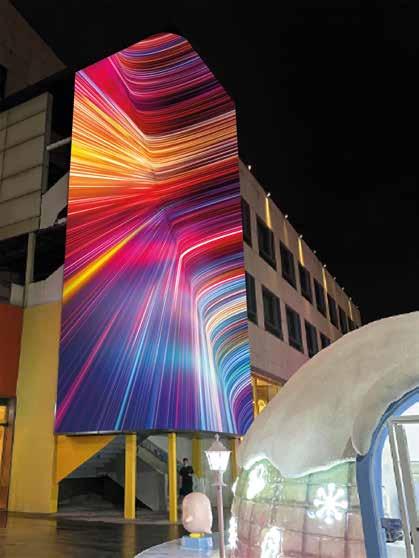

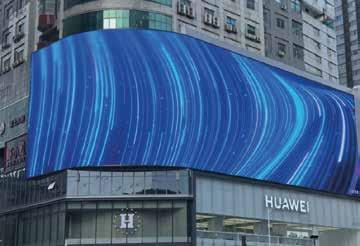

Shopping Mall, DOOH, Billboard Advertisement, Street Signage, Stadiums, etc.
OTV Series - 2023
SPEC IF ICATI ON - OT V S eries 960
Type Model: Density Cabinet Size (H x W) Cabinet Resolution Weight Maintenance Brightness Voltage IP Rating Application OTV Series-960 6.67 22,477 SMD2727 1R1G1B 480 x 320 mm 72 x 48 960 x 960 mm 144 x 144 Aluminium 60 mm 23 Kg Front&rear 6S Nationstar / MTC 6.500 / 8.000 nits 3840 Hz 110-220 V 500W/sqm 180 W/㎡ -25ºC~45ºC 10%~95% IP65 140° Async&sync Outdoor (DOOH) OTV Series-960 8 15,625 SMD3535 1R1G1B 480 x 320 mm 60 x 40 960 x 960 mm 120 x 120 Aluminium 60 mm 23 Kg Front&rear 5S Nationstar / MTC 6.500 / 8.000 nits 3840 Hz 110-220 V 600 W/㎡ 180 W/㎡ -25ºC~45ºC 10%~95% IP65 140° Async&sync Outdoor (DOOH) OTV Series-960 10 10,000 SMD3535 1R1G1B 480 x 320 mm 48 x 32 960 x 960 mm 96 x 96 Aluminium 60 mm 23 Kg Front&rear 4S Nationstar / MTC 7.000 / 8.000 nits 3840 Hz 110-220 V 600 W/㎡ 180 W/㎡ -25ºC~45ºC 10%~95% IP65 140° Async&sync Outdoor (DOOH)
Case Thickness Case Material LED Brand
Parameters-960 Series
Type Model: Density Cabinet Size (H x W) Cabinet Resolution OTV Series-1000 7.8 16,437 SMD2727 1R1G1B 500 x 250 mm 64 x 64 1000 x 1000 mm 128 x 128 Aluminium 60 mm 24 Kg Front&rear 4S Nationstar / MTC 6.500 / 8.000 nits 3840 Hz 110-220 V 600 W/㎡ 180 W/㎡ -25ºC~45ºC 10%~95% IP65 140° Async&sync Outdoor (DOOH) N SELED Europe srl Via M arc o d’A grate 41/ B 201 39 Milano Italia info@ nseled. eu T. +39 02 500421 52 For more informati on www.nseled. eu OTV Series-1000 3.9 65,746 SMD1921 1R1G1B 500 x 250 mm 128 x 128 1000 x 1000 mm 256 x 256 Aluminium 60 mm 24 Kg Front&rear 8S Nationstar / MTC 6.500 / 8.000 nits 3840 Hz 110-220 V 430W/sqm 180 W/㎡ -25ºC~45ºC 10%~95% IP65 140° Async&sync Outdoor (DOOH) Parameters-1000 Series Weight Maintenance Brightness Voltage IP Rating Application Case Thickness Case Material LED Brand
SPEC IF ICATI ON - OT V S eries 1000
