NOVOMATIC Electronics Catalogue EN

PREMIUM

INDEX

MODERN PRODUCTION 4 PREMIUM QUALITY 6 COMPLETE SOLUTIONS 8 AUTOMATION 10 CONTROLLED QUALITY 12 TRACEABILITY 14 PROCESS COMPETENCE 16 EXPERIENCE & EXPERTISE 18 STABLE BASIS 20

4

Electronics: electronics@novomatic.com • www.novomatic.com

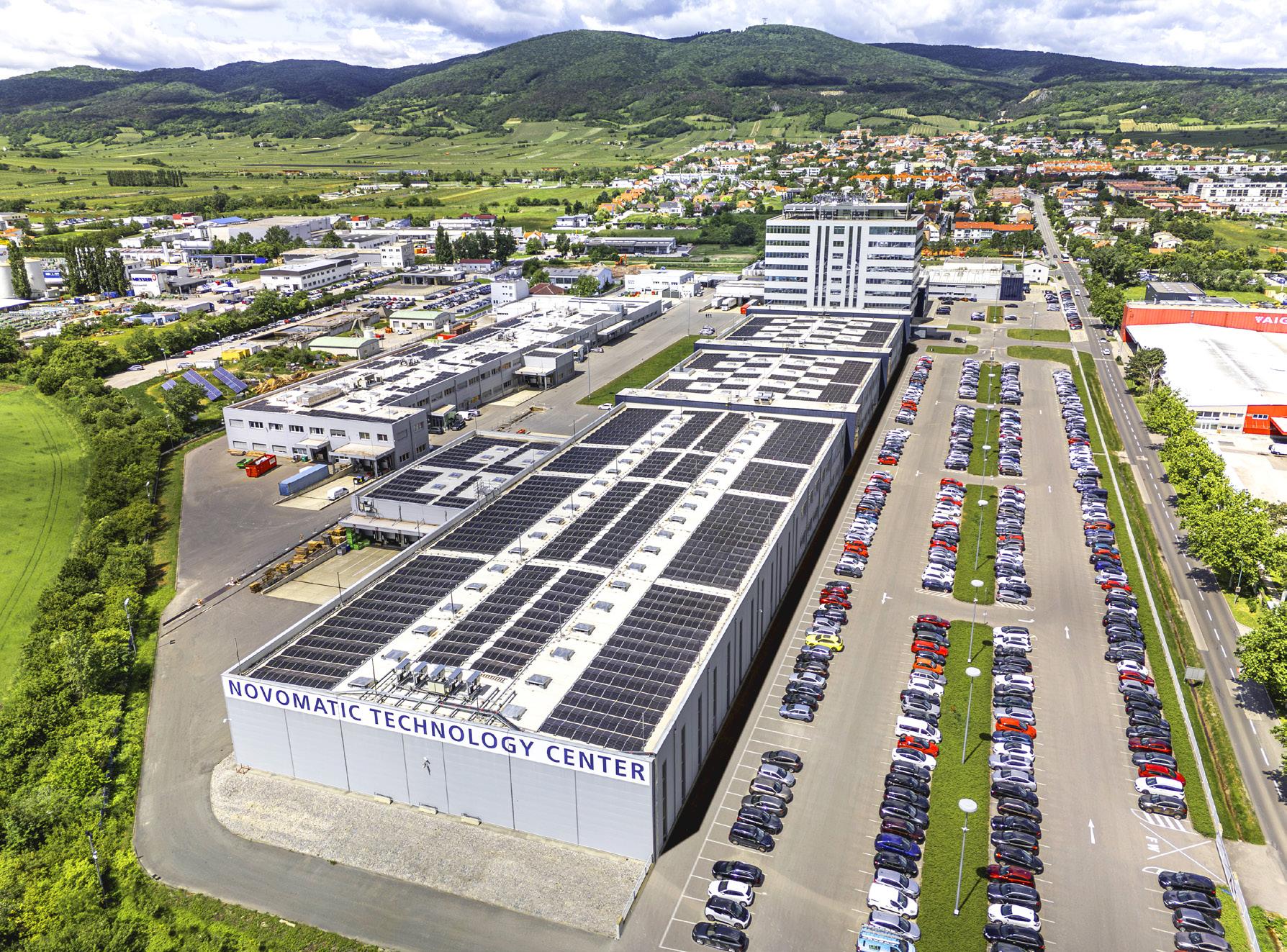

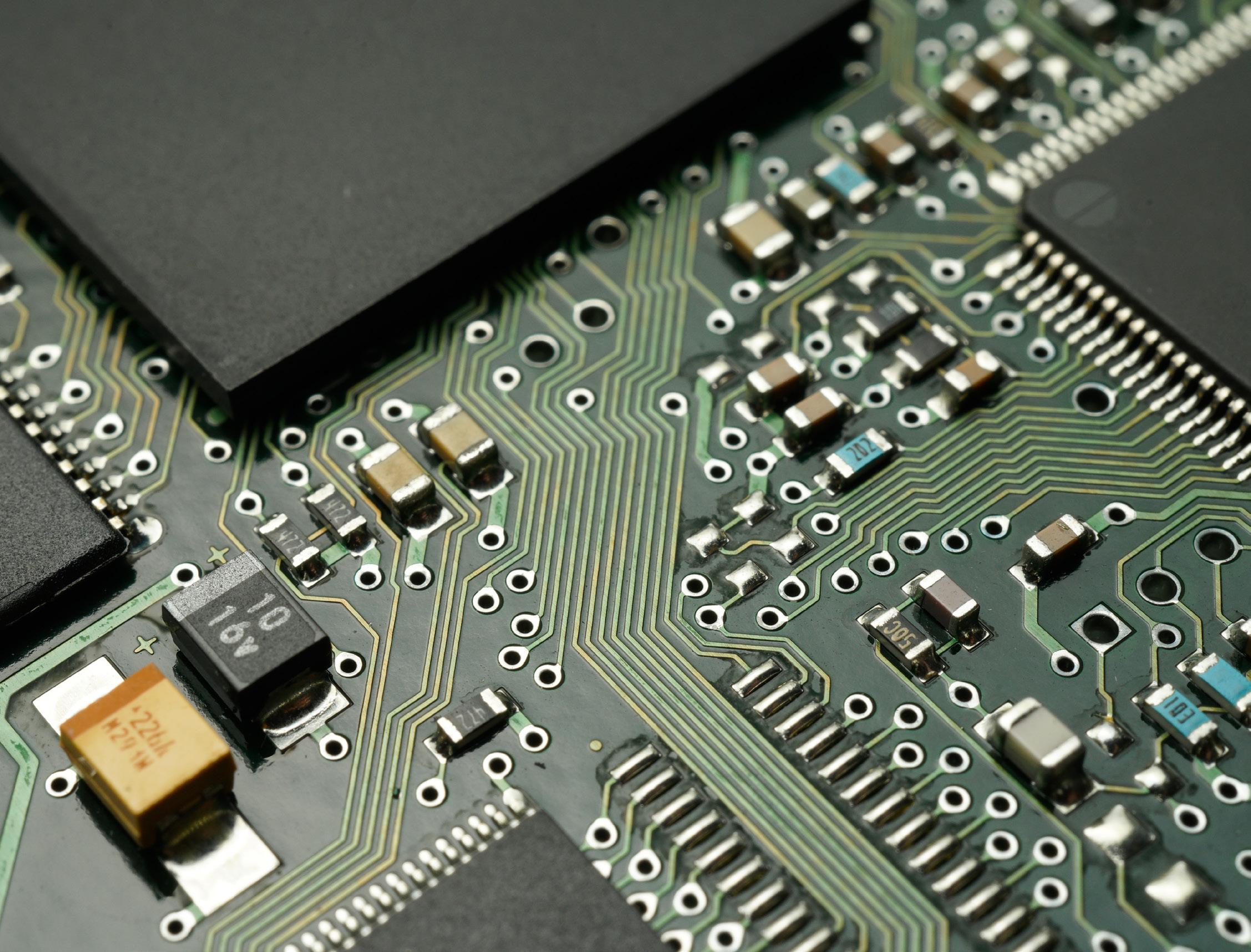

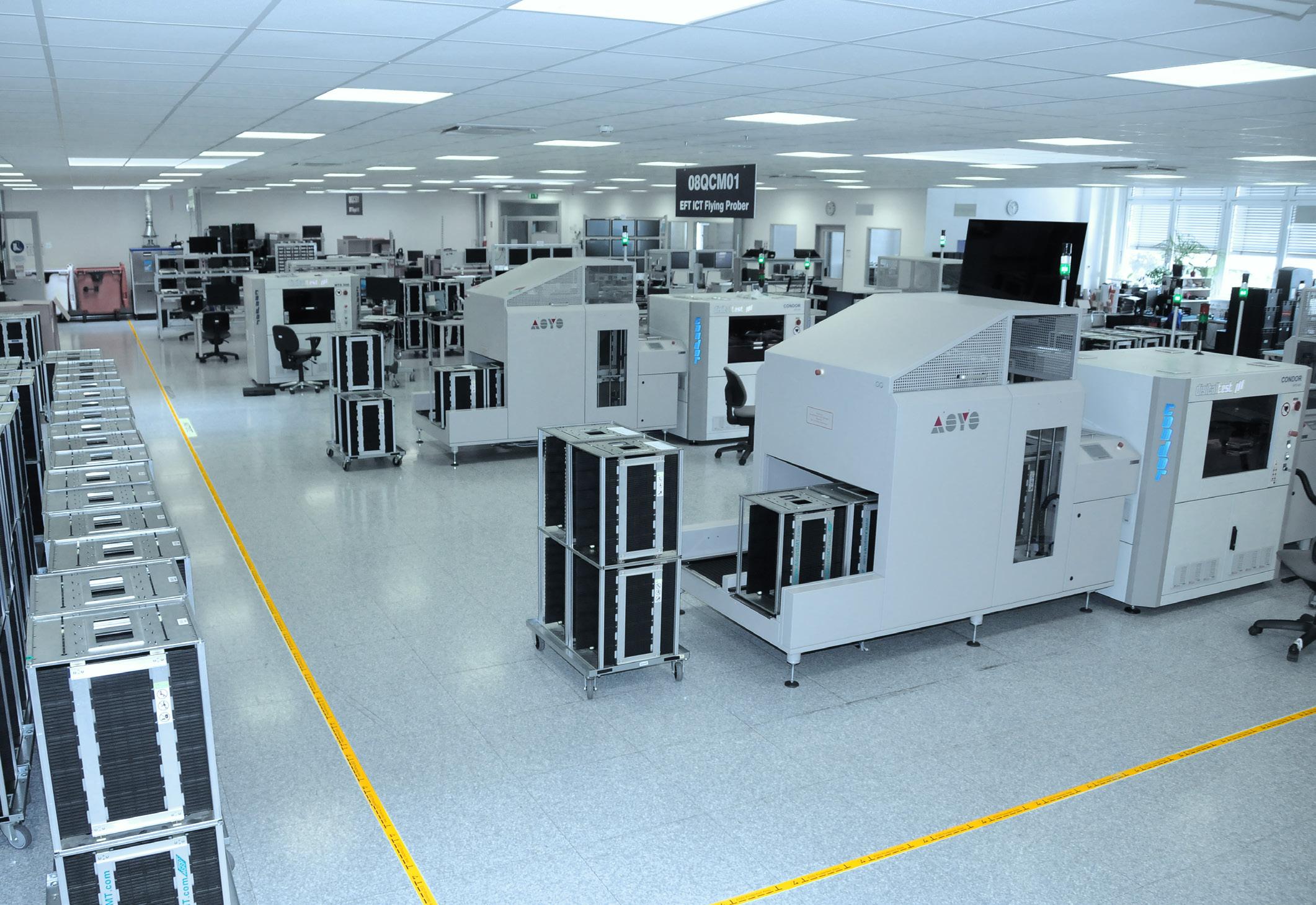

MODERN PRODUCTION The state-of-the-art PCB assembly at the NOVOMATIC Group headquarters in Gumpoldskirchen, Lower Austria, covers a total area of around 3,300 sqm and houses modern equipment for the planning, production, and programming, as well as the testing and repair of high-quality printed circuit boards, which fulfill around 90% of the demand of all international production sites of the NOVOMATIC Group.

The conscious management decision in 1994 not to outsource to the Far East but to opt instead for a local production laid the foundation for a centre of excellence which, based on continuously modernised technologies and highperformance machinery, continues to this day to guarantee premium quality for the very heart of our products in the sensitive gaming industry.

5

PREMIUM QUALITY The exclusive use of high-quality raw materials from internationally recognised suppliers, as well as the seamless control and traceability of the production processes through our SAP S/4Hana enterprise management system, enables an efficient and transparent process flow management.

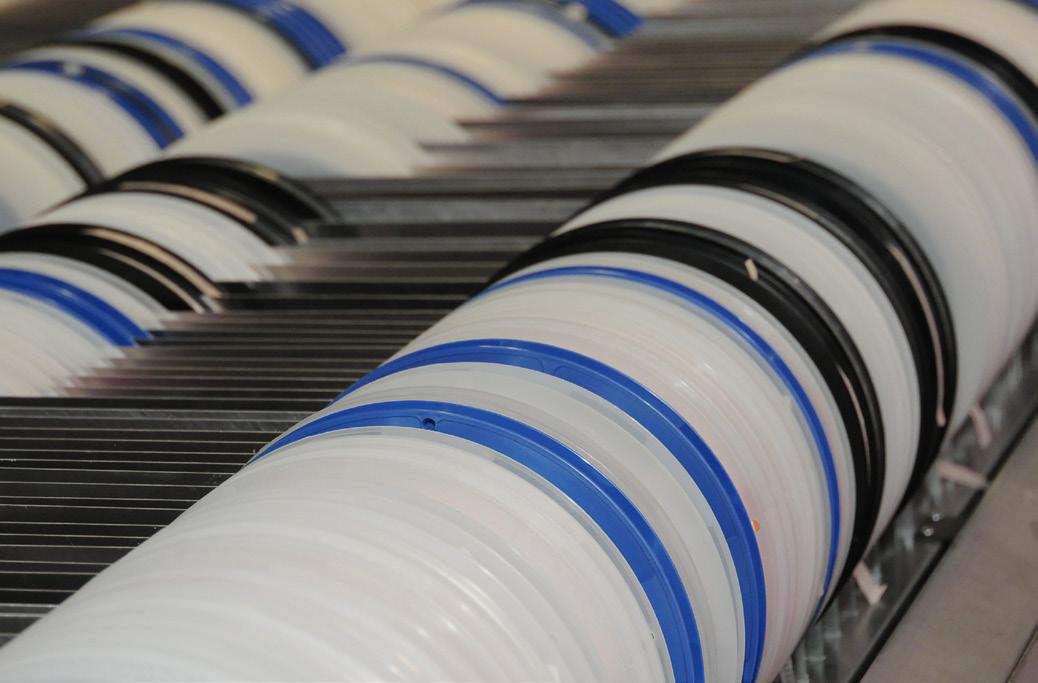

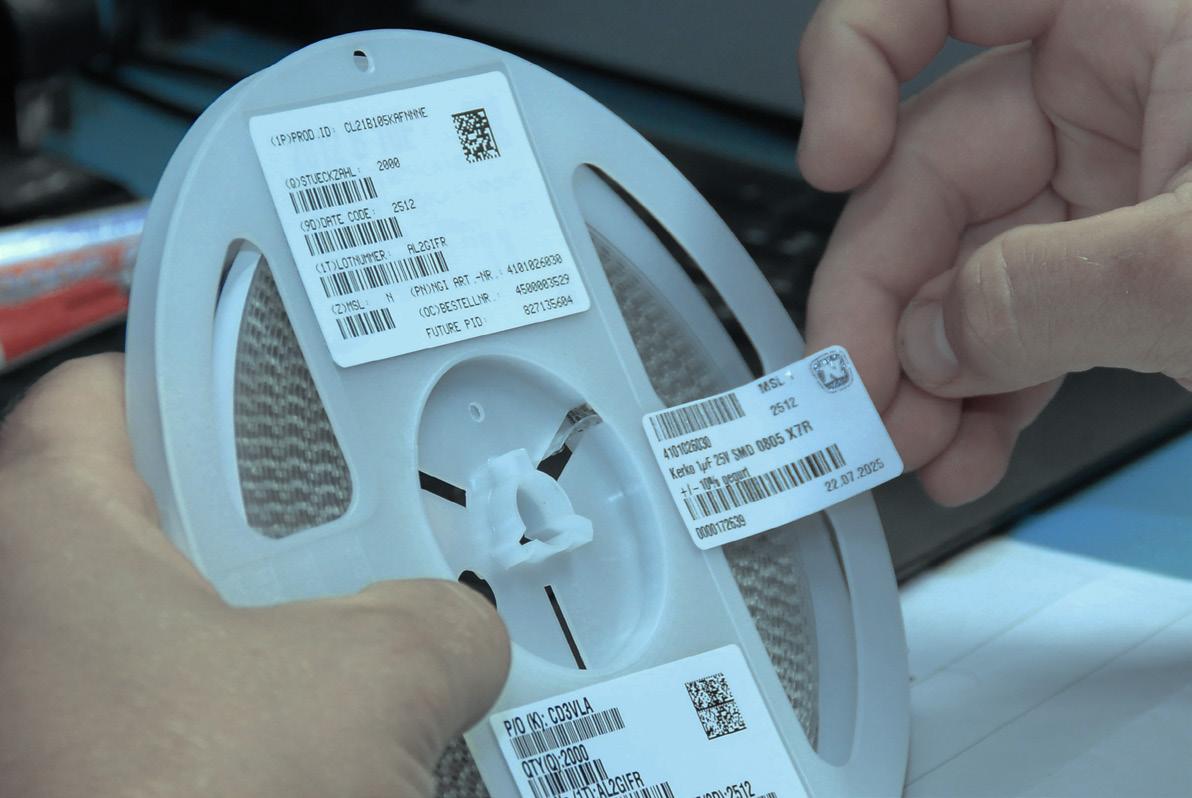

Careful incoming goods inspection, including visual inspection, part number comparison, SAP material number management and climate- and humidity-controlled storage form the basis for the premium quality of the products.

All circuit boards undergo a series of quality and functional tests, such as solder paste inspection (SPI), automatic optical inspection (AOI), in-circuit testing (ICT), boundary scan, flying probe testing, X-ray inspection, functional testing and final inspection.

6

Electronics: electronics@novomatic.com • www.novomatic.com

7

8

Electronics: electronics@novomatic.com • www.novomatic.com

COMPLETE SOLUTIONS Our complete electronics solutions cover a wide range of production processes, from circuit board planning to final quality inspection. The creation and documentation of detailed technical assembly plans under the expert guidance of our development engineers enables us to develop customized precision solutions for each individual customer requirement.

Optimally planned circuit board design as well as the precise management of the manufacturing processes and the complex, multi-stage assembly processes based on the highest level of expertise ensure high-quality, precise end results that guar-antee long-term reliability and the success of the products on the market.

9

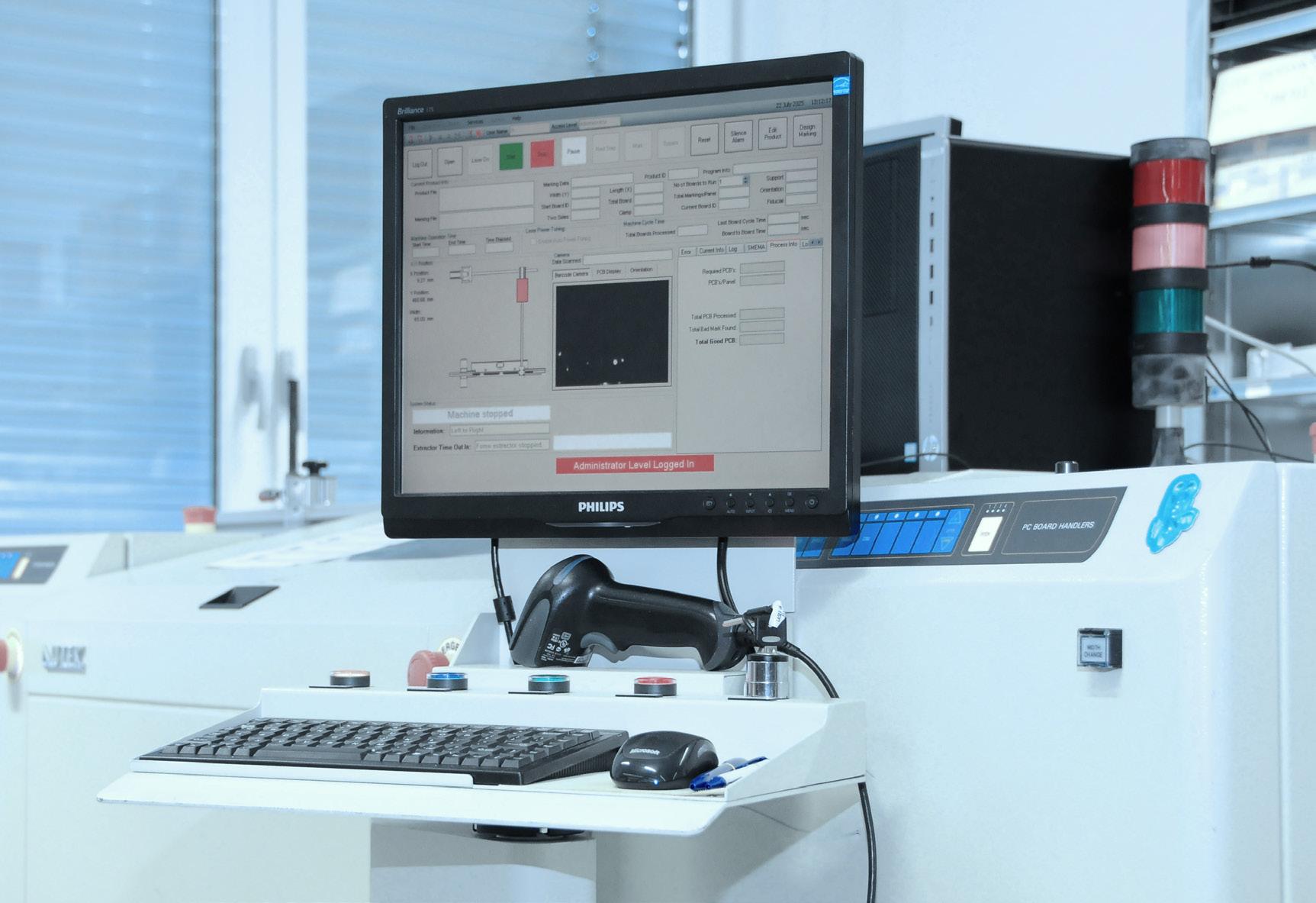

AUTOMATION The use of both automated and manual methods in the circuit board assembly process enables us to meet every requirement.

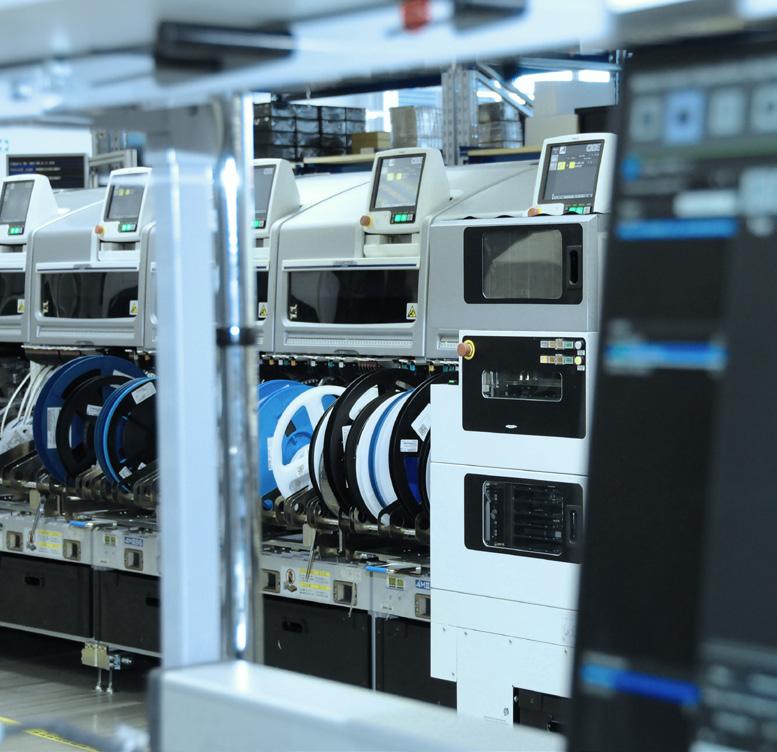

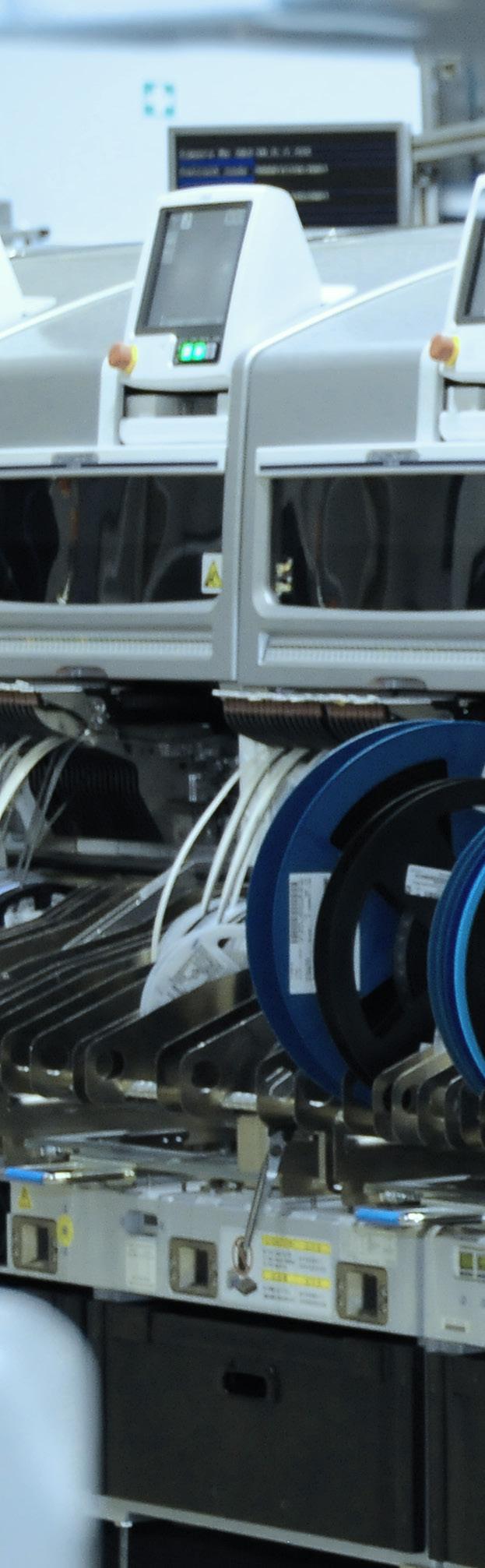

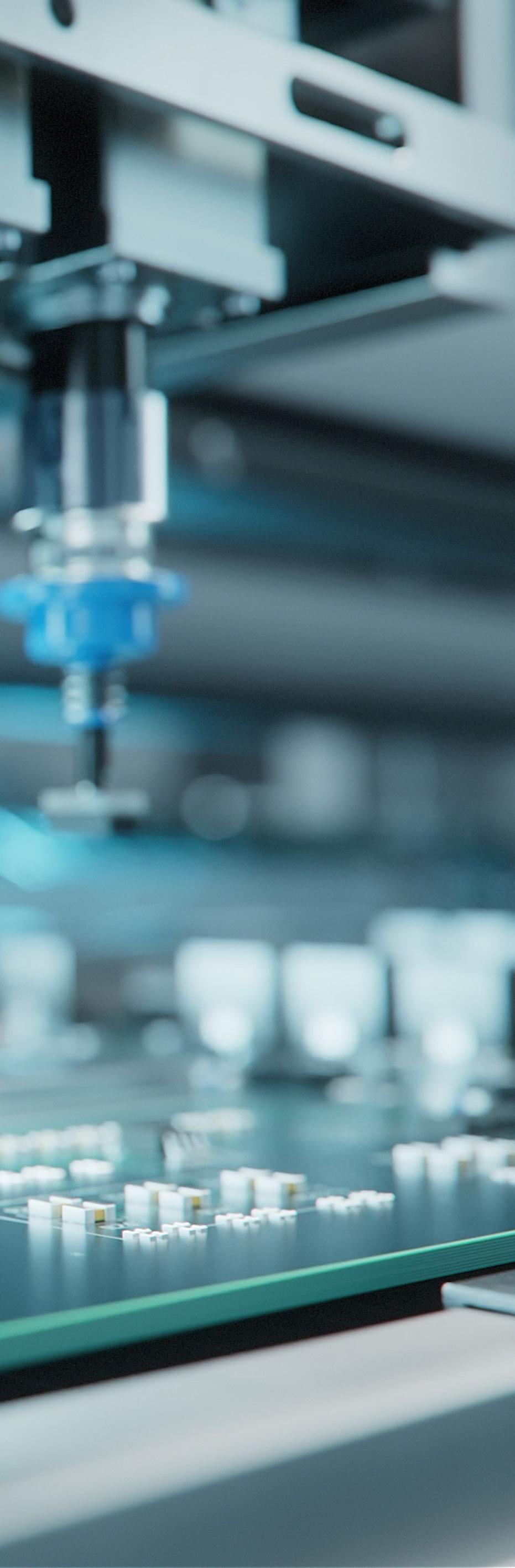

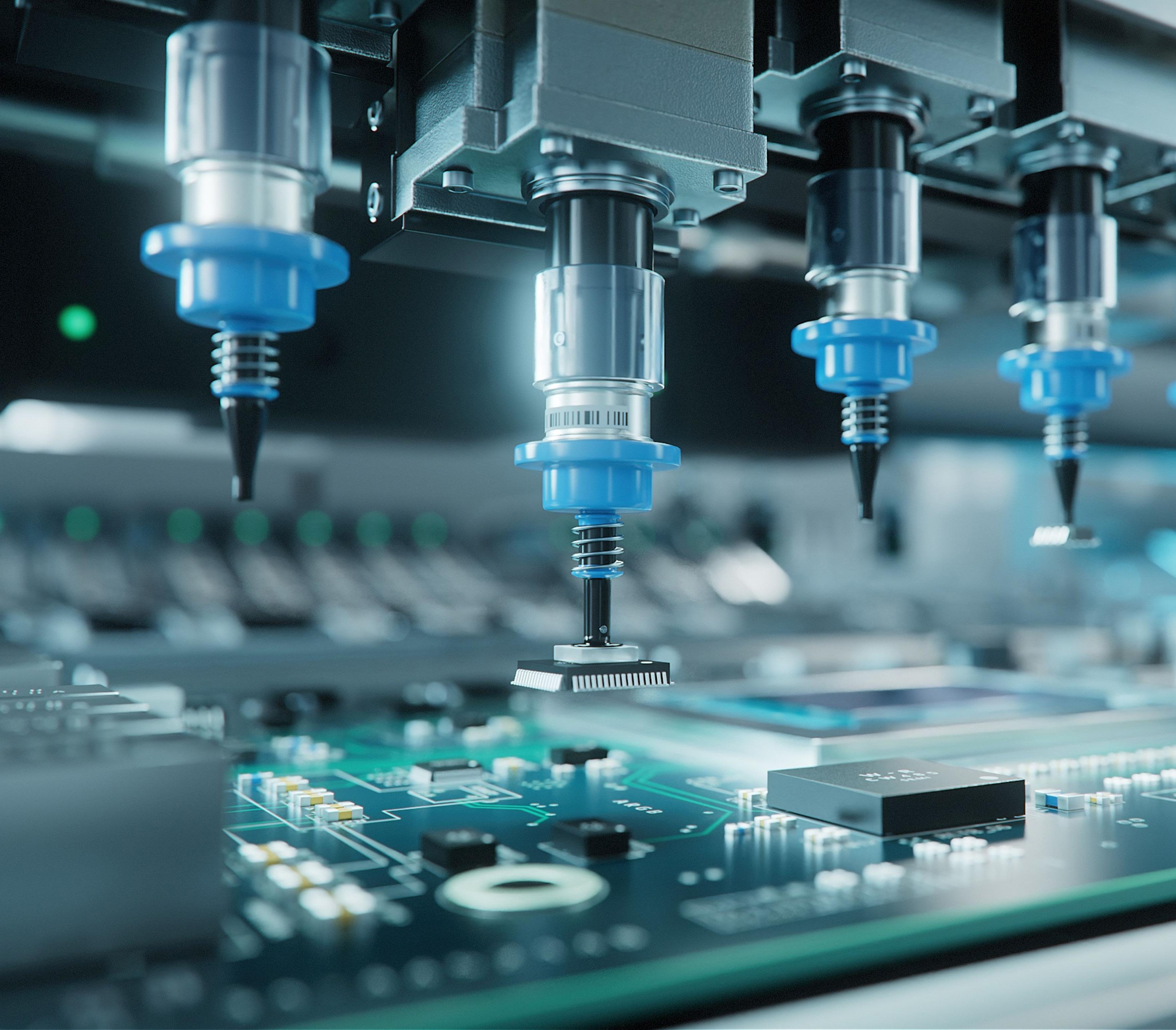

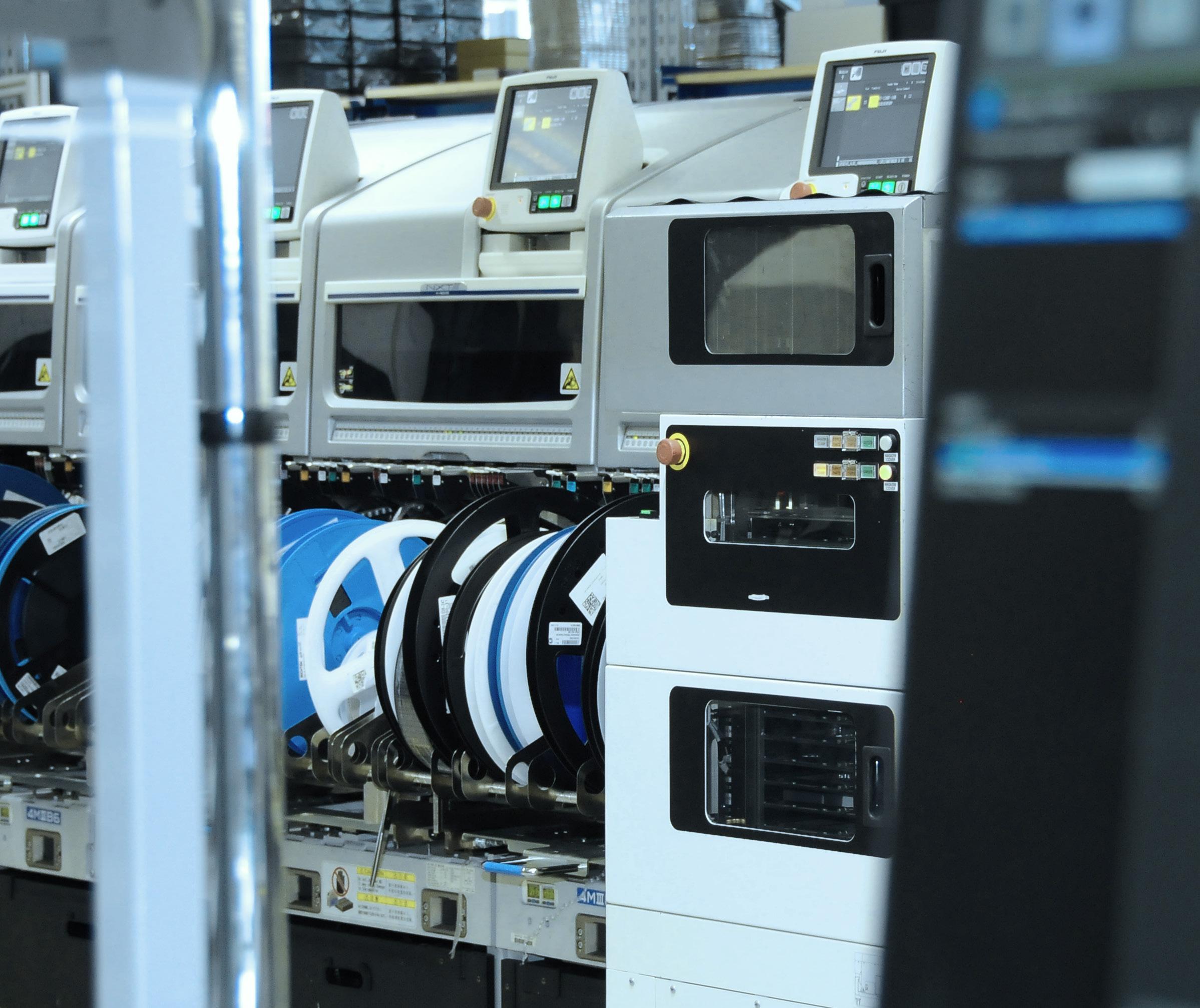

Our machinery includes three fully automated SMT assembly lines from Fuji, including solder paste printing, high-speed pickand-place assembly and reflow soldering ovens.

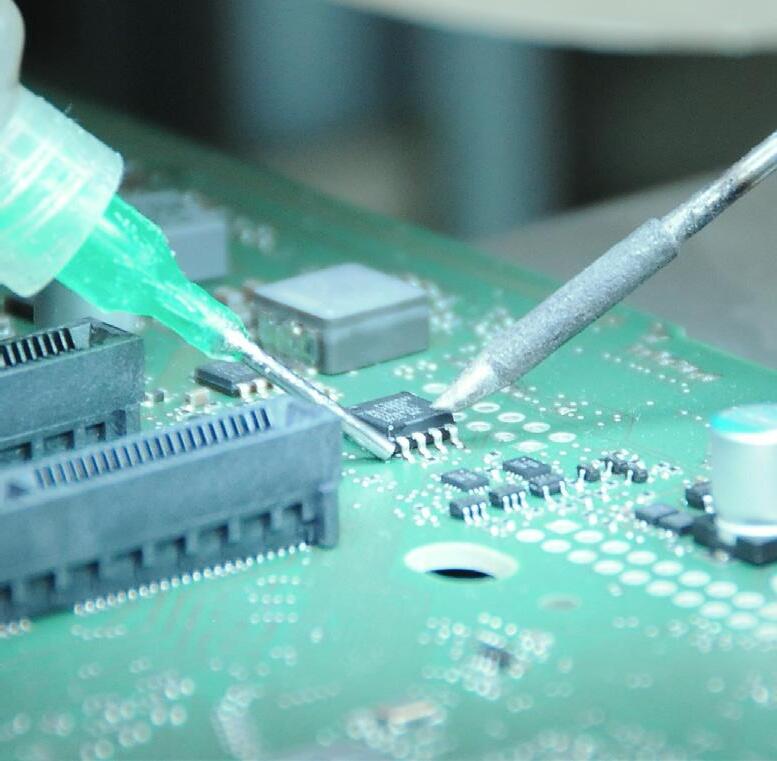

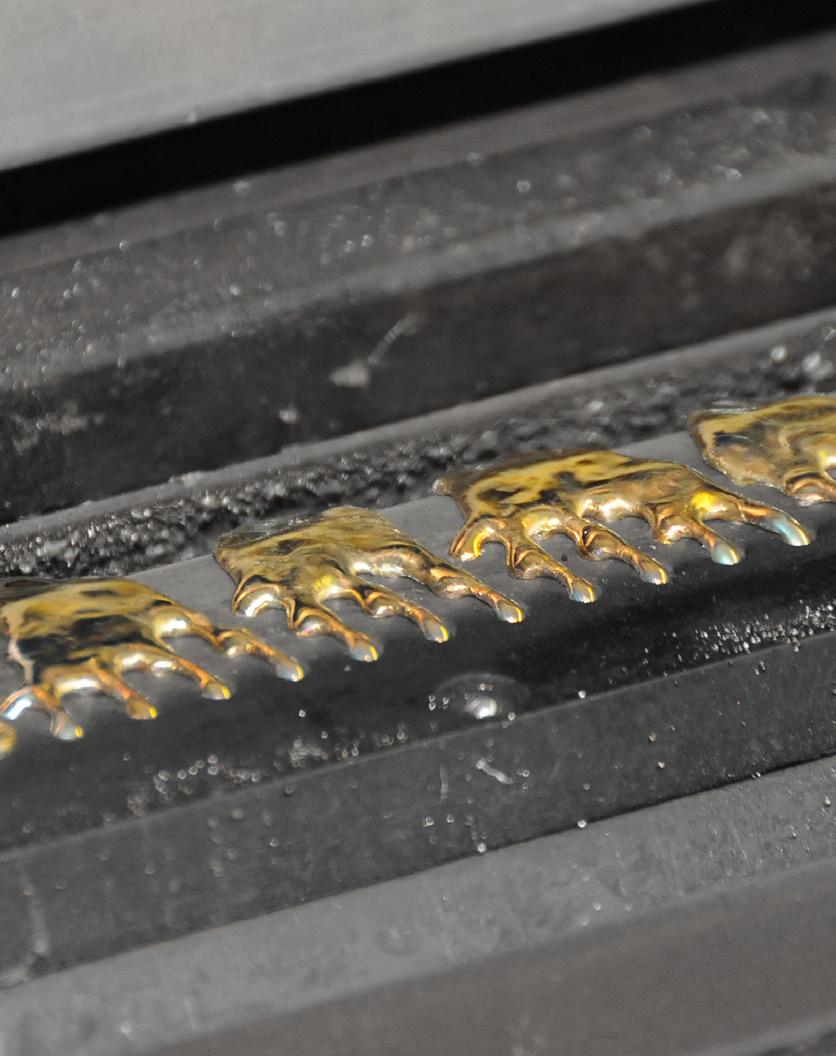

THT components for small series and complex hybrid projects are assembled manually or semi-automatically and fixed using nitrogen-flushed selective soldering or wave soldering ovens.

Careful and highly project-specific production and process planning for the application of modern technologies and manufacturing processes ensures maximum cost efficiency with the highest accuracy and reliability.

10

Electronics: electronics@novomatic.com • www.novomatic.com

11

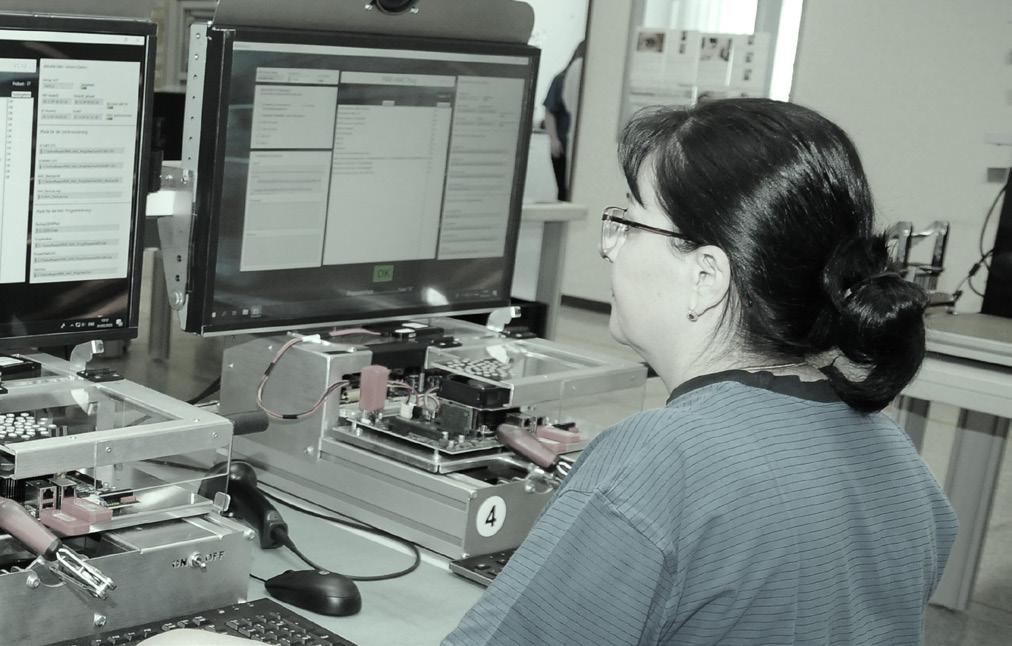

CONTROLLED QUALITY An important part of the production cycle is a series of quality controls and inspections for ongoing quality assurance.

These include standardised testing procedures such as solder paste inspection prior to soldering, automatic optical inspection (AOI) to check assembly and soldering results, classic in-circuit testing (ICT) for component testing, X-ray sample checking, testing via integrated boundary scan, flying probe testing for SMT assembly and, finally, general functional testing and final inspection.

Boards tested: 2023: 770,000 units 2024: 830,000 units 2025: 700,000 units* (*forecast estimate)

12

Electronics: electronics@novomatic.com • www.novomatic.com

13

14

Electronics: electronics@novomatic.com • www.novomatic.com

TRACEABILITY The principle of traceability is applied throughout the entire value chain in process management: all components are stored in batches.

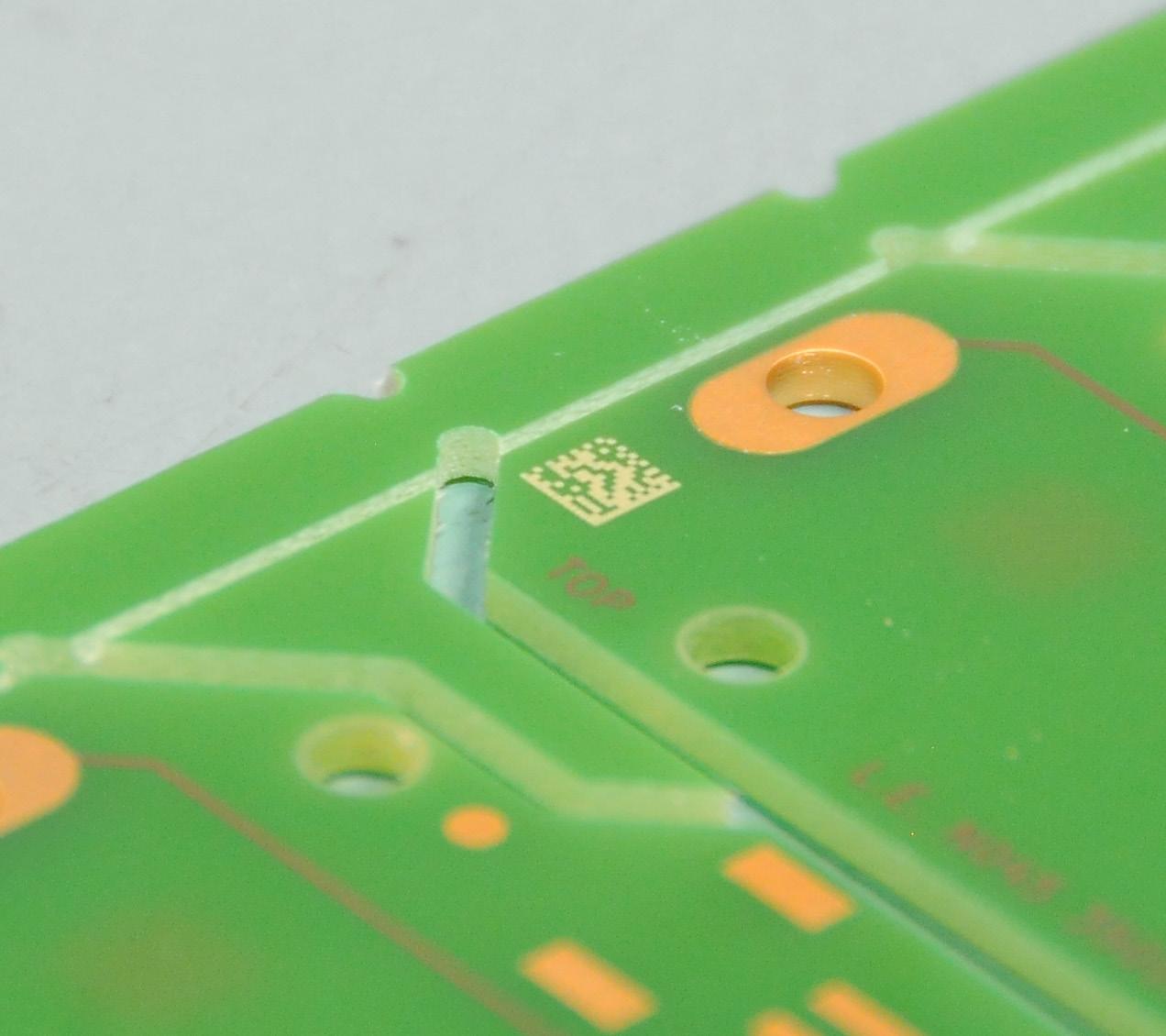

Each individual circuit board is marked with a laser-engraved data matrix code (unique ID) upon commencement of the production order.

This serial number is the key to all lifecycle data for the product. This allows for detailed error analyses and targeted batch investigations in the event of problems occurring in series production or during customer use.

15

AUTOMATED PROCESS

INCOMING INSPECTION

PCB PLANNING

SCREEN PRINTING & SPI-INSPECTION

CAD planning Test equipment development Assembly programme desgin Documentation Creation of components and parts lists

PCM MANUFACTURING

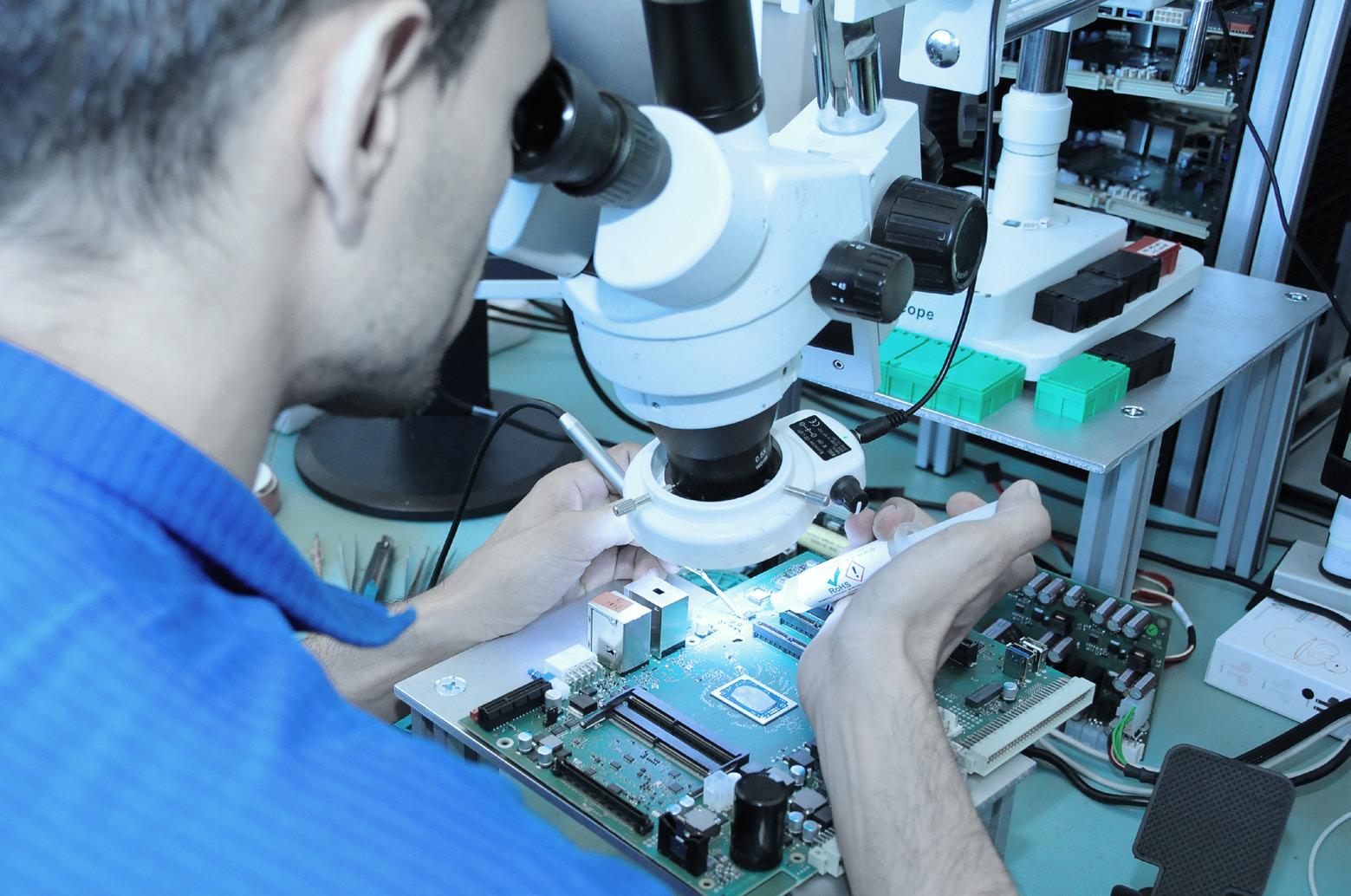

Visual inspection

16

Electronics: electronics@novomatic.com • www.novomatic.com

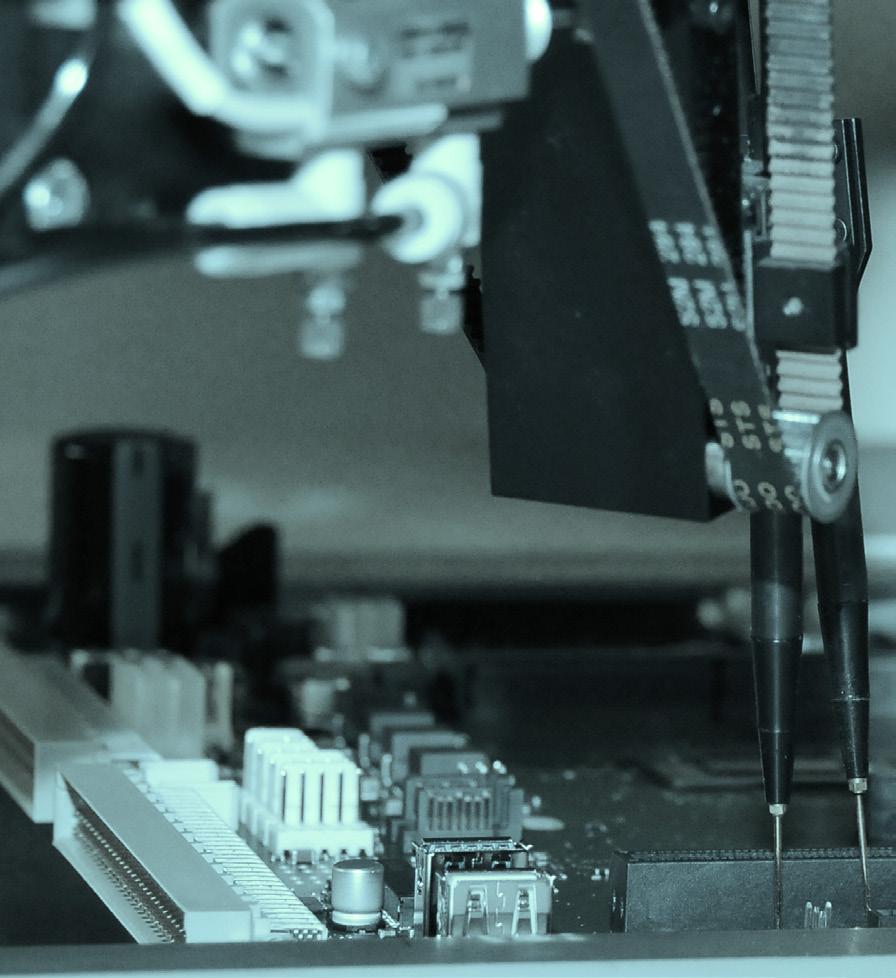

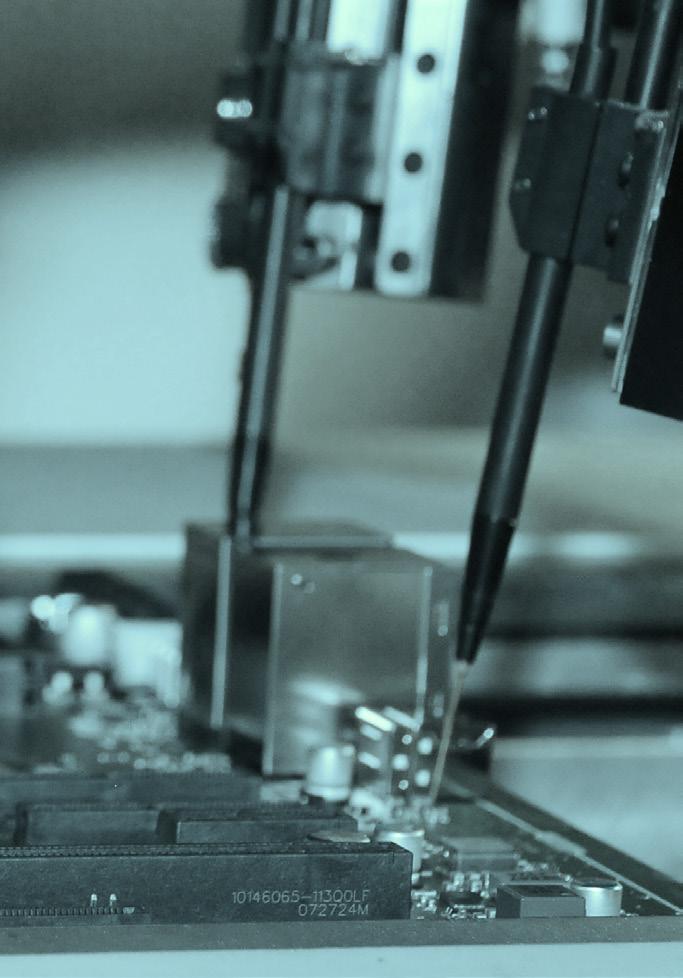

FLYING PROBE TEST IN-CIRCIT-TEST Continuity test Isolation test Resistance measurement Capacitance measurement Inductance measurement Component testing

Fully automatic printing, SPI inspection, SMT assembly Automatic optical inspection (AOI)

PRE-TEST

e.g., RFID-TID

ASSEMBLY

e.g., heat sink

PROCESS COMPETENCE SMT-ASSEMBLY & REFLOW OVEN

AOI

X-RAY

X-Ray inspection

FUNCTIONAL TEST

PROGRAMMING

Voltage measurement Current measurement Signal tracing Functional testing of ICs

BIOS MAC Boot loader

THT ASSEMBLY & WAVE- OR SELECTIVE SOLDERING Assembly with THT components Manual / selective soldering Semi-automated / wave soldering

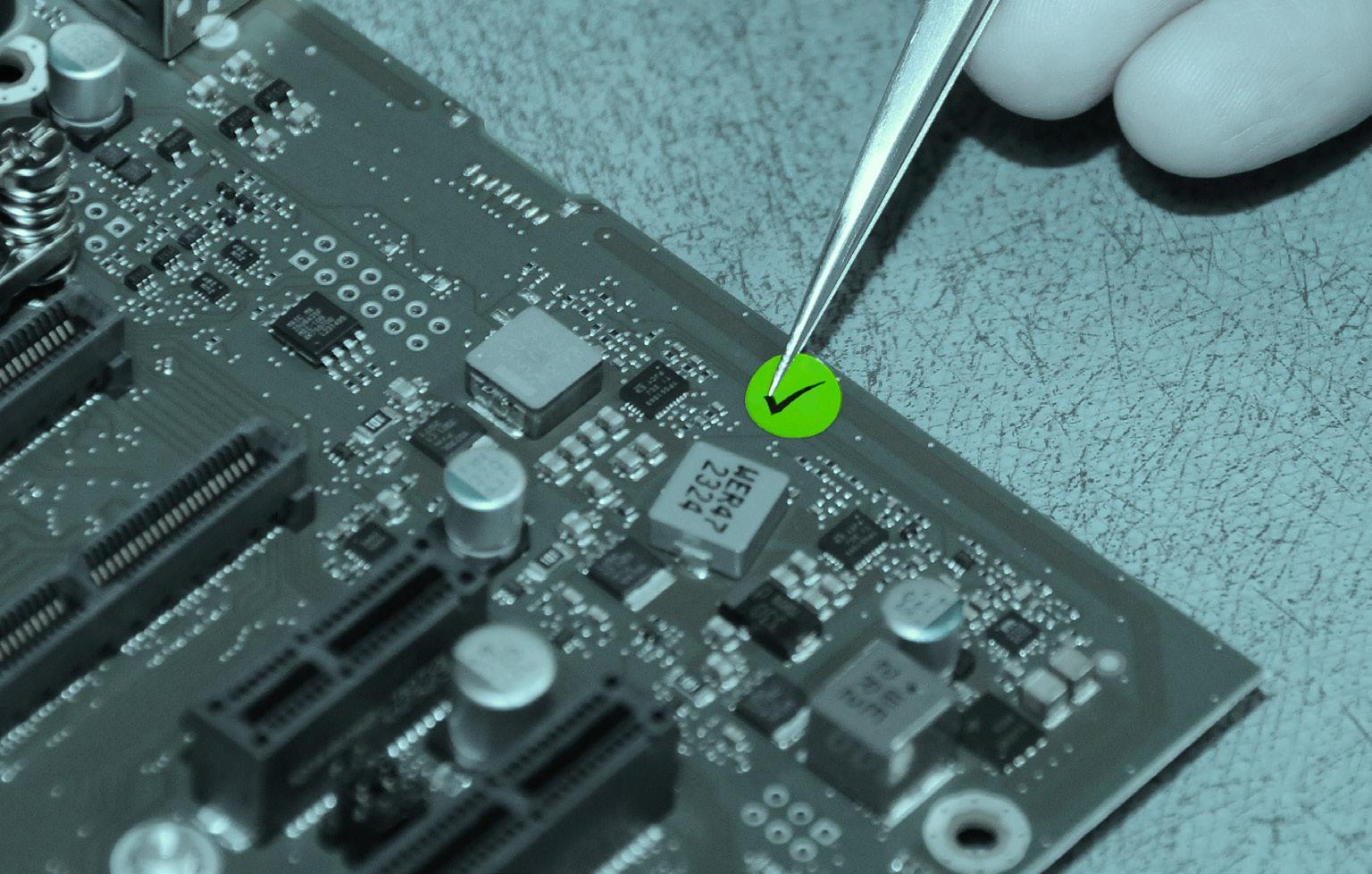

FINAL INSPECTION

Testing in the intended function

BOARD PROGRAMMING Order-specific firmware programming 17

EXPERIENCE & EXPERTISE A team of 65 highly qualified specialists with more than 44 years of experience and expertise ensures that all projects are planned and implemented in accordance with the highest international quality standards.

Using the latest technological processes, our team of experts creates premium-quality, reliable and durable products that meet the high expectations of the market and our customers.

Currently, an average of around 860,000 circuit boards are produced annually and 196 million SMD components and around 6 million THT components are assembled.

18

Electronics: electronics@novomatic.com • www.novomatic.com

19

20

Electronics: electronics@novomatic.com • www.novomatic.com

STABLE BASIS As a global gaming technology group with more than 26,000 employees, the NOVOMATIC AG Group acts as a technologically innovative partner with a stable economic background, also for third-party customers from other industries.

The company’s strong focus on research and development in the field of electronics and gaming technologies enables us to apply innovative technologies for production planning and PCB production using high-performance industrial equipment to meet the diverse needs and industry requirements of our customers.

21
