Operator’s Quick Guide Xsite® 3D Machine Control System

User interface functions ................. 4 Main menu ................. 6 Check Before Starting ................. 7 Correction Signal (RTK) ................. 7 Project Selection ................. 8 Model Selection and Measurement ................. 8 Model Color and Visibility ................. 9 Accuracy Check ................. 10 Bucket Calibration ................. 11

Thank you for choosing the Xsite® Machine Control System!

Founded in Finland in 1991, Novatron is a technology company with long-standing experience in machine control and the earthmoving industry. We design and manufacture Xsite® systems to meet the demands of modern infrastructure construction — helping professionals work with greater accuracy, efficiency, and confidence.

This quick guide will help you get started with your new system. For more tutorials, practical tips, and guidance on getting the most out of your digital tools, please visit our website and follow our YouTube channel: @NovatronMCS. For local sales, support, and services, please contact your local Xsite® Dealer. Our dedicated and experienced dealer network provides expert assistance throughout the lifetime of your system — from selecting the right solution to user support, field services, and maintenance.

You can find local contacts by country at novatron.com/resellers Would you like to help us develop our systems further? We value your feedback.

Scan with your phone and give feedback about Xsite® 3D!

We hope Xsite® helps make your workdays smoother, easier, and more productive.

Best Regards, Petri Moisio CEO, Novatron Oy

2

3

Xsite® 3D User interface

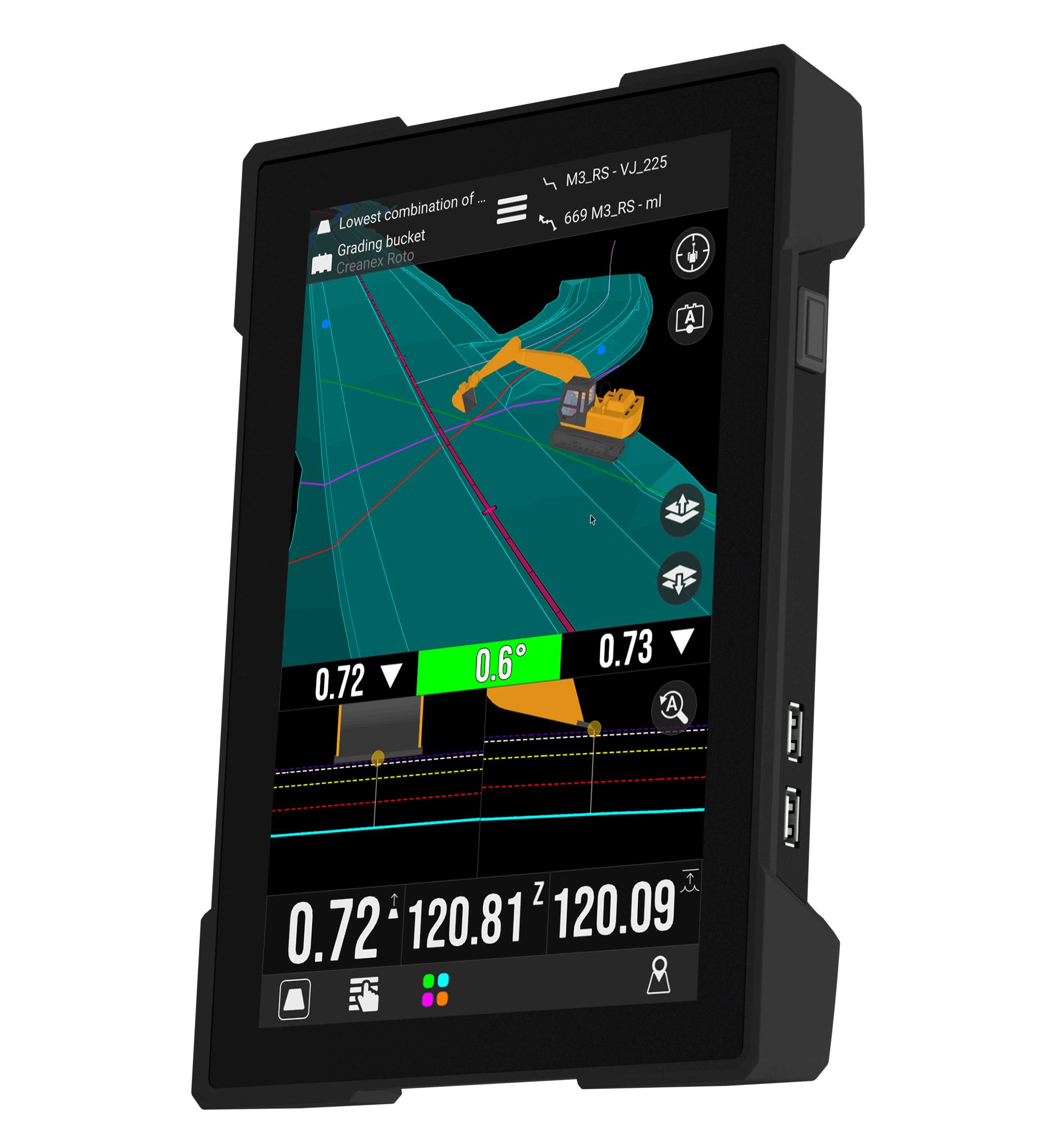

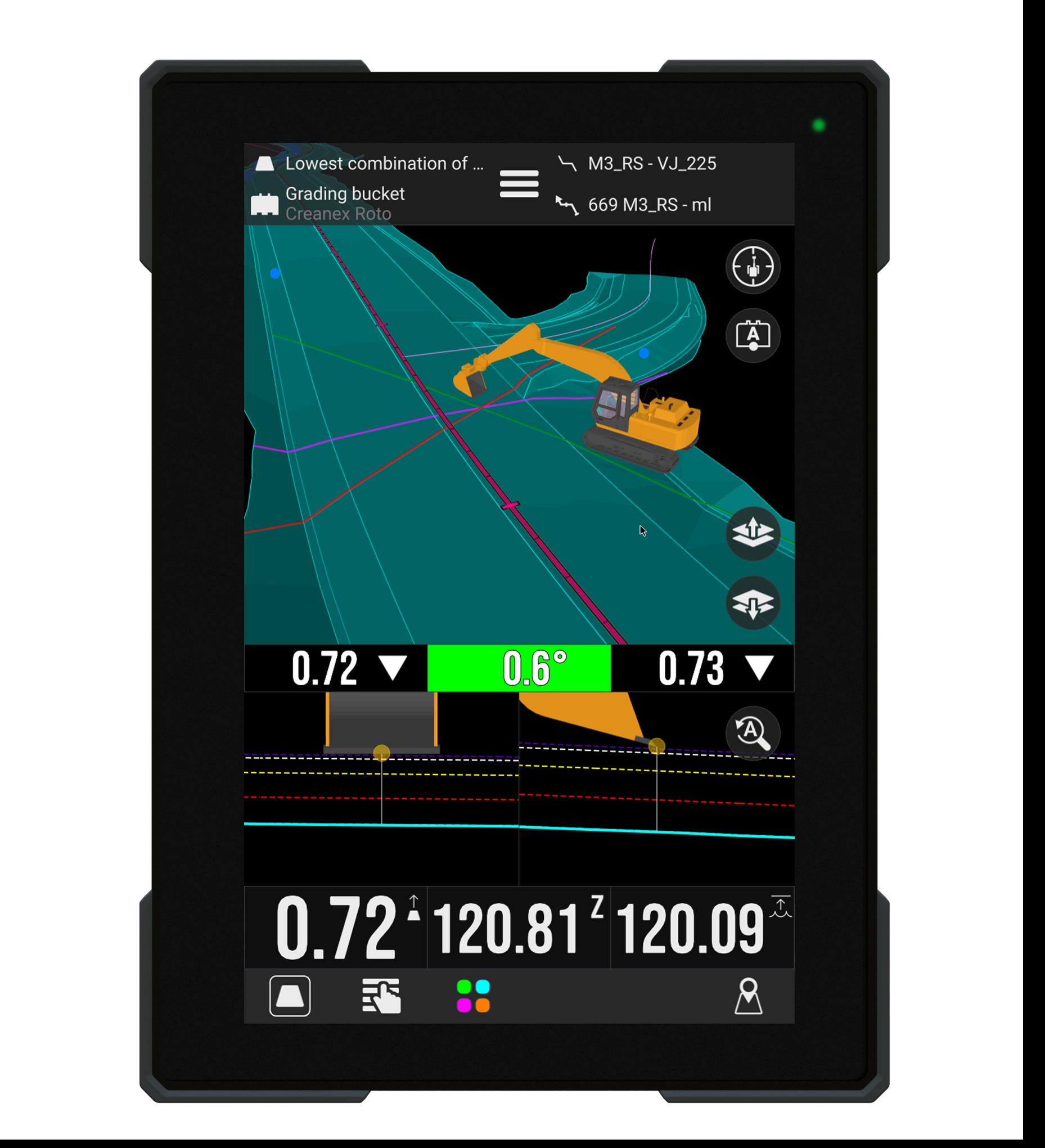

Main Menu Active surface Select bucket / Change bucket You can select or change the bucket or attachment of your choice.

Bucket arrow indicators (Cut / Level / Fill)

Measuring values Select measuring mode

4

Toolbar You can select four different quick actions in the middle of the toolbar.

Supported standards

ISO/TS 15143-4

Active line name Station number / Active centerline Change map view Change measuring point

Change active surface

Profile view zoom reset

Save as-built

5

Main menu 1.

Clock

4.

Positioning Accuracy

2.

Internet Connection

5.

Cloud Connection Status

3.

Number of Satellites

6.

Measuring Point Coordinates

1.

6.

2.

6

3.

4.

5.

Check Before Starting To use wireless data transfer, network correction services, or remote support, the system requires a SIM card with a data connection.

The SIM card must be Mini size. You can obtain a subscription from the service provider of your choice. Request a SIM card without PIN lock.

We recommend a 4G data connection (minimum speed 10 MB).

The SIM card is installed in the computer. The computer must be turned off during installation.

1. Remove the SIM card tray by pressing the yellow button.

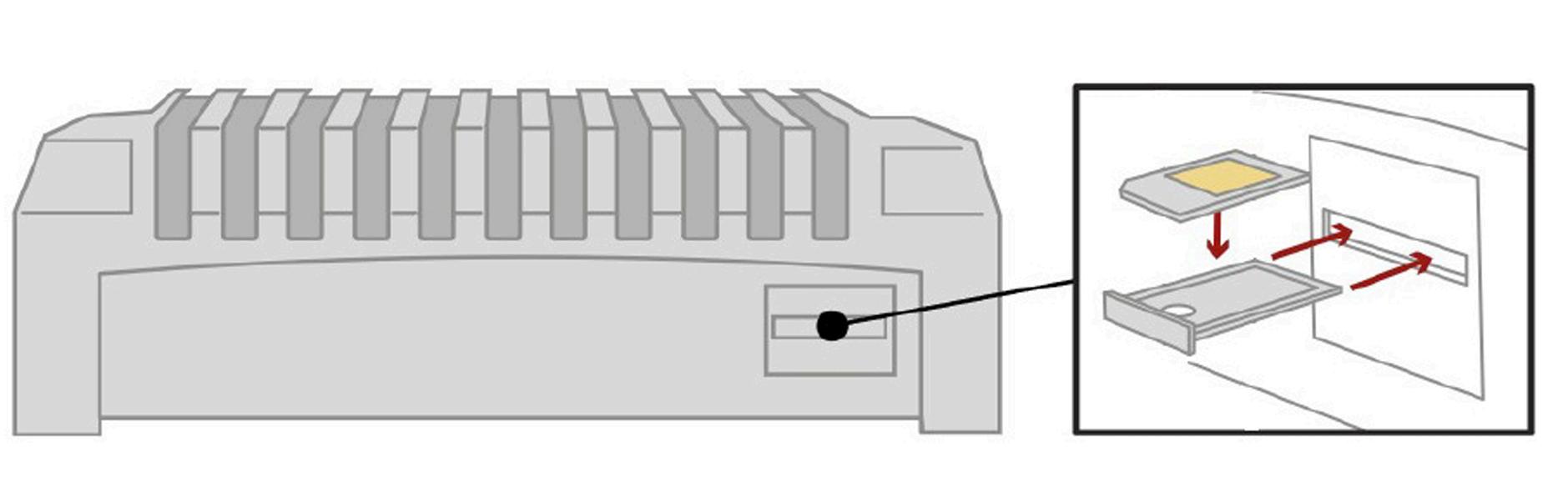

2. Insert the SIM card into the tray as shown in the picture.

3. Push the tray back into place.

Correction Signal (RTK) To achieve the required measurement accuracy for 3D machine control in construction (centimeter-level accuracy), the system requires an RTK (Real-Time Kinematic) correction signal.

The correction signal can be obtained either from a local site base station or via a network correction service (NTRIP).

Check with the site surveyor whether the construction site uses a local base station and what settings are required to use the base station with the machine control system.

The correction message from a local base station can be transmitted either via radio or through a network correction service.

7

Project Selection You can open projects from the project list in the main menu.

1.Open the Main Menu 2.Select “Project” 3.Select “Active Project”

Model Selection and Measurement When you have selected the desired project, you can choose a model for measurement.

The system provides three ways to select models for measurement: 1.Use the arrow buttons in the map view to browse surface models at the machine’s location.

2.Press and hold the desired object in the map view (lists objects located in the selected area).

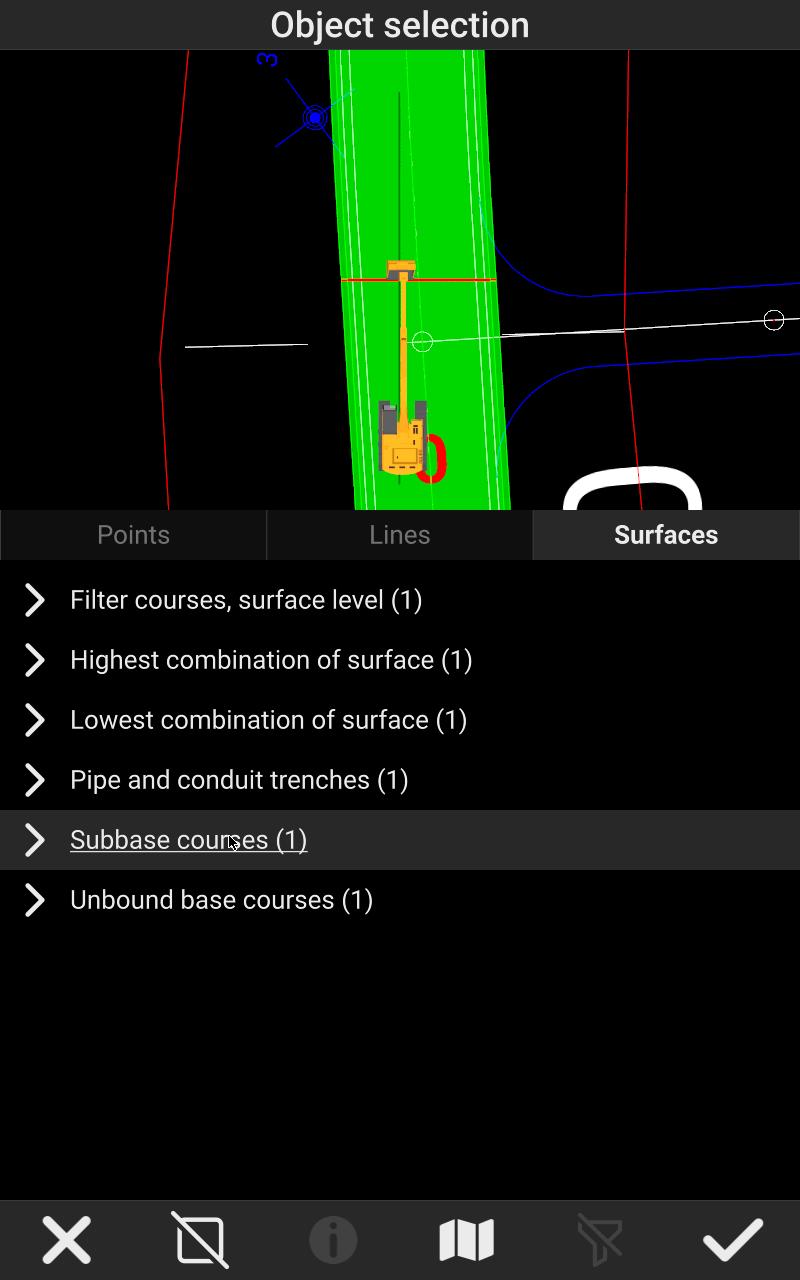

3.Use the Object Selection button on the toolbar (lists all model data in the project).

The system categorizes the model data by type into tabs: Surface: Structure surfaces Line: Pipes, cables Point: Light pole foundations, manholes

1.Select the tab according to the model type.

2.Select the desired model from the list.

3.Press “Select”.

After selecting the model, choose the correct measuring mode from the bottom of the screen.

8

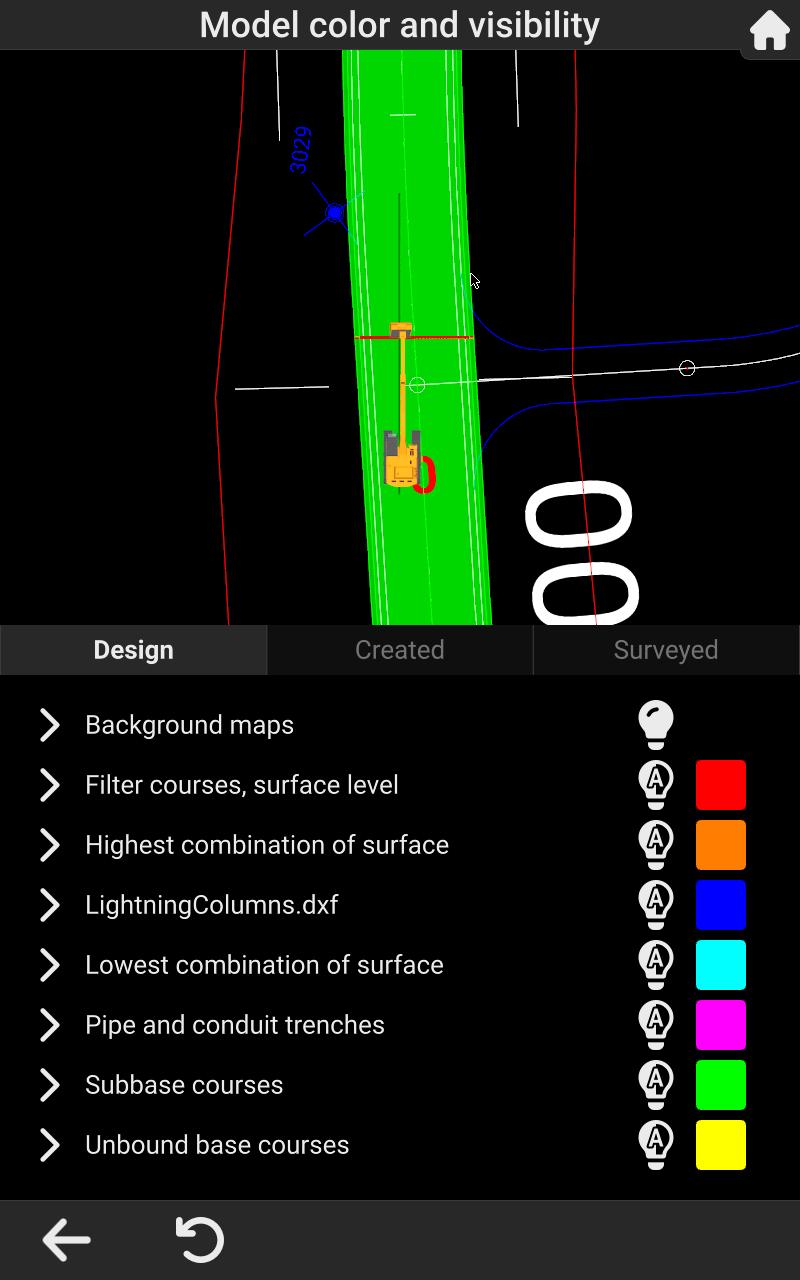

Model Color and Visibility From the Model Colors and Visibility menu, you can change the visibility and colors of project data.

The data is divided into tabs based on its source: 1.Design – Contains all design data imported into the project.

2.Created – Contains models created within the system.

3.Surveyed – Contains survey data collected with the system.

Background maps and warning maps are always shown at the beginning of the design data.

Model colors can be changed using the color icon.

Model visibility can be changed using the light bulb icon.

= Always visible = Visible when selected for measurement

= Not Visible

9

Accuracy Check Always check your system’s positioning accuracy (3D) when starting work at a new construction site using the site control point (a point measured by the surveyor that contains X, Y, and Z coordinates).

1.Ask the site surveyor for the control point coordinates (X, Y, Z).

2.Place the bucket measurement point precisely on the control point.

3.Compare the bucket measurement point coordinates with the control point coordinates.

If the accuracy is not within the site tolerances, perform a bucket accuracy check.

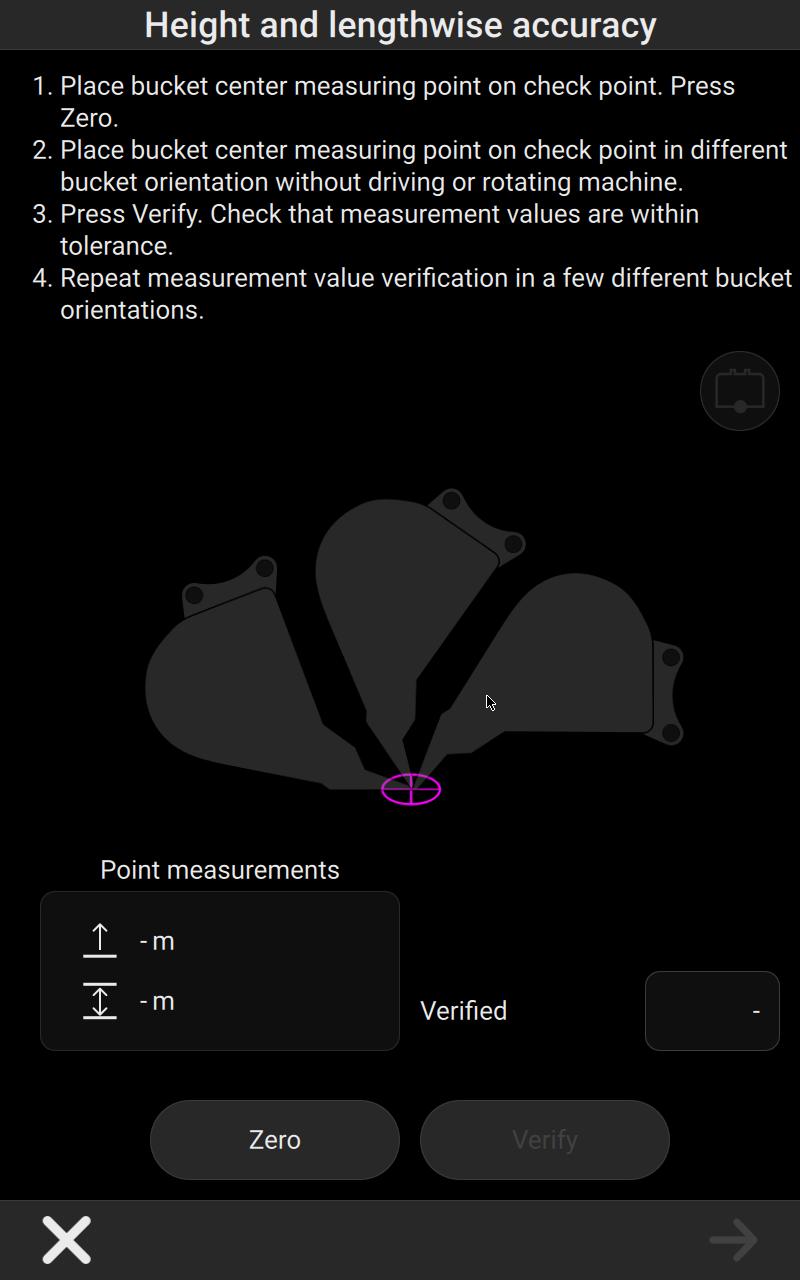

1.Open the “Main Menu” 2.Select “Machine and Buckets” 3.Select “Accuracy Checks” 4.Select “Bucket Accuracy” 5.Perform the check according to the system instructions.

If the error is more than ±2 cm, it is recommended to recalibrate the bucket.

10

Bucket Calibration If the bucket is worn or when new buckets are acquired, it must always be calibrated before using it with the 3D machine control system.

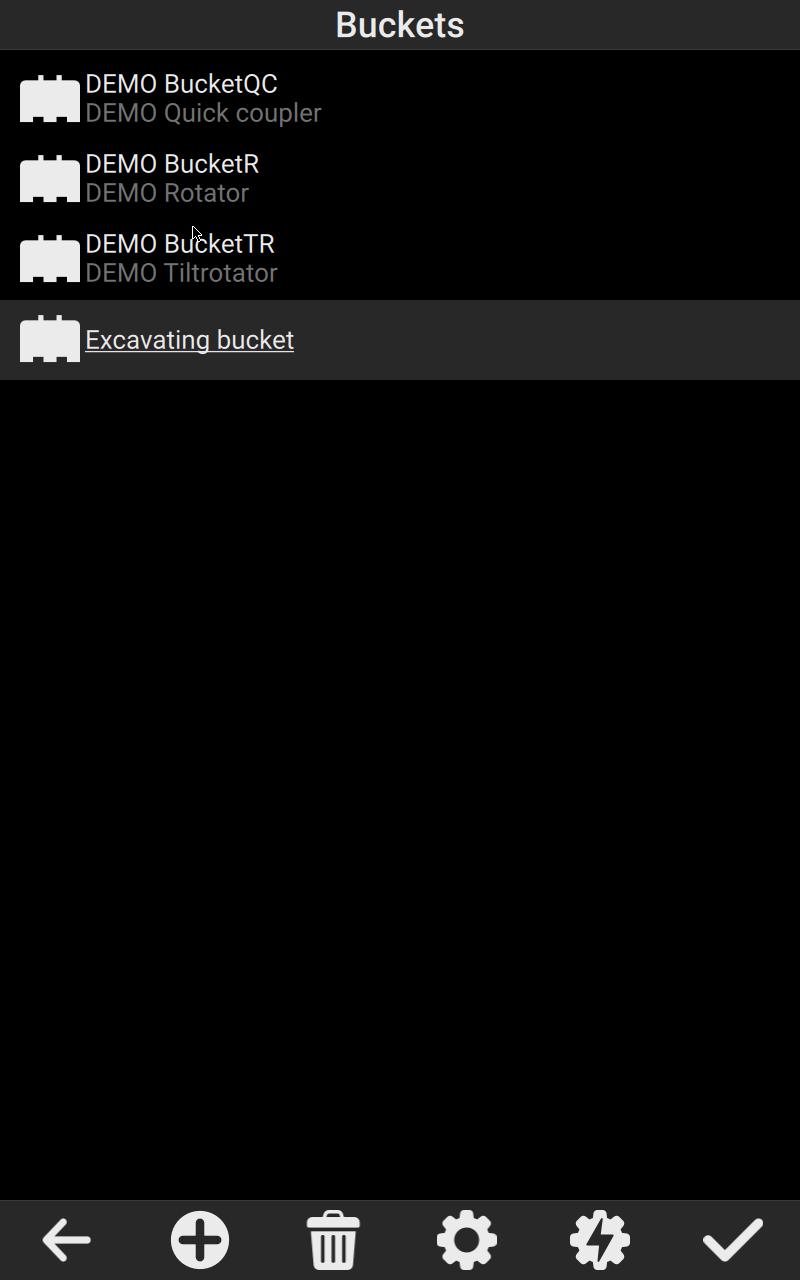

1.Open the “Main Menu” 2.Select “Machine and Buckets” 3.Select “Buckets” In the bottom menu bar, you will find the following functions: Add a new bucket Remove a bucket Recalibrate a bucket Quick bucket calibration (sufficient if the bucket has only worn due to use) Select the appropriate calibration method.

The system user interface will guide you through the calibration steps.

11
