NORTH KITE PRODUCT PREVIEW | MY24.2

AT NORTH, WE’RE FOR THE SEEKERS.

The adventurers, the explorers, the athletes.

Those who are their true selves when they’re at one with the elements.  Water. Wind. Sky.

They call to us.

We’re halfway between worlds. Suspended in time. Lost. At one with it all.

At North, we seek change, we chase the unknown, we pursue progress.

Every day we are inspired – and humbled - by nature’s engineering genius and her beautiful, intuitive simplicity.

Engineered. Refined. Intuitive.

So when you ride North, you ride in tune with nature, in tune with yourself.

So you feel everything – and nothing – all at once.

It Calls.

Where wind meets water. Where nature meets technology. Where sport meets spirit.

North lives at the intersection of wind and water. Both elements are fundamental and defining, and our new 2024 Collection proudly bears the shared horizon icon that embodies these two elements.

At North, we don’t follow currents, we work with the latest technologies and brightest minds to make our own. We draw upon the expertise of the world’s leading sailmaker, North Sails, to bring the latest innovations to kite and foil.

North was established in 1957 when Olympic gold medalist and aerospace engineer, Lowell North, sought to change the world of sailing through precision technology. We are dedicated to design, engineering and performance leadership in the marine world.

The company employs over 50 advanced degree engineers worldwide, and our excellence in engineering and science has led to cooperative development projects with aeronautics companies, Formula 1 racing and NASA.

North’s legacy in innovation represents features and benefits that transcend performance sailing, kiting and foiling. Lowell’s clear purpose, creativity and competitive spirit continues to inspire our designs today.

“You make history by looking ahead.”

– Lowell North, Founder North Sails. Est. 1957

In 2024 we see our brand identity evolve to embody the next chapter—the chapter where the innovating spirit of Lowell North permeates through all corners of the North organisation. One where we understand the exponential power of working together as one united, visionary and responsible community.

When you choose North, you not only choose products designed for ease of use, high performance and a low warranty rate. You join us on the journey.

Engineered. Refined. Intuitive. There is only one North.

Since its founding in 1957, North has been dedicated to creating equipment that enhances your time on the water. The Pro Series is the next level of development that champions more advanced materials and technology.

Engineered. Refined. Intuitive.

KITE LINEUP

ORBIT

Big Air / Freeride

CODE: 85000.240000

ORBIT PRO

Competition Big Air

CODE: 85000.240010

REACH

Performance Freeride

CODE: 85000.240004

CODE ZERO

Performance Foil

CODE: 85000.240008

CARVE

Surf / Strapless Freestyle

CODE: 85000.240001

PULSE

Freestyle / Wakestyle

CODE: 85000.240002

PREDICTABLE IN THE UNPREDICTABLE

We’ve engineered our iconic premier 5-strut kite with greater stability, top-end control and responsiveness in an even wider wind range. The 2024 Orbit has a livelier, more reactive feel, reduced drag, faster turning speed, and improved catch, loft and hangtime.

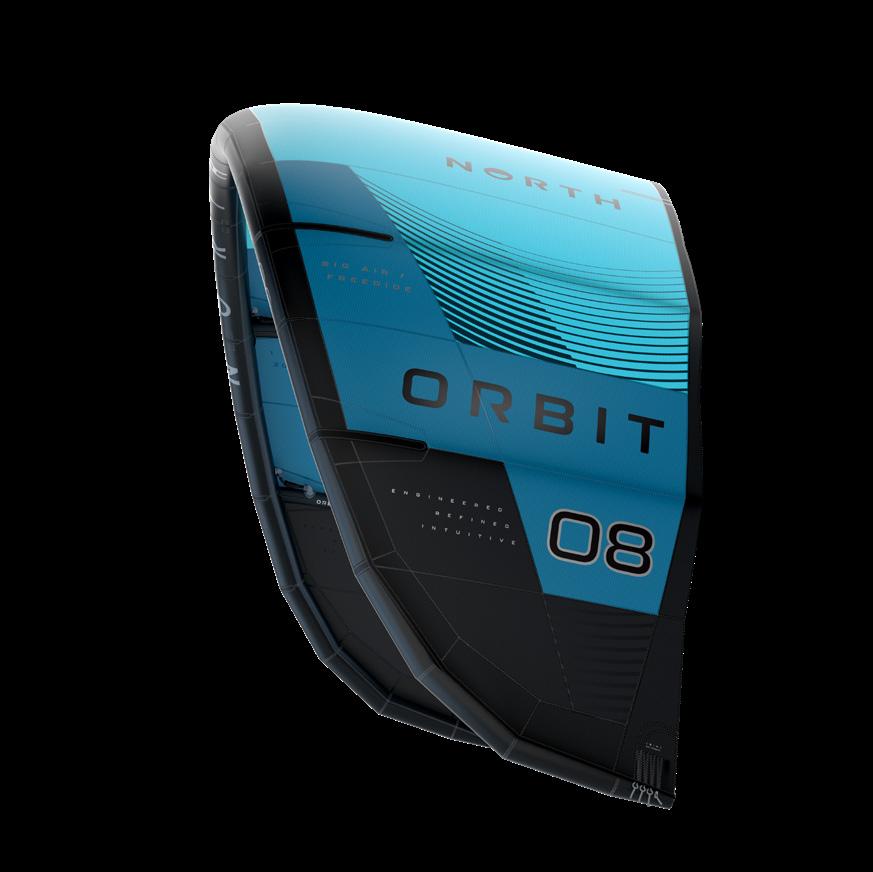

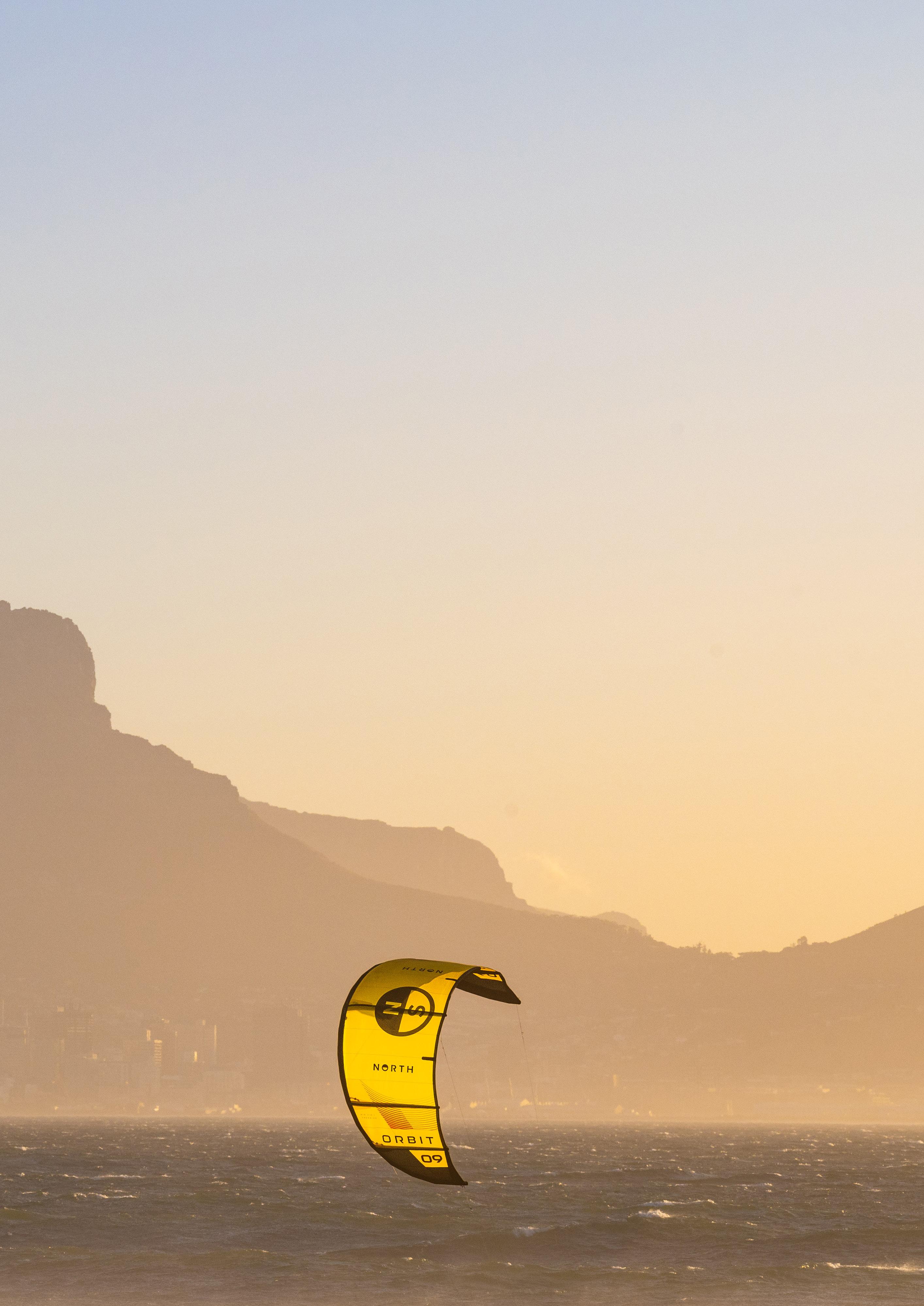

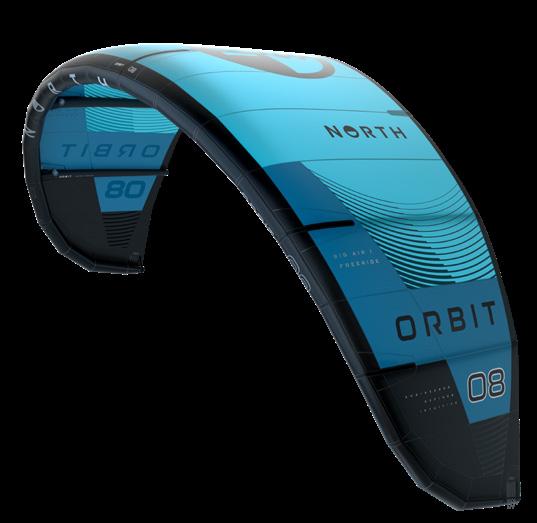

Orbit

Big Air / Freeride

• New segmented-curve arc design

• Reworked bridles for greater stability

• More powerful and efficient aerodynamic profile

• Bigger overpowered airs and megaloops

• Increased low-end performance

• Lighter bladders in all sizes

• Highest-quality Dacron airframe for uncompromised strength and durability

ORDER DETAILS

CODE: 85000.240000

SIZES:

PRODUCT DETAILS

Kite, Kite Bag, Repair Kit

ACCESSORIES (SOLD SEPARATELY)

Kite/Wing Pump, Short Lines, Short Freeride Loop

415 Turquoise 6, 7, 8, 9, 10, 11, 12m

218 Sunset Yellow 6, 7, 8, 9, 10, 11, 12m

310 Rubine Red

475 Pacific Blue

Orbit Technology

Even more predictable in the unpredictable

A high-performance big air kite that is stable and consistent in a wide range of conditions, especially in the high end. For 2024 we’ve fully reworked the bridles, so the kite feels even more stable and forgiving. The kite will not front-stall in overpowered, gusty conditions, but still maintains that ability to fly forward and catch you in kiteloops. This predictability is one of the key features of the Orbit, and it allows you to ride the kite overpowered without it getting away from you.

Extreme boosts and megaloops

Send it to extreme heights. With its dependable catch and kiteloop recovery, the Orbit always has your back. The Orbit has a very big footprint in the sky. This increases the amount of sail area working for you, making the kite super-efficient with great power delivery. It’s also fast and responsive in the steering and flies forward through the sky quickly, so it’s able to get around and catch you, climb up and give you lots of time to prepare for your landing.

Segmented curve arc-design

We’ve smoothed out the shape of the LE, introducing a segmented curve arc that is slightly narrower in the shoulders and wider in the wingtips. The wingtip has more of a an elliptical shape for reduced drag and slightly faster turning speed, while a slightly deeper profile in the centre creates a little more lift. Changes to the wingtip led to a fully reworked bridle – in combination with moving the attachment points – for the most stable Orbit yet. We’ve made the Orbit more stable and forgiving, without losing its looping capabilities or that incredible catch. Riders of all abilities can experience the best of both worlds now, worrying less about overflying or the kite’s position in the sky. It is our most reliable, stable Big Air/ Freeride kite yet. We’re confident it will do it all, but with the added stability, it’s suitable for everyone.

Aerodynamic profile transition panels

We’ve refined the panel cuts for 2024 and removed the heavy-duty canopy panels. There’s now only one panel segment instead of two, this reduces the number of seams, and helps to smooth out the profile entry, ensuring a precise lateral profile shape is maintained as close to the leading edge as possible and creating a smooth transition from the segmented leading edge to the curved canopy. The new panels reduce inconsistencies in the profile, resulting in a smoother, more efficient kite, with more aerodynamic airflow and less turbulence. In the smaller sizes you’ll notice better hangtime and a faster/tighter turning radius. In the bigger sizes the kite is more lively and reactive with increased low end.

High aspect ratio design

The high AR gives the Orbit a low drag profile, making it sit further forwards in the wind window for upwind performance and creating more area in the centre of the kite for efficiency and easy relaunch. For 2024, we’ve lowered the aspect ratio in the smaller sizes for more hangtime. They have a better catch and loft, more hangtime and you always know where the kite sits in the sky.

Fully re-engineered bridles

The 2024 Orbit has a fully reworked bridle, engineered to be more stable and forgiving in overpowered and gusty conditions. We’ve retained the Orbit’s controlled response and fast steering, while giving the kite a more energetic feel with increased depower. Working closely with our pro team riders to put the kite through hardcore testing in a lot of wind enabled us to further improve the stability, feedback and steering behaviour, and to give the kite a lighter, more responsive feel.

Stable 5-strut performance

When you’re chasing a storm, the Orbit provides incredible top-end control. The five-strut design gives it an incredible amount of stability and wind range, and you have a lot more control over the canopy movement at low attack angles. The Orbit has the widest wind range of all our kites. The fixed, no-pulley bridle is a little bit longer, and combined with its placement on the kite gives us a very stable platform in all conditions.

Lightweight bladders in all sizes

Weight matters, always. Lighter weight means a smaller turning radius. Lighter weight means your kite flies faster, sooner, because you need less wind to get the kite up in the sky. The lighter the kite, the faster the steering, the more lift it creates and the higher you jump. Bladders make up a bigger weight percentage than any other material used in a kite, so for 2024 we’ve introduced 17% lighter weight bladder material in all sizes to help the kite feel even lighter and more responsive in all conditions. This additional weight reduction improves the low-end capabilities and helps the kite fly more efficiently. It also improves the overall static balance of the wing by reducing weight in the front of the kite.

4x Bar pressure options for precise steering and depower

The steering impulse options are the attachment points at the wing tip for your rear bridle lines. The Orbit is pre-set on the second point from the wingtip and gives the kite a lighter, more forgiving feeling. For more direct steering and shorter depower travel, move your connection forward on the wing tip. Setting A – closest to the wingtip. Setting D is our megaloop setting – this gives the heaviest bar pressure or most direct steering impulse. It is the most stable choice in high winds and is recommended for stronger, heavier riders.

Durable highest-quality Dacron inflated structures

For uncompromised strength and durability, all of the inflated structures and the wingtips in the Orbit are constructed from the highest quality industry-proven Dacron with the best strength to weight ratio in a heavy-duty application.

TESTED BY NATURE. PROVEN ON THE PODIUM.

TESTED BY NATURE. PROVEN ON THE PODIUM.

Engineered lighter

Its efficient, weight saving design features lighter N-Max Dacron, stripped back scuff guards, the lightest bladders, reduced HyperFlow hardware and steering impulse attachment points.

Podium Proven

The Orbit Pro lets you exploit increased pressure systems at altitude for greater power and delivers the hangtime you need to win the heat.

Performance Driven

At North, we know committing to overpowered airs and megaloops in gusty conditions demands unwavering trust in your kite. The Orbit Pro guarantees Incredible top-end control and performance you can rely on.

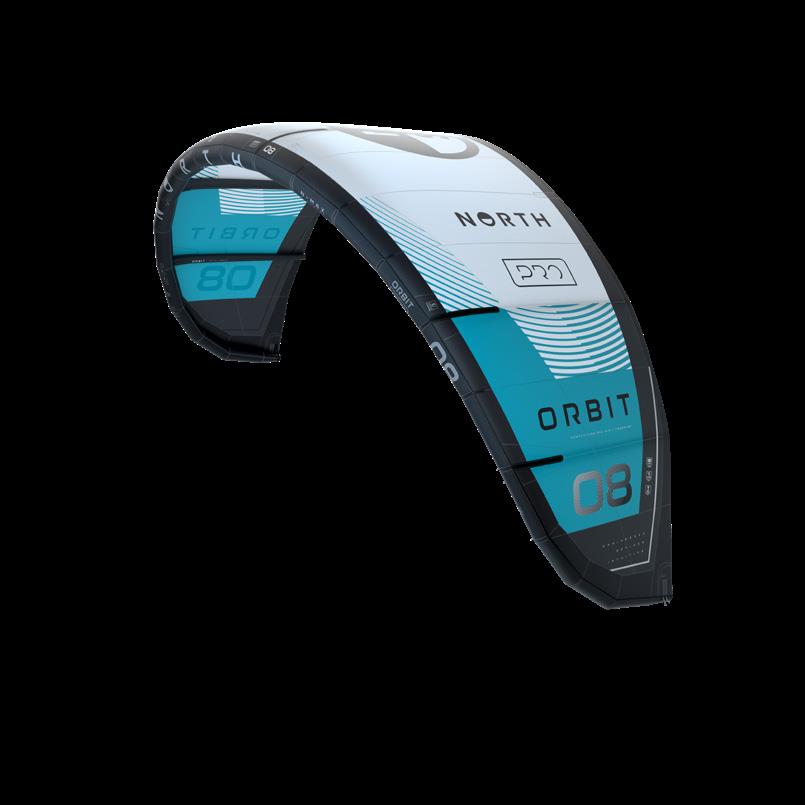

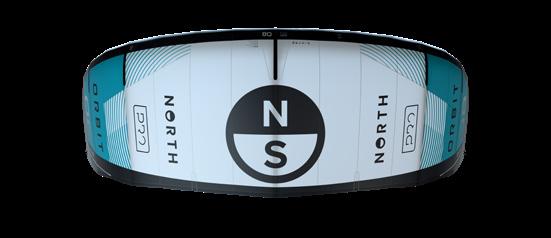

Orbit Pro

Competition Big Air

• N-Max Airframe 13% lighter

• Competition Ready core sizes 6-11m for overpowered conditions

• Responsive Bridling for faster control

• Pro Points light and direct steering impulse options

• Extreme Altitude 2m line extensions included for greater height

• Refined weight-saving construction

ORDER DETAILS

CODE: 85000.240010

SIZES: 100 White 6, 7, 8, 9, 10, 11m

PRODUCT DETAILS

Kite, 2m Line Extensions, Kite Bag, Repair Kit*

ACCESSORIES (SOLD SEPARATELY)

Navigator Control System, Short Freeride Loop, Short Lines, Kite/Wing Pump

*Kite

N-Max is a coated composite material which ensures the airframe meets structural stiffness and durability demands without adding unnecessary weight. The multi-layer structure of this new material improves the tear strength five times. N-Max also has a more balanced weave for a crisp, lively feel. The symmetrical yarn pattern gives the material a lower bias elongation which snaps back to its original shape faster. This provides the kite with a crisp response, more precise steering and more dynamic recovery.

13% Lighter*

5x Tear Resistance**

21% Less Elongation*

*Compared to a standard Dacron (156gsm)

**Compared to uncoated standard Dacron

Orbit Pro Technology

Refined weight-saving construction

Engineered to feel as light as possible, the Orbit Pro has many weight-saving features for lighter more agile handling. We’ve used lighter N-Max Dacron, stripped back the scuff guards, used the lightest bladders, reduced the HyperFlow hardware and steering impulse attachment points. The canopy is constructed using North High Tenacity Ripstop (N-HTRS) polyester yarn canopy material for lightness, high tear strength and longevity.

Bridle shape optimised

For nailing the highest-scoring tricks. The reworked bridles ensure consistent high-performance, especially in the high end. We’ve retained the Orbit’s controlled response and fast steering while giving the kite a more energetic feel with increased depower. Our competition athletes have put the Orbit Pro through hardcore testing in exteme conditions, enabling us to refine the steering behaviour and give the kite a more responsive feel. When you’re in inverted rotations, you’ll know where it is.

Extreme boosts and megaloops

Increased amplitude, faster turning, catch and recovery. The Orbit Pro is super-efficient with great power delivery. It’s also fast and responsive in the steering and flies forward through the sky quickly, so it’s able to get around and catch you, climb up and give you time to prepare for your landing.

Light and direct bar pressure options

The Orbit Pro has two steering line attachment points. Closest to the wingtip (-) is the factory setting your kite will be delivered with. Use this setting for light bar pressure and a slightly more direct feel in the steering. Further away from the wingtip (+) gives a medium bar pressure, firmer, more direct steering and shorter depower travel. It’s a Formula 1 feel, requiring a little more force to control the steering.

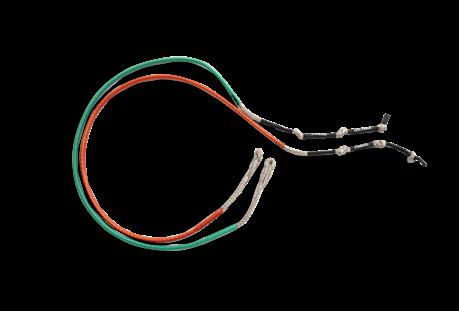

2m line extensions included

For more extreme height. The 2m line extensions create 24m lines when combined with the standard 10m + 12m Navigator Control lines. 24m lines means you can exploit the increased pressure at altitude for greater boosting power.

Stable 5-strut performance

When you’re chasing a storm, the Orbit Pro provides incredible top-end control. The five-strut design gives it an incredible amount of stability and wind range, and you have a lot more control over the canopy movement at low attack angles. Reduced diameter micro struts are engineered as thin as possible while maintaining structural integrity.

Refined strut isolation capacity

To reduce the overall kite weight, the Orbit Pro is supplied with a single HyperFlow pinch clamp on the centre strut only. This helps to concentrate any weight in the centre of the kite, enabling a balanced load distribution for faster turning and reduced swing weight. Note: HyperFlow Pinch Clamps can be purchased separately and added to the second and third struts if preferred.

Aerodynamic profile transition panels (PTP)

Refined panel cuts reduce the number of seams and ensure a precise lateral profile shape is maintained as close to the leading edge as possible, creating a smooth transition from the segmented leading edge to the curved canopy. The PTP reduce inconsistencies in the profile, resulting in a more efficient kite, with aerodynamic airflow and less turbulence.

Segmented curved arc-design

We’ve smoothed out the shape of the LE, introducing a segmented curve arc that is slightly narrower in the shoulders and wider in the wingtips. The wingtip has more of an elliptical shape for reduced drag and slightly faster turning speed, while a slightly deeper profile in the centre creates more lift.

DuraLite seam protection

We’ve reduced the length of the lightweight STPU reinforcement patches that protect the leading edge from chafing and abrasion. Markcloth seam protectors on the canopy also help to protect the stitching.

Lightweight bladders in all sizes

Because weight matters. Lighter weight means a smaller turning radius. The lighter the kite, the faster the steering, the more lift it creates and the higher you jump. Bladders make up a bigger weight percentage than any other material used in a kite, so we’ve selected 17% lighter weight bladder material in all sizes to help the kite feel even lighter and more responsive in all conditions. This additional weight reduction improves the low-end capabilities and helps the kite fly more efficiently. It also improves the overall static balance by reducing weight in the front of the kite.

Recycled PET kite bag

Every North kite bag is made from a durable recycled polyester ripstop fabric. Recycled materials are also used to make our own custom webbing. The bag is generously sized to fit your packed-down kite easily, with corrosion-free zippers, stash pockets and air-vents in the bottom and sides of the bag. North kite bags also have an external Control System pocket, Kite Pump attachment and ergonomic shoulder and chest straps.

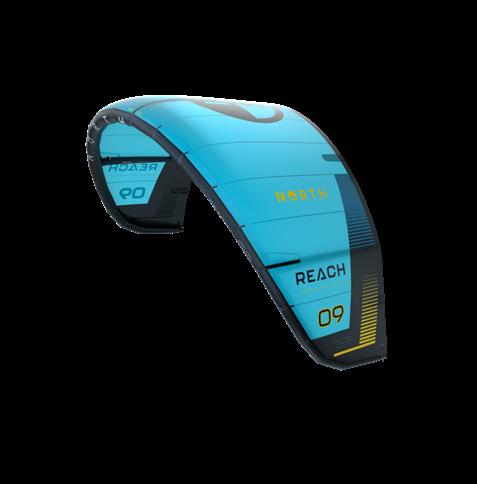

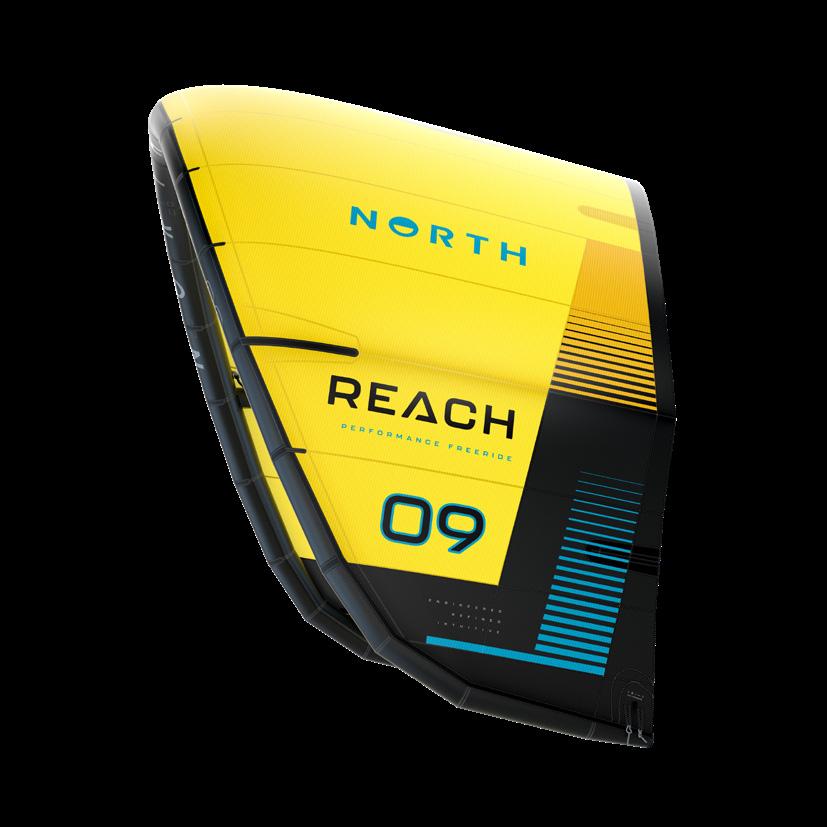

YOUR DESERT ISLAND KITE

Nimble and easy to ride, the Reach is your go-to kite in all conditions. For 2024 we’ve improved the canopy tension and revised the arc design for a crisper, snappier response, more direct steering and dynamic recovery.

Reach

Performance Freeride

• Smoother segmented-curve arc

• Improved canopy tension

• Cleaner profile entry

• Lighter weight construction with N-Max

• Faster, more responsive steering

ORDER DETAILS

CODE: 85000.240004

SIZES: 218

PRODUCT DETAILS

Kite, Kite Bag, Repair Kit

ACCESSORIES (SOLD SEPARATELY)

Kite/Wing Pump, Navigator Control System, Short Freeride Loop

310 Rubine Red

415 Turquoise 5,

475 Pacific Blue 7,

306 Red Sea 7,

629 Marine Green

Reach Technology

Boosts and loops with a smooth reliable catch

The Reach has superb loft and hangtime with a compact steering radius, thanks to its medium-high aspect ratio design with wider wing-tip and well-balanced bridle. During a loop, many kites will pause before they climb back up, but the Reach has a smooth, consistent catch and doesn’t hesitate to come back around.

Incredible stability for foil and light wind

Boasting predictable, consistent power delivery in every condition, the Reach has exceptional performance at the low-end - especially at slower speeds in lighter wind. Its moderate leading-edge diameter provides additional buoyancy, helping the kite to release quickly from the water in even the lightest conditions.

New segmented curve arc for improved canopy tension

Where nature meets technology. We’ve revised the Reach arc shape so tension can transition more evenly through the canopy, as you would see in a catenary shape in nature. The new segmented curve arc gives the kite a cleaner profile that is more stable in kite loops. The kite remains light and fast but now has a crisper, more snappy feel.

Massive wind range and upwind drive

A precise draft-forward profile gives the Reach a very smooth and efficient profile entry and upwind drive. We’ve refined the panel cuts for a cleaner profile entry, removing the heavy-duty canopy panels. There’s now only one panel segment instead of two, this reduces the number of seams, and helps to smooth out the profile shape, creating a smooth transition from the segmented leading edge to the curved canopy. This results in an even more aerodynamic and efficient airflow and less turbulence.

N-Max Dacron for lighter weight

N-Max is a lighter weight Dacron used in the leading edge and strut to save weight without compromising on strength, stiffness or durability. N-Max Dacron has a balanced weave for a crisp, more lively feel. The symmetrical yarn pattern gives it a lower bias elongation that snaps back to its original shape faster. For 2024 we’ve reduced the total amount of Dacron used on the kite, making the Reach even lighter. We’ve used a two-ply canopy material along the trailing edge for optimal steering and performance, without compromising strength or durability. The lighter weight kite has a snappier response, more direct steering and more dynamic recovery.

Well-balanced tactile surf handling

Quick responsive steering and neutral static balance helps you fire up your performance in the surf, without any surprises. The Reach drifts well and doesn’t fall over, front-stall or back-stall - making it your go-to kite for foiling and wave-riding.

Progressive freestyle medium-high AR

A forgiving kite with pop when you need it for freestyle manoeuvres. The medium high aspect ratio, combined with the powerful profile, gives the Reach explosive pop. Good pop helps generate line slack for handle passes - simply load up, edge hard and pop off the water for easy freestyle progression.

Direct and responsive steering

Tactile handling with light bar pressure and steering impulse for a fast response and tight turning radius. Refined tuning of the short responsive bridle gives the Reach quick, exponential depower, allowing you to ride it in an even wider range of conditions. The bar pressure and steering impulse can be adjusted on the wing tip, allowing you to fine tune the kite’s characteristics to your personal preference.

Larger sizes light wind-optimised

Predictable, consistent power delivery in every condition, and exceptional performance at the low-end. The 13, 15 or 17m Reach will get you up and riding with a power-hungry twintip like the new Trace in just 8 knots. The combination of lighter weight materials and design elements give the kite a surprisingly light bar pressure, fast turning speed and fore and aft balance. We recommend you select your lightwind kite size according to rider weight rather than wind range. We recommend the 13m for lighter riders (under 70kg), and the 17m for heavier riders (over 85kg).

Lightweight bladders in every size

Bladders make up a bigger weight percentage than any other material used in a kite. The lighter the kite, the more efficiently it flies, the greater the performance in lighter winds, the faster the steering, the more lift created and the higher you jump.

YOUR DESERT ISLAND KITE

FEEL AT ONE

Code Zero is the name of a sail born to go fast in light, shifty conditions. Like its namesake, the Code Zero kite is a light, fast and reactive singlestrut performer with effortless one-handed control and efficient light wind power delivery.

Code Zero

Performance Foil

• Newly revised bridle

• New sizes: 6m, 8m, 10m, 14m

• More direct steering

• Smoother aerodynamic efficiency

• Stable, balanced design with improved TE tension

• Responsive power-delivery in all conditions

• Lighter weight construction with N-Max

ORDER DETAILS

CODE: 85000.240008

SIZES: 475 Pacific Blue 3, 5, 6, 7, 8, 9, 10, 11, 14m

PRODUCT DETAILS

Kite, Kite Bag, Repair Kit

ACCESSORIES (SOLD SEPARATELY)

Kite/Wing Pump, Navigator Control System, Slide Surf Loop

Code Zero Technology

Blazing-fast light wind performance

Ideal for foil and wave riding, the Code Zero has excellent drift, manoeuvrability and extremely fast, reactive steering. Engineered for travelling at speeds so fast other kites couldn’t keep up, the Code Zero has excellent drift for foiling, where you travel at very high speeds downwind and it’s important the kite goes along with you.

Newly revised bridle

The redesigned bridle gives the kite a more rigid feel, with lighter bar pressure, more direct response and added stability. The bridlepoints are designed to sit on the intersegments, ensuring the bridle loads through a thicker part of the LE for a more direct/solid feel. Moving the bridle toward the outside of the kite also places less load through the centre of the kite, creating more stability and lighter bar pressure.

More direct steering

The steering response is result of the reworked bridling. We’ve also increased the low end slightly – while maintaining responsiveness.

Smoother aerodynamics and minimal flutter

We’ve optimised the angle of attack in the wingtip, making it more direct, and improved the tension in the trailing edge. The balanced geometry ensures the kite has minimal flutter, but maintains its upwind capability. Easy to fly, stable and evenly tensioned, the Code Zero has a balanced geometry which makes flying one-handed a breeze. This means you can maintain your preferred stance when changing direction, without getting into an awkward position.

More sizes for 2024

We’ve added four new sizes to the range: 6m, 8m, 10m and 14m. The 14m will be ideal for teaching in 7 knots, or for a heavier rider with a smaller foil in super light wind. If you’re <70kg and hydrofoiling, you won’t need bigger than an 8m – even in the lightest winds. The smaller sizes are ideal for wave-riding with a surfboard or foil.

Easy relaunch and reverse launch

Curved leading edge profile means less surface area touching the water surface, for fast, headache-free launching.

N-HTRS High Performance Canopy Material

All our kites are constructed using high tenacity polyester yarn ripstop canopy for lightness, high tear strength, zero porosity and longevity.

Small battens

Stabilize the canopy and counter flutter on sizes 9m, 10m and 11m

Compact, travel-friendly size

Your lightweight Code Zero packs down into a high-quality GoGreen Recycled PET kite bag with Foil Assist. The recycled polyester ripstop fabric meets the Global Recycling Standard. The Kite Bag features a comfortable STPU padded area with groove designed especially for carrying a foil mast over your shoulder. It also features mesh windows for ventilation, zipper pockets for spare parts and storage, a Control System pocket and kite pump holder.

One of the lightest single-strut kites ever designed

In light wind kiting, you want to go out using the smallest possible kite in the least amount of wind. To keep the kite flying, the less weight it has, the easier it is to fly. We wanted to see how light you could go without losing performance or making it too fragile. Engineered using the lightest materials possible, we’ve taken a minimalist approach – there’s nothing on it you don’t need. This helps contribute to the Code Zero’s playful, agile feel and fun, dynamic steering.

DuraLite reinforcement

The only added reinforcements are the Duralite seam protectors on the wingtip and the center strut, providing abrasion resistance only where you need it.

2-Ply Canopy trailing edge reinforcement

A double layer of canopy material at the trailing edge provides optimal tension in the canopy shape, keeping it as smooth as possible and helping the kite to fly faster through the sky. Two layers of canopy material are softer than using a single-ply reinforcement material, allowing the kite to twist better and be more responsive.

Lighter N-Max Dacron

We’ve used N-Max lighter weight dacron in the leading edge and strut for stiffness and durability. This ensures the airframe meets the structural demands without adding unnecessary weight. Using a lighter Dacron on the leading edge and struts saves a significant amount of weight, without compromising strength or durability. The N-Max Dacron has a more balanced weave for a crisp, lively feel. The symmetrical yarn pattern gives the material a lower bias elongation that snaps back to its original shape faster. This provides the kite with a crisp response, more direct steering and more dynamic recovery.

Lighter weight bladders

We’ve chosen a lighter weight bladder material to match the refined lighter construction method. These ingredients combine for a super lightweight kite with the fastest response and turning speeds possible.

HyperFlow rapid single-point inflation

Ergonomic high volume single point inflation system with large diameter hose for rapid inflation and deflation. The cap and valve base geometry are optimised for more comfortable opening and closing in colder conditions (when your fingers are freezing). The bayonet style main inflation valve is compatible with most pumps – no adapter required.

Ride lighter wind conditions with a smaller kite

With responsive power delivery in light, shifty conditions, the Code Zero is highly efficient, and it reacts super direct on steering impulses. The Code Zero has a wide wind range and impressive power for a one-strut kite. It depends on the size, but it performs best in its low-end range, and will carry you through the lulls and gusts. When you’re riding with more wind, the smaller sizes will open the world of foil freestyle. The kite is lighter and faster through the window, making it fun for performing tricks.

THE CHASE IS ON

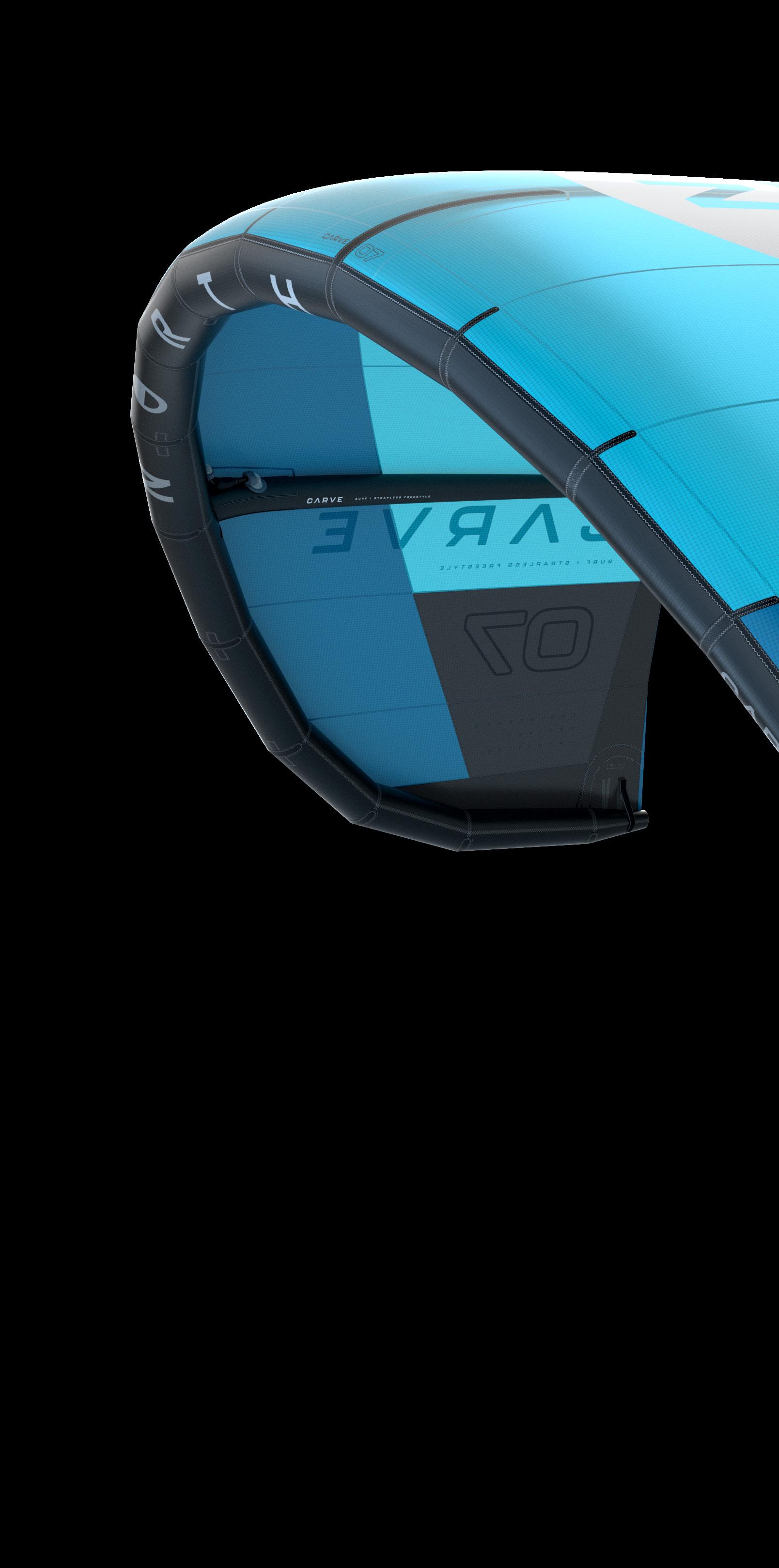

The Carve is a powerful, reactive and controllable surf/strapless freestyle kite, with a stable, lower aspect ratio design for fast pivot turns and excellent drift.

Carve

Surf / Strapless Freestyle

• Faster responsive turning

• Lighter handling with earlier initiation

• Progressive travel through full depower range

• Smooth, intuitive power delivery

• Excellent hangtime and catch

• Lighter weight surf-tough construction

ORDER DETAILS

CODE: 85000.240001

SIZES: 415 Turquoise 5, 6, 7, 8, 9, 10, 11, 12, 13m

310 Rubine Red 4, 5, 6, 7, 8, 9, 10, 11, 12, 13m

PRODUCT DETAILS

Kite, Kite Bag, Repair Kit

ACCESSORIES (SOLD SEPARATELY)

Kite/Wing Pump, Navigator Control System, Slide Surf Loop

Carve Technology

Longer travel for improved drift and smoother response

The Carve is a statically balanced, stable kite that resists nose diving. Its bridling ensures you’re able to maintain complete drift while sheeted in or out, riding a down-the-line or onshore wave. It features longer, more progressive depower travel. The pressure gets higher as you bring the bar closer to your body. This helps the kite feel smoother and perform more responsively throughout the full depower range. Using the full length of travel helps improve the drift and ensures when you sheet out, it will still react. The Carve provides an extremely direct feel in both bar pressure and steering initiation, with intuitive feedback from the bar in both directions, so you’ll always know where your kite is.

New lighter weight durable reinforcement

For 2024 we’ve removed some unnecessary excess weight to help the kite drift better, without compromising the kite’s structural integrity. We’ve updated the reinforcement material at the trailing edge to a 2-ply canopy and maintained the dacron reinforcement on the wingtips. The two layers of canopy material are softer, allowing the kite to twist better and be more responsive. This re-engineered construction allows the kite to be more responsive in the steering and depower, improves the Carve’s static balance and light wind performance, without affecting the strength and durability. The lighter weight helps with the drift and behaviour of the kite and reduces any tendency to front stall in lightwind conditions.

Improved wind range with more low-end efficiency

The Carve’s low aspect ratio design creates more apparent wind, providing excellent stability and wind. For 2024, we’ve maintained the high-end and hangtime, improving the linear power delivery and low end. The kite is rock solid when it needs to be, yet still has the control and manageability you need for jumps and tricks. Strapless freestyle riders will love the hangtime and catch, which lets you stay in the air for longer, kiteloop with ease and land softly.

Lightweight bladders in ALL sizes

The lighter the kite, the faster the steering and the more lift it creates. The Carve has lighter weight bladders in all sizes in the range. This helps the Carve to fly more efficiently, so the kite feels even lighter and more responsive in all conditions – and particularly in light wind. It also improves the overall static balance of the wing by reducing weight in the front of the kite. Bladders make up a bigger weight percentage than any other material used in a kite. The new bladder material is 17% lighter than in previous bladders.

Smoother power delivery

For 2024 we’ve redesigned the whole kite from top to bottom, reduced the leading-edge diameter and smoothed out the profiles to provide a smoother power delivery.

New continuous curve arc with direct pivot steering

For 2024 we’ve introduced a new continuous curve arc with smoother profiles and thinner wingtips. The wingtips are lighter, and we’ve introduced a smoother curve and more shape draft back, so the balance is more in the centre of the profile.

Highest quality low-drag, no-pulley bridle lines

All North bridle lines are pre-loaded and measured before cutting to improve accuracy and consistency. This results in reduced shrinkage, reduced elongation and improved longevity. Removing ALL pulleys from the bridle improves safety and gives the kite direct and precise handling. The end result is lower drag, more accuracy and a more direct feeling.

Refined aerodynamic profile transition panels

The profile transition panels ensure that as the leading edge expands, tension from the elongation doesn’t migrate into the canopy and a precise lateral profile shape is maintained as close to the leading edge as possible. This creates a smooth transition from the segmented leading edge to the curved canopy, so the profiles are more uniform throughout the entire wing. The panels reduce inconsistencies in the profile, resulting in a smoother, more efficient kite, with more aerodynamic airflow, drive and stability.

Fast-launching swept leading edge design

Allows more area in the centre of the kite for efficiency and makes the kite easy to roll off the water during critical relaunch in the surf. The Carve is not swept in the trailing edge like a bow kite, but it has a lot of curvature when viewed from the side, and the wingtips are not particularly wide. This puts a lot of the usable area in the center of the kite, rather than in the wing tip. So even though the Carve is lower aspect, it is still efficient for its size, and more importantly, the relaunch is super-quick. With less leading edge on the water, it doesn’t lay flat, so for fast relaunch simply rotate the bar. This helps if you’re riding waves and need to relaunch your kite quickly when a set’s coming.

2x personalised performance tuning options

Bar pressure and steering impulse can be adjusted on the wing tip, allowing you to fine tune the kite’s characteristics to your personal preference. There are two options. Use the attachment point closest to the wingtip for a lighter, more forgiving feel. If you prefer a more direct steering and shorter depower travel, you’re able to move the lines forward on the wingtip for more bar pressure.

SET THE AIR ON FIRE

The explosive pop, powerful fast turns and responsive steering of our hybrid freestyle kite will set your heart pumping. The 2024 Pulse has increased performance and lift, drive through the kite loop, better recovery and improved slack line and pop.

Pulse

• Smoother canopy

• Lighter construction

• Upright low-sweep design

• Enhanced impulse slack

• Dynamic edge response

• Boosts and loops with ease

ORDER DETAILS

CODE: 85000.240002

SIZES: 310 Rubine Red 6, 7, 8, 9, 10, 11, 12, 14 m

PRODUCT DETAILS

Kite, Kite Bag, Repair Kit

ACCESSORIES (SOLD SEPARATELY)

Kite/Wing Pump, Navigator Control System, Standard Freestyle Loop, Long Freestyle Loop, HandlePass Leash

Pulse Technology

Fast responsive steering with FlexPulse structure

The low sweep arc shape gives the kite a more powered turn through the entire wing. Its upright design ensures the twist from the steering lines runs deeper into the centre of the canopy. As a result, the power produced through the turn is constant through the entire loop, rather than just pivoting off the tip and then having a dead spot in the loop. The added energy and efficiency produced through the entire loop means the kite can come around quickly to catch you, and lofts nicely for a good landing.

Bridled hybrid design

The ultimate unhooked performer with balanced line slack for handle passes and unhooking – the hybrid design blends the best of freestyle and freeride. In today’s world a pure C-kite is not as efficient as what most people are used to riding, so combining the attributes of a C-kite and a less upright, wider arc kite together gives you a kite that’s not only efficient, but still has many of the attributes and behaviours of a C-kite.

Dynamic edge response

A combination of higher aspect ratio, smaller diameter leading edge and aerodynamic, leaner profile entry enables the Pulse to fly forward quickly after an explosive pop or when checking a rail edge. It also makes the Pulse very efficient and manageable, especially in extreme overpowered conditions.

Lightweight bladders now in all sizes

Bladders make up a bigger weight percentage than any other material used in a kite. The lighter the kite, the more efficiently it flies, the greater the performance in lighter winds, the faster the steering, the more lift created and the higher you jump.

Lightweight 2-ply canopy reinforcement material

We’ve reduced the amount of heavy duty canopy reinforcement in the Pulse. The Trailing Edge is a 2-ply canopy material. The lighter reinforcement material saves weight without affecting durability, strength or elongation control, and makes the kite more responsive in the steering and depower. The result is a durable kite that can hold its profile for increased performance and lift, but is also dynamic, flexible and can twist to turn.

Aerodynamic profile transition panels

The extra panels that connect to the leading-edge seam are now a single ply of canopy material for a less complicated, smoother profile entry. This material helps to reduce the overall weight of the kite, and stretches more uniformly together with the leading edge when it’s inflated, creating a smoother transition, more profile efficiency, better handling and a more balanced feeling. The panels reduce inconsistencies in the profile for more aerodynamic airflow and less turbulence.

Durable highest-quality Dacron inflated structures

All of the inflated structures and the wingtips in the Pulse are constructed from the highest quality industry-proven Dacron for the best strength to weight ratio in a heavy-duty application. For 2024 we’ve reduced all non-essential dacron panel reinforcements to save weight. We’ve maintained stiffness and reduced the flutter in the trailing edge, while ensuring longevity and durability for protection against chafing when self-launching.

Refined 2-stage arc design

The refined 2-stage arc design enables a smooth curved efficient central region of the kite to produce power, with straighter wing tips for a more dynamic steering response. A narrower span kite such as the Pulse is fast in flight, with less power overall.

Kevlar reinforced strut system with bridle deflectors

For the most accurate and durable connection between the strut and the leading edge. Bridle deflectors on the leading edge prevent the control lines catching on the struts.

Personalised performance tuning options

Bar pressure and steering impulse can be adjusted on the wing tip, allowing you to fine tune the kite’s characteristics to your personal preference.

Pioneer

2m Dual Line Trainer Kite

• Master the fundamentals of kite flying safely on land.

• Responsive, easy to fly and stable in the sky.

• Recommended wind range 5-20knots.

• Durable nylon canopy

• Simplified bridle with safety line

• Kite bag made from recycled PET material

ORDER DETAILS

CODE: 85000.240003

SIZES: 600 Green 2m

PRODUCT DETAILS

Kite, 2-line Control Bar, Wrist Leash, Recycled Material Kite Bag

WHERE IT ALL BEGINS

The North Pioneer teaches the fundamentals of kite flying in 5 to 20 knots of wind, allowing you to master the basics of kite control and power management safely before you hit the water.

Kite Bags

Recycled PET kite bag

Every North kite bag’s durable recycled polyester ripstop fabric meets Global Recycling Standard. Recycled materials are also used to make our own custom webbing. It’s generously sized to fit your packed-down kite easily, with corrosion-free zippers, stash pockets and air-vents in the bottom and sides of the bag. North kite bags also have an external Control System pocket, Kite Pump attachment and ergonomic shoulder and chest straps.

Foil Assist

The Reach and Code Zero Kite Bags feature Foil Assist, a comfortable STPU padded area with groove designed especially for carrying a foil mast over your shoulder.

Kite Technology Overview

HyperFlow rapid single-point inflation

Ergonomic high volume single point inflation system with large diameter hose for rapid inflation and deflation. The cap and valve base geometry has been optimised for more comfortable opening and closing in colder conditions (when your fingers are freezing). The bayonet style main inflation valve is compatible with most pumps. No adaptor needed.

Highest quality no-pulley bridle lines

Our high-quality spliced, pre-stretched bridle lines are pre-loaded and measured before cutting to improve accuracy and consistency. This results in reduced shrinkage, reduced elongation and improved longevity. Removing ALL pulleys from the bridle improves safety and gives the kite direct and precise handling.

Durable reinforcement materials

For uncompromised strength and durability, the LE, struts and wingtips are constructed from an industry-proven Dacron material and we’ve used a layer of markcloth to reinforce the trailing edge. This adds strength and elongation control, protecting the lighter inner main canopy body.

High performance N-HTRS canopy

All our kites are manufactured using high tenacity polyester yarn canopy material for lightness, high tear strength, zero porosity and longevity.

Kevlar reinforced strut system with bridle deflectors

For the most accurate and durable connection between the strut and the leading edge. Bridle deflectors on the leading edge prevent the control lines from snagging.

DuraLite seam protection

A lightweight reinforcement to protect from chafing and abrasion along the struts to the leading edge. Thin foam padding is inserted underneath to form a lightweight durable buffer which lifts the kite slightly off rough surfaces and protects the stitching along the struts and leading edge seams. Markcloth seam protectors on the canopy also help to protect the stitching.

Durable, higher tensile leading edge seams

There is a large amount of force on the closing seam of the leading edge due to inflation and steering movement. We’ve replaced the thread in the closing seam with a new lightweight thread that features a higher breaking strength and better shock-absorbing qualities. Similar to the lines on a parachute, which undergo a high amount of movement and elongation, the new thread has improved fatigue, impact and wear resistance. ON ALL KITES NOW

Kite Performance

ORBIT PRO / ORBIT

REACH

CODE ZERO

CARVE

PULSE

POWER PLAY

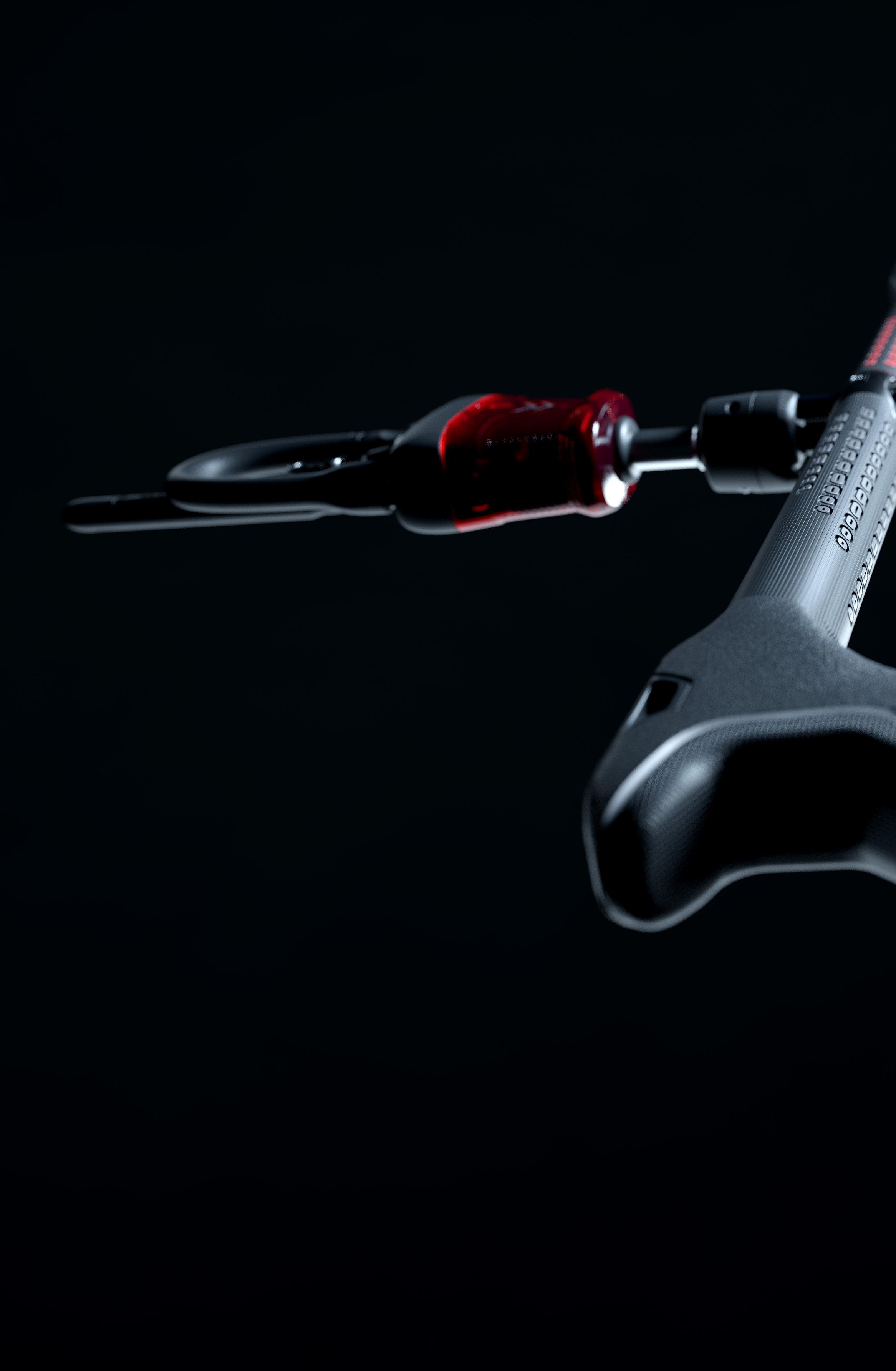

The safest, most universally compatible, highperformance control system ever. Now autounwinding, stronger and lighter, with unrivalled comfort and grip in all conditions.

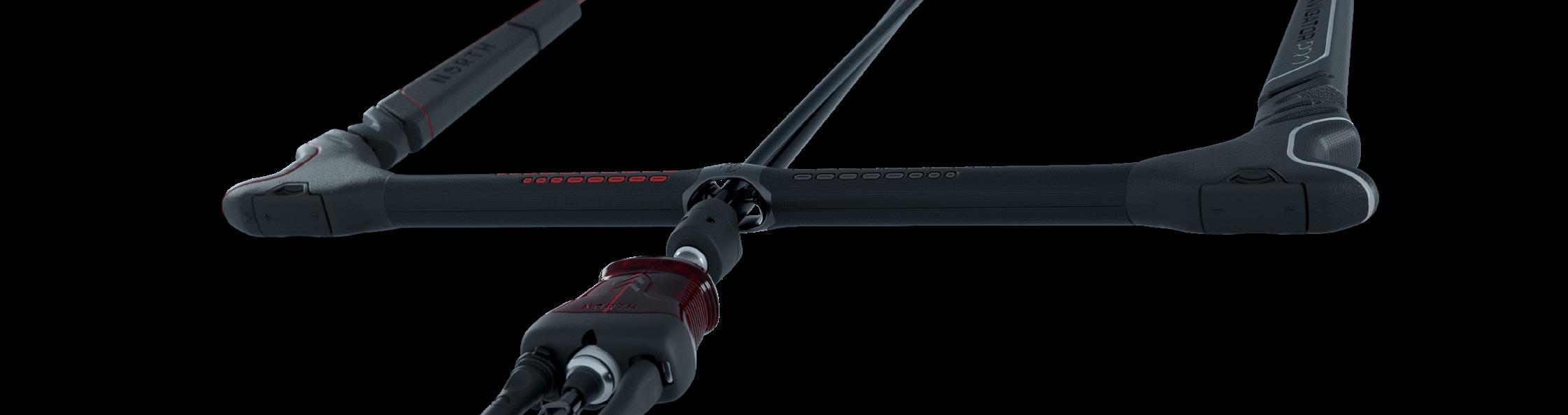

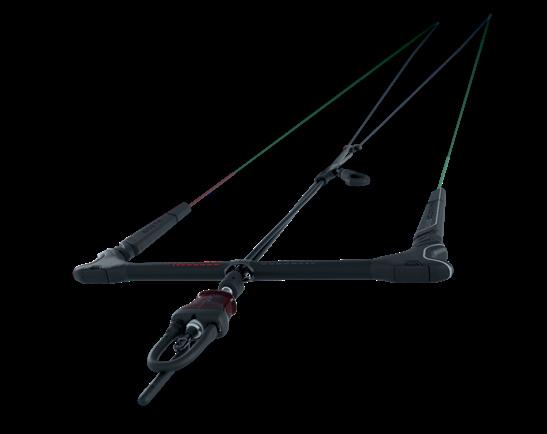

Navigator Pro

Control System

• Front-line auto-unwind

• 20% stronger and 20% lighter

• Safest single-action reload Quick Release

• New highest quality Dyneema Pro Lines

• Max-traction comfort grip

• Modular Toolless Interloop System

• Universally compatible with any kite*

ORDER DETAILS

CODE: 85001.240021

COLOUR: 999 Multiple Colour

SIZES: M 45-50cm | L 50-55cm

PRODUCT DETAILS

Control

ACCESSORIES (SOLD SEPARATELY)

Pro Surf Slider, Pro Freestyle Loop, Handle Pass Leash, Pro Line Sets, High-V Split Kit

*Instantly compatible with any Low-V split kite, or use the High-V Split kit to pair with High-V kites (refer to User Manual)

Bar, Quick Release with Security Finger, 12+10m Pro Lines (Ø1.55mm Front Lines, Ø1.33mm Rear Lines), Pro Freeride Loop, Standard Leash (Pro)

45-50cm

50-55cm

<11m >8m

*Recommended kite size for optimal Freeride performance.

Bar Size Kite Size*

Auto-unwind

SMOOTH AND RELIABLE FRONT LINE AUTO-UNTWIST

• Hard technical ceramic bearings for high strength, wear and corrosion resistance

• Fail-safe, low-friction plastic washer ensures the bar will always unwind

• Depower Main Line and Landing Line run inside individual TPU tubes - stacked front to back for comfortable one handed flying

• Extra secure single-action reload Quick Release

• Reduced risk of accidental unhooking

• Stiffer security finger attached to QR instead of loop

• Reduced risk of accidental release

• Smaller, more streamlined standard loop

20% Lighter. 20% Stronger.

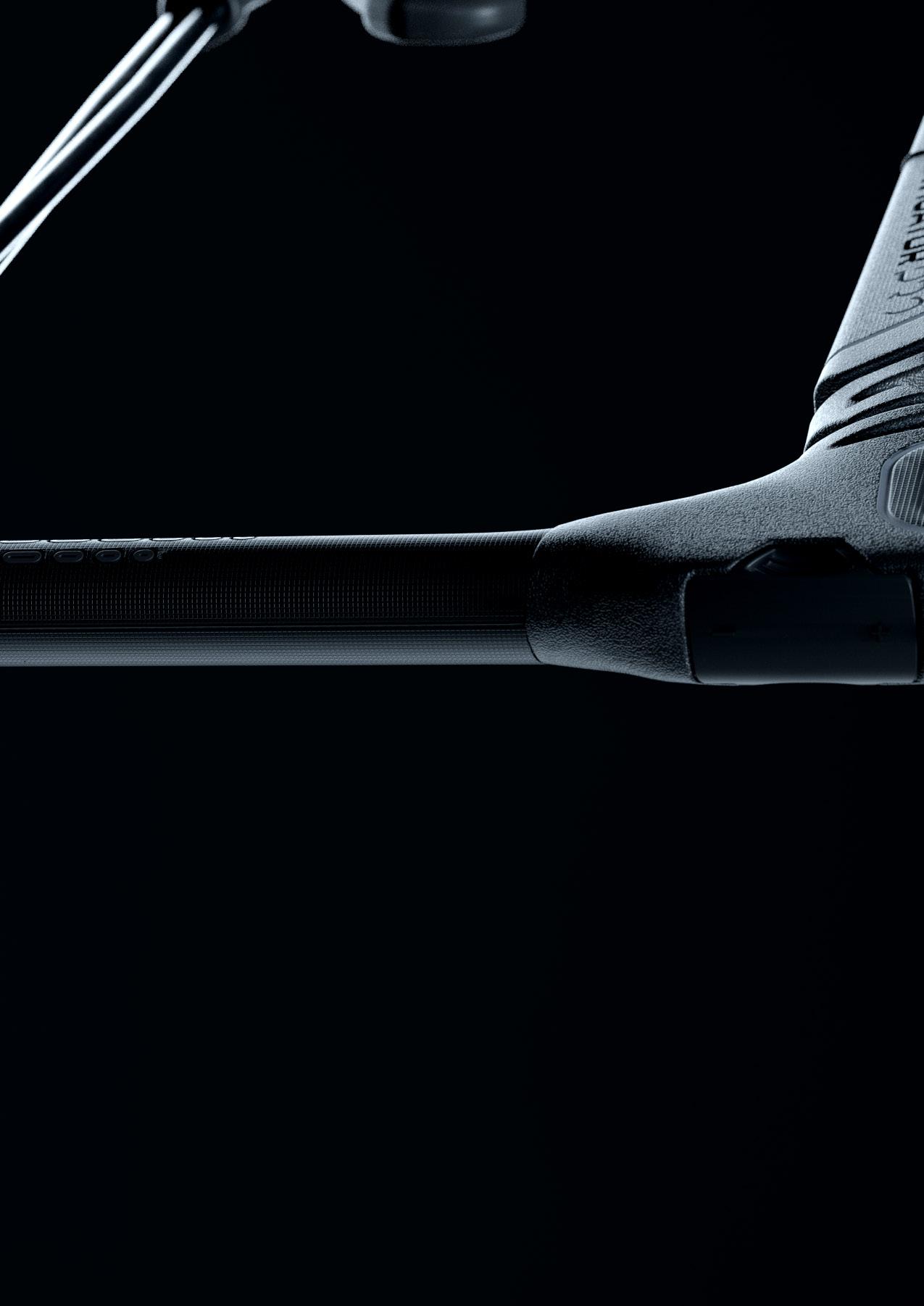

OVER-MOULDED ONE-PIECE BAR WITH LIGHTWEIGHT INTERNAL TRUSS

• Smooth, strong and wear-resistant stainless steel centerpiece with titanium PVD-coating

• Minimalist design optimised for weight savings

• Generous dual-chamber centrepiece geometry for uninhibited bar travel and reliable auto unwind

• Unique new micro-textured dual compound bar grip for max-traction and comfort

HIGH-V SPLIT KIT

Compatible with Navigator Pre-2024 / Pro

Convert the Navigator / Navigator Pro Low-V Control System to pair with your High-V kite.

• Adjustable High-V kite front line splitter

• Smooth coated-alloy parts for low wear on flying lines

• Not required for North kites from 2020-onwards*

ORDER DETAILS

CODE: 85007.240111

SIZES: 999 Multiple Colour

SIZES: O/S

WARNING: Refer to the Installation Guide and your kite manufacturer’s User Manual for compatibility and mounting instructions.

*The Navigator / Navigator Pro is compatible with all Low-V Split Kites. The High-V Split Kit enables its use with High-V Split Kites.

Universally compatible WITH LOW-V KITES

The Navigator Control System features a Low-V split, which is compatible with most other kites. If your kite has a High-V setup, we recommend using the North High-V Split Kit accessory with the Navigator / Navigator Pro to adapt your front lines.

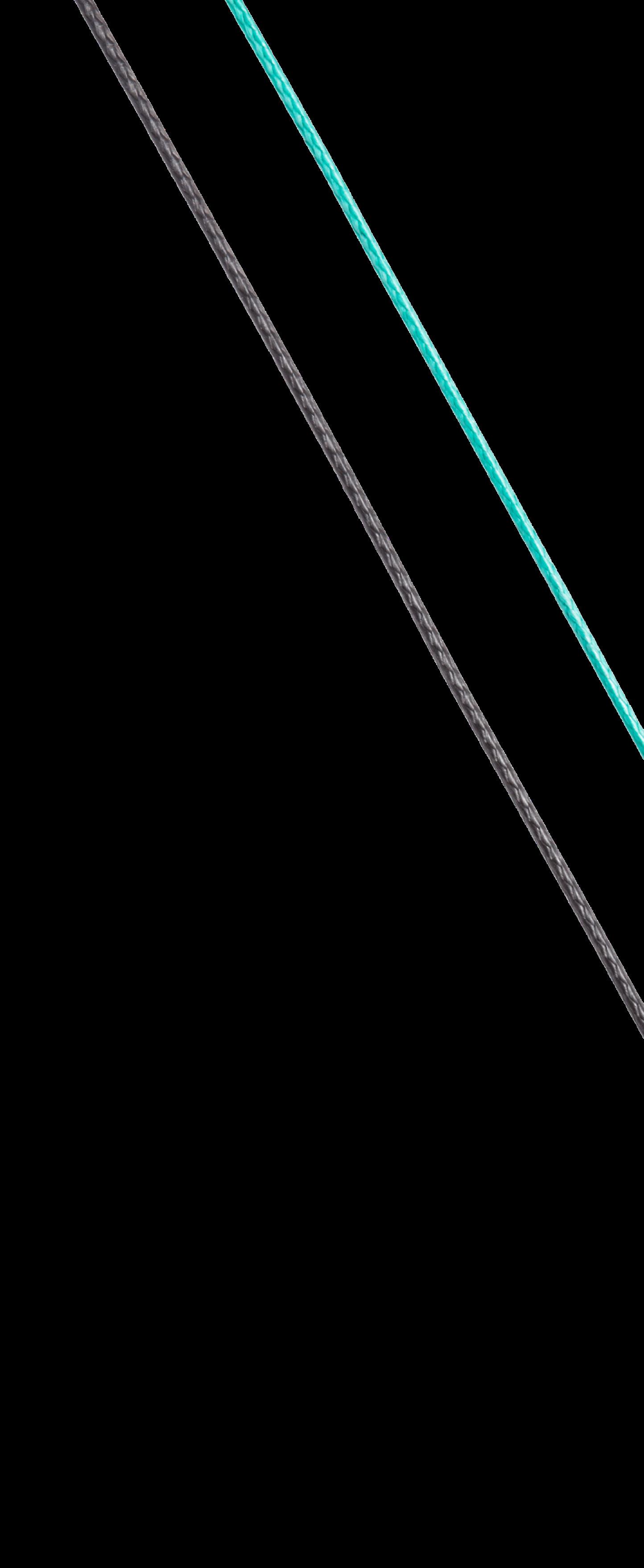

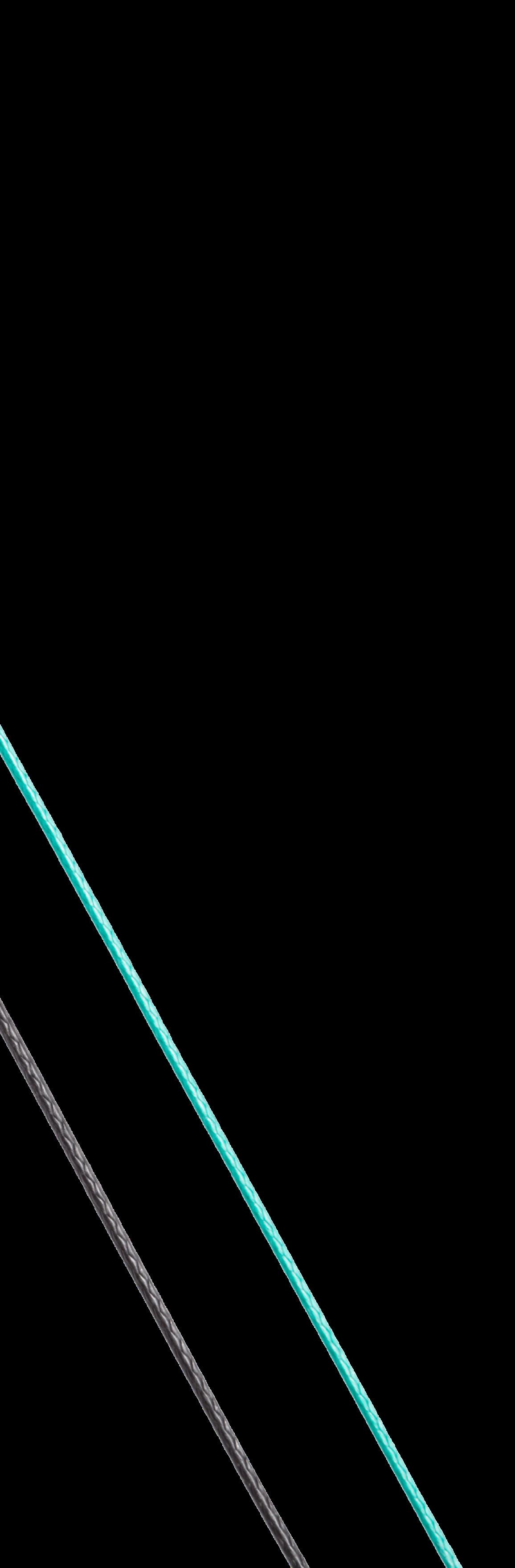

Pro Lines

Navigator Pro / Navigator*

• Industry-leading quality Liros Dyneema SK99 lines, made in Germany.

• Strong, ultra-low stretch and high-load

• Less parasitic drag

• Uncompromised direct performance

• Ø1.55mm Front Lines, Ø1.33mm Rear Lines prevent uneven shrinkage

ORDER DETAILS

22m Pro Line Set (12+10m)

CODE: 85007.240042

COLOUR: 631 Green/Grey

SIZES: 22m (12+10m)

PRODUCT DETAILS

2x Ø1.55mm Front Lines (1x 10m, 1x 12m), 2x Ø1.33mm Rear Lines (1x10, 1x12m), 1x Fixed Stopper Loop, 2x Line Winder

ORDER DETAILS

6m Pro Line Extensions

CODE: 85007.240063

COLOUR: 631 Green/Grey

SIZES: 6m

PRODUCT DETAILS

Ø1.55mm Front Lines , Ø1.33mm

Rear Lines, 1x Line Winder

ORDER DETAILS

8m Pro Line Extensions

CODE: 85007.240041

COLOUR: 631 Green/Grey

SIZES: 8m

PRODUCT DETAILS

Ø1.55mm Front Lines , Ø1.33mm Rear Lines, 1x Line Winder

ORDER DETAILS

2m Pro Line Extensions

CODE: 85007.240062

COLOUR: 631 Green/Grey

SIZES: 2m

PRODUCT DETAILS

Ø1.55mm Front Lines , Ø1.33mm

Rear Lines, 1x Line Winder

*Pro Lines are compatible with the Navigator Pro and Navigator-Pre 2024. We recommend switching all your lines at the same time. Different age lines may have different wear characteristics, and mixing left and right rear lines with different diameters may affect kite performance.

THINNER. FASTER. HIGHER.

The Navigator Control System is supplied with 22m Lines, with a split at 12m, which is far enough for the bar to travel to completely depower our largest kite when you flag out. Remove the standard 10m top section of line to switch up your ride.

THINK LESS. FEEL MORE.

Release and reload faster with the intuitive single-action reload Connect Quick Release, and switch effortlessly between disciplines with the Toolless Interloop, our no-tools required modular harness loop replacement system. The Navigator Control System has a durable and ergonomic design that connects you intuitively to your kite.

Navigator

Control System

• Premium 100% Dyneema SK99 lines

• Omnidirectional grip and offset finger bar

• Colour coded components

• Soft EVA bar ends with retractable line winders

• Protective PU covered leader lines

• Adjustable cleated trim system

• Custom low-friction spinning handle

• Premium Quick Release Leash

ORDER DETAILS

Navigator

CODE: 85001.220020

COLOUR: 999 Multiple Colour

SIZES: 38-43cm, 45-50cm, 50-55cm

PRODUCT DETAILS

ORDER DETAILS

Navigator Short Throw

CODE: 85001.240025

COLOUR: 999 Multiple Colour

SIZES: 45-50cm

Navigator Control Bar complete with Connect Quick Release, Flying Lines, Standard Freeride Loop with Finger, Standard Leash, Repair Kit

Navigator Short Throw now available

The new Navigator Short Throw brings the Trim Handle 10cm closer, making it easier for riders with shorter arms to reach the bar after letting go. We recommend using it with 12m and smaller kites to achieve enough depower in high winds.

50-55cm

45-50cm

45-50cm

<11m >8m

*Recommended kite size for optimal Freeride performance.

LEASHES Control System Accessories

NEW

Raising the bar on safety and comfort. Featuring a soft and grippy TPU quick-release handle with optimised geometry for reliable release and secure reload in all conditions.

• Grippy over-moulded handle

• Non-abrasive elasticised webbing

• Reliable release and reload in all conditions

• Swivel to prevent twisting on Handle Pass Leash

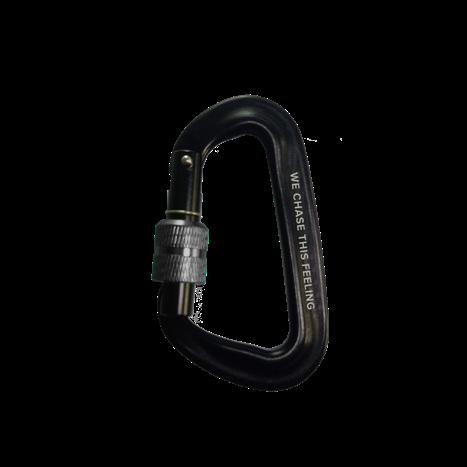

• Quality high-load 316 Stainless steel carabiner

• QR mechanism ensures correct release pin orientation when reloading

• ISO 21853 Approved

HANDLEPASS LEASH STANDARD LEASH*

ORDER DETAILS

HandlePass Leash

CODE: 85005.240026

COLOUR: 965 Black/Red

SIZES: O/S

*Compatible with Navigator Pre-2024 / Pro

ORDER DETAILS

Standard Leash

CODE: 85005.240027

COLOUR: 965 Black/Red

SIZES: O/S

**The Navigator / Navigator Pro is supplied complete with a Standard Leash.

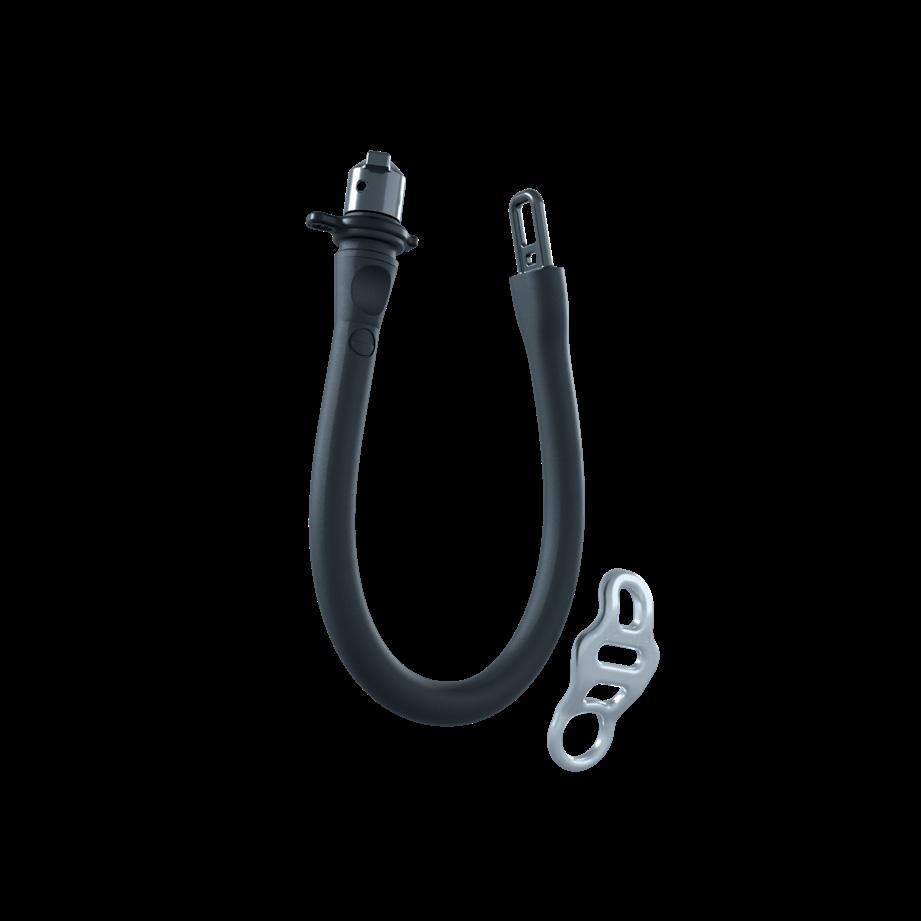

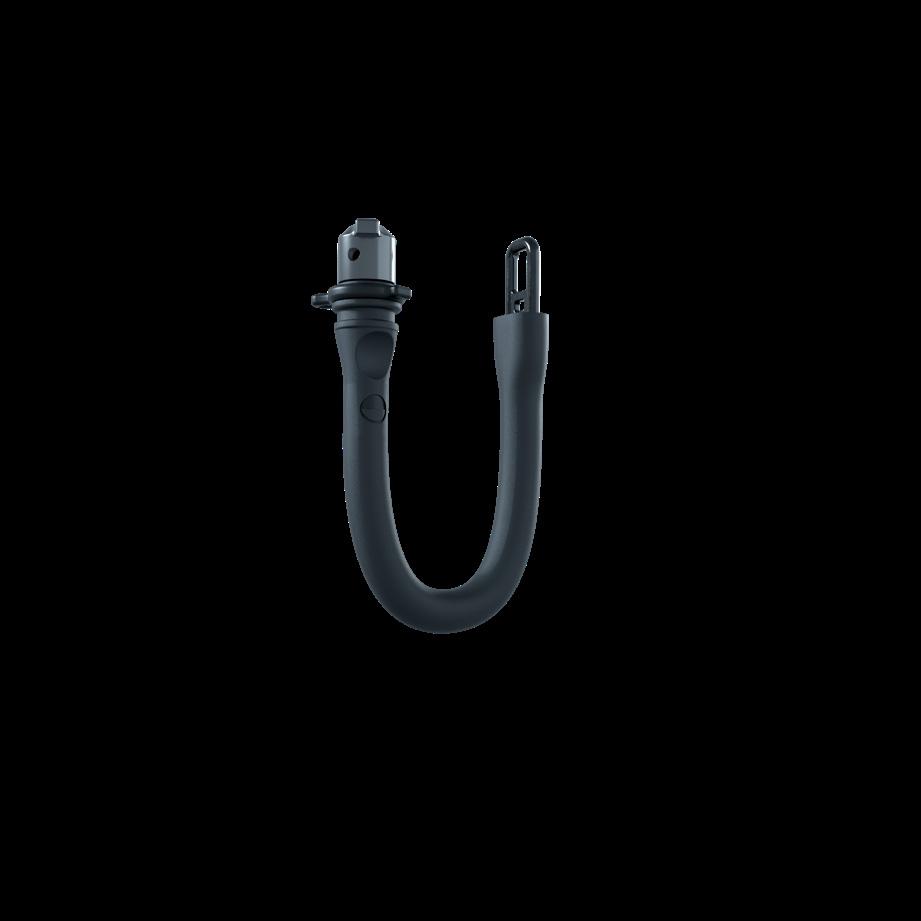

PRO HARNESS LOOPS

For use with Navigator Pro*

NEW

Switch effortlessly between disciplines with our patented Connect toolless modular loop replacement system. For secondary safety, the LockGuard flexible safety ring with pull-tab secures the loop connection and prevents accidental release.

• 2024 Interloops are compatible with Navigator Pro only*

• Toolless installation

• Flexible LockGuard safety ring

• Optimised TPU construction for flex and durability

FREERIDE (PRO)

SURF SLIDER (PRO)

FREESTYLE (PRO)

With Freestyle Leash Ring

ORDER DETAILS

Freeride Loop (Pro)

CODE: 85007.240024

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

1x Loop with Lockguard Safety Tab

ORDER DETAILS

Surf Slider Loop (Pro)

CODE: 85007.240025

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

1x Loop with Lockguard Safety Tab

ORDER DETAILS

Freestyle Loop (Pro) Freestyle Leash Ring

CODE: 85007.240026

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

1x Loop with Lockguard Safety Tab

*Freestyle Loop includes Freestyle Leash Ring

*Removable Security Finger located on Quick Release and sold separately. Pro Loops are not compatible with Navigator Pre-2024.

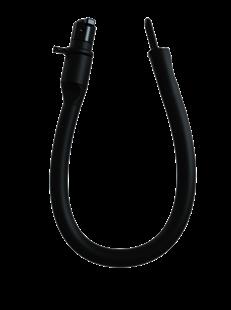

MODULAR HARNESS LOOPS

For use with Navigator Pre-2024*

Switch effortlessly between disciplines with our patented modular harness loop replacement system - no tools required.

STANDARD FREERIDE LOOP

Included with Navigator.

SHORT FREERIDE LOOP

Closer reach for smaller riders.

SLIDE SURF LOOP

For use with rope harness.

ORDER DETAILS

Standard Freeride Loop

CODE: 85007.220023

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

1x Loop with Finger (Fitted with size ‘M’ Connect Security Finger & 1x LockGuard) 2x Spare LockGuard

ORDER DETAILS

Short Freeride Loop

CODE: 85007.220022

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

1x Short Freeride Loop with Finger (Fitted with size ‘S’ Connect Security Finger & 1x LockGuard), 2x Spare LockGuard

*2022 Harness Loops are not compatible with 2024 Navigator Pro.

ORDER DETAILS

Slide Surf Loop

CODE: 85007.220025

COLOUR: 925 Black/Silver

SIZES: O/S

PRODUCT DETAILS

1x Slide Surf Loop (Fitted with 1x LockGuard), 2x Spare LockGuard

STANDARD FREESTYLE LOOP

For use with Freestyle leash Ring.

LONG FREESTYLE LOOP

No security finger - advanced riders only.

ORDER DETAILS

Standard Freestyle Loop

CODE: 85007.220030

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

1x Loop with Finger (Fitted with size ‘M’

Connect Security Finger & 1x LockGuard), 2x Spare LockGuard

ORDER DETAILS

Long Freestyle Loop

CODE: 85007.220024

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

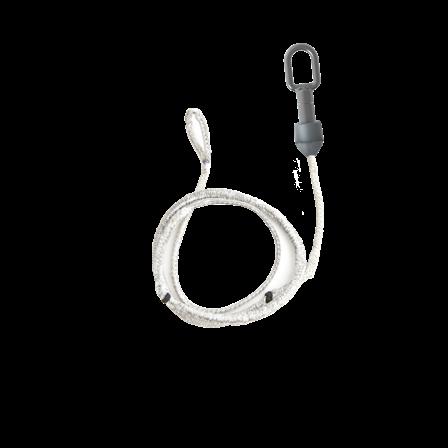

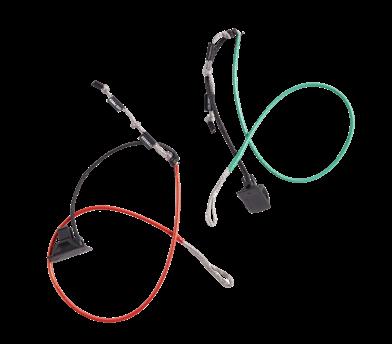

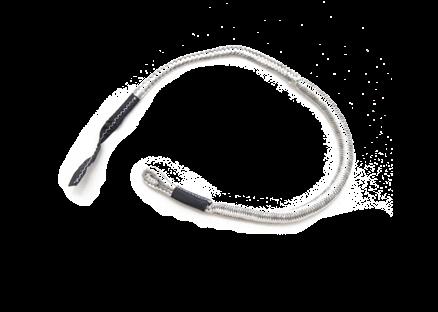

1x Long Freestyle Loop (Fitted with 1x LockGuard), 2x Spare LockGuard, 1x Freestyle Leash Ring (SS316 Polished), 1x 20cm Long Assembly Line

CODE: 85002.240023

CODE: 85002.240022

ASTRA Freeride / Big Air

CODE: 85002.240021

ATMOS PRO Performance Big Air / Freeride

ATMOS Big Air / Freeride

CODE:

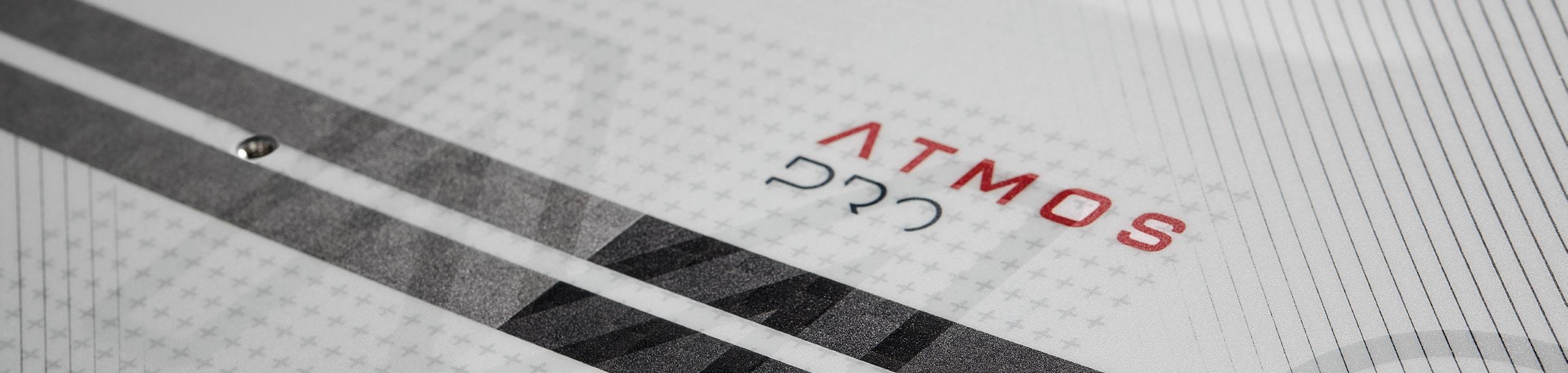

ATMOS PRO

Performance Big Air / Freeride

Pro Carbon Technology

ORDER DETAILS

CODE: 85002.240023

SIZES: 100 White 136x40, 138x41, 141x42, 144x43cm

PRODUCT DETAILS

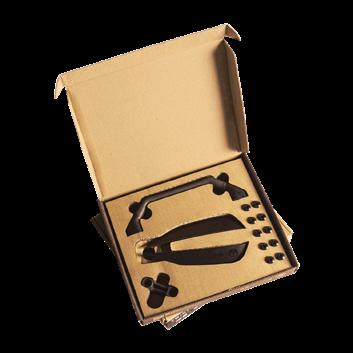

TT Accessory Kit, 40mm Fins included

ACCESSORIES (SOLD SEPARATELY)

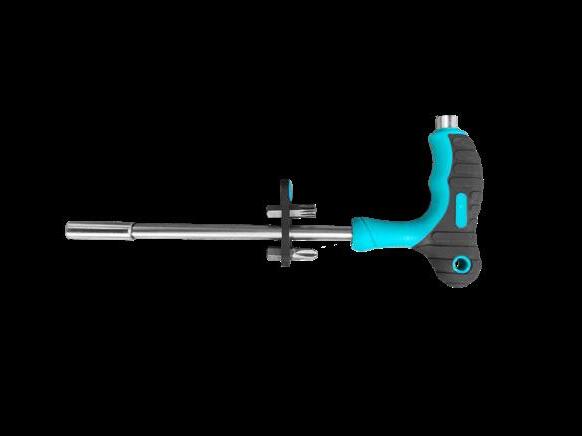

Flex, Flex Pro Bindings , North Multitool (PH3)

• Torsional stiffness and flex

• Precise edge control

• Medium rocker

• Single concave centre to quad tips

GRAVITY, WE DEFY YOU.

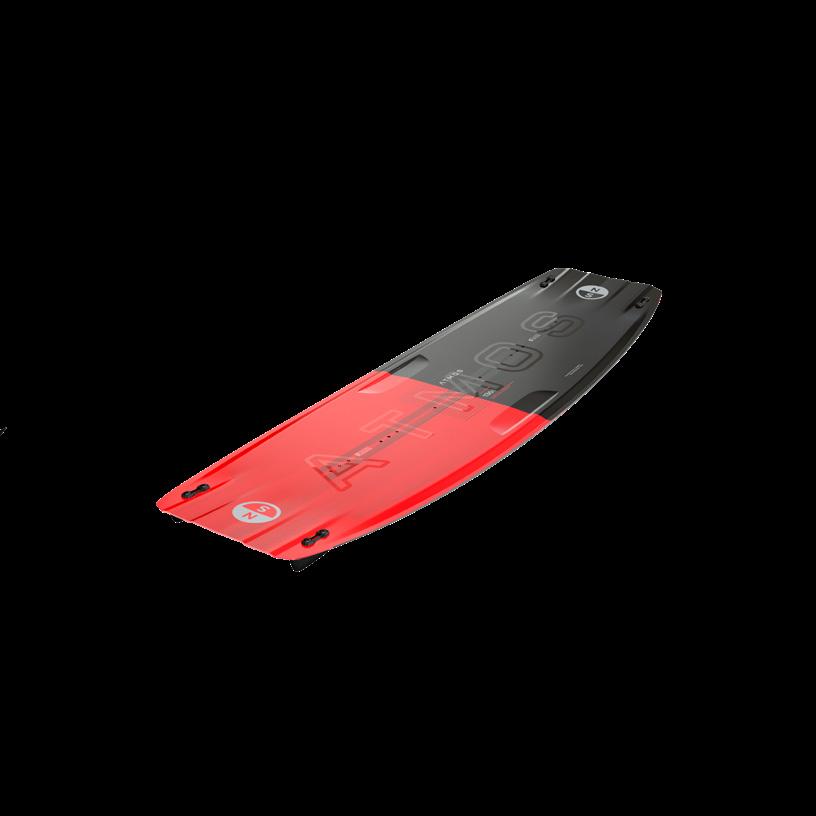

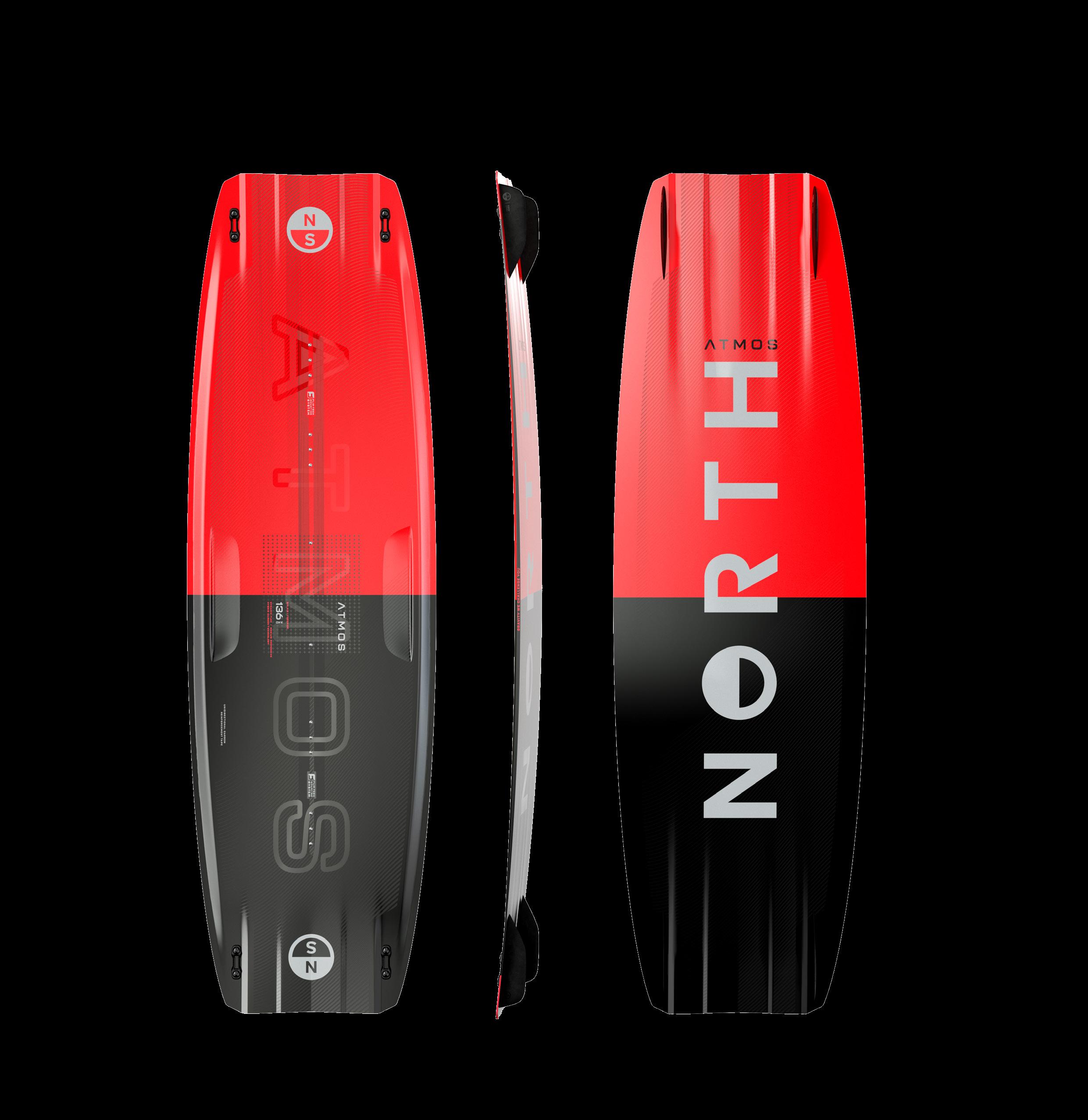

ATMOS

Big Air / Freeride

Hybrid Carbon Technology

ORDER DETAILS

CODE: 85002.240022

SIZES: 300 Red 136x40, 138x41, 141x42, 144x43cm

PRODUCT DETAILS

TT Accessory Kit, 40mm Fins included

ACCESSORIES (SOLD SEPARATELY)

Flex, Flex Pro Bindings , North Multitool (PH3)

• Carbon UD tapes

• Dynamic, responsive board flex

• Powerful upwind tracking

• Early planing

• Single concave to quad tips

GRAVITY, WE CHALLENGE YOU.

Our most popular high-performance freeride board for explosive boosting, looping and stable, predictable landings. The Atmos is powerful upwind with precise edge control.

LIGHT RIDER

Playful yet powerful, the Astra delivers responsive flex, comfort and control to riders of all levels with a smaller build. Featuring a consistent, dependable rail grip, super-efficient bottom shape and medium flex for clean and powerful pop.

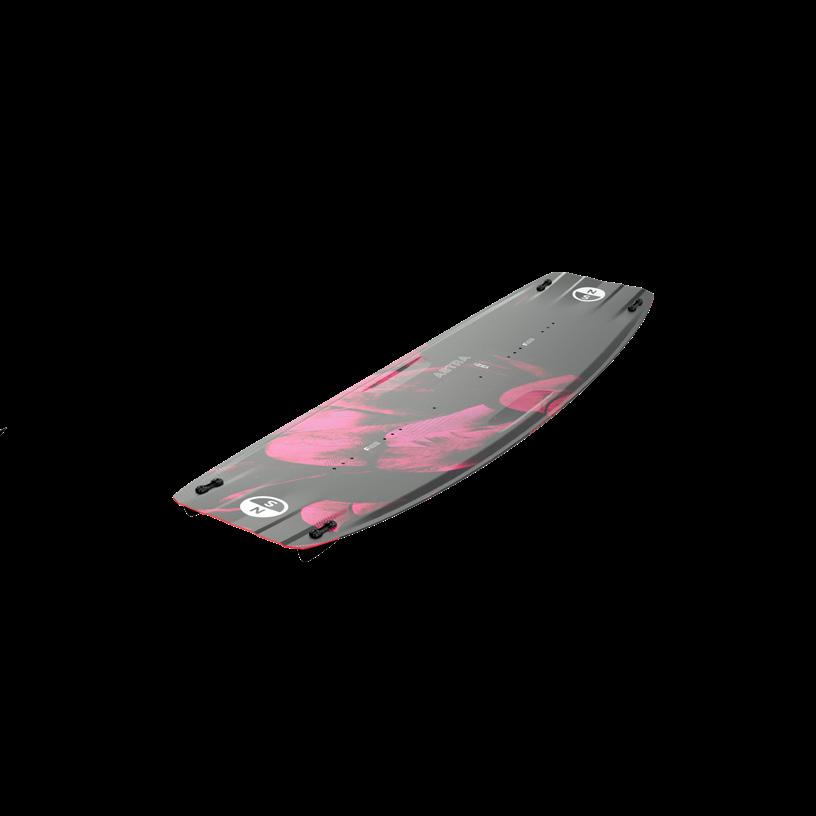

ASTRA

Freeride / Big Air

Hybrid Basalt Technology

ORDER DETAILS

CODE: 85002.240021

SIZES: 310 Rubine Red 129x38, 132x39, 135x40, 138x41cm

PRODUCT DETAILS

TT Accessory Kit, 40mm Fins included

ACCESSORIES (SOLD SEPARATELY)

Flex, Flex Pro Bindings , North Multitool (PH3)

• Basalt UD tape construction

• Dialled-in flex for comfort in chop

• Easy upwind, boosts and soft landings

• Narrower stance

• Medium rocker for all-round performance

• FlipTech Mounting System

YOUR TICKET TO RIDE

Instantly familiar, intuitive and comfortable, the Prime helps you progress faster in your freeride game. A sweet performer in all wind and water conditions, it tracks upwind smoothly and slices splash-free through the chop.

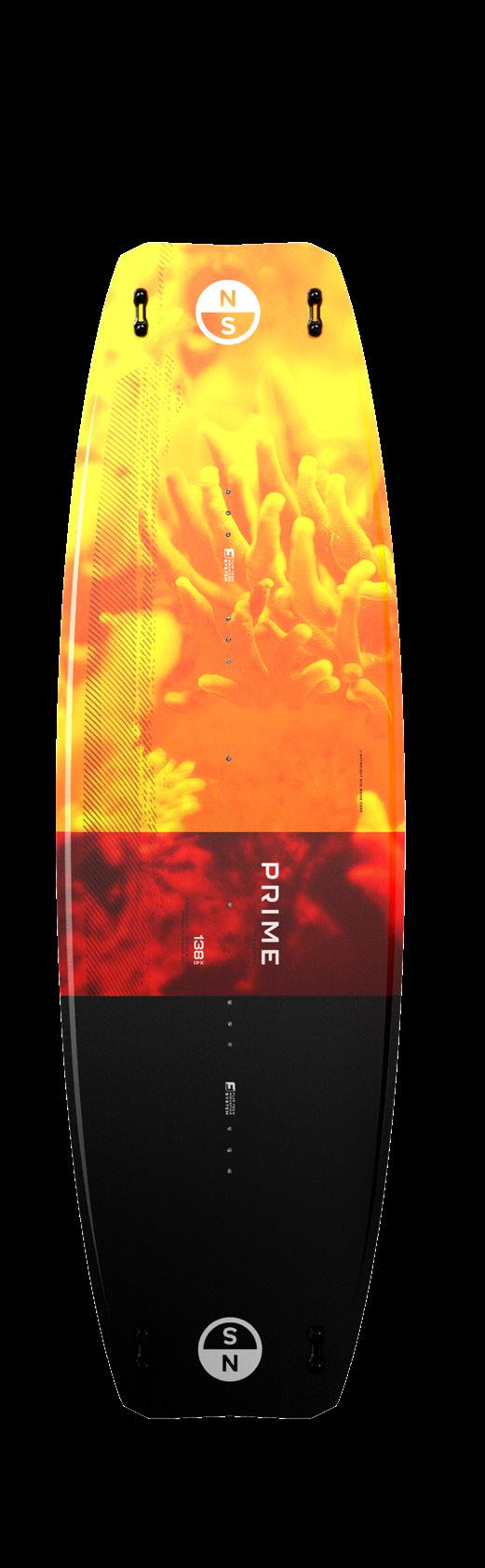

PRIME

Freeride

Composite Technology

ORDER DETAILS

CODE: 85002.240020

SIZES: 218 Sunset Yellow 133x39, 136x40, 138x41, 141x42,144x43, 148x44, 152x45cm

PRODUCT DETAILS

TT Accessory Kit, 40mm Fins included

ACCESSORIES (SOLD SEPARATELY)

Flex, Flex Pro Bindings , North Multitool (PH3)

• Early planing progressive single concave

• Easy to edge rounded outline

• Forgiving flex for softer landings

• Pulled-in tips for a splash-free ride

• FlipTech Mounting

FIRST OUT, LAST IN.

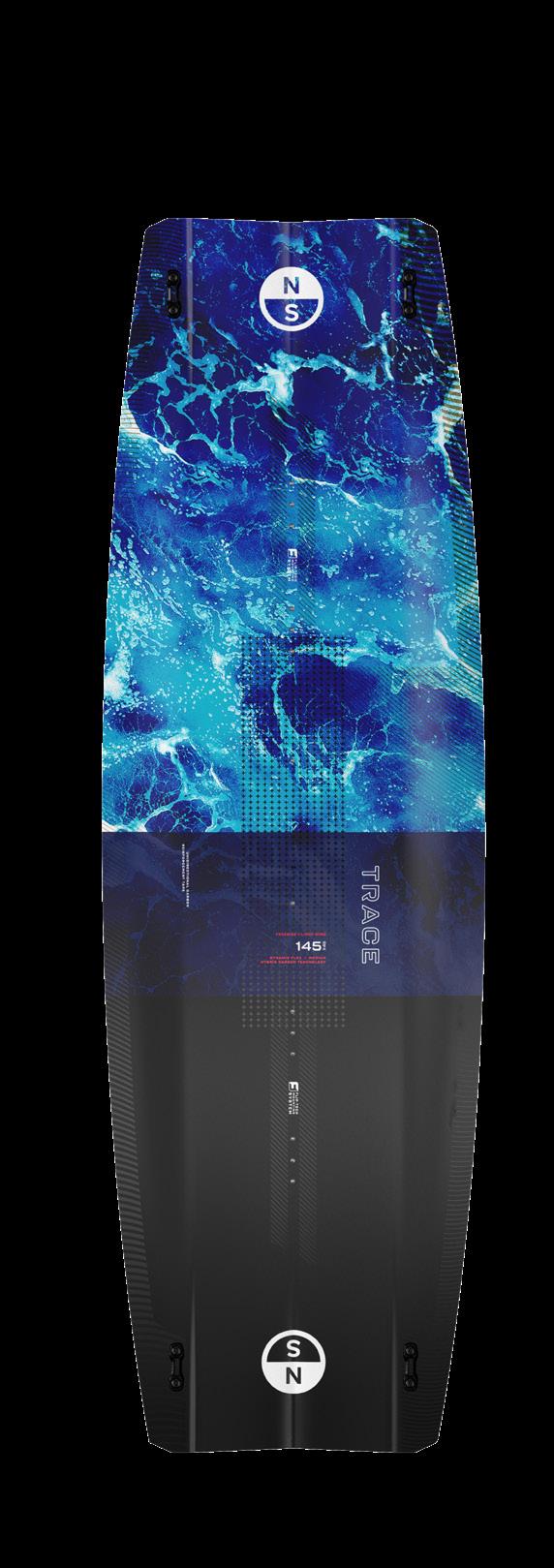

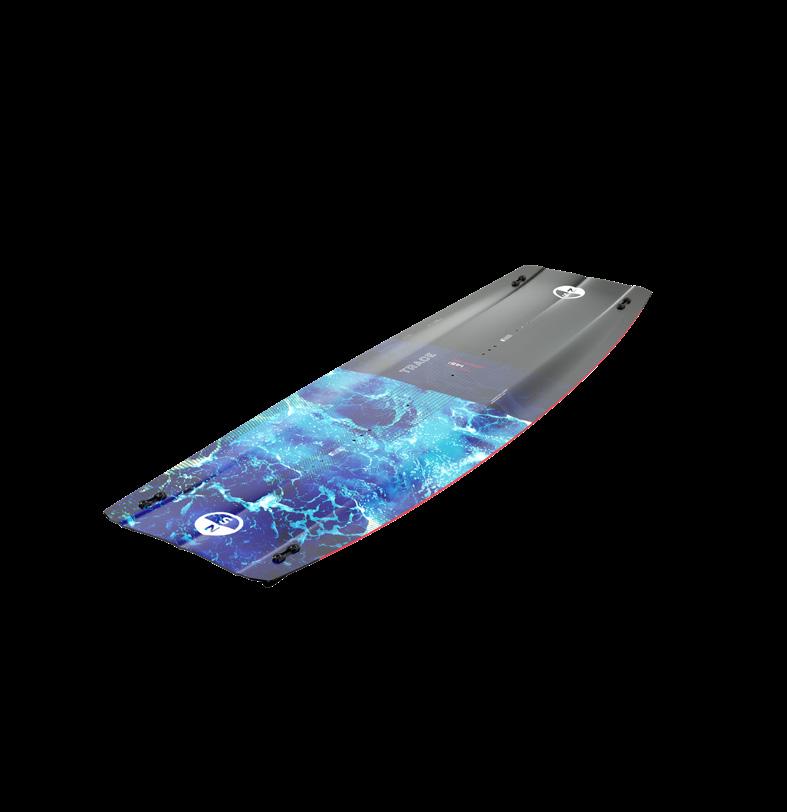

Light wind? No problem. The Trace has a progressive straight, square outline and large surface area for early planing and upwind performance in the lightest winds.

TRACE

Light Wind Freeride

Hybrid Carbon Technology

ORDER DETAILS

CODE: 85002.240026

SIZES: 426 Ocean Blue 145x45, 155x46cm

PRODUCT DETAILS

TT Accessory Kit, 40mm Fins included

ACCESSORIES (SOLD SEPARATELY)

Flex, Flex Pro Bindings, North Multitool (PH3)

• Phenomenal pop for lightwind transitions

• Balanced rocker outline and flex

• Carbon UD Tapes

• V-Spine and quad channels

• FlipTech Mounting System

• Ideal for use with the 13/15/17m Reach

FOCUS

Freestyle / Freeride

Hybrid Carbon Technology

ORDER DETAILS

CODE: 85002.240024

SIZES: 900 Black 133x40, 136x41, 139x42, 142x43cm

PRODUCT DETAILS

TT Accessory Kit, 40mm Fins included

ACCESSORIES (SOLD SEPARATELY)

Flex, Flex Pro Bindings, North Multitool (PH3)

• Progressive rocker and squarer, flatter outline

• Dynamic flex

• Quad concave bottom shape

• Quad-channel butter-soft tips

• Harmony between rocker, outline and flex

FREE YOUR STYLE

Precisely engineered to generate ultimate pop, hold a rail and edge harder. Well-balanced and responsive flex lets you ride for longer, with flow and form. More controlled takeoffs while butter-soft tips reduce impact load on landings and glide through chop.

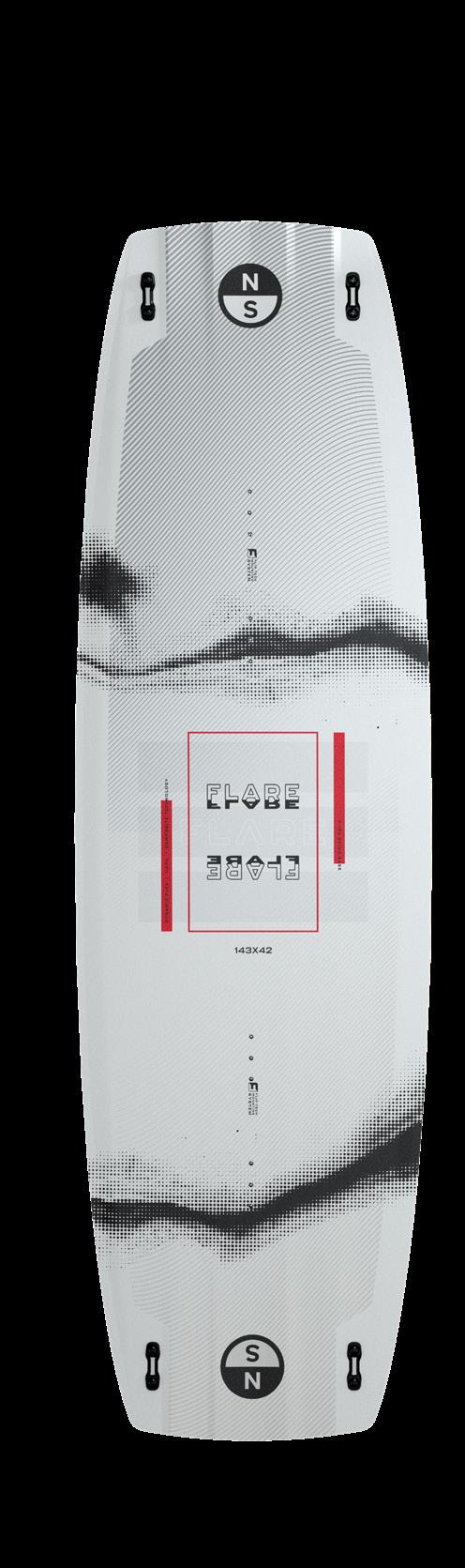

FLARE

Wakestyle / Park

Composite Technology

ORDER DETAILS

CODE: 85002.240025

SIZES: 100 White 139x41, 143x42, 147x43cm

PRODUCT DETAILS

FLARE TT Accessory Kit, 20mm Fins included

ACCESSORIES (SOLD SEPARATELY)

Flex, Flex Pro Bindings, North Multitool (PH3)

• Low-friction P-Tex grind base

• High wakestyle rocker

• PressFlex tip control

• Quad concave centre to deep quad channel tips

• Medium outline curve

• Wide square tail

BLIND CONFIDENCE

Transition between Kite and Park with style. The Flare is designed for advanced riders, using bulletproof P-Tex grind base material to be the most durable board in the park. Tom Bridge’s freestyle stick of choice.

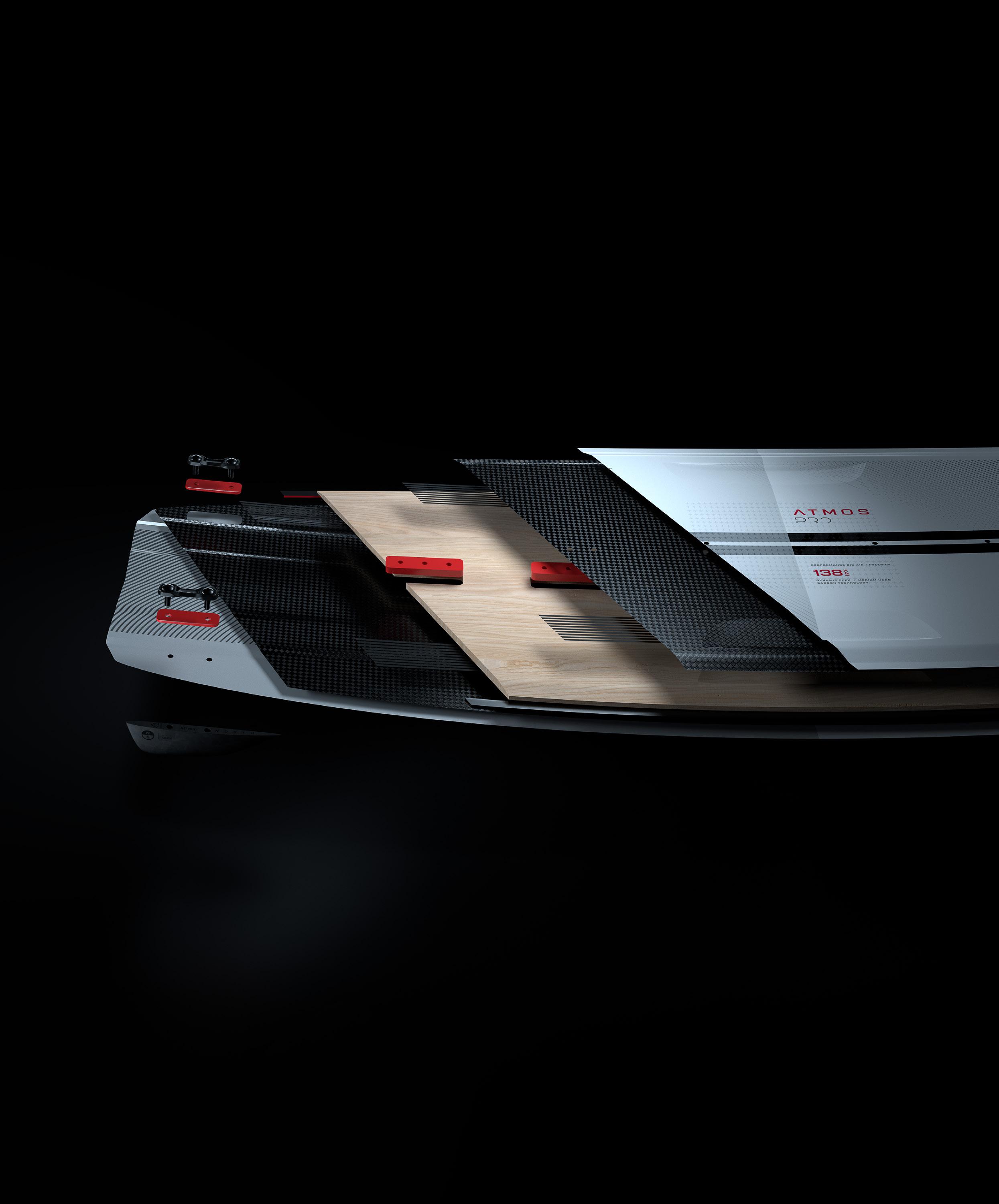

Pro Carbon

Refined Carbon laminate layup for higher performance. Thoughtfully selected and arranged combination of woven roving and biaxial carbon fibre fabrics and unidirectional reinforcements provides an extremely fast response when loaded, with greater torsional and longitudinal board flex. The advantage of the Carbon over Hybrid Technology is a more controlled performance in overpowered conditions.

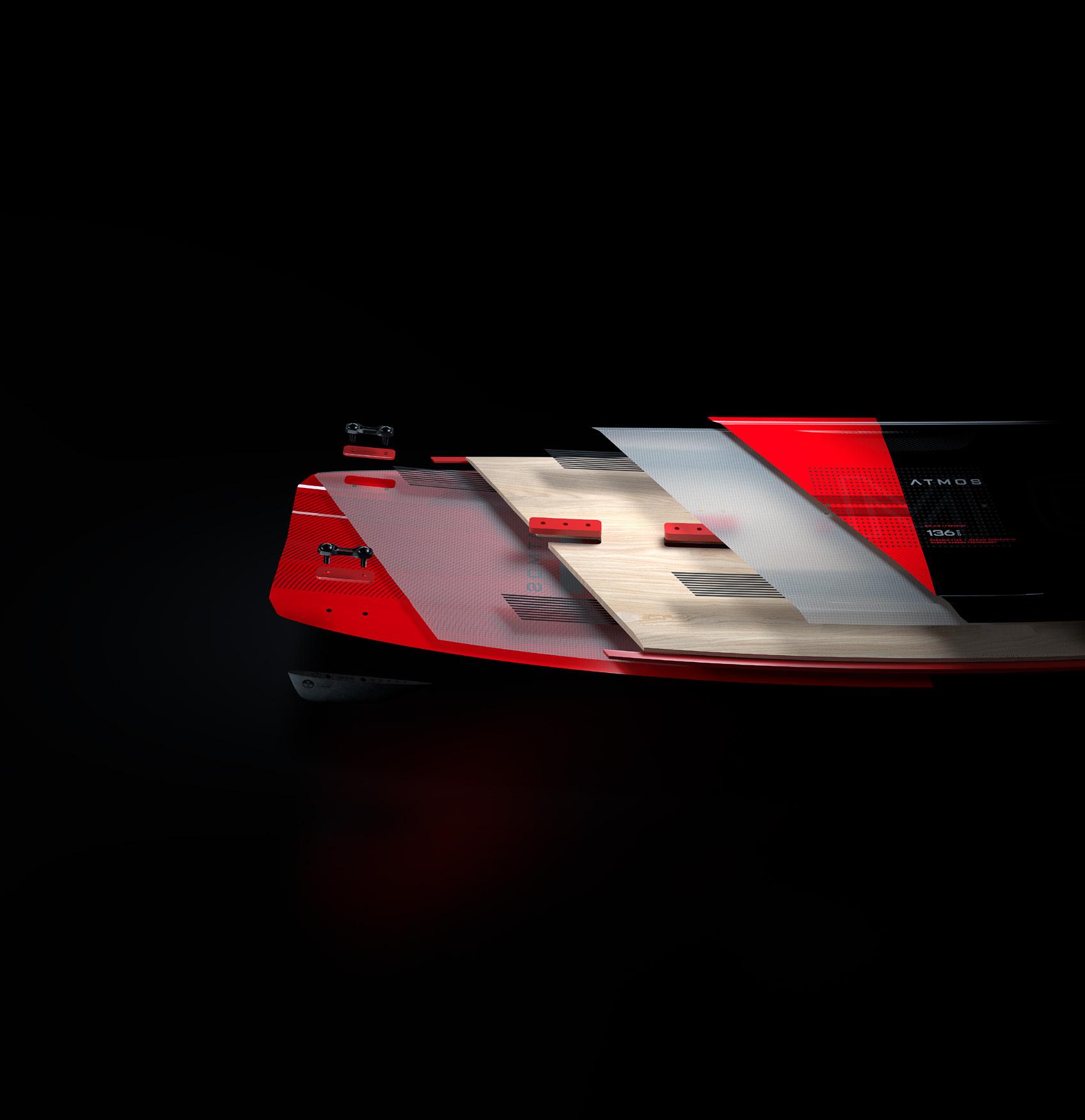

Twintip Technology

Hybrid Carbon

Strategically placed layers of unidirectional carbon tape reinforce the E-glass laminate in high-load areas. This layup is sandwiched with a Paulownia wood core to deliver a well-balanced, more forgiving flex so you can ride for longer, with flow and form. Core thickness variations and taper, longitudinal and lateral, help control the overall flex and feel.

Hybrid Basalt

A lightweight structural reinforcement that is stronger and more responsive than e-glass. The unidirectional basalt tapes contribute to a board’s lively feel and lower weight, delivering more pop without adding an unnecessary amount of stiffness. We’ve orientated the e-glass and basalt UD tapes in the laminate layup to optimise the loading of the individual fibres, resulting in a unique construction method with superior performance. Light and strong Paulownia wood core.

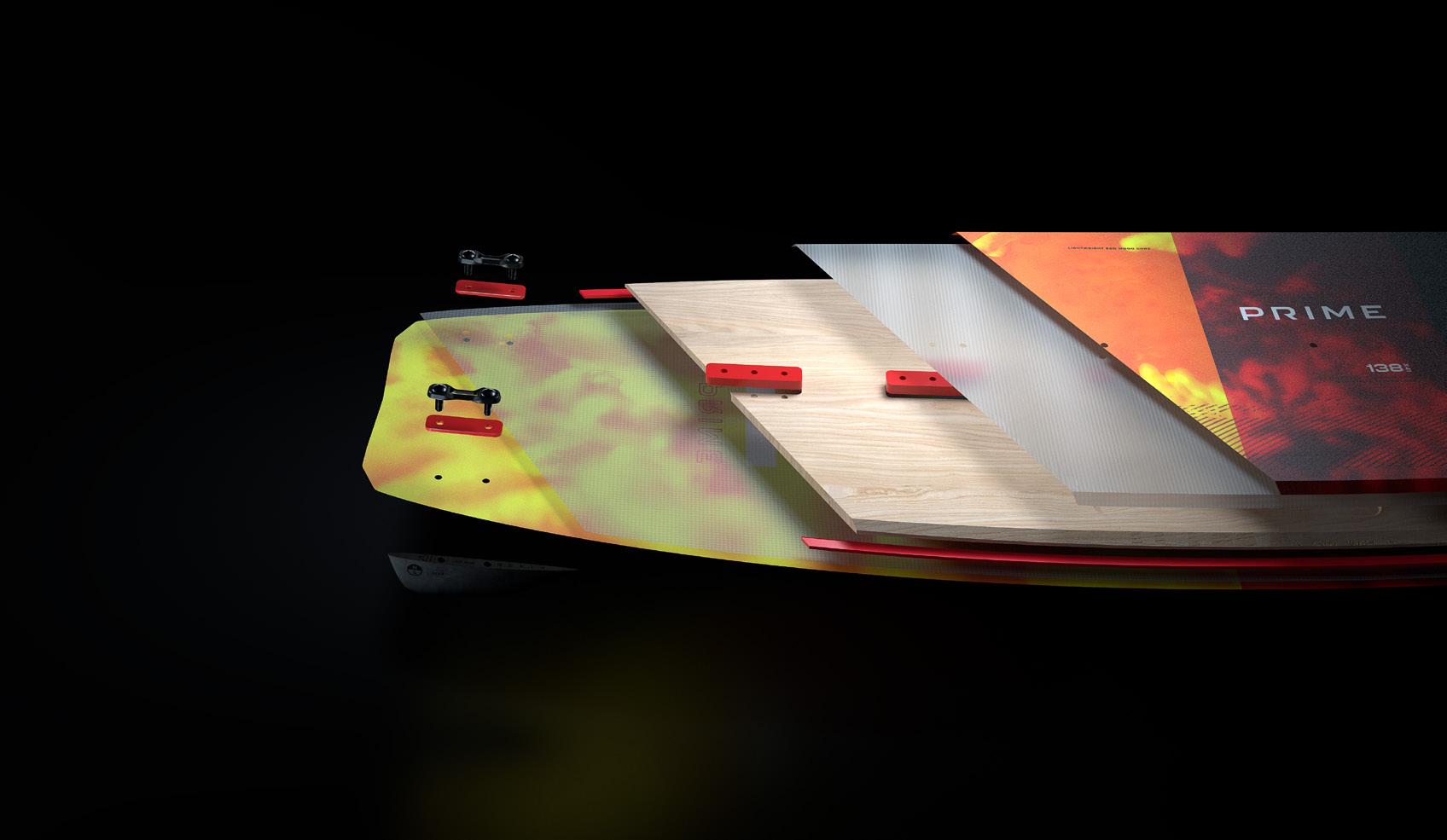

Composite

The combination of a Paulownia wood core with engineered E-glass laminate layups on the top and bottom drives your riding performance to the next level. Paulownia is a highly renewable hardwood species, with one of the highest strength to weight ratios. Ultra lightweight, with a high shear force and high impact resistance. Each board has a customised core thickness individually fine-tuned to ensure its characteristics are consistent throughout the range, no matter your size or weight.

Twintip Technology

Dynamic Flex

The flex characteristic of every TwinTip Board is determined by multiple features built into each specific design. Core thickness variations and taper, as well as detailing, longitudinally and laterally, play the most significant role in controlling the overall flex and feel. Board specific laminate layups then allow us to further fine tune the flex and board characteristics. We adjust the stiffness lengthwise and torsionally in conjunction with the rocker line, plan shape view and profile of the board, to give each board its specific performance characteristics.

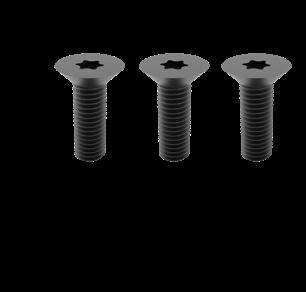

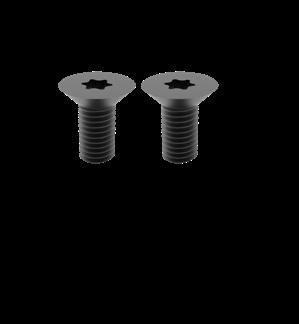

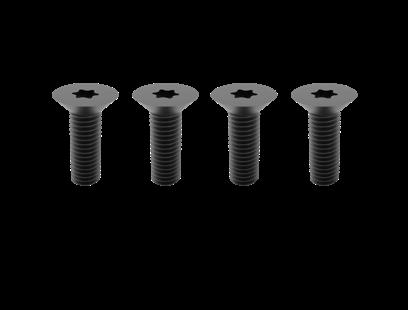

Stainless M6 standardised hardware

Standardised SS316 M6x16mm hardware across all twin tip boards and accessories enables the use of the same PH3 screwdriver for assembly and makes replacement of parts super easy. North Multitool recommended.

Lightweight, Impact Resistant Eco Wood Core

Paulownia is a highly renewable hardwood species, with one of the highest strength to weight ratios. Ultra lightweight, with a high shear force and high impact resistance, Paulownia wood forms a non-toxic core which significantly displaces the amount of foam or resin used in manufacturing, thereby reducing carbon emissions. Each board has a customised core thickness individually fine-tuned to ensure its characteristics are consistent throughout the range, no matter your size or weight.

FlipTech Mounting

All 2023-2024 North TwinTip boards feature our new FlipTech Mounting System, with centreline inserts. This means if you wear out one side of your board, simply flip the bindings around for a fresh new heelside rail again. We recommend pairing your North TwinTip with the Flex or Flex Pro bindings.

Twintip Performance

ATMOS / ATMOS PRO

ASTRA

TRACE

PRIME

FOCUS FLARE

Twintip Specifications

ATMOS PRO

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Single concave to quad channel tips

Quad Concave with V-Spine

Quad Concave with V-Spine

Progressive Single Concave with flatter middle

Progressive Single Concave with flatter middle

Progressive Single Concave with flatter middle

Progressive Single Concave with flatter middle

Progressive Single Concave with flatter middle

Progressive Single Concave with flatter middle

Progressive Single Concave with flatter middle

Quad concave centre to quad channel tips

Quad concave centre to quad channel tips

Quad concave centre to quad channel tips

Quad concave centre to quad channel tips Quad

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PROGRESSIVE / PULLED-IN TIPS

PARALLEL PROGRESSIVE/PULLED-IN TIPS

PARALLEL PROGRESSIVE/PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

ROUNDED / PULLED-IN TIPS

PARALLEL CENTRE / WIDE SQUARE TIPS

PARALLEL CENTRE / WIDE SQUARE TIPS

PARALLEL CENTRE / WIDE SQUARE TIPS

PARALLEL CENTRE / WIDE SQUARE TIPS

ROUNDED / WIDE TIPS

ROUNDED / WIDE TIPS

ROUNDED /

MEDIUM HARD

MEDIUM HARD

MEDIUM HARD

MEDIUM HARD

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM

MEDIUM SOFT

MEDIUM SOFT

MEDIUM SOFT

MEDIUM SOFT

MEDIUM SOFT

MEDIUM SOFT

MEDIUM SOFT

RESPONSIVE / MEDIUM

RESPONSIVE / MEDIUM

RESPONSIVE / MEDIUM

RESPONSIVE / MEDIUM

HARD

REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR NARROW NARROW NARROW NARROW REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR REGULAR

BOOTS & BINDINGS LINEUP

FLEX

CODE: 85003.240040

FLEX

Twintip Bindings

CODE: 85003.240030

PRO Performance Bindings

AIR-TIME

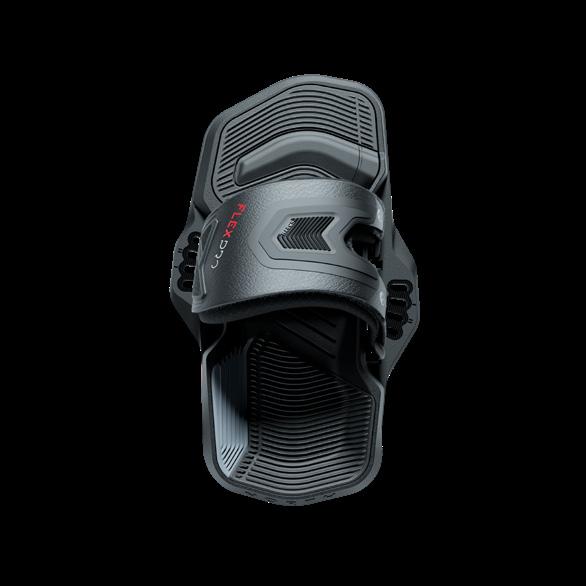

Cushioning. Support. Shock absorption. The 2024 Flex Pro are engineered to help absorb and disperse impact after gravitydefying boosts, with triple-density dynamic support technology to protect your heels and guarantee softer landings.

Flex

Performance Bindings

ORDER DETAILS

CODE: 85003.240040

SIZES: 900 Black S, M, L, XL

PRODUCT DETAILS

2x Straps, 2x Foot Pads, 4x M6x16mm Button Head Screws

ACCESSORIES (SOLD SEPARATELY)

North Multitool (PH3)

• New softer cushioned heel

• Contoured anatomical footbed

• Ramped chassis for lateral support

• GripFlex hold when wet

• KnitFlex seamless comfort

• Injection Velcro adjustment

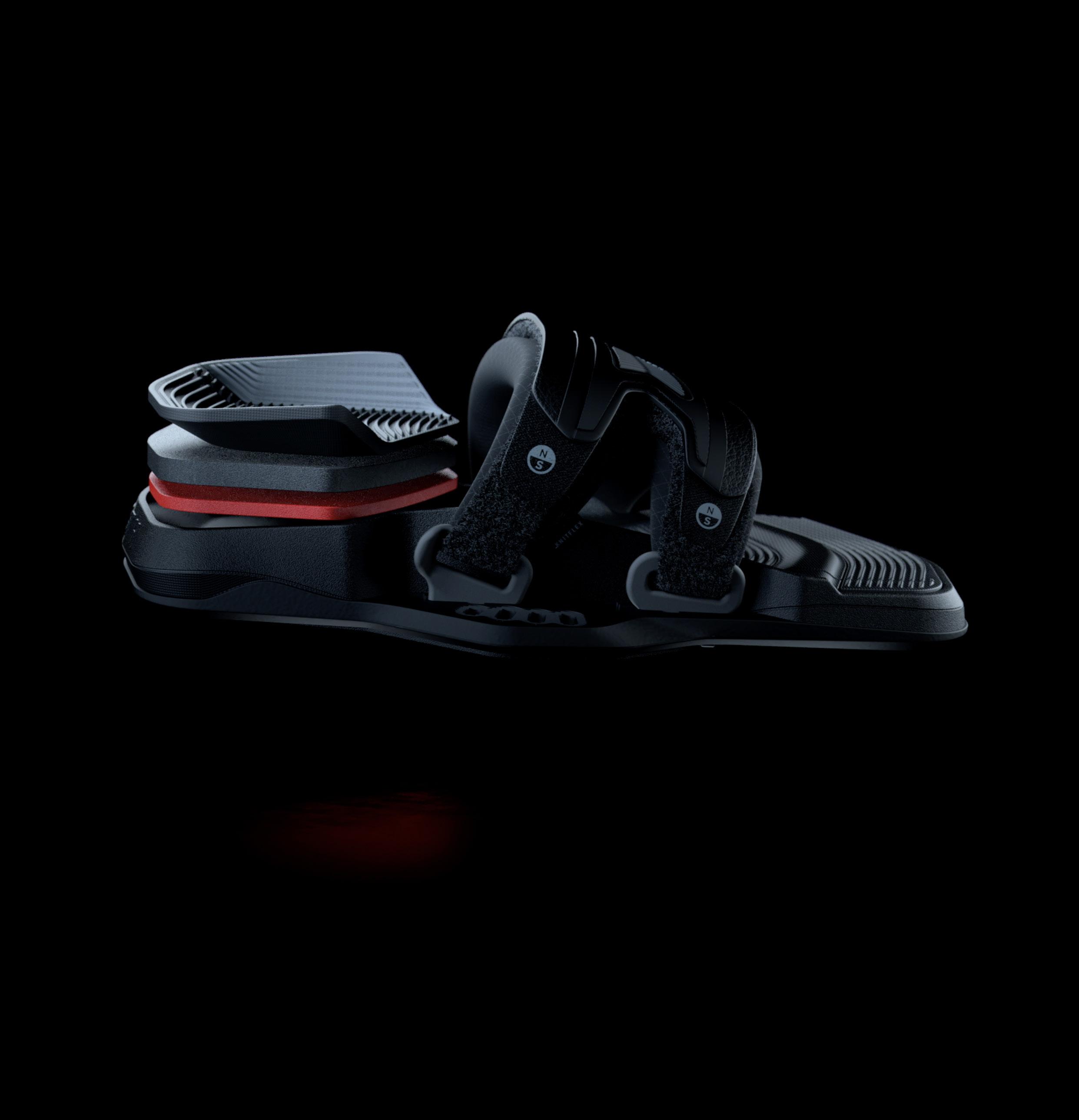

Maximum Shock Absorption

The triple density dynamic support technology - absorbs and disperses impact after gravity-defying boosts, protects your heels and makes for softer landings. Softer high-density impact pads protect the heel from board contact on big landings, and are dual-moulded with a medium-density layer for serious impact protection. Another softer insert pod provides strategically-placed comfort under the ball of the foot.

Flex Pro Technology

Locked-in hold and grip when wet.

GripFlex lightweight, rubberized EVA provides soft cushioning and maintains grip underfoot when wet, while the fine grip pattern helps keep your foot locked in on various angles.

Anatomical support, structure and stability

Contoured anatomical footbed and ramped chassis increases lateral support, structure and stability. The footpad is ergonomically angled to encourage optimised weight distribution and knee alignment, helping to minimise common rider injuries. Outer angled heel inserts give increased lateral support, helping to ensure your foot rolls properly to provide a stable landing and protecting your knees and ankles when loading up to release into the air.

Ramped toe bar

The ramped toe bar has been engineered with an angled tactile edge to get purchase on and prevent your foot from slipping out during high rotation tricks. We’ve lowered the toebar a little on the Flex LX to provide a better fit for all different foot types.

Custom comfort

4 new sizes for a more personalised fit in S, M, L, XL. To ensure the right fit, check that there’s enough room for your toes to stretch and flex, and make sure the adjustable top strap doesn’t slip or rub. The upper should feel secure, but not too tight, and the footbed should match the shape of your foot.

Adjustable top-loading strap

For quick setup and a perfect fit for all sizes. Strap Adjusters allow comfortable foot positioning, a secure feel and use of the toe bar. Simply drop the inner and outer Strap Adjusters into the baseplate from the top, move forward or backward then pull up into your desired position. For a more locked-in feeling set the inner two Strap Adjusters further apart. The rear eyelets have an outward kick to ensure your foot never comes in contact with the edge of the eyelet on hard landings.

Lighter weight

Small and Medium are 22% lighter and the larger sizes are 14% lighter because we’ve reduced the footprint.

KnitFlex seamless topside comfort

Our lightweight and responsive seamless KnitFlex strap inners are engineered for topside comfort and support. The Knitflex fabric is pre-tensioned and laminated to the conforming foam inner, so it can create a 3D-curve without any bunching or creasing, and there’s no inner stitching to rub on your foot. The soft foam allows your foot to shuffle more easily into a locked-in position.

Precision velcro straps reduce water lift

Injection velcro decreases sand retention and extended top flaps increase hold and reduce water lift. The split inner-velcro design ensures a custom fit on top of the feet for all shapes, sizes and rider styles. Position the velcro straps wider apart for a more fixed feel, closer together for easy board-offs. Our fully re-engineered top flap gives a strong hold without compromising strap flexibility.

Easy stance adjustment to suit all riders.

Our Flex Pro mounting system uses standardised M6x16mm screw hardware to fasten the binding to the board in various positions. As a starting point we recommend using Setting I (debossed on the topside of chassis) for North 2020 – 2022 boards. Use Setting II for 2023 boards onwards. From there you can change your duck stance, move the bindings backwards (heelside) or forwards (toeside) or set the position for a wide or narrow stance.

Compatible with other boards

The oval fastening hole allows for both 6”- 6.5” industry standard screw spacings, which makes the Flex LX compatible with most TwinTip brands.

FlipTech mounting

For 2023 and 2024, all of the North TwinTip boards have our new FlipTech Mounting System, with centreline inserts. This means if you wear out one side of your board, simply flip the bindings around and you’ve got a shiny new heelside rail again. The Flex Pro bindings are compatible with both the 2023-2024 FlipTech boards and 2020-2022 offline boards. The “2” indicator on the Flex Pro is for the boards that have flip tech, and is our recommended setup positioning for a 15/-15 degree duck stance.

STRAP IN FOR THE RIDE OF YOUR LIFE

At North, we understand comfort is critical to performance. That’s why we’ve dedicated two years to refining our best value lightweight binding, ensuring a balance of simplicity and support with a single fastening strap and anatomical cushioned footbed.

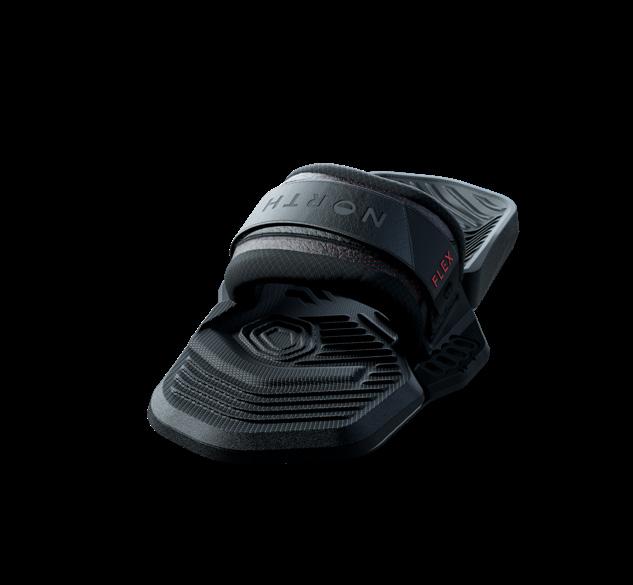

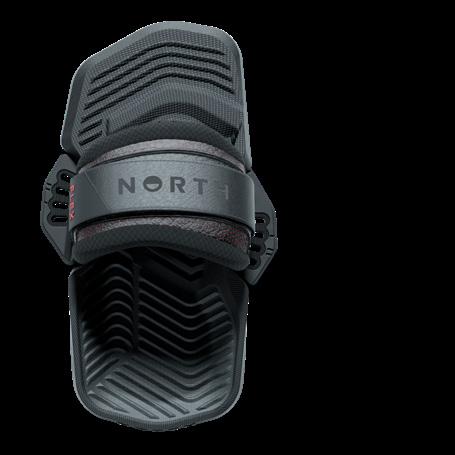

Flex

Twintip Bindings

ORDER DETAILS

CODE: 85003.240030

SIZES: 900 Black S/M, L/XL

PRODUCT DETAILS

2x Straps, 2x Foot Pads, 4x M6x16mm Button Head Screws

ACCESSORIES (SOLD SEPARATELY)

North Multitool (PH3)

• Lightweight, minimal design

• Fast assembly and adjustment

• Anatomical comfort with grip when wet

• Seamless KnitFlex top strap

• Industry standard 6-6.5” screw spacings

Flex Technology

Lightweight minimal design

Simplicity and ergonomic comfort, with one single strap for even tension. We’ve balanced simplicity and support with a single fastening strap, and we’ve optimised the footbed thickness and durometer for cushioned comfort.

Super-fast assembly with maximum adjustability

Move your bindings backwards (heelside) or forwards (toeside), set the position for a wide or narrow stance, and change your duck stance. Simply drop the entire binding onto the board and insert the screw where you want it. The intuitive Flex connection system uses standardised M6x16mm screw hardware to fasten the binding to the board in various positions with easy stance adjustment to suit all riders. The oval hole allows for both 6”- 6.5” industry standard screw spacings.

Anatomical comfort with grip when wet

The anatomically-shaped footbed is engineered using a single layer of waterproof rubberized EVA foam. Lightweight, durable, and impact absorbing, with the grip pattern height increased for added comfort, its forward-angled anti-slip serration pattern helps your foot stay in place on various angles. The shock-absorbing footbed is ergonomically angled to encourage optimised weight distribution and knee alignment, provide core support and reduce pressure on your feet, knees, hips and back.

Seamless KnitFlex top strap

The soft and comfortable single-fastening strap conforms to all foot shapes, while the rigid skeletal frame within the strap ensures a supportive locked feel. Our unique seamless KnitFlex lining is pre-tensioned and laminated to the conforming foam inner, so it can create a 3D-curve without any bunching or creasing, and there’s no stitching to rub on your foot.

Extended lateral arch supports

The inner and outer arch supports ensure an even distribution of weight and stabilise the tarsal bones, allowing for a more solid stance and maximum support during hard landings. The arch supports are extended inside the strap to ensure comfort where the top strap meets the footbed, protecting your foot from the most rigid load-bearing[HP1] part of the binding. No blisters, no hard edges.

Raised toe grip

The raised toe grip allows your toes to remain loose and spread out in their natural position, while also providing an edge for riders to get purchase on. The new softer toe bar has been engineered to suit different foot shapes, allowing the rider to grip on with toes and prevent your foot from slipping out during high rotation tricks and landings.

Shaped heel cup

The shaped heel cup cradles the heel and stabilises the foot upon impact. We’ve engineered it wider on the new Flex so you can lock your foot sideways in both directions.

Injection Velcro strap

Decreases sand and debris retention. Extended top flaps increase hold and reduce water lift.

Longitudinally convexed chassis shape

The convex drives more pressure on to the tip and heel of the chassis when the binding is attached to the board, locking out sand and debris from under the binding.

FlipTech Mounting

For 2023 and 2024, all of the North TwinTip boards have our new FlipTech Mounting System, with centreline inserts. This means if you wear out one side of your board, simply flip the bindings around and you’ve got a fresh new heelside rail again. Flex bindings are compatible with both FlipTech boards and offline board mounting systems. The “2” indicator on the Flex is for the boards that have flip tech, and is our recommended setup positioning for a 15/-15 degree duck stance.

Two size options

A good starting point would be Men’s US 9 (EU42.5) and above for binding size L/XL but we highly recommend trying before purchase to guarantee the best fit. We have found it’s more to do with the shape and angle of your upper foot than foot length when aiming for the most effective fit.

Intuitive labelling

Positioning and adjustment settings are printed on the binding to make setup simple and intuitive. With more labels printed on the binding than ever, you’ll never have to refer to the User Manual again.

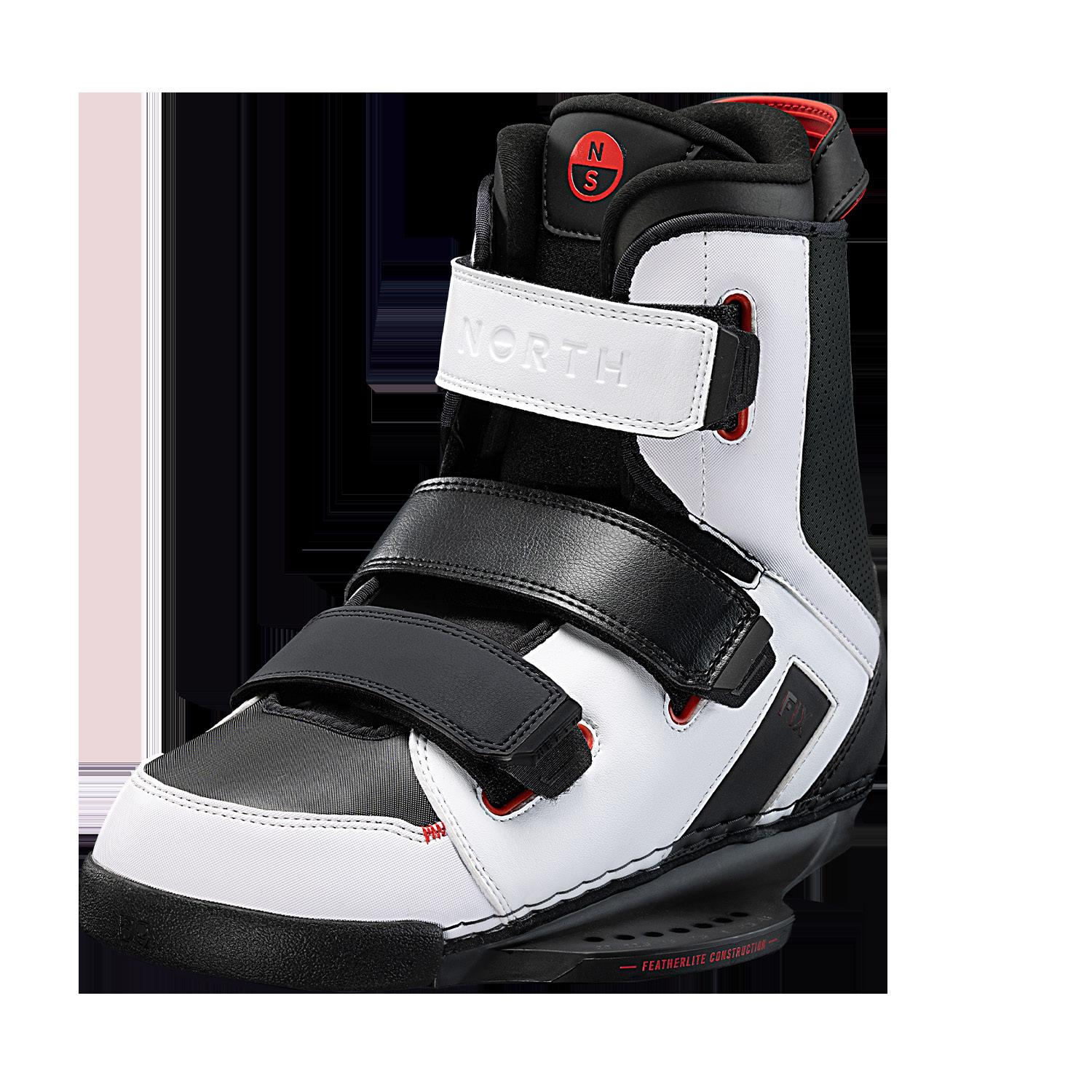

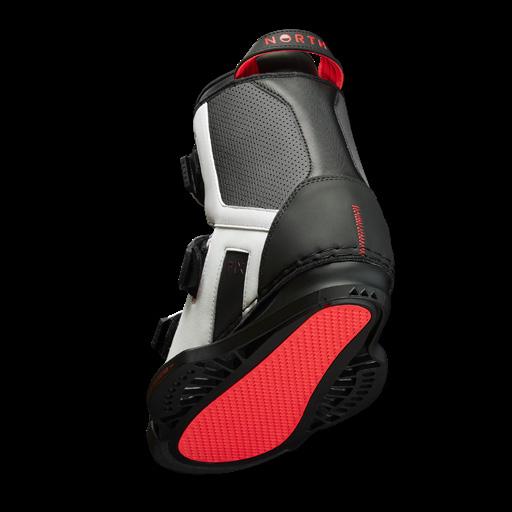

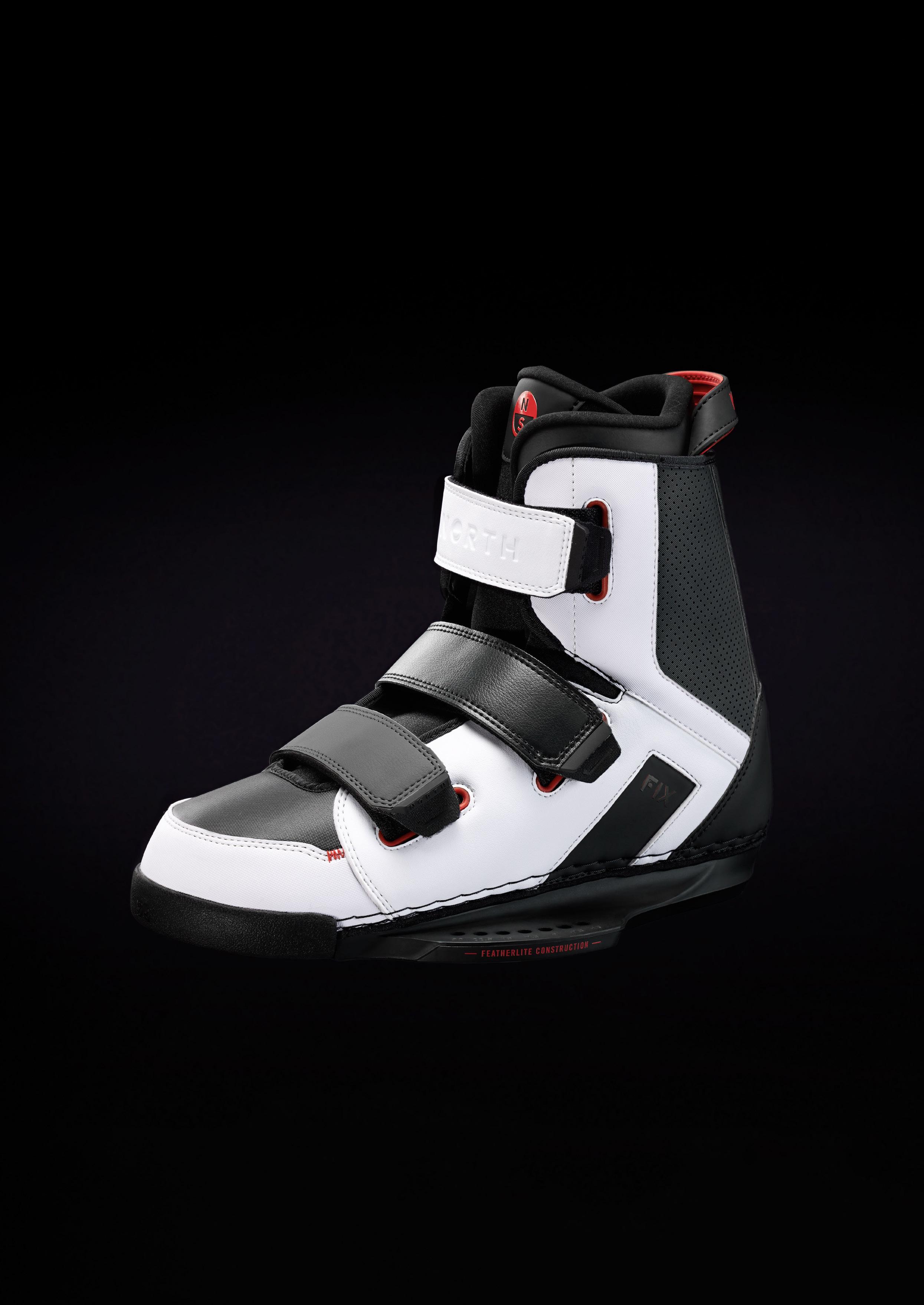

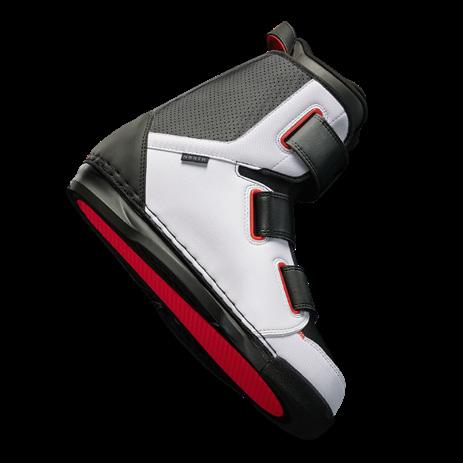

FIX

Freestyle Boots

Bone out that grab. Relax your stance. The Fix boots have bigger pop, powered unhooked tricks and harder landings covered. Flexible and Featherlite, the unrestrictive low-cut design allows you to lean back and drive comfortably upwind.

ORDER DETAILS

CODE: 85003.240031

SIZES: 900 Black S, M, L, XL

PRODUCT DETAILS

2x Straps, 2x Foot Pads, 4x M6x16mm Button Head Screws

ACCESSORIES (SOLD SEPARATELY)

North Multitool (PH3)

• Fast velcro entry/exit

• One-handed adjustment

• Extended neoprene flex zone

• Seamless KnitFlex comfort inner

Boot & Binding Sizes

FREE

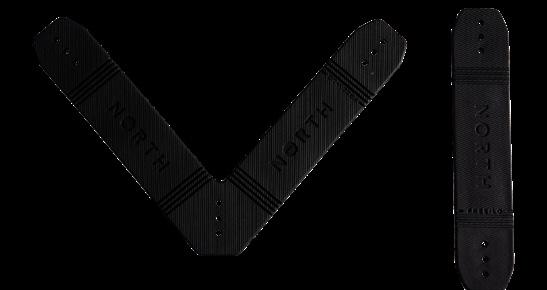

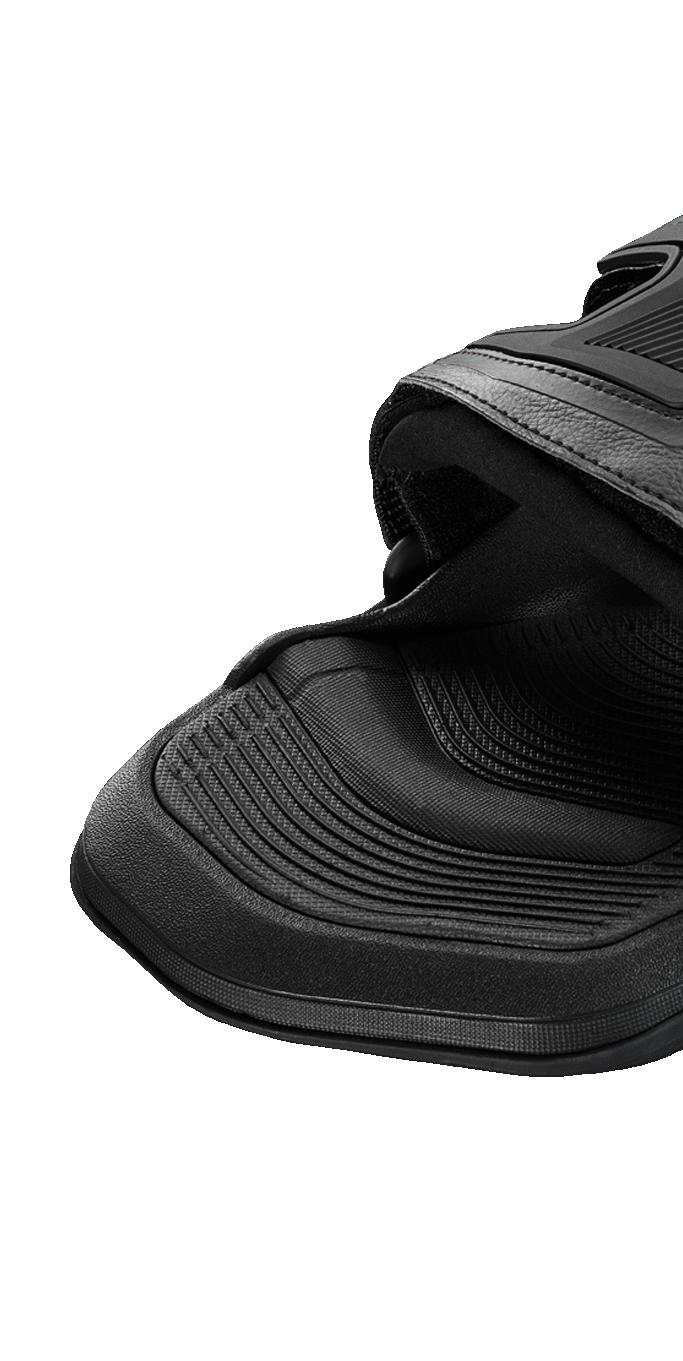

Surf Straps

• 4-way stretch KnitFlex inner

• Micro strap adjustment capabilities

• Lightweight minimalist design

ORDER DETAILS

CODE: 85003.240032

SIZES: 900 Black O/S

PRODUCT DETAILS

5x 6.3x25mm Button Head Screws, 1x Standard Foot Strap, 1x Asymmetric Foot Strap, 3x Single Washers, 1x Double Washer

COMPATIBILITY

CROSS, CHARGE PRO

SECURE THE FREEDOM

Premium lightweight cushioned surf straps. Featuring our unique pre-tensioned and laminated seamless KnitFlex inner material, the Free Straps allow you to customise your fit and stance, giving you freedom to move and shred in every condition. The Free Surf Straps have a flared rear strap so the screw can go either side of the rear fin box.

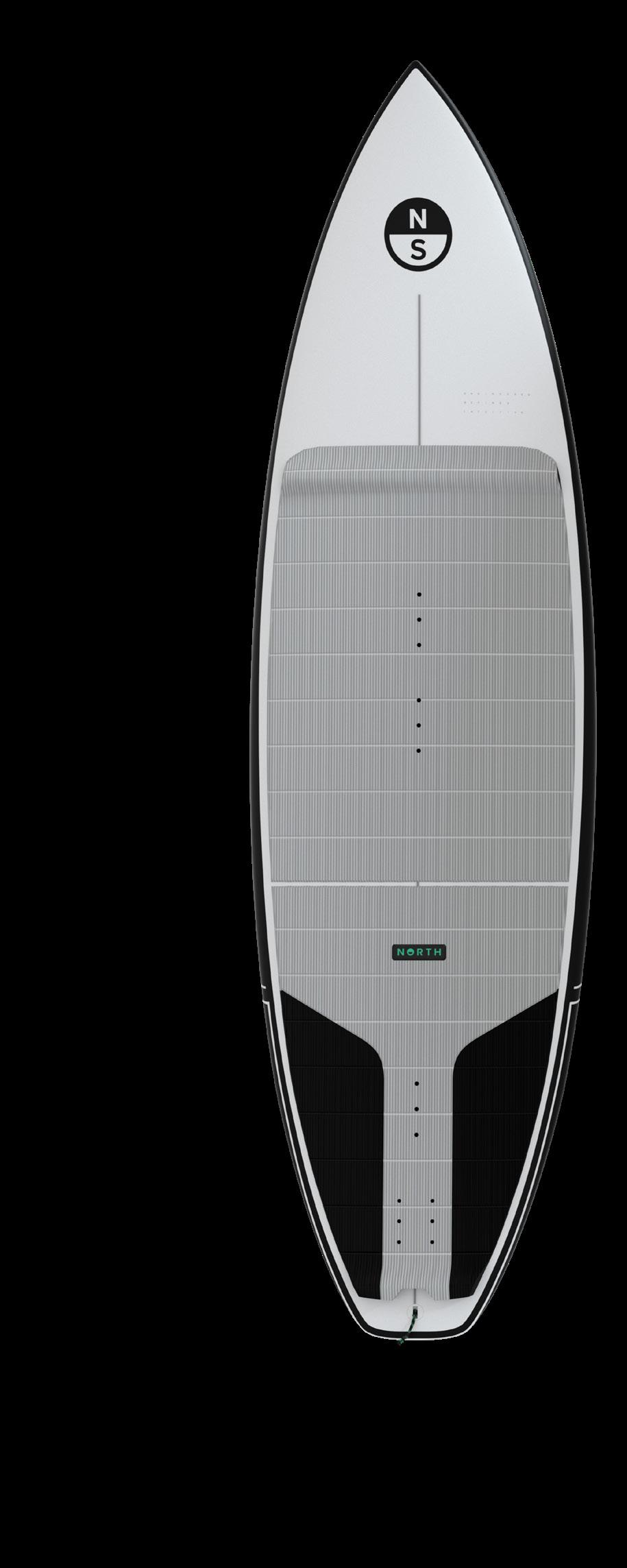

CHARGE PRO

Performance Surf

ORDER DETAILS

CODE: 85012.240006

SIZES: 100 White 5’5, 5’7, 5’9, 5’11

ACCESSORIES (SOLD SEPARATELY)

North Hexcel Coremat Fins, Free Surf Straps, Ankle Leash

• Pro Carbon Futurelite

• Lightweight strength and flex

• Fast response, speed and drive

DOWN THE LINE

Smooth and powerful down the line, turning hard in the pocket and releasing on-demand, the Charge Pro delivers responsive handling at speed and vertical attack in larger waves, excels at carving, driving upwind and onshore riding.

The Pro-technology lightweight Carbon Innegra Futurelite wireframe forms a structural skeleton to support the laminates, maximising strength without losing flex, and allowing the board to load and release power on demand for more drive and responsiveness. On the top side, the Futurelite runs down the centreline of the board and around the foot strap inserts. On the bottom side, it runs along the rails and locks in the leash plug and fin boxes, giving the board a direct feel with no delay. Futurelite allows us to dial in the flex of the board perfectly and create a very durable, lightweight kite surfboard that really comes alive in the waves.

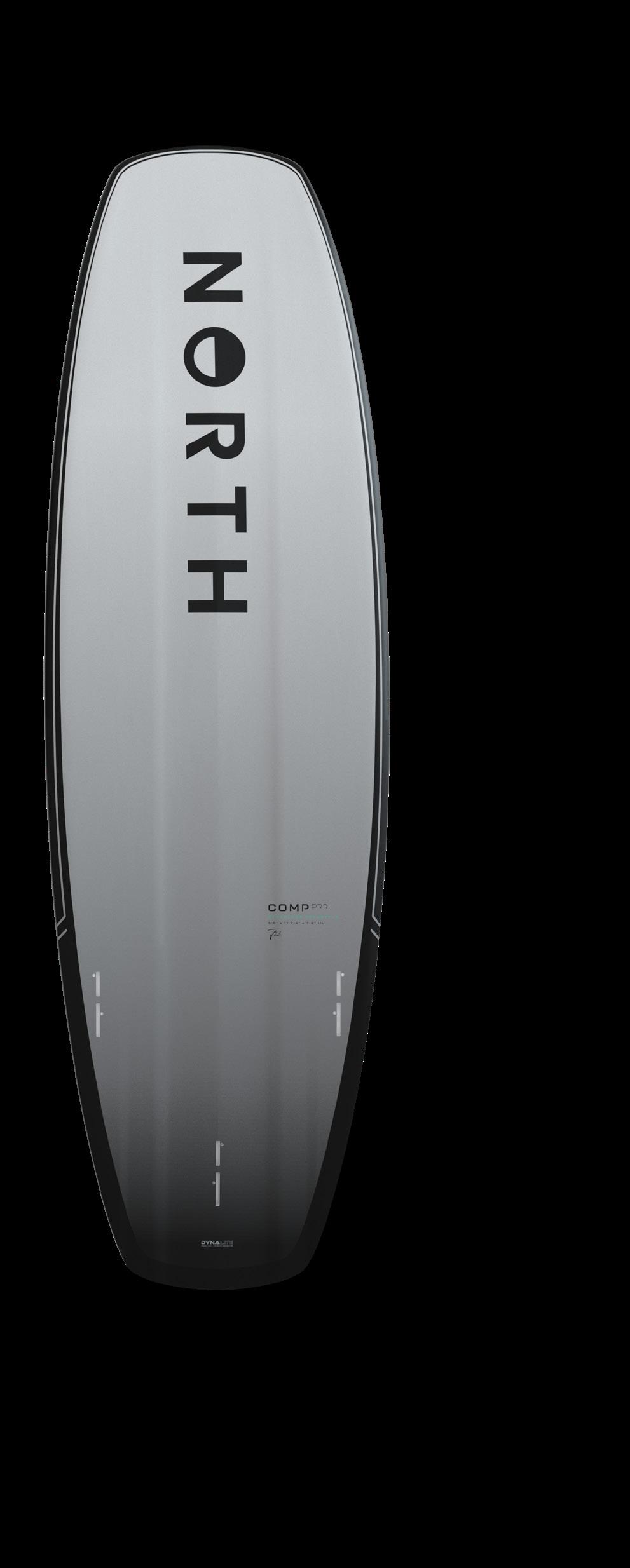

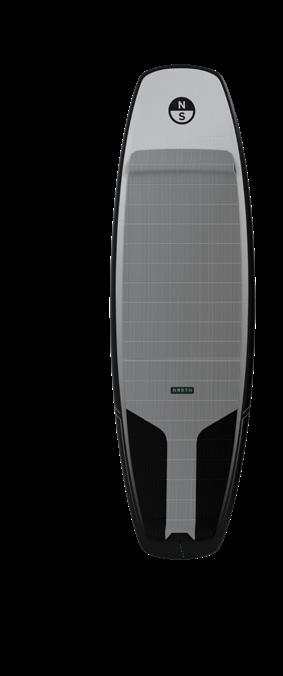

COMP PRO

Strapless Freestyle

ORDER DETAILS

CODE: 85012.240005

SIZES: 196 Titanium 4’10, 5’0, 5’2

ACCESSORIES (SOLD SEPARATELY)

North Hexcel Coremat Fins

• Pro-Dynalite Carbon for explosive pop

• Ultra-thin, durable and lightweight

• Fast and responsive

• Recessed deck for stickability

• Maximum traction and control

HALF THE VOLUME.

TWICE THE PERFORMANCE.

A refined low-volume board for every condition. Compact and easily grabbable, its fast-release tail aids grip and adds control, while the longitudinal V-spine and smooth, progressive rocker help reduce bounce on hard, fast landings.

High-performance DynaLite construction with carbon reinforced laminate layup delivers lightweight strength and stiffness for faster feedback and more explosive pop. Biaxial Glass layers provide torsional strength, while stepped layers of unidirectional carbon reinforcement tape in specific high-stress rail areas dial in the global longitudinal flex of the board. The durable low-volume, high-density PVC core provides faster feedback and more direct response. Its thin profile and lighter weight makes handling in the air so much easier. It also makes the board less buoyant on the water, which means softer landings that are easier on your body, because there is less counter-force on landings.

FUEL THE STOKE

Your one-board quiver. Light and fast with an immediate edgy and responsive feel, the Cross lets you drive effortlessly upwind, carve a tight turn or smack the lip. It delivers a fun, forgiving ride with plenty of speed.

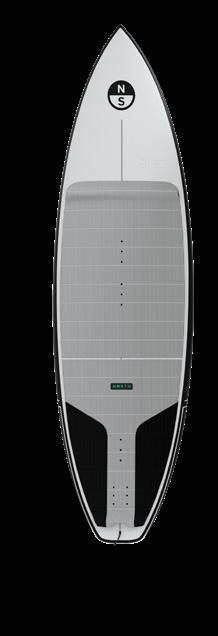

CROSS

Freeride Surf

• Compact surf outline

ORDER DETAILS

CODE: 85012.240004

SIZES: 100 White 5’1, 5’3, 5’5

ACCESSORIES (SOLD SEPARATELY)

North Hexcel Coremat Fins, Free Surf Straps

• Low entry surf rocker

• Forgiving deep-v channel

• Greater control, comfort and stability

• EcoLite Impact Resistant Bamboo Construction

• Choose thruster or quad mode

Surfboard Technology

The lightest way to make the strongest board. We’ve engineered our EcoLite Impact Resistant Bamboo Construction for durable lightweight strength and stiffness with fast feedback. By using thin layers of bamboo veneers in the laminate, you gain global stiffness of the board and impact resistance at once, while keeping the board weight really low. The Cross has a very agile and direct feel. There’s no delay when you give a steering command. It is also soft on the landings and handles the choppy conditions extremely well.

HONEYCOMB MESH RECYCLED CARDBOARD PACKAGING

We’ve removed all plastic from our surfboard packaging, replacing it with a unique cushioning material that mimics honeycomb. Strategically cut to allow the card to stretch into many different hexagons, this flexible material creates a lightweight protective layer of ‘honeycomb’ mesh. The mesh behaves like a spring to absorb impact and protect the board from abrasion. Conventional cardboard box packaging is very rigid and offers little cushioning or support around large, curved items like our surfboards. As a solution, the space between a product and its box is often filled with polystyrene, bubble wrap and other single-use plastic materials to create a layer of protection. Many of these materials cannot be recycled and contribute to the plastic waste that ends up in our oceans and landfills.

Surfboard Specifications

ROUNDED SQUARE

ROUNDED SQUARE

ROUNDED SQUARE

ROUNDED PIN TAIL

FULL LENGTH CHANNEL WITH CENTRELINE-V

BOTTOM SHAPE BEVELLED BEVELLED

FULL LENGTH CHANNEL WITH CENTRELINE-V

FULL LENGTH CHANNEL WITH CENTRELINE-V

FULL LENGTH CHANNEL WITH CENTRELINE-V

ROUNDED PIN TAIL

ROUNDED PIN TAIL

FULL LENGTH CHANNEL WITH CENTRELINE-V

FULL LENGTH CHANNEL WITH CENTRELINE-V

DEEP SINGLE TO SLIGHT DOUBLE CONCAVE

DEEP SINGLE TO SLIGHT DOUBLE CONCAVE

DEEP SINGLE TO SLIGHT DOUBLE CONCAVE

DEEP SINGLE TO SLIGHT DOUBLE CONCAVE

SURF FINS

North Hexcel Coremat Fins

• Optimised flex, weight and strength

• Medium or large size thruster setup with centre fin

• Durable fibreglass sandwich construction

• No infills required

• Sold separately

ORDER DETAILS

CODE: 85005.240070

SIZES: 900 Black M, L

PRODUCT DETAILS

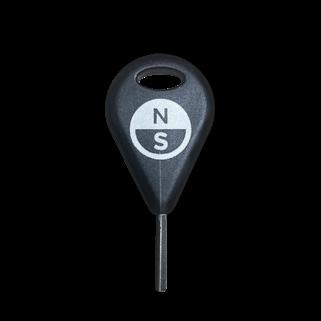

3x Fins, 1x Fin Key, 6x Grub screws to fit FCSII fin plugs

COMPATIBLE WITH

Any surfboard with FCS1 or FCS2 fin box

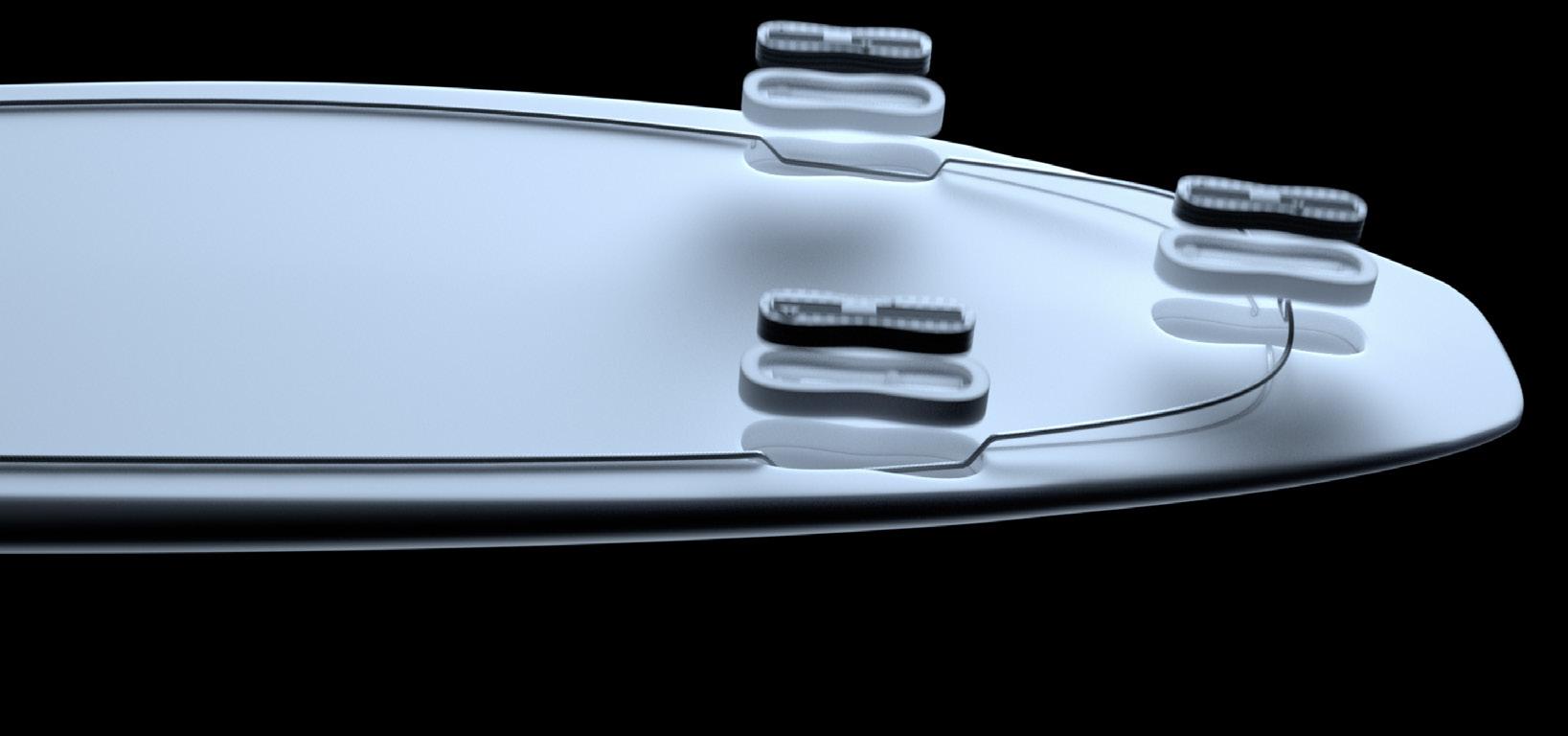

FCSII PREMIUM FIN BOX

The lightweight premium fin box is compatible with both FCSI and click-in keyless FCSII fins for more speed & drive, quicker acceleration, and more response from your board. High-density foam reinforcements surrounding the FCSII fin box are shaped to match the curved template for a clean bond and smoother load transfer into the board.

Lightweight fibreglass raked thruster surf fins with a balanced template for smooth control and projection. Our custom fin base shape does not require FCSII infills. Fins sold separately to surfboards.

FOILBOARDS LINEUP

CODE: 85013.240009

CODE: 85013.240008

SCOOP

Kite / Tow-In Foilboard

SCOOP MINI

Kite / Tow-In Foilboard

RIDE LIKE THE WIND

Direct and responsive performance foil board in lightweight yet durable hybrid carbon construction for stiffness, manoeuvrability and glide. Suitable for kitefoil, wakefoil and tow-surf foiling big waves.

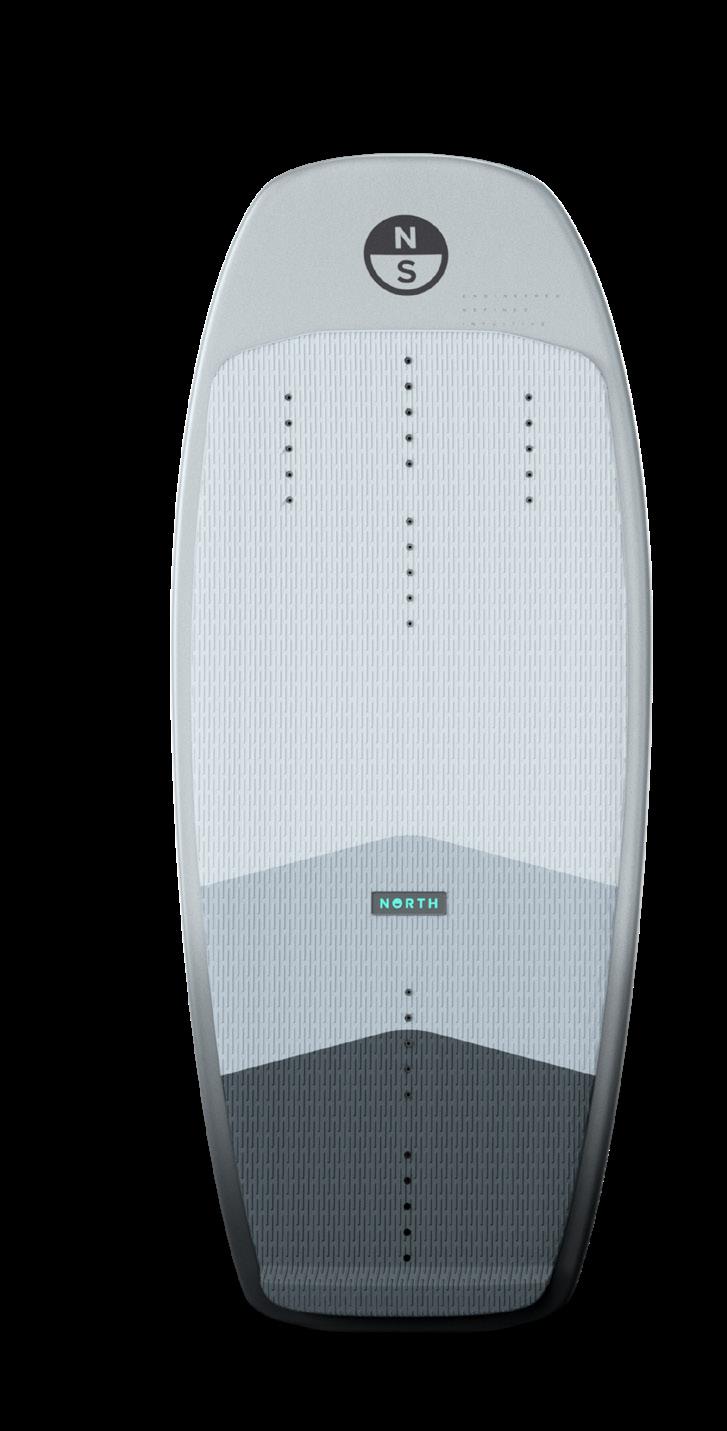

SCOOP

Kite Foilboard

Hybrid Technology

• Tri-plane hull design for earlier takeoffs and faster release

• Angled planing surfaces for smoother touchdowns on more variable angles

• Refined rocker for a more balanced, forgiving touchdown recovery

• Finer bevelled rails to match the smooth rocker

• New non-abrasive max-traction deckpad

• DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)

• Lightweight Hybrid Carbon Technology

ORDER DETAILS

CODE: 85013.240008

COLOUR: 196 Titanium

SIZES: 120 x 46, 135 x 49cm

PRODUCT DETAILS

DropBox Screw Pack (4x M8x30mm, 4x T-Nuts)

ACCESSORIES (SOLD SEPARATELY)

Free, Free-V, Free Lo and Free-Lo V Foil Straps

SCOOP MINI

Kite Foilboard

Hybrid Technology

A direct and responsive high-performance kite foilboard for more advanced riders. Featuring a compact, ultralight hybrid carbon construction with durable, high-density core. Less, but better.

• Ultra-scooped nose rocker

• Ultra-lightweight Hybrid Carbon with durable highdensity core

• Compact outline with flat deck

• Smooth rounded rails

• New non-abrasive deckpad

• Centrleine and V-strap inserts

• DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)

ORDER DETAILS

CODE: 85013.240009

COLOUR: 196 Titanium

SIZES: 110 x 45cm

PRODUCT DETAILS

DropBox 25mm Screw Pack (4x M8x25mm, 4x T-Nuts)

ACCESSORIES (SOLD SEPARATELY)

Free, Free-V, Free Lo and Free-Lo V Foil Straps

ANOTHER DIMENSION

SENSE

Kite / Wake Foilboard

Composite Technology

Intuitive glide with roll to ride water starts. Modern technology, strength and performance in a userfriendly low-volume wood core foil board.

ORDER DETAILS

CODE: 85013.240012

COLOUR: 196 Titanium

SIZES: 135 x 47cm

PRODUCT DETAILS

Sense Screw Pack (4x M8x23mm), Foil Strap Buttonhead Screws (5x M6x18m + 5x M6x20mm)*

ACCESSORIES (SOLD SEPARATELY)

Free, Free-V, Free Lo and Free-Lo V Foil Straps

• Neutral buoyancy for effortless take-offs

• Strong and durable

• New non-abrasive max-traction deckpad

• 4-point foil mount (165x90)

• Centreline and V-strap inserts

*18mm for Free-Lo and Free-Lo V Foil Straps; 20mm for the Free-V Foil and Free Foil. Over time as the foil strap compresses, you may want to change to a shorter screw

Foilboard Technology

Tri-plane hull design

Designed for earlier takeoffs and faster release. The double V-shape in the bottom contour of the board is created by a single concave in the centre with an angled planing surface on each side. The water tracks from the central concave and side rails to the two longitudinal spines, allowing the board to lift and release quickly, without sticking. The angled-planing surfaces run right through to the tail, allowing you to touch down on more variable rail angles without catching. SCOOP

Refined Bevelled Rails

Bevelled rails help with touchdown recovery, creating a wider deck with a narrower footprint. The effect is like having a smaller board. You don’t stick when you touch the water, but you still have the standing area for comfort. SCOOP

Hybrid Carbon Technology Lighter weight construction for stiffness, manoeuvrability, and glide. The stiffer the board, the better it will pump and the more responsive it feels. A light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup is wrapped around an EPS core. High-density closed cell PVC reinforcement around the foil track mount, leash plug, and foot strap inserts spreads the load. An ultra-lightweight double bamboo reinforcement layer under the standing area adds greater impact resistance and rigidity. SCOOP

Integrated high-density structural stringer system

The DropBox foil mounting tracks are embedded into a high-density closed-cell PVC block. Two high-density PVC stringers are glued to each side of this block, distributing the load lengthwise, and the full system connects the top and bottom laminate skins for maximum support. SCOOP

Includes foil to board mounting hardware

The DropBox M8 screws and t-nuts are supplied with your North Foilboard. You’ll find them installed into the mast tracks (so you don’t lose your nuts). North Foilboards are compatible with foils with an industry-standard 165x90mm connection. ALL BOARDS

Scoop Mini ultra-lightweight Hybrid Carbon with high-density core

The stiffer the board, the more responsive it feels. Our Hybrid Carbon Scoop Mini features a light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup, wrapped around a durable high-density PVC core. SCOOP MINI

DropBox Adjustable Fast Foil Mounting Track

Speed-dial your foil setup. Simply drop your foil pre-assembled with screws and t-nuts into the track, slide it backwards, then tighten the screws to fasten. Our unique structurally-integrated DropBox has a longer track for a wider adjustment range, allowing you to precision-tune the foil set up for your rider weight. A measurement guide next to the track aids correct positioning. Industry-standard 90mm track spacing means North Foilboards are compatible with most foil systems.

SCOOP MINI, SCOOP

Intuitive Concaved Deck

The highly concaved deck allows more intuitive foot positioning and also acts like a counterbalance, so you don’t feel like you are heeling over as far on the board. SCOOP

Non-abrasive high traction deck grip with tactile and visual stance reference

For a more intuitive and direct connection to your foil, high traction non-abrasive heat-embossed deckpad with centre-line ridge allows fast, easy tactile foot placement. ALL BOARDS

Customisable strap insert positions

Multiple positioning options for each strap allow you to personalise your stance - or go strapless. Centreline, V-Strap and offline strap insert options accommodate both goofy or natural riding. (Straps sold separately –see Footstrap Installation Guide for more information) ALL BOARDS

Sense Fast-mounting 165x90mm foil connection

The quick-setup four-point screw-in connection system provides a stable base for efficient load transfer. Industry standard bolt spacing 165 x 90mm. SENSE

Sense Paulownia Wood Composite Construction

For more direct feel and control. New lighter weight composite construction with a durable Paulownia wood core provides stiffness for a more direct feel and powerful foil response. Ideal for landing freestyle tricks.

SENSE

Foilboard Specification Chart

CENTRELINE, V-STRAP CENTRELINE, V-STRAP CENTRELINE, V-STRAP CENTRELINE, V-STRAP

Foilboard Performance Chart

ROUNDED

REFINED BEVELLED REFINED BEVELLED ABS

DROPBOX 165X90MM

NOVICE: New to foiling - has other board sports experience

INTERMEDIATE: Progressing on Foil - may cross over from another foil sport

ADVANCED: Pro/Semi-Pro, has mastered all manoeuvres

SONAR EDITION

Modular Foil System

• Fully interchangeable modular foil system

• Unique GeoLock System for clean, direct feel

• Longer 85cm mast increases overall ride performance in choppy conditions

• 72 mast ideal for shallower waters

• Industry-standard 165x90mm bolt pattern*

• Supplied with roomy padded Sonar Travel Bag

• Compatible with all Sonar Front Wings (sold separately)

ORDER DETAILS

CODE: 85004.240066

COLOUR: 900 Black

SIZES: AF72, AF85

PRODUCT DETAILS

*Foil to board mounting screws are included with North Foilboards

ORDER DETAILS

CODE: 85004.240070

COLOUR: 900 Black

SIZES: CF72, CF85

PRODUCT DETAILS

Carbon CF Mast with cover, C700 Fuselage, S270 Stabilizer with cover, Tool Kit, Screw Packs B,C, Sonar Travel Bag

AF Mast, AF Board Adaptor, A700 Fuselage, S270 Stabilizer with cover, Tool Kit, Screw Packs A,B,C,* Sonar Travel Bag

ACCESSORIES (SOLD SEPARATELY)

HM105 / CF95 / AF95 Masts

MAv2 / HA Front Wings

A600 / C600 Fuselage

ALUMINIUM EDITION

Start building your modular quiver here. The new refined aluminium mast profile section delivers an optimal balance between light weight and exceptional strength, so you can kite foil with confidence, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water.

CARBON EDITION

Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback.

Engineered with exceptional stiffness, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction.

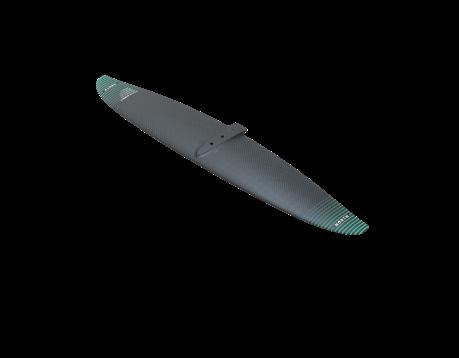

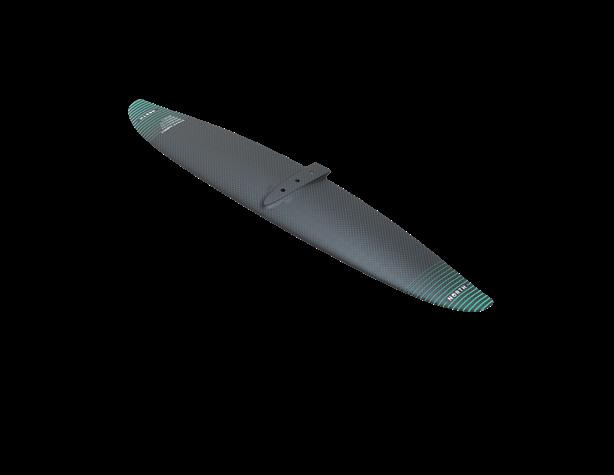

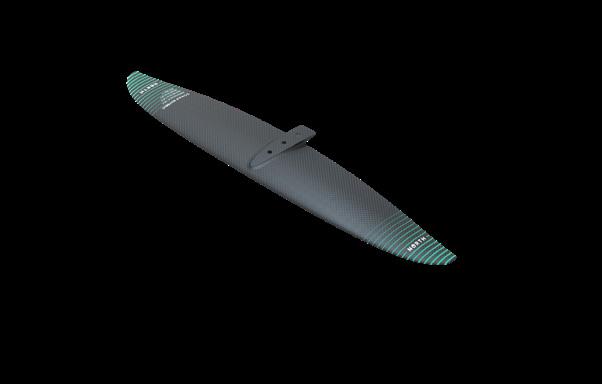

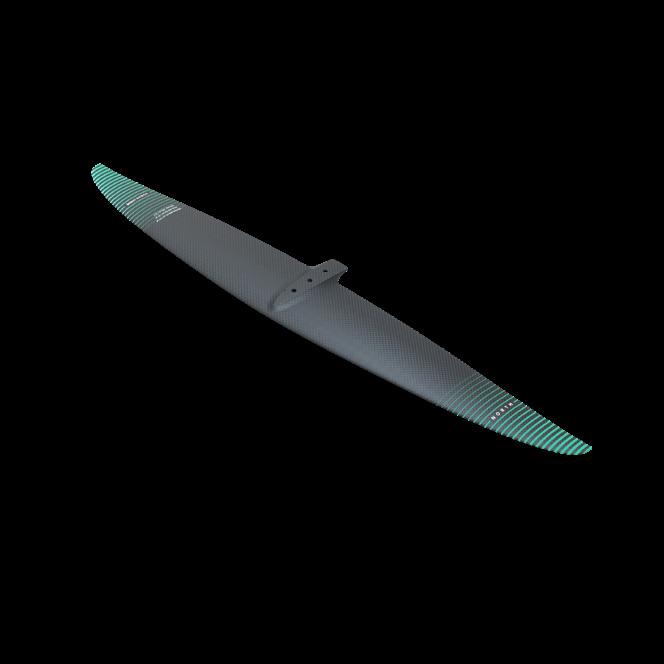

SONAR MID ASPECT (MA) V2 SERIES

Front Wings

KITE. WING. BOAT. WAKE.

Multi-discipline advanced riding 1200 / 1050 / 850 / 700

As you step down in size, you’ll step up in speed. The smaller sizes are even faster, more agile and have a higher top-end speed perfect for kite foiling or wake foiling in the 700, 850 and 1050 size. (1200 for the bigger riders).

The foil section is focused more on low drag when up on the foil, reasonable take-off and stall speeds. The outline balances efficiency and manoeuvrability. The flat centre-section with anhedral further along the span and flattened wing tips delivers predictable turning and improved ventilation resistance.

MA700v2

ORDER DETAILS

CODE: 85004.240089

COLOUR: 900 Black

SIZES: 700cm2

PRODUCT DETAILS

Front Wing with Cover, Screw Pack H (M8x23)

MA850v2

ORDER DETAILS

CODE: 85004.240086

COLOUR: 900 Black

SIZES: 850cm2

PRODUCT DETAILS

Front Wing with Cover, Screw Pack D Ti (M8x25)

MA1050v2

ORDER DETAILS

CODE: 85004.240090

COLOUR: 900 Black

SIZES: 1050cm2

PRODUCT DETAILS

Front Wing with Cover, Screw Pack D (M8x25)

MA1200v2

ORDER DETAILS

CODE: 85004.240091

COLOUR: 900 Black

SIZES: 1200cm2

PRODUCT DETAILS

Front Wing with Cover, Sonar Screw Pack F (M8x30)

NO BAD DAYS

For novice to pro riders, in all conditions. Every wing in the versatile MAv2 Series has an extremely wide speed range and early lift, is fast-turning, features ventilationfree tip-breaching, and works across multiple disciplines.

HIGH SPEED PERFORMANCE

Our highest-performance front wings, ideal for intermediate to advanced riders. Incredibly efficient, fast and direct, the HA Series is ideally suited to highspeed kitefoiling, surfing bigger waves, and riding fastmoving downwind swells. The wingtips are designed for zero ventilation when you tip-breach, allowing you to crank faster, tighter radius turns at higher speeds, without losing speed. The smaller HA550-HA950 has less planing surface and higher stall speed. They are designed to generate maximum efficiency and lift for high-speed kite foiling.

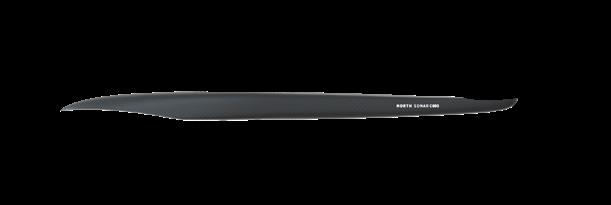

HIGH MODULUS CARBON MAST

HM85 / HM105

HM85 / HM105

Impossibly thin. Impressively fast.

We’ve reduced the thickness of the submerged portion of our new High Modulus Carbon masts by over 15% compared to our standard Carbon masts, while also increasing both bending and torsional stiffness.

HM85 The HM85 covers all disciplines. Wind-powered disciplines require edging against the wind to create forward drive. Some of this drive comes from the front wing and some comes from the mast. To efficiently provide this drive, the chord length in the submerged part of the mast is slightly longer. It increases near the top of the mast to maximise stiffness with no drag penalty, as this part of the mast is clear of the water once on foil.

ORDER DETAILS

CODE: 85004.240071

COLOUR: 900 Black

SIZES: 85cm, 105cm

PRODUCT DETAILS

Mast*, Cover

*Mounting screws are included with North Foilboards and sold separately

What is High Modulus?

Modulus of Elasticity (E) is a measurement of the stiffness of a material and is defined as the ratio of stress to strain when the material is deformed. The higher the modulus, the stiffer the material (i.e., the greater the stress necessary to cause deformation).

High Modulus carbon fibers are created through specialized heat treatment processes which deliver much higher tensile modulus values around 57 msi (million pounds per square inch), but at a reduced tensile strength of 640 ksi. This fiber will produce a part that is much stiffer but will lower tensile strength.

Life doesn’t come with a Rider Guide. But the Sonar Foil System does.

Angle of attack. Aspect Ratio. Stall Speed. When you’re new to Foiling, it can all seem a little complex. But like everything we design, the North Modular Foil System is engineered for the perfect ride, without overthinking. Our new Rider Guide takes the Sonar Foil System to pieces, so you can build it back together - step by step, then modify it your way. We’ve simplified the process, so wherever you are on your foiling journey, or whatever conditions are calling, you can be confident your gear will outperform the rest.

Sonar

HORIZON TEE

ORDER DETAILS

CODE: 85105.240010

COLOUR: 100 White / 900 Black

SIZES: S, M, L, XL, XXL

PRODUCT DETAILS

220gsm Organic Cotton

HEARTFELT TEE

ORDER DETAILS

CODE: 85105.240014

COLOUR: 900 Black

SIZES: S, M, L, XL, XXL

PRODUCT DETAILS

220gsm Organic Cotton

EXPLORER TEE

ORDER DETAILS

CODE: 85105.240012

COLOUR: 630 Green Fig

SIZES: S, M, L, XL, XXL

PRODUCT DETAILS

220gsm Organic Cotton

INTUITION TEE

ORDER DETAILS

CODE: 85105.240011

COLOUR: 870 Pumice

SIZES: S, M, L, XL, XXL

PRODUCT DETAILS

220gsm Organic Cotton

COLOUR:

MENS SEASONAL

EXPLORER HOOD SWEAT

ORDER DETAILS

CODE: 85104.240007

COLOUR: 410 Navy

SIZES: S, M, L, XL, XXL

PRODUCT DETAILS

320gsm Organic Cotton

Back Brushed Fleece

HORIZON BADGE CREW SWEAT

ORDER DETAILS

CODE: 85104.240006

COLOUR: 900 Black

SIZES: S, M, L, XL, XXL

DRIFTER ZIP HOOD SWEAT

ORDER DETAILS

CODE: 85104.240005

COLOUR: 900 Black

SIZES: S, M, L, XL, XXL

PRODUCT

PRODUCT DETAILS

320gsm Organic Cotton

Back Brushed Fleece

UNISEX BRAND

COLOUR:

900 Black

SIZES:

ORDER

CODE:

COLOUR:

SIZES:

UNISEX JACKETS

DOWNWINDER JACKET

ORDER DETAILS

CODE: 85101.240000

COLOUR: 900 Black

SIZES: XS, S, M, L, XL, XXL

VENTURE JACKET

ORDER DETAILS

CODE: 85101.2400001

COLOUR: 910 Caviar

SIZES: XS, S, M, L, XL, XXL

WOMENS SEASONAL

HORIZON BADGE CREW SWEAT WOMEN

ORDER

CODE:

COLOUR: 870 Pumice

SIZES:

EXPLORER TANK TEE WOMEN

ORDER

CODE:

COLOUR:

SIZES:

INTUITION TEE WOMEN

ORDER

CODE:

COLOUR:

SIZES:

EASE CAP

HORIZON CAP

HEARTFELT CAP

SEEKER CAP

ICONIC CAP

SEEKER CAP

HORIZON CAP

SEASIDE BEANIE

WORDMARK CAP

BRAND CAP

PASSAGE BEANIE

HORIZON SUN HAT

HORIZON QUICK DRY S/S TEE

BRAND PONCHO

HEARTFELT PONCHO

ORDER

CODE:

COLOUR:

SIZES:

UNIVERSAL DISPLAY STAND

POS

NORTH BEACH TENT

ORDER DETAILS

CODE: 85011.241001

COLOUR: 900 Black

SIZES: O/S

NORTH PARTY TENT

ORDER DETAILS

CODE: 85011.241002

COLOUR: 900 Black

SIZES: O/S

NORTH PARTY TENT (NO METAL FRAME)

ORDER DETAILS

CODE: 85011.241010

COLOUR: 900 Black

SIZES: O/S

NORTH BANNER

Set of 3

ORDER DETAILS

CODE: 85011.241007

COLOUR: 900 Black

SIZES: 1 x 3m

NORTH WINDSOCK

Set of 3

ORDER DETAILS

CODE: 85011.241003

COLOUR: 900 Black

SIZES: 120 cm

PRODUCT DETAILS

1x 6m tent with bag, 1x centre pole, 6x metal pegs

PRODUCT DETAILS 1x 3m pop-up tent, 1x metal frame, 1x bag

PRODUCT DETAILS

1x 3m tent, 1x bag

PRODUCT DETAILS

3x 3m banners

PRODUCT DETAILS

3x 120cm windsocks

NORTH LOGO FLAG

SMALL 70 x 100 cm

ORDER DETAILS

CODE: 85011.241013

COLOUR: 900 Black

SIZES: O/S

LARGE 150 x 210 cm

ORDER DETAILS

CODE: 85011.241014

COLOUR: 900 Black

SIZES: O/S

NORTH WORDMARK FLAG

SMALL 75 X 95 CM

ORDER DETAILS

CODE: 85011.241011

COLOUR: 900 Black

SIZES: O/S

LARGE 100 X 200 CM

ORDER DETAILS

85011.241012

COLOUR: 900 Black

NORTH BEACHFLAG

ORDER DETAILS

CODE: 85011.241004

COLOUR: 900 Black

SIZES: 4m

BEACHFLAG NO POLES

ORDER DETAILS

CODE: 85011.241005

COLOUR: 900 Black

SIZES: 4m

NORTH BUOY

ORDER DETAILS

CODE: 85011.241009

COLOUR: 250 Yellow

PRODUCT DETAILS

150 x 210cm flags PRODUCT DETAILS

75 x 95cm flags

4m flag with poles

4m flag

POS

NORTH FESTIVAL CUPS

ORDER

CODE: 85011.241045

COLOUR: 900 Black

SIZES: O/S

MIZU M8 WATER BOTTLE

ORDER

CODE:

COLOUR: 900 Black / 100 White

MIZU D7 FLASK

MIZU COFFEE MUG

NORTH LANYARD

CODE:

COLOUR: 900 Black SIZES: O/S

NORTH BUFF

ORDER

CODE: 85011.241060

COLOUR: 900 Black

NORTH MAGNET

Set of 10

ORDER

DETAILS

COLOUR: 900 Black

NORTH CARABINER

DETAILS

85011.241025

COLOUR: 900 Black

O/S

Set of 10 NEW NEW NEW NEW 196

PRODUCT

PRODUCT

NORTH RECYCLED BEANBAG NORTH RECYCLED BEACH CHAIR

NORTH MY24 AIR FRESHENER PACK ORDER

WORDMARK PROMO STICKER SMALL

NORTH WORDMARK PROMO STICKER LARGE

LOGO PROMO STICKER NORTH DEALER STICKER NORTH WORDMARK FLOOR STICKER

POS

NORTH MY24 STICKER PACK

ORDER DETAILS

CODE: 85011.241071

COLOUR: 999 Multiple Colour

SIZES: O/S

NORTH LOGO CUT OUT STICKER

ORDER DETAILS

CODE: 85011.241074

COLOUR: 900 Black / 198 Silver SIZES:

NORTH WORDMARK CUT OUT STICKER SMALL

ORDER DETAILS

CODE:

COLOUR: 900 Black / 198 Silver SIZES: O/S

NORTH WORDMARK CUT OUT STICKER LARGE

ORDER DETAILS

COLOUR: 900 Black / 198 Silver

O/S

NORTH WORDMARK VEHICLE STICKER LARGE

ORDER DETAILS

CODE: 85011.241075

COLOUR: 900 Black / 198 Silver

SIZES: O/S

NORTH WORDMARK VEHICLE STICKER X-LARGE

ORDER DETAILS

CODE: 85011.241076

COLOUR: 900 Black / 198 Silver

NORTH LOGO VEHICLE STICKER LARGE

COLOUR: 900 Black / 198 Silver

O/S

NORTH LOGO VEHICLE STICKER X-LARGE

ORDER DETAILS

CODE: 85011.241078

COLOUR: 900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS

8 x 8cm vinyl stickers

2.5 x 15cm vinyl stickers

PRODUCT DETAILS

8 x 8cm vinyl stickers

PRODUCT DETAILS

stickers

PRODUCT DETAILS

stickers

PRODUCT DETAILS

12.3 x 75cm vinyl stickers

PRODUCT DETAILS

stickers

PRODUCT DETAILS 50 x 50cm

PRODUCT DETAILS 70 x 70cm

NORTH DOORMAT

ORDER

COLOUR:

NORTH RETAILER PACK

ORDER

COLOUR: 999 Multiple Colour

SIZES: O/S

NORTH SHELF LOGO

ORDER

CODE: 85011.241035

COLOUR: 900 Black SIZES: O/S

NORTH PERSPEX SHELF TALKER

ORDER

COLOUR:

SIZES:

NORTH PAPER BAG SMALL

ORDER

CODE:

COLOUR:

NORTH PAPER BAG LARGE

COLOUR:

NORTH COTTON TOTE BAG

ORDER

CODE:

COLOUR:

SIZES: O/S

KITE / WING PUMP

2.3L or 2.9L

Ergonomic double-action kite and wing pump with tall body and high-airflow piston for faster, easier inflation.

• Single/double action switch

• Anti-sand filter and seals

• Integrated pressure gauge

• Medium 2.3L / Large 2.9L

ORDER DETAILS

CODE: 85005.240079

COLOUR: 900 Black

SIZES: M, L

KITE PUMP HOSE

ORDER DETAILS

CODE: 85005.210080

COLOUR: 999 Multiple Colour

SIZES: O/S

PRODUCT DETAILS Pump, Hose, Adaptor Kit, Pump Leash

KITE PARTS

HYPERFLOW INFLATION VALVE

Single / Set of 10

ORDER DETAILS

CODE: 85006.220195 (SINGLE)

COLOUR: 900 Black

SIZES: O/S

ORDER DETAILS

CODE: 85006.220095 (SET OF 10)

COLOUR: 900 Black SIZES: O/S

HYPERFLOW INFLATION VALVE BASE

Set of 10

ORDER DETAILS

CODE: 85006.200016

COLOUR: 902 Black Sand

SIZES: O/S

HYPERFLOW INFLATION VALVE COVER

ORDER DETAILS

CODE: 85006.240052 (SINGLE)

COLOUR: 900 Black

SIZES: O/S

HYPERFLOW SNAP CLIPS

Set of 10

ORDER DETAILS

CODE: 85006.200099

COLOUR: 902 Black Sand

SIZES: O/S

HYPERFLOW PINCH CLAMP

Set of 5

ORDER DETAILS

CODE: 85006.240054

COLOUR: 900 Black

SIZES: O/S

HYPERFLOW PINCH CLAMP COVER

Set of 5

ORDER DETAILS

CODE: 85006.240055

COLOUR: 900 Black

SIZES: O/S

HYPERFLOW

HOSE 1M SECTION

ORDER DETAILS

CODE: 85006.200056

COLOUR: 902 Black Sand

SIZES: 1m

BATTENS

Set of 2

ORDER DETAILS

CODE: 85006.200053

COLOUR: 100 White

SIZES: 400mm

LINE CONNECTORS

Set of 4

ORDER DETAILS

CODE: 85006.200057

COLOUR: 999 Multiple Colour

SIZES: O/S

204

KITE/WING ZIPPER

STRUT REPLACEMENT BLADDER

CARVE LE BLADDER

PULSE LE BLADDER

REACH LE BLADDER

ORDER

Colour:

CODE ZERO LE BLADDER

ORDER

Colour:

REPAIR MATERIALS

N-FIX CANOPY REPAIR TAPE

Temporary Canopy Repair

ORDER DETAILS

CODE: 85015.240111

COLOUR: 999 Multiple Colour

SIZES: O/S

2024 N-MAX REPAIR MATERIAL

ORDER DETAILS

CODE: 85015.240126

COLOUR: 900 Black

SIZES: 2m x 1.42m

2024 CANOPY REPAIR MATERIAL

ORDER DETAILS

CODE: 85006.240117

COLOUR: 415 Turquoise SIZES: 3m x 1.5m

2023 CANOPY REPAIR MATERIAL

ORDER DETAILS

CODE: 85006.230117

COLOUR: 100 White / 218 Sunset Yellow / 310 Rubine Red / 475 Pacific Blue

SIZES: 3m x 1.5m

2022 CANOPY REPAIR MATERIAL

ORDER DETAILS

CODE: 85006.220117

COLOUR: 629 Marine Green / 475 Pacific Blue / 306 Red Sea SIZES: 3m x 1.5m

2024 KITE DACRON REPAIR MATERIAL

ORDER DETAILS

CODE: 85006.240118

COLOUR: 900 Black

SIZES: 2m x 1.42m

2023 KITE DACRON REPAIR MATERIAL

ORDER DETAILS

CODE: 85006.230118

COLOUR: 900 Black

SIZES: 2x x 1.42m

*2020-2022 Repair Materials available online

*2024 Orbit, Reach, Carve

*All 2023-2024 Kites

*2024

*2024 Carve, Pulse

*All 2023 Kites

TOOLS & MAINTENANCE

SONAR T40 MICRO TOOL

SONAR T40 TOOL

MULTI TOOL

NORTH MULTITOOL DRIVER BITS

Set of 5

ORDER

CODE:

COLOUR: 909 Steel Grey

SIZES: PH3, T40

PRO CONTROL SYSTEM PARTS

NAVIGATOR CONTROL BAR WITH LEADERS

ORDER DETAILS

CODE: 85007.240054

COLOUR: 999 Multiple Color

SIZES: 45-50cm, 50-55cm

CONNECT QUICK RELEASE

ORDER DETAILS

CODE: 85007.240038

COLOUR: 965 Black/Red

SIZES: O/S

NAVIGATOR REPLACEMENT BEARING

ORDER DETAILS

CODE: 85007.240059

COLOUR: 999 Multiple Colour

SIZES: O/S

SECURITY FINGER

ORDER DETAILS

CODE: 85007.240027

COLOUR: 900 Black

SIZES: O/S

QUICK RELEASE GROMMET

ORDER DETAILS

CODE: 85007.240040

COLOUR: 900 Black

SIZES: O/S

DEPOWER MAIN LINE + TUBING

ORDER DETAILS

CODE: 85007.240044

COLOUR: 900 Black

SIZES: O/S

HIGH-V SPLIT KIT

Adustable Line Splitter to pair Low-V bar with High-V Kite

ORDER DETAILS

CODE: 85007.240111

COLOUR: 999 Multiple Colour

SIZES: O/S

CLEAT KIT

ORDER DETAILS

CODE: 85007.240109

COLOUR: 999 Multiple Colour

SIZES: O/S

TRIM HANDLE + STOPPER

ORDER DETAILS

CODE: 85007.240104

COLOUR: 999 Multiple Colour

SIZES: O/S

PRODUCT DETAILS

1x Bar, 1x Bar Width Inserts (set of 2 assembled onto bar) 1x Line Winder Bungee (set of 2)

PRODUCT DETAILS Single Quick Release (no loop)

PRODUCT DETAILS 1x Bearing, 1x 1mm Washer

PRODUCT DETAILS 1x Security Finger, 1x M4x17 Screw

PRODUCT DETAILS Single Grommet

PRODUCT DETAILS

1x Depower Main Line with 5x8 Tube, 1x Spinning Handle Top

PRODUCT DETAILS

*Compatible with Navigator / Navigator Pro

PRODUCT DETAILS

Cleat, Base, 2x Screws

PRODUCT DETAILS Handle, Ball with Grub Screw

CONNECT QUICK RELEASE BUNGEE

ORDER DETAILS

CODE: 85007.240039

COLOUR: 900 Black

SIZES: O/S

BAR WIDTH INSERTS + LEADER LINES

ORDER DETAILS

CODE: 85007.240053

COLOUR: 999 Multiple Colour

SIZES: O/S

LINE WINDER BUNGEE

ORDER DETAILS

CODE: 85007.240052

COLOUR: 900 Black

SIZES: M, L

LANDING LINE

ORDER DETAILS

CODE: 85007.240057

COLOUR: 999 Multiple Colour

SIZES: O/S

LANDING LINE TUBE WITH INSERTS

ORDER DETAILS

CODE: 85007.240058

COLOUR: 900 Black

SIZES: O/S

FREESTYLE LEASH RING

ORDER DETAILS

CODE: 85007.240028

COLOUR: 909 Steel Grey

SIZES: O/S

HANDLEPASS LEASH

ORDER DETAILS

CODE: 85005.240026

COLOUR: 965 Black/Red

SIZES: O/S

STANDARD LEASH

ORDER DETAILS

CODE: 85005.240027

COLOUR: 965 Black/Red

SIZES: O/S

PRODUCT DETAILS Bungee, Cap

PRODUCT DETAILS

2x Bar Width Inserts left and right, Leader Lines green and red (assembled)

PRODUCT DETAILS

2x Line Winder Bungee with Tabs

PRODUCT DETAILS

Landing Line, Leash Swivel Ring, Stopper Ball

PRODUCT DETAILS

Landing Line Tube 7x 10mm, 1x Spinning Handle Top, 1x Cleat Base

PRODUCT DETAILS

Freestyle Leash Ring not included

*Compatible with Navigator Pre-2024 / Pro

PRODUCT DETAILS

*Compatible with Navigator Pre-2024 / Pro

PRE-2024 CONTROL SYSTEM PARTS

NAVIGATOR

CONTROL BAR WITH LEADERS

ORDER DETAILS

CODE: 85007.220107

COLOUR: 999 Multiple Color

SIZES: 38-43, 45-50, 50-55cm

CONNECT QUICK RELEASE

ORDER DETAILS

CODE: 85007.220038

COLOUR: 965 Black/Red

SIZES: O/S

POWER BRACKET

ORDER DETAILS

CODE: 85007.200048

COLOUR: 902 Black Sand

SIZES: O/S

CONNECT SECURITY FINGER

ORDER DETAILS

CODE: 85007.220032 (SHORT)

COLOUR: 900 Black

SIZES: O/S

ORDER DETAILS

CODE: 85007.220033 (STANDARD)

COLOUR: 900 Black

SIZES: O/S

QUICK RELEASE GROMMET

Set of 10

ORDER DETAILS

CODE: 85007.220040 (SINGLE)

COLOUR: 900 Black

SIZES: O/S

LOCKGUARD

Set of 10

ORDER DETAILS

ORDER DETAILS

CODE: 85007.220041 (SET OF 10)

COLOUR: 900 Black SIZES: O/S

SAFETY RING W/ PULL TAB

CODE: 85007.200119

COLOUR: 902 Black Sand

SIZES: O/S

RELEASE MECHANISM

ORDER DETAILS

CODE: 85007.210103

COLOUR: 909 Steel Grey

RELEASE PIN O-RING

Set of 10

ORDER DETAILS

CODE: 85007.210102

COLOUR: 900 Black

SIZES: O/S

DEPOWER MAIN LINE + TUBING

ORDER DETAILS

CODE: 85007.210044

COLOUR: 900 Black

SIZES: O/S

CLEAT KIT

ORDER DETAILS

CODE: 85007.200109

COLOUR: 999 Multiple Colour

SIZES: O/S

CONNECT QUICK RELEASE BUNGEE

ORDER DETAILS

CODE: 85007.220039

COLOUR: 900 Black

SIZES: O/S

BAR WIDTH INSERTS

Set of 2

ORDER DETAILS

CODE: 85007.220050 (2021-2022)

COLOUR: 999 Multiple Colour

SIZES: O/S

TRIM HANDLE + STOPPER

ORDER DETAILS

CODE:

COLOUR: 900 Black

SIZES: O/S

ELASTICATED

TRIM LINE

ORDER DETAILS

CODE: 85007.210045

COLOUR: 900 Black

SIZES: O/S

LANDING LINE

ORDER

CODE:

COLOUR:

SIZES:

MODULAR SPRING PLATE

ORDER

CODE:

COLOUR:

SIZES: O/S

FREESTYLE

LEASH RING

ORDER

COLOUR: 909 Steel Grey

SIZES: O/S

LEADER LINE

Set of 2

ORDER DETAILS

CODE: 85007.210047

COLOUR: 999 Multiple Color

SIZES: O/S

PRE-2024 CONTROL SYSTEM PARTS

SHORT THROW LANDING LINE

ORDER DETAILS

CODE:

COLOUR: 800 Grey

SHORT THROW TRIM HANDLE + STOPPER

ORDER DETAILS

CODE:

COLOUR: 999 Multiple Colour

SIZES: O/S

SHORT THROW DEPOWER MAIN LINE + TUBING

ORDER DETAILS CODE:

COLOUR: 900 Black SIZES: O/S

SHORT THROW BAR WIDTH INSERTS + LEADER LINES

ORDER DETAILS CODE:

COLOUR: 999 Multiple Colour SIZES: O/S

LINE WINDER BUNGEE

ORDER DETAILS

CODE:

COLOUR: 999 Multiple Color

SIZES: S, M, L

DETAILS

PRODUCT

CONNECT INTERLOOPS

NAVIGATOR PRO:

FREERIDE LOOP PRO

Included with Navigator Pro

ORDER DETAILS

CODE: 85007.240024

COLOUR: 900 Black

SIZES: O/S

SURF SLIDER LOOP PRO

For Navigator Pro with Rope Harness

ORDER DETAILS

CODE: 85007.240025

COLOUR: 900 Black

SIZES: O/S

FREESTYLE LOOP PRO

For Navigator Pro (comes with Freestyle Leash Ring)

ORDER DETAILS

CODE: 85007.240026

COLOUR: 900 Black

SIZES: O/S

NAVIGATOR PRE-2024:

STANDARD FREERIDE LOOP

ORDER DETAILS

CODE: 85007.220023

COLOUR: 900 Black

SIZES: O/S

STANDARD FREESTYLE LOOP

ORDER DETAILS

CODE: 85007.220030

COLOUR: 900 Black

SIZES: O/S

LONG FREESTYLE LOOP

ORDER DETAILS

CODE: 85007.220024

COLOUR: 900 Black

SIZES: O/S

SHORT FREERIDE LOOP

ORDER DETAILS

CODE: 85007.220022

COLOUR: 900 Black

SIZES: O/S

SLIDE SURF LOOP

ORDER DETAILS

CODE: 85007.220025

COLOUR: 925 Black/Silver

SIZES: O/S

PRODUCT DETAILS

1x Loop with Lockguard Safety Tab

PRODUCT DETAILS

1x Loop with Lockguard Safety Tab

PRODUCT DETAILS

1x Loop with Lockguard Safety Tab

*Freestyle Loop includes Freestyle Leash Ring

PRODUCT DETAILS

1x Loop with Finger (Fitted with size ‘M’

Connect Security Finger & 1x LockGuard)

2x Spare LockGuard

PRODUCT DETAILS

1x Loop with Finger (Fitted with size ‘M’

Connect Security Finger & 1x LockGuard), 2x Spare LockGuard

PRODUCT DETAILS

1x Long Freestyle Loop (Fitted with 1x LockGuard), 2x Spare LockGuard,

1x Freestyle Leash Ring (SS316 Polished),

1x 20cm Long Assembly Line

PRODUCT DETAILS

1x Short Freeride Loop with Finger (Fitted with size ‘S’ Connect Security Finger & 1x LockGuard), 2x Spare LockGuard

PRODUCT DETAILS

1x Slide Surf Loop (Fitted with 1x LockGuard), 2x Spare LockGuard

LINES

NAVIGATOR PRO:

2M PRO LINE EXTENSIONS

ORDER DETAILS

CODE: 85007.240062

COLOUR: 631 Green/Grey

SIZES: 2m

6M PRO LINE EXTENSIONS

ORDER DETAILS

CODE: 85007.240063

COLOUR: 631 Green/Grey

SIZES: 6m

8M PRO LINE EXTENSIONS

ORDER DETAILS

CODE: 85007.240041

COLOUR: 631 Green/Grey

SIZES: 8m

22M PRO LINE SET

PRODUCT DETAILS

2x 2m Ø1.55mm Grey Front Lines

2x 2m Ø1.33mm Green Rear Lines

PRODUCT DETAILS

2x 6m Ø1.55mm Grey Front Lines

2x 6m Ø1.33mm Green Rear Lines

PRODUCT DETAILS

2x 8m Ø1.55mm Grey Front Lines

2x 8m Ø1.33mm Green Rear Lines

ORDER DETAILS

CODE: 85007.240042

COLOUR: 631 Green/Grey

SIZES: 22m

NAVIGATOR PRE-2024:

2M LINE EXTENSIONS

ORDER DETAILS

CODE: 85007.240061

COLOUR: 631 Green/Grey

SIZES: 2m

6M LINE EXTENSIONS

ORDER DETAILS

CODE:

COLOUR: 631 Green/Grey

SIZES: 6m

10M SHORT LINE SET

ORDER DETAILS

CODE: 85007.200041

COLOUR: 631 Green/Grey

SIZES: 8m + 2m

22M LINE SET

12 + 10M 12 + 10M

ORDER DETAILS

CODE:

COLOUR: 631 Green/Grey

SIZES: 12

PRODUCT DETAILS

2x 12m Ø1.55mm Grey Front Lines, 2 x 10m Ø1.55mm Grey Front Lines

2x 12m Ø1.33mm Green Rear Lines, 2x 12m Ø1.33mm Green Rear Lines

1x Fixed Stopper Loop

Lines

2x 2m Ø1.55mm Green Rear Lines

BOARD & BINDING PARTS

TWINTIP ACCESSORY KIT

FLARE TWINTIP ACCESSORY KIT

TWINTIP HARDWARE SCREWS

TWINTIP FIN WASHERS

TWINTIP HANDLE

TWINTIP HANDLE EXTENSION

GRAB-IT TWINTIP GRAB RAIL

GRUB SCREW KIT (FCS)

COLOUR:

NORTH HEXCEL COREMAT FINSET

COLOUR:

FREE STRAP SELF-TAPPING SCREWS

Set of 5

ORDER DETAILS

CODE: 85008.240112

COLOUR: 909 Steel Grey

SIZES: O/S

FREE STRAP M6 SCREWS (SENSE)

2x Set of 5

ORDER DETAILS

CODE: 85008.240110

COLOUR: 900 Black

SIZES: O/S

FREE SURF STRAP WASHERS

Set of 5

ORDER DETAILS

CODE: 85008.240114

COLOUR: 900 Black

SIZES: O/S

FREE FOIL STRAP WASHERS

ORDER DETAILS

CODE: 85008.240115

COLOUR: 900 Black

SIZES: O/S

FREE-V

FOIL STRAP WASHERS

Set of 5

ORDER DETAILS

CODE: 85008.240120

COLOUR: 900 Black

SIZES: O/S

FREE-LO STRAP WASHERS

Set of 5

ORDER DETAILS

CODE: 85008.230121

COLOUR: 900 Black

SIZES: O/S

ANKLE LEASH

ORDER DETAILS

CODE: 85005.240031

COLOUR: 900 Black

SIZES: O/S

PRODUCT DETAILS

PRODUCT DETAILS

PRODUCT DETAILS

PRODUCT DETAILS

PRODUCT DETAILS

PRODUCT

FOIL PARTS

SONAR MARINE GREASE

ORDER DETAILS

CODE:

COLOUR: 999 Multiple Colour

SIZES: O/S

DROPBOX THUMB SCREW PACK

ORDER

SENSE FOIL BOARD SCREW PACK

Prevent corrosion, screw seizure and jamming Extend the lifespan of your Sonar Foil System, tools and hardware

Re-application recommended each time you assemble your Sonar Foil System.

DROPBOX 23MM SCREW PACK

DROPBOX 25MM SCREW

ORDER

DROPBOX 30MM SCREW PACK

SONAR BOARD ADAPTOR SCREW PACK A

SONAR FUSELAGE SCREW PACK B

ORDER

SONAR CARBON FUSELAGE SCREW PACK B2

SONAR WING SCREW PACK D (M8X25)

SONAR SCREW PACK H (M8X23)

Replacement Strut Bladder Size Guide

Replacement Bladders can be selected by measuring the existing bladder from the valve to the end of the TPU Bladder.

Reach Strut Bladder Sizes

STRUT

BLADDER

Carve Strut Bladder Sizes

Pulse Strut Bladder Sizes

Code Zero Strut Bladder Sizes

2024 Range Overview

CODE: 85000.240008

CODE: 85002.240026

CODE: 85003.240031

CODE: 85003.240032

CODE: 85007.240026

CODE: 85000.240001

CODE: 85002.240024

CODE: 85000.240002

CODE: 85012.240004

CODE: 85002.240025

CODE: 85012.240006

CODE: 85007.240025

CODE:

CODE: 85005.240070

Pro Freestyle Loop

Pro Surf Slider Loop

Sonar Range Overview

CODE: 85004.240070

CODE: 85004.240089

CODE: 85004.230100

CODE: 85004.240066

CODE: 85004.240086

CODE: 85004.230104

CODE: 85004.230101

CODE: 85004.230095

Sonar HA550

Sonar HA650

Sonar MA700v2

Sonar MA850v2

Sonar HA950

Carbon

Aluminium

Sonar S178

HM Carbon Mast

CODE: 85004.240071

Fuselage Aluminium

CODE: 85010.210085

SIZES: A600

Fuselage Carbon

CODE: 85010.210086

Sonar MA1050v2

CODE: 85004.240090

SIZES: C600

Sonar MA1200v2

CODE: 85004.240091

Sonar HA750

CODE: 85004.230102

Sonar S208

CODE: 85004.230094

Sonar HA850

CODE: 85004.230103

Sonar S210

CODE: 85004.220090

Credits

Production

North

Photography

Andy Troy

Frankie Bees

Graeme Murray

Miles Taylor

Additional Photographers

Adam Sims

Kyle Cabano

Slater Neborsky

All artwork, styling and design by North Actionsports Group B.V.

Published by North Actionsports. All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any information storage and retrieval system without permission in writing from North Actionsports Group, Auckland, New Zealand. marketing@northasg.com
