NORTH FOILS PRODUCT PREVIEW | 2024.2

NORTH FOILS CATA LO G UE

20 24 . 2

2

W E C HAS E T HI S F EEL I N G

AWAKEN THE VOYAGER WITHIN

When the world says slow down, RUN. When others stumble, FLY Let go of effort, BE. I won’t play by your rules.

I won’t stay between four walls.

I don’t have time to sit still.

Let me go.

Let me ride.

I will live free.

RUN. FLY. BE.

northfoils.com

3

4

2 02 4 P R OD U CT CATALOGU E F OIL S

Where wind meets water.

Where nature meets technology.

Where sport meets spirit.

North lives at the intersection of wind and water. Both elements are fundamental and defining, and our new 2024 Collection proudly bears the shared horizon icon that embodies these two elements. ​

North’s legacy in innovation represents features and benefits that transcend performance sailing, kiting and foiling. Lowell’s clear purpose, creativity and competitive spirit continues to inspire our designs today. ​

​ t North, we don’t follow currents, we work with the latest A technologies and brightest minds to make our own. We draw upon the expertise of the world’s leading sailmaker, North Sails, to bring the latest innovations to kite and foil.

“You make history by looking ahead.”​ – Lowell North, Founder North Sails. Est. 1957​

North was established in 1957 when Olympic gold medalist and aerospace engineer, Lowell North, sought to change the world of sailing through precision technology. We are dedicated to design, engineering and performance leadership in the marine world.

The company employs over 50 advanced degree engineers worldwide, and our excellence in engineering and science has led to cooperative development projects with aeronautics companies, Formula 1 racing and NASA.​

In 2024 we see our brand identity evolve to embody the next chapter—the chapter where the innovating spirit of Lowell North permeates through all corners of the North organisation. One where we understand the exponential power of working together as one united, visionary and responsible community. ​ ​ hen you choose North, you not only choose products designed W for ease of use, high performance and a low warranty rate. You join us on the journey.​ ​ ngineered. Refined. Intuitive.​ E There is only one North.

northfoils.com

5

6

Contents 01

WINGS

14

02

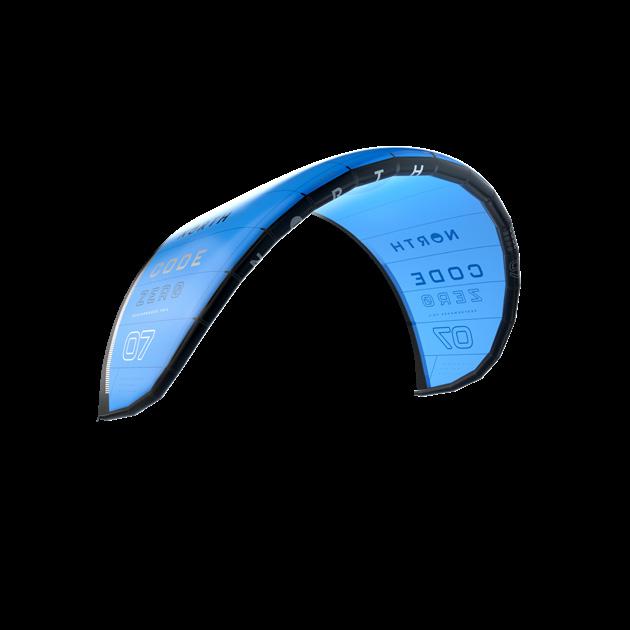

KITE FOIL

66

03

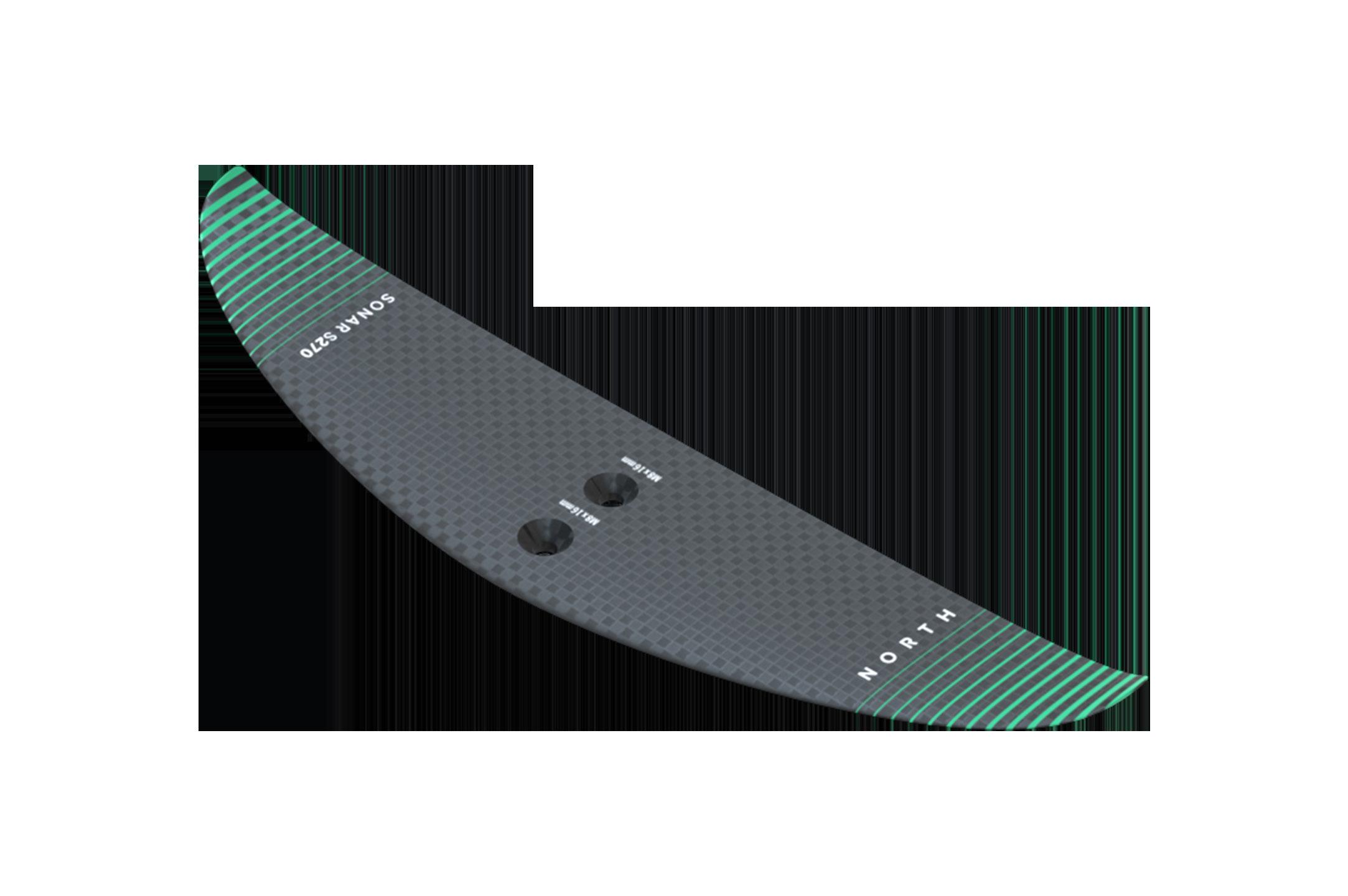

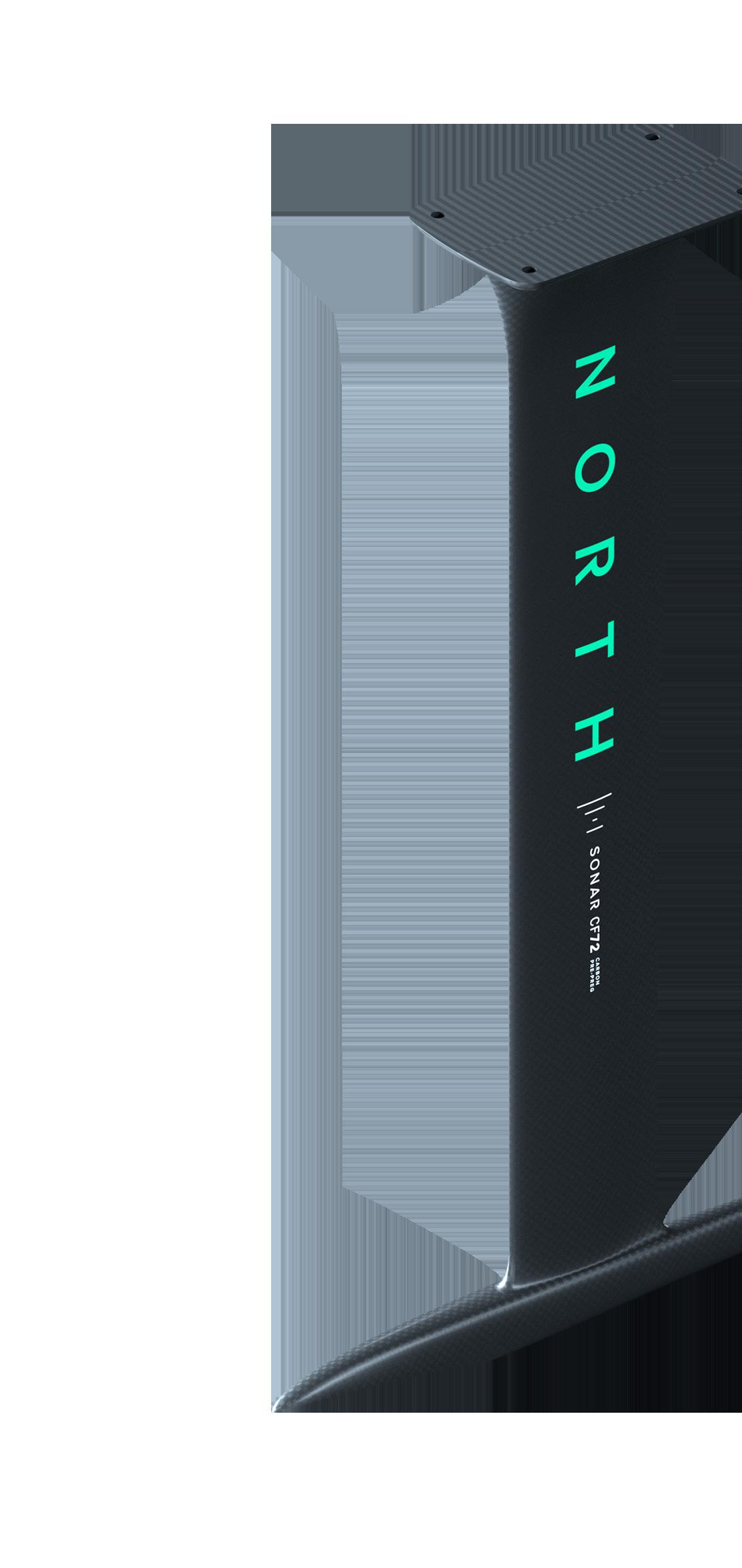

SONAR FOILS

80

04

FOILBOARDS

132

05

LANDBOARDS

162

06

ACCESSORIES

172

07

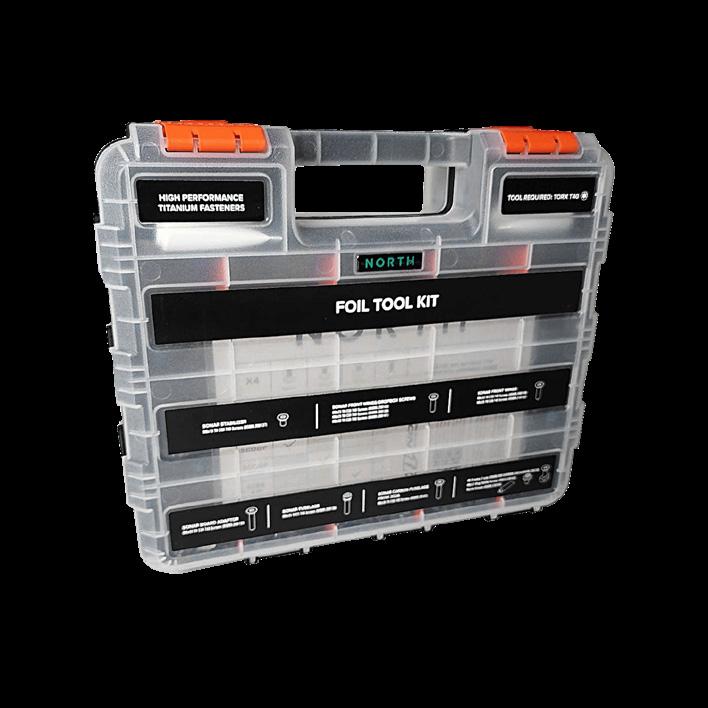

TOOLS & MAINTENANCE

194

08

LIFESTYLE

204

09

POS/DEMO/EVENTS

220

10

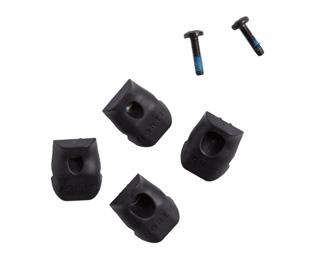

SPARE PARTS

230

11

2024 RANGE OVERVIEW

244

12

SONAR FOILS OVERVIEW

246

northfoils.com

7

Ultra / Pro / Classic A new tier system to champion our highest-performance products.

With Pro and Ultra we continue to advance material technology.

Always seeking the lightest, stiffest, most direct and responsive solutions, so riders can have the confidence to push harder, higher and faster than ever in both extreme conditions and lighter winds.

Classic represents the iconic quality, durability and ease of use we associate with all North equipment.

Engineered. Refined. Intuitive.

8

ULT RA

P RO

CLAS S IC

northfoils.com

9

10

At North, we’re always looking for more.

We seek change. We pursue progress.

The Ultra Series represents the pinnacle of material technology. Ultimate precision.

Highest performance. Fastest speed.

Lightest, most direct handling. Designed for advanced riders.

Mode Ultra northfoils.com

11

Since its founding in 1957, North has been dedicated to creating equipment that enhances your time on the water. The Pro Series is the next level of development that champions more advanced materials and technology.

Nova Pro 12

Mode Pro

Loft Pro

northfoils.com 1 3

14

Wings 01

MODE ULTRA MODE PRO LOFT PRO NOVA PRO NOVA

18 24 34 38 52

WING LINEUP

NEW

Mode Ultra High Speed Performance N-Weave45 / NXi CODE: 85014.240020

Mode Pro High Speed Performance N-Weave45 / Matrix CODE: 85014.240006

Loft Pro Light Wind N-Weave45 / N-HTRS CODE: 85014.240007

16

2 02 4 P R OD U CT CATALOGU E

NEW W IN GS

Nova Pro Performance Freeride Hybrid N-Weave45 / Hybrid Matrix CODE: 85014.240008

NEW

Nova Freeride Dacron / N-HTRS CODE: 85014.240005

northfoils.com 1 7

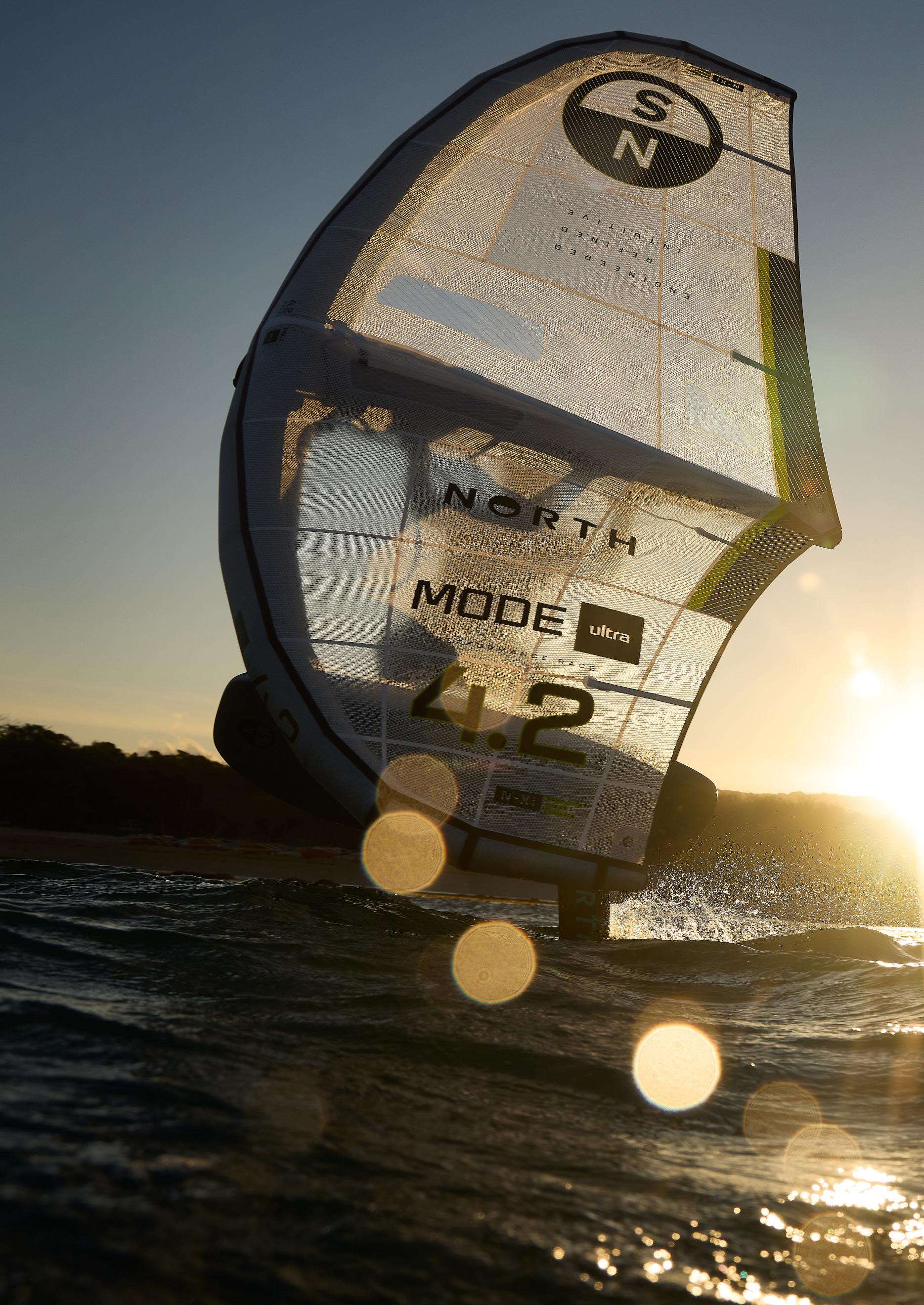

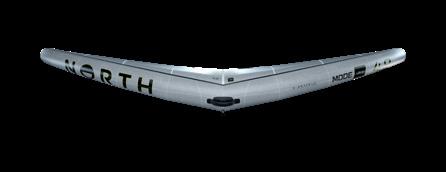

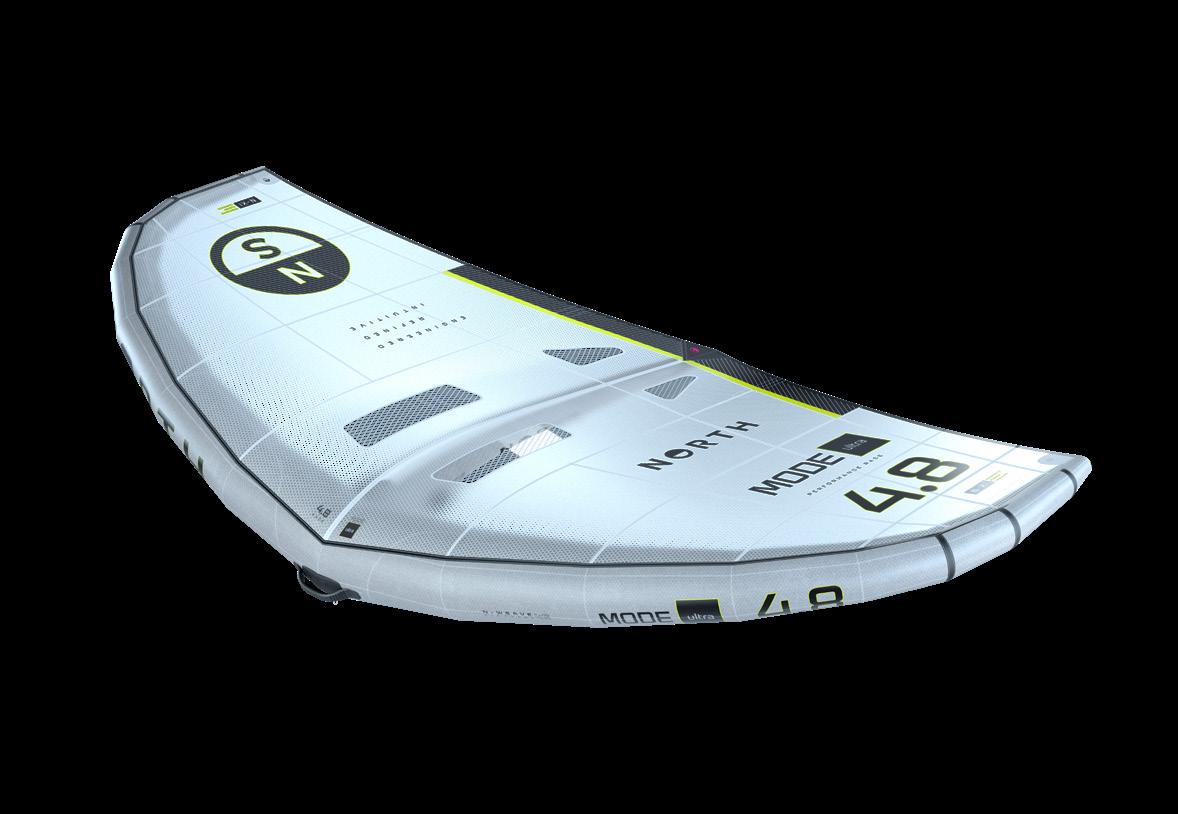

MO DE U LTRA PERFO RMAN C E RAC E 18

2 02 4 P R OD U CT CATALOGU E W IN GS

UNBELI EVA BLY POWE RFU L, IMPOSSIBLY FAST. A powerful and direct high-speed race wing featuring new ultra-stiff N-XI Canopy, an ultra-high modulus composite material, and rigid N-Weave45 airframe.

northfoils.com 1 9

POW E R E D BY

ORDER DETAILS CODE: 85014.240020 SIZES: 100 White 3.5m, 4.2m, 4.8m, 5.5m, 6.5m PRODUCT DETAILS Wing, Carbon Wing Handles, Wrist Wing Leash, Bag, Repair Kit ACCESSORIES (SOLD SEPARATELY) Kite/Wing Pump, Wing Waist Belt, Wing Harness Loop, Carbon Bridge Boom 20

2 02 4 P R OD U CT CATALOGU E

Mode

NEW

Performance Race with N-Xi Rigid and direct – feel every micro-gust Pinch higher, reach deeper - VMG-optimised Ultra-stiff and durable with impressive shape-hold Carbon UDi Technology Race tough with improved blade-resistance UV-tested and performance-proven in race sails Designed for use with a Wing Harness

W IN GS

• • • • • • •

TO G E THE R WITH

Wind Range* 3.5

16-36

4.2

12-32

4.8

9-26

5.5

7-24

6.5

6-20

*Mode Ultra recommended wind range is for an advanced rider around 75kg northfoils.com 2 1

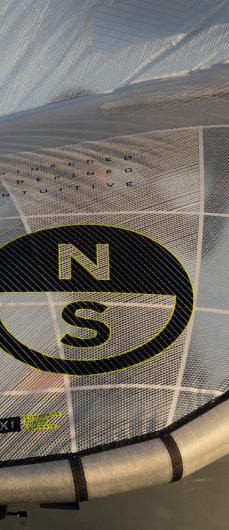

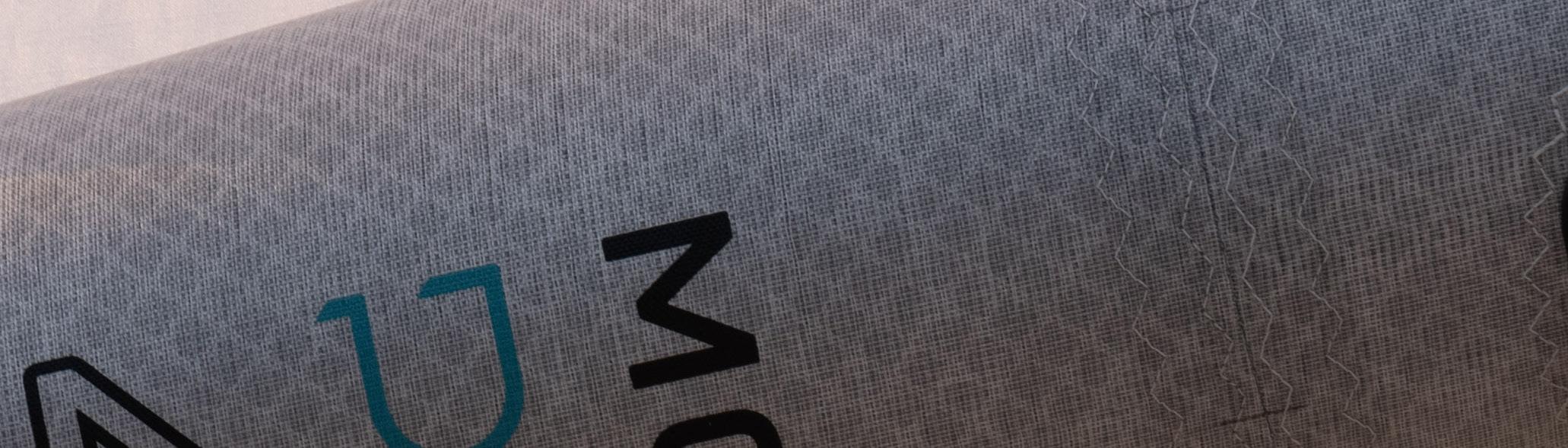

N-Xi is our latest North Sails Advanced Textile Technology. The high-performance canopy material is engineered from two 66% recycled laminate films, sandwiched around UHMWPE fibres laid in the 0 direction and +/- 60-degree direction, making it ultrastiff in three directions. We’ve orientated the Mode Ultra’s panel layouts to take advantage of these fiber directions.

22

Weight

Stiffness warp (0) tensile test

Stiffness weft/fill (90) tensile test

Stiffness 45deg/bias stretch test

N-Xi

77gsm

4.28 (10lbs)

6.21 (10lbs)

1.2 (2.5lbs)

Matrix

89gsm

4.74 (10lbs)

10 (10lbs)

4.0 (2.5lbs)

N-HTRS

52gsm

10.35 (10lbs)

25.64 (10lbs)

40 (2.5lbs)

2 02 4 P R OD U CT CATALOGU E W IN GS

Requires careful handling To keep your Mode Ultra feeling crisp and new for longer, always rinse and dry after each use, and carefully roll the wingtips toward the strut to store – it is important not to fold or crease the canopy.

N-Xi is less brittle than the heavier X-ply used in windsurfers and sails – it creases but won’t break. However, it does require more careful handling than a polyester canopy. northfoils.com 2 3

SPEED M ODE. SE N D MOD E . YOU R MOD E .​ For high-speed performance, efficiency is key. We’ve engineered Mode, our high-speed performance wing, with high tensile strength N-Weave45 x-ply reinforced woven fibre airframe and Matrix N-HTRS canopy to create a stiffer, lighter and more durable wing without geometric compromise.​

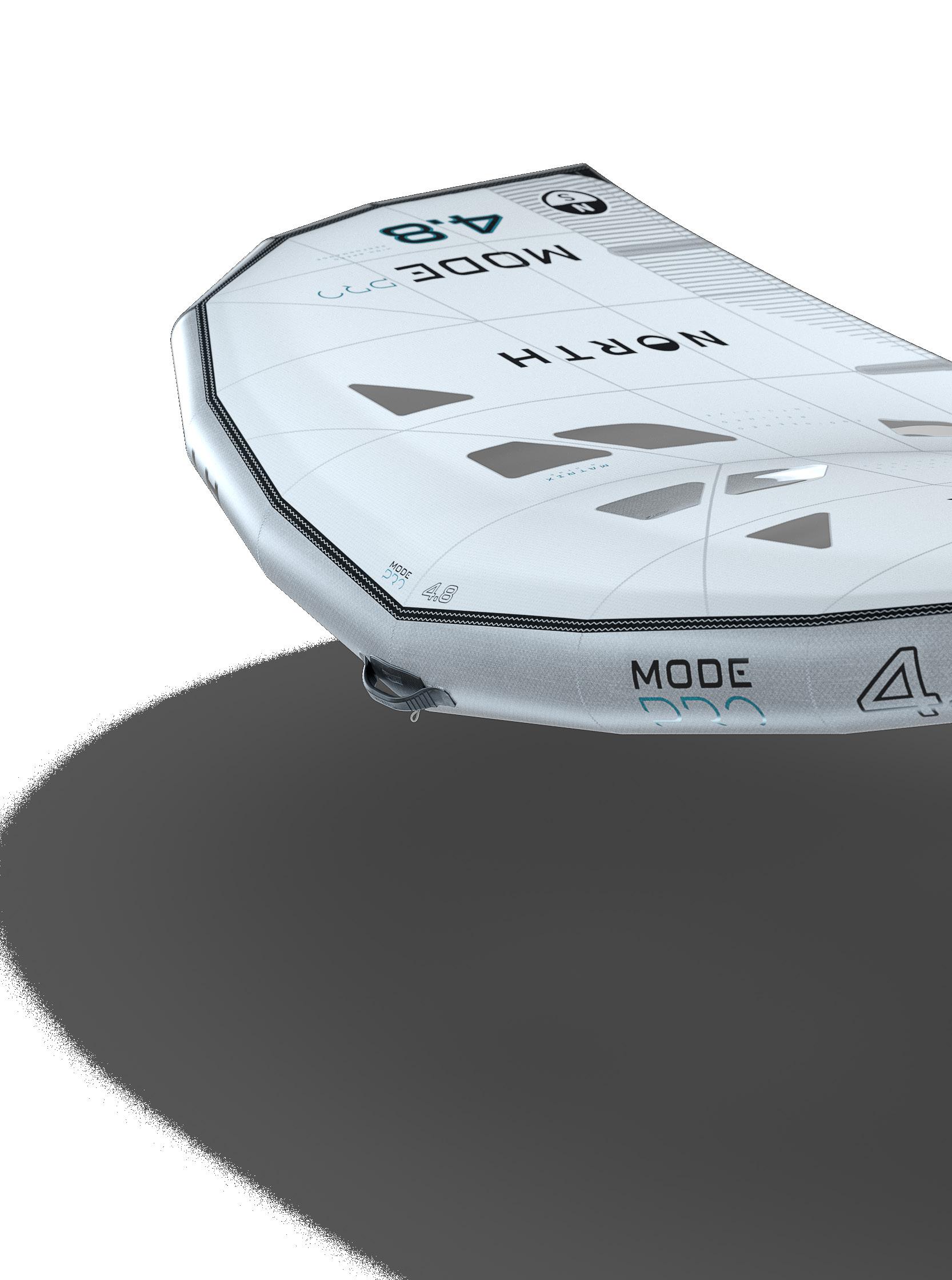

MO DE PRO HIG H SP E E D P E RFORMAN C E 24

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 2 5

POW E R E D BY

N-Weave45 reduces structural deflection and transfers wind energy into greater forward speed, explosive boost and hangtime for freestyle tricks. ​

ORDER DETAILS CODE: 85014.240006 SIZES: 100 White 3.5m, 4.2m, 4.8m, 5.5m, 6.8m PRODUCT DETAILS Wing, Carbon Wing Handles, Wrist Wing Leash, Repair Kit, Wing Bag​ ACCESSORIES (SOLD SEPARATELY) Kite/Wing Pump, Wing Harness Loop, Waist Belt with Wing Leash​, Carbon Bridge Boom 26

2 02 4 P R OD U CT CATALOGU E

Mode

High Speed Performance N-Weave45 Airframe​ Matrix N-HTRS Canopy​ Improved structural integrity​ Stiffer form​ Highly efficient power delivery ​ Rigid Carbon GripLock handles​

W IN GS

• • • • • •

TO G E THE R WITH

​ ew low-stretch, low-deflection Matrix N-HTRS N high-tenacity canopy material manages the added tension of the N-Weave45 airframe, further increasing the wind range, holding its shape in all conditions and resisting foil tears.

Wind Range* 3.5

22-36+

4.2

17-33

4.8

15-30

5.5

12-27

6.8

7-22

*Recommended wing size is also dependent on rider height, ability and foil setup.​ northfoils.com 2 7

30% lighter

3x stiffer

on the 0˚ warp direction

45˚

2x torsionally stiffer on the 45˚ bias direction​*

*Compared to a traditional Dacron (176gsm)

28

Mode Pro / Loft Pro

2 02 4 P R OD U CT CATALOGU E W IN GS

New high tensile strength woven fiber with​x-ply reinforcement​.

northfoils.com 2 9

New MATRIX stretch-resistant canopy material.​ ​​

30

2 02 4 P R OD U CT CATALOGU E W IN GS

• Specifically designed to handle higher loads of N-Weave45 frame • Maximum strength and low-deformation​ • Maintains its designed shape in all conditions • Resists foil tears

2.5x stiffer on the 0˚/90˚ warp/weft direction

45˚

5x torsionally stiffer on the 45˚ bias direction​*

*Compared to a traditional canopy material (51gsm)

Mode Pro northfoils.com 3 1

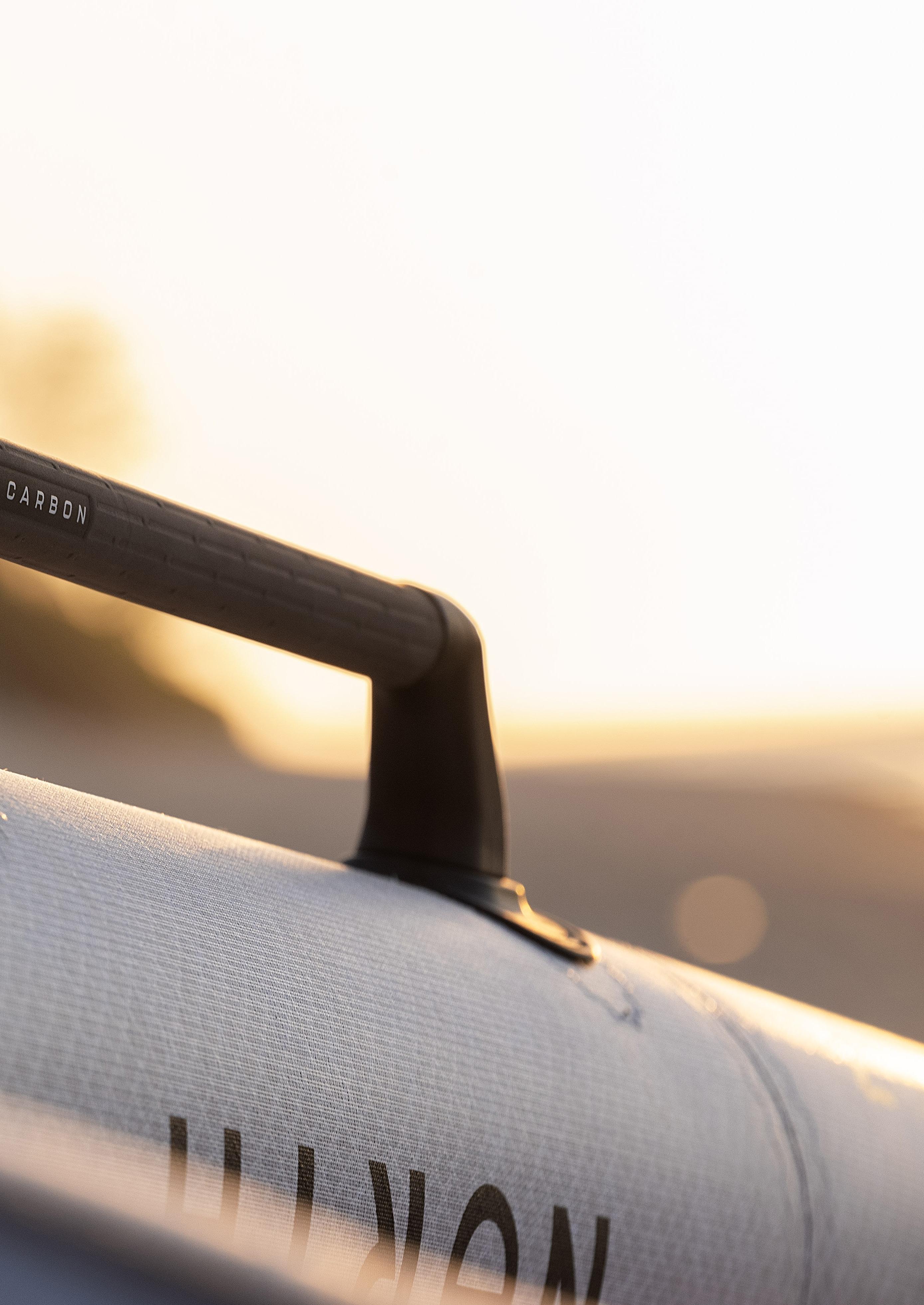

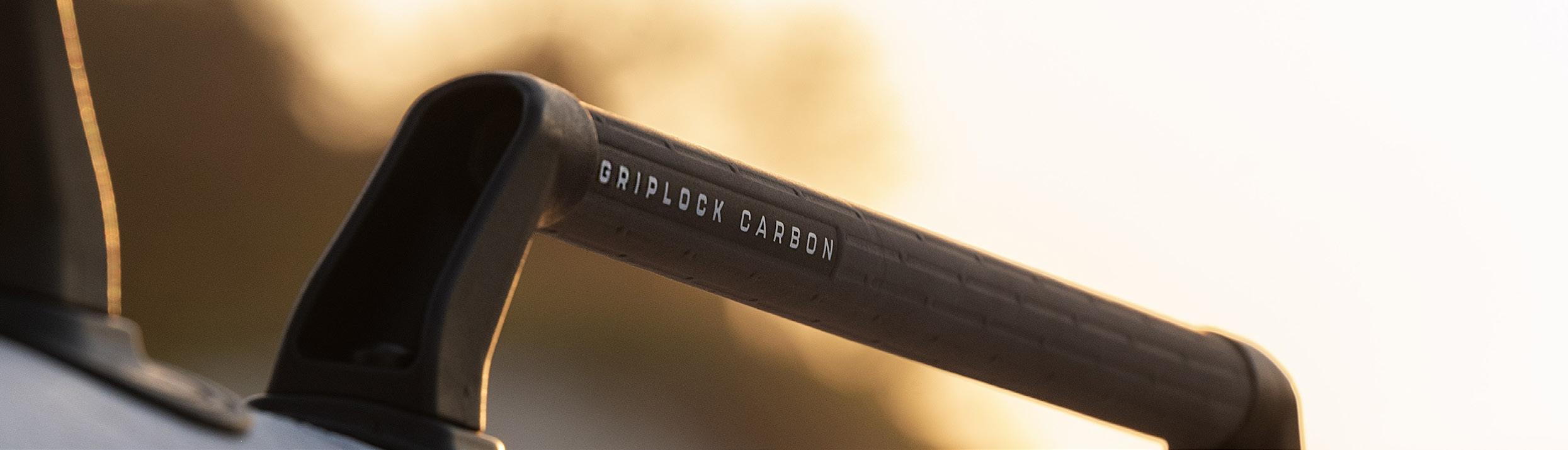

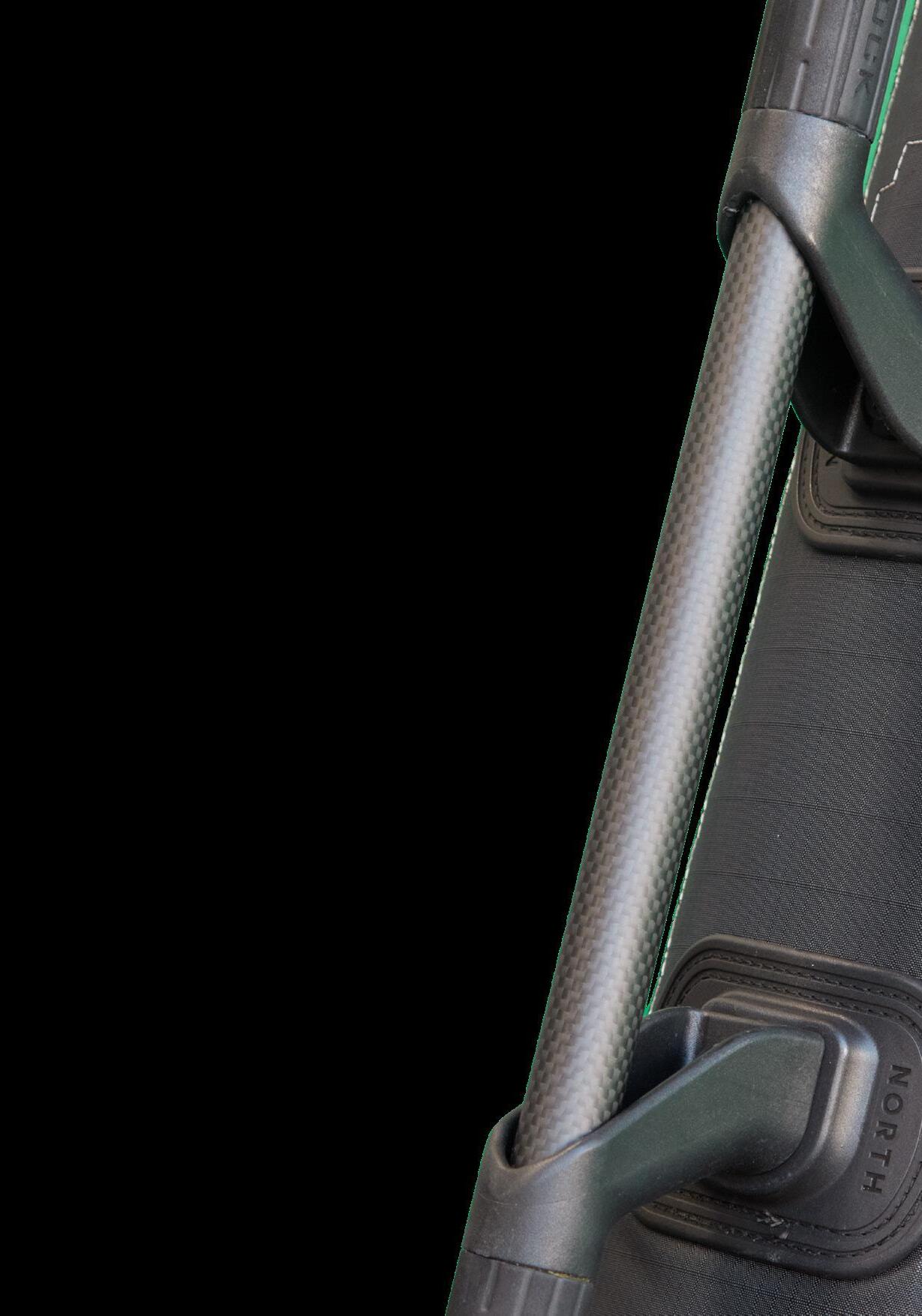

Rigid Carbon GripLock micro-trim control handles for immediate response and intuitive transitions. Radically transform the way you ride with increased control and reduced hand-fatigue. The lightweight carbon trim handles offer a more immediate, direct response and balance adjustment. The two handlebars are wrapped in a soft EVA comfort grip. Their generous length lets you slide your hands into optimum trimming positions so you can instantly control the wing’s pitch, yaw and roll, while keeping your body positioned perfectly over the foil. More freedom in your hand placement allows you to choose the best feel based on the conditions, your arm length and your body size, and makes transitions more intuitive.

Mode Pro / Loft Pro 32

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 3 3

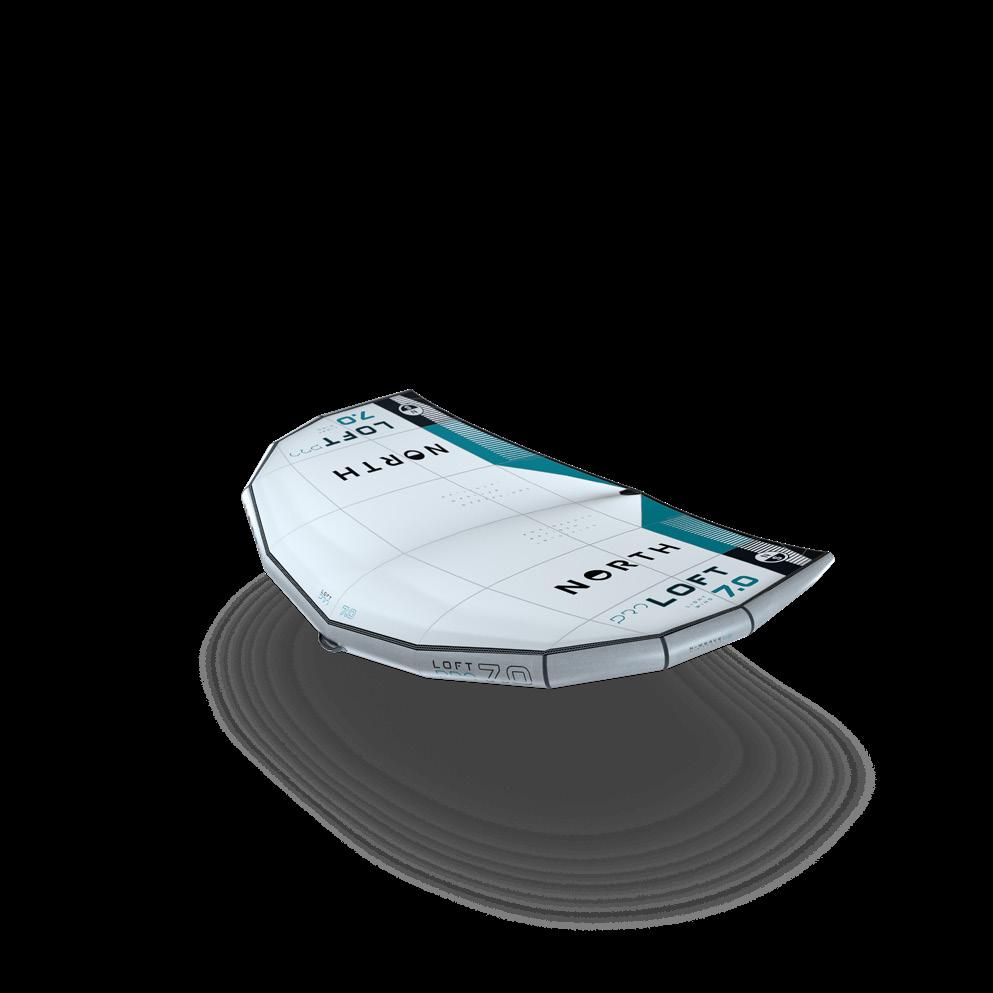

F I R ST UP. STAY U P. The power to unlock borderline sessions, lift you up instantly in the lightest wind and keep you on the foil for longer. Balanced load distribution and lift for easier gybes, tacks and low-speed transitions. Powered by N-Weave45 High Tensile Strength woven fibre with x-ply reinforcement. ​

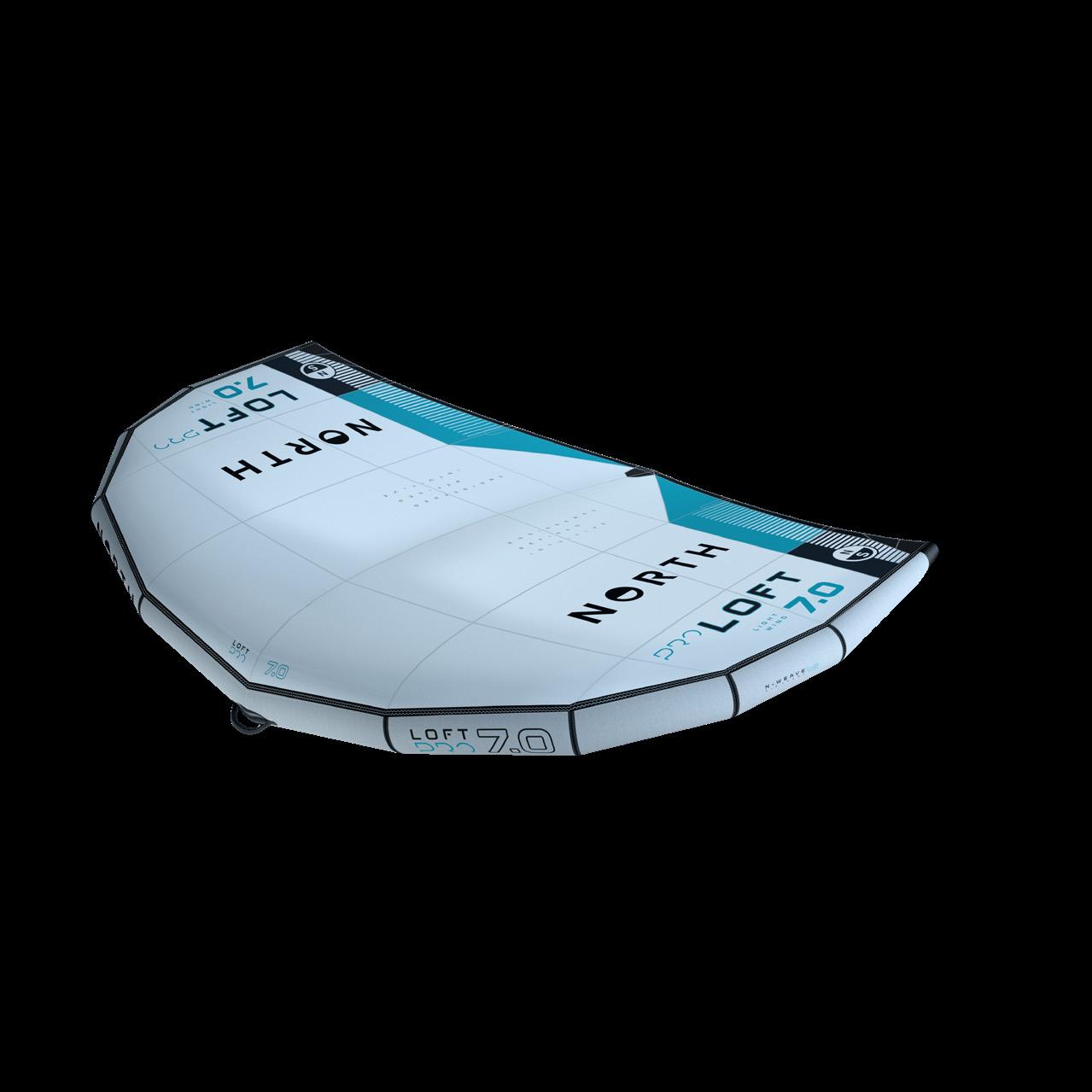

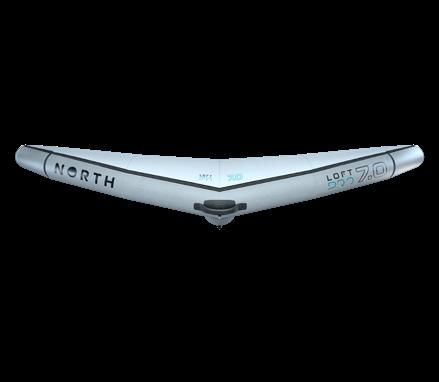

LO F T PRO LIG HT W IN D 34

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 3 5

POWE R E D BY

N-Weave45 High Tensile Strength Woven Fibre with x-ply reinforcement reduces structural deflection and transfers wind energy more efficiently.

ORDER DETAILS CODE: 85014.240007 SIZES: 100 White 7m, 8m PRODUCT DETAILS Wing, Carbon Wing Handles, Wrist Wing Leash, Repair Kit, Wing Bag ACCESSORIES (SOLD SEPARATELY) Kite/Wing Pump, Wing Harness Loop, Waist Belt with Wing Leash, Carbon Bridge Boom 36

2 02 4 P R OD U CT CATALOGU E

Loft Light Wind •

W IN GS

• • • •

Deep profile and stiff frame for most efficient power delivery per m2 ​ N-Weave45 Airframe N-HTRS High Tenacity Ripstop Canopy ​ Rigid Carbon GripLock handles ​ Refined, weight-saving design with lighter handling ​

Wind Range* 7

6-16

60-80kg

8

6-16

>80kg

*Choose wing according to your rider size. Recommended wing size also dependent on rider height, ability and foil setup.​ northfoils.com 3 7

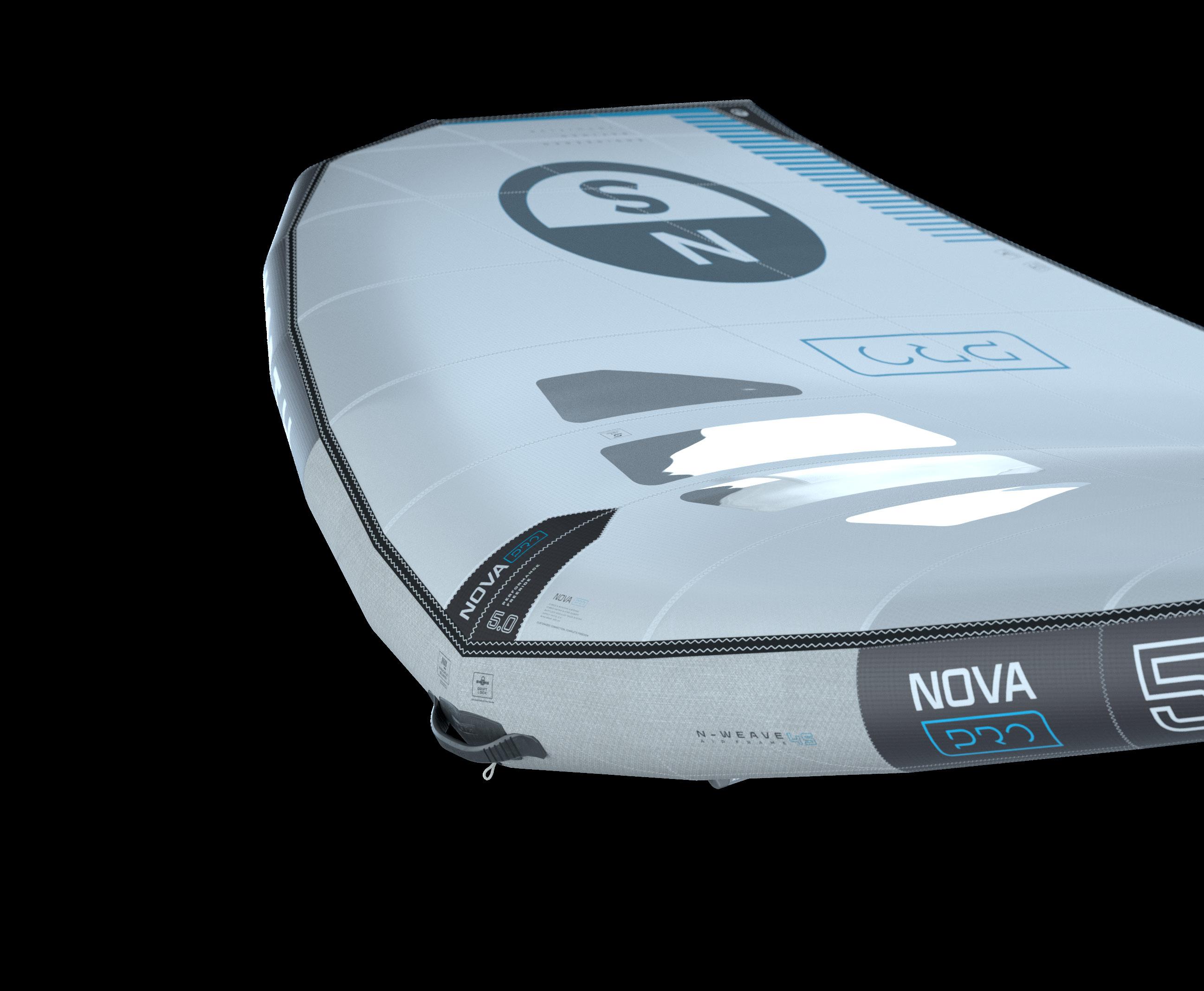

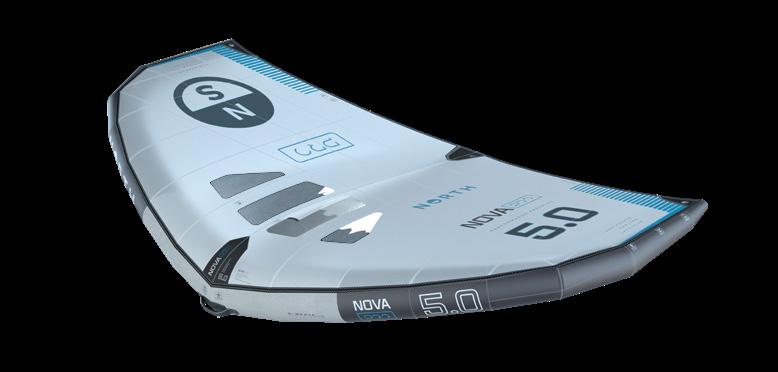

PER F OR MA NC E, MEET SIMP LICIT Y. The Nova Pro, with our industry-first ShiftLock Modular Track Mounting system and Carbon UDi Technology, is for riders ready to crank it up a level. Riders who are bored of mowing the lawns; riders who just want to be out there carving lines in endless ocean swells, boosting or freestylin’. Designed to ignite your creativity and your desire to progress, the Nova Pro is light in your hands and efficient upwind. Its advanced materials, tighter canopy and balanced tensioning provide perfect shape-hold in the upper wind range and improved light wind performance - for the best of both worlds.

NOVA PRO PERFORMAN C E FRE E RID E 38

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 3 9

POW E R E D BY

ORDER DETAILS CODE: 85014.240008 SIZES: 100 White 2.9m, 3.5m, 4.2m, 5m, 6m PRODUCT DETAILS Wing, Wrist Wing Leash, Bag, Repair Kit, Sonar T40 Tool ACCESSORIES (SOLD SEPARATELY) ShiftLock Carbon Wing Handles (250, 400, 500 or Boom 1100mm), Shiftlock Action Camera mount, Kite/Wing Pump, Wing Waist Belt, Wing Harness Loop 40

2 02 4 P R OD U CT CATALOGU E

Nova

NEW

Performance Freeride ShiftLock Modular Track Mounting System Hybrid N-Weave45 Airframe for stiffness where it counts Hybrid Matrix Canopy provides smart tensioning in high-load areas Matrix is 10x stronger than a traditional canopy material Stable, freeride/freestyle-optimised geometry Forgiving Active Twist wingtips for easier manoeuvres Now with anti-deflection carbon UDi technology

W IN GS

• • • • • • •

IN TR O DUCING Modular Track Mounting System Wind Range* 2.9

18-28+

3.5

16-36

4.2

12-32

5

9-26

6

8-24

*Recommended wing size dependent on rider weight, ability and foil setup. northfoils.com 4 1

At North, we understand that when it comes to wing handling, one size does not fit all. The brand-new Nova Pro features our revolutionary ShiftLock Modular Track Mounting System, a patented innovation by North.

42

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 4 3

MOR E POWER . M OR E PE RFORMAN CE . MORE OP T ION S .

ShiftLock gives you the freedom to choose your own handle lengths – 1100 Boom, 500, 400, or 250 handles*. Simply slide the handle mounts into your favourite position, anywhere along the track, for locked-in comfort and precise handling in every condition.

*Handles sold separately

44

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 4 5

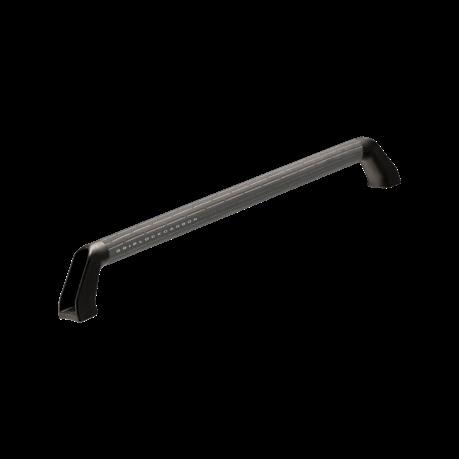

SHIFTLOCK CARBON WING HANDLES Completely customise your wing connection NEW • • • •

Freedom to adjust handle positioning to maximize efficiency Patent pending ShiftLock Modular Track Mounting System for customised wing performance and control Fine-tune your ride with Carbon ShiftLock Handles or Boom (sold separately) Combine 250mm, 400mm, and 500mm handles or opt for the single Boom 1100mm handle

ORDER DETAILS CODE: 85015.240106 COLOUR: 900 Black SIZES: 250, 400, 500, Boom 1100 PRODUCT DETAILS 1x Carbon Handle, 2 x Clamps (threaded), 2x Clamps (screw side), 2x T40 M6x23mm Screws ACCESSORIES (SOLD SEPARATELY) Torx T40 Tool, North Wing Harness Loop 46

2 02 4 P R OD U CT CATALOGU E W IN GS

Recommended Handle Lengths for Nova Pro Front

Rear

2.9

400

400

3.5

400

400

4.2

400

400

5

500

400

6

500

500

Single Handle Weight 250mm

188g +/-2%

400mm

216g +/-2%

500mm

242g +/-2%

Boom 1100mm

335g +/-2%

The 1100 Boom is not compatible with the Nova Pro 2.9m northfoils.com 4 7

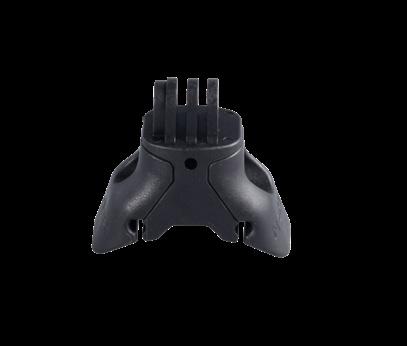

SHIFTLOCK ACTION CAMERA MOUNT For wings with ShiftLock Modular Track System NEW

• • • •

Universal camera mounting accessory Securely locks into any position on the track with sliding adjustment Durable construction and strong hold to withstand high-speed impact Capture unique hands-free footage from your handle position without restricting hand placement

ORDER DETAILS CODE: 85015.240107 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 1x Action Camera Mount, 1x Clamp (threaded side), 1x Clamp (screw side), 1x T40 M6x23mm Screw, 1x Dome Nut ACCESSORIES (SOLD SEPARATELY) Torx T40 Tool 48

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 4 9

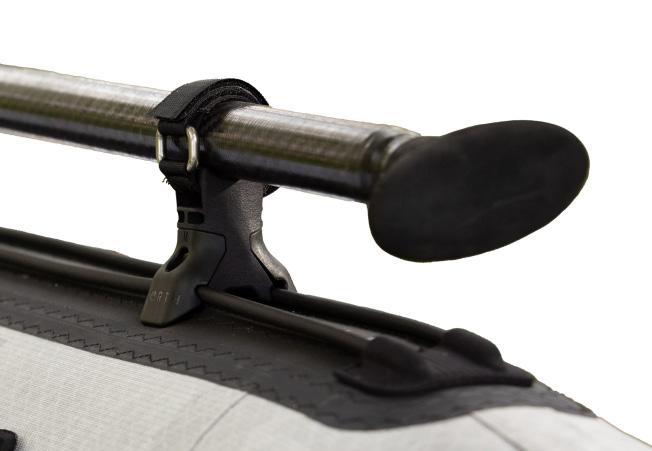

SHIFTLOCK PADDLE MOUNT

For wings with ShiftLock Modular Track System NEW • • • • • •

Stand Up Paddle Shaft Mount Attach a paddle to your ShiftLock system instead of a handle to ride upwind Pack your wing into a small backpack Use the paddle to help catch bumps and ride swell downwind Can also be used for a GoPro Extension Pole Fits most paddle shafts (around Ø30mm)

ORDER DETAILS CODE: 85015.240112 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 2x Paddle Mounts with Velcro fastening, 2x Clamps (threaded), 2x Clamps (screw side), 2x T40 M6x23mm Screws ACCESSORIES (SOLD SEPARATELY) Torx T40 Tool

50

2 02 4 P R OD U CT CATALOGU E

W IN GS

northfoils.com 5 1

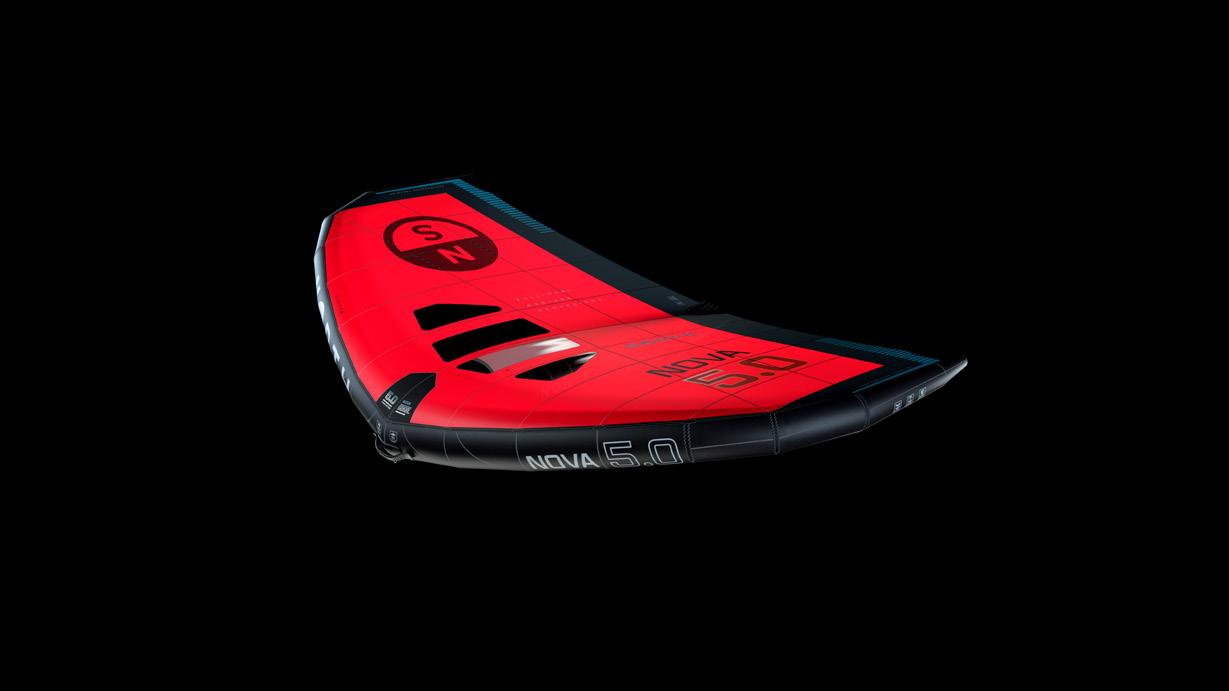

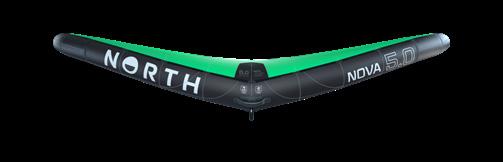

NOVA FREERID E 52

2 02 4 P R OD U CT CATALOGU E W IN GS

YOUR EV ERYT HIN G Master of the upwind, glide through tacks, float through gybes, and lofty jumps with bonus hangtime. The 2024 Nova is a balanced, easyto-use all-round wing with a wide wind range, low-end power, high-end stability and light, intuitive handling. Now with anti-deflection carbon UDi tape wingtip stiffening.

northfoils.com 5 3

ORDER DETAILS CODE: 85014.240005 SIZES: 475 Pacific Blue 2.9, 3.5, 4.2, 5m 629 Marine Green 2.9, 3.5, 4.2, 5, 6m 306 Red Sea 1.9, 2.5, 2.9, 3.5, 4.2, 5, 6m PRODUCT DETAILS Wing, Wing Handles, Wrist Wing Leash, Bag, Repair Kit, Handle Bumper ACCESSORIES (SOLD SEPARATELY) Kite/Wing Pump, Wing Waist Belt, Wing Harness Loop, Carbon Wing Handles, Carbon Bridge Boom 54

2 02 4 P R OD U CT CATALOGU E

Nova

NEW

Freeride

Suits new riders to seasoned pros Anti-deflection carbon UDi technology Effortless upwind performance Intuitive gybes, tacks and transitions Balanced trailering for riding swell Intuitive rigid GripLock handles Independent double chamber HyperFlow Effective wide-angle windows Radial Load Diffuser for even canopy tensioning

W IN GS

• • • • • • • • •

Wind Range* 1.9

6+

2.5

20-40+

2.9

18-38

3.5

16-34

4.2

12-30

5.0

9-24

6.0

9-22

*Recommended wing size dependent on rider weight, ability and foil setup.*1.9m designed for lighter riders (under 50kg) or for skateboard sessions. northfoils.com 5 5

56

2 02 4 P R OD U CT CATALOGU E W IN GS

NEW

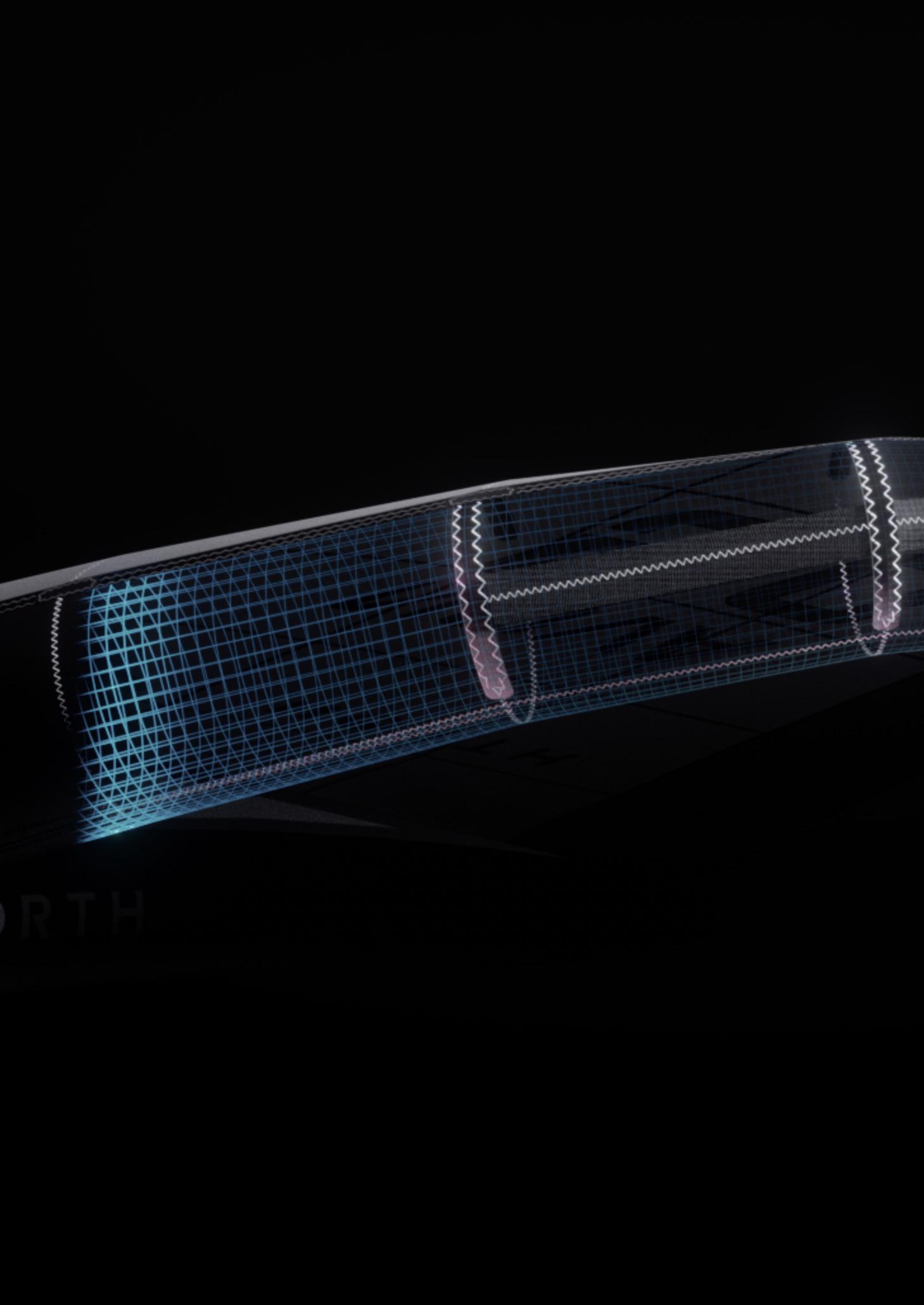

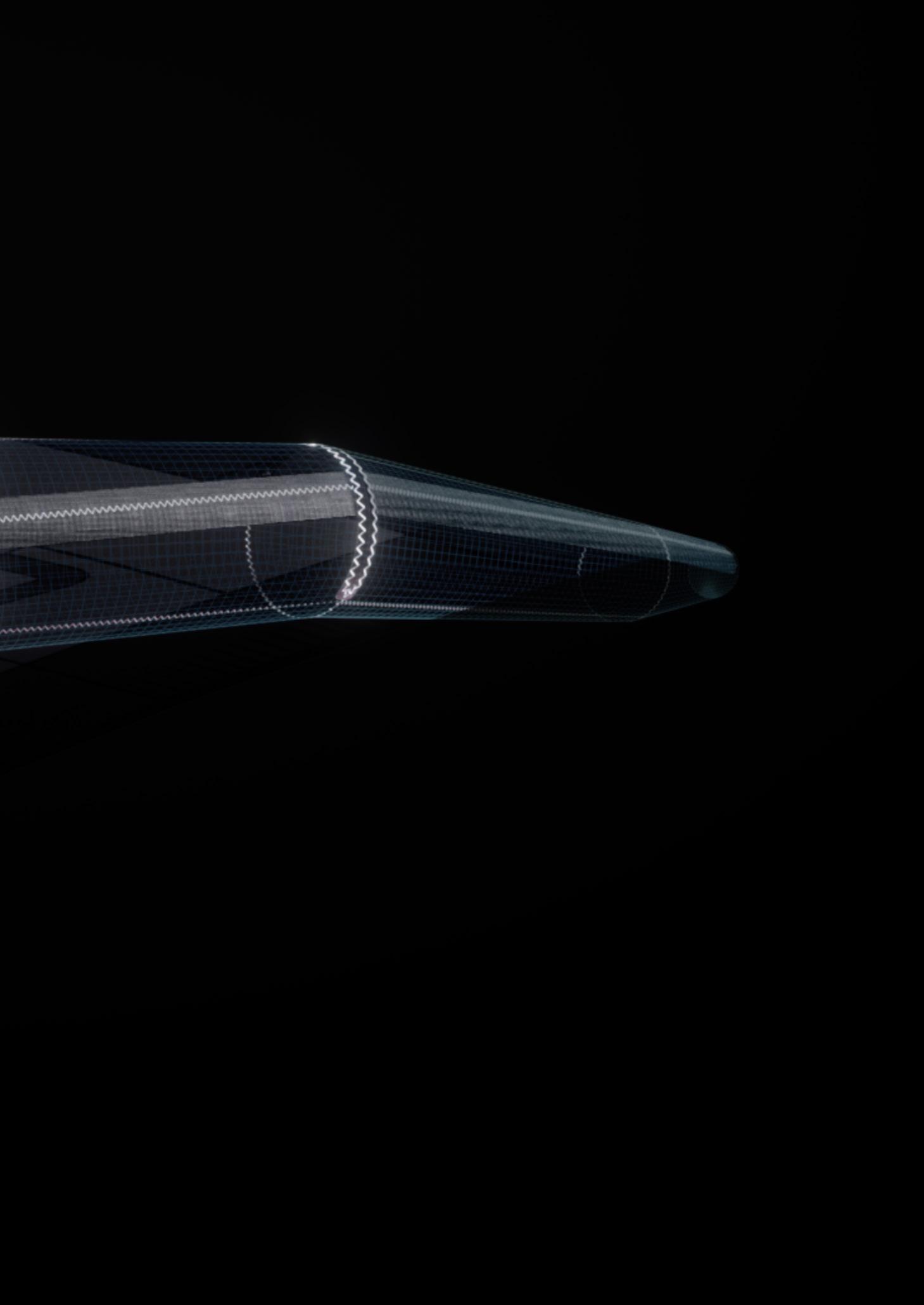

Carbon UDi Technology Chasing stiffness of the inflated airframe, whether locally or globally.

Anti-deflection Carbon UD tapes are placed inside the leading edge on strategic high load areas, to provide additional wingtip stiffening while keeping the wing lightweight and responsive. North Sails is renowned for using this technology in their podium-proven 3Di race sails. We’ve taken the same material and implemented it in the Nova and Nova Pro Wingtips. We’ve engineered the Mode Ultra using the Carbon UDi technology across the entire Leading Edge, from tip to tip, to stiffen out the airframe.

Nova. Nova Pro. Mode Ultra.

northfoils.com 5 7

58

2 02 4 P R OD U CT CATALOGU E W IN GS

NEW

Radial Load Diffuser for even canopy tensioning

The radial load diffuser provides reinforcement at the end of the strut that helps to distribute tension more evenly in defined load directions, ultimately creating a cleaner canopy with less distortion, which results in reduced drag.

Nova. Nova Pro.

northfoils.com 5 9

60

2 02 4 P R OD U CT CATALOGU E W IN GS

NEW

N-X6 Trailing Edge Panel Engineered for use in the highly-loaded TE area, durable and lightweight N-X6 panels help to maintain shape hold over time, provide greater TE tension, dampen flutter and help to create a cleaner release with minimal drag. N-X6 is a new high-performance, low-elongation wing canopy material specifically designed to handle higher loads. A symmetrical 6-yarn reinforcement is woven into the fabric every 10mm, both in the warp and weft direction, ensuring the material is ultra-low stretch with ultra-high tear strength. NX-6 is 40% stiffer in the warp direction, 55% stiffer in the weft direction, and 3x torsionally stiffer in the 45-deg bias direction than a traditional canopy material (51gsm).

Nova.

northfoils.com 6 1

62

2 02 4 P R OD U CT CATALOGU E

Wing Performance

NOVA W IN GS

NEW

NOVA PRO NEW

MODE ULTRA NEW

MODE PRO

LOFT PRO

northfoils.com 6 3

2024 Wing Specifications NOVA WING SIZE

1.9M

2.5M

2.9M

3.5M

4.2M

5.0M

6.0

2.9

3.5

4.2

5.0

WINGSPAN CM

200

240

280

305

330

355

380

255

275

298

325

PSI

>10PSI

>10PSI

>10PSI

>9PSI

>8PSI

>8PSI

>7PSI

10PSI

9PSI

9PSI

8PSI

FRONT HANDLE

400MM

400MM

400MM

400MM

500MM

500MM

500MM

400MM NOT INCLUDED

400MM NOT INCLUDED

400MM NOT INCLUDED

500MM NOT INCLUDED

REAR HANDLE

400MM

400MM

400MM

400MM

400MM

400MM

500MM

400MM NOT INCLUDED

400MM NOT INCLUDED

400MM NOT INCLUDED

400MM NOT INCLUDED

HANDLE COMPOSITION

ALUMINIUM

ALUMINIUM

ALUMINIUM

ALUMINIUM

ALUMINIUM

ALUMINIUM

ALUMINIUM

CARBON SHIFTLOCK

CARBON SHIFTLOCK

CARBON SHIFTLOCK

CARBON SHIFTLOCK

LE/STRUT MATERIAL

DACRON

DACRON

DACRON

DACRON

DACRON

DACRON

DACRON

HYBRID N-WEAVE45 / DACRON

HYBRID N-WEAVE45 / DACRON

HYBRID N-WEAVE45 / DACRON

HYBRID N-WEAVE45 / DACRON

CANOPY MATERIAL

N-HTRS / N-X6

N-HTRS / N-X6

N-HTRS / N-X6

N-HTRS / N-X6

N-HTRS / N-X6

N-HTRS / N-X6

N-HTRS / N-X6

HYBRID MATRIX / N-HTRS

HYBRID MATRIX / N-HTRS

HYBRID MATRIX / N-HTRS

HYBRID MATRIX / N-HTRS

WINDOWS

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

BATTENS

NONE

NONE

NONE

NONE

NONE

NONE

NONE

1X 250MM, 3MM

1X 250MM, 3MM

1X 250MM, 3MM

1X 250MM, 3MM

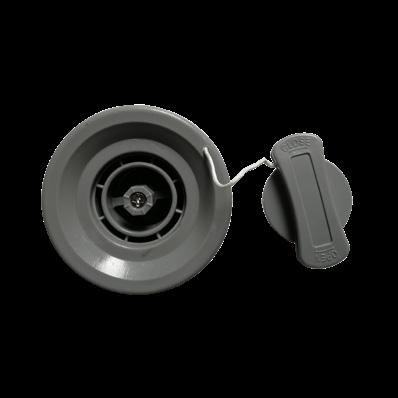

VALVES

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

HARNESS

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

WRIST LEASH

S, 1350MM

S, 1350MM

S, 1350MM

M, 1800MM

M, 1800MM

M, 1800MM

L, 2400MM

M, 1800MM

M, 1800MM

M, 1800MM

M, 1800MM

WIND RANGE (KNOTS)

20-40+

18-38

16-34

12-30

9-24

8-22

20-40+

18-38+

16-36

12-32

9-26

2.05

2.24

2.55

2.80

WEIGHT KG +/-10%

64

NOVA PRO

*Recommended wing size dependent on rider size, ability and foil setup. 1.9m Nova designed for lighter riders (under 50kg) or skateboard sessions.

Choose Loft Pro according to your rider size. Wing weight includes wrist leash, Nova Pro weight does not include ShiftLock Carbon Wing Handles, these are sold separately.

Up to 200g weight savings on the Nova when fitted with optional Carbon Wing Handles (sold separately).

The 1100 Boom is not compatible with the Nova Pro 2.9m

MODE PRO

MODE ULTRA

7.0M

8.0M

3.5M

4.2M

4.8M

5.5M

6.8M

3.5

4.2

4.8

5.5

6.5

340

360

375

275

298

320

330

362

286

316

339

353

365

7PSI

>7PSI

>7PSI

10PSI

9PSI

9PSI

8PSI

7PSI

10PSI

9PSI

9PSI

8PSI

7PSI

500MM NOT INCLUDED

500MM

500MM

400MM

400MM

400MM

400MM

500MM

400MM

400MM

400MM

500MM

500MM

500MM NOT INCLUDED

500MM

500MM

400MM

400MM

400MM

400MM

400MM

400MM

400MM

400MM

400MM

400MM

CARBON SHIFTLOCK

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

CARBON

HYBRID N-WEAVE45 / DACRON

N-WEAVE45

N-WEAVE45

N-WEAVE45

N-WEAVE45

N-WEAVE45

N-WEAVE45

N-WEAVE45

N-WEAVE45/ N-WEAVE45/ N-WEAVE45/ N-WEAVE45/ N-WEAVE45/ N-WEAVE N-WEAVE N-WEAVE N-WEAVE N-WEAVE

HYBRID MATRIX / N-HTRS

N-HTRS

N-HTRS

MATRIX

MATRIX

MATRIX

MATRIX

MATRIX

N-XI

N-XI

N-XI

N-XI

N-HTRS

YES

NO

NO

YES

YES

YES

YES

YES

NO

NO

NO

NO

NO

1X 250MM, 3MM

2X 250MM

2X 250MM

2X 250MM

2X 250MM

2X 250MM

2X 250MM

2X 250MM

2X 250MM, 3MM

2X 250MM, 3MM

2X 250MM, 3MM

2X 250MM, 3MM

2X 250MM, 3MM

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

2X HYPER FLOW, 1X HOSE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

FIX TO HANDLE

L, 2400MM

L, 2400MM

L, 2400MM

M, 1800MM

M, 1800MM

M, 1800MM

M, 1800MM

L, 2400MM

M, 1800MM

M, 1800MM

M, 1800MM

M, 1800MM

L, 2400MM

8-24

6-20

4-18

22-36+

15-40

12-35

10-30

8-25

16-36

12-32

9-26

7-24

6-20

3.09

3.10

3.30

2.40

2.55

2.80

3.00

3.50

northfoils.com 6 5

W IN GS

6.0

2 02 4 P R OD U CT CATALOGU E

LOFT PRO

66

Kite / Control System 02

CODE ZERO NAVIGATOR PRO NAVIGATOR

68 72 76

CO D E Z ERO PERFORMAN C E FOIL

68

2 02 4 P R OD U CT CATALOGU E K IT E F OIL

F EEL AT O N E Code Zero is the name of a sail born to go fast in light, shifty conditions. Like its namesake, the Code Zero kite is a light, fast and reactive single-strut performer with effortless one-handed control and efficient light wind power delivery. ​

northfoils.com 6 9

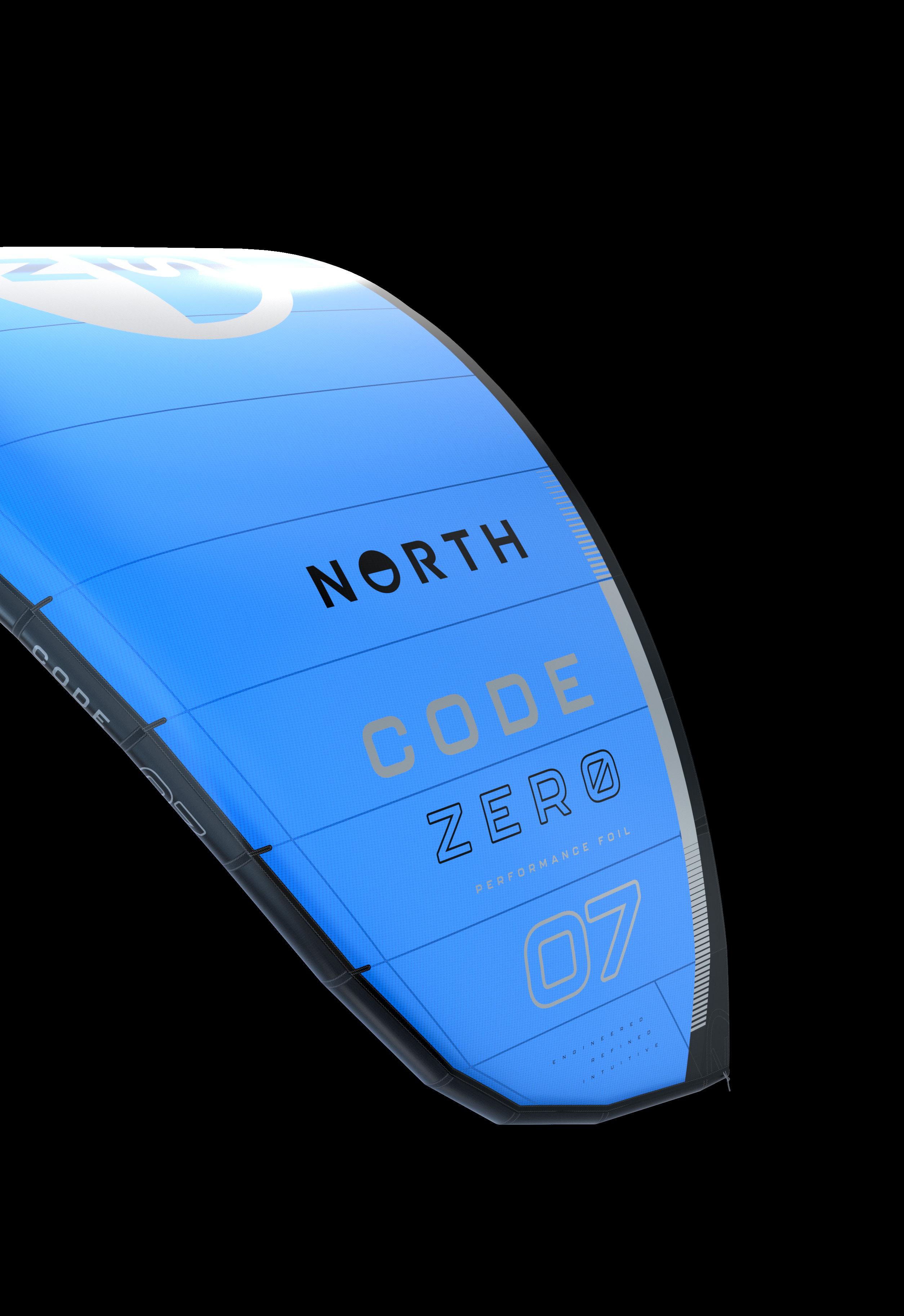

Code Zero Performance Foil

ORDER DETAILS CODE: 85000.240008​ SIZES: 475 Pacific Blue 3, 5, 6, 7, 8, 9, 10, 11, 14m​ PRODUCT DETAILS Kite, Kite Bag, Repair Kit​ ACCESSORIES (SOLD SEPARATELY) Kite/Wing Pump, Navigator Control System, Slide Surf Loop

70

2 02 4 P R OD U CT CATALOGU E K IT E F OIL

Wind Range

• • • • • • •

Foil

Surf

3

18-30+

22-34

5

14-25

18-28

6

12-22

17-27

7

10-21

16-26

8

8-19

14-23

9

8-18

12-20

10

7-17

11-19

11

7-16

10-18

14

7-15

7-17

Newly revised bridle​ More sizes: 6m, 8m, 10m​, 14m More direct steering ​ Smoother aerodynamic efficiency​ Stable, balanced design with improved TE tension​ Responsive power-delivery in all conditions Lighter weight construction with N-Max northfoils.com 7 1

NAVIGATOR PRO 72

2 02 4 P R OD U CT CATALOGU E

POWER PLAY K IT E F OIL

The safest, most universally compatible, highperformance control system ever. Now autounwinding, stronger and lighter, with unrivalled comfort and grip in all conditions.

northfoils.com 7 3

NEW

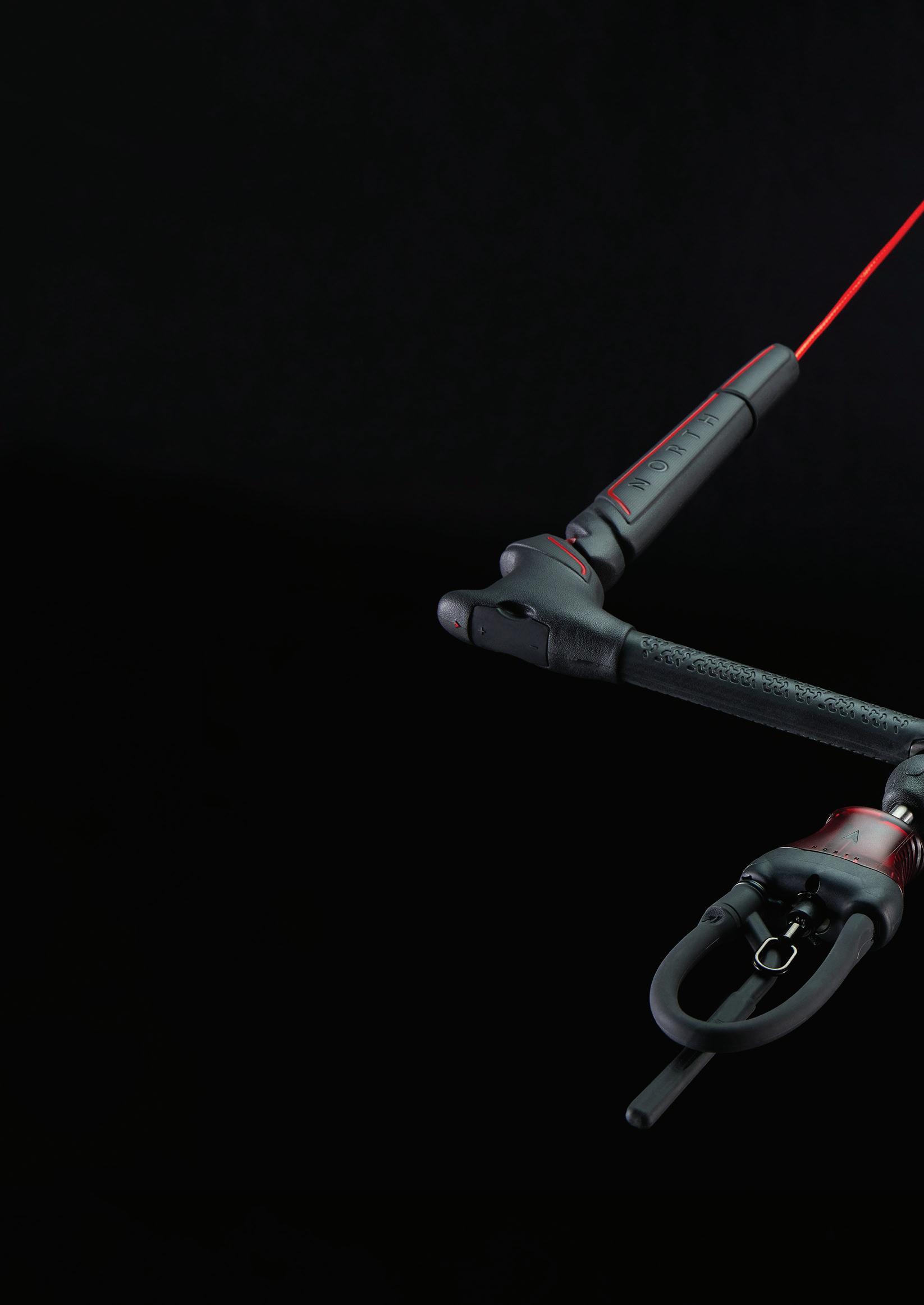

Navigator Pro Control System •

Reduced risk of accidental unhooking or release

•

Extra-secure single-action-reload Quick Release

•

Ceramic bearing for smooth and reliable front-line auto-untwist

•

20% stronger and 20% lighter for faster bar spin

•

New Pro Lines. Highest-quality Liros Dyneema SK99, made in Germany.

•

Unique micro-textured compound grip for max-traction and comfort

•

Change quickly between disciplines with the Modular Toolless Interloop System

•

Instantly compatible with your Low-V-split kite, or use the High-V-split Kit to pair with High-V kites (Refer to User Manual)

ORDER DETAILS CODE: 85001.240021 COLOUR: 999 Multiple Colour SIZES: M 45-50cm | L 50-55cm PRODUCT DETAILS Control Bar, Quick Release with Security Finger, 12+10m Pro Lines (Ø1.55mm Front Lines, Ø1.33mm Rear Lines), Pro Freeride Loop, Standard Leash ACCESSORIES (SOLD SEPARATELY) Pro Surf Slider 85007.240025, Pro Freestyle Loop 85007.240026, Handle Pass Leash, Pro Line Sets* *For Kite and Control System parts refer to the North Kite Catalogue.

74

2 02 4 P R OD U CT CATALOGU E K IT E F OIL

Bar Size

Kite Size*

45-50cm

<11m

50-55cm

>8m

*Recommended kite size for optimal Freeride performance.

northfoils.com 7 5

THI NK LESS. F EEL MORE .

Release and reload faster with the intuitive single-action reload Connect Quick Release, and switch effortlessly between disciplines with the Toolless Interloop, our no-tools required modular harness loop replacement system. The Navigator Control System has a durable and ergonomic design that connects you intuitively to your kite. ​

NAVIGATOR 76

2 02 4 P R OD U CT CATALOGU E

K IT E F OIL

northfoils.com 7 7

Navigator Control System • • • • • • • •

Premium 100% Dyneema SK99 lines​ Omnidirectional grip and offset finger bar​ Colour coded components​ Soft EVA bar ends with retractable line winders​ Protective PU covered leader lines​ Adjustable cleated trim system​ Custom low-friction spinning handle​ Premium Quick Release Leash​

ORDER DETAILS Navigator CODE: 85001.220020 COLOUR: 999 Multiple Colour SIZES: 38-43cm, 45-50cm, 50-55cm

ORDER DETAILS Navigator Short Throw CODE: 85001.240025 COLOUR: 999 Multiple Colour SIZES: 45-50cm

PRODUCT DETAILS Navigator Control Bar complete with Connect Quick Release, Flying Lines, Standard Freeride Loop with Finger, Standard Leash, Repair Kit *For Kite and Control System parts refer to the North Kite Catalogue” 78

2 02 4 P R OD U CT CATALOGU E K IT E F OIL

NEW

Navigator Short Throw now available The new Navigator Short Throw brings the Trim Handle 10cm closer, making it easier for riders with shorter arms to reach the bar after letting go. We recommend using it with 12m and smaller kites to achieve enough depower in high winds.

ORDER DETAILS

ORDER DETAILS

ORDER DETAILS

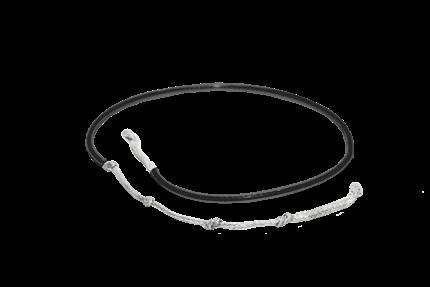

Standard Freeride Loop

Short Freeride Loop

Slide Surf Loop

CODE:

85007.220023

CODE:

85007.220022

CODE:

85007.220025

COLOUR:

900 Black

COLOUR:

900 Black

COLOUR:

925 Black/Silver

SIZES:

O/S

SIZES: O/S

SIZES: O/S northfoils.com 7 9

80

Sonar Foils 03

SONAR EDITIONS FRONT WINGS STABILIZERS FUSELAGE MASTS/BOARD ADAPTOR

84 88 110 120 122

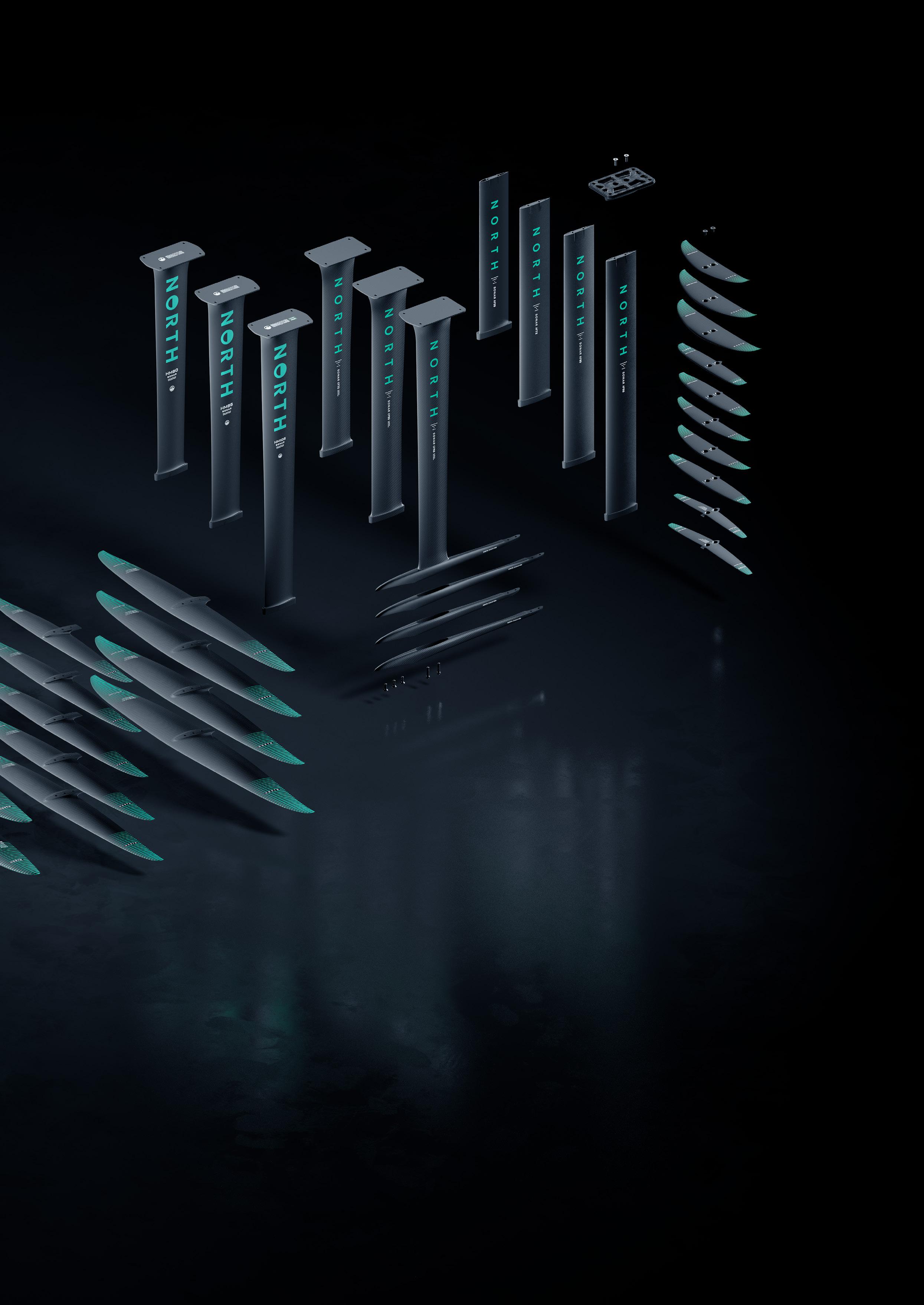

SONAR FOILS LINEUP

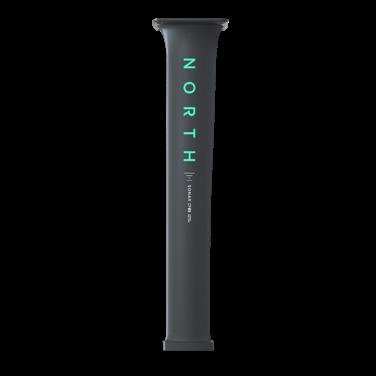

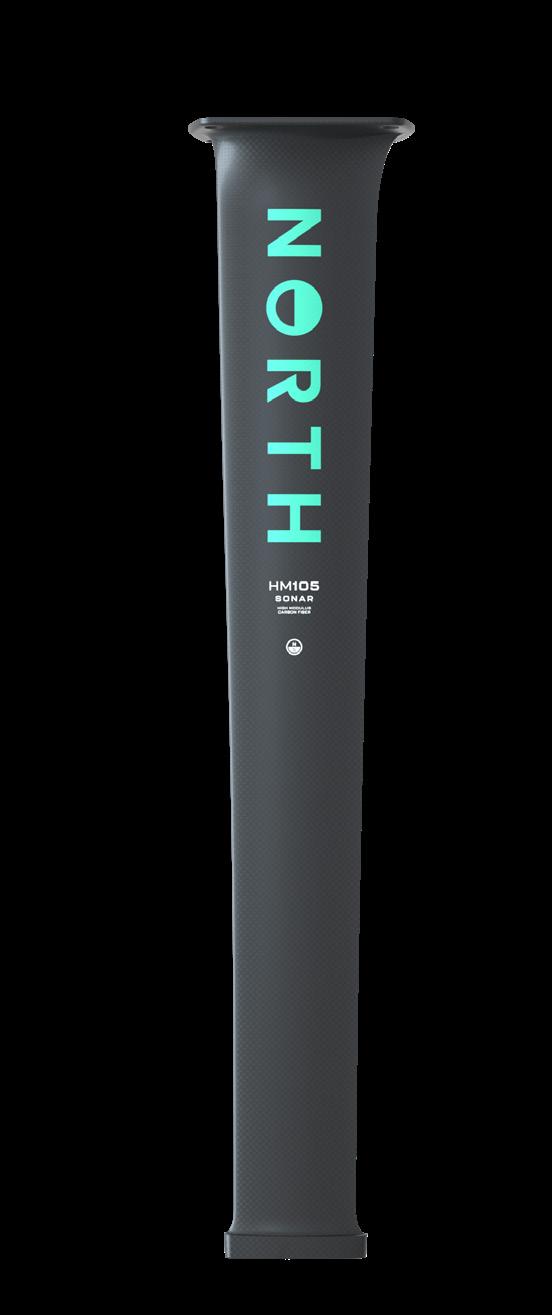

HM CARBON MASTS

PUMP

DOWNWIND

SURF

MAv2

82

2 02 4 P R OD U CT CATALOGU E

AF BOARD ADAPTOR

AF FOIL MASTS CF CARBON MASTS

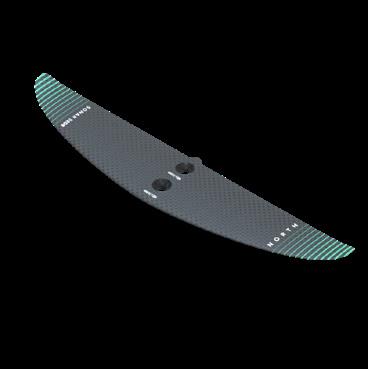

SURF STABS

HIGH SPEED STABS

ALLOY FUSELAGE

GLIDE STABS

CARBON FUSELAGE

HIGH ASPECT

northfoils.com

83

S ON AR F OIL S

FREERIDE STABS

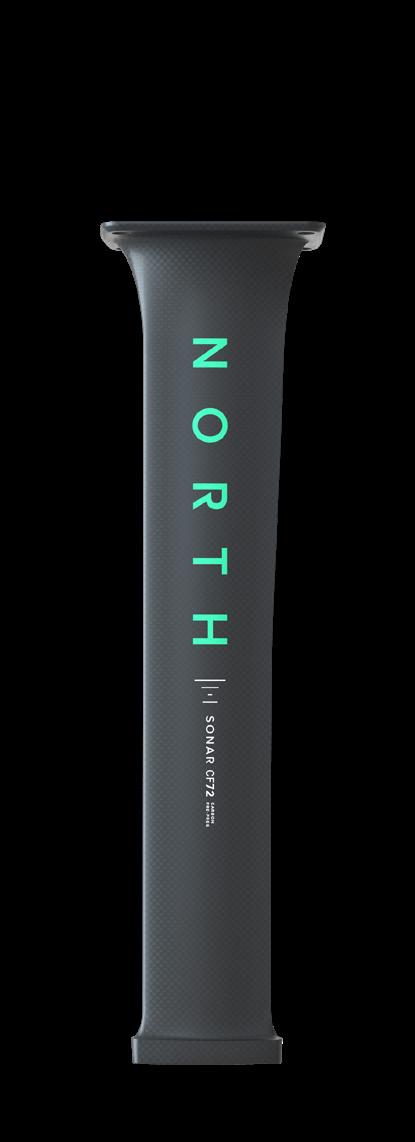

CARBON EDITION Modular Foil System • • • • • • • •

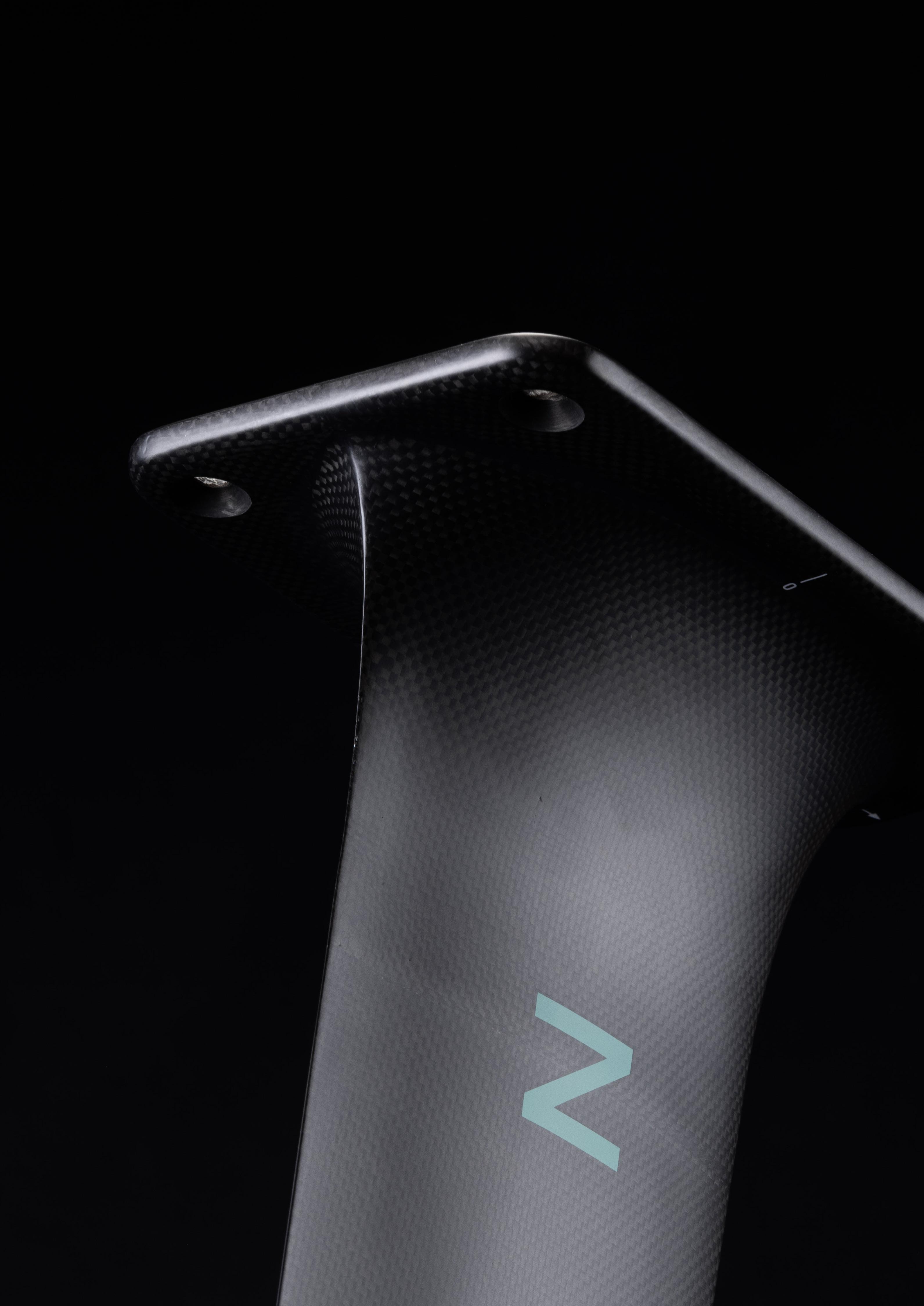

Refined lightweight pre-preg carbon one-piece mast​​ C700 pre-preg carbon fuselage weighs ~50% less than the A700​​ S270 carbon pre-preg stabilizer for fast pivoting turns and easy breach recovery​ Unique GeoLock system for clean direct feel​ Fully interchangeable modular foil system​ Industry-standard 165x90mm bolt pattern​ Supplied with roomy padded Sonar Travel Bag Compatible with all Sonar Front Wings (sold separately​)

ORDER DETAILS CODE: 85004.240070 COLOUR: SIZES:

900 Black CF72, CF85

PRODUCT DETAILS Carbon CF72 or CF85 Mast with cover, C700 Fuselage, S270 Stabilizer with cover, Tool Kit, Screw Packs B,C*, Sonar Travel Bag *Foil to board mounting screws are included with North Foilboards 84

2 02 4 P R OD U CT CATALOGU E

CR AFTE D TO P ER FEC T ION S ON AR F OIL S

Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback.

Engineered with exceptional stiffness for all disciplines, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel, and great pumpability. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction. The longer CF85 mast increases overall ride performance in choppy conditions. The CF72 mast is ideal for shallower waters, prone surf foiling and towing.

Stability, performance and efficiency is enhanced by the ultra-light Carbon 700mm Fuse and Carbon Pre-preg S270 Freeride Stabilizer.

northfoils.com

85

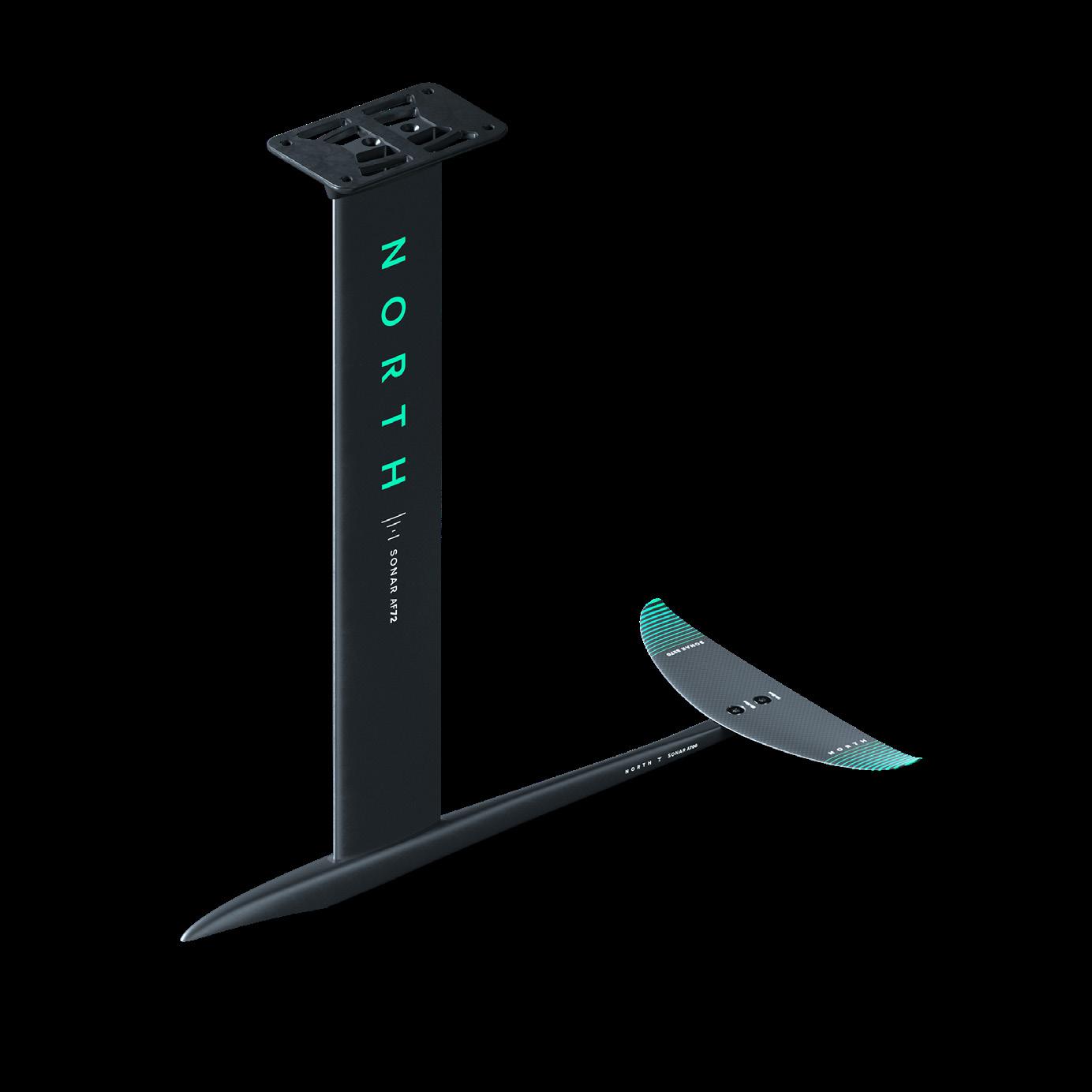

ALUMINIUM EDITION Modular Foil System • • • • • • • •

S270 carbon pre-preg stabilizer for easy pivoting turns and breach recovery​ A700 Fuselage - cruise control​ Engineered to last with exceptional strength to weight ratio​ Unique GeoLock system for clean direct feel​ Includes AF Board Adaptor with strong geometry locking connection​ Industry standard 165x90mm bolt pattern​ Supplied with roomy, padded Sonar Travel Bag for secure storage​ Compatible with all Sonar Front Wings (sold separately)

ORDER DETAILS CODE: 85004.240066 COLOUR: SIZES:

900 Black AF72, AF85

PRODUCT DETAILS AF72 or AF85 Mast, AF Board Adaptor, A700 Fuselage, S270 Stabilizer with cover, Tool Kit, Screw Packs A,B,C, Sonar Travel Bag *Foil to board mounting screws are included with North Foilboards 86

2 02 4 P R OD U CT CATALOGU E

FU TU R E PR OOF YO U R FOILING

S ON AR F OIL S

Start building your modular quiver here. The new refined aluminium mast profile section delivers an optimal balance between light weight and exceptional strength, so you can kite, wing, surf and tow foil with confidence, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water.

MAST LENGTH (CM)

Choose your ride height: Why shorter?

72cm

Choose the 72cm for shallower waters and prone surf and learning to foil.

Why taller?

85cm

Choose the taller 85cm mast when you need more height to clear waves or heel over for tighter turns.

northfoils.com

87

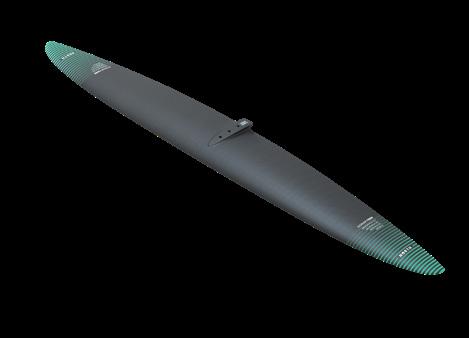

FRONT WING LINEUP

MAv2 SERIES

MAv2 SERIES

SF SERIES

MA1500v2: 85004.240092

MA700v2: 85004.240089

SF680: 85004.240095

MA1850v2: 85004.240087

MA850v2: 85004.240086

SF830: 85004.240096

MA2100v2: 85004.240088

MA1050v2: 85004.240090

SF930: 85004.230091

MA2400v2: 85004.240093

MA1200v2: 85004.240091

SF1080: 85004.230092

MID ASPECT FRONT WING Learn to Foil

MID ASPECT FRONT WING Most Versatile

SURF FRONT WING Prone / Wing

SF1230: 85004.230093

88

2 02 4 P R OD U CT CATALOGU E S ON AR F OIL S

NEW

NEW

DW SERIES

P SERIES

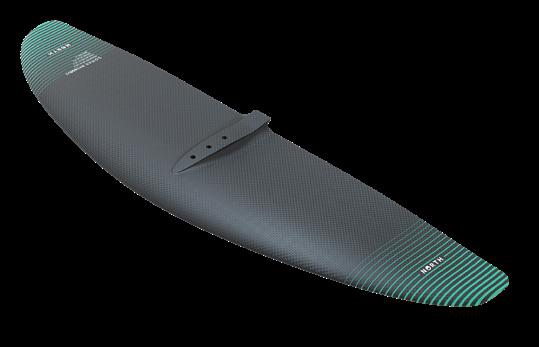

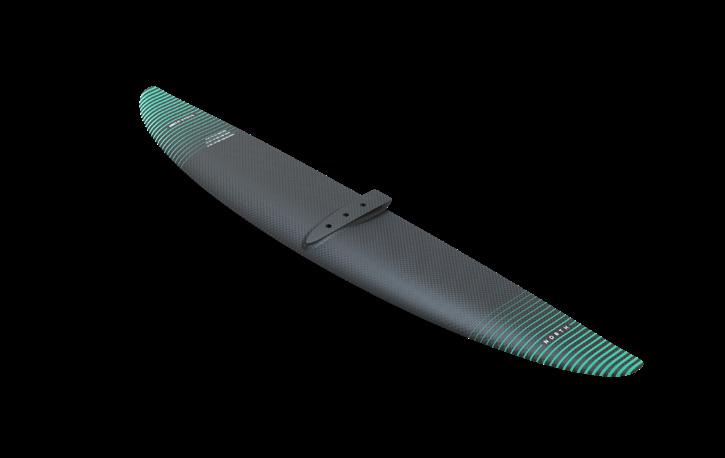

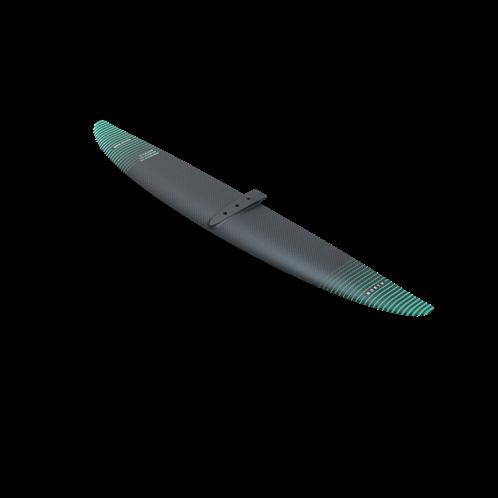

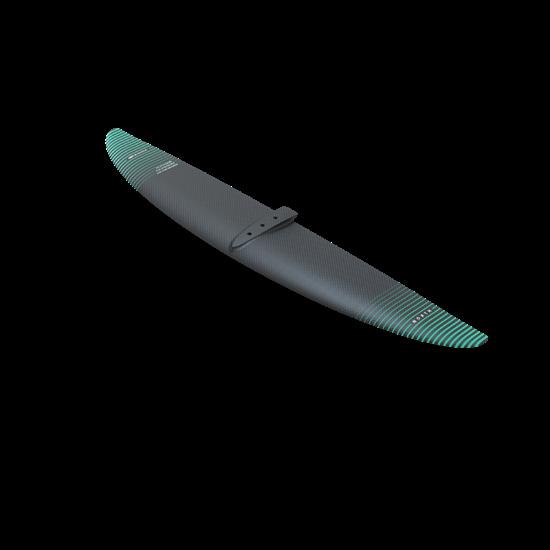

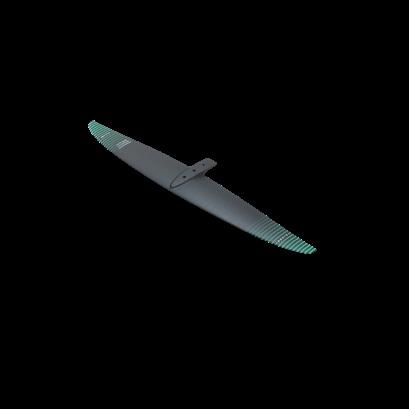

HA SERIES

DW750: 85004.240069

P1800: 85004.240072

HA550: 85004.230100

DW900: 85004.240074

P2050: 85004.240073

HA650: 85004.230101

DOWNWIND FRONT WING Downwind

PUMP FRONT WING Dockstart / Pump

HIGH ASPECT FRONT WING High Speed

DW1100: 85004.240075

HA750: 85004.230102

DW1400: 85004.240076

HA850: 85004.230103 HA950: 85004.230104 HA1050: 85004.230105 HA1150: 85004.230106 HA1250: 85004.230107 ​​ HA1450: 85004.230108 northfoils.com

89

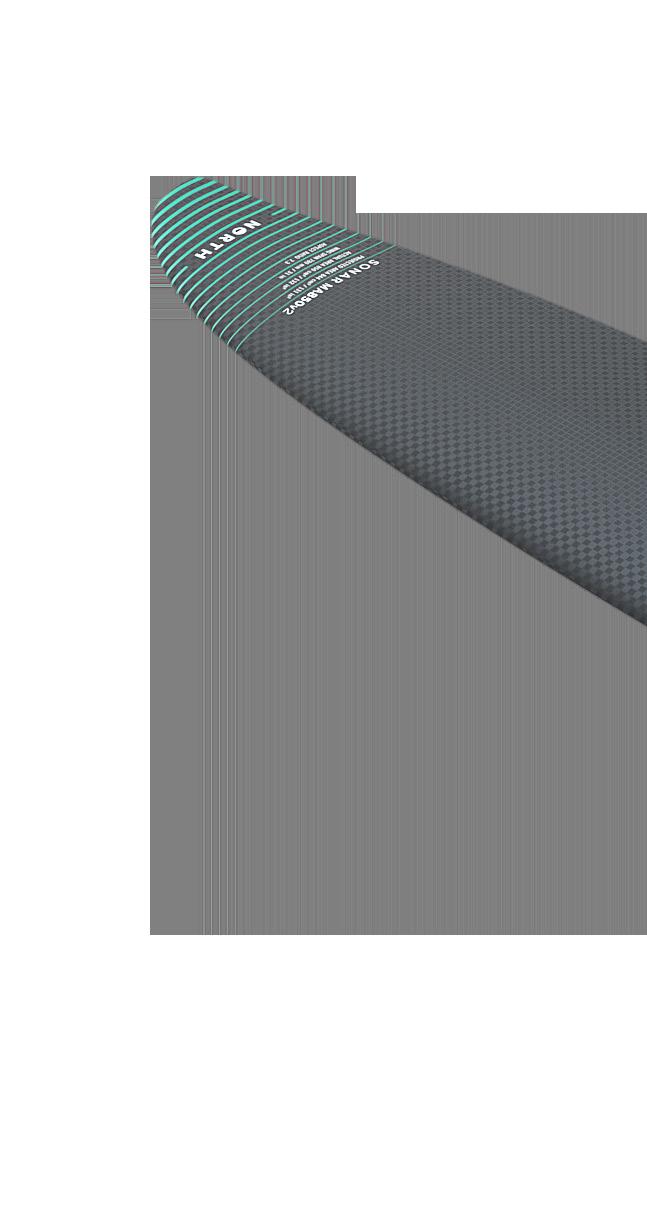

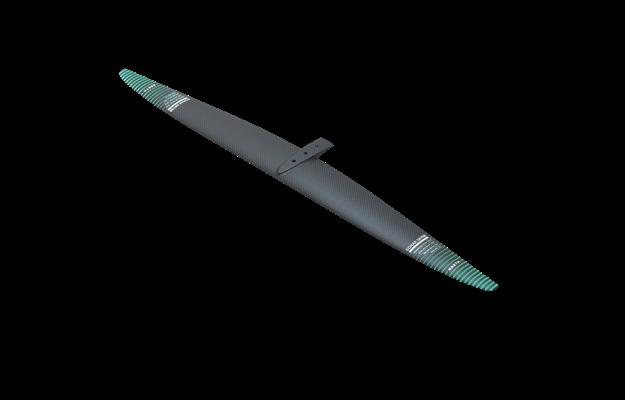

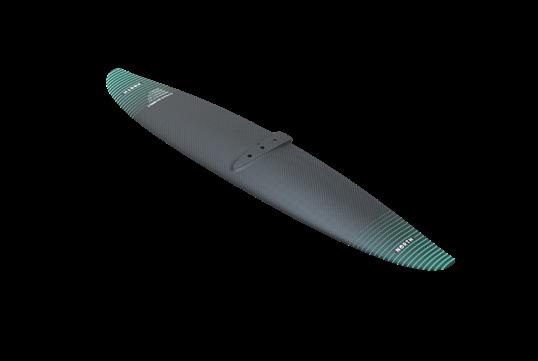

SONAR MID ASPECT (MA) V2 SERIES Front Wings

WING. BOAT. WAKE.

Learn to foil 2400 / 2100 / 1850 / 1500 Ideal for progressing, the larger sizes provide a stable set-up for learning to wing foil or towing behind a boat. These wings easily generate a great amount of lift without the need to pump, and are super stable so you can focus more on your wing in your hands.

The foil section prioritises pitch stability, early takeoffs and low stall speed. More sweep in the TE than the smaller size helps to make these big wings more manoeuvrable and easier to turn. More anhedral provides directional stability.

The MA2400v2 is engineered in an affordable prepreg e-glass construction, offering the same high performance, durability, and impact resistance as the carbon pre-preg. The MA1850 and MA2100v2 are available in both constructions.

MA1500v2

MA1850v2

MA1850v2 PRIME

MA2100v2

ORDER DETAILS CODE: 85004.240092 COLOUR: 900 Black SIZES: 1500cm2

ORDER DETAILS CODE: 85004.240087 COLOUR: 900 Black SIZES: 1850cm2

ORDER DETAILS CODE: 85004.240100 COLOUR: 900 Black SIZES: 1850cm2

ORDER DETAILS CODE: 85004.240088 COLOUR: 900 Black SIZES: 2100cm2

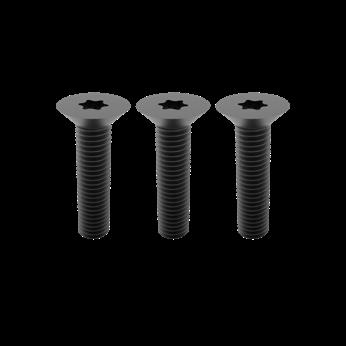

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Sonar Screw Pack E (M8x33)

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Screw Pack G Ti (M8x35)

PRODUCT DETAILS Pre-preg Aluminium Front Wing, Cover, Screw Pack G Ti (M8x35)

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Screw Pack G Ti (M8x35)

*MA1500-2100v2 Pre-preg Carbon / MA1850-MA2400v2 Pre-preg Aluminium construction.

90

2 02 4 P R OD U CT CATALOGU E

NO BAD DAYS

MA2100v2 PRIME

MA2400v2 PRIME*

ORDER DETAILS CODE: 85004.240101 COLOUR: 900 Black SIZES: 2100cm2

ORDER DETAILS CODE: 85004.240093 COLOUR: 900 Black SIZES: 2400cm2

PRODUCT DETAILS Pre-preg Aluminium Front Wing, Cover, Screw Pack G Ti (M8x35)

PRODUCT DETAILS Pre-preg Aluminium Front Wing, Cover, Sonar Screw Pack I (M8x40mm)

S ON AR F OIL S

For novice to pro riders, in all conditions. Every wing in the versatile MAv2 Series has an extremely wide speed range and early lift, is fast-turning, features ventilationfree tip-breaching, and works across multiple disciplines.

The larger MA2400-1500v2 are designed to get you up on foil faster and shorten your learning curve.

northfoils.com

91

SONAR MID ASPECT (MA) V2 SERIES Front Wings

WING. KITE. BOAT. WAKE. SURF.

Multi-discipline advanced riding 1200 / 1050 / 850 / 700 As you step down in size, you’ll step up in speed.

The smaller sizes are even faster, more agile and have a higher top-end speed. Ideal for freeride wingfoiling at speed, freestyle or in surf, and perfect for kite foiling or wake foiling in the 700, 850 and 1050 size. (1200 for the bigger riders).

The foil section is focused more on low drag when up on the foil, reasonable take-off and stall speeds.

The outline balances efficiency and manoeuvrability.

The flat centre-section with anhedral further along the span and flattened wing tips delivers predictable turning and improved ventilation resistance.

MA700v2

MA850v2

MA1050v2

MA1200v2

ORDER DETAILS CODE: 85004.240089 COLOUR: 900 Black SIZES: 700cm2

ORDER DETAILS CODE: 85004.240086 COLOUR: 900 Black SIZES: 850cm2

ORDER DETAILS CODE: 85004.240090 COLOUR: 900 Black SIZES: 1050cm2

ORDER DETAILS CODE: 85004.240091 COLOUR: 900 Black SIZES: 1200cm2

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Screw Pack H (M8x23)

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Screw Pack D Ti (M8x25)

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Screw Pack D (M8x25)

PRODUCT DETAILS Pre-preg Carbon Front Wing, Cover, Sonar Screw Pack F (M8x30)

92

2 02 4 P R OD U CT CATALOGU E

STEP U P I N S P EED

S ON AR F OIL S

For intermediate to pro riders, in all conditions. Every wing in the versatile MAv2 Series has an extremely wide speed range and early lift, is fast-turning, features ventilation-free tip-breaching, and works across multiple disciplines. As you progress into the smaller, playful and agile MA1200-700v2, you’ll discover true versatility, while retaining that familiar feel and ease of use.

northfoils.com

93

SUR F SERIES FRONT W IN GS 94

2 02 4 P R OD U CT CATALOGU E

S ON AR F OIL S

95

northfoils.com

SONAR SURF FOIL (SF) SERIES Front Wings

SF680

SF830

SF930

SF1080

ORDER DETAILS CODE: 85004.240095 COLOUR: 900 Black SIZES: 680cm2

ORDER DETAILS CODE: 85004.240096 COLOUR: 900 Black SIZES: 830cm2

ORDER DETAILS CODE: 85004.230091 COLOUR: 900 Black SIZES: 930cm2

ORDER DETAILS CODE: 85004.230092 COLOUR: 900 Black SIZES: 1080cm2

PRODUCT DETAILS Wing, Cover, Screw Pack H Ti (M8x23)

PRODUCT DETAILS Wing, Cover, Screw Pack D Ti (M8x25)

PRODUCT DETAILS Wing, Cover, Sonar Wing Titanium Screw Pack D (M8x25)

PRODUCT DETAILS Wing, Cover, Sonar Wing Titanium Screw Pack D (M8x25)

96

2 02 4 P R OD U CT CATALOGU E

AT O NE WI TH IT A LL A frictionless sensation of glide at slower speeds.

Responsive and agile. With intuitive recovery. We’ve engineered our SF-Series for super low stall speeds, effortless pumping and surf-style carving.​

S ON AR F OIL S

Ideal for riders wanting more from surf and downwind swells (with or without a wing). The foils’ angle of attack change forgiveness means you don’t have to be an expert or have perfect pumping technique. ​ A refined balance of roll stability and manoeuvrability gives you confidence during pumping and take-offs, and the ability to initiate smooth and powerful rail-to-rail carves. Push it harder. Lip stall and lay down banking turns, knowing tip ventilation is a thing of the past. ​ Reduced distance between the mast and front wing makes for faster, tighter pivoting turns. We’ve kept the span similar between the three larger sizes, to provide the same ride feel. The two new smaller sizes are fast, manoeuvrable and responsive with highly efficient glide at higher speeds or for lighter riders.

For maximum performance, pair your SF Front Wing with the lower stall speed S215 OR S185 Surf Stabilizer Wakesurfing ten waves back, dockstarting, prone surfing or mastering the downwind.

SF1230 ORDER DETAILS CODE: 85004.230093 COLOUR: 900 Black SIZES: 1230cm2 PRODUCT DETAILS Wing, Cover, Sonar Wing Titanium Screw Pack F (M8x30)

ACCESSORIES (SOLD SEPARATELY)

S185 CODE:

85004.240097

CODE:

85004.230096

S215

northfoils.com

97

98

2 02 4 P R OD U CT CATALOGU E

S ON AR F OIL S

99

northfoils.com

SONAR DOWNWIND (DW) SERIES Front Wings NEW • • • • •

Wingspan maximised for low drag and longer glide while retaining manoeuvrability required to navigate downwind swell Shaped for high efficiency and intuitive turning with maximum ventilation resistance Four sizes for different rider weights and conditions Smaller sizes for lighter riders or locations with strong wind and larger, fast-moving swell Pair with the S192/S142/S238 Stabilizers for maximum glide and increased turning responsiveness

DW750

DW900

DW1100

DW1400

ORDER DETAILS CODE: 85004.240069 COLOUR: 900 Black SIZES: 750cm2

ORDER DETAILS CODE: 85004.240074 COLOUR: 900 Black SIZES: 900cm2

ORDER DETAILS CODE: 85004.240075 COLOUR: 900 Black SIZES: 1100cm2

ORDER DETAILS CODE: 84004.240076 COLOUR: 900 Black SIZES: 1400cm2

PRODUCT DETAILS Front Wing, Cover, Screw Pack H

PRODUCT DETAILS Front Wing, Cover, Screw Pack D

PRODUCT DETAILS Front Wing, Cover, Screw Pack D

PRODUCT DETAILS Front Wing, Cover, Screw Pack F

100

2 02 4 P R OD U CT CATALOGU E

HAR NESS THE ENER GY OF OC EA N SWELL Designed for effortless take-offs at low speed, with high top-end speeds to keep up with faster swell.

S ON AR F OIL S northfoils.com 1 01

SONAR PUMP (P) SERIES Front Wings NEW • • • • • • •

High-efficiency, low-speed design for maximum pump duration Intuitive and manageable to manoeuvre Relaxed, endurance-focused, pumping cadence without fear of dropping off the foil Stiff laminate layup to ensure a predictable and responsive ride Pair with S142/S192 Glide or the S238 High Speed Stabilizer P1800 suits riders <85kg P2050 suits riders >85kg or novice riders

P1800

P2050

ORDER DETAILS CODE: 85004.240072

ORDER DETAILS CODE: 85004.240073

COLOUR: SIZES:

COLOUR: SIZES:

900 Black 1800cm2

PRODUCT DETAILS Front Wing, Cover, Screw Pack E

900 Black 2050cm2

PRODUCT DETAILS Front Wing, Cover, Screw Pack E

ACCESSORIES (SOLD SEPARATELY): Sonar Edition (AF/CF), Glide Stabilizers, Vert, Swell, Scoop, Horizon 102

2 02 4 P R OD U CT CATALOGU E

R U N, FLY, BE.

S ON AR F OIL S

To pump and glide for long durations, a wing must be able to maintain flight with very low power input from the rider.

We’ve designed the new P-Series for flatwater pumping, dockstarts and SUP paddle-ups.

northfoils.com 1 03

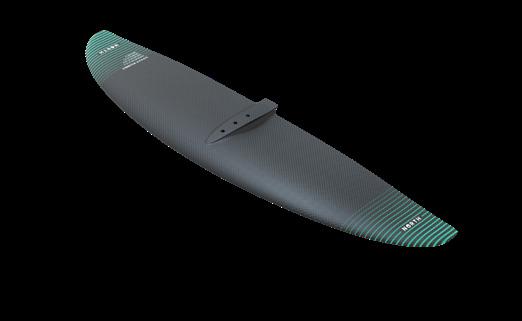

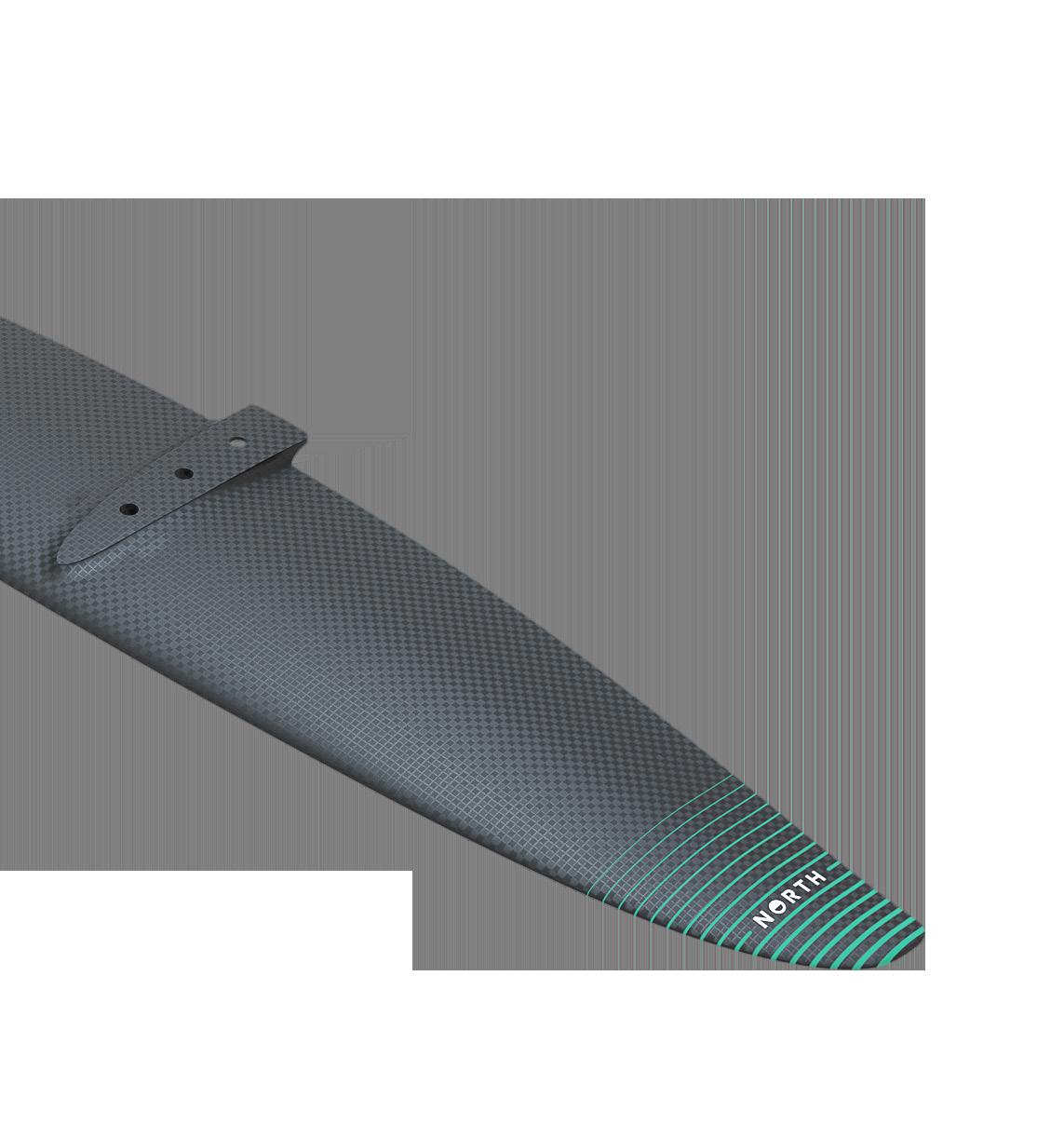

SONAR HIGH ASPECT (HA) SERIES Front Wings • • • •

Carbon Pre-Preg​ Your stand-out wing for intermediate to advanced wing-foil riders​ Also ideal for kite and surf foiling Wingtip designed for zero ventilation when you tip-breach

CODE: COLOUR: SIZES: PRODUCT DETAILS: 104

HA550

HA650

HA750

HA850

HA950

85004.230100

85004.230101

85004.230102

85004.230103

85004.230104

900 Black

900 Black

900 Black

900 Black

900 Black

550cm²

650cm²

750cm²

850cm²

950cm²

Wing, Cover, Screw Pack H

Wing, Cover, Screw Pack H

Wing, Cover, Screw Pack H

Wing, Cover, Screw Pack D

Wing, Cover, Screw Pack D

2 02 4 P R OD U CT CATALOGU E

HI G H SPEE D P ER FOR M A NC E Our highest-performance front wings, ideal for intermediate to advanced riders. Incredibly efficient, fast and direct, the HA Series is ideally suited to highspeed winging, surfing bigger waves, and riding fastmoving downwind swells.

S ON AR F OIL S

The wingtips are designed for zero ventilation when you tip-breach, allowing you to crank faster, tighter radius turns at higher speeds, without losing speed.

With excellent high-speed lift, the HA850 to HA1250 are your core wing-foiling and prone surf (overhead) sizes.

The larger HA1250-HA1450 are ideal for lighter winds, coastal runners or stealing wakes.

The smaller HA550-HA750 have less planing surface and higher stall speed. They are designed to generate maximum efficiency and lift for high-speed wing foiling, racing, and kite foiling.

HA1050

HA1150

HA1250

HA1450

85004.230105

85004.230106

85004.230107 ​​

85004.230108 ​

900 Black

900 Black

900 Black

900 Black

1050cm²

1150cm²

1250cm²

1450cm²

Wing, Cover, Screw Pack D

Wing, Cover, Screw Pack D

Wing, Cover, Screw Pack F

Wing, Cover, Screw Pack F northfoils.com 1 05

Front Wing Performance Which Front Wing should I use?

106

WING FREERIDE

WING SURF

WING LIGHT WIND

WING HIGH SPEED

WING DOWNWIND

ACTUAL AREA CM 2

WINGSPAN MM

ASPECT RATIO

MA700 v2

700

720

7.4

ADV

MA850 v2

850

780

7.2

ADV

MA1050 v2

1050

850

6.9

MA1200 v2

1200

875

6.4

MA1500 v2

1500

920

5.6

MA1850 v2

1850

960

5.0

MA2100 v2

2100

1000

4.8

>85

MA2400 v2

2400

1040

4.5

NOV >85

SF680

680

790

9.2

ADV

ADV

ADV

SF830

830

865

9.0

SF930

930

900

8.8

SF1080

1080

915

7.8

SF1230

1230

930

7.1

>85

>85

>85

DW750

750

1000

13.3

DW900

900

1080

13

DW1100

1100

1150

12

DW1400

1400

1250

11.2

P1800

1800

1300

9.4

P2050

2050

1400

9.6

HA550

550

740

10.0

ADV

ADV

ADV

ADV

HA650

650

810

10.1

ADV

ADV

ADV

ADV

HA750

750

870

10.1

ADV

ADV

HA850

850

920

10.0

ADV

HA950

950

1000

10.6

ADV

HA1050

1050

1050

10.5

HA1150

1150

1100

10.5

HA1250

1250

1120

10.1

HA1450

1450

1200

10.0

ADV

LW LW

LW

LW

LW

2 02 4 P R OD U CT CATALOGU E

NOVICE: New to foiling - has other board sports experience INTERMEDIATE: Progressing on Foil - may cross over from another foil sport ADVANCED: Pro/Semi-Pro, has mastered all manoeuvres LW: Light Wind, <85: Riders under 85kg, >85: Riders over 85kg​

PADDLE DOWNWIND

PUMP / DOCKSTART

TOW-IN SURF (OVER HEAD)

SURF BIG (OVER HEAD)

SURF SMALL (UNDER HEAD)

KITE

BOAT

WAKE

S ON AR F OIL S

ADV ADV

NOV NOV NOV >95 ADV ADV

ADV

<75

<85 >85 >85 ADV ADV

>85 ADV

ADV

ADV

ADV

ADV

ADV ADV

>85

*Wing Foil recommendations dependent on wind strength and rider ability​ northfoils.com 1 07

108

2 02 4 P R OD U CT CATALOGU E

S ON AR F OIL S

northfoils.com 1 09

STABILIZER LINEUP

FREERIDE

SURF

S210: 85004.220090

S185: 85004.240097

S270: 85004.220091

S215: 85004.230096

S320: 85004.220092

110

2 02 4 P R OD U CT CATALOGU E S ON AR F OIL S

NEW

GLIDE

HIGH SPEED

S142: 85004.240099

S178: 85004.230095

S192: 85004.240102

S208: 85004.230094 S238: 85004.240098

northfoils.com

111

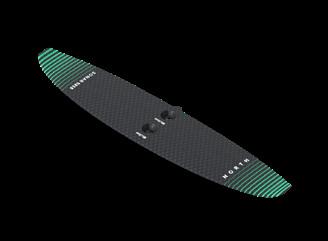

SONAR STABILIZERS Freeride

S210 / S270 / S320 Our thinner profile and higher aspect ratio freeride carbon stabilizers offer reduced resistance and a more efficient outline. The S270 is your go-to for all round kite, wing and surf performance, offering optimal balance, speed, efficiency and control. Pair the S210 with a smaller front wing for high-speed performance and a more agile feel. Pair the S320 with a larger front wing for early planing, greater balance and stability.

• • • • •

Easy recovery from surface breaching ​ Carbon pre-preg construction​ Thin profile and efficient outline Less surface friction for better glide Your go-to stabilizer

P E R F ORMAN CE ACR OSS THE R ANG E

S210

S270

S320

ORDER DETAILS CODE: 85004.220090 COLOUR: 900 Black SIZES: 210cm2

ORDER DETAILS CODE: 85004.220091 COLOUR: 900 Black SIZES: 270cm2

ORDER DETAILS CODE: 85004.220092 COLOUR: 900 Black SIZES: 320cm2

PRODUCT DETAILS Stabilizer with cover, Stabilizer Screw Pack C (M8x16) 112

Surf

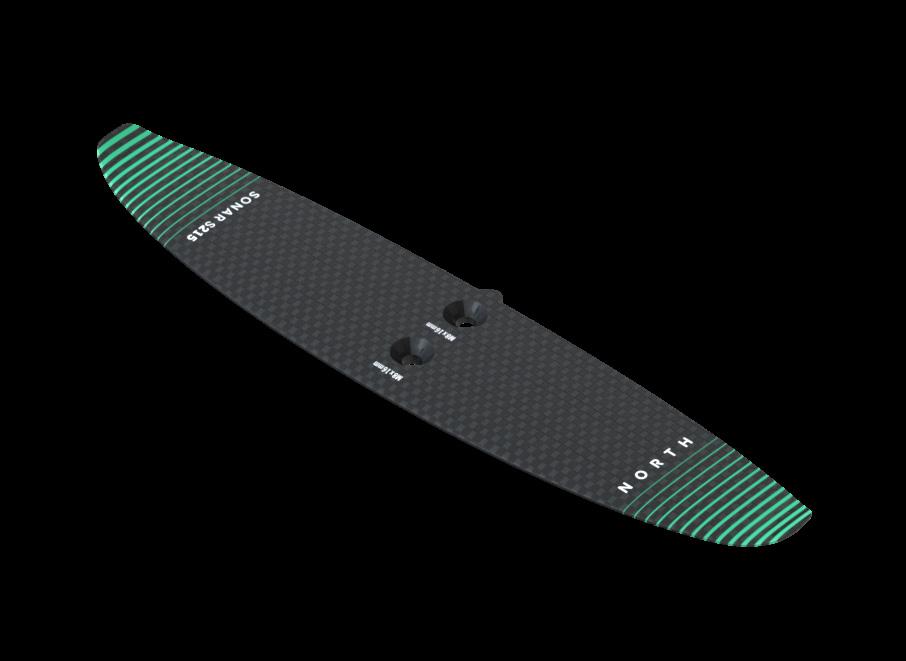

S185 / S215 • • • • • • • •

Moderate span ​ Medium-high aspect ratio for efficient pumping​ Compact outline for responsiveness in turns​ Minimal sweep outline improves low-speed performance​ Upward curving tips provide directional stability and grip in turns​ Option to remove wingtips, creating a flat, loose stabilizer​ Pair the S215 with SF930-SF1230 Front Wings​ Pair the S185 with the SF680-SF860 Front Wings

LOW SP EED CARVE AND PU MP

S185

S215

ORDER DETAILS CODE: 85004.240097 COLOUR: 900 Black SIZES: 185cm2

ORDER DETAILS CODE: 85004.230096 COLOUR: 900 Black SIZES: 215cm2

PRODUCT DETAILS Stabilizer with cover, Stabilizer Screw Pack C (M8x16mm) northfoils.com 1 1 3

S ON AR F OIL S

The Surf Stabilizers have a low stall speed to complement that of the SF Series Front Wings.

The minimal sweep outline improves low-speed performance and effectively reduces fuselage length compared to swept stabilizers​. Tips curve upwards to provide directional stability, inspiring confidence during take-offs and grip in turns. Advanced riders who are seeking a looser feel may choose to remove the wingtips, using the dashed guideline graphic, to create a completely flat stabilizer.

2 02 4 P R OD U CT CATALOGU E

SONAR STABILIZERS

SONAR STABILIZERS Glide

S142 / S192 NEW Downwind. Pump. Surf. Our new Glide Series stabs are designed to cover insane distances with minimal work.

S192 Relaxed, speedy, flowy and effortless - an intermediate rider will find the S192 super stable and easy to pump when paired with the smaller Downwind Front Wings.

The S192 also pumps efficiently with the Surf Series, is ideal for charging white wash and bigger surf and has so much glide you can pump around to connect waves with ease. For winging, pair the S192 with the bigger Downwind Foils - the glide is the stand-out factor.

S142 The S142 is higher performance, crazy fast and whippy.

Your average rider may find it a little more advanced for pumping, but with enough grunt to dig out if you need to. Supercharge your setup for speed with the new High Modulus Mast and smaller Downwind foils.

The S142 has enough holding power to take you right up to the DW1400, but we recommend the S192 for the larger Downwind Foils.

E FF ORT LESS DOWNWI ND, PU MP AND GLID E

S142

S192

ORDER DETAILS CODE: 85004.240099 COLOUR: 900 Black SIZES: 142cm2

ORDER DETAILS CODE: 85004.240102 COLOUR: 900 Black SIZES: 192cm2

PRODUCT DETAILS Stabilizer with cover, 2x Stabilizer Ti Screw (M8x16 CSK) 114

2 02 4 P R OD U CT CATALOGU E

S ON AR F OIL S

northfoils.com 1 1 5

SONAR STABILIZERS High Speed

S178 / S208 / S238 Flat, loose and fast. The High-Speed Stabilizer Series are a high-performance upgrade to the Sonar Foil System for experienced riders.

Sonar S178 Stabilizer Flat, loose and even faster. We recommend pairing the S178 with Front Wing Suze HA950 or smaller. The S178 has a higher aspect ratio than the S208.

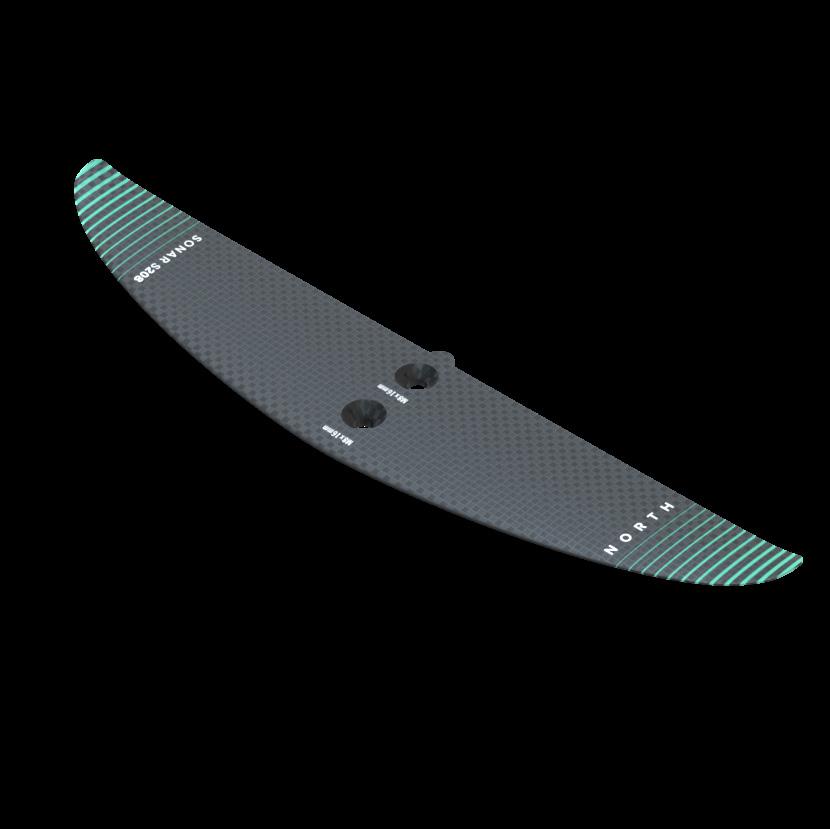

Sonar S208 Stabilizer The S208 has a higher aspect ratio than the S210, which means less drag, and the flatter rondure (front view) enables more manoeuvrability.

Sonar S238 Stabilizer The S238 is designed to match the larger HA front wings, and the new MA1200/MA1500, giving your setup a faster and more responsive feel.

S178

S208

S238

ORDER DETAILS CODE: 85004.230095 COLOUR: 900 Black SIZES: 178cm2

ORDER DETAILS CODE: 85004.230094 COLOUR: 900 Black SIZES: 208cm2

ORDER DETAILS CODE: 85004.240098 COLOUR: 900 Black SIZES: 238cm2

PRODUCT DETAILS Stabilizer with cover, Stabilizer Screw Pack C (M8x16mm) 116

2 02 4 P R OD U CT CATALOGU E

SONAR STABILIZER SHIM KIT

S ON AR F OIL S

The rear Stabilizer’s main role is to maintain a level and stable flight path. However, conditions and user preference may change what stabilizer angle feels the best (aka the sweet spot).

The smallest tweak in the AOA can improve comfort, reduce fatigue, change the cadence of your pump or the turning radius of your carve, allowing you to increase/ decrease your front and rear foot pressure without changing your foot position.

With the Sonar Shim Kit you can stack multiple shims, from -0.5 to +2.5 degrees.

Positive shimming will increase front foot pressure. Negative shimming will reduce front foot pressure. The full stack (+2.5deg) creates the maximum recommended AOA to ensure your stabilizer is still effective without creating drag.

Shimming changes the angle of attack (AOA) and controls the amount of downforce the Stabilizer creates on the overall foil system.

Stack multiple shims, from -0.5 to +2.5 degrees

ORDER DETAILS CODE: 85004.220093 COLOUR: 999 Multiple SIZES: O/S PRODUCT DETAILS 1x -0.5 Deg Shim, 1x 0.5 Deg Shim, 2x 1 Deg Shim northfoils.com 1 1 7

Front Wing X Stab Specs STABILIZERS Freeride

Surf

S210

S270

S320

S185

S215

ACTUAL AREA CM 2

210

270

320

185

217

WINGSPAN MM

350

395

430

350

368

ASPECT RATIO

5.9

5.8

5.9

6.6

6.3

SF680 SF830 SF930 SF1080 SF1230 MA700 V2 MA850 V2 MA1050 V2

FRONT WINGS

MA1200 V2 MA1500 V2 MA1850 V2 MA2100 V2 MA2400 V2 HA550 HA650 HA750 HA850 HA950 HA1050 HA1150 HA1250 HA1450 P1800 P2050 DW750 DW900 DW1100 DW1400 118

ADV

2 02 4 P R OD U CT CATALOGU E

STABILIZERS High Speed

Glide

S208

S238

S142

S192

180

208

238

150

192

380

380

430

380

440

8.1

7

7.8

10.2

10.1

ADV ADV

S ON AR F OIL S

S178

ADV ADV ADV

>85

ADV ADV

<85 northfoils.com 1 1 9

FUSELAGE Carbon

C600 / C700 C600 High-strength 600m pre-preg carbon fuselage weighs ~50% less than the A600, with equal strength and stiffness. Strong, durable and corrosion resistant. The shorter length C600 Fuselage improves pumpability and has a sporty feel with earlier take-offs. ​Features GeoLock. ​ Fits all Sonar Masts.

Construction: Carbon Prepreg C700 High-strength 700mm pre-preg carbon fuselage weighs in ~50% less than the A700, with equal strength and stiffness. Strong, durable and corrosion resistant. The forgiving longer C700 fuselage is ideal for wing-foiling or learning to foil, offering greater stability and more control. Features GeoLock. ​ Fits all Sonar Masts.

Construction: Carbon Prepreg

ORDER DETAILS CODE: 85010.210086 COLOUR: 900 Black SIZES: C600, C700 PRODUCT DETAILS Fuselage, Screw Pack B (M8x35) 120

2 02 4 P R OD U CT CATALOGU E

FUSELAGE Aluminium A600 / A700

S ON AR F OIL S

A600 600mm long fuselage ideal for pumping. Precisely CNC-machined to a hydrodynamically-optimized shape. Offers minimum resistance and features GeoLock for a more efficient load transfer. ​ Fits all Sonar Masts.

Construction: 6000-Series Alloy A700 Cruise control. Forgiving 700mm long fuselage improves stability when paired with any wing. Ideal for learning to foil, the longer fuselage delays the pitching moment, giving you more time to react. Its precisely CNC-machined and hydrodynamically-optimized shape offers minimum resistance and features GeoLock. ​ Fits all Sonar Masts.

Construction: 6000-Series Alloy

ORDER DETAILS CODE: 85010.210085 COLOUR: 900 Black SIZES: A600, A700 PRODUCT DETAILS Fuselage, Screw Pack B (M8x35) northfoils.com 1 2 1

I MPOSSI BLY TH IN. IM P R ESSIV ELY FAST. We’ve reduced the thickness of the submerged portion of our new High Modulus Carbon masts by over 15% compared to our Carbon masts, while also increasing both bending and torsional stiffness.

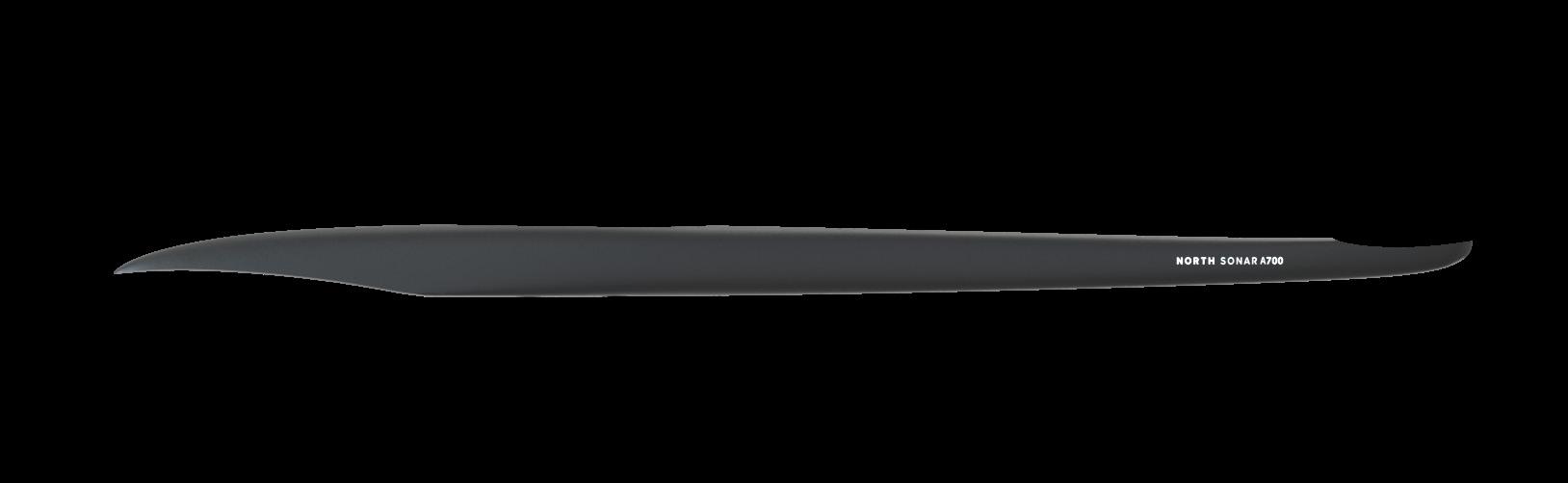

H I GH M OD U LU S CA RBON MAST 122

2 02 4 P R OD U CT CATALOGU E

S ON AR F OIL S

northfoils.com 1 2 3

NEW

HIGH MODULUS CARBON MAST HM80 / HM85 / HM105

HM80 The HM80 favours disciplines without wind power prone surf, pump and downwind. The shorter chord length over the entire mast length reduces drag and increases manoeuvrability. This delivers more glide, more efficient pumping, and quicker turns.

HM85 The HM85 covers all disciplines, with a focus on wingfoiling. Wind-powered disciplines require edging against the wind to create forward drive. Some of this drive comes from the front wing and some comes from the mast. To efficiently provide this drive, the chord length in the submerged part of the mast is slightly longer. It increases near the top of the mast to maximise stiffness with no drag penalty, as this part of the mast is clear of the water once on foil.

HM105 The HM105 has been optimised for racing. The thickness of the submerged part of the mast is a further 1mm thinner than the HM80 and HM85, to provide maximum top-end speed. As a result this mast is not for jumping. Like the HM85, the chord length in the submerged region has been tailored to provide good upwind drive, while the chord length increases above the waterline to maximise stiffness.

ORDER DETAILS CODE: COLOUR: SIZES:

85004.240071 900 Black 80, 85, 105cm

PRODUCT DETAILS Mast*, Cover *Mounting screws are included with North Foilboards and sold separately 124

2 02 4 P R OD U CT CATALOGU E S ON AR F OIL S

What is High Modulus?

Modulus of Elasticity (E) is a measurement of the stiffness of a material and is defined as the ratio of stress to strain when the material is deformed. The higher the modulus, the stiffer the material (i.e., the greater the stress necessary to cause deformation).

High Modulus carbon fibers are created through specialized heat treatment processes which deliver much higher tensile modulus values around 57 msi (million pounds per square inch), but at a reduced tensile strength of 640 ksi. This fiber will produce a part that is much stiffer but will lower tensile strength. northfoils.com 1 2 5

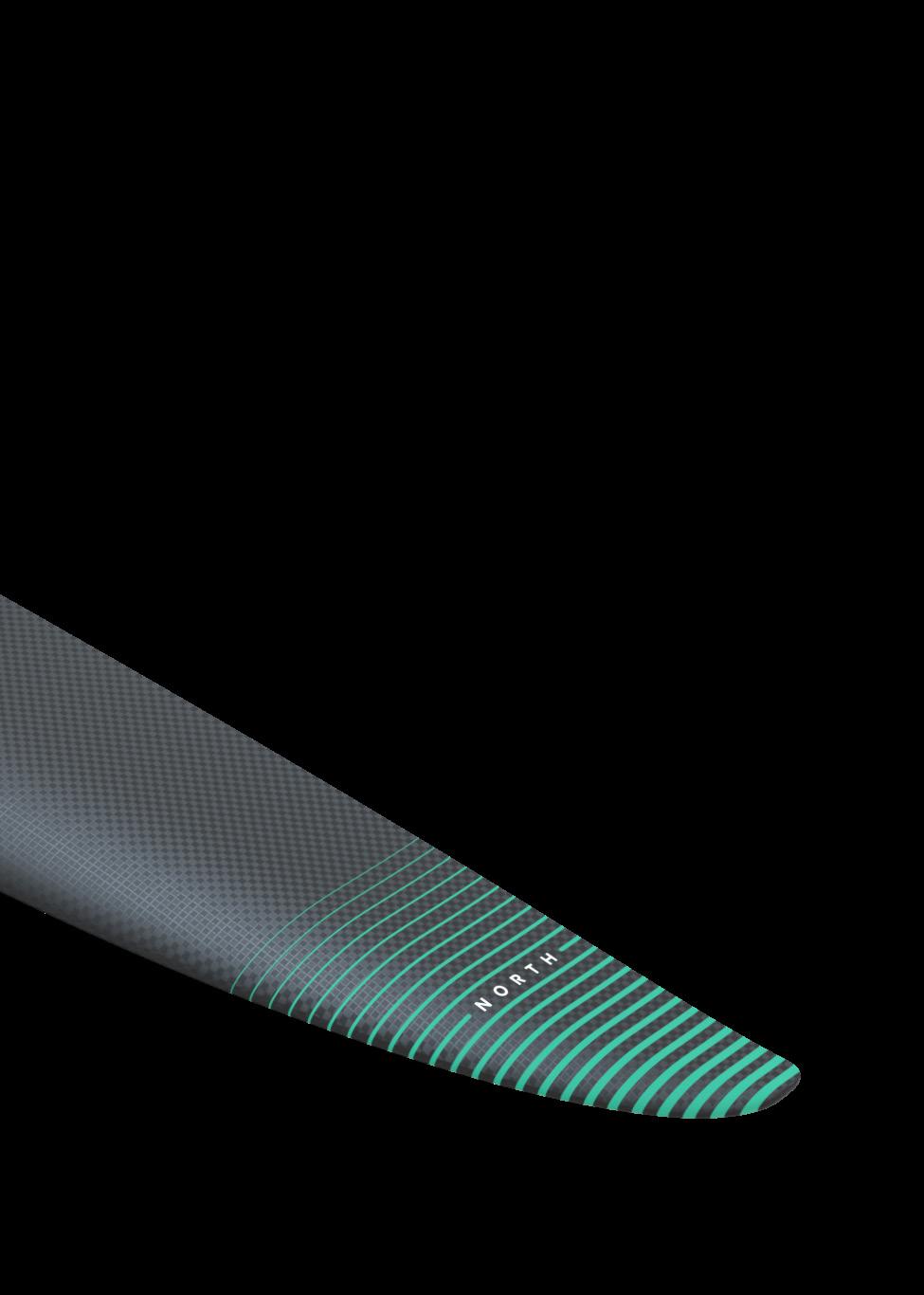

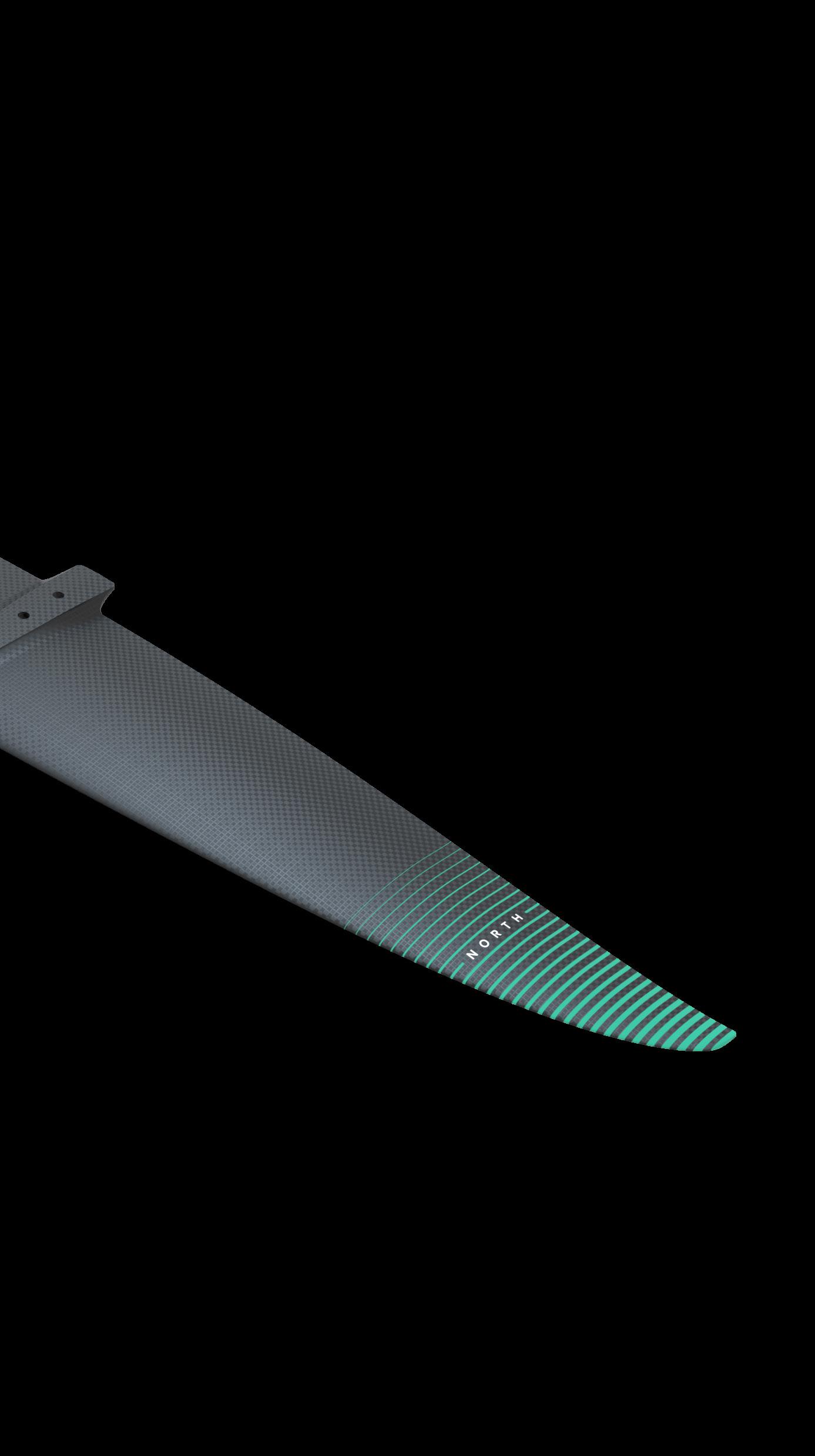

CF CARBON MAST CF72 / CF85 / CF95

​ ur highest quality pre-preg carbon mast delivers a O stiffer, more direct feel and more immediate feedback.

Tapered for optimal load transfer and lower surface friction, the refined one-piece design presents a strong, durable and corrosion-free choice across all disciplines. The CF72 mast is ideal for shallower waters, and prone surf foiling. The longer CF85 mast increases overall ride performance in choppy conditions. Features GeoLock. The new CF95 mast is designed for use with higher aspect foils, when conditions are rougher and there is more chop, when racing, kite foiling or high-speed winging.

• • • •

• • •

ORDER DETAILS CODE: COLOUR: SIZES:

85010.210124 900 Black CF72, CF85, CF95

PRODUCT DETAILS Mast*, Cover *Mounting screws are included with North Foilboards and sold separately 126

Exceptional strength-to-weight ratio for higher loads ​ Longer chord at top of the mast increases stiffness​ Refined foil section to maximise laminar flow and minimise drag​ Optimised carbon layup to provide the best balance between bending stiffness (flexural stiffness) and torsional stiffness with low weight​ GeoLock​ Industry-standard 165x90mm mounting pattern for use with DropBox or any board​ Foil to board mounting screws sold separately

2 02 4 P R OD U CT CATALOGU E

S ON AR F OIL S

northfoils.com 1 2 7

AF FOIL MAST AF55 / AF72 / AF85 / AF95

Our new refined aluminium foil section gives the best balance between light weight and increased strength for higher loads. ​30% stiffer than the AK mast yet only 13% heavier. T ​ he forgiving 55cm mast is suitable for skimming just above the water and its easy recovery makes it ideal for learning to foil or for shallower waters. ​The AF72 is also ideal for shallower waters, and prone surf foiling. T ​he AF85 increases overall ride performance in choppy conditions. ​The AF95 has been designed for use with higher aspect foils, when conditions are rougher and there is more chop, when racing, kite foiling or high-speed winging.

ORDER DETAILS CODE: COLOUR: SIZES:

85010.210123 900 Black AF55, AF72, AF85, AF95

PRODUCT DETAILS Mast only* *AF Board Adaptor and screws sold separately 128

• • •

•

Exceptional strength to weight ratio for higher loads ​ GeoLock​ Requires AF Board Adaptor with Industry standard 165x90mm mounting pattern for use with DropBox or any board​ Supplied without screws

2 02 4 P R OD U CT CATALOGU E S ON AR F OIL S

AF BOARD ADAPTOR Board Adaptor for the AF72 and AF85 masts. FEAnalysis allows us to optimise the structure, increase strength in the areas of highest stress concentration and reduce unecessary weight in lower stress areas.

Incorporates a strong geometry locking connection for better energy transfer and a more direct feel. ​Fits all boards with a 165x90mm mounting pattern. ​ Not compatible with AK Mast Series.

Construction: 6000-Series Alloy

ORDER DETAILS CODE: 85010.210090 COLOUR: SIZES:

900 Black O/S

PRODUCT DETAILS AF Board Adaptor, Screw Pack A (M8x40) SCREWS SOLD SEPARATELY*​ *Foil to Board mounting screws are included with all North Foilboards or available to purchase as an accessory.

DROPBOX 23mm SCREW PACK CODE: 85009.230135 DROPBOX 25mm SCREW PACK CODE: 85009.220134 DROPBOX 30mm SCREW PACK CODE: 85009.200133 SENSE FOILBOARD SCREW PACK CODE: 85009.200088 northfoils.com 1 2 9

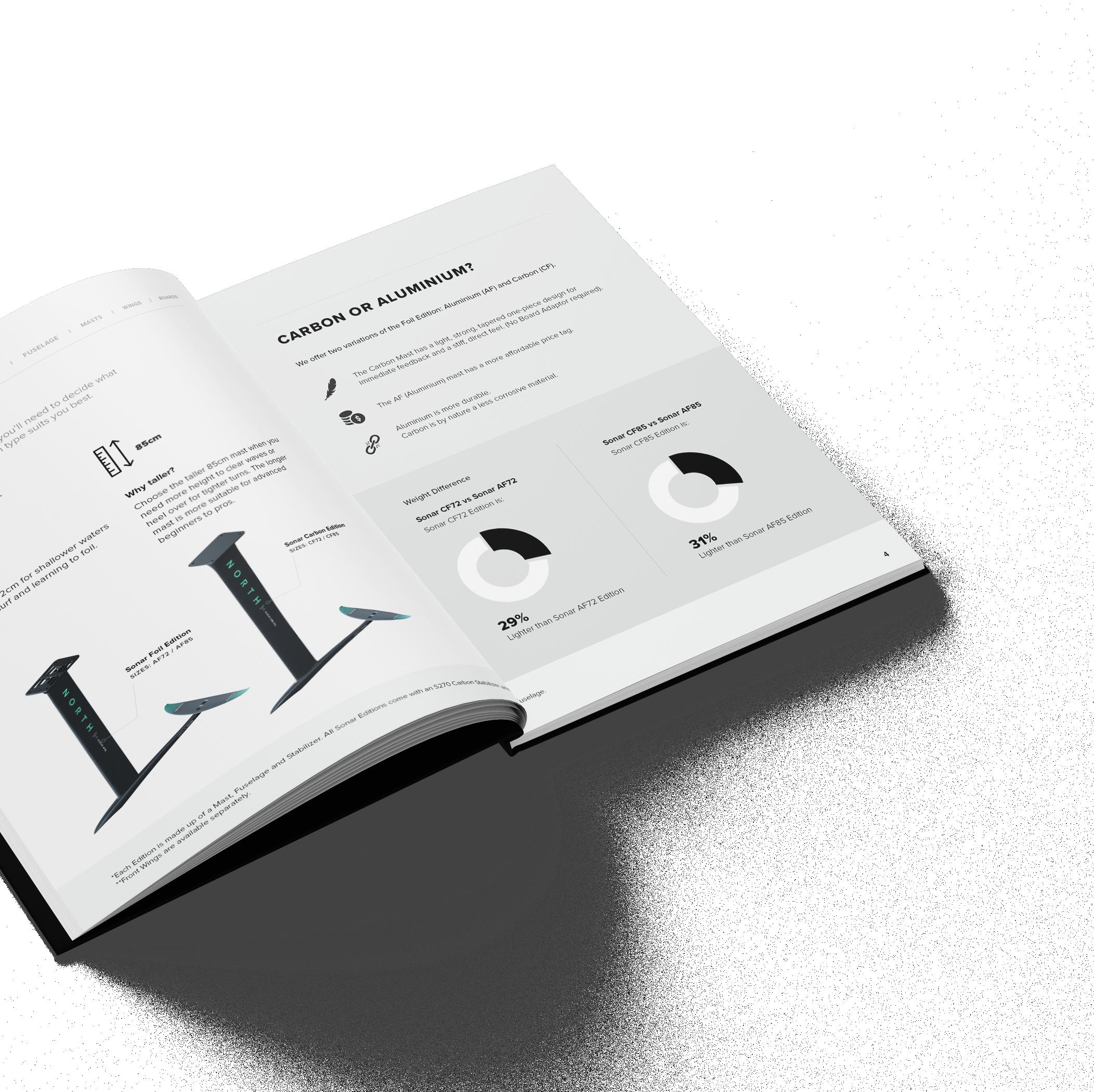

Life doesn’t come with a Rider Guide.

But the Sonar Foil System does.

Angle of attack. Aspect Ratio. Stall Speed. When you’re new to Foiling, it can all seem a little complex.

But like everything we design, the North Modular Foil System is engineered for the perfect ride, without overthinking. Our new Rider Guide takes the Sonar Foil System to pieces, so you can build it back together - step by step, then modify it your way. We’ve simplified the process, so wherever you are on your foiling journey, or whatever conditions are calling, you can be confident your gear will outperform the rest.

Sonar Foils. Ride your way. northfoils.com

Foilboards 04

132

SEEK SEEK PRIME SEEK AIR HORIZON SWELL VERT SCOOP SCOOP MINI SENSE

136 139 140 144 148 150 152 154 155

FOILBOARDS LINEUP

NEW

SEEK

SEEK AIR

SEEK PRIME

HORIZON

CODE: 85013.240011

CODE: 85013.240015

CODE: 85013.240017

CODE: 85013.240016

Wing

134

NEW

Wing Inflatable

Learn-to-Wing

Downwind / SUP / LW Wing

2 02 4 P R OD U CT CATALOGU E F OIL BOAR D S

NEW

SWELL

VERT

SCOOP

SCOOP MINI

SENSE

CODE: 85013.240010

CODE: 85013.240018

CODE: 85013.240008

CODE: 85013.240009

CODE: 85013.240012

Surf / Wing Crossover

Performance Surf

Wake / Kite / Tow

Pump / Kite / Tow

Kite / Wake

northfoils.com 1 3 5

R I SE UP Engineered for an intuitive and direct connection to your hydrofoil, the Seek has a stiff, responsive Hybrid Carbon construction. We’ve refined the design for improved speed and acceleration, with stable clean release and forgiving touchdowns. ​

SE E K FOILBOA RD 136

2 02 4 P R OD U CT CATALOGU E

F OIL BOAR D S

northfoils.com 1 3 7

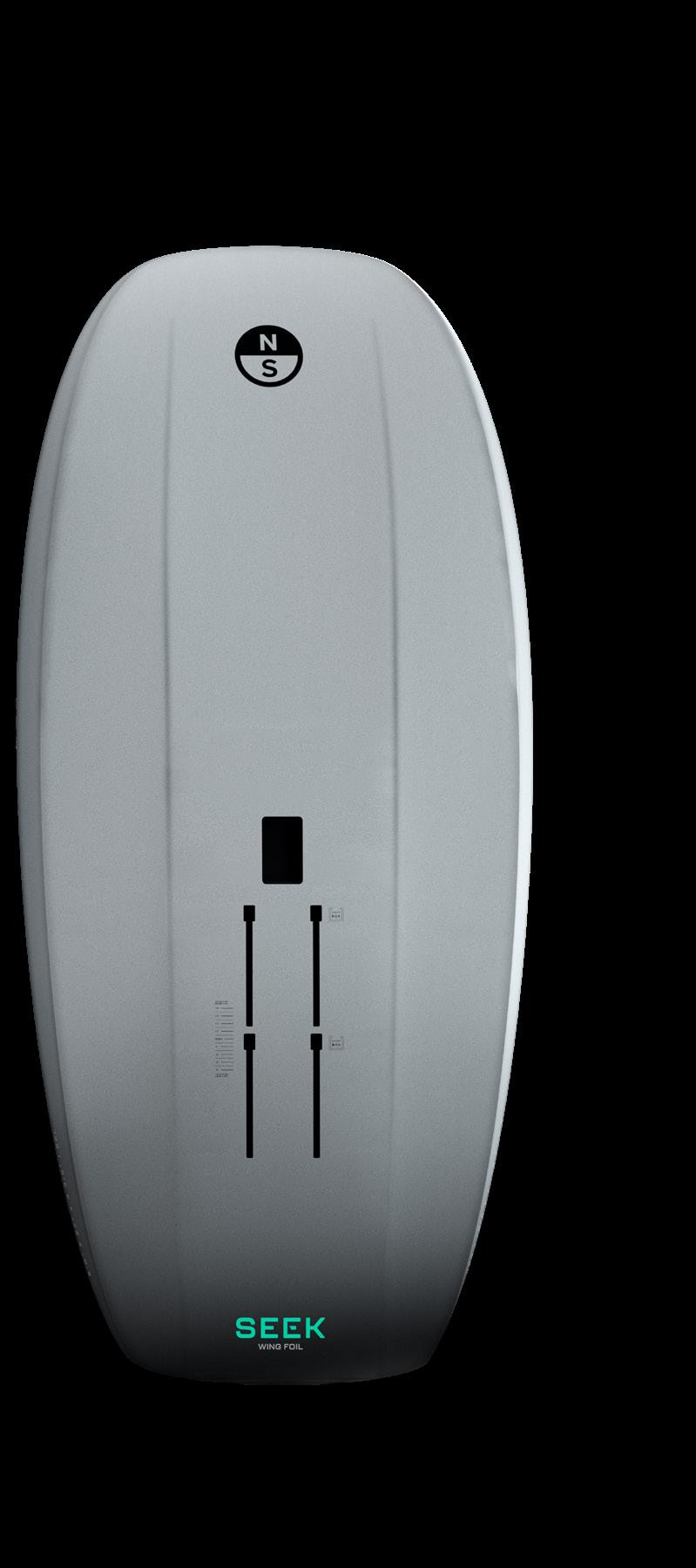

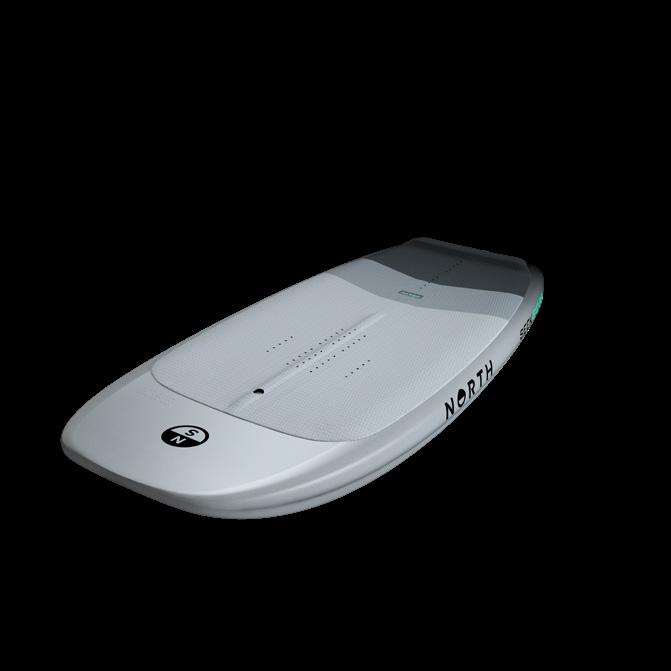

SEEK Wing

Hybrid Technology • • • • • • •

Efficient tri-plane hull design​ Longer waterline with lower entry rocker ​ New sizes with updated volumes​ Max-traction non-abrasive deck grip​ Lightweight Hybrid Carbon Technology​ Centreline, offline and V-strap insert options (straps sold separately)​ DropBox 165x90mm Fast Foil Mount (screws and t-nuts pre-installed)​

ORDER DETAILS CODE: 85013.240011 COLOUR: 196 Titanium SIZES: 4’4 | 48L, 4’6 | 58L, 4’8 | 68L, 4’10 | 78L, 5’0 | 88L, 5’2 | 98L, 5’4 | 108L, 5’6 | 118L, 5’11 | 138L PRODUCT DETAILS DropBox Screw Pack (4x M8x30mm, 4x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Free, Free-V, Free Lo and Free-Lo V Foil Straps, Calf Leash, Waist Belt Leash, Quick Release Board Leash 138

Learn-to-Wing

NEW

EcoLite Softskin Technology Early planing with longer waterline to get you up on foil faster Ample width and volume for stability User-friendly EcoLite Softskin Construction Affordable, durable and impact-resistant Comfortable high-traction EVA deckgrip DropBox fast foil-mounting system Nose tow-attachment point for instructor-towing

F OIL BOAR D S

• • • • • • •

2 02 4 P R OD U CT CATALOGU E

SEEK PRIME

ORDER DETAILS CODE: 85013.240017 COLOUR: 415 Turquoise SIZES: 6’4 | 138L, 6’10 | 168L PRODUCT DETAILS Board with EVA Deckpad, Leash Plug and Tow Point, DropBox Screw Pack (4x M8x30mm, 4 x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Calf Leash, Waist Board Leash, DropBox Fin Adaptor northfoils.com 1 3 9

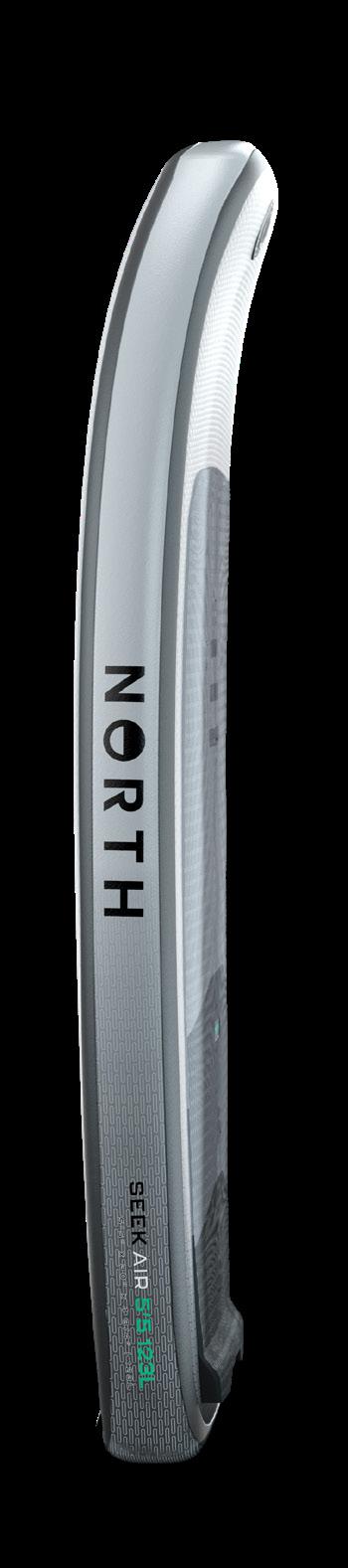

SEEK AIR Wing Inflatable Inflatable CST • • • • •

Outstanding control and direct, responsive connection to y​ our foil​​ Effortless take-offs and touchdown recovery​​ Durable, impact absorbing and ding resistant​​ Forgiving performance rails with sharp release tail ​ ​Unique CST (Carbon Sandwich Transfer) base, custom-curved to match the rocker of the board​​

• • • •

ORDER DETAILS CODE: 85013.240015 COLOUR: 196 Titanium SIZES: 4’10 | 78L, 5’1 | 110L, 5’5 | 124L, 5’9 | 132L, 6’2 | 155L ​ PRODUCT DETAILS Recycled PET Roller Bag with Straps, Inflatable Board Pump, Repair Kit, Seek Air Screw Pack ACCESSORIES (SOLD SEPARATELY) DropBox Fin Adaptor (5’9/6’2), Calf Leash, Waist Belt and Quick Release Board Leash, Free Foil, Free-Lo, Free-V and Free-Lo V Straps 140

DropBox Fast Foil Mounting​​ V-Strap and Centreline Foot strap inserts​​ 5’9 / 6’2 ideal entry to foiling​- shaped for on-water speed and ​fast, early take-offs​ Maximum stiffness guaranteed – up to 15PSI Inflation pressure​

2 02 4 P R OD U CT CATALOGU E

S M O OT H R I DER

F OIL BOAR D S

Redefining the inflatable foilboard. T ​ he Seek Air delivers the feel and performance of it’s hybrid-carbon counterpart with all the ​lightweight convenience, portability, and durability of an inflatable.

northfoils.com 1 4 1

Getting Started Your learn-to-fly setup

1.

2.

4.

1. NOVA

142

2. SEEK PRIME

3. WAIST BOARD LEASH

4. SONAR MA1850/2100v2 FRONT WINGS

5. AF FOIL EDITION (72/85)

2 02 4 P R OD U CT CATALOGU E

3.

10.

7.

6.

9.

8.

6. S320 STAB

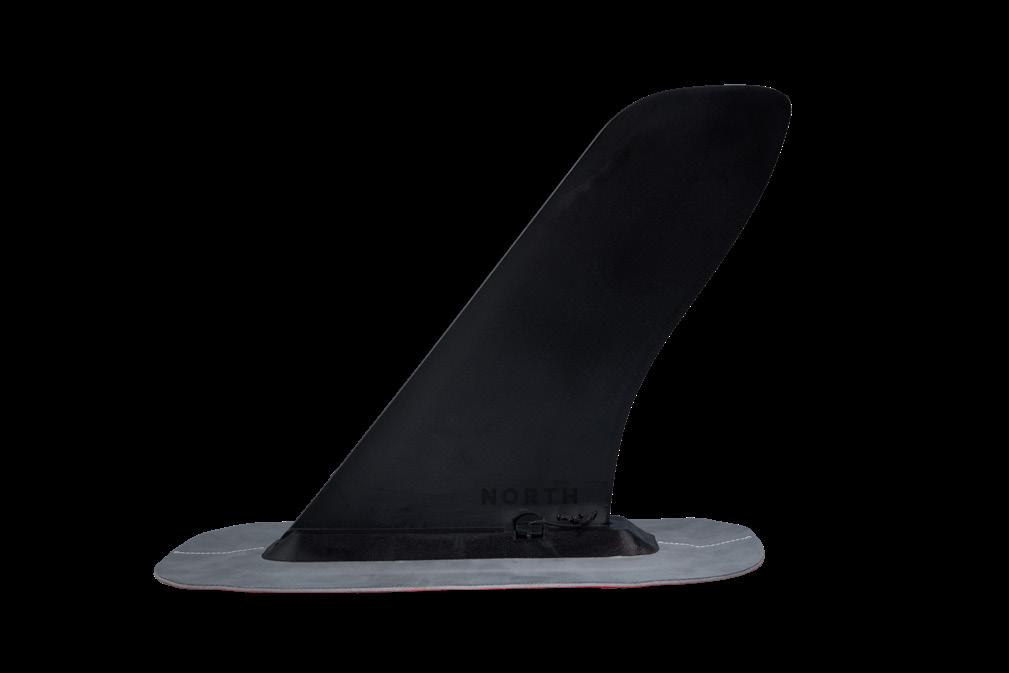

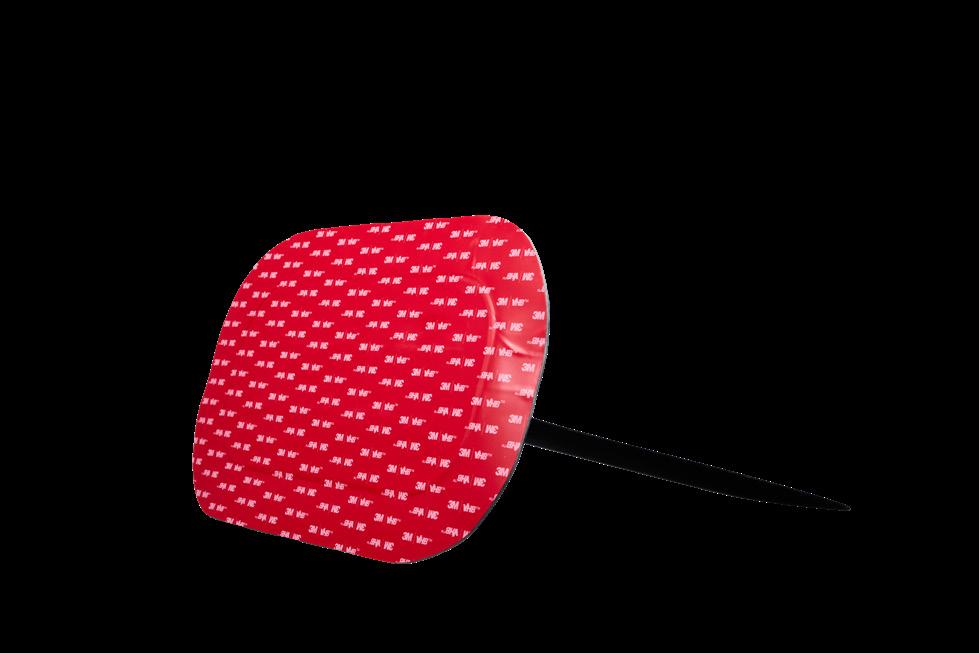

7. GLUE-ON FIN

8. NORTH PONCHO

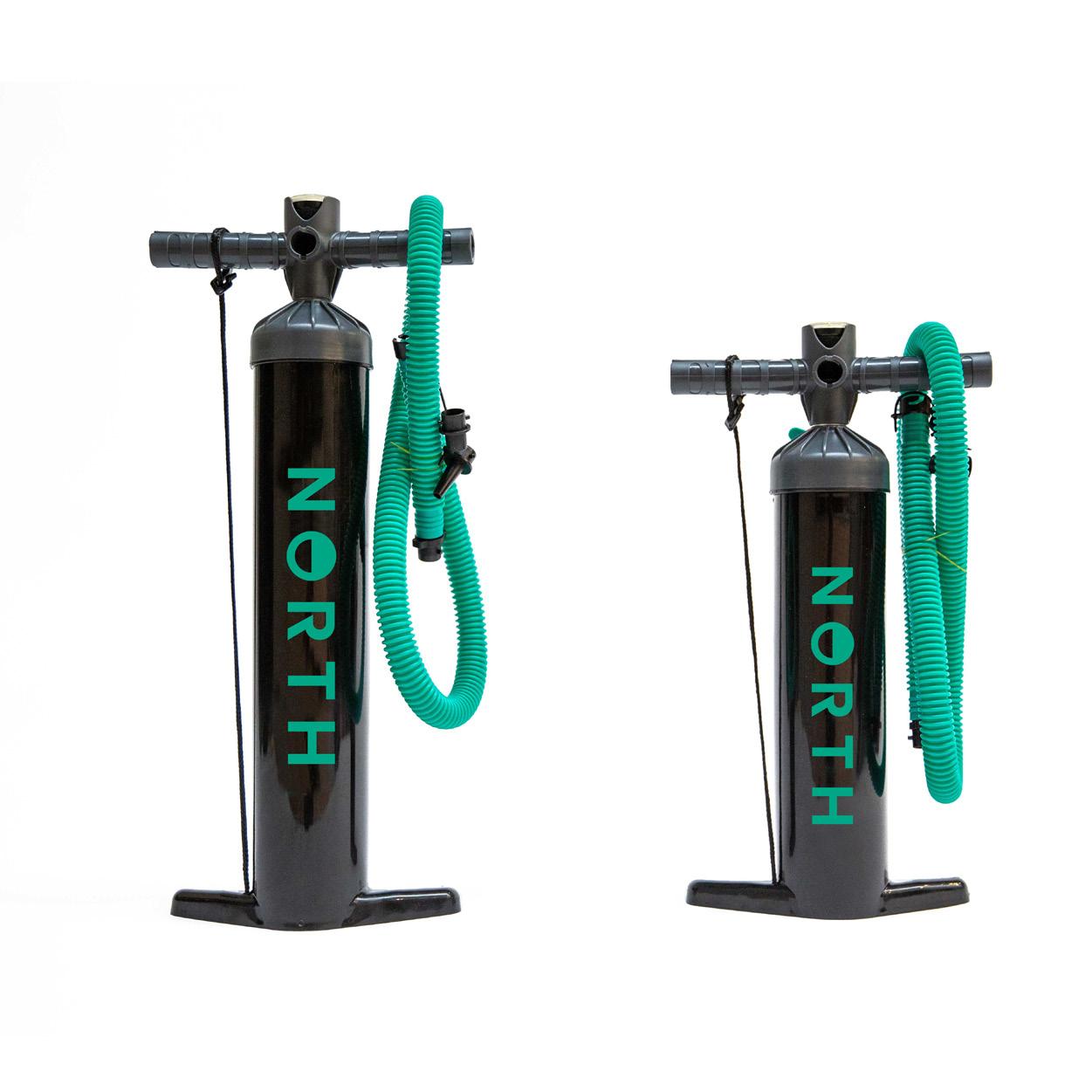

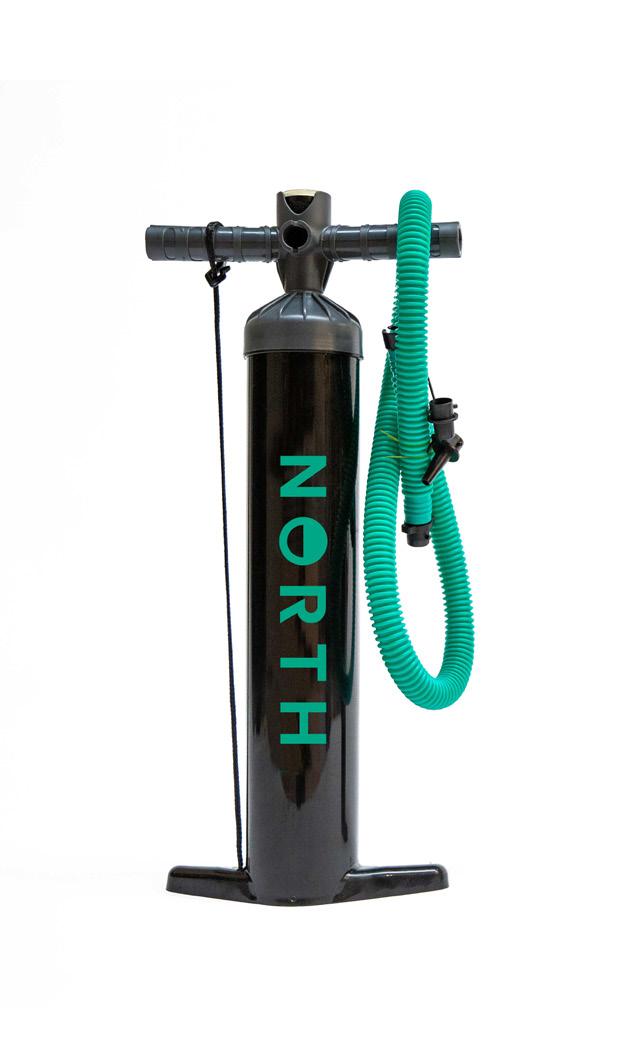

9. KITE/WING PUMP

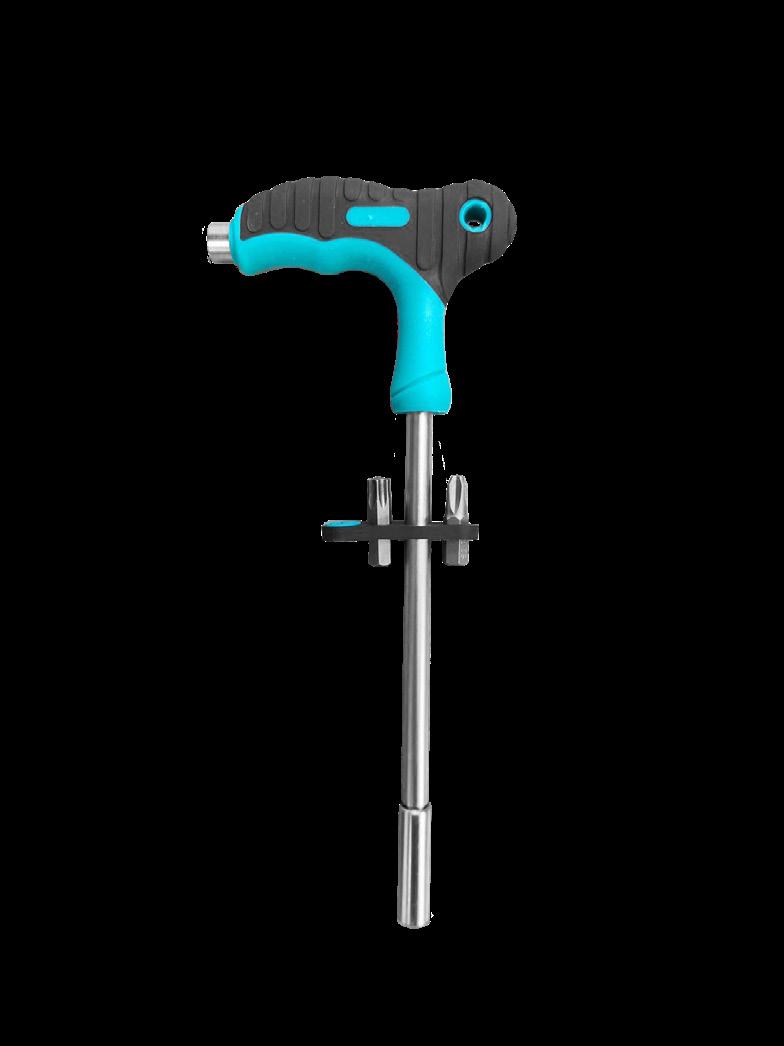

10. TORX T40 TOOL

northfoils.com 1 4 3

F OIL BOAR D S

5.

AWA K EN THE VOYAG E R WIT HIN The horizon reminds us that there is always more to explore.

It’s not just a line where wind meets water but a symbol of limitless possibilities. When we look to the horizon, it ignites our desire to progress and a thirst to overcome challenges – it awakens the voyager within. An evolution of surfing, with downwinding, the entire ocean becomes our playground. No matter how far we go or how close we get, the horizon will always be just beyond our reach. But the journey gives us a direction. We chase it endlessly and never stop seeking.

H O RIZON FOILBOA RD 144

2 02 4 P R OD U CT CATALOGU E

F OIL BOAR D S

northfoils.com 1 4 5

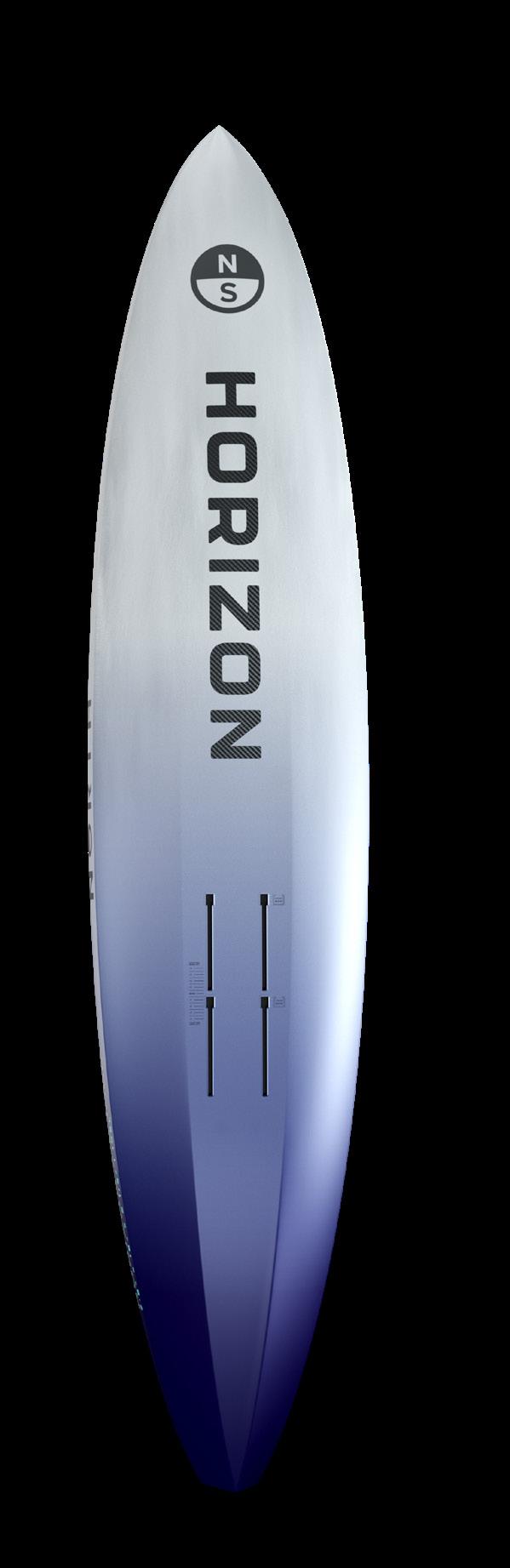

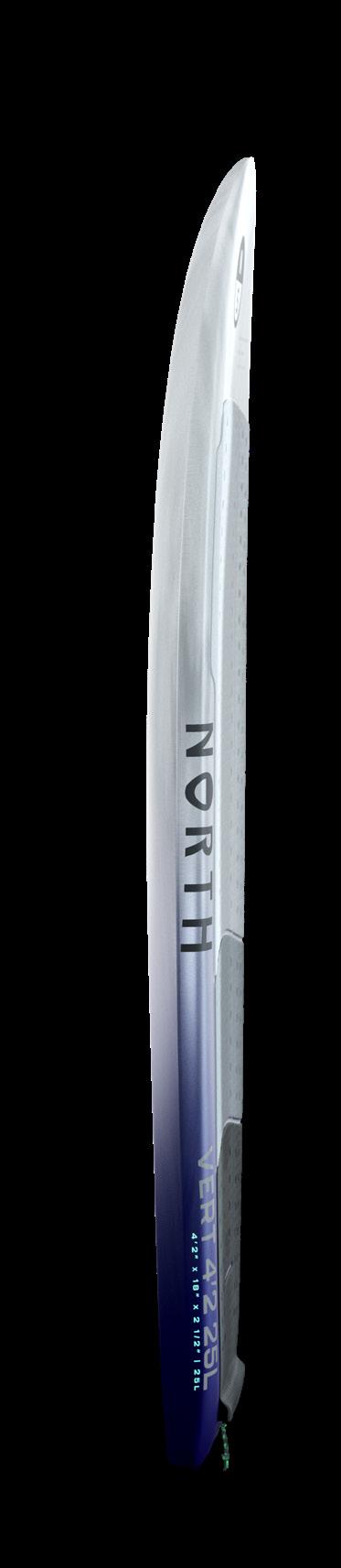

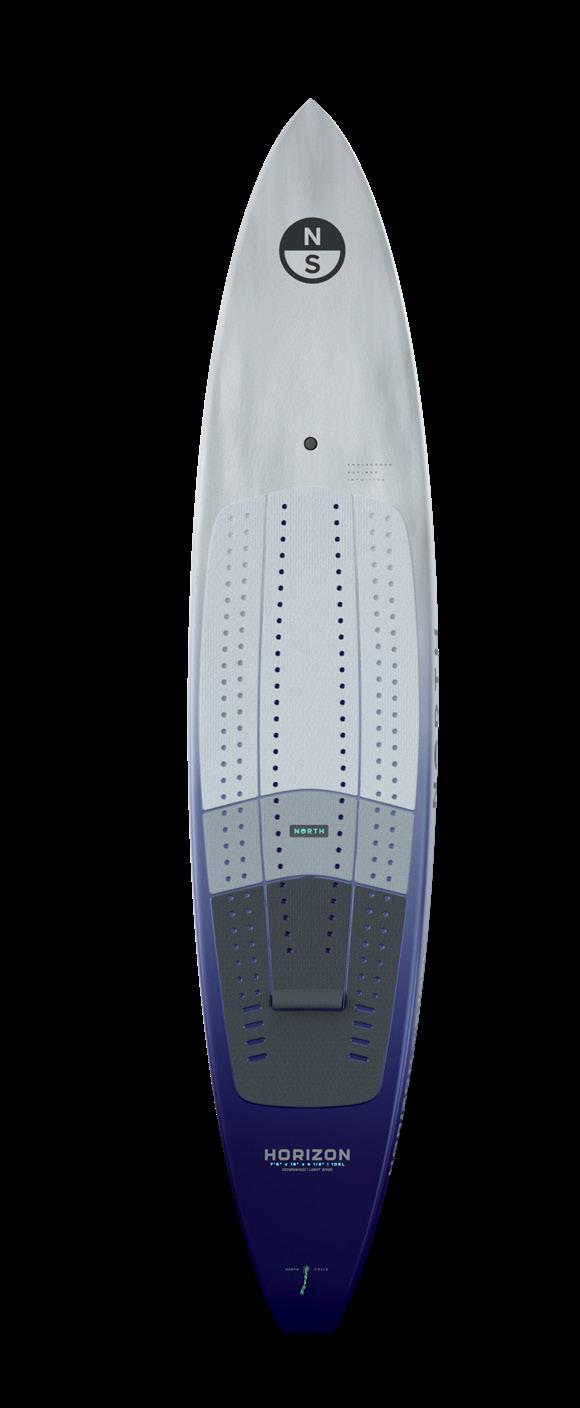

HORIZON

Downwind / SUP / LW Wing Carbon Technology • • • • • • •

Efficient displacement hull design for quick pump-to-foil Lightweight, strong and durable full-carbon construction Pulled-in tail for tracking and efficiency on takeoff and touchdown Forgiving forward rails, sharper behind the foil for fast-release Slightly concaved deck under the standing section for stability Comfortable EVA deck pad with raised rail edges and extended tail pad for wingfoiling DropBox adjustable fast foil mounting

ORDER DETAILS CODE: 85013.240016 COLOUR: 196 Titanium SIZES: 6’10 | 95L, 7’5 | 105L, 7’10 | 115L, 8’4 | 125L PRODUCT DETAILS Board with EVA Deckpad and Leash Plug, DropBox Screw Pack (4x M8x30mm, 4 x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Sonar Downwind Series Front Wings, Glide Stabilizers, Waist Board Leash, Coiled Calf Leash, North Carbon Paddle (available from North Windsurfing) 146

NEW

2 02 4 P R OD U CT CATALOGU E

F OIL BOAR D S

northfoils.com 1 4 7

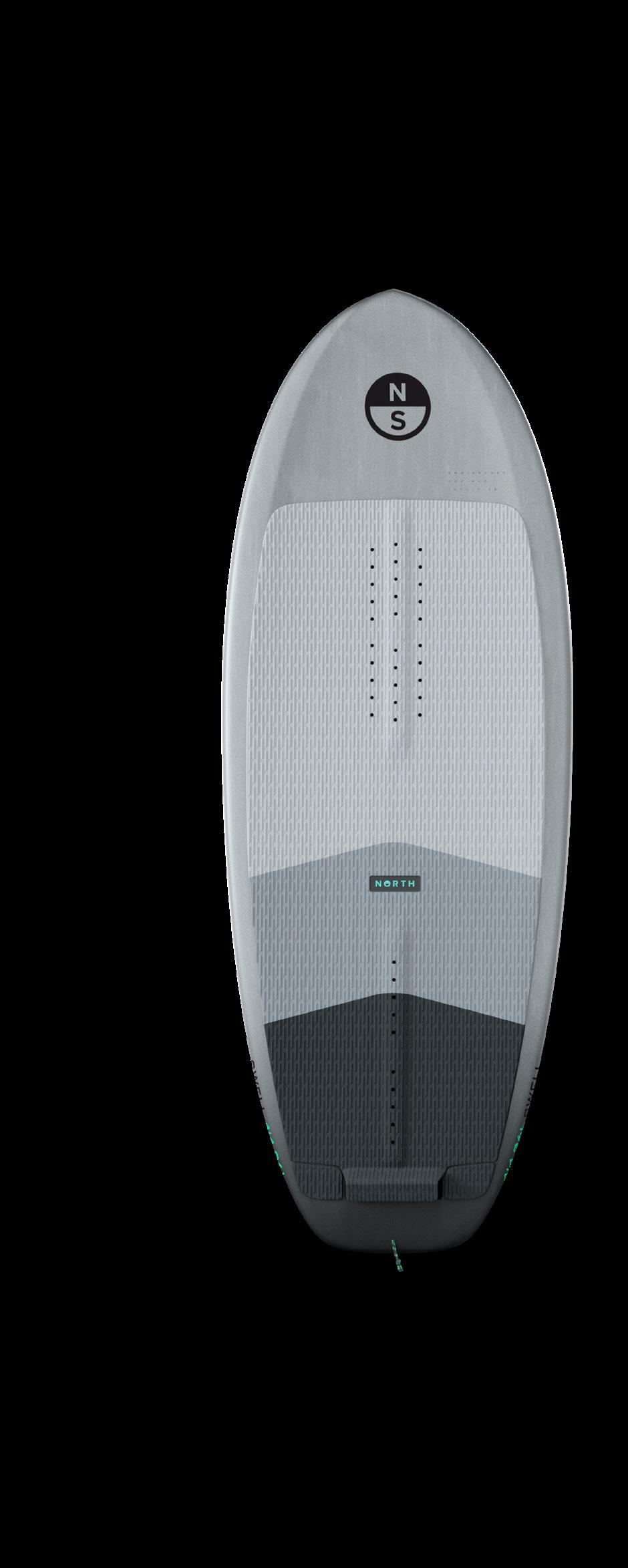

SWELL

Surf / Wing Crossover Hybrid Technology • • • • • • •

Efficient tri-plane hull design​ Faster paddling thinner profile with lower entry rocker ​ Grip-friendly concaved forward rails for duck-diving and pop-ups ​ New non-abrasive max-traction deckpad ​ Lightweight Hybrid Carbon Technology with dual PVC stringers​ DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)​ Centreline and offline strap inserts (straps sold separately)​

ORDER DETAILS CODE: 85013.240010 COLOUR: 196 Titanium SIZES: 4’2 | 29L, 4’4 | 33L, 4’6 | 36L, 4’10 | 42L PRODUCT DETAILS DropBox Screw Pack (4x M8x30mm, 4x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Free, Free Lo, Calf Leash, Ankle Leash 148

2 02 4 P R OD U CT CATALOGU E F OIL BOAR D S

CATC H E VERY WAV E Pocket frother. Foam chaser. No wave is “too” anything for the Swell, a highperformance prone surf foilboard with direct connection to your foil. Its stiff, responsive and manoeuvrable construction is engineered for stable, fast-release takeoffs and effortless touchdown recovery. ​

northfoils.com 1 4 9

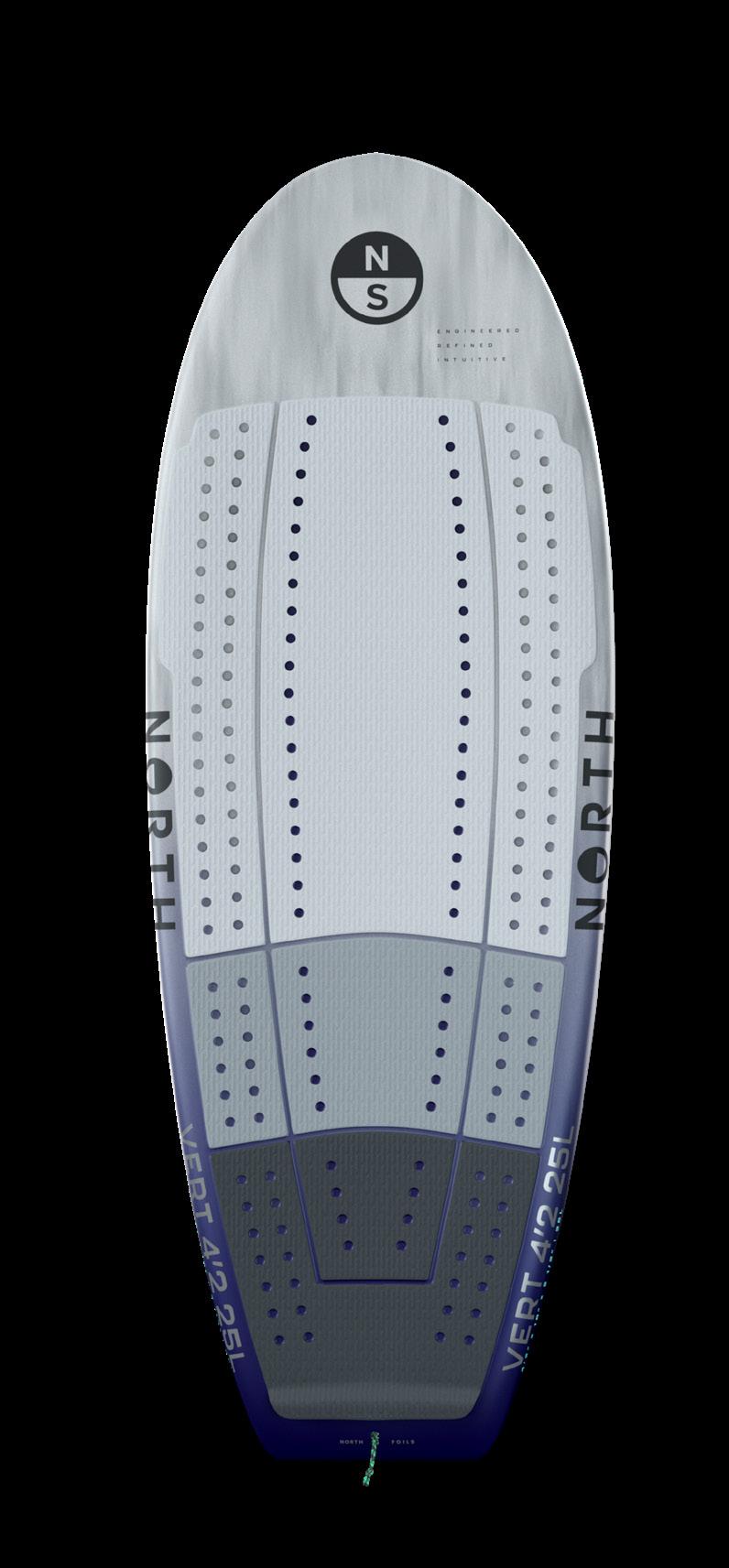

VERT

Performance Surf Carbon Technology • • • • • • •

Fast and intuitive dedicated prone board for advanced foil surfers Light and efficient for extended pumping with smaller foils Slender teardrop shape for tighter carves Grabbable rails and balanced volume distribution Strong full carbon shell with structural reinforcement Comfortable max-traction deckpad - no strap inserts Also for wake foiling and tow-in foiling (big waves).

ORDER DETAILS CODE: 85013.240018 COLOUR: 196 Titanium SIZES: 4’2 | 25L, 4’5 | 30L PRODUCT DETAILS Board with EVA Deckpad and Leash Plug, DropBox Screw Pack (4x M8x30mm, 4x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Sonar SF Series, CF Edition (72/85), S185/S215 Stab, C600/C700 Fuse, HM80 Mast, Coiled Ankle Leash, Calf Leash, Waist Board Leash *No foot strap inserts 1 50

NEW

2 02 4 P R OD U CT CATALOGU E F OIL BOAR D S

PURE. UNCOMPROMISED. PERFORMANCE. “I absolutely love this board! Its flat profile makes it easier for me to paddle into waves, while the pulled-in tail gives me more control and allows me to lean into turns without catching the rail. The lightweight carbon construction makes pumping more efficient and gives the board a lively, dynamic feel.”

— Sylvain Mithault, Foiling Australia Head Coach

northfoils.com 1 5 1

RID E LIKE T H E WIN D Direct and responsive performance foil board in lightweight yet durable hybrid carbon construction for stiffness, manoeuvrability and glide.

Suitable for kitefoil, wakefoil and towsurf foiling big waves. ​

1 52

2 02 4 P R OD U CT CATALOGU E

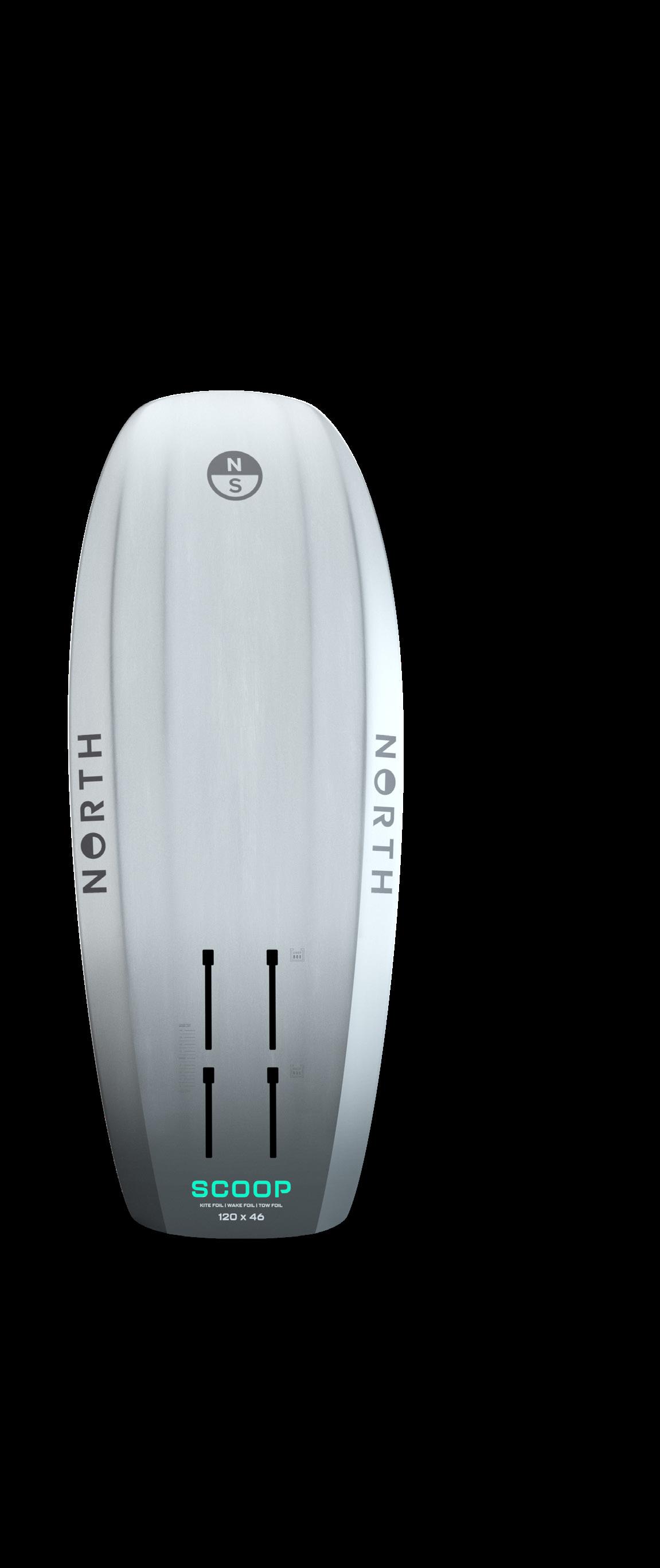

SCOOP

Wake / Kite / Tow Hybrid Technology • •

F OIL BOAR D S

• • • • •

Tri-plane hull design for earlier takeoffs and faster release​ Angled planing surfaces for smoother touchdowns on more variable angles​ Refined rocker for a more balanced, forgiving touchdown recovery​ Finer bevelled rails to match the smooth rocker​ New non-abrasive max-traction deckpad​ DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)​ Lightweight Hybrid Carbon Technology ​

ORDER DETAILS CODE: 85013.240008 COLOUR: 196 Titanium SIZES: 120 x 46cm | 16.5L, 135 x 49cm | 19.5L PRODUCT DETAILS DropBox Screw Pack (4x M8x30mm, 4x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Free, Free-V, Free Lo and Free-Lo V Foil Straps northfoils.com 1 5 3

T HE MIN IMALIST

SCOOP MINI Pump / Kite / Tow

• •

A direct and responsive high-performance kite foilboard for more advanced riders. Featuring a compact, ultralight hybrid carbon construction with durable, high-density core. Less, but better.​

• • • • •

Hybrid Technology

ORDER DETAILS CODE: 85013.240009 COLOUR: 196 Titanium SIZES: 110 x 45cm | 10L PRODUCT DETAILS DropBox 25mm Screw Pack (4x M8x25mm, 4x T-Nuts) ACCESSORIES (SOLD SEPARATELY) Free, Free-V, Free Lo and Free-Lo V Foil Straps 1 54

Ultra-scooped nose rocker ​ Ultra-lightweight Hybrid Carbon with durable highdensity core​ Compact outline with flat deck​ Smooth rounded rails​ New non-abrasive deckpad​ Centreline and V-strap inserts​ DropBox (165x90) Fast Foil Mount (screws and t-nuts pre-installed)​

2 02 4 P R OD U CT CATALOGU E

AN OT HE R D IME N S IO N

F OIL BOAR D S

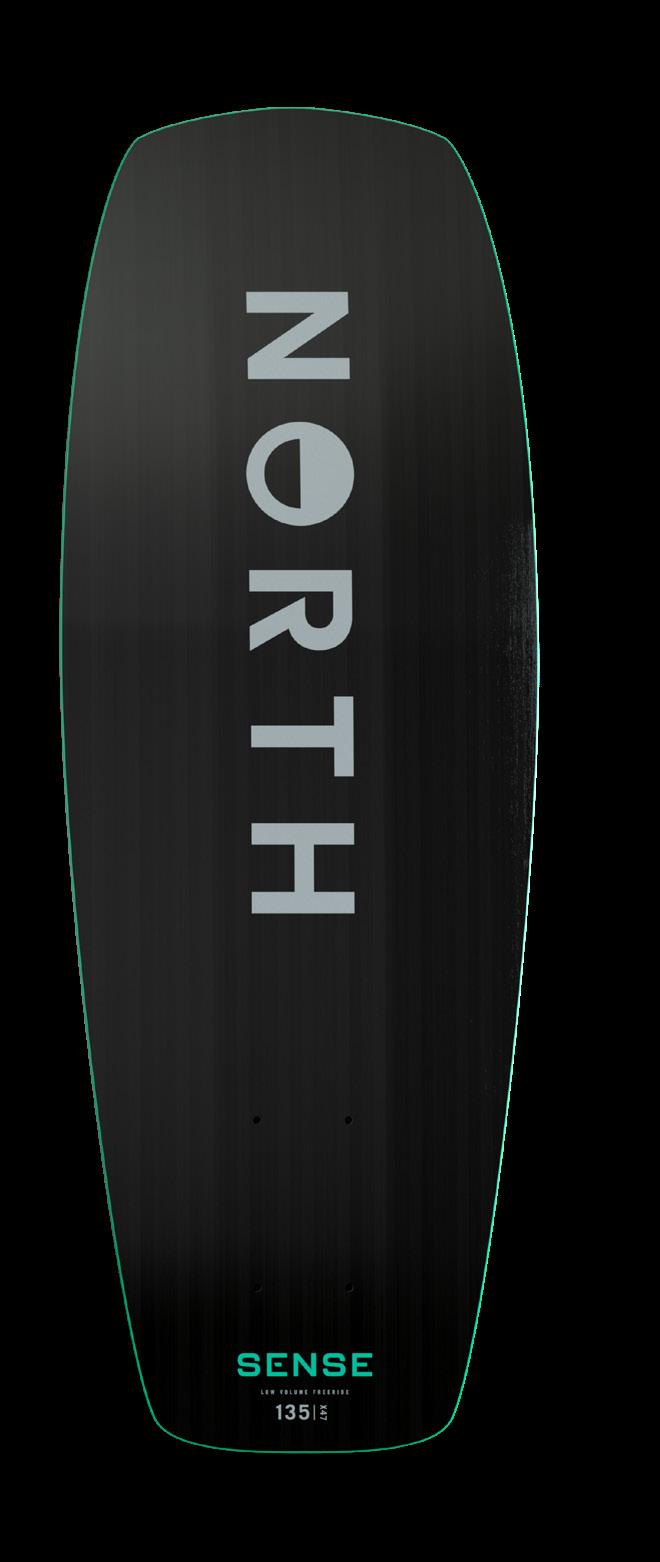

SENSE

Kite / Wake

Composite Technology Intuitive glide with roll to ride water starts. Modern technology, strength and performance in a userfriendly low-volume wood core foil board. ​

• • • • •

Neutral buoyancy for effortless take-offs ​ Strong and durable ​ New non-abrasive max-traction deckpad​ 4-point foil mount (165x90)​ Centreline and V-strap inserts​

ORDER DETAILS CODE: 85013.240012 COLOUR: 196 Titanium SIZES: 135 x 47cm PRODUCT DETAILS Sense Screw Pack (4x M8x23mm), Foil Strap Buttonhead Screws (5x M6x18m + 5x M6x20mm)* ACCESSORIES (SOLD SEPARATELY) Free, Free-V, Free Lo and Free-V Lo Foil Straps *18mm for Free-Lo and Free-Lo V Foil Straps; 20mm for the Free-V Foil and Free Foil.

Over time as the foil strap compresses, you may want to change to a shorter screw northfoils.com 1 5 5

Foilboard Technology Carbon Technology Strong, light and efficient full carbon shell with structural reinforcement top to bottom and in the rails. Pump for longer with even smaller foils. VERT Carbon Technology with PVC Stingers The Horizon doesn’t have the same load case as a wingfoil board, it’s length, thickness and high volume gives the board a natural structural integrity, strength and durability, while keeping the weight low for a direct responsive feel. HORIZON Hybrid Carbon Technology Lighter weight construction for stiffness, manoeuvrability, and glide. The stiffer the board, the better it will pump and the more responsive it feels. A light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup is wrapped around an EPS core. High-density closed cell PVC reinforcement around the foil track mount, leash plug, and foot strap inserts spreads the load. An ultra-lightweight double bamboo reinforcement layer under the standing area adds greater impact resistance and rigidity. SCOOP, SWELL, SEEK Integrated high-density structural stringer system The DropBox foil mounting tracks are embedded into a high-density closed-cell PVC block. Two high-density PVC stringers are glued to each side of this block, distributing the load lengthwise, and the full system connects the top and bottom laminate skins for maximum support. S ​ COOP, SWELL, SEEK Scoop Mini ultra-lightweight Hybrid Carbon with high-density core The stiffer the board, the more responsive it feels. Our Hybrid Carbon Scoop Mini features a light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup, wrapped around a durable high-density PVC core. SCOOP MINI Ecolite Softskin Technology We’ve engineered the new EcoLite Seek Prime with a user-friendly soft skin for durable, lightweight strength and stiffness. Thin layers of bamboo veneer in the laminate improve global stiffness, rigidity and impact resistance while keeping the board weight as low as possible. A forgiving soft EVA skin wraps the entire deck and rails, together with a comfortable EVA deckpad. SEEK PRIME Sense Paulownia Wood Composite Construction For more direct feel and control. New lighter weight composite construction with a durable Paulownia wood core provides stiffness for a more direct feel and powerful foil response. Ideal for landing freestyle tricks. SENSE

1 56

PVC Dropstitch Technology Inflatable PVC dropstitch construction is durable, impact absorbing and ding resistant. This makes it ideal for the boat, and a forgiving surface to fall on when you’re learning to wing or foil. SEEK AIR Tri-plane hull design Designed for earlier takeoffs and faster release.​The double V-shape in the bottom contour of the board is created by a single concave in the centre with an angled planing surface on each side. The water tracks from the central concave and side rails to the two longitudinal spines, allowing the board to lift and release quickly, without sticking.​The angled-planing surfaces run right through to the tail, allowing you to touch down on more variable rail angles without catching. SCOOP, SWELL, SEEK Refined Bevelled Rails Bevelled rails help with touchdown recovery, creating a wider deck with a narrower footprint. The effect is like having a smaller board. You don’t stick when you touch the water, but you still have the standing area for comfort. The Swell also features grip-friendly concaved forward rails, to make duckdiving and pop-ups easier.

While riding you can grab the rail for added stability and control of your foil. The concaved bevelled rail also allows your fingers to stay clear of the planing surface, eliminating drag during take-offs. SCOOP, SEEK, SWELL. GORE™ waterproof 2-way vent The EPS core of a high volume board is affected by extreme temperature changes. To prevent air pressure build-up we’ve installed a two-way GORE™ Protective Vent on the top deck. This allows air to pass in and out of the board, while preventing water from entering. The vent is factory-fitted and does not require any adjustment. SWELL, SEEK​ Intuitive Concaved Deck The highly concaved deck allows more intuitive foot positioning and also acts like a counterbalance, so you don’t feel like you are heeling over as far on the board.

SCOOP, SWELL, SEEK Non-abrasive high traction deck grip with tactile and visual stance reference For a more intuitive and direct connection to your foil, high traction non-abrasive heat-embossed deckpad with centre-line ridge allows fast, easy tactile foot placement. ALL BOARDS Customisable strap insert positions Multiple positioning options for each strap allow you to personalise your stance - or go strapless. Centreline, V-Strap and offline strap insert options accommodate both goofy or natural riding. (Straps sold separately – see Footstrap Installation Guide for more information) ALL BOARDS

2 02 4 P R OD U CT CATALOGU E F OIL BOAR D S

DropBox Adjustable Fast Foil Mounting Track Speed-dial your foil setup. Simply drop your foil pre-assembled with screws and t-nuts into the track, slide it backwards, then tighten the screws to fasten. Our unique structurally-integrated DropBox has a longer track for a wider adjustment range, allowing you to precision-tune the foil set up for your rider weight. A measurement guide next to the track aids correct positioning. Industry-standard 90mm track spacing means North Foilboards are compatible with most foil systems.

SCOOP MINI, SCOOP, SWELL, SEEK CST Base – direct responsive foil connection Our unique Carbon Sandwich Transfer (CST) base with DropBox fast foil mounting. The CST base is designed for the most direct and responsive connection to the foil. It is engineered with a slight curve to match the rocker of the board, for outstanding control and pumpability. The CST base plate runs the full length of your stance, transferring the load and your steering impulses directly to the foil. SEEK AIR Sense Fast-mounting 165x90mm foil connection The quick-setup four-point screw-in connection system provides a stable base for efficient load transfer. Industry standard bolt spacing 165 x 90mm SENSE​ Includes foil to board mounting hardware The DropBox M8 screws and t-nuts are supplied with your North Foilboard. You’ll find them installed into the mast tracks (so you don’t lose your nuts). North Foilboards are compatible with foils with an industry-standard 165x90mm connection. ALL BOARDS​

northfoils.com 1 5 7

Foilboard Performance Chart WING

DOWNWIND/ SUP

PUMP/ DOCKSTART

SURF

SCOOP MINI 110 | 10L

TOW-IN SURF

KITE

ADV

ADV

BOAT

WAKE

ADV

SCOOP 120 | 16.5L SCOOP 135 | 19.5L SENSE 135 VERT 4’2 | 25L

ADV

VERT 4’5 | 30L

ADV

SWELL 4’2 | 29L

ADV

SWELL 4’4 | 33L SWELL 4’6 | 36L

ADV

SWELL 4’10 | 42L

ADV

SEEK 4’4 | 48L

ADV

SEEK 4’6 | 48L

ADV

SEEK 4’8 | 58L SEEK 4’10 | 78L SEEK 5’0 | 88L SEEK 5’2 | 98L SEEK 5’4 | 108L SEEK 5’6 | 118L SEEK 5’11 | 138L SEEK PRIME 6’4 | 138L SEEK PRIME 6’10 | 168L SEEK AIR 4’10 | 78L SEEK AIR 5’1 | 110L SEEK AIR 5’5 | 124L SEEK AIR 5’9 | 132L SEEK AIR 6’2 | 155L HORIZON 6’10 | 95L HORIZON 7’5 | 105L HORIZON 7’10 | 115L HORIZON 8’4 | 125L NOVICE: New to foiling - has other board sports experience INTERMEDIATE: Progressing on Foil - may cross over from another foil sport ADVANCED: Pro/Semi-Pro, has mastered all manoeuvres 1 58

2 02 4 P R OD U CT CATALOGU E

F OIL BOAR D S

northfoils.com 1 5 9

Foilboard Specification Chart

1 60

VOLUME

LENGTH

WIDTH

THICKNESS

RIDER KG

RIDER KG

RIDER KG

(L)

(foot/inch)

(inch)

(inch)

Novice

Intermediate

Advanced*

ALL

ALL

MY24 SCOOP MINI

110

10L

45cm

17 11/1"

7/8

MY24 SCOOP PROTOTYPES

120

16.5L

3'11

18 1/8

1 1/2

ALL

ALL

ALL

MY24 SCOOP PROTOTYPES

135

19.5L

4'5

18 7/8

1 1/2

ALL

ALL

ALL

MY24 SENSE

135

47cm

18 1/2

ALL

ALL

ALL

VERT

4’2

25L

4’2

18”

2 7/16

<75

<75

VERT

4’5

30L

4’5

19”

2 5/8”

>75

>75

MY24 SWELL

4'2

29L

4'2

19 1/2

2 5/8

<35

<50

<75

MY24 SWELL

4'4

33L

4'4

19 3/4

2 7/8

<50

<65

<85

MY24 SWELL

4'6

36L

4'6

20 1/8

3

<70

<85

<95

MY24 SWELL

4'10

42L

4'10

21

3 1/8

<90

<95

>95

MY24 SEEK

4'4

48L

4'4

22 1/2

3 1/3

<45

<65

MY24 SEEK

4'6

58L

4'6

22 1/4

3 3/4

<35

<55

<75

MY24 SEEK

4'8

68L

4'8

24 1/2

4

<45

<65

<85

MY24 SEEK

4'10

78L

4'10

25 3/4

4 1/4

<55

<75

<95

MY24 SEEK

5'0

88L

5'0

27

4 3/8

<65

<85

>70

MY24 SEEK

5'2

98L

5'2

28

4 1/2

<75

<95

>80

MY24 SEEK

5'4

108L

5'4

29 7/8

4 5/8

<85

<105

>85

MY24 SEEK

5'6

118L

5'6

29 3/4

4 3/4

<95

<115

>95

MY24 SEEK

5'11

138L

5'11

31

5

>75

>95

MY24 SEEK PRIME

6'4

138L

6'4

27 3/16

5 3/8

<85

MY24 SEEK PRIME

6'10

168L

6'10

29 5/16

5 5/8

>85

SEEK AIR

4'10

78L

4'10

25 1/16

4

<55

<75

<95

SEEK AIR

5'1

110L

5'1

28 1/8

4 3/4

<85

<105

>85

SEEK AIR

5'5

124L

5'5

29 7/8

4 3/4

<95

<120

>95

SEEK AIR

5'9

132L

5'9

30

4 3/4

<100

<125

>100

SEEK AIR

6'2

155L

6'2

31

4 3/4

>75

>95

HORIZON

6'10"

95L

6'10

17 ½

6 ½"

<65

<75

HORIZON

7'5"

105L

7'5

18

6 ½"

65-75

75-85

HORIZON

7'10"

115L

7'10

18 ½

6 ½"

75-85

85-95

HORIZON

8'4"

125L

8'4

19

6 ½"

>85

>95

TAIL SHAPE

NOSE SHAPE

BOTTOM SHAPE

RAIL

FOIL MOUNT

CONSTRUCTION

CENTRELINE, V-STRAP

FLAT

PULLED-IN SLIGHTLY SCOOPED

FLAT

ROUNDED

DROPBOX 165x90mm

HYBRID CARBON HD CORE

CENTRELINE, V-STRAP

FLAT

PULLED-IN SCOOPED

TRI-PLANE HULL

REFINED BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP

FLAT

PULLED-IN SCOOPED

TRI-PLANE HULL

REFINED BEVELLED

DROPBOX 165x90mm

CENTRELINE, V-STRAP

FLAT

PULLED-IN SLIGHTLY SCOOPED

TRI-PLANE HULL

ABS

165x90mm

WOOD CORE

NO

CHOPPED SQUARE

Rounded

Tri-plane

Soft Bevelled

DROPBOX 165x90mm

CARBON

NO

CHOPPED SQUARE

Rounded

Tri-plane

Soft Bevelled

DROPBOX 165x90mm

CARBON

CENTRELINE, OFFLINE

RAMPED

ROUNDED SURF

TRI-PLANE HULL

STEEP BEVELLED CONCAVED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, OFFLINE

RAMPED

ROUNDED SURF

TRI-PLANE HULL

STEEP BEVELLED CONCAVED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, OFFLINE

RAMPED

ROUNDED SURF

TRI-PLANE HULL

STEEP BEVELLED CONCAVED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, OFFLINE

RAMPED

ROUNDED SURF

TRI-PLANE HULL

STEEP BEVELLED CONCAVED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP, OFFLINE

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

HYBRID CARBON

CENTRELINE, V-STRAP,

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

ECOLITE SOFTSKIN

CENTRELINE, V-STRAP,

BOX

ROUNDED SQUARE

TRI-PLANE HULL

STEEP BEVELLED

DROPBOX 165x90mm

ECOLITE SOFTSKIN

CENTRELINE, V-STRAP

SHARP RELEASE

ROUNDED SQUARE

FLAT

STEEP CURVED

DROPBOX 165x90mm

INFLATABLE

CENTRELINE, V-STRAP

SHARP RELEASE

ROUNDED SQUARE

FLAT

STEEP CURVED

DROPBOX 165x90mm

INFLATABLE

CENTRELINE, V-STRAP

SHARP RELEASE

ROUNDED SQUARE

FLAT

STEEP CURVED

DROPBOX 165x90mm

INFLATABLE

CENTRELINE, V-STRAP

SHARP RELEASE

ROUNDED SQUARE

FLAT

STEEP CURVED

DROPBOX 165x90mm

INFLATABLE

CENTRELINE, V-STRAP

SHARP RELEASE

ROUNDED SQUARE

FLAT

STEEP CURVED

DROPBOX 165x90mm

INFLATABLE

NO

NARROW TAPERED

NARROW ROUNDED

DISPLACEMENT HULL

SQUARE

DROPBOX 165x90mm

CARBON

NO

NARROW TAPERED

NARROW ROUNDED

DISPLACEMENT HULL

SQUARE

DROPBOX 165x90mm

CARBON

NO

NARROW TAPERED

NARROW ROUNDED

DISPLACEMENT HULL

SQUARE

DROPBOX 165x90mm

CARBON

NO

NARROW TAPERED

NARROW ROUNDED

DISPLACEMENT HULL

SQUARE

DROPBOX 165x90mm

CARBON

northfoils.com 1 6 1

F OIL BOAR D S

STRAP INSERTS

2 02 4 P R OD U CT CATALOGU E

*NOVICE: New to foiling - has other board sports experience. INTERMEDIATE: Progressing on Foil - may cross over from another foil sport. ADVANCED: Pro/Semi-Pro, has mastered all manoeuvres

Landboards 05

1 62

DUNE TRACK BALANCE BOARD

166 167 170

northfoils.com 1 6 3

C H ASE T H AT FE EL I NG . E VE RYWHE R E.

Hone your wing or kite skills without getting your feet wet. The North Dune combines the best elements of skate, snow and all-terrain mountainboarding (ATB) with the versatile windpower of a wing or kite. Ideal for use on sand, dirt, grass or pavement, our new off-road landboard’s long deck, wide trucks and large wheels provide stability on rough terrain. Strong oversized bearings withstand high side loads when cruising the flats or mastering airs and tricks, while 10.5” trucks ensure high speeds and excellent carving. PVD-coated stainless steel fasteners ensure longevity in salty environments.

DUNE 1 64

2 02 4 P R OD U CT CATALOGU E

L AN D BOAR D S

northfoils.com 1 6 5

Dune

All Terrain Mountain Board​

• • • • • • • • •

4WD all-terrain 200x50mm (8”) pneumatic rubber tyres ​ 266mm (10.5”) wide forged-aluminium trucks Strong 8-ply Canadian maple deck with responsive flex​ Deck size 965x200mm (38”x7.87”)​ Rachet bindings for secure, quick and easy connection​ Oversized 30mm OD ABEC 7 bearings for optimal side loading ​ Aluminium hubs for powerful strength-to-weight​ Durable PVD-coated 316 Stainless Steel hardware​ Strategic deck grip positioning​

ORDER DETAILS CODE: 85011.242000 COLOUR: 900 Black SIZES: O/S (965x200mm / 38x7.87”) Deck PRODUCT DETAILS Board, 2x 266mm trucks, 4x 200mm wheels with 30mm bearings, 2x ratchet bindings 1 66

2 02 4 P R OD U CT CATALOGU E

Track

Urban Surf-Skate Board

L AN D BOAR D S

• • • • • •

Carving surf-skate 160mm (6.25”) trucks​ 813x250mm (32x10”) Canadian Maple deck ​ Soft smooth 78A 65mm diameter wheels​ Fast ABEC 7 bearings for effortless rolling​ Durable PVD coated 316 Stainless Steel hardware ​ Full deck grip​

ORDER DETAILS CODE: 85011.242001 COLOUR: 900 Black SIZES: O/S (813x250mm / 32x10”) Deck PRODUCT DETAILS Board, 2x 160mm trucks, 4x 65mm wheels with bearings northfoils.com 1 6 7

C H ASE T H AT FEE LI NG . EVERYDAY.

Skate like you surf. We’ve designed our new Track urban surf-skate board to capture the feel of riding waves even when there are none. Forged aluminium surf-style trucks are designed to generate forward momentum when you pump the board laterally and to throw down deep rail-to-rail carving turns. The smooth, grippy 65mm wheels and ABEC 7 bearings deliver effortless speed, allowing you to lean into controlled carves and cutbacks with confidence. We recommend the Track for use on pavement, with or without a wind wing, for cross-training and keeping up your fitness.

TR ACK 1 68

2 02 4 P R OD U CT CATALOGU E

L AN D BOAR D S

northfoils.com 1 6 9

Balance Board Surf / Kite / Foil NEW

NON-MARKING FELT FLOOR PROTECTORS ANTI-SLIP DECK

CORK ROLLER

DURABLE PLYWOOD CONSTRUCTION

No wind? No problem. This indoor training aid will keep your muscles toned and stabilisers honed for your next session (and provide endless hours of living room entertainment). Use it at home, at your standing desk, or in the gym.

ORDER DETAILS CODE: 85011.242003 COLOUR: 999 Multiple Colour SIZES: O/S (Board 74 x 28 x 1.5cm, Roller 40cm x Ø10cm) PRODUCT DETAILS 1x Balance Board, 1x Cork Roller 170

SECURED WOODEN SAFETY STOPS

2 02 4 P R OD U CT CATALOGU E

F OIL BOAR D S

northfoils.com 1 7 1

172

Accessories 06

WING ACCESSORIES

176

LEASHES

180

FOILBOARD ACCESSORIES

184

174

2 02 4 P R OD U CT CATALOGU E

ACCES S OR IES

northfoils.com 1 7 5

Wing Accessories

UP GR A D E YOUR WI NG I NSTA NTLY

Lighter, faster and more responsive handling.

CARBON WING HANDLE Lightweight, high-strength carbon composite handles help to reduce inertia, so you can move the wing faster through transitions, tacks, gybes and other manoeuvres. Our goal was to reduce the weight as much as possible while still maintaining strength, with the same comfort, control and direct steering of the original rigid GripLock wing handles.

•

400mm Handle is 43% lighter than aluminium handle​

•

500mm Handle is 47% lighter than aluminium handle

•

GripLock comfort, control and direct steering​

•

400mm / 500mm sizes​

•

Backwards compatible to 2022

ORDER DETAILS CODE: 85015.230105 COLOUR: 900 Black SIZES: 400mm, 500mm PRODUCT DETAILS 1x Handle only*​ *Screws not included.

Requires 2x M8x12 Torx Screws for attachment. Reuse the original screws supplied with your wing, or purchase Wing Handle Screw Pack 85015.220102 (sold separately) 176

Size guide page 229

2 02 4 P R OD U CT CATALOGU E

NEW

GRIPLOCK HANDLE BUMPER Soft lightweight bumper to provide you and your equipment with additional impact protection. Place your thumb on the indent for improved depower handing.

Retrofittable to all rigid GripLock wing handles

•

Easy tool-free installation to end of front handle

•

Minimises potential contact damage to rider and board

•

Prevents finger entrapment in hollaow handle-end

•

Intendted thumb grip provides ergonomic one-handed control

ACCES S OR IES

•

ORDER DETAILS CODE: 85015.240110 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS

NEW

GRIPLOCK BRIDGE BOOM Prepreg Carbon Tube •

Strong, lightweight Carbon construction

•

Cut to size to fit between front and rear wing Handles

•

Enables secure one-point harness line attachment

•

Positions your rider weight in the centre of effort

ORDER DETAILS CODE: 85015.240083 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 1x carbon tube northfoils.com 1 7 7

178

2 02 4 P R OD U CT CATALOGU E

TA KE T H E LOA D OF F ACCES S OR IES

WING HARNESS LOOP Winging with a harness allows you to stay out for twice as long, enables one-handed riding and minimizes the risk of repetitive strain injury. The lightweight, minimalist loop can be easily rotated away from you with a twist of your thumb, so it can stay out of the way when not needed or while pumping onto the plane.

•

Thin rigid tube provides a solid connection for effortless hooking in and out

•

Easy rotation of harness line direction

•

Lightweight high-quality TPU tubing

•

Fast and intuitive Velcro ring-fastening system​​

•

Compatible with rigid handle wings​

•

For use with a wing harness​

ORDER DETAILS CODE: 85015.230106 COLOUR: SIZES:

999 Multiple Colour 22inch, 26inch northfoils.com 1 7 9

Leashes

NEW

WAIST WING LEASH For use with wind wing

Comfortable waist belt with elasticised webbing wing leash for easy grip and fast wing retrieval.​ • • • •

Strong adjustable injection-Velcro belt with soft neoprene lining Three fixed loops for left or right leash attachment Includes high-quality bungy core wing leash with SS316 swivel (for wing use only) To secure your board, attach the Quick Release Board Leash (sold separately)

ORDER DETAILS CODE: 85005.240081 COLOUR: 900 Black SIZES: O/S SPECIFICATIONS Wing Leash length = 137cm (54”) Cuff width = 5cm (2”) Max Waist Circumference = 132cm (52”) PRODUCT DETAILS 1x Adjustable Belt, 1x Wing Leash 1 80

2 02 4 P R OD U CT CATALOGU E ACCES S OR IES

NEW

WAIST BOARD LEASH

Adjustable Belt with Coiled Board Leash Comfortable, neoprene-lined waist belt with coiled board leash. The leash cord stays above the water, minimizing drag or entanglement with your feet or foil.

• • • • •

Adjustable waist size Non-slip fast-release clip Two fixed loops for left or right leash attachment (wing leash sold separately) Fixed PU Coiled Leash with double SS316 swivels Lightweight slimline railsaver

ORDER DETAILS CODE: 85005.240082 COLOUR: 900 Black SIZES: O/S SPECIFICATIONS Leash length = 183cm (6”) Cord thickness = 5.5mm (1/5”) Cuff width = 4.5cm (3/4”) Max Circumference = 145cm (57”) PRODUCT DETAILS 1x Adjustable Belt with coiled PU Leash northfoils.com

181

Leashes QUICK RELEASE BOARD LEASH For use with Waist Wing Leash • • • •

Quick release mechanism for consistent, safe release and reload 7mm high-grade coiled PU cord ​ Slimline rail saver for low-drag protection SS316 stainless steel swivel reduces tangles

ORDER DETAILS CODE: 85010.210033 COLOUR: 900 Black SIZES: O/S

CALF LEASH Wing / Surf / SUP •

Coiled calf leash keeps cord above water to reduce drag ​

•

Lightweight neoprene calf cuff with stretch resistant TPU top layer, comfort lining and silicon inner grip to reduce slipping​

•

Double SS316 stainless steel swivels reduce tangles​

•

Easy grab finger tab for fast, safe release​

•

Strong injection-moulded velcro for light, sand-resistant hold​

•

7mm high-grade coiled PU cord ​

•

Slimline rail saver for low-drag protection​

LENGTH: 6’ / 180cm THICKNESS: 7mm

ORDER DETAILS CODE: 85005.240030 COLOUR: 900 Black SIZES: O/S 1 82

NEW

Foil Surf

Lightweight, low-drag prone foiling leash

•

Comfortable neoprene ankle cuff with stretch resistant TPU top layer, soft lining and silicon grip to reduce slipping

•

Fast-release finger tab

•

Double SS316 swivels to reduce tangles

•

Strong injection Velcro for light, sand-resistant hold

•

5.5mm high-grade coiled PU cord

•

Slimline rail saver for low-drag protection

ACCES S OR IES

•

ORDER DETAILS CODE: 85005.240032 COLOUR: 900 Black SIZES: O/S

ANKLE LEASH

Medium - Large Waves •

Double SS316 stainless steel swivels reduce tangles

•

Lightweight neoprene ankle cuff with stretch resistant TPU top layer and comfort lining with silicon inner grip to reduce slipping

•

Easy grab finger tab for fast, safe release

•

Strong injection-moulded velcro for light, sand-resistant hold

•

6mm high-grade polyurethane cord for all round surf and foil confidence

•

Slimline rail saver for low-drag protection​

2 02 4 P R OD U CT CATALOGU E

COILED ANKLE LEASH

LENGTH: 6’ / 180cm THICKNESS: 6mm

ORDER DETAILS CODE: 85005.240031 COLOUR: 900 Black SIZES: O/S northfoils.com 1 8 3

Foilboard Accessories

FREE-V FOIL STRAPS

Lightweight cushioned Foilboard Straps​ Our full comfort V-shaped front straps allow you to ride offline on both tacks in a more natural stance, with less fatigue in your front knee compared to a centreline stance. The straps also provide a tactile reference for ideal foot positioning, easier takeoffs and fine-trimming of the foil. Fully customise your fit and stance.​

•

V-shaped double front strap ergonomically angled for ​​ easy entrance and a locked-in feel​​

•

Seamless KnitFlex neoprene and dual-density foam comfort​​

•

Angled centre washer for even load distribution​​

•

Smooth screw hole reinforcement for added durability ​​

•

Highly adjustable foot-strap positioning​​

ORDER DETAILS CODE: 85003.240035 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 1x V-Shaped Foot Strap​​, 1x Standard Foot Strap,​​ 5x 6.3x25mm Screw​​, 4x Single Strap Washer,​​1x 45deg Strap Washer​ COMPATIBILITY Seek, Swell, Scoop Foilboard​​ Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)​​ Sense Foilboard (M6x18mm and M6x20mm screws included with board)​ 1 84

2 02 4 P R OD U CT CATALOGU E ACCES S OR IES

FREE-LO V FOIL STRAPS

Lightweight low-profile Foilboard Straps A comfortable low-profile, super lightweight strap set with a V-shaped double front strap. The Free-V Lo allow you to ride offline on both tacks in a more natural stance with less fatigue in your front knee compared to a centreline stance. They also provide a flexible tactile reference for easier foot positioning, take-offs and fine-trimming of the foil.

•

Flexible low-profile lays flat against the deck​

•

Dual density soft/firm EVA for comfort and durability ​

•

Lightweight watertight closed cell construction ​

•

Internal composite structural reinforcement for effective load distribution ​

•

Low-profile micro adjustment washers​

ORDER DETAILS CODE: 85003.240037 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 1x Low-profile Foot Strap​, 1x V-shaped Low-profile Foot Strap,​ 5x 6.3x25mm Screw​, 4x Free-Lo Strap Washer​, 1x Free-Lo 45deg Strap Washer COMPATIBILITY Scoop, Seek, Swell Foilboard​​ Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)​ Sense Foilboard (M6x18mm and M6x20mm screws included with board) northfoils.com 1 8 5

Foilboard Accessories

FREE FOIL STRAPS Lightweight cushioned Foilboard Straps​

Complete connection. Full comfort. The Free Foil Straps provide a tactile reference for ideal foot positioning, easier take-offs and fine-trimming of the foil. Ideal for all foil disciplines and aerial manoeuvres, with a wide range of adjustments to customise your fit and stance. Both front and back straps have a parallel outline. ​

• • • • •

Seamless KnitFlex neoprene and dual-density foam comfort​​ Smooth screw hole reinforcement for added durability ​​ Highly adjustable foot-strap positioning​​ Asymmetric strap washers for micro-fit adjustment​​ Elasticized neoprene strap-end screw covers ​​

ORDER DETAILS CODE: 85003.240033 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 2x Standard Foot Strap​​, 4x 6.3x25mm Screw​​s, 4x Single Strap Washer COMPATIBILITY Seek, Swell, Scoop, Scoop Mini Foilboard​​ Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)​​ Sense Foilboard (M6x18mm and M6x20mm screws included with board) 1 86

2 02 4 P R OD U CT CATALOGU E ACCES S OR IES

FREE-LO FOIL STRAPS Lightweight low-profile Foilboard Straps​

A comfortable, low-profile, minimalist strap designed for strapped-in riding. Whether you’re boosting airs or maximising your pump efficiency to connect multiple waves, these super lightweight foot straps give you more leverage over the foil in freestyle manoeuvres, improved landing recovery and connection to the foil. ​​

• • • • •

Flexible low-profile lays flat against the deck​​ Dual density soft/firm EVA for comfort and durability ​​ Lightweight, watertight closed-cell construction ​​ Composite structural reinforcement for effective load distribution​​ Low-profile micro-adjustment washers ​

ORDER DETAILS CODE: 85003.240036​ COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 2x Low-profile Foot Strap​​, 4x 6.3x25mm Screw​​s, 4x Free-Lo Strap Washer COMPATIBILITY Scoop, Seek, Swell Foilboard​​ Seek Air Foilboard (M6x16mm and M6x18mm screws included with board)​ Sense Foilboard (M6x18mm and M6x20mm screws included with board) northfoils.com 1 8 7

Foilboard Accessories DROPBOX FIN ADAPTOR Recommended with 5’9 or 6’2 Seek Air • • • • •

Provides lateral resistance for forward drive to stay upwind Always use in conjunction with two side fins​ Inserts into CST Base DropBox mast track​ Saves your mast from damage in shallow water​ Compatible with any 165x90mm foil mast track

ORDER DETAILS CODE: COLOUR: SIZES:

85009.230136 900 Black O/S

PRODUCT DETAILS Dropbox Fin Adaptor, Seek Air Fin, Dropbox Screw Pack 4x T40 M8x23mm Screws, 4 x T-Nuts

NEW

DETACHABLE STICK-ON FIN

For use in combination with the DropBox Fin Adaptor • • • • • • •

8” detachable fin with self-adhesive fin-box Combine with the DropBox Fin Adaptor Helps upwind tracking while learning to wing without the foil Position under the rider’s front foot on the Seek Prime or larger Seek Foilboard Front footstrap inserts on the deck can be used as a positioning guide Ideal setup for boards being used by more than one rider Fin can be detached without removing the fin box when you are ready to progress to a foil

ORDER DETAILS CODE: 85005.240065 COLOUR: 999 Multiple Color SIZES: O/S PRODUCT DETAILS Self-adhesive Fin Box, 8” Fin 1 88

2 02 4 P R OD U CT CATALOGU E ACCES S OR IES

LE ARN TO WIN G WIT HOU T T HE FO IL Learn to wing on your Seek Air 5’9 or 6’2 without the foil attached. The DropBox Fin Adaptor can also be used on the Seek or Seek Prime in combination with the Detachable Stick-on Fin under your front foot, to help you stay upwind.

northfoils.com 1 8 9

NEW

PREMIUM TOW ROPE

Premium Braided Floating Rope with Handle • • • • • • • • • • • •

Ultra-low stretch braided PE floating rope Non-water absorbing closed-cell EVA foam core High-visibility safety colours Large diameter rope with non-slip braided knots Lightweight low-drag floating handle Comfortable ergonomic EVA bar grip Durable and safe moulded-EVA bar ends Handle sized to reduce chance of body entrapment Adjustable length – from 35’ (10.65m) to 20’ (6.1m) 15’ (4.55m) protective rigid PVC tubing section Nylon attachment point eyelet to reduce rope wear Velcro line manager to secure rope to vessel

ORDER DETAILS CODE: 85010.240099 COLOUR: 999 Multiple Colour SIZES: O/S SPECS: 35‘ / 10.65m Length x 1 ¼” / 30mm Diameter (including handle 1’ / 30cm) PRODUCT DETAILS Rope, Handle, Line Manager 1 90

2 02 4 P R OD U CT CATALOGU E ACCES S OR IES

C R I TI CA L PER FORMAN CE WHE N YOU N E E D IT Easy-grab, high-visibility floating rope with a comfortable ergonomic handle for tow-in foil and surf. Adjustable length, large diameter rope with non-slip braided knots for fast pickups in critical situations and towing multiple riders.

northfoils.com

191

1 92

2 02 4 P R OD U CT CATALOGU E ACCES S OR IES

NEW

N-FIX CANOPY REPAIR TAPE Temporary Canopy Repair

Keep a roll of this self-adhesive tape in your gear bag as a quick emergency fix for wing and kite canopy tears.

Developed in collaboration with North Sails Advanced Textiles, the tape is a semi-transparent (off-white colour) to match all canopy colourways. Extra strong selfadhesive bond.

ORDER DETAILS CODE: 85015.240111 COLOUR: 999 Multiple Colour SIZES: O/S PRODUCT DETAILS 1x Roll of tape (3m x 40mm) northfoils.com 1 9 3

Tools & Maintenance 07

1 94

FOIL & BINDINGS TOOLKIT

196

SESSION SAVER BOX

197

RAILTAPE, GREASE, TORX TOOL, MULTIOOL

198

DROPBOX THUMB SCREW SET

200

SONAR T40 MICRO TOOL

201

PUMPS

202

FOIL & BINDINGS TOOL KIT

Always ready, always prepared Everything you need, in one box. Large Toolbox recommended for Retailers/ Schools/Agents/ Ambassadors. Contains all Sonar Foil, TwinTip, Surfboard and Bindings Hardware.

ORDER DETAILS CODE: 85008.230075 COLOUR: 999 Multiple Colour SIZES: O/S PRODUCT DETAILS 4x M8x40 TH CSK T40 Ti Screws​ 8x M8x35 THCS T40 Ti Screws​ 6x M8x16 TH CSK T40 Ti Screws​ 12x M8x35 TH CSK T40 Ti Screws​ 6x M8x33 TH CSK T40 Ti Screws​ 18x M8x30 TH CSK T40 Ti Screws​ 12x M8x25 TH CSK T40 Ti Screws ​ 6x M8x23 TH CSK T40 Ti Screws ​ 4x M8x12mm Wing Handle Screws 12x M8 Ti T-nuts, 10x TT Fin Washers​

1 96

• • 24x M6x16mm SS Button Head Screws​ 12x M6x18mm SS Button Head Screws​ 12x 6.3x25mm Self-tapping SS Screws​ 6x Free-Lo Strap Washers​ 2x Free Surf Strap Washers Double ​ 6x Free Strap Washer Single ​ 4x Free V Foil Strap Washer 45deg ​ 15x Grub Screws for FCSII Fin Plugs​ 5x North Fin Key​ 4x Marine Grease Tube​ 1x Large Tool Box

• • • •

All Titanium Foil Screws and T-Nuts Double-sided Toolbox – one side Foil, the other Board & Bindings Future-proofed with empty compartments Restock and add product to suit your riders’ needs Recommended for use with PH3 Screwdriver (sold separately) Recommended for use with Torx T40 Tool (sold separately)

2 02 4 P R OD U CT CATALOGU E

SONAR SESSION SAVER BOX Never miss a session

A convenient toolbox full of Sonar Foil hardware, recommended for all foilers.

All Titanium screws and T-nuts Torx T40 Tool included Convenient storage for all your parts Includes Sonar Foil Assembly Guide for checking screw sizes

TOOL S & M AIN T EN AN C E

• • • •

ORDER DETAILS CODE: 85009.230160 COLOUR: 999 Multiple Colour SIZES: O/S PRODUCT DETAILS 2x M8x40 TH CSK T40 Ti Screws ​ 2x M8x35 THCS T40 Ti Screws ​ 4x M8x16 TH CSK T40 Ti Screws ​ 3x M8x35 TH CSK T40 Ti Screws ​ 3x M8x33 TH CSK T40 Ti Screws ​ 9x M8x30 TH CSK T40 Ti Screws ​ 8x M8x25 TH CSK T40 Ti Screws ​ 4x M8x23 TH CSK T40 Ti Screws ​ 6x M8 Ti T-nuts ​ 1x Marine Grease Tube ​ 1x Torx T40 Tool ​ 1x Small Tool Box northfoils.com 1 9 7

SONAR MARINE GREASE

NORTH MULTI TOOL

Re-application recommended each time you assemble your Sonar Foil System.

For quick, effortless gear changes.

• •

Prevent corrosion, screw seizure and jamming Extend the lifespan of your Sonar Foil System, tools and hardware

• • • • • •

ORDER DETAILS CODE: 85009.230163 COLOUR: 999 Multiple Colour SIZES: O/S 1 98

Torx T40 for Sonar Foil Hardware Adjustment P3 Phillips Head Screwdriver Tool for Footstrap and Binding Adjustment Compatible with North Kiteboarding and Sonar Foil Hardware Ergonomic anti-slip T-handle To extend longevity, wash with fresh water and dry after use* Spare PH3 and T40 MultiTool Driver Bits sold separately 85009.240162

ORDER DETAILS CODE: 85009.230162 COLOUR: 999 Multiple Colour SIZES: O/S PRODUCT DETAILS 1x North Multi Tool, 1x PH3 bit, 1x Torx T40 bit, 1x Bit holder ACCESSORIES (SOLD SEPARATELY): 85009.240162 North Multi Tool Driver Bits (set of 5) PH3 or T40

2 02 4 P R OD U CT CATALOGU E TOOL S & M AIN T EN AN C E

SONAR T40 TOOL

FOILBOARD RAIL TAPE

Torx T40 tool compatible with all Sonar Foil screws.

Protect your foilboard from dings, scratches, leash and harness point contact in high wear areas with our durable, easy to install TPU tape with adhesive backing. Nose tape will also protect your board when rigging up on hard surfaces if the tape is placed all the way to the nose radius.

• • • •

Manufactured from high quality Chromiumvanadium steel Comfortable anti-slip ergonomic T-handle Dual-ended design for fast assembly and higher torque To extend longevity, wash with fresh water and dry after use*

IMPORTANT: Over time all tools will rust in a saltwater environment. We recommend using protective grease or spray after washing and drying to extend lifespan.

ORDER DETAILS CODE: 85009.230161 COLOUR: 999 Multiple Colour SIZES: O/S

ORDER DETAILS CODE: 85008.230074 COLOUR: 999 Multiple Colour SIZES: O/S (60mm Wide) PRODUCT DETAILS 2x rail, 1x nose and 1x tail tape northfoils.com 1 9 9

NEW

DROPBOX THUMB SCREW SET Reposition your mast without leaving the water. These lightweight titanium screws are designed for fast foil mounting and adjustment – no tools required. Simply loosen the screws by hand to slide your mast forward or back in the DropBox track, then re-tighten by hand.

Compatible with Seek, Swell and Scoop Foilboards Not suitable for use with Seek Air (23mm) or Scoop Mini (25mm) WARNING: Tighten by hand only. Do not use any tools, and do not over-tighten. When tight, screws may not align with your mast.

ORDER DETAILS CODE: 85009.240137 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 4x Ti M8x30mm Screws, 4x Ti T-Nuts WARNING: Due to the reduced torque moment of the thumbscrews and the T40 Micro Tool, screws can loosen more easily.

Check screw tightness before and during sessions.

2 00

2 02 4 P R OD U CT CATALOGU E TOOL S & M AIN T EN AN C E

NEW

SONAR T40 MICRO TOOL Keep this Mini Torx T40 Screwdriver with lanyard in your pocket or on your key ring for fast foil or handle setup and changes. Compatible with the Sonar Foils and ShiftLock Modular Track System.

• • • • •

High-quality SS316 with PVD-coating Corrosion resistant Ergonomic finger grip Compatible with Sonar Foil Compatible with ShiftLock

ORDER DETAILS CODE: 85009.240170 COLOUR: 900 Black SIZES: O/S PRODUCT DETAILS 1x Tool on lanyard northfoils.com 2 01

2 02

2 02 4 P R OD U CT CATALOGU E

KITE / WING PUMP 2.3L or 2.9L Ergonomic double-action kite and wing pump with tall body and high-airflow piston for faster, easier inflation.

Single/double action switch Anti-sand filter and seals Integrated pressure gauge Medium 2.3L / Large 2.9L

TOOL S & M AIN T EN AN C E

• • • •

ORDER DETAILS CODE:

85005.240079

COLOUR:

900 Black

SIZES:

M, L

PRODUCT DETAILS Pump, Hose, Adaptor, Pump leash

INFLATABLE BOARD PUMP 1.8L Our two-way high pressure board inflation pump can also be used for wing or kite inflation. Each pump has an adaptor for multi-use, so you only need to carry one pump. ​ • • •

Single/double action switch​ Anti-sand filter and seals​ Integrated pressure gauge

ORDER DETAILS CODE: 85005.240060 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS Pump, Hose, Valve Adaptor, Pump leash

KITE PUMP HOSE ORDER DETAILS CODE: 85005.210080 COLOUR:

999 Multiple Colour

SIZES: O/S

northfoils.com 2 03

2 04

Lifestyle 08

MENS SEASONAL

206

UNISEX BRAND

211

UNISEX JACKETS

213

WOMENS SEASONAL

214

HATS

216

WATERWEAR

219

MENS SEASONAL

100% ORGANIC COTTON

HORIZON TEE ORDER DETAILS CODE: 85105.240010 COLOUR:

100 White / 900 Black

SIZES:

S, M, L, XL, XXL

PRODUCT DETAILS 220gsm Organic Cotton

HEARTFELT TEE

INTUITION TEE

ORDER DETAILS

ORDER DETAILS

CODE: 85105.240014 COLOUR:

900 Black

SIZES:

S, M, L, XL, XXL

CODE: 85105.240011 PRODUCT DETAILS

COLOUR:

870 Pumice

220gsm Organic Cotton

SIZES:

S, M, L, XL, XXL

EXPLORER TEE ORDER DETAILS CODE: 85105.240012 COLOUR:

630 Green Fig

PRODUCT DETAILS

SIZES:

S, M, L, XL, XXL

220gsm Organic Cotton

2 06

PRODUCT DETAILS 220gsm Organic Cotton

2 02 4 P R OD U CT CATALOGU E

L IF EST Y L E

northfoils.com 2 07

2 08

100% ORGANIC COTTON

2 02 4 P R OD U CT CATALOGU E

MENS SEASONAL

L IF EST Y L E

FLY TEE ORDER DETAILS CODE: 85105.240013 COLOUR:

100 White / 474 Waterspout

SIZES:

S, M, L, XL, XXL

PRODUCT DETAILS 220gsm Organic Cotton

WANDERER TEE

RIPTIDE TEE

ORDER DETAILS

ORDER DETAILS

CODE: 85105.240015 COLOUR:

636 Storm

SIZES:

S, M, L, XL, XXL

CODE: 85105.240016 PRODUCT DETAILS

COLOUR:

420 Sailor Blue

PRODUCT DETAILS

220gsm Organic Cotton

SIZES:

S, M, L, XL, XXL

220gsm Organic Cotton

northfoils.com 2 09

MENS SEASONAL

EXPLORER HOOD SWEAT

HORIZON BADGE CREW SWEAT

ORDER DETAILS

ORDER DETAILS

CODE: 85104.240007 COLOUR:

410 Navy

SIZES:

S, M, L, XL, XXL

PRODUCT DETAILS

COLOUR:

900 Black

Back Brushed Fleece

SIZES:

S, M, L, XL, XXL

DRIFTER ZIP HOOD SWEAT ORDER DETAILS CODE: 85104.240005 COLOUR:

900 Black

SIZES:

S, M, L, XL, XXL

210

CODE: 85104.240006

320gsm Organic Cotton

PRODUCT DETAILS 57% Cotton 43% Polyester Bonded Waffle Knit

PRODUCT DETAILS 320gsm Organic Cotton Back Brushed Fleece

2 02 4 P R OD U CT CATALOGU E

UNISEX BRAND

100% ORGANIC COTTON

L IF EST Y L E

BRAND TEE ORDER DETAILS CODE: 85105.240019 COLOUR:

613 North Green / 900 Black

SIZES:

XS, S, M, L, XL, XXL

PRODUCT DETAILS 220gsm Organic Cotton

LOOP TEE

BRAND HOOD SWEAT

ORDER DETAILS

ORDER DETAILS

CODE: 85105.240018 COLOUR:

900 Black

SIZES:

S, M, L, XL, XXL

CODE: 85104.240008 PRODUCT DETAILS

COLOUR:

900 Black

220gsm Organic Cotton

SIZES:

XS, S, M, L, XL, XXL

PRODUCT DETAILS 320gsm Organic Cotton Back Brushed Fleece northfoils.com

211

212

2 02 4 P R OD U CT CATALOGU E

UNISEX JACKETS

L IF EST Y L E

DOWNWINDER JACKET ORDER DETAILS

PRODUCT DETAILS

CODE: 85101.240000

65% Cotton 35% Polyester

COLOUR:

900 Black

Backside Coated Canvas

SIZES:

XS, S, M, L, XL, XXL

Water Resistant 500mm

VENTURE JACKET ORDER DETAILS CODE: 85101.240001 COLOUR:

900 Black

SIZES:

XS, S, M, L, XL, XXL

PRODUCT DETAILS 100% Polyester 300T 50D*50D 68gsm micro peach / dull finish 200gsm TSALL down-feel insulation northfoils.com 2 1 3

WOMENS SEASONAL

HORIZON BADGE CREW SWEAT WOMEN ORDER DETAILS CODE: 85104.240009 COLOUR:

870 Pumice

SIZES:

XS, S, M, L, XL

PRODUCT DETAILS 320gsm Organic Cotton Back Brushed Fleece

EXPLORER TANK TEE WOMEN

INTUITION TEE WOMEN

ORDER DETAILS

ORDER DETAILS

CODE: 85105.240020

CODE: 85105.240021

COLOUR:

344 Pink Clay

PRODUCT DETAILS

COLOUR:

109 Off White

PRODUCT DETAILS

SIZES:

XS, S, M, L, XL

220gsm Organic Cotton

SIZES:

XS, S, M, L, XL

220gsm Organic Cotton

214

2 02 4 P R OD U CT CATALOGU E

L IF EST Y L E

northfoils.com 2 1 5

HATS

EASE CAP

HORIZON CAP

ORDER DETAILS

ORDER DETAILS

CODE: 85108.240028 COLOUR:

706 Warm Sand

SIZES: O/S

CODE: 85108.240029 PRODUCT DETAILS 100% Cotton

COLOUR:

640 Olive Green

SIZES: O/S

HEARTFELT CAP

ICONIC CAP

ORDER DETAILS

ORDER DETAILS

CODE: 85108.240031 COLOUR:

900 Black

SIZES: O/S

100% Cotton

COLOUR:

802 Dark Grey

SIZES: O/S

SEEKER CAP

ORDER DETAILS

ORDER DETAILS

CODE: 85108.240030 704 Golden Brown

SIZES: O/S

216

100% Cotton

CODE: 85108.240025 PRODUCT DETAILS

SEEKER CAP

COLOUR:

PRODUCT DETAILS

PRODUCT DETAILS 56% Recycled Polyester 44% Cotton

CODE: 85108.240030 PRODUCT DETAILS 65% Polyester 35% Cotton

COLOUR:

410 Navy

SIZES: O/S

PRODUCT DETAILS 65% Polyester 35% Cotton

2 02 4 P R OD U CT CATALOGU E L IF EST Y L E

HORIZON CAP

BRAND CAP

ORDER DETAILS

ORDER DETAILS

CODE: 85108.240029 COLOUR:

842 Carbon

SIZES: O/S

CODE: 85108.240027 PRODUCT DETAILS 100% Cotton

COLOUR:

900 Black

SIZES: O/S

SEASIDE BEANIE

PASSAGE BEANIE

ORDER DETAILS

ORDER DETAILS CODE: 85108.240035

CODE: 85108.240034 COLOUR:

410 Navy / 870 Pumice

SIZES: O/S

PRODUCT DETAILS 50% Cotton 50% Recycled Acrylic

COLOUR:

420 Sailor Blue / 900 Black

SIZES: O/S

WORDMARK CAP

HORIZON SUN HAT

ORDER DETAILS

ORDER DETAILS

CODE: 85108.240026 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 56% Recycled Polyester 44% Cotton

PRODUCT DETAILS 50% Cotton 50% Recycled Acrylic

CODE: 85108.240033 PRODUCT DETAILS

COLOUR:

900 Black

PRODUCT DETAILS

56% Recycled Polyester 44% Cotton

SIZES:

S/M, L/XL

6 x straw hats northfoils.com 2 1 7

218

2 02 4 P R OD U CT CATALOGU E

WATERWEAR

L IF EST Y L E

HORIZON QUICK DRY S/S TEE ORDER DETAILS CODE: 85105.240023

PRODUCT DETAILS 87% Nylon 13% Spandex

COLOUR:

109 Off White / 910 Caviar

Breathable UPF50+

SIZES:

XS, S, M, L, XL, XXL

Spreader bar hole

BRAND PONCHO ORDER DETAILS CODE: 85118.240040 COLOUR:

910 Caviar / 626 Seasalt Green

SIZES: O/S

PRODUCT DETAILS 100% Cotton

HEARTFELT PONCHO ORDER DETAILS CODE: 85118.240041 COLOUR:

910 Caviar

SIZES: O/S

PRODUCT DETAILS 100% Micro Cotton northfoils.com 2 1 9

220

POS / Demo / Events 09

POS DISPLAY

222

POS

224

UNIVERSAL DISPLAY STAND

UNIVERSAL DISPLAY STAND CODE: 85011.241083

BRANDING PACK

NORTH CODE: 85011.241084 OR SHIFTLOCK CODE: 85011.241085

UNIVERSAL DISPLAY STAND

NEW

Fixed*

PRODUCT DETAILS 2000h x 1000w x 300d mm 1x Flatpack Metal Slat Rack Display Stand 1x Wooden Base Shelf 1x Left and Right Lower Side Frames 1x Light Box with Detachable Metal Plate 3x Downlights 1x Power Adaptor with Universal Converter 50x Unbranded 15cm Hooks

Metal display stand with LED backlit top panel.

Branding Pack Sold Separately ORDER DETAILS CODE: 85011.241083 COLOUR:

999 Multiple Colour

ACCESSORIES (SOLD SEPARATELY) Spare Shelf, Branded Hook Pack

SIZES: O/S

UNIVERSAL DISPLAY STAND BRANDING PACK NORTH

CODE: 85011.241084 999 Multiple Colour

SIZES: O/S

*Compatible with Universal Display Stand

UNIVERSAL DISPLAY STAND BRANDING PACK SHIFTLOCK

ORDER DETAILS CODE: 85011.241085 COLOUR:

999 Multiple Colour

SIZES: O/S

222

NEW

PRODUCT DETAILS 1x Acrylic NORTH Logo for Light Box 1x NS Logo Left and Right Upper Side Frames 1 x NORTH Logo Lower Metal Plate

ORDER DETAILS COLOUR:

*The Universal Stand cannot be assembled without parts contained in the Branding Pack

NEW

PRODUCT DETAILS 1x Acrylic NORTH Logo for Light Box 1x NS Logo Left and Right Upper Side Frames 1 x NORTH Logo Lower Metal Plate *Compatible with Universal Display Stand *WARNING: We recommend attaching the cabinet to a solid construction/wall/floor to prevent tipping.

SHIFTLOCK DISPLAY STAND On Castors

CODE: 85011.241082 COLOUR:

900 Black

SIZES: O/S

SHIFTLOCK DEMO STRUT

ORDER DETAILS CODE: 85011.240112 COLOUR:

900 Black

SIZES: O/S

SONAR FOIL DISPLAY STAND - LARGE With North ERI Branding

ORDER DETAILS CODE: 85011.241087 COLOUR:

900 Black

SIZES: O/S

UNIVERSAL DISPLAY STAND BRANDED HOOK PACK

PRODUCT DETAILS 1750 x 600w x 400d mm 1x Metal Double-sided Flatpack Slat Stand 4x Wheels 1x Acrylic Shiftlock Logo Panel 30x Unbranded 15cm Hooks

NEW

PRODUCT DETAILS 1x Inflatable N-Weave45 Wing Strut *ShiftLock Handles Sold Separately

NEW

PRODUCT DETAILS 1870h x 1050w x 872d mm 1x Flatpack Plywood Veneer Stand *Foils Sold Separately NEW

Set of 25

ORDER DETAILS CODE: 85011.241086 COLOUR:

900 Black

SIZES: O/S

UNIVERSAL DISPLAY STAND SPARE SHELF

PRODUCT DETAILS 25x NS Logo Branded Hooks *Compatible with Universal Display Stand

NEW

Single

ORDER DETAILS CODE: 85011.241088 COLOUR:

999 Multiple Colour

SIZES: O/S

PRODUCT DETAILS 998w x 258d x 18h mm 1x Wood veneer shelf with bracket *Compatible with Universal Display Stand northfoils.com 2 2 3

P OS

ORDER DETAILS

NEW

2 02 4 P R OD U CT CATALOGU E

POS DISPLAY

POS NORTH BEACH TENT

ORDER DETAILS CODE: 85011.241001 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 6m tent with bag, 1x centre pole, 6x metal pegs

NORTH PARTY TENT

ORDER DETAILS CODE: 85011.241002 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 3m pop-up tent, 1x metal frame, 1x bag

NORTH PARTY TENT (NO METAL FRAME) ORDER DETAILS CODE: 85011.241010 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 3m tent, 1x bag

NORTH BANNER Set of 3

ORDER DETAILS CODE: 85011.241007 COLOUR:

900 Black

SIZES:

1 x 3m

PRODUCT DETAILS 3x 3m banners

NORTH WINDSOCK Set of 3

ORDER DETAILS CODE: 85011.241003 COLOUR:

900 Black

SIZES:

120 cm

224

PRODUCT DETAILS 3x 120cm windsocks

2 02 4 P R OD U CT CATALOGU E

NORTH LOGO FLAG

Set of 3

SMALL 70 x 100 cm ORDER DETAILS CODE: 85011.241013 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x 70 x 100cm flags

P OS

LARGE 150 x 210 cm ORDER DETAILS CODE: 85011.241014 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x 150 x 210cm flags

NORTH WORDMARK FLAG Set of 3

SMALL 75 X 95 CM ORDER DETAILS CODE: 85011.241011 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x 75 x 95cm flags

LARGE 100 X 200 CM ORDER DETAILS CODE: 85011.241012 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x 100 x 200cm flags

NORTH BEACHFLAG ORDER DETAILS CODE: 85011.241004 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 4m flag with poles

BEACHFLAG NO POLES ORDER DETAILS CODE: 85011.241005 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 4m flag

NORTH BUOY

ORDER DETAILS CODE: 85011.241009 COLOUR:

250 Yellow

SIZES: O/S

PRODUCT DETAILS 1x 135 x 135cm buoy northfoils.com 2 2 5

POS NORTH FESTIVAL CUPS

NEW

Set of 8

ORDER DETAILS CODE: 85011.241045 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 8x 16oz biodegradable cups Made from wheat straw Dishwasher and microwave safe

MIZU M8 WATER BOTTLE

ORDER DETAILS CODE: 85011.241052 COLOUR:

900 Black / 100 White

SIZES: O/S

MIZU D7 FLASK

PRODUCT DETAILS 1x 25 oz / 750mL stainless steel bottle with lid

NEW

ORDER DETAILS CODE: 85011.241050 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 23oz insulated stainless steel flask with lid

MIZU COFFEE MUG

ORDER DETAILS CODE: 85011.241051 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 14oz insulated stainless steel mug with lid

NORTH LANYARD Set of 10

ORDER DETAILS CODE: 85011.241029 COLOUR:

900 Black

SIZES: O/S

NORTH BUFF

PRODUCT DETAILS 10x lanyards NEW

ORDER DETAILS CODE: 85011.241060 COLOUR:

900 Black

SIZES: O/S

NORTH MAGNET Set of 10

PRODUCT DETAILS 1x 100% recycled polyester buff UPF30 sun protection

NEW

ORDER DETAILS CODE: 85011.241055 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 10x 3 x 10 cm magnets

NORTH CARABINER Set of 10

ORDER DETAILS CODE: 85011.241025 COLOUR:

900 Black

SIZES: O/S

226

PRODUCT DETAILS 10x aluminium carabiners Spring loaded shackle opening *Not intended for climbing

ORDER DETAILS CODE: 85011.241015 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 70x40cm recycled ripstop beanbag *Beans not included

P OS

NORTH RECYCLED BEACH CHAIR

ORDER DETAILS CODE: 85011.241016 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 70x40cm wooden folding chair with recycled ripstop back

NORTH MY24 AIR FRESHENER PACK Set of 2

ORDER DETAILS CODE: 85011.241020 COLOUR:

999 Multiple Colour

SIZES: O/S

NORTH WORDMARK PROMO STICKER SMALL Set of 10

PRODUCT DETAILS 2x 75mm coconut scented cards NEW

ORDER DETAILS CODE: 85011.241039 COLOUR:

900 Black

SIZES: O/S

NORTH WORDMARK PROMO STICKER LARGE

PRODUCT DETAILS 10x 2.3 x 12 cm vinyl stickers NEW

Set of 10

ORDER DETAILS CODE: 85011.241040 COLOUR:

900 Black

SIZES: O/S

NORTH LOGO PROMO STICKER

PRODUCT DETAILS 10x 4.5 x 23 cm vinyl stickers NEW

Set of 10

ORDER DETAILS CODE: 85011.241038 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 10x 7 x 7 cm vinyl stickers

NORTH DEALER STICKER Set of 2

ORDER DETAILS CODE: 85011.241070 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 2x 17 x 13.5 cm front adhesive vinyl stickers

NORTH WORDMARK FLOOR STICKER Set of 2

ORDER DETAILS CODE: 85011.241065 COLOUR:

900 Black

SIZES: O/S

2 02 4 P R OD U CT CATALOGU E

NORTH RECYCLED BEANBAG

PRODUCT DETAILS 2x 30x80cm self-adhesive vinyl floor stickers northfoils.com 2 2 7

POS NORTH MY24 STICKER PACK Set of 4

ORDER DETAILS CODE: 85011.241071 COLOUR:

999 Multiple Colour

SIZES: O/S

PRODUCT DETAILS 2x 8 x 8cm vinyl stickers 2x 2.5 x 15cm vinyl stickers

NORTH LOGO CUT OUT STICKER Set of 25

ORDER DETAILS CODE: 85011.241074 COLOUR:

900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS 25x 8 x 8cm vinyl stickers

NORTH WORDMARK CUT OUT STICKER SMALL Set of 25

ORDER DETAILS CODE: 85011.241072 COLOUR:

900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS 25x 2.5 x 15cm vinyl stickers

NORTH WORDMARK CUT OUT STICKER LARGE Set of 25

ORDER DETAILS CODE: 85011.241073 COLOUR:

900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS 25x 3.3 x 20cm vinyl stickers

NORTH WORDMARK VEHICLE STICKER LARGE Set of 2

ORDER DETAILS CODE: 85011.241075 COLOUR:

900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS 2x 12.3 x 75cm vinyl stickers

NORTH WORDMARK VEHICLE STICKER X-LARGE Set of 2

ORDER DETAILS CODE: 85011.241076 COLOUR:

900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS 2x 19.7 x 120cm vinyl stickers

NORTH LOGO VEHICLE STICKER LARGE Set of 2

ORDER DETAILS CODE: 85011.241077 COLOUR:

900 Black / 198 Silver

SIZES: O/S

PRODUCT DETAILS 50 x 50cm

NORTH LOGO VEHICLE STICKER X-LARGE Set of 2

ORDER DETAILS CODE: 85011.241078 COLOUR:

900 Black / 198 Silver

SIZES: O/S

228

PRODUCT DETAILS 70 x 70cm

ORDER DETAILS CODE: 85011.241017 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 90 x 60cm doormat 650 gr heavy duty 5mm nylon 1.8mm vinyl base and border

ORDER DETAILS CODE: 85011.241500 COLOUR:

999 Multiple Colour

SIZES: O/S

P OS

NORTH RETAILER PACK 1x MY24 Sticker Pack 1x North Perspex Shelf Talker 1x North Lanyard 1x Festival Cup 1x North Cotton Tote Bag

PRODUCT DETAILS 1x North Shelf Logo 1x North Carabiner 1x North MY24 Air Freshener Pack 1x Dealer Stickers

NORTH SHELF LOGO

ORDER DETAILS CODE: 85011.241035 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 1x 45 x 17 x 5 cm shelf logo Heavy duty cardboard

NORTH PERSPEX SHELF TALKER

Set of 2

ORDER DETAILS CODE: 85011.241036 COLOUR:

999 Multiple Colour

SIZES: O/S

PRODUCT DETAILS 1x A5 perspex sleeve 1 x wooden stand

*Shelf Talker cards available online for download

NORTH PAPER BAG SMALL

Set of 100

ORDER DETAILS CODE: 85011.241032 COLOUR:

700 Brown

SIZES: O/S

PRODUCT DETAILS 100x 32 x 12 x 41cm recycled kraft paper bags

NORTH PAPER BAG LARGE

Set of 250

ORDER DETAILS CODE: 85011.241033 COLOUR:

700 Brown

SIZES: O/S

PRODUCT DETAILS 250x 45 x 17 x 48cm recycled kraft paper bags

NORTH COTTON TOTE BAG

ORDER DETAILS CODE: 85011.241031 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 10oz cotton canvas

NORTH SURF/FOIL BOARD HANGER Set of 10

ORDER DETAILS CODE: 85011.241019 COLOUR:

900 Black

SIZES: O/S

2 02 4 P R OD U CT CATALOGU E

NORTH DOORMAT

PRODUCT DETAILS 10x Nylon hooks 20x arms (Long 330mm / Short 200mm) northfoils.com 2 2 9

230

Spare Parts 10

WING/KITE PARTS WING PARTS WING COMPATIBILITY MATERIALS BLADDERS FOIL PARTS BOARD & BINDING PARTS

232 234 234 237 238 240 242

WING/KITE PARTS WRIST WING LEASH

Included with all wings

ORDER DETAILS CODE: 85015.240120 COLOUR:

900 Black

SIZES:

S, M, L

SPARE WAIST WING LEASH

For use with Waist Belt

ORDER DETAILS CODE: 85015.220104 COLOUR:

900 Black

SIZES: O/S

2021 NOVA ADJUSTABLE HARNESS LINE

Compatible with 2021 Nova Wing

ORDER DETAILS CODE: 85010.210121 COLOUR:

999 Multiple Colour

SIZES: O/S

2022 NOVA ADJUSTABLE HARNESS LINE

PRODUCT DETAILS 1x Adjustable Harness Line

Compatible with all rigid-handle Wings

ORDER DETAILS CODE: 85010.220121 COLOUR:

999 Multiple Colour

SIZES: O/S

WING HARNESS LOOP

PRODUCT DETAILS 1x Adjustable Harness Line 2x Velcro Attachment Loops

Compatible with all rigid-handle Wings

ORDER DETAILS CODE: 85015.230106 COLOUR:

999 Multiple

SIZES:

22inch, 26inch

HYPERFLOW HOSE 1M SECTION

*2024 Nova

ORDER DETAILS CODE: 85006.200056 COLOUR:

902 Black Sand

SIZES: 1m

LINE CONNECTORS Set of 4

ORDER DETAILS CODE: 85006.200057 COLOUR:

999 Multiple Colour

SIZES: O/S

KITE BRIDLE SET 2024 CODE ZERO ORDER DETAILS CODE: 85006.240064 COLOUR:

999 Multiple Colour

SIZES:

3, 5, 6, 7, 8, 9, 10, 11, 14

232

Includes complete Bridle Set (Left + right) 2020-2023 Bridle Sets available online

2 02 4 P R OD U CT CATALOGU E

KITE/WING ZIPPER ORDER DETAILS CODE: 85006.230200 COLOUR:

100 White

SIZES:

17.5, 19.5

ROUND BATTENS

Compatible with 2023 Nova Light Wind, 2023 Mode

S PAR E PARTS

Set of 3

ORDER DETAILS CODE: 85015.230050 COLOUR:

100 White

SIZES:

25cm

HYPERFLOW INFLATION VALVE Single / Set of 10

ORDER DETAILS

ORDER DETAILS

CODE:

85006.220195 (SINGLE))

CODE:

85006.220095 (SET OF 10)

COLOUR:

900 Black

COLOUR:

900 Black

SIZES: O/S

SIZES: O/S

HYPERFLOW INFLATION VALVE BASE Set of 10

ORDER DETAILS CODE: 85006.200016 COLOUR:

902 Black Sand

SIZES: O/S

HYPERFLOW INFLATION VALVE COVER ORDER DETAILS CODE: 85006.240052 COLOUR:

900 Black

SIZES: O/S

HYPERFLOW SNAP CLIPS Set of 10

ORDER DETAILS CODE: 85006.200099 COLOUR:

902 Black Sand

SIZES: O/S

HYPERFLOW PINCH CLAMP Set of 5

ORDER DETAILS CODE: 85006.240054 COLOUR:

900 Black

SIZES: O/S

HYPERFLOW PINCH CLAMP COVER Set of 5

ORDER DETAILS CODE: 85006.240055 COLOUR:

900 Black

SIZES: O/S

*For Control System Spare Parts refer to North Kite Catalogue

northfoils.com 2 3 3

WING PARTS SHIFTLOCK CARBON HANDLE

*Refer to Wing Compatilbility

ORDER DETAILS CODE: 85015.240106 COLOUR:

900 Black

SIZES:

250mm, 400mm, 500mm, 1100mm

PRODUCT DETAILS 1x Carbon Handle, 4x Clamps, 2x T40 M6x23mm Screws

SHIFTLOCK ACTION CAMERA MOUNT ORDER DETAILS CODE: 85015.240107 COLOUR:

900 Black

PRODUCT DETAILS 1x Mount, 2x Clamps, 1x Screw

SIZES: O/S

SHIFTLOCK PADDLE MOUNT ORDER DETAILS CODE: 85015.240112 COLOUR:

PRODUCT DETAILS 2x Paddle Mounts with Velcro fastening, 4x Clamps, 2x T40 M6x23mm Screws

900 Black

SIZES: O/S

SHIFTLOCK REPLACEMENT CLAMPS

SHIFTLOCK REPLACEMENT SCREWS

ORDER DETAILS

ORDER DETAILS

CODE: 85015.240108 COLOUR:

900 Black

SIZES: M

CARBON WING HANDLE

PRODUCT DETAILS 2x Clamps, 2x T40 M6x23mm Screws

CODE: 85015.240109 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 4x T40 M6x23mm Screws

*Refer to Wing Compatilbility

ORDER DETAILS CODE: 85015.230105 COLOUR:

900 Black

SIZES:

400mm, 500mm

WING HANDLE

PRODUCT DETAILS 1x Carbon Wing Handle, Screws sold separately

*Refer to Wing Compatilbility

ORDER DETAILS CODE: 85015.220101 COLOUR:

900 Black

SIZES:

400mm, 500mm*

WING HANDLE SCREW PACK

PRODUCT DETAILS 1x GripLock Wing Handle, Screws sold separately *For Fixed Rigid Handles

ORDER DETAILS CODE: 85015.220102 COLOUR:

900 Black

SIZES:

O/S

GRIPLOCK BRIDGE BOOM

*Cut to desired length

ORDER DETAILS CODE: 85015.240083 COLOUR:

900 Black

SIZES: O/S

GRIPLOCK HANDLE BUMPER ORDER DETAILS CODE: 85015.240110 COLOUR:

800 Grey

SIZES: O/S

234

PRODUCT DETAILS 1x Carbon tube*

GRIPLOCK MY24 NOVA PRO*

Front Handle Size (mm)

Rear Handle Size (mm)

GRIPLOCK MY24 MODE ULTRA

Front Handle Size (mm)

Rear Handle Size (mm)

2.9m

400

400

3.5m

400

400

3.5m

400

400

4.2m

400

400

400

400

400

400

5m

500

400

5.5m

500

400

6m

500

500

6.5m

500

400

MY24 NOVA

Front Handle Size (mm)

Rear Handle Size (mm)

MY24 MODE PRO

Front Handle Size (mm)

Rear Handle Size (mm)

1.9m

400

400

3.5m

400

400

2.5m

400

400

4.2m

400

400

400

400

S PAR E PARTS

4.2m

4.8m

2.9m

400

400

4.8m

3.5m

400

400

5.5m

400

400

6.8m

500

400

MY23 MODE

Front Handle Size (mm)

Rear Handle Size (mm)

4.2m

400

400

5.5m

500

400

7.0m

500

400

MY24 LOFT PRO

Front Handle Size (mm)

Rear Handle Size (mm)

7.0m

500

500

8.0m

500

500

MY23 NOVA LIGHT WIND

Front Handle Size (mm)

Rear Handle Size (mm)

6.0m

500

500

7.0m

500

500

8.0m

500

500

4.2m

500

400

5.0m

500

400

6.0m

500

500

7.0m

500

500

MY23 NOVA

Front Handle Size (mm)

Rear Handle Size (mm)

1.9m

400

400

2.5m

400

400

2.9m

400

400

3.5m

400

400

4.2m

500

400

5.0m

500

400

6.0m

500

500

7.0m

500

500

MY22 NOVA

Front Handle Size (mm)

Rear Handle Size (mm)

1.9m

400

400

2.5m

400

400

2.9m

400

400

3.5m

500

400

4.2m

500

400

5.0m

500

500

6.0m

500

500

7.0m

500

500

2 02 4 P R OD U CT CATALOGU E

WING COMPATIBILITY

*Nova Pro is supplied without handles.Any length handle combination is compatible with any wing. The Nova Pro handle chart is a recommendation only. northfoils.com 2 3 5

236

N-FIX CANOPY REPAIR TAPE ORDER DETAILS CODE: 85015.240111 COLOUR:

999 Multiple Color

SIZES:

3m x 40mm roll

2024 N-WEAVE45 REPAIR MATERIAL

*2024 Mode Pro, 2024 Loft Pro

S PAR E PARTS

ORDER DETAILS CODE: 85015.240124 COLOUR:

100 White

SIZES:

2m x 1.42m

2023 N-WEAVE REPAIR MATERIAL

*2023 Mode

ORDER DETAILS CODE: 85015.230124 COLOUR:

100 White

SIZES:

2m x 1.42m

2024 WING DACRON REPAIR MATERIAL ORDER DETAILS CODE: 85015.240125 COLOUR:

900 Black

SIZES:

2m x 1.42m

2024 KITE DACRON REPAIR MATERIAL ORDER DETAILS CODE: 85006.240118 COLOUR:

900 Black

SIZES:

2m x 1.42m

2024 CANOPY REPAIR MATERIAL - MATRIX N-HTRS

*2024 Mode Pro, 2024 Nova Pro

ORDER DETAILS CODE: 85015.240123 COLOUR:

100 White

SIZES:

3m x 1.5m

CANOPY REPAIR MATERIAL - N-X6

*2024 Nova

ORDER DETAILS CODE: TBC COLOUR:

900 Black

SIZES:

3m x 1.5m

CANOPY REPAIR MATERIAL

*2023 Nova, 2023 Nova Light Wind, 2024 Loft Pro

ORDER DETAILS CODE: 85006.230117 COLOUR:

100 White / 218 Sunset Yellow / 310 Rubine Red / 475 Pacific Blue

SIZES:

3m x 1.5m

CANOPY REPAIR MATERIAL

*2024 Nova

ORDER DETAILS CODE: 85006.220117 COLOUR:

306 Red Sea / 629 Marine Green / 475 Pacific Blue

SIZES:

3m x 1.5m

* 2020-2022 Repair Materials available online

2 02 4 P R OD U CT CATALOGU E

MATERIALS

northfoils.com 2 3 7

BLADDERS 2024 LOFT PRO LE BLADDER ORDER DETAILS CODE: 85015.240075 COLOUR:

197 Transparent

SIZES:

7, 8

2024 LOFT PRO STRUT BLADDER ORDER DETAILS CODE: 85015.240068 COLOUR:

197 Transparent

SIZES:

7, 8

2024 MODE PRO LE BLADDER

*2024 Mode Pro, 2024 Mode Ultra

ORDER DETAILS CODE: 85015.240076 COLOUR:

197 Transparent

SIZES:

3.5, 4.2, 4.8, 5.5, 6.8

2024 MODE PRO STRUT BLADDER

*Use 6.8 for 6.5m Mode Ultra

*2024 Mode Pro, 2024 Mode Ultra

ORDER DETAILS CODE: 85015.240069 COLOUR:

197 Transparent

SIZES:

3.5, 4.2, 4.8, 5.5, 6.8

2023 NOVA LE BLADDER

*Use 6.8 for 6.5m Mode Ultra

*2023-2024 Nova, 2024 Nova Pro

ORDER DETAILS CODE: 85015.230074 COLOUR:

197 Transparent

SIZES:

1.9, 2.5, 2.9, 3.5, 4.2, 5, 6, 7

2023 NOVA STRUT BLADDER ORDER DETAILS CODE: 85015.230066 COLOUR:

197 Transparent

SIZES:

1.9, 2.5, 2.9, 3.5, 4.2, 5, 6, 7

2023 NOVA LIGHT WIND LE BLADDER ORDER DETAILS CODE: 85015.230075 COLOUR:

197 Transparent

SIZES:

6, 7, 8

2023 NOVA LIGHT WIND STRUT BLADDER ORDER DETAILS CODE: 85015.230068 COLOUR:

197 Transparent

SIZES:

6, 7, 8

2023 MODE LE BLADDER ORDER DETAILS CODE: 85015.230076 COLOUR:

197 Transaprent

SIZES:

4.2, 5.5, 7

238

*2023-2024 Nova, 2024 Nova Pro

2 02 4 P R OD U CT CATALOGU E

2023 MODE STRUT BLADDER ORDER DETAILS CODE: 85015.230069 COLOUR:

197 Transaprent

SIZES:

4.2, 5.5, 7

CODE ZERO LE BLADDER S PAR E PARTS

ORDER DETAILS CODE: 85006.240075 COLOUR:

197 Transparent

SIZES:

3, 5, 6, 7, 8, 9, 10, 11, 14

STRUT REPLACEMENT BLADDER

Set of 2

ORDER DETAILS CODE: 85006.210065 COLOUR:

197 Transparent

SIZES:

070, 080, 090, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 210, 220, 230 (cm)

All kites

PRODUCT DETAILS 1x Left, 1x Right For use with Reach, Carve, Orbit, Pulse and Code Zero

northfoils.com 2 3 9

FOIL PARTS DROPBOX THUMB SCREW PACK ORDER DETAILS CODE: 85009.240137 COLOUR:

900 Black

PRODUCT DETAILS 4x T-Nuts, 4x Ti Toolless Screws

SIZES: O/S

DROPBOX 23MM SCREW PACK ORDER DETAILS CODE: 85009.230135 COLOUR:

PRODUCT DETAILS 4x M8x23 TH CSK T40 Screws 4x T-nuts

900 Black

SIZES: O/S

DROPBOX 25MM SCREW PACK ORDER DETAILS CODE: 85009.220134 COLOUR:

PRODUCT DETAILS 4x M8x25 TH CSK T40 Screws 4x T-nuts

900 Black

SIZES: O/S

DROPBOX 30MM SCREW PACK ORDER DETAILS CODE: 85009.200133 COLOUR:

PRODUCT DETAILS 4x M8x30 TH CSK T40 Screws 4x T-nuts

902 Black Sand

SIZES: O/S

SENSE FOILBOARD SCREW PACK ORDER DETAILS

PRODUCT DETAILS 4x M8x23 TH CSK T40 Screws 5x M6x18mm for Free-Lo Straps 5x M6x20mm for Free Straps

CODE: 85009.200088 COLOUR:

902 Black Sand

SIZES: O/S

SONAR BOARD ADAPTOR SCREW PACK A ORDER DETAILS CODE: 85009.200135 COLOUR:

902 Black Sand

PRODUCT DETAILS 2x M8x40 TH CSK T40 Screws

SIZES: O/S

SONAR FUSELAGE SCREW PACK B

SONAR FUSELAGE SCREW PACK B2

For straight holes (earlier models) ORDER DETAILS CODE: 85009.200136 COLOUR:

902 Black Sand

SIZES: O/S

For tapered countersunk holes

ORDER DETAILS PRODUCT DETAILS 2x M8x35 THCS T40 Screws 2x M8 Washer with plastic backing washer

CODE: 85009.240165 COLOUR:

902 Black Sand

SIZES: O/S

PRODUCT DETAILS 2x M8x30 countersunk screws.

SONAR STABILIZER SCREW PACK C ORDER DETAILS CODE: 85009.200137 COLOUR:

902 Black Sand

SIZES: O/S

PRODUCT DETAILS 4x M8x16 TH CSK T40 Screws

SONAR WING SCREW PACK D (M8X25) ORDER DETAILS CODE: 85009.200138 COLOUR:

902 Black Sand

SIZES: O/S

240

PRODUCT DETAILS 3x M8x25 TH CSK T40 Screws

ORDER DETAILS CODE: 85009.200139 COLOUR:

902 Black Sand

SIZES:

O/S

PRODUCT DETAILS 3x M8x33 TH CSK T40 Screws

2 02 4 P R OD U CT CATALOGU E

SONAR WING SCREW PACK E (M8X33)

SONAR WING SCREW PACK F (M8X30)

CODE: 85009.200141 COLOUR:

902 Black Sand

SIZES: O/S

PRODUCT DETAILS 3x M8x30 TH CSK T40 Screws

SONAR WING SCREW PACK G (M8X35) ORDER DETAILS CODE: 85009.210142 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x M8x35 TH CSK T40 Screws

SONAR SCREW PACK H (M8X23) ORDER DETAILS CODE: 85009.230143 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x M8x23 TH CSK T40 Screws

SONAR WING SCREW PACK I (M8X40) ORDER DETAILS CODE: 85009.240165 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 3x M8x40 TH CSK T40 Screws

SONAR FUSELAGE COVER ORDER DETAILS CODE: 85009.230089 COLOUR:

900 Black

SIZES:

600, 700

SONAR AF/AK MAST COVER ORDER DETAILS CODE: 85009.210087 COLOUR:

900 Black

SIZES:

70-72, 85

SONAR CARBON MAST COVER ORDER DETAILS CODE: 85009.210088 COLOUR:

900 Black

SIZES:

CF72, CF85, CF95

SONAR TRAVEL BAG ORDER DETAILS CODE: 85009.240131 COLOUR:

900 Black

SIZES:

O/S northfoils.com 2 4 1

S PAR E PARTS

ORDER DETAILS

BOARD & BINDING PARTS FREE STRAP SELF-TAPPING SCREWS

Set of 5

ORDER DETAILS CODE: 85008.240112 COLOUR:

909 Steel Grey

SIZES:

O/S

PRODUCT DETAILS 5x 6.3x25mm

FREE STRAP M6 SCREWS (SENSE) Set of 10

ORDER DETAILS CODE: 85008.240110 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 5x M6x18mm for Free-Lo Straps 5x M6x20mm for Free Straps

SEEK AIR STRAP SCREW PACK ORDER DETAILS CODE: 85008.230053 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 5x M6x16mm for Free-Lo Straps 5x M6x18mm for Free Straps

FREE FOIL STRAP WASHERS Set of 4

ORDER DETAILS CODE: 85008.240115 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 4x Single Washers

FREE-V FOIL STRAP WASHERS Set of 5

ORDER DETAILS CODE: 85008.240120 COLOUR:

900 Black

SIZES: O/S

PRODUCT DETAILS 4x Single Washers 1x 45° Washer

FREE-LO STRAP WASHERS Set of 4

ORDER DETAILS CODE: 85008.230121 COLOUR:

900 Black

SIZES: O/S

FOILBOARD RAIL TAPE ORDER DETAILS CODE: 85008.230074 COLOUR:

999 Multiple Colour

SIZES: O/S

242

PRODUCT DETAILS 4x Single Washers

ORDER DETAILS CODE:

85009.230136

COLOUR:

900 Black

SIZES:

O/S

PRODUCT DETAILS Dropbox Fin Adaptor, Seek Air Fin, Dropbox Screw Pack – 23mm

2 02 4 P R OD U CT CATALOGU E

DROPBOX FIN ADAPTOR

SELF-ADHESIVE FIN

CODE: 85008.240065 COLOUR:

999 Multiple

SIZES: O/S

SEEK AIR FIN

PRODUCT DETAILS 1x Self-Adhesive Base, 1x 8” Fin

Replacement side fins for Seek sizes 5’9 and 6’2 only

ORDER DETAILS CODE: 85008.230050 COLOUR:

900 Black

SIZES: O/S

SEEK AIR REPAIR MATERIAL ORDER DETAILS CODE: 85008.230051 COLOUR:

196 Titanium

SIZES: O/S

PRODUCT DETAILS 2x PVC Patches 180 x 110mm

INFLATABLE BOARD VALVE ORDER DETAILS CODE: 85008.230052 COLOUR:

800 Grey

SIZES: O/S

BOARD VENT PLUG

Goretex™ Valve for Seek and Swell Foilboards

ORDER DETAILS CODE: 85008.210072 COLOUR:

800 Grey

SIZES: O/S

SONAR T40 MICRO TOOL ORDER DETAILS CODE: 85009.240170 COLOUR:

900 Black

SIZES: O/S

NORTH MULTITOOL DRIVER BITS

Set of 5

ORDER DETAILS CODE:

85009.240162

COLOUR:

909 Steel Grey

SIZES:

PH3, T40

northfoils.com 2 4 3

S PAR E PARTS

ORDER DETAILS

2024 Range Overview

Mode Ultra

Mode Pro

Loft Pro

CODE: 85014.240020

CODE: 85014.240006

CODE: 85014.240007

Horizon

Seek

Seek Prime

CODE: 85013.240016

CODE: 85013.240011

CODE: 85013.240017

Swell

Vert

Scoop

CODE: 85013.240010

CODE: 85013.240018

CODE: 85013.240008

Sonar CF Carbon Edition

Sonar AF Aluminium Edition

HM Carbon Mast

CODE: 85004.220070

CODE: 85004.220066

CODE: 85004.240071

Waist Wing Leash

Waist Board Leash

Quick Release Board Leash

CODE: 85005.240081

CODE: 85005.240082

CODE: 85010.210033

244

2 02 4 P R OD U CT CATALOGU E

Nova

ShiftLock Carbon Wing Handle

CODE: 85014.240008

CODE: 85014.240005

CODE: 85015.240106

Seek Air

Dropbox Fin Adaptor

Carbon Wing Handle

CODE: 85013.240015

CODE: 85009.230136

CODE: 85015.230105

Scoop Mini

Sense

CODE: 85013.240009

Wing Harness Loop

CODE: 85013.240012

CODE: 85015.230106

CF Carbon Mast

AF Foil Mast

AF Board Adaptor

CODE: 85010.210124

CODE: 85010.210123

CODE: 85010.210090

Calf Leash

Coiled Ankle Leash

Ankle Leash

CODE: 85005.240032

CODE: 85005.240031

CODE: 85005.240030

northfoils.com 2 4 5

S PAR E PARTS

Nova Pro

Sonar Foils Overview

Sonar MA2100v2

Sonar MA1850v2

CODE: 85004.240088

CODE: 85004.240087

Sonar MA2400v2 PRIME

Sonar MA2100v2 PRIME

Sonar MA1850v2 PRIME

CODE: 85004.240093

CODE: 85004.240101

CODE: 85004.240100

Sonar MA850v2

Sonar MA700v2

Sonar SF680

CODE: 85004.240086

CODE: 85004.240089

CODE: 85004.240095

Sonar SF1230

Sonar DW750

Sonar DW900

CODE: 85004.230093

CODE: 85004.240069

CODE: 85004.240074

Sonar P2050

Sonar HA550

Sonar HA650

CODE: 85004.240073

CODE: 85004.230100

CODE: 85004.230101

Sonar HA1050

Sonar HA1150

Sonar HA1250

CODE: 85004.230106

CODE: 85004.230107 ​​

Sonar S210

Sonar S270

Sonar S320

CODE: 85004.220090

CODE: 85004.220091

CODE: 85004.220092

Sonar S185

Sonar S215

Sonar S142

CODE: 85004.240097

CODE: 85004.230096

CODE: 85004.240099

CODE: 85004.230105

246

2 02 4 P R OD U CT CATALOGU E

Sonar MA1200v2

Sonar MA1050v2

CODE: 85004.240092

CODE: 85004.240091

CODE: 85004.240090

Sonar SF830

Sonar SF930

Sonar SF1080

CODE: 85004.240096

CODE: 85004.230091

CODE: 85004.230092

Sonar DW1100

Sonar DW1400

Sonar P1800

CODE: 85004.240075

CODE: 85004.240076

CODE: 85004.240072

Sonar HA750

Sonar HA850

Sonar HA950

CODE: 85004.230102

CODE: 85004.230103

CODE: 85004.230104

Sonar HA1450

Fuselage Aluminium

CODE: 85004.230108 ​

CODE: 85010.210085

Sonar S238

Sonar S208

Sonar S178

CODE: 85004.240098

CODE: 85004.230094

CODE: 85004.230095

S PAR E PARTS

Sonar MA1500v2

SIZES: A600, A700

Fuselage Carbon CODE: 85010.210086

SIZES: C600, C700

Sonar S192 CODE: 85004.240102 northfoils.com 2 4 7

248

2 02 4 P R OD U CT CATALOGU E S PAR E PARTS

Foiling Simplified Need help choosing your Sonar Foil setup?

Our Sonar Rider Guide makes it simple.

Your Sonar Foil set up comprises an Edition (Mast, Fuselage and Stabilizer) plus a Front Wing.

The system is fully modular - which means all the parts are compatible. So you can choose a different combination to suit your foil discipline and rider ability.

For help building your perfect foil quiver, view our Sonar Rider Guide here.

SONAR RIDER GUIDE

SCAN HERE FOR DOWNLOADABLE PDF

northfoils.com 2 4 9

250

Credits Production North Photography Frankie Bees Leo Hochgrassl Graeme Murray Mathys Fraile Miles Taylor Matt Argentin Additional Photographers Adam Sims Slater Neborsky All artwork, styling and design

by North Actionsports Group B.V. Published by North Actionsports.

All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any information storage and retrieval system without permission in writing from North Actionsports Group, Auckland, New Zealand. marketing@northasg.com northfoils.com 2 5 1
