2023/24 ICE COLLECTION

IT TAKES A SPECIAL BREED

We have one focus in mind, the love of fishing, the allure of the ice, and it’s not for everyone. Ice anglers are a special breed. Facing the toughest conditions out there with a passion to bring fish through the ice. A team of five command brands: Rapala®, VMC ® , Sufix®, StrikeMaster ® and Mora Ice® . All providing premium gear we know matches your desire to overcome the demands.

DEDICATED TO CONTINUOUS INNOVATION.

LITHIUM 40v LITE

Utilizing the 8" Lite-Flite Lazer

Drill Units, we've created a lighter version of the proven original Lithium 40v. Both sizes include the Lite-Flite Lazer™ Magnetic Snap Cover, so no more bending over or turning the auger to get the blade guard on and off.

POWERHEAD / MOTOR

• Electric DC Brushless Motor

• Planetary Gear System • 15.9:1 Gear Ratio

• Power Button with Deadman Safety Switch

• Forward and Reverse • Built-in LED Lights

• Impact-Resistant Long Filament Handles

LITE-FLITE LAZER™ / LAZER

DRILL UNIT / BLADES

• Proprietary Synthetic Resin Molded Flighting

• Twin Serrated Stainless Steel

• Full Length Segmented Flighting

• Carriage Formed from Exclusive Engineered Compounds

• Reinforced “T” Connection to Carriage with Heavy-Duty Steel Hex Shaft

• Power Point Keeps the Drill Unit in Place While Drilling

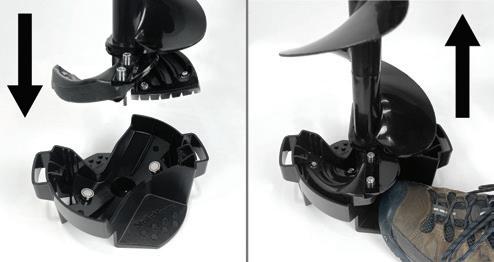

• Magnetic Snap Cover Blade Guard

100 Hole - 8" Auger on a Single Charge*

70 Holes - 10" Auger on a Single Charge* at Peak Performance.

*Based on Repeated Tests

MODEL NO. WEIGHT

LFVLF-8 21 lbs.

LFVLF-10 22 lbs.

Total weight is measured with powerhead, battery & spiral. (see page 11 for specs and complete details)

5-AMP BATTERY

40-volt, 5-amp Hour Lithium ION Battery

Internal Battery Management System

4 LED Battery Status Indicator • 2-Year Warranty

CHARGING BASE

2-1/2 Hours from

Empty to Full - 5-amp Battery

Built-in Cell Optimization, Smart Charging

Wall Mountable • 2-Year Warranty

5 STRIKEMASTER WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

LITHIUM 40v

Built from the ground up with the features that make a difference on the ice. The StrikeMaster® Lithium 40v combines decades of ice auger experience with leading edge design and power engineering. This auger will muscle through ice hole after hole.

POWERHEAD / MOTOR

• Electric DC Brushless Motor

• Planetary Gear System

• 15.9:1 Gear Ratio

• Power Button with Deadman Safety Switch

• Forward and Reverse

• Built-in LED Lights

• Impact-Resistant Long Filament Handles

DRILL UNIT / BLADES

• Steel Auger Flighting and Blade Carriage

• Power Point Keeps the Drill Unit in Place While Drilling

• Twin Serrated Stainless Steel Lazer™ Blades

• Lazer™ Blade Guard

100 Holes - 8" Auger on a Single Charge*

70 Holes - 10" Auger on a Single Charge* at Peak Performance.

*Based on Repeated Tests with 16" of Ice

LITHIUM 40v, 5-AMP BATTERY

• 40-volt, 5-amp Hour Lithium ION Battery

• Internal Battery Management System

Ensures Battery Longevity

• 4 LED Battery Status Indicator • 2-Year Warranty

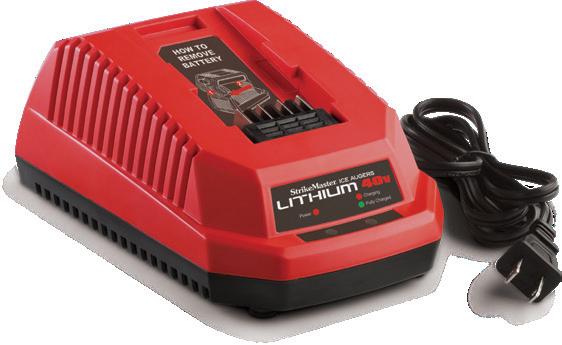

LITHIUM 40v CHARGING BASE

• Charges All 40v Batteries

• 2-amp Rapid Charging 2-1/2 Hours from Empty to Full - 5-amp Battery

• Built-in Cell Optimization, Smart Charging

• Wall Mountable • 2-Year Warranty

MODEL NO. WEIGHT DESCRIPTION LFVL-8 24 lbs. Lithium 40v 8" Auger LFVL-10 27 lbs. Lithium 40v 10" Auger Total weight is measured with powerhead, battery & spiral. (see page 11 for specs and complete details) US PATENT #D832,316
STRIKEMASTER 6 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

LITHIUM 24v

More power, more holes, stable ergonomic handling and the lightest, most compact peak performer in its class. Crushes performance of standard handheld cordless drivers.

POWERHEAD / MOTOR

• Electric DC Brushless Motor

• Planetary Gear System

• 50:1 Gear Ratio

• Power Button with Deadman Safety Switch

• Forward and Reverse

• Impact-Resistant Long Filament Handles

LITE-FLITE LAZER™ DRILL UNIT / BLADES

• Proprietary Synthetic Resin Molded Flighting

• Twin Serrated Stainless Steel Lazer™ Blades

• Full Length Segmented Flighting

• Carriage Formed from Exclusive Engineered Compounds

• Reinforced “T” Connection to Carriage with Heavy-Duty Steel Hex Shaft

• Power Point Keeps the Drill Unit in Place While Drilling

• 6" - Lazer™ Blade Guard

• 8" - Magnetic Snap Cover Blade Guard

65 Holes - 6" Auger on a Single Charge*

50 Holes - 8" Auger on a Single Charge* at Peak Performance.

*Based on Repeated Tests with 16" of Ice MODEL

(see page 12 for specs and complete details)

LITHIUM 24v BATTERY

24-volt, 4-amp Hour Lithium ION Battery

Internal Battery Management System

Ensures Battery Longevity

3 LED Battery Status Indicator • 2-Year Warranty

LITHIUM 24v CHARGING BASE

2-amp Rapid Charging, 2 Hours from Empty to Full Built-in Cell Optimization, Smart Charging

Wall Mountable • 2-Year Warranty

WEIGHT DESCRIPTION
13.3 lbs. Lithium 24v 6" Auger
14.3 lbs. Lithium 24v 8" Auger
NO.
LTVLF-6
LTVLF-8
PATENT PENDING
7 STRIKEMASTER WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

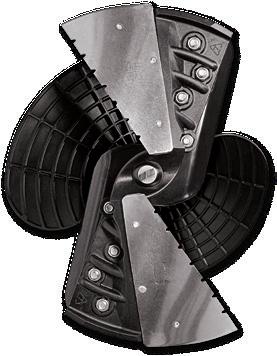

LITE-FLITE LAZER™ DRILL UNIT

The ultimate advancement in lightweight and fast ice drilling! The lightweight Lite-Flite Lazer™ Drill Unit is designed to be used with any professional quality 18v (or higher) brushless handheld cordless driver with 1/2" chuck and side-handle or any StrikeMaster® ice auger powerhead.

• Proprietary Synthetic Resin Molded Flighting

• Full Length Segmented Flighting

• Carriage Formed from Exclusive Engineered Compounds

• Reinforced “T” Connection to Carriage with Heavy-Duty Steel Hex Shaft

• Power Point Keeps the Drill Unit in Place While Drilling

• Twin Serrated Stainless Steel Lazer™ Blades

• 6" - Lazer™ Blade Guard

• 8" - Magnetic Snap Cover Blade Guard

MODEL NO. WEIGHT DESCRIPTION LFLD-6 4.4 lbs. Lite-Flite 6" Drill LFLD-8 5.3 lbs Lite-Flite 8" Drill (see page 12 for specs and complete details) STRIKEMASTER 8 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
Lite-Flite Lazer ™ Drill Unit includes the NDA-3 Drill Adapter & FND Safety Flange
9 STRIKEMASTER

LAZER™ LITE DRILL UNIT 10"

Built tough with our proprietary synthetic resin molded flighting. Giving you the lightest 10" drill unit on the market. Our 10" Lazer™ Lite Drill Unit is designed to be used only with the StrikeMaster® Lithium 40v powerhead, giving you the maximum torque needed to drill big holes through thick ice.

• Proprietary Synthetic Resin Molded Flighting

• Full Length Segmented Flighting

• Carriage Formed from Exclusive Engineered Compounds

• Reinforced “T” Connection to Carriage with Heavy-Duty Steel Hex Shaft

• Power Point Keeps the Drill Unit in Place While Drilling

• Twin Serrated Stainless Steel Lazer™ Blades

• Magnetic Snap Cover Blade Guard

MODEL NO. WEIGHT DESCRIPTION

LFLD-10 6.8 lbs. Lazer ™Lite 10" Drill (see page 13 for specs and complete details)

WARNING:
NEW

WE CONTINUE TO WIN THE RACE TO THE BOTTOM OF THE HOLE.

Building legendary augers with over 75 years of experience of reaching fish through the ice. Every model features premium components, unmatched by the competition.

LITHIUM 40v LITE

POWER LAZERTM

DRILL UNIT

Twin Serrated, Stainless Steel Lazer™ Blades

POWER LITE-FLITE

LAZERTM DRILL UNIT

Twin Serrated, Stainless Steel Lazer™ Blades

POWER LAZERTM LITE

DRILL UNIT 10"

Twin Serrated, Stainless Steel

Lazer™ Blades

LAZERTM HAND

DRILL UNIT

Twin Chrome-Alloy Stainless Steel

Lazer™ Blades

MORA® HAND

DRILL UNIT

Twin Chrome-Alloy Carbon Steel

Mora® Blades

FEATURES

Electric DC Brushless Motor

Planetary Gear System

15.9:1 Gear Ratio

Power Button with Deadman Safety Switch

Forward and Reverse

Built-in LED Lights

Impact-Resistant Long

Filament Handles

Lite-Flite Lazer™ / Lazer™ Lite Drill Unit

Magnetic Snap Cover Blade Guard

BLADES

BATTERY

Twin Serrated Stainless Steel Lazer™ Blades

40-volt, 5-amp Hour

Lithium ION Battery

Internal Battery Management System Ensures Battery Longevity

4 LED Battery Status Indicator

2-amp Charging Station

(Recharges battery in 2-1/2 hours)

WARRANTY

2-Year Manufacturer’s Warranty on Motor, Battery and Charger

LFVLF-8 .....8 "Auger . . . . . . 21 lbs.

LFVLF-10 ....10"Auger ...... 22 lbs.

LFV-B .... 40v 5-amp Lithium Battery

LFV-CB Lithium 40v Charging Base

ELECTRIC AUGERS

LITHIUM 40v

Electric DC Brushless Motor

Planetary Gear System

15.9:1 Gear Ratio

Power Button with Deadman Safety Switch

Forward and Reverse

Built-in LED Lights

Impact-Resistant Long

Filament Handles

Lazer™ Drill Unit

Blade Guard

Twin Serrated Stainless Steel Lazer™ Blades

40-volt, 5-amp Hour

Lithium ION Battery

Internal Battery Management System Ensures Battery Longevity

4 LED Battery Status Indicator

2-amp Charging Station

(Recharges battery in 2-1/2 hours)

2-Year Manufacturer’s Warranty on Motor, Battery and Charger

LFVL-8 ...... 8 "Auger... 24 lbs.

LFVL-10 ..... 10"Auger... 27 lbs.

LFV-B 40v 5-amp Lithium Battery

LFV-CB Lithium 40v Charging Base

11 STRIKEMASTER
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
NEW

HAND AUGERS

LITHIUM 24v

Electric DC Brushless Motor

Planetary Gear System

50:1 Gear Ratio

Power Button with Deadman Safety Switch

Forward and Reverse

Impact-Resistant Long Filament Handles

Lite-Flite Lazer™ Drill Unit

6" - Lazer™ Blade Guard

8" - Magnetic Snap Cover Blade Guard

Twin Serrated Stainless Steel Lazer™ Blades

24-volt, 4-amp Hour

Lithium ION Battery

Internal Battery Management System Ensures Battery Longevity

LED Battery Status Indicator

2-amp Charging Station

(Recharges battery in 2 hours)

2-Year Manufacturer’s Warranty on Motor, Battery and Charger

LTVLF-6 6"Auger. 13.3 lbs.

LTVLF-8 8"Auger 14.3 lbs.

LTV-B 24v Lithium Battery

LTV-CB Lithium 24v Charging Base

Steel Auger Flighting and Blade Carriage

Powder Coated Paint Reduces Ice Build-up

Ergonomically Designed Handle Adjusts from 48" - 57"

Uncouples into 2-Pieces for Transport and Storage

Blade Guard

Steel Auger Flighting and Blade Carriage

Powder Coated Paint Reduces Ice Build-up

Ergonomically Designed Handle Adjusts from 48" - 57"

Uncouples into 2-Pieces for Transport and Storage

Blade Guard

LITE-FLITE LAZER

Proprietary Synthetic Resin Molded Flighting

DRILL

Full Length Segmented Flighting Carriage Formed from Exclusive Engineered Compounds

Reinforced “T” Connection to Carriage with Heavy-Duty Steel Hex Shaft

Includes: NDA-3 Two Stage Drill Adapter, Protection Flange, Collar Bolt & Allen Wrench

6" - Lazer™ Blade Guard

Twin Chrome-Alloy Stainless Steel Lazer™ Blades 1-Year

Twin Chrome-Alloy Carbon Steel Mora® Blades 1-Year

8" - Magnetic Snap Cover Blade Guard

Twin Serrated Stainless Steel Lazer™ Blades

1-Year Manufacturer’s Warranty

"

STRIKEMASTER 12
TM
lbs.
TM
LFLD-6 6
Drill 4.4 lbs. LFLD-8 8"Drill 5.3
LAZER
LD-5 ...... 5"Auger ...... 6.0 lbs. LD-6 ...... 6"Auger ...... 6.5 lbs. LD-7* ..... 7"Auger ...... 7.5 lbs. LD-8* 8"Auger 8.5 lbs. * includes support brace
®
Manufacturer’s Warranty
MORA
Manufacturer’s Warranty MD-5 ..... 5"Auger ...... 6.0 lbs. MD-6 ..... 6"Auger ...... 6.0 lbs. MD-7 7"Auger 7.0 lbs. MD-8 8"Auger 8.0 lbs.
PATENT PENDING WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

TM

LAZER

LITE DRILL

Proprietary Synthetic Resin Molded Flighting

Full Length Segmented Flighting Carriage Formed from Exclusive Engineered Compounds

Reinforced “T” Connection to Carriage with Heavy-Duty Steel Hex Shaft

Includes: Magnetic Snap Cover Blade Guard, Collar Bolt & Allen Wrench

Twin Serrated Stainless Steel Lazer™ Blades 1-Year

LAZER

TM

DRILL

Steel Auger Flighting and Blade Carriage

Powder Coated Paint Reduces Ice Build-up

Fits StrikeMaster Powerheads

Includes: Blade Guard, Collar Bolt & Allen Wrench

SINGLE CHIPPER DRILL

Steel Auger Flighting and Blade Carriage

Powder Coated Paint Reduces Ice Build-up

Fits StrikeMaster Powerheads

Includes: Blade Guard, Collar Bolt & Allen Wrench

Twin Serrated Stainless Steel Lazer™ Blades

High Carbon Steel Chipper Blade 1-Year

8.25" Drill 9.5 lbs. D-1025 10.25" Drill 12.3 lbs. NEW STRIKEMASTER 13
Manufacturer’s Warranty D-825
Manufacturer’s Warranty LFLD-10 10 "Drill 6.8 lbs.
POWER AUGER DRILL UNITS
1-Year Manufacturer’s Warranty LPD-8 8"Drill 8.6 lbs. LPD-10 10"Drill 11.6 lbs. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 14 STRIKEMASTER

POWER UP LIFE ON THE ICE

Battery power and accessories to extend your time on the ice & make it more productive and enjoyable.

LITHIUM 40v POWER STATION

The StrikeMaster ® box that rocks! Power it up! This portable package has it all. Utilizing the same Lithium 40v battery as the Lithium 40v augers, it powers a Bluetooth speaker, LED area light, multiple USB ports for a variety of electronic devices, universal terminals and when plugged into 110v it recharges the Lithium 40v battery. Perfect for powering fish locators and portable LED light kits.

• Internal 40v Battery Charger

• LED Charging Status Indicator

• LED Area Light with White and UV Options

• Universal Bluetooth Speaker

• 2 USB-A Ports (Output) 5v at 1A Maximum

• 2 USB-C Port (Output) 5v at 1A Maximum

• Universal Positive and Negative Terminals (Output) 12v at 10A Maximum

• Lighted Master Power Switch

• Banana Plugs with Alligator Clips

• 110v Charging Cord

The Average Amount of Times a Device can be Charged from One Fully Charged 40v Battery

• Smart Phone: 8 Recharges

• Tablet: 3 Recharges

• Laptop: 4 Recharges

• POV Camera: 250 Recharges

Works Only with StrikeMaster's 40v Battery (LFV-B)

STRIKEMASTER 15 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
NEW MODEL NO. DESCRIPTION DIMENSIONS LFV-40VPS Lithium 40v Power Station 10.5" x 8.5" x 5.5" Battery not included Battery not included

LITHIUM 40v POWER ADAPTER

A 40v battery isn't just to power an auger. With this adapter you can utilize the 40v battery to charge and operate a variety of electronic devices like fish locators and portable LED light kits.

• 2 USB-A Ports (Output) 5v at 1A Maximum

• 1 USB-C Port (Output) 5v at 1A Maximum

• Universal Positive and Negative Terminals (Output) 12v at 10A Maximum

• Lighted Master Power Switch

The Average Amount of Times a Device can be Charged from One Fully Charged 40v Battery

• Smart Phone: 8 Recharges

• Tablet: 3 Recharges

• Laptop: 4 Recharges

• POV Camera: 250 Recharges

Works Only with StrikeMaster's 40v Battery (LFV-B) MODEL NO. DESCRIPTION

LFV-12VA Lithium 40v 12v Power Adapter

Battery not included

BATTERY BAG

Easily transport, store and protect batteries when not in use. Water resistant outer shell & insulated padded liner with heavy-duty zipper & handle. Holds 2 batteries or one battery & charging base.

• Removable Divider

• Detachable Shoulder Strap

• Bag Dimensions - 9”x8”x6”

LITHIUM CHARGING BASES

Replacement StrikeMaster Lithium 40v and 24v charging bases.

(see page 5-7 for specs and complete details)

LITHIUM BATTERIES

Have an extra battery on hand or replace your StrikeMaster Lithium 40v or 24v battery.

(see page 5-7 for specs and complete details)

STRIKEMASTER 16 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
DESCRIPTION
MODEL NO.
SBB2 Battery Bag
MODEL NO. DESCRIPTION LFV-CB 40v, 2-amp Rapid Charging Base LTV-CB 24v, 2-amp Rapid Charging Base
MODEL NO. DESCRIPTION LFV-B 40v, 5-amp Hour Lithium ION Battery LTV-B 24v, 4-amp Hour Lithium ION Battery
NEW Battery not included

AUGER REPLACEMENT PARTS & ACCESSORIES

LITE-FLITE LAZER

MAGNETIC SNAP COVER

• Hands Free Push-in to Attach, Use the Foot Pads When Detaching

• Strong Connecting Magnets

• Locking Tabs

(Compatible with Lite-Flite Lazer ® & Lazer ® Lite Drill Units Only)

BLADE GUARDS

REPLACEMENT BLADES

The sharpest blades for that “brand new” blade experience.

POWER AUGER BLADES

HAND AUGER BLADES

AUGER PARTS & ACCESSORIES

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 17 STRIKEMASTER
MODEL NO. DESCRIPTION BG-5 Mora® Blade Guard 5" BG-6 Mora® Blade Guard 6" BG-7-8 Mora® Blade Guard 7" and 8" LBG-5 Lazer™ Blade Guard 5" LBG-6 Lazer™ Blade Guard 6" LBG-7 Lazer™ Blade Guard 7" LBG-8 Lazer™ Blade Guard 8" LBG-10 Lazer™ Blade Guard 10" PG-825 Chipper Blade Guard 8.25" PG-1025 Chipper Blade Guard 10.25" MODEL NO. DESCRIPTION MSCLF-8 Magnetic Snap Cover Blade Guard 8" MSCLF-10 Magnetic Snap Cover Blade Guard 10"
MODEL NO. DESCRIPTION LPD-6PB Lazer™ Power Replacement Blades 6" LPD-8PB Lazer™ Power Replacement Blades 8" LPD-10PB Lazer™ Power Replacement Blades 10" MB-825B Chipper Replacement Blade 8.25" MB-1025B Chipper Replacement Blade 10.25" LFLD-10PB Lite-Flite Lazer™ Replacement Blade 10"
LD-5B Lazer™ Hand Replacement Blades 5" LD-6B Lazer™ Hand Replacement Blades 6" LD-7B Lazer™ Hand Replacement Blades 7" LD-8B Lazer™ Hand Replacement Blades 8" MD-5B Mora® Hand Replacement Blades 5" MD-6B Mora® Hand Replacement Blades 6" MD-7B Mora® Hand Replacement Blades 7" MD-8B Mora® Hand Replacement Blades 8" PG
LBG
MODEL NO. DESCRIPTION WINGBOLT Wing-Bolt For Adjustable Hand Auger RGS-P2 Rubber Guard Strap (2) (for Power & Hand Blade Guards) WINGBOLT
original manufacturer replacement parts ensures long life. SB-1 Power Auger Storage Bracket SC-1 Power Auger Storage Case SC-1 BG RGS-P2
Using

EXT-2

EXT-3

Hand Auger Extension - Adjustable 12"

Power Auger Extension 12"

Power Auger Extension 20"

FLANGE FOR CORDLESS DRIVER ADAPTER

A safety shield in the rare instance that your driver chuck releases your auger. 8" diameter, made of lightweight polyethylene (Compatible with NDA-3 only).

MODEL NO. DESCRIPTION

FND Flange

TWO STAGE DRILL ADAPTER FOR AUGER DRIVER

Turn any professional quality 18v cordless electric 1/2" chuck driver into a power ice auger. For use with StrikeMaster ® hand and power auger drills.

MODEL NO. DESCRIPTION

NDA-3 Two Stage Drill Adapter

BAIT BUCKET

The perfect solution for fast and efficient fishing. This water-tight, insulated, refrigerator safe bucket has rubber gasket in lid for splashproof, air tight seal – removable for long-term bait storage. Removable handle. 5" diameter x 7" deep.

MODEL NO. DESCRIPTION

RBBU Bait Bucket

BAIT PUCK

Crush proof protection for your maggots, wax worms and other creatures. Insulated to maintain perfect temperature. Refrigerator safe. 3" diameter x 1" deep.

MODEL NO. DESCRIPTION

BP-1 3" Bait Puck 2 Pack: 1 Red/1 Yellow

BP-1-BULK 3" Bait Puck

24 Count assorted mix of Red & Yellow

BP-2 5" Red Bait Puck II

BAIT PUCK PLUS

Two-sided version of the original Bait Puck. With just a flip of the wrist the bedding (sawdust) separates from the bait, purposely exposing your wax worms, maggots, etc. Refrigerator safe. 3" diameter x 2-1/4" deep.

LAZER

ICE AUGER BLADE SHARPENER

Great tool for field sharpening damaged blades. Keeps your auger performing at its peak for the day. Simply draw sharpener across auger blades several times to temporarily restore the cutting edge.

MODEL NO. DESCRIPTION

CS-1 Lazer ™ Ice Auger Blade Sharpener

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) STRIKEMASTER 18
MODEL NO. DESCRIPTION BP-P Yellow Bait Puck Plus
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 19 STRIKEMASTER

PRO SUIT

If the conditions keep you off the ice, you’re not wearing the right gear. StrikeMaster’s Pro Suit, the ultimate cold-weather outerwear, will keep you warm, comfortable, and most importantly safe on the ice.

NEW STYLE PRO JACKET

• StrikeMaster® SOS Flotation Technology (Stay On Surface) Floats for 2 Hours When Worn with the Pro Bibs

• 3-1 Interchangeable Jacket with Zip-Out Puff Vest (100g 3M™ Insulation)

• Outer Main Jacket - 140g 3M™ Insulation + (EPE Foam – 40g Equivalent)

• Upgraded Ripstop Polyester Outer Shell is Water Repellent and Breathable with Ripstop Weave that Strengthens the Fabric and Prevents Tears

• Fleece Lined Hand Warming Pockets

• Inside Zip Pockets for Convenient Storage

• Premium YKK Zippers • Magnetic Flap on Main Zipper

• Removable Hood • D-Rings for Accessory Attachment

• 100% Polyester/PU Coating and Lining • Reflective Trim for Added Safety

• Waterproof (8000mm) Breathable (8000mm)

• Non Coast Guard Approved

SPJF Black LT-XXLT XS-4XL

NEW SPJ23 Black Grey LT-XXLT XS-4XL

NEW STYLE PRO BIBS

• StrikeMaster® SOS Flotation Technology (Stay On Surface) Floats for 2 Hours When Worn with the Pro Jacket

• Upgraded Ripstop Polyester Outer Shell is Water Repellent and Breathable with Ripstop Weave that Strengthens the Fabric and Prevents Tears

• 140g 3M™ Insulation + (EPE Foam – 40g Equivalent)

• Multiple Layers of 5mm EVA Foam Knee Padding

• Zip-to-Hip Side Zippers • Magnetic Flap on Side and Main Zippers

• Chest Fleece Lined Hand Warming Pockets • Adjustable Hem on Bottom Cuffs

• Premium YKK Zippers • D-Rings on Cargo Pocket for Accessory Attachment

• 100% Polyester/PU Coating and Lining • Reflective Trim for Added Safety

• Waterproof (8000mm) Breathable (8000mm) • Waterproof Hem

• Non Coast Guard Approved

MODEL NO.

COLOR REGULAR

SPBF Black XS-4XL

NEW SPB23 Black Grey XS-4XL

NEW W WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) STRIKEMASTER 20
MODEL NO. COLOR TALL REGULAR
Zip-Out Men's Strikemaster® Puff Vest

SURFACE SUITS

The StrikeMaster ® Surface name says it all. “SURFACE” with SOS Flotation Technology (Stay on Surface) assists you in keeping afloat for up to two hours when worn as a complete suit, jacket and bibs. Designed for safety, warmth and loaded with features from head-to-toe.

SURFACE JACKET

• StrikeMaster® SOS Flotation Technology (Stay On Surface) Floats for 2 Hours When Worn with the Surface Bibs

• Fleece Lined Hand Warming Pockets

• Inside Zip Pocket for Cell Phone, Wallet, etc.

• Premium YKK Zippers

• Magnetic Flap on Main Zipper

• Removable Hood

• 100% Nylon Oxford Fabric • 100% Nylon Taslon Fabric

• 100% Polyester/PU Coating • 100% Polyester Tricot Lining

• 120g Padded Insulation + (EPE Foam – 40g Equivalent)

• Waterproof (8000mm) Breathable (8000mm)

• Non Coast Guard Approved

MODEL NO. COLOR YOUTH TALL REGULAR

SSJBG Blue Grey - LT-XXLT XS-4XL

SSJCR Charcoal Red YS-YL LT-XXLT XS-4XL

SURFACE BIBS

• StrikeMaster® SOS Flotation Technology (Stay On Surface) Floats for 2 Hours When Worn with the Surface Jacket

• Zip-to-Hip Side Zippers • Magnetic Flap on Side Zippers

• Chest Fleece Lined Hand Warming Pockets

• Magnetic Flap on Main Zipper • Adjustable Hem on Cuff

• Premium YKK Zippers • D-Rings on Cargo Pocket

• Multiple Layers of EPF Knee Padding

• 100% Nylon Oxford Fabric • 100% Nylon Taslon Fabric

• 100% Polyester/PU Coating • 100% Polyester Tricot Lining

• 120g Padded Insulation + (EPE Foam – 40g Equivalent)

• Waterproof (8000mm) Breathable (8000mm)

• Non Coast Guard Approved

MODEL NO. COLOR YOUTH REGULAR

SSBBG Blue Grey - XS-4XL

SSBCR Charcoal Red YS-YL XS-4XL

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 21 STRIKEMASTER

BATTLE SUIT

Battle the elements in the StrikeMaster ® Battle Jacket and Bibs. The perfect suit with comfort and warmth that serious anglers need for their ice fishing adventure. Wear the hottest brand on the ice.

BATTLE JACKET

• Fleece Lined Hand Warming Pockets

• Inside Zip Pocket for Cell Phone, Wallet, etc.

• Premium YKK Zippers

• Magnetic Flap on Main Zipper

• Removable Hood

• D-Rings on Pockets

• 100% Nylon Oxford Fabric

• 100% Polyester/PU Coating

• 100% Polyester Tricot Lining

• 160g Padded Insulation

• Waterproof (8000mm) Breathable (8000mm)

BATTLE BIBS

• Zip-to-Hip Side Zippers

• Magnetic Flap on Side Zippers

• Chest Fleece Lined Hand Warming Pockets

• Magnetic Flap on Main Zipper

• Adjustable Hem on Cuff

• Premium YKK Zippers

• D-Rings on Cargo Pockets

• Multiple Layers of EPF Knee Padding

• 100% Nylon Oxford Fabric

• 100% Polyester/PU Coating

• 100% Polyester Tricot Lining

• 160g Padded Insulation

• Waterproof (8000mm) Breathable (8000mm)

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) STRIKEMASTER 22
MODEL NO. COLOR REGULAR SBBV Vintage XS-4XL
MODEL NO. COLOR TALL REGULAR SBJV Vintage LT-XXLT XS-4XL

PUFF VEST

Ultimate comfort and style for everyday wear. The Puff Vest may be worn by itself or layered for extra warmth.

• Channel-Quilted Design • 100g 3M™ Insulation

• Reflective Liner Helps Keep Warmth In • Premium YKK Zipper

• Outer Zip Pocket

• Inner Zip Pocket

• Adjustable Waistband Drawstring

• Sizing: XS-4XL

• Reflective Logo

HEAVY-WEIGHT MITT

• 100% Durable Polyester Shell & Waterproof Lining

• 40g 3M™ Thinsulate™ Padding

• 100% Polyurethane Palm & a Quick Drying Liner that Wicks Away Sweat • Adjustable Wrist Closures

• Full Hand Immersion Protection • Sizing: M-XL

FIVE-FINGER-FLIP MITT

• 97% Tough Polyester Shell with 3% Spandex

• 40g 3M™ Thinsulate™ Padding

• 100% Polyurethane Palm & Waterproof Insert

• 100% Polyester Fleece Lining

• Flip Mitt with Magnets Holds Mitt & Thumb Tops Back when Flipped Open

• Silicone Palm Grip • Sizing: M-XL

• Adjustable Wrist and Gauntlet Closures

• Leather Palm

• Full Hand Immersion Protection • Sizing: M-XL

• 40g 3M™ Thinsulate™ Padding

• Sure-Grip Palm Coating

• Windproof

• Hook and Loop Wrist Closure

• Full Hand Immersion Protection

• Sizing: M-XL

• 100% Polyester Spandex

• Hipora Membrane Waterproof Insulated

• Full Hand Immersion Protection • Sizing: M-XL

SG03 Black SG02 Black SG01 Black SPUFFV Black SG05 Grey
23 STRIKEMASTER WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
SG04 Black

THE ULTIMATE COMBINATION OF COMFORT

Our beanies and sweatshirts offer the ultimate combination of comfort, function and warmth. A must-have for when the temperatures head south.

BRANDED BEANIES

Built with warmth to keep your dome warm and style for the hard water experience. Men's and women's styles.

• Outer: 100% Acrylic • Lining: 100% Polyester Fleece

BRANDED SWEATSHIRTS

These must-have hooded sweatshirts are the ultimate combination of comfort, function and warmth, which feature premium materials and a kangaroo front pouch.

• 100% Cotton Soft Brushed Fleece

• 100% Cotton Rib Cuffs and Hem

• 320 gsm

• Screen Print Logo

• Heavyweight Fleece

• Super Soft Brushed Exterior

• Fleece Interior

• Sizing: XS-3XL

BRANDED TOWELS

A soft, lightweight, water absorbing, hand drying microfiber towel with carabiner clip. Perfect for attaching to your StrikeMaster ® Suit.

• 80% Polyester • 20% Polyamide

• 100% Polyester Interlaced Fleece

• 92% Polyester, 8% Spandex Cuffs and Hem

• 260 gsm

• Dye-Sublimation Logo and Pattern

• Performance Look and Feel Exterior

• Fleece Interior

• Sizing: XS-3XL

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) STRIKEMASTER / RAPALA 24
RTOWEL-1 Blue SMTOWEL-1 Grey RAPBEANIE3 RAPBEANIE4 RAPBEANIE6 RAPBEANIE7 SMBEANIE1 SMBEANIE2 SMBEANIE5 Red Black Red Black Black/Red/White Black/Grey/White Black/Grey/Red Red Black WOMEN'S WOMEN'S WOMEN'S RAPBEANIEL1 RAPBEANIEL3 SMBEANIEL2 Snow Foxy Red Frosty SMS02 Black Ice RSH07 Black Grey RSH08 Grey Light Grey
25 RAPALA WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

JIGGING SHADOW RAP®

Following in the footsteps of the original Rapala® Jigging Rap® , the much lighter Jigging Shadow Rap® features a zinc weighted slower darting action. Designed for vertical jigging, the broader silhouette, modern finishes and belly-flashing action are ideal for targeting wary fish, whether they are suspended or close to the bottom.

RAPALA 26 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
BSR BYR GL Blue Silver Black Yellow Glow GPSQ GSLM GT Glow Pink Squirrel Glow Slimy Lime Glow Tiger HLW NP PD Halloween Nordic Perch Purpledescent PEL S SML Live Perch Silver Live Smelt MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT JSDR09 Variable 6 3-1/2" 5/8 oz. GLOW GLOW GLOW GLOW NEW

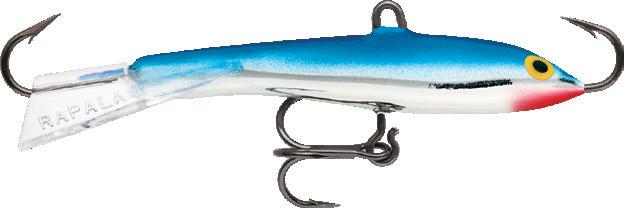

JIGGING RAP

Sixty years plus, it’s still a number one seller. With a wide choice of sizes and more colors than anyone could possibly fish. Swimming in tantalizing circles for suspended game fish, the Jigging Rap® features a balanced, weighted minnow profile. Single reversed hooks with center treble and eyelet. This bait can also be bottom bounced with unbeatable results. There are countless ice lures on the market; this is the one they all want to be like.

MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT W2 Variable 14 1-1/4" 1/8 oz. W3 Variable 12 1-1/2" 3/16 oz. W5 Variable 10 2" 5/16 oz. W7 Variable 7 2-3/4" 5/8 oz. W9 Variable 6 3-1/2" 7/8 oz. BG CHB CHR Bluegill Chrome Blue Chrome Red CLN FPN G Clown Fruit Punch Gold GBT GFR GGT Glow Blue Tiger Gold Fluorescent Red Glow Green Tiger GHP GL GPSQ Glow Hot Perch Glow Glow Pink Squirrel GRT GSLM GT Glow Red Tiger Glow Slimy Lime Glow Tiger GTU GYP HSD Green Tiger UV Glow Yellow Perch Helsinki Shad HSP OTU P Head Spin Orange Tiger UV Perch PD PRT PTU Purpledescent Parrot Pink Tiger UV PW RFCW RSD Pearl White Redfire Crawdad Regal Shad RT S SFC Rainbow Trout Silver Silver Fluorescent Chartreuse GLOW GLOW GLOW GLOW GLOW GLOW GLOW GLOW GLOW 27 RAPALA WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

JIGGING SHAD RAP®

The Jigging Shad Rap® has more pronounced movement, with slow circle down action. Raising in a sharp "snapping" motion will cause the bait to circle faster. A quick "vibrating" motion can also be used at fixed depths to prompt strikes from otherwise lifeless fish. Single reverse hooks on both ends with center treble and eyelet that can be tipped with your favorite bait. Zinc weighted, shad profile in natural, glow and UV color patterns.

MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT WSR02 Variable 14 1-1/4" 1/8 oz. WSR03 Variable 10 1-1/2" 3/16 oz. WSR05 Variable 8 2" 5/16 oz. Glow Firetiger Green Tiger UV Mossy Tiger UV Orange Tiger UV Pearl Pink Tiger UV Silver GLOW GLOW GLOW RAPALA 28 WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)

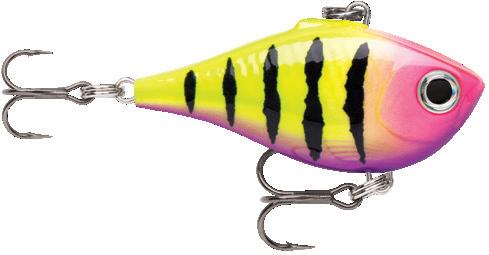

RIPPIN’ RAP®

A loud, rattling versatile lure with hard vibration and an active flutter on the drop. Tall, skinny, textured scale body with a distinctive BB rattle system.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 29 RAPALA MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT RPR05 Variable 8 & 10 2" 5/16 oz. RPR06 Variable 6 & 8 2-1/2" 1/2 oz. RPR07 Variable 4 & 6 1-3/4" 7/8 oz. BLKL BLS CH CHB Black Light Bad Lipstick Chrome Chrome Blue CMBS CSD DCW FRB Chrome Moss Chartreuse Shad Dark Brown Fruit Bowl Back Shiner Crawdad FT GCH GTU HSD Firetiger Gold Chrome Green Tiger UV Helsinki Shad JLC LPC MFT OGCW Juicy Lucy Leprechaun Moldy Fruit Olive Green Crawdad PCL PGS PRCL PTU Pink Clown Pearl Grey Shiner Purple Clown Pink Tiger UV RCW RFCW RTR VDH Red Crawdad Redfire Crawdad Road Trip Voodoo Haze YP Yellow Perch

NEW

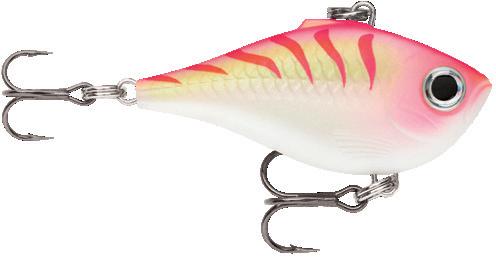

ULTRA LIGHT RIPPIN’ RAP®

GLOW GLOW

NEW COLORS CSD Chrome Chrome Blue Chartreuse Shad GHP Fruit Punch Firetiger Gold Chrome Glow Hot Perch GPSQ GSLM Glow Pink Squirrel Glow Slimy Lime Glow Tiger HSD Green Tiger UV Glow Yellow Perch Hot Steel Helsinki Shad PDS Headspin Orange Tiger UV Pink Clown Purpledescent PRCL PUTU Pearl Grey Shiner Purple Clown Pink Tiger UV Purple Tiger UV RFCW Redfire Crawdad

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 30
Like its big brother, this ultra-light still packs a punch! A loud, rattling lipless lure with a hard-action flutter on the drop. Tall, skinny, textured body with a distinctive BB rattle system. MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT ULRPR03 Variable 12 & 14 1-1/8" 1/16 oz. ULRPR04 Variable 10 & 12 1-1/2" 3/16 oz.

RAP-V BLADE

This extremely versatile bait produces instant vibration on the lift or retrieve. For vertical presentation, drop to bottom and twitch for a jigging action. Two line tie positions: front line tie for a slower fall swimming action, rear line tie for a faster fall, head down action.

31 RAPALA WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT RVB05 Variable 6 & 8 2" 3/8 oz. RVB06 Variable 4 & 6 2-1/2" 1/2 oz. ACHT BGH BUD Albino Blue Ghost Bud Chrome Tiger CBN CLN CRT Carbon Clown Chrome Tiger FT G GCHT Firetiger Gold Gold Chrome Tiger GH MBS MLC Ghost Moss Back Molten Copper Shiner PD RDF S Purpledescent Redfire Silver YP Yellow Perch

Designed to be fished a variety of ways. Quick rod snaps make this lure search in wide, erratic directions, circling back to center after pause. Lift-drop motion creates subtle vibration on rise with a side-to-side motion on the fall. Weight forward design enables a rocking action to trigger negative fish.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 32
SLAB RAP®
MODEL NO. RUNNING DEPTH HOOK SIZE LENGTH WEIGHT SLR04 Variable 12 1-1/2" 1/8 oz. SLR05 Variable 10 2" 1/4 oz. SLR06 Variable 8 2-1/2" 3/8 oz. Chrome Chrome Blue FPN Fruit Punch Gold Chrome Glow Hot Perch GPSQ GSLM Glow Pink Squirrel Glow Slimy Lime Glow Tiger Green Tiger UV Glow Yellow Perch HSP Headspin Orange Tiger UV Pink Clown Purple Clown Pink Tiger UV PUTU RFCW Purple Tiger UV Redfire Crawdad GLOW GLOW GLOW GLOW GLOW NEW NEW NEW NEW

SERIES

Rapala® R12® Series fishing accessories redefine fishing productivity. Juice up all your Rapala® R12® fishing accessories with the same Lithium ION 2Ah battery. Fueled for action, the R12’s battery delivers the strength, durability and reliability to keep you fishing longer.

® ®

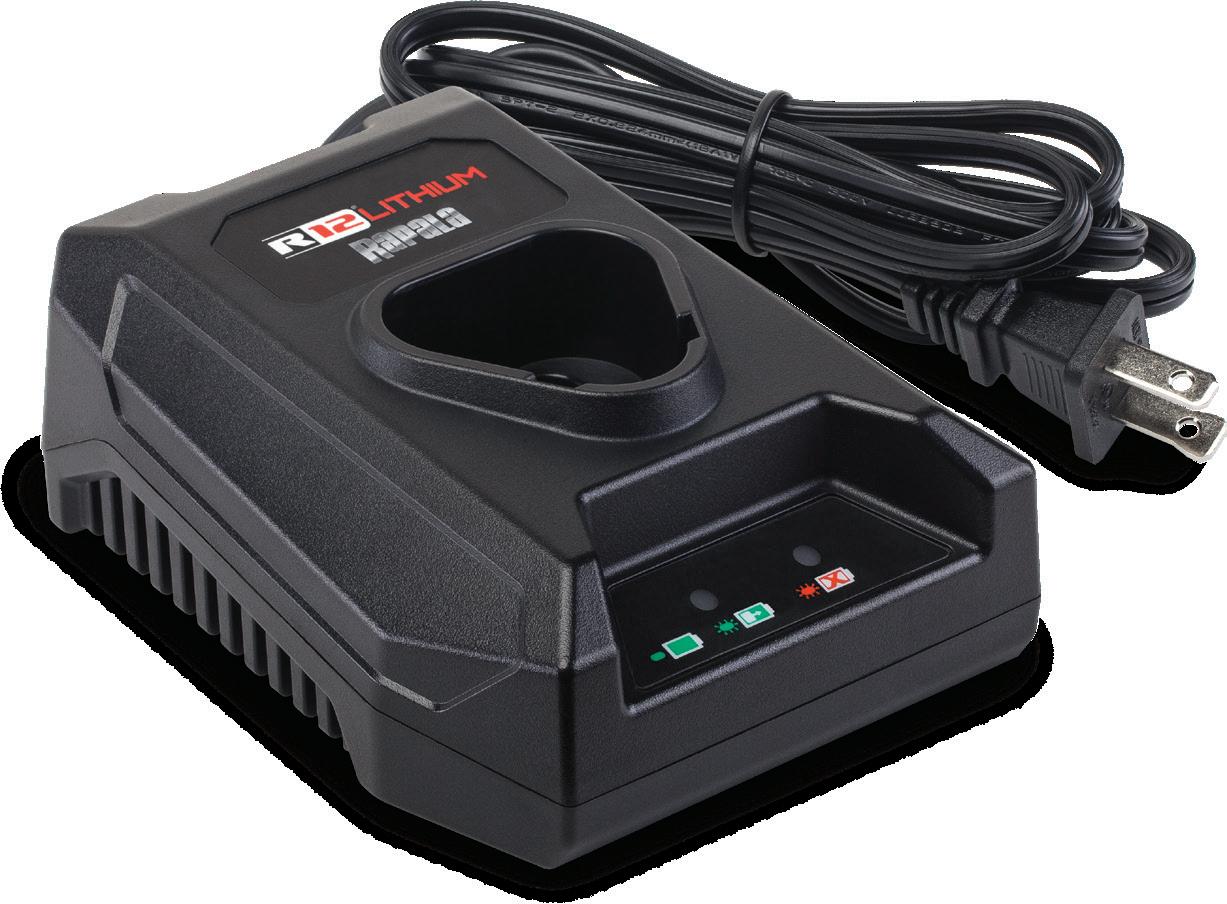

R12® BATTERY 2AH & CHARGING BASE R12® HEAVY-DUTY LITHIUM FILLET KNIFE R12® LITHIUM SPOTLIGHT LANTERN
NEW NEW
R12® LITHIUM AERATOR
35 PATENT PENDING NEW WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) Includes One R12 Battery Pack and a Compact Charging Base Sustainable Retail Carton Package

Includes Padded EVA Case

PATENT PENDING WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 36

®

R12® LITHIUM AERATOR WITH SMARTHUB®

• Provides up to 35 hours of runtime on a single 2Ah Lithium ION battery charge

• High/Low and interval air output settings allow user to adjust airflow to accommodate different live bait requirements

• On-board LED power gauge to monitor battery status

• Flexible air hose and high output aerator stone

• Includes one SmartHub® Flat Mount and one SmartHub® Bucket Mount with high-strength 3M™ VHB™ mounting tape

• 2-year warranty

R12LA

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 37 RAPALA

Battery Not Included
SmartHub® Bucket Mount SmartHub® Flat Mount
Battery & Charging Base Not Included NEW
SmartHub® Connector System The SmartHub Flat Mount utilizes the SmartHub Track System 16 or can be mounted to virtually any flat surface. The SmartHub Bucket Mount attaches to curved surface. Includes high-strength 3M™ VHB™ mounting tape. Do not overtighten screws.

R12® LITHIUM SPOTLIGHT LANTERN

• Articulating, adjustable head for directional light control

• Bright LED output, 1000 Lumens

• On-board LED power gauge to monitor battery status

• Recessed hanging loop

• 2-year warranty

SPOTLIGHT

• Low, medium, high and strobe

• Max runtime, spotlight 5 hours when utilizing a 2Ah Lithium ION battery

LANTERN

• Low, medium, high and UV for charging glow lures

• Max runtime, lantern 17 hours when utilizing a 2Ah Lithium ION battery

Battery Not Included Battery Not Included
Battery & Charging Base Not Included
NEW WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 38
R12SLT
®

SMARTHUB® SYSTEM

The Rapala® SmartHub® is the ultimate, versatile system that gives you endless options to interchange and adjust for your needs. A single SmartHub can be used independently or choose the Track to easily expand your accessory options.

SMARTHUB® ICE SHACK PACK

The perfect set of gear to get your SmartHub System started.

• Includes 2 Rattle Reels, 2 Rod Holders, 2 Track System 16 and 4 Flat Mounts

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 39 RAPALA
NEW

®

RATTLE REEL WITH SMARTHUB

• Specifically designed to hold all 50 yard Sufix® Rattle Reel & Tip Up Line spools. Fits 14mm or 15mm center spools

• Pre-loaded with 25 yards of Sufix 30 lb. Rattle Reel Line (see pages 51-52 for line details)

• Rapala logo glow features for low light conditions

• Built-in hook keeper • Variable spool tension knob

• Includes one adjustable SmartHub connector

RSHRR

Specifically Designed to Hold all Sufix Rattle Reel & Tip Up Line Spools. Simply unscrew tension knob to separate reel & install a 14mm or 15mm center Sufix spool.

ADJUSTABLE ARM WITH SMARTHUB

®

• Interchangeable & adjustable support mount

• Position your GoPro,® Aqua-Vu ® and MarCum® underwater video cameras or accessories that accept a 3/4," 1/4-20 bolt

• Includes one adjustable SmartHub connector

RSHAA

ROD HOLDER WITH SMARTHUB

• Adjustable rod holder can rock or be locked down for “tip down” or “dead rod” applications by adjusting set screw

• Articulated arm adjusts to any position

®

• Includes one adjustable SmartHub connector

RSHRH

SMARTHUB

®

ARM EXTENSION 7

• Extends connection distance 7”

• Pivoting arm with screw knob locks arm in place for perfect positioning

• Attaches to a SmartHub mount (sold separately)

RSHAE

TRACK SYSTEM 16 WITH SMARTHUB

• Includes 3 SmartHubs

®

• Interlocking track system allows easy and secure track expansion. Mounting holes 16" and 24" on center

• Position SmartHub along the track. Red center set screw holds the SmartHub in place

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 40
Includes the Exclusive Rapala ® SmartHub® Connector Includes the Exclusive Rapala ® SmartHub® Connector
PATENT
Includes the Exclusive Rapala ® SmartHub® Connector
PENDING
RSHT163 PATENT PENDING NEW

Includes the Exclusive Rapala ® SmartHub® Connector

SMARTHUB® WORK STATION

• Folding work area, easy-open clear lid compartments

• Lure storage slotted foam under work area & perimeter holes for hanging

• Tool storage drop-in slots & hang hooks on either end

• Includes one adjustable SmartHub connector

SMARTHUB

RSHWS

®

CUP HOLDER

• Fits most beverage cans, cups & mugs

• Tool only - attaches to a SmartHub mount (sold separately)

SMARTHUB® ROD STORAGE

• Stores most rod & reel combos

• Tool only - attaches to a SmartHub mount (sold separately)

2-PACK ............... RSHROD

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 41 RAPALA
. . . . . . . . . . . . . . . . . . . . . .
.
RSHCH

SMARTHUB® CLAMP MOUNT

• Mounts to round & square tubing & edges up to 1-1/4”

• Perfect for portable shelter frame poles

• Built-in 1/4-20 receiving port

SMARTHUB® BUCKET MOUNT

• Mounts on curved surface

• Includes 3M ™ VHB ™ High-Strength Bonding Tape

SMARTHUB®

FLAT MOUNT

• Mount independently on any flat surface or on the Track System 16 system

PATENT PENDING

RSHCM

2-PACK

RSHBM

2-PACK RSHFM

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 42

ESSENTIAL ICE TOOLS & ACCESSORIES

From classic to innovative, Rapala Ice Tools & Accessories make time on the ice easier.

FOLDING CAMERA PANNER

with excellent lighting power to charge up glow baits with ease. Includes two-3V (CR2016)

Glow Pick 6

Glow Pick 6 Bulk, 26 pieces

RAPALA® ICE ROD PROTECTOR

Next time you plan a fishing trip, ensure your rods make it safely. The Rapala Ice Rod Protector supports and secures your rod tips & blanks during transportation and prevents line tangles when stored with multiple rod combos. Featuring strong, built-in reinforcement with protective polyester and hook & loop straps. 15" in length.

3-PACK RIRP

RGP6

The Rapala Folding Camera Panner is the simplest and easiest to use panner on the market. Panner expands to 17" diameter to support any size hole on the ice or in a wheelhouse/fish house. Folding arms for compact travel and storage. Works with all size camera cables.

CHARGE ’N GLOW

Mounted to your rod handle for quick and convenient charging of glow baits. Ultraviolet LEDs create peak brightness from glow baits. Compact design allows you to fish like it's not there. Includes two-3V (CR2016) batteries. RGCRM

not kink or break. Adjustable tension, hi-vis indicator bead signals even the lightest of bites. Fits most rods. 2 pack.

Medium Light Action RTISBML Ultra Light Action RTISBUL

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning)
US PATENT #D715,988
43 RAPALA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RFCP
RGP6-B PATENT PENDING
360° CAMERA ADJUSTMENT

RAPALA LURE BOX

Protect your investment with this new heavyduty, four-sided tackle storage system, custom designed for jigging lures. Slotted compression foam for protection. High compression locks and waterproof seal keep inside dry.

Large 9"x 5"x 3" RLBL

RAPALA® JIG BOX

Four-sided jig storage system. Use the hook clips and the slotted compression foam to organize your collection. High compression locks and waterproof seal keep inside dry.

Medium ...... 6.75" x 4" x 2" ........ RJBM

Small 4.75" x 4" x 2" RJBS

RAPALA® UTILITY BOX

Four-sided tackle storage system. Slotted and ribbed foam, plus easy-open clear lid compartments keep gear organized and at hand. High compression locks and waterproof seal keep inside dry.

Medium 6.75" x 4" x 2" RUBM

Small 4.75" x 4" x 2" RUBS

SOFT– SIDED 30 " ROD BAG

Keep rods safe in this water-resistant lightweight padded denier shell.

• Stores up to 4 ice rod & reel combos up to 30 inches

• Padded case for protection

• Interior storage pocket

• Adjustable shoulder strap RSSRB30

DOUBLE BARREL 40 ICE ROD BAG

Transport up to 8 rods protected in tubing and lightweight denier bag.

• Stores 6-8 ice rod & reel combos up to 40 inches

• Two PVC tubes for protection

• Adjustable shoulder strap

• Two exterior zippered pockets

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 44
RUBM RJBM RJBS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. .
RDBRB40

ESSENTIAL ICE TOOLS & ACCESSORIES

From classic to innovative, Rapala Ice Tools & Accessories make time on the ice easier.

COMPACT MEGA SCOOP

This 13.5" compact model makes it easy to keep on your person while ice-trolling. Large fold-in scoop removes the maximum amount of slush. Adjustable wrist lanyard included.

MEGA SCOOP

Large fold-in scoop removes the maximum amount of slush. Just the right length so you can scoop a hole without bending over. 34" handle features a molded-in 30" ruler to easily measure ice depth & your trophy catch. Adjustable wrist lanyard included.

FOLDING PACK SHOVEL

Super light and compact, but extra tough. Great to keep in trunk of car. Unfolds to 26". Easily folds down for storage into included 13" storage pouch.

RFPSB

lightweight with a fold-in scoop. The No.1 choice for ice trolling. Wrist lanyard.

ICE SAFETY SPIKES

Contoured finger grip handles offer secure grip. Hardened steel spikes penetrate the toughest of ice. Designed to wear around neck when in use and to stow spikes inside handles for safety when not in use.

62" TWO-PIECE ICE CHISEL

Designed to open and keep holes open all season long. Great for punchin’ early ice and then reopening. Welded steel with foam coated handle for grip and shock resistance. Includes blade guard for safety. Rugged strap lanyard.

MPCH2

RMSCR34 RMSC34 RISWC20
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 45 RAPALA
RCMS RSSK

LOCK ’N HOLD ROD RACK

Holds up to 6 rods safely and securely in jaws designed not to deform or damage rods. Base grip holder takes pressure off rod eyelets. Mount in vertical or horizontal orientation (mounting hardware included).

60" RETRACTABLE RULER

The 60" Retractable Ruler will ensure that you always know the length of your catch. Spring loaded retractable ruler for easy storage, with oversized, easy-to-read numbers, in 1/2 increments up to 60." Non-reflective surface ensures length shows in photos. Made from a long-lasting, UV protected, waterproof material. Flip-up nose board for accurate measuring.

RRRUL60

24" FOLDING RULER

Get accurate measurements of all your fish for tracking your catch or qualifying catch for slot limits. Includes fold up to bump fish against for extreme accuracy. Ruler features large, easy-to-read numbers molded into high impact plastic, large enough to show up in photos. Includes both inches and centimeter measurements. Includes mounting holes for permanent installation or folds for compact storage.

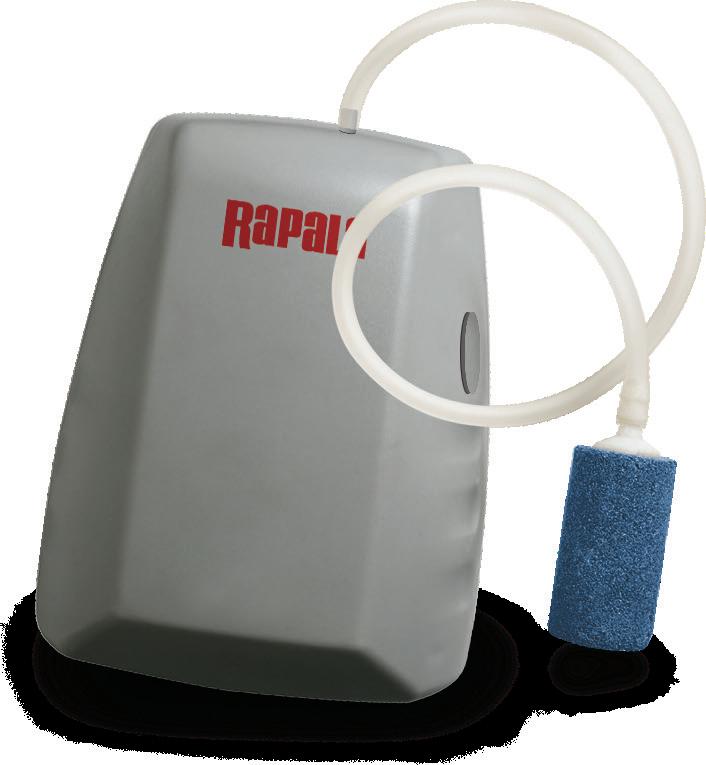

BATTERY AERATOR

Quiet, powerful diaphragm pump. Runs on 2 C cell batteries (not included). 24" hose with filter stone to protect pump.

RAERTR-C

FLOATING AERATOR

Gently mixes air into water to keep bait alive. Water activated switch powers unit for 18 hour continuous run time or 36 hours in 15-minute interval mode. Aerates 1.5 liters (0.4 gal.) per minute. Runs on 3 C cell batteries (not included).

RFLAERTR

LITHIUM AERATOR

• Provides up to 35 hours of runtime on a single 2Ah Lithium ION battery charge.

• High/Low and interval air output settings allow for different live bait requirements.

(See page 37 for all details)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RFDRLR
PATENT #7,503,459
PGRH-6 US
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 46
®
R12
Battery & Charging Base Not Included
R12LA
® NEW

ESSENTIAL ICE TOOLS & ACCESSORIES

From classic to innovative, Rapala Ice Tools & Accessories make time on the ice easier.

MAGNETIC TOOL HOLDERS

The Magnetic Tool Holders securely hold tools with durable collar & magnetic backer. Mount to any flat surface; wheelhouse walls, the inside of your sled or anywhere you need to reach your tools easily. Two models to choose from. Mounting hardware included. Tools not included.

Two Place Holder MTH2

Three Place Holder ................ MTH3

RETRACTABLE LANYARD

Versatile and secure tool management.

• 360° rotating carabiner clip provides full range of motion

• Quick release clip with split ring for tool attachment

• Strong retractor mechanism

28" Cord Length

6 oz. Hang Weight Capacity RL3

36" Cord Length

10 oz. Hang Weight Capacity ............. RL5

COMPACT LINE REMOVER

Measuring only 5" long the Rapala Compact Line Remover is convenient to have close at hand and store. The high torque motor removes 6 feet of line per second and the dual-direction design allows for left-and-right handed operation. Requires 2 AA batteries (not included) and has an easy-to-access battery compartment.

CHARGE ’N GLOW

The Charge 'n Glow charges glow hard baits, soft baits, spoons & jigs easily. This size is perfect for hard baits, soft baits and glow spoons up to 6”. Spring loaded case with push button activation.

28 lumen's. 8 UV LED bulbs.

3 AAA batteries (not included)

MINI CHARGE ’N GLOW

The Mini Charge 'n Glow is pocket sized, perfect for smaller baits like soft baits, spoons & jigs. Spring loaded case with push button activation and quick release neck lanyard.

4 UV LED bulbs.

1 AAA battery (not included)

FISH COUNTER

Easily keep track of your catch for the day or the whole trip. Easy one-hand operation & fixed loop to hang on hook or belt. 4-Figure register, automatic reset.

RFCR
RCLR
RMGC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RGC
47 RAPALA

RAPALA® BULK SERIES

Impulse items offer great value and generate increased profits. Bulk up your store with these checkout aisle champions and watch the sales add up at your register.

FILLET FORK

Secures fish in place as you fillet. Stainless steel forks with heavy-duty comfort grip handles.

24 pieces

JAW SPREADERS

Stainless steel spring for one-handed operation. Clamps lock for storage.

8" 42 pieces

FLOATING FISH GRIPPER

Quick release jaws hold strong yet release easily.

6" EZ OPEN FORCEPS

Spring loaded, locking ratchet clamp for smooth one-handed operation.

PANFISH PLIERS

Compact narrow gripping nose provides control & reach when removing hooks from panfish.

16 pieces

FISHING CLIPPER

Built-in lure tuning tool, swing-out line pick and cutting knife

FISHERMAN’S PLIERS

6-1/2", nickel plated carbon steel, leaf spring, crimper & side cutter.

12 pieces

TWO-STAGE SHARPENERS

Fixed fine & coarse ceramic sticks (SH2).

SUPER LINE SCISSORS

Serrated edge for cutting braid and other line.

FISH & GAME SHEARS

Two-piece straight & serrated side knife edges, lopper, scaler, bone cracker.

GLOW PICK 6

Features a forked punch for fast and easy dehooking as well as an LED UV pinch light

HOOK

Double sided 4" ultra-fine carbon steel file.

STAINLESS STEEL LINE NIPPER

Perfect for tag ends and general line cutting.

LED UV PINCH LIGHT

Pinch light features excellent lighting power to charge up glow baits with ease.

36 pieces

36 pieces

12 pieces

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) RAPALA 48
Model No. Item Count RSSLN-B
36 pieces
Model No. Item Count RSHD-1
Model No. Item Count RSD-1
32 pieces
Model No. Item Count RPP4-B
Model No. Item Count RLUPL-B
48 pieces
Model No. Length Item Count RJSS6-B
RJSS8-B
6" 42 pieces
Model No. Item Count RPLD-1
Model No. Length Item Count RFFG6-B 6"
pieces RFFG9-B 9"
16
20 pieces
Model No. Item Count RFGS-B
18 pieces
Model No. Item Count RGP6-B
26 pieces
FILE
Model No.
RHCF4B
Item Count
Model No. Item Count RFF2-B
Model No. Item Count RCD-2
Model No. Item Count REOF6-B
36 pieces
NEW
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 49 SUFIX

ALWAYS USE THE BEST LINE. ™

Sufix® is engineered to be stronger, tougher and uncompromising. Like the anglers who depend on it. With Sufix there's nothing you can't catch.

ADVANCE

100% FLUOROCARBON

Proprietary Gel Phase Technology™ process produces the ultimate fluorocarbon ice line in performance, clarity and super-sensitivity.

• Hydrophobic / water repellent reduces line freeze

• Incredible shock absorption & knot strength

• Virtually invisible underwater

• Superior abrasion resistance to all elements

• Low memory G2 Precision Winding® is virtually memory free allowing your presentations to move more naturally

ADVANCE ® ICE MONOFILAMENT

The mono that thinks it's a braid® is the most abrasion resistant, supple and sensitive monofilament ever. Sufix® Advance® Ice Monofilament is a combination of HMPE and Hyper CoPolymer.®

• 50% Lower stretch and UV absorption than standard monofilament

• Superior sensitivity

• Hydrophobic water-repellent protection that resists freezing

• Unbeatable knot strength

• Low memory

• Exclusive G2 Precision Winding® virtually eliminates line memory

832

ADVANCED ICE BRAID

The strongest, most durable small diameter ice braid.

• Constructed of 8 fibers (7 HMPE fibers plus 1 GORE ® Performance Fiber) with 32 weaves (pics) per inch

• GORE ® Performance Fibers add incredible fray and abrasion resistance for unmatched durability

• HMPE fibers provide high strength & sensitivity

• Small diameter

• Hydrophobic water-repellent protection that resists freezing

PERFORMANCE ICE BRAID

The original premium ice braid. Made with digital Y6 Braiding, it sheds water, resists freezing, stays flexible under extremely cold conditions and is super strong and ultra quiet.

• Digital Y6 braiding

• Sheds water/resists freezing

• Stays flexible under extreme cold conditions

• Super strong & ultra quiet

TEST DIA. MONO CASE GLACIER LB. INCH EQUIV. PACK BLUE 4 .004 1 6 664-004GB 6 .006 2 6 664-006GB 8 .007 3 6 664-008GB 10 .008 4 6 664-010GB 20 .009 6 6 664-020GB 30 .012 8 6 664-030GB
Yard Spools
75
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) SUFIX 50 GLACIER BLUE
®
TEST DIA. MONO ICE NEON LB INCH EQUIV. CAMO GHOST LIME 4 .004 1 671-004IC 671-004GH 671-004L 6 .006 2 671-006IC 671-006GH 671-006L 8 .007 3 671-008IC 671-008GH 671-008L 10 .008 4 671-010IC 671-010GH 671-010L 20 .009 6 671-020IC 671-020GH 671-020L 30 .011 8 671-030IC 671-030GH 671-030L All are Case Pack 6 • 50 Yard Spools Gore ® is a registered trademark of W.L. Gore & Assoc.
®
TEST DIA. CASE LB. INCH PACK CLEAR 2 .005 6 677-002C 3 .006 6 677-003C 4 .007 6 677-004C 6 .008 6 677-006C 8 .009 6 677-008C 50 Yard Spools
TEST DIA. CASE LB INCH. PACK CLEAR NEON LIME 2 .006 6 606-002 606-002L 3 .007 6 606-003 606-003L 4 .008 6 606-004 606-004L 6 .010 6 606-006 606-006L 8 .011 6 606-008 606-008L 100 Yard Spools CLEAR CLEAR NEON LIME
ICE
GHOST NEON LIME
CAMO

ICE MAGIC

High performance ice fishing monofilament.

• Stays manageable even in frigid water

• Additives deter water absorption that causes ice build-up

INVISILINE ™ ICE FLUOROCARBON

Ultra-low visibility and superior strength and handling.

• 100% Fluorocarbon with stealth-like invisibility

• Hydrophobic/water repellent

• Superior strength, abrasion resistance and sensitivity

• Low-stretch index for optimal hook setting power

• Sinks 4 times faster than monofilament

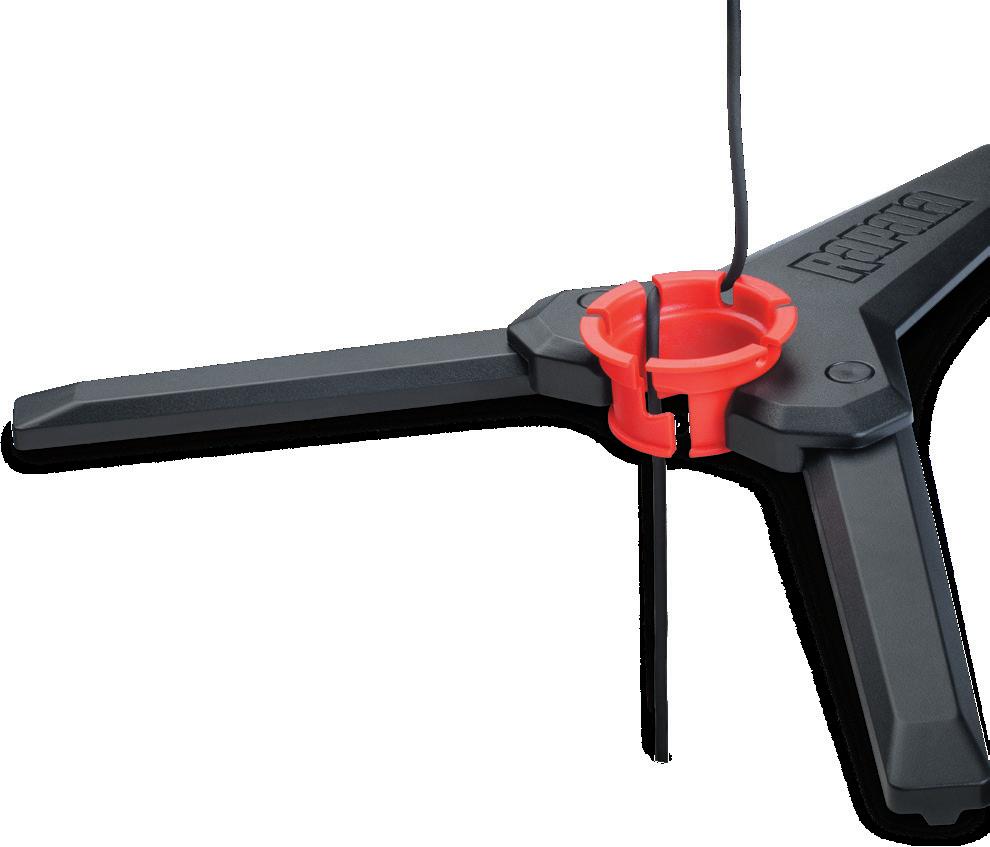

RATTLE REEL V-COAT

The ultimate line for rattle reel performance.

• Vinyl coating for extreme anti-freezing, water proofing and cold weather handling

• Exceptional line management reducing the amount of tangling when retrieving your catch

• Durability & low stretch

• Excellent abrasion resistance

• Spool fits in the Rapala ® Rattle Reel with SmartHub™

(see page 40 for more information)

TEST LB. DIA. INCH CASE PACK CLEAR NEON ORANGE 1 .004 6 603-001 603-001NO 2 .004 6 603-002 603-002NO 3 .005 6 603-003 603-003NO 4 .007 6 603-004 603-004NO 6 .008 6 603-006 603-006NO 8 .010 6 603-008 603-008NO 100 Yard Spools TEST LB. DIA. INCH CASE PACK CLEAR NEON ORANGE 1 .004 6 603-101 603-101NO 2 .004 6 603-102 603-102NO 3 .005 6 603-103 603-103NO 4 .007 6 603-104 603-104NO 6 .008 6 603-106 603-106NO 8 .010 6 603-108 603-108NO 300 Yard Spools
TEST LB. DIA. INCH CASE PACK CRYSTAL CLEAR 2 .005 6 678-002C 3 .006 6 678-003C 4 .007 6 678-004C 5 .0075 6 678-005C 6 .008 6 678-006C 7 .0085 6 678-007C 8 .009 6 678-008C 50 Yard Spools CRYSTAL CLEAR CLEAR NEON ORANGE WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 51 SUFIX
TEST LB. DIA. INCH CASE PACK COLOR ITEM NUMBER 20 .027 6 Black 612-120BLK 20 .027 6 Hot Pink 612-120P 20 .027 6 Neon Fire 612-120F 20 .027 6 Neon Lime 612-120L 50 Yard Spools TEST LB. DIA. INCH CASE PACK COLOR ITEM NUMBER 30 .030 6 Black 612-130BLK 30 .030 6 Hot Pink 612-130P 30 .030 6 Neon Fire 612-130F 30 .030 6 Neon Lime 612-130L 50 Yard Spools HOT PINK NEON LIME BLACK NEON FIRE

RATTLE REEL METERED V-COAT

The ultimate line for rattle reel performance.

METERED EVERY 50 YARDS for consistent multi-rattle reel spooling.

• Vinyl coating for extreme anti-freezing, water proofing and cold weather handling

• Exceptional line management reducing the amount of tangling when retrieving your catch

• Durability & low stretch

• Excellent abrasion resistance

PERFORMANCE TIP-UP ICE BRAID

The standard in tip-up ice fishing line.

• Hydro Fusion Process ensures fast sinking speed

• Low memory

• Exceptional cold weather handling

• Spool fits in the Rapala ® Rattle Reel with SmartHub™

(see page 40 for more information)

PERFORMANCE METERED TIP-UP ICE BRAID

Metered in 5 ft. segments for precise depth management.

• Hydro Fusion Process ensures fast sinking speed

• Low memory

• Exceptional cold weather handling

• Spool fits in the Rapala ® Rattle Reel with SmartHub™

(see page 40 for more information)

PERFORMANCE V-COAT TIP-UP LINE

Cold weather performance.

• Vinyl coating for extreme anti-freezing, water proofing and cold-weather handling

• Exceptional abrasion resistance

• Durability & low stretch

• Diameter-to-strength ratios

• Spool fits in the Rapala ® Rattle Reel with SmartHub™ (see page 40 for more information)

TEST LB. DIA. INCH CASE PACK BLACK/WHITE 15 .011 6 610-115MC 20 .014 6 610-120MC 30 .017 6 610-130MC 50 .024 6 610-150MC 50 Yard Spools
TEST LB. DIA. INCH CASE PACK BLACK 15 .011 6 610-115BLK 20 .014 6 610-120BLK 30 .017 6 610-130BLK 50 .024 6 610-150BLK 50 Yard Spools TEST LB. DIA. INCH CASE PACK BLACK 15 .011 3 610-215BLK 20 .014 3 610-220BLK 30 .017 3 610-230BLK 50 .024 3 610-250BLK NEW SPOOL SIZE 150 Yard Spools
TEST LB. DIA. INCH CASE PACK BLACK 15 .024 6 609-115BLK 20 .027 6 609-120BLK 30 .030 6 609-130BLK 50 .038 6 609-150BLK 50 Yard Spools BLACK & WHITE METERED BLACK BLACK WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) SUFIX 52
TEST LB. DIA. INCH CASE PACK COLOR ITEM NUMBER 20 .027 3 Black 613-220BLK 20 .027 3 Hot Pink 613-220P 20 .027 3 Neon Fire 613-220F 20 .027 3 Neon Lime 613-220L 150 Yard Spools TEST LB. DIA. INCH CASE PACK COLOR ITEM NUMBER 30 .030 3 Black 613-230BLK 30 .030 3 Hot Pink 613-230P 30 .030 3 Neon Fire 613-230F 30 .030 3 Neon Lime 613-230L 150 Yard Spools HOT PINK NEON LIME BLACK NEON FIRE NEW
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 53 VMC

YOUR ICE FISHING EXPERT

VMC® creates award-winning products for every style of fishing, many with first-to-market features. We manufacture the highest quality fish hooks, spoons, jigs, rigs and terminal tackle that are second to none.

RATTLING ROACH SPOON

When it’s time to eat, the VMC ® Rattling Roach Spoon calls ‘em in. Its intense fluttering action combined with an exposed rattle chamber delivers maximum sound vibrations, grabbing the attention of nearby fish like no other spoon. We’ve dressed the spoon with a marabou teaser tail, which conceals a super sharp VMC ® treble hook. Holographic eye and a variety of UV, holographic attractor and live baitfish patterns. Ultra Glow colors last up to 15 minutes.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 54
MODEL NO. HOOK SIZE LENGTH WEIGHT RRS132 14 1" 1/32 oz. RRS116 12 1-1/4" 1/16 oz. RRS18 10 1-5/8" 1/8 oz. RRS316 8 2" 3/16 oz. NEW

BULL SPOON

Erratic, wounded baitfish action, quick sinking, minnow shaped profile and life-like 3D holographic eye. A wide variety of UV, holographic attractor and live baitfish patterns. Ultra Glow colors last up to 15 minutes.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) MODEL NO. HOOK SIZE LENGTH WEIGHT BLS132 14 3/4" 1/32 oz. BLS116 12 7/8" 1/16 oz. BLS18 10 1" 1/8 oz.
GBSH Glow Blue Shiner GCSH Glow Chartreuse Shiner GGF Glow Gold Fish GHP Glow Hot Perch GLT Glow Tiger GPFU Glow Pink Fire UV GRSH Glow Red Shiner P Perch GBWB Glow Black Wonderbread GFT Glow Fire Tiger GGFU Glow Green Fire UV GJL Glow Juicy Lucy GOFU Glow Orange Fire UV GPS Glow Pink Squirrel G SL Glow Slimy Lime SH Shiner 55 VMC

4 NEW COLORS TUMBLER SPOON

The Tumbler Spoon has a unique “knuckle” bend that offers a slow tumbling action. Small attractor blade adds flash. 3D holographic VMC ® Ultra Glow colors last up to 15 minutes. UV finishes, natural baitfish patterns and holographic eye.

4 NEW COLORS TINGLER SPOON

The Tingler Spoon’s wide wobbling action exaggerates the movement of dying baitfish with its unique curved body and V-shaped design. Large 3D holographic eye and a wide variety of UV, holographic attractor and live baitfish patterns. Ultra Glow colors last up to 15 minutes.

MODEL NO. HOOK SIZE LENGTH WEIGHT TMS112 12 1" 1/12 oz. TMS18 10 1-1/2" 1/8 oz. MODEL NO. HOOK SIZE LENGTH WEIGHT TGS116 12 1" 1/16 oz. TGS18 10 1-1/2" 1/8 oz. TGS316 8 2" 3/16 oz.
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 56 GCSH Glow Chartreuse Shiner GGF Glow Gold Fish GHP Glow Hot Perch GLT Glow Tiger GPFU Glow Pink Fire UV G SL Glow Slimy Lime YP Yellow Perch NEW NEW NEW NEW NEW NEW NEW NEW

4 NEW COLORS FLASH CHAMP SPOON

Constructed of heavy-duty brass, beveled edges and tapered design offer an enticing fluttering action. An array of colors with holographic eyes and Ultra Glow pigments that last up to 15 minutes.

RATTLE SPOON

The VMC ® Rattle Spoon has an unmatched brass rattle chamber with multiple beads. The chamber allows the angler to impart sound with minimal jigging while maintaining action. A wide variety of colors in UV, natural baitfish, holographic finishes and VMC ® Ultra Glow pigments that last up to 15 minutes.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 57 VMC
MODEL NO. HOOK SIZE LENGTH WEIGHT RTS116 12 1" 1/16 oz. RTS18 10 1-1/4" 1/8 oz. RTS14 8 1-1/2" 1/4 oz. GBSH Glow Blue Shiner GFT Glow Fire Tiger GGFU Glow Green Fire UV GLT Glow Tiger GPFU Glow Pink Fire UV P Perch MODEL NO. HOOK SIZE LENGTH WEIGHT FCS132 14 3/4" 1/32 oz. FCS116 12 1" 1/16 oz. FCS18 10 1-1/4" 1/8 oz.
GBSH Glow Blue Shiner GCSH Glow Chartreuse Shiner GGF Glow Gold Fish GHP Glow Hot Perch GPS Glow Pink Squirrel GSL Glow Slimy Lime GBWB Glow Black Wonderbread GFT Glow Fire Tiger GGFU Glow Green Fire UV GJL Glow Juicy Lucy GPFU Glow Pink Fire UV GRSH Glow Red Shiner P Perch NEW NEW NEW NEW

ROCKER SPOON

The VMC ® Rocker Spoon has an exceptional slow horizontal rocking action on the fall for attracting strikes! Black Nickel dropper chain, glow resin Octopus hook and 3D holographic eyes provide a natural enticing presentation.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning MODEL NO. PIECES HOOK SIZE SPOON LENGTH DROPPER RKS316 1 6 1-1/2"
GBSH Glow Blue Shiner GCSH Glow Chartreuse Shiner GFT Glow Fire Tiger GGFU Glow Green Fire UV GHP Glow Hot Perch GLT Glow Tiger GPFU Glow Pink Fire UV GSH Gold Shiner P Perch YP Yellow Perch VMC 58

TUNGSTEN LARV EYE JIG

Provides precision vertical jigging with a design that maintains a 90-degree presentation of live or imitation bait. Features VMC ® exclusive super sharp Power Gap hook and a oversized 3D holographic eye.

4 NEW COLORS

TUNGSTEN MONGO JIG

Fast dropping Tungsten jig provides a smaller profile combined with an X-long Power Gap hook that is perfect for rigging your favorite soft plastic or live bait. A 90° line tie keeps jig balanced at all times.

Glow Black Wonderbread Orange Chart. Glow Glow Black Wonderbread Glow Fire Tiger
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 59 VMC MODEL NO. PIECES HOOK SIZE WEIGHT TMJ132 2 10 1/32 oz. TMJ116 2 8 1/16 oz. MODEL NO. PIECES HOOK SIZE WEIGHT TLEJ132 2 12 1/32 oz. TLEJ116 2 10 1/16 oz.
Green Orange
NEW NEW NEW NEW NEW

4 NEW COLORS

TUNGSTEN TUBBY JIG

The heavy density Tungsten jig delivers a soft or live-bait presentation to the strike zone faster. VMC ® Power Gap hook, precision balance & 90° hook eye ensure the optimal horizontal position!

TUNGSTEN MUSTACHE JIG

Extra action, tapered appendages on either side of the 90° eye VMC ® Power Gap hook. This greatly increases hook rate and balance for optimal horizontal position. Ultra Glow gives the head up to 15 minutes of charge!

Crappie Minnow Glow Hot Perch Glow Glow Red Glow Fire Tiger Glow Hot Perch Glow Chart. Glow Tiger Green Orange Glow Purpledescent Glow Parrot Glow Yellow Perch Glow Pink Chart. Glow WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 60 MODEL NO. PIECES HOOK SIZE WEIGHT TTJ132 2 12 1/32 oz. TTJ116 2 10 1/16 oz.
MODEL NO. PIECES HOOK SIZE WEIGHT TMWJ132 2 12 1/32 oz. TMWJ116 2 10 1/16 oz.
NEW NEW NEW NEW

TUNGSTEN NYMPH JIG

Micro profile with attitude. The heavy-duty VMC ® Tungsten Mongo Jig Head adds super-fast drop, delivering your presentation to the strike zone faster with greater efficiency. Pre-rigged with a Nymph soft bait. Exclusive VMC ® Power Gap hook delivers a wider round gap compared to other competitive micro jigs, greatly increasing your hook rate percentage.

TUNGSTEN WAX TAIL JIG

Pre-rigged with a Wax Tail soft bait combined with the heavy-duty VMC ® Tungsten Mongo Jig Head for super-fast drop speed.The exclusive VMC ® Power Gap hook delivers a wider round gap greatly increasing your hook rate percentage. The precision balance is amplified by a 90° hook eye for optimal horizontal position and maintains the perfect strike angle!

TUNGSTEN CHANDELIER JIG

The VMC ® Tungsten Chandelier Jig is a super-charged mechanism for deep water deployment! The heavy-duty Tungsten and inversed conical head design delivers superior sonar return, making it easier for the angler to target desired depth. Add your favorite soft or live-bait to the super sharp VMC ® treble hook and hold on tight!

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 61 VMC MODEL NO. PIECES HOOK SIZE WEIGHT TNYJ132 2 10 1/32 oz. TNYJ116 2 8 1/16 oz. MODEL NO. PIECES HOOK SIZE WEIGHT TCJ116 1 14 1/16 oz. TCJ18 1 12 1/8 oz.
MODEL NO. PIECES HOOK SIZE WEIGHT TWTJ132 2 10 1/32 oz. TWTJ116 2 8 1/16 oz.
GOGL Green Orange Glow OCGL Orange Chart. Glow PCGL Pink Chart. Glow GL Glow GLCH Glow Chart. GLRD Glow Red GOGL Green Orange Glow OCGL Orange Chart. Glow PCGL Pink Chart. Glow GL Glow GLCH Glow Chart. GLRD Glow Red GOGL Green Orange Glow OCGL Orange Chart. Glow PCGL Pink Chart. Glow GL Glow GLCH Glow Chart. GLRD Glow Red

TUNGSTEN BULLFLY JIG

The VMC® Tungsten Bullfly Jig has a longer & bulkier body with goose feather tail and wings. Tungsten drops fast to get to those hungry fish as they feed. Exclusive VMC® Power Gap hook offers a 5% wider gap than traditional jig hooks for high efficiency hooking rate. The precision balance is amplified by a 90° hook eye which ensures the optimal horizontal position.

TUNGSTEN FLY JIG

A perfect imitator of natural flies and aquatic insects, the small compact profile delivers results. The VMC® Power Gap hook offers a wider round gap which greatly increases your hook rate percentage. The precision balance is amplified by a 90° hook eye which ensures the optimal horizontal position, maintaining the perfect strike angle!

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 62 MODEL NO. PIECES HOOK SIZE WEIGHT TFJ164 2 14 1/64 oz. TFJ132 2 12 1/32 oz. TFJ116 2 10 1/16 oz.
MODEL NO. PIECES HOOK SIZE WEIGHT TBFJ164 2 12 1/64 oz. TBFJ132 2 10 1/32 oz. TBFJ116 2 8 1/16 oz.
GL Glow GLPK Glow Pink GOGL Green Orange Glow MRNB Metallic Rainbow MG Metallic Gold GLCH Glow Chartreuse GLPRP Glow Purple MR Metallic Red MS Metallic Silver OCGL Orange Chartreuse Glow GL Glow GLPK Glow Pink GOGL Green Orange Glow MRNB Metallic Rainbow MG Metallic Gold GLCH Glow Chartreuse GLPRP Glow Purple MR Metallic Red MS Metallic Silver OCGL Orange Chartreuse Glow

TEAR DROP JIG

Nobody likes a cry baby! The VMC Tear Drop Jig with over-sized holographic eye gets busy when fished with a float, dead stick or tip up. The unique wide profile and tear drop shape mimic fingerling-sized baitfish that active feeding predators seek out at all times of the year. Wide variety of colors in UV, natural baitfish, holographic finishes, and Ultra Glow pigments that last up to 15 minutes!

WAXY JIG

The vertical presentation of the VMC ® Waxy Jig imitates the natural small insects. Raised body ridges give the Waxy Jigs a more life-like “bug” appearance. Offered in a variety of metallic and Ultra Glow colors giving anglers up to 15 minutes of continuous charge!

GGFU Glow Green Fire UV GOFU Glow Orange Fire UV GPFU Glow Pink Fire UV GRSH Glow Red Shiner GCSH Glow Chartreuse Shiner GBSH Glow Blue Shiner GGF Glow Gold Fish P Perch GOGL Green Orange Glow OCGL Orange Chartreuse Glow PCGL Pink Chartreuse Glow GL Glow GLCH Glow Chartreuse GLRD Glow Red WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 63 VMC
MODEL NO. PIECES HOOK SIZE WEIGHT TDJ116 1 6 1/16 oz. TDJ18 1 4 1/8 oz. TDJ14 1 2 1/4 oz.
MODEL NO. PIECES HOOK SIZE WEIGHT WXJ164 2 10 1/64 oz. WXJ132 2 8 1/32 oz. WXJ116 2 6 1/16 oz.

LARVAE JIG

Pre-rigged with a Larvae soft bait. Attracts fish and maximizes taste and texture. Exclusive VMC ® Power Gap hook features a wider round gap greatly increasing your hook rate percentage. 90° hook eye ensures the optimal horizontal position for a perfect strike angle! Ultra Glow pigments last up to 15 minutes per charge.

WAX TAIL JIG

Pre-rigged with a Wax Tail soft bait. The soft plastic material attracts fish and maximizes taste and texture. The exclusive VMC ® Power Gap hook delivers a wider round gap increasing your hook rate percentage. The precision balance of the 90° hook eye ensures optimal horizontal position for a perfect strike angle!

Green Orange Glow OCGL Orange Chartreuse Glow PCGL Pink Chartreuse Glow GL Glow GLCH Glow Chartreuse GLRD Glow Red GOGL Green Orange Glow OCGL Orange Chartreuse Glow PCGL Pink Chartreuse Glow GL Glow GLCH Glow Chartreuse GLRD Glow Red WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 64 MODEL NO. PIECES HOOK SIZE WEIGHT LVJ1100 2 10 1/100 oz. MODEL NO. PIECES HOOK SIZE WEIGHT WTJ1100 2 10 1/100 oz. WTJ150 2 8 1/50 oz. WTJ132 2 6 1/32 oz.

YOUR ICE FISHING EXPERT

Be prepared for any fishing situation with VMC® jig kits. Each pack is available in a variety of sizes, features and assorted colors. All with super sharp VMC hooks.

TUNGSTEN MONGO JIG KITS

TUMBLER SPOON KITS

TUNGSTEN FLY JIG KITS

RATTLE SPOON KITS

TUNGSTEN BULLFLY JIG KITS

TUNGSTEN TUBBY JIG KITS

NEON MOON EYE JIG KITS

WAXY JIG KITS

NEON MOON EYE GLOW JIG KITS

PUG BUG JIG KITS

NEON MOON EYE UV JIG KITS

FLASH CHAMP SPOON KITS

HAMMER HEAD JIG KITS

TINGLER SPOON KITS

HARD BALL JIG KITS

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 65 VMC
MODEL NO. PIECES HOOK WEIGHT TMJ132G6 6 10 1/32 oz. TMJ132G6-2 6 10 1/32 oz. TMJ116G6 6 8 1/16 oz. TMJ116G6-2 6 8 1/16 oz.
MODEL NO. PIECES HOOK WEIGHT TFJ164G6 6 14 1/64 oz. TFJ132G6 6 12 1/32 oz. TFJ116G6 6 10 1/16 oz.
MODEL NO. PIECES HOOK WEIGHT TBFJ164G6 6 12 1/64 oz. TBFJ132G6 6 10 1/32 oz. TBFJ116G6 6 8 1/16 oz.
MODEL NO. PIECES HOOK WEIGHT TTJ132G6 6 12 1/32 oz. TTJ132G6-2 6 12 1/32 oz. TTJ116G6 6 10 1/16 oz. TTJ116G6-2 6 10 1/16 oz.
MODEL NO. PIECES HOOK WEIGHT WXJ164G6 6 10 1/64 oz. WXJ132G6 6 8 1/32 oz. NEW WXJ116G6 6 6 1/16 oz.
MODEL NO. PIECES HOOK WEIGHT PBJ132G6 6 10 1/32 oz. PBJ116G6 6 8 1/16 oz.
MODEL NO. PIECES HOOK LENGTH WEIGHT FCS132G3 3 14 3/4" 1/32 oz. FCS132GUV3 3 14 3/4" 1/32 oz. FCS132L3 3 14 3/4" 1/32 oz. FCS116G3 3 12 1" 1/16 oz. FCS116GUV3 3 12 1" 1/16 oz. FCS116L3 3 12 1" 1/16 oz. FCS18G3 3 10 1-1/4" 1/8 oz. FCS18GUV3 3 10 1-1/4" 1/8 oz. FCS18L3 3 10 1-1/4" 1/8 oz.
MODEL NO. PIECES HOOK LENGTH WEIGHT TGS116G3 3 12 1" 1/16 oz. TGS116GUV3 3 12 1" 1/16 oz. TGS116L3 3 12 1" 1/16 oz. TGS18G3 3 10 1-1/2" 1/8 oz. TGS18GUV3 3 10 1-1/2" 1/8 oz. TGS18L3 3 10 1-1/2" 1/8 oz. TGS316G3 3 8 2" 3/16 oz. TGS316GUV3 3 8 2" 3/16 oz. TGS316L3 3 8 2" 3/16 oz.
MODEL NO. PIECES HOOK LENGTH WEIGHT TMS112G3 3 12 1" 1/12 oz. TMS112GUV3 3 12 1" 1/12 oz. TMS112L3 3 12 1" 1/12 oz. TMS18G3 3 10 1-1/2" 1/8 oz. TMS18GUV3 3 10 1-1/2" 1/8 oz. TMS18L3 3 10 1-1/2" 1/8 oz.
MODEL NO. PIECES HOOK LENGTH WEIGHT RTS116G3 3 12 1" 1/16 oz. RTS116GUV3 3 12 1" 1/16 oz. RTS116L3 3 12 1" 1/16 oz. RTS18G3 3 10 1-1/4" 1/8 oz. RTS18GUV3 3 10 1-1/4" 1/8 oz. RTS18L3 3 10 1-1/4" 1/8 oz. NEW RTS14G3 3 8 1-1/2" 1/4 oz. NEW RTS14GUV3 3 8 1-1/2" 1/4 oz. NEW RTS14L3 3 8 1-1/2" 1/4 oz.
MODEL NO. COLORS PIECES HOOK WEIGHT NME132K-ASST Assorted 10 6 1/32 oz. NME116K-ASST Assorted 10 4 1/16 oz.
MODEL NO. COLORS PIECES HOOK WEIGHT NME132GK-ASST Ultra Glow 10 6 1/32 oz. NME116GK-ASST Ultra Glow 10 4 1/16 oz.
MODEL NO. COLORS PIECES HOOK WEIGHT NME132UVK UV Bright 10 6 1/32 oz. NME116UVK UV Bright 10 4 1/16 oz.
MODEL NO. COLORS PIECES HOOK WEIGHT DHHJ18K-ASST Assorted 10 1/0 1/8 oz. DHHJ18GK-ASST Ultra Glow 10 1/0 1/8 oz. DHHJ18UVK UV Bright 10 1/0 1/8 oz. DHHJ14K-ASST Assorted 10 2/0 1/4 oz. DHHJ14GK-ASST Ultra Glow 10 2/0 1/4 oz. DHHJ14UVK UV Bright 10 2/0 1/4 oz.
MODEL NO. COLORS PIECES HOOK WEIGHT HBJ132K Assorted 12 6 1/32 oz. HBJ132VP Assorted 25 6 1/32 oz. HBJ116K Assorted 12 4 1/16 oz. HBJ116VP Assorted 25 4 1/16 oz.
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 66

BLADED HYBRID TREBLE SHORT

Resin sealed swivel and blade for maximum rotation, vibration and flash. 1X Strong, Hi Carbon Steel Wide Gap with Needle Point.

9650 ROUND BEND TREBLE

9617 O'SHAUGHNESSY TREBLE

BLACK STAINLESS STEEL OPEN EYE ROLLING SWIVEL

Large open eye for custom rigging hooks, lures & plastics. Eliminates line twist.

CROSSOVER CAP™

Quickly attach multiple "tricks" to your hooks and presentations.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) 67 VMC MODEL NO. AVAILABLE COLORS PIECES HOOK SIZE 7548BD#12PP BN, TR 2 12 7548BD#10PP BN, TR 2 10 7548BD#8PP BN 2 8 7548BD#6PP BN 2 6 7548BD#5PP BN 2 5 7548BD#4PP BN 2 4 7548BD#3PP BN 2 3 7548BD#2PP BN 2 2 *
Tin Red, 12 & 10 Only
*12 *10 8 6 5 4 3 2 MODEL NO. PIECES HOOK SIZE 9617BZ#18 (PP)7, (C)25 18 9617GO#18 (PP)5, (C)25 18 9617BZ#16 (PP)7, (C)25 16 9617GO#16 (PP)5, (C)25 16 9617BZ#14 (PP)9, (C)25 14 9617GO#14 (PP)6, (C)25 14 9617BZ#12 (C)25 12 9617GO#12 (PP)6, (C)25 12 9617GO#10 (C)25 10 MODEL NO. KB. TEST SIZE PC. PER PACK BSOERS#10 24 10 10 BSOERS#8 24 8 10 BSOERS#6 29 6 10 BSOERS#5 33 5 10 BSOERS#4 38 4 10
Hi Carbon Steel with Cut Point.
18 16 14 12 10 MODEL NO. PIECES HOOK SIZE 9650TR#14 (PP) 7 14 9650TR#12 (PP) 7 12 9650TR#10 (PP) 7 10 9650TR#8 (PP)7, (C)25 8 9650TR#6 (PP)7, (C)25 6 9650TR#4 (PP)7, (C)25 4 9650TR#2 (PP)7, (C)25 2 9650TR#1 (PP)7, (C)25 1
Strong
with Cut
14 12 10 8 6 4 BZ GO BN TR TR 10 8 6 5 4 MODEL NO. COLOR PC. PER PACK CRSCPB Black 10 CRSCPC Clear 10 CRSCPG Green Pumpkin 10
1X
with Tin Red finish, Hi Carbon Steel
Point.
B C G Black Clear Green Pumpkin Examples of rigging with VMC ® Open Eye Rolling Swivel & VMC® Spring Keeper. 1 2

GLOW RESIN TREBLE HOOK

The classic VMC ® 9650 Round Bend Treble is enhanced with a durable epoxy resin infused with a choice of five Ultra Glow colors that stay charged for up to 15 minutes. 1X Strong, Black Nickel, Hi Carbon Steel with Cut Point.

TREBLE HOOK DROPPER CHAIN

The VMC ® Treble Dropper Chain does the same tricks under the ice as the Octopus model, the only difference being the treble hook. Rigged with Black Nickel dropper chain and Ultra Glow resin bead.

OCTOPUS HOOK DROPPER CHAIN

Change out to this VMC ® Octopus Dropper Chain on your favorite spoons or lures for increased action and attraction to turn those sniffers into biters! Ultra Glow resin bead stays charged for up to 15 minutes.

MODEL NO. PIECES HOOK SIZE GRT12 2 12 GRT10 2 10 GRT8 2 8 GRT6 2 6
MODEL NO. PIECES HOOK SIZE LENGTH TDC15 2 14 1-1/2"
MODEL NO. PIECES HOOK SIZE LENGTH ODC15 2 6 1-3/4"
GL Glow GLCH Glow Chartreuse GOGL Green Orange Glow OCGL Orange Chartreuse Glow PCGL Pink Chartreuse Glow WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov (All items on this page pertain to this warning) VMC 68 12 10 8 6 GL Glow GLCH Glow Chartreuse OCGL Orange Chartreuse Glow PCGL Pink Chartreuse Glow
rapala.com 935 Aldrin Drive • Eagan, MN 55121 Specifications subject to change without notice ©2023 RAPALA VMC CORPORATION All other trademarks are property of their respective owners PRINTED IN USA
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
