NgNiCo_DWD_E-Portfolio_202208

UBBL

NATURAL LIGHTING & VENTILATION

ACCORDING TO UBBL BY LAW - 39

(1) Every room designed, adapted or used for residential, business or other purposes except hospitals and schools shall be provided with natural lighting and natural ventilation by means of one or more windows having a total area of not less than 10% of the clear floor area of such room and shall have openings capable of allowing a free uninterrupted passage of air of not less than 5% of such floor area.

(2) Every room used for the accommodation of patients in a hospital shall be provided with natural lighting and natural ventilation by means of one or more windows having a total area of not less than 15 of clear floor area of such room and shall have openings capable of allowing a free uninterrupted passage of air or not less than 10% of such floor area.

(3) Every room used for the purpose of conducting classes in a school shall be provided with natural lighting and natural ventilation by means of one or more windows having a total area of not less than 20% of clear floor area of such rooms and shall have openings capable of allowing a free uninterrupted passage of air of not less than 10% of such floor area.

(4) Every water closet, latrine, urinal or bathroom shall be provided with natural lighting and natural ventilation by means of one or more openings having a total area of not less than 0.2 square metre per water closet, urinal latrine or bathroom and such openings shall be capable of allowing a free uninterrupted passage of air

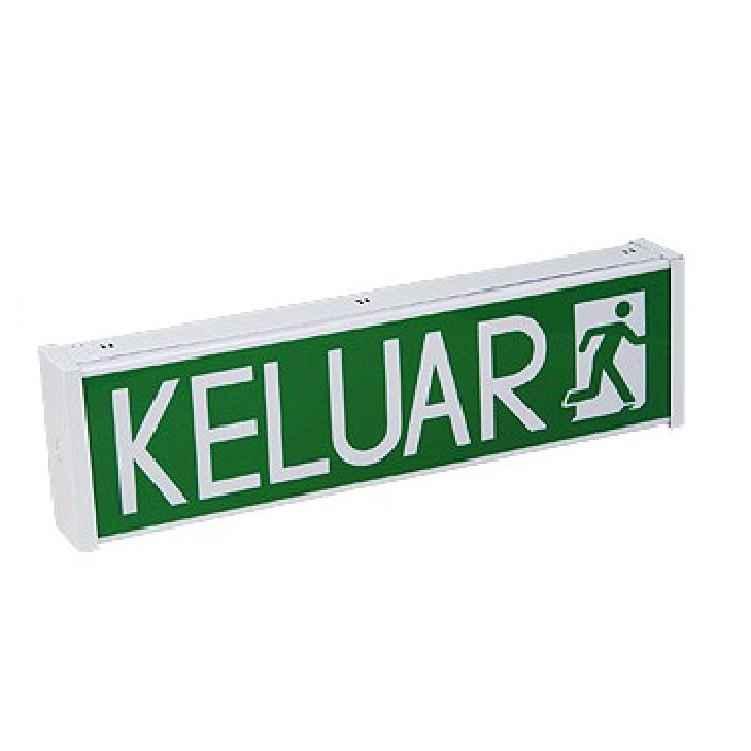

EMERGENCY EXIT SIGNS ACCORDING TO UBBL BY LAW - 172

(1) Storey exits and access to such exits shall be marked by readily visible signs and shall not be obscured by any decorations, furnishings or other equipment.

(2) A sign reading "KELUAR" with an arrow indicating the direction shall be placed in every location where the direction of travel to reach the nearest exit is not immediately apparent.

(3) Every exit sign shall have the word "KELUAR" in plainly legible letters not less than 150 millimetres high with the principal strokes of the letters not less than 18 millimetres wide The lettering shall be in red against a black background

(4) All exit signs shall be illuminated continuously during periods of occupancy.

(5) Illuminated signs shall be provided with two electric lamps of not less than fifteen watts each.

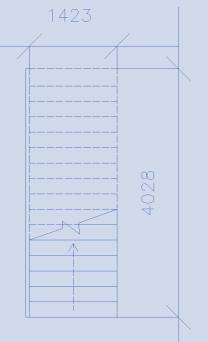

HANDRAILS

ACCORDING TO UBBL BY LAW - 107

(1) Except for staircases of less than 4 risers, all staircases shall be provided with at least one handrail.

(2) Staircases exceeding 2225 millimetres in width shall be provided with intermediate handrail for each 2225 millimetres of required width spaced approximately equally.

(3) In building other than residential buildings, a handrail shall be provided on each side of the staircase when the width of the staircase is 1100 millimetres or more.

(4) All handrails shall project not more than 100 millimetres from the face of the finished wall surface and shall be located not less than 825 millimetres and not more than 900 millimetres measured from the nosing of the treads provided that handrails to landings shall not be less than 900 millimetres from the level of the landing.

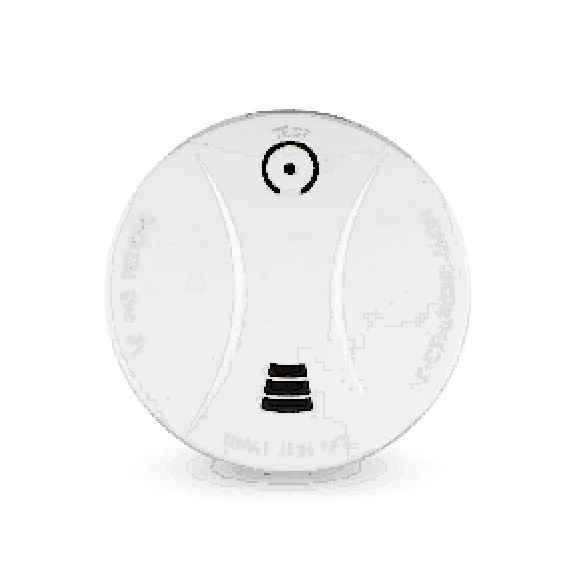

DETECTING AND EXTINGUISHING FIRE ACCORDING TO UBBL BY LAW - 225

(1) Every building shall be provided with means of detecting and extinguishing fire and with alarms together with illuminated exit signs in accordance with the requirements as specified in the Tenth Schedule to these By laws

(2) Every building shall be served by at least one fire hydrant located not more than 91.5 metres from the nearest point of fire brigade access

(3) Depending on the size and location of the building and the provision of access for fire appliances, additional fire hydrant shall be provided as may be required by the Fire Authority.

SCHEDULEOFACCOMODATION

AREAS NO.OFOCCUPANTS NO.OFROOMSAREAOFONEROOM(m2)TOTALAREAOFROOM(m2)

FIRSTFLOOR

SECONDFLOOR

DESCRIPTION DESCRIPTION

DOORNO.

TYPE FRAME DOORLEAF HINGES LOCK,BOLTS STOPS,PULLS LOCATION

D1 D2

FRENCHARCHDOORWITHSIDELIGHTWINDOWS 200MMTHKPINEWOODINCHERRY 20MMTHKDOUBLEGLAZEDINSULATEDGLASS BALLBEARINGHINGE TWOLEVERLOCK N/A MAINENTRANCE

DESCRIPTION DESCRIPTION

DOORNO.

TYPE FRAME DOORLEAF HINGES LOCK,BOLTS STOPS,PULLS LOCATION

WORKEDON.RESCRAPANCIESMUSTBE REPORTEDTOPARTNERSHIP BEFOREPROCESSING. FLOORLEVEL

EXISTINGCEILINGLEVEL NO. DATE DESCRIPTION

AS-BUILTINTERIORWORKOFUNIPLACE HEADQUARTERS. S302,THEGARDENS,LINGKARANSYED PUTRA,59200KUALALUMPUR SECONDFLOOR,WISMAKONWA, NO25-2859200,KUALALUMPUR 8,JALANCONLEY50450,KUALA LUMPUR 13,JALANP.RAMLEE,5250,KUALA LUMPUR

750 2100 ARCHITECT: INTERIORDESIGN CONSULTANT: QUANTITYSURVEYOR: PROJECTNAME: DRAWINGTITLE:-DOORSCHEDULE SCALE:1:50 CHECKEDBY: MSSINAI DRAWINGNO: WFH-DWD-JS-DS-01

D3 STAINLESSSTEELFRAMEDSWINGDOOR STAINLESSSTEEL DOUBLELAYERLAMINATEDGLASSWITHPOWDERFINISH BALLBEARINGHINGE ROUNDDOORKNOB N/A TOILET

750 DATE:19OCT2022 DRAWNBY: JAZWA REVNO: 01

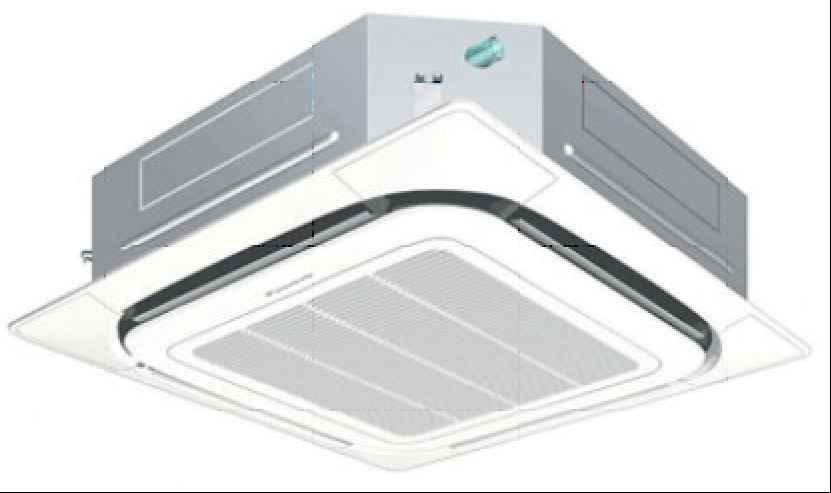

SCHEDULEOFFURNITURE,FIXTURES&EQUIPMENT

CODEIMAGE

LF8

LF4

SPECIFICATIONQTYSUPPLIERPRICEUNIT MEETINGROOM(FIRSTFLOOR)

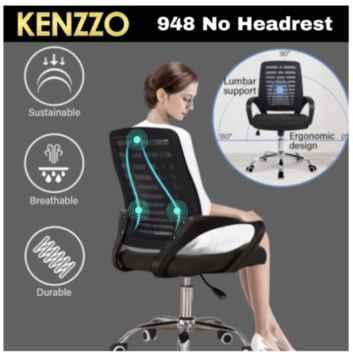

KENZZOMODEL948 ADJUSTABLEOFFICE CHAIR 26KENZZORM75.00

2400mm(L),4000K NATURALWHITE,80W, WHITELEDLINEAR PENDANTLIGHTING 3SeraRM899.99

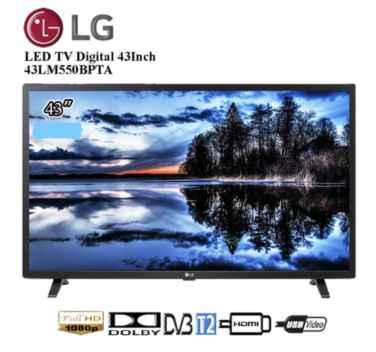

LF10 43"LG43LM550LEDTV FULLHD2LGRM1200.00

LF10A

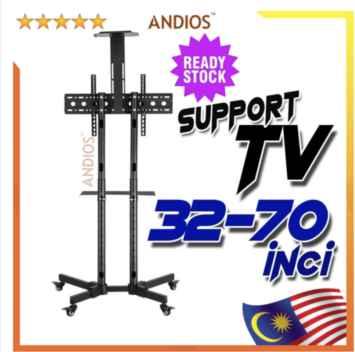

MOBILETVSTAND BRACKET(BLACK POWDERCOATED STEELFRAME) 2ANDIOSRM152.00

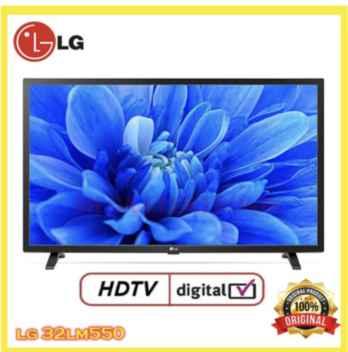

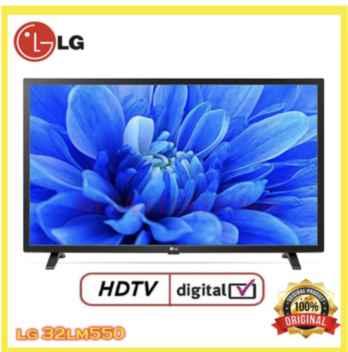

LF19 32"LG32LM550LEDTVWALLMOUNTED1LGRM715.00

OPENWORKSPACE(FIRSTFLOOR)

LF8

KENZZOMODEL948 ADJUSTABLEOFFICE CHAIR 66KENZZORM75.00

LF11

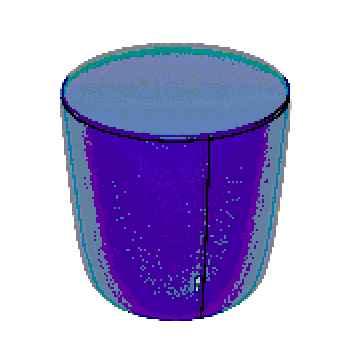

450mmdia.x450mm CYCLINDERCHAIRWITH VINYLUPHOLSTERY, 12mmMDFBASEBOARD WITHMETALINSERTFIT

17FomcoreRM1275.00

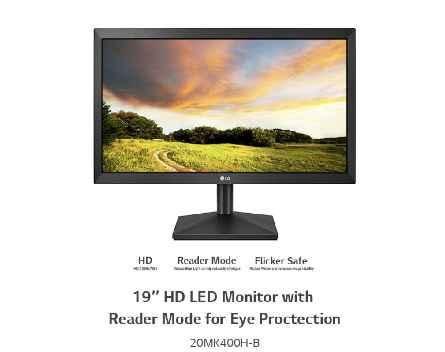

LF12 19.5"LG20MK400HLED MONITORN/ALGRM365.00

SCHEDULEOFFURNITURE,FIXTURES&EQUIPMENT

CODEIMAGE

SPECIFICATIONQTYSUPPLIERPRICEUNIT

LF4 2400mm(L),4000K NATURALWHITE,80W, WHITELEDLINEAR PENDANTLIGHTING

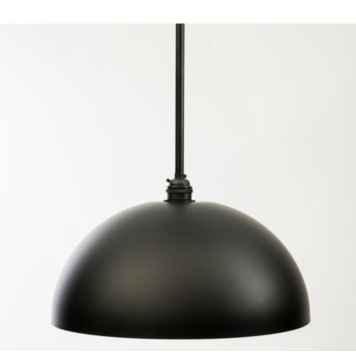

LF13

600mmDIAMETER PENDANTLIGHTWITH BLACKMATTESHADE

4SeraRM899.99

5CorderoLightingRM2125.00

LIBRARY(FIRSTFLOOR)

LF3

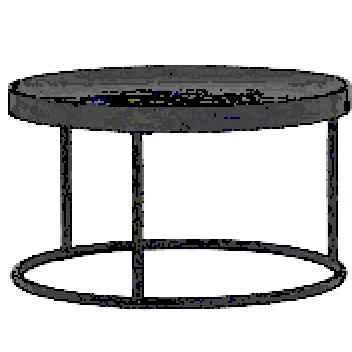

70mmdia.x40mmthk BLACKPAINTEDOAK PLYWOODTABLETOP, WITHBLACKPOWDER COATEDSTEELFRAME

LF13

600mmDIAMETER PENDANTLIGHTWITH BLACKMATTESHADE

1ShaoXingEastSide FurnitureR525.00

1CorderoLightingRM2125.00

KITCHEN&EATINGHALL(FIRSTFLOOR)

LF14

3000mm(L)x1200mm(W) x750mm(H),40mmthk. DINNINGTABLEWITH ELMTABLETOP,BLACK POWDERCOATED STEELLEG

LF15

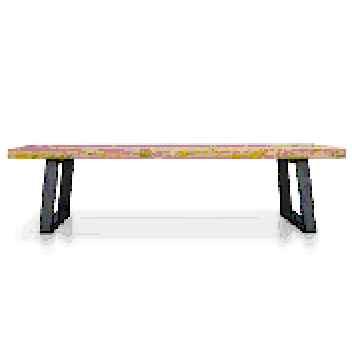

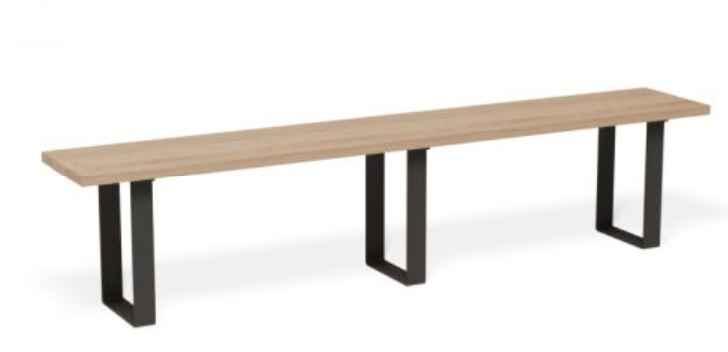

2100mm(L)x380mm(W)x 450mm(H)OAKBENCH WITHBLACKPOWDER COATEDSTEELLEG

1MyLittleEmpireRM13211.28

2RelaxhouseRM3752.40

LF16

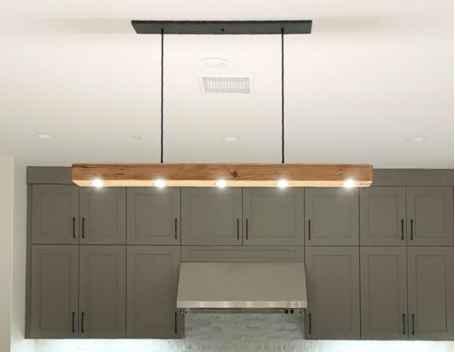

1500mm(L)x150mm(W) x100mmthk,50W,120V, WOODBEAMPENDANT LIGHT

LF13

600mmDIAMETER PENDANTLIGHTWITH BLACKMATTESHADE

1PieceOfGrainRM6177.00

1CorderoLightingRM2125.00

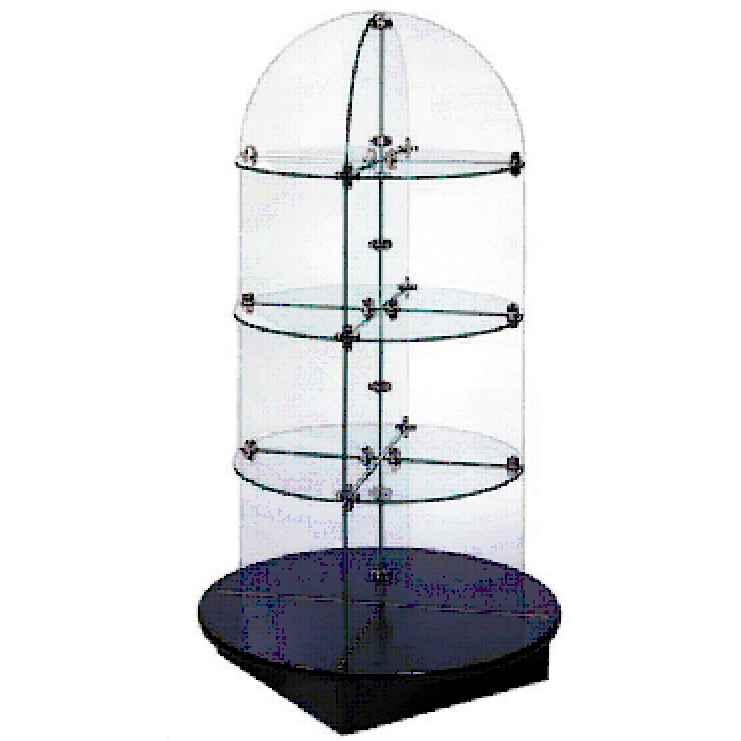

SCHEDULEOFFURNITURE,FIXTURES&EQUIPMENT

CODEIMAGESPECIFICATIONQTYSUPPLIERPRICEUNIT

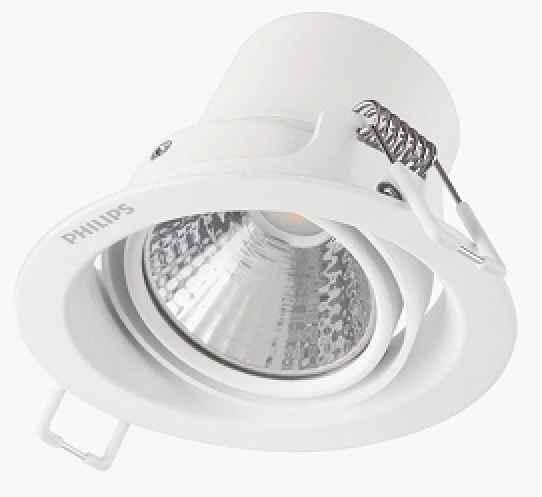

LF17

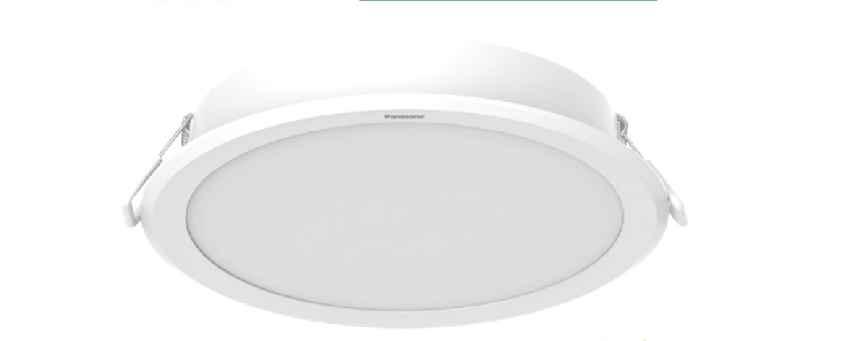

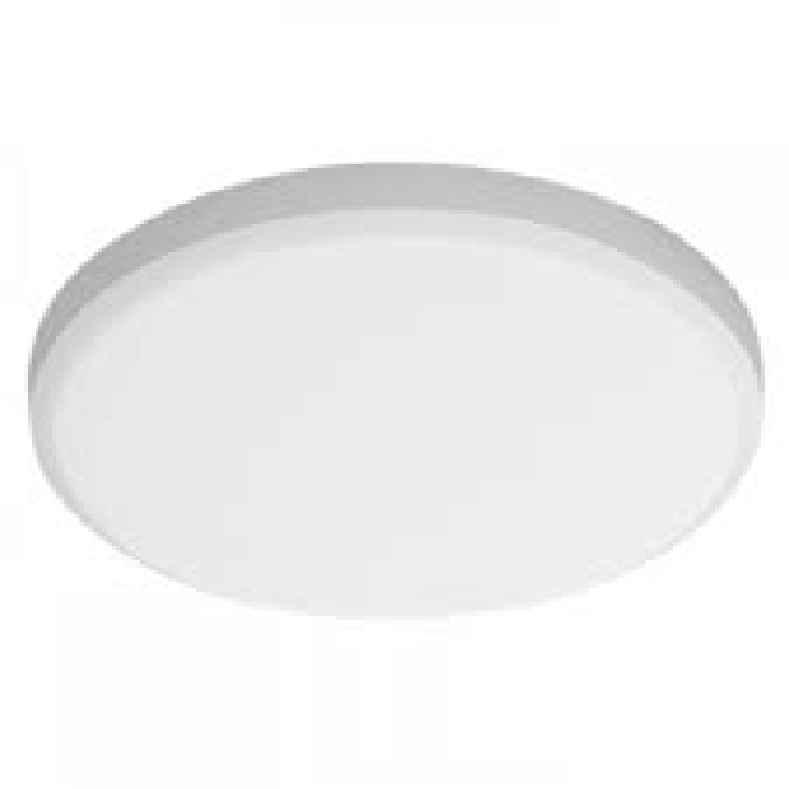

150mmdia.,18W,3000K WARMWHITE,1530lm PANASONICLED DOWNLIGHT 3PanasonicRM26.50

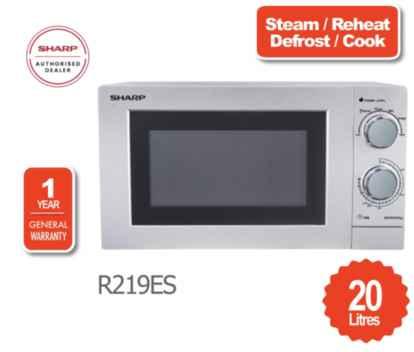

LF18 315mm(L)x198mm(W)x 297mm(H),700W MICROWAVE 4SharpRM259.00

OPENWORKSPACE(SECONDFLOOR)

LF8

KENZZOMODEL948 ADJUSTABLEOFFICE CHAIR 30KENZZORM75.00

LF4 2400mm(L),4000K NATURALWHITE,80W, WHITELEDLINEAR PENDANTLIGHTING 3SeraRM899.99

OPENSPACEMEETINGAREA(SECONDFLOOR)

LF17 150mmdia.,18W,3000K WARMWHITE,1530lm PANASONICLED DOWNLIGHT 12PanasonicRM26.50

LF10 43"LG43LM550LEDTV FULLHD1LGRM1200.00

LF10A

MOBILETVSTAND BRACKET(BLACK POWDERCOATED STEELFRAME) 1ANDIOSRM152.00

SCHEDULEOFFURNITURE,FIXTURES&EQUIPMENT

CODEIMAGESPECIFICATIONQTYSUPPLIERPRICEUNIT ENCLOSEDWORKSPACE(SECONDFLOOR)

LF8 KENZZOMODEL948 ADJUSTABLEOFFICE CHAIR 30KENZZORM75.00

LF1

700mmx700mmx 800mm,BLUEVELVET COVERBEANBAG,WITH EPSGRANULEINSIDE

LF4

LF19

LF13

3KenzzoFurnitureRM129.00

2400mm(L),4000K NATURALWHITE,80W, WHITELEDLINEAR PENDANTLIGHTING 3SeraRM899.99 WORKLOUNGE(SECONDFLOOR)

32"LG32LM550LEDTVWALLMOUNTED3LGRM715.00

600mmDIAMETER PENDANTLIGHTWITH BLACKMATTESHADE

3CorderoLightingRM2125.00

GYM(SECONDFLOOR)

LF20 1625mm(L)x77mm(W)x 1395mm(H)JOHNSON FITNESSHORIZON TR3.0TREADMILL

9Johnsonfitness.coRM1558.00

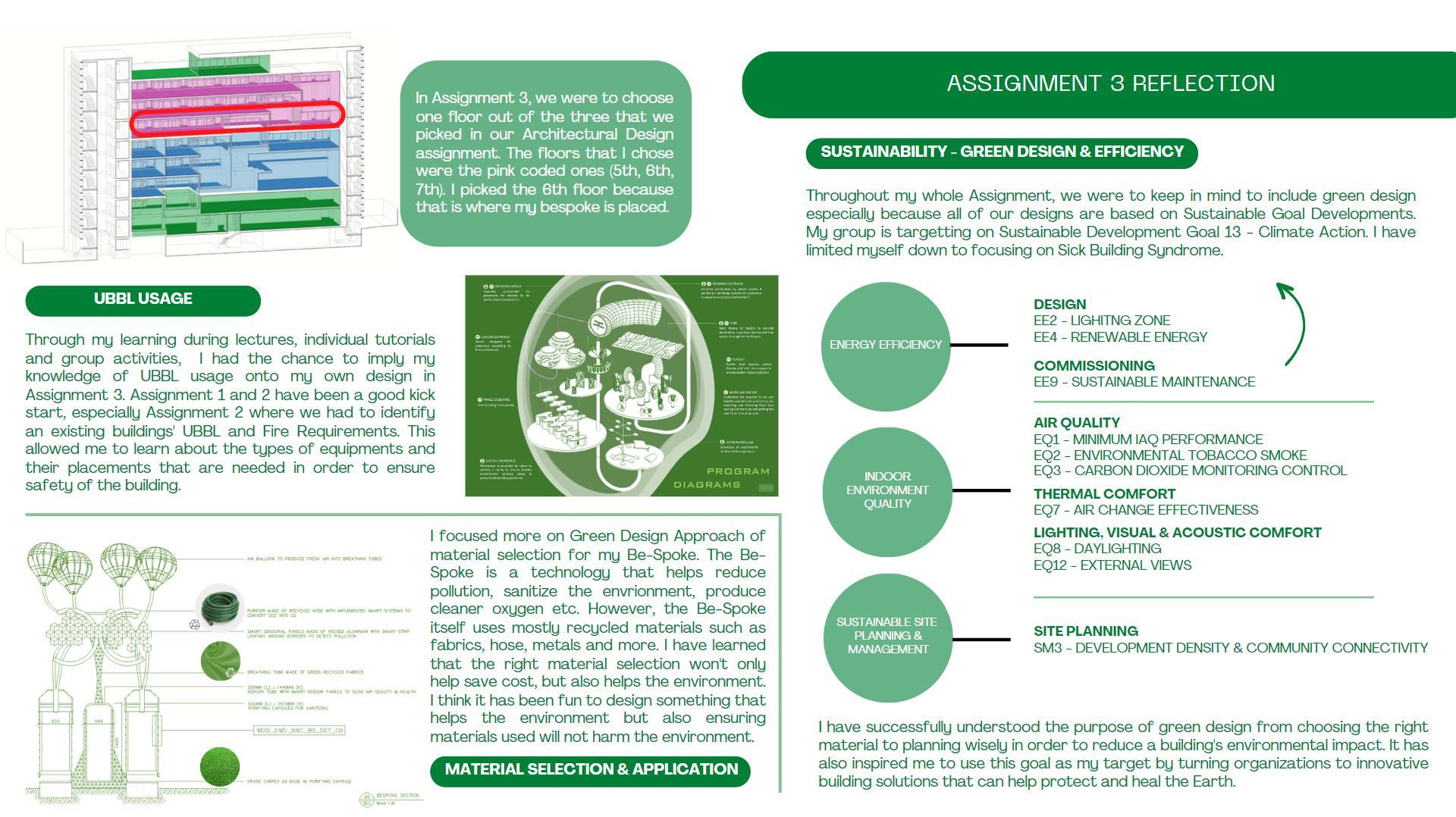

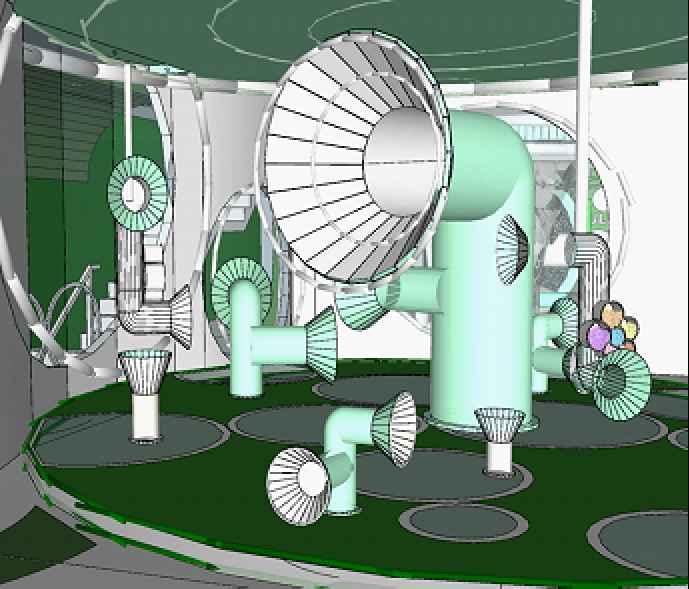

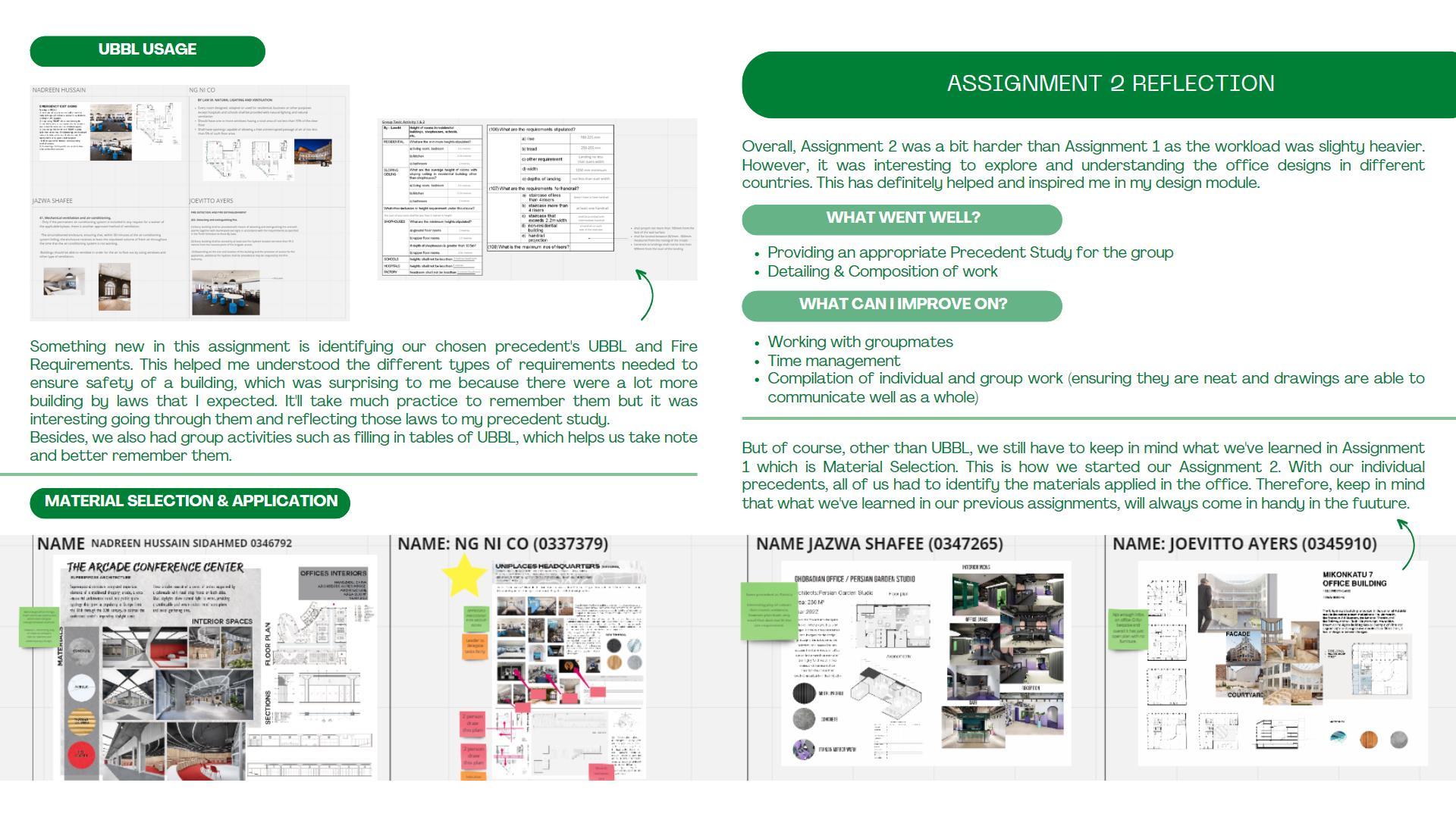

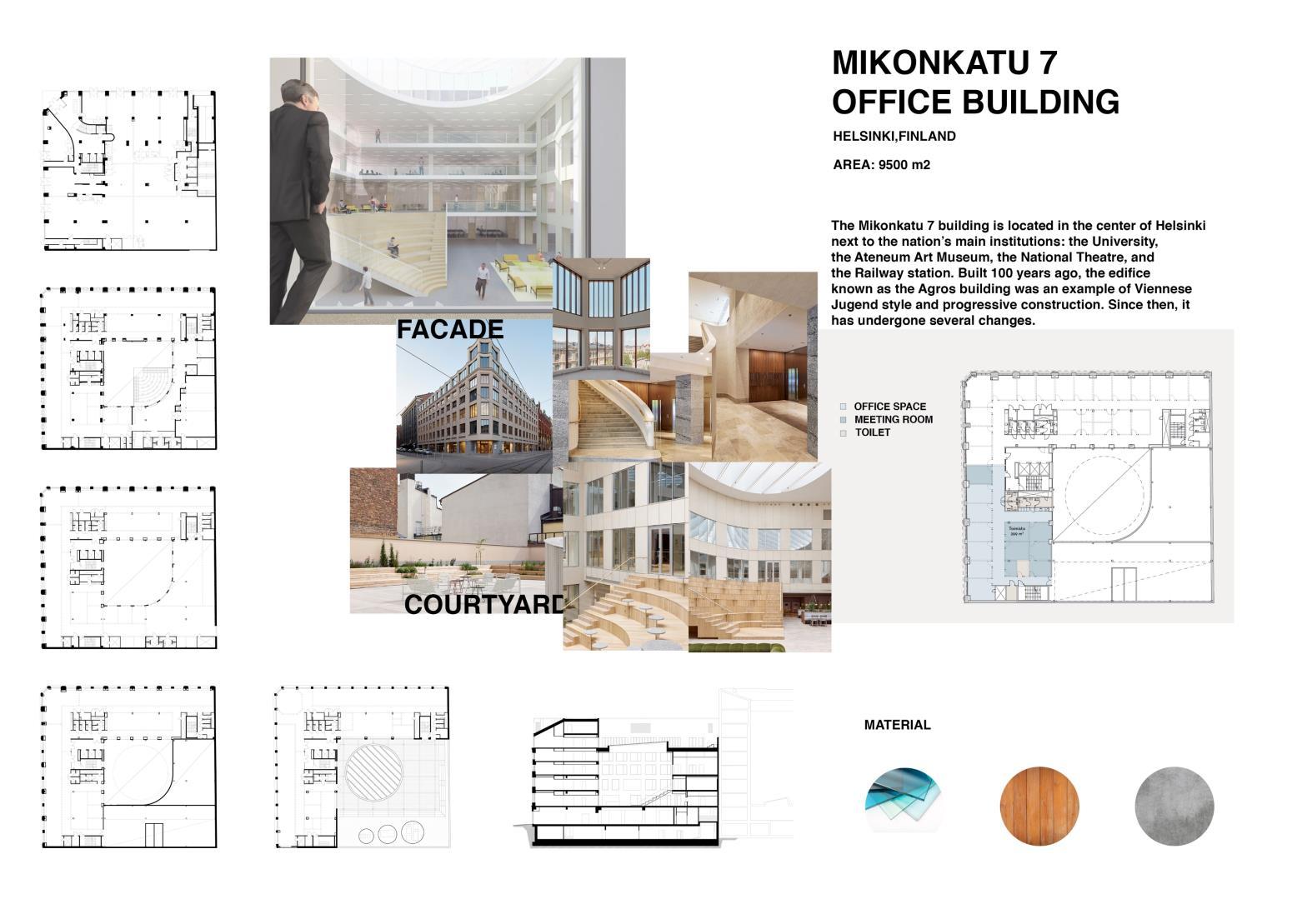

INDIVIDUAL REFLECTION

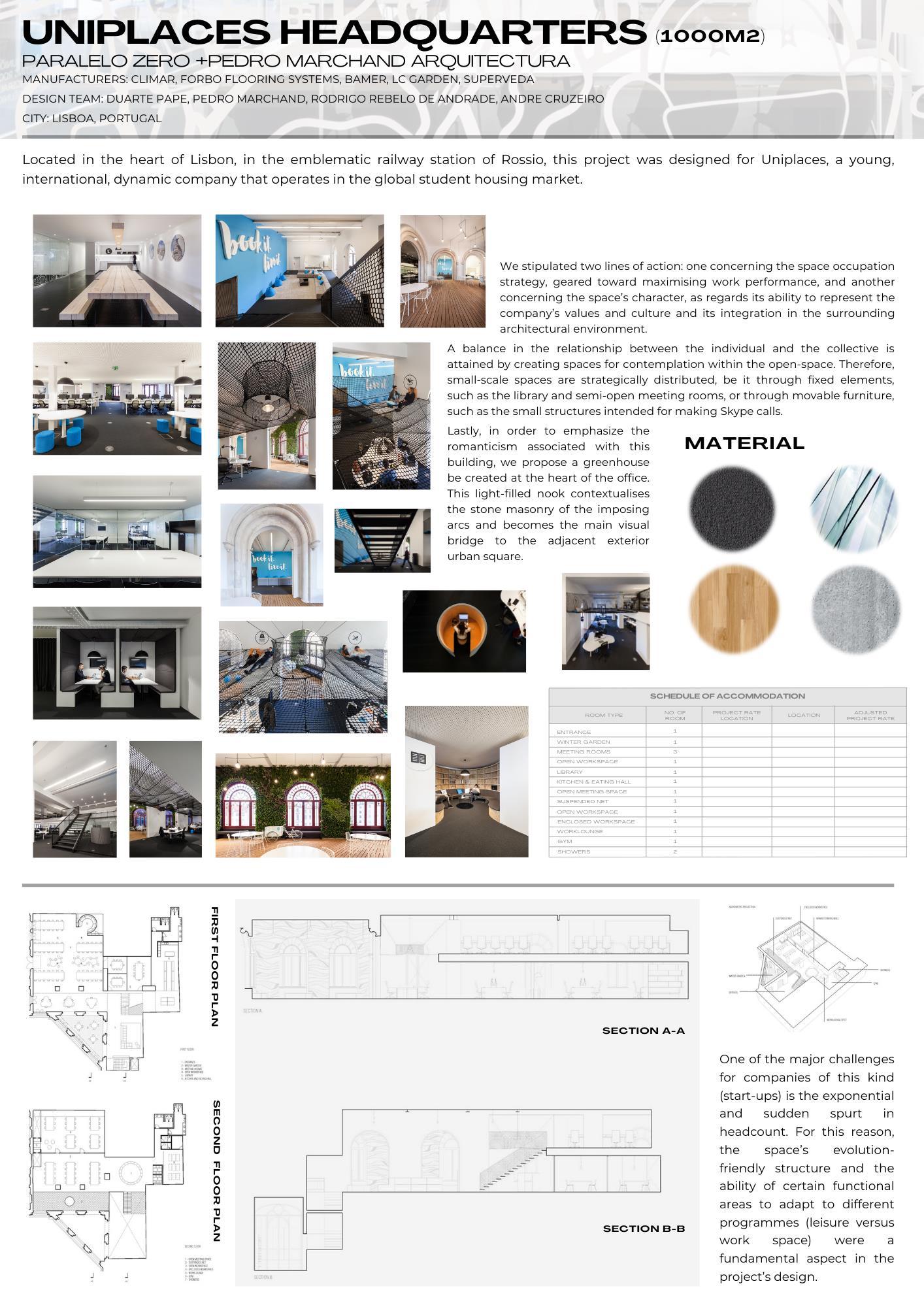

The headquarters of Uniplaces, a new, energetic, worldwide business that competes in the global student housing market, is located in the center of Lisbon. This is demonstrated by the thoughtful interior design, which was divided into two lines of action: one regarding the space occupation strategy, aimed at maximizing work performance, and another regarding the character of the space, as it relates to its capacity to reflect the company's values and culture and its integration with the surrounding architectural environment.

The office spaces were designed to function as an open-space environment to improve communication by minimizing the use of partitions in the workspace (see Figure 1). By establishing areas for reflection within the open space, a balance is achieved in the relationship between the individual and the collective. As a result, small-scale spaces are thoughtfully placed throughout the building, such as in the library (see Figure 2) and semi open conference rooms (see Figure 3), or through mobile furniture (see Figure 4), like the little buildings used for Skype calls.

The space's essential features include an evolutionary structure and functional regions that may adapt to various programs (leisure versus work space). Dynamic systems that are both innovative and challenging in the experience they provide, such as the horizontal extension of the mezzanine with a suspended net structure (see Figure 5), as well as static spaces like the living room (see Figure 6), greenhouse (see Figure 7), and reading corner (library), were created.

The workplace space integrates architecturally with the surroundings. The offices are housed in the neo Manueline style structure of the Rossio railway station. The epic expeditions of the Discoveries are powerfully evoked by this style. The facade is marked by things like armillary spheres and ship ropes Rope netting is utilized as an architectural element in many office spaces, drawing inspiration from that. The netting conveys the intended young and dynamic environment because of its transient nature.

Finally, a greenhouse is built in the center of the workplace to highlight the romance connected with this building. This bright nook serves as the primary visual link to the nearby outer urban plaza and contextualizes the stone masonry of the massive arcs (see Figure 8).

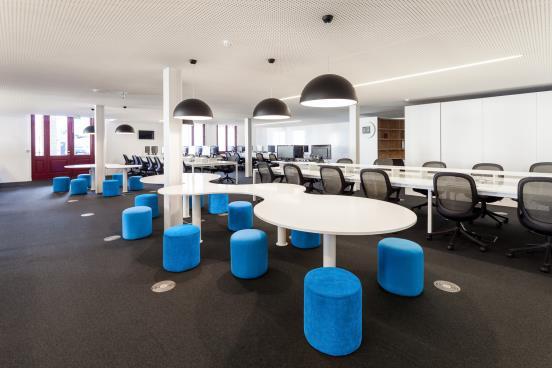

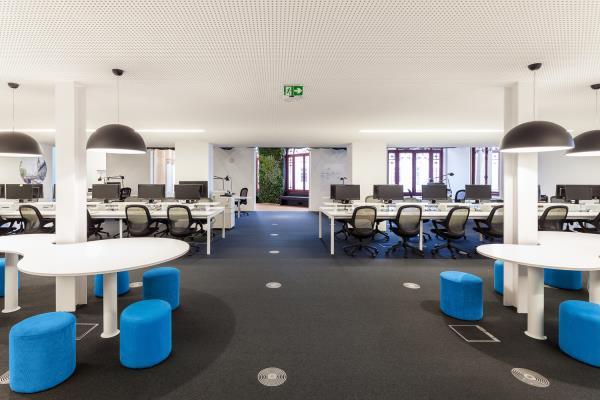

Figure 1. Spacious workspace with little partitions

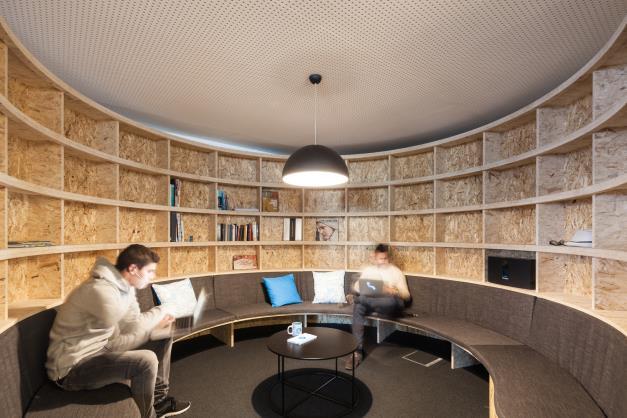

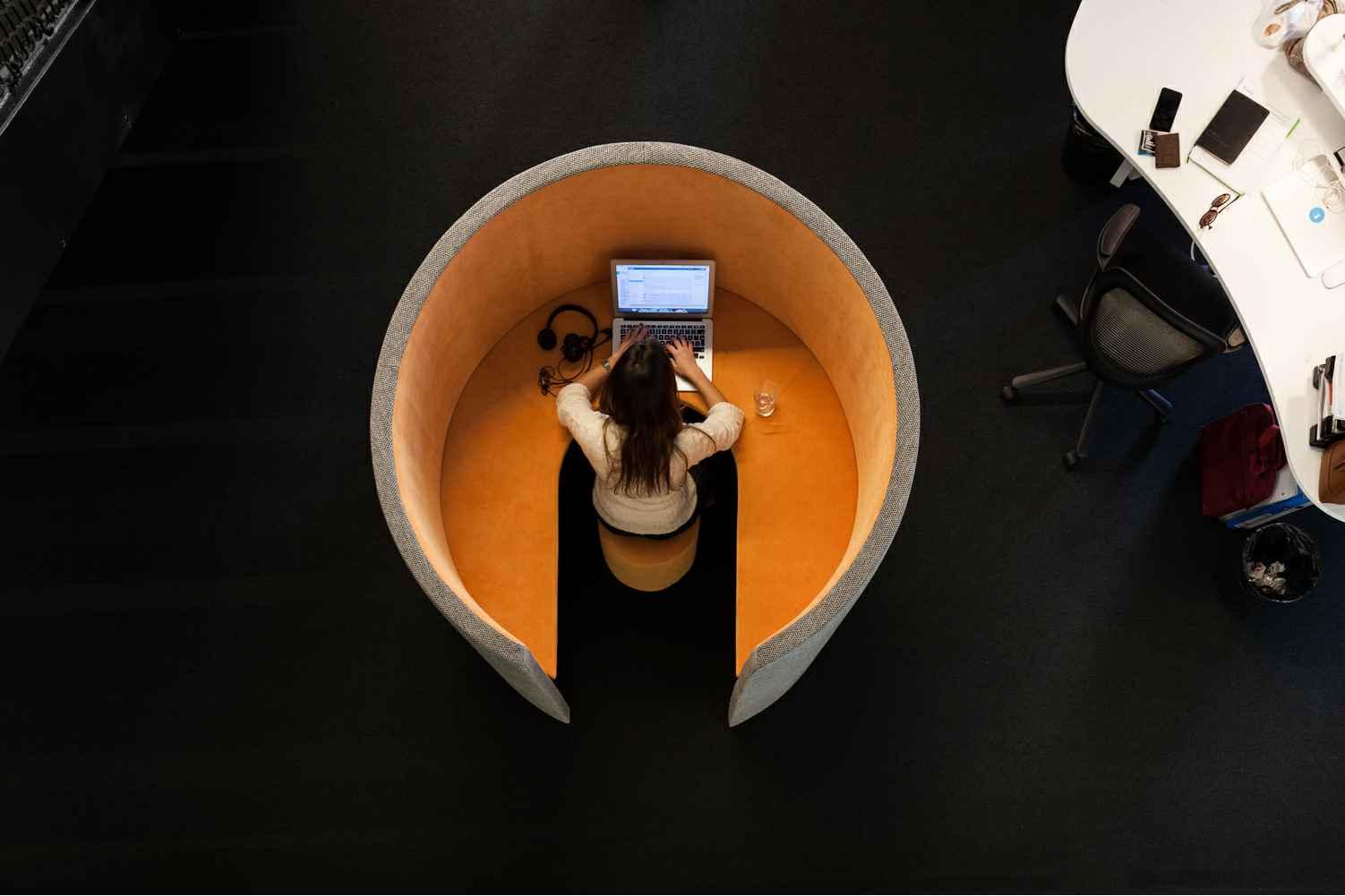

Figure 2 Mini Library / Reading Area with privacy

Figure 4 Bespoke furniture movable and for individual working

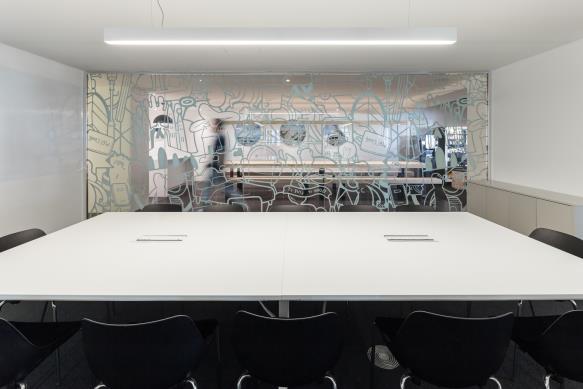

Figure 3 See through conference rooms

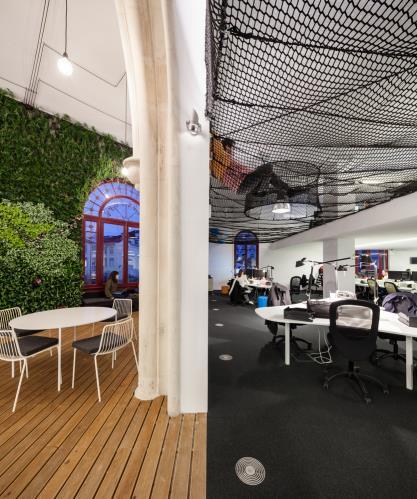

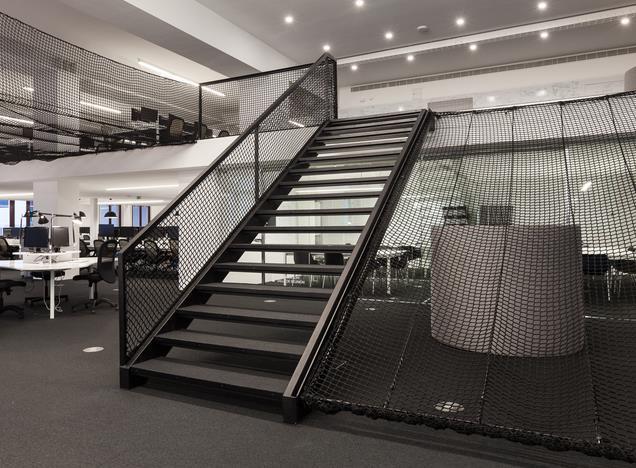

Figure 5 Suspended net for chilling / resting / to experience a different working style

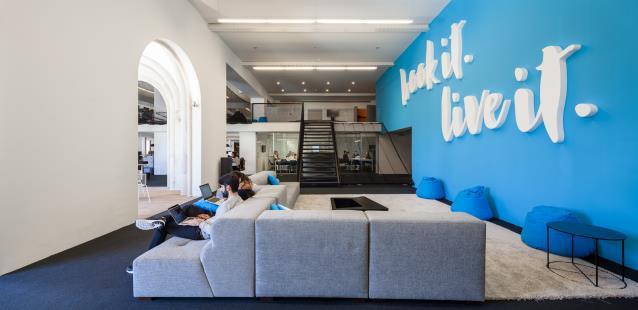

Figure 6 Living room as chilling area or another choice of working space for workers

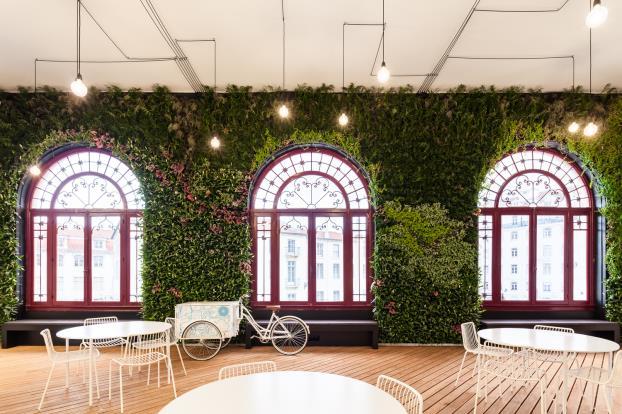

Figure 7 Greenhouse (built in the centre) also known as Winter Garden for various activities eating, resting, working, discussions etc

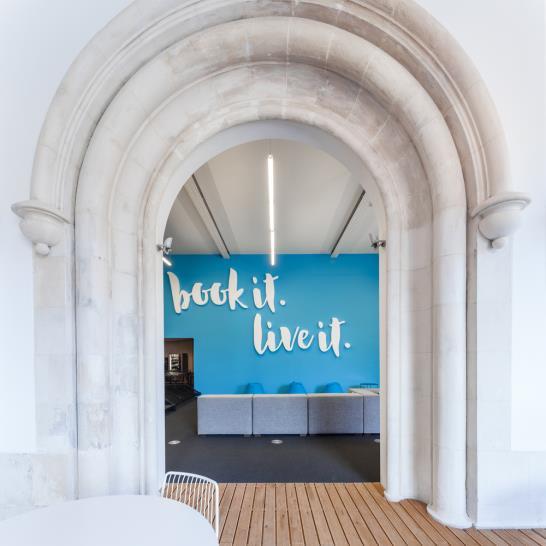

Figure 8 Massive Arcs surrounding winter garden to highlight it as a focal point

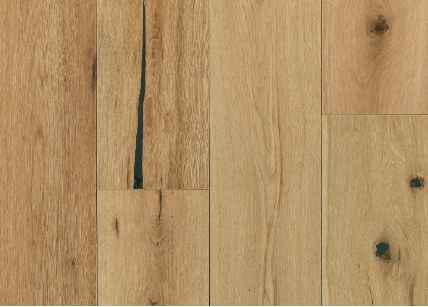

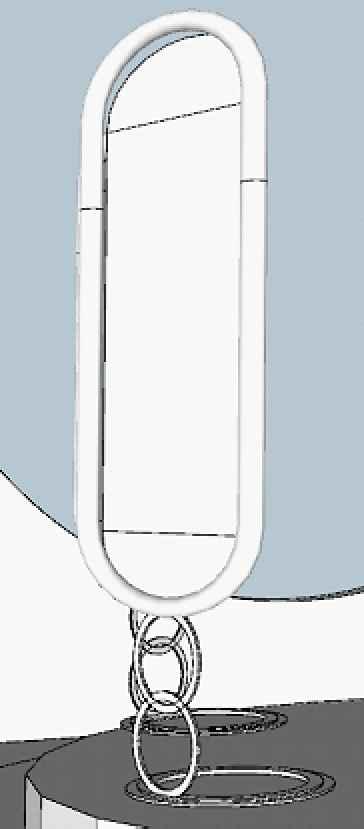

120mmTHKWHITEOAKSOLID WOODFLOORING

430mm(L)x420mm(W)x900mm(H) OPENWEAVEMATERIALBACKREST WITHBLACKFOAMCUSHIONSEAT C/WPOWDERCOATEDCHROME PLATINGSTEELSTARBASELEG

1500mm(L)x490mm(W)x750mm(H) WHITEMELAMINERESINCOATED SITSTANDDESKWITHHEAVYDUTY FRAMEANDTELESCOPICLEGS

THISDRAWINGISCOPYRIGHTDRAWING.THE AUTHORIZEDUSERISTOCHECKALLDIMENSION ONTHESITE.ONLYFIGUREDDIMENSIONTOBE WORKEDON.DISCREPANCIESMUSTBE REPORTEDIMMEDIATELYTOPARTNERSHIP BEFOREPROCESSING.

2100mm(L)x600mm(W)x3000mm(H) MELAMINEWOODBLACKHIGHGLOSS LAMINATEWARDROBE

3000 1990

704mm(L)x960mm(H)x20mmTHK RECTANGULARMIRRORWITH REFLECTIVECOATING TANSINAI S308,THEGARDENS,LINGKARANSYED PUTRA,59200KUALALUMPUR 2ndFLOOR,WISMAKONWA,NO25-28, JALANTUNPERAK,50050KUALALUMPUR8,JALANCONLAY,50450KUALALUMPUR13,JALANP.RAMLEE, 50250KUALALUMPUR

374mm(L)x288mm(W)x224mm(H) LAMINATEDMDFDRAWERSWITHWHITE MELAMINEFACES

700mm(L)x565mm(W)x650mm(H) MELAMINEWOODBLACKHIGHGLOSS LAMINATEWARDROBEWITHSWING DOOR

20mmDIAx600mm(L) STAINLESSSTEELCLOTHESHANGING ROD

700mm(L)x3000mm(H)x50mmTHK MELAMINEWOODBLACKHIGHGLOSS LAMINATEWARDROBETRIPLESLIDING DOOR

50mmTHKHARDWOODFRAMINGFIXED TOPARTITIONWALL

490mm(L)x288mm(W)x210mm(H) 18mmTHKLAMINATEDMDFDRAWERS WITHINNERANDOUTERWHITE MELAMINEFACESFITTEDONBALLRACE TYPEMETALTELESCOPICRUNNERS

700mm(L)x920mm(H)x20mmTHK RECTANGULARMIRRORWITH REFLECTIVECOATING

700mm(L)x308mm(W)x20mmTHK TEMPEREDGLASSPANEL

700mm(L)x508mm(W)x170mm(H) 18mmTHKLAMINATEDMDFDRAWERS WITHINNERANDOUTERWHITE MELAMINEFACESFITTEDONBALLRACE TYPEMETALTELESCOPICRUNNERS

20mmDIAx600mm(L)

STAINLESSSTEELCLOTHES HANGINGROD

SCHEDULEOFFINISHES

STUDYROOM

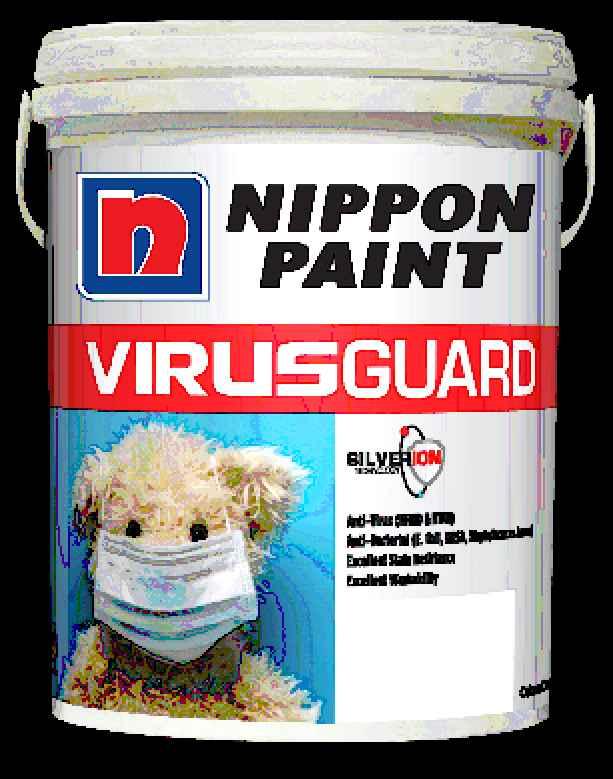

CODE: B1 NAME: BRICKWALLWITHVINYLACRYLIC COPOLYMEREMULSIONPAINT

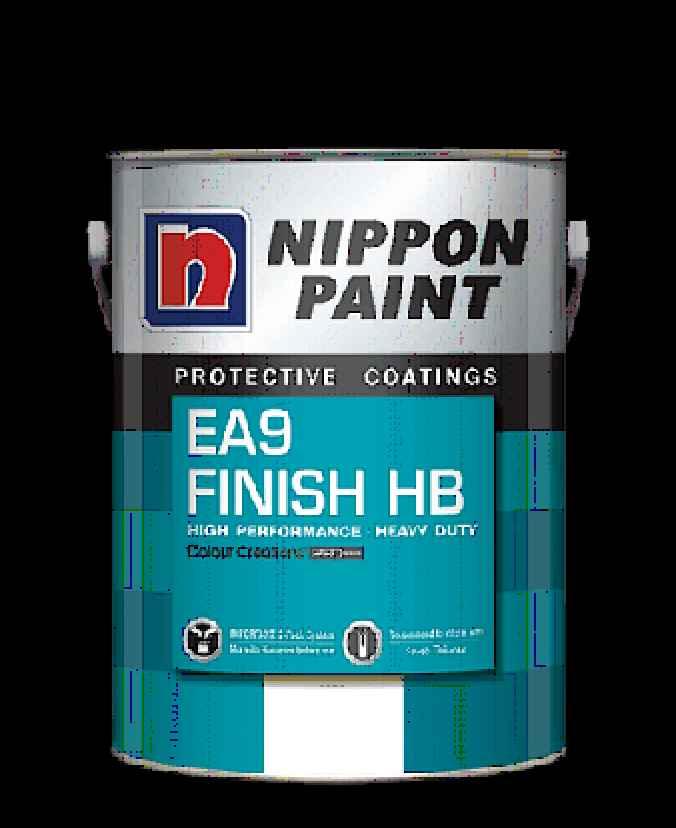

COLORCODE: BRILLIANTWHITE1001 BRAND: NIPPONPAINT

CODE: P1

NAME: PLASTERCEILINGWITHEASY COATPAINT COLORCODE: OYSTERGRAY5874 BRAND: NIPPONPAINT

AREA FLOOR WALL CEILING WINDOW CODE: W1 NAME: MAPLEWOODENSPCFLOORING SIZE: 4mmTHK FINISHES: VARNISHFINISH PRODUCTCODE: 847-SPC-MAPLEWOOD BRAND: PRIMELAY

TANSINAI
