Our team understands the importance of craft in architecture and desires to highlight craft as labor and craft as innovation. We plan on using innovation as an inspiration to push the boundaries of OSU’s traditional campus design standards while reflecting on what it means to expand your knowledge as a student in higher education.

By using the design guidelines as a starting point, rather than the end goal, we aim to create a facility that will be at home in an ever-changing campus. Our team looks to the idea of craft as labor as a guiding principle to highlight the effort and skill that goes into the construction industry, which is very similar to the effort and skill that is poured into any work of art. To imitate perfection would be to discount the hands that have created the facility.

STATEMENT OF CRAFT

SD RECAP | 2

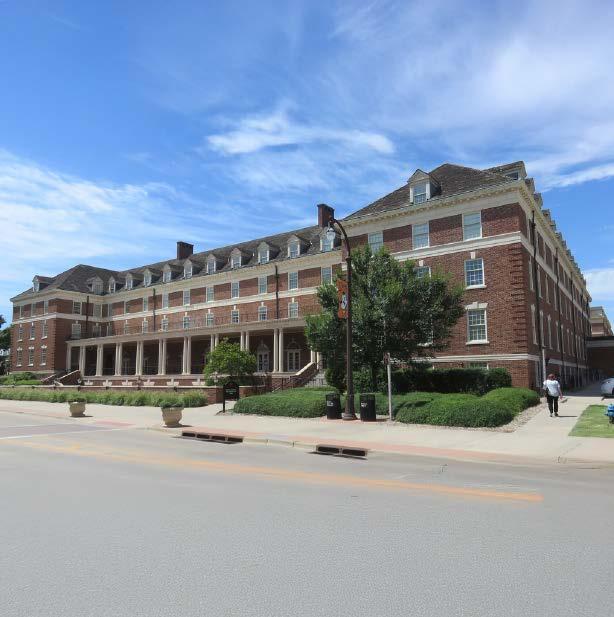

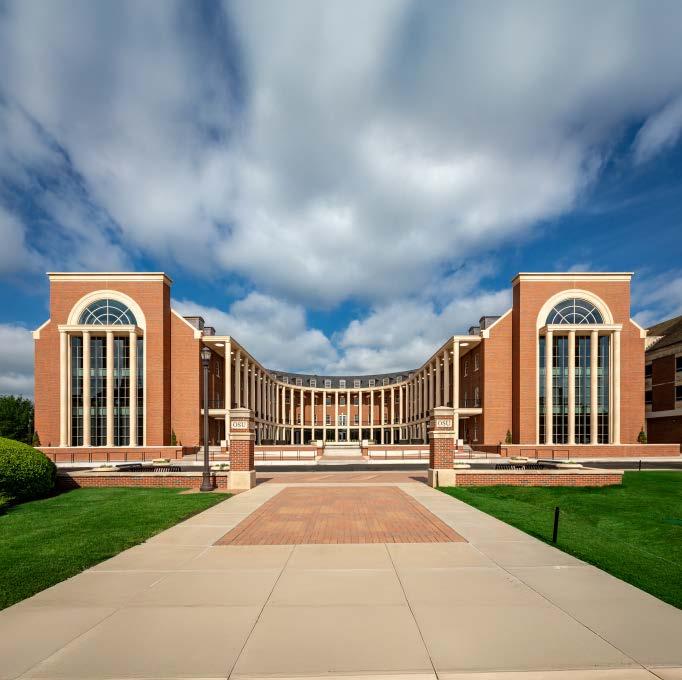

Whitehurst Hall

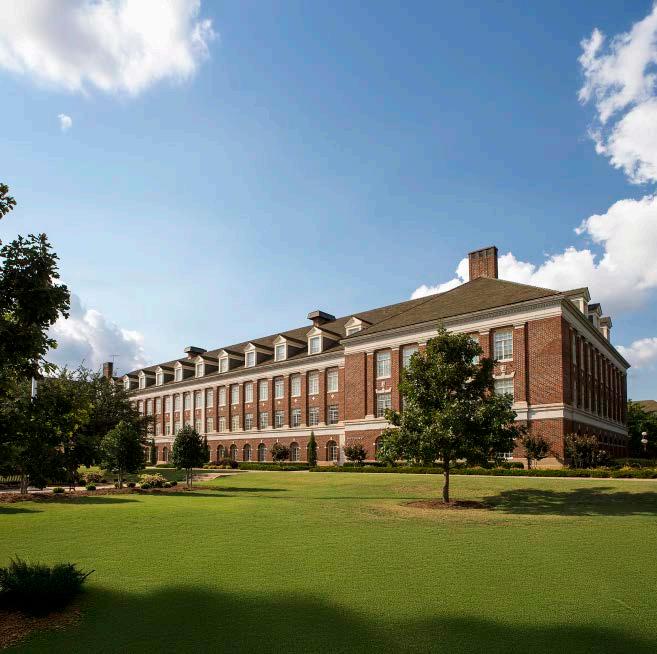

Edmon Low Library

McKnight Center

Most buildings on campus are horizontal in nature, and are designed much wider than they are deep. The majority of buildings are three stories tall, with a fourth floor “attic”.

Buildings on campus are classified as foreground or background buildings.

Foreground buildings are iconic to the University and tend to receive more unique detailing.

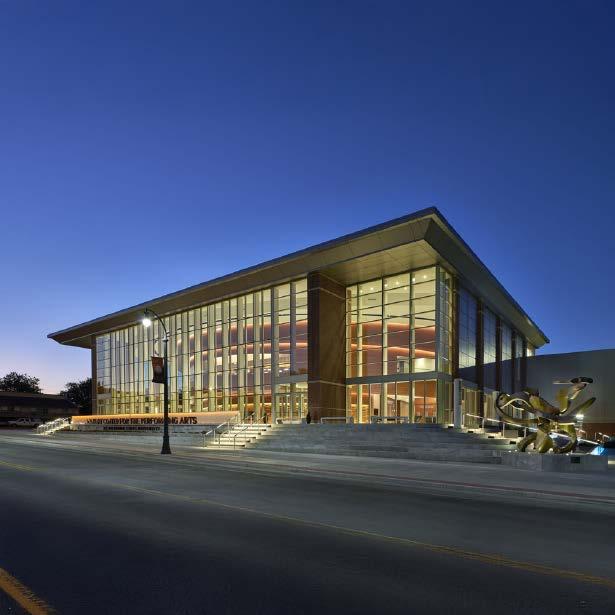

The McKnight Center breaks away from punched windows to feature large curtain walls, making it appear much lighter than the typical OSU building.

Social Sciences and Humanities

Spears School of Business

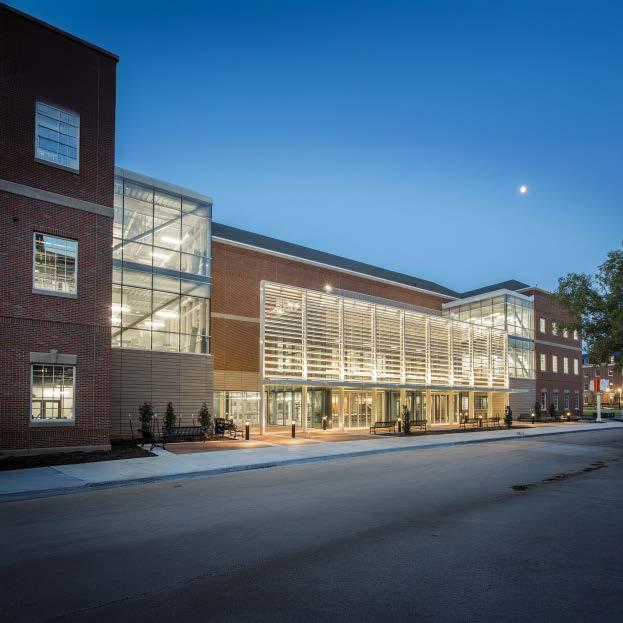

Endeavor Lab

Punched windows with cast stone trim tend to dominate the campus, allowing small slivers of light into the building at any one opening.

Symmetry is emphasized strongly in the OSU Design Guidelines, especially in instances where there are two entrances.

STRICT ADHERENCE DESIGN INSPIRATION

The Endeavor Lab combines OSUs brick blend with curtain walls and expressive shading structures, making it unique on the campus.

LIBERTIES TAKEN SD RECAP | 3

ARTS LOCATIONS

PROGRAM COMPONENTS

er ak s M ace Sp

Open

ms

oo ssr

a Cl

SITE CIRCULATION

MASSING AND ORGANIZATION

ry

Ent

Studio

Su

pp

or

t

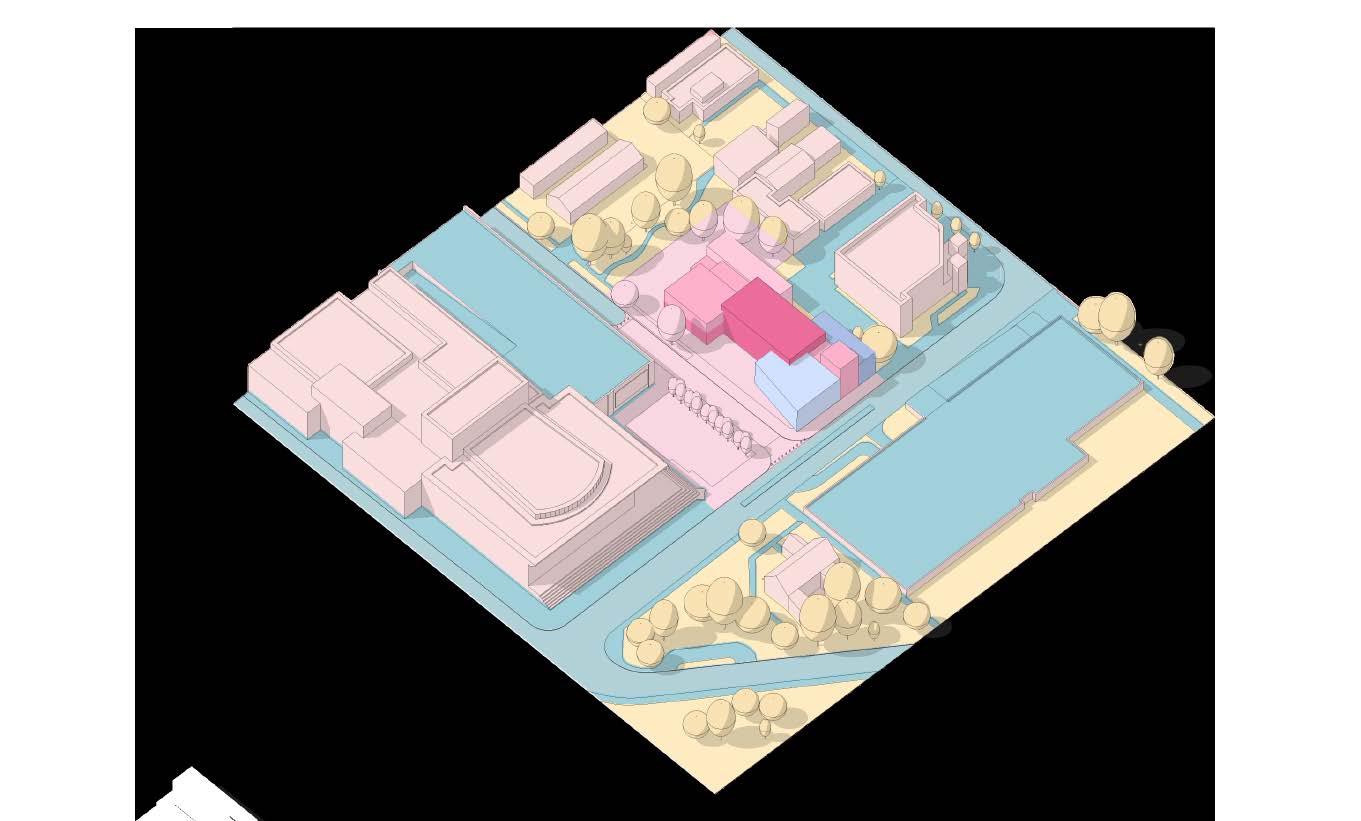

MASSING AND SITE

SD RECAP | 4

Conference

Mechanical

Elev. Rm

Office

Office

Stg. Office

Open to Below Lobby RR

Penthouse

Gallery RR

RR

RR

Computer Lab

Cafe

Gallery Extension

Lecture

Open to Below

Studio

Floorplan Legend Classrooms

RR

RR Print/Media Studio

RR

Administration

RR

Entry

Fine Art Studio Digi-Fab Shop

Elev. Rm

Manual Shop

Dark Room

Electrical and Mechanical 0' 5'

SD FLOORPLANS

15'

30'

Support Spaces Maker Spaces Open Studio

SD RECAP | 5

Conference

Mechanical

Elev. Rm

Office

Office

Stg. Office

Open to Below Lobby RR

Penthouse

Gallery RR

RR

RR

Computer Lab

Cafe

Gallery Extension

RELOCATE AHU 2 ROOM TO ELIMINATE PENTHOUSE & REDUCE HEIGHT

Lecture

Open to Below

IMPROVE CORE CIRCULATION & ADD A SENSE OF ENTRY

Studio

Floorplan Legend Classrooms RR

RR Print/Media Studio

RR

Administration RR

Entry

Fine Art Studio Digi-Fab Shop

Elev. Rm

Support Spaces

Manual Shop

Dark Room

Electrical and Mechanical 0' 5'

SD FLOORPLAN FEEDBACK

15'

30'

Maker Spaces Open Studio

SD RECAP | 6

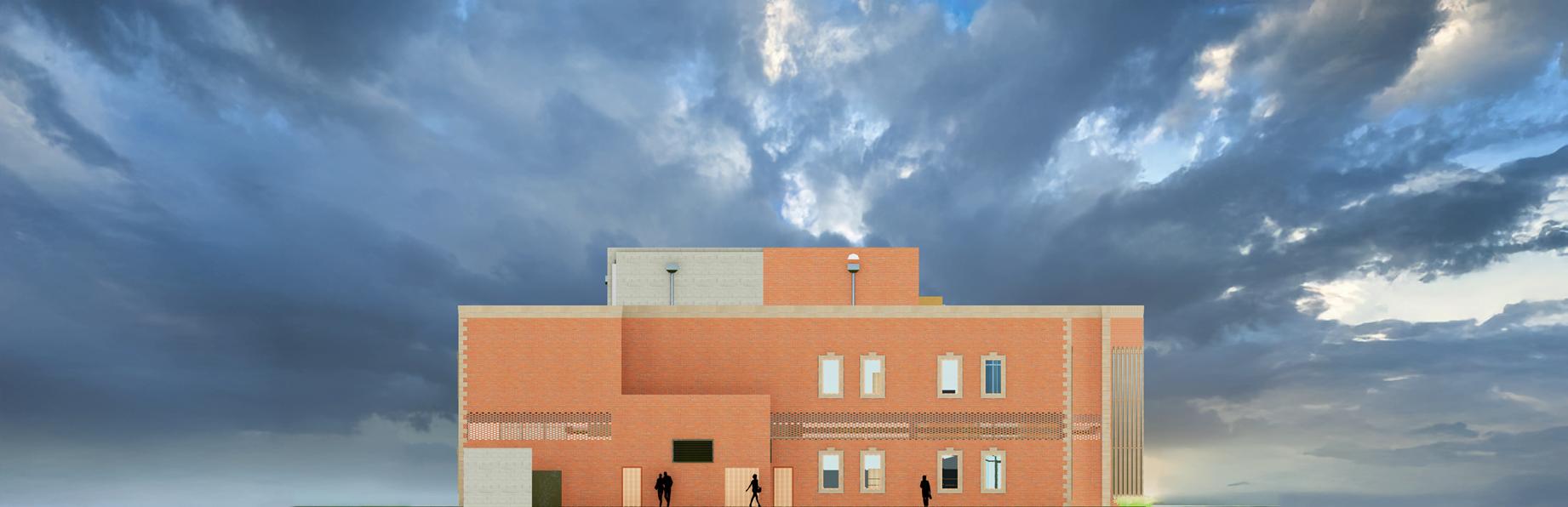

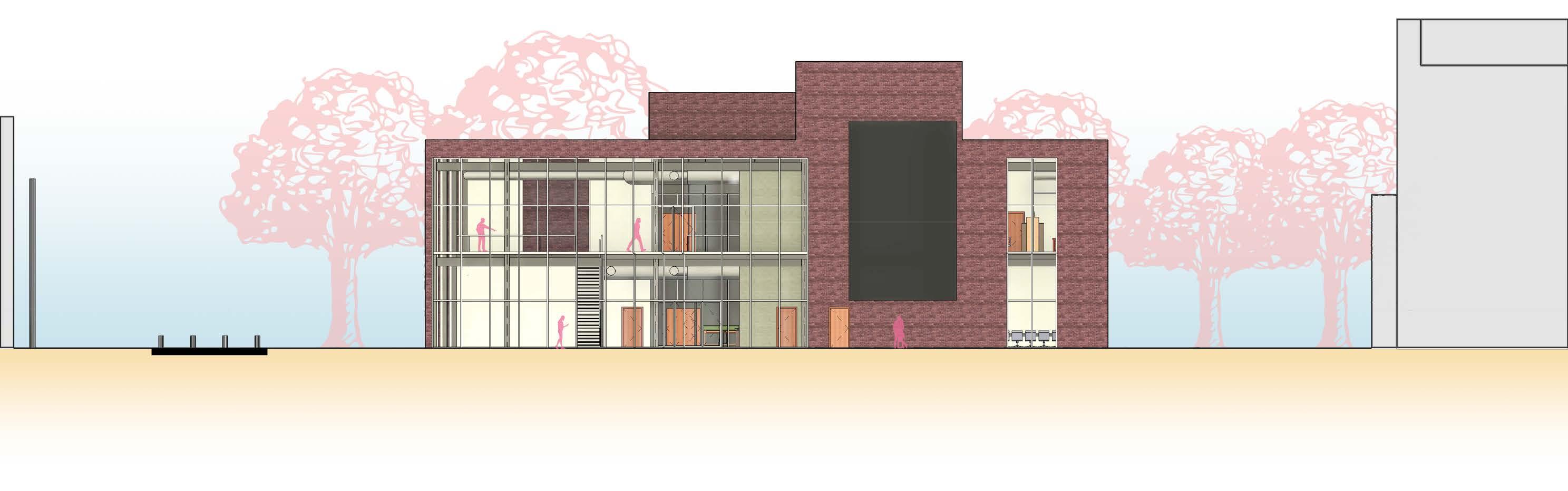

NORTH ELEVATION - ENTRY

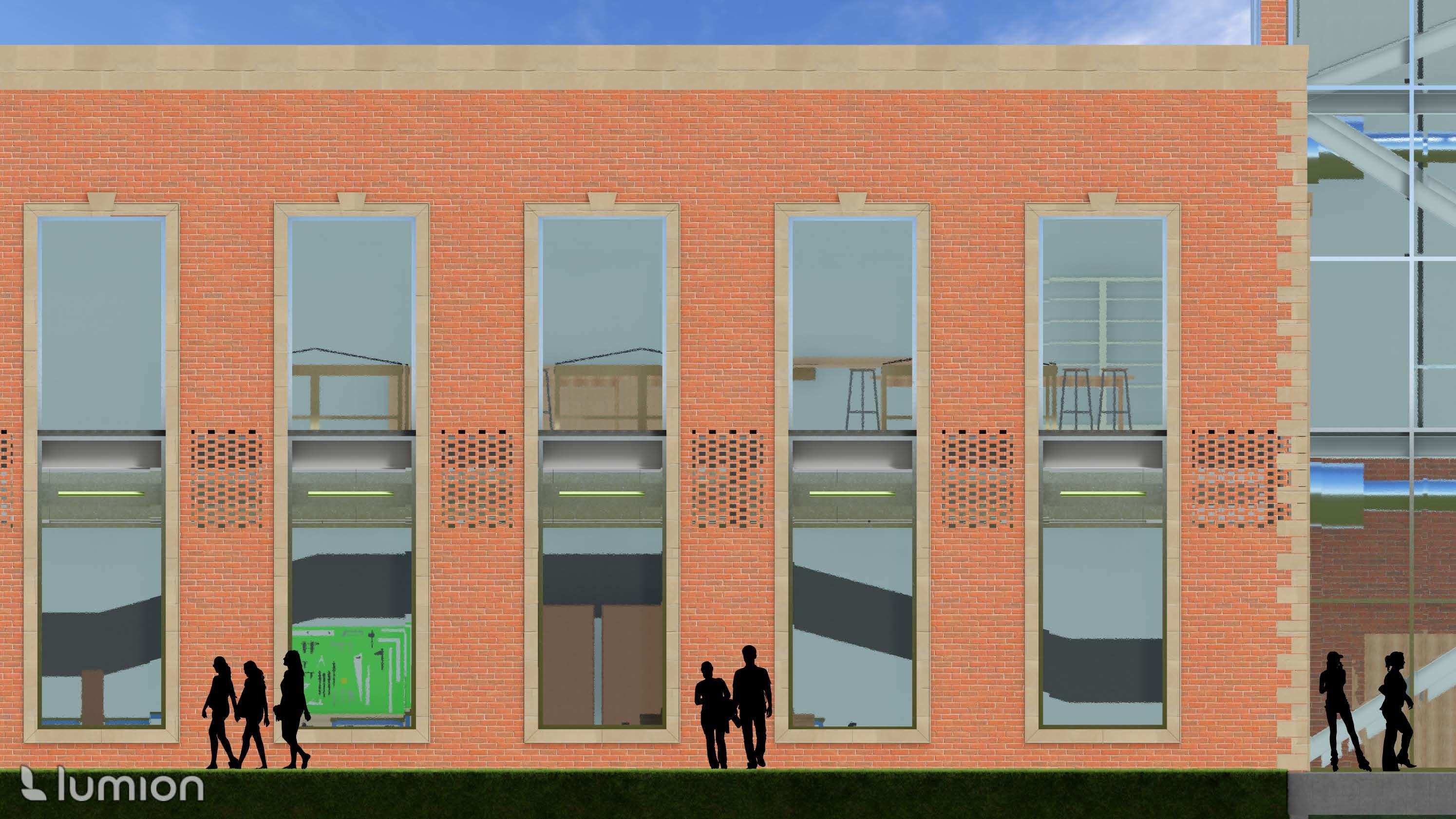

EAST ELEVATION

SD ELEVATIONS

SD RECAP | 7

REDUCE HEIGHT TO MAKE THE STUDIO A POINT OF HIEARCHY

IMPROVE ENTRY

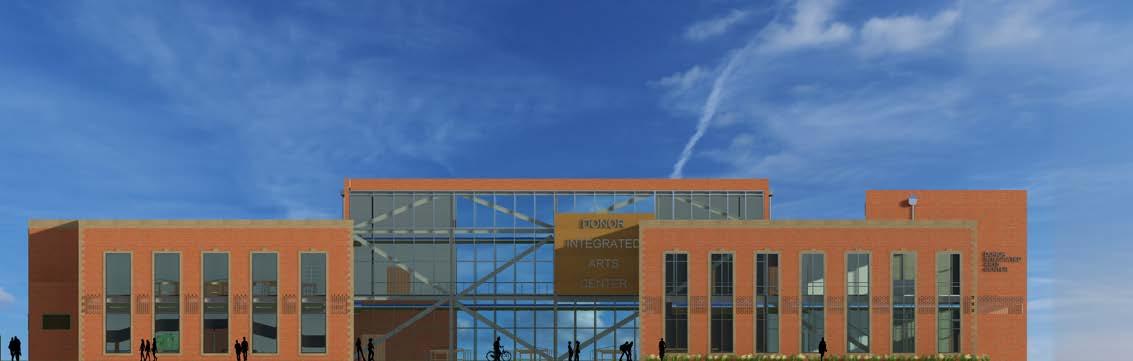

NORTH ELEVATION - ENTRY

ADD SIGNAGE

EAST ELEVATION

SD ELEVATION FEEDBACK

SD RECAP | 8

A A

B

D

C

E

C

B

S1

A

6

9

D

C

1

9

2

14

1. LOBBY 2. GALLERY 3. CAFE 4. OPEN STUDIO 5. CONFERENCE ROOM 6. LECTURE HALL 7. FINE ART STUDIO 8. MANUAL SHOP 9. STORAGE 10. COMPUTER LAB 11. PRINT/MEDIA STUDIO 12. DIGI-FAB SHOP 13. GALLERY EXTENSION 14. OFFICES 15. RESTROOMS 16. MECHANICAL ROOM

B

S1

15

30' 30’

10

16

9

15

3

15

3 4

4

4 4

3

5

4 5

5

13 14

14

5

5 Open to Below

6

6

6 6

7

7

7

8

15

2

8

15

8

8

7 7

8

15

15

9

7

11 9

9

12

9 10

1 12

11 12

1 13

FIRST FLOOR 15'

2

1

Open to Below

3

12

0' 5'

S1 1

3

15

11

DD FLOOR PLANS 0’ 5’ 15’

E

2

10

8

D

C

1S1

E

2

16

2

B

A

2

1

LEGEND

E

D

1 10

1

17

12

10 11 12

10 11 12

1 13

2 8

SECOND FLOOR ARCHITECTURE | 9

C

D

E

8

9

10

11

INDIVIDUAL WORKSPACES

FLOOR PLANS

MACHINERY

STORAGE/SUPPORT

GROUP MEETING SPACE

ARCHITECTURE | 10

B

D

C

2

E

S1

2

A 1

2

B

D

C

E

1

2

2

1

S1

2 Open to Below

3

3

4

4

1 3

3

25

2

ROOF DRAINAGE

2

5

Open to Below

1

The roof consists of 4 unique levels: the two wings are even, and the studio and penthouse rise above them. In order to avoid the need for visible gutters or scuppers, the penthouse and roof drain onto the two wings, which direct water to interior roof drains.

1. High Point 2. Roof Drain 3. Scupper

6

7

2 3

3 8

2

2 1

2

7

9

9

10

10

11

11

12

12 8

8

0' 5’ 5' 15' 0’ 15’

8

2

2

ROOF PLAN

7

7,200 SF of PV Panels are situated on the South wing of the building, which is equal to 20.9% of the building’s area.

The panels are angled at 36.01° for maximum efficiency. These panels help to reduce the building’s expected EUI from 48.27 KBtu/ft2/yr to 2.10 KBtu/ft2/yr.

2

2

2

6

PV PANELS

30' 30’

ARCHITECTURE | 11

A

B

D

C

E

Studio Roof Framing 41' - 0" Roof/Penthouse 32' - 0"

A

B

D

C

E

Level 2 16' - 0"

2 8

Foundation 0' - 0"

1 13

Studio Roof Framing 41' - 0" Roof/Penthouse 32' - 0"

A

B

C

D

E

Level 2 16' - 0"

Foundation

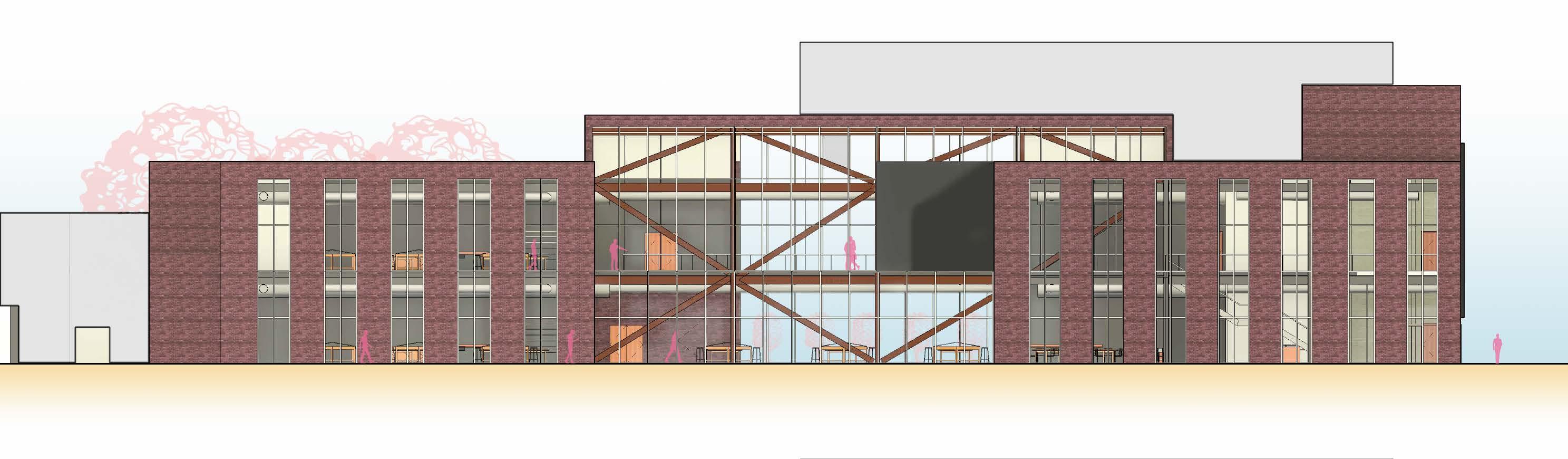

SOUTH FACADE

0'0’

5'5’

15' 15’

30' 30’

0' - 0"

ARCHITECTURE | 12

12

10

11

9

8

7

5

6

4

3

2

1

Studio Roof Framing 41' - 0" Roof/Penthouse 32' - 0"

Level 2 16' - 0"

Foundation 0' - 0"

6

5

1

4

3

2

1

12

1 14

Studio Roof Framing 41' - 0" Roof/Penthouse 32' - 0"

Level 2 16' - 0"

EAST FACADE

0’

5’

15’

30’

Foundation 0' - 0"

Studio Roof Framing 41' - 0" Roof/Penthouse 32' - 0"

Level 2 16' - 0"

Foundation 0' - 0"

ARCHITECTURE | 13

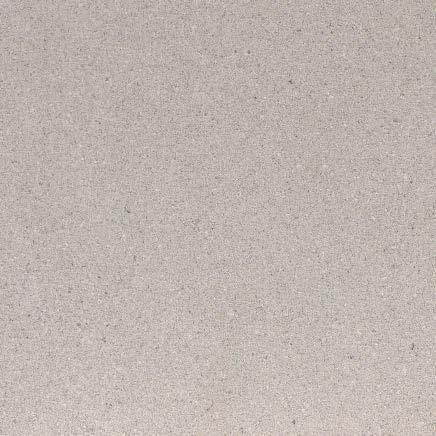

CAST STONE

FROSTED GLASS

ACME VANDERBILT BRICK

MATERIAL EXPLORATION

ARCHITECTURE | 14

1 16

12

1 15

Roof/Penthouse 32' - 0"

LEGEND

1. BRICK VENEER 2. DRAINAGE CAVITY 3. RIGID INSULATION 4. VAPOR BARRIER 5. GYPSUM BOARD 6. STEEL STUDS 7. CAVITY INSULATION 8. WALL FINISH 9. BRICK SCREEN 10. CONCRETE ON METAL DECKING 11. FOUNDATION/SLAB ON GRADE 12. ROOF SYSTEM 1 17

10

Level 2 16' - 0"

9 1 18

1 2 3 4

7

5

5 8

6

1 19

11

Foundation 0' - 0"

WALL SECTION

ARCHITECTURE | 15

CAST STONE PARAPET

GYP. GYP. VAPOR BARRIER

BRICK AIR GAP RIGID INSULATION

1.5" 19 GA, GR. 50 METAL ROOF DECK

FLASHING L8x8x5/8 1/2 DIA. ANCHOR BOLT WEEP HOLES @ 2' O.C. 1/4" MIN.

Roof/Penthouse 32' - 0"

L3x3x3/8 CAVITY INSULATION BEAM TO COLUMN SHEAR CONNECTION EDGE GIRDER

W14x34 GIRDER W8x31 COLUMN

BRICK SCREEN

WALL SECTION

L3x3x3/8

ARCHITECTURE | 16

GYP. GYP. VAPOR BARRIER 1.5" 19 GA, GR. 50 METAL ROOF DECK

BRICK AIR GAP RIGID INSULATION GYP. L8x8x5/8 STRUCTURAL CONNECTION @ 48" O.C. CAVITY INSULATION L3 1/2 x 3 1/2 x 3/8 FLASHING WELDED CONNECTIONS

6" STUDS @ 24" O.C. GYP. 2" LWC 1.5" 19 GA. GR. 50 COMP. DECK

Level 2 16' - 0"

BRICK SCREEN STOREFRONT WINDOW BEAM TO COLUMN SHEAR CONNECTION

Roof/Penthouse 32' - 0"

EDGE GIRDER W8x31 COLUMN W21x55 GIRDER

W14x34 GIRDER W8x31 COLUMN BRICK AIR GAP RIGID INSULATION VAPOR BARRIER GWB 6" MTL STUDS @ 24" O.C. CAVITY INSULATION GWB CAVITY INSULATION

WALL SECTION

ARCHITECTURE | 17

32' - 0" L3x3x3/8 CAVITY INSULATION BEAM TO COLUMN SHEAR CONNECTION EDGE GIRDER

W14x34 GIRDER W8x31 COLUMN

BRICK SCREEN

L3x3x3/8 FLASHING 1/2 DIA. ANCHOR BOLT BRICK AIR GAP RIGID INSULATION VAPOR BARRIER GWB 6" MTL STUDS @ 24" O.C. CAVITY INSULATION GWB

WALL SECTION

ARCHITECTURE | 18

W14x34 GIRDER W8x31 COLUMN BRICK AIR GAP RIGID INSULATION VAPOR BARRIER GWB 6" MTL STUDS @ 24" O.C. CAVITY INSULATION GWB CAVITY INSULATION

FLASHING VAPOR BARRIER MORTAR FILL

WEEP HOLES @ 2' O.C. 1/4" MIN.

WALL SECTION

Foundation 0' - 0"

ARCHITECTURE | 19

EXTERIOR PERSPECTIVE

ARCHITECTURE | 20

INTERIOR PERSPECTIVE

ARCHITECTURE | 21

Envelope Cast stone, red brick, and curtain wall systems enclose the Integrated Arts Center, resembling OSU’s typical designs while pushing forward to a more modern design.

HVAC A system comprised of two Air Handling Units, serviced by a ground source heat pump (GSHP) and a chilled water pump will keep the building comfortable year-round.

Structure Structural steel is exposed throughout the project to highlight the craft of the construction industry, and OSU-orange brace frames are showcased in the Open Studio.

Organization The open studio serves as both a hierarchical and organizational center, rising above the brick wings with its curtain walls.

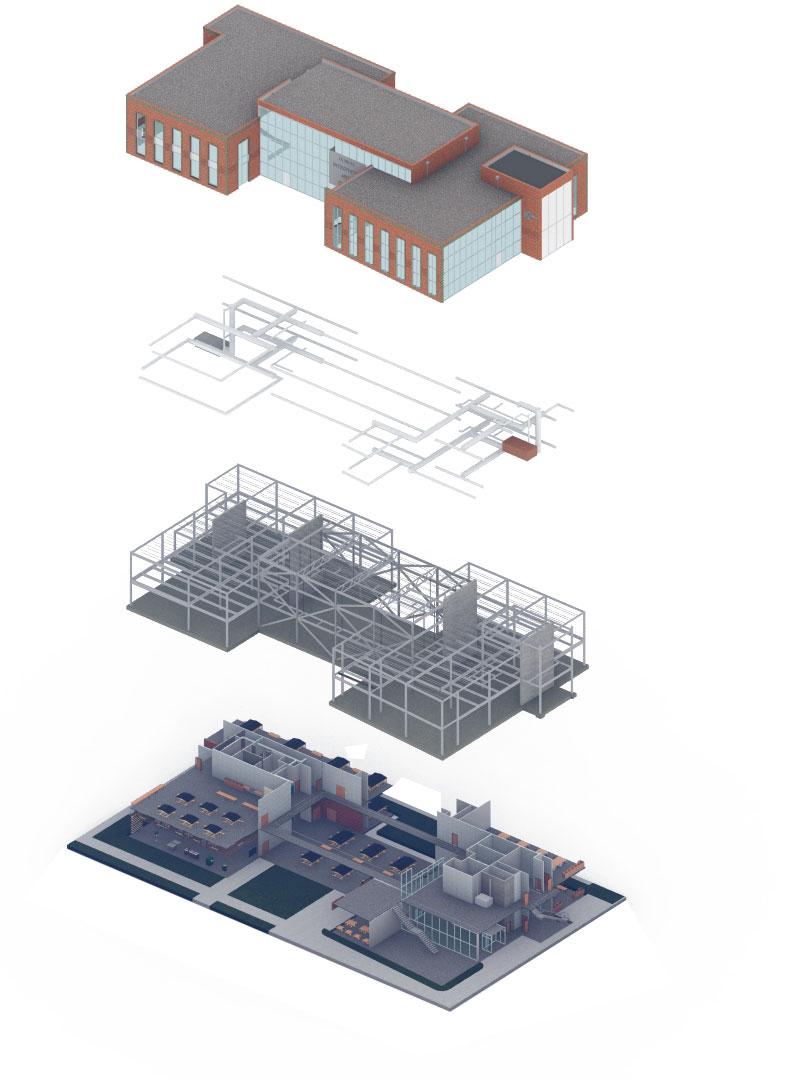

BUILDING SYSTEMS AXONOMETRIC

ARCHITECTURE | 22

BAY MODEL

ARCHITECTURE | 23

GRAVITY LOADS

WIND LOADS

ROOF LOAD

ROOF JOISTS

GIRDERS

COLUMNS

FLOOR LOAD

FLOOR BEAMS

GIRDERS

COLUMNS

FOUNDATION

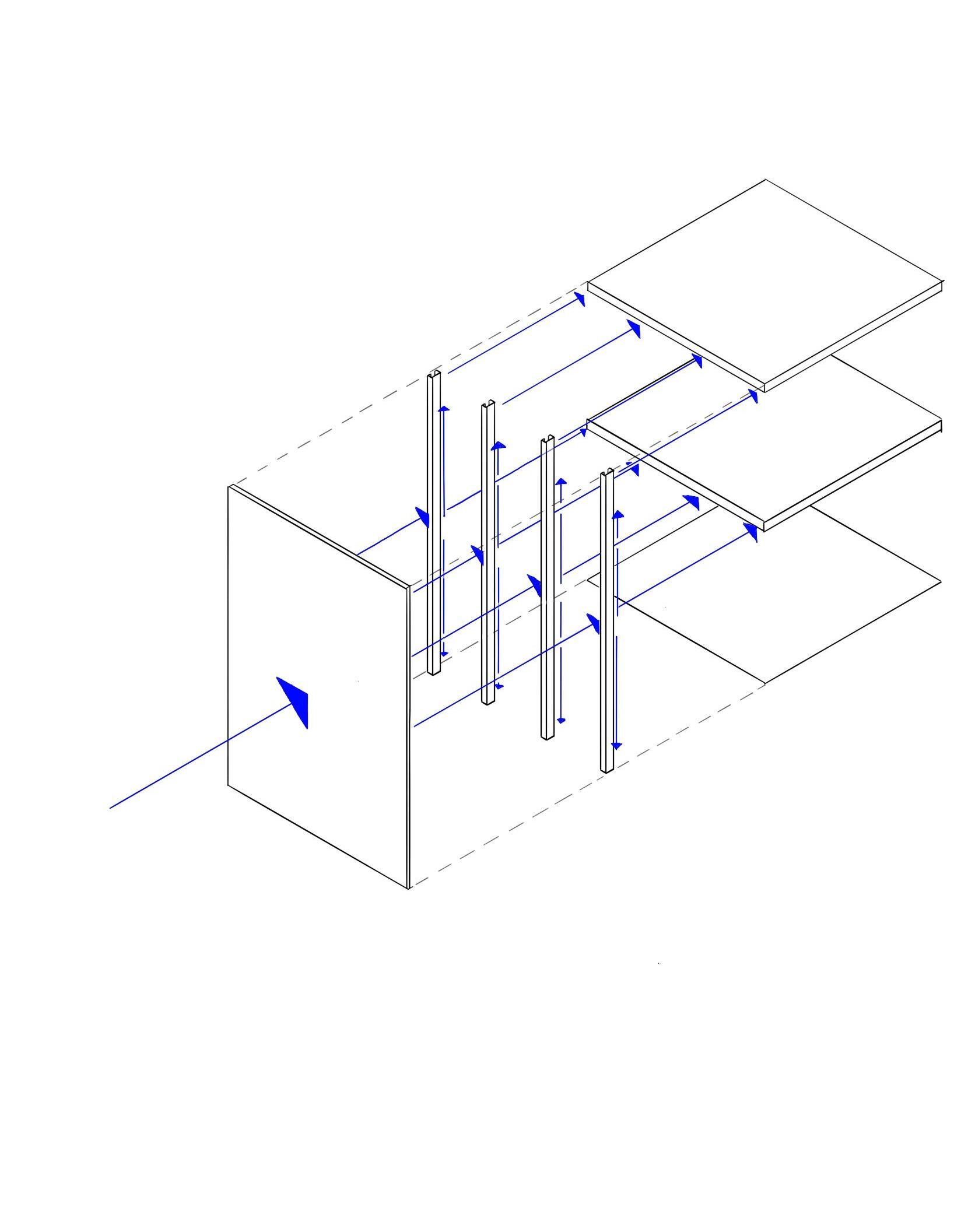

1 LOAD PATH AXONS

EH Focus Space Exp Axon

STRUCTURAL | 25

EUI

CO2 REDUCTION

50

40 30 55%

87%

98%

MODEL A

MODEL B

MODEL C

2030 TARGET: 21.79

20

10

0

MODEL A

MODEL B

MODEL C

MODEL C EUI BREAKDOWN 10

DAYLIGHTING

8.33 3.20

2.12

2.52

3.02 0.70

0

0.25

33%

44%

MODEL A ASE

MODEL C ASE

42%

34%

MODEL A sDA

MODEL C sDA

-18.05

-10

EN

ER G

Y

R PV

W AT E O T

S

PS M PU H

EQ

U

IP

M

TI H G

FA N

EN

G N

G LI

EA TI

N

G H

N LI O O C

COVE.TOOLS DATA

T

-20

ENVIRONMENTAL | 26

#1 #2

#3 #4 #5 #6

VIRACON 1-5/16” INS. LAMINATED VNE26-53 (CHOSEN GLASS)

CODE COMPLIANCE

U-FACTOR

0.20

<0.38

SHGC

0.17

<0.25

SC

0.20

N/A

VT

0.30

>0.30

73.2 fc 64.4 fc 55.1 fc 46.6 fc 38.9 fc Target Illuminance - 30 fc

DAYLIGHTING DATA

33.5 fc

31.2 fc

30.2 fc

ENVIRONMENTAL | 27

ENVELOPE

PEAK COOLING LOADS (CFM/sq.ft.)

1.5

BASELINE: 1.4959 CFM/sq.ft.

UPDATED: 0.8802 CFM/sq.ft.

1.0

UPDATED DESIGN

CODE BASELINE

GLASS RATIO

32.38%

30%

U-FACTOR OF ROOF

0.032414

0.039

U-FACTOR OF OPAQUE WALL

0.03752

0.064

U-FACTOR OF SLAB-ON-GRADE

0.60975

0.15

U-FACTOR OF GLASS

0.20

0.38

GLASS SHGC

0.17

0.25

GLASS SC

0.20

0.29

GLASS VT

0.30

0.275

UPDATED: 0.8802 CFM/sq.ft.

BASELINE: 1.4959 CFM/sq.ft.

PEAK COOLING LOADS (KBtuh) BASELINE PERIMETER @ 12 PM, AUG. 5: 9.694 KBtuh BASELINE INTERIOR @ 12 PM, AUG. 5: 5.704 KBtuh

0.5

UPDATED PERIMETER @ 11 AM, AUG. 5: 8.946 KBtuh UPDATED INTERIOR @ 11 AM, AUG. 5: 6.357 KBtuh 0.0

PERIMETER THERMAL ZONE

PEAK COOLING LOADS

INTERIOR THERMAL ZONE

ENVIRONMENTAL | 28

CEILING COMPONENTS

30 (6 COLUMNS, 5 ROWS) 12’ x 8’ ARMSTRONG INFUSION BLADES PROVIDES LINEAR PATTERNS AND OBSCURES CEILING SYSTEMS CLASS A FIRE PERFORMANCE

20 SPRINKLER HEADS WITH 10’ THROW DISTANCES PROVIDES FIRE PROTECTION

8 TITUS FL-10 W/ 1” CONTINUOUS SLOT DIFFUSERS PROVIDES HEAT AND AIR

35 PEERLESS RNNAD 90 CRI TUWH PRP 30K 500 LMF 8FT FIXTURES PROVIDES 37.354 fc ILLUMINATION IN FOCUS SPACE LIGHT LOAD: 0.467 W/sf (COMPARE TO 1.05 W/sf CODE MAX.) SYSTEM’S OVERALL EFFICIENCY: 84.3% RETURN GRILLE VAV BOX

DUCTS

LIGHTS

DIFFUSERS

CEILING PANELS

SPRINKLER HEADS

SPRINKLER THROW DISTANCE

RCP AND ARTIFICIAL ILLUMINATION

ENVIRONMENTAL | 29

CHILLED WATER SUPPLY (DISTRICT SUPPLIED) GSHP

STC-56 RATED WALLS AHU 2

CHILLED WATER PUMP

Open to Below

FRESH AIR EXHAUST AIR

(DISTRICT SUPPLIED) STC-56 RATED WALLS AHU 2

SATELLITE ELECTRIC

Open to Below

FRESH AIR SATELLITE ELECTRIC

Open to Below

EXHAUST AIR

Open to Below

EXHAUST AIR AHU 1 FRESH AIR

STC-56 RATED WALLS

TRANSFORMER SERVICE ROAD DUMPSTER GSHP WELLS

HVAC PLANS

0’ 5’ 15’

30’

ENVIRONMENTAL | 30

Occupancy

EXIT DOOR 1: # Occupants from Computer Lab = 76 # Occupants from Gallery Extention = 27 # Occupants from Mech 111 = 1 Total # of occupants = 104

EXIT DOOR 3: # Occupants from Lecture = 76 Total # of occupants = 76

Number

EXIT DOOR 2: NORTH STAIR 120

STG MECH 110 111

Lecture

OFFICE 108

Gallery

EL. RM. 114

RR 115

102 Lobby

RR 116

4 LS-2

Cafe

Conference

EXIT DOOR 4: # Occupants from Cafe = 54 Total # of occupants = 54

103

109

Studio 104

" 25

4' -

73

/4"

48' - 1 1/2"

'-0 111

EXIT DOOR 6: # Occupants from half of Studio = 51 # Occupants from half of Manual Shop = 32 # Occupants from Fine Art Studio = 48 Total # of occupants = 131

105

Manual Shop

"

2" 1/ 8 '80

UP

Elec & Mech 112 EXIT DOOR 8: # Occupants from Dark Room = 6 # Occupants from Print/Media Studio = 49 # Occupants from Digi Fab Shop = 63 # Occupants from Office 207 = 3 # Occupants from Office 206 = 3 Total # of occupants = 124

1

107 108 109 110

Lobby 893 SF Gallery 1345 SF Cafe 803 SF Studio 5043 SF Fine Art 2402 SF Studio Manual 3152 SF Shop Lecture 1517 SF Office 207 SF Conference 310 SF Stg 164 SF

111

Mech

192 SF

112

Elec & Mech

459 SF

113

Elev. Rm

98 SF

114

Elev Rm

103 SF

115 116 117 118 119 120

RR RR RR RR South Stair North Stair

204 SF 206 SF 174 SF 175 SF 237 SF 274 SF

106

106

9 3/4

EL. RM. 113

2 LS-2

65' -

TOTAL PATH OF EGRESS: 163' - 0"

RR 118

Area

EXIT DOOR 5: # Occupants from half of Studio = 51 # Occupants from Conference = 10 Total # of occupants = 61

Fine Art Studio

RR 117

101 102 103 104 105

101

9' - 11"

107

Occupants from Gallery = 45 Total # of occupants = 45

3 LS-2

Name

0' 5'

15'

30'

EXIT DOOR 7: # Occupants from half of Manual Shop = 32 Total # of occupants = 32

Occupancy

Occupant Load Factor

Occupant Load

Exhibit Gallery Unconcentrated Shops Shops

0 SF 30 SF 15 SF 50 SF 50 SF

45 54 101 48

Shops

50 SF

63

Classroom Unconcentrated Unconcentrated Accessory storage areas, mech room Accessory storage areas, mech room Accessory storage areas, mech room Accessory storage areas, mech room Accessory storage areas, mech room

20 SF 15 SF 15 SF 300 SF

76 14 21 1

300 SF

1

300 SF

2

300 SF

0

300 SF

0

TOTAL 1ST FLOOR OCCUPANCY: 400

TOTAL OCCUPANCY = 626 OCCUPANTS # OF EXITS REQUIRED = MINIMUM OF 3

Level 1 Egress Plan 1/32" = 1'-0"

EGRESS PLANS

ARCHITECTURE | 31

Occupancy

NORTH STAIR SERVICES 104 OCCUPANTS NORTH STAIR 215

Number

RR 213

20 SF

75

2458 SF

Shops

50 SF

49

3152 SF

Shops

50 SF

63

814 SF

Exhibit Gallery

30 SF

27

205 206 207 208

309 SF 118 SF 125 SF 207 SF

50 SF 15 SF 15 SF 300 SF

6 8 8 1

209

Mech

320 SF

Shops Unconcentrated Unconcentrated Accessory storage areas, mech room Accessory storage areas, mech room

300 SF

1

210 211 212 213 214 215

RR RR RR RR South Stair North Stair

174 SF 187 SF 204 SF 206 SF 238 SF 274 SF

240

'-4

"

Open to Below TOTAL PATH OF EGRESS: 164' - 6"

186' - 3 1/2"

204

DARK ROOM 205

" -9

TOTAL 2ND FLOOR OCCUPANCY: 226

4' - 3 3/4"

Digi-Fab Shop 203

4' - 0"

SOUTH STAIR 214

7' - 6"

80 '

202

62' -

7 1/

RR 211

4"

RR 210

Print/Media Studio

Classroom

204 Gallery Extension

Occupant Load

1490 SF

203

OFFICE OFFICE 207 206

Occupant Load Factor

Computer Lab Print/Media Studio Digi-Fab Shop Gallery Extension Dark Room Office Office Stg

202

RR 213

9' - 11"

201

STG 208

Occupancy

SOUTH STAIR SERVICES 124 OCCUPANTS

28' - 10 3/4"

Computer Lab

201

Open to Below

Area

7' - 11 1/4"

43' - 4 3/4"

MECH 209

Name

4' - 0"

4' - 0" 15' - 1 3/4" 4' - 0"

1

EGRESS PLANS

Level 2 Egress Plan 1/32" = 1'-0"

2

15' - 11"

South Stair Enlarged Plan 1/16" = 1'-0"

3

North Stair Enlarged Plan 1/16" = 1'-0"

4

Gallery Stair Enlarged Plan 1/16" = 1'-0"

ARCHITECTURE | 32
