NISHA BALOTIYA
PORTFOLIO
SELECTED WORK : 2019-2022 ARCHITECTURAL
NISHA BALOTIYA
EDUCATION
2019 - Present
Vivekanand Education Society’s College of Architecture, Mumbai 2016 - 2018
Sophia Women’s College, Mumbai 2004 - 2016
Adarsha Vidyalaya School, Mumbai
WORKSHOPS
Archicad Software Workshop.
Muncipal Byelaws Workshop.
Advanced Graphics I Photoshop I Indesign. Envimet Software Workshop.
Product Design I Clock Design
EDS I Climate Responsive design EVS I DfGE
SOFTWARE SKILLS 2022 2021 2020&2019
Green Campus Workshop
Mind Memory & Drawing Workshop
Kitchen Design Workshop
Draw

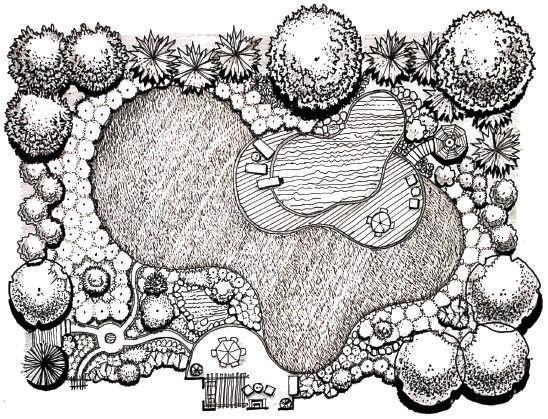

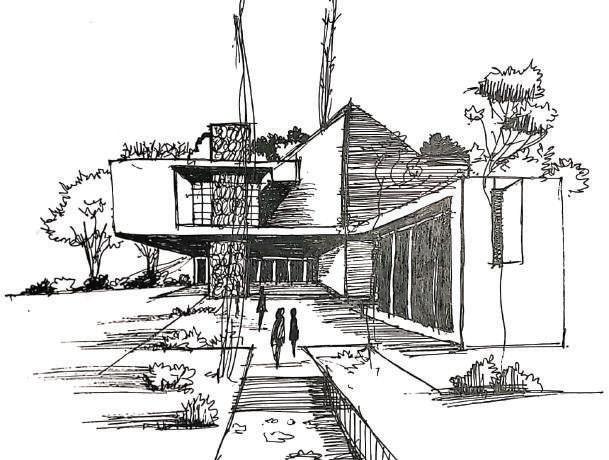

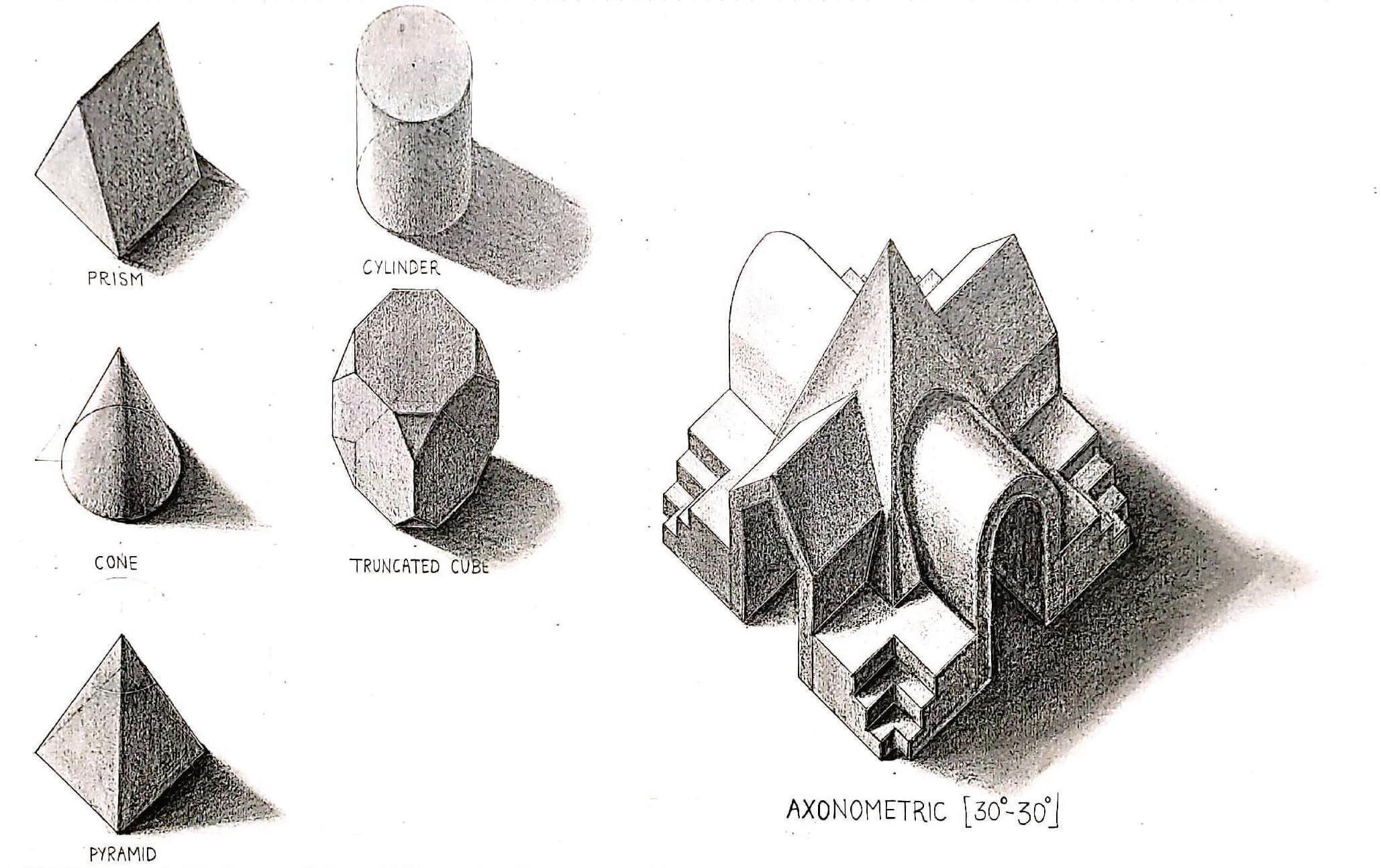

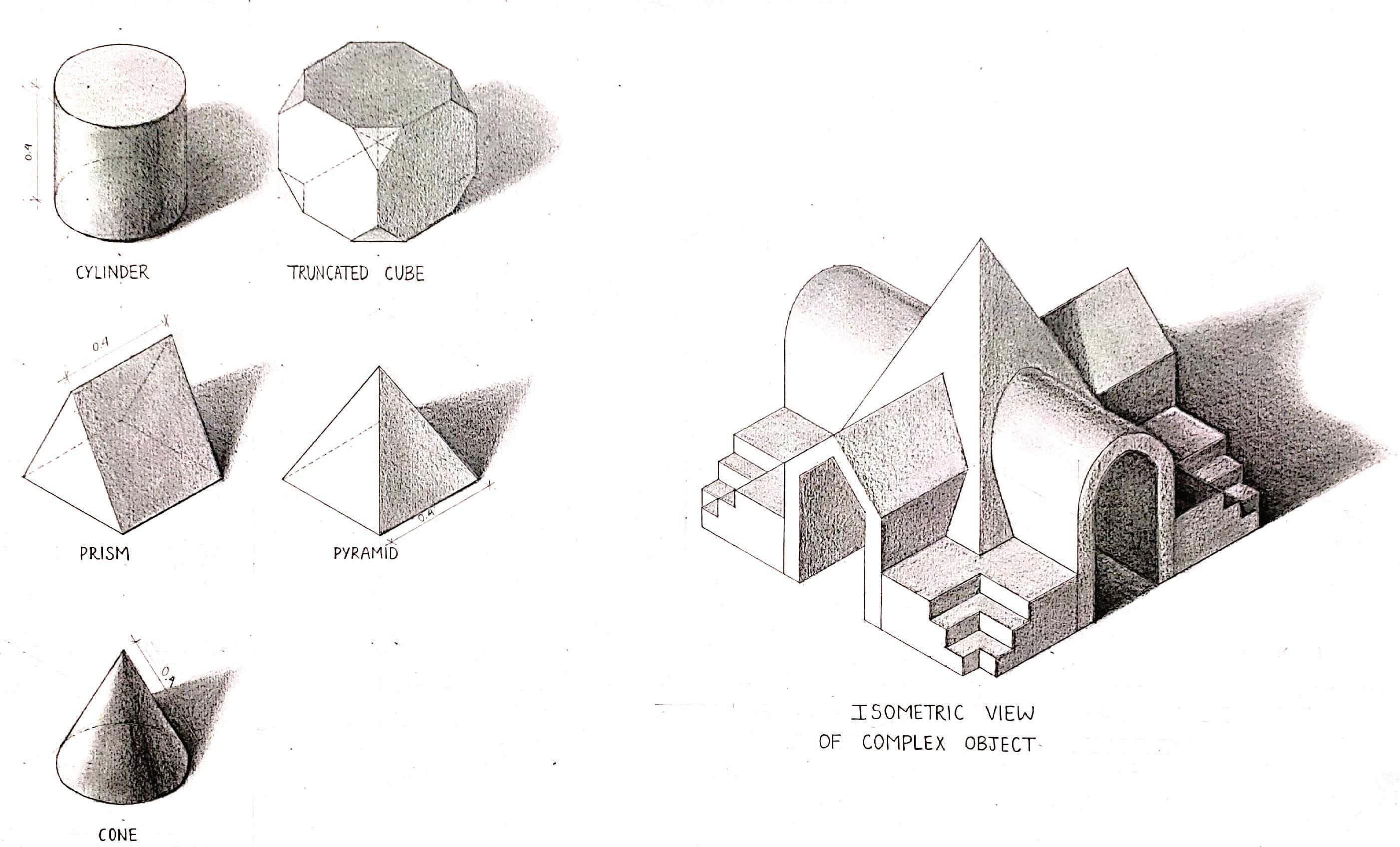

Sketching & Rendering Workshop

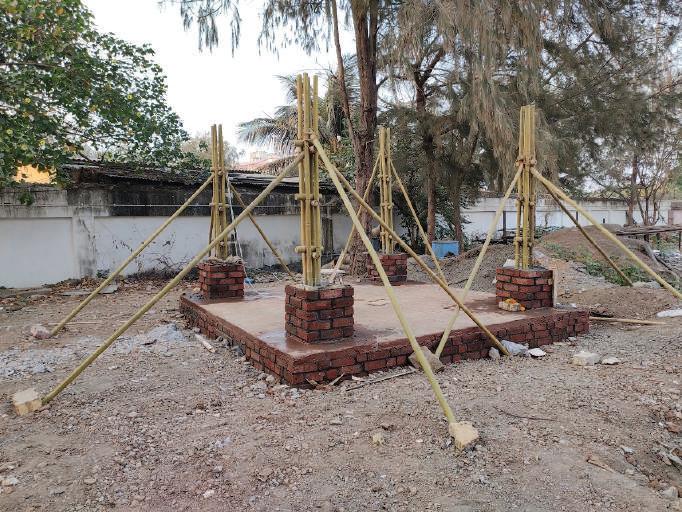

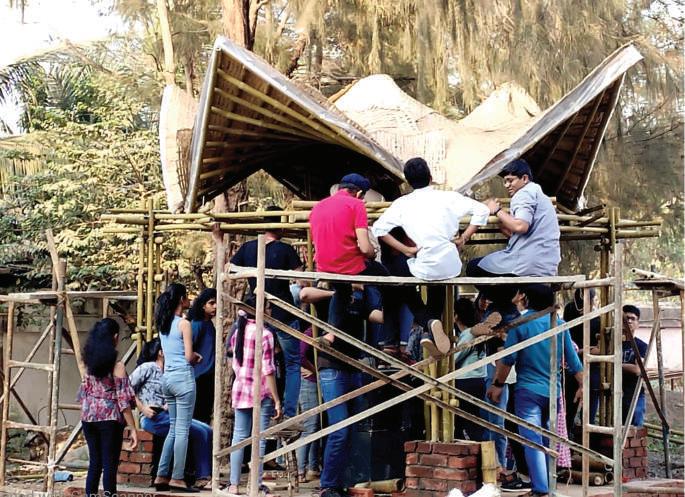

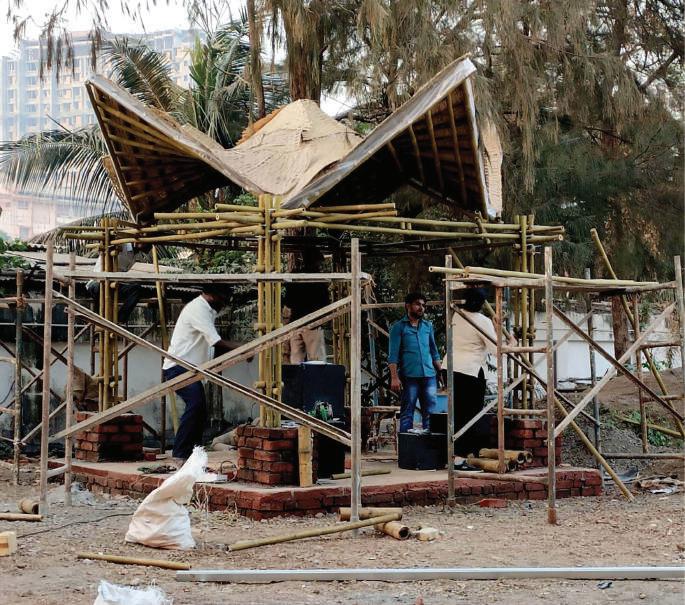

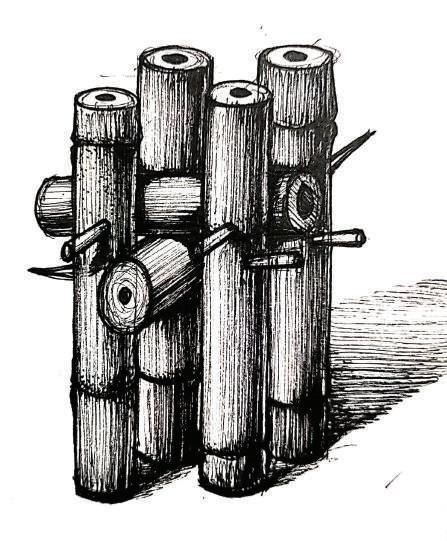

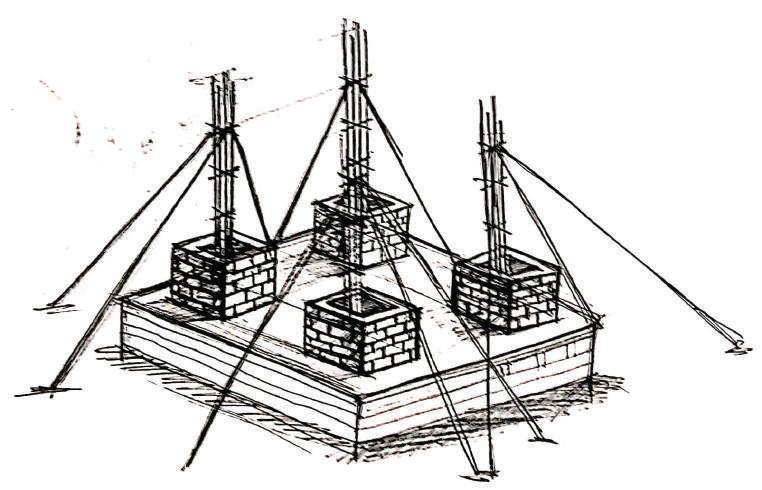

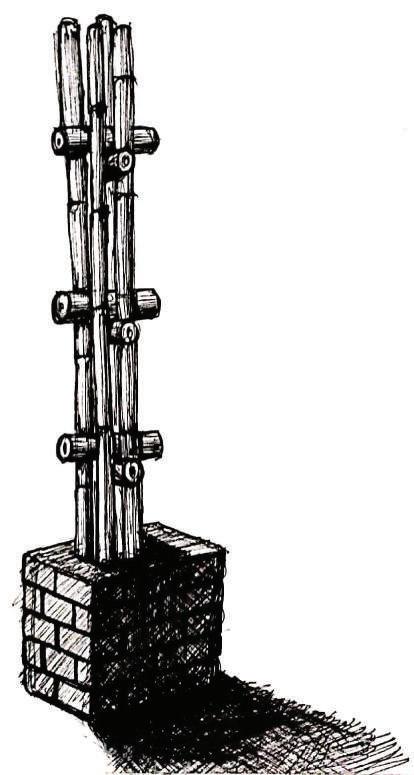

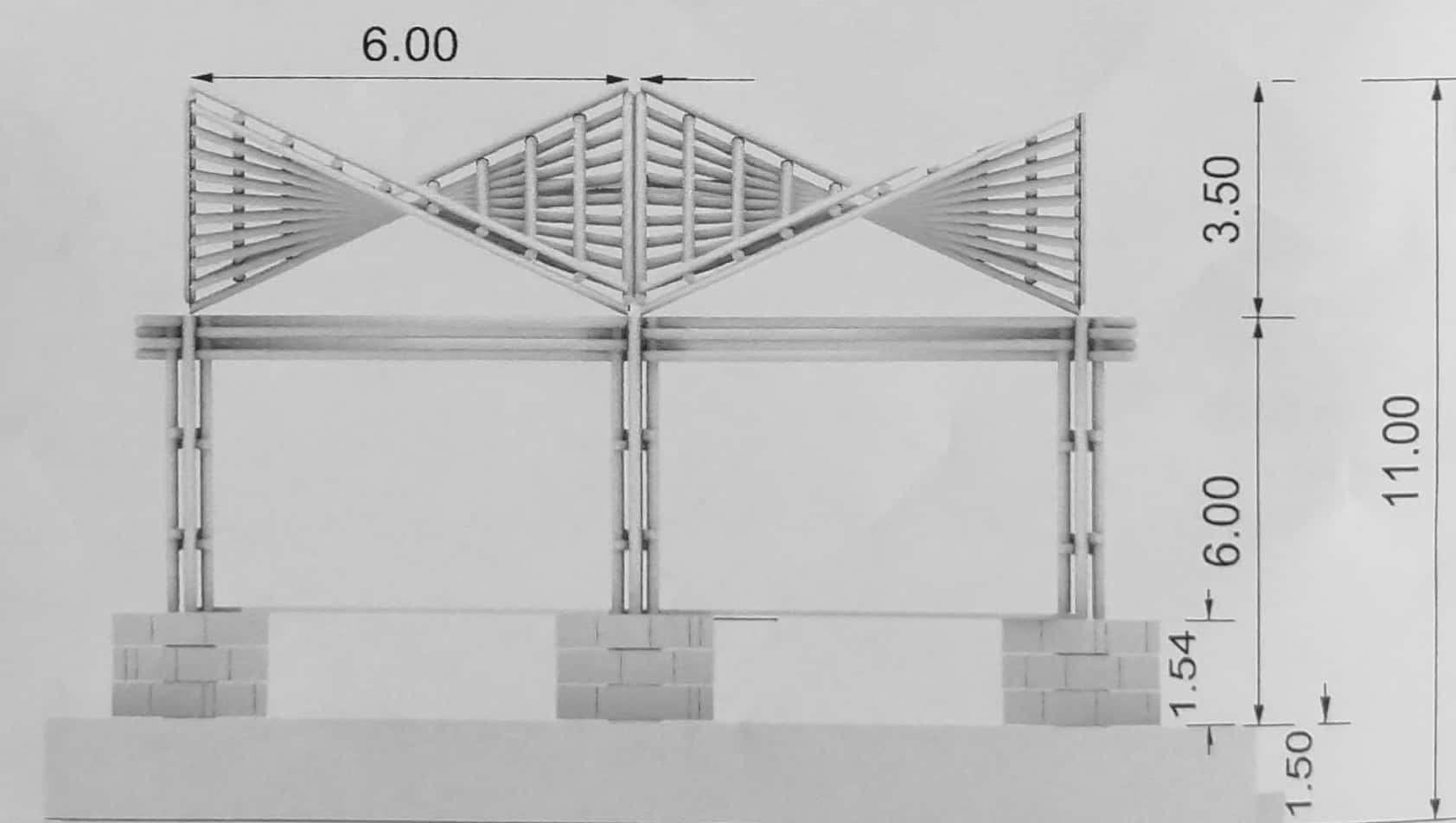

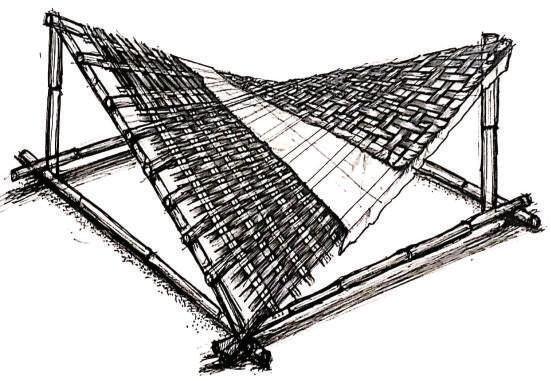

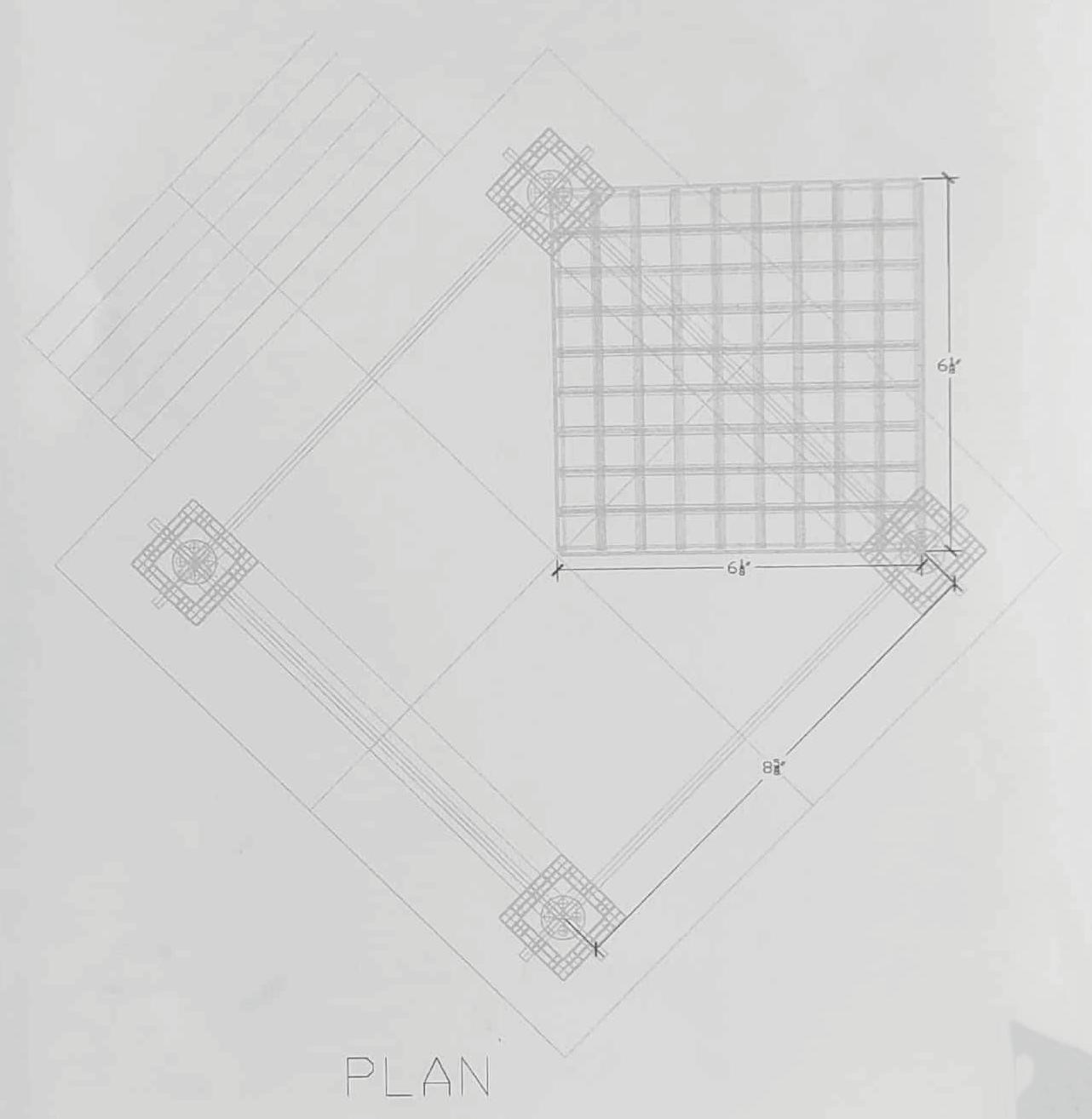

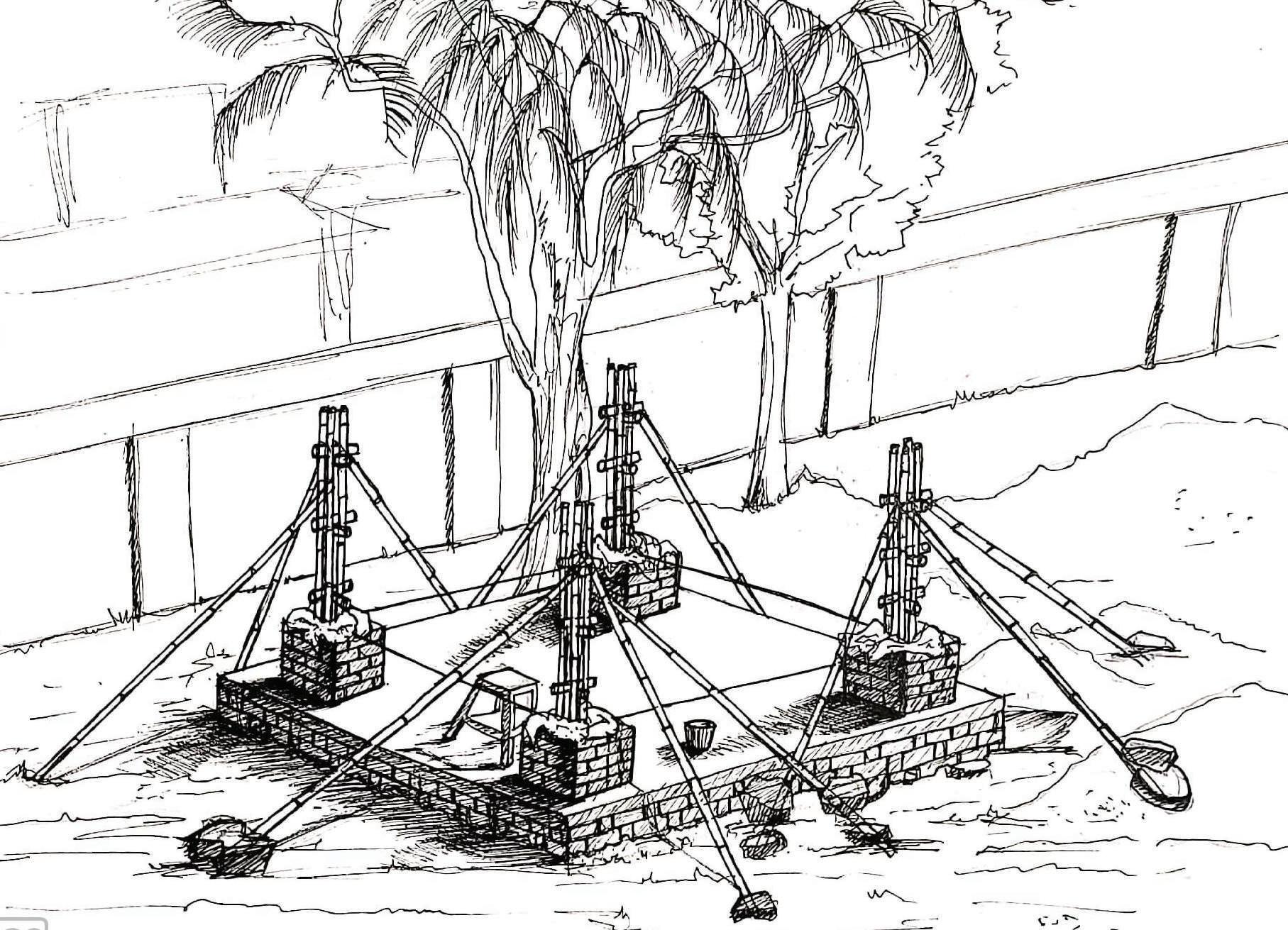

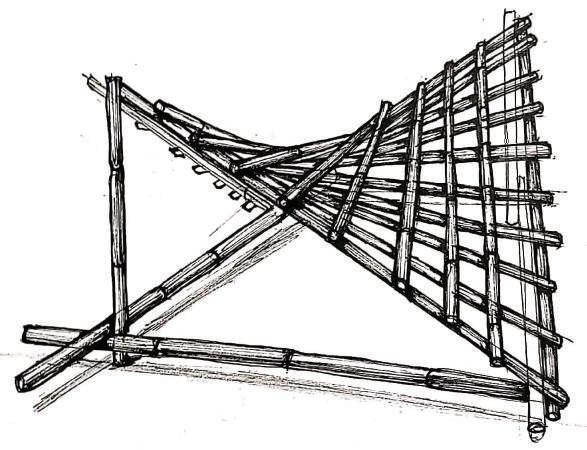

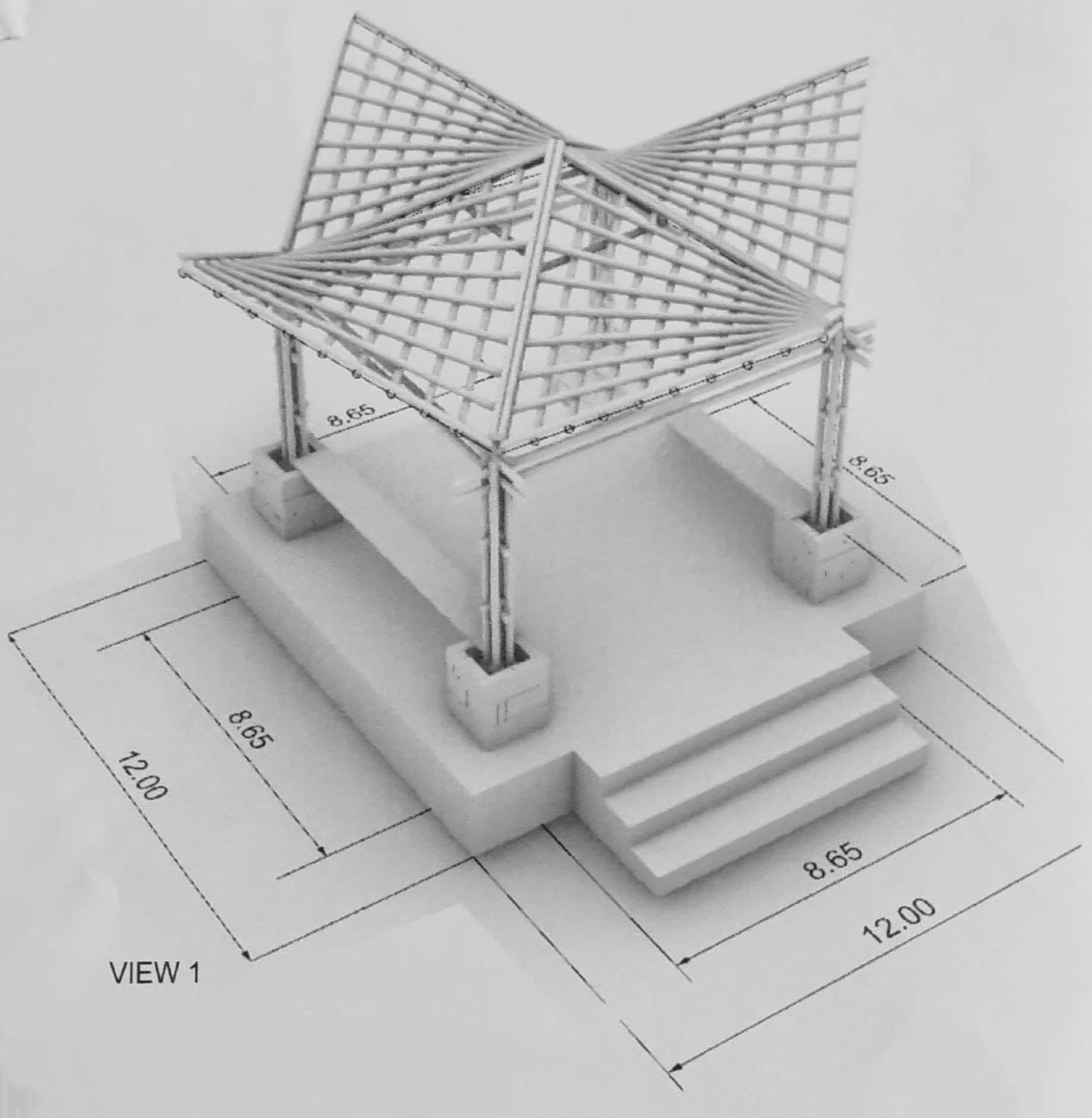

Hands on Bamboo Installation Workshop
Model Making I Orgami
Wall Painting

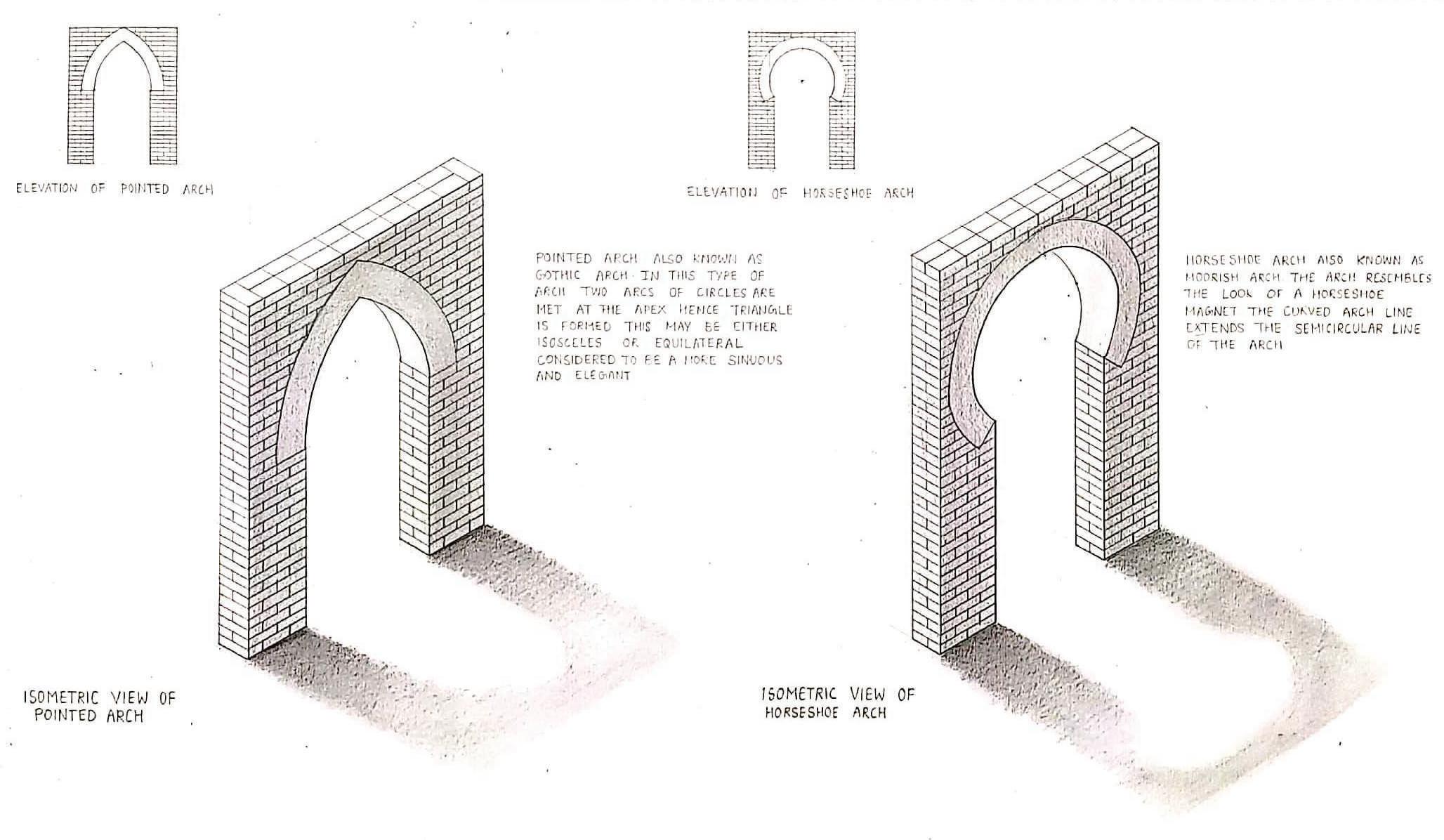

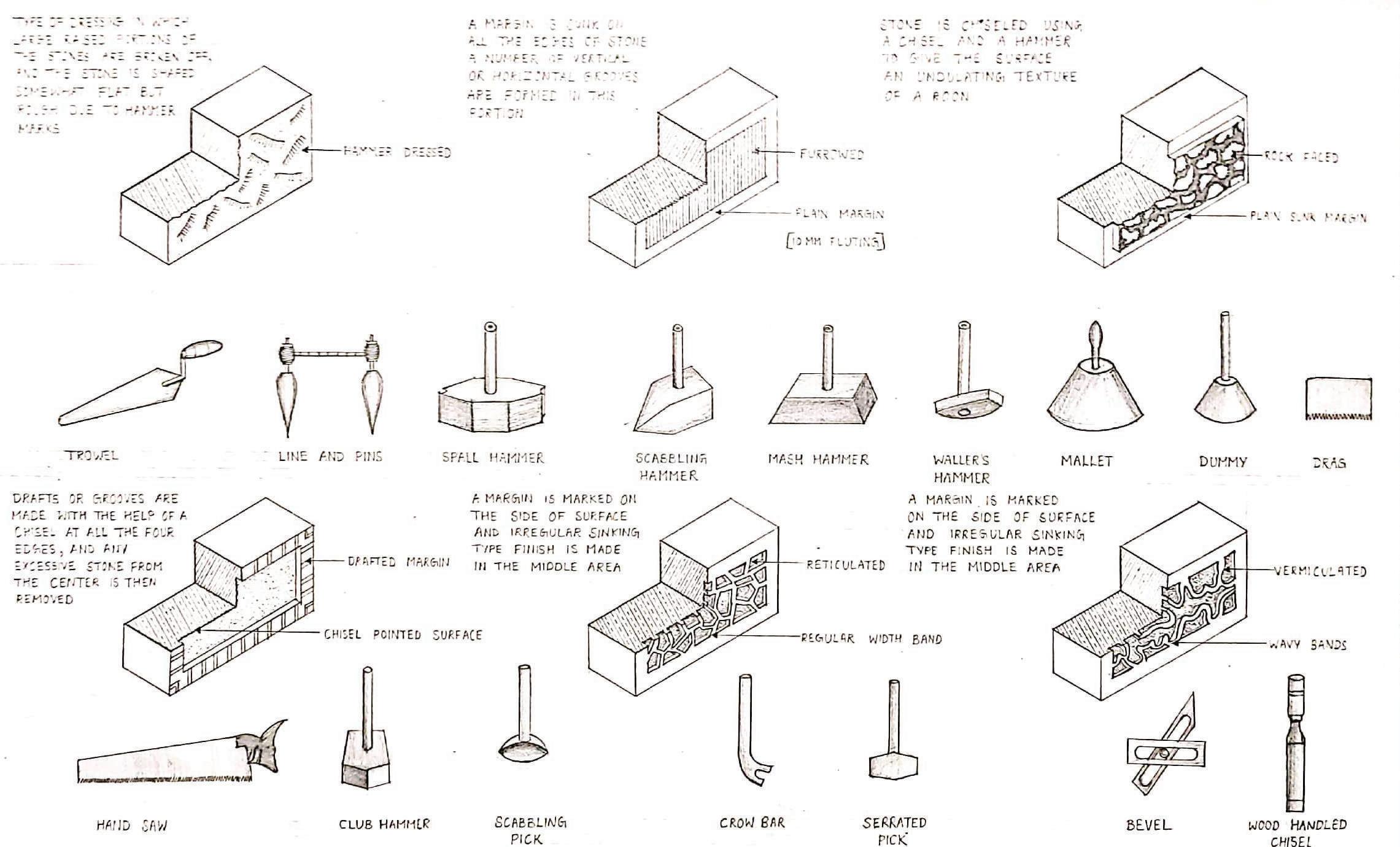

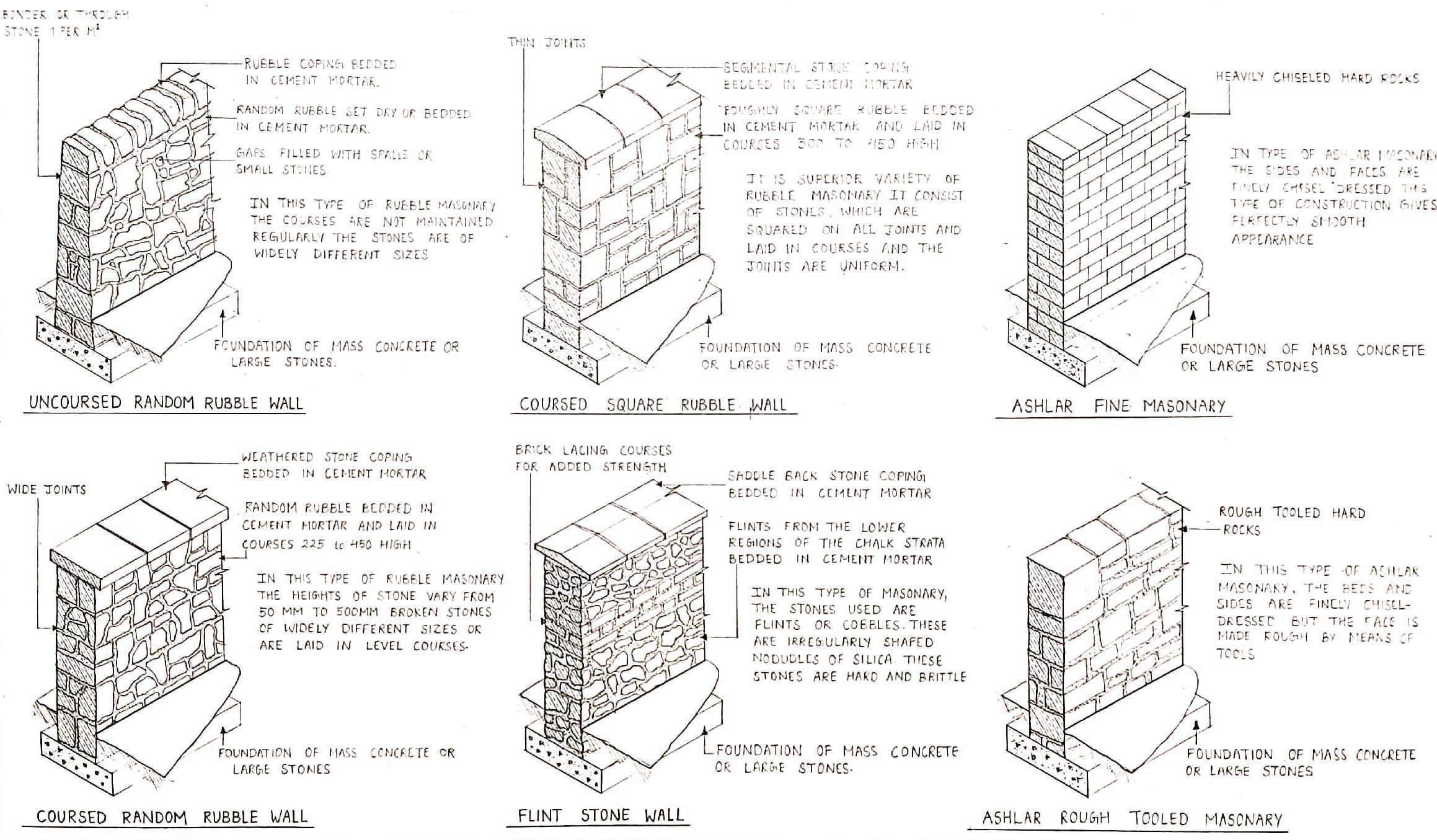

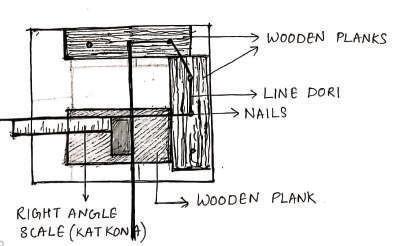

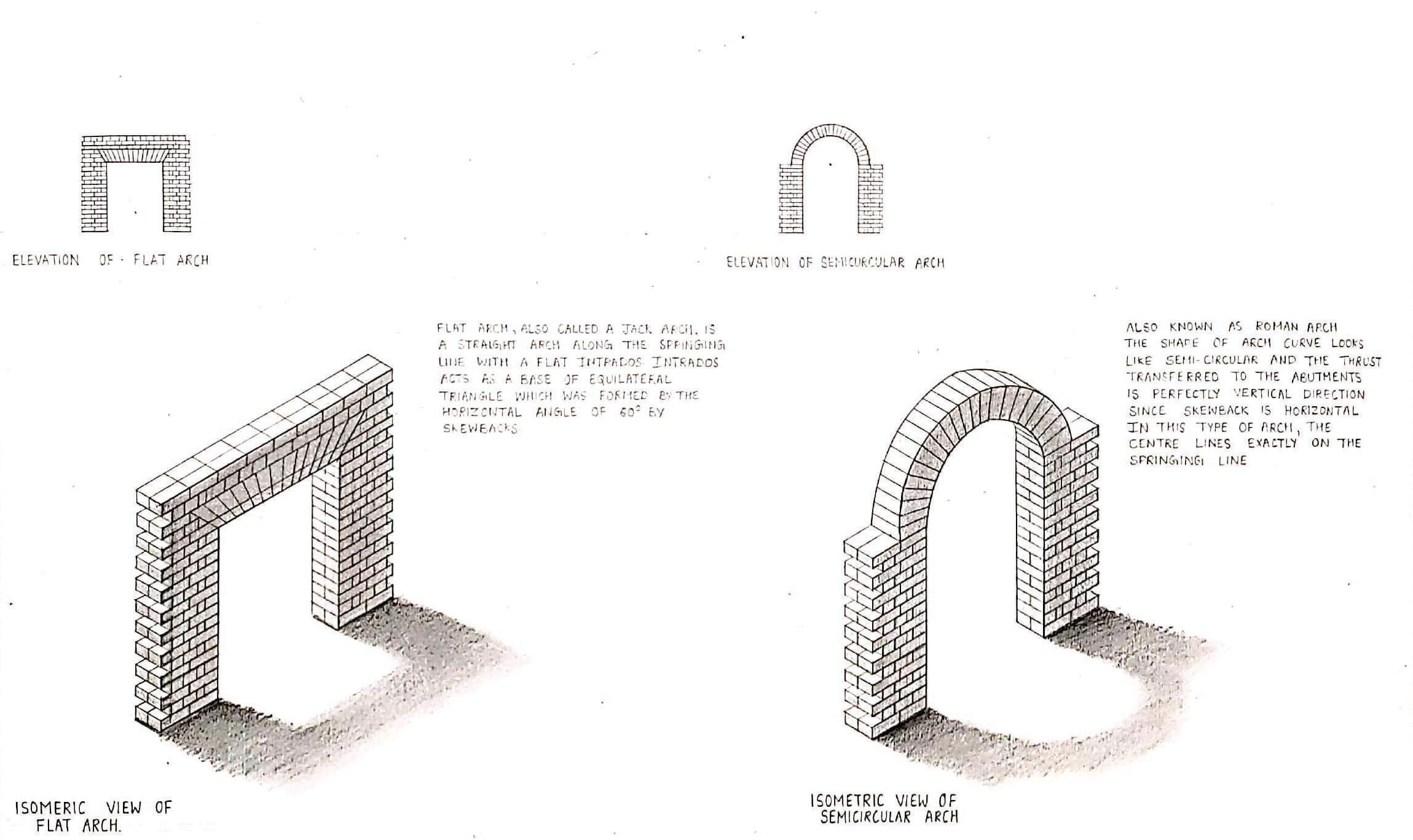

Hands on brick masonry and arch construction
WEBINARS
Exploring Design
RS & GIS Software WorkshopI am a Bachelor of Architecture student, currently studying in IV year. I always found myself as a person with great interest in creative fields and design. Seeking an opportunity for 4 months interniship between December 2022 to April 2023. Mumbai, India.
nishabalotiya11@gmail.com
Concept To Design
Alternative Design Technologies

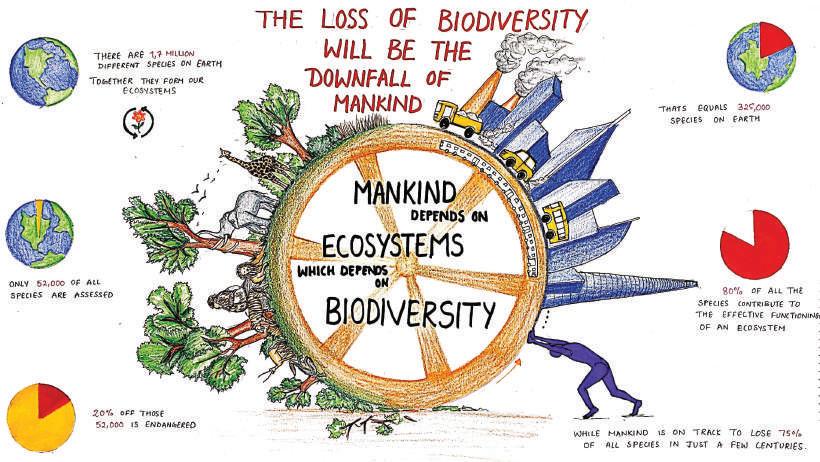

Positioning Biodiversity
Biomimicry
Climate Responsive Architecture
Qgis Software
Design For Greater Efficiency
MS office
QGIS
SKILLS
Hand Rendering & Sketching
Model Making
Drafting
Watercolour & Pastels
LANGUAGE
English Hindi Marathi
Autocad Sketchup Photoshop Illustrator Indesign Revit Archicad Corel
Enscape
City Archives
Uplift
Shikshan
Contents 01 02 03 04 05 06
01 Aims to revive traditional public library 1-9
03 Education based on Gandhian philosophy – “ Sarvodya” 19-25 Pyaau 04 A water-booth - place built for drinking water 26-33
Co-Living 02 Work, Play & Live 10-18 Working Drawings 06 37-48 Miscellaneous Works 08 56-70 07 08 Muncipal Drawings 07 49-55 Workstation 05 A workstation design for self and 1 user 34-36 Academic, Artworks, Workshops

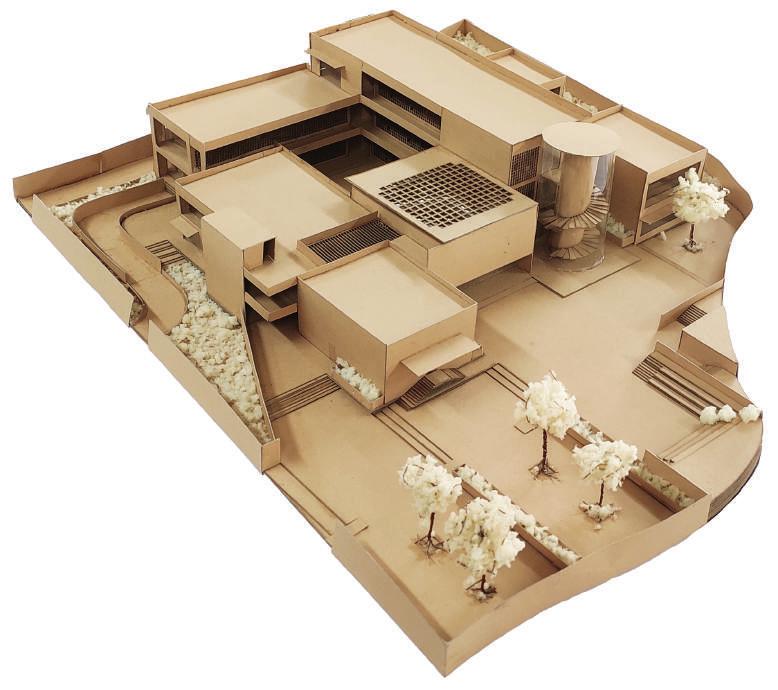

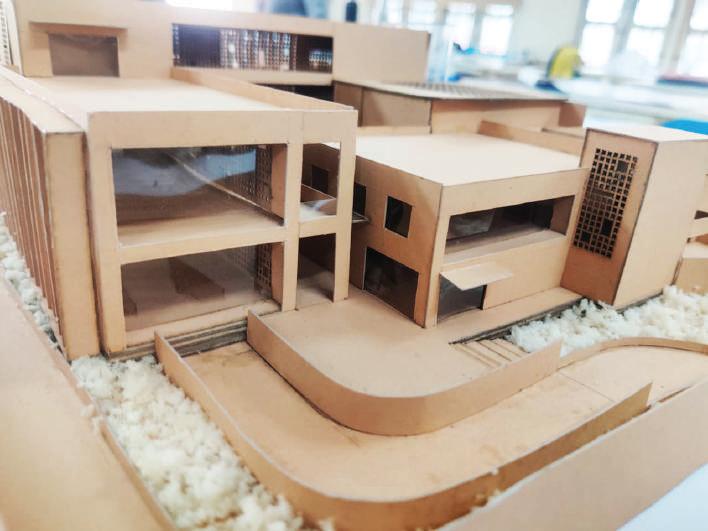

City Archives, 2022
Year Semester VI Location Navi Mumbai Site Area 7500 sq.m. Typology Public Building Mentor Abhijit Sahasrabudhe Type Individual
The project aims to revive traditional public library while pro viding a conducive learning and interactive social space. The project should exemplify practices of cost-effectiveness and energy-efficiency and the use of alternative construction technologies.
01 01
02

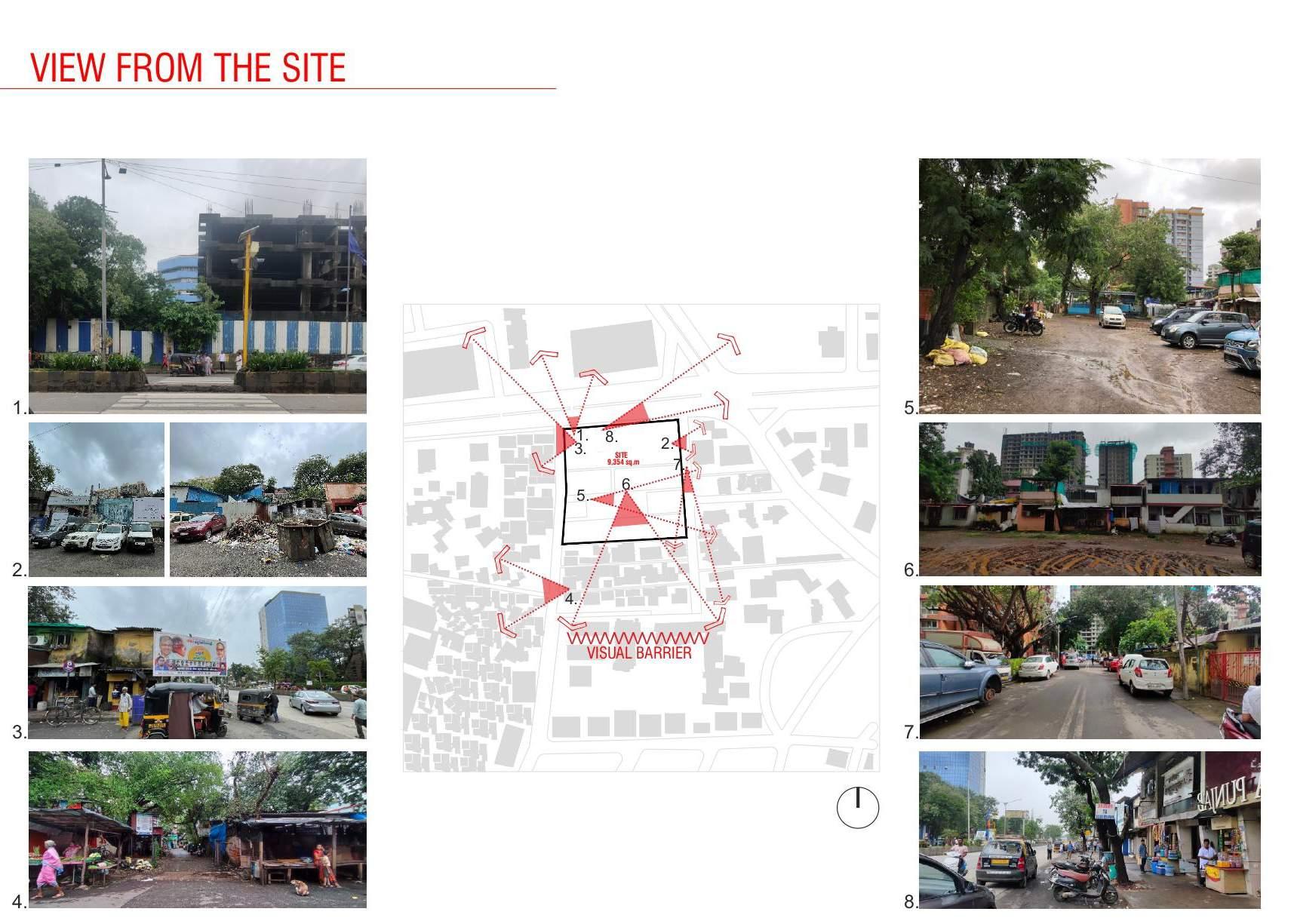

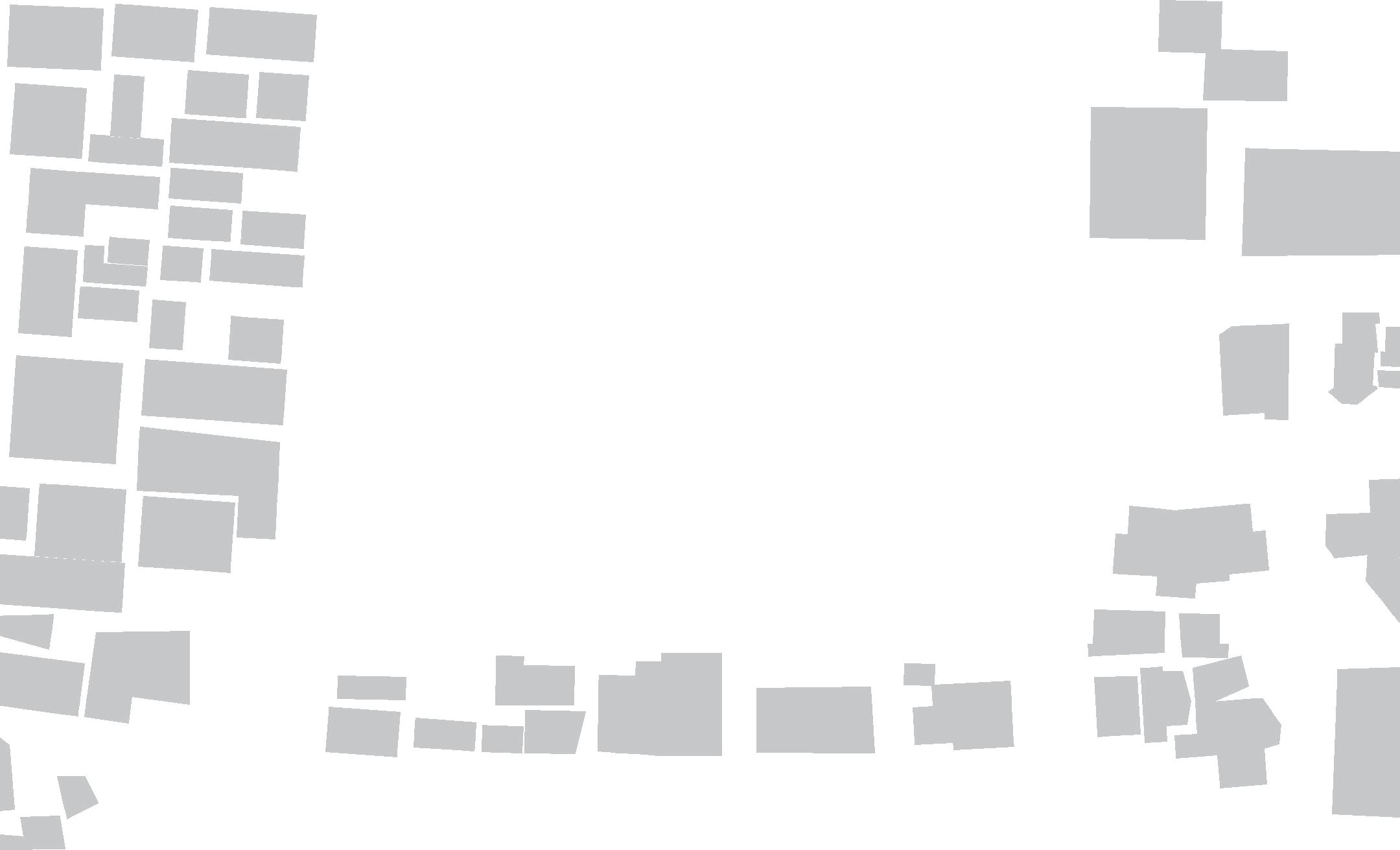

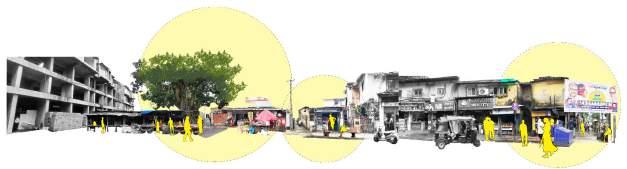

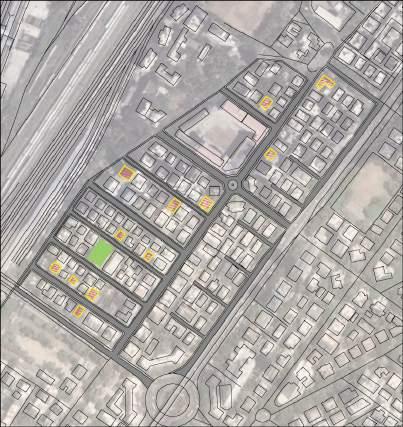

H GH NO SE MED UM NO SE LOW NO SE PR MARY ROAD SECONDARY ROAD TERT ARY ROAD PEDESTR AN WALKWAY TOUCH ZONE NON TOUCH ZONE COMFORT ZONE C RCULAT ON ZONE DENSE VEGETAT ON SPARSE VEGETAT ON 03

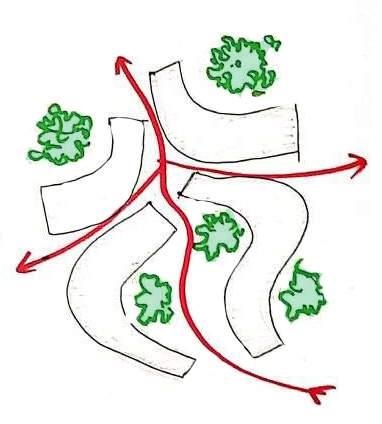

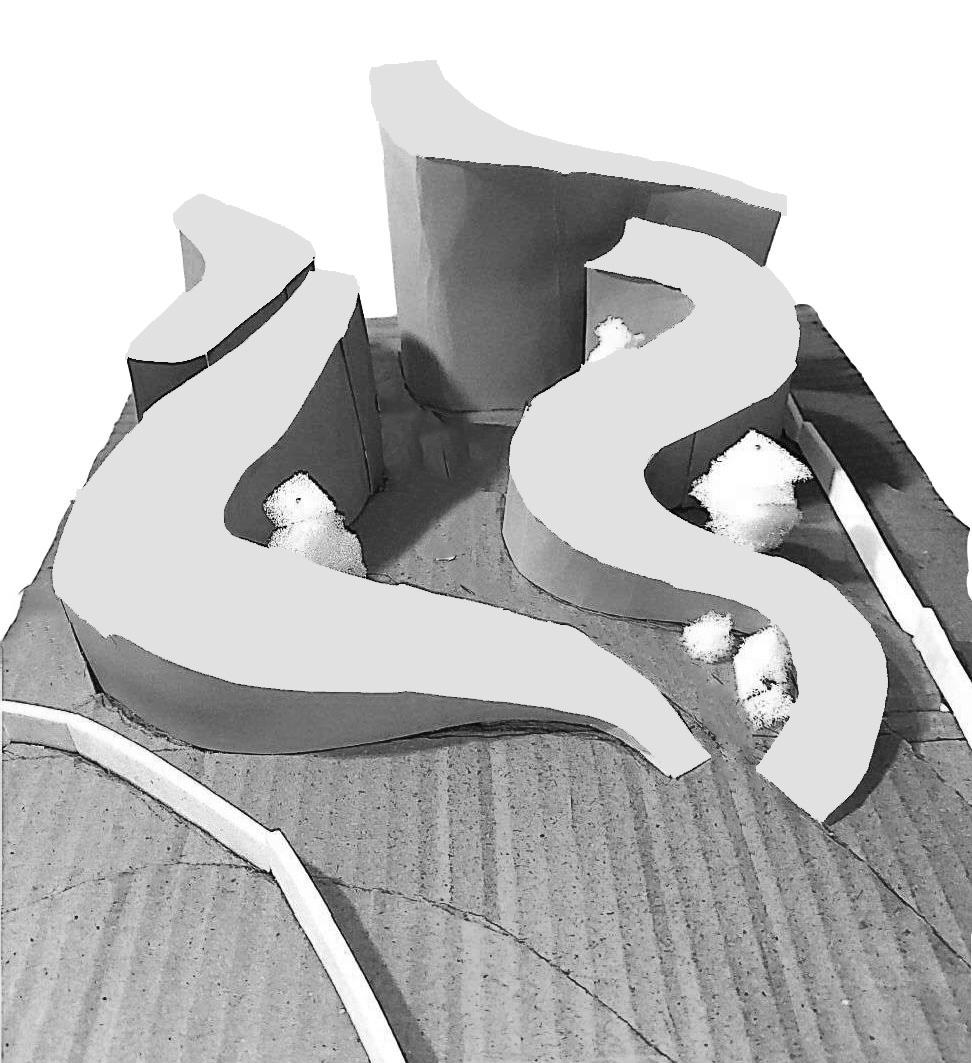

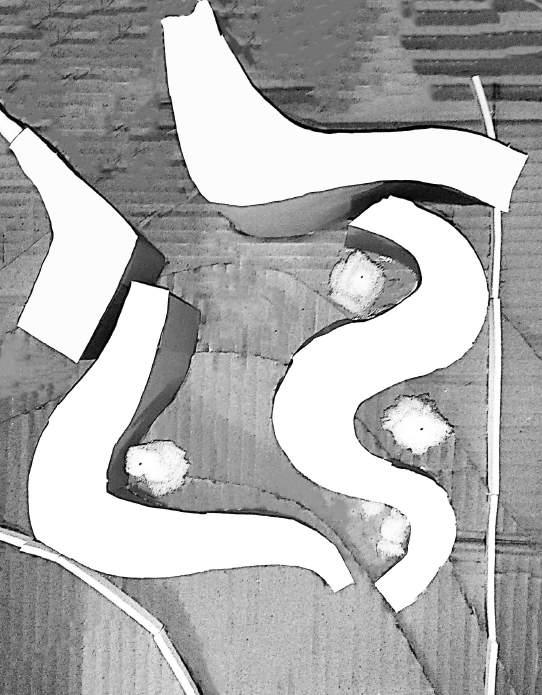

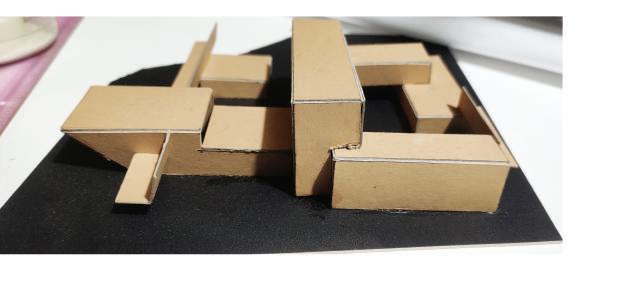

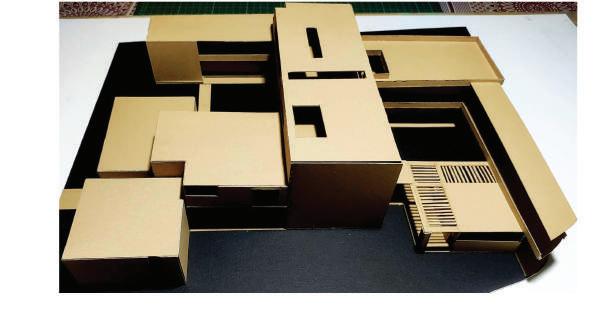

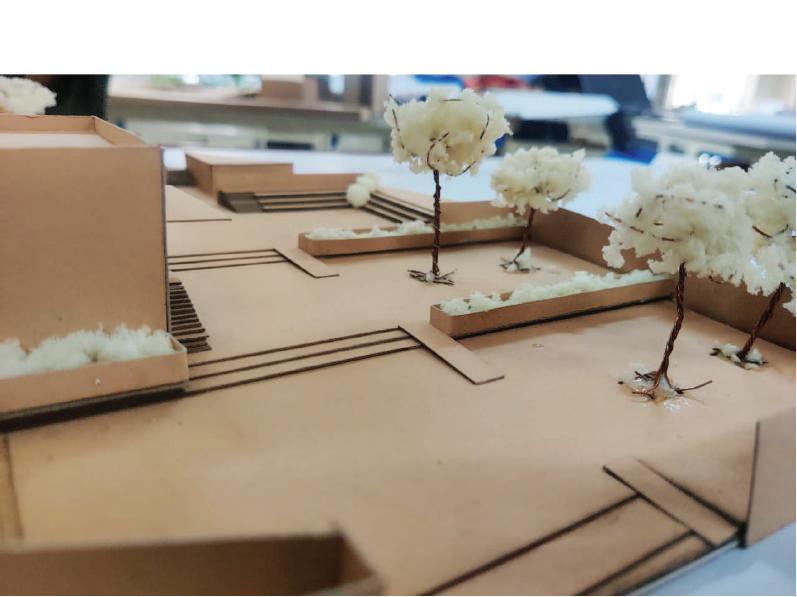

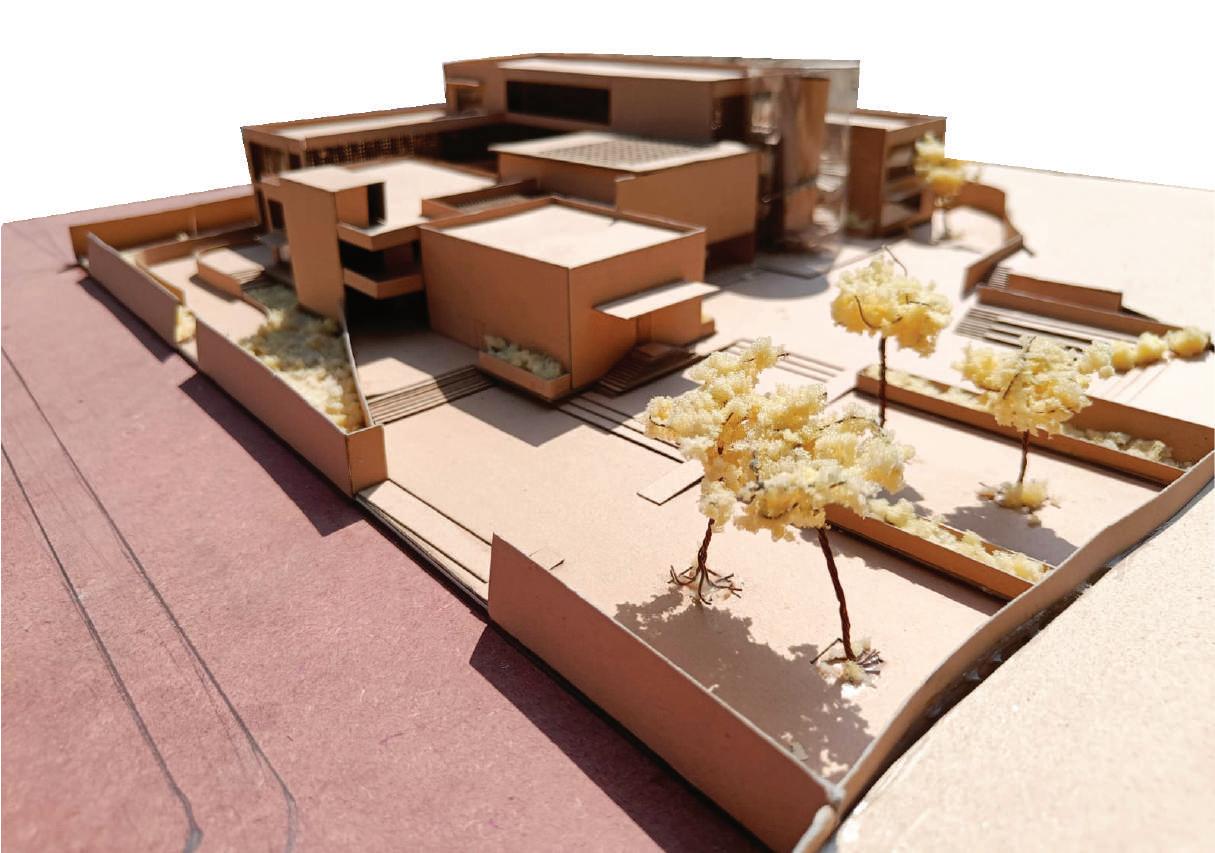

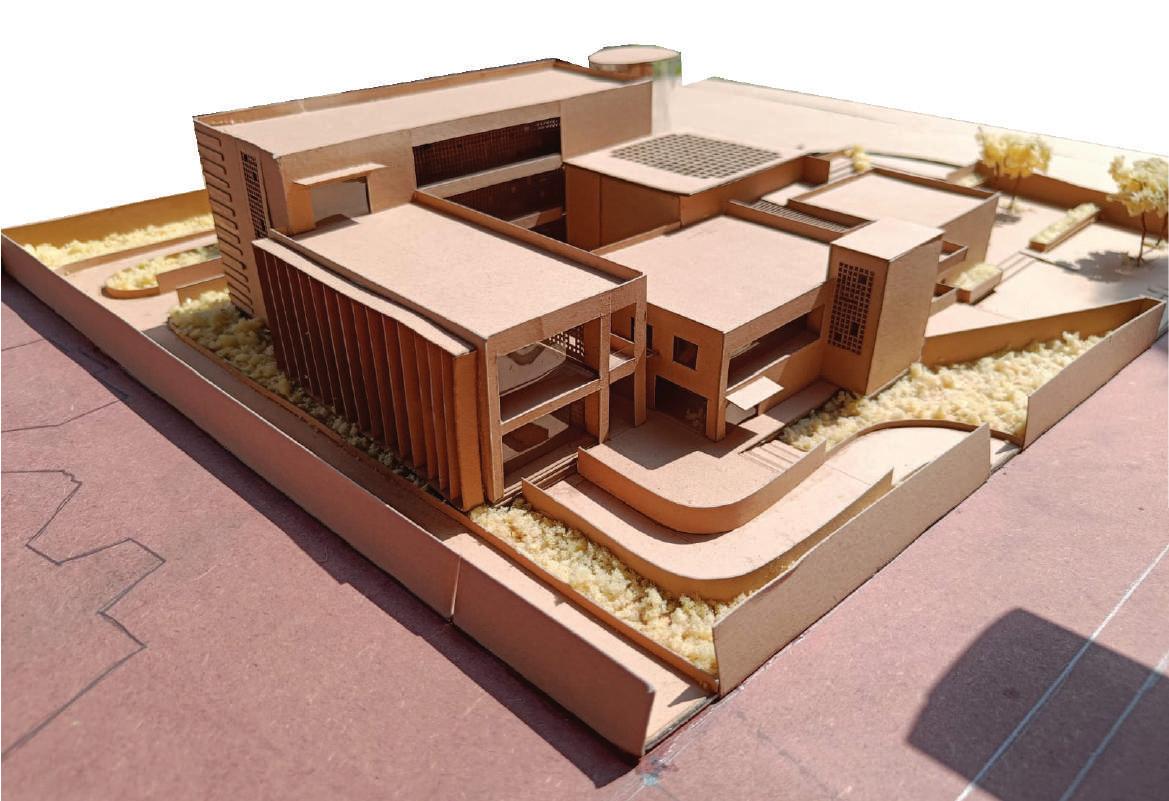

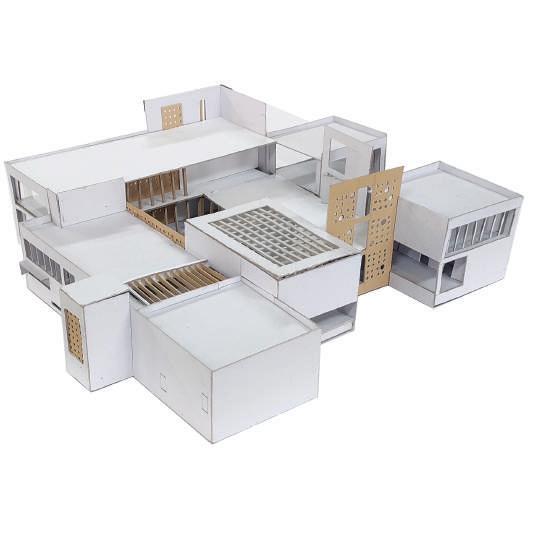

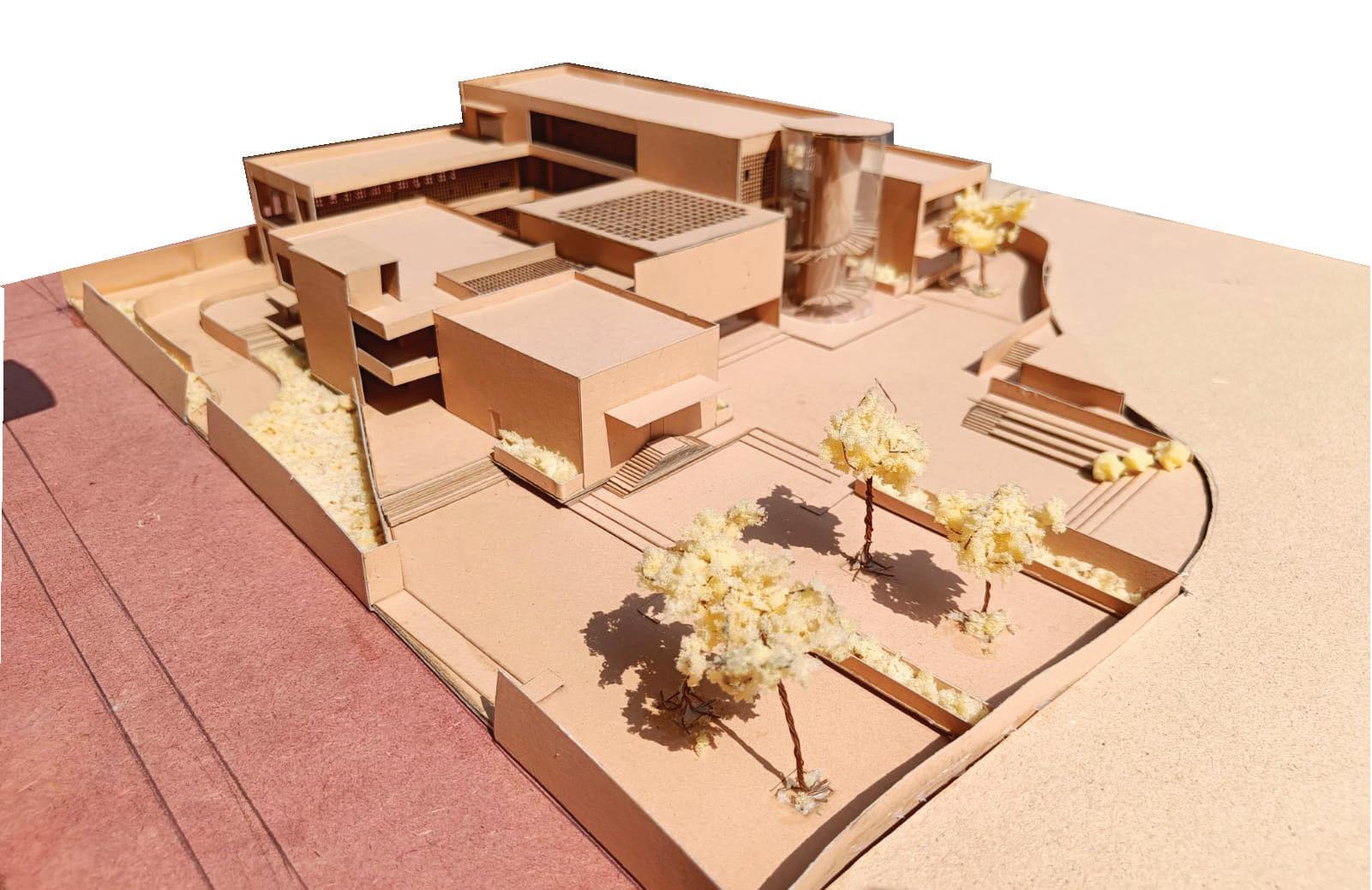

PLAZA PUBLIC SPACE SILENT ZONE FORM EVOLUTION DIAGRAM PROCESS MODEL INITIAL VOLUME PLACING PUBLIC ACTIVITIES CONNECTED TO PUBLIC PLAZA MASSING HELPS IN SELF SHADING 04
MASTER PLAN

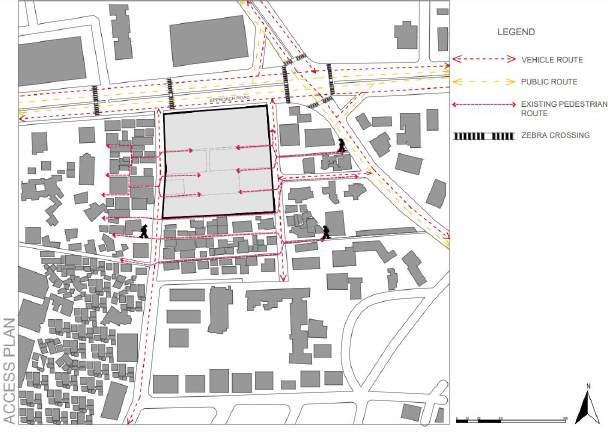

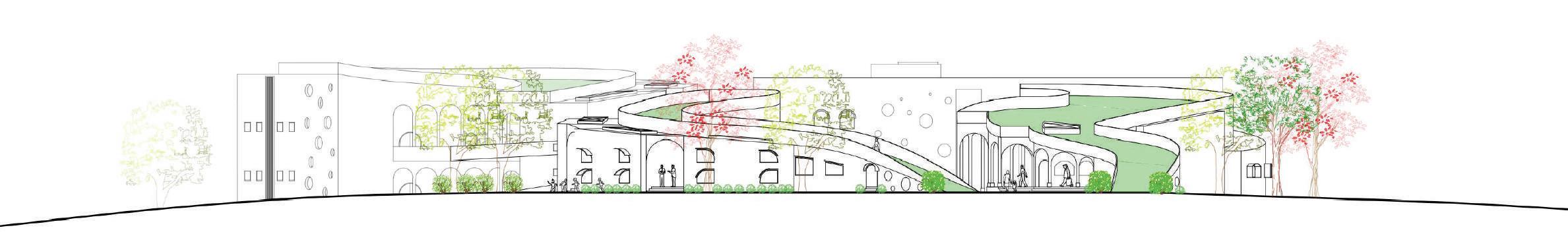

EXIT VEHICULAR ENTRY ENTRY VEHICULAR EXIT PEDESTRAIN ENTRY 1 PEDESTRAIN ENTRY 2 UTSAV CHOWK RD 10M WIDE UTSAV CHOWK RD 10M WIDE UTSAV CHOWK PRAVESHPRAVESHMARG12MWIDE MARG12MWIDE RAIL VIHAR CHS BAL BHARTI PUBLIC SCHOOL HOSPITAL AUTO WORK SHOP BELPADA ROAD ACCESS ROAD METRO RAILWAY A A' B B' SOUTH EAST ELEVATION

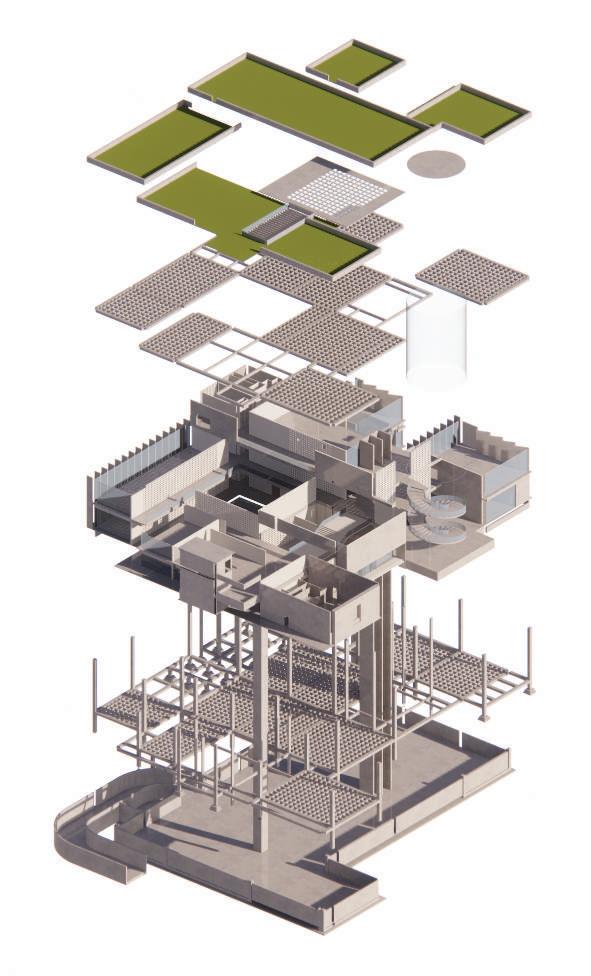

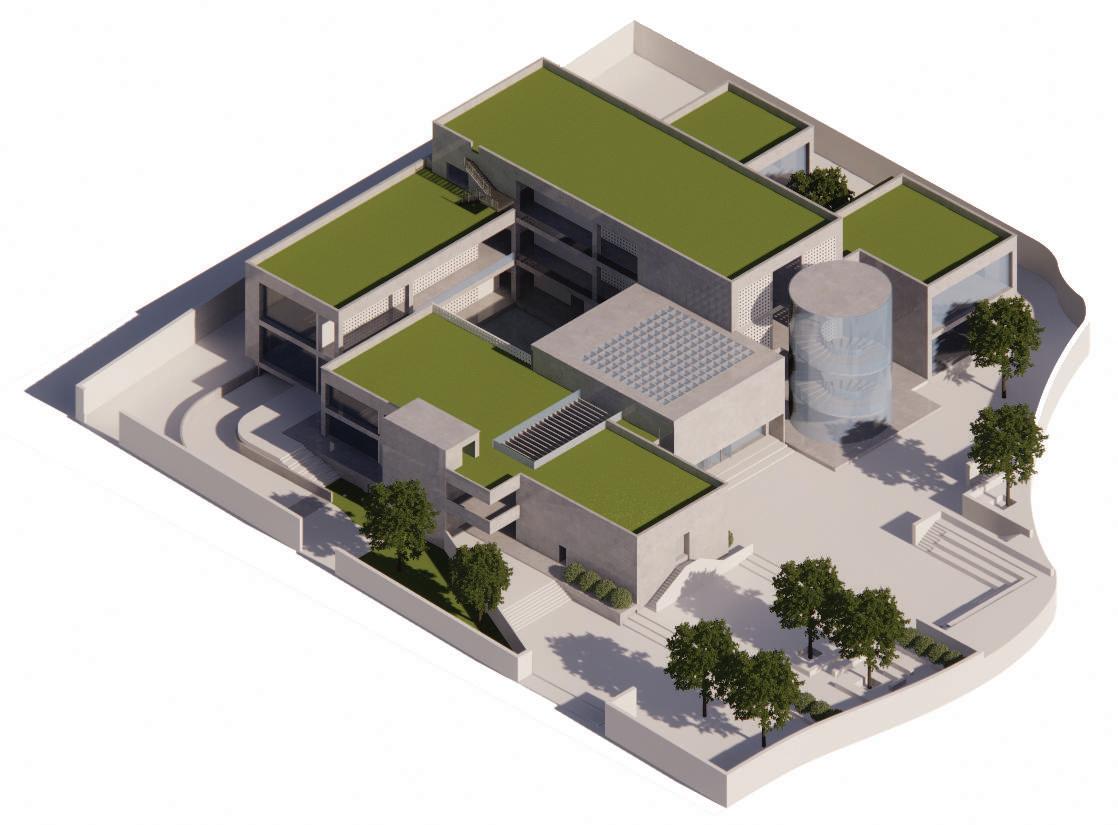

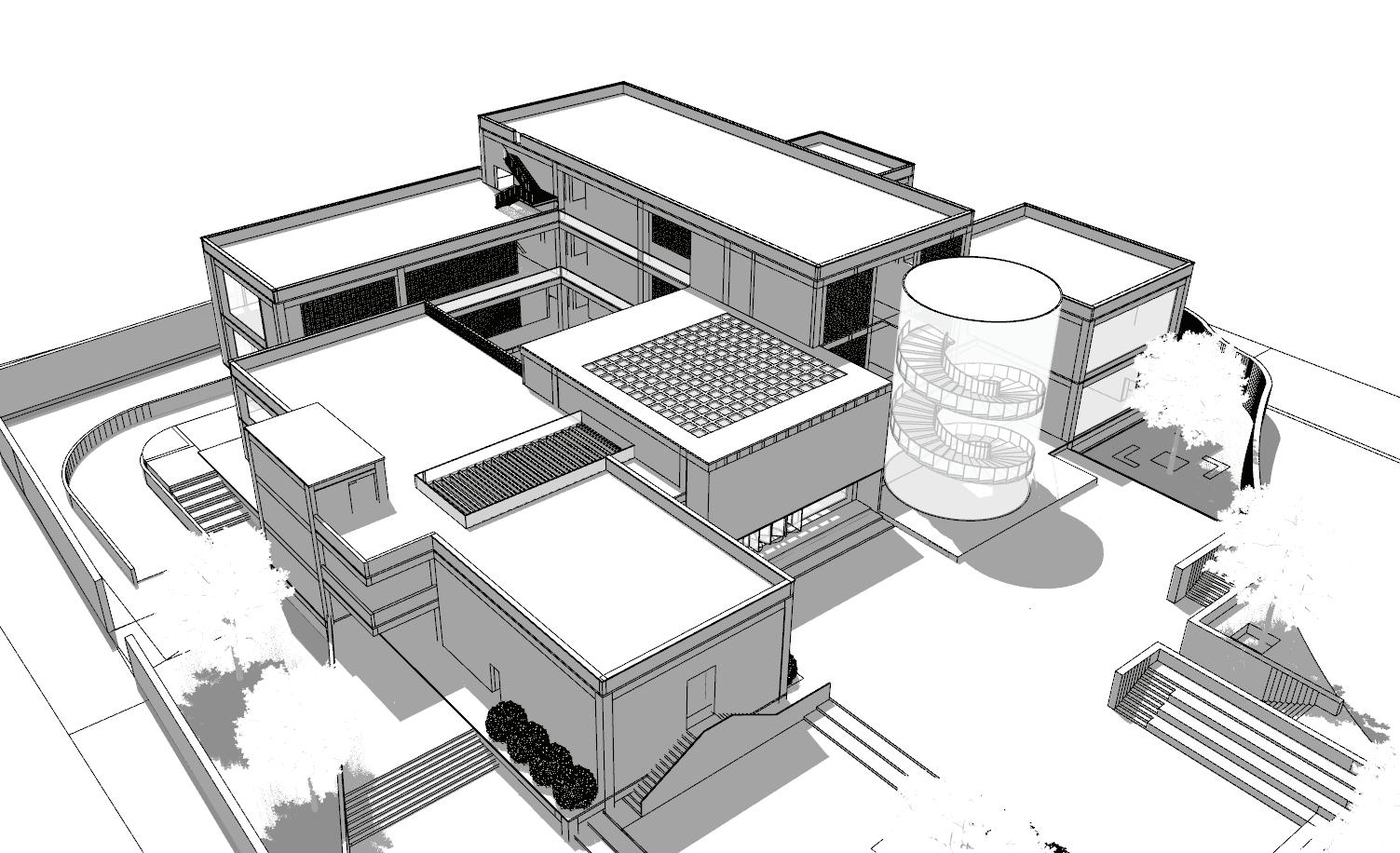

AXONOMETRID VIEW 05
ENTRY UP 10 11 12 13 14 15 16 17 18 17 16 15 14 13 12 11 10 18 19 20 21 22 23 VEHICULAR ENTRY 5M WIDE 1.5M WIDE 1.5M WIDE 5M WIDE VEHICULAR EXIT 1920212223 24 25 26 27 28 29 30 31 32 33 34 35 36 DOWN 1:10+0.0M -2.0M 38 37 43 42 41 40 39 45 44 46 48 47 50 49 53 52 51 54 55 5M WIDE -2.0M 5M WIDE -2.0M 5M WIDE -2.0M UP 1:10 EXIT +0.0M CAR PARKING BIKE PARKING 55 spaces 23 spaces SECURITY CANTEEN BAGGAGE SECTION WAITING AREA UP IMPAIRED SECTIONS CHILDREN SECTION AUDITORIUM EXIT VEHICULAR ENTRY PEDESTRAIN ENTRY 1 PEDESTRAIN ENTRY 2 ADMIN OFFICE ROOM KITCHEN ENTRY REFERENCE SECTION PERIODICAL SECTION +0.0M +0.17M +0.34M +0.34M+1.53M +0.34M +0.85M +0.85M +1.36M +3.4M+2.7M +1.36M +1.7M +1.36M +3.0M +3.0M +1.36M +0.68M +1.36M +0.0M +1.7M+1.7M+0.0M +1.7M +1.7M +1.7M +1.7M +1.7M +1.7M +0.0M +1.7M+0.0M +1.7M +1.4M +1.7M +1.7M +1.7M +1.7M EXHIBITION PLAZA ACTIVITY PLAZA LIVE PERFORMANCE PLAZA RECREATIONAL SPACE AMPHITHEATRE +1.7M UP DN UP VEHICULAR EXIT ENTRANCE FOYER MAIN ENTRY UTSAV CHOWK RD 10M WIDE UTSAV CHOWK RD 10M WIDE UTSAV ACCESS ROAD UP UP UPUP SERVICE ROAD A A' B B' SECTION AA' BASEMENT PLAN GROUND FLOOR PLAN 06
+0.17M +0.34M +0.34M+1.53M +0.34M +1.36M +1.36M +3.0M +1.36M +3.0M +3.0M +1.36M +0.68M +1.36M +0.0M +1.7M +0.0M AMPHITHEATRE RESEARCH STATIONS LIBRARY COPY ROOM UP TEXT BOOK SECTION +6.7M LIBRARY +6.7M LIBRARY +6.7M UP +6.7M +6.7M +6.7M +6.7M +6.7M +6.7M +6.7M +5.95M +5.2M +5.2M +5.2M +5.2M +5.2M +5.2M UP UP PEDESTRAIN ENTRY 2 +0.0M +0.17M +0.34M +0.34M+1.53M +0.34M +1.36M +1.36M +3.0M +1.36M +3.0M +3.0M +1.36M +1.36M +0.0M +1.4M +0.0M +1.7M +0.0M +0.0M PLAZA AMPHITHEATRE UP ACADEMIC BOOKS +11.7M +11.7M +11.7M +11.7M +11.7M +5.2M +11.7M WAFFLE SLAB UP UP GREEN ROOF +11.7M GREEN ROOF +11.7M +11.7M GREEN ROOF +5.2M +5.2M GREEN ROOF GREEN ROOF FIRST FLOOR PLAN ROOF PLAN NORTH EAST ELEVATION 07

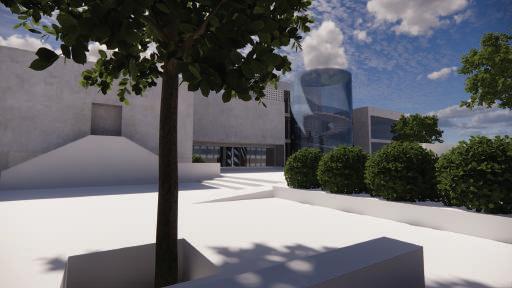

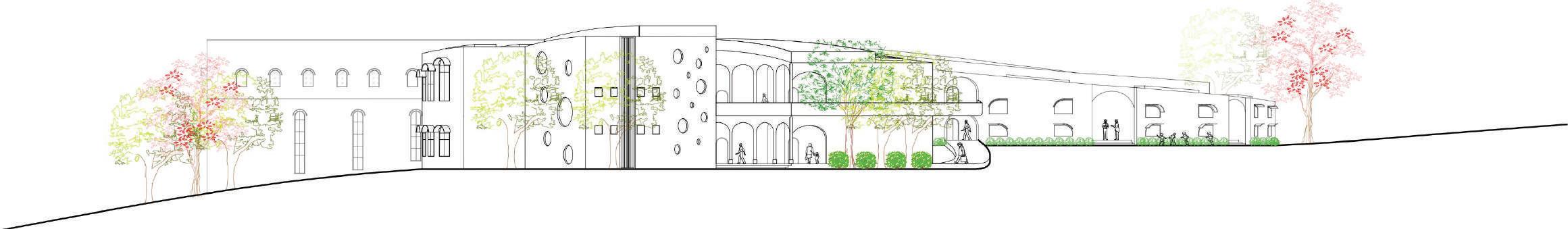

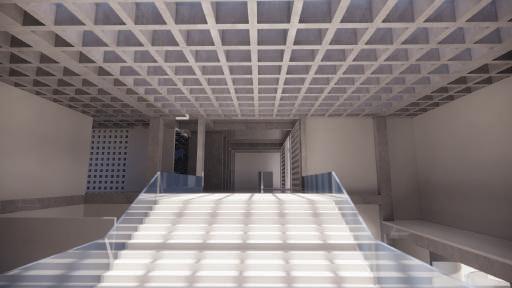

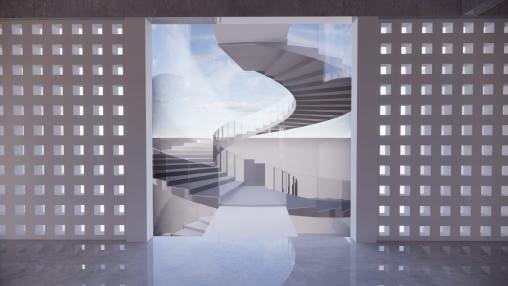

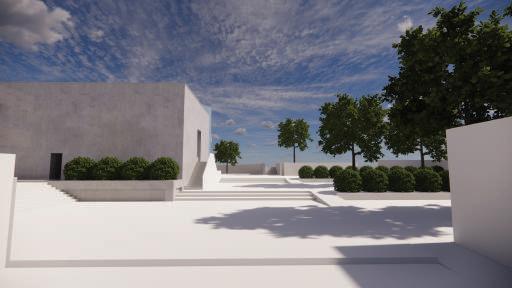

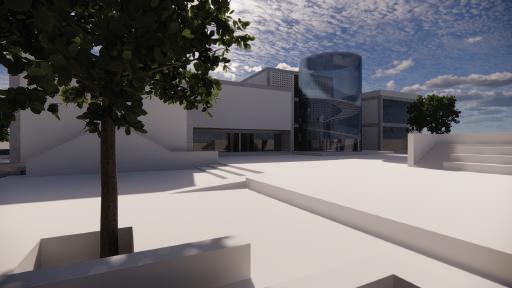

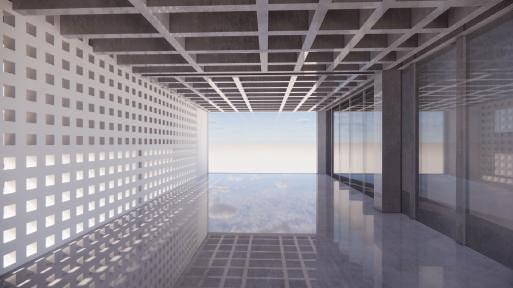

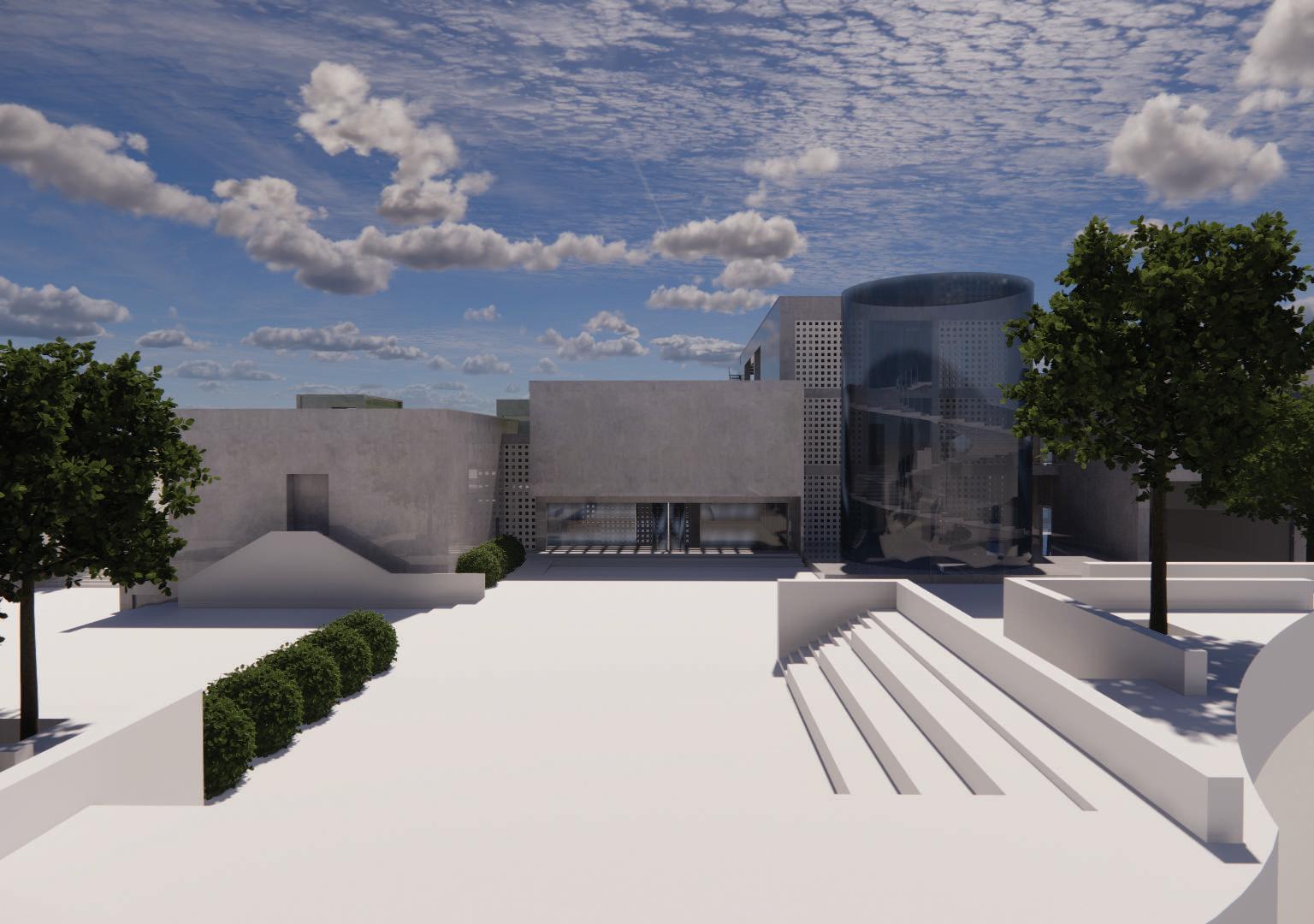

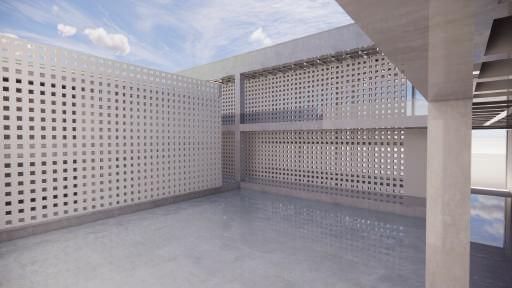

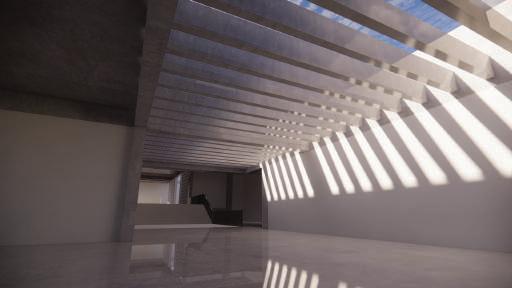

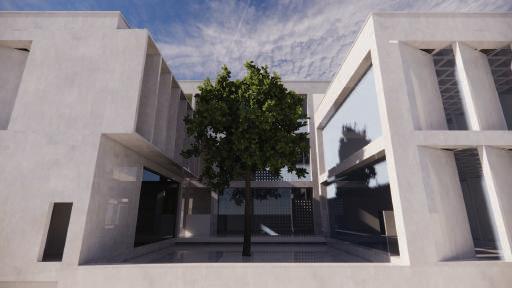

SOUTH VIEW PLAZA VIEW/SITE ENTRYPERSPECTIVE VIEW

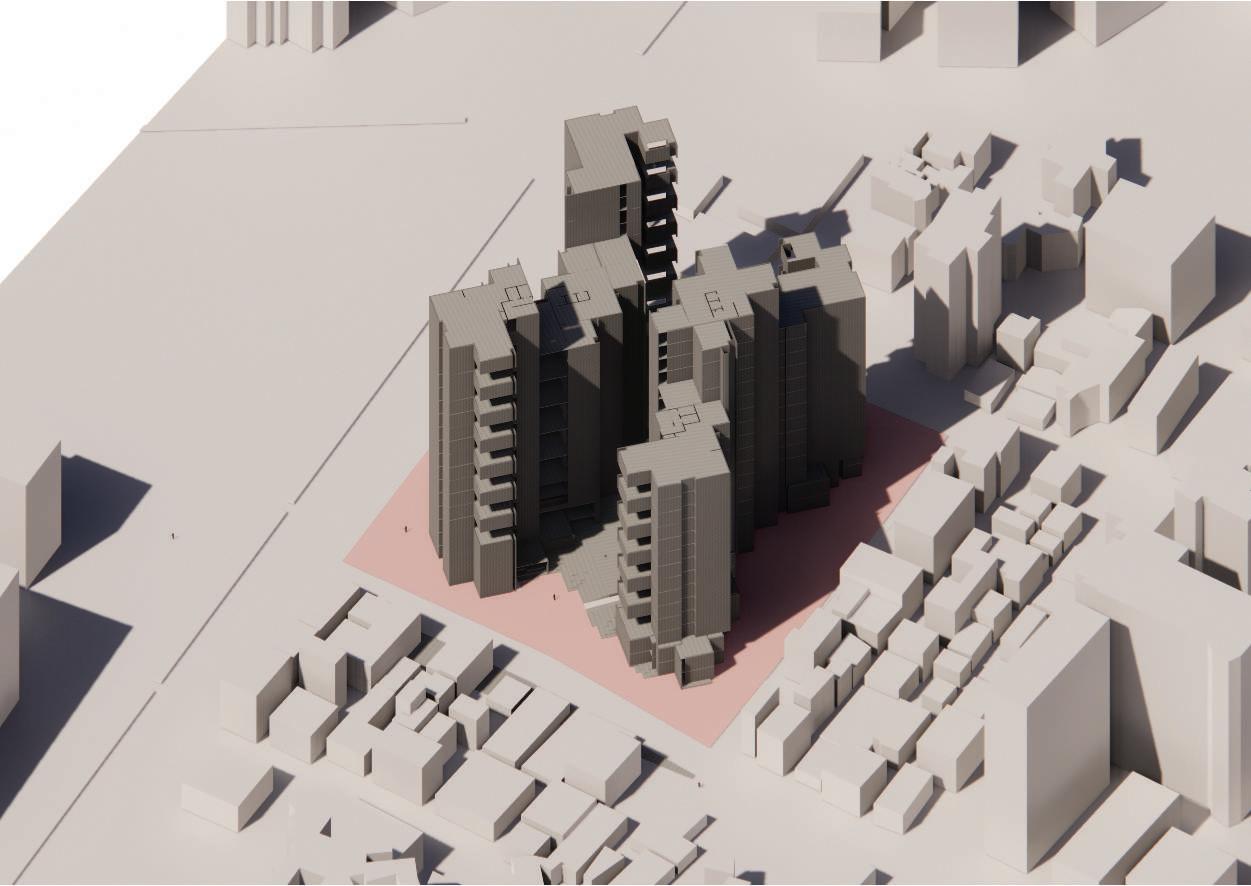

Uplift Co-Living, 2022
Year Semester VII (present)
Location Mumbai Site Area 9300 sq.m.
Mentor Abhishek Kadam Type Group (3)
Typology Rental Housing
PEOPLE, PLACE & CO-LIVING.
Housing requirements for communities that are impermanent. A sense of co-living based on students and professionals, individuals, and families, and cater to their LIVE + WORK + PLAY NETWORK.
Innovation and creativity in the modularity of spaces.
02
11

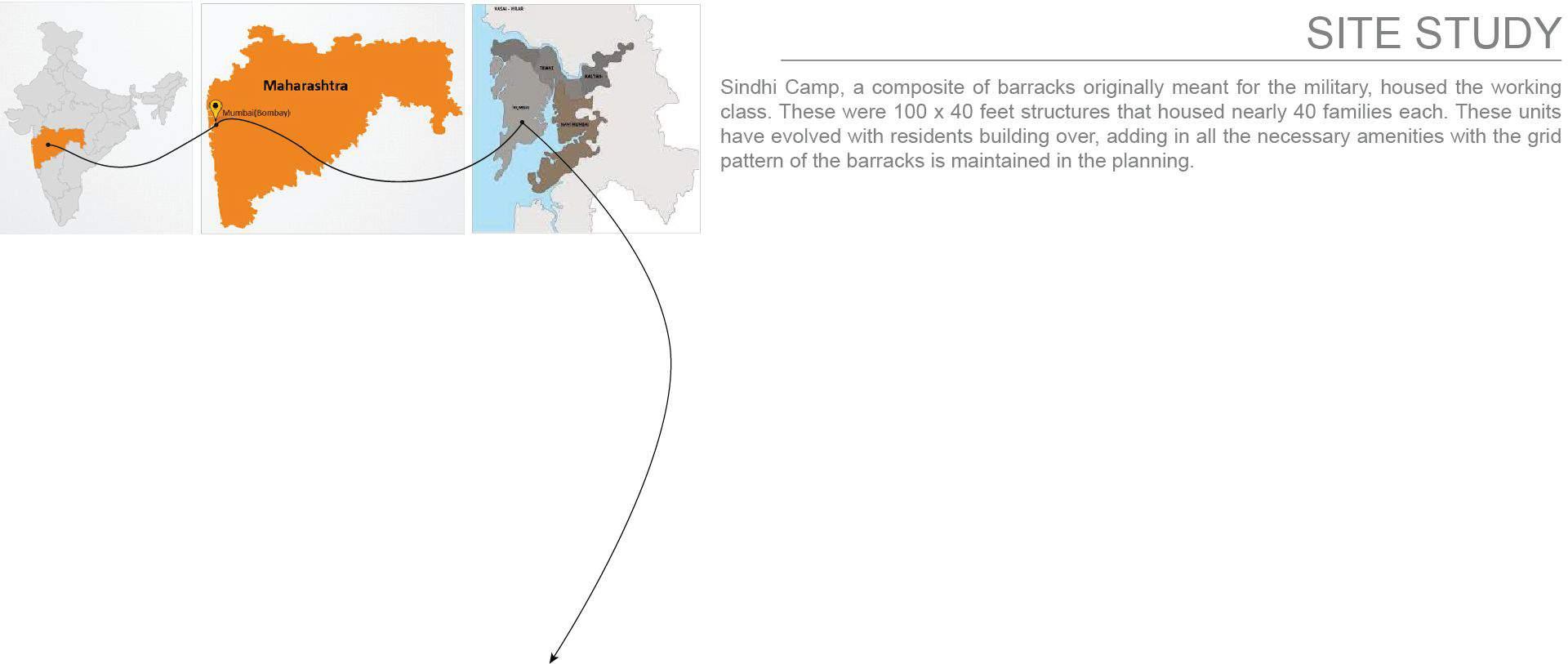

Uplift is a mixed-use building that includes housing as well as retail space and underground parking. The contemporary architectural design breaks down the bulk, typical of most housing projects by alternating between residential and open spaces in the structure. Rather than building one massive, imposing facade, two distinct volumes emerge along, both of them catering to different types of users.
The project will provide affordable housing offered at below market rates to students and professionals in addition to ac ademic, commercial, and public functions. Located within minutes of a college campus, the project offers a new ap proach to growth: blurring the boundary and embedding academic life. The units are a mix of studio, one-bedroom, two-bedroom and live-work foorplans

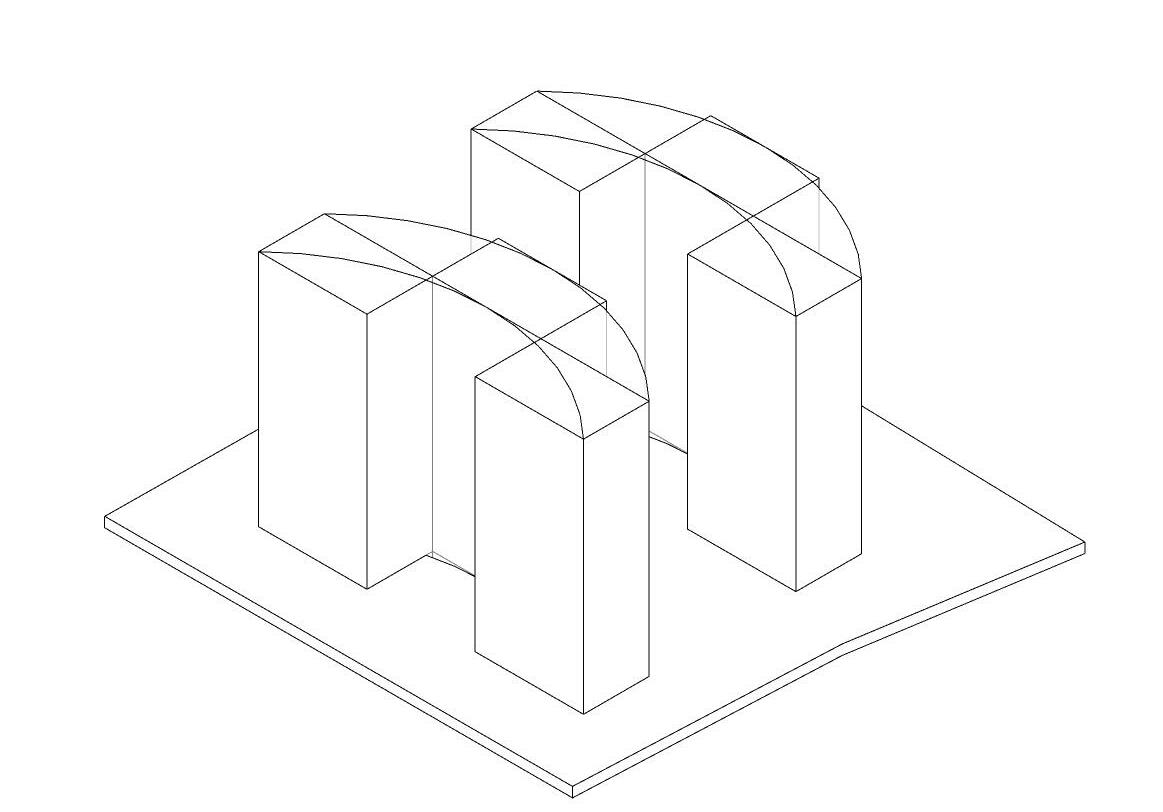

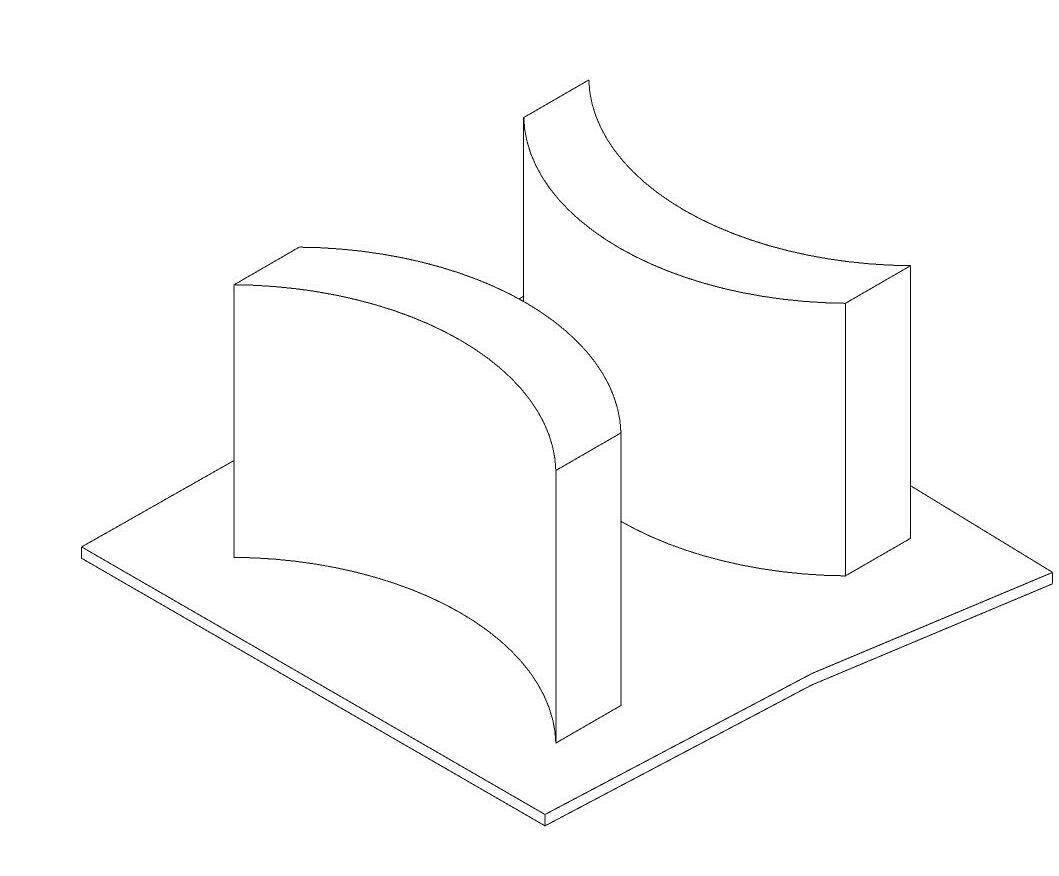

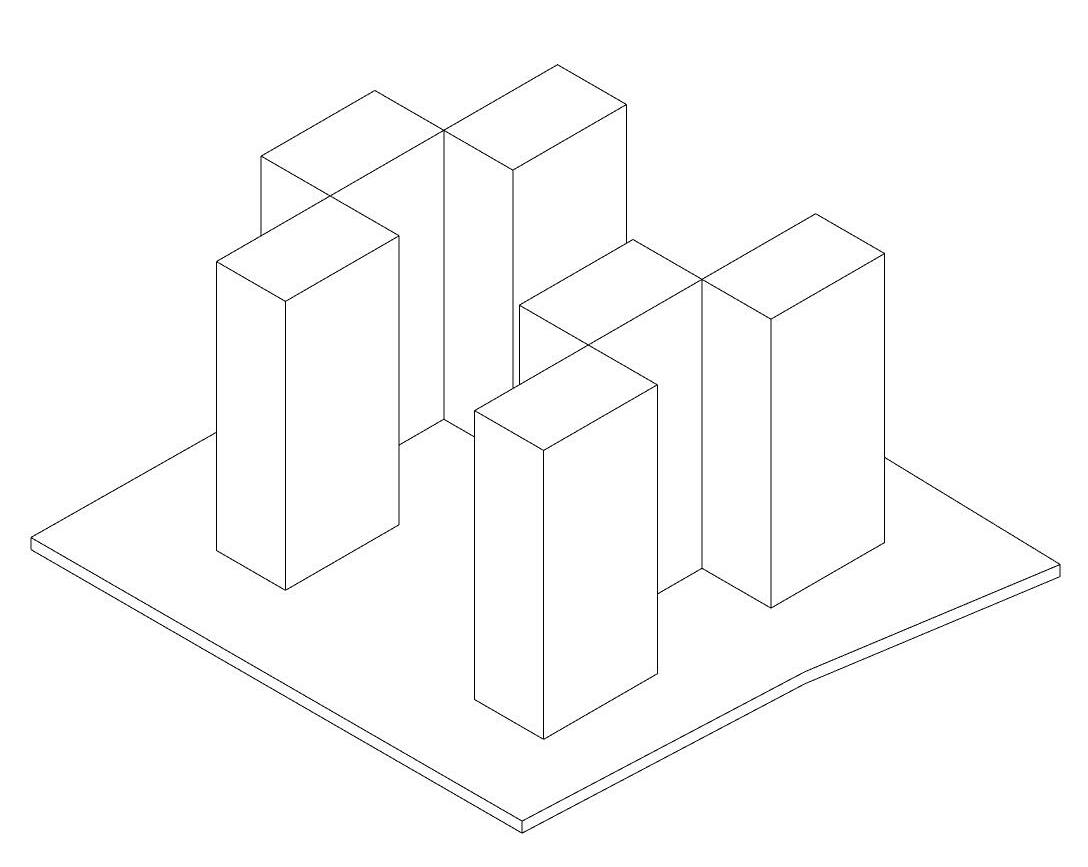

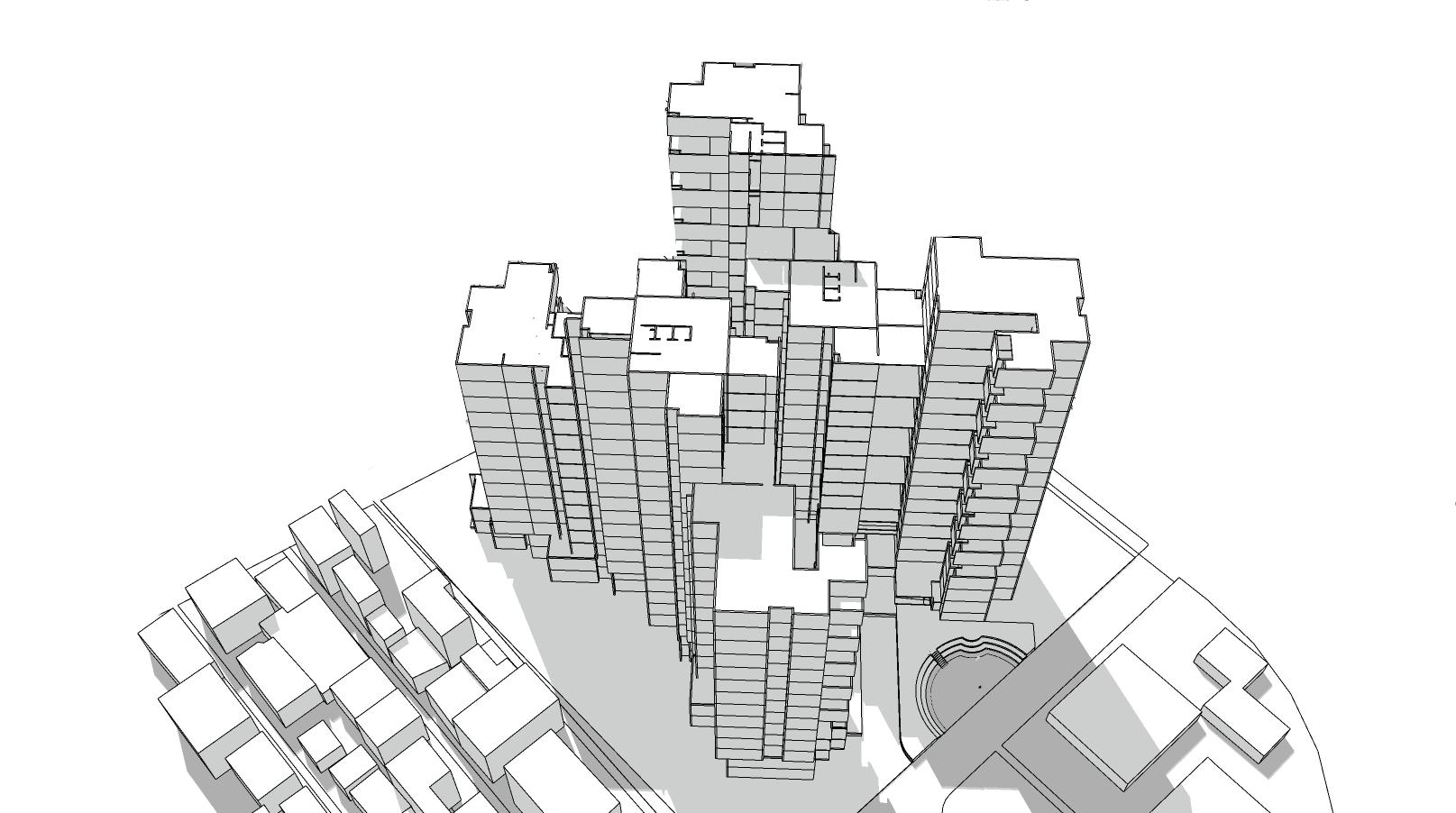

INITIAL VOLUME
ALIGNING BLOCKS AS PER NORTH SOUTH ORIENTATION
STRUCTURE ALIGNED TOWARDS THE MARKET TO MAKE THE SITE MORE INVITING
DIAGONAL GRID LAYOUT OF 7Mx7M TO MA XIMISE DAYLIGHT, WIND AND VIEWS OF THE CITY

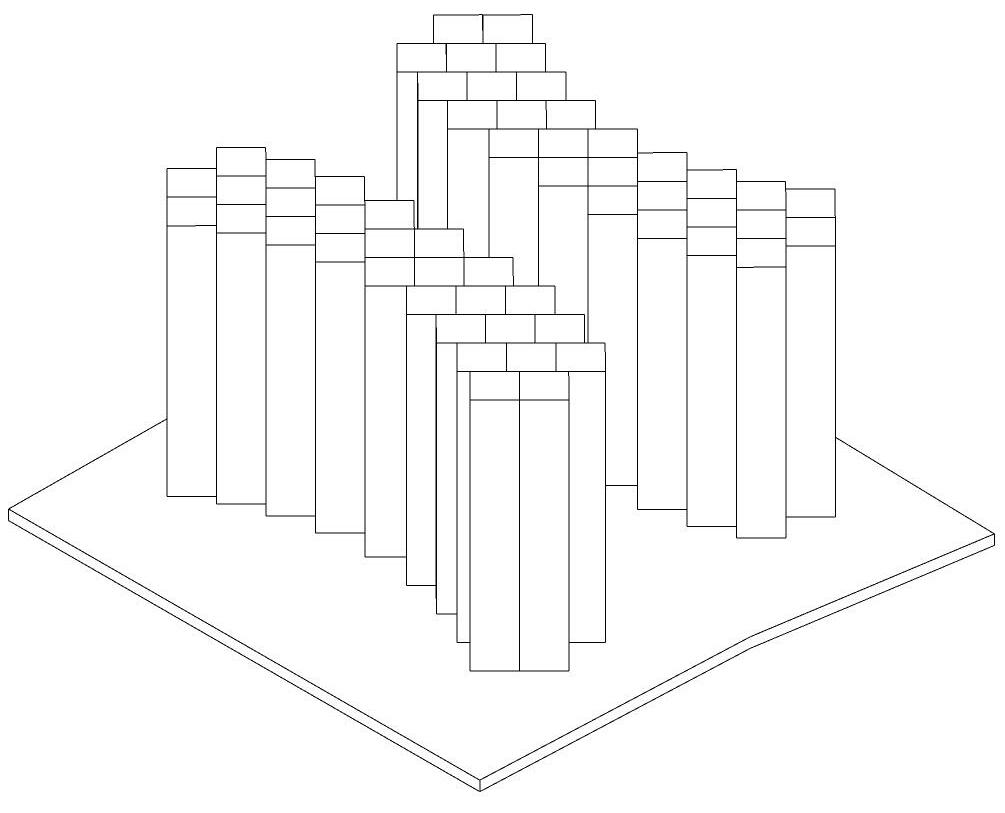

VOLUME
THE VOLUME IS PUSHED DOWN GIVING BUILDING THREE PEAKS
THE VOLUME IS PUSHED DOWN WHILE MAINTAINING NEIGHBOURING VIEWS OF EACH BUILDING

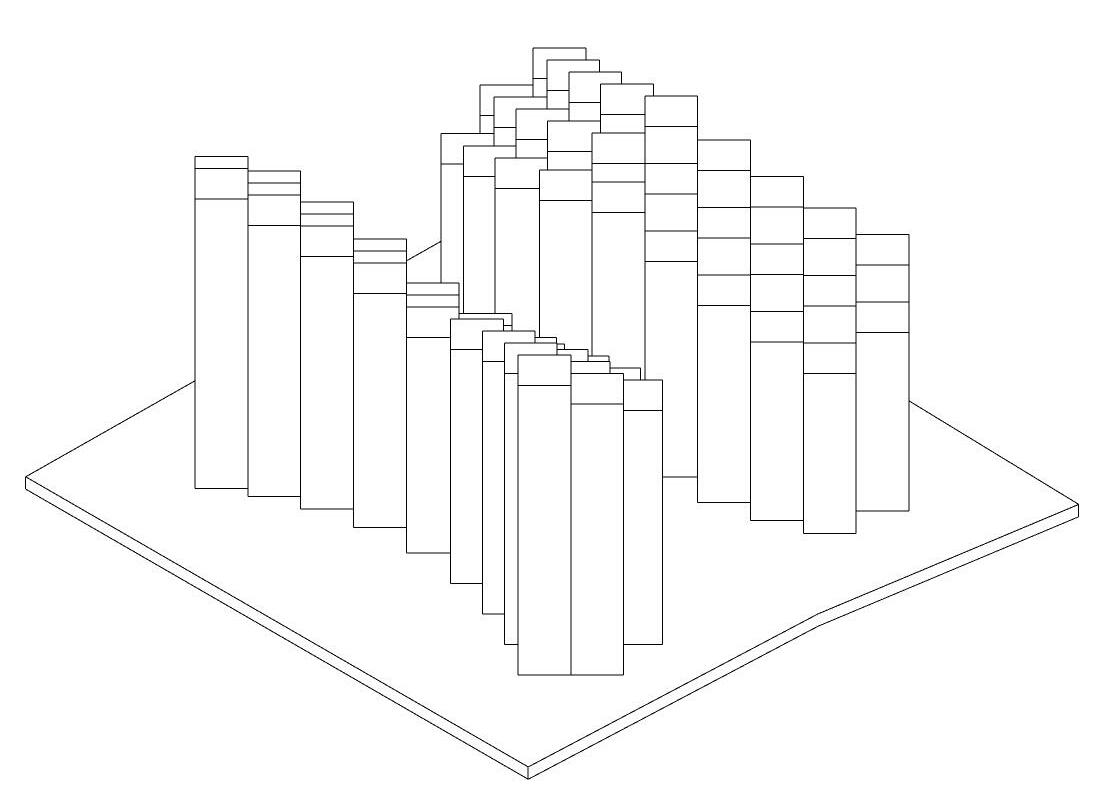

FORM EVOLUTION DIAGRAMLOCATION PLAN 10 15 25 13

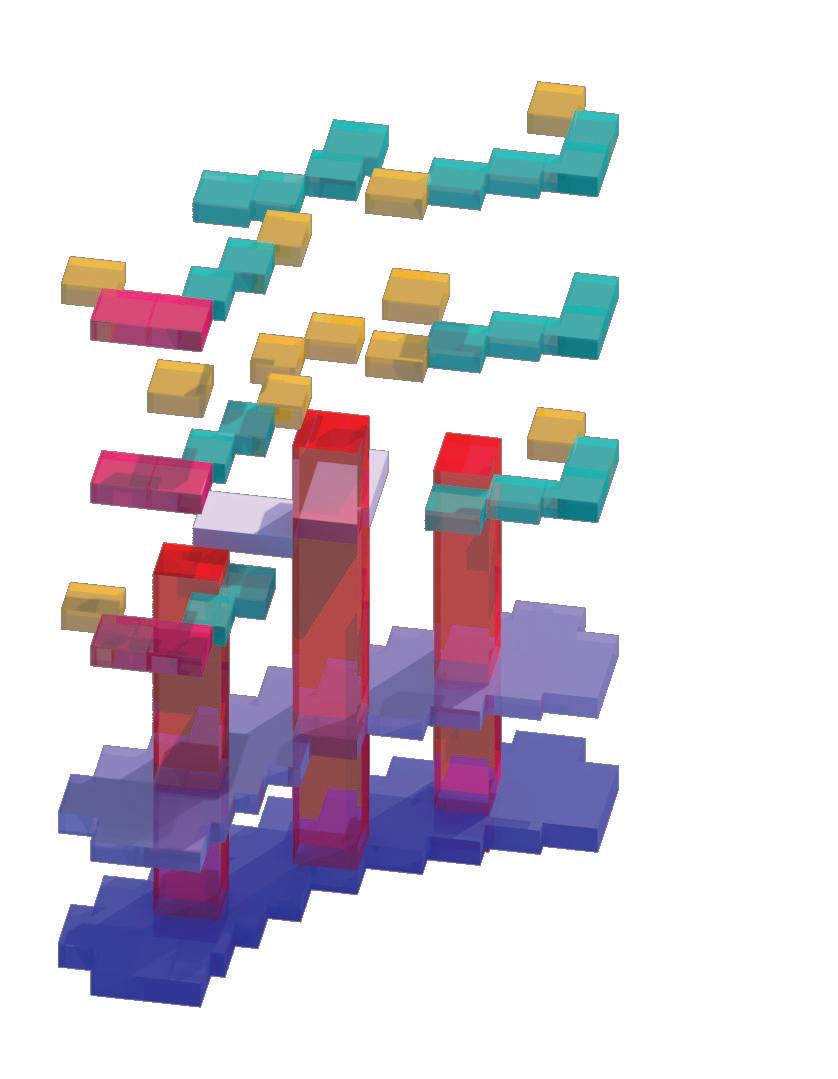

FUNCTIONAL AXONOMETRICSITE PLAN RO ES O AL N RY PROF S ONA EN R OMMUN Y WO KSPA E EN R M 1 2M + M 0 0M 1 2M FAM LY EN R ± M U CRECHE EN R D 0 0M OUTDOOR PLAY AREA PLAYGROUND OMMUN T N NG EN R 2M S UD N S ENTRY + M 5M MA N ENTRY D F 1 2M ± M 0 0M ± M 0 0M ± M 0 0M 0 0M ± M 1 M AMPH THEATRE + M 5M PLAZA+ PARK PAR N MARKET SPACE MARKET SPACE 50 10 15 USER UNIT R ATIO Profess onals Stud ents Fam ily 50% 30% 20% SECOND FLOOR THIRD FLOOR +9 60M FOURTH FLOOR +12,60M +6 60M FIRST FLOOR +3 60M GROUND FLOOR +0,00M COMMUNITY D NNING CLUB HOUSE SERVICE CORE 2BHK 3BHK 1BHK LAUNDRY 14

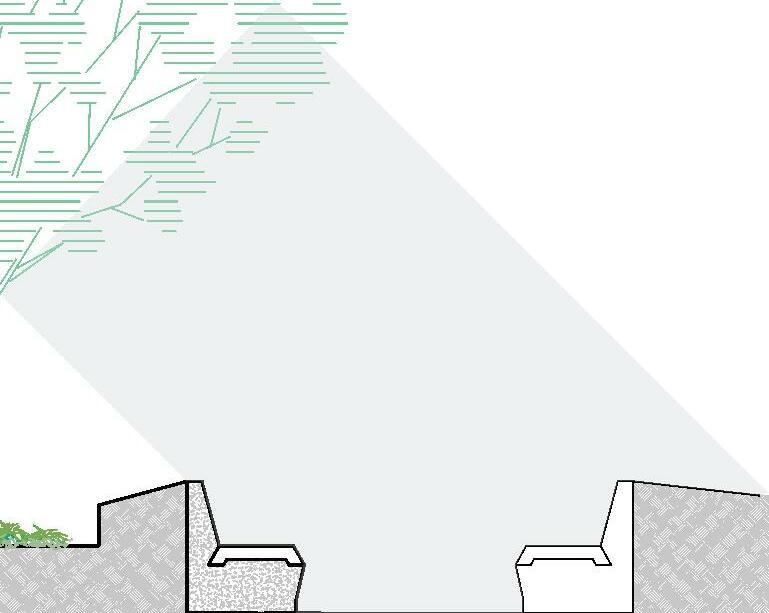

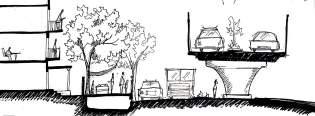

SOUTH VIEW EAST VIEW NORTH VIEW WEST VIEW URBAN EDGE DETAILS 2 15
16
17
18

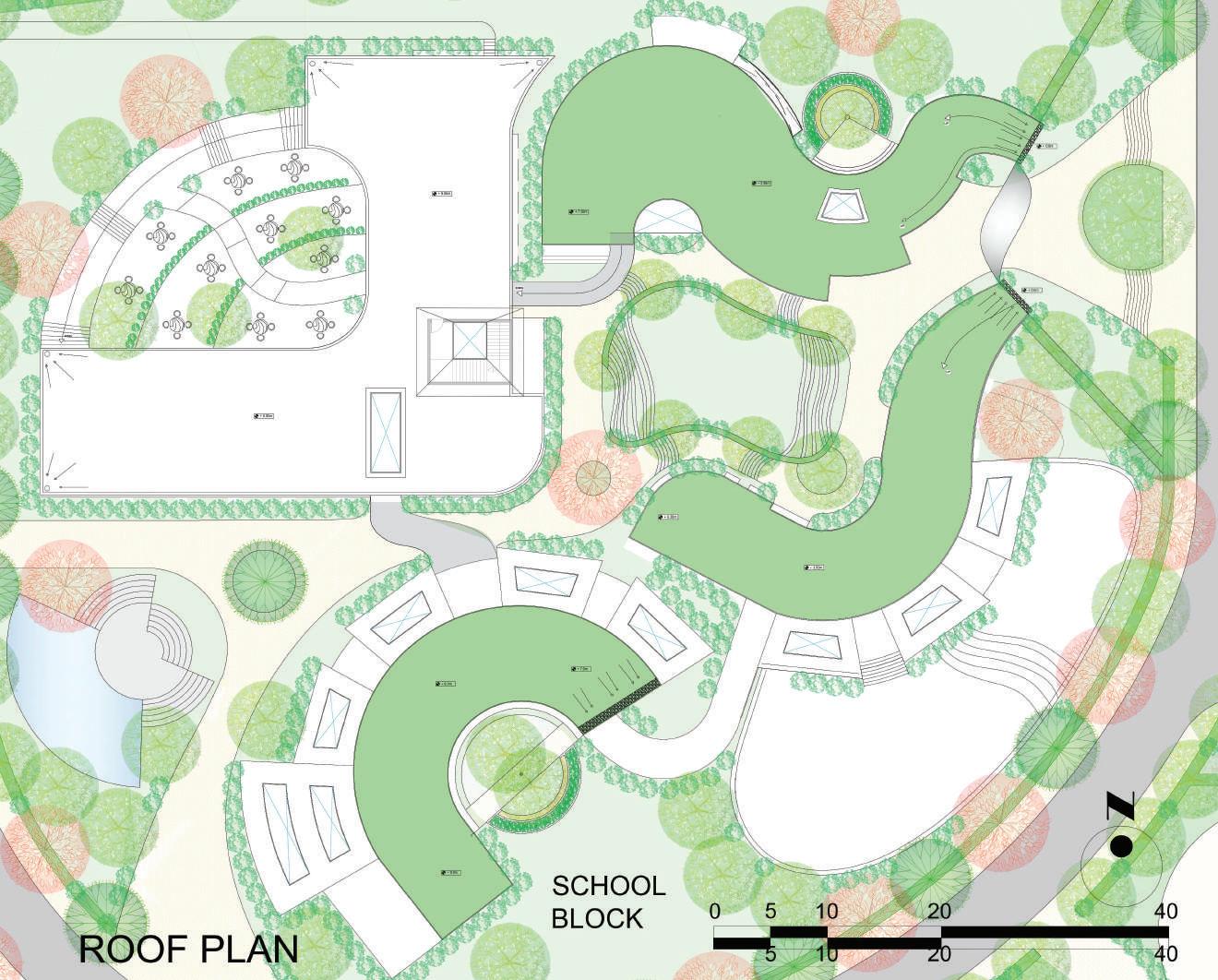

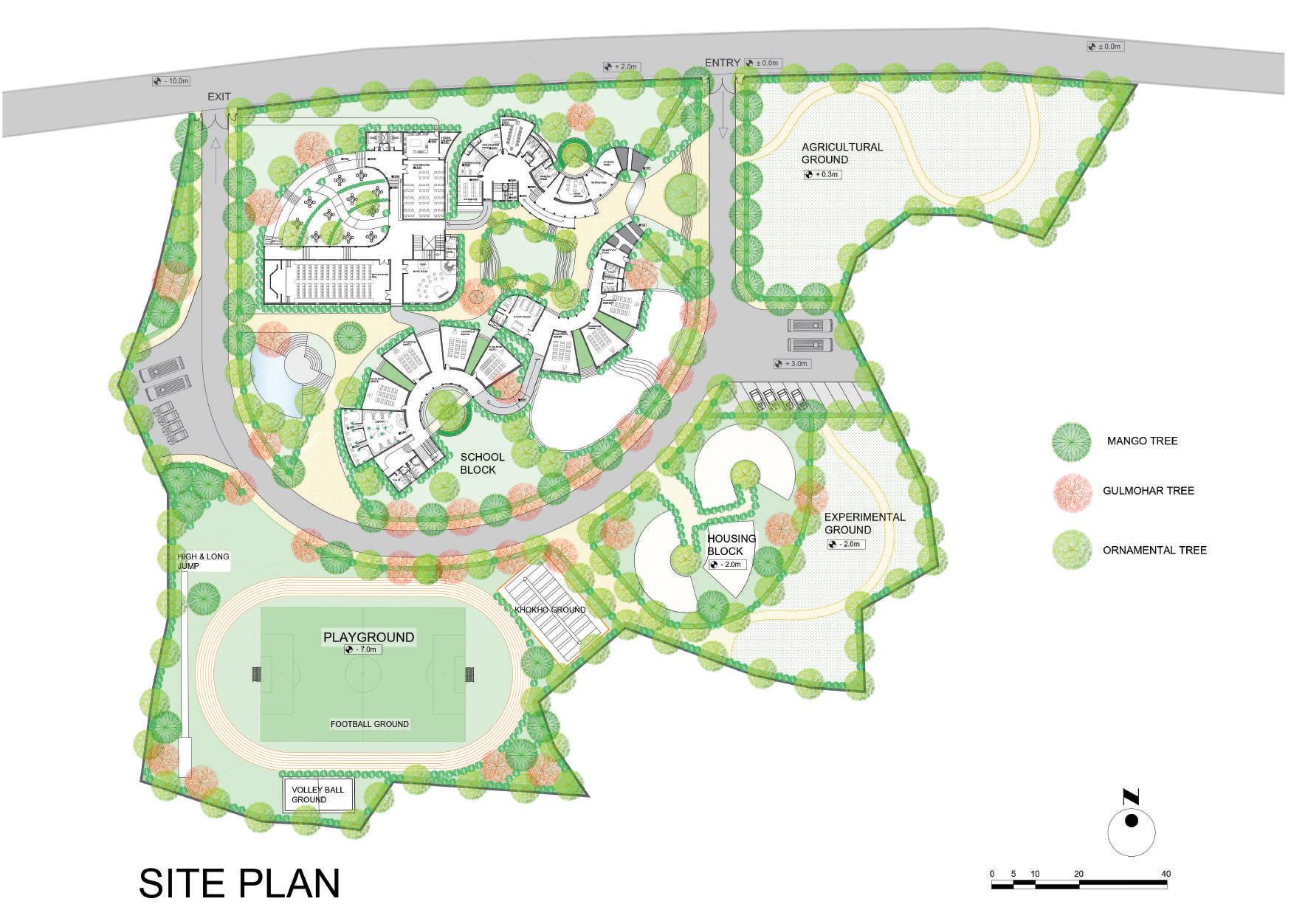

Shikshan, 2021
Year Semester V Location Karjat Site Area 26000 sq.m. Typology Institutional Building Mentor Anushka Sanas Type Individual
The project aims to revive traditional knowledge systems while providing a conducive learning environment. cost-effectiveness and energy-efficiency and the use of alternative construction technologies. The centre will follow an alternative system of education based on Gandhian philosophy – “ Sarvodya” - that aims in the spherical development of the individual, society and nation.
19
03
Kondhane is a small village/ hamlet in karjat taluka in raigad district of maharashtra state, India. It comes under Kondhane panchayat and belongs to konkan region. It is located 67Km towards east from district head quarters- Alibaug. The local tribe was katkari tribe who were historically forest dwellers. Local language is Marathi.

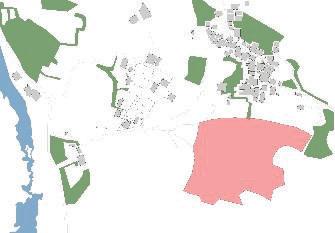

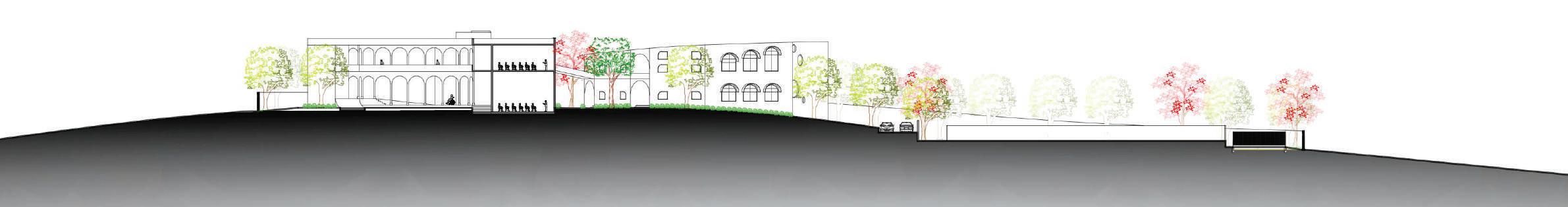

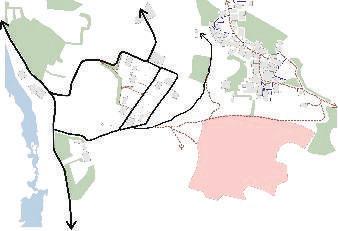

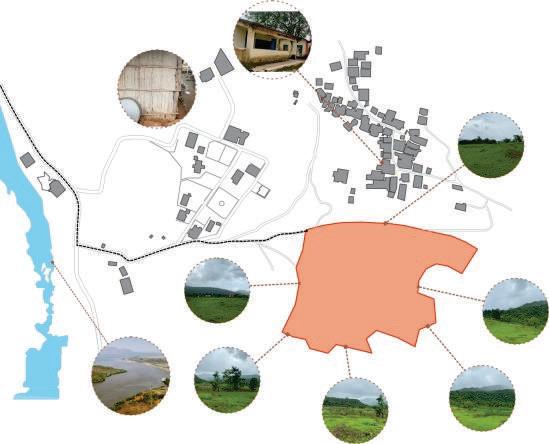

CO M M ERCI A L RES I DENTI A L GA O NTHA N B U I L D I N G T Y P O L O G Y A C C E S S I B I L I T Y MA IN ROA D 5 M K A CHHA RA S TA S TREET V E G E T A T I O N GREEN A REA S C O NTO UR SE C TIO N 72M 0M 74M 0M 84 5M S ECT ON A A 75M 0M 0M 77M 177M S ECT ON BB 168M 0M 78M 0M 87M S ECT ON CC 0M 0M 0M 90M 76M 0M 124M S ECT ON DD S ECT ON EE 89M 74M 0M 83M 73M 0M 153M A B B C C F D scale 1:2000 E N 20 CONTOU R W TH 1 M H E G H T scae 1:2000 N % % SA ND CL A Y S L T SITE STUDY

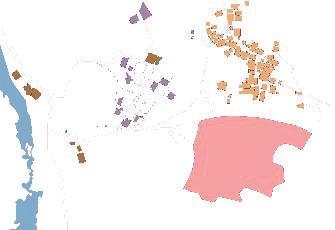

RESPONSE TO SITE AND CONTEXT

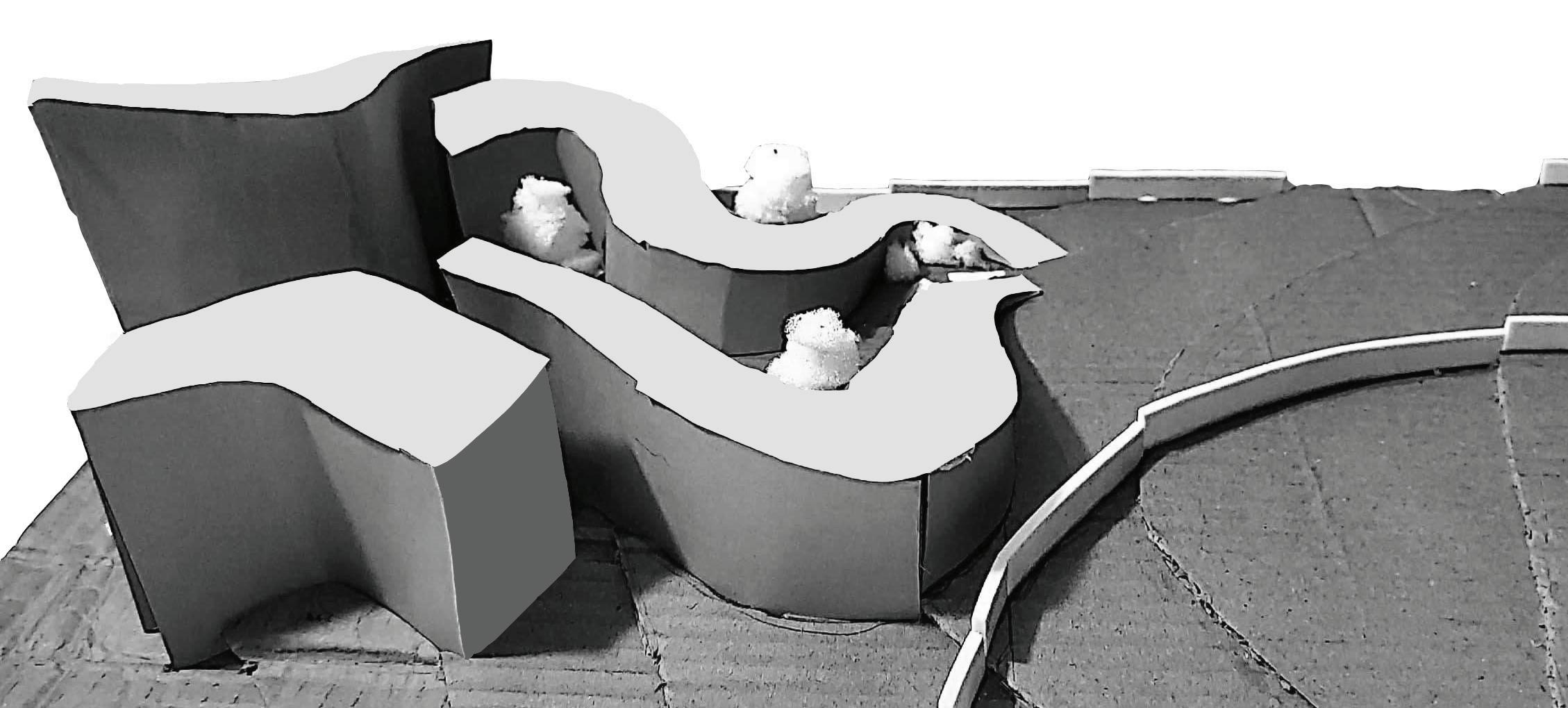

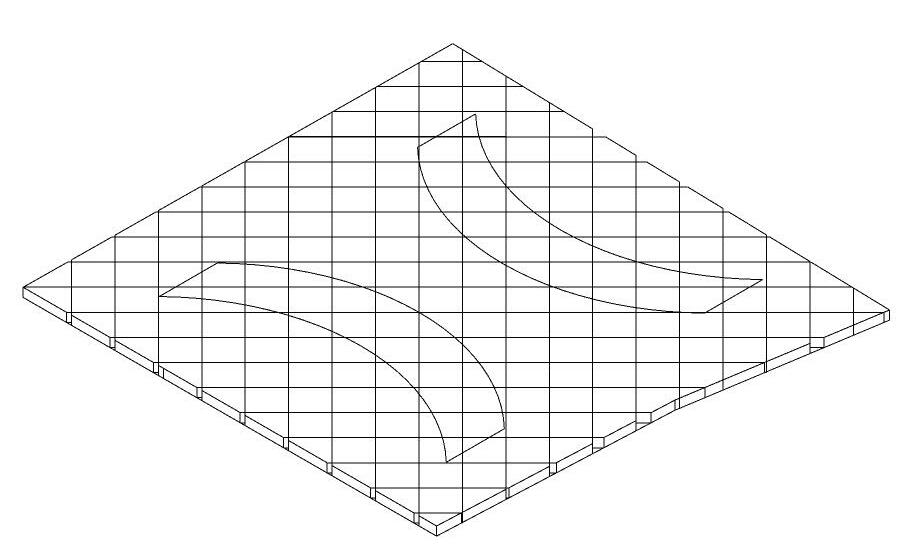

Running
Curves
FORM
PLANNING IDEA OR CONCEPT
“SARVODAYA” : UPLIFTMENT OF ALL
Unity in FORM, DESIGN &
Concept of Sarvodaya has incorporated in the structure

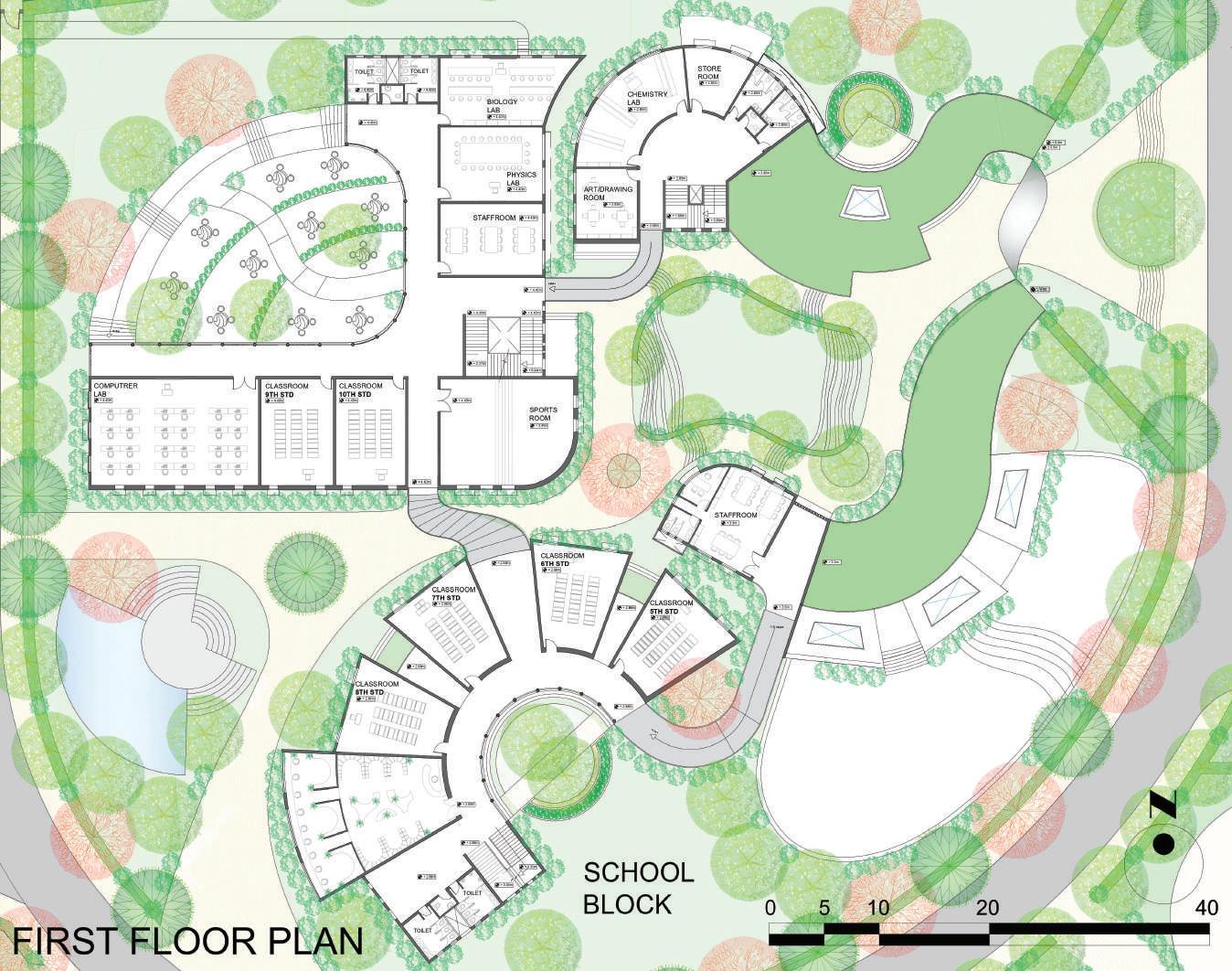

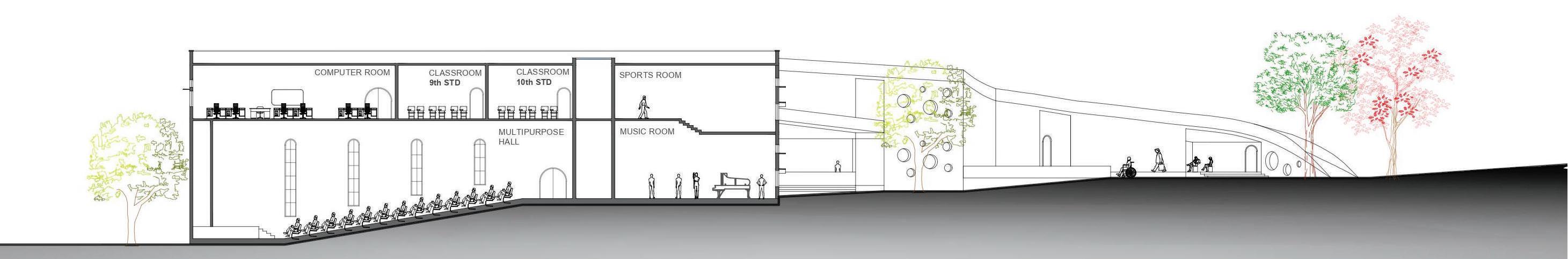

ACTIVITY & FORM / ARCHITECTURAL SPACES

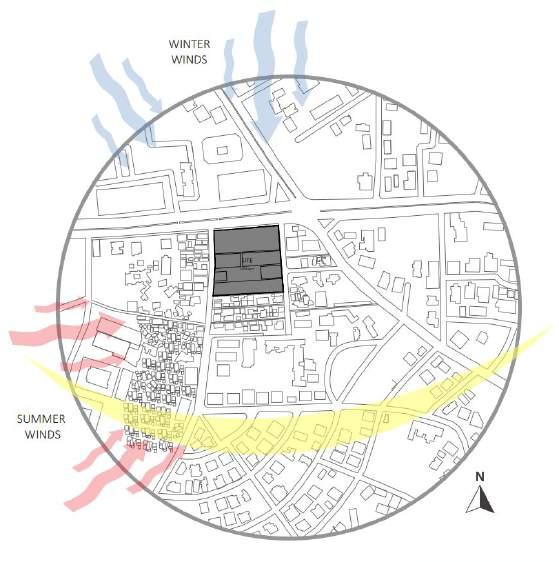

CLIMATE RESPONSE
Water body placed at south
which keeps the
winds cool entering
Building receives good morning sunlight at school hours ,hence, encourages good day
21
EVOLUTION
Ulhas River
that response the context Ulhas River
SPACE

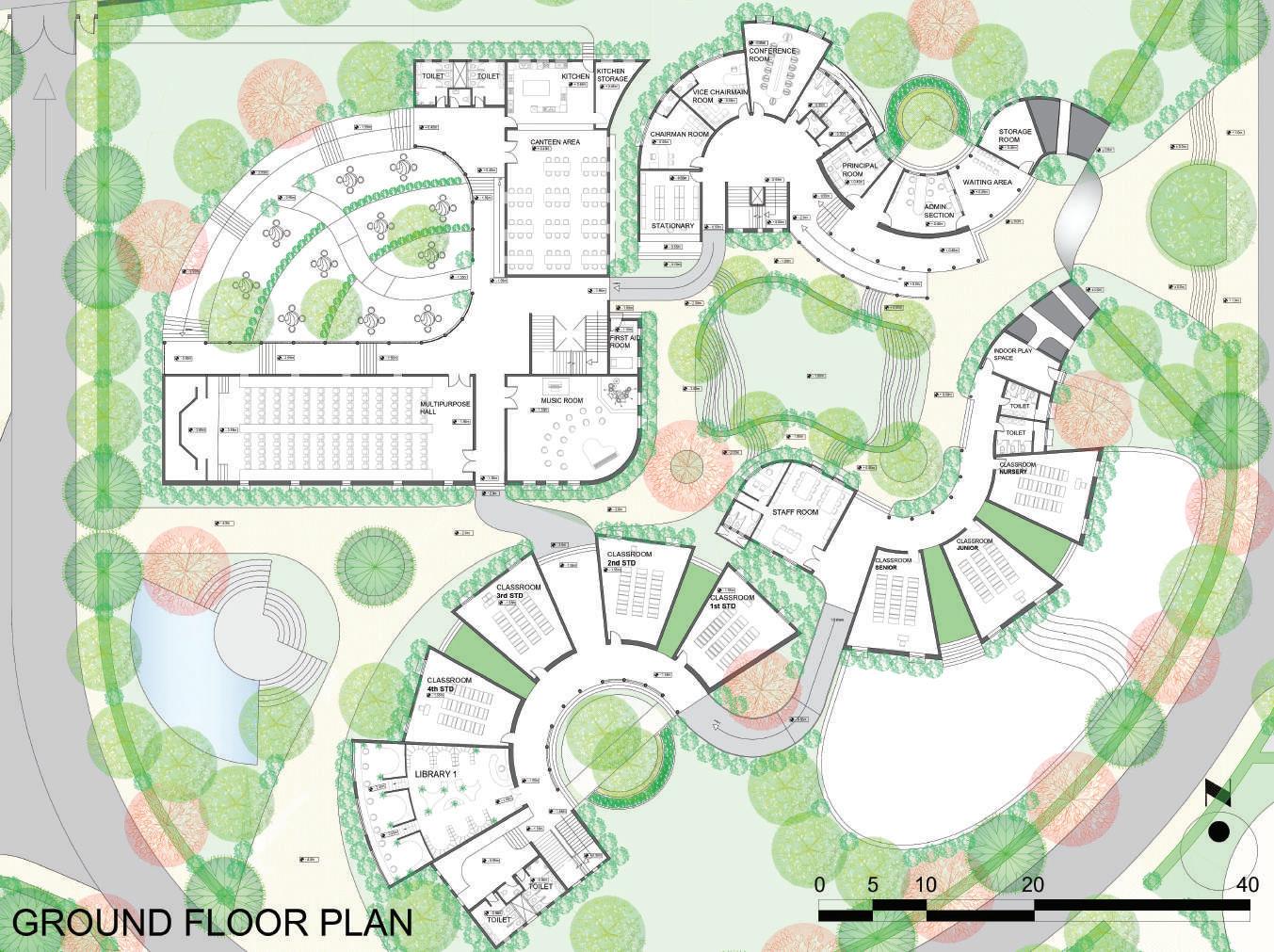

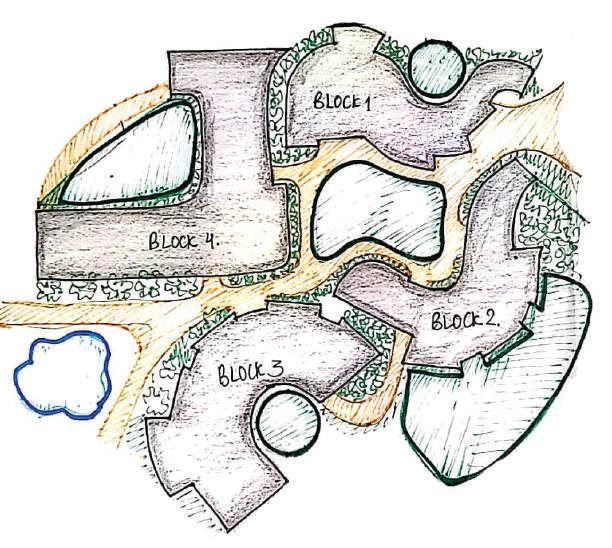

Small Courtyard Pockets Cultural Block Admin Block Primary School Block Nursery School Block ENTRY
west direction
summer
the building
lighting
18 22
23
24
25

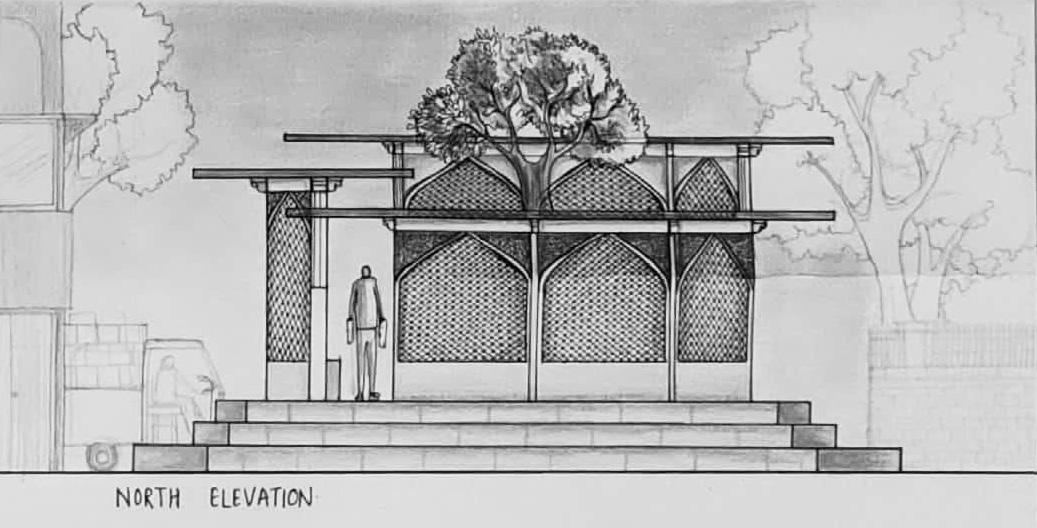

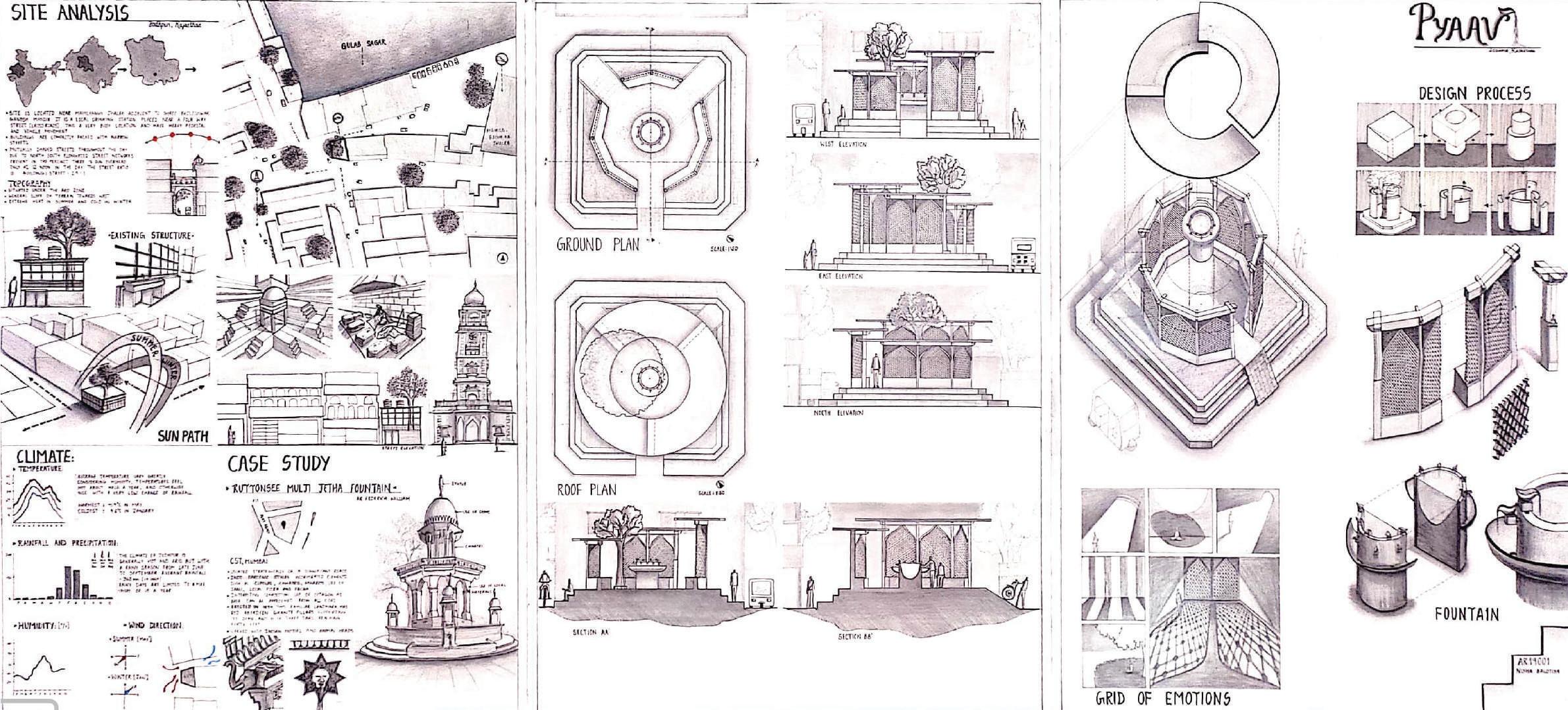

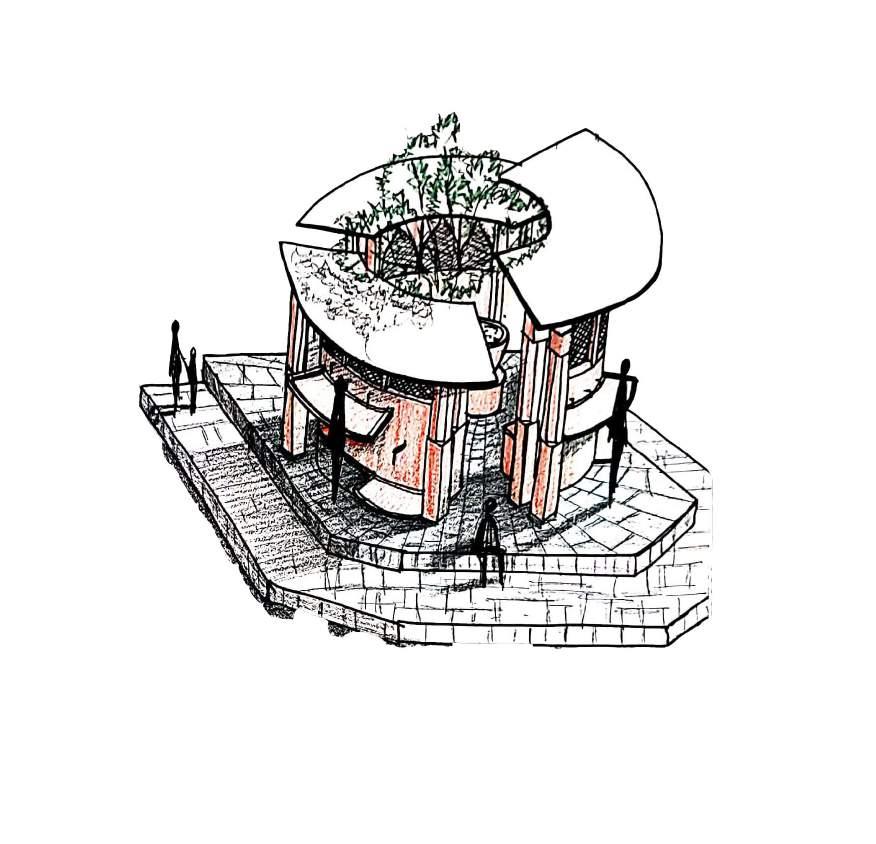

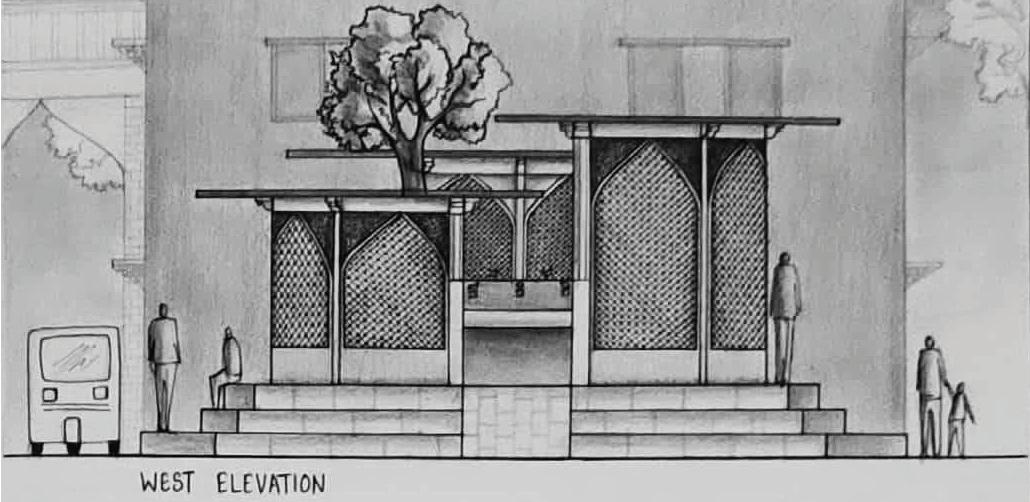

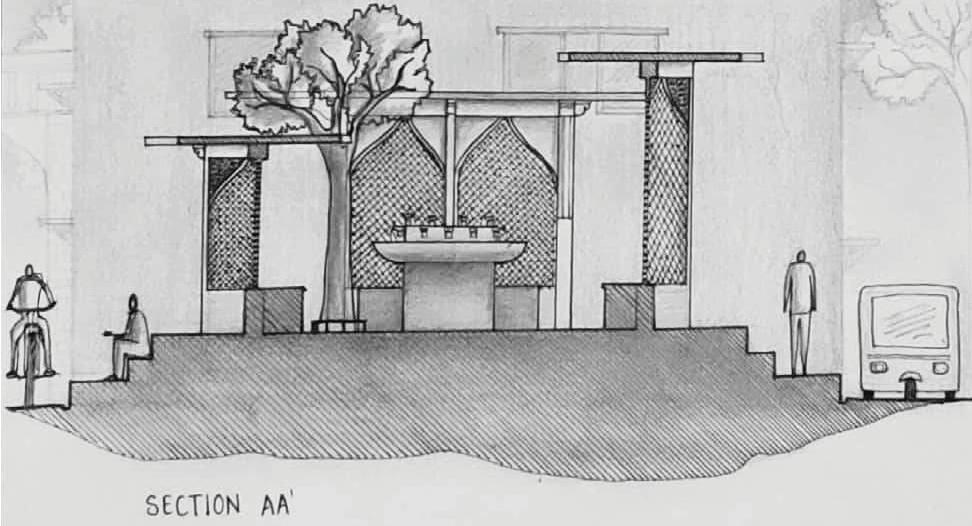

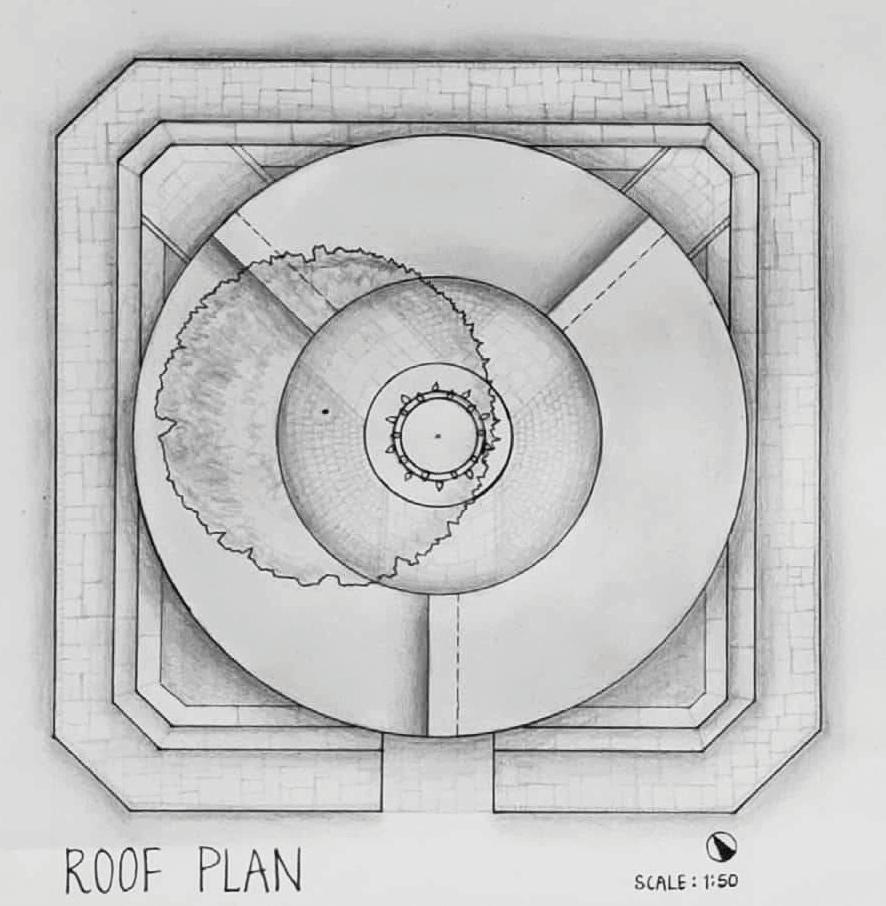

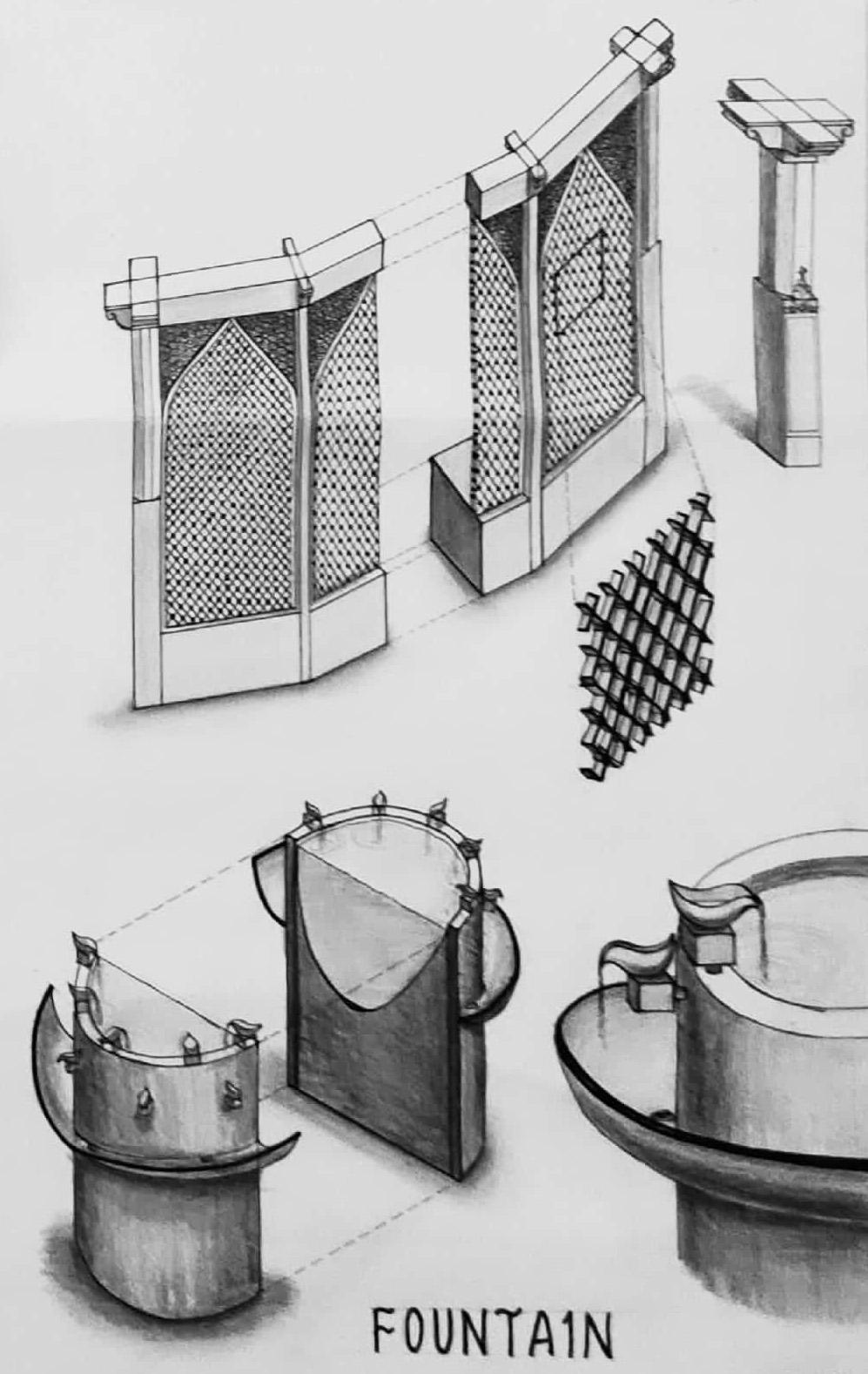

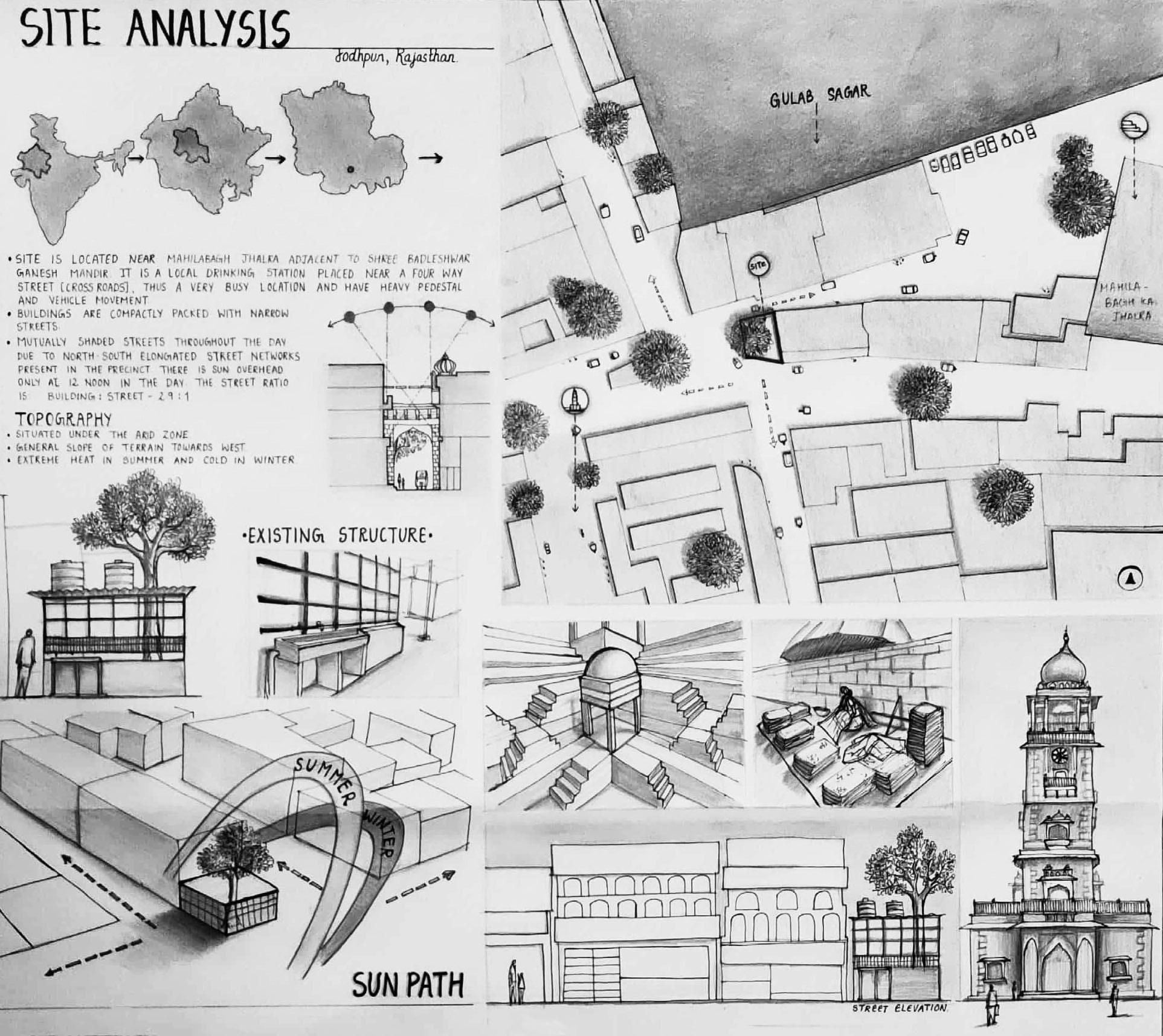

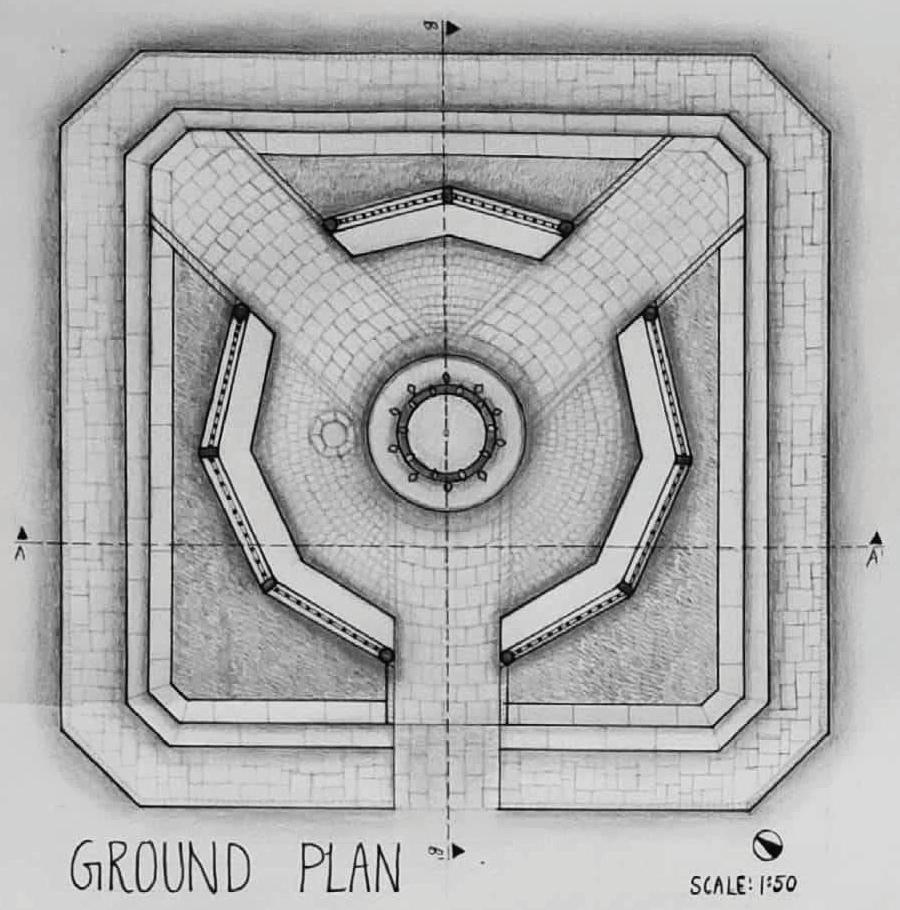

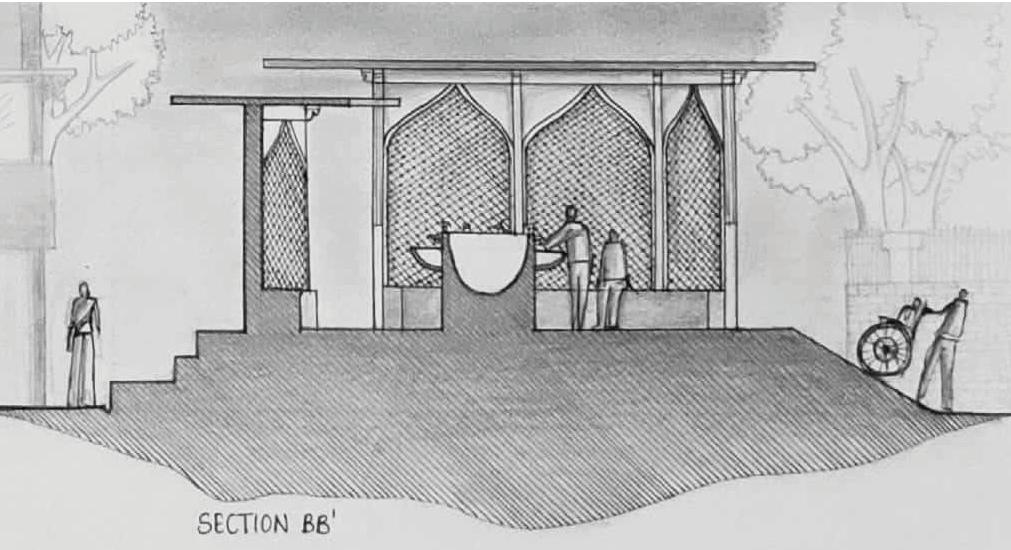

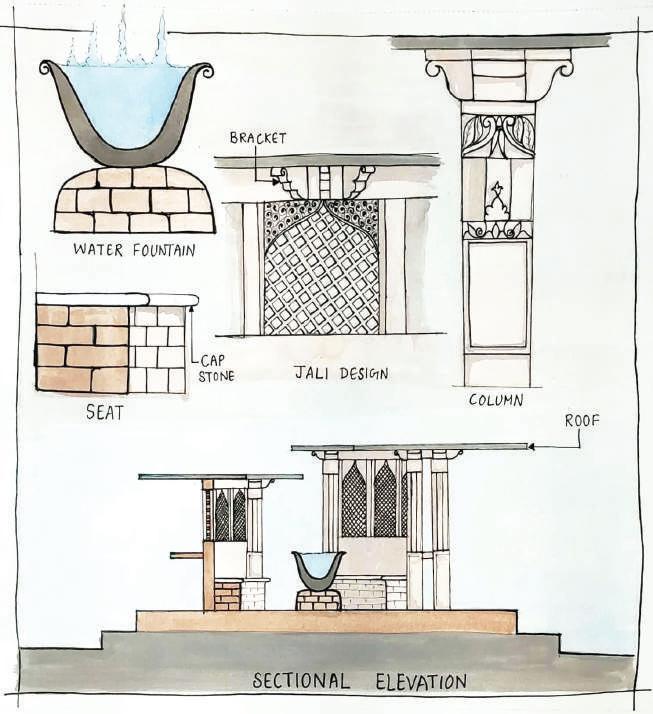

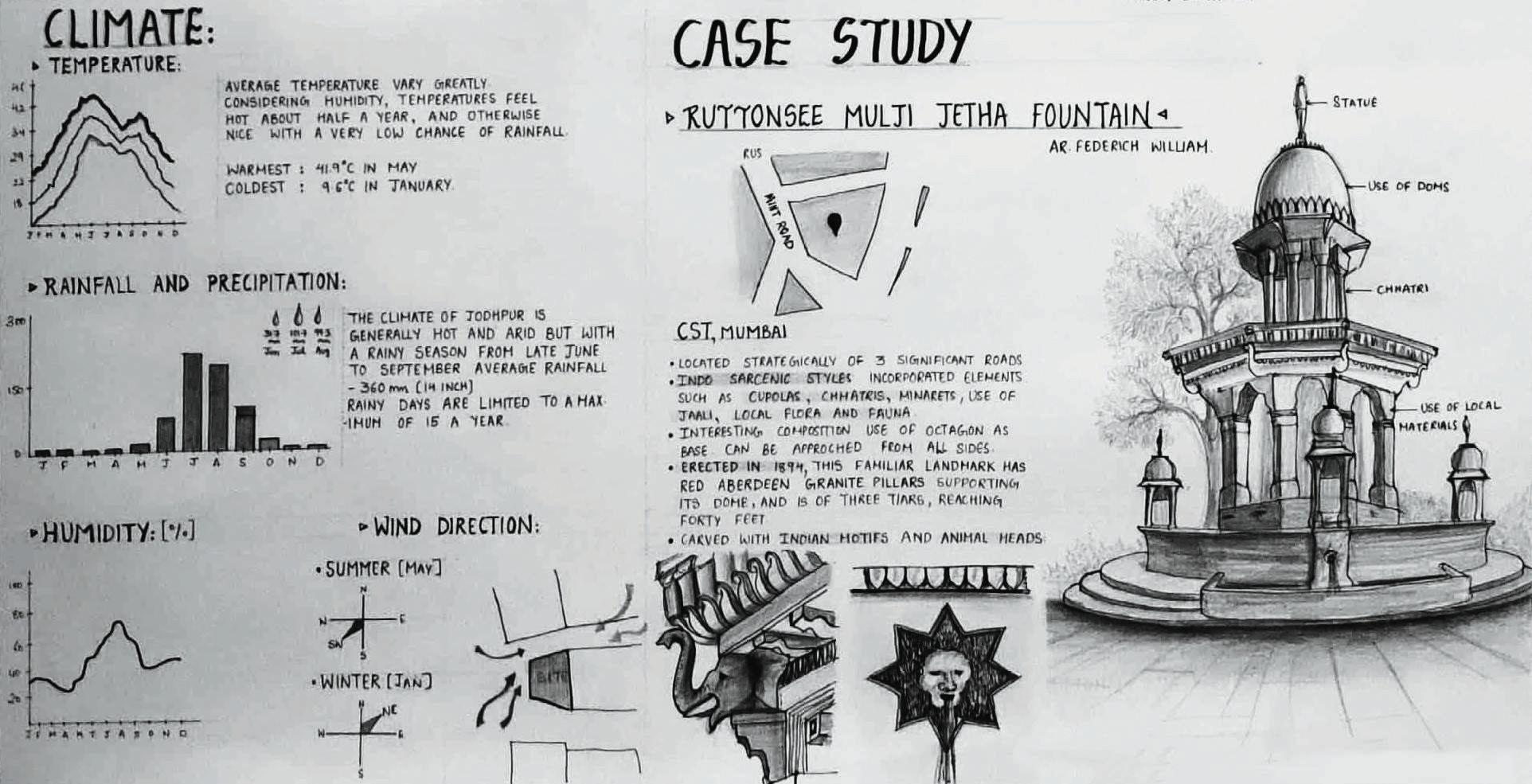

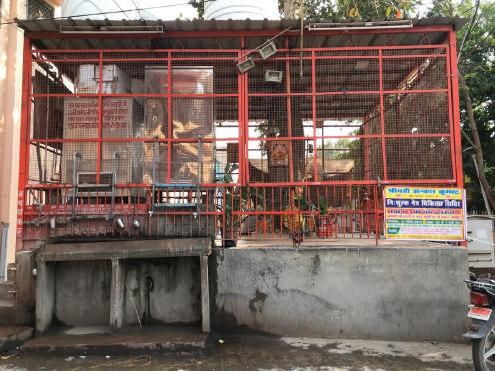

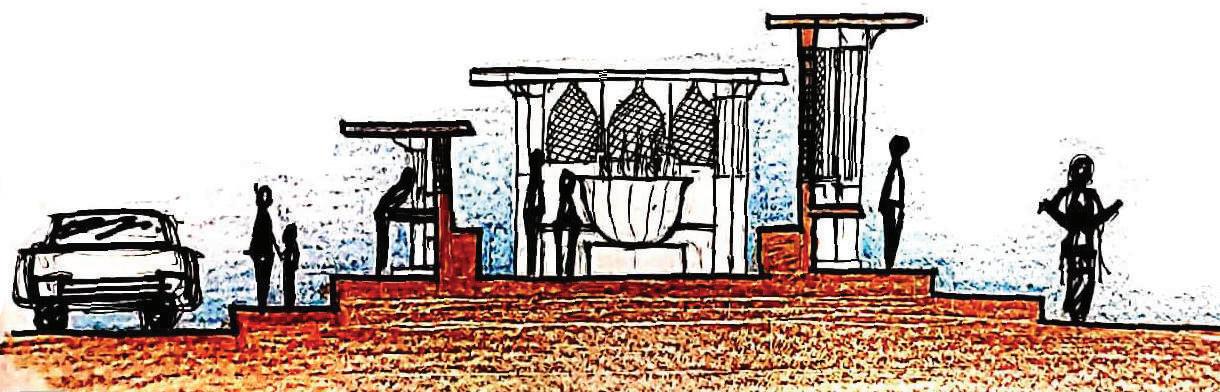

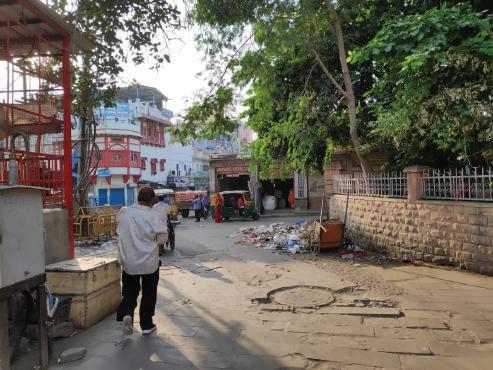

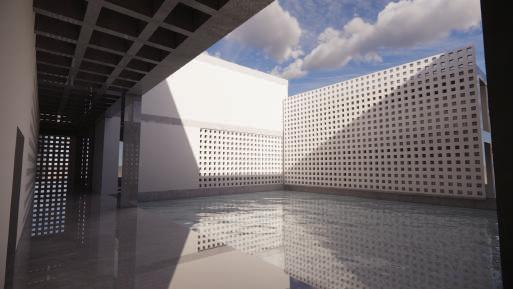

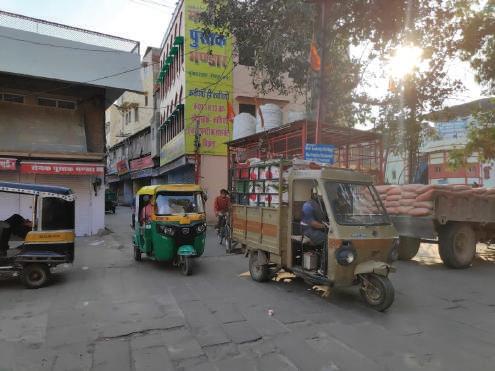

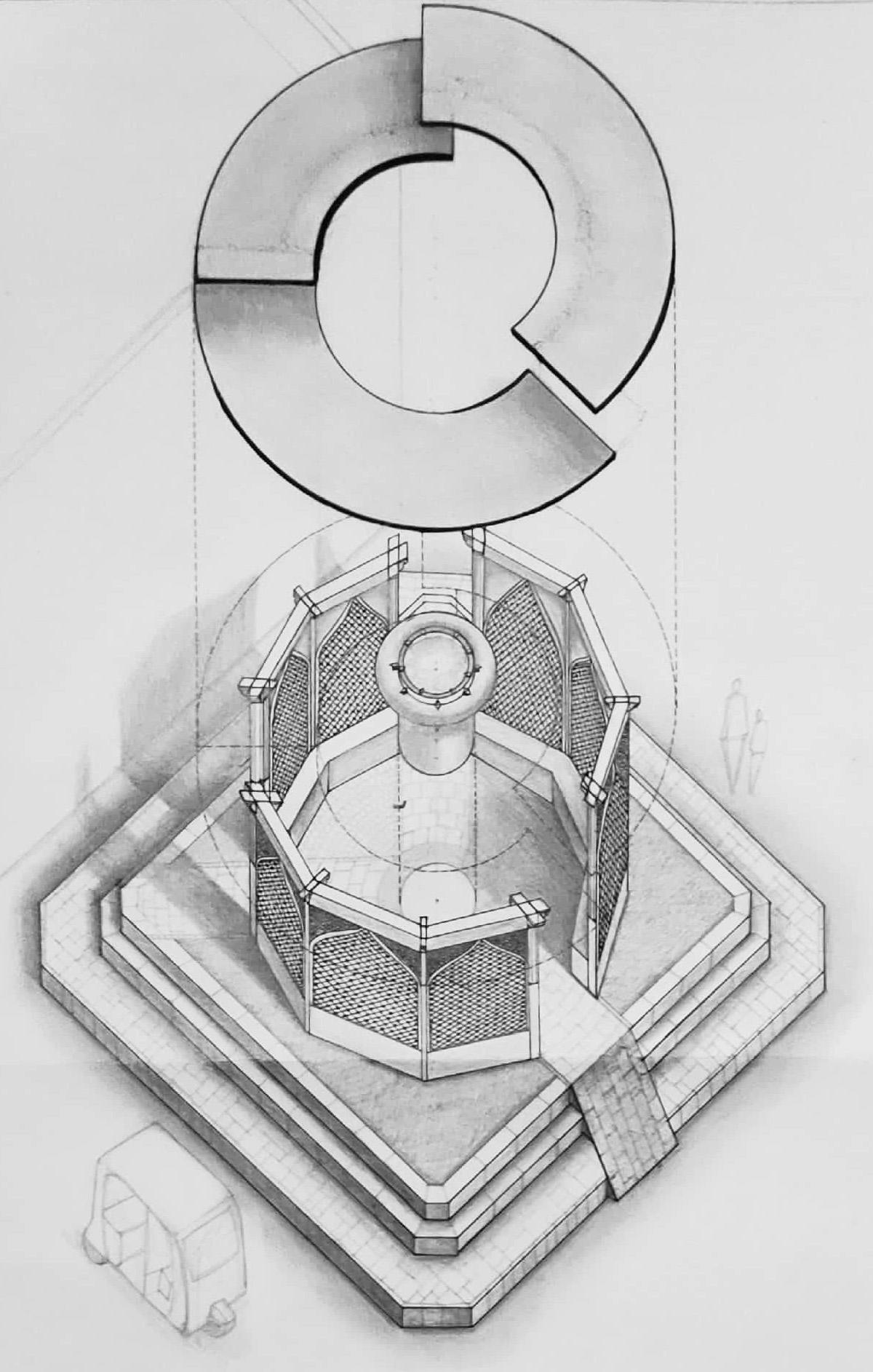

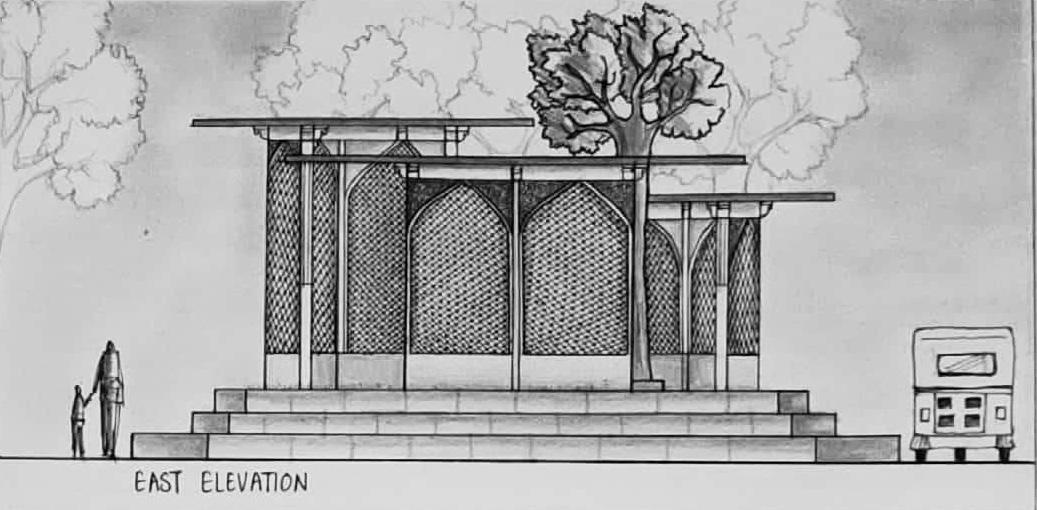

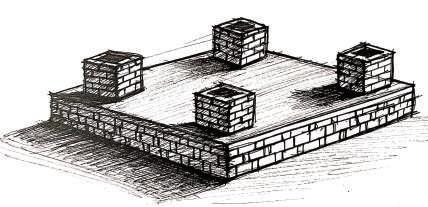

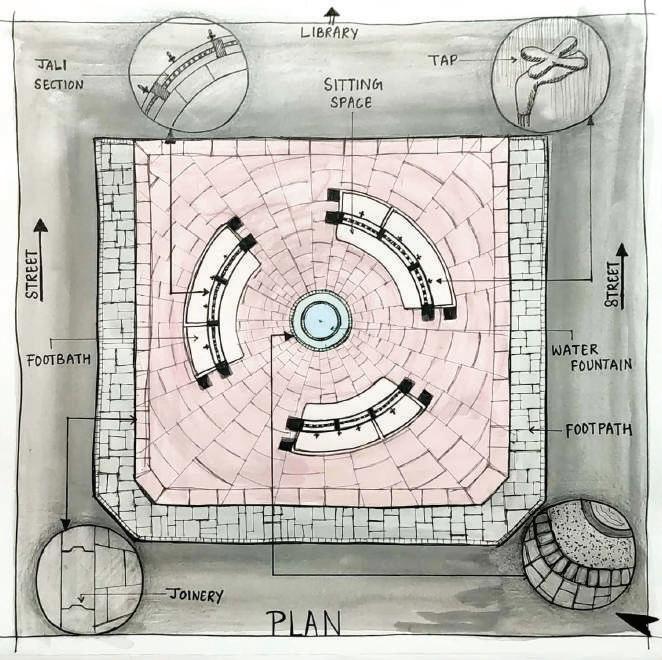

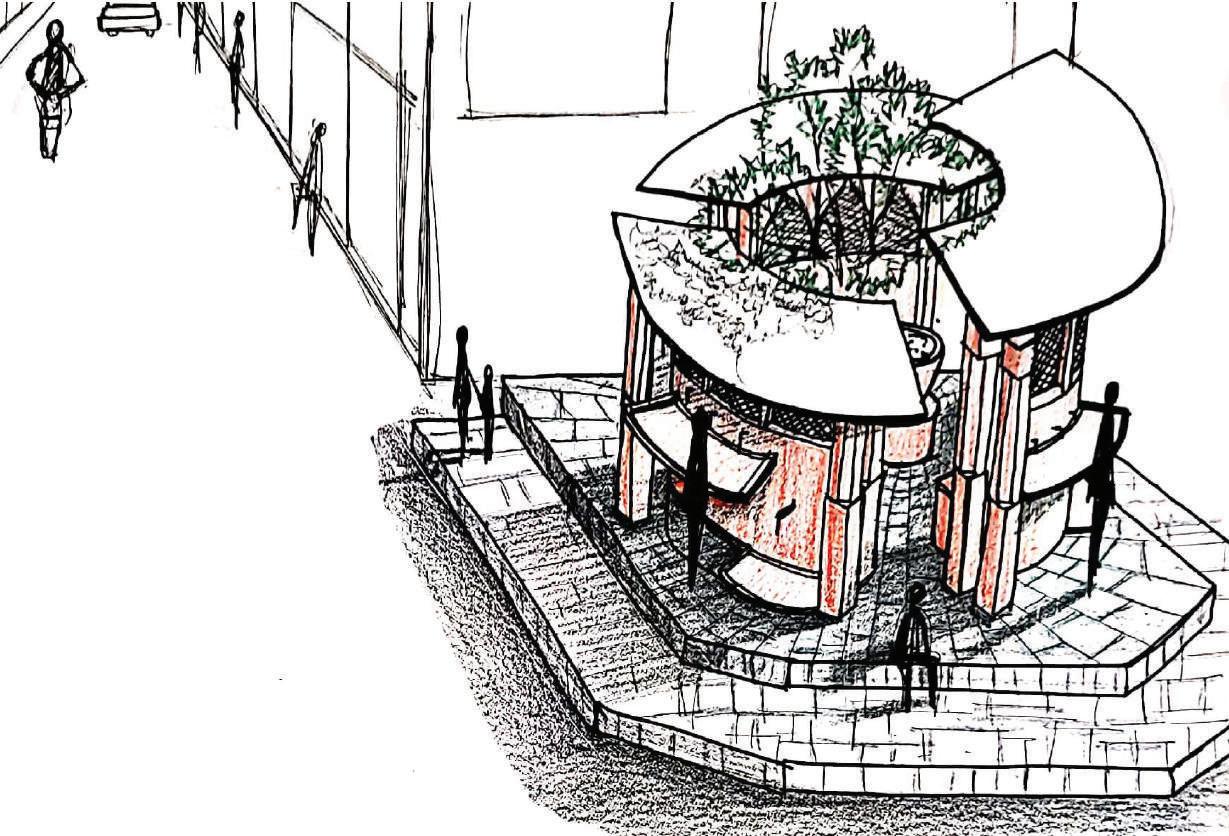

Pyaau, 2021
Year Semester II
Jodhpur
Area 70 sq.m.
Mentor Kiran Keluskar
Typology Public Building
Individual
26
Location
Site
Type
04
27
28
29
30
31
32
33

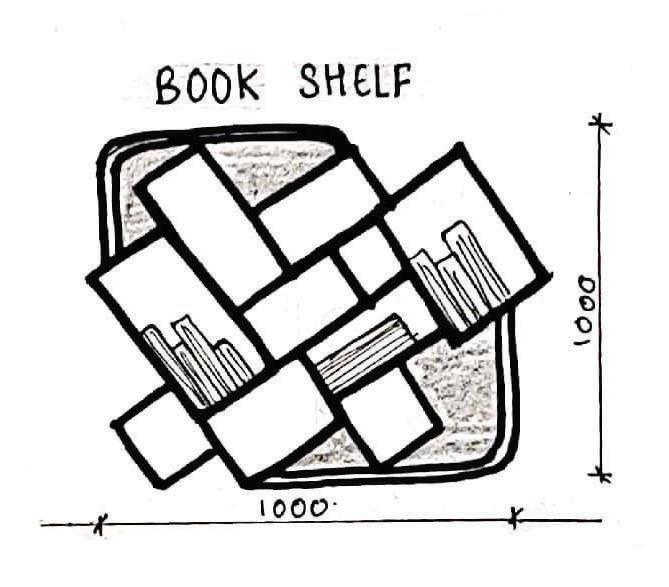

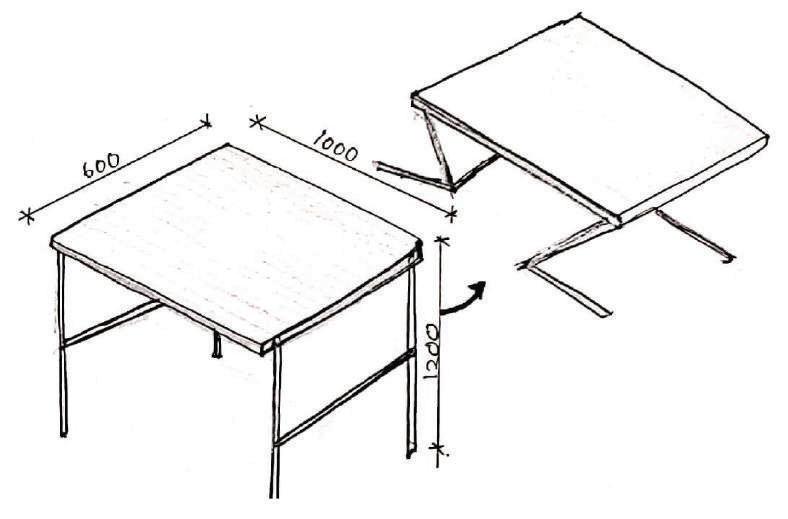

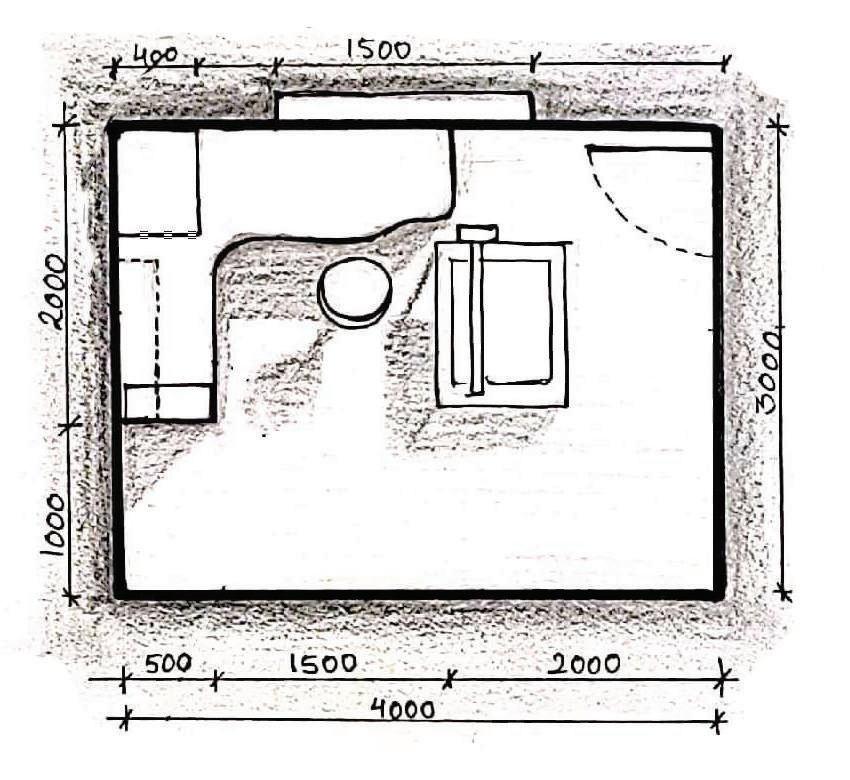

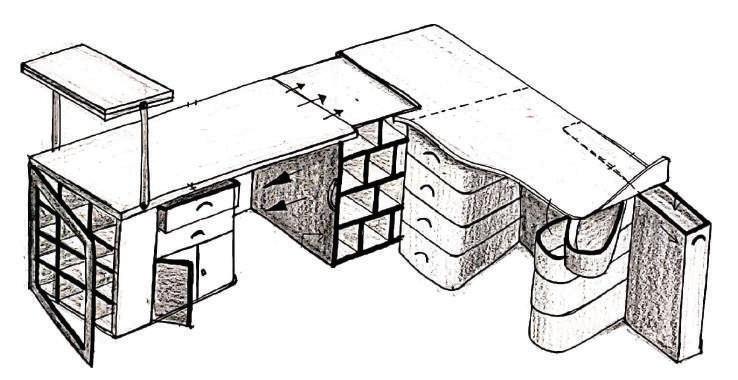

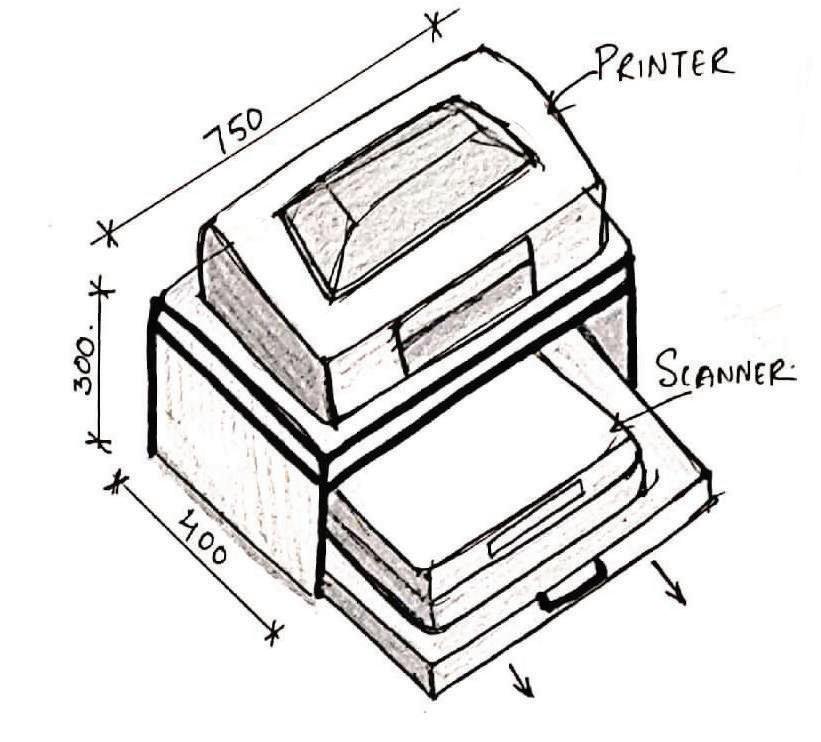

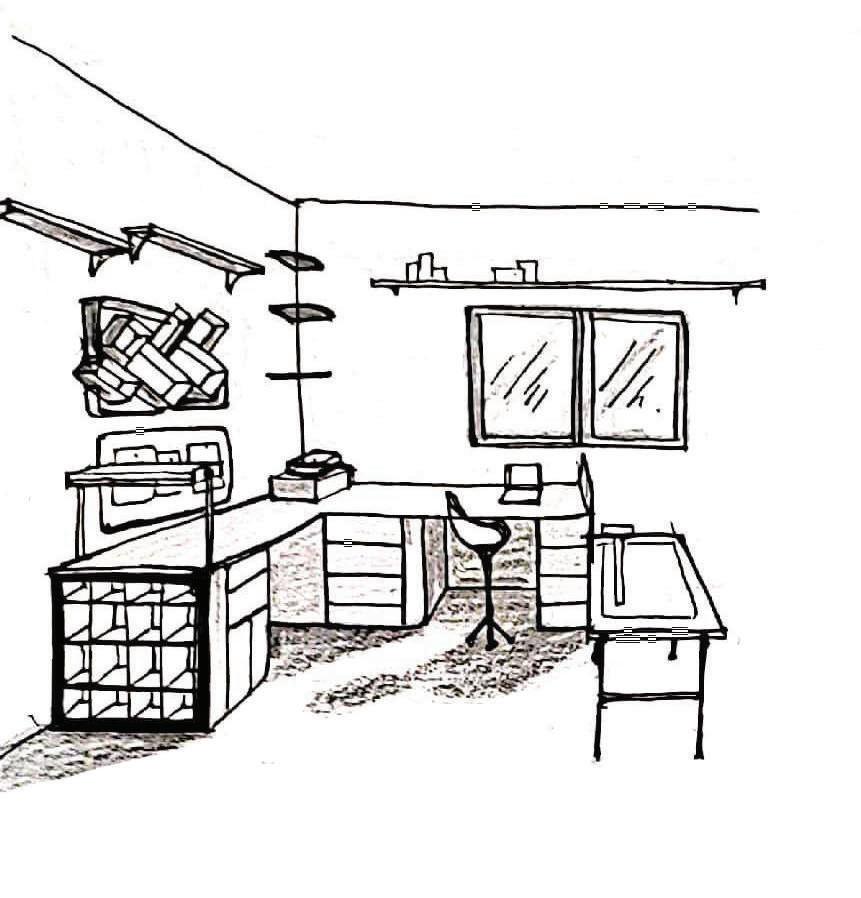

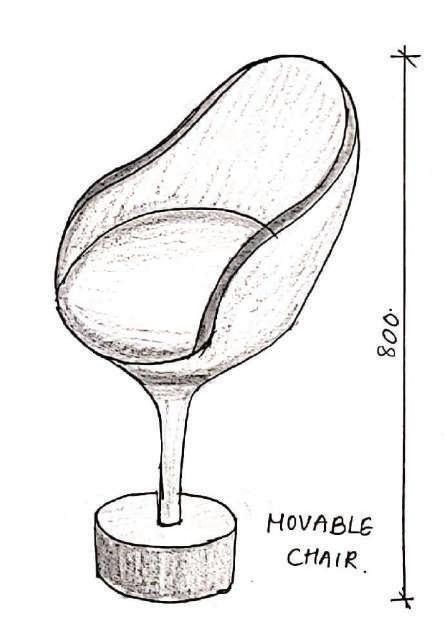

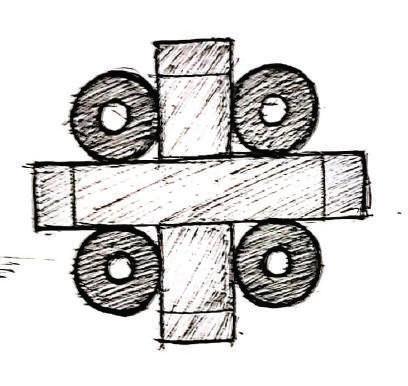

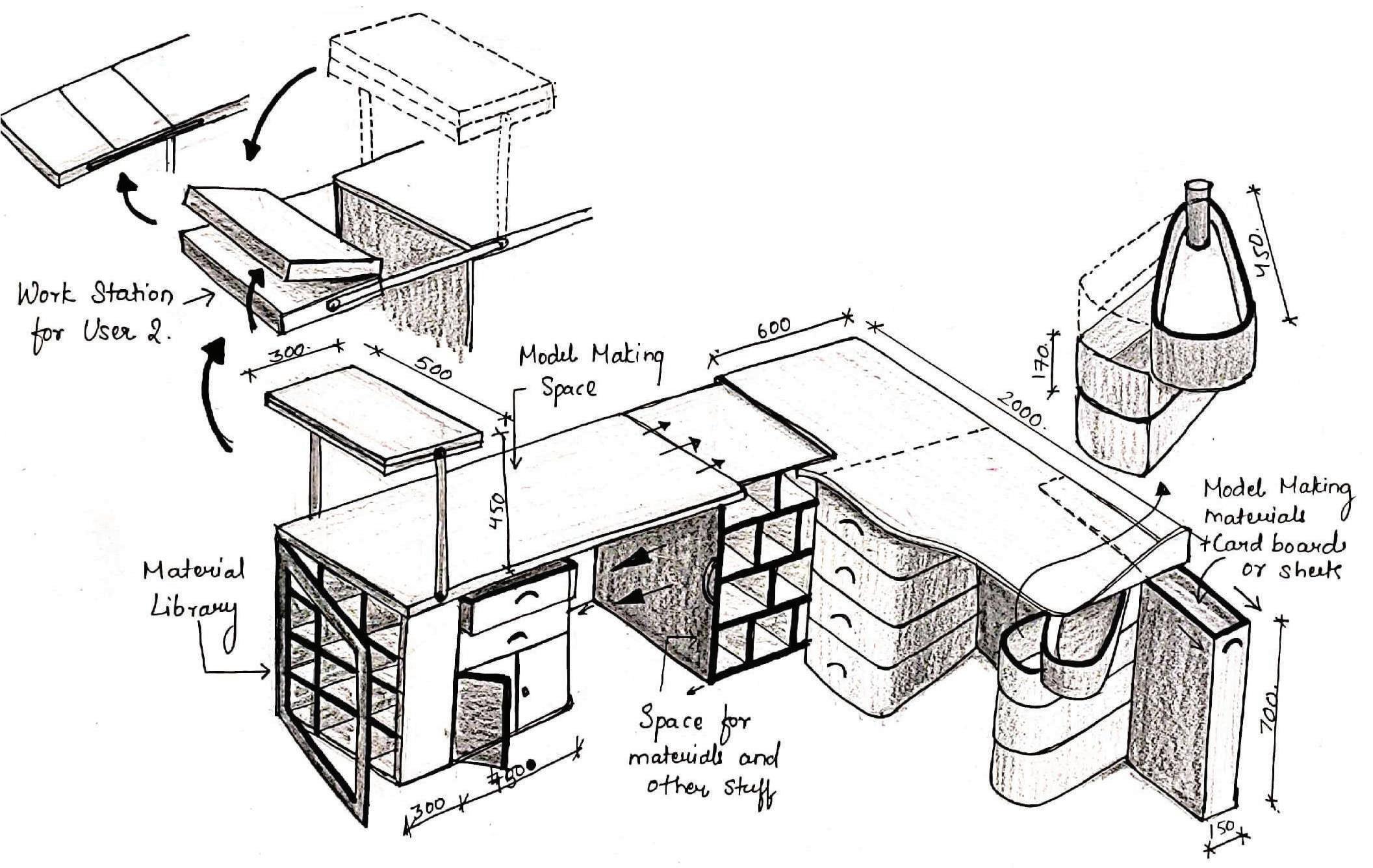

34 Workstation, 2020 Year Semester III Typology Furniture Mentor Mandar Dhuri Type Individual 05
35
36
Working Drawings,2021,22 Year Semester V Load Bearing Structure 06 Year Semester VI Frame Structure 37
1. All dimensions are in
not
2. Levels indicated
be
to
of other building on site.
and do not relate to the
3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
A B D C P DATUM 2 END FACE 84952 14000 59950 72085 6064 12564 4625 35200 11350 15300 39200 14000 330010800 47855 3200 15500 1650 8600 1650 5530 10166 93757 14553 11700 21850 73717371 9024 35799 47764 6749 675014005 3200 90° 90° 90° Q R 3491 START FACE START FACE END FACE 9000 8000 11228 1891311516 10249 23981 56000 90° 10948 90° 9417 6060 5600 3300 47855 9267 DATUM 1 DATUM 2 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES :
MM. Dimensions are to
read always,
measured.
are specific
this building in isolation
indicated levels
North LEGENDS : Project Title: CITY LIBRARY Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / VI Roll Number: AR19001 Sheet Title : SETTING OUT PLAN Scale: 1:200 Date: Sheet No.: 01 Vivekanand Education Society's College of Architecture BUILDING HATCH ROAD KEYPLAN 38
1. All dimensions are in
not
2. Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site.
3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
LEGENDS : CENTRE LINE
X
C3,C4,C8,C9,C10,C11,C15,C16,C17, C19,C21,C22,C24,C25,C26,C27,C28, C31,C44,C45,C46,C50,C51,C52,C53, C54,C55,C56,C57,C58,C59,C60,C61,C62, C63,C64,C65,C66,C67,C68.
C5,C6,C7,C12,C13,C18,C20,C29,C30, C41,C42,C43
X
X
C1,C2,C14,C32,C33,C34,C37,C38, C39,C40,C47,C48,C49,C69,C70,C71,C72, C73,C74,C75
Project Title: CITY LIBRARY

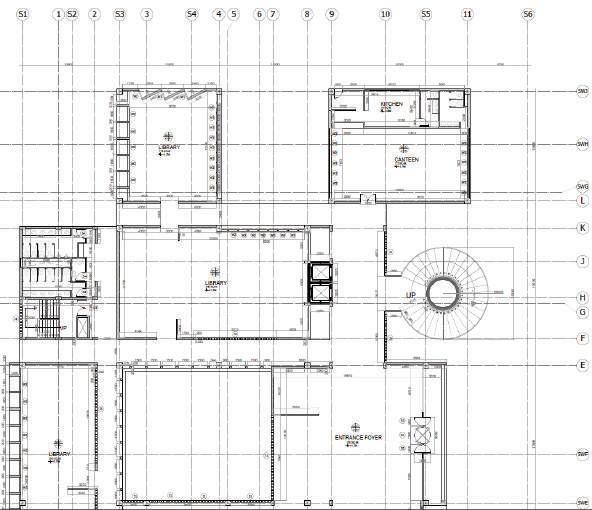

Sheet Title : CENTERLINE
Stamp and guide's Signature
Name: NISHA BALOTIYA
Year
Roll Number:
Date:
North
Vivekanand Education Society's College of Architecture
C10 C11 C1 C2 C9 C8 C7 C6 C5 C4 C3 C14 C13 C12 C15 C16 C17C18C19C20C21C22C23C24 C25 C26 C27 C28 C29 C30 C31 C32C33C34 C39 C38 C37 C49 C48 C47 C46 C45 C44 C43 C42 C50 C51 C52 C53 C57 C56 C55 C54 b c START FACE ± 0.0 M + 3.50 M + 29.80 M + 25.30 M + 22.30 M + 17.30 M + 9.00 M + 43.80 M + 48.30 M + 52.90 M + 59.65 M C9,C22 C8,C14,C21,C27,C45,C51,C56,C59 C1,C7 C6,C13,C20 C4,C15,C30,C42,C60 C3,C16,C61+ 7.50 M + 11.50 M + 31.30 M C2,C5,C12,C18,C29,C36,C41,C43,C52,C55 + 37.80 M C53,C54 + 59.95 M END FACEC10,C24,C34,C39,C49,S1 C33,C38,C48 2 4 6 8 9 512 7 10 13 14 1516 17 START FACE ± 0.0 M C1,C2 + 0.115 M + 41.68 M + 26.58 M + 23.98 M + 20.63 M + 7.48 M + 72.08 M C12,C13,C14 C17,C18,C19, C20,C21,C22, C23,C24,SWE C25,C26,C27, C28,C29,C30, C31 C32,C33,C34 C35,C36 END FACE + 5.41 M N + 44.68 M C40,C41 P + 49.08 MR + 53.08 MT + 48.48 MQ + 65.08 M C42,C43,C44, C45,C46,C47, C48,C49 + 56.78 M U C54,C55,C56, C57,C65,C66, SWJ + 71.78 M B C E G M P Q T N A D+ 9.28 M C3,C4,C5,C6,C7, C8,C9. + 11.63 M FC10,C11 + 16.63 M JC15,C16,C62, SWD K + 31.88 M L C37,C38,C39 R S C50,C51,C52, C53,C64,SWG + 59.78 MV U V 1 3 C32,C37,C47 C11,C23,C26,C46,C50,C57,C58,C67,S3 + 14.30 M C19,C28,C35,C40,C44 + 35.10 M C17,C31,C62,C64,C66,S4 C58 C59 C60 C61 C62 C67 C64 C63 C65 C66 3850 3850 3850 3850 6700 5300 3000 3700 1700 600 3800 3000 4700 5300 2600 4000 5000 2350 1800 2070 5300 115 300 3500 4000 1500 2500 2800 3000 5000 3000 4500 1500 2200 2700 6000 4500 4600 6750 300 A B D J K L W X C C58,C59,C60, C61,SWC SWB SWA E F G C67,SWF C63,SWH 72085 59950 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 17 S2 C63,C65,S4 C68 11 1600 C19,C28,C35,C40,C44 + 33.50 M 11 1750 1600 W X + 50.78 MS C37,C38,C39 + 36.58 MM C67,SWF 2300 5100 + 22.38 M C12,C13,C14H H C69 C70 C71 C72 C73 C74 C75 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES :
MM. Dimensions are to be read always,
measured.
/ Semester: 3rd / VI
AR19001
Scale: 1:150
Sheet No.: 02
600
600 300
600 600
300 39
NOTES :
1. All dimensions are in
Dimensions are to be read always, not measured.
2. Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site.
3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
C10 C11 C1 C2 C9 C8 C7 C6 C5 C4 C3 C14 C13 C12 C15 C16 C17C18C19C20 C21 C22C23 C24 C25 C27 C28 C29 C30 C31 C32C33 C34 C39 C38 C37 C49 C48 C47 C46 C45 C44 C43 C42 C50 C51 C52 C53 C57 C56 C55 C54 C58 C59 C60 C61 C62 C67 C64 C63 C65 C66 C68 C26 C70 C71 C72 C73 C74 C75 C69 2 4 6 8 9 512 7 10 13 14 1516 17 B C E G M P Q T N A D F J K L R S U V 1 3 11 W X H B C E G M P Q T N A D F J K L R S U V W X H 2 4 6 8 9 512 7 10 13 14 1516 117 3 11 A B EARTH FILLING 20 MM THICK SHABAD TILE 115 MM THICK BRICK WALL WATERPROOFING 300 MM RCC SHEAR WALL 16MM DIA MAIN STEEL BAR 150C/C 100 MM DIA PERFORATED PIPE 16 MM DIA STEEL BAR 300C/C 100 MM PCC SOILING 300 100 FINISH FLOOR 120MM PCC BED METAL COVER GUTTER DRAINAGE CHANNEL WATERPROOFING 25MM PCC BURNT BRICK FILLING 16 MM DIA STEEL BAR 300C/C SOILING 100 MM PCC 500 x 500 MM COLUMN 500 X 500 UPSTAND BEAM 16MM DIA MAIN STEEL BAR 300 C/C BURNT BRICK FILLING 16MM DIA DISTRIBUTION STEEL BAR 150 C/C DETAIL A DETAIL B This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower.
MM.
North LEGENDS : CENTRE LINE Project Title: CITY LIBRARY Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / VI Roll Number: AR19001 Sheet Title : FOUNDATION PLAN Scale: 1:150/ 1:20 Date: Sheet No.: 03 Vivekanand Education Society's College of Architecture ROAD KEYPLAN 40
1.
2. Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site.
3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
1 2 3 4 5 6 UP 8 9 10 11 12 7 13 14 15 16 17 18 1 2 3 4 5 6 7 8 17 16 15 14 13 12 11 10 9 18 19 20 21 22 23 5M WIDE 1.5M WIDE 1.5M WIDE 5M WIDE 1920212223 24 25 26 27 28 29 30 31 32 34 35 36 DOWN 1:10 -2.0M 38 43 42 41 40 39 45 44 46 48 47 50 49 53 52 51 54 55 5M WIDE -2.0M 5M WIDE -2.0M 5M WIDE -2.0M UP 1:10 33 37 19 EXIT +0.0M ENTRY +0.0M 2 4 6 8 9 512 7 10 13 14 1516 17 B C E G M P Q T N A D F J K L R S U V 1 3 11 W X H B C E G M P Q T N A D F J K L R S U V W X H 2 4 6 8 9 512 7 10 13 14 1516 117 3 11 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES :
All dimensions are in MM. Dimensions are to be read always, not measured.
North Project Title: CITY LIBRARY Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / VI Roll Number: AR19001 Sheet Title : BASEMENT FLOOR PLAN Scale: 1:150 Date: Sheet No.: Vivekanand Education Society's College of Architecture SCHEDULE FOR WINDOWS AND DOOR ELEVATION NAME OPENING WIDTH X HEIGHT SILL LEVEL TYPE MATERIAL SPECIFICATIONS 75X100 FIBREGLASS SHUTTER 850 X 3400 900 MM CENTER PIVOT GLASS WINDOW FRAME TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 1600 X 3400 900 MM TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 1000 X 1600 900 MM TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 400 X 400 X 200 TERRACOTTA JALI BLOCK 1700 X 2100 CIRCULAR GLASS DOOR 900 X 2100 GLASS DOOR 1800 X 2100 TEAK WOOD DOUBLE SHUTTER DOOR 900 X 2100 TEAK WOOD SINGLE SHUTTER DOOR NO. SURFACE DESCRIPTION WF1 WF2 F1 F2 F3 S1 WALL FINISH 12MM THICK PLASTER TEXTURE FINISH 300MM X 300MM MATT TILE FINISH FOR TOILET 12MM FLOOR FINISH GRANITE FLOORING 800MM X 800MM ANTI SLIP CERAMIC FLOOR TILE 12MM KAJARIA KOTA STONE FLOORING 12MM SKIRTING FINISH 25MM GRANITE FLOORING TILE SKIRTING C1 CEILING FINISH EXPOSED SLAB WALL FINISH TOILET FLOOR FINISH EXTERIOR FLOOR FINISH C2 CEILING FINISH EXPOSED SLAB SCHEDULE FOR FINISHES FIXED GLASS CENTER PIVOT GLASS WINDOW CENTER PIVOT GLASS WINDOW 75X100 FIBREGLASS 75X100 FIBREGLASS 300MM SHEAR WALL W4W4 W1 W1 W2 W2 W3 W3 J1 J1 D1 D1 D2 D2 D3 D3 D4 D4 41
be read long and co-coordinated with relevant consultants
In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
W1 W1 W11250 200 10800 11600 11900 15700 50000 W2 W2 W2 W2 W2 1770 25° 25° 25° 1370 4400 4200 W3 W3 W3 W3 W3 W3 W3 W3 W3 9650 12162 2524 2524 2524 1800 2730 2730 2730 410 11900 11400 300 KITCHEN +1.7M 2445 2100 2700 900 1000 3600 8115 600 3055 3955 2180 600 1000106403600 2810 39553955 3000 9700 15240 8070 900 300 1000 703370 1070 D3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 W3 1099 1098 W2 F2 S1C2 2 4 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21222324 25 26 27 28 29 UP ENTRANCE FOYER 16.6M X 14.5M +1.7M W1 F1 S1C1 J1 J1 J1 J1 J1 300 4400 4200 1500 1500 755 870 17162500 1500 11880 11650 4770 2000 5000 2000 9200 3200 3500 3250 W3 W3 W3 W3 W3 W3 W3 W3 300 1015 1500 8140 1125 5885 3085 1000 5285 8140 5285 3085 1500 1615 1125 4100 2000 2400 2000 2250 8400 2300 1000 8000 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 20870 12020 4900 2400 3650 2250 6270 5655 5000 8730 4050 W2 W2 5350 3800 5350 5700 14500 2300 6950 300 17470 14200 4000 1500UP 9350 2000 15250 9950 1212012490 15990 2700 300 2585 DN 10 262026202550 2200 2200 DN 10 2700 2200 2585 300 2400 DN 1514131211 16 17 3350 6200 3350 1500 300 1500 1500 1540 7770 2000 10000 1070 2000 2000 5930 200 200 200 200 8370 24820 2200 2200 2000 2000 2500 5400 5200 2000 3900 2400 8750 1700 900 900 16618 14500 12342 600 4000 1370 2145 3885 2365 5550 7770 3260 2050 20002000 2400 7400 5550 750 230 1500 230 1500 230 1500 230 1500 230 1500 230770 930 230 1500 230 1500 230 930 15950 16550 14500 1080 230 1500 230 1500 230 1500 230 1500 230 1500 230 1500 230 1500 230 1080 13900 5200 11900 2400 100 100 100 100 UP D1 D2 D2 3900 W4 W4 12600 17500 17700 60750 REFERENCE SECTION 20M X 12M +1.7M W1 F1 S1C1 W2 F2 S1C2 TOILET 8M X 3M +1.7M TOILET 8M X 3M +1.7M D3 D3 D3 D3 D3 D3 J1 J1J1J1 J1 J1 D4 D4 D4 D4 D4 D4 D3 W4 W4 W4 W4 W4 REFERENCE SECTION 9.6M X 12M +1.7M W1 F1 S1C1 COURTYARD 11.9M X 11.4M +1.2M CANTEEN 15M X 8M +1.7M W1 F1 S1C1 CHILDREN SECTION 8M X 24M +1.7M W1 F1 S1C1 WATER BODY 16M X 14M +1.2M 2 4 6 8 9 512 7 10 13 14 1516 17 G M P Q T N J K L R S U V 1 3 11 W X H This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES : 1. All dimensions are in MM. Dimensions are to be read always, not measured. 2. Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site. 3. This drawing is to
drawings.
North Project Title: CITY LIBRARY Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / VI Roll Number: AR19001 Sheet Title : GROUND FLOOR PLAN Scale: 1:100 Date: Sheet No.: Vivekanand Education Society's College of Architecture SCHEDULE FOR WINDOWS AND DOOR ELEVATION NAME OPENING WIDTH X HEIGHT SILL LEVEL TYPE MATERIAL SPECIFICATIONS 75X100 FIBREGLASS SHUTTER 850 X 3400 900 MM CENTER PIVOT GLASS WINDOW FRAME TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 1600 X 3400 900 MM TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 1000 X 1600 900 MM TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 400 X 400 X 200 TERRACOTTA JALI BLOCK 1700 X 2100 CIRCULAR GLASS DOOR 900 X 2100 GLASS DOOR 1800 X 2100 TEAK WOOD DOUBLE SHUTTER DOOR 900 X 2100 TEAK WOOD SINGLE SHUTTER DOOR NO. SURFACE DESCRIPTION WF1 WF2 F1 F2 F3 S1 WALL FINISH 12MM THICK PLASTER TEXTURE FINISH 300MM X 300MM MATT TILE FINISH FOR TOILET 12MM FLOOR FINISH GRANITE FLOORING 800MM X 800MM ANTI SLIP CERAMIC FLOOR TILE 12MM KAJARIA KOTA STONE FLOORING 12MM SKIRTING FINISH 25MM GRANITE FLOORING TILE SKIRTING C1 CEILING FINISH EXPOSED SLAB WALL FINISH TOILET FLOOR FINISH EXTERIOR FLOOR FINISH C2 CEILING FINISH EXPOSED SLAB SCHEDULE FOR FINISHES D4D4 D3D3 D2D2 D1D1 J1J1 W3W3 W2W2 W1W1 W4 W4 FIXED GLASS CENTER PIVOT GLASS WINDOW CENTER PIVOT GLASS WINDOW 75X100 FIBREGLASS 75X100 FIBREGLASS 230 MM THICK BRICK WALL 115 MM THICK BRICK WALL 42
1.
2. Levels
not relate to the indicated levels of other building on site.
3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
SECTION AA' SECTION BB' CDEKNUVX QST FGJLW D3 D3 D3 D3 D3 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 +17.3M PARAPET LEVEL +12.3M PARAPET LEVEL +6.32 M FIRST FLOOR LEVEL +1.32 M GROUND FLOOR LEVEL +0.0 M GROUND LEVEL -2.38 M BASEMNET LEVEL 2380 1320 5000 5980 5000 W4 W4 W4W4 W4 W4 W2W2W2W2W2 W4 W1 CANTEEN KITCHEN LIBRARY ENTRANCE FOYER V2 25803080 1286421514135 1 2100 D3 D3 D3 D3 D3 D3 J1 J1 J1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 W1 F1 S1C1 +21.69 M LIFT ROOM LEVEL +17.675 M PARAPET LEVEL +11.7 M SECOND FLOOR LEVEL +6.7 M FIRST FLOOR LEVEL +1.7 M GROUND FLOOR LEVEL +0.0 M GROUND LEVEL -2.0 M GROUND LEVEL 975 LIBRARY LIBRARY LIBRARY This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES :
All dimensions are in MM. Dimensions are to be read always, not measured.
indicated are specific to this building in isolation and do
North Project Title: CITY LIBRARY Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / VI Roll Number: AR19001 Sheet Title: SECTIONS Scale: 1:200 Date: Sheet No.: Vivekanand Education Society's College of Architecture SCHEDULE FOR WINDOWS AND DOOR ELEVATION NAME OPENING WIDTH X HEIGHT SILL LEVEL TYPE MATERIAL SPECIFICATIONS 75X100 FIBREGLASS SHUTTER 850 X 3400 900 MM CENTER PIVOT GLASS WINDOW FRAME TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 1600 X 3400 900 MM TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 1000 X 1600 900 MM TEAKWOOD RAILS WITH 3MM THICK CLEAR GLASS 400 X 400 X 200 TERRACOTTA JALI BLOCK 1700 X 2100 CIRCULAR GLASS DOOR 900 X 2100 GLASS DOOR 1800 X 2100 TEAK WOOD DOUBLE SHUTTER DOOR 900 X 2100 TEAK WOOD SINGLE SHUTTER DOOR NO. SURFACE DESCRIPTION WF1 WF2 F1 F2 F3 S1 WALL FINISH 12MM THICK PLASTER TEXTURE FINISH 300MM X 300MM MATT TILE FINISH FOR TOILET 12MM FLOOR FINISH GRANITE FLOORING 800MM X 800MM ANTI SLIP CERAMIC FLOOR TILE 12MM KAJARIA KOTA STONE FLOORING 12MM SKIRTING FINISH 25MM GRANITE FLOORING TILE SKIRTING C1 CEILING FINISH EXPOSED SLAB WALL FINISH TOILET FLOOR FINISH EXTERIOR FLOOR FINISH C2 CEILING FINISH EXPOSED SLAB SCHEDULE FOR FINISHES FIXED GLASS CENTER PIVOT GLASS WINDOW CENTER PIVOT GLASS WINDOW 75X100 FIBREGLASS 75X100 FIBREGLASS 230 MM THICK BRICK WALL 115 MM THICK BRICK WALL W4W4 W1 W1 W2 W2 W3 W3 J1 J1 D1 D1 D2 D2 D3 D3 D4 D4 ENTRY PEDESTRAIN PEDESTRAIN ENTRY ACTIVITY PLAZA AMPHITHEATRE VEHICULAR EXIT SERVICE ROAD A A' B B' 43
1. All dimensions are in MM. Dimensions are to be read always, not measured.
2. Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site.
3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings wherever relevant.
Name: NISHA
A D G B K L M Y X W V U T S R Q P O N 84933122177 16410 68563 87105 40808 C 62975 F E H 29245 13006 87826 30873 56954 9290 75642 54989 32838 42682 90° 90° This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES :
North LEGENDS : BUILD UP AREA Project Title: Stamp and guide's Signature
BALOTIYA Year / Semester: 3rd / V Roll Number: AR19001 Sheet Title : SETTING OUT PLAN Scale: 1:350 Date: Sheet No.: Vivekanand Education Society's College of Architecture .\VESCOA LOGO.png 44
do not relate
drawing
the
to
of
co-coordinated with
In case of any
proceeding
1 2 3 4 5 6 7 8 9 A B C D E F H I J START FACE ± 0.00M B +9.970 M C + 12.970 M D + 15.050 M E + 19.040 M F + 30.840 M G + 32.490 M H + 34.580 M + 36.190 M J + 38.730 M START FACE ± 0.00M 2 + 23.350 M 3 + 26.475 M 4 + 28.660 M 5 + 31.810 M 6 +34.110 M 7 + 40.010 M 8 + 41.330 M END FACE + 44.335 M G 9770 5000 5000 5000 5000 14197 14197 A + 0.200 M 9 + 44.135 M 1 + 0.115 M END FACE + 38.845 M 200 2231 2801 X Y Z W 115 23235 3125 2185 3150 2300 5900 1320 2805 200 44335 3000 2080 3990 11800 1650 2090 1610 2540 115 38845 5000 5000 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES : 1. All dimensions are in MM. Dimensions are to be read always, not measured. 2. Levels indicated are specific
this building in isolation and
to
indicated levels
other building on site. 3. This
is to be read long and
relevant consultants drawings.
discrepancy notify the architect immediately before
with any work on that part 4. Refer detailed drawings wherever relevant. North LEGENDS : CENTERLINE Project Title: Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / V Roll Number: AR19001 Sheet Title : CENTERLINE PLAN BLOCK A Scale: 1:100 Date: Sheet No.: Vivekanand Education Society's College of Architecture .\VESCOA LOGO.png 45
2.
This
Refer
14197 14197 1 2 3 4 5 6 7 8 9 A B C D E F H I J START FACE ± 0.00M B +9.885 M C + 12.862 M D + 14.964 M F + 30.755 M G + 32.404 M H + 34.493 M I + 36.108 M J + 38.644 M START FACE ± 0.00M 3 + 26.474 M 4 + 28.660 M 5 + 31.808 M 6 +34.117 M 7 + 40.033 M 8 + 41.330 M END FACE + 44.246 M G 9770 2999 2080 3988 11803 1649 2089 1615 2536 38847 A + 0.115 M 9 + 44.131 M 1 + 0.115 M END FACE + 38.759 M 200 115 115280112975916230931482186312323236115 44247 27640 8870 2247 8784 6326 1817 4191 12584 8622 5376 7366 5376 3430 521 7548 3246 1583 2970 1330 765 15477 10662 E + 18.952 M 8172 2247 6722 16679 2886 3082 8441 15544 13899 10422 6158 7995 23136 5046 900 5000 5000 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES : 1. All dimensions are in MM. Dimensions are to be read always, not measured.
Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site. 3.
drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part 4.
detailed drawings wherever relevant. North LEGENDS : CENTRE LINE Project Title: Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / V Roll Number: AR19001 Sheet Title : FOUNDATION PLAN BLOCK A Scale: 1:100 Date: Sheet No.: Vivekanand Education Society's College of Architecture .\VESCOA LOGO.png 46
1. All dimensions are in
not
2. Levels indicated are specific to this
to be read
in isolation and do not relate to the
of other building on site.
3. This drawing is to be read long and co-coordinated with relevant consultants
In case of any discrepancy notify the architect immediately before proceeding with any work on that part
4. Refer detailed drawings
relevant.
UP KITCHEN KITCHEN STORAGE CANTEEN AREA MUSIC ROOMMULTIPURPOSE HALL FIRST AID ROOM 750 750768 824 285 3916 1790 770 115 1176 750311 824 750 771 750 900 750 2000 1808 115 265 306968 1028 1200 478 1200 500 1200 1377 1016 467 1200 826 1200 810 1034 4964 1016 7359 416 1112 7049 UP 914 914 500 1000 1276 1000 1826 1000 1855 9292979 800 1284 1138 2265 1156 2745 1017 987 9752980 21941 8441 9165 300 2194 START FACE ± 0.00M 2 + 23.350 M 3 + 26.475 M 4 + 28.660 M 5 + 31.810 M 6 +34.110 M 7 + 40.010 M 8 + 41.330 M END FACE + 44.335 M 9 + 44.135 M 1 + 0.115 M START FACE ± 0.00M B +9.970 M C + 12.970 M D + 15.050 M E + 19.040 M F + 30.840 M G + 32.490 M H + 34.580 M + 36.190 M J + 38.730 M A + 0.200 M END FACE + 38.845 M 1 2 3 4 5 6 7 8 9 B C D E F H I J G A TOILET TOILET + 0.50m - 0.55m 3.55m 2.55m 1.55m 1.55m 1.55m - 1.55m 1.55m 1.55m 1.10m - 1.55m - 1.55m3.55m 1.55m 1.55m 2.0m 0.55m 0.55m 0.55m - 0.55m 10 12 1314151617 2000 300 1000 1000 1585 915 15041016 600 2565 914 914 924 12081 6736 1468 1200 945 1200 747 1200 1425 1200 945 1200 10157 7845 8071 914 914 26644218503891850389185038918506910 9528 850 3891 850 3891 850 3891 850 3891 850 1811 914 914 6858 29000 2.55m W3 V W2 W1 D4 D3 D4 D1 D3 D2 W1 W1 W1 W1 W2 W2 W2 W2 W2 W2 W2 W2 W2 V V V W1 W1 W3 W3 W3 W3 W3 W3 W3 W3 D1 D1 D2 D2 D2 0.55m 0.55m UP UP 3.5M X 4M 3.5M X 4M 2M X 1.5M 8M X 6M 9M X 13M 2.5M X 5M 12M X 10M 30M X 10M 2647 3099 2980 6917 14197 14197 4965 5000 23569 307 7854 7854 7640 230 230 10178 29040 7647 2304 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES :
MM. Dimensions are
always,
measured.
building
indicated levels
drawings.
wherever
North LEGENDS : CENTRE LINE Project Title: Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / V Roll Number: AR19001 Sheet Title : GROUND FLOOR PLAN BLOCK A Scale: 1:100 Date: Sheet No.: Vivekanand Education Society's College of Architecture .\VESCOA LOGO.png BRICK HATCH DOOR AND WINDOW SCHEDULE SILL LEVEL WIDTH HEIGHT DESCRIPTION NOS 1 2 D1 D2 0.00 0.00 1016 1830 2100 2100 TEAK WOOD FLUSH DOOR 3 4 3 D3 900 2100 2 6 7 W2 W3 1200 850 1200 1200 10 9 8 V 1800 750 1000 TEAK WOOD DOUBLE SHUTTER WINDOW 4 4 5 D4 W1 0.00 0.00 900 900 900 TEAK WOOD DOUBLE SHUTTER DOOR TEAK WOOD FLUSH DOOR 2 7 TEAK WOOD FLUSH DOOR2100 1200 750 1000 TEAK WOOD DOUBLE SHUTTER WINDOW TEAK WOOD DOUBLE SHUTTER WINDOW TEAK WOOD DOUBLE SHUTTER WINDOW 47
BLOCK B CENTER LINE PLAN START FACE ± 0.00M A + 0.200 M B + 1.300 M C + 3.435 M START FACE ± 0.00M 1 2 3 4 5 6 2 +6.115 M 3 + 8.858 M 4 + 11.113 M 5 + 12.353 M 6 + 14.593 M A B C D + 6.685 M END FACE + 6.800 M END FACE + 14.708 M 6800 1 + 0.115M Y Z 200 2135 3250 D 115 6000 2255 1240 2240 115 1000 1000 160 560 6000 2000 2000 2000 30901780675 X W 5949 5949 2576 5980 9415 31275981 4934 5000500050005000 13042 6000 3000 6000 3000 2200 6000 6000 11418 18290 3805 4437 7876 15208 18054 16551 14692 67545526 8000 5526 8000 5526 5526 6000 6000 115 1100 2743 14708 7943 This drawing and the design it covers is the property of V.E.S.C.O.A. It is merely loaned on the borrower as express agreement that it will not be reproduced, copied, loaned or used except in a limited way by any written consent given by the lender to th e borrower. NOTES : 1. All dimensions are in MM. Dimensions are to be read always, not measured. 2. Levels indicated are specific to this building in isolation and do not relate to the indicated levels of other building on site. 3. This drawing is to be read long and co-coordinated with relevant consultants drawings. In case of any discrepancy notify the architect immediately before proceeding with any work on that part 4. Refer detailed drawings wherever relevant. North LEGENDS : CENTRE LINE Project Title: Stamp and guide's Signature Name: NISHA BALOTIYA Year / Semester: 3rd / V Roll Number: AR19001 Sheet Title : BLOCK B Scale: 1:100 Date: Sheet No.: Vivekanand Education Society's College of Architecture .\VESCOA LOGO.png 48

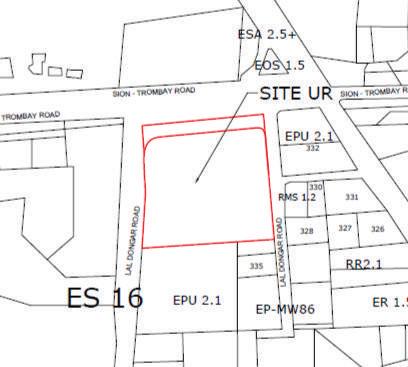

07 Muncipal Drawings,2022 Year Semester VII 49
1693.94
06
8308.71
DUNGAR RD WIDTH 18.3 M
AREA
3
7
16
5.5
BLDG
C BLDG HT.70
B BLDG
WIDTH 36.6 M 22.5 30.3 1
WADI RD WIDTH 9.3M
BLDG
+ GR + 1ST TO 22ND.WING-A,C,E + 1ST TO 15TH.WING-B + 2ND TO 14TH.WING-D,F.
21.5 16.6
E BLDG HT.70
8.3
F BLDG HT.70
D BLDG
8.2 8.2 13.712.7 10.6 10.5 10.8 10.614.5
11.64.3 8.6 15.4 12.1 9.7
2
7.8
1 3 7 10 11 2.92 5.19 10.68 12 2 4 5 6 5.32 103.2 21.21 105.75 117.05 20.7 19.92 118.79 96.56 87.26 32.21 28.52 22.43 6.28 94.58 10.32 22.77 B A 94.26 SITE UR ES 16 EP-MW86 EPU 2.1 EPU 2.1 ESA 2.5+ EOS 1.5 RR2.1 ER 1.5 331 328 330 TROMBAY SION ROAD TROMBAY DONGAR ROAD RG 5% AMENITIES AREA PROP.
BASEMENT
RESIDENTIAL FLOORS. 12 WING A
HT.70 M WING
HT.49 M WING
M 36.6 18.3 9.3 WING
HT.46 M WING
M WING
M TYPICALFLOORLINE TYPICALFLOORLINE TYPICALFLOORLINE BASEMENTLINE BASEMENTLINE BASEMENTLINE BASEMENTLINE TYPICALFLOORLINE 5.5
15
12.7 6.5
AREA UNDER ROAD SETBACK LAL
WAMAN
VN PURAV MARG
RG
RG
10.48 32.48 10.09 36.86 9.9228.92 10.23 40.73 7.5 7.98 40.29 7.7 7.7 40.37 7.41 1 2 3 4 5 6 7 8 9 10 18.3 BLOCK PLAN SCALE - 1:500 PLOT AREA DIAGRAM SCALE - 1:500 PLOT AREA CALCULATION ADDITION 01 02 03 1/2 X X = X X = X X = 1/2 1/2 SQ.M 103.20 117.05 118.79 21.21 19.92 22.43 1094.43 1165.81 1332.2304 X X =1/2 105.75 20.70 1094.51 07 X1/2 87.26 6.28X = 273.99 12 = 8.21 = 39.06 A - (9) 13 05
1/2 X X =118.79 28.52
X X =1/2 96.56 32.21 1555.18 09=0.67(10.68X2.92)+((2.92X2.92)/(2X10.68)) = 20.19 08=0.67(5.19X22.76)+((5.19X5.19)/(2X22.76)) 78.43= =
= 991.29 10 = 472.9 = 471.3 X X1/2 94.58 10 11 X X1/2 94.26 10 B (8) = 28.40 20.19 = 117.49 - 78.43 DEDUCTION TOTAL PLOT AREA = 9300= 8308.73 + 991.27 SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SQ.M SETBACK AREA PLOT AREA SIGNATURE OF ARCHITECT JOB NO. data spacera nanji bhai bmc bmc plan CHECKED BY NORTH OWNERSHIP TOWN PLANNING SCHEME RECORDS. 528.44 SQ.MTS AND TALLIES WITH THE AREA STATED IN THE DOCUMENT OF ON THE PLAN ARE AS MEASURED ON SITE AND THE AREA SO WORKED OUT IS 04/12/2014 AND THAT THE DIMENSIONS OF THE SIDES, ETC. OF THE PLOT STATED CERTIFIED THAT HAVE SURVEYED THE PLOT UNDER REFERENCE ON DATE DRN. BY DATE 26-09-2019 REV. S.E.B.P. ( _ _ _ _ ) 1) AREA OF PLOT 2) DEDUCTIONS FOR ROAD SET-BACK AREA PROPOSED ROAD ANY RESERVATION SUB-PLOT a) b) c) 3) BALANCE AREA OF PLOT 1 MINUS 2 4) DEDUCTION FOR 5% AMENITIES 5) NET AREA OF PLOT 3 MINUS 4 7) TOTAL AREA 5 PLUS 6 ) 8) FLOOR SPACE INDEX PERMISSIBLE FLOOR SPACE INDEX CREDIT AVAILABLE BY DEVELOPMENT RIGHTS9) 0.50 F.S.I. AS PER DCR 32b) ADDITION IN LIEU OF T.D.R. FSI CONSUMED ON NET HOLDING = 11 5 a) F.S.I. AS PER DCR 33c) 10) PROPOSED BUILT UP AREA (10 + 2X 2(a))11) PERMISSIBLE FLOOR AREA 7 x 8 ) PLUS 9 ABOVE P R O F O R M A - A B) 12) A) DETAILS OF RESIDENTIAL NON RESIDENTIAL AREA PURELY RESIDENTIAL BUILT UP AREA REMAINING NON-RESIDENTIAL BUILT UP AREA a) b) C) DETAILS OF FSI AVAILED AS PER DCR 31 3 ) FUNGIBLE BUILT UP AREA COMPONENT PROPOSED FOR PURELY RESIDENTIAL = OR (B1 0.35 1) FUNGIBLE BUILT UP AREA COMPONENT PROPOSED FOR NON RESIDENTIAL = OR < (B2 x 0.35 2) TOTAL FUNGIBLE BUILT UP AREA = C1 + C23) TOTAL GROSS BUILT UP AREA PROPOSED 11 + C34) TENEMENT STATEMENTD) PROPOSED AREA ITEM B4 ABOVEi) LESS DEDUCTION OF NON RESIDENTIAL AREA SHOP ETC.ii) AREA AVAILABLE FOR TENEMENTS (i) MINUS (ii)iii) TENEMENTS PERMISSIBLE 450 HECTARE FOR 2.29 HECTAREiv) v) TENEMENTS PROPOSED vi) TENEMENTS EXISTING vii) TOTAL TENEMENTS ON THE PLOT PARKING STATEMENTE) PARKING REQUIRED BY REGULATIONS FOR CAR SCOOETR MOTOR CYCLE i) OUTSIDERS VISITORS ) COVERED GARAGE PERMISSIBLEii) COVERED GARAGES PROPOSED CAR SCOOETR MOTOR CYCLE iii) OUTSIDERS VISITORS ) TOTAL PARKING REQUIREDiv) TOTAL PARKING PROVIDEDv) TRANSPORT VEHICLES PARKINGF) SPACES FOR TRANSPORT VEHICLES PARKING REQUIRED BY REGULATIONSi) TOTAL NO. OF TRANSPORT VEHICLES PARKING SPACES PROVIDEDii) CERTIFICATE OF PLOT AREA P R O F O R M A - B DESCRIPTION OF PROPOSAL AND PROPERTY NAME, ADD. & SIGNATURE OF OWNER NAME, ADD. & SIGNATURE OF ARCHITECT STAMP OF APPROVAL OF PLAN AREA STATEMENT 9300 SQ.MTS. 991.29 8308.71415.53 7893.18 50% GENERAL TDR = 3947.55 50% SLUM TDR = 3947.55 7935.35 x 0.50 = 3967.67 7893.18 X = 7893.18 CONTENTS OF SHEET A.E.B.P. _ _ _ _ E.E.B.P. ( _ _ _ _ ) 1 21714.58 3946.59 19732.95 2.75 17000 4714.58 5950 1650.10 7600.10 29314.6 29314.6 22942.92 1032 4346364.68 (21714.5 + 7600.10) (4716.5+1650) 7893.18 7893.18 5) NET AREA OF PLOT 3 MINUS 4 2(a) 100% FOR D.P. ROAD(RESTRICTED TO) NET AREA OF PLOT 3 MINUS 4 SHEET NO - 1/3 CONTENTS OF SHEET- PLOT AREA DIAGRAM WITH CALCULATIONS - BLOCK & LOCATION PLAN - RECREATIONAL GROUND DIAGRAM WITH CALCULATIONS - RERA CARPET AREA WITH CALCULATIONS NAME OF HOUSING PROJECT 77 77 77 PROPOSED BUILDING ON PLOT BEARING CTS NO. Ms. NISHA BALOTIYA Ms. SONAL BORKAR Mr. RONIT GALA LOCATION PLAN @ 1:4000 R.G. AREA CALCULATION 1 2 3 4 5 6 7 8 9 10 32.5 32.5 36.9 28.9 40.7 40.7 40.3 40.3 40.4 40.4 TOTAL ADDITION TOTAL RG AREA X X X X X X X X X X 10.5 10.1 10.1 9.9 10.2 7.5 8 7.7 7.7 7.4 X 0.50 X 0.50 X 0.50 X 0.50 X 0.50 X 0.50 X 0.50 X 0.50 X 0.50 X 0.50 170.63 164.13 186.35 143.06 207.57 152.63 161.20 155.16 155.54 149.48 SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. 1645.72 SQ.MT. 1645.72 SQ.MT. FOR PLOT AREA 8355 SQ.MT., 20% LOS REQUIRED LOS REQUIRED LOS PROPOSED 1671 SQ.MT. 1645.72 SQ.MT. RG AREA DIAGRAM SCALE - 1:500 BUILT UP

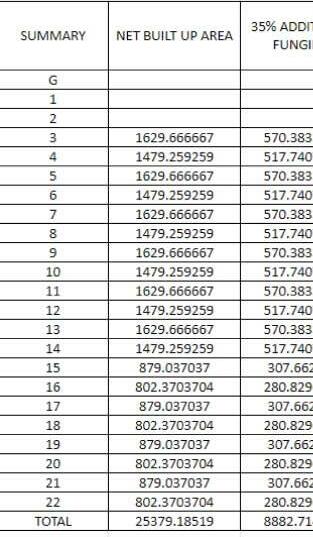

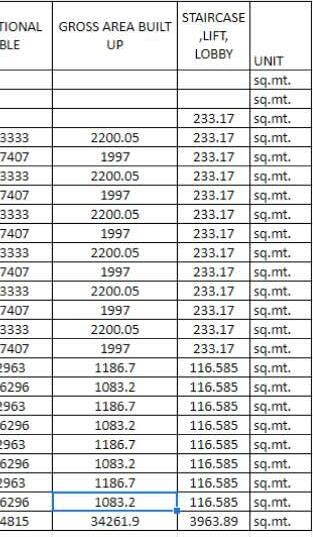

SUMMARY: 50
19 21 22 26 24 30 WIDEDRIVEW WID IVEWAY SER UPMWIDERAMP TO ROUNDLVL 54.0 9.10 42.45 30.9 15.10 3.2 25.3 32 34 36 38 DN LVL UP EWA -1.90 RIVEWAY 6.0 6.0 29 4 8 10 1112 1314 1516 18 20 22 43 45 48 50 5352 5554 5756 58 60 26 32.82 16.08 5.50 30.0 1 3 5 7 9 19 21 24 22 26 24 28 30 6.0MWIDE DRIVEWAY 6.0MWIDE DRIVEWAY 15 14 13 12 11 27 SERVICES 26 10 09 08 07 06 05 04 26 01 6MWIDERAMP 16 17 23 UPTOGROUNDLVL 54.0 9.10 42.45 30.9 15.10 3.2 6.15 3.2 25.35 4.0 STAIRCASE LIFT 6 1.8X1.5 LIFT 1.8X1.5 LIFT 3.0X1.5 LIFT 3.0X1.5 LIFT 1 1.8X1.5 LIFT 1.8X1.5 STAIRCASE STAIRCASE17 32 34 36 38 ED FD UP LOBBY LOBBY DN ±0.00LVL UP 6.0MWIDE DRIVEWAY -1.90LVL ED FD ED FD UP 6.0MWIDE DRIVEWAY FRD 6.0 6 6 6 6.0 40 39 37 35 33 31 29 27 25 23 27 25 2 4 6 8 10 1112 1314 1516 19 18 18 20 22 41 21 20 4342 4544 4746 23 22 25 24 4948 5150 27 26 28 29 5352 5554 31 30 32 33 5756 35 34 5958 37 36 6160 39 38 02 03 26 32.82 22.8 30.25 41.51 20.03 3.44 5.50 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 V1 30.0 5400 JOB NO. data spacera nanji bhai bmc bmc plan CHECKED BY NORTH DRN. BY DATE 26-09-2019 REV. S.E.B.P. ( _ _ _ _ P R O F O R M A - B DESCRIPTION OF PROPOSAL AND PROPERTY NAME, ADD. & SIGNATURE OF OWNER NAME, ADD. & SIGNATURE OF ARCHITECT STAMP OF APPROVAL OF PLAN A.E.B.P. _ _ _ _ E.E.B.P. ( _ _ _ _ ) SHEET NO - 2/3 CONTENTS OF SHEET BASEMENT PLAN BASEMENT PART SECTION PARKING STATEMENT NAME OF HOUSING PROJECT PROPOSED BUILDING ON PLOT BEARING CTS NO. Ms. NISHA BALOTIYA Ms. SONAL BORKAR Mr. RONIT GALA BASEMENT SCALE - 1:100 PARKING STATEMENT RERA CARPET AREA IN SQ.MT. TOTAL NO OF FLATS PARKING PAERMISSIBLE AS PER D.C. RULES PARKING REQUIRED 45 TO 60M 37 1 PARKING/ 2 TENEMNETS 18.50 60 TO 90M 27 1 PARKING/1 TENEMNETS 27 ABOVE 90 NIL 2 PARKING/1 TENEMNETS NIL TOTAL 64 NIL 45.50=46 APPROX 25% VISITORS + 5% PROFESSIONAL (1 PARKING MIN) TOTAL PARKING 60 13.80=14 APPROX TOTAL PARKING 61 KEY PLAN SCALE - 1:500 PART SECTION SCALE - 1:100 51
PROFESSIONAL ENTRY 1 COMMUNITY WORKSPACE LIBRARY PROFESSIONAL ENTRY 2 UP FD ED UP FD ED COMMUNITY WORKSPACE DN COMMUNITY WORKSPACE TO WORKSPACE TO RESIDENTIAL COMMUNITY WORKSPACE TO LIBRARY UP ED FD OUT ±0.0M +0.45M +0.45M +1.2M +1.2M +0.45M +1.2M +1.2M +1.2M +0.45M +1.2M +0.45M ROAD SETBACK 14.003 3.805 6.766 2.479 7.231 6.718 5.668 6.077 1.73 1.801 6.767 3.805 14.003 15.806 5.27 5.194 6.99 6.244 7.23 5.8625.246.9586.958 5.245.644.494 7.31 5.577 7.84 6.84 5.194 5.27 15.806 A A B 5.734 12.942 15.975 16.337 16.048 12.943 5.732 4.5 5.5 5.926 9.3 9.271 350 SQ.M 270 SQ.M 270 SQ.M 14.1811.073 JOB NO. data spacera nanji bhai bmc bmc plan CHECKED BY DRN. BY DATE 22-09-2022 REV. S.E.B.P. ( _ _ _ _ P R O F O R M A - B DESCRIPTION OF PROPOSAL AND PROPERTY NAME, ADD. & SIGNATURE OF OWNER STAMP OF APPROVAL OF PLAN A.E.B.P. ( _ _ _ _ E.E.B.P. ( _ _ _ _ ) PROPOSED BUILDING ON PLOT BEARING CTS NO. Ms. NISHA BALOTIYA Ms. SONAL BORKAR Mr. RONIT GALA NORTH CONTENTS OF SHEET GROUND FLOOR PLAN GROUND FLOOR PLAN SCALE - 1:100 KEY PLAN 52
1.5
0.50 1.00 0.50 1.00 0.50 0.50 1.00 1.00 0.50 1.00 0.50 1.00 0.50 1.00 0.50 1.00 0.50 1.00 0.50 1.00 0.50 0.50 12.09 X 12.09 X 0.50 8.99 1.5 14.88 X 5.91 4.05
0.9 2.1 2.1 3.81 3.37 3.81 3.37 5.88 5.88 7.23 7.23 1.57 1.57 5.2 5.2 7 4.9 7 0.9 9.69 5.27 5.91 0.9 3.1 10.56
4.04 5.91 4.05 7.03 0.9 2.98 2.98 1.5 1.5 4.57 4.57 6.37 1.5 1.50 5.27 0.9 14.64 X X 11.08 X 6.97 6.97 0.61 7.93 5.27
1.73 1.73 7 7 7.84 6.97 0.87 0.61 7.93 5.27 TOTAL DEDUCTION TOTAL BUILT UP AREA STAIRCASE,LIFT & LOBBY AREA ST ST ST L L L3 L' 1 L' 2 L' 3 L' 4 L' 5 L' 6 L' 7 L' 8 L' 9 L' 10 L' 11 L' 12 L' 13 L' 14 L' 15
X X X X X X X X X X X X X X X X X X X X X TOTAL DEDUCTION NET BUILT UP AREA
X X X X X
6.16 6.16 6.16 5.19 5.19 5.19 2.25 3.46 4.96 4.95 4.95 2.66 2.43 2.66 2.84 4.11 4.95 4.95 4.96 3.46 2.25
3.46 3.46 3.46 3.86 2.66 3.86 1.50 1.03 1.82 3.38 1.58 0.96 2.03 1.07 2.43 2.34 3.38 1.58 1.82 1.07 1.50
1.00 1.00 1.00 1.00 0.50 0.50 1.00 1.00 1.00 0.50 0.50 1.00 0.50 1.00 0.50 1.00 0.50 0.50 1.00 1.00 0.50 1.00 0.50 1.00 0.50 1.00 0.50 0.50 0.50
1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
80.34 X 28.92 X 1.00 2323.43 2323.43 46.95 2.70 2.21 10.29 7.26 5.68 30.86 38.86 17.29 75.85 26.14 83.65 1.23 20.87 13.52 42.12 24.50 34.30 24.50 2.70 46.95 13.89 73.08 53.13 1.35 3.10 60.12 17.46 8.20 74.24 1.35 12.07 4.44 1.13 6.86 10.44 29.11 20.29 6.86 1.13 13.89 1.35 9.12 1.50 102.48 24.50 86.87 24.29 6.06 0.19 31.44 13.89 1272.21 1051.23 21.31 21.31 21.31 20.03 13.81 20.03 3.38 3.56 9.03 16.73 7.82 2.55 4.93 2.85 6.90 9.62 16.73 7.82 9.03 3.70 3.38 24.69 1026.54
SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT.
2.1 7.00 3.81 1.57 4.3 5.59 5.9 6.37 1.5 6.071.43 7 3.1 4.13 0.9 1.5 0.3 6.097.89 5.59 7.00 0.3 5.23 0.9 5.12 5.27 5.19 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.95X1.5 BALCONY 1.8X1.5 PANTRY PANTRY PANTRY PANTRY PANTRY PANTRY PANTRY LIVING ROOM 5.12X4.59 BED RM 3X3.38 BED RM 7X3.14 BED RM 3.14X3.03 LIVING ROOM 6.74X4.86 LIVING ROOM 6.95X3.14 LIVING ROOM 6.54X4.40 LIVING ROOM 5.72X3.82 LIVING ROOM 3.45X4.89 LIVING ROOM 6.39X5.32 5.27 2.1 7.00 3.81 1.57 4.3 5.596.75 6.43 1.5 6.07 1.49 7 3.1 4.13 0.31.5 6.09 7.89 5.59 7.00 0.3 5.2 3 5.12 5.27 5.19 5.21 LIVING ROOM 4.28X6.52 BALCONY 1.8X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 TOILET 2.1X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.8X1.5 BALCONY 1.95X1.5 BALCONY 1.8X1.5 PANTRY PANTRY PANTRY PANTRY PANTRY PANTRY PANTRYPANTRY LIVING ROOM 5.12X4.59 BED RM 3X3.38 BED RM 7X3.14 BED RM 3.14X3.03 LIVING ROOM 6.74X4.86 LIVING ROOM 6.95X3.14 LIVING ROOM 6.54X4.40 LIVING ROOM 5.72X3.82 LIVING ROOM 3.45X4.89 LIVING ROOM 6.39X5.32 LIVING ROOM 4.28X6.52 BALCONY 1.8X1.5 1.64 1.64 10.5613.77 10.57 13.71 FLAT NO.1 1BHK 45.11 SQ.M. FLAT NO.2 1RK 30.1SQ.M. FLAT NO.3 1RK 37.06 SQ.M. FLAT NO.4 1RK 36.28 FLAT NO.5 1RK 36.17 SQ.M. FLAT NO.6 1BHK 45.89 SQ.M. FLAT NO.7 1RK 33.19 SQ.M. FLAT NO.8 1BHK 45.52SQ.M. FLAT NO.1 1BHK 45.11SQ.M. FLAT NO.2 1RK 30.01SQ.M. FLAT NO.3 1RK 37.06 SQ.M. FLAT NO.4 1RK 36.28 SQ.M. FLAT NO.5 1RK 36.71 SQ.M. FLAT NO.6 1BHK 45.89 SQ.M. FLAT NO.7 1RK 33.19 SQ.M. FLAT NO.8 1BHK 45.52 SQ.M. PANTRY 1.5 1.5 1.5 1.56 1.5 1.5 1 4 3 5 7 6 8 9 10 11 12 14 15 16 17 18 19 21 22 23 24 27 26 30 32 31 29 28 3334 35 36 38 39 41 43 45 47 44 51 48 9.69 2.1 4.9 3.81 3.37 37 42 3.81 2 9.69 3 3.37 8.1 11.53 5.88 5.88 12.9 7.23 7.23 11.57 13.29 1.571.57 5.25.2 8.1 7 7 4.9 0.9 5.27 9.69 20 12.09 12.09 8.995.91 3.1 1.5 5.93 14.88 5.91 7.0310.56 2.98 4.054.052.982.98 0.9 1.51.54.574.576.374.571.55.271.731.73 14.64 7 11.08 7 7.84 0.61 0.61 6.97 6.97 0.87 7.93 0.9 5.27 52 46 48 3.11.50.9 5.93 0.9 1.5 1.5 5.27 3 9.69 77 80.34 28.92 132.1 25 0.9 6.37 4044 49 50 7.93 5.27 ST 1 L'2 L' 16.16 3.46 1.5 2.25 1.03 L 1L' 3 L' 5 L' 4 4.96 1.82 4.95 3.38 3.86 5.19 ST 2 L 2 L'8 L' 7 L' 10 L' 6 6.163.46 2.432.66 0.96 1.07 5.19 2.66 4.11 2.34L' 2.849 L 3 L' 11 L' 12 L' 13 3.86 1.58 3.38 4.95 1.82 4.965.19 ST 3 L' 15 3.46 1.07 2.25 1.5 6.16 L' 14 BUILT UP AREA CALCULATION 3RD FLOOR PLAN (BLOCK A) ADDITION A TOTAL ADDITION DEDUCTION 1 2 3 4 5 6 7 8 9 9.69 2.1 4.9 3.81 3.37 8.1 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 X X X X X X X 11.53 X 5.88 12.9 7.23 X X X 11.57 X 1.57 X 13.29 X 5.2 8.1 7 7.00 7 9.69 5.27 X X X X X X X X 5,93 X X X X X 4.05 2.98 1.5 4.57 4.57 6.37 6.37 4.57 1.5 5.27 1.5 5.27 1.73 7 X X X X X X X X X X X X X X 9.69
X
BUILT-UP AREA DIAGRAM OF TYPICAL FLOOR PLAN (BLOCK 1) SCALE - 1:100 TYPICAL FLOOR PLAN (BLOCK 1) SCALE - 1:100 BUILT-UP AREA CALULATION JOB NO. data spacera nanji bhai bmc bmc plan CHECKED BY DRN. BY DATE 22-09-2022 REV. S.E.B.P. ( _ _ _ _ P R O F O R M A - B DESCRIPTION OF PROPOSAL AND PROPERTY NAME, ADD. & SIGNATURE OF OWNER STAMP OF APPROVAL OF PLAN A.E.B.P. ( _ _ _ _ ) E.E.B.P. _ _ _ _ ) PROPOSED BUILDING ON PLOT BEARING CTS NO. Ms. NISHA BALOTIYA Ms. SONAL BORKAR Mr. RONIT GALA NORTH CONTENTS OF SHEET CLUSTER 2: TYPICAL FLOOR PLAN, BUILT UP AREA DIAGRAM AND CALCULATION CLUSTER 1: REFUGEE FLOOR PLAN (8TH FLOOR), BUILT UP AREA DIAGRAM AND CALCULATION 53
2
1
3
1st
L' 2 L' 3 3.46 4.96 X X 1.03 1.82 X 1.00 X 1.00 3.56 9.03 SQ.MT. SQ.MT.
TOTAL AREA 81.86 SQ.MT. NO. OF FLOORS NET AREA SQ.MT.
RERA
1st to 22nd F2 FLOOR
ADDITIONS
1 6.321 X 3.550 = 22.440
RERA
1st to 22nd F3 FLOOR
ADDITIONS:
1 1.000 X 0.300 = 0.300
3 4.530 X 0.070 = 0.317
4 2.657 X 0.070 0.186
5 5.129 X 3.407 = 17.475
6 2.049 X 3.306 = 6.774
7 1.7 X 2.250 = 3.881
8 1.500 X 1.581 = 2.371
9 1.570 X 3.789 = 5.949
TOTAL RERA: 37.253
LOBBY
RERA
1st to 22nd F3 FLOOR PLAN
ADDITIONS:
1 3.307 X 6.850 = 22.653 SQ.MT
2 1.800 X 5.930 = 10.674 SQ.MT
3 2.170 X 6.850 = 14.865 SQ.MT
4 2.640 X 5.580 = 14.731 SQ.MT
5 3.627 X 5.200 = 18.860 SQ.MT
6 2.477 X 1.650 = 4.087 SQ.MT
7 1.000 X 0.300 = 0.300 SQ.MT
TOTAL RERA: 86.170 SQ.MT
1.00
1.00
1.00
1.00
1.00
1.00
1.00
21.31 13.81 7.82 2.55 4.93 2.85 6.90 9.62
SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT.
TOTAL AREA 69.45 SQ.MT. NO. OF FLOORS NET AREA SQ.MT.
STAIRCASE,LIFT & LOBBY AREA
ST 3 L3 L' 11 L' 12 L' 13 L' 14 L' 15
6.16 5.19 4.95 4.95 4.96 3.46 2.25
TOTAL AREA
X
X
3.46 3.86 3.38 1.58 1.82 1.07 1.50
X 1.00 X 1.00 X 1.00 X 1.00 X 1.00 X 1.00 X 1.00
21.31 20.03 16.73 7.82 9.03 3.56 3.38 81.86
SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT.
NO. OF FLOORS NET AREA SQ.MT.
carpet area calculation
carpet area calculation
PLAN
SQ.MT
SQ.MT
SQ.MT
SQ.MT
SQ.MT
SQ.MT
SQ.MT
SQ.MT
SQ.MT
carpet area calculation
PLAN
SQ.MT 2 5.042 X 0.750 3.782 SQ.MT 3 3.317 X 0.820 2.720 SQ.MT 4 1.0 X 0.300 = 0.300 SQ.MT TOTAL RERA AREA: 29.241 SQ.MT RERA carpet area calculation
to 22nd F1 FLOOR PLAN ADDITIONS:
5.710 X 2.930 = 16.730 SQ.MT
1.720 X 2.025 = 3.483 SQ.MT
5.660 X 3.675 = 20.801 SQ.MT 4 2.405 X 1.769 = 4.3 SQ.MT 5 1.000 X 0.300 0.3 SQ.MT TOTAL RERA AREA 45.6 SQ.MT 4 1 2 2 RERA carpet area calculation 1st to 22nd F4 FLOOR PLAN ADDITIONS 1 1.000 X 0.300 = 0.300 SQ.MT 2 1.650 X 1.050 = 1.733 SQ.MT 3 3.630 X 2.320 8.422 SQ.MT 4 1.650 X 2.4 3.960 5 6.930 X 3.170 21.968 TOTAL RERA: 36.382 SQ.MT 1 2 3 4 1 2 3 3 RERA CARPET AREA DIAGRAM FOR FLAT 1 (TYPICAL FLOOR PLAN) A WING RERA CARPET AREA DIAGRAM FOR FLAT 2 (TYPICAL FLOOR PLAN) A WING RERA CARPET AREA DIAGRAM FOR FLAT 3 (TYPICAL FLOOR PLAN) A WING 1 7 5 4 2 3.31 6.85 1.8 5.93 6.85 2.17 5.58 2.64 2.48 5.2 3.63 4 6 5.745.58 2.77 2.25 2.81 2.17 4.26 1.58 6.54 5.683.71 6.62 5.8 4.85 1.27 3.78 1.72 6.93 3.18 3.63 1.65 2.4 2.321.65 1.05 3.415.13 3.312.05 2.25 1.51.58 3.79 1.57 6.31 3.55 0.820.73 3.325.04 5.66 5.71 1.77 2.41 2.93 2.03 3.68 1.72 4.53 2.660.07 1.73 RERA carpet area calculation 1st to 22nd F3 FLOOR PLAN ADDITIONS: 1 2.810 X 2.170 = 6.098 SQ.MT 2 2.770 X 2.250 = 6.233 SQ.MT 3 5.737 X 2.300 13.195 SQ.MT 4 5.577 X 4.260 23.758 SQ.MT 5 3.707 X 1.580 = 5.857 SQ.MT 6 5.675 X 6.540 = 37.115 SQ.MT TOTAL RERA: 92.255 SQ.MT RERA carpet area calculation 1st to 22nd F2 FLOOR PLAN ADDITIONS : 1 1.000 X 0.300 = 0.300 SQ.MT 2 1.270 X 4.850 6.160 SQ.MT 3 3.780 X 6.621 25.027 SQ.MT 4 1.7 X 5.801 = 9.978 SQ.MT TOTAL RERA AREA: 41.465 SQ.MT RERA CARPET AREA DIAGRAM FOR FLAT 4 (TYPICAL FLOOR PLAN) A WING RERA CARPET AREA DIAGRAM FOR FLAT 1 (TYPICAL FLOOR PLAN) A WING RERA CARPET AREA DIAGRAM FOR FLAT 2 (TYPICAL FLOOR PLAN) A WING RERA CARPET AREA DIAGRAM FOR FLAT 4 (TYPICAL FLOOR PLAN) A WING ST 3 ST 2 ST 1 L 1 L 2 L 3 L'8 L'2 L' 1 L' 3 L' 5 L' 7 L' 10 L' 11 L' 12 L' 13 L' 15 6.16 3.46 1.5 2.25 1.07 L' 4 L' 6 6.163.46 2.43 2.66 0.96 1.07 5.19 2.66 4.11 2.34 3.86 1.58 3.38 4.95 1.82 4.96 5.19 3.46 1.07 2.25 1.5 6.16 4.96 1.82 4.95 3.38 3.86 5.19 L' 9 L' 14 2.84 STAIRCASE,LIFT & LOBBY AREA ST 1 L 1 L' 1 L' 4 L' 5 6.16 5.19 2.25 4.95 4.95 X X X X X 3.46 3.86 1.50 3.38 1.58 X 1.00 X 1.00 X 1.00 X 1.00 X 1.00 21.31 20.03 3.38 16.73 7.82 SQ.MT. SQ.MT. SQ.MT. SQ.MT. SQ.MT. STAIRCASE,LIFT &
AREA ST 2 L 2 L' 5 L' 6 L' 7 L' 8 L' 9 L' 10 6.16 5.19 4.95 2.66 2.43 2.66 2.84 4.11 X X X X X X X X 3.46 2.66 1.58 0.96 2.03 1.07 2.43 2.34 X
X 1.00 X
X
X
X
X
X
X X X X X
0.3 1 5 7 1 2 3 4 1 2 3 JOB NO. data spacera nanji bhai bmc bmc plan CHECKED BY DRN. BY DATE 22-09-2022 REV. S.E.B.P. ( _ _ _ _ ) P R O F O R M A - B DESCRIPTION OF PROPOSAL AND PROPERTY NAME, ADD. & SIGNATURE OF OWNER STAMP OF APPROVAL OF PLAN A.E.B.P. ( _ _ _ _ ) E.E.B.P. ( _ _ _ _ ) PROPOSED BUILDING ON PLOT BEARING CTS NO. Ms. NISHA BALOTIYA Ms. SONAL BORKAR Mr. RONIT GALA NORTH CONTENTS OF SHEET RERA CARPET AREA DIAGRAMS AND CALCULATIONS BUILT-UP AREA CALULATION: STAIRCASE, LIFTS, LOBBY SCALE 1:100 BLOCK 1 FLOOR PLAN 1:250 (PROFESSIONAL) BLOCK 2 FLOOR PLAN 1:250 (FAMILY) RERA CARPET AREA DIAGRAM AND CALCULATION BLOCK 1 BLOCK 2 BUILT-UP AREA CALULATION: STAIRCASE, LIFTS, LOBBY SCALE - 1:100 54
COMMUNITY WORKSPACE COMMUNITY WORKSPACE LOBBY TOILET PASSAGE TOILET TOILET SUNK PASSAGE LOBBY 0.3 0.15 2.1 0.9 0.2 SUNK 0.8 2.1 0.6 1ST FLOOR LVL 2ND FLOOR LVL 3RD FLOOR LVL 4TH FLOOR LVL 5TH FLOOR LVL 6TH FLOOR LVL 7TH FLOOR LVL 8TH FLOOR LVL 9TH FLOOR LVL 10TH FLOOR LVL 11TH FLOOR LVL 12TH FLOOR LVL 13TH FLOOR LVL 14TH FLOOR LVL 15TH FLOOR LVL 16TH FLOOR LVL 17TH FLOOR LVL 18TH FLOOR LVL 19TH FLOOR LVL 1ST FLOOR LVL 20TH FLOOR LVL TERRACE LVL + 0.6M PLINTH LVL ±0.0M GROUND LVL. 21ST FLOOR LVL 3.6 3.0 2.1 0.9 TOILET PASSAGE 2.1 0.9 2.13.0 2.1 0.9 TOILET TOILETPASSAGE 2.1 0.9 2.13.0 2.1 0.9 TOILET TOILET SUNK PASSAGE 2.1 0.9 SUNK2.13.0 2.1 0.9 TOILET TOILET SUNK PASSAGE 2.1 0.9 SUNK2.13.0 2.1 0.9 TOILET TOILETPASSAGE 2.1 0.9 2.13.0 2.1 0.9 TOILET TOILET SUNK PASSAGE 2.1 0.9 SUNK2.13.0 2.1 0.9 TOILET SUNK PASSAGE 2.1 0.9 3.0 TOILET TOILETPASSAGE 2.1 0.9 2.13.0 2.1 0.9 TOILET TOILET SUNK PASSAGE 2.1 0.9 SUNK2.13.0 2.1 0.9 TOILET TOILET SUNK PASSAGE 2.1 0.9 SUNK2.13.0 2.1 0.9 TOILET TOILETPASSAGE 2.1 0.9 2.13.0 2.1 0.9 TOILET TOILET SUNK PASSAGE 2.1 0.9 SUNK2.13.0 2.1 0.9 TOILET SUNK PASSAGE 2.1 0.9 3.0 TOILET PASSAGE 2.1 0.9 3.0 TOILET SUNK PASSAGE 2.1 0.9 3.0 2.1 0.9 3.0 2.1 0.9 3.0 2.1 0.9 3.0 2.1 0.9 3.0 2.1 0.9 3.0 2.1 0.9 3.0 TOILET SUNK TOILET TOILET SUNK TOILET SUNK TOILET TOILET SUNK PASSAGE PASSAGE PASSAGE 1RK 1RK 1RK 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK PASSAGE 1RK 70 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE PASSAGE COMMUNITY WORKSPACE 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1RK 1RK 1RK 1RK 1RK 1RK 1RK 1RK 1RK 1RK 1RK 1RK 1ST FLOOR LVL 2ND FLOOR LVL 3RD FLOOR LVL 4TH FLOOR LVL 5TH FLOOR LVL 6TH FLOOR LVL 7TH FLOOR LVL REFUGE FLOOR LVL 9TH FLOOR LVL 10TH FLOOR LVL 11TH FLOOR LVL 12TH FLOOR LVL 13TH FLOOR LVL TERRACE LVL 0.6M PLINTH LVL ±0.0M GROUND LVL. 24.6 SERVICE DUCT SERVICE DUCT SERVICE DUCT SERVICE DUCT SERVICE DUCT SERVICE DUCT OHT 2.85 2.55 2.5 2.85 2.85 2.1 2.1 43 JOB NO. data spacera nanji bhai bmc bmc plan CHECKED BY DRN. BY DATE 22-09-2022 REV. S.E.B.P. ( _ _ _ _ P R O F O R M A - B DESCRIPTION OF PROPOSAL AND PROPERTY NAME, ADD. & SIGNATURE OF OWNER STAMP OF APPROVAL OF PLAN A.E.B.P. ( _ _ _ _ ) E.E.B.P. _ _ _ _ ) PROPOSED BUILDING ON PLOT BEARING CTS NO. Ms. NISHA BALOTIYA Ms. SONAL BORKAR Mr. RONIT GALA NORTH CONTENTS OF SHEET SECTION BB' SECTION AA' SCALE - 1:100 KEY PLAN 55
