LIGHTNING ROD ANCHOR

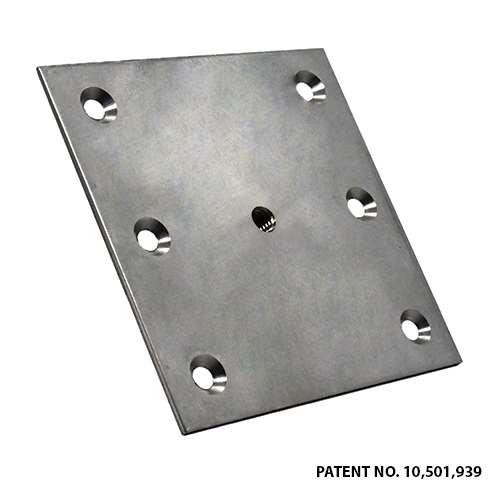

Threaded Port (NB1A)
5” X 5” Stainless Nill Flange - 3/8"
Advertisement
Nill Building Solutions has revolutionized the flange that has been in use for decades by roofers worldwide by making it stronger, waterproof and eliminating common trouble areas while improving on efficiency. Various sizes available to suite your needs. This product is ideal for installation of LIGHTNING RODS and much more.
Product Features:
‣PATENT NO. 10,501,939
‣Stainless steel construction
‣1/8” Thick - Multiple thicknesses available
‣6 counter-sink holes to receive flat head lag or sheet metal screws
‣1-1/4” X 1/2”-13 threaded post can be fastened from underneath
‣3/8”-16 waterproof threaded port standard for all your mounting needs
‣Various sizes available to suit your needs
‣Compatible with most popular roofing systems

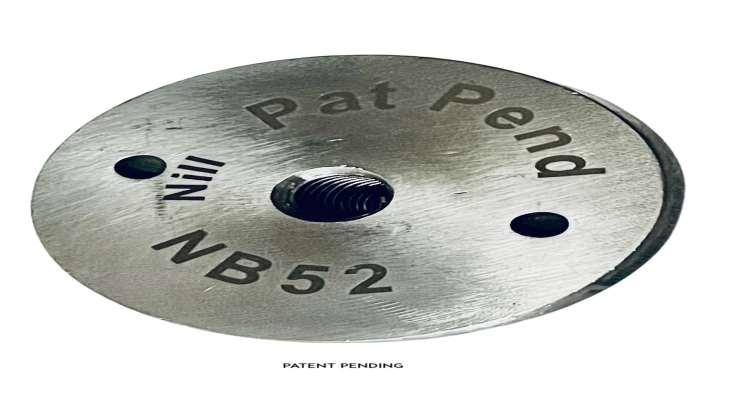

Reducer - Works with NB1D - 3"- Diameter (NB52)
The Nill Building Solutions 3” reducer flange is designed to mount on top of the roofing membrane and sandwich into the NB1D. Adding double waterproof protection to your attachment points while creating another waterproof attachment point with the reducer flange’s threaded port.
Product Features
‣PATENT PENDING
‣1/2”-13
Waterproof Threaded port
‣3/4”-10 X 1” Long threaded post
‣3” flange X 1/4" thick
‣Caulk groove to ensure waterproof seal
