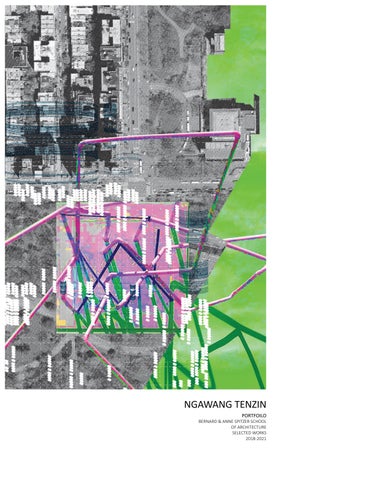

BERNARD & ANNE SPITZER SCHOOL OF ARCHITECTURE SELECTED WORKS 2018-2021

CONTENTS

01.

THE LAUNDROMAT PROJECT

02.

FREEDOM FARMS VEGETABLE STALL

03.

TRASH HEAP 01

04.

GARDEN OF EARTHLY DELIGHTS

05.

BARCELONA ARCHERY RANGE EXTENSION

06.

CO-OP CITY COOPERATION JACKSON

07.

BROWNSVILLE ELEMENTARY

08.

CONTROL TOWER

09.

MYCELIUM PANELS

01 THE LAUNDROMAT PROJECT A flexible space for community engagement

The Laundromat Project is an arts organization serving artists and communities of color. The organization was first conceived in Bed-Stuy and after years of operating from Harlem and the South Bronx, the LP is celebrating its homecoming. The new site is located on Bed-Stuy’s Bustling Fulton street. The LPs diverse program called for a multipurpose space for community gathering, and an array of other activities that the LP has been renowned for, hosting yoga classes to social justice workshops. The new home for the LP was designed with inclusivity in mind, catering to the diverse needs and aesthetics of the neighborhood through art as a means of community building Bagchee architects 2020-2021 Collaborator: The Laundromat Project

The Laundromat Project

1'-2"

112" 4"

1'-0"

4'-6"

02. Axonometry of program space 5"

01. Axonometry of lobby

1 THE LAUNDROMAT PROJECT

BLACK ALUMINIUM EDGE

SCALE: 3/4" = 1'-0"

1 8"

1476 FULTON STREET BROOKLYN, NY 11216.

1 21" PAINTED MDF PANEL/ FRAME

2'-6"

IKEA

IKEA COUNTER WITH ADJ. SHELVES

1'-75 8"

1'-73 4"

2'-6"

7'-23 4"

3 8"

1 4"

1'-67 8"

4'-6" 1

BAGCHEE ARCHITECT

195 Chrystie Street, 601 D New York, NY 10002

CEMENT BOARD 3 4"

1'-67 8"

1'-112"

Architect:

TILE ON MORTAR

PLYWOOD

1'-75 8"

2'-10"

DRAWERS

AXONOME

LOCATE ALL CASTORS UNDER SUPPORT EDGE AS SHOWN

BLOCKING AS REQUIRED

PLAN

SCALE: 3/ THE LAUNDROM PROJECT

SCALE: 3/4" = 1'-0"

2'-03 8"

MAINTAIN THIS DEPTH OF COUNTER TO HAVE 3 1 " EVEN TILES WITH 16 GROUT JOINT

1'-73 4"

4'-6"

3 4"

PLYWOOD BACKREST PTD. WITH CLEAR FINISH EDGE

1476 FULTON STRE BROOKLYN, NY 112

HOLE FOR 81" DIA. CORD

SLIDE OUT TRASH BIN TO FIT UNDER DOUBLE SINK. (G.C. TO CO-OPERATE AFTER PLUMBING IS IN PLACE)

3 4" CHAMFERED PLYWOOD FIN SUPPORT PTD. WITH CLEAR FINISH EDGE

KITCHENETTE UNIT

1'-2"

SECTION

TITLE:

1'-2"

OUBLE SINK

11.24.2020 1'-4"

2'-10"

2'-218"

112" 4"

ALIGN

1'-0"

DATE:

1'-0"

L. OF SINK & TILE &FAUCET EQ. EQ.

TRASH

DIA. CORD

MICROWAVE

FAUCET FX-1

SCALE: 3/

3 4" CHAMFERED PLYWOOD FIN SUPPORT PTD. WITH CLEAR FINISH EDGE

LED IKEA LIGHT

NK X-2

SIDE ELE

PLYWOOD BACKREST PTD. WITH CLEAR FINISH EDGE

2'-218"

1" OVERHANG MAINTAIN THIS COUNTER HEIGHT TO HAVE 2 21 TILES WITH 1 16" GROUT

3 4"

112"

1 8"

ELEVATION

Professional

NOTE: 1) 2) 3)

6'-6"

SEE CORRECTED SHOP DRAWINGS. SEAL TILE & GROUT GROUT TO MATCH BLACK COLOR IN TILE (CO-OPERATE WITH ARCHITECT)

1" PTD. PLYWOOD WITH CLEAR FINISH EXPOSED EDGE

HEAVY DUTY CASTORS WITH BRAKE LOCK ON TWO

Architect:

SHEET:

SECTION

1" = 1'-0" 03. Kitchenette SCALE: Section

ELEVATION SCALE: 3/4" = 1'-0"

SK-004 1 8"

SIDE ELEVATION

2 SCALE: 3/4" = 1'-0" 04. Mobile bench plan & section

DIA. CORD

ROUND ALL EXPOSED 1 " CORNERS BY 16

3 4"

PLYWOOD BACKREST PTD. WITH CLEAR FINISH EDGE

PAINTED PLYWOOD FINISH WITH CLEAR EXPOSED EDGE

3 4"

LIGHTLY EASE ALL PLYWOOD EDGES

CHAMFERED PLYWOOD FIN SUPPORT PTD. WITH CLEAR FINISH EDGE

BAGCHEE ARCHITECT 195 Chrystie Street, 601 D New York, NY 10002

DATE: 11.11.2020

LOCATE ALL CASTORS UNDER SUPPORT EDGE AS SHOWN

TITLE: BENCH MILL WOR

The Laundromat Project

05. Mobile bench

Professional

06. Plan

02 FREEDOM FARMS | COOPERATION JACKSON PRODUCE SATLL Cooperation Jackson is an emerging vehicle for sustainable community development, economic democracy, and community ownership in Jackson, Mississippi. Freedom Farms Cooperative is one of the many emerging cooperatives under Cooperation Jackson. The group runs the farmland owned by the cooperation, producing fresh produce for the people of West Jackson and actively teaching the community on how to eat healthily. Bagchee Architects has been working with Cooperation Jackson for over two years now, and the Stall project is another way of integrating design to help organizations working for the upliftment of disenfranchised communities. Bagchee architects 2020 Collaborator: Cooperation Jackson

Freedom Farm Produce Stall

The stall is designed on top of a readymade car trailer and can be easily transported. The design utilizes simple folding counters and built-in racks to display the produce while out in the market and also functions as storage on the route. The side panels open up to provide shade and protection from the weather.

01. Stall model

”

12’-0”

5” 18

.7 18

SPINACH LETTUCE KALE

PRODUCE CRATE

LEAFY GREENS

FRUIT/ ROOT VEGGIES

SPINACH

POTATOES TOMATOS OKRA ONIONS GARLIC

FRUIT/ ROOT VEGGIES POTATOES LETTUCE TOMATOS KALE OKRA ONIONS GARLIC

4’-6”

8’-11”

LEAFY GREENS

” 15

” 26

PRODUCE CRATE

PRODUCE STORAGE

5”

”

5”

COLEMAN 48 QT

COLEMAN 48 QT COOPERATION JACKSON VEGGEI STALL

COOPERATION JACKSON VEGGEI STALL

11”

11” ” 5” 13”

2”

14”

14” 1

”

12’-0”

TRAVEL TRAVEL

”

5”

8.5”

5’-

5”

”

5”

5’-

”

” 24

”

. 11 2’-

2’-

8.5”

CAULIFLOWER CABBAGE WATERMELON SQUASH PUMPKINS

4’-6”

8’-4”

4’-6”

8’-4”

HEAVY PRODUCE

2’-7”

30” 4’-6”

DISPLAY

2’-7”

30” 4’-6”

CAULIFLOWER CABBAGE WATERMELON SQUASH PUMPKINS

6’-8”

HEAVY PRODUCE

DISPLAY

02. StallCOOPERATION DiagramsJACKSON | FREEDOM FARMS MOBILE STALL

Professional

firdauskareem@gmail.com

TITLE:

OVERALL DIMENSIONS

DATE: 08/07/20

BAGCHEE ARCHITECTS nb@bagcheearchitects.com

COOPERATION JACKSON | FREEDOM FARMS MOBILE STALL

TITLE:

firdauskareem@gmail.com

DATE:

OVERALL DIMENSIONS 08/07/20

BAGCHEE ARCHITECTS nb@bagcheearchitects.com

Freedom Farm Produce Stall

Professional

03. Stall setup

Freedom Farm Produce Stall

04. Display view

Professional

The Produce stall is also an important means of advertising and branding, graphic logos and colorful signage allows the stall to be easily identified. The stall also functions as a display for posters and zines.

05. Closed Axonometric

Freedom Farm Produce Stall

Professional

06. Display axonometric

03 TRASH HEAP 01

Architecture in the age of acceleration

Trash Heap is a multifaceted address to the global waste problem. It is a living organism that incorporates workspaces for innovation, industry, education, and residential, simultaneously adapting to various applications/locations. The proposal seeks to create a set of design parameters to reintegrate waste into the urban landscape. The project does not propose a complete design or a singular final result but focuses on the countless amalgamation of form based on the available waste materials.

Academic

Instructor: Viren Brahmbhatt Spring 2020 Collaborator: Karyna Yanovska & Rebecca Mechanic

WASTE MANAGEMENT NYC NYC PRODUCES 33 MILLION TONS OF GARBAGE EVERY YEAR, OF WHICH 663,600 TONS ARE RECOVERED FOR RECYCLING

A1 COMPACTION Recyclables Handling and Recovery Facility Mixed solid waste: 63,018 tons

Transfer Station Mixed solid waste: 60,373 ton

WASTE MANAGEMENT FAIRVIEW NJ

Transfer Station Mixed solid waste: 399,577 tons

WASTE MANAGEMENT INC HARLEM RIVER

SOUTH CAROLINA BRONX

VIRGINIA OHIO KENTUCKY PENNSYLVANIA

New York ships most of its nonrecyclable trash to other states totaling $300 million a year

VISY 59th STREET Recyclables Handling Recovery Facility Paper: 70,620 tons

MANHATTAN

NORTH SHORE MARINE TRANSFER STATION Transfer Station

QUEENS

Mixed solid waste: 382,293 tons

NEWTOWN CREEK Serves 1.1 Million people WASTE WATER treats 225 million gallons TREATMENT FACILITY of waste water.

JERSEY CITY SIMS METAL MANAGEMENT FACILITY

NEWARK

WASTE MANAGEMENT INC VARVICK STREET Transfer Station

Mixed solid waste: 311,370 tons

REGAL RECYCLING

METAL RECYCLING

Transfer Station Mixed solid waste: 43,713 tons

IESI - COURT STREET Transfer Station Mixed solid waste: 138,856 tons

BT THAMES BROOKLYN

Transfer Station Mixed solid waste: 51,415 tons

SPECIAL WASTE DROP OFF SITES

PAPER RECYCLING

STATEN ISLAND

FRESHKILLS LANDFILL (CLOSED)

IESI 50th STREET TRANSFER STATION Transfer Station Mixed solid waste: 233,760 tons

SIMS MUNICIPAL RECYCLING FACILITY Recyclables Handling and Recovery Facility Paper: 29,874 tons

ACTION ENVIRONMETAL Transfer Station Mixed solid waste: 63,899 tons

SIMS claims to be the largest recy- In 2013 the City struck a 20-year agreement cling plant in North America, with Sims in 2013 agreeing to pay $75 per is responsible for processing 500,000 tons of the city’s recyclable material a ton to Sims for processing and sorting its trash as opposed to paying the average cost year. of $100 per ton to send the recyclables to a landfill.

Academic

PRATT INDUSTRIES PAPER MILL

Trsah Heap 01

BOER U

LOR IM

AY DW OA BR

ER S T

M ST

Academic

01. Site axonometric

02. Empty lots map

The first inception of Trash Heap will be located on the junction of three highly contested neighborhoods of Brooklyn: Bushwick, East Williamsburg, and Bedford Stuyvesant. Adjacent to the broadway J, Z, M train lines. The Project began with analyzing the broder context of brooklyn, by looking into structures and lots that were being neglected and left in disarray.

Trash Heap 01

05. Abandoned Architecture map

04. Program parti

Academic

03. Trash models

Trsah Heap 01

06. Trash models

Academic

A key component of our project was upcycling discarded products, with this in mind we went about building some “trash models” using household waste and exploring scale, function, and the relationships between our programs (Live, Work, Play).

Trash Heap 01

07. Recycled sections

Academic

The sections is an amalgamation of existing drawings that are carefully stitched together, further exploring the relationship between the programs.

Trsah Heap 01

08. Program classification

09. Start-up production

Several iterations are produced based on the program classifications which allocate a set area for each program.

Academic

10. Formal iterations

Trash Heap 01

Academic

11. Proposal 0.1 Axonometric section

Academic

Trsah Heap 01

Academic

Trash Heap 01

04 THE GARDEN OF EARTHLY DELIGHTS A social condensor of contemporary pleasures

Social Condenser: Programmatic layering upon vacant terrain to encourage dynamic coexistence of activities and to generate through their interference, unprecedented events. -Rem Koolhass The conceptual scenery for the studio is the famous triptych; The Garden of Earthly Delights by Hieronymus Bosch. Three main scenes linked by a common denominator, sin, create an ambiguous and enigmatic world composed of multiple narratives and micro and macro readings. Like the painting, the studio is placed in an intermediate zone between fantasy and reality, the critical and the imaginative, the concrete and the invented. Instructor: Maria Fullando Fall 2019

The Garden of Earthly Delights

-the pleasure running all fourRunning on allof four when you are lateon to class.

-the pleasure of having X-ray visionThe ability to see through anything.

I hate how he doesnt reply toat my all, he’s me! avoiding me! yo, who planned this trip jsuch a wate of time. I hate how he doesnt reply to my texts all,texts he’s at avoiding I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!!I hate how he doesnt reply to my texts at all, he’s avoiding me! yo, who planned this trip jsuch a wate of time. I really care about the enivironment but like recycling is a draggg!!! yo, who planned this trip jsuch a wate of time. I just dont understand at ll ughhhh! can I please not do this I just dont understand at ll ughhhh! I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! yo, who planned this trip jsuch a wate of time. I hate how the train is always slow Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person can I please not do this Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! I hate how the train is always slow can I please not do this Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! yo, who planned this trip jsuch a wate of time. Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! I really care about the enivironment but like recycling is a draggg!!! I hate how he doesnt reply to my texts at all, he’s avoiding me! I just dont understand at ll ughhhh! I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!! I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. I just dont understand at ll ughhhh! I hate how the train is always slow I hate how the train is always slow I just dont understand at ll ughhhh! I just dont understand at ll ughhhh! I just dont understand at ll ughhhh! I hate how he doesnt reply to my texts at all, he’s avoiding me! I just dont understand at ll ughhhh! yo, who planned this trip jsuch a wate of time. I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!! can I please not do this I dont like this at all, like I’m usually a nice person yo, who planned this trip jsuch a wate of time. I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! yo, who planned this trip jsuch a wate of time. Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person yo, who planned this trip jsuch a wate of time. I hate how he doesnt reply to my texts at all, he’s avoiding me! I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person yo, who planned this trip jsuch a wate of time. I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. I hate how he doesnt reply to my texts at all, he’s avoiding me! skunk Do you think im being annoying please let me know if I am.I hate how he doesnt reply to my texts at all, he’s avoiding me! I just dont understand at ll ughhhh! I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I dont like this at all, like I’m usually a nice person asphalt tar I just dont understand at ll ughhhh! I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! squid ink I really care about the enivironment but like recycling is a draggg!!! ll ughhhh! I hate how he doesnt reply to my texts at all, he’s avoiding me! can I please not do this I just dont understand at I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I hate how he doesnt reply to my texts at all, he’s avoiding me! coal I hate how he doesnt reply to my texts at all, he’s avoiding me!Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. smoke I hate how the train is always slow I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! yo, who planned this trip jsuch a wate of time. I hate how he doesnt reply to my texts at all, he’s avoiding me! black dirt stuck I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! yo, who planned this trip jsuch a wate of time. hair yo, who planned this trip jsuch a wate of time. yo, who planned this trip jsuch a wate of time. I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! soil I just dont understand at ll ughhhh! I dont like this at all, like I’m usually a nice person I dont like this at all, like I’m usually a nice person yo, who planned this trip jsuch a wate of time. I dont like this at all, like I’m usually a nice person I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. I hate how he doesnt reply to my texts at all, he’s avoiding me! I really care about the enivironment but like recycling is a draggg!!! Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! I really care about the enivironment but like recycling is a draggg!!! hh h . . Do you think im being annoying please let me know if I am. I hate how he doesnt reply to my texts at all, he’s avoiding me! hh . . . I just dont understand at ll ughhhh! . I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. yo, who planned this trip jsuch a wate of time. I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! yo, who planned this trip jsuch a wate of time. Do you think im being annoying please let me know if I am. I hate how he doesnt reply to my texts at all, he’s avoiding me! I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! yo, who planned this trip jsuch a wate of time. I hate how he doesnt reply to my texts at all, he’s avoiding me! I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person hate about how he reply to my at all, he’sisavoiding me! I dont like this at all, like I’m usually a nice person I reallyI care thedoesnt enivironment but texts like recycling a draggg!!! I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! I hate how the train is always slow I really care about the enivironment but like recycling is a draggg!!! I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. I hate how he doesnt reply to my texts at all, he’s avoiding me! can I please not do this I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I dont like this at all, like I’m usually a nice person Do you think im being annoying please let me know if I am.Do you think im being annoying please let me know if I am. I just dont understand at ll ughhhh! I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!! I really care about the enivironment but like recycling is a draggg!!! I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! I really care about the enivironment but like recycling is a draggg!!! yo, who planned this trip jsuch a wate of time. Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person Do you think im being annoying please let me know if I am. I really care about the enivironment but like recycling is a draggg!!! I really care about the enivironment but like recycling is a draggg!!! I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!!I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! Do you think im being annoying please let me know if I am. I just dont understand at ll ughhhh! I really care about the enivironment but like recycling is a draggg!!! Do you think im being annoying please let me know if I am. I dont like this at all, like I’m usually a nice person I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! I hate how he doesnt reply to my texts at all, he’s avoiding me! I just dont understand at ll ughhhh! I hate how he doesnt reply to my texts at all, he’s avoiding me! yo, who planned this trip jsuch a wate of time. I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! Do you think im being annoying please let me know if I am. I hate how he doesnt reply to my texts at all, he’s avoiding me! I dont like this at all, like I’m usually a nice person I just dont understand at ll ughhhh! I dont like this at all, like I’m usually a nice person I really care about the enivironment but like recycling is a draggg!!! I hate how he doesnt reply to my texts at all, he’s avoiding me!

smell of a cool fridge the sky smell of rain cold beach on a hot summer day blueberries sunflowers blueberries light cheese between your nails mac and cheese grass the sun spinach roses cheese strawberries green apples hot water trees fire green go lights apples

!!!! hing

I don t hear a nyt

pleasure of nothearing hearing Complaints. -the pleasurethe of not complaints-

Academic

The Pleasures The first task for the stusio was to produce compositions or triptychs suggesting contemporary pleasures expressed as a set of deviations, transgressions of confrontations of the relations between event, space, form, subject, matter, body, object, movement, time, experience, etc. using the technique of collage.

Breathe and Smell -the pleasure ofthe colors. smelling colors-

The Garden of Earthly Delights

The Pleasures device In this assignment, students were tasked to Design 2 devices for 2 different pleasures from the inventory of contemporary pleasures or a set of new pleasure that can be added. The Dream Projector With this device the user can experience the pleasure of having one’s dream recorded and projected.

Academic

The Chit-chat chamber The pleasure of hearing secretsThis collage speaks of a device that would allow one to experience the pleasure of hearing secrets. The device can be thought of as a fun modern confession booth.

The ASSEMBLAGE

STRATEGY

CONGESTION

LAYER

CIRCULATION

Academic

ASSEMBLAGE + MUSIC SCORE + IMAGE

STRATEGY

BALANCE

LAYER PLEASURES/GARDEN

STRATEGY

WEIGHTLESS

LAYER PERSON

Academic

The Garden of Earthly Delights

GARDEN OF............... GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF NO HATE GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP GARDEN OF REJECTION GARDEN OF SLEEP GARDIN OF NO HATE GARDIN OF SEX

GARDIN OF SEX GARDIN GARDIN OF OF HAPPY T GARDIN OF VOID GARDIN OF MOVING ON GARDIN OF OF NOTHIN GARDIN OF NO EXISTAN GARDIN OF NO HATE G GARDIN OF OF NOTHIN HEAVY GARDEN GARDE GARDEN FULL OF PLEAS GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF ILLUSION G GARDEN OF COMPLETE GARDEN OF PAIN GARDEN OF NO DISTRA GARDEN OF SELF HATE GARDEN OF WEALTH GA GARDEN OF PAIN GARD GARDEN OF MOVING ON GARDEN OF REJECTION

GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF OF NOTHING MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE GARDIN OF NO EXISTANCE GARDIN OF NO HATE GARDIN OF SEX GARDIN OF NO HATE GARDIN OF OF NOTHING MATTERS GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF COMPLETE SILENCE GARDIN OF OF NOTHING MATTERS GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP GARDEN OF REJECTION GARDEN OF SLEEP

FULFILL YOUR EVERY DESIRE WELCOME TO THE GARDEN OF COMPLETE SATISFACTION

EXIT Academic

GARDIN OF SEX GARDIN GARDIN OF OF HAPPY T GARDIN OF VOID GARDIN OF MOVING ON GARDIN OF OF NOTHING GARDIN OF NO EXISTAN GARDIN OF NO HATE GA GARDIN OF OF NOTHING HEAVY GARDEN GARDE GARDEN FULL OF PLEAS GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF ILLUSION G GARDEN OF COMPLETE GARDEN OF PAIN GARDEN OF NO DISTRAC GARDEN OF SELF HATE GARDEN OF WEALTH GA GARDEN OF PAIN GARDE GARDEN OF MOVING ON GARDEN OF REJECTION

GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF OF NOTHING MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE GARDIN OF NO EXISTANCE GARDIN OF NO HATE GARDIN OF SEX GARDIN OF NO HATE GARDIN OF OF NOTHING MATTERS GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP GARDEN OF REJECTION GARDEN OF SLEEP

GARDIN OF SEX GARDIN GARDIN OF OF HAPPY TH GARDIN OF VOID GARDIN OF MOVING ON GARDIN OF OF NOTHING GARDIN OF NO EXISTANC GARDIN OF NO HATE GA GARDIN OF OF NOTHING HEAVY GARDEN GARDEN GARDEN FULL OF PLEAS GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF ILLUSION GA GARDEN OF COMPLETE GARDEN OF PAIN GARDEN OF NO DISTRAC GARDEN OF SELF HATE GARDEN OF WEALTH GA GARDEN OF PAIN GARDE GARDEN OF MOVING ON GARDEN OF REJECTION

!!!!! ! !! !!!!

GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF OF NOTHING MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE GARDIN OF NO EXISTANCE GARDIN OF NO HATE GARDIN OF SEX GARDIN OF NO HATE GARDIN OF OF NOTHING MATTERS GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP GARDEN OF REJECTION GARDEN OF SLEEP

ONE

GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF OF NOTHING MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE GARDIN OF NO EXISTANCE GARDIN OF NO HATE GARDIN OF SEX GARDIN OF NO HATE GARDIN OF OF NOTHING MATTERS GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP GARDEN OF REJECTION GARDEN OF SLEEP

ME VE EA

S S . . . . THATS ...... T H E S P OT T

GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF OF NOTHING MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE GARDIN OF NO EXISTANCE GARDIN OF NO HATE GARDIN OF SEX GARDIN OF NO HATE GARDIN OF OF NOTHING MATTERS GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP

L GARDIN OF SEX GARDIN OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF VOID GARDIN OF OF MOVING ON GARDIN OF MOVING ON GARDIN OF OF NOTHING MATTERS GARDIN OF NO DESIRE A GARDIN OF NO EXISTANCE L GARDIN OF NO EXISTANCE GARDIN OF NO HATE GARDIN OF SEX GARDIN OF NO HATE GARDIN OF OF NOTHING MATTERS GARDIN OF VOID HEAVY GARDEN HEAVY GARDEN GARDEN OF LIES GARDEN FULL OF PLEASURE GARDEN FULL OF PLEASURE GARDEN OF SELF HATE GARDEN OF SELF HATE GARDEN OF REJECTION GARDEN OF SOLITUTUDE GARDEN OF ILLUSION GARDEN OF LIES GARDEN OF ILLUSION GARDEN OF COMPLETE SILENCE GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION GARDEN OF NO DISTRACTION GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF WEALTH GARDEN OF DECIT GARDEN OF WEALTH GARDEN OF PAIN GARDEN OF MOVING ON GARDEN OF DECIT GARDEN OF MOVING ON GARDEN OF SLEEP GARDEN OF REJECTION GARDEN OF SLEEP GARDEN OF...............

The Garden of complete satisfaction

The Garden of Earthly Delights

N OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF MOVING ON N NG MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE NCE GARDIN OF SEX GARDIN OF NO HATE NG MATTERS GARDIN OF VOID HEAVY GARDEN EN OF LIES GARDEN FULL OF PLEASURE SURE GARDEN OF SELF HATE N GARDEN OF SOLITUTUDE GARDEN OF LIES GARDEN OF ILLUSION E SILENCE GARDEN OF WEALTH GARDEN OF COMPLETE SILENCE ACTION GARDEN OF NO DISTRACTION GARDEN OF SOLITUTUDE ARDEN OF DECIT GARDEN OF WEALTH DEN OF MOVING ON GARDEN OF DECIT N GARDEN OF SLEEP N GARDEN OF SLEEP

N OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF MOVING ON N G MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE NCE ARDIN OF SEX GARDIN OF NO HATE G MATTERS GARDIN OF VOID HEAVY GARDEN EN OF LIES GARDEN FULL OF PLEASURE SURE GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF LIES GARDEN OF ILLUSION SILENCE GARDEN OF WEALTH GARDEN OF COMPLETE SILENCE ACTION GARDEN OF NO DISTRACTION GARDEN OF SOLITUTUDE ARDEN OF DECIT GARDEN OF WEALTH DEN OF MOVING ON GARDEN OF DECIT N GARDEN OF SLEEP GARDEN OF SLEEP

Pods, platforms and columns (Zoom-in)

N OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH THOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF MOVING ON N G MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE NCE ARDIN OF SEX GARDIN OF NO HATE G MATTERS GARDIN OF VOID HEAVY GARDEN EN OF LIES GARDEN FULL OF PLEASURE SURE GARDEN OF SELF HATE GARDEN OF SOLITUTUDE GARDEN OF LIES GARDEN OF ILLUSION SILENCE GARDEN OF WEALTH GARDEN OF COMPLETE SILENCE GARDEN OF NO DISTRACTION CTION GARDEN OF SOLITUTUDE ARDEN OF DECIT GARDEN OF WEALTH EN OF MOVING ON GARDEN OF DECIT N GARDEN OF SLEEP GARDEN OF SLEEP

ENTE

Pods, platforms and columns (Zoom-in)

Academic

N OF NO DESIRE GARDEN OF SELF HATE GARDEN OF WEALTH HOUGHTS GARDIN OF OF HAPPY THOUGHTS GARDIN OF OF MOVING ON N G MATTERS GARDIN OF NO DESIRE GARDIN OF NO EXISTANCE CE ARDIN OF SEX GARDIN OF NO HATE G MATTERS GARDIN OF VOID HEAVY GARDEN N OF LIES GARDEN FULL OF PLEASURE SURE GARDEN OF SELF HATE GARDEN OF SOLITUTUDE ARDEN OF LIES GARDEN OF ILLUSION SILENCE GARDEN OF WEALTH GARDEN OF COMPLETE SILENCE CTION GARDEN OF NO DISTRACTION GARDEN OF SOLITUTUDE ARDEN OF DECIT GARDEN OF WEALTH EN OF MOVING ON GARDEN OF DECIT N GARDEN OF SLEEP GARDEN OF SLEEP

05 BARCELONA ARCHERY RANGE EXTENSION David Werber International Travel Fellowship Analog Studio Fundació Enric Miralles

This project was produced in the Enric Miralles Foundation in Barcelona, Spain, during a month-long study abroad studio hosted by the office of Enrique Miralles & Benedetta Tagliabue (EMBT). The site is located on the outskirts of Barcelona in an area known as Val D’Hebron; a large complex of buildings, arenas, and sports facilities built in 1992 for the Barcelona Olympics. The structure is an archery range embedded into the landscape. Today the structure is mostly neglected save for the use as a locker room for local soccer teams. The site slopes down away from the range and meets the sea, there are three distinct levels, the roof, the ground, and the large overpass. The Intervention is an extension to the Archery range with a visitor center that would revitalize the mostly abandoned structure.

Academic

Instructor: Fabian Llounch Summer 2019 Collaborator: Dante Paterno & Allan Bertiche

Academic

Barcelona Archery Range Extension

02. Concept drawing

The project is placed behind the existing structure connected through two openings. The programs are laid out in a winding path to allow for a playful discovery of open courtyards that bring light in. The winding pathway allows for a slow progression through the space, the pathway emulates the narrow streets of the gothic quarters and is shaded by a colorful roof providing a cool refuge from the Barcelona summer heat.

Academic

01. Process drawings

Barcelona Archery Range Extension

03. Physical model, Plan

Academic

04. Physical model, Elevation

Barcelona Archery Range Extension

05. Roof plan & section

06. Roof sketches

Academic

The roof structure provides a space for leisure and is covered by colorful tiles, showcasing the rich traditon of decorative glazed ceramic mosaics seen all over Catalunya.

07W. Plan & sections

Academic

Barcelona Archery Range Extension

06 CO-OP CITY COOPERATION JACKSON The objective of the project was to design a proposal for single and collective dwellings for the Co-op Eco-City project under Cooperation Jackson. The cooperation was interested in schemes that incorporated passive methods to sustainable living and a modular scheme that could be easily built by the user and reproduced. The project first started off by analyzing the city of Jackson and the ideas of public shared spaces. This analysis was done by looking into the block site and the existing buildings; as well as analyzing different urban cities around the world in particular the medieval city of Patan in Nepal.

Academic

Instructor: Nandini Bagchee Spring 2019

Academic

CO-OP City |Cooperation Jackson

Academic

01. Analysis

The medieval city of Patan in Kathmandu, Nepal has a dense urban fabric, but yet offers large public squares to its residents for cultural activities and commerce. There is a balance of private and public spaces, the Market squares being the more public and the residential

courtyards as the more private space. The gradients of Public and shared private spaces seen in Patan was something that was lacking in the urban fabric of west Jackson.

CO-OP City |Cooperation Jackson

02. Layout Schemes

Academic

The site contains four abandoned houses that would be incorporated into the plan. A grid is laid based on the location of these houses and multiple schemes are produced.

CO-OP City |Cooperation Jackson

03. Unit stacking

04. Unit layout

The cluster is composed of two units: a single unit for an individual, a medium sized single unit for couples. The units are built up of SIP panels and can be easily added on to other units or can be topped by a roof allowing for the collection of water as well as functioning as a breezeway to cool the interior.

Academic

05. Massing Models

CO-OP City |Cooperation Jackson

05. Unit section

06. Section perspective

LEVEL 1

LEVEL 2

LEVEL 3

07. Plans

Academic

The units are built up of SIP panels and can be easily added on to other units or can be topped by a roof allowing for the collection of water as well as functioning as a breezeway to cool the interior.

CO-OP City |Cooperation Jackson

All residential clusters have shared courtyards based on the number of units. The courtyards vary from public to private designed for use by the residents of two or three units. The location of the fields in the middle of the plan allows it to be visible from all points of the plan. The farm will be operated by Freedom Farms a farming cooperative under cooperation jackson.

Academic

Private Courtyard

08. Section

Shared Courtyard

CO-OP City |Cooperation Jackson

09. View looking at the farm and housing units

Academic

Central Farm

07 BROWNSVILLE ELEMENTARY Play as learning

“The education of a child hovers within the contentious realm of the individual, the family, and their social realm and its organizations. To create the environment for this activity is to manifest a position, an opinion, a bias, etc. within this realm.” -Ali Hocek. The project started by analyzing the pedagogical theory of Maria Montessori, and the programmatic requirements of an elementary school. The proposal focuses on Montessori’s core idea of “play as learning”, and using this ethos to reorganize the conventional elementary school, presenting a space where a child can learn and play anywhere and the two are not mutually exclusive. The architecture promotes flexibility and spontaneity with minimal directed program. The school is both a space for learning, playing and interaction, between the students, the site, and its community.

Academic

Instructor: Ali Hocek Fall 2018

Academic

Brownsville Elementary

The site sits between the tall NYCHA housing projects and the low rise residential buildings to the south separated by the J train line. The structure mediates between the two scales and acts as a convergence point. The architecture is empty and skeletal, allowing for program and activity to be injected from both sides of the divide. The architecture of the school is essentially one surface that winds down. Playing with Montessori’s theory that learning can take place anywhere, the architecture provides a wide open surface for learning. The different levels provide a flexible surface on which programs and activities can be determined, the enclosed spaces house mechanical equipment and the main circulation.

01. Concept Image, “play as learning”.

DESIGNATED LEARNING SPACE MEDIA LEARNING SPACE

INDOOR PLAY LIBRARY LOBBY

GUIDANCE/SUPPORT

STORAGE

ADMINSTRATION CAFETERIA

CIRCULATION CUSTODIAL KITCHEN

OUTDOOR PLAY

137SF/STUDENT

03. Structure diagram

Academic

02. Program concept model,

03. Structure diagram

Brownsville Elementary

04. Gymnasium perspective

05. Junis street perspective

06. Lobby perspective

07. Sketches

Academic

08. Site model

Brownsville Elementary

09. Cellar & Gymnasium

LEVEL 5 1'-6"

10'

LEVEL 4 1'-6"

10'

LEVEL 3 1'-6"

10'

LEVEL 2 1'-6"

10'

LEVEL 1 1'-6"

10'

CELLAR 2 1'-6"

10'

Academic

CELLAR 1

10. Ground flr & offices

Brownsville Elementary

12. Level 3

13. Level 5

14. East West Section

Academic

11. Level 2

Brownsville Elementary

Academic

14. Gymnasium and Cellar

15. East perspective

Brownsville Elementary

16. Level 2

Academic

17. level 4

08 AIR TRAFFIC CONTROL TOWER, LAGUARDIA AIRPORT First opened in 1939, the airport has seen many additions over the decades struggling to accommodate the ever-growing number of passengers and air traffic and has been dubbed a ‘third world” airport by then vice president; Joe Binden in 2014. That same year the governor, Andrew Cumo, with vice president Biden announced a complete reconstruction of the airport with a 4 billion dollar budget. The studio was tasked with designing an Air Traffic control tower for the new airport. The proposal exposes the secretive control tower by revealing the tower’s programmatic units. Each unit has a distinct facade based on its program.The units are placed between the two vertical circulation towers and the exoskeleton. Instructor: Timothy Collins Spring 2018 Collaborator: Benjamin Akhavan

Air Traffic Control Tower

01. Models

Academic

02. Aerial Render

Air Traffic Control Tower

17'-0"

LOBBY - CONNECTION TO BASE BUILDING

Scale: 1/8"=1'-0"

6'-7"

F.C.

RADAR EQUIP ROOM 215'-3" TO F.F.

12'-5"

F.C.

AIR TRAFFIC CONTROL CAB 197'-6" TO F.F.

13'-2"

F.C.

MECHANICAL SUPPORT

RECREATION SPACE

ADMINISTRATIVE OFFICES

Scale: 1/8"=1'-0"

177'-1" TO F.F.

13'-2"

F.C.

ADMINISTRATIVE OFFICES 150'-3" TO F.F.

17'-0"

MECHANICAL SUPPORT

AIR TRAFFIC CONTROL CAB

Scale: 1/8"=1'-0"

LOBBY - CONNECTION TO BASE BUILDING

Scale: 1/8"=1'-0"

F.C.

13'-2"

NGAWANG TENZIN & BENJAMIN AKHAVAN CORE STUDIO 6 │ SPRING 2018 PROF. TIMOTHY COLLINS THE BERNARD AND ANNE SPITZER SCHOOL OF ARCHITECTURE THE CITY COLLEGE OF NEW YORK

RECREATION SPACE 101'-3" TO F.F.

141 CONVENT AVE │ NYC │ 10031

DESIGN CONSULTING TIMOTHY M. COLLINS 141 CONVENT AVE NEW YORK, NY 10031 SUSTAINABILITY HILLARY BROWN NEW CIVIC WORKS 141 CONVENT AVE NEW YORK, NY 10031 STRUCTURAL ENGINEER IVAN MARKOV, PH.D. 141 CONVENT AVE NEW YORK, NY 10031

DRAWING TITLE:

MECHANICAL ENGINEER DONALD MONGITORE JAROS, BAUM & BOLLES INC. 80 PINE STREET NEW YORK, NY 10005

FLOOR PLANS LAGUARDIA AIRPORT AIR TRAFFIC CONTROL TOWER

LIGHTING CONSULTANT ILVA DODAJ DOMINGO GONZALEZ ASSOCIATES 29 BROADWAY - 3RD FLOOR NEW YORK, NY 10006 AIR TRAFFIC CONTROL TOWER ROBERT EISENSTADT PORT AUTHORITY CHIEF ARCHITECT

LAGUARDIA AIRPORT │ Queens, NY 11371

DATE:

05.14.18

PROJECT NUMBER: DRAWN BY: SCALE: DRAWING #:

A-101

RECREATION SPACE

Scale: 1/8"=1'-0"

ADMINISTRATIVE OFFICES Scale: 1/8"=1'-0"

13'-2"

F.C.

LOBBY 16'-1" TO F.F.

GRADE

MECHANICAL SUPPORT

0'-0"

Scale: 1/8"=1'-0"

AIR TRAFFIC CONTROL CAB Scale: 1/8"=1'-0"

10.2' ABOVE SEA LEVEL

03. Elevation

THE BERNARD AND ANNE SPITZER SCHOOL OF ARCHITECTURE THE CITY COLLEGE OF NEW YORK

SOUTH ELEVATION SCALE: 1/8" : 1'

NGAWANG TENZIN & BENJAMIN AKHAVAN CORE STUDIO 6 │ SPRING 2018 PROF. TIMOTHY COLLINS THE BERNARD AND ANNE SPITZER SCHOOL OF ARCHITECTURE THE CITY COLLEGE OF NEW YORK 141 CONVENT AVE │ NYC │ 10031

04. Plans

NGAWANG TENZIN & BENJAMIN AKHAVAN

CORE STUDIO 6 │ SPRING 2018 PROF. TIMOTHY COLLINS

141 CONVENT AVE │ NYC │ 10031

STRUCTURAL ENGINEER IVAN MARKOV, PH.D. 141 CONVENT AVE NEW YORK, NY 10031

DRAWING TITLE:

FLOOR PL LAGUARDIA AIRPORT AIR TRAFFIC CONTROL TOWER

LIGHTING CONSULTANT ILVA DODAJ DOMINGO GONZALEZ ASSOCIATES 29 BROADWAY - 3RD FLOOR NEW YORK, NY 10006 AIR TRAFFIC CONTROL TOWER ROBERT EISENSTADT PORT AUTHORITY CHIEF ARCHITECT

LAGUARDIA AIRPORT │ Queens, NY 11371

DATE: DRAWN BY: DRAWING #:

05.14.18

PROJECT NUMBER: SCALE:

A-201

05.1

PROJECT NUMBER: DRAWN BY: SCALE:

A-10

ELEVATION LAGUARDIA AIRPORT AIR TRAFFIC CONTROL TOWER

LIGHTING CONSULTANT ILVA DODAJ DOMINGO GONZALEZ ASSOCIATES 29 BROADWAY - 3RD FLOOR NEW YORK, NY 10006

DATE:

DRAWING #:

DRAWING TITLE:

MECHANICAL ENGINEER DONALD MONGITORE JAROS, BAUM & BOLLES INC. 80 PINE STREET NEW YORK, NY 10005

AIR TRAFFIC CONTROL TOWER ROBERT EISENSTADT PORT AUTHORITY CHIEF ARCHITECT

SUSTAINABILITY HILLARY BROWN NEW CIVIC WORKS 141 CONVENT AVE NEW YORK, NY 10031

MECHANICAL ENGINEER DONALD MONGITORE JAROS, BAUM & BOLLES INC. 80 PINE STREET NEW YORK, NY 10005

Academic

DESIGN CONSULTING TIMOTHY M. COLLINS 141 CONVENT AVE NEW YORK, NY 10031

Air Traffic Control Tower

1" STL. DECKING DROPPED CEILING WINDOW BEYOND FLASHING SILL REVEAL

E ANEL (VIP)

MING

SUB-WALL FINISHED WALL REVEAL

.40 SYSTEM K

WALL SECTION - WINDOW CONDITION

Academic

05. Program unit wall detail

Scale: 1-1/2"=1'-0"

06. Program to structure detail

Air Traffic Control Tower

Academic

07. Model showing Program to structure connection

09 MYCELIUM ACOUSTIC PANELS Augmented Architecture | bioMATTERS

Mycelium is the nutrient absorbing part of a mushroom, these organisms can be found growing abundantly in soil and other substrates. When dried and the fungus is no longer alive it hardens into a lightweight, and porous material. In recent years Mycelium has Proven to be a great alternative to modern design strategies and manufacturing processes. The Panels incorporate digital fabrication and biological systems to produce a material that is easy to produce and better for the environment. Instructor: Frank Melendez Spring 2019 Collaborator: Santiago Neville Bella Fishta Elene Solomnishvili

Mycelium Panels

01. CNC routing foam molds

03. Negative foam molds The Panels are first modeled in Rhino and then used by the CNC machine to route out perfect copies.

Academic

02. 3D model of panels

Mycelium Panels

04. Process After enough mycelium growth, the mold is left to dry, killing the mycelium and hardening it.

Academic

The Molds are then prepared and sanitiezed for the mycelium to be packed in. They are then placed into plastic bag to retain moisture, allowing the mycelium culture to develop.

PS 208 Model Richard Sturgeon Studio Summer 2017

Beinecke Library Spring 2017
