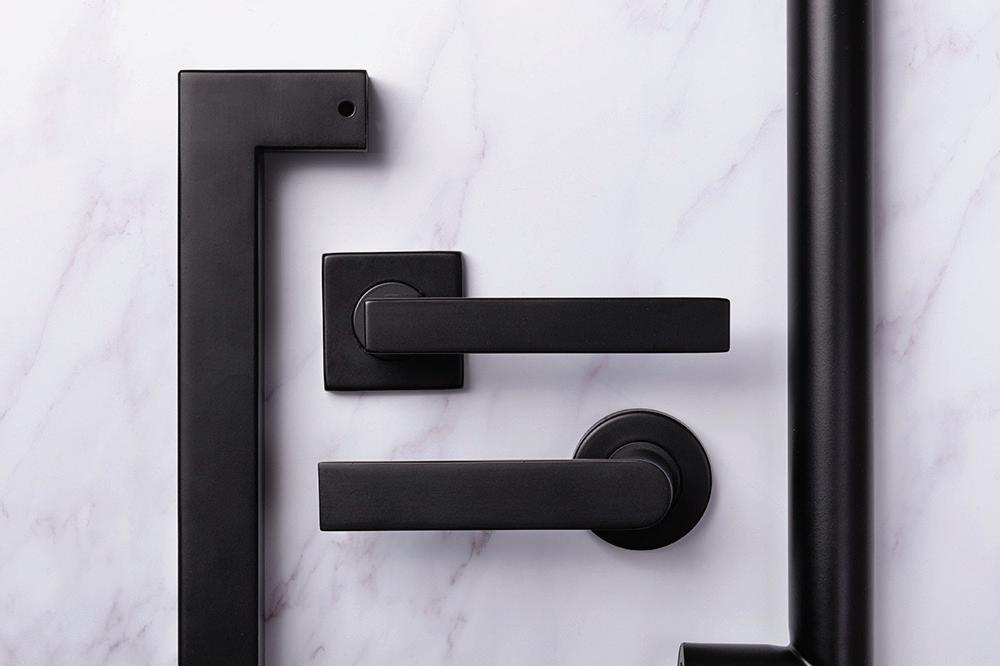

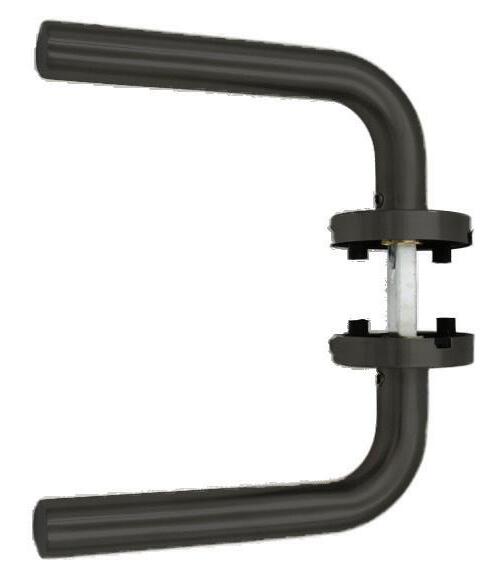

Decorative lever handles on rose

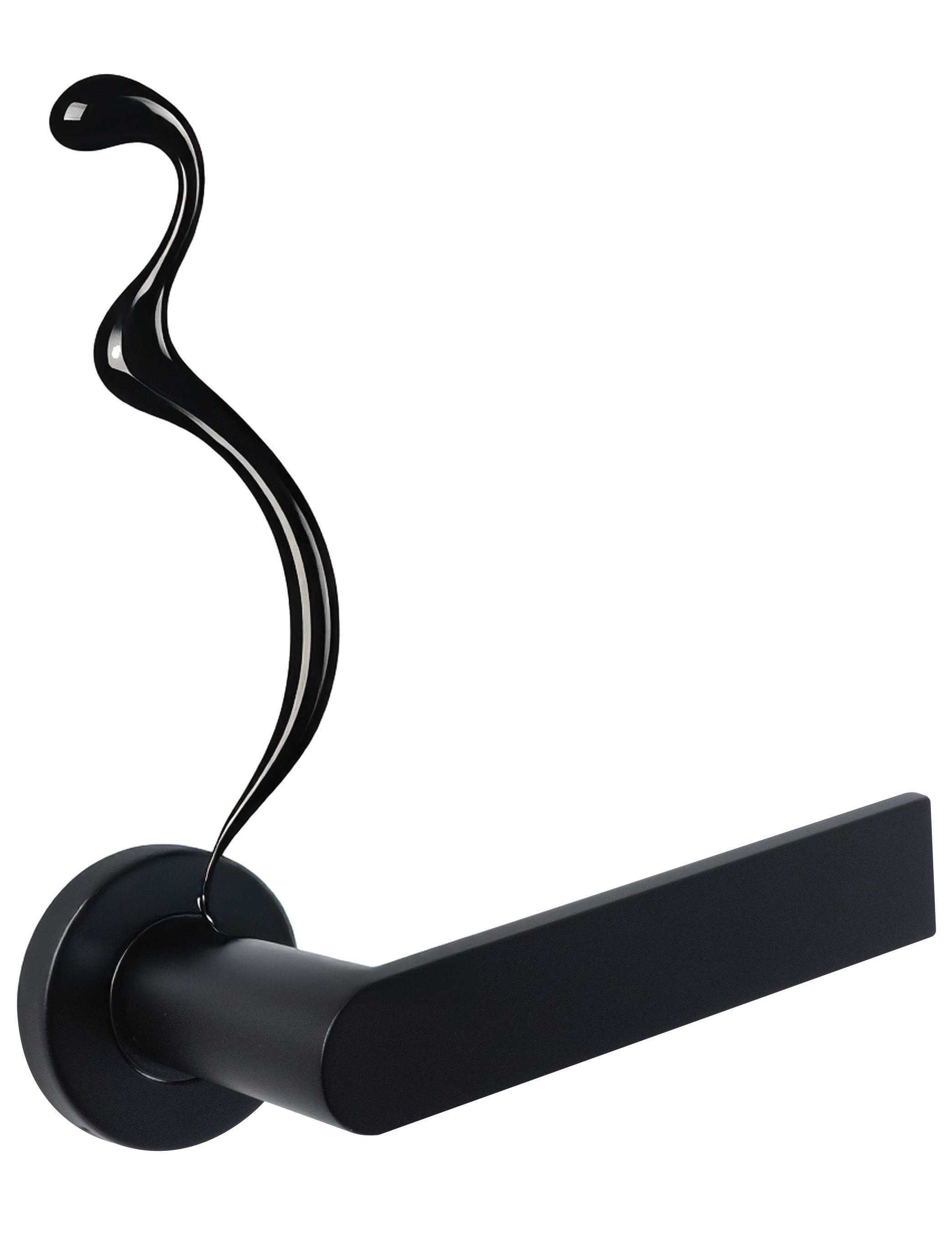

Decorative lever handles on rose

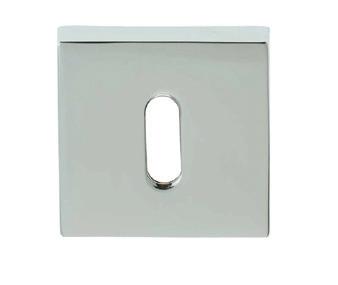

Escutcheons
Grade 304 stainless steel
Electroplated matte black finish
Tested to EN1906, Passed 100,000cyle testing, Salt spray tested to 200 hours
Ideal for coastal conditions
Sprung action lever handle
Supplied with a 120mm slotted spindle, 8x8mm
Can be used on doors up to 80mm thick
Supplied with patent fixing screws and timber screws
Features modern and trendy aesthetic designs
5-year guarantee
Clip on rose cover - round: 52x8mm, square: 52x52x8mm
01 Bontebok Lever Handle Matte Black 6272-06SSBLK 02 Impala Lever Handle Matte Black 6274-06SSBLK
Grade 304 stainless steel
Electroplated matte black finish
Tested to EN1906, Passed 100,000cyle testing, Salt spray tested to 200 hours
Supplied with fixing screws, supplied in pairs
Clip on Rose cover - round: 52x8mm, square: 52x52x8mm
Available in keyhole and Euro profile

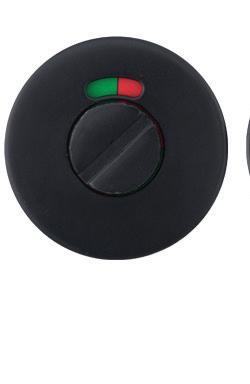

WC Colour indicating, choose between Red and white or Red and Green
Lever handle on plate
Sandpiper lever handle on plate
Grade 201 stainless steel
Powder coated matte black finish
Sprung action lever handle
Backplate 150x40x7mm, 16mm diameter tubular lever handle
Radius plate corners for a smooth finish
Passed 30,000cyle testing and salt spray tested to 100hours
Available in Keyhole - 57mm CTC or Euro Cylinder Profile - 60mm CTC
01 Sandpiper straight lever handle on backplate 150x40 keyhole – Matte Black

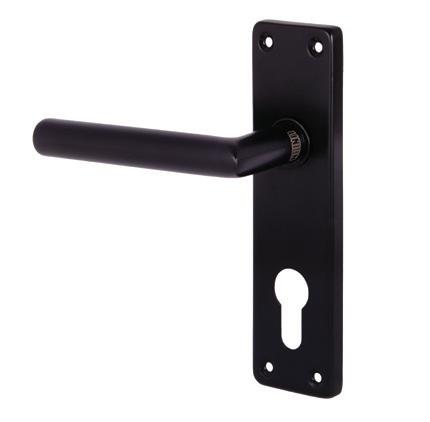

02 Sandpiper straight lever handle on backplate 150x40 cylinder – Matte Black

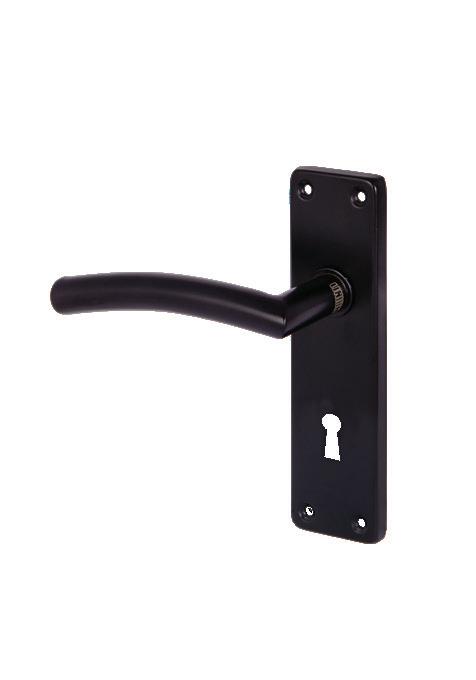

03 Sandpiper curved lever handle on backplate 150x40 keyhole – Matte Black
04 Sandpiper curved lever handle on backplate 150x40 cylinder – Matte Black
616204-24SSBLK
616204-05SSBLK
616208-24SSBLK
616208-05SSBLK

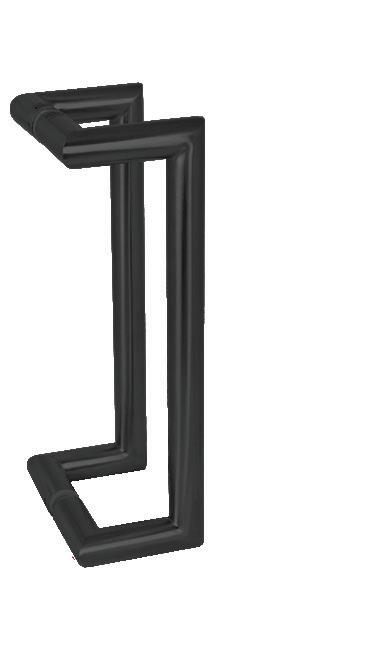

Sandpiper pull handles
Sandpiper pull handles Premium Range
Grade 304 Stainless Steel
Electroplated matte black finish
Passed 200 hour salt spray test
Ideal for coastal conditions
Available in Bolt Thru and Back to Back
Supplied with various screw lengths for doors 8–65mm thick
Suitable for glass, aluminium & timber
Designed to perfectly compliment the Sandpiper lever handles
Product description

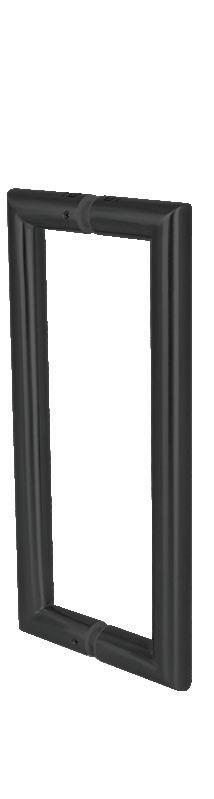

01 T-Mitre Straight 300mm 25mmØ Pull Handle Matte Black - BTB PH5330-25-300BBBLK
02 T-Mitre Offset 300mm 25mmØ Pull Handle Matte Black - BTB
PH5331-25-300BBBLK
03 Kinglet Square Pull Handle 30X400mm Matte Black - BTB 520286-400BBSSBLK

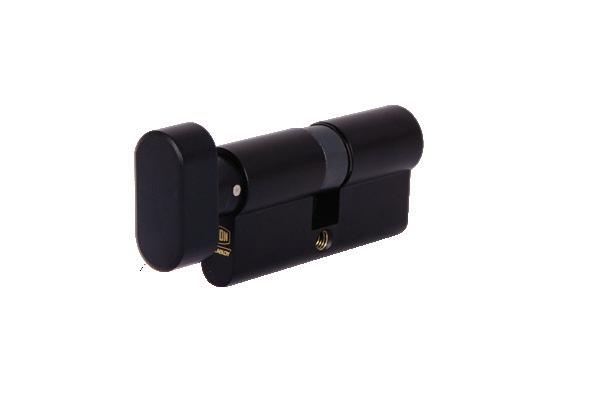

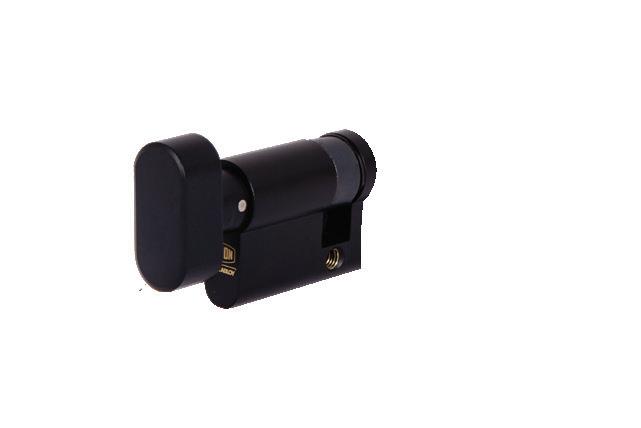

Cylinders

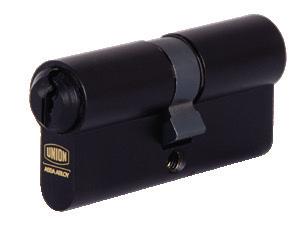

Cylinders Keyed to Differ
5-pin euro profile cylinder – supplied with 3keys
21,000 effective key differs
Tested to EN1303:2015, Tested to 300,000cycles
Salt spray tested to 96hours
Fire and Pick resistant
Key blanks available, R101 profile – CY2X-BLANK-SS
Cylinders
Keyed Alike, Master Key and Grand
5-pin euro profile cylinder – supplied with 2 keys
Masterkey systems: 2 master keys included
Grandmaster systems: 2 grand master keys + 2 keys per master system
Tested to EN1303 & SABS Approved – SANS1533
Tested to 100,000cycles, Salt spray tested to 96hours
Keys available – RE3006 Servant key, RE3007 Master key, RE3004 Grand Master key
Door Closers

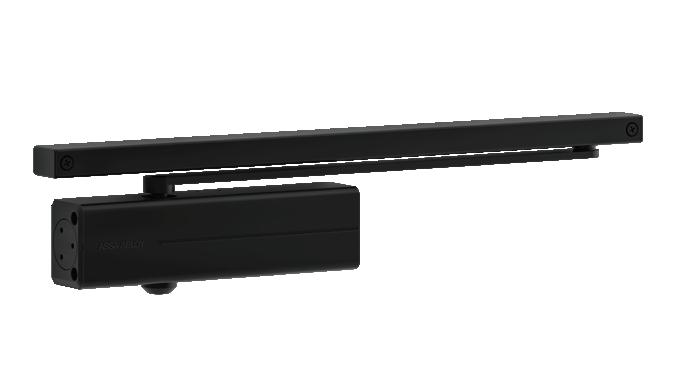

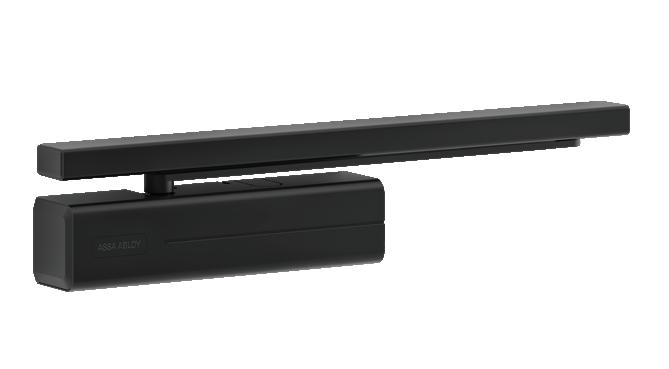

DC500 Cam-Motion® Door Closer
Cam motion door closer with slide channel EN1-4, variable adjustment
Maximum door width – 1100mm
Certified to EN1154 standards, Tested to over 500,000 cycles
Suitable for Fire and Smoke protection doors, Suitable for left and right handed doors
Adjustable closing and latching speed, Backcheck functionality to protect door closer body and surrounding areas
Suitable for medium to heavy duty commercial use
DC135 Rack and Pinion Door Closer
Rack and Pinion door closer with slide channel EN3, Fixed mounting
Maximum door width – 950mm
Certified to EN1154 standards, Tested to over 500,000 cycles
Suitable for Fire and Smoke protection doors, Suitable for left and right handed doors
Adjustable closing and latching speed, Backcheck functionality to protect door closer body and surrounding areas
Suitable for medium duty commercial and residential use

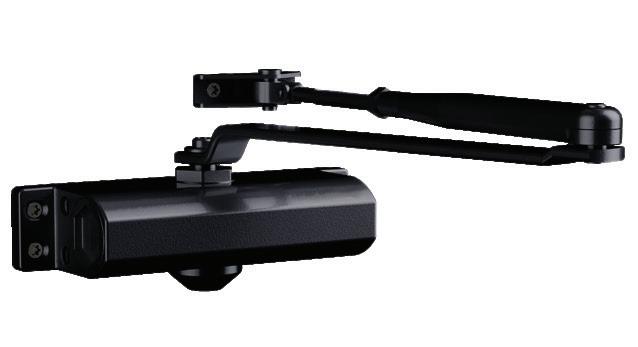

7770 Rack and Pinion Door Closer
Rack and Pinion door closer with link arm EN2/3/4, Template mounting
Maximum door width – 1100mm
Certified to UL228/LC-S133, UL10C standards, Tested to over 100,000cycles
Suitable for Fire and Smoke protection doors, Suitable for left and right handed doors
Adjustable closing and latching speed,
Suitable for light to medium duty commercial and residential use
Accessories
Hinge

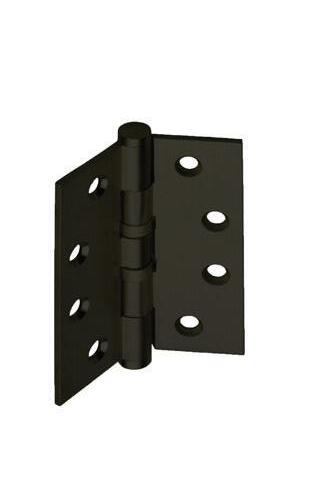

2 Ball bearing butt hinge
Grade 201 stainless steel, Matte Black Finish - Electroplated, 102x76x3mm, 120kg max door weight
Congruent (Semi-C) fixing pattern, Grade 13 hinge, CE Rated
Salt spray tested to 200hours, 3rd party tested to BS EN 1935:2002, Durability tested to 200,000cycles
Fire Rated – Certifire Approved

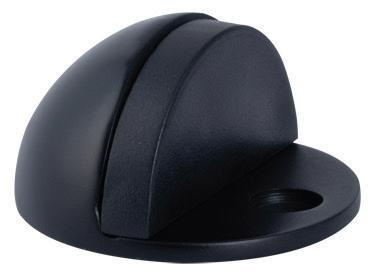

Floor door stop
Grade 304 stainless steel, Electroplated half moon doorstop with rubber buffer
Supplied with fixing screws

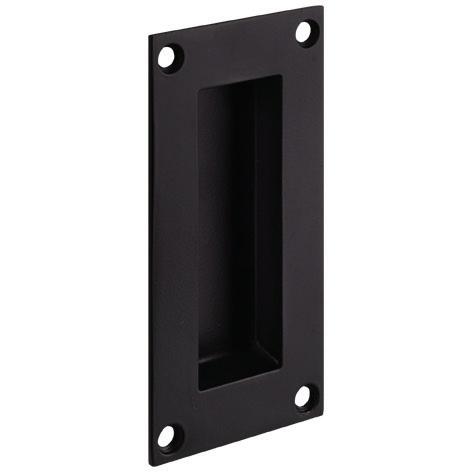

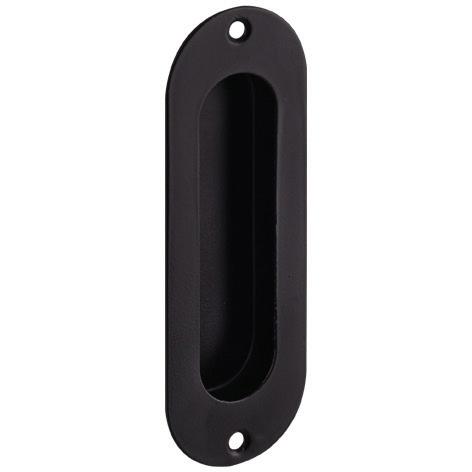

Flush pull handle
Grade 304SS Stainless Steel, Matte Black electroplated
Includes fixing screws
Countersunk fixing holes
