NEHA ISAAC DESIGN PORTFOLIO 2024

PORTFOLIO

Savannah College of Art and Design

Graduation: Winter 2024

for Sport Success for Black Women in Sports contents

the

Incubator for Sport Success

LOCATION

200 E. Pratt Street, Suite 4100, Baltimore, MD 21202

PURPOSE

“The Flip” is an incubator for sport success for black women in sports. Amplifying celebration, it increases awareness towards racisim, otherness, and intersectionalities within sports.

PROJECT DESCRIPTION

The lack of a platform for black female athletes to voice and control nuanced narratives is a pressing issue in today's sports industry. There is a pronounced gap when it comes to offering these athletes the opportunity to share their experiences authentically.

By creating a space where these athletes can freely express themselves, important stories that have long been marginalized can be brought to the forefront. This incubator would not only empower these athletes, it would act also as a catalyst for change.

the site & user

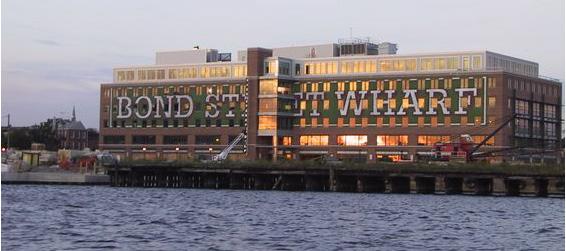

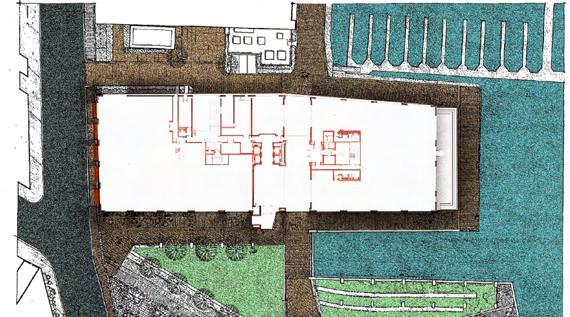

[the site]

[the gaps]

[user groups]

nuanced coverage “otherness” caused by 1 awareness intersectionalities within

4

2 that extends beyond a “part-time citizenship.”

3 A means to equity in access and opportunities dismantle systemic and unconscious biases.

concept

[concept moodboard]

[the concept]

Powerful conversations wield the capacity to dismantle pre-conceived perspectives. This moment of transformation reveals a duality that is propelled by a common ground and embraces insight and exploration.

This middle ground is designed to amplify empowerment and celebration to reflect the nuanced spaces that embrace intersectionality and otherness. A rhythmic curation of layering, bold contrasting forms, and a vibrant pop of colors embodies a dynamic tactility that seeks unrestricted curiosity. Through the motivated exploration of self and identity, these moments of duality through storytelling uplifts growth and shifting perspectives.

contrasting geometries to symbolize an atmosphere of curiosity and conversation

use of contrast and layering to showcase a balanced duality and middle ground

monumental forms that emphasize scale and echo the message of celebration 3

[concept models]

schematic development

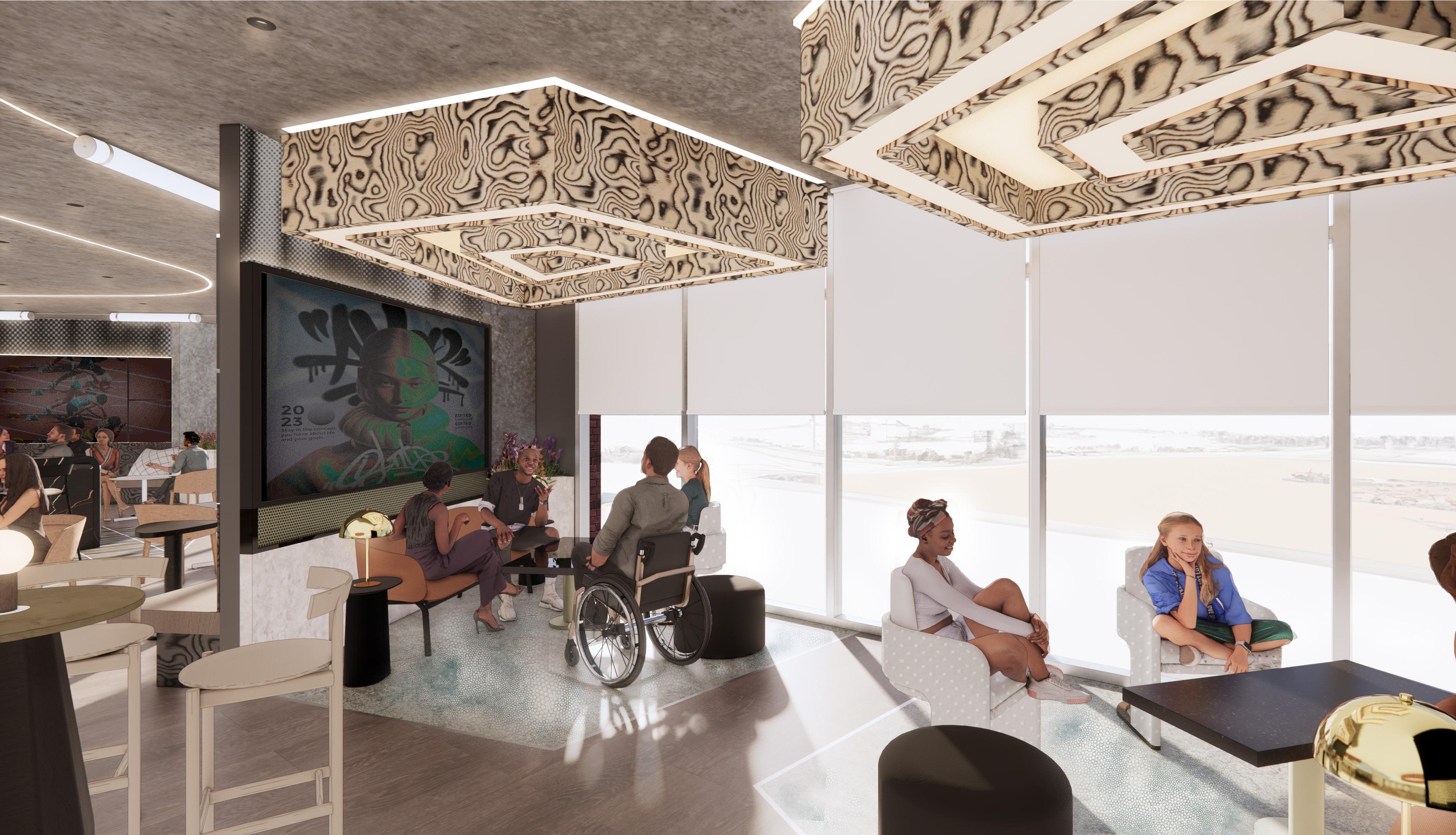

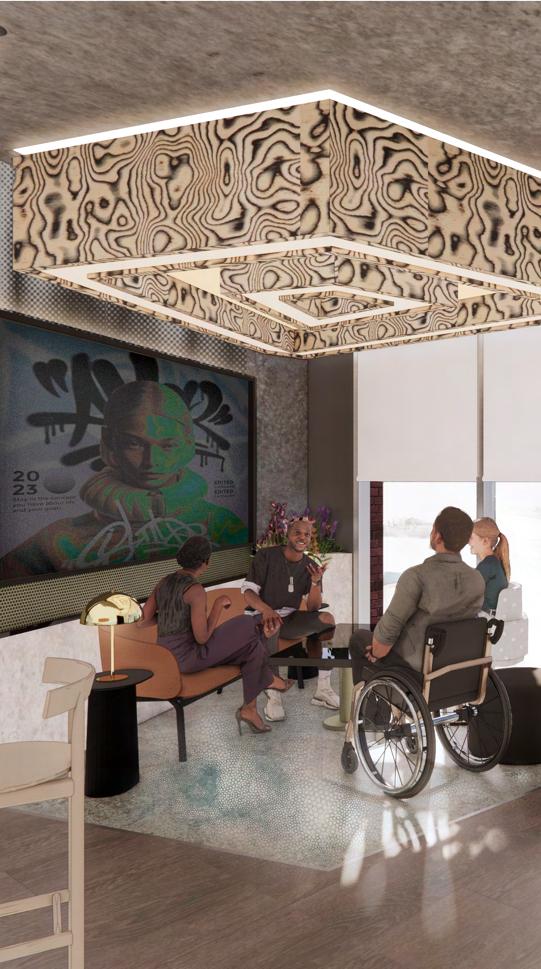

[sports bar]

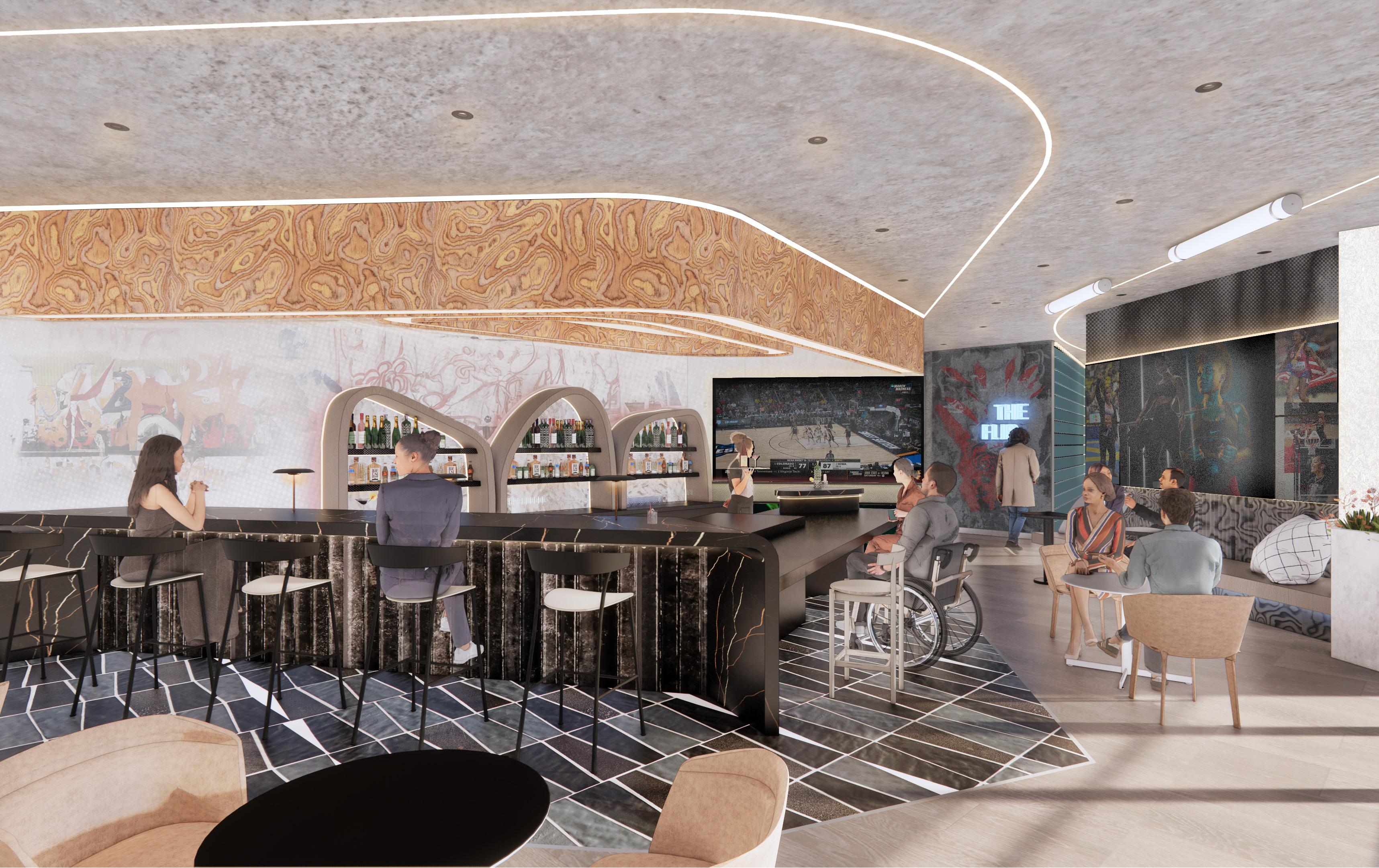

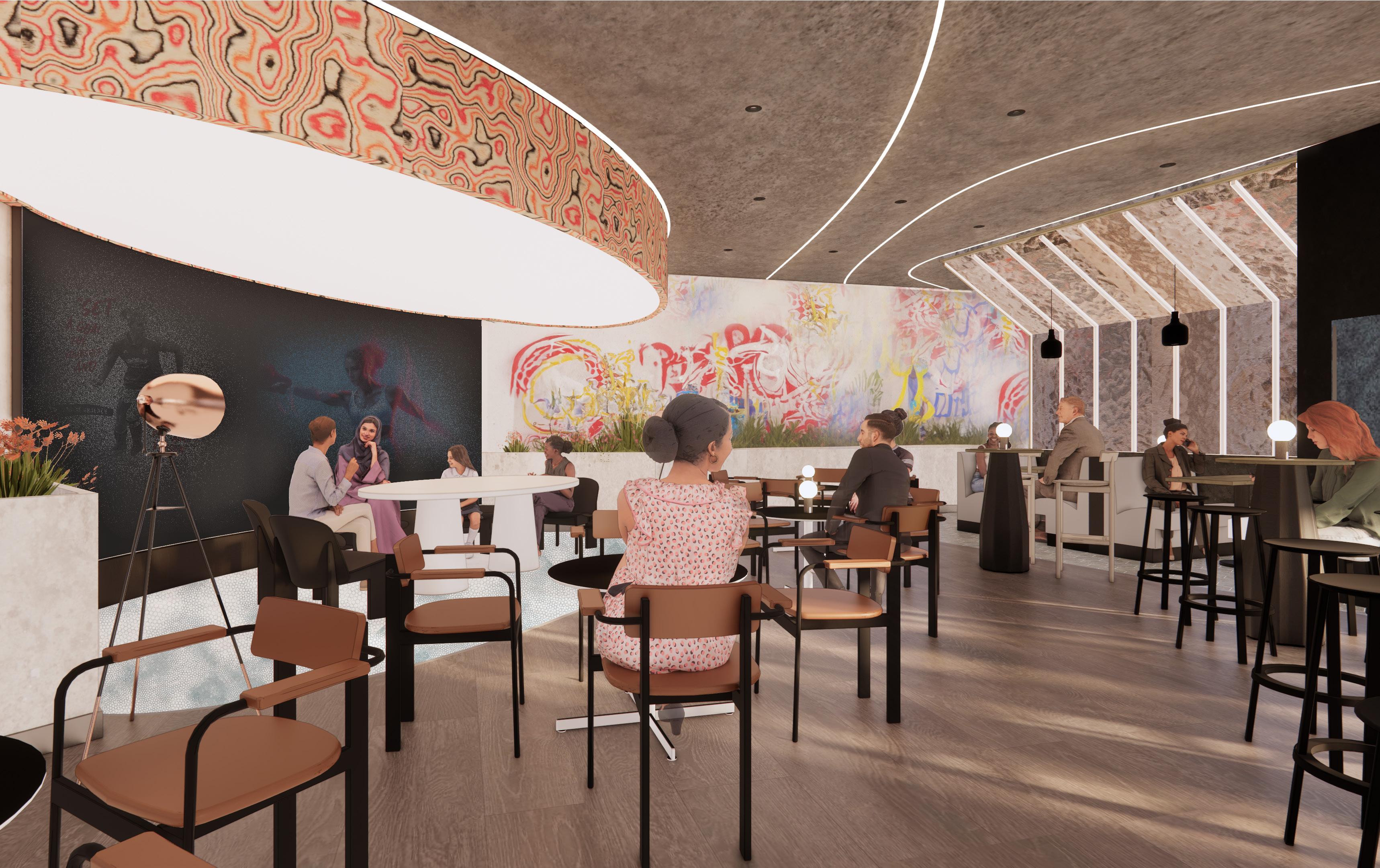

The sports bar features live collegiate and professional women’s sports and media.

[hall of fame]

This gallery celebrates the continued history and legacy of black women around the world in sports.

[press room]

“The Press Room” is an interactive talk show format where the audience takes the role of the press.

1 A sports bar that features collegiate and professional women’s sports. The design of the space encourages further conversation and dialogue through a range of seating options.

2 Multiple screens to showcase sports content that is made in the media spaces of the “Press Room” and Podcast spaces.

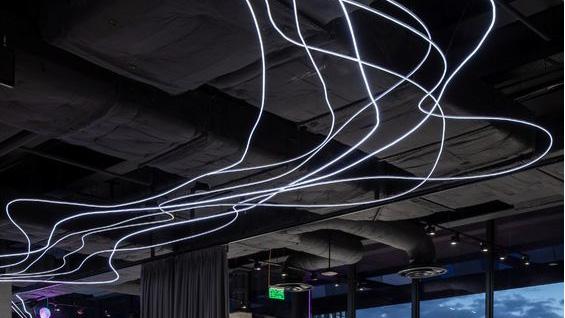

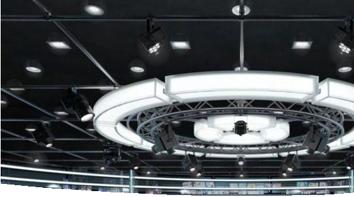

3 A ceiling with linear curved lighting that reflects the linework from sports track fields to aid circulation and wayfinding.

4 Celebrating local artscapes through collaborating with local Baltimore graffiti artists to create wall murals.

A universally design bar counter to encourage a range of diverse connections and conversations surrounding women in sports.

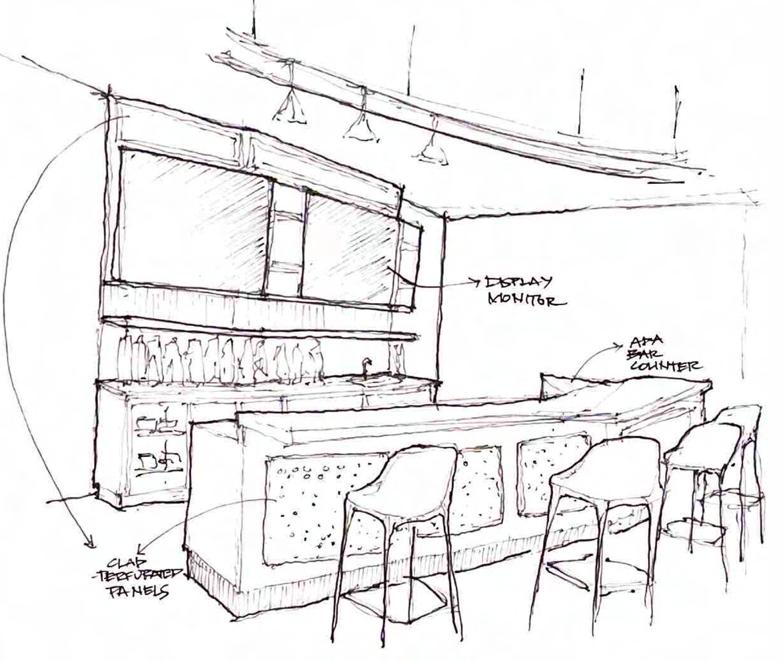

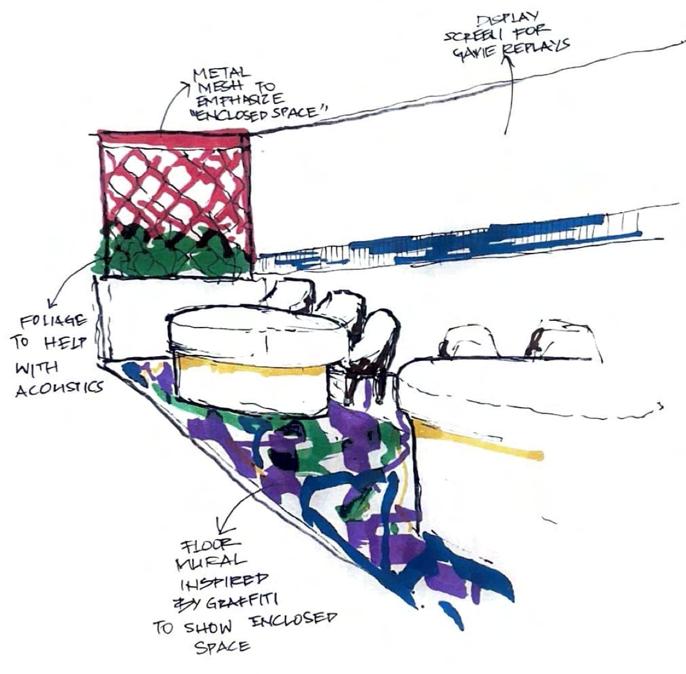

[preliminary sketch]

LIGHTING

GRAFFITI MURAL

ACCESSIBLE COUNTER

[sports bar counter]

[key finishes]

1 Contrasting geometries and the use of layering to showcase a duality and create an atmosphere of curiosity and conversation.

2 A ceiling with linear curved lighting that reflects the linework from sports track fields to aid circulation and wayfinding.

3 Multiple screens to showcase sports highlight reels and other sports data to aid the visual content for the recording space.

4 Multiple seating options that allow the public to partake in the content for the recording space.

5 Celebrating local artscapes through collaborating with local Baltimore graffiti artists to create wall murals.

6

Highliting areas of interest with pops of contrast that complement the graffiti murals.

[preliminary sketch]

[recording space display wall]

[key finishes]

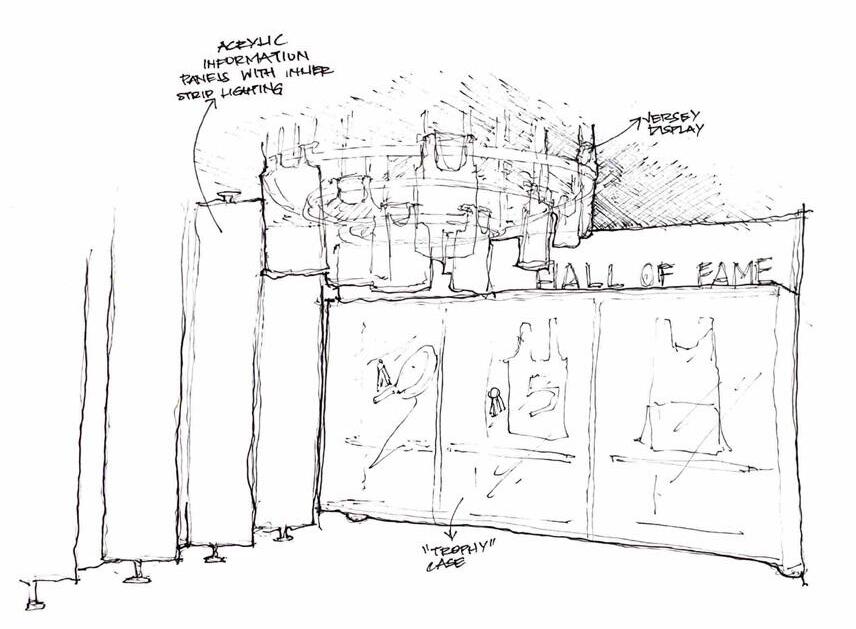

1 The “Hall of Fame” is a gallery that features memorabilia, information, highlight reels, and so much more, celebrating the continued history and legacy of black women around the world in sports. There is also a section dedicated to the celebrated Baltimore athletes.

2 This custom gallery display features a lightbox with information on internation athletes. Contained in the lightbox is small display of memorabilia. In the back is an attached seating with a small screen displaying information.

3 A ceiling with linear curved lighting that reflects the linework from sports track fields to aid circulation and wayfinding.

4 Celebrating local artscapes through collaborating with local Baltimore graffiti artists to create wall murals.

6

5 Contrasting geometries and the use of layering to showcase a duality and create an atmosphere of curiosity and conversation.

Multiple screens to showcase sports content that is made in the media spaces of the “Press Room” and Podcast spaces.

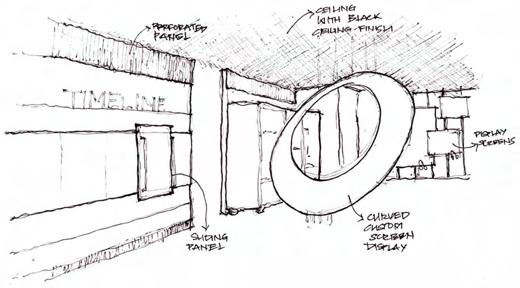

[preliminary sketches]

[key finishes]

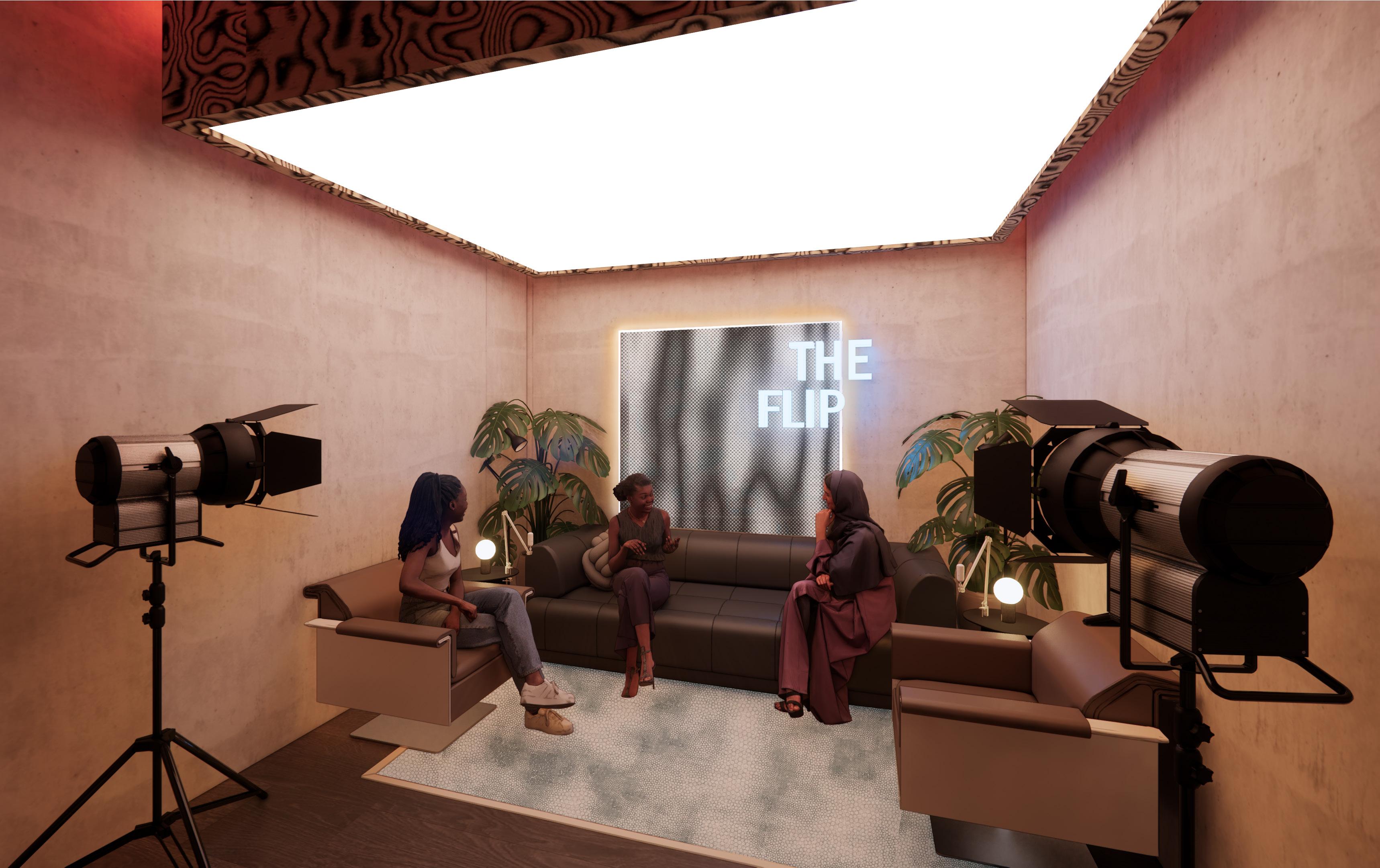

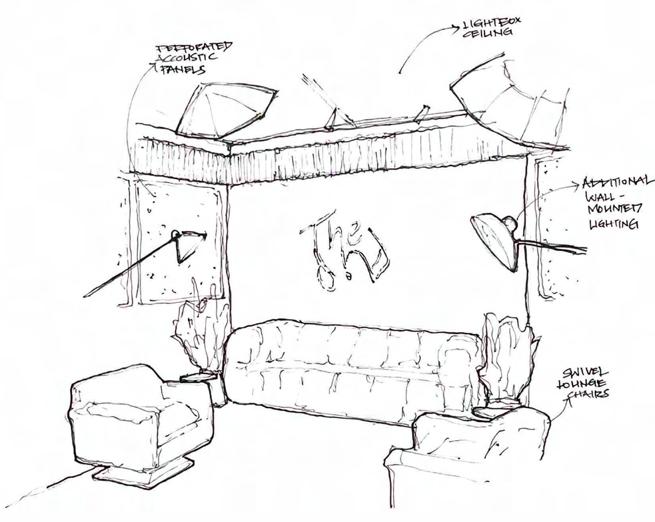

1 The Podcast Room becomes a conversation platform that allows for audio and video formats for

[preliminary sketch]

[logo wall]

[key finishes]

BACKLIT LOGO

GRAFFITI MURAL

1 “The Press Room” utilizes an interactive talk show format, where the audience takes the role of the press. Together, the athletes and the audience, through conversation, flips perspectives, finds middle ground, and raises awareness.

2 A ceiling with linear curved lighting that reflects the linework from sports track fields to aid circulation and wayfinding.

3 A stage for sports media content to be recorded for multiple viewing platforms. The seating in the space mimics bleachers.

4 Contrasting geometries and layering to showcase a duality and create an atmosphere of curiosity.

6

5 Use of recalaimed and recycled materials sourced from the Baltimore Harbor. Celebrating local artscapes through collaborating with local Baltimore graffiti artists to create wall murals.

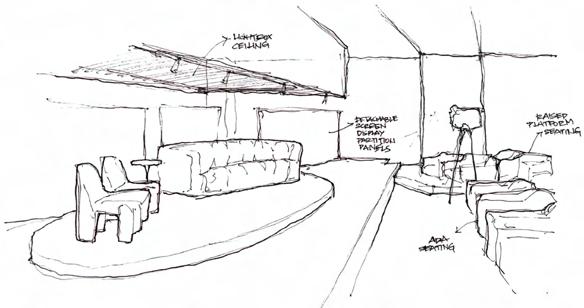

[preliminary sketch]

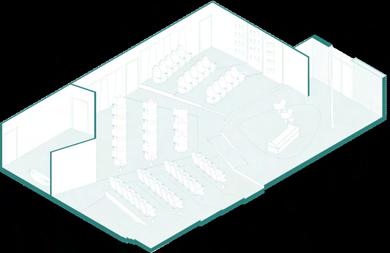

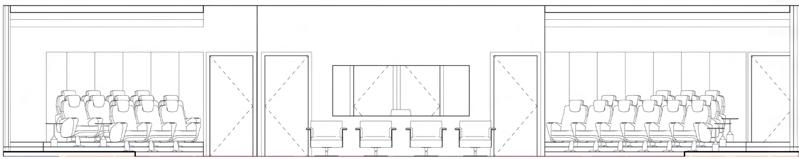

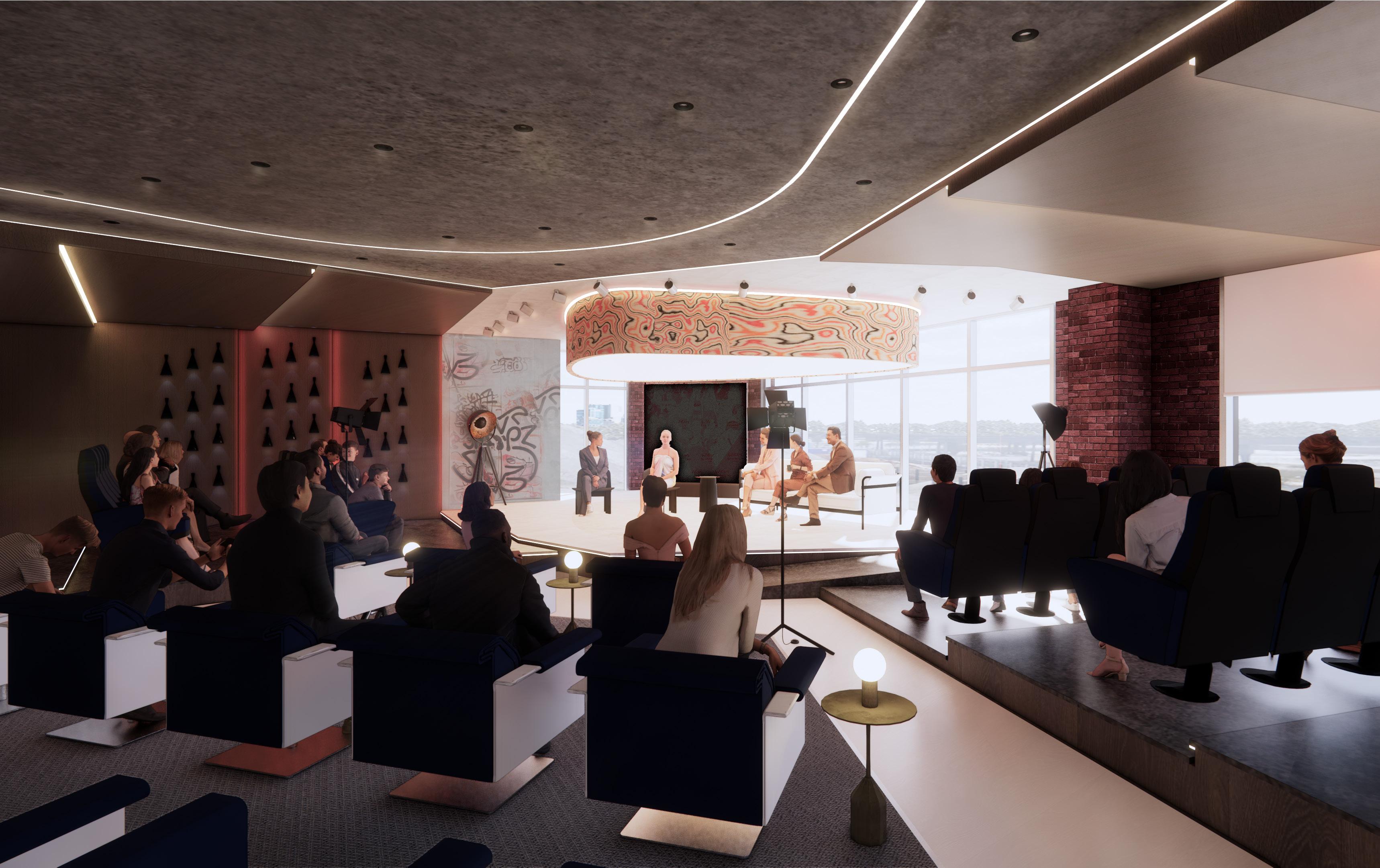

[press room seating]

[key finishes]

ACOUSTIC PANEL FLOOR SEATS ELEVATED BLEACHER SEATING CONTROL ROOM

themaze

Experimental Hostel & Community Center

LOCATION

81, Sukhumvit Road (Soi 2), Khlong Toey, Bangkok, Thailand

PURPOSE

To stimulate mindful conversation between the tourists and residents of Khlong Toey in an effort to better understand the experiences and art of the largest slum in Bangkok, ‘the canal of pandan.’

PROJECT DESCRIPTION

An experiential hostel in Khlong Toei, Thailand, 'The Maze,’ embodies the unexpected layers that the slums of Khlong Toei have to offer as well as the labyrinthine urban setting of Bangkok.

This was a collaborative project with Grace Wiley and Yiwei Zhang. My role in this team was that of Technology Manager. While I was mostly in charge of 3D modelling and perspective renders, I was collaboratively involved also in the concept and schematic development stages.

the site & user

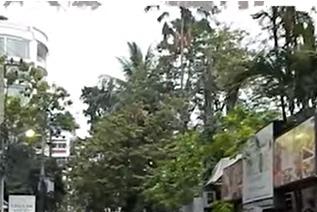

[the site]

[user groups]

BACKPACKERS KHLONG TOEY ARTISTS

NEIGHBOURING TOURISTS INFLUENCERS

Redevelopment of Khlong Toey

[history of site]

The city is full of color and pattern, incorporated into nature. Yet, this distinction is also calls for divide. There are the 2 Klong Toey’s - one a story of redevelopment, and the other a story of community.

Chao Phraya River

“Canal of Pandan”

Land Rent System Slums Khlong Toey Market

COVID-19 “Straight Outta Khlong Toey”

Hotels Restaurants

concept

[the concept]

Embarking on a journey of self-discovery is a universal desire. Whether it be through travel, education, or experiences, the road to self-discovery can be winding and I confusing. The journey may require unpredictable turns and detours that ultimately lead to a deeper understanding about the world around us. An experiential hostel in Khlong Toei, Thailand, 'The Maze,’ embodies the unexpected layers that Khlong Toei has to offer as well as the labyrinthine urban setting of Bangkok.

The design reflects the maze that is self discovery. Through the use of personalized choice points, unsuspecting materiality and form, and a meandering design, the space will inspire users to retrace their steps and take unexpected turns I with a sense of perseverance and exploration in order to reach their individual destination.

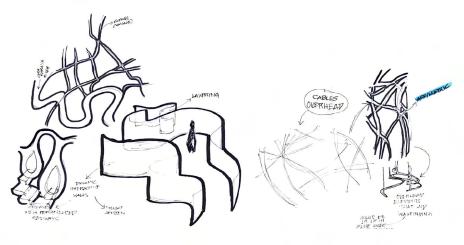

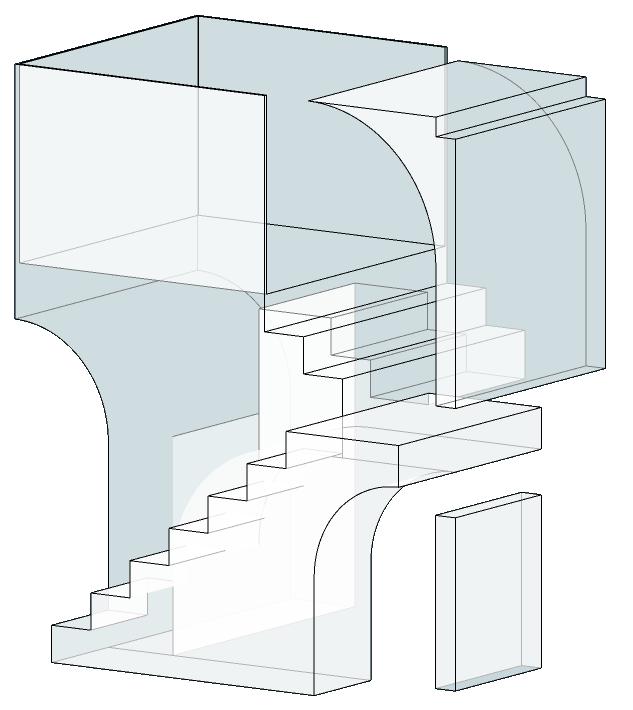

[concept diagrams]

[moodboard]

schematic development

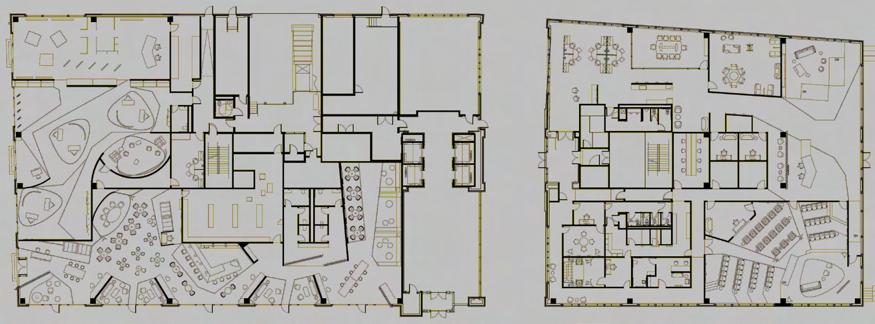

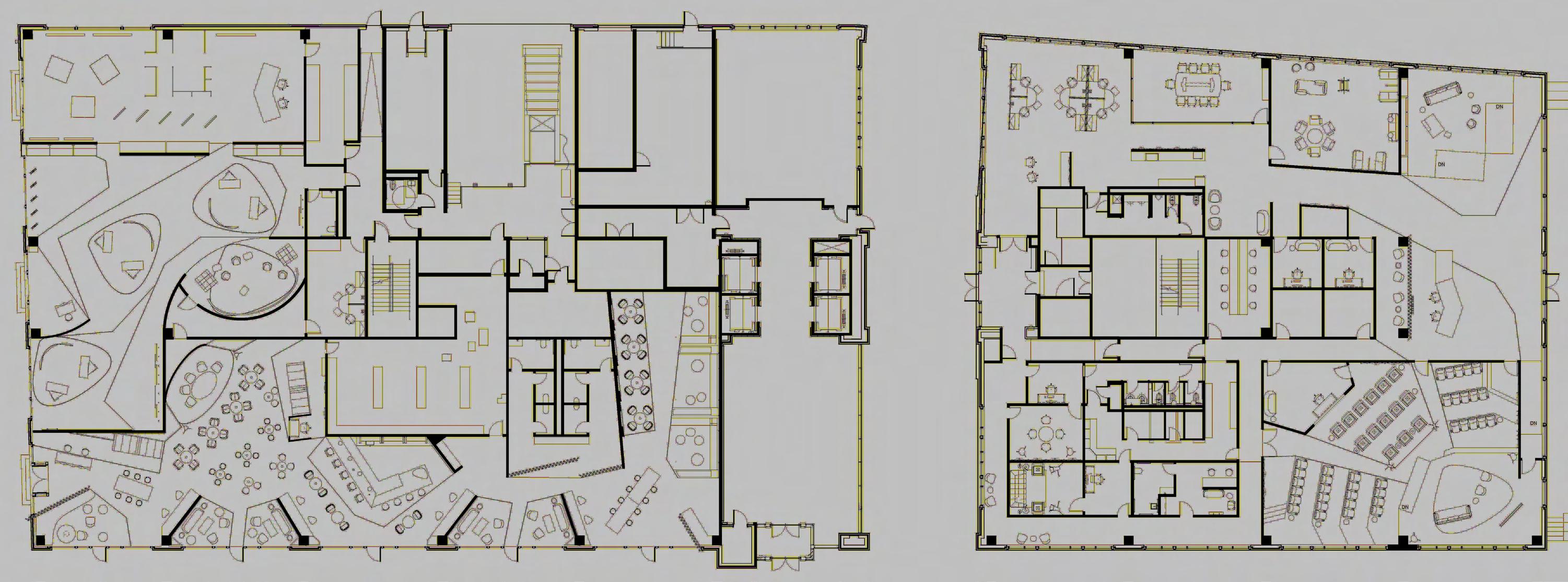

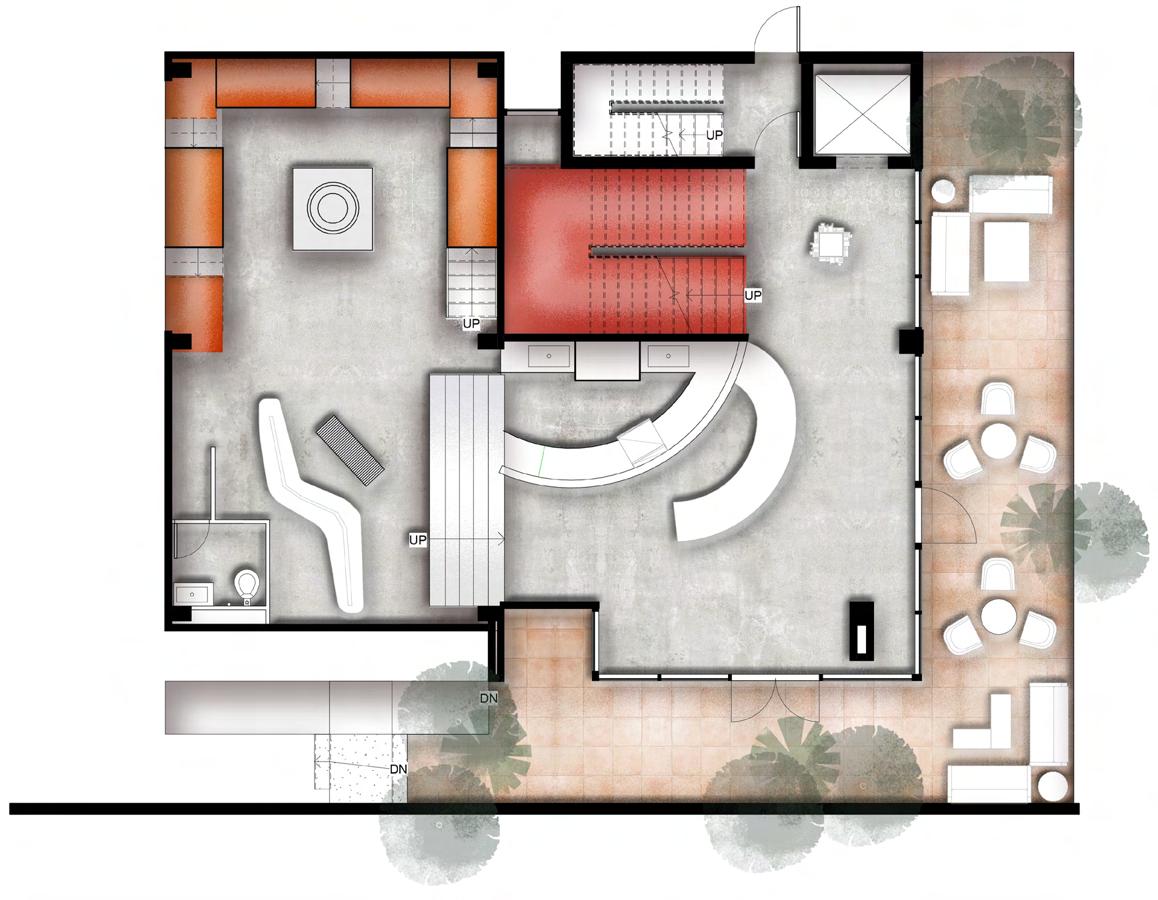

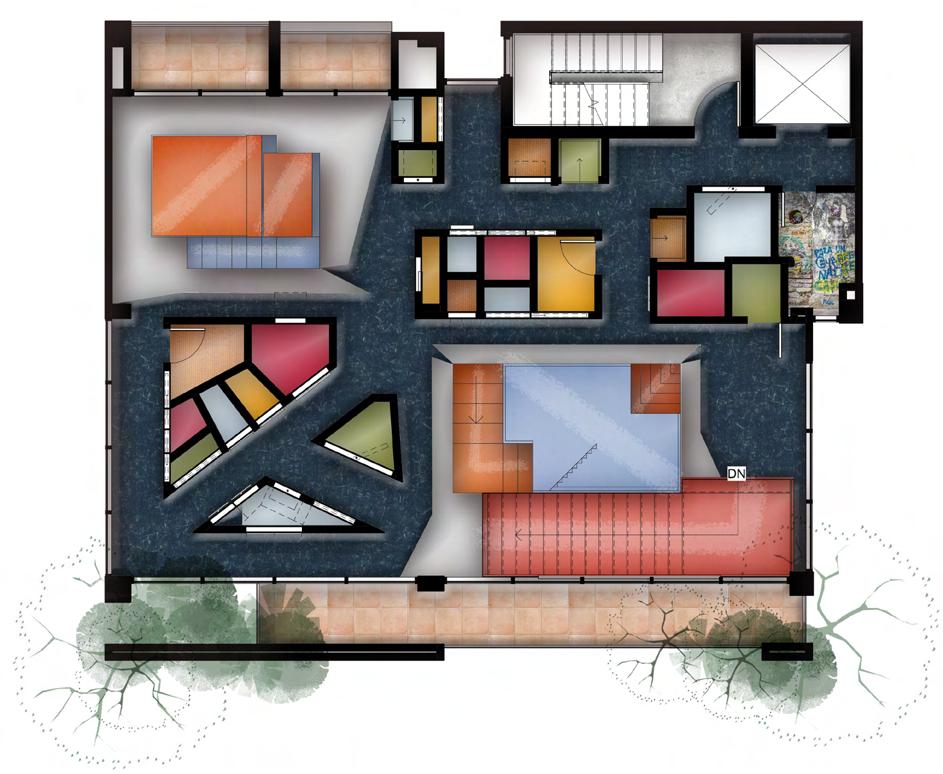

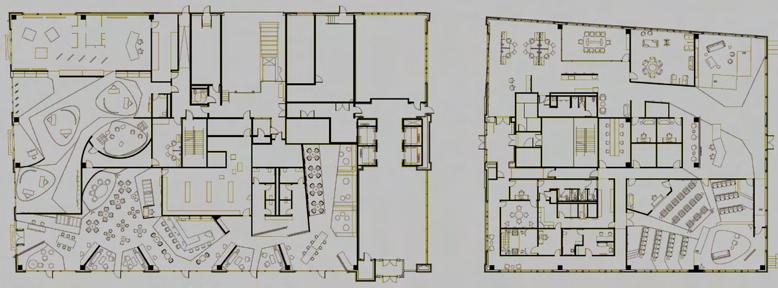

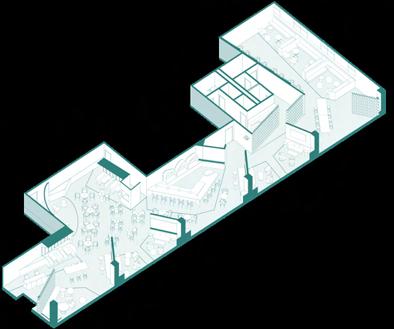

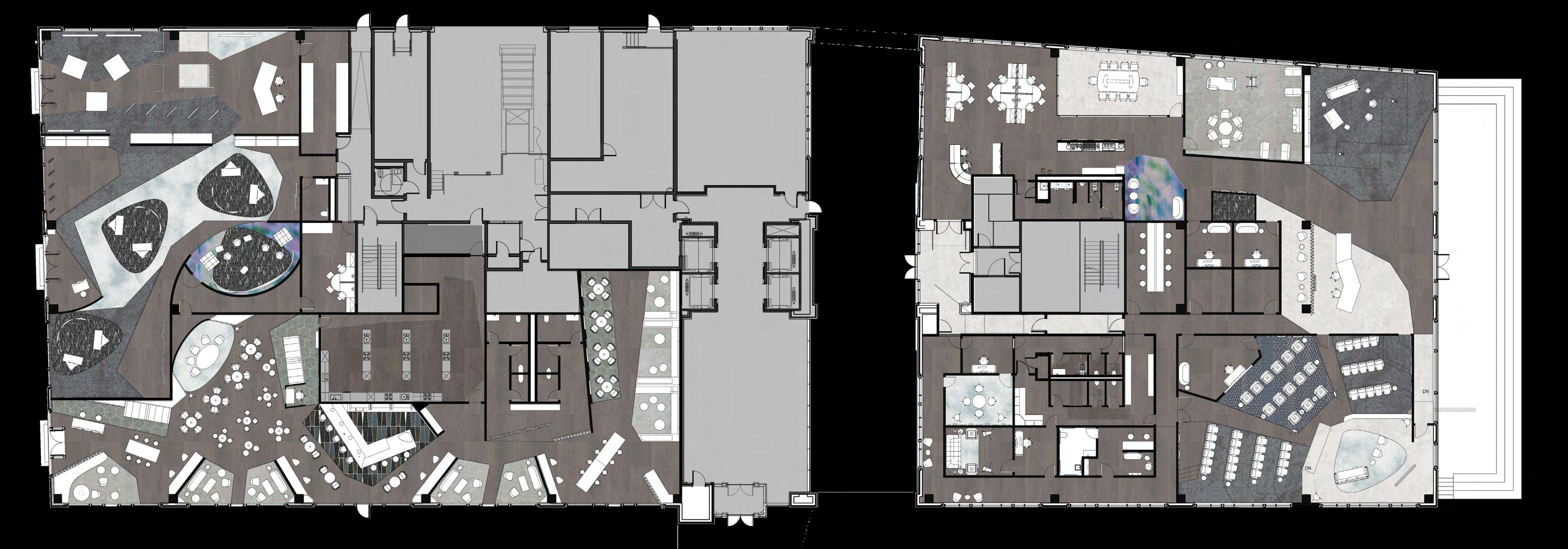

[level 1 | furniture plan]

[performance area pods]

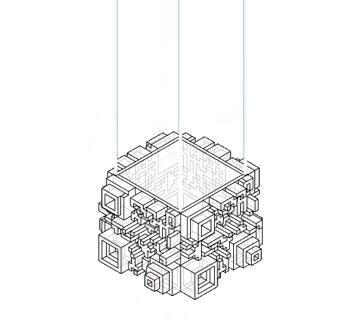

[suspended QR code]

schematic development

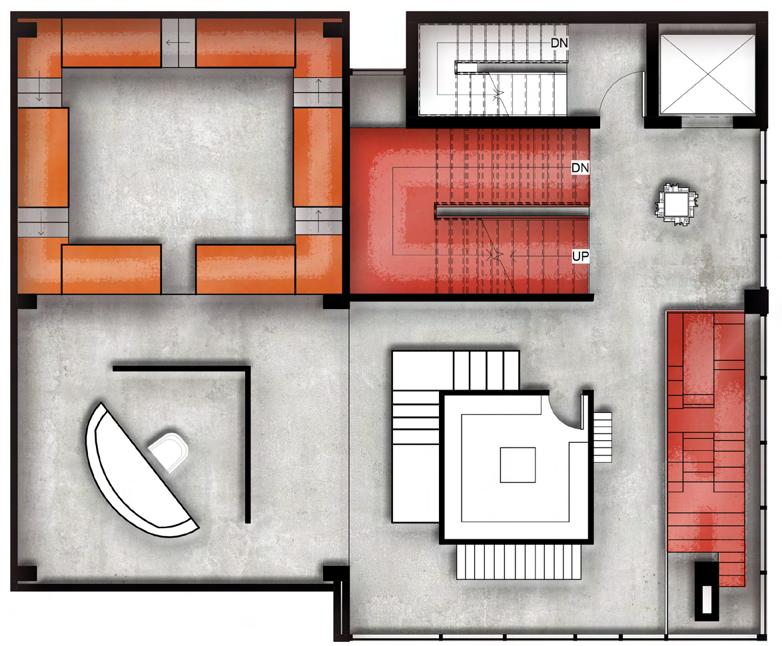

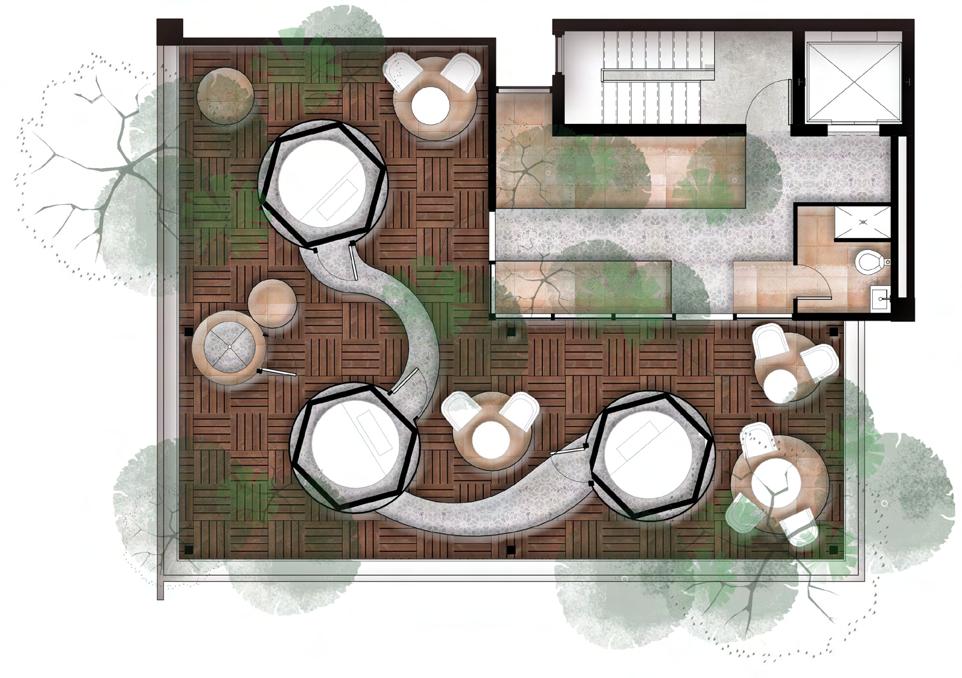

[level 6 | furniture plan]

[n.t.s]

[n.t.s]

[private roof pod]

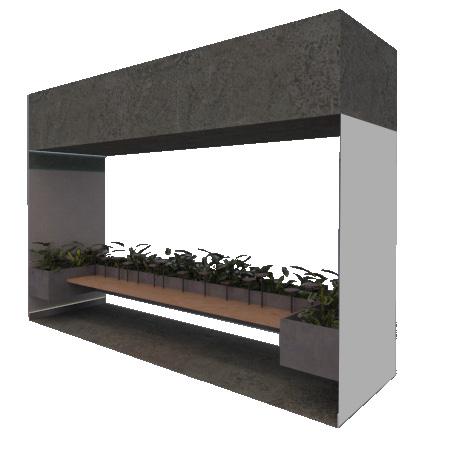

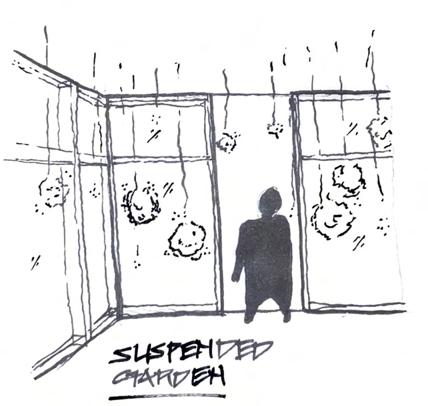

[schematic sketch of suspended garden]

[jungle gym]

furniture plan]

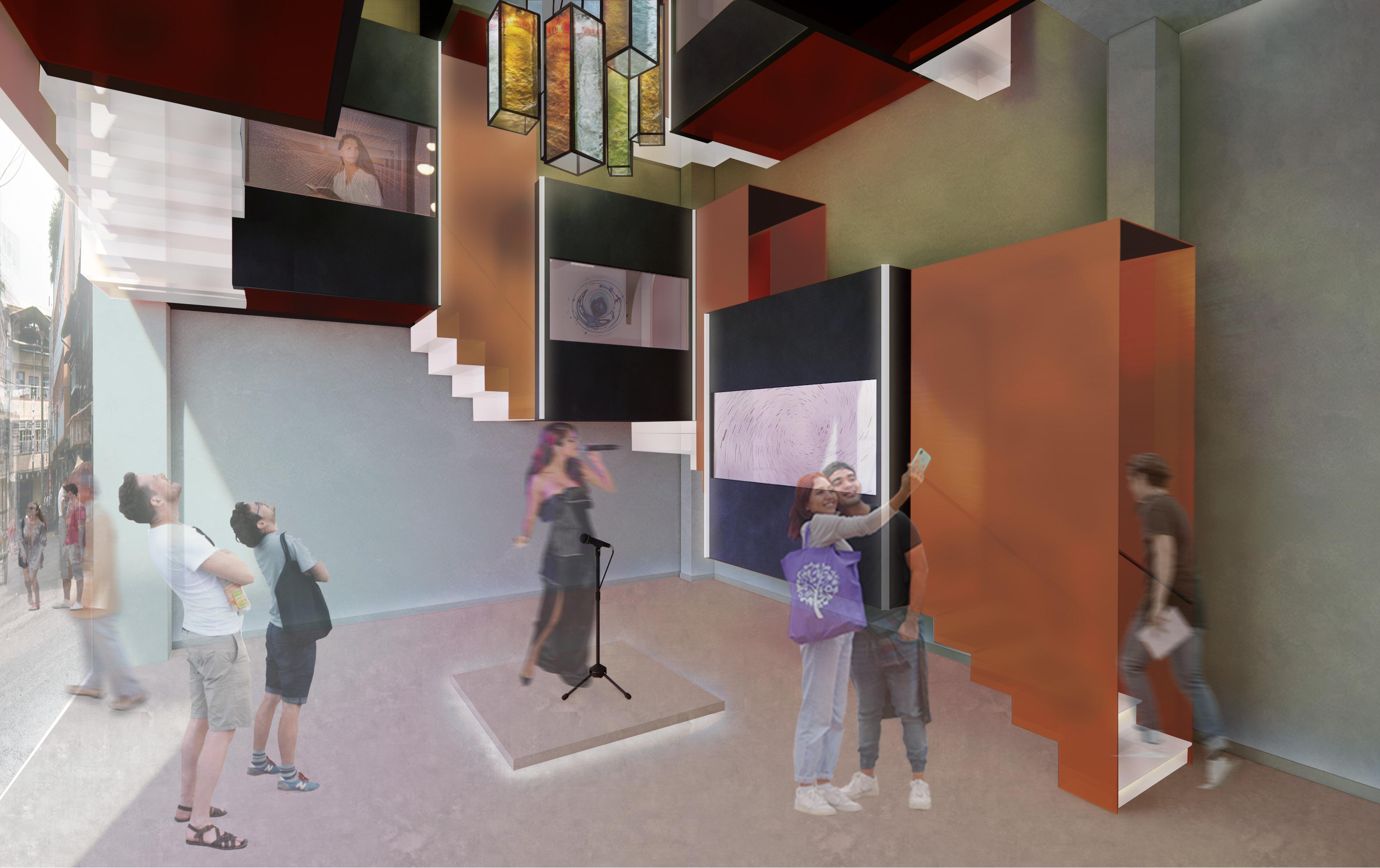

1 The performance area features a stage with a height-adjustable platform for the local artists off Kholng Toey to showcase their art.

2 The stairways leading into the viewing pods are encased in semi-transparent acrylics to reveal a hint of movement.

3 Viewing pods have smart screens to layer information about the artists.

4 The blue tint of the walls combined with blue cove lighting immitates the wayfinding of Khlong Toey.

5 The pods along with the staircases create a maze-like situation that wraps along the double volume walls of level 1 and leads the user up to the Reception area in level 2.

[rappers of Khlong Toey]

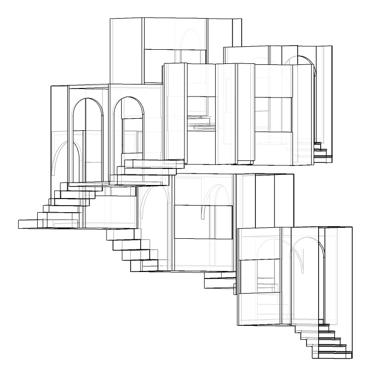

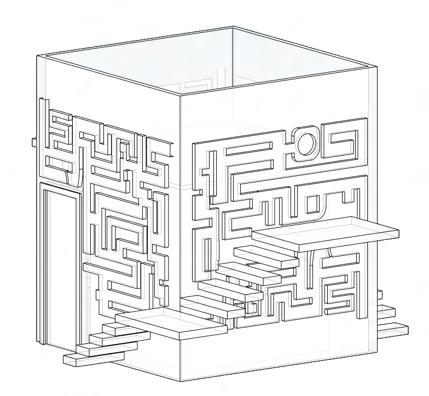

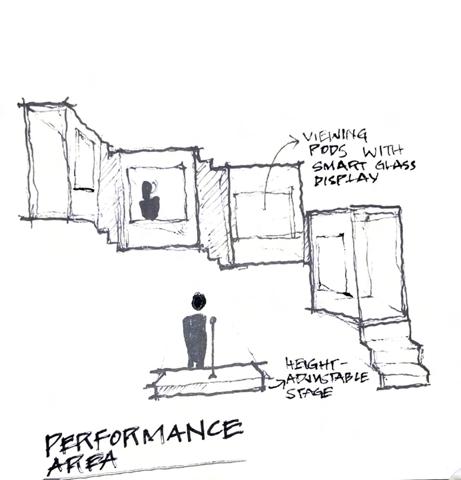

[schematic sketch of performance area pods]

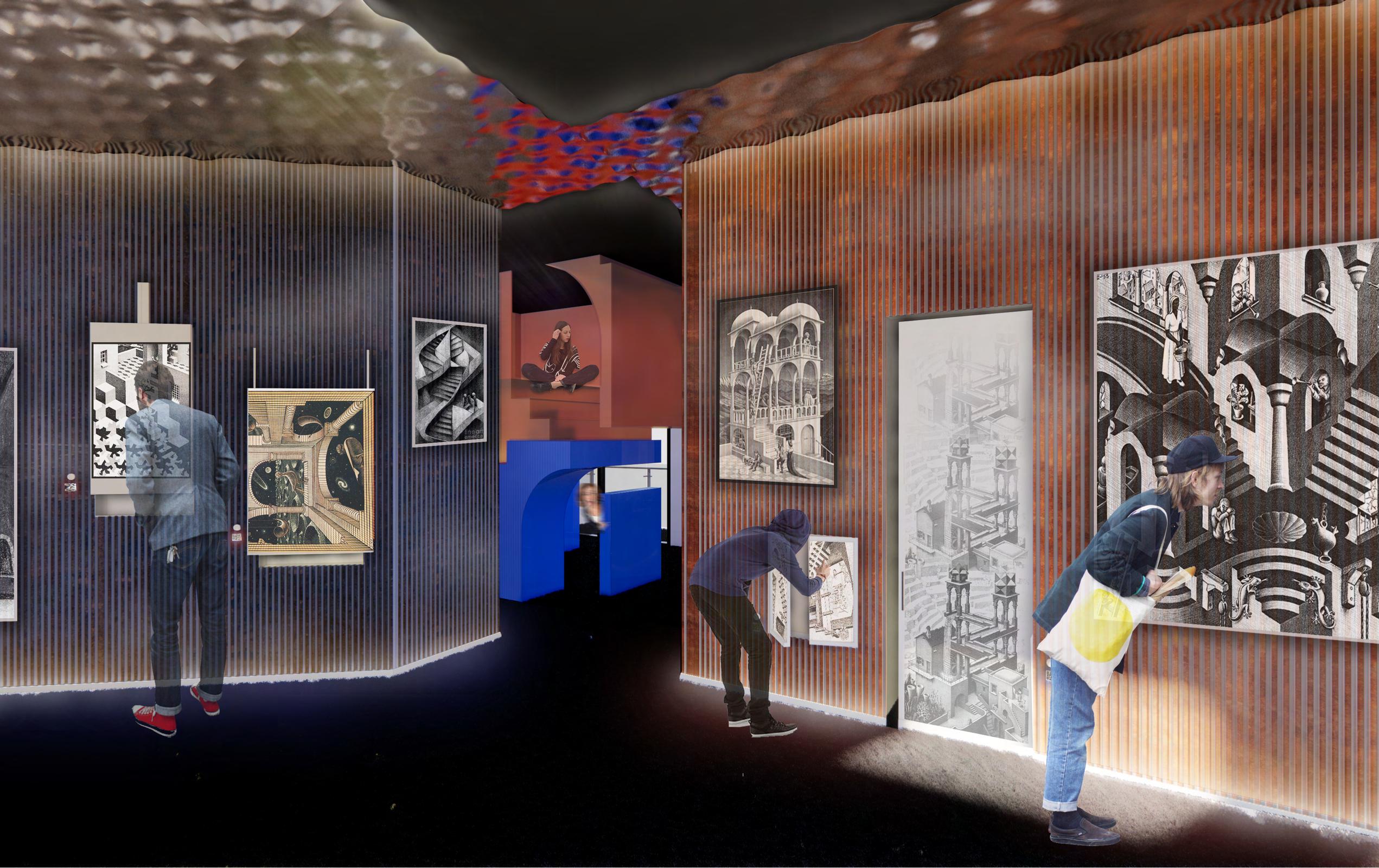

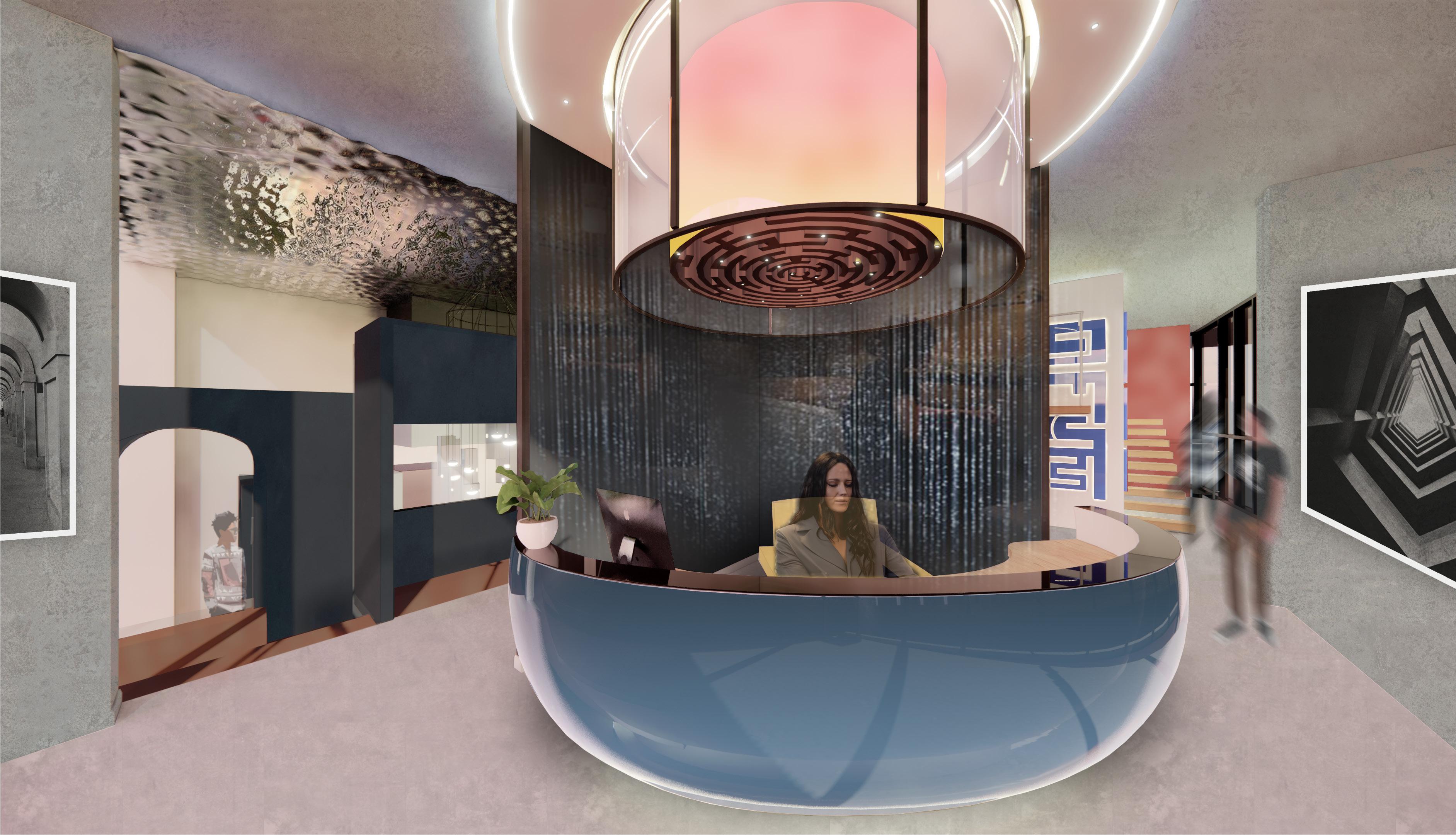

1 The walls of the Interactive Maze features hidden peepholes behind the conventional art to reveal the local graffiti art of Khlong Toey.

2 each of the peepholes is indicated with a button and a QR code beside to help the user navigate the touchpoint with ease.

3 The Jungle Gym becomes a semi-opaque resting structure.

4 The ceiling imitates the Choa Phraya River, aiding movement within the Interactive Maze.

5 The flooring is suspensful and exaggerates the vibrance of the maze. Cove light running through the trim of the maze walls further heightens this emotion.

[Khlong Toey street art]

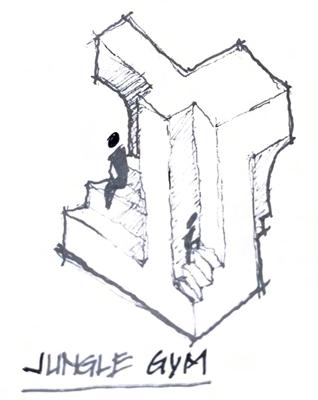

[schematic sketch of jungle gym]

5

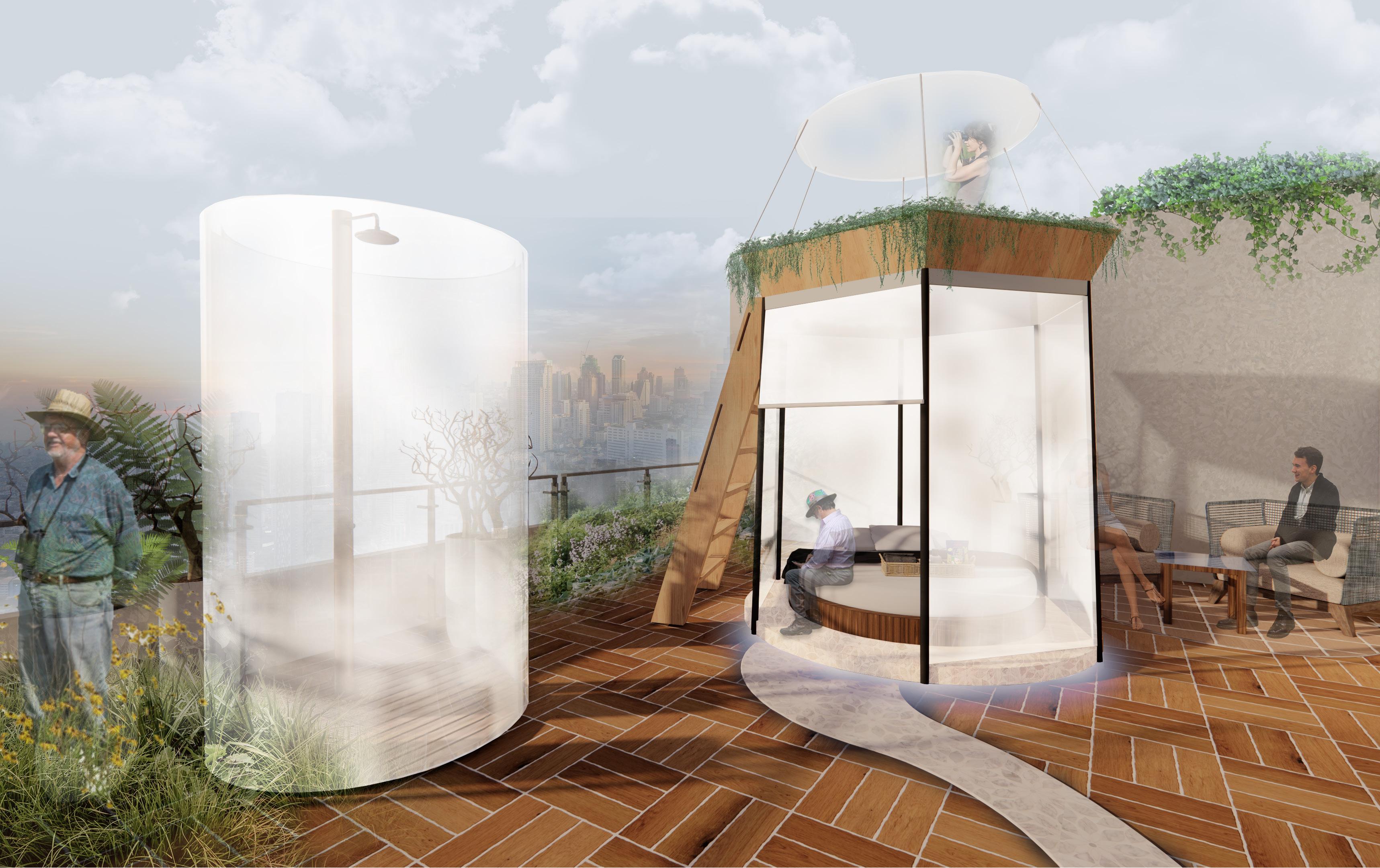

1 The Private Roof Pods are encased in smart glass walls that allows the user to control the opacity and therefore privacy within the space.

2 Cove lighting under each pod is connected to the QR-based app that the user is able to control to help their pod wayfinding.

3 Small seating areas over each pod lets the user enjoy the city views.

4 The Outdoor Shower is encased in a one way glass that ensures the privacy of the user inside.

5 Seating Areas around the pods on the roof become points of interaction that are heigntened by the sensory elements of the roof garden and surrounding views.

[sensory floral elements of Khlong Toey]

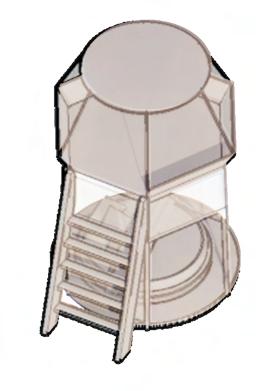

[schematic sketches of private roof pod]

[key finishes]

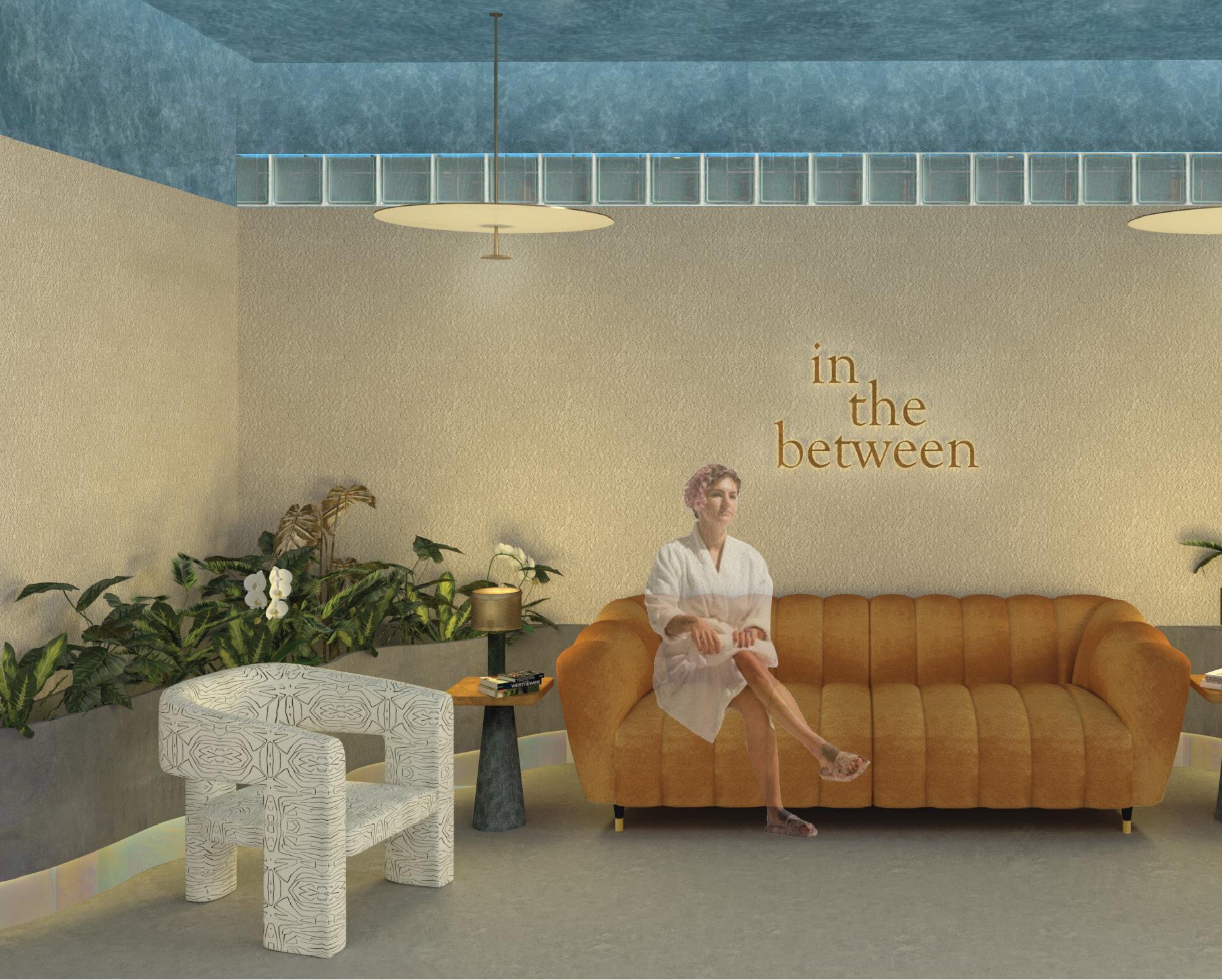

the in-between

Collaborative Spa & Retail Concept

LOCATION

38 Montgomery Street in Savannah, GA 31401

PURPOSE

To create an escape for the tourists and residents of Savannah to experience a luxury spa & retail concept, to enourage guests to ‘loose themselves and find themselves in the moments of transition.’

PROJECT DESCRIPTION

Spavia, a luxury spa franchise, is opening a prototype spa & store for their services and boutique retail line in Savannah, Georgia. The objective of this project is to create a sustainable and healthy wellness environment in a historic building in downtown Savannah’s Landmark Historic District that incorporates the principles of universal design. This luxury spa and retail concept is to incorporate visual merchandising in the user experience, through engaging the five senses.

the client & user

[the client]

Spavia is a luxurious spa franchise that offers a range of services including massages, beaty & waxing, body treatmrnts, skin care, mens treatments. ‘Via’ in many languages means route or pathway, so Spavia is the route or journey to wellness. Each guest begins their own customised journey set in a tranquil environment.

[user groups]

TOURISTS

SAVANNAH LOCALS

COLLEGE STUDENTS MILLENIALS

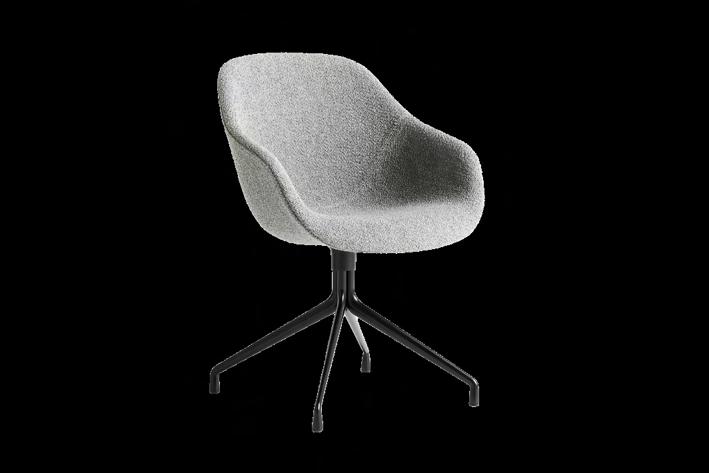

[preliminary furniture and finishes inspiration]

concept

[the concept]

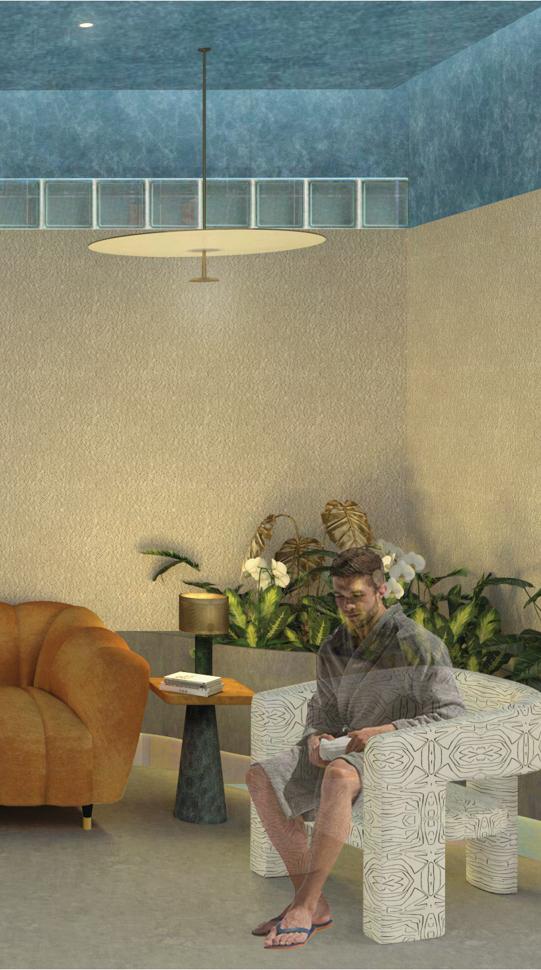

The expanse of in-betweenness is an escape from the seasonal and fleeting spaces we occupy. The atmosphere is designed to stimulate feelings of stillness and contemplation to reflect the healing powers of the spa. A rhythmic curation of lighting, texture, and negative space embodies a tactility and timelessness that seek curiosity and balance. Through the motivated exploration of self and identity, these moments of transition provoke a surrender to the in-between.

[parti diagrams and models]

[moodboard]

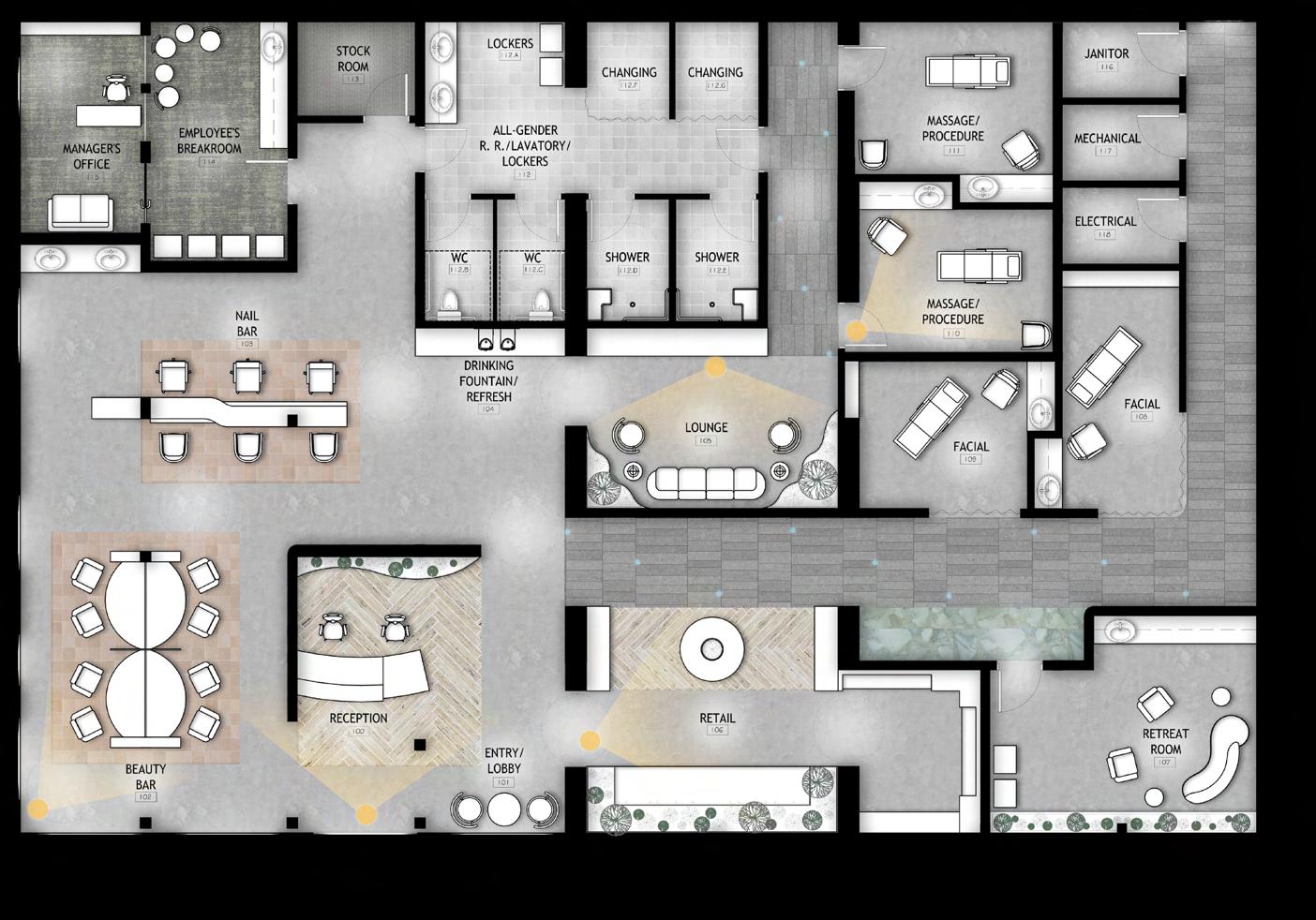

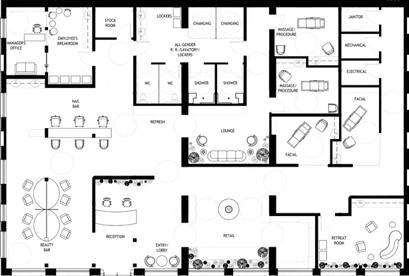

schematic development

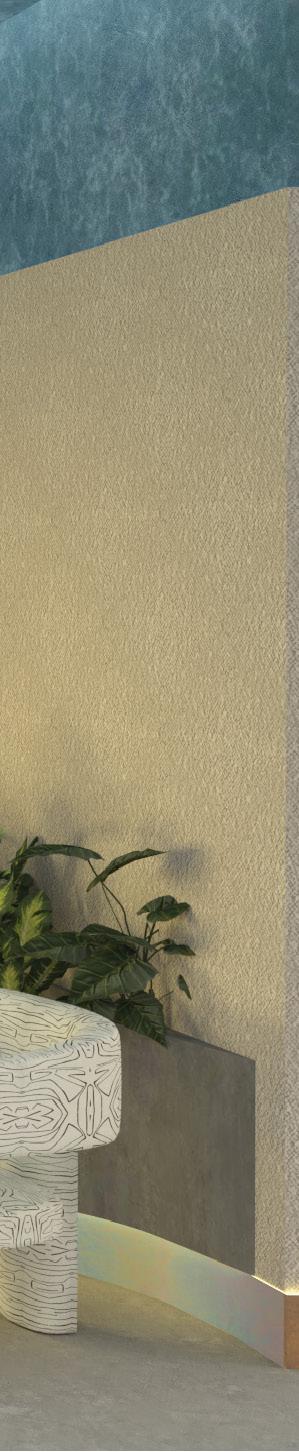

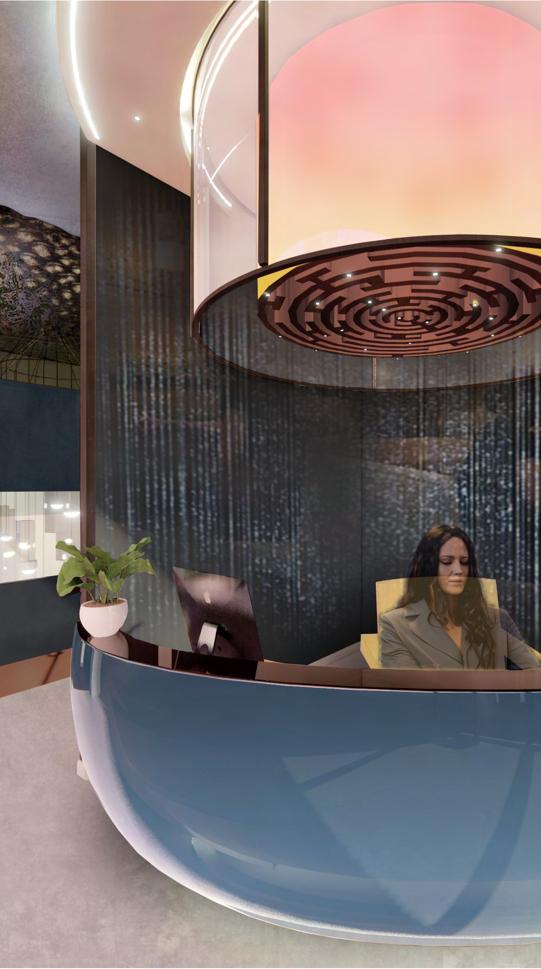

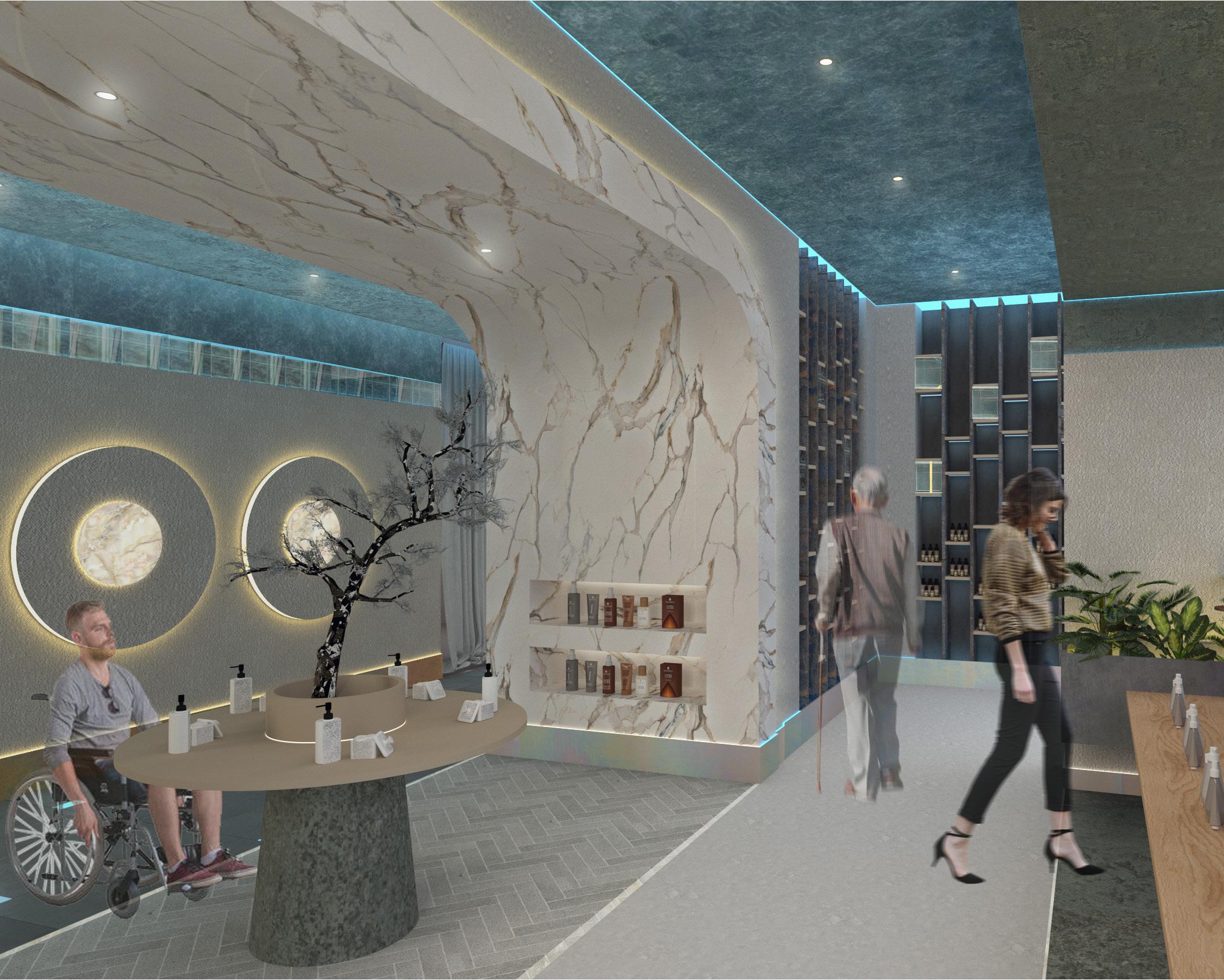

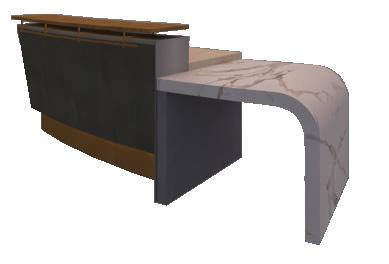

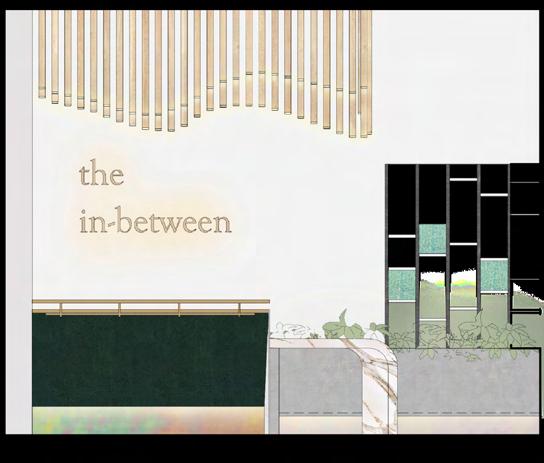

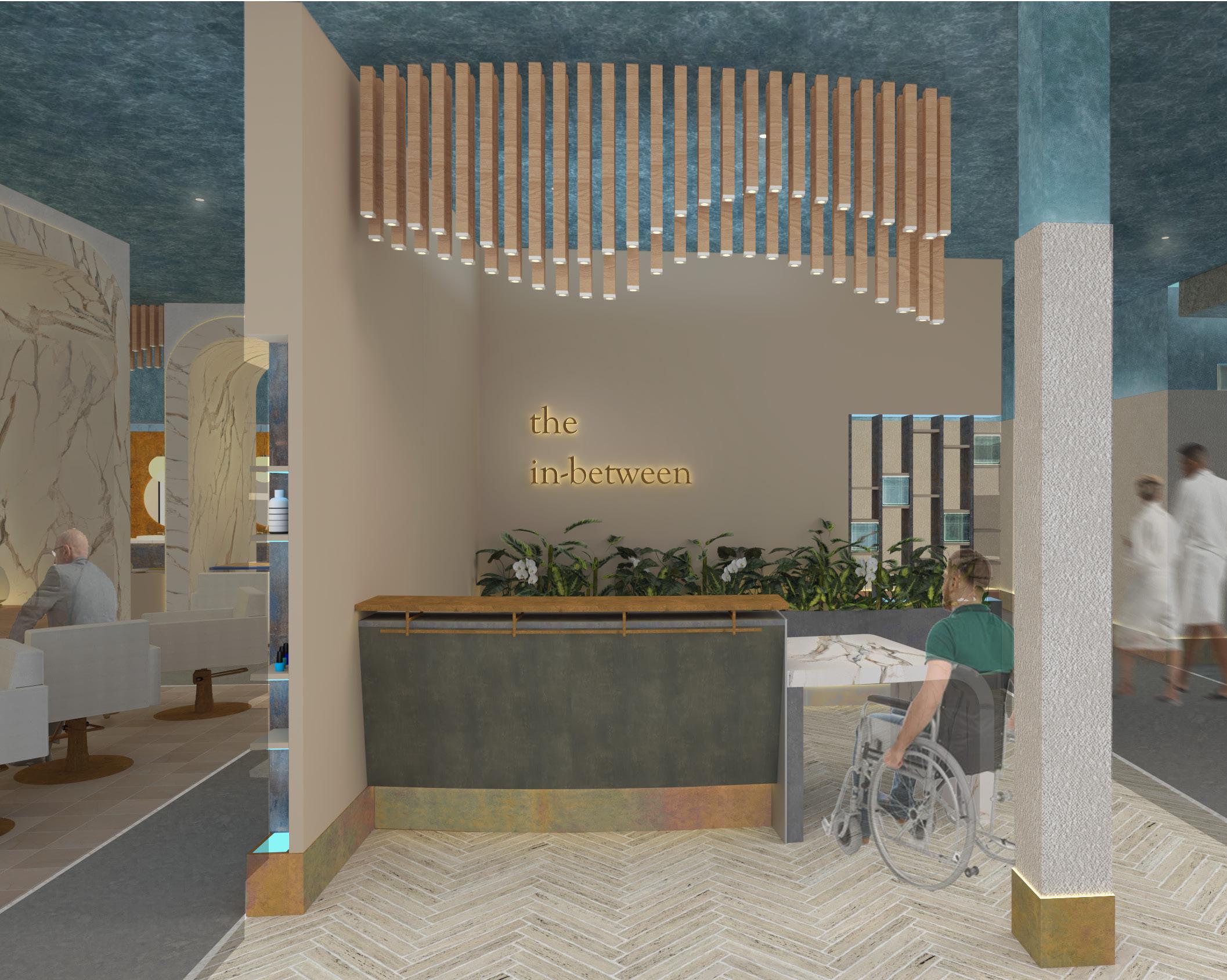

1 The reception desk incorporates a 9” toe-kick to ensure clear floor space to facilitate unobstructed movement.

2 The wooden trellis above the reception counter rhythmically guides the customer to the retail and spa services on either end.

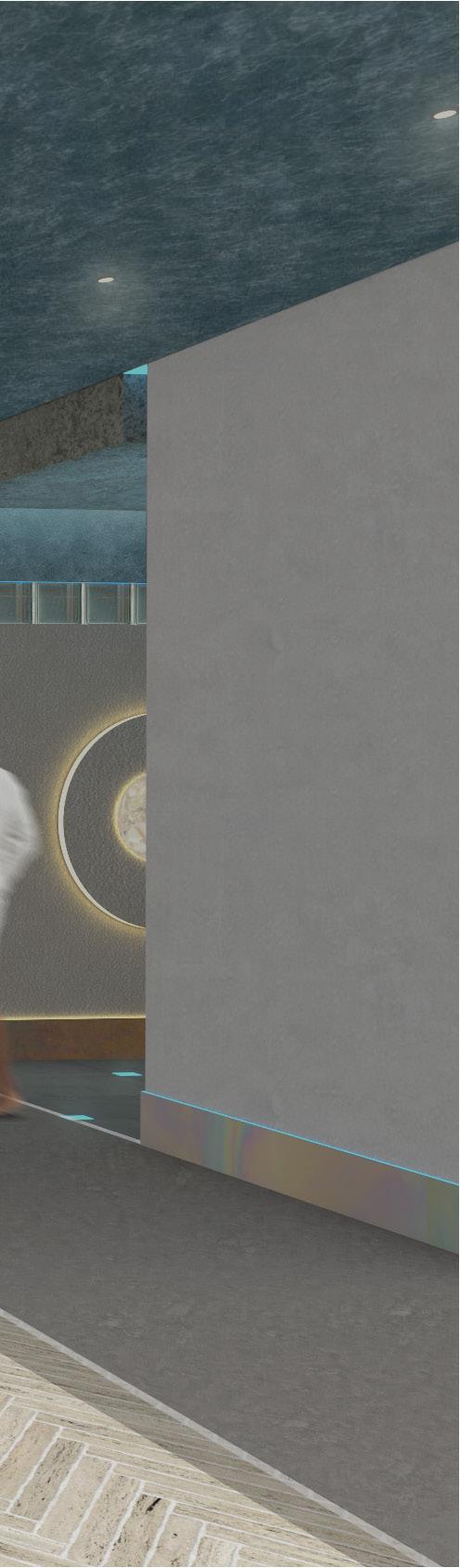

3 Texured blue paint emulates the feeling of being under water.

4 Herringbone tiles on the floor lead the customer in, aiding the wayfinding.

5 The passageways within the space have a clearance of 5ft or more, incorporating turning circles every few feet to allow for easy circulation within the space.

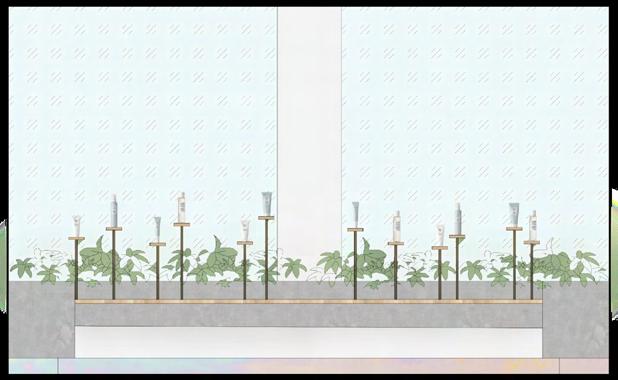

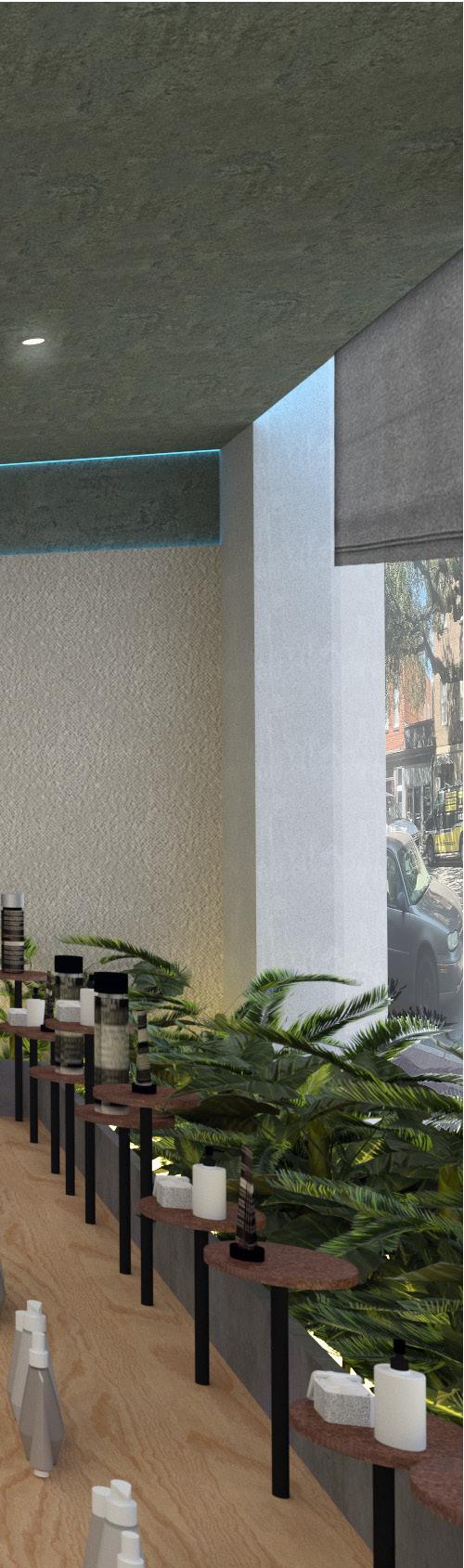

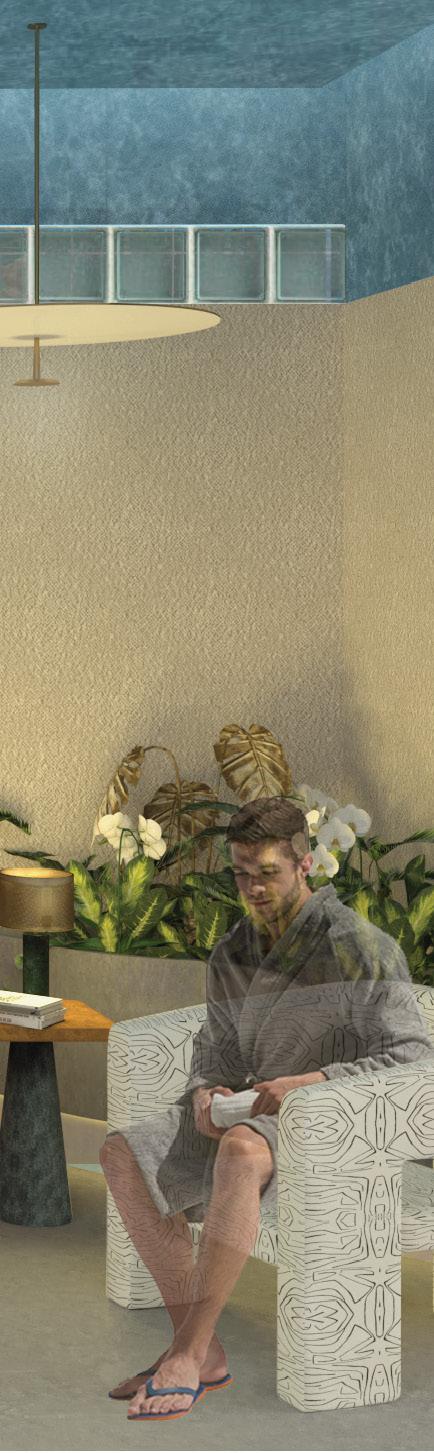

[custom design elements]

granite tile travertine herringbone chromatized steel

wood laminate flagstone laminate textured paint marble

1 Herringbone tiles on the floor creates a sense of directionality within the space.

2 The veined texture reiterates the feeling of being surrounded by water.

3 Texured blue paint emulates the feeling of being just under the surface of the water.

4 Window treatments include blinds that help regulate the amount of light and privacy experienced within the spa and retail spaces.

5 The passageways within the space have a clearance of 5ft or more, incorporating turning circles every few feet to allow for easy circulation within the space.

[custom design elements]

wood laminate travertine herringbone chromatized steel

Additional Works

Renderings and Model-Making

PROJECT DESCRIPTION

A collection of renderings and model-making spanning a range of creative mediums in my time at SCAD

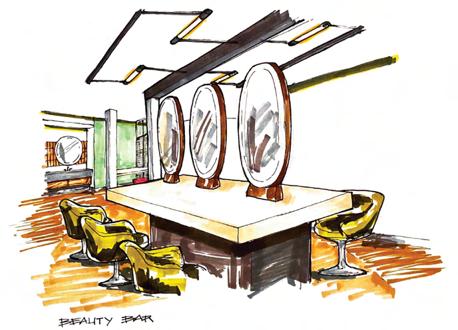

renderings

×

× 10" Pen and Marker on Bristol Paper [walls]

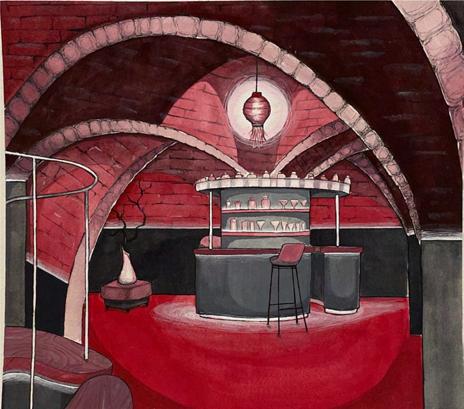

× 25" Nupastel on Grey Mi Tienes Paper [the diner]

19" × 25"

Nupastel on Grey Mi Tienes Paper [bones and bloom]

model-making

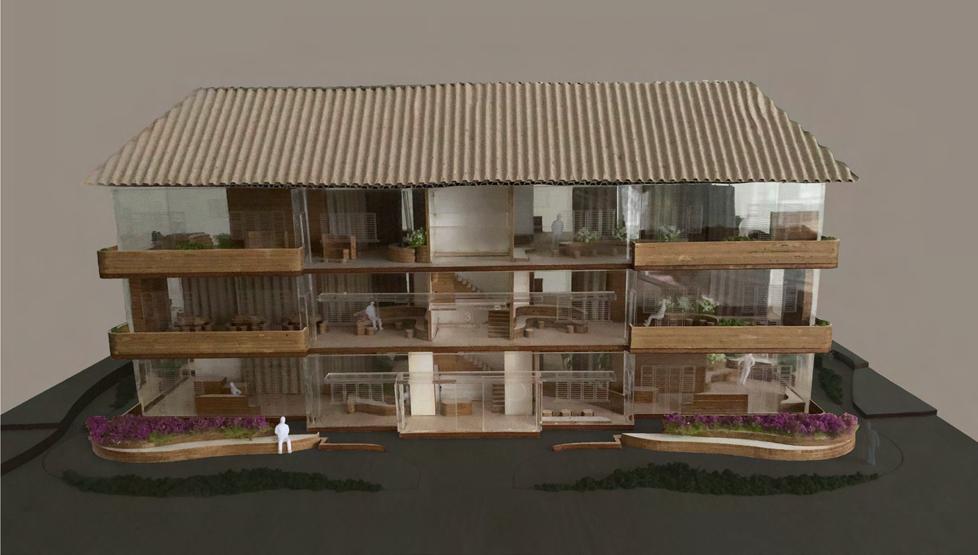

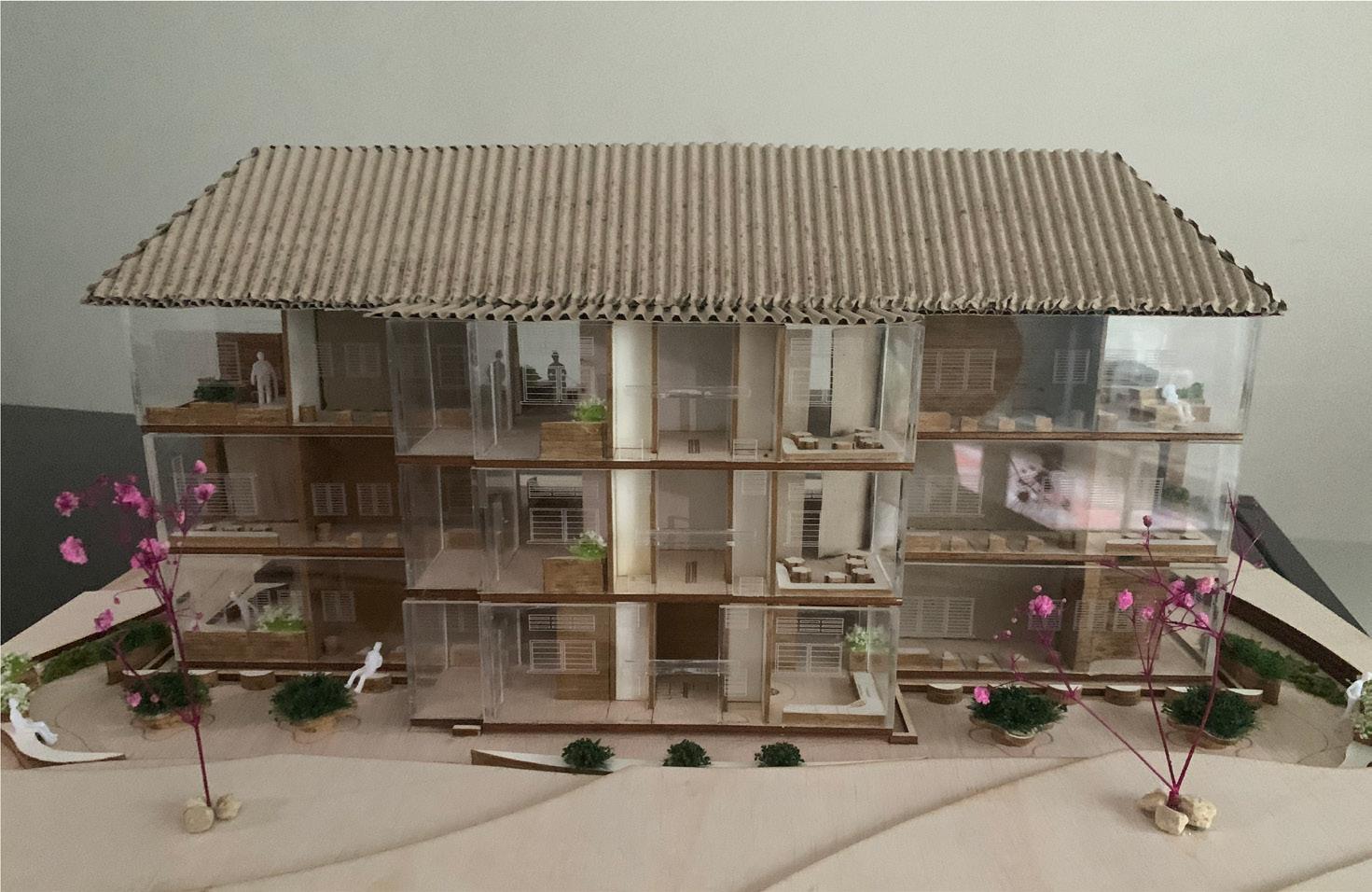

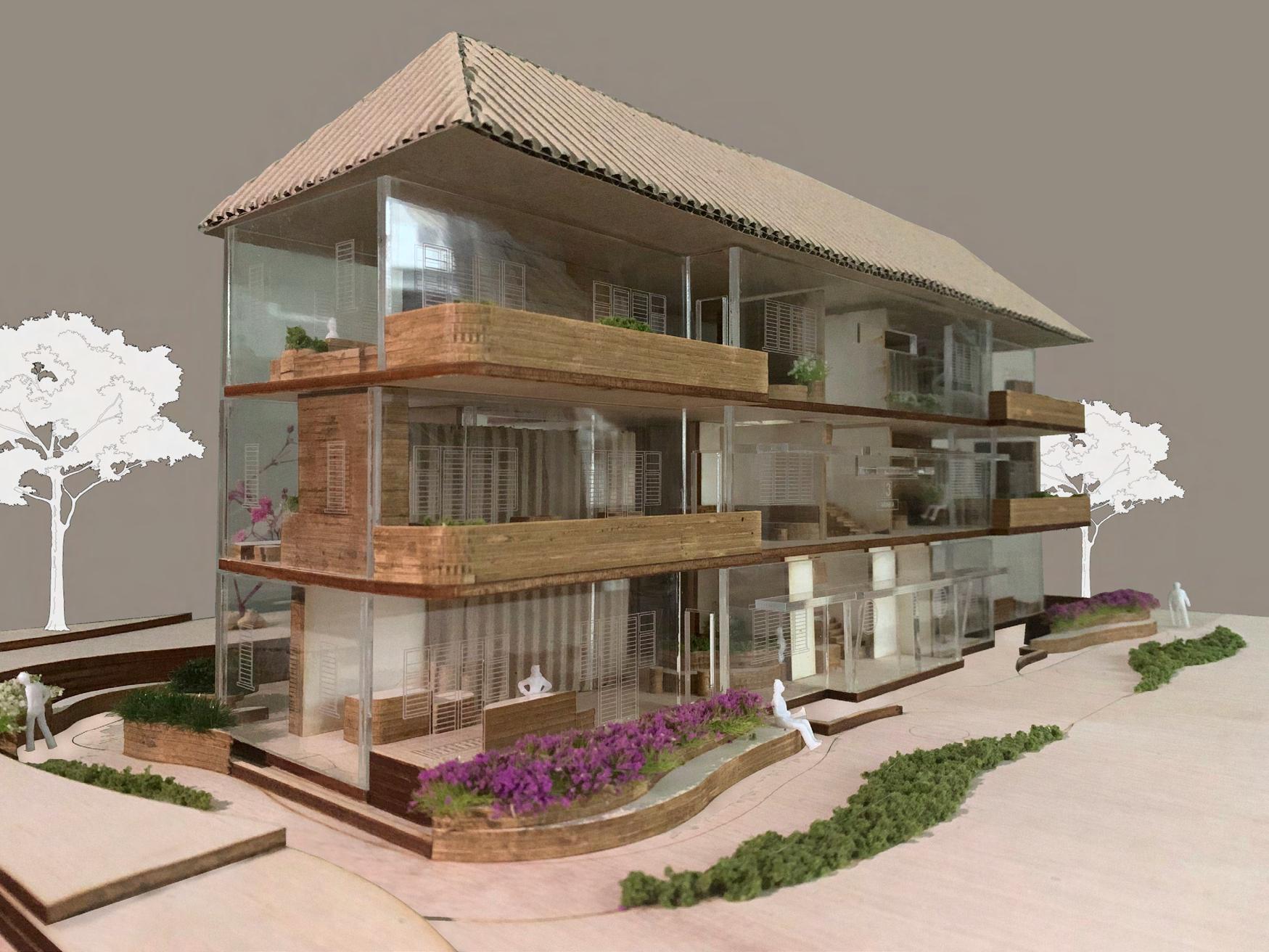

This 1:75 scaled model of Block 3 of the Wessex Estate in Singapore was made mostly from Bristol Board for the furniture, acrylic for the walls, and plywood boards for the flooring. The significance of having three distinctly different materials relates to the space being catered for persons with dementia, a condition which requires clear visual planes for non-restricted spatial navigation.
