Operator comfort in the extreme

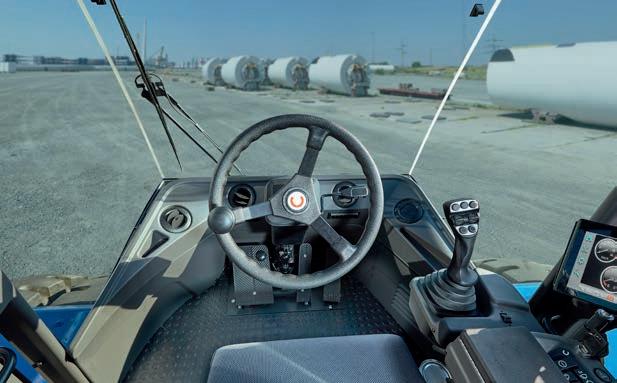

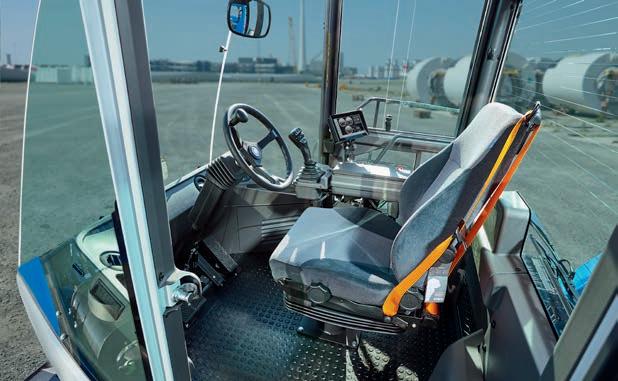

Look into the cab. It has large, break-proof windows with optimum view in all directions.

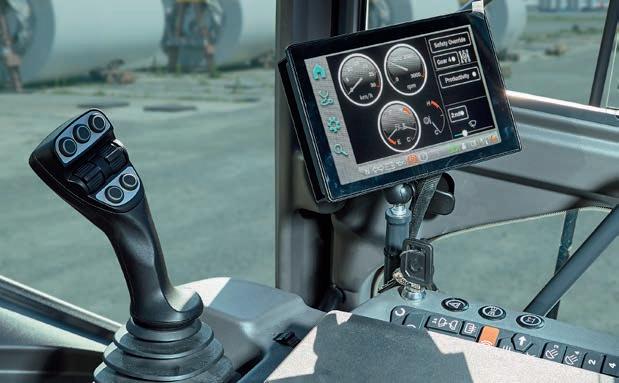

It has lots of space and storage areas. It has well-arranged operating panels comfortably located within reach. The cab can be moved horizontally forward by hydraulics so that the operator is close to the operations at the front of the machine. It has an ergonomic driver’s seat and various accessories can be installed, for example a reverse-view camera. Easy access is possible on both sides of the machine.
Benefits of choosing a heavy-duty reach stacker from N.C. Nielsen:
• High reliability
• Low TCO (Total Cost of Ownership)
• Attractive payback times
• Flexible lifts for a wide range of tasks
• Proven and well-documented product quality
• Customised solution
• High operator comfort with superior visibility, low noise level and lots of accessories
• Future-proof and energy-optimised machines
• Sophisticated data collection

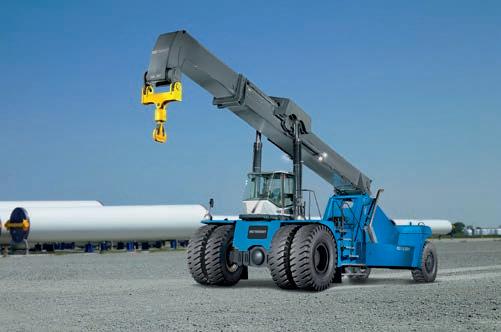

Heavy goods handled easily
Even the heaviest lifts must be easy to handle. This is the philosophy of N.C. Nielsen as we develop our innovative heavyduty reach stackers to customers throughout the world. We have established long-standing expertise in heavy goods and we are constantly raising the bar for the machines’ lifting capacity, manoeuvrability, operator comfort, flexibility and technical capabilities.

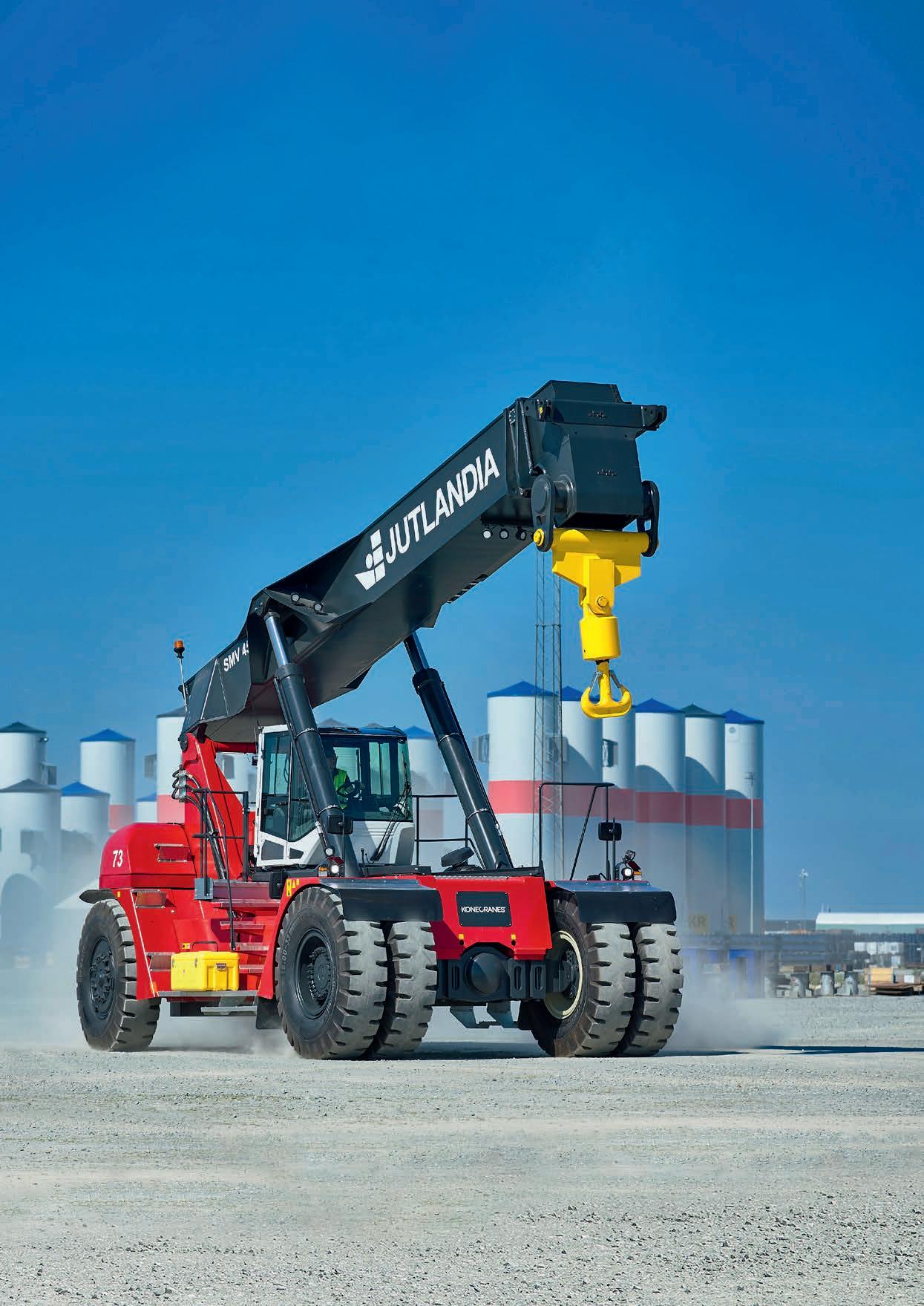

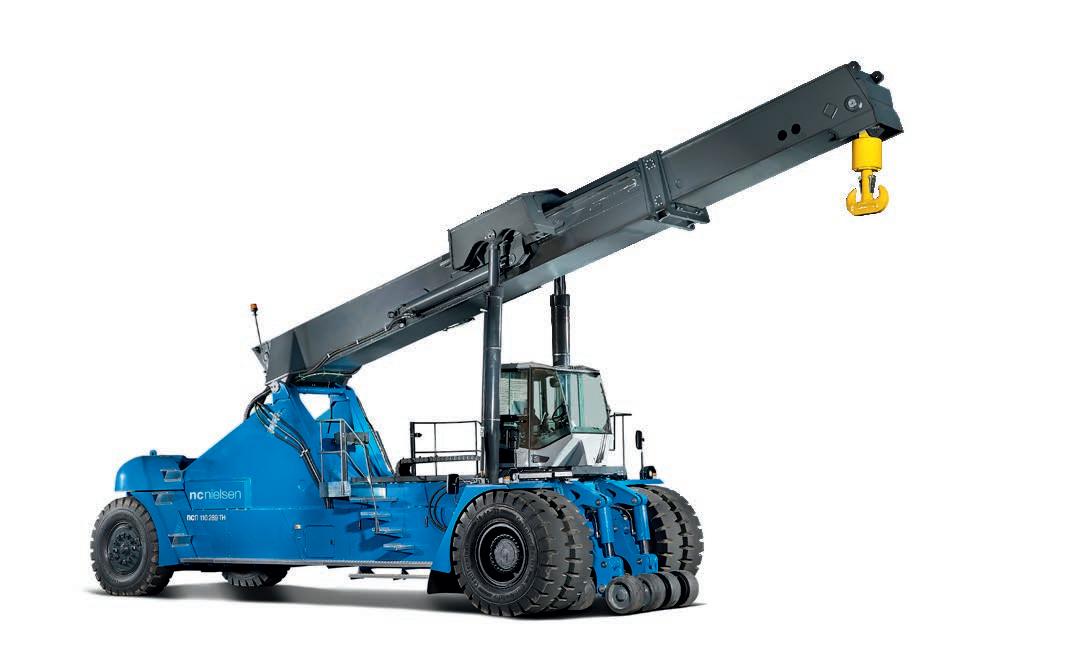

Every reach stacker from N.C. Nielsen has been customised to the tasks at hand and the surrounding working environment. They are available with lifting capacities from 85 tons to 152 tons and with options such as hook, container spreader, forks or jib - and painted in your company’s preferred colours. Last but not least, operator safety is in focus with various functional details inside the cab.
N.C. Nielsen cooperates with Konecranes in the development of the reach stackers. This gives us access to the world’s leading brand in this area. The close development collaboration benefits our customers in terms of strong solutions for lower TCO and improved bottom line. We are delivering a total package with a functional reach stacker, technical documentation, special equipment, optional test drive as well as attractive service.
Welcome to a world of reach stackers.
Moving windturbines and everything else.

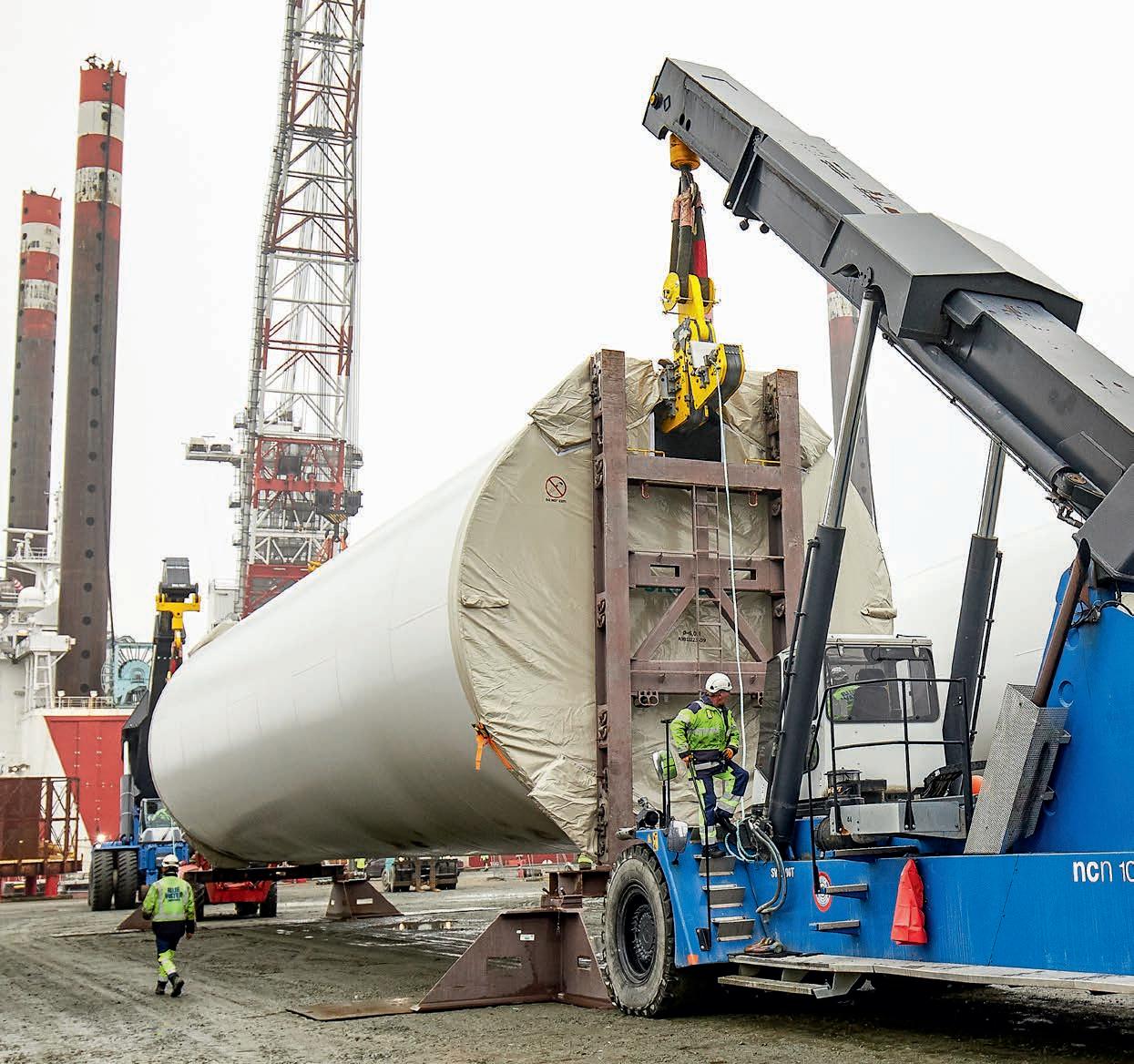

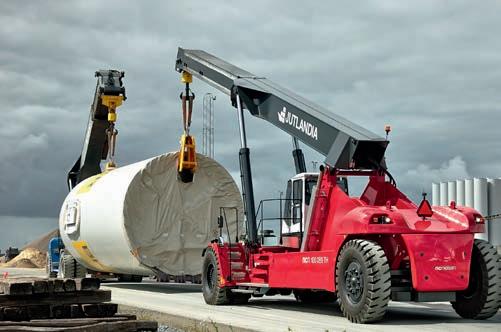

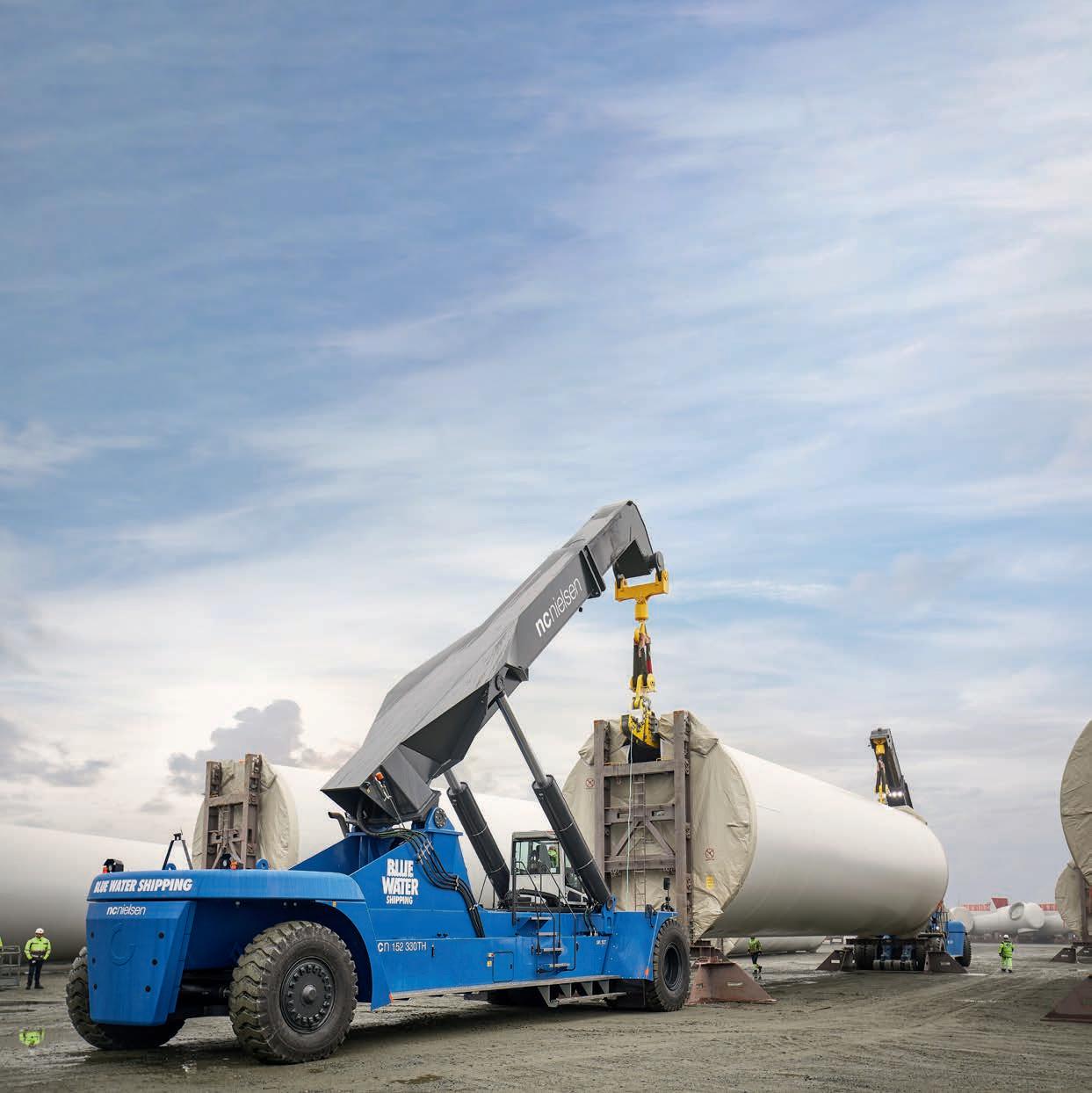

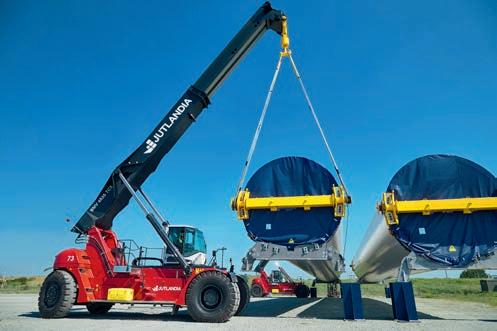

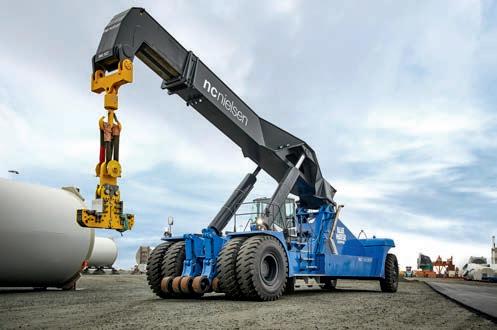

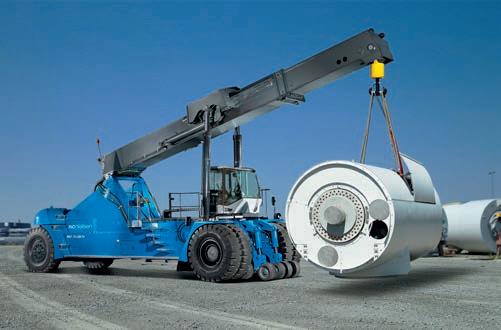

At N.C. Nielsen, we have an increasing number of inquiries for very heavy lifts. We have delivered custom solutions for the Danish wind turbine industry lifting turbine turrets and nacelles from a flat bed truck in a storage area or transporting them from one industrial building to another. The reach stackers also carry out other tasks such as flexible container handling at terminals, moving very heavy items at shipyards or transports in the busy supply bases in harbours.
The operator’s view is optimised in all directions and the option of hydraulically sliding the cab forward provides the operator with an impressive view of the working area.
Customized heavyweight reach stackers in any weight class
Technical specifications NCN 85 T NCN 100 T NCN 110 T NCN 130 T NCN 152 T Length 11,100 mm 13,330 mm 13,330 mm 14,495 mm 16,695 mm Width 4,160 mm 4,160 mm 4,160 mm 4,900 mm 4,900 mm Heigth 4,675 mm 4,718 mm 5,074 mm 5,300 mm 5,300 mm Net weigth 69,700 kg 79,100 kg 89,800 kg 108,000 kg 122,000 kg Engine Volvo EU stage 4/5, 265 kW (alt. Volvo EU stage 4/5, 285 kW as option) Wheel size front 18,00x33 18,00x33 18,00x33 24,00x35 24,00x35 Wheel size back 18,00x33 18,00x33 18,00x33 21,00x35 21,00x35
…
0 1 000 2 000 3,000 4 000 5 000 6,000 7 000 8 000 1 000 2 000 3,000 4 000 5 000 6,000 7 000 8 000 0 20,000 40,000 60,000 80,000 100 000 120 000 140 000 160 000 Lifting capacity Lifting capacity ( k g ) 0 2,000 4,000 6,000 8,000 10 000 12 000 14 000 16 000 Lifting height ( mm ) Hook center (mm) 0 Hook center (mm) Lifting height NCN 85 T NCN 100 T NCN 110 T NCN 130 T NCN 152 T NCN 85 T NCN 100 T NCN 110 T NCN 130 T NCN 152 T
NCN 100 T LC 2890 mm NCN 110 T LC 2890 mm NCN 130 T LC 3000 mm NCN 85 T LC 2850 mm NCN 152 T LC 3300 mm
