360° INTEGRATED STUDIOS EDUCATION

The Education Studio is committed to designing innovative spaces that nurture learning. By conducting research in to current and projected trends, NBRS have extensive knowledge in catering for the evolving future of junior, senior and tertiary education facilities.

LIFE & CULTURE

The Life & Culture Studio is a foundation studio at NBRS. Passionate about human centred design and creating spaces that engage people for civic, religious, cultural and recreational purposes.

JUSTICE

The Justice Studio is creating impactful, well rounded design solution to improve the lives of compromised people. With a wealth of experience across correctional facilities and other justice buildings, the NBRS seeks to create responsive facilities that service all who interact with these spaces.

WELLNESS

Through ongoing research and the development of future focused wellness spaces, the Wellness Studio continues to create impactful designs for a range of clients and communities.

INTERIOR DESIGN

Our Interior Design Studio is passionate about achieving a seamless connection between interior design and the whole architectural concept. We deeply consider how interior spaces are used and create innovative design solutions.

LANDSCAPE ARCHITECTURE

Landscape Architecture is an amalgam of art and science. As designers, Landscape Architects are required to be careful interpreters of the natural and cultural conditions of a site. Our Landscape Studio seeks to create attractive, meaningful, usable, connected and equitable spaces that embody sustainable design principles.

HERITAGE

Our Heritage Studio has specialist expertise in providing conservation and heritage planning advice, in addition to adaptivereuse design. We have experience in the identification and management of built heritage items of all types and periods and in design documentation and project administration of projects for both government and private sectors.

4

QUEENWOOD JUNIOR SCHOOL 5

CONTENTS PAGE

360 Integrated Studios

4

Masterplanning in Education

7

Project Experience

8

Cairnsfoot Special Needs School

10

Hastings College

12

Kaiapoi Cluster Schools

Presbyterian Ladies College

Pacific Hills New Hope School

Abbotsleigh Junior School

Precinct Transformation MasterPlan

Queenwood Junior School

Tara Anglican School for Girls

Redlands School

Oran Park Public School

Norfolk Island Central

HMAS Platypus Senior College Campus

43

Knox Grammar School Landscape Masterplans

43

Canberra Grammar School

45

NBRS Profile

16 18 20 24 26 28 30 32 36 38 42

50

6

MASTERPLAN IN EDUCATION

A masterplan is a strategic document outlining a long term plan for the development of your school.

An NBRS Masterplan provides an appropriate and considered physical planning framework to guide the future development of a school campus. This blueprint provides a sequencing for development over the short, medium and long term. Key considerations include the core academic facilities footprint, learning zones and student precincts, open spaces for active and passive recreation, traffic strategies, as well as establishing development envelopes for the location of new buildings. Principles for building form, density and style are considered and buildings of heritage significance are identified.

7

MASTERPLAN THE ROLE OF A MASTERPLAN

Existing Campus

•

Serve the Strategic Plan or Vision

•

Siting, Contours, Vistas,

Statement of your school

•

Landscaping

Act as a guidance document for

•

Heritage

highlighting campus potential and

•

Services

•

Environmental, Solar access, prevailing

•

facilities management •

Be goal orientated in harmony with Strategic Plan

•

Be creative and visionary

•

Be conceptual

•

Be multi-dimensional

•

Be relevant and user-friendly

•

Be subject to review

THE SCOPE OF A MASTERPLAN Goals & Opportunities of the Strategic Plan

winds •

Pedestrian / Traffic

•

Important spaces

•

Existing building forms

•

Constraints / Opportunities / Options

Design Prinicples •

Colours

•

Textures

•

Scale

•

Language

Off Campus

•

Cultural

•

Social

•

Impact of overseas ventures

•

Academic

•

Other sites

•

Entrepreneurial

•

Joint Ventures

•

Neighbourhood Context

Elemental Cost

•

Relationship / Impact on the

•

Stages

•

Departmental

•

Services

•

Options

community •

Residential, infrastructure / commercial precincts

•

Heritage impact

•

Urban planning, vistas, sense of place

•

Intensity of use

8

QUEENWOOD JUNIOR SCHOOL

PROJECT EXPERIENCE Creating environments that have positive impacts on lives

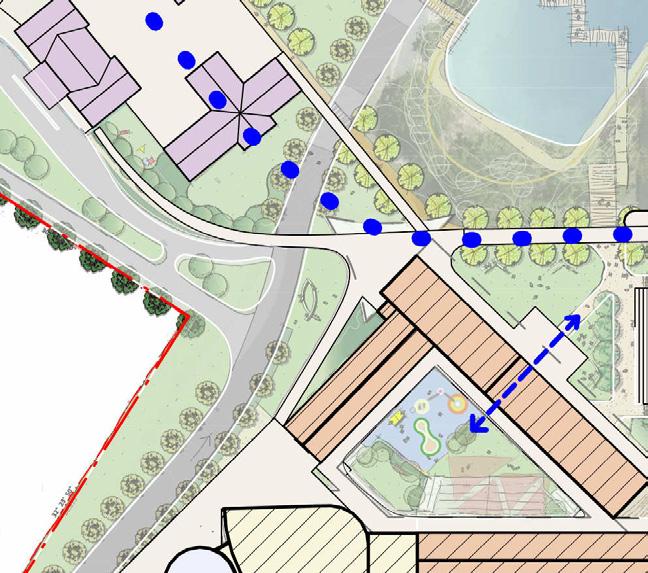

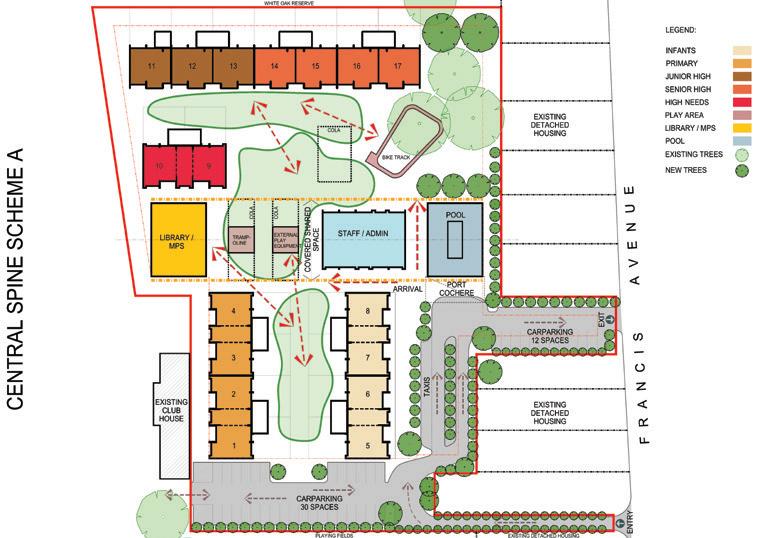

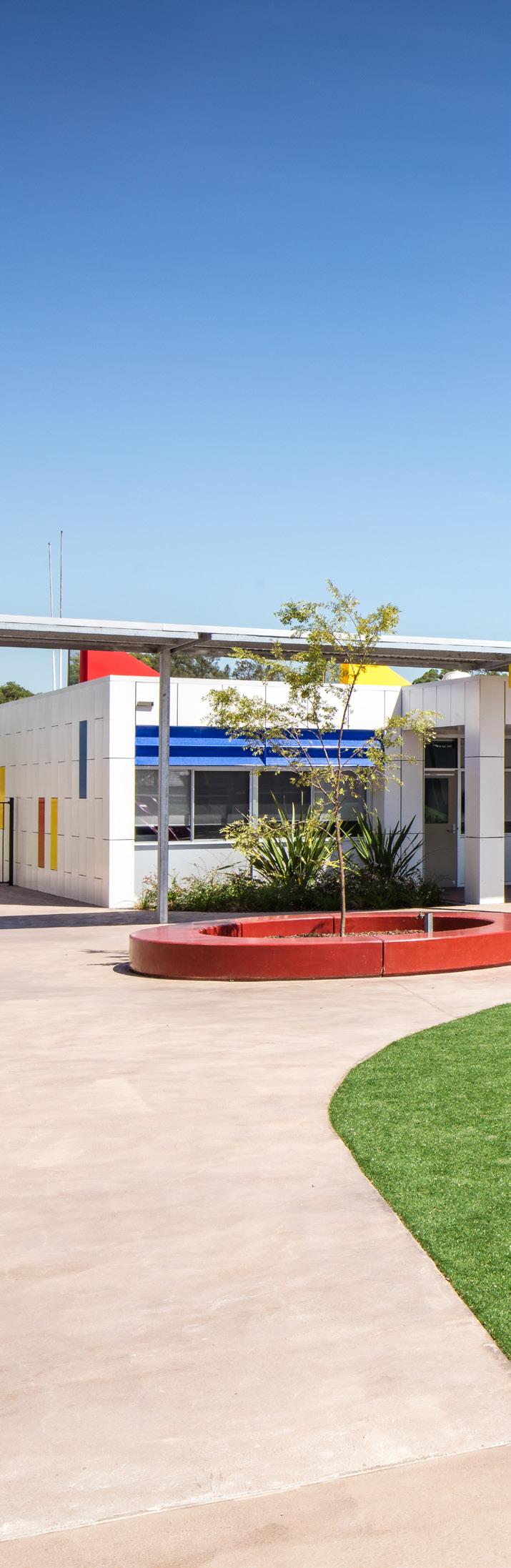

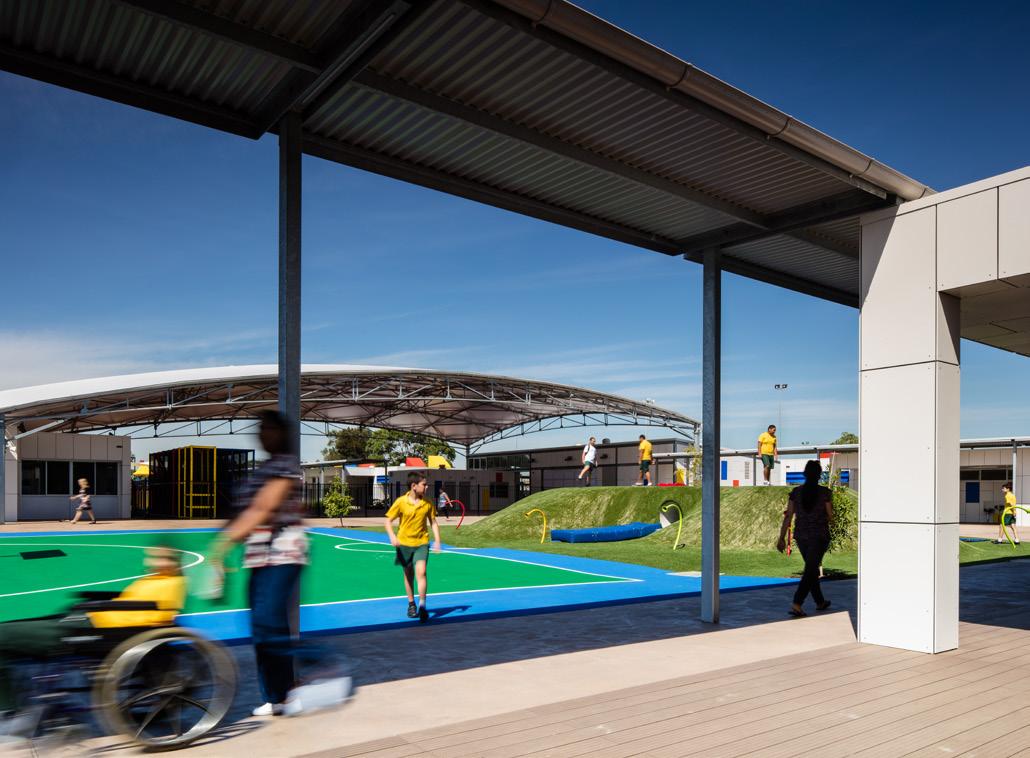

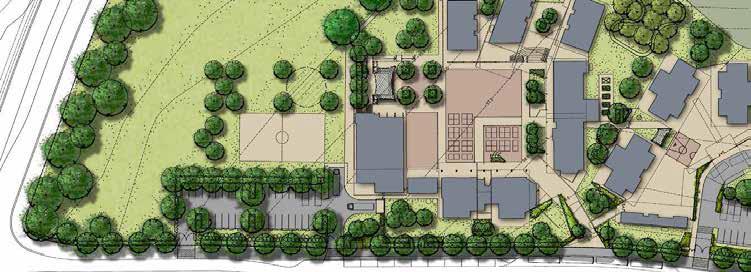

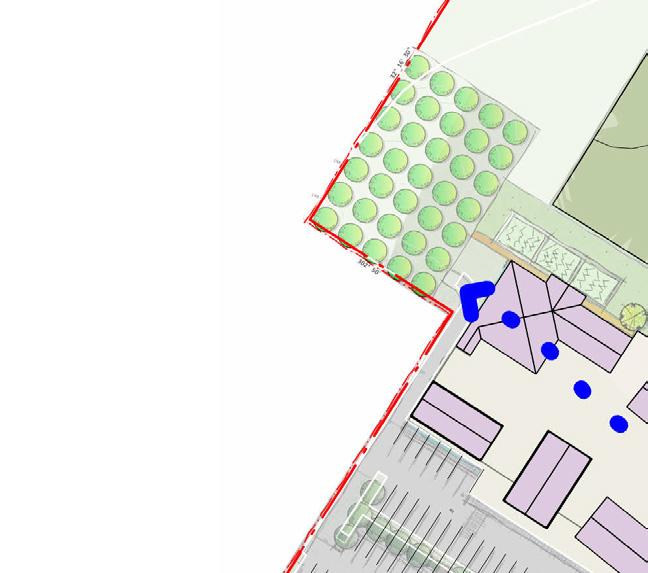

CAIRNSFOOT SPECIAL NEEDS SCHOOL

This project included the delivery of design and documentation for the relocation of the Cairnsfoot School, Brighton-Le-Sands.

The scope of works at included provision of a new School for special purposes to be provided with 17 classrooms including all support facilities required under the Special Education Facilities Standards.

Features: •

•

•

community to engender pride in the school and its surrounds •

•

•

•

definition through planting and paving

supervised and easy

patterns

The shared facilities are central and easy

•

promoting key views and connections

Good shared public access to the

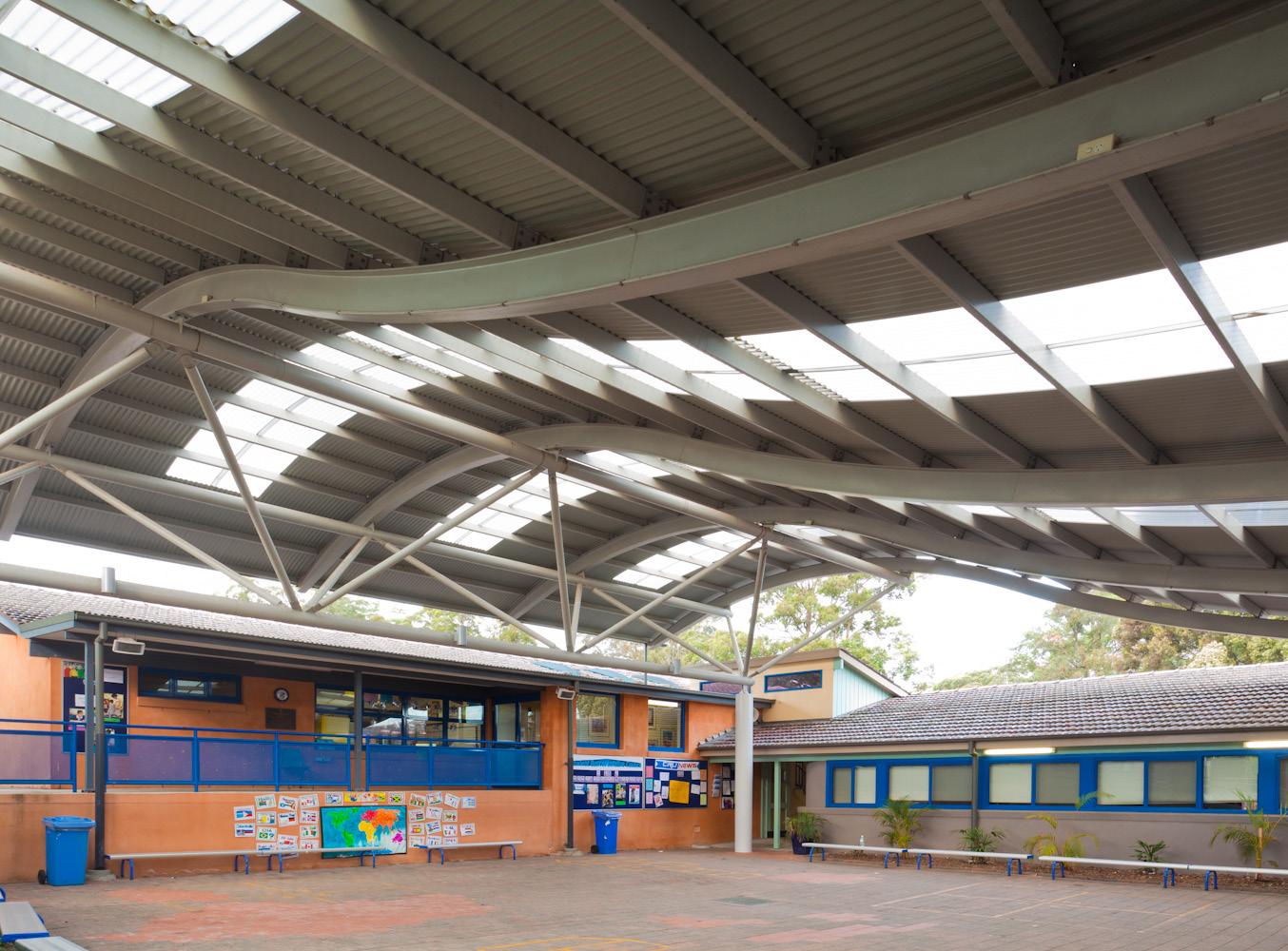

A large roof form to reinforce the central

from the site Play Elements:

idea of shelter

•

Fixed play equipment in fenced areas

The site easily divides into junior and

•

Bike track, slides, swing and climbing

Retained natural features to NE corner and incorporates outdoor challenges

wall •

“Roadway” or “train track” paths, with pedestrian crossings and signage

•

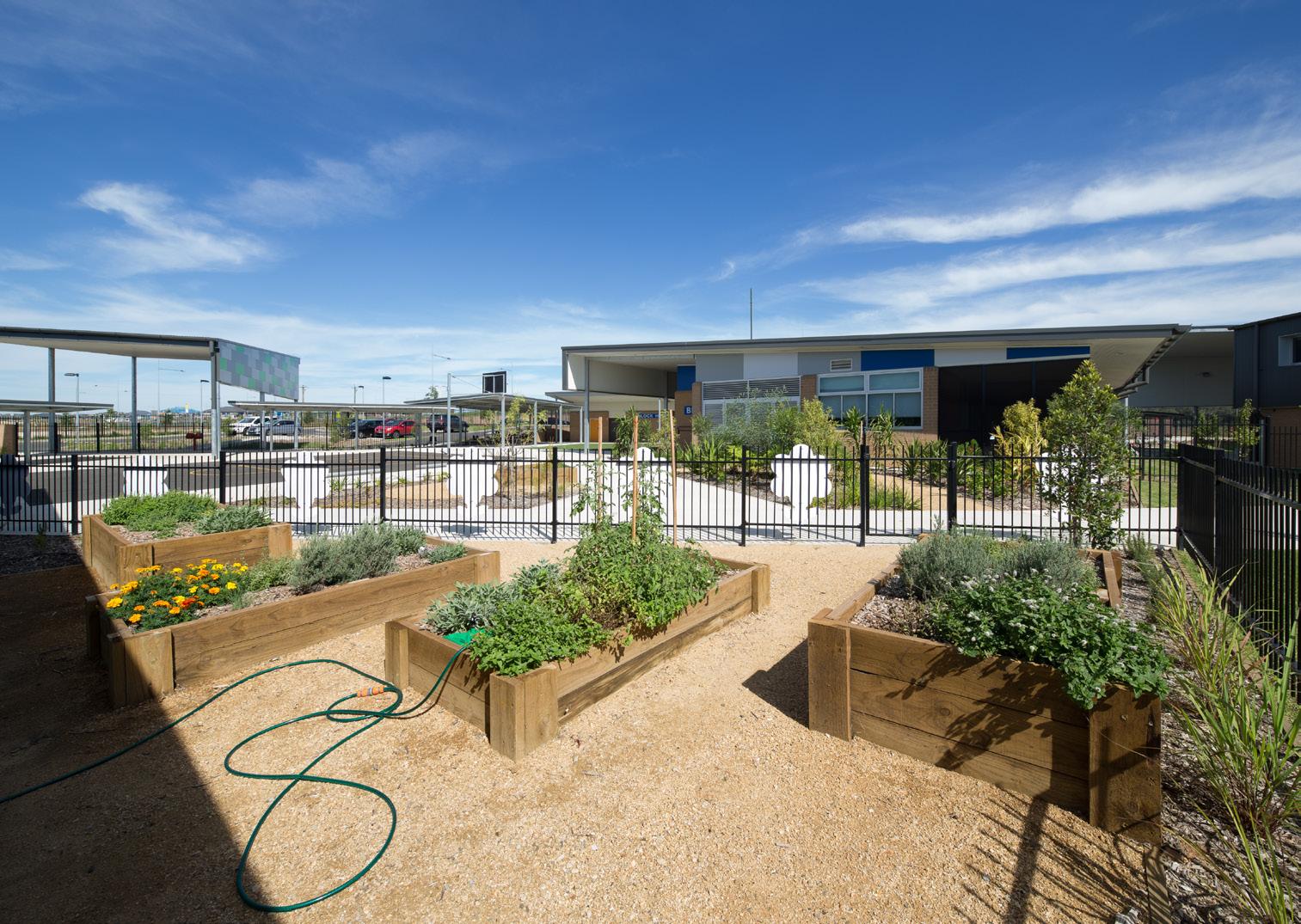

Herb and vegetable gardens as well as

Outdoor spaces can flow in a layer

orchard planting for garden to kitchen

manner from home bases to shared

learning and group use

spaces •

To create a wider connection to the surrounding areas and community by

of site reinforces a natural edge buffer

•

To provide wayfinding and spatial

Arrival and pedestrian flow is central,

senior sectors •

To provide comfort to users and climate control to the built environments

swimming pool •

To create attractive, functional and educational landscapes

to navigate •

To create a positive image within the

•

A holistic approach where the built forms intersect with the natural and outdoor forms

Sensory garden with a range of plant types and ground textures

•

Observation towers for outlook over play space

Design Principles:

12

Caroma Cube

e

Caroma Cube Extension Basin

e

c W s tuo Door ed iswingin s iht il

Door swingin

Basin outside this line

Basin outside this line

Basin outside this line

n

n

e

e

n

Basin outside this line Basin outside this line

W

ist u oc W

oc is tu

ed

t ed

il s iht

h lis i

Door swingin

Door swingin

n

li

li

Door swingin

Basin outside this line

is

n

u t i s de t his li

e

co

i ht s

t his li

Door swingin

Extension Basin

Extension Basin

Extension Basin

Basin outside this line

e

ti hs li

Door swingin

Caroma Cube

Caroma Cube

Extension Basin

t e h ts id Wc ou

u t i s de

en

ne

n

W

Basin outside this line

ou t s i de

co

n

Wc

ide u ts Wc o

W

e

ils ih t Door swingine d is tuo c W

Caroma Cube Caroma Cube Extension Basin

Basin outside this line

Door swingin

Caroma Cube Extension Basin

Caroma Cube Extension Basin Caroma Cube Extension Basin

PE STORE G.21 13 m²

CHAIR STORE G.22 9 m²

STAFF ROOM G.44 66 m²

GARDEN STORE G.56 14 m² POOL PLANT G.2

MULTIPURPOSE SPACE G.20 120 m²

27 m²

PRINCIPAL INTERVIEW G.54 17 m²

Room G.48 9 m²

Room G.47 5 m²

BULK STORE G.57 15 m²

STAFF CHANGE G.43 15 m²

SPORTS STORE G.27 13 m²

COMMS. G.24 6 m²

KLA RESOURCE G.25 20 m²

SICK BAY G.51 9 m²

PRINCIPAL G.53 17 m²

OFFICE / WORKROOM G.26 15 m²

ENTRY / VESTIBULE G.55 13 m²

DEPUTY PRINCIPAL G.46 15 m² CLERICAL PRINTING G.50 54 m²

LIBRARY G.16 90 m²

SECURITY STORE G.45 15 m²

Extension Basin

en

Basin outside this line

Caroma Cube

Caroma Cube

ne

Courtyard

CLEAN. STR G.59 4 m²

GARBAGE G.60 15 m²

Basin outside this line

en

ne

li

GENERAL STORE G.5 23 m²

EDB G.58 4 m²

W o c Door swingin is tu te d Basin outside this line

h lis i

i l i

Extension Basin

Extension Basin

Basin outside this line Basin outside this line

Basin outside this line

si

en

h e t d Door swing s i in ou t Wc

POOL PLANT G.4 13 m²

il s ih t Door edsswing i t in uo c W

Extension Basin

Caroma Cube

th s

ne

Extension Basin

W Door swingin c ou t s ide

Caroma Cube

Caroma Cube

Caroma Cube

s li h i e t Door swing s d in u i c o t W

TOILETS & CHANGE ROOMS G.29 53 m²

c W

Extension Basin

en

Basin outside this line

Caroma Cube

tuo Door swingin d is e ih t lis

ne

Extension Basin

Wc ou ts id e Door swingin th i s il

INTERVIEW OFFICE G.49 12 m²

Caroma Cube

SPECIAL PROGRAMS G.19 32 m²

Extension Basin

KITCHEN G.18 20 m²

POOL G.1 166 m²

Basin outside this line

SP STORE G.17 7 m²

Intersection

INTERVIEW G.52 13 m²

il s iht ed swing Door i in s tuo c W

Hub

13

AILA 2020 Health and Education Landscape Winner Kidsafe 2020 High School (2B) Commended

14

2020

Kidsafe

Commended

2020

AILA

15

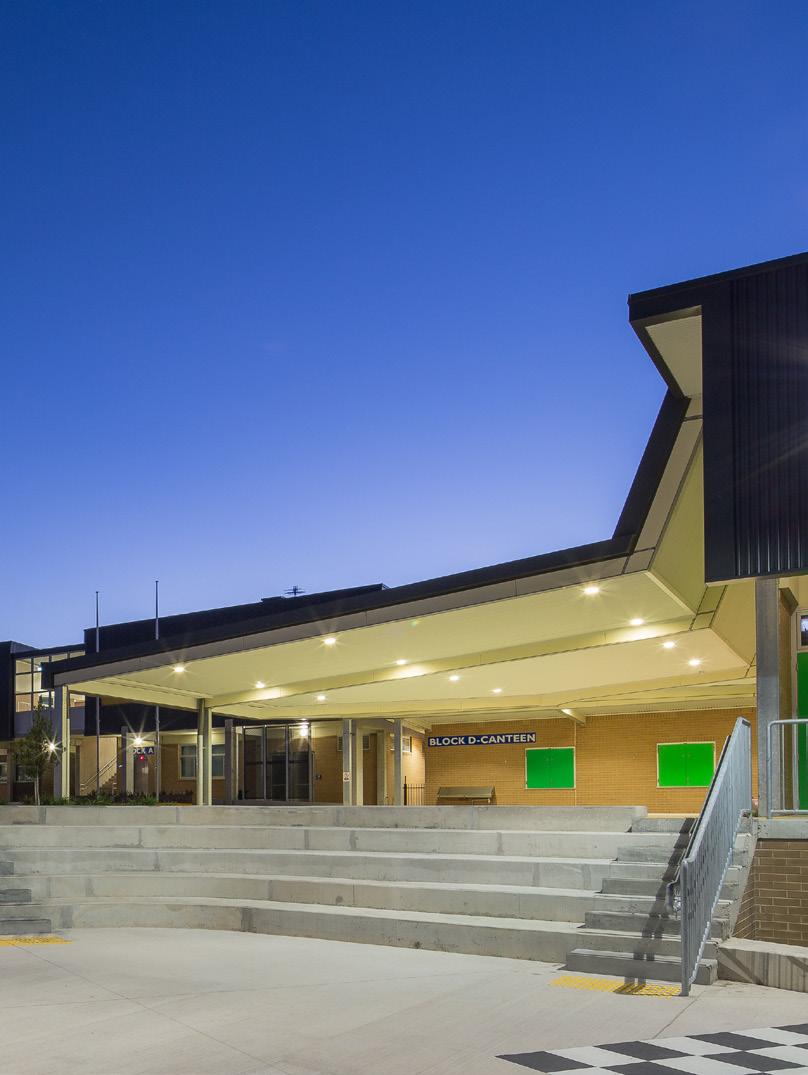

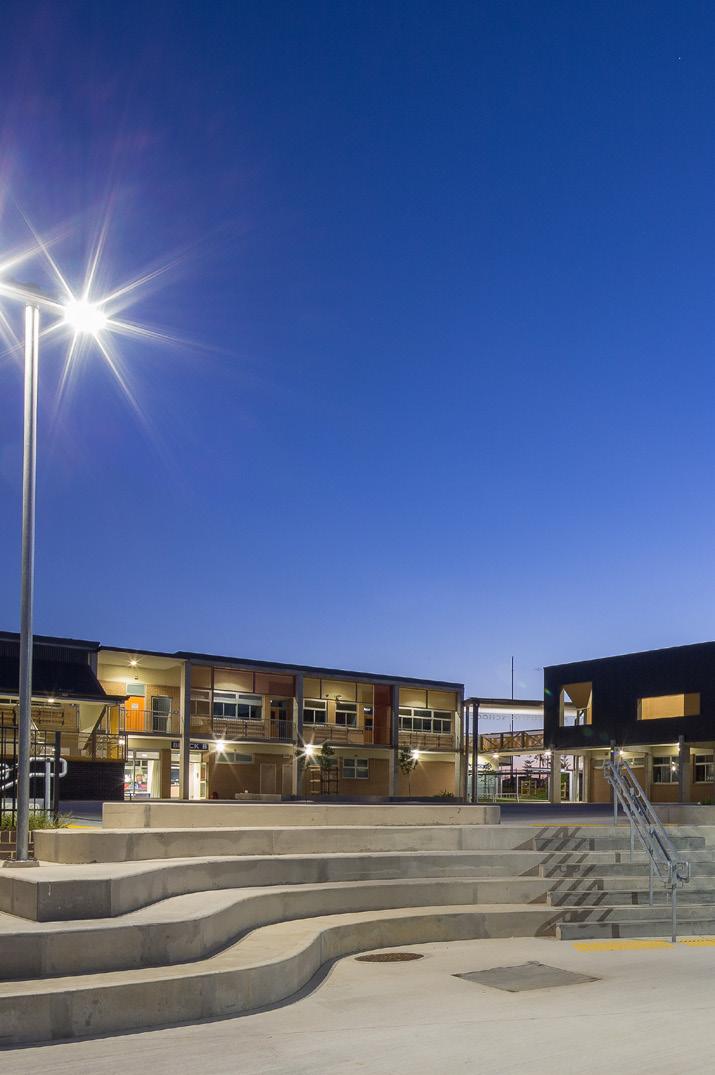

NBRS was engaged by SINSW to manage the masterplanning, concept and schematic design for the delivery of upgrade works to two campuses at Hastings College, each with a capacity of 1,000 students.

The two campuses were constructed at different times and later unified into a single school. The requirements to upgrade the separated campuses are thus different; the two campuses are not connected and the areas are distinct in their condition and socioeconomic status.

The works at Port Macquarie Campus include the construction of 29 permanent teaching spaces; replacement of 15 permanent teaching spaces and removal of 8 demountable teaching spaces; creation of an indoor sports facility for joint use with PCYC; the provision of accommodation components that are missing per the EFSG; and the upgrade of existing accommodation.

At West Port Campus, a n centre and a new admini reception area are being

An extensive engagemen undertaken to ensure NB community and its needs with SINSW to define the and to identify which lear best suit the needs of the

HASTINGS COLLEGE NBRS was engaged by SINSW to manage the masterplanning, concept and schematic design for the delivery of upgrade works to two campuses at Hastings College, each with a capacity of 1,000 students.

54

The two campuses were constructed at different times and later unified into a single school. The requirements to upgrade the separated campuses are thus different; the two campuses are not2)connected and EDMONDSON PARK TOWN CENTRE WEST (STAGE VERTICAL SECONDARYthe PUBLIC SCHOOL areas are distinct in their condition and socioeconomic status.

The works at Port Macquarie Campus include the construction of 29 permanent teaching spaces; replacement of 15 permanent teaching spaces and removal of 8 demountable teaching spaces; creation of an indoor sports facility for joint use with PCYC; the provision of accommodation

components that are missing per the EFSG; and the upgrade of existing accommodation.

At West Port Campus, a new well-being centre and a new administration and reception area are being developed.

An extensive engagement process was undertaken to ensure NBRS understood the community and its needs. NBRS worked with SINSW to define the optimum layout and to identify which learning areas would best suit the needs of the students.

16

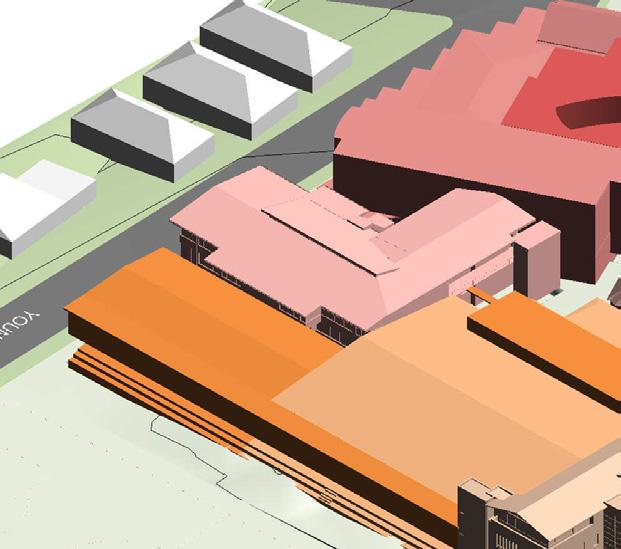

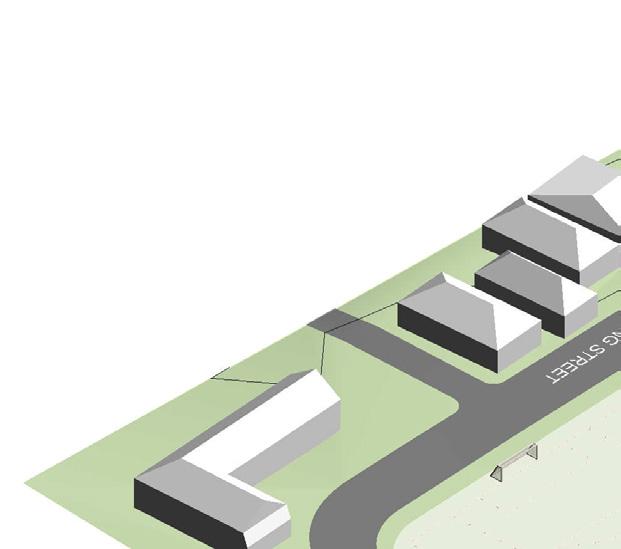

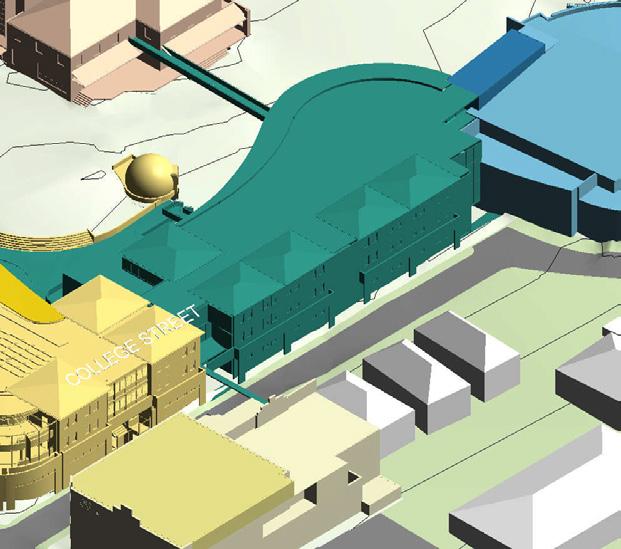

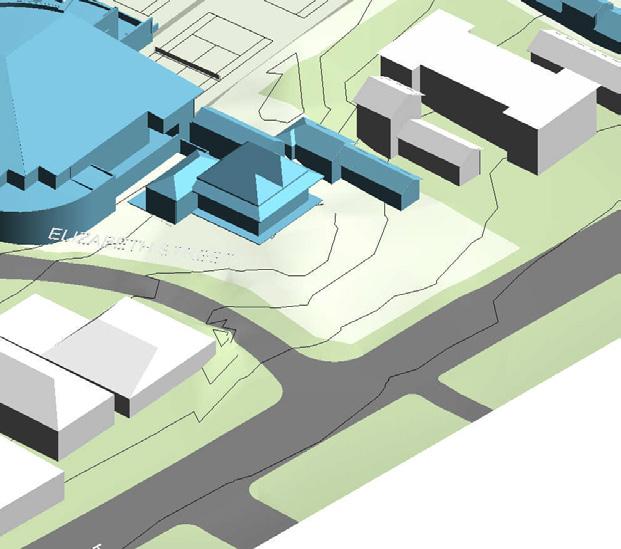

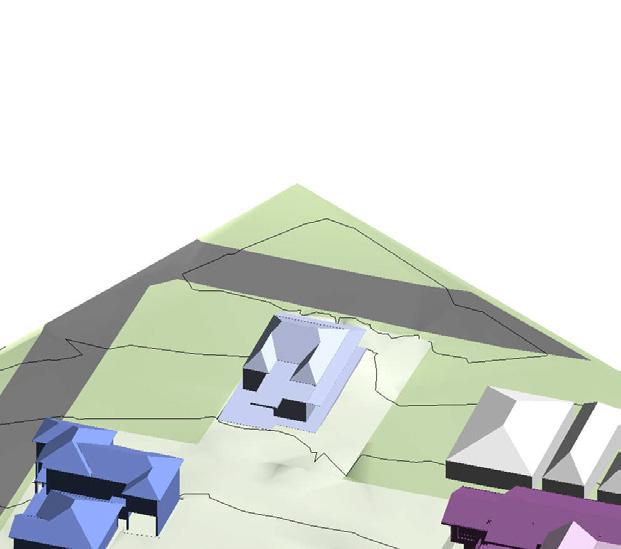

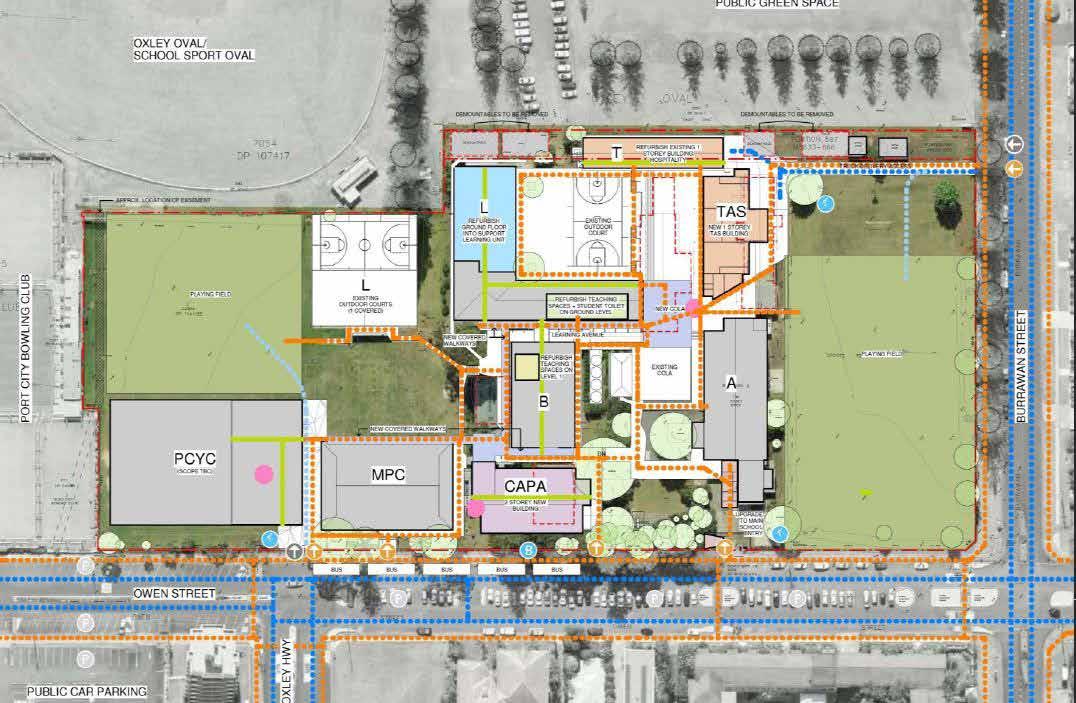

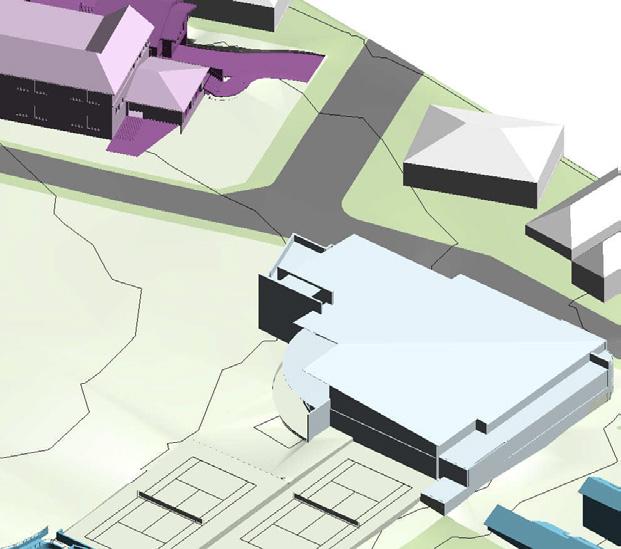

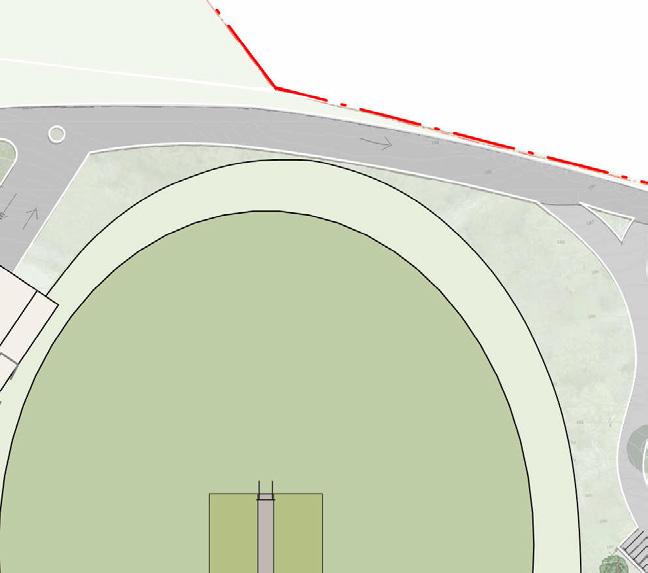

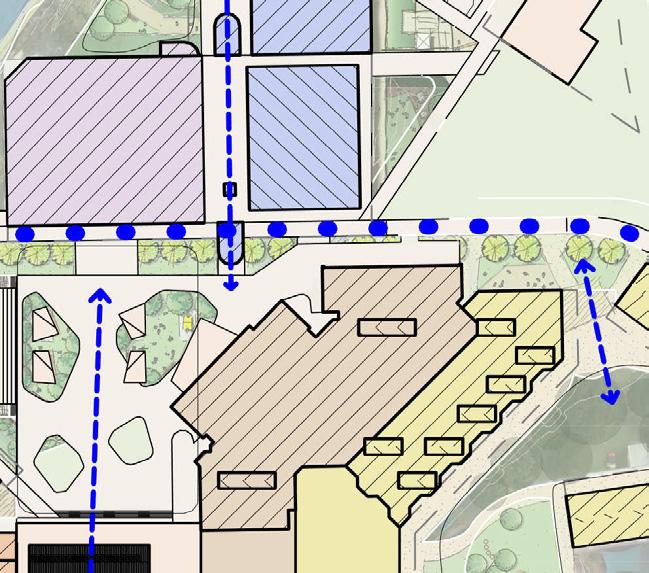

NEW TAS ZONE T

G NIN AR LE

UE EN AV

A

L

B

PCYC

Issue No.

Drawing Title Date

Description

Chkd

P

I NA LIM RE

RY

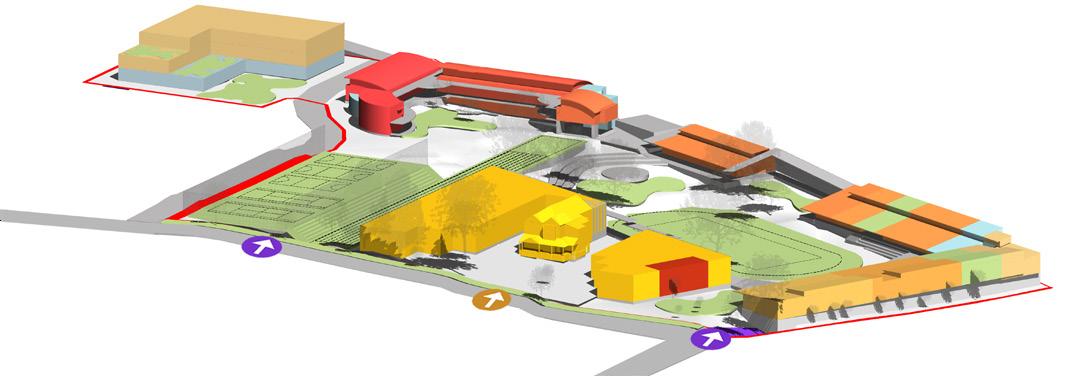

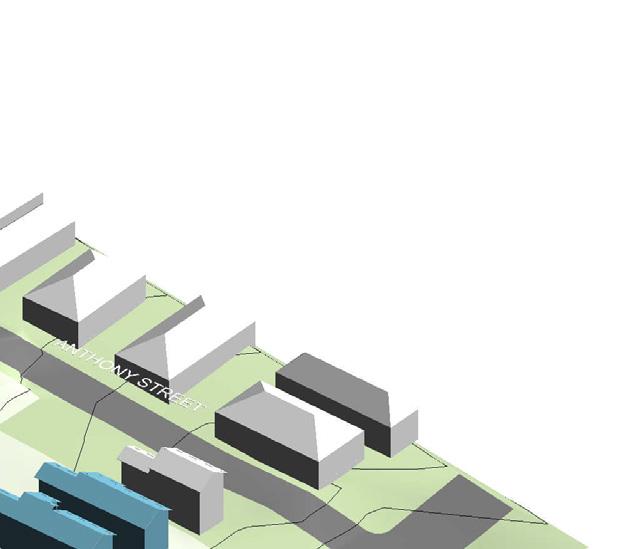

1C - AMENDED 3D VIEW

Project

PMC - Hastings Secondary College at 29 Owen St, Port Macquarie NSW 2444 for NSW Department of Education

Architect

Date

6/02/2020 5:00:37 PM

Scale Sydney 61 2 9922 2344

@ A1

nbrsarchitecture.com

Any form of replication of this drawing in full or in part without the written permission of NBRS+PARTNERS Pty Ltd consistitutes an infringement of the copyright.

Nominated Architects: © 2020 Andrew Duffin NSW 5602 NBRS & Partners Pty Ltd VIC 51197 ABN 16 002 247 565

Drawing Reference

Revision

19135-NBRS-A-MP-201 0

1

2

3

4

5

6

7

8

9

10

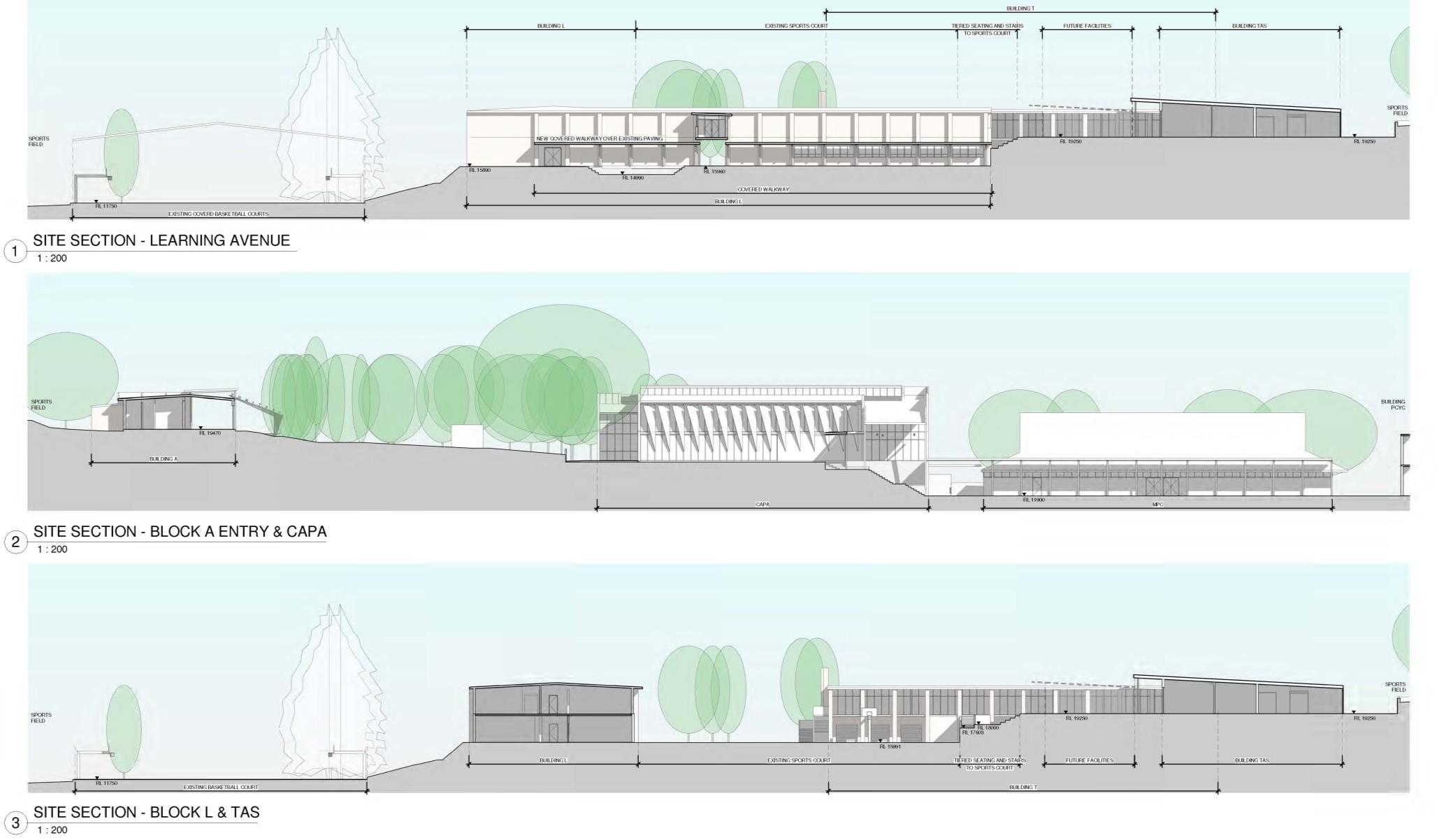

SITE SECTIONS 17

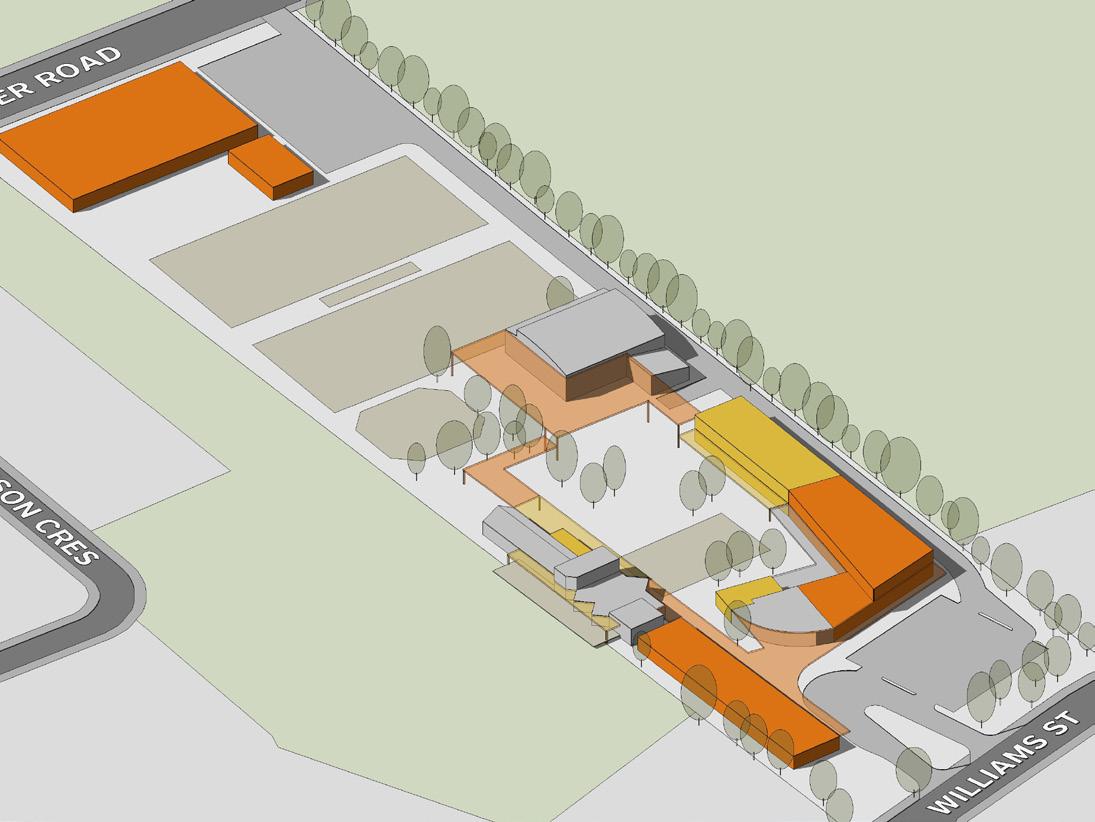

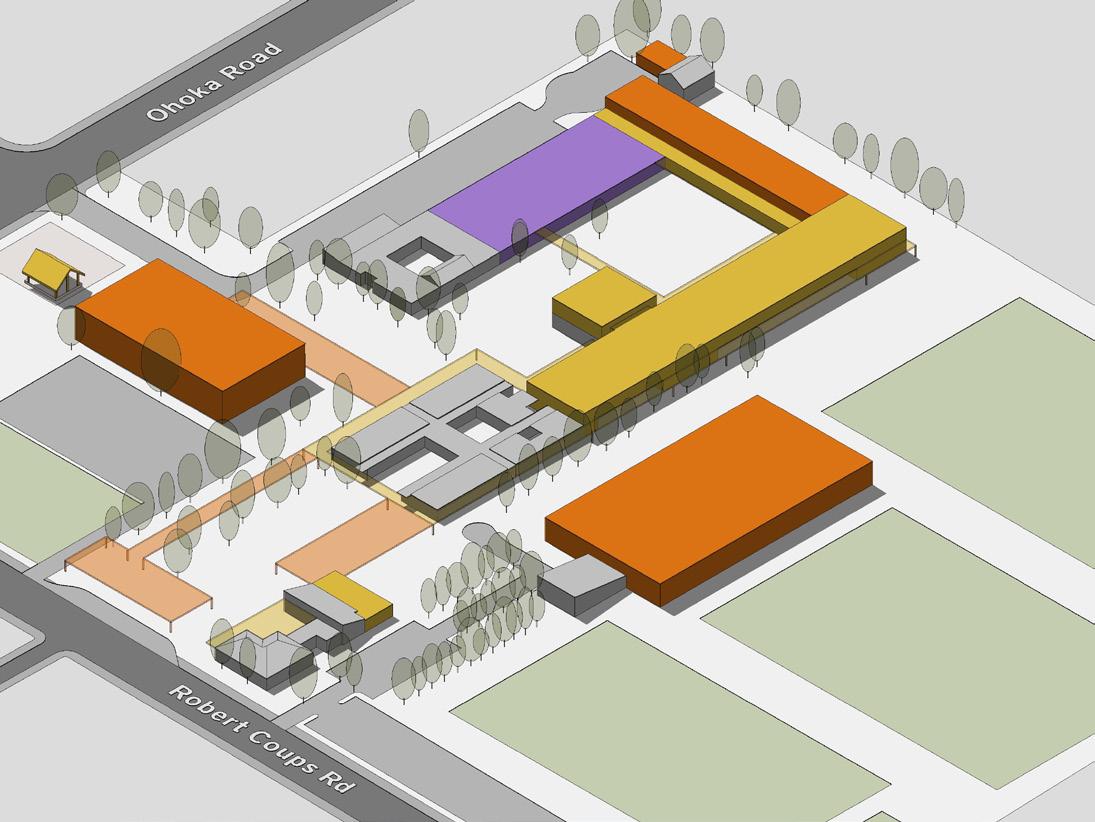

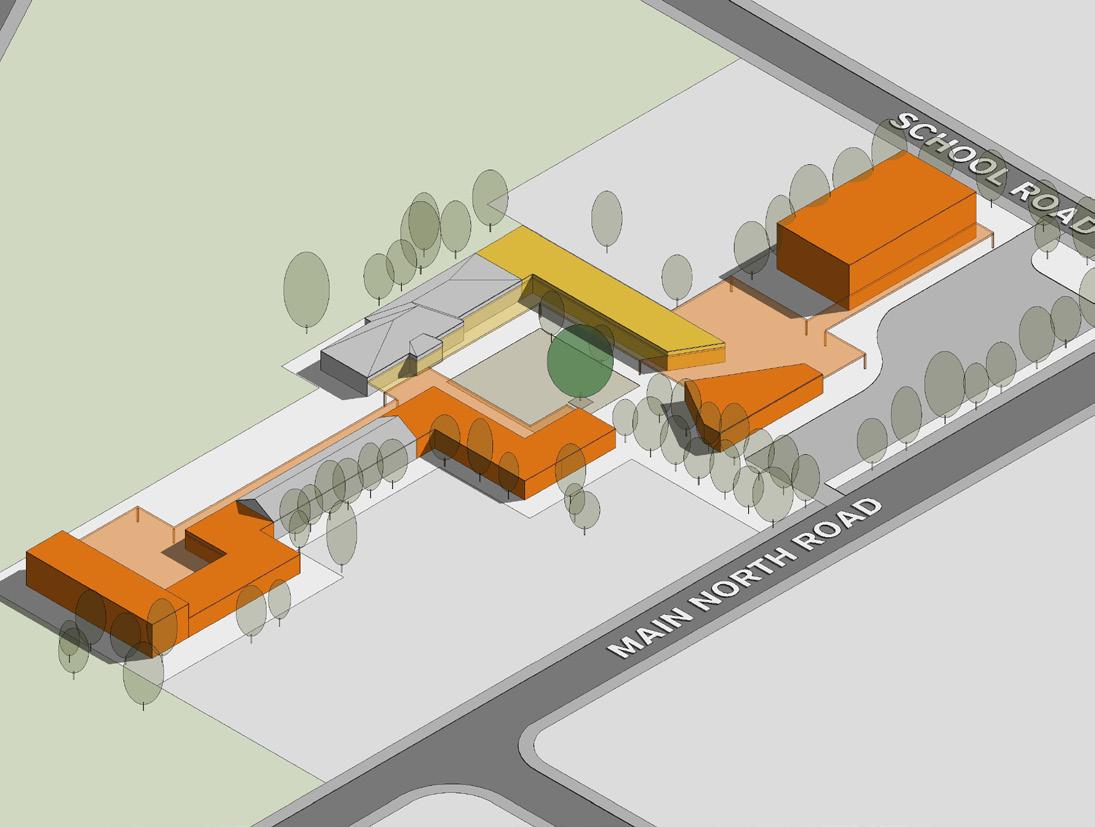

KAIAPOI CLUSTER SCHOOLS “It has been a pleasure to work with architects that listen, care and have great skill in putting our ideas onto paper.”

The New Zealand Government is committed to rebuilding greater Christchurch and its education network, in the wake of the earthquakes of 2010 and 2011. It is investing in restoring, renewing and establishing modern learning environments with improved facilities.

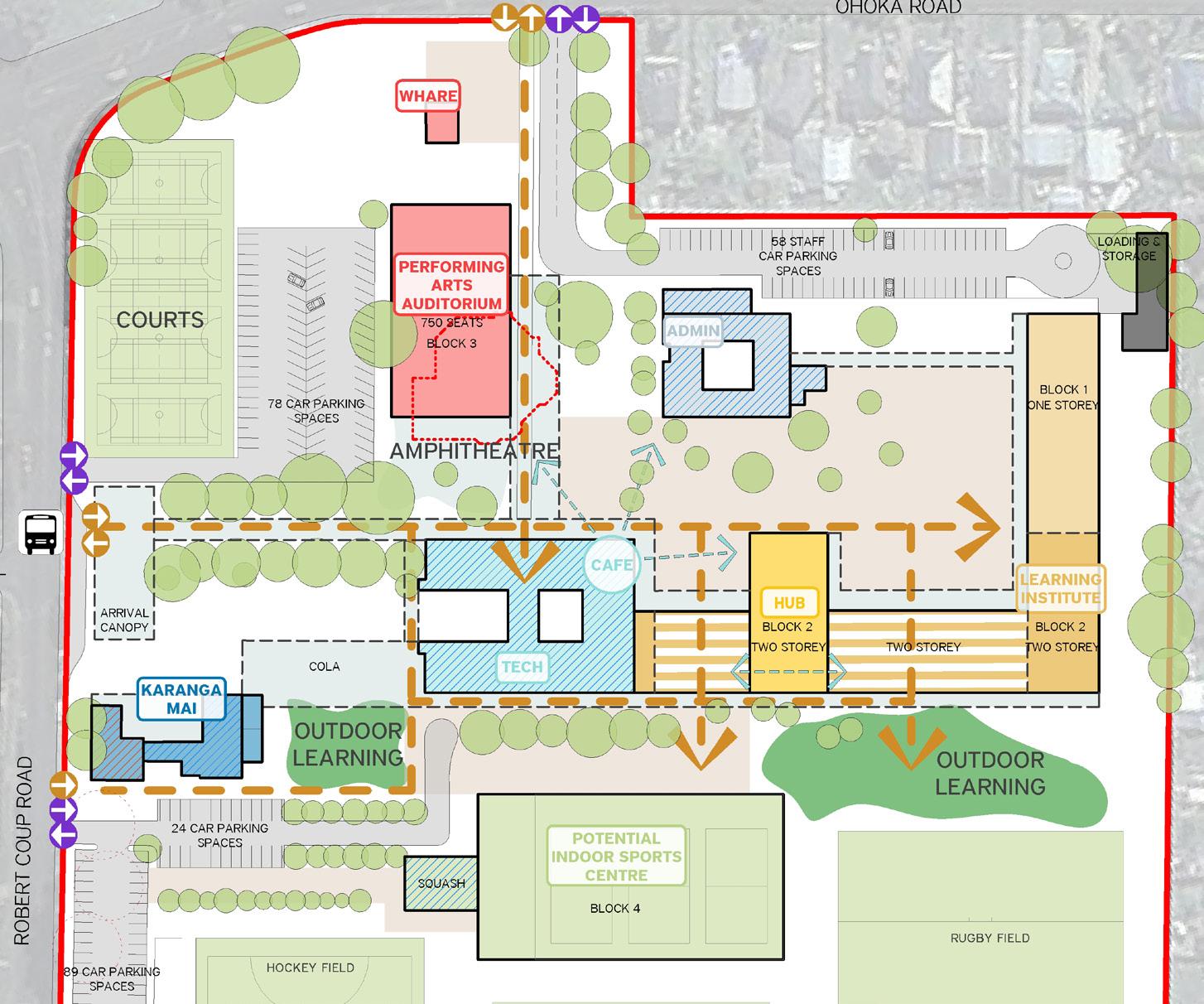

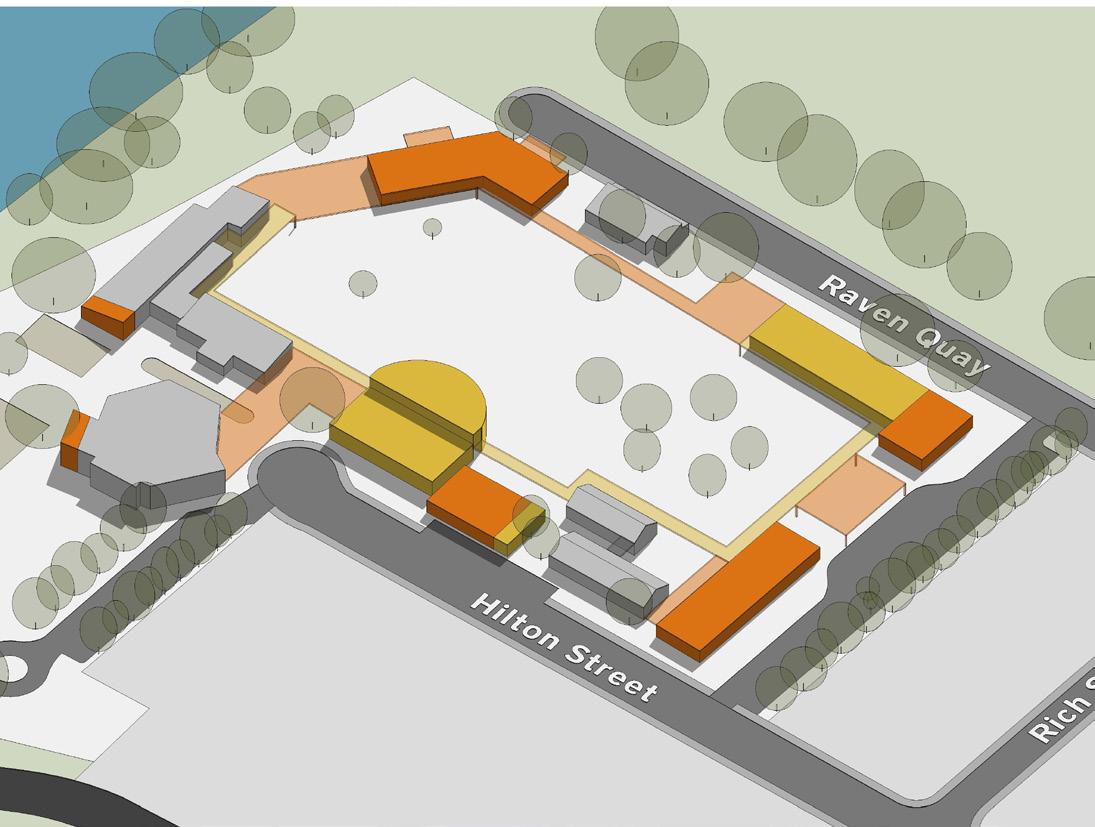

The Kaiapoi region cluster includes Kaiapoi Borough Primary School, Kaiapoi North Primary School, Woodend Primary School, Kaiapoi High School & Karanga Mai Young Parents College.

In addition to the observation of existing and planning for future facilities, NBRSARCHITECTURE sought to engage with the entire school community to understand their needs and priorities. This community consultation took a variety of forms: face-to-face workshops, a web-based feedback hub and online surveys.

The exercises allowed stakeholder segments to contribute through controlled channels. Our architects were responsive to the feedback and of the school in the formation of designs, interpreted by their experience and expertise in school planning.

18

Quadrangle

Community Hub

Learning Hub

Courtyard

19

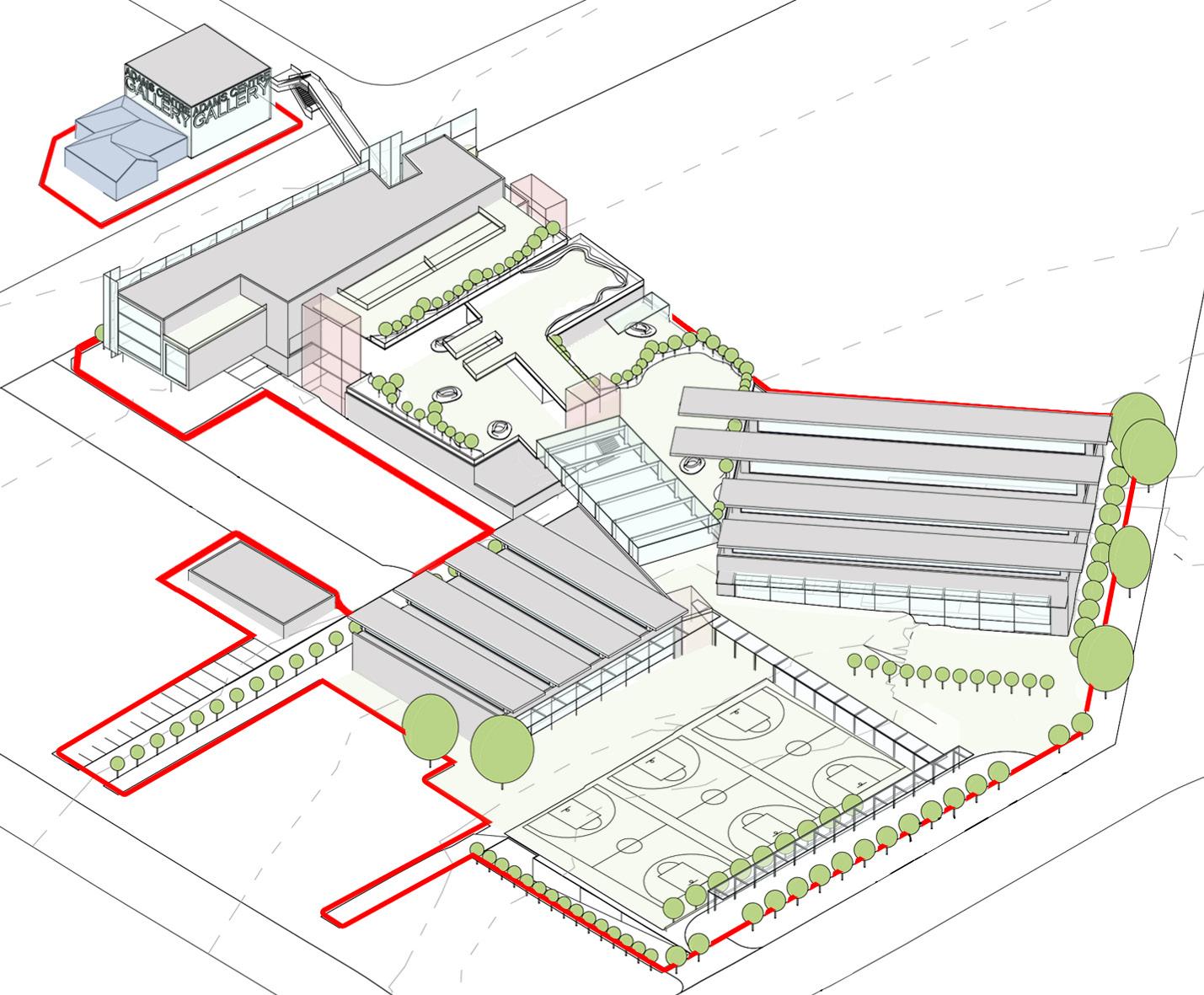

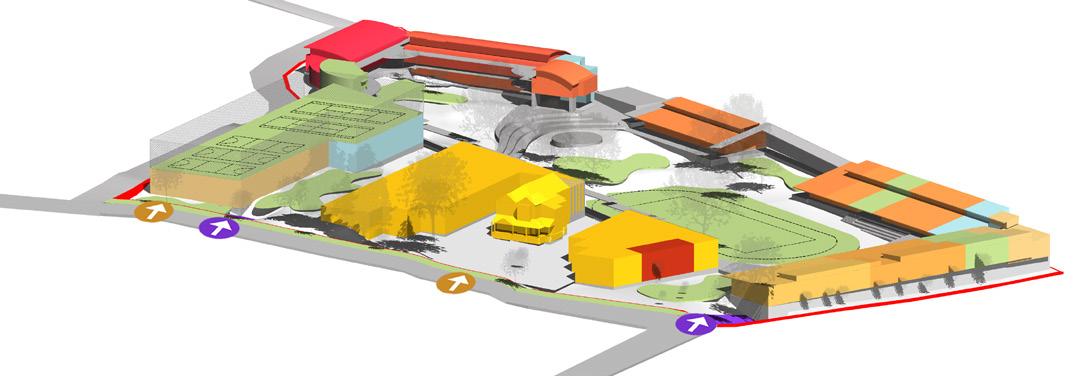

ALTERATIONS AND ADDITIONS TO FREDA WHITLAM COURTYARD

3 x NEW CLASSROOMS

PRESBYTERIAN LADIES COLLEGE

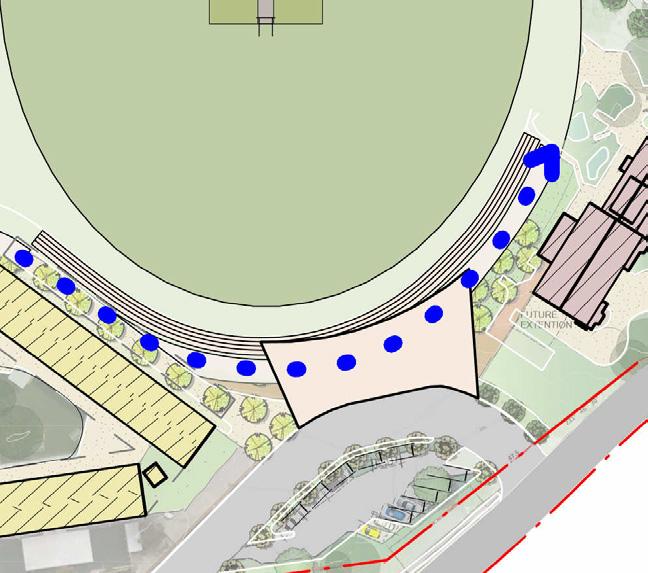

NEW STAFF COMMON ROOM WITH ATRIUM COURTYARD AND EXTENSION OF DRUMMOND FIELD TIERED SEATING NEW BASKETBALL COURT AND PROPOSED EXTENSION OF GYM TIERED SEATING

“PLC occupies a most strategic site with many development opportunities”

The 2008 PLC Masterplan addressed not only at the physical needs of the college but also the future curriculum needs and directions, plan sizes and co-curricular activities.

Prior to commencing the 2008 masterplan, the PLC Board had spent considerable time in preparing a strategic plan for the school, clearly setting out core directions, values and needs for the school in the years to come. The masterplan set out to be accountable to those strategic goals, with a focus on providing clear guidance as to how the physical needs can be met.

PLC occupies a most strategic site with many development opportunities available to it. This is now an inner city campus with all the planning pressures that come with conducting an educational institution in

a built up residential area with potential conflict of uses, infrastructure needs, heritage sensitivities and general intensity of use challenges. NBRS designed the masterplan to sensitively handle these factors so that the campus still has the potential to adapt and develop its facilities and meet its strategic goals.

Equally important as the buildings on campus are the open spaces created by them. The masterplan recognizes the importance of the existing quality open spaces, including the main heritage gardens, the entry forecourt to the boarding house and the boarder’s quadrangle, and aims to enhance these spaces by opening up related areas to improve vistas and access into these, as well as create new open spaces that contribute to the campus setting and improve access throughout.

NEW SPORTS AREA

ADDITIONAL STUDIO SPACE

20

UNDER CONSTRUCTION NEW DRIVEWAY AND STAFF PARKING (20 CAR PARKS), 3 x CLASSROOMS WITH BREAKOUT SPACE AND TUITION ROOM

NEW DANCE STUDIO

NEW ALPHA & OMEGA BUILDING

SCALE: @ A3

21

22

23

8.0 MASTERPLA PACIFIC HILLS NEW HOPE SCHOOL AGRICULTURE

HOCKE

An emphasis has been places on creating adaptive and creative learning spaces.

A cottage style cluster design creates a homely atmosphere which fosters a sense of belonging. These flexible spaces cater to various learning objectives and provide a meaningful and engaging environment as part of a wider supportive and caring community.

PARKING (68 PARKS) SPORTS FACILITIES + AMENITIES UNDER

Breakout areas and communal spaces offer areas where the whole school and wider community can meet and gather. Dedicated quiet spaces, both within the building and as part of the building’s landscape, provide areas where children can escape to for quiet time. This assists in managing behaviour and sensory needs.

CONFERENCE CENTRE 100 PEOPLE

TR Y

Key to NBRS’ approach was to develop clear communication with staff from the outset to gain a full understanding of their requirements and to appreciate the physical, social and behavioural needs of students.

A strong sense of community can be achieved through the interactions and support provided by staff to the students.

Positive interactions between students and the physical planning of the school site also help to achieve this goal.

Facilities such as a kitchen and laundry assist students in developing essential life skills. The inclusion of these resources reflects the supportive and caring nature of the school and its staff.

EN

The new Hope School will provide a comprehensive curriculum for children with autism and moderate intellectual disabilities.

It provides quality care for 72 students in a supportive environment.

NEW ENTRY TO PAC

MASTERPLAN PROJECT: 17369

24

AN

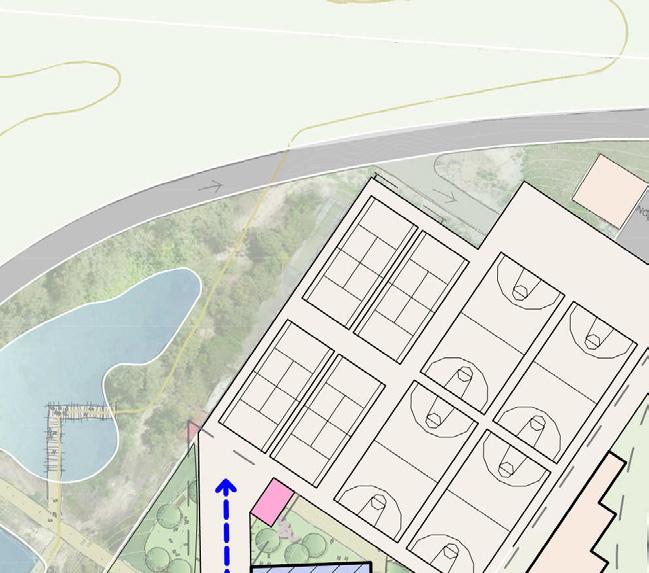

SPORTS FACILITIES INCLUDE 2 CRICKET NETS, 4 TENNIS COURTS & 4 BASKETBALL COURTS

EY FIELD

EXIT

MAIN OVAL

NEW HOPE SCHOOL

PARKING (30 PARKS)

SPORTS AMENITIES MPC

MIDDLE SCHOOL

SCHOOL SQUARE

ENTRY

SENIOR SCHOOL

ADMIN / LIBRARY

JUNIOR SCHOOL

A QU

Y RR

NE LA

EARLY LEARNING CENTER FOR 100 CHILDREN

BUS SHELTER MINI BUS PARKING

PAC ENTRY VISITOR PARKING ROAD QUARRY

NEW ENTRY INCLUDES: UPGRADING SICK BAY, OFFICES, BOARD ROOM, INTERVIEW ROOMS, THERAPY ROOMS & ARCHIVES

SCALE: 1 : 1500@ A3

DR AF T

C

MAINTENANCE FACILITIES

CA E N R PA TR RK Y/ EX IT

MULTI STOREY PARKING DECK UNDER APPROX. 300 CARPARKS

EXTENSION TO JUNIOR SCHOOL INCLUDES: DRAMA ROOM, COMPUTER ROOM & MUSIC ROOM

Any form of replication of this drawing in full or in part without the written permission of NBRS&PARTNERS PTY LTD constitutes an infridgement of the copyright © 2018

NBRS&PARTNERS PTY LTD Level 3, 4 Glen Street, Milsons Point NSW 2061 Australia nbrsarchitecture.com

ABN 16 002 247 565 Sydney: +61 2 9922 2344 Melbourne: +61 3 86760427 architects@nbrsarchitecture.com

25

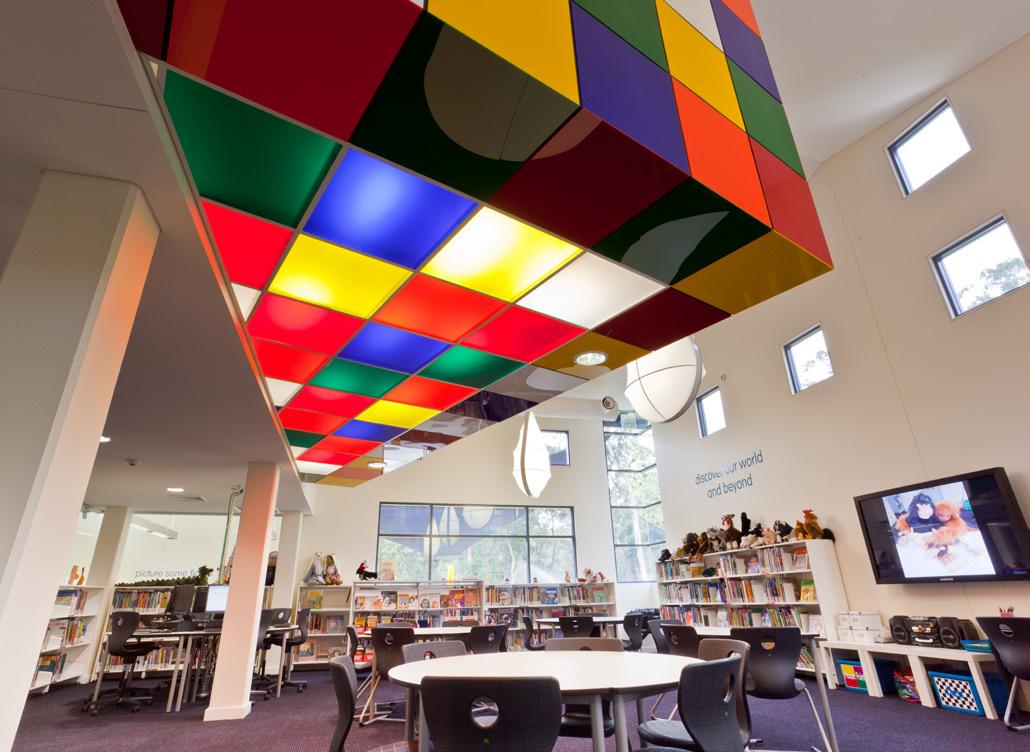

ABBOTSLEIGH JUNIOR SCHOOL “Our design philosophy for Abbotsleigh Junior School is to create a seamless connection with its context and with clarity communicate a safe, vibrant, unique learning space for young women.”

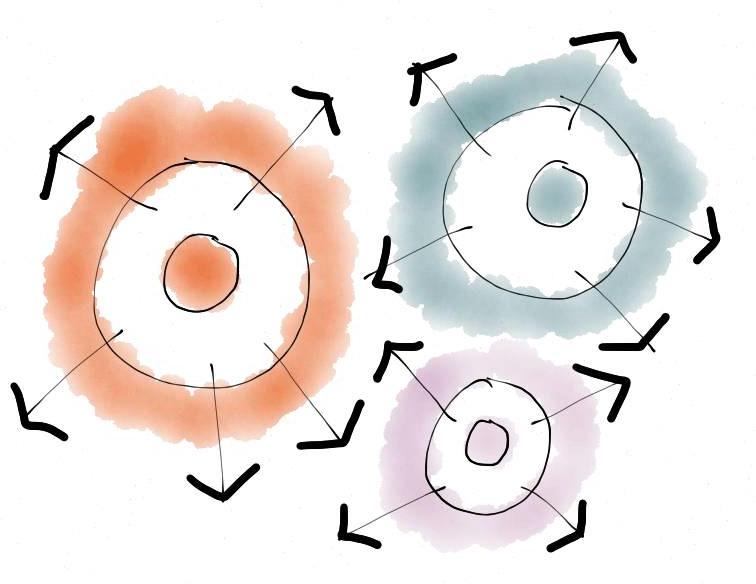

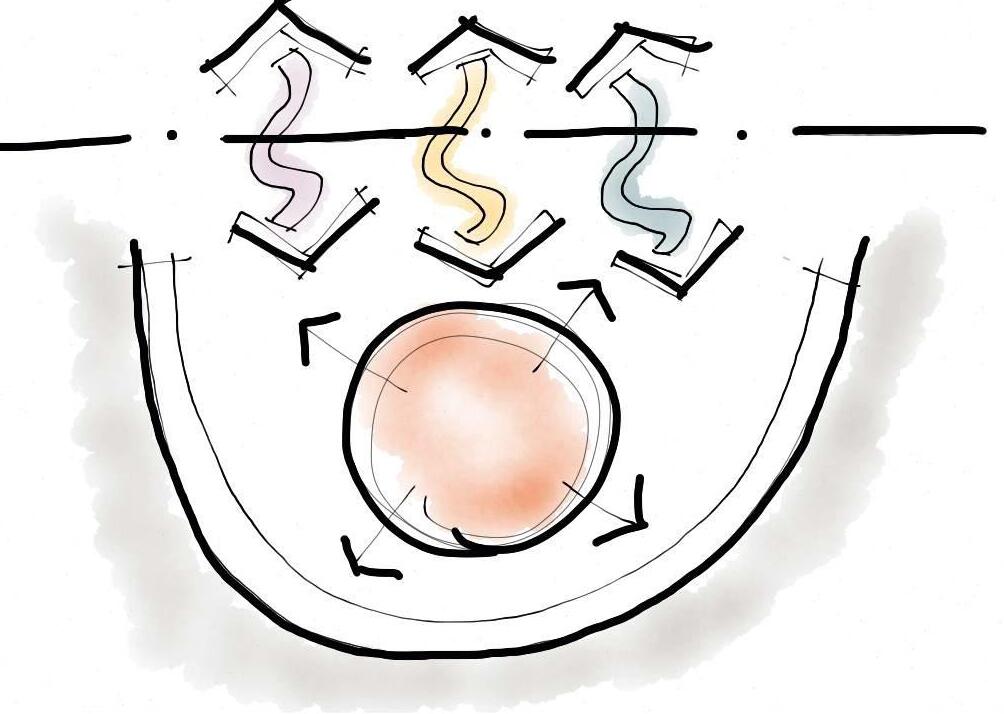

Connection

Expansion

Integration

Abbotsleigh requested a masterplan that would enable the built environment to support the learning and educational needs of the Junior School into the future.

•

The primary drivers of the process were to: •

Determine what impact and capacity the site has to increase the student population by up to 5 classes (100 students).

•

Determine what potential can be made

Ensure the effective, strategic and

of the 3 adjacent properties current on

staged development of the current

the market given limited options exist

Junior School Site to optimise the land

into the future to expand the land size of

usage.

the Junior School.

26

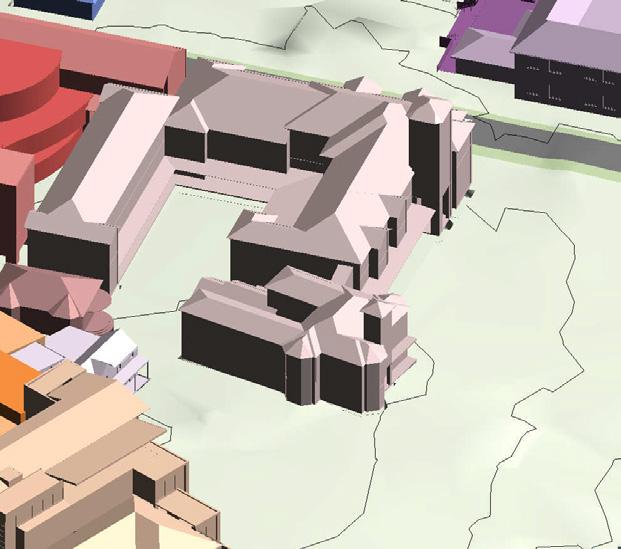

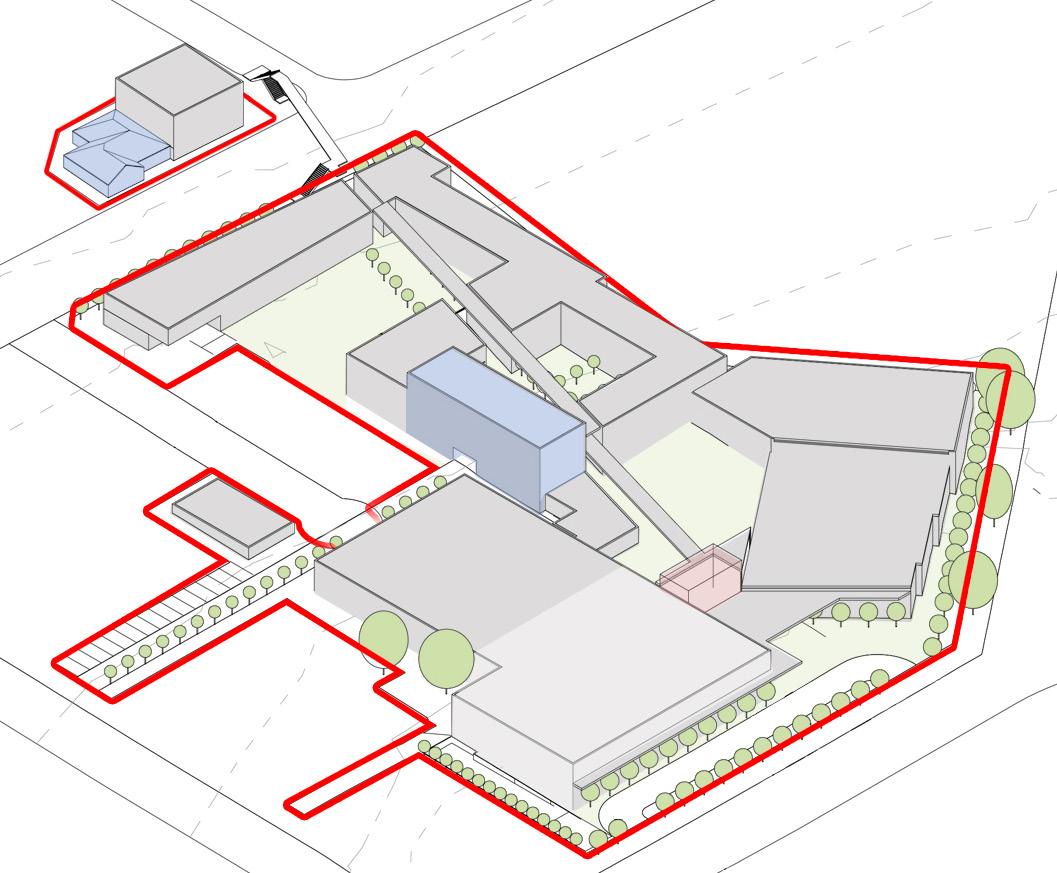

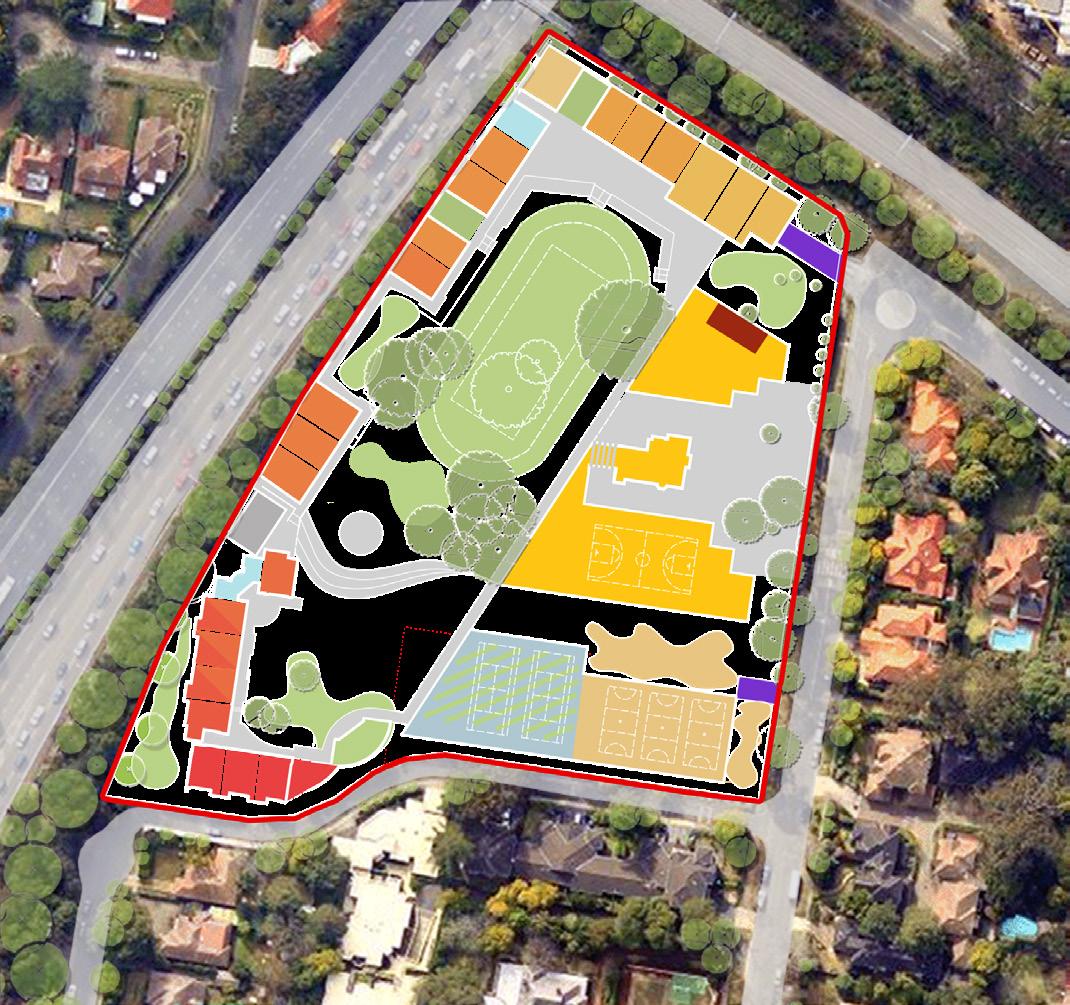

Masterplan - Existing Site

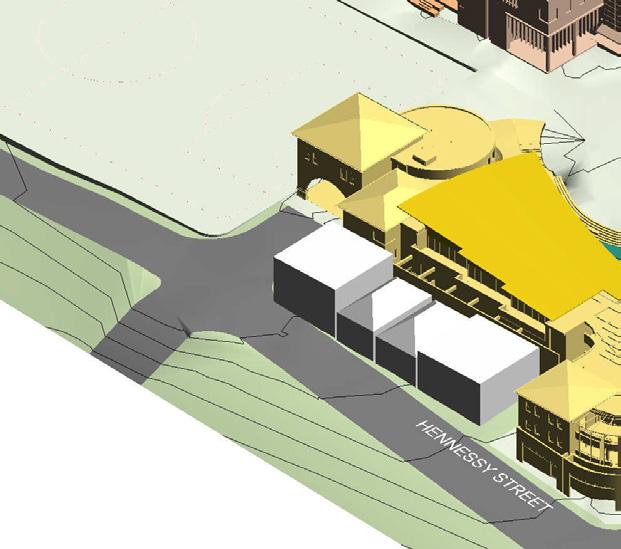

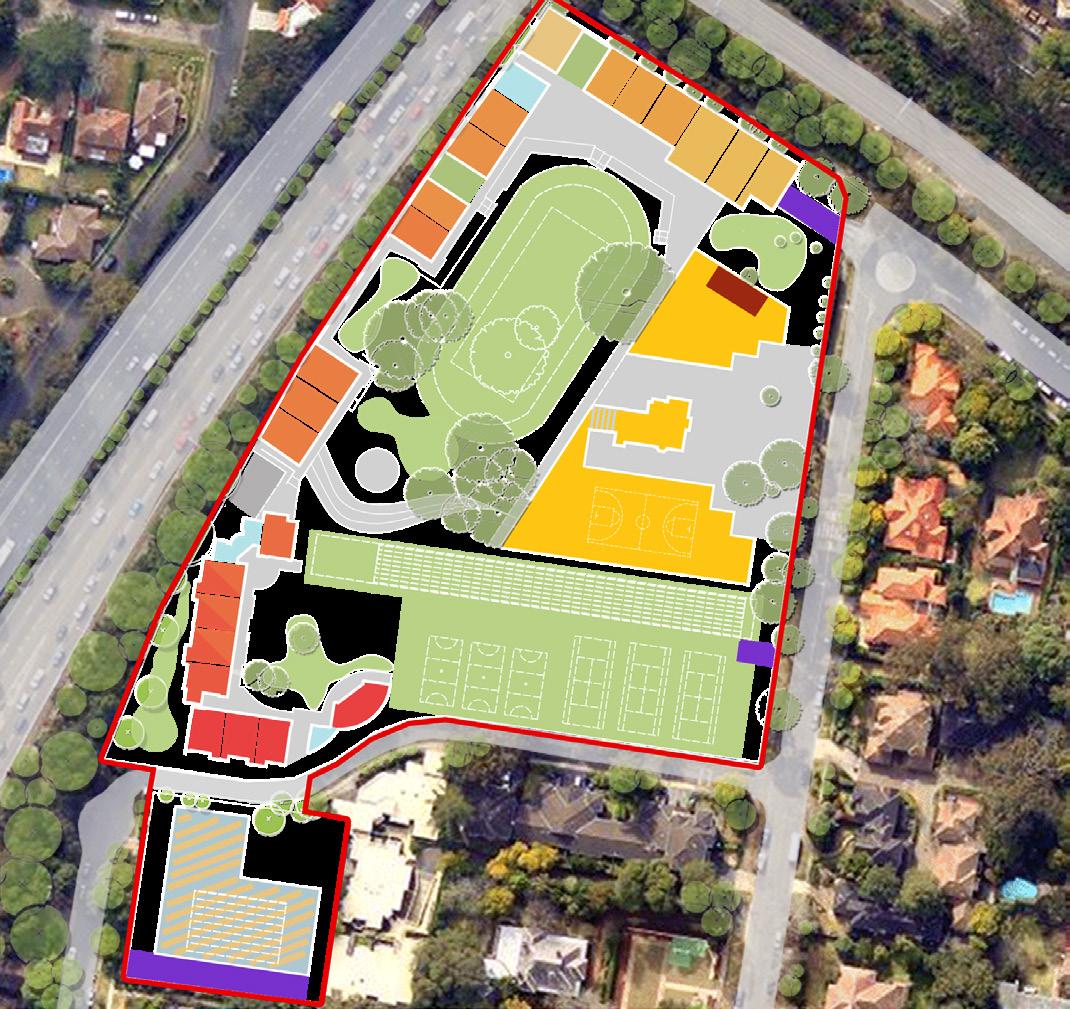

Masterplan - Potential Future Site

27

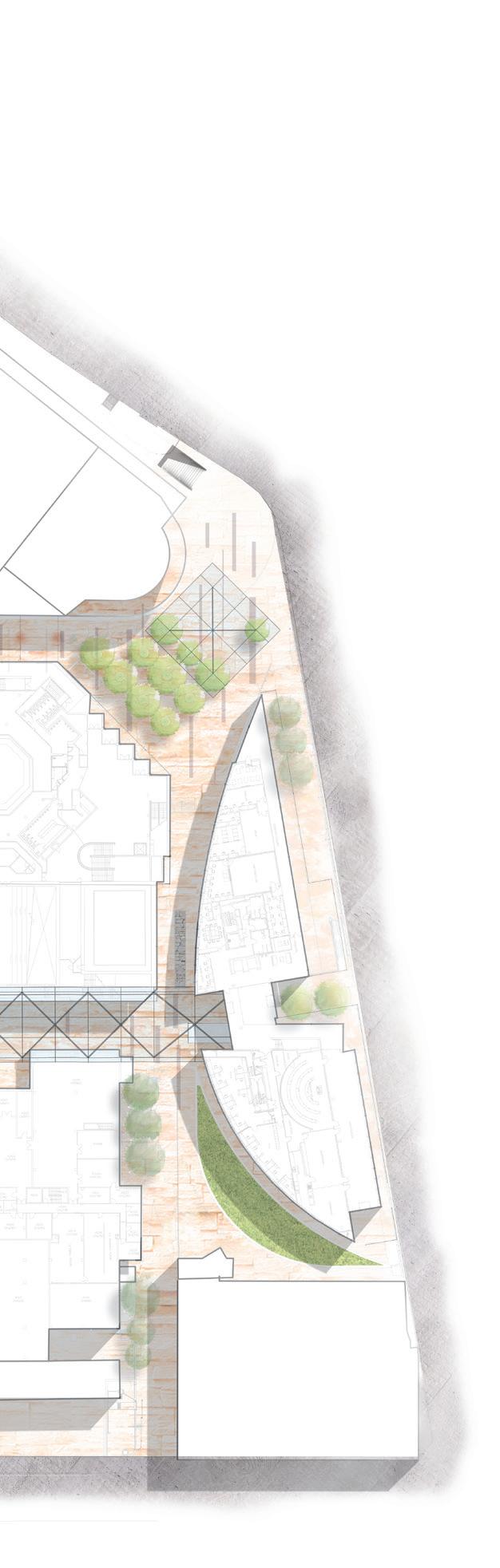

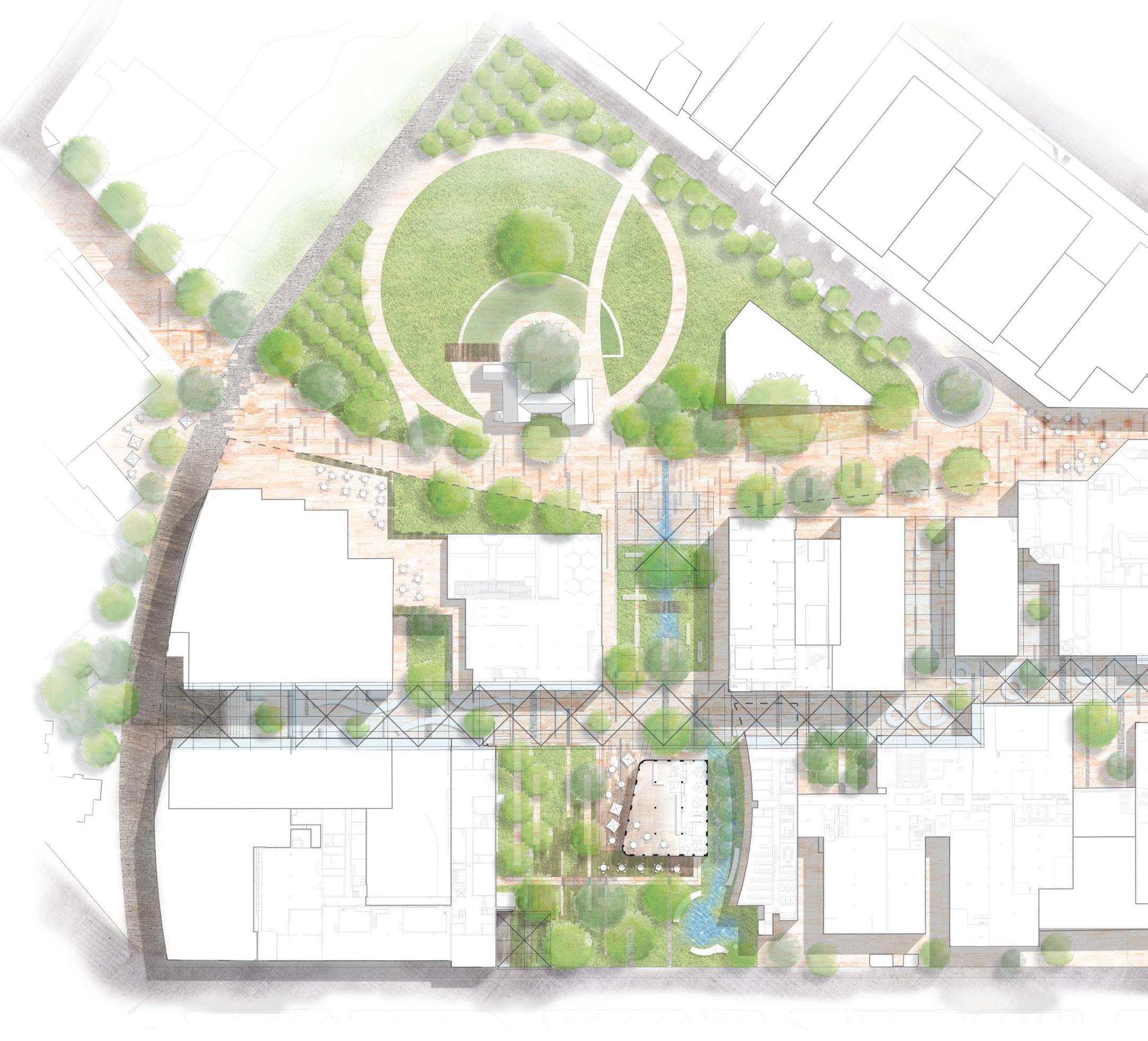

PRECINCT TRANSFORMATION MASTERPLAN “A creative and stimulating environment sustaining educational excellence and global leading research platforms”

28

LEGEND

1

Faculty of De

Sydney Colle

5979m2

8000m2

6400m2

J03

Building B

Building E 1160m2

2

Student Acco

3

Seymour Ce

44160

New

27573

Refu

21285

Exis

10861

Dem

J09/ Building D 2 1

93018

FEIT

17340

Othe Acco

14792m2 285m2

J12

G15

1 3

57155

Othe

3764m2

J02

Exis Build

2

33580m2

Building A

8140m2

5813m2

1108m2

3785m2

8097m2

1010m2

2506m2

Building C

J05

J04

J13

J07

Building F

J11

NBRSARCHITECTURE has recently completed a Transformation Masterplan for The Faculty of Engineering and Information technologies (FEIT), which comprises five schools housed in a number of buildings located in the Engineering Precinct of Sydney University Darlington Campus.

The Faculty of Engineering and Information Technologies is planning to invest into its precinct to sustain a world class profile, to maintain its financial viability, and to reaffirm its position as a leading contributor to the Sydney University campus and reputation.

The precinct will deliver a creative and stimulating environment sustaining

educational excellence and global leading research platforms. Central to the stimulating environment will be the design response creating a cohesive faculty collective which permits diversity in education and research and affirming unity and strength through shared identity and resourcing.

Our commission was to research the current data, understand the project’s functional attributes and aspirational attributes, and through dialogue produce a Masterplan which would lead to a staged project realisation.

29

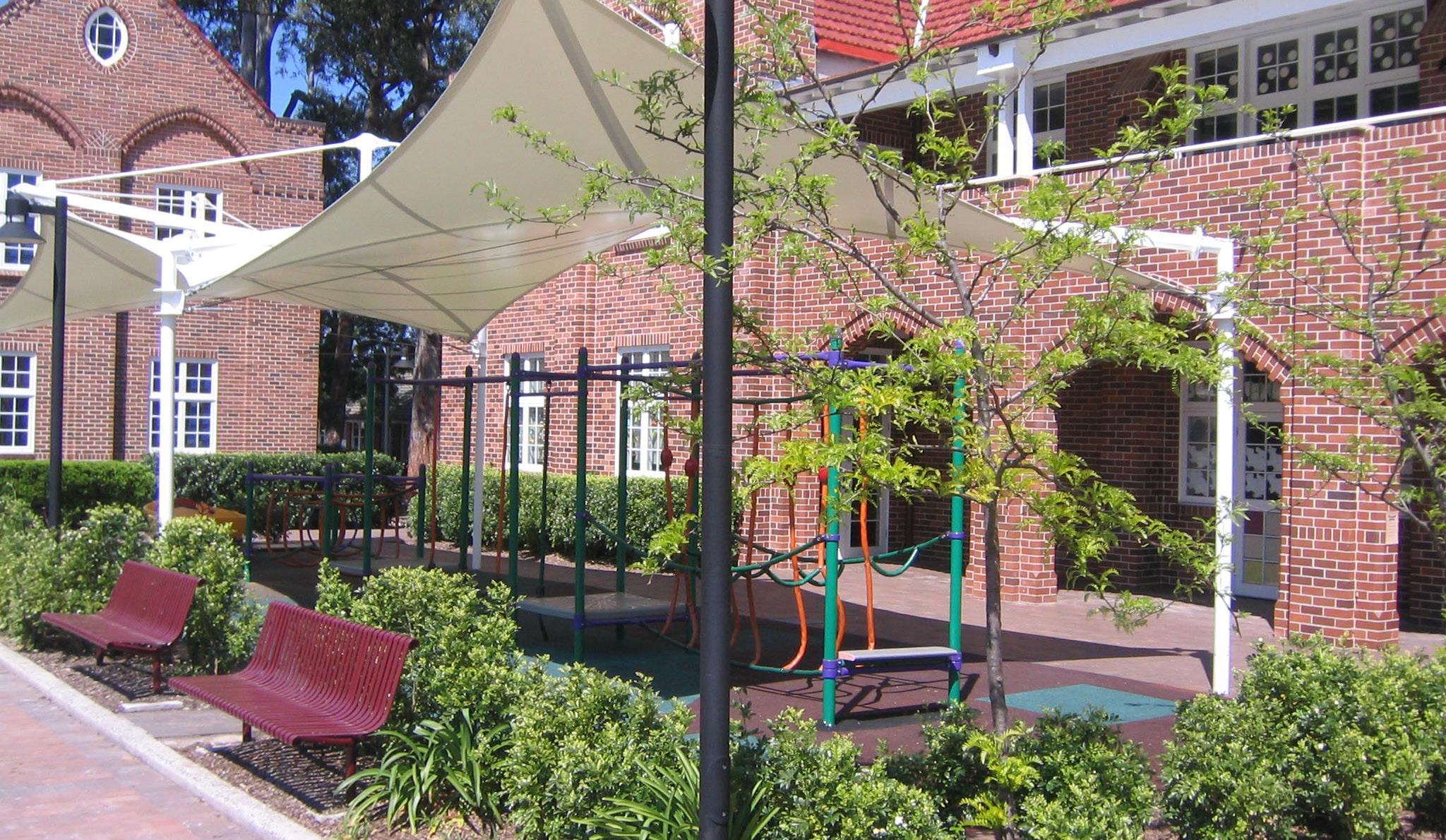

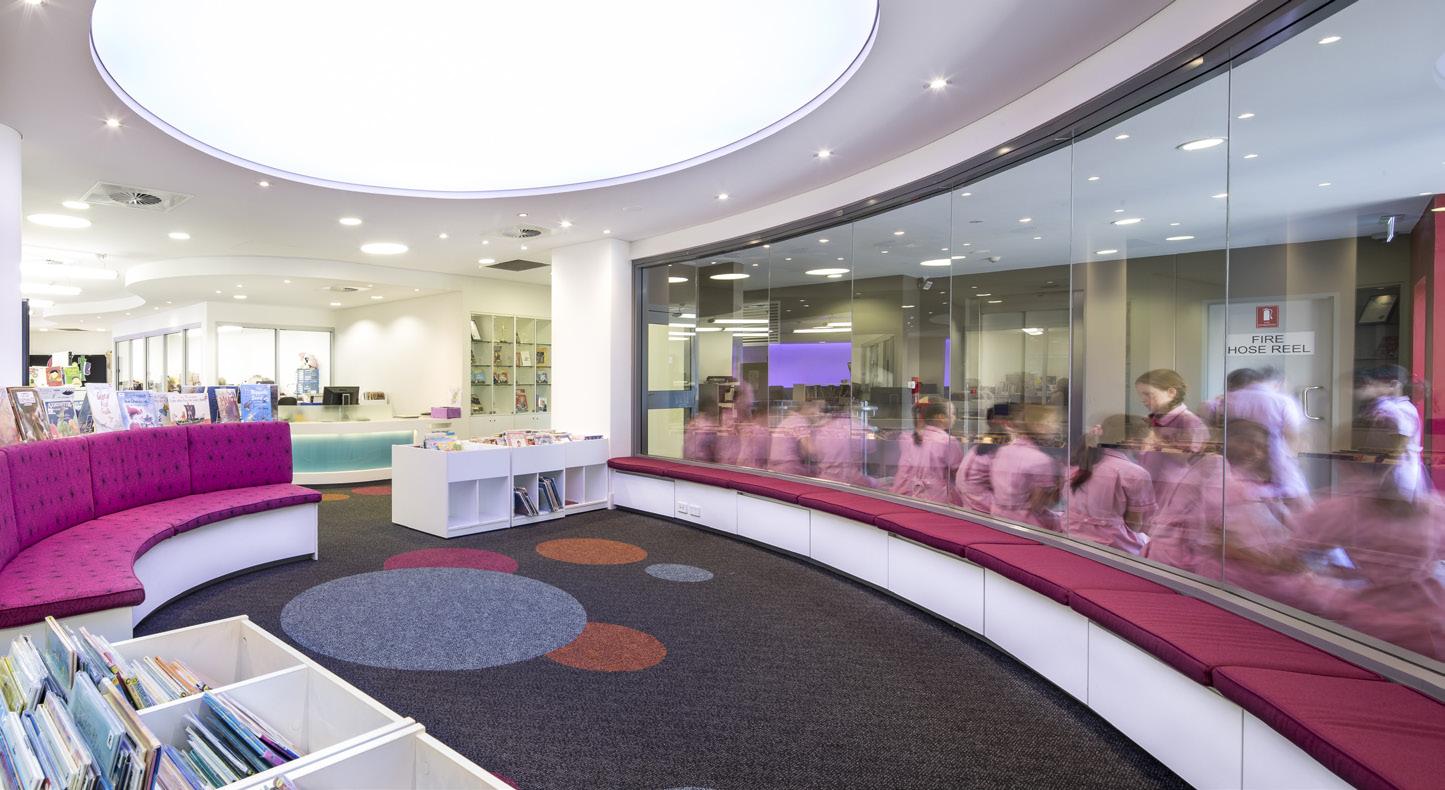

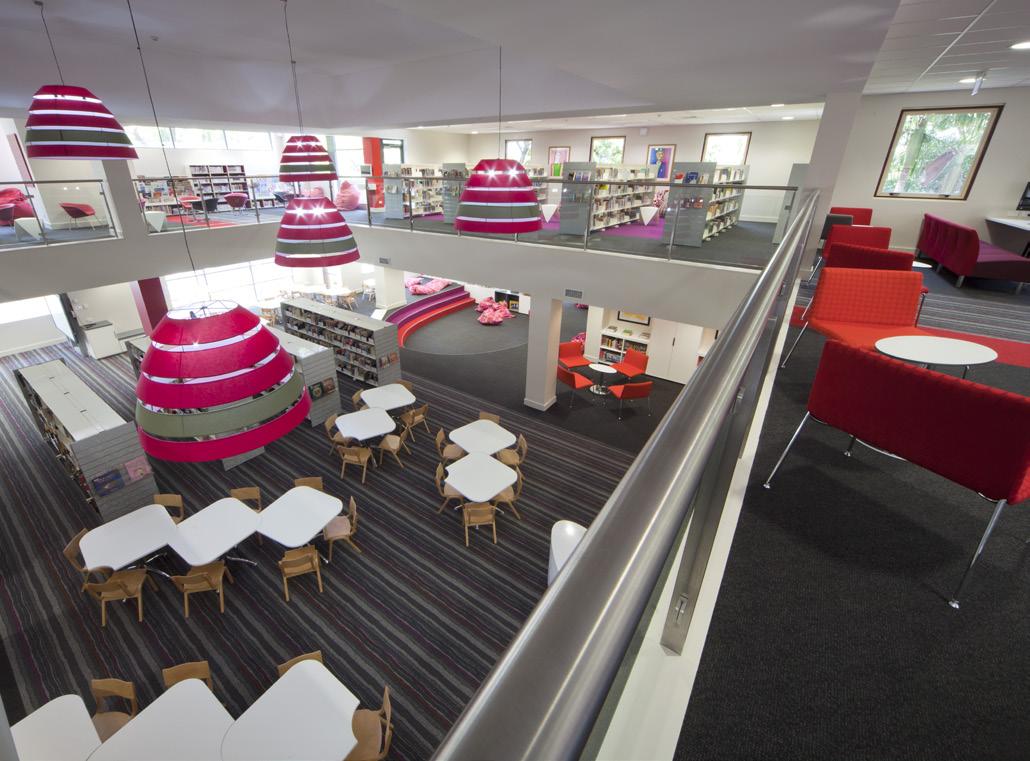

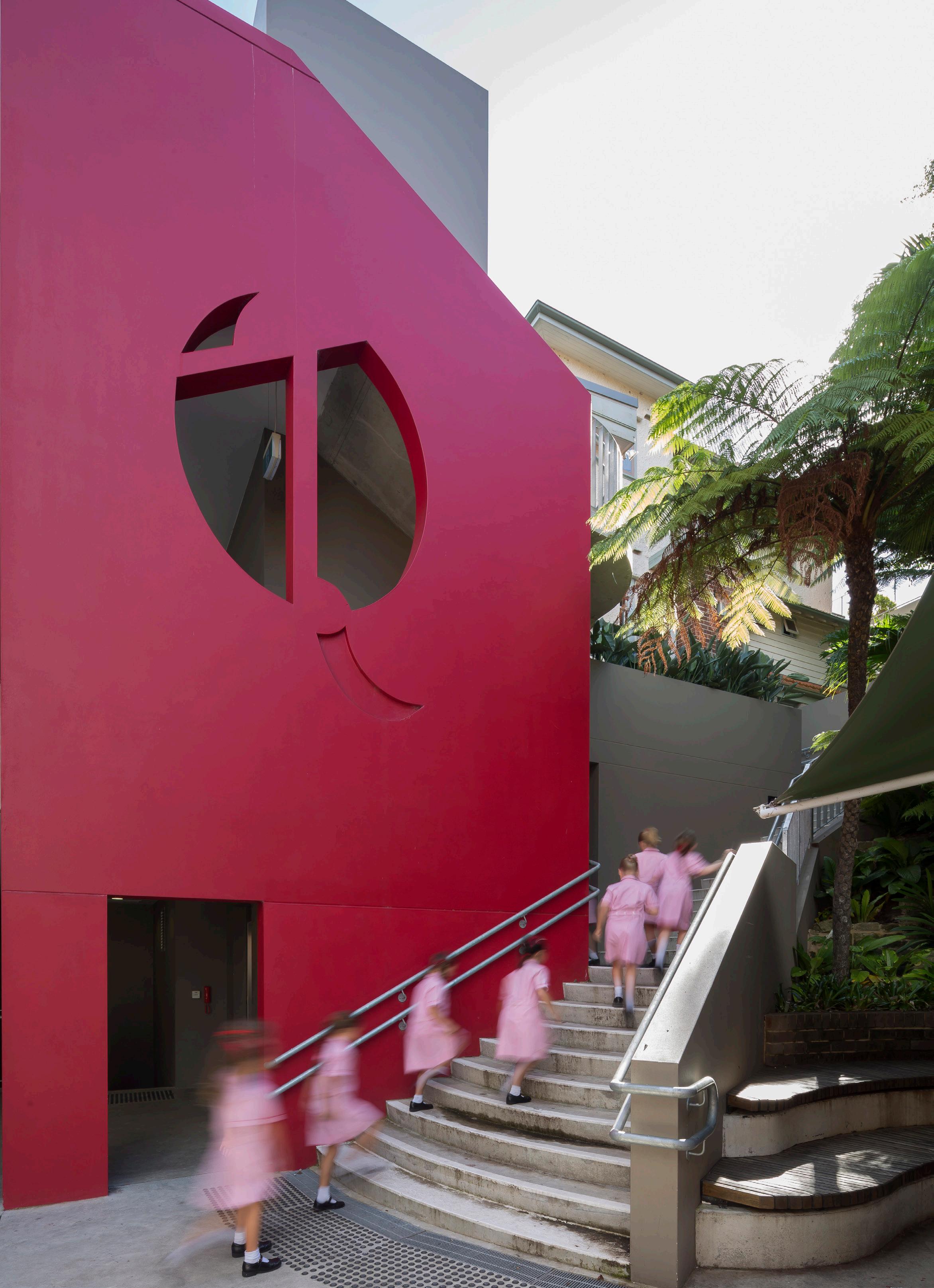

QUEENWOOD JUNIOR SCHOOL The masterplan defined the six level campus into usebased precincts, in order to increase efficiency in use and access to like areas.

The masterplan formed the initial stage in a staged extension to Queenwood Junior School, undertaken by NBRS. The development is on a steeply descending site, requiring a solution that involves the integration of several existing internal and external levels, while maintaining solar access, visual connectivity and respect for

adjacent heritage building.

The masterplan defined the six level campus into use-based precincts, in order to increase efficiency in use and access to like areas. The design creates fluid connections between the levels and between indoor and outdoor spaces.

30

ect access

library and adjacent to

srooms.

year group of building

ing building match the

he existing arts of the eas, whilst

come staff

within the with privacy

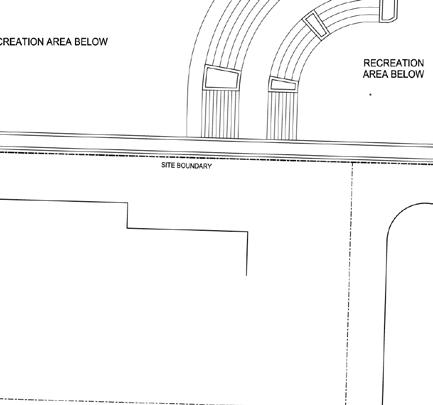

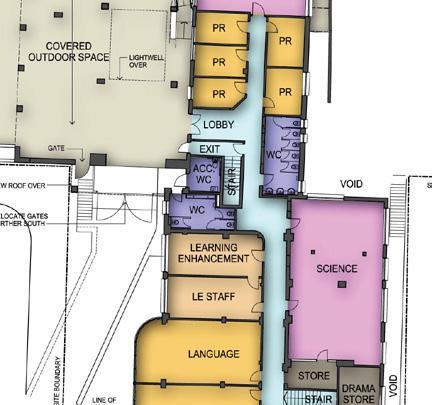

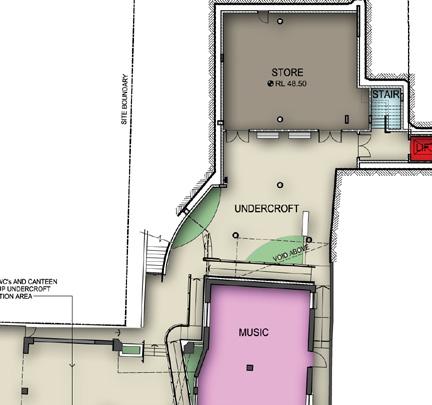

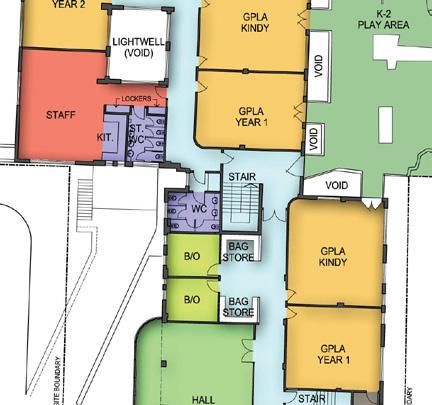

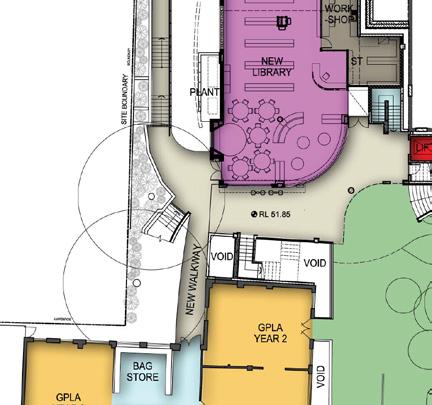

LEVEL 1 SPECIALIST • The addition of 100m2 of storage space provided in the undercroft to new library building with direct ramped access to specialist rooms & adjacent lift.

• Additional covered outdoor space for students to gather provided in new building with a direct relationship to existing undercroft space at this level.

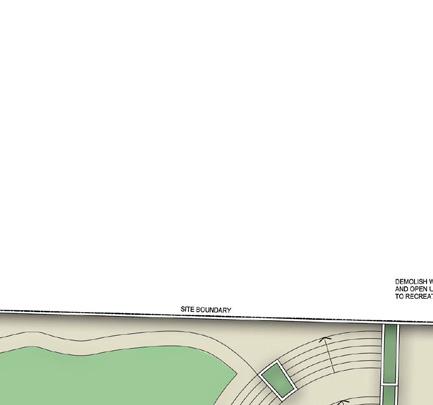

• Demolish canteen and WCs and open up existing undercroft area, to better relate it to the adjacent recreation area to the west.

• Relocate external WCs from undercroft to within existing building. To be accessed from the exterior near relocated Caban Street gates.

• Create a designated level for specialist activities, including music, art, science, drama and languages.

• Provide an additional GPLA as a flexible learning space for 20 students. Extend room to include existing balconies.

• Relocate learning enhancement room to central location on level 1. Provide staff room adjacent it for 4 teachers.

• Create a new music precinct with large music room and five practice rooms of varying sizes.

• Remove existing rotten timber floor on SE side of building and replace this with concrete slab.

Install required services in new slab for science laboratory.

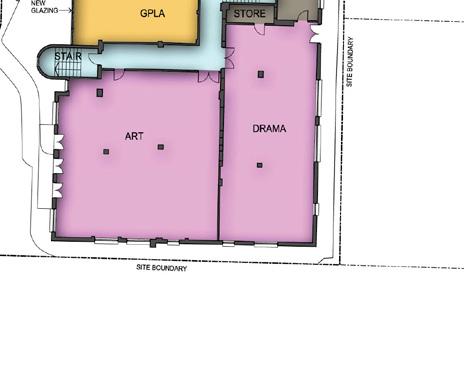

• Relocate art to other side of south building to better light and improved outlook. Expand area to include existing WCs as wet area for art room.

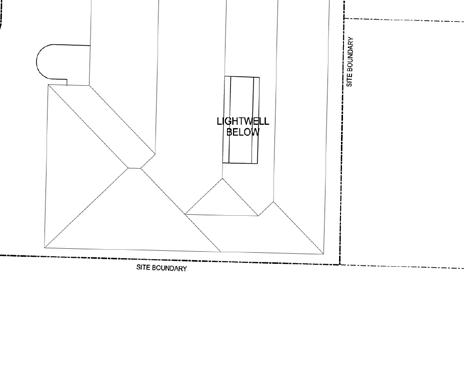

• Build in existing lightwell to create a new drama area in the darkest SE corner of building. Ability to black out room if required.

Level 1

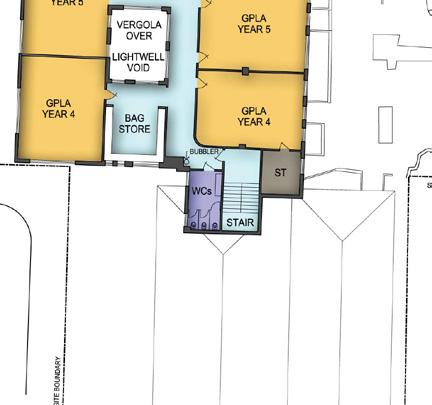

LEVEL 3 YEARS 4 AND 5 MARCH 2011

SCALE 1:200@B1

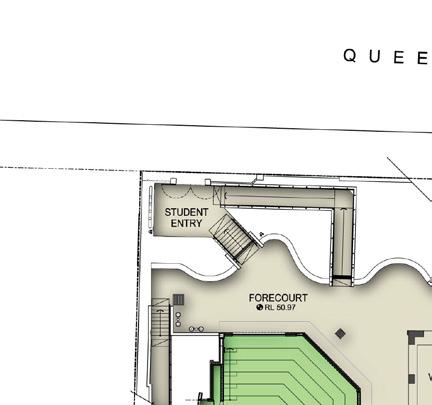

JOB No. 11012 • Revised student entry to school, including disabled and level forecourt area.

Level 3, 4 Glen Street Milsons Point, NSW 2061 Australia access, T: 61 2 9922 2344 F: 61 2 9922 1308 W: www.nbrsap.com.au

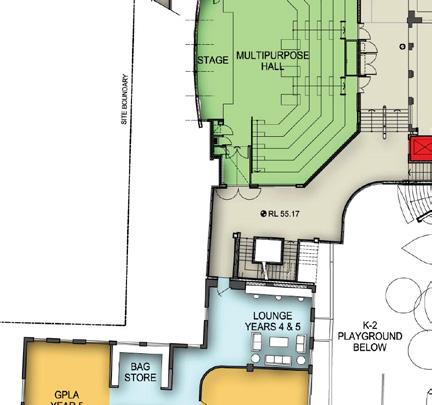

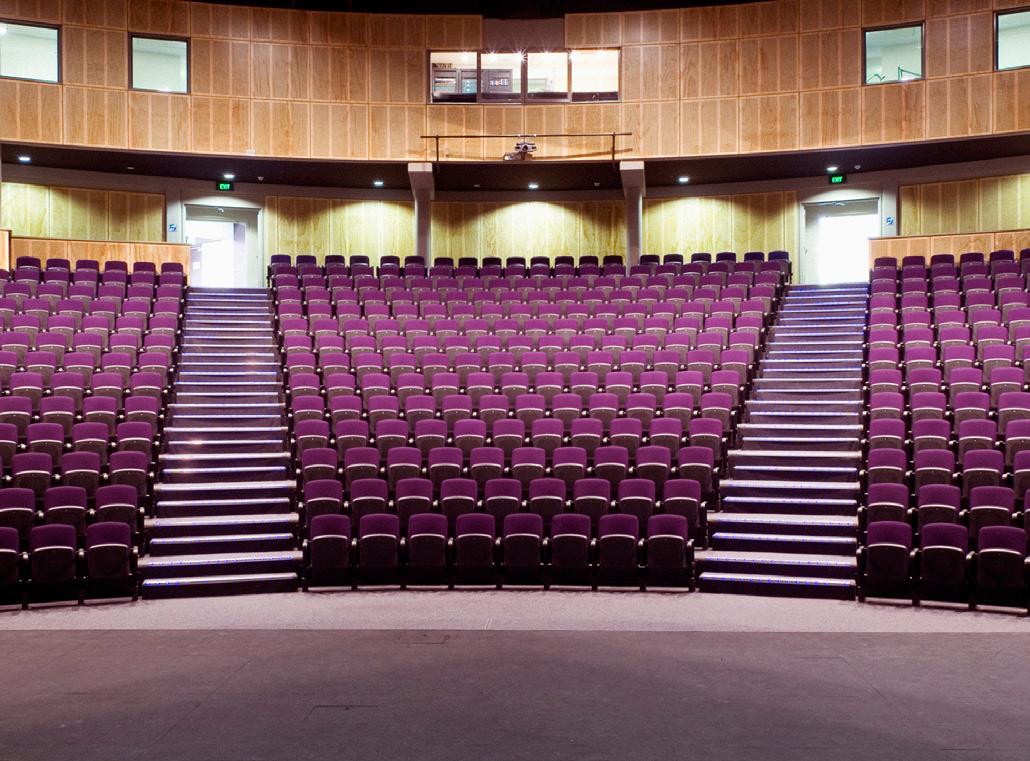

• New Multi-purpose hall with tiered seating for 200 and overall capacity for 300 students and 20 staff.

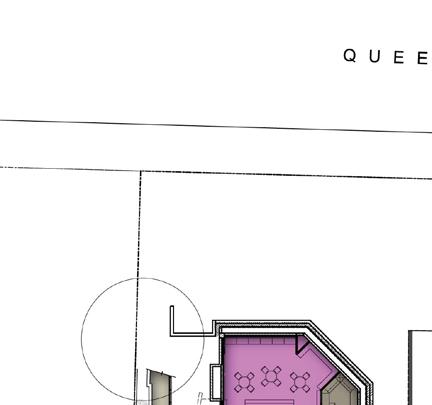

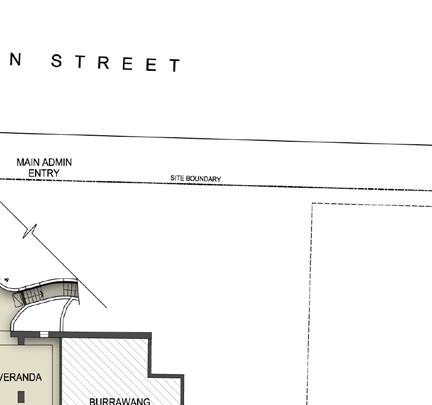

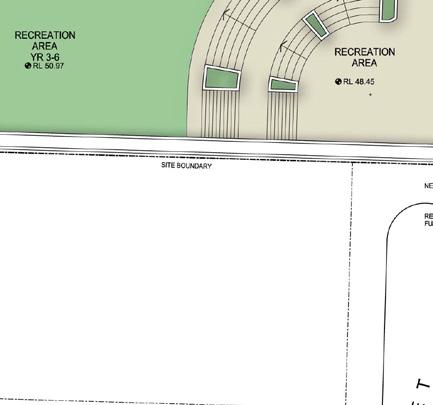

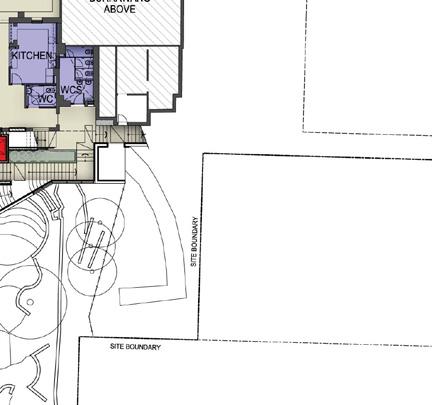

LEVEL 1 - CONCEPT MASTERPLAN PROPOSALS QUEENWOOD SCHOOL FOR GIRLS, QUEEN STREET MOSMAN

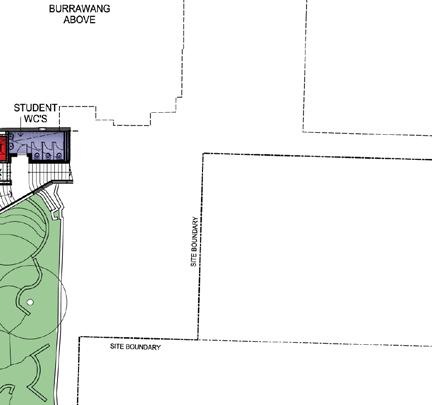

• Undercroft to Burrawang building opened up to create covered veranda within existing arches, as well as kitchen to serve hall and new staff/public WC facilities.

• Student WCS provided a half level down accessed directly by stairs adjacent to lift.

• Create a designated level for Year 4 and 5 classrooms.

• Provide bag and hat storage areas for each year group adjacent to the classrooms.

• Convert northern most classroom in existing building to an open plan lounge/study area for year 4 and 5 students.

• Retain and refurbish existing student WCs on this level.

• Air condition the top floor classrooms.

cated near azed walls.

Cs to WCs,

th adjacent

of balcony.

12

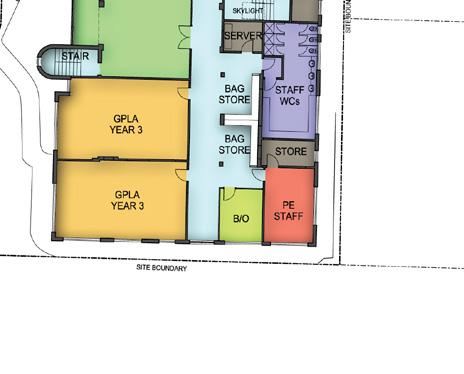

Level 2

MARCH 2011

Level 3

LEVELJOB 2 No. - 11012 CONCEPT MASTERPLAN PROPOSALS

SCALE 1:200@B1

LEVEL 3 - CONCEPT MASTERPLAN PROPOSALS

Level 3, 4 Glen Street Milsons Point, NSW 2061 Australia T: 61 2 9922 2344 F: 61 2 9922 1308 W: www.nbrsap.com.au

QUEENWOOD SCHOOL FOR GIRLS, QUEEN STREET MOSMAN QUEENWOOD SCHOOL FOR GIRLS, QUEEN STREET MOSMAN

31

Views Bushla

TARA ANGLICAN SCHOOL FOR GIRLS “Ability to recognise & embrace the need to modify their school environments to accommodate and encourage the huge advancements in technology.”

Views to Bushland

Prevailing Winds

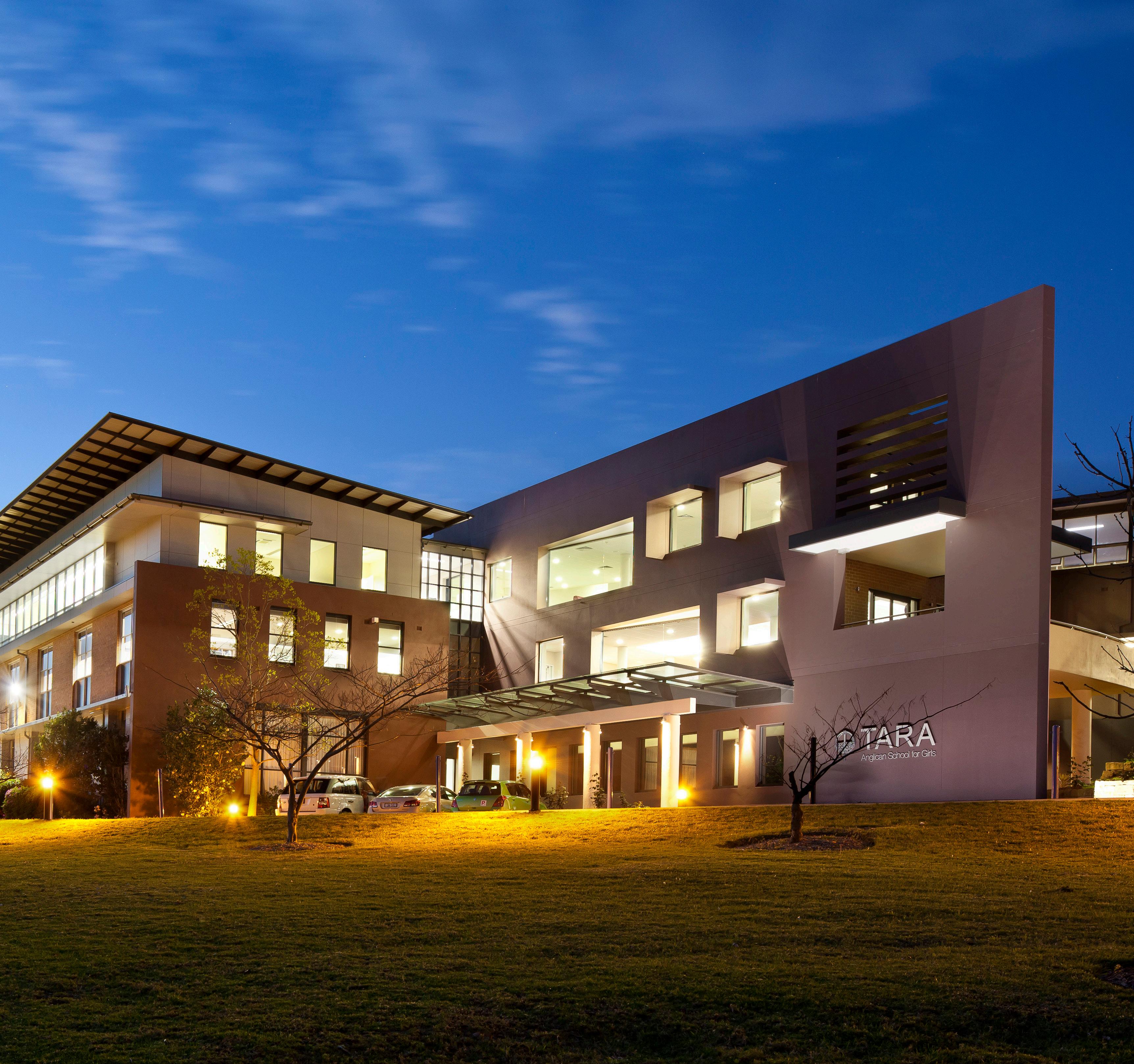

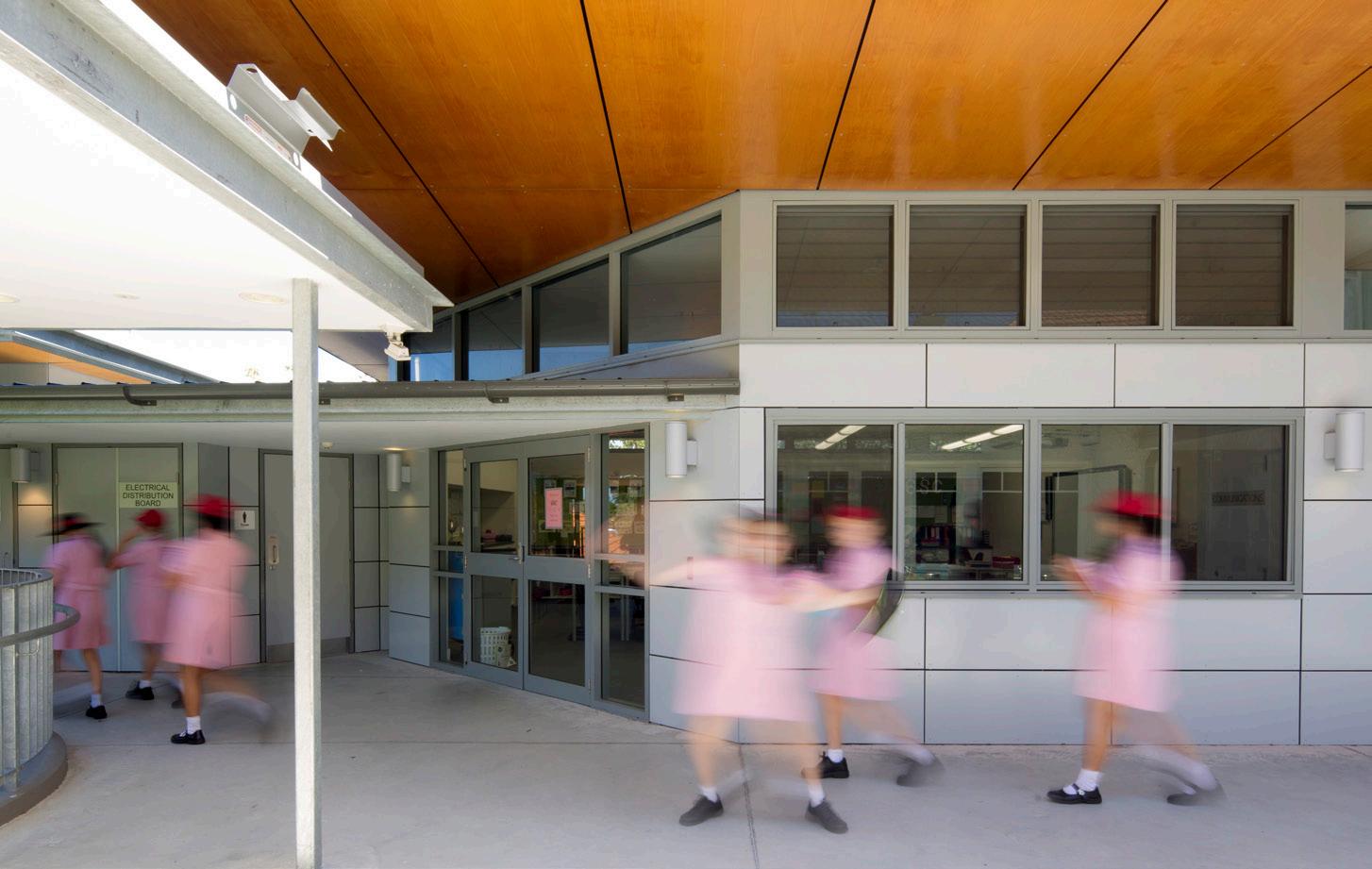

At the ground floor of the building is the new entrance which relates directly to the existing entrance road to the School. A one and a half storey space with a void visually connecting it to the first floor it is a fitting and impressive welcome to the school. Off this entrance are directly related administrative facilities and offices.

s m

NBRSARCHITECTURE have achieved this by their creation of a ‘state of the art’ environment for year 11 and 12 students.

The space provides a hierarchy of spaces

The other two levels of the new three storey building accommodate a staff lounge area at first floor, enabling the adjacent existing lounge area to be converted into a staff study area with individual workstations grouped into departments.

oo sr as

area, spacial relationships and circulation routes through its connections to the existing facilities surrounding it.

Views to Bushland

Cl

Its location at the ‘front door’ to the senior school, wedged between two existing buildings was an innovative and economical concept that utilised land otherwise unused by the School and created efficiencies, in

within one level of the building that enables students to socialise and learn, both individually and collaboratively.

to ht Lg ft So

Tara’s need for an identifiable entrance within the School and to provide social and study areas for staff and senior students were the main drivers for their new Seniors Facility and Entry.

JUNIOR S

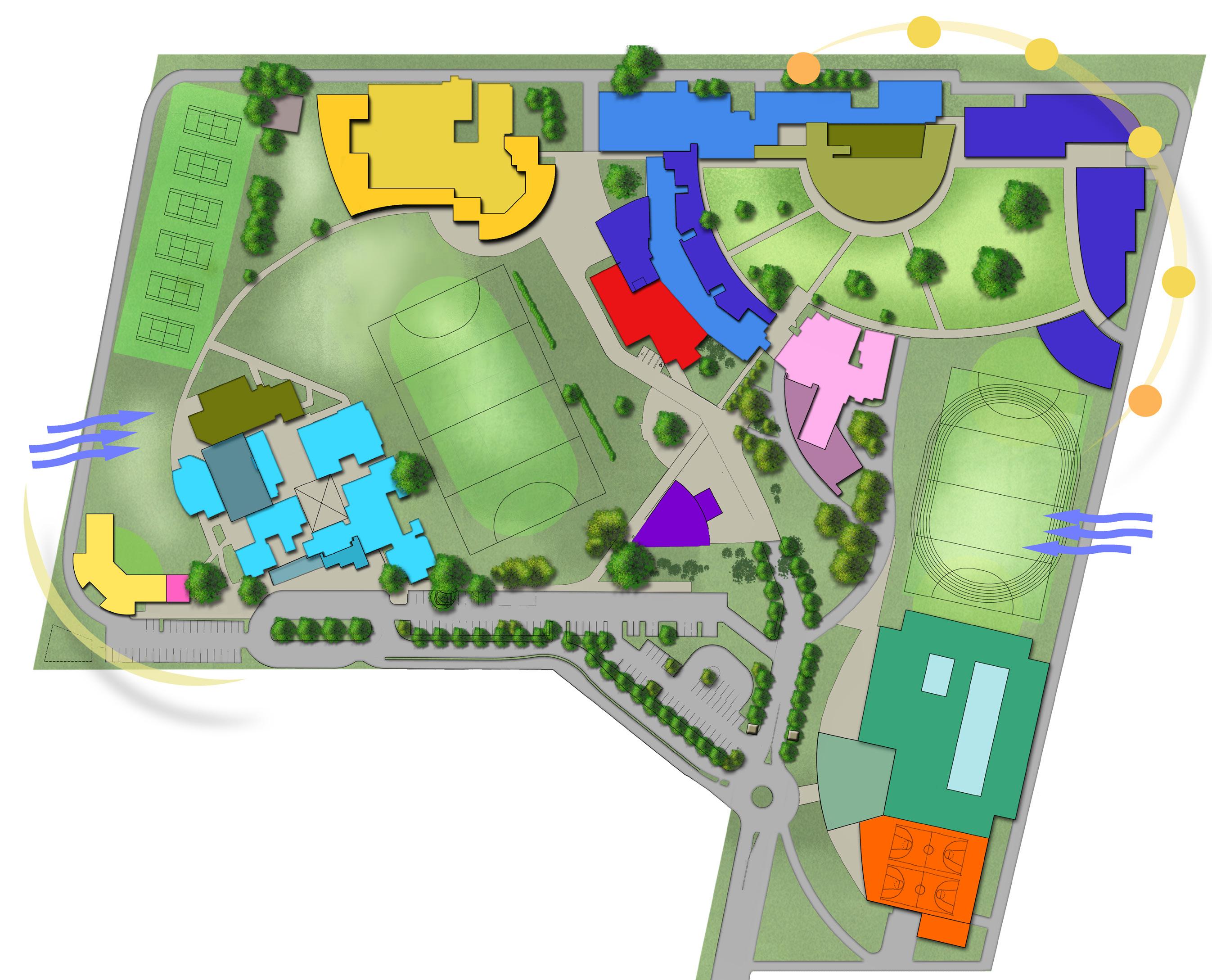

2012 CAMPUS 1:2000 at A3

1:1000 at A1 32

to and

Afternoon Sun

MUSIC/PERFORMANCE FACILITY SENIOR SCHOOL

RECEPTION

Morning Sun

BOARDING SPORTS OVAL

ADMINISTRATION BOARDING

PROPOSED ADDITION TO BOARDING

SCHOOL

SENIOR SCHOOL

PROPOSED ADDITION TO SENIOR SC

Prevailing Winds

JUNIOR SCHOOL

PROPOSED ADDITION TO JUNIOR SC LIBRARY PROPOSED ADDITION TO LIBRARY MAINTENANCE PERFORMING ARTS CENTRE

PROPOSED ADDITION TO PERFORMIN

GYMNASIUM/PROPOSED NEW GYMN

SPORTS COMPLEX

OBSERVATORY

SWIMMING POOL/PROPOSED NEW A AFTER SCHOOL CARE PROPOSED NEW PRESCHOOL PROPOSED NEW CHAPEL

NS DR

IVE

CARPARKING CIRCULATION AND LINKAGES LINK

MASO

S MASTERPLAN

CAFETERIA

MOULERIC FIELD

1

33

34

35

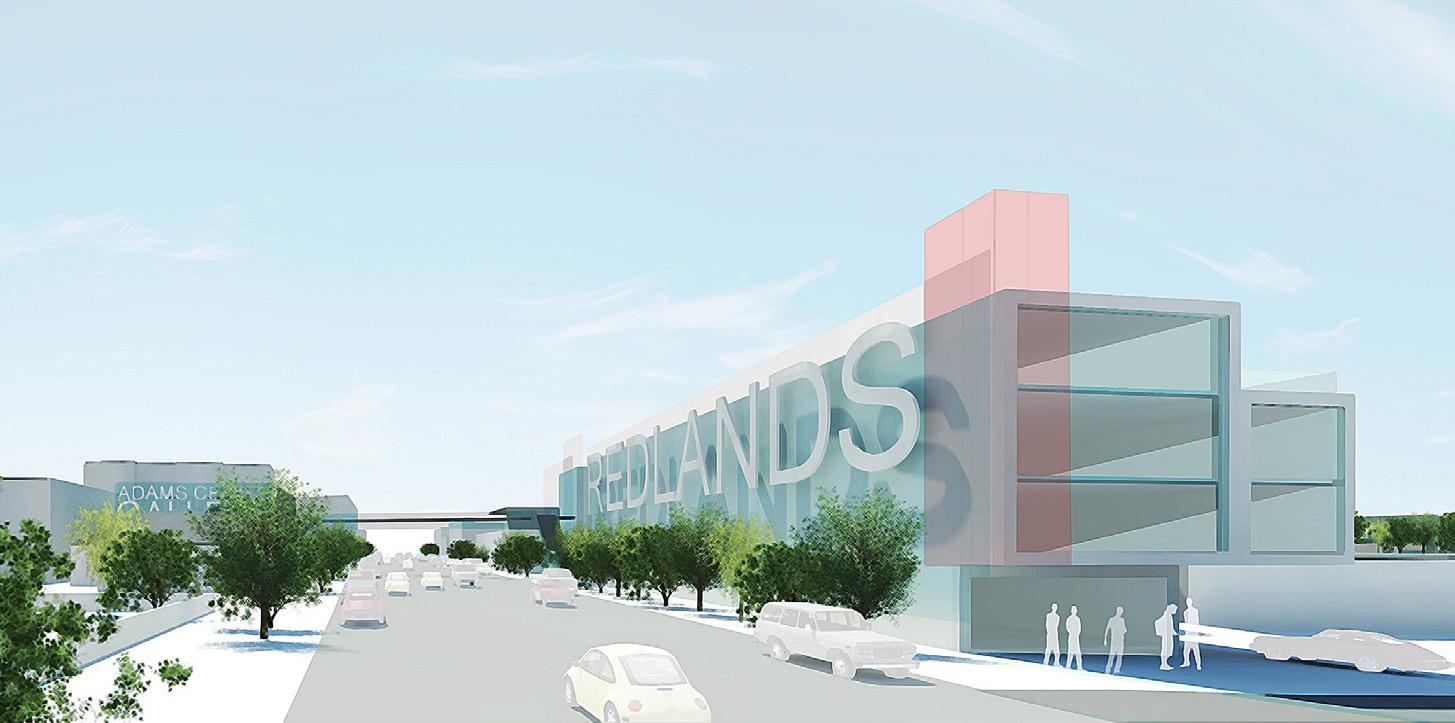

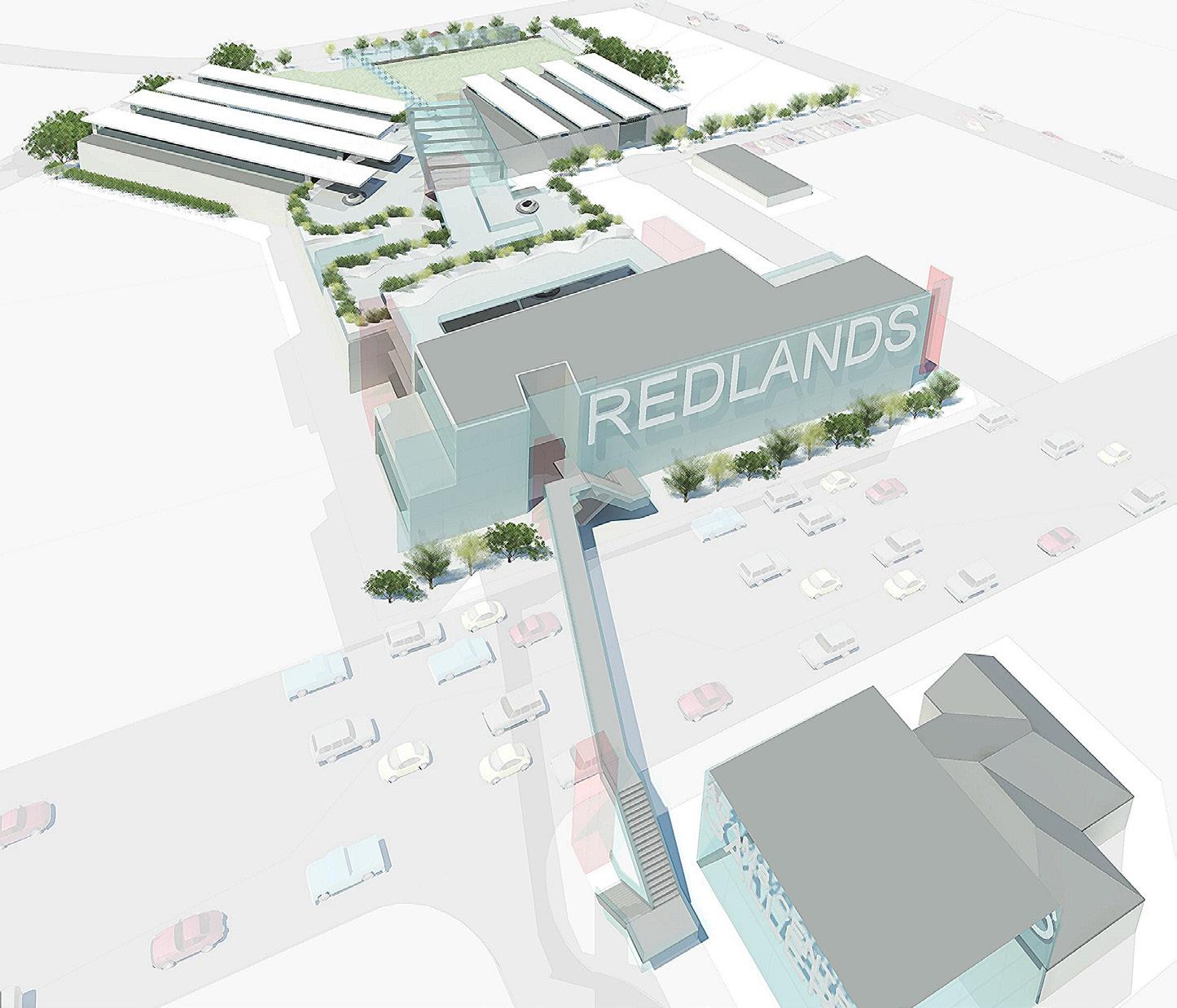

REDLANDS SCHOOL Creating a World of Endless Opportunities

Redlands desired to create a strong identity for their uniquely positioned, urban campus.

They required schemes that allowed for growth and the continual function of the school as the campus was developed.

For the future, Redlands is focussing on

delivering improved green presence in the tight urban constraints of Cremorne. A dynamic school life will require world class campus that embraces a range of activity scapes; a creative arts precinct, indoor sporting and performing arts venues.

36

Institute

CHOICE Maximise activity across campus Amplify Facilities [University College] Emphasise the Arts Enhance Sport [green and outdoors]

IDENTITY Quadrangle

Present a ‘designed’ culture Clear community interface Standout branding [on Lower North Shore] Sustainable Structures

DESIGN INTEGRITY Supporting pedagogical innovation Flexible [long term upgradeable] Adaptable [short term solutions] Whole of life materials

37

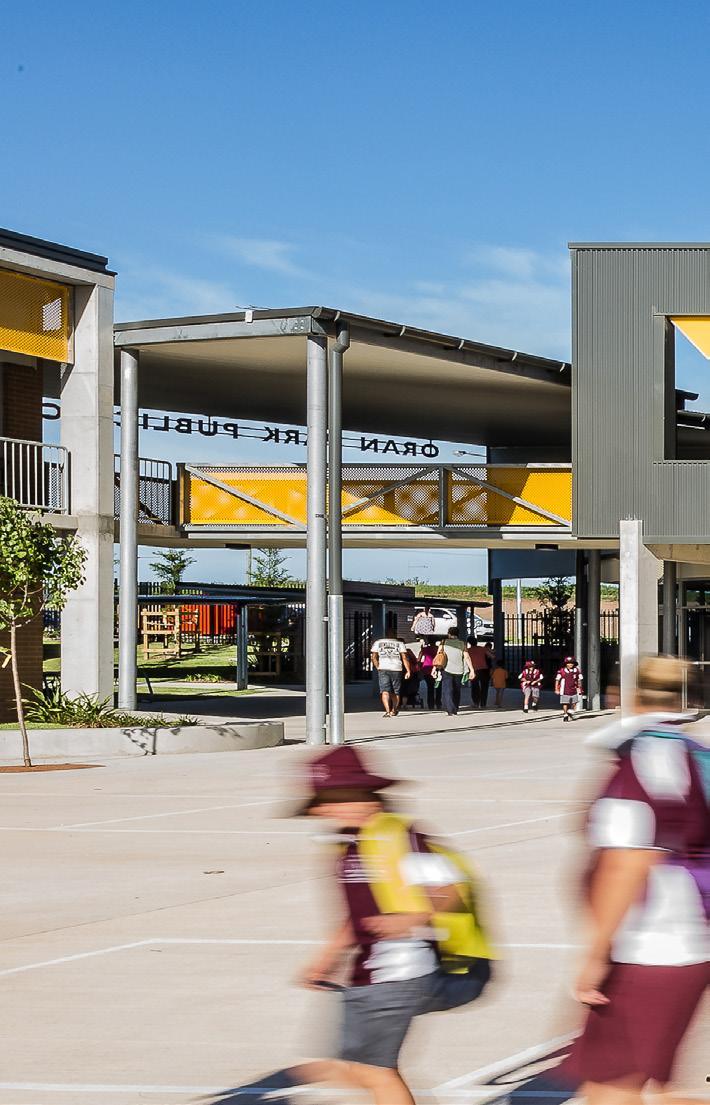

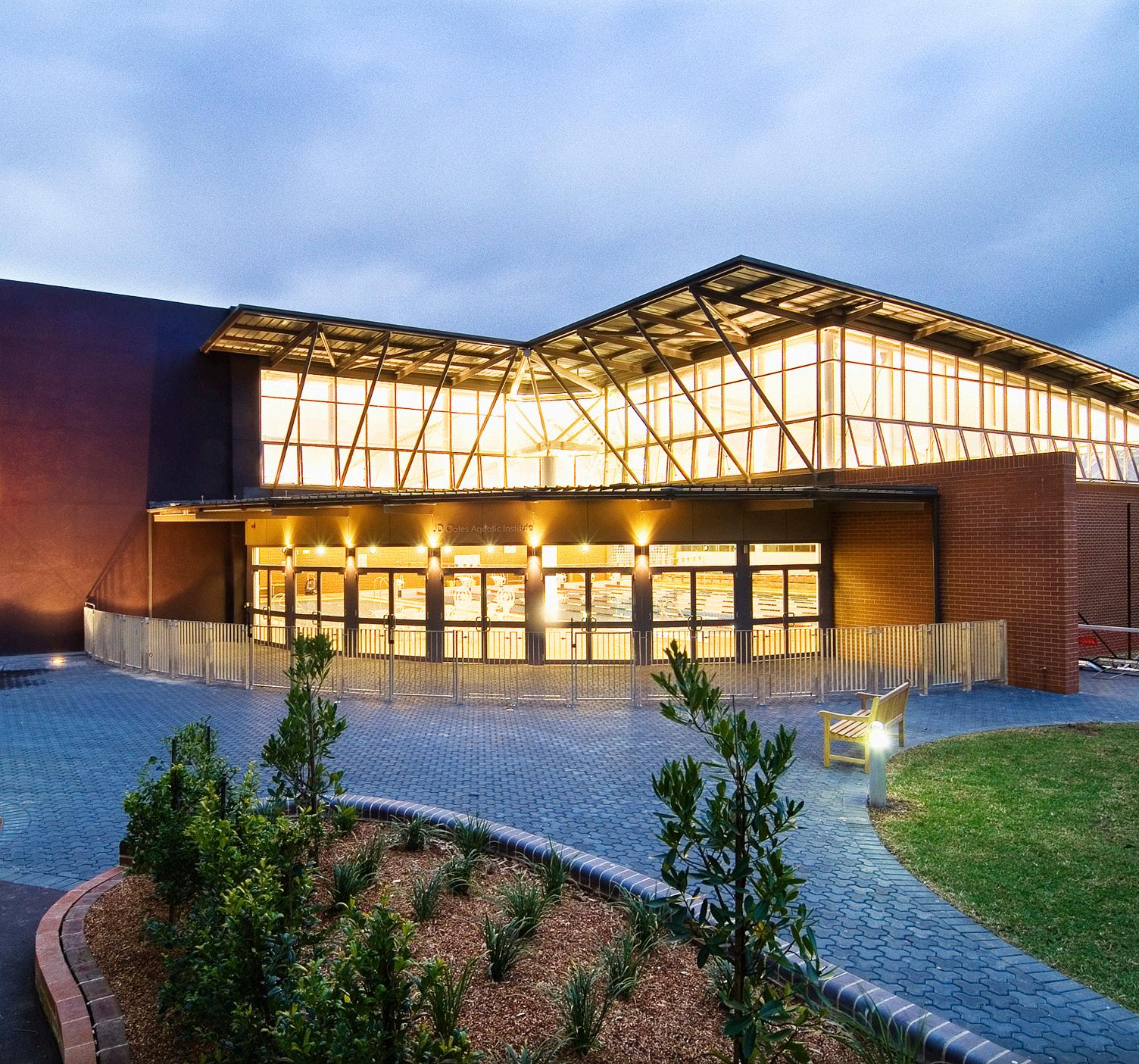

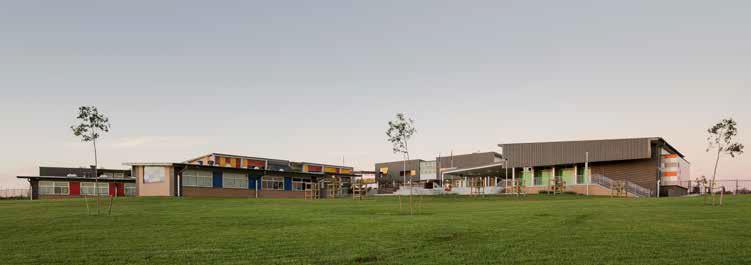

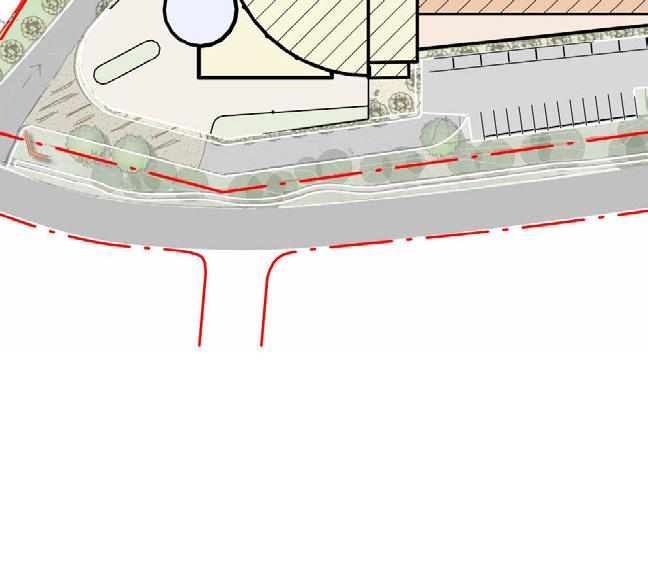

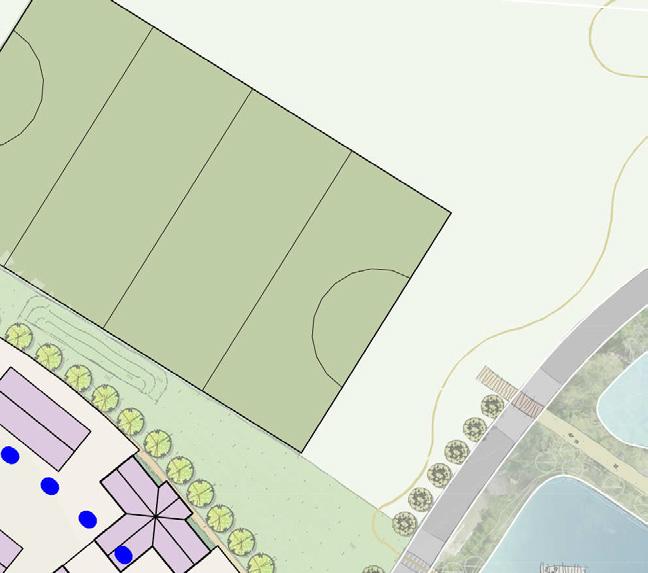

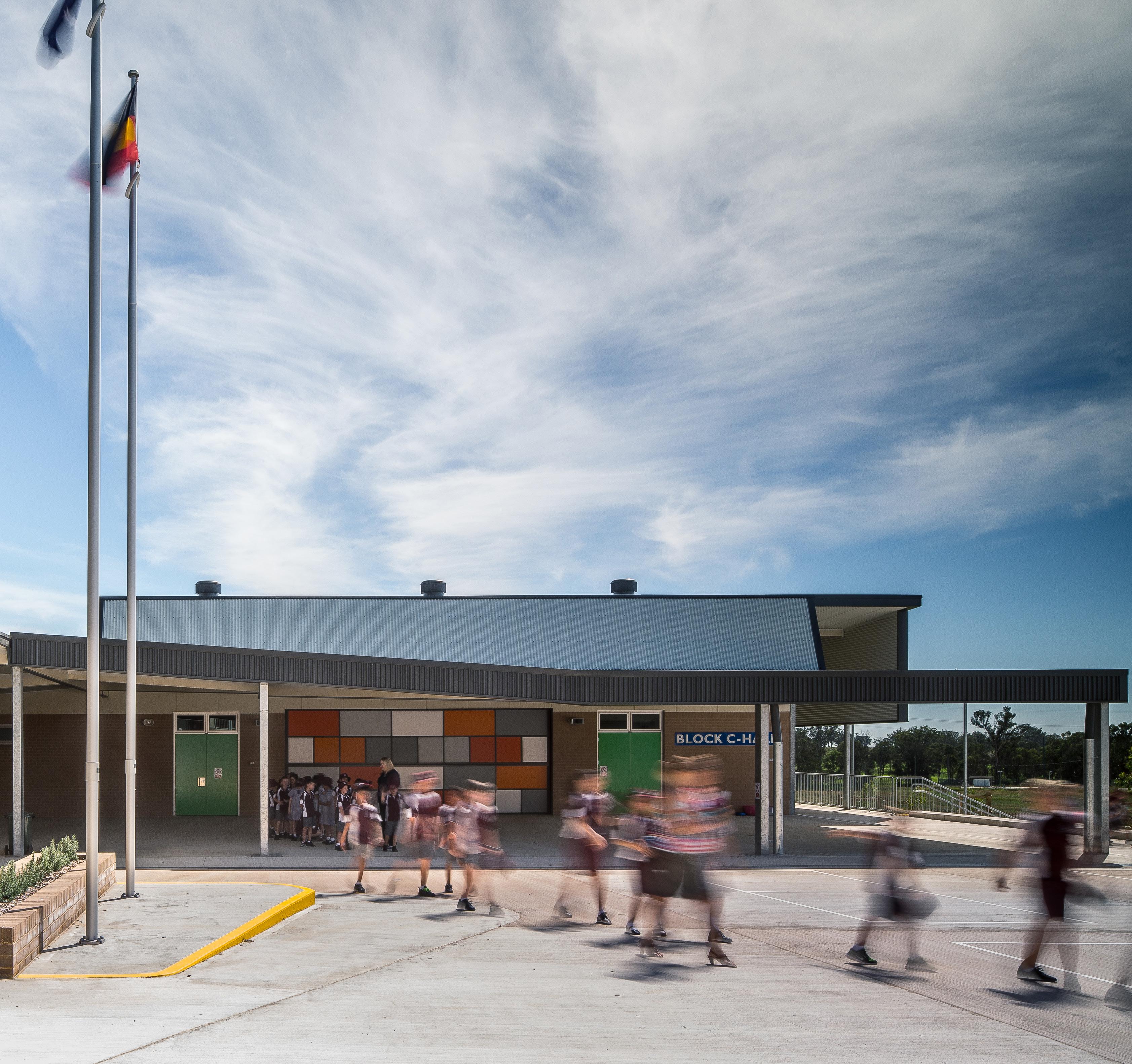

ORAN PARK PUBLIC SCHOOL

Oran Park Public School is a new “Core 21” Primary School with Special Needs facilities in Sydney’s South-West Growth Centre.

The site planning clearly communicates a sense of arrival and navigation. The entry portico defines destination and leads to a piazza courtyard which creates an atmosphere of security and belonging. Shape, colour and orientation give identifiable makers to all parts of the campus.

The courtyard arrangement of buildings is designed to encourage school community, and acts as a central break out space from classrooms. It also provides the school with a functional civic heart, with all the key facilities located around a single courtyard.

The creation of outdoor learning spaces has provided an extension of the classroom, expanding the opportunity for educational opportunities.

38

39

Oran Park Public School School, Oran Park NSW The scope Oran Park of Public major School capitalis works a new at “Core Oran21” Primary Park Public School school with includes Specialthe Needs provision facilities of in new a Sydney’s “CoreSouth-West 21” PrimaryGrowth School Centre. including all support facilities required under the Schools The site planning clearly communicates a Facilities Standards. sense of arrival and navigation. The entry This school will to serve the new residential area known as Oran Park, which is currently of security and belonging.

Shape,Local colour and being developed in the Camden Government Area (LGA). The proposed project of theacampus. is on 8.5 hectare site within the development The arrangement of buildings is a will contain area courtyard which, when fully developed, designedschool to encourage school community, primary with special education facilities acts asHigh a central and future School.break out space from classrooms. It also provides the school with Features of the NBRS+PARTNERS a functional civic heart, with all thedesign key include school community, facilitiesencouraging located around a single courtyard. giving the school a functional civic heart, The creation of outdoor learning spaces creating a school identity & visible marker, has provided an extension of the classroom, expanding the opportunity for effective supervision. educational opportunities.

School School, Oran Park NSW Spine & Rib

Oranscope The Park of Public major School capitalis works a new at “Core Oran21” Park Primary Public School school with includes Specialthe Needs provision facilities of in a new Sydney’s “CoreSouth-West 21” PrimaryGrowth School Centre. including all support facilities required under the Schools The site planning clearly communicates a Facilities Standards. sense of arrival and navigation. The entry This school will to serve the new residential area known as Oran Park, which is currently of security and belonging.

Shape,Local colour and being developed in the Camden Government Area (LGA). The proposed project of theacampus. is on 8.5 hectare site within the development The arrangement of buildings is a will contain area courtyard which, when fully developed, designedschool to encourage school community, primary with special education facilities acts asHigh a central and future School.break out space from classrooms. It also provides the school with Features of the NBRS+PARTNERS a functional civic heart, with all thedesign key include school community, facilitiesencouraging located around a single courtyard. giving the school a functional civic heart, The creation of outdoor learning spaces creating a school identity & visible marker, has provided an extension of the classroom, expanding the opportunity for effective supervision. educational opportunities.

Oran Park Public School School, Oran Park NSW Linear

Landscape Completed Schematic New SchoolDesign

The scope Oran Park of Public major School capitalis works a new at “Core Oran21” Primary Park Public School school with includes Specialthe Needs provision facilities of in new a Sydney’s “CoreSouth-West 21” PrimaryGrowth School Centre. including all support facilities clearly required under the Schools The site planning communicates a Facilities Standards. sense of arrival and navigation. The entry This school will to serve the new residential area known as Oran Park, which is currently of security and belonging.

Shape,Local colour and being developed in the Camden Government Area (LGA). The proposed project of theacampus. is on 8.5 hectare site within the development The arrangement of buildings is a will contain area courtyard which, when fully developed, designed to encourage school community, primary school with special education facilities and future acts asHigh a central break out space from School. classrooms. It also provides the school with Features of the NBRS+PARTNERS a functional civic heart, with all thedesign key include school community, facilitiesencouraging located around a single courtyard. giving the school a functional civic heart, The creation of outdoor learning spaces creating a school identity & visible marker, has provided an extension of the classroom, expanding the opportunity for effective supervision. educational opportunities.

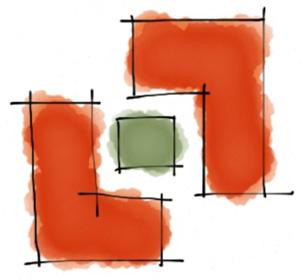

Courtyard

Landscape Completed Schematic New SchoolDesign

40

41

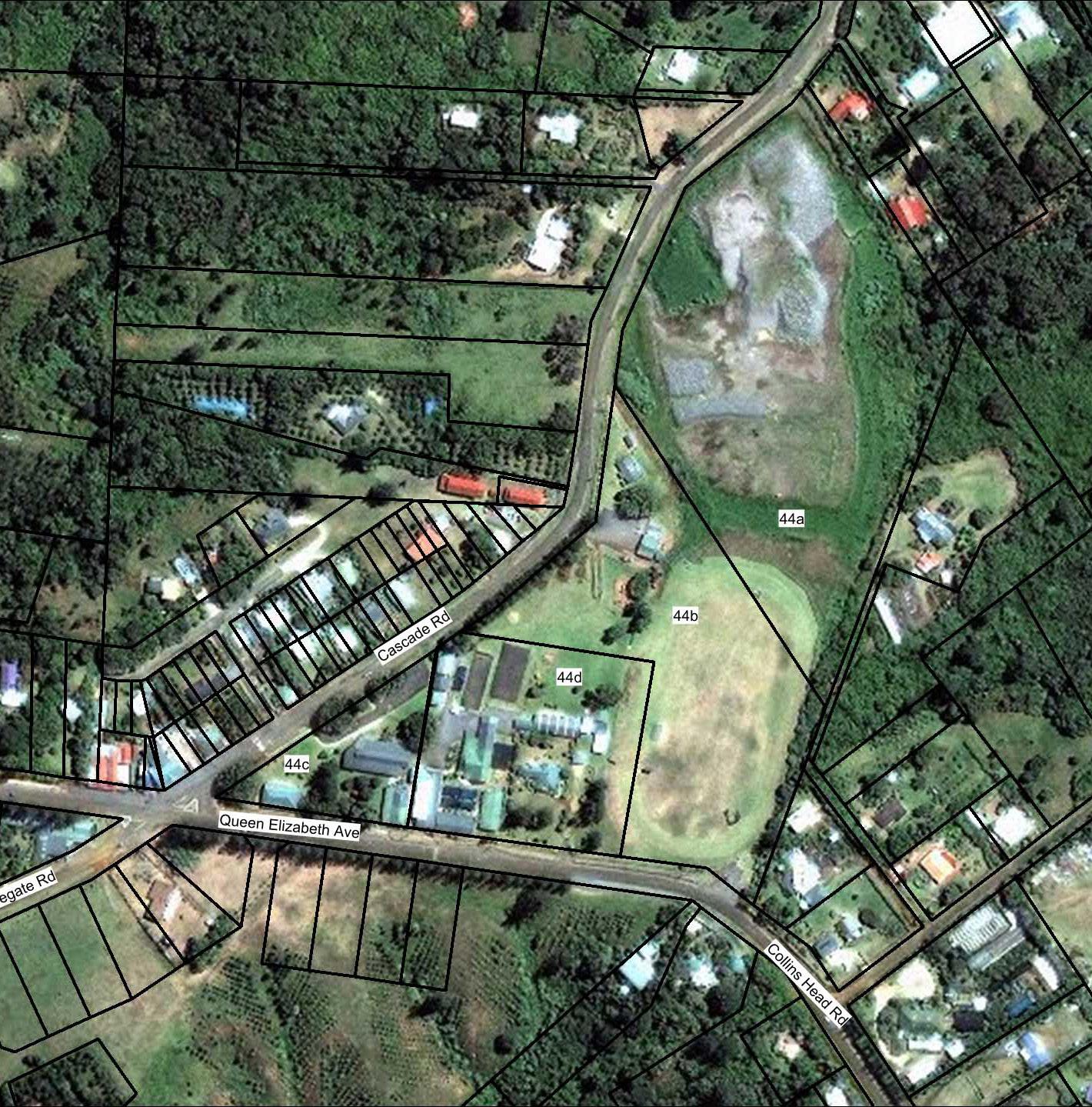

NORFOLK ISLAND CENTRAL

The Department of Education and Norfolk Island Central School engaged NBRS for the implementation of a comprehensive Masterplan for the upgrade of the School.

The design followed the following important considerations: •

Projecting a strong community that

•

families on campus •

•

connections (Marine Biology,

which supports project based learning •

Improved technology integration

•

Incorporating ESD features to connect learning to outdoor spaces

Community Access, Seismic Activity Research and Marine Biology Research)

Desire to be future focused and establish multimodal learning spaces

culture and heritage Growing International and Industry

School transitioning to NSW DoE standards

connects their Norfolk Island identity,

•

Increased integration of community and

•

Provide large ‘event’ spaces for community and adult education

42

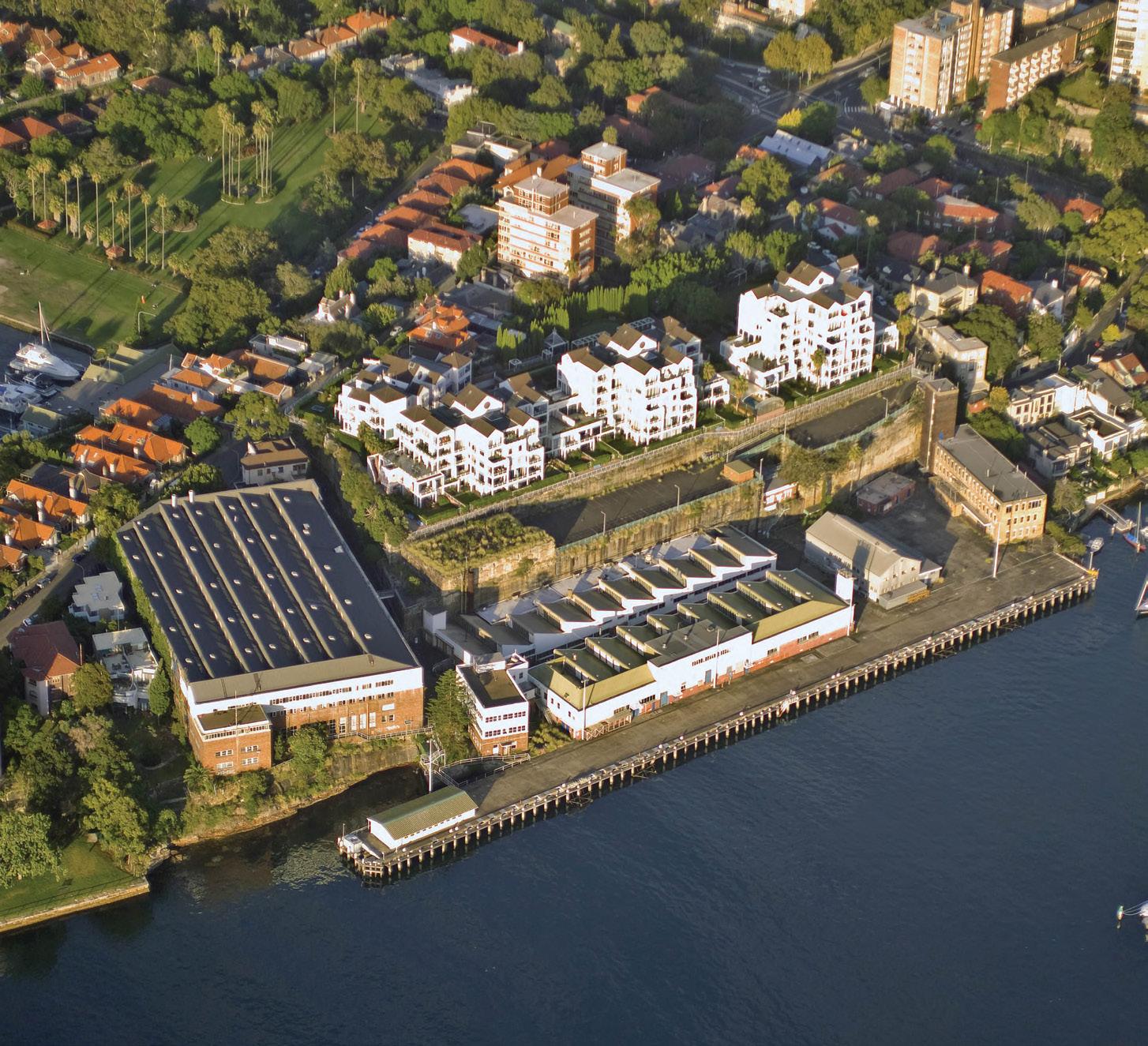

HMAS PLATYPUS SENIOR COLLEGE CAMPUS

The Street

The Hub

This feasibility study explored the opportunities in redeveloping a unique site for a Senior Secondary College.

NBRS prepared three masterplan options to suit the adaptive reuse of the former

The Edge

industrial site for a three stream Secondary Senior College. The three masterplan options addressed the opportunities and constraints the site offers.

43

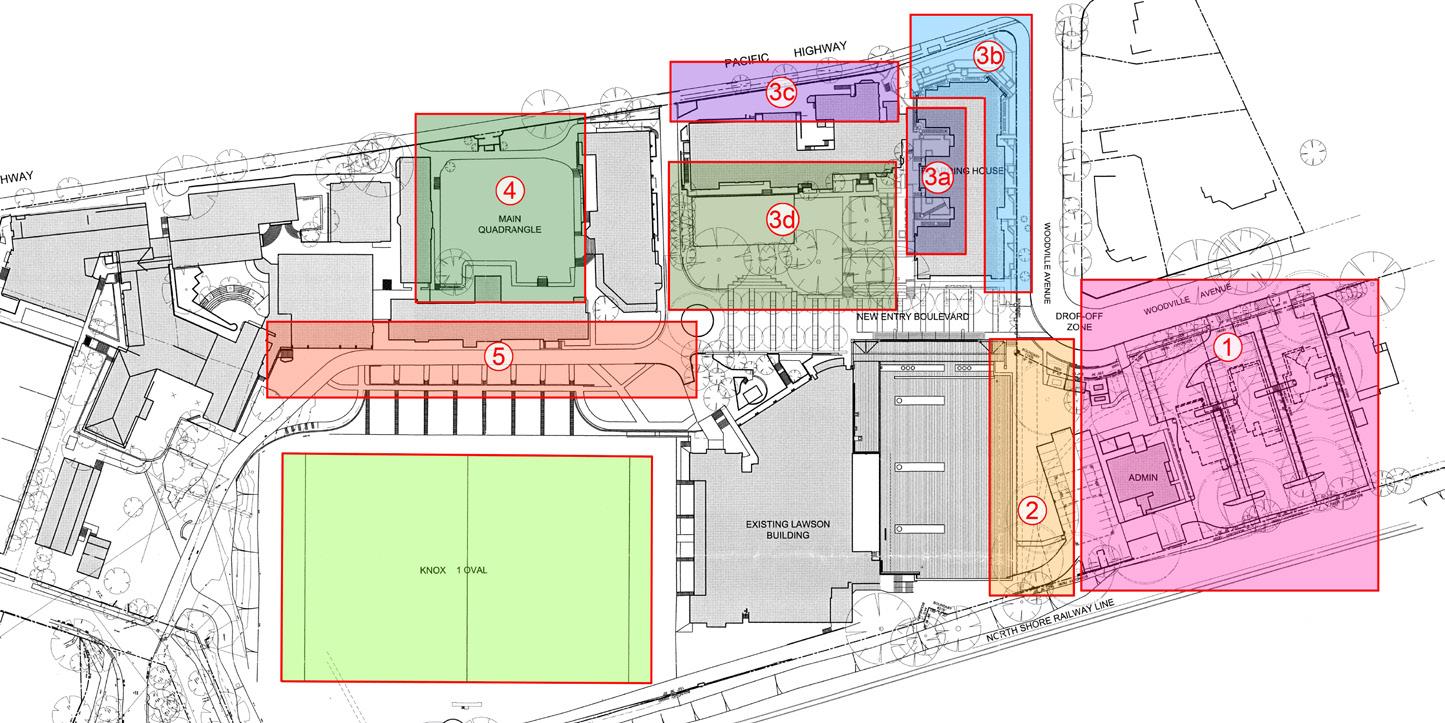

KNOX GRAMMAR SCHOOL LANDSCAPE MASTERPLANS

NBRS was commissioned by Knox Grammar School with the preparation of two landscape masterplan documents. The first was to cover the northern portion of the senior campus embracing the original school building north to Woodville Avenue including the boarding houses, Great Hall and Aquatic Centre. The second masterplan incorporates all areas of the Preparatory school campus.

The purpose of the masterplan documents was to present the school with a cohesive palette of plant materials and hardscape

finishes. The goal is to see unified treatments that reflect a “Knox Look” that is strong in the Architectural forms of the school but not so evident in its landscape areas.

The objectives of the masterplans are to build a sense of identity through consistent treatments in plant materials and hardscape elements (paving, furniture, and lighting), preserve, enhance and integrate existing significant vegetation and site features and provide a safe environment for students, staff and visitors.

44

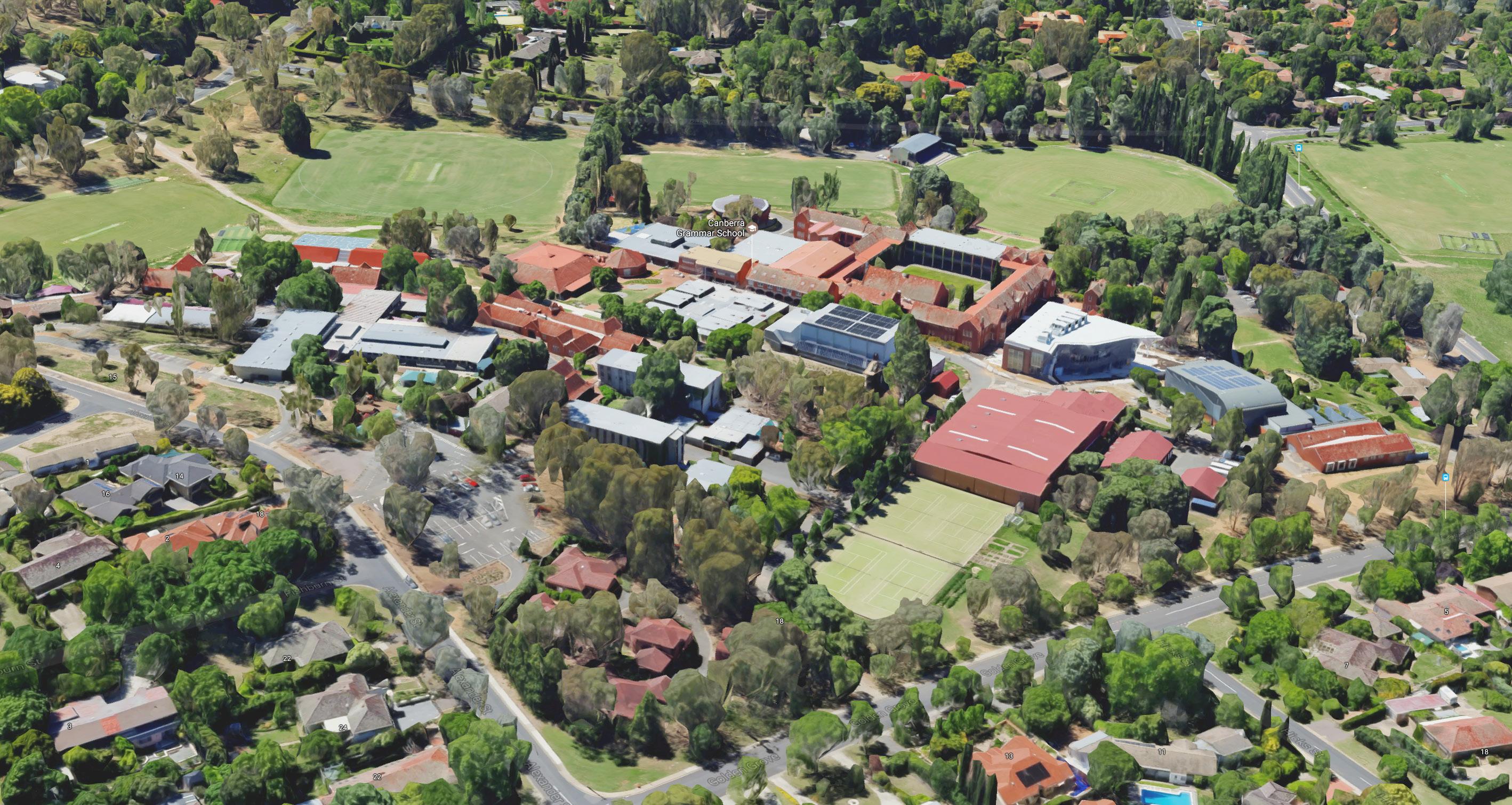

CANBERRA GRAMMAR SCHOOL

NBRSARCHITECTURE worked with the Executive Team to understand the strategic intent for the schools desires and functional requirements. These concepts will be incorporated in the future masterplan and planning documents.

International Focus & Vision CGS by virtue of its location in Canberra embraces internationalism. The school is an outward looking learning environment and desires to prepare students for a life of positive engagement within a global community.

Unsurpassed Community CGS is a growing co-education school.

With strong Christian values the school community embraces and is committed to supporting the House system and boarding.

• • • • • • •

Key Elements One campus K-2 and 12 Co-educational Pastoral - house system (home bases) Boarding Faith based values Wider community accessibility

Active Co-Curricular Education Sport and co-curricular activities have set CGS apart. The school desires to increase the prescence and accessibility of these attributes.

• • •

Improving Aesthetics Presence is important. CGS desires to create a campus which reflects the schools values and its role in the community.

• • •

‘Top draw’ look & feel Brand - heritage Faith focus [chapel]

Creating Agile Learning Spaces [MLE] Agile learning is core to nurturing enquiring minds. CGS desires to break open and activate the campus to create a motivating environment where you see active learning taking place.

• • • •

Transparency Multi-modal group spaces Adaptable & flexible learning space Discovery / learning centres [Ju School]

Unlocking The Campus The schools campus is 90 years old. This history has created legacy buildings and led to challenging spatial configuration and circulation. Careful planning will unlock this campus.

• • • •

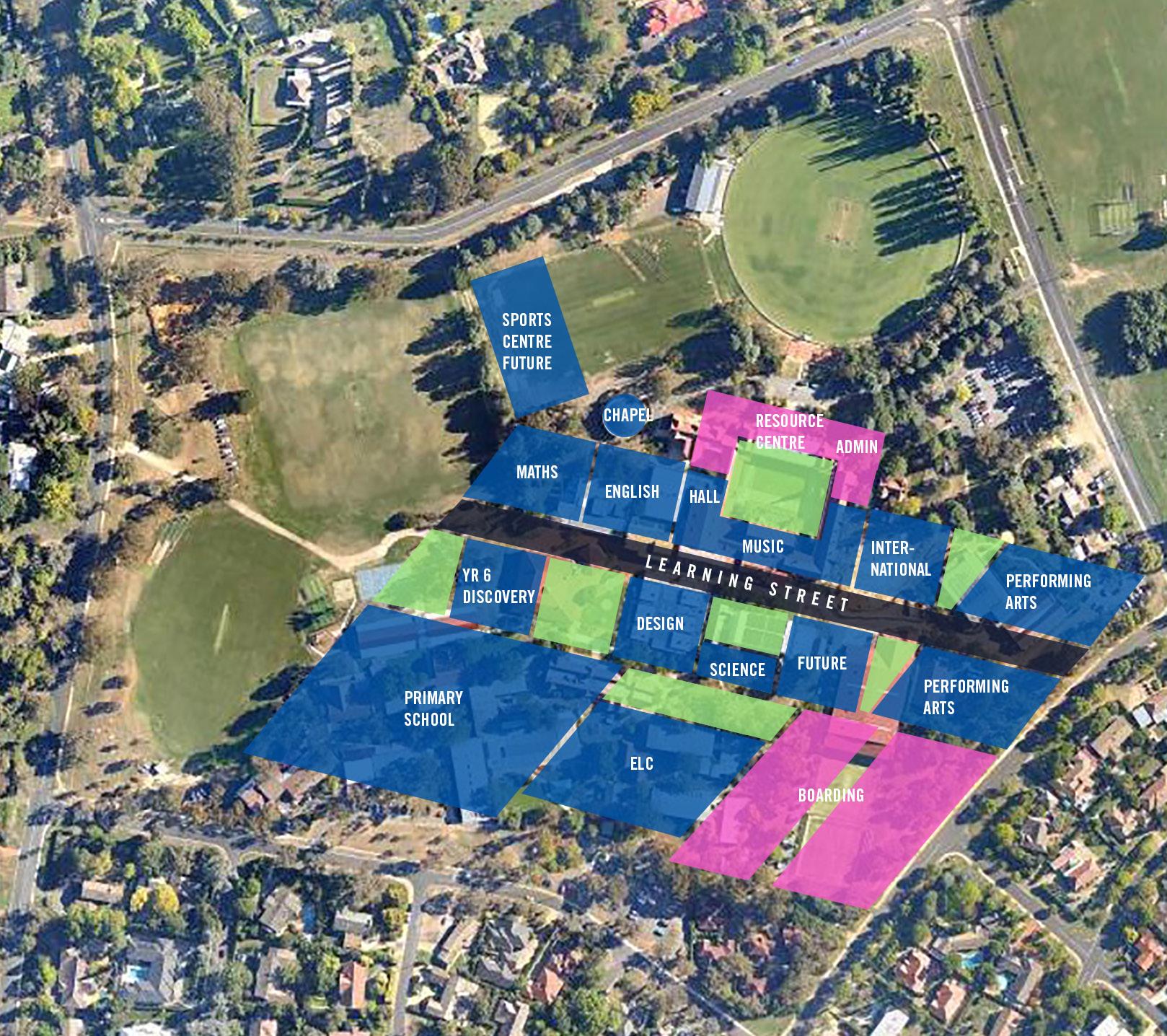

Create learning street - faculties Promote learning stages - linear flow from youngest to oldest Develop the hierarchy - large, medium & small spaces Define precincts - sports, drama & music

Sport Music Drama

45

STREET

THE LEARNING STREET

The Learning Street is the central spine of the campus. The termination points, the NG PRECINCT arts and sports precincts bookend a campus oriented around Faculty style buildings and courtyards, gathering spaces for the school houses.

L E A R N I N G

S T R E E T

46

TREET (FUTURE)

47 NBRS&PARTNERS PTY LTD Level 3, 4 Glen Street,

ABN 16 002 247 565 Sydney: +61 2 9922 2344

DIRECTORS Geoffrey Deane NSW reg. 3766, Rodney Drayton NSW reg. 8632,

LEGEND Administration Physical Education & Health

LEGEND Administration Physical Education & Health Sports fields Performing Arts Junior School Classrooms ELC & Infants Classrooms Boarding & Residences Shared Facilities Mathematics English Art, Design & Technology Science Miscellaneous, General Learning & Electives Asian Studies Music Services Future Future Arts Building Proposed Buildings (Red outline)

Sports fields Performing Arts Junior School Classrooms Pool

ELC & Infants Classrooms

Sports Field

Boarding & Residences Shared Facilities Mathematics English

Sports Field

Sport facilities

Sports Field

Gymnasium

4

Sports Field

Chapel

Art, Design & Technology

McKeown B SE

RV

Science Miscellaneous, General Learning & Electives Asian Studies

SE

RV

Music

ICE

SL

INE

Edward Centre

ICE

SL

INE

UN

DE

Sports Oval

R

Services

UN

DE

Music & Assembly Hall

Primary 3/4

Future

LEAR

N

Discovery

Future Arts Building

Sports Oval

Proposed Buildings (Red outline)

Primary 3/4

Art Design & Technology

Primary Library

Primary

Built in Facilities Interior Refurbishments

R

Primary

5b

6

5d

Learning Street

Built in Facilities

Infants

Interior Refurbishments

5e

Learning Street

Hall

3

5a 5c Potential car park upgrade

Res

LONG TERM MASTERPLAN CA N B ERRA GRA M M A R S C H OOL

V. 5 . 12.07.17

48

M

Proposed new parking area

Sports Pavilion

Proposed new

Sports Pavilion

area Sportsparking Pavilion

Sports Oval

Sports amenities & store

1 Sports amenities & store

1

McKeown Bld.

Senior Quad Edward Centre

Admin

English

3

LEAR

Proposed

LEAR

Primary Library Senior Primary

NING

NING

Senior Primary waiting Bay

or Quad

STRE ET Primary

NING

Asian Studies Art Design & Technology Centre

Asian Studies Centre Primary

Science

2

2

STRE

ET

6

Outdoor Recreational facilities

Boarding Dining / Potential 1 car park Rec. upgrade

8 Outdoor Recreational facilities

4.

2.

New Science Centre

New Gymnasium

5.

Indoor Sport / Assembly / Aquatic Centre

4.

New Early Learning Cen

5.

Future Building (Senior)

6.

Future Building (Primary)

7.

Future Performing Arts

8.

New Maintenance Buildin

2.

New Science Centre

3.

Science to English Conversion

4.

New Early Learning Centre

5.

Future Building (Senior)

New Early Learning Centre

6.

Future Senior building

7.

New Maintenance building Studies

8.

Future Gateway building

8.

Future Building (Primary) Future Performing Arts New Maintenance Building

Future Gateway building

Asian

Tim Murray Theatre

Centre

Asian Studies Centre

Performing Arts

Tim Murray Theatre

5

Performing Arts Agricultural Plot

7 7

Performing Arts

Outdoor Recreational facilities

Outdoor Recreational facilities

8

6

New Early Learning Centre

Future Senior building

2 5

Performing Arts Agricultural Plot

Infants

Hall Infants Agricultural Plot

ET

Art Design & Technology

2

Murray Theatre

Indoor Sport / Assembly

C. Lingard Hall alterations & 6.

Future Senior building additions D. Additional learning Proposed waiting7.

Bay E. Staff training & education New Maintenance building

STRE

Tim Murray Theatre

Primary Tim

3.

2.

Senior Quad

3

Future Senior building

Develop new Boarding facilities stage 3

Admin

Proposed waiting Bay

English

2.

Primary School upgrade 6.

A. New Admin Building B. Minor Primary School extension 4.

New Gymnasium 7.

C. Lingard Hall alterations & Admin 5.

Primary School upgrade additions 8. learning A. New Admin BuildingD. Additional Proposed waiting Bay E. Staff training & education B. Minor Primary School extension Senior Quad

Chapel

Admin

1. 3 Develop new Boarding facilities stage

1.

3.

Chapel

Edward Centre

1.

PROPOSED FACILITIES LONG TERM STAGING

McKeown Bld.

Bld.

1.

PROPOSED FACILITIES STAGING PROPOSED FACILITIES LONG TERM STAGING 3.

Science to English Conv

Sports Oval

Sports Oval

ilion

1

PROPOSED FACILITIES STAG

Sports Oval

Boarding

4Boarding

4

Boarding Dining / Boarding Rec.

Boarding Dining / Rec.

Potential car park upgrade

Boarding

Boarding

Boarding

Boarding

Boarding

8

8

Boarding Boarding

7

Residences

Residences

Golden Date Grove, Red Hill, ACT 23/06/2017 18 Golden Grove, Red Hill,18 ACT Scale 1:1000@A1 , 1:2000@A3 School Canberra Grammar SchoolCanberra Grammar

sidences

Date

23/06/2

Scale

1:1000@

Proposed Long Term Masterplan Proposed Long Term Masterplan Rev.E (Option 1) (Option 1) Date 11/07/2017 18 Golden Grove, Red ACT Grove, Date 18Hill, Golden Red Hill, ACT Scale 1:1000@A1 , 1:2000@A3 Canberra Grammar School Scale Canberra Grammar School

Proposed Long Term Masterplan

Rev.F Proposed Long Term Masterplan

2017

NBRS&PARTNERS PTY LTD

M AR C H 20 17

Level 3, 4 Glen Street,NBRS&PARTNERS

ABN 16 002 247 565

DIRECTORS

PTY LTDSydney: +61 2 9922 2344 ABNGeoffrey 16 002Deane 247 NSW 565 reg. 3766, DIRECTORS Rodney Drayton NSW reg. 8632,

LevelAustralia 3, 4 Glen Street, Milsons Point NSW 2061

Re

11/07/2017 1:1000@A1 , 1:2000@A3

Rev.F ASSOCIATE DIRECTORS

17112

49

ASSOCIATE DIRECTORS Brett Sherson, Trevor Eveleigh, Andrew Tripet, Jonathan West

Trevor Eveleigh, Andrew Tripet, Jon +61 2Duffin 9922 NSW 2344reg. 5602, Geoffrey Deane NSW reg. reg. ASSOCIATES 8632, SENIOR John Baker, Brett Barry Sherson, Flack ASSOCIATES Derek Mah, Melbourne: +61 3 8676 0427Sydney: Andrew Garry Hoddinett NSW reg.3766, 5286, Rodney Drayton NSW

NBRS & PARTNERS PTY LTD Sydney 4 Glen Street, Milsons Point NSW 2061 +61 2 9922 2344 Melbourne Suite 704 / 575 Bourke St Melbourne VIC 3000 ABN 16 002 247 565 architects@nbrsarchitecture.com nbrsarchitecture.com @nbrsarchitecture NBRSARCHITECTURE is a people focused, research based studio that aims to enrich lives. By developing creative design partnerships our portfolio exhibits an understanding of the people whose lives will be affected. Above all NBRS seeks to design environments that will have positive life changing affect.

Architecture is the cornerstone of NBRS global interdisciplinary design practice with expertise in Architecture, Heritage, Interior Design, Urban Planning, Landscape Architecture, ESD and Research.

Since 1968, NBRS has developed a research led architecture practice based in Sydney and Melbourne. NBRS is recognised for its innovative, award-winning design excellence and comprehensive expertise.

50

DIRECTORS:

STUDIO PRINCIPALS:

DIRECTOR OF DESIGN Andrew Duffin

EDUCATION STUDIO Jonathan West Macella Salzmann

Nominated Arch. NSW 5602, ACT 2450, NT 1160, QLD 5465, SA 3539, TAS 1160, VIC 20063, WA 2699, NZ 4897

Jonathan West DIRECTOR OF STRATEGY James Ward DIRECTOR OF OPERATIONS Rodney Drayton DIRECTOR OF PEOPLE & CULTURE Andrew Leuchars DIRECTOR OF STUDIOS Samantha Polkinghorne

LIFE & CULTURE STUDIO Andrew Tripet WELLNESS STUDIO Ian Gibson JUSTICE STUDIO Anthea Doyle INTERIOR DESIGN STUDIO Sophie Orrock LANDSCAPE ARCHITECTURE STUDIO Andrew Leuchars HERITAGE STUDIO Samantha Polkinghorne

51
